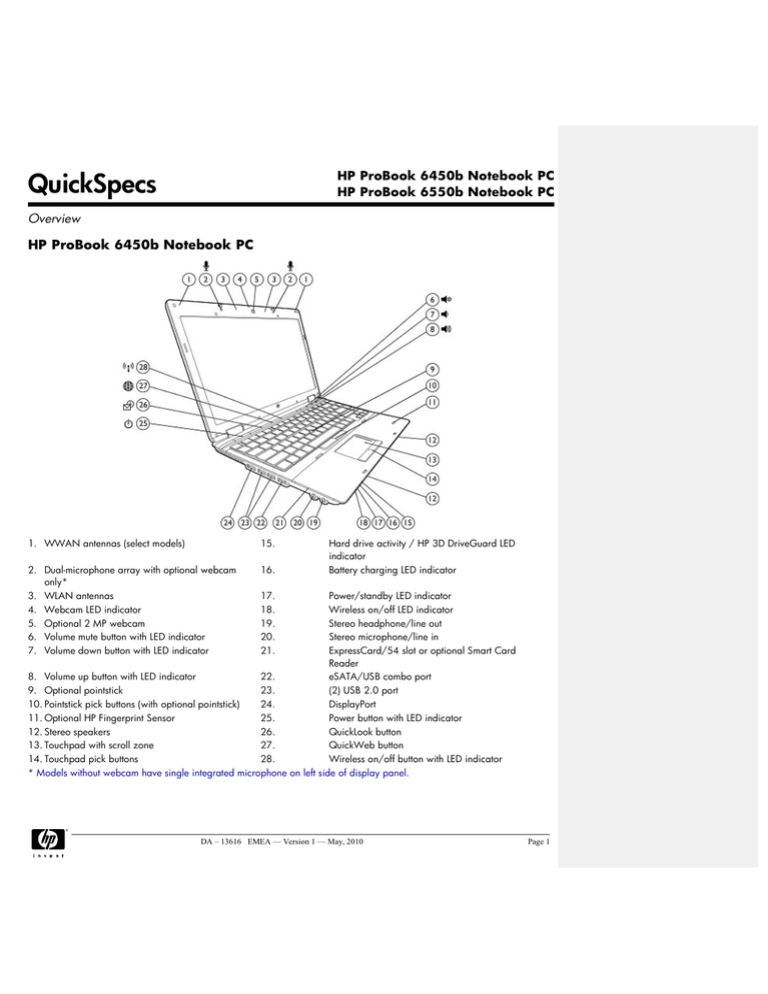

QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Overview
HP ProBook 6450b Notebook PC
1. WWAN antennas (select models)
15.
2. Dual-microphone array with optional webcam
only*
3. WLAN antennas
4. Webcam LED indicator
5. Optional 2 MP webcam
6. Volume mute button with LED indicator
7. Volume down button with LED indicator
16.
Hard drive activity / HP 3D DriveGuard LED
indicator
Battery charging LED indicator
17.
18.
19.
20.
21.
Power/standby LED indicator
Wireless on/off LED indicator
Stereo headphone/line out
Stereo microphone/line in
ExpressCard/54 slot or optional Smart Card
Reader
8. Volume up button with LED indicator
22.
eSATA/USB combo port
9. Optional pointstick
23.
(2) USB 2.0 port
10. Pointstick pick buttons (with optional pointstick)
24.
DisplayPort
11. Optional HP Fingerprint Sensor
25.
Power button with LED indicator
12. Stereo speakers
26.
QuickLook button
13. Touchpad with scroll zone
27.
QuickWeb button
14. Touchpad pick buttons
28.
Wireless on/off button with LED indicator
* Models without webcam have single integrated microphone on left side of display panel.
DA – 13616 EMEA — Version 1 — May, 2010
Page 1
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Overview
HP ProBook 6450b Notebook PC
1.
2.
3.
4.
5.
Upgrade Bay (optical drive or second hard drive)
(1) USB 2.0 port
Media Card Reader
1394a port
RJ-11/modem port
6.
7.
8.
9.
Lock slot
RJ-45/Ethernet port
VGA/external monitor connector
Power connector
1.
2.
3.
4.
5.
Battery bay
6. Vents
SIM slot for WWAN (select models) – inside battery bay 7. Hard drive bay
Battery release latch
8. Memory module compartment
Docking connector
9. WLAN/WWAN module compartment (select models)
Secondary battery connector
10. Bluetooth module compartment
DA – 13616 EMEA — Version 1 — May, 2010
Page 2
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Overview
HP ProBook 6550b Notebook PC
1. WWAN antennas (select models)
2. Dual-microphone array with optional webcam
only*
3. WLAN antennas
4. Webcam LED indicator
5. Optional 2 MP webcam
6. Volume mute button with LED indicator
7. Volume down button with LED indicator
8. Volume up button with LED indicator
16.
17.
Touchpad pick buttons
Hard drive activity / HP 3D DriveGuard LED
indicator
18.
Battery charging LED indicator
19.
Power/standby LED indicator
20.
Wireless on/off LED indicator
21.
Stereo headphone/line out
22.
Stereo microphone/line in
23.
ExpressCard/54 slot or optional Smart Card
Reader
9. Calculator button
24.
eSATA/USB 2.0 combo port
10. Separate numeric keypad
25.
(2) USB 2.0 ports
11. Optional pointstick
26.
DisplayPort
12. Pointstick pick buttons (with optional pointstick)
27.
Power button with LED indicator
13. Optional HP Fingerprint Sensor
28.
QuickLook button
14. Stereo speakers
29.
QuickWeb button
15. Touchpad with scroll zone
30.
Wireless on/off button with LED indicator
* Models without webcam have single integrated microphone on left side of display panel.
DA – 13616 EMEA — Version 1 — May, 2010
Page 3
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Overview
HP ProBook 6550b Notebook PC
1.
2.
3.
4.
5.
Upgrade Bay (optical drive or second hard drive)
(1) USB 2.0 port
Media Card Reader
1394a port
Serial port
6. Lock slot
7. RJ-11/modem port
8. RJ-45/Ethernet port
9. VGA/external monitor connector
10. Power connector
1.
2.
3.
4.
5.
Battery bay
6. Vents
SIM slot for WWAN (select models) – inside battery bay 7. Hard drive bay
Battery release latch
8. Memory module compartment
Docking connector
9. WLAN/WWAN module compartment (select models)
Secondary battery connector
10. Bluetooth module compartment
DA – 13616 EMEA — Version 1 — May, 2010
Page 4
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Overview
At A Glance

























Genuine Windows 7 versions, Genuine Windows Vista versions, Genuine Windows Vista Business available
through downgrade rights from Windows 7, Genuine Windows XP Professional available through downgrade
rights from Windows 7 Professional, RedFlag Linux (PRC only), or FreeDOS
Choice of Intel® Core™ i7, Core i5, Core i3, or Celeron® processor
ATI Mobility Radeon HD 540v discrete graphics with 512 MB dedicated video memory (6550b only)
or integrated Intel HD Graphics
Widescreen LED-backlit HD or HD+ display
HP ProBook 6450b: 35.6cm (14.0-inch) diagonal; HD anti-glare or HD+ anti-glare
HP ProBook 6550b: 39.6cm (15.6-inch) diagonal; HD anti-glare or HD+ anti-glare
Starting at 2.26 kg/5.0 lb (6450b) or 2.51 kg/5.5 lb (6550b)
Flexible wireless connectivity options:
o Integrated HP un2420 EV-DO/HSPA Mobile Broadband Module provides worldwide Gobi mobile Internet
technology with GPS
o Integrated Intel Centrino® 802.11 a/b/g/n; Broadcom 802.11 a/b/g/n or b/g/n wireless LAN module
o Bluetooth® v2.1+EDR
Touchpad with scroll zone; optional pointstick
Full-sized spill-resistant keyboard with drains; full separate numeric keypad on the HP ProBook 6550b
Touch-sensitive controls for HP QuickLook 3, HP QuickWeb, wireless on/off, mute, volume down, volume up;
calculator button on HP ProBook 6550b
Choice of 9-cell (93 WHr) or 6-cell (55 WHr & 47 WHr) primary battery, or 6-cell (51 WHr) HP Long Life Battery
(OOC, with 3-year system warranty)
3-cell (47 WHr) HP Long Life Battery available as after-market option
Optional external batteries: HP Ultra-Capacity Battery, HP Extended Life Battery
Optional integrated 2 MP Webcam with dual-microphone array
Choice of 7200 rpm user-removable hard drive up to 500 GB with HP 3D DriveGuard protection,
or 128 GB Solid State Drive
Upgrade Bay for optical drive
Media Card Reader
New eSATA/USB 2.0 combo port
Reliability with HP 3D DriveGuard, magnesium alloy support structure, HP DuraFinish, and the spill-resistant
keyboard with drains
Security features including HP ProtectTools with Central Management, Computrace LoJack Pro ready, HP SpareKey,
HP Disk Sanitizer, TPM 1.2;* optional Smart Card Reader (replaces ExpressCard slot), optional HP Fingerprint
Sensor, and optional HP Privacy Filter
HP Power Assistant allows you to conserve power, stretch battery run-time, accurately monitor your reported power
need, and report workforce power consumption.
HP QuickLook 3 for instant access to e-mail, calendar, and contacts; HP QuickWeb for fast access to the web
HP DayStarter displays your calendar and battery charge while Windows starts up
HP Support Assistant helps maintain your PC performance and resolve problems with automated updates and tuneups, onboard diagnostics, and guided assistance.
Options include HP Advanced Docking Station, HP Docking Station, HP USB 2.0 Docking Station, and HP Essential
USB 2.0 Port Replicator
BFR/PVC-free**, ENERGY STAR qualified and EPEAT Gold registered in the U.S. EPEAT status varies by countryplease see epeat.net.
DA – 13616 EMEA — Version 1 — May, 2010
Page 5
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Overview
* TPM module disabled where not permitted by law (for example, Russia and China).
** This notebook is brominated flame retardant and polyvinyl chloride-free (BFR/PVC-free) on notebooks that are nonWWAN; meeting the evolving definition of 'BFR/PVC-free' as set forth in the "iNEMI Position Statement on the 'Definition of
Low-Halogen' Electronics (BFR/CFR/PVC-Free)'". Plastic parts contain < 1000 ppm (0.1%) of bromine [if the Br source is
from BFRs] and < 1000 ppm (0.1%) of chlorine [if the Cl source is from CFRs or PVC or PVC copolymers]. Power supply
and power cords are not BFR/PVC-free. Service parts after purchase may not be BFR/PVC-free.
DA – 13616 EMEA — Version 1 — May, 2010
Page 6
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Standard Features (availability may vary by country)
Processors
Intel Dual-Core Processors
Comment [tcs1]: Do not print with this
note.
Intel Core i7-620M Processor (2.66 GHz, 35W, 4 MB L3 cache)*
Up to 3.33 GHz with Intel Turbo Boost Technology
Under embargo until June 20:
Intel Core i5-540M Processor (2.53 GHz, 35W, 3 MB L3 cache)*
Up to 3.06 GHz with Intel Turbo Boost Technology
Intel Core i5-450M Processor (2.40 GHz, 35W,
3 MB L3 cache)*
Up to 2.66 GHz with Intel Turbo Boost
Technology
Intel Core i5-520M Processor (2.40 GHz, 35W, 3 MB L3 cache)*
Up to 2.93 GHz with Intel Turbo Boost Technology
Intel Core i3-370M Processor (2.40 GHz, 35W,
3 MB L3 cache)*
Intel Celeron P4500 Processor (1.80 GHz, 35W, 2 MB L3 cache)*
* Intel's numbering is not a measurement of higher performance.
NOTE: Processor speed denotes maximum performance mode; processors will run at lower
speeds in battery optimization mode.
Operating System
Preinstalled
Genuine Windows 7 Professional Edition 32*
Genuine Windows 7 Professional Edition 64*
Genuine Windows 7 Home Premium Edition 32*
Genuine Windows 7 Home Basic Edition 32* (select countries)
Genuine Windows Vista Business 32**
Genuine Windows Vista Home Basic 32**
Genuine Windows XP Professional available through downgrade rights
from Genuine Windows 7 Professional)*†
FreeDOS
Supported
Genuine
Genuine
Genuine
Genuine
Genuine
Genuine
Certified
SuSE Linux Enterprise Desktop 11
Windows
Windows
Windows
Windows
Windows
Windows
7 Enterprise 32*
7 Enterprise 64*
7 Ultimate 32*
7 Ultimate 64*
Vista Enterprise 32**
Vista Enterprise 64**
* System may require upgraded and/or separately purchased hardware and/or a DVD drive to
install the Windows 7 software and take full advantage of Windows 7 functionality. See
http://www.microsoft.com/windows/windows-7/ for details.
** Certain Windows Vista product features require advanced or additional hardware. See:
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
http://www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista
Upgrade Advisor can help you determine which features of Windows Vista will run on your
computer. To download the tool, visit: http://www.windowsvista.com/upgradeadvisor.
† Windows XP Professional is preinstalled on this system and includes end user rights and media
for Windows 7 Professional. You may only use one version at a time. You must back up all data
(files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.
DA – 13616 EMEA — Version 1 — May, 2010
Page 7
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Standard Features (availability may vary by country)
Chipset
Mobile Intel HM57 Express Chipset (non vPro configurations)
Graphics
Models with discrete graphics (6550b only):
ATI Mobility Radeon™ HD 540v with 512 MB dedicated video memory
Microsoft DirectX 10.1 (Shader Model 4.1) and OpenGL 2.1 capable
Models with integrated graphics (6450b and 6550b):
Intel HD Graphics
Microsoft DirectX 10 (Shader Model 4.0) and OpenGL 2.0 capable
Display
HP ProBook 6450b:
35.6cm (14.0-inch) diagonal LED-backlit HD anti-glare (1366 x 768
resolution)
35.6cm (14.0-inch) diagonal LED-backlit HD+ anti-glare (1600 x 900
resolution)
Internal
HP ProBook 6550b:
39.6cm (15.6-inch) diagonal LED-backlit HD anti-glare (1366 x 768
resolution)
39.6cm (15.6-inch) diagonal LED-backlit HD+ WVA anti-glare (1600 x
900 resolution)
HP Privacy Filter support
Memory
External
Up to 32-bit per pixel color depth
DisplayPort supports resolutions up to 2560 x 1600, 30-bit color
depth at 60 Hz, and full HD (1920 x 1080) monitors, 24-bit color
depth at 120 Hz
VGA port supports resolutions up to 2048 x 1536 at 75 Hz, and
lower resolutions at up to 100 Hz
DVI-D (single link) video signal available through DVI port in optional
HP Docking Station (sold separately)
supports resolutions up to 1600 x 1200 at both full and reduced
blanking, and 1920 x 1200 at reduced blanking
NOTE: Resolutions are dependent upon monitor capability, and
resolution and color depth settings.
Standard
DDR3 PC3-10600 SDRAM (1333 MHz)*
Two SODIMM slots supporting dual-channel memory
2048 MB and 4096 MB SODIMMs
Maximum
Upgradeable to 8192 MB with 4096 MB SODIMMs in slots 1 and 2
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same
size and speed in both memory slots.
* Memory speed is processor dependent.
DA – 13616 EMEA — Version 1 — May, 2010
Page 8
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Standard Features (availability may vary by country)
NOTE: Due to the non-industry standard nature of some third-party memory modules, we
recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system
will perform at the lower memory speed. Full availability of 4 GB or more of memory requires a
Windows 64-bit operating system or Linux. With Windows 32-bit operating systems, the amount
of usable memory is dependent upon your configuration, so that above 3 GB all memory may
not be available due to system resource requirements.
Communications
Integrated Intel 82577LC Gigabit* Network Connection (non vPro configurations)
56K V.92 modem**
* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard
802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For
high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is
required.
** Designed for downloads from 56K modem compliant sources. Maximum achievable
download transmission rates currently do not reach 56 KB/s, and will vary with line conditions.
Modem availability is subject to country regulatory approval.
Wireless Devices
Support for a broad range of secure, integrated wireless LAN and wireless WAN options
featuring support for the latest industry standards. Broadband Wireless (WWAN) requires a
Windows operating system and is available in select countries as a standard, factory
configurable feature only. Integrated Bluetooth is also available (factory configurable only) and
can be combined with any of the supported wireless LAN and wireless WAN options.
HP un2420 EVDO/HSPA Mobile
Broadband Module
Integrated mobile broadband module with Gobi global mobile Internet
technology that provides connectivity to both CDMA (EVDO) and
UMTS (HSPA) networks. It also provides GPS functionality for various
mapping applications and security applications such as Computrace
LoJack Pro Premium for HP ProtectTools.
NOTE: Separately purchased mobile network operator service is
required.
Two 850/900/1575/1800/1900/2100 MHz antennas integrated in
the top of the display panel support current and future WWAN
technologies.
All 802.11
integrated wireless
LAN options
Wi-Fi Certified*
Cisco Compatible Extensions support
Wired Equivalent Privacy (WEP) support up to 128-bit keys
Wi-Fi Protected Access (WPA) and WPA2 support
802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAPGTC, PEAP-MSCHAPv2, and LEAP
Advanced Encryption Standard (AES) support
Dual antennas integrated in the display enclosure
Intel Centrino
Advanced-N 6200
(2x2)
Integrated support for 802.11a, b, g, and n*
2 transmit, 2 receive antennas
Up to 300 mbps data rate
Broadcom 4322AGN Integrated support for 802.11 a, b, g, and n
DA – 13616 EMEA — Version 1 — May, 2010
Page 9
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Standard Features (availability may vary by country)
802.11a/b/g/n
WiFi Adapter
Up to 300 mbps data rate
Broadcom 4313GN
802.11b/g/n
WiFi Adapter
Integrated support for 802.11 b, g, and n
Up to 72 mbps data rate
Bluetooth Specification v2.1+EDR compliant
HP Integrated
Works with a wide range of Bluetooth devices
Module with
Bluetooth 2.1+EDR
Wireless Technology
Keyboard
The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard
and a drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes
the risk of damage to sensitive components underneath. The 101/102-key compatible keyboard
features a full-pitch key layout with desktop keyboard features, such as the isolated inverted-T
cursor control keys, editing keys, both left and right control and alt keys, 12 function keys, and
19.05 x 19.05 mm key pitch (center-to-center spacing). U.S. and International key layouts are
available. Other features include hotkeys for instant access to power conservation and
brightness. The HP ProBook 6550b includes a separate numeric keypad.
Touch-sensitive
controls
Touch-sensitive controls provide easy access to the following features: HP QuickLook 3, HP
QuickWeb, wireless on/off, volume mute, volume down, volume up. The HP ProBook 6550b
also features a calculator button.
Pointing device
Touchpad with scroll zone, two pick buttons
Optional pointstick with two additional pointstick buttons
Expansion card slots ExpressCard/54 slot Supports ExpressCard/54 and ExpressCard/34
or
Optional Integrated
Smart Card Reader
(replaces
ExpressCard/54 slot)
Compatible with ISO 7816 compliant Smart Cards
PC/SC interface support
Media Card Reader
Supports SD (Secure Digital), HC-SD (High Capacity Secure Digital),
MMC (MultiMedia Card), HS-MMC (MultiMedia Card Plus), Sony
Memory Stick, Sony Memory Stick Pro, Memory Stick Duo*, xD-Picture
card
Additionally, the following cards are supported via passive adapters
(sold separately): Mini-Secure Digital (Mini-SD), Transflash (Micro-SD),
Reduced size Multimedia card (RS-MMC), Reduced size Dual voltage
Multimedia card, MMC Mobile Cards, MMC Micro Cards, Memory
Stick Duo (MS Duo)*, Memory Stick Duo Pro (MS Duo Pro)*, Memory
Stick M2 Micro
DA – 13616 EMEA — Version 1 — May, 2010
Page 10
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Standard Features (availability may vary by country)
* Memory Stick Duo Adapters are required and sold separately. Inserting a Memory Stick Duo
Card directly into your notebook could damage the memory card and/or notebook.
Internal Storage
250/320/500 GB 7200 rpm SMART SATA II
Hard drives
NOTE: These hard drives are customer removable and will withstand multiple insertion/removal
cycles. Up to 10 GB is reserved for the system recovery software.
Upgrade Bay
HP 3D DriveGuard
(Windows only)
The hard drive is mounted directly to the notebook frame, reducing the
transmission of shock to the hard drive. Uses three-axis digital motion
detection with intelligent sensitivity to help protect the hard drive during
normal use from shock and vibration. The digital accelerometer
temporarily halts all data transfer and parks the hard drive when
abrupt motion is detected.
Solid State Drive
128 GB
Fixed 12.7 mm SATA DVD+/-RW SuperMulti DL LightScribe Drive
DVD-ROM Drive
optical drive
Weight saver
Interfaces
ExpressCard/54 slot One (or optional Smart Card Reader)
External monitor
Two - (1) DisplayPort, (1) VGA
1394a
One
Stereo microphone
in
One
One
Stereo
headphone/line out
Audio/Visual
Power connector
One
RJ-11/modem
One
RJ-45/Ethernet
One
USB 2.0
Three
eSATA/USB 2.0
combo
One
Serial port
One (HP ProBook 6550b only)
Docking connector
One
Secondary battery
connector
One
HP Premier Sound™
Integrated stereo speakers
Integrated microphone (dual-microphone array when equipped with optional 2 MP webcam)
Touch-sensitive controls for volume up, volume down, and mute
DA – 13616 EMEA — Version 1 — May, 2010
Page 11
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Standard Features (availability may vary by country)
Stereo headphone/line out
Stereo microphone/line in
Optional 2 MP webcam






Software
Supports videoconferencing and still image capture
Large image sensor for excellent color matching and good low light sensitivity
Up to 30 frames/sec
Fixed focus lens
Video capture at VGA, 1.3 Mpixel, and 2 Mpixel resolutions
16-bit true color (camera sensors output YCrCb format among others)
Preinstalled
software with
Windows operating
system
HP Recovery Manager (available with Windows 7 or Vista only)
HP Support Assistant (available with Windows 7 or Vista only)
HP ProtectTools Security Manager
HP ProtectTools for Central Management
HP Quick Launch Buttons Software
HP QuickLook 3
HP QuickWeb
HP Power Assistant
HP Connection Manager 3.1
HP Wireless Assistant
HP DayStarter
Microsoft Office Professional 2007 60-day Convertible Trial
McAfee Total Protection*
Intervideo WinDVD - DVD Player (select models)
Roxio Creator Business (select models)
HP Webcam Software (select models)
Skype
WinZip 14 trial
Additional software HP SoftPaq Download Manager
available from the
web
* 60 day trial period for McAfee Total Protection for Small Business software. Internet access
required to receive updates. First update included. Subscription required for updates thereafter.
HP Recovery
Manager
Models shipped with Windows 7 or Windows Vista include HP Recovery Manager. HP Recovery
Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted
or if important system files are accidentally deleted. Up to 10 GB of the hard drive is reserved for
the system recovery software.
Security
Standard Features
HP ProtectTools Security Manager
Enhanced Pre-Boot Security
DA – 13616 EMEA — Version 1 — May, 2010
Page 12
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Standard Features (availability may vary by country)
HP SpareKey
One-Step Logon
Setup Password
TPM 1.2 Embedded Security Chip*
TPM Enhanced DriveLock*
HP Disk Sanitizer
Lock slot
Support for Computrace** LoJack Pro for HP ProtectTools
Optional Features
Smart Card Reader
(replaces
ExpressCard/54 slot)
Compatible with ISO 7816 compliant Smart
Cards
PC/SC interface support
HP Fingerprint
Sensor
Enhanced sensor scans the fingerprint to
uniquely identify and authenticate a person.
HP Privacy Filter
Narrows viewing area so that screen data is
visible only to persons directly in front of the
monitor.
Computrace**
LoJack Pro Premium
for HP ProtectTools
with GPS Tracking
Subscription based security solution
providing the ability to track, initiate physical
recovery, conduct asset management, and
perform remote data delete by utilizing GPS
technology. GPS functionality requires HP
un2420 EV-DO/HSPA Mobile Broadband
Module.
* TPM module disabled where use is restricted by law; for example, Russia and China.
** The Computrace agent is shipped turned off, and must be activated by customers when they
purchase a subscription with terms ranging from one to five years.
For more information on HP security solutions refer to: http://www.hp.com/go/security.
HP ProtectTools
Security Manager
with Central
Management
HP ProtectTools Security Manager is the security platform for business notebooks and desktops.
The HP ProtectTools Security Manager is an extensible client security console that delivers
enhanced security capabilities through add-on software modules. The following modules are
available on the hard drive (also downloadable from the web) and can be configured in
Software Setup:







Credential Manager for HP ProtectTools
Device Access Manager for HP ProtectTools
Drive Encryption for HP ProtectTools
File Sanitizer for HP ProtectTools
Privacy Manager for HP ProtectTools (Chat & Sign)
Embedded Security for HP ProtectTools
Computrace LoJack Pro for HP ProtectTools
HP ProtectTools is now capable of being centrally managed from a single control point. HP
ProtectTools is management ready out of the box, in partnership with Digital Persona, and
provides features that customers expect from a centrally managed security solution, such as user
DA – 13616 EMEA — Version 1 — May, 2010
Page 13
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Standard Features (availability may vary by country)
provisioning, credential reset, and system and network revocation . Central Management is
available in two feature levels:
Power Supply

Digital Persona Pro Enterprise: Designed for environments with Active Directory. For
large businesses, as well as smaller businesses utilizing an active directory based
infrastructure. Gives IT Managers the ability to create role based security policies,
provision users, and create login policies based on passwords, biometrics or smart
cards. Management features also include remote credential recovery in case the user
forgets the password, loses the smart card, or cannot use the fingerprint reader for any
reason. In addition, advanced auditing capabilities are also built in.

Digital Persona Workgroup Manager: Designed for environments without Active
Directory. This option can be used by smaller businesses as well as workgroups within
large organizations. Workgroup Manager offers features similar to Digital Persona Pro
Enterprise, but without active directory integration. Workgroup activation is built into HP
ProtectTools, and activation of up to 5 seats is completely free.
Models with discrete graphics:
External 90-watt Smart AC adapter
Models with integrated graphics:
External 65-watt Smart AC adapter
Power cord included is 1.8 meter (6-foot).
Total length including external AC adapter is 3.66 meter (12 feet).
HP Fast Charge*
*HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP
Fast Charge does not apply to the 9-cell primary battery or the 12-cell Ultra-Capacity batteries.
Battery
Primary battery
HP 9-cell (93 WHr) Li-Ion battery
HP 6-cell (55 WHr) Li-Ion battery
HP Long Life 6-cell (51 WHr) Battery (with 3-year platform warranty
only)
Optional HP Long
Life Battery
3-cell (47 WHr) Li-Ion battery
Optional HP
Extended Life
Battery
8-cell (52 WHr) Li-Ion battery
Optional HP UltraCapacity Battery
12-cell (95 WHr) Li-Ion battery
Battery Life
HP 9-cell (93 WHr) HP 6-cell (55 WHr) HP Long Life 6-cell
Primary
Primary
(51 WHr)
Primary battery
Up to 11 hours
Up to 6h 30min
DA – 13616 EMEA — Version 1 — May, 2010
Up to 6hours
Page 14
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Standard Features (availability may vary by country)
Primary battery and Up to 17h 30min
optional HP
Extended Life
Battery
Up to 13 hours
Primary battery and Up to 22 hours
optional HP UltraCapacity Battery
Up to 17h 30min
NOTE: Battery life will vary depending on the product model, configuration, loaded
applications, features, use, wireless functionality and power management settings. The maximum
capacity of the battery will naturally decrease with time and usage. See MobileMark07 battery
benchmark www.bapco.com/products/mobilemark2007 for additional details.
System Standby
Time
Up to 1 week
Power Conservation ATI PowerPlay technology
Hibernation
Standby
ACPI compliance
Docking and Stands HP
HP
HP
HP
HP
HP
HP
HP
90W Docking Station
120W Advanced Docking Station
USB 2.0 Docking Station
Essential USB 2.0 Port Replicator
Dual Hinge Notebook Stand
Display & Notebook Stand
Adjustable Display Stand
Adjustable Dual Display Stand
Service and Support 1-year warranty options depending on country;
1-year limited warranty on primary battery. On-site service and warranty upgrades are also
available. HP Care Pack Services extend service contracts beyond the standard warranties. To
choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool
at: http://www.hp.com/go/lookuptool. Additional HP Care Pack Services information by
product is available at: http://www.hp.com/hps/carepack.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for
details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp.
DA – 13616 EMEA — Version 1 — May, 2010
Page 15
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Options (availability may vary by country)
Memory
Storage
HP 1 GB (DDR3 1333 MHz) SODIMM
AT912AA
HP 4 GB (DDR3 1333 MHz) SODIMM
AT913AA
HP Upgrade Bay SATA DVD+/-RW SuperMulti DL LightScribe Drive
AK869AA
HP 250 GB Pocket Media Drive
FE477AA
HP External USB Drive CD/DVD R/RW
FS943AA
HP Upgrade Bay SATA 500 GB 7200 rpm Hard Drive
AU097AA
HP Primary SATA 500 GB 7200 rpm Hard Drive
AU098AA
HP Primary SATA 320 GB 7200 rpm Hard Drive
AS282AA
Expansion Solutions HP 90W Docking Station
HP 120W Advanced Docking Station
Power
VB041AA
NZ222AA
HP USB 2.0 Docking Station
FQ834AA
HP Essential USB 2.0 Port Replicator
AQ731AA
HP Dual Hinge Notebook Stand
AW661AA
HP Display & Notebook Stand
AW662AA
HP Adjustable Display Stand
AW663AA
HP Adjustable Dual Display Stand
AW664AA
HP Smart 65W Travel AC Adapter
AU155AA
HP 90W Smart AC Adapter
ED495AA
HP 90W Smart Combo Adapter
Carrying Cases
AT911AA
HP 2 GB (DDR3 1333 MHz) SODIMM
AJ652AA
HP Long Life 3-Cell Battery
AU213AA
HP 6-Cell Li-Ion Primary Battery
KU531AA
HP 9-Cell Li-Ion Primary Battery
AT908AA
HP Extended Life Battery
AJ359AA
HP Ultra-Capacity Battery
AT486AA
HP Basic Carrying Case
AJ078AA
HP Value Nylon Case
RR314AA
HP Universal Nylon Case
RR315AA
HP Professional Slim Top Load Case
AY530AA
HP Executive Leather Case
RR316AA
HP Deluxe Nylon Backpack
RR317AA
HP Deluxe Roller Case
GD405AA
HP Basic Backpack
AM863AA
HP Merlot Slipcase
AU095AA
DA – 13616 EMEA — Version 1 — May, 2010
Page 16
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Options (availability may vary by country)
Security
Input/Output
Devices
HP Basic Messenger Carrying Case
AP355AA
HP Professional Series Carrying Case
AT886AA
HP Professional Series Backpack
AT887AA
HP Professional Series Messenger
AT888AA
HP Professional Series Designer Tote
AT889AA
HP Professional Series Slip Case
AT890AA
HP Elite Series Designer Tote
AT891AA
HP Elite Series Quick Case
AT892AA
HP Notebook Combination Lock
AY475AA
HP Docking Station Cable Lock
AU656AA
HP 14.0-inch Display Privacy Filter
AU100AA
HP 15.6-inch Display Privacy Filter
AU103AA
HP ExpressCard Smart Card Reader
AJ451AA
HP PS/2 Keyboard & Mouse Bundle
RC464AA
HP USB Keyboard & Mouse Bundle
RC465AA
HP USB Optical Travel Mouse
RH304AA
HP USB/PS2 Optical 2-Button Scroll Mouse
AR085AA
HP BT Headset
AR084AA
HP Mobile Audio Speakers
Miscellaneous
DC369A
HP Wireless Mouse
FS944AA
HP Mobile Productivity Bundle
AQ792AA
HP Bluetooth ExpressCard Mouse
GK872AA
HP Notebook Companion Projector
AX325AA
HP Migration Cable for Windows 7
AY493AA
HP Premium Autofocus Webcam
KQ245AA
Premium Digital Headset
KJ270AA
DisplayPort To DVI-D Adapter
FH973AA
Promo USB Graphics Adapter
NL571AT
External USB Modem
GS023AA
Belkin USB to Serial Adapter
EM449AA
Notebook Multi-Purpose Cleaning Kit
DA – 13616 EMEA — Version 1 — May, 2010
BL528AA
Page 17
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Memory
DDR3 PC3-10600 SDRAM (1333 MHz)*
Two SODIMM slots supporting dual-channel memory
SODIMM sizes supported: 2048 MB and 4096 MB
Standard Memory
Optional Memory
Upgrades
Up to
4096 MB
4096 MB
8192 MB



2048 MB (2048 MB x 1)
4096 MB (2048 MB x 2)
4096 MB (4096 MB x 1)
Support for up to 8192 MB of memory with the installation of optional DDR3 SDRAM memory
kits. Both memory slots are user-accessible. Please refer to the Hardware and Software Guide for
installation procedures. Maximized dual-channel performance requires SODIMMs of the same
size and speed in both memory slots.
Slot 1
2048 MB
4096 MB
4096 MB
Slot 2
2048 MB
Empty
4096 MB
* Memory speed is processor dependent.
NOTE: This chart does not represent all possible memory configurations. Due to the non-industry
standard nature of some third-party memory modules, we strongly recommend using only HPbranded memory modules to ensure compatibility. If you mix memory speeds, the system will
perform at the lower memory speed. Full availability of 4 GB or more of memory requires a
Windows 64-bit operating system or Linux. With Windows 32-bit operating systems, the amount
of usable memory is dependent upon your configuration, so that above 3 GB all memory may not
be available due to system resource requirements.
Memory Upgrades
HP 1 GB (DDR3 1333 MHz) SODIMM
AT911AA
HP 2 GB (DDR3 1333 MHz) SODIMM
AT912AA
HP 4 GB (DDR3 1333 MHz) SODIMM
AT913AA
DA – 13616 EMEA — Version 1 — May, 2010
Page 18
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Storage
Upgrade Bay Drive Support
Quantity Supported
Drive Bay
DVD+/-RW SuperMulti DL LightScribe
Drive
One
Upgrade Bay
DVD-ROM Drive
One
Upgrade Bay
Weight Saver
One
Upgrade Bay
Quantity Supported
Drive Bay
500 GB 7200 rpm SMART SATA II
Hard Drive
One
Dedicated hard drive bay
320 GB 7200 rpm SMART SATA II
Hard Drive
One
Dedicated hard drive bay
250 GB 7200 rpm SMART SATA II
Hard Drive
One
Dedicated hard drive bay
One
Dedicated hard drive bay
Internal Storage Device
Hard Drives
Solid State Drive
128 GB Solid State Drive
DA – 13616 EMEA — Version 1 — May, 2010
Page 19
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
System Unit
Dimensions (HxWxD) HP ProBook 6450b:
33.8 mm (at front) x 339 mm x 236.2 mm
1.33 in (at front) x 13.35 in x 9.3 in
HP ProBook 6550b:
34.8 mm (at front) x 371.4 mm x 248.0 mm
1.37 in (at front) x 14.62 in x 9.76 in
HP ProBook 6450b:
Starting at 2.26 kg (5.0 lb) with weight saver (no optical drive)
Starting at 2.39 kg (5.31 lb) with DVD-ROM drive
Weight
HP ProBook 6550b:
Starting at 2.51 kg (5.5 lb) with weight saver (no optical drive)
Starting at 2.64 kg (5.81 lb) with DVD-ROM drive
NOTE: Height varies depending upon where on the notebook the measurement is made. Weight
varies by configuration and components. Weight includes 6-cell battery and hard drive.
Stand-Alone Power
Requirements (AC
Power)
Temperature
Nominal Operating
Voltage
18.5 V
Average Operating
Power
TBD W
Max Operating Power
< 65 W
or
< 90 W
Operating
0° to 35° C (32° to 95° F) (not writing
optical)
5° to 35° C (41° to 95° F) (writing optical)
Non-operating
Relative Humidity
-20° to 60° C (-4° to 140° F)
Operating
10% to 90%, non-condensing
Non-operating
5% to 95%,101.6° F (38.7° C) maximum
wet bulb temperature
Operating
125 G, 2 ms, half-sine
Non-operating
200 G, 2 ms, half-sine
Operating
0.75 grms
Non-operating
1.50 grms
Altitude
(unpressurized)
Operating
-15.24 to 3,048 m (-50 to 10,000 ft)
Non-operating
-15.24 to 12,192 m (-50 to 40,000 ft)
Industry Standard
Certifications
UL
Yes
CSA
Yes
FCC Compliance
Yes
Shock
Random Vibration
DA – 13616 EMEA — Version 1 — May, 2010
Page 20
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
ENERGY STAR®
Select models*
EPEAT
Registered Gold in United States**
ICES
Yes
GS
Yes
Australia / NZ A-Tick
Compliance
Yes
CCC
Yes
Japan VCCI Compliance Yes
KCC
Yes
BSMI
Yes
CE Marking Compliance Yes
BNCI or BELUS
Yes
CIT
Yes
GOST
Yes
Saudi Arabian
Compliance (ICCP)
Yes
SABS
Yes
UKRSERTCOMPUTER
Yes
* Configurations of the HP ProBook 6450b and HP ProBook 6550b that are ENERGY STAR
qualified are identified as HP ProBook 6450b ENERGY STAR and HP ProBook 6550b ENERGY
STAR on HP websites and on www.energystar.gov.
** EPEAT Registered Gold in U.S. EPEAT registration varies by country. See www.epeat.net for
registration status by country.
NOTE: For accessibility information on HP products, please visit:
http://www.hp.com/accessibility.
HP 90W Smart AC
Adapter
Dimensions
12.7 x 5.0 x 2.9 cm (5.00 x 1.97 x 1.1 in)
Weight
370 g (0.82 lb)
Input
100 to 240 VAC
Input Efficiency
87% min at 115 VAC
Input frequency range
47 to 63 Hz
Input AC current
1.5 A at 90 VAC, 0.75 A at 180 VAC PFC
Version
2.4 A at 90 VAC, 1.2 A at 180 VAC NON
PFC Version
Output
Output power
90W
DC output
19.0V
Hold-up time
5 msec at 115 VAC input
Output current limit
<11A, Over voltage protection- 29V max
DA – 13616 EMEA — Version 1 — May, 2010
Page 21
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
automatic shutdown
HP 65W Smart AC
Adapter
Connector
3 pin/grounded, mates with interchangeable cords
Environmental
Design
Operating temperature
Altitude
0 to 3,048 m (0 to 10,000 ft)
Humidity
20% to 80%
Storage Humidity
10% to 90%
EMI and Safety
Certifications
CE Mark - full compliance with LVD and EMC directives; Worldwide
safety standards - IEC60950, EN60950, UL60950, Class1, SELV;
Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B,
FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE; MTBF- over
200,000 hours at 25°C ambient condition.
Dimensions
10.6 x 4.7 x 2.8 cm (4.17 x 1.85 x 1.1 in)
Weight
280 g (0.62 lb)
Input
100 to 240 VAC
Output
Optional HP UltraCapacity Battery
0° to 40° C (32° to 104° F)
Non-operating (storage) -20° to 65° C (-4° to 149° F)
temperature
Input Efficiency
87% min at 115 VAC
Input frequency range
47 to 63 Hz
Input AC current
1.7 A at 90 VAC, 0.85 A at 180 VAC
Output power
65W
DC output
18.5V
Hold-up time
5 msec at 115 VAC input
Output current limit
<11A, Over voltage protection- 29V max
automatic shutdown
Connector
3 pin/grounded, mates with interchangeable cords
Environmental
Design
Operating temperature
0° to 40° C (32° to 104° F)
Non-operating (storage) -20° to 65° C (-4° to 149° F)
temperature
Altitude
0 to 3,048 m (0 to 10,000 ft)
Humidity
20% to 80%
Storage Humidity
10% to 90%
EMI and Safety
Certifications
CE Mark - full compliance with LVD and EMC directives; Worldwide
safety standards - IEC60950, EN60950, UL60950, Class1, SELV;
Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B,
FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE; MTBF - over
200,000 hours at 25°C ambient condition.
Dimensions (H x W x
L)
3.33 x 15.25 x 26.88 cm (1.3 x 6.0 x 10.6 in)
Weight
0.803 kg (1.77 lb)
DA – 13616 EMEA — Version 1 — May, 2010
Page 22
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
Cells/Type
12-cell Lithium-Ion
Energy
Watt-hour Capacity
95 WHr
Temperature
Operating (Charging)
0° to 45° C (32° to 113° F)
Operating (Discharging) –10° to 60° C (14° to 140° F)
Non-operating
Optional HP
Extended Life
Battery
–20° to 60° C (–4° to 140° F)
Battery Re-Charge
Time
Smart Adapter
3 to 4 hours
System ON
4 to 5 hours (depending on system power
consumption)
Fuel Gauge
When pressed, LEDs light indicating level of charge remaining on
battery
Dimensions (H x W x
L)
2.5 x 10.0 x 22.0 cm (1.0 x 3.9 x 8.7 in)
Weight
0.455 kg (1.00 lb)
Cells/Type
8-cell Lithium-Ion
Energy
Watt-hour Capacity
52 WHr
Temperature
Operating (Charging)
0° to 45° C (32° to 113° F)
Operating (Discharging) –10° to 60° C (14° to 140° F)
Battery Re-Charge
Time
Optional HP Long
Life 3-cell 47 WHr
Lithium-Ion Battery
Non-operating
–20° to 60° C (–4° to 140° F)
System in OFF mode or
Standby
3 hours
System ON
3 to 5 hours (depending on system power
consumption)
HP Fast Charge
Technology
Charges the battery up to 90% within 90
minutes when system is OFF
Fuel Gauge
When pressed, LEDs light indicating level of charge remaining on
battery
Dimensions (H x W x
L)
2.0 x 5.3 x 20.4 cm (0.8 x 2.1 x 8.0 in)
Weight
0.71 lb 0.32 kg)
Cells/Type
3-cell Lithium-Ion
Energy
Watt-hour Capacity
47 WHr
Temperature
Operating (Charging)
0° to 45° C (32° to 113° F)
Operating (Discharging) -10° to 60° C (14° to 140° F)
Battery Re-Charge
Time
Non-operating
-20° to 60° C (-4° to 140° F)
System in OFF mode or
Standby
2.5 hours
System ON
3 to 5 hours (depending on system power
consumption)
DA – 13616 EMEA — Version 1 — May, 2010
Page 23
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
HP Fast Charge
Technology
HP Long Life 6-cell
51 WHr Lithium-Ion
Primary battery
Dimensions (H x W x
L)
2.0 x 5.3 x 20.3 cm (0.8 x 2.1 x 8.0 in)
Weight
0.331 kg (0.73 lb)
Cells/Type
6-cell Lithium-Ion
Energy
Watt-hour Capacity
51 WHr
Temperature
Operating (Charging)
0° to 45° C (32° to 113° F)
Operating (Discharging)
Battery Re-Charge
Time
9-Cell (93 WHr)
Lithium-Ion battery
Charges the battery up to 90% within 90
minutes when system is OFF
-10° to 60° C (14° to 140° F
Non-operating
-20° to 60° C (-4° to 140° F)
System in OFF mode or
Standby
2.5 hours
System ON
3 to 5 hours (depending on system power
consumption)
Dimensions (H x W x
L)
2.0 x 7.3 x 21.0 cm (0.8 x 2.9 x 8.3 in)
Weight
1.07 lb (0.488 kg)
Cells/Type
9-cell Lithium-Ion
Energy
Watt-hour Capacity
93 WHr
Temperature
Operating (Charging)
0° to 45° C (32° to 113° F)
Operating (Discharging) –10° to 60° C (14° to 140° F)
Battery Re-Charge
Time
6-Cell (55 WHr)
Lithium-on battery
Non-operating
–20° to 60° C (–4° to 140° F)
System in OFF mode or
Standby
3 to 4 hours
System ON
4 to 6 hours (depending on system power
consumption)
Dimensions (H x W x
L)
2.0 x 5.3 x 20.4 cm (0.8 x 2.1 x 8.0 in)
Weight
0.32 kg (0.71 lb)
Cells/Type
6-cell Lithium-Ion
Energy
Watt-hour Capacity
55 WHr
Temperature
Operating (Charging)
0° to 45° C (32° to 113° F)
Operating (Discharging) –10° to 60° C (14° to 140° F)
Battery Re-Charge
Time
Non-operating
–20° to 60° C (–4° to 140° F)
System in OFF mode or
Standby
2.5 hours
System ON
3 to 5 hours (depending on system power
DA – 13616 EMEA — Version 1 — May, 2010
Page 24
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
consumption)
HP Fast Charge
Technology
Charges the battery up to 90% within 90
minutes when system is OFF
Displays
39.6 cm (15.6-inch)
LED HD (1366 x
768)
anti-glare
Active Area (W x H)
34.4 x 19.4 cm (13.54 x 7.59 in)
Diagonal Size
39.6 cm (15.6 in)
Surface Treatment
Anti-glare
Contrast Ratio
300:1 (typical)
Refresh Rate
60 Hz
Brightness
200 nit (typical)
Pixel Resolution
Pitch
0.252 mm
Format
1366 x 768
Configuration
RGB Stripe
Backlight
LED
PPI
100 ppi
Viewing Angle
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
39.6 cm (15.6-inch) Active Area (W x H)
LED HD+ WVA (1600 Diagonal Size
x 900)
Surface Treatment
anti-glare
Contrast Ratio
35.6cm (14.0-inch)
LED HD (1366 x
768)
anti-glare
34.4 x 19.4 cm (13.54 x 7.59 in)
39.6 cm (15.6 in)
Anti-glare
300:1 (typical)
Refresh Rate
60 Hz
Brightness
200 nit (typical)
Pixel Resolution
Pitch
0.215 mm
Format
1600 x 900
Configuration
RGB Stripe
Backlight
LED
PPI
118 ppi
Viewing Angle
±60° Horizontal, ± 50° Vertical (minimum) or
±70° Horizontal, ±60° Vertical (typical)
Active Area (W x H)
32.4 cm x 19.2 cm (12.74 x 7.56 in)
Diagonal Size
35.6cm (14.0 in)
Surface Treatment
Anti-glare
Contrast Ratio
400:1 (typical)
DA – 13616 EMEA — Version 1 — May, 2010
Page 25
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
35.6cm (14.0-inch)
LED HD+ (1600 x
900)
anti-glare
Refresh Rate
60 Hz
Brightness
200 nit (typical)
Pixel Resolution
Pitch
0.227 mm
Format
1366 x 768
Configuration
RGB Stripe
Backlight
LED
PPI
112 ppi
Viewing Angle
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
Dimensions (W x H)
32.4 cm x 19.2 cm (12.74 x 7.56 in)
Diagonal Size
35.6cm (14.0 in)
Surface Treatment
Anti-glare
Contrast Ratio
300 (min)
Refresh Rate
60 Hz
Brightness
200 nits (typ)
Pixel Resolution
Pitch
0.1935mm
Format
1600 x 900
Configuration
RGB Stripe
Backlight
LED
PPI
131 ppi
Viewing Angle
30/30/20/10 (Left/Right/Down/Up) (minimum)
Weight
80.1 Grams
Capacity
128 GB
Height
9.5 mm (0.37 in)
Width
70 mm (2.75 in)
Internal Storage
128 GB
2.5-inch SATA Solid
State Drive
Interface
SATA
Performance
Maximum
Sequential Read
Maximum Sequential Write
220 MB/s
200 MB/s
Logical Blocks
250,069,680
Operating
Temperature
0° to 70°C (32° to 158°F) [case temp]
Features
ATA Security; ATA-7 ;SATA 2.6; DIPM
DA – 13616 EMEA — Version 1 — May, 2010
Page 26
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
500 GB 7200 rpm
SATA Hard Drive
Drive Weight
115 g (0.25 lbs)
Capacity
500 GB
Height
9.5 mm (0.37 in)
Width
70 mm (2.75 in)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
Seek Time
Single Track
(typical reads, including Average
settling)
Maximum
320 GB 7200 rpm
SATA Hard Drive
1.5 ms
11 ms
22 ms
Rotational Speed
7200 rpm
Logical Blocks
976,773,168
Operating
Temperature
0° to 60° C (32° to 140° F) [case temp]
Features
ATA Security
Drive Weight
0.25 lbs (115 g)
Capacity
320 GB
Height
0.37 in (9.5 mm)
Width
2.75 in (70 mm)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
Seek Time
Single Track
(typical reads, including Average
settling)
Maximum
250 GB 7200 rpm
SATA Hard Drive
100 MB/s (Drive Capability)
100 MB/s (Drive Capability)
1.5 ms
11 ms
22 ms
Rotational Speed
7200 rpm
Logical Blocks
625,142,448
Operating
Temperature
0° to 60° C (32° to 140° F) [case temp]
Features
ATA Security
Drive Weight
115g (0.25 lbs)
Capacity
250 GB
Height
9.5 mm (0.37 in)
Width
70 mm (2.75 in)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
100 MB/s (Drive Capability)
DA – 13616 EMEA — Version 1 — May, 2010
Page 27
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
Seek Time
Single Track
(typical reads, including Average
settling)
Maximum
DVD-ROM Drive
1.5 ms
11 ms
22 ms
Rotational Speed
7200 rpm
Logical Blocks
488,397,168
Operating
Temperature
0° to 60° C (32° to 140° F) [case temp]
Features
ATA Security
Access Times
Random
Max Data Transfer
Rate
24X CD-ROM
Up to 3,600 KB/s
8X-DVD
Up to 10,800 KB/s
Transfer Mode
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media
(read)
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVDROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,
DVD+RW, DVD-RAM
Supported Media
(write)
None
< 110 ms CD (typical)
< 110 ms DVD (typical)
Max Media Capacity 8.5 GB
(read)
DVD+/-RW
SuperMulti DL
LightScribe Drive
Transport
Tray Loading
Access Times
Random
Max Data Transfer
Rate
24X CD-ROM
< 150ms CD (typical)
< 160 ms DVD (typical)
Transfer Mode
Up to 3,600 KB/s
8X DVD
Up to 10,800 KB/s
24X CD-R
Up to 3,600 KB/s
16X CD-RW
Up to 2,400 KB/s
8X DVD+R
Up to 10,800 KB/s
8X DVD+RW
Up to 10,800 KB/s
8X DVD-R
Up to 10,800 KB/s
6X DVD-RW
Up to 8100KB/s
4X - DVD+R Dual Layer
Up to 5,400 KB/s
4X - DVD-R Dual Layer
Up to 5,400 KB/s
5X DVD-RAM
Up to 6,750 KB/s
UDMA Mode 5
DA – 13616 EMEA — Version 1 — May, 2010
Page 28
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
Interface
Gen 1 SATA
Supported Media
(read)
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVDROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,
DVD+RW, DVD-RAM
Supported Media
(write)
CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM,
LightScribe
Max Media Capacity 8.5 GB
(read)
Max Media Capacity 8.5 GB
(write)
Transport
Tray Loading
Implementation
IDT 92HD75B High Definition CODEC
Touch-Sensitive
Volume Controls
Volume up, volume down, and mute
Full Duplex
Yes
Microphone In
Stereo
Audio
Hardware
Headphone/Line Out Stereo
Yes, one microphone on configurations without optional webcam;
dual-microphone array when equipped with optional webcam
Integrated
Microphone
Audio Output
Quality
Integrated Stereo
Speakers
Frequency Response 20 Hz – 20 kHz
Signal to Noise Ratio >85 dB
Total Harmonic
Distortion
0.01%
Noise Floor
–110 dB
Play/Record
Sampling Rate(s)
8 kHz – 48kHz
DAC
16, 20 or 24-bit
ADC
16 or 20-bit
Power Rating
2 Watts
Impedance
4 Ohms
Security
DA – 13616 EMEA — Version 1 — May, 2010
Page 29
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
HP Fingerprint
Sensor (optional)
Mobile Voltage
Operation
3.0V-3.6V Single Supply
Operating
Temperature
32° - 158°F (0° - 70°C)
Current Consumption Less than 70 mA peak imaging and scrolling
Less than 25 mA hardware finger detection
@ 3.3V
Advanced Power Management
High-Rate Image
Capture
Up to 240 image frames /sec
ESD Resistance
IEC 61000-4-2 Level 4 (±15KV)
Detection Matrix
192 x 16 Pixels
9.7 mm x 0.81 mm
500 ppi High-Resolution Images
Ethernet Features
10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 1314)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses
21-30)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3z and 802.3ab;
IEEE 802.3 clauses 34-42)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and
100 Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
Communications
Integrated Intel
Gigabit Network
Connection
(10/100/1000 NIC)
82577LM
[codename Hanksville-M
for internal use only]
Power Management ACPI compliant -- multiple power modes
Situation-sensitive features reduce power consumption
Performance
Features
TCP/IP/UDP Checksum Offload (configurable)
Manageability
Wake-on-LAN from standby and hibernation (Magic Packet and
Microsoft Wake-Up Frame); Wake-on-LAN from off (Magic Packet
only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB
(802.3x, clause 30))
Comprehensive diagnostic and configuration software suite
Intel Advanced Management Technology 6.0 (iAMT)
Interface
PCI Express x1 based, SMBUS dedicated connection with Intel® 5
Series Chipset
NIC Device Driver
Name
Intel 82577 Gigabit Network Connection
DA – 13616 EMEA — Version 1 — May, 2010
Page 30
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
V.92 56K Data/Fax
Modem
MDC 1.5 Daughtercard
Form Factor
Power Management APM Revision 1.2, ACPI
Support
Approvals/
Certifications
UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC
Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian
ACA, CE Mark, Other Countries
Data Mode
Capabilities
V.92 data
V.8bis
V.80
V44, V.42bis, MNP5 (Compression)
V.42 (LAPM, MNP2-4) (Error Correction)
Optional symbol rates:
2800, 3429
Asymmetric Symbol rates
Synchronous primary channel data signaling rates:
3600, 31200
Automatic rate re-negotiation
V.34
V.32bis
V.32
V.23
V.22bis
V.22
V.21
Bell 212A
Bell 103J
Fax Mode
Capabilities
TIA/EIA-578-B (Class 1)
T.30, T.4 (Group 3)
V.17
V.29
V.27ter
V.21 Channel 2
Command Set
V.250 (Partial)
TIA-602
Identification: +GMI, +GMM, +GMR
Port control: +IPR, +ICF, +IFC, +ILRR
Modulation: +MS, +MR, +MA
Error control: +ES, +ER, +EB, +ESR, +ETBM
Data compression: +DS, +DR
V.251
HP un2420
Technology/Operating GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM),
1800MHz(DCS), 1900MHz (PCS)
EV-DO/HSPA Mobile Bands
UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band
DA – 13616 EMEA — Version 1 — May, 2010
Page 31
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
I), 1900MHz (UTRA FDD Band II), 900MHz (UTRA FDD Band VIII),
850MHz (UTRA FDD Band V)
1xEVDO/1xRTT with receive diversity: 850MHz (Band Class0-Cell),
1900MHz (Band Class1-PCS)
Broadband Module
Wireless Protocol
Standards
GSM/GPRS/EDGE: Class B, Multi-slot operation, coding schemes
CS1 – CS4 and MSC1 – MSC9.
UMTS/WCDMA: Release 99 and Release 6
CDMA: 1xEVDO Release 0 and Release A, IS-95A, IS-95B, IS-2000
Wireless Parametric
Standards
Meets or exceeds TIA/EIA IS-98-D
Maximum Data Rates UMTS (HSPA) – 7.2 Mbps (Download ), 2.0 Mbps (Upload)
CDMA (EVDO Release A) – 3.1 Mbps (Download), 1.8 Mbps
(Upload)
GPS
Standalone GPS enabled
GPS Bands
L1 – 1575.42 MHz
Maximum Output
Power
GSM/GPRS/EDGE: 32dBm (+/-1)
WCDMA: 24dBm (+/-1)
CDMA: 24dBm (+/-1)
Maximum Power
Consumption
2500mA (peak); 1000mA (average)
Power Consumption,
Sleep Mode
5 mA
Power Management
USB selective suspend
Integrated notebook wireless button
Antenna Type
Dual high efficiency 5 band antennae with spatial diversity, mounted
in the display enclosure
Form Factor
PCI-Express MiniCard, USB 2.0 interface
Weight
11.5 g
Dimensions (Length x
Width x Thickness)
51 x 30 x 5 mm (2.01 x 1.18 x 0.18 in)
Voltage, Operating
3.3v +/- 10%
Temperature,
Operating (from
TIA/EIA/IS-98-D)
–30° to 60° C (–22° to 140° F) (full RF performance)
–30° to 75° C (–22° to 167° F) (reduced RF performance)
–40° to 85° C (–40° to 185° F)
Temperature, Nonoperating, 96 hours
(from MIL-STD 202 Method
108)
Humidity, Nonoperating
85% relative humidity for 48 hours @ 85° C (185° F) (noncondensing)
Configuration Utilities HP Connection Manager
LED Activity
LED Off – Radio Off;
Solid LED On – Radio On
DA – 13616 EMEA — Version 1 — May, 2010
Page 32
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
Intel Centrino
Advanced-N 6200
(2x2)
Wireless LAN
Standards
IEEE
IEEE
IEEE
IEEE
802.11a
802.11b
802.11g
802.11n*
* In countries where 802.11n is not allowed, this capability is not
enabled.
Interoperability
Wi-Fi certified
Cisco Compatible Extensions Program compliant with Microsoft
Windows Vista and XP
Frequency Band
2.4 GHz and 5GHz
Antenna Structure
2 transmit; 2 receive (2x2)
Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 66 possible data rates, ranging from 6 Mbps to 300 Mbps,
depending on the combination of Bandwidth, Modulation Coding
Scheme, and Guard Interval used, as defined in IEEE 802.11n
specification
Modulation
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Security1
Authentication: WPA and WPA2, 802.1x (EAP_TLS, TTLS, PEAP, LEAP,
EAP-FAST)
Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP, MSCHAPv2
Encryption: 64 and 128-bit WEP, AES-CCMP, CKIP, TKIP
Support for Cisco Security Features (proven compatibility with Cisco
Aironet infrastructure products through the Cisco Compatible
Extensions Program Version 4) with Microsoft Windows Vista and XP
only.
Sub-channels
Multinational support with frequency bands and channels compliant to
local regulations.
Media Access
Protocol
CSMA/CA (Collision Avoidance) with ACK
Network
Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between 2.4GHz band Access Points
Output Power (for
CCK and OFDM)2
17 dBm max
Power Consumption Transmit: 2.3 Watts (average, with one spatial streams)
DA – 13616 EMEA — Version 1 — May, 2010
Page 33
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
Receive: 1 Watt (max with two spatial streams)
Idle mode3: 35 mW (average)
Radio off: 20 mW (max)
Power Management ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity4 54 Mbps: -76 dBm, 6 Mbps: -92 dBm
Antenna Connections 2 U.FL type connectors, 50 ohm nominal impedance
Form Factor
PCI-Express Half-MiniCard
Weight
0.0075 lb (3.4 g)
Dimensions
3.1 x 26.8 x 30.0 mm (0.12 x 1.06 x 1.18 in)
Operating Voltage
3.3V +/- 9%
Temperature
Operating
Non-operating
0° to 80° C (32° to 176° F)
–40° to 80° C (–40° to 176° F)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 90% (non-condensing)
Altitude
Operating
Non-operating
3,048 m (0 to 10,000 ft)
15,240 m (0 to 50,000 ft)
Configuration Utility5 Microsoft Windows XP
Choice of Configuration Utility:


Microsoft Windows XP Wireless Network Connection
Manager
Intel PROSet for Microsoft Windows XP (required for Cisco
Compatible Extensions support)
Microsoft Windows Vista


LED Activity
Microsoft Windows Vista Wireless Network Connection
Manager.
Intel IHV extensions for Windows Vista available to support
Cisco Compatible Extensions.
LED Off – Radio OFF; Solid LED On – Radio ON
1.
2.
3.
4.
Check latest software/driver release for updates on supported security features.
Maximum output power may vary by country according to local regulations.
In Power Save Polling mode and on battery power.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK
modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).
5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with
Microsoft Windows XP. WLAN may also be compatible with certain third-party software
supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions
support for Microsoft Windows Vista.
DA – 13616 EMEA — Version 1 — May, 2010
Page 34
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
Intel Centrino
Wireless-N 1000
Wireless LAN
Standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n*
* In countries where 802.11n is not allowed, this capability is not enabled.
Interoperability Wi-Fi certified
Cisco Compatible Extensions Program compliant with Microsoft Windows Vista
and XP
Frequency
Band
2.4 GHz
Antenna
Structure
1 transmit; 2 receive (1x2)
Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: many possible data rates, ranging from 6 Mbps to 300 Mbps,
depending on the combination of Bandwidth, Modulation Coding Scheme, and
Guard Interval used, as defined in IEEE 802.11n specification
Modulation
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Security1
Authentication: WPA and WPA2, 802.1x (EAP_TLS, TTLS, PEAP, LEAP, EAPFAST)
Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP, MS-CHAPv2
Encryption: 64 and 128-bit WEP, AES-CCMP, CKIP, TKIP
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program Version
4) with Microsoft Windows Vista and XP only.
Sub-channels
Multinational support with frequency bands and channels compliant to local
regulations.
Media Access
Protocol
CSMA/CA (Collision Avoidance) with ACK
Network
Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between 2.4GHz band Access Points
Output Power
(for CCK and
OFDM)2
15 dBm typical
Power
Consumption
Transmit: 1.4 Watts (average, with one spatial streams)
Receive: 1.3 Watts (average with two receive chains)
Idle mode3: 30 mW (average)
Radio off: 20 mW (max)
Power
Management
ACPI compliant power management
802.11 compliant power saving mode
DA – 13616 EMEA — Version 1 — May, 2010
Page 35
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
Receiver
Sensitivity4
54 Mbps: -74 dBm, 6 Mbps: -91 dBm
Antenna
Connections
2 U.FL type connectors, 50 ohm nominal impedance
Form Factor
PCI-Express Half-MiniCard
Weight
3.4 g (0.0075 lb)
3.1 x 26.8 x 30.0 mm (0.12 x 1.06 x 1.18 in)
Dimensions
Operating
Voltage
3.3V +/- 9%
Temperature
Operating
Non-operating
0° to 80° C (32° to 176° F)
–40° to 80° C (–40° to 176° F)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 90% (non-condensing)
Altitude
Operating
Non-operating
3,048 m (0 to 10,000 ft)
15,240 m (0 to 50,000 ft)
Configuration
Utility5
Microsoft Windows XP
Choice of Configuration Utility:


Microsoft Windows XP Wireless Network Connection Manager
Intel PROSet for Microsoft Windows XP (required for Cisco Compatible
Extensions support)
Microsoft Windows Vista


LED Activity
Microsoft Windows Vista Wireless Network Connection Manager.
Intel IHV extensions for Windows Vista available to support Cisco
Compatible Extensions.
LED Off – Radio OFF; Solid LED On – Radio ON
1.
2.
3.
4.
Check latest software/driver release for updates on supported security features.
Maximum output power may vary by country according to local regulations.
In Power Save Polling mode and on battery power.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation)
and a packet error rate of 10% for 802.11a/g (OFDM modulation).
5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with
Microsoft Windows XP. WLAN may also be compatible with certain third-party software
supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions
support for Microsoft Windows Vista.
LED Activity
LED Off – Radio OFF; Solid LED On – Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK
modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).
DA – 13616 EMEA — Version 1 — May, 2010
Page 36
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
4. WLAN supplier's client utility is required for Cisco Compatible Extensions support
with Microsoft Windows XP. WLAN may also be compatible with certain thirdparty software supplicants. WLAN supplier IHV extensions required for Cisco
Compatible Extensions support for Microsoft Windows Vista.
Broadcom 4322AGN Wireless LAN
802.11a/b/g/n
Standards
WiFi Adapter
IEEE
IEEE
IEEE
IEEE
802.11a
802.11b
802.11g
802.11n
Interoperability
Wi-Fi certified (802.11abg only)
Cisco Compatible Extensions Program compliant (802.11abg only)
with Microsoft Windows Vista and XP
Frequency Band
2.4 GHz and 5 GHz
Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6, 6.5, 9, 12, 13, 13.5, 18, 19.5, 24, 26, 27, 36, 39,
40.5, 48, 52, 54, 58.5, 65, 78, 81, 104, 108, 117, 121.5, 130,
135, 162, 216, 243, 270, 300 Mbps
Frequency Support
20 MHz: 2.4 GHz and 5 GHz bands
40 MHz: 2.4 GHz and 5 GHz bands
Modulation
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Security1
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated
AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAPMSCHAPv2, LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco
Aironet infrastructure products through the Cisco Compatible
Extensions Program Version 4) with Microsoft Windows Vista and XP
only.
Sub-channels
Multinational support with frequency bands and channels compliant to
local regulations.
Media Access
Protocol
CSMA/CA (Collision Avoidance) with ACK
Network
Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power (for
CCK)2
17 dBm
15 dBm
Output Power (for
OFDM; power varies by
data rate)2
DA – 13616 EMEA — Version 1 — May, 2010
Page 37
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
Power Consumption Idle associated: 250 mW
Idle unassociated: 150 mW
Transmit/Receive 20 MHz channel: 2.0 W (max)
Transmit/Receive 40 MHz channel: 2.0 W (max)
Power Management ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity3 270 Mbps: -61dBm, , 54 Mbps: -72 dBm, 11 Mbps: -85 dBm , 1
Mbps: -92 dBm
Antenna type
High efficiency dual band antenna with spatial diversity, mounted in
the display enclosure
Form Factor
PCI-Express Half-MiniCard
Weight
6 g (0.013 lb)
4.75 x 26.8 x 30 mm (0.19 x 1.06 x 1.18 in)
Dimensions
Operating Voltage
3.3v +/- 10%
Temperature
Operating
Non-operating
–10° to 65° C (14° to 149° F)
–40° to 80° C (–40° to 176° F)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
3,048 m (0 to 10,000 ft)
15,240 m (0 to 50,000 ft)
Configuration Utility4 Microsoft Windows XP
Choice of Configuration Utility:


Microsoft Windows XP Wireless Network Connection
Manager
Broadcom Wireless Configuration Utility (required for Cisco
Compatible Extensions support)
Microsoft Windows Vista


LED Activity
Microsoft Windows Vista Wireless Network Connection
Manager
Broadcom IHV extensions for Windows Vista available to
support Cisco Compatible Extensions.
LED Off – Radio OFF; Solid LED On – Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK
modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).
4. WLAN supplier's client utility is required for Cisco Compatible Extensions support with
Microsoft Windows XP. WLAN may also be compatible with certain third-party software
supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions
support for Microsoft Windows Vista.
DA – 13616 EMEA — Version 1 — May, 2010
Page 38
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
Broadcom 4313GN
802.11b/g/n
WiFi Adapter
Wireless LAN
Standards
Interoperability
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Wi-Fi certified
Cisco Compatible Extensions Program compliant with Microsoft Win7,
Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN)
Frequency Band
2.4 GHz
Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5, 7.2, 13, 14.4, 19.5, 21.7, 26, 28.9, 39, 43.3, 52,
57.8, 58.5, 65, 72.2Mbps
Frequency Support
20 MHz: 2.4 GHz bands
Modulation
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Security1
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated
AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAPMSCHAPv2, LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco
Aironet infrastructure products through the Cisco Compatible Extensions
Program Version 4) with Microsoft Windows Vista and XP only.
Sub-channels
Multinational support with frequency bands and channels compliant to
local regulations.
Media Access
Protocol
CSMA/CA (Collision Avoidance) with ACK
Network
Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power (for
CCK)2
17 dBm , nominal
15 dBm , nominal
Output Power (for
OFDM; power varies by
data rate)2
Power Consumption Idle associated: 250 mW avg (CLKREQ enabled)
Idle unassociated: 425 mW avg
Transmit/Receive 20 MHz channel: 5.5 W (max)
Power Management ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity3 72.2 Mbps: -71dBm
Antenna type
High efficiency dual band antenna with spatial diversity, usually
mounted in the display enclosure
Form Factor
PCI-Express Half-MiniCard
DA – 13616 EMEA — Version 1 — May, 2010
Page 39
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
Weight
6 g (0.013 lb)
Dimensions
4.75 x 26.8 x 30 mm (0.19 x 1.06 x 1.18 in)
Operating Voltage
3.3v +/- 10%
Temperature
Operating
Non-operating
-10° to 65° C (14° to 149° F)
-40° to 80° C (-40° to 176° F)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
3,048 m (0 to 10,000 ft)
15,240 m (0 to 50,000 ft)
LED Activity
LED Off - Radio OFF; Solid LED On - Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK
modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).
4. WLAN supplier's client utility is required for Cisco Compatible Extensions support with
Microsoft Windows XP. WLAN may also be compatible with certain third-party software
supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions
support for Microsoft Windows Vista and Win7.
HP Integrated
Bluetooth
Module with
Specification
Bluetooth 2.1+EDR
Dimensions
Wireless Technology
Frequency Band
2.1+EDR Compliant
30 x 6.5 x 3.25 mm (1.18 x 0.26 x 0.13 in)
2402 to 2480 MHz
Number of Available 79 (1 MHz) available channels
Channels
Data Rates and
Throughput
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice
channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric or 1306.9 kbps symmetric
Transmit Power
-6 dBm to 4 dBm (Bluetooth Class II)
Receiver Sensitivity
Better than -80 dBM at 0.1 % raw bit error rate
Power Consumption Peak (Tx) 264 mW
Peak (Rx) 231 mW
Sleep <1 mW
Antenna
Internally integrated within module
Range
Up 10 m (33 ft)
Electrical Interface
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Bluetooth Software
Supported
Broadcom Bluetooth for Windows
Microsoft Windows Bluetooth Software
DA – 13616 EMEA — Version 1 — May, 2010
Page 40
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
Link Topology
Point to Point, Multipoint Pico Nets up to 7 slaves
Security
Full support of Bluetooth Security Provisions
Power Management Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating
modes, including Standby, Hold, Park, and Sniff
Certifications
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Temperature
Humidity
Altitude
Bluetooth Profiles
Supported
Operating
-20° to 70° C (-4° to 158° F)
Non-operating
-40° to 80° C (-40° to 176° F)
Operating
10% to 90%
Non-operating
5% to 95%
Operating
4,572 m (15,000 ft)
Non-operating
12,192 m (40,000 ft)
Serial Port Profile (SPP)1
Service Discovery Applicaton Profile (SDAP)
Dial-Up Networking (DUN)1,2
Generic Object Exchange Profile (GOEP)1,2
Object Push Profile (OPP)1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)1,2
Personal Area Networking Profile (PAN)1,2
Human Interface Device Profile (HID)1,2,3
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
1
2
indicates the profile is supported by Microsoft Windows XP SP2
indicates the profile is part of Windows Vista
Copyright © 2010 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows, Windows 7, Windows Vista and Windows XP are registered trademarks or
trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel, Core, and Celeron are registered trademarks
or trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG,
Inc., in the U.S. and other countries. All other product names mentioned herein may be trademarks of their respective
companies.
DA – 13616 EMEA — Version 1 — May, 2010
Page 41
QuickSpecs
HP ProBook 6450b Notebook PC
HP ProBook 6550b Notebook PC
Technical Specifications
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind.
The warranties for HP products are set forth in the express limited warranty statements accompanying such products.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA – 13616 EMEA — Version 1 — May, 2010
Page 42
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
