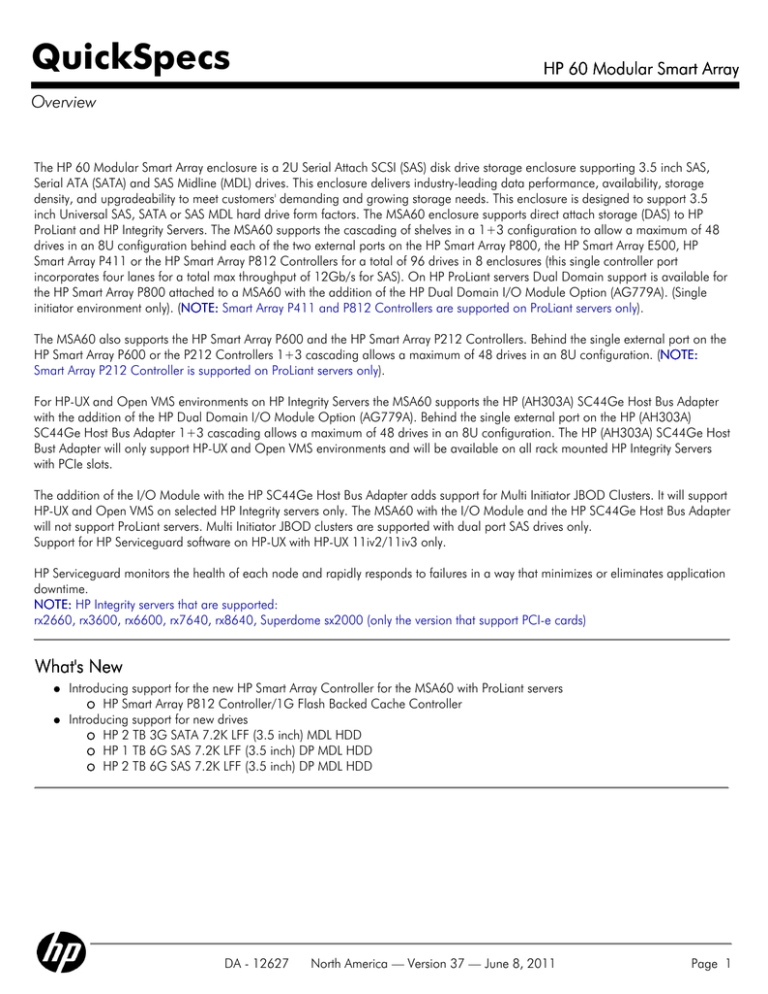

QuickSpecs
HP 60 Modular Smart Array
Overview
The HP 60 Modular Smart Array enclosure is a 2U Serial Attach SCSI (SAS) disk drive storage enclosure supporting 3.5 inch SAS,
Serial ATA (SATA) and SAS Midline (MDL) drives. This enclosure delivers industry-leading data performance, availability, storage
density, and upgradeability to meet customers' demanding and growing storage needs. This enclosure is designed to support 3.5
inch Universal SAS, SATA or SAS MDL hard drive form factors. The MSA60 enclosure supports direct attach storage (DAS) to HP
ProLiant and HP Integrity Servers. The MSA60 supports the cascading of shelves in a 1+3 configuration to allow a maximum of 48
drives in an 8U configuration behind each of the two external ports on the HP Smart Array P800, the HP Smart Array E500, HP
Smart Array P411 or the HP Smart Array P812 Controllers for a total of 96 drives in 8 enclosures (this single controller port
incorporates four lanes for a total max throughput of 12Gb/s for SAS). On HP ProLiant servers Dual Domain support is available for
the HP Smart Array P800 attached to a MSA60 with the addition of the HP Dual Domain I/O Module Option (AG779A). (Single
initiator environment only). (NOTE:
NOTE: Smart Array P411 and P812 Controllers are supported on ProLiant servers only).
The MSA60 also supports the HP Smart Array P600 and the HP Smart Array P212 Controllers. Behind the single external port on the
HP Smart Array P600 or the P212 Controllers 1+3 cascading allows a maximum of 48 drives in an 8U configuration. (NOTE:
NOTE:
Smart Array P212 Controller is supported on ProLiant servers only).
For HP-UX and Open VMS environments on HP Integrity Servers the MSA60 supports the HP (AH303A) SC44Ge Host Bus Adapter
with the addition of the HP Dual Domain I/O Module Option (AG779A). Behind the single external port on the HP (AH303A)
SC44Ge Host Bus Adapter 1+3 cascading allows a maximum of 48 drives in an 8U configuration. The HP (AH303A) SC44Ge Host
Bust Adapter will only support HP-UX and Open VMS environments and will be available on all rack mounted HP Integrity Servers
with PCIe slots.
The addition of the I/O Module with the HP SC44Ge Host Bus Adapter adds support for Multi Initiator JBOD Clusters. It will support
HP-UX and Open VMS on selected HP Integrity servers only. The MSA60 with the I/O Module and the HP SC44Ge Host Bus Adapter
will not support ProLiant servers. Multi Initiator JBOD clusters are supported with dual port SAS drives only.
Support for HP Serviceguard software on HP-UX with HP-UX 11iv2/11iv3 only.
HP Serviceguard monitors the health of each node and rapidly responds to failures in a way that minimizes or eliminates application
downtime.
NOTE: HP Integrity servers that are supported:
rx2660, rx3600, rx6600, rx7640, rx8640, Superdome sx2000 (only the version that support PCI-e cards)
What's New
Introducing support for the new HP Smart Array Controller for the MSA60 with ProLiant servers
HP Smart Array P812 Controller/1G Flash Backed Cache Controller
Introducing support for new drives
HP 2 TB 3G SATA 7.2K LFF (3.5 inch) MDL HDD
HP 1 TB 6G SAS 7.2K LFF (3.5 inch) DP MDL HDD
HP 2 TB 6G SAS 7.2K LFF (3.5 inch) DP MDL HDD
DA - 12627
North America — Version 37 — June 8, 2011
Page 1
QuickSpecs
HP 60 Modular Smart Array
Overview
Front panel LEDs and buttons
1. Heartbeat LED
2. Fault LED
3. UID button/LED
Rear Panel components
1. Power Supply 1
2. System fan 1
3. Dual 7 segment display board (for future use)
4. SAS in connector
5. SAS out connector
DA - 12627
6.
7.
8.
9.
I/O module bay
I/O module bay
System fan 2
Power supply 2
North America — Version 37 — June 8, 2011
Page 2
QuickSpecs
HP 60 Modular Smart Array
Overview
At A Glance
2U rackmount form factor
3 Gb/s SAS host connectivity
Dual Domain support with HP Smart Array P800 Controller for HP ProLiant and Integrity servers (requires dual port SAS
drives)
Multi Initiator support with the SC44Ge Host Bus Adapter (AH303A) (HP-UX and Open VMS on selected HP Integrity Servers)
with dual port SAS drives only
Supports HP SAS single port and dual port 3G SAS disk drives, (72 GB, 146 GB, 300 GB & 450 GB 15K & 400 GB 10K
capacities) and 6G DP SAS disk drives (300GB, 450GB & 600GB 15K capacities)
Ability to support HP SAS dual port MDL (Midline) 6G disk drives (1 TB and 2 TB capacities)
Compatible with HP SATA 3G disk drives, (500 GB, 1 TB and 2 TB capacities)
Maximum storage capacity of 7.2 TB (with twelve HP SAS 6G 600 GB hard drives) or 24 TB (with twelve HP SATA 3G 2 TB
hard drives or 2 TB SAS MDL drives)
1+3 Cascade support (behind a single SAS port)
Supports boot from storage
Redundant hot-plug power supplies and fans standard
Addition of second I/O Module adds Dual Domain capability providing higher level of redundancy and reliability
DA - 12627
North America — Version 37 — June 8, 2011
Page 3
QuickSpecs
HP 60 Modular Smart Array
Standard Features
Modular Smart Array
Family
The HP Modular Smart Array family delivers simple, affordable storage technology to meet today's
demanding and growing IT needs. These storage solutions offer the best price/performance and best
price/availability features for direct attach environments, small clusters, workgroups and entry-level SAN
environments. Each solution is designed for easy deployment, secure operation, and reduced
management costs while driving rapid return on investment.
MSA60
The HP MSA60 Enclosure (hereafter referred to as "MSA60") is a disk drive storage enclosure with 3G
SAS host connectivity. These enclosures deliver industry-leading availability, storage density, and
upgradeability to meet customers' demanding and growing storage needs. The MSA60 delivers the ideal
mix of low-cost and high capacity, for minimum I/O workloads such as reference data, archival, and
disk-to-disk backup.
Key Features
2U rackmount form factor
SAS host interface
Dual Domain support with HP Smart Array P800 Controller (requires dual port SAS drives)
Multi Initiator support with the SCG44e Host Bus Adapter (AH303A) (HP-UX and Open VMS on
selected HP Integrity Servers) with dual port SAS drives only
Supports twelve 3.5-inch hot pluggable drives
Ability to support, 72 GB ,146 GB, 300 GB & 450 GB 15K and 400 GB 10K 3.5 inch 3G SAS
single port and dual port drives, and 300GB, 450GB & 600GB 6G SAS dual port drives
Ability to support HP 6G SAS dual port MDL (Midline) disk drives (1 TB & 2 TB capacities)
Compatible with HP SATA 3G disk drives, (250 GB, 500 GB, 750 GB, 1 TB & 2 TB capacities)
Modular design
1+3 Cascade support (behind a single SAS port)
SATA 3G - Delivering data transfer rates greater than 100 MB/s
Provides storage capacity of up to 7.2 TB per enclosure using 6G , 600GB DP SAS disk drives
Provides storage capacity of up to 24 TB per enclosure using 2 TB SATA disk drives or 2 TB SAS
MDL HDD
Hot pluggable disk drives, power supplies, and fans
Redundant fans and power supplies ship as standard equipment with base enclosure
Each MSA60 enclosure comes with dual power supplies that are sufficient to provide power to the
enclosure and maintain normal operating levels
Integrated Environmental Monitoring - Monitors environmental conditions within the enclosure
and components such as the power supply, fans and temperature
Easy removal of parts provides better serviceability. No tools are required!
Supports MS Windows 2003, MS Windows 2008, Red Hat Linux, SUSE Linux, Novell NetWare,
HP-UX 11iv2 and 11iv3, Open VMS 8.3 1H
Supported with Smart Array P800, the Smart Array E500, the Smart Array P600, the Smart Array
P411, the Smart Array P212 or the HP Smart Array P812 Controller for HP ProLiant Servers and
HP Integrity Servers in a single initiator environment. (NOTE: Smart Array P411, P212 & P812
Controllers are supported on ProLiant servers only).
Attached to HP SC44Ge Host Bus Adapter for HP-UX and Open VMS support on selected HP
Integrity Servers (servers that support PCI-e cards)
Supported with ACU, ORCA and HP Systems Insight Manager through configuration utilities
provided via the Smart Array controller
RoHS compliant
3 year limited warranty (MSA60 enclosure only)
Pre-Failure warranty that covers SAS and SATA disk drives (See note below)
DA - 12627
North America — Version 37 — June 8, 2011
Page 4
QuickSpecs
HP 60 Modular Smart Array
Standard Features
NOTE: Customer must be running HP Systems Insight Manager in order to qualify for Pre-Failure
warranty. The enclosure is only covered for the warranty period of the drive (3 years for SAS and 1 year
for SAS Midline (MDL) and SATA drives).
DA - 12627
North America — Version 37 — June 8, 2011
Page 5
QuickSpecs
HP 60 Modular Smart Array
Product Highlights
High Levels of Storage
Density, Data Protection,
and Functionality
Low Total Cost of
Ownership
Storage Capacity - The MSA60 enclosure supports up to 12 SAS drives for a maximum capacity
of 7.2 TB SAS drives or 24 TB with SATA or SAS MDL drives
Data Protection - MSA60 is designed for a high level of data protection. It includes redundant
fans and power supplies (standard), and support for various RAID level including RAID6 with ADG
(depending upon the Smart Array Controller used)
Dual Domain - Dual domain SAS creates redundant pathways from servers to storage devices.
The redundant paths created by these configurations reduce or eliminate single points of failure
within the storage network. This provides increased levels of high availability with redundant paths
from the controller to the drives.
Storage Manageability - The MSA60 features familiar configuration and management tools such
as Array Configuration Utility (ACU) and HP Systems Insight Manager (SIM). Online Management
Features include: Online Capacity Expansion, Online RAID Level Migration, Online Stripe Size
Migration, Online Spares (Global)
Choice of Computing Platform - The MSA60 is designed and qualified for HP ProLiant and HP
Integrity servers
Advanced Data Guarding (RAID 6 with ADG) Fault Tolerance - It allocates two sets of parity data
across drives and allows simultaneous write operations. This level of fault tolerance can withstand
two simultaneous drive failures without downtime or data loss.
The modular, scalable design of the MSA60 provides an extremely flexible platform. You can buy what
you need today and purchase additional capacity as your data storage needs grow, instead of making a
large up-front investment. Additional drives and enclosures can be easily added as your needs dictate.
Cascading - The MSA60 has the unique capability of cascading up to 4 - four enclosures behind
a single SAS port (depends on the Smart Array Controller).
Tiered Storage - MSA60 supports mixing SAS and SATA drives in the same enclosure, allowing
you to more effectively utilize mission critical storage where you need it most.
Universal SATA Hard Drive - Since the MSA60 supports HP Universal SATA drives, your
investment in disk drives is protected and cost is minimized as you add new drives.
Pre-Failure Warranty - Drives installed in a MSA60 and monitored under HP Systems Insight
Manager are supported by a Pre-Failure (replacement) Warranty (3 years for SAS and 1 year for
SAS MDL and SATA drives). Pre-Failure Warranty allows for the replacement of designated drives
in MSA60 before they actually fail when using HP Systems Insight Manager on HP ProLiant or HP
Integrity servers.
NOTE: Some operating systems may not support all of these features.
Integrated Configuration and Management Tools - The MSA60 utilizes the standard, integrated
set of Smart Array management and utility software for HP ProLiant Servers. These tools
consistently lower the cost of ownership by reducing training and technical expertise necessary to
install and maintain HP server storage. HP-UX and Open VMS uses HP Integrity ODE for storage
enclosure support.
DA - 12627
North America — Version 37 — June 8, 2011
Page 6
QuickSpecs
HP 60 Modular Smart Array
MSA60 Components
MSA60 Enclosure
The 2U array houses up to twelve 3.5 inch Universal hot pluggable SAS or SATA drives.
Each MSA60 includes the following standard components:
MSA60 base enclosure with redundant power supplies and fan modules
Rack mounting hardware kit
0.5m mini-SAS cable
Two AC power cords and two PDU interconnect cords
Smart Array P800
Features
HP's highest performing 16-port PCI-express controller with expander support
Expander support enables the addition of external storage, allowing increased number of drives
for increased performance
Provides highest level of data protection standard by using RAID 6 with Advanced Data Guarding
Supports a maximum total of 104 hard drives (96 drives across eight enclosures plus 8 drives in
the server internal backplane)
Supported in a single initiator environment
For more information see:
http://h18004.www1.hp.com/products/quickspecs/12616_na/12616_na.html
Smart Array E500
Features
HP's first external connect only PCI Express (PCIe) Serial Attached SCSI (SAS) RAID controller
Expander support enables the addition of external storage, allowing increased number of drives
for increased performance
Offers RAID 0, 1 & 0+1 and can be upgraded with battery-backed write cache (BBWC) module
for RAID 5
Supports a maximum total of 108 hard drives
Supported in a single initiator environment
Formore information see:
http://h18004.www1.hp.com/products/quickspecs/12700_na/12700_na.html
Smart Array P411
Features
The HP Smart Array P411 is HP's PCI Express (PCIe) Serial Attached SCSI (SAS) RAID controller
Low profile, half height card has 8 ports and utilizes DDR2-800 memory
The P411 is ideal for RAID 0/1, 5, 1+0 & 5+0 and can be upgraded with the 512MB batterybacked write cache (BBWC) module and Smart Array Advanced via license key for RAID 6 &, 6 +
0, 50 and 60
For more information see:
http://h18004.www1.hp.com/products/quickspecs/13202_na/13202_na.html
Smart Array P212
Features
The HP Smart Array P212 is HP's entry level PCI Express (PCIe) Serial Attached SCSI (SAS) RAID
controller
The Low Profile, Half Height card has 8 ports and utilizes DDR2-266 memory
The P212 is ideal for RAID 0/1, 1+0 and can be upgraded with the 256MB battery-backed write
cache (BBWC) module for RAID 5, 5+0
For more information see:
http://h18004.www1.hp.com/products/quickspecs/13203_na/13203_na.html
DA - 12627
North America — Version 37 — June 8, 2011
Page 7
QuickSpecs
HP 60 Modular Smart Array
MSA60 Components
Smart Array P812
Features
The HP Smart Array P812 provides superior RAID performance, while delivering high levels of
connectivity, reliability, and many advanced features
Increased connectivity with 8 internal ports and 16 external ports.
1 G 72-bit wide DDR2-800 flash-backed write cache (FBWC).
Smart Array Advanced Pack (SAAP) license key included standard
For moreinformation see:
http://h18004.www1.hp.com/products/quickspecs/13558_na/13558_na.html
HP (AH303A) SC44Ge
Host Bus Adapter
SAS technology delivers high performance and data bandwidth up to 3 Gbps per physical link.
PCI Express x8 capable
PCIe x8 (2.5 GB/s bandwidth)
Supported in a Multi Initiator environment
RAID
Several fault tolerant configurations keep data available and servers running while drives are being
replaced – RAID levels that offer fault tolerance include:
RAID 50 (RAID 5+0) protects against failure of one drive (and failure of particular multiple
drives). RAID 50 is a nested RAID method that uses RAID 0 striping across RAID 5 arrays. RAID 50
tolerates one drive failure in each spanned array without loss of data. RAID 50 requires less
rebuild time than single RAID 5 arrays RAID 50 requires a minimum of six drives.
RAID 60 (RAID 6+0) allows administrators to split the RAID 6 storage across multiple external
boxes. RAID 60 requires a minimum of eight drives. RAID 60 is a nested RAID method that uses
RAID 0 block-level striping across multiple RAID 6 arrays with dual distributed parity. With the
inclusion of dual parity, RAID 60 will tolerate the failure of two disks in each spanned array
without loss of data.
RAID 6 with ADG:
ADG Allocates the equivalence of two parity drives across multiple drives and allows
simultaneous write operations.Distributed Data Guarding (RAID 5): Allocates parity data across
multiple drives and allows simultaneous write operations.Drive Mirroring (RAID 1 and 1+0 Striped
Mirroring): Allocates half of the drive array to data and the other half to mirrored data, providing
two copies of every file.
Dual Domain (NEW)
Dual domain SAS creates redundant pathways from servers to storage devices. The redundant paths
created by these configurations reduce or eliminate single points of failure within the storage network.
This provides increased levels of high availability with redundant paths from the controller to the drives.
Dual domain SAS implementations make it possible to tolerate host bus adapter (HBA) failure, external
cable failure, expander failure, failure in a spanned disk (JBOD) environments.
DA - 12627
North America — Version 37 — June 8, 2011
Page 8
QuickSpecs
HP 60 Modular Smart Array
Software Components
Utilities
Configuration Utilities
Management/Health
Utilities
The MSA60 utilizes a single, consistent set of utility software for storage and RAID management, setup,
configuration and troubleshooting. This consistency reduces the cost of ownership by reducing the
training and technical expertise necessary to install and maintain your HP server storage solution.
Array Configuration Utility (ACU) [On-line for Microsoft and Linux, Remote Web-Based & Off-line]
Option ROM Configuration for Arrays (ORCA), NetWare ACU CPQONLIN (only online support no Web
based support)
HP Systems Insight Manager
Array Configuration Utility
(ACU)
Provides a graphical view of HP drive array configurations.
Easy to use Wizards for configuration.
Web Based ACU supports On-Line, Remote Web Based and Off-line configuration.
Supports on-line configuration for Microsoft, NetWare and Linux.
HP Systems Insight
Manager
Powerful storage, server and server option management tool.
Monitor storage from a remote central location.
Browser based Insight Manager 7 provides full access from anywhere on the Intranet, eliminating
the need for a dedicated Insight Manager console.
Supported Operating
Systems
HP ProLiant Servers
NOTE: For information on supported Operating Systems, please see the following Smart Array
Quickspecs:
E500: http://h18004.www1.hp.com/products/quickspecs/12700_na/12700_na.html
P600: http://h18004.www1.hp.com/products/quickspecs/12247_na/12247_na.html
P800: http://h18004.www1.hp.com/products/quickspecs/12616_na/12616_na.html
P212: http://h18004.www1.hp.com/products/quickspecs/13203_na/13203_na.html
P411: http://h18004.www1.hp.com/products/quickspecs/13202_na/13202_na.html
P812: http://h18004.www1.hp.com/products/quickspecs/13558_na/13558_na.html
HP Integrity Servers
HPUX 11iv2/11iv3
Open VMSV 8.3 1H
NOTE: HPUX 11iv2/11iv3 (for Dual Domain only)
Needs I/O Module (#AG779A), and HP SC44Ge Host Bus Adapter or HP Smart Array P800
Controller
Qualified for the following HP Integrity servers:
rx2660, rx3600, rx6600, rx7640, rx8640, Superdome sx2000 (only the version that support PCIe cards)
NOTE: Open VMS (for Dual Domain only)
Needs I/O Module (#AG779A), and HP (AH303A) SC44Ge Host Bus Adapter
Qualified for the following HP Integrity servers:
rx2660, rx3600, rx6600, rx7640, rx8640, Superdome sx2000 (only the version that support PCIe cards)
DA - 12627
North America — Version 37 — June 8, 2011
Page 9
QuickSpecs
HP 60 Modular Smart Array
Service and Support, HP Care Pack, and Warranty Information
Service and Support
Three-year limited parts only warranty, including hardware diagnostic support, pre-failure warranty
(coverage of hard drives, memory and processors). The warranty is fully supported by HP Services and a
worldwide network of resellers and service providers. In addition 90-day's getting started software
telephone support may be covered under the warranty or available for an additional fee. Enhancements
to warranty services are available through HP Care Pack services.
NOTE: The MSA60 has a limited 3 year parts only warranty. The SAS drives have a 3 year warranty. SAS
MDL and SATA drives have a 1 year warranty
Care Pack services provide a range of life cycle support options that let you choose the service levels that
meet your business requirements, from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available including:
Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7
days call window with options including 4-hour response or 6-hour Call To Repair
Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials
solutions helping to deliver high level of application availability. Response times range from 30
minutes for critical problems to 2 hours.
System Management, Performance Services and Mission Critical Support Solution
Service includes HP branded hardware options qualified for the storage enclosure, purchased at the
same time or afterwards, internal to the enclosure. These will be covered at the same service level and
coverage period as the storage enclosure.
NOTE: For more information on HP Care Pack services, contact any of our worldwide sales offices or
resellers or visit our worldwide Web site on the Internet at: http://www.hp.com/hps/carepack
NOTE: For more complete information on HP Services offerings, customers and resellers, please visit us
at: http://www.hp.com/hps
NOTE: Additional information regarding worldwide limited warranty and technical support is available
at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
HP Care Pack Information Flexible Support
1 Year Support
3 Year Support
DA - 12627
North America — Version 37 — June 8, 2011
HA101A1-87G
HA103A1-87G
HA104A1-87G
HA105A1-87G
HA109A1-87G
HA110A1-87G
HA111A1-87G
HA112A1-87G
HA101A3-87G
HA103A3-87G
HA104A3-87G
HA105A3-87G
HA109A3-87G
Page 10
QuickSpecs
HP 60 Modular Smart Array
Service and Support, HP Care Pack, and Warranty Information
4 Year Support
5 Year Support
Fixed Care Packs
DA - 12627
Installation & Start-Up
HP 1Y NBD,9X5 MSA60 HW Support
HP 1Y 4h 13x5 MSA60 HW Support
HP 1Y 4h 24x7 MSA60 HW Support
HP 1y 6h CTR MSA60 HW Support
HP 3y NBD 9x5 MSA60 HW Support
HP 3y 4h 13x5 MSA60 HW Support
HP 3y 4h 24x7 MSA60 HW Support
HP 3y 6h CTR MSA60 HW Support
HP 1y PW NBD MSA60 HW Support
HP 1y PW 4h 13x5 MSA60 HW Support
HP 1y PW 4h 24x7 MSA60 HW Support
HP 1y PW 6h CTR MSA60 HW Support
Hardware Installation, Electronic
North America — Version 37 — June 8, 2011
HA110A3-87G
HA111A3-87G
HA112A3-87G
HA101A4-87G
HA103A4-87G
HA104A4-87G
HA105A4-87G
HA109A4-87G
HA110A4-87G
HA111A4-87G
HA112A4-87G
HA101A5-87G
HA103A5-87G
HA104A5-87G
HA105A5-87G
HA109A5-87G
HA110A5-87G
HA111A5-87G
HA112A5-87G
HA113A1-564
UF297E
UF298E
UF299E
UF300E
UF301E
UF302E
UF303E
UF304E
UF305PE
UF306PE
UF307PE
UF308PE
U8132E
Page 11
QuickSpecs
HP 60 Modular Smart Array
Configuration Information
Step 1: Base Configuration
Model
MSA60
I/O Module
Shipping Dimensions
HP 60 Modular Smart Array
HP Modular Dual Domain I/O Module Option Kit
NOTE: The I/O Module is a field upgradeable Option Kit the addition of which in the
MSA60 will allow dual domain capability providing higher level of redundancy and
reliability.
HP Smart Array P800 Controller (381513-B21) supports Dual Domain on the
MSA60 with the addition of the HP Dual Domain I/O Module in a single
initiator environment.
Requires Dual port SAS drives
HP (AH303A) SC44Ge Host Bus Adapter supports Dual Domain on the MSA60
with the addition of the HP Dual Domain I/O Module in a Multi Initiator
environment. Supports only HP-UX and Open VMS and on selected HP Integrity
Servers only.
MSA60 SAS MDL Dual
HP MSA60 5.4TB SAS DP HDD Bundle (MSA60 w/12 450GB 15K SAS LFF DP HDD
Port drive bundle
+ Additional I/O Module)
HP MSA60 12 TB SAS DP MDL HDD Bundle (MSA60 w/12 1 TB 7.2K SAS Midline
(MDL) DP HDD + Additional I/O Module)
MSA60 Americas bundles HP MSA60 w/ Dual Domain I/O Module, (12) 3.5-in. 300GB SAS Drives w/ cable
NOTE: available in USA & Solution
Canada only
(1) HP MSA60 Modular Smart Array Enclosure;
(1) HP Modular Dual Domain I/O Module Option Kit;
(12) HP 300GB 3G 15K SAS 3.5" DP HDD;
(1) Mini SAS 4x2M Cable All
HP MSA60 w/ (12) 1TB 3.5-in. LFF 7.2K rpm SATA MDL Drives w/ cable Solution
(1) HP MSA60 Modular Smart Array Enclosure;
(12) HP 1TB 3G SATA7.2K 3.5"MDL HDD;
(1) Mini SAS 4x2M Cable All
DA - 12627
North America — Version 37 — June 8, 2011
Part Number
418408-B21
AG779A
AP713A
AP714A
AJ922A
AJ924A
Page 12
QuickSpecs
HP 60 Modular Smart Array
Configuration Information
Step 2: Array Controllers
Smart Array Controllers
Supported
(Single Domain)
Smart Array Controllers
Supported
(Dual Domain)
Description
HP ProLiant Servers
HP Smart Array P800 controller
HP Smart Array E500 controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P812 Controller/ 1G Flash Backed Cache Controller
HP Smart Array P411/256MB Controller
HP Smart Array P411/512MB BBWC
HP Smart Array P411/1G FBWC Controller
HP Smart Array P212/256MB Controller
HP Integrity Servers
HP Smart Array P800 controller
HP Smart Array E500 controller
HP Smart Array P600/256 BBWC Controller
NOTE: The HP Smart Array P800 supports the cascading of shelves in a 1+3
configuration to allow a maximum of 48 drives in an 8U configuration behind or the
HP Smart Array P800 controller for a total of 96 drives on the two external ports.
NOTE: Dual Domain is support for the HP Smart Array P800 controller (single
initiator only)
NOTE: The HP Smart Array P600 supports the cascading of shelves in a 1+3
configuration to allow a maximum of 48 drives in an 8U configuration behind or the
HP Smart Array P600 controller as the P600 has only a single external port.
NOTE: The Smart Array E500 offers RAID 0, 1 and 0+1 and can be upgraded with
ProLiant server to RAID 5 with battery-backed write cache (BBWC) module - 383280B21.
NOTE: Smart Arrays P411 and P212 are supported on ProLiant servers only
HP ProLiant Servers
HP Smart Array P800 controller
HP Integrity Servers
HP SC44Ge Host Bus Adapter
NOTE: Only HP-UX and Open VMS on selected HP Integrity servers supported.
HP Integrity servers that are supported:
rx2660, rx3600, rx6600, rx7640, rx8640, Superdome sx2000 (only the version that
support PCI-e cards).
DA - 12627
North America — Version 37 — June 8, 2011
Part Number
381513-B21
435129-B21
337972-B21
487204-B21
462830-B21
462832-B21
572531-B21
462834-B21
AD335A
AH226A
337972-B21
381513-B21
AH303A
Page 13
QuickSpecs
HP 60 Modular Smart Array
Configuration Information
Step 3: Choose HP ProLiant Server(s)/HP Integrity Server(s)
Server Compatibility
HP ProLiant Servers
For up to date compatibility, please see the following URL for complete Smart Array P600,
P800,E500,P411, P212 & P812 Controller compatibility and support information:
http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/index.html
HP Integrity Servers
HP Integrity Server rx2660 with combination PCIx/PCIe riser only
HP Integrity Server rx3600 with combination PCIx/PCIe backplane only
HP Integrity Server rx6600 with combination PCIx/PCIe backplane only
HP integrity Server rx7640 with combination PCIx/PCIe only
HP integrity Server rx8640 with combination PCIx/PCIe only
HP integrity Server sx2000 with combination PCIx/PCIe only
NOTE: HP Integrity Server home:
http://www.hp.com/products1/serverconnectivity/support_matrices.html
Step 4: Choose Hard Drives
SAS Drives
SAS MDL (Midline)
SATA Drives
6G LFF Serial Attached SCSI (SAS) Hard Drives
HP 300GB 6G SAS 15K LFF (3.5-inch) DP ENT HDD
HP 450GB 6G SAS 15K LFF (3.5-inch) DP ENT HDD
HP 600GB 6G SAS 15K LFF (3.5-inch) DP ENT HDD
NOTE: 6G SAS drives will work in 3G systems like the MSA60. 6G SAS drives will
only function as 3G drives in a MSA60..
NOTE: 6G SAS drives will only function as 3G drives in a MSA60
HP 1TB 6 GB SAS 7.2K LFF (3.5 inch) DP MDL HDD
HP 2TB 6 GB SAS 7.2K LFF (3.5 inch) DP MDL HDD
HP 2 TB 3G SATA 7.2K LFF (3.5-inch) MDL HDD
HP 1 TB 3G 7.2K 3.5-inch SATA MDL HDD
HP 500 GB 3G SATA 7.2K LFF (3.5-inch) SATA MDL HDD
NOTE: The following PN#s for SATA drives have been replaced by new PN#s:
516814-B21
516816-B21
516828-B21
507614-B21
507616-B21
507632-B21
454146-B21
458928-B21
250GB: New PN# 458926-B21 replaces Old PN# 349239-B21
500GB: New PN# 458928-B21 replaces Old PN# 394573-B21
750GB: New PN# 458930-B21 replaces Old PN# 432341-B21
NOTE: SATA drives are not Dual Port drives
NOTE: There is a known compatibility issue with some early 3.5 inch SATA HDD that
will make them unable to be used with the MSA20/60. Customers should verify that
they are not using hard drive part number 356536-002/003 (spare 353044-001).
The following SATA hard drives require SATA FirmWare flash in order to work
properly. They are:
500GB SATA 1.5 - Model # 6H500F0, min F/W rev: HA431DD0
80GB RoHS Mask Rom SATA 1.5, Model # 6L080M0, min F/W rev BACE1GG0
160GB RoHS Mask Rom SATA 1.5, Model # 6L160M0, min F/W rev BACE1GG0
250GB RoHS Mask Rom SATA 1.5, Model # 6L250S0, min F/W rev BACE1GG0
DA - 12627
North America — Version 37 — June 8, 2011
Page 14
QuickSpecs
HP 60 Modular Smart Array
Configuration Information
NOTE: Go to the HP Hard Drive Compatibility table for complete drive compatibility
information (http://www.hp.com/products/harddiskdrives). Using hard drives in
unsupported configurations will result in voiding the warranty and could result in
damage to the drive and/or loss of data.
Step 5: Choose Rack Option
HP Racks
HP Universal Rack 10642 G2 Pallet ALL
HP Universal Rack 10642 G2 Shock Rack
HP Universal Rack 10642 G2 Crated ALL
HP Universal Rack 10642 G2 w/Ext Shock Rack
HP Universal Rack 10636 G2 Pallet ALL
HP Universal Rack 10636 G2 Shock Rack
HP Universal Rack 10636 G2 Crated ALL
HP Universal Rack 10636 G2 w/Ext Shock Rack
HP 10642 G2 200mm Extn Shock Rack
HP 10647 G2 200mm Extn Shock Rack
HP Rack S10614 (14U) Rack Cabinet – Shock Pallet
AF001A
AF002A
AF003A
AF004A
AF011A
AF012A
AF013A
AF014A
AF034A
AF044A
292302-B22
Step 6: Choose Cables
Cable Options
Cables used for connecting the HP Smart Array P800/512 BBWC Controller (P/N
381513-B21 or AD335A) the HP Smart Array E500 (P/N 435129-B21 or AH226A),
the HP Smart Array P212 (P/N 462834-B21), the HP Smart Array P411 (P/Ns
462830-B21 or 462832-B21) or the P812 (P/Ns 487204-B21) to MSA60
Mini SAS 4x 2M Cable All
Mini SAS 4x 4M Cable All
Mini SAS 4x 6M Cable All
*#0D1 will appear after this part number on your sales order if factory integration is
indicated.
Cables used for connecting the HP Smart Array P600/512 BBWC Controller (P/N
337972-B21) or the HP SC44Ge Host Bus Adapter (P/N AH303A) to MSA60
SAS 4x to Mini SAS 4x 2M
SAS 4x to Mini SAS 4x 4M
SAS 4x to Mini SAS 4x 6M
*#0D1 will appear after this part number on your sales order if factory integration is
indicated.
DA - 12627
North America — Version 37 — June 8, 2011
407339-B21*
432238-B21*
432239-B21*
419571-B21*
419572-B21*
419573-B21*
Page 15
QuickSpecs
HP 60 Modular Smart Array
Technical Specifications
LED Indicators for HDDs Online (bottom)
Drive Failure/ID (top)
LED Indicators on Front Heartbeat LED
Panel
Fault LED
UID button/LED
LED Indicators on Rear I/O Module LED
Panel
UID button/LED
Heartbeat LED
Fault LED
Power On/Standby button/system power LED
Host Interface
Maximum Number of
Drives
Temperature Range
Relative Humidity
Input Power
Requirements
Heat Dissipation
(maximum)
RAID Support
Upgradeable Firmware
Disk Drives and
Enclosure Protocol
Support
I/O Module
MSA60 Enclosure
Power supply LED
4 x wide SAS 3 Gb/s ports
Up to 12 (twelve), 3.5 inch SAS, SATA or SAS MDL drives
Operating
Shipping
50° to 95° F (10° to 35° C)
-40° to 150° F (-40° to 66° C)
NOTE: Rated 1°C per 1000 feet of elevation to 10,000 ft.
10% to 90%
Up to 95%
100 to 240 VAC
50 to 60 Hz
3.9A at110 VAC typical, 6A Maximum
345 W
Operating
Non-operating
Rated Input Voltage
Rated Input Frequency
Rated Input Current
Input Power (max)
1175 Btu/hr*
* Input Power and Heat Dissipation specifications are maximum values and apply to worst-case
conditions at full rated power supply load. The power/heat dissipation for your installation will vary
depending on the equipment configuration.
See Qucikspecs for Smart Array Controllers P600, P800, E500, P212, P411 & P812
http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/index.html
Yes, Offline only. Firmware updates available through hp.com
HP 3.5 inch SAS 3 Gb/s
Connector Type
Number of Ports
2U Rack Form Factor
Dimensions (HxWxD)
Weight (base unit)
Weight (with all drives)
DA - 12627
IPass (mini-SAS)
Two (one IN, other is OUT)
3.47 x 17.64 x 23.25 in (8.8 x 44.8 x 59 cm)
34 lb (15.4 kg)
54 lb (24.6 kg)
North America — Version 37 — June 8, 2011
Page 16
QuickSpecs
HP 60 Modular Smart Array
Technical Specifications
© Copyright 2011 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1 GB = 1 billion bytes. Actual formatted capacity is less.
DA - 12627
North America — Version 37 — June 8, 2011
Page 17
Download PDF

advertising
