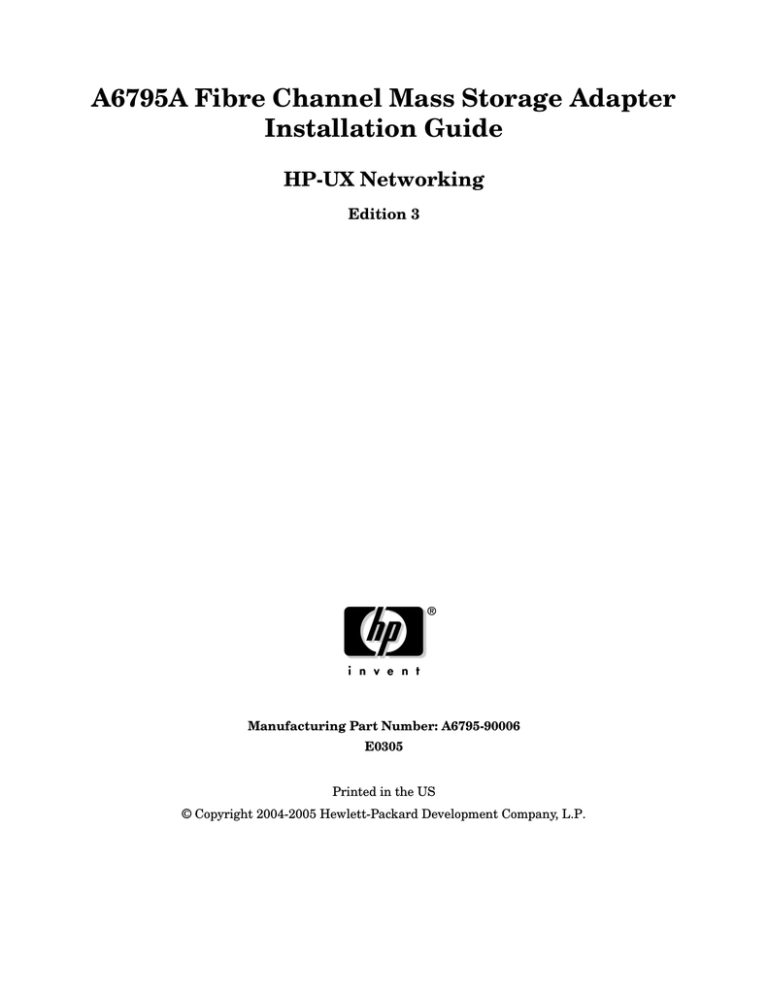

A6795A Fibre Channel Mass Storage Adapter
Installation Guide
HP-UX Networking
Edition 3
Manufacturing Part Number: A6795-90006
E0305
Printed in the US
© Copyright 2004-2005 Hewlett-Packard Development Company, L.P.
Legal Notices
The information in this document is subject to change without notice.
Hewlett-Packard makes no warranty of any kind with regard to this manual, including, but not limited to, the
implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be held
liable for errors contained herein or direct, indirect, special, incidental or consequential damages in
connection with the furnishing, performance, or use of this material.
Warranty
A copy of the specific warranty terms applicable to your Hewlett-Packard product and replacement parts can
be obtained from your local Sales and Service Office.
U.S. Government License
Proprietary computer software. Valid license from HP required for possession, use or copying. Consistent with
FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical
Data for Commercial Items are licensed to the U.S. Government under vendor's standard commercial license.
Trademark Notices
UNIX is a registered trademark in the United States and other countries, licensed exclusively through The
Open Group.
Localized Documentation
This Installation Guide has been translated to:
http://www.docs.hp.com/ja/index.html
2
Contents
1. HP-UX Installation
Supported Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Superdome Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Patches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installing Driver Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing the Adapter Online . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing the Adapter Offline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Attach Other Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Verifying Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Verifying Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Interpreting Hardware Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
A. Regulatory Information
FCC Statement (For U.S.A.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EMI (Australia and New Zealand) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VCCI (Japan) (PCI Card Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EMI Statement (European Community) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Laser Safety Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A6795A Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
17
17
18
18
18
20
3
Contents
4
1 HP-UX Installation
This chapter contains HP-UX installation information for the A6795A Fibre Channel Mass Storage Adapter
and contains the following sections:
•
“Supported Configurations”
•
“Superdome Installation”
•
“Installation Prerequisites”
•
“Patches”
•
“Installing Driver Software”
•
“Installing the Adapter Online”
•
“Installing the Adapter Offline”
•
“Attach Other Devices”
•
“Verifying Installation”
•
“Verifying Connectivity”
•
“Interpreting Hardware Paths”
Thank you for purchasing HP I/O Cards
If you are installing an HP I/O card as an add-in device, please review this document before attempting
installation.
If this card was factory installed in your server, you can skip to the Verifying Installation section.
HP welcomes your input. Please email us at: netinfo_feedback@cup.hp.com with comments or suggestions on
HP I/O Cards or related documentation.
All product documentation, including a comprehensive Support Guide, Installation Guide, Release Notes, and
Support Matrix are available online at: http://docs.hp.com
1. Click on browse by topic.
2. Click on networking and communications.
3. Click on the Fibre Channel product category.
Supported Configurations
Verify compliance with the supported configurations listed in the HP Fibre Channel Host Bus Adapter
Support Matrix, available at: http://www.docs.hp.com/hpux/netcom/index.html#Fibre%20Channel
Alternately, you can access the HP Fibre Channel Host Bus Adapter Support Matrix, as well as other Fibre
Channel documentation as follows:
a. go to http://www.docs.hp.com
b. select “browse by topic”
c.
select “Networking and Communications”
d. select “Fibre Channel”
Chapter 1
5
HP-UX Installation
Superdome Installation
Superdome Installation
Superdome systems are not intended for access by users. HP recommends that Superdome systems only be
opened by a qualified HP engineer. Failure to observe this requirement can invalidate any support agreement
or warranty to which the system owner might otherwise be entitled.
Installation Prerequisites
•
Check that the /usr/bin, /usr/sbin, and /sbin directories are in PATH by entering the following
command:
echo $PATH
•
Verify that you have the following items:
— Grounding wrist strap
— Fibre Channel driver software media (included with OS or application CD). Alternately the driver
software, FibrChanl-00, can be downloaded from http://software.hp.com.
— Fibre Channel host bus adapter with an optical port protector attached (not included with all
adapters).
•
Verify the cabling requirements:
— Cable map (optional)
— A 50 micron fibre optic duplex M/M cable terminated with a SFF (small form factor) LC connector
•
Locate the part number and the Worldwide Name for each port on the Fibre Channel adapter and record
them.
NOTE
Patches are available from either http://www.software.hp.com or
http://ITresourcecenter.hp.com.
Patches
Review the FibrChanl-00 (fcd) Fibre Channel Mass Storage Driver for HP-UX Release Notes for the latest
patch and dependency requirements:
a. go to http://www.docs.hp.com
b. select “browse by topic”
c.
select “Networking and Communications”
d. select “Fibre Channel”
Install all driver software and dependency patches before you install the adapter.
6
Chapter 1
HP-UX Installation
Installing Driver Software
Installing Driver Software
NOTE
Use the following instructions if the driver is provided on a CD-ROM. If the driver software is
downloaded, follow the instructions provided with that file. The driver software, FibrChanl-00,
may be downloaded from http://software.hp.com. The FibrChanl-00 bundle is also provided on
the Hardware Enablement CD.
To load the driver from a CD-ROM, do the following:
1. Log in as root.
2. Insert the CD-ROM.
3. Mount the CD-ROM using the command:
mount /dev/dsk/<cd_rom_dev_file> /<tmp_mnt>
4. Run the swinstall program to install the software. Enter the command: /usr/sbin/swinstall
This opens the Software Selection window and the Specify Source window.
5. In the Specify Source window, change the Source Host Name if necessary. Enter the mount point of
the drive in the Source Depot Path field and click the OK button to return to the Software Selection
window. (You can click the Help button to get more information).
6. Select the FibrChanl-00 software bundle.
7. Select Mark for Install from the Actions menu.
8. Select Install from the Actions menu to begin product installation and open the Install Analysis
window.
9. Click the OK button in the Install Analysis window to confirm that you want to install the software.
Swinstall displays the Install window.
View the Install window to read processing data while the software is being installed. When the Status
field indicates Ready, the Confirmation window opens.
10. Click the OK button. A second Confirmation window opens.
11. Click the OK button again. The Install window opens.
12. Click the Done button. The Note window opens.
13. Click the OK button on the Note window to reboot. The user interface disappears and the system reboots.
14. Once the system comes back up, log in as root and view the following files to see any error or warning
messages that may have occurred during the installation:
/var/adm/sw/swagent.log
/var/adm/sw/swinstall.log
Chapter 1
7
HP-UX Installation
Installing the Adapter Online
Installing the Adapter Online
The Online Addition and Replacement feature (OLAR for HP-UX 11i v1, or OL* for HP-UX 11i v2 and later
HP-UX releases) allows PCI host bus adapters to be added, or replaced, without shutting down and rebooting
the system, and without adversely affecting other system components. The system hardware uses slot-specific
power control, combined with HP-UX operating system support, to enable these features.
OLAR or OL* may not be supported on the system you plan to install an A6795A adapter in. See the HP Fibre
Channel Host Bus Adapter Support Matrix, at http://www.docs.hp.com, to confirm if OLAR or OL* is
supported.
NOTE
For detailed instructions on using OLAR on HP-UX 11i v1, see Chapter 2 of Configuring
HP-UX for Peripherals, which can be accessed at http://www.docs.hp.com
For detailed instructions on using OL* on HP-UX 11i v2 and later HP-UX releases, see the
Interface Card OL* Support Guide, and the Interface Card OL* Support Matrix, which can be
accessed at http://www.docs.hp.com
NOTE
rp54xx servers have slot restrictions for OLAR.
PCI slots 1 through 4 do not support OLAR.
In these servers, use PCI slots 5 through 12 for OLAR.
IMPORTANT Superdome systems are not intended for access by users. HP recommends that Superdome
systems only be opened by a qualified HP engineer. Failure to observe this requirement can
invalidate any support agreement or warranty to which the system owner might otherwise be
entitled.
Installing the Adapter Offline
NOTE
Install all driver software and dependency patches before you install the adapter.
CAUTION
Observe all ESD safety precautions before attempting this procedure. Failure to follow ESD
safety precautions could result in damage to equipment.
NOTE
See the system documentation for information about how to safely shutdown your system and
obtain access to expansion slots.
8
Chapter 1
HP-UX Installation
Installing the Adapter Offline
In some systems, the A6795A adapter is limited to use in specific slots. The following table identifies these
limitations.
Table 1-1
Server Name
Product Number
L1000
A5576A
8, 10, 12
L2000
A5191A
3, 4, 5, 6, 8, 10, 12
N4000 Rev. A
A3639A
2, 4, 6, 8, 10, 12
N4000 Rev. B
A3639B
2, 4, 6, 8, 10, 12
N4000 Rev. C
A3639C If
upgraded from
A3639A or A3639B
2, 4, 6, 8, 10, 12
NOTE
Supported Slots
rp54xx servers have slot restrictions for OLAR.
PCI slots 1 through 4 do not support OLAR.
In these servers, use PCI slots 5 through 12 for OLAR.
CAUTION
The optical port protector is used only to protect the adapter port when it is not in use. Do not
use the protector as a diagnostic tool.
To install the A6795A Adapter offline (all systems except Superdome):
1. Shutdown the system.
2. Install the adapter in an available PCI slot.
3. Attach fiber cabling to the adapter. The A6795A adapter uses a fiber optic cable terminated with an LC
connector.
For additional installation instructions, see the system documentation.
Chapter 1
9
HP-UX Installation
Installing the Adapter Offline
Figure 1-1
10
A6795A Dual Port Fibre Channel Adapter
Chapter 1
HP-UX Installation
Attach Other Devices
Attach Other Devices
Attaching a Fibre Channel HBA to other Fibre Channel devices.
1. Be sure you have removed the Fibre Channel host bus adapter’s optical port protector (if included).
2. Be sure you have attached a connector cable to the Fibre Channel host bus adapter. Align the slotted plug
with the keyed connector. Push the connector in until you hear it click.
3. Attach the free end of the cable to a compatible Fibre Channel device.
4. Reconnect the power cord, if necessary, and power up the system.
The following table lists the Fibre Channel cables that you can use with Fibre Channel Host Bus Adapters.
Be sure to use LC-LC or LC-SC cables for the A6795A. adapter.
Table 1-2
Cable Products
LC-LC
C7524A
Fibre Channel Cable 2m LC 50/125 duplex M/M
C7525A
Fibre Channel Cable 16m LC 50/125 duplex M/M
C7526A
Fibre Channel Cable 50m LC 50/125 duplex M/M
C7527A
Fibre Channel Cable 200m LC 50/125 duplex M/M
LC-SC
C7529A
Fibre Channel Cable 2m LC-SC 50/125 duplex M/M
Optical
C7530A
Fibre Channel Cable 16m LC-SC 50/125 duplex M/M
Optical
Adapter/Extenders
C7534A
Fibre Channel Adapter SC F/F
Adapter Kit
C7540A
Chapter 1
Fibre Channel Adapter Kit: Includes 2m LC/SC Cable
and F/F extenders
11
HP-UX Installation
Verifying Installation
Verifying Installation
1. To verify the adapter installation, enter the command:
ioscan -f
2. Verify that the following drivers appear for each installed adapter. If all drivers display, proceed to the
next section, Verifying Connectivity.
The ioscan output might look like the following. The third column represents the hardware path of the
slot in which the adapter is installed. This path will be different for each installed adapter port.
Table 1-3
ioscan -f Output
Class
I
H/W Path
Driver
S/W State
H/W Type
Description
fc
0
1/1/0/0
td
CLAIMED
INTERFACE
HP Tachyon
XL2 Fibre
Channel
Mass Storage
Adapter
3. If the correct driver is installed, but the adapter does not show it in the ioscan output, the driver is not
recognizing the adapter. Contact HP for assistance.
NOTE
If the td driver for an installed Tachyon adapter (A6795A) does not display, verify that the
adapter is securely seated before taking additional action.
Verifying Connectivity
Once your HP Fibre Channel Mass Storage software and hardware is installed and running, type the
following commands to verify mass storage hardware and software installation.
1. Check the state of all Fibre Channel hardware and interfaces. Enter the ioscan command and verify that
the S/W State of all Fibre Channel hardware and interfaces is CLAIMED.
If the Fibre Channel device file has not been created, enter the following commands:
ioscan -f
insf -e
2. Verify that all devices you attached to the Fibre Channel adapter are listed in the ioscan output. For
example, if you have a direct attach Fibre Channel device attached to the system, the ioscan output
might look like the following:
8/12.8.0.255.0.1.0
sdisk
CLAIMED
DEVICE
DGC C3400WDR5
The example above is the hardware path of LUN0 of a directly attached Fibre Channel Mass Storage
device with Loop ID of 1. For details on interpreting hardware paths for Fibre Channel devices, see
Interpreting Hardware Paths.
12
Chapter 1
HP-UX Installation
Interpreting Hardware Paths
3. HP Fibre Channel Mass Storage installation is verified if the ioscan output lists all mass storage devices
attached to the adapter. If any attached devices are not listed or appear as UNCLAIMED, see the
Troubleshooting and Maintenance chapter of the HP Fibre Channel Adapters Support Guide.
Interpreting Hardware Paths
The following illustration is the Fibre Channel hardware path format:
Figure 1-2
Example of a Hardware Path for a Public Loop Device
Adapter
Domain Area Port
Bus Target LUN
0/1/2/0.1.19.255.15.4.0
Figure 1-3
Example of a Hardware Path for a Direct Fabric Attach Device
Adapter
Domain Area Port
Bus Target LUN
0/1/2/0.1.19.255.0.0.0
Figure 1-4
Example of a Hardware Path for a Private Loop Device
Adapter
Domain Area Port
Bus Target LUN
0/1/2/0.8.0.255.0.1.0
Each field in the hardware path is described below:
Fibre Channel Topology of HBA
Field
Adapter
Chapter 1
Value Information
Fabric Topologies such as Public
Loop and Direct Fabric Attach
Private Loop
This is the hardware path of the Fibre Channel adapter through which the LUN is seen.
In the case of multi-port adapters, this field describes a specific port on the adapter.
13
HP-UX Installation
Interpreting Hardware Paths
Fibre Channel Topology of HBA
Field
Domain
Area
Value Information
Fabric Topologies such as Public
Loop and Direct Fabric Attach
Private Loop
The value depends
on the Fibre
Channel topology of
the HBA.
This field is typically the Domain ID
of the switch to which the target
device is attached. The value of
this field is taken from the most
significant byte of the N_Port ID of
the target device.
This field is set to 8.
The value depends
on the Fibre
Channel topology of
the HBA.
This field is taken from the second
byte of the N_Port ID of the target
device.
This field is set to 0.
For historical reasons, HP-UX
uses a Domain ID of 8 to indicate
Private Loops. Fibre Channel
switches seen by HP-UX hosts
cannot be configured with
Domain ID of 8; doing so is
unsupported and will not work.
On some switches, the second byte of
the N_Port ID encodes the switch
port to which the device is
connected. How this encoding is
done depends on the switch. Consult
the relevant switch manual to
interpret this field.
Port
Bus
The value depends
on the Fibre
Channel topology of
the HBA and the
target device, and on
the LUN addressing
method used.
For LUNs with Peripheral Device
Addressing, the value of this field is
always 255.
For LUNs with Peripheral Device
Addressing, the value of this field
is always 255.
For other LUN methods, the value of
this field is the least significant byte
of the N_Port ID of the target device.
For other LUN methods, the
value of this field is the Loop ID
of the target device.
The value depends
on the Fibre
Channel topology of
the HBA and the
target device, and on
the LUN addressing
method used.
For LUNs with Peripheral Device
Addressing, the value of this field is
the upper 4-bits of the least
significant byte of the N_Port ID of
the target device.
For LUNs with Peripheral Device
Addressing, the value of this field
is the upper 4-bits of the Loop
ID of the target device.
For LUNs with Logical Unit Addressing, the value is the Bus Number
field of the Logical Unit Number.
For LUNs with Volume Set Addressing (Flat Space Addressing), the
value is bits 7 - 13 of the Logical Unit Number
14
Chapter 1
HP-UX Installation
Interpreting Hardware Paths
Fibre Channel Topology of HBA
Field
Target
Value Information
The value depends
on both the Fibre
Channel topology
and the LUN
addressing method
used.
Fabric Topologies such as Public
Loop and Direct Fabric Attach
For LUNs with Peripheral Device
Addressing, the value of this field is
the lower 4-bits of the third byte of
the N_Port ID of the target
device.
Private Loop
With Peripheral Device
Addressing, the value of this field
is the lower 4-bits of the Loop ID
of the target device.
This field usually corresponds to the
Arbitrated Loop Physical Address
(AL_PA) of the target device.
For LUNs with Logical Unit Addressing, the value is the Target field of
the Logical Unit Number.
For LUNs with Volume Set Addressing (Flat Space Addressing), the
value is bits 3 - 6 of the Logical Unit Number.
LUN
The value of this field depends only on the LUN addressing method used, see below.
LUN
Addressing
Method
Value of LUN
field in FC
HW Path
Peripheral Device
Addressing
The Target or LUN field of
the Logical Unit Number.
Logical Unit Addressing
Volume Set Addressing
(Flat Space Addressing)
The LUN field of the
Logical Unit Number.
Bits 0 - 2 of the Logical Unit
Number.
For more information about the fields in the Logical Unit Number, please refer to the SCSI Architecture
Model - 3 (SAM-3) standards document.
NOTE
Fibre Channel devices can connect to a Fabric using either Direct Fabric Attach or Public Loop.
Different devices may have different types of connections to the same Fabric, for example an
HBA may have a Direct Fabric Attach connection to the Fabric, while an array has a Public
Loop connection to the same Fabric. In other words, in a Fabric, the Fibre Channel Topology of
an HBA may be different from the Fibre Channel Topology of devices seen by that HBA.
Public Loop devices have an Arbitrated Loop Physical Address (AL_PA). The AL_PA usually
appears in the least significant byte of the device's N_Port ID. Direct Fabric Attach devices do
not have an AL_PA and the least significant byte of their N_Port ID is usually 0. This is
dependent on the switch implementation and not all switches adhere to this scheme.
Some switches allow devices in Private Loop mode to connect to a Fabric. In these situations,
the switch typically translates the private loop device as either a Public Loop or Direct Fabric
Attach device to the rest of the Fabric. The switch also typically translates the rest of the Fabric
as Private Loop devices to the Private Loop device.
Chapter 1
15
HP-UX Installation
Interpreting Hardware Paths
16
Chapter 1
A Regulatory Information
FCC Statement (For U.S.A.)
Federal Communications Commission Radio Frequency Interference Statement
WARNING
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference and
(2) this device must accept any interference received, including interference that
might cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy, and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at his own expense will be required to take whatever measures
may be required to correct the interference.
Hewlett-Packard’s system certification tests were conducted with HP-supported
peripheral devices and cables, such as those received with your system. Changes or
modifications to this equipment not expressly approved by Hewlett-Packard could
void the user’s authority to operate the equipment.
Canada
Warning: This Class A digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du règlement sur le matériel brouilleur du
Canada.
EMI (Australia and New Zealand)
This product meets the applicable requirements of the Australia and New Zealand EMC Framework.
Appendix A
17
Regulatory Information
VCCI (Japan) (PCI Card Only)
VCCI (Japan) (PCI Card Only)
This equipment complies with the Class A category for information technology equipment based on the rules
of Voluntary Control Council for Interference by Information Technology Equipment. When used in a
residential area, radio interference may be caused. In this case, the user may be required to take appropriate
corrective actions.
Figure A-1
VCCI Regulatory Statement
EMI Statement (European Community)
NOTE
This is a Class A product. In a domestic environment, this product may cause radio
interference, in which case you may be required to take adequate measures.
Laser Safety Statements
Laser Safety Statements - U.S. FDA/CDRH - Optical (laser) Transceiver
CAUTION
The optical transceiver provided on the network interface card contains a laser system and is
classified as a “Class-I Laser Product” under a U.S. Department of Health and Human Services
(DHHS) Radiation Performance standard according to the Radiation Control for Health and
Safety Act of 1968. The Class I label and compliance statement are located on the optical
transceiver.
To ensure proper use of this product, please read this instruction manual carefully and retain for future
reference. Should the unit ever require maintenance, contact an authorized service location.
CAUTION
Use of controls, adjustments or the performance procedures other than those specified herein
may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not
try to open the enclosure.
Laser Safety - European Union - Optical Transceiver Only
18
Appendix A
Regulatory Information
Laser Safety Statements
CAUTION
The optical transceiver provided on the network interface card contains a laser system and is
classified as a “Class 1 Laser Product” per EN 60825-1, Safety of Laser products. Class 1 laser
products are considered safe and do not pose a biological hazard if used within the data sheet
limits and instructions.
To ensure proper use of this product, please read this instruction manual carefully and retain for future
reference. Should the unit ever require maintenance, contact an authorized service location.
CAUTION
Use of controls, adjustments or the performance procedures other than those specified herein
may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not
try to open the enclosure.
There are no user serviceable parts nor any maintenance required for the optical transceiver. All adjustments
are made at the factory before shipment to customers. Tampering with or any attempt to modify the optical
transceiver will result in voided product warranty. It may also result in improper operation of the network
card circuitry and possible overstress of the laser source. Device degradation or product failure may result.
Appendix A
19
Regulatory Information
A6795A Declaration of Conformity
A6795A Declaration of Conformity
20
Appendix A
Download PDF

advertising
