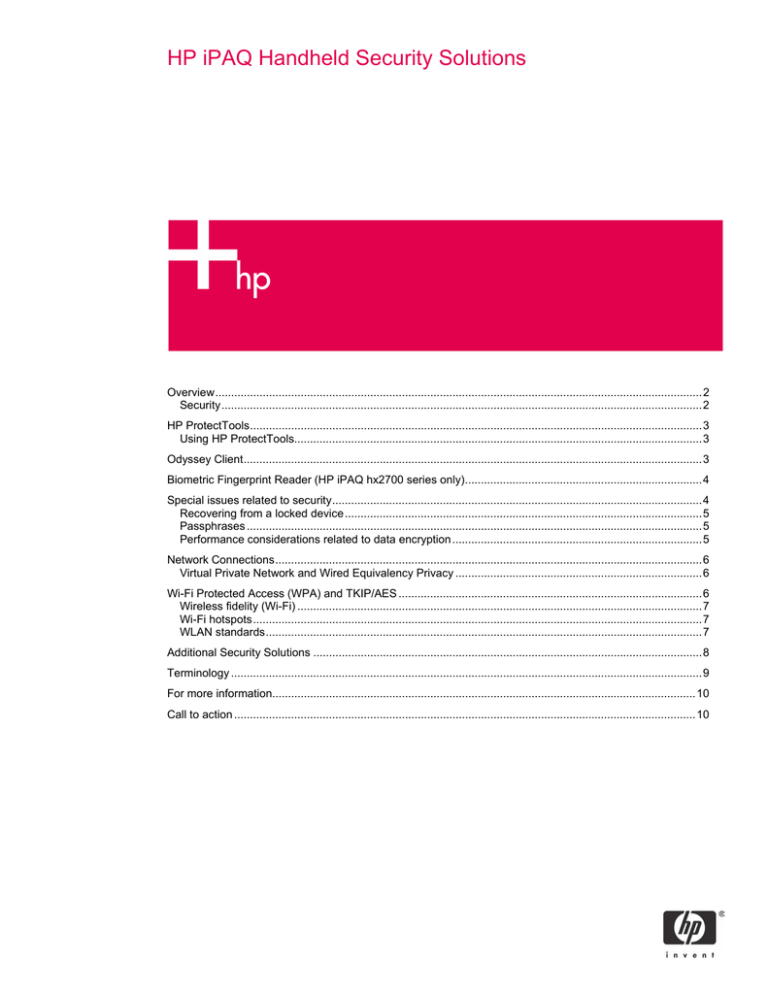

HP iPAQ Handheld Security Solutions
Overview..........................................................................................................................................................2
Security........................................................................................................................................................2
HP ProtectTools...............................................................................................................................................3
Using HP ProtectTools.................................................................................................................................3
Odyssey Client.................................................................................................................................................3
Biometric Fingerprint Reader (HP iPAQ hx2700 series only)...........................................................................4
Special issues related to security.....................................................................................................................4
Recovering from a locked device.................................................................................................................5
Passphrases ................................................................................................................................................5
Performance considerations related to data encryption ...............................................................................5
Network Connections.......................................................................................................................................6
Virtual Private Network and Wired Equivalency Privacy ..............................................................................6
Wi-Fi Protected Access (WPA) and TKIP/AES ................................................................................................6
Wireless fidelity (Wi-Fi) ................................................................................................................................7
Wi-Fi hotspots..............................................................................................................................................7
WLAN standards..........................................................................................................................................7
Additional Security Solutions ...........................................................................................................................8
Terminology .....................................................................................................................................................9
For more information......................................................................................................................................10
Call to action ..................................................................................................................................................10
Overview
Protecting the private information on your HP iPAQ is serious business. There are many ways that
you can protect your HP iPAQ. Taking advantage of the built-in security features is a great way to
start protecting your HP iPAQ. These security features are powerful defenses against data theft.
Your login name and password are great ways to begin protecting your HP iPAQ against theft. It is
important to protect the information contained on your HP iPAQ from unauthorized access. Data
encryption is probably the best way to protect information on mobile devices as well as on external
storage cards. (Data encryption is a conversion process that is used for protecting data.)
This white paper provides detailed information about HP ProtectTools, Odyssey Client®, and
biometric security solutions. In today’s world, a lot of valuable information is being stored on
handheld devices. That is why securing your personal data is so important to HP. The HP
ProtectTools security features provide on-device security protection that decreases the risk of you
losing sensitive data and from unauthorized access on your HP iPAQ. In addition, Odyssey Client
allows easy and secure connection to a wireless network. This document is designed to assist you
in understanding security and how it works on HP iPAQ devices.
Security
Security is a crucial issue facing business users today. Without strong security protection, a lost or
stolen mobile device can give unauthorized users easy access to mission-critical data and network
resources, exposing the business to potential legal liability, financial loss, and competitive
espionage.
For these reasons, strong security is an indispensable asset for mobile business computing devices
such as HP iPAQ handhelds. HP iPAQ devices address these security challenges head-on with a
unique mix of advanced features and tools designed to prevent unauthorized access to user data.
Several important technologies converge to make it happen:
• HP ProtectTools secured by CREDANT Technologies uses many of the same capabilities found
in that company's enterprise-class Mobile Guardian® product, including user authentication and
data encryption. (Authentication is the process of granting or denying someone access to a
network resource.)
• Odyssey Client developed by Funk Software, Inc. allows users to connect their device (HP iPAQ
hw6900 Mobile Messenger series only) to multiple secured wireless networks. Odyssey Client
supports networks that adhere to the 802.11b wireless LAN standards. These networks can be
found in hotels, airports, and other Internet hotspots.
• A special Biometric Fingerprint Reader allows users to easily login with a swipe of the finger (HP
iPAQ hx2700 series Pocket PC only) and/or with a PIN (personal identification number). This
feature provides highly secure, convenient, and fast authentication—without users having to
remember passwords.
• Full virtual private network (VPN) and WEP-enhanced security is included in the Microsoft
operating system. A VPN provides enhanced security when accessing corporate data over the
Internet. WEP provides 64-bit and 128-bit encryption security when connected via wireless
networks (802.11b).
• Even more advanced security for wireless communication through built-in support for 802.1X and
WPA (Wi-Fi Protected Access) along with support for LEAP and TKIP. LEAP is used for
authentication purposes.
Mobile viruses are not currently a serious threat; but, it is important be aware of potential risks to
your HP iPAQ. Viruses (also called worms or Trojan horses) are malicious and can be widely
distributed. When you download programs or files that are already infected, a virus can spread
between your personal computer, laptop, or other removable storage. To get more information
about mobile viruses, visit http://www.microsoft.com/athome/security/viruses/mobilevirus.mspx.
2
HP ProtectTools
The special security technology found in many HP iPAQ devices is provided by HP ProtectTools, a
suite of built-in, not bolted on security solutions. These security solutions are based on the same
technologies used by market leader CREDANT Technologies Inc. CREDANT Mobile Guardian®
(CMG) provides solutions that reduce specific security risks to handheld users. These security
solutions provide certain advantages that allow you to protect your device more effectively. The first
layer of security involves PIN or password access for HP iPAQ devices. A second layer of defense
involves data encryption, which helps ensure that sensitive information remains confidential.
You can encrypt e-mail messages, attachments, My Documents, and other files that are then
automatically protected whether stored on the device or an external storage card.
(By default, all data in the My Documents folder is encrypted.) If you forget your PIN or password,
you can regain access by entering an answer to a pre-selected question.
If a device is lost or stolen, aggressive failsafe actions can be automatically invoked to hard reset
the device back to factory defaults after a pre-determined number of access attempts.
Using HP ProtectTools
HP ProtectTools helps protect your device and the data stored on it. When HP ProtectTools is
enabled, you may have an option to enroll a fingerprint or enter a PIN and/or password to access
the device.
Once you have set the security features on your device and are unable to successfully swipe your
fingerprint or forget your PIN or password, you can access your device with a back-up question and
answer.
You should only need to set up HP ProtectTools one time. If needed, you can make changes to any
of your security settings later.
Refer to the HP iPAQ documentation on the Companion CD or Getting Started CD to learn more
about:
• Setting up HP ProtectTools
• Managing security options
• Changing your HP ProtectTools settings
• Encrypting/decrypting data
Odyssey Client
Using Odyssey Client, you can do the following:
• Connect your HP iPAQ to a wireless network
• Connect peer-to-peer to other devices on a network
• Configure multiple networks to connect to various networks (possibly using different credentials
and/or authentication methods)
• Use 802.1x to authenticate to a network
• Use various authentication methods (such as EAP-TTLS, EAP-PEAP, and EAP-TLS protocols) to
keep your credentials secure
3
To use Odyssey Client on your HP iPAQ, your device must have an 802.1x-compliant (network
interface card) NIC driver. The HP iPAQ can be compatible with your preferred WLAN security
protocol for network authentication. A readme.txt file is included with the Odyssey Client software
that lists compatible devices.
You will need a license key to use Odyssey Client. A license key is a text sequence that
corresponds to your licensed copy of Odyssey Client. During the installation process, you are
prompted to enter the license key.
You can also enter the license key after the installation process. Several features of Odyssey Client
are licensed separately. Depending on the license, some features may be unavailable and areas of
the user interface may be grayed out.
You will need to install the Odyssey Client software onto your HP iPAQ. For instructions on
installing Odyssey Client via the CD or web download version, refer to the information that came
with your HP iPAQ.
After configuring a network on Odyssey Client, you must be within range of an access point to log
on to a specified network and connect to it. Some wireless networks require that you log on while
others let anyone within range log on. The access point links your HP iPAQ to a network. (The
range of an access point is usually several hundred feet.) If there is no access available, two or
more wireless devices can use peer-to-peer networking to share files and play games. No additional
hardware equipment is needed to use peer-to-peer networking.
Currently, the Odyssey Client for network authentication is available with the HP iPAQ hw6900
Mobile Messenger series only.
Biometric Fingerprint Reader (HP iPAQ hx2700 series
only)
The built-in Biometric Fingerprint Reader is exclusive to the HP iPAQ hx2700 series. The built-in
fingerprint reader is convenient, and it adds an extra level security for authorized users. This robust
security feature easily identifies authorized users and prevents access by others. Depending on the
strength of protection required, you can specify whether to identify yourself using only a fingerprint,
a PIN, a password, or various combinations of these methods.
This type of identification is virtually foolproof, for the simple reason that fingerprints are a unique
form of biometric identification possessed only by the specific user. This also provides the ultimate
in convenient access and does not have to be remembered like a password or PIN.
You can also find more specific information about how to enroll fingerprints using HP ProtectTools
in the User’s Guide on the Companion CD. (If you purchased an HP iPAQ hx2700 Pocket PC, the
Companion CD is available with your device.)
Special issues related to security
The unprecedented set of powerful security features found in the HP iPAQ hx2000 series requires
new behavior for some individual users. In particular, users may find that they run the risk of losing
current data in the devices if regular backups do not occur and they forget any required access
passwords or PIN numbers. This is because a locked device without a password requires a "hard
reset" that will wipe out all of the data on the unit.
The "hard reset" feature is another level of security that helps prevent data theft by unauthorized
users. For the strongest level of protection, you can set a flag in the device that blocks any attempt
to log back in after a certain number of tries. The HP default is to turn this flag off. If this flag is
turned on, in circumstances where lockout occurs, there is no recovery from the lockout that will
preserve your data.
4
Recovering from a locked device
If the device locks and you enter a correct answer to the pre-selected question, this regains access
to the device and its data. If you forget the PIN/password and the answer to the preselected
question, there is no way to recover from a locked device without losing data. The device will
prompt for a hard or clean reset, and all memory will be set back to the default factory condition
which includes deleting data in the iPAQ File Store. If this option is chosen, the iPAQ File Store
takes more than 10 minutes to initialize. During this initialization process, it is recommended that
you connect your HP iPAQ to AC power to avoid timeouts.
However, if you forget your PIN, but successfully enter your hint question/answer, you are prompted
to enter a new PIN. If you do not answer the hint question/answer successfully, there is a time delay
between the hint question/answer attempts until you enter the correct answer.
Passphrases
When HP ProtectTools is initiated, you are prompted for a passphrase that is different than the PIN
or password used to access the device. The passphrase is created for one reason: if data is stored
on a memory card and encrypted by HP ProtectTools, a passphrase is used to facilitate sharing the
data with other HP iPAQ devices. In other words, HP iPAQ devices that use the same passphrase
can also share the data that is encrypted on memory cards.
One special example occurs when HP ProtectTools is disabled but data is still encrypted on a
memory card. This data can be retrieved from the card if HP ProtectTools is reinitiated on the HP
iPAQ using the same passphrase used previously when the data was encrypted on the card. Thus,
like PINs and passwords, it is important to store the passphrase in a secure location. Passphrases
must be at least eight characters long and must include at least one punctuation mark. For best
results, a mix of at least 30 numbers, letters, and special characters should be used.
Performance considerations related to data encryption
With HP ProtectTools, the HP iPAQ automatically encrypts data stored on the device using one of
four encryption algorithms. These encryption algorithms are listed below in order of the strongest to
the weakest:
• Lite
• AES (advanced encryption standard)
• Blowfish
• 3DES
When you lock and unlock the device, the HP iPAQ encrypts and decrypts the data using whichever
algorithm is chosen. Since the computer must run all data through this algorithm, the
encryption/decryption operation will take time and affect the performance of the device.
If you have a large amount of data on your device and choose to encrypt it all, regardless of
processor performance, it will take time to decrypt the data To improve performance, you may
consider encrypting only the most critical data. Performance can also be improved somewhat by
moving to weaker encryption algorithm. For instance, someone using AES for encryption can see a
small performance improvement by changing to the Blowfish method, which is still strong but not
quite as strong as AES. It is possible to change the encryption settings later, but this also involves a
wait while the data is being converted from one format to the other.
Encrypting your personal data is the best way to protect your personal information. The encryption
process runs in the background, so you are able to perform other tasks on your HP iPAQ during this
time. There are two methods to monitor the decryption process. To find out more about encrypting
and decrypting data, refer to the documentation on the Companion CD or Getting Started CD that
came with your HP iPAQ.
5
Network Connections
You will need to configure the networks you want to connect to. Using your HP iPAQ, you must be
within the range of the access point to initiate network authentication. You will need your logon
credentials to access various networks: SSID, user name, password, and domain name. You will
then be able to select an available network from an on-screen list.
To get specific information about configuring and logging on to networks, refer to the documentation
that came with your HP iPAQ.
Virtual Private Network and Wired Equivalency Privacy
A virtual private network (VPN) allows two or more private networks to be connected over a publicly
accessed network. Primarily, a VPN connection helps you to securely connect to servers (such as a
corporate network) via the Internet. In a sense, VPNs are similar to WANs or a securely encrypted
tunnel. The key feature of VPNs is that they can use public networks like the Internet rather than
rely on expensive, privately leased lines.
Additionally, VPNs have the same security and encryption features as private networks. To learn
more about setting up and connecting to a VPN, refer to the documentation on the Companion CD
or Getting Started CD that came with your HP iPAQ.
Wired Equivalency Privacy (WEP) encrypts data immediately before wireless transmissions are
sent, and decrypts data it receives. WEP is a security protocol designed to provide a wireless local
area network (WLAN) with the same level of security usually expected on a local area network
(LAN). Basically, WLAN is a wireless network in which a mobile user can connect to a local area
network through a wireless connection.
WEP security is considered the first significant line of defense against casual eavesdroppers. If
WEP uses a secret key, which is considered similar to a password, then the key must be available
on all of the network’s wireless devices. WEP is intended to provide wireless users with the same
level of privacy as users in a wired network environment.
Public wireless connections such as hotspots can be somewhat insecure. (Hotspots are public or
private areas where a wireless access point is available. For example, this wireless connection can
be located at a library or coffee house.)
Temporal Key Integrity Protocol (TKIP) technology improves WEP by using a per-packet key
mechanism, in which the base key is modified for each packet sent over the network. The overall
key length is extended to 256 bits for encryption.
To obtain device-specific instructions on how to create, change, and start a VPN connection using
your HP iPAQ, refer to the documentation that came with your device.
To get specific information about turning on or off WLAN and Wi-Fi, refer to the documentation on
the Companion CD or Getting Started CD that came with your device.
Wi-Fi Protected Access (WPA) and TKIP/AES
Wi-Fi Protected Access (WPA) works with 802.11, and it secures a wireless network environment.
WPA is intended to replace the current, less secure WEP system which is part of the Electrical and
Electronic Engineers (IEEE) 802.11i standard.
WPA technology enables a practical, economical solution to wireless LAN security. WPA is also a
strong encryption solution for wireless network security—especially while users roam from access
point to access point.
6
A wireless network is a group of computers and associated devices that share a common wireless
communication link over radio waves. A wireless network is enabled by a collection of wireless
access points residing within a small geographic area, such as in an office building or wireless
fidelity (Wi-Fi) public hotspot.
WLANs enable a variety of mobile transactions such as Internet and e-mail access, and
sophisticated tasks such as allowing sales people to access customer records from customer
locations.
TKIP/AES enhance the encryption methods of the 802.11 standards of WPA. These enhancements
include:
• Improved data encryption for WPA (It provides more secured data encryption then WEP.)
• WPA allows simpler passphrases, based on preconfigured WEP keys (If you configure a
passphrase for your access points, you cannot use 802.1x-based authentication. You must also
use the same passphrase in Odyssey Client.)
Wireless fidelity (Wi-Fi)
Wi-Fi, also known as 802.11, is a communication standard created by the Institute of Electrical and
Electronic Engineers (IEEE). The 802.11 standard defines the electrical and radio frequency
components of a wireless Ethernet.
This standard also defines an encryption algorithm (Wired Equivalent Privacy, or WEP) to secure
the network. The Wi-Fi Alliance is the body that ensures compatibility and is responsible for issuing
standard compliance tests and logos.
Wi-Fi hotspots
Wi-Fi hotspots are WLANs that use the IEEE 802.11 protocol to establish wireless connections for
general public use. Offered to customers by a growing number of hotels, restaurants, airport
lounges, coffee shops and other businesses, Wi-Fi hotspots enable users to access Internet
resources, send and receive e-mail, use instant messaging, and perform similar tasks they would
otherwise perform on their business or home PCs. Before trying to connect to a wireless network at
a public Wi-Fi hotspot, it is a good idea to find out what setting information you will need to connect
to their network. Many Wi-Fi hotspots charge their customers a fee for this service.
Convenience and increased productivity make Wi-Fi hotspots attractive to users on the go, but
hotspots can also increase the possibility of security risks. The security risks are manageable;
however, if safety precautions are taken.
You can find out more information about Wi-Fi features and connections in the documentation on
the Companion CD or Getting Started CD that came with your HP iPAQ.
WLAN standards
IEEE wireless standards such as 802.11 have undergone many improvements and addendums
since they were first defined. The following list offers a high-level description of each of the better
known standards:
• 802.11, which operates in the 2.4-GHz frequency band and offers only 2 megabits per
second (Mbit/s) of overall throughput, was the original implemented standard.
• 802.11b is the most widely used form of Wi-Fi today. The radio operates within the 2.4-Ghz
frequency band but allows a maximum data throughput of 11 Mbit/s.
• 802.11a is a short-range, but extremely high-speed, Wi-Fi network. This standard is not
compatible with existing 802.11b networks. This high-speed Wi-Fi network operates in the 5-Ghz
frequency band and can transfer data at a maximum speed of 54 Mbit/s.
• 802.11g is compatible with existing 802.11b networks, but also enables higher speeds. Its
maximum speed is 54 Mbit/s, but 802.11g operates in the 2.4-Ghz frequency band.
7
Note: The 54-Mbit/s maximum speed of 802.11g is obtained only when the network contains other 802.11g-based devices.
Users who mix 802.11b devices in that network will see a maximum throughput value of only 22 Mbit/s.
• The 802.1x standard defines the method of encapsulating EAPs over wired or wireless Ethernet
networks. This standard does not define any specific security protocol, but is based on EAP types
documented and ratified by the Internet Engineering Task Force (IETF).
Additional Security Solutions
Personal firewalls are the best way to protect your computer-related devices and wireless network.
A firewall keeps computer hackers out and your sensitive data in; it acts as a barrier through which
all information passes between the computer and the network. Personal firewalls monitor all
incoming and outgoing traffic on your computer, including external systems.
Firewalls look at this data and make an access decision based on predetermined access rules. A
firewall can give you the needed tools to protect your sensitive information while you’re
communicating across public networks. You have an option of selecting what information you want
to protect, such as credit card numbers or passwords.
Personal firewalls can also prevent Web servers from getting access to sensitive data, and they can
block Java applets and ActiveX controls. These Internet tools can endanger computer security.
Firewalls can provide you with various helpful security needs for your computer hardware and
software.
Personal firewalls are also available for mobile devices, such as Zone Alarm Personal Edition from
Zone Labs, Inc. To download a free copy of this software on to your personal computer or notebook,
go to www.zonelabs.com for more information.
Bluefire Security TechnologiesTM develops software that protects devices, data, and networks. The
security solutions help prevent intrusion, provide integrity management, encryption, and
authentication enterprise security. These security features add extra protection across VPNs, such
as protecting lost and stolen devices; and preventing computer-hacker attacks and unauthorized
access. Bluefire Mobile Firewall provides protection of information with encryption of data files,
external storage cards, and personal information such as your mailbox, contact, calendar, and task
databases. By visiting www.bluefiresecurity.com, Windows Mobile 2003 and Windows Mobile 5.0
users can download a free 30-day trial version of the software.
Pointsec® for Pocket PC provides convenient, real-time encryption of information on mobile devices
as well as external storage cards. User-information is automatically encrypted and stored on your
device. Pointsec for Pocket PCs is a pictured-based application. It is combined with PicturePIN®
(access control) and QuickPIN® to provide fast re-entry to the device and its content. This security
solution protects sensitive information in any format including Word Mobile, Excel Mobile, Outlook email, attachments and notes. Your information is secure and instantly accessible. Pointsec® for
Pocket PC is an integrated mobile security solution that provides users with strong encryption and
fast, reliable speed or performance. You can learn more about security solutions that protect lost or
stolen mobile devices by visiting www.pointsec.com.
These technologies can protect against unauthorized accesses, enforce security policies as well as
monitor activity on devices.
8
Terminology
A glossary of security-related terms:
Acronym
Term
Definition
802.11b
The standard specification for wireless
local area networks (WLAN), often
called Wi-Fi.
802.1x
802.1x uses the protocol EAP
(Extensible Authentication Protocol) to
perform authentication when using a
wireless network.
AES
Advanced Encryption Standard
A 128-bit block data encryption
technique.
EAP
Extensible Authentication Protocol
A framework for transporting
authentication protocols to secure
networks: EAP-TTLS, EAP-PEAP, EAPTLS, and EAP-LEAP.
Encryption (WEP) EAP or IEEE
802.1x
A set of security services used to protect
802.11 networks from unauthorized
access.
SSID
Service Set Identifier
A sequence of characters that uniquely
identifies a Wi-Fi network. (This
identification number uses a maximum
number of 32 characters and is case
sensitive.).
TKIP/AES
Temporal Key Integrity Protocol
Improved data encryption for WPA.
TKIP provides stronger encryption than
WEP.
VPN
Virtual Private Network
A way of providing users (for example,
remote offices, telecommuters, etc.)
secure access to their organization’s
network by way of the Internet.
WAP
Wireless Access Point
Physical hardware or computer software
that acts as a hub for users of wireless
devices to connect to a local area
network (LAN).
WEP
Wired Equivalent Privacy
A security protocol designed to provide
a wireless local area network (WLAN).
WLAN
Wireless Local Area Network
WLAN is a wireless network in which a
mobile user can connect to a local area
network through a wireless connection.
WPA
Wi-Fi Protected Area
WPA works with 802.11 standard, and it
secures a wireless network
environment.
9
For more information
iPAQ Mobile
http://www.hp.com/go/iPAQ
http://hp.com/sbso/wireless/index.html
MSN Mobile
http://www.mobile.msn.com/pocketpc
Call to action
www.hp.com
http://welcome.hp.com/country/us/en/support.html
www.hp.com/sbso/wireless/secure_wlan_mobile.pdf
www.bluefiresecurity.com
www.funk.com
www.microsoft.com/athome/security/default.mspx
www.microsoft.com/atwork/default.mspx
www.pointsec.com
www.zonelabs.com
© 2006 Hewlett-Packard Development Company, L.P. The information contained
herein is subject to change without notice. The only warranties for HP products
and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or
omissions contained herein.
Itanium is a trademark or registered trademark of Intel Corporation in the U.S. and
other countries and is used under license.
5983-1105ENUC, 04/2006
Download PDF

advertising
