HP | iPAQ 310 Travel Companion | Product guide | HP iPAQ 310 Travel Companion Product Guide

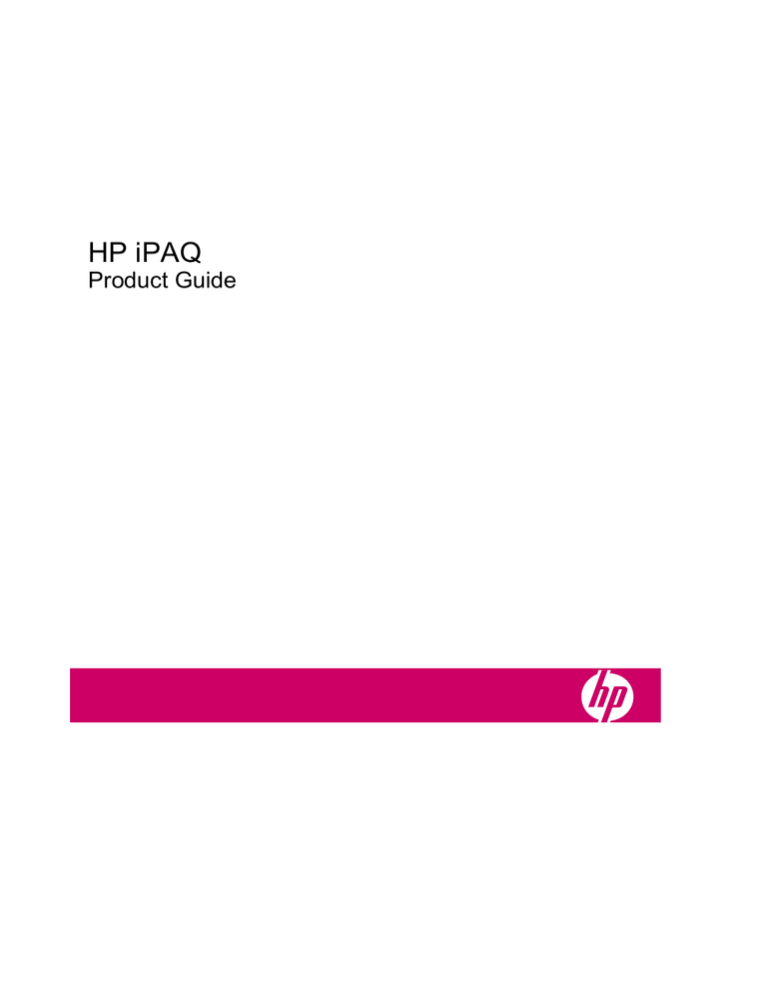

HP iPAQ
Product Guide
© Copyright 2007 Hewlett-Packard
Development Company, L.P.
HP iPAQ products are powered by
Microsoft® Windows CE 5.0 with Messaging
and Security Feature Pack.
Microsoft Windows and the Windows logo
are trademarks of Microsoft Corporation in
the U.S. and other countries.
Office. © Crown copyright and/or database
right 2004. All rights reserved. License
number 100026920.
Ordnance Survey of Northern Ireland.
© Norwegian Mapping Authority, Public
Roads Administration / © Mapsolutions
© Roskartographia
© Swisstopo
SD Logo is a trademark of its
proprietor.
Topografische onderground Copyright ©
dienst voor het kadaster en de openbare
registers, Apeldoorn 2006
Bluetooth® is a trademark owned by its
proprietor and used by Hewlett-Packard
Development Company, L.P. under license.
All other product names mentioned herein
may be trademarks of their respective
companies.
Hewlett-Packard Company shall not be liable
for technical or editorial errors or omissions
contained herein. The information is
provided “as is” without warranty of any kind
and is subject to change without notice. The
warranties for Hewlett-Packard products are
set forth in the express limited warranty
statements accompanying such products.
Nothing herein should be construed as an
additional warranty.
This document contains proprietary
information that is protected by copyright. No
part of this document may be photocopied,
reproduced, or translated to another
language without the prior written consent of
Hewlett-Packard Development Company,
L.P.
NOTICE: © 1984 – 2007 Tele Atlas. All rights
reserved. This material is proprietary and the
subject of copyright protection and other
intellectual property rights owned or licensed
to Tele Atlas Canada, Inc. Tele Atlas
Canada, Inc. is an authorized distributor of
selected Statistics Canada computer files
under Agreement number 6776 and is an
authorized distributor of selected Geomatics
Canada computer files. The product includes
information copied with permission from
Canadian authorities, including © Canada
Post Corporation. The use of this material is
subject to the terms of a License Agreement.
You will be held liable for any unauthorized
copying or disclosure of this material.
Second Edition November 2007
Document Part Number: 461378–002
Produced under license from, and contains
copyrighted material of “The Sanborn Map
Company, Inc”. All Rights Reserved.
© 1984-2007 Tele Atlas. All rights reserved.
This material is proprietary and the subject of
copyright protection and other intellectual
property rights owned by or licensed to Tele
Atlas. The use of this material is subject to
the terms of a license agreement. You will be
held liable for any unauthorized copying or
disclosure of this material.
Data Source © 2007 Tele Atlas N.V.
© BEV, GZ 1368/2003
© DAV, violation of these copyrights shall
cause legal proceedings.
© IGN France
This product includes mapping data licensed
from Ordnance Survey with the permission of
the Controller of Her Majesty’s Stationery
Table of contents
1 Welcome
2 Register the Travel Companion
3 Box contents
Box contents ......................................................................................................................................... 3
4 Components
Front components ................................................................................................................................ 4
Left and right components .................................................................................................................... 5
Top and bottom components ................................................................................................................ 5
Back components ................................................................................................................................. 6
5 Power on and set up the Travel Companion
Set up the Travel Companion ............................................................................................................... 7
Step 1: Remove the battery cover ....................................................................................... 7
Step 2: Install the battery and replace the battery cover ..................................................... 7
Step 3: Charge the battery ................................................................................................... 8
Power on Travel Companion ................................................................................................................ 8
Car kit setup ......................................................................................................................................... 8
6 Warnings and safety information
7 Learn the basics
Hardware buttons ............................................................................................................................... 12
Power on/off ....................................................................................................................... 12
Multifunction wheel ............................................................................................................ 12
Zoom in and out ................................................................................................ 12
Adjust volume and brightness ........................................................................... 12
Open the Quick Launch menu .......................................................................... 13
Screen buttons ................................................................................................................................... 13
Buttons on the top and the bottom of the screen ............................................................... 13
Buttons on the map ............................................................................................................ 16
Selectors ............................................................................................................................................ 17
Direct selectors .................................................................................................................. 17
List selectors ...................................................................................................................... 18
Sliders ................................................................................................................................ 18
iii
Switches ............................................................................................................................ 18
Virtual keyboards ............................................................................................................... 18
The QWERTY keyboard ..................................................................................................................... 18
The numeric keyboard ........................................................................................................................ 19
8 Discovering the Travel Companion through the Startup menu
Entertainment ..................................................................................................................................... 20
Videos ................................................................................................................................ 20
Music ................................................................................................................................. 21
Games ............................................................................................................................... 22
Pictures .............................................................................................................................. 22
Contacts ............................................................................................................................................. 23
Add contact ........................................................................................................................ 24
Edit contact ........................................................................................................................ 25
Navigate to a contact ......................................................................................................... 25
Call contact ........................................................................................................................ 25
Extras ................................................................................................................................................. 25
Clock .................................................................................................................................. 25
Phone ................................................................................................................................ 27
Calculator ........................................................................................................................... 27
Settings .............................................................................................................................................. 27
System ............................................................................................................................... 28
Align screen ...................................................................................................... 28
Time ................................................................................................................................... 28
Date ................................................................................................................................... 28
Language ........................................................................................................................... 28
Media directories ............................................................................................................... 29
9 Operating navigation
Navigate to an address ...................................................................................................................... 30
Navigate to a POI ............................................................................................................................... 31
Create a route with multiple destinations ........................................................................................... 31
Create a route with a different start point ........................................................................................... 32
Save user data ................................................................................................................................... 33
10 Reference book – Navigation menu
Go to ................................................................................................................................................... 34
Find an address, street, intersection, or city ...................................................................... 35
Find in History .................................................................................................................... 36
Find one of the Favorites ................................................................................................... 36
Find home or work ............................................................................................................. 36
Find a POI .......................................................................................................................... 36
Search reference ............................................................................................... 36
iv
POI groups ........................................................................................................ 37
POI subgroups .................................................................................................. 37
Select a POI ...................................................................................................... 37
Find co-ordinates ............................................................................................................... 38
Coordinate display format ................................................................................. 39
11 Bluetooth
Connect a Bluetooth-enabled phone to your Travel Companion ....................................................... 40
Make a call ......................................................................................................................................... 41
Use phone dialer ................................................................................................................ 41
Use contacts ...................................................................................................................... 42
Use POI ............................................................................................................................. 42
Answer or reject a call ........................................................................................................................ 42
Connect to a Bluetooth stereo headphones ....................................................................................... 42
12 Map
Map visualization ................................................................................................................................ 45
Daylight and night color schemes ...................................................................................... 45
Current position and Lock-on-Road ................................................................................... 45
Selected map point, also known as the Cursor ................................................................. 46
Visible POIs (Points of Interest) ......................................................................................... 46
Road safety cameras ......................................................................................................... 46
Contacts ............................................................................................................................. 46
Elements of the active Route ............................................................................................. 46
Start point, Via points, and destination .............................................................. 47
Active leg of the route ....................................................................... 47
Inactive legs of the route .................................................................. 47
Turn preview ....................................................................................................................................... 47
Cursor (the selected map point) ......................................................................................................... 47
Track Log recording/playback indicator .............................................................................................. 47
Cursor menu ....................................................................................................................................... 48
Current street ..................................................................................................................................... 49
Distance to next turn .......................................................................................................................... 49
Next street/Next city ........................................................................................................................... 49
13 Route
Edit Route ........................................................................................................................................... 50
Route Detail ........................................................................................................................................ 50
Saved Routes ..................................................................................................................................... 51
Route Info ........................................................................................................................................... 51
Route data displayed (for destination and Via points) ....................................................... 51
Warning icons .................................................................................................................... 53
Other functions .................................................................................................................. 53
v
Manage Track Logs ........................................................................................................... 54
14 Settings
Visual settings .................................................................................................................................... 56
3D settings ......................................................................................................................... 56
Landmarks ........................................................................................................ 56
Elevated roads .................................................................................................. 56
Buildings ............................................................................................................ 56
Terrain ............................................................................................................... 56
Backlight settings ............................................................................................................... 56
Brightness ......................................................................................................... 56
Power management .......................................................................................... 56
Backlight always on ........................................................................................... 56
Smart Powersave .............................................................................................. 57
Map settings ...................................................................................................................... 57
Alternative Road Names ................................................................................... 57
Show Street Labels ........................................................................................... 57
2D/3D map view ................................................................................................ 57
POI visibility ....................................................................................................... 57
Night mode ........................................................................................................ 58
Zoom settings .................................................................................................................... 58
Auto zoom ......................................................................................................... 58
Restore Lock-to-Position and Smart Zoom ....................................................... 59
Zoom in after find .............................................................................................. 59
Overview mode .................................................................................................................. 59
Sound settings .................................................................................................................................... 59
Voice guidance .................................................................................................................. 60
Key sounds ........................................................................................................................ 60
Dynamic Volume ................................................................................................................ 60
Route settings .................................................................................................................................... 60
Vehicle ............................................................................................................................... 60
Route calculation method .................................................................................................. 61
Short .................................................................................................................. 61
Fast ................................................................................................................... 61
Economical ........................................................................................................ 61
Off-route recalculation ....................................................................................................... 61
Automatic .......................................................................................................... 61
Off ..................................................................................................................... 61
Avoidances ........................................................................................................................ 61
Unpaved Roads ................................................................................................ 61
Motorways ......................................................................................................... 61
Ferries ............................................................................................................... 62
Cross-border planning ....................................................................................... 62
vi
U-turns .............................................................................................................. 62
Permit needed ................................................................................................... 62
Toll roads .......................................................................................................... 62
Carpool lanes (for the USA map only) .............................................................. 62
Keep position on road ........................................................................................................ 62
Regional settings ................................................................................................................................ 62
Language ........................................................................................................................... 63
Voice .................................................................................................................................. 63
Units ................................................................................................................................... 63
Time settings ..................................................................................................................... 63
Set time format .................................................................................................. 63
Warnings ............................................................................................................................................ 63
Warn when speeding ......................................................................................................... 63
Speeding tolerance ........................................................................................... 63
Alternative speed limit ....................................................................................... 63
Alternative speeding tolerance .......................................................................... 64
Enable safety cameras ...................................................................................................... 64
15 Navigation extras
Trip Planner ........................................................................................................................................ 65
Traffic Message Channel (TMC) ........................................................................................................ 65
List of traffic messages ...................................................................................................... 65
TMC configuration ............................................................................................................. 66
TMC radio settings ............................................................................................................. 66
Selected FM radio station ................................................................................. 66
Exclude selected station ................................................................................... 66
Show excluded stations .................................................................................... 66
16 GPS data screen
17 About screen
18 Outlook synchronization
19 Product specifications
System specifications ......................................................................................................................... 70
Physical specifications ....................................................................................................................... 70
Operating environment ....................................................................................................................... 71
20 Regulatory notices
Federal Communications Commission Notice ................................................................................... 72
Modifications ...................................................................................................................... 72
vii
Cables ................................................................................................................................ 72
Declaration of Conformity for Products Marked with the FCC Logo (United States
Only) .................................................................................................................................. 72
Canadian Notice ................................................................................................................................. 73
Avis Canadien .................................................................................................................................... 73
European Union Notice ...................................................................................................................... 73
Products with 2.4–GHz Wireless LAN Devices ................................................................. 74
France ............................................................................................................... 74
Italy .................................................................................................................... 74
Battery Warning .................................................................................................................................. 74
Battery Recycling ............................................................................................................................... 74
Battery Disposal ................................................................................................................................. 74
Equipment Warning ............................................................................................................................ 75
Acoustics Warning .............................................................................................................................. 75
Airline Travel Notice ........................................................................................................................... 76
Medical Electronic Equipment ............................................................................................................ 76
Wireless Notices ................................................................................................................................. 76
U.S. Regulatory Wireless Notice ....................................................................................... 76
Canadian Regulatory Wireless Notice ............................................................................... 76
Brazilian Notice .................................................................................................................. 76
Japanese Notice ................................................................................................................................. 76
Bluetooth Devices .............................................................................................................. 77
Taiwan DGT Notice ............................................................................................................................ 77
Korean Notice ..................................................................................................................................... 77
21 Guidelines for care and maintenance
Using the Travel Companion .............................................................................................................. 78
Cleaning the Travel Companion ......................................................................................................... 78
Carrying or storing the Travel Companion ......................................................................................... 78
Using accessories .............................................................................................................................. 78
Using the Travel Companion in public places .................................................................................... 78
Obtain services for a cracked or damaged screen ............................................................................. 78
Protect the Travel Companion screen from cracking or damage ....................................................... 79
viii
1
Welcome
Thank you for purchasing the HP iPAQ 300 Travel Companion. Your Travel Companion is pre loaded
with many features that enhance your travel experience that you can learn about in this guide. In addition,
there are free Web resources and additional content available to enhance your travels. Here you can
find new Web-based trip planning services that allow you to personalize your travel by creating custom
itineraries for export to your Travel Companion. Visit http://www.ipaq.com to learn about the latest
services and content available for the Travel Companion.
Use this guide to know more about how to:
●
Get started with using your Travel Companion.
●
Manage your contacts and synchronize data.
●
Use Bluetooth for making calls using your Travel Companion.
1
2
Register the Travel Companion
You need to register the Travel Companion with Hewlett-Packard to be able to:
●
Access support and services, and get the most out of your HP products.
●
Manage your profile.
●
Sign up for free support alerts, driver notices, and personalized newsletters.
After registering the Travel Companion, you will receive an e-mail message regarding special offers and
promotions. Visit http://www.register.hp.com and follow the on-screen instructions to register the Travel
Companion or update your mail or e-mail address after registration. You are required to enter your user
ID and registration password to edit your profile online.
2
Chapter 2 Register the Travel Companion
3
Box contents
Box contents
This illustration depicts the items that come in the box with the Travel Companion. Use this illustration
to become more familiar with the device.
NOTE:
Box contents vary by model.
Box Contents
(1)
Travel Companion
(2)
Stylus
(3)
1700 mAH li-ion removable/rechargeable battery
(4)
Getting Started CD with additional software
(5)
Travel Companion Documentation
(6)
AC adapter with interchangeable plug
(7)
mini-USB cable/power cable
(8)
Case
(9)
Dash mount disk
(10)
Car kit – windshield mounting bracket
(11)
Car kit – holder
(12)
Car kit – Travel power adapter
Box contents
3
4
Components
Front components
(1)
Component
Function
Power Key and LED
Press and hold to turn on the Travel Companion.
●
4
Charge LED
◦
Solid Amber – Battery charging
◦
Solid Green – Battery fully charged
(2)
Bluetooth LED
Blue – Bluetooth ON
(3)
Microphone
For Bluetooth hands free audio.
Chapter 4 Components
Left and right components
Component
Function
(1)
Multifunction Wheel
Long press to open the Shortcut menu. Scroll to use.
(2)
3.5 mm Audio Jack
Use with 3.5 mm audio headphones.
(3)
Charging/Communications Port
Use to connect the mini-USB cable.
(4)
Reset
Use to reset the Travel Companion.
(5)
SD Card Slot
Insert a Secure Digital (SD) storage card with the label side up for data
storage.
Top and bottom components
(1)
Component
Function
Microphone
For Bluetooth hands free audio.
Left and right components
5
Back components
6
Component
Function
(1)
Stylus
Remove and use to select elements on the screen and to enter information.
(2)
Back Speaker
Use the speaker to listen to audio.
(3)
Back Cover
Slide the cover away from the Travel Companion to remove the battery.
Chapter 4 Components
5
Power on and set up the Travel
Companion
Set up the Travel Companion
Step 1: Remove the battery cover
Slide the back cover down and away from the Travel Companion.
Step 2: Install the battery and replace the battery cover
1.
Align the battery connectors on the battery with the housing pins in the battery compartment and
insert the battery.
2.
Slide the battery cover until it clicks into place.
Set up the Travel Companion
7
Step 3: Charge the battery
CAUTION: To avoid damaging the Travel Companion or the AC adapter, make sure all connectors
are properly aligned before connecting.
The battery provides power for the Travel Companion to operate. Travel Companion comes with a
mini-USB cable, which must be used to charge the device.
It takes approximately 2-4 hours to fully charge the battery when the device is off. While the device is
in use, it can take up to 8 to 10 hours to fully charge a battery that has been discharged.
To charge the battery:
1.
Insert the USB end of the mini-USB cable into the port on the AC adapter.
2.
Connect the AC adapter to an electrical outlet.
3.
Connect the mini-USB cable to the charging/communications port on the Travel Companion. The
cable connector fits only one way. If the connector does not insert easily, turn it over.
TIP: You can also charge the battery by connecting the Travel Companion to a USB port on your
computer using the mini-USB cable. You can only transfer data when charging through USB.
NOTE: Whenever a replacement battery is inserted into the Travel Companion, press the
Power key for at least two seconds. In case the device does not turn on, attach the AC adapter to
turn on the Travel Companion.
Power on Travel Companion
To power on the Travel Companion:
1.
Press and hold the Power key.
2.
Follow the on-screen instructions to set up the Travel Companion.
NOTE:
The on-screen set up instructions appear only the first time you turn on the Travel Companion.
Car kit setup
The car kit allows you to mount the Travel Companion on a location in your car that provides an open
view of the sky to get the best available GPS signal.
To install the car kit:
1.
8
Plug the power cable into the travel power adapter, and then plug the adapter into a vehicle power
outlet.
Chapter 5 Power on and set up the Travel Companion
2.
Attach the power cable to the clips on the back of the Travel Companion holder. Be sure to leave
enough cable to plug into the Travel Companion, and that the connector is turned the correct way
to plug into the unit.
3.
Install the holder onto the windshield mounting bracket.
4.
Place the car kit assembly onto the windshield (1), and then press the locking lever (2) to securely
mount the assembly into place.
5.
To install the Travel Companion:
Car kit setup
9
6.
10
a.
Insert the Travel Companion into the mounted car kit holder.
b.
Insert the securing clip into the slot on the top of the Travel Companion.
c.
Plug the power cable into the Travel Companion.
Use the knobs to adjust the vertical and horizontal orientation of the Travel Companion.
Chapter 5 Power on and set up the Travel Companion
6
Warnings and safety information
The Travel Companion is a navigation system that helps you find your way to your selected destination.
It determines your exact location with the help of the built-in GPS device. The position information
obtained from the GPS receiver is not transmitted elsewhere. Therefore, others cannot track you with
the help of this application.
If you are the driver of the vehicle, we recommend that you operate the Travel Companion before
beginning your journey. The driver’s attention should always be on the road. Plan your route before
departure, and pull over if you need to change route parameters.
It is also important that you look at the display only if it is absolutely safe to do so.
You should always observe traffic signs and road geometry before you obey any instruction from the
Travel Companion. If you need to deviate from the recommended direction, the Travel Companion
suggests a modified route according to the new situation.
Never place your Travel Companion where it can obstruct the view of the driver, is within the deployment
zone of airbags, or where it can cause injuries in case of an accident.
11
7
Learn the basics
Your Travel Companion is a touch screen controlled device with limited hardware key functions. The
device and the software are designed for easy operation. All controls are operable using your fingertips.
Wherever possible, push buttons and lists are provided to make accessing functions or changing
settings as easy as possible.
Hardware buttons
The majority of the Travel Companion functions can be accessed using the touch screen. Use the
hardware buttons to perform the following functions:
Power on/off
Use the Power button to turn the power on or off. If the device is switched off, the GPS stops working.
Consequently, your position is not calculated, the track log is not saved, and the navigation stops. When
you turn the device on, your Travel Companion continues navigating as soon as the built-in GPS
determines the location.
Multifunction wheel
The Multifunction wheel performs multiple functions.
Zoom in and out
When the map is visible on the screen, turn the wheel up to zoom in, and turn it down to zoom out.
Adjust volume and brightness
To adjust the volume and brightness:
1.
Press the button swiftly to open the Master volume slider below the speaker icon. You may also
tap
to open the Master volume slider.
2.
Now, turn the wheel up or down to adjust the volume. The
displays the newly selected value.
3.
and the position of the fader
If you wait for a few seconds, the slider disappears. Before this happens, you can press the button
swiftly again, and the slider switches to the Display brightness setting. The
the speaker icon above the slider.
12
icon replaces
4.
The wheel now adjusts the backlight value of the current display mode. If you use the Travel
Companion in daylight mode, the brightness for daylight is modified, if you use the night mode, the
backlight for night use is adjusted.
5.
Now, press the button again, or wait for a few seconds, and the slider disappears.
Chapter 7 Learn the basics
Open the Quick Launch menu
To open the Quick Launch menu:
1.
Press and hold the Multifunction wheel to open the Quick Launch menu, a list of frequently used
applications is displayed.
2.
Turn the wheel up or down to scroll through the list, and press it to jump to the highlighted
subsystem. If you use the touch screen, you can directly select any of the list items, or tap the arrow
below the list to turn the page.
3.
Press and hold the button again or wait for a few seconds till the list disappears.
Screen buttons
Use the touch screen of your Travel Companion to know more about the different functions, to display
information, and to launch different actions.
Some buttons on the screen are common to all or most screens, whereas some buttons appear when
you tap the map to place the cursor.
Buttons on the top and the bottom of the screen
The blue bars on the top and the bottom of all screens contain buttons that initiate functions or lead to
different parts of the application. The symbols on the buttons may provide information on the current
state of the Travel Companion.
The buttons are as follows:
Button
Function
Opens Backlight settings and Power management.
Displays the current status of the battery. The thunderbolt
image on the battery indicates the battery is being charged.
Exits navigation, and opens the Bluetooth settings screen.
Displays the current status of the Bluetooth radio. When the
icon is bright, it indicates the Bluetooth connection is enabled.
When the icon is dark, it indicates that the radio is switched off.
Opens the Master sound level slider below the icon to set the
new master level. Tap the screen at the desired volume level,
or use the wheel to adjust it.
Screen buttons
13
Displays the current master volume level. The more number of
arcs, the louder is the sound. The crossed out speaker icon
indicates that the sound output is mute.
Opens the Brightness setting slider below the icon to set the
new backlight level. Tap the screen at the desired backlight
level, or use the wheel to adjust it. This icon is displayed only
when you tap the speaker icon, or press the multifunction
wheel twice.
Opens the Route progress list.
When displayed on the Main menu screen, tap this icon to exit
navigation, and return to the Multimedia application. When
displayed on list screens, tap this icon to delete the item it is
displayed next to.
Opens a new screen where you can edit the item it is displayed
next to.
Opens the GPS Data screen.
Displays the current GPS reception quality status. The more
vertical lines, the better is the reception. A cross means there
is no GPS reception.
Locks the touch screen against accidental tapping. The
hardware buttons can be operated even if the screen is locked.
Reactivates the touch screen.
Unlock
Returns to the Main menu screen.
Opens the Map screen.
Displayed on the top left corner, this button opens the Phone
Dialer application.
On Points of interest (POI) detail screens, tapping the button
calls the number saved with the POI.
Exits navigation, and opens the Music player application.
Returns to the previous screen.
On screens with editable screen content, this icon saves the
changes and exits the screen.
On such screens, the
screen without saving.
icon returns to the previous
On screens with non-editable point information, this icon leads
to the Map screen with the selected point in the middle.
14
Chapter 7 Learn the basics
Deletes all list items. You are prompted for confirmation before
items are deleted.
Opens the Cursor menu.
2007-08-04
18:04:31
Displayed on the top centre of the screen, this icon opens Time
settings.
Displays the current date and time.
2007-08-04
18:12:04
Displayed on the bottom left corner, tap this icon to change its
content.
Displays the current date, current time, or both.
29 km/k
4.3 km
143 km
Displays the current speed at which you are traveling, or the
distance of the next Via point and the destination.
Toggles between the values.
1:31 h
3:16:43
5:14 min
1:52:10
Displays the time remaining to reach the final destination, or to
reach the next Via point.
Toggles between the values.
Opens Settings at the page related to the current screen's
content.
Some screen specific buttons:
Button
Aa
123
Function
On keyboard screens, this icon toggles between the alphabetic
and numeric keyboards.
On keyboard screens, this icon inserts a space character in the
text (Space).
On keyboard screens, this icon clears the last entered
character (Backspace).
On keyboard screens, tap this icon to finish entering a text or
number (Enter).
Fit to screen - this icon opens the map sized to fit the object to
be displayed. The object can be a track log, the recommended
route, or a road segment that a TMC message refers to.
On the Route Edit screen, this icon adds a new route point to
the recommended route.
On the Route Edit screen, this icon deletes the selected route
point.
Screen buttons
15
On the Route Edit screen, this icon reorders the route points
to optimize the route length.
On the Route Information screen, this icon starts a simulation
of the recommended route.
On the Route Detail (Itinerary) screen, this icon saves the
route for later use.
On the Track Log list screen, this icon starts recording a track
log.
On the Track Log list screen, this icon replaces the previous
one if a track log is being recorded. Tap this icon to stop
recording.
On the Track Log information screen, this icon opens a new
screen where you can edit the name of the track log.
On the Track Log information screen, this icon exports the
displayed track log to a file.
This icon is displayed when you tap Add POI in the Cursor
menu. First, select the POI group in which you wish to save the
POI, and then tap this icon to start entering the details.
When saving a user POI, this icon lets you create a new group
for the new POI. Tap it, and enter the name of the new POI
group.
On the screen of current TMC messages, this icon opens the
TMC radio settings.
Buttons on the map
When you tap the map, you place the Cursor and semi-transparent buttons appear on the map to help
you modify the view. Tap the map again to have the buttons disappear.
The following buttons are displayed:
Button
Function
These icons change the scale of the map. Tap the magnifier
with the + sign to zoom in. You can see a smaller part of the
map in more detail. Tap the other icon to zoom out, and see a
larger part of the map in less detail.
On the 2D map screen (screen designed for map browsing)
you can access fixed zoom levels using these icons.
16
Chapter 7 Learn the basics
On the 3D map screen (screen designed for navigation) you
can access fixed tilt (and zoom) levels using these icons.
These icons appear only when GPS position is available.
These icons rotate the map left and right.
2D
Only one of these icons is displayed. Tap 3D to switch from the
2D map (designed for map browsing) to the 3D map (Cockpit,
designed for navigation). Tap 2D to return.
3D
This icon moves the map back to the current GPS position (to
the position arrow), and re-enables Smart Zoom that
automatically scales and tilts the map based on the distance
of the next route event. When GPS position is not available,
the map jumps to the position of the Cursor.
This icon is displayed on the screen when a track log is being
recorded. Tap it to jump to the list of track logs.
This icon is displayed on the screen during route simulation
and track log playback. Tap the screen anywhere to stop
simulation.
These icons help you to view the map in the full screen view
and to return to the normal screen view.
Selectors
In the following sections, you can find some of the controls frequently used in the Travel Companion.
Direct selectors
Some of the settings can be chosen from a list of possible values. If the values can be described
graphically, icons are displayed on the screen.
Tap one of the icons to set/change the value.
Sometimes direct selectors appear as radio buttons. Tap either the button or the label to change the
value.
Selectors
17
List selectors
When the available values in the list need to be named, only the current value is displayed (sometimes
with a short description) in a horizontal stripe with arrows at both ends.
The arrows are buttons. Tap to move left in the list or tap to move right. You need not confirm your
selection. The selected value becomes effective immediately.
Sliders
When a feature has several different unnamed (numeric) values, the Travel Companion shows sliders
to set the desired value. They look like analogue potentiometers.
If the value limits are not displayed at the ends of the slider, the leftmost or bottom position means the
minimum value, while the rightmost or top position represents the maximum value.
With some sliders, you can check the current value at one end.
This control can be operated in two ways. Either drag the handle to move the slider to its new position,
or tap the slider where you require the handle to appear (the thumb jumps there immediately). There is
no need to confirm your selection. The selected value becomes effective immediately.
Switches
When a function can only have two values (mainly Enabled and Disabled), a switch is used. The
horizontal line contains the name of the function and not the actual status. There is a check box on the
left to show whether the function is active or not.
When the check mark is cleared or missing, it indicates that the function is not selected. When the check
mark is selected or displayed, the function is selected or enabled. The entire strip performs as a button.
Tap the strip to toggle between the enabled and disabled status.
Virtual keyboards
Your Travel Companion is designed to ensure that you only need to enter letters or numbers when it is
inevitable. In these cases, a full screen keyboard pops up. It can be easily operated with your fingertips.
You can choose between a QWERTY keyboard that contains only letters, and a numeric keypad. There
is a button reserved to switch between the two keyboard types.
The alphabetic keyboard in the Travel Companion does not contain special characters, because you
do not need to enter accents when searching for a destination. Type only the base letters (the letter
most similar to the accented one) and the Travel Companion searches for all the combinations in the
database (for example, for the French street ‘Cité Bergère ’ you only need to type ‘Cite Bergere’, and
the application picks up the correct street name).
When you type in POI names or track log names, the Travel Companion automatically turns all initials
into capitals to create names.
The QWERTY keyboard
The QWERTY keyboard has the same layout as the Standard English QWERTY keyboard. The only
difference is that it contains no numbers and symbol keys. Only the alphabet and some special keys.
The special keys are as follows:
Button
18
Chapter 7 Learn the basics
Function
Aa
123
Toggles between the alphabetic and numeric keyboards.
Inserts a space character in the entered text.
Clears the last entered character.
Tap this icon to finish entering characters.
The numeric keyboard
The numeric keyboard only contains numbers, on buttons. The special keys you find on the other
keyboards (except Space) are available on this keyboard as well.
The numeric keyboard
19
8
Discovering the Travel Companion
through the Startup menu
The best way to discover your Travel Companion is to explore each screen in detail, and find out how
to navigate from one screen to another. When you turn on the Travel Companion, the Startup menu is
displayed.
You can choose from the following applications:
●
Entertainment
●
Contacts
●
Navigation
●
Extras
●
Settings
Entertainment
Tap
to access the following applications:
●
Videos
●
Music
●
Games
●
Pictures
Videos
To play your videos and organize your playlist:
1.
Tap
to access the video function.
Tap
to view and organize your playlist.
Tap
to add videos to the playlist.
2.
3.
NOTE: You will need to add your video files to Media directories to play videos on your Travel
Companion. For more information, see Media directories on page 29.
4.
Tap
to delete videos from your playlist.
NOTE: Similar options are available with the music application.
20
Chapter 8 Discovering the Travel Companion through the Startup menu
5.
Confirm any changes by tapping
.
6.
You can organize your playlist by tapping
after you finish organizing your playlist.
. Tap
to return to the main Video screen
You can play, stop, or jump to next and previous item by tapping the appropriate buttons. The volume
level can be modified with the hardware jogwheel button. The scroll bar shows how much of the video
file has been played and its total length.
Music
To work with music files:
1.
Tap
to enter the Music application.
Tap
to navigate to the songs on your device grouped as follows:
2.
3.
●
Artist
●
Artist/album
●
Album
●
Genre/artist
●
Genre/artist/album
●
Genre/album
The files can also be sorted by title, track, file name, and file size.
4.
Tap the corresponding
to select individual songs, or tap
to select all of them.
5.
Tap
to add them to your playlist.
NOTE: You will need to add your music files to Media directories to play music on your Travel
Companion. For more information, see Media directories on page 29.
Following are some additional features for your music playlist
●
To quickly insert a song to the beginning of your playlist and listen to it right away, tap
●
.
You can open folders or categories by tapping their name, and you can move up by one level by
tapping
.
●
Tap
to view and organize your playlist.
Tap
to select all files.
●
Entertainment
21
●
Tap
if you would like to remove songs from the playlist.
Tap
to return to the main Music screen after you finish organizing your playlist.
●
●
You can play, stop, or jump to next and previous item by tapping the appropriate buttons.
●
The volume level can be modified with the hardware scroll button.
●
The scroll bar shows how much of the song has been played.
●
To repeat a single song or the entire playlist, tap
.
●
To play the songs in a random order, tap
. To follow the order of the playlist, disable this icon.
●
You can change your Music player settings by entering the
menu. If you tap the Remember
playlist option, the music player remembers your playlist until you delete it
●
You can listen to background music whenever you use your Travel Companion. Tap Always to
enable this feature. Tap Ask to enable this feature for some time. Tap Never to turn this feature
off.
Games
Tap
to see the list of games. Tap the icon representing the game you wish to launch:
Games
Description
(1)
Contains four classic games, including Snake, Fireball, Jewel Master, and
Cannons
(2)
Contains a 3D racing game
FLUX
challenge
Each game contains a description of the rules and game controls.
Pictures
To view pictures using picture viewer:
1.
Tap
2.
22
to get a thumbnail view of the pictures on your Travel Companion.
Tap the thumbnail of the picture you want enlarge.
Chapter 8 Discovering the Travel Companion through the Startup menu
3.
Enlarge the picture to full screen view by tapping
4.
. Tap it again to get a thumbnail view.
●
Tap the center of the picture to switch back to normal view.
●
Tap the left side of the screen to display the previous picture and the right side to display the
next one.
Tap Details to view the properties of the picture. If you need to see the data for several pictures
in a folder, tap the left and right arrows to move freely among the data sheets of all the pictures.
You can arrange your pictures into virtual albums. Use the following steps to organize your picture
albums:
1.
.
Tap
2.
Tap the pictures you wish to add to an album.
3.
Tap
and select the album where you wish to store the pictures.
4.
You can add and remove albums with
and
.
NOTE: You will need to add your picture files to Media directories to view pictures on your Travel
Companion. For more information, see Media directories on page 29.
When you first enter the picture viewer, you can see the contents of the “Unfiled Pictures“ album. To
see another album, just tap the button on top of the screen and select the album from the list.
to configure the picture viewer.
Tap
●
●
Slide Show Effect: The following slide show transition effects are available for selection:
◦
Fade
◦
Slide
◦
Special Effect 1–10
◦
No effect
Slide Show Interval Time: The pictures follow each other at specified intervals. Tap the Slide
Show option to start the slide show. Tap the screen anywhere to stop it.
Contacts
The
icon displays the Contact list. You can add your contacts to this list and include their phone
number, address, work place, and e-mail address. You can edit the contact details any time and search
for your acquaintances. If your Travel Companion is connected to a Bluetooth-enabled phone, you can
even dial your contacts directly from the contact list. You can also synchronize your Outlook contacts
with your Travel Companion. For more information, see Outlook synchronization on page 69.
Contacts
23
Add contact
To add a contact:
1.
to add a new contact to your list.
Tap
2.
A data sheet is displayed. Tap the field and use the virtual keyboard to fill in the following
information:
●
name
●
mobile phone
●
e-mail (1–3)
●
home address
●
work phone (1–2)
●
work address (1–3)
●
home phone (1-2)
●
fax
●
birthday
●
pager
●
Web
●
other address
●
office location
●
job
●
spouse
●
anniversary
●
children
●
home fax
●
car phone
●
assistant name
●
assistant phone
●
categories
●
radio phone
●
company
When you are ready, tap
, which brings you back to the data sheet. You can choose another field
and follow the same process to fill in the required details. To save your changes and return to the contact
list, tap
24
.
Chapter 8 Discovering the Travel Companion through the Startup menu
Edit contact
To edit a contact:
1.
to modify the details.
Tap a contact name, and then
2.
To add or change the picture associated with the contact, tap the picture icon. This takes you to
the pictures stored on your Travel Companion. Tap on a picture to select it, and then drag the
picture around to choose which part of the picture becomes the contact icon. You can even change
the size of the icon rectangle by tapping
.
3.
To delete a contact, tap
.
Navigate to a contact
The Navigation application can be launched directly from the Contacts menu. This enables you to
navigate to one of your contacts without entering the navigation application and typing the address of
the destination.
sign. If an address has a
sign
The addresses that can be navigated to are indicated by a
next to it, it means that the application could not find the address on the map. Tap the contact you wish
to navigate to and tap
NOTE:
.
If the contact does not have an address, an error message is displayed.
Call contact
Select the name of the contact you need to call, and then tap
.
NOTE: In order to use this function, you need to connect your Travel Companion to a
Bluetooth-enabled phone first.
Extras
Extra features of the software include clock, phone, and calculator.
Clock
12
3
9
Tap
6
to display the clock, set the time, or set up alarms.
Extras
25
To configure the clock:
1.
Tap
to configure the clock. You can choose between analog and digital modes, and set up
a world clock that shows three time zones at the same time.
2.
To set up the world clock, tap the Main clock title and timezone tab and choose your local time
zone from the list selector.
3.
To confirm your selection, tap
.
You can set the other two time zones in a similar way. To set the time, tap
Tap
Time
4:43 PM
.
to see a full screen view of the clock. Tap on the screen to display the menu buttons again.
To set an alarm:
1.
Tap
to enter the Alarm menu.
Tap
to set an alarm.
2.
3.
In the Description menu, enter the text to be displayed when the alarm rings.
4.
Set the time of the alarm by tapping Time.
NOTE: You can snooze the alarm. To set the length of delay, select the required minutes from
the list.
5.
to confirm your selection.
Tap
The following types of alarms are available:
●
Once: The alarm is not recurrent.
●
Regular: The alarm is recurrent. Here, you can choose the days of the week you require an alarm.
●
Countdown: The alarm alerts after the specified delay.
●
Call back: A link to the Contact list is displayed at the bottom of the screen. You can choose the
contact you need to be reminded to call back.
NOTE:
Tap
to save your selections. If you do not need the alarm, tap
.
TIP: When setting the alarm time, you can change the time by dragging the minute hand of the analog
clock.
To modify an alarm:
1.
Tap an alarm entry in the list to display the detailed settings of the alarm.
2.
To edit or delete a preset alarm, tap
NOTE:
26
To delete all your alarms, tap
.
from the Alarm list screen.
Chapter 8 Discovering the Travel Companion through the Startup menu
Phone
To make a phone call using the phone feature:
1.
Tap
2.
to enter the telephone function from the Extras menu.
Enter a phone number directly, or select a phone number from your contact list by tapping
.
3.
After entering the phone number, tap
to initiate the call.
NOTE: If you have not connected your phone via Bluetooth, your Travel Companion initiates the
connection now.
4.
Tap
to end the call.
The following features are also available:
●
to display a list of previous calls. Each entry contains the phone number, and the date
Tap
and time of the call.
●
Tap
to add a number on the list to your contacts.
Tap
to delete individual entries.
Tap
to completely clear your call history.
●
●
Calculator
Tapping
opens the calculator function.
Tap Mode to switch between the two calculator types:
●
basic
●
exponential
NOTE:
The currently used mode is displayed above the Enter button.
Settings
The Settings
button takes you to the settings of the device. The following options are available:
●
Set the visual appearance
●
Choose the language
Settings
27
●
Set the time and date
●
Read about the software and maps
The Settings
button takes you to the settings of the device. You can, for example, set the visual
appearance, choose the language to apply, set the time and date, and read about the software and
maps. The available settings are discussed in detail below.
System
Tap the
menu point to calibrate the screen alignment, set up the power saving, and display
information about the software and the maps.
Align screen
To align screen:
1.
Enter the
menu point to calibrate the orientation of your screen. This is necessary if your
touch screen is not aligned and you have difficulty in activating the on-screen buttons.
NOTE: When this option is selected, a target cross with instructions is displayed on the screen.
2.
Tap the stylus on the center of the cross, and repeat this each time the cross moves around the
screen.
3.
When the cross disappears, tap the screen within 30 seconds to save the new calibration, or wait
for 30 seconds to retain the original calibration.
Time
To set the time:
1.
You can set hours and minutes by tapping
2.
and
.
12/24
Tap
to choose between 12-hour or 24-hour display in digital mode. If the 12-hour display is
selected, A.M. or P.M. is displayed next to the time.
3.
Tap
to set the time zone.
Date
July
15
Tap
to set the date. Tap
in the calendar to select it.
and
to choose the year and the month, and tap the day
Language
Tap
to set the language of the screen messages. Select the language from the list using
appropriate letter group buttons to find the language that you want to use.
28
Chapter 8 Discovering the Travel Companion through the Startup menu
Media directories
In the
menu item, you can configure all your media directories. This saves time because the
device searches for media files only in the directories listed here, rather than scanning all folders.
To use media directories:
1.
Tap
2.
to add,
to remove a folder, and use
to remove all directories.
When you delete a folder, the application displays Directory won't be scanned after this. Are
you sure? to confirm whether you really require to remove the selected directory.
Choose Yes to confirm deletion. In this case, the particular directory is not removed from your Travel
Companion, but is removed only from the list of media directories. If required, you can call back what
you deleted at a later time.
Settings
29
9
Operating navigation
You can access various navigation features using the navigation feature of your Travel Companion.
CAUTION: Drive with due care and attention when using the Travel Companion for navigation.
Navigate to an address
To navigate to an address:
1.
If you are not on the Main menu screen, tap
to return to the main menu.
2.
Tap Go to.
3.
Tap Address.
4.
The first two lines show the country and the city/town of the last search.
5.
If the address is in a different country, tap the icon with the name of the country, and select the
desired country from a list.
6.
If the appropriate country is displayed, and you need to change the city/town to search for, either
7.
8.
9.
a.
tap History to select a recently used city/town; or
b.
tap the icon with the name of the settlement, and enter the desired city or town.
With country and city/town selected, you have two options:
a.
tap City Center to navigate to the centre of the city/town; or
b.
tap Enter Street Name and enter the street you are looking for.
With country, city/town and street selected, there are three options to finish the address search:
a.
tap Street Center to navigate to the midpoint of the street;
b.
tap Intersection and enter the name of the crossing street; or
c.
tap House Number and enter the house number to navigate to.
If any of the above three is chosen, the map is displayed with the selected point in the middle, and
the Cursor menu displays your available options.
10. Tap Set as Destination.
11. The route is automatically planned, and navigation starts.
12. Start driving, and listen to the voice instructions of the Travel Companion.
30
Chapter 9 Operating navigation
Navigate to a POI
To navigate to a POI:
1.
If you are not on the Main menu screen, tap
2.
Tap Go to.
3.
Tap Point of Interest.
4.
After you reach the next screen, do the following:
5.
to return to the main menu.
a.
tap Quick Search if you have saved a search criteria that can be used now,
b.
tap Along Route to search for a POI near your current route, or
c.
tap any of the other icons to define a point around which you wish to search for the POI.
The list of POI groups appears. Here:
a.
tap any of the group names to open the list of their subgroups,
b.
tap Save to save this search criteria for later use in Quick Search, or
c.
tap
6.
to see all POI near the selected reference point or the route.
Either you go deeper in POI subgroups or tap the list of available POIs that appear. Here:
a.
tap
b.
tap
c.
ABC
Km/Mi
to see the POIs in alphabetical order,
to see the POIs ordered by their distance from the reference,
and finally, tap the desired POI to see its details.
7.
On the screen that shows the details of the selected POI, tap
.
8.
The map is displayed with the selected point in the middle, and the Cursor menu shows your
options.
9.
Tap Set as Destination.
10. The route is automatically planned, and navigation starts.
11. Start driving, and listen to the voice instructions of the Travel Companion.
Create a route with multiple destinations
Multi-point routes are created from a single destination route. Create a single route with one of the
destinations first as described in the previous sections then follow the procedure below:
To create route for multiple destinations:
1.
If you are not on the Main menu screen, tap
2.
to return to the main menu.
Tap Go to, and select a new point just like you did before.
Navigate to a POI
31
3.
When the map is displayed with the Cursor menu, you can extend your previous route:
●
Tap Add Via insert this new point before the final destination; or
●
Tap Continue to append it as a new final destination after the original destination.
4.
The route is automatically recalculated, and navigation continues.
5.
Repeat the above steps to add more route points if necessary, then start driving.
Create a route with a different start point
If you wish to create a future route or to change the starting point to a different location, there are two
different ways to do this.
To create a route with a different start point keeping the same destination:
1.
If you are not on the Main menu screen, tap
to return to the main menu.
2.
Tap Go to, and select the start point just like you did before with destinations.
3.
When the map is displayed with the Cursor menu, tap Set as Start.
4.
The Travel Companion asks you to confirm that the route does not start from the current GPS
position.
5.
If you confirm, the new starting point is set, and automatic route recalculation is disabled (otherwise
the Travel Companion would recalculate the route from the current GPS position as soon as a new
position data is received).
6.
The new route has the same destination and Via points as the previous one.
Alternatively, you can also create a route with a different starting point and a new destination:
1.
If you are not on the Main menu screen, tap
to return to the main menu.
2.
Tap Go to, and select start point.
3.
When the map appears with the Cursor menu, tap Set as Start.
4.
The Travel Companion asks you to confirm that navigation does not start from the current GPS
position.
5.
If you confirm, the new starting point is set, and automatic route recalculation is disabled (otherwise
the Travel Companion would recalculate the route from the current GPS position as soon as a new
position data is received).
6.
Tap
32
to return to the Main menu screen.
7.
Tap Go to, and select the destination.
8.
When the map is displayed with the Cursor menu, tap Set as Destination.
9.
A new route is calculated with the desired end point.
Chapter 9 Operating navigation
Save user data
To save user data, first select a map point, and then do the following:
1.
Either tap a location on the map to place the cursor, then open the Cursor menu with the
icon.
2.
In the Main menu, tap Go to, and select a point. The map with the Cursor menu is displayed.
From the Cursor menu:
●
tap Save as Favorite, if you wish to place this point on the list of your favorite destinations;
●
tap Add POI, if you wish to save a useful map point with icon, telephone number, and
additional information; or
●
tap Add Speedcam, to save the point as a location of a road safety camera.
Save user data
33
10 Reference book – Navigation menu
The Main menu is displayed when navigation is started. This is the root of the screen hierarchy. Most
parts of the Travel Companion are directly accessible from here by using the icons described below:
NOTE:
To return to the Main menu from any screen, tap
Button
.
Function
Opens the Go to menu, the subsystem that helps you find your
destination.
Opens the map screen (2D or 3D).
Opens the Route menu, with options to fetch route information
and modify the route if required.
Opens Settings to configure and modify the behavior of the
Travel Companion.
Opens Navigation Extras, the screen for additional navigation
features.
Go to
The Go to menu is accessible from the Main menu. This screen offers various options for selecting a
location.
When a selected location is found, the results are displayed on the map marked with the cursor (a red
dot with radiating red circles). The Cursor menu appears with possible actions.
and
icons to navigate between
There are multiple menu options in the Go to menu. Use the
the screens and see all available options. These options are described in detail in the following sections.
Buttons
Function
Opens the address search screen.
Opens the list of Favorites.
Displays Home on the map. Home is the first in the list of
Favorite destinations.
34
Chapter 10 Reference book – Navigation menu
Buttons
Function
Displays Work on the map. Work is the second in the list of
Favorite destinations.
Opens the POI search screen.
Opens the list of recent destinations.
12
9
3
6
Opens the list of Contacts saved with valid address(es).
Opens the map to let you pick one point.
Opens the co-ordinates search screen.
Opens the list of saved routes.
Opens the next screen to display more options.
Returns to the first screen.
Find an address, street, intersection, or city
Searching for a city, a street, an intersection, or an exact address can all be done in the Find
Address module. If you know at least a part of the address, this is the quickest way to find the location.
The button names are as follows:
Button names
Function
Country Name
Tap to select a different country.
History
Tap to select a city/town from the list of recently used cities and
towns.
City Name
Tap to select a region/state in the displayed country.
City Center
Tap this button to navigate to the centre of the selected region/
state if you have no street information.
Street Name
Tap to select a street in the displayed region/state.
Intersection
Tap to define a cross street to select the crossing as the
destination.
Street Center
Tap this button to navigate to the midpoint of the selected street
if you do not have the house number information.
<House Number>
Tap to enter the house number to search for.
Go to
35
Find in History
If you have already used Go to, or picked and used map points before, all of these appear in the
History list.
You can pick any of your recent locations to be your destination. On this screen, the list cannot be
reordered or filtered by name, but the scroll bar on the right lets you browse through the complete list
to find your preferred point.
Use
to clear one item from the list, or
to empty the list.
Find one of the Favorites
The list of your favorite destinations appears on this screen. Tap any option available in the list to select
the point. Use the scroll bar to browse through the whole list, or select one of the following options:
Buttons
Function
Reorders the list by the distance of the Favorites.
Km/Mi
ABC
Reorders the list alphabetically.
Deletes the favorite it appears next to.
Find home or work
The first item in the list of favorite destinations is
and the second one is
. These two points
can be accessed directly from the Go to menu. Tap any of the two icons, and the map with the
Cursor menu is displayed with the selected point in the middle.
Find a POI
You can select your destination from the thousands of POIs included with the Travel Companion or from
the ones you have previously created. This screen helps you find the destination you are looking for.
POI items are categorized to let you locate them more easily.
Search reference
The search is carried out around a certain reference. First, you need to set this reference, or choose
Quick Search to filter the POIs based on a previously saved criteria.
Buttons
Function
The search is carried out around the current GPS position.
?
36
Chapter 10 Reference book – Navigation menu
Opens the list of previously saved search criteria (reference
point, POI category, and POI subcategory).
Buttons
Function
The search is carried out around a certain point on the map.
The map opens to let you select the reference point by tapping
the reference point.
The search is carried out around the final destination of your
current route.
The reference is not a point but the whole route. The distance
of the POI is calculated based on the extra distance you need
to travel to reach the point then return to the route.
Using Quick Search you need to choose one from the previously saved search criteria, and you instantly
get a list of POIs matching that criteria and reference.
POI groups
The other icons lead to a list of POI groups. On this screen, you can see the first page of the top-level
POI categories.
The options are as follows:
Buttons
Km/Mi
ABC
Save
Functions
The list of results is ordered by their distance from the
reference.
The list of results is ordered alphabetically.
Save the current search criteria to be accessed later from
Quick Search.
Show the list of all POI items matching the current criteria.
Narrow the list of matching items by giving a part of its name.
POI subgroups
If you tap any of the POI groups, the list of its subgroups open, where you have the same options as
POI groups.
Select a POI
Once you get a list of matching POIs, tap one item in the list to see its details. The options are as follows:
Buttons
Functions
Returns to the list of search results.
Go to
37
Buttons
Functions
Initiates a phone call to the displayed number.
Opens the map with the selected POI in the centre.
Opens the Cursor menu, and the map with the selected POI
in the centre.
Find co-ordinates
In the Travel Companion, select your destination by entering map co-ordinates. The co-ordinates need
to be entered in Latitude/Longitude format, based on the WGS84 earth model (the model used by most
GPS devices).
On accessing this screen, the co-ordinates of the current GPS position (or the selected map point,
referred to as the Cursor, if the map has been moved) are displayed.
The co-ordinates are always displayed in the format previously configured here, but you can enter the
co-ordinates in any of the three Latitude/Longitude formats (decimal degrees; degrees and decimal
minutes; or degrees, minutes and decimal seconds). You can even enter the latitude and longitude in
different formats.
To easily enter a Latitude/Longitude pair:
1.
The left field contains the latitude.
2.
Check the first character: an ‘N’ (North) or ‘S’ (South) letter. This specifies whether the point is in
the Northern or the Southern hemisphere.
3.
Use N/S to change the hemisphere if necessary.
4.
Use
5.
to clear the figures not matching the desired latitude.
Enter numbers for the latitude.
●
●
Use the decimal point if the degrees, minutes, or seconds are not integers.
I
II
,
, or
(the label depends on the current cursor position inside the
Use
latitude) to start entering minutes after degrees or seconds after minutes.
6.
When finished, tap the longitude on the right, and enter it as you did with the latitude. This time the
E/W hemisphere-changing icon specifies whether the point is located East or West from the
meridian crossing Greenwich, UK.
7.
Tap
to select the latitude and longitude entered.
To change the format the coordinate is displayed here and on other screens of the Travel Companion,
tap Change Format. This leads to a new screen to change the format.
38
Chapter 10 Reference book – Navigation menu
Coordinate display format
Positions are sometimes displayed with their addresses, and sometimes with their co-ordinates. This
setting lets you choose whether to display co-ordinates in degrees (dd.dddddd); degrees and minutes
(dd mm.mmm); or degrees, minutes and seconds (dd mm ss.s).
Go to
39
11 Bluetooth
The Bluetooth application lets you connect your mobile phone, stereo headphone, or car stereo to your
Travel Companion. When the connection to a mobile phone is established and you receive a call, it is
automatically transferred to your Travel Companion and the speaker turns on. This enables safer driving
and you need not use a headset or press any buttons to activate the speaker.
To launch the Bluetooth application, choose one of the following options:
●
R
Tap
on the top of the screen.
R
NOTE: The
icon is always available on every screen
●
Go to the Settings menu and tap Bluetooth.
●
Tap Extras/Phone/Key Pad menu point to dial the phone number.
Connect a Bluetooth-enabled phone to your Travel
Companion
You can connect Bluetooth-capable mobile phones to your Travel Companion. Check the
documentation of your phone for compatibility information.
To connect to a Bluetooth-enabled phone:
1.
Make sure that Bluetooth is enabled on the phone.
2.
R
Tap Settings >
.
3.
Tap Explore Bluetooth devices.
4.
Nearby Bluetooth devices are listed. Tap your phone’s name when displayed in the list.
5.
Select the Bluetooth service to use:
●
To use your device as a loudspeaker, choose Voice Gateway.
●
For transferring files between your phone and the Travel Companion, choose OBEX File
Transfer.
NOTE: Other services may be listed as well depending on the phone.
6.
Both your phone and your Travel Companion will prompt for a 4-digit numeric password. Enter the
same password on both devices.
The icons available on the screen are as listed below:
Buttons
R
40
Chapter 11 Bluetooth
Function
Tap to launch the Bluetooth application
Buttons
Function
Tap to set your Bluetooth preferences
Tap to enable automatic transfer of incoming calls
Tap to view more information on Bluetooth
?
Tap to dial a phone number
Tap to view a list of previous connect attempts
NOTE: My Shortcuts menu contains devices you have
previously paired with your Travel Companion for easy access.
Tap to initiate pairing from your mobile phone
Tap to initiate a call
Tap to end a call
Make a call
You can make calls using the phone feature, contacts, or POI.
Use phone dialer
To make calls using the phone dialer:
1.
R
Tap Settings >
.
2.
Tap
to enter a phone number.
3.
Tap
to initiate a call.
Make a call
41
Use contacts
To make calls using contacts:
1.
Tap Extras >
.
2.
Select a phone number from your contact list by tapping
.
3.
Tap
to initiate a call.
Use POI
To make calls using POI:
1.
After a list of POI is displayed on your screen, tap
to initiate a call.
2.
Tap
to end a call.
Answer or reject a call
If the Voice Gateway service is enabled with your phone, you can answer or reject calls on your Travel
Companion.
In case of a call, Incoming Call is displayed on the screen. Tap
to answer the call and tap
to reject a call.
Connect to a Bluetooth stereo headphones
You can connect a Bluetooth-enabled stereo headphone to your Travel Companion.
To connect to a Bluetooth-enabled stereo headphone:
1.
Make sure that Bluetooth is enabled on the phone.
2.
R
Tap Settings >
42
.
3.
Tap Explore Bluetooth devices.
4.
Nearby Bluetooth devices are listed. Tap your headphone’s name when displayed in the list.
Chapter 11 Bluetooth
12 Map
There are two map screens: the Map (2D) screen and the Cockpit (3D) screen. The manner in which
they display the map is similar, but the look and controls are optimized for different purposes.
The Map (2D) screen is to be used for the following:
●
browse the map,
●
create user POI items,
●
plan your route based on map points.
The Map screen is designed to show the maximum map area. This screen can only be used in 2D
North-up mode. You can scale the map, but rotating and tilting is disabled.
The Cockpit (3D) screen is for driving purposes
●
If you are just cruising data such as speed, GPS reception quality, current date, and time
●
If you are navigating, some more route data like the next street in your route, the distance to travel,
type of the next route event.
There are several controls that function in a similar fashion on the two screens. They are described in
the following sections.
Button
Function
Exits navigation, and opens the Phone dialer application
Opens Route Progress screen
Turn preview*
Opens a large turn preview box in the corner of the map when
you are on an active route.
Next street (scrolled)*
Zellerrain-Bu
Shows the Current street for a few seconds. This option is
displayed only on an active route.
Turn distance*
5.1km
Shows the Current street for a few seconds. This option is
displayed only on an active route.
Exits navigation, and opens the Music player application
Sound volume level or muted
Opens volume setting slider
Zooms out map
43
Zooms in map
Initiates fixed zoom levels and re-enables Lock-to-Position
(2D map only)**. This option is displayed only when GPS
position is available.
Initiates fixed tilt and zoom levels and re-enables
Lock-to-Position (3D map only)**. This option is displayed only
when GPS position is available.
Re-enables Lock-to-Position and Smart Zoom
2D
Toggles between 2D (Map) and 3D (Cockpit) screens
3D
Selected map point (Cursor)
Rotates map left (3D map only)
Rotates map right (3D map only)
2007-08-04
18:12:04
Date and Time
Changes content: Date, Time, or Date/Time
This option enables you to switch to full screen map mode and
back to normal map mode on the map screen.
Opens Cursor menu
44
Chapter 12 Map
GPS reception quality
Opens GPS Data screen
1:31 h
3:16: 43
Time to destination and ETA at destination
Time and ETA to next Via point
Current speed
29 km/k
Distance to next Via point and destination
Opens the Main menu (Go to, Map, Route, Nav Extras,
Settings)
Map visualization
The current version of the Travel Companion is primarily intended for land navigation. That is why maps
in the Travel Companion look similar to paper roadmaps (when using daytime colors and 2D map mode).
However, the Travel Companion provides much more than regular paper maps can. The look and the
contents can be changed.
Daylight and night color schemes
The daylight and night color schemes let you adjust the Travel Companion to the brightness of the
environment. Use the daylight and night color schemes accordingly. Daylight colors are similar to paper
roadmaps, while the night color schemes use dark tints for large objects to keep the average brightness
of the screen low, with carefully selected colors to still keep you informed about all the necessary
information on the screen.
You can change between day and night views manually in Settings, or let the Travel Companion do it
automatically for you.
NOTE: The automatic day/night mode is based upon the current date and GPS position by which the
Travel Companion calculates the exact sunrise and sunset times on the particular day at the particular
location. Using that information the Travel Companion can automatically switch between the color
schemes a few minutes before sunrise, when the sky has already turned bright, and a few minutes after
sunset before it gets dark.
TIP: To further enhance the effect of the night color scheme, you can instruct the Travel Companion
to decrease the display backlight when the night colors are used. Set the desired backlight levels for
both daylight and night modes.
Current position and Lock-on-Road
When your GPS position is available, a blue arrow (yellow when using night colors) shows your location
on the map.
The direction of the arrow represents your heading. The arrow is sized and vertically rotated with the
zoom and tilt levels to always look realistic.
Your Travel Companion has a built-in Lock-on-Road feature that always puts the position arrow on the
road, on the axis of the street in case of one-way streets, or on the side of the road where you drive
(e.g. on the right in Germany and on the left in the U.K.) on two-way roads.
You always see this corrected position on the map. The position given by the GPS is not displayed, but
this is the information recorded in the track log. When recorded track logs are displayed on the map,
the line is not corrected. You see the positions reported by the GPS.
Map visualization
45
When the GPS position is lost, the arrow turns grey, but the journey continues on the recommended
route for a short period of time with the speed last detected before the GPS position was lost. When the
next route event is reached, or after 40 seconds, the arrow stops, and remains grey until GPS reception
returns. This way short tunnels can be crossed without losing the position.
Selected map point, also known as the Cursor
If you tap the map somewhere and tap again or select a specific item in Go to, it becomes the selected
point on the map, marked with a small red dot and permanently radiating red circles to make it
conspicuous at all zoom levels, even when it is in the background of a 3D map view. You can use this
point as starting point, Via point, or destination of your route, you can search for a POI near to it, or save
it as a POI, a Favorite or the location of a road safety camera. The cursor, when visible, is also the
reference point for map scaling.
NOTE: When your GPS position is available, and Lock-to-Position is active, the cursor is the current
GPS position, the blue arrow. When you select another point by tapping the map, or using the Go to
menu, the new Cursor is displayed on the display with the red dot and the radiating red circles.
Visible POIs (Points of Interest)
Your Travel Companion comes with thousands of built-in POIs, and you can create your own POI
database as well.
POIs are represented by icons on the map. For a built-in POI it is the icon of the subcategory of the
actual POI. For points you create, it is the icon you had chosen when you created the POI. POI icons
can be changed later in Visual settings.
These icons are large enough to recognize the symbol, and semi-transparent so as not to cover the
streets and junctions behind them.
When the map is zoomed out, the icons are not displayed. As you zoom in, icons appear based on their
visibility settings.
Road safety cameras
Road safety cameras, such as speed cameras and red light cameras are special POI types in the Travel
Companion.
Contacts
A different type of special POIs is Contacts. When the Travel Companion is started, it attempts to
recognize the addresses in your Travel Companion’s Contact database. All contacts with the address
recognized are displayed as POIs in a group named Contacts.
If they exist, the Home, Work, and Other addresses of a contact are imported. For example if you have
the home and office addresses of John Smith, you have two POIs, one called ‘John Smith (Home)’, and
another one as ‘John Smith (Work)’.
Elements of the active Route
Your Travel Companion uses a multi-destination routing system in which you have a start point (normally
your current GPS position), a destination, the line of the active leg of the route, and optionally Via points
and inactive legs. They are all displayed on the map.
46
Chapter 12 Map
Start point, Via points, and destination
You have the following features on any active route while you are at a start point, at Via points, or at the
destination.
Active leg of the route
The active leg is the section of the route you are currently driving. If you have not added any Via points,
the whole route is the active leg. When Via points are present, the active leg is the part leading from
your location to the next Via point. The active section is displayed in light green (red when using night
colors). It is always the most conspicuous part of the map even when in the background of a 3D map
view. The line of the route is displayed on the driving side of the road for two-way and on the axis in
case of one-way streets. When the map is zoomed in and the line is wide enough, small arrows show
the direction of the route. This can be useful if you preview the route before starting the journey or when
entering a complex junction.
Inactive legs of the route
Future sections of a route are inactive. They are also displayed on the map with the same color but a
darker tint than the active one. An inactive route section becomes active as soon as you reach its starting
Via point. Roads in the route can be excluded by setting required preferences. Although you can choose
whether to include or avoid some road types in Route settings, sometimes they are impossible to avoid
near the starting point, Via points, or the destination. If so, the Travel Companion displays those
segments of the route with an alternate color.
Turn preview
On the Map screens this field shows a graphic illustration of the next maneuver. For example when you
approach a turn, an arrow shows whether it is a slight, normal or sharp turn. When showing a roundabout,
the number of the exit is also given.
This field also serves as a button. Tap it to display the turn preview in large in the top left corner of the
map. Tap again to disable the large turn preview.
Cursor (the selected map point)
If you tap the map somewhere twice or select one specific item in Go to, it becomes the selected point
on the map, marked with a small red dot and radiating red circles to make it conspicuous. You can use
this point as starting point, Via point, or destination for your route, you can search for a POI near it, or
save it as a POI, a Favorite, or a road safety camera.
Track Log recording/playback indicator
When a track log is being recorded, a
icon is displayed on the map screens. This icon also
functions as a button leading to the Track Log screen where you can stop the recording or make the
track log visible on the map.
During track log playback a
anywhere) stops the simulation.
icon is displayed. Tapping this icon (in fact, tapping the screen
Turn preview
47
Cursor menu
The Cursor is the selected point on the map (marked by a red dot and radiating red circles around it),
or the current GPS position when it is available and Lock-to-Position is enabled.
, or using the Go to menu, the map with the Cursor menu is displayed to give you
Tapping the
the list of possible functions you can use the Cursor for.
The content of the Cursor menu is slightly different if there is an active route already planned, and if
you are near to a route point. You have the following options:
48
Button
Function
Set as Start
Use the Cursor as the departure point for your route. This
disables routing from the current GPS position and automatic
off-route recalculation. If a route existed before, the Via points
and the destination remains the same.
Remove Start
This button replaces “Set as Start“, if the Cursor is at or near
to the start point of the route. Tap it to remove the start point
of the route.
Add Via
By inserting the selected map point as a via, you instruct the
Travel Companion to cross this location before the destination
of the route. This is the way to build a multi-point route in
reverse order (when you wish to insert a stopover ‘go to A but
first get some fuel at B’ or you need to influence the direction
of the route). This menu point works only if a route is already
active.
Remove Via
This button replaces “Add Via“, if the Cursor is at or near to any
of the Via points of the route. Tap it to remove that particular
Via point from the route.
Continue
This button adds a new final destination after the previous
destination. The new destination replaces the old one, which
is now demoted to a Via point. This is the way to build your
multi-point route in straight order (when you wish to visit
several destinations ‘go to A then to B’). This menu point is
available only if a route is already active.
Set as Destination
Use the Cursor as the destination of your route. This button is
to start a new route. The previous route (if it exists) is deleted
and replaced. If a multi-point route is active, the Travel
Companion asks you whether you really need to delete it
together with all its Via points.
Remove Destination
This button replaces “Set as Destination“, if the Cursor is at or
near to the destination of the route. Tap it to remove the
destination of the route promoting the last Via point as the new
destination.
Save as Favorite
Save the cursor as one of your favorite destinations. Select one
position in the Favorite list, and it is filled/replaced with the
details of the cursor.
Add POI
Save the cursor as a user POI. Give a name, an icon, and
select a POI group for the new POI.
Add Speedcam
Save the Cursor as the position of a road safety camera. Select
the type, the direction of the camera, and the speed limit
checked.
Chapter 12 Map
Edit Speedcam
This button replaces Add Speedcam, if the Cursor is at or near
to a position of a road safety camera. Tap it to edit the details
of the camera.
POI Info
This button opens a list of POIs near the Cursor.
Current street
If you tap the Next street field on the map screens, the current street name is displayed for a few seconds.
Distance to next turn
This field shows the distance to go before reaching the next route event (turn, roundabout, exit, etc.).
This field is only displayed when navigating a route.
Next street/Next city
This field shows the road or street that comes next in the route itinerary.
If you are not yet in the city or town where this next street is, the Travel Companion displays the name
of the settlement instead of the name of the road or street. A bullet symbol appears next to the name of
settlement to help you identify them apart from street names.
This field is only displayed when navigating a route.
Current street
49
13 Route
This menu contains options to manage your routes and track logs.
Edit Route
To edit a route, you need to be aware of all waypoints used in the route. The first item in the list is the
departure point of the route without a valid GPS position. The list contains the last reached Via point or
the point where the Travel Companion recalculated the route. This means the list is permanently
updated, and Via points drop out during the journey. The last item in the list is your final destination.
Use the scroll bar to browse through the list and tap any list item to highlight it. You can perform the
following actions:
Buttons
Function
Moves the highlighted route point up in the list.
Moves the highlighted route point down in the list.
Selects a new point to add to the list below the highlighted route
point.
Deletes the highlighted route point.
Optimizes the route sequence. Optimization is for Via points
only. Your starting point and destination remain in their
positions.
Route Detail
This function opens the itinerary (route event) list of the active route.
All significant junctions are displayed in the list, even ones to be passed.
The Itinerary is live and constantly updated when navigating a route. The list item coming next in
navigation is the highlighted one until you tap another item in the list to highlight it. After that, the highlight
remains on the item you have selected.
Tap any of the list items to have it displayed on the map. This helps you identify route events in the list.
Other available functions on this screen are:
50
Chapter 13 Route
Buttons
Function
Deletes all route events. The whole route is deleted.
Saves the route.
Saved Routes
This function opens the list of saved routes.
All significant junctions are displayed in the list, even the ones that have still to be passed. Tap any of
the list items to change its name. Other available functions on this screen:
Buttons
Function
Deletes the route it is displayed next to.
Deletes all saved routes.
Route Info
The Route Information screen has all the data and some functions that you might need while
navigating. Without an active route some icons are inactive, and route data cannot be displayed.
Route data displayed (for destination and Via points)
The route data displays information about the current route. These fields are continuously updated while
you keep this screen open.
Saved Routes
51
When you open the screen, you will see all fields contain information on reaching your final destination.
Tap any of the fields to see data on the Via points starting from the first one through the final destination
again. You can see the following options on the screen:
●
Route line
The upper part of this screen shows your planned route as a horizontal line. Its leftmost point is
the start of the route, the rightmost one is the final destination, and you can see your Via point flags
along the line, spaced in proportion to their distance.
The blue (yellow when using night colors) arrow representing your position travels from the left to
the right, giving you visual feedback of your journey.
When you reach a Via point, it becomes the starting point of the route, the past is deleted. The line
with all the other Via points are modified instantly, and the arrow jumps back to the left.
When the Travel Companion needs to recalculate the route, the arrow does not jump back to the
left as when reaching a Via point. It might drift a bit as the length of the new route may be different
from the previous one.
When the data corresponding to the entire route is displayed in the fields below, the line is colored
the same way as the road type displayed on the map. When you see data that belongs to a Via
point, the route is colored only up to that Via point. The rest of the line remains grey.
●
Destination/Via point
This field shows the exact address (or its co-ordinates if the address is not available) of the final
destination.
If Via points exist, tap and tap again any of the fields to see the address or co-ordinates of the first,
second, etc. Via point.
●
Estimated Arrival
This field shows the estimated arrival time at the final destination of the route based on information
available for the remaining segments of the route. The calculation cannot take into account traffic
jams and other possible delays.
If Via points exist, tap and tap again any of the fields to see the estimated arrival at the first, second,
etc. Via point.
●
Distance Left
This is the distance you need to travel on the route before reaching your final destination.
If Via points exist, tap and tap again any of the fields to see the distance to reach the first, second,
or next Via point.
●
Time Left
This field shows the time needed to reach the final destination of the route based on information
available for the remaining segments of the route. The calculation cannot take into account traffic
jams and other possible delays.
If Via points exist, tap and tap again any of the fields to see the time needed to reach the first,
second Via point.
●
Method
This field shows how the route was calculated. It either displays the ‘Route’ or the ‘Vehicle’ field
from the Route settings. If you have chosen Car, Taxi, Bus, or Lorry, the type of the route
(Fast, Short, or Economical) is displayed here; if you have selected Bicycle, this information is
displayed here.
52
Chapter 13 Route
Warning icons
The following 5 squares are normally empty. Some of them show a graphical symbol in case warning
(s) are attached to the planned route. These are warnings, so icons always show information for the
whole route, even if the data fields display values from your current position to a Via point only.
Tap on any of the icons to show its description. A few samples of the available icons:
●
– This icon shows that you need to pay toll on the recommended route.
●
– This icon shows that the route contains motorways. Tap the icon to see the total length of
the motorways in the recommended route.
●
– This icon shows that toll motorways are included in the recommended route.
●
– This icon shows that you need to board a ferry along the recommended route.
●
– This icon shows that you need to pay for the ferry.
●
– This icon is displayed when the Travel Companion could not plan a route with all your
suggested road type preferences. Sometimes it is impossible to find a suitable route near the start
or the destination.
●
– This icon warns you that the Travel Companion had to recommend a route that does not
match all your preferences given at the Route Parameters settings.
●
– The recommended route contains unpaved roads.
●
Points
– The recommended route contains roads that require a permit or permission to enter.
●
– Information – any other piece of relevant but not categorized information. Tap the icon to
see the content.
●
– displayed when more than 5 warnings apply for the recommended route.
Other functions
You also have the following options on this screen:
Buttons
Function
Fit to screen – opens the map with a 2D North-up view, and
shows an overview of the whole recommended route.
Route Info
53
Buttons
Function
Settings – Opens the Route settings screen
Simulation - this feature has no navigation function, it merely
provides a quick view of the route. It presents a simulation of
the route showing what you might see later when navigating.
You can choose from two different kinds of simulations:
●
Fly Over: The route is simulated with high speed.
●
Simulate: The route is simulated with the speed identical
to the speed limit on the streets and roads in the route.
Manage Track Logs
Using the Travel Companion it is also possible to save the track logs of your journeys. This screen lets
you manage all your track logs. When it comes up, it shows a list of all track logs already saved.
The original name of a track log is the date and time when it was recorded. You can change the name
to something more meaningful if you wish.
Each track log has a color, displayed to the left of its name, when the track log is visible on the map. If
the track is not visible, a horizontal line is displayed. Tapping the line of the highlighted track log toggles
between showing and hiding that log. The track log is drawn on the map using the color next to its name.
TIP: When a track log is being recorded, a new line is displayed in this list with a horizontal line, as
newly recorded track logs are not displayed on the map normally.
On this screen you have the following options:
Button
Function
Initiates track log recording. A new line is displayed in the list,
and GPS position data is saved until you stop the recording or
icon is displayed on the
exit the Travel Companion. A
map to let you know that a recording is in progress. Tapping
that icon opens this Track Log screen.
Stops track log recording.
This icon displays the color of the track log line on the map. A
horizontal line means the track log is not displayed on the map.
Tap this box to toggle between showing and hiding the track
log.
Deletes the track log it is displayed next to.
54
Chapter 13 Route
Tap any of the track log names in the list to open a new screen with the details of that track log. On this
screen you have the following options:
Button
Function
Changes the color of the track log.
Opens a new screen where you can change the name of the
track log.
Exports the track log to an inserted SD card in GPX format.
Route Info
55
14 Settings
Your Travel Companion provides several settings to help you customize functions. The Settings screen
can be accessed directly from the Main menu screen, while some of its sub-screens are accessible
from other parts of the Travel Companion.
Visual settings
You can set a few parameters that determine the appearance of your Travel Companion.
3D settings
The Travel Companion is capable of displaying the map and several objects in 3D. It has an extremely
fast graphic engine that is capable of moving detailed maps at high speed. The lesser the 3D details,
the faster your Travel Companion can draw and move the map..
Landmarks
3D landmarks that come with the map can be displayed or hidden.
Elevated roads
Roads can be elevated to enhance visibility, and to better recognize complex junctions with flyovers.
You can suppress elevation to view a road network that looks like a conventional map.
Buildings
3D buildings can slow down map visualization and can make the map dense. Turn this feature on or off
to configure the Travel Companion to display only the closest buildings or buildings far ahead.
Terrain
Terrain can be displayed using rich 3D details, less detailed, or even turned off.
Backlight settings
You can set the behavior of the display backlight when using your Travel Companion.
These settings are independent of other applications in the device.
Brightness
You can set the backlight level separately for both daylight and night modes, thus enhancing the effect
of the night color scheme.
Power management
You can set behavior of backlight when the screen has been untouched for a while.
Backlight always on
You can choose to have the backlight always on.
56
Chapter 14 Settings
Smart Powersave
When running on battery, Smart Powersave lights up the screen only when you press a button or tap
the screen. After a few seconds, the light level decreases, and after another few seconds, the backlight
turns off. This helps you conserve the battery and achieve a longer battery life.
Map settings
These settings determine how maps are displayed on the Travel Companion.
Alternative Road Names
Some highways have an international name or number for foreign travelers. You can decide whether to
show only the local name or both.
Show Street Labels
You can set whether or not to see the names of the streets and the POI icons on the map while driving.
Based on the current zoom and tilt levels, street names are displayed either aligned with the street or
on signposts on the streets (Streets and roads). If you switch these signs on, it is easier to recognize
your location on the map. If you turn them off, it is easier to see the road geometry.
NOTE: You can only disable street names and POI icons if the Travel Companion follows your position.
As soon as you move the map and Lock-to-Position is disabled, street names and icons become visible
again. Tap
to re-enable Lock-to-Position and have the labels and icons disappear again.
2D/3D map view
In 2D map view mode, the map is displayed in a conventional top-down view with a fixed North-up
orientation. You cannot tilt or rotate the map. The elevation of the map is displayed with colors and
shading similar to a topographic map.
In 3D map view mode, the map shows a perspective view. You can change the vertical angle of the
view, you can rotate the map, and turn 3D map elements on or off.
POI visibility
The maps in the Travel Companion come with a huge number of POIs. Displaying all of them would
make the screen too crowded. In order to avoid this, you can decide which POI groups to show and
which ones to hide on the map, and how close you need to zoom in to start seeing a particular POI
group. Your Travel Companion has a multi-level POI category system. You can set the visibility of all
levels. Subgroups can inherit the visibility settings of the group, but you can also assign different settings
to any subgroup.
To view POIs:
1.
When you tap the button, you will see the list of the top-level POI groups is displayed:
2.
Tap any of the group names to see the list of its subgroups.
The two screens are similar. You have the following buttons on these screens:
Button
Function
This POI group has subgroups. Tap this, or the name of the
groups to see the list of its subgroups.
Visual settings
57
Button
Function
This POI group has no subgroups. Tapping it does not
perform any action.
Off
500 m
The POI group is not displayed on the map. However, some
of its subgroups might be displayed according to their
individual settings.
The POI group is displayed on the map starting from this
zoom level. Some of its subgroups might be hidden, or
displayed from different zoom levels according to their
individual settings.
Tap this button to edit the visibility of the POI group.
3.
When you edit the visibility of a POI group or subgroup, a new screen is displayed:
You have the following options:
Button
Function
This is the icon of the POI group. This icon is displayed on
the map when the group is visible. Tap it to choose another
icon for the edited POI group or subgroup.
Tap any of the radio buttons to choose a new visibility level
for the edited POI group or subgroup.
All in Current Category
Check this box, and the visibility level of all the subgroups
of the edited POI category is overwritten with the value set
here. This does not start any dependency between the
group and its subgroups. If you wish to have uniform
visibility for the whole group, tap the button again.
Night mode
Using the automatic night mode, your Travel Companion switches between the daylight and night color
schemes a few minutes before sunrise and a few minutes after sunset based on the time and location
information provided by your GPS. Set Night mode permanently on or off to display only the daylight
or the night color scheme.
Zoom settings
The Auto zoom (or Smart zoom) feature offers a lot more than just the usual automatic zoom.
●
While navigating a route: When approaching a turn, it zooms in and raises the view angle to let
you easily recognize your maneuvre at the next junction. If the next turn is at a distance, it zooms
out and lowers the view angle to be flat to let you see the road in front of you. It can switch to an
Overview mode to let you follow your position on the map.
●
While cruising: If there is no active route and you are just cruising, Smart zoom can zoom in if
you drive slowly and zoom out when you drive at a high speed.
Auto zoom
Turn Auto zoom on to configure your Travel Companion to perform the automatic map scaling and
tilting. You can turn off this feature to navigate with a fixed zoom level and vertical view angle.
58
Chapter 14 Settings
Restore Lock-to-Position and Smart Zoom
You can move, rotate, tilt, and zoom the map during navigation.
When you rotate, tilt, or zoom the map, the map follows your position but does not change the view
parameter you have modified. Tap
to return to the full Smart Zoom mode.
to
If you move the map, all parts of Smart Zoom are deactivated, and the view freezes. Tap
configure your Travel Companion to follow your position (Lock-to-Position) and re-enable Smart
Zoom.
Turning on Restore Lock-to-Position configures the Travel Companion to automatically lock to the
position after a few seconds of inactivity.
You can also set the time-out. Shorter delays are best if you tend to accidentally change the map display,
but you might prefer a longer delay if you often look for things around your position while driving.
WARNING! Remember to look at the display only if it is absolutely safe to do so.
NOTE: If you tap
before this automatic feature comes into effect, Smart Zoom and
Lock-to-Position is re-enabled instantly.
Zoom in after find
When the Zoom in after find feature is turned off, the Travel Companion centers the map to the location
selected in Go to but does not change the zoom level. If you turn this feature on, the Travel Companion
zooms in to the selected point.
The zoom level in this case depends on the type of object you have searched for. For example, in the
case of a city search, the zoom level shows you the whole region/state or at least a significant part of it
around its centre. Selecting a POI, a junction or an exact address gives you a closer look with only a
few streets on the display.
Overview mode
Turn this feature on, and the Overview mode is triggered when the next turn is at a distance.
Turn distance determines when the Travel Companion switches to the Overview and back to the
Navigation view. If the distance from the next route event is more than the value set here, the map view
switches to Overview mode, a top-down, North-up oriented map view with a zoom level that enables
you to see a larger part of the map around your position. As you approach the route event, normal
navigation returns automatically.
The Overview zoom level determines the fixed zoom level of the map in the Overview mode. You can
change the zoom level manually at any time, but when you enter the Overview mode again, the zoom
level is reset to this value.
Sound settings
You can configure the parameters to determine the sounds and sound alerts on your Travel Companion
on this screen.
Sound settings
59
Voice guidance
You can turn on the audible guidance (voice instructions and speed camera warning) by selecting the
Voice check box. Move the voice slider to adjust the loudness of voice prompts.
●
Moving the voice slider to the leftmost position suppresses the voice guidance.
●
Moving the voice slider to the rightmost position applies the master volume.
Key sounds
You can turn on key sounds by selecting the Keys check box, which is placed below the Voice check
box. Key sounds are audible confirmations of either pressing hardware buttons or tapping the touch
screen.
NOTE: The sound effects on your Travel Companion are context sensitive. They are different if, for
example you open or close a window, or enable or disable a setting. These effects indicates if you have
entered enough letters of a street name to have a short list of matching street names displayed on the
screen.
Dynamic Volume
When driving at a high speed, the noise in the car might be too loud to clearly understand the voice
guidance messages and perceive the key sounds. Using Dynamic Volume, you can configure your
Travel Companion to increase the volume when your speed exceeds a certain minimum, and reach its
highest volume at the given maximum speed.
To change dynamic volume:
1.
Tap Dynamic Volume to turn on the feature.
2.
Move the slider to set the minimum and maximum speeds.
Route settings
You can use the Route settings screen to determine how routes are calculated.
This screen is also accessible from the Route Information screen.
Vehicle
You can set the type of the vehicle that you might use to navigate the route. Based upon this setting,
certain road types are excluded from the route, or some of the restrictions might not be taken into
account.
Additionally, when either Bus or Lorry is chosen, the Travel Companion assumes that high speeds
cannot be achieved, and this information is taken into account when calculating the route, the estimated
time enroute (ETE), and the estimated time of arrival (ETA).
You can choose the type of vehicle from the available values:
60
●
Car
●
Taxi
●
Bus
●
Lorry
●
Bicycle
Chapter 14 Settings
Route calculation method
You can choose from three different route types.
Short
Choosing Short results in a route that has the smallest total distance of all possible routes between the
given points. This is usually preferred by cyclists or slow vehicles.
Fast
Choosing Fast results in the quickest possible route, given that you can travel at or near the speed limits
on all included roads. This is usually preferred for fast and normal cars.
Economical
This setting is a combination of the previous two. Although it is used to select the fastest solution, if there
is another route taking a bit more time but a lot less distance compared to the fastest one, your Travel
Companion chooses this one instead to save fuel.
Off-route recalculation
Once a route is planned, this setting offers options on what to do when you deviate from that route.
Automatic
The route is recalculated automatically a few seconds after you go astray.
Off
If you stick to the original route, and you wish to get back to it on your own, you can disable recalculation.
Guidance stops until you return to the recommended route.
Avoidances
To select the route that fits your needs, you can also set which road types are to be considered for or
to be excluded from the route if possible.
●
On Check items to avoid screen, select the road type you require to avoid.
●
Clear the check box to use the specific road type.
NOTE: Excluding a road type does not necessarily mean that the road type can be completely avoided
on your routes. If your destination can only be accessed by using some of the excluded road types, your
Travel Companion uses them minimally. In this case a warning icon is displayed on the Route
Information screen, and the road that does not match your preference is displayed using an alternate
color on the map.
Unpaved Roads
Unpaved roads are excluded by default, as they can be in a bad condition and you usually cannot reach
the speed limit on them.
Motorways
When driving a slow car or towing another vehicle, you might prefer to avoid motorways.
Route settings
61
Ferries
The accessibility of temporary ferries is not necessarily included in the map data. Additionally, since you
might need to pay a fare, you could consider disabling them.
Cross-border planning
By default your Travel Companion plans routes using the border crossing points. However, if you live
near the border, you can disable border crossing with this switch to remain within one country.
U-turns
Although displayed along with road types, this is a type of action. Most drivers prefer to replace them
with a few normal left and/or right turns at the next junctions. This option is selected by default, as
Avoid.
Turning back on dual carriageways is not considered as a U-turn.
NOTE: U-turns handle Via points as stopovers with regards to U-turns. It means disabling U-turns on
this screen avoids U-turns during the entire route if possible, but when reaching a Via point, the
subsequent part of the route might be planned starting in the opposite direction.
Permit needed
To access certain roads or areas, you might need a special permit or permission from the owners. These
roads are excluded from your routes by default. Clear the check box if your vehicle is authorized to enter
these roads.
Toll roads
You can select this option to disable Toll roads and configure your Travel Companion to plan the best
toll-free route, you may have to travel more to avoid paying a toll.
Carpool lanes (for the USA map only)
You can configure your Travel Companion to use carpool lanes when planning routes. These lanes are
currently available in the USA only.
This option is displayed only if the USA map is available in the Travel Companion.
Keep position on road
Your Travel Companion is intended for use primarily for vehicle navigation. Therefore Lock-on-Road
displays the position arrow precisely over roads, and corrects small GPS errors.
NOTE: By turning off Lock-on-Road you also turn off the GPS position error filtering. The position
displayed on the map is subject to possible position errors and position fluctuations.
Regional settings
On the Regional settings screen, you can set the languages, measurement units, and date and time
formats used by your Travel Companion.
62
Chapter 14 Settings
Language
The display language currently selected is displayed. By tapping the left or right arrow, you can scroll
through and select from the available languages. Your Travel Companion needs to be restarted if you
change this setting. You are prompted for confirmation before it restarts.
Voice
The voice guidance profile currently selected is displayed. By tapping the left or right arrow, you can
cycle through and select from the available languages and speakers.
Units
The unit of distance currently selected is displayed. By tapping the left or right arrow, you can cycle
through and select from the available distance units.
Time settings
To set timezone properties:
●
Use Auto Time Zone: You can select this option to configure your Travel Companion to
automatically determine the time zone based on the current GPS position. To select a time zone
manually, turn off the switch and tap Set Time Zone.
●
Auto Correction: You can select this option to configure your Travel Companion to frequently
check and correct the internal clock of the device with the always-accurate GPS time.
Set time format
You can set the date and time format displayed on the screen. Tap the left or right arrow to cycle through
and select from the various international formats that are available.
Warnings
Tap Warnings to enable and fine-tune user alerts. A new window opens with the options.
Warn when speeding
Maps might contain information about the speed limits of the road segments. You can configure your
Travel Companion to warn you when you exceed the current limit. This information is region-specific
and might not be available for your region (ask your local dealer) or might not be fully correct for all roads
in the map. Use this option to determine whether you need to receive the warnings or not.
You can set two different kinds of behavior for the warning: One is applied up to a certain speed limit
and another that is used at speeds limits above that.
Speeding tolerance
You can configure the warning to prompt you when you exceed the speed limit percentage specified
here.
Both positive and negative values can be given.
Alternative speed limit
If the speed limit of the current road segment equals or is above this limit, the speed warning uses the
Alternative speeding tolerance instead of the previous one.
Warnings
63
Move the slider to its right-most position to turn off the alternative speed warning. This way the Speeding
tolerance slider determines the warning for all roads.
Alternative speeding tolerance
If the speed limit of the current road reaches the value set at Alternative speed limit, this setting
replaces Speeding tolerance. The slider works exactly as for Speeding tolerance.
Enable safety cameras
Your Travel Companion can warn you when you approach known speed and red light cameras
previously uploaded or copied into the device, or saved manually in the software. This can be done
using the Cursor menu.
On this screen you can enable or disable the visible and audible warning for known cameras.
WARNING! Detecting the location of speed cameras might be prohibited by law in certain countries
or regions. Be sure to check if it is legal before you turn on this warning.
64
Chapter 14 Settings
15 Navigation extras
You can use the additional features of the Travel Companion to enhance your travel experience.
Trip Planner
Your Travel Companion includes access to HP iPAQ trip planning services. Visit http://www.ipaq.com
to learn about the latest services and content available. Here you will find the free Web-based trip
planning service that allows you to personalize your travel by creating custom trip itineraries that you
can transfer to your Travel Companion for use during your travels.
Traffic Message Channel (TMC)
Your Travel Companion can provide you with better routes if Traffic Message Channel (TMC) information
is available. TMC is a specific application of the FM Radio Data System (RDS) used for broadcasting
real-time traffic and weather information.
NOTE: TMC is not a global service. It might not be available in your country or region. Ask your local
dealer for coverage details.
You need a TMC receiver attached to your Travel Companion to receive TMC information. To learn
more about compatible TMC solutions for your area, visit http://www.hp.com/accessories/ipaq.
If public TMC data is broadcast at your location, the Travel Companion automatically takes into account
the TMC information received. The receiver automatically searches the FM radio stations for TMC data,
and the decoded information is immediately used in route planning. As soon as the Travel Companion
receives traffic information that might affect your route, the Travel Companion warns you that it is
recalculating the route. Navigation then continues with a new route that is optimal considering the most
up-to-date traffic conditions.
List of traffic messages
Tap Traffic Messages in the Navigation Extras menu for a list of the nearest TMC events. The list is
arranged by the distance from your current location.
Use the scroll bar to navigate through the screens, and see traffic difficulties farther away from your
current position. You can alternately use one of the following options:
Button
Function
Opens a new screen to configure the TMC subsystem.
Shows the highlighted traffic difficulty on the map fit to the
screen size.
Opens a new screen to maintain the TMC receiver and radio
stations.
Trip Planner
65
TMC configuration
You can configure TMC using following features:
●
Subscribe to TMC
To receive a TMC data from a source, which needs subscription, you need to subscribe to it. Tap
Subscribe TMC to subscribe. A new screen is displayed. Fill in the required details, tap the Web
site and enter details when prompted. Tap Enter code, and enter the received TMC subscription
code. Tap Done when finished.
NOTE: This button is displayed only if you are in a country where the subscribed TMC services
can be used with the help of the Travel Companion.
●
Recalculate to avoid traffic
You can enable or disable recalculation of the route during navigation based on TMC information.
Disabling the route does not prevent the system from using TMC data for route planning, but does
not trigger an automatic recalculation when the traffic conditions change during your journey.
●
Sort events by distance/type
The list of traffic events can be ordered by their distance from the current position, or by their type.
●
Event list
You can choose to display certain TMC event types in the Event list or choose All events to show
all types.
TMC radio settings
This screen shows the selected TMC source and allows you to change the radio settings.
Selected FM radio station
The name and frequency of the selected radio station is displayed. The signal strength information is
indicated by a bar.
The radio can be tuned manually with the plus and minus buttons, or it can be automatic if auto tuner
is selected. With auto tuner, the radio scans the frequency range, tests every radio station for TMC data,
and stops when the first TMC source is found.
If there are no radio stations broadcasting TMC data in your area, and auto tuner is turned on, the
receiver keeps searching for the radio station. You can see the frequency continuously sweeping across
the FM CCIR radio band (87.5-108 MHz). When you move to an area with TMC information, the indicator
shows the frequency, and detailed information for the TMC station.
Exclude selected station
If you wish to receive TMC data from a different radio station, tap this button. After the current radio
station is added to the list of excluded stations, the Travel Companion searches for another TMC station,
and skips the excluded station in future.
Show excluded stations
This button opens the list of excluded radio stations. Tap any of the stations in the list, then tap
to let the Travel Companion accept TMC information from this station.
66
Chapter 15 Navigation extras
16 GPS data screen
The GPS data screen is a collection of information received from the GPS device. The GPS data screen
displays the visible part of the sky above you, with your position as the centre. The satellites are
displayed at their current positions. The GPS receives data from both the green and yellow satellites.
Signals from the yellow satellites are only received. The green ones are used by the GPS to calculate
your current location. You can also view the satellite signal strength bars. The grey bars are for the
yellow satellites and colored bars are for the green satellites. The more satellites your GPS tracks (the
green ones), the more accurate your calculated position is.
The GPS data screen also includes information like current position in latitude/longitude format,
elevation, speed, date, time, the GPS connection status, and calculated accuracy.
NOTE: Accuracy can be affected by several factors that Travel Companion cannot take into account.
Use this accuracy information only as an estimation.
67
17 About screen
You can access this screen from the main page by tapping Settings > System > About. The screen
provides information on the maps and licenses you have installed on your Travel Companion.
68
Chapter 17 About screen
18 Outlook synchronization
The HP iPAQ Outlook Synchronizer can synchronize contact entries between your computer's Outlook
database and the Travel Companion, as well as back up, and restoring the entire contacts database.
NOTE: You need to install the HP iPAQ Outlook Synchronizer that is available on the Getting
Started CD or visit http://www.ipaq.com for downloading this application before you begin using it.
The synchronization tool can be launched from the Start menu through All programs > HP IPAQ
Outlook Synchronizer.
You can select any of the following options:
●
Data backup: launches the backup application, which lets you save the entire contact database
to a file on your hard drive and restore the saved database to the Travel Companion.
●
Settings: launches the Settings screen.
●
Start: launches the outlook synchronization tool.
If an entry has changed in either Outlook or on the device, or in both places, the synchronizing tool will
either ask which version is to be retained, or resolve the conflict automatically, depending on the
configuration. The Travel Companion can resolve conflicts automatically or prompts user.
The tool minimizes on the task bar and detects and synchronizes automatically when a device is
connected.
You can select any of the following options:
●
Synchronize automatically: When enabled, the tool synchronizes with the device immediately
whenever it is connected.
●
Start with Windows: When enabled, the tool launches when Windows boots.
●
Conflict handling: When enabled, the tool determines what to do if a contact has been changed
both in Outlook and on the device after the last synchronization.
The main screen for Outlook synchronization offers the following options:
●
Tap Settings to see the configuration options.
●
Tap Minimize to minimize the window to the task bar.
●
Tap Close to exit the application.
The device status is indicated at the bottom of the window. When the device is connected, Sync!
becomes active. When you click it, the progress bar shows the overall progress, and the device status
is Synchronization is in progress. Also the window displays what is being synchronized.
69
19 Product specifications
System specifications
System Feature
Description
Processor
Titan 600 MHz ARM11 Dual-Core Processor
Operating System
Microsoft® Windows CE 5.0
Memory
2.0 GB flash memory, user available varies by model
128 MB SDRAM for running applications
External Power
AC Input: 100~240 Vac, 50/60 Hz, AC Input current: 0.2 A ac
max Output Voltage: 5Vdc (typical)
Display
4.3" WVGA 800x480 TFT with touch screen, antiglare,
landscape oriented, 16bit RGB depth
SD Slot
Supports SD memory
Antenna
Internal Bluetooth antenna
Audio
Integrated microphone, speaker, and one 3.5–mm stereo
headset jack
Battery
1,700 mAh Li-ion removable/rechargeable battery
Bluetooth
Bluetooth 2.0 with Enhanced Data Rate, typical 10 meter
range (approximately 33 feet)–High-speed, low-power,
short-range wireless communication with other Bluetooth
devices
LED Indicators:
●
Solid Amber – Battery charging
Charge and Notification LED
●
Solid Green – Battery fully charged
Wireless LED
●
Blue indicates Bluetooth is on
●
LED off indicates Bluetooth is off
GPS Receiver
SiRF embedded GPS receiver with InstantFix(TM) time to first
fix acceleration
GPS Antenna
Internal patch antenna
Physical specifications
70
US
Metric
Width
4.3 in
110.2 mm
Height
3.4 in
86.8 mm
Depth
0.7 in
18.2 mm
Weight
6.6 oz
187 g
Chapter 19 Product specifications
Operating environment
Temperature
Relative Humidity
Maximum Altitude
US
Metric
Operating
32° to 104° F
0° to 40° C
Nonoperating
-9.6° to 140° F
-20° to 60° C
Operating
up to 85 %
up to 85 %
Nonoperating
up to 85 %
up to 85 %
Operating
0 to 15,000 ft
0 to 4572 m
Nonoperating
0 to 40,000 ft
0 to 12192 m
Operating environment
71
20 Regulatory notices
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
●
Reorient or relocate the receiving antenna.
●
Increase the separation between the equipment and receiver.
●
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
●
Consult the dealer or an experienced radio or television technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that are
not expressly approved by HP may void the user's authority to operate the equipment.
Cables
To maintain compliance with FCC Rules and Regulations, connections to this device must be made with
shielded cables having metallic RFI/EMI connector hoods.
Declaration of Conformity for Products Marked with the FCC Logo
(United States Only)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following 2
conditions:
1.
This device may not cause harmful interference.
2.
This device must accept any interference received, including interference that may cause
undesired operation.
If you have questions about the product that are not related to this declaration, write to
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, TX 77269–2000
or call 1–800–HP–INVENT (1–800–474–6836)
72
Chapter 20 Regulatory notices
For questions regarding this FCC declaration, write to
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, TX 77269–2000
or call HP at 281–514–3333
To identify your product, refer to the part, series, or model number located on the product.
Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
European Union Notice
Products bearing the CE marking comply with the following EU Directives:
●
Low Voltage Directive 2006/95/EC
●
EMC Directive 2004/108/EC
CE compliance of this product is valid only if powered with the correct CE-marked AC adapter provided
by HP.
If this product has telecommunications functionality, it also complies with the essential requirements of
the following EU Directive:
●
R&TTE Directive 1999/5/EC
Compliance with these directives implies conformity to harmonized European standards (European
Norms) that are listed in the EU Declaration of Conformity issued by HP for this product or product family.
This compliance is indicated by one of the following conformity markings placed on the product.
●
This CE marking is valid for non-telecommunications products and for EU harmonized
telecommunications products, such as Bluetooth®.
●
This CE marking is valid for EU non-harmonized telecommunications products.
*If applicable, a notified body number is used. Refer to the regulatory label provided on this product.
Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, D-71034 Böblingen, Germany
The telecommunications functionality of this product may be used in the following EU and EFTA
countries:
Canadian Notice
73
Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Slovak Republic, Romania, Slovenia, Spain, Sweden,
Switzerland, and United Kingdom.
Products with 2.4–GHz Wireless LAN Devices
France
L'utilisation de cet equipement (2.4GHz Wireless LAN) est soumise a certaines restrictions: Cet
equipement peut être utilisé a l'interieur d'un batiment en utilisant toutes les frequences de 2400 a
2483.5MHz (Chaîne 1-13). Pour une utilisation en environement exterieur, les frequences comprises
entre 2400-2454 MHz (Chaîne 1-9) peuvent être utilisé. Pour les dernieres restrictions, voir
http://www.arcep.fr.
For 2.4 GHz Wireless LAN operation of this product certain restrictions apply: This product may be used
indoors for the entire 2400–2483.5 MHz frequency band (channels 1–13). For outdoor use, only 2400–
2454 MHz frequency band (channels 1–9) may be used. For the latest requirements, see
http://www.arcep.fr.
Italy
E'necessaria una concessione ministeriale anche per l'uso del prodotto. Verifici per favore con il proprio
distributore o direttamente presso la Direzione Generale Pianificazione e Gestione Frequenze.
License required for use. Verify with your dealer or directly with the General Direction for Frequency
Planning and Management (Direzione Generale Pianificazione e Gestione Frequenze).
Battery Warning
WARNING! This HP iPAQ contains a lithium ion rechargeable battery. To reduce the risk of fire or
burns, do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
Replace only with the HP spare.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to the instructions.
Battery Recycling
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and
rechargeable batteries. For more information about recycling programs, visit http://www.hp.com/
recycle.
Battery Disposal
WARNING! When a battery has reached the end of its useful life, do not dispose of the battery in
general household waste. Follow the local laws and regulations in your area for computer battery
disposal.
74
Chapter 20 Regulatory notices
Equipment Warning
WARNING! To reduce the risk of personal injury, electrical shock, fire or damage to the equipment:
Plug the AC adapter into an AC outlet that is easily accessible at all times.
Disconnect power from the equipment by unplugging the AC adapter from the AC outlet or unplugging
the synchronization cable from the host computer.
Do not place anything on the power cord or any of the other cables. Arrange them so that no one may
accidentally step on or trip over them.
Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug
or, in the case of the AC adapter, grasp the AC adapter and pull out from the electrical outlet.
Do not use converter kits sold for appliances to power your HP iPAQ.
Acoustics Warning
WARNING! Listening to this device at high volume levels and for extended durations may damage
one’s hearing. In order to reduce the risk of damage to hearing, one should lower the volume to a safe,
comfortable level, and reduce the amount of time listening at high levels.
●
For your own safety, before using headsets or earphones, always reset the volume. Some
headphones are louder than other headphones, even if the volume control setting is the same.
●
Changing the default audio or equalizer settings might lead to higher volume and should only be
done with caution.
●
Headsets or earphones used with this device should comply with the headphone limits in EN
50332-2.
Equipment Warning
75
Airline Travel Notice
Use of electronic equipment aboard commercial aircraft is at the discretion of the airline.
Medical Electronic Equipment
If you have a medical condition that requires you to use a pacemaker, hearing aid, or any type of medical
electronic equipment, consult the manufacturer of the equipment to determine if the medical equipment
is shielded from RF energy. Turn off your HP iPAQ in health care facilities or hospitals when there are
posted restrictions requiring you to do so.
Wireless Notices
In some environments, the use of wireless devices may be restricted. Such restrictions may apply aboard
airplanes, in hospitals, near explosives, in hazardous locations, etc. If you are uncertain of the policy
that applies to the use of this device, please ask for authorization to use it prior to turning it on.
U.S. Regulatory Wireless Notice
WARNING! Exposure to Radio Frequency (RF) Radiation The radiated output power of this device
is below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a
manner that the potential for human contact during normal operation is minimized.
To avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the
antenna should be minimized. No metallic body accessories are allowed and 1.5 cm spacing between
PDA and the body must be maintained to satisfy RF Exposure.
This PDA must not be co-located or operating in conjunction with any other antenna or transmitter.
Canadian Regulatory Wireless Notice
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired operation of
the device.
Brazilian Notice
Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência
prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando
em caráter primário.
Japanese Notice
76
Chapter 20 Regulatory notices
Bluetooth Devices
Taiwan DGT Notice
Korean Notice
Taiwan DGT Notice
77
21 Guidelines for care and maintenance
It is recommended that you follow certain guidelines to prevent possible damage to the Travel
Companion and to keep it in a good condition.
Using the Travel Companion
●
Avoid using the Travel Companion in dusty and extremely high or low temperature environments.
●
Do not spill water on the Travel Companion or expose it to the rain.
●
Avoid removing the battery without turning off the Travel Companion.
●
Do not apply strong force or shocks to the Travel Companion.
●
Keep the Travel Companion and its accessories away from children.
●
Do not insert metal objects into the charging/communications port of the Travel Companion. This
can short-circuit the battery and result in danger.
Cleaning the Travel Companion
●
Use a soft, clean, and slightly moistened cloth to clean the Travel Companion. Do not let water
come into contact with the earpiece, microphone, or the metal surface.
●
Do not wipe the Travel Companion with any corrosive liquid or coarse objects. This can damage
the outer surface of the Travel Companion.
Carrying or storing the Travel Companion
●
Do not leave the Travel Companion in extremely high or low temperature environments.
●
Remove the battery from the Travel Companion if it is not going to be used for a long period of
time. Store the Travel Companion and its battery in a cool, dark, and dry place.
Using accessories
●
Use original HP batteries and chargers to charge the Travel Companion.
●
Do not use the Travel Companion battery and charger for other purposes.
Using the Travel Companion in public places
Turn off the Travel Companion or switch it to silent mode when you are asked to in public places.
Obtain services for a cracked or damaged screen
NOTE: HP is not responsible for damage that occurs as a result of failure to follow the instructions
that came with the HP branded product. Refer to the warranty document included with the Travel
Companion for more information.
78
Chapter 21 Guidelines for care and maintenance
If a nonwarranty event occurs such as a damaged or cracked screen and want your device repaired,
contact HP Customer Support at http://www.hp.com/support for service. However, contacting HP
customer service on a nonwarranty event results in a charge for the repair.
Protect the Travel Companion screen from cracking or
damage
CAUTION: The screen of the Travel Companion is made of glass and can be damaged or broken by
drops, impacts, or pressure.
To reduce the risk of damage to the internal components, do not spray liquid directly on the screen, or
allow excess liquid to drip inside the Travel Companion. Using soap or other cleaning products on the
screen might discolor the finish and damage it.
●
Observe the following practices to protect the screen of the Travel Companion from damage:
◦
Do not sit on the Travel Companion.
◦
When transporting the Travel Companion in a purse, pocket, briefcase, etc., ensure the device
does not get compressed, bent, dropped, or hit.
◦
When not in use, use the protective screen cover (if one is available) on the Travel Companion
and store it in a case.
●
Do not place anything on top of the Travel Companion.
●
Do not bang the Travel Companion against hard objects.
●
Never use any device other than the stylus that comes with the Travel Companion or an approved
replacement to tap or write on the screen. If you lose or break your stylus, order extras at
http://www.hp.com/accessories/ipaq.
●
Clean the Travel Companion by wiping the screen and the exterior with a soft, damp cloth lightly
moistened only with water.
Protect the Travel Companion screen from cracking or damage
79
