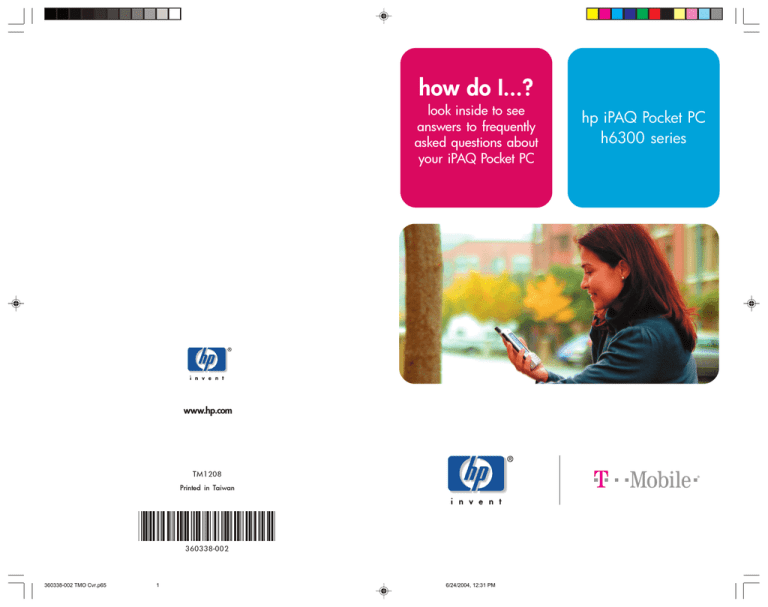

how do I...?
look inside to see
answers to frequently
asked questions about
your iPAQ Pocket PC
www.hp.com
TM1208
Printed in Taiwan
360338-002
360338-002 TMO Cvr.p65
1
6/24/2004, 12:31 PM
hp iPAQ Pocket PC
h6300 series
360338-xx1 Onyx How Do I.book Page i Wednesday, June 23, 2004 1:34 PM
360338-xx1 Onyx How Do I.book Page i Wednesday, June 23, 2004 1:34 PM
© 2004 Hewlett-Packard Development Company, L.P.
Microsoft, Windows, and Windows NT are trademarks of Microsoft
Corporation in the U.S. and other countries.
T-Mobile is a registered trademark of Deutsche Telekom AG.
All other product names mentioned herein may be trademarks of their
respective companies.
Hewlett-Packard Company shall not be liable for technical or editorial
errors or omissions contained herein. The information is provided “as is”
without warranty of any kind and is subject to change without notice. The
warranties for Hewlett-Packard products are set forth in the express limited
warranty statements accompanying such products. Nothing herein should
be construed as an additional warranty.
Ä
CAUTION: Text set off in this manner indicates that failure to follow
directions could result in damage to equipment or loss of information.
How Do I...?
HP iPAQ Pocket PC h6300 Series
First Edition (July 2004)
Document Part Number: 360338-002
360338-xx1 Onyx How Do I.book Page i Wednesday, June 23, 2004 1:34 PM
360338-xx1 Onyx How Do I.book Page i Wednesday, June 23, 2004 1:34 PM
Contents
How Do I Find Out What’s On My CD? . . . . . . . . . . . . . . . 1
How Do I Install Microsoft ActiveSync?. . . . . . . . . . . . . . . 2
How Do I Create an ActiveSync Partnership?. . . . . . . . . . . 7
How Do I Synchronize to a PC? . . . . . . . . . . . . . . . . . . . . 12
How Do I Perform a Soft (“Normal”) Reset? . . . . . . . . . . 14
How Do I Perform a Hard (“Full”) Reset?. . . . . . . . . . . . . 15
How Do I Migrate Data from Palm
Desktop Software to Pocket PC 2003? . . . . . . . . . . . . . . . 16
How Do I Transfer Files from
My Personal Computer to My iPAQ Pocket PC? . . . . . . . 18
How Do I Insert the Subscriber Identity
Module (SIM) Card Correctly? . . . . . . . . . . . . . . . . . . . . . 20
How Do I Manage Available Storage? . . . . . . . . . . . . . . . 21
How Do I Insert and Remove My Battery Correctly? . . . . 24
How Do I Maximize Battery Life? . . . . . . . . . . . . . . . . . . 26
How Do I Check the Battery Charge Level? . . . . . . . . . . . 27
How Do I Use the Built-in Digital
Camera in My iPAQ Pocket PC to Take
and Send Pictures? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
How Do I View Pictures That I’ve Already Taken? . . . . . 31
How Do I Save Pictures to a Memory Card?. . . . . . . . . . . 32
How Do I Send Pictures Using Picture
Messaging (MMS) or E-mail? . . . . . . . . . . . . . . . . . . . . . . 33
How Do I Find Out More About Expansion Cards? . . . . . 34
How Do I Place and Receive Phone Calls? . . . . . . . . . . . . 35
How Do I Set Up and Access My Voicemail?. . . . . . . . . . 38
How Do I Make a Conference Call? . . . . . . . . . . . . . . . . . 38
How Do I Change My Phone Services Settings?. . . . . . . . 39
360338-xx1 Onyx How Do I.book Page ii Wednesday, June 23, 2004 1:34 PM
Contents
How Do I Change The Call Forwarding Settings? . . . . . .
How Do I Communicate If I am Using a Headset? . . . . . .
How Do I Use the Wireless Features of
My iPAQ Pocket PC?. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How Do I Use Wi-Fi? . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How Do I Set Up My iPAQ Pocket PC
to Connect and Browse the Internet
through a Wi-Fi HotSpot? . . . . . . . . . . . . . . . . . . . . . . . . .
How Do I Connect to a T-Mobile HotSpot? . . . . . . . . . . .
How Do I Use Bluetooth? . . . . . . . . . . . . . . . . . . . . . . . . .
How Do I turn on Bluetooth?. . . . . . . . . . . . . . . . . . . . . . .
How Do I Use Bluetooth to Transfer
Files to Another Pocket PC, Computer, or Printer? . . . . . .
How Do I Send and Receive Text Messages? . . . . . . . . . .
How Do I Recognize and Filter Spam
Text Messages (SMS)? . . . . . . . . . . . . . . . . . . . . . . . . . . .
How Do I Set Up T-Mobile Alerts?. . . . . . . . . . . . . . . . . .
How Do I Protect My iPAQ Pocket PC
from Screen Damage or Cracking? . . . . . . . . . . . . . . . . . .
How Do I Find the Product ID and
Serial Number of My iPAQ Pocket PC? . . . . . . . . . . . . . .
How Do I Find Information On Topics
Not Covered in This Booklet? . . . . . . . . . . . . . . . . . . . . . .
39
40
41
43
48
49
51
52
54
56
57
58
58
59
61
360338-xx1 Onyx How Do I.book Page 1 Wednesday, June 23, 2004 1:34 PM
This document is intended to answer the most frequently asked
questions regarding the HP iPAQ Pocket PC h6300 Series. For
complete setup and installation instructions, refer to the Welcome
Guide in the box or the User’s Guide located on the Companion
CD. For further support, visit the T-Mobile website at
www.t-mobile.com/help.
How Do I Find Out What’s On My CD?
The Companion CD is located in the box and contains:
■
Microsoft ActiveSync 3.7.1
■
Microsoft Outlook 2002
■
HP iPAQ Pocket PC h6300 Series User’s Guide
■
How Do I...? (this document)
■
Know Your Options (Accessories Information)
■
Important Safety Information
1
360338-xx1 Onyx How Do I.book Page 2 Wednesday, June 23, 2004 1:34 PM
All of the software and documents are designed to be installed on
your personal computer to enhance your ability to use your iPAQ
Pocket PC to its fullest potential. The CD also contains Microsoft
add-on software applications and Pocket PC enhancements that
can be installed directly onto your Pocket PC for use on the go.
Note: It is recommended that you save the original packaging for
the CD because the Microsoft product key for installing
Microsoft Outlook is located on the sticker on the CD packaging.
You will need that information if you ever need to reinstall
Outlook on your personal computer.
How Do I Install Microsoft ActiveSync?
Microsoft ActiveSync, located on the Companion CD, is software
that allows your iPAQ Pocket PC and your personal computer
to communicate with each other by setting up a partnership.
Before you insert your iPAQ Pocket PC into the USB
Synchronization Cradle/Charger, you must first install
ActiveSync onto your personal computer.
Note: If you have previously installed ActiveSync on your
computer, you do not have to uninstall the software to proceed
with installing the latest version of ActiveSync.
To install Microsoft ActiveSync, follow the steps below:
1. First insert the Companion CD that came with your Pocket
PC into the CD-ROM drive on your personal computer. Be
sure to do this before inserting your iPAQ Pocket PC into the
USB Synchronization Cradle/Charger.
If the CD starts automatically, proceed to step 3.
2
360338-xx1 Onyx How Do I.book Page 3 Wednesday, June 23, 2004 1:34 PM
2. If the CD doesn’t start automatically (auto run), click Start >
Run > Browse on your personal computer. Select setup.exe
from the list of files, then click Open > OK to run the Setup
program.
3. Click the small arrow in the center of the opening image, or
wait a few moments for the Getting Started with Your
Pocket PC screen to appear.
3
360338-xx1 Onyx How Do I.book Page 4 Wednesday, June 23, 2004 1:34 PM
4. Click Start Here. Five options are displayed:
■
Overview
■
Install Outlook 2002
■ Install ActiveSync 3.7.1
■ Register your iPAQ Pocket PC
■
Main Menu
5. If you do not already have Microsoft Outlook 98 or higher
installed on your personal computer and you want to
synchronize your calendar, contacts, inbox, notes, and/or
tasks, select Install Outlook 2002 and follow the onscreen
instructions to install it on your personal computer. To
determine what version of Outlook is installed on your
personal computer, click Start > Programs > Microsoft
Outlook > Help > About Microsoft Outlook.
4
360338-xx1 Onyx How Do I.book Page 5 Wednesday, June 23, 2004 1:34 PM
Note: Microsoft Outlook Express will not work with the iPAQ
Pocket PC and ActiveSync.
If you decide to upgrade from an older version of Microsoft
Outlook to Outlook 2002, all your personal settings are saved and
reloaded during the upgrade process.
6. Once Microsoft Outlook is installed on your personal
computer, select Install ActiveSync 3.7.1 from your CD
menu and read the “Product Detail and Installation
Guidelines.” Click Install > OK.
5
360338-xx1 Onyx How Do I.book Page 6 Wednesday, June 23, 2004 1:34 PM
7. When the File Download window is displayed, click Open.
8. When the Set Up Microsoft ActiveSync 3.7.1 window is
displayed, follow the onscreen instructions to complete the
installation.
6
360338-xx1 Onyx How Do I.book Page 7 Wednesday, June 23, 2004 1:34 PM
You will know ActiveSync installed successfully when you
see the Set Up a Partnership screen. Refer to the next
section, “How Do I Create an ActiveSync Partnership?” for
more information.
Note: If you are having trouble installing ActiveSync and have
firewall software installed, try disabling the firewall software
during the ActiveSync installation, then enabling it again after
installation is complete. If you are connected to a corporate
firewall, contact your network administrator for assistance.
How Do I Create an ActiveSync
Partnership?
A Microsoft ActiveSync partnership allows your iPAQ Pocket PC
and your personal computer to communicate with each other. To
synchronize your HP iPAQ Pocket PC h6300 series and your
personal computer, you must first create a partnership using
ActiveSync. You only need to create a partnership once.
These instructions will give you information on creating a basic
partnership. Other partnership options are available, and these
instructions are found in Chapter 12, “Using ActiveSync,” of the
User’s Guide located on the Companion CD.
To create an ActiveSync partnership between your iPAQ Pocket
PC and your personal computer, first install ActiveSync.
1. When the Get Connected screen is displayed during
ActiveSync installation, connect the USB Synchronization
Cradle/Charger to your personal computer by attaching the
free end of the USB cable to the USB port on your personal
computer. Then connect one end of the AC Adapter to the
cradle and the other end to an electrical outlet.
7
360338-xx1 Onyx How Do I.book Page 8 Wednesday, June 23, 2004 1:34 PM
2. Turn on your iPAQ Pocket PC by pressing the power button,
then insert it into the USB Synchronization Cradle/Charger.
Note: If you are turning on the iPAQ Pocket PC for the first time,
use your stylus to press the Reset Button on the left, side panel to
turn on the unit.
3. When the Set Up a Partnership screen is displayed, select
Standard Partnership and click Next.
8
360338-xx1 Onyx How Do I.book Page 9 Wednesday, June 23, 2004 1:34 PM
4. When the New Partnership screen is displayed, select
Synchronize with this desktop computer, then click Next.
9
360338-xx1 Onyx How Do I.book Page 10 Wednesday, June 23, 2004 1:34 PM
5. When the Select Number of Partnerships screen is
displayed, choose whether you want to synchronize with one
computer or two (e.g., home and office).
Note: If you set up two (or more) Pocket PCs or are
re-establishing a legacy ActiveSync Partnership, you must name
each unit. Do not set up a Guest Partnership because you will not
be able to synchronize with your PC.
10
360338-xx1 Onyx How Do I.book Page 11 Wednesday, June 23, 2004 1:34 PM
6. When the Select Synchronization Settings screen is
displayed, check the items you want to synchronize between
your iPAQ Pocket PC and your personal computer.
7. When the Setup Complete screen is displayed, click Finish.
ActiveSync immediately begins synchronizing.
11
360338-xx1 Onyx How Do I.book Page 12 Wednesday, June 23, 2004 1:34 PM
Do you want to learn more about:
■
setting up a guest partnership?
■
setting up a partnership with a server?
■
setting up a partnership with two computers?
Refer to the Microsoft Pocket PC 2003 Web site at
www.microsoft.com/windowsmobile/resources/support/
pocketpc. Fill in your region, your device, and your operating
system, then click the Get Support button. Under Support
Topics on the left hand side of the window, select ActiveSync.
How Do I Synchronize to a PC?
Synchronizing your iPAQ Pocket PC and your desktop or laptop
computer allows you to keep the same information (such as
calendar, contacts, and e-mails) in both places, making it
available when you work on your desktop or laptop computer or
when you are on the go with your Pocket PC. There are several
ways to synchronize your Pocket PC with your personal
computer, including:
■
USB (Universal Serial Bus) Synchronization Cradle/Charger
■
Bluetooth
■
Infrared
■
Wireless LAN via a server
The most common way to synchronize is with USB. This section
explains how to synchronize using the USB Synchronization
Cradle/Charger.
12
360338-xx1 Onyx How Do I.book Page 13 Wednesday, June 23, 2004 1:34 PM
To synchronize your personal computer and your iPAQ
Pocket PC:
1. Be sure to install ActiveSync first. Refer to “How Do I Install
Microsoft ActiveSync?” earlier in this document for more
information.
Note: ActiveSync must be installed prior to synchronization.
2. Connect the USB Synchronization Cradle/Charger to your
personal computer.
3. Place your iPAQ Pocket PC in the USB Synchronization
Cradle/Charger. Synchronization begins automatically.
Note: If you must log in to a server (such as your company’s
Virtual Private Network), you might receive a message from
ActiveSync telling you it is unable to synchronize.
Synchronization begins automatically once you have logged in.
Do you want to learn more about:
■
synchronizing using Bluetooth?
■
synchronizing using Infrared?
■
synchronizing using Wireless LAN and a server?
■
troubleshooting synchronization connection problems?
Refer to the User’s Guide on the Companion CD.
13
360338-xx1 Onyx How Do I.book Page 14 Wednesday, June 23, 2004 1:34 PM
How Do I Perform a Soft (“Normal”)
Reset?
A soft reset (also known as a normal reset) stops all running
applications, but does not erase any programs or saved data.
Ä
CAUTION: Be sure to save your data in all currently open applications
before performing a soft reset since a soft reset erases all
unsaved data.
To perform a soft reset:
1. Locate the recessed Reset button on the left side of your
iPAQ Pocket PC.
2. Use the stylus to lightly press and release the Reset button.
The Pocket PC restarts and displays the Today screen.
Note: A soft reset does not change any Bluetooth or ActiveSync
settings currently set on your Pocket PC.
14
360338-xx1 Onyx How Do I.book Page 15 Wednesday, June 23, 2004 1:34 PM
How Do I Perform a Hard (“Full”)
Reset?
Perform a hard reset (also known as a full reset) when you want
to clear all settings, programs, and data from Random-Access
Memory (RAM).
Ä
CAUTION: If you perform a hard reset, your iPAQ Pocket PC returns
to its default settings and loses all information (files, settings, etc.) that is
not recorded in ROM. However, information stored in iPAQ File Store
will not be lost. Also, all of your GPRS connection methods are erased
with a hard reset, except the default GPRS connection with T-Mobile.
To perform a hard reset:
1. Press and hold down the Power button.
2. While holding the Power button, use the stylus to lightly
press the Reset button on the left side of the Pocket PC for
about five seconds.
3. The Pocket PC screen fades and the device resets. Once the
device resets and the screen comes back on, release the Power
button and remove the stylus from the Reset button.
15
360338-xx1 Onyx How Do I.book Page 16 Wednesday, June 23, 2004 1:34 PM
If the Pocket PC does not power on after a reset, try the
following:
■ Check the battery door to ensure it is locked. If not, insert
the stylus into the battery lock on the back of the Pocket
PC and slide the battery lock to the left (or locked
position). This action locks the battery door. If the battery
door is not locked, the Pocket PC does not power on. For
more information, refer to the section “How Do I Insert
and Remove My Battery Correctly?” found in this
document.
How Do I Migrate Data from Palm
Desktop Software to Pocket PC 2003?
If you used a Palm Operating System (OS) based device before
purchasing your iPAQ Pocket PC, you will need to migrate your
data from the Palm Desktop software to Microsoft Pocket
PC 2003.
Note: Do not insert your iPAQ Pocket PC into the USB
Synchronization Cradle/Charger until you have installed
ActiveSync and are prompted to do so.
To migrate data from Palm Desktop to Pocket PC 2003:
1. If you do not already have Microsoft Outlook 98 or higher
installed on your personal computer, install Outlook 2002
from the Companion CD as described in “How Do I Install
Microsoft ActiveSync?” earlier in this document.
2. Insert the Companion CD that came with your Palm device
into your computer’s CD-ROM drive. From the Discover
Your Handheld screen, select Install Microsoft Conduits.
Alternatively, you may reinstall the Palm Desktop software.
16
360338-xx1 Onyx How Do I.book Page 17 Wednesday, June 23, 2004 1:34 PM
During the configuration process, select Synchronize your
handheld with Microsoft Outlook and Palm Desktop
software.
Note: Microsoft Outlook must be set as your default e-mail
program to properly synchronize with the Palm Desktop
software. If you need to change your settings, open Microsoft
Outlook, then click Tools > Options > Other tab and check the
Make Outlook the default program for E-mail, Contacts, and
Calendar checkbox. Click Apply > OK, then restart your
personal computer.
3. Use the HotSync software located on the Companion CD
that came with your Palm unit to synchronize your Palm
information with Outlook. Refer to the instructions that came
with your Palm unit for help installing or using HotSync.
4. When Outlook is synchronized with your Palm device,
uninstall Hotsync from your personal computer. Click
Start > Control Panel > double-click Add or Remove
Programs. Select Palm Desktop, then click Remove. Follow
the onscreen instructions.
5. Install ActiveSync on your personal computer as described in
“How Do I Install Microsoft ActiveSync?” earlier in this
document.
6. Create a partnership between your iPAQ Pocket PC and your
personal computer as described in “How Do I Create an
ActiveSync Partnership?” earlier in this document.
7. Synchronize your iPAQ Pocket PC with Outlook as described
in “How Do I Synchronize to a PC?” earlier in this document.
17
360338-xx1 Onyx How Do I.book Page 18 Wednesday, June 23, 2004 1:34 PM
How Do I Transfer Files from
My Personal Computer to My iPAQ
Pocket PC?
If you would like to be able to take files (such as photos,
documents, presentation files, etc.) you created on your personal
computer with you on your iPAQ Pocket PC, follow these steps:
1. On your personal computer, click Start > Programs >
Microsoft ActiveSync.
2. In ActiveSync, click Tools > Options.
3. Under the Sync Options tab, check the Files checkbox.
18
360338-xx1 Onyx How Do I.book Page 19 Wednesday, June 23, 2004 1:34 PM
4. A message is displayed stating that a Synchronized Files
folder will be created on your personal computer’s desktop.
Click OK.
5. Click OK to save your changes, then click File > Close to
close ActiveSync.
6. If your iPAQ Pocket PC is in the USB Synchronization
Charger/Cradle, synchronization begins automatically. A
folder is created on your desktop that is named after the name
you gave your iPAQ Pocket PC when you set up your
partnership (for example, Pocket_PC My Documents). If
your iPAQ Pocket PC is not in the cradle, synchronization
begins and the folder is created when you place your Pocket
PC in the cradle.
Note: If synchronization does not begin automatically on your
personal computer, open ActiveSync and click File > Options >
Schedule tab. Under Desktop schedule, select either
Continuously or On connection from the dropdown list box,
then click OK to save the changes.
7. Copy any files you want to transfer to your Pocket PC to the
Synchronized Files folder for transfer during
synchronization.
8. To verify that the files were transferred successfully on your
iPAQ Pocket PC, tap Start > Programs > File Explorer >
My Documents folder.
19
360338-xx1 Onyx How Do I.book Page 20 Wednesday, June 23, 2004 1:34 PM
How Do I Insert the Subscriber Identity
Module (SIM) Card Correctly?
The SIM card is the intelligence that operates the phone features
on your Pocket PC. The SIM card contains a computer chip with
information about your phone number, service, registration
information, and contacts. The SIM card also contains the
memory to store speed dial numbers and text or SMS messages
that you receive. With the exception of emergency calls (911), the
SIM card must be inserted into the SIM slot under the battery on
the back of your Pocket PC.
Note: If the battery is already installed, you must remove it
before inserting the SIM card.
To insert the SIM card into the Pocket PC:
1. On the back of your Pocket PC, push the SIM tray to the right
1 to unlock and lift up 2 to open it.
2. Insert the SIM card into the SIM tray by aligning the notched
corner on the card with the notched corner in the SIM slot 3.
20
360338-xx1 Onyx How Do I.book Page 21 Wednesday, June 23, 2004 1:34 PM
3. Press the SIM tray (with the SIM card inserted) down 4 into
the SIM slot and lock it into place 5 by sliding the tray to the
left.
How Do I Manage Available Storage?
Your iPAQ Pocket PC normally manages storage for you by
moving available space back and forth between storage memory
(memory used to store data and document files) and program
memory (memory used to run programs) as needed. However,
there are a variety of ways you can manage storage space yourself
to maximize the memory capacity of your iPAQ Pocket PC. You
can choose any or all of the options below.
Option A: Changing Storage Settings
Manually
To temporarily change the storage settings manually:
1. On your iPAQ Pocket PC, tap Start > Settings >
System tab > Memory.
21
360338-xx1 Onyx How Do I.book Page 22 Wednesday, June 23, 2004 1:34 PM
2. Use the stylus to slide the Storage/Programs bar as
necessary.
3. Tap OK to save your changes.
Option B: Stopping Running Programs
To stop programs that are running in the background:
1. Tap Start > Settings > System tab > Memory > Running
Programs tab.
2. Select one or more of the programs in the Running
Programs List.
3. Tap Stop.
Option C: Removing Unused Programs
To permanently uninstall programs you have installed yourself:
1. Tap Start > Settings > System tab > Remove Programs.
2. Select a program to remove.
3. Tap Remove.
Option D: Using iPAQ File Store
The iPAQ File Store is an unused portion of Read-Only Memory
(ROM) where the operating system and built-in programs are
stored. Files stored in iPAQ File Store will not be deleted if you
perform a full (hard) reset.
To store files in iPAQ File Store:
1. Copy the file(s) you want to store in iPAQ File Store.
2. Tap Start > Programs > File Explorer > My Device > iPAQ
File Store.
3. Tap Edit > Paste.
22
360338-xx1 Onyx How Do I.book Page 23 Wednesday, June 23, 2004 1:34 PM
To view available memory in iPAQ File Store:
1. Tap Start > Settings > System tab >Memory > Storage
Card tab.
2. Select iPAQ File Store from the drop-down list box.
Option E: Using Optional Storage Expansion
Cards
To maximize the memory capacity of your iPAQ Pocket PC,
purchase a Secure Digital (SD) card for your unit. The SD card
can be installed in the Expansion Slot on the right side of your
iPAQ Pocket PC.
For more information on purchasing expansion cards, visit the
HP Web site at www.hp.com/go/ipaqaccessories.
Do you want to learn more about:
■
what you can do with optional expansion cards?
■
using expansion cards in your iPAQ Pocket PC?
Refer to Chapter 10, “Expansion Cards,” in the User’s Guide
located on the Companion CD.
23
360338-xx1 Onyx How Do I.book Page 24 Wednesday, June 23, 2004 1:34 PM
How Do I Insert and Remove My
Battery Correctly?
Ä
CAUTION: Use only an HP approved battery for your iPAQ Pocket PC.
Inserting a battery that does not comply with HP requirements might
cause the Pocket PC to malfunction.
To install the removable/rechargeable battery in the HP iPAQ
Pocket PC h6300 Series:
1. Insert the two tabs on the top of the battery 1 into the latches
in the top of the battery compartment on the back of the
Pocket PC.
2. Snap the bottom of the battery into place 2.
24
360338-xx1 Onyx How Do I.book Page 25 Wednesday, June 23, 2004 1:34 PM
3. Insert the stylus into the battery lock and slide it to the left or
locked position.
Ä
CAUTION: The cover must be tightly latched in place and you must
lock the battery for the Pocket PC to operate. If the battery lock is
not in the locked position, when you press the Power button, the iPAQ
Pocket PC will not work.
Note: If the battery is not fully charged, you must connect
the AC Adapter to the Pocket PC to fully charge it before
continuing. It can take up to four hours to fully charge a
completely drained battery.
To remove the battery in the HP iPAQ Pocket PC h6300 Series,
perform these same instructions in reverse order. Be sure to save
your data in all currently open applications on the Pocket PC
before you remove the battery because removing the battery
erases all unsaved data.
25
360338-xx1 Onyx How Do I.book Page 26 Wednesday, June 23, 2004 1:34 PM
How Do I Maximize Battery Life?
There are a number of ways to ensure your battery lasts as long as
possible between charges. You can use as many as necessary to
maximize your battery life.
26
■
Tap Start > Settings > System tab > Power > Advanced tab,
then set the iPAQ Pocket PC to turn off after a short time if it
is not being used.
■
Tap Start > Settings > System tab > Backlight, then set the
backlight to go off quickly after you stop using your iPAQ
Pocket PC.
■
Turn off Bluetooth power when not in use. To turn off
Bluetooth, from the Today screen, tap the iPAQ Wireless
icon in the Command bar, and then tap the Bluetooth icon.
■
Turn off Wi-Fi power when not in use. To turn off Wi-Fi,
from the Today screen, tap the iPAQ Wireless icon in the
Command bar, and then tap the Wi-Fi icon.
■
Leave your iPAQ Pocket PC connected to AC power at all
times when you’re not using it.
■
Tap Start > Settings > Connections tab > Beam, then
uncheck the “Receive all incoming beams” checkbox to
receive infrared beams manually.
■
To ensure you always have battery power available, purchase
a spare battery or Extended Battery. The spare battery can be
charged in the USB Synchronization Cradle/Charger. For
more information on purchasing optional batteries, visit the
HP Web site at www.hp.com/go/ipaqaccessories.
360338-xx1 Onyx How Do I.book Page 27 Wednesday, June 23, 2004 1:34 PM
How Do I Check the Battery Charge
Level?
Tap Start > Settings > System tab > Power > Battery tab. You
can view the amount of battery power remaining for both the
main battery and the backup battery.
If the battery charge level is low, connect to AC power using
the USB Synchronization Cradle/Charger or the AC Adapter,
or change the battery. For information on purchasing a spare
battery or optional Extended Battery, visit the HP Web site at
www.hp.com/go/ipaqaccessories.
Ä
CAUTION: It is recommended that you do not allow the battery
installed in your iPAQ Pocket PC to discharge completely. Doing so
will not harm your Pocket PC or battery, but you will lose all data not
stored in Read-Only Memory (ROM). Discharging the battery
completely is similar to performing a hard reset. Refer to “How Do I
Perform a Hard (“Full”) Reset?” later in this document for more
information.
27
360338-xx1 Onyx How Do I.book Page 28 Wednesday, June 23, 2004 1:34 PM
How Do I Use the Built-in Digital
Camera in My iPAQ Pocket PC to Take
and Send Pictures?
If you purchased a HP iPAQ Pocket PC with a built-in camera, the
camera allows you to turn your Pocket PC into a mobile digital
imaging center. You can share images through e-mail or the Web,
print from your iPAQ Pocket PC using Bluetooth, or transfer files
to the Pocket PC for storage.
The software programs described below are included on your HP
iPAQ Pocket PC or on the Companion CD.
HP Camera Software
28
Function
HP Image Capture
Snap images and modify settings
for your iPAQ Pocket PC Camera.
HP Image Zone
Review and share images from your
iPAQ Pocket PC. Print, send, record
and e-mail images directly from
your Pocket PC, or create slideshows
to share your pictures with friends
and family.
HP Image Transfer
Transfer images to your personal
computer. This software is included
on the Companion CD and must be
downloaded before you can use it.
360338-xx1 Onyx How Do I.book Page 29 Wednesday, June 23, 2004 1:34 PM
To take a picture:
1. From the Start menu, tap Programs > HP Image Capture.
2. Locate the camera lens on the top left corner on the back of
the Pocket PC and frame the subject to be photographed in
the digital viewfinder on the Pocket PC screen.
3. Tap the
icon to zoom in on the subject or tap the
icon to zoom out.
Note: You can also press the top side of the Navigation
button to zoom in or press the bottom side of the
Navigation button to zoom out. Pressing the Navigation
button in the middle snaps a picture.
4. Make sure that both you and your subject do not move to
ensure a clear image.
5. Press the Shutter button on the side of the Pocket PC or tap
the Shutter icon
on the screen to snap a picture.
Tip: You can also snap pictures by pressing down on the
middle of the Navigation button. Use the mode that is convenient
for you.
29
360338-xx1 Onyx How Do I.book Page 30 Wednesday, June 23, 2004 1:34 PM
When you snap a picture, your iPAQ Pocket PC makes an audible
shutter sound (if you have not muted the sounds). The clock
indicates a picture has been taken and the iPAQ Pocket PC
processes the picture. It might take a few seconds to process and
store the picture, depending on its size, quality, and complexity.
Immediately after taking a picture, Instant Review automatically
displays three icons so you can decide to either discard, e-mail, or
keep the image.
6. Tap one of the three icons to perform the following functions:
❏
Trash icon - to delete the current picture
❏
E-mail icon - to attach the picture to a Picture Message
(MMS)
❏
OK icon - finished reviewing the picture
For more information on troubleshooting the way pictures appear
on your iPAQ Pocket PC screen, refer to Chapter 9 “Using the
Camera” of the User’s Guide located on the Companion CD.
30
360338-xx1 Onyx How Do I.book Page 31 Wednesday, June 23, 2004 1:34 PM
How Do I View Pictures That I’ve
Already Taken?
If you have taken some pictures and you would like to view them,
follow these steps:
1. From the Start menu, tap Programs > HP Image Zone.
2. Tap a thumbnail (i.e., a small representation of a larger
image) to select the picture. A preview of the picture and
information about it will be displayed.
To view images in a different folder:
1. Tap File > Change Folder.
2. Select the desired folder.
3. Tap OK.
31
360338-xx1 Onyx How Do I.book Page 32 Wednesday, June 23, 2004 1:34 PM
How Do I Save Pictures to a Memory
Card?
To set the camera to automatically save a picture to your
removable Secure Digital (SD) memory card, follow these steps.
Note: Make sure to insert the SD card into the expansion slot
located on the right hand side (as shown below) of the Pocket PC.
If the memory card is not present in the expansion slot, the Pocket
PC will not list Storage Card as an option on the “Save to”
screen.
1. From the Start menu, tap Programs > HP Image Capture >
Menu icon
> File tab > Open Folder icon next to the
Save Picture in: list box.
2. On the “Save to:” screen, tap Storage Card.
3. Tap OK twice to return to the camera application.
32
360338-xx1 Onyx How Do I.book Page 33 Wednesday, June 23, 2004 1:34 PM
To verify you saved the picture, you can view the picture(s) using
HP Image Zone.
Note: You can also move or copy pictures to a SD memory card
by using the HP Image Zone application.
How Do I Send Pictures Using Picture
Messaging (MMS) or E-mail?
Picture Messaging (MMS) allows you to exchange
multimedia communications (such as audio and video clips,
pictures and text) between your mobile phone and other
devices.
Note: You must have phone service to use Picture Messaging
(MMS).
To send a picture via Picture Messaging:
1. From the Start menu, tap Programs > HP Image Capture >
to take a photo and the Instant Review feature automatically
comes up displaying three icons.
33
360338-xx1 Onyx How Do I.book Page 34 Wednesday, June 23, 2004 1:34 PM
2. Tap one of the three icons to perform the following functions:
❏
Trash icon - to delete the current picture
❏
E-mail icon - to attach the picture to a Picture Message
(MMS)
❏
OK icon - finished reviewing the picture
To e-mail a picture:
1. From the Start menu, tap Programs > HP Image Zone.
2. Tap the thumbnail of the image to be e-mailed.
3. Tap File > Send > via E-mail and enter the appropriate
e-mail address or tap the Contacts icon in the Navigation bar
and select the appropriate Contact name(s).
Note: Notice that the attached image appears at the bottom of the
e-mail message.
4. Enter the subject and/or message, if any.
5. Tap Send.
How Do I Find Out More About
Expansion Cards?
You can expand the memory and connectivity of your Pocket PC
by using SD (Secure Digital), SDIO (Secure Digital IO), or MMC
(Multimedia Memory) expansion cards. Use these optional
expansion cards for:
34
■
Adding functionality such as the HP PhotoSmart Camera,
Bar Code Scanners, etc.
■
Expanding the memory of your Pocket PC for data storage
■
Viewing the content of memory cards (SD/MMC)
360338-xx1 Onyx How Do I.book Page 35 Wednesday, June 23, 2004 1:34 PM
Expansion cards must be purchased separately and are not
included with your Pocket PC.
Note:
To locate information about expansion cards, go to the following
HP Web site: www.hp.com/go/ipaqaccessories.
How Do I Place and Receive Phone
Calls?
Once you subscribe and request mobile phone service, you can
place local or long distance domestic calls. Also, you can place
international calls if you requested setup.
Placing a Call
When you turn on the Phone, the Phone keypad displays on the
Pocket PC screen.
■
From the Phone keypad, tap the number you want to call, and
then tap Talk or press the Send button.
35
360338-xx1 Onyx How Do I.book Page 36 Wednesday, June 23, 2004 1:34 PM
■
Other ways to make a call:
❏
Making a Conference Call (refer to “How Do I Make a
Conference Call?” later in this document.)
❏
From Contacts (refer to the section on “Making a Call
From Contacts” in the User’s Guide located on the
Companion CD).
❏
Using Speed Dial (refer to the section on “Making a Call
Using Speed Dial” in the User’s Guide located on the
Companion CD).
❏
From Call History (refer to the section on “Making a Call
from Call History” in the User’s Guide located on the
Companion CD).
Receiving a Call
When you receive a phone call, the iPAQ Pocket PC rings (or
vibrates) and a message appears on the screen, giving you an
option to either answer or ignore the incoming call.
■
Tap Answer or press the Green
button to receive the call.
Note: To silence the phone and reject the call, tap Ignore. This
option either sends the caller to your voicemail or sends out a
busy signal, depending on your service provider.
Helpful Tips Using the Phone
Here are some basic tips when using some of the general phone
functions on your iPAQ Pocket PC.
36
360338-xx1 Onyx How Do I.book Page 37 Wednesday, June 23, 2004 1:34 PM
Muting an Active Voice Call
During a call, you can mute your microphone so that the person
with whom you are speaking cannot hear you, but you can still
hear him or her. This is useful if you do not want the other person
to hear a conversation or background noise on your side of
the call.
■
From the Phone keypad, tap the mute icon in the Command
bar to mute or unmute a call.
Placing a Call On Hold
During a phone call, tap Hold on the Phone keypad to put the call
on hold. The call on hold appears on the top right of the dialer
screen. You can switch between calls by tapping the call on hold.
Note: You can have only one call on hold while the other call is
active. Also, when a call is placed on hold, the call is not
disconnected.
37
360338-xx1 Onyx How Do I.book Page 38 Wednesday, June 23, 2004 1:34 PM
How Do I Set Up and Access My
Voicemail?
The first speed dial location is set as a default for your voice
mailbox number. When you insert your Subscriber Identity
Module (SIM) card into your Pocket PC, it sets (as default) the
voice mailbox number of your mobile service provider. You
might need to configure your phone to the Voicemail setting by
dialing or setting the Voicemail dial number.
To retrieve your voicemail:
■
With the Phone turned on and the Phone keypad visible on
the screen, press and hold down the left side of the 5-Way
Navigation Button (shown below) and release, select 1
Voicemail, then press
.
How Do I Make a Conference Call?
You can create a three-way conference call between yourself and
two other parties.
■
38
From the Phone keypad, dial the first number, tap Talk and
after the call is initiated, tap Hold, dial the second number,
tap Talk and then tap Conference.
360338-xx1 Onyx How Do I.book Page 39 Wednesday, June 23, 2004 1:34 PM
How Do I Change My Phone Services
Settings?
Your iPAQ Pocket PC has several phone service settings you can
change, such as Call barring, Caller ID, Call Forwarding, Call
Waiting, and Voicemail and SMS settings.
To change any of these service settings:
1. On the Phone keypad, from the Command bar, tap Tools >
Options > Services tab.
2. Tap the appropriate service you would like to change.
How Do I Change The Call Forwarding
Settings?
Use call forwarding to forward all incoming calls to a different
phone number.
1. From the Phone keypad, tap Tools > Options > Services tab.
2. Tap Call Forwarding > Get Settings.
3. Select Forward all incoming phone calls, and specify the
phone number to receive the forwarded calls.
You can also use call forwarding to forward incoming calls to a
different number based on your situation.
❏
Select Unavailable to forward calls only when your
phone is turned off or you are unreachable.
❏
Select Busy to forward calls only when the line is busy.
39
360338-xx1 Onyx How Do I.book Page 40 Wednesday, June 23, 2004 1:34 PM
How Do I Communicate If I am Using a
Headset?
When you plug in a headset to the iPAQ Pocket PC, the internal
microphone on the Pocket PC becomes disabled. If you are using
either the headset HP ships with the iPAQ Pocket PC or the HP
recommended Plantronics stereo headset, the caller will be able to
hear you. However, if you are using a headset without a built-in
microphone, you will be able to hear the caller, but the caller will
not be able to hear you.
To be able to communicate with the caller again, disconnect the
headset from the iPAQ Pocket PC so the microphone can
re-engage. After disconnecting the headset, the caller should be
able to hear you.
For more information on purchasing a headset, visit the HP Web
site at www.hp.com/go/ipaqaccessories.
40
360338-xx1 Onyx How Do I.book Page 41 Wednesday, June 23, 2004 1:34 PM
How Do I Use the Wireless Features of
My iPAQ Pocket PC?
Before learning how to use the wireless features (such as Wi-Fi
and Bluetooth) on your iPAQ Pocket PC, first familiarize yourself
with the following wireless technology terms.
Term
Definition
802.11b
The standard specification for wireless local
area networks, often called Wi-Fi.
802.1x
A standard designed to enhance the security
of Wi-Fi networks by providing an
authentication framework.
Authentication
The verification of the identity of a person or
process. For example, in a communication
system, authentication verifies that messages
really come from their stated source, similar
to a signature on a (paper) letter. Logically,
authentication precedes authorization even
though they might appear to occur
simultaneously.
Authorization
The process of granting or denying someone
access to a network resource.
Bluetooth
A telecommunication industry specification
that allows Bluetooth-enabled devices
(mobile phones, computers, and some
Pocket PCs) short-range connections and
provides fast, reliable, wireless
communication.
Data Encryption
A conversion process that is used for
protecting data.
HotSpots
Public or private areas where there is a
wireless access point available. This wireless
connection could be located, for example, at
a library or cyber cafe.
41
360338-xx1 Onyx How Do I.book Page 42 Wednesday, June 23, 2004 1:34 PM
42
Term
Definition (Continued)
Internet Protocol (IP)
Address
A number that identifies each sender or
receiver of information (sent in packets)
across the Internet.
Media Access Control
(MAC) Address
A computer’s unique hardware number in a
network. For example, on an Ethernet LAN,
it’s the same as your Ethernet address.
When you are connected to the Internet a
correspondence table relates your IP address
to your computer’s MAC address on the
LAN.
Service Set Identifier
(SSID)
A sequence of characters that uniquely
identifies (i.e., names) a Wi-Fi network. This
identification number uses a maximum
number of 32 characters and is case
sensitive.
Virtual Private Network
A way of providing users (i.e., remote
offices, telecommuters, etc.) secure access to
their organization’s network by way of the
Internet.
Wired Equivalent
Privacy (WEP)
A security protocol designed to provide
Wi-Fi networks with the same level of
security usually expected on a LAN.
Wireless Fidelity (WiFi)
The term used for a high-frequency wireless
networking.
Wireless Local Area
Network (WLAN)
A wireless network in which a mobile user
can connect to a local area network through
a wireless connection.
Wireless Access Point
Physical hardware (device) or computer
software that acts as a hub for users of
wireless devices to connect to a local area
network.
360338-xx1 Onyx How Do I.book Page 43 Wednesday, June 23, 2004 1:34 PM
How Do I Use Wi-Fi?
Wireless access eliminates the need to use cables to connect your
Pocket PC to the Internet. However, to be able to use a Wi-Fi
network, you must have a Wireless Access Point. These access
points transmit data to and from your wireless device. Your
Pocket PC can connect to an 802.11b Wi-Fi network or connect
directly to other Wi-Fi enabled devices.
With Wi-Fi, you can:
■
Access the Internet
■
Send and receive e-mail
■
Access corporate network information
■
Use virtual private networks (VPN) for secure remote access
■
Use HotSpots for wireless connectivity
Getting Started with Wi-Fi
To use Wi-Fi on your Pocket PC, you need to turn on Wi-Fi and
set up your device. To turn Wi-Fi on or off from the Today
screen, tap the iPAQ Wireless icon ( ) in the Command bar,
and then tap the Wi-Fi icon.
43
360338-xx1 Onyx How Do I.book Page 44 Wednesday, June 23, 2004 1:34 PM
If Wi-Fi is powered on, the Wi-Fi icon background turns from
gray to amber to green, and the Wi-Fi LED (located to the left of
the power button) blinks green to indicate Wi-Fi is on.
Note: A blinking amber Wi-Fi LED indicates Wi-Fi is on but not
connected, and a blinking green Wi-Fi LED indicates Wi-Fi is on
and associated with another device.
Even though the Wi-Fi LED flashes to indicate Wi-Fi is turned
on, it does not necessarily mean a connection has been
established with another device or access point.
Alternatively, you can use the Data Connectivity icon in the
Navigation bar to turn Wi-Fi on and off:
1. Tap the Data Connectivity icon in the Navigation bar.
2. When the Data Connectivity box displays, select either Turn
On Wi-Fi or Turn Off Wi-Fi to complete the action.
Battery Saving Tip: Turn Wi-Fi off when you are not using it.
44
360338-xx1 Onyx How Do I.book Page 45 Wednesday, June 23, 2004 1:34 PM
Automatically Connecting to a Network
1. If one or more networks are present, the Network Indicator
icon
appears in the Navigation bar. Tap the network you
want to connect to, then tap whether the network connects to
the Internet (does not use proxy settings) or Work (uses proxy
settings).
2. If you are prompted for a Network Key (WEP), enter it and
tap Connect. If you are not sure, contact your network
administrator.
Manually Entering New Network Settings
A wireless network can be added either when the network
is detected (the Network Indicator icon is showing in the
Navigation bar) or manually by entering setting information.
To manually add a wireless network:
1. Be sure Wi-Fi is powered on.
2. Tap the Connections icon > Settings > Advanced tab >
Network Card button > Wireless tab > Add New Settings.
45
360338-xx1 Onyx How Do I.book Page 46 Wednesday, June 23, 2004 1:34 PM
3. Tap the General tab and enter a network name (SSID).
Note: If a network was detected in step 2, the SSID is
automatically entered and cannot be changed.
4. In the Connects to: box, select where your network connects
to (The Internet or Work).
5. If you want to connect to an ad-hoc connection, tap the This
is a device-to-computer (ad-hoc) connection checkbox.
6. If authentication information is needed, from the Configure
Wireless Network screen, tap the Authentication tab.
Note: To determine whether authentication information is
needed, see your network administrator.
7. Select the type of network authentication to use:
a. To use data encryption, check the Data encryption
(WEP enabled) checkbox.
b. To use Shared Key authentication, check the Network
Authentication (Shared mode) checkbox. Type the
network key in the Network Key: box.
c. If a network key is provided by your network
automatically, check the The Key is provided for
me automatically checkbox.
d. For increased security, check the Enable network
access using IEEE 802.1X checkbox. You should
only check this option if it is supported by your network
environment. Ask your network administrator if you are
unsure.
Note: If you are trying to connect to your corporate network,
contact your network administrator for assistance.
46
360338-xx1 Onyx How Do I.book Page 47 Wednesday, June 23, 2004 1:34 PM
Searching for Networks to Access
Networks that you have already configured are preferred
networks and are listed in Wireless Networks. You can choose
whether to connect only to preferred networks or to have your
Pocket PC search for and connect to any available network
(preferred or not).
1. Tap the Connections icon > Settings > Advanced tab >
Network Card button > Wireless tab.
2. In the Networks to access box, tap the type of network you
want to connect to (All Available, Only access points, or
Only computer-to-computer).
3. To connect only to networks that have already been
configured, clear the Automatically connect to
non-preferred networks checkbox.
Note: If you check the Automatically connect to
non-preferred networks checkbox, your Pocket PC will detect
any new networks and provide you the opportunity to configure
them.
For more information on Wireless LAN, refer to Chapter 7,
“Using Wi-Fi” in the User’s Guide located on the Companion CD
or go to the HP website and chat with an online agent. To receive
47
360338-xx1 Onyx How Do I.book Page 48 Wednesday, June 23, 2004 1:34 PM
instructions on how to chat with an online agent, refer to the
question “How Do I Find Information On Topics Not Covered in
This Booklet?” found at the end of this document.
How Do I Set Up My iPAQ Pocket PC
to Connect and Browse the Internet
through a Wi-Fi HotSpot?
Connecting to a HotSpot in your local coffee shop or at the
airport or other public places usually requires a contract with the
HotSpot service provider. A contract can be purchased at the
HotSpot site from your service provider or by accessing the
service provider’s Web site.
Once you have purchased this service, you will be able to connect
to their HotSpots using your HP iPAQ Pocket PC h6300 Series.
Note: Some public places might even provide a free HotSpot
connection.
To connect at the HotSpot location:
1. Turn on Wi-Fi from the Today screen, tap the iPAQ Wireless
icon ( ) in the Command bar, and then tap the Wi-Fi icon.
The Wi-Fi icon changes to green when it turns on.
2. Tap OK.
3. Tap the network icon in the Navigation bar.
48
360338-xx1 Onyx How Do I.book Page 49 Wednesday, June 23, 2004 1:34 PM
4. Select the network when it is detected and tap Connect.
5. Launch Internet Explorer—From the Start menu, tap
Internet Explorer.
6. Enter the Internet address to be accessed in the address bar
and tap GO.
Note: If you experience problems connecting to the HotSpot
location, you will need to contact the service provider’s Help line
for help. Most HotSpot locations provide brochures with Help
information.
How Do I Connect to a T-Mobile
HotSpot?
You can connect to a T-Mobile HotSpot to access the Internet,
e-mail, or even your corporate network. T-Mobile HotSpots
provide this access at convenient locations, such as airports,
coffeehouses, bookstores, universities, etc.
CAUTION: For security reasons, it is recommended that you use a
personal firewall or VPN to secure your Internet connection when
using HotSpots.
49
360338-xx1 Onyx How Do I.book Page 50 Wednesday, June 23, 2004 1:34 PM
You do need a T-Mobile service contract to access T-Mobile
HotSpots. If you already have a T-Mobile service contract in
place, you can immediately connect to a T-Mobile HotSpot using
your HP iPAQ Pocket PC h6300 Series.
To connect at the T-Mobile HotSpot location:
1. Turn on Wi-Fi from the Today screen, tap the iPAQ Wireless
icon ( ) in the Command bar, and then tap the Wi-Fi icon.
The Wi-Fi icon changes to green when it turns on.
2. Tap OK.
3. Tap the network icon in the Navigation bar.
4. Select the network (either tmobile or tmobile1x) when it is
detected and tap Connect. The tmobile network provides
open access for customers who do not have existing T-Mobile
Wi-Fi- subscriptions. The tmobile1x network provides a
higher level of data encryption and security.
Note: To authenticate to the tmobile1x network, you must have a
active account subscription.
»
To access the T-Mobile HotSpot network:
a. Select tmobile and tap Connect.
b. Launch Internet Explorer—From the Start menu, tap
Internet Explorer. This takes you to the T-Mobile
HotSpot login page.
c. Enter your username and password to access the network.
If you need to purchase a DayPass, you can do so from
the login page.
50
360338-xx1 Onyx How Do I.book Page 51 Wednesday, June 23, 2004 1:34 PM
»
To access the T-Mobile1x HotSpot network:
a. Select tmobile1x and tap Connect.
b. From the Configure Network Authentication screen, tap
1x and select the Use IEEE 802.1x network access
control checkbox.
c. Enter your username and password to authenticate and
connect to the network.
How Do I Use Bluetooth?
Your HP iPAQ Pocket PC comes with built-in Bluetooth
technology that allows short-range connections and provides fast,
reliable, wireless communication.
With Bluetooth powered on, you can send information or perform
the following tasks wirelessly between two Bluetooth devices,
within a range of approximately 10 meters (30 feet):
■
Exchange contacts, calendar items, and tasks
■
Send or exchange business cards
■
Transfer files
■
Synchronize with a computer through an ActiveSync
connection
■
Partner with a Bluetooth-enabled cell phone and use the cell
phone as a wireless modem
■
Connect to other Bluetooth devices (Virtual COM port)
■
Connect to Bluetooth wireless local area networks (WLANs)
■
Print to a Bluetooth printer
51
360338-xx1 Onyx How Do I.book Page 52 Wednesday, June 23, 2004 1:34 PM
■
Use a Bluetooth headset
■
Create a personal area network (PAN) to chat, play
games, etc.
NOTE: Use of dial-up and wireless Internet, e-mail, corporate
networks, and other wireless communications, such as
Bluetooth-enabled devices, may require separately purchased
additional hardware and other compatible equipment, in addition
to a standard Wireless Local Area Network (WLAN)
infrastructure and a separately purchased service contract. Check
with your service provider for availability and coverage in your
area. Not all Web content may be available. Some Web sites may
not be formatted to fit Pocket PC screens and may require
installation of additional software.
For more information on Bluetooth, refer to Chapter 8, “Using
Bluetooth” in the User’s Guide located on the Companion CD or
go to the HP website and chat with an online agent. To receive
instructions on how to chat with an online agent, refer to the
question “How Do I Find Information On Topics Not Covered in
This Booklet?”found at the end of this document.
How Do I turn on Bluetooth?
From the Today screen, tap the iPAQ Wireless icon ( ) in the
Command bar, tap the Bluetooth icon, then tap Manager box
next to Bluetooth.
Note: You must turn on Bluetooth before you can select the
Manager or Settings boxes.
Now you have turned on Bluetooth you are ready to transfer files,
connect to a Bluetooth printer, synchronize with your computer
and more.
52
360338-xx1 Onyx How Do I.book Page 53 Wednesday, June 23, 2004 1:34 PM
Helpful Tip Using Bluetooth
Here is a helpful tip on how to set up the Bluetooth settings on
your iPAQ so that other bluetooth devices cannot detect your
iPAQ Pocket PC.
Make My iPAQ Invisible to Other Bluetooth
Devices
If you would like to change your Bluetooth settings on your iPAQ
Pocket PC to where your Pocket PC cannot be seen by other
Bluetooth devices, follow these steps:
1. From the Today Screen, tap Start then Settings.
2. Under the Connections tab, tap the Bluetooth icon.
3. Under the Accessibility tab, uncheck the Allow other
devices to connect checkbox. This action grays out the
options for other devices to be able to discover your
Pocket PC.
53
360338-xx1 Onyx How Do I.book Page 54 Wednesday, June 23, 2004 1:34 PM
Note: If you want other Bluetooth-enabled devices to be able
to connect to your device (all devices or only paired devices),
check the All other devices to connect checkbox. If you uncheck
this option, no devices are able to discover or connect to your
Pocket PC. For more detailed information on Bluetooth, refer to
Chapter 8, “Using Bluetooth” in the User’s Guide located on the
Companion CD.
4. Tap OK to save your changes.
How Do I Use Bluetooth to Transfer
Files to Another Pocket PC, Computer,
or Printer?
Bluetooth is a wireless feature that allows you to exchange
information with other Bluetooth-enabled devices located within
10 meters of your iPAQ Pocket PC. To transfer files from your
iPAQ Pocket PC to another Bluetooth-enabled device, such as
another Pocket PC, personal computer, or printer, you must first
create a file transfer connection.
Creating a File Transfer Connection
From the Today screen, tap the iPAQ Wireless icon ( ) in the
Command bar, tap the Bluetooth icon, then tap Manager box
next to Bluetooth.
Note: You must turn on Bluetooth before you can select the
Manager or Settings boxes.
54
360338-xx1 Onyx How Do I.book Page 55 Wednesday, June 23, 2004 1:34 PM
The first screen that displays is My Shortcuts.
1. Tap New > Browse files on a remote device > Next.
2. The Bluetooth Connection Wizard Screen displays the
devices within a 10 meter range of your iPAQ. Next, follow
the connection wizard instructions.
Note: The remote device must have Bluetooth turned on and set
up to allow discovery before the connection can occur.
Sending Files
1. Tap and hold a file transfer shortcut icon, and tap Connect.
2. Tap File > Send a File…
3. Locate the file(s) to send.
4. Tap the file(s) to send it.
5. Tap OK.
For more detailed information on Bluetooth, refer to Chapter 8,
“Using Bluetooth” in the User’s Guide located on the Companion
CD or go to the HP website and chat with an online agent. To
55
360338-xx1 Onyx How Do I.book Page 56 Wednesday, June 23, 2004 1:34 PM
receive instructions on how to chat with an online agent, refer to
the question “How Do I Find Information On Topics Not Covered
in This Booklet?” found at the end of this document.
How Do I Send and Receive Text
Messages?
You can send and receive SMS text messages on your iPAQ
Pocket PC by using the phone option. These text messages are
sent and received through your wireless phone service provider
by using a phone number as the message address.
Note: You must have a Subscriber Identity Module (SIM) card
installed in your Pocket PC to send and receive text messages. A
SIM card either came with your unit or must be purchased from a
mobile phone service provider or electronics store.
To compose and send a message:
1. In the message list, tap New.
2. To select an account, tap the From list and select SMS.
3. Enter the SMS address of one or more recipients, separating
them with a semicolon. To access addresses and phone
numbers from Contacts, tap To.
4. Enter your message. To quickly add a canned message, tap
My Text and tap a desired message.
5. To check spelling, tap Edit > Spell Check.
6. Tap Send. If you are working offline, the message is moved
to the Outbox folder and will be sent the next time you
connect.
Note: If you are sending a text message and want to know if it
was received, before sending the message, tap Edit > Options,
and select Request SMS text message delivery notification.
56
360338-xx1 Onyx How Do I.book Page 57 Wednesday, June 23, 2004 1:34 PM
To reply to a message:
1. Tap on the message to open it, tap the reply icon in the
navigation bar, and then tap Reply, or Reply All.
2. Enter your response. To quickly add common messages, tap
My Text and tap a desired message.
3. To check spelling, tap Edit > Spell Check.
4. Tap Send.
Note: Selections in the Tools > Options > Message tab
determine whether the original text is included with the outgoing
message.
How Do I Recognize and Filter Spam
Text Messages (SMS)?
Spam is unsolicated e-mail on the Internet that sometimes can be
hard to filter. Customers can identify and filter unwanted e-mails
by setting up a filtering option found on the T-Mobile website.
Spam can be recognized by content if the From address in the
e-mail has an unexpected number of digits. For example, most
10-digit phone numbers are messages sent from other Text
Messaging (SMS) users and are not considered spam. However, if
the message is from a completely unfamiliar number containing
5-digits or more, this increases the chance the message is spam
but is not all inclusive.
To set up spam filtering:
1. Login to the T-Mobile web site at www.t-mobile.com.
2. Select Communications > Two-Way Text Messaging >
Spam/Keyword Filters option located on the left-hand side
of the screen.
57
360338-xx1 Onyx How Do I.book Page 58 Wednesday, June 23, 2004 1:34 PM
On the “Message Forwarding and Spam Blocking” screen,
spam filters (as well as forwarding rules) can be specified.
Filters can scan the To: field, the From: field and Subject:
field for any string of text that the customer judges to be
likely spam keywords.
How Do I Set Up T-Mobile Alerts?
T-Mobile alerts are brief text messages such as e-mail
notification, weather forecasts, sports scores, daily jokes, etc.
T-Mobile customers can choose which alerts they would like to
receive. Customers can also receive e-mail notification alerts
through “MyEmail” service which provides a brief summary of
the e-mail content.
To set up T-Mobile alerts:
1. Login to the T-Mobile web site at www.t-mobile.com.
2. Select Entertainment, and then the Alerts option.
3. Check the boxes for the alerts desired. Note that some of
these are scheduled alerts and some are on demand.
For more details on T-Mobile alerts, refer to the Help Notes listed
on this page.
How Do I Protect My iPAQ Pocket PC
from Screen Damage or Cracking?
You should observe the following practices to protect the screen
of your iPAQ Pocket PC from damage:
❏
58
Never use any device other than the stylus that comes
with the Pocket PC or an approved replacement to tap or
write on the screen. If you lose or break your stylus, you
can order extras at www.hp.com/go/ipaqaccessories.
360338-xx1 Onyx How Do I.book Page 59 Wednesday, June 23, 2004 1:34 PM
❏
When not in use, store your iPAQ Pocket PC in a case.
You can use the case that came with your Pocket PC, or
you can select from a wide variety of case options at
www.hp.com/go/ipaqaccessories.
❏
Do not place anything on top of your Pocket PC.
❏
Avoid scratching the surface of the screen and banging it
against hard objects.
❏
Clean your Pocket PC by wiping the screen and the
exterior with a soft, damp cloth lightly moistened only
with water.
To reduce the risk of damage to the internal
components, do not spray liquid directly on the screen or
allow excess liquid to drip inside your iPAQ Pocket PC.
Using soap or other cleaning products on the screen may
discolor the finish and damage it.
CAUTION:
How Do I Find the Product ID and
Serial Number of My iPAQ Pocket PC?
The Product ID and Serial Number for your iPAQ Pocket PC can
be found on the label under the battery or in the Asset Viewer
program. It is recommended that you have this information
available before contacting HP Customer Support, particularly if
you are calling for in-warranty support.
Option A—To locate the Product ID and Serial Number in Asset
Viewer:
1. Tap Start > Settings > System tab > Asset Viewer.
2. To locate the Product ID, tap System.
3. To locate the Serial Number, tap Identity.
59
360338-xx1 Onyx How Do I.book Page 60 Wednesday, June 23, 2004 1:34 PM
Option B—To view the label:
1. On the back of the iPAQ Pocket PC, slide the battery lock to
the right 1 or unlocked position to open the battery door.
2. Slide the battery latch down 2 to release the battery 3.
3. The label containing the Product ID and the Serial Number is
beneath the battery.
60
360338-xx1 Onyx How Do I.book Page 61 Wednesday, June 23, 2004 1:34 PM
How Do I Find Information On Topics
Not Covered in This Booklet?
For complete setup and installation instructions, refer to the
Welcome Guide document in the box or the User’s Guide located
on the Companion CD. The User’s Guide is in a printable format
if you prefer a hard copy document.
If you have questions on using your iPAQ Pocket PC that have
not been covered in this booklet or in the Welcome Guide
or User’s Guide, refer to the T-Mobile website at
www.t-mobile.com/help.
To receive support from T-Mobile, either:
■
Go to the Web site at www.t-mobile.com/help
■
Dial 611 from your T-Mobile phone free of charge
■
Dial toll free at 1-800-937-8997
61
how do I...?
look inside to see
answers to frequently
asked questions about
your iPAQ Pocket PC
www.hp.com
TM1208
Printed in Taiwan
360338-002
360338-002 TMO Cvr.p65
1
6/24/2004, 12:31 PM
hp iPAQ Pocket PC
h6300 series
Download PDF

advertising
