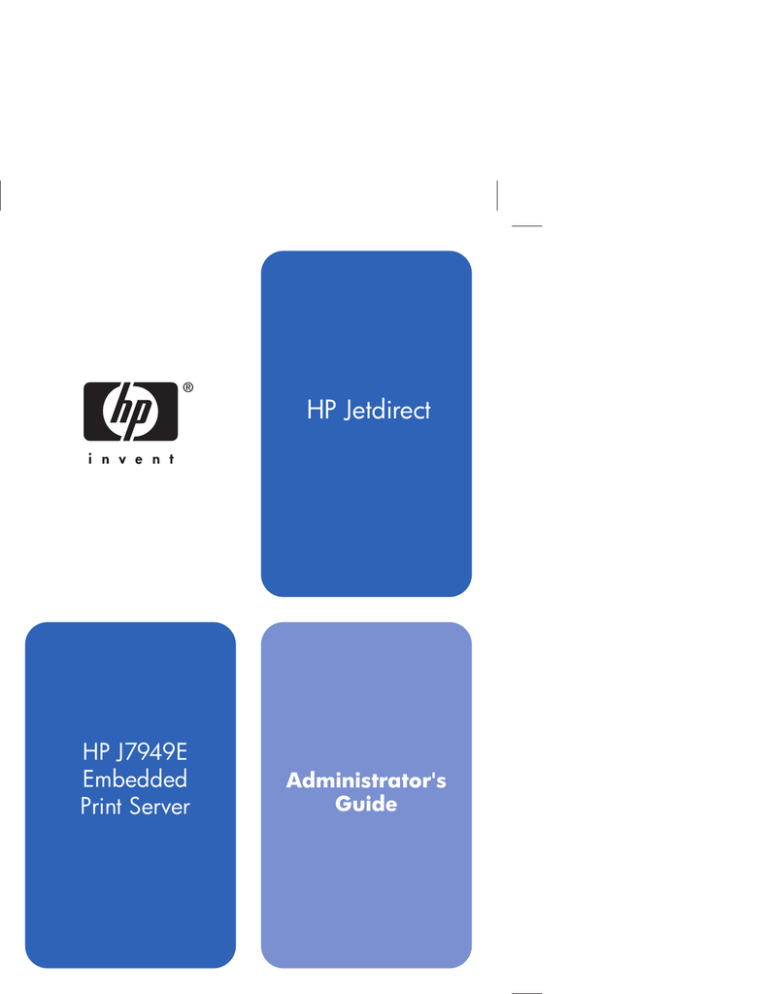

HP Jetdirect
HP J7949E
Embedded
Print Server
Administrator's
Guide
Administrator’s Guide
HP Jetdirect
Embedded Print Server
© 2004 Copyright Hewlett-Packard Development Company, L.P.
All rights reserved. Reproduction, adaptation, or translation without prior written
permission is prohibited, except as allowed under the copyright laws.
The information contained in this document is subject to change without notice.
The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable
for technical or editiorial errors or omissions contained herein.
Edition 1, 9/2004
Trademark Credits
Microsoft®, Windows®, are U.S. registered trademarks of Microsoft Corporation.
Adobe®, PostScript®, are trademarks of Adobe Systems, Incorporated. Linux® is a
U.S. registered trademark of Linus Torvalds. UNIX® is a registered trademark of
the Open Group.
Table of Contents
1. Introducing the HP Jetdirect Embedded
Print Server
Introduction ............................................................................. 6
Identification ........................................................................... 7
Supported Network Protocols ................................................. 8
Security Protocols .................................................................... 9
HP Support ............................................................................ 10
Product Registration.............................................................. 12
2. HP Software Solutions Summary
Introduction ........................................................................... 13
HP Install Network Printer Wizard (Windows)................... 16
HP Jetdirect Printer Installer for UNIX .............................. 16
HP Web Jetadmin.................................................................. 17
Internet Printer Connection Software.................................. 20
HP IP/IPX Printer Gateway for NDPS................................. 23
HP LaserJet Utilities for Mac OS......................................... 25
3. TCP/IP Configuration
Introduction ........................................................................... 31
Default IP Address ................................................................ 32
Using BOOTP/TFTP.............................................................. 36
Using DHCP........................................................................... 56
Using RARP ........................................................................... 64
Using the arp and ping Commands ...................................... 66
Using Telnet........................................................................... 68
Using the Embedded Web Server ......................................... 88
Using the Printer Control Panel........................................... 89
Moving to Another Network.................................................. 90
4. Using the Embedded Web Server
Introduction ........................................................................... 91
Requirements......................................................................... 92
Viewing the Embedded Web Server ..................................... 93
Networking Tab ..................................................................... 95
Other Links .......................................................................... 133
5. Configuring for LPD Printing
Introduction ......................................................................... 134
LPD Setup Overview ........................................................... 136
ENWW
4
LPD on UNIX Systems........................................................ 138
LPD on Windows NT/2000/Server 2003 Systems .............. 142
LPD on Windows XP Systems............................................. 147
LPD on Mac OS Systems..................................................... 150
6. FTP Printing
Introduction ......................................................................... 152
Requirements....................................................................... 152
Print Files ............................................................................ 153
Using FTP Printing ............................................................. 153
Example of an FTP Session................................................. 158
7. Security Features
Introduction ......................................................................... 159
Using Security Features...................................................... 163
8. Troubleshooting the HP Jetdirect
Print Server
Introduction ......................................................................... 165
Resetting to Factory Defaults ............................................. 166
General Troubleshooting..................................................... 167
Troubleshooting an LPD UNIX Configuration .................. 175
9. HP Jetdirect Configuration Page
Introduction ......................................................................... 177
Configuration Page Format................................................. 178
Configuration Page Messages ............................................. 180
Error Messages .................................................................... 195
A. TCP/IP Overview
Introduction ......................................................................... 205
IP Address ............................................................................ 206
Configuring IP Parameters ................................................. 209
Subnets................................................................................. 210
Gateways.............................................................................. 211
Syslog Server ....................................................................... 211
B. The HP Jetdirect Control Panel Menu
Introduction ......................................................................... 214
Parameter Descriptions....................................................... 214
C. OpenSSL Statements
Index
ENWW
5
1
Introducing the HP Jetdirect
Embedded Print Server
Introduction
This printer or multifunction peripheral (MFP) device contains an
HP Jetdirect embedded print server that is integrated directly on
the device. Using this print server, you can connect this device
directly to a network and share it among multiple users or systems.
Because the print server is built into the device, an input/output
(I/O) slot or external port is not needed for network connectivity and
may be used for other purposes.
Network Connection
Using the embedded print server and built-in RJ-45 connector, the
printer or MFP device can connect to an IEEE 802.3 10/100Base-TX
(Ethernet/Fast Ethernet) network through unshielded twisted-pair
network cables.
Autonegotiation (10/100Base-TX) is used to automatically configure
link operation at 10 Mbps or 100 Mbps, and full- or half-duplex
communication mode, as required by the network. However, link
operation may be manually set using several configuration tools,
such as the printer control panel (if supported), Telnet and TFTP
commands, a Web browser, and network management software.
These tools are described later in this guide.
Note
ENWW
Unless otherwise specified, the term print server in
this manual refers to an HP Jetdirect print server
and not a separate computer running print server
software.
6
Identification
Product Number and Firmware Version
The features and capabilities of an HP Jetdirect print server
depends on the print server’s product model/number and its
operating firmware version. The print server can be upgraded with
new firmware versions when they are released. New versions may
provide enhanced features and capabilities.
The features and capabilities described in this guide support the
following HP Jetdirect print server and firmware version:
Note
For an HP Jetdirect embedded print server, a
non-orderable product number has been assigned.
The product number is for identification purposes
only.
●
HP Product Number: J7949E
●
Firmware Version: V.28.xx.nnnnnnnn
where xx identifies a sequential release number. Note that
nnnnnnnn, if it appears, is an encoded value for HP support use
only.
The installed firmware version can be identified using various
methods, including the HP Jetdirect configuration page (see
Chapter 9), Telnet (see Chapter 3), embedded Web server (see
Chapter 4), and network management applications. For firmware
updates, see “Firmware Upgrades”.
ENWW
Introducing the HP Jetdirect Embedded Print Server 7
Supported Network Protocols
The supported network protocols, and popular network printing
environments that use those protocols, are listed in Table 1.1.
Table 1.1
Supported Network Protocols
Supported Network
Protocols
Network Printing Environments*
TCP/IP
Microsoft Windows 98/Me/NT4.0/2000/XP (32- and 64-bit),
Direct Mode printing
Novell NetWare 5, 6.x using NDPS
UNIX and Linux, including:
Hewlett-Packard HP-UX, Sun Microsystems Solaris
(SPARCsystems only), IBM AIX**, HP MPE-iX**, RedHat
Linux, SuSE Linux
LPR/LPD (Line Printer Daemon)**
IPP (Internet Printing Protocol)
FTP (File Transfer Protocol)
IPX/SPX and
compatible
Novell NetWare**
AppleTalk
Apple Mac OS
Microsoft Windows 98/Me/NT4.0/2000/XP (32-bit only), Direct
Mode printing
(EtherTalk only)
DLC/LLC
Microsoft Windows NT**
* Refer to the current HP Jetdirect product data sheets for additional network systems
and versions. For operation with other network environments, consult your system
vendor or authorized HP dealer.
** For these network systems, contact your network system vendor for software,
documentation, and support.
If not supplied with this product, HP network setup and
management software for supported systems may be obtained from
HP support at:
http://www.hp.com/support/net_printing
For software to set up network printing on other systems, contact
your system vendor.
ENWW
Introducing the HP Jetdirect Embedded Print Server 8
Security Protocols
SNMP (IP and IPX)
SNMP (Simple Network Management Protocol) is used by network
management applications for device management. HP Jetdirect
print servers support SNMP and standard MIB-II (Management
Information Base) objects on both IP and IPX networks.
The HP Jetdirect embedded print server supports an SNMP v1/v2c
agent, and an SNMP v3 agent for enhanced security.
HTTPS
The HP Jetdirect embedded print server supports HTTPS (Secure
Hyper Text Transfer Protocol) for secure, encrypted management
communications between the embedded Web server and your Web
browser.
ENWW
Introducing the HP Jetdirect Embedded Print Server 9
Authentication
EAP/802.1X Server-Based Authentication
The HP Jetdirect print server supports network client access using
the Extensible Authentication Protocol (EAP) on an IEEE 802.1X
network. The IEEE 802.1X standard provides a port-based
authentication protocol where a port can allow or block access
depending on client authentication results.
When connected to an 802.1X port, the print server supports
Extensible Authentication Protocol (EAP) with an authentication
server, such as a RADIUS (Remote Authentication Dial In User
Service, RFC 2138) server.
The print server supports the following EAP/802.1X method:
●
PEAP (Protected Extensible Authentication Protocol). PEAP is
a mutual authentication protocol that uses digital certificates
for network server authentication and passwords for client
authentication. For additional security, the authentication
exchanges are encapsulated within TLS (Transport Layer
Security). Dynamic encryption keys are used for secure
communications.
The network infrastructure device that connects the print server to
the network (such as an HP Procurve switch) must also support the
EAP/802.1X method used. In conjunction with the authentication
server, the infrastructure device can control the degree of network
access and services available to the print server client.
To configure the print server for EAP/802.1X authentication, you
must access the embedded Web server through your Web browser.
For more information, see Chapter 4.
HP Support
HP Online Support
Click your way to a quick solution! The HP Web site
http://www.hp.com/support/net_printing
is a great place to start for answers to questions about your
HP Jetdirect print server — 24 hours a day, 7 days a week.
ENWW
Introducing the HP Jetdirect Embedded Print Server 10
Firmware Upgrades
Hewlett-Packard offers downloadable firmware upgrades for the
HP Jetdirect print server. The upgrades are available from the
World Wide Web at:
http://www.hp.com/go/webjetadmin_firmware
Firmware Installation Tools
Firmware upgrades for supported HP Jetdirect print servers may
be installed over a network using one of the following firmware
installation tools:
●
HP Jetdirect Download Manager (Windows). HP Jetdirect
Download Manager can be downloaded from HP online support
at:
http://www.hp.com/go/dlm_sw
●
HP Web Jetadmin may be used on supported systems. For more
information on HP Web Jetadmin, visit:
http://www.hp.com/go/webjetadmin/
●
Using a Web browser, the networking pages of the embedded
Web server provide a firmware upgrade feature using your Web
browser. For more information see Chapter 4.
●
FTP (File Transfer Protocol) may be used to transfer a firmware
upgrade image file to the print server. To start an FTP session,
use the device IP address or host name. If a password is set, it
must be entered to log into the device. After user login, typical
FTP commands to upgrade the device are illustrated below:
ftp> bin
ftp> hash
ftp> cd /download
ftp> put <firmware image filename; specify full pathname>
ftp>######### <Wait for FTP to complete the download>
ftp> bye
ENWW
Introducing the HP Jetdirect Embedded Print Server 11
HP Support By Phone
Highly trained technicians are ready to take your call. For the most
recent HP support telephone numbers and available services
worldwide, visit:
http://www.hp.com/support/support_assistance
Note
For toll-free support in the USA and Canada, call
1-800-HPINVENT or 1-800-474-6836.
Note
Telephone fees are the responsibility of the caller.
Rates may vary. Contact your local telephone
company for current rates.
Product Registration
To register for better access to HP support and services for this
product, use the following HP Web page:
http://www.hp.com/go/jetdirect_register
ENWW
Introducing the HP Jetdirect Embedded Print Server 12
2
HP Software Solutions Summary
Introduction
HP provides a variety of software solutions to set up or manage your
HP Jetdirect-connected network devices. See Table 2.1 to help you
determine which software is best for you.
Note
For more information on these and other solutions,
visit HP online support at:
http://www.hp.com/support/net_printing
Table 2.1
Software Solutions (1 of 3)
Operating Environment
Function
Remarks
HP Install Network Printer Wizard (Windows)
Windows 98, Me, NT 4.0,
2000, XP, Server 2003
(TCP/IP direct mode
printing)
ENWW
Install a single network
printer on your system for
peer-to-peer (direct mode)
or client-server (shared)
printing.
●
Simple printer
installation, typically
integrated with printer
system software
●
Runs from CD-ROM
●
Installable version that
runs from your hard
disk is available
13
Table 2.1
Software Solutions (2 of 3)
Operating Environment
Function
Remarks
HP Jetdirect Printer Installer for UNIX
HP-UX 10.x-10.20, 11.x
Solaris 2.6, 7, 8
(SPARCsystems only)
Fast and easy installation
of HP Jetdirect-connected
printers.
●
May be downloaded
from HP’s Website
Remote installation,
configuration, and
management of
HP Jetdirect-connected
print servers, non-HP
printers that support the
standard MIBs, and
printers with embedded
Web servers.
●
HP’s preferred solution
for ongoing
management and
installation of multiple
printers anywhere on
your intranet
●
Browser-based
management
●
Allows economical
distribution of
high-quality hardcopy
documents over the
Internet, replacing fax,
mail, and overnight
services
TCP/IP
HP Web Jetadmin
(See the HP Website for
supported system
updates.)
Windows NT 4.0, 2000, XP
Professional, Server 2003
HP-UX*
Solaris*
Red Hat Linux, SuSE Linux
NetWare*
TCP/IP, IPX/SPX
*Supports queue creation
and peripheral
management from
HP Web Jetadmin hosted
on a supported system.
Alerts and consumables
management.
Remote firmware
upgrades for HP Jetdirect
print servers.
Asset tracking and
utilization analysis.
Internet Printer Connection Software
Windows NT 4.0, 2000
(Intel)
TCP/IP only
Note: Microsoft Internet
Printing software is also
integrated with
Windows 2000, XP, Server
2003.
ENWW
Printing through the
Internet to Internet Printing
Protocol (IPP)-enabled
HP Jetdirect-connected
printers.
HP Software Solutions Summary 14
Table 2.1
Software Solutions (3 of 3)
Operating Environment
Function
Remarks
HP IP/IPX Printer Gateway for NDPS
NetWare 5.x, 6.0
Simplified installation,
printing, and bidirectional
management of
HP Jetdirect-connected
printers under Novell
Distributed Print Services
(NDPS).
●
Frees up user licenses
●
Allows disabling of
SAPs to reduce
network traffic
●
May be downloaded
from HP’s Website.
Allows automatic discovery
and installation of
HP Jetdirect-connected
printers into NDPS.
HP LaserJet Utilities for Mac OS
Mac OS 9.x, X 10.x
(Classic Mode)
(AppleTalk)
ENWW
Configuration and
management of
HP Jetdirect-connected
printers.
HP Software Solutions Summary 15
HP Install Network Printer Wizard
(Windows)
The HP Install Network Printer Wizard is a software module for
quick and easy printer installation on a TCP/IPnetwork. During
installation, the wizard allows you to configure your device with
basic TCP/IP parameters necessary for operation on your network..
The wizard is typically integrated with your CD-ROM printing
system software. However, a standalone version that runs from
your system disk is also available and can be downloaded from
HP online support at:
http://www.hp.com/go/inpw_sw
Requirements
●
Microsoft Windows XP, Windows 2000, Windows NT 4.0,
Windows 98/Me, Server 2003
◆
TCP/IP network protocol
●
The correct printer driver
●
A network connection using an HP Jetdirect print server
HP Jetdirect Printer Installer for
UNIX
The HP Jetdirect Printer Installer for UNIX contains support for
HP-UX and Solaris systems. The software installs, configures and
provides diagnostics capabilities for HP printers connected to
TCP/IP networks using full-featured HP Jetdirect print servers.
The software is available for download from HP online support at:
http://www.hp.com/support/net_printing
For system requirements and installation information, see the
documentation provided with the software.
ENWW
HP Software Solutions Summary 16
HP Web Jetadmin
HP Web Jetadmin is an enterprise management tool that allows
you to remotely install, configure and manage a wide variety of HP
and non-HP network printing devices simply through a standard
Web browser. HP Web Jetadmin can be used to proactively manage
both individual or groups of devices.
While HP Web Jetadmin supports devices that contain Standard
Printer MIB (Management Information Base) objects for common
management, it is well-integrated with HP Jetdirect print servers
and HP printers to provide enhanced management features.
To use HP Web Jetadmin, see the online help and documentation
supplied with the software.
System Requirements
HP Web Jetadmin software runs on Microsoft Windows NT 4.0,
Windows 2000, Windows XP Professional, Windows Server 2003,
Red Hat Linux, and SuSE Linux systems. For information on
supported operating systems, clients, and compatible browser
versions, visit HP online support at:
http://www.hp.com/go/webjetadmin.
Note
ENWW
When installed on a supported host server,
HP Web Jetadmin can be accessed from any client
through a compatible Web browser by browsing to
the HP Web Jetadmin host. This allows printer
installation and management on Novell NetWare
and other networks.
HP Software Solutions Summary 17
Installing HP Web Jetadmin
Before installing the HP Web Jetadmin software, you must have
administrator or root privileges on the local system:
1. Download the installation files from HP online support at
http://www.hp.com/go/webjetadmin.
2. Follow the instructions on the screen to install the HP Web
Jetadmin software.
Note
Installation instructions are also contained in the
HP Web Jetadmin install file.
Verifying Installation and Providing Access
●
Verify that the HP Web Jetadmin software is correctly installed
by navigating to it with your browser as shown in the following
example:
http://systemname.domain:port/
where systemname.domain is the host name of your Web server
and port is the port number assigned during installation. By
default, the port number is 8000.
●
Provide users access to HP Web Jetadmin software by adding a
link to your Web server’s home page that is addressed to HP Web
Jetadmin’s URL. For example:
http://systemname.domain:port/
Configuring and Modifying a Device
Using your browser, navigate to HP Web Jetadmin’s URL.
For example:
http://systemname.domain:port/
ENWW
HP Software Solutions Summary 18
Note
In place of systemname.domain, the IP address of
the host computer on which HP Web Jetadmin is
installed can be used.
Follow the instructions on the appropriate home page to find and
configure or modify your printer.
Removing HP Web Jetadmin Software
To remove HP Web Jetadmin software from your Web server, use
the uninstall program provided with the software package.
ENWW
HP Software Solutions Summary 19
Internet Printer Connection
Software
The HP Jetdirect print server supports the Internet Printing
Protocol (IPP).
Using the appropriate software on your system, you can create an
IPP print path from your system to a supported
HP Jetdirect-connected printer over the Internet.
Note
For incoming print path requests, the network
administrator must configure the firewall to accept
incoming IPP requests. Security features available
in the software are currently limited.
Features and benefits provided by Internet printing include:
●
High-quality, time-sensitive documents can be printed remotely,
in full-color or black-and-white
●
Documents can be printed remotely at a fraction of the cost of
current methods (such as fax, mail, or overnight delivery
services)
●
The traditional LAN printing model can be extended to that of
an Internet Printing Model
●
IPP requests for sending print jobs can be transmitted outbound
through firewalls
HP-Supplied Software
HP Internet Printer Connection software allows you to set up
Internet printing from Windows NT 4.0 and Windows 2000 clients.
1. To obtain the software:
Download the HP Internet Printer Connection software from
HP online support at:
http://www.hp.com/support/net_printing
ENWW
HP Software Solutions Summary 20
2. To install the software and set up the print path to the printer,
follow the instructions provided with the software. Contact your
network administrator to get the IP address or URL of the
printer to complete the setup.
HP Software System Requirements
●
Computer running Microsoft Windows NT 4.0 (Intel-based) or
Windows 2000
●
HP Jetdirect print server with IPP enabled.
HP Software Supported Proxies
Web proxy with support for HTTP v1.1 or greater (may not be
needed if printing over an intranet).
Microsoft Supplied Software
Note
Contact Microsoft for support of Windows IPP
software.
Windows 2000/XP/Server 2003 Integrated Software
On Windows 2000/XP/Server 2003 systems, an alternative to using
the HP supplied software is to use the IPP-client software
integrated with the Windows system. The IPP implementation on
the HP Jetdirect print server is compatible with the Windows
system IPP-client software.
To set up a print path to an HP Jetdirect-connected Internet printer
using the Windows 2000/XP IPP-client software, proceed as follows:
1. Open the Printers folder (click Start, select Settings, and
select Printers).
2. Run the Add Printer wizard (double-click Add Printer), then
click Next.
3. Select the option for a network printer and click Next.
ENWW
HP Software Solutions Summary 21
4. Select Connect to a printer on the Internet and enter the
print server’s URL:
http://IP_address[/ipp/port#]
where IP_address is the IP address configured on the
HP Jetdirect print server and [/ipp/port#] is an optional
parameter that defaults to /ipp/port1 for HP Jetdirect embedded
print servers.
Example:
http://192.160.45.40
An IPP connection to HP Jetdirect
embedded print server with IP address
192.160.45.40. (“/ipp/port1” is
assumed and not required.)
Then click Next.
5. You will be prompted for a printer driver (the HP Jetdirect
print server does not contain printer drivers, so your system
cannot automatically obtain the driver). Click OK to install the
printer driver onto your system and follow the instructions on
the screen. (You may need your printer CD-ROM to install
the driver.)
6. To complete the print path setup, follow the instructions on
the screen.
Windows Me IPP Client
The IPP implementation on the HP Jetdirect print server is
compatible with Windows Me IPP-client software. The IPP client
is installed from the Add-Ons folder on the Windows Me CD-ROM.
For installation and setup of a Windows Me IPP client, see the
instructions provided with the Windows Me CD-ROM.
Novell Supplied Software
The HP Jetdirect print server is compatible with IPP running on
NetWare 5.1 with SP1 or later. For NetWare client support, refer
to your NetWare technical documentation or contact Novell.
ENWW
HP Software Solutions Summary 22
HP IP/IPX Printer Gateway for NDPS
NDPS (Novell Distributed Print Services) is a printing architecture
developed by Novell in partnership with Hewlett-Packard. NDPS
simplifies and streamlines the administration of network printing.
It eliminates the need to set up and link print queues, printer
objects, and print servers. Administrators can use NDPS to manage
networked printers within supported NetWare environments.
The HP IP/IPX Printer Gateway is a NetWare Loadable Module
(NLM) developed by HP to provide functionality and compatibility
with Novell's NDPS for full-featured HP Jetdirect print servers.
The HP Gateway seamlessly integrates HP Jetdirect-attached
printers into the NDPS environment. Using the HP Gateway, an
administrator can view statistics, configure gateway settings, and
configure printing for HP Jetdirect-connected printers.
Features
Features and benefits provided by the HP Gateway and NDPS
include:
●
Smart detection of printers in NetWare 5.x, 6.0 environments
●
Automatic installation of printers using IP/IPX
●
Tight integration with Novell's NDS and NWAdmin
●
Status updates from printers
●
Simplified Automatic Driver Download
●
Reduced SAP Traffic
●
Reduced number of required NetWare User Licenses
●
Native TCP/IP printing with NetWare 5.x, 6.0
ENWW
HP Software Solutions Summary 23
To Get the Software
The HP IP/IPX Printer Gateway is included with all current
versions of NDPS. Novell NetWare 5.x and 6.0 includes NDPS.
To obtain the most recent software version, or to obtain the related
documentation:
■
Visit http://www.hp.com/go/hpgate_sw
■
Select and follow the instructions for downloading drivers and
software.
System requirements and Novell Client support are included in the
documentation supplied with the software.
ENWW
HP Software Solutions Summary 24
HP LaserJet Utilities for Mac OS
The HP LaserJet Utilities for Mac OS allow you to configure and
manage your HP Jetdirect-connected printers on networks that use
the AppleTalk (EtherTalk) protocol.
Note
On TCP/IP networks, you can use Mac OS system
utilities to discover and install your printer:
●
On Mac OS 9.x systems, use the Apple Desktop
Printer Utility to set up LPR/LPD printing.
●
On Mac OS X 10.x systems, use the Print Center
to select IP Printing or Rendezvous to install your
printer.
TCP/IP printer configuration is also supported
through other tools, such as the embedded Web
server.
Installing the Printer Software
To install the printer software for Mac OS systems, follow the
instructions in your printer Getting Started or User guides.
Note
The availability of the HP LaserJet Utility on the
printing system CD-ROM depends on your printer
model. If you install the HP LaserJet Utility from a
source other than the CD-ROM, see the README
file that accompanies the software for installation
instructions.
Note
Automatic virus detection programs might interfere
with the installation of this software. Turn off any
such programs that are active on your Mac OS
computer before proceeding with the installation
process.
ENWW
HP Software Solutions Summary 25
Configuring the Printer
The HP LaserJet Utility allows printer settings such as printer
name and preferred zone to be configured from your Mac OS system.
Hewlett-Packard recommends that only network administrators
use the printer configuration capabilities of this utility.
If this printer is to be serviced by a print spooler, set up the printer's
name and zone before configuring the spooler to capture the printer.
Running the HP LaserJet Utility
1. With the printer turned on and online, and the print server
connected to the printer and to the network, double-click the
HP LaserJet Utility icon.
2. If the printer’s name is not listed as the target printer, click
Select Printer. The Select a Target Printer window appears.
■
Select the zone, if necessary, from the AppleTalk Zones list in
which the printer resides. The zone the printer is in is shown
on the configuration page. See the hardware installation guide
for your print server or your printer's Getting Started guide
for instructions on printing a configuration page.
■
Select the printer from the Available Printers list and
click OK.
Verifying Network Configuration
To verify your current network configuration, print a Jetdirect
configuration page. If you have not printed a configuration page
from your printer, see your printer documentation for instructions
(see Chapter 9 for more information). If your printer has a control
panel, make sure a READY message appears on the control panel for
at least 1 minute, then print the page. The current configuration is
listed under “AppleTalk” on the configuration page.
Note
ENWW
If you have multiple printers on your network, you
need to print a configuration page to identify the
printer’s name and zone.
HP Software Solutions Summary 26
Renaming the Printer
The factory supplies a default name for your printer.
Hewlett-Packard highly recommends that you rename your
printer to avoid having multiple printers with similar
names on your network.
CAUTION
After you have renamed the printer and have set up
print queues to that printer, use caution when
changing the printer name again. If you rename the
printer again, the queues for that printer will no
longer function.
Note
The name may be up to 32 characters in length.
A warning beep indicates that an illegal character
was typed. For illegal characters, see the Help
system integrated with the software.
You can name your printer anything you like—for example,
“Michael’s LaserJet 4000.” The HP LaserJet Utility has the ability
to rename devices located in different zones, as well as the local zone
(no zones need to be present in order to use the HP LaserJet Utility).
1. Select the Settings icon from the scrolling icon list. The
Please select a setting: dialog appears.
2. Select Printer Name in the list.
3. Click Edit. The Set Printer Name dialog box appears.
4. Type the new name.
5. Click OK.
Note
If you try to name your printer the same name
as another printer, an alert dialog box appears
directing you to select another name. To select
another name, repeat steps 4 and 5.
6. If your printer is on an EtherTalk network, continue with the
next section, “Selecting a Zone.”
ENWW
HP Software Solutions Summary 27
7.
To exit, select Quit from the File menu.
Notify everyone on your network of the new name for your printer
so they can select the printer in the Chooser.
Selecting a Zone
The HP LaserJet Utility allows you to select a preferred zone for
your printer on a Phase 2 EtherTalk network. Instead of your
printer remaining on the default zone, which is set by the router,
this utility lets you select the zone on which your printer appears.
The zones on which your printer can reside are limited by your
network configuration. The HP LaserJet Utility only enables
you to select a zone that is already configured for your
network.
Zones are groups of computers, printers, and other AppleTalk
devices. They can be grouped by physical location (for example,
Zone A may contain all the printers on the network in building A).
They may also be grouped logically (for example, all printers used
in the finance department).
1. Select the Settings icon from the scrolling icon list. The Please
Select a Setting: dialog box appears.
2. Select Printer Zone in the list and click Edit. The Select a
Zone dialog box appears.
3. Select your preferred network zone from the Select a Zone: list
and click Set Zone.
4. To exit, select Quit from the File menu.
Notify everyone on your network of the new zone for your printer
so they can select the printer in the Chooser.
Selecting Your Printer
1. Select the Chooser from the Apple menu.
2. Select the printer icon for use with your printer. If the
appropriate printer icon does not appear in the Chooser, or you
are not sure which icon to select for your printer, see “Installing
the Printer Software” in this chapter.
ENWW
HP Software Solutions Summary 28
3. If AppleTalk is not active, an alert dialog box appears on your
screen. Select OK. The Active button turns on.
If your network is linked to other networks, the AppleTalk
Zones list dialog box appears in the Chooser.
4. If applicable, select the zone in the AppleTalk Zones scrolling
list where your printer is located.
5. Select the printer name you want to use from the list of printer
names in the upper-right area of the Chooser. If the printer's
name does not appear in the list, make sure the following tasks
have been performed:
■
■
■
the printer is turned on and is online.
the print server is connected to the printer and to the network.
the printer cable connections are secure.
A READY message should appear if the printer has a control panel
display. See Chapter 8 for more information.
Note
If your printer is the only name listed in the
dialog box, you must still select it. Your printer
remains selected until you select a different printer
with the Chooser.
6. Click Setup or Create in the Chooser; then, if prompted, select
the appropriate PostScript Printer Description file (PPD) for the
printer. For more information, see the online documentation.
7. Set Background Printing to ON or OFF.
If background printing is turned OFF when you send a print job
to the printer, status messages appear on your screen and you
have to wait until the messages clear before continuing your
work. If background printing is turned ON, the messages are
redirected to the PrintMonitor and you can continue working
while the printer is printing your job.
8. Exit the Chooser.
To display your user name on the network when you are printing
documents, go into the Control Panel on your Mac OS computer,
select Sharing Setup, then type your owner name.
ENWW
HP Software Solutions Summary 29
Testing the Configuration
1. Select Print Window from the File menu, or if no window is
open, select Print Desktop.
The Print dialog box appears.
2. Click Print.
If the printer prints the job, you have connected your printer to
your network correctly. If your printer does not print, see
Chapter 8.
ENWW
HP Software Solutions Summary 30
3
TCP/IP Configuration
Introduction
To operate properly on a TCP/IP network, the HP Jetdirect print
server must be configured with valid TCP/IP network configuration
parameters, such as an IP address that is valid for your network.
For general information on TCP/IP networks, see Appendix A.
Server-Based and Manual TCP/IP Configuration
When in a factory-default state and initially powered on, the HP
Jetdirect print server will systematically try to obtain its TCP/IP
configuration using a server-based method (BOOTP, DHCP, and
RARP, described later in this chapter). Up to two minutes are used.
If configuration is not successful, a default IP address will be
assigned.
The print server may also be configured manually. Manual-based
tools include Telnet, a Web browser, the printer control panel, arp
and ping commands (when the default IP address is 192.0.0.192),
or SNMP-based management software. TCP/IP configuration
values assigned manually will be retained when powered off/on.
The print server can be reconfigured to use either server-based or
manual configuration of TCP/IP settings at any time.
To identify the IP address that is configured on the print server at
any time, see the HP Jetdirect configuration page.
ENWW
31
Default IP Address
When in a factory-default state (for example, when shipped from
the factory or after a cold-reset), the HP Jetdirect print server has
no IP address. A default IP address may or may not be assigned
depending on the network environment.
Default IP Address Will Not Be Assigned
A default IP address will not be assigned if a server-based method
(such as BOOTP or DHCP) is successful. And if the print server is
powered off/on, the same method will again be used to retrieve IP
configuration settings. If this method now fails to retrieve the IP
configuration settings (for example, the BOOTP or DHCP server is
no longer available), a default IP address will not be assigned.
Instead, the print server will continue to send IP configuration
requests indefinitely. You must cold-reset the print server to change
this behavior.
In addition, a default IP address will not be assigned if a network
cable is not attached to a wired print server.
Default IP Address Will Be Assigned
A default IP address will be assigned if the factory-default methods
fail, or if the print server has just been reconfigured by an
administrator to use a server-based method (such as BOOTP or
DHCP) that fails.
If a default IP address is assigned, the address will depend on the
network to which the print server is connected. The print server
senses broadcast packets on the network to determine the
appropriate default IP settings:
●
On small private networks that adhere to automated,
standards-based IP address assignments, the print server uses
a link-local addressing technique to assign a unique IP address.
Link-local addressing may be referenced as Auto IP. The IP
address assigned will be in the range of 169.254.1.0 to
169.254.254.255 (commonly referenced as 169.254/16), and
should be valid. However, it can be further modified for your
network using supported TCP/IP configuration tools if
necessary.
ENWW
TCP/IP Configuration 32
With link-local addresses, subnetting is not used. The subnet
mask will be 255.255.0.0, and cannot be changed.
Link-local addresses will not route off the local link, and access
to or from the Internet will not be available. The default gateway
address will be the same as the link-local address.
If a duplicate address is sensed, the HP Jetdirect print server
will automatically reassign its address, if necessary, in
accordance with standard link-local addressing methods.
●
On large or enterprise IP networks, a temporary address of
192.0.0.192 will be assigned until it is reconfigured with a valid
address through supported TCP/IP configuration tools. We refer
to this address as Legacy Default IP.
●
On mixed-environment networks, the self-assigned default IP
address may be either 169.254/16 or 192.0.0.192. In this case,
you should verify on the Jetdirect configuration page that the
assigned default IP address is as expected.
The IP address configured on your print server may be determined
by inspecting the Jetdirect configuration page for the print server.
See Chapter 9.
Default IP Address Configuration Options
Default IP Parameter Options
A Default IP configuration parameter on the print server controls
how the default IP address is assigned. Whenever the print server
is unable to obtain an IP address during a forced TCP/IP
reconfiguration (for example, when manually configured to use
BOOTP or DHCP), this parameter will determine the default IP
address to use.
When the print server is in a factory-default state, this parameter
is undefined.
If the print server is initially configured with a default IP address
(either a link-local IP address or the legacy default 192.0.0.192 IP
address), the Default IP parameter will be set to either Auto IP or
Legacy Default IP to match.
The Default IP parameter can be changed through a supported
configuration tool, such as Telnet, a Web browser, the printer
control panel, and SNMP management applications.
ENWW
TCP/IP Configuration 33
DHCP Requests Enable/Disable
When a default IP address is assigned, you can choose to send, or
not send, periodic DHCP requests. DHCP requests are used to
retrieve IP configuration settings from a DHCP server on the
network. By default, this parameter is enabled, allowing DHCP
requests to be transmitted. However, this parameter may be
disabled through supported configuration tools such as Telnet, a
Web browser, and SNMP management applications.
TCP/IP Configuration Tools
Depending on your printer and operating system, an HP Jetdirect
print server can be configured with valid TCP/IP parameters for
your network in the following ways:
●
Using Software. You can use your printer installation
software on supported systems. For more information see
Chapter 2, “HP Software Solutions Summary”.
●
BOOTP/TFTP. You can download the data from a
network-based server using BOOTP (Bootstrap Protocol) and
TFTP (Trivial File Transfer Protocol) each time the printer is
turned on. For more information, see “Using BOOTP/TFTP”.
The BOOTP daemon, bootpd, must be running on a BOOTP
server that is accessible by the printer.
●
DHCP/TFTP. You can use Dynamic Host Configuration
Protocol (DHCP) and TFTP (Trivial File Transfer Protocol) each
time the printer is turned on. These protocols are supported on
HP-UX, Solaris, Red Hat Linux, SuSE Linux, Windows
NT/2000/Server 2003, NetWare and Mac OS systems. (Refer to
your network operating system manuals to verify that your
server operating system supports DHCP.) For more
information, see “Using DHCP”.
ENWW
TCP/IP Configuration 34
Note
Linux and UNIX systems: For more information,
see the bootpd man page.
On HP-UX systems, a sample DHCP configuration
file (dhcptab) may be located in the /etc directory.
Since HP-UX presently does not provide Dynamic
Domain Name Services (DDNS) for its DHCP
implementations, HP recommends that you set all
print server lease durations to infinite. This ensures
that print server IP addresses remain static until
such time as Dynamic Domain Name Services
are provided.
●
RARP. A network-based server can use RARP (Reverse Address
Resolution Protocol) to answer the print server's RARP request
and supplying the print server with the IP address. The RARP
method only allows you to configure the IP address. For more
information, see “Using RARP”.
●
arp and ping commands. (For print servers configure with
Legacy default IP address 192.0.0.192 only) You can use the arp
and ping commands from your system. For more information,
see “Using the arp and ping Commands”.
●
Telnet. You can set configuration parameters using Telnet. In
order to set configuration parameters, set up a Telnet
connection from your system to the HP Jetdirect print server
using the default IP address. Once configured, the print server
saves the configuration when powered off/on. For more
information, see “Using Telnet”.
●
Embedded Web server. You can browse to the embedded Web
server on the HP Jetdirect print server to set the configuration
parameters. For more information, see Chapter 4.
●
Printer Control Panel. You can manually enter the
configuration data using the printer control panel keys. The
control panel method allows you to configure only a limited
subset of configuration parameters. Therefore, control panel
configuration is recommended only during troubleshooting or
for simple installations. If control panel configuration is used,
the print server saves the configuration when powered off/on.
For more information, see “Using the Printer Control Panel”.
ENWW
TCP/IP Configuration 35
Using BOOTP/TFTP
BOOTP (Bootstrap Protocol) and TFTP (Trivial File Transfer
Protocol) provide a convenient way to automatically configure the
HP Jetdirect print server for TCP/IP network operation. When
powered on, the Jetdirect print server sends a BOOTP request
message onto the network. A properly configured BOOTP server
on the network will respond with a message that contains basic
network configuration data for the Jetdirect print server. The
BOOTP server’s response may also identify a file that contains
extended configuration data for the print server. The Jetdirect print
server downloads this file using TFTP. This TFTP configuration file
may be located on the BOOTP server, or a separate TFTP server.
BOOTP/TFTP servers are typically UNIX or Linux systems.
Windows NT/2000/Server 2003 and NetWare servers can respond
to BOOTP requests. Windows NT/2000/Server 2003 servers are
configured through Microsoft DHCP services (see Using DHCP).
However, Windows NT/2000/Server 2003 systems may require
third-party software for TFTP support. For setup of NetWare
BOOTP servers, refer to your NetWare documentation.
Note
ENWW
If the Jetdirect print server and BOOTP/DHCP
server are located on different subnets, IP
configuration may fail unless the routing device
supports “BOOTP Relay” (allows the transfer of
BOOTP requests between subnets).
TCP/IP Configuration 36
Why Use BOOTP/TFTP?
Using BOOTP/TFTP to download configuration data has the
following benefits:
●
Enhanced configuration control of the HP Jetdirect print server.
Configuration by other methods, such as a printer control panel,
are limited to select parameters.
●
Ease of configuration management. Network configuration
parameters for the entire network can be in one location.
●
Ease of HP Jetdirect print server configuration. Complete
network configuration can be automatically downloaded each
time the print server is powered on.
Note
BOOTP operation is similar to DHCP, but the
resulting IP parameters will be the same when
powered off/on. In DHCP, IP configuration
parameters are leased and may change over time.
When in its factory-default state and powered on, the HP Jetdirect
print server will attempt to automatically configure itself using
several dynamic methods, one of which is BOOTP.
BOOTP/TFTP on UNIX
This section describes how to configure the print server using
BOOTP (Bootstrap Protocol) and TFTP (Trivial File Transfer
Protocol) services on UNIX servers. BOOTP and TFTP are used
to download network configuration data from a server to the
HP Jetdirect print server over the network.
Systems That Use Network Information Service (NIS)
If your system uses NIS, you may need to rebuild the NIS map with
the BOOTP service before performing the BOOTP configuration
steps. Refer to your system documentation.
ENWW
TCP/IP Configuration 37
Configuring the BOOTP Server
For the HP Jetdirect print server to obtain its configuration data
over the network, the BOOTP/TFTP servers must be set up with
the appropriate configuration files. BOOTP is used by the print
server to obtain entries in the /etc/bootptab file on a BOOTP
server, while TFTP is used to obtain additional configuration
information from a configuration file on a TFTP server.
When the HP Jetdirect print server is powered on, it broadcasts a
BOOTP request that contains its MAC (hardware) address. A
BOOTP server daemon searches the /etc/bootptab file for a
matching MAC address, and if successful, sends the corresponding
configuration data to the Jetdirect print server as a BOOTP reply.
The configuration data in the /etc/bootptab file must be properly
entered. For a description of entries, see “Bootptab File Entries”.
The BOOTP reply may contain the name of a configuration file
containing enhanced configuration parameters. If the HP Jetdirect
print server finds such a file, it will use TFTP to download the file
and configure itself with these parameters. For a description of
entries, see “TFTP Configuration File Entries“. Configuration
parameters retrieved through TFTP are optional.
Note
ENWW
HP recommends that the BOOTP server be located
on the same subnet as the printers it serves.
BOOTP broadcast packets may not be
forwarded by routers unless the routers are
properly configured.
TCP/IP Configuration 38
Bootptab File Entries
An example of a /etc/bootptab file entry for an HP Jetdirect
print server is provided below:
picasso:\
:hn:\
:ht=ether:\
:vm=rfc1048:\
:ha=0001E6123456:\
:ip=192.168.40.39:\
:sm=255.255.255.0:\
:gw=192.168.40.1:\
:lg=192.168.40.3:\
:T144=“hpnp/picasso.cfg”:
Note that the configuration data contains “tags” to identify the
various HP Jetdirect parameters and their settings. Entries and
tags supported by the HP Jetdirect print server are listed in Table
3.1.
Table 3.1
Tags Supported in a BOOTP/DHCP Boot file (1 of 4)
Item
RFC
2132
Option
Description
nodename
--
The name of the peripheral. This name identifies an entry
point to a list of parameters for a specific peripheral.
nodename must be the first field in an entry. (In the
example above, nodename is “picasso”.)
ht
--
The hardware type tag. For the HP Jetdirect print server,
set this to ether (for Ethernet). This tag must precede the
ha tag.
vm
--
The BOOTP report format tag (required). Set this
parameter to rfc1048.
ha
--
The hardware address tag. The hardware (MAC) address
is the link-level, or station address of the HP Jetdirect print
server. It can be found on the HP Jetdirect configuration
page as the HARDWARE ADDRESS.
ip
--
The IP address tag (required). This address will be the
HP Jetdirect print server’s IP address.
ENWW
TCP/IP Configuration 39
Table 3.1
Tags Supported in a BOOTP/DHCP Boot file (2 of 4)
Item
RFC
2132
Option
Description
sm
1
The subnet mask tag. The subnet mask will be used by
the HP Jetdirect print server to identify the portions of an
IP address that specify the network/subnetwork number
and the host address.
gw
3
The gateway IP address tag. This address identifies the
IP address of the default gateway (router) that the
HP Jetdirect print server will use for communications
with other subnets.
ds
6
DNS (Domain Name System) server’s IP address tag.
Only a single name server can be specified.
lg
7
The syslog server’s IP address tag. It specifies the server
that the HP Jetdirect print server sends syslog messages
to. For more information, see Appendix A.
hn
12
The host name tag. This tag does not take a value but
causes the BOOTP daemon to download the host name
to the HP Jetdirect print server. The host name will be
printed on the Jetdirect configuration page, or returned on
an SNMP sysName request by a network application.
dn
15
Domain name tag. Specifies the domain name for the
HP Jetdirect print server (for example, support.hp.com). It
does not include the host name; it is not the Fully Qualified
Domain Name (such as printer1.support.hp.com).
ef
18
Extensions file tag that specifies the relative path name of
the TFTP configuration file.
Note: This tag is similar to the vendor-specific tag T144,
described below.
na
44
Tag for IP addresses of the NetBIOS-over-TCP/IP Name
Server (NBNS). A primary and secondary server may be
specified in order of preference.
lease-time
51
DHCP IP address lease duration time (seconds).
tr
58
DHCP T1 timeout, specifying the DHCP lease renewal
time (seconds).
ENWW
TCP/IP Configuration 40
Table 3.1
Tags Supported in a BOOTP/DHCP Boot file (3 of 4)
Item
RFC
2132
Option
Description
tv
59
DHCP T2 timeout, specifying the DHCP lease rebind time
(seconds).
T69
69
The IP address (in hexadecimal) of the preferred outgoing
e-mail SMTP (Simple Mail Transport Protocol) server, for
use with supported Scan devices.
T144
--
An HP-proprietary tag that specifies the relative path name
of the TFTP configuration file. Long path names may be
truncated. The path name must be in double quotes (for
example, “pathname”). For file format information, refer to
“TFTP Configuration File Entries“.
Note: Standard BOOTP option 18 (extensions file path)
also allows a standard tag (ef) to specify the relative path
name of the TFTP configuration file.
T145
--
Idle Timeout option. An HP-proprietary tag to set the idle
timeout (seconds), which is the amount of time that a print
data connection may remain idle before being closed. The
range is 1 - 3600 seconds.
T146
--
Buffer Packing option. An HP-proprietary tag to set buffer
packing for TCP/IP packets.
0 (default): Normal data buffers are packed before sending
to the printer.
1: Disable buffer packing. Data is sent to the printer
when received.
T147
--
Write Mode option. An HP-proprietary tag that controls the
TCP PSH flag setting for device-to-client data transfers.
0 (default): disables this option, flag not set.
1: all-push option. The push bit is set in all data packets.
2: eoi-push option. The push bit is set only for data packets
that have an End-of-Information flag set.
T148
--
IP Gateway Disable option. An HP-proprietary tag to
prevent configuration of a Gateway IP address.
0 (default): allows an IP address.
1: prevents a Gateway IP address to be configured.
ENWW
TCP/IP Configuration 41
Table 3.1
Tags Supported in a BOOTP/DHCP Boot file (4 of 4)
Item
RFC
2132
Option
Description
T149
--
Interlock Mode option. An HP-proprietary tag that specifies
whether an acknowledgement (ACK) on all TCP packets
is required before the printer is allowed to close a Port 9100
print connection. A Port Number and Option value are
specified, in the form:
<Port Number> <Option>
<Port Number>: For an HP Jetdirect embedded print
server, the Port Number is 1.
<Option>: Option value 0 (default) disables interlock, 1
enables.
Example: 1 1 specifies port 1, interlock enabled
T150
--
TFTP server’s IP address option. An HP-proprietary tag to
specify the TFTP server’s IP address where the TFTP
configuration file is located.
T151
--
Network Configuration option. An HP-proprietary tag to
specify either “BOOTP-ONLY” or “DHCP-ONLY” requests
be sent.
A colon (:) indicates the end of a field, and a backslash (\) indicates
that the entry is continued on the next line. Spaces are not allowed
between the characters on a line. Names, such as host names, must
begin with a letter and can contain only letters, numbers, periods
(for domain names only), or hyphens. The underline character (_)
is not allowed. Refer to your system documentation or online help
for more information.
TFTP Configuration File Entries
To provide additional configuration parameters for your
HP Jetdirect print server, such as SNMP (Simple Network
Management Protocol) or non-default settings, an additional
configuration file can be downloaded using TFTP. This TFTP
configuration file’s relative path name is specified in the BOOTP
reply using the /etc/bootptab file’s T144 vendor-specific tag
(or the “ef” standard BOOTP tag) entry. An example of a TFTP
configuration file is provided below (the symbol ‘#’ denotes a
remark and is not included in the file).
ENWW
TCP/IP Configuration 42
#
# Example of an HP Jetdirect TFTP Configuration File
#
# Allow only Subnet 192.168.10 access to peripheral.
# Up to 10 ‘allow’ entries can be written through TFTP.
# Up to 10 ‘allow’ entries can be written through Telnet
# or embedded Web server.
# ‘allow’ may include single IP addresses.
#
allow: 192.168.10.0
255.255.255.0
#
#
# Disable Telnet
#
telnet-config: 0
#
# Enable the embedded Web server
#
ews-config: 1
#
# Detect SNMP unauthorized usage
#
auth-trap: on
#
# Send Traps to 192.168.10.1
#
trap-dest: 192.168.10.1
#
# Specify the Set Community Name
#
set-cmnty-name: 1homer2
#
# End of file
ENWW
TCP/IP Configuration 43
Table 3.2 lists the supported TFTP commands (HP Jetdirect
firmware version V.28.xx or later).
Table 3.3 describes the TFTP command parameters.
Table 3.2
List of Supported TFTP Commands (1 of 2)
General
●
passwd:
●
ssl-state:
●
sys-location:
●
security-reset:
●
sys-contact:
●
tftp-parameter-attribute:
TCP/IP Main
●
host-name:
●
sec-dns-svr:
●
parm-file:
●
pri-wins-svr:
●
domain-name:
●
sec-wins-svr:
●
pri-dns-svr:
TCP/IP Print Options
●
9100-printing:
●
interlock:
●
ftp-printing:
●
buffer-packing:
●
ipp-printing:
●
write-mode:
●
lpd-printing:
●
mult-tcp-conn:
●
banner:
TCP/IP Raw Print Ports
●
raw-port:
TCP/IP Access Control
●
allow: netnum [mask]
TCP/IP Other Settings
ENWW
●
syslog-config:
●
ipv4-multicast:
●
syslog-svr:
●
idle-timeout:
●
syslog-max:
●
user-timeout:
●
syslog-priority:
●
ews-config:
●
syslog-facility:
●
tcp-mss:
●
slp-config:
●
tcp-msl:
●
slp-keep-alive:
●
telnet-config:
●
ttl-slp:
●
default-ip:
●
mdns-config:
●
default-ip-dhcp:
●
mdns-service-name:
●
web-refresh:
●
mdns-pri-svc:
TCP/IP Configuration 44
Table 3.2
List of Supported TFTP Commands (2 of 2)
SNMP
●
snmp-config:
●
auth-trap:
●
get-cmnty-name:
●
trap-dest:
●
set-cmnty-name:
IPX/SPX
●
ipx-config:
●
ipx-nds-context:
●
ipx-unit-name:
●
ipx-job-poll:
●
ipx-frametype:
●
pjl-banner:
●
ipx-sapinterval:
●
pjl-eoj:
●
ipx-nds-tree:
●
pjl-toner-low:
AppleTalk
●
appletalk:
DLC/LLC
●
dlc/llc-config:
Other Settings
●
link-type:
Support
ENWW
●
support-name:
●
support-url:
●
support-number:
●
tech-support-url:
TCP/IP Configuration 45
Table 3.3
TFTP Configuration File Parameters (1 of 10)
General
passwd:
(passwd-admin:)
A password (up to 16 alphanumeric characters) that allows administrators to
control changes of HP Jetdirect print server configuration parameters through
Telnet, HP Web Jetadmin, or embedded Web server. The password may be
cleared by a cold reset.
sys-location:
(host-location:, location:)
Identifies the physical location of the printer (SNMP sysLocation object). Only
printable ASCII characters are allowed. The maximum length is 64 characters. The
default location is undefined. (Example: 1st floor, south wall)
sys-contact:
(host-contact:, contact:)
ASCII character string (up to 64 characters) that identifies the person who
administers or services the printer (SNMP sysContact object). This may include
how to contact this person. The default contact is undefined.
ssl-state:
Sets the print server’s security level for Web communications:
1 (default): Forced redirection to the HTTPS port. Only HTTPS (secure HTTP)
communications can be used.
2: Disable forced redirection to HTTPS. Both HTTP and HTTPS communications
can be used.
security-reset:
Reset security settings on the print server to factory default values. 0 (default) does
not reset, 1 resets the security settings.
tftp-parameter-attribute:
Specifies whether TFTP parameters can be manually overwritten on the print
server (for example, through Telnet) after it has been configured by TFTP.
tftp-ro (default): Do not allow TFTP parameters to be manually changed, and
always overwrite manual configurations.
tftp-rw: Allow TFTP parameters to be manually changed, and always overwrite
manual configurations.
manual-ro: Do not allow TFTP parameters to overwrite manually configured
parameters.
ENWW
TCP/IP Configuration 46
Table 3.3
TFTP Configuration File Parameters (2 of 10)
TCP/IP Main
host-name:
(sys-name:, name:)
Specifies the node name that will appear on the Jetdirect configuration page.
Default is NPIxxxxxx, where xxxxxx is the last six digits of the LAN hardware
address.
parm-file:
Specifies the path and file name whose contents are sent to the printer for printing
each time the print server is powered on. The path and filename entry is limited to
64 alphanumeric characters.
domain-name:
The domain name for the device (for example, support.hp.com). It does not
include the host name; it is not the Fully Qualified Domain Name (such as
printer1.support.hp.com).
pri-dns-svr:
(dns-srv)
The IP address of the primary DNS (Domain Name System) server.
sec-dns-svr:
The IP address of a secondary DNS server to use if the primary DNS server is
unavailable.
pri-wins-svr:
(pri-wins-srv:)
The IP address of the primary Windows Internet Name Service (WINS) server.
sec-wins-svr:
(sec-wins-srv:)
The IP address of the secondary Windows Internet Name Service (WINS) server.
TCP/IP Print Options
9100-printing:
(9100-config:)
Enables or disables printing to TCP port 9100 on the print server. 0 disables,
1 (default) enables.
ftp-printing:
(ftp-config:, ftp:)
Enables or disables the ability to print through FTP: 0 disables, 1 (default) enables.
ipp-printing:
(ipp-config:, ipp:)
Enables or disables the ability to print through IPP: 0 disables, 1 (default) enables.
ENWW
TCP/IP Configuration 47
Table 3.3
TFTP Configuration File Parameters (3 of 10)
lpd-printing:
(lpd-config:, lpd:)
Enables or disables LPD (Line Printer Daemon) printing services on the Jetdirect
print server. 0 disables, 1 (default) enables.
banner:
A port-specific parameter that specifies printing an LPD banner page. 0 disables
banner pages. 1 (default) enables banner pages.
interlock:
(interlock-mode:)
Specifies whether an acknowledgement (ACK) on all TCP packets is required
before the printer is allowed to close a Port 9100 print connection. A Port Number
and Option value are specified. For HP Jetdirect embedded print servers, the Port
Number is 1. Option value 0 (default) disables interlock, 1 enables. For example,
“interlock 1 1” specifies Port 1, interlock enabled.
buffer-packing:
(packing:)
Enables or disables buffer packing for TCP/IP packets.
0 (default): is normal, the data buffer is packed before sending to the printer.
1: disables buffer packing, data is sent to the printer as it is received.
write-mode:
Controls the setting of the TCP PSH flag for device-to-client data transfers.
0 (default): disables this option, flag is not set.
1: all-push option. The push bit is set in all data packets.
2: eoi-push option. The push bit is set only for data packets that have an
End-of-Information flag set.
mult-tcp-conn:
Enables or disables multiple TCP connections.
0 (default): allows multiple connections.
1: disables multiple connections.
TCP/IP Raw Print Ports
raw-port:
(addrawport:)
Specifies additional ports for printing to TCP port 9100. Valid ports are 3000 to
9000, which are application-dependent.
ENWW
TCP/IP Configuration 48
Table 3.3
TFTP Configuration File Parameters (4 of 10)
TCP/IP Access Control
allow: netnum [mask]
Makes an entry into the host access list stored on the HP Jetdirect print server.
Each entry specifies a host or network of hosts that are allowed to connect to the
printer. The format is “allow: netnum [mask]” where netnum is a network number
or host IP address, and mask is an address mask of bits applied to the network
number and host address to verify access. Up to 10 access list entries are allowed.
If there are no entries, all hosts are permitted access. For example,
allow: 192.0.0.0 255.0.0.0 allows hosts on network 192.
allow: 192.168.1.2 allows a single host. In this case, the default mask
255.255.255.255 is assumed and is not required.
allow: 0 This entry clears the host access list.
For additional information, see Chapter 1.
TCP/IP Other Settings
syslog-config:
Enables or disables syslog server operation on the print server: 0 disables,
1 (default) enables.
syslog-svr:
(syslog-srv:)
The syslog server’s IP address. It specifies the server that the HP Jetdirect print
server sends syslog messages to. For more information, see Appendix A.
syslog-max:
Specifies the maximum number of syslog messages that can be sent by the
HP Jetdirect print server on a per-minute basis. This setting allows administrators
to control the log file size. The default is 10 per minute. If it’s set to zero, the number
of syslog messages is not restricted.
syslog-priority:
Controls the filtering of syslog messages sent to the syslog server. The filter
range is 0 to 8, with 0 being the most specific and 8 the most general. Only
messages that are lower than the filter level specified (or higher in priority) are
reported. The default is 8, messages of all priorities are sent. If 0, all syslog
messages are disabled.
syslog-facility:
A code used to identify the source facility of a message (for example, to identify
the source of selected messages during troubleshooting). By default, the
HP Jetdirect print server uses LPR as the source facility code, but local user values
of local0 through local7 can be used to isolate individual or groups of print servers.
slp-config:
Enables or disables the Service Location Protocol (SLP) operation on the print
server: 0 disables, 1 (default) enables.
ENWW
TCP/IP Configuration 49
Table 3.3
TFTP Configuration File Parameters (5 of 10)
slp-keep-alive:
Specifies a time period for the print server to send multicast packets on the network
to prevent being deleted from network device tables. Some infrastructure devices,
such as switches, may delete active devices from their device tables due to
inactivity on the network. To enable this feature, set a value from 1 to 1440 minutes.
Set 0 to disable this feature.
ttl-slp:
Specifies the IP multicast “Time To Live” (TTL) setting for Service Location Protocol
(SLP) packets. The default value is 4 hops (the number of routers from the local
network). The range is 1-15. When set to a -1, multicast capability is disabled.
mdns-config:
Enables or disables Multicast Domain Name System (mDNS) services. 0 disables,
1 (default) enables. mDNS is typically used on small networks for IP address and
name resolution (through UDP port 5353) where a conventional DNS server is
neither used or available.
mdns-service-name:
Specifies an alphanumeric string of up to 64 ASCII characters assigned to this
device or service. This name is persistent and is used to resolve a particular device
or service if socket information (such as the IP address) changes from session to
session. Apple Rendezvous will display this service. The default service name is
the printer model and the LAN Hardware (MAC) address.
mdns-pri-svc:
Specifies the mDNS highest priority service to use for printing.To set this
parameter, choose one of the following printing option numbers:
1: Port 9100 printing
2: IPP port printing
3: The default LPD raw queue
4: The default LPD text queue
5: The default LPD auto queue
6: The default LPD binps (binary postscript) queue
7 through 12: If user-specified LPD queues are defined, corresponds to
user-specified LPD queues 5 through 10.
The default selection will depend on the printer, typically port 9100 printing or LPD
binps.
ipv4-multicast:
Enables or disables the receipt and transmission of IP version 4 multicast packets
by the print server. 0 disables, 1 (default) enables.
ENWW
TCP/IP Configuration 50
Table 3.3
TFTP Configuration File Parameters (6 of 10)
idle-timeout:
The number of seconds that an idle print data connection is allowed to remain
open. Since the card supports only a single TCP connection, the idle timeout
balances the opportunity of a host to recover or complete a print job against the
ability of other hosts to access the printer. The acceptable values range from 0 to
3600 (1 hour). If “0” is typed, the timeout mechanism is disabled. The default is
270 seconds.
user-timeout:
(telnet-timeout:)
An integer (1..3600) that specifies the number of seconds that your Telnet or FTP
session can be idle before it will be automatically disconnected. The default is 900
seconds. 0 disables the timeout.
CAUTION: Small values, such as 1-5, may effectively disable the use of Telnet.
A Telnet session may terminate before any changes can be made.
ews-config:
(web:)
Enables or disables the print server’s embedded Web server to change
configuration values: 0 disables, 1 (default) enables.
tcp-mss:
(subnets-local:)
Specifies the maximum segment size (MSS) that the HP Jetdirect print server will
advertise for use when communicating with local subnets (Ethernet MSS=1460
bytes or more) or remote subnets (MSS=536 bytes):
0 (default): All networks are assumed to be local (Ethernet MSS=1460 bytes or
more).
1: Use MSS=1460 bytes (or more) for subnets, and MSS=536 bytes for remote
networks.
2: All networks are assumed to be remote (MSS=536 bytes), except the local
subnet.
MSS affects performance by helping to prevent IP fragmentation that may result
in data retransmission.
tcp-msl:
Specifies the maximum segment life (MSL) in seconds. The range is 5 - 120
seconds. The default is 15 seconds.
telnet-config:
(telnet:)
If set to 0, this parameter instructs the print server not to allow incoming Telnet
connections. To regain access, change the setting in the TFTP configuration file
and power cycle the print server, or cold reset the print server to factory default
values. If this parameter is set to 1, incoming Telnet connections are allowed.
ENWW
TCP/IP Configuration 51
Table 3.3
TFTP Configuration File Parameters (7 of 10)
default-ip:
Specifies the IP address to use when the print server is unable to obtain an IP
address from the network during a forced TCP/IP reconfiguration (for example,
when powered off/on or manually configured to use BOOTP/DHCP).
DEFAULT_IP: sets the legacy default IP address 192.0.0.192.
AUTO_IP: sets a link-local IP address 169.254.x.x.
The initial setting is determined by the IP address obtained when first powered on.
default-ip-dhcp:
Specifies whether DHCP requests will be periodically transmitted when a legacy
default IP address 192.0.0.192 or link-local IP address 169.254.x.x has been
automatically assigned.
0: Disables DHCP requests.
1 (default): Enables DHCP requests.
web-refresh:
Specifies the time interval (1 -99999 seconds) for embedded Web server
diagnostic page updates. If set to 0, the refresh rate is disabled.
SNMP
snmp-config:
Enables or disables SNMP operation on the print server. 0 disables, 1 (default)
enables SNMP.
CAUTION: Disabling SNMP will disable all SNMP agents (SNMP v1, v2, v3) as
well as communications with HP Web Jetadmin. In addition, firmware upgrades
through current HP downloading utilities will be disabled.
get-cmnty-name:
(get-community-name:)
Specifies a password that determines which SNMP GetRequests the HP Jetdirect
print server will respond to. This is optional. If a user-specified get community name
is set, the print server will respond to either a user-specified community name or
the factory-default. The community name must be ASCII characters. The
maximum length is 255 characters.
set-cmnty-name:
(set-community-name:)
Specifies a password that determines which SNMP SetRequests (control
functions) the HP Jetdirect print server will respond to. The community name of
an incoming SNMP SetRequest must match the print server’s “set community
name” for the print server to respond. (For additional security, you may limit
configuration access through the print server’s host access list). Community
names must be ASCII characters. The maximum length is 255 characters.
ENWW
TCP/IP Configuration 52
Table 3.3
TFTP Configuration File Parameters (8 of 10)
auth-trap:
(authentication-trap:)
Configures the print server to send (on) or not send (off) SNMP authentication
traps. Authentication traps indicate that an SNMP request was received, but the
community name check failed. The default is “on.”
trap-dest:
(trap-destination:)
Enters a host’s IP address into the HP Jetdirect print server’s SNMP trap
destination list. The command format is:
trap-dest: ip-address [community name] [port number]
The default community name is ”public”; the default SNMP port number is ”162”.
The port number cannot be specified without a community name.
If a ”trap-community-name” command is followed by ”trap-dest” commands, the
trap community name will be assigned to those entries unless a different
community name is specified in each ”trap-dest” command.
To delete the table, use ”trap-dest: 0”.
If the list is empty, the print server does not send SNMP traps. The list may contain
up to three entries. The default SNMP Trap Destination List is empty. To receive
SNMP traps, the systems listed on the SNMP trap destination list must have a trap
daemon to listen to those traps.
IPX/SPX
ipx-config:
(ipx/spx:)
Enables or disables IPX/SPX protocol operation on the print server: 0 disables,
1 (default) enables.
ipx-unit-name:
A user-assigned alphanumeric name assigned to the print server (31 characters
maximum). By default, the name will be NPIxxxxxx, where xxxxxx are the last six
digits of the LAN hardware address.
ipx-frametype:
Specify the IPX frame type setting available for your print server model: AUTO
(default), EN_SNAP, EN_8022, EN_8023, EN_II, TR_8022, TR_SNAP.
ipx-sapinterval:
Specifies the time interval (1 to 3600 seconds) that the HP Jetdirect print server
waits between Service Advertising Protocol (SAP) broadcasts on the network. The
default is 60 seconds. 0 disables SAP broadcasts.
ipx-nds-tree:
Identifies the name of the Novell Directory Services (NDS) tree for this printer.
ENWW
TCP/IP Configuration 53
Table 3.3
TFTP Configuration File Parameters (9 of 10)
ipx-nds-context:
An alphanumeric string, up to 256 characters, that specifies the NDS context for
the HP Jetdirect print server.
ipx-job-poll:
Specifies the time interval (seconds) that the HP Jetdirect print server will wait to
check for print jobs in a print queue.
pjl-banner:
(ipx-banner:)
Enables or disables printing an IPX banner page. 0 disables banner pages.
1 (default) enables banner pages.
pjl-eoj:
(ipx-eoj:)
Enables or disables IPX end-of-job notification. 0 disables, 1 (default) enables.
pjl-toner-low:
(ipx-toner-low:)
Enables or disables IPX toner-low notification. 0 disables, 1 (default) enables.
AppleTalk
appletalk:
(at-config:, ethertalk:)
Enables or disables AppleTalk (EtherTalk) protocol operation on the print server:
0 disables, 1 (default) enables.
DLC/LLC
dlc/llc-config:
(dlc/llc:)
Enables or disables DLC/LLC protocol operation on the print server: 0 disables,
1 (default) enables.
Other Settings
link-type:
(10/100 Fast Ethernet) Sets the print server’s link speed (10 or 100 Mbps) and
communication mode (Full- or Half-Duplex). Selections are AUTO, 100FULL,
100HALF, 10FULL, 10HALF.
For AUTO (default), the print server uses autonegotiation to determine the link
speed and mode. If autonegotiation fails, then 100HALF is set.
ENWW
TCP/IP Configuration 54
Table 3.3
TFTP Configuration File Parameters (10 of 10)
upgrade:
To configure one or more Jetdirect print servers with the name and location of a
firmware upgrade file.
CAUTION: Ensure that command parameters are properly entered and that the
upgrade file is a higher version than the currently installed version. The print server
will attempt to upgrade when the upgrade file contains a higher version than the
installed version.
The command format is:
upgrade: <TFTP server IP> <Version> <Product Number> <Filename>
where,
TFTP Server IP is the IP address of the TFTP server,
Version specifies the firmware version of the upgrade file,
Product Number specifies and must match the product number of the print server,
Filename is the path and filename of the firmware upgrade file.
Support
support-name:
(support-contact:)
Typically used to identify the name of a person to contact for support of this device.
support-number:
Typically used to specify a phone number or extension to call for support of this
device.
support-url:
A Web URL for product information on this device over the Internet or an intranet.
tech-support-url:
A Web URL for technical support over the Internet or an intranet.
ENWW
TCP/IP Configuration 55
Using DHCP
Dynamic Host Configuration Protocol (DHCP, RFC 2131/2132) is
one of several auto configuration mechanisms that the HP Jetdirect
print server uses. If you have a DHCP server on your network, the
HP Jetdirect print server automatically obtains its IP address
from that server and registers its name with any RFC 1001
and 1002-compliant dynamic name services as long as a WINS
(Windows Internet Naming Service) server IP address has been
specified.
A TFTP (Trivial File Transfer Protocol) configuration file may also
be used with DHCP to configure extended parameters. For more
information on TFTP parameters, see “Using BOOTP/TFTP”.
Note
DHCP services must be available on the server.
Refer to your system documentation or online help
to install or enable DHCP services.
Note
If the Jetdirect print server and BOOTP/DHCP
server are located on different subnets, IP
configuration may fail unless the routing device
allows the transfer of DHCP requests between
subnets.
ENWW
TCP/IP Configuration 56
UNIX Systems
For more information on setting up DHCP on UNIX systems, see
the bootpd man page.
On HP-UX systems, a sample DHCP configuration file (dhcptab)
may be located in the /etc directory.
Since HP-UX presently does not provide Dynamic Domain Name
Services (DDNS) for its DHCP implementations, HP recommends
that you set all print server lease durations to “infinite”. This
ensures that print server IP addresses remain static until dynamic
domain name services are provided.
Windows Systems
HP Jetdirect print servers support IP configuration from a
supported Windows DHCP server. This section describes how to set
up a pool, or “scope,” of IP addresses that the Windows server can
assign or lease to any requester. When configured for BOOTP or
DHCP operation and powered on, the HP Jetdirect print
server automatically sends a BOOTP or DHCP request for its IP
configuration. If properly set up, a Windows DHCP server will
respond with the print server’s IP configuration data.
Note
This information is provided as an overview. For
specific information or for additional support, see
the information supplied with your DHCP server
software.
Note
To avoid problems resulting from IP addresses
that change, HP recommends that all printers
be assigned IP addresses with infinite leases or
reserved IP addresses.
ENWW
TCP/IP Configuration 57
Windows NT 4.0 Server
To set up a DHCP scope on a Windows NT 4.0 server, perform the
following steps:
1. At the Windows NT server, open the Program Manager window
and double-click the Network Administrator icon.
2. Double-click the DHCP Manager icon to open this window.
3. Select Server and select Server Add.
4. Type the server IP address, then click OK to return to the
DHCP Manager window.
5. In the list of DHCP servers, click on the server you have just
added, then select Scope and select Create.
6. Select Set up the IP Address Pool. In the IP Address Pool
section, set up the IP address range by typing the beginning IP
address in the Start Address box and the ending IP address in
the End Address box. Also type the subnet mask for the subnet
to which the IP address pool applies.
The starting and ending IP addresses define the end points of
the address pool assigned to this scope.
Note
If desired, you can exclude ranges of IP addresses
within a scope.
7. In the Lease Duration section, select Unlimited, then
select OK.
HP recommends that all printers be assigned infinite leases to
avoid problems resulting from IP addresses that change. Be
aware, however, that selecting an unlimited lease duration for
the scope causes all clients in that scope to have infinite leases.
If you want clients on your network to have finite leases, you
can set the duration to a finite time, but you should configure
all printers as reserved clients for the scope.
ENWW
TCP/IP Configuration 58
8. Skip this step if you have assigned unlimited leases in the
previous step. Otherwise, select Scope and select Add
Reservations to set up your printers as reserved clients. For
each printer, perform the following steps in the Add Reserved
Clients window to set up a reservation for that printer:
a. Type the selected IP address.
b. Obtain the MAC address or hardware address from the
configuration page, and type this address in the Unique
Identifier box.
c.
Type the client name (any name is acceptable).
d. Select Add to add the reserved client. To delete a
reservation, in the DHCP Manager window, select Scope
and select Active Leases. In the Active Leases window,
click on the reservation you want to delete and
select Delete.
9. Select Close to return to the DHCP Manager window.
10. Skip this step if you are not planning to use WINS (Windows
Internet Naming Service). Otherwise perform the following
steps when configuring your DHCP server:
a. From the DHCP Manager window, select DHCP Options
and select one of the following:
Scope — if you want Name Services only for the
selected scope.
Global — if you want Name Services for all scopes.
b. Add the server to the Active Options list. From the DHCP
Options window, select WINS/NBNS Servers (044) from
the Unused Options list. Select Add, then select OK.
A warning may appear requesting that you set the node
type. You do this in step 10d.
ENWW
TCP/IP Configuration 59
c.
You must now provide the IP address of the WINS server
by doing the following:
●
Select Value, then Edit Array.
●
From the IP Address Array Editor, select Remove to
delete any undesired addresses previously set. Then
type in the IP address of the WINS server and select
Add.
●
Once the address appears in the list of IP addresses,
select OK. This returns you to the DHCP Options
window. If the address you have just added appears in
the list of IP addresses (near the bottom of the window)
return to step 10d. Otherwise, repeat step 10c.
d. In the DHCP Options window, select WINS/NBT Node
Type (046) from the Unused Options list. Select Add to
add the node type to the Active Options list. In the Byte
box, type 0x4 to indicate a mixed node, and select OK.
11. Click Close to exit to Program Manager.
Windows 2000 Server/Server 2003
To set up a DHCP scope on a Windows 2000 server or Server 2003
system, perform the following steps:
1. Run the Windows DHCP manager utility.
■
Windows 2000: Click Start, then select Settings and
Control Panel. Open the Administrative Tools folder and
run the DHCP utility.
■
Server 2003: Click Start, then select Control Panel. Open
the Administrative Tools folder and run the DHCP utility.
2. In the DHCP window, locate and select your Windows server in
the DHCP tree.
If your server is not listed in the tree, select DHCP and click
the Action menu to add the server.
3. After selecting your server in the DHCP tree, click the Action
menu and select New Scope. This runs the Add New Scope
Wizard.
4. In the Add New Scope Wizard, click Next.
5. Enter a Name and Description for this scope, then click Next.
ENWW
TCP/IP Configuration 60
6. Enter the range of IP addresses for this scope (beginning IP
address and ending IP address). Also, enter the subnet mask.
then click Next.
Note
If subnetting is used, the subnet mask defines
which portion of an IP address specifies the subnet
and which portion specifies the client device. For
more information, see Appendix A.
7. If applicable, enter the range of IP addresses within the scope
to be excluded by the server. Then click Next.
8. Set the IP address lease duration for your DHCP clients. Then
click Next.
HP recommends that all printers be assigned reserved IP
addresses. This can be accomplished after you set up the scope
(see step 11).
9. Select No to configure DHCP options for this scope later. Then
click Next.
To configure DHCP options now, select Yes and click Next.
a. If desired, specify the IP address of the router (or default
gateway) to be used by clients. Then click Next.
b. If desired, specify the Domain Name and DNS (Domain
Name System) servers for clients. Click Next.
c.
If desired, specify WINS server names and IP addresses.
Click Next.
d. Select Yes to activate the DHCP options now, and click
Next.
10. You have successfully set up the DHCP scope on this server.
Click Finish to close the wizard.
11. Configure your printer with a reserved IP address within the
DHCP scope:
a. In the DHCP tree, open the folder for your scope and select
Reservations.
b. Click the Action menu and select New Reservation.
c.
ENWW
Enter the appropriate information in each field, including
the reserved IP address for your printer. (Note: the MAC
TCP/IP Configuration 61
address for your HP Jetdirect-connected printer is
available on the HP Jetdirect configuration page.)
d. Under “Supported types”, select DHCP only, then click
Add. (Note: Selecting Both or BOOTP only will result in
a configuration through BOOTP due to the sequence in
which HP Jetdirect print servers initiate configuration
protocol requests.)
e.
Specify another reserved client, or click Close. The
reserved clients added will be displayed in the
Reservations folder for this scope.
12. Close the DHCP manager utility.
NetWare Systems
NetWare 5.x servers provide DHCP configuration services for
network clients, including the HP Jetdirect print server. To set up
DHCP services on a NetWare server, refer to Novell documentation
and support.
To Discontinue DHCP Configuration
CAUTION
Changes to an IP address on your HP Jetdirect
print server may require updates to printer or
system printing configurations for clients or
servers.
If you do not want your HP Jetdirect print server configured
through DHCP, you must reconfigure the print server to use a
different configuration method.
1. If you use the printer control panel to set Manual or BOOTP
configuration, then DHCP will not be used.
2. You can use Telnet to set Manual (status indicates “User
Specified”) or BOOTP configuration, then DHCP will not
be used.
3. You can manually modify the TCP/IP parameters through a
supported Web browser using the Jetdirect embedded Web
server or HP Web Jetadmin.
ENWW
TCP/IP Configuration 62
If you change to BOOTP configuration, the DHCP-configured
parameters are released and the TCP/IP protocol is initialized.
If you change to Manual configuration, the DHCP-configured IP
address is released and the user-specified IP parameters are used.
Therefore, if you manually provide the IP address, you
should also manually set all of the configuration
parameters, such as subnet mask, default gateway, and
idle timeout.
Note
If you choose to re-enable a DHCP configuration,
the print server will acquire its configuration
information from a DHCP server. This means that
when you choose DHCP and complete your
configuration session (using Telnet, for example),
the TCP/IP protocol for the print server is
re-initialized and all current configuration
information is deleted. The print server then
attempts to acquire new configuration information
by sending DHCP requests on the network to a
DHCP server.
For DHCP configuration through Telnet, refer to “Using Telnet” in
this chapter.
ENWW
TCP/IP Configuration 63
Using RARP
This section describes how to configure the print server using the
Reverse Address Resolution Protocol (RARP) on UNIX and Linux
systems.
This setup procedure enables the RARP daemon running on your
system to respond to a RARP request from the HP Jetdirect print
server and to supply the IP address to the print server.
1. Turn the printer off.
2. Log onto your UNIX or Linux system as a superuser.
3. Make sure the RARP daemon is running on your system by
typing the following command at the system prompt:
ps -ef | grep rarpd (Unix)
ps ax | grep rarpd (BSD or Linux)
4. The system response should be similar to the following:
861 0.00.2
24
72
5
14:03
0:00
rarpd -a
860 0.00.5
36 140
5
14:03
0:00
rarpd -a
5. If the system does not display a process number for the RARP
daemon, see the rarpd man page for instructions on starting the
RARP daemon.
6. Edit the /etc/hosts file to add your designated IP address and
node name for the HP Jetdirect print server. For example:
192.168.45.39 laserjet1
ENWW
TCP/IP Configuration 64
7. Edit the /etc/ethers file (/etc/rarpd.conf file in
HP-UX 10.20) to add the LAN hardware address/station
address (from the configuration page) and the node name
for the HP Jetdirect print server. For example:
00:01:E6:a8:b0:00 laserjet1
Note
If your system uses Network Information Service
(NIS), you need to incorporate changes to the NIS
host and ethers databases.
8. Turn the printer on.
9. To verify that the card is configured with the correct IP address,
use the ping utility. At the prompt, type:
ping <IP address>
where <IP address> is the assigned address from RARP.
10. If ping does not respond, see Chapter 8.
ENWW
TCP/IP Configuration 65
Using the arp and ping Commands
You can configure an HP Jetdirect print server with an IP address
using an ARP (Address Resolution Protocol) command from a
supported system. The protocol is not routable, that is, the
workstation from which the configuration is made must be located
on the same network segment as the HP Jetdirect print server.
Using the arp and ping commands with HP Jetdirect print servers
requires the following:
●
Windows NT/2000/XP/Server 2003 or UNIX system configured
for TCP/IP operation
●
A legacy default IP address 192.0.0.192 has been set on the print
server
●
The LAN hardware (MAC) address of the HP Jetdirect print
server (specified on an HP Jetdirect configuration page)
Note
On some systems, superuser rights may be required
for the arp command.
After an IP address is assigned through arp and ping commands,
use other tools (such as Telnet, embedded Web server, or HP Web
Jetadmin software) to configure other IP parameters.
To configure a Jetdirect print server, use the following commands:
arp -s <IP address> <LAN hardware address>
ping <IP address>
where <IP address> is the desired IP address to be assigned to
the print server. The arp command writes the entries to the arp
cache on the workstation, and the ping command configures the
IP address on the print server.
ENWW
TCP/IP Configuration 66
Depending on the system, the LAN hardware address may require
a specific format.
For example:
●
For Windows NT 4.0, 2000, XP, Server 2003
arp -s 192.168.45.39 00-01-E6-a2-31-98
ping 192.168.45.39
●
For UNIX
arp -s 192.168.45.39 00:01:E6:a2:31:98
ping 192.168.45.39
Note
Once the IP address has been set on the print server,
additional arp and ping commands will be ignored.
Once the IP address is configured, arp and ping
cannot be used unless the print server is reset to
factory values (see Chapter 8).
On UNIX systems, the arp -s command may vary
between different systems.
Some BSD-based systems expect the IP address (or
host name) in reverse order. Other systems may
require additional parameters. See your system
documentation for specific command formats.
ENWW
TCP/IP Configuration 67
Using Telnet
This section describes how to configure the print server (firmware
version V.28.xx or greater) using Telnet.
Although a Telnet connection may be protected by an administrator
password, Telnet connections are not secure. For networks with
high security levels, Telnet connections can be disabled on the print
server using other tools (for example, TFTP, embedded Web server,
or HP Web Jetadmin software).
Creating a Telnet Connection
To use Telnet commands with the HP Jetdirect print server, a route
must be available from your workstation to the print server. If the
print server and your computer must have a similar IP address,
that is, the network portion of their IP addresses match, chances
are that a route will exist. For information on IP address structure,
see Appendix A.
If their IP addresses do not match, then you can either change your
workstation’s IP address to match, or you can try an operating
system command to create a route to the print server. (For example,
if the print server is configured with a legacy default IP address
192.0.0.192, a route will not likely exist.)
On Windows systems, you can use the route command at a
Windows command (DOS) prompt to create a route to the print
server.
For information on system command prompts, see your Windows
online help. On Windows NT systems, the command prompt utility
is in the Programs folder (click Start, Programs, Command
Prompt). On Windows 2000/XP/Server 2003 systems, it is in the
Accessories folder in the Programs or All Programs folder.
ENWW
TCP/IP Configuration 68
To use the route command, you will also need the IP address of your
workstation. To view it, you can enter the appropriate command at
the command prompt:
C:\> ipconfig
(on Windows NT/2000/XP/Server 2003)
C:\> winipconfig
(on Windows 98)
To create a route from the system command prompt, enter the
following command:
route add <Jetdirect IP Address> <system IP Address>
where <Jetdirect IP address> is the IP address configured on
the HP Jetdirect print server, and <system IP address> is the
IP address of the workstation's network card that is attached to the
same physical LAN as the print server.
For example, to create a route from your workstation with IP
address 169.254.2.1 to a print server with a default IP address of
192.0.0.192, try this command:
route add 192.0.0.192
CAUTION
169.254.2.1
Using Telnet to manually set an IP address will
override dynamic IP configuration (such as
BOOTP, DHCP, or RARP), resulting in a static
configuration. In a static configuration, the IP
values are fixed and the operation of BOOTP,
DHCP, RARP and other dynamic configuration
methods may no longer function.
Whenever you are manually changing an IP
address, you should also reconfigure the subnet
mask and default gateway at the same time.
ENWW
TCP/IP Configuration 69
A Typical Telnet Session
Initiating a typical Telnet session is illustrated below.
ENWW
TCP/IP Configuration 70
To set configuration parameters, you must set up a Telnet session
from your system to the HP Jetdirect print server.
1. Type the following at the system prompt:
telnet <IP address>
where <IP address> is the IP address listed on the Jetdirect
configuration page. See Chapter 9.
2. A connection to the HP Jetdirect print server will be displayed.
If the server responds with “connected to IP address”, press
Enter twice to make sure that the Telnet connection is
initialized.
3. If prompted for a user name and password, enter the correct
values.
By default, the Telnet interface does not require a user name or
password. If an administrator password has been set, you will
be prompted for a user name and this password before you can
enter and save Telnet command settings.
4. By default, a Command Line interface is provided. To configure
parameters using a Menu interface, enter Menu. For more
information, see “User Interface Options”.
For a list of supported commands and parameters, see “Telnet
Commands and Parameters”.
User Interface Options
The HP Jetdirect print server provides two interface options to
enter Telnet commands: a Command Line Interface (Default) and
a Menu Interface.
ENWW
TCP/IP Configuration 71
Command Line Interface (Default)
Using the Telnet command line interface, you can set configuration
parameters using the following procedures:
Note
During a Telnet session, enter ? to view available
configuration parameters, the correct command
format, and a list of commands.
To list additional (or advanced) commands, enter
the command advanced befored entering ?.
To display current configuration information,
enter /.
1. At the Telnet prompt “>” type:
<parameter>: <value>
then press Enter, where <parameter> refers to the
configuration parameter you are defining, and <value> refers
to the definitions you are assigning to that parameter. Each
parameter entry is followed by a carriage return.
See Table 3.4 for configuration parameters .
2. Repeat the previous step to set any additional configuration
parameters.
3. When you have finished typing the configuration parameters,
type exit or quit (depending on your system).
When prompted whether to save settings that you have
changed, enter Y (default) for Yes, or N for No.
If you enter save instead of exit or quit, you will not be
prompted to save settings.
ENWW
TCP/IP Configuration 72
Telnet Commands and Parameters. Table 3.4 lists the
available Telnet commands and parameters.
Note
If a parameter is supplied dynamically (for example,
from a BOOTP or DHCP server), its value cannot
be changed using Telnet without first setting
Manual configuration. To set Manual configuration,
see the ip-config command.
Whenever you are manually changing an IP
address, you should also reconfigure the subnet
mask and default gateway at the same time.
Table 3.4
Telnet Commands and Parameters (1 of 13)
User Control Commands
Command
Description
?
Displays the Help and Telnet commands.
/
Displays current values.
menu
Displays the Menu Interface for access to configuration
parameters.
advanced
Enables the Advanced commands. Help (?) will include the
Advanced commands in the list.
general
Disables the Advanced commands. Help (?) will not include
Advanced commands (default).
save
Save the configuration values and exit the session.
exit
Exit the session.
export
Export the settings to a file for editing, and importing through
Telnet or TFTP (this command is only supported by systems,
such as UNIX, that support input/output redirection).
General
Command
Description
passwd
Set the administrator password (shared with the embedded
Web server and HP Web Jetadmin). For example,
“passwd jd1234 jd1234” sets the password to jd1234.
Note that “jd1234” is entered twice for confirmation.
Up to 16 alphanumeric characters may be used. When
initiating the next Telnet session, you will be prompted for a
user name and this password.
To clear the password, enter the command without
password and confirmation entries.
Passwords may be cleared by a cold reset.
ENWW
TCP/IP Configuration 73
Table 3.4
Telnet Commands and Parameters (2 of 13)
sys-location
Alpha-numeric string (up to 255 characters), typically used
to identify a location.
sys-contact
Alpha-numeric string (up to 255 characters), typically used
to identify the name of a network or device administrator.
ssl-state
Sets the print server’s security level for Web
communications:
1: Forced redirection to the HTTPS port. Only HTTPS
(secure HTTP) communications can be used.
2: Disable forced redirection to HTTPS. Both HTTP and
HTTPS communications can be used.
security-reset
Reset security settings on the print server to factory default
values. 0 (default) does not reset, 1 resets the security
settings.
TCP/IP Main
Command
Description
host-name
Alphanumeric string (up to 32 characters), to assign or
change the name of the network device. For example,
“host-name printer1” assigns the name “printer1” to the
device. The default host name is NPIxxxxxx, where xxxxxx
are the last six digits of the LAN hardware (MAC) address.
ip-config
Specify the configuration method:
manual: The print server will wait for IP parameters using
manual tools (such as Telnet, embedded Web server,
control panel, installation/management software). Status
will be User Specified.
bootp: The print server will send BOOTP requests on the
network for dynamic IP configuration.
dhcp: The print server will send DHCP requests on the
network for dynamic IP configuration.
auto_ip: The print server will be automatically configured
with a unique link-local address 169.254.x.x.
ip
IP address for the print server, in dotted notation. For
example:
ip-config
ip
manual
192.168.45.39
where ip-config specifies manual configuration and ip
manually sets the IP address 192.168.45.39 on the print
server.
Specifying 0.0.0.0 clears the IP address.
If you exit and save a new IP address, it must be specified
on the next Telnet connection.
ENWW
TCP/IP Configuration 74
Table 3.4
Telnet Commands and Parameters (3 of 13)
subnet-mask
A value (in dotted notation) that identifies the network and
host portions of an IP address in received messages. For
example,
subnet-mask 255.255.255.0
stores the subnet mask value 255.255.255.0 on the print
server. The value 0.0.0.0 disables the subnet mask. For
more information see Appendix A.
default-gw
The IP address of a default gateway, in dotted notation.
For example,
default-gw 192.168.40.1
assigns 192.168.40.1 as the IP address of the default
gateway for the print server.
Note: If the HP Jetdirect print server is configured by DHCP
and you manually change the subnet mask or the default
gateway address, you should manually change the print
server’s IP address. This will release the DHCP-assigned
address back to the DHCP IP address pool.
Config Server
(Read-only parameter) The IP address of the server (such
as a BOOTP or DHCP server) that last configured the IP
address on the HP Jetdirect print server.
TFTP Server
(Read-only parameter) The IP address of the TFTP server
that provided TFTP parameters to the HP Jetdirect print
server.
TFTP Filename
(Read-only parameter) The path and TFTP filename on the
TFTP server. For example,
domain-name
The domain name for the device. For example,
hpnp/printer1.cfg
domain-name support.hp.com
assigns support.hp.com as the domain name.
The domain name does not include the host name; it is not
the Fully Qualified Domain Name (such as
printer1.support.hp.com).
pri-dns-svr
IP address of the primary DNS (Domain Name System)
server.
sec-dns-svr
IP address of a secondary DNS server to use if the primary
DNS server is unavailable.
pri-wins-svr
The IP address of the primary Windows Internet Name
Service (WINS) server, in dotted notation.
sec-wins-svr
The IP address of the secondary Windows Internet Name
Service (WINS) server, in dotted notation.
ENWW
TCP/IP Configuration 75
Table 3.4
Telnet Commands and Parameters (4 of 13)
TCP/IP Print Options
Command
Description
9100-printing
Enables or disables printing to TCP port 9100 on the print
server. 0 disables, 1 (default) enables.
ftp-printing
Enables or disables the ability to print through FTP. 0
disables, 1 (default) enables. (TCP ports 20, 21)
ipp-printing
Enables or disables the ability to print using IPP. 0 disables,
1 (default) enables. (TCP port 631)
lpd-printing
Enables or disables the ability to print using LPD. 0 disables,
1 (default) enables.(TCP port 515)
banner
Enables or disables printing an LPD banner page. 0 disables
banner pages. 1 (default) enables banner pages.
interlock
Specifies whether an acknowledgement (ACK) on all TCP
packets is required before the printer is allowed to close a
Port 9100 print connection. A Port Number and Option value
are specified. For HP embedded print servers, the default
Port Number is 1. Option value 0 (default) disables interlock,
1 enables. For example,
interlock 1
mult-tcp-conn
1 specifies Port 2, interlock enabled.
(Restrict Mult Prt) Enables or disables multiple TCP
connections.
0 (default): allows multiple connections.
1: disables multiple connections.
buffer-packing
Enables or disables buffer packing for TCP/IP packets.
0 (default): is normal, the data buffer is packed before
sending to the printer.
1: disables buffer packing, data is sent to the printer as it is
received.
write-mode
Controls the setting of the TCP PSH flag for device-to-client
data transfers.
0 (default): disables this option, flag is not set.
1: all-push option. The push bit is set in all data packets.
2: eoi-push option. The push bit is set only for data packets
that have an End-of-Information flag set.
TCP/IP LPD Queues
Command
Description
addq
Adds a user-defined queue. The queue name (up to 32
displayable ASCII characters), prepend string name,
append string name, and processing queue (typically, RAW)
must be specified in the command line. Up to six
user-defined queues may be added.
deleteq
Delete a user-specified queue. The queue name must be
specified in the deleteq command line.
ENWW
TCP/IP Configuration 76
Table 3.4
Telnet Commands and Parameters (5 of 13)
defaultq
Name of the queue to be used if the queue specified for a
print job is unknown. By default, the default queue is AUTO.
addstring
Adds a user-defined character string that may be prepended
or appended to print data. Up to eight character strings may
be specified. A string name and the character string contents
are specified in the addstring command line.
deletestring
Deletes a user-defined string. The string name is specified
in the deletestring command line.
TCP/IP Raw Print Ports
Command
Description
raw-port
Specifies additional ports for printing to TCP port 9100. Valid
ports are 3000 to 9000, which are application-dependent.
Up to two ports can be specified.
TCP/IP Access Control
Command
Description
allow
Makes an entry into the host access list stored on the
HP Jetdirect print server. Each entry specifies a host or
network of hosts that are allowed to connect to the printer.
The format is “allow netnum [mask]” where netnum is a
network number or host IP address, and mask is an address
mask of bits applied to the network number and host address
to verify access. Up to 10 access list entries are allowed. If
there are no entries, all hosts are permitted access. For
example,
allow 192.0.0.0
255.0.0.0
allows hosts on network 192.
allow 192.168.1.2
allows a single host. In this case, the default mask
255.255.255.255 is assumed and is not required.
allow 0 clears the host access list.
For additional information, see Chapter 1.
TTCP/IP Other
Command
Description
syslog-config
Enables or disables syslog server operation on the print
server: 0 disables, 1 (default) enables. (UDP port 514)
syslog-svr
The syslog server’s IP address in dotted notation. It specifies
the server that the HP Jetdirect print server sends syslog
messages to. For example,
syslog-svr: 192.168.40.1
assigns 192.168.40.1 as the IP address of that server.
For more information, see Appendix A.
ENWW
TCP/IP Configuration 77
Table 3.4
Telnet Commands and Parameters (6 of 13)
syslog-max
Specifies the maximum number of syslog messages that
can be sent by the HP Jetdirect print server on a per-minute
basis. This setting allows administrators to control the log
file size. The default is 10 per minute. If it’s set to zero, the
number of syslog messages is not restricted.
syslog-priority
Controls the filtering of syslog messages sent to the syslog
server. The filter range is 0 to 8, with 0 being the most
specific and 8 the most general. Only messages that are
lower than the filter level specified (or higher in priority) are
reported. The default setting is 8, where messages of all
priorities are sent.
If 0, all syslog messages are disabled.
syslog-facility
A code used to identify the source facility of a message (for
example, to identify the source of selected messages during
troubleshooting). By default, the HP Jetdirect print server
uses LPR as the source facility code, but local user values
of local0 through local7 can be used to isolate individual or
groups of print servers.
slp-config
Enables or disables the Service Location Protocol (SLP)
operation on the print server: 0 disables, 1 (default) enables.
SLP is used by selected HP software applications (through
UDP port 427) to automate device discovery.
slp-keep-alive
Specifies a time period for the print server to send multicast
packets on the network to prevent being deleted from
network device tables. Some infrastructure devices, such as
switches, may delete active devices from their device tables
due to inactivity on the network. To enable this feature, set
a value from 1 to 1440 minutes. Set 0 to disable this feature.
mdns-config
Enables or disables Multicast Domain Name System
(mDNS) services. 0 disables, 1 (default) enables. mDNS is
typically used on small networks for IP address and name
resolution (through UDP port 5353) where a conventional
DNS server is not available.
mdns-service-name
Specifies an alphanumeric string of up to 64 ASCII
characters assigned to this device or service. This name is
persistent and is used to resolve a particular device or
service if socket information (such as the IP address)
changes from session to session. Apple Rendezvous will
display this service. The default service name is the printer
model and the LAN Hardware (MAC) address.
mDNS Domain
Name
(Read-only parameter) Specifies the mDNS domain name
assigned to the device, in the form <host name>.local. If a
user-specifed host name has not been assigned, the default
host name NPIxxxxxx is used, where xxxxxx are the last 6
digits of the LAN hardware (MAC) address.
ENWW
TCP/IP Configuration 78
Table 3.4
Telnet Commands and Parameters (7 of 13)
mdns-pri-svc
Specifies the mDNS highest priority service to use for
printing.To set this parameter, choose one of the following
printing option numbers:
1: Port 9100 printing
2: IPP port printing
3: The default LPD raw queue
4: The default LPD text queue
5: The default LPD auto queue
6: The default LPD binps (binary postscript) queue
7 through 12: If user-specified LPD queues are defined,
corresponds to user-specified LPD queues 5 through 10.
The default selection will depend on the printer, typically port
9100 printing or LPD binps.
ttl-slp
Specifies the IP multicast “Time To Live” (TTL) setting for
Service Location Protocol (SLP) packets. The default value
is 4 hops (the number of routers from the local network).
The range is 1-15. When set to a -1, multicast capability
is disabled.
ipv4-multicast
Enables or disables the receipt and transmission of IP
version 4 multicast packets by the print server. 0 disables,
1 (default) enables.
idle-timeout
An integer (1..3600) that specifies the number of seconds
an idle print data connection is allowed to remain open. For
example,
idle-timeout 120
assigns 120 seconds as the desired idle timeout value.
The default is 270 seconds. If set to 0, the connection will
not terminate and other hosts will not be able to make a
connection.
user-timeout
An integer (1..3600) that specifies the number of seconds
that your Telnet or FTP session can be idle before it will be
automatically disconnected. The default is 900 seconds.
0 disables the timeout.
CAUTION: Small values, such as 1-5, may effectively
disable the use of Telnet. A Telnet session may terminate
before any changes can be made.
cold-reset
Sets TCP/IP factory default settings. After a cold reset,
power cycle the print server. Parameters for other
subsystems, such as IPX/SPX or AppleTalk, are not
affected.
ews-config
Enables or disables the print server’s embedded Web
server. 0 disables, 1 (default) enables.
For more information, see Chapter 4.
web-refresh
ENWW
Specifies the time interval (1 -99999 seconds) for embedded
Web server diagnostic page updates. If set to 0, the refresh
rate is disabled.
TCP/IP Configuration 79
Table 3.4
Telnet Commands and Parameters (8 of 13)
tcp-mss
Specifies the maximum segment size (MSS) that the
HP Jetdirect print server will advertise for use when
communicating with local subnets (Ethernet MSS=1460
bytes or more) or remote subnets (MSS=536 bytes):
0: (default) All networks are assumed to be local (Ethernet
MSS=1460 bytes or more).
1: Use MSS=1460 bytes (or more) for subnets, and
MSS=536 bytes for remote networks.
2: All networks are assumed to be remote (MSS=536 bytes),
except the local subnet.
MSS affects performance by helping to prevent IP
Fragmentation that may result in data retransmission.
tcp-msl
Specifies the maximum segment life (MSL) in seconds. The
range is 5 - 120 seconds. The default is 15 seconds.
gw-disable
Specifies whether or not to automatically assign the device
IP address as the gateway when a network gateway is not
configured.
0: A gateway using the device IP address will be assigned.
1: A gateway is not assigned. The gateway address 0.0.0.0
will be configured.
default-ip
Specifies the IP address to use when the print server is
unable to obtain an IP address from the network during a
forced TCP/IP reconfiguration (for example, when powered
off/on or manually configured to use BOOTP/DHCP).
DEFAULT_IP: sets the legacy default IP address
192.0.0.192.
AUTO_IP: sets a link-local IP address 169.254.x.x.
The initial setting is determined by the IP address obtained
when first powered on.
default-ip-dhcp
Specifies whether DHCP requests will be periodically
transmitted when a legacy default IP address 192.0.0.192
or link-local IP address 169.254.x.x has been automatically
assigned.
0: Disables DHCP requests.
1 (default): Enables DHCP requests.
ENWW
TCP/IP Configuration 80
Table 3.4
Telnet Commands and Parameters (9 of 13)
dhcp-fqdn-config
dhcp-fqdn-behavior
Specifies configuration control of the Fully Qualified Domain
Name (FQDN), using either DHCP, manual configuration,
or both. The fully qualified domain name consists of the
device’s host name and domain name. Select one of the
following command values:
0 (default): DHCP may be used to supply the host name and
domain name. The host name may be changed using a
manual configuration method (such as the embedded Web
server, printer control panel, or Telnet). However, the
domain name cannot be manually changed if it was
configured through DHCP.
1: Keep DHCP settings only. Once the Fully Qualified
Domain Name is configured through DHCP, manual
changes cannot be made.
2: Keep manual settings. The settings can be manually
configured. DHCP may be used only if the settings are
factory-default values.
3: Keep manual settings only. While manual configuration
methods may be used, configuration through DHCP is not
allowed.
TCP/IP Diagnostics
Command
Description
Last Config IP
(Read-only parameter) The IP address of the system from
which the HP Jetdirect print server’s IP address was
configured.
TCP Conns Refused
(Read-only parameter) The number of client TCP
connections that are refused by the print server.
TCP Access Denied
(Read-only parameter) The number of times that client
systems were denied access to the print server because
there was no allowable entry in the print server’s host access
list.
DHCP Lease Time
(Read-only parameter) DHCP IP address lease duration
time (seconds).
DHCP Renew Time
(Read-only parameter) DHCP T1 timeout, specifying the
DHCP lease renewal time (seconds).
DHCP Rebind Time
(Read-only parameter) DHCP T2 timeout, specifying the
DHCP lease rebind time (seconds).
ENWW
TCP/IP Configuration 81
Table 3.4
Telnet Commands and Parameters (10 of 13)
SNMP
Command
Description
snmp-config
Enables or disables SNMP operation on the print server.
0 disables, 1 (default) enables SNMP.
CAUTION: Disabling SNMP will disable all SNMP agents
(SNMP v1, v2, v3) as well as communications with
management applications, such as HP Web Jetadmin. In
addition, firmware upgrades through current HP
downloading utilities will be disabled.
get-cmnty-name
Specifies a password that determines which SNMP
GetRequests the HP Jetdirect print server will respond to.
This is optional. If a user-specified get community name is
set, the print server will respond to either a user-specified
community name or the factory-default. The community
name must be ASCII characters. The maximum length is
255 characters.
set-cmnty-name
Specifies a password that determines which SNMP
SetRequests (control functions) the HP Jetdirect print server
will respond to. The community name of an incoming SNMP
SetRequest must match the print server’s “set community
name” for the print server to respond. (For additional
security, you may limit configuration access through the print
server’s host access list.) Community names must be ASCII
characters. The maximum length is 255 characters.
default-get-cmnty
Enables or disables the default Get community name.
0 disables, 1 (default) enables.
Disabling this parameter may prohibit communications with
SNMP management applications.
SNMP Traps
Command
Description
auth-trap
Configures the print server to send (on) or not send (off)
SNMP authentication traps. Authentication traps indicate
that an SNMP request was received, but the community
name check failed. 0 is off, 1 (default) is on.
trap-dest
Enters a host IP address into the HP Jetdirect print server’s
SNMP trap destination list. The command format is:
trap-dest: ip-address [community name] [port number]
The default community name is ‘public’; the default SNMP
port number is ‘162’. The port number cannot be specified
without a community name.
To delete the table, use ‘trap-dest: 0’.
If the list is empty, the print server does not send SNMP
traps. The list may contain up to three entries. The default
SNMP Trap Destination List is empty. To receive SNMP
traps, the systems listed on the SNMP trap destination list
must have a trap daemon to listen to those traps.
ENWW
TCP/IP Configuration 82
Table 3.4
Telnet Commands and Parameters (11 of 13)
IPX/SPX
Command
Description
ipx-config
Enables or disables IPX/SPX protocol operation on the print
server. 0 disables, 1 (default) enables. For example,
ipx-unitname
(Print Server Name) A user-assigned alphanumeric name
assigned to the print server (31 characters maximum). By
default, the name will be NPIxxxxxx, where xxxxxx are the
last six digits of the LAN hardware address.
Address
(Read-only parameter) Identifies the IPX network and node
numbers detected on the network, in the form
NNNNNNNN:hhhhhhhh (hexadecimal), where
NNNNNNNN is the network number and hhhhhhhh is the
LAN hardware address of the print server.
ipx-frametype
Specifies the IPX frame type settings available for your print
server model: AUTO (default), EN_SNAP, EN_8022,
EN_8023, EN_II, TR_8022, TR_SNAP. For more
information, see Chapter 9.
ipx-sapinterval
Specifies the time interval (1 to 3600 seconds) that the
HP Jetdirect print server waits between Service Advertising
Protocol (SAP) broadcasts on the network. The default is
60 seconds. 0 disables SAP broadcasts.
ipx-mode
(Read-only parameter) Specifies the NetWare mode
configured on the print server, eith RPRINTER or
QSERVER mode.
ipx-nds-tree
An alphanumeric string, up to 31 characters, that specifies
the NDS tree name for the print server.
ipx-nds-context
An alphanumeric string, up to 256 characters, that specifies
the NDS context for the HP Jetdirect print server.
ipx-job-poll
Specifies the time interval (1 to 255 seconds) that the
HP Jetdirect print server will wait to check for print jobs in
a print queue. The default is 2 seconds.
pjl-banner
Enables or disables printing an IPX banner page through
Printer Job Language (PJL). 0 disables banner pages. 1
(default) enables banner pages.
ipx-config 0 will disable IPX/SPX operation.
ipx-banner
pjl-eoj
ipx-eoj
pjl-toner-low
ipx-toner-low
ENWW
Enables or disables IPX end-of-job notification through PJL.
0 disables, 1 (default) enables.
Enables or disables IPX toner-low notification through PJL.
0 disables, 1 (default) enables.
TCP/IP Configuration 83
Table 3.4
Telnet Commands and Parameters (12 of 13)
AppleTalk
Command
Description
appletalk
Enables or disables AppleTalk (EtherTalk) protocol
operation on the print server. 0 disables, 1 (default) enables.
For example,
appletalk 0 will disable AppleTalk operation
Name
(Read-only parameter) The name of the printer on the
AppleTalk network. A number after the name indicates that
there are multiple devices with this name, and this is the Nth
instance of the name.
Print Type
(Read-only parameter) Specifies the AppleTalk network
printer type reported by the Jetdirect print server. Up to three
print types may be reported.
Zone
(Read-only parameter) The name of the AppleTalk network
zone on which the printer is located.
Phase
(Read-only parameter) AppleTalk phase 2 (P2) is
preconfigured on the HP Jetdirect print server.
Status
(Read-only parameter) Indicates the current AppleTalk
configuration status.
READY: Indicates the HP Jetdirect print server is awaiting
data.
DISABLED: Indicates that AppleTalk was manually
disabled.
INITIALIZING: Indicates that the print server is registering
the node address or name. An additional status message
may also be displayed.
DLC/LLC
Command
Description
dlc/llc-config
Enables or disables DLC/LLC protocol operation on the print
server. 0 disables, 1 (default) enables. For example,
strict-8022
Controls DLC/LLC protocol interpretation:
dlc/llc-config 0 will disable DLC/LLC operation.
0 (default): disables, that is, provides loose interpretation.
1: enables, that is, provides strict interpretation).
ENWW
TCP/IP Configuration 84
Table 3.4
Telnet Commands and Parameters (13 of 13)
Other
Command
Description
link-type
(10/100 Fast Ethernet) Sets the print server’s link speed (10
or 100 Mbps) and communication mode (Full- or
Half-Duplex). Selections are AUTO, 100FULL, 100HALF,
10FULL, 10HALF.
For AUTO (default), the print server uses autonegotiation to
determine the link speed and mode. If autonegotiation fails,
then 100HALF is set.
laa
Specifies a locally administered address (LAA) that replaces
the factory-assigned LAN Hardware (MAC) address. If LAA
is used, a user-specified string of exactly 12 hexadecimal
digits must be entered.
For Ethernet print servers, the LAA address must start with
hexadecimal X2, X6, XA, or XE, where X is any hexadecimal
digit 0 through F.
The default address is the factory-assigned address.
scan-idle-timeout
Specifies the number of seconds (1 - 3600) that an idle scan
connection is allowed to remain open. 0 disables the
timeout. The default is 300 seconds.
MFP-config
(MFP config) Enable or disable print server support of the
client software provided with your multifunction or all-in-one
peripheral.
0 (default): disables client software support (allows printing
only).
1: enables client software support (allows printing and
scanning).
Support
Command
Description
Web JetAdmin URL
(Read-only parameter) If HP Web Jetadmin discovers this
device, the URL to access HP Web Jetadmin will be
specified.
Web JetAdmin
Name
(Read-only parameter) If HP Web Jetadmin discovers this
device, the name of the HP Web Jetadmin host will be
specified (if known).
support-name
Typically used to identify the name of a person to contact for
support of this device.
support-number
Typically used to specify a phone or extension number to
call for support of this device.
support-url
A Web URL address for product information on this device
over the Internet or an intranet.
tech-support-url
A Web URL address for technical support over the Internet
or an intranet.
ENWW
TCP/IP Configuration 85
Menu Interface
An optional Menu interface is displayed when you type menu at the
Telnet command prompt. The Menu interface eliminates the need
to memorize commands, and provides structured menu lists for easy
access to configuration parameters.
Figure 3.1 illustrates the Menu interface, using the TCP/IP menus
as an example.
●
From the Main Menu screen, select and enter a menu number.
If there are submenus, select and enter a submenu number.
●
If you want to change a parameter setting, enter “Y” (for “Yes”)
when prompted.
Changes to parameters are made by editing the setting through
the use of the Backspace key. If an unrecognized value is
entered, the correct entry options will be displayed.
Note
ENWW
Changes are not saved on the Jetdirect print server
until you exit a menu and, when prompted, choose
to save your changes.
TCP/IP Configuration 86
Figure 3.1 Example: Using the Menu Interface
Main Menu
------------------------------1. General Menu
2. TCP/IP Menu...
3. SNMP Menu...
4. IPX/SPX Menu
5. AppleTalk Menu
6. DLC/LLC Menu
7. Other Settings
8. Support Settings
9. Wireless Settings
?. Help
e. Exit Menu
0. Exit Telnet
Enter Selection => 2
For the TCP/IP Menu, select 2.
TCP/IP Menu
------------------------------1.
2.
3.
4.
5.
6.
0.
TCP/IP
TCP/IP
TCP/IP
TCP/IP
TCP/IP
TCP/IP
Return
- Main Settings
- Print Options
- Raw Print Ports
- Access Control
- Other Settings
- Diagnostics
to Main Menu
For parameters listed in
TCP/IP Main, select 1.
Enter Selection => 1
TCP/IP - Main Settings
------------------------------Host Name
IP Config Method
IP Address
Subnet Mask
Default Gateway
Config Server
TFTP Server
TFTP File Name
Domain Name
DNS Server
Pri WINS Server
Sec WINS Server
SMTP Mail Server
:
:
:
:
:
:
:
:
:
:
:
:
:
printer1
USER SPECIFIED
192.168.45.39
255.255.0.0
192.168.40.1
192.168.2.21
192.168.2.21
hpnp/print.cfg
Not Specified
Not Specified
Not Specified
Not Specified
Not Specified
Would you like to change any of the settings? (Y/[N]):Y
To edit these parameters, enter Y. Use the Backspace key to edit the
parameters.
Changes are not saved until you save them when you exit the session.
ENWW
TCP/IP Configuration 87
Using Telnet to Erase the Existing IP Settings
To erase the IP address during a Telnet session, use the following
command line entries:
1. Type cold-reset, then press Enter.
2. Type quit, then press Enter to exit Telnet.
3. Power the print server off/on.
Note
This procedure resets all TCP/IP parameters, but
only affects the TCP/IP subsystem. Parameters for
other subsystems such as IPX/SPX or AppleTalk are
not affected.
To reset all parameters to factory default values,
refer to Chapter 8.
Using the Embedded Web Server
You can set IP parameters on HP Jetdirect print servers that
support the embedded Web server. For more information, refer to
Chapter 4.
ENWW
TCP/IP Configuration 88
Using the Printer Control Panel
When supported by the printer, HP Jetdirect print servers provide
a configuration menu that can be accessed from the printer’s control
panel. Using this menu, you can enable or disable network protocols
and set basic network parameters. For a summary of the available
menu items, see Appendix B.
Note
For instructions on using the control panel for your
printer, refer to your printer documentation.
When accessing the HP Jetdirect menu from the printer’s control
panel, the TCP/IP network configuration parameters that you can
set include the following:
●
●
●
●
●
●
●
IP host name
DHCP lease behavior (release or renew)
IP address of the print server
Subnet mask
Default gateway address
Syslog server address
Idle timeout period
If you need to configure more TCP/IP parameters than allowed by
control panel configuration, use an alternate configuration tool
(such as Telnet or the embedded Web server).
If the HP Jetdirect print server is configured to receive its TCP/IP
configuration from the printer control panel, the configuration is
saved on the print server when powered off/on.
ENWW
TCP/IP Configuration 89
Moving to Another Network
When moving an HP Jetdirect print server that is configured with
an IP address to a new network, make sure that the IP address does
not conflict with addresses on the new network. You may change
the IP address of the print server to one that can be used on the new
network, or erase the current IP address and configure another
address on the new network. See Chapter 8, “Troubleshooting the
HP Jetdirect Print Server,” for instructions to reset the print server
to factory default settings.
If the current BOOTP server is not reachable, you may need to
locate a different BOOTP server and configure the printer to this
server.
If the print server was configured using BOOTP, DHCP or RARP,
edit the appropriate system files with updated settings. If the IP
address was manually set (for example, from the printer control
panel or Telnet), reconfigure IP parameters as described in this
chapter.
ENWW
TCP/IP Configuration 90
4
Using the Embedded Web Server
Introduction
This device contains an embedded Web server that can be accessed
from a compatible Web browser over an intranet. The embedded
Web server provides access to configuration and management pages
for the HP Jetdirect print server and the attached network device
(such as a printer or multifunction, all-in-one device).
Tabs across the upper portion of your browser window provide
access to device and networking pages. The tabs and functions
displayed will vary depending on the capabilities of the device and
the HP Jetdirect print server firmware version.
Network configuration for the HP Jetdirect print server are
accessed through the Networking tab. A typical Networking tab
is illustrated in Figure 4.1. For detailed configuration information,
see Networking Tab.
For information on other available tabs, see the embedded Web
server documentation supplied with your printer or MFP device.
Networking Tab
Menu items in
left margin
Figure 4.1 Embedded Web Server Networking Tab
ENWW
91
Requirements
Compatible Web Browsers
To access the embedded Web server, you must use a compatible Web
browser. In general, the embedded Web server can be used with
Web browsers that support HTML 4.01 and cascading style sheets.
Hewlett-Packard tests a number of current and older browsers
using a variety of systems. In general, we recommend using the
following browsers:
●
●
Microsoft Internet Explorer 5.0 or greater
Netscape Navigator 6.0 or greater
Browser Exceptions
Due to known problems experienced during testing, we recommend
that you do not use the following browsers:
●
Netscape Navigator 6.2.x with SSL
Supported HP Web Jetadmin Version
HP Web Jetadmin is a browser-based, enterprise management tool
for network devices. It is available from HP online support at the
following URL:
http://www.hp.com/go/webjetadmin
To make use of improved security features, HP Web Jetadmin
version 7.6 or greater is recommended for operation with the
HP Jetdirect embedded Web server. Using HP Web Jetadmin, you
can enable the SNMP v3 agent and seamlessly create an SNMP v3
account on the print server.
A link to HP Web Jetadmin will be displayed on the embedded Web
server if HP Web Jetadmin has discovered this device through an
Integration URL.
Currently, browser support between HP Web Jetadmin and the
embedded Web server may differ. For supported browsers with HP
Web Jetadmin, visit http://www.hp.com/go/webjetadmin.
ENWW
Using the Embedded Web Server 92
Viewing the Embedded Web Server
Before you can use the embedded Web server, the HP Jetdirect print
server must be configured with an IP address. For a description of
an IP address and an overview of TCP/IP networking, see
Appendix A.
There are many ways to configure an IP address on the print server.
For example, you can automatically configure IP parameters over
the network using BOOTP (Bootstrap Protocol) or DHCP (Dynamic
Host Configuration Protocol) each time the print server is turned
on. Or, you can manually configure IP parameters using the
printer’s control panel, Telnet, the “arp” and “ping” system
commands, HP Web Jetadmin or other management software. For
more information on TCP/IP configuration options, see Chapter 3.
When powered on, an HP Jetdirect print server that is unable to
retrieve a valid IP address from the network will automatically
assign itself either a legacy default IP address 192.0.0.192 or a
link-local address in the range 169.254.1.0 to 169.254.254.255. The
IP address configured on your print server can be determined by
inspecting the Jetdirect configuration page for the print server. See
Chapter 3 for more information.
If the legacy default IP address 192.0.0.192 has been assigned, you
must temporarily set up your computer with the same IP network
number or establish a route to the print server before you can gain
access to the embedded Web server.
After an IP address is established on the print server, perform the
following steps:
1. Run a supported Web browser.
2. Enter the IP address of the print server as the URL.
Figure 4.2 Entering the IP Address
3. If prompted with security alerts, click Yes to proceed.
The embedded Web server uses standard HTTP for initial
ENWW
Using the Embedded Web Server 93
access. However, the print server may be configured to appear
as a secure site using an installed X.509-compliant certificate
for identification. When properly configured, encrypted browser
communications through HTTPS (secure HTTP) may be used
for secure access.
Although not recommended, you can use your Internet
Options menu to configure your browser to ignore security
warnings if the print server is configured to operate through
HTTPS. See Mgmt. Protocols.
4. An embedded Web server page will be displayed.
Operating Notes
●
If you enter or change a configuration parameter value, click
Apply to enable your change, or click Cancel to erase your
change.
●
Changes to the IP address will close the connection to the
embedded Web server. To re-establish a connection, use the new
IP address.
CAUTION
●
Changes to the IP address on the HP Jetdirect print
server may result in printing failures for clients
that have been configured to print to this printer
using the previous IP address.
Novell NetWare networks: On the Network Settings page, use
the IPX/SPX tab to configure Novell Directory Services (NDS)
Queue Server mode parameters. Note that the embedded Web
server cannot create NDS objects (print server, printer, and print
queue objects) on the Novell server. To create these objects, use
a Novell NetWare utility, such as NWAdmin, or configure the
IPX/SPX stack for NDS through HP utilities, such as the HP
Install Network Printer Wizard or HP Web Jetadmin.
ENWW
Using the Embedded Web Server 94
Networking Tab
Networking
The Networking tab provides
access to HP Jetdirect network
configuration parameters and
status. The menu items in the left
margin provide access to
configuration and status pages.
CONFIGURATION
Network Settings
Other Settings
Privacy Settings
Select Language
SECURITY
Settings
Authorization
Sending Product
Information to HP
Mgmt. Protocols
802.1x Authentication
DIAGNOSTICS
The first time that you access the
Network Statistics
Networking tab, you will be
Protocol Info
prompted whether to allow sending
Configuration Page
product information to HP. Product
identification and usage data
collected by HP will be used to improve product features and
services. Personal data is not collected in accordance with HP
privacy policies. See Hewlett-Packard Online Privacy Statement.
You can choose to enable or disable this feature at any time using
the Privacy Settings page under the Networking tab.
Network Settings
The Network Settings pages allow you to set or change
configuration parameters for TCP/IP, IPX/SPX, AppleTalk,
DLC/LLC, and SNMP protocols. To assign a parameter setting,
enter the desired value and click Apply.
ENWW
Using the Embedded Web Server 95
TCP/IP
The TCP/IP page provides configuration parameters summarized
in Table 4.1.
Table 4.1
TCP/IP Settings (1 of 3)
Item
Description
IP Configuration
Method
Selects the method that the HP Jetdirect print server will use for
its IP configuration parameters: BOOTP (default), DHCP,
Manual, or Auto IP.
For BOOTP or DHCP, the IP parameters will be automatically
configured by a BOOTP or DHCP server each time the print
server is powered on.
If you select Manual, then basic IP parameters can be manually
entered using this Web page, or using other available tools.
If you select Auto IP, then a unique link-local address 169.254.x.x
will be assigned.
For more information, see Chapter 3.
Host Name
Specifies a readable IP name (the SNMP SysName object) for
the network device. The name must start with a letter and can
end in a letter or number, up to 32 ASCII characters. The default
name is NPIxxxxxx, where xxxxxx is the last six digits of the LAN
hardware (MAC) address.
IP Address
Use this field to manually assign the Internet Protocol address on
the HP Jetdirect print server. The IP address is a four byte (32-bit)
address in the form "n.n.n.n", where 'n' is a number from 0 to 255.
An IP address uniquely identifies a node on a TCP/IP network.
Duplicate IP addresses on a TCP/IP network are not allowed. For
more information on IP addresses, see Appendix A.
Subnet Mask
If subnetting is used, use this field to manually assign a subnet
mask. A subnet mask is a 32-bit number that, when applied to an
IP address, determines which bits specify the network and
subnet, and which bits uniquely specify the node.
For more information on subnet masks, see Appendix A.
Default Gateway
Identifies the IP address of a router or computer that is used to
connect to other networks or subnetworks.
Domain Name
Specifies the name of the Domain Name System (DNS) domain
that the HP Jetdirect print server resides in (for example,
support.hp.com). It does not include the host name; it is not the
Fully Qualified Domain Name (such as printer1.support.hp.com).
ENWW
Using the Embedded Web Server 96
Table 4.1
TCP/IP Settings (2 of 3)
Item
Description
Primary WINS
Server
Specifies the IP address of the primary Windows Internet Naming
Service (WINS) server. The WINS server provides IP address
and name resolution services for network computers and devices.
Secondary WINS
Server
Specifies the IP Address to be used for WINS if the primary WINS
Server is unavailable.
Syslog Server
Specifies the IP address of a host computer that is configured to
receive syslog messages from the HP Jetdirect print server. If a
Syslog Server is not specified, syslog messages are disabled.
For more information, see Appendix A.
Syslog Maximum
Messages
Specifies the maximum number of syslog messages that can be
sent by the HP Jetdirect print server on a per-minute basis. This
setting allows administrators to control the log file size. The
default is 10 per minute. If set to zero, no maximum number is
defined.
Syslog Priority
Controls the filtering of syslog messages that are sent to the
syslog server. The filter range is 0 to 8, with 0 being the most
specific and 8 being the most general. Only messages that are
lower than the filter level specified (that is, higher in priority) are
reported. The default value is 8 which reports all syslog
messages. A value of zero effectively disables syslog reporting.
Idle Timeout
Specifies the number of seconds that an idle connection is
allowed to remain open. Up to 3600 seconds can be set. 270 is
the default value. If set to 0, the timeout is disabled and TCP/IP
connections will remain open until closed by the device at the
other end of the network (for example, a workstation).
TTL/SLP
Specifies the IP multicast Time To Live (TTL) discovery setting
for Service Location Protocol (SLP) packets. The default value is
4 hops (the number of routers from the local network). The range
is 1-15. If set to -1, multicast capability is disabled.
For print servers configured for Auto IP (link-local) addresses, this
field will be ignored. TTL on outbound packets will always be set
to 255 and limited to the link-local network.
ENWW
Using the Embedded Web Server 97
Table 4.1
TCP/IP Settings (3 of 3)
Item
Description
System Contact
Identifies a person who is assigned to administer or service this
device. This field may include a phone number or similar
information.
When configured, this parameter will be displayed on the
HP Jetdirect home page.
System Location
Specifies the physical location of the device or related
information. Only printable ASCII characters are allowed, up to 64
characters.
When configured, this parameter will be displayed on the
HP Jetdirect home page.
Banner Page
Specifies whether to enable or disable printing of an LPD banner
page for print jobs. For embedded print servers, only a single port
is available (Port 1).
Default IP
Specifies the IP address to use when the print server is unable
to obtain an IP address from the network during a forced TCP/IP
reconfiguration (for example, when manually configured to use
BOOTP/DHCP).
LEGACY DEFAULT_IP: sets the legacy default IP address
192.0.0.192.
AUTO_IP: sets a link-local IP address 169.254.x.x.
The initial setting is determined by the IP address obtained when
first powered on.
Send DHCP
requests
A checkbox is used to specify whether DHCP requests will be
periodically transmitted when a legacy default IP address
192.0.0.192 or link-local IP address 169.254.x.x has been
automatically assigned.
Clear the checkbox to disable DHCP requests.
Check the checkbox (default) to enable DHCP requests.
IPX/SPX
The IPX/SPX tab allows you to configure IPX/SPX (Internet
Packet Exchange/Sequenced Packet Exchange) parameters on the
HP Jetdirect print server for operation on a Novell NetWare or
IPX/SPX-compatible network (such as a Microsoft network).
See Table 4.2 for a description of items on this page.
ENWW
Using the Embedded Web Server 98
If you are using direct-mode printing over IPX/SPX
on a Microsoft network, do not disable IPX/SPX.
CAUTION
For a Novell NetWare network:
●
The embedded Web server may be used to select Queue Server
Mode parameters in a Novell Directory Services (NDS)
environment.
●
You cannot create the NDS print server, printer, and queue
objects using the embedded Web server. To create these objects,
use other available tools or utilities.
Table 4.2
IPX/SPX Settings (1 of 2)
Item
Description
IPX/SPX Enable
Enables or disables the IPX/SPX protocols on the HP Jetdirect
print server. If the checkbox is empty, IPX/SPX is disabled.
IPX/SPX Frame
Type
Specify the IPX/SPX frame type to be used by the HP Jetdirect
print server on your network. After a frame type has been
configured, all others will be counted and discarded.
●
AUTO (default) senses all frame types and configures the first
one detected.
●
EN_8023 limits the frame type to IPX over IEEE 802.3 frames.
●
EN_II limits the frame type to IPX over Ethernet frames.
●
EN_8022 limits the frame type to IPX over IEEE 802.2 with
IEEE 802.3 frames.
●
EN_SNAP limits the frame type to IPX over SNAP with
IEEE 802.3 frames.
SAP Interval
Specifies the time interval (in seconds) that the HP Jetdirect
print server waits to send Service Advertising Protocol (SAP)
messages, which are broadcast to advertise its service
capabilities on a Novell NetWare network. To disable SAP
messages, use the value “0”.
Print Server Name
Specify a NetWare printer name for the HP Jetdirect print server
(alphanumeric characters only). The default name is NPIxxxxxx,
where xxxxxx are the last six digits of the HP Jetdirect print
server's LAN hardware (MAC) address.
ENWW
Using the Embedded Web Server 99
Table 4.2
IPX/SPX Settings (2 of 2)
Item
Description
NDS Tree Name
Specify the name of the NDS tree for this device. The NDS
(Novell Directory Services) tree name refers to the name of the
organizational tree used by your network. To disable NDS
support, leave this field blank.
NDS Context
The print server's NDS context refers to the NDS container or
organizational unit that contains the print server object. Print
queue and device objects can be located anywhere within the
NDS tree, but the HP Jetdirect print server must be configured
with the fully-qualified print server object name.
For example, if the print server object is found in the container
"marketing.mytown.lj", the fully qualified print server context
name (CN) is: "OU=marketing.OU=mytown.O=lj"
(where OU is an Organization Unit container and O is an
Organization container within the NDS tree). The print server will
also accept “marketing.mytown.lj”.
To disable NDS support, leave this field blank.
Note: NDS objects cannot be created by the embedded Web
server.
Job Poll Interval
Specifies the time interval (seconds) that the HP Jetdirect print
server will wait to check for print jobs in a print queue.
PJL Configuration
For Printer Job Language (PJL) parameters, enable (check) or
disable (clear) the parameters provided:
ENWW
●
Banner Page (for printing separator pages between print
jobs)
●
End-Of-Job Notification (if received from the printer, an
end-of-job message will be forwarded to a client application)
●
Toner Low Notification (if received from the printer, the
HP Jetdirect print server will forward a “toner low” message
to a client application)
Using the Embedded Web Server 100
AppleTalk
The AppleTalk tab allows you to configure selected AppleTalk
settings on the HP Jetdirect print server. See Table 4.3 for a
description of items on this page.
The AppleTalk parameters displayed include the
AppleTalk printer types that are advertised on
the network.
Note
The HP Jetdirect print server supports AppleTalk
Phase 2 only.
Table 4.3
AppleTalk Settings
Item
Description
AppleTalk Enable
checkbox
Enable (check) or disable (clear) the AppleTalk protocol on the
print server. If AppleTalk is enabled, AppleTalk parameters
stored on the print server are displayed.
Device
(AppleTalk) Name
Specify the name of the printer on the AppleTalk network. If you
enter a name that is already assigned on your network, the
AppleTalk name specified on the Jetdirect configuration page will
be followed by a number to indicate that it is a duplicate.
Print Type
Identify the type of printer being advertised on the network. Up
to two types can be displayed (for example, HP LaserJet and
LaserWriter).
Zone
Select an available AppleTalk network zone for the printer. By
default, the zone currently selected will be displayed.
Click the Refresh selected zone Info button to refresh the list
of available zones.
DLC/LLC
Using the checkbox provided, you can enable (check) or disable
(clear) the DLC/LLC (Data Link Control/Logical Link Control)
protocols on the HP Jetdirect print server. If the checkbox is clear,
DLC/LLC protocols are disabled.
ENWW
Using the Embedded Web Server 101
SNMP
You can specify or change the SNMP (Simple Network Management
Protocol) parameters provided. See Table 4.4.
CAUTION
If you use HP Web Jetadmin to manage your
devices, you should use HP Web Jetadmin to
seamlessly configure SNMP v3 and other security
settings on the print server.
Using the embedded Web server to create the
SNMP v3 account will erase any existing SNMP v3
accounts. In addition, the SNMP v3 account
information will need to be implemented on the
SNMP management application. For more
information, see SNMP v3.
Table 4.4
SNMP Settings (1 of 2)
Item
Description
Enable SNMPv1/v2
read-write access
This option enables the SNMP v1/v2c agents on the print
server. Custom community names can be configured to
control management access to the print server.
An SNMP Set Community Name is a password to be able
to configure (or “write”) SNMP information on the
HP Jetdirect print server.
An SNMP Get Community Name is a password to retrieve
(or “read”) SNMP information on the HP Jetdirect print
server.
An incoming SNMP SetRequest or GetRequest command
must contain the appropriate Set or Get community name
before the print server will respond.
A community name must be ASCII characters and can be
up to 255 characters long.
The default Get community name is “public”, which can be
disabled to restrict access by checking the checkbox
provided.
Note: If “public” is disabled, some port monitors or
discovery utilities may not operate properly.
Enable SNMPv1/v2
read-only access
ENWW
This option enables the SNMP v1/v2c agents on the print
server, but limits access to read-only. Write-access is
disabled. The default Get community name “public” is
automatically enabled.
Using the Embedded Web Server 102
Table 4.4
SNMP Settings (2 of 2)
Item
Description
Disable SNMPv1/v2
This option disables the SNMP v1/v2c agents on the print
server, which is recommended for secure environments. If
SNMP v1/v2c is disabled, some port monitors or discovery
utilities may not operate properly.
Enable SNMPv3
(Full-featured HP Jetdirect print servers only) This option
enables (check) or disables (clear) the SNMP v3 agent on
the print server.
When enabled, an SNMP v3 account must be created on
the print server, and the account information must be
implemented on the SNMP v3 management application.
You may create an account by providing the following
information:
User Name: the SNMP v3 account user name.
Authentication Key: a 16-byte hexadecimal value for
authenticating the SNMP packet contents using Message
Digest Algorithm 5 (MD5, RFC 1321) .
Privacy Key: a 16-byte hexadecimal value for encrypting
the data portion of the SNMP packet using the Data
Encryption Standard (DES) algorithm.
Context Name: the view context in which this user can
access SNMP objects. It is always “Jetdirect”.
Other Settings
This item provides access to a variety of management and printing
configuration options. The following tabs are provided:
●
Misc. Settings: for enabling miscellaneous advanced protocols
and functions
●
Firmware Upgrade: (for print servers that support firmware
upgrades) to update your HP Jetdirect print server with new
features and enhancements
●
LPD Queues: for setting up print queues used in printing under
LPD (line printer daemon) printing services
●
Support Info: to set up the Support link located under Other
Links in the left margin
●
Refresh Rate: to set the time interval (in seconds) for embedded
Web diagnostic page updates
ENWW
Using the Embedded Web Server 103
Misc. Settings
The Miscellaneous Settings parameters allow you to set a variety
of advanced protocols and features, as described below.
See Table 4.5.
Table 4.5
Miscellaneous Settings (1 of 4)
Item
Description
SLP Config
Enable or disable SLP (Service Location Protocol), used by
selected client application software to automatically discover and
identify the HP Jetdirect print server.
Telnet Config
Enable or disable access to HP Jetdirect configuration
parameters using Telnet. For more information, see Chapter 3.
mDNS
Enable or disable Multicast Domain Name System (mDNS)
services. mDNS is typically used on small networks for IP address
and name resolution (through UDP port 5353) where a
conventional DNS server is not used.
Multicast IPv4
Enable or disable the receipt and transmission of IP version 4
multicast packets by the print server.
9100 Config
Enable or disable port 9100 services. Port 9100 is an
HP-proprietary raw TCP/IP port on the HP Jetdirect print server
and is the default port for printing. It is accessed by HP software
(for example, the HP Standard Port).
FTP Printing
Enable or disable File Transfer Protocol services available on the
HP Jetdirect print server for printing. For more information, see
Chapter 6.
LPD Printing
Enable or disable the Line Printer Daemon services on the
HP Jetdirect print server. LPD on the HP Jetdirect print server
provides line printer spooling services for TCP/IP systems. For
more information, see Chapter 5.
IPP Printing
Enable or disable the Internet Printing Protocol on the
HP Jetdirect print server. If the printer is properly connected and
accessible, IPP allows printing to this device over the Internet (or
intranet). A properly configured IPP client system is also required.
For information on IPP client software, see Chapter 2.
ENWW
Using the Embedded Web Server 104
Table 4.5
Miscellaneous Settings (2 of 4)
Item
Description
Link settings
(For wired 10/100TX networks only) Set the network link
speed(10 or 100 Mbps) and communication mode (full- or
half-duplex) for HP Jetdirect 10/100TX print servers. The
available settings are listed below.
CAUTION: If you change the link setting, network
communications with the print server and network device may
be lost.
●
AUTO: (Default) The print server uses autonegotiation to
match the network’s link speed and communication mode. If
autonegotiation fails, 100TXHALF is set.
●
10TXFULL: 10 Mbps, full-duplex operation
●
10TXHALF: 10 Mbps, half-duplex operation
●
100TXFULL: 100 Mbps, full-duplex operation
●
100TXHALF: 100 Mbps, half-duplex operation
Primary DNS
Server
Specify the IP address of the primary DNS (Domain Name
System) server.
Secondary DNS
Server
Specify the IP address of a secondary DNS server to use if the
primary DNS server is unavailable.
Scan Idle Timeout
Specifies the number of seconds that an idle connection for
scanning is allowed to remain open. The maximum is 3600, and
the default is 300. If set to 0, the timeout is disabled and the
connection will remain open until closed by the network system
that is accessing the device.
Locally
Administered
Address
Specifies a locally administered address (LAA) that replaces the
factory-assigned LAN Hardware (MAC) address. If LAA is used,
a user-specified string of exactly 12 hexadecimal digits must be
entered.
For Ethernet print servers, the LAA address must start with
hexadecimal X2, X6, XA, or XE, where X is any hexadecimal digit
0 through F.
The default address is the factory assigned address.
Syslog Facility
ENWW
Specify the encoded source facility of a message (for example,
to identify the source of selected messages during
troubleshooting). By default, the HP Jetdirect print server uses
LPR as the source facility code, but local user values of local0
through local7 can be used to isolate individual or groups of print
servers.
Using the Embedded Web Server 105
Table 4.5
Miscellaneous Settings (3 of 4)
Item
Description
Dynamic Raw
Port Setting
Allows additional ports to be specified for printing to TCP port
9100. Valid ports are 3000 to 9000, which are
application-dependent.
Disable listening
on these ports
For security purposes, two fields allow you to disable services on
the printer that use the network. In each field, you must specify
the port numbers that are used for network communications with
those services. Up to five ports may be specified in each field (for
example, [5, 10, 40, 20, 50]). The valid range for port numbers is
1 through 65535.
Streams: In this field, enter port numbers of services that pass
data streams. Data streams use Transport Control Protocol
(TCP) to guarantee data delivery.
Datagrams: In this field, enter port numbers of services that pass
datagrams. Datagrams, typically used for broadcast messages,
use the User Datagram Protocol (UDP), a connectionless
protocol where delivery and error recovery are not guaranteed.
Enable MFP and
AIO software
support
Enable or disable the print server’s support of the full-function
scanning facility installed on client computers through software
supplied with the HP multifunction device (MFP or All-in-One).
If disabled, the print server will not allow client software device
functions other than network printing.
mDNS Service
Name
Specifies an alphanumeric string of up to 64 ASCII characters
assigned to this device or service. This name is persistent and is
used to resolve a particular device or service if socket information
(such as the IP address) changes from session to session. Apple
Rendezvous will display this service. The default service name
is the printer model and the LAN Hardware (MAC) address.
mDNS Domain
Name
(Read-only parameter) Specifies the mDNS domain name
assigned to the device, in the form <host name>.local. If a
user-specified host name has not been assigned, the default host
name NPIxxxxxx is used, where xxxxxx are the last 6 digits of the
LAN hardware (MAC) address.
ENWW
Using the Embedded Web Server 106
Table 4.5
Miscellaneous Settings (4 of 4)
Item
Description
mDNS Highest
Priority Service
Specifies the mDNS highest priority service to use for printing.To
set this parameter, choose one of the following printing options:
9100 Printing: Raw IP printing through HP-proprietary port 9100.
IPP Printing: Internet Printing Protocol printing.
LPD Printing (RAW): Default LPD raw queue printing.
LPD Printing (TEXT): Default LPD text queue printing.
LPD Printing (AUTO): Default LPD auto queue printing.
LPD Printing (BINPS): Default LPD binary postscript queue
printing.
LPD Printing (<user-defined>): Up to 5 user-specified LPD
queues will be listed if they have been configured, where
<user-defined> is the name of the user-specified LPD print
queue.
The default selection will depend on the printer, typically 9100
Printing or LPD Printing (BINPS).
Proxy Server
Specifies the proxy server to be used by embedded applications
in your printer/MFP. A proxy server is typically used by network
clients for Internet access. It caches Web pages, and provides a
degree of Internet security, for those clients.
To specify a proxy server, enter its IP address or fully-qualified
domain name. The name can be up to 64 characters.
For some networks, you may need to contact your Independent
Service Provider (ISP) for the proxy server address.
Proxy Server Port
Enter the port number used by the proxy server for client support.
The port number identifies the port reserved for proxy activity on
your network, and can be a value from 0 to 65535.
Proxy Server User
Name
If a user account on the proxy server has been set up, enter the
name of the user account.
Proxy Server
Password
If a user account on the proxy server has been set up, enter the
password of the user account.
Proxy Server
Exception List
Enter Web addresses, host names, or domain names that do not
need to be accessed through the proxy server. Use semicolons
(;) to separate entries.
ENWW
Using the Embedded Web Server 107
Firmware Upgrade
For print servers that support firmware upgrades, this page allows
you to upgrade the print server with new features.
The firmware upgrade file for the print server must be available on
your system. To identify and retrieve the appropriate upgrade file,
visit HP online support at:
http://www.hp.com/go/webjetadmin_firmware
On that page, do the following:
1. Locate the print server model and the upgrade file.
2. Check the upgrade file version and verify that it is more recent
than the print server’s installed version. If it is, then download
the file. If not, then you do not need to upgrade.
To upgrade the print server using the embedded Web server:
1. Enter the path to the upgrade file or click Browse to locate it.
2. Then click Upgrade Firmware.
LPD Queues
The LPD Queues page allows you to specify LPD (line printer
daemon) print queues on the Jetdirect print server. For more
information on LPD printing and print queues, see Chapter 5,
“Configuring for LPD Printing”.
LPD printing must be enabled on the print server before you can
set LPD queues. If LPD is disabled, go to the Misc. Settings tab to
enable it.
If LPD printing is enabled, ten different named print queues are
available. Four of these queues are configured automatically and
their parameters cannot be changed. The remaining six queues can
be defined by the user.
The six user-defined queues can be set up with character strings -such as job control commands -- that are automatically added before
or after the print job. You can define up to eight named strings, and
you can set up each queue so that any of these named strings
precedes the print data (“prepend string name”) or follows the print
data (“append string name”).
LPD Queue Parameters for setting up LPD queues are described
below. See Table 4.6.
ENWW
Using the Embedded Web Server 108
Table 4.6
LPD Queue Parameters (1 of 3)
Item
Description
Queue Name
Name of the user-defined queue. This name can be up to 32
characters long, and can consist of any displayable ASCII
characters. You can define up to six user-defined queues.
Prepend String
Name
Enter the name of one or more strings to be added before (or
prepended to) the print data. You specify string names and
values in the table at the bottom of the page.
To prepend a long string, multiple string names may be
concatenated, that is, entered and separated by a “+” character.
For example, to prepend a long string that has been divided into
two separate strings, enter:
<stringname1>+<stringname2>
where stringname1 and stringname2 are specified as two
separate string names with different values.
Append String
Name
Enter the name of one or more strings to be added after (or
appended to) the print data. You specify string names and values
in the table at the bottom of the page.
To append a long string, multiple string names may be
concatenated, that is, entered and separated by a “+” character.
For example, to append a long string that has been divided into
two separate strings, enter:
<stringname1>+<stringname2>
where stringname1 and stringname2 are specified as two
separate string names with different values.
ENWW
Using the Embedded Web Server 109
Table 4.6
LPD Queue Parameters (2 of 3)
Item
Description
Queue Type
Processing instruction for the queue. Choose from these four
queue types:
●
RAW -- No processing. The line printer daemon treats the
data in a raw queue as a print job that has already been
formatted in PCL, PostScript, or HP-GL/2, and sends it to the
printer without modification. (Note that any user-defined
prepend or append string will be added to the job in the
appropriate position.)
●
TEXT -- Carriage return added. The line printer daemon treats
data in text queues as unformatted or ASCII text, and adds a
carriage return to each line before sending it to the printer.
●
AUTO -- Automatic. The line printer daemon uses
autosensing to determine whether the print data should be
sent as raw or text.
●
BINPS -- Binary PostScript. This instructs the PostScript
interpreter that the printjob is to be interpreted as Binary
PostScript data.
Default Queue
Name
Name of the queue to be used if the queue specified for a print
job is unknown. By default, the Default Queue Name is AUTO.
String Name
Name of a character string. You may define up to eight character
strings for use in LPD queues; this parameter names the string,
and the Value parameter defines the content of the string.
Prepend and Append string names (specified in the table at the
top of the browser window) must be chosen from the names
specified here. The string name can be up to 32 characters long,
and can consist of any displayable ASCII characters.
ENWW
Using the Embedded Web Server 110
Table 4.6
LPD Queue Parameters (3 of 3)
Item
Description
Value
The content of the string. The String Name parameter names
the string; the Value parameter defines its content. When a string
name is specified for a prepend or append string (in the table at
the top of the browser window), the line printer daemon sends
the value of that string to the printer before or after the print data
(as appropriate).
Character values can be anywhere in the extended ASCII range
of 0 to 255 (hex 00 to FF). You can specify a non-printing
character using its hexadecimal value, by entering a backslash
followed by two hexadecimal characters. For example, to enter
the escape character (hex 1B), type in \1B. If your string includes
the backslash character itself, specify it as \5C. The maximum
number of characters you can type into this field is 240. The
characters in the field are checked for hexadecimal values,
converted if necessary, and stored internally. The maximum
number of characters stored internally in the string is 80; any
characters that exceed this are discarded.
To set up a user-defined print queue, you first define the strings,
assign them as prepend or append strings, and define the queue
type. Once you have defined an LPD queue, you specify its use by
setting up an LPD printer that uses that queue. For instance, if you
set up string “a” with a value of “abc” and string “z” with a value of
“xyz”, you can define print queue “az_queue” with a prepend string
of “a”, an append string of “z”, and a queue type of “raw”. Then, when
you send a print job consisting of <formatted_text> through queue
az_queue, the job sent to the printer is “abc<formatted_text>xyz”.
Instructions for setting up an LPD printer are different for different
operating systems; refer to Chapter 5, “Configuring for LPD
Printing” for details.
ENWW
Using the Embedded Web Server 111
Example. If you had an LPD printer and wanted to reset it at the
start of each print job, you could set up a user-defined print queue
named “clear_printer” that issues a PCL reset command (Escape-E)
at the beginning of each job. You could set this up as follows:
First, set up the print queue:
a. Name a string: Type "reset_string" into the String Name
field in row 1.
b. Define the string's value: Type "\1BE" (Escape-E) into the
Value field in row 1. (Alternatively, you could type
"\1B\45".)
c.
Name the queue: Type "clear_printer" into the Queue
Name field in row 5.
d. Set up the prepend string: Type "reset_string" into the
Prepend String field in row 5.
e.
Leave the Append String field in row 5 blank.
f.
Set the queue type: Using the pull-down menu, set the
Queue Type field in row 5 to "RAW".
Then, set up the printer to use the queue, making sure to specify
"clear_printer" when asked for a queue name. (For details of setting
up the printer, refer to Chapter 5, “Configuring for LPD Printing”.)
After that, any print jobs sent to the printer -- either from the server
or from a client computer that has set up that printer -- will include
a reset command at the beginning of the job.
Support Info
Use this page to configure links for Support assistance. You can
designate a Support person and phone number of an administrator
for this device, as well as URL addresses for Web-based product and
technical support.
Refresh Rate
The refresh rate is the time period (in seconds) that the diagnostic
pages will be automatically updated. The value '0' disables the
refresh rate.
ENWW
Using the Embedded Web Server 112
Privacy Settings
On the Privacy Settings page, you can allow the embedded Web
server to collect product identification and use information and then
send the information to HP (Internet access is required). Product
use information assists HP in improving product features and
services. By default, this feature is disabled.
To enable this feature, check the checkbox and click Apply.
To disable this feature, clear the checkbox and click Apply.
Select Language
This link appears if the HP Jetdirect Web pages support multiple
languages. Supported languages may also be selected through
language preference settings in your browser (see your browser’s
Help).
To display supported non-English languages, the use of cookies
must be enabled in your browser settings.
Settings
In the SECURITY section, the Settings menu provides access to
the following tabs: Status (default), Wizard, Restore Defaults.
The available settings depend on your particular print server model.
Status
The Status page displays the current security configuration
settings of the print server. The settings that will be displayed
depend on the features supported by the print server.
ENWW
Using the Embedded Web Server 113
Wizard
Note
If you use HP Web Jetadmin to manage your
devices, you should not use this wizard. Instead, use
HP Web Jetadmin to configure your network
security settings to ensure they are properly set for
your network.
The Wizard page allows you to run the HP Jetdirect Security
Configuration Wizard. This wizard will guide you through the print
server’s security configuration needed for your network. Click Start
Wizard to run the wizard. This opens the Security Level page.
The optional configuration parameters presented by the wizard
will depend on your choice of security level. For an overview,
see Table 4.7.
Note
If you improperly exit the wizard (for example, by
failing to use the Cancel button), an Operation
Failed screen may appear. If so, wait approximately
two minutes before entering the wizard again.
Restore Defaults
This page is used to restore security configuration settings to factory
defaults. The default settings displayed depend on the features
supported by the print server.
Only the security settings listed are restored to factory defaults,
other configuration settings are not affected.
ENWW
Using the Embedded Web Server 114
Table 4.7
Wizard Security Levels (1 of 2)
Security Level
Description
Basic Security
This option requires that you configure an administrator
password for configuration management. The administrator
password is shared with other management tools, such as
Telnet and SNMP applications. However, some
management tools, such as Telnet, use plain-text
communications and are not secure.
The Administrator Account page is used to enter the
administrator password. The Administrator Password will
also be used as the SNMP v1/v2 Set Community Name for
SNMP management applications.
The Configuration Review page displays all the current
settings that may affect security. Click Finish to set your
basic security selections.
Enhanced Security
(Recommended)
This option adds to Basic Security by automatically
disabling management protocols that are do not use secure,
encrypted communications (such as Telnet and FTP
firmware updates, RCFG, SNMP v1/v2c). To change
individual protocol settings, see Mgmt. Protocols.
The Administrator Account page is used to enter the
administrator password.
SNMP Configuration pages are used to configure specific
SNMP settings:
●
Enable SNMPv3: (Full-featured print servers only)
Enable SNMP v3 and create an SNMP v3 account.
Creating an SNMP v3 account is not recommended if
you manage devices using HP Web Jetadmin. See
SNMP.
●
Enable SNMPv1/v2 read-only access: Enable this
option to allow support of current tools that rely on SNMP
v1/v2 for device discovery and status.
The Configuration Review page displays all the current
settings that may affect security. Click Finish to set your
basic security selections.
ENWW
Using the Embedded Web Server 115
Table 4.7
Wizard Security Levels (2 of 2)
Security Level
Description
Custom Security
This option proceeds through all available security settings
supported by your print server. For more information on
specific parameters and selections, see the tabs on the
Mgmt. Protocols and Authorization menu pages under
SECURITY.
The Administrator Account page is used to enter the
administrator password.
The Web Mgmt. page (for full-featured print servers only)
is used for HTTPS (secure HTTP) configuration, including
certificates and encryption levels.
The Management Tools page allows configuration of
management protocols that are not secure (such as RCFG,
Telnet and FTP firmware updates).
SNMP Configuration pages are used to configure specific
SNMP settings:
●
Enable SNMPv1/v2: Enable this option to allow
management software that use SNMP v1/v2. If selected
the SNMPv1/v2 Configuration page is displayed to
configure SNMP community names.
●
Enable SNMPv3: (Full-featured print servers only)
Enable this option to create an SNMP v3 account.
Creating an SNMP v3 account is not recommended if
you manage devices using HP Web Jetadmin. See
SNMP.
The Access Control page is used to set up an Access
Control List, if desired to control host access to the device.
The Print Protocols and Services page is used to enable
or disable network printing, print services, and device
discovery protocols that may affect security.
The Configuration Review page displays all the current
settings that may affect security. Click Finish to set your
basic security selections.
ENWW
Using the Embedded Web Server 116
Authorization
The Authorization page provides tabs that allow you to control
access to the device, as well as to device configuration and
management features. In addition, you may configure certificates
for client and server authentication.
Admin. Account
Use this page to set an administrator password for controlled access
to Jetdirect configuration and status information. The
administrator password is shared by Jetdirect configuration tools,
such as the embedded Web server, Telnet, and HP Web Jetadmin.
In addition, for applicable printers, the password is shared with the
printer (see Printer Password Synchronization below).
If a password is set and you attempt to access Jetdirect print server
settings, you will be prompted for a user name and this password
before you are allowed access.
Note
The administrator password may be cleared by a
cold reset of the print server, which resets the print
server to factory default settings.
A checkbox allows you to synchronize HP Web Jetadmin and the
SNMP v1/v2c Set Community Name.If you enable this feature (the
checkbox is checked), the administrator password will also be used
as the SNMP Set Community Name for SNMP v1/v2c management
applications.
Note
ENWW
If you subsequently change the SNMP Set
Community Name (for example, using the SNMP
tab on the Network Settings page or from Web
Jetadmin), the two settings will no longer be
synchronized.
Using the Embedded Web Server 117
Printer Password Synchronization. Most printers provide
password-protected access to printer configuration and status
settings. The password is set through security Web pages provided
by the printer. For these printers, the administrator password for
the printer and the Jetdirect print server are synchronized so that
the same password is used to access both printer and networking
configuration pages. For printers that support password
synchronization, the same password is used regardless of the
embedded Web page (printer Security page or networking Admin.
Account page) in which the password was set.
If password synchronization is lost on these printers, recovery may
require one of the following procedures:
●
Restore both the printer and the Jetdirect print server to
factory-default states (for example, through a cold-reset), and
then reconfigure your settings.
●
Manually set the same administrator password using both the
printer Security page and the networking Admin. Account
page.
Certificates
(Full-featured HP Jetdirect print servers only) This tab provides
access to installation, configuration and management services for
X.509 digital certificates. A digital certificate is an electronic
message typically containing, among other things, a key (a short
string used for encryption and decryption) and a digital signature.
Certificates may be issued and signed by a trusted third party
(commonly called a Certificate Authority, or CA), which may exist
internal or external to the organization. Or certificates may be
“self-signed”, which is similar to validating your own identity.
Note
ENWW
While self-signed certificates are permitted and
allow data encryption, they do not ensure valid
authentication.
Using the Embedded Web Server 118
The Certificates page provides the status of the certificates
installed on the HP Jetdirect print server:
●
Jetdirect certificate. The Jetdirect certificate is used to
validate the identity of the Jetdirect device to clients and to
network authentication servers.
By factory default, a self-signed Jetdirect certificate is
preinstalled. This allows the embedded Web server to
immediately use HTTPS and appear as a secure site when
accessed from your Web browser.
Click View to view the contents of an installed Jetdirect
certificate, or click Configure to update or install a new one. See
Configuring Certificates.
When installed, a Jetdirect certificate will be saved across a
cold-reset, which is used to restore the print server to
factory-default values.
●
CA Certificate. A certificate from a trusted third party, or
Certificate Authority (CA), is used to validate the identity of a
network authentication server during selected authentication
methods that use EAP (Extensible Authentication Protocol). The
authentication server’s identity is validated when information on
the CA certificate matches the information on a certificate
received from the authentication server.
A CA certificate for the print server is a certificate that was used
to sign the authentication server’s certificate. Therefore, the
Certificate Authority for the authentication server’s certificate
must also be used for the CA certificate.
Click View to view the contents of an installed Jetdirect
certificate, or click Configure to update or install a new one. See
Configuring Certificates.
A CA certificate is not saved when the print server is reset to
factory-default values.
The maximum certificate size that can be installed on the HP
Jetdirect print server is 3072 bytes.
ENWW
Using the Embedded Web Server 119
Configuring Certificates
When you click Configure, a certificate management wizard will
help you update or install a certificate. The screens displayed will
depend on the type of certificate (Jetdirect or CA) and your
selections. Table 4.8 provides a description of the screens and
configuration parameters that may appear.
If you improperly exit Certificates configuration (for
example, by failing to use the Cancel button), an
Operation Failed screen may appear. If so, wait
approximately two minutes before entering the
wizard again.
Note
Table 4.8
Certificate Configuration Screens (1 of 4)
Certificate Options
Choose from the options listed.
Update Pre-Installed Certificate. Use this option to update the preinstalled,
self-signed certificate. When updated, the preinstalled certificate is
overwritten.You may update the following item:
●
Certificate Validity Period
With self-signed certificates, the browser will identify the certificate as self-signed
for each new Web session and may cause a security alert message. This
message can be bypassed if the user adds it to their browser’s certificate store
or disables browser alerts (not recommended).
Self-signed certificates are not necessarily secure because the certificate owner
is merely confirming his own identity instead of verification by a trusted third party.
Certificates from a trusted third party are considered more secure.
Create Certificate Request. Using this option, you are prompted for specific
device and organizational information in the following screen:
●
Certificate Information
This option may be used, for example, when an authentication protocol requires
that a Jetdirect certificate issued by a trusted third party or Certificate Authority
be installed.
ENWW
Using the Embedded Web Server 120
Table 4.8
Certificate Configuration Screens (2 of 4)
Install Certificate. This option is displayed only if there is a Jetdirect certificate
request (to a trusted third party) pending. When received, the certificate is installed
using this option. Once installed, this certificate overwrites the preinstalled
certificate.
Using this option, you are prompted for information in the following screen:
●
Install Certificate
The certificate to be installed must be associated with a previous certificate
request generated by the embedded Web server.
Install CA Certificate. This option is provided when you click Configure for a
CA certificate, which must be installed for selected authentication protocols. Using
this option, you are prompted for information in the following screen:
●
Install Certificate
Import Certificate and Private Key. This option allows you to import a previously
acquired and known certificate as the Jetdirect certificate. If you import a
certificate, the currently installed certificate will be overwritten. Using this option,
you are prompted by the following screen:
●
Import Certificate and Private Key
Export Certificate and Private Key. This option allows you to export the Jetdirect
certificate currently installed on the print server for use on other print servers.
Using this option, you are prompted by the following screen:
●
Export the Jetdirect certificate and private key
Delete CA Certificate. This option is used to remove the CA certificate installed
on the Jetdirect print server. This option appears when a CA certificate for EAP
authentication has been installed.
CAUTION: If the CA Certificate is deleted, EAP authentication will be disabled
and network access will be denied.
The CA Certificate will also be removed on a cold-reset of the print server, where
factory-default settings are restored.
Certificate Validity
Use this screen to specify how long the Jetdirect self-signed certificate will be valid.
This screen appears only when a self-signed certificate is preinstalled and you
click Edit Settings to update the validity period. It specifies the current
Coordinated Universal Time (UTC). UTC is a time scale maintained by the
International Bureau of Weights and Measures. It adjusts for differences between
Greenwich Mean Time and atomic time. It is set at 0 degrees longitude on the
prime meridian.
The Validity Start Date is calculated from the PC’s clock settings.
The Validity Period specifies the number of days (1 to 3650) that the certificate
is valid, starting from the Validity Start Date. A valid entry (1 to 3650) is required.
The default is 5 years.
ENWW
Using the Embedded Web Server 121
Table 4.8
Certificate Configuration Screens (3 of 4)
Certificate Information
Use this page to enter information for requesting a certificate from a Certificate
Authority.
Common Name. (Required)
For HP Jetdirect print servers, specify the fully qualified domain name or a valid
IP address for the device.
Examples:
●
Domain Name: myprinter.mydepartment.mycompany.com
●
IP address: 192.168.2.116
The Common Name will be used to uniquely identify the device. For HP Jetdirect
print servers using EAP authentication, some authentication servers may need
to be configured with the Common Name as specified on the certificate.
If the default IP address 192.0.0.192 is configured on the Jetdirect print server, it
will not likely be valid for your network. You should not use this default address
to identify your device.
Organization. (Required) Specify the full legal name for your company.
Organizational Unit. (Optional) Specify your department, division, or other
subgroup of your organization.
City/Locality. (Required) Enter the city or locality in which your organization is
located.
State/Province. (Required for all countries/regions) Must contain at least three
characters. (required)
Country/Region. Two-character ISO 3166 country/region code. For example,
use "gb" Great Britain or "us" for USA (required).
ENWW
Using the Embedded Web Server 122
Table 4.8
Certificate Configuration Screens (4 of 4)
Install Certificate, or
Install CA Certificate
Use the Install Certificate screen to install a Jetdirect certificate.
Use the Install CA Certificate screen to install a trusted Certificate Authority (CA)
certificate for use during EAP authentication.
Install a PEM/Base64 (Privacy Enhanced Mail) encoded certificate.
To install a certificate, specify the name and path of the file that contains the
certificate. Or, click Browse to browse your system for the file.
Click Finish to complete the installation.
To install a certificate, it must be associated with a pending certificate request by
the embedded Web server. The Install Certificate option will not be presented if
there is no pending request.
A Jetdirect or CA certificate size is limited to 3 KBytes.
Import Certificate and Private Key
Use this screen to import a Jetdirect certificate and private key.
Import a Jetdirect certificate and private key. When imported, the existing
certificate and private key will be overwritten.
The file format must be PKCS#12 encoded (.pfx) and cannot exceed 4 KBytes.
To import a certificate and private key, specify the name and path of the file that
contains the certificate and private key. Or, click Browse to browse your system
for the file. Then enter the password that was used to encrypt the private key.
Click Finish to complete the installation.
Export the Jetdirect certificate and private key
Use this screen to export the installed Jetdirect certificate and private key to a file.
To export a certificate and private key, enter a password that will be used to
encrypt the private key. You must enter the password again to confirm it. Then
click Save As to save the certificate and private key in a file on your system. The
file format will be PKCS#12 encoded (.pfx).
ENWW
Using the Embedded Web Server 123
Access Control
Use this tab to display the Access Control List (ACL) on the
HP Jetdirect print server. An access control list (or host access list)
specifies individual host systems, or networks of host systems, that
will be allowed to access the print server and the attached network
device. Up to 10 entries can be included on the list. If the list is
empty (no hosts are listed), any supported system can access the
print server.
CAUTION
Use caution when using this feature. You may lose
your ability to communicate with the HP Jetdirect
print server if your system is not properly specified
in the list, or access through HTTP is disabled.
For use of the host access list as a security feature,
see Chapter 7.
Note
By default, hosts with HTTP connections (for
example, through the embedded Web server or IPP
-- the Internet Printing Protocol) are allowed access
to the print server regardless of access control list
entries.
To disable access by HTTP hosts, clear the Allow
Web Server (HTTP) access checkbox at the
bottom of the list.
Host systems are specified by their IP addresses or network
number. If the network contains subnets, an address mask may be
used to identify whether the IP address designates an individual
host system or a group of host systems.
ENWW
Using the Embedded Web Server 124
Examples. See the table of sample entries below:
IP Address
Mask
Description
192.0.0.0
255.0.0.0
Allow all hosts with network number 192.
192.1.0.0
255.1.0.0
Allow all hosts on network 192, subnet 1.
192.168.1.2
Allow the host with IP address 192.168.1.2.
The mask 255.255.255.255 is assumed and is
not required.
To add an entry into the access control list, use the IP Address and
Mask fields to specify a host, and click (check) the Save checkbox
for that entry. Then click Apply.
To delete an entry from the list, clear the Save checkbox for that
entry. Then click Apply.
To clear the entire access control list, clear all Save checkboxes,
and click Apply.
ENWW
Using the Embedded Web Server 125
Mgmt. Protocols
This link provides access to management communications and
other protocols that affect security.
Web Mgmt.
Use this tab to manage communications with the embedded Web
server from Web browsers. This tab appears only for full-featured
print servers.
Secure, encrypted Web-based communication is provided through
the Secure HTTP (HTTPS) protocol. If configured to require
HTTPS, the embedded Web server routes HTTPS communications
through port 443, the well-known port for HTTPS traffic. Although
ports 80, 280, or 631 continue for Internet Printing Protocol (IPP)
use, other non-secure communications (HTTP) are redirected to
HTTPS. Redirection of your browser to use HTTPS may be
transparent depending on your browser’s capabilities.
HP Jetdirect embedded print servers, by factory default, are
configured to allow HTTPS or HTTP.
Although not recommended, you may choose to accept both HTTPS
and HTTP communications that are not secure by disabling
(clearing) the Encrypt All Web Communication checkbox.
To support the use of HTTPS communications, a Jetdirect
certificate must be installed. A factory-default, self-signed
certificate is preinstalled for initial use. Click the Configure button
to update the preinstalled certificate, or to install a new one. For
more information, see Configuring Certificates.
The minimum encryption strength that will be allowed must be
specified when using a Jetdirect certificate. You may select Low
(default), Medium, or High encryption strength. For example,
selecting Low will allow medium or high encryption levels to be
used whereas selecting High will only allow high encryption levels.
For each encryption strength, ciphers are specified to identify the
weakest cipher allowed. Early browsers may only support 40-bit
(Low) encryption levels.
ENWW
Using the Embedded Web Server 126
Note
Cipher suites support different levels of encryption
strength. The cipher suites currently supported for
encryption and decryption are DES (Data
Encryption Standard, 56-bit), RC4 (40-bit or
128-bit), and 3DES (168-bit).
SNMP
Use this tab to enable or disable SNMP v1, v2c and v3 agents on
the print server, depending on the print server model. Value-based
print servers do not support an SNMP v3 agent. For a description
of SNMP selections, see Table 4.4.
SNMP v3. The HP Jetdirect print server includes an SNMP v3
(Simple Network Management Protocol, version 3) agent, for
enhanced SNMP security. The SNMP v3 agent employs a
User-based Security Model for SNMP v3 (RFC 2574), which
features user-authentication and data privacy through encryption.
The SNMP v3 agent is enabled when an initial SNMP v3 account
on the print server is created. Once the account is created, any
SNMP management application, if properly configured, can access
or disable the account.
CAUTION
If you use HP Web Jetadmin to manage your
devices, you should use HP Web Jetadmin to
seamlessly configure SNMP v3 and other security
settings on the print server.
Using the embedded Web server to create the
SNMP v3 account will erase any existing SNMP v3
accounts. In addition, the SNMP v3 account
information will need to be implemented on the
SNMP management application.
You may create the initial account by specifying the HMAC-MD5
authentication and CBC-DES data privacy encryption keys used by
your SNMP v3 management application.
ENWW
Using the Embedded Web Server 127
CAUTION
You should disable Telnet and ensure secure
embedded Web communications through HTTPS is
enabled before creating the initial SNMP v3
account. This will help to prevent access or
interception of account information over a
connection that is not secure.
SNMP v1 and v2c agents can coexist with the SNMP
v3 agent. However, to fully secure SNMP access,
you should disable SNMP v1 and v2c.
Other
Use this tab to enable or disable various protocols supported by the
print server for printing, print services, and management. See
Table 4.9.
Table 4.9
Other Protocols (1 of 2)
Item
Description
Enable Print
Protocols
Enable or disable network protocols supported by the print
server: IPX/SPX, AppleTalk, DLC/LLC. For example, you
should disable unused protocols to prevent printer access
using those protocols.
For network environments that use these protocols, see
Chapter 1.
Because it uses TCP/IP, the embedded Web server does
not allow disabling TCP/IP.
Enable Print Services
ENWW
Enable or disable various print services supported by the
print server: port 9100, LPD (Line Printer Daemon), IPP
(Internet Printing Protocol), FTP (File Transfer Protocol).
Disable unused print services to prevent access through
those services.
Using the Embedded Web Server 128
Table 4.9
Other Protocols (2 of 2)
Item
Description
Enable Device
Discovery
Enable or disable device discovery protocols supported by
the print server:
SLP (Service Location Protocol).
If enabled (checked), the HP Jetdirect print server
sends SLP packets, which are used by system
applications for automated discovery and installation.
If disabled (cleared), SLP packets are not sent.
mDNS (multicast Domain Name System).
If enabled (checked), Multicast Domain Name System
(mDNS) services are provided. mDNS is typically used
on small networks for IP address and name resolution
(through UDP port 5353) where a conventional DNS
server is not used.
Multicast IPv4.
If enabled (checked), the print server will send and
receive IP version 4 multicast packets.
Enable Management
Protocols
Enable or disable Telnet access and the use of FTP to
upgrade firmware on the print server. Telnet and FTP are
not secure protocols and device passwords may be
intercepted.
Enable or disable RCFG, a remote IPX configuration
protocol used by older management tools to configure
Novell NetWare parameters. Disabling RCFG does not
affect direct mode printing using IPX/SPX.
Disabling Telnet, FTP firmware upgrades, and RCFG is
recommended.
ENWW
Using the Embedded Web Server 129
802.1x Authentication
This page allows you to configure 802.1X authentication settings on
the Jetdirect print server as required for client authentication on
your network. In addition, you can reset the 802.1X authentication
settings to factory-default values.
Use caution when changing the 802.1X
authentication settings; you may lose your
connection. If communication with the
printer/MFP device is lost, you may need to reset
the print server to a factory-default state and then
reinstall the device.
CAUTION
For most 802.1X networks, the infrastructure components (such as
LAN switches) must use 802.1X protocols to control a port's access
to the network. If these ports do not allow partial or guest access,
the print server may need to be configured with your 802.1X
parameters prior to connection. To configure initial 802.1X settings
before connecting to your network, you can use an isolated LAN, or
a direct computer connection using a cross-over cable.
The supported 802.1X authentication protocols and associated
configuration depend on the print server model and firmware
version. This model and version support settings as listed in
Table 4.10.
Table 4.10
802.1X Configuration Settings
Item
Description
Enable Protocols
Enable (check) the supported protocols used for 802.1X
authentication on your network.
●
User Name
ENWW
PEAP: (Protected Extensible Authentication Protocol).
PEAP uses digital certificates for network server
authentication and passwords for client authentication.
PEAP requires an EAP User Name, EAP Password,
and CA Certificate. Dynamic encryption keys are also
used.
Specify an EAP/802.1X user name (up to 128 characters
maximum) for this device. The default user name is the
default host name of the print server, NPIxxxxxx, where
xxxxxx are the last six digits of the LAN hardware (MAC)
address.
Using the Embedded Web Server 130
Table 4.10
802.1X Configuration Settings
Item
Description
Password,
Specify an EAP/802.1X password (up to 128 characters
maximum) for this device. Enter the password again in the
Confirm Password field to ensure it was properly entered.
Confirm Password
Server ID
Specify the Server ID validation string that identifies and
validates the authentication server. The Server ID string is
specified on the digital certificate issued by a trusted
Certificate Authority (CA) for the authentication server. The
entry may be a partial string unless the Require Exact
Match checkbox is enabled.
Encryption Strength
Specify the minimum encryption strength that can be used
during communications with the authentication server. You
may select Low, Medium, or High encryption strength. For
each encryption strength, ciphers are specified to identify
the weakest cipher allowed.
Early browsers may only support 40-bit (Low) encryption
levels.
CA Certificate
To validate the authentication server’s identity, a CA (or
“Root”) certificate must be installed on the print server. This
CA certificate must be issued by the Certificate Authority
who signed the authentication server’s certificate.
To configure or install a CA certificate, click Configure.
Authentication
Behavior:
Reauthenticate on
Apply
Enable (check) or disable (clear) this checkbox to control
authentication when you click Apply on this page,
assuming valid configuration entries have been made.
Note: This parameter does not apply to security or other
configuration wizards. Changes to parameters through
a wizard will always cause the print server to
reauthenticate.
If disabled (default), the print server will not attempt
reauthentication unless configuration changes cause the
print server to disconnect and reconnect to the network.
If enabled, the print server will always try to reauthenticate
using the configuration values set.
ENWW
Using the Embedded Web Server 131
Network Statistics
This page is used to display counter values and other status
information currently stored on the HP Jetdirect print server. This
information is often useful to diagnose performance and operational
problems associated with the network or network device.
Protocol Info
This page provides a list of various network configuration settings
on the HP Jetdirect print server for each protocol. Use these lists to
validate your desired settings.
Configuration Page
This page provides a view of the HP Jetdirect configuration page
that contains a summary of HP Jetdirect status and configuration
information. The contents of this page are described in Chapter 9.
ENWW
Using the Embedded Web Server 132
Other Links
Help
The Help page in the Networking tab provides a quick summary
of the HP Jetdirect embedded Web server features. In the Help
page, a link to the latest information on the embedded Web server
is provided (Internet access is required).
Support
The information displayed on the Support page depends on the
values configured in the Support Info tab in the Other Settings
menu. Support information may include the name and telephone
number of a Support person, or Web links to Product and Technical
Support pages. The default Web links include HP online support
and HP product information Web pages (Internet access is
required).
HP Home
HP Home provides a link to Hewlett-Packard’s home page on the
HP Web site (Internet access is required). This link may also be
accessed by clicking on the HP logo.
HP Web Jetadmin
HP Web Jetadmin is HP's premier network peripheral
management software tool.
A link to HP Web Jetadmin will be displayed only if HP Web
Jetadmin has discovered this device through an “Integration URL”.
You can then use HP Web Jetadmin to provide enhanced
management capabilities for this and other HP Jetdirect-connected
devices on your network.
ENWW
Using the Embedded Web Server 133
5
Configuring for LPD Printing
Introduction
The HP Jetdirect print server contains an LPD (Line Printer
Daemon) Server module to support LPD printing. This chapter
describes how to configure the HP Jetdirect print server for use
with various systems that support LPD printing. These
instructions include:
●
LPD on UNIX Systems
Configuring BSD-based UNIX systems using LPD
■ Configuring print queues using the SAM utility (HP-UX
systems)
LPD on Windows NT/2000/Server 2003 Systems
LPD on Windows XP Systems
LPD on Mac OS Systems
■
●
●
●
Note
For other systems not listed, refer to your operating
system documentation and online help.
Recent versions of Novell NetWare (NetWare 5.x
with NDPS 2.1 or greater) support LPD printing.
For setup instructions and support, refer to the
documentation supplied with NetWare. Also, refer
to the Technical Information Documentation (TID)
on Novell’s support Web site.
ENWW
134
About LPD
Line Printer Daemon (LPD) refers to the protocol and programs
associated with line-printer spooling services that may be installed
on various TCP/IP systems.
Some of the widely used systems in which the HP Jetdirect print
server functionality supports LPD include:
●
●
●
●
●
●
●
Berkeley-based (BSD) UNIX systems
HP-UX
Solaris
IBM AIX
Linux
Windows NT/2000
Mac OS
The UNIX configuration examples in this section show the syntax
for BSD-based UNIX systems. The syntax for your system may vary.
See your system documentation for the correct syntax.
The LPD functionality can be used with any host
implementation of LPD that complies with the
RFC 1179 document. The process for configuring
printer spoolers, however, may differ. See your
system documentation for information on
configuring these systems.
Note
The LPD programs and protocol include the following:
Table 5.1
LPD Programs and Protocols
Program Name
Purpose of Program
lpr
Queues jobs for printing
lpq
Displays print queues
lprm
Removes jobs from print queues
lpc
Controls print queues
lpd
Scans and prints the files if the specified printer is
connected to the system.
If the specified printer is connected to another
system, this process forwards the files to an lpd
process on the remote system where the files are
to be printed.
ENWW
Configuring for LPD Printing 135
Requirements for Configuring LPD
Before you can use LPD printing, your printer must be properly
connected to the network through the HP Jetdirect print server, and
you must have print server status information. This information is
listed on the HP Jetdirect printer configuration page. If you have
not printed a configuration page from your printer, see your printer
documentation for instructions. You must also have the following:
●
An operating system that supports LPD printing.
●
Superuser (root) or Administrator access to your system.
●
The LAN hardware address (or station address) of the print
server. This address is printed with print server status
information on the HP Jetdirect configuration page and is of
the form:
HARDWARE ADDRESS: xxxxxxxxxxxx
where x is a hexadecimal digit (for example, 0001E6123ABC).
●
An IP address configured on the HP Jetdirect print server.
LPD Setup Overview
The following steps are necessary to configure the HP Jetdirect
print server for LPD printing:
1. Setting up IP parameters.
2. Setting up print queues.
3. Printing a test file.
The following sections provide detailed descriptions for each step.
Step 1. Setting Up IP Parameters
To set up IP parameters on the HP Jetdirect print server, refer to
Chapter 3. For more information on TCP/IP networks, refer to
Appendix A.
ENWW
Configuring for LPD Printing 136
Step 2. Setting Up Print Queues
You must set up a print queue for each printer or printer personality
(PCL or PostScript) you use on your system. Also, different queues
are required for formatted and unformatted files. The queue names
text and raw in the following examples (see rp tag) have special
meanings.
Table 5.2
Supported Queue Names
raw, raw1, raw2, raw3
no processing
text, text1, text2, text3
carriage return added
auto, auto1, auto2, auto3
automatic
binps, binps1, binps2, binps3
binary PostScript
<user-defined>
defined by user; optionally including
command strings before and after the print
data
The line printer daemon on the HP Jetdirect print server treats
data in the text queue as unformatted text or ASCII, and adds a
carriage return to each line before sending it to the printer. (Note
that the actual observed behavior is that a PCL line termination
command (value of 2) is issued at the beginning of the job.)
The line printer daemon treats data in the raw queue as formatted
files in PCL, PostScript, or HP-GL/2 languages and sends the data
without change to the printer.
Data in the auto queue will be automatically processed as text or
raw, as appropriate.
For the binps queue, the PostScript interpreter interprets the print
job as binary PostScript data.
For user-defined queue names, the line printer daemon adds
user-defined strings before or after the print data (user-defined
print queues can be set up through Telnet, Chapter 3, or the
embedded Web server, Chapter 4).
If the queue name is not one of the above, the HP Jetdirect print
server assumes it to be raw1.
Step 3. Printing a Test File
Print a test file using the LPD commands. For instructions, see the
information provided for your system.
ENWW
Configuring for LPD Printing 137
LPD on UNIX Systems
Configuring Print Queues for BSD-based Systems
Edit the /etc/printcap file to include the following entries:
printer_name|short_printer_name:\
:lp=:\
:rm=node_name:\
:rp=remote_printer_name_argument:\ (this should be
text, raw, binps, auto, or user-defined)
:lf=/usr/spool/lpd/error_log_filename:\
:sd=/usr/spool/lpd/printer_name:
where printer_name identifies the printer to the user,
node_name identifies the printer on the network, and
remote_printer_name_argument is the print queue
designation.
For more information on printcap, see the printcap man page.
Example: Printcap Entries for ASCII or Text Printers
lj1_text|text1:\
:lp=:\
:rm=laserjet1:\
:rp=text:\
:lf=/usr/spool/lpd/lj1_text.log:\
:sd=/usr/spool/lpd/lj1_text:
ENWW
Configuring for LPD Printing 138
Example: Printcap Entries for PostScript, PCL, or HP-GL/2
Printers
lj1_raw|raw1:\
:lp=:\
:rm=laserjet1:\
:rp=raw:\
:lf=/usr/spool/lpd/lj1_raw.log:\
:sd=/usr/spool/lpd/lj1_raw:
If your printer does not support automatic switching between
PostScript, PCL, and HP-GL/2 languages, use the printer's control
panel (if the printer has one) to select the printer language or rely
on the application to select the printer language via commands
embedded in the print data.
Make sure your users know the printer names for the printers, since
they must type those names on the command line for printing.
Create the spooling directory by making the following entries. At
the root directory, type:
mkdir /usr/spool/lpd
cd /usr/spool/lpd
mkdir printer_name_1 printer_name_2
chown daemon printer_name_1 printer_name_2
chgrp daemon printer_name_1 printer_name_2
chmod g+w printer_name_1 printer_name_2
where printer_name_1 and printer_name_2 refer to the
printers to be spooled. You may spool several printers. The following
example shows the command to create the spooling directories for
printers used for text (or ASCII) printing and for PCL or PostScript
printing.
Example: Creating Spooling Directory for Text and
PCL/PostScript Printers
mkdir /usr/spool/lpd
cd /usr/spool/lpd
mkdir lj1_text lj1_raw
chown daemon lj1_text lj1_raw
chgrp daemon lj1_text lj1_raw
chmod g+w lj1_text lj1_raw
ENWW
Configuring for LPD Printing 139
Configuring Print Queues Using SAM (HP-UX systems)
On HP-UX systems you can use the SAM utility to configure remote
print queues for printing “text” (ASCII) files or “raw” (PCL,
PostScript, or other printer language) files.
Before you execute the SAM program, select an IP address for
the HP Jetdirect print server and set up an entry for it in the
/etc/hosts file on your system running HP-UX.
1. Start the SAM utility as a superuser.
2. Select Peripheral Devices from the Main menu.
3. Select Printers/Plotters from the Peripheral Devices menu.
4. Select Printers/Plotters from the Printers/Plotters menu.
5. Select Add a Remote Printer from the Actions list, then select
a printer name.
Examples: my_printer or printer1
6. Select a remote system name.
Example: jetdirect1 (node name of the HP Jetdirect print
server)
7. Select a remote printer name.
Type text for ASCII or raw for PostScript, PCL, or HP-GL/2.
Type auto to let the line printer daemon select automatically.
Type binps to instruct the PostScript interpreter to interpret
the print job as binary PostScript data.
Type the name of a user-defined queue to include pre-defined
strings before and/or after the print data (user-defined print
queues can be set up through Telnet, Chapter 2, and the
embedded Web server, Chapter 4).
8. Check for a remote printer on a BSD system. You must type Y.
9. Click OK at the bottom of the menu. If the configuration is
successful, the program prints the message:
The printer has been added and is ready to accept
print requests.
ENWW
Configuring for LPD Printing 140
10. Click OK and select Exit from the List menu.
11. Select Exit Sam.
Note
By default, the lpsched is not running. Make sure
you turn the scheduler on when you set up your
print queues.
Printing a Test File
To verify that the printer and print server connections are correct,
print a test file.
1. At the UNIX system prompt type:
lpr -Pprinter_name file_name
where printer_name is the designated printer and
file_name refers to the file to be printed.
Examples (for BSD-based systems):
Text File: lpr -Ptext1 textfile
PCL File: lpr -Praw1 pclfile.pcl
PostScript File: lpr -Praw1 psfile.ps
HP-GL/2 File: lpr -Praw1 hpglfile.hpg
For HP-UX systems, substitute lp -d for lpr -P.
2. To get print status, type the following at the UNIX prompt:
lpq -Pprinter_name
where printer_name is the designated printer.
Examples (for BSD-based systems):
lpq -Ptext1
lpq -Praw1
For HP-UX systems, substitute lpstat for lpq -P to get print
status.
This completes the process for configuring the HP Jetdirect print
server to use LPD.
ENWW
Configuring for LPD Printing 141
LPD on Windows NT/2000/Server 2003
Systems
This section describes how to configure Windows NT/2000 networks
to use the HP Jetdirect LPD (Line Printer Daemon) services.
The process consists of two parts:
●
●
Installing TCP/IP software (if not already installed).
Configuring a network LPD printer.
Installing TCP/IP Software
This procedure lets you check whether you have TCP/IP installed
on your Windows NT system, and to install the software if
necessary.
Note
You may need your Windows System distribution
files or CD-ROMs to install TCP/IP components.
1. To check whether you have Microsoft TCP/IP Printing protocol
and TCP/IP printing support:
■
Windows 2000/Server 2003—
Windows 2000: Click Start, Settings, Control Panel. Then
double-click the Network and Dial-up Connections folder.
Double-click the Local Area Connection for your network
and click Properties.
Server 2003: Click Start, All Programs, Accessories,
Communications, and open the Network Connections
folder. Double-click the Local Area Connection for your
network and click Properties.
If Internet Protocol (TCP/IP) is listed and enabled in the list
of components used by this connection, the necessary software
is already installed. (Proceed to “Configuring a Network
Printer for Windows 2000/Server 2003 Systems”). If not, go to
step 2.
■
ENWW
NT 4.0—Click Start, Settings, Control Panel. Then
double-click the Network option to display the Network
dialog box.
Configuring for LPD Printing 142
If TCP/IP Protocol is listed in the Protocols tab, and
Microsoft TCP/IP Printing is listed in the Services tab, you
have already installed the necessary software. (Proceed to
“Configuring a Network Printer for Windows NT 4.0
Systems.”) If not, go to step 2.
2. If you have not previously installed the software:
■
Windows 2000/Server 2003—In the Local Area Connection
Properties window, click Install. In the Select Network
Component Type window, select Protocol and click Add to
add the Internet Protocol (TCP/IP).
Follow the instructions on the screen.
■
NT 4.0—Click the Add button for each tab and install the
TCP/IP Protocol and the Microsoft TCP/IP Printing
service.
Follow the instructions on the screen.
When prompted, type the full path to the Windows NT
distribution files (you may need your Windows NT
workstation or server CD-ROM).
3. Enter TCP/IP configuration values for the computer:
■
Windows 2000/Server 2003—On the General tab in the Local
Area Connection Properties window, select Internet
Protocol (TCP/IP) and click Properties.
■
NT 4.0—You may be automatically prompted for TCP/IP
configuration values. If not, select the Protocols tab in the
Networks window and select TCP/IP Protocol. Then click
Properties.
If you are configuring a Windows server, type the IP address,
default gateway address, and subnet mask in the appropriate
spaces.
If you are configuring a client, check with your Network
Administrator to learn whether you should enable automatic
TCP/IP configuration or whether you should type a static IP
address, default gateway address, and subnet mask in the
appropriate spaces.
4. Click OK to exit.
5. If prompted, exit Windows and restart your computer for the
changes to take effect.
ENWW
Configuring for LPD Printing 143
Configuring a Network Printer for
Windows 2000/Server 2003 Systems
Set up the default printer by performing the following steps.
1. Verify that the Print Services for Unix is installed (required for
LPR port availability):
a. On Windows 2000, click Start, Setup, and Control
Panel. Double-click the Network and Dial-up
Connections folder.
On Server 2003: Click Start, All Programs, Accessories,
Communications, and open the Network Connections
folder.
b. Click the Advanced menu and select Optional
Networking Components.
c.
Select and enable Other Network File and Print
Services.
d. Click Details, and verify that Print Services for Unix is
enabled. If not, enable it.
e.
Click OK, and then Next.
2. On Windows 2000, open the Printers folder (from the Desktop,
click Start, Settings, and Printers).
On Server 2003, open the Printers and Faxes folder (from the
Desktop, click Start, Printers and Faxes).
3. Double-click Add Printer. From the Add Printer Wizard
welcome screen, click Next.
4. Select Local printer, and disable automatic detection for Plug
and Play printer installation. Click Next.
5. Choose Create a new port, and select LPR Port. Click Next.
6. In the Add LPR compatible printer window:
a. Enter the DNS name or IP address of the HP Jetdirect
print server.
b. For the name of the printer or print queue on the HP
Jetdirect print server, enter (in lowercase) raw, text,
auto, binps, or the name of a user-defined print queue
(user-defined print queues can be set up through the
embedded Web server, see Chapter 4).
ENWW
Configuring for LPD Printing 144
c.
Note
Then click OK.
The HP Jetdirect print server treats text files as
unformatted text or ASCII files. Files that are raw
are formatted files in PCL, PostScript, or HP-GL/2
printer languages.
If the queue type is binps, the PostScript interpreter
is instructed to interpret the print job as binary
PostScript data.
7. Select the Manufacturer and Printer model. (If necessary, click
Have Disk and follow the instructions to install the printer
driver.) Click Next.
8. Choose to keep the existing driver, if prompted. Click Next.
9. Enter a printer name, and choose whether this printer will be
the default printer. Click Next.
10. Choose whether this printer will be available to other
computers. If shared, enter a share name that identifies the
printer to other users. Click Next.
11. If desired, enter a location and other information for this printer.
Click Next.
12. Choose whether to print a test page, and click Next.
13. Click Finish to close the wizard.
ENWW
Configuring for LPD Printing 145
Configuring a Network Printer for
Windows NT 4.0 Systems
At the Windows NT 4.0 system, set up the default printer by
performing the following steps.
1. Click Start, select Settings, and click Printers. The Printers
window opens.
2. Double-click Add Printer.
3. Select My Computer, then click Next.
4. Click Add Port.
5. Select LPR Port, and click New Port.
6. In the Name or address of server providing lpd box, type the IP
address or DNS name of the HP Jetdirect print server.
Note
NT clients can enter the IP address or name of the
NT server that is configured for LPD printing.
7. In the Name of printer or print queue on that server box, type (in
lowercase) raw, text, binps, auto, or the name of a
user-defined print queue (user-defined print queues can be set
up through the embedded Web server, see Chapter 4). Then
click OK.
The HP Jetdirect print server treats text files as unformatted
text or ASCII files. Files that are raw are formatted files in PCL,
PostScript, or HP-GL/2 printer languages. If the queue type is
binps, the PostScript interpreter is instructed to interpret the
print job as binary PostScript data.
8. Ensure that the port is selected in the Add Printer list of the
available ports, then click Next.
9. Follow the remaining instructions on the screen to complete the
configuration.
ENWW
Configuring for LPD Printing 146
Verifying the Configuration
From within Windows NT, print a file from any application. If the
file prints correctly, the configuration was successful.
If the print job is not successful, try printing directly from DOS
using the following syntax:
lpr -S<ipaddress> -P<queuename> filename
where ipaddress is the IP address of the print server, queuename
is the name “raw” or “text” and filename is the file you wish to
print. If the file prints correctly, the configuration was successful.
If the file does not print, or prints incorrectly, see Chapter 8.
Printing from Windows Clients
If the LPD printer on the Windows server is shared, Windows
clients can connect to the printer on the Windows server using the
Windows Add Printer utility in the Printers folder.
LPD on Windows XP Systems
This section describes how to configure Windows XP networks to
use the HP Jetdirect LPD (Line Printer Daemon) services.
The process consists of two parts:
●
●
Adding Windows Optional Networking Components
Configuring a Network LPD Printer.
Adding Windows Optional Networking
Components
1. Click Start.
2. Click Control Panel.
3. Click Network and Internet Connections.
4. Click the Network Connections icon.
5. Select Advanced in the top menu bar. In the drop-down list,
select Optional Networking Components.
ENWW
Configuring for LPD Printing 147
6. Select Other Network File and Print Services and click
Next. (If you select Details before selecting Next, you will see
“Print Services for UNIX (R)” as a component of Other Network
File and Print Services.) The files being loaded will be shown.
7. Close the Network Connections window. LPR port is now an
option in the Properties of a printer under Ports, Add Port.
Configuring a Network LPD Printer
Adding a New LPD Printer
1. Open the Printers folder (from the desktop, click Start,
Printers and Faxes).
2. Click Add Printer. On the Add Printer Wizard welcome screen,
click Next.
3. Select Local printer, then uncheck the automatic detection for
Plug and Play printer installation. Click Next.
4. Select Create a new port, and select LPR Port from the
pull-down menu. Click Next.
5. In the Add LPR Compatible Printer window, do the following:
a. Type the Domain Name System (DNS) name or Internet
protocol (IP) address of the HP Jetdirect print server.
b. Type (in lowercase) the name of the print queue for the HP
Jetdirect print server (for example: raw, text, auto, or
binps.)
c.
Click OK.
6. Select the manufacturer and printer model. (If necessary, click
Have Disk and follow the instructions to install the printer
driver.) Click Next.
7. Click Yes to keep the existing driver, if prompted. Click Next.
8. Type a printer name and (if desired) click this printer as default
(if desired). Click Next.
9. Select whether to share this printer with other network
computers (for example, if your system is a printer server). If
shared, type a share name to identify the printer to other users.
Click Next.
ENWW
Configuring for LPD Printing 148
10. If desired, enter a location and other information for this printer.
Click Next.
11. Click Yes to print a test page, then click Next.
12. Click Finish to close the wizard.
Creating an LPR Port for an Installed Printer
1. Click Start, Printers and Faxes.
2. Right-click the Printer icon, and select Properties.
3. Select the Ports tab and Add Port.
4. Select LPR Port from the Printer Ports dialog box, and select
New Port.
5. In the field labeled Name or address of server providing lpd,
enter the DNS name or IP address of the HP Jetdirect print
server.
6. In the dialog box labeled Name of printer or print queue on that
server, (in lowercase) type the name of the print queue for the
HP Jetdirect print server (for example: raw, text, auto,
binps, or user-specified print queue).
7. Select OK.
8. Select Close and OK to close the Properties box.
ENWW
Configuring for LPD Printing 149
LPD on Mac OS Systems
LaserWriter 8 version 8.5.1 or higher is required in order to support
IP printing on computers running any of the following:
●
Mac OS 8.1 or higher
●
Mac OS 7.5 through Mac OS 7.6.1
●
Desktop Printer Utility 1.0 or later
Note
IP printing in LaserWriter 8 is not available on
Mac OS 8.0.
Assigning an IP Address
Before you can set up a printer for LPR printing, assign an IP
address to the printer or print server. Use the HP LaserJet Utility
to configure the printer IP address as follows:
1. Double-click HP LaserJet Utility in the HP LaserJet folder.
2. Click the Settings button.
3. Select TCP/IP from the scrolling list and then click Edit.
4. Select the desired option. You can automatically obtain the
TCP/IP configuration from either the DHCP server or the
BOOTP server, or you can manually specify the TCP/IP
configuration.
ENWW
Configuring for LPD Printing 150
Setting Up Mac OS
To configure a computer for LPR printing, do the following:
1. Launch the Desktop Printer Utility.
2. Select Printer (LPR) and click OK.
3. In the PostScript Printer Description (PPD) File section, click
Change... and select the PPD for your printer.
4. In the Internet Printer or the LPR Printer section, depending on
your version of the Desktop Printer Utility, click Change....
5. Enter the printer's IP address or domain name for Printer
Address.
6. Enter the queue name, if used. Otherwise, leave it blank.
Note
The queue name is typically raw. Other valid queue
names are text, binps, auto, or a user-defined
queue name (user-defined print queues can be set
up through Telnet or the embedded Web server, see
Chapter 4).
7. Click Verify to verify that the printer was found.
8. Click OK or Create, depending on your version of the Desktop
Printer Utility.
9. Go to the File menu and select Save or use the resulting save
dialog, depending on your version of the Desktop Printer Utility.
10. Enter a name and location for the desktop printer icon and click
OK. The default name is the printer's IP address, and the
default location is on the desktop.
11. Exit the program.
For the latest information on using the HP Jetdirect LPD services
from Mac OS systems, search for “LPR printing” at Apple
Computer's Tech Info Library Web site at http://til.info.apple.com.
ENWW
Configuring for LPD Printing 151
6
FTP Printing
Introduction
FTP (File Transfer Protocol) is a basic TCP/IP connectivity utility
to transfer data between systems. FTP printing is a way to use FTP
to send print files from a client system to an HP Jetdirect-connected
printer. In an FTP printing session, the client connects and sends
a print file to the HP Jetdirect FTP server which in turn passes the
print file to the printer.
The HP Jetdirect FTP server can be enabled or disabled through a
configuration tool, such as Telnet (see Chapter 3) or the embedded
Web server (see Chapter 4).
Requirements
FTP printing described here requires the following:
●
TCP/IP client systems with FTP that complies with RFC 959.
Note
ENWW
For the most recent list of tested systems, visit HP
online support at
www.hp.com/support/net_printing.
152
Print Files
The HP Jetdirect FTP server transfers print files to the printer but
does not interpret them. For proper printing, print files must be in
a language recognized by the printer (such as PostScript, PCL, or
unformatted text). For formatted print jobs, you must first print to
a file from your application using the driver for the selected printer,
then transfer the print file to the printer through an FTP session.
For formatted print files, use binary (image) type transfers.
Using FTP Printing
FTP Connections
Similar to standard FTP file transfers, FTP printing uses two TCP
connections: a control connection and a data connection.
Once an FTP session is opened, it remains active until either the
client closes the connection or the data and control connections
are idle for a time that exceeds the idle timeout period (default is
270 seconds). The idle timeout can be set through various TCP/IP
configuration tools, such as BOOTP/TFTP, Telnet, printer’s control
panel (see Chapter 3), the embedded Web server (see Chapter 4), or
management software.
ENWW
FTP Printing 153
Control Connection
Using standard FTP, a control connection is opened by the client
to the FTP server on the HP Jetdirect print server. FTP control
connections are used to exchange commands between the client
and the FTP server. The HP Jetdirect print server supports up to
four control connections (or FTP sessions) simultaneously. If the
number of allowed connections is exceeded, a message indicating
that service is not available will be displayed.
FTP control connections use TCP port 21.
Data Connection
A second connection, a data connection, is created each time a file
is transferred between the client and the FTP server. The client
controls the creation of a data connection by issuing the commands
that require a data connection (such as FTP ls, dir or put
commands).
Although the ls and dir commands are always accepted, the
HP Jetdirect FTP server supports a single data connection for
printing at a time.
The transmission mode for an FTP data connection with the
HP Jetdirect print server is always in stream mode, which marks
the end-of-file by closing the data connection.
Once a data connection is established, the file transfer type (ASCII
or binary) can be specified. Clients may attempt to autonegotiate a
transfer type, and the default transfer type depends on the client
system (for example, Windows NT may default to ASCII, while
UNIX may default to binary). To specify the transfer type, enter
the bin or ascii command at the FTP prompt.
ENWW
FTP Printing 154
FTP Login
To start an FTP session, enter the following command from a
MS-DOS or UNIX command prompt:
ftp <IP address>
where <IP address> is the valid IP address or node name
configured for the HP Jetdirect print server. See Figure 6.1
Figure 6.1 FTP Login Example
If the connection is successful, a Ready message will be displayed.
After a successful connection, the user is prompted for a login name
and password. The default is the client’s login name. The Jetdirect
FTP server will allow any user name. Passwords are ignored.
If login is successful, a message “230” will be displayed on the client
system. In addition, the available HP Jetdirect ports for printing
will be displayed. HP Jetdirect print servers supported in this guide
provide a single port (Port 1). For a typical FTP printing session,
see “Example of an FTP Session.”
ENWW
FTP Printing 155
Ending the FTP Session
To end an FTP session, type quit or bye.
Prior to ending an FTP session, a Ctrl C command
is recommended to ensure the data connection is
closed.
Note
Commands
Table 6.1 summarizes commands available to the user during an
FTP printing session.
Table 6.1
User Commands for HP Jetdirect FTP Server (1 of 2)
Command
Description
user <username>
<username> specifies a user. Any user will be accepted
and can print to the selected port.
cd <port#>
<port#> selects a port number for printing. For
HP Jetdirect embedded print servers, only port1 is
available.
cd /
/ specifies the root directory of the HP Jetdirect
FTP server.
quit
quit or bye terminates the FTP session with the
HP Jetdirect print server.
bye
dir
ls
dir or ls displays the contents of the current directory.
If this command is typed in the root directory, a list of
available ports for printing is displayed. For HP Jetdirect
embedded print servers, only PORT1 is available.
pwd
Displays the current directory or the current Jetdirect
printing port.
put <filename>
<filename> specifies the file to send to the selected
HP Jetdirect print server port (Port1).
bin
Configures an FTP binary (image) file transfer.
ascii
Configures an FTP ASCII file transfer. HP Jetdirect print
servers support only non-print format control for character
transfers (standard values for spacing and margins are
used).
ENWW
FTP Printing 156
Table 6.1
User Commands for HP Jetdirect FTP Server (2 of 2)
Command
Description
Ctrl C
Press the Ctrl and C keyboard keys simultaneously to
abort the FTP service command and any transfer of data.
The data connection is closed.
rhelp
This command depends on your client system (use rhelp
on UNIX, or remotehelp on Windows NT/2000/Server
2003) and displays a list of FTP system commands
supported by the print server. (Note: The commands
displayed are not user commands. User-accessible
commands depend on the client’s FTP system.)
remotehelp
ENWW
FTP Printing 157
Example of an FTP Session
This is an example of a typical FTP printing session:
C:\> ftp 192.168.45.39
Connected to 192.168.45.39.
220 JD FTP Server Ready
User <192.168.45.39:<none>>: susan_g
001 Username Ok, send identity <email address> as password
Password:
230- Hewlett-Packard FTP Print Server Version 2.0
Directory:
Description:
----------------------------------------------------PORT1
Print to port 1 HP LaserJet 9050
To print a file, use the command: put <filename> [portx]
or cd to a desired port and use: put <filename>.
Ready to print to PORT1
230 User logged in.
ftp> pwd
257 “/” is current directory. <“default port is : /PORT1>
HP LaserJet 9050”
ftp> cd port1
250 Changed directory to “/PORT1”
ftp> pwd
257 “/PORT1” is current directory. “HP LaserJet 9050”
ftp> bin
200 Type set to I. Using binary mode to transfer files.
ftp> put d:\atlas\temp\ftp_test.ps
200 PORT command successful.
150 Opening BINARY mode data connection
226- Ready
226- Processing job
226 Transfer complete
31534 bytes sent in 0.04 seconds <788.35 Kbytes/sec>
ftp> quit
221 Goodbye
C:\>
ENWW
FTP Printing 158
7
Security Features
Introduction
Security features are provided that can help to minimize
unauthorized access to network configuration parameters and other
data stored on HP Jetdirect print servers. The features may differ
depending on the version of firmware resident on the print server.
CAUTION
Although these features can help to minimize
unauthorized access to stored data and
configuration parameters on HP Jetdirect print
servers, the prevention of unauthorized access
cannot be guaranteed.
For advanced security needs, contact
HP Consulting services.
Table 7.1 summarizes the basic security features provided with
HP Jetdirect print servers.
ENWW
159
Table 7.1
Summary of HP Jetdirect Security Features (1 of 3)
Secure Embedded Web Server Management
●
A preinstalled, self-signed digital certificate provides HTTPS (secure HTTP)
access to the embedded Web server from your Web browser. HTTPS (secure
HTTP) provides secure, encrypted communications with your browser.
●
Digital certificates issued by a trusted third party can be installed on the print
server, allowing it to be configured as a trusted site.
●
Using HTTPS, the embedded Web server provides configuration and
management of network parameters and protocols through a secure channel.
●
An HP Jetdirect Security Configuration Wizard provides an easy-to-use
interface to configure security settings.
Network Protocol Control
●
Network printing, printing services, device discovery, and management
protocols on the HP Jetdirect print server can be enabled or disabled. By
disabling unused or unnecessary protocols, unauthorized access through
applications that use these protocols can be prevented.
●
Protocols may be enabled or disabled through Telnet, embedded Web server,
and HP Web Jetadmin.
IP Administrator Password
●
Used by Telnet, HP Web Jetadmin, and the embedded Web server to control
access to HP Jetdirect configuration parameters.
●
Up to 16 alphanumeric characters may be used.
●
Configured on the HP Jetdirect print server using TFTP (Chapter 3), Telnet
(Chapter 3), embedded Web server (Chapter 4) services, or HP Web Jetadmin.
Up to 16 alphanumeric characters are allowed.
●
If configured through the embedded Web server, may be synchronized as the
SNMP Set Community Name used in HP Web Jetadmin SNMP v1/v2c Set
commands.
●
Cleared by cold reset of the print server to factory default settings.
ENWW
Security Features 160
Table 7.1
Summary of HP Jetdirect Security Features (2 of 3)
IP Access Control List
●
Specifies up to 10 host systems, or networks of host systems, that are allowed
access to the HP Jetdirect print server and the attached network device.
●
Access is generally limited to host systems specified in the list.
●
By factory default, host systems that use HTTP (for example, using the
embedded Web server or IPP) are not checked against entries in the Access
List and are allowed access. However, HTTP host access can be disabled
through the embedded Web server.
●
If the list is empty, then all hosts are allowed access.
●
Configured on the HP Jetdirect print server using TFTP (Chapter 3), Telnet
(Chapter 3), embedded Web server (Chapter 4), or management software.
Telnet Control
●
Telnet may be disabled through the embedded Web server (see Chapter 4).
Telnet access is not secure.
EAP/802.1X Authentication
●
ENWW
Certificate management for X.509 digital certificates is provided through the
embedded Web server, for both client-based and server-based authentication.
(Installed certificates are limited to 3KB. A single Certificate Authority (CA)
certificate may be installed.)
Security Features 161
Table 7.1
Summary of HP Jetdirect Security Features (3 of 3)
SNMP v1/v2c Set Community Name (IP/IPX)
(SNMP v1/v2c only)
●
A password on the HP Jetdirect print server that allows incoming SNMP Set
commands (for example, from management software) to write (or set)
HP Jetdirect configuration parameters.
●
For a user-assigned Set Community Name, SNMP Set commands must
contain the user-assigned name, which is authenticated by the print server
before the command is performed.
●
On IP networks, authentication of SNMP Set commands may be further
restricted to systems identified on the access control list.
●
Configured on the HP Jetdirect print server using TFTP (Chapter 3), Telnet
(Chapter 3), embedded Web server (Chapter 4), or Management application
services.
●
SNMP v1/v2c uses plain text and can be disabled.
SNMP v3
(For full-featured print servers only)
●
An SNMP v3 agent on the HP Jetdirect print server provides secure, encrypted
communications with an SNMP v3 management application, such as HP Web
Jetadmin.
●
The print server supports creation of an SNMP v3 account when it is enabled
through the embedded Web server. The account information can be integrated
on SNMP v3 management applications.
●
The print server supports seamless SNMP v3 account creation and
management from HP Web Jetadmin.
HP Web Jetadmin Password and Profiles
●
Access control to Jetdirect configuration parameters through the Jetdirect IP
Administrator password, which may be configured from HP Web Jetadmin,
Telnet, or embedded Web server. For instructions, refer to the HP Web
Jetadmin online help.
●
HP Web Jetadmin provides access control through User Profiles. User Profiles
allow password protection for individual profiles and controlled access to
HP Jetdirect and printer features. For more information, refer to the HP Web
Jetadmin online help.
●
(For full-featured print servers only) HP Web Jetadmin can seamlessly enable
the SNMP v3 agent on the print server, and create an SNMP v3 account for
secure, encrypted management.
Printer Control Panel Lock
●
ENWW
Selected HP printers provide a control panel lock that prevents access to
HP Jetdirect embedded print server configuration parameters. In many cases,
this lock may be set remotely by management applications (such as HP Web
Jetadmin). To determine whether your printer supports a control panel lock,
refer to your printer documentation.
Security Features 162
Using Security Features
Access to HP Jetdirect configuration parameters can be controlled
through combined use of the available security features. Table 7.2
provides examples of various settings and the associated level of
access control.
Table 7.2
Settings for Access Control
Settings
●
Accessible through HTTP
(embedded Web server),
SNMP v1/v2c applications, or
Telnet
Level of Access Control
Low
Best suited for trusted environments.
Any system can access the HP Jetdirect
configuration parameters through the embedded
Web server, Telnet, or SNMP management
software. Passwords are not required.
●
Administrator password
not set
●
Default SNMP v1/v2c
community names used
●
No authentication or
encryption
●
Access control list empty
●
Administrator password set
Medium
●
User-specified SNMP v1/v2
Set Community Name set
Limited security for non-trusted environment.
●
●
The Access Control List
contains host entries and
checks HTTP connections
Telnet and other non-secure
protocols disabled.
ENWW
If the Administrator password and SNMP v1/v2c
Set Community Name are known, access is
limited to:
●
systems listed in the Access Control List, and
●
SNMP v1/v2c management applications
Security Features 163
Table 7.2
Settings for Access Control
Settings
Level of Access Control
●
Unused protocols disabled
High
●
HTTPS access enabled using
certificates issued by trusted
sources
High security for non-trusted, professionally
managed environments.
●
Jetdirect print servers
configured for 802.1x EAP
authentication
●
SNMP v3 enabled, SNMP
v1/v2c disabled
●
Telnet disabled
●
Passwords set
●
The Access Control List
contains specified entries and
HTTP connections are
checked
●
Printer control panel locked
ENWW
Access is limited to authenticated hosts that are
specified in the Access Control List. Encryption
provides data privacy; network communication in
plain-text is not used.
CAUTION: Power-on settings (for example,
configurations from a BootP/TFTP or
DHCP/TFTP server) may change the print
server’s settings when it is power-cycled. Be sure
to confirm your intended power-on settings.
Security Features 164
8
Troubleshooting the HP Jetdirect
Print Server
Introduction
This chapter describes how to diagnose and correct problems
associated with the HP Jetdirect print server.
A flowchart guides you to the correct procedures for troubleshooting
the following:
●
●
●
Printer problems
HP Jetdirect print server problems
Network-related problems
To troubleshoot your HP Jetdirect print server, you may need the
following items:
●
●
●
●
A Jetdirect configuration page (see Chapter 9)
A Printer Configuration or Diagnostic Page
Documentation that came with your printer/MFP
The diagnostics tools and utilities provided with your network
software (for example, Novell NetWare utilities, TCP/IP utilities,
or network printer management applications such as HP Web
Jetadmin)
Note
For frequently asked questions on using the HP
Jetdirect print server, visit:
http://www.hp.com/support/net_printing.
ENWW
165
Resetting to Factory Defaults
Parameters on the HP Jetdirect print server (for example, the
IP address) can be reset to factory default values using the following
procedures:
CAUTION
●
A Jetdirect X.509 certificate, installed for SSL/TLS
secure Web services, will be saved over a cold reset
to factory default values. However, a Certificate
Authority (CA) certificate installed to validate a
network authentication server will not be saved.
HP LaserJet Printer with Embedded Print Server
In most cases, the HP Jetdirect print server can be reset to
factory defaults when a cold-reset is performed on the printer.
For several HP LaserJet printers, a cold-reset is performed by
power cycling the printer while pressing the Start, or
Pause/Resume, button. For other printers, refer to your printer
manuals. Or, visit http://www.hp.com/go/support and search for
document file bpj02300.html.
Note
Some printers provide a factory reset option for
the printer through the printer’s control panel.
However, this reset option for the printer may not
reset the HP Jetdirect print server. When you
attempt to reset to factory default values, print a
Jetdirect configuration page to confirm that
factory-reset values have been assigned.
CAUTION
Resetting the printer will reset all printer settings
to their factory defaults. After resetting the printer,
users may be affected due to changes in
user-specified printer settings.
After a cold reset, your network systems may lose their connection
to the printer.
ENWW
Troubleshooting the HP Jetdirect Print Server 166
General Troubleshooting
Troubleshooting Chart - Assessing the Problem
Figure 8.1 Assessing the Problem
ENWW
Troubleshooting the HP Jetdirect Print Server 167
Procedure 1: Verifying that the Printer is On and
Online
Check the following items to make sure the printer is ready to print.
1. Is the printer plugged in and turned on?
Make sure the printer is plugged in and turned on. If the
problem persists, you may have a defective power cable, power
source, or printer.
2. Is the printer online?
The Ready light should be lit. If it is not, press the appropriate
buttons (for example, Start, Pause/Resume, or press to
access the menus) to place the printer online.
3. Is the printer’s control panel display blank (on printers
with displays)?
■
■
Make sure the printer is turned on.
Make sure the printer is not in Power Save mode.
4. Does a message other than Ready appear on the printer control
panel display?
■
■
ENWW
See Procedure 3 in this section for a list of network-related
error messages and corrective actions.
See your printer documentation for a complete list of control
panel messages and corrective actions.
Troubleshooting the HP Jetdirect Print Server 168
Procedure 2: Printing an HP Jetdirect
Configuration Page
The HP Jetdirect configuration page is an important
troubleshooting tool. The information on this page reveals the
status of your network and the HP Jetdirect print server. The
ability to print a configuration page provides an indication that
the printer is operating correctly. See Chapter 9 for information
on the HP Jetdirect configuration page.
Note
For a TCP/IP network, the Jetdirect configuration
page can also be viewed from a browser by accessing
the Jetdirect embedded Web server. See Chapter 4
for more information.
Check the following items if the configuration page does not print.
1. Did you perform the correct steps on the printer to print the
configuration page?
The steps required to print a configuration page vary between
different printers. In most cases, a Jetdirect configuration page
prints when you print a printer configuration page. See your
printer Use guides or control panel Help system.
2. Is there a print job in process?
You cannot print an HP Jetdirect configuration page to the
printer while a print job is in process. Wait until the print job is
complete, then print the configuration page.
3. Does an error message appear on the printer control panel
display?
■
■
ENWW
See Procedure 3 in this section for a list of network-related
error messages and corrective actions.
See your printer documentation for a complete list of control
panel messages and corrective actions.
Troubleshooting the HP Jetdirect Print Server 169
Procedure 3: Resolving Printer Display
Error Messages
Check the following information to resolve network-related error
messages that appear on the printer control panel display. This
information assumes you have already printed a configuration page.
1. Does the printer’s control panel display a Service Error message,
such as 49.XXXX, 79.XXXX or 8X.XXXX error?
■
■
■
■
■
Refer to your printer manuals to interpret the error message.
If you upgraded the Jetdirect firmware recently, power the
print server off/on using the printer’s On/Off switch.
Verify the network cable is properly connected.
Inspect and verify the configuration parameters on the
Jetdirect configuration page. To interpret HP Jetdirect
configuration page messages, see Chapter 9.
Record all error codes and contact your service provider. For
warranty service, include all diagnostic and configuration
pages with the faulty print server.
2. Does INITIALIZING/DO NOT POWER OFF or similar message appear
on the display?
Wait for ten minutes to see if it clears. If it does not, you may
need to replace the HP Jetdirect print server.
3. Does a 40 ERROR appear on the printer’s control panel display?
The HP Jetdirect print server detected a break in the data
communications. When this error occurs, the printer
goes offline.
A break in communications may result from the physical
network connection being disrupted or the server going down.
If your printer has an Auto Continue feature that is disabled or
off, you must press the appropriate key (Start or
Pause/Resume, for example) on the printer after the
communications problem is solved to put the printer back
online. Turning the Auto Continue feature on forces the printer
to reconnect without user intervention. However, this does not
solve the disconnect problem.
ENWW
Troubleshooting the HP Jetdirect Print Server 170
4. Does an Initializing or similar message appear on the display?
This is a normal message. Wait about 3 minutes for the message
to clear, or another message to appear. If another message
appears, see the printer’s documentation and configuration
pages for additional information.
5. Does a message other than READYappear on the display?
See your printer documentation for a complete list of control
panel messages and corrective actions.
ENWW
Troubleshooting the HP Jetdirect Print Server 171
Procedure 4: Resolving Printer Communication
Problems with the Network
Check the following items to verify that the printer is communicating
with the network. This information assumes you have already
printed a Jetdirect configuration page.
1. Are there any physical connection problems between the
workstation or file server and the HP Jetdirect print server?
Verify network cabling, connections, and router configurations.
Verify that network cable lengths meet network specifications.
2. Are your network cables connected properly?
Ensure the network cable connectors are properly connected. If
the problem continues, try a different cable or a different
network port on the hub or switch.
3. For 10/100Base-TX configurations, is autonegotiation properly
configured?
The speed and communication mode on the print server must
match the network for proper operation. Autonegotiation for the
print server may be configured from the printer’s control panel.
If the print server’s RJ-45 network
connector has indicator lights to
identify the connection speed, verify
that either the 10 Mbps or 100 Mbps
light is on.
10 Mbps
100 Mbps
4. Is the print server connected to an
802.1X network and properly configured for EAP/802.1X
operation?
The network must support the Extensible Authentication
Protocol (EAP) method configured for use on the print server.
Verify the configuration of the network’s 802.1X port. If it does
not allow guest or temporary access, you may need to
preconfigure the Jetdirect print server for 802.1X operation
before connection to your network. This is done using an isolated
LAN, or through a direct computer-to-printer connection using
a cross-over cable.
ENWW
Troubleshooting the HP Jetdirect Print Server 172
5. Can the print server’s ping test communicate with any remote
node on the network?
Use the Jetdirect Diagnostic menu from the printer’s control
panel to run a ping test with a remote node. For a description
of the Jetdirect Diagnostic menu, see Appendix B.
6. Have any software applications been added to the network?
Make sure they are compatible and that they are installed
correctly with the correct printer drivers.
7. Are other users able to print?
The problem may be workstation-specific. Check the
workstation network drivers, printer drivers, and redirection
(capture in Novell NetWare).
8. If other users are able to print, are they using the same network
operating system?
Check your system for proper network operating system setup.
9. Is your protocol enabled on the HP Jetdirect print server?
Check the status of your protocol settings on the Jetdirect
configuration page. See Chapter 9 for information on the
configuration page. (On TCP/IP networks, you can also use the
embedded Web server to check status of other protocols. See
Chapter 4.)
10. Is there an error message in the protocol sections on the
Jetdirect configuration page?
See Chapter 9 “HP Jetdirect Configuration Page” for a list of
print server error messages.
11. If you are using Apple EtherTalk, does the printer appear in the
Chooser?
■
■
■
■
ENWW
Verify network and HP Jetdirect settings on the Jetdirect
configuration page. See Chapter 9 for information on the
configuration page.
Confirm the network settings for the printer using the printer
control panel (for printers with control panels).
See the troubleshooting section in the online help for the
HP LaserJet Utility.
Verify the printer has the PostScript option installed.
Troubleshooting the HP Jetdirect Print Server 173
12. If you are on a TCP/IP network, can you use Telnet to print
directly to the printer?
Use the following Telnet command:
telnet <IP address> <port>
where <IP address> is the IP address assigned to the
HP Jetdirect print server and <port> is 9100, the default
printing port of the print server.
In the Telnet session, type in data and press Enter. The data
should print to the printer (a manual form feed may be
required).
13. Does the printer appear in HP Web Jetadmin or other
management application?
■
■
■
Verify network and HP Jetdirect settings on the Jetdirect
configuration page. See Chapter 9 for information on the
configuration page.
Confirm the network settings for the printer using the printer
control panel (for printers with control panels).
See the troubleshooting section in the online help included
with the HP Web Jetadmin software.
14. If you are using Microsoft Windows NT 4.0 (DLC/LLC), does
the printer appear in the Add a Hewlett-Packard Network
Peripheral Port dialog box?
■
■
■
Verify network and HP Jetdirect settings on the Jetdirect
configuration page. See Chapter 9 for information on the
configuration page.
Confirm the network settings for the printer using the printer
control panel (for printers with control panels).
Ensure that the printer is on the same physical subnet and
that it is not connected over a router.
15. On supported systems, does the printer respond to HP Web
Jetadmin?
■
■
■
ENWW
Verify network and HP Jetdirect settings on the Jetdirect
configuration page. See Chapter 9 for information on the
configuration page.
Confirm the network settings for the printer using the printer
control panel (for printers with control panels).
See the troubleshooting section in the online help included
with the HP Web Jetadmin software.
Troubleshooting the HP Jetdirect Print Server 174
Troubleshooting an LPD UNIX
Configuration
The troubleshooting steps below describe how to troubleshoot
printing problems you may have with the HP Jetdirect print server.
1. Print a Jetdirect configuration page.
2. Verify that the IP configuration values are correct. If they are
not, reconfigure the HP Jetdirect print server.
3. Log onto the host system and type:
ping <IP address>
where <IP address> is the IP Address assigned to the printer.
4. If ping fails, make sure the IP Address on the configuration page
is correct. If it is correct, the problem is in the network.
5. If the ping test passes, print a test file. At the UNIX prompt,
type:
lpr -Pprinter_name test_file (BSD-based and Linux
systems)
where printer_name is the name of your printer and
test_file is an appropriate file (ASCII, PCL, PostScript,
HP-GL/2, or text) for the printer defined in the :rp tag in the
printcap file.
6. If the test file does not print, do the following:
■
■
■
■
ENWW
Check printcap entries.
Check printer status (using LPC or a similar process).
Examine the contents of the logfile for this printer, such as
/usr/spool/lpd/error_log_filename
Check other log files, such as
HP-UX: /usr/adm/syslog
Troubleshooting the HP Jetdirect Print Server 175
7. If the test file prints but is formatted incorrectly, do the
following:
■
Check :rp tag in printcap file.
Example 1 (suggested name for an ASCII or text printer):
text | lj1_text:\
:lp=:\
:rm=laserjet1:\
:rp=text:\
:lf=/usr/spool/lpd/ERRORLOG:\
:sd=/usr/spool/lpd/lj1_text:
Example 2 (suggested name for PostScript, PCL, or HP-GL/2
printers):
raw | lj1_raw:\
:lp=:\
:rm=laserjet:\
:rp=raw:\
:lf=/usr/spool/lpd/ERRORLOG:\
:sd=/usr/spool/lpd/lj1_raw:
8. Check that the printer is set up to print the type of test file you
specified: PCL, PostScript, HP-GL/2, or ASCII.
9. Check whether the printer was turned off or lost its LAN
connection in the middle of a print job. LPD queues may become
disabled or stop sending data if the printer is powered off or if
the LAN connection is broken when the printer is in the middle
of printing a job. (Example: power is turned off to fix a
paper jam.)
Use the HP-UX command lpstat -Pqname to find out if the
queue has been disabled after the printer has powered up again
or the connection is reestablished.
The disabled queue can be restarted using the following
command:
HP-UX: enable qname
ENWW
Troubleshooting the HP Jetdirect Print Server 176
9
HP Jetdirect Configuration Page
Introduction
The HP Jetdirect configuration page is an important tool for
managing or troubleshooting HP Jetdirect print servers. This page
provides identification information (such as the HP Jetdirect
model, firmware version, and LAN hardware address), as well
as status and configuration parameters of supported network
protocols. Network statistics gathered by the print server are
also provided.
The HP Jetdirect configuration page may be printed directly on the
attached printer. The format of the Jetdirect configuration page
depends on:
■
■
the printer model
the HP Jetdirect model and firmware version
A Jetdirect configuration page will automatically print after a
printer configuration page is printed. For instructions, see your
printer manuals.
An HP Jetdirect configuration page can also be viewed over the
network from a management utility (such as HP Web Jetadmin), or
by accessing the embedded Web server (see Chapter 4).
Status Field Error Messages
The HP Jetdirect configuration page contains several status fields
for the print server and the supported protocols. One or more error
codes and related error messages may be displayed in a Status field.
For information on each error message, see Table 9.9.
ENWW
177
Configuration Page Format
A typical Jetdirect configuration page is illustrated in Figure 9.1.
The configuration page information provided will vary depending
on the print server.
Figure 9.1 Typical Jetdirect Configuration Page
ENWW
HP Jetdirect Configuration Page 178
The Jetdirect configuration page is divided into sections, as
identified in the following table. For each section, the detailed
parameter descriptions and settings, including error messages, are
provided in the remainder of this chapter.
Section Name
Description
HP Jetdirect
Configuration or
General
Information
Identifies the HP Jetdirect print server and provides general status.
For information on items in this section, see Table 9.1. (For error
messages, see Table 9.9.)
Security Settings
Provides the current status of configuration and access security
parameters. See Table 9.2.
Network
Statistics
Provides the current values for various network parameters
monitored by the HP Jetdirect print server. See Table 9.3.
TCP/IP
Provides the current status and parameter values for the TCP/IP
network protocols. See Table 9.4. (For error messages, see
Table 9.9.)
IPX/SPX
Provides the current status and parameter values for the IPX/SPX
network protocols. See Table 9.5. (For error messages, see
Table 9.9.)
Novell/NetWare
Provides the current status and parameter values for a Novell
NetWare network. See Table 9.6. (For error messages, see
Table 9.9.)
AppleTalk
(Ethernet Only) Provides the current status and parameter values
for the AppleTalk network protocols. See Table 9.7. (For error
messages, see Table 9.9.)
DLC/LLC
Provides the current status and parameter values for the DLC/LLC
network protocols. See Table 9.8. (For error messages, see
Table 9.9.)
ENWW
HP Jetdirect Configuration Page 179
Configuration Page Messages
HP Jetdirect Configuration/General Information
Information in this section provides general HP Jetdirect print
server configuration as described in Table 9.1. For error messages,
see Table 9.9.
Table 9.1
HP Jetdirect Configuration (1 of 2)
Message
Description
STATUS:
Current state of the HP Jetdirect print server.
I/O CARD READY: The HP Jetdirect print server has
successfully connected to the network and is awaiting data.
I/O CARD INITIALIZING: The HP Jetdirect print server is
initializing the network protocols. For more information, see
the status line for each protocol on the configuration page.
I/O CARD NOT READY: There is a problem with the print
server or its configuration.
An error code and message is displayed if the print server
is not ready. For more information, see Table 9.9.
MODEL NUMBER:
The model number of the HP Jetdirect print server (for
example, J7949E).
HARDWARE
ADDRESS:
The 12-digit hexadecimal network hardware (MAC) address
of the HP Jetdirect print server installed in the printer or
device. This address is assigned by the manufacturer.
FIRMWARE VERSION:
The firmware revision number of the HP Jetdirect print
server currently installed in the printer.
PORT SELECT:
(Ethernet only) Specifies the port on the HP Jetdirect print
server that has been detected for use:
NONE: The print server is not connected to the network.
RJ-45: The RJ-45 network port is connected.
LAA
ENWW
The Locally Administered Address (LAA) identifies the
user-specified LAN hardware address of a print server,
which may be required by some network adiministrators.
The default address is the print server’s factory-default LAN
hardware address.
HP Jetdirect Configuration Page 180
Table 9.1
HP Jetdirect Configuration (2 of 2)
Message
Description
PORT CONFIG:
Identifies the link configuration of the RJ-45 port on the
HP Jetdirect 10/100Base-TX print server:
10BASE-T HALF: 10 Mbps, half-duplex
10BASE-T FULL: 10 Mbps, full-duplex
100TX HALF: 100Mbps, half-duplex
100TX-FULL: 100Mbps, full-duplex
UNKNOWN: The print server is in an initialization state.
DISCONNECTED: A network connection has not been
detected. Check network cables.
AUTONEGOTIATION
Identifies whether IEEE 802.3u Autonegotiation on the
HP Jetdirect 10/100TX port is enabled (ON) or disabled
(OFF).
ON (default): The HP Jetdirect print server will attempt to
automatically configure itself onto the network at the proper
speed (10 or 100 Mbps) and mode (half or full duplex).
Autonegotiation is enabled after a cold reset.
OFF: You must manually configure the speed and mode
using the Jetdirect integrated menu from the printer’s control
panel. If Autonegotiation is off, the settings must match
those of the network for proper operation.
MANUFACTURING ID:
The manufacturing identification code for use by HP online
support personnel.
DATE
MANUFACTURED:
Identifies the date of manufacture of the HP Jetdirect print
server.
ENWW
HP Jetdirect Configuration Page 181
Security Settings
Information in this section of the Jetdirect configuration page is
described in Table 9.2.
Table 9.2
Security Settings (1 of 2)
Message
Description
Admin Password:
Specifies whether an IP Administrator password has been
configured on the print server. This password is shared by
Telnet, the embedded Web server, and HP Web Jetadmin
to control access to print server configuration parameters.
Up to 16 case-sensitive, alphanumeric characters can be
used.
Not Set: An Administrator password has not been set.
Set: An Administrator password has been set.
(The password may be cleared from the print server through
a cold reset.)
Secure Web:
Specifies the use of encrypted communications between a
browser and the HP Jetdirect embedded Web server.
Optional (HTTPS/HTTP): Allows unencrypted
communications using standard HTTP ports, as well as
encrypted communications using HTTPS (secure HTTP).
HTTPS Required: Only encrypted communications on
HTTPS is allowed.
Cert Expires:
Specifies the expiration date of the digital certificate for
SSL/TLS encrypted security. The date is in UTC format (for
example, “2002-10-02 12:45 UTC”).
Not Applicable: Displayed if a digital certificate has not been
installed.
ENWW
HP Jetdirect Configuration Page 182
Table 9.2
Security Settings (2 of 2)
Message
Description
SNMP Versions:
Specifies the SNMP versions enabled on the print server.
Disabled: All SNMP versions are disabled on the print
server. No SNMP access is allowed.
1;2: SNMP v.1 and SNMP v.2c are supported, and SNMP
v.3 is disabled, or not supported.
1;2;3-na/np: SNMP v.1, v.2c, and v.3 are enabled. v.3 is
enabled with the minimum security of no authentication
(“na”) and no privacy (“np”).
1;2;3-a/np: SNMP v.1, v.2c, and v.3 are enabled. v.3 is
enabled with the minimum security of authentication
enabled (“a”) but no privacy (“np”).
1;2;3-a/p: SNMP v.1, v.2c, and v.3 are enabled. v.3 is
enabled with the minimum security of authentication (“a”)
with privacy (“p”) enabled.
3-na/np: SNMP v.1 and v.2c are disabled. SNMP v.3 is
enabled with the minimum security of no authentication
(“na”) and no privacy (“np”).
3-a/np: SNMP v.1 and v.2c are disabled. SNMP v.3 is
enabled with the minimum security of authentication
enabled (“a”) but no privacy (“np”).
3-a/p: SNMP v.1 and v.2c are disabled. SNMP v.3 is
enabled with the minimum security of authentication (“a”)
with privacy (“p”) enabled.
SNMP Set Cmty Name:
Specifies whether an SNMP set community name has been
configured on the HP Jetdirect print server. An SNMP set
community name is a password for write access to SNMP
control functions (SNMP SetRequests) on the HP Jetdirect
print server.
Not Specified: An SNMP set community name has not been
set.
Specified: A user-specified SNMP set community has been
set.
Access List:
Identifies whether a host access control list is configured on
the HP Jetdirect print server. A host access control
list specifies the IP address of individual systems, or IP
network of systems, that are allowed access to the print
server and device.
Specified: A host access list is configured on the
HP Jetdirect print server.
Not Specified: A host access list is not configured on the
print server. All systems are allowed access.
ENWW
HP Jetdirect Configuration Page 183
Network Statistics
Information in this section of the Jetdirect configuration page is
described in Table 9.3.
Table 9.3
Network Statistics
Message
Description
TOTAL PACKETS
RECEIVED:
Total number of frames (packets) received by the
HP Jetdirect print server without error. This includes
broadcast, multicast packets, and packets specifically
addressed to the print server. This number does not
include packets specifically addressed to other nodes.
UNICAST PACKETS
RECEIVED:
Number of frames specifically addressed to this
HP Jetdirect print server. This does not include broadcasts
or multicasts.
BAD PACKETS
RECEIVED:
Total number of frames (packets) received with errors by the
HP Jetdirect print server.
FRAMING ERRORS
RECEIVED:
Maximum of CRC (Cyclic Redundancy Check) errors and
framing errors. CRC errors are frames received with CRC
errors. Framing errors are frames received with alignment
errors. A large number of framing errors could indicate a
cabling problem with your network.
TOTAL PACKETS
TRANSMITTED:
Total number of frames (packets) transmitted without error.
UNSENDABLE
PACKETS:
Total number of frames (packets) not successfully
transmitted because of errors.
TRANSMIT
COLLISIONS:
Number of frames not transmitted because of repeated
collisions.
TRANSMIT LATE
COLLISIONS:
Total number of frames not transmitted because a late
collision occurred. Late collisions often occur when cable
lengths exceed network specifications. A large number may
indicate a cabling problem on the network.
ENWW
HP Jetdirect Configuration Page 184
TCP/IP Protocol Information
Information in this section of the Jetdirect configuration page is
described in Table 9.4. For error messages, see Table 9.9.
Table 9.4
TCP/IP Configuration Information (1 of 4)
Message
Description
STATUS:
Current TCP status.
READY: Indicates the HP Jetdirect print server is awaiting
data over TCP/IP.
DISABLED: Indicates that TCP/IP was manually disabled.
INITIALIZING: Indicates that the print server is searching
for the BOOTP server, or trying to get the configuration file
through TFTP. An additional status message may also be
displayed.
An error code and message is displayed if the print server
is not ready. For more information, see Table 9.9.
HOST NAME:
The host name configured on the print server. It may be
truncated.
NOT SPECIFIED: Indicates that no host name was
specified in a BOOTP response or TFTP configuration file.
NPIxxxxxx: The default name is NPIxxxxxx, where xxxxxx
represents the last six digits of the LAN hardware (MAC)
address.
IP ADDRESS:
The Internet Protocol (IP) address assigned to the
HP Jetdirect print server. This is a required entry for
operation of the print server on a TCP/IP network. During
initialization, a temporary value 0.0.0.0 is displayed. After
two minutes, a default IP address 169.254/16 or
192.0.0.192 is assigned.
NOT SPECIFIED: Indicates that an IP address is not
assigned or the value is zero.
SUBNET MASK:
The IP subnet mask configured on the HP Jetdirect print
server. During initialization, a temporary value 0.0.0.0 is
displayed. Depending on configuration parameters, the
print server may automatically assign a usable default
value.
NOT SPECIFIED: Indicates that a subnet mask is not
configured.
ENWW
HP Jetdirect Configuration Page 185
Table 9.4
TCP/IP Configuration Information (2 of 4)
Message
Description
DEFAULT GATEWAY:
The IP address of the gateway used when sending packets
off the local network. Only one default gateway may be
configured. During initialization, a temporary value 0.0.0.0
is displayed. If not provided, the IP address of the Jetdirect
print server is used.
NOT SPECIFIED: Indicates that a default gateway is not
configured.
CONFIG BY:
Identifies how the HP Jetdirect print server obtained its
IP configuration:
BOOTP: Automatic configuration through a BOOTP server.
BOOTP/TFTP: Automaticautomatic configuration through
a BOOTP server and TFTP configuration file.
DHCP: Automatic configuration through a DHCP server
DHCP/TFTP: Automatic configuration through a DHCP
server and TFTP configuration file.
RARP: Automatic configuration through the Reverse
Address Resolution Protocol.
USER SPECIFIED: Manual configuration through Telnet,
the printer’s control panel, HP Web Jetadmin, embedded
Web server, or other method.
DEFAULT IP: The default IP address was assigned. This
address may not be a valid address for your network.
AUTO IP: A link-local IP address (169.254.x.x) was
assigned. If the network is a link-local network, this address
should be valid.
NOT CONFIGURED: The print server was not configured
with IP parameters. Verify that TCP/IP is enabled, or check
for error status.
BOOTP SERVER:
or
DHCP SERVER:
or
RARP SERVER:
BOOTP/DHCP
SERVER:
ENWW
Displayed if BOOTP, DHCP, or RARP is used for TCP/IP
configuration. It specifies the IP address of the system that
responds to the HP Jetdirect print server's request for
automatic TCP/IP configuration over the network.
NOT SPECIFIED: Indicates that the configuration server's
IP address could not be determined or was set to zero in
the response packet.
Displayed during initialization while the HP Jetdirect print
server attempts to obtain its TCP/IP configuration from a
BOOTP or DHCP server. The temporary address
displayed is 0.0.0.0.
HP Jetdirect Configuration Page 186
Table 9.4
TCP/IP Configuration Information (3 of 4)
Message
Description
TFTP SERVER:
The IP address of the system where the TFTP
configuration file is located. During initialization, the
temporary address 0.0.0.0 is displayed.
NOT SPECIFIED: Indicates that a TFTP server has not
been not been set.
CONFIG FILE:
The name of the HP Jetdirect configuration file. The file
pathname may be truncated to fit on two lines.
NOT SPECIFIED: Indicates that a file was not specified in
the BOOTP reply from the host.
DOMAIN NAME:
The Domain Name System (DNS) name of the domain in
which the HP Jetdirect print server resides (for example,
support.company.com). It is not the fully qualified DNS
name (for example, printer1.support.company.com)
because the host printer name is not included.
NOT SPECIFIED: Indicates that a domain name has not
been configured on the print server.
DNS SERVER:
The IP address of the Domain Name System (DNS) server.
NOT SPECIFIED: Indicates that a DNS server’s IP address
has not been configured on the print server.
WINS SERVER:
The IP address of the Windows Internet Name Service
(WINS) server.
NOT SPECIFIED: Indicates that a WINS server’s IP
address has not been configured on the print server.
SYSLOG SERVER:
The IP address of the syslog server configured on the
print server.
NOT SPECIFIED: Indicates that a syslog server has not
been configured.
IDLE TIMEOUT:
The timeout value expressed in seconds after which the
print server closes an idle TCP print data connection.
Acceptable values are integers between 0 and 3600. A
value of zero turns off the timeout mechanism. The default
value is 270 seconds.
SLP:
Specifies whether the HP Jetdirect print server sends
Service Location Protocol (SLP) packets used by system
applications for automated installation.
ENABLED: The print server sends SLP packets.
DISABLED: The print server does not send SLP packets.
ENWW
HP Jetdirect Configuration Page 187
Table 9.4
TCP/IP Configuration Information (4 of 4)
Message
Description
WEB JETADMIN URL:
If the HP Jetdirect print server is found on the network by
HP Web Jetadmin, the URL of the host system used for
HP Web Jetadmin services is displayed. The URL is limited
to two lines and may be truncated.
NOT SPECIFIED: Indicates that the URL of the Web
Jetadmin host system could not be identified or is
not configured.
ENWW
HP Jetdirect Configuration Page 188
IPX/SPX Protocol Information
Information in this section of the Jetdirect configuration page is
described in Table 9.5. For error messages, see Table 9.9.
Table 9.5
IPX/SPX Configuration Information (1 of 2)
Message
STATUS:
Description
Indicates the current IPX/SPX protocol status.
READY: Indicates the HP Jetdirect print server is awaiting
data over IPX/SPX.
DISABLED: Indicates that IPX/SPX was manually disabled.
INITIALIZING: Indicates that the print server is registering
the node address or name. An additional status message
may also be displayed.
An error code and message is displayed if the print server
is not ready. For more information, see Table 9.9.
PRIMARY FRAME
TYPE:
Specifies the frame type selection on the Jetdirect print
server.
AUTO SELECT: The print server automatically senses and
limits the frame type to the first one detected.
EN_8023: Limits the frame type to IPX over IEEE 802.3
frames. All others will be counted and discarded.
EN_II: Limits the frame type to IPX over Ethernet frames.
All others will be counted and discarded.
EN_8022: Limits the frame type to IPX over IEEE 802.2 with
IEEE 802.3 frames. All others will be counted and
discarded.
EN_SNAP: Limits the frame type to IPX over SNAP with
IEEE 802.3 frames. All others will be counted and
discarded.
ENWW
HP Jetdirect Configuration Page 189
Table 9.5
IPX/SPX Configuration Information (2 of 2)
Message
Description
NETWORK
The first column (Network) indicates the network number
associated with a protocol frame type used for
communication between a server and the HP Jetdirect print
server.
XXXXXX
XXXXXX
XXXXXX
XXXXXX
FRAME TYPE
XXXXX
XXXXX
XXXXX
XXXXX
UNKNOWN: Indicates that the HP Jetdirect print server is
still trying to determine which network number to use.
The second column (Frame Type) identifies the frame type
used with the associated network number:
EN_8023, EN_8022, EN_II, EN_SNAP, TR_8022,
TR_SNAP. Unless a specific frame type has been manually
configured, the print server automatically determines the
protocol frame type by listening to the network data being
transferred over the network.
DISABLED: Indicates that a specific frame type for that
network has been manually configured.
RCVD
XXXX
XXXX
XXXX
XXXX
ENWW
The third column (RCVD) indicates how many packets have
been received for each frame type.
HP Jetdirect Configuration Page 190
Novell NetWare Parameters
Information in this section of the Jetdirect configuration page is
described in Table 9.6. For error messages, see Table 9.9.
Table 9.6
Novell NetWare Configuration Information (1 of 2)
Message
Description
STATUS:
Indicates the current Novell NetWare configuration status.
READY: Indicates the HP Jetdirect print server is awaiting
data.
DISABLED: Indicates that IPX/SPX was manually
disabled.
INITIALIZING: Indicates that the print server is registering
the node address or name. An additional status message
may also be displayed.
An error code and message is displayed if the print server
is not ready. For more information, see Table 9.9.
NODE NAME:
Queue Server Mode: The print server name. This name
must match a valid print server on the appropriate NetWare
file server. The default name is NPIXXXXXX, where
XXXXXX is the last six digits of the LAN hardware (MAC)
address.
Remote Printer Mode: The name you gave the network
printer when you configured the network printer. The
default name is NPIXXXXXX.
NETWARE MODE:
The mode used by the HP Jetdirect print server.
QUEUE SERVER: Indicates that the print server receives
data directly from the queue.
REMOTE PRINTER (followed by the printer number):
Indicates that the print server emulates a Novell NetWare
remote printer.
If the printer is not configured, this field displays QUEUE
SERVER.
NDS TREE NAME:
Displays the name of the Novell Directory Services (NDS)
tree for this printer. NDS is a database of objects on a
NetWare network organized in a hierarchical tree structure.
NOT SPECIFIED or blank: NDS is disabled.
NDS CONTEXT:
Displays the fully qualified NDS name where the
HP Jetdirect print server object resides in the NDS tree.
For example:
CN=lj_pserver.OU=support.OU=mycity.OU=mycompany
NOT SPECIFIED or blank: NDS is disabled.
ENWW
HP Jetdirect Configuration Page 191
Table 9.6
Novell NetWare Configuration Information (2 of 2)
Message
Description
ATTACHED SERVER:
The Attached Server field identifies the Jetdirect discovery
method [NSQ] (Nearest Service Query) or [GSQ] (General
Service Query) and the name of the proxy file server used
to locate the configured bindery servers.
NOT SPECIFIED or blank: A NetWare server has not been
configured.
QUEUE POLL
INTERVAL
(Job Poll Interval) Specifies the time interval (seconds) that
the HP Jetdirect print server waits to check for print jobs in
a print queue. The default is 2 seconds.
SAP INTERVAL:
Specifies the time interval (seconds) that the HP Jetdirect
print server waits between Service Advertising Protocol
(SAP) broadcasts on the network. The default is 60
seconds.
SERVER x:
Identifies a NetWare file server to which the HP Jetdirect
print server is attached.
ENWW
HP Jetdirect Configuration Page 192
AppleTalk Protocol Information
Information in this section of the Jetdirect configuration page
(Ethernet Only) is described in Table 9.7. For error messages,
see Table 9.9.
Table 9.7
AppleTalk Configuration Information
Message
Description
STATUS:
Indicates the current AppleTalk configuration status.
READY: Indicates the HP Jetdirect print server is awaiting
data.
DISABLED: Indicates that AppleTalk was manually
disabled.
INITIALIZING: Indicates that the print server is registering
the node address or name. An additional status message
may also be displayed.
An error code and message is displayed if the print server
is not ready. For more information, see Table 9.9.
NAME:
The name of the printer on the AppleTalk network. A
number after the name indicates that there are multiple
devices with this name, and this is the Nth instance of the
name.
ZONE:
The name of the AppleTalk network zone on which the
printer is located.
TYPE:
The type of the printer being advertised on the network.
Two types can be displayed.
NETWORK
NUMBER:
NETWORK NUMBER: Identifies the AppleTalk Network
Number on which the HP Jetdirect print server is currently
operating.
NODE NUMBER:
NODE NUMBER: Identifies the AppleTalk Node Number
that the print server chose for itself as part of its
initialization sequence.
Note: The AppleTalk phase 2 (P2) parameter is
preconfigured on the HP Jetdirect print server.
ENWW
HP Jetdirect Configuration Page 193
DLC/LLC Protocol Information
Information in this section of the Jetdirect configuration page is
described in Table 9.8.
Table 9.8
DLC/LLC Configuration Information
Message
Description
STATUS:
Indicates the current DLC/LLC protocol status.
READY: Indicates the HP Jetdirect print server is awaiting
data.
DISABLED: Indicates that DLC/LLC was manually disabled.
INITIALIZING: Indicates that the print server is registering
the node address or name. An additional status message
may also be displayed.
An error code and message is displayed if the print server
is not ready. For more information, see Table 9.9.
ENWW
HP Jetdirect Configuration Page 194
Error Messages
Error codes and messages that may appear in the Status sections
of the Jetdirect configuration page are described in Table 9.9.
Table 9.9
Error Messages (1 of 10)
Error Code and
Message
Description
02 LAN ERROR INTERNAL
LOOPBACK
During self-test, the HP Jetdirect print server detected an
internal loopback test error. The print server may be faulty.
If the error persists, replace the HP Jetdirect print server.
03 LAN ERROR EXTERNAL
LOOPBACK
The HP Jetdirect print server is incorrectly connected to
your network or is defective. Make sure your HP Jetdirect
print server is correctly attached to your network. In addition,
check the cabling and connectors.
07 LAN ERROR CONTROLLER CHIP
(Wired Ethernet) Check the network connections. If the
connections are intact, run the power-on self-test: turn the
printer off, then on again. If the error persists, replace the
HP Jetdirect print server.
07 AUTHENTICATION
FAILED
The Jetdirect print server could not access the network
because of an authentication error. The error depends on
the authentication method used.
Verify the authentication method and settings on the print
server.
08 LAN ERROR INFINITE DEFERRAL
There is a network congestion problem.
08 AUTHENTICATION
IN PROGRESS
Link-level authentication is in progress.
09 LAN ERROR BABBLE
Check the network connections. If the connections are
intact, run the power-on self-test: turn the printer off, then
on again. If the error persists, replace the HP Jetdirect print
server. For replacement instructions, see the hardware
installation guide for your print server.
0A LAN ERROR NO SQE
(Wired Ethernet) Check the network connections. If the
connections are intact, run the power-on self-test: turn the
printer off, then on again. If the error persists, replace the
HP Jetdirect print server.
ENWW
Note: If the print server is not connected to the network, this
error cannot occur.
HP Jetdirect Configuration Page 195
Table 9.9
Error Messages (2 of 10)
Error Code and
Message
Description
0C LAN ERROR RECEIVER OFF
There may be a problem with your network cabling or the
HP Jetdirect print server. Check the cabling and connectors
on your Ethernet network. If you cannot find a problem with
your network cabling, run the power-on self-test: turn the
printer off, then on again. If the error persists after the printer
is turned on again, there is a problem with the HP Jetdirect
print server.
0D LAN ERROR TRANSMITTER OFF
There may be a problem with your network cabling or the
HP Jetdirect print server. Check the cabling and connectors
on your Ethernet network. If you cannot find a problem with
your network cabling, run the power-on self-test: turn the
printer off, then on again. If the error persists, there is a
problem with the HP Jetdirect print server.
0E LAN ERROR LOSS OF CARRIER
Check the network connections. If the connections are
intact, run the power-on self-test: turn the printer off, then
on again. If the error persists, replace the HP Jetdirect
print server.
10 LAN ERROR UNDERFLOW
(Wired Ethernet) There may be a problem with your network
cabling or the HP Jetdirect print server. Check the cabling
and connectors on your network. If you cannot find a
problem with your network cabling, run the power-on
self-test: turn the printer off, then on again. If the error
persists, there is a problem with the HP Jetdirect print
server.
11 LAN ERROR RETRY FAULTS
(Wired Ethernet) There is a problem with your network
cabling or external network configuration. Verify operation
of the hub or switch port.
12 LAN ERROR NO LINKBEAT
With a 10/100 Base-TX port connected, this message is
displayed if Link Beat is not sensed. Check the network
cable, and verify that the concentrator/hub is providing Link
Beat.
13 NETWORK
RECONFIG - MUST
REBOOT
Reset or power off/on the HP Jetdirect print server to enable
new configuration values.
14 DISCONNECTED
The Novell NetWare protocol is disconnected. Check the
server and the print server.
15 CONFIGURATION
ERROR
(Ethernet) The configuration information for the NetWare
functions is not stored correctly on the HP Jetdirect print
server. Use the installation software, embedded Web
server, or other tools to reconfigure the print server. If this
error persists, there may be a problem with the HP Jetdirect
print server.
ENWW
HP Jetdirect Configuration Page 196
Table 9.9
Error Messages (3 of 10)
Error Code and
Message
Description
16 NOT CONFIGURED
(Ethernet) The HP Jetdirect print server has not been
configured for NetWare. Use the installation software,
embedded Web server, or other tools to configure the print
server for NetWare networks.
17 UNABLE TO FIND
SERVER
(Ethernet) The HP Jetdirect print server was unable to find
the NetWare print server (Remote Printer mode) or file
server (Queue Server mode). (There was no response to
service queries for advertising print servers or file servers
that matched the configured print server or file server
name.)
Make sure that the print server or file server is running and
that the print server or file server name configured on the
HP Jetdirect print server matches the actual name used by
the print server or file server. Also make sure that all cables
and routers are functioning correctly.
18 PASSWORD
ERROR
The HP Jetdirect print server detected that the password for
the NetWare print server object is wrong. Use a NetWare
utility (such as PCONSOLE) to erase the password for the
print server object. When the HP Jetdirect print server logs
on again, it sets a new password.
Note: When multiple file servers are configured, the error is
only displayed on the configuration page if none of the file
servers are connected.
19 NO QUEUE
ASSIGNED
The HP Jetdirect print server detected that the print server
object has not been assigned any queues to service. Assign
queues to the print server object using printer installation or
NetWare utilities.
Note: When multiple file servers are configured, the error is
only displayed on the configuration page if none of the file
servers were successfully connected.
1A PRINTER NUMBER
NOT DEFINED
A NetWare printer number for this printer has not been
configured. Assign a valid printer number to the HP Jetdirect
print server. Use a NetWare utility (such as PCONSOLE),
the Jetdirect embedded Web server, or other tool to assign
a printer number.
1B PRINTER NUMBER
IN USE
The NetWare printer number assigned to the printer is
already in use by another printer. Assign an unused printer
number. This may also occur when a printer is powered
off/on, in which case the error goes away after the print
server times out and detects the lost connection.
ENWW
HP Jetdirect Configuration Page 197
Table 9.9
Error Messages (4 of 10)
Error Code and
Message
Description
1C PRINT SERVER
NOT DEFINED
The file server does not have a print server object that
corresponds to the specified NetWare node name. Use
printer installation software, a NetWare utility (such as
PCONSOLE), or other tool to create the print server object.
When the HP Jetdirect print server is configured for multiple
file servers, the error is only displayed on the configuration
page if none of the file servers made the connection.
1D UNABLE TO
CONNECT TO
SERVER
Remote Printer mode error: The HP Jetdirect print server
was unable to establish an SPX connection with the
NetWare print server. Make sure that the NetWare print
server is running and that all cables and routers are
functioning correctly.
1E FAIL RESERVING
PRINTER NUM
The SPX connection to the print server was lost when the
HP Jetdirect print server attempted to reserve the printer
number. This indicates a possible network problem, or a
problem with the print server. Make sure all cables and
routers are functioning correctly. Try restarting the print
server.
1F ERR NEGOTIATING
BUFFER SIZE
A failure was detected when selecting the buffer size to be
used when reading print data from the file server. This may
indicate a network problem.
When the HP Jetdirect print server is configured for multiple
file servers, the error is only displayed on the configuration
page if none of the file servers was successfully connected.
20 UNABLE TO LOGIN
A failure was detected when the HP Jetdirect print server
tried to log onto the file server. This could be caused by the
print server object not existing on the file server, or by a
security check that prevents the print server from logging in.
Make sure the file server name and print server object name
are correct. Use PCONSOLE to erase the password for the
print server object. Create a new print server object.
When the HP Jetdirect print server is configured for multiple
file servers, the error is only displayed on the configuration
page if none of the file servers made the connection.
21 UNABLE TO SET
PASSWORD
A failure was detected when the HP Jetdirect print server
tried to set the password for the print server object.
(Whenever the HP Jetdirect print server is able to log in
without a password, it sets the password automatically.) This
indicates a networking or security problem. Create a new
print server object.
When multiple file servers are configured, the error is only
displayed on the configuration page if none of the file servers
were successfully connected.
ENWW
HP Jetdirect Configuration Page 198
Table 9.9
Error Messages (5 of 10)
Error Code and
Message
Description
22 UNABLE TO
CONNECT TO
SERVER
Queue Server mode error: The HP Jetdirect print server
could not establish an NCP connection to the file server.
Make sure that the correct file servers are connected.
When multiple file servers are configured, the error is only
displayed on the configuration page if none of the file servers
were successfully connected.
23 UNABLE TO
ATTACH TO QUEUE
A failure was detected when the HP Jetdirect print server
tried to attach to one of the queues assigned to the print
server object. This may be because no servers are allowed
to attach to this queue. There may also be a networking or
security problem. Use PCONSOLE to make sure that
servers are allowed to attach to the queue, to delete the print
server object from the list of queue servers if you want the
HP Jetdirect print server to service other queues, or to
delete the queue and create a new one (the print server
object must be added to the list of queue servers).
When the HP Jetdirect print server is configured for multiple
file servers, the error is only displayed on the configuration
page if none of the file servers made the connection.
24 PSERVER CLOSED
CONNECTION
The NetWare print server requested a termination of the
connection with the HP Jetdirect print server. No error exists
or is indicated. Make sure the NetWare print server is
running, and restart it if necessary.
25 DISCONNECTING SPX TIMEOUT
The SPX connection to the print server was lost after the
connection had been made. This indicates a possible
network problem, or a problem with the print server. Make
sure all cables and routers are functioning correctly. Try
restarting the print server.
26 UNKNOWN NCP
RETURN CODE
The HP Jetdirect print server encountered an unexpected
fatal error after it had successfully connected to the file
server. A wide variety of failures could produce this error
message, including a downed file server or a network
router failure.
27 UNEXPECTED
PSERVER DATA RCVD
The print server sent some data when the HP Jetdirect print
server had not given its permission to do so. This indicates
a possible print server problem, possibly a software
problem.
28 OUT OF BUFFERS
The HP Jetdirect print server was unable to allocate a buffer
from its internal memory. This indicates all buffers are busy
due possibly to heavy broadcast traffic or large amounts of
network traffic directed to the print server.
ENWW
HP Jetdirect Configuration Page 199
Table 9.9
Error Messages (6 of 10)
Error Code and
Message
Description
29 UNABLE TO SENSE
NET NUMBER
The HP Jetdirect print server has been trying for over 3
minutes to determine the NetWare protocol used on the
network. Make sure that any file servers and routers are
operating correctly. Make sure that the settings for NetWare
frame type and source routing are correct.
2A NDS ERR:
EXCEEDS MAX
SERVERS
More queues were assigned than the HP Jetdirect print
server can handle. Remove one or more print queues from
the list to be serviced by Queue Server Mode.
2B NDS ERR: UNABLE
TO LOGIN
Unable to log onto the NetWare directory tree. Make sure
that the print server object is defined in the directory at the
correct context. Clear the print server password using
NWADMIN or similar NetWare tool.
2C NDS
AUTHENTICATION
ERROR
Unable to log onto the NetWare directory tree. Make sure
that the print server object is defined in the directory at the
correct context.
2D NDS ERR:
CHANGE PSSWRD
FAILED
Cannot modify the print server password to the value
expected by the HP Jetdirect print server.
2E NDS SERVER
PUBLIC KEY ERROR
Print Server Object Name mismatch. Unable to read the file
server’s public key. Verify object names, or contact the NDS
administrator.
2F NDS ERR: SRVR
NAME UNRESOLVD
The file server on the network cannot be located. The server
may not be running at this time or a communications
problem may exist.
30 NDS PRINT
SERVER NAME
ERROR
The HP Jetdirect print server object cannot be located in the
specified NDS context.
31 NDS PS PRINTER
LIST ERROR
Cannot locate a list of printers objects that should be
assigned to the print server object.
32 NDS PRINTER OBJ
NOTIFY ERR
The list of notification objects assigned to the printer object
cannot be located.
33 NDS PRINT OBJ
QUEUE LIST ERR
The list of print queues assigned to the printer objects
cannot be located.
34 NDS ERR:
UNRESOLVD PRNTR
OBJ
The printer object cannot be located in the NDS directory.
35 NDS ERR: INVALID
SRVR VERS
The current version of the NetWare file server is not
supported.
36 NDS ERR: NO
PRINTER OBJECTS
No printer objects are assigned to the print server object
configured to this HP Jetdirect print server.
ENWW
HP Jetdirect Configuration Page 200
Table 9.9
Error Messages (7 of 10)
Error Code and
Message
Description
37 NDS ERR: MAX
PRINT OBJECTS
Too many printer objects are assigned to the print server
object. Using NetWare utilities (such as NWADMIN), reduce
the number of printer objects assigned to the print server.
38 NDS ERR: NO
QUEUE OBJECTS
No print queue objects are assigned to the printer objects
located in the NDS directory.
39 NDS ERR: MAX
QUEUE OBJECTS
Too many print queue objects are assigned to the printer.
Reduce the number of queues assigned.
3A NDS ERR: UNABLE
TO FIND TREE
The NDS tree cannot be located. The message may occur
when the file server is not running or when a network
communications problem exists.
3B NDS
CONNECTION STATE
ERROR
The HP Jetdirect print server cannot change the NDS
connection state. Check licenses on the spooling server.
3C NDS ERR:
UNRESOLVED
QUEUE
The print queue object cannot be located in the specified
NDS context.
3D NDS ERR:
CANNOT READ Q
HOST
Cannot locate the file server on the network. The server may
not be running at this time or a communications problem
may exist.
3E NDS PRNT SRVR
PUBLIC KEY ERR
Print Server Object Name mismatch. Unable to read the
print server’s public key. Verify object names. Verify that the
object key assigned to the HP Jetdirect print server is a print
server object and not a printer or other object.
3F UNABLE TO GET
NDS SRVR ADDR
The NDS server address cannot be located or accessed.
40 ARP DUPLICATE IP
ADDRESS
The ARP layer has detected another node on the network
using the same IP address as the HP Jetdirect print server.
Extended error information below this message shows the
hardware address of the other node.
41 NOVRAM ERROR
The HP Jetdirect print server cannot read the contents of its
NOVRAM.
42 INVALID IP
ADDRESS
The IP address specified for the HP Jetdirect print server
(through BOOTP) is an invalid IP address for specifying a
single node. Check your Bootptab file for proper entries.
43 INVALID SUBNET
MASK
The IP subnet mask specified for the HP Jetdirect print
server (through BOOTP) is an invalid subnet mask. Check
your Bootptab file for proper entries.
44 INVALID GATEWAY
ADDRESS
The default gateway IP address specified for the
HP Jetdirect print server (through BOOTP) is an invalid IP
address for specifying a single node. Check your Bootptab
file for proper entries.
ENWW
HP Jetdirect Configuration Page 201
Table 9.9
Error Messages (8 of 10)
Error Code and
Message
Description
45 INVALID SYSLOG
ADDRESS
The syslog server IP address specified for the HP Jetdirect
print server (through BOOTP) is an invalid IP address for
specifying a single node. Check your Bootptab file for proper
entries.
46 INVALID SERVER
ADDRESS
The TFTP server IP address specified for the HP Jetdirect
print server (through BOOTP) is an invalid IP address for
specifying a single node. Check your Bootptab file for proper
entries.
47 INVALID TRAP
DEST ADDRESS
One of the SNMP trap (Trap PDU) destination IP addresses
specified for the HP Jetdirect print server (through TFTP) is
an invalid IP address for specifying a single node. Check
your TFTP configuration file.
48 CF ERR - FILE
INCOMPLETE
The TFTP configuration file contained an incomplete last
line that did not end in a newline character.
49 CF ERR - LINE TOO
LONG
A line being processed in the TFTP configuration file was
longer than the HP Jetdirect print server could accept.
4A CF ERR UNKNOWN
KEYWORD
A TFTP configuration file line contained an unknown
keyword.
4B CF ERR - MISSING
PARAMETER
A line in the TFTP configuration file was missing a required
parameter.
4C CF ERR - INVALID
PARAMETER
A line in the TFTP configuration file contained an invalid
value for one of the parameters on that line.
4D CF ERR - ACCESS
LIST EXCEEDED
The TFTP configuration file specified too many access list
entries using the “allow:” keyword.
4E CF ERR - TRAP
LIST EXCEEDED
The TFTP configuration file specified too many trap
destination list entries using the “trap-destination:” keyword.
4F TFTP REMOTE
ERROR
The TFTP transfer of the configuration file from the host to
the HP Jetdirect print server failed with the remote host
sending a TFTP ERROR packet to the print server.
50 TFTP LOCAL
ERROR
The TFTP transfer of the configuration file from the host to
the HP Jetdirect print server failed with the local print server
encountering some form of inactivity timeout, or excessive
retransmissions situation.
51 TFTP RETRIES
EXCEEDED
The overall retrying of the TFTP transfer of the configuration
file from the host to the HP Jetdirect print server has
exceeded a retry limit.
ENWW
HP Jetdirect Configuration Page 202
Table 9.9
Error Messages (9 of 10)
Error Code and
Message
Description
52 BAD BOOTP/DHCP
REPLY
An error was detected in the BOOTP or DHCP reply that the
HP Jetdirect print server received. The reply either had
insufficient data in the UDP datagram to contain the
minimum BOOTP/DHCP header of 236 bytes, had an
operation field that was not BOOTPREPLY(0X02), had a
header field that did not match the print servers hardware
address, or had a UDP source port that was not the
BOOTP/DHCP server port (67/udp).
53 BAD BOOTP
TAG SIZE
The tagsize in a vendor-specific field in the BOOTP reply
is either 0, or greater than the remaining number of
unprocessed bytes in the vendor-specified area.
54 BOOTP/RARP
IN PROGRESS
The HP Jetdirect print server is currently in the process of
obtaining its basic IP configuration information through
BOOTP/RARP.
55 BOOTP/DHCP
IN PROGRESS
The HP Jetdirect print server is currently in the process of
obtaining its basic IP configuration information through
BOOTP/DHCP, and has not detected any errors.
56 DHCP NAK
The HP Jetdirect print server received a negative
acknowledgement message from the DHCP server in
response to a configuration request.
57 UNABLE TO
CONNECT DHCP SVR
The HP Jetdirect print server had received IP parameters
from a DHCP server, but communication with the DHCP
server has been lost. Check status of the DHCP server.
If an infinite lease was assigned, the print server will use the
IP address of the most recent DHCP server used, but
operation may be degraded until a DHCP server responds.
58 POSTSCRIPT
MODE NOT
SELECTED
The printer does not support AppleTalk or AppleTalk
extensions.
59 INCOMPLETE F/W MUST DOWNLOAD
Firmware download message. Currently downloading
firmware to the HP Jetdirect print server, or the download
did not complete properly.
5A TURN PRINTER
OFF / ON
Firmware download message. Download of firmware is
complete. Power off/on the HP Jetdirect print server.
5C DHCP BAD REPLY
A bad reply was received from the DHCP server. Check your
DHCP server settings for this print server.
5D DHCP LEASE
DURATION TOO
SHORT
The DHCP lease times for this print server’s TCP/IP
configuration settings are too short. Reconfigure the DHCP
lease times on the DHCP server.
ENWW
HP Jetdirect Configuration Page 203
Table 9.9
Error Messages (10 of 10)
Error Code and
Message
Description
5E DHCP LEASE
RELEASED
The lease for DHCP-configured parameters, including the
IP address, have been released through a manual
configuration method, such as through the printer’s control
panel.
5F WINS
REGISTRATION
FAILED
Attempts to register the print server’s name on the WINS
server failed. Check for duplicate names, or verify the WINS
server configuration.
61 AUTO IP
CONFIGURED
An IP address could not be retrieved over the network. The
print server will default to an IP address using link-local
addressing in the form 169.254.x.x.
62 DEFAULT IP
CONFIGURED
An IP address could not be retrieved over the network.
The print server will default to a legacy default IP address
192.0.0.192.
63 AUTO IP IN
PROGRESS
The print server is automatically assigning an IP address
using link-local addressing in the form 169.254.x.x.
64 INVALID
PASSWORD
An invalid password was specified through TFTP. Verify that
the password consists of a maximum of 16 printable
characters.
83 DISCONNECTING
FROM SERVER
The server has been shut down because of a configuration
change or reset request. This message automatically clears
after a few seconds, unless the printer is offline, is in an error
state, or is servicing another I/O port or another network
protocol.
84 DHCP LEASE
TIMERS ADJUSTED
The print server detected a DHCP lease error due to one of
the following conditions:
●
Renew time is less than 30 seconds.
●
Rebind time is less than 52 seconds.
●
Rebind time is less than, or equal to, the Renew time.
●
The lease duration is less than, or equal to,
the Rebind time.
F1 TRYING TO
CONNECT TO
SERVER
The HP Jetdirect print server is trying to connect to the
NetWare server(s). This is a normal message. Wait until
either the connection is established or another status
message appears.
F2 TFTP IN
PROGRESS
The print server is attempting to use TFTP to obtain TCP/IP
configuration settings over the network.
F3 BOOTP/RARP IN
PROGRESS
The print server is attempting to use BootP or RARP to
obtain TCP/IP configuration settings over the network.
F4 BOOTP/DHCP IN
PROGRESS
The print server is attempting to use BootP or DHCP to
obtain TCP/IP configuration settings over the network.
ENWW
HP Jetdirect Configuration Page 204
A
TCP/IP Overview
Introduction
This appendix is intended to provide information to help you gain
a basic understanding of TCP/IP.
Similar to a common language that people use to communicate with
each other, TCP/IP (Transmission Control Protocol/Internet
Protocol) is a suite of protocols designed to define the way computers
and other devices communicate with each other over a network.
TCP/IP is rapidly becoming the most used set of protocols. The main
reason this is happening is the fact that the Internet is based on
TCP/IP. If you have a network that you wish to connect to the
internet, you must be using TCP/IP to communicate.
Internet Protocol (IP)
When information is sent across the network, the data is broken
down into small packets. Each packet is sent independently of one
another. Each packet is encoded with IP information, such as the
IP address of the sender and receiver. IP packets can be routed over
routers and gateways, devices that connect a network with other
networks.
IP communications is connectionless. When IP packets are sent,
there is no guarantee that they arrive at their destination in the
proper sequence. That task can be performed by higher level
protocols and applications thereby allowing IP communications to
be efficient.
Each node or device that will communicate directly onto the
network requires an IP address, including HP Jetdirect-connected
devices.
ENWW
205
Transmission Control Protocol (TCP)
TCP handles breaking the data into packets and recombining the
packets on the receiving end by providing a connection-oriented,
reliable, and guaranteed delivery service to another node on the
network. When data packets are received at their destination,
TCP calculates a checksum for each packet to verify the data is
not corrupt. If the data in the packet has been corrupted during
transmission, TCP discards the packet and requests that the packet
be resent.
User Datagram Protocol (UDP)
UDP provides similar services to TCP. However, UDP does not
acknowledge data receipt and supports request/reply transactions
with no added reliability or guarantee of delivery. UDP is used when
acknowledgment and reliability are not required, such as during a
“discovery broadcast.”
IP Address
Every host (workstation or node) on an IP network requires a
unique IP address for each network interface. This address is a
software address that is used to identify both the network and
specific hosts located on that network. Each IP address can be
divided into two separate parts: the network portion and the host
portion. It is possible for a host to query a server for a dynamic IP
address each time the device boots-up (for example, using DHCP
and BootP).
Note
NWW
When assigning IP addresses, always consult the IP
address administrator. Setting the wrong address
can disable other equipment operating on the
network or interfere with communications.
TCP/IP Overview 206
IP Address: (Network Portion)
Network addresses are managed by an organization in Norfolk,
Virginia recognized as InterNIC. InterNIC has been contracted by
the National Science Foundation to manage the Internet addresses
and domains. Network addresses are distributed to organizations
that are in turn responsible for making sure all attached devices or
hosts on the network are properly numbered. For more information
on the network portion of an IP address, see “IP Address Structure
and Class” and “Subnets” later in this appendix.
IP Address: (Host Portion)
Host addresses numerically identify specific network interfaces on
an IP network. Usually a host has only one network interface; thus,
only one IP address. Because no two devices can share the same
number at the same time, administrators typically maintain
address tables to assure correct assignment of addresses in the
host network.
ENWW
TCP/IP Overview 207
IP Address Structure and Class
An IP address is comprised of 32 bits of information and divided
into 4 sections containing 1 byte each section or 4 bytes total:
xxx.xxx.xxx.xxx
For efficiency in routing, networks were broken down into three
classes, so routing can begin simply by identifying the leading
byte of information in the IP address. The three IP addresses
that InterNIC assigns are class A, B, and C. The network class
determines what each of the four IP address sections identify as
shown in Table A.1:
Table A.1
IP Address Class Format
Class
First Address
Byte xxx.
Second
Address
Byte xxx.
Third Address
Byte xxx.
Fourth
Address
Byte xxx
A
Network.
Host.
Host.
Host
B
Network.
Network.
Host.
Host
C
Network.
Network.
Network.
Host
As illustrated in Table A.2, each network class differs by the leading
bit identifier, the address range, the number of each type available,
and the maximum number of hosts each class allows.
Table A.2
Network Class Characteristics
Class
Leading
Bit
Identifier
Address Range
Maximum
Number of
Networks in the
Class
Maximum
Hosts in the
Network
A
0
0.0.0.0 to
127.255.255.255
126
Over 16 Million
B
10
128.0.0.0 to
191.255.255.255
16,382
65,534
C
110
192.0.0.0 to
223.255.255.255
Over 2 Million
254
NWW
TCP/IP Overview 208
Configuring IP Parameters
TCP/IP configuration parameters (such as IP address, subnet mask,
default gateway) can be configured on the HP Jetdirect print server
in a variety of ways. These values can be configured manually (for
example, through Telnet, the embedded Web server, the arp and
ping commands, and HP management software), or they can be
automatically downloaded using DHCP or BOOTP each time the
print server is turned on. For configuration methods, see Chapter 3.
When powered on, a new HP Jetdirect print server that is unable
to retrieve a valid IP address from the network will automatically
assign itself a default IP address. The default IP address will depend
on the type of network to which the print server is connected. On a
small private network, a technique called link-local addressing is
used to assign a unique IP address in the range of 169.254.1.0 to
169.254.254.255, which should be valid. On a large or enterprise
network, a temporary address of 192.0.0.192 will be assigned until
it is properly configured for your network. The IP address
configured on your print server may be determined by inspecting
the Jetdirect configuration page for the print server.
Dynamic Host Configuration Protocol (DHCP)
DHCP allows a group of devices to use a set of IP addresses that are
maintained by a DHCP server. The device or host sends a request
to the server, and if an IP address is available, the server assigns
it to that device.
BOOTP
BOOTP is a bootstrap protocol used to download configuration
parameters and host information from a network server. BOOTP
uses UDP for its transport. In order for devices to boot and load
configuration information into RAM, they must communicate
through the bootstrap protocol BOOTP as a client with their server.
To configure the device, the client broadcasts a boot request packet
containing at least the hardware address of the device (HP Jetdirect
print server hardware address). The server answers with a boot
reply packet containing the information the device needs
to configure.
ENWW
TCP/IP Overview 209
Subnets
When an IP network address for a particular network class is
assigned to an organization, no provision is made for more than
one network being present at that location. Local network
administrators use subnets to partition a network into several
different subnetworks. Splitting a network into subnets can result
in better performance and improved use of limited network
address space.
Subnet Mask
The subnet mask is a mechanism used to divide a single IP network
into several different subnetworks. For a given network class, a
portion of an IP address that would normally be used to identify a
node is used, instead, to identify a subnetwork. A subnet mask
is applied to each IP address to specify the portion used for
subnetworks, and the portion used to identify the node.
For example, see Table A.3.
Table A.3
Example: Subnet Mask 255.255.0.0 Applied to Class A
Network
Class A Network Address
15
xxx
xxx
xxx
Subnet Mask
255
255
0
0
IP Address fields with Subnet
Mask applied
Network
Subnet
Host
Host
Example of a node’s IP Address
on Subnet 1
15
1
25
7
Example of a node’s IP Address
on Subnet 254
15
254
64
2
As illustrated in Table A.3, the Class A IP network address “15”
has been assigned to company ABC. To allow additional networks
at company ABC’s site, the subnet mask of 255.255.0.0 is used. This
subnet mask specifies that the second byte of the IP address will be
used to identify up to 254 subnets. Using this designation, each
device is uniquely identified on its own subnet, but company ABC
can incorporate up to 254 subnetworks without violating their
assigned address space.
NWW
TCP/IP Overview 210
Gateways
Gateways (routers) are used to connect networks together.
Gateways are devices that act as translators between systems that
do not use the same communication protocols, data formatting,
structures, languages, or architectures. Gateways repackage the
data packets and change the syntax to match that of the destination
system. When networks are divided into subnets, gateways are
required to connect one subnet to another.
Default Gateway
The Default Gateway is the gateway or router that, if not specified,
will be used to move packets between networks. It is specified by an
IP address.
If multiple gateways or routers exist, then the default gateway is
typically the address of the first, or nearest, gateway or router. If
no gateways or routers exist, then the default gateway will typically
assume the IP address of the network node (such as the workstation
or HP Jetdirect print server).
Syslog Server
A syslog server is a system on the network (typically a UNIX system)
that can receive and log syslog messages from other devices on the
network. Syslog messages allow administrators to monitor status
or troubleshoot network devices.
A syslog server requires software that provides syslog capabilities
running on the server. UNIX systems provide a daemon, syslogd,
that monitors User Datagram Protocol (UDP) port 514 for incoming
messages. The messages are processed depending on their priority
and on how syslogd is set up to operate.
You can configure the HP Jetdirect print server with the syslog
server’s IP address. When a syslog server is configured, both the
HP Jetdirect print server and attached device can send syslog
messages using UDP.
ENWW
TCP/IP Overview 211
The syslog server may not receive all syslog events from the
HP Jetdirect print server:
●
●
●
UDP does not guarantee delivery of messages.
The HP Jetdirect print server attempts to eliminate duplicate
messages (to minimize unnecessary network traffic).
The volume of messages sent by the HP Jetdirect print server is
configurable.
Methods to configure HP Jetdirect syslog parameters include
BOOTP, DHCP, Telnet, the embedded Web server, and
management software. For selected printers, a menu
accessed through the printer control panel provides limited syslog
configuration. The syslog configuration command or parameter
entries may vary depending on the method used. For more
information, see the applicable sections in this guide.
Selected syslog parameters on the HP Jetdirect print server are
listed in Table A.4.
Table A.4
HP Jetdirect Syslog Parameters
Item
Description
Syslog Server
IP address
IP address of a syslog server for sending syslog messages. If
zero (0.0.0.0) or not specified, syslog messages are disabled.
Syslog Maximum
Messages
The number of syslog messages that can be sent by the
HP Jetdirect print server on a per-minute basis, from 0 to 1000.
This parameter helps to control the syslog file size. The default
is 10 messages per minute. If 0, the number of syslog messages
is not restricted.
Syslog Priority
A method for filtering syslog messages that are sent to the
syslog server. The range is 0 through 8, with 0 the most specific
and 8 the most general. Only messages that are lower than the
specified filter level (or higher in priority) are reported. The
default is 8, messages of all priorities are sent. If 0, all syslog
messages are disabled.
Syslog Facility
A code used to identify the source facility of a message (for
example, to identify the source of selected messages during
troubleshooting). By default, the HP Jetdirect print server uses
LPR as the source facility code, but local user values of local0
through local7 can be used to isolate individual or groups of print
servers.
NWW
TCP/IP Overview 212
Typical logfile entries of syslog messages are illustrated below:
Oct 22 08:10:33 jd08 printer: error cleared
Oct 22 15:06:07 jd04 printer: powered up
Oct 22 15:07:56 jd04 printer: offline or intervention needed
Oct 22 15:08:58 jd04 printer: error cleared
Oct 24 17:52:27 jd37 printer: powered up
Oct 24 18:28:13 jd37 printer: printer is disconnected
Oct 24 18:37:46 jd07 printer: error cleared
Oct 24 18:38:42 jd37 printer: powered up
Oct 25 07:50:16 jd04 printer: toner/ink low
ENWW
TCP/IP Overview 213
B
The HP Jetdirect Control
Panel Menu
Introduction
HP Jetdirect embedded print servers provide a configuration menu
that can be accessed from the printer’s control panel. The
keystrokes to access this menu from the printer control panel
depend on the printer. Refer to your printer Use guide, or print a
control panel menu map, for more information.
The printer’s graphical
control panel is used to access
the Jetdirect print server
menu items. Graphical
control panels typically
display 18 characters on a
line, and as many as four lines
at a time. In addition, scrolling may be supported to allow display
of additional lines.
MENUS
+ XXXXXXXXXX
+ XXXXXXXXXXXX
+ XXXXXXXX
1
2
3
4
5
6
7
8
9
0
?
C
On graphical control panels, a numeric keypad and navigation
buttons are used to access HP Jetdirect menu items.
Parameter Descriptions
For a description of menu items and options, see Table B.1.
ENWW
214
Table B.1
HP Jetdirect Control Panel Menu (1 of 7)
Menu Item
Options
Description of settings
TCP/IP
ENABLE
●
ON: Enable the TCP/IP protocol
●
OFF: Disable the TCP/IP protocol
HOST NAME
An alphanumeric string, up to 32 characters,
used to identify the device. This name is
listed on the Jetdirect configuration page.
The default host name is NPIxxxxxx, where
xxxxxx is the last six digits of the LAN
hardware (MAC) address.
CONFIG METHOD
Specifies the method that TCP/IP
parameters will be configured on the
Jetdirect print server.
DHCP RELEASE
DHCP RENEW
ENWW
●
BOOTP: Use BootP (Bootstrap Protocol)
for automatic configuration from a BootP
server.
●
DHCP: Use DHCP (Dynamic Host
Configuration Protocol) for automatic
configuration from a DHCP server. If
selected and a DHCP lease exists, DHCP
RELEASE and DHCP RENEW menus
will be available to set DHCP lease
options.
●
AUTO IP: Use automatic link-local IP
addressing. An address in the form
169.254.x.x will be automatically
assigned.
●
MANUAL: Use the MANUAL SETTINGS
menu to configure TCP/IP parameters.
This menu appears if CONFIG METHOD
was set to DHCP and a DHCP lease for the
print server exists.
●
NO (default): The current DHCP lease is
saved.
●
YES: The current DHCP lease along with
the leased IP address are released.
This menu appears if CONFIG METHOD
was set to DHCP and a DHCP lease for the
print server exists.
●
NO (default): The print server does not
request to renew the DHCP lease.
●
YES: The print server requests to renew
the current DHCP lease.
The HP Jetdirect Control Panel Menu 215
Table B.1
Menu Item
HP Jetdirect Control Panel Menu (2 of 7)
Options
Description of settings
MANUAL
SETTINGS
(Available only if CONFIG METHOD is set to
MANUAL) Configure parameters directly
from the printer control panel:
DEFAULT IP
ENWW
●
IP ADDRESS n.n.n.n: The unique IP
address of the printer, where n is a value
from 0 to 255.
●
SUBNET MASK m.m.m.m: The subnet
mask for the printer, where m is a value
from 0 to 255.
●
SYSLOG SERVER n.n.n.n: The IP
address of the syslog server used to
receive and log syslog messages.
●
DEFAULT GATEWAY n.n.n.n: The IP
address of the gateway or router used for
communications with other networks.
●
IDLE TIMEOUT: The time period, in
seconds, after which an idle TCP print
data connection is closed (default is 270
seconds, 0 disables the timeout).
Specify the IP address to default to when the
print server is unable to obtain an IP address
from the network during a forced TCP/IP
reconfiguration (for example, when manually
configured to use BootP or DHCP).
●
AUTO IP: A link-local IP address
169.254.x.x will be set.
●
LEGACY: The address 192.0.0.192 will
be set, consistent with older Jetdirect
products.
PRIMARY DNS
Specify the IP address (n.n.n.n) of the
Primary Domain Name System (DNS)
Server.
SECONDARY DNS
Specify the IP address (n.n.n.n) of the
Secondary Domain Name System (DNS)
Server.
The HP Jetdirect Control Panel Menu 216
Table B.1
Menu Item
HP Jetdirect Control Panel Menu (3 of 7)
Options
Description of settings
PROXY SERVER
Specifies the proxy server to be used by
embedded applications in your printer/MFP.
A proxy server is typically used by network
clients for Internet access. It caches Web
pages, and provides a degree of Internet
security, for those clients.
To specify a proxy server, enter its IP
address or fully-qualified domain name. The
name can be up to 64 characters.
For some networks, you may need to contact
your Independent Service Provider (ISP) for
the proxy server address.
IPX/SPX
PROXY PORT
Enter the port number used by the proxy
server for client support. The port number
identifies the port reserved for proxy activity
on your network, and can be a value from 0
to 65535.
ENABLE
●
ON: Enable the IPX/SPX protocol
●
OFF: Disable the IPX/SPX protocol
FRAME TYPE
APPLETALK
DLC/LLC
ENWW
ENABLE
ENABLE
Selects the frame type setting for your
network.
●
AUTO (default): Automatically sets and
limits the frame type to the first one
detected.
●
EN_8023, EN_II, EN_8022, EN_SNAP:
Frame type selections for Ethernet
networks.
(Ethernet/Fast Ethernet only)
●
ON: Enable the AppleTalk protocol
●
OFF: Disable the AppleTalk protocol
●
ON: Enable the DLC/LLC protocol
●
OFF: Disable the DLC/LLC protocol
The HP Jetdirect Control Panel Menu 217
Table B.1
HP Jetdirect Control Panel Menu (4 of 7)
Menu Item
Options
Description of settings
SECURE WEB
For configuration management, specify
whether the embedded Web server will
accept communications using HTTPS
(Secure HTTP) only, or both HTTP and
HTTPS.
DIAGNOSTICS
●
HTTPS REQUIRED: For secure,
encrypted communications, only HTTPS
access is accepted. The print server will
appear as a secure site.
●
HTTPS OPTIONAL: Access using either
HTTP or HTTPS is permitted.
A Jetdirect Diagnostics menu provides tests
to help diagnose network hardware or
TCP/IP network connection problems.
LOOPBACK TEST
CAUTION: This test will erase your TCP/IP
configuration.
An internal loopback test will send and
receive packets only on the internal network
hardware. There are no external
transmissions on your network.
The test will run continuously until either the
printer is turned off, or an error occurs and a
diagnostic page is printed.
At the EXECUTE prompt, select one of the
following:
ENWW
●
YES: The loopback test will be initiated.
●
NO: The loopback test will not be initiated.
The HP Jetdirect Control Panel Menu 218
Table B.1
Menu Item
ENWW
HP Jetdirect Control Panel Menu (5 of 7)
Options
Description of settings
PING TEST
This test is used to check network
communications. This test sends link-level
packets to a remote network host, then waits
for an appropriate response. To run a ping
test, set the following items:
●
DEST IP: Specify the IP address of the
remote host. A valid IP address must be
entered. For example, 0.0.0.0 is not
allowed.
●
PACKET SIZE: Specify the size of each
packet, in bytes, to be sent to the remote
host. The minimum is 64 (default) and the
maximum is 2048.
●
TIMEOUT: Specify the length of time, in
seconds, to wait for a response from the
remote host. The default is 1 and the
maximum is 100.
●
COUNT: Specify the number of ping test
packets to send for this test. Select a
value from 1 to 100. To configure the test
to run continuously, select 0.
●
PRINT RESULTS: If the ping test was not
set for continuous operation, you can
choose to print the test results. Select
YES to print results. If you select NO
(default), results will not be printed.
●
EXECUTE: Specify whether to initiate the
ping test. Selet YES to initiate the test, or
NO to not run the test.
The HP Jetdirect Control Panel Menu 219
Table B.1
Menu Item
ENWW
HP Jetdirect Control Panel Menu (6 of 7)
Options
Description of settings
PING RESULTS
Use this item to view the ping test status and
results using the control panel display. You
can select the following items:
●
PACKETS SENT: Displays the number of
packets (0 - 65535) sent to the remote
host since the most recent test was
initiated or completed.
●
PACKETS RECEIVED: Displays the
number of packets (0 - 65535) received
from the remote host since the most
recent test was initiated or completed.
●
PERCENT LOST: Displays the percent of
ping test packets that were sent with no
response from the remote host since the
most recent test was initiated or
completed.
●
RTT MIN: Displays the minimum
detected round-trip-time (RTT), from 0 to
4096 milliseconds, for packet
transmission and response.
●
RTT MAX: Displays the maximum
detected round-trip-time (RTT), from 0 to
4096 milliseconds, for packet
transmission and response.
●
RTT AVE: Displays the average
round-trip-time (RTT), from 0 to 4096
milliseconds, for packet transmission and
response.
●
PING IN PROGRESS: Displays whether
or not a ping test is in progress. YES
indicates a test in progress, and NO
indicates that a test completed or was not
run.
●
REFRESH: When viewing the ping test
results, this item updates the ping test
data with current results. Select YES to
update the data, or NO to maintain the
existing data. However, a refresh will
automatically occur when the menu times
out or you manually return to the main
menu.
The HP Jetdirect Control Panel Menu 220
Table B.1
Menu Item
RESET
SECURITY
LINK SPEED
HP Jetdirect Control Panel Menu (7 of 7)
Options
Description of settings
Specify whether the current security settings
on the print server will be saved or reset to
factory defaults.
●
NO (default): The current security
settings are maintained.
●
YES: Security settings are reset to factory
defaults.
(10/100Base-TX print servers only) Selects
the network link speed and communication
mode for the 10/100TX print server. For
proper communications, the Jetdirect
settings must match the network.
AUTO: (Default) The print server will
automatically configure itself to match the
network’s link speed and communication
mode. If it fails, 100TX HALF is set.
10T HALF: 10Mbps, half-duplex operation.
10T FULL: 10 Mbps, full-duplex operation.
100TX HALF: 100 Mbps, half-duplex
operation
100TX FULL: 100 Mbps, full-duplex
operation
ENWW
The HP Jetdirect Control Panel Menu 221
C
OpenSSL Statements
OpenSSL License
Copyright © 1998-2004 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are
permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of
conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the following disclaimer in the documentation and/or other
materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display
the following acknowledgment:
"This product includes software developed by the OpenSSL Project for use in the
OpenSSL Toolkit. (http://www.openssl.org/)"
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse
or promote products derived from this software without prior written permission.
For written permission, please contact openssl-core@openssl.org.
5. Products derived from this software may not be called "OpenSSL" nor may
"OpenSSL" appear in their names without prior written permission of the OpenSSL
Project.
6. Redistributions of any form whatsoever must retain the following
acknowledgment:
"This product includes software developed by the OpenSSL Project for use in the
OpenSSL Toolkit (http://www.openssl.org/)"
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS'' AND ANY
EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGE.
This product includes cryptographic software written by Eric Young
(eay@cryptsoft.com). This product includes software written by Tim Hudson
(tjh@cryptsoft.com).
ENWW
222
Original SSLeay License
Copyright © 1995-1998 Eric Young (eay@cryptsoft.com). All rights reserved.
This package is an SSL implementation written by Eric Young (eay@cryptsoft.com).
The implementation was written so as to conform with Netscape’s SSL.
This library is free for commercial and non-commercial use as long as the following
conditions are adheared to. The following conditions apply to all code found in this
distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The
SSL documentation included with this distribution is covered by the same copyright
terms except that the holder is Tim Hudson (tjh@cryptsoft.com).
Copyright remains Eric Young's, and as such any Copyright notices in the code are
not to be removed.
If this package is used in a product, Eric Young should be given attribution as the
author of the parts of the library used.
This can be in the form of a textual message at program startup or in documentation
(online or textual) provided with the package.
Redistribution and use in source and binary forms, with or without modification, are
permitted provided that the following conditions are met:
1. Redistributions of source code must retain the copyright notice, this list of
conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the following disclaimer in the documentation and/or other
materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display
the following acknowledgement:
"This product includes cryptographic software written by Eric Young
(eay@cryptsoft.com)"
The word 'cryptographic' can be left out if the routines from the library being used
are not cryptographic related.
4. If you include any Windows specific code (or a derivative thereof) from the apps
directory (application code) you must include an acknowledgement:
"This product includes software written by Tim Hudson (tjh@cryptsoft.com)"
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS'' AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
The licence and distribution terms for any publically available version or derivative
of this code cannot be changed, i.e., this code cannot simply be copied and put under
another distribution license [including the GNU Public Licence.]
ENWW
OpenSSL Statements 223
Index
A
Access List
configuration page entry 183
embedded Web server 124
security features 161
Telnet configuration 77
TFTP configuration file 49
Administrator Password 182
Embedded Web Server 117
Security features 160
Telnet configuration 73
TFTP configuration file 46
Apple Chooser 28, 173
AppleTalk
Control panel configuration
217
installing software 25
Name 27, 193
Network number 193
Node number 193
software configuration 26
STATUS 193
Telnet configuration 84
TFTP configuration 54
TYPE 101, 193
verifying configuration 26
Zone 101, 193
arp command 66
ARP DUPLICATE IP ADDRESS
201
ATTACHED SERVER 192
AUTHENICATION FAILED 195
Authentication 10, 130
Auto IP
See also, Default IP address
Control panel 215
embedded Web server 96
AUTONEGOTIATION 181
B
BAD BOOTP REPLY 203
BAD BOOTP TAG SIZE 203
BAD PACKETS RCVD 184
ENWW
banner page
embedded Web server 98
Telnet configuration 76
TFTP configuration 48
BOOTP
embedded Web server 96
overview 209
Telnet configuration 74
using 36
BOOTP Server 38
configuration 38
identifying 186
BOOTP/DHCP IN PROGRESS
203
BOOTP/RARP IN PROGRESS 203
browsers
embedded web server 92
HP Web Jetadmin 17
BSD systems
LPD printing 138
C
CA certificate 119
embedded Web server 131
Cert Expires 182
Certificate Authority, See CA
certificate
Certificates 118
validity period 121
CF ERR
ACCESS LIST EXCEEDED
202
FILE INCOMPLETE 202
INVALID PARAM 202
LINE TOO LONG 202
MISSING PARAM 202
TRAP LIST EXCEEDED 202
UNKNOWN KEYWORD 202
Chooser, Apple 28, 173
clients, supported
HP IP/IPX Printer Gateway 24
Internet Printer Connection 20
software solutions 13
cold-reset 166
224
Index
Community name
configuration page 183
embedded Web server 102
security features 162
Telnet 82
TFTP configuration 52
CONFIG BY 186
CONFIG FILE 187
configuration
HP Web Jetadmin 18
LPD printing 134
software solutions 13
TCP/IP networks 32
Telnet commands 73
TFTP parameters 46
CONFIGURATION ERROR 196
configuration page
embedded web server 132
printing 169
configuration page messages
AppleTalk 193
DLC/LLC 194
Error Messages 195
General Messages 180
IPX/SPX 189
Novell NetWare 191
TCP/IP 185
control panel configuration 89, 214
D
DATE MANUFACTURED 181
Default gateway
See also, gateway
configuration page 186
Default IP address 32
Default IP addresses
Control panel configuration
216
defaults, See factory defaults
ENWW
DHCP
control panel 215
enabling or disabling 62
IP addresses 209
Telnet configuration 74
UNIX systems 57
using 56
Windows servers 57
DHCP NAK 203
DHCP Server, identifying 186
Diagnostic menu
Control panel 218
DISCONNECTED 196
DISCONNECTING
FROM SERVER 204
SPX TIMEOUT 199
DLC/LLC
configuration messages 194
Control panel configuration
217
embedded Web server 101
Telnet configuration 84
TFTP configuration 54
DNS server 57, 187
Boot file tag 40
embedded Web server 105
Telnet configuration 75
TFTP configuration 47
Domain name 187
Boot file tag 40
embedded Web server 96
Telnet configuration 75
TFTP configuration 47
E
EAP 10
CA certificates 119
225
Index
embedded Web server
HP Web JetAdmin 92
HTTPS security 126, 160
LPD setup 108
NetWare objects 94
TFTP configuration file 51
upgrading firmware 108
using 91
viewing 93
web browsers 92
Encryption
SNMP v3 127
supported ciphers 127
ERR NEGOTIATING BUFFER
SIZE 198
error messages 195
HP Jetdirect configuration
page 177
printer control panel 170
Extensible Authentication
Protocol, See EAP
F
factory defaults, resetting 166
cold-reset 166
security parameters 46, 74,
114, 221
TCP/IP from Telnet 88
FAIL RESERVING PRINTER
NUM 198
FIRMWARE REVISION 180
firmware upgrades 11
embedded Web server 108
obtaining 11
TFTP configuration 55
FRAME TYPE 190
FRAMING ERRORS RCVD 184
FTP printing
commands 156
example 158
exiting 156
introduction 152
TFTP configuration 47
ENWW
G
gateway
bootptab file 40
description 211
embedded Web server 96
NDPS 23
printer control panel 89
H
hardware address
arp command 66
Bootptab file 39
default NetWare printer name
99
identifying 180
in default user name 130
LPD printing 136
RARP 65
Host Access List, See Access List
HOST NAME 185
BOOTP tag 40
Control panel 215
embedded Web server 96
Telnet 74
TFTP file 47
HP IP/IPX printer gateway for
NDPS 23
HP Jetdirect
cold-reset 166
configuration page messages
177
configuration page, how to
print 169
Error messages 195
general configuration messages
180
network statistics 182, 184
using the printer control panel
89, 214
HP LaserJet Utility
renaming the printer 27
running 26
HP Support, Online 10
HP Web JetAdmin
with embedded Web server 92
226
Index
HP Web Jetadmin 17
installing 18
removing 19
HTTPS
configuration page 182
embedded Web server 94, 126
redirection from Telnet 74
redirection from TFTP 46
I
I/O Card, STATUS message 180
Identification, print server 7
idle timeout
current setting 187
embedded Web server 97
printer control panel 89
Telnet 79
TFTP configuration file 51
IEEE 802.1X 10
Configuration 130
INIT message 171
INITIALIZING TRYING TO
CONNECT TO SERVER 204
installing
AppleTalk software 25
HP Web Jetadmin software 18
Internet Printer Connection
software
introduction 20
supported proxies 21
system requirements 21
Internet Printing Protocol, See IPP
INVALID
GATEWAY ADDRESS 201
IP ADDRESS 201
PASSWORD 204
SERVER ADDRESS 202
SUBNET MASK 201
SYSLOG ADDRESS 202
TRAP DEST ADDRESS 202
ENWW
IP address 185
Bootptab file 39
configuring 209
default 32
embedded Web server 93, 96
erasing through Telnet 88
printer control panel 89
resetting 166
TCP/IP overview 206
IP, See TCP/IP
IP/IPX printer gateway 23
IPP
Internet Printer Connection
14, 20
TFTP configuration 47
ipv4-multicast
embedded Web server 104, 129
Telnet 79
TFTP configuration file 50
IPX/SPX
Control panel configuration
217
STATUS message 189
Telnet configuration 83
TFTP configuration 53
J
Jetdirect certificate 119
L
LAN ERROR
BABBLE 195
CONTROLLER CHIP 195
EXTERNAL LOOPBACK 195
INFINITE DEFERRAL 195
INTERNAL LOOPBACK 195
LOSS OF CARRIER 196
NO LINKBEAT 196
NO SQE 195
RECEIVER OFF 196
RETRY FAULTS 196
TRANSMITTER OFF 196
UNDERFLOW 196
227
Index
link configuration
embedded Web server 105
graphical control panel 221
Telnet 85
TFTP 54
locally administered address
(LAA) 85, 105, 180
LPD (Line Printer Daemon), See
LPD printing
LPD printing
Mac OS 150
setup overview 136
TFTP configuration 48
UNIX 138
troubleshooting 175
Windows NT/2000 142
LPD Queues
embedded Web server 108
Telnet 76
user defined 108, 137
M
MAC address, See hardware
address
Manufacturing ID 181
messages
AppleTalk 193
DLC/LLC 194
Errors 195
General 180
HP Jetdirect configuration
page 177
IPX/SPX 189
TCP/IP 185
Model number
configuration page 180
Multicast Domain Name System
(mDNS)
embedded Web server 104, 129
Telnet 78
TFTP 50
N
NDPS, See HP IP/IPX printer
gateway for NDPS
ENWW
NDS
AUTHENTICATION ERROR
200
CONNECTION STATE
ERROR 201
Context 191
PRINT OBJ QUEUE LIST
ERROR 200
PRINT SERVER NAME
ERROR 200
PRINTER OBJ NOTIFY ERR
200
PRNT SRVR PUBLIC KEY
ERR 201
PS PRINTER LIST ERROR
200
SERVR PUBLIC KEY ERR 200
TREE NAME 191
NDS ERR
CANNOT READ Q HOST 201
CHANGE PSSWD FAILED
200
EXCEEDS MAX SERVERS
200
INVALID SRVR VERS 200
MAX PRINT OBJECTS 201
MAX QUEUE OBJECTS 201
NO PRINTER OBJECTS 200
NO QUEUE OBJECTS 201
SRVR NAME UNRESOLVD
200
UNABLE TO FIND TREE 201
UNABLE TO LOGIN 200
UNRESOLVD PRNTR OBJ
200
UNRESOLVED QUEUE 201
NETWARE MODE 191
network
AppleTalk (Mac OS) 25
configuration page 177
Error messages 195
HP software solutions 13
security parameters 182
statistical parameters 184
supported protocols 8
TCP/IP overview 205
228
Index
NETWORK FRAME TYPE RCVD
190
NIS (Network Information
Service) 37
NO QUEUE ASSIGNED 197
NODE NAME 191
NOT CONFIGURED 197
Novell NetWare
Configuration page 191
embedded web server 94
Error messages 195
STATUS 191
NOVRAM ERROR 201
O
OUT OF BUFFERS 199
P
PACKETS TRANSMITTED 184
PASSWORD ERROR 197
password, administrator
printer synchronization 118
Web Jetadmin synchronization
117
PEAP 10
PEM (Privacy Enhanced Mail) 123
ping
Control panel test 219
for configuration 66
PORT CONFIG 181
PORT SELECT 180
POSTSCRIPT MODE NOT
SELECTED 203
Primary Frame Type 189
print queue
BSD systems 138
LPD 76, 137
SAM (HP-UX) systems 140
Print Server
Control panel menu 215
Identification 7, 180
PRINT SERVER NOT DEFINED
198
printcap file 138
printer control panel 89, 214
ENWW
printer gateway, See HP IP/IPX
printer gateway for NDPS
PRINTER NUMBER IN USE 197
PRINTER NUMBER NOT
DEFINED 197
printer, selecting with Apple
Chooser 28
Protected Extensible
Authentication Protocol, See
PEAP
protocols
control panel configuration 214
embedded Web server 103, 126
Telnet configuration 73
TFTP configuration 53
proxies, Internet Printer
Connection software 21
Proxy server
Control panel configuration
217
embedded Web server 107
PSERVER CLOSED
CONNECTION 199
Q
queue names
LPD printing 76, 109, 137
Queue poll interval 192
Telnet 83
TFTP 54
R
RARP Server, identifying 186
RARP, using 64
RCFG (NetWare) 116, 129
refresh rate
embedded Web server 112
Telnet web-refresh 79
TFTP web-refresh 52
renaming the printer, AppleTalk
networks 27, 101
229
Index
requirements
embedded web server 92
Internet Printer Connection
software 21
LPD configuration 136
reset security
embedded Web server 114
graphical control panel 221
Telnet 74
TFTP 46
resetting to factory defaults 166
S
SAM (HP-UX) print queues 140
SAP Interval 192
Secure Web
configuration page entry 182
embedded Web server 126
Telnet configuration 74
TFTP configuration 46
security features 159
self-test page, See configuration
page
SERVER x 192
Service Location Protocol (SLP)
configuration page entry 187
embedded Web server 129
Telnet 78
TFTP configuration 49
SNMP 9
configuration page entry 183
embedded Web server 127
Telnet configuration 82
TFTP configuration 45, 52
version 3 127
SNMP get community name
See also, Community name
embedded Web server 102
TFTP configuration 52
SNMP set community name
See also, Community name
configuration page 183
embedded Web server 102
security features 162
Telnet configuration 82
TFTP configuration 52, 53
ENWW
SNMP v3 162
embedded Web server 103
software installation
AppleTalk (Mac OS) 25
HP Web Jetadmin 18
Status
AppleTalk 193
General 180
IPX/SPX 189
TCP/IP 185
subnet mask 185
bootptab file parameter 40
overview 210
printer control panel 89
TFTP host access list 49
Windows configuration 61
subnets 210
supported network protocols 8
syslog parameters 212
embedded Web server 97
Telnet configuration 77
TFTP configuration 49
syslog server
Bootptab file parameter 40
identifying 187
printer control panel 89
T
TCP/IP 31
configuration methods 31
configuration page 185
Control panel configuration
215
embedded Web server 96
LPD setup 136
overview 205
STATUS message 185
Telnet configuration 74
TFTP configuration 47
Telnet
command line configuration 73
erasing the IP address 88
security control 161
using 68
test file, printing
UNIX LPD 141
230
Index
TFTP
BOOTP 36
configuration file 42
controlling configuration 46
DHCP 56
Error messages 202
Server 38, 187
TFTP (Trivial File Transfer
Protocol), See TFTP
TOTAL PACKETS RCVD 184
traps, TFTP configuration 53
troubleshooting 165
configuration page error
messages 195
flow chart 167
LPD UNIX 175
U
UDP, See User Datagram Protocol
UNABLE TO
ATTACH TO QUEUE 199
CONNECT DHCP SERVER
203
CONNECT TO SERVER 198,
199
FIND SERVER 197
GET NDS SRVR ADDR 201
LOGIN 198
SENSE NET NUMBER 200
SET PASSWORD 198
UNEXPECTED PSERVER DATA
RCVD 199
UNICAST PACKETS RCVD 184
UNIX (HP-UX and Solaris)
networks, LPD printing 134
UNKNOWN NCP RETURN
CODE 199
UNSENDABLE PACKETS 184
upgrades, firmware 11
TFTP parameter 55
User Datagram Protocol (UDP)
206
datagram port control 106
mDNS configuration 104, 129
ENWW
V
Validity Period
certificates 121
W
Web JetAdmin URL
configuration page entry 188
embedded Web server link 133
Web Jetadmin URL
See also, HP Web Jetadmin
WINS server 187
DHCP and 56
X
XMIT COLLISIONS 184
XMIT LATE COLLISIONS 184
Z
zone, AppleTalk
embedded Web server 101
HP LaserJet Utility 28
Telnet 84
231
© 2004
Hewlett-Packard Development Company, L.P.
English
Download PDF

advertising
