S00eiohw.book Page 1 Thursday, February 24, 2000 2:26 PM

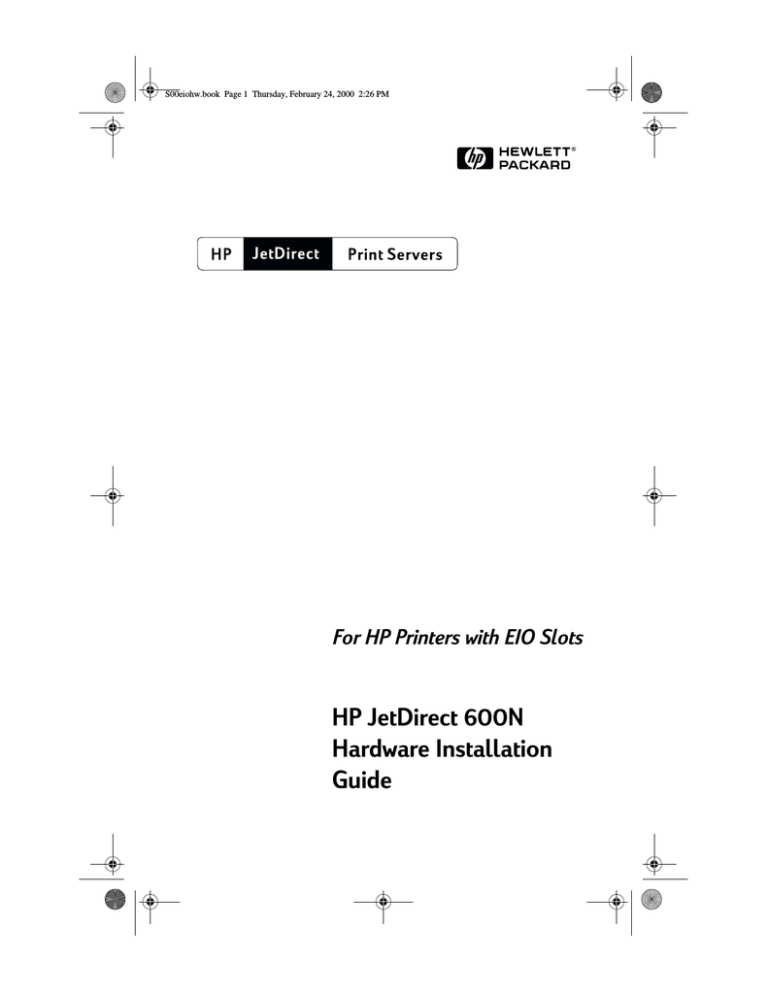

For HP Printers with EIO Slots
HP JetDirect 600N
Hardware Installation
Guide
S00eiohw.book Page 2 Thursday, February 24, 2000 2:26 PM
S00eiohw.book Page 1 Thursday, February 24, 2000 2:26 PM
Hardware Installation Guide
HP JetDirect 600N Print Server
S00eiohw.book Page 2 Thursday, February 24, 2000 2:26 PM
©Copyright Hewlett-Packard
Company 2000. All rights reserved.
Reproduction, adaptation or translation
without prior written permission is
prohibited, except as allowed under
the copyright laws.
Warranty and Service
For product warranty and service
information, refer to the Quick Start
Guide supplied with this product.
5969-3561
A copy of the specific warranty terms
applicable to your HP product and
replacement parts can be obtained from
your HP Sales and Service Office or
Authorized dealer.
First Edition February 2000
Safety Considerations
Applicable Products:
Prior to the installation and use of this
product, review all safety markings and
instructions.
Publication number
J3110A
J3111A
J3112A
J3113A
Trademark Credits
Microsoft®, MS-DOS®, Windows®,
Microsoft Windows NT® are trademarks
or U.S. registered trademarks of Microsoft
Corporation. NetWare® and Novell®
are registered trademarks of Novell
Corporation. IBM®, IBM LAN Server®,
Operating System/2® are registered
trademarks of International Business
Machines Corp. Ethernet is a registered
trademark of Xerox Corporation.
PostScript® is a trademark of Adobe
Systems, Incorporated. UNIX® is a
registered trademark of the Open Group.
Disclaimer
The information contained in this
document is subject to change without
notice.
HEWLETT-PACKARD COMPANY
MAKES NO WARRANTY OF ANY KIND
WITH REGARD TO THIS MATERIAL,
INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE.
Hewlett-Packard shall not be liable for
errors contained herein or for incidental
or consequential damages in connection
with the furnishing, performance or use of
this material.
Customer Support
For assistance, visit HP Customer Care
Online at:
www.hp.com/support/net_printing
or refer to HP Customer Care By Phone
described in the Quick Start Guide
supplied with this product.
!
Instruction Manual
Symbol. If the product
is marked with this
symbol, refer to the
product manuals to
protect the product
from damage.
WARNING
Denotes a hazard that
can cause injury
CAUTION
Denotes a hazard that
can damage equipment
or data.
Do not proceed beyond a WARNING or
Caution notice until you have understood
the hazard and have taken appropriate
steps.
Grounding. This product is installed in a
safety class 1 product that has a protective
earthing terminal. There must be an
uninterrupted safety earth ground from
the main power source to the product’s
input wiring terminals, power cord or
supplied power cord set. Whenever it
is likely that the protection has been
impaired, disconnect the power cord
until the ground has been restored.
Hewlett-Packard Company
8000 Foothills Boulevard
Roseville, California 95747-6588
S00eiohw.book Page 3 Thursday, February 24, 2000 2:26 PM
Quick Installation
Note
See chapter 2 for detailed information.
1. Identify Your HP JetDirect 600N Internal Print Server
HP J3110A for Ethernet
(10Base-T) networks
Provides an RJ-45 connector
(unshielded twisted-pair cable)
HP J3111A for Ethernet
(10Base-T, 10Base-2) and
LocalTalk networks
Provides an RJ-45 connector
(unshielded twisted-pair cable), a
BNC connector (coaxial ThinLAN
cable) and Mini-DIN 8 connector
(LocalTalk connector box)
HP J3112A for Token Ring
(IEEE 802.5) networks
Provides an RJ-45 connector
(unshielded twisted-pair cable) and
DB-9 connector (type 1, 2, or 6
shielded twisted-pair cable)
HP J3113A for Fast Ethernet
(10/100Base-TX) networks
Provides an RJ-45 connector
(unshielded twisted-pair cable). For
100Base-TX, use Category 5 cable.
3
S00eiohw.book Page 4 Thursday, February 24, 2000 2:26 PM
2. If Necessary, Set Switches or Jumpers on Your Card
If You Have a Token Ring Card
Token Ring networks operate at
4 Mbps or 16 Mbps. You must set
the Data Rate switch on the card to
either 4 or 16, depending on your
network. If you don’t know, ask your
network administrator. The factory
default is 16 Mbps.
If You Have a 10/100Base-TX Card
The 10/100TX card is preconfigured
for Autonegotiation (jumper P1),
which means the card will
automatically attempt to connect to
your network using the proper speed
(10 or 100 Mbps) and duplex mode
(Full or Half). In most cases, you do
not need to change the jumper
settings. Refer to Appendix A for
more information.
3. Before Installing the Card, Verify That Your Printer
Works.
Print a Printer
Configuration Page.
For instructions, see
chapter 2 or refer to your
printer manuals.
4
S00eiohw.book Page 5 Thursday, February 24, 2000 2:26 PM
4. Turn Off Your Printer and Insert the Card. Then connect
the network cables.
Some printers have multiple EIO (Enhanced I/O) slots. You can
install the HP JetDirect card into any EIO slot.
5. Verify That the Card Is Operating Properly.
Turn on the printer and
print another
configuration page.
Verify that a “JetDirect
Configuration Page” also
prints.
Check the JetDirect
Configuration Page and
verify that an “I/O CARD
READY” message appears.
5
S00eiohw.book Page 6 Thursday, February 24, 2000 2:26 PM
Note
If other messages appear, see the troubleshooting
sections in the HP JetDirect administrator’s guide
provided on the HP JetDirect CD-ROM.
For HP J3113A 10/100Base-TX cards, see appendix
A in this manual for special troubleshooting
information.
6. Configure the Card for Network Operation.
You can use the installation and
configuration software on the
HP JetDirect CD-ROM, or
download it from the World
Wide Web.
Refer to the HP JetDirect
administrator’s guide (supplied
electronically on the CD-ROM).
For many HP printers, you can use
the printer’s control panel to
configure basic network
parameters.
Refer to chapter 3 in this guide.
If the JetDirect card has been
configured with an IP address, you
can use a supported Web Browser
for advanced configuration.
Refer to chapter 4 in this guide.
6
S00eiohw.book Page 7 Thursday, February 24, 2000 2:26 PM
Table of Contents
Quick Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Introduction 1-1
Supported Network Protocols . . . . . . . . . . . . . . . . . . . 1-2
Supported Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Installing the Print Server . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
What You Need for Installation . . . . . . . . . . . . . . . . . . 2-1
Step 1. Identify Your HP JetDirect 600N
Internal Print Server . . . . . . . . . . . . . . . . . . . . . . . 2-2
Step 2. If Necessary, Set Switches or Jumpers
on Your Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Step 3. Before Installing the Card, Verify
That Your Printer Works . . . . . . . . . . . . . . . . . . . . 2-5
Step 4. Turn Off Your Printer and Insert the Card . . 2-7
Step 5. Verify That the Card Was Installed Correctly 2-8
Step 6. Configure the Card for Network Operation . . 2-10
Control Panel Configuration . . . . . . . . . . . . . . . . . . . . . . . 3-1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
To Restore Configuration Default Values . . . . . . . . . . 3-2
To Enable or Disable Network Protocols . . . . . . . . . . . 3-2
To enable or disable network protocols . . . . . 3-3
Configuring IPX Frame Types . . . . . . . . . . . . . . . . . . . 3-4
IPX Frame Types on an HP JetDirect
Ethernet Card . . . . . . . . . . . . . . . . . . . . . . 3-4
IPX Frame Types on an HP JetDirect
Token Ring Card . . . . . . . . . . . . . . . . . . . . 3-4
To configure an IPX frame type . . . . . . . . . . . 3-5
Configuring IPX Source Routing
(Token Ring Cards Only) . . . . . . . . . . . . . . . . . . . . 3-6
To configure IPX source routing . . . . . . . . . . . 3-6
7
S00eiohw.book Page 8 Thursday, February 24, 2000 2:26 PM
Configuring TCP/IP Parameters . . . . . . . . . . . . . . . . . 3-8
To configure TCP/IP parameters . . . . . . . . . . . 3-9
Configuring Apple EtherTalk Phase Parameters
(Ethernet Cards Only) . . . . . . . . . . . . . . . . . . . . . . 3-11
To configure EtherTalk parameters . . . . . . . . 3-11
Using the Embedded Web Server . . . . . . . . . . . . . . . . . . . 4-1
Supported Web Browsers . . . . . . . . . . . . . . . . . . . . . . . 4-2
HP Web JetAdmin Compatibility . . . . . . . . . . . . . . . . 4-2
Viewing the Embedded Web Server . . . . . . . . . . . . . . . 4-3
Operating Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
HP J3113A 10/100Base-TX Print Server . . . . . . . . . . . . . . A-1
Supported Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Link-Speed LEDs . . . . . . . . . . . . . . . . . . . . . . . A-1
Link Configuration Jumper Settings . . . . . . . A-2
Link Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
Specifications and Regulatory Statements . . . . . . . . . . . B-1
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . . . B-2
8
S00eiohw.book Page 1 Thursday, February 24, 2000 2:26 PM
1
Introduction
The HP JetDirect 600N family of internal print servers are network
interface cards for HP Enhanced I/O (EIO) printers and mopiers.
With an HP JetDirect print server, you can connect and share your
printer anywhere on your network and print at network speeds.
A typical network using an HP JetDirect 600N print server is
illustrated below. The card must first be installed into the printer
and connected to the network. Then, you must configure the card
for network operation.
HP JetDirect 600N
●
You can use HP JetDirect printer installation or management
software. Refer to the HP JetDirect software installation
instructions included with this product.
●
Alternatively, for printers equipped with a control panel, you
can use the printer’s control panel to configure basic network
parameters. See chapter 3.
Introduction 1-1
S00eiohw.book Page 2 Thursday, February 24, 2000 2:26 PM
Supported Network Protocols
Supported
Network
Protocols
Supported Networks*
HP JetDirect
600N Product
IPX/SPX and
compatible
Novell NetWare
J3110A
J3111A
J3112A
J3113A
EtherTalk
AppleTalk
J3110A
J3111A
J3113A
LocalTalk
AppleTalk
J3111A
DLC/LLC
IBM OS/2 Warp**
J3110A
J3111A
J3112A
J3113A
Microsoft Windows 95/98/NT/2000
Microsoft Windows NT
Artisoft LANtastic**
TCP/IP
Microsoft Windows 95/98/NT/2000
Novell NetWare 5 via NDPS
IBM OS/2 Warp
J3110A
J3111A
J3112A
J3113A
LPD (line printer daemon)
IPP (Internet Printing Protocol)
UNIX and Linux, including:
Hewlett-Packard HP-UX, Sun
Microsystems Solaris (Sun
SPARCsystems only), SCO UNIX**,
IBM AIX**, HP MPE-iX**, RedHat
Linux, SuSE Linux
* Refer to the current HP JetDirect product data sheets for supported network
versions. For other networks, consult your system vendor or authorized HP
dealer.
**Contact your network system vendor for software, documentation, and
support.
1-2 Introduction
S00eiohw.book Page 3 Thursday, February 24, 2000 2:26 PM
Supported Printers
■
■
■
HP LaserJet EIO printers
HP Color LaserJet EIO printers
HP Mopiers (EIO mopiers)
HP DesignJet EIO large format printers
For most of these printers, you can use the printer’s control panel
to configure basic network parameters on the HP JetDirect 600N
internal print server. Refer to chapter 3.
Note
For installation in peripheral devices not covered in
this guide, refer to the manuals supplied with the
peripheral device.
Introduction 1-3
Introduction
■
1
The HP JetDirect 600N print servers are supported in all HP
printers and mopiers with Enhanced Input/Output (EIO) slots,
such as:
S00eiohw.book Page 4 Thursday, February 24, 2000 2:26 PM
1-4 Introduction
S00eiohw.book Page 1 Thursday, February 24, 2000 2:26 PM
2
Installing the Print Server
What You Need for Installation
●
The proper HP JetDirect print server, documentation, and
software for your network.
●
The proper network cables and connectors for connecting the card
and printer to your network.
●
A static-safe environment for handling the card.
CAUTION
HP JetDirect cards contain electronic
components that can be damaged by static
electricity through electrostatic discharge
(ESD). To prevent ESD damage, maintain frequent
contact with any bare sheet metal surface on the
printer. A grounding wrist strap (or similar device)
is useful for this purpose. Handle the card carefully
at all times. Avoid touching electronic components
or circuit paths.
Installing the Print Server 2-1
S00eiohw.book Page 2 Thursday, February 24, 2000 2:26 PM
Step 1. Identify Your HP JetDirect
600N Internal Print Server
Remove the HP JetDirect card from its packaging and verify that
you have the correct card for your network.
HP J3110A for Ethernet and
IEEE 802.3 Type 10Base-T
networks (10 Mbps).
This card provides a single
RJ-45 connector for networks
that use unshielded twisted-pair
cables.
HP J3111A for Ethernet, IEEE
802.3 Type 10Base-T/10Base-2
networks (10 Mbps), and
LocalTalk networks.
This card provides an RJ-45
connector for networks that use
unshielded twisted-pair cables,
a BNC connector for ThinLAN
coaxial cables, and a Mini-DIN 8
connector for a LocalTalk
connector box.
You can use the LocalTalk port and only
one Ethernet port: RJ-45 or BNC.
2-2 Installing the Print Server
S00eiohw.book Page 3 Thursday, February 24, 2000 2:26 PM
HP J3112A for Token Ring
(IEEE 802.5) networks. A Data
Rate switch selects operation for
4-Mbps or 16-Mbps Token Ring
networks.
This card provides a single
RJ-45 connector for networks
that use unshielded twisted-pair
cables.
Jumpers
In most cases, you do not need to
change the jumpers. See appendix A.
Installing the Print Server 2-3
Installing the
Print Server
HP J3113A for Ethernet, IEEE
802.3 Type 10Base-T or IEEE
802.3u Type 100Base-TX
networks. Jumpers on the card
allow autonegotiated or manual
settings for 10 or 100 Mbps
operation at full or half duplex.
You can use only one Token Ring port:
RJ-45 or DB 9.
2
This card provides an RJ-45
connector for networks that use
unshielded twisted-pair cables,
and a DB 9 connector for Type
1, 2 or 6 shielded twisted-pair
cables.
Data Rate Switch
S00eiohw.book Page 4 Thursday, February 24, 2000 2:26 PM
Step 2. If Necessary, Set Switches or
Jumpers on Your Card
●
If you have an HP J3112A Token Ring print server, you
must set the Data Rate switches on the card to either 4 Mbps or
16 Mbps. The selection depends on the data rate of your Token
Ring network.
4 Mbps
16 Mbps
a. Locate the Token Ring card Data Rate switches.
b. Set the switches to 4 or 16 Mbps. The default is 16 Mbps.
●
If you have an HP J3113A 10/100Base-TX print server,
verify that jumper P1 is in the “AUTO” (Autonegotiation)
position. This is the default position. (In this position, the card
will attempt to automatically connect to the network at the
detected speed (10 or 100 Mbps) and communication mode
(Full or Half Duplex).)
P1 = AUTO
10/100; Half/Full
Autonegotiation
Note
For the definition of other jumper settings on the
10/100Base-TX card, see appendix A.
2-4 Installing the Print Server
S00eiohw.book Page 5 Thursday, February 24, 2000 2:26 PM
Step 3. Before Installing the Card,
Verify That Your Printer Works
To verify that your printer is working properly, print a Printer
Configuration page. Instructions for printing a configuration page
on selected printers are provided below. (For other printers, refer
to the manuals supplied with the printer.) If a Printer Configuration
page will not print, refer to your printer manuals for
troubleshooting instructions.
2
HP LaserJet Printers and Mopiers
Perform the following steps using the printer control panel:
2. Press [Menu] until the display reads INFORMATION MENU.
3. Press [Item] until the display reads PRINT CONFIGURATION (or
PRINT CONFIG PAGE).
4. Press [Select] to print. If necessary, press [Go] to bypass
additional messages.
5. The Printer Configuration page(s) show how the printer is
configured.
Figure 2-1 Typical HP LaserJet Printer Control Panels
A Go
B Menu
C Item
D Value
E Select
Installing the Print Server 2-5
Installing the
Print Server
1. Make sure the printer is on and the READY message is displayed.
S00eiohw.book Page 6 Thursday, February 24, 2000 2:26 PM
HP DesignJet Printers
Note
Refer to your HP DesignJet printer documentation
for instructions on navigating through the printer’s
Front Panel menus.
1. With the printer status Ready, select the Printer Setup Menu
icon on the front panel using the up or down arrow keys (¦Ø).
Then press [Enter].
2. To ensure that all Front Panel menu items are accessible, verify
the Menu Mode is set to Full (Utilities -> Menu Mode -> Full).
3. Print a Service Configuration print (Utilities -> Test prints ->
Service Config).
Note
When an HP JetDirect print server is installed in
the printer, HP JetDirect configuration information
will be included with the printer’s Service
Configuration print.
2-6 Installing the Print Server
S00eiohw.book Page 7 Thursday, February 24, 2000 2:26 PM
Step 4. Turn Off Your Printer and
Insert the Card
Figure 2-2 Typical Card Installation and Network Connection
2
BNC
1. Turn off the printer (or mopier).
2. Identify an available HP Enhanced I/O (EIO) slot in the back of
the printer.
Note
You can install the card into any EIO slot in the
HP printer or mopier.
3. If the slot has a cover plate, remove it.
4. Insert the card. Align the card with the guide rails in the slot.
5. Press the card into the slot until firmly seated and tighten each
retaining screw a little at a time until both screws are secure.
6. Connect the network cable to the card.
Installing the Print Server 2-7
Installing the
Print Server
RJ-45
S00eiohw.book Page 8 Thursday, February 24, 2000 2:26 PM
Note
For the HP J3111A Ethernet card, you can connect
to the LocalTalk port and to only one of the Ethernet
ports (RJ-45 or BNC).
For the HP J3112A Token Ring card, you can
connect to only one of the Token Ring ports
(RJ-45 or DB 9).
7. Turn on the printer (or mopier).
Step 5. Verify That the Card Was
Installed Correctly
1. Print another Printer Configuration Page (or Service
Configuration print) as described previously in Step 3 and verify
that JetDirect Configuration Page information also prints.
In HP LaserJet printers, a JetDirect Configuration Page will
print for each EIO slot that contains an HP JetDirect card.
2. In the General Information section of the JetDirect
Configuration Page, locate the message “I/O CARD READY”.
This section of the configuration page also contains productspecific information, such as:
■
■
■
■
Note
HP JetDirect product number
Firmware revision number
LAN Hardware (MAC) address
Manufacturing identification number
For a description of other messages that may appear
on the JetDirect Configuration Page, refer to the
HP JetDirect administrator’s guide located on the
HP JetDirect CD-ROM.
2-8 Installing the Print Server
S00eiohw.book Page 9 Thursday, February 24, 2000 2:26 PM
Figure 2-3 Example of HP JetDirect Configuration Page
I/O CARD READY
2
4. If I/O CARD READY does not appear, check that you have:
■
Installed the card correctly and properly connected the card
to the network
■
Verified that the network is operating properly
■
Turned the printer off and then on again
Note
For HP J3113A 10/100Base-TX cards: See
appendix A in this guide for special troubleshooting
information.
For LocalTalk-Only Customers: If you are
not connected to an Ethernet network, “I/O CARD
NOT READY” and “LAN ERROR - EXTERNAL
LOOPBACK” messages may appear. These
messages should stop appearing after three
minutes. To eliminate the messages, attach
an Ethernet loopback connector to one of the
Ethernet ports.
Installing the Print Server 2-9
Installing the
Print Server
3. If I/O CARD READY appears, the card has been installed
successfully. Proceed to “Step 6. Configure the Card for Network
Operation.”
S00eiohw.book Page 10 Thursday, February 24, 2000 2:26 PM
For persistent problems, refer to the troubleshooting sections in the
HP JetDirect administrator’s guide supplied electronically on the
HP JetDirect CD-ROM.
Step 6. Configure the Card for
Network Operation
If the card has been successfully installed and is operating correctly,
you are now ready to configure the card for network operation. You
can configure the card using the following methods:
●
Use the installation and configuration software on the
HP JetDirect CD-ROM. On Microsoft Windows 95/98/NT/2000
systems (Microsoft or Novell NetWare networks), the CD-ROM
installation utility will guide you through the entire printer setup
process.
●
Use HP printer management software (such as HP Web
JetAdmin) or other network utilities. HP printer management
software can be downloaded from HP’s Customer Care Center
(www.hp.com/support/net_printing). For additional information,
see the HP JetDirect administrator’s guide supplied
electronically on the CD-ROM.
●
Use the printer’s control panel (for printers with a supported
control panel) to configure basic network parameters on the card.
See chapter 3 in this guide.
●
Once the HP JetDirect card has been configured for TCP/IP
operation, use a supported network browser to access the
embedded web server on the HP JetDirect card. See chapter 4 in
this guide.
●
Once the HP JetDirect card has been configured for TCP/IP
operation, use the Telnet services provided on the HP JetDirect
card. See the HP JetDirect administrator’s guide supplied
electronically on the CD-ROM.
2-10 Installing the Print Server
S00eiohw.book Page 11 Thursday, February 24, 2000 2:26 PM
Note
Depending on the method you use to configure the
HP JetDirect card for network operation, you may
still need to set up your computers for printing. To
add the printer to your system, or to enable printing
from your system, refer to the Help system provided
with your printer installation software and operating system. For more information, refer to the
HP JetDirect Administrator’s Guide provided on
the HP JetDirect CD-ROM.
2
Installing the
Print Server
Installing the Print Server 2-11
S00eiohw.book Page 12 Thursday, February 24, 2000 2:26 PM
2-12 Installing the Print Server
S00eiohw.book Page 1 Thursday, February 24, 2000 2:26 PM
3
Control Panel Configuration
Introduction
In most cases, you will use HP software tools to configure your
network printer. However, if your HP printer or Mopier has a
control panel, you can configure basic network parameters through
the printer’s control panel. Printers with control panel support
include:
●
HP LaserJet 4000, 4050, 5000, 8000, and 8100 Series EIO
printers
● HP Color LaserJet 4500, 8500, 8550 Series EIO printers
● HP Mopier 240 and 320 Series EIO Mopiers
● HP DesignJet 1050C and 1055CM Series EIO printers
Note
To configure HP JetDirect parameters on
HP DesignJet 1050C/1055CM Series printers
through the printer’s front control panel, see
your HP DesignJet setup guide.
For printers without control panels (for example,
HP LaserJet 2100 Series EIO printers), you must
use HP software tools for configuration.
You can use the printer control panel to do the following:
●
Enable or disable network protocols
Configure IPX frame types
Configure IPX source routing for Token Ring networks
● Configure TCP/IP parameters
● Configure Apple EtherTalk Phase parameters for Ethernet
networks
●
●
Control Panel Configuration 3-1
S00eiohw.book Page 2 Thursday, February 24, 2000 2:26 PM
After you have configured the HP JetDirect card through the control
panel, you may still need to complete the configuration of your
computer and network operating system for printing. For more
information, see the HP JetDirect software installation
instructions included with this product.
If you reconfigure the card—for example, you disable a network
protocol—your configuration is saved on the card and is maintained
even after the printer is turned off and back on again.
To Restore Configuration Default
Values
You can restore default values by performing a cold reset on your
printer. See your printer documentation for instructions. (Note: To
perform a cold reset on some HP LaserJet printers, turn off the
printer and then hold down [Go] as you turn the printer back on.)
Resetting your printer restores both your printer and JetDirect
configuration to their factory default values. To verify HP JetDirect
default values have been reset, print a JetDirect configuration page
(see chapter 2).
To Enable or Disable Network
Protocols
When you first install the card from the factory, all supported
network protocols are enabled (or turned on) when you turn the
printer on. If a network protocol is enabled, the card may actively
transmit on the network even when the protocol is not in use. This
may increase network traffic slightly. To eliminate unnecessary
traffic, you can disable unused protocols. Disabling unused
protocols lets you:
●
reduce network traffic by eliminating broadcast messages from
unused protocols (for example, IPX/SPX and TCP/IP).
●
provide better control over who prints to the printer by
eliminating users from other networks who might accidentally
route print jobs to this printer.
3-2 Control Panel Configuration
S00eiohw.book Page 3 Thursday, February 24, 2000 2:26 PM
●
eliminate unnecessary information on the JetDirect
Configuration Page, which displays status information
for all enabled protocols.
●
display protocol-specific error conditions on the printer’s control
panel. These warning messages are displayed only if all enabled
protocols are unable to print.
To enable or disable network protocols
1. Take the printer offline by pressing [Go]. The “Ready” LED
should be off.
2. Press [Menu] repeatedly until EIO # JETDIRECT MENU is displayed
(# identifies the EIO slot number of the card).
3. Press [Item] until CFG NETWORK=NO* appears.
NO* indicates that access to the EIO JetDirect network menus
will be bypassed. You must change this to CFG NETWORK=YES* to
access the EIO JetDirect menus:
a. Press [Value]. CFG NETWORK=YES appears.
IPX/SPX=ON*
DLC/LLC=ON*
● To change the protocol status, press [Value]
and then press [Select].
● Press [Item] to continue to the next protocol.
TCP/IP=ON*
ETALK=ON*
Note:
ON* indicates the protocol is enabled.
OFF* indicates the protocol is disabled.
“ETALK” refers to the EtherTalk protocol (not available on Token Ring
cards)
5. To activate the printer and save your changes, press [Go].
Control Panel Configuration 3-3
Control Panel
Configuration
4. Press [Item] to scroll through each network protocol until the one
you want to change is displayed.
3
b. Press [Select]. CFG NETWORK=YES* appears.
S00eiohw.book Page 4 Thursday, February 24, 2000 2:26 PM
Configuring IPX Frame Types
On IPX/SPX protocol networks (for example, Novell NetWare), the
format of network communication frames must be specified on the
card. In most cases, you can keep the default Frame Type setting,
which is AUTO (“Automatic”). However, you can manually set the
frame type format if required.
Note that the IPX/SPX protocol must be enabled (IPX/SPX=ON*)
before you can configure frame types.
IPX Frame Types on an HP JetDirect Ethernet
Card
Frame Type
Description
AUTO (default)
Automatically senses and limits the frame type to the first
one detected.
EN_8023
Limits the frame type to IPX over IEEE 802.3 frames. All
others will be counted and discarded.
EN_II
Limits the frame type to IPX over Ethernet Frames. All
others will be counted and discarded.
EN_8022
Limits the frame type to IPX over IEEE 802.2 with IEEE
802.3 frames. All others will be counted and discarded.
EN_ SNAP
Limits the frame type to IPX over SNAP with IEEE 802.3
frames. All others will be counted and discarded.
IPX Frame Types on an HP JetDirect Token Ring
Card
Frame Type
Description
AUTO (default)
Automatically senses and limits the frame type to the first
one detected.
TR_8022
Limits the frame type to IPX over IEEE 802.2 LLC with
IEEE 802.5 frames. All others will be counted and
discarded.
TR_ SNAP
Limits the frame type to IPX over SNAP with IEEE 802.5
frames. All others will be counted and discarded.
3-4 Control Panel Configuration
S00eiohw.book Page 5 Thursday, February 24, 2000 2:26 PM
To configure an IPX frame type
If you have not already done so, enable the IPX/SPX protocol
(IPX/SPX=ON*) by following the instructions described in “To enable
or disable network protocols” in this chapter.
1. Take the printer offline by pressing [Go]. The “Ready” LED
should be off.
2. Press [Menu] repeatedly until EIO # JETDIRECT MENU is displayed
(# identifies the EIO slot number of the card).
3. Press [Item] until CFG NETWORK=NO* appears.
NO* indicates that access to the EIO JetDirect network menus
will be bypassed. You must change this to CFG NETWORK=YES* to
access the EIO JetDirect menus:
a. Press [Value]. CFG NETWORK=YES appears.
b. Press [Select]. CFG NETWORK=YES* appears.
4. Press [Item] to scroll through each network protocol until
CFG IPX/SPX=NO* is displayed.
AUTO
EN_8023
EN_II
EN_8022
EN_SNAP
● To change the frame type, press [Value] until
the desired option appears, and then press
[Select].
● Press
[Item] to continue to the next
parameter.
TR_8022
TR_SNAP
Note:
An asterisk (*) indicates the active frame type selected.
The available frame type options depend on whether you have an
Ethernet or Token Ring card installed.
6. To activate the printer and save your changes, press [Go].
Control Panel Configuration 3-5
Control Panel
Configuration
5. Press [Item] until FRAME=<Frame Type>* appears.
3
To access the IPX/SPX configuration menu, press [Value] and
then press [Select] to display CFG IPX/SPX=YES*.
S00eiohw.book Page 6 Thursday, February 24, 2000 2:26 PM
Configuring IPX Source Routing
(Token Ring Cards Only)
On an IPX/SPX network, the HP JetDirect Token Ring print server
must be configured with the type of Token Ring source routing used
on the network. In most cases, you can keep the default setting,
which is AUTO (“Automatic”). However, you can manually set
source routing if required.
Note that the IPX/SPX protocol must be enabled (IPX/SPX=ON*)
before you can configure source routing.
The possible routing selections are:
Source Routing Description
AUTO (default)
The type of source routing required by the network
environment will be automatically sensed.
OFF
All packets are sent without source routing. The JetDirect
card will only respond to stations that are on the same
ring.
SINGLE R
All packets are sent with source routing. The Single Route
method is used for broadcasts and when the route is
unknown.
ALL RT
All packets are sent with source routing. The All Routes
method is used for broadcasts and when the route is
unknown.
To configure IPX source routing
1. Take the printer offline by pressing [Go]. The “Ready” LED
should be off.
2. Press [Menu] repeatedly until EIO # JETDIRECT MENU is displayed
(# identifies the EIO slot number of the card).
3-6 Control Panel Configuration
S00eiohw.book Page 7 Thursday, February 24, 2000 2:26 PM
3. Press [Item] until CFG NETWORK=NO* appears.
NO* indicates that access to the EIO JetDirect network menus
will be bypassed. You must change this to CFG NETWORK=YES* to
access the EIO JetDirect menus:
a. Press [Value]. CFG NETWORK=YES appears.
b. Press [Select]. CFG NETWORK=YES* appears.
4. Press [Item] to scroll through each network protocol until
CFG IPX/SPX=NO* is displayed.
To access the IPX/SPX configuration menu, press [Value] and
then press [Select] to display CFG IPX/SPX=YES*.
5. Press [Item] until SRC RC=<Source Routing>* appears.
AUTO
OFF
SINGLE R
[Value] until the
desired option appears, and then press [Select].
● To change the selection, press
● Press
[Item] to continue to the next parameter.
ALL RT
Note:
Control Panel Configuration 3-7
Control Panel
Configuration
6. To activate the printer and save your changes, press [Go].
3
An asterisk (*) indicates the active source-routing selection.
S00eiohw.book Page 8 Thursday, February 24, 2000 2:26 PM
Configuring TCP/IP Parameters
Using the control panel of your printer, you can manually configure
these TCP/IP parameters:
Parameter
Description
BOOTP
YES (default) enables TCP/IP configuration
automatically from the network using BOOTP/TFTP,
DHCP, or RARP.
If BOOTP=YES*, none of the remaining parameters can
be configured from the control panel.
NO disables BOOTP, and allows you to configure the
remaining parameters from the printer’s control panel.
IP Address
The JetDirect card’s unique TCP/IP network address,
consisting of 4 bytes:
IP BYTE1.IP BYTE2.IP BYTE3.IP BYTE4
(example: 015.024.227.113).
Subnet Mask
A bit mask filter used to identify the subnet of the JetDirect
card if subnetting is used, consisting of 4 bytes:
SM BYTE1.SM BYTE2.SM BYTE3.SM BYTE4
(example: 255.255.248.0)
Syslog Server IP
Address
The IP address of the log server to be used by the
JetDirect card consisting of 4 bytes:
LG BYTE1.LG BYTE2. LG BYTE3.LG BYTE4
Default Gateway
The IP address of the gateway used to communicate with
stations outside the local subnet consisting of 4 bytes:
GW BYTE1.GW BYTE2.GW BYTE3.GW BYTE4
Timeout
The TCP/IP idle time-out period (in seconds). The value
can range from 0 to 3600. The default is 90.
If set to “0”, the timeout feature of the HP JetDirect card
is disabled—TCP/IP connections will remain open until
closed by the server.
3-8 Control Panel Configuration
S00eiohw.book Page 9 Thursday, February 24, 2000 2:26 PM
Note
The card must be configured with a valid IP address
to operate on a TCP/IP network.
For DHCP (Dynamic Host Configuration Protocol)
operation, BOOTP must be enabled.
If an IP address is configured through DHCP and is
subsequently changed through the control panel,
the DHCP assigned address is released.
If a printer is configured through DHCP, and you
manually change the subnet mask or default
gateway through the control panel, you should
also change the IP address.
To configure TCP/IP parameters
If you have not already done so, enable TCP/IP (TCP/IP=ON*) by
following the instructions described in “To Enable or Disable
Network Protocols” earlier in this chapter.
1. Take the printer offline by pressing [Go]. The “Ready” LED
should be off.
2. Press [Menu] repeatedly until EIO # JETDIRECT MENU is displayed
(# identifies the EIO slot number of the card).
3. Press [Item] until CFG NETWORK=NO* appears.
NO* indicates that access to the EIO JetDirect network menus
will be bypassed. You must change this to CFG NETWORK=YES* to
access the EIO JetDirect menus:
a. Press [Value]. CFG NETWORK=YES appears.
b. Press [Select]. CFG NETWORK=YES* appears.
Control Panel Configuration 3-9
Control Panel
Configuration
Enter data carefully. If you make an incorrect entry,
you cannot change it without starting again from
step 1.
3
Note
S00eiohw.book Page 10 Thursday, February 24, 2000 2:26 PM
4. Press [Item] to scroll through each network protocol until
CFG TCP/IP=NO* is displayed.
To access the TCP/IP configuration menu, press [Value] and then
press [Select] to display CFG TCP/IP=YES*.
5. Press [Item] until BOOTP=YES* or BOOTP=NO* appears.
■
The asterisk (*) indicates the active selection.
■
To change the BOOTP setting, press [Value]. Then press
[Select]. Be sure “*” appears alongside your selection.
6. If BOOTP=YES*, the printer is configured to retrieve its TCP/IP
parameters over the network using BOOTP or DHCP. No other
TCP/IP prompts will be displayed on the printer's control panel.
To activate the printer and save your changes, press [Go].
You have completed TCP/IP configuration on the card. You must
now configure your BOOTP or DHCP server. Refer to your
system manuals for instructions.
7. If BOOTP=NO*, the printer is configured to accept TCP/IP
parameters from the printer's control panel. Press [Item]
to configure each TCP/IP parameter.
a. IP BYTE 1=<value>* should appear on the control panel first.
To enter the first byte of the IP address, press [Value] until
the desired value appears. (If you press and hold [Value], the
values scroll rapidly.)
b. To save the value, press [Select]. Press [Item] to continue.
c. Configure the remaining bytes of the IP address in the same
manner.
8. You can configure the subnet mask bytes (SM), syslog server IP
address (LG), default gateway (GW), and timeout (TIMEOUT)
in the same manner.
9. To activate the printer and save your changes, press [Go].
3-10 Control Panel Configuration
S00eiohw.book Page 11 Thursday, February 24, 2000 2:26 PM
Configuring Apple EtherTalk Phase
Parameters (Ethernet Cards Only)
You can configure Apple EtherTalk parameters if the Apple
EtherTalk protocol is enabled (ETALK=ON*), and the PostScript
printer language is enabled.
To ensure the PostScript printer language is enabled, check the
printer’s CONFIGURATION MENU. PERSONALTY=PS* or
PERSONALTY=AUTO* should be set.
To configure EtherTalk parameters
If you haven't already done so, enable EtherTalk by following the
instructions described in “To Enable or Disable Network Protocols”
in this chapter.
1. Take the printer offline by pressing [Go]. The “Ready” LED
should be off.
2. Press [Menu] repeatedly until EIO # JETDIRECT MENU is displayed
(# identifies the EIO slot number of the card).
a. Press [Value]. CFG NETWORK=YES appears.
b. Press [Select]. CFG NETWORK=YES* appears.
4. Press [Item] to scroll through each network protocol until
CFG ETALK=NO* is displayed.
To access the EtherTalk configuration menu, press [Value] and
then press [Select] to display CFG ETALK=YES*.
5. Press [Item]. ETALK PHASE=1* or ETALK PHASE=2* appears.
■
The asterisk (*) indicates the active phase setting.
■
To change the phase setting, press [Value] until the phase
setting that you desire appears, then press [Select]. Be sure
“*” appears alongside your selection.
6. To activate the printer and save your changes, press [Go].
Control Panel Configuration 3-11
Control Panel
Configuration
NO* indicates that access to the EIO JetDirect network menus
will be bypassed. You must change this to CFG NETWORK=YES* to
access the EIO JetDirect menus:
3
3. Press [Item] until CFG NETWORK=NO* appears.
S00eiohw.book Page 12 Thursday, February 24, 2000 2:26 PM
3-12 Control Panel Configuration
S00eiohw.book Page 1 Thursday, February 24, 2000 2:26 PM
4
Using the Embedded Web Server
Each HP JetDirect 600N print server contains an embedded web
server that can be accessed through a supported web browser on an
intranet. The embedded web server provides access to configuration
and management pages for the HP JetDirect print server and the
attached peripheral device.
Using the Embedded Web Server 4-1
S00eiohw.book Page 2 Thursday, February 24, 2000 2:26 PM
Supported Web Browsers
The following web browsers are supported:
●
Windows 95/98 and NT 4.0:
■ Netscape Navigator 4.01, 4.02, 4.03, and 4.05
■ Microsoft Internet Explorer 4.0 with update version SP1
● Windows 2000:
■ Microsoft Internet Explorer 5.0
● HP-UX and Solaris
■ Netscape Navigator 4.01, 4.02, 4.03, and 4.05
● Linux
■ Netscape Navigator 4.03, 4.05
For the latest information, visit our HP Customer Care Center web
site (www.hp.com/go/support).
HP Web JetAdmin Compatibility
HP Web JetAdmin is a printer installation and management
application for intranets and is available from the HP Customer
Care Center web site (www.hp.com/support/net_printing).
HP Web JetAdmin version 5.6 or later is recommended for operation
with the HP JetDirect embedded web server.
If your printer has been discovered through HP Web JetAdmin 5.6
(or later), the embedded web server on the JetDirect print server
will provide a link to HP Web JetAdmin for management of this and
other JetDirect devices on the network.
4-2 Using the Embedded Web Server
S00eiohw.book Page 3 Thursday, February 24, 2000 2:26 PM
Viewing the Embedded Web Server
Before you can use the embedded web server, the HP JetDirect print
server must be configured with an IP address.
There are many ways to configure an IP address on the print server.
For example, you can automatically configure IP parameters over
the network using BootP (Bootstrap Protocol) or DHCP (Dynamic
Host Configuration Protocol) each time the printer is turned on. Or,
you can manually configure IP parameters using one of the
following methods:
●
the Install Network Printer wizard on the HP JetDirect CD-ROM
●
the printer’s control panel (see chapter 3),
●
Telnet (see the HP JetDirect administrator’s guide supplied
electronically on the HP JetDirect CD-ROM),
●
Using the TCP/IP “arp -s” command,
●
HP Web JetAdmin or other management software.
If the HP JetDirect print server does not receive it’s IP configuration
within two minutes after power up, a default IP address is
automatically assigned: 192.0.0.192. This address is not a valid
IP address for your network but can be used to initially access the
JetDirect print server. However, to use the default IP address, you
must temporarily set up your system with the same IP network
number or establish a route to it.
After an IP address is established on the print server, perform the
following steps:
1. Run a supported version of your web browser.
4
2. Enter the IP address of the print server as the URL.
Embedded
Web Server
The HP JetDirect main web page will be displayed.
Click the “?” icon on the web page for more information.
Using the Embedded Web Server 4-3
S00eiohw.book Page 4 Thursday, February 24, 2000 2:26 PM
Operating Notes
●
Changes to the IP address and other parameters will close the
connection to the embedded web server. To re-establish a
connection, use the new IP address.
●
The HP JetDirect 600N print server supports the Internet
Printing Protocol (IPP). For Windows NT 4.0 and 2000 systems,
HP provides software (the HP Internet Printer Connection
software) to configure the system for internet printing. To
automatically install the software and set up your system for
printing to this printer, click Internet Printing Install
Wizard.
●
A link to HP’s web site is provided by clicking on the HP logo.
4-4 Using the Embedded Web Server
S00eiohw.book Page 1 Thursday, February 24, 2000 2:26 PM
A
HP J3113A 10/100Base-TX Print
Server
Supported Links
HP J3113A 10/100 Base-TX print servers support 10 or 100 Mbps
operation using full-duplex or half-duplex transmission channels.
When connecting to network devices that do not support
autonegotiation, the print server will configure itself for 10-Mbps
or 100-Mbps half-duplex operation. For example, when connected
to a non-negotiating 10 Mbps hub, the print server card will
automatically set itself to operate at 10-Mbps half-duplex.
If the card is not able to connect to the network through
autonegotiation, you can manually set the link operating mode
using link configuration jumpers (P1, P2, and P3) on the card.
Link-Speed LEDs
The HP J3113A print server provides 2 light-emitting diodes
(LEDs) near the RJ-45 connector. These LEDs indicate the
operating link speed of the print server.
LED State
Description
Off
Not linked
On
Link established
at either 10 Mbps
or 100 Mbps
LEDs
HP J3113A 10/100Base-TX Print Server A-1
S00eiohw.book Page 2 Thursday, February 24, 2000 2:26 PM
Link Configuration Jumper Settings
Link configuration jumpers (P1, P2, and P3) can be used to configure
the card. These jumpers should be used if the card is unable to
establish a network link through autonegotiation. If P1 is changed
to the AUTO=OFF position, then P2 selects the link speed (10 or
100 Mbps) and P3 selects the communication mode (Half duplex or
Full duplex). If you manually configure the card using jumpers P2
and P3, you must match the configuration of the connecting device,
such as the network hub or switch.
Jumper Setting Descriptions
Jumper Location
AUTO = ON
(Default)*
100 Mbps
Half-Duplex
(AUTO = OFF)
100 Mbps
Full-Duplex
(AUTO = OFF)
10 Mbps
Half-Duplex
(AUTO = OFF)
(*Note: If the jumper on P1 is removed
or lost, the card defaults to the
AUTO=ON state.)
10 Mbps
Full-Duplex
(AUTO = OFF)
A-2 HP J3113A 10/100Base-TX Print Server
S00eiohw.book Page 3 Thursday, February 24, 2000 2:26 PM
Link Troubleshooting
both link speed LEDs (10 and 100) will be off
●
a “LOSS OF CARRIER ERROR” will be indicated on the
JetDirect Configuration Page.
Note
The HP J3113A 10/100Base-TX print server may
require up to 10 seconds to establish a connection
on the network.
Try the following troubleshooting procedures:
●
Verify cabling connections.
●
Use jumpers P1, P2, and P3 to manually configure the print
server. Verify that the configuration of the connecting network
device (such as a network switch) matches. For example, if you
set the print server for 100Base-TX Full-Duplex operation, the
port on the network switch must also be set to 100Base-TX
Full-Duplex operation. Be sure to power-cycle the printer.
●
On the JetDirect Configuration Page, compare your
configuration for the following parameters:
Parameter
Expected Messages for 10/100TX Cards
PORT SELECT:
RJ-45
PORT CONFIG:
100TX HALF, 100TX FULL,
10BASE-T HALF, 10BASE-T FULL
AUTONEG:
ON (Jumper P1 set to AUTO)
OFF (Jumper P1 set for manual configuration)
For other configuration parameters and messages on the JetDirect
Configuration Page, refer to the troubleshooting chapters in the
HP JetDirect administrator’s guide provided on the HP JetDirect
CD-ROM.
HP J3113A 10/100Base-TX Print Server A-3
HP J3113A
10/100TX
●
A
If the HP J3113A print server does not successfully connect to the
network:
S00eiohw.book Page 4 Thursday, February 24, 2000 2:26 PM
A-4 HP J3113A 10/100Base-TX Print Server
S00eiohw.book Page 1 Thursday, February 24, 2000 2:26 PM
B
Specifications and Regulatory
Statements
Specifications
HP JetDirect 600N Internal Print Server
● HP J3110A
Ethernet, IEEE 802.3 Type 10Base-T (RJ-45)
● HP J3111A
Ethernet, IEEE 802.3 Type 10Base-T (RJ-45),
Type 10Base2 (BNC), and
LocalTalk (Mini-DIN 8)
● HP J3112A
Token Ring/IEEE 802.5 (RJ-45 or DB-9)
● HP J3113A
Ethernet, IEEE 802.3 and
IEEE 802.3u 10/100Base-TX (RJ-45)
Electrical
1.25 A maximum @ 3.3 V nominal
Environmental
Operating
Non-Operating
0°C to 55°C
-40°C to 70°C
(32°F to 131°F)
(-40°F to 158°F)
Relative Humidity
(non-condensing)
15% to 95% at
15% to 90% at
40°C (104°F)
65°C (149°F)
Maximum altitude
4.6 km (15,000 ft.)
4.6 km (15,000 ft.)
Temperature
Specifications and Regulatory Statements B-1
S00eiohw.book Page 2 Thursday, February 24, 2000 2:26 PM
Electromagnetic
●
●
●
●
●
●
●
FCC Title 47 CFR Part 15 Class A for Ethernet (Class B if
LocalTalk only) (USA)
ICES-003 Class A (Canada)
VCCI Class A (Japan)
AS/NZS3548 Class A (Australia, New Zealand)
CISPR-22 Class A (1993)* for Ethernet (Class B if LocalTalk
only) (International, Europe)
CNS 13438 Class A (Taiwan)
Korean EMI Law, No. 1996-98 Class A (Korea)
(*For EU immunity compliance, see the Declaration of Conformity
on page B-3.)
Regulatory Statements
FCC Statements
General Information. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this
equipment not expressly approved by the Hewlett-Packard Company may cause
interference and void the FCC authorization to operate this equipment.
The Federal Communications Commission has prepared a booklet titled Interference
Handbook (1986), which may be helpful to you. This booklet (stock number 004-000004505-7) may be purchased from the Superintendent of Documents, U.S.
Government Printing Office, Washington, D.C. 20402.
FCC Class A for HP J3112A Token Ring, and HP J3110A, J3111A, J3113A
Ethernet or IEEE 802.3/802.3u. This equipment has been tested and found to
comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against
interference in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause interference to radio communications.
Installing this equipment in an FCC Level B product results in an FCC Level A
Composite System (as defined in the FCC Rules and Regulations) when attached
to an Ethernet (IEEE 802.3/802.3u) or Token Ring (IEEE 802.5) network.
B-2 Specifications and Regulatory Statements
S00eiohw.book Page 3 Thursday, February 24, 2000 2:26 PM
FCC Class B for HP J3111A with LocalTalk Only. This equipment has been
tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
This is a class A product. In a domestic environment, this product may
cause radio interference, in which case the user may be required to take
adequate measures.
Declaration of Conformity. The following Declaration of Conformity
complies with ISO/IEC Guide 22 and EN45014. It identifies the product,
the manufacturer's name and address, and the applicable specifications
that are recognized in the European community.
Specifications and Regulatory Statements B-3
Regulatory
Specifications
When used with Ethernet, IEEE 802.3/802.3u 10/100Base-TX, or Token
Ring configurations, this equipment complies with EN55022 Class A.
B
European Community
S00eiohw.book Page 4 Thursday, February 24, 2000 2:26 PM
B-4 Specifications and Regulatory Statements
S00eiohw.book Page 5 Thursday, February 24, 2000 2:26 PM
Australia
This equipment complies with Australian EMC requirements.
Canada
This equipment complies with Canadian EMC Class-A requirements.
B
VCCI Class A (Japan)
Regulatory
Specifications
RRL Statement (Korea)
Taiwan Class A.
Specifications and Regulatory Statements B-5
S00eiohw.book Page 6 Thursday, February 24, 2000 2:26 PM
Chinese Safety Statement
B-6 Specifications and Regulatory Statements
S00eiohw.book Page 8 Thursday, February 24, 2000 2:26 PM
S00eiohw.book Page 9 Thursday, February 24, 2000 2:26 PM
©Copyright 2000
Hewlett-Packard Company
Manual Part Number
5969-3561
*5969-3561*
Download PDF

advertising
