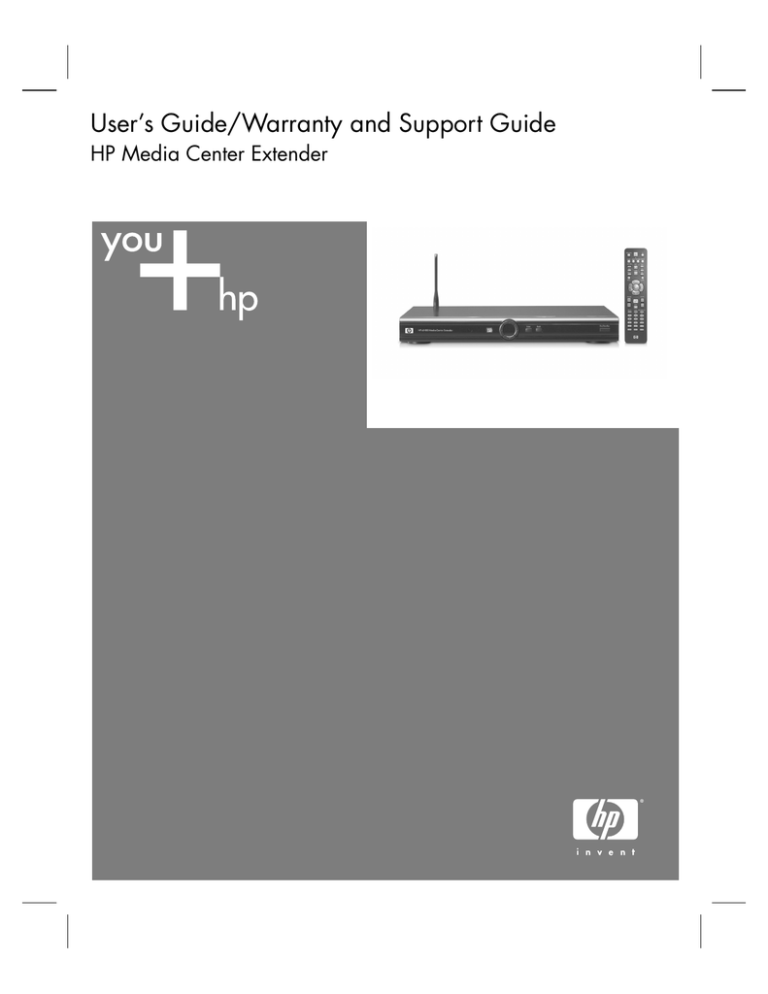

User’s Guide/Warranty and Support Guide
HP Media Center Extender
Before contacting HP Total Care, it’s important to have the following
information handy.
Please take a moment to write down your product information for future
reference.
Product Name: _________________________________________________________
Model Number: ________________________________________________________
System or
Product Number: ________________________________________________________
Serial Number: _________________________________________________________
Purchase Date: _________________________________________________________
Media Center Extender User’s Guide
System Requirements
The Media Center Extender has the following system requirements:
Must have an HP Media Center PC or HP Digital Entertainment Center running Windows XP Media
Center Edition 2005.
Must have a high speed network connection between the HP Media Center PC or HP Digital Entertainment
Center and the Media Center Extender device. If you are using a wireless network, the HP Media Center PC
or HP Digital Entertainment Center must still be connected to the network with an Ethernet cable. The Media
Center Extender can be wireless (additional Media Center Extenders must be wired, see the following table).
Only approved wireless routers may be used. For more information about approved routers, go to
www.microsoft.com/mcx
The HP Media Center PC or HP Digital Entertainment Center must have at least a 2.8GHz processor with
256MB RAM to power one Media Center Extender device. An HP Media Center PC or HP Digital
Entertainment Center can support multiple Media Center Extender devices simultaneously based on the below
table:
Media Center
Extender devices
HP Media Center PC or
HP Digital Entertainment
Center CPU speed
HP Media Center PC or
HP Digital Entertainment
Center Memory
1
2.8 GHz
256 MB
2
2.8 GHz
512 MB
3–5
3.4 GHz
1 GB
IMPORTANT! When using multiple Media Center Extenders over a wireless network, only one Media Center
Extender may be wireless. All others must be connected to the network with an Ethernet cable. In addition,
even with additional wired extenders, network bandwidth limitations may impact system performance,
especially when using video files.
For more information and help
More information about Media Center Extender is available on the HP Media Center PC or HP Digital
Entertainment Center.
To open Media Center Extender Help
1 Go to the HP Media Center PC or HP Digital Entertainment Center.
2 On the Start menu, point to All Programs, point to Accessories, point to Media Center, and then
click Media Center Extender Help.
NOTES
•
•
Use the Contents tab to display the table of contents. You can browse by feature area.
•
Use the Index tab to see a list of commonly used terms. Click the term to see the topics associated with
a specific term.
Use the Search tab to find a specific word. Type the term you want to find, and then press ENTER to
get a list of topics that contain that term.
Media Center Extender Tools
Three tools are available for you to maintain the Media Center Extender and monitor its performance. These
tools are installed onto the HP Media Center PC or HP Digital Entertainment Center.
Media Center Extender Manager
Use the Media Center Extender Manager to add another Media Center Extender to your HP Media Center PC
or HP Digital Entertainment Center, or to update the software for the Media Center Extender.
To use the Media Center Extender Manager, go to the HP Media Center PC or HP Digital Entertainment Center
and, on the Start menu, point to All Programs, point to Accessories, point to Media Center, and then
click Media Center Extender Manager.
IMPORTANT! You should only update the Media Center Extender if you are absolutely sure you should do so.
If you are having problems with your Media Center Extender and believe you need an update, contact HP for
more information.
Media Center Extender Network Performance Tuner
The Media Center Extender Network Performance Tuner tests how well your wireless network supports the
Media Center Extender. If you have problems receiving video information such as Live TV or Recorded TV on
the Media Center Extender, use the Network Performance Tuner to determine the strength of the network signal
and capacity. In addition, the Network Performance Tuner provides information about how to improve network
performance between the Media Center Extender and the HP Media Center PC or HP Digital Entertainment
Center.
To use the Media Center Extender Manager, go to the HP Media Center PC or HP Digital Entertainment Center
and, on the Start menu, point to All Programs, point to Accessories, point to Media Center, and then
click Media Center Extender Network Performance Tuner.
Media Center Extender Resource Monitor
To quickly see the status of system sources in use by the Media Center Extender, use the Media Center
Extender Resource Monitor. This tool shows you the status of four important HP Media Center PC or HP Digital
Entertainment Center resources: CPU Use, Disk Usage, Network Usage, and Memory Available.
If an experience you are using on the Media Center Extender such as watching TV suddenly worsens, check
the Media Center Extender Resource Monitor to see if the HP Media Center PC or HP Digital Entertainment
Center is running low on one of these resources. You can use the Turn On Notifications option to have the
Media Center Extender Resource Monitor notify you if one of the resources is beginning to reach its maximum
level.
To use the Media Center Extender Resource Monitor, go to the HP Media Center PC or HP Digital
Entertainment Center and, in the notifications area, right-click the Media Center Extender Resource Monitor
icon. Then select Show System Resources.
STANDBY button
The STANDBY button located on the front of the Media Center Extender can be pressed to turn the Media
Center Extender on or place the Media Center Extender on standby.
Windows Media Center START button
The Windows Media Center START button is a green button located on the front panel of the Media Center
Extender. Press the button to display the Media Center Start page on the Media Center Extender. No matter
what page you are viewing, you can press the button to return to the Start page.
NOTE: The Media Center START button on the front of the Media Center Extender works the same as the
Media Center Start button on the remote control.
Arrow keys
On the front panel of the Media Center Extender you will find four arrow keys (Up, Down, Left, and Right or
four related arrow buttons) that can be used for navigation in the menus. These arrow keys are identical to the
arrow keys on the remote control.
There are two additional navigation buttons, BACK and ENTER. The BACK button navigates to the previous
page on screen while the ENTER button selects buttons on screen. These buttons are identical to the BACK and
OK buttons on the remote control.
Power Light
On the front of the Media Center Extender, the power light shows the current status of the Media Center
Extender. The power light will display one of three colors (green, red, and yellow) and the light will either be
solid, flashing slowly, or flashing quickly. The table below lists the status of the lights and what they represent.
Power Light Status
Extender Status
Solid green
Starting up
Solid green
Normal operation
Fast blinking green
Extender software is updating
Fast blinking yellow
Extender is resetting
Fast blinking red
A system failure has occurred
Slow blinking green (on/off)
Test mode
A separate red light on the front panel of the Media Center Extender displays when an infrared (IR) command
is received from the remote control. The light displays only when a command is accepted.
Rear Panel
The rear panel of the Media Center Extender includes the following ports (connections) and switches:
Port/Switch
Use
Ethernet port
Connect an Ethernet cable to this port if you are using a wired (Ethernet) home network.
Audio ports
Red and white ports for right and left audio output cables.
Universal Serial Bus
(USB) port
Not used at this time.
Video Selection
switch
Set this switch to match the type of cable you used to connect the Media Center Extender
to your TV or other video component. If you have connected the Media Center Extender
to your TV using component video cables, set this switch to Component. If you used an
S-video cable or a composite video cable, set this switch to S-video.
Ethernet switch
Under normal circumstances, this switch is not used. If you need to use a crossover cable
to connect the Media Center Extender to the HP Media Center PC or HP Digital
Entertainment Center, this switch should be in the OUT position.
Troubleshooting
The Media Center Extender might display an error code on screen such as the following picture:
If this screen appears, the number in the triangle on the lower-left corner will be a 1, 2, 3, or 4. Use the
following table to determine what the error means and action you need to take to correct the error.
Error
Code
Error
Action Required
1
The Media Center Extender is defective and must
be returned for repair.
Contact HP to determine how to return the Media
Center Extender.
2
The Media Center Extender software is either
damaged or missing and must be restored.
Contact HP for information about restoring your
Media Center Extender software.
3
The Media Center Extender software update is
incorrect or the HP Media Center PC or HP Digital
Entertainment Center is not ready to upgrade.
Contact HP for more information about updating
the Media Center Extender software.
4
There is a problem with the Media Center Ethernet
connection or the Ethernet cable is defective.
Make sure the Ethernet cable is properly installed
or replace the Ethernet cable with another one.
Update and Restore
You should update the Media Center Extender only if you are absolutely sure you should do so. If you are
having problems with your Media Center Extender and believe you need an update, contact HP for more
information.
This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of
such technology outside of this product is prohibited without a license from Microsoft Corporation or an
authorized Microsoft Corporation subsidiary.
Don’t Forget to Register!
Go to: http://register.hp.com
Registration is quick, easy and offers:
•
•
E-mail updates containing notifications about product enhancements, the most recent support alerts, and
driver updates specific to the product(s) you own.
The HP newsgram, our monthly online magazine packed full of product news, support tips, project ideas,
and much more. Visit us at: http://subscription.support.hp.com
Where to Get Help
HP offers a wide variety of service and support options, which are available around the clock for HP
customers with products that are either in or out of warranty.
Options to use when you need help:
1 Check the setup poster and product documentation for help with setting up and using your product.
2 HP Customer Care Web support. For Product information, driver updates, troubleshooting and much
more, go to: http://www.hp.com/support
3 Email a support specialist to solve your problem. Available through the HP Customer Care
support & drivers: http://www.hp.com/support
4 If you have not solved the problem, call HP Total Care by phone 24 hours a day, seven days a week in
English, Spanish (U.S. only) and French (CA only) at
1-(800)-474-6836 [1-(800) HP invent] (U.S. & Canada)
Or
905-206-4663 (local to Mississauga)
When you call, please have your product model number, serial number, and date of purchase available.
Telephone support is free during your limited warranty period.
Warranty and License Information
HP Total Care
HP Total Care provides fast, friendly, and effective expert advice for all your HP products. If you have a
question or if a problem arises, we offer extensive service and support options around the clock to better
handle your needs. For more information on your support and services options visit:
http://www.hp.com/home/ownerservices
When should I contact HP phone service and support?
•
You either do not have Internet access, or cannot connect to the Internet to use the HP Customer Care Web
support site to email a support specialist.
• There is obvious damage or a mechanical breakdown with your product and it does not work.
HP Total Care Technical Agents are available 24 hours a day in English, Spanish (U.S. only), and French
(CA only) via:
1-(800)-474-6836 [1-(800) HP invent] or 905-206-4663 (local to Mississauga) to provide
expert assistance.
NOTE: Support options, availability and hours vary by product, country/region, and language and are
subject to change.
If Necessary: Get Repair
Customer-replaceable Parts
You can easily replace many of external Media Center Extender parts yourself. This is the fastest method of
repair, where the part is conveniently sent with next-day service to your home or business. We pay the
shipping and handling. Detailed instructions are included to guide you through an easy repair, and if you
have questions, call us for assistance. This service is free for the duration of the hardware warranty period.
In some cases, HP will ask for a credit card as collateral for the part and will charge you for the retail price of
the part if the failed part is not returned within thirty (30) days.
Availability of this program may vary depending on your country/region.
Advanced Unit Replacement Warranty Service
Your HP Limited Warranty may include an advance unit replacement warranty service. Under the terms of the
advanced unit replacement warranty service, if a unit is diagnosed as defective, HP will ship a replacement
product directly to you. On receiving the replacement unit, you will be required to return the defective unit
back to HP, in the packaging that arrives with the replacement unit, within a defined period of time, normally
fifteen (15) days. HP will incur all shipping and insurance costs to return the defective unit to HP. Failure to
return the defective unit may result in HP billing you for the replacement product.
Software Support
HP provides technical software support for ninety (90) days from the date of purchase. This support includes
assistance with installation, setup, and basic configuration of software included by HP with the PC, excluding
system optimization, customization and network configuration. Support for technical issues caused by viruses
or spyware is available for a fee.
HP Out-of-Warranty Support Options
Even after your warranty has ended, HP can still provide you with service and support options:
•
For Visa and MasterCard holders in the United States or calls from Canada, please call
1-(800)-474-6836 [1-(800) HP invent] or 905-206-4663 (local to Mississauga).
• 1 time technical support, $40* U.S. per call
• 1 year unlimited technical support $75* U.S.
*Prices are subject to change without notice and may vary based on your product.
Fees are charged to your Visa or MasterCard.
Protect Your Investment
Obtaining a Warranty Upgrade
Upgrade your standard factory warranty to two or three years with an Extended Service Plan. Service
coverage begins on product purchase date and you must purchase the service within the first year after
purchasing the product. The hardware service offering will be determined based on the outcome of system
self-test programs run by the customer through the initial call to HP Total Care.
For more information please visit:
US Only http://www.hp.com/home/ownerservices
Canada Only http://www.hp.ca/ownerservices
or call: 1-(866)-234-1377
Recycle — HP Planet Partners
HP is sensitive to the environment and has a program, Planet Partners, to make it simple for us to reclaim your
old product for recycling. HP will help you recycle your old equipment even if it is not an HP product; we take
back all makes and models. Visit our Web site to find out how easy it is to recycle:
http://www.hp.com/recycle
Hardware Limited Warranty
General Terms
This HP Hardware Limited Warranty gives you, the customer, express limited warranty rights from HP, the
manufacturer. Please refer to HP’s Web site for an extensive description of your limited warranty entitlements.
In addition, you may also have other legal rights under applicable local law or special written agreement
with HP.
EXCEPT AS EXPRESSLY SET FORTH IN THIS LIMITED WARRANTY, HP MAKES NO OTHER WARRANTIES OR
CONDITIONS, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. HP EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS
NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW
ARE LIMITED IN DURATION TO THE LIMITED WARRANTY PERIOD. Some states or countries/regions do not
allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or
consequential damages for consumer products. In such states or countries/regions, some exclusions or
limitations of this Limited Warranty may not apply to you.
THE LIMITED WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE EXTENT LAWFULLY
PERMITTED, DO NOT EXCLUDE, RESTRICT, OR MODIFY BUT ARE IN ADDITION TO THE MANDATORY
STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT TO YOU.
This Limited Warranty is applicable in all countries/regions and may be enforced in any country/region
where HP or its authorized service providers offer warranty service subject to the terms and conditions set forth
in this Limited Warranty. However, warranty service availability and response times may vary from
country/region to country/region and may also be subject to registration requirements in the country/region
of purchase. If so, your HP authorized service provider can provide you with details.
This Limited Warranty applies only to HP-branded and Compaq-branded hardware products (collectively
referred to in this Limited Warranty as “HP Hardware Products”) sold by or leased from Hewlett-Packard
Company, its worldwide subsidiaries, affiliates, authorized resellers, or country/region distributors (collectively
referred to in this Limited Warranty as “HP”) with this Limited Warranty. The term “HP Hardware Product” is
limited to the hardware components and required firmware. The term “HP Hardware Product” DOES NOT
include any software applications or programs; non-HP products or non-HP branded peripherals. All non-HP
products or non-HP branded peripherals external to the HP Hardware Product — such as external storage
subsystems, displays, printers and other peripherals — are provided “AS IS” without HP warranty. However,
non-HP manufacturers and suppliers, or publishers may provide their own warranties directly to you.
HP warrants that the HP Hardware Products that you have purchased or leased from HP are free from defects
in materials or workmanship under normal use during the Limited Warranty Period. The Limited Warranty
Period starts on the date of purchase or lease from HP, or from the date HP completes installation. Your dated
sales or delivery receipt, showing the date of purchase or lease of the product, is your proof of the purchase
or lease date. You may be required to provide proof of purchase or lease as a condition of receiving warranty
service. You are entitled to hardware warranty service according to the terms and conditions of this document
if a repair to your HP Hardware Product is required within the Limited Warranty Period.
Unless otherwise stated, and to the extent permitted by local law, new HP Hardware Products may be
manufactured using new materials or new and used materials equivalent to new in performance and
reliability. HP may repair or replace HP Hardware Products (a) with new or previously used products or parts
equivalent to new in performance and reliability, or (b) with equivalent products to an original product that has
been discontinued. Replacement parts are warranted to be free from defects in material or workmanship for
ninety (90) days or, for the remainder of the Limited Warranty Period of the HP Hardware Product they are
replacing or in which they are installed, whichever is longer.
During the Limited Warranty Period, HP will, at its discretion, repair or replace any defective component. All
component parts or hardware products removed under this Limited Warranty become the property of HP. In
the unlikely event that your HP Hardware Product has recurring failures, HP, at its sole discretion, may elect to
provide you with (a) a replacement unit of HP’s choosing that is the same or equivalent to your HP Hardware
Product in performance or (b) to give you a refund of your purchase price or lease payments (less interest)
instead of a replacement. This is your exclusive remedy for defective products.
Exclusions
HP DOES NOT WARRANT THAT THE OPERATION OF THIS PRODUCT WILL BE UNINTERRUPTED OR ERRORFREE. HP IS NOT RESPONSIBLE FOR DAMAGE THAT OCCURS AS A RESULT OF YOUR FAILURE TO
FOLLOW THE INSTRUCTIONS INTENDED FOR THE HP HARDWARE PRODUCT.
This Limited Warranty does not apply to expendable or consumable parts and does not extend to any product
from which the serial number has been removed or that has been damaged or rendered defective (a) as a
result of accident, misuse, abuse, contamination, improper or inadequate maintenance or calibration or other
external causes; (b) by operation outside the usage parameters stated in the user documentation that shipped
with the product; (c) by software, interfacing, parts or supplies not supplied by HP; (d) improper site
preparation or maintenance; (e) virus infection; (f) loss or damage in transit; or (g) by modification or service
by anyone other than (i) HP, (ii) an HP authorized service provider, or (iii) your own installation of end-user
replaceable HP or HP approved parts if available for your product in the servicing country/region.
YOU SHOULD MAKE PERIODIC BACKUP COPIES OF THE DATA STORED ON YOUR HARD DRIVE
OR OTHER STORAGE DEVICES AS A PRECAUTION AGAINST POSSIBLE FAILURES, ALTERATION, OR
LOSS OF THE DATA. BEFORE RETURNING ANY UNIT FOR SERVICE, BE SURE TO BACK UP DATA
AND REMOVE ANY CONFIDENTIAL, PROPRIETARY, OR PERSONAL INFORMATION. HP IS NOT
RESPONSIBLE FOR DAMAGE TO OR LOSS OF ANY PROGRAMS, DATA, OR REMOVABLE STORAGE
MEDIA. HP IS NOT RESPONSIBLE FOR THE RESTORATION OR REINSTALLATION OF ANY
PROGRAMS OR DATA OTHER THAN SOFTWARE INSTALLED BY HP WHEN THE PRODUCT IS
MANUFACTURED.
Exclusive Remedy
TO THE EXTENT ALLOWED BY APPLICABLE LOCAL LAW, THESE TERMS AND CONDITIONS CONSTITUTE THE
COMPLETE AND EXCLUSIVE WARRANTY AGREEMENT BETWEEN YOU AND HP REGARDING THE HP HARDWARE
PRODUCT YOU HAVE PURCHASED OR LEASED. THESE TERMS AND CONDITIONS SUPERSEDE ANY PRIOR
AGREEMENTS OR REPRESENTATIONS — INCLUDING REPRESENTATIONS MADE IN HP SALES LITERATURE OR
ADVICE GIVEN TO YOU BY HP OR AN AGENT OR EMPLOYEE OF HP — THAT MAY HAVE BEEN MADE IN
CONNECTION WITH YOUR PURCHASE OR LEASE OF THE HP HARDWARE PRODUCT. No change to the conditions
of this Limited Warranty is valid unless it is made in writing and signed by an authorized representative of HP.
Limitation of Liability
IF YOUR HP HARDWARE PRODUCT FAILS TO WORK AS WARRANTED ABOVE, HP’S MAXIMUM LIABILITY UNDER
THIS LIMITED WARRANTY IS EXPRESSLY LIMITED TO THE LESSER OF THE PRICE YOU HAVE PAID FOR THE
PRODUCT OR THE COST OF REPAIR OR REPLACEMENT OF ANY HARDWARE COMPONENTS THAT
MALFUNCTION IN CONDITIONS OF NORMAL USE.
EXCEPT AS INDICATED ABOVE, IN NO EVENT WILL HP BE LIABLE FOR ANY DAMAGES CAUSED BY THE
PRODUCT OR THE FAILURE OF THE PRODUCT TO PERFORM, INCLUDING ANY LOST PROFITS OR SAVINGS OR
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. HP IS NOT LIABLE FOR ANY CLAIM MADE BY A THIRD
PARTY OR MADE BY YOU FOR A THIRD PARTY.
THIS LIMITATION OF LIABILITY APPLIES WHETHER DAMAGES ARE SOUGHT, OR A CLAIM MADE, UNDER THIS
LIMITED WARRANTY OR AS A TORT CLAIM (INCLUDING NEGLIGENCE AND STRICT PRODUCT LIABILITY), A
CONTRACT CLAIM, OR ANY OTHER CLAIM. THIS LIMITATION OF LIABILITY CANNOT BE WAIVED OR
AMENDED BY ANY PERSON. THIS LIMITATION OF LIABILITY WILL BE EFFECTIVE EVEN IF YOU HAVE ADVISED HP
OR AN AUTHORIZED REPRESENTATIVE OF HP OF THE POSSIBILITY OF ANY SUCH DAMAGES. THIS LIMITATION
OF LIABILITY, HOWEVER, WILL NOT APPLY TO CLAIMS FOR PERSONAL INJURY.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT
MAY VARY FROM STATE TO STATE OR FROM COUNTRY/REGION TO COUNTRY/REGION. YOU ARE ADVISED
TO CONSULT APPLICABLE STATE OR COUNTRY/REGION LAWS FOR A FULL DETERMINATION OF YOUR RIGHTS
Limited Warranty Period
The Limited Warranty Period for an HP Hardware Product is a specified, fixed period commencing on the date of
purchase. The date on your sales receipt is the date of purchase unless HP or your reseller informs you otherwise in
writing.
Products
Limited Warranty Period
and Service Delivery Method*
Hardware:
Original Systems
1 year parts / 1 year labor
Technical phone assistance to diagnose potential hardware issues —
1 year
*Warranty Service indicated in this table reflects base level warranty offerings.
Enhancements to base warranty may be included with your HP Hardware Product. For
current warranty information, contact the nearest HP Sales office.
Types of Warranty Service
To enable HP to provide the best possible support and service during the Limited Warranty Period, you may be
directed by HP to verify configurations, load most recent firmware, install software patches, run HP diagnostics
tests, or use HP remote support solutions where applicable.
HP strongly encourages you to accept the use of, or to employ available support technologies provided by HP.
If you choose not to deploy available remote support capabilities, you may incur additional costs due to
increased support resource requirements. Listed below are the types of warranty support service that may be
applicable to the HP Hardware Product you have purchased.
Advanced Unit Replacement Warranty Service
Your HP Limited Warranty may include an advance unit replacement warranty service. Under the terms of the
advanced unit replacement warranty service, if a unit is diagnosed as defective, HP will ship a replacement
product directly to you. On receiving the replacement unit you will be required to return the defective unit back
to HP, in the packaging that arrives with the replacement unit, within a defined period of time, normally fifteen
(15) days. HP will incur all shipping and insurance costs to return the defective unit to HP. Failure to return the
defective unit may result in HP billing you for the replacement product.
Customer Self Repair Warranty Service
In countries/regions where it is available, your HP Limited Warranty may include a Customer Self Repair
warranty service. If applicable, HP will determine in its sole discretion that Customer Self Repair is the
appropriate method of warranty service. If so, HP will ship approved replacement parts directly to you to fulfill
your HP Hardware Product warranty service. This will save considerable repair time. After you contact HP and
the fault diagnosis identifies that the problem can be fixed using one of these parts, a replaceable part can be
sent directly to you. Once the part arrives, replace the defective part pursuant to the provided instructions and
documentation. If further assistance is required, call the HP Technical Support Center and a technician will
assist you over the phone. In cases where the replacement part must be returned to HP, you must ship the
defective part back to HP within a defined period of time, normally fifteen (15) days. The defective part must
be returned with the associated documentation in the provided shipping material. Failure to return the
defective product may result in HP billing you for the replacement. With a Customer Self Repair, HP will pay
all shipping and part return costs and determine the courier/carrier to be used. If Customer Self Repair applies
to you, please refer to your specific HP Hardware Product announcement. You can also obtain information on
this warranty service on the HP Web site at: http://www.hp.com/support
Service Upgrades
HP has a range of additional support and service coverage for your product that can be purchased locally.
However, some support and related products may not be available in all countries/regions. For information on
availability of service upgrades and the cost for these service upgrades, refer to the HP Web site at:
http://www.hp.com/support
Options and Software Limited Warranties
The Limited Warranty terms and conditions for most HP-branded options (HP Options) are as set forth in the
Limited Warranty applicable to the HP Option and are included in the HP Option product packaging. If your
HP Option is installed in an HP Hardware Product, HP may provide warranty service for either the period
specified in the warranty documents (HP Option Limited Warranty Period) that shipped with the HP Option or
for the remaining warranty period of the HP Hardware Product in which the HP Option is being installed,
whichever period is the longer, but not to exceed three (3) years from the date you purchased the HP Option.
The HP Option Limited Warranty Period starts from the date of purchase from HP or an HP authorized reseller.
Your dated sales or delivery receipt, showing the date of purchase of the HP Option, is your warranty start
date. See your HP Option Limited Warranty for more details. Non-HP options are provided “AS IS”. However,
non-HP manufacturers and suppliers may provide warranties directly to you.
EXCEPT AS PROVIDED IN THE APPLICABLE SOFTWARE END-USER LICENSE OR PROGRAM LICENSE
AGREEMENT, OR IF OTHERWISE PROVIDED UNDER LOCAL LAW, SOFTWARE PRODUCTS, INCLUDING
ANY SOFTWARE PRODUCTS OR THE OPERATING SYSTEM PREINSTALLED BY HP ARE PROVIDED “AS IS”.
HP’s only warranty obligations with respect to software distributed by HP under the HP brand name are set
forth in the applicable end-user license or program license agreement provided with that software. If the
removable media on which HP distributes the software proves to be defective in materials or workmanship
within ninety (90) days of purchase, your sole remedy shall be to return the removable media to HP for
replacement. For blank tape removable media please refer to the following Web site:
http://h20000.www2.hp.com/bizsupport/
TechSupport/Document.jsp?objectID=lpg50101
It is your responsibility to contact non-HP manufacturers or suppliers for their warranty support.
Software Technical Support
Software Technical Support for your HP Software, HP pre-installed third-party software and third-party software
purchased from HP is available from HP via multiple contact methods, including electronic media and
telephone, for ninety (90) days from date of purchase. See “Contacting HP” for online resources and
telephone support. Any exceptions to this will be specified in your End User License Agreement (EULA).
Software Technical Support includes assistance with:
•
•
•
•
•
Answering you installation questions (how to, first steps, and prerequisites).
Setting up and configuring the software (how-to and first steps). Excludes system optimization,
customization and network configuration.
Interpreting system error messages.
Isolating system problems to software usage problems.
Obtaining support pack information or updates.
Software technical support does NOT include assistance with:
•
•
Generating or diagnosing user generated programs or source codes.
Installation of non-HP products.
Contacting HP
If your product fails during the Limited Warranty Period and the suggestions in the product documentation do
not solve the problem, you can receive support by doing the following:
•
•
Locate your nearest HP Support location via the World Wide Web at: http://www.hp.com/support
Be sure to have the following information available before you call HP:
•
•
•
•
•
•
Product serial number, model name, and model number
Applicable error messages
Add-on options
Operating system
Third-party hardware or software
Detailed questions
DECLARATION OF CONFORMITY
According to ISO/IEC Guide 22 and EN 45014
Manufacturer’s Name:
Hewlett-Packard Company
Manufacturer’s Address:
Hewlett-Packard Company
10500 Ridgeview Court
Cupertino, CA 95014
declares, that the product(s)
Product:
Model Number(s):
Product Options:
Personal computer
S0000, SR1000, SA3000, m000, m1000, m5000, d1000, a000,
t000, 8000, 9000, x5000 series
All
conforms to the following Product Specifications:
Safety:
IEC 60950: 1999 / EN60950: 2000
IEC 60825-1:1993 +A1 / EN 60825-1:1994 +A11 Class 1 (Laser/LED)
GB4943: 2001
EMC:
CISPR 22: 1997 / EN 55022: 1998 +A1 Class B
CISPR 24: 1997 / EN 55024: 1998
IEC 61000-3-2:2000 / EN 61000-3-2: 2000
IEC 61000-3-3:1994 + A1: 2001 / EN 61000-3-3: 1995 + A1: 2001
GB9254: 1998
FCC Title 47 CFR, Part 15 Class B / ICES-002, issue 2
AS/NZS CISPR 22: 2002
Telecom:
TBR 21: 1998, EG 201 121: 1998
Radio:
ETSI 300-826 General EMC requirements for Radio equipment.
ETSI 300-328 Technical requirements for Radio equipment.
Supplementary Information:
The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC, the EMC Directive
89/336/EEC and the R&TTE Directive 1999/5/EC and carries the “CE Marking “ accordingly.
This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Cupertino, CA USA
Aug. 1, 2004
Signature / Manager: ___________________________________________
Ervin Gomez, Hardware Quality Eng. Manager
For regulatory compliance information only, contact:
Australia Contact: Product Regulations Manager, Hewlett-Packard Australia Ltd., 31-41 Joseph Street, Blackburn, Victoria 3130
European Contact: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Straße 140, 71034 Böblingen, Germany
(FAX: +49-7031-14-3143)
North America Contact: Hardware Quality Eng. Manager, Hewlett-Packard, CPC, 10500 Ridgeview Ct., Cupertino, CA 95015-4010
Phone: (408)-343-5000
Regulatory and Safety Information
WARNING: Text set off in this manner indicates that failure to follow directions could result in
damage to equipment, loss of information, bodily harm, or loss of life.
WARNING: Please read the “Additional Safety Information” located later in this document
before installing and connecting your device to the electrical power system.
FCC Regulatory and Safety Information (USA Only)
Federal Communications Commission (FCC) Radio Frequency Interference Statement
WARNING: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to correct the
interference by one or more of the following measures:
•
•
•
•
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet that is on a circuit different from the receiver.
Consult the dealer or an experienced radio/TV technician for help.
The system RFI and Radiated Immunity tests were conducted with supported peripheral devices
and shielded cables, such as those you receive with your system. Changes or modifications not
expressly approved by the manufacturer could void the user’s authority to operate the
equipment. To comply with the limits for an FCC Class B computing device, always use shielded
signal cables and the power cord supplied with this unit.
WARNING: When using this device, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, and injury to persons, including the following:
•
Do not use this product near water; for example, near a bathtub, wash bowl, kitchen sink,
or laundry tub, in a wet basement, or near a swimming pool.
•
Avoid using this product during an electrical storm. There may be a remote risk of electric
shock from lightning.
•
•
Do not use this product to report a gas leak in the vicinity of the leak.
•
If this product was not provided with a telephone line cord, use only No. 26 AWG or larger
telecommunication line cord in order to reduce the risk of fire.
•
Do not plug a modem or telephone cable into the Network Interface Card (NIC) receptacle.
Always disconnect the modem cable before opening the equipment enclosure or touching an
uninsulated modem cable, jack, or internal components.
SAVE THESE INSTRUCTIONS
Additional Safety Information
This product has not been evaluated for connection to an “IT” power system (an AC distribution system with no
direct connection to earth, according to IEC 60950).
AC Power Safety Warning
WARNING: Install the device near an AC outlet. The AC power cord is your device’s main AC
disconnecting device and must be easily accessible at all times. For your safety, the power cord
provided with your device has a grounded plug. Always use the power cord with a properly
grounded wall outlet, to avoid the risk of electrical shock.
WARNING: For your safety, always unplug the device from its power source and from any
telecommunications systems (such as telephone lines), networks, or modems before performing
any service procedures. Failure to do so may result in personal injury or equipment damage.
Hazardous voltage levels are inside the power supply and modem of this product.
© 2004 Hewlett-Packard Development Company, L.P.
www.hp.com
Printed in
Download PDF

advertising
