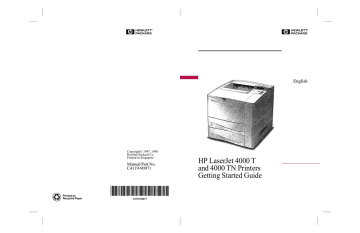

HP LaserJet 4000 T
and 4000 TN Printers
Getting Started Guide
HP LaserJet 4000 T and
4000 TN Printers
Getting Started Guide
Printer Setup
© Copyright Hewlett-Packard
Company 1997, 1998
All Rights Reserved.
Reproduction, adaptation, or
translation without prior written
permission is prohibited,
except as allowed under the
copyright laws.
Publication number
C4119-90971
First Edition, February 1998
Warranty
The information contained in
this document is subject to
change without notice.
Hewlett-Packard makes no
warranty of any kind with
respect to this information.
HEWLETT-PACKARD
SPECIFICALLY DISCLAIMS
THE IMPLIED WARRANTY
OF MERCHANTABILITY AND
FITNESS FOR A
PARTICULAR PURPOSE.
Hewlett-Packard shall not be
liable for any direct, indirect,
incidental, consequential, or
other damage alleged in
connection with the furnishing
or use of this information.
Trademark Credits
Adobe, PostScript, and Adobe
Photoshop are trademarks of
Adobe Systems Incorporated
which may be registered in
certain jurisdictions.
Arial, Monotype, and Times
New Roman, are U.S.
registered trademarks of the
Monotype Corporation.
CompuServe is a U.S.
trademark of CompuServe,
Inc.
Helvetica, Palatino, Times, and
Times Roman are trademarks
of Linotype AG and/or its
subsidiaries in the U.S. and
other countries.
Microsoft, MS Windows,
Windows, and Windows NT
are U.S. registered trademarks
of Microsoft Corporation.
TrueType is a U.S. trademark of
Apple Computer, Inc.
ENERGY STAR is a U.S.
registered service mark of the
U.S. EPA.
Hewlett-Packard Company
11311 Chinden Boulevard
Boise, Idaho 83714
Introduction
Congratulations on your purchase of the HP LaserJet printer! The
printer was packaged with two getting started guides. Be sure to
use the guide that matches your printer model.
Configurations
This printer is available in four configurations, as described below.
HP LaserJet 4000
The HP LaserJet 4000 comes standard with 4 MB RAM and one
500-sheet tray.
HP LaserJet 4000 N
The HP LaserJet 4000 N comes standard with 8 MB RAM, an
HP JetDirect print server card for connecting to a network, and one
500-sheet tray.
HP LaserJet 4000 T
The HP LaserJet 4000 T comes standard with 4 MB RAM and two
250-sheet trays.
HP LaserJet 4000 TN
The HP LaserJet 4000 TN comes standard with 8 MB RAM, an
HP JetDirect print server card for connecting to a network, and two
250-sheet trays.
EN
Getting Started Guide 1
Installation Checklist
This getting started guide will help you set up and install the new
printer. For proper installation, please complete each section in
order.
Unpack the Printer
steps 1-4
Install the Printer
steps 5-9
Connect the Printer Cables
step 10
Install Printer Software
step 11
Verify Printer Setup
step 12
WARNING!
The printer is heavy. We recommend two people move it.
Note
To learn about all the features and capabilities of the printer, see
the printer user’s guide and the help menus in the printer driver
(available after you install the printing software).
2 Getting Started Guide
EN
Step 1. Check Package Contents
Printer
Printer
Documentation
(This could
already be
installed on
the printer.)
Control
Panel
Overlay
Toner
Cartridge
Power Cord
Printer
Software
Figure 1
Note
EN
Package Contents
A printer cable is not included in the package contents. See the
printer user’s guide for ordering information.
Getting Started Guide 3
Step 2. Remove Internal Packaging
Note
Save all packing material. You may
need to repack the printer at a later
date.
1 Remove the shipping bag and tape
from the trays.
2 Remove the tape from the back of
the printer.
3 Open the top cover.
4 Remove the two pieces of packing
material from inside the toner
cartridge cavity.
5 Remove the plastic film on the
control panel display.
Continued on the next page.
4 Getting Started Guide
EN
6 Slide Trays 2 and 3 out of the printer.
7 Remove all packaging material and
tape from the trays.
8 Slide Trays 2 and 3 back into the
printer.
EN
Getting Started Guide 5
Step 3. Prepare Printer Location
39.67 inches (100.76 cm)
full length, trays and rear output bin open
16.77 inches (42.6 cm)
printer only, rear output bin closed
15.4 inches
(39.0 cm)
Printer Weight: 39.27 lb (17.85 kg)
(without toner cartridge)
HP LaserJet
4000/4000 N
18.5 inches
(46.99 cm)
with cover open
13.3 inches
(34.3 cm)
with cover closed
Printer Weight: 45.66 lb (20.71 kg)
(without toner cartridge)
HP LaserJet
4000 T/4000 TN
20.1 inches
(51.19 cm)
with cover open
15.5 inches
(38.5 cm)
with cover closed
Figure 2
Printer Dimensions
6 Getting Started Guide
EN
Location requirements for the printer
• A sturdy, level surface for
• Adequate power supply
placement
• Space allowance around the
printer
• A well ventilated room
• A stable environment—no
abrupt temperature or
humidity changes
• Relative humidity 20% to
80%
• No exposure to direct
sunlight or chemicals,
including ammonia-based
cleaning solutions
EN
• Room temperature 50° to
91° F (10° to 32° C)
Getting Started Guide 7
Step 4. Locate Printer Parts
The following illustrations give the location and names of the
important printer parts.
Top output bin
Control
panel
Top cover
Tray 1
(100-sheet,
with
extension)
Additional
memory can be
installed here.
Trays 2 and 3
(each 250-sheet, closed)
Power switch
Paper level
indicators
Tray numbers
Figure 3
Printer Parts (front view)
8 Getting Started Guide
EN
Serial and model numbers (inside cover)
Serial and
accessory
interface
connectors
Rear output bin
(straight-through
paper path)
Power connector
Memory, network,
or I/O
(More than one
can be installed.)
Figure 4
EN
Parallel interface
connector
Printer Parts (rear view)
Getting Started Guide 9
Step 5. Install Accessories
Install any accessories that you have purchased with the printer.
Use the installation instructions that are packaged with the
accessories.
HP JetDirect
print server
EIO card
Envelope Feeder
Duplex Printing
Accessory
(or duplexer,
for 2-sided printing)
Note
Envelope Feeder
500-sheet tray
HP LaserJet
4000/4000 N
printers
Figure 5
Hard disk
EIO card
Memory or Flash
DIMM
Duplex Printing
Accessory
(or duplexer,
for 2-sided printing)
HP LaserJet
4000 T/4000 TN
printers
Optional Accessories
See the printer user’s guide for information on ordering accessories.
10 Getting Started Guide
EN
Step 6. Install Toner Cartridge
1 Remove the toner cartridge from its
packaging (save packaging for
possible cartridge storage). Open
the printer by lifting the top cover.
2 Rotate the cartridge and gently
shake it from side to side to
distribute the toner evenly inside the
cartridge.
3 Locate the sealing tape tab on the
end of the cartridge. Carefully bend
the tab back and forth until it
separates from the cartridge.
4 Firmly pull the tab straight out from
the cartridge to remove the entire
length of tape (22 in, or 56 cm).
Avoid touching any black toner on
the tape.
Note
If the tab separates from the tape,
grasp the tape and pull it out of the
cartridge.
5 Position the cartridge as shown with
the arrow pointing into the printer.
Slide the cartridge into the printer as
far as it will go.
If the cartridge is installed correctly, the
cover will close easily.
Note
If toner gets on your clothing, wipe it off
with a dry cloth and wash clothing in
cold water. (Hot water sets toner into
fabric.)
EN
Getting Started Guide 11
Step 7. Load Trays
Trays 2 and 3
Trays 2 and 3 are 250-sheet trays. For
supported sizes of paper, see the
printer user’s guide.
1 Pull the tray completely out of the
printer.
2 If the tray is not already set to the
desired paper size, snap the left and
right guides into place to match the
width of the paper.
3 Locate the release tabs (indicated
by the two arrows).
Squeeze the blue tabs to release
them from the slots while sliding the
back section of the tray to the
desired paper size. Make sure the
tabs lock into the correct slots.
4 Load paper into the tray.
5 Make sure the paper is flat in the tray
at all four corners and below the tabs
on the guides. Gently slide the tray
back into the printer.
The printer automatically senses the
size of paper if the tray is adjusted
correctly.
Repeat these steps for Tray 3.
12 Getting Started Guide
EN
Tray 1
Tray 1 is a multi-purpose tray that holds up to 100 sheets of paper,
10 envelopes, or 20 index cards.
Tray 1 provides a convenient way to print envelopes, transparencies,
custom-sized paper, or other type of media without having to unload
the other trays.
Note
The printer may pull paper from Tray 1 first. To change this, see the
printer user’s guide.
Tray 1 Orientation
Generally, load paper with the side to be printed facing up, and the
top, short edge toward the printer. See the sections on letterhead,
envelope, and duplexing in the printer user’s guide for proper
orientation for specific jobs.
Figure 6
EN
Paper Orientation for Tray 1
Getting Started Guide 13
Step 8. Attach Power Cord
1 Locate the power switch on the right
side of the printer. Make sure the
printer is switched off.
2 Connect the power cord to the
printer and a grounded power strip
or an AC outlet.
Note
Only use the power cord that came with
the printer.
3 Switch the printer on.
4 After the printer warms up, the
READY message should be visible on
the control panel display and the
Ready light will remain on. If the
READY message does not appear,
go to the problem solving chapter in
the printer user’s guide.
READY
Ready
Go
Data
14 Getting Started Guide
Menu
Item
EN
Step 9. Test the Printer
READY
Before connecting the printer to a
network or computer, print a
configuration page to make sure the
printer is operating correctly.
1 Make sure the printer is on and the
READY message is displayed.
INFORMATION
MENU
2 Press [Menu] until the display reads
INFORMATION MENU.
3 Press [Item] until the display reads
PRINT CONFIGURATION.
4 Press [Select] to print.
PRINT
CONFIGURATION
If the control panel display prompts
to load letter or A4 paper size, press
[Go] to bypass the message for
now. (See the printer user’s guide to
change the default paper size from
the control panel.)
5 The configuration page(s) show
how the printer is configured.
PRINT
CONFIGURATION
EN
Getting Started Guide 15
Step 10. Connect Printer Cables
The HP LaserJet 4000 T printer includes two interface ports: an
IEEE-1284 parallel and a RS-232C serial, and an accessory
connector.
The HP LaserJet 4000 TN printer also includes an HP JetDirect
600N print server card with an additional three ports: LocalTalk,
Ethernet 10Base-T (RJ-45), and 10Base2 (BNC).
Thinlan cable
and BNC port
Accessory port
10Base-T
cable and
RJ-45 port
Serial cable
and port
LocalTalk cable
and port
Figure 7
Parallel cable
and IEEE-1284
port
Interface Ports
16 Getting Started Guide
EN
Connecting Parallel Cable
Use the parallel port when directly
connecting the printer to a personal
computer.
Caution
Make sure the printer is turned off
before connecting the parallel cable.
Note
To ensure reliability, use an IEEE-1284
compliant parallel cable (these cables
are clearly marked with “IEEE-1284”).
Only IEEE-1284 cables support all of
the printer’s advanced features.
1 Connect the parallel cable to the
parallel port.
2 Snap the wire clips in place to
secure the cable to the printer.
The cable should install easily. If
installation is difficult, check the
cable orientation.
Connect the other end of the cable to
the proper connector on the computer.
EN
Getting Started Guide 17
Connecting Serial Cable
If you are connecting the printer with
the serial port, follow these
instructions.
Caution
Make sure the printer is turned off
before connecting the serial cable.
Caution
Do not connect a serial cable to the
accessory port.
1 Connect the serial cable to the serial
port.
The cable should install easily. If
installation is difficult, check the
cable orientation.
2 Lock the serial cable into place with
the two cable screws.
Connect the other end of the cable to
the proper connector on the computer.
18 Getting Started Guide
EN
Connecting to Apple LocalTalk Network
Use the LocalTalk port to connect to a
Apple LocalTalk network.
Caution
Make sure the printer is turned off
before connecting to the LocalTalk
port.
1 Carefully check the orientation of
the pins on the LocalTalk cable with
the LocalTalk port.
2 Connect the cable to the port.
Connect the other end of the cable to
the proper connector on the computer.
Note
The HP JetDirect 600N print server
card supports a LocalTalk and one
Ethernet cabling connection at the
same time.
Note
See the printer user’s guide for
information on ordering a Macintosh
Computer serial cable.
EN
Getting Started Guide 19
Connecting to Ethernet 10Base-T Network
Use the RJ-45 port to connect the printer to an Ethernet 10-Base-T
network.
Caution
Make sure the printer is turned off before connecting to the RJ-45
port.
• Connect a twisted-pair network cable to the RJ-45 port on the
HP JetDirect 600N print server card.
• Connect the other end of the cable to the network.
Note
The 10Base-T port is the default port on the HP JetDirect 600N print
server card.
Note
The HP JetDirect 600N print server card supports one Ethernet
cabling connection at a time.
20 Getting Started Guide
EN
Connecting to Ethernet 10Base2 Network
Use the BNC port to connect the printer to an Ethernet 10Base2
network.
Caution
Make sure the printer is turned off before connecting to the BNC
port.
• Attach one section of your ThinLAN cable to the BNC “T”
connector.
• Attach another ThinLAN cable section or a 50-ohm terminator to
the other side of the BNC “T” connector. If you are attaching the
printer to the end of your network you must connect a 50-ohm
terminator.
• Connect the BNC “T” to the BNC port.
Note
The 10Base-T port is the default port on the HP JetDirect 600N print
server card.
Note
The HP JetDirect 600N print server card supports one Ethernet
cabling connection at a time.
EN
Getting Started Guide 21
Accessory Connector
The accessory connector is used for adding optional paper handling
(external input, output, and paper finishing) devices provided by HPauthorized hardware developers. For specific installation
instructions, see the documentation provided with these products.
Caution
Make sure printer is turned off before connecting a device to the
accessory connector.
Caution
Do not connect the accessory cable to the serial port.
22 Getting Started Guide
EN
Step 11. Install Printing Software
The printer comes with printing software on a compact disc. The
printer drivers on this compact disc must be installed to take full
advantage of the printer features. If your computer does not have a
CD-ROM drive but you have access to one, you can copy the
compact disc onto diskettes for installation into your computer.
If you do not have access to a CD-ROM drive, a diskette is provided
with the basic printer drivers. (The diskette does not have all of the
software available on the compact disc.) The most recent drivers
are available on the Internet. Depending on the configuration of
Windows-driven computers, the installation program for the printer
software automatically checks the computer for Internet access to
obtain the latest software.
See the HP Support pages at the front of the printer user’s guide
and the Readme file on the diskette for additional information or to
order diskettes if you do not have Internet access.
Installing Network Software
If the printer is to be used on a Novell or Windows NT Network, the
networking software should be installed and configured on the
network before individual users install the printing software.
1 Load the HP JetAdmin software from the compact disc, and run it.
Note
At this time load only the HP Jet Admin software. Once you have
configured the printer on the network, load the additional HP printing
software.
2 See the HP JetDirect Print Server software installation guide and
the HP JetAdmin software to configure the printer for your
network.
EN
Getting Started Guide 23
Installing Windows Printing Software
For Windows 95/NT 4.0
1 Close all running applications.
2 Insert the compact disc into the CD-ROM drive. (Depending on
the computer configuration, the installation program may
automatically start.)
3 Click Start.
4 Click Run.
5 Type D:\SETUP (or the appropriate drive directory letter) in the
command line box and click OK.
6 Follow the instructions on the computer screen.
For Windows 3.1, Windows 3.11, and NT 3.5x1
1
2
3
4
5
Close all running applications.
Insert the compact disc into the CD-ROM drive.
In the Windows Program Manager screen, click the File menu.
Click Run.
Type D:\SETUP (or the appropriate drive directory letter) in the
command line box and click OK.
6 Follow the instructions on the computer screen.
1. Includes only PostScript Level 2 Emulation (or Level 1 Emulation for Windows 3.1 x) and FontSmart
24 Getting Started Guide
EN
Installing Macintosh Printing Software
1 Quit all open applications.
2 Insert the compact disc into the CD-ROM drive.
3 Double-click the Installer icon and follow the instructions on the
screen.
4 Open the Chooser from the Apple menu.
5 Click the Apple LaserWriter icon. If the icon is not there, contact
your Macintosh dealer.
6 If you are on a network with multiple zones, select the zone in the
AppleTalk Zones box where the printer is located. If this is
unknown, ask your network administrator.
7 Double-click the desired printer. An icon should appear.
8 Choose a Background Printing option. Select On if you want to
work on the computer at the same time a job is being printed.
9 Close the Chooser by clicking the go-away (close) box in the
upper left corner.
EN
Getting Started Guide 25
Step 12. Verify Printer Setup
The easiest way to verify that the installation has been completed
successfully is to print a document from a software application.
1 Load a software application of your choice and open or create a
simple document.
2 Make sure the correct printer driver is selected.
3 Print the document.
If the document prints, installation is complete. If nothing printed,
see the problem solving chapter in the printer user’s guide.
26 Getting Started Guide
EN
English
Copyright© 1997, 1998
Hewlett-Packard Co.
Printed in Singapore
Manual Part No.
C4119-90971
Printed on
Recycled Paper
*C4119-90971*
*C4119-90971*
C4119-90971
HP LaserJet 4000 T
and 4000 TN Printers
Getting Started Guide
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
