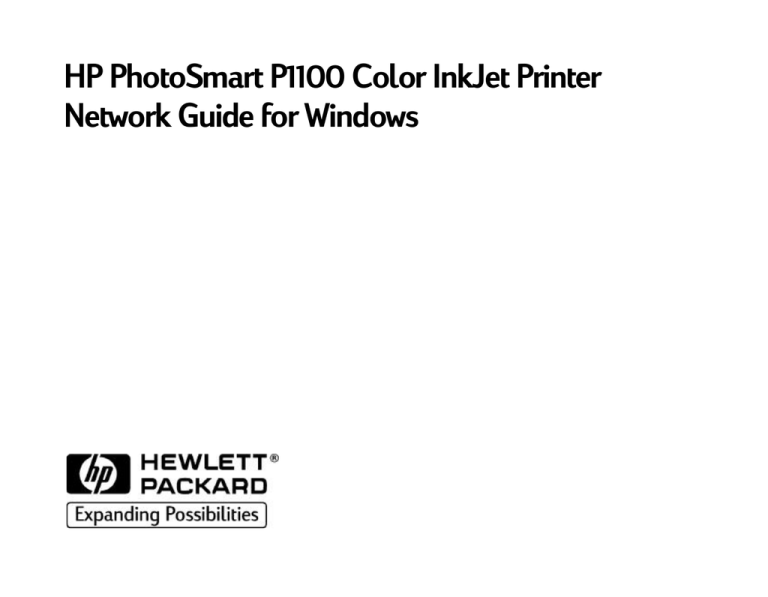

HP PhotoSmart P1100 Color InkJet Printer
Network Guide for Windows
Table of Contents
1
Using Your Printer on a Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2
Locally Shared Printer Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Setting Up a Locally Shared Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Operating Systems for the Locally Shared Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Setting Up Windows 95 and Windows 98 Hosts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Setting Up Windows NT 4.0 Hosts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installing the Printer Software on Each Client Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3
Peer-to-Peer Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Operating Systems and Print Servers for the Peer-to-Peer Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Setting Up a Peer-to-Peer Printer Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installing the Printer Software on Each of the Clients. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4
Client Server Network Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating Systems for the Client Server Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Setting Up a Client Server in Windows NT 4.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Setting Up a Client Server in NetWare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
HP PhotoSmart P1100 Color InkJet Printer Network Guide for Windows
i
1 Using Your Printer on a Network
To share your printer on a network, you must connect the printer to your network using one of the following methods. Before you
set up your printer, check that your computer is fully set up, operational, and meets the minimum system requirements listed in
“System Requirements” in your HP PhotoSmart P1100 Printer User’s Guide.
Your HP PhotoSmart P1100 printer can be shared over a network in three different ways:
• Locally Shared: Share your printer from a network-connected computer by enabling printer sharing on your computer and
connecting your printer to the parallel port of the host computer. See “Locally Shared Printer Connection” on page 2 for details.
• Peer-to-Peer: Connect your printer to a network via the parallel port of an HP JetDirect External Print Server. See “Peer-to-Peer
Connection” on page 8 and consult your print server documentation for help setting up the print server.
HP PhotoSmart P1100 Color InkJet Printer Network Guide for Windows
1
• Client Server Network Connection: Connect your printer to a network via the parallel port of an HP JetDirect External Print
Server and share the printer from a Windows NT 4.0 or NetWare 3.12, 4.11, or 5.0 server on your network. Clients print through a
Windows NT or NetWare server. See “Client Server Network Connection” on page 10 for details.
Note: Clients on a network do not have access to the CompactFlash or SmartMedia card slots. Clients only have the capability to print.
Host PCs in a locally shared configuration will have access to the card slots, only if software is loaded from setup.exe.
2 Locally Shared Printer Connection
In the locally shared configuration, the printer is connected directly to the parallel port of a selected computer that functions as a
host to other computers on the network. To locally share your printer, the printer software must be installed on the host computer
and on each client computer.
HP PhotoSmart P1100 Color InkJet Printer Network Guide for Windows
2
Setting Up a Locally Shared Printer
1 Set up the printer. Follow the instructions on the installation poster (included in the box).
Note: Make sure you do not have any peripheral devices, such as scanners, switch boxes, backup units, etc. installed between the
printer and the computer.
2 Install the printer software on the host computer, and share your printer on the network. See the table below to find instructions for
your operating system.
3 Install the printer software on each of the client computers. See the table below to find instructions for your operating system.
Operating Systems for the Locally Shared Connection
Installation instructions for the supported operating systems can be found on page:
Supported OS
Host
Client
Windows 95 and Windows 98
See page 4
See page 6
Windows NT 4.0
See page 5
See page 7
HP PhotoSmart P1100 Color InkJet Printer Network Guide for Windows
3
Setting Up Windows 95 and Windows 98 Hosts
Preparing your Computer to Share Your Printer on the Network
1 Turn on the host computer and the printer.
2 From the Windows Start menu, select Settings, then select Control Panel.
3 Double-click the Network control panel.
4 Click the File and Print Sharing button.
5 If it is not already checked, check I want to be able to allow others to print to my printer(s).
6 Click OK to close the File and Print Sharing dialog box, then click OK to close the Network dialog box.
7 If prompted, restart Windows.
Installing Printer Software on a Windows 95 or Windows 98 Host
1 Close any virus protection programs or other software programs that are open and running on the computer, except the HP
PhotoSmart Software Installer and Windows Explorer.
2 Using the installation poster (included in the box), follow the software installation instructions for your operating system.
HP PhotoSmart P1100 Color InkJet Printer Network Guide for Windows
4
Sharing Your Printer on the Network
1 From the Windows Start menu, select Settings, then select Printers.
2 Right-click the HP PhotoSmart P1100 printer icon and choose Sharing from the pop-up menu.
3 Select Shared As and enter the name you want to use for your printer on the network. Use a name of eight characters or less. If you
want to restrict access to your printer, enter a password in the Password field; users will need to enter this password in order to print
to your printer.
Note: See your Windows 95 or Windows 98 documentation for more information about sharing your printer.
4 Click OK.
Setting Up Windows NT 4.0 Hosts
Installing Printer Software on a Windows NT 4.0 Host
Note:
You must have administrator privileges to install the printer software on a Windows NT 4.0 system.
1 Turn on the host computer and the printer.
HP PhotoSmart P1100 Color InkJet Printer Network Guide for Windows
5
2 Close any virus protection programs or other software programs that are open and running on the computer, except the HP
PhotoSmart P1100 Sofware Installer and Windows Explorer.
3 Using the installation poster (included in the box), follow the software installation instructions for your operating system.
Installing the Printer Software on Each Client Computer
Make sure you have installed printer software on the host and shared the printer before you install the printer software on the client.
Add Printer Installation
You can install a locally shared printer on the client computers using the Add Printer installation. The Add Printer installation is the
most compatible with different operating systems.
Note: You can also use the Point and Print installation to install printer software directly from the host computer on client
computers running Windows 95, Windows 98, or Windows NT 4.0.
Installing the Printer Software on Windows 95 or Windows 98 Clients
1 From the Windows Start menu, select Settings, then select Printers.
2 Double-click Add Printer, then click Next.
3 Choose Network printer as the printer connection, then click Next.
HP PhotoSmart P1100 Color InkJet Printer Network Guide for Windows
6
4 Enter the path or queue name of the printer. For example, type: \\HostComputerName\PrinterName or
\\ServerName\QueueName, then click Next.
or
Click Browse to in Network Neighborhood to locate the print server and printer, then click Next.
5 Click the Have Disk button, and insert the HP PhotoSmart P1100 printer software CD into your CD-ROM drive.
Note: If the CD-ROM autoplays and starts an installation program, exit that program before continuing.
6 In the Install From Disk dialog box, click Browse, then browse to the HPDJ.INF file on the CD for your desired language and your
PC’s operating system. See the language code chart on page 13.
Example: To select the HPDJ.INF file for the English language and the Windows 95 or Windows 98 operating system, browse
enu\9xinf\HPDJ.INF.
7 Click OK to close the Open dialog box, then click OK to close the Install From Disk dialog box, then click Next.
8 Either accept the default printer name (the default printer name is recommended) or enter a printer name for the network printer on
your computer, then click Finish.
Installing Printer Software on Windows NT 4.0 Clients
Note: You must have administrator privileges to install the printer software on a Windows NT 4.0 system.
1 From the Windows Start menu, select Settings, then select Printers.
2 Double-click Add Printer, then click Next.
3 Choose Network printer server as the printer connection, then click Next.
HP PhotoSmart P1100 Color InkJet Printer Network Guide for Windows
7
4 Enter the path or queue name of the printer. For example, type:
\\HostComputerName\PrinterName or \\ServerName\QueueName
or
Browse the Shared Printers list box to locate and select the print server and printer.
Note: If the host computer is not a Windows NT4.0 computer, you will need to install the printer software from the printer software
CD or from a shared network drive.
5 Choose whether or not to set the new printer as your default printer, then click Next, then click Finish.
6 If prompted, restart Windows.
3 Peer-to-Peer Connection
In a peer-to-peer direct network configuration, the printer is directly connected to the network via an HP JetDirect External Print
Server, and each computer on the network sends print jobs directly to the HP JetDirect External Print Server.
HP PhotoSmart P1100 Color InkJet Printer Network Guide for Windows
8
Operating Systems and Print Servers for the Peer-to-Peer Connection
The following client operating systems and print servers are supported:
Operating Systems
• Windows 95
• Windows 98
• Windows NT 4.0
Print Servers
• HP JetDirect 170X
• HP JetDirect 300X
Setting Up a Peer-to-Peer Printer Connection
1 Set up the printer. Follow the installation instructions included in the box. Be sure to connect the printer to the HP JetDirect External
Print Server using a bi-directional IEEE 1284-compliant parallel cable.
2 Set up the HP JetDirect External Print Server. Install and configure the HP JetDirect External Print Server according to the
instructions provided with the print server.
3 Install the HP PhotoSmart P1100 printer software on each of the clients. See below for instructions for your operating system.
HP PhotoSmart P1100 Color InkJet Printer Network Guide for Windows
9
Installing the Printer Software on Each of the Clients
1 Install the HP JetDirect port software on each client according to the instructions included with the print server.
2 Close any virus protection programs or other software programs that are open and running on the computer, except the HP
PhotoSmart Software Installer and Windows Explorer.
3 Using the installation poster (included in the box), follow the software installation instructions for your operating system. Be sure to
select the port you configured when you set up the HP JetDirect External Print Server.
4 Client Server Network Connection
In the client server connection, you connect your HP PhotoSmart P1100 printer to the network with an HP JetDirect External Print
Server. Clients print to the Windows NT 4.0 or NetWare 3.12, 4.11, or 5.0 server that is serviced by the HP JetDirect External Print
Server.
HP PhotoSmart P1100 Color InkJet Printer Network Guide for Windows
10
Operating Systems for the Client Server Connection
Installation instructions for the supported operating systems can be found on page:
Server Operating Systems
NetWare 3.12, 4.11, or 5.0: See page 12.
Windows NT 4.0: See page 11.
Client Operating Systems
Windows NT 4.0: See page 6.
Windows 95 or Windows 98: See page 6.
Setting Up a Client Server in Windows NT 4.0
1 Set up the printer. Follow the instructions and be sure to connect the printer to the HP JetDirect External Print Server with a parallel
cable.
2 Set up the HP JetDirect External Print Server. Install and configure the HP JetDirect External Print Server according to the
instructions provided with the print server.
HP PhotoSmart P1100 Color InkJet Printer Network Guide for Windows
11
3 Install the printer software on the Windows NT 4.0 server and share your printer on the network. Follow the instructions on the
installation poster (included in the box). Be sure to select the port you configured when you set up the HP JetDirect External Print
Server.
4 Install the printer software on each of the client computers. See “Installing the Printer Software on Each Client Computer” on page 6
to find instructions for your operating system.
Setting Up a Client Server in NetWare
• Refer to Novell's web site for NetWare printer installation methods and NetWare client software.
• See the documentation that came with your HP JetDirect External Print Server and HP’s web site at www.hp.com/go/
networkprinting for information on setting up an HP JetDirect External Print Server in a NetWare environment and for additional
network printing information.
• You can copy your HP PhotoSmart P1100 printer software to a NetWare drive. See the language code table on page 13 to help
you select which languages and operating systems you should copy.
HP PhotoSmart P1100 Color InkJet Printer Network Guide for Windows
12
Appendix
Language Codes
If you are doing an Add Printer Installation in Windows 95, Windows 98, or Windows NT 4.0, you need to browse to the INF file for
your operating system’s language.
• Windows 95 and Windows 98: The INF file is in the path: [CD drive letter]: \[language code]\9xinf\HPDJ.INF
• Windows NT 4.0: The INF file is in the path: [CD drive letter]: \[language code]\nt4inf\HPDJ.INF
Find the language code for your operating system’s language in the table below.
Language
Language code
English
enu
French
fra
German
deu
Italian
ita
Japanese
jpn
Spanish
esm
HP PhotoSmart P1100 Color InkJet Printer Network Guide for Windows
13
