HP LC2640N User manual

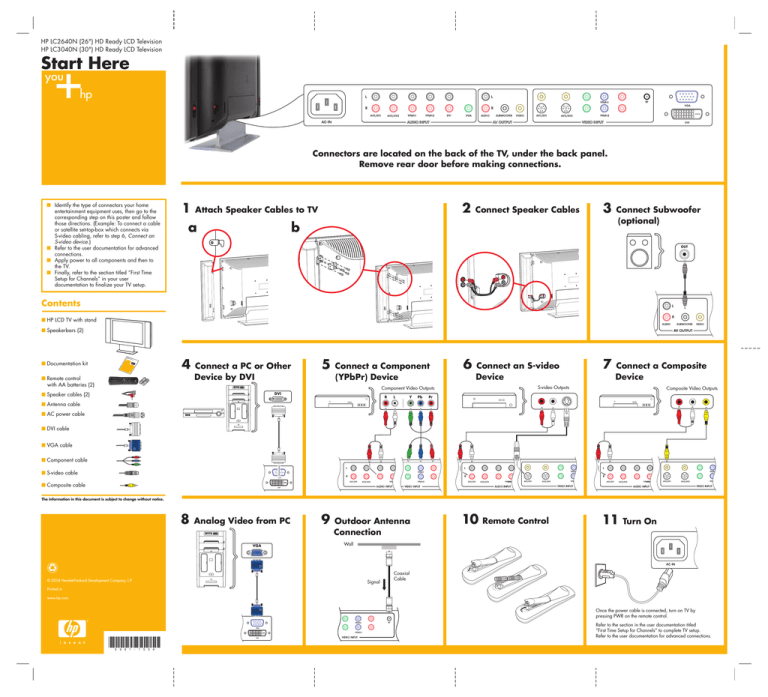

HP LC2640N (26") HD Ready LCD Television HP LC3040N (30") HD Ready LCD Television Start Here Connectors are located on the back of the TV, under the back panel. Remove rear door before making connections. ■ Identify the type of connectors your home entertainment equipment uses, then go to the corresponding step on this poster and follow those directions. (Example: To connect a cable or satellite set-top-box which connects via S-video cabling, refer to step 6, Connect an S-video device.) ■ Refer to the user documentation for advanced connections. ■ Apply power to all components and then to the TV. ■ Finally, refer to the section titled “First Time Setup for Channels” in your user documentation to finalize your TV setup. 1 Attach Speaker Cables to TV a b 2 Connect Speaker Cables 3 Connect Subwoofer (optional) OUT Contents ■ HP LCD TV with stand ■ Speakerbars (2) ■ Documentation kit 4 ■ Remote control with AA batteries (2) Connect a PC or Other Device by DVI 5 Connect a Component (YPbPr) Device Component Video Outputs ■ Speaker cables (2) DVI R L Y Pb 6 Connect an S-video Device 7 Connect a Composite Device S-video Outputs Composite Video Outputs Pr ■ Antenna cable ■ AC power cable ■ DVI cable ■ VGA cable ■ Component cable ■ S-video cable ■ Composite cable The information in this document is subject to change without notice. 8 Analog Video from PC VGA © 2004 Hewlett-Packard Development Company, L.P. 9 Outdoor Antenna Connection 10 Remote Control 11 Turn On Wall Signal Coaxial Cable Printed in www.hp.com Once the power cable is connected, turn on TV by pressing PWR on the remote control. Refer to the section in the user documentation titled “First Time Setup for Channels” to complete TV setup. Refer to the user documentation for advanced connections.
