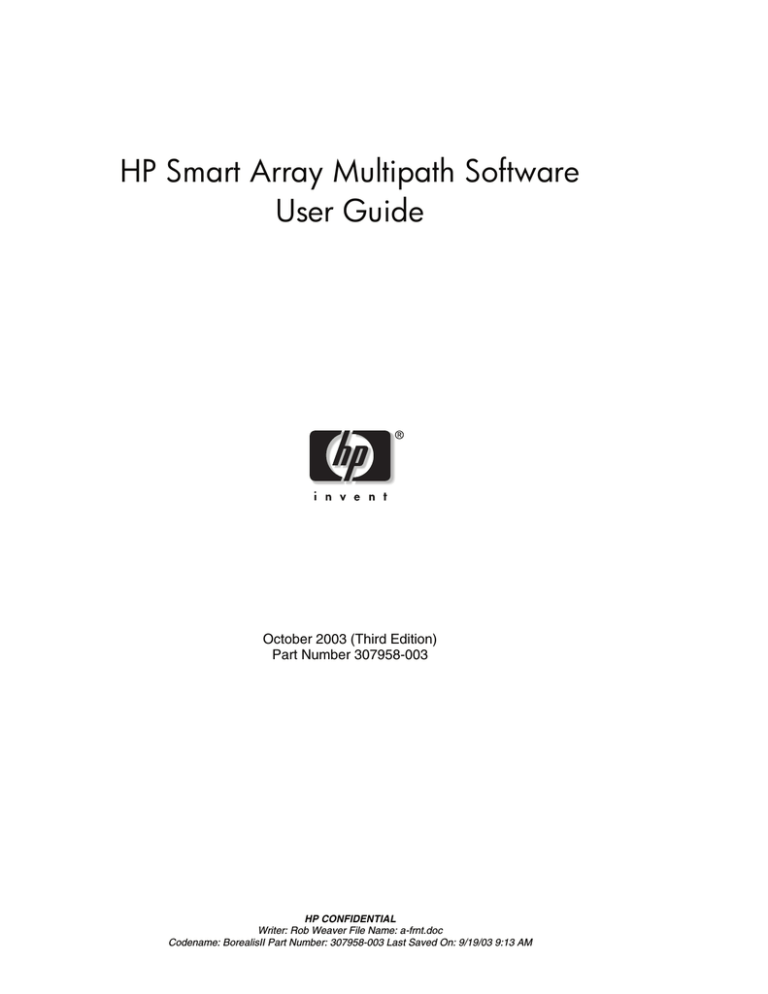

HP Smart Array Multipath Software
User Guide
October 2003 (Third Edition)
Part Number 307958-003
HP CONFIDENTIAL
Writer: Rob Weaver File Name: a-frnt.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:13 AM
© 2003 Hewlett-Packard Development Company, L.P.
Microsoft® and Windows®are U.S. registered trademarks of Microsoft Corporation.
Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions
contained herein. The information in this document is provided “as is” without warranty of
any kind and is subject to change without notice. The warranties for HP products are set forth
in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty.
Confidential computer software. Valid license from HP required for possession, use or
copying. Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer
Software Documentation, and Technical Data for Commercial Items are licensed to the U.S.
Government under vendor's standard commercial license.
HP Smart Array Multipath Software User Guide
October 2003 (Third Edition)
Part Number 307958-003
HP CONFIDENTIAL
Writer: Rob Weaver File Name: a-frnt.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:13 AM
Contents
About This Guide
Audience Assumptions........................................................................................................v
Important Safety Information ..............................................................................................v
Symbols in Text................................................................................................................. vi
Related Documents............................................................................................................ vi
Getting Help ...................................................................................................................... vi
Technical Support ...................................................................................................... vii
HP Website ................................................................................................................ vii
Authorized Reseller ................................................................................................... vii
Reader’s Comments ........................................................................................................ viii
Chapter 1
System Preparation
Overview ......................................................................................................................... 1-1
Minimum Requirements.................................................................................................. 1-1
Supported Operating Systems ......................................................................................... 1-2
Microsoft Feature Support ........................................................................................ 1-3
Linux Feature Support .............................................................................................. 1-3
Multiple Operating System Support ......................................................................... 1-3
Supported Four-Node Configurations ............................................................................. 1-4
Additional Microsoft Preparations .................................................................................. 1-7
Additional Red Hat and SuSE Linux Preparations.......................................................... 1-8
Editing the Active Linux Kernel............................................................................... 1-8
Modifying the RAIDTAB Configuration File ........................................................ 1-12
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: a-frnt.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:13 AM
iii
Contents
Chapter 2
Installation and Operation
Preparing for Software Installation..................................................................................2-1
Installing the Smart Array Multipath Software................................................................2-2
Upgrade Procedures for Microsoft Operating Systems.............................................2-2
Uninstalling Smart Array Multipath Software Driver...............................................2-3
First-Time Installation...............................................................................................2-4
UnitedLinux Configuration .......................................................................................2-5
Multipath Operations .......................................................................................................2-7
Microsoft Browser Security Settings ........................................................................2-7
Static LUN Balancing ...............................................................................................2-7
Static Load (Read-Only) Balancing ..........................................................................2-9
Chapter 3
Troubleshooting
Problem Diagnosis...........................................................................................................3-1
Problems During Installation ...........................................................................................3-1
HBA Failure.....................................................................................................................3-3
Cable Failure....................................................................................................................3-4
Index
List of Tables
1-1
1-2
1-3
1-4
1-5
1-6
1-7
iv
Two-Server External Boot Configuration (Microsoft Only).....................................1-4
Two-Server Internal Boot Configuration ..................................................................1-4
Two-Server Mixed Boot Configuration ....................................................................1-5
Two-Server Cluster Configuration ............................................................................1-5
Three-Server External Boot Configuration (Microsoft Only)...................................1-6
Three-Server Internal Boot Configuration ................................................................1-6
Three-Server Mixed Boot Configuration ..................................................................1-7
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: a-frnt.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:13 AM
About This Guide
This guide provides installation and troubleshooting procedures for the Smart Array
Multipath software for the HP StorageWorks Modular Smart Array 500 system.
Audience Assumptions
This guide is for the person who installs, administers, and troubleshoots servers and
storage systems. HP assumes you are qualified in the servicing of computer
equipment and trained in recognizing hazards in products with hazardous energy
levels.
Important Safety Information
Before installing this product, read the Important Safety Information document
included with the server.
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: a-frnt.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:13 AM
v
About This Guide
Symbols in Text
These symbols may be found in the text of this guide. They have the following
meanings.
WARNING: Text set off in this manner indicates that failure to follow directions
in the warning could result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could
result in damage to equipment or loss of information.
IMPORTANT: Text set off in this manner presents essential information to explain a concept
or complete a task.
NOTE: Text set off in this manner presents additional information to emphasize or supplement
important points of the main text.
Related Documents
For additional information on the topics covered in this guide, refer to the following
documentation:
•
HP StorageWorks Modular Smart Array 500 System User Guide
•
HP StorageWorks Modular Smart Array 500 System Hardware Configuration
and Installation poster
•
4-Port Shared Storage Module Installation Instructions
•
HP Array Configuration Utility User Guide
Getting Help
If you have a problem and have exhausted the information in this guide, you can get
further information and other help in the following locations.
vi
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: a-frnt.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:13 AM
About This Guide
Technical Support
In North America, call the HP Technical Support Phone Center at 1-800-652-6672.
This service is available 24 hours a day, 7 days a week. For continuous quality
improvement, calls may be recorded or monitored. Outside North America, call the
nearest HP Technical Support Phone Center. Telephone numbers for worldwide
Technical Support Centers are listed on the HP website, www.hp.com.
Be sure to have the following information available before you call HP:
•
Technical support registration number (if applicable)
•
Product serial number
•
Product model name and number
•
Applicable error messages
•
Add-on boards or hardware
•
Third-party hardware or software
•
Operating system type and revision level
HP Website
The HP website has information on this product as well as the latest drivers and flash
ROM images. You can access the HP website at www.hp.com.
Authorized Reseller
For the name of the nearest authorized reseller:
•
In the United States, call 1-800-345-1518.
•
In Canada, call 1-800-263-5868.
•
Elsewhere, see the HP website for locations and telephone numbers.
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: a-frnt.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:13 AM
vii
About This Guide
Reader’s Comments
HP welcomes your comments on this guide. Please send your comments and
suggestions by e-mail to ServerDocumentation@hp.com.
viii
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: a-frnt.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:13 AM
1
System Preparation
Overview
Smart Array Multipath software delivers dual path functionality and supports failover
capability for redundant host bus adapters (HBAs) in a server with redundant cabling
to an HP StorageWorks Modular Smart Array 500 system. This fault-tolerant tool
enhances availability in clustering and direct attached storage (DAS) solutions with
up to two servers managing up to 2 TB of stored data.
The software supports multiple I/O paths to the same logical volumes. When a path
fails, the software moves the logical drives from the failed path to the path of the
redundant HBA in the same server.
Smart Array Multipath software works differently with Microsoft and Linux products
to provide specific features that are compatible with operating system functionality.
Minimum Requirements
Be sure that your solution consists of the following hardware:
•
At least one server with two supported HBAs (Smart Array 5i, 5i+, or 532
controllers) with updated firmware
•
A supported operating system installed on the server or MSA500 system
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 System Preparation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
1-1
System Preparation
•
An MSA500 system with the following:
— At least one HP StorageWorks Modular Smart Array 500 controller
— A 2-Port Shared Storage Module and two SCSI cables
or
— A 4-Port Shared Storage Module and four SCSI cables
For the latest versions of firmware, refer to
www.hp.com
Supported Operating Systems
Supported operating systems include:
•
Microsoft®
— Windows® 2000
— Windows Server 2003
IMPORTANT: Systems running Microsoft Windows 2000 with Service Pack 4 or
Windows Server 2003 must use Smart Array Multipath Software v2.0 or later.
•
Linux
— Red Hat
— SuSE Linux Enterprise Server (SLES)
— UnitedLinux
IMPORTANT: Systems running UnitedLinux v1.0 must:
•
Use Service Packs 1 and 2
•
Use Smart Array Multipath Software v2.0 or later.
For the most current operating system support information, refer to
www.hp.com/products/sharedstorage
1-2
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 System Preparation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
System Preparation
Microsoft Feature Support
Features supported under Microsoft operating systems include:
•
Static LUN balancing enables the administrator to optimize I/O by assigning
specific volumes to specific paths in the storage system. If one path fails, the
system moves volumes to the path for the redundant HBA for I/O management.
•
Server-based PCI Hot Plug functionality supports online HBA addition and
replacement
•
Logical volume hot-add functionality supports online array expansion/extension
•
ProLiant Storage Manager software and device manager extension provide
point-and-click multipath management.
•
Configuration flexibility enables boot volumes for DAS solutions to reside on the
storage system.
Linux Feature Support
Features supported under Linux operating systems include:
•
Static load (read-only) balancing enables the HBAs to optimize I/O with dual
paths to the same volumes in the storage system. If one HBA fails, the system
moves volumes to the path for the redundant HBA for I/O management.
•
Servers maintain boot volumes and enable greater storage capacity on the storage
system.
Multiple Operating System Support
For multipath configurations with multiple operating systems, use Selective Storage
Presentation (SSP) to restrict HBAs from accessing logical volumes containing data
from a different operating system. For more information about SSP, refer to the
documentation that ships with the 4-Port Shared Storage Module.
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 System Preparation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
1-3
System Preparation
Supported Four-Node Configurations
The following sections identify supported multipath configurations with their
respective 4-Port Shared Storage Module connections and locations for boot and data
volumes. These configurations require two or three servers attached with four SCSI
cables to the MSA500 system.
Two-Server External Boot Configuration (Microsoft Only)
All boot and data volumes reside on the MSA500 system.
Table 1-1: Two-Server External Boot Configuration (Microsoft
Only)
Server
Port (Bus)
1
A1
Boot Volume
Location
Data Volume
Location
Storage system
Storage system
Storage system
Storage system
B1
2
A2
B2
Two-Server Internal Boot Configuration
Boot volumes reside on their respective servers, while data volumes reside on the
MSA500 system.
Table 1-2: Two-Server Internal Boot Configuration
Server
Port (Bus)
1
A1
Boot Volume
Location
Data Volume
Location
Server 1
Storage system
Server 2
Storage system
B1
2
A2
B2
1-4
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 System Preparation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
System Preparation
Two-Server Mixed Boot Configuration
One boot volume resides on its respective server, while the other boot volume resides
on the MSA500 system. Both data volumes reside on the storage system.
Table 1-3: Two-Server Mixed Boot Configuration
Server
Port (Bus)
1
A1
Boot Volume
Location
Data Volume
Location
Storage system*
Storage system
Server 2
Storage system
B1
2
A2
B2
*Linux operating systems support boot volumes on servers only. For a mixed
boot configuration in a multiple operating system environment, always locate
Linux boot volumes on servers.
Two-Server Cluster Configuration
Identical servers (hardware and software configuration) connect to the MSA500
system. Boot volumes reside on their respective servers, while both data volumes
reside on the storage system.
Table 1-4: Two-Server Cluster Configuration
Server
Port (Bus)
1
A1
Boot Volume
Location
Data Volume
Location
Server 1
Storage system
Server 2
Storage system
B1
2
A2
B2
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 System Preparation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
1-5
System Preparation
Three-Server External Boot Configuration (Microsoft Only)
All boot and data volumes reside on the MSA500 system. One server connects to two
ports.
Table 1-5: Three-Server External Boot Configuration (Microsoft
Only)
Server
Port (Bus)
1
A1
Boot Volume
Location
Data Volume
Location
Storage system
Storage system
B1
2
A2
3
B2
Three-Server Internal Boot Configuration
Boot volumes reside on their respective servers, while data volumes reside on the
MSA500 system. One server connects to two ports.
Table 1-6: Three-Server Internal Boot Configuration
Server
Port (Bus)
1
A1
Boot Volume
Location
Data Volume
Location
Server 1
Storage system
B1
1-6
2
A2
Server 2
3
B2
Server 3
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 System Preparation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
System Preparation
Three-Server Mixed Boot Configuration
Two boot volume resides on their respective servers, while one boot volume resides
on the MSA500 system. All data volumes reside on the storage system. One server
connects to two ports.
Table 1-7: Three-Server Mixed Boot Configuration
Server
Port (Bus)
1
A1
Boot Volume
Location
Data Volume
Location
Storage system*
Storage system
B1
2
A2
Server 2
3
B2
Server 3
*Linux operating systems support boot volumes on servers only. For a mixed
boot configuration in a multiple operating system environment, always locate
Linux boot volumes on servers.
Additional Microsoft Preparations
Before installing Smart Array Multipath software on a server with a Microsoft
operating system, connect only one of the SCSI cables from one HBA to the
MSA500 system. Leave the second SCSI cable to the redundant HBA disconnected.
After the multipath software is installed, connect the second SCSI cable.
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 System Preparation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
1-7
System Preparation
Additional Red Hat and SuSE Linux Preparations
IMPORTANT: For Red Hat and SuSE operating sytems, configure the system for multipath
before installing the software from the CD. For configuration instructions for UnitedLinux
operating systems, refer to Chapter 2, “Installation and Operation.”
Before installing Smart Array Multipath software on a server with a Red Hat or SuSE
Linux operating system, perform the following procedures:
•
Always edit the active Linux kernel that enables the system to recognize the
multipath hardware configuration. Refer to “Editing the Active Linux Kernel” in
this chapter.
•
Always modify the raidtab configuration file to be sure it contains the appropriate
information. Refer to “Modifying the RAIDTAB Configuration File” in this
chapter.
Editing the Active Linux Kernel
To configure the system for multipath operations:
1. Modify the makefile.
2. Overwrite the active config file.
3. Edit the make config and make the kernel.
4. Make and install the module.
The procedures in this section provide examples for all these basic steps.
Modifying the Makefile
IMPORTANT: The following procedure is for Red Hat Linux only.
To modify the Makefile:
1. Identify the name of the active kernel:
a. At the root level, enter:
uname –a
1-8
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 System Preparation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
System Preparation
b. Identify the kernel. An example is 2.4.9-e.3enterprise, where “enterprise” is
the name of the kernel. Remember the name for use in later procedures.
2. Use an editor to modify the Makefile. For example, enter:
vi Makefile
3. In the EXTRAVERSION field, replace the current value (typically
-e.3custom) by entering:
–e.3enterprise
using the name of your kernel in place of “enterprise.”
Overwriting the Active .Config File
Depending on the operating system, use the procedures below.
IMPORTANT: Before overwriting any file, create a backup of the original file.
Red Hat Operating Systems
To overwrite the active .config file for Red Hat operating systems:
1. Locate the specific .config file for the modified kernel:
a. From the root level, enter:
cd configs
b. Identify the appropriate .config file by name, for example
2.4.9-i686-enterprise.config
2. Copy the kernel to the root level directory and overwrite the active .config file.
Enter:
cp kernel-2.4.9-i686-enterprise.config ../.config
3. When prompted to overwrite the existing file, enter:
y
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 System Preparation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
1-9
System Preparation
SLES 7 Operating System
To overwrite the active .config file for the SLES 7 operating system:
1. Locate the specific .config file for the modified kernel:
a. From the root level, enter:
cd /boot
b. Identify the appropriate .config file by name, for example
vmlinuz.config
2. Copy the kernel to the root level directory and overwrite the active .config file.
Enter:
cp vmlinuz.config /usr/src/linux/arch/i386
3. Go to the root directory. Enter:
cd /usr/src/linux/arch/i386
4. Save the current config.in file in the current directory to a backup filename.
5. Copy the new .config file and overwrite the config.in file. Enter:
cp vmlinuz.config config.in
6. When prompted to overwrite the existing file, enter:
y
Editing the Makeconfig File and Making the Kernel
To edit the Makeconfig file:
1. Open the configuration menu. Enter:
make menuconfig
2. Select Multi-device support (RAID and LVM).
3. Select RAID support.
4. Be sure that the RAID support option is checked with an asterisk. If it is not
checked, use the space bar to cycle through the settings until an asterisk appears
next to the option.
5. Select Multipath I/O support.
1-10
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 System Preparation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
System Preparation
6. Be sure that the Multipath I/O support option is set as a module. If it is not set
as a module, use the space bar to cycle through the settings until an “M” appears
next to the option.
7. Press the Esc key twice to exit the menus.
8. When prompted to save the new kernel configuration, press the Enter key to
select Yes.
9. Make the kernel:
a. From the root level, enter:
make
b. Wait for the kernel to be made. Depending on the hardware configuration,
this process can last up to 30 minutes.
Making and Installing the Module
To make and install the module:
1. From the root level, enter:
make modules
2. Wait for the modules to be made.
3. After the module is made, install the module:
a. From the root directory, enter:
make modules_install
b. Load the module. Enter:
insmod multipath
4. Verify that the module is installed and loaded by listing all modules. Enter:
lsmod
The kernel is now ready for multipath operations.
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 System Preparation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
1-11
System Preparation
Modifying the RAIDTAB Configuration File
To perform multipath operations with a Linux operating system, a raidtab
configuration file must be present. Use the instructions in the following sections to be
sure the raidtab configuration file contains the appropriate information.
RAIDTAB Terms
Observe the following definitions for raidtab terms:
•
raiddev—introduces the configuration for a particular device
•
nr-raid-disks—the number of raid disks in the array; specified in the /dev/cciss
directory
•
persistent-superblock—must be set to 1 if an md device is to be mounted/used
during a reboot
•
chunk-size—sets the stripe size in bytes, in the power of 2
•
device—the physical device that makes up the RAID array
•
raid-disk—the index of the device in the RAID array
For more information, refer to the operating system documentation.
Sample RAIDTAB Configuration File
The following raidtab sample file is for a multipath configuration with three
partitions (/dev/md0, /dev/md1, and /dev/md2) where each md device represents a
partition on the device. If another partition is needed, add it as /dev/md3 with the
same characteristics as the preceding partitions.
The limit for number of partitions is four primary partitions. However, creating one
of the four partitions as a type “type 0xf” Win 95 Ext’d (LBA) partition enables you
to create extended logical partitions inside of the primary partition. Inside of the
extended partition, you can create additional Linux partitions.
1-12
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 System Preparation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
System Preparation
The raidtab configuration file must reside in the /etc directory. The contents of
/etc/raidtab should resemble the following:
raiddev /dev/md0
raid-level
multipath
nr-raid-disks
2
persistent-superblock
1
chunk-size
8
device
/dev/cciss/c0d2p1
raid-disk
0
device
/dev/cciss/c1d2p1
raid-disk
1
raiddev /dev/md1
raid-level
multipath
nr-raid-disks
2
persistent-superblock
1
chunk-size
8
device
/dev/cciss/c0d2p2
raid-disk
0
device
/dev/cciss/c1d2p2
raid-disk
1
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 System Preparation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
1-13
System Preparation
raiddev /dev/md2
raid-level
multipath
nr-raid-disks
2
persistent-superblock
1
chunk-size
8
device
/dev/cciss/c0d2p3
raid-disk
0
device
/dev/cciss/c1d2p3
raid-disk
1
Completing the Linux Multipath Setup
After a valid raidtab file is created in the /etc directory, verify that the correct drivers
and modules are loaded.
To verify properly loaded files:
1. Verify that the md and multipath drivers are loaded, either statically or by a
module load. Enter:
lsmod
This command reveals which modules are running. Examining the boot-time
messages reveals the static loaded drivers.
IMPORTANT: If you have made configuration changes to the kernel (including the
multipath or /dev/md driver) and have not rebooted from the new kernel, you must reboot
before continuing. Red Hat and SuSE typically include the md driver in the kernel.
1-14
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 System Preparation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
System Preparation
2. Verify that the md driver is in the kernel. Enter:
dmesg | grep md | more
This command shows the boot-time messages. If the md driver was loaded,
several messages should appear, similar to the following messages:
md: md driver version X.X
md: Autodetecting RAID arrays
md: autorun…
md: …autorun DONE
3. If the multipath driver was built as a module but not loaded, load the module.
Enter:
insmod multipath
This command loads the driver. If the driver does not load the multipath module,
rebuild the module. Refer to “Making and Installing the Module” in this chapter.
4. After verifying loaded drivers, make the raid files. For the sample partition table
in the “Sample RAIDTAB Configuration File” section, enter:
mkraid /dev/md0
mkraid /dev/md1
mkraid /dev/md2
mkraid /dev/md3
CAUTION: Do not use Fdisk or mkraid to create any other partitions on this
logical drive. This action results in data corruption and data loss.
5. If mkraid responds that the partition contains existing data, do the following:
a. Force the mkraid to run. Enter:
mkraid – f
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 System Preparation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
1-15
System Preparation
b. Make filestystems on the raid devices. Enter:
mkfs –t ext2 /dev/md0
mkfs –t ext2 /dev/md1
mkfs –t ext2 /dev/md2
mkfs –t ext2 /dev/md3
mkfs –t ext2 /dev/md4
IMPORTANT: The example in step 5b uses ext2 because known bugs in the ext3
filesystem can cause data corruption.
6. The multipath RAID device should be functioning. To mount the device
/dev/md0, enter:
mount /dev/md0 /spare_filesystem
If necessary, you can stop or start the RAID device with the following
commands:
— To stop the RAID device, enter:
raidstop /dev/md0
This command may need to start the md device after a reboot. Place the
command in the rc /etc configuration files for mounted filesystems at boot
time.
— To start the RAID device, enter:
raidstart /dev/md0
This command can be placed in shutdown scripts in /etc.
For more information, refer to the operating system documentation.
1-16
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 System Preparation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
2
Installation and Operation
Preparing for Software Installation
To prepare for software installation:
1. Complete the MSA500 system hardware installation:
a. Install the MSA500 system.
b. Install the 4-Port Shared Storage Module.
c. Install the controllers.
d. Update the system firmware, if needed.
2. Complete the server installation:
a. Install all hardware, including a second supported HBA
IMPORTANT: For Microsoft operating system installation, the server only supports one
SCSI path during installation. If the server is already cabled for a multipath configuration,
disconnect the SCSI cable connected from the redundant HBA to the storage system.
b. Install a supported operating system.
c. Reboot the server.
3. Install a multipath cabling configuration. Refer to “Supported Four-Node
Configurations” in Chapter 1.
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: c-ch2 Installation and Operation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
2-1
Installation and Operation
4. Depending on the operating system, do one of the following:
— If the server has a Microsoft operating system, be sure that only one SCSI
cable is connected from the server to the MSA500 system. During
installation, the Smart Array Multipath software supports only one SCSI path
per Microsoft-based server.
— If the server has a Red Hat or SuSE Linux operating system, edit the active
kernel and modify the RAIDTAB configuration. Refer to “Additional
Red Hat and SuSE Linux Preparations” in Chapter 1.
5. Power up the storage system. Wait for the controller display to provide a “Startup
Complete” message.
6. Power up one of the servers.
Installing the Smart Array Multipath Software
Upgrade Procedures for Microsoft Operating Systems
Use the appropriate procedure in this section when upgrading the multipath software
or your Microsoft operating system.
IMPORTANT: Systems running Microsoft Windows 2000 with Service Pack 4 or Windows
Server 2003 must use Smart Array Multipath Software v2.0 or later.
Upgrading to Windows 2000 Service Pack 4 or Later
1. Uninstall Smart Array Multipath software v1.0, if installed. Refer to
“Uninstalling the Smart Array Multipath Software Driver” in this chapter.
2. Install the service pack.
3. Install Smart Array Multipath software v2.0 or later. Refer to “First-Time
Installation” in this chapter.
Upgrading to Microsoft Windows Server 2003
To upgrade your operating system to Microsoft Windows Server 2003:
2-2
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: c-ch2 Installation and Operation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
Installation and Operation
1. Uninstall Smart Array Multipath software, if installed. Refer to “Uninstalling
Smart Array Multipath Software Driver” in this chapter.
2. Upgrade to Windows Server 2003.
3. Install Smart Array Multipath software v2.0 or later. Refer to “First-Time
Installation” in this chapter.
Upgrading from v1.0 to v2.0
1. Uninstall Smart Array Multipath software v1.0. Refer to “Uninstalling Smart
Array Multipath Software Driver” in this chapter.
2. Install Smart Array Multipath software v2.0 or later. Refer to “First-Time
Installation” in this chapter.
Uninstalling Smart Array Multipath Software Driver
To uninstall the software:
CAUTION: Before uninstalling the software driver in a Microsoft Windows
Server 2003 clustering environment, use the Cluster Administrator to stop the cluster
service on the appropriate node.
1. Power down the server.
2. Disconnect all SCSI cables from any Smart Array 532 Controllers in the system,
unless the boot drive is attached.
3. Power up the server.
4. Select Start>Settings>Control Panel.
5. Select Add/Remove Programs.
6. From the list of components, select Compaq Smart Array Redundancy Filter
Driver.
NOTE: For Microsoft Windows Server 2003 only, the selection is Compaq Smart Array
Multipath Driver.
7. Click Change/Remove.
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: c-ch2 Installation and Operation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
2-3
Installation and Operation
8. Click OK.
NOTE: A Microsoft Windows Server 2003 system does not indicate progress during the
removal. Wait at least 10 minutes to allow the system to complete the removal.
9. Click Cancel.
10. Shut down the server.
11. Disconnect the SCSI cable from the redundant HBA.
First-Time Installation
1. To install the Smart Array Multipath software, refer to the HP Smart Array
Multipath Software CD Installation Instructions that ship with the CD.
2. After completing the installation instructions, depending on the operating system,
do one of the following:
— If the server has a Microsoft operating system, go to step 3.
— If the server has a Linux operating system, go to step 4.
3. For a Microsoft operating system:
a. Reconnect the SCSI cable from the redundant HBA to the MSA500 system.
b. Cycle the server power.
4. Repeat steps 1 through 3 for subsequent servers.
5. Use the appropriate software for specific Microsoft or Linux multipath
operations:
— For Microsoft operating systems, refer to “Static LUN Balancing” in this
chapter.
— For Red Hat or SuSE Linux operating systems, refer to “Static Load
(Read-Only) Balancing” in this chapter.
— For the UnitedLinux operating system, refer to “UnitedLinux Configuration”
in this chapter.
2-4
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: c-ch2 Installation and Operation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
Installation and Operation
UnitedLinux Configuration
After installing Smart Array Multipath software on a server with a UnitedLinux
operating system, configure for multipath operations.
Review the following sample configuration procedure. This sample assumes that the
user wants to set /dev/cciss/c1d0p2 and /dev/cciss/c2d0p2 to point to the same
volume as a multipath device.
To configure the system for multipath use:
1. Be sure that the MSA500 system contains two controllers connected to the same
logical volume.
2. To create multipath device /dev/md0, run:
mdadm –create –level multipath –n 2 /dev/md0
/dev/cciss/c1d0p2 /dev/cciss/c2d0p2
3. To review the status, run:
mdadm –D /dev/md0
Results should look similar to the following:
/dev/mdp:
Version : 00.90.00
Creation Time : Mon Apr 29 09:15:00 2003
Raid Level : multipath
Array Size : 14683328 (14.00 GiB 15.08 GB)
Raid Devices : 2
Total Devices : 2
Preferred Minor : 0
Persistence : Superblock is persistent
Update Time : Mon Apr 29 09:02:00 2003
State : dirty, no-errors
Active Devices : 2
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: c-ch2 Installation and Operation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
2-5
Installation and Operation
Working Devices : 2
Failed Devices : 0
Spare Devices : 0
Number
Major
Minor
RaidDevice
State
0 106
2
0
active sync
/dev/cciss/c2d0p2
1 105
2
1
active sync
/dev/cciss/c1d0p2
UUID : b1ec5895:5ed49b44:7ec7d4a8:397e19b1
IMPORTANT: You can also review status by running:
/proc/mdstat
Results would look similar to the following:
Personalities : [multipath]
read_ahead 1024 sectors
md0 : active multipath cciss/c2d0p2[0] cciss/c1d0p2[1]
14683328 blocks [2/2] [UU]
unused devices : <none>
4. To format the volume, run:
mkfs –t ext2 /dev/md0
5. To mount the volume, run:
mount /dev/md0/spare_filesystem
6. Configuration is complete. To perform multipath operations, refer to “Static Load
(Read-Only) Balancing” in this chapter.
2-6
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: c-ch2 Installation and Operation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
Installation and Operation
Multipath Operations
Microsoft Browser Security Settings
For Windows Server 2003, the modified version of Internet Explorer 6.0 defaults all
servers to the “Internet zone,” which enables the highest level of security. At this
security level, browsing to HP Management agents generates many security
messages.
To avoid these security messages:
1. Open Internet Explorer 6.0.
2. Select Tools>Internet Options.
3. Select the Security tab.
4. Click Local intranet.
5. Manually set the servers to the Local intranet zone by entering:
http://<servername or IP address>:2301
https://<servername or IP address>:2381
Static LUN Balancing
The Smart Array Multipath software and Microsoft operating system support static
LUN balancing. The movement of drives to specific paths can be done two ways:
•
Locally with a Device Manager Extension (DME)
•
Remotely with the Smart Array Multipath found on the Smart Array Multipath
Software CD
To balance LUNs with the DME:
1. From the desktop, right-click My Computer.
2. Click Manage. The Device Manager window opens.
3. Click SCSI and RAID Controllers.
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: c-ch2 Installation and Operation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
2-7
Installation and Operation
4. Right-click one of the array controller icons and click Properties.
5. When the Properties window opens, click the Redundancy Configuration tab.
From the Redundancy Configuration tab, the administrator can view the
following controller information:
— Name
— Slot number
— Status
— Slot number of redundant controller
— Controller tree
6. In the controller tree, right-click one of the logical volumes and then click Switch
Path. The system moves the logical volume to the other path.
To manage your redundant configuration:
1. First-time users must install the software. Install the ProLiant Storage Manager
software and Smart Array Multipath Manager software. Refer to the Smart Array
Multipath Software CD Installation Instructions.
2. Browse to the System Management Homepage by entering:
https:\\<name of server>:2381
IMPORTANT: If you encounter numerous security messages on a Windows Server 2003
platform, refer to “Microsoft Browser Security Settings” in this chapter.
3. To accept the security certificate, click Yes. The system may prompt for the
administrator password established during the original software installation. The
System Management Homepage opens.
4. Click the Home tab.
5. Select ProLiant Storage Manager. A new window opens.
6. Click the appropriate controller on the Device View tab.
7. Click Multipath Management. The Multipath Management and
Configuration screen displays.
2-8
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: c-ch2 Installation and Operation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
Installation and Operation
8. From the Multipath Management and Configuration screen, do one of the
following:
— To move all drives from the current path to the redundant path, click the link
for the controller and select Switch All Paths. The system moves all drives
to the redundant path.
— To move a drive from one path to the redundant path, click the link for the
drive and select Switch Path.
IMPORTANT: After establishing a redundant configuration and adding a logical volume, use
Windows Disk Manager to detect the new volume.
Static Load (Read-Only) Balancing
The Smart Array Multipath software and Linux operating system support static load
(read-only) balancing functionality. To create, add, or extend logical volumes, use
ACU Version 6.0 or later. Locate ACU on the SmartStart CD. Refer to the HP Array
Configuration Utility User Guide on the SmartStart CD or refer to the HP website:
www.hp.com
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: c-ch2 Installation and Operation.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:20 AM
2-9
3
Troubleshooting
Problem Diagnosis
When a problem exists with the multipath I/O, consult the Insight Management
Agents and do one of the following:
•
For Microsoft operating systems:
— Use the ProLiant Storage Manager FAQs
— Use the ProLiant Storage Manager software and the Device Manager
Extension to identify I/O path status.
•
For Linux operating systems, use the following command to identify HBA status,
multipath status, and I/O block transfer size:
cat /proc/mdstatus
Problems During Installation
This section provides systematic instructions on what to try and where to go for help
for the most common problems encountered during software installation.
If you encounter problems during installation:
1. In a Microsoft environment, be sure to uninstall any previous version of the
multipath software first. Refer to “Upgrade Procedures for Microsoft Operating
Systems” in Chapter 2, “Installation and Operation.”
2. Be sure that the firmware is upgraded for all of the HBAs and both of the HP
StorageWorks Modular Smart Array 500 controllers, if installed.
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: d-ch3 Troubleshooting.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:22 AM
3-1
Troubleshooting
3. Be sure that the hardware installation meets the minimum requirements for the
software. Refer to “Minimum Requirements” in Chapter 1, “System
Preparation.”
4. Be sure that the SCSI cabling configuration is complete. Refer to “Supported
Four-Node Configurations” in Chapter 1, “System Preparation.”
5. Be sure that the HBA is functioning properly. Refer to the appropriate server and
HBA documentation. If the HBA has failed, refer to “HBA Failure” in this
chapter.
6. Be sure that the SCSI cable is functioning properly. If the cable has failed, refer
to “Cable Failure” in this chapter.
7. Be sure that you followed operating system-specific instructions:
— If the server has a Red Hat or SuSE Linux operating system, be sure that the
active kernel is edited properly.
— If the server has a Microsoft operating system, be sure that the SCSI cable
from the redundant HBA was disconnected before Smart Array Multipath
software installation.
IMPORTANT: After establishing a redundant configuration and adding a logical volume,
use Windows Disk Manager to detect the new volume.
8. If these steps do not solve the installation problem, contact an authorized reseller.
3-2
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: d-ch3 Troubleshooting.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:22 AM
Troubleshooting
HBA Failure
If one of the HBAs in the server fails, the redundant HBA performs all I/O
operations.
To replace the failed HBA:
1. Power down the HBA in one of the following ways:
— For a PCI-based HBA in a Microsoft operating system environment, use the
PCI Hot Plug functionality in the server to power down the HBA while the
server is online.
— For an embedded HBA in a Microsoft operating system environment, power
down the server.
— For an HBA in a Linux operating system environment, power down the
server.
2. Disconnect the SCSI cable from the connector on the HBA or from the external
VHDCI connector on the server.
3. Remove the failed HBA. Refer to the server maintenance and service guide.
4. Install a replacement HBA. Refer to the documentation that ships with the server
or HBA.
5. Connect the SCSI cable to the connector on the HBA or to the external VHDCI
connector on the server.
6. Power up the replacement HBA in one of the following ways:
— Use PCI Hot Plug functionality to restore power.
— Power up the server.
IMPORTANT: In a Microsoft environment, the software recognizes the replacement HBA
and automatically restores redundancy.
7. If operating in a Linux environment, reconfigure the I/O for multipath operation.
Refer to Chapter 2, “Installation and Operation.”
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: d-ch3 Troubleshooting.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:22 AM
3-3
Troubleshooting
Cable Failure
To replace the failed cable:
1. Power down the HBA in one of the following ways:
— For a PCI-based HBA in a Microsoft operating system environment, use the
PCI Hot Plug functionality in the server to remove the HBA while the server
is online.
— For an embedded HBA in a Microsoft operating system environment, power
down the server.
— For an HBA in a Linux operating system environment, power down the
server.
2. Disconnect the SCSI cable:
a. Disconnect the cable from the MSA500 system.
b. Disconnect the cable from the connector on the HBA or from the external
VHDCI connector on the server.
3. Connect the replacement cable:
a. Connect the cable to the connector on the HBA or to the external VHDCI
connector on the server.
b. Connect the cable to the MSA500 system.
4. Apply power to the replacement HBA in one of the following ways:
— Use PCI Hot Plug functionality to restore power (PCI-based Microsoft Only).
— Power up the server.
3-4
HP Smart Array Multipath Software User Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: d-ch3 Troubleshooting.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:22 AM
Index
A
K
additional preparations 1-7
Array Configuration Utility 2-9
array controllers, supported 1-1
authorized reseller vii
kernel procedures 1-10
L
C
Linux
additional preparations 1-8
feature support 1-3
cable failure 3-4
Config file overwriting 1-9
configurations, four-node 1-4
M
D
Device Manager Extension 2-7
F
firmware updates 2-1
Makefile modifications 1-8
Microsoft
additional preparations 1-7
feature support 1-3
minimum requirements 1-1
modules in Linux 1-11
multipath operations 2-7
O
H
HBA failure 3-3
HP website vii
I
Insight Management Agents 3-1
installation preparation 2-1
installation procedure 2-4
operating systems
feature support 1-3
Linux preparations 1-8
Microsoft preparations 1-7
multiple support 1-3
support 1-2
overview 1-1
HP Smart Array Multipath Software User Guide
COMPAQ CONFIDENTIAL
Writer: Rob Weaver File Name: x-index.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:22 AM
Index-1
Index
P
PCI Hot Plug functionality 1-3
multiple operating systems 1-3
operating systems 1-2
static LUN balancing 1-3
symbols in text vi
R
raidtab configuration file 1-12
requirements, minimum 1-1
S
static load (read-only) balancing
functionality 2-9
support 1-3
static LUN balancing
support 1-3
with Device Manager 2-7
with ProLiant Storage Manager 2-8
support
array controllers 1-1
configurations, four-node 1-4
Index-2
T
technical support vii
telephone numbers vii
troubleshooting
cable failure 3-4
HBA failure 3-3
installation 3-1
U
updating firmware 2-1
W
website, HP vii
HP Smart Array Multipath Software User Guide
COMPAQ CONFIDENTIAL
Writer: Rob Weaver File Name: x-index.doc
Codename: BorealisII Part Number: 307958-003 Last Saved On: 9/19/03 9:22 AM
Download PDF

advertising
