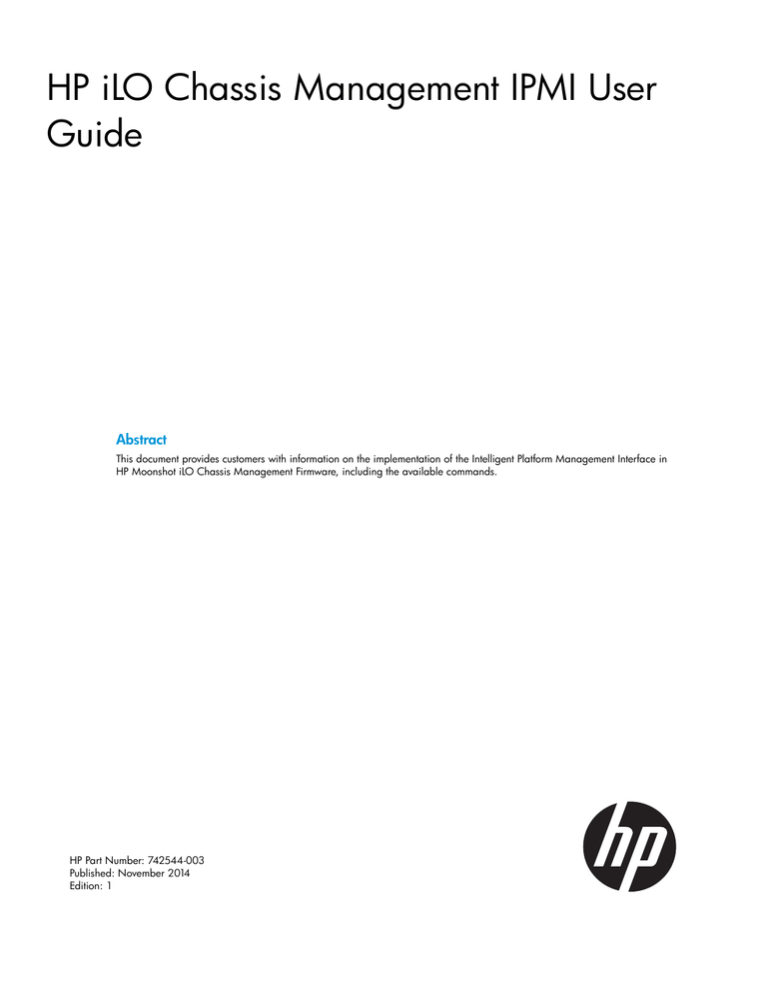

HP iLO Chassis Management IPMI User
Guide
Abstract
This document provides customers with information on the implementation of the Intelligent Platform Management Interface in
HP Moonshot iLO Chassis Management Firmware, including the available commands.
HP Part Number: 742544-003
Published: November 2014
Edition: 1
© Copyright 2014
Notices
Confidential computer software. Valid license from HP required for possession, use, or copying. Consistent with FAR 12.211 and 12.212, Commercial
Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under
vendor's standard commercial license.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Contents
1 Introduction and key concepts......................................................................7
Overview................................................................................................................................7
Sensor Data Model...................................................................................................................7
Sensor owner identification...................................................................................................7
Sensor type code.................................................................................................................8
System event log and event messages.....................................................................................8
SDR repository..................................................................................................................10
SDR formats.................................................................................................................10
Reading the SDR repository and device SDR repositories....................................................11
FRU......................................................................................................................................11
FRU inventory device..........................................................................................................12
Standardized timers................................................................................................................12
Watchdog timer................................................................................................................12
POH counter.....................................................................................................................12
Timestamp format...............................................................................................................12
2 The virtual topology of the Moonshot 1500 CM module................................14
3 Discovering managed entities using IPMITool................................................17
4 IPMItool..................................................................................................18
Moonshot IPMItool support — out of band.................................................................................18
Interfaces...............................................................................................................................19
System Interface.................................................................................................................19
LANPlus Interface...............................................................................................................19
Features................................................................................................................................20
Events...................................................................................................................................21
Inventory...............................................................................................................................22
Chassis management..............................................................................................................22
Synopsis................................................................................................................................22
IPMItool Raw command syntax and example..............................................................................24
5 Command specification.............................................................................25
Standard command specification..............................................................................................29
Global commands.............................................................................................................29
Get device ID command................................................................................................29
Cold reset command ....................................................................................................32
Warm reset command...................................................................................................33
Get self test results command .........................................................................................33
Get ACPI power state command .....................................................................................34
Broadcast get device ID command .................................................................................35
IPMI messaging support commands......................................................................................36
Set BMC global enables command .................................................................................36
Get BMC global enables command ................................................................................37
Clear message flags command ......................................................................................37
Get message flags command .........................................................................................38
Enable message channel receive command .....................................................................38
Get message command ................................................................................................39
Send message command...............................................................................................42
Get system GUID command ...........................................................................................44
Set system info parameters command ..............................................................................45
Get system info parameters command..............................................................................46
Master write-read command...........................................................................................49
Contents
3
Get channel authentication capabilities command.............................................................50
Get Channel Cipher Suites Command.............................................................................52
Cipher suite records..................................................................................................54
Cipher suite ID numbers............................................................................................55
Set session privilege level command ...............................................................................56
Close session command.................................................................................................57
Get session info command ............................................................................................57
Get AuthCode command ..............................................................................................59
Set channel access command ........................................................................................60
Get channel access command .......................................................................................62
Get channel info command ...........................................................................................63
Set user access command..............................................................................................65
Get user access command..............................................................................................66
Set user name command ...............................................................................................68
Get user name command...............................................................................................68
Set user password command..........................................................................................69
RMCP+ support and payload commands..............................................................................70
Activate payload command............................................................................................71
Deactivate payload command........................................................................................73
Suspend/resume payload encryption command................................................................74
Set channel security keys command.................................................................................75
Get system interface capabilities command.......................................................................77
Get payload activation status command...........................................................................78
Get payload instance info command...............................................................................79
Set user payload access command..................................................................................79
Get user payload access command.................................................................................80
Get channel payload support command...........................................................................81
Get channel payload version command...........................................................................82
IPMI LAN Device Commands...............................................................................................83
Set LAN configuration parameters command....................................................................83
Get LAN configuration parameters command...................................................................83
SOL commands.................................................................................................................92
Set SOL configuration parameters command.....................................................................92
Get SOL configuration parameters command....................................................................93
MC watchdog timer commands...........................................................................................96
Watchdog timer actions.................................................................................................96
Watchdog timer use field and expiration flags..................................................................97
Using the timer use field and expiration flags...............................................................97
Watchdog timer event logging........................................................................................97
Pre-timeout interrupt.......................................................................................................98
Pre-timeout interrupt support detection.........................................................................98
BIOS support for watchdog timer................................................................................98
Reset watchdog timer command .....................................................................................98
Set watchdog timer command ........................................................................................98
Get watchdog timer command .....................................................................................100
Chassis commands..........................................................................................................102
Get chassis capabilities command ................................................................................102
Get chassis status command ........................................................................................103
Chassis control command ............................................................................................104
Chassis identify command ...........................................................................................105
Set power restore policy command ...............................................................................106
Set system boot options command ................................................................................107
Get system boot options command................................................................................107
Get POH counter command .........................................................................................111
Event commands..............................................................................................................112
4
Contents
Set event receiver command.........................................................................................112
Get event receiver command........................................................................................113
Platform event message command.................................................................................113
SEL commands................................................................................................................114
SEL device commands..................................................................................................114
Get SEL info command............................................................................................114
Reserve SEL command............................................................................................115
Get SEL entry command..........................................................................................116
Add SEL entry command.........................................................................................116
Clear SEL...................................................................................................................117
SEL record type ranges................................................................................................117
Get SEL time command................................................................................................118
Set SEL time command.................................................................................................118
SDR repository device commands......................................................................................118
SDR record IDs...........................................................................................................118
Get SDR repository info command.................................................................................119
Get SDR repository allocation info command..................................................................120
Reserve SDR repository command.................................................................................120
Reservation restricted commands..............................................................................121
Reservation cancellation..........................................................................................121
Get SDR command......................................................................................................121
Add SDR command.....................................................................................................122
Delete SDR command..................................................................................................123
Clear SDR repository command....................................................................................123
Run initialization agent command..................................................................................124
FRU inventory device commands........................................................................................124
Get FRU inventory area info command...........................................................................125
Read FRU data command........................................................................................125
Write FRU data command.......................................................................................126
Sensor Device Commands.................................................................................................126
Get device SDR info command.....................................................................................126
Get device SDR command............................................................................................127
Reserve device SDR repository command.......................................................................128
Get sensor thresholds command....................................................................................128
Get sensor reading command.......................................................................................129
DCMI specific commands.................................................................................................130
Get DCMI capability info command..............................................................................131
Get asset tag command...............................................................................................133
Get DCMI sensor info command...................................................................................134
Set asset tag command................................................................................................135
Management controller ID string...................................................................................135
Get controller ID string command..................................................................................136
Set controller ID string command...................................................................................136
PICMG specific commands...............................................................................................137
Get PICMG properties command..................................................................................137
Get address info command..........................................................................................137
FRU inventory device lock control command....................................................................138
6 IPMI Messaging and Interfaces.................................................................140
System Interfaces..................................................................................................................140
Message interface description...........................................................................................141
IPMI Messaging Interfaces.................................................................................................141
Network function codes.........................................................................................................141
Completion codes.................................................................................................................142
Channel Model, Authentication, Sessions, and Users.................................................................144
Contents
5
Channel numbers.............................................................................................................145
Logical channels..............................................................................................................145
Channel Privilege Levels....................................................................................................145
Users & Password support.................................................................................................146
IPMI sessions...................................................................................................................146
Session-less connections....................................................................................................147
Session inactivity timeouts.................................................................................................147
System interface messaging...................................................................................................147
Bridging..............................................................................................................................148
MC LUN 10b..................................................................................................................148
Send Message command with response tracking..................................................................149
Bridged Request Example..................................................................................................149
IPMB access via master write-read command.......................................................................151
MC IPMB LUNs................................................................................................................151
Sending Messages to IPMB from system software.................................................................152
Keyboard Controller Style Interface.........................................................................................153
KCS Interface/MC LUNs...................................................................................................153
KCS Interface-MC Request message format..........................................................................153
MC-KCS Interface Response Message format.......................................................................153
LAN Interface.......................................................................................................................154
Remote Management Control Protocol (RMCP).....................................................................154
RMCP port numbers....................................................................................................154
RMCP Message Format................................................................................................155
Serial Over LAN (SOL)..........................................................................................................156
7 Support and other resources....................................................................157
Information to collect before contacting HP...............................................................................157
How to contact HP................................................................................................................157
HP authorized resellers..........................................................................................................157
Related information...............................................................................................................157
A Command Assignments...........................................................................159
B Verbose output examples.........................................................................164
Glossary..................................................................................................186
Index.......................................................................................................188
6
Contents
1 Introduction and key concepts
Overview
The term Intelligent Platform Management (IPMI), refers to autonomous monitoring and recovery
features implemented directly in platform management hardware and firmware. The key
characteristic of Intelligent Platform Management is that inventory, monitoring, logging, and recovery
control functions are available independently of the main processors, BIOS, and operating system.
Platform management functions are available even when the system is in a powered down state.
IPMI capabilities are a key component in providing enterprise-class management for HA systems.
Platform status information is obtained and recovery actions initiated under situations where system
management software and normal “in-band” management mechanisms are unavailable.
The independent monitoring, logging, and access functions available through IPMI provide a level
of manageability built-in to the platform hardware. This supports systems with no system management
software available for the particular operating system, or the end-user who elects not to load or
enable the system management software.
NOTE: The HP Moonshot-45G Switch Module does not support IPMI. Only the HP Moonshot iLO
Chassis Management Firmware supports IPMI.
Sensor Data Model
The IPMI Sensor Model provides access to monitored information including temperatures, voltages,
and fan status. Instead of providing direct access to the monitoring hardware, IPMI provides access
by abstracted sensor commands, such as the Get Sensor Reading command, implemented
via a management controller. This approach isolates software from changes in the platform
management hardware implementation. Sensors return analog or discrete readings and events
are either discrete or threshold-based. Sensors are classified according to:
•
Type of readings
•
Type of events
Event types, sensor types, and monitored entities are represented using numeric codes defined in
the IPMI specification. IPMI avoids reliance on strings for management information and using
numeric codes facilitates internationalization, automated handling by higher level software, and
reduces management controller code and data space requirements.
Sensor owner identification
The definition for the Request/Response identifier, Requester’s ID, and Responder’s ID are specific
to the particular messaging interface used. However, the SDR and SEL must contain information
to identify the owner of the sensor. For management controllers, a slave address and LUN identify
the owner of a sensor on the IPMB. For system software, a software ID identifies the sensor owner.
These fields are used in event messages, where events from management controllers or the IPMB
are identified by an eight-bit field where the upper 7 bits represent the slave address or the system
software ID. The least significant bit is 0 if the value represents a slave address and 1 if the value
represents a system software ID.
Sensor number is not part of the sensor owner ID, but is a separate field used to identify a particular
sensor associated with the sensor owner. This combination of sensor owner ID and sensor number
uniquely identify a sensor in the system.
Table 1 Sensor owner ID and sensor number field definition
IPMB Sensor Owner ID
System Sensor Owner ID
7:1 slave address (7 bits)
system software ID (7 bits)
Overview
7
Table 1 Sensor owner ID and sensor number field definition (continued)
IPMB Sensor Owner ID
System Sensor Owner ID
0 0b (ID is a slave address)
0 1b (ID is a software ID)
LUN (2 bits)
sensor number (8 bits, FFh = reserved)
sensor number (1 bit, FFh = reserved)
In Moonshot: 0x82 IPMB address
This only appears in the system node SEL, where the it is
logged by the host system
Sensor type code
Each sensor has a sensor type code and are defined in “Some Moonshot sensor type codes”
(page 8). Sensor type codes are used both in SDRs and event messages. An example of a sensor
type code is code 0x1, which indicates a temperature sensor.
Table 2 Some Moonshot sensor type codes
Sensor type
Sensor type code
Reading type code
Temperature
0x1
0x1
Fan
0x4
0xA
Fan redundancy
0x4
0xB
PICMG IPMB0 Physical Link
0xF1
0x6F
Health LED
0xC0
0x71
UID LED
0xC0
0x70
Power supply
0x8
0x6F
Power supply redundancy
0x8
0xB
For a complete listing of sensor type codes, see the IPMI specification available at:
http://www.intel.com/content/www/us/en/servers/ipmi/second-gen-interface-spec-v2.html
System event log and event messages
The MC provides a centralized, non-volatile SEL. Having the SEL and logging functions managed
by the MC helps ensure that post-mortem logging information is available should a failure occur
that disables the systems processor(s).
A set of IPMI commands allows the SEL to be read and cleared, and for events to be added to the
SEL. The common request message used for adding events to the SEL is an event message. Event
messages are sent to the MC via the IPMB providing the mechanism for satellite controllers to detect
events and log them into the SEL. The controller that generates an event message to another
controller via IPMB is the IPMB Event Generator. The controller receiving event messages is the
IPMB Event Receiver.
In Moonshot, event messages are sent to the zone manager by each cartridge and chassis controller.
There are two event logs, the SEL and the IML. There are OEM specific commands for obtaining
and displaying these logs. For more information, see the related commands in “Command
specification” (page 25).
8
Introduction and key concepts
Event messages are special messages sent by management controllers when they detect significant
or critical system management events. This includes messages for events such as:
•
temperature threshold exceeded
•
voltage threshold exceeded
•
power fault
The event message generator notifies the system by sending an Event Request Message to
the event receiver device.
When the event receiver gets a valid event message, it sends a response message to the event
message generator which is typically transferred to the SEL. The event receiver does not interpret
event messages so that new event message types can be added into the system without impacting
event receiver implementation.
SEL commands — The SEL is a non-volatile repository for system events and some system
configuration information. The SEL device access the commands sent by the SEL. Event messages
when received by the event receiver device are written to the SEL.
Table 3 SEL event records
Byte
Field
Description
1
Record ID
ID used for SEL record access. The Record ID values 0000h and FFFFh have special
meaning in the Even Access commands and must not be used as Record ID values
for stored SEL event records.
Record type
[7:0] — Record type
2
3
02h = system event record
C0h-DFh = OEM timestamped, bytes 8–16 OEM defined
E0h-FFh = OEM non-timestamped, bytes 4–16 OEM defined
4
Timestamp
Time when event was logged. LS byte first.
Generator ID
RqSA & LUN if event was generated from IPMB. Software ID if event was generated
from system software.
5
6
7
8
9
Byte 1
[7:1] — 7–bit I2C. Slave address, or 7–bit system software ID
[0] 0b = ID is IPMB slave address
1b = System software ID
Byte 2
[7:4] — Channel number. Channel that received the event message 0h if the event
message was received via the system interface, primary IPMB, or internally generated
by the MC.
[3.2] — Reserved. Write as 00b.
[1.0] — IPMB device LUN if byte 1 holds slave address, otherwise 00b.
10
EvM Rev
Event message format version (=04h for events in this specification, 03h for IPMI
v1.0 event messages).1
11
Sensor type
Sensor type code for sensor that generated the event.
12
Sensor #
Number of sensor that generated the event.
13
Event dir 1
Event dir
Event type
[7] — 0b = Assertion event.
1b = Deassertion event.
Sensor Data Model
9
Table 3 SEL event records (continued)
Byte
Field
Description
Event type
Type of trigger for the event, such as, a critical threshold going high or state asserted.
Also indicates class of the event. Example: discrete, threshold, or OEM. The event
type field is encoded using the event/reading type code.
14
Event data 1
Event request message, event data field contents.
15
Event data 2
Event request message, event data field contents.
16
Event data 3
Event request message, event data field contents.
1
The MC must accept Platform Event request messages that are in IPMI v1.0 format (EvM Rev=03h) and log them as IPMI
v1.5/v2.0 records by setting the EVMRev field to 04h and setting the channel number in the generator ID field
appropriately for the channel that received the event.
SDR repository
With IPMI’s extensibility and scalability each platform implementation can have a different
population of management controllers and sensors, and different event generation capabilities.
IPMI allows system management software to retrieve information from the platform and automatically
configure itself to the platform’s capabilities, enabling the use of plug and play, platform-independent
instrumentation software.
Information that describes the platform management capabilities is provided via two mechanisms:
•
Capability commands — these are commands within the IPMI command set that return
information on other commands and functions that the controller can handle.
•
SDRs — these contain information about the type and number of sensors in the platform, sensor
threshold support, event generation capabilities, and sensor type readings.
The primary purpose of SDRs is to describe the sensor configuration of the platform management
subsystem to system software. SDRs also include records describing the number and type of devices
connected to the system’s IPMB, records that describe the location and type of FRU Devices (devices
that contain field replaceable unit information).
SDRs are kept in a single, centralized, non-volatile storage area managed by the MC. This storage
area is the SDR repository. In Moonshot, the SDRR is kept by the zone manager; the remaining
controllers have device SDRs. Additional device SDRs are kept at the cartridge and system node
level. All SDR repositories provide a mechanism for information to be obtained independently from
the controller by the BIOS system management or remote management.
SDR formats
The general SDR format consists of three major components: the record header, record key fields,
and the record body. To save space, sensors that only generate events do not require SDRs, in
addition, generic system management software does not access sensors unless they are reported
by SDRs.
10
Introduction and key concepts
Table 4 Sensor data record formats
Record header
Record Key fields
Record body
Record ID — a value used for
accessing sensor data records.
The record key bytes are the
Contains specific information to the
contiguous bytes following the record sensor data record
header. The number of bytes vary
SDR version — version number of the according to record type. Together,
SDR specification.
they make up a set of unique fields for
a given record specifying location (for
Record type — a number representing example, slave address, LUN and Bus
the type of record. Example, 01h =
ID) and sensor number.
8–bit sensor with thresholds.
Record length — the number of bytes
of data following the record length
field.
Reading the SDR repository and device SDR repositories
An application that retrieves records from the SDR repository must first read them sequentially using
the Get SDR command. This command returns the requested record and the record ID of the next
SDR in sequence.
NOTE: Record IDs are not required to be sequential or consecutive and applications should not
assume that SDR record IDs follow any particular numeric ordering.
Retrieve succeeding records by issuing the Get SDR or Get device SDR command using the
next record ID returned in the previous response. This is continued until the End of Record ID
is encountered.
Once all the desired records have been read, the application can randomly access the records
according to their Record ID. An application that seeks to access records randomly must save a
data structure that retains the record key information according to the record ID.
IMPORTANT: Record IDs may change with time, it is important for applications to first verify that
the Record Key information matches the record retrieved.
If the record ID is no longer valid for a record key, then, access the SDR records again as described
above until the record matches the record key.
An application can tell whether records have changed by examining the most recent addition
timestamp using the Get SDR repository info or Get device SDR repository info
command, depending on the zone in which the command is issued.
If the record information has changed, an application does not need to list out the entire contents
of all records. The Get SDR or Get device SDR allows a partial read of the SDR. Thus, an
application can search for a given Record Key by just retrieving that portion of the record.
FRU
The IPMI specifications include support for storing and accessing multiple sets of non-volatile FRU
data for different modules in the system. An enterprise-class system typically has FRU information
for each major system board such as the processor board, memory board or I/O board. FRU data
includes serial number, part number, model, and asset tag.
IPMI FRU information is accessible via the IPMB and management controllers. The information can
be retrieved at any time, independent of the main processor, BIOS, system software, or OS, via
out-of-band interfaces, such as the ICMB, a remote management card, or other device connected
to the IPMB. FRU information is still available when the system is powered down.
With these capabilities FRU information is available even under failure conditions when access
mechanisms that rely on the main processor are unavailable. This facilitates the creation of
automated remote inventory and service applications. IPMI does not seek to replace other FRU or
FRU
11
inventory data mechanisms such as those provided by SM BIOS, and PCI vital product data. Rather,
IPMI FRU information is typically used to complement that information or provide information access
out-of-ban or under system down conditions.
IPMI provides FRU information in two ways: via a management controller, or via FRU SEEPROMs.
FRU information that is managed by a management controller is accessed using IPMI commands.
This isolates software from direct access to the non-volatile storage device, allowing the hardware
implementor to utilize whatever type of non-volatile storage required.
FRU inventory device
The FRU inventory device contains information such as the serial number, part number, asset tag,
and short descriptive string for the FRU. The contents of a FRU inventory record are specified in
the platform management FRU information storage definition.
The FRU inventory device is a logical device and is not necessarily implemented as a separate
physical device. This device contains the SDR repository device and typically holds FRU inventory
Information for the main system board and chassis. In addition, there may be a separate FRU
inventory device that provides access to the FRU information for a replaceable module such as a
memory module.
FRU devices can be located either behind a management controller or directly on the IPMB. The
sensor data records include a FRU device locator record that tells software where the device is
located and the type of commands required to access the FRU device. FRU devices can be located
in three types of location:
•
Behind a management controller and accessed using Read/Write FRU data commands.
Multiple FRU devices can be behind a management controller.
•
SEEPROM on a private bus behind a management controller. These devices are accessed
using Master Write-Read commands.
•
SEEPROM on the IPMB. These devices are typically accessed using a Master Write-Read
command to the IPMB via the MC.
Standardized timers
Watchdog timer
IPMI provides a standardized interface for a system watchdog timer that can also be used for
BIOS, OS, and OEM applications. The timer can be configured to automatically generate selected
actions when it expires; including power off, power cycle, reset, and interrupt. The timer function
automatically logs the expiration event. Setting 0 for the timeout interval result causes the timeout
action to be initiated immediately. This provides a means for devices on the IPMB, such as remote
management cards, to use the watchdog timer to initiate emergency reset and other recovery
actions dependent on the capability of the timer.
In Moonshot, watchdog timers are implemented by the system node controllers.
POH counter
The standardized power-on hours (POH) counter is optional. It returns a counter value proportional
to the system operating power-on hours.
In Moonshot, the POH counter is implemented at the system node controller.
Timestamp format
A timestamp is a key component of event logging and tracking changes to the SDRs and the SDR
repository.
Time is an unsigned, 32–bit value representing the local time as the number of seconds from
00:00:00,January 1, 1970.
12
Introduction and key concepts
The timestamps used for SDR and SEL records are specified in relative local time (that is, the
difference between the timestamp does not include the GMT offset). Converting the timestamp to
a GMT-based time requires adding the GMT offset for the system and is obtained from system
software level interfaces. IPMI commands do not store or return GMT offset for the system.
Applications may use ANSI C time standard library routines for converting the SEL timestamp into
other time formats.
Special timestamp values
0xFFFFFFFF indicates an invalid or unspecified time value.
0x00000000 through 0x20000000 indicate events that occur after initialization of the SEL device
up to when the timestamp is set with the system time value. These timestamp values are relative to
the completion of the SEL devices initialization, and not January 1, 1970.
Standardized timers
13
2 The virtual topology of the Moonshot 1500 CM module
Figure 1 Moonshot virtual IPMI topology
There are five virtual management controller (MC) entity types represented within the HP Moonshot
1500 Chassis Management module.
Table 5 (page 14) summarizes the various functions available in Moonshot and the virtual
management controllers to which they apply.
Table 5 Moonshot virtual management controller functions
Function
Description
Applicable Virtual Management Controller
Zone
IPM Device
The MC must implement the mandatory IPM Device x
commands. If an IPMB is provided, the mandatory
commands must be accessible from the IPMB unless
otherwise noted.
System Interface The implementation must provide MC access via
one of the specified IPMI system interfaces.
SDR Repository
14
The MC must provide a SDR Repository to hold
x
Sensor, Device Locator, and Entity Association
records for all sensors in the platform management
subsystem. This does not need to include SDRs for
sensors that only generate events. If the SDR
Repository is writable, it is recommended that at
least 20% additional space is provided for add-in
platform management extensions.
The virtual topology of the Moonshot 1500 CM module
Chassis Power
Supply
Cart Node
x
x
x
x
x
Table 5 Moonshot virtual management controller functions (continued)
Function
Description
Applicable Virtual Management Controller
Zone
Chassis Power
Supply
Cart Node
x
x
The SDR Repository must be accessible via the
system interface. If an IPMB is provided, the SDR
Repository must be readable via that interface as
well. SDR update via the IPMB interface is optional.
SDR Repository access when the system is powered
up or in ACPI ‘S1’ sleep is mandatory, but access
when the system is powered -down or in a >S1
sleep state is optional.
IPMB Interface
The IPMB is highly recommended, but optional. The x
MC must provide the system interface to the IPMB.
If an IPMB is imp lemented, at least one of the
specified IPMB connectors must be provided. Refer
to the IPMB Protocol specification for connector
definition. In addition the MC must implement a
message channel that allows messages to be sent
from the IPMB to the system interface, and
vice-versa, and any other mandatory IPMB support
functions and commands.
x
x
Watchdog
Timer
The MC must provide the standardized Watchdog
Timer interface, with support for system reset action.
Certain functions within the Watchdog Timer are
optional. Refer to the sections on the Watchdog
Timer for information.
x
Event Receiver
The MC must implement an Event Receiver function x
and accept Event Messages via the system interface.
If an IPMB is provided, the Event Receiver function
must also accept Event Messages from the IPMB.
Event Receiver operation while the system is
powered up or in ACPI ‘S1’ sleep is mandatory,
but operation when the system is powered down or
in a >S1 sleep state is optional.
x
SEL Interface
The MC must provide a System Event Log interface. x
The event log must hold at least 16 entries. SEL
access must be provided via the system interface.
The SEL must be fully accessible via all mandatory
SEL commands through all supported interfaces to
the MC whenever the system is powered up or in
ACPI 'S1' sleep state. SEL read access is always
mandatory whenever the MC is accessible, and
through any interface that is operational, regardless
of system power state.
x
FRU Inventory
The MC must provide a logical Primary FRU
x
inventory device , accessible via the Write- and
Read FRU Data commands. The FRU
Inventory Device Info command must also
be supported. It is highly recommended that all other
management controllers also provide a Primary FRU
inventory device. (This was optional in IPMI v1.0.)
x
x
x
x
Initialization
Agent
The initialization agent function is one where the
x
MC initializes event generation and sensors both
internally and on other management controllers
according to initialization settings stored in the SDR
for the sensor.
x
x
x
x
15
Table 5 Moonshot virtual management controller functions (continued)
Function
Description
Applicable Virtual Management Controller
Zone
Chassis Power
Supply
Cart Node
Sensors
The MC can provide sensors. A typical server MC
would provide sensors for baseboard temperature,
voltage, and chassis intrusion monitoring.
x
x
x
x
x
Internal Event
Generation
The MC must generate internal events for the
x
Watchdog Timer. It is highly recommended that
sensors generate events to eliminate the need for
system management software to poll sensors, and
to provide “post -mortem” failure information in the
SEL. Internal event generation for sensors is optional,
but highly recommended - particularly for
‘environmental’ (e.g. temperature and voltage)
sensors.
x
x
x
x
External Event
Generation
The MC could be designed to accept the Set Event
Receiver command to allow it to be set as an IPMB
Event Generator and send its event messages to
another management controller. This would
primarily be used for development and test
purposes.
x
x
x
LAN Messaging Ability for the MC to send and receive IPMI
Messaging over LAN
x
LAN Alerting
Ability to send an Alert over the LAN
Not implemented yet.
Bridging
Support
The ability to transfer IPMI request and response
x
messages between two interfaces connected to the
MC.
x
x
The following support is required if the
corresponding interfaces are supported:
• LAN <–> IPMB
• LAN <–> System Interface
Platform Event
Filtering (PEF)
and Alert
Policies
16
Ability for MC to perform a selectable action on a Not implemented yet.
n event. This capability is mandatory if paging or
alerting is supported. Certain actions within PEF are
optional. Refer to the sections on PEF for
information. The Alert action and Alert Policies are
mandatory if serial/modem or LAN alerting is
supported.
The virtual topology of the Moonshot 1500 CM module
x
x
3 Discovering managed entities using IPMITool
Enter the IPMItool sdr list all command to show all management controller records, whether
you are querying an SDRR from the Virtual Zone MC or you are querying a device SDR for Virtual
Cartridge MC records. For example:
# ipmitool —l lanplus —H iloatx-gem-2c -U admin —P admin123 sdr list all
ZoMC
254
IPMB0 Phys Link
ChasMgmtCtlr1
PsMgmtCtlr1
PsMgmtCtlr2
PsMgmtCtlr3
PsMgmtCtlr4
CaMC
CaMC
CaMC
CaMC
CaMC
|
|
|
|
|
|
|
|
|
|
|
|
|
Static MC @ 20h
| ok
Log FRU @FEh f0.60 | ok
0x00
| ok
Static MC @ 44h
| ok
Dynamic MC @ 52h | ok
Dynamic MC @ 54h | ok
Dynamic MC @ 56h | ok
Dynamic MC @ 58h | ok
Dynamic MC @ 82h | ok
Dynamic MC @ A0h | ok
Dynamic MC @ A6h | ok
Dynamic MC @ DAh | ok
Dynamic MC @ A4h | ok
Querying an SDRR from the Zone Management Controller
•
Enter the sdr list all command to show all management controller records.
•
Management controller records
◦
Chassis controller – statically assigned, always should be present. Even though always
assigned address 0x44, record should be parsed to learn address and channel number
(IPMB=0).
◦
Power supply controllers --- full complement of records always present. Dynamic indication
in record indicates to application that controller may or may not be present. When not
present, the controller will “nak”. Even though always assigned address 0x52-0x58,
records should be parsed to learn address and channel number (IPMB=0).
◦
Cartridge controllers are dynamically added/deleted to the SDRR upon cartridge
insertion/deletion. Possibility of “nak” condition during deletion transitions. Records
should be parsed to learn addresses and channel number (IPMB=0).
Querying a device SDR for a Cartridge Management Controller
•
Management controller records
◦
System node controllers – statically assigned, always should be present. Number of system
node controllers is dependent on cartridge type. Some cartridges may not contain host
systems such as switches. Other cartridges may contain 1 or 4 system nodes. Records
should be parsed for addressing and channel number routing. System nodes routed on
channel 7 (IPMB-L).
You can learn the phsical locations of managed entities by entering the PICMG get address
info command. Use the IPMB address of the cartridge to get the physical address (slot number).
You can also learn the chassis topology through chassis FRU serial number for Zones with the same
chassis.
17
4 IPMItool
IPMI tool is a simple command-line interface to systems that support the IPMI v1.5 specification. It
provides the ability to read the sensor data repository and print sensor values, display the contents
of the system event log, print field replaceable unit information, read and set LAN configuration
parameters, and perform remote chassis power control. It was originally written to take advantage
of IPMI-over-LAN interfaces but is also capable of using the system interface as provided by a
kernal device driver such as Open IPMI. IPMItool is available under a BSD-compatible license.
System Management Software is generally complex and makes platform management only part
of a much larger management picture. However, many system administrators and developers rely
on command-line tools that can be scripted and systems that can be micro-managed. IPMItool takes
a different approach to SMS and provides a completely command-line oriented tool. Therefore, it
is not designed to replace the Open IPMI library. Where possible, it supports printing
comma-separated values for output to facilitate parsing by other scripts or programs. It is designed
to run quick command response functions that can be as simple as turning the system on or off or
as complex as reading in the sensor data records and extracting and printing detailed sensor
information for each record.
Moonshot IPMItool support — out of band
Single-bridging out of band command
You must single-bridge out of band commands to reach specific chassis management controller or
cartridge management controller to discover management controller addresses.
Enter the sdr list all command at the zone management controller to discover chassis and
cartridge management controller addresses. For example,
•
Chassis Controller
-b 0 -t 0x44
•
Cartridge Controller Slot 1
-b 0 –t 0x82
•
Cartridge Controller Slot 2
-b 0 –t 0x84
where:
•
-b <ipmi channel number>
•
-t <target slave address>
Double-bridging out of band commands
You must double-bridge out of band commands to reach specific system node management
controllers to discover system node management controller addresses.
Enter the sdr list all at the cartridge management controller to discover system node
management controller addresses. For example,
•
–System Node Controller 2 (0x74) on Cartridge Controller Slot 1 (0x82)
-T 0x82 -B 0 –b 7 -t 0x74
•
–System Node Controller 1 (0x72) on Cartridge Controller Slot 2 (0x84)
-T 0x84 -B 0 –b 7 -t 0x72
18
IPMItool
where:
•
–B <transit channel for bridged request (dual bridge)>
•
–T <transit address for bridge request (dual bridge)>
•
-b <ipmi channel number>
•
-t <target slave address>
Interfaces
IPMItool supports dynamic loading of interfaces that correspond to low-level communication methods
for accessing IPMI systems. The most common of these are the System Interface provided by the
OpenIPMI Linux kernal driver and IPMI over LAN interfaces.
System Interface
There are multiple types of system interfaces, and they are all similar enough to enable a single
driver like OpenIPMI to support them all. They can be connected to any system bus such as ISA
or X-bus that allows the main processor to access I/O mapped locations and meet the timing
specifications. The varieties of system interfaces include KCS and SSIF. All of these are supported
in recent versions of the OpenIPMI driver for the Linux kernal. IPMItool uses this driver to access
the system interface through a character device node at /dev/ipmi0. To use this interface with
IPMItool provide the -l open parameter on the command line.
LANPlus Interface
The LANPlus interface communicates with the MC over an ethernet LAN connection using UDP
under IPv4. The LANPlus interface uses the RMCP+ protocol. RMCP+ facilitates improved
authentication and data integrity checks as well as encryption and the ability to carry multiple
types of payloads. Generic Serial Over LAN support requires RMCP+, so the IPMItool sol
activate command requires the use of LANPlus.
RMCP+ session establishment uses a symmetric challenge-response protocol called RAKP (Remote
Authenticated Key-Exchange Protocol) which allows the negotiation of many options.
NOTE: IPMItool does not allow the user to specify the value of every option, defaulting to the
most obvious settings marked as required in the v2.0 specification. Authentication and integrity
HMACS are produced with SHA1, and encryption is performed with AES-CBC-128. Role-level
logins are not yet supported.
IPMItool must be linked with the OpenSSL library in order to perform the encryption functions and
support the LANPlus interface. If the required packages are not found it will not be compiled and
supported.
ipmitool -I lanplus -H <hostname>[-U <username>][-P <password>]<command>
A hostname must be given on the command line in order to use the LAN interface with IPMItool.
The —C option allows the authentication integrity and encryption algorithms to be used for LANPlus
sessions based on the cipher suite ID found in IPMI v2.0. The default cipher suite is 3 which specifies
RAKP-HMAC-SHA1 authentication, HMAC-SHA1–96 integrity, and AES-CBC-128 encryption
algorithms.
Interfaces
19
Example 1 Raw Get Device ID to chassis satellite controller over LAN
# ipmitool -I lanplus -H 16.85.178.125 -U admin -P admin123 -L Administrator -b 0 -t 0x44 raw 6 1
15 01 02 01 02 29 0b 00 00 00 85 00 00 00 00
Example 2 Powering on C2N1 over LAN
# ipmitool -I lanplus -H 16.85.178.125 -U admin -P admin123 -L Administrator -B 0 –T 0x84 –b 7 –t 0x72 chassis
power on
Chassis Power Control: Up/On
Example 3 Activating SOL on C2N1 over LAN
# ipmitool -I lanplus -H 16.85.178.125 -U admin -P admin123 -L Administrator -B 0 –T 0x84 –b 7 –t 0x72 sol
activate
Activates SOL session for C2N1
Features
Instead of directly accessing the monitoring hardware for device entry, IPMI provides access to
sensor data through abstracted messaging commands. Some common types of sensors that can
be found in the system include baseboard and processor temperature sensors, processor and DIMM
presence sensors, fan speed and failure monitoring, and baseboard, processor and SCSI terminating
voltage sensors. The amount of data available for each sensor can be overwhelming, so by default
IPMItool only displays the sensor name, reading and status. Considerably more output can be seen
by enabling the verbose output option.
To facilitate discovery of features, IPMI includes a set of records called SDRs kept in a single
centralized non-volatile storage area. These records include software information such as how
many sensors are present, what type they are, their events, threshold info and more. This allows
software to interpret and present sensor data without any prior knowledge about the platform.
20
IPMItool
Example 4 Output from sdr list all command
ZoMC
254
IPMB0 Phys Link
ChasMgmtCtlr1
PsMgmtCtlr1
PsMgmtCtlr2
PsMgmtCtlr3
PsMgmtCtlr4
CaMC
CaMC
CaMC
CaMC
CaMC
.
.
.
CaMC
|
|
|
|
|
|
|
|
|
|
|
|
|
Static MC @ 20h
| ok
Log FRU @FEh f0.60 | ok
0x00
| ok
Static MC @ 44h
| ok
Dynamic MC @ 52h | ok
Dynamic MC @ 54h | ok
Dynamic MC @ 56h | ok
Dynamic MC @ 58h | ok
Dynamic MC @ A6h | ok
Dynamic MC @ A8h | ok
Dynamic MC @ AAh | ok
Dynamic MC @ ACh | ok
Dynamic MC @ AEh | ok.
| Dynamic MC @ A4h
| ok
Example 5 Output from sdr list all command at cartridge
01-Front Ambient
02-CPU
03-DIMM
04-Cart Ctrlr
05-CPU Zone
06-LOM Zone
CaMC
SnMC
SnMC 1
|
|
|
|
|
|
|
|
|
21 degrees C
| ok
40 degrees C
| ok
25 degrees C
| ok
24 degrees C
| ok
29 degrees C
| ok
36 degrees C
| ok
Dynamic MC @ A4h | ok
Dynamic MC @ 72h | ok
Log FRU @01h c1.62 | ok
See “Verbose output examples” (page 164) for an example of verbose output from the sdr list
all command.
Events
Events are special messages sent by the management controller when they detect system
management events. Some examples of events are temperature threshold exceeded, voltage
threshold exceed, correctable ECC memory error, etc. These events are processed and usually
logged in the SEL. This is similar to the SDR in that it provides a centralized non-volatile storage
area for platform events that are logged autonomously by the MC or directly with event messages
sent from the host.
There is an abundance of information available from an event log entry. By default IPMItool displays
only the basic data for the event and the sensor that triggered it. Detailed information is available
with the verbose option.
Example 6 Output from sel list command
0
1
2
3
4
5
|
|
|
|
|
|
04/16/2013
06/28/2013
07/28/2013
08/04/2013
08/09/2013
08/09/2013
|
|
|
|
|
|
20:22:01
20:36:17
00:20:52
00:23:10
14:34:48
14:34:49
|
|
|
|
|
|
Power Supply #0x04 | Failure detected | Asserted
Power Supply #0x02 | Presence detected | Deasserted
Power Supply #0x02 | Failure detected | Asserted
Power Supply #0x02 | Presence detected | Deasserted
Fan #0x07 | Transition to Off Line | Asserted
Fan #0x07 | Transition to Running | Deasserted
See “Verbose output examples” (page 164) for an example of verbose output from the sel list
command.
Events
21
Inventory
IPMI supports multiple sets of non-volatile FRU information for different parts in the system. This
provides access to data such as serial number, part number, asset tag, and other information for
major modules in the system including the baseboard, chassis, processors, memory, power supplies,
and even the management controller itself. This information is even available when the system is
powered down or non-operational, facilitating the creation of automated remote inventory and
service applications. IPMItool can read and display full FRU information for the system as well as
detailed descriptions of power supplies and full DIMM SPD data.
Example 7 Output from the fru print command
FRU Device Description : ChasMgmtCtlr1
Chassis Type
: Rack Mount Chassis
Chassis Part Number
: 700349-B21
Chassis Serial
: 600012J0SD
Chassis Extra
: d09701640003000000
Chassis Extra
: d1110102000000
Board Mfg Date
: Fri Dec 7 19:54:00 2012
Board Mfg
: HP
Board Product
: HP Moonshot 1500 Chassis Management Module
Board Serial
: 1G24900006J0SE
Board Part Number
: 712678-001
Board Extra
: d25835
Board Extra
: 700369-001
Product Manufacturer : HP
Product Name
: HP Moonshot 1500 Chassis
Product Part Number
: 700451-001
Chassis management
This feature provides standardized chassis status and control functions that allow a remote system
to be turned on/off or rebooted without manual intervention. It also provides commands for causing
the chassis to physically identify itself with an implementation dependant mechanism such as turning
on visible lights, displaying messages on an LCD, emitting beeps through a speaker, etc. IPMItool
fully supports the available chassis management commands and can eliminate trips to the data
center or server room to reset a frozen machine or help identify the single system in a rack that
must be removed.
Example 8 Sample chassis power commands
root@JSMITH-LX:/# ipmitool -I lanplus -H ILOH101GEMINI -U Administrator -P password sdr list all
(output)
root@JSMITH-LX:/# ipmitool -I lanplus -H ILOH101GEMINI -U Administrator -P password -t 0xa4 power status
Chassis Power is on
In all of the above examples only a portion of the available output is shown, the full output is much
richer and tells a full story about the system health and status; in addition verbose output options
are available which increase the output information. See “Verbose output examples” (page 164)
for examples of verbose output.
Synopsis
ipmitool [-chvV] [-Iopen <command>]
ipmitool [-chvV] -Ilan -H<hostname>
[-p<port>]
[-U<username>]
[-A<authtype>]
[-L<privlvl>]
[-aEPf<password>]
[-o<oemtype>]
22
IPMItool
<command>
ipmitool [-chvV] -Ilanplus -H<hostname>
[-p<port>]
[-U<username>]
[-L<privlvl>]
[-aEPf<password>]
[-o<oemtype>]
[-C<ciphersuite>]
<command>
Description
This program allows management of IPMI functions of either the local system via a kernal device
driver or a remote system using IPMI v1.5 and IPMI v2.0. These functions include printing FRU
information, LAN configuration, sensor readings and remove chassis power control.
IPMI management of a local system interface requires a compatible IPMI kernel driver to be installed
and configured. On Linux this driver is called OpenIPMI and it is included in standard distributions.
Options
—a
Prompt for the remote server password.
—A <authtype>
Specify the authentication type to use during IPMI v1.5 LAN session
activation. Supported types are NONE, PASSWORD, MD5 or OEM.
—c
Present output in CSV format. Not available with all commands.
—C<ciphersuite>
The remote server authentication, integrity, and encryption algoritms to
use for IPMI v2 lanplus connections. Default = 3 and specifies
RAKP-HMAC-SHA1 authentication, HMAC-SHA1–96 integrity, and
AES-CBC-128 encryption algorithms.
—E
The remote server password is specified by the environment variable
ipmi_password.
—f<password_file>
Specifies a file containing the remote server password. If this option is
absent or if the <password_file> is empty the password defaults to
NULL.
—h
Get basic usage help from the command line.
—H <address>
Remote server address can be IP address or hostname. This option
is required for LAN and LANPLUS interfaces.
— I <interface>
Selects the IPMI interface. Supported interfaces display in the usage help
output.
—L<privlvl>
Force session privilege level, defaults to admin.
—m<local address>
Set the local IPMB address. Default = 0x20.
—o<oemtype>
Select OEM type. Use —o list to see a list of currently supported OEM
types.
-p<port>
Remote server UDP port. Default = 623.
-P<password>
Remote server password specified on the command line. It is not
recommended to specify a password on the command line.
NOTE: If no password method is specified, the IPMI tool prompts the
user for a password, if no password is entered, the remote server password
is set to NULL.
—t<target address>
Bridge IPMI requests to the remote target address.
—U<username>
Remote server username. Default = NULL
Synopsis
23
—v
Increase verbose output level. May be specified multiple times to increase
levels of debug output, for example, specifying three times results in
hexdumps of all incoming and outgoing packets.
—V
Display version information.
IPMItool Raw command syntax and example
1.
2.
Syntax — Target command towards specific virtual controller
•
—b <ipmi channelnumber>
•
—t <target slave address>
•
-m <source slave address>
•
Chassis controller —b 0 —t 0x44 —m 0x20
•
Power supply A controller -b 0 -t 0x52 -m 0x20
•
Power supply B controller -b 0 -t 0x54 -m 0x20
•
Power supply C controller -b 0 -t 0x56 -m 0x20
•
Power supply D controller -b 0 -t 0x58 -m 0x20
Examples:
•
Raw Get Device ID to chassis satellite controller over LAN:
ipmitool -I lanplus -H 16.85.178.125 -U admin -P admin123 -L
Administrator -b 0 -t 0x44 -m 0x20 raw 6 1
•
Power on to C2N1 over LAN:
ipmitool -I lanplus -H 16.85.178.125 -U admin -P admin123 -L
Administrator -B 0 –T 0x84 –b 7 –t 0x72 -m 0x20 chassis power on
•
SOL to C2N1 over LAN
ipmitool -I lanplus -H 16.85.178.125 -U admin -P admin123 -L
Administrator -B 0 –T 0x84 –b 7 –t 0x72 -m 0x20 sol activate
24
IPMItool
5 Command specification
IPMI provides standardized interfaces and commands for configuring the platform managemenet
subsystem. This enables cross-platform software to SDRs are an example of the interface for
configuring sensor population and behavior on a system. There are also commands for configuring
capabilities such as LAN and serial/modem remote protocols, user passwords and privilege levels,
platform event filtering, alert destinations, and others.
This section provides specifications for elements that apply to all requests and responses.
See “Completion codes” (page 142).
Unless otherwise noted, reserved bits and fields in commands (request messages) and responses
are written as 0. Applications must ignore the state of reserved bits when they are read.
Unless otherwise specified, commands that are listed as mandatory must be accessed via LUN
00b. An implementation may elect to make any command available on any LUN or channel as
long as it does not conflict with other requirements in this specification.
Command table notation
The following section includes command tables that list the data that is included in a request or a
response for each command. The completion code for a response is included as the first byte of
the response data field for each command. The NetFn and command byte values for each command
are specified in separate tables.
The following notation is used in the command tables.
Notation
Description
Request data
Identifies the portion of the table that lists the fields that are included in the data portion of a request
message for the given command.
Response data
Identifies the portion of the table that lists the fields that are included in the data portion of a response
message for the given command. The completion code is always listed as the first byte in the
response data field.
4
Single byte field. A single value in the byte column of a command table is used to identify a single
byte field. The value represents the offset to the field within the data portion of the message. In some
cases a single byte field follows a variable length field in which case the single byte offset is
represented with an alphabetic variable and number representing the single byte field’s location
relative to the end of the variable length field. For example: N+1.
5:7
Multi-byte field. The byte column indicates the byte offset(s) for a given field. For a multi-byte field,
the first value indicates the starting offset, the second value (following the colon) indicates the offset
for the last byte in the field. For example, 5:7 indicates a three-byte field spanning byte offsets 5,
6, and 7.
In some cases, multi-byte fields may be variable length, in which case an alphabetic variable is
used to represent the ending offset, for example: 5:N. Similarly, a field may follow a variable length
field. In this case the starting value is shown as an offset relative to the notation used for the previous
field, for example, if the previous field were 5:N, the next field would be shown starting at N+1.
A variable length field may follow a variable length field, in which case a relative starting offset is
shown with an alphabetic value indicating a relative ending offset, for example, N+1:M.
(3)
Optional Fields. When used in the byte column of the command tables, parentheses are used to
indicate optional data byte fields. These can be absent or present at the choice of the party
generating the request or response message. Devices receiving the message are required to accept
any legal combination of optional data byte fields.
Unless otherwise indicated, if an optional byte field is present, all prior specified byte fields must
also be present. Similarly, if an optional byte field is absent all following byte fields must also be
absent. For example, suppose a request accepts 4 data bytes. If data byte 3 was shown in
parentheses as (3), it would indicate that byte 3 and following were optional. A legal request could
consist of just bytes [1 and 2], bytes [1, 2, and 3,] or bytes [1, 2, 3 and 4]. A request which
eliminates byte 3, but includes byte 4. (a request with data bytes [1, 2, and 4]), is illegal.
25
Notation
Description
Multi-byte fields that are shown as optional cannot be split. Either all bytes for the field are present
or absent. For example, if a four byte multi-byte field is listed as optional, it is illegal to include the
first two bytes, but not the second two bytes.
Table 6 (page 26) lists the available Moonshot IPMI commands and, where available, the equivalent
iLO Chassis Management CLI command. The IPMI commands and capabilities available for
Moonshot are not completely analogous to the commands available at the iLO Chassis Management
CLI, and so not every IPMI command has a CLI equivalent. Additionally, where there are analogous
commands, the responses offered by the two commands may not be equivalent.
Table 6 Moonshot IPMI commands and their iLO CM CLI equivalents
Moonshot IPMI Command
NetFn
Command Moonshot iLO CM CLI command equivalent
Code
Get Device ID
App (0x06)
0x01
Show chassis info provides a partially
equivalent response.
Broadcast ‘Get Device ID’1
App (0x06)
0x01
Show chassis info provides a partially
equivalent response.
Cold Reset
App (0x06)
0x02
Reset CM
Warm Reset
App (0x06)
0x03
Reset CM
Get Self Test Results
App (0x06)
0x04
Show log IML provides a partially
equivalent response (specifically, failures
that were written to the iML)
Get ACPI Power State
App (0x06)
0x07
show node power CxNy
Reset Watchdog Timer
App (0x06)
0x22
IPMI specific
Set Watchdog Timer
App (0x06)
0x24
IPMI specific
Get Watchdog Timer
App (0x06)
0x25
IPMI specific
Set BMC Global Enables
App (0x06)
0x2E
IPMI specific
Get BMC Global Enables
App (0x06)
0x2F
IPMI specific
Clear Message Flags
App (0x06)
0x30
IPMI specific
Get Message Flags
App (0x06)
0x31
IPMI specific
Enable Message Channel Receive
App (0x06)
0x32
IPMI specific
Get Message
App (0x06)
0x33
IPMI specific
Send Message
App (0x06)
0x34
IPMI specific
Get System GUID
App (0x06)
0x37
The physical node UUID is not shown in the
CLI.
Set System Info Parameters
App (0x06)
0x58
Not supported in CLI.
Get System Info Parameters
App (0x06)
0x59
Show node info returns the MAC
address; other parameters returned by the
IPMI command are IPMI specific.
Get Channel Authentication
Capabilities
App (0x06)
0x38
IPMI specific
IPMI Device Global Commands
MC Watchdog Timer Commands
IPMI Messaging Support Commands
26
Command specification
Table 6 Moonshot IPMI commands and their iLO CM CLI equivalents (continued)
Moonshot IPMI Command
NetFn
Command Moonshot iLO CM CLI command equivalent
Code
Set Session Privilege Level
App (0x06)
0x3B
IPMI specific
Close Session
App (0x06)
0x3C
IPMI specific
Get Session Info
App (0x06)
0x3D
IPMI specific
Get AuthCode
App (0x06)
0x3F
IPMI specific
Set Channel Access
App (0x06)
0x40
IPMI specific
Get Channel Access
App (0x06)
0x41
IPMI specific
Get Channel Info
App (0x06)
0x42
IPMI specific
Set User Access
App (0x06)
0x43
Set user privilege
Get User Access
App (0x06)
0x44
show user
Set User Name
App (0x06)
0x45
add user
Get User Name
App (0x06)
0x46
show user
Set User Password
App (0x06)
0x47
set user password
Activate Payload
App (0x06)
0x48
IPMI specific
Deactivate Payload
App (0x06)
0x49
IPMI specific
Get Payload Activation Status
App (0x06)
0x4A
IPMI specific
Get Payload Instance Info
App (0x06)
0x4B
IPMI specific
Set User Payload Access
App (0x06)
0x4C
IPMI specific
Get User Payload Access
App (0x06)
0x4D
IPMI specific
Get Channel Payload Support
App (0x06)
0x4E
IPMI specific
Get Channel Payload Version
App (0x06)
0x4F
IPMI specific
Master Write-Read
App (0x06)
0x52
No CLI equivalent
Get Channel Cipher Suites
App (0x06)
0x54
IPMI specific
Suspend/Resume Payload Encryption
App (0x06)
0x55
IPMI specific
Set Channel Security Keys
App (0x06)
0x56
IPMI specific
Get System Interface Capabilities
App (0x06)
0x57
IPMI specific
Get Chassis Capabilities
Chassis (0x00)
0x00
IPMI specific
Get Chassis Status
Chassis (0x00)
0x01
show chassis status or show node
status
Chassis Control
Chassis (0x00)
0x02
set node power
Chassis Identify
Chassis (0x00)
0x04
set chassis uid or set cartridge
uid
Set Power Restore Policy
Chassis (0x00)
0x06
set chassis autopower
Set System Boot Options
Chassis (0x00)
0x08
set node boot or set node bootonce
Get System Boot Options
Chassis (0x00)
0x09
show node boot
Get POH Counter
Chassis (0x00)
0x0F
No CLI equivalent
Chassis Device Commands
27
Table 6 Moonshot IPMI commands and their iLO CM CLI equivalents (continued)
Moonshot IPMI Command
NetFn
Command Moonshot iLO CM CLI command equivalent
Code
Set Event Receiver
S/E (0x04)
0x00
IPMI specific
Get Event Receiver
S/E (0x04)
0x01
IPMI specific
Platform Event (Event Message)
S/E (0x04)
0x02
No CLI equivalent
Get Device SDR Info
S/E (0x04)
0x20
IPMI specific
Get Device SDR
S/E (0x04)
0x21
show
show
show
show
Reserve Device SDR Repository
S/E (0x04)
0x22
IPMI specific
Get Sensor Thresholds
S/E (0x04)
0x27
show chassis temperature and show
cartridge temperature
Get Sensor Reading
S/E (0x04)
0x2D
show
show
show
show
Get FRU Inventory Area Info
Storage (0x0A)
0x10
IPMI specific
Read FRU Data
Storage (0x0A)
0x11
show fru
Write FRU Data
Storage (0x0A)
0x12
No CLI equivalent
Get SDR Repository Info
Storage (0x0A)
0x20
IPMI specific
Get SDR Repository Allocation Info
Storage (0x0A)
0x21
IPMI specific
Reserve SDR Repository
Storage (0x0A)
0x22
IPMI specific
Get SDR
Storage (0x0A)
0x23
show
show
show
show
Add SDR
Storage (0x0A)
0x24
IPMI specific
Delete SDR
Storage (0x0A)
0x26
IPMI specific
Clear SDR Repository
Storage (0x0A)
0x27
IPMI specific
Run Initialization Agent
Storage (0x0A)
0x2C
IPMI specific
Get SEL Info
Storage (0x0A)
0x40
IPMI specific
Reserve SEL
Storage (0x0A)
0x42
IPMI specific
Get SEL Entry
Storage (0x0A)
0x43
show log IML
Add SEL Entry
Storage (0x0A)
0x44
No CLI equivalent
Clear SEL
Storage (0x0A)
0x47
clear log
Event Commands
Sensor Device Commands
chassis status
chassis powersupply
chassis temperature
cartridge temperature
chassis status
chassis powersupply
chassis temperature
cartridge temperature
FRU Device Commands
SDR Device Commands
chassis status
chassis powersupply
chassis temperature
cartridge temperature
SEL Device Commands
28
Command specification
Table 6 Moonshot IPMI commands and their iLO CM CLI equivalents (continued)
Moonshot IPMI Command
NetFn
Command Moonshot iLO CM CLI command equivalent
Code
Get SEL Time
Storage (0x0A)
0x48
show time
Set SEL Time
Storage (0x0A)
0x49
set time
Set LAN Configuration Parameters
Transport (0x0C)
0x01
set network
Get LAN Configuration Parameters
Transport (0x0C)
0x02
show network
Set SOL Configuration Parameters
Transport (0x0C)
0x21
IPMI specific
Get SOL Configuration Parameters
Transport (0x0C)
0x22
IPMI specific
Get DCMI Capability Info
DCGRP (0xDC)
0x01
IPMI specific
Get Asset Tag
DCGRP (0xDC)
0x06
show chassis asset
Get DCMI Sensor Info
DCGRP (0xDC)
0x07
show chassis temperature and show
cartridge temperature
Set Asset Tag
DCGRP (0xDC)
0x08
set chassis asset
Get Controller Id String
DCGRP (0xDC)
0x09
IPMI specific
Set Controller Id String
DCGRP (0xDC)
0x0A
IPMI specific
Get PICMG Properties
PICMG (0x00)
0x00
IPMI specific
Get Address Info
PICMG (0x00)
0x01
IPMI specific
Fru Inventory Device Lock Control
PICMG (0x00)
0x1F
IPMI specific
LAN Device Commands
Serial/Modem Device Commands
DCMI Specific commands
PICMG Specific commands
1
Only relevant to satellite controllers.
NOTE: The IPMI commands and capabilities available for Moonshot are not completely analogous
to those available to the iLO Chassis Management CLI, and so not every IPMI command has a CLI
equivalent.
Standard command specification
This section presents the commands that are common to all IPMI devices that follow this
specification’s message/command interface. This includes management controllers that connect
to the system via a compatible message interface, as well as IPMB devices.
Global commands
IPMI management controllers shall recognize and respond to these commands via LUN 0.
Get device ID command
This command is available to MC, ChMC, and PSMC.
This command is used to retrieve the intelligent device’s hardware revision, firmware/software
revision, and sensor and event interface command specification revision information. The command
also returns information regarding the additional logical device functionality (beyond application
and IPM device functionality) that is provided within the intelligent device, if any.
Standard command specification
29
While broad dependence on OEM-specific functionality is discouraged, two fields in the response
allow software to identify controllers for the purpose of recognizing controller specific functionality.
These are the device ID and the product ID fields. A controller that just implements standard IPMI
commands can set these fields to unspecified.
Table 7 Device ID command response data
Response data Data field
byte number
1
Completion code
2
Device ID. 00h = unspecified
3
Device revision
• [7] — 1=device provides device SDRs and 0=device does not provide device SDRs.
• [6:4) — Reserved. Return as 0.
• [3:0] — Device revision, binary encoded.
4
Firmware revision 1
• [7] — Device available: 0=normal operation, device firmware, SDR repository update or
self-initialization in progress. Firmware or SDR repository updates can be differentiated by issuing
a get SDR command and checking the completion code.
• [6:0] — Major firmware revision, binary encoded.
5
Firmware revision 2: minor firmware revision. BCD encoded.
6
IPMI version. Holds IPMI command specification version. BCD encoded. 00h = reserved. Bits 7:4
hold the least significant digit of the revision, while bits 3:0 hold the most significant bits. For example,
a value of 51h indicates revision 1.5 functionality. 02h for implementations that provide IPMI v2.0
capabilities per this specification.
7
Additional device support (formerly called IPM device support) lists the IPMI logical device commands
and functions supported by the controller that are in addition to the mandatory IPM and application
commands.
• [7] — Chassis device
• [6] — Bridge (device responds to bridge NetFn commands)
• [5] — IPMB event generator. Device generates event messages (platform event request messages)
from the IPMB.
• [4] — IPMB event receiver. Device accepts event messages (platform event request messages) from
the IPMB.
• [3] — FRU inventory device
• [2] — SEL device
• [1] — SDR repository device
• [0] — Sensor device
8:10
manufacturer ID, LS byte first. The manufacturer ID is a 20-bit value that is derived from the IANA
private enterprise ID (see below). Most significant four bits = reserved (0000b).
000000h = unspecified. 0FFFFFh = reserved. This value is binary encoded. For example, the ID for
the IPMI forum is 7154 decimal, which is 1BF2h, and would be stored in this record as F2h, 1Bh,
00h for bytes 8 through 10, respectively.
11:12
Product ID, LS byte first. This field can be used to provide a number that identifies a particular system,
module, add-in card, or board set. The number is specified according to the manufacturer given by
manufacturer ID (see below).
0000h = unspecified. FFFFh = reserved.
(13:16)
30
Auxiliary firmware revision information. This field is optional. If present, it holds additional information
about the firmware revision, such as boot block or internal data structure version numbers. The meanings
of the numbers are specific to the vendor identified by manufacturer ID (see below). When the
Command specification
Table 7 Device ID command response data (continued)
Response data Data field
byte number
vendor-specific definition is not known, generic utilities should display each byte as 2-digit hexadecimal
numbers, with byte 13 displayed first as the most significant byte.
Additional specifications and descriptions for the device ID response fields:
Table 8 Additional device ID specifications
Device ID Specification
Description
Device ID/Device instance
Specified by the manufacturer identified by the manufacturer ID field it allows
controller-specific software to identify the unique application command, OEM
fields, and functionality that are provided by the controller.
Controllers that have different application commands, or different definitions
of OEM fields, are expected to have different device ID values. Controllers
that implement identical sets of applications commands can have the same
device ID in a given system. Thus, a standardized controller could be produced
where multiple instances of the controller are used in a system, and all have
the same device ID value. (The controllers would still be differentiable by their
address, location, and associated information for the controllers in the SDRs.)
The device ID is typically used in combination with the product ID field such
that the device IDs for different controllers are unique under a given product
ID. A controller can optionally use the device ID as an instance identifier if
more than one controller of that kind is used in the system.
Binary encoded.
Device revision
The least significant nibble is used to identify when significant hardware
changes have been made to the implementation of the management controller
that cannot be covered with a single firmware release. This field is used to
identify two builds off the same code firmware base, but for different board
fab levels. For example, device revision "1" might be required for fab X and
earlier boards, while device revision "2" would be for fab Y and later boards.
Binary encoded and unsigned.
Firmware revision 1
Major revision of the firmware. 7-bits. It is incremented on major changes or
extensions of the functionality of the firmware, such as additions, deletions,
or modifications of the command set.
The device available bit is used to indicate whether normal command set
operation is available from the device, or if it is operating in a state where
only a subset of the normal commands are available. Typically because the
device is in a firmware update state. It may also indicate that full command
functionality is not available because the device is in its initialization phase
or an SDR update is in progress.
The revision information obtained when the device available bit is 1 is
indicative of the code version that is in effect. The version information may
vary with the device available bit state.
Binary encoded and unsigned.
Firmware revision 2
Minor revision of the firmware, incremented for minor changes such as bug
fixes.
BCD encoded.
IPMI version
The version of the IPMI specification in which the controller is compatible,
indicating conformance with this document including event message formats
and mandatory command support.
The value is 02h for implementations that provide IPMI v2.0 capabilities per
this specification.
BCD encoded with bits 7:4 holding the least significant digit of the revision
and bits 3:0 holding the most significant bits.
Standard command specification
31
Table 8 Additional device ID specifications (continued)
Device ID Specification
Description
Additional device support
Indicates the logical device support that the device provides in addition to the
IPM and application logical devices.
Manufacturer ID
Uses IANA (http://www.iana.org/). SMI network management private
enterprise codes (enterprise numbers) for identifying the manufacturer
responsible for the specification of functionality of the vendor (OEM) -specific
commands, codes, and interfaces used in the controller.
For example, an event in the SEL could have OEM values in the event record.
An application that parses the SEL could extract the controller address from
the event record contents and use it to send the get device ID command
and retrieve the manufacturer ID. A manufacturer-specific application could
then do further interpretation based on prior knowledge of the OEM field,
while a generic cross-platform application would typically just use the ID to
present the manufacturer’s name alongside uninterpreted OEM event values.
The manufacturer ID is for the manufacturer that defines the functionality of
the controller, which is not necessarily the manufacturer that created the
physical microcontroller. For example, vendor A may create the controller,
but it gets loaded with vendor B’s firmware. The manufacturer ID would be
for vendor B, since they defined the controller’s functionality.
The manufacturer ID value from the get device ID command does not
override manufacturer or OEM ID fields that are explicitly defined as part of
a command or record format.
If no vendor-specific functionality is defined, it is recommended that the field
be loaded with the manufacturer ID for the manufacturer that is responsible
for the controller's firmware, or the value FFFFh to indicate unspecified.
Binary encoded and unsigned.
Product ID
Used in combination with the manufacturer ID and device ID values to identify
the product-specific element of the controller-specific functionality. This number
is specified by the manufacturer identified by the manufacturer ID field.
Typically, a controller-specific application would use the product ID to identify
the type of board, module, or system that the controller is used in, instead of
using the data from the FRU information associated with the controller.
Auxiliary firmware revision information This field is optional. If present, it holds additional information about the
firmware revision, such as boot block or internal data structure version numbers.
The meanings of the numbers are specific to the vendor identified by
manufacturer ID. When the vendor-specific definition is not known, generic
utilities should display each byte as 2-digit hexadecimal numbers, with byte
13 displayed first as the most significant byte.
Cold reset command
This command is available to the MC. This command is not required to return a response in all
implementations.
This command directs the responder's device to reinitialize its event, communication, and sensor
functions. This causes the default setting of interrupt enables, event message generation, sensor
scanning, threshold values, and other power up default state to be restored. If the device
incorporates a self test, the self test also runs at this time.
Table 9 Cold reset command response data
32
Response data byte
number
Data field
1
Completion code
Command specification
NOTE: The cold reset command is provided for platform development, test, and
platform-specific initialization and recovery actions. The system actions of the cold reset
command are platform specific. Issuing a cold reset command could have adverse effects on
system operation, particularly if issued during run-time. Therefore, the cold reset command
should not be used unless all the side-effects for the given platform are known.
It is recognized that there are conditions where a given controller may not be able to return a
response to a cold reset request message. Therefore, though recommended, the implementation
is not required to return a response to the cold reset command. Applications should not rely
on receiving a response as verification of the completion of a cold reset command.
Warm reset command
This command is available to the MC.
This command directs the responder's device to reset communications interfaces, but current
configurations of interrupt enables, thresholds, and so on are left alone. A warm reset does not
initiate the self test. The intent of the warm reset command is to provide a mechanism for cleaning
up the internal state of the device and its communication interfaces. A warm reset resets
communication state information such as sequence number and retry tracking, but does not reset
interface configuration information such as addresses, enables, and so on. An application may
try a warm reset if it determines a non-responsive communication interface, but it must also be
capable of handling the side effects.
Table 10 Warm reset command response data
Response data byte
number
Data field
1
Completion code
Get self test results command
This command is available to MC, ChMC, and PSMC.
This command directs the device to return its self test results, if any. A device implementing a self
test normally runs that test on device power up as well as after cold reset commands. A device
is allowed to update this field during operation if it has tests that run while the device is operating.
Devices that do not implement a self test always return a 56h for this command.
While the self test only runs at particular times, the get self test results command can
be issued any time the device is in a ready for commands state.
Standard command specification
33
Table 11 Get self test results command response data
Response data byte
number
Data field
1
Completion code.
2
• 55h — No error. All self tests passed.
• 56h — Self test function not implemented in this controller.
• 57h — Corrupted or inaccessible data or devices.
• 58h — Fatal hardware error (system should consider MC inoperative). This indicates that
the controller hardware (including associated devices such as sensor hardware or RAM)
may need to be repaired or replaced.
• FFh — Reserved.
• All other — Device-specific internal failure. Refer to the particular device specification for
definition.
3
For byte 2 =:
• 55h, 56h, FFh: 00h
• 58h, all other: Device-specific.
• 57h: self-test error bitfield. A return of 57h does not imply that all tests were run, just that
a given test has failed. For example, 1b means failed, 0b means unknown.
• [7] — 1b = Cannot access SEL device.
• [6] — 1b = Cannot access SDR repository.
• [5] — 1b = Cannot access MC FRU device.
• [4] — 1b = IPMB signal lines do not respond.
• [3] — 1b = SDR repository empty.
• [2] — 1b = Internal use area of MC FRU corrupted.
• [1] — 1b = Controller update boot block firmware corrupted.
• [0] — 1b = Controller operational firmware corrupted.
Get ACPI power state command
This command is available to the MC.
The command is used to retrieve the present power state information that has been set into the
controller. This is an independent setting from the system power state that may not necessarily
match the actual power state of the system. Unspecified bits and codes are reserved and returned
as 0.
Table 12 Get ACPI power state command response data
Response data
byte number
Data field
1
Completion code
2
ACPI system power state
[7] — Reserved
[6:0] — System power state enumeration
34
Command specification
00h
S0 / G0
Working
01h
S1
Hardware context maintained, typically equates to
processor/chip set clocks stopped
02h
S2
Typically equates to stopped clocks with processor/cache
context lost
Table 12 Get ACPI power state command response data (continued)
Response data
byte number
3
Data field
03h
S3
Typically equates to suspend-to-RAM
04h
S4
Typically equates to suspend-to-disk
05h
S5 / G2
Soft off
06h
S4/S5
Soft off, cannot differentiate between S4 and S5
07h
G3
Mechanical off
08h
sleeping
Sleeping - cannot differentiate between S1-S3
09h
G1 sleeping
Sleeping - cannot differentiate between S1-S4
0Ah
Override
S5 entered by override
20h
Legacy on
Legacy on (indicates on for system that does not support ACPI
or has ACPI capabilities disabled)
21h
Legacy off
Legacy soft-off
2Ah
Unknown
Power state has not been initialized, or device lost track of
power state
ACPI device power state
[7] — Reserved
[6:0] — Device power state enumeration
00h
D0
01h
D1
02h
D2
03h
D3
02h
Unknown
Power state has not been initialized, or device lost track of
power state
Broadcast get device ID command
This command is available to MC, ChMC, and PSMC. It is only relevant to satellite controllers.
This command is the broadcast version of the get device ID command which provides for the
discovery of intelligent devices on the IPMB only. Request is formatted as an entire IPMB application
request message, from the RsSA field through the second checksum, with the message prefixed
with the broadcast slave address, 00h. Response format is same as the regular get device ID
response.
The broadcast get device ID command is not bridged but can be delivered to the IPMB
using master write-read commands.
To perform a discovery, the command is repeatedly broadcast with a different rsSA slave address
parameter field specified in the command. The device that has the matching physical slave address
information shall respond with the same data it would return from a regular (non-broadcast) get
device ID command. Since an IPMB response message carries the responder’s slave address,
the response to the broadcast provides a positive confirmation that an intelligent device exists at
the slave address given by the rsSA field in the request.
An application driving discovery then cycles through the possible range of IPMB device slave
addresses to find the population of intelligent devices on the IPMB.
Standard command specification
35
See “Get device ID command” (page 29) for information on the fields returned by the broadcast
get device ID command response. The IPMB message format for the broadcast get device
ID ID request exactly matches that for the get device ID command, with the exception that
the IPMB message is prefixed with the 00h broadcast address. The following illustrates the format
of the IPMB broadcast get device ID request message:
Figure 2 Broadcast get device ID request message
Addresses 00h-0Fh and F0h-FFh are reserved for I2C functions and not used for IPM devices on
the IPMB. These addresses can therefore be skipped if using the broadcast get device ID
command to scan for IPM devices. The remaining fields follow the regular IPMB definitions.
In order to speed the discovery process on the IPMB, a controller should drop off the bus as soon
as it sees that the rsSA in the command does not match its rsSA.
IPMI messaging support commands
This section defines the commands used to support the system messaging interfaces. This includes
control bits for using the MC as an event receiver and SEL device. SMM messaging and event
message buffer support is optional. Use of IPMI support for SMI and SMM messaging is deprecated.
Configuration interface support for enabling or disabling SMM messaging and corresponding SMI
has been removed from the specification. If SMM messaging were implemented using the IPMI
infrastructure, it would now be done as an OEM-proprietary capability.
System software that is not explicitly aware of the particular platform’s use of SMI messaging must
assume that the any SMI options have been pre-configured by the controller, system BIOS, or other
software. Therefore, runtime system software should not reconfigure SMI options, nor should it
access the event message buffer if it finds that event message buffer interrupt is mapped to SMI.
The effects of SMS accessing the event message buffer when it is configured for SMI are unspecified.
Set BMC global enables command
This command is available to the MC.
This command is used to enable message reception into message buffers, and any interrupt
associated with that buffer getting full. The OEM0, OEM 1, and OEM 2 flags are available for
definition by the OEM/system integrator. Generic system management software must not alter
these bits.
Table 13 Set BMC global enables command request and response data
36
Request data
byte number
Data field
1
This field is set to xxxx_100xb on power-up and system resets. If the implementation allows the receive
message queue interrupt to be enabled/disabled, the default for bit 0 should be 0b.
[7]
OEM 2 Enable
[6]
OEM 1 Enable
[5]
OEM 0 Enable
[4]
Reserved
[3]
1b =
Command specification
Generic system management software must do a ‘read-modifywrite’
using the get BMC global enables and set BMC global
enables commands to avoid altering this bit.
Enable system event logging (enables/disables logging of events to
the SEL - with the exception of events received over the system
interface. Event reception and logging via the system interface is
always enabled.) SEL logging is enabled by default whenever the
MC is first powered up. It is recommended that this default state also
be restored on system resets and power on.
Table 13 Set BMC global enables command request and response data (continued)
[2]
1b =
Enable event message buffer. Error completion code returned if written
as 1 and the event message buffer not supported.
[1]
1b =
Enable event message buffer full interrupt.
[0]
1b =
Enable receive message queue interrupt (this bit also controls whether
KCS communication interrupts are enabled or disabled. An
implementation is allowed to have this interrupt always enabled.)
NOTE: If the event message buffer full or receive message queue interrupt are not supported, an
implementation can elect to return a CCh error completion code for the set BMC global enables
command if an attempt is made to enable the interrupt (this is the recommended implementation).
Alternatively, the implementation can accept the command, but must return 0b for the corresponding
bit in the get BMC global enables.
Response data Data field
byte number
1
Completion code
Get BMC global enables command
This command is available to the MC.
This command is used to retrieve the present setting of the global enables. The OEM0, OEM 1,
and OEM 2 flags are available for definition by the OEM/system integrator. Generic system
management software must ignore these bits.
Table 14 Get BMC global enables command response data
Response data
byte number
Data field
1
Completion code
2
[7]
1b =
OEM 2 enabled
[6]
1b =
OEM 1 enabled
[5]
1b =
OEM 0 enabled
[4]
Reserved
[3]
1b =
System event logging enabled
[2]
1b =
Event message buffer enabled
[1]
1b =
Event message buffer full interrupt enabled
[0]
1b =
Receive message queue interrupt enabled (this bit also indicates whether
KCS communication interrupt is enabled or disabled.)
If the receive message queue or event message full interrupts are not implemented the corresponding
interrupt enabled status bit must return as 0b.
Clear message flags command
This command is available to the MC.
This command is used to flush unread data from the receive message queue or event message
buffer. This will also clear the associated buffer full/message available flags. See “Get message
flags command ” (page 38).
Standard command specification
37
Table 15 Clear message flags command request and response data
Request data
byte number
Data field
1
[7]
1b =
Clear OEM 2
[6]
1b =
Clear OEM 1
[5]
1b =
Clear OEM 0
[4]
Reserved
[3]
1b =
[2]
Reserved
[1]
1b =
Clear event message buffer
[0]
1b =
Clear receive message queue
Clear watchdog pre-timeout interrupt flag
If the receive message queue or event message full interrupts are not implemented the corresponding
interrupt enabled status bit must return as 0b.
Response data Data field
byte number
1
Completion code. Implementations are not required to return an error completion code if an attempt
is made to clear the event message buffer flag but the event message buffer is not supported.
Get message flags command
This command is available to the MC.
This command is used to retrieve the present message available states. The OEM0, OEM 1, and
OEM 2 flags are available for definition by the OEM/system integrator. Generic system
management software must ignore these bits.
Table 16 Get message flags command response data
Request data
byte number
Data field
1
Completion code
2
Flags
[7]
1b =
OEM 2 data available.
[6]
1b =
OEM 1 data available.
[5]
1b =
OEM 0 data available.
[4]
Reserved.
[3]
1b =
[2]
Reserved.
[1]
1b =
Event message buffer full. Return as 0 if event message buffer is not supported,
or when the event message buffer is disabled.
[0]
1b =
Receive message available. One or more messages ready for reading from
receive message queue.
Watchdog pre-timeout interrupt occurred.
Enable message channel receive command
This command is available to the MC.
This command is used to enable and disable message reception into the receive message queue
from a given message channel. The command provides a mechanism to allow SMS to only receive
38
Command specification
messages from channels that it intends to process, and provides a disable mechanism in case the
receive message queue is being erroneously or maliciously flooded with requests on a particular
channel. It does not affect the ability for SMS to transmit on that channel. Only the SMS message
channel is enabled by default. All other channels must be explicitly enabled by BIOS or system
software, as appropriate. It is recommended that a destination unavailable completion code be
returned if a request message to SMS is rejected because reception has been disabled.
Table 17 Enable message channel receive command request and response data
Request data
byte number
Data field
1
Channel number
• [7:4] — Reserved
• [3:0] — Channel number
2
Channel state
• [7:2] — Reserved
• [1:0]
◦
00b = Disable channel
◦
01b = Enable channel
◦
10b = Gen channel enable/disable state
◦
11b = Reserved
Response data Data field
byte number
1
Completion code
2
Channel number
• [7:4] — Reserved
• [3:0] — Channel number
3
Channel state
• [7:1] — Reserved
• [0]
◦
1b = Channel enabled
◦
0b = Channel disabled
Get message command
This command is available to the MC.
This command is used to get data from the receive message queue.
Software is responsible for reading all messages from the message queue even if the message is
not the expected response to an earlier send message. System management software is responsible
for matching responses up with requests.
The get message command includes an inferred privilege level that is returned with the message.
This can help avoid the need for software to implement a separate privilege level and authentication
mechanism. For example: A user activates a session with a maximum privilege level of Administrator
on a multi-session channel, and an MD5 authentication type was negotiated. That user-level
authentication is disabled. A user that has user or higher privilege can place messages into the
receive message queue by sending them to LUN 10b, or by using the send message command.
If the packet has authentication type = MD5, the packet is assigned an inferred privilege level
Standard command specification
39
based the on the present operating privilege level for the user (set using the set session
privilege level command). If, before sending the packet, the user had set their privilege level
to Operator, the packet would be assigned an inferred privilege level of Operator. This means an
authenticated (signed) packet can be assigned different inferred privilege levels based on the
present operating privilege set by the set session privilege level command.) If the
message is received in a packet that has authentication type = none, the packet is assigned an
inferred privilege level of User, since that is the lowest privilege level for which that type of
authentication is accepted.
Now suppose that the remote user had used the receive message queue as a way to send a
message to system management software that requests a soft shutdown of the operating system.
The message would either have an inferred privilege level of Operator or User depending on
whether it was sent as an authenticated message or not. SMS can then use that inferred privilege
level as part of deciding whether to accept and process the message or not. For single-session
channels, the inferred privilege level is always set to the present operating privilege level. For
session-less channels, the inferred privilege level is set to none, indicating that there was no
IPMI-specified authentication operating on the channel from which the message was received.
Table 18 Get message command response data
Response data Data field
byte number
1
Completion code.
Generic, plus the command specific completion code: 80h = data not available (queue / buffer
empty). Implementation of this completion code is mandatory. The code eliminates the need for system
software to always check the message buffer flags to see if there is data left in the receive message
queue. If a non-OK, non-80h completion is encountered - software must check the message flags to
get the empty/non-empty status of the receive message queue.
2
Channel number
• [7:4] Inferred privilege level for message.
When the MC receives a message for the receive message queue, it assigns an inferred privilege
level to the message as follows:
If the message is received from a session-based channel, it is initially assigned a privilege level
that matches the maximum requested privilege level that was negotiated via the activate
session command.
If per-message authentication is enabled, but user-level authentication is disabled, the MC assigns
a level of User to any messages that are received with an authentication type = none. (Per-message
and user-level authentication options only apply to multi-session channels).
The MC then lowers the assigned privilege limit, if necessary, based on the present session privilege
limit that was set via the set session privilege level command.
If the channel is session-less such as IPMB), the MC returns none for the privilege level.
◦
0h = None (unspecified)
◦
1h = Callback level
◦
2h = User level
◦
3h = Operator level
◦
4h = Administrator level
◦
5h = OEM proprietary level
• [3:0] channel number
3:N
40
Message data. Maximum length and format dependent on protocol associated with the channel.
Command specification
The following table indicates the contents of the Message Data field from the get message response
according to the channel type and channel protocol that was used to place the message in the
receive message queue.
Table 19 Get message data fields
1
Originating channel
type
Channel protocol
Message data for received requests (RQ) and
responses (RS)
IPMB (I2C)
IPMB1
RQ: netFn/rsLUN, chk1, rqSA, rqSeq/rqLUN, cmd,
<data>, chk2
RS: netFn/rqLUN, chk1, rsSA, rqSeq/rsLUN, cmd,
completion code, <data>, chk2
4
802.3 LAN
IPMB
RQ: Session handle, rsSWID, netFn/rsLUN, chk1,
rqSWID or rqSA, rqSeq/rqLUN, cmd, <data>,
chk2
RS: Session handle, rqSWID, netFn/rsLUN, chk1,
rsSWID or rsSA, rqSeq/rsLUN, cmd, completion
code, <data>, chk2
5
Asynch. serial/modem IPMB (basic mode, terminal
(RS-232)
mode, and PPP mode)
RQ: Session handle, rsSWID, netFn/rsLUN, chk1,
rqSWID or rqSA, rqSeq/rqLUN, cmd, <data>,
chk2
RS: Session handle, rqSWID, netFn/rsLUN, chk1,
rsSWID or rsSA, rqSeq/rsLUN, cmd, completion
code, <data>, chk2
NOTE: When LUN 10b is used to deliver a
message to SMS from a terminal mode remote
console, the MC inserts fixed values for the SWIDs
and LUNs in the message. Messages from the
remote console are always returned as coming
from SWID 40h (81h) LUN 00b, and going to
SMS SWID 20h (41h) LUN 00b.
6
Other LAN
IPMB
RQ: Session handle, rsSWID, netFn/rsLUN, chk1,
rqSWID or rqSA, rqSeq/rqLUN, cmd, <data>,
chk2
RS: Session handle, rqSWID, netFn/rsLUN, chk1,
rsSWID or rsSA, rqSeq/rsLUN, cmd, completion
code, <data>, chk2
7
PCI SMBus
IPMI-SMBus
RQ: rsSA, Netfn(even)/rsLUN, 00h, rqSA,
rqSeq/rqLUN, CMD, <data>, PEC
8
SMBus v1.0/1.1
9
SMBus v2.0
10
Reserved for USB 1.x
n/a
n/a
11
Reserved for USB 2.x
n/a
n/a
12
System interface
BT, KCS, SMIC
RQ: Session handle, rsSWID, netFn/rsLUN, chk1,
rqSWID or rqSA, rqSeq/rqLUN, cmd, <data>,
chk2
RS: rqSA or rqSWID, NetFn(odd)/rqLUN, 00h,
rsSA or rsSWID, rqSeq/rsLUN, CMD, completion
code, <data>, PEC
RS: Session handle, rqSWID, netFn/rsLUN, chk1,
rsSWID or rsSA, rqSeq/rsLUN, cmd, completion
code, <data>, chk2
1
This message data matches the IPMB message format with the leading slave address omitted. The format includes
checksums. In order to verify those checksums, they must be calculated as if 20h (MC slave address) was the value that
was used as the slave address when the checksums were calculated per [IPMB]. 20h is always used for the checksum
Standard command specification
41
calculation for the receive message queue data whenever IPMB is listed as the originating bus and with IPMB as the
channel protocol.
Send message command
This command is available to the MC.
The send message command is used for bridging IPMI messages between channels, and between
the SMS and a given channel.
For IPMI v2.0 the send message command has been updated to include the ability to indicate
whether a message must be sent authenticated or with encryption (for target channels on which
authentication and/or encryption are supported and configured).
Table 20 Send message command request and response data
Request data
byte number
Data field
1
Channel number
[7:6]
[5]
[4]
00b =
No tracking. The MC reformats the message for the selected channel but does
not track the originating channel, sequence number, or address information.
This option is typically used when software sends a message from the system
interface to another media. Software will typically use no tracking when it
delivers sends a message from the system interface to another channel, such
as IPMB. In this case, the software formats the encapsulated message so that
when it appears on the other channel, it appears to have been directly
originated by MC LUN 10b. See “MC LUN 10b” (page 148) for more
information.
01b =
Track request. The MC records the originating channel, sequence number,
and addressing information for the requester, and then reformats the message
for the protocol of the destination channel. When a response is returned, the
MC looks up the requester’s information and format the response message
with the framing and destination address information and reformats the
response for delivery back to the requester. This option is used for delivering
IPMI request messages from non-SMS (non-system interface) channels. See
“Send Message command with response tracking” (page 149) for more
information.
10b =
Send raw (optional). This option is primarily provided for test purposes. It may
also be used for proprietary messaging purposes. The MC simply delivers the
encapsulated data to the selected channel in place of the IPMI message data.
If the channel uses sessions, the first byte of the message data field must be
a session handle. The MC must return a non-zero completion code if an attempt
is made to use this option for a given channel and the option is not supported.
It is recommended that completion code CCh be returned for this condition.
11b =
Reserved
1b =
Send message with encryption. MC returns an error completion code if this
encryption is unavailable.
0b =
Encryption not required. The message is sent unencrypted if that option is
available under the given session. Otherwise, the message is sent encrypted.
1b =
Send message with authentication. MC returns an error completion code if
this authentication is unavailable.
0b =
Authentication not required. Behavior is dependent on whether authentication
is used and whether the target channel is running an IPMI v1.5 or IPMI
v2.0/RMCP+ session, as follows:
• IPMI v1.5 sessions default to sending the message with authentication if
that option is available for the session.
• IPMI v2.0/RMCP+ sessions send the message unauthenticated if that option
is available under the session. Otherwise, the message is sent with
authentication.
42
Command specification
Table 20 Send message command request and response data (continued)
[3:0]
Channel number where to send the message
2:N
Message data. Format dependent on target channel type.
Request data
byte number
Data field
1
Completion code
Generic, plus additional command-specific completion codes: 80h = Invalid session handle. The
session handle does not match up with any currently active sessions for this channel.
If channel medium = IPMB, SMBus, or PCI management bus (This status is recommended for applications
that need to access low-level I2C or SMBus devices).
• 81h = Lost arbitration
• 82h = Bus error
• 83h = NAK on write
(2:N)
Response data
This data will only be present when using the send message command to originate requests from
IPMB or PCI management bus to other channels such as LAN or serial/modem. It is not present in the
response to a send message command delivered via the system interface.
NOTE: The MC does not parse messages that are encapsulated in a send message command
and does not know what privilege level should be associated with an encapsulated message. Thus,
messages that are sent to a session using the send message command are always output using
the authentication type that was negotiated when the session was activated.
The following table summarizes the contents of the message data field when the send message
command is used to deliver an IPMI message to different channel types. In most cases, the format
of message information the message data field follows are the same used for the IPMB, with two
typical exceptions:
•
When the message is delivered to channels without physical slave devices, a SWID field takes
the place of the slave address field.
•
When the message is delivered to a channel that supports sessions, the first byte of the message
data holds a session handle.
Table 21 Send message data fields
1
Target channel type
Target channel protocol
Message data for sending requests (RQ) and
responses (RS)
IPMB (I2C)
IPMB
RQ: rsSA, netFn/rsLUN, chk1, rqSA,
rqSeq/rqLUN, cmd, <data>, chk2
RS: rqSA, netFn/rqLUN, chk1, rsSA, rqSeq/rsLUN,
cmd, completion code, <data>, chk2
4
802.3 LAN
IPMB+session header
RQ: Session handle1, rsSWID, netFn/rsLUN, chk1,
rqSWID or rqSA, rqSeq/rqLUN, cmd, <data>,
chk2
RS: Session handle1, rqSWID, netFn/rsLUN, chk1,
rsSWID or rsSA, rqSeq/rsLUN, cmd, completion
code, <data>, chk2
5
Asynch. serial/modem IPMB (basic mode, terminal
(RS-232)
mode, and PPP mode)
RQ: Session handle1, rsSWID, netFn/rsLUN, chk1,
rqSWID or rqSA, rqSeq/rqLUN, cmd, <data>,
chk2
RS: Session handle1, rqSWID, netFn/rsLUN, chk1,
rsSWID or rsSA, rqSeq/rsLUN, cmd, completion
code, <data>, chk2
Standard command specification
43
Table 21 Send message data fields (continued)
Target channel type
Target channel protocol
Message data for sending requests (RQ) and
responses (RS)
NOTE: Terminal mode has a single, fixed SWID
for the remote console. Software using send
message to deliver a message to a terminal mode
remote console should use their SWID or slave
address as the source of the request or response,
and the terminal mode SWID (40h) as the
destination.
6
Other LAN
IPMB
RQ: Session handle1, rsSWID, netFn/rsLUN, chk1,
rqSWID or rqSA, rqSeq/rqLUN, cmd, <data>,
chk2
RS: Session handle1, rqSWID, netFn/rsLUN, chk1,
rsSWID or rsSA, rqSeq/rsLUN, cmd, completion
code, <data>, chk2
7
PCI SMBus
IPMI-SMBus
RQ: rsSA, netFn/rsLUN, chk1, rqSA,
rqSeq/rqLUN, cmd, <data>, chk2
8
SMBus v1.0/1.1
9
SMBus v2.0
10
Reserved for USB 1.x
n/a
n/a
11
Reserved for USB 2.x
n/a
n/a
12
System interface
RS: rqSA, netFn/rqLUN, chk1, rsSA, rqSeq/rsLUN,
cmd, completion code, <data>, chk2
RQ: rsSA, netFn/rsLUN, chk1, rqSA,
rqSeq/rqLUN, cmd, <data>, chk2
RS: rqSA, netFn/rqLUN, chk1, rsSA, rqSeq/rsLUN,
cmd, completion code, <data>, chk2
NOTE: MC adds session handle information
when it puts the message into the receive message
queue .
1
The session handle identifies a particular active session on the given channel. The MC assigns a different value to each
time a new session is activated. A typical implementation keeps track of the last value that was assigned and increment
it before assigning it to a new active session when the activate session command has been accepted. Software
must include this field for channels where the get channel info command indicates that the channel supports sessions.
Get system GUID command
This command is available to the MC.
This optional, though highly recommended, command can be used to return a GUID (also known
as a UUID), for the managed system to support the remote discovery process and other operations.
The format of the ID follows the octet format specified in [RFC 4122]. [RFC4122] specifies four
different versions of UUID formats and generation algorithms suitable for use for a GUID in IPMI.
•
Time based — version 1 (0001b)
•
Name based:
◦
version 3 (0011b) MD5 hash
◦
version 4 (0100b) Pseudo-random
◦
version 5 SHA1 hash
[SMBIOS] does not specify a particular specification or version for UUID generation. In general,
if it remains unspecified, the version 1 format is recommended by the IPMI specification for new
44
Command specification
system implementations. However, versions 3, 4, or 5 formats are also allowed. A system GUID
should not change over the lifetime of the system.
If the MC is on a removable card that can be moved to another system, the vendor of the card or
system vendor should provide a mechanism for generating a new system GUID or retrieving the
SMBIOS UUID from the given system.
Since the GUID is typically permanently assigned to a system, an interface that would allow the
GUID to be configured or changed is not specified. For systems that support [SMBIOS], the system
GUID that is returned by the MC should match the UUID field value in the SMBIOS system
information (type 1) record.
The session header (session request data and session response data) values shown in the following
table illustrate the values that would be used to execute a get system GUID command outside
of an active session. The get system GUID is always accepted outside of an active session. The
get system GUID command can also be executed within the context of an active session
(providing the user is operating at higher than callback privilege). When the get system GUID
command is executed in the context of an active session, the session header fields must have correct
values according to the authentication, session ID, and session sequence number information that
was negotiated for the session.
Session header fields request and response data prior when used prior to session activation
authentication type = NONE
session seq# = null (0’s)
Session ID = null (0’s)
AuthCode = NOT PRESENT
Table 22 Get system GUID command response data
Response data Data field
byte number
1
Completion code
2:17
GUID bytes 1 through 16.
Set system info parameters command
This command is available to the MC.
This command is used for setting system information parameters such as system name and
BIOS/system firmware revision information.
Table 23 Set system info parameters command request and response data
Request data
byte number
Data field
1
Parameter selector
2:N
Configuration parameter data, per Table 25 (page 46)
Response data Data field
byte number
1
Completion dode
• 80h = parameter not supported
• 81h = attempt to set the set in progress value (in parameter #0) when not in the set complete state.
(This completion code provides a way to recognize that another party has already claimed the
parameters).
• 82h = attempt to write read-only parameter
Standard command specification
45
Get system info parameters command
This command is available to the MC.
This command is used for retrieving system information parameters from the set system info
parameters command.
Table 24 Get system info parameters command request and response data
Request data
byte number
Data field
1
[7]
• 0b = get parameter
• 1b = get parameter revision only
[6:0] — reserved
2
Parameter selector
3
Set selector. Selects a given set of parameters under a given parameter selector value. 00h if
parameter does not use a set selector.
4
Block selector (00h if parameter does not require a block number)
Response data
byte number
Data field
1
Completion code
Generic codes, plus the command-specific completion code: 80h = parameter not supported.
2
[7:0] — Parameter revision. Format:
• MSN = present revision
• LSN = oldest revision parameter that is backward compatible
• 11h for parameters in this specification
The following data bytes are not returned when the get parameter revision only bit is 1b.
3:N
Configuration parameter data, per “System info parameters” (page 46). If the rollback feature is
implemented, the MC makes a copy of the existing parameters when the set in progress state becomes
asserted. (See the set in progress parameter #0). While the set in progress state is active, the MC
returns data from this copy of the parameters, plus any uncommitted changes that were made to the
data. Otherwise, the MC returns parameter data from non-volatile storage.
Table 25 System info parameters
Parameter
#
Parameter data (non-volatile unless otherwise noted)1
Set in progress (volatile)
0
Data 1 - This parameter is used to indicate when any of the following parameters
are being updated, and when the updates are completed. The bit is primarily
provided to alert software that some other software or utility is in the process
of making changes to the data.
An implementation can also elect to provide a rollback feature that uses this
information to decide whether to roll back to the previous configuration
information, or to accept the configuration change.
If used, the roll back restores all parameters to their previous state. Otherwise,
the change takes effect when the write occurs.
46
Command specification
[7:2]
Reserved
[1:0]
00b =
Set complete. If a system reset or transition to
powered down state occurs while set in progress
is active, the MC goes to the set complete state.
If rollback is implemented, going directly to set
complete without first doing a commit write
causes any pending write data to be discarded.
Table 25 System info parameters (continued)
Parameter
System firmware version
#
1
Parameter data (non-volatile unless otherwise noted)1
01b =
Set in progress indicating that some utility or other
software is presently doing writes to parameter
data. It is a notification flag only, it is not a
resource lock. The MC does not provide any
interlock mechanism that would prevent other
software from writing parameter data while set
in progress value is present on these bits.
10b =
Commit write (optional). This is only used if a
rollback is implemented. The MC saves the data
that has been written since the last time the set
in progress and then go to the set in progress
state. An error completion code is returned if this
option is not supported.
11b =
Reserved
System firmware version string in text. System firmware that requires multiple
strings to represent version information can separate those strings using 00h
as the delimiter for ASCII+LATIN1 and UTF-8 encoded string data, or 0000h
for UNICODE encoded string data. For IA32 and EMT64 utilizing non-EFI
system firmware, it is recommended that four blocks (64 bytes) of storage be
provided. For EFI-based systems, 256 bytes is recommended.
NOTE: System firmware may optionally include a routine that checks during
POST to see if this parameter is up-to-date with the present firmware version,
and if not, update it automatically. Other implementations may elect to
automatically update this parameter when system firmware updates occur.
Data 1 — set selector = 16-byte data block number to access, 0 based. Two
data blocks (32-bytes) for string data required, at least three
recommended. Number of effective characters is dependent on the
encoding selected in string data byte 1.
Data
2:17 —
16-byte block for system firmware name string data
For the first block of string data (set selector = 0), the first two bytes
indicate the encoding of the string and its overall length as follows:
String data byte 1:
• [7:4] — Reserved
• [3:0] — Encoding
◦
0h = ASCII+Latin1
◦
1h = UTF-8
◦
2h = UNICODE
◦
All other = Reserved
String data byte 2:
• [7:0] - String length (in bytes, 1-based)
System name
2
System name. A name for the overall system to be associated with the MC.
This may or may not match other names that are used for the system.
Data 1 — set selector = 16-byte data block number to access, 0 based. Two
data blocks (32-bytes) for string data required, at least three
recommended. Number of effective characters will be dependent
on the encoding selected in string data byte 1.
Data
2:17 -
16-byte block for system name string data
For the first block of string data (set selector = 0), the first two string
data bytes indicate the encoding of the string and its overall length
Standard command specification
47
Table 25 System info parameters (continued)
Parameter
#
Parameter data (non-volatile unless otherwise noted)1
as follows. There is no required value to be set or used for any
bytes that are past the string length.
String data byte 1:
• [7:4] — Reserved
• [3:0] — Encoding
◦
0h = ASCII+Latin1
◦
1h = UTF-8
◦
2h = UNICODE
◦
All other = Reserved
String data byte 2:
• [7:0] - String length (in bytes, 1-based)
Primary operating system
name (non-volatile)
3
Primary operating system name. The OS that the system boots to for this MC
according to the default configuration of its system firmware. In systems that
may have multiple physical partitions, this reflects the OS for the partition that
holds the given MC. For systems that have virtual machine capability being
utilized (where more than one virtual systems may be sharing a physical MC),
it is recommended that this value hold the name of the virtual machine monitor
(VMM) software or VMM type).
Data 1
Set selector = 16-byte data block number to access, 0 based. Two
data blocks (32-bytes) for string data required, at least three
recommended. Number of effective characters will be dependent
on the encoding selected in string data byte 1.
Data
2:17
16-byte block for system name string data
For the first block of string data (set selector = 0), the first two bytes
indicate the encoding of the string and its overall length as follows.
There is no required value to be set or used for any bytes that are
past the string length.
String data byte 1:
• [7:4] — Reserved
• [3:0] — Encoding
◦
0h = ASCII+Latin1
◦
1h = UTF-8 (ls-byte first)
◦
2h = UNICODE (ls-byte first)
◦
All other = Reserved
String data byte 2:
• [7:0] - string length (in bytes, 1-based)
Operating system name
(volatile)
4
Present operating system name. The name of the operating system that is
presently running and able to access this MC’s system interface. The MC
automatically clears this value by zeroing out the string length on system power
cycles and resets.
In systems that may have multiple physical partitions, this reflects the OS for
the partition that holds the given MC. For systems that have virtual machine
capability being utilized (where more than one virtual systems may be sharing
a physical MC), it is recommended that this value hold the name of the virtual
machine monitor (VMM) software or VMM type.
48
Command specification
Table 25 System info parameters (continued)
Parameter
#
Parameter data (non-volatile unless otherwise noted)1
Data 1
Set selector = 16-byte data block number to access, 0 based. Two
data blocks (32-bytes) for string data required, at least three
recommended. Number of effective characters is dependent on the
encoding selected in string data byte 1.
Data
2:17
16-byte block for system name string data
For the first block of string data (set selector = 0), the first two bytes
indicate the encoding of the string and its overall length as follows.
There is no required value to be set or used for any bytes that are
past the string length.
String data byte 1:
• [7:4] — Reserved
• [3:0] — Encoding
◦
0h = ASCII+Latin1
◦
1h = UTF-8
◦
2h = UNICODE
◦
All other = Reserved
String data byte 2:
• [7:0] - String length (in bytes, 1-based)
OEM
1
192 …
255
This range is available for special OEM system information parameters.
Choice of system manufacturing defaults for non-volatile parameters is left to the system manufacturer unless otherwise
specified.
Master write-read command
This command can be used for low-level I2C/SMBus write, read, or write-read access to the IPMB
or private busses behind a management controller. The command can also be used for providing
low-level access to devices that provide an SMBus slave interface.
NOTE:
In Moonshot, this command is not available over LAN.
Table 26 Master write-read command request and response data
IPMI request
data byte
number
Data field
1
Bus ID:
2
[7:4]
Channel number (ignored when bus type=1b
[3:1]
Bus ID, 0–based (always 000b for public bus ([bus type=0b])
[0]
Bus type:
0b =
Public (for example, IPMB or PIC Management) bus. The channel number
value is used to select the target bus.
1b =
Private bus (the bus ID value is used to select the target bus.)
Requested maximum privilege level
[7:1]
Slave address
[0]
Reserved. Write a 0.
Standard command specification
49
Table 26 Master write-read command request and response data (continued)
3
Read count. Number of bytes to read, 1 based. 0 equals not bytes to read. The maximum read count
should be at least 34 bytes. This allows the command to be used for an SMBus Block Read. This is
required if the command provides access to an SMBus or IPMB. Otherwise, if FRU SEEPROM devices
are accessible, at least 31 bytes must be supported. Note than an implementation that supports fewer
bytes can be supported if none of the devices to be accessed can handle the recommended minimum.
4:N
Data to write. This command should support at least 35 bytes of write data. This allows the command
to be used for an SMBus Block Write with PEC. Otherwise, if FRU SEEPROM devices are accessible,
at least 31 bytes must be supported. Note that an implementation is allowed to support fewer bytes
if none of the devices to can handle the recommended minimum.
IPMI response
data byte
number
Data field
1
Completion code
A management controller shall return an error Completion Code if an attempt is made to access an
unsupported bus. This is a generic response but also may include the following command specific
codes:
• 81h—Lost arbitration
• 82h—Bus error
• 83h—NAK on write
• 84h—Truncated read
(2:M)
Bytes read from specified slave address. This field will be absent if the read count is 0. The controller
terminates the I2C transaction with a STOP condition after reading the requested number of bytes.
Get channel authentication capabilities command
This command is available to the MC.
This command is sent in unauthenticated (clear) format. This command is used to retrieve capability
information about the channel from which the message is delivered, or for a particular channel.
The command returns the authentication algorithm support for the given privilege level. When
activating a session, the privilege level passed in this command is normally the same requested
maximum privilege level that is used for a subsequent activate session command.
MC implementations of IP-based channels must support the get channel authentication
capabilities command using the IPMI v1.5 packet format. BMCs that support IPMI v2.0 RMCP+
must also support the command using the IPMI v2.0/RMCP+ format.
The get channel authentication capabilities command can also be used as a no-op
“ping” to keep a session from timing out.
Session header fields request and response data prior when used prior to session activation
authentication type = NONE/payload type = IPMI message
session seq# = null (0’s)
Session ID = null (0’s)
AuthCode = NOT PRESENT
Table 27 Get channel authentication capabilities command request and response data
50
IPMI request
data byte
number
Data field
1
Channel number
Command specification
Table 27 Get channel authentication capabilities command request and response data (continued)
[7]
1b =
Get IPMI v2.0+ extended data. If the given channel supports authentication
but does not support RMCP+ (such as a serial channel), then the response
data should return with bit [5] of byte 4 = 0b, byte 5 should return 01h,
0b =
Backward compatible with IPMI v1.5. Result response data only returns bytes
1:9, bit [7] of byte 3 (authentication type support) and bit [5] of byte 4 returns
as 0b, bit [5] of byte 5 returns 00h.
[6:4]
Reserved
[3:0]
Channel number
0hBh, Fh = Channel numbers
Eh =
2
Retrieve information for the channel from which this request was issued.
Requested maximum privilege level
[7:4]
Rreserved
[3:0]
Requested privilege level
0h =
Reserved
1h =
Callback level
2h =
User level
3h =
Operator level
4h =
Administrator level
5h =
OEM proprietary level
IPMI response
data byte
number
Data field
1
Completion code
2
Channel number on which the authentication capabilities is being returned. If the channel number in
the request was set to Eh, this returns the channel number for the channel where the request was
received.
3
Authentication type support. Returns the setting of the authentication type enable field from the
configuration parameters for the given channel that corresponds to the requested maximum privilege
level.
[7]
1b =
IPMI v2.0+ extended capabilities available. See Extended capabilities field
below.
0b =
IPMI v1.5 support only.
[6]
Reserved
[5:0]
IPMI v1.5 authentication type(s) enabled for given requested maximum privilege level.
All bits:
1b = Supported
0b = Authentication type not available for use
[5]
OEM proprietary (per OEM identified by the IANA OEM ID in the RMCP ping
response)
[4]
Straight password / key
[3]
Reserved
[2]
MD5
[1]
MD2
Standard command specification
51
Table 27 Get channel authentication capabilities command request and response data (continued)
[0]
4
None
[7:6]
Reserved
[5]
KG status (two-key login status). Applies to v2.0/RMCP+ RAKP authentication only.
Otherwise, ignore as reserved.
0b =
KG is set to default (all 0’s). User key KUID is used in place of KG in RAKP.
(Knowledge of KG not required for activating session.)
1b =
KG is set to non-zero value. (Knowledge of both KG and user password (if
not anonymous login) required for activating session.)
Following bits apply to IPMI v1.5 and v2.0:
[4]
[3]
[2:0]
5
Per-message authentication status
0b =
Per-message authentication is enabled. Packets to the MC must be authenticated
per authentication type used to activate the session, and the user level
authentication setting.
1b =
Per-message authentication is disabled. Authentication type none accepted
for packets to the MC after the session has been activated.
User level authentication status
0b =
User level authentication is enabled. User level commands must be
authenticated per authentication type used to activate the session.
1b =
User level authentication is disabled. Authentication type none accepted for
user level commands to the MC.
Anonymous login status. This parameter returns values that tells the remote console whether
there are users on the system that have ‘null’ usernames. This can be used to guide the way
the remote console presents login options to the user.
[2]
1b = Non-null usernames enabled. (One or more users are enabled that have
non-null usernames).
[1]
1b = Null usernames enabled. (One or more users that have a null username,
but non-null password, are presently enabled).
[0]
1b = Anonymous login enabled. (A user that has a null username and null
password is presently enabled).
For IPMI v1.5: - Reserved
For IPMI v2.0+: - Extended capabilities
[7:2]
Reserved
[1]
1b =
Channel supports IPMI v2.0 connections
[0]
1b =
Channel supports IPMI v1.5 connections
6:8
OEM ID. IANA enterprise number for OEM/Organization that specified the particular OEM
authentication type for RMCP. Least significant byte first. Return 00h, 00h, 00h if no OEM authentication
type available.
9
OEM auxiliary data. Additional OEM-specific information for the OEM authentication type for RMCP.
Return 00h if no OEM authentication type available.
Get Channel Cipher Suites Command
This command can be executed prior to establishing a session with the MC. The command is used
to look up what authentication, integrity, and confidentiality algorithms are supported. The algorithms
are used in combination as ‘Cipher Suites’. This command only applies to implementations that
support IPMI v2.0/RMCP+ sessions.
52
Command specification
The data is accessed 16-bytes at a time starting from List Index field value of 0 in the request and
then repeating the request incrementing the List Index field each time until fewer than 16-bytes of
algorithm data (or no algorithm data) is returned in the response, or the maximum List Index value
has been reached.
A given Cipher Suite may only be available for establishing a session at a particular maximum
privilege level or lower. For example, a Cipher Suite that has a privilege level of ‘Admin’ can
therefore be used for any privilege level, while a privilege level of User can only be used for
establish sessions with a Maximum Requested Privilege Level of User or Callback.
Because the authentication algorithm specifies the steps for authenticating the user, it is a necessary
part of session establishment. Therefore an authentication algorithm number is required for all
Cipher Suites. It is possible that a given Cipher Suite may not specify use of an integrity or
confidentiality algorithm. If the Cipher Suite has integrity and/or confidentiality of 'none', then all
the same steps for establishing a session are used (open session request/response, RAKP messages)
- but the integrity (AuthCode) and confidentiality fields will be absent in packets for that are sent
under the session.
Table 28 Get channel cipher suites command request and response data
IPMI Request
Data Byte
Data field
1
Channel Number
[7:4]
Reserved
[3:0]
Channel number
0h-Bh, Fh = Channel numbers
Eh = retrieve information for channel this request was issued on.
2
Payload Type.
[7:6] - reserved
[5:0] - Payload Type number
Typically 00h (IPMI).
The Payload Type number is used to look up the Security Algorithm support when establishing a
separate session for a given payload type.
3
List Index.
[7]
1b = list algorithms by Cipher Suite
0b = list supported algorithms1
[6]
Reserved
[5:0]
List index (00h-3Fh). 0h selects the first set of 16, 1h selects the next set of 16, and so
on.
00h = Get first set of algorithm numbers. The MC returns sixteen (16) bytes at a time per
index, starting from index 00h, until the list data is exhausted, at which point it will 0
bytes or <16 bytes of list data.
IPMI Response
Data Byte
Data field
1
Completion Code
2
Channel Number
Channel number that the Authentication Algorithms are being returned for. If the channel number
in the request was set to Eh, this will return the channel number for the channel that the request was
received on.
(3:18)
Cipher Suite Record data bytes, per Table 22-18, Cipher Suite Record
Standard command specification
53
Table 28 Get channel cipher suites command request and response data (continued)
Format. Record data is ‘packed’; there are no pad bytes between records. It is possible that record
data will span across multiple List Index values.
The MC returns sixteen (16) bytes at a time per index, starting from index
00h, until the list data is exhausted, at which point it will 0 bytes or <16 bytes of list data.
1
When listing numbers for supported algorithms, the MC returns a list of the algorithm numbers for each algorithm that
the MC supports on a given channel. Each algorithm is listed consecutively and only listed once. There is no requirement
that the MC return the algorithm numbers in any specific order.
Cipher suite records
The data from the Get Channel Cipher Suites command is issued as Cipher Suite records. Tag bits
are used to delimit different fields in the record. Each record starts off with a “Start Of Record”
byte. This byte can be 30h or 31h, indicating that the Start Of Record byte is followed either by
an Cipher Suite ID, or by a OEM Cipher Suite ID plus OEM IANA.
Following the header bytes are algorithm number bytes for the different algorithms that form the
Cipher Suite. Each byte is tagged with the type of algorithm the number is for. Cipher Suite records
are required to list algorithms in the order: Authentication Algorithm number first, Integrity Algorithm
numbers next, and Confidentiality Algorithm numbers last.
If more than one algorithm of a given type is listed in the Cipher Suite Record, then any one of the
algorithms can be used in combination with the other types. For example, if a Cipher Suite response
returns both MD5 and MD2 as Authentication and Integrity algorithms, and xRC4 for confidentiality,
then the allowed combinations are [MD2, MD2, xRC4], [MD2, MD5, xRC4], [MD5, MD2, xRC4],
and [MD5, MD5, xRC4]. A remote console can negotiate for those combinations when establishing
a session.
Table 29 Cipher suite record format
Size
Tag bits
[7:6]
2 or 5
Tag bits
[5:0]
This field starts off with either a C0h or C1h "Start of Record" byte, depending on whether the
Cipher Suite is a standard Cipher Suite ID or an OEM Cipher Suite, respectively.
Standard cipher suite ID
• Byte 1:
[7:0] = 1100_0000b. Start of Record, Standard Cipher Suite.
• Byte 2 (Data following C0h (1100_0000b) start of record byte):
Cipher Suite ID—This value is used a numeric way of identifying the Cipher Suite on the platform.
It’s used in commands and configuration parameters that enable and disable Cipher Suites.
OEM cipher suite
• Byte 1:
[5:0] = 1100_0001b — Start of Record, OEM Cipher Suite.
• Byte 2 (Data following C1h (1100_0001) start of record byte):
OEM Cipher Suite ID
Byte 3:5 - OEM IANA
Least significant byte first. 3-byte IANA for the OEM or body that defined the Cipher
Suite.
1
00b
[5:0] = Authentication Algorithm Number.
A Cipher Suite is only allowed to utilize one Authentication algorithm.
54
Command specification
Table 29 Cipher suite record format (continued)
Size
Tag bits
[7:6]
Tag bits
[5:0]
var
01b
[5:0] = Integrity Algorithm Number(s).
var
10b
[5:0] = Confidentiality Algorithm Number(s).
Cipher suite ID numbers
The following table provides the number ranges and assignments for Cipher Suite IDs. The Cipher
Suite ID values are used as a way to identify different Cipher Suites in configuration parameters
and IPMI commands.
The OEM IDs do not correspond to a particular Cipher Suite, but are handles that can be used to
identify the Cipher Suite on a particular implementation of a MC. I.e. the OEM Cipher Suite
corresponding to “80h” can be different from one MC to the next. These handles can, however,
be used in configuration parameters and commands the same way as the IPMI-defined Cipher
Suite IDs.
The Get Channel Cipher Suites command will return the algorithms used to form a given Cipher
Suite (those numbers can then be used by a remote console in the commands for establishing a
session). For OEM defined Cipher Suites, the Get Channel Cipher Suites command will also return
the IANA for the OEM or body that defined the Cipher Suite.
Table 30 Cipher suite ID numbers
ID
Characteristics
Cipher Suite
Authentication
Algorithm
Integrity Algorithm(s) Confidentiality
Algorithm(s)
0
no password
00h, 00h, 00h
RAKP-none
None
None
1
S
01h, 00h, 00h
RAKP-HMAC-SHA1 None
None
2
S, A
01h, 01h, 00h
3
S, A, E
01h, 01h, 01h
AES-CBC-128
4
S, A, E
01h, 01h, 02h
xRC4-128
5
S, A, E
01h, 01h, 03h
xRC4-40
6
S
02h, 00h, 00h
7
S, A
02h, 02h, 00h
8
S, A, E
02h, 02h, 01h
AES-CBC-128
9
S, A, E
02h, 02h, 02h
xRC4-128
10
S, A, E
02h, 02h, 03h
xRC4-40
11
S, A
02h, 03h, 00h
12
S, A, E
02h, 03h, 01h
AES-CBC-128
13
S, A, E
02h, 03h, 02h
xRC4-128
14
S, A, E
02h, 03h, 03h
xRC4-40
HMAC-SHA1-96
RAKP-HMAC-MD5
None
None
None
HMAC-MD5-128
None
MD5-128
None
80h- OEM specified
BFh
OEM specified
OEM specified
OEM specified
OEM specified
C0h- reserved
FFh
-
-
-
-
Key:
S = Authenticated session setup (correct role, username and password/key required to establish session.)
Standard command specification
55
Table 30 Cipher suite ID numbers (continued)
ID
Characteristics
Cipher Suite
Authentication
Algorithm
Integrity Algorithm(s) Confidentiality
Algorithm(s)
A = Authenticated payload data supported.
E = Authentication and encrypted payload data supported.
Set session privilege level command
This command is available to the MC.
This command is sent in authenticated format. When a session is activated, the session is set to an
initial privilege level. A session that is activated at a maximum privilege level of callback is set to
an initial privilege level of callback and cannot be changed. All other sessions are initially set to
user level, regardless of the maximum privilege level requested in the activate session
command. The remote console must raise the privilege level of the session using this command in
order to execute commands that require a greater-than-user level of privilege.
This command cannot be used to set a privilege level higher than the lowest of the privilege level
set for the user (via the set user access command) and the privilege limit for the channel that
was set via the set channel access command. The specification allows a session to be used
across multiple channels. The maximum privilege limit and authentication are based on the user
privilege and channel limits. Since these can vary on a per channel basis, an implementation
cannot simply assign a single privilege limit to a given session but must authenticate incoming
messages according to the specific settings for the channel and the user on a per-channel basis.
Table 31 Set session privilege level command request and response data
IPMI request
data byte
number
Data field
1
Requested privilege level
• [7:4] — Reserved
• [3:0] — Privilege level
◦
0h — No change, just return present privilege level
◦
1h — Reserved
◦
2h — Change to user level
◦
3h — Change to operator level
◦
4h — Change to administrator level
◦
5h — Change to OEM proprietary level
◦
All other = Reserved
IPMI response
data byte
number
Data field
1
Completion code. Generic, plus following command specific:
• 80h = Requested level not available for this user
• 81h = Requested level exceeds channel and/or user privilege limit
• 82h = Cannot disable user level authentication
2
56
New privilege level (or present level if return present privilege level was selected.)
Command specification
Close session command
This command is used to immediately terminate a session in progress. It is typically used to close
the session that the user is communicating over, though it can be used to terminate other sessions
in progress (provided that the user is operating at the appropriate privilege level, or the command
is executed over a local channel, such as the system interface).
Table 32 Close session command request and response data
IPMI request
data byte
number
Data field
1:4
Session ID. For IPMI v2.0/RMCP+ this is the Managed System Session ID value that was generated
by the MC, not the ID from the remote console. If Session ID = 0000_0000h then an implementation
can optionally enable this command to take an additional byte of parameter data that allows a session
handle to be used to close a session.
(5)
Session Handle. Only present if Session ID = 0000_0000h.
IPMI response
data byte
number
Data field
1
Completion code.
• 87h = Invalid session ID in request
• 88h = Invalid Session Handle in request
• 82h = Cannot disable user level authentication
Get session info command
This command is available to the MC.
This command is used to get information regarding which users presently have active sessions,
and, when available, addressing information for the party that has established the session. A
portion of the response is dependent on the type of channel.
For IPMI v2.0, a previously reserved field has been defined to hold a value indicating whether a
session operating on a channel of channel type = 802.3 LAN is presently using IPMI v1.5 or
v2.0/RMCP+ protocols.
Table 33 Get session info command request and response data
IPMI request
data byte
number
Data field
1
Session index. This value is used to select entries in a logical sessions table maintained by the
management controller. Information for all active sessions can be retrieved by incrementing the session
index from 1 to N, where N is the number of entries in the active sessions table.
• 00h = Return information for the active session associated with the session where this command
was received.
• N = Get information for Nth active session
• FEh = Look up session information according to the session handle passed in this request.
• FFh = Look up session information according to the session ID passed in this request.
Present if session index = FEh
2
Session handle. 00h = reserved.
Present if session index = FFh:
2:5
Session ID. ID of session to look up session information. For IPMI v2.0/RMCP+ this is the session ID
value that was generated by the MC, not the ID from the remote console.
Standard command specification
57
Table 33 Get session info command request and response data (continued)
IPMI response
data byte
number
Data field
1
Completion code
2
Session handle presently assigned to active session. FFh = reserved. Return 00h if no active session
associated with given session index.
3
Number of possible active sessions. This value reflects the number of possible entries (slots) in the
sessions table.
• [7:6] — Reserved
• [5:0] — Session slot count. 1-based.
4
Number of currently active sessions on all channels on this controller.
• [7:6] — Reserved
• [5:0] — Active session count. 1-based. 0=no currently active sessions.
The following parameters are returned only if there is an active session corresponding to the given session index:
5
User ID for selected active session.
• [7:6] — Reserved
• [5:0] — User ID. 000000b = reserved.
6
Operating privilege level
• [7:4] — Reserved
• [3:0] — Ppresent privilege level at which the user is operating.
7
[7:4] — Session protocol auxiliary data. For channel type = 802.3 LAN:
• 0h = IPMI v1.5
• 1h = IPMI v2.0/RMCP+
Channel in which the session was activated.
[3:0] - Channel number
The following bytes 8:18 are optionally returned if channel type = 802.3 LAN:
8:11
IP address of remote console (MS-byte first). Address that was received in the activate session
command that activated the session
12:17
MAC address (MS-byte first). Address that was received in the activate session command that
activated the session.
18:19
Port number of remote console (LS-byte first). Port number that was received in UDP packet that held
the activate session command that activated the session (for IPMI v1.5 packets) or that was
used for in the packet for RAKP Message 3 (for IPMI v2.0 / RMCP+ packets).
The following bytes 8:13 are returned if channel type = asynch. serial/modem:
8
Session/channel activity type:
• 0 = IPMI messaging session active
• 1 = Callback messaging session active
• 2 = Dial-out alert active
• 3 = TAP page active
9
Destination selector for active call-out session. 0 otherwise.
• [7:4] - Reserved
• [3:0] - Destination selector. Destination 0 is always present as a volatile destination that is used
with the alert immediate command.
58
Command specification
Table 33 Get session info command request and response data (continued)
10:13
If PPP connection, the IP address of the remote console. (MS-byte first). 00h, 00h, 00h, 00h otherwise.
The following additional bytes 14:15 are returned if channel type = asynch. serial/modem and connection is PPP:
14:15
Port address of remote console (LS-byte first). Address that was received in the activate session
command that activated the session.
Get AuthCode command
This command is available to the MC.
This command is used to send a block of data to the MC, whereupon the MC returns a hash of
the data together concatenated with the internally stored password for the given channel and user.
This command allows a remote console to send an AuthCode and data block to system software
on a remote platform, whereby the system software can validate the AuthCode by comparing it
with the AuthCode returned by the MC. This enables the MC to serve as a validation agent for
remote requests that come through local system software instead of through a remote session directly
with the MC.
The following is an outline of potential use of this capability. Remote console software could request
that system software perform a particular operation. In response, local system software could deliver
a challenge string to the remote console, which would be required to hash it with the desired
password and return the AuthCode to the local system software. The local system software would
then perform the requested operation only if it found that the AuthCode matched the one returned
by the MC. The local software would typically implement mechanisms to bind the challenge string
to the requested operation to ensure that the challenge string and AuthCode combination only
applied to a given instance of the requested operation, and even from a particular remote console.
•
Managed system delivers a random number token, S, to the console. In this example, the
console uses S to identify a particular request. The managed system tracks outstanding S
values, and expires them either because a valid message was received from a console that
used that token, or because the token was not used within a specified interval.
•
Console determines: X = data to be authenticated
◦
K1 = 16-byte signature of X and a sequence number = hash(X, S,
SW_Authentication_Type). Where SW_Authentication_Type is any signature algorithm
management software wishes to use for providing a signature given X and S.
◦
K2 = 16-byte hash of K1 and the password = hash(K1, PWD, Authentication_Type).
Where Authentication_Type in this case is one of the supported authentication types for
the given MC.
•
Console sends X, S, and K2 to software agents on the managed system.
•
Software agent on the managed system calculates K1 from X and S that it received by locally
calculating K1=hash1(X, S, SW_Authentication_Type). The software also verifies that S is a
valid outstanding token.
•
Managed system passes K1 to MC. MC internally looks up password based on the user ID
passed in the get authcode command and produces: K2BMC= hash(K1, PWD,
Authentication_Type).
•
Managed system accepts data if software agents finds that K2 = K2BMC.
Standard command specification
59
Table 34 Get AuthCode command request and response data
IPMI request
data byte
number
Data field
1
[7:6] - Authentication type / Integrity algorithm number
• 00b = IPMI v1.5 AuthCode algorithms
• 01b = IPMI v2.0/RMCP+ algorithm number
For [7:6] = 00b, IPMI v1.5 AuthCode number:
• [5:4] - Reserved
• [3:0] - Hash type
◦
0h = Reserved
◦
1h = MD2
◦
2h = MD5
◦
3h = Reserved
◦
4h = Reserved (change from IPMI v1.5). This results in an error completion code.
◦
5h = OEM proprietary
◦
All other = Reserved
For [7:6] = 01b, IPMI v2.0/RMCP+ Integrity algorithm number
• 5:0] - Integrity algorithm number. The user password is used as the starting key for the Integrity
algorithm, instead of session-dependent keys such as the session integrity key. The “none” Integrity
number (0) is illegal and results in an error completion code.
2
Channel number
• [7:4] - Reserved
• [3:0] - Channel number
3
User ID. (Software will typically have to use the get user name command to look up the user ID
from a user name).
4:19
Data to hash (must be 16 bytes).
IPMI response
data byte
number
Data field
1
Completion code.
For IPMI v1.5 AuthCode number:
2:17
AuthCode =
For IPMI v2.0 Integrity algorithm number
(2:21)
Resultant hash, per selected Integrity algorithm. Up to 20 bytes. An implementation can elect to return
a variable length field based on the size of the hash for the given integrity algorithm, or can return a
fixed field where the hash data is followed by 00h bytes as needed to pad the data to 20 bytes.
Set channel access command
This command is available to the MC.
This command is used to configure whether channels are enabled or disabled, whether alerting is
enabled or disabled for a channel, and to set which system modes channels are available under.
This configuration is saved in non-volatile storage associated with the MC. The choice of factory
default setting for the non-volatile parameters is left to the implementer or system integrator.
60
Command specification
The active (volatile) settings can be overwritten to allow run-time software to make temporary
changes to the access. The volatile settings are overwritten from the non-volatile settings whenever
the system is reset or transitions to a powered off state.
An implementation can elect to provide a subset of the possible access mode options. If a given
access mode is not supported, the command-specific completion code 83h (access mode not
supported) must be returned.
Table 35 Set channel access command request and response data
Request data
byte number
Data field
1
[7:4] — Reserved
[3:0] — Channel number
2
[7:6]
[5]
[4]
[3]
00b =
Do not set or change channel access.
01b =
Set non-volatile channel access according to bits [5:0].
10b =
Set volatile (active) setting of channel access according to bits [5:0].
11b =
Reserved.
PEF alerting enable/disable. This bit globally gates whether PEF alerts can be issued from
the given channel. Setting this to enable PEF alerting is a necessary part of enabling alerts
for the channel, but for alerts to be generated, the PEF and channel configuration must
also be set to enable alerting. Setting this bit to enable does not alter the PEF configuration
or the alerting settings in the channel's configuration parameters. For example, if PEF is
not configured for generating an alert, enabling PEF alerting with this bit does not change
that configuration. Setting this bit to disable blocks PEF -generated alerts regardless of the
PEF and channel configuration parameters.
0b =
Enable PEF alerting.
1b =
Disable PEF alerting on this channel. The alert immediate command
can still be used to generate alerts.
Per-message authentication enable/disable. This bit is ignored for channels (such as
serial/modem) that do not support per-message authentication.
0b =
Enable per-message authentication.
1b =
Disable per-message authentication. Authentication is required to activate
any session on this channel, but authentication is not used on subsequent
packets for the session.
User level authentication enable/disable. Optional. Return a CCh invalid data field error
completion code if an attempt is made to set this bit, but the option is not supported.
0b =
Enable user level authentication. All user level commands are to be
authenticated per the authentication type that was negotiated when the
session was activated.
1b =
Disable user level authentication. Allow user level commands to be executed
without being authenticated.
If the option to disable user level command authentication is accepted, the
MC will accept packets with authentication type set to none if they contain
user level commands.
For outgoing packets, the MC returns responses with the same authentication
type that was used for the request.
[2:0]
Access mode for IPMI messaging. (PEF alerting is enabled/disabled separately from IPMI
messaging, see bit 5).
000b =
Disabled. Channel disabled for IPMI messaging.
001b =
Pre-boot only. Channel only available when system is in a powered down
state or in BIOS before start of boot.
Standard command specification
61
Table 35 Set channel access command request and response data (continued)
3
010b =
Always available. Channel always available for communication regardless
of system mode. BIOS typically dedicates the serial connection to the MC.
011b =
Shared. Same as always available, but BIOS typically leaves the serial port
available for software use.
Channel privilege level limit. This value sets the maximum privilege level that can be accepted on
the specified channel.
[7:6]
00b =
Do not set or change channel privilege level limit.
01b =
Set non-volatile privilege level limit according to bits [3:0].
10b =
Set volatile setting of privilege level limit according to bits [3:0].
11b =
Reserved.
[5:4]
Reserved.
[3:0]
Channel privilege level limit.
0h =
Reserved.
1h =
Callback level.
2h =
User level.
3h =
Operator level.
4h =
Administrator level.
5h =
OEM proprietary level.
Response data
byte number
Data field
1
Completion code. Generic, plus the following command-specific completion codes:
82h =
Set not supported on selected channel (for example, channel is session-less).
83h =
Access mode not supported.
Get channel access command
This command is available to the MC.
This command is used to return whether a given channel is enabled or disabled, whether alerting
is enabled or disabled for the entire channel, and under what system modes the channel can be
accessed.
Table 36 Get channel access command request and response data
Request data
byte number
Data field
1
[7:4] — Reserved
[3:0] — Channel number
2
[7:6]
[5:0]
Response data
byte number
62
Command specification
Data
field
00b =
Reserved
01b =
Get non-volatile channel access
10b =
Get present volatile (active) setting of channel access
11b =
Reserved
Reserved
Table 36 Get channel access command request and response data (continued)
1
2
Completion code. Generic, plus the command-specific completion code:
82h =
Command not supported for selected channel (for example, the channel is session-less.)
[7:6]
Reserved.
[5]
0b =
Alerting enabled.
1b =
Alerting disabled.
[4]
[3]
[2:0]
3
Per-message authentication enable/disable. This bit is unspecified for channels (such as
serial/modem) that do not support per-message authentication.
0b =
Per message authentication enabled.
1b =
Per message authentication disabled.
User level authentication enable
0b =
User level authentication enabled.
1b =
User level authentication disabled.
Access mode
0h =
Disabled. Channel disabled for communication.
1h =
Pre-boot only. Channel only available when system is in a powered down
state or in BIOS before start of boot.
2h =
Always available. Channel always available for communication regardless
of system mode. BIOS typically dedicates the serial connection to the MC.
3h =
Shared. Same as always available, but BIOS typically leaves the serial port
available for software use.
Channel privilege level limit. This value returns the maximum privilege level that can be accepted on
the specified channel.
[7:4]
Reserved.
[3:0]
Channel privilege level limit.
0h =
Reserved.
1h =
Callback level.
2h =
User level.
3h =
Operator level.
4h =
Administrator level.
5h =
OEM proprietary level.
Get channel info command
This command returns media and protocol information about the given channel. The channel
protocol may vary with changes to the configuration parameters associated with the channel.
Table 37 Get channel info command request and response data
IPMI request
data byte
number
Data field
1
[7:4] — Reserved
[3:0] — Channel number. Use Eh to get information about the channel from which this command is
being executed.
Standard command specification
63
Table 37 Get channel info command request and response data (continued)
IPMI response
data byte
number
Data field
1
Completion code
2
[7:4]
Reserved
[3:0]
Actual channel number. This value typically matches the channel number passed in the
request, unless the request is for channel E, in which case the response returns the actual
channel number.
[7:4]
Reserved
[6:0]
7-bit channel medium type
3
4
5
Channel protocol type:
[7:5]
Reserved
[4:0]
5-bit channel IPMI messaging protocol type
Session support
[7:6]
00b =
Channel is session-less
01b =
Channel is single-session
10b =
Channel is multi-session
11b =
Channel is session-based (return this value if a channel could alternate
between single- and multi-session operation, as can occur with a
serial/modem channel that supports connection mode auto-detect)
Number of sessions that have been activated on the given channel.
[5:0]
6
Active session count. 1-based. 00_0000b = no sessions have been activated on this
channel.
Vendor ID (IANA enterprise number) for OEM/organization that specified the channel protocol.
Least significant byte first. Returns the IPMI IANA for IPMI-specification defined, non-OEM protocol
type numbers other than OEM.
The IPMI enterprise number is: 7154 (decimal). This gives the values F2h, 1Bh, 00h for bytes 6
through 8, respectively. This value is returned for all channel protocols specified in this document,
including PPP.
9:10
Auxiliary channel info
For channel = Fh (system interface):
• Byte 1: SMS interrupt type
◦
00h-0Fh = IRQ 0 through 15, respectively
◦
10h-13h = PCI A-D, respectively
◦
14h = SMI
◦
15h = SCI
◦
20h-5Fh = System interrupt 0 through 63, respectively
◦
60h = Assigned by ACPI / Plug ‘n Play BIOS
◦
FFh = No interrupt / unspecified
◦
All other = Reserved
• Byte 2: Event message buffer interrupt type. See values for byte 1.
64
Command specification
Table 37 Get channel info command request and response data (continued)
For OEM channel types: Byte 1:2 = OEM specified per OEM identified by vendor ID.
All other channel types: Byte 1:2 = reserved.
Set user access command
This command is available to the MC.
This command is used to configure the privilege level and channel accessibility associated with a
given user ID. If this command is not supported, then a single null user (User 1) per channel is
assumed and the privilege level and channel access are determined solely by the settings returned
by the get channel access limits command. If implemented, this command must support
at least the null user (User 1). The number of additional users supported is left to the implementer.
NOTE: The limits set using the set channel access command take precedence over the set
user access command settings. That is, if a given channel is limited to user level then all users
are limited to user level operation regardless of what their user access levels were set to using the
set user access command. Changes made to the user access and privilege levels may not
take affect until the next time the user establishes a session.
Table 38 Set user access command request and response data
Request data
byte number
Data field
1
[7]
[6]
[5]
0b =
Do not change any of the following bits in this byte.
1b =
Enable changing the following bits in this byte.
User restricted to callback
0b =
User privilege limit is determined by the user privilege limit parameter,
below, for both callback and non-callback connections.
1b =
User privilege limit is determined by the user privilege limit parameter for
callback connections, but is restricted to callback level for non-callback
connections. Thus, a user can only initiate a callback when they call in to
the MC, but once the callback connection has been made, the user could
potentially establish a session as an operator.
User link authentication enable/disable (used to enable whether this user’s name and
password information will be used for link authentication, for example PPP CHAP) for
the given channel. Link authentication itself is a global setting for the channel and is
enabled/disabled via the serial/modem configuration parameters.
• 0b = disable user for link authentication
• 1b = enable user for link authentication
[4]
User IPMI messaging enable/disable (used to enable/disable whether this user’s name
and password information will be used for IPMI messaging. In this case, IPMI messaging
refers to the ability to execute generic IPMI commands that are not associated with a
particular payload type. For example, if IPMI messaging is disabled for a user, but that
user is enabled for activating the SOL payload type, then IPMI commands associated
with SOL and session management, such as get SOL configuration parameters
and close session are available, but generic IPMI commands such as get SEL
time are unavailable.)
• 0b = Disable user for IPMI messaging
• 1b = Enable user for IPMI messaging
[3:0]
Channel number
Standard command specification
65
Table 38 Set user access command request and response data (continued)
2
User ID
• [7:6] — Reserved
• [5:0] — User ID. 000000b = Reserved.
3
(4)
User limits
[7:4]
Reserved
[3:0]
User privilege limit. Determines the maximum privilege level that the user is allowed to
switch to on the specified channel.
0h =
Reserved
1h =
Callback
2h =
User
3h =
Operator
4h =
Administrator
5h =
OEM proprietary
Fh =
No access
User session limit (optional). Sets how many simultaneous sessions can be activated with the username
associated with this user. If not supported, the username can be used to activate as many simultaneous
sessions as the implementation supports. Return a CCh invalid data field error completion code if
an attempt is made to set a non-zero value in this field, but the option is not supported.
[7:4]
Reserved
[3:0]
User simultaneous session limit. 1-based. 0h = only limited by the implementations
overall support for simultaneous sessions.
Response data
byte number
Data field
1
Completion code.
NOTE: An implementation does not return an error completion code if the user access level is set
higher than the privilege limit for a given channel. To bring attention to this condition, the software
must check the channel privilege limits set using the set channel access command and provide
notification of any mismatch.
Get user access command
This command is available to the MC.
This command is used to retrieve channel access information and enabled/disabled state for the
given user ID. The command also returns information about the number of supported users.
Table 39 Get user access command request and response data
Request data
byte number
Data field
1
[7:4]
Reserved
[3:0]
Channel number
[7:6]
Reserved
[3:0]
User ID. 000000b = reserved.
2
66
Response data
byte number
Data field
1
Completion code.
Command specification
Table 39 Get user access command request and response data (continued)
NOTE: An implementation does not return an error completion code if the user access level is set
higher than the privilege limit for a given channel. To bring attention to this condition, the software
must check the channel privilege limits and provide notification of the mismatch.
2
Maximum number of user IDs. 1-based. Count includes User 1. A value of 1 indicates only User 1
is supported.
• [7:6] — Reserved
• [5:0] — Maximum number of user IDs on this channel.
3
Count of currently enabled user IDs (1-based). A value of 0 indicates that all users, including User
1, are disabled. This is equivalent to disabling access to the channel.
[7:6]
[5:0]
4
User ID cnable status (for IPMI v2.0 errata 3 and later implementations).
00b =
User ID enable status unspecified. (For backward compatibility with pre-errata
3 implementations. IPMI errata 3 and later implementations should return
the 01b and 10b responses.)
01b =
User ID enabled via set user password command.
10b =
User ID disabled via set user password command.
11b =
Reserved.
Count of currently enabled user IDs on this channel which indicates how many user ID
slots are presently in use.
Count of user IDs with fixed names, including User 1 (1-based). Fixed names in addition to User 1
are required to be associated with sequential user IDs starting from User ID 2.
• [7:6] — Reserved
• [5:0] — Count of user IDs with fixed names on this channel.
5
Channel access
[7]
Reserved
[6]
0b =
User access available during call-in or callback direct connection.
1b =
User access available only during callback connection.
For pre- IPMI v2.0 errata 3 implementations: bits 5:4 are used for determining the count of currently
enabled user IDs in byte 3. Either bit being set to 1b represents an enabled user ID.
For IPMI v2.0 errata 3 and later implementations: the count of enabled User IDs is based on the user
IDs that are presently enabled as reflected in byte 3, bits [7:6], user ID enable status.
NOTE: Some pre- IPMI v2.0 errata 3 implementations may automatically clear bits [5:4], and may
also prevent them from being set, while the user ID is disabled. IPMI v2.0 errata 3 and later
implementations should not alter bits [5:4] based on whether or not a user ID is enabled.
[5]
[4]
[3:0]
0b =
User disabled for link authentication
1b =
User enabled for link authentication
0b =
User disabled for IPMI messaging
1b =
User enabled for IPMI messaging
User privilege limit for given channel
0h =
Reserved
1h =
Callback
2h =
User
3h =
Operator
Standard command specification
67
Table 39 Get user access command request and response data (continued)
4h =
Administrator
5h =
OEM proprietary
Fh =
No access. This value does not add to, or subtract from, the number of
enabled user IDs
Set user name command
This command is available to the MC.
This command adds a new user ID. The names are stored as a logical array within non-volatile
storage associated with the management controller. Names are stored and retrieved using the user
ID as the index into the logical array. There is no configurable name for User ID 1. User ID 1 is
reserved for the null user name, User 1. Null user is not supported.
The management controller does not prevent duplicate user names from being enabled for the
same channel. It is the responsibility of configuration software to ensure that duplicate user names
are not enabled simultaneously for the same channel.
Having duplicate user names does not cause functional problems with the MC because the MC
uses the first username match that it finds. However, it could be confusing to the user if they have
duplicate user names enabled for a given channel, since only the settings for the first encountered
user name would be used by the MC.
This command is highly recommended for session-based channels. It is also recommended that the
implementation support multiple users with configurable user names.
Table 40 Set user name command request and response data
Request data
byte number
Data field
1
User ID
• [7:6] — Reserved
• [5:0] — User ID. 000000b = reserved. (User ID 1 is permanently associated with User 1, the
null user name).
2:17
User name string in ASCII, 16 bytes, max. Strings with fewer than 16 characters are terminated with
a null (00h) character and 00h padded to 16 bytes. When the string is read back using the get
user name command, those bytes return as 0’s.
Response data
byte number
Data field
1
Completion code.
Get user name command
This command is available to the MC.
This command is used to retrieve user name information that was set using the set user name
command. Configuration software can use this command to retrieve user names.
Table 41 Get user name command request and response data
Request data
byte number
Data field
1
User ID
• [7:6] — Reserved
• [5:0] — User ID. 000000b = reserved.
68
Command specification
Table 41 Get user name command request and response data (continued)
Response data
byte number
Data field
1
Completion code.
2:17
User name string in ASCII, 16 bytes, max. Strings with fewer than 16 characters are terminated with
null (00h) characters filling in the remaining bytes. MC does not check to see whether string data is
printable or not. Only character that MC interprets is null (00h).
Set user password command
This command is available to the MC.
This command is used to set and change user passwords and to enable and disable user IDs. If
no password protection is desired for a given user, the password must be stored as an ASCII
null-string. The management controller firmware forces the remaining fifteen bytes to 00h and stores
the password as sixteen bytes of 00h.
The password is stored as a 16-byte or 20-byte (for IPMI v2.0/RMCP+) octet string. All values
(0-255) are allowed for every byte. The management controller does not check the format or
interpret values that are passed in with this command.
Software is allowed to place additional restrictions on what passwords can be entered, in which
case it is the responsibility of configuration software and console software to stay in synch with
that definition. For example, remote console software could restrict passwords to the printable
ASCII character set in order to simplify direct keyboard entry. If this is done, any companion
configuration utility should ensure that the user does not configure the managed system with
non-printable passwords. Otherwise, it would be possible for the management controller to be
configured with passwords that could not be entered via the remote console utility.
Table 42 Set user password command request and response data
Request data
byte number
Data field
1
User ID
For IPMI v2.0, the MC supports 20-byte passwords for all supported user IDs that have configurable
passwords. The MC maintains an internal tag that indicates whether the password was set as a
16-byte or as a 20-byte password.
A 16-byte password can be used in algorithms that call for a 20-byte password. In this case, the
16-byte password is padded with 0’s to 20- bytes.
The test password operation returns the test failed error completion code if an attempt is made to
test a password that was stored as a 20-byte password as a 16-byte password (per password size
bit 7), and vice versa. The test password operation can be used to determine whether a password
has been stored as 16-bytes or 20-bytes.
A password that has been stored as a 20-byte password cannot be used for establishing an IPMI
v1.5 session. If it is necessary to configure the same password for both IPMI v2.0 and IPMI v1.5
access, it must be set as a 16-byte password.1The password is padded with 0’s as necessary for
IPMI v2.0 / RMCP+ use.
[7]
2
Password size
1b =
Set 20-byte user password/key.
0b =
Set 16-byte user password/key (IPMI v1.5 backward compatible).
[6]
Reserved
[5:0]
User ID. 000000b = reserved. (User ID 1 is permanently associated with User 1, the null
user name).
[7:2]
Reserved
[1:0]
Operation
Standard command specification
69
Table 42 Set user password command request and response data (continued)
00b =
Disable user
01b =
Enable user
10b =
Set password
11b =
Test password. Compares the password data given in the request with the
presently stored password and returns an OK completion code if there is a
match. Otherwise, an error completion code is returned. (See the completion
code description in the response data.)
For password size = 16 bytes:
3:18
Password data. This is a required, fixed length field when used for the set and test password
operations. If the password is entered as an ASCII string, it must be null (00h) terminated and 00h
padded if the string is shorter than 16 bytes. This field is not needed if the operation is disable user
or enable user. If this field is present for those operations, the MC ignores the data.
For password size = 20 bytes:
3:22
Password data. This is a required, fixed length field when used for the set- and test password
operations. If the password is entered as an ASCII string, it must be null (00h) terminated and 00h
padded if the string is shorter than 20 bytes. This field is not needed if the operation is disable user
or enable user. If this field is present for those operations, the MC ignores the data.
Response data
byte number
Data field
1
Completion code. Generic, plus the command-specific completion codes:
1
80h =
Mandatory. Password test failed. Password size is correct, but the password data does
not match the stored value.
81h =
Mandatory. Password test failed. Wrong password size was used.
The same user name can be used with different passwords on different channels. The MC scans user names until it finds
the first one that is enabled for a particular channel. Thus, it is possible for a MC implementation to be configured to
allow a 20-byte password on one channel, and a 16-byte password on another channel for the same user name. This
requires multiple user entries.
RMCP+ support and payload commands
This sections list the commands associated with discovering, enabling, and activating payloads
under IPMI v2.0/RMCP+ as well as updates and additions to IPMI commands to support IPMI
v2.0/RMCP+ sessions, authentication, and configuration.
70
Command specification
NOTE: The following commands remain available for payloads if IPMI messaging payload type
is disabled:
•
Deactivate payload
•
Suspend/resume payload encryption (as defined for given payload)
•
Get payload activation status
•
Get channel payload version command
•
Set session privilege level
•
Close session
Table 43 (page 71) defines the payload type numbers and ranges for Payload Type Handles.
Table 43 Payload type numbers
Number
Type
Major format
version
Minor format
version
Standard Payload Types
0h
IPMI Message
1h
0h
1h
SOL (serial over LAN)
1h
0h
Session Setup Payload Types
10h
RMCP+ Open Session Request
1h
0h
11h
RMCP+ Open Session Response
1h
0h
12h
RAKP Message 1
1h
0h
13h
RAKP Message 2
1h
0h
14h
RAKP Message 3
1h
0h
15h
RAKP Message 4
1h
0h
Activate payload command
This command is available to the MC.
This command is used for activating and deactivating a payload type under a given IPMI session.
The ability to execute this command is determined via the user’s privileges as assigned via the set
user payload access command.
The activate payload command may return a port number that is separate from the port
number for the session that the command was issued under. In this case, the remote console must
establish a session on the port number that the activate session command returned. The
remote console must then issue the activate payload command on that port number in order
to actually activate the payload. It is possible that the remote console already had a session active
on the given port number. If the privileges associated with that session are sufficient (this is typically
the case unless the remote console activated the session at a privilege level that was lower than
the maximum level for the user) the remote console can re-use the existing session and just use the
activate payload command to activate the new payload type.
BMCs may have limited resources for handling multiple sessions. It is highly recommended that a
remote console avoids creating multiple sessions and shares sessions for multiple payloads whenever
possible.
The activate payload command is only accepted over a channel on which payloads can be
activated. For example, the activate payload command cannot be executed from the IPMB.
Standard command specification
71
Table 44 Activate payload command request and response data
Request data
byte number
Data field
1
• [7:6] — Reserved
• [5:0] — Payload type. IPMI message payloads do not need to be explicitly activated. A payload
that is required to be launched over a different port than that used to establish the initial IPMI
session is only required to support the IPMI commands needed by the particular payload type.
2
Payload instance
• [7:4] — Reserved
• [3:0] — Payload instance. 1-based. 0h = reserved.
3:6
Auxiliary request data. Additional payload-specific parameters to configure behavior of the payload
when it becomes activated. Ignored if no auxiliary data is specified for a given payload type.
For payload type = SOL:
• Byte 1
◦
[7] — Encryption activation. The encryption algorithms specified in this document must be
used with authentication. The MC returns an error completion code if an attempt is made to
activate encryption without also activating authentication.
– 1b: Activate payload with encryption. All SOL payload data from the MC is encrypted, if
encryption was negotiated at the time of session activation.
– 0b: Activate payload without encryption. MC sends all SOL payload data unencrypted, if
that option is allowed. (An SOL configuration parameter allows a system to be configured
to require encryption for all SOL transfers).
◦
[6] — Authentication activation.
– 1b: Activate payload with authentication. All SOL payload data from the MC is
authenticated, if authentication was negotiated at the time of session activation
– 0b: Activate payload without authentication. MC sends all SOL payload data
unauthenticated, if that option is allowed. (An SOL configuration parameter allows a system
to be configured to require authentication for all SOL transfers).
◦
[5] — Test mode (optional). Enables DCD and DSR to be manually controlled by the remote
console and the reporting of RTS and DTR state via the SOL operation/status byte. This can
be used to facilitate software testing of the 16550 UART interface.
– 1b = Activate test mode. If test mode is not supported, bit [0] of the auxiliary response data
will be returned as 0b.
– 0b = Deactivate test mode.
◦
[4] — Reserved
◦
[3:2] — Shared serial alert behavior. The following settings determine what happens to serial
alerts if IPMI over serial and SOL are sharing the same baseboard serial controller.
– 11b: Reserved
– 10b: Serial/modem alerts succeed while SOL active.
– 01b: Serial/modem alerts deferred while SOL active.
– 00b: Serial/modem alerts fail while SOL active.
◦
[1] — SOL startup handshake
– 0b: MC asserts CTS and DCD/DSR to baseboard upon activation.
– 1b: CTS and DCD/DSR remain deasserted after activation. Remote console must send an
SOL payload packet with control field settings to assert CTS and DCD/DSR. (This enables
72
Command specification
Table 44 Activate payload command request and response data (continued)
the remote console to first alter volatile configuration settings before hardware handshake
is released).
◦
[0] — Reserved
• Byte 2:4 — Reserved, write a 00h
Response data
byte number
Data field
1
Completion code. Generic plus the command-specific completion codes: (An error completion code
should be returned if the payload type in the request is set to IPMI Message ( 0h ) ).
• 80h: Payload already active on another session (required). This will be returned any time an
attempt is made to activate a payload type when that type is already activated for another session,
and when the MC only supports one instance of that payload type running at a time.
• 81h: Payload type is disabled (optional). Given payload type is not configured to be enabled
for activation.
• 82h: Payload activation limit reached. Cannot activate given payload type because the maximum
number of simultaneous instances of that payload type are already running.
• 83h: Cannot activate payload with encryption.
• 84h: Cannot activate payload without encryption. MC requires encryption for all payloads for
given privilege level.
2:5
Auxiliary response data. LS-byte first. For payload = SOL:
• [31:1] — Reserved. Return as 0s.
• [0]
◦
0b = Test mode not supported / enabled.
◦
1b = Test mode enabled.
6:7
Inbound payload size. Maximum size of payload data field from remote console to MC. Excludes
size of confidentiality header and trailer fields, if any. 1-based.
8:9
Outbound payload size. Maximum size of payload data field from MC to remote console. Excludes
size of confidentiality header and trailer fields, if any. 1-based.
10:11
Payload UDP port number. UDP port number through which the payload can be transferred. If the
port number is the same as the port that was used to establish the IPMI session, then SOL payload
transfers are now available under that IPMI session on that port. Otherwise, the remote console needs
to establish a separate IPMI session to the specified port number using the same IP address, username
and password/key information that was used to establish the IPMI session. SOL payload transfers
are then available over that session.
If the remote console already has an IPMI session established on that port for a different payload
type, the SOL payload type is also available over that session - provided that the session was
established at a privilege level that matches the privilege level and authentication required for SOL.
Otherwise, the remote console needs to close that session and reestablish it at the necessary privilege
level.
12:13
Payload VLAN number - FFFFh if VLAN addressing is not used.
Deactivate payload command
This command is available to the MC.
This command is used to terminate use of a given payload on an IPMI session. This type of traffic
then becomes freed for activation by another session, or for possible re-activation under the present
session. The deactivate payload command does not cause the session to be terminated. The
close session command should be used for that purpose. A remote console application does
not need to explicitly deactivate payload(s) before terminating a session. When a session terminates,
all payloads that were active under that session are automatically deactivated by the MC.
Standard command specification
73
Table 45 Deactivate payload command request and response data
Request data
byte number
Data field
1
• [7:6] — Reserved
• [5:0] — Payload type.
2
Payload instance
• [7:4] — Reserved
• [3:0] — Payload instance. 1-based. 0h = reserved.
3:6
Payload auxiliary data. Additional parameters to configure behavior of the payload when it becomes
deactivated. Ignored if no auxiliary data is specified for given payload type.
For payload type = SOL, (no auxiliary data) write as 0000_0000h:
Response data
byte number
Data field
1
Completion code. Generic plus the command-specific completion codes: (An error completion code
should be returned if the payload type in the request is set to “IPMI Message” ( 0h ) ).
• 80h: Payload already deactivated.
• 81h: Payload type is disabled (optional). Given payload type is not configured to be enabled
for activation.
Suspend/resume payload encryption command
This command enables a remote console to control whether payload data from the MC is sent
encrypted or not. Since encryption can be a significant burden on software, this command provides
a mechanism to allow higher performance by operating without encryption and only activating
encryption when it is required for data confidentiality. The command can also trigger a regeneration
of the encryption Initialization Vector and re-initialization of the encryption state machine for
algorithms such as xRC4 that use the same initialization vector for multiple packets.
The extent at which this command can control encryption of data from the MC is dependent on
the payload definition. Some payload definitions may use a mix of encrypted and unencrypted
payload data transfers. For example, a payload may implement a ‘request/response’ protocol,
where the MC would return an encrypted or unencrypted response based on whether the request
from the remote console was encrypted or unencrypted. In this case, the command may only affect
data that is autonomously generated by the MC. Other payload definitions may just use whatever
encryption the session was activated with, and offer no ‘run-time’ control of encryption/decryption,
while other payload definitions may be ‘stream based’ where it is desirable for the remote console
to be able to select when payload data is from the MC is encrypted or not.
The Suspend/Resume Payload Encryption command is only accepted from the channel that the
payload was activated on.
Table 46 Payload-specific encryption behavior
Payload Type = IPMI Messaging
• Encrypted requests from the remote console will get encrypted responses from the MC.
• The Suspend/Resume Payload Encryption command controls whether asynchronous (unrequested) messages from
the MC are encrypted or not.
• PET Traps (which are actually separate from IPMI Messaging) are always sent unencrypted.
74
Command specification
Table 46 Payload-specific encryption behavior (continued)
Payload Type = SOL
• The SOL configuration parameters allow configuring the system to require that SOL data be encrypted.
• The MC will transmit SOL payload data according to encryption settings that were selected when the payload was
activated unless over-ridden by SOL configuration parameters.
• The Suspend/Resume Payload Encryption command controls whether SOL Payload data is encrypted or not.
Table 47 Suspend/resume payload command request and response data
IPMI
request
data byte
number
Data field
1
[7:6] - reserved
[5:0] - payload type (See Table 13-16, Payload Type Numbers)
2
Payload Instance
[7:4] - reserved
[3:0] - payload instance. 1-based. 0h = reserved.
3
[7:2] - reserved
[4:0] - Operation
• 2h = Regenerate initialization vector. For xRC4 encryption, this causes the MC to reinitialize the xRC4
state machine, reset the data offset, and deliver a new Initialization Vector value in the next encrypted
packet it sends to the remote console. Because of processing delays and potential tasks in progress,
the remote console may receive additional packets from the MC that are encrypted using the prior
Initialization Vector before getting packets that use the new IV.
• 1h = Resume/Start encryption on all transfers of specified payload data from the MC.
• 0h = Suspend encryption on all transfers of specified payload messages from the MC.
IPMI
response
data byte
number
Data field
1
Completion Code
Generic plus the following command-specific completion codes:
• 80h: Operation not supported for given payload type.
• 81h: Operation not allowed under present configuration for given payload type.
• 82h: Encryption is not available for session that payload type is active under.
• 83h: The payload instance is not presently active.
Set channel security keys command
The Set Channel Security Keys command provides a standardized interface for initializing system
unique keys that are used for the pseudo-random number generator key (KR) and the key-generation
key (KG) used for RMCP+. Implementing the ability to set Kr is optional. The command is provided
mainly to offer a common interface for BMCs that are not pre-configured with a KR values, or which
may need their KR values to be restored if they are lost due to a data corruption or firmware update.
The command includes a mechanism that allows specified keys to be “locked”. Once locked, the
key value cannot be read back or rewritten via standard IPMI commands. It is possible, however,
that a firmware update or re- installation procedure may cause the keys to be cleared or unlocked.
Software utilities responsible for MC initial installation and setup should check to see whether keys
have been locked and if not, should initialize them appropriately and lock them.
Standard command specification
75
If this command is not supported, it indicates that the keys are either permanently pre-configured,
or that they are only configurable via an OEM/MC-specific mechanism.
Request data
byte number
Data field
1
Channel Number
[7:4] - reserved
[3:0] - Channel Number
NOTE: This command only applies to channels that support RMCP+, if the channel does not support
RMCP+ the command will return an error completion code.
2
Operation
[7:2] - reserved
[1:0] - Operation
• 00b = read key
MC returns value of specified key, provided key has not yet been locked. Some BMCs may allow
the key to be re-written if it does not match the expected value. Other BMCs may only allow one
‘set’ operation. If the key value has not yet been initialized, the MC will return 0’s for the key value.
Utility software responsible for MC installation and initial setup can use this operation to also check
to see whether keys have been initialized and locked.
• 01b = set key
MC writes given key value to non-volatile storage.
• 10b = lock key
MC locks out modification or reading the key value. Once a key has been locked, it is not cannot
be rewritten or read via IPMI specified commands.
• 11b = reserved
3
Key ID
[7:0] - key ID.
• 00h = RMCP+ “KR” key (20 bytes). The “KR” key is used as a unique value for random number
generation. Note: A MC implementation is allowed to share a single KR value across all channels.
A utility can set KR and lock it for one channel, and then verify it has been set and locked for any
other channels by using this command to read the key from other channels and checking the ‘lock
status’ field for each channel to see if it matches and is locked.
• 01h = RMCP+ “KG” key (20 bytes). “KG” key acts as a value that is used for key exchange for
the overall channel. This key is cannot be locked, to ensure a password/key configuration utility
can set its value. This value is used in conjunction with the user key values (passwords) in
RAKP-HMAC- SHA1 and RAKP-HMAC-MD5 authentication. I.e. the remote console needs to have
a-priori knowledge of both this key value and the user password setting, in order to establish a
session. KG must be individually settable on each channel that supports RMCP+.
• All other = reserved
(4:M)
Key value. Value for specified key. Used for “set” Operation only. Otherwise, this field is not used in
the request. The MC will ignore any bytes following the ‘Key ID’ byte.
Response data Data field
byte number
1
Completion Code. Generic, plus following command-specific completion codes:
• 80h = Cannot perform set / confirm. Key is locked (mandatory)
• 81h = insufficient key bytes
• 82h = too many key bytes
• 83h = key value does not meet criteria for specified type of key
• 84h = KR is not used. MC uses a random number generation approach that does not require a
KR value.
76
Command specification
2
7:2 - reserved.
1:0 - lock status
• 00b = key is not lockable.
• 01b = key is locked.
• 10b = key is unlocked.
• 11b = reserved
(3:N)
Key value.
The MC returns the specified key value when the Operation is set to “read key”. Otherwise, the MC
returns no additional bytes past the completion code.
Get system interface capabilities command
This command can be used to determine whether the SSIF supports multi-part transactions, and
what size of IPMI messages can be transferred. The Get System Interface Capabilities command
is mandatory for BMCs that implement multi-part writes or reads. Thus, software can assume that
if the Get System Interface Capabilities command is not implemented, the interface only supports
single-part writes and reads.
Request
data byte
number
Data field
1
System Interface Type
[7:4] - reserved
[3:0] - System Interface Type (For BT use the Get BT Interface Capabilities command)
• 0h = SSIF
• 1h = KCS
• 2h = SMIC
• all other = reserved
Response
data byte
number
Data field
1
Completion Code
2
Reserved. Returned as 00h.
For System Interface Type = SSIF:
3
[7:6] - Transaction support
• 00b = only single-part reads/writes supported.
• 01b = multi-part reads/writes supported. Start and End transactions only.
• 10b = multi-part reads/writes supported. Start, Middle, and End transactions supported.
• 11b = reserved.
[5:4] - reserved.
[3] - PEC support.
• 1b = implements PEC. MC will start using PEC in read transactions after it receives any SSIF write
transaction that includes a valid PEC. The MC ceases using PEC if it receives an SSIF write transaction
that does not include PEC.
• 0b = does not support PEC. Note that a MC implementation may reject write transactions that include
a PEC byte.
Standard command specification
77
[2:0] - SSIF Version
• 000b = version 1 (version defined in this specification).
4
Input message size in bytes. (1 based.)
Number of bytes of IPMI message data that the MC can accept. This number does not include slave address,
SMBus length , PEC, or SMBus CMD bytes, just the IPMI message data. A MC that just supports single-part
writes would return 32 (20h) for this value. A MC that supports multi-part Start and End would return a
value from 33 to 64. A MC that supports multi-part with Middle transactions would return a value from 65
to 255.
5
Output message size in bytes. (1 based.)
Maximum number of bytes of IPMI message data that can be read from the MC. This number does not
include slave address, SMBus length, PEC, SMBus CMD bytes, special bytes (such as the special bytes
following the length byte in the multi -part read middle and end transactions) just the IPMI message data.
A MC that just supports single-part reads would return 20h (32) for this value. A MC that supports multi-part
Start and End would return a value from 33 to 62 (the reason this is 62 instead of 64 is that there are two
special bytes after the length byte.) A MC that supports multi-part with Middle transactions would return a
value from 63 to 255.
For System Interface Type = KCS or SMIC
3
[7:3] - reserved
[2:0] - System Interface Version
• 000b = version 1 (conformant with KCS or SMIC interface as defined in this specification).
4
Input maximum message size in bytes. (1 based.)
Largest number of bytes that can be transferred in a KCS FFh means 255 or more.
Get payload activation status command
This command is available to the MC.
This command returns how many instances of a given payload type are presently activated, and
how many total instances can be activated.
Table 48 Get payload activation status command request and response data
Request data
byte number
Data field
1
Payload type number - number of the standard payload type or OEM payload handle from which
to retrieve status.
Response data
byte number
Data field
1
Completion code
2
Instance capacity
3
[7:4]
Reserved.
[3:0]
Number of instances of a given payload type that can be simultaneously activated on
MC. 1-based. 0h = reserved.
[7]
1b =
Instance 8 is activated.
0b =
Instance 8 is deactivated.
1b =
Instance 7 is activated.
0b =
Instance 7 is deactivated.
1b =
Instance 1 is activated.
[6]
...
[0]
78
Command specification
Table 48 Get payload activation status command request and response data (continued)
4
[7]
[6]
0b =
Instance 1 is deactivated.
1b =
Instance 16 is activated.
0b =
Instance 16 is deactivated.
1b =
Instance 15 is activated.
0b =
Instance 15 is deactivated.
1b =
Instance 9 is activated.
0b =
Instance 9 is deactivated.
...
[0]
Get payload instance info command
This command is available to the MC.
This command returns information about a specific instance of a payload type. It is primarily used
by software that may want to negotiate with an application that is presently using the given payload
type. It accomplishes this by using the session ID returned from this command with the get session
info command to look up the addressing information for the party that activated the payload.
The application may then use that information to establish a direct dialog with the application that
presently owns the payload (this inter-application communication is not defined in the IPMI
specifications).
Table 49 Get payload instance info command request and response data
Request data byte Data field
number
1
Payload type number - number of the standard payload type or OEM payload handle from which
to retrieve status.
2
Payload instance. 1-based. 0h = reserved.
Response data
byte number
Data field
1
Completion code. An error completion code should be returned if the payload type in the request
is set to IPMI message ( 0h ) .
2:5
Session ID - ID of session on which the instance is presently activated. (The managed system session
ID that the MC generated when the session was activated). 00_00_00_00h if the given instance
is not activated. Remote software can use this information with the get session info command
to identify the remote console that presently is using a given payload type.
6:13
Payload-specific information (8-bytes)
For payload type = SOL:
• Byte 1: Port number, a number representing the system serial port that is being redirected.
1-based. 0h = unspecified. Used when more than one port can be redirected on a system.
• Byte 2: 8 = reserved.
Set user payload access command
This command is available to the MC.
This command controls whether the specified user has the ability to activate the specified payload
type on the given channel. The command uses bitfields to allow a configuration utility to use a
single command to set enable/disable multiple payloads at a time. Standard payloads are set
separately from OEM payload enables. The command would be issued at least once with standard
Standard command specification
79
payloads selected to set the configuration for standard payloads, and then at least once with OEM
payloads selected to set the configuration for OEM payloads.
Table 50 Set user payload access command request and response data
Request data byte Data field
number
1
Channel number
• [7:4] — Reserved
• [3:0] — Channel number
2
[7:6] - Operation
• 00b = Enable. Writing a “1b” to enable/disable bit enables the corresponding payload.
Writing “0b” to bit causes no change to enabled/disabled state.
• 01b = Disable. Writing a “1b” to bit disables the corresponding payload. Writing ”0b” to bit
causes no change to enabled/disabled state.
• 10b, 11b = Reserved
[5:0] — User ID. 000000b = reserved.
3
Standard payload enables 1
• [7:2] — Reserved for standard payloads 2-7 enable/disable bits.
• [1] — Standard payload 1 (SOL) enable/disable
• [0] — Reserved. IPMI messaging is enabled/disabled for users via the set user access
command.
4
Standard payload enables 2 - reserved
5
OEM payload enables 1
• [7] - OEM payload 7 enable/disable
• [6] - OEM payload 6 enable/disable
• [5] - OEM payload 5 enable/disable
• [4] - OEM payload 4 enable/disable
• [3] - OEM payload 3 enable/disable
• [2] - OEM payload 2 enable/disable
• [1] - OEM payload 1 enable/disable
• [0] - OEM payload 0 enable/disable
6
OEM payload enables 2 - reserved
Response data
byte number
Data field
1
Completion code. An implementation will not return an error completion code if the user access
level is set higher than the privilege limit for a given channel. If it is desired to bring attention to
this condition, it is up to software to check the channel privilege limits set using the set channel
access command and provide notification of any mismatch.
Get user payload access command
This command is available to the MC.
The get user payload access command returns the user payload enable settings that were
set using the set user payload access command.
80
Command specification
Table 51 Get user payload access command request and response data
Request data byte Data field
number
1
Channel number
• [7:4] — Reserved
• [3:0] — Channel number
2
User ID
• [7:6] — Reserved
• [5:0] - User ID. 000000b = reserved
Response data
byte number
Data field
1
Completion code
2
Standard payload enables 1
• [7:2] — Reserved for standard payloads 2-7 enabled/disabled state.
• [1]
◦
1b = Standard payload 1 enabled (SOL)
◦
0b = Standard payload 1 disabled
• [0] — Reserved.
3
Standard payload enables 2 - reserved
4
OEM payload enables 1. For each bit: 1b = payload enabled, 0b = payload disabled.
• [7] - OEM payload 7 enabled/disabled
• [6] - OEM payload 6 enabled/disabled
• [5] - OEM payload 5 enabled/disabled
• [4] - OEM payload 4 enabled/disabled
• [3] - OEM payload 3 enabled/disabled
• [2] - OEM payload 2 enabled/disabled
• [1] - OEM payload 1 enabled/disabled
• [0] - OEM payload 0 enabled/disabled
5
OEM payload enables 2 - reserved
Get channel payload support command
This command is available to the MC.
This command enables local and remote console software to determine what payloads are enabled
on the given MC. The command returns a bitfield indicating which payload type numbers can be
activated on the given channel.
Table 52 Get channel payload support command request and response data
Request data byte Data field
number
1
Channel number
• [7:4] — Reserved
• [3:0] — Channel number
Response data
byte number
Data field
Standard command specification
81
Table 52 Get channel payload support command request and response data (continued)
1
Completion code
2
• [7] = Standard payload type #7 supported
• ...
• [0] = Standard payload type #0 supported
3
• [7] = Standard payload type #15 (0Fh) supported
• ...
• [0] = Standard payload type #8 supported
4
• [7] = Session setup payload type #7 supported
• ...
• [0] = Session setup payload type #0 supported
5
• [7] = Session setup payload type #15 (0Fh) supported
• ...
• [0] = Session setup payload type #8 supported
6
• [7] = Payload type 27h (OEM7) used
• ...
• [0] = Payload type 20h (OEM0) used
7
• [7] = Payload type 2Fh (OEM15) used
• ...
• [0] = Payload type 28h (OEM8) used
8:9
Reserved. Return as 0000h
Get channel payload version command
This command is available to the MC.
This command returns version information for the given payload type. The version number has
major and minor parts. The major part of the version should only increment when there are
significant changes to the payload format, commands, or payload-specific protocols that break
backward compatibility with earlier versions. The minor part of the version increments when there
are extensions to the payload format that are significant but are backwards compatible with earlier
versions under the same major version number. An example of a major change would be a change
to the payload activation process that would prevent earlier applications from activating the given
payload type. An example of a minor format version change would be the definition of commands
for new functions that did not exist under the previous format, but if unused, do not interfere with
the operation of older applications.
Table 53 Get channel payload version command request and response data
Request data byte Data field
number
1
Channel number
• [7:4] — Reserved
• [3:0] — Channel number
2
82
Command specification
Payload type number/payload type handle - number of the standard payload type or OEM payload
handle for which to retrieve status. See Table 43 (page 71).
Table 53 Get channel payload version command request and response data (continued)
Response data
byte number
Data field
1
Completion code. Generic plus command-specific completion code: 80h — Payload type not
available on given channel.
2
Format version
• [7:4] - Major format version. BCD encoded (0 to 9).
• [3:0] - Minor format version. BCD encoded (0 to 9). Software should present version data to
the user in the format “major.minor”. For example, 10h —>1.0.
The format version for the SOL payload implemented per this specification is 1.0 (10h).
IPMI LAN Device Commands
This section defines the configuration and control commands that are specific to LAN channels.
None of the commands in the following table are required unless a LAN channel is implemented.
See Table 125 (page 160) for the specification of the Network Function and Command (CMD)
values and privilege levels for these commands.
Set LAN configuration parameters command
This command is used for setting parameters such as the network addressing information required
fro IPMI LAN-operation.
Table 54 Set LAN configuration parameters request and response data
Request data byte Data field
number
1
Channel number
• [7:4] — Reserved
• [3:0] — Channel number
2
Parameter selector
3:N
Configuration parameter data, per the table.
Response data
byte number
Data field
1
Completion code.
• 80h = parameter not supported.
• 81h = attempt to set the ‘set in progress’ value (in parameter #0) when not in the ‘set complete’
state. (This completion code provides a way to recognize that another party has already
‘claimed’ the parameters.)
• 82h = attempt to write read-only parameter.
• 83h = attempt to read write-only parameter.
Get LAN configuration parameters command
This command is used for retrieving the configuration parameters from the set LAN
configuration parameters command.
Standard command specification
83
Table 55 Get LAN configuration parameters request and response data
Request data byte Data field
number
1
[7]
• 0b = Get parameter
• 1b = Get parameter revision only
[6:4] - Reserved
[3:0] - Channel number
2
Parameter selector
3
Set Selector. Selects a given set of parameters under a given Parameter selector value. 00h
if parameter doesn’t use a Set Selector.
4
Block Selector (00h if parameter does not require a block number)
Response data
byte number
Data field
1
Completion Code.
Generic codes, plus following command-specific completion code(s):
80h = parameter not supported.
2
[7:0] - Parameter revision.
Format: MSN = Present revision. LSN = Oldest revision with which the parameter is backward
compatible. 11h for parameters in this specification.
The following data bytes are not returned when the ‘get parameter revision only’ bit is 1b.
3:N
Configuration parameter data, per Table 56 (page 84). If the rollback feature is implemented,
the MC makes a copy of the existing parameters when the ‘set in progress’ state becomes
asserted (See the Set In Progress parameter #0). While the ‘set in progress’ state is active,
the MC will return data from this copy of the parameters, plus any uncommitted changes
that were made to the data. Otherwise, the MC returns parameter data from non-volatile
storage.
Table 56 LAN configuration parameters
Parameter
#
Parameter Data (non-volatile unless otherwise noted)1
Set In Progress
0
data 1 - This parameter is used to indicate when any of the following parameters
are being updated, and when the updates are completed. The bit is primarily
provided to alert software than some other software or utility is in the process of
making changes to the data. An implementation can also elect to provide a
‘rollback’ feature that uses this information to decide whether to ‘roll back’ to the
previous configuration information, or to accept the configuration change.
(volatile)
If used, the roll back shall restore all parameters to their previous state. Otherwise,
the change shall take effect when the write occurs.
[7:2] - reserved
[1:0] • 00b = set complete. If a system reset or transition to powered down state occurs
while ‘set in progress’ is active, the MC will go to the ‘set complete’ state. If
rollback is implemented, going directly to ‘set complete’ without first doing a
‘commit write’ will cause any pending write data to be discarded.
• 01b = set in progress. This flag indicates that some utility or other software is
presently doing writes to parameter data. It is a notification flag only, it is not
a resource lock. The MC does not provide any interlock mechanism that would
prevent other software from writing parameter data while.
• 10b = commit write (optional). This is only used if a rollback is implemented.
The MC will save the data that has been written since the last time the ‘set in
84
Command specification
Table 56 LAN configuration parameters (continued)
Parameter
#
Parameter Data (non-volatile unless otherwise noted)1
progress’ and then go to the ‘set in progress’ state. An error completion code
will be returned if this option is not supported.
• 11b = reserved
Authentication Type 1
Support (Read
Only)
This ‘read only’ field returns which possible Authentication Types (algorithms) can
be enabled for the given channel. The following Authentication Type Enables
parameter selects which Authentication Types are available when activating a
session for a particular maximum privilege level.
[7:6] -reserved
[5:0] -Authentication type(s) enabled for this channel (bitfield): All bits:
• 1b = supported
• 0b = authentication type not available for use.
[5] - OEM proprietary (per OEM identified by the IANA OEM ID in the RMCP Ping
Response)
[4] - straight password / key
[3] - reserved
[2] - MD5
[1] - MD2
[0] - none
Authentication Type 2
Enables
This field is used to configure which Authentication Types are available for use
when a remote console activates an IPMI messaging connection to the MC for a
given requested maximum privilege level. Once the session has been activated,
the accepted authentication type will be the only one used for authenticated packets,
regardless of the present operating privilege level, or the privilege level associated
with the command.
Depending on configuration of per-message and user-level authentication disables,
unauthenticated packets (authentication type = none) may also be accepted. The
MC makes no attempt to check or ensure that stricter authentication types are
associated with higher requested maximum privilege levels. E.g. it is possible to
configure the MC so activating a session with a maximum privilege level of ‘User’
requires MD5 while ‘Admin’ requires ‘none’.
NOTE: An implementation that has fixed privilege and authentication type
assignments, in which case this parameter can be implemented as Read Only. It
is recommended that an implementation that implements a subset of the possible
authentication types returns a CCh error completion code if an attempt is made to
select an unsupported authentication type.
• byte 1: Authentication Types returned for maximum requested privilege =
Callback level.
◦
[7:6] -reserved
◦
[5:0] -Authentication type(s) enabled for this channel (bitfield):
◦
All bits:
– 1b = authentication type enabled for use at given privilege level
– 0b = authentication type not available for use at given privilege level.
◦
[5] - OEM proprietary (per OEM identified by the IANA OEM ID in the
RMCP Ping Response)
◦
[4] - straight password / key
◦
[3] - reserved
◦
[2] - MD5
Standard command specification
85
Table 56 LAN configuration parameters (continued)
Parameter
#
Parameter Data (non-volatile unless otherwise noted)1
◦
[1] - MD2
◦
[0] - none
• byte 2: Authentication Type(s) for maximum privilege = User level
(format follows byte 1)
• byte 3: Authentication Type (s) for maximum privilege = Operator level
(format follows byte 1)
• byte 4: Authentication Type (s) for maximum privilege = Administrator level
(format follows byte 1)
• byte 5: Authentication Type (s) for maximum privilege = OEM level
(format follows byte 1)
IP Address
3
data 1:4 - IP Address
MS-byte first.
IP Address Source
4
data 1
[7:4] -reserved
[3:0] -address source
• 0h = unspecified
• 1h = static address (manually configured)
• 2h = address obtained by MC running DHCP
• 3h = address loaded by BIOS or system software
• 4h = address obtained by MC running other address assignment protocol
MAC Address
5
(can be Read Only)
data 1:6 - MAC Address for messages transmitted from MC.
MS-byte first. An implementation can either allow this parameter to be settable, or
it can be implemented as Read Only.
Subnet Mask
6
data 1:4 - Subnet Mask. MS-byte first.
IPv4 Header
Parameters
7
• data 1 - Time-to-live. 1-based. (Default = 40h)
Value for time-to-live parameter in IP Header for RMCP packets and PET Traps
transmitted from this channel.
• data 2
◦
[7:5] - Flags. Sets value of bit 1 in the Flags field in the IP Header for packets
transmitted by this channel. (Default = 010b “don’t fragment”)
◦
[4:0] - reserved
• data 3
[7:5] - Precedence (Default = 000b)
◦
[4:1] - Type of Service (Default = 1000b, “minimize delay”) [0] - reserved
Primary RMCP Port 8
data 1:2 - Primary RMCP Port Number, LSByte first.
Number (optional)
Default = 26Fh (RMCP ‘Aux Bus Shunt’ port)
Secondary RMCP
Port
Number (optional)
86
◦
Command specification
9
data 1:2 - Secondary Port Number, LSByte first.
Default = 298h (RMCP ‘Secure Aux Bus’ port)
Table 56 LAN configuration parameters (continued)
Parameter
#
MC-generated ARP 10
control
(optional2)
Parameter Data (non-volatile unless otherwise noted)1
data 1 - MC-generated ARP control. Note: the individual capabilities for
MC-generated ARP responses and MC-generated Gratuitous ARPs are individually
optional. The MC should return an error completion code if an attempt is made to
enable an unsupported capability.
[7:2] - reserved
[1] • 1b = enable MC-generated ARP responses
• 0b = disable MC-generated ARP responses
[0] • 1b = enable MC-generated Gratuitous ARPs
• 0b = disable MC-generated Gratuitous ARPs
Gratuitous ARP
11
data 1 • Gratuitous ARP interval
interval (optional)
• Gratuitous ARP interval in 500 millisecond increments. 0-based. Interval accuracy
is +/- 10%.
• If this configuration parameter is not implemented, gratuitous ARPs shall be
issued at a rate of once every 2 seconds.
Default Gateway
12
Address
data 1:4 - IP Address
MS-byte first. This is the address of the gateway (router) used when the MC sends
a message or alert to a party on a different subnet than the one the MC is on.
Default Gateway
MAC Address
13
data 1:6 - MAC Address. MS-byte first.
Backup Gateway
14
data 1:4 - IP Address
Address
MS-byte first. This is the address of an alternate gateway (router) that can be
selected when a sending a LAN Alert.
Backup Gateway
MAC Address
15
data 1:6 - MAC Address. MS-byte first.
Community String
16
data 1:18 - Community String
Default = ‘public’. Used to fill in the ‘Community String’ field in a PET Trap. This
string may optionally be used to hold a vendor-specific string that is used to provide
the network name identity of the system that generated the event. Printable ASCII
string-. If a full 18 non-null characters are provided, the last character does not
need to be a null. 18 characters must be written when setting this parameter, and
18 will be returned when this parameter is read.
The null character, and any following characters, will be ignored when the
Community String parameter is placed into the PET. The MC will return whatever
characters were written. In other words, it will not set bytes following the null to
any particular value.
Number of
Destinations
(Read Only)
17
data 1 - Number of LAN Alert Destinations supported on this channel. (Read Only).
At least one set of non-volatile destination information is required if LAN alerting
is supported. Additional non-volatile destination parameters can optionally be
provided for supporting an alert ‘call down’ list policy. A maximum of fifteen (1h
to Fh) non-volatile destinations are supported in this specification. Destination 0 is
always present as a volatile destination that is used with the Alert Immediate
command.
[7:4] - reserved.
[3:0] - Number LAN Destinations. A count of 0h indicates LAN Alerting is not
supported.
Standard command specification
87
Table 56 LAN configuration parameters (continued)
Parameter
#
Parameter Data (non-volatile unless otherwise noted)1
Destination Type
18
Sets the type of LAN Alert associated with the given destination. This parameter
is not present if the Number of Destinations parameter is 0.
(volatile /
non-volatile - see
description)
• data 1 - Set Selector = Destination selector, 0 based.
◦
[7:4] -reserved
◦
[3:0] -Destination selector. Destination 0 is always present as a volatile
destination that is used with the Alert Immediate command.
• data 2 - Destination Type
◦
[7] - Alert Acknowledge.
– 0b = Unacknowledged. Alert is assumed successful if transmission occurs
without error. This value is also used with Callback numbers.
– 1b = Acknowledged. Alert is assumed successful only if acknowledged
is returned. Note, some alert types, such as Dial Page, do not support
an acknowledge.
◦
[6:3] -reserved
◦
[2:0] -Destination Type
– 000b = PET Trap destination
– 001b - 101b = reserved
– 110b = OEM 1
– 111b = OEM 2
• data 3 - Alert Acknowledge Timeout / Retry Interval, in seconds, 0-based (i.e.
minimum timeout = 1 second).
This value sets the timeout waiting for an acknowledge, or the time between
automatic retries depending on whether the alert is acknowledge or not.
Recommended factory default = 3 seconds. Value is ignored if alert type does
not support acknowledge, or if the Alert Acknowledge bit (above) is 0b.
• data 4 - Retries
88
Command specification
◦
[7:4] - Reserved
◦
[3] - Reserved
◦
[2:0] - Number of times to retry alert to given destination. 0 = no retries
(alert is only sent once). If the alert is acknowledged (Alert Acknowlege bit
= 1b) the alert will only be retried if a timeout occurs waiting for the
acknowledge. Otherwise, this value selects the number of times an
unacknowledged alert will be sent out. The timeout interval or time between
retries is set by the Alert Acknowledge Timeout / Retry Interval value (byte
3 of this parameter).
Table 56 LAN configuration parameters (continued)
Parameter
#
Parameter Data (non-volatile unless otherwise noted)1
Destination
Addresses
19
Sets/Gets the list of IP addresses that a LAN alert can be sent to. This parameter
is not present if the Number of Destinations parameter is 0.
• data 1 - Set Selector = Destination Selector.
◦
[7:4] -reserved
◦
[3:0] -Destination selector. Destination 0 is always present as a volatile
destination that is used with the Alert Immediate command.
• data 2 - Address Format
◦
[7:4] - Address Format.
0h = IPv4 IP Address followed by DIX Ethernet/802.3 MAC Address
◦
[3:0] - Reserved
For Address Format = 0h:
• data 3 - Gateway selector
◦
[7:1] - Reserved
◦
[0] – 0b = use default gateway
– 1b = use backup gateway
• data 4:7 - Alerting IP Address (MS-byte first)
• data 8:13 - Alerting MAC Address (MS-byte first)
Following parameters are introduced with IPMI v2.0 / RMCP+
VLAN configuration can be used with IPMI v1.5 and IPMI v2.0sessions. Parameters labeled “RMCP+” are
specific to IPMI v2.0 implementations that implement IPMI v2.0 / RMCP+ sessions.
802.1q VLAN ID
(12-bit)
20
• data 1
[7:0] - Least significant 8-bits of the VLAN ID. 00h if VLAN ID not used.
• data 2
◦
[7] - VLAN ID enable.
– 0b = disabled
– 1b = enabled.
If enabled, the MC will only accept packets for this channel if they have
802.1q fields and their VLAN ID matches the VLAN ID value given in
this parameter.
802.1q VLAN
Priority
21
◦
[6:4] - Reserved
◦
[3:0] - Most significant four bits of the VLAN ID
data 1
[7:3] - Reserved
[2:0] - Value for Priority field of 802.1q fields. Ignored when VLAN ID enable is
0b (disabled) - See 802.1q VLAN ID parameter, above. Setting is network
dependent. By default, this should be set to 000b.
RMCP+ Messaging 22
Cipher Suite Entry
Support
(Read Only)
This parameter provides a count of the number (16 max.) of Cipher Suites available
to be enabled for use with IPMI Messaging on the given channel.
Software can find out what security algorithms are associated with given Cipher
Suite ID by using the Get Channel Cipher Suites command. In addition, there are
Standard command specification
89
Table 56 LAN configuration parameters (continued)
Parameter
#
Parameter Data (non-volatile unless otherwise noted)1
Cipher Suite IDs assigned for standard Cipher Suites (see Table 22-19, Cipher
Suite IDs)
data 1
[7:5] - reserved
[4:0] - Cipher Suite Entry count. Number of Cipher Suite entries, 1-based, 10h
max.
RMCP+ Messaging 23
Cipher Suite Entries
(Read Only)
This parameter contains zero to sixteen (16) bytes of Cipher Suite IDs for Cipher
Suites that can be used for establishing an IPMI messaging session with the MC.
The number of Cipher Suites that are supported is given in the preceding parameter.
• data 1 - Reserved
• data 2 - Cipher Suite ID entry A. data 3 - Cipher Suite ID entry B.
• ...
• data 17 - Cipher Suite ID entry P.
RMCP+ Messaging 24
Cipher Suite
Privilege Levels
This parameter allows the configuration of which privilege levels are associated
with each Cipher Suite. The total number of nibbles supported (zero to sixteen)
matches the number of fixed Cipher Suite IDs.
• data 1 - Reserved
• data 2 - Maximum Privilege Level for 1st and 2nd Cipher Suites
◦
[7:4] - Maximum Privilege Level for 2nd Cipher Suite
◦
[3:0] - Maximum Privilege Level for 1st Cipher Suite
– 0h = Unspecified (given Cipher Suite is unused)
– 1h = Callback level
– 2h = User level
– 3h = Operator level
– 4h = Administrator level
– 5h = OEM Proprietary level
• data 3 - Maximum Privilege Level for 3rd and 4th Cipher Suites data 4 Maximum Privilege Level for 5th and 6th Cipher Suites
• …
• data 9 - Maximum Privilege Level for 15th and 16th Cipher Suites
Destination Address 25
VLAN TAGs
(can be READ
ONLY, see
description)
90
Command specification
Sets/Gets the VLAN IDs (if any) addresses that a LAN alert can be sent to. This
parameter is not present if the Number of Destinations parameter is 0, or if the
implementation does not support the use of VLAN IDs for alerts. Otherwise, the
number of VLAN TAG entries matches the number of Alert Destinations.
An implementation may only be able to send alerts using the same VLAN TAG
configuration as specified by parameters 20 and 21, in which case this parameter
is allowed to be READ ONLY, where data 3-4 reflects the settings of parameters
20 and 21, and data 2 [7:4] indicates that VLAN TAGs are being used for alerts.
If the implementation does support configurable VLAN TAGs for alert destinations,
Table 56 LAN configuration parameters (continued)
Parameter
#
Parameter Data (non-volatile unless otherwise noted)1
it must support configuring unique TAG information for all destinations on the given
channel.
• data 1 - Set Selector = Destination Selector.
◦
[7:4] -reserved
◦
[3:0] -Destination selector. Destination 0 is always present as a volatile
destination that is used with the Alert Immediate command.
• data 2 - Address Format
◦
[7:4] - Address Format.
– 0h = VLAN ID not used with this destination
– 1h = 802.1q VLAN TAG
◦
[3:0] - Reserved
For Address Format = 1h:
• data 3:-4 - VLAN TAG
Bad Password
Threshold (optional)
26
◦
[7:0] - VLAN ID, least-significant byte
◦
[11:8] - VLAN ID, most-significant nibble
◦
[12] - CFI (Canonical Format Indicator. Set to 0b) [15:13] - User priority
(000b, typical)
Sets/Gets the Bad Password Threshold. If implemented and non-zero, this value
determines the number of sequential bad passwords that will be allowed to be
entered for the identified user before the user is automatically disabled from access
on the channel.
For example, a value of 3 indicates that 3 sequential attempts are allowed for the
given username on the particular channel. If the password for the third attempt is
not correct, the user will be disabled for the channel. If this value is zero (00h)
then there is no limit on bad passwords.
The effect of the disable is the same as if a Set User Access command were used
to remove the user's access from the channel.
Bad password attempts are tracked according to individual username on a per
channel basis. (Thus, a given username may be disabled on one channel, but still
enabled on another) Bad password attempts are not counted if integrity check or
other session parameters, such as session ID, sequence number, etc. are invalid.
That is, bad password attempts are not counted if there are any other errors that
would have caused the login attempt to be rejected even if the password was
valid. The count of bad password attempts is retained as long as the MC remains
powered and is not reinitialized.
Counting automatically starts over (is reset) under any one of the following
conditions:
• A valid password is received on any of the allowed attempts b) the Attempt
Count Reset Interval expires
• The user is re-enabled using the Set User Access command
• The user is automatically re-enabled when the User Lockout Interval expires.
• The Bad Threshold number parameter value is re-written or changed
Standard command specification
91
Table 56 LAN configuration parameters (continued)
Parameter
#
Parameter Data (non-volatile unless otherwise noted)1
The Set User Access command is used to re-enable the user for the Channel.
• byte 1
◦
[7:1] - reserved
◦
[0] – 0b = do not generate an event message when the user is disabled.
– 1b = generate a Session Audit sensor "Invalid password disable" event
message. byte 2
◦
7:0 - Bad Password Threshold number.
• byte 3:4
◦
15:0 - Attempt Count Reset Interval. The interval, in tens of seconds, for
which the accumulated count of bad password attempts is retained before
being automatically reset to zero. The interval starts with the most recent
bad password attempt for the given username on the channel. This interval
is allowed to reset if a MC power cycles or re-initialization occurs while the
interval is being counted.
0000h = Attempt Count Reset Interval is disabled. The count of bad password
attempts is retained as long as the MC remains powered and is not
reinitialized.
• byte 5:6
◦
15:0 - User Lockout Interval. The interval, in tens of seconds, that the user
will remain disabled after being disabled because the Bad Password
Threshold number was reached. The user is automatically re-enabled when
the interval expires. Note that this requires the MC implementation to track
that the user was disabled because of a Bad Password Threshold. This interval
is allowed to be restarted if a MC power cycle or re-initialization occurs
while the interval is being counted. Note that this requires an internal
non-volatile setting to be maintained that tracks when a particular user has
been temporarily disabled due to the Bad Password Threshold. This is
required to distinguish a user that was disabled automatically from a user
that is intentionally disabled using the Set User Access command.
0000h = User Lockout Interval is disabled. If a user was automatically
disabled due to the Bad Password threshold, the user will remain disabled
until re-enabled via the Set User Access command.
OEM Parameters
192
:
255
This range is available for special OEM configuration parameters. The OEM is
identified according to the Manufacturer ID field returned by the Get Device ID
command.
1
Choice of system manufacturing defaults is left to the system manufacturer unless otherwise specified.
2
This configuration parameter must be supported if the controller autonomously issues gratuitous ARPs or ARP responses.
SOL commands
Set SOL configuration parameters command
This command is available to the MC.
This command is used for setting parameters such as the network addressing information required
for SOL payload operation. Parameters can be volatile or non-volatile.
92
Command specification
Table 57 Set SOL configuration parameters command request and response data
Request data byte Data field
number
1
• [7:4] — Reserved
• [3:0] — Channel number
2
Parameter selector
3:N
Configuration parameter data. See Table 59 (page 94).
Response data
byte number
Data field
1
Completion code.
• 80h = Parameter not supported.
• 81h = Attempt to set the set in progress value (in parameter #0) when not in the set complete
state. (This completion code provides a way to recognize that another party has already
“claimed” the parameters).
• 82h = Attempt to write read-only parameter.
• 83h = Attempt to read write-only parameter.
Get SOL configuration parameters command
This command is available to the MC.
This command is used for retrieving the configuration parameters from the set sol
configuration parameters command.
Table 58 Get SOL configuration parameters command request and response data
Request data byte Data field
number
1
• [7]
◦
0b = Get parameter
◦
1b = Get parameter revision only
• [6:4] — Reserved
• [3:0] — Channel number
2
Parameter selector
3
Set selector. Selects a given set of parameters under a given parameter selector value. 00h if
parameter does not use a set selector.
4
Block selector (00h if parameter does not require a block number).
Response data
byte number
Data field
1
Completion code. Generic codes, plus command-specific completion code: 80h = parameter not
supported.
[7:0] - Parameter revision. Format: MSN = present revision. LSN = oldest revision parameter in
which it is backward compatible. 11h for parameters in this specification.
The following data byte is not returned when the get parameter revision only bit is 1b.
3:N
Configuration parameter data, per Table 59: “SOL configuration parameters” (page 94) If the
rollback feature is implemented, the MC makes a copy of the existing parameters when the set in
progress state becomes asserted. (See the set in progress parameter #0). While the set in progress
state is active, the MC returns data from this copy of the parameters, plus any uncommitted changes
that were made to the data. Otherwise, the MC returns parameter data from non-volatile storage.
Standard command specification
93
Table 59 SOL configuration parameters
Parameter
#
Parameter Data (non-volatile unless otherwise noted)1
Set In Progress (volatile)
0
Data 1 - This parameter is used to indicate when any of the following parameters
are being updated, and when the updates are completed. The bit is primarily
provided to alert software that some other software or utility is in the process of
making changes to the data.
An implementation can also elect to provide a rollback feature that uses this
information to decide whether to roll back to the previous configuration
information, or to accept the configuration change.
If used, the roll back restores all parameters to their previous state. Otherwise,
the change takes effect when the write occurs.
SOL enable
1
[7:2]
Reserved
[1:0]
00b =
Set complete. If a system reset or transition to powered
down state occurs while set in progress is active, the MC
goes to the set complete state. If rollback is implemented,
going directly to set complete without first doing a commit
write causes any pending write data to be discarded.
01b =
Set in progress. This flag indicates that some utility or
other software is presently doing writes to parameter data.
It is a notification flag only, it is not a resource lock. The
MC does not provide any interlock mechanism that would
prevent other software from writing parameter data.
10b =
Commit write (optional). This is only used if a rollback is
implemented. The MC saves the data that has been written
since the last time it was set in progress and then goes to
the set in progress state. An error completion code will
be returned if this option is not supported.
11b =
Reserved
Byte 1:
[7:1]
SOL authentication
2
[6]
Command specification
[0]
SOL enable. This controls whether the SOL payload type
can be activated. Whether an SOL stream can be
established is also dependent on the access mode and
authentication settings for the corresponding LAN channel.
The enabled/disabled state and access mode settings for
the serial/modem channel have no effect on SOL.
1b =
Enable SOL payload
0b =
Disable SOL payload
Byte 1: SOL authentication enable
[7]
94
Reserved
Force SOL payload encryption
1b:
Force encryption. If the cipher suite for the session supports
encryption, this setting forces the use of encryption for all
SOL payload data.
0b:
Encryption controlled by remote console. Whether SOL
packets are encrypted or not is selected by the remote
console at the time the payload is activated (using the
activate payload command) and can be changed
during operation via the suspend/resume payload
encryption command.
Force SOL payload authentication
Table 59 SOL configuration parameters (continued)
Parameter
Character accumulate
interval & character send
threshold
#
3
Parameter Data (non-volatile unless otherwise noted)1
1b:
Force authentication. If the cipher suite for the session
supports authentication, this setting forces the use of
authentication on all SOL payload data.
0b:
Authentication controlled by remote software. For the
standard cipher suites, if encryption is used then
authentication must also be used. Therefore, while
encryption is being used, software is not be able to select
using unauthenticated payloads.
[5:4]
Reserved
[3:0]
SOL privilege level. Sets the minimum operating privilege level that is
required to be able to activate SOL using the activate payload
command.
0h:
Reserved
1h:
Reserved
2h:
User level
3h:
Operator level
4h:
Administrator level
5h:
OEM proprietary level
All other :
Reserved
• Byte 1: Character accumulate interval in 5 ms increments. 1-based. This sets
the typical amount of time that the MC waits before transmitting a partial SOL
character data packet. (Where a partial packet is defined as a packet that
has fewer characters to transmit than the number of characters specified by
the Send threshold parameter (see below). A packet is not sent.
00h = reserved
• Byte 2: Character send threshold. 1-based. The MC automatically sends an
SOL character data packet containing this number of characters as soon as
this number of characters (or greater) has been accepted from the baseboard
serial controller into the MC. This provides a mechanism to tune the buffer to
reduce latency to when the first characters are received after an idle interval.
In the degenerate case, setting this value to 1 would cause the MC to send
a packet as soon as the first character was received.
This can be useful if the character accumulate interval is large. If the MC is
waiting for an acknowledge from the previous packet, it ignores this threshold
and continues to collect data until it has a full packet’s worth.
SOL retry
4
• Byte 1: Retry count
◦
[7:3] - Reserved
◦
[2:0] - Retry count. 1-based. 0 = no retries after packet is transmitted.
Packet is dropped if no ACK/NACK received by the time retries expire.
• Byte 2: Retry interval. 1-based. Retry interval in 10 ms increments. Sets the
time that the MC waits before the first retry and the time between retries when
sending SOL packets to the remote console.
◦
SOL non-volatile bit rate
(non-volatile)
5
00h: Retries sent back-to-back
This configuration parameter is not supported if the implementation does not
have a MC serial controller that can be potentially configured.
Serial communication with the MC when SOL is activated always occurs using
8 bits/character, no parity, 1 stop bit, and RTS/CTS (hardware) flow control.
Standard command specification
95
Table 59 SOL configuration parameters (continued)
Parameter
#
Parameter Data (non-volatile unless otherwise noted)1
NOTE: If SOL is enabled for multiple LAN channels, the MC uses the serial
communication settings for the channel over which the activate sol command
was initially received. The settings for other channels are ignored.
Data 1
[7:4]
Reserved
[3:0]
Bit rate. 1-5h = reserved. Support for bit rates other than 19.2 kbps is
optional. The MC must return an error completion if a requested bit
rate is not supported. It is recommended that the parameter out-of-range
(C9h) code be used for this situation.
0h =
Use setting presently configured for IPMI over serial
channel. The setting is used even if the access mode for
the serial channel is set to disabled. IPMI specification
can allow more than one serial channel. If serial port
sharing is not implemented, this value is reserved. 6h:
9600 bps.
7h =
19.2 kbps
8h =
38.4 kbps
9h =
57.6 kbps
Ah =
115.2 kbps
All other =
Reserved
SOL volatile bit rate
(volatile)
6
Set volatile version of SOL serial settings. Data follows that for the SOL non-volatile
bit rate parameter.
SOL payload channel
(optional, read only)
7
This parameter indicates which IPMI channel is being used for the communication
parameters (such as IP address, MAC address) for the SOL payload. Typically,
these parameters come from the same channel that the activate payload
command for SOL was accepted.
SOL payload port number
(read only or read/write)
8
This parameter is read/write when the implementation allows the port number
over which the SOL payload can be activated to be configurable. Otherwise, it
is a read only parameter.
Data 1:2 - Primary RMCP port number, LS byte first.
OEM parameters
1
192:255 This range is available for special OEM configuration parameters. The OEM is
identified according to the manufacturer ID field returned by the get device
id command.
Choice of system manufacturing defaults is left to the system manufacturer unless otherwise specified.
MC watchdog timer commands
The MC implements a standardized watchdog timer that can be used for a number of system
timeout functions by system management software or by the BIOS. Setting a timeout value of 0
allows the selected timeout action to occur immediately. This provides a standardized means for
devices on the IPMB, such as remote management cards, to perform emergency recovery actions.
Watchdog timer actions
The following actions are available on expiration of the watchdog timer:
96
•
System reset
•
System power off
Command specification
•
System power cycle
•
Pre-timeout interrupt (optional)
The system reset on timeout, system power off on timeout, and system power cycle on timeout
action selections are mutually exclusive. The watchdog timer is stopped whenever the system is
powered-down. A command must be sent to start the timer after the system powers up.
Watchdog timer use field and expiration flags
The watchdog timer provides a timer use field that indicates the current use assigned to the watchdog
timer. The watchdog timer provides a corresponding set of timer use expiration flags that are used
to track the type of timeout that had occurred.
The timeout use expiration flags retain their state across system resets and power cycles, as long
as the MC remains powered. The flags are normally cleared solely by the set watchdog timer
command; with the exception of the don’t log flag, which is cleared after every system hard reset
or timer timeout.
The timer use fields indicate:
Timer use field
Description
BIOS FRB2 timeout
An FRB-2 (fault-resilient booting, level 2) timeout has occurred indicating that the
last system reset or power cycle was due to the system timeout during POST,
presumed to be caused by a failure or hang related to the bootstrap processor.1
BIOS POST timeout
In this mode, the timeout occurred while the watchdog timer was being used by
the BIOS for some purpose other than FRB-2 or OS load watchdog.
OS load timeout
The last reset or power cycle was caused by the timer being used to watchdog
the interval from boot to OS up and running. This mode requires system
management software, or OS support. BIOS should clear this flag if it starts this
timer during POST.
SMS OS watchdog timeout
Indicates that the timer was being used by SMS. During run-time, SMS starts the
timer, then periodically resets it to keep it from expiring. This periodic action
serves as a heartbeat that indicates that the OS (or at least the SMS task) is still
functioning. If SMS hangs, the timer expires and the MC generates a system
reset. When SMS enables the timer, it should make sure the SMS bit is set to
indicate that the timer is being used in its OS watchdog role.
OEM
Indicates that the timer was being used for an OEM-specific function.
1
In a multiprocessor system, the bootstrap processor is defined as the processor that, on system power-up or hard reset,
is allowed to run and execute system initialization (BIOS POST) while the remaining processors are held in an idle state
awaiting startup by the multiprocessing OS.
Using the timer use field and expiration flags
The software that sets the timer use field is responsible for managing the associated timer use
expiration flag. For example, if SMS sets the timer use to SMS/OS watchdog, then that same SMS
is responsible for acting on and clearing the associated timer use expiration flag.
In addition, software should only interpret or manage the expiration flags for watchdog timer uses
that it set. For example, BIOS should not report watchdog timer expirations or clear the expiration
flags for non-BIOS uses of the timer. This is to allow the software that did set the timer use to see
that a matching expiration occurred.
Watchdog timer event logging
By default, the MC automatically logs the corresponding sensor-specific watchdog sensor event
when a timer expiration occurs. A don’t log bit is provided to temporarily disable the automatic
logging. The don’t log bit is automatically cleared (logging re-enabled) whenever a timer expiration
occurs.
Standard command specification
97
Pre-timeout interrupt
The watchdog timer offers a pre-timeout interrupt option. This option is enabled whenever the
interrupt on timeout option is selected along with any of the other watchdog timer actions. If this
option is enabled, the MC generates the selected interrupt a fixed interval before the timer expires.
This feature can be used to allow an interrupt handler to intercept the timeout event before it actually
occurs. The default pre-timeout interrupt interval is one (1) second.
The watchdog timeout action and the pre-timeout interrupt functions are individually enabled. Thus,
the watchdog timer can be configured so that when it times out it provides just an interrupt, just
the selected action, both an interrupt and selected action, or none.
If the pre-timeout interval is set to zero, the pre-timeout action occurs concurrently with the timeout
action. If a power or reset action is selected with a pre-timeout interval of zero, there is no guarantee
that a pre-timeout interrupt handler would have time to execute, or to run to completion.
Pre-timeout interrupt support detection
An application that wishes to use a particular pre-timeout interrupt can check for its support by
issuing a set watchdog timer command with the desired pre-timeout interrupt selection. If the
controller does not return an error completion code, then a get watchdog timer command
should be issued to verify that the interrupt selection was accepted.
While it can be assumed that a controller that accepts a given interrupt selection supports the
associated interrupt, it is recommended that, if possible, an application also generate a test interrupt
and verify that the interrupt occurs and the handler executes correctly.
BIOS support for watchdog timer
If a system warm reset occurs, the watchdog timer may still be running while BIOS executes
POST. Therefore, BIOS should take steps to stop or restart the watchdog timer early in POST.
Otherwise, the timer may expire later during POST or after the OS has booted.
Reset watchdog timer command
This command is used for starting and restarting the watchdog timer from the initial countdown
value that was specified in the set watchdog timer command. If a pre-timeout interrupt has
been configured, the reset watchdog timer command is not restart the timer once the
pre-timeout interrupt interval has been reached. The only way to stop the timer once it has reached
this point is via the set watchdog timer command.
Table 60 Reset watchdog timer command response data
Response data
byte number
Data field
1
Completion code. Generic plus command-specific completion code: 80h — Attempt to start
un-initialized watchdog. It is recommended that a MC implementation return this error completion
code to indicate to software that a set watchdog timer command has not been issued to
initialize the timer since the last system power on, reset, or MC reset. Since many systems may
initialize the watchdog timer during BIOS operation, this condition may only be seen by software
if a MC gets re-initialized during system operation (as might be the case if a firmware update
occurred, for example).
Set watchdog timer command
This command is used for initializing and configuring the watchdog timer. The command is also
used for stopping the timer.
98
Command specification
If the timer is already running, the set watchdog timer command stops the timer (unless the
don’t stop bit is set) and clears the watchdog pre-timeout interrupt flag. MC hard resets, system
hard resets, and the cold reset command also stop the timer and clear the flag.
•
Byte 1 is used for selecting the timer use and configuring whether an event will be logged on
expiration.
•
Byte 2 is used for selecting the timeout action and pre-timeout interrupt type.
•
Byte 3 sets the pre-timeout interval. If the interval is set to zero, the pre-timeout action occurs
concurrently with the timeout action.
•
Byte 4 is used for clearing the timer use expiration flags. A bit set in byte 4 of this command
clears the corresponding bit in byte 5 of the get watchdog timer command.
•
Bytes 5 and 6 hold the least significant and most significant bytes, respectively, of the
countdown value. The watchdog timer decrement is one count/100 ms. The counter expires
when the count reaches zero. If the counter is loaded with zero and the reset watchdog
command is issued to start the timer, the associated timer events occur immediately.
Table 61 Set watchdog timer command request and response data
Request data
byte number
Data field
1
Timer use
2
[7]
1b =
Don't log
[6]
1b =
Don't stop the timer on set watchdog timer command. New parameters
take effect immediately. If the timer is already running, the countdown value
gets set to the given value and the countdown continues from that point. If the
timer is already stopped, it remains stopped. If the pre-timeout interrupt bit is
set, it is cleared.1
0b =
Timer stops automatically when the set watchdog timer command is
received.
[5:3]
Reserved
[2:0]
Timer use (logged on expiration when don't log bit = 0b)
000b =
Reserved
001b =
BIOS FRB2
010b =
BIOS/POST
011b =
OS Load
100b =
SMS/OS
101b =
OEM
110b
-111b =
Reserved
Timer actions
[7]
Reserved
[6:4]
Pre-timeout interrupt (logged on expiration when don’t log bit = 0b)
000b =
None
001b =
SMI (optional)
010b =
NMI / diagnostic interrupt (optional)
011b =
Messaging interrupt (this is the same interrupt as allocated to the messaging
interface, if communications interrupts are supported for the system interface).
Standard command specification
99
Table 61 Set watchdog timer command request and response data (continued)
100b,111b Reserved
=
[3]
Reserved
[2:0]
Timeout action
000b =
No action
001b =
Hard reset
010b =
Power down
011b =
Power dycle
100b,111b Reserved
=
3
Pre-timeout interval in seconds. 1 based.
4
Timer use expiration flags clear. (0b = leave alone, 1b = clear timer use expiration bit).
[7]
Reserved
[6]
Reserved
[5]
OEM
[4]
SMS/OS
[3]
OS load
[2]
BIOS/POST
[1]
BIOS FRB2
[0]
Reserved
5
Initial countdown value, LS byte (100 ms/count)
6
Initial countdown value, MS byte
Response data
byte number
Data field
1
Completion code
1
Potential race conditions exist with implementations of this option. If the set watchdog timer command is sent just
before a pre-timeout interrupt or timeout is set to occur, the timeout could occur before the command is executed. To
avoid this condition, it is recommended that software set this value no closer than 3 counts before the pre-timeout or
timeout value is reached.
Get watchdog timer command
This command retrieves the current settings and present countdown of the watchdog timer. The
timer use expiration flags in byte 5 retain their states across system resets and system power cycles.
With the exception of bit 6 in the timer use byte, the timer use expiration flags are cleared using
the set watchdog timer command. They may also become cleared because of a loss of MC
power, firmware update, or other cause of MC hard reset. Bit 6 of the timer use byte is automatically
cleared to 0b whenever the timer times out, is stopped when the system is powered down, enters
a sleep state, or is reset.
Table 62 Get watchdog timer command response data
Response data
byte number
Data field
1
Completion code
100 Command specification
2
3
Timer use
[7]
1b =
Don't log
[6]
1b =
Timer is started (running)
0b =
Timer is stopped
[5:3]
Reserved
[2:0]
Timer use (logged on expiration when don't log bit = 0b)
000b =
Reserved
001b =
BIOS FRB2
010b =
BIOS/POST
011b =
OS Load
100b =
SMS/OS
101b =
OEM
110b
-111b =
Reserved
Timer actions
[7]
Reserved
[6:4]
Pre-timeout interrupt (logged on expiration when don’t log bit = 0b)
000b =
None
001b =
SMI (if implemented)
010b =
NMI / diagnostic interrupt (if implemented)
011b =
Messaging interrupt (this is the same interrupt as allocated to the messaging
interface).
100b,111b Reserved
=
[3]
Reserved
[2:0]
Timeout action
000b =
No action
001b =
Hard reset
010b =
Power down
011b =
Power dycle
100b,111b Reserved
=
4
Pre-timeout interval in seconds. 1 based.
5
Timer use expiration flags clear. (1b = timer expired while associated use was selected.)
[7]
Reserved
[6]
Reserved
[5]
OEM
[4]
SMS/OS
[3]
OS load
Standard command specification
101
Table 62 Get watchdog timer command response data (continued)
[2]
BIOS/POST
[1]
BIOS FRB2
[0]
Reserved
6
Initial countdown value, LS byte (100 ms/count)
7
Initial countdown value, MS byte
8
Present countdown value, LS byte. The initial countdown value and present countdown values should
match immediately after the countdown is initialized via a set watchdog timer command and
after a reset watchdog timer has been executed. Internal delays in the MC may require
software to delay up to 100 ms before seeing the countdown value change and be reflected in the
get watchdog timer command.
9
Present countdown value, MS byte
Chassis commands
The following chassis commands are specified for IPMI v1.5. These commands are primarily to
provide standardized chassis status and control functions for remote management cards and remote
consoles that access the MC. They can also be used for emergency management control functions
by system management software.
Get chassis capabilities command
This command returns information about which main chassis management functions are present
on the IPMB (or virtual IPMB) and what addresses are used to access those functions. This command
is used to find the devices that provide functions such as SEL, SDR, and ICMB bridging so that they
can be accessed via commands delivered via a physical or logical IPMB. The command does not
include a channel number for the individual functions, therefore all reported functions must be
located on the primary IPMB.
The chassis capabilities information is non-volatile. There is no requirement that the information be
configurable. The chassis device function in a peripheral chassis may be hardcoded with this
information. For example, a system that implements the ICMB as an add-on bridge to an MC is
typically able to have the well known address for the MC (20h) hardcoded as the address for the
chassis SDR, SEL, and SM devices, while the chassis FRU info device address could be set with
the chassis devices own address.
An add-in device that serves as a bridge device that could be used in different vendors systems
may want to provide a way for this information to be configured. The set chassis
capabilities command is one option for providing this.
Table 63 Get chassis capabilities command response data
Response data
byte number
Data field
1
Completion code
2
Capabilities flags
102 Command specification
[7:4]
Reserved
[3]
1b =
Provides power interlock (IPMI 1.5)
[2]
1b =
Provides diagnostic interrupt, FP NMI. (IPMI 1.5)
[1]
1b =
Provides front panel lockout which indicates that the chassis has capabilities
to lock out external power control and reset button or front panel interfaces
and/or detect tampering with those interfaces.
[0]
1b =
Chassis provides intrusion (physical security) sensor
Table 63 Get chassis capabilities command response data (continued)
3
Chassis FRU info device address. All IPMB addresses used in this command have the 7-bit I2C slave
address as the most-significant 7-bits and the least significant bit set to 0b. 00h = unspecified.
4
Chassis SDR device address
5
Chassis SEL device address
6
Chassis system management device address
(7)
Chassis bridge device address. Reports location of the ICMB bridge function. If this field is not
provided, the address is assumed to be the MC address (20h). Implementing this field is required
when the get chassis capabilities command is implemented by an MC, and whenever the
chassis bridge function is implemented at an address other than 20h.
Get chassis status command
This command is available to ChMC and MC.
This command returns information regarding the high-level status of the system chassis and main
power subsystem.
Table 64 Get chassis status command response data
Response data
byte number
Data field
1
Completion code
2
Current power state
[7]
Reserved
[6:5]
Power restore policy1
[4]
00b =
Chassis stays powered off after AC/mains returns
01b =
After AC returns, power is restored to the state that was in effect when
AC/mains was lost
10b =
Chassis always powers up after AC/mains returns
11b =
Unknown
Power control fault
1b =
[3]
Power fault
1b =
Fault detected in main power subsystem.
[2]
1b =
Interlock (chassis is presently shut down because a chassis panel interlock
switch is active). (IPMI 1.5).
[1]
Power overload
1b =
[0]
3
Controller attempted to turn system power on or off, but system did not enter
desired state.
System shutdown because of power overload condition
Power is on
1b =
System power is on
0b =
System power is off (soft-off S4/S5 or mechanical off)
Last power event
[7:5]
Reserved
[4]
1b =
Last Power is on state was entered via IPMI command
Standard command specification 103
Table 64 Get chassis status command response data (continued)
4
1b =
Last power down caused by power fault
[2]
1b =
Last power down caused by a power interlock being activated
[1]
1b =
Last power down caused by a power overload
[0]
1b =
AC failed
Miscellaneous chassis state
(5)
1
[3]
[7]
Reserved
[6]
1b =
Chassis identify command and state information supported (optional)
0b =
Chassis identify command support unspecified via this command. (The get
command support command, if implemented, would still indicate support
for the chassis identify command).
[5:4]
Chassis identify state. Mandatory when bit [6] = 1b, reserved (return as 00b) otherwise.
Returns the present chassis identify state. See “Chassis identify command ” (page 105).
[3]
1b =
Cooling/fan fault detected
[2]
1b =
Drive fault
[1]
1b =
Front panel lockout active (power off and reset via chassis push-buttons
disabled.)
[0]
1b =
Chassis intrusion active
Front panel button capabilities and disable/enable status (optional). Button actually refers to the
ability for the local user to be able to perform the specified functions via a pushbutton, switch, or
other front panel control built into the system chassis.
[7]
1b =
Standby (sleep) button disable allowed
[6]
1b =
Diagnostic Interrupt button disable allowed
[5]
1b =
Reset button disable allowed
[4]
1b =
Power off button disable allowed (in the case there is a single combined
power/standby (sleep) button, disabling power off also disables sleep requests
via that button).
[3]
1b =
Standby (sleep) button disabled
[2]
1b =
Diagnostic Interrupt button disabled
[1]
1b =
Reset button disabled
[0]
1b =
Power off button disabled (in the case there is a single combined
power/standby (sleep) button, then this indicates that sleep requests via that
button are also disabled).
In some installations, the chassis’ main power feed may be DC based. For example, -48V. In this case, the power restore
policy for AC/mains refers to the loss and restoration of the DC main power feed.
Chassis control command
This command is available to the MC.
This command provides a mechanism for providing power up, power down, and reset control.
Table 65 Chassis control command request and response data
Request data
byte number
Data field
1
[7:4]
Reserved
[3:0]
Chassis control1
104 Command specification
Table 65 Chassis control command request and response data (continued)
0h =
Power down. Force system into soft off (S4/S45) state. This is for emergency
management power down actions. The command does not initiate a clean
shut-down of the operating system before powering down the system.
1h =
Power up.
2h =
Power cycle (optional). This command provides a power off interval of at least
1 second following the de-assertion of the system’s power good status from
the main power subsystem. It is recommended that no action occur if system
power is off (S4/S5) when this action is selected, and that a D5h Request
parameter(s) not supported in present state. error completion
code be returned. Some implementations may cause a system power up if a
power cycle operation is selected when system power is down. For consistency
of operation, it is recommended that SMS first check the system power state
before issuing a power cycle, and only issue the command if the system power
is on or in a lower sleep state than S4/S5.
3h =
Hard reset. In some implementations, the MC may not know whether a reset
causes any particular effect and pulses the system reset signal regardless of
power state. If the implementation can tell that no action occurs if a reset is
delivered in a given power state, then it is recommended (but still optional)
that a D5h Request parameter(s) not supported in present
state. error completion code be returned.
NOTE:
4h =
Pulse diagnostic interrupt (optional). Pulse a version of a diagnostic interrupt
that goes directly to the processor(s). This is typically used to cause the
operating system to do a diagnostic dump (OS dependent). The interrupt is
commonly an NMI on IA-32 systems and an INIT on Intel® Itanium™ processor
based systems.
5h =
Initiate a soft-shutdown of OS via ACPI by emulating a fatal overtemperature
(optional).
All other
=
Reserved
Response data
byte number
Data field
1
Completion code2
1
2
Reset is not supported in Moonshot.
The command can also be used for compute blades or compute partition applications where the blades or partitions
entities are emulating independent computer systems that implement IPMI. In these applications, the chassis power control
aspects of the command are not required to be supported. Individual blades or computer partitions can elect to either
not support the power on/off functions, can use them for power control of the blade/partition independent of the
containing chassis, or may map them into a power control scheme for the overall chassis. For example, a scheme where
chassis power will go off only after all blades within a chassis have been commanded into the power off state.
The implementation is allowed to return the completion code before performing the selected control action if necessary.
Chassis identify command
This command is available to the MC.
This command causes the chassis to physically identify itself by a mechanism chosen by the system
implementation; such as turning on blinking user-visible lights or emitting beeps via a speaker, LCD
panel, etc. Unless the optional force identify on capability is supported and used, the chassis
identify command automatically times out and deasserts the indication after a configurable
time-out. Software must periodically resend the command to keep the identify condition asserted.
This restarts the timeout.
NOTE: In Moonshot, directing this command at the chassis affects the chassis UID, while directing
the command at a cartridge affects the cartridge UID.
Standard command specification 105
Table 66 Chassis identify command request and response data
Request data
byte number
Data field
11
[7:0]
Identify interval in seconds (optional). 1-based. Timing accuracy = -0/+20%. If this byte
is not provided, the default timeout shall be 15 seconds -0/+20%. This byte can be
overridden by optional byte 2.
00h = Turn off identify
22
Force identify on (optional). This field enables software to command the identify to be on indefinitely.
The MC implementation should return an error completion code if this byte is not supported.
[7:1]
Reserved
[0]
1b =
Turn on identify indefinitely. This overrides the values in byte 1.
0b =
Identify state driven according to byte 1.
Response data
byte number
Data field
1
Completion code
1
2
This parameter byte is optionally present. If not provided, the dhassis identify can be used to turn on the identify indication
for the default timeout interval, but cannot be used to turn the indication off.
This parameter byte is optionally present. If provided, it is highly recommended that the chassis provides a local manual
mechanism that enables a user or service personnel to turn off Identify. If a local manual mechanism is not provided, AC
removal (MC reset) should remove the indication.
Set power restore policy command
This command is available to the MC.
This command can be used to configure the power restore policy. This configuration parameter is
kept in non-volatile storage. The power restore policy determines how the system or chassis behaves
when AC power returns after an AC power loss. The get chassis status command returns
the power restore policy setting.
Table 67 Set power restore policy command request and response data
Request data
byte number
Data field
1
[7:3]
Reserved
[2:0]
Power restore policy1
011b =
No change (just get present policy support)
010b =
Chassis always powers up after AC/mains is applied or returns
001b =
After AC/mains is applied or returns, power is restored to the state that was
in effect when AC/mains was removed or lost
000b =
Chassis always stays powered off after AC/mains is applied, power push
button or command required to power on system
All other
=
Reserved
Response data
byte number
Data field
1
Completion code. A non-zero completion code should be returned if an attempt is made to set a
policy option that is not supported.
2
Power restore policy support (bitfield)
[7:3]
106 Command specification
Reserved
Table 67 Set power restore policy command request and response data (continued)
1
[2]
1b =
Chassis supports always powering up after AC/mains returns
[1]
1b =
Chassis supports restoring power to the state that was in effect when AC/mains
was lost
[0]
1b =
Chassis supports staying powered off after AC/mains returns
In some installations, the chassis’ main power feed may be DC based. For example, -48V. In this case, the power restore
policy for AC/mains refers to the loss and restoration of the DC main power feed.
Set system boot options command
This command is available to the MC.
This command is used to set parameters that direct the system boot following a system power up
or reset. The boot flags only apply for one system restart. It is the responsibility of the system BIOS
to read these settings from the MC and then clear the boot flags.
It is possible that a remote console application could set the boot option flags and then be terminated
either accidentally or intentionally. In this circumstance, it is possible that a user-initiated system
restart could occur hours or even days later. If the boot options were used without examining the
reset cause, this could cause an unexpected boot sequence. Thus, the MC automatically clears a
boot flags valid bit if a system restart is not initiated by a chassis control command within
60 seconds +/- 10% of the valid flag being set. The MC also clears the bit on any system resets
or power cycles that are not triggered by a system control command. This default behavior
can be temporarily overridden using the MC boot flag valid bit clearing parameter.
Table 68 Set system boot options command request and response data
Request data
byte number
Data field
1
Parameter valid
[7]
[6:0]
(2:N)
1b =
Mark parameter invalid/locked
0b =
Mark parameter valid/unlocked
Boot option parameter selector
Boot option parameter data. Passing 0-bytes of parameter data allows the parameter valid bit to be
changed without affecting the present parameter setting.
NOTE:
Moonshot currently supports only parameters 0, 4, and 5. See Table 70 (page 108).
Response data
byte number
Data field
1
Completion code. Generic plus the command-specific completion codes:
80h =
Parameter not supported.
81h =
Attempt to set the set in progress value (in parameter #0) when not in the set complete
state. This completion code provides a way to recognize that another party has already
claimed the parameters.
82h =
Attempt to write read-only parameter.
Get system boot options command
This command is available to the MC.
This command is used to retrieve the boot options set by the set system boot options
command.
NOTE:
Moonshot currently supports only parameters 0, 3, 4, and 5. See Table 70 (page 108).
Standard command specification 107
Table 69 Get system boot options request command and response data
Request data
byte number
Data field
1
Parameter selector
[7]
Reserved
[6:0]
Boot option parameter selector
2
[7:0] - Set selector. Selects a particular block or set of parameters under the given parameter selector.
Write as 00h if parameter does not use a set selector.
3
[7:0] - Block selector. Selects a particular block within a set of parameters. Write as 00h if parameter
does not use a block selector.
NOTE: There are no IPMI-specified boot options parameters that use the block selector. However,
this field is provided for consistency with other configuration commands and as a placeholder for
future extension of the IPMI specification.
Response data
byte number
Data field
1
Completion code. Generic plus the command-specific completion code: 80h = parameter not
supported.
2
[7:4]
Reserved
[3:0]
Parameter version. 1h for this specification unless otherwise specified.
3
Parameter valid
[7]
[6:0]
4:N
1b =
Parameter marked invalid / locked
0b =
Parameter marked valid / unlocked
Boot option parameter selector
Configuration parameter data, per Table 70 (page 108). If the rollback feature is implemented, the
MC makes a copy of the existing parameters when the set in progress state becomes asserted (see
the set in progress parameter #0). While the set in progress state is active, the MC returns data from
this copy of the parameters, plus any uncommitted changes that were made to the data. Otherwise,
the MC returns parameter data from non-volatile storage.
Table 70 Boot option parameters
Parameter
#
Parameter data (non-volatile unless otherwise noted)
Set in progress (volatile)
0
Data 1 - This parameter is used to indicate when any of the following parameters
are being updated, and when the updates are completed. The bit is primarily
provided to alert software that some other software or utility is in the process
of making changes to the data.
An implementation can also elect to provide a rollback feature that uses this
information to decide whether to roll back to the previous configuration
information, or to accept the configuration change.
If used, the roll back restores all parameters to their previous state. Otherwise,
the change takes effect when the write occurs.
108 Command specification
[7:2]
Reserved
[1:0]
00b =
Set complete. If a system reset or transition to
powered down state occurs while set in progress is
active, the MC goes to the set complete state. If
rollback is implemented, going directly to set
complete without first doing a commit write causes
any pending write data to be discarded.
01b =
Set in progress. This flag indicates that some utility
or other software is presently doing writes to
Table 70 Boot option parameters (continued)
Parameter
#
Parameter data (non-volatile unless otherwise noted)
parameter data. It is a notification flag only, it is
not a resource lock. The MC does not provide any
interlock mechanism that would prevent other
software from writing parameter data.
11b =
MC boot flag valid bit
clearing (semi-volatile)1
Boot info acknowledge
(semi-volatile)1
3
4
Reserved
Data 1 — MC boot flag valid bit clearing. Default = 00000b.
[7:5]
Reserved
[4]
1b =
Do not clear valid bit on reset/power cycle caused
by PEF. Not supported in Moonshot.
[3]
1b =
Do not automatically clear boot flag valid bit if
chassis control command is not received
within 60-second timeout (countdown restarts when
a chassis control command is received).
[2]
1b =
Do not clear valid bit on reset/power cycle caused
by watchdog timeout.
[1]
1b =
Do not clear valid bit on push button reset/soft-reset
(such as “Ctrl-Alt-Del”). Not supported in Moonshot.
[0]
1b =
Do not clear valid bit on power up via power push
button or wake event. Not supported in Moonshot.
These flags are used to allow individual parties to track whether they have
already seen and handled the boot information. Applications that deal with
boot information should check the boot information and clear their
corresponding bit after consuming the boot options data.
Data 1: Write mask (write-only). This field is returned as 00h when read. This
is to eliminate the need for the MC to provide storage for the write mask field.
[7]
1b =
Enable write to bit 7 of data field
[6]
1b =
Enable write to bit 6 of data field
[5]
1b =
Enable write to bit 5 of data field
[4]
1b =
Enable write to bit 4 of data field
[3]
1b =
Enable write to bit 3 of data field
[2]
1b =
Enable write to bit 2 of data field
[1]
1b =
Enable write to bit 1 of data field
[0]
1b =
Enable write to bit 0 of data field
Data 2: Boot initiator acknowledge data. The boot initiator should typically
write FFh to this parameter before initiating the boot. The boot initiator may
write 0’s if it wants to intentionally direct a given party to ignore the boot info.
This field is automatically initialized to 00h when the management controller
is first powered up or reset.
[7]
Reserved. Write as 1b. Ignore on read.
[6]
Reserved. Write as 1b. Ignore on read.
[5]
Reserved. Write as 1b. Ignore on read.
[4]
0b =
OEM has handled boot information.
[3]
0b =
SMS has handled boot information.
[2]
0b =
OS/service partition has handled boot information.
Standard command specification 109
Table 70 Boot option parameters (continued)
Parameter
#
Boot flags (semi-volatile)1 5
Parameter data (non-volatile unless otherwise noted)
[1]
0b =
OS loader has handled boot information.
[0]
0b =
BIOS/POST has handled boot information.
[7]
1b =
Boot flags valid. The bit should be set to indicate
that valid flag data is present. This bit may be
automatically cleared based on the boot flag valid
bit clearing parameter.
[6]
0b =
Options apply to next boot only.
1b =
Options requested to be persistent for all future
boots (such as requests for BIOS to change its boot
settings).
Data 1
NOTE: In order to set this bit remotely (over a
session), the user must execute the set system
boot options command at Admin privilege level.
In order to retain backward compatibility, this bit
is automatically cleared by the MC whenever the
boot flags valid bit is clear (0b). This is to avoid the
possibility that this bit would already be set when
an older application changes other options. Thus,
this bit and the boot flags valid bit must be set
simultaneously.
[5]
[4:0]
BIOS boot type (for BIOS that support both legacy and EFI boots).
0b =
PC compatible boot (legacy).
1b =
Extensible firmware interface boot (EFI). Not
supported in Moonshot.
Reserved
BIOS support for the following flags is optional. If a given flag is supported, it
must cause the specified function to occur in order for the implementation to
be considered conformant with this specification.
The following parameters represent temporary overrides of the BIOS default
settings when data1[6] has value 0b (one-boot), and represent requests to
persistently change the BIOS boot behavior when data1[6] has value 1b
(persistent). BIOS should only use the following flags when the boot flags valid
bit (data1[7]) is set (1b).
If data[6] = 0b (one-boot) a value of 0 for a given data2 parameter indicates
that BIOS should use its default configuration for the given option (no override)
- a non-zero value requests BIOS to enter the requested state.
If data[6] = 1b (persistent) BIOS is requested to change its setting according
to the flag. This only applies to parameters labeled
parameters are ignored.
. Settings for other
Data 2
[7]
1b =
CMOS clear. Not supported in Moonshot.
[6]
1b =
Lock keyboard. Not supported in Moonshot.
[5:2]
Boot device selector
110
Command specification
0000b =
No override
0001b =
Force PXE
Table 70 Boot option parameters (continued)
Parameter
#
Parameter data (non-volatile unless otherwise noted)
0010b =
Force boot from default hard-drive2
1100-1110b
Reserved
[1]
1b =
Screen blank. Not supported in Moonshot.
[0]
1b =
Lock out reset buttons. Not supported in
Moonshot.
Data 3
[7]
1b =
Lock out (power off/ sleep request) via power
button. Not supported in Moonshot.
[6:5]
Firmware (BIOS) verbosity (directs what appears on POST display).
Not supported in Moonshot.
[4]
0b (1b = Force progress event traps for [IPMI 2.0]). Not
supported in Moonshot.
[3]
1b =
User password bypass . Not supported in
Moonshot.
[2]
1b =
Lock out sleep button . Not supported in
Moonshot.
[1:0]
Console redirection control. Not supported in Moonshot.
OEM parameters
(optional). Non-volatile
or volatile as specified
by OEM.
1
2
96:127
This range is available for special OEM configuration parameters. The OEM
is identified according to the manufacturer ID field returned by the get device
ID command.
Semi-volatile means that the parameter is kept across system power cycles, resets, system power on/off, and sleep state
changes, but is not preserved if the management controller loses standby power or is cold reset. Parameters designated
as semi-volatile are initialized to 0’s upon controller power up or hard reset, unless otherwise specified.
IPMI allows software to use the boot initiator mailbox as a way for a remote application to pass OEM parameters for
additional selection of the boot process and direction of the startup of post-boot software. If additional parameters are
not included, the system boots the primary/first-scanned device of the type specified.
Get POH counter command
This command is available to the MC.
IPMI provides a specification for an optional, POH counter. The management controller automatically
increments non-volatile storage at the specified rate whenever the system is powered up. It is
recommended that this command be implemented in the MC to provide a standardized location
for this function.
The definition of powered up used in this document indicates that the power-on hours accumulate
whenever the system is in the operational (S0) state. An implementation may elect to increment
power-on hours in the S1 and S2 states as well.
Clear or set commands are not specified for this counter because the counter is most typically used
for warranty tracking or replacement purposes.
Standard command specification
111
Table 71 Get POH counter command response data
Response data
byte number
Data field
1
Completion code
2
Minutes per count
3:6
Counter reading. LS byte first.
When the system is powered down between counts, the counter either picks up incrementing at
the offset at which the power down occurred, or starts counting at 0 minutes from the last counter
reading, depending on the choice of the implementer. In any case, the time does not get rounded
up to the next count as a result of powering down between counts.
Event commands
The sensor/event network function is used for device functionality related to the transmission,
reception, and handling of event messages and platform sensors. An event message is actually a
sensor/event message with a command byte of ‘02h’. The request is also referred to as an event
request message, while the corresponding response is referred to as an event response message.
Set event receiver command
This command tells a controller where to send event messages. The slave address and LUN of the
event receiver must be provided. A value FFh for the event receiver slave address disables event
message generation entirely. This command is only applicable to management controllers that act
as IPMB event generators.
A device that receives a set event receiver command re-arms event generation for all its
internal sensors. This means internally re-scanning for the event condition and updating the event
status based on the result. This causes devices that have any pre-existing event conditions to transmit
new event messages for those events.
A reading/state unavailable (formerly initial update in progress) bit is provided with the get
sensor reading and get sensor event status commands to help software avoid getting
incorrect event status due to a re-arm. For example, a controller only scans for an event condition
once every four seconds. Software that accessed the event status using the get sensor reading
command could see the wrong status for up to four seconds before the event status would be
correctly updated. A controller that has slow updates must implement the reading/state unavailable
bit, and should not generate event messages until the update has completed. Software should
ignore the event status bits while the reading/state unavailable bit is set.
Table 72 Set event receiver command request and response data
Request data byte Data field
number
1
Event receiver slave address. 0FFh disables event message generation. Otherwise:
• [7:1] - IPMB (I2C) slave address
• [0] - always 0b when [7:1] holds I2C slave address
2
• [7:2] - reserved
• [1:0] - event receiver LUN
112
Response data
byte number
Data field
1
Completion code
Command specification
Get event receiver command
This command is used to retrieve the present setting for the event receiver slave address and LUN.
This command is only applicable to management controllers that act as IPMB event generators.
Table 73 Get event receiver command response data
Response data
byte number
Data field
1
Completion code
2
Event receiver slave address. 0FFh indicates event message generation has been disabled.
Otherwise:
• [7:1] - IPMB (I2C) slave address
• [0] - always 0b when [7:1] holds I2C slave address
3
• [7:2] - reserved
• [1:0] - event receiver LUN
Platform event message command
This command is available to ChMC and MC.
This command is a request for the MC to process the event data that the command contains.
Typically, the data is logged to the SEL. Depending on the implementation, the data may also go
to the event message buffer and processed by PEF.
In Moonshot, the Zone manager can receive event messages from the chassis, power supply and
cartridge controllers. The System Node can receive event messages from the system interface as
well as generate events for its own consumption.
Table 74 Platform event message command request and response data
IPMB messaging (IPMB, LAN, Serial/Modem, PCI Mgmt.
Bus)
System interface
Request data
byte number
Data field
Request data
byte number
Data field
—
Generator ID (RqSA, RqLUN)
1
Generator ID
1
EvMRev
2
EvMRev
2
Sensor type
3
Sensor type
3
Sensor #
4
Sensor #
4
Event Dir | Event type
5
Event Dir | Event type
5
Event data 1
6
Event data 1
6
Event data 2
7
Event data 2
7
Event data 3
8
Event data 3
Response
data byte
number
1
Response data
byte number
Completion code
1
Completion code
The generator ID field is a required element of an event request message. For IPMB messages, this
field is equated to the requester’s slave address and LUN fields. Thus, the generator ID information
is not carried in the data field of an IPMB request message.
For system side interfaces, do not overlay the generator ID field with the message source address
information. It should be specified as being carried in the data field of the request.
Standard command specification
113
SEL commands
The SEL is a non-volatile repository for system events and certain system configuration information.
The device that fields these commands is referred to as the SEL device. Event message information
is normally written into the SEL after being received by the event receiver functionality in the event
receiver device.
The SEL device commands are structured in such a way that the device can be separated from the
event receiver device. In this instance, the event receiver device must send the appropriate Add
sel entry message directly to the SEL device or pass the equivalent request through an
intermediary.
SEL entries have a unique record id field, used for retrieving log entries from the SEL. SEL reading
is done in a random access manner, that is, SEL entries are read in any order as long as the record
id is known.
NOTE: SEL record id’s 0000h and FFFFh are reserved for functional use and are not legal id
values. Record ids are handles and are not required to be sequential or consecutive. Applications
should not assume that the SEL record id will follow any particular numeric order.
SEL records are stored as ordered lists. Appending and deleting individual entries does not change
the access order.
SEL device commands
The SEL device can be implemented as a separate device from the event receiver and event
generator devices. If this is done, it is up to the implementer to create the method by which even
messages are passed from the even receiver device to the SEL device.
Get SEL info command
This command return the number of entries in the SEL, SEL command version and the timestamp
for the most recent entry and delete/clear. The most recent addition timestamp field returns the
timestamp for the last add or log operation while the most recent erase field returns the timestamp
for the last delete or clear operation.
These timestamps are independent of timestamps that may be returned by other commands, such
as those returned by the Get sdr repository info command. The timestamp reflects when
the most recent SEL add or erase occurred, and not when the last add or erase occurred on the
physical storage device.
For example, the SEL Info most recent addition timestamp would reflect the last time a
new event was added to the SEL. This would be independent of the Info most recent
addition time for an SDR even if the implementation elected to implement the SEL and SDR
repository in the same storage device.
Table 75 Get SEL info command request and response data
Request data
byte number
Data field
1
Completion code
• 81h = cannot execute command
• SEL erase in progress
2
SEL version — version number of the SEL command set for this SEL Device.
• 51h
• BCD encoded with bits 7:4 holding the least significant digit of the revision and bits 3:0 holding
the most significant bits.
3
114
Command specification
Entries LS byte — number of log entries in SEL, LS byte
Table 75 Get SEL info command request and response data (continued)
Request data
byte number
Data field
4
Entries MS byte — number of log entries in SEL, MS byte
5:6
Free space in bytes, LS byte first. FFFFh indicates 65535 or more bytes of free space are available.
7:10
Most recent addition timestamp.
• LS byte first.
• Returns FFFF_FFFFh if no SEL entries have ever been made or if a component update or error
caused the retained value to be lost.
11:14
Most recent erase timestamp. Last time that one or more entries were deleted from the log. LS byte
first.
15
Operation support
• [7] — Overflow flag. 1=events have been dropped due to lack of space in the SEL.
• [6:4] — reserved. Write as 000
• [3] — 1b = Delete SEL command supported
• [2] — 1b = Partial Add SEL Entry command supported
• [1] — 1b = Reserve SEL command supported
• [0] — 1b = Get SEL Allocation information command supported
Reserve SEL command
This command sets the present owner of the SEL as identified by the software id or by the requesters
slave address from the command. The reservation process provides a limited amount of protection
on repository access from the IPMB when records are deleted or incrementally read.
The reserve sel command provides helps prevent the wrong record from being deleted. It
includes a mechanism that prevents the SEL from being cleared when a new event is received in
addition to preventing receipt of incorrect data during incremental reads.
The reserve sel does not guarantee access to the SEL. Essentially, this command prevents
requesters from causing deadlocking.
A reservation id value is returned in response to this command. This value is required in other
requests, such as the clear sel command. This commands will not execute unless the correct
reservation id value is provided.
The reservation id is used in the following manner. Suppose an application wishes to clear the
SEL. The application would first reserve the repository by issuing a reserve sel command. The
application would then check that all SEL entries have been handled prior to issuing the clear
sel command.
If a new event is placed in the SEL after records were checked, but before the clear sel
command, it is possible for the event to be lost. However, the addition of a new event to the SEL
causes the present reservation id to be cancelled. This would prevent the clear sel command
from executing. If this occurred, the application would repeat the reserve check clear process until
successful.
Table 76 Reserve SEL command request and respond data
Request data
byte number
Data field
1
Completion code. 81h = cannot execute command, SEL erase in progress
2
Reservation id, LS byte 0000h reserved
3
Reservation id, MS byte
Standard command specification
115
Get SEL entry command
Use this command to retrieve entries from the SEL. The record data field in the response returns the
16 bytes of data from the SEL event record.
Table 77 Get sel entry request data
Request data
byte number
Data field
1:2
Reservation id, LS byte first. Only required for partial get. Use 0000h otherwise.
3:4
SEL record id, LS byte first.
1
0000h = get first entry
FFFFh — get last entry
5
Offset into record
6
Bytes to read. FFh means read entire record.
1
The reservation id should be set to 0000h for implementations that don’t implement the reserve sel command.
Table 78 Get set entry response data
Response data
byte number
Data field
1
Completion code. Return an error completion code if the SEL is empty. 81h = cannot execute
command, SEL erase in progress.
2:3
Next SEL record id, LS byte first (return FFFFh if the record returned is the last record.) FFFFh is not
a valid record id.
4:N
Record data, 16 bytes for entire record.
Add SEL entry command
This command enables the BIOS to add records to the system event log. Normally, the SEL device
and the event receiver device are incorporated into the same management controller. In this case,
the BIOS or the system SMI handler adds its own events to the SEL by formatting an event message
and transmitting it to the SEL device instead of using this command.
Records are added after the last record in the SEL. The SEL device adds the timestamp according
to the SEL record type when it creates the record. In some cases, the timestamp bytes in the record
data are ignored, there are still dummy timestamp bytes present in the data.
The record data field is passed in the request consists of all bytes of the SEL event record. The
record id field that is passed in the request is just a placeholder. The record id field that was passed
in the request is overwritten with a record id value that the SEL device generates before the record
is stored. Depending on the record type, the entry may also be automatically timestamped. If the
entry is automatically timestamped, the SEL device also overwrites the four bytes of the records
timestamp field.
NOTE: The normal mechanism for adding entries to the SEL is by an event request message to
the event receiver device.
Table 79 Add SEL entry request data
116
Request data
byte number
Data field
1:16
Record data, 16 bytes
Command specification
Table 80 Add SEL entry response data
Request data
byte number
Data field
1
Completion code. Generic, plus following command specific:
80h = operation not supported for this record type
81h = cannot execute command, SEL erase in progress
2:3
Record id for added record, LS byte first.
Clear SEL
This command erases all contents of the System Event Log. Since this process may take several
seconds, based on the type of storage device, the command also provides a means for obtaining
the status of the erasure.
Table 81 Clear SEL entry request data
Request data
byte number
Data field
1:2
Reservation ID, LS Byte first.1
3
‘C’ (43h)
4
‘L’ (4Ch)
5
‘R’ (52h)
6
AAh = initiate erase.
00h = get erasure status.
1
The reservation ID should be set to 0000h for implementations that don’t implement the Reserve SEL command.
Table 82 Clear SEL entry response data
Request data
byte number
Data field
1
Completion Code
2
Erasure progress.
[7:4] - reserved
[3:0] - erasure progress
• 0h = erasure in progress.
• 1h = erase completed.
SEL record type ranges
Table 83 SEL record type ranges
Record ranges
Description
00h — BFh
This range is reserved for standard SEL record types. Records are automatically timestamped
unless otherwise indicated.
C0h — DFh
This range is reserved for timestamped OEM SEL records. These records are automatically
timestamped by the SEL device.
E0h — FFh
This range is reserved for non-timestamped OEM SEL records. The SEL device does not
automatically timestamp these records. The four bytes passed in the byte locations for the
timestamp are directly entered into the SEL.
Standard command specification
117
Get SEL time command
This command returns the time from the SEL device. This time is used by the SEL device for event
timestampting.
Table 84 Get SEL time command request and respond data
Response data byte
number
Data field
1
Completion code
2:5
Present timestamp clock reading. LS byte first.
Request data byte
number
Data field
1:4
Time in four byte format. LS byte first.
Set SEL time command
This command initializes the time in the SEL device. This time is used by the SEL device for event
timestamping.
Table 85 Set SEL time command response data
Response data
byte number
Data field
1
Completion code.
SDR repository device commands
The following sections describe the commands that an SDR repository device provides for accessing
the SDR repository. The commands are designed to simplify the SDR repository device’s
implementation by pushing back intelligence to higher-level software where possible. The SDR
repository device is not intended to be a database engine. Thus, the SDR access commands do
not include automatic search functions. It is recommended that an application read the SDR
repository into a RAM buffer and work from that copy (keeping track of the SDR timestamp to check
for possible changes to the SDR repository). The general procedure for reading SDRs from the SDR
repository is described under the get sdr command.
As with event messages, the commands are designed so that the SDR repository device is isolated
and does not need to know the content and format of the SDR records themselves.
SDR record IDs
In order to generalize SDR access, sensor data records are accessed using a record ID number.
There are a fixed number of possible record IDs for a given implementation of the SDR repository.
The most common implementation of record IDs is as a value that translates directly to an index
or offset into the SDR repository. However, it is also possible for an implementation to provide a
level of indirection, and implement record IDs as handles to the SDRs.
Record ID values may be recycled so that the record ID of a previously deleted SDR can be used
as the record ID for a new SDR. The requirement is that, at any given time, the record IDs are
unique for all SDRs in the repository.
Record IDs can be reassigned by the SDR repository device as needed when records are added
or deleted. An application that uses a record ID to directly access a record should always verify
that the retrieved record information matches up with the ID information (slave address, LUN, sensor
ID, and so on) of the desired sensor. An application that finds that the SDR at a given record ID
has moved needs to re-enumerate the SDRs by listing them out using a series of get sdr commands.
It is not necessary to read out the full record data to see if the record ID for a particular record has
118
Command specification
changed. Software can determine whether a given record has been given a different record ID by
examining just the SDR’s header and record key bytes.
Get SDR repository info command
This command is available to the MC.
At the zone level, remember to issue the SDR repository version of the command. At any other
zone, use the device SDR version of the command.
This command returns the SDR command version for the SDR repository. It also returns a timestamp
for when the last add, delete, or clear occurred. The most recent addition timestamp field returns
the timestamp for the last addition operation, while the most recent erase field returns the timestamp
for the last delete or clear operation.
These timestamps are independent of timestamps that may be returned by other commands, such
as those returned by the get SEL info command. The timestamp reflects when the most recent
SDR repository add or erase occurred, not when the last add or erase occurred on the physical
storage device.
For example, the SDR repository info most recent addition timestamp would reflect the last time a
new record was added to the SDR repository. The SDR repository’s most recent addition timestamp
is always independent of the most recent addition time for the SEL - even if the SEL and SDR
repository are implemented in the same physical storage device.
Table 86 Get SDR repository info command response data
Response data byte
number
Data field
1
Completion code
2
SDR version - version number of the SDR command set for the SDR device. 51h for this
specification. (BCD encoded with bits 7:4 holding the least significant digit of the revision and
bits 3:0 holding the most significant bits.)
3
Record count LS byte - number of records in the SDR repository.
4
Record count MS Byte - number of records in the SDR repository.
5:6
Free space in bytes, LS Byte first. 0000h indicates full, FFFEh indicates 64KB-2 or more
available. FFFFh indicates unspecified.
7:10
Most recent addition timestamp. LS byte first.
11:14
Most recent erase (delete or clear) timestamp. LS byte first.
15
Operation support
[7]
Overflow flag. 1=SDR could not be written due to lack of space in the SDR
repository.
[6:5]
00b =
Modal/non-modal SDR repository update operation unspecified.
01b =
Non-modal SDR repository update operation supported.
10b =
Modal SDR repository update operation supported.
11b =
Both modal and non-modal SDR repository update supported.
[4]
Reserved. Write as 0b.
[3]
1b=
Delete SDR command supported.
[2]
1b=
Partial Add SDR command supported.
[1]
1b=
Reserve SDR repository command supported.
[0]
1b=
Get SDR repository allocation information
command supported.
Standard command specification
119
Get SDR repository allocation info command
This command is available to the MC.
This command returns the number of possible allocation units, the amount of usable free space (in
allocation units), the allocation unit size (in bytes), and the size of the largest contiguous free region
(in allocation units). The allocation unit size is the number of bytes in which storage is allocated.
For example, if a 20-byte record is to be added, and the SDR repository has a 16-byte allocation
unit size, then the record would take up 32-bytes of storage.
The SDR repository implementation, at a minimum, provides an allocation unit size of 16 bytes or
more and a maximum record size supporting a record of 64 bytes or more. Software should assume
an allocation unit size of 16 bytes if this command is not implemented.
Table 87 Get SDR repository allocation info command response data
Response data byte
number
Data field
1
Completion code
2
Number of possible allocation units, LS byte.
3
Number of possible allocation units, MS byte. This number indicates whether the total number
of possible allocation units is equal to or less than the log size divided by the allocation unit
size. 0000h indicates unspecified.
4
Allocation unit size in bytes. 0000h indicates unspecified.
5
6
Number of free allocation units, LS byte.
7
Number of free allocation units, MS byte.
8
Largest free block in allocation units, LS byte.
9
Largest free block in allocation units, MS byte.
10
Maximum record size in allocation units.
Reserve SDR repository command
This command is available to the MC.
This command is used to set the present owner of the repository, as identified by the software ID
or by the requester’s slave address from the command. The reservation process provides a limited
amount of protection on repository access from the IPMB when records are being deleted or
incrementally read.
The reserve SDR repository command is provided to help prevent deleting the wrong record
when doing deletes, and to prevent receiving incorrect data when doing incremental reads. It does
not guarantee access to the SDR repository so that a pair of requesters could vie for access to the
SDR that they alternately cancel the reservation that is held by the other - effectively deadlocking
each other.
A reservation ID value is returned in response to this command which is required in other requests,
such as the delete SDR command. These commands do not execute unless the correct reservation
ID value is provided.
The reservation ID is used in the following manner. Suppose an application wishes to delete a
particular record. The application would first reserve the repository by issuing a reserve SDR
repository command. The application reads the header and key information from the record
to verify that it has the correct record ID for the record. Assuming this is correct, the application
issues a delete SDR command using the reservation ID and record ID as parameters.
If an event had occurred that changed the record IDs after the header and key information was
read but before the delete SDR command, the delete SDR command could be issued with
120 Command specification
the record ID for the wrong record. However, events that change record IDs for any existing records
cause the present reservation ID to be canceled. This prevents software from using an out-of-date
record ID to access a record. For example, it would prevent the delete SDR command from
executing and deleting the wrong record in case a given record ID was reassigned to a different
record.
Table 88 Reserve SDR repository command response data
Response data byte
number
Data field
1
Completion code
2
Reservation ID, LS byte.
3
Reservation ID, MS byte.
Reservation restricted commands
A requester must issue a reserve SDR repository command before issuing any of the following
SDR repository commands. This command only needs to be reissued if the reservation is canceled.
The following commands are rejected if the requester’s reservation has been canceled.
•
Delete SDR command
•
Clear SDR Repository command
•
Get SDR command (if a partial read)
If the given reservation has been canceled, a reservation canceled completion code is returned in
response to the above commands. See “Reservation cancellation” (page 121)
Since record IDs could change between offset 0 “gets” of a given record, it is the responsibility of
the device accessing the repository to verify that the retrieved record information matches up with
the ID information (slave address, LUN, sensor ID, and so on) of the desired sensor.
Reservation cancellation
The SDR repository device automatically cancels the present SDR repository reservation after any
of the following events occur:
•
An SDR record is added using the add SDR command so that other record IDs change. As
a simplification, an implementation is allowed to cancel the reservation on any SDR record
add.
•
An SDR record is deleted so that other record IDs change. As a simplification, an
implementation is allowed to cancel the reservation on any SDR record deletion.
•
The SDR repository is cleared.
•
The SDR repository device is reset (via hardware or cold reset command).
•
A new reserve SDR repository command is received.
An error completion code is returned if an attempt is made to execute a command that requires a
reservation ID, but the reservation ID used is not valid or current.
Get SDR command
This command is available to the MC.
This command returns the sensor record specified by record ID. The command also accepts a byte
range specification that allows just a selected portion of the record to be retrieved (incremental
read). The requester must first reserve the SDR repository using the reserve SDR repository
command in order for an incremental read to an offset other than 0000h to be accepted. (It is also
recommended that an application use the get SDR repository info command to verify the
Standard command specification
121
version of the SDR repository before it sends any other SDR repository commands. This is important
since the SDR repository command format and operation can change between versions).
If the record ID is specified as 0000h, this command returns the record header for the first SDR in
the repository. FFFFh specifies that the last SDR in the repository should be listed. If the record ID
is non-zero, the command returns the information from the matching record, and the record ID for
the next SDR in the repository.
An application that wishes to retrieve the full set of SDR records must first issue the get SDR
command starting with 0000h as the record ID to get the first record. The next record ID is extracted
from the response and this is then used as the record ID in a get SDR request to get the next
record. This is repeated until the last record ID value (FFFFh) is returned in the next record ID field
of the response.
A partial read from offset 0000h into the record can be used to extract the header and associated
key fields for the specified sensor data record in the SDR repository. An application can use the
command in this manner to get a list of what records are in the SDR and to identify the instances
of each type. It can also be used to search for a particular sensor record.
NOTE: To support future extensions, applications should check the SDR Vversion byte before
interpreting any of the data that follows.
The application issuing get SDR commands with a non-zero value for the offset into the record
field must first reserve the SDR repository by issuing a reserve SDR repository command.
If you issue a get SDR command (storage 23h) with a bytes to read size of FFh (meaning read
entire record) this will cause an error in most cases, since SDRs are bigger than the buffer sizes
for the typical system interface implementation. The controller therefore returns an error completion
code if the number of record bytes exceeds the maximum transfer length for the interface. The
completion code CAh indicates that the number of requested bytes cannot be returned. Returning
this code is recommended, although a controller could also return an FFh completion code. In
either case, the algorithm for handling this situation is to default to using partial reads if the read
entire record operation fails (that is, if you get a non-zero completion code).
Table 89 Get SDR command request and response data
Request data
byte number
Data field
1
Reservation ID, LS byte. Only required for partial reads with a non-zero offset into record field. Use
0000h for the reservation ID otherwise.
2
Reservation ID, MS byte.
3
Record ID of record being requested, LS byte.
4
Record ID of record being requested, MS byte.
5
Offset into record.
6
Bytes to read. FFh means read entire record.
Response data
byte number
Data field
1
Completion code.
2
Record ID for next record, LS byte.
3
Record ID for next record, MS byte.
4:3+N
Record data.
Add SDR command
This command is available to the MC.
122
Command specification
This command adds the specified sensor record to the SDR repository and returns its record ID.
The data passed in the request must contain the SDR data in its entirety.
Table 90 Add SDR command request and response data
Request data
byte number
Data field
1:N
SDR data
Response data
byte number
Data field
1
Completion code
2
Record ID for added record, LS byte
3
Record ID for added record, MS byte
Delete SDR command
This command is available to the MC.
This command deletes the sensor record specified by record ID. The requester’s ID and the
reservation ID must also match the present owner of the SDR repository.
Table 91 Delete SDR command request and response data
Request data
byte number
Data field
1
Reservation ID, LS byte
2
Reservation ID, MS byte
3
Record ID of record to delete, LS byte
4
Record ID of record to delete, MS byte
Response data
byte number
Data field
1
Completion code
2
Record ID for deleted record, LS byte
3
Record ID for deleted record, MS byte
Clear SDR repository command
This command is available to the MC.
This command clears all records from the SDR repository and re-initializes the SDR repository
subsystem. Mainly a development and production aid, use of this command should be avoided in
utilities and system management software. The requester’s ID and reservation ID information must
also match the present owner of the SDR repository.
Table 92 Clear SDR repository command request and response data
Request data
byte number
Data field
1
Reservation ID, LS byte
2
Reservation ID, MS byte
3
C (43h)
4
L (4Ch)
Standard command specification
123
Table 92 Clear SDR repository command request and response data (continued)
5
R (52h)
6
• AAH = initiate erase
• 00h = get erasure status
Response data
byte number
Data field
1
Completion code
2
Erasure progress
• [7:4] - reserved
• [3:0] - erasure in progress
◦
0h = erasure in progress
◦
1h = erase completed
Run initialization agent command
This command is available to the MC.
This command can be used to cause the initialization agent to run. The command can be used to
check the status of the initialization agent as well.
Table 93 Run initialization agent command request and response data
Request data
byte number
Data field
1
• [7:1] - reserved
• [0]
◦
1b = run initialization agent
◦
0b = get status of initialization agent process
Response data
byte number
Data field
1
Completion code
2
• [7:1] - reserved
• [0]
◦
1b = initialization completed
◦
0b = initialization in progress
FRU inventory device commands
The FRU inventory data contains information such as the serial number, part number, asset tag,
and a short descriptive string for the FRU. The contents of a FRU inventory record are specified in
the Platform Management FRU Information Storage Definition.
The FRU inventory device is a logical device and is not necessarily implemented as a separate
physical device. The device that contains the SDR repository device also typically holds FRU
inventory information for the main system board and chassis, there may also be a separate FRU
inventory device that provides access to the FRU information for a replaceable module such as a
memory codule.
124
Command specification
Get FRU inventory area info command
This command returns the overall size of the FRU inventory area for a device in bytes.
Table 94 Get FRU inventory area info command request and response data
Request data
byte number
Data field
1
FRU device id. FFh = reserved
Response data
byte number
Data field
1
Completion code.
2
FRU inventory area size in bytes, LS byte.
3
FRU inventory area size in bytes, MS byte.
4
[7:1] — reserved
[0] — 0b = device is accessed by bytes, 1b = device is accessed by words
Read FRU data command
This command returns the specified data from the FRU inventory info area. This is effectively a low
level direct interface to a non-volatile storage area. This means that the interface does not interpret
or check any semantics or formatting for the data being accessed. The offset used in this command
is a logical offset that may correspond to the physical address used in the device that provides the
non-volatile storage. For example, FRU information kept in flash at physical address 1234h, however
the offset 0000h would be used with this command to access the start of the FRU information. IPMI
FRU device data (devices formatted per FRU) as well as process and DIMM FRU data always starts
from offset 0000h unless otherwise noted.
NOTE: While offset values are 16–bit allowing FRU devices up to 64K words, the count to
read, count returned and count written fields are 8–bits. This is in recognition of the
limitations on the size of messages. Currently IPMB messages are limited to 32–bytes total.
Table 95 Read FRU data command request and response data
Request data
byte number
Data field
1
FRU device id. FFh = reserved.
2
FRU inventory offset to read, LS byte.
3
FRU inventory offset to read, MS byte.
Offset is in bytes or words per device access type returned in the get fru inventory area
info command.
4
Count to read – count is 1 based.
Response data
byte number
Data field
1
Completion code. Generic, plus following command specific:
• 81h = FRU device busy.
The requested cannot be completed because the implementation of the logical FRU device is in
a state where the FRU information is temporarily unavailable. This could be due to a condition
such as a loss of arbitration if the FRU is implemented as a device on a shared bus.
• Software can elect to retry the operation after at least 30 milliseconds if this code is returned.
NOTE: It is highly recommended that management controllers incorporate built-in retry mechanisms.
Generic IPMI software cannot be relied upon to take advantage of this completion code
Standard command specification
125
Table 95 Read FRU data command request and response data (continued)
2
Count returned – count is 1 based
3:2+N
Requested data.
Write FRU data command
This command writes the specified byte or word to the FRU inventory info area. This is a low level
direct interface to a non-volatile storage area. This means that the interface does not interpret or
check any semantics or formatting for the data being written. The offset used in this command is
a logical offset that may correspond to the physical address used in device that provides the
non-volatile storage. For example, FRU information could be kept in flash at physical address
1234h, however offset 0000h would still be used with this command to access the start of the FRU
information. IPMI FRU device data (devices that are formatted per FRU) as well as processor and
DIMM FRU data always starts from offset 0000h unless otherwise noted. Updating the FRU inventory
data is presumed to be a system level, privileged operation. There is no requirement for devices
implementing this command to provide mechanisms for rolling back the FRU inventory area in the
case of incomplete or incorrect writes.
Table 96 Write FRU data command request and response data
Request data byte
number
Data field
1
FRU device id. FFH = reserved
2
FRU inventory offset to write, LS byte
3
FRU inventory offset to write, MS byte
4:3+N
Data to write
Response data
byte number
Data field
1
Completion code. Generic, plus following command specific:
• 80h = write-protected offset. Cannot complete write because one or more bytes of FRU data are
to a write-protected offset in the FRU device. An implementation may have allowed a partial
write of the data to occur.
• 81h = FRU device busy. Refer to the preceding table Table 95 (page 125) for the description of
this completion code.
2
Count written – count is 1 based
Sensor Device Commands
Get device SDR info command
This command returns general information about the collection of sensors in a dynamic sensor
device.
NOTE:
Issuing this command without a parameter, returns LUN based device sensor information.
Regarding LUN based device sensor information, a device could implement four sensors under
one LUN and twelve under another. SDR info does not return the aggregate of the sensor
information, instead you must issue a Get Device SDR Info command for each LUN.
Table 97 Get device SDR info command request and response data
Request data byte
number
Data field
1
126
Command specification
Operation (optional)
Table 97 Get device SDR info command request and response data (continued)
[7:1] — reserved
[0] — 1b = Get SDR count, returns the total number of SDRs in the device.
0b = Get sensor count, returns the number of sensors implemented on the LUN addressed.
Response data
byte number
Data field
1
Completion code
2
For operation = Get sensor count (or if byte 1 not present in the request): Number of sensors
in device for the LUN this command was addressed.
For operation = Get SDR count, the total number of SDRs in the device.
3
Flags:
Dynamic population
[7]
0b = static sensor population. The number of sensors handled by this device is fixed and a query
shall return records for all sensors.
1b = dynamic sensor population. This device may have its sensor population vary during run time
(any time other than during installation).
Reserved
[6:4] — reserved
Device LUNs
[3] — 1b = LUN 3 has sensors
[2] — 1b = LUN 2 has sensors
[1] — 1b = LUN 1 has sensors
[0] — 1b = LUN 0 has sensors
4:7
Sensor population change indicator. LS byte first.
Four byte timestamp, or counter. Updated or incremented each time the sensor population changes.
This field is not provided if the flags indicate a static sensor population.
Get device SDR command
The Get Device SDR command allows SDR information for sensors and is typically implemented
in a satellite management controller. It also returns SDR types in addition to 01h and 02h. This is
an optional command for static sensor devices, and mandatory for dynamic sensor devices. The
format action is similar to the get sdr command for repository devices.
NOTE:
A sensor device uses consistent sensor numbers for particular sensor.
The Get Device SDR command includes a reservation id that notifies the requestor that a
record may have changed during a multi-part read.
Table 98 Get device SDR command request and response data
Request data byte
number
Data field
1
Reservation ID. LS Byte. Only required for partial reads with a non-zero offset into record field. Use
0000h for reservation id.
2
Reservation ID. MS Byte.
3
Record id of record to get, LS byte. 0000h returns the first record.
4
Record id of record to get, MS byte.
Standard command specification
127
Table 98 Get device SDR command request and response data (continued)
5
Offset into record.
6
Bytes to read. FFh means read entire record.
Response data
byte number
Data field
1
Completion code. Generic, plus command specific:
80h = record changed. This status is returned if any of the record contents were altered since the
last time the requestor issued the request with 00h for the offset into SDR field.
2
Record id for next record, LS byte.
3
Record id for next record, MS byte.
4:3+N
Requested bytes from record.
Reserve device SDR repository command
This command is used to obtain a reservation id that is part of the mechanism used to notify
the requestor of record changes during a multi-part read.
Table 99 Reserve device SDR repository command request and response data
Response data
byte number
Data field
1
Completion code
2
Reservation id, LS byte 0000h reserved.
3
Reservation id, MS byte
Request data
byte number
Data field
1
Sensor number (FFh = reserved)
Get sensor thresholds command
This command retrieves the threshold for a given sensor.
Table 100 Get sensor thresholds command response data
Response data
byte number
Data field
1
Completion code
2
[7:6] — reserved. Returns as 00b.
Readable thresholds: This bit mask indicates which thresholds are readable
[5] — 1b = upper non-recoverable threshold
[4] — 1b = upper critical threshold
[3] — 1b = upper non-critical threshold
[2] — 1b = lower non-recoverable threshold
[1] — 1b = lower critical threshold
[0] — 1b = lower non-critical threshold
128
3
lower non-critical threshold, if present, ignore on read otherwise
4
lower critical threshold, if present, ignore on read otherwise
5
lower non-recoverable threshold, if present, ignore on read otherwise
Command specification
Table 100 Get sensor thresholds command response data (continued)
Response data
byte number
Data field
6
upper non-critical threshold, if present, ignore on read otherwise
7
upper critical, if present, ignore on read otherwise
8
upper non-recoverable, if present, ignore on read otherwise
Get sensor reading command
This command returns the present reading for sensor. The sensor device may return a stored version
of a periodically updated reading, or the sensor device may scan to obtain the reading after
receiving the request.
The event/reading type code from the SDR determines the state bits returned by discrete sensors.
Table 101 Get sensor reading command request data
Request data byte
number
Data field
1
Sensor number (FFh = reserved)
Response data byte
number
Data field
1
Completion code.
2
Sensor reading
Byte 1: byte of reading. Ignore on read if the sensor does not return a numeric (analog) value.
3
[7] — 0b = All event messages disabled from this sensor.
[6] — 0b = sensor scanning disabled.
[5] — 1b = reading/state unavailable (formerly: initial update in progress). This bit is set to
indicate a re-arm or set event receiver command has been used to request an update of
the sensor status, and that update has not occurred yet. Software should use this bit to avoid
getting an incorrect status while the first sensor update is in progress. This bit is only required if
it is possible for the controller to receive and process a get sensor reading or get sensor
event status command for the sensor before the update completes. This is most likely the
case for sensors, such as fan RPM sensors that may require seconds to accumulate the first reading
after a re-arm. The bit may also indicate when a reading/state is unavailable because the
management controller cannot obtain a valid reading or state for the monitored entity, typically
because the entity is not present.
[4:0] — reserved. Ignore on read.
(4)
For threshold-based sensors:
Present threshold comparison status
[7:6] — reserved. Returned as 1b. Ignore on read.
[5] — 1b = at or above (≥) upper non-recoverable threshold
[4] — 1b = at or above (≥) upper critical threshold
[3] — 1b = at or above (≥) upper non-critical threshold
[2] — 1b = at or below (≤) lower non-recoverable threshold
[1] — 1b = at or below (≤) lower critical threshold
[0] — 1b = at or below (≤) lower non-critical threshold
For discrete reading sensors:
[7] = 1b = state 7 asserted
[6] = 1b = state 6 asserted
[5] = 1b = state 5 asserted
[4] = 1b = state 4 asserted
Standard command specification
129
Table 101 Get sensor reading command request data (continued)
[3] = 1b = state 3 asserted
[2] = 1b = state 2 asserted
[1] = 1b = state 1 asserted
[0] = 1b = state 0 asserted
(5)
For discrete reading sensors only. (Optional)
(00h Otherwise)
[7] = Reserved. Returned as 1b. Ignore on read.
[6] = 1b = state 14 asserted
[5] = 1b = state 13 asserted
[4] = 1b = state 12 asserted
[3] = 1b = state 11 asserted
[2] = 1b = state 10 asserted
[1] = 1b = state 9 asserted
[0] = 1b = state 8 asserted
DCMI specific commands
This section includes commands specific to the Data Center Manageability Interface implementation
in Moonshot. Table 102 (page 130) shows the completion codes and definitions found in data byte
1 of DCMI specific command responses.
Table 102 DCMI completion codes
Code
Definition
00h
Command completed normally.
C0h
Node busy. Command could not be processed because command processing resources are temporarily
unavailable.
C1h
Invalid Command. Used to indicate an unrecognized or unsupported command.
C2h
Command invalid for given LUN.
C3h
Timeout while processing command. Response unavailable.
C4h
Out of space. Command could not be completed because of a lack of storage space required to
execute the given command operation.
C5h
Reservation cancelled or invalid reservation ID.
C6h
Request data truncated.
C7h
Request data length invalid.
C8h
Request data field length limit exceeded.
C9h
Parameter out of range. One or more parameters in the data field of the request are out of range.
This is different from ‘Invalid data field’ (CCh) code in that it indicates that the erroneous fields have
a contiguous range of possible values.
CAh
Cannot return number of requested data bytes.
CBh
Requested sensor, data, or record not present.
CCh
Invalid data field in request.
CDh
Command illegal for specified sensor or record type.
CEh
Command response could not be provided.
130 Command specification
Table 102 DCMI completion codes (continued)
Code
Definition
CFh
Cannot execute duplicated request. This completion code is for devices which cannot return the
response that was returned for the original instance of the request. Such devices should provide
separate commands that allow the completion status of the original request to be determined. An
event receiver does not use this completion code, but returns the 00h completion code in the response
to (valid) duplicated requests.
D0h
Command response could not be provided. SDR repository in update mode.
D1h
Command response could not be provided. Device in firmware update mode.
D2h
Command response could not be provided. MC initialization or initialization agent in progress.
D3h
Destination unavailable. Cannot deliver request to selected destination. For example, this code can
be returned if a request message is targeted to SMS, but receive message queue reception is disabled
for the particular channel.
D4h
Cannot execute command due to insufficient privilege level or other security-based restriction.
D5h
Cannot execute command. Command, or request parameters, not supported in present state.
D6h
Cannot execute command. Parameter is illegal because command sub-function has been disabled or
is unavailable.
FFh
Unspecified error.
Get DCMI capability info command
This command provides version information for DCMI and information about the mandatory and
optional DCMI capabilities that are available on the particular platform. The command is session-less,
and is a bare-metal provisioning command. The availability of features does not imply the features
are configured.
Table 103 Get DCMI capability info command request and response data
Request data byte
number
Data field
1
Group extension identification = DCh
2
Parameter selector
Response data
byte number
Data field
1
Completion code. See Table 102 (page 130).
2
Group extension identification = DCh
3:4
DCMI specification conformance:
• Byte 1 — Major version (01h)
• Byte 2— Minor version (01h)
5
Parameter revision = 02h
6:N
Parameter data. See Table 104 (page 132).
Standard command specification
131
Table 104 DCMI Capabilities Parameters
Parameter
# Parameter data (non-volatle unless noted)
Supported DCMI capabilities
1 This field returns the supported capabilities available in the server in conformance
to DCMI specification for both Platform and Manageability access. All reserved
bits shall be set to 0b.
• Byte 1–Reserved
• Byte 2–Platform capabilities.
All bits:
◦
0b=Not present
◦
1b=Available
◦
[7:1] — Reserved
◦
[0] — Power management/monitoring support (Defined as support for either
power monitoring or power monitoring plus power limiting.)
• Byte 3–Manageability access capabilities.
All bits:
Mandatory platform attributes
◦
0b=Not present
◦
1b=Available
◦
[7:3] — Reserved
◦
[2] — Out-of-band secondary (second) LAN channel available (optional).
◦
[1] — Serial TMODE available (TMODE on serial port to management
controller) (optional)
◦
[0] — Power management/monitoring support (Defined as support for either
power monitoring or power monitoring plus power limiting.)
2 This field returns the platform attributes for th platform capabilities. All reserved
bits shall be set to 0b.
• Byte 1:2–SEL attributes
◦
[15]–SEL automatic rollover enabled (SEL overwrite) (0b=Not present,
1b=available)
◦
[14] Entire SEL Flush upon rollover (Valid if rollover is enabled) (0b=Not
present, 1b=available)
◦
[13] Record level SEL flush upon rollover (Valid if rollover is enabled) (0b=Not
present, 1b=available)
◦
[12] Reserved
◦
[11:0] Number of SEL entries (maximum of 4096) (the number of entries
supported must be 64 or great to be in conformance)
• Byte 3–4—Reserved
• Byte 5–Sample frequency for temperature monitoring (in units of 1 second)
132
Command specification
Table 104 DCMI Capabilities Parameters (continued)
Parameter
# Parameter data (non-volatle unless noted)
Optional platform attributes
3 This field returns the attributes required for the recommended platform capabilities.
• Byte 1 — Power management device slave address
◦
[7:1] 7–bit I2C slave address on IPMB.
◦
[0] Reserved. Write as 0b.
◦
[20h=MC, XXh=Satellite/external controller]
• Byte 2 — Power management controller channel number
Manageability access
attributes
◦
[7:4] Channel number for channel that management controller is located on.
Use 0h for the primary MC.
◦
[3:0] Device revision (used for providing the revision control for power
magement capability)
4 This field returns the attributes of the manageability access.
• Byte 1–Mandatory primary LAN OOB support (RMCP+ support only)
[7:0] Channel number (0xFFh==Not supported)
• Byte 2–Optional secondary LAN OOB support (RMCP+ support only)
[7:0] Channel number (0xFFh==Not supported)
• Byte 3–Optional serial out-of-band TMODE capability
[7:0] Channel number (0xFFh==Not supported)
Get asset tag command
This command enables management consoles or local software to get asset tag data. UTF-8
encoding is identified when the first three bytes (offsets 0, 1, and 2) of the returned asset tag data
are set to the UTF-8 byte order mark (BOM) pattern, EFh, BBh, BFh, respectively.
Table 105 Get asset tag command request and response data
Request data byte
number
Data field
1
Group extension identification = DCh
2
Offset to read
3
Number of bytes to read (16 bytes maximum)
NOTE: If the number of bytes to read starting from the given offset to read exceeds the number
of remaining asset tag data bytes, the command will complete normally (completion code = 00h)
but will only return the remaining bytes (provided the offset to read and bytes to read are within
their correct ranges.) For example, if the asset tag length is presently 20 bytes, submitting an offset
to read of 16 and a bytes to read of 16 will be accepted, but only the asset tag data bytes at
offsets 16–19 will be returned.
Response data
byte number
Data field
1
Completion code. C9h shall be returned if offset >62, offset to read+bytes to read >63, or bytes
to read is >16.
The following applies to implementations that keep the DCMI asset tag and IPMI FRU asset tag
information synchronized:
If the encoding indicated by the Type/Length byte in the IPMI FRU is not set to ASCII+Latin1 or
the language code for the IPMI FRU product info area is not set to English (0 or 25), the command
Standard command specification
133
Table 105 Get asset tag command request and response data (continued)
shall return the requested data bytes, but shall also return a command-specific completion code
based on the detected encoding type, as follows:
• 80h=Encoding type in FRU is binary/unspecified
• 81h=Encoding type in FRU is BCD Plus
• 82h=Encoding type is FRU is 6–bit ASCII Packed
• 83h=Encoding type is set to ASCII+Latin1 but language code is not set to English (indicating
data is 2–byte Unicode).
The management controller does not check, nor require, a BOM in the asset tag data; asset tag
data can be stored and retrieved as ASCII+Latin1 without receiving an error completion code.
2
Group extension identification = DCh
3
Total asset tag length (must be less than or equal to 64 bytes)
4:N
Asset tag data (starting from the offset to read)
Get DCMI sensor info command
This DCMI command returns information about a DCMI-specified sensor. A particular sensor is
identified by the combination of its entity ID and entity instance numbers.
Table 106 DCMI Entity ID extension
Entity ID description
Entity ID
Entity instance
Sensor type
Inlet temperature
40h
0x01...n
Temp (01h)
CPU temperature (based on 41h
number of processors or
cores)
0x01...n
Temp (01h)
Baseboard temperature
0x01...n
Temp (01h)
42h
Table 107 Get DCMI sensor info command request and response data
Request data byte
number
Data field
1
Group extension identification = DCh
2
Sensor type
3
Entity ID
4
Entity instance
• 00h = Retrieve information about all instances associate with entity ID
• 01h-FFh = Retrieve only the information about particular instance
134
5
Entity instance start, used with entity instance 00h for number of instance exceeding one IPMI
response.
Response data
byte number
Data field
1
Completion code. See Table 102 (page 130).
2
Group extension identification = DCh
3
Total number of available instances for the entity ID.
Command specification
Table 107 Get DCMI sensor info command request and response data (continued)
4
Number of record IDs in this response (maximum of 8 per response)
01h for entity instance not equal to 00h.
5:6 + N
SDR record ID corresponding to the entity IDs.
• Byte 1: Record ID LS byte, used for retrieving SDR records.
• Byte 2: Record ID MS byte, used for retrieving SDR records.
NOTE: The management controller can include SDR record IDs corresponding to entities IDs
compatible IPMI 2.0 specified entity IDs such as:
• Request for inlet temp (40h) can also include air inlet temp info (37h)
• Request for CPU temp (41h) can also include CPU temp (03h)
• Request for baseboard temp (42h) can also include system board (07h)
Set asset tag command
This command enables remote consoles or local software to set the asset tag data. UTF-8 encoding
is identified when the first three bytes (offsets 0, 1, and 2) of the returned asset tag data are set
to the UTF-8 byte order mark (BOM) pattern, EFh, BBh, BFh, respectively. Otherwise the data
encoding is assumed to be the ASCII+Latin1 subset. Note that the management controller simply
stores all eight bits of each of the given asset tag data bytes. It does not check the encoding of the
asset tag data bytes, nor does it check for a BOM in the data.
Implementations that keep the asset tag in synch with the IPMI FRU data shall write the given
characters to the asset tag field in the product info area of the IPMI FRU device and set the encoding
of the corresponding type/length byte field to ASCII+Latin1.
Table 108 Set asset tag command request and response data
Request data byte
number
Data field
1
Group extension identification = DCh
2
Offset to write (0 to 62). The offset is relative to the first character of the asset tag data.
3
Number of bytes to write (16 bytes maximum)
NOTE: The command must set the overall length of the asset tag (in bytes) to the value (offset to
write + bytes to write). Any pre-existing asset tag bytes at offsets past that length are automatically
deleted.
4–N
Asset tag data
Response data
byte number
Data field
1
Completion code. C9h shall be returned if offset >62, offset+bytes to write >63, or bytes to writer
>16.
A C9h completion code shall also be returned if an attempt is mde to writer to an offset that is
more than one great than the length of the presently stored asset tag data. Set operations for asset
tags must be contiguous. For example, if the asset tag is presently seven bytes long an attempt to
writer starting at offset 10 will be rejected and a C9h completion code returned.
2
Group extension identification = DCh
3
Total asset tag length. This is the length in bytes of the stored asset tag after set operation has
completed. The asset tag length shall be set to the sum of the offset to write plus bytes to write.
For example, if offset to write is 32 and bytes to write is 4, the total asset tag length returned will
be 36.
Management controller ID string
The management controller ID string is provided in order to accommodate the requirement for the
management controllers to identify themselves during discovery phases. Set/get management
Standard command specification
135
controller identifier string commands are provided to provision the controller with
the unique identification. The management controller must maintain the management controller
identifier string as non-volatile data.
The management controller ID string is used to override the default OEM provided ID for DHCP
discovery. If the management controller ID string is not provisioned, then the default controller ID
shall be “DCMI<mac-address>”. The maximum length of the identifier string shall be 64 bytes
including a NULL terminator.
Get controller ID string command
Table 109 Get controller ID string command request and response data
Request data byte
number
Data field
1
Group extension identification = DCh
2
Offset to read
3
Number of bytes to read (16 bytes maximum)
Response data
byte number
Data field
1
Completion code. See Table 102 (page 130).
2
Group extension identification = DCh
3
Total length.
NOTE:
4–N
The maximum length of the identifier string must not exceed 64 bytes.
Data
Set controller ID string command
Table 110 Set controller ID string command request and response data
Request data byte
number
Data field
1
Group extension identification = DCh
2
Offset to write
3
Number of bytes to write (16 bytes maximum)
4–N
Data
Response data
byte number
Data field
1
Completion code. See Table 102 (page 130).
2
Group extension identification = DCh
3
Total length written.
NOTE:
136
Command specification
The maximum length of the identifier string must not exceed 64 bytes.
PICMG specific commands
Get PICMG properties command
Table 111 Get PICMG properties command request and response data
Request data byte
number
Data field
1
PICMG Identifier. Indicates that this is a PICMG-defined group extension command. A value of
00h is used.
Response data
byte number
Data field
1
Completion code.
2
PICMG Identifier. Indicates that this is a PICMG-defined group extension command. A value of
00h is used.
3
PICMG Extension Version. Indicates the version of PICMG extensions implemented by the IPM
Controller.
[7:4]
BCD encoded minor version
[3:0]
BCD encoded major version
This specification defines version 2.3 of the PICMG extensions. IPM Controllers implementing the
extensions as defined by this specification report a value of 23h. The value 00h is reserved.
4
Max FRU Device ID. The numerically largest FRU Device ID for the Managed FRUs implemented
by this IPM Controller, excluding the following FRU Device IDs reserved at the top of the range for
special purposes:
• 254 — This FRU Device ID does not represent any Managed FRU and is used only certain
commands directed at the Shelf Manager for accessing logical Shelf FRU information.
• 255 — Reserved by IPMI specification.
5
FRU Device ID for IPM Controller. Indicates a FRU Device ID for the FRU containing the IPM
Controller. IPM Controllers report zero (0).
Get address info command
Table 112 Get address info command request and response data
Request data byte
number
Data field
1
PICMG identifier. Indicates that this is a PICMG-defined group extension command. A value of
00h is used.
2
FRU Device ID. Indicates an individual FRU site, which must identify a FRU being managed by the
IPM Controller. This field is optional. If this field is not present, the command will return addressing
information for the FRU containing the IPM Controller that implements the command. This field is
ignored when Address Key Type is set to Physical Address. This field is required if Address Key
Type is present.
3
Address Key Type. This field defines the type of address that is being provided in the Address Key
field; only Physical Address is defined when this command is addressed to an IPM Controller. This
field is optional. If this field is not present, the command will return addressing information for the
FRU specified by the FRU Device ID. 03h = Physical Address
All other values reserved.
4
Address Key. This field is required if Address Key Type is present, and holds the Site Number of
a FRU managed by the IPM Controller in this extension.
5
Site Type. This field is required if Address Key Type is Physical Address.
Response data
byte number
Standard command specification
137
Table 112 Get address info command request and response data (continued)
1
Completion code.
2
PICMG identifier. Indicates that this is a PICMG-defined group extension command. A value of
00h is used.
3
Hardware Address. Indicates the Hardware Address of the IPM Controller.
4
IPMB-0 Address. Indicates the IPMB address for IPMB-0 of the IPM Controller.
5
Reserved. Has a value FFh. Other values reserved in PICMG 2.9.
6
FRU Device ID. The FRU Device ID associated with the FRU that the Site Number designates.
7
Site Number. The Site Number associated with the FRU that the FRU Device ID designates. This
Site Number is IPM Controller relative except for AdvancedTCA Boards or Rear Transition Modules.
If the IPM Controller does not provide this information, it must return 0.
8
Site Type. See Table 113 (page 138).
9
Reserved. Has a value FFh. Other values reserved in PICMG MTCA.0.
10
Address on IPMI Channel 7. Specifies the address of the management controller representing the
FRU on IPMI Channel Number 7, if such controller exists and is accessible through message
bridging. If there is no such controller or if it is not IPMI-compatible, this byte is not returned or
contains a value of FFh.
Table 113 Site type values
Site type description
Site type
Front board
00h
Power entry
01h
Shelf FRU information
02h
Dedicated ShMC
03h
Fan tray
04h
Fan filter tray
05h
Alarm
06h
Advanced MC module
07h
PMC
08h
Rear transition module.1
09h
Reserved
0Ah-BFh
OEM
C0h-CFh
Reserved
D0h-FEh
Unknown
FFh
1
Also applies to front transition modules in ATCA300 shelves.
FRU inventory device lock control command
Table 114 FRU inventory device lock control command request and response data
Request data byte
number
Data field
138
1
PICMG identifier. Indicates that this is a PICMG-defined group extension command. A value of
00h is used.
2
FRU device ID. Indicates the FRU inventory device to be locked. This value must be 254.
Command specification
Table 114 FRU inventory device lock control command request and response data (continued)
3
Operation. The operation to perform on the FRU lock.
0 Get last commit timestamp. Used to fetch the FRU inventory device’s last commit timestamp.
1
Lock. Lock the FRU inventory device lock and return a lock 10.
2
Unlock and discard. Unlock the FRU inventory device lock and discard all writes since the last
lock.
3
Unlock and commit. Unlock the FRU inventory device lock and commit all writes since the last
lock.
4–5
FRU inventory device lock ID. For operations 2 and 3 above, this is the lock ID to unlock. The value
must be zero for other operations.
Response data
byte number
Data field
1
Completion code:
80h Invalid FRU information. An unlock and commit operation was requested and the FRU
information was invalid.
81h
Lock failed. A lock operation was requested and the FRU inventory device was already
locked, or an unlock operation was requested and the FRU inventory device lock ID was
invalid.
2
PICMG identifier. Indicates that this is a PICMG-defined group extension command. A value of
00h is used.
3–4
FRU inventory device lock ID. For the lock operation, this returns the FRU inventory device lock ID
for the lock if the lock operation was successful. This value is chosen by the MC arbitrarily, but is
chosen is such a way to avoid reusing a recently used number. For all other operations this value
is set to zero.
5–8
FRU inventory device last commit timestamp. This value is the timestamp of the last successful
commit operation on the FRU inventory device.
Standard command specification
139
6 IPMI Messaging and Interfaces
IPMI uses message based interfaces for the different interfaces to the platform management subsystem
such as IPMB, LAN, and the system interface to the MC.
All IPMI messages share the same fields in the message payload regardless of the interface
(transport) that they are transferred over. The same core of IPMI messages is available over every
IPMI specified interface, just wrapped differently according to the needs of the particular transport.
This enables management software that works on one interface to be converted to use a different
interface by changing the underlying driver for that particular transport. This also enables knowledge
reuse, that is a developer who understands the operation of IPMI commands over one interface
can readily apply that knowledge to a different IPMI interface.
IPMI messaging uses a request/response protocol. IPMI request messages are commonly referred
to as commands. The use of a request/response protocol facilitates the transfer of IPMI messages
over different transports. It also facilitates multi-master operations on busses like the IPMB, allowing
messages to be interleaved and multiple management controllers to directly intercommunicate on
the bus.
IPMI commands are grouped into functional command sets, using a field called the network function
code (NetFn). There are command sets for sensor and event related commands, chassis commands,
and others. This functional grouping makes it easier to organize and manage the assignment and
allocation of command values.
All IPMI request messages have a network function command and optional data fields. All IPMI
response messages carry network function command optional data and a completion code field.
As inferred earlier, the differences between the different interfaces has to do with the framing and
protocols used to transfer this payload. For example, the IPMB protocol adds fields for I2C and
controller addressing and data integrity checking and handling whereas the LAN interface adds
formatting for sending IPMI messages as LAN packets.
System Interfaces
IPMI defines three standard system interfaces that system software use for transferring IPMI messages
to the MC (of which Moonshot supports two). In order to support a variety of microcontrollers, IPMI
offers a choice of system interface, this is also key to enabling cross-platform software. The system
interfaces are similar enough so that a single driver can be created that supports all IPMI system
interfaces.
The system interface connects to a system bus that can be driven by the main processor(s). The
present IPMI system interfaces can be I/O or memory mapped. Any system bus that allows the
main processor(s) to access the specified I/O or memory locations, and meet the timing
specifications, can be used. Thus, an IPMI system interface could be hooked to the X-bus, PCI, LPC
or a proprietary bus off the baseboard chipset.
IPMI system interfaces:
•
•
Keyboard controller style (KCS) — the bit definitions and operation of the registers follow that
used in the Intel 8742 Universal Peripheral Interface microcontroller. KCS reflects the fact that
the 8742 interface was used as the legacy keyboard controller interface in PC architecture
computer systems. This interface is available built-in to several commercially available
microcontrollers. Data is transferred across the KCS interface using a per byte handshake.
SMBus System Interface (SSIF) — This interface is a low pin count option that specifies accessing
an MC that is connected to the system SMBus host controller. SSIF helps support lower cost
MC implementations by enabling an interface that can be used on low cost microcontrollers
in low pin count packages.
NOTE: The SSIF typically has a much lower bandwidth to the MC than the other system
interfaces owing to the 100 kbps maximum data rate presently specified for SM Bus.
140 IPMI Messaging and Interfaces
Message interface description
The heart of this specification is the definition of the messages and data formats used for
implementing sensors, event messages, event generators and event receivers, the SDR Repository,
and the SEL in the platform management architecture. These messages are designed for delivery
using a messaging interface with a particular set of characteristics. This section presents the general
specification of that interface, and the messages.
The message interface is defined as a request/response interface. That is, a request message is
used to initiate an action or set data, and a response message is returned to the requester. In this
document, request messages are often referred to as commands, and response messages as
responses.
All messages in this specification share the same common elements as the payload to the command
interpreter in the logical device that receives the message. The messaging interfaces differ in the
framing, physical addressing, and data integrity mechanisms that are used to deliver the payload.
Table 115 Common message components
Component
Description
Network Function (NetFn)
A field that identifies the functional class of the message. The network function
clusters IPMI commands into different sets.
Request/Response identifier
A field that unambiguously differentiates request messages from response messages.
In the IPMB protocol, this identifier is merged with the NetFn code where even
numbered network function codes identify request messages and odd numbered
network function codes identify response messages.
Requester’s ID
Information that identifies the source of the request. This information must be sufficient
to allow the response to be returned to the correct requestor. For example, the IPMB
requesters ID consists of the slave address and LUN of the requester device. For a
multiple stream system interface the requesters ID is the stream ID for the stream
through which the request was issued.
Responder’s ID
A field that identifies the Responder to the request. In request messages this field is
used to address the request to the desired responder, in response messages this
field is used to assist the requester in matching up a response with a given request.
Command
The messages specified in this document contain a one-bye command field.
Commands are unique within a given network function. Command values can range
from 00h through FDh. Code FEh is reserved for future extension of the specification
and code FFh is reserved for message interface level error reporting on potential
future interfaces.
Data
The data field carries the additional parameters for a request or a response, if any.
IPMI Messaging Interfaces
In Moonshot, there are two system interface implementations specified for the MC: KCS and SSIF.
The MC can also be reached through additional interfaces such as the IPMB and LAN interfaces.
Network function codes
The network layer in the connection header includes a six-bit field identifying the function accessed.
The remaining two bits are the LUN field. The LUN field provides further sub-addressing within the
node.
The network function clusters commands into functional command sets. In a parsing hierarchy, the
LUN field may be thought of as the selector for a particular network function handler in the node,
and the network function may be considered the selector for a particular command set handler
within the node.
“Moonshot network function codes” (page 142) defines the supported network functions. With the
exception of the application and firmware transfer network functions, the commands and responses
Network function codes
141
for a given network function are not node specific. The format and function for standard command
sets is specified later.
Table 116 Moonshot network function codes
Value(s)
Name
Meaning
Description
00, 01
Chassis
Chassis device
requests and
responses
00h identifies the message as a command/request and 01h
as a response, relating to the common chassis control and
status functions.
04, 05
Sensor/Event Sensor and event
requests and
responses
This functionality can be present on any node. 04h identifies
the message as a command/request and 05h as a response,
relating to the configuration and transmission of event
messages and system sensors.
In Moonshot, this includes event and sensor device
commands.
06, 07
Application
Application requests
and responses
06h identifies the message as an application
command/request and 07h a response. The exact format of
application messages are implementation-specific for a
particular device, with the exception of App messages that
are defined by the IPMI specifications.
In moonshot, this includes IPMD global commands, MC
watchdog timer commands, and MC device and messaging
commands.
0A, 0B
0C, 0D
Storage
Transport
Non-volatile storage
requests and
responses
This functionality can be present on any node that provides
non-volatile storage and retrieval services.
Media-specific
configuration &
control
Requests (0Ch) and responses (0Dh) for IPMI-specified
messages that are media-specific configuration and operation,
such as configuration of serial and LAN interfaces.
In Moonshot, this includes FRU device, SDR device and SEL
device commands.
In Moonshot, this includes LAN device and serial device
commands.
2Ch–2Dh
Group
extension
Non-IPMI group
requests and
responses
The first data byte position in requests and responses under
this network function identifies the defining body that specifies
command functionality. Software assumes that the command
and completion code field positions will hold command and
completion code values.
The following values are used to identify the defining body.
• 00h PICMG — PCI Industrial Computer Manufacturer’s
Group at http://www.picmg.com
• DCh DCMI specifications at http://www.intel.com/go/
dcmi
• All other reserved
Moonshot supports PICMG and DCMI group extensions only.
When this network function is used, the ID for the defining
body occupies the first data byte in a request, and the second
data byte (following the completion code) in a response.
Completion codes
All response messages specified in this document include a completion code as the first byte in
the data field of the response. A management controller that gets a request to an invalid
(unimplemented) LUN must return an error completion code using that LUN as the responder’s LUN
(RsLUN) in the response. The completion code indicates whether the associate request messages
142
IPMI Messaging and Interfaces
completed successfully and normally, and if not, provides a value indicating the completion
condition.
Completion codes work at the command level. They are responses to the interpretation of the
command after it has been received and validated through the messaging interface. Errors at the
network (messaging interface) level are handled with a different error reporting mechanism.
Completion code values are split into generic, device-specific (which covers OEM) and
command-specific ranges. All commands can return generic completion codes. Commands that
complete successfully return the 00h command completed normally, completion code. Commands
that produce error conditions or return a response that varied from what was specified by the
request parameters for the command, return a non-zero completion code as specified in “Completion
Codes” (page 143).
Table 117 Completion Codes
Code
Definition
GENERIC COMPLETION CODES 00h, C0h-FFh
00h
Command completed normally
C0h
Node Busy. Command could not be processed— command processing resources temporarily
unavailable.
C1h
Invalid Command. Indicates an unrecognized or unsupported command.
C2h
Command invalid for given LUN.
C3h
Timeout while processing command. Response unavailable.
C4h
Out of Space. Command could not be completed because of a lack of storage space.
C5h
Reservation canceled or invalid reservation id.
C6h
Request data truncated.
C7h
Invalid request data length.
C8h
Request data field length limit exceeded.
C9h
Parameter out of range. One or more parameters in the data field of the Request are out
of range. This is different from Invalid data field (CCh) code in that it indicates that the
erroneous field(s) has a contiguous range of possible values.
CAh
Cannot return number of requested data bytes.
CBh
Requested sensor, data, or record not present.
CCh
Invalid data field in request.
CDh
Command illegal for specified sensor or record type.
CEh
Command response could not be provided.
CFh
Cannot execute duplicated request. This completion code is for devices which cannot return
the response that was returned for the original instance of the request. Such devices should
provide separate commands that allow the completion status of the original request to be
determined.
D0h
Command response could not be provided. SDR repository in update mode.
D1h
Command response could not be provided. Device in firmware update mode.
D2h
Command response could not be provided. MC initialization or initialization agent in
progress.
D3h
Destination unavailable. Cannot deliver request to selected destination. Example, this code
can be returned if a request message is targeted to SMS, but receive message queue
reception is disabled for the particular channel.
Completion codes
143
Table 117 Completion Codes (continued)
Code
Definition
D4h
Cannot execute command due to insufficient privilege level or other security based restriction
(example, disabled for firmware firewall).
D5h
Cannot execute command. Command or request parameter(s) not supported in present
state.
D6h
Cannot execute command. Parameter is illegal because command sub-function has been
disabled or is unavailable (example, disabled for firmware firewall).
FFh
Unspecified error.
DEVICE SPECIFIC (OEM) CODESs 01h — 7Eh
01h — 7Eh
Device specific (OEM) completion codes. This range is used for command specific codes
that are also specific for a particular device and version. A priori knowledge of the device
command set is required for interpretation of these codes.
COMMAND SPECIFIC CODES 80h — BEh
80h — BEh
Standard command specific codes. This range is reserved for command specific completion
codes for commands specified in this document.
all other
Reserved.
Additional command specific completion codes, if any, are listed in the completion code field
description for the command. In some cases, use of certain command specific completion codes
is mandatory. This will be listed alongside the description of the completion code in the command
table. If no command specific completion codes are listed, the description will solely indicate that
the field is the completion code field.
NOTE: The generic completion code values can be used with any command, regardless of
whether additional command specific completion codes are defined.
Channel Model, Authentication, Sessions, and Users
IPMI v2.0 incorporates a common communication infrastructure referred to as the Channel Model.
Channels provide the mechanism for directing the routing of IPMI messages between different
media connections to the MC. A channel number identifies a particular connection. For example,
0 is the channel number for the primary IPMB. Up to nine total channels can be supported (the
System Interface and primary IPMB, plus seven additional channels with a media type assigned
by the implementer.) Channels can thus be used to support multiple IPMB, LAN, Serial, etc.,
connections to the MC.
Channels can be session-based or session-less. A session is used for two purposes:
1. As a framework for user authentication.
2. To support multiple IPMI messaging streams on a single channel.
Session-based channels thus have at least one user login and support user and message
authentication. Session-less channels do not have users or authentication. A LAN channel is
session-based, while the System Interface and IPMB are examples of session-less channels.
In order to do IPMI messaging using a session, a session must first be activated. Activating a session
authenticates a particular user.
A session has a Session ID that is used for tracking the state of a session. The Session ID
mechanism allows multiple sessions to be simultaneously supported on a channel.
The concept of user is essentially a way to identify a collection of privilege and authentication
information. User configuration is done on a per channel basis. This means that a given user could
have a different password and set of privileges for accessing the MC via a LAN channel than via
a serial channel.
144 IPMI Messaging and Interfaces
Privilege Levels determine which IPMI commands a given user can execute over a given channel.
Privilege Limits set the maximum privilege level at which a user can operate. A user is configured
with a given maximum privilege limit for each channel. In addition, there is a Channel Privilege
Limit that sets the maximum limit for all users on a given channel. The Channel Privilege
Limit takes precedence over the privilege configured for the user. Thus, a user can operate at a
privilege level that is no higher than the lower of the User Privilege Limit and the Channel
Privilege Limit.
Channel numbers
Each interface has a channel number that is used when configuring the channel and for routing
messages between channels. Only the channel number assignments for the primary IPMB and the
System Interface are fixed, the assignment of other channel numbers can vary on a per-platform
basis. Software uses a Get Channel Info command to determine what types of channels are
available and what channel number assignments are used on a given platform. The following table
describes the assignment and use of the channel numbers:
Table 118 Moonshot channel number assignments
Channel
Number
Type/Protocol
Description
0h
Primary IPMB
Assigned for communication with the primary IPMB. IPMB protocols are
used for IPMI messages.
2h
LAN
Assigned for communication between the zone MC and the LAN. RMCP+
is used as the protocol.
7h
IPMB_L
Secondary IPMB, used for communication between the cartridge and system
node controllers. IPMB protocols are used.
Eh
Present channel
The value Eh is used as a way to identify the current channel that the
command is being received from, for example, if software wants to know
what channel number it’s presently communicating over, it can find out by
issuing a Get Channel Info command for channel E.
Fh
System interface
Assigned for routing messages to the system interface.
Logical channels
From the IPMI Messaging point-of-view, a party that bridges a message from one channel to another
only is mainly concerned that it gets the correct response from the MC. Often, it does not matter
to remote console or system software whether the target channel and devices are physically
implemented or not. For example, in Moonshot the IPMB and IPMB-L are logical channels.
Channel Privilege Levels
Channel privilege limits determine the maximum privilege that a user can have on a given channel.
One channel can be configured to allow users to have up to Administrator level privilege, while
another channel may be restricted to allow no higher than User level. The privilege level limits take
precedence over the privilege level capabilities assigned per user.
Channels can be configured to operate with a particular maximum Privilege Level. Privilege levels
tell the MC which commands are allowed to be executed via the channel. The Set Channel
Access command sets the maximum privilege level limit for a channel. The Set Session
Privilege Level command requests the ability to perform operations at a particular privilege
level. The Set Session Privilege Level command can only be used to set privilege levels
that are less than or equal to the privilege level limit for the entire channel, regardless of the privilege
level of the user.
Channel Model, Authentication, Sessions, and Users
145
Table 119 Channel privilege levels
Channel privilege level
Description
Callback
Lowest privilege level. Only commands necessary to support initiating a Callback are
allowed.
User
Primarily commands that read data structures and retrieve status. Commands that can be
used to alter MC configuration, write data to the management controllers, or perform
system actions such as resets, power on/off, and watchdog activation are disallowed.
Operator
All MC commands are allowed, except for configuration commands that can change the
behavior of the out-of-band interfaces. For example, operator privilege does not allow the
capability to disable individual channels or higher.
Administrator
All MC commands are allowed, including configuration commands. An administrator can
even execute configuration commands that would disable the channel that the administrator
is communicating over.
Users & Password support
User in this specification refers to a collection of data that identifies a password for establishing
an authenticated session and the privileges associated with that password. For configuration
purposes, sets of user information are organized and accessed according to a numeric User ID.
When activating a session, user information is looked up with a text username.
NOTE:
In Moonshot and HP iLO, anonymous users are not supported due to security concerns.
User access can be enabled on a per channel basis. Thus, different channels can have different
sets of users enabled.
If desired, a username on one channel can be associated with a different password than the same
username on a different channel. When a session is activated the MC scans usernames sequentially
starting with User ID 1 and looks for the first user with matching username and access granted for
the given channel. Thus, having different passwords for a given username requires configuring
multiple user entities — one for each different password being used for a particular set of channels.
The specification allows a number of different implementations for supporting users on a channel.
Minimum requirements include:
•
No anonymous user access.
•
User names may be fixed or configured, or a combination of both, at the choice of the
implementation.
•
Support for configuring user passwords for all User IDs is required.
•
Support for setting per user privilege limits is optional. If the Set User Access command
is not supported, the privilege limits for the channel are used for all users.
IPMI sessions
Authenticated IPMI communication to the MC is accomplished by establishing a session. Once
established, a session is identified by a Session ID. The Session ID may be thought of as a handle
that identifies a connection between a given remote user and the MC, using either the LAN or
Serial/Modem connection.
The specification supports having multiple active sessions established with the MC. Moonshot
supports up to 58 simultaneous sessions at the zone.
The specification also allows a given endpoint (identified by an IP address) on the LAN to open
more than one session to a MC. This capability allows a single system to serve as a proxy providing
MC LAN sessions for other systems. It is not intended for one system to use this provision to open
multiple session to the MC for that systems sole use.
146
IPMI Messaging and Interfaces
An IPMI messaging connection to the MC fits one of three classifications, session-less, single-session,
or multi-session.
Session-less connections
A session-less connection is unauthenticated. There is no user login required for performing IPMI
messaging. The System Interface and IPMB are examples of session-less connections.
A special case of a session-less connection can occur over an interface that supports session-based
messaging. Session-based connections have certain commands that are accepted and responded
to outside of a session. When that occurs, the channel is effectively operating in a session-less
manner for those commands. Commands that are handled outside of a session have fixed values
for session-specific fields in the message. For example, when the Get Channel
Authentication Capabilities is sent over a LAN channel outside of a session, the Session
ID is set to NULL and authentication type set to NONE in the IPMI session header. Note that
commands accepted outside of a session can also be accepted within the context of a session, in
which case they must have valid Session IDs, etc. in the session header to be accepted.
Session inactivity timeouts
A session is automatically closed if no new, valid message has been received for the session within
the specified interval since the last message. The session must be re-authenticated to be restored.
A remote console can optionally use the Activate Session command to keep a session open
during periods of inactivity.
Note that only an active session will keep the Session Inactivity Timeout from expiring.
IPMI message activity that occurs outside of an active session has no effect. This is to prevent
someone from keeping a phone connection indefinitely while trying to guess different passwords
to activate a session.
The MC only monitors for inactivity while the connection is switched over to the MC. Note that
closing a session is not always the same as hanging up a modem connection. Serial/modem
sessions are also automatically closed when the connection is switched over to the system, but the
phone connection remains active. The MC only terminates the phone connection if a session is
closed due to an inactivity timeout while the serial connection is routed to the MC.
The timeout and tolerance values are specified for the MC that will timeout and close the session.
System software should take this tolerance into account, plus any additional delays due to media
transmission times, etc.
An implementation can provide an option to allow timeout configuration via a parameter in the
configuration parameters for the given channel type.
System interface messaging
Messaging between system software and the other management BUSes such as the IPMB, is
accomplished using channels and a Receive Message Queue. A channel is a path through
the MC that allows messages to be sent between the system interface and a given bus or message
transport. The Receive Message Queue is used to hold message data for system software until
system software can collect it. All channels share the Receive Message Queue for transferring
messages to system management software. The Receive Message Queue data contains channel,
session, and IPMI addressing information that allows system software to identify the source of the
message, and to format a message back to the source if necessary.
System management software is responsible for emptying the Receive Message Queue whenever
it has data in it. Messages are rejected if the Receive Message Queue gets full. It is recommended
that the Receive Message Queue have at least two slots for each channel. The Receive
Message Queue is a logical concept. An implementation may choose to implement it as an actual
queue, or could implement separate internal buffers for each channel. It is recommended that the
implementation attempt to leave a slot open for each channel that does not presently have a
System interface messaging
147
message in the queue. This helps prevent lockout by having the queue fill with just messages from
one interface.
The MC itself can, if necessary, use the Receive Message Queue and Messaging Channels
to send asynchronous messages to system management software. The recommended mechanism
for accomplishing this is to define a unique channel with a protocol type of system. To send an
asynchronous message to system software the MC would place a message from that channel
directly into the Receive Message Queue in System format. System software would be able to
respond back to the MC using a Send Message command for that channel.
Bridging
MC Messaging Bridging provides a mechanism for routing IPMI Messages between different media.
Bridging is only specified for delivering messages between channels; it is not specified for delivering
messages between two sessions on the same channel.
With IPMI 2.0, bridging is extended to support delivering IPMI messages between active
connections/sessions on the same channel.
There are three mechanisms for bridging messages between different media connected to the MC,
depending on the message target:
•
MC LUN 10b — used for delivering messages to the System Interface. The MC automatically
routes any messages it receives via LUN 10b to the Receive Message Queue.
•
Send Message command from System Interface — used for delivering messages to other
channels, such as the IPMB. The messages appear on the channel as if they’ve come from
MC LUN 10b. Thus, if the message is a request message, the response goes to MC LUN 10b
and the MC automatically places the response into the Receive Message Queue for retrieval.
System software is responsible for matching the response up with the original request, thus
the No Tracking setting in the Send Message command.
•
Send Message command with response tracking — used with response tracking for bridging
request messages to all other channels except when the System Interface is the source or
destination of the message.
MC LUN 10b
Messages to SMS are always routed to the Receive Message Queue and the Send Message
command is not typically used. Messages to SMS are delivered via the MC SMS LUN 10b. The
MC automatically reformats and places any messages that are addressed to LUN 10b into the
Receive Message Queue for SMS to retrieve using the Get Message command.
Sending a request to SMS requires formatting the command so that it is address to MC LUN 10b.
SMS can retrieve the request from the Receive Message Queue, extract the originator’s address
and channel info, and then use the Send Message command to deliver a response.
The MC does not track requests and responses for messages to system software because the Receive
Message Queue provides the channel and session information necessary to format the Send
Message command to deliver the response. System software is capable of tracking the channel
and session information it used when generating a request. The No Tracking option is used for
Send Message commands from system software.
The responder then delivers its response message to MC LUN 10b and the response gets routed
to the Receive Message Queue. Conversely, if a channel wants to deliver a message to SMS, it
sends the request message to MC LUN 10b, and later SMS uses a Send Message command to
return the response from MC LUN 10b.
148
IPMI Messaging and Interfaces
Send Message command with response tracking
The Send Message command is used primarily to direct the MC to act as a proxy that translates
a message from one IPMI messaging protocol to another. The MC formats the data for the target
channel type and protocol and delivers it to the selected medium.
Media such as the IPMB do not include channel number and session information as part of their
addressing information. As a result, request messages from another channel must be delivered as
if they originated from the MC itself.
If the bridged message is a request, it is necessary for the MC to hold onto certain data, such as
originating channel and session information, so that when the response message comes back it
can reformat the response and forward it back to the originator of the request. The primary way
the MC accomplishes this is by assigning a unique sequence number to each request that it
genearates, and saving a set of information in a Pending Bridged Response table that is later used
to reformat and route a response back to the originator of the request.
The sequence number returned in the response is used to look up who generated the original
response, the saved formatting and address information. The MC then reformats and delivers the
response to the original requester and deletes the request from its list of pending responses. The
Send Message command includes a parameter that directs the MC to save translation information
for and track outstanding request messages for the purpose of routing the response back to the
originator of the Send Message command.
NOTE: With the exception of messages to SMS, when the Send Message command is used
to deliver a message to a given medium the message appears to have been originated by the MC.
This means that a controller on the IPMB can’t generically distinguish a bridged request from SMS
from a bridged request from LAN.
Table 120 Message bridging mechanism by source and destination
Message Type and direction
Delivery
Mechanism
MC tracks pending
responses
Request or Response from system interface to any other channel
Send Message
no
Request or Response to system interface from any other channel
MC LUN 10b
no
Request from any channel except system interface to IPMB
Send Message
yes
Response from IPMB to any channel except system interface
MC LUN 00b
yes
Bridged Request Example
This example illustrates a Send Message command from the LAN being used to deliver a request
to IPMB.
The MC uses the sequence number that it places on the bridged request to identify the channel
where the request came from and where to send the response. It is important for the MC to ensure
that unique sequence numbers are used for pending requests from each channel. It is also important
that sequence numbers are unique for successive requests to a given responder. One way to
manage sequence numbers to the IPMB is to track them on a per responder basis. This can be kept
in a table of Pending Bridged Response information.
In order to get the response back to the LAN, the IPMB response must return the same sequence
number that was passed in the request. The management controller uses the sequence number to
look up the channel type specific addressing, sequence number, and security information that it
stored when the request was forwarded. For example, if the channel type is LAN then the response
message must be formatted up in an RMCP/UDP packet with the IP address of the requester, the
sequence number passed in the original request, the appropriate security key information, and so
on.
Bridging
149
When a request message is bridged to another channel by encapsulating it in a Send Message
command (from a source channel other than the system interface), the MC immediately returns a
response to the Send Message command itself. Meanwhile, the request is extracted from the
Send Message command and forwarded to the specified target channel.
The Send Message command must be configured to direct the MC to keep track of data in the
request so when the response comes back from the target device it can be forwarded by the MC
back to the channel that delivered the original Send Message command to the MC. When the
response comes back from the target, the MC uses the tracking information to form at the response
for the given channel. To the party that initiated the Send Message command, the response will
appear as if the encapsulated request was directly executed by the MC.
For example, suppose a Get Device ID command has been encapsulated in a Send Message
command directed to the IPMB from a LAN channel. The MC will immediately send a response to
the Send Message command back on the LAN. The MC will extract the encapsulated Get
Device ID message content and format it as a Get Device ID request for IPMB. The target
device on IPMB responds with a Get Device ID response message in IPMB format. The MC takes
the tracking information that was stored when the Send Message command was issued, and
uses it to create a Get Device ID response in LAN format. The Responder’s address information in
that response can either be that of the MC, of the device on IPMB that the request was targeted
at the choice of the MC implementation. Parties that initiate this type of bridged request using the
Send Message command should accept responses from the MC that use either address.
The following figure and steps present an example high-level design for handling a bridged request.
Note that the example shows information that is generated and stored, but it does not show any
particular code module that would perform that operation. That is, the choice of which functions
are centralized, which are in a LAN module, and which are in an IPMB module is left to the
implementer.
Figure 3 LAN to IPMB bridged request example
150
IPMI Messaging and Interfaces
1.
2.
3.
4.
5.
When the MC receives the Send Message command with the Bridged Request parameter
bit set, it checks for an available entry in a Pending Bridged Response table and copies
parameters from the request to be bridged. When the response comes back, these parameters
will be used to validate that the response matches the earlier request and to reformat the
response for the originating channel. The bold outlined boxes represent parameters and data
in the Send Message command that will ultimately be copied to the resulting request on the
target channel.
Any channel session information necessary to get the response back to the original requester
will also need to be recorded. In this example, the MC maintains a separate table of session
information for the LAN channel. An offset into that table is used as a handle for identifying
the session information associated with the request. This handle is used in the Pending Bridged
Response table in place of copying all the session information. Note that with such an
implementation, it is important to remember details such as invalidating and freeing any bridge
table entry associated with that session if the session should get closed while responses are
pending.
In this example, the MC has a separate Sequence Number Allocator routine that ensures that
sequence numbers used in bridged requests are kept unique for a given channel. This is done
so that the response comes back, the sequence number can be used to look up corresponding
request info entries from the Pending Bridged Response table.
Responses have a five second Sequence Number Expiration interval. If a response is not
received by the expiration interval, the corresponding entry in the Pending Bridged Response
entry is deleted and the sequence number associated with the request can be reused. The
Sequence Number Expiration column in this example represents a possible implementation
where the value is decremented nominally once every10 ms. The entry is considered to be
free when the number reaches 0. In this example the Sequence Number Expiration field could
be used both for tracking sequence number expiration as well as a mechanism for marking
availability of the table entry.
The MC takes the indicated values and uses them to construct the bridged request. The request
is a combination of field values copied from the original Send Message command and values
generated by the MC. The MC generated values are shown with a bold, underlined typeface
with an asterisk.
IPMB access via master write-read command
When an IPMB is implemented in the system, the MC serves as a controller to give system software
access to the IPMB. The IPMB allows non-intelligent devices as well as management controllers on
the bus. To support this operation, the MC provides the Master Write-Read command via its interface
with system software. The Master Write-Read command provides low-level access to non-intelligent
devices on the IPMB, such as FRU SEEPROMs.
The Master Write-Read command provides a subset of the possible I2C and SM BUS operations
that covers most I2C/SM BUS-compatible devices.
In addition to supporting non-intelligent devices on the IPMB, the Master Write-Read command
also provides access to non-intelligent devices on Private Busses behind management controllers.
The main purpose of this is to support FRU SEEPROMs on Private Busses.
MC IPMB LUNs
A MC supports several LUNs to which messages are sent via the IPMB interface. These LUNs are
used to identify different sub-addresses within the MC.
In Moonshot, since the system interface is only implemented at the system node controller, the SMS
message LUN is only applicable to the system interface node controllers.
Bridging
151
Table 121 MC IPMB LUNs
LUN
Short Description
Long Description
00b
MC commands and Event
Request Messages
Event Request Messages received on this LUN are routed to the Event
Receiver Function in the MC and automatically logged if SEL logging is
enabled.
01b
OEM LUN 1
OEM — reserved for MC implementer/system integrator definition.
10b
SMS Message LUN (intended
for messages to System
Management Software)
Messages received on this LUN are routed to the Receiver Message
Queue and retrieved using a Read Message command. The SMS_Avail
flag is set whenever the Receive Message Queue has valid contents.
11b
OEM LUN 2
OEM — reserved for MC implementer/system integrator definition
Sending Messages to IPMB from system software
NOTE: In Moonshot, since the system interface is only implemented at the system node controller,
the SMS message LUN is only applicable to the system interface node controllers.
SMS can use the MC for sending and receiving IPMB messages. Both IPMB request and response
messages can be sent and received using this mechanism. Therefore, not only can system software
send requests to the IPMB and receive responses from the IPMB, it is also possible for system
software to receive requests from the IPMB to send back IPMB responses.
System software sends messages to the IPMB through the system interface using the MC as an
IPMB controller. This is accomplished by using the Send Message command to write the message
to the IPMB (channel 0). The MC does not place any restrictions on the type or content of the IPMB
message being sent. System management software can send any IPMB request or response message
it desires provided that the message meets the maximum length requirements of the Send Message
command.
System Management Software is responsible for providing all fields for the IPMB message, including
Requester and Responder Slave addresses and checksums. The following figures show an example
using the Send Message command to send a Set Event Receiver command to an IPMB device
at slave address 52h, LUN 00b, via the system interface. The example command sets the Event
Receiver address to 20h — MC.
The heavy bordered fields show the bytes for the IPMB message carried in the Send Message
command. The requesters LUN field (rqLUN) is set to 10b (MC SMS LUN). This directs the responder
to send the response to the Set Event Receiver command to the system node’s Receive
Message Queue.
Figure 4 IPMB request sent using Send Message command
Figure 5 Send Message command response
152
IPMI Messaging and Interfaces
The response is for the Send Message command and not for the Set Event Receiver
command. The response to the Set Event Receiver command is returned later in the Receive
Message Queue. System software uses the Get Message command to read messages from the
Receive Message Queue. System software keeps track of any outstanding responses and matches
responses up with corresponding requests as they are returned. System software must also keep
track of the protocol assigned to the particular channel in order to interpret the response to the
Get Message command.
Keyboard Controller Style Interface
The Keyboard Controller Style (KCS) is one of the supported MC to SMS interfaces. The KCS
interface is specified solely for SMS messages.
The KCS Interface supports polled operations. Implementations optionally provide an interrupt
driven by the OBF flag, this must not prevent driver software from using the interface in a polled
manner. This allows software to default to polled operation. It also allows software to use the KCS
interface in a polled mode until it determines the type of interrupt support. Methods for assigning
and enabling such an interrupt are outside the scope of this specification.
KCS Interface/MC LUNs
LUN 00b is typically used for all messages to the MC through the KCS Interface. LUN 10b is
reserved for Receive Message Queue use and should not be used for sending commands to the
MC. Note that messages encapsulated in a Send Message command can use any LUN in the
encapsulated portion.
KCS Interface-MC Request message format
Request Messages are sent to the MC from system software using a write transfer through the KCS
interface. The message bytes are organized according to the following format specification:
Figure 6 KCS Interface/MC Request Message format
Where:
LUN
This is a sub-address that allows messages to be routed to different LUNS that reside behind the same
physical interface. The LUN field occupies the least significant two bits of the first message byte.
NetFN
Provides the first level of functional routing for messages received by the MC via the KCS Interface. The
NetFn field occupies the most significant six bits of the first message byte. Even NetFn values are used
for requests to the MC, and odd NetFn values are returned in responses from the MC.
Cmd
This message byte specifies the operation that is to be executed under the specified Network Function.
Data
Zero or more bytes of data, as required by the given command. The general convention is to pass data
LS-byte first, but check the individual command specifications to be sure.
MC-KCS Interface Response Message format
Response Messages are Read Transfers from the MC to system software via the KCS interface. The
MC only returns responses via the KCS Interface when data needs to be returned. The message
bytes are organized according to the following format specification:
Keyboard Controller Style Interface
153
Where:
LUN
Returns the LUN that was passed in the Request Message.
NetFn
A return of the NetFn code that was passed in the Request Message. Except that an odd NetFn value
is returned.
Cmd
Return of the Cmd code that was passed in the Request Message.
Completion
Code
Indicates whether the request completed successfully.
Data
Zero or more bytes of data. The MC always returns a response to acknowledge the request, regardless
of whether data is returned.
LAN Interface
The LAN interface specifications define how IPMI messages can be sent to and from the MC
encapsulated in Remote Management Control Protocol (RMCP) packet datagrams. This capability
is also referred to as IPMI over LAN. IPMI also defines the associated LAN specific configuration
interfaces for settings things such as IP address other options, as well as commands for discovering
IPMI based systems.
The Distributed Management Task Force (DMTF) specifies the RMCP format. This same packet
format is used for non-IPMI messaging via the DMTF’s Alert Standard Forum (ASF) specification.
Using the RMCP packet format enables more commonality between management applications that
operate in an environment that includes both IPMI based and ASF based systems.
IPMI v2.0 defines and extended packet format and capabilities that are collectively referred to as
RMCP+ and defined under the IPMI specific portion of an RMCP packet. RMCP+ utilizes
authentication algorithms that are more closely aligned with the mechanisms used for the ASF 2.0
specification. In addition, RMCP+ adds data confidentiality (encryption) and payload capability.
In Moonshot, IPMI v2.0/RMCP+ is implemented for the LAN interface.
Remote Management Control Protocol (RMCP)
The Distributed Management Task Force (DMTF) has defined a RMCP for supporting pre-OS and
OS absent management. RCMP is a simple request-response protocol that can be delivered using
UDP datagrams. IPMI-over-LAN uses version 1 of the RMCP protocol and packet format.
RMCP includes a field that indicates the class of messages that can be embedded in an RMCP
message packet, including a class for IPMI messages. Other message classes are ASF and OEM.
An IPMI LAN implementation can also use ASF-class Ping and Pong messages to support the
discovery of IPMI managed systems on the network.
RMCP port numbers
RMCP uses two well-known ports under UDP. “RMCP Port Numbers” (page 154) describes these
ports and summarizes their use.
Table 122 RMCP Port Numbers
Port#
Name
Description
623 (26Fh)
Aux bus Shunt
(Primary RMCP Port)
The Primary RMCP Port — This port and the required RMCP messages must be
provided to conform with RMCP specifications.
There is a mandatory set of messages required to be supported on this port.
These messages are always sent in the clear so that system software can discover
systems that have RMCP support.
664 (298h)
Secure Aux BUS
(Secondary RMCP
Port)
154 IPMI Messaging and Interfaces
Referred to as the secondary RMCP port or secure port, it is only used when it
is necessary to encrypt packets using an algorithm or specification that prevents
also sending unencrypted packets from being transferred via the same port.
Table 122 RMCP Port Numbers (continued)
Port#
Name
Description
Since discovery requires sending in the clear RMCP ping/pong packets, the
secondary port is used to transfer encrypted transfers while the primary port
continues to support unencrypted packets.
An implementation that utilizes this port must still support the Primary RMCP port
and the required messages on that port in order to be conformant with the RMCP
specifications.
Note that the common IPMI messaging protocols and authentication mechanisms
in this pecification do not use encrypted packets at the RMCP level (encrypted
packets in IPMI are defined unter the IPMI message class), therefore IPMI
messaging does not need to use the secondary port.
RMCP Message Format
There are two types of RMCP messages: Data or Normal RMCP messages and RMCP acknowledge
messages. Data messages and ACK messages are differentiated by the ACK/normal bit of the
class of message field.
Table 123 RMCP Message Format
Field
Size in bytes
Description
Version
1
06h = RMCP Version 1.0
Reserved
1
00h
Sequence Number
1
Varies, see text
Class of Message
1
This field identifies the form of the messages that follow this header. All
messages of class ASF (6) conform to the formats defined in this specification
and can be extended via an OEM IANA.
RMCP Header
Bit 7 RMCP ACK
0 — Normal RMCP message
1 — RMCP ACK message
Bit 6:5 Reserved
Bit 4:0 Message Class
0–5 = Reserved
6 = ASF
7 = IPMI
8 = OEM defined
all other = Reserved
RMCP Data
Data
Variable
data based class of message
The following table presents how the ACK/Normal Bit and the message class combine to identify
the type of message under RMCP and which specification defines the format of the associated
message data.
Table 124 Message Type Determination Under RMCP
ACK/Normal bit
Message Class Message Type
Message Data
ACK
ASF
RMCP ACK
No Data. Message contains only RMCP heading, and
sequence number from the last message received.
ACK
all other
undefined
not allowed
LAN Interface
155
Table 124 Message Type Determination Under RMCP (continued)
ACK/Normal bit
Message Class Message Type
Message Data
normal
ASF
ASF Messages Per ASF specification
normal
OEM
OEM message bytes:3 = OEM IANA
under RMCP
bytes 4:N = OEM message data (defined by manufacturer or
organization identified by the OEM IANA field value)
normal
IPMI
IPMI messages Per this specification
Serial Over LAN (SOL)
SOL is the name for the redirection of baseboard serial controller traffic over an IPMI session. This
enables asynchronous serial-based OS and pre-OS communication over a connection to the MC.
SOL can be used to provide a user at a remote console a means of interacting with serial text-based
applications over the IPMI LAN session. A single remote console application can use SOL to
simultaneously provide LAN access to IPMI platform management and serial text redirection under
a unified user interface. SOL is implemented as a payload type under the IPMI v2.0 RMCP+
protocol. Access privileges for SOL are managed under the same user configuration interfaces that
are used for IPMI management. This simplifies the creation of configuration software, remote
management applications, and cross-platform configuration utilities.
156
IPMI Messaging and Interfaces
7 Support and other resources
Information to collect before contacting HP
Be sure to have the following information available before you contact HP:
•
Software product name
•
Hardware product model number
•
Operating system type and version
•
Applicable error message
•
Third-party hardware or software
•
Technical support registration number (if applicable)
How to contact HP
Use the following methods to contact HP technical support:
•
In the United States, see the Customer Service / Contact HP United States website for contact
options:
http://www.hp.com/go/assistance
•
In the United States, call +1 800 334 5144 to contact HP by telephone. This service is available
24 hours a day, 7 days a week. For continuous quality improvement, conversations might be
recorded or monitored.
•
In other locations, see the Contact HP Worldwide website for contact options:
http://www.hp.com/go/assistance
HP authorized resellers
For the name of the nearest HP authorized reseller, see the following sources:
•
In the United States, see the HP U.S. service locator web site:
http://www.hp.com/service_locator
•
In other locations, see the Contact HP worldwide web site:
http://welcome.hp.com/country/us/en/wwcontact.html
Related information
Documents
•
HP Moonshot Documentation Overview
•
HP Moonshot Configuration and Compatibility Guide
•
HP Moonshot 1500 Chassis Setup and Installation Guide
•
HP Moonshot 1500 Chassis Maintenance and Service Guide
•
Important Download Documentation, Drivers, and Software and Firmware Updates
•
HP Moonshot Troubleshooting Guide
•
Safety, Compliance, and Warranty Information
•
HP Moonshot iLO Chassis Management Firmware User Guide
•
HP Moonshot Component Pack Release Notes
Information to collect before contacting HP
157
These documents are on the HP website at:
http://www.hp.com/go/moonshot/docs
Websites
•
HP Moonshot website:
http://www.hp.com/go/moonshot
•
HP Moonshot Component Pack download website:
http://www.hp.com/go/servers/moonshot/download
•
Intel IPMI specification website:
http://www.intel.com/design/servers/ipmi/tools.htm
158
Support and other resources
A Command Assignments
The following lists the commands defined in this specification and the minimum privilege level
required to execute a given command. In addition, the following apply:
•
Unless otherwise specified, unauthenticated, session-less interfaces, such as the System Interface
and IPMB, can support any IPMI command.
•
The privilege level requirements for OEM commands (NetFn=OEM, OEM/Group) is specified
by the OEM identified by the corresponding manufacturer ID.
•
Note that the Send Message and Master Write-Read commands are not available at
the User privilege level, with the exception of using a Send Message command to deliver
a message to the System Interface. This is because these commands enable unfiltered access
the IPMB, ICMB, private management busses, and PCI Management Bus. This would potentially
allow someone to use those commands to send commands to other controllers or write to
non-intelligent devices on those busses. As a consequence, a User is only able to read FRU
and sensors directly managed by the MC. In addition, FRU must be accessed via the Read
FRU command and not Master Write-Read.
•
The Send Message command can be used to deliver a message to the System Interface at
User privilege level. It is up to the system software to determine the privilege level and place
any additional restrictions on messages received via the Receive Message Queue. This can
be accomplished by using the session handle associated with the message and the Get
Session Info command to look up the privilege level that the user is operating at. Software
can also check the limits for the channel and the user by using information from the Get
Channel Access and Get User Access commands to determine whether a given user
has sufficient privilege to deliver a particular command to system software.
Unless otherwise specified, the listed IPMI commands, if supported, must be accessible via LUN
00b.
Key for Table 125 (page 160)
•
b = Command only generated by MC, can be sent prior to a session being established
•
b1 = Command only generated by MC, can only be delivered to a session-less channel, or
a channel that has an active session
•
b2 = Command only generated by MC, can be sent to a serial channel when serial port
sharing is used and activating the SOL payload causes the serial session to be terminated.
•
b3 = Command only generated by MC, can only be delivered to a session-less channel.
•
p = Works at any privilege level, can be sent prior to a session being established
•
s = Command executable via system interface only
•
X = Supported at given privilege level or higher
•
I = Command executable from local interfaces only (e.g. IPMB, SMBus, PCI Mgmt. bus or
System Interface)
•
C = Callback privilege
•
U = User Privilege level
•
O = Operator Privilege level
•
A = Administrator Privilege level
•
App = Application Network Function Code
•
S/E = Sensor/Event Network Function Code
•
- = Reserved/unassigned, or OEM specified
159
Table 125 Moonshot command number assignments and privilege levels
NetFn
CMD C U O A
App
01h
Broadcast ‘Get Device ID’
App
01h
Cold Reset
App
02h
X
Warm Reset
App
03h
X
Get Self Test Results
App
04h
X
Get ACPI Power State
App
07h
X
Reset Watchdog Timer
App
22h
X
Set Watchdog Timer
App
24h
X
Get Watchdog Timer
App
25h
Set BMC Global Enables
App
2Eh
Get BMC Global Enables
App
2Fh
Clear Message Flags
App
30h
s
Get Message Flags
App
31h
Enable Message Channel Receive
App
Get Message
App
IPM Device “Global” Commands
Get Device ID
1
X
I
I
I
I
MC Watchdog Timer Commands
X
MC Device and Messaging Commands
s
s
s
s
s
s
s
s
s
s
s
32h
s
s
s
s
33h
s
s
s
s
X
2
Send Message
App
34h
X X
Get System GUID
App
37h
p3 p3 p3 p3
Set System Info Parameters
App
58h
Get System Info Parameters
App
59h
X
Set Session Privilege Level
App
3Bh
X4
Close Session
App
3Ch
Get Session Info
App
3Dh
Get AuthCode
App
3Fh
Set Channel Access
App
40h
Get Channel Access
App
41h
X
Get Channel Info
App
42h
X
Set User Access
App
43h
Get User Access
App
44h
Set User Name
App
45h
Get User Name
App
46h
Set User Password
App
47h
X
Activate Payload
App
48h
X5 1
[0] 1
[0] [10]
Deactivate Payload
App
49h
X5 1
[0] 1
[0] [10]
160 Command Assignments
X
X5
X
X
X
X
X
X
X
Table 125 Moonshot command number assignments and
privilege levels (continued)
NetFn
CMD C U O A
Get Payload Activation Status
App
4Ah
X
Get Payload Instance Info
App
4Bh
X
Set User Payload Access
App
4Ch
Get User Payload Access
App
4Dh
Get Channel Payload Support
App
4Eh
X
Get Channel Payload Version
App
4Fh
X
Master Write-Read
App
52h
X
Get Channel Cipher Suites
App
54h
p p p
Suspend/Resume Payload Encryption App
55h
X9
Set Channel Security Keys
App
56h
Get System Interface Capabilities
App
57h
X
Get Chassis Capabilities
Chassis
00h
X
Get Chassis Status
Chassis
01h
X
Chassis Control
Chassis
02h
X
Chassis Identify
Chassis
04h
X
Set Power Restore Policy
Chassis
06h
X
Set System Boot Options
Chassis
08h
X6
Get System Boot Options
Chassis
09h
X
unassigned
Chassis
0Ch0
- Eh -
-
Get POH Counter
Chassis
0Fh
X
Set Event Receiver
S/E
00h
Get Event Receiver
S/E
01h
Platform Event (a.k.a. “Event
Message”)
S/E
02h
unassigned
S/E
03h-
X
X
p
X
Chassis Device Commands
-
-
Event Commands
X
X
X
-
-
-
-
0Fh
Sensor Device Commands
Get Device SDR Info
S/E
20h
I
I
I
I
Get Device SDR
S/E
21h
I
I
I
I
S/E
2Dh
X
Get FRU Inventory Area Info
Storage
10h
X
Read FRU Data
Storage
11h
X
Reserve Device SDR Repository
Get Sensor Reading
FRU Device Commands
161
Table 125 Moonshot command number assignments and
privilege levels (continued)
NetFn
CMD C U O A
Storage
12h
Get SDR Repository Info
Storage
20h
X
Get SDR Repository Allocation Info
Storage
21h
X
Reserve SDR Repository
Storage
22h
X
Get SDR
Storage
23h
X
Add SDR
Storage
24h
X
Delete SDR
Storage
26h
X
Clear SDR Repository
Storage
27h
X
Run Initialization Agent
Storage
2Ch
X
Get SEL Info
Storage
40h
X
Reserve SEL
Storage
42h
X
Get SEL Entry
Storage
43h
X
Add SEL Entry
Storage
44h
X
Clear SEL
Storage
47h
X
Get SEL Time
Storage
48h
Set SEL Time
Storage
49h
Write FRU Data
X
SDR Device Commands
SEL Device Commands
X
X
LAN Device Commands
Set LAN Configuration Parameters
Transport 01h
Get LAN Configuration Parameters
Transport 02h
X
X
Serial/Modem Device Commands
Set SOL Configuration Parameters
Transport 21h
X
Get SOL Configuration Parameters
Transport 22h
X
Get DCMI Capability Info
DCGRP
(2ch)
01h
X
Get Asset Tag
DCGRP
(2ch)
06h
X
Get DCMI Sensor Info
DCGRP
(2ch)
07h
X
Set Asset Tag
DCGRP
(2ch)
08h
X
Get Controller ID String
DCGRP
(2ch)
09h
Set Controller ID String
DCGRP
(2ch)
0Ah
DCMI Specific
PICMG Specific
162
Command Assignments
X
X
Table 125 Moonshot command number assignments and
privilege levels (continued)
NetFn
CMD C U O A
Get PICMG Properties
PICMG
(00h)
00h
X
Get Address Info
PICMG
(00h)
01h
X
FRU Inventory Device Lock Control
PICMG
(00h)
1Fh
1
X
This command is sent using the Broadcast format on IPMB. See command description for details.
2
A User can use a Send Message command to deliver a message to system software, but
Operator privilege is required to use it to access other channels.
3
Command only applies to authenticated channels.
4
This is effectively a no-op if the user has a maximum privilege limit of User since the command
could not be used to change the operating privilege level to a higher value.
5
A session operating at Callback, User, or Operator can only use this command to terminate their
own session. An Administrator or system software can use the command to terminate any session.
6
There is a bit in this command that can only be set at Administrator privilege level
7
Command available for all levels except for User level.
8
See [ICMB] specification for command specifications
9
The Suspend/Resume Payload Encryption command may be overridden by a configuration option
for the particular payload type that forces encryption to be used. In this case, an Admin level
command would typically be required to change the configuration.
10
The configuration parameters for a given payload type determine the privilege level required
to activate/deactivate the payload.
163
B Verbose output examples
root@JSMITH-LX:/# ipmitool -I lanplus -H ILOH101GEMINI -U Administrator -P password sdr list all –v
Running Get PICMG Properties my_addr 0x20, transit 0, target 0x20
Discovered PICMG Extension 2.3
Discovered IPMB-0 address 0x20
Device ID
: ZoMC
Entity ID
: 240.96 (PICMG Shelf Management Controller)
Device Slave Address
: 20h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Static
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : No
IPMB Event Receiver
: Yes
FRU Inventory Device : Yes
SEL Device
: Yes
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
Entity ID
Device Access Address
Logical FRU Device
Channel Number
LUN.Bus
Device Type.Modifier
OEM
:
:
:
:
:
:
:
:
254
240.96 (PICMG Shelf Management Controller)
20h
FEh
0h
0h.0h
10h.0h (IPMI FRU Inventory)
00h
Sensor ID
: IPMB0 Phys Link (0x1)
Entity ID
: 240.96 (PICMG Shelf Management Controller)
Sensor Type (Discrete): PICMG IPMB0 Link State (0xf1)
Sensor Reading
: 0h
Event Message Control : No Events From Sensor
OEM
: 0
Device ID
: ChasMgmtCtlr1
Entity ID
: 23.1 (System Chassis)
Device Slave Address
: 44h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Static
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: Yes
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: PsMgmtCtlr1
Entity ID
: 10.1 (Power Supply)
Device Slave Address
: 52h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
Entity ID
Device Slave Address
Channel Number
ACPI System P/S Notif
ACPI Device P/S Notif
Controller Presence
Logs Init Agent Errors
Event Message Gen
164 Verbose output examples
:
:
:
:
:
:
:
:
:
PsMgmtCtlr2
10.2 (Power Supply)
54h
0h
Not Required
Not Required
Dynamic
No
Enable
Device Capabilities
Chassis Device
Bridge
IPMB Event Generator
IPMB Event Receiver
FRU Inventory Device
SEL Device
SDR Repository
Sensor Device
:
:
:
:
:
:
:
:
No
No
Yes
No
Yes
No
Yes
Yes
Device ID
: PsMgmtCtlr3
Entity ID
: 10.3 (Power Supply)
Device Slave Address
: 56h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: PsMgmtCtlr4
Entity ID
: 10.4 (Power Supply)
Device Slave Address
: 58h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: A6h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: A8h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
Entity ID
Device Slave Address
Channel Number
ACPI System P/S Notif
ACPI Device P/S Notif
Controller Presence
:
:
:
:
:
:
:
CaMC
160.97 (PICMG Front Board)
AAh
0h
Not Required
Not Required
Dynamic
165
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: ACh
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: AEh
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: B0h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: B2h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
Entity ID
Device Slave Address
Channel Number
ACPI System P/S Notif
166 Verbose output examples
:
:
:
:
:
CaMC
160.97 (PICMG Front Board)
B8h
0h
Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: B4h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: BAh
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: 82h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: B6h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
Entity ID
Device Slave Address
: CaMC
: 160.97 (PICMG Front Board)
: BCh
167
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: 84h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: BEh
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: 86h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: C0h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
168 Verbose output examples
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: 88h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: C2h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: C4h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: 8Ah
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: C6h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
169
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: 8Ch
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: C8h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: 8Eh
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: 90h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: CAh
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
170
Verbose output examples
SDR Repository
Sensor Device
: Yes
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: CCh
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: 92h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: CEh
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: 94h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: D0h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
171
FRU Inventory Device
SEL Device
SDR Repository
Sensor Device
:
:
:
:
Yes
No
Yes
Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: 96h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: D2h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: 98h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: D4h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: 9Ah
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
172
Verbose output examples
IPMB Event Generator
IPMB Event Receiver
FRU Inventory Device
SEL Device
SDR Repository
Sensor Device
:
:
:
:
:
:
Yes
No
Yes
No
Yes
Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: D6h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: 9Ch
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: 9Eh
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: D8h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
Entity ID
Device Slave Address
Channel Number
ACPI System P/S Notif
ACPI Device P/S Notif
Controller Presence
Logs Init Agent Errors
Event Message Gen
Device Capabilities
:
:
:
:
:
:
:
:
:
CaMC
160.97 (PICMG Front Board)
A0h
0h
Not Required
Not Required
Dynamic
No
Enable
173
Chassis Device
Bridge
IPMB Event Generator
IPMB Event Receiver
FRU Inventory Device
SEL Device
SDR Repository
Sensor Device
:
:
:
:
:
:
:
:
No
No
Yes
No
Yes
No
Yes
Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: DAh
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: A2h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: A4h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
At cartridge:
root@JSMITH-LX:/# ipmitool -I lanplus -H ILOH101GEMINI -U Administrator -P password -t 0xa4 sdr list all -v
Running Get PICMG Properties my_addr 0x20, transit 0, target 0x20
Discovered PICMG Extension 2.3
Discovered IPMB-0 address 0x20
Discovered Target IPMB-0 address 0xa4
Sensor ID
: 01-Front Ambient (0x1)
Entity ID
: 64.97 (Air Inlet)
Sensor Type (Threshold) : Temperature (0x01)
Sensor Reading
: 21 (+/- 0) degrees C
Status
: ok
Positive Hysteresis
: Unspecified
Negative Hysteresis
: Unspecified
Minimum sensor range : -127.000
Maximum sensor range : Unspecified
Event Message Control : Entire Sensor Only
Readable Thresholds
: ucr unr
Settable Thresholds
:
Threshold Read Mask
: ucr unr
Sensor
Entity
Sensor
Sensor
Status
174
ID
: 02-CPU (0x2)
ID
: 65.97 (Processor)
Type (Threshold) : Temperature (0x01)
Reading
: 40 (+/- 0) degrees C
: ok
Verbose output examples
Positive Hysteresis
Negative Hysteresis
Minimum sensor range
Maximum sensor range
Event Message Control
Readable Thresholds
Settable Thresholds
Threshold Read Mask
:
:
:
:
:
:
Unspecified
Unspecified
-127.000
Unspecified
Entire Sensor Only
ucr unr
:
: ucr unr
Sensor ID
: 03-DIMM (0x3)
Entity ID
: 32.97 (Memory Device)
Sensor Type (Threshold) : Temperature (0x01)
Sensor Reading
: 26 (+/- 0) degrees C
Status
: ok
Positive Hysteresis
: Unspecified
Negative Hysteresis
: Unspecified
Minimum sensor range : -127.000
Maximum sensor range : Unspecified
Event Message Control : Entire Sensor Only
Readable Thresholds
: ucr unr
Settable Thresholds
:
Threshold Read Mask
: ucr unr
Sensor ID
: 04-Cart Ctrlr (0x4)
Entity ID
: 66.97 (Baseboard/Main System Board)
Sensor Type (Threshold) : Temperature (0x01)
Sensor Reading
: 24 (+/- 0) degrees C
Status
: ok
Positive Hysteresis
: Unspecified
Negative Hysteresis
: Unspecified
Minimum sensor range : -127.000
Maximum sensor range : Unspecified
Event Message Control : Entire Sensor Only
Readable Thresholds
: ucr unr
Settable Thresholds
:
Threshold Read Mask
: ucr unr
Sensor ID
: 05-CPU Zone (0x5)
Entity ID
: 66.98 (Baseboard/Main System Board)
Sensor Type (Threshold) : Temperature (0x01)
Sensor Reading
: 29 (+/- 0) degrees C
Status
: ok
Positive Hysteresis
: Unspecified
Negative Hysteresis
: Unspecified
Minimum sensor range : -127.000
Maximum sensor range : Unspecified
Event Message Control : Entire Sensor Only
Readable Thresholds
: ucr unr
Settable Thresholds
:
Threshold Read Mask
: ucr unr
Sensor ID
: 06-LOM Zone (0x6)
Entity ID
: 66.99 (Baseboard/Main System Board)
Sensor Type (Threshold) : Temperature (0x01)
Sensor Reading
: 36 (+/- 0) degrees C
Status
: ok
Positive Hysteresis
: Unspecified
Negative Hysteresis
: Unspecified
Minimum sensor range : -127.000
Maximum sensor range : Unspecified
Event Message Control : Entire Sensor Only
Readable Thresholds
: ucr unr
Settable Thresholds
:
Threshold Read Mask
: ucr unr
Device ID
: CaMC
Entity ID
: 160.97 (PICMG Front Board)
Device Slave Address
: A4h
Channel Number
: 0h
ACPI System P/S Notif : Not Required
ACPI Device P/S Notif : Not Required
Controller Presence
: Dynamic
Logs Init Agent Errors : No
Event Message Gen
: Enable
Device Capabilities
Chassis Device
: No
Bridge
: No
IPMB Event Generator : Yes
IPMB Event Receiver
: No
FRU Inventory Device : Yes
SEL Device
: No
SDR Repository
: Yes
Sensor Device
: Yes
Device ID
Entity ID
Device Slave Address
Channel Number
ACPI System P/S Notif
ACPI Device P/S Notif
Controller Presence
Logs Init Agent Errors
Event Message Gen
:
:
:
:
:
:
:
:
:
SnMC
193.97 (PICMG AdvancedMC Module)
72h
7h
Not Required
Not Required
Dynamic
No
Enable
175
Device Capabilities
Chassis Device
Bridge
IPMB Event Generator
IPMB Event Receiver
FRU Inventory Device
SEL Device
SDR Repository
Sensor Device
Device ID
Entity ID
Device Access Address
Logical FRU Device
Channel Number
LUN.Bus
Device Type.Modifier
OEM
:
:
:
:
:
:
:
:
No
No
Yes
No
Yes
Yes
Yes
Yes
:
:
:
:
:
:
:
:
SnMC 1
193.98 (PICMG AdvancedMC Module)
A4h
01h
0h
0h.0h
10h.0h (IPMI FRU Inventory)
00h
root@JSMITH-LX:/# ipmitool -I lanplus -H ILOH101GEMINI -U Administrator -P password sel list -v
Running Get PICMG Properties my_addr 0x20, transit 0, target 0x20
Discovered PICMG Extension 2.3
Discovered IPMB-0 address 0x20
SEL Record ID
: 0000
Record Type
: 02
Timestamp
: 02/23/2000 21:29:38
Generator ID
: 0044
EvM Revision
: 04
Sensor Type
: Power Supply
Sensor Number
: 04
Event Type
: Sensor-specific Discrete
Event Direction
: Assertion Event
Event Data
: 01ffff
Description
: Failure detected
176
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
Verbose output examples
: 0001
02
02/28/2000 21:57:58
0044
04
Power Supply
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 0002
02
03/06/2000 11:11:14
0044
04
Power Supply
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 0003
02
03/17/2000 01:52:47
0044
04
Power Supply
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 0004
02
03/24/2000 03:07:30
0044
04
Power Supply
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
: 0005
02
03/27/2000 01:23:36
0044
04
Power Supply
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
:
:
:
:
:
:
:
:
: 0006
02
03/27/2000 03:00:34
0044
04
Power Supply
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 0007
02
03/27/2000 08:42:18
0044
04
Power Supply
02
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 0008
02
03/27/2000 08:42:18
0044
04
Power Supply
03
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 0009
02
03/27/2000 08:42:18
0044
04
Power Supply
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 000a
02
03/27/2000 20:58:04
0044
04
Power Supply
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 000b
02
04/04/2000 22:19:34
0044
04
Power Supply
02
Sensor-specific Discrete
Assertion Event
177
178
Event Data
Description
: 01ffff
: Failure detected
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
:
:
:
:
:
Verbose output examples
: 000c
02
04/04/2000 22:19:36
0044
04
Power Supply
03
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 000d
02
04/04/2000 22:19:36
0044
04
Power Supply
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 000e
02
04/04/2000 22:19:36
0044
04
Power Supply
05
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 000f
02
04/07/2000 01:33:48
0044
04
Power Supply
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 0010
02
04/07/2000 01:37:33
0044
04
Power Supply
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 0011
02
04/16/2013 20:22:01
0044
04
Power Supply
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 0012
02
04/16/2013 21:23:09
0044
04
Power Supply
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
: 0019
: 02
: 07/28/2013 00:20:52
: 0013
02
04/18/2013 13:24:19
0044
04
Power Supply
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 0014
02
04/18/2013 13:36:11
0044
04
Power Supply
02
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 0015
02
04/22/2013 15:54:30
0044
04
Power Supply
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 0016
02
06/26/2013 21:57:07
0044
04
Power Supply
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 0017
02
06/27/2013 18:17:54
0044
04
Power Supply
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 0018
02
06/28/2013 20:36:17
0044
04
Power Supply
02
Sensor-specific Discrete
Deassertion Event
00ffff
Presence detected
179
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
180 Verbose output examples
0044
04
Power Supply
02
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 001a
02
08/04/2013 00:23:10
0044
04
Power Supply
02
Sensor-specific Discrete
Deassertion Event
00ffff
Presence detected
: 001b
02
08/06/2013 15:05:21
0044
04
Power Supply
03
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 001c
02
08/06/2013 15:05:22
0044
04
Power Supply
04
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 001d
02
08/06/2013 15:05:22
0044
04
Power Supply
05
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 001e
02
08/06/2013 15:05:26
0044
04
Power Supply
02
Sensor-specific Discrete
Assertion Event
01ffff
Failure detected
: 001f
02
08/09/2013 14:34:48
0044
04
Fan
07
Generic Discrete
Assertion Event
04ffff
Transition to Off Line
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
: 0020
02
08/09/2013 14:34:49
0044
04
Fan
07
Generic Discrete
Deassertion Event
00ffff
Transition to Running
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
:
:
:
:
:
:
:
:
: 0021
02
08/09/2013 14:34:53
0044
04
Fan
07
Generic Discrete
Assertion Event
00ffff
Transition to Running
: 0022
02
08/09/2013 14:35:11
0044
04
Fan
09
Generic Discrete
Assertion Event
04ffff
Transition to Off Line
: 0023
02
08/09/2013 14:35:11
0044
04
Fan
09
Generic Discrete
Deassertion Event
00ffff
Transition to Running
: 0024
02
08/09/2013 14:35:16
0044
04
Fan
09
Generic Discrete
Assertion Event
00ffff
Transition to Running
: 0025
02
08/09/2013 14:35:21
0044
04
Fan
08
Generic Discrete
Assertion Event
04ffff
Transition to Off Line
: 0026
02
08/09/2013 14:35:21
0044
04
Fan
08
Generic Discrete
Deassertion Event
181
182
Event Data
Description
: 00ffff
: Transition to Running
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
:
:
:
:
:
Verbose output examples
: 0027
02
08/09/2013 14:36:09
0044
04
Fan
09
Generic Discrete
Assertion Event
04ffff
Transition to Off Line
: 0028
02
08/09/2013 14:36:09
0044
04
Fan
09
Generic Discrete
Deassertion Event
00ffff
Transition to Running
: 0029
02
08/09/2013 14:36:14
0044
04
Fan
09
Generic Discrete
Assertion Event
00ffff
Transition to Running
: 002a
02
08/09/2013 14:36:31
0044
04
Fan
08
Generic Discrete
Assertion Event
00ffff
Transition to Running
: 002b
02
08/09/2013 14:36:45
0044
04
Fan
0a
Generic Discrete
Assertion Event
04ffff
Transition to Off Line
: 002c
02
08/09/2013 14:36:45
0044
04
Fan
0a
Generic Discrete
Deassertion Event
00ffff
Transition to Running
: 002d
02
08/09/2013 14:36:50
0044
04
Fan
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
0a
Generic Discrete
Assertion Event
00ffff
Transition to Running
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
: 0034
: 02
: 08/09/2013 14:49:46
: 002e
02
08/09/2013 14:36:52
0044
04
Fan
0b
Generic Discrete
Assertion Event
04ffff
Transition to Off Line
: 002f
02
08/09/2013 14:36:52
0044
04
Fan
0b
Generic Discrete
Deassertion Event
00ffff
Transition to Running
: 0030
02
08/09/2013 14:36:57
0044
04
Fan
0b
Generic Discrete
Assertion Event
00ffff
Transition to Running
: 0031
02
08/09/2013 14:43:23
0044
04
Fan
08
Generic Discrete
Assertion Event
04ffff
Transition to Off Line
: 0032
02
08/09/2013 14:43:23
0044
04
Fan
08
Generic Discrete
Deassertion Event
00ffff
Transition to Running
: 0033
02
08/09/2013 14:43:54
0044
04
Fan
08
Generic Discrete
Assertion Event
00ffff
Transition to Running
183
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
184 Verbose output examples
0044
04
Fan
0a
Generic Discrete
Assertion Event
04ffff
Transition to Off Line
: 0035
02
08/09/2013 14:49:46
0044
04
Fan
0a
Generic Discrete
Deassertion Event
00ffff
Transition to Running
: 0036
02
08/09/2013 14:49:55
0044
04
Fan
0a
Generic Discrete
Assertion Event
00ffff
Transition to Running
: 0037
02
08/09/2013 14:50:12
0044
04
Fan
08
Generic Discrete
Assertion Event
04ffff
Transition to Off Line
: 0038
02
08/09/2013 14:50:12
0044
04
Fan
08
Generic Discrete
Deassertion Event
00ffff
Transition to Running
: 0039
02
08/09/2013 14:50:31
0044
04
Fan
08
Generic Discrete
Assertion Event
00ffff
Transition to Running
: 003a
02
08/09/2013 15:00:54
0044
04
Fan
0b
Generic Discrete
Assertion Event
04ffff
Transition to Off Line
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
: 003b
02
08/09/2013 15:00:54
0044
04
Fan
0b
Generic Discrete
Deassertion Event
00ffff
Transition to Running
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
SEL Record ID
Record Type
Timestamp
Generator ID
EvM Revision
Sensor Type
Sensor Number
Event Type
Event Direction
Event Data
Description
:
:
:
:
:
:
:
:
:
:
: 003c
02
08/09/2013 15:01:03
0044
04
Fan
0b
Generic Discrete
Assertion Event
00ffff
Transition to Running
: 003d
02
08/09/2013 15:01:30
0044
04
Fan
08
Generic Discrete
Assertion Event
04ffff
Transition to Off Line
: 003e
02
08/09/2013 15:01:30
0044
04
Fan
08
Generic Discrete
Deassertion Event
00ffff
Transition to Running
: 003f
02
08/09/2013 15:02:05
0044
04
Fan
08
Generic Discrete
Assertion Event
00ffff
Transition to Running
185
Glossary
ACPI
Advanced Configuration and Power Interface Specification
BCD
Binary-coded Decimal
BMC
Baseboard Management Controller
BT
Block Transfer
ChMC
Chassis Management Controller
CMOS
The PC-AT compatible region of battery-backed 128 bytes of memory, which normally resides
on the baseboard
CTS
Clear to send
DCD
Data Carrier Detect
DCMI
Data Center Manageability Interface
DSR
Data Set Ready
DTR
Data Transfer Request
EvMRev
Event message revision
FPGA
Field-Programmable Gate Array
FRB
Fault-resilient booting
FRU
Field replaceable unit
GUID
Globally Unique ID
HA
High availability
2
I C
Inter-Integrated Circuit
IANA
Internet Assigned Numbers Authority
ICMB
Intelligent Chassis Management Bus
IERR
Internal error
IPMB
Intelligent Platform Management Bus
IPMI
Intelligent Platform Management Interface
KCS
Keyboard Controller Style
LPC
Low Pin Count
LS
Least significant byte
MC
Management Controller
MS
Most significant byte
mux
multiplexing
NAK
Negative-acknowledge character
NetFn
Network Function
NMI
Non-maskable Interrupt
PCI
Peripheral Component Interconnect
PEF
Platform Event Filtering
PICMG
PCI Industrial Computer Manufacturers Group
POH
Power-On Hours
PSMC
Power Supply Management Controller
RAKP
Remote Authenticated Key-Exchange Protocol
RMCP
Remote Management Control Protocol
RQ
Received request
RS
Received response
186 Glossary
rsSA
Random Single Switch Algorithm
RTS
Request to send
SCI
Software Configuration Identification
SDR
Sensor Data Record
SEL
System Event Log
SMB
System Management Bus
SMI
System Management Interrupt
SMIC
System Management Interface Chip
SMM
System Management Mode.
SMS
System Management Software
SOL
Serial Over LAN
SSI
Server System Infrastructure
SSIF
SMBus System Interface
SWID
Software ID
TAP
Telocator Access Protocol
UUID
Universally Unique IDentifier
VSO
VITA Standards Organization
187
Index
A
ACK messages, 155
active sessions, 57
authcode, 59
authentication, 144
authorized resellers, 157
B
BMC, 141
interfaces, 141
BT, 19
C
channel access, 66
channel accessibility, 65
channel number, 144
chassis status, 22
command line tool, 18
command set, 141
command value, 141
Commands
Get Sensor Reading, 7
commands
Activate Session, 144
activate session, 56
add sel entry, 114
CMD, 141
get channel access limits, 65
Get Channel Info, 145
Get Device ID, 17
Get SDR, 11
Get SDR Repository Info, 11
Get Session, 144
Master Write-Read, 12
Read/Write FRU, 12
SEEPROM, 12
set channel access, 56
set user access, 56
verbose, 21
completion code, 142
completion condition, 142
configure channels, 60
contacting HP, 157
D
data block, 59
device discovery, 17
dynamic controllers, 17
E
event receiver, 114
events, 21
F
FRU, 11
188 Index
data, 11
inventory device, 12
function codes, 141
function command, 140
H
handshake
per block, 140
per byte, 140
help
obtaining, 157
HP
technical support, 157
I
ICMB, 141
inventory
remote, 22
IPMI
capabilities, 7
definition, 7
IPMI LAN session, 156
IPMItool, 18
definition, 18
discovery of features, 20
encryption, 19
LANplus interface, 19
remote chassis power control, 18
IPMV, 141
IPv4, 19
K
KCS, 140, 141
L
LAN, 141
LANPlus interface
RMCP+, 19
Linux
kernal driver, 19
OpenIPMI, 23
M
message interface, 141
message payload, 140
microcontroller, 140
N
NetFn, 140
network function code, 140
O
OpenIPMI, 19
OpenSSL, 19
P
V
parsing hierarchy, 141
payload commands, 70
POH counter, 12
print field replaceable unit, 18
privilege level, 65
virtual chassis manager, 17
R
RCMP+, 70
remote systems, 22
response messages, 142
RMCP, 154, 155
RMCP+ protocol, 156
S
SDR
format, 10
platform management, 10
purpose, 10
record body, 10
record header, 10
record key, 10
repository, 10
repository device, 12
SEL, 114
SEL commands, 114
SEL device, 114
SEL commands, 9
Sensor data model, 7
sensor data repository, 18
sensor owner
sensor owner id, 7
sensor type codes, 8
serial/modem, 141
session, 144
session-less, 144
SMCI, 141
SOL, 156
Solaris
BMC, 23
SSIF, 140
Support and other resources, 157
system interface, 19
T
technical support
HP, 157
timers
POH counter, 12
Watchdog, 12
timestamp
format, 12
values, 12
U
user id, 69
user password, 69
189
