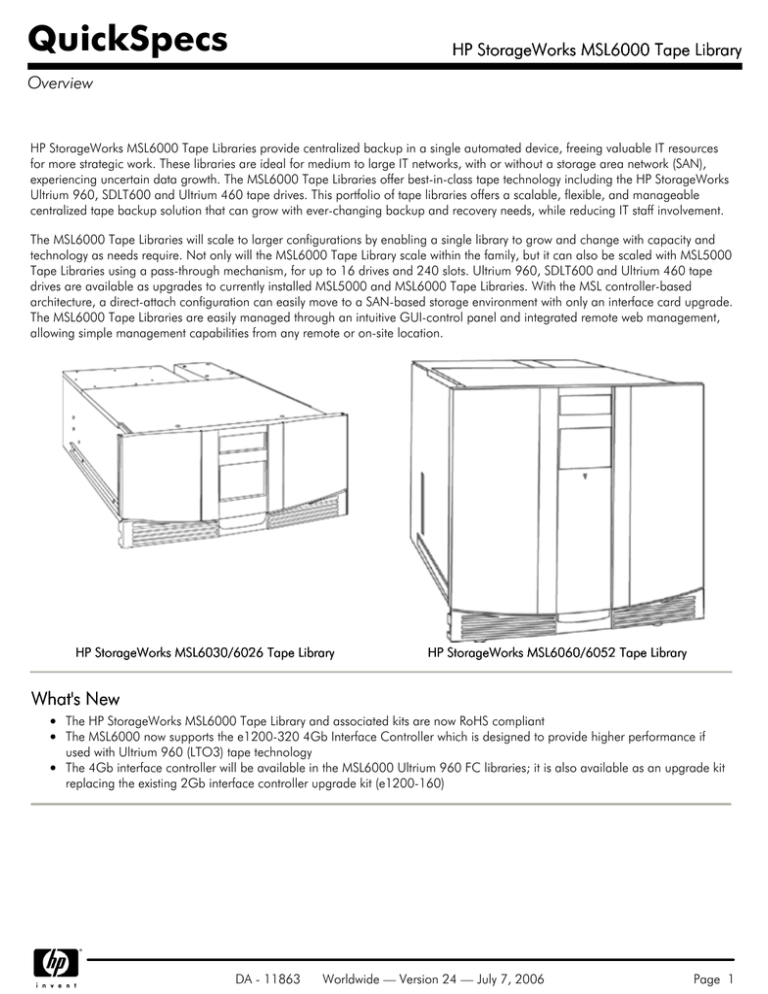

QuickSpecs
HP StorageWorks MSL6000 Tape Library
Overview
HP StorageWorks MSL6000 Tape Libraries provide centralized backup in a single automated device, freeing valuable IT resources
for more strategic work. These libraries are ideal for medium to large IT networks, with or without a storage area network (SAN),
experiencing uncertain data growth. The MSL6000 Tape Libraries offer best-in-class tape technology including the HP StorageWorks
Ultrium 960, SDLT600 and Ultrium 460 tape drives. This portfolio of tape libraries offers a scalable, flexible, and manageable
centralized tape backup solution that can grow with ever-changing backup and recovery needs, while reducing IT staff involvement.
The MSL6000 Tape Libraries will scale to larger configurations by enabling a single library to grow and change with capacity and
technology as needs require. Not only will the MSL6000 Tape Library scale within the family, but it can also be scaled with MSL5000
Tape Libraries using a pass-through mechanism, for up to 16 drives and 240 slots. Ultrium 960, SDLT600 and Ultrium 460 tape
drives are available as upgrades to currently installed MSL5000 and MSL6000 Tape Libraries. With the MSL controller-based
architecture, a direct-attach configuration can easily move to a SAN-based storage environment with only an interface card upgrade.
The MSL6000 Tape Libraries are easily managed through an intuitive GUI-control panel and integrated remote web management,
allowing simple management capabilities from any remote or on-site location.
HP StorageWorks MSL6030/6026 Tape Library
HP StorageWorks MSL6060/6052 Tape Library
What's New
The HP StorageWorks MSL6000 Tape Library and associated kits are now RoHS compliant
The MSL6000 now supports the e1200-320 4Gb Interface Controller which is designed to provide higher performance if
used with Ultrium 960 (LTO3) tape technology
The 4Gb interface controller will be available in the MSL6000 Ultrium 960 FC libraries; it is also available as an upgrade kit
replacing the existing 2Gb interface controller upgrade kit (e1200-160)
DA - 11863
Worldwide — Version 24 — July 7, 2006
Page 1
QuickSpecs
HP StorageWorks MSL6000 Tape Library
Overview
Key Features
Scalable up to 16 drives and 240 slots
Flexible in terms of choice for tape drive technology and library interface
Investment protection for performance and capacity needs
Manageable
Reliable
Extensive compatibility testing
Agility in storage and movement of data
RoHS compliant
Customer Benefits
Multi-unit stacking allows the library to grow with changing storage requirements for up 16 drives
and 240 slots using either MSL6000 or MSL5000 Tape Libraries.
Available with a broad choice of tape technologies including Ultrium 960, Ultrium 460, and
SDLT600; and with either an Ultra320 LVD-SCSI or 4Gb Fibre Channel interface (Ultrium 960
only).
Upgrade to a new drive technology by simply installing a drive upgrade kit into an existing library
chassis.
A controller-based architecture allows direct-attach configurations to easily move to a SAN
environment via an interface card upgrade.
User-friendly GUI control panel and web interface make library management easy from any
remote or local location.
Tape libraries provide consistent backup and automatically change tapes with a robotics rating of
2 million Mean Swaps Between Failures (MSBF).
Works with industry-leading servers, operating systems and backup software.
(http://www.hp.com/go/ebs)
For dedicated import/export of data cartridges, each library includes one to two configurable mail
slots, along with two to four removable magazines, dependent upon library configuration.
Meets lead-free initiatives required for EU compliance.
Family Comparison
Form Factor
Tape Drives Supported
Max Drives per Unit
Max Capacity per Unit
(native)
Max Number of Units
Stacked
Max Data Transfer Rate
per Unit (native, max
drives)
Interface
MSL6030 Tape Library
5U
Ultrium 960
Ultrium 460
2
12 TB
(with Ultrium 960)
8
MSL6026 Tape Library
5U
SDLT600
576 GB/hr
(with Ultrium 960)
Ultra320 SCSI LVD/SE
Ultra160 SCSI LVD/SE
4Gb Fibre Channel
2Gb Fibre Channel
DA - 11863
MSL6060 Tape Library
10U
Ultrium 960
Ultrium 460
4
24 TB
(with Ultrium 960)
4
MSL6052 Tape Library
10U
SDLT600
259 GB/hr
1.1 TB/hr
(with Ultrium 960)
518 GB/hr
Ultra160 SCSI LVD/SE
2Gb Fibre Channel
Ultra320 SCSI LVD/SE
Ultra160 SCSI LVD/SE
4Gb Fibre Channel
2Gb Fibre Channel
Ultra160 SCSI LVD/SE
2Gb Fibre Channel
2
7.8 TB
8
Worldwide — Version 24 — July 7, 2006
4
15.6 TB
4
Page 2
QuickSpecs
HP StorageWorks MSL6000 Tape Library
Product Highlights
Multi-unit Scalability
The MSL6000 Tape Library has the capability for multi-unit scalability; up to four 10U libraries or eight
5U libraries can be scaled together into a single library. For the MSL6030/6026, the first two modules
are linked using the MSL Universal Pass-Through Mechanism base unit kit, which has a shuttle
mechanism for tape movement between units. For the MSL6060/6052, the first two modules are linked
using the MSL Universal Pass-Through Mechanism base unit kit and a 10U extender kit. Additions of
subsequent modules require one MSL 5U or one MSL 10U pass-through extender kit per library module.
A MSL6000 Tape Library can also be scaled with a MSL5000 Tape Library for added flexibility and
investment protection. The ISV application will determine mixed media and tape drive support per tape
library configuration.
Manageability
The MSL6000 Tape Library includes web-based management to allow monitoring and managing of the
library from across the room or across the globe. Many of the functions that are available on the front
panel are included in the remote management interface. These include, but are not limited to: library
and drive status, moving media, load/unload tape drives, access to diagnostics, library configuration,
library statistics, inventory check, and security settings.
Proven Reliability
With a rating of 2,000,000 robot load/unload cycles, the MSL6000 Tape Library provides necessary
high reliability for today's demanding environment. To improve reliability and longevity, all HP Ultrium
products feature Data Rate Matching (DRM). This allows the tape drive to dynamically and continuously
adjust the speed of the drive, from 27 MB/s to 80 MB/s, to match the speed of the host or network. This
increases performance, reduces mechanical wear on the tape drive and extends tape life.
Factory Express Portfolio
for Servers and Storage
HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed. Customization must comply with all relevant product specifications
and factory supported configurations.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, and HP
9000 servers as well as MSA, VA7xxx, EVA, and XP disk arrays, rackable tape libraries and configurable
network switches.
Type of service support varies by platform and product family. For more information on Factory Express
services for your specific server model or storage device please contact your sales representative or go to
http://www.hp.com/go/factory-express.
HP StorageWorks Library The MSL6000 Tape Library configurations are supported on HP's industry-leading diagnostic tool - HP
and Tape Tools (L&TT)
StorageWorks Library and Tape Tools (L&TT). L&TT is a single, convenient program that's a snap to
install and simple to operate. L&TT's intuitive user interface eliminates the need for training and deploys
in less than five minutes. This robust diagnostic tool is designed for both the experienced professional
and the untrained administrator. It ensures product integrity through self-diagnostics and fast resolution
to device concerns. Additional information on L&TT plus download information can be found at:
http://www.hp.com/support/tapetools.
DA - 11863
Worldwide — Version 24 — July 7, 2006
Page 3
QuickSpecs
HP StorageWorks MSL6000 Tape Library
Product Highlights
LTO Ultrium Technology The HP StorageWorks Ultrium 960 Tape Drive represents HP's third-generation of LTO tape drive
technology. Positioned as the highest capacity drive in the StorageWorks family, the Ultrium 960 features
an 800 GB compressed (2:1) storage capacity using new LTO 3 media. By doubling the capacity of
current Ultrium drives, HP customers now require fewer data cartridges to meet their storage needs,
significantly reducing their IT costs and increasing their ROI. The Ultrium 960 also features a
compressed (2:1) data transfer rate of 160 MB/s. Using a new 16-channel recording head, an Ultra320
SCSI interface, and increases in media tracks and bit density, the HP Ultrium 960 sets a new
performance benchmark as the world's fastest tape drive.
NOTE: For additional information regarding the HP StorageWorks Ultrium Tape Drives, please see the
following QuickSpecs at:
http://h18006.www1.hp.com/products/storageworks/ultrium960/specifications.html
Data Rate Matching
An exclusive feature of HP Ultrium tape drives, data rate matching allows the tape drive to adjust its
transfer rate to the speed of the host dynamically and continuously. This feature, coupled with the Ultrium
buffer management technology within the data path, ensures that the tape drive continues to stream
data, reducing the need to rewind the tape back and forth to wait for the host. This feature brings two
big advantages:
It optimizes performance, getting the best performance possible for the environment, regardless of
the speed of the host or the network.
It reduces wear and tear on drive and media, thus increasing reliability
HP Ultrium WORM
Critical to the success of data retention policies in highly regulated environments is the ability to store
and manage data in an unalterable state. Following stringent guidelines set forth by regulatory agencies
such as the SEC and HIPPA, IT organizations must now integrate new solutions and policies that can
verify the integrity of stored data for periods that can extend well beyond seven years.
The new Ultrium 960 tape drive features the ability to archive and store data in a non-rewriteable format
that meets the most stringent regulatory guidelines. Using a combination of integrated fail-safe features
in the drive firmware, cartridge memory, and tape formatting, the Ultrium 960 can archive large
amounts of data for periods of up to 30 years in a secure, untampered state. Since all Ultrium 960 tape
drives include support for both rewritable and WORM (write-once, read-many) media, IT organizations
can now easily integrate a secure, long-term archiving solution into their current data protection strategy.
As compared to other technologies that feature support for WORM storage, the Ultrium 960 offers the
advantages of:
A single drive to support all backup and archiving needs
Two distinctive tape cartridges to easily distinguish and manage both rewriteable and WORM data
cartridges
A specially designed WORM data cartridge with multiple integrated fail-safe features to prevent
accidental or intentional overwriting of data
High-capacity, low-cost HP WORM media that can store up to 800GB of data on a single data
cartridge
Support from many backup and archiving software vendors, providing the most comprehensive
and mainstream support in the industry
The LTO open standard that offers greater choice and compatibility across all third-generation
Ultrium products
NOTE: While all HP Ultrium 960 tape drives support LTO Ultrium WORM media, some third-generation
LTO Ultrium tape drives from other manufacturers may not include read and write support for LTO
Ultrium WORM media. For non-HP third-generation LTO Ultrium tape drives, please check the
manufacturers' specifications to ensure this support is provided if you are using your WORM media. If
DA - 11863
Worldwide — Version 24 — July 7, 2006
Page 4
QuickSpecs
HP StorageWorks MSL6000 Tape Library
Product Highlights
WORM support is not provided, the drive will eject the WORM tape cartridge immediately upon insertion
into to the tape drive.
SDLT Technology
DLT (digital linear tape) uses a proven linear recording technology, a highly accurate tape guide system,
and a read after write correction system to provide high-capacity, high reliability data backup and
restoration. DLT has fast become the industry-standard secondary storage tape format for departmental
and enterprise backup. The new generation SDLT drive, provides enhanced capacity and backup
performance and includes several new features such as laser guided magnetic recoding (LGMR)
technology, pivoting optical servo (POS), magneto-resistive cluster heads (MRC), partial response
maximum likelihood (PRML) channel technology and backward-read compatibility with earlier
generations of DLT drives (to be able to read media written in DLT type IV format).
HP SDLT WORM
The HP StorageWorks SDLT600 Tape Drive includes support for WORM (Write-Once, Read-Many)
functionality. WORM implementation is dependent on the backup application and more information on
which applications support WORM can be found at http://www.hp.com/go/connect.
WORM technology provides an enhanced level of security against accidental or malicious alteration of
data on tape cartridges. WORM can be important when implementing data retention policies to be
compliant with regulations regarding the storage of data on non-rewritable, non-erasable media. The
SDLT600 tape drive ships with support for WORM and can be set to WORM mode using the backup
application. Once the cartridge has been set up for WORM, you will be unable to erase or overwrite the
data on it, although you will be able to append data until the cartridge is full. WORM media can be
read as often as required. When implementing WORM an unformatted or blank Super DLTtape II
600GB data cartridge is required.
HP Storage Media
HP recommends that you use HP-branded cartridges in the MSL6000 Tape Library to assure the highest
level of protection for your valuable data. The test program for HP media is the most thorough and
comprehensive in the industry.
All HP cartridges must satisfy an exhaustive battery of additional tests that relate directly to real life
situations, where real data and real businesses are at stake. The benefit of the HP brand specification for
media is consistent quality. Through the testing of thousands of HP drives and HP cartridges, the ideal
formulation for backup performance is defined and then continuously monitored. This hugely resourceintensive process is unique to HP and affords deep insight into the HP+HP backup solution for a wide
range of environments and duty cycles. Your best choice for ease of support and maximum dependability
is to use HP-branded Ultrium cartridges at all times.
DA - 11863
Worldwide — Version 24 — July 7, 2006
Page 5
QuickSpecs
HP StorageWorks MSL6000 Tape Library
Compatibility
HP's extensive compatibility testing program assures that your HP StorageWorks MSL6000 Tape Library works with leading servers,
operating systems, and backup applications - and not just those sold by HP. The MSL6000 works seamlessly in many environments,
making them especially suitable if you have a mixed system environment. For the latest list of servers, workstations, operating
systems, and backup software that support the MSL6000, check the HP StorageWorks Enterprise Backup Solution compatibility
matrix at http://www.hp.com/go/ebs.
Server Compatibility
The MSL6000 is supported on a wide range of HP systems. For details of which MSL6000 works with
which systems, including third-party systems, reference the EBS compatibility matrix at
http://www.hp.com/go/ebs for the latest hardware compatibility information.
OS Support
Reference the EBS compatibility matrix for the most up-to-date OS compatibility information at
http://www.hp.com/go/ebs.
Software Support
Reference the EBS compatibility matrix for the most up-to-date software compatibility information at
http://www.hp.com/go/ebs.
DA - 11863
Worldwide — Version 24 — July 7, 2006
Page 6
QuickSpecs
HP StorageWorks MSL6000 Tape Library
Service and Support, HP Care Pack, and Warranty Information
Warranty
Warranty Upgrade
Options
The warranty for this product consists of one-year, next business day, onsite.
Response - Upgrade on-site response from next business day to same day 4-hours
Coverage - Extend hours of coverage from 5 days x 9 hours to 7 days x 24 hours
Duration - Select duration of coverage for a minimum period of 1 year to multiple years
HP Care Pack Information HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific
duration and hours of coverage.
HP Care Pack is not available for less than the products warranty duration.
HP Care Pack is available for sale anytime during the warranty period for most products, but the
commencement date will be the same as the warranty start date (delivery date to end user
customer). Proof of purchase may be required.
HP Care Pack services are prepaid.
For additional HP Care Pack (hardware & software) information, as well as orderable part numbers,
please refer to the URL http://www.hp.com/hps/carepack/.
Hardware Product
Services
Installation services
On-site Maintenance (includes warranty support)
Response time upgrades during the warranty period
Post-warranty coverage
RAID setup and performance consulting via statement of work
For additional hardware installation and maintenance information please refer to the URL
http://www.hp.com/hps/hardware/.
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit http://www.hp.com/support
DA - 11863
Worldwide — Version 24 — July 7, 2006
Page 7
QuickSpecs
HP StorageWorks MSL6000 Tape Library
Service and Support, HP Care Pack, and Warranty Information
Support Services
HP Services provides up to a three-year, limited warranty, fully supported by a worldwide network of
resellers and service providers and 9x5 hardware technical phone support during the warranty period. In
addition, available service offerings include a full range of optional packaged hardware and software
services:
Installation and start up
Extended coverage hours and enhanced response times
System management and performance services
Availability and recovery services
Components
The following brick level options/components do not have individual HP Care Pack Services. These items
will be included in product HP Care Pack Services into which they are installed.
Disk Drives
Tape Drives
CD/DVD ROM
SCSI Hubs in SBBs Adapters
Bus Converters
Backplane RAID
Power Supplies
Cabling
Fans
Controllers
DA - 11863
Worldwide — Version 24 — July 7, 2006
Page 8
QuickSpecs
HP StorageWorks MSL6000 Tape Library
Configuration Information
NOTE: The HP StorageWorks MSL6000 Tape Library comes standard as a rack-ready unit and includes a rack kit specifically
designed for HP 10000/9000/5000 series racks. If the library will be installed into a HP System/E or Alpha rack, then a separate
rack kit must also be purchased.
NOTE: Each library includes a 110/220 VAC power cord for US/Canada/Mexico (1 per 5U unit; 2 per 10U unit). For additional or
specific regional power cord requirements, separate power cords must be ordered.
Step 1 – Select a Configuration
Select one:
Model Name
HP StorageWorks
MSL6030/6026 Tape
Library
Model Description
HP MSL6030 1 Ultrium 960 Drive Library
HP MSL6030 2 Ultrium 960 Drive Library
HP MSL6030 1 Ultrium 960 Drive 4Gb FC Library
HP MSL6030 2 Ultrium 960 Drive 4Gb FC Library
HP MSL6030 1 Ultrium 460 Drive Library
HP MSL6030 2 Ultrium 460 Drive Library
HP MSL6030 1 Ultrium 460 Drive 2Gb FC Library
HP MSL6030 2 Ultrium 460 Drive 2Gb FC Library
NOTE: The HP StorageWorks MSL6030 Tape Library supports 30 media slots
(including one configurable mail slot) and up to two Ultrium tape drives (number of
drives determined by SKU chosen). Additional drives can be added for a maximum of
2 drives per library module. The tape library ships as a rack-ready unit.
HP MSL6026 1 SDLT600 Drive Library
HP MSL6026 2 SDLT600 Drive Library
HP MSL6026 1 SDLT600 Drive 2Gb FC Library
HP MSL6026 2 SDLT600 Drive 2Gb FC Library
NOTE: The HP StorageWorks MSL6026 Tape Library supports 26 media slots
(including one configurable mail slot) and up to two SDLT tape drives (number of
drives determined by SKU chosen). Additional drives can be added for a maximum of
2 drives per library module. The tape library ships as a rack-ready unit.
Kit Contents (for each library):
Part Number
AD606B
AD607B
AD608B
AD609B
AD598B
AD599B
AD600B
AD601B
AD582C
AD583C
AD584C
AD585C
12' 110/220 VAC US/Mexico/Canada Power Cord (1 per 5U unit)
.5M VHDCI SCSI cable (1 per tape drive and 1 per FC card)
(1) RJ-11 Serial cable
VHDCI SCSI terminator (1 per tape drive)
Rackmount hardware including template poster (for use with HP
10000/9000/5000 series racks)
Documentation kit including Getting Started Poster and User's Guide (CD)
NOTE: Each MSL6030/6026 library installation will require, one (1) library system,
one (1) geographically specific power cord (if other than US 110/220 VAC), and up
to 30 HP data cartridges with bar code labels. SCSI applications will require (1) SCSI
host cable for each drive. Fibre Channel applications will require one (1) Fibre
Channel cable for each drive pair. Multi-unit configurations will require additional
pass-through kits. Installation services may also be ordered for customers who prefer
to have a certified HP engineer perform on-site library installation.
DA - 11863
Worldwide — Version 24 — July 7, 2006
Page 9
QuickSpecs
HP StorageWorks MSL6000 Tape Library
Configuration Information
HP StorageWorks
MSL6060/6052 Tape
Library
HP MSL6060 2 Ultrium 960 Drive Library
HP MSL6060 2 Ultrium 960 Drive 4Gb FC Library
HP MSL6060 2 Ultrium 460 Drive Library
HP MSL6060 2 Ultrium 460 Drive 2Gb FC Library
NOTE: The HP StorageWorks MSL6060 Tape Library ships with 60 media slots
(including two configurable mail slots), redundant power supplies, and two Ultrium
tape drives (number of drives determined by SKU chosen). Additional drives can be
added for a maximum of 4 drives per library module. The tape library ships as a rackready unit.
HP MSL6052 2 SDLT600 Drive Library
HP MSL6052 2 SDLT600 Drive 2Gb FC Library
NOTE: The HP StorageWorks MSL6052 Tape Library ships with 52 media slots
(including two configurable mail slots), redundant power supplies, and two SDLT tape
drives (number of drives determined by SKU chosen). Additional drives can be added
for a maximum of 4 drives per library module. The tape library ships as a rack-ready
unit.
Kit Contents (for each library):
AD610B
AD611B
AD603B
AD604B
AD587B
AD588B
12' 110/220 VAC US/Mexico/Canada Power Cord (1 per 5U unit; 2 per 10U
unit)
.5M VHDCI SCSI cable (1 per tape drive and 1 per FC card)
(1) RJ-11 Serial cable
VHDCI SCSI terminator (1 per tape drive)
Rackmount hardware including template poster (for use with HP
10000/9000/5000 series racks)
Documentation kit including Getting Started Poster and User's Guide (CD)
NOTE: Each MSL6060/6052 library installation will require (1) library system, (2)
geographically specific power cords (if other than US 110/220 VAC) and up to 60
data cartridges with bar code labels. SCSI applications will require one (1) SCSI host
cable for each drive. Fibre Channel applications will require one (1) Fibre Channel
cable for each drive pair. Multi-unit configurations will require additional passthrough kits. Installation services may also be ordered for customers who prefer to
have a certified HP engineer perform an on-site library installation.
DA - 11863
Worldwide — Version 24 — July 7, 2006
Page 10
QuickSpecs
HP StorageWorks MSL6000 Tape Library
Configuration Information
Step 2 - Select The Appropriate Rack Kit
Select one per library unit:
Rack Kits
Description
HP MSL System/E Rack Mount Kit
NOTE: Required to install a rack-ready MSL5000 or MSL6000 Tape Library into a HP
System/E rack; one kit required per library being racked.
HP MSL 5U Tabletop to 10K Rack Conversion Kit
NOTE: Required to install a tabletop MSL5000 or MSL6000 Tape Library into a HP
10000/9000/5000 series rack; one kit required per library being racked.
HP MSL 5U Tabletop to Alpha/HP Rack Conversion Kit
NOTE: Required to install a MSL5000 or MSL6000 Tape Library into an Alpha rack;
one kit required per library being racked.
NOTE: Depending on the environment, different rack kits are required. Each rackready MSL6000 Tape Library includes a rack kit designed for HP 10000/9000/5000
series racks. If installing into these racks, no additional kits are needed. If the
environment is different, one of the above kits is necessary for racking (one per
library).
Part Number
AG164A
AG162A
AG161A
Step 3 - Select The Appropriate Power Cord
Select one per 5U library unit or two per 10U library unit:
Power Cords
Description
Power Cord, US
NOTE: This cord ships standard with each MSL6000 Tape Library (1 per 5U unit; 2
per 10 unit)
NOTE: can be used to connect the rack mounted device to PDUs with NEMA 5-15R
receptacles
Power Cord, European
Power Cord, Australian
Power Cord, United Kingdom
Power Cord, Switzerland
Power Cord, Denmark
Power Cord, Japan
Power Cord, South Africa
Power Cord, China
Power Cord, Latin America (2 cords)
Power Cord, Taiwan
PDU Power Cord
NOTE: can be used to connect the device to PDUs with IEC-320 receptacles
NOTE: One power cord required for each MSL6030; two power cords required for
each MSL6060. Select the correct power cord for your geographical location.
WARNING: Use of a non-HP approved Power Cord may result in (1) use of a power
cord that does not meet individual country specific safety requirements; (2) a power
cord with insufficient conductor ampacity that could result in overheating with potential
personal injury and/or property damage; and/or (3) an unapproved power cord could
fracture resulting in the internal contacts being exposed which potentially cold subject
the user to a shock hazard. Use ONLY an HP approved power cord for your particular
country. HP disclaims all liability in the event a non-HP approved power cord is used.
DA - 11863
Worldwide — Version 24 — July 7, 2006
Part Number
E7743A
AD526A
AD527A
AD528A
AD529A
AD530A
AD531A
AD532A
AD533A
AD534A
AF913A
E7742A
Page 11
QuickSpecs
HP StorageWorks MSL6000 Tape Library
Related Options
Factory Racking
Factory integrate the MSL6000 Tape Library with other HP products such as HP
ProLiant Servers.
NOTE: #0D1 will appear after the MSL part number on the sales order if HP factory
integration is selected.
Tape Drives
HP MSL6000 Ultrium 960 Drive
NOTE: For use in the MSL5000 Ultrium libraries; data transfer rates up to 80 MB/s.
NOTE: For use in the MSL6000 Ultrium libraries; data transfer rates up to 160 MB/s.
HP MSL6000 Ultrium 460 Drive
NOTE: For use in the MSL5000 and MSL6000 Ultrium libraries.
HP MSL6000 SDLT600 Drive
NOTE: For use in the MSL5000 and MSL6000 SDLT libraries.
NOTE: For details on MSL drive upgrade compatibility, reference the Business Class
Libraries Drive Upgrade matrix at
ftp://ftp.compaq.com/pub/products/storageworks/techdoc/tapestorage/
MSL_drivematrix.pdf
AD612B
FC Interface Card
HP e1200-320 4Gb Fibre Channel Interface Card
NOTE: One FC interface card kit required for every two tape drives; for use in the
MSL5000 or MSL6000 Tape Libraries.
AD577A
Slot Expansion Modules
HP MSL6030 0 Drive Ultrium Library
NOTE: A zero drive library which includes 30 slots; to be used with either MSL5000
or MSL6000 Ultrium libraries.
HP MSL6026 0 Drive SDLT Library
NOTE: A zero drive library which includes 26 slots; to be used with either MSL5000
or MSL6000 SDLT libraries.
HP MSL6060 0 Drive Ultrium Library
NOTE: A zero drive library which includes 60 slots; to be used with either MSL5000
or MSL6000 Ultrium libraries.
HP MSL6052 0 Drive SDLT Library
NOTE: A zero drive library which includes 52 slots; to be used with either MSL5000
or MSL6000 SDLT libraries.
AD597B
Pass-Through Mechanism HP MSL Universal Pass-Through Mechanism Base Unit
Hardware
NOTE: Includes elevator mechanism and router; required to connect first two units in
a stack; capable of handling both SDLT and LTO media.
HP MSL 10U Pass-Through Extender
NOTE: Supported by the MSL 10U Tape Libraries only; one required for each unit
connected to the stack, for second unit and additional units.
HP MSL 5U Pass-Through Extender
NOTE: Supported by the MSL 5U Tape Libraries only; one required for each unit
connected to the stack, for third units and additional units.
DA - 11863
Worldwide — Version 24 — July 7, 2006
#0D1
AD605B
AD589B
AD581C
AD602B
AD586B
AG163A
AG160A
AG159A
Page 12
QuickSpecs
HP StorageWorks MSL6000 Tape Library
Related Options
Magazines
Rack to Tabletop
Conversion
Rack Cabinets
HP MSL Ultrium Universal Magazine
NOTE: For use in the MSL5000 or MSL6000 Tape Libraries; includes two 15-slot
magazines (left and right set).
HP MSL SDLT Universal Magazine
NOTE: For use in the MSL5000 or MSL6000 Tape Libraries; includes two 13-slot
magazines (left and right set).
AD621A
HP MSL6000 5U Rack to Table Top Conversion Kit
NOTE: Can also be used with the MSL5000 Tape Libraries.
HP MSL6000 10U Rack to Table Top Conversion Kit
NOTE: Can also be used with the MSL5000 Tape Libraries.
AD622B
AD620A
AD627B
10622 (22U) Rack Cabinet - Shock Pallet
10636 (36U) Universal Rack Cabinet - Shock Pallet
10636 (36U) Universal Rack Cabinet with extension - Shock Pallet
10636 (36U) Universal Rack Cabinet, no door - Shock Pallet
10636 (36U) Universal Rack Cabinet with extension, no door - Shock Pallet
10642 (42U) Universal Rack Cabinet - Shock Pallet
10642 (42U) Universal Rack Cabinet with extension - Shock Pallet
10642 (42U) Universal Rack Cabinet , no door - Shock Pallet
10642 (42U) Universal Rack Cabinet with extension, no door - Shock Pallet
NOTE: The MSL Tape Libraries are certified to ship in HP 10000 series racks which
include a shock pallet. It is mandatory to use a shock pallet in order to ship racks with
equipment installed.
5642 (42U) Rack Cabinet
NOTE: This rack ships unassembled and boxed on a standard size pallet. It is an
industry standard 19" wide rack with side panels and rear doors; does not ship with
the front door or casters.
NOTE: for additional HP ProLiant rack information, visit
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/index.html
245163-B22
AF012A
AF014A
AF015A
AF016A
AF002A
AF004A
AF005A
AF006A
FC Cables
2m SW LC/SC FC Cable Kit
5m SW LC/SC FC Cable Kit
15m SW LC/SC FC Cable Kit
2m SW LC/LC FC Cable Kit
5m SW LC/LC FC Cable Kit
15m SW LC/LC FC Cable Kit
Reference the Data Cable data sheets for the most up-to-date cable information at:
http://iss.tsgonline.hp.com/Document_Storage/collateral/ds_scsimultimode.pdf
221691-B21
221691-B22
221691-B23
221692-B21
221692-B22
221692-B23
FC Host Bus Adapters
For more information on FC HBAs please consult the EBS connectivity matrix at
http://www.hp.com/go/ebs.
DA - 11863
Worldwide — Version 24 — July 7, 2006
358254-B21
Page 13
QuickSpecs
HP StorageWorks MSL6000 Tape Library
Related Options
SCSI Host Bus Adapters
For more information on SCSI HBAs please consult the EBS connectivity matrix at
http://www.hp.com/go/ebs.
Media
HP Ultrium 800GB RW Data Cartridge
HP Ultrium 800GB WORM Data Cartridge
HP Ultrium 400GB Data Cartridge
HP Ultrium 200GB Data Cartridge (1 pack)
HP Ultrium Universal Cleaning Cartridge
HP Ultrium 3 RW Bar Code Label Pack
HP Ultrium 3 WORM Bar Code Label Pack
HP Ultrium 2 Bar Code Label Pack
HP Ultrium 1 Bar Code Labels (100 pack)
HP Ultrium 800GB RW Custom Labeled Data Cartridge (20 pack)
HP Ultrium 800GB WORM Custom Labeled Data Cartridge (20 pack)
HP Ultrium 800GB Non-Custom Labeled Data Cartridge (20 pack)
NOTE: Non-custom labels will come pre-labeled with a pre-determined number
sequence.
HP Ultrium 400GB Custom Labeled Data Cartridge (20 pack)
HP Ultrium 400GB Non-Custom Labeled Data Cartridge (20 pack)
NOTE: Non-custom labels will come pre-labeled with a pre-determined number
sequence.
HP Ultrium 200GB Custom Labeled Data Cartridge (20 pack)
HP Ultrium 200GB Non-Custom Labeled Data Cartridge (20 pack)
NOTE: Non-custom labels will come pre-labeled with a pre-determined number
sequence.
HP Ultrium 400 GB Storage Media Kit
NOTE: Kit includes 20 HP Ultrium 400GB data cartridges, one HP Ultrium Universal
Cleaning Cartridge, 20 colored labels, a protective carrying case that can be used to
securely store or transport data cartridges, one copy of "The Essentials of Successful
Tape Backup," and one copy of HP StorageWorks Data Protector Express Evaluation
Software (60 day free trial).
HP Ultrium 200GB Storage Media Kit
NOTE: Kit includes 20 HP Ultrium 200GB data cartridges, one HP Ultrium Universal
Cleaning Cartridge, 20 colored labels, a protective carrying case that can be used to
securely store or transport data cartridges, one copy of "The Essentials of Successful
Tape Backup," and one copy of HP StorageWorks Data Protector Express Evaluation
Software (60 day free trial).
HP SDLT II 600GB Data Cartridge
HP SDLT Cleaning Cartridge
HP SDLT II Bar Code Label Pack
DA - 11863
Worldwide — Version 24 — July 7, 2006
C7973A
C7973W
C7972A
C7971A
C7978A
Q2007A
Q2008A
Q2002A
Q2001A
C7973AL
C7973WL
C7973AN
C7972AL
C7972AN
C7971AL
C7971AN
C8014A
C8013A
Q2020A
C7982A
Q2006A
Page 14
QuickSpecs
HP StorageWorks MSL6000 Tape Library
Related Options
HP Care Pack
Services
MSL6030/6026 Non-configurable Care Packs
Installation (electronic)
HW, 3-year, next-day, onsite (electronic)
HW, 3-year, same-day, 13x5, 4 hour response, onsite (electronic)
HW, 3-year, same-day, 24x7, 4 hour response, onsite (electronic)
HW, 3-year, same-day, 6 hour call to repair, onsite (electronic)
Band For Library
MSL6030/6026 Configurable Care Packs
Initial Tape Library Installation
463
Initial Tape Library Implementation Into SAN
463
Subsequent Tape Drive Installation
N/A
HW, 3-year, same day, on-site
463
HW, 3-year, 4-hour, 13 x 5, on-site
463
HW, 3-year, 4-hour, 24 x 7, on-site
463
Support plus, 3-year*
463
Support plus 24, 3-year*
463
MSL6060/6052 Non-configurable Care Packs
Installation (electronic)
HW, 3-year, next day, onsite (electronic)
HW, 3-year, same day, 13x5, 4 hour response, onsite (electronic)
HW, 3-year, same day, 24x7, 4 hour response, onsite (electronic)
HW, 3-year, same day, 6 hour call to repair, onsite (electronic)
Band For
MSL6060/6052 Configurable Care Packs
Library
Initial Tape Library Installation
464
Initial Tape Library Implementation Into SAN
464
Subsequent Tape Drive Installation
N/A
HW, 3-year, same day, on-site
464
HW, 3-year, 4-hour, 13 x 5, on-site
464
HW, 3-year, 4-hour, 24 x 7, on-site
464
Support plus, 3-year*
464
Support plus 24, 3-year*
464
U4823E
U2859E
U2860E
U2861E
U9287E
Installation
Band
5DR
5DR
5DU
N/A
N/A
N/A
N/A
N/A
HA113A1
HA114A1
HA113A1
HA101A3
HA103A3
HA104A3
HA109A3
HA110A3
U4824E
U2862E
U2863E
U2864E
U9288E
Installation
Band
5DS
5DS
5DU
N/A
N/A
N/A
N/A
N/A
HA113A1
HA114A1
HA113A1
HA101A3
HA103A3
HA104A3
HA109A3
HA110A3
*NOTE: Support Plus covers Hardware support only.
Hewlett Packard also offers 1-year options for the services quoted above.
Due to the complexities involved with the initial installation of an enterprise Library into a SAN
environment, Hewlett Packard recommends that customers take advantage of the SAN Implementation
Service (HA114A1). This service covers pre-installation preparation activities, installation and
configuration of the library and router, configuration of hosts and switches, verification testing and
customer orientation.
In order to maximize ROI and product uptime, and minimize the cost of ownership, Hewlett-Packard
recommends the 3-year, 24 x 7 service options. These offerings will ensure that any product issue can be
tackled when they occur (most back up issues will occur outside standard business hours) and that the
service coverage regarding period, covers the minimum expected life of the host system.
DA - 11863
Worldwide — Version 24 — July 7, 2006
Page 15
QuickSpecs
HP StorageWorks MSL6000 Tape Library
Technical Specifications
Form Factor
MSL6030/26 Tape Library
5U Rack-mount
MSL6060/52 Tape Library
10U Rack-mount
Dimensions
MSL6030/26 Tape Library
8.75 x 17.00 x 30.00 in
(22.22 x 43.18 x 76.20 cm)
15.25 x 23.00 x 38.25 in
(38.73 x 58.42 x 97.15 cm)
MSL6060/52 Tape Library
17.50 x 17.00 x 30.00 in
(44.45 x 43.18 x 76.20 cm)
33.00 x 47.00 x 31.00 in
(83.62 x 119.38 x 78.74 cm)
MSL6030/26 Tape Library
43.0 lb (19.50 kg)
75.0 lb (34.01 kg)
47.6 lb (21.59 kg)
79.6 lb (36.10 kg)
52.2 lb (23.67kg)
84.2 lb (38.19 kg)
MSL6060/52 Tape Library
95.0 lb (43.99 kg)
147.0 lb (66.67 kg)
N/A
N/A
104.2 lb (47.26 kg)
156.2 lb (70.85 kg)
MSL6030 Tape Library
12 TB (native)
24 TB (compressed)
96 TB (native)
192 TB (compressed)
NOTE: 8 modules with multi-unit
scalability
6 TB (native)
12 TB (compressed)
48 TB (native)
96 TB (compressed)
NOTE: 8 modules with multi-unit
scalability
MSL6026 Tape Library
7.8 TB (native)
15.6 TB (compressed)
62.4 TB (native)
124.8 TB (compressed)
NOTE: 8 modules with multi-unit
scalability
MSL6060 Tape Library
24 TB (native)
48 TB (compressed)
96 TB (native)
192 TB (compressed)
NOTE: 4 modules with multi-unit
scalability
12 TB (native)
24 TB (compressed)
48 TB (native)
96 TB (compressed)
NOTE: 4 modules with multi-unit
scalability
MSL6052 Tape Library
15.6 TB (native)
31.2 TB (compressed)
62.4 TB (native)
124.8 TB (compressed)
NOTE: 8 modules with multi-unit
scalability
Out-of-Box (HxWxD)
Shipping (HxWxD)
Weight
Out-of-Box (0-drive)
Shipping (0-drive)
Out-of-Box (1-drive)
Shipping (1-drive)
Out-of-Box (2-drive)
Shipping (2-drive)
Capacity
Ultrium 960
Base unit
Maximum configuration
Ultrium 460
Base unit
Maximum configuration
SDLT600
Base unit
Maximum configuration
DA - 11863
Worldwide — Version 24 — July 7, 2006
Page 16
QuickSpecs
HP StorageWorks MSL6000 Tape Library
Technical Specifications
Maximum Transfer Rate
Ultrium 960
MSL6030 Tape Library
576 GB/hr (native)
1.15 TB/hr (compressed)
NOTE: 2 drive configuration
4.6 TB/hr (native)
9.2 TB/hr (compressed)
NOTE: 8 modules with multi-unit
scalability
216 GB/hr (native)
432 GB/hr (compressed)
NOTE: 2 drive configuration
1.7 TB/hr (native)
3.4 TB/hr (compressed)
NOTE: 8 modules with multi-unit
scalability
MSL6026 Tape Library
259 GB/hr (native)
518 GB/hr (compressed)
NOTE: 2 drive configuration
2 TB/hr (native)
4 TB/hr (compressed)
NOTE: 8 modules with multi-unit
scalability
Base unit
Maximum configuration
Ultrium 460
Base unit
Maximum configuration
SDLT600
Base unit
Maximum configuration
MSL6060 Tape Library
1.15 TB/hr (native)
2.3 TB/hr (compressed)
NOTE: 4 drive configuration
4.6 TB/hr (native)
9.2 TB/hr (compressed)
NOTE: 4 modules with multi-unit
scalability
432 GB/hr (native)
864 GB/hr (compressed)
NOTE: 4 drive configuration
1.7 TB/hr (native)
3.4 TB/hr (compressed)
NOTE: 4 modules with multi-unit
scalability
MSL6052 Tape Library
518 GB/hr (native)
1 TB/hr (compressed)
NOTE: 4 drive configuration
2 TB/hr (native)
4 TB/hr (compressed)
NOTE: 4 modules with multi-unit
scalability
Interface
Ultra320 LVD SCSI, VHDCI interconnect (Ultrium 960)
Ultra160 LVD SCSI, VHDCI interconnect (Ultrium 460 & SDLT600)
4Gb Fibre Channel (Ultrium 960)
2Gb Fibre Channel (Ultrium 460 & SDLT600)
Reliability
MTBF
MSBF
250,000 hours (100% duty cycle; excludes drives)
2,000,000 robot load/unload cycles
Noise Power Emission Level
Avg Sound Pressure Level
MSL6030/26 Tape Library
8 bels, maximum
52 dBA
MSL6060/52 Tape Library
8 bels, maximum
52 dBA
Typical
Maximum
MSL6030/26 Tape Library
612 BTU's/hour
671 BTU's/hour
MSL6060/52 Tape Library
1020 BTU's/hour
1224 BTU's/hour
MSL6030/26 Tape Library
Auto-ranging
100 to 240 VAC, ±10% @ 50 to
60Hz, ±5%
MSL6060/52 Tape Library
Auto-ranging
100 to 240 VAC, ±10% @ 50 to
60Hz, ±5%
Acoustic Noise
Heat Dissipation
Power Consumption
Base unit
Voltage
DA - 11863
Worldwide — Version 24 — July 7, 2006
Page 17
QuickSpecs
HP StorageWorks MSL6000 Tape Library
Technical Specifications
Power Requirement
Typical
Maximum
Robotics Performance
Initialization time
Inventory time
Cartridge swap
(drive to slot)
MSL6030/26 Tape Library
180 Watts
240 Watts
MSL6060/52 Tape Library
300 Watts
440 Watts
MSL6030/26 Tape Library
100 sec
60 sec
8 sec average
MSL6060/52 Tape Library
240 sec
110 sec
15 sec average
NOTE: 35 sec average cartridge
swap time for 4 scaled modules.
Relative Humidity (noncondensing)
Operating
Shipping
10 to 80% @ 82° F (28° C)
10 to 90% @ 82° F (28° C)
Temperature Range
Operating
Shipping
50° to 95° F (10° to 35° C)
-40° to 140° F (-40° to 60° C)
© Copyright 2006 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Windows NT is a US registered trademark of Microsoft Corporation. Unix is a registered trademark of The Open Group.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 11863
Worldwide — Version 24 — July 7, 2006
Page 18
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
