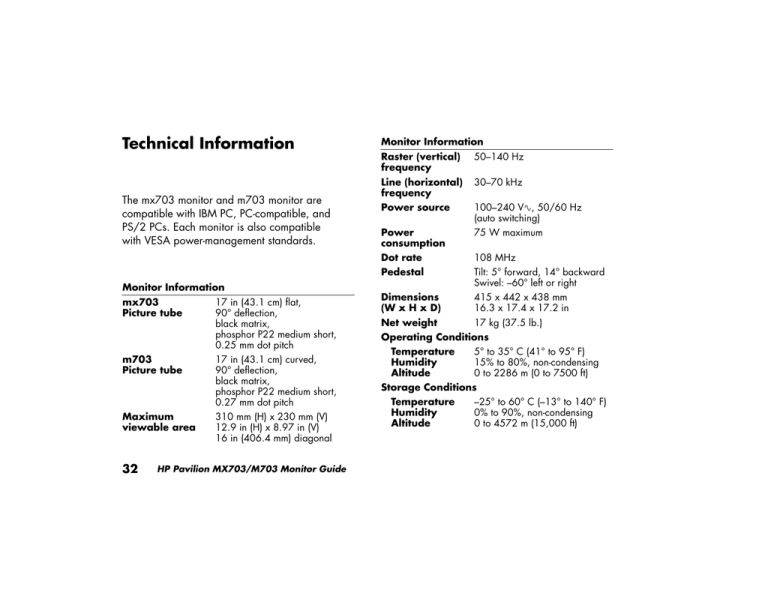

Technical Information
The mx703 monitor and m703 monitor are
compatible with IBM PC, PC-compatible, and
PS/2 PCs. Each monitor is also compatible
with VESA power-management standards.
Monitor Information
mx703
Picture tube
m703
Picture tube
Maximum
viewable area
32
17 in (43.1 cm) flat,
90° deflection,
black matrix,
phosphor P22 medium short,
0.25 mm dot pitch
17 in (43.1 cm) curved,
90° deflection,
black matrix,
phosphor P22 medium short,
0.27 mm dot pitch
310 mm (H) x 230 mm (V)
12.9 in (H) x 8.97 in (V)
16 in (406.4 mm) diagonal
HP Pavilion MX703/M703 Monitor Guide
Monitor Information
Raster (vertical)
frequency
50–140 Hz
Line (horizontal)
frequency
Power source
30–70 kHz
Power
consumption
Dot rate
100–240 V, 50/60 Hz
(auto switching)
75 W maximum
108 MHz
Pedestal
Tilt: 5° forward, 14° backward
Swivel: –60° left or right
Dimensions
(W x H x D)
415 x 442 x 438 mm
16.3 x 17.4 x 17.2 in
Net weight
17 kg (37.5 lb.)
Operating Conditions
Temperature
Humidity
Altitude
5° to 35° C (41° to 95° F)
15% to 80%, non-condensing
0 to 2286 m (0 to 7500 ft)
Storage Conditions
Temperature
–25° to 60° C (–13° to 140° F)
Humidity
0% to 90%, non-condensing
Altitude
0 to 4572 m (15,000 ft)
