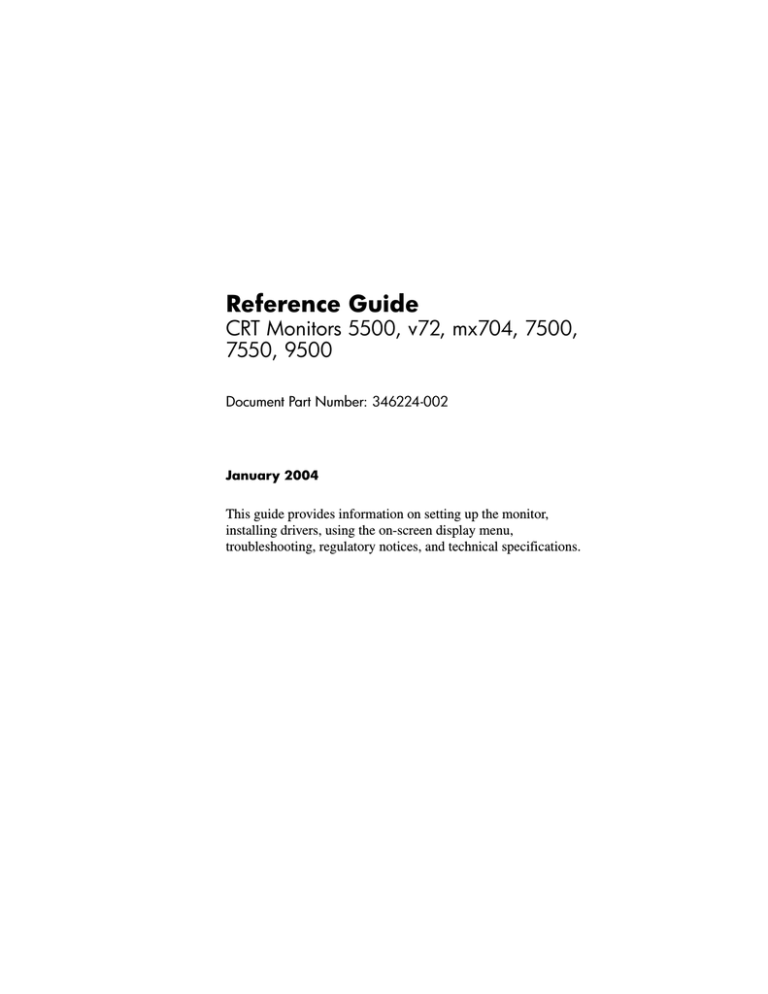

Reference Guide
CRT Monitors 5500, v72, mx704, 7500,
7550, 9500
Document Part Number: 346224-002
January 2004
This guide provides information on setting up the monitor,
installing drivers, using the on-screen display menu,
troubleshooting, regulatory notices, and technical specifications.
© Copyright 2004 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft, MS-DOS, Windows, and Windows NT are trademarks of
Microsoft Corporation in the U.S. and other countries.
Intel, Pentium, Intel Inside, and Celeron are trademarks of Intel
Corporation in the U.S. and other countries.
Adobe, Acrobat, and Acrobat Reader are trademarks or registered
trademarks of Adobe Systems Incorporated.
The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or omissions
contained herein.
This document contains proprietary information that is protected by
copyright. No part of this document may be photocopied, reproduced, or
translated to another language without the prior written consent of
Hewlett-Packard Company.
Å
WARNING: Text set off in this manner indicates that failure to
follow directions could result in bodily harm or loss of life.
Ä
CAUTION: Text set off in this manner indicates that failure to follow
directions could result in damage to equipment or loss of information.
Reference Guide
CRT Monitors 5500, v72, mx704, 7500, 7550, 9500
Second Edition (January 2004)
Document Part Number: 346224-002
Contents
1 Introduction
Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1
2 Safety and Maintenance Guidelines
Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . .
Important Safety Information . . . . . . . . . . . . . . . . . .
Maintenance Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . .
Removing the Monitor Base . . . . . . . . . . . . . . . . . . .
2–1
2–1
2–1
2–2
2–4
3 Installation
Attaching the Monitor Base . . . . . . . . . . . . . . . . . . . . . . .
Setting Up the Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Speakers (Available with Select Models)
Attaching the JBL Speakers to the Monitor . . . . . . .
Using the JBL Speaker Security Lock. . . . . . . . . . . .
Connecting Portable Output Devices to the
JBL Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Plugging Headphones into the Computer . . . . . . . . . . . .
3–1
3–2
3–4
3–5
3–6
3–7
3–7
4 Operation
Information Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . .
On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
On-Screen Display Functions . . . . . . . . . . . . . . . . . .
Reference Guide
4–1
4–2
4–4
4–5
iii
Contents
Monitor Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
No Signal Message . . . . . . . . . . . . . . . . . . . . . . . . .
Out of Frequency Range Message. . . . . . . . . . . . . .
Using the Energy Saver Mode . . . . . . . . . . . . . . . . . . . .
4–10
4–10
4–11
4–12
A Troubleshooting
Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . A–1
Using the Worldwide Web. . . . . . . . . . . . . . . . . . . . . . . . A–4
Preparing to Call Technical Support . . . . . . . . . . . . . . . . A–4
B Technical Specifications
5500/15” Series Monitor . . . . . . . . . . . . . . . . . . . . . . . . . B–1
v72/17” Series Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . B–3
mx704/17” Series Monitor. . . . . . . . . . . . . . . . . . . . . . . . B–5
7500/17” Series Monitor . . . . . . . . . . . . . . . . . . . . . . . . . B–7
7550/17” Flat CRT Monitor. . . . . . . . . . . . . . . . . . . . . . . B–9
9500/19” Series Monitor . . . . . . . . . . . . . . . . . . . . . . . . B–11
C Agency Regulatory Notices
Federal Communications Commission Notice. . . . . . . . . C–1
Modifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–1
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–2
Declaration of Conformity for Products Marked with FCC
Logo, United States Only. . . . . . . . . . . . . . . . . . . . . . . . . C–2
Canadian Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3
Avis Canadien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3
European Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3
Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–4
Korean Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–4
EPA Energy Star Compliance . . . . . . . . . . . . . . . . . . . . . C–4
Power Cord Set Requirements . . . . . . . . . . . . . . . . . . . . . C–4
iv
Reference Guide
1
Introduction
Your microprocessor-based, digitally controlled color monitor is
a high-performance and easy-to-use product. It employs the latest
on-screen menu technology.
Kit Contents
The monitor kit contains:
■
CRT monitor
■
Monitor Base (pre-attached on select models)
■
Monitor AC power cord (select models)
■
Speakers and power adapter (select models)
■
Documentation kit
Reference Guide
1–1
2
Safety and Maintenance
Guidelines
Safety Guidelines
Power Requirements
A power cord is included with your monitor. If another cord is
used, use only a power source and connection appropriate for this
monitor. For information on the correct power cord set to use with
your monitor, refer to the “Power Cord Set Requirements” section
in Appendix C.
Important Safety Information
Å
WARNING: To reduce the risk of electric shock or damage to your
equipment, do not disable the power cord grounding feature. This
equipment is designed to be connected to a grounded (earthed)
power outlet that is easily accessible to the operator. The grounding
plug is an important safety feature.
Å
WARNING: For your safety, be sure that the power outlet you plug
the power cord into is easily accessible and located as close to the
equipment as possible. When you need to disconnect the power to
the equipment, unplug the power cord from the power outlet by
grasping the plug firmly. Never pull on the cord.
Reference Guide
2–1
Safety and Maintenance Guidelines
Ä
CAUTION: For the protection of your monitor, as well as your
computer, connect all power cords for your computer and its
peripheral devices (such as a monitor, printer, scanner) to some form
of surge protection device such as a power strip or Uninterruptible
Power Supply (UPS). Not all power strips provide surge protection;
the power strips must be specifically labeled as having this ability.
Use a power strip whose manufacturer offers a Damage Replacement
Policy so you can replace your equipment if surge protection fails.
Maintenance Guidelines
To enhance the performance and extend the life of your monitor,
follow these guidelines:
2–2
■
Do not open your monitor cabinet or attempt to service this
product yourself. If your monitor is not operating properly, or
has been dropped or damaged, first unplug from power outlet,
then contact your Hewlett-Packard authorized dealer, reseller,
or service provider.
■
Adjust only those controls that are discussed in the operating
instructions.
■
Place your monitor at least 3 inches (76 mm) away from
walls or other enclosures.
■
Use only a power source and connection appropriate for this
monitor, as indicated on the label/back plate of the monitor.
■
Be sure the total ampere rating of the products connected to
the outlet does not exceed the current rating of the electrical
outlet, and the total ampere rating of the products connected
to the cord does not exceed the rating of the cord. Look on the
power label to determine the ampere rating (AMPS or A) for
each device.
Reference Guide
Safety and Maintenance Guidelines
Ä
■
Install your monitor near an outlet that you can easily reach.
Disconnect the monitor by grasping the plug firmly and
pulling it from the outlet. Never disconnect the monitor by
pulling the cord.
■
Turn your monitor off when not in use. You can substantially
increase the life of your monitor by using a screen saver
program and turning off the monitor when not in use.
■
Unplug your monitor from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning. If the screen requires additional cleaning,
use an antistatic CRT screen cleaner.
CAUTION: Do not use benzene, thinner, ammonia, or any other
volatile substances to clean your monitor or the screen. These
chemicals may damage the cabinet finish as well as the screen.
■
Slots and openings in the cabinet are provided for ventilation.
These openings must not be blocked or covered. Never push
objects of any kind into cabinet slots or other openings.
■
Do not place plants on top of your monitor. Water or dirt from
the plant may get into the vents.
■
Do not drop your monitor or place it on an unstable surface.
■
Do not allow anything to rest on the power cord. Do not walk
on the cord.
■
Keep your monitor in a well-ventilated area, away from
excessive light, heat or moisture. Keep your monitor away
from high-capacity transformers, electric motors, and other
devices with strong magnetic fields.
■
In a two-monitor system, place your monitors as far apart
from one another as possible to lessen interference between
them.
Reference Guide
2–3
■
Do not place the monitor face down. Damage could result to
the front panel controls or the monitor screen.
Removing the Monitor Base
In the event that you need to disassemble the base from the
monitor, follow these instructions:
1. If you must remove the base attachment, release the catch and
slide the base toward the back of your monitor.
2. Lift the base up and away from your monitor.
2–4
Reference Guide
3
Installation
Attaching the Monitor Base
On some monitors, the base must be attached prior to setting up
the monitor. To attach the base:
1. Align the hooks on the base with the sockets on the bottom of
the monitor and attach the base.
Reference Guide
3–1
Installation
2. Push the base toward the front of the monitor until it stops.
Setting Up the Monitor
Before setting up the monitor, place it in a convenient,
well-ventilated location near your computer.
1. Turn off the power to your computer and other peripheral
devices.
2. Connect the video cable (blue connector) 1 from the back of
the monitor to the blue 15-pin connector on the back of the
computer. Tighten the cable screws to secure the cable to the
connector.
Ä
3–2
CAUTION: To avoid damaging the video cable, ensure that the
cable aligns with the 15-pin connector. Do not force the cable onto
the connector.
Reference Guide
Installation
3. Connect the power cord 2 to the back of the monitor, then
connect the power cord to a power outlet.
4. Power on your computer and monitor.
your monitor fails to function properly, refer to Appendix A,
✎ If“Troubleshooting.”
5. If necessary, adjust the front panel monitor controls
according to your personal preference. See “Front Panel
Controls” for detailed information.
Your monitor installation is now complete.
Reference Guide
3–3
Installation
Connecting the Speakers (Available
with Select Models)
To install the JBL or Harman/Kardon speakers:
1. Place the control speaker 1 and the other speaker 2 on either
side of the monitor.
2. Attach the speaker power cable 3 to the black connector on
the back of the control speaker 1, then connect the AC
adapter 4 into an electrical wall outlet.
3. On the JBL speakers, insert the white connector 5 from the
other speaker 2 into the white port on the back of the control
speaker 1.
On the Harman/Kardon speakers, this connection is not
necessary.
4. Attach the green connector 6 from the control speaker 1 to
the green port on the back of the computer.
3–4
Reference Guide
Installation
You can attach the speakers to the monitor or place them on an
even surface next to the monitor. To attach the JBL speakers to
the monitor, see the following section, “Attaching the JBL
Speakers to the Monitor.”
Attaching the JBL Speakers to the Monitor
To attach the JBL speakers to the sides of your monitor:
1. Rotate the thumbwheel, located on the side of the speaker, up
to extend the speaker hook mechanism
2. Align the hooks with the slots in the monitor.
3. Gently insert the hooks into the slots and slide down into
place.
Reference Guide
3–5
Installation
Using the JBL Speaker Security Lock
The JBL speakers can be locked to the sides of the monitor. To
use the Speaker Security Lock:
1. Grasp the front cloth-covered grill firmly at the sides and
remove from the speaker, then locate the security lock screw,
which can be found in the top inner corner of the speaker.
2. Attach the speaker to the side of the monitor as described in
the “Attaching the JBL Speakers to the Monitor.”
3. Using a Phillips screwdriver, loosen the security lock screw,
but do not remove it.
4. Slide the security lock out from the speaker until it engages
the slot in the side of the monitor.
5. Once the lock is in place in the side of the monitor, tighten
the security lock screw to secure the speaker to the monitor.
6. Reattach the grill to the speaker.
7. Repeat this process for the other speaker.
3–6
Reference Guide
Installation
Connecting Portable Output Devices to the
JBL Speakers
You can use the JBL speakers to listen to portable output devices
such as MP3 players or CD players. To connect the device to the
speakers:
1. Plug the cable (not included) from the output device into the
Line In connector on the front of the speaker.
2. Adjust the volume controls on both the output device and the
speaker until you hear sound.
Plugging Headphones into the
Computer
To use the headphones, plug them into the connector on the back
of the computer labeled Out, Line Out or Speaker. You may need
to disconnect the speakers to connect the headphones.
✎ The speakers do not have a headphone port.
Reference Guide
3–7
4
Operation
Information Files
The CD-ROM included with this monitor contains two data files
that must be installed onto your computer: an .INF file and an
.ICM file.
The .INF file designates software and defines monitor resources
used by Microsoft Windows to ensure monitor compatibility with
the graphics adapter in your computer.
The .ICM file provides color matching consistency between your
monitor screen and your printer. Once installed, this file is
activated by graphics programs that have this color-matching
feature.
To install these files on your computer:
1. Insert the Software and Reference Guide CD-ROM in your
computer's optical drive.
2. When the CD-ROM menu launches, select Install INF and
ICM Files for your monitor model.
3. To get the latest .INF and .ICM files, download them from the
HP Web site. Access http://www.hp.com/support and select your
monitor model to download the appropriate files.
Reference Guide
4–1
Operation
Front Panel Controls
5500, v72, 7500, 7550, 9500 Models
Item
Icon
Name
Select
Launches on-screen displays,
selects functions and
adjustments, and exits menus
and On-Screen Display.
Left Adjustment
Moves backward through menu
options or decreases adjustment
levels.
Right Adjustment
Moves forward through menu
options or increases adjustment
levels.
Power/LED
Controls power to the monitor.
The LED on the power button
indicates the state of the
monitor.
1
2
3
4
Function
✎
4–2
The icon for the
power/LED varies on
select models.
Reference Guide
Operation
mx704 Model
Item
Icon
Name
Power/LED
Controls power to the monitor.
The LED on the power button
indicates the state of the
monitor.
Select
Launches on-screen displays,
selects functions and
adjustments, and exits menus
and On-Screen Display.
Left Adjustment
Moves backward through menu
options or decreases adjustment
levels.
Right Adjustment
Moves forward through menu
options or increases adjustment
levels.
1
2
3
4
Reference Guide
Function
4–3
Operation
On-Screen Display
The On-Screen Display (OSD) adjusts the screen image based on
your viewing preferences. To access the OSD, do the following:
1. If the monitor is not already on, press the Power button to
turn on the monitor.
2. Press the Select button to display the On-Screen Display
menu. A screen similar to this one appears. For a description
of the icons that appear on the screen, see “On-Screen
Display Functions” later in this chapter.
all OSD features are available on all models. The OSD for
✎ Not
your monitor may be different. See “On-Screen Display
Functions” for a features list for your model.
3. To move to a function, press the Right-Adjustment or
Left-Adjustment button on the front panel of your monitor
until the function is highlighted.
4–4
Reference Guide
Operation
4. Press the Select button on the monitor to choose the function.
5. The adjustment window displays. Press the Right-Adjustment
or Left-Adjustment buttons to increase (Right) or decrease
(Left) the level of adjustment.
6. Press Select to save the new adjustment.
7. To exit the On-Screen Display, select the Exit icon and press
the Select button once.
On-Screen Display Functions
Use the Right-Adjustment and Left-Adjustment buttons found on
the front control panel of your monitor to adjust the on-screen
display functions in the following table.
shaded area indicates that this function is available in the
✎ The
model indicated.
Reference Guide
4–5
Operation
On-Screen Display Icons and Functions
Icon
4–6
Function
Description
Contrast
Right-Adjustment
increases the
contrast and
Left-Adjustment
decreases the
contrast.
Brightness
Right-Adjustment
increases the
brightness and
Left-Adjustment
decreases the
brightness.
Horizontal
Position
Right-Adjustment
moves the image to
the right and
Left-Adjustment
moves the image to
the left.
Horizontal
Size
Right-Adjustment
increases the
horizontal size and
Left-Adjustment
decreases the
horizontal size.
Vertical
Position
Right-Adjustment
moves the image up
and Left-Adjustment
moves the image
down.
5500
v72
mx704
7500
&
7550
9500
Reference Guide
Operation
On-Screen Display Icons and Functions (Continued)
Icon
Function
Description
Vertical
Size
Right-Adjustment
increases the
vertical size and
Left-Adjustment
decreases the
vertical size.
Pincushion
Right-Adjustment
makes the image
sides convex and
Left-Adjustment
makes the image
concave.
Trapezoid
Right-Adjustment
adjusts the image so
the top is larger and
Left-Adjustment
adjusts the image so
that the bottom is
larger.
Pin Balance
Right-Adjustment
moves the top and
bottom of the image
to the right and
Left-Adjustment
moves the top and
bottom of the image
to the left.
Reference Guide
5500
v72
mx704
7500
&
7550
9500
4–7
Operation
On-Screen Display Icons and Functions (Continued)
Icon
Function
Description
Parallelogram
This control corrects
the tilted vertical
edges of the image
on both sides of the
screen that are in
the same direction.
Tilt
(Rotation)
Right-Adjustment tilts
the sides of the
image to the right
and Left-Adjustment
tilts the sides of the
image to the left.
Moire
Right-Adjustment
increases the Moire
correction and
Left-Adjustment
decreases the Moire
correction.
Degauss
This control
demagnetizes the
screen to reduce
color impurities.
✎
4–8
5500
v72
mx704
7500
&
7550
9500
It is recommended
that you
not
degauss
more than
once
within a
30-minute
period of
time.
Reference Guide
Operation
On-Screen Display Icons and Functions (Continued)
Icon
Function
Description
Color Temp
Right-Adjustment
selects the color
temperature to the
right and
Left-Adjustment
selects the color
temperature to the
left.
Reset
This control resets
the monitor to
factory default
values.
Exit
This control exits the
OSD menu.
Reference Guide
5500
v72
mx704
7500
&
7550
9500
4–9
Operation
Monitor Messages
No Signal Message
If a No Signal message displays on your monitor, check to be sure
your video cable is properly connected and ensure that your
computer is powered on.
4–10
Reference Guide
Operation
Out of Frequency Range Message
If an Out of Frequency Range message displays on your monitor,
your video resolution and/or refresh rate are set higher than the
levels your monitor supports.
To change the video resolution or refresh rate on your monitor,
follow these steps:
1. Restart your computer.
2. Enter Safe Mode on your computer. Refer to your computer’s
operating system Help for instructions on entering Safe
Mode.
3. Change your display settings to a supported setting (see
“Technical Specifications”).
4. Restart your computer so that the new settings take effect.
Reference Guide
4–11
Operation
Using the Energy Saver Mode
Your monitor is designed to meet strict Environmental Protection
Agency (EPA) Energy Star requirements for reduced power
consumption. Using a combination of hardware and software
functions, this energy-saving feature allows your computer to
control your monitor’s power consumption and reduce your
monitor’s power state when not in use.
Power Management Status for 5500/15”
Series Monitors
State
LED Color
Power
Consumption
Description
On
Green
< 80 watts
Normal Operation
Sleep
Amber
< 5 watts
Monitor screen is blank. High
voltage is off. Heater voltage is
off. There is a brief warm-up
period before returning to full
power mode.
Power Management Status for v72, 7500 and 7550/17”
Series Monitors
State
LED Color
Power
Consumption
Description
On
Green
< 100 watts
Normal Operation
Sleep
Amber
< 5 watts
Monitor screen is blank. High
voltage is off. Heater voltage is
off. There is a brief warm-up
period before returning to full
power mode.
4–12
Reference Guide
Operation
Power Management Status for mx704/17”
Series Monitors
State
LED Color
Power
Consumption
Description
On
Blue
< 100 watts
Normal Operation
Sleep
Amber
< 5 watts
Monitor screen is blank. High
voltage is off. Heater voltage is
off. There is a brief warm-up
period before returning to full
power mode.
Power Management Status for 9500/19”
Series Monitors
State
LED Color
Power
Consumption
Description
On
Green
< 130 watts
Normal Operation
Sleep
Amber
< 5 watts
Monitor screen is blank. High
voltage is off. Heater voltage is
off. There is a brief warm-up
period before returning to full
power mode.
monitor’s energy saver feature works only when your
✎ Your
monitor is connected to a computer that also has energy saver
features.
The Energy Saver utility, with its energy saving features, is
available with all Microsoft Windows operating systems. Some
features are also available in DOS. Refer to your computer’s user
guide for instructions on setting energy saver features (also
referred to as power management features).
Reference Guide
4–13
A
Troubleshooting
Solving Common Problems
The following table lists possible problems, the possible cause of
each problem, and the recommended solutions.
Problem
Screen is blank.
Possible Cause
Solution
Power cord is disconnected.
Connect the power
cord.
Power switch is off.
Turn on power.
Video cable is improperly
connected.
Connect video cable
properly.
Screen blanking utility is
active.
Depress any key on
the keyboard or move
the mouse.
Image appears
blurred, indistinct, or
too dark.
Brightness and contrast are too
low.
Press the SELECT
button to access the
On-Screen Display.
Select the Brightness
and/or Contrast
icons to adjust as
needed.
Color is abnormal.
A magnetic object may be
nearby.
Move the object
farther away.
Reference Guide
A–1
Troubleshooting
Problem
Image is too large or
too small.
Image is not centered.
A–2
Possible Cause
Solution
Monitor may have been
moved or inadvertently
bumped.
Press the SELECT
button to access the
On-Screen Display.
Select Degauss to
activate.
Hewlett-Packard
suggests you not
degauss more than
once within a
30-minute period of
time.
Horizontal width may need
adjustment.
Press the SELECT
button to access the
On-Screen Display.
Select H. Size to
adjust as needed.
Vertical height may need
adjustment.
Press the SELECT
button to access the
On-Screen Display.
Select V. Size to
adjust as needed.
Horizontal position may need
adjustment.
Press the SELECT
button to access the
On-Screen Display.
Select H. Position to
adjust as needed.
Vertical position may need
adjustment.
Press the SELECT
button to access the
On-Screen Display.
Select V. Position to
adjust as needed.
Reference Guide
Troubleshooting
Problem
Possible Cause
Solution
“No Signal” is
displayed on screen.
Monitor video cable is
disconnected.
Connect the 15-pin
monitor video cable
to the computer. Be
sure that the
computer power is
on.
“Out of Frequency” is
displayed on screen.
Video resolution and/or
refresh rate are set higher than
what your monitor supports.
Restart your computer
and enter Safe
Mode. Change your
settings to a
supported setting (see
“Technical
Specifications”).
Restart your computer
so that the new
settings take effect.
Monitor is
overheating.
There is not enough air space
to allow proper ventilation.
Leave at least 3
inches (76 mm) of
ventilation space
around the monitor,
and do not place
objects on top of the
monitor.
Reference Guide
A–3
Using the Worldwide Web
Before contacting customer services, refer to the support Web site
at: http://www.hp.com/support.
Preparing to Call Technical Support
If you cannot solve a problem using the troubleshooting tips in
this section, you may need to call technical support. Have the
following information available when you call:
A–4
■
The monitor
■
Monitor model number
■
Serial number for the monitor
■
Purchase date on invoice
■
Conditions under which the problem occurred
■
Error messages received
■
Hardware configuration
■
Hardware and software you are using
Reference Guide
B
Technical Specifications
performance specifications are provided by the component
✎ All
manufacturers. Performance specifications represent the highest
specification of all HP’s component manufacturers’ typical level
specifications for performance and actual performance may vary
either higher or lower.
5500/15” Series Monitor
Screen Size
15” (38 cm) visual diagonal
Viewable screen size 13.8” (35 cm)
Dot Pitch
0.28 mm (Diagonal)
Display Area Default
199 x 265 (mm) typical
Display Colors
Infinite
Display Resolutions
640 x 480
640 x 480
640 x 480
720 x 400
800 x 600
800 x 600
1024 x 768
Refresh Rates
60 Hz
75 Hz
85 Hz
70 Hz
75 Hz
85 Hz (preferred resolution)
60 Hz (maximum resolution)
Synchronization (Horizontal)
30 to 54 KHz
Synchronization (Vertical)
50 to 120 Hz
Reference Guide
B–1
Technical Specifications
(Continued)
Max Pixel Clock
70 MHz Max.
Input Signal
Video RGB Analog Sync. TTL Separate
Video Cable
15-pin D-sub connector
Power Input Voltage Frequency
100 to 240V AC
50 +3 to 60 +3 Hz
Inrush Current
30 amps @ 120V
60 amps @ 220V
Power Consumption
80 W (Max.)
Dimension (W x H x D)
Unpacked w/attached base
14.4 x 15.7 x 16.5 inches (maximum)
365 x 400 x 418 mm (maximum)
Weight
29 lb Max.
13 kg Max.
Operating Temperature
50o F to 95o F
10o C to 35o C
Storage Temperature
-22o F to 140o F
-30o C to 60o C
Humidity
20% to 80% (non-condensing)
Altitude
Up to 10,000 ft./3048 meters
TCO Requirements
Select models meet TCO’99
MPRII
Select models meet MPRII
Plug and Play
Yes
B–2
Reference Guide
Technical Specifications
v72/17” Series Monitor
Screen Size
17” (43 cm) visual diagonal
Viewable screen size 16” (40.6 cm)
Dot Pitch
0.28 mm (Diagonal)
Display Area Default
234 x 312 (mm) typical
Display Colors
Infinite
Display Resolutions
640 x 480
640 x 480
640 x 480
720 x 400
800 x 600
800 x 600
1024 x 768
1024 x 768
1280 x 1024
Refresh Rates
60 Hz
75 Hz
85 Hz
70 Hz
75 Hz
85 Hz
75 Hz
85 Hz (preferred user resolution)
60 Hz (maximum resolution)
Synchronization
(Horizontal)
30 to 70 KHz
Synchronization (Vertical)
50 to 140 Hz
Max Pixel Clock
110 MHz Max.
Input Signal
Video RGB Analog Sync. TTL Separate
Video Cable
15-pin D-sub connector
Power Input Voltage
Frequency
100 to 240V AC
50 +3 to 60 +3 Hz
Inrush Current
30 amps @ 120V
60 amps @ 220V
Power Consumption
100 W (Max.)
Dimension (W x H x D)
Unpacked w/attached
base
16.6 x 17 x 17.5 inches (maximum)
410 x 432 x 445 mm (maximum)
Reference Guide
B–3
Technical Specifications
Weight
38 lb Max.
17 kg Max.
Operating Temperature
50o F to 95o F
10o C to 35o C
Storage Temperature
-22o F to 140o F
-30o C to 60o C
Humidity
20% to 80% (non-condensing)
Altitude
Up to 10,000 ft./3048 meters
TCO Requirements
Select models meet TCO’99
MPRII
Select models meet MPRII
Plug and Play
Yes
B–4
Reference Guide
Technical Specifications
mx704/17” Series Monitor
Screen Size
17” (43 cm) visual diagonal
Viewable screen size 16” (40.6 cm)
Anti-Glare Coating
Dot Pitch
0.25 to 0.28 mm (variable)
Display Area Default
234 x 312 (mm) typical
Display Colors
Infinite
Display Resolutions
640 x 480
640 x 480
640 x 480
720 x 400
800 x 600
800 x 600
1024 x 768
1024 x 768
1280 x 1024
Refresh Rates
60 Hz
75 Hz
85 Hz
70 Hz
75 Hz
85 Hz
75 Hz
85 Hz (preferred user resolution)
60 Hz (maximum resolution)
Synchronization
(Horizontal)
30 to 70 KHz
Synchronization (Vertical)
50 to 140 Hz
Max Pixel Clock
110 MHz Max.
Input Signal
Video RGB Analog Sync. TTL Separate
Video Cable
15-pin D-sub connector
Power Input Voltage
Frequency
100 to 240V AC
50 +3 to 60 +3 Hz
Inrush Current
30 amps @ 120V
60 amps @ 220V
Power Consumption
100 W (Max.)
Dimension (W x H x D)
Unpacked w/attached
base
16.1 x 17 x 17.4 inches (maximum)
410 x 432 x 442 mm (maximum)
Reference Guide
B–5
Technical Specifications
Weight
42 lb Max.
19 kg Max.
Operating Temperature
50o F to 95o F
10o C to 35o C
Storage Temperature
-22o F to 140o F
-30o C to 60o C
Humidity
20% to 80% (non-condensing)
Altitude
Up to 10,000 ft./3048 meters
TCO Requirements
Select models meet TCO’99
MPRII
Select models meet MPRII
Plug and Play
Yes
B–6
Reference Guide
Technical Specifications
7500/17” Series Monitor
Screen Size
17” (43 cm) visual diagonal
Viewable screen size 16” (40.6 cm)
Dot Pitch
0.28 mm (Diagonal)
Display Area Default
234 x 312 (mm) typical
Display Colors
Infinite
Display Resolutions
640 x 480
640 x 480
640 x 480
720 x 400
800 x 600
800 x 600
1024 x 768
1024 x 768
1280 x 1024
Refresh Rates
60 Hz
75 Hz
85 Hz
70 Hz
75 Hz
85 Hz
75 Hz
85 Hz (preferred user resolution)
60 Hz (maximum resolution)
Synchronization
(Horizontal)
30 to 70 KHz
Synchronization (Vertical)
50 to 140 Hz
Max Pixel Clock
110 MHz Max.
Input Signal
Video RGB Analog Sync. TTL Separate
Video Cable
15-pin D-sub connector
Power Input Voltage
Frequency
100 to 240V AC
50 +3 to 60 +3 Hz
Inrush Current
30 amps @ 120V
60 amps @ 220V
Power Consumption
100 W (Max.)
Dimension (W x H x D)
Unpacked w/attached
base
16.6 x 17 x 17.5 inches (maximum)
410 x 432 x 445 mm (maximum)
Reference Guide
B–7
Technical Specifications
Weight
38 lb Max.
17 kg Max.
Operating Temperature
50o F to 95o F
10o C to 35o C
Storage Temperature
-22o F to 140o F
-30o C to 60o C
Humidity
20% to 80% (non-condensing)
Altitude
Up to 10,000 ft./3048 meters
TCO Requirements
Select models meet TCO’99 or TCO’03
MPRII
Select models meet MPRII
Plug and Play
Yes
B–8
Reference Guide
Technical Specifications
7550/17” Flat CRT Monitor
Screen Size
17” (43 cm) visual diagonal
Viewable screen size 16” (40.6 cm)
Anti-Glare Coating
Dot Pitch
0.25 to 0.28 mm (variable)
Display Area Default
234 x 312 (mm) typical
Display Colors
Infinite
Display Resolutions
640 x 480
640 x 480
640 x 480
720 x 400
800 x 600
800 x 600
1024 x 768
1024 x 768
1280 x 1024
1600 x 1200
Refresh Rates
60 Hz
75 Hz
85 Hz
70 Hz
75 Hz
85 Hz
75 Hz
85 Hz (preferred user resolution)
75 Hz
65 Hz (maximum resolution)
Synchronization (Horizontal)
30 to 86 KHz
Synchronization (Vertical)
50 to 140 Hz
Max Pixel Clock
180 MHz Max.
Input Signal
Video RGB Analog Sync. TTL Separate
Video Cable
15-pin D-sub connector
Power Input Voltage
Frequency
100 to 240V AC
50 +3 to 60 +3 Hz
Inrush Current
30 amps @ 120V
60 amps @ 220V
Power Consumption
100 W (Max.)
Dimension (W x H x D)
Unpacked w/attached base
16.1 x 17 x 17.4 inches (maximum)
410 x 432 x 442 mm (maximum)
Reference Guide
B–9
Technical Specifications
Weight
42 lb Max.
19 kg Max.
Operating Temperature
50o F to 95o F
10o C to 35o C
Storage Temperature
-22o F to 140o F
-30o C to 60o C
Humidity
20% to 80% (non-condensing)
Altitude
Up to 10,000 ft./3048 meters
TCO Requirements
Select models meet TCO’99 or TCO’03
MPRII
Select models meet MPRII
Plug and Play
Yes
B–10
Reference Guide
Technical Specifications
9500/19” Series Monitor
Screen Size
19” (48 cm) visual diagonal
Viewable screen size 18” (46 cm)
Anti-Glare Coating
Dot Pitch
0.26 mm (Diagonal)
0.22 mm (Horizontal)
Display Area Default
264 x 352 (mm) typical
Display Colors
Infinite
Display Resolutions
640 x 480
640 x 480
720 x 400
800 x 600
800 x 600
1024 x 768
1024 x 768
1280 x 1024
1280 x 1024
1600 x 1200
Refresh Rates
60 Hz
85 Hz
70 Hz
75 Hz
85 Hz
75 Hz
85 Hz
75 Hz
85 Hz (preferred user resolution)
75 Hz (maximum resolution)
Synchronization (Horizontal)
30 to 96 KHz
Synchronization (Vertical)
50 to 160 Hz
Max Pixel Clock
210 MHz Max.
Input Signal
Video RGB Analog Sync. TTL Separate
Video Cable
15-pin D-sub connector
Power Input Voltage Frequency
100 to 240V AC
50 +3 to 60 +3 Hz
Inrush Current
30 amps @ 120V
60 amps @ 220V
Power Consumption
130 W (Max.)
Reference Guide
B–11
Dimension (W x H x D)
Unpacked w/attached base
17.9 x 18.5 x 18.7 inches (maximum)
455 x 470 x 475 mm (maximum)
Weight
44 lb Max.
20 kg Max.
Operating Temperature
50o F to 95o F
10o C to 35o C
Storage Temperature
-22o F to 140o F
-30o C to 60o C
Humidity
20% to 80% (non-condensing)
Altitude
Up to 10,000 ft./3048 meters
TCO Requirements
Select models meet TCO’99 or TCO’03
MPRII
Select models meet MPRII
Plug and Play
Yes
B–12
Reference Guide
C
Agency Regulatory Notices
Federal Communications
Commission Notice
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and the
receiver.
■ Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
■ Consult the dealer or an experienced radio or television
technician for help.
Modifications
The FCC requires the user to be notified that any changes or
modifications made to this device that are not expressly approved
by Hewlett Packard Company may void the user's authority to
operate the equipment.
Reference Guide
C–1
Agency Regulatory Notices
Cables
Connections to this device must be made with shielded cables
with metallic RFI/EMI connector hoods to maintain compliance
with FCC Rules and Regulations.
Declaration of Conformity for
Products Marked with FCC Logo,
United States Only
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
For questions regarding your product, contact:
Hewlett Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call
1-800- 652-6672
For questions regarding this FCC declaration, contact:
Hewlett Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call
(281) 514-3333
To identify this product, refer to the Part, Series, or Model
number found on the product.
C–2
Reference Guide
Agency Regulatory Notices
Canadian Notice
This Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les
exigences du Règlement sur le matériel brouilleur du Canada.
European Notice
Products with the CE Marking comply with both the EMC
Directive (89/336/EEC) and the Low Voltage Directive
(73/23/EEC) issued by the Commission of the European
Community.
Compliance with these directives implies conformity to the
following European Norms (in brackets are the equivalent
international standards):
■
EN55022 (CISPR 22) - Electromagnetic Interference
■
EN55024 (IEC61000-4-2,3,4,5,6,8,11) - Electromagnetic
Immunity
■
EN61000-3-2 (IEC61000-3-2) – Power Line Harmonics
■
EN61000-3-3 (IEC61000-3-3) – Power Line Flicker
■
EN60950 (IEC950) - Product Safety
Reference Guide
C–3
Agency Regulatory Notices
Japanese Notice
Korean Notice
EPA Energy Star Compliance
Monitors that are marked with the Energy Star Logo meet the
requirements of the EPA Energy Star program. As an Energy Star
Partner, Hewlett Packard Company has determined that this
product meets the Energy Star guidelines for energy efficiency.
Specific details on using the Energy Saving features can be found
in the energy saver or power management section of the computer
manual.
Power Cord Set Requirements
The monitor power supply is provided with Automatic Line
Switching (ALS). This feature allows the monitor to operate on
input voltages between 100-120V or 200-240V.
The power cord set (flexible cord or wall plug) received with the
monitor meets the requirements for use in the country where you
purchased the equipment.
C–4
Reference Guide
Agency Regulatory Notices
If you need to obtain a power cord for a different country, you
should purchase a power cord that is approved for use in that
country.
The power cord must be rated for the product and for the voltage
and current marked on the product's electrical ratings label. The
voltage and current rating of the cord should be greater than the
voltage and current rating marked on the product. In addition, the
cross-sectional area of the wire must be a minimum of 0.75 mm²
or 18AWG, and the length of the cord must be between 6 feet
(1.8 m) and 12 feet (3.6 m). If you have questions about the type
of power cord to use, contact your HP authorized service
provider.
A power cord should be routed so that it is not likely to be walked
on or pinched by items placed upon it or against it. Particular
attention should be paid to the plug, electrical outlet, and the
point where the cord exits from the product.
Reference Guide
C–5
Download PDF

advertising
