Network/Spectrum Analyzer
HP 4390A
Task Reference
+
ET

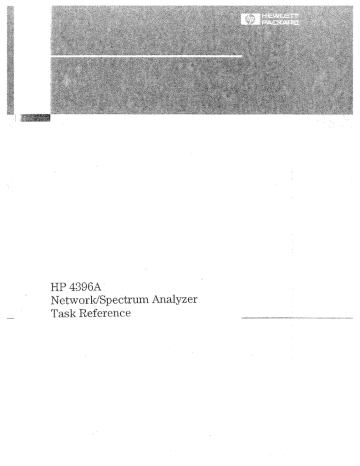

HP 4396A Network/Spectrum Analyzer
Task Reference
SERIAL NUMBERS
This manual applies directly to instruments with serial number prefix
3241J, For additional information about serial numbers, read “Serial
Number” in Appendix A of this manual.
[A Paciano
HP Part No. 04396-90000
Microfiche Part No. 04396-90050
Printed in Japan December 1992
First Edition
Notice The information contained in this document is subject to change
without notice.
This document contains proprietary information that is protected by
copyright. All rights are reserved. No part of this document may be
photocopied, reproduced, or translated to another language without
the prior written consent of the Hewlett-Packard Company.
Yokogawa-Hewlett-Packard, LTD.
Kobe Instrument Division
1-3-2, Murotani, Nishi-ku, Kobe-shi,
Hyogo, 651-22 Japan
©Copyright 1992, Yokogawa-Hewlett-Packard, LED.
Manual Printing History
The manual printing date and part number indicate its current
edition. The printing date changes when a new edition is printed.
(Minor corrections and updates that are incorporated at reprint do not
cause the date to change.) The manual part number changes when
extensive technical changes are incorporated.
December 1992 ea о First Edition
Safety Summary The following general safety precautions must be observed during
all phases of operation, service, and repair of this instrument.
Failure to comply with these precautions or with specific WARNINGS
given elsewhere in this manual violates safety standards of design,
manufacture, and intended use of the instrument.
The Hewlett-Packard Company assumes no liability for the customer's
failure to comply with these requirements.
Ground The Instrument
This is a Safety Class 1 product (provided with a protective earth
terminal). An uninterruptible safety earth ground must be provided
from the main power source to the product input wiring terminals,
power source to the product input wiring terminals, power cord, or
supplied power cord set. Whenever itis likely that the protection has
been impaired, the product must be made inoperative and secured
against any unintended operation.
DO NOT Operate in an Explosive Atmosphere
Do not operate the instrument in the presence of flammable gases or
fumes. Operation of any electrical instrument in such an environment
is a safety hazard.
Keep Away From Live Circuits
Operating personnel must not remove instrument covers, Component
replacement and internal adjustments must be made by qualified
maintenance personnel. Do not replace components with the power
cable connected. Under certain conditions, dangerous voltages may
exist even with the power cable removed. 10 avoid injuries, always
disconnect power and discharge circuits before touching them.
DO NOT Service Or Adjust Alone
Do not attempt internal service or adjustment unless another person,
capable of rendering first aid and resuscitation, is present.
DO NOT Substitute Parts Or Modify Instrument
Because of the danger of introducing additional hazards, do not
substitute parts or perform unauthorized modifications to the
instrument. Return the instrument to a Hewlett-Packard Sales and
Service Office for service and repair to ensure the safety features are
maintained.
iv
Dangerous Procedure Warnings
Warnings, such as the example below, precede potentially dangerous
procedures throughout this manual. Instructions contained in the
warnings must be followed.
Warning Dangerous voltages, capable of causing death, are present in this
instrument. Use extreme caution when handling, testing, and
adjusting this instrument.
Typeface Conventions
Bold
Italics
Computer
HARDKEYS
SOFTKEYS
vi
Boldface type is used when a term is defined.
For example: icons are symbols.
Italic type is used for emphasis and for titles
of manuals and other publications.
Italic type is also used for keyboard entries
when a name or a variable must be typed in
place of the words in italics. For example:
copy filename means to type the word copy,
to type a space, and then to type the name of
a file such as filel.
Computer font is used for on-screen prompts
and messages.
Labeled keys on the instrument front panel
are enclosed in (_).
Softkeys located to the right of the CRT are
enclosed in
Warranty
Certification
Hewlett-Packard Company certifies that this product met its
published specifications at the time of shipment from the factory.
Hewlett-Packard further certifies that its calibration measurements
are traceable to the United States National Institute of Standards and
Technology, to the extent allowed by the Institution's calibration
facility, or to the calibration facilities of other International Standards
Organization members,
This Hewlett-Packard instrument product is warranted against defects
in material and workmanship for a period of one year {rom the date
of shipment, except that in the case of certain components listed
in General Information of this manual, the warranty shall be for
the specified period. During the warranty period, Hewlett-Packard
Company will, at its option, either repair or replace products which
prove to be defective.
For warranty service or repair, this product must be returned to a
service facility designated by HP. Buyer shall prepay shipping charges
to HP and HP shall pay shipping charges to return the product to
Buyer. However, Buyer shall pay all shipping charges, duties, and
taxes for products returned to HP from another country.
HP warrants that software and firmware designated by HP for use
with an instrument will execute its programming instruction when
property installed on that instrument. HP does not warrant that
the operation of the instrument, or software, or firmware will be
uninterrupted or error free.
Limitation of Warranty
The foregoing warranty shall not apply to defects resulting from
improper or inadequate maintenance by Buyer, Buyer-supplied
software or interfacing, unauthorized modification or misuse,
operation outside of the environmental specifications for the product,
or improper site preparation or maintenance.
No other warranty is expressed or implied. HP specifically disclaims
the implied warranties of merchantability and fitness jor a
particular purpose.
vil
Exclusive Remedies
The remedies provided herein are buyer’s sole and exclusive
remedies. HP shall not be liable for any direct, indirect, special,
incidental, or consequential damages, whether based on contract, tort,
or any other legal theory.
Assistance Product maintenance agreements and other customer assistance
agreements are available for Hewlett-Packard products.
For any assistance, contact your nearest Hewlett-Packard Sales and
Service Office. Addresses are provided at the back of this manual.
viii
manuals.
777 % д.
№
)
Warning в
Caution U
Note u
Safety Symbols General definitions of safety symbols used on equipment or in
Instruction manual symbol: the product is marked
with this symbol when it is necessary for the user to
refer to the instruction manual in order to protect
against damage to the instrument.
Indicates dangerous voltage {terminals fed from the
interior by voltage exceeding 1000 volts must be so
marked}.
Protective conductor terminal. For protection against
electrical shock in case of a fault. Used with wiring
terminals to indicate the terminal which must be
connected to ground before operating equipment.
Low-noise or noiseless, clean ground (earth) terminal.
Used for a signal common, as well as providing
protection against electrical shock in case of fault. À
terminal marked with this symbol must be connected
to ground in the manner described in the installation
(Operation) manual, and before operating the
equipment.
Frame or chassis terminal. À connection to the frame
(chassis) of the equipment which normally includes all
exposed metal structures.
Alternating current (power line),
Direct current (power line).
Alternating or direct current (power line).
Warning denotes a hazard. It calls attention to a
procedure, practice, condition or the like, which, if
not correctly performed or adhered to, could result in
injury or death to personnel.
Caution denotes a hazard. It calls attention to a
procedure, practice, condition or the like, which, if
not correctly performed or adhered to, could result
damage to or destruction of part or all of the product.
Note denotes important information. It calls
attention to a procedure, practice, condition or the
like, which is essential to highlight,
How To Use This Manual
This manual provides a procedure how to operate the HP 4396A. You
can use this manual to learn about the operations and the features
of the HP 4396A. When you have an objective but do not know
how to accomplish it, this manual provides a best way to make your
objective.
Following chapters are included in this manual
Chapter
Chapter 1
Chapter 2
Chapter 3
Chapter 4
Chapter 5
Chapter 6
Description
This chapter provides how to access the functions
and data entry of the HP 4396A, After chapter 2,
procedure step is simplified about details. So, you
should read this chapter and understand about the
basic rules of the HP 4396A operation.
This chapter provides a spectrum measurement
procedure with the HP 4396A. If you want to know
about an operation of the spectrum analyzer part oí
the HP 4396A, read this chapter. The HP 4396A has
some useful features for a spectrum measurement.
This chapter presents you how to use them.
This chapter describes an typical spectrum
measurement using the HP 4396A. When you want to
operate the HP 43964 for a specific measurement, see
this chapter.
This chapter provides basic network measurement
procedure with the HP 4396A. If you want to know
about basic operation of the network analyzer part of
the HP 4396A, read this chapter. The HP 4396A has
some useful features for the network measurement.
This chapter presents you how to use them.
This chapter describes an advanced network
measurement of the HP 4396A. When you want to
operate the HP 4396A for a specific measurement, see
this chapter. |
This chapter provides the procedures of a common
feature that can be used for spectrum and network
analyzer mode of the HP 4396A. Printing and
saving/recalling data are also included in this chapter.
Appendix A provides a manual change history and an information of
the serial number.
Documentation Map
The following manuals are available for the analyzer.
Task Reference (HP Part Number 34396-90000)
Task Reference helps you to learn how to use the analyzer. This manual provides simple
step-by-step instructions without concepts.
User’s Guide (HP Part Number 04396-90001)
The User’s Guide walks you through system setup and initial power-on, shows how to
make basic measurements, explains commonly used features, and typical application
measurement examples, After you receive your analyzer, begin with this manual.
Function Reference (HP Part Number 04396-90002)
The Function Reference describes all function accessed from the front panel keys and
softkeys. It also provides information on options and accessories available, specifications,
system performance, and some topics about the analyzer's features.
Programming Guide (HP Part Number 04396-96003)
The Programming Guide shows how to write and use BASIC program to control the
analyzer.
HP-IB Command Reference (HP Part Number 04396-90004)
The HP-IB Command Reference provides a summary of all availabie HP-IB commands. It
also provides information on the status reporting structure and the trigger system (these
features conform to the SCPI standard).
Using HP Instrument BASIC with the HP 4396A (Option 1C2 only) (HP Part Number
04396-90005)
The Using HP Instrument BASIC with the HP 4396A describes how HP Instrument BASIC
works with the analyzer.
HP Instrument BASIC Manual Set (Option 1C2 only), (HP Part Number E2083-90000)
The HP Instrument BASIC User's Handbook introduces you to the HP Instrument BASIC
programming language, provide some helpful hints on getting the most use from it, and
provide a general programming reference. It is divided into three books, HP Instrument
BASIC Programming Techniques, HP Instrument BASIC Interface Techniques, and HP
Instrument BASIC Language Reference.
Performance Test Manual (HP Part Number 04396-90100)
The Performance Test Manual explains how to verify conformance to published
specifications.
Service Manual (Option OBW only), (HP Part Number 04396-90101)
The Service Manual explains how to adjust, troubleshoot, and repair the instrument.
This manual is option 0BW only.
Xi
Microfiche Copies of the Manual
Use the microfiche part number on the title page to order a package
of 10 x 15 centimeter (4 x 6 inch) microfilm transparencies of the
User's Guide, the Task Reference, the Function Reference, the HP-IB
Programming Guide, the HP-IB Command Reference, the Using HP
Instrument BASIC with the HP 4396A, the Performance Test Manual,
and the Service Manual.
xii
Contents
I.
Na ETA
Overview
Key Operation Overview . . . . . . . . . . . . . .. 1-1
Hardkeys and Softkeys . . . . . . . . . . . . . .. 1-1
Toggle Keys . . . . . . . . . . .... ...... 1-1
Numerical Entries. . . . . . . KK 1-2
Notes . . . aaa aaa a 1-2
Character Entries . . . . . 0.0. . 0 1-2
To Enter Characters . . . . . . . . . «+ +... 1-2
Recommended Spectrum Measurement Task Sequence
Step 1: Preparing for a Measurement . . . . . . . . . 2-2
To Connect an Unknown Signal . . . . . . . . . .. 2-2
To Preset the Analyzer . . . . . . . . . . . . . .. 2-2
To Select the Active Channel . . 2.24 444440 2-3
To Display Dual Channels . . . . . . . . . . . .. 2-3
To Select the Spectrum Analyzer Mode . . . . . . . . 2-4
Step 2: Setting the Trigger . . . . . . . . . . . 2-5
To Select the Trigger Mode . . . . . . . . . . . .. 2-5
To Use the External Trigger . . . 2 22242 445 2-6
To Set the Trigger Signal Polarity . . . . . . . . 2-6
To Select the Sweep Condition. . . . . . . . . . .. 2-6
Step 3: Selecting the Measurement Format . . . . . . . 2-7
To Select the Display Unit . . . . . . . . . . . . .. 2-7
Notes . . ua ee ee e e ae 2-7
Step 4: Setting the Frequency Range . . . . . . . .. 2-8
To Set the Center Frequency . . . . . . . . . . .. 2-8
To Set the Marker Position to Center . . . . . . . 2-9
To Set the Maximum Peak to Center . . . . . . . . 2-10
To Change the Center with the Specified Step Size 2-10
Example: Displaying Harmonics . . . . . . . . . 2-11
To Set the Frequency Span . . . . . . . . . . ... 2-12
To Set the Frequency Range to Full Span. . . . . . . 2-12
Notes —. . 2. 22411 4444424 444 42240 2-12
To Narrow the Span Setting . . . . . . . . . . . .. 2-13
To Zoom To a Part of the Trace . . . . . . . . . .. 2-14
To Change the Zooming Magnification . . . . . . . 2-14
To Display a Zoomed Trace on the Other Channel . . 2-14
To Zoom Between the Marker and the AMarker . 2-15
Step 5: Setting the Vertical Settings . . . . . . . . .. 2-16
To Set the Reference Level . . . . . . . . . . . .. 2-17
Using the Entry Keys . . . . . . . . . . . «. .. 2-17
Using the Marker . . . . . . . . . . 2-17
To Change the Scale per Division . . . . . . . . .. 2-18
Step 6: Tuning the Settings . . . . . . . . . . . . .. 2-19
To Set the Resolution Bandwidth (RBW) . . . . . . . 2-19
To Set the Video Bandwidth . . . . . . . . . . . .. 2-20
Contents-1
Contents -2
To Turn Off the Video Bandwidth . . . . . . . . .
To Minimize the Sweep Time . . . . . . . . . . ..
Step 7: Performing Calibration . . . . . . . . . . ..
To Perform the Reference Level Calibration . . . . .
To Use the External Reference . . . . . . . . . . .
To Turn Off Calibration .. . . . . . . . . . . . ...
To Perform the Calibration for the 75 Q Configuration .
Step 8: Reading the Measured Result . . . . . . . . .
To Read a Value Using the Marker . . . . . . . . . .
To Stabilize the Trace . . . . . . . . . . . . . ..
To Stop the Sweep . . . . 11444 4421440
To Use the Averaging Function . . . . . . . . . .
To Use Maximum or Minimum Hold Function . . . .
To Capture an Unstable Signal Using Signal Track . .
To Use the Sub-markers . . . . . . . . . . . . . ..
To Use the AMarker . . . . . . . . . . . . . . ...
To Search For a Single Peak on the Trace . . . . . . .
To Search For Multiple Peaks . . . . . . . . . . ..
To Specify the Search Range . . . . . . . . . . ..
Using the Marker . . . . . . . . . . . . .. ...
Using the AMarker . . . . . . . . . . . . . . ..
To Ignore Small Peaks . . . . . . . . . . . .. ..
Defining the Peak Threshold . . . . . . . . . . . .
Using Rotary Knob . . . . . . . . .. . .
Using the Marker . . . . . . . . . 0044
Defining Peak Height . . . . . . . . . . .. . ..
Typical Spectrum Measurement Techniques
To Measure the Noise Level . . . . . . . . . 4 4 4 20
To Convert to a Different Equivalent Noise Bandwidth
To Measure the Carrier to Noise Ratio . . . . . . . .
To Perform the Time Gated Spectrum Analysis . . . . .
Step 1: Determining Gate Trigger Parameters
Step 2: Gate Trigger Source Connection . . . . . . .
Step 3: Setting Center and Span Frequency . . . . .
Step 4: Adjusting Gate Trigger . . . . . . . . . ..
Step 5: Setting RBW, VBW, and Averaging . . . . . .
To Set the Resolution Bandwidth . . . . . . . . .
To Set the VBW .. 2 2 1102 4 144 4 221220
Step 6: Measuring . . . . . . . . . . . . . . ..
To Measure Zero Span. . . . . . . . . . . . . +...
Notes . . . aaa ae ae e ae eee
To Stabilize the Trace Using the Video Trigger
To Read a Time Transition Using the Marker . . . .
To Track Unstable Harmonics Using Search Track . .
To Track and Zoom a Signal . . . . . . . . . . . ...
Step 1: Setting the Wide Frequency Range . . . . . .
Step 2: Setting the Narrow Frequency Range for the
Other Channel . . . . . . . . . . . 2... ..
Recommended Network Measurement Task Sequence
Step 1: Preparing for a Measurement . . . . . . . . .
To Connect the Test Device , . . . . . . . . .. ..
To Preset the Analyzer . . . . . . . . . . . ....
To Select the Active Channel . . . . . 1444244
To Select the Network Analyzer Mode . . . . . . . .
Step 2: Setting the Sweep . . . . . . . 41214440
To Select the Trigger Mode . . . . . . . . . . . ..
To Use the External Trigger . . . . . . . . . . ..
To Set the Trigger Signal Polarity . . . . . . . .
To Trigger on Each Display Point . , . . . . . ..
To Select the Sweep Condition. . . . . . . . . . ..
To Select the Sweep Type . . . 1 2122424240
To Use the Power Sweep . . . . . . . . . . . ..
Step 3: Selecting the Measurement Format . . . . . . .
To Select the Input Port . . . . . . . . . . . .. ..
With the T/R Test Set . . . . . . . . . . . ....
To Display Trace As a Smith Chart . . . . . . . . . .
To Change Marker Readout Format . . . . . . | .
To Use Impedance Conversion Function . . . . . . .
Step 4: Setting the Sweep Parameter . . . . . . . . .
To Set the Sweep Parameter Using and Lo
Step 5: Setting the Vertical Settings . . . . . . . . ..
To Set the Scale and Reference Automatically
Notes . . 2. 42 4 4 4 4404441411 414 440
Step 6: Tuning the Settings . . . . . . . . . 4 12 20
To Increase the Dynamic Range (Setting IF Bandwidth)
Notes . . 2. 12 4 4 4 2222102441 4 4140
Step 7: Performing Calibration . . . . . . . . . . ..
To Select an Appropriate Calibration Method . . .
To Perform a Response Calibration . . . . . . . . . .
To Perform a Response & isolation Calibration .
To Perform an S11 1-Port Calibration . . . . . . . . .
To Perform an S22 1-Port Calibration . . . . . . . . .
To Make Full 2-Port Calibration . . . . . . . . , . .
To Perform a 1-Path 2-Port Calibration . . . . . . . .
To Select the Calibration Kit . . . . . . . . . . . ..
To Customize the User Defined Calibration Kit .
To Define the Standard Definition . . . . . . . , .
Step 1: Preparation. . . . . . . . . . . 4 2 40
Step 2: Activating the Define Standard Menu . . .
Step 3: Entering a C Parameters. . . . . . . . .
Step 4: Entering an OFFSET Parameters . . . . .
Step 6: Entering a Standard Class Label . . . . .
Step 6: Completing the Definition of a Calibration
A
To Define a Class Assignment . . . . . . . . . ..
Step 1: Preparing for the Class Assignment
Step 2: Specifyingthe Class . . . . . . . . . ..
Step 3: Labeling the Standard Class Label
To Label and Save Calibration Kit . . . . . . . .
To Verify Definition of User-Defined Calibration Kit
Step 8: Reading the Measured Result . . . . . . . ..
Contents-3
Contents-4
To Read a Value Using the Marker . . . . + + + + += 4-32
To Stabilize the Trace . . . . . . . . . . + + + + « 4-33
To Stop the Sweep . . . + 2424 44450840 d-33
To Reduce Variation of the Measurement Trace Using
Averaging . . . . . 1 4 404 404 6 A 4-33
To Restart the Averaging . . . . . . . . . . . 4-33
To Use the Sub-markers . . . . . . . . . « «+ « « « 4-34
To Use the AMarker . . . . . . . « . « «+ « « « 0 4-35
To Search For a Point that has the Target Value . . . . 4-36
To Search for the Peak-to-Peak of Ripples Using the
Statistics Function . . . . 2. 2 40440442 +400 4-37
Step 1: To Specify the Search Range . . . . . . . . 4-37
Step 2: To Search For the Ripple. . . . . . . . . . 4-37
To Define the Peak for Search . . . . . . . . . . . 4-38
Defining the Peak Slope to Ignore the Relatively
Broad Peaks . . . . . . . . . . к... к. . 4-38
Entering Directly . . . . . . . 4404 . 4-38
UsingtheMarker . . . . . . . . . . . . . 50). 4-38
Specifying the Peak Threshold to Ignore the
Absolutely Small Peaks . . . . . . . . . . .. 4-39
Entering Directly . . . . . 6 к к коек око) око 4-39
Using the Marker . . . . . . . . . . . . . 4-39
Typical Network Measurements
To Measure the 3 dB Bandwidth Using the Width
Function . . . . aaa HH KH 5-2
To Monitor the Spectrum of the Network Measurement.
Input . . ae eee e a 5-3
To Measure the Electrical Length . . . o. . + 4 + + +5 5-4
To Set Velocity Factor of a Cabie . . . . + + ++ . .. 5-5
To Measure the Phase Deviation . . . . + + + + + . .. 5-6
To Display the Deviation from the Linear Phase . . . 5-6
To Display the Group Delay . . . . . . . . . . . .. 5-7
To Set the Group Delay Aperture . . . . . . . . . 5-7
To Cancel an Extension of a Measurement Cable . . . . 5-8
If the Electrical Delay of the Extended Cable is Known 5-8
If the Electrical Delay of the Extended Cable is
Unknown . . . . 1 2 2 aa ae e eee 5-10
Measuring the Electrical Length of the Gable . . . . 5-10
Measuring the OPENed or SHORTed Cabie Reflection 5-11
Notes . . . o. . 2» e a e ea aaa ee 5-11
Using Features Common to Both Modes of Operation
To Perform GO/NO-GO Testing . . . . + . «+. . « + ———_ 6-2
Step 1: Planning the Limit Lime . . . . . . . . . .. 6-2
Step 2: Editing a Limit Line Table . . . . . .. . .. 6-3
To Modify or Delete the Segment . . . . . . . . . 0-5
Step 3: Executing a Limit Line Test . . . . . . . . . 0-5
To Make a Limit Line Test Active . . . . . . . . . 6-5
To Beep When the Limit Test is Failed . . . . . . . 6-6
Notes . . . xa ee 6-6
To Offset the Limit Line . . . . . . 2». e e 6-7
To Make a List Sweep . . . . . . 2. + + ee 6-9
Step 1: Planning the List Sweep . . . . . . . . . . . 6-9
Step 2: Editing a Sweep List . . . . . . . . . . = 8-10
To Modify or Delete the Segment . . . . . . . .. 6-11
Step 3: Activating the List Sweep . . . . . . . . .. 6-12
Notes 2. 1. 111 4 404 444206040282 444606 6-12
To Use the Trace Memory . . . . + + 2 4 4 4 4 + + +0 6-13
Step 1: To Store the Trace into the Trace Memory . . 6-13
Step 2: To Display Memory Traces . . . . . . . . . . 6-13
Notes . 1. 1. 1 121 411204444444 44120 6-13
To Offset the Trace . . . . 1 42 404040440444 440 6-14
To Clear the Offset . . . . . . . . . . « «+ +. .. 6-14
Notes . . 1. 2 11 244102404044 444 4 246 6-14
To Use the Trace Math Function . . . . . . . . . . .. 6-15
To Turn Off the Data Math Function . . . . . . . .. 0-15
To Multiply the Trace . . . . . . . . . . . . « . .. 6-15
To Clear a Multiplied Trace . . . . . . . . . . . .. 6-15
To Print and Plot . . . . . . . . ae ae 6-16
To Print Out a Display Image . . . . . . . . . . .. 6-16
To See or Print a Measured Value List . . . . . . . . 6-16
To Print an Analyzer Setting . . . . . . . . . .. . 6-17
To Plot a Display Image . . . . . . . . . . . . . .. 6-17
To Plot to a Transparent Sheet . . . . . . . . . . 6-18
To Use a Different HP-IB Address for the Printer/Plotter 6-18
Notes . . 1.1 1 1101 114441 444 4 2 120 6-18
To Save and Recall . . . . . . . . .. ........ 6-19
To Save an Analyzer Setting or Measurement Data . . 6-19
To Specify a Data Array Type . . . . . . . . . .. 6-20
To Recall a Saved Analyzer Setting . . . . . . . .. 6-20
To Save a Display Image to an HP-GL File . . . . . . 6-21
To Save Measured Data for a Spreadsheet . . . . . . 6-22
To Copy the File . . . . . . . .. ......... 6-23
To Initialize a Disk for Use . . . . . . . . . . . . . 6-23
To Initialize the RAM Disk for Use . . . . . . . . .. 6-24
Notes .. 1 1 1 412 4404440444 4444400 6-24
Manual Changes
Introduction . . . . . 2. a, 2 e ea e e e a. A-1
Manual Changes . . . . . . « « «+. + 2 a» e e A-1
Serial Number . . . xa eee ee a À-2
Index
Contents-5
Conte nts-6
2-10.
2-11.
2-12.
2-13.
2-14.
2-15.
2-16.
2-17,
2-18.
2-19.
2-20.
2-21.
2-22.
2-23.
2-24.
3-1.
3-3.
3-4.
3-5.
> Time Gated Measurement Configuration . . . . . . .
3-7.
3-8.
3-10.
4-1.
4-2.
4-4,
4-5.
4-6.
4-7.
4-8,
4-9.
4-10
. Character Entry Menu . . . . e. e
. Location of the S Input . 2..2... . 2 2
. Dual Channel Display . . . . . . . . « . . . . « ..
. Location of EXT TRIGGER Connector . . . . . . . .
. Marker to Center . . . . . . . . . . . oo
. Peak to Center . . . . +. 2404040104 + 444540
. Displaying Harmonics . . . . . . . . . . . . . . ..
. Narrowing Span with Signal Track . . . . . . . . ..
, Marker Zoom . . . 1 2 2 442440405044 84445
‚ MKRA- SPAN KR
Marker to Reference . . . . 2. . 224 #2 4 4425
Changing Scale/Div. . . . . . . 222 HH
Setting Resolution Bandwidth (RBW). . . . . . . . .
Setting Video Bandwidth (VBW) . . . . . . . . . ..
Minimized Sweep Time . . . . . . . . . .
Reference Level Calibration Connection . . . . . . .
Reference Level Calibration Connection for the 75 {2
Configuration . . . . . . . . . « . HA
Marker Readout . . . . HK .
Maximum Holding the Drifting Signal . . . . . . . .
Sub-marker and Maker List . . . . . + 4 1 4 4 +26
AMarker . . . 1 2 2 42 24 40404044 4444640
Peak Search . . KU
Searching for Multiple Peaks . . . . . . . . . . ..
SearchRange . . . . . . . . . «+ + « «+
Threshold Function . . . . . . . . « «+ + + « « « .
Noise Readout . . . . . 2 24 404040404044 + 550
. CN Measurement . . . KH 6
Time Domain Measurement Configuration . . . . . .
Target and Trigger Signal Timing on the Oscilloscope .
Gate Parameters . . . 2 + 2 x= e... e e.
Time Gated Spectrum Analysis . . . . . . . . . ..
Marker Time . . . . 2 2 424 4020440244 4440
. Tracking Unstable Harmonics Using Search Track . . .
Tracking and Zooming a Signal . . . . . . . . . . .
Using the Transmission/Reflection Test Set . . . . . .
Using the S-Parameter Test Set . . . . . . . . . . .
. Location of EXT TRIGGER Connector . . . . . . . .
Smith Chart. . 1. 24 2404020404 84040404 4 460
Sweep Parameter Setting . . . . . . . . + 4450
Autoscale Function . . . . . . . 2 e e e EA
Setting IF Bandwidth (IFBW) . . . . . . . . . . ..
Marker Readout . . . . . . . . . . «+ + oo.
Sub-markers . . . . 220.20 ae E
‚ AMarker . . . 2 4 4 4 4 44 4 ++ 00 ae aa
4-11
4-12
5-5.
Ripple Parameters Readout . . . . . . . . . . ..
Peak Definition . . . . 2.221444 44 4144 20
. Bandwidth Measurement Using Width Function .
. Spectrum Monitoring in the Network Measurement . |
. Adding Electrical Length . . . . 12444 4440
Deviation from the Linear Phase
Setting Group Delay Aperture . . . . . . . . ..
. Port Extension With the T/R Test Set . . . . . . . .
. Cable Measurement Configuration . . . . . . . . .
-8. Cable Measurement Configuration . . . . . . . . .
. Limit Line Image . . . . . . aa aaa
. Frequency, Upper and Lower Limit . . . . . . . .
. Limit Line Editor . . . . . . . . . ., aa
. Limit Line Test . . . 2 224 221 11 41 4 220
. Offsetting Limit Lines . . . . . . . . . .. . . ..
. List Sweep (Upper) Reduces Sweep Time . . . . .
. List Sweep Editor . . .. 4 44144 420
. Offsetting the Trace . . . . 11444444 240
. Reading Saved Data from Spreadsheet Software Co.
. Serial Number Plate . . . . . . . . . . . . ...
Contents-7
3-1. Minimum Gate Length setting with RBW setting . . . 3-10
4-1, Calibration Method Selection Table . . . . . . . . 4-17
4-2. Example of the Standard Definitions (HP 850328 500
Type-N Calibration Kit) . . . . . . . . . . . .. 4-27
4-3. Standard Class Assignment of the HP 85032B . . . . 4-29
A-1. Manual Changes by Serial Number . . . . . . . . . . A-1
A-2. Manual Changes by Firmware Version . . . . . . . . A-1
Contents-8
<<
<
< |
in
=
Overview
This chapter contains the following information:
a Key Operation Overview
uw Numerical Entries
m Character Entries
After chapter 2, the procedural steps do not contain as much detailed
information. Therefore, you should read this chapter to understand
the basic rules of analyzer’s operation.
Key Operation Overview
Hardkeys and Softkeys
There are two types of front-panel keys; hardkeys and softkeys. Most
hardkeys that have a label display function menus on the right side of
the display. These function menus are also called softkey menus,
Softkey menus list functions other than those accessed directly by the
hardkeys. To activate a function that is on a softkey menu, press the
key located to the right of the displayed function label.
This manual uses the following conventions:
Indicates a hardkey
Softkey Indicates a softkey
Toggle Keys Some softkeys toggle menu settings. On a softkey label, the currently
active setting is displayed in high intensity and upper case characters.
The inactive setting is displayed in low intensity and lower case
characters.
This manual shows a toggled setting as follows:
m Toggle DUAL CHAN on OFF to ON off.
This line means that the dual channel function is currently OFF. You
turn it ON by pressing the corresponding softkey. The resulting upper
case expression, ON, shows that the function is now active (ON).
For more information about each hardkey and softkey, see the
Function Reference manual.
Overview 1-1
Character Entries
Numerical Entries
Notes
A numerical data entry is preceded by some function settings. For
example, before entering a center frequency you must specify the
center frequency value. The analyzer provides the following three
ways to enter numerical data:
Using Description
Numerical keys (0) .. (9) Enters numerical data directiy and
terminates the entry using the units
terminator keys. This capability is useful
when you know the value you must enter.
For example, to enter ! MHz, press (1) (M/u).
(1) and (7) key Increments or decrements the settings. This
is useful for changing settings broadly.
Rotary knob 6 Changes settings continuously. This is useful
if you want to change the setting while
verifying changes on the display.
You can use following techniques when entering numerical data:
mw If you enter a wrong character, press to erase the last
character entered.
mw If you want to clear the current entry, press (Entry Off).
Character Entries
To Enter Characters
1-2 Overview
Save, recall, and display title functions require character entries.
When a function that requires character entry is activated, a
character entry menu is displayed (see Figure 1-1).
You can enter the characters by using following procedure:
1. Move the cursor (“7”) under the character you want to enter.
2. Press SELECT LETTER or (XI).
3. Repeat step 1 and 2 until all characters are entered.
4. Press DONE.
Character Entries
15 oB/ REF 2 38m
CHI в
WITHEKNOE ST KEY] THEN
' mA
START Go HZ STOP 1.8 GHz
Figure 1-1. Character Entry Menu
You can use the following techniques when entering characters:
= If you want to use different case characters, press (7) and (I) to
toggle the upper and lower case of an alphabet list:
ABCDEFGHIJKLMNOPORSTUVWXYZ_0123456789
abcdefghijklmnopgrstuvwxyz, 0123456789
® If you enter a wrong character, press BACK | SPACE or to
erase the last entered character.
w If you want to clear the current entry, press ERASE TITLE.
If the keyboard is connected, you can use it for the character entry,
(Option 1C2 only)
Overview 1.3
«<
a
<
aT
2
2
Recommended Spectrum Measurement Task Sequence
This chapter describes a typical task sequence commonly used for any
measurement using the spectrum analyzer mode.
If you are using the analyzer for the first time, see the User's Cuide
first. The User's Guide provides the information needed to install and
set up the analyzer, and a quick start guide to introduce you to the
analyzer.
Lo
a
e
с
3
The measurement tasks described in this chapter are as follows:
m Step 1: Preparing for a measurement
=
®
5}
7
=
=
v
3
НИ
=
эй.
md
e
wn
x
m Step 2: Setting the trigger
m Step 3: Selecting the measurement format
w Step 4: Setting the frequency range
a Step 5: Setting the vertical settings
m Step 6: Tuning the settings
m Step 7: Performing calibration
m Step 8: Reading the measured result
Generally, you can make a measurement by performing these steps. If
you want to perform a more complex spectrum measurement, chapter
3 provides additional measurement techniques.
Recommended Spectrum Measurement Task Sequence 2-1
Preparing for a Measurement
Step 1: Preparing for a Measurement
This step prepares the analyzer for a spectrum measurement. You
must perform the following procedures before you enter measurement
parameters (such as frequency range).
# To connect an unknown signal
® To preset the analyzer
a To select the active channel
sm To select the spectrum analyzer mode
To Connect an Unknown Signal
m Connect the unknown signal to the $ input on the front panel.
The $ input is a standard N 50 Q female connector. If you want to
connect the BNC cable, use the N-BNC adapter (furnished).
CH202001
Figure 2-1. Location of the S Input
To Preset the Analyzer
® In the INSTRUMENT STATE block, press the green key to set
the analyzer to the preset state.
For additional information about the preset state, see appendix D of
the Function Reference.
2-2 Recommended Spectrum Measurement Task Sequence
Preparing for a Measurement
To Select the Active Channel
uw In the ACTIVE CHANNEL block, press (channel 1) or
(channel 2) to toggie the active channel.
The analyzer has two independent channels. Each channel can have
different settings that include whether the mode of operation is
network analyzer or spectrum analyzer. Select the active channel
before you select any other settings.
You can display two channeis simultaneously,
To Display Dual Channels
1. Press (Display).
я
Re)
D:
e
ba
уе
3
4. Select the following display modes:
=
qu
2
A
=
{I
3
D
=.
Wu
2
on
Display Mode Toggle
Split channel SPLIT CHAN on OFF to ON off
Overlap channel SPLIT CHAN ON off to on OFF
Сна об. Spectrum 10 u/s REF e com CHi 5 Spectrum 10 da, HEF J Sm
Cee 3 Spec Ertim 10 dB, BEF o dam
+
CH1 CENTER 300 MHz SPAN 1.8 GHz
CHZ 5 Spectrum 10 @В/ REF © oBm
t+ ВВМ 3 MHZ VEN 3 MHZ АТМ 10 0B SW# 20705 maes
. CH1 CENTER S00 MHz SPAN 1.8 GHZ
CHZ CENTER 500 MMHx SPAM 1.8 GHz CHZ CENTER 900 MHr SPAN 4.8 GHz
Toggle to SPLIT DISP ON off Toggle to SPLIT DISP on OFF.
Figure 2-2, Dual Channel Display
Recommended Spectrum Measurement Task Sequence 2.3
Preparing for a Measurement
To Select the Spectrum Analyzer Mode
1. Press (Meas).
When you change the analyzer type (mode), the analyzer is reset to a
known state. So, you must select the analyzer type before you select
any additional settings.
2-4 Recommended Spectrum Measurement Task Sequence
Setting the Trigger
Step 2: Setting the Trigger
This step selects the trigger source and the sweep condition using the
following procedures:
u To select the trigger mode
D To use the external trigger
a To select the sweep condition
To Select the Trigger Mode
1. Press (Trigger).
2. Press TRIGGER: [FREE RUN] .
wy
Le
D
HER
La ol
x
og
7
3. Select the trigger mode:
=
CD
a
7
ue
“т
qu
3
и |
ран
=
a
on
Ш ч
To Select a Trigger to Press
Internal trigger source FREE RUN.
External trigger source EXTERNAL !
Video trigger VIDEO?
Time gated trigger GATES
1 See the “Ib Use the External Trigger” procedure.
2 The “To Stabilize the Trace Using the Video Trigger” in Chapter 3, describes how to
use this trigger mode.
3 The “To Perform the Time Gated Spectrum Analysis” in Chapter 3, describes how to
use this trigger mode. This function is option 1D6 only.
Recommended Spectrum Measurement Task Sequence 2-5
Setting the Trigger
To Use the External Trigger
1. Connect the trigger source to the EXT TRIGGER connector on the
rear panel of the analyzer.
2. Press (Trigger).
3. Press TRIGGER: [FREE RUN]
5. Input a trigger signal to the analyzer.
The external trigger signal must be TTL level compatible,
Г
/
OriOr©1 ¡O
И
№7
f 3
Ta
ci
CS2020H
Figure 2-3. Location of EXT TRIGGER Connector
To Set the Trigger Signal Polarity.
1. Press (Trigger).
2. Press TRIGGER: [FREE RUN] .
3. Toggle TRIG PLRTY POS neg to pos NEG to set the trigger signal
polarity to negative.
To Select the Sweep Condition
1. Press (Trigger).
2. Choose one of the following.
To Sweep Do
Continuously Press CONTINUOUS.
Single Time Press SINGLE. |
Specified Times Press NUMBER of GROUPS . Then enter number
of times to sweep.
26 Recommended Spectrum Measurement Task Sequence
Selecting the Measurement Format
Step 3: Selecting the Measurement Format
This step provides the following procedure:
mi To select the display unit
To Select the Display Unit
1. Press (Format).
2. Select unit:
To Display Unit Press = o
Power dBm dBm : 8
W WATT UE
Voltage dBV dBY 2
ABuV aBuY A
у voLT i
You can change the displayed unit anytime you want, The analyzer
calculates the unit conversion using the internal stored data. The
sweep is not required (it can even be in the hold state).
Notes For more information about each unit, see chapter 5 of the Function
Reference.
If you want to make a noise measurement instead of a spectrum
measurement, see “To Measure the Noise Level” in Chapter 3.
Recommended Spectrum Measurement Task Sequence 2.7
Setting the Frequency Range
Step 4: Setting the Frequency Range
The analyzer has some useful commands for setting the frequency
range. This step provides the following procedures that are related to
setting the frequency range.
a To set the center frequency
cl To set the marker position to center
OD To set the maximum peak to center
Oo To change the center with the specified step size
xk To set the frequency span
m To set the frequency range to full span
S To narrow the span setting
a 10 zoom to a part of the trace
co To change the zooming magnification
0 To display a zoomed trace on the other channel
m To zoom between the marker and the Amarker
To Set the Center Frequency
1. Press to activate the center frequency function.
2. Change the center frequency to place the target signal in the
center of the grid by using the following keys:
To Use
Set directly (0)... (3) and units terminator keys
+ FEA
Change continuously ©)
Change with 1-2-5 step" MO
1 You can change the step size of (1) (1). See “To Change the Center with the
Specified Step Size” in this step.
2-8 Recommended Spectrum Measurement Task Sequence
Setting the Frequency Range
To Set the Marker Position to Center
1. Press to display the reverse-triangle shaped marker.
2. Place the marker on the position you want to set to the center by
using the rotary knob.
4. Press (Entry Off).
The center frequency setting immediately changes to the marker
position. 1f you are measuring an unknown signal, display the signal
in fuli span first. Then move the signal to the center using this
function. ==,
OER
a @D
TEES
CHA 5 Spectrum 10 8 REF © ем -64, 3% dam Сна 5 Spectrum 19 8, HEF € den -584.524 cam a
> её ‚о ©
40 MHz 40 MHZ {D 3
Les
E]
+
a
A
+ +
Tr Ti
y 7
\ :
kl EAL x e Hi N Ei
[| E [a F 3 Vu + L | a E + tn
1 ] a
|
GREW 30 kHz TEN 56 «Hz АТМ 16 UB INP 185 пяес SEW 36 (Hz VBW 30 «Hz АТН “180 dB SWE 180 твес
CENTER 30 MHz SPAN AG MHz CENTER 40 MHz SEAN 40 MHz
Move the marker Press MKR— CENTER
Figure 2-4. Marker to Center
Recommendad Spectrum Measurement Task Sequence 2.9
Setting the Frequency Range
To Set the Maximum Peak to Center
1. Press (Marker—).
3. Press (Entry Off).
This function changes the center frequency to display the maximum
peak in the center of the grid.
Note CE When the frequency span setting is too wide, the peak cannot be
center of the grid, press PEAK—CENTER again.
Chi 5 Spectrum 10 QBs REF © ам CH: 5 Spectrum 10 dB, REF © dBm 47,759 dim
19%, 12 MHZ
MARKER
19.125 MZ
+ +
i
i
5
iq .
i 4
Ы hr
wut TET ES AEE | Ни Tu ab К к Me: ml
Ta LT TA DDEC NL id LIE
| |
ABW 3 MHz VEN = MEZ ATN 410 de SWF 40 maec Вам 30 kHZ VER o KHZ АТН 10 ЭВ EWP TRAD mmec
START a на STOP 1.7 Gx START © Hz STOR 38.25 MHz
Figure 2-5. Peak to Center
To Change the Center with the Specified Step Size
1. Press (Center).
2. Do one of the following:
# Press CENTER STEP SIZE. Then set a step size directly by using
©... 6) and the units terminator keys.
E Press (Marker) (Marko). Move the marker to the point you want to use : as
the step size frequency. Then press > CD! (Center) MKR—CNTR ‘STEP.
4. Press ==
5, Press ($) to increment (or @ to decrement) the center frequency
setting the specified step size.
2.10 Recommended Spectrum Measurement Task Sequence
Setting the Frequency Range
This function is useful to display peaks that have a constant interval
(such as a harmonics) one after the other. The following example
shows how to display the harmonics using this function.
Example: Displaying Harmonics. When you want to display the
fundamental and the harmonics of 100 MHz signal:
1. Press 100 (M/u). Then set the span to display the
fundamental in the center of the grid.
2. Press 150 (м/н).
3. Toggle SEARCH TRK on OFF. to oN | off. to enable the search gg
track function.
4. Press SEARCH:PEAK to move the marker on the fundamental.
N
т
ke
©
La]
Pa
E
на
3
9. Press MKR-—+CNTR STEP. Enter 100 MHz (so the step size
matches the fundamental frequency).
6. Toggle STEP
step size.
7. Press (Center). Then press (1) to display the second harmonic.
8. To display higher order harmonics, press (1) as required.
<
a
x"
Li
pan
ry
5
3
m
Jo |
ной
—i
a
En
pr
The marker searches for the next harmonic each time you change the
center frequency by using the search track function.
сна = Spectrum 15 de, MEF $ dm —-—1% 141 Em сна в Spectrum 10 BS RÉF 7 dem —_58,547 dm
100 MHZ 200 MH
CENTER CENTER
JO MHZ ООО MHZ
$»
E il H | | ds idk NE fd gd] Mile à 14 1x} |
bus Tun did aul A МА A lS
} E Е
:
E i : E i Ë
Error mm mms Dors mp re rer rd sr
HE 390 kHz VEN 300 æHz ATH to <a Sw ВО mnec ВВМ 300 key YEW A300 kHz ATH 19 o6 SHWE 50 maac
CENTER 100 MHZ SPAN 150 MHZ CENTER 200 MHZ SPAN 180 MHz
Fr ro
Fundamental Second Harmonics
Figure 2-6. Displaying Harmonics
Recommended Spectrum Measurement Task Sequence 2-11
Setting the Frequency Range
To Set the Frequency Span
1. Press (Span).
2. Enter the frequency span to display the target peak in the
optimum grid setting.
To Use
Set directly (0)... (9) and units terminator keys
Change continuously ©
Change with 1-2-5 steps DO
To Set the Frequency Range to Full Span
1. Press (Span).
This function is useful when you want to get a general view of the
spectrum after you have obtained the detailed view of a specific
signal.
Notes You can set the sweep parameter using and instead of
| and (Span). See “To Set the Sweep Parameter Using and
(Stop)” in Chapter 4.
2-12 Recommended Spectrum Measurement Task Sequence
Setting the Frequency Range
To Narrow the Span Setting
1. Press (Search).
2. Press SEARCH:PEAK to place the marker on the carrier.
3. Toggle SIGNAL TRK on OFF to ON off
4. Narrow the span setting. See the “To Set the Frequency Span”
procedure.
When you narrow the span setting substantially, the test signal
can disappear from display. This happens because of the difference
between the displayed and actual frequencies. For example, when the
span setting is set to full span, the displayed test signal frequency
has an error of approximately 2 MHz because of its resolution {1.8
(Hz/800). If you narrow the span setting to less than the error
frequency, the test signal can be lost from the display.
o
К
q
с
я
fog
3
The signal track function allows you to avoid this situation. When
signal track is enabled, the analyzer narrows the span setting while
centering the test signal as you narrow the span setting. Therefore,
the test signal is placed in the center of the grid.
=
Pue
a
A
wey
id
es
3
(D
ps
Fo
в
ab)
LA
pe
The following figures show an example of narrowing the span with
the signal track function. The actual signal frequency is 1.00001 GHz.
When the center is fixed and the span is 10 kHz, the signal is out of
display. The signal track function tracks the signal by changing the
center frequency, and keeps displaying the signal in the center of the
display.
o o
CH 8 паст 10 dar REF 514.53 сл “15.257 dam Chi В Spectrum 10 586,7 REF «18% 6 cam 15 5259 CE
1 GH 1.0000 100081 GHz
Sgr l sgn]
+ +
E
ss lana o : |
ERA SZ MHz у Вы 3 MHZ ATH 190 de Sis AO mae вам 30 Hz WHEW чб вх AT 10 ев SWR 357 2 masc
CENTER 1 GHz SPAN 1.8 GHz CENTER 1.000. I1Q0064 GHZ SPAN 10 «Hz
Span 1.8 GHz Span 10 kHz
Figure 2-7. Narrowing Span with Signal Track
Recommended Spectrum Measurement Task Sequence 2-13
Setting the Frequency Range
To Zoom To a Part of the Trace
1. Move the marker to the point where you want to observe the
signal details,
2. Press (Marker—).
3. Press MKR ZOOM.
4. To zoom more, press MKR ZOOM again.
To Change the Zooming Magnification
2. Enter a zooming aperture value as a percentage of the span.
If you want to magnify the display 20 times;, enter 5% for the
zooming magnification,
To Display a Zoomed Trace on the Other Channel
1. Display two channels on the CRT. See the “To Display Dual
Channels” procedure.
CH1 BS ES LM 10 da, SEF Q dBm - «a 751 dem
de
Fe EC
. TEL
CH: CENTER 1 MHZ SPAN 1 Mr
сна 8 Жаре со 10 аВ/ REF 9 aBm
+
СНЕ CENTER 860 кн: ТИР АН LOU конный
Figure 2-8. Marker Zoom
2-14 Recommended Spectrum Measurement Task Seguanca
Setting the Frequency Range
To Zoom Between the Marker and the AMarker
1. Press (Marker).
2. Move the marker to the start point you want to zoom to by using
the 6.
3. Press AMODE MENU AMKR.
4. Move the marker to the end point you want to zoom to by using
VA
the
=)
e
Le
a
=
3
The center frequency and span setting are changed automatically to
display the specified area. You can display the zooming result on the
other channel by toggling CROSS: CHAN on OFF to ON off.
=
НЫ
ça)
y
=
re 3
O
3
€
ыы
=
wei
on
7
x
сена = Spectrum 10 sas RÉF O dm 1.2558 св
r "I T
75 MHZ
A Mkr
paid
вне 10 кн «42 ATM 10 de SWP 7.96 sec
CH NMTER 40 MHZ SPAN 50 MHZ
CHE Spectrum 10 dea, REF O dam Am
4
22,5 MHZ
RAW 10 kz VEW 40 ЕН ATM 10 de Sw BOD meee
CHE CENTER 20.4379 MHz SPAN 7. 5 Mhz
Figure 2-9. MKRA—SPAN
Recommended Spectrum Measurement Task Sequence 2-15
Setting the Vertical Settings
Step 5: Setting the Vertical Settings
You need to change the vertical settings if the top of peak is out of
the grid or a signal level is too small relative to a reference setting. To
change the vertical settings, change the reference value or spread the
display area by changing the scale per division setting by doing one of
the following procedures:
# To set the reference level
m To change the scale per division
2-16 Recommended Spectrum Measurement Task Sequence
Setting the Vertical Settings
To Set the Reference Level
Using the Entry Keys
1. Press (Scale Ref).
2. Press REFERENCE VALUE.
To Use
Move trace toward top yor (3)
Move trace toward bottom ©) or (1)
Set reference value directly (0)... (9) and unit keys
ied
1%
Le
O
eo
=
o
3
Using the Marker
1. Press SEARCH: PEAK to move the marker to the peak.
2. Press (Scale Ref).
=
®
hd
7
=
an}
a
3
BD
Ш
gage
peu
®
n
ж
H1 5 Spectra 10 dé, MEF Dd dim нее, ЛЕО dam ©
€ La г. x 2 CHI SS Soectrum 10 dB, REF -20 5 dem 7-20 794 dem
an MHz -
ао MHZ
! on Di: La NE wr Я à В Рай Даа:
Г) A мая "| Ur у A JAR AF a fi 1 Y das 1 Mi 1] “e ¿E LH |] ы ТО de] [Zell iy | [At] YD y
: 19° ! Y a ES +" NAS
; :
BRW 30 kHz vaw 30 kHz ATN 10 de "aw 145 тес) en : od
CENTER 20 Mez SPAM 90 MH? RBA 30 «HZ Y Bl 30 kHz ATH 10 ав Su £40 maar
CENTER 20 MHz SPAN BO MMT
Move the marker to the top of the peak Press MKR—REFERENCE
Figure 2-10. Marker to Reference
- Recommended Spectrum Measurement Task Sequence 2-17
Setting the Vertical Settings
To Change the Scale per Division
1. Set the reference level to the peak level of the target signal. See
the “To Set the Reference Level” procedure.
2. Press (Scale Ref).
3. Press SCALE/DIV.
4. Change the scale/division setting to display additional details by
using following keys:
To Use
Change continuously ©
Change 1-2-5 steps 01)
Set Scale/Div directly (0)... (9) and unit keys
This function can be used to display a small peak on a full grid.
CHI: 5 Specierum 10 dea, REF 23.8 cam +72. 805 dam сна в Spectrum 3 der REF О зов cam FT. 415 Em
go MHz
i
| ; He pod
E ; Е ‚if: à
; ¢ À НЕЕ 18 JF idl] 5
3 i La i A [НР LE EEA НИЧЕ Е % Kal: a
EE TEA] EE AL ELO ESA AL M FE fi ИУ МИ A in
[TTY REET YR FETO TEE y Fo TTT
i]! | Ч | |
1 1
Наиля 16 kHz VBW 10 kHz АТМ 10 de SWB 1 2 Bed
CENTER БО MHZ SPAM зо мнт CENTER БО MHZ SPAN 30 MZ
Scale 10 dB/Div Scale 3 dB/Div
Figure 2-11. Changing Scale/Div,
2-18 Recommended Spectrum Measurement Task Sequence
Tuning the Settings
Step 6: Tuning the Settings
This step provides the bandwidth settings. The RBW setting affects
the resolution of the frequency and lowers the displayed noise floor.
The video bandwidth setting reduces noise variation.
m To set the resolution bandwidth (RBW)
m To set the video bandwidth
в То minimize the sweep time
To Set the Resolution Bandwidth (RBW)
1. Press (Bw/Avg).
2. Change the RBW setting by using (1), (I), or the ©).
If the internal IF filter is wider than the difference of the adjacent
signals, the analyzer cannot separate them. You must set the
Resolution Bandwidth (RBW) narrower to make sure the analyzer
can recognize each signal. For more information about RBW, see the
Function Reference.
Le)
M
A
mo
al
=
CD.
a
Xu
en
мл
D
3
ai
=
pri
ие
jue]
Un
=~
Narrowing the RBW reduces the noise power per display point. As a
result, the displayed noise floor is down and the lower level signal is
displayed.
For example, the trace of a 20 kHz amplitude modulated signal
conceals sidebands in the skirt of the carrier trace when the RBW is
10 kHz. If you set the RBW to 1 kHz, the carrier and sidebands are
split completely and the displayed noise floor is down.
Сену в Trim 10 на, HEF o adm HA = trot 10 der REF co dam
masc
CENTER 1 GHZ SEAN BOD kHz CENTER 1 GHz SPAN 500 kHz
mag
RBW 30 kHz RBW 1 kHz
Figure 2-12, Setting Resolution Bandwidth (RBW)
Recommended Spectrum Measurement Task Sequence 2.19
Tuning the Settings
To Set the Video Bandwidth
Сна 5 Spectrum
1. Press (Bw/Avg).
2. Press VIDEO BV.
3. Set video bandwidth by using the following keys:
To Use
Lower noise level (1), or ©
Faster sweep time (11), or 6
Set bandwidth directly (0)... (9) and unit keys
When the target signal and the noise are hard to distinguish because
of noise variation, narrow the video bandwidth. This reduces the
noise variations and makes the signal clearly visible. However, if the
video bandwidth is narrowed, the sweep takes more time.
The allowable VBW setting is 1/1, 1/3, 1/10, 1/30, 1/100, and 1/300 of
the current RBW setting.
To Turn Off the Video Bandwidth
1, Press (Bw/Avg) VIDEO BW.
à. Enter the same value as the RBW setting.
For more information about the VBW, see chapter 12 of the Punction
Reference manual.
РО а; HEF -50 cm Hi 6 Spectrum 10 НВ, REF -56 dim
}
1. у НН A |
ОМ | | ||
REW#
230 kHz УВЫ ЗО вн:
CENTER 1 GHz
Video BW 10 kHz
ATM 10 va EF 20.02 masse
. тва с
SPAN 2 MHZ CENTER {1 GHz SPAN = MHZ
Video BW 300 Hz
Figure 2-13. Setting Video Bandwidth (VBW)
2-20 Recommended Spectrum Measurement Task Sequence
Tuning the Settings
To Minimize the Sweep Time
1. Press (Sweep).
3. Press (0) (x1).
The analyzer reduces the NOP (number of points) to equalize the
display resolution and the RBW. As a result, the displayed trace
becomes rough. However, the frequency readout resolution does not
change.
This feature is effective when the RBW is greater than Span/(NOP—1).
For more information about this feature, see chapter 6 of the
Function Reference manual.
No.
2
ке.
®
©
=
с
3
Figure 2-14 shows an example of minimizing the sweep time. Center,
span, VBW, and RBW settings are the same, but the sweep time that is
shown on the right bottom of each trace is different. The sweep time
of channel 2 is approximately 25% of channel 1.
a
©
a
Nu
=
Tor
e
>
A
=
Le
À
+)
о
un
CHI = trum 10 ma, REF © o8m =15 174 dgm
+
Hit CENTER 200 MHZ SPA 1 MHZ
сна 3 Ба 10 dB, REF J JBM 15.185 cam
=
ï .
CHE CENTER WIC pA SPAM 1 MIRE
Figure 2-14, Minimized Sweep Time
Recommended Spectrum Measurement Task Sequence 2-21
Performing Calibration
Step 7: Performing Calibration
This step provides procedures for the reference level calibration.
Performing the reference level calibration improves the level
accuracy.
E To perform the reference level calibration
m To use the external reference
# To turn off the calibration
To Perform the Reference Level Calibration
1. Wait at least 30 minutes after the analyzer is turned on. This
warming up period is required to meet the analyzer's specifications.
2. Attach the N(m)-BNC(f) adapter (furnished) to an input (S, R, A, or
B). (See Figure 2-15.)
3. Connect the CAL OUT output and the selected input using the BNC
cable (furnished).
4. Press (Meas). Then select the input (that the cable is connected to)
by pressing 8, К, А ог В.
5. Press (Cal).
6. Press EXECUTE LVL CAL.
The analyzer automatically changes the frequency setting to measure
the CAL OUT signal. When the reference level calibration is
completed, all measurement settings are restored.
After the calibration is completed, “Cor” appears on the left side of
the grid.
To obtain a higher level measurement accuracy, perform the reference
level calibration just before reading the measured value. If you
change the setting of the RBW or the attenuator, you must perform
the reference level calibration again. The analyzer stores the
calibration data individually for each of the inputs,
The error terms that are canceled by the reference level calibration
are described in chapter 12 of the Function Reference manual.
— 2-22 Recommended Spectrum Measurement Task Sequence
Performing Calibration
winijoadg:g
NC RUE ESC
ESPERA
Figure 2-15. Reference Level Calibration Connection
To Use the External Reference
You can use an external reference signal instead of the internal
reference.
1. Wait at least 30 minutes after the analyzer is turned on. This
warming up period is required to meet the analyzer’s specifications.
2. Connect the external reference to the selected front-panel
spectrum input.
3. Set up the frequency range to measure the external reference
signal.
4. If a unit other than dBm is selected, press dBm
9. Press SEARCH PEAK. Then move the marker to the peak of
the external reference signal,
6. Read the external reference signal level.
7. Calculate the expected level — readout level of the reference signal.
8. Press LVL CAL DATA . Then enter the calculated value.
Recommended Spectrum Measurement Task Sequence 2.23
Performing Calibration
To Turn Off Calibration
LVL CAL DATA. Then press (©)
The “Cor” notation disappears from the dispiay.
To Perform the Calibration for the 75 Q Configuration
If you want to perform a reference level calibration in the 75 1
configuration:
1. If the analyzer is not set up for a 75 Q configuration, see appendix
A of the User's Guide.
2. Confirm that the analyzer is configured to measure the 75 Q
configuration by pressing INPUT Z.
3. Wait at least 30 minutes after the analyzer is turned on. This
warming up period is required to meet the analyzer’s specifications.
4. Attach the 75 0 N(m) to 50 @ BNC(f) adapter to the HP 118528
option C04 50 Umy75 Af) minimum loss pad that is connected to
the S input. (See Figure 2-16.)
Connect the CAL OUT and the S input with the 50 Q BNC cable.
After the completion of calibration, disconnect the BNC cable.
Detach the 75 Q N(m) to 50 2 BNC(f) adapter.
о ное ©
PROBE
POWER
a
a
N
118528 option C04
500/750 Minimum Loss Pad
—
SONBNC to 75 AN adapter
BNC cable (500)
rio
Reference Level Calibration Connection for the 75 2 Configuration
2-24 Recommended Spectrum Measurement Task Sequence
Reading the Measured Result
Step 8: Reading the Measured Result
If you can display the correct trace on the display, you can read the
measured signal level using the marker. The analyzer has several
useful search functions. This step provides the procedures for reading
the measured results using the marker.
® To read a value using the marker
m To stabilize the trace
# To use the sub-markers
m To use the Amarker
m To search for a single peak on the trace
у
5
К
Is
=
3
am To search for multiple peaks
u To ignore small peaks
<
O
Ly)
un
ны
—
o
=
a,
ed
ноя
<
a
Un
pr ЧЕ
Recommended Spectrum Measurement Task Sequence 2-25
Reading the Measured Result
To Read a Value Using the Marker
Note
THY 95 Spectrum 10 484,7 REF © dem
+
1. Press (Marker).
2. Move the marker by performing the following steps:
m Turn the rotary knob until the marker moves to the point where
you want to read the measured value.
w Enter the target frequency by using numerical keys,
3. Read the marker value displayed on the upper right of the display.
If you want a more accurate frequency reading of the target signal,
set the span and the RBW as narrow as possible.
The readout resolution of the frequency is determined by the setting
of the frequency span, the number of points (NOP), and the resolution
bandwidth (RBW). The resolution is the larger value between
SPAN/(NOP—1) and RBW. For example, when the frequency span is 10
MHz, the NOP is 801, and the RBW is 10 kHz, the readout resolution
is approximately 12.5 kHz.
V
Level
Frequency
omit) or
RBW# 30 KHz YEW 50 kz ATH 10 98 SWR a4) msec
CENTER 100 MHz SPAN mo Me
Figure 2-17, Marker Readout
2.26 Recommended Spectrum Measurement Task Sequence
Reading the Measured Result
To Stabilize the Trace When the trace is not stable and the marker value changes frequently,
it is difficult to read the measured value. You can use the following
techniques to stabilize the trace:
m Stop the sweep.
a Use the averaging function.
a Use the maximum or minimum hold function.
a Capture the unstable signal using signal track.
To Stop the Sweep
1. Press (Trigger).
?. Press SHEEP: HOLD.
The sweep is stopped immediately (even if the sweep is in progress).
If you want to restart the sweep, press CONTINUOUS to start a
x
у
Le)
a
uv
=
=
3
free-run sweep or press SINGLE to make a single sweep.
=
x
Ln
e
Lu
om, |
‘р
3,
D
=
ar
si
jay
Nn
X
To Use the Averaging Function
1. Press (Bw/Avg).
3. If needed, enter the averaging factor (number of times). Then
press the (x1). Default averaging factor is 16.
+ Toggle AVERAGING on OFF to ON off.
The averaging notation (Avg) appears on left side of the grid when
averaging is turned on. The averaging notation indicates the number
of times averaging has been performed. When averaging is completed,
the counter stops incrementing. However, the trace continues
updating with each sweep.
Averaging requires a sweep with a specified number of times that is
enough for an averaging factor to complete the averaging. You can set
the number of sweeps by using the number of groups function.
If you want to change the setting of any parameter when averaging,
you can restart averaging from the 0 count.
resets averaging counter to 0.
Recommended Spectrum Measurement Task Sequence 2-27
Reading the Measured Result
To Use Maximum or Minimum Hold Function
1. Press (Display).
To Hold Press
Maximum Level MAX
Minimum Level MIN
“Max” (or “Min”) appears on the right of the grid when the maximum
(minimum) hold function is activated.
To turn off the maximum or minimum hold, press
CH1 8 trim 10 da, REF О dem
. тес
STAMMT “O MHZ ho Ссне Zoo MAZ
Figure 2-18. Maximum Holding the Drifting Signal
To Capture an Unstable Signal Using Signal Track
1. Press (Search).
2. Press S
CH:PEAK to move the marker to the peak of the drifting
test signal.
3. Toggle SIGNAL TRK on OFF to ON off.
The signal track function captures the peak that is indicated by the
marker and places it in the center of the grid for each sweep. If
the peak is unstable horizontally, use this function. The analyzer
automatically changes the center frequency to keep the peak in the
center of the grid.
2-28 Recommended Spectrum Measurement Task Sequenca
Reading the Measured Result
To Use the Sub-markers
1. Press (Marker).
2. Move the marker to the point where you want to set the
sub-marker.
3. Press SUB MKR.
4. Select the sub-marker from SUB MKR 1 to 7.
5. Press
6. Toggle MER: LIST « on OFF to oN off to display the marker list on
the bottom of the display.
The sub-marker appears at the point of that the marker is displayed.
Sub-markers are fixed horizontally and you cannot move them.
N
м
ke
{D
©
per
rn]
=
3
The sub-marker value can only be displayed by using the marker list.
To clear a sub-marker, press (Marker) (Marker) CLEAR SUB MER. Then press the
sub-marker number that you want to erase from the display.
To clear all of the markers, press PRESET MKRS -
=
и
ая
un
и
=
a
3
e
=
ине.
=
a
ZA
eo
сы: = Spectrum 150 day REF О ст -29 7323 dem
3
100 MBE MZ
Sub Marker
TT
és EEN oe Na
ABWR 30 cl MILI 5 515 SEC
CENTER 4100 MHZ SPAN 200 KHZ
N SWR PARAM VAL
9 100.04575 MHz ~29 723 dBm
1 59.955 MHZ 20,046 dBm
= 100 001 MHz -34.114 dSm
Figure 2-19. Sub-marker and Maker List
Recommended Spectrum Measurement Task Sequence 2-29
Reading the Measured Result
To Use the AMarker
panal
. Press (Marker).
Place the marker at the point you want use as the reference point
. Fea
by using the ©).
Press AMKR.
5. The reference marker appears at the marker point.
0. To move the marker:
w Enter an offset frequency by using the numerical keys,
a Turn the rotary knob until the marker moves to the point you
want to read the value.
. Read the level and the frequency differences from the reference
marker that are dispiayed on the upper right of the grid.
The marker value on the upper right of the grid shows the frequency
and the level differences between the reference marker and the
marker.
When you use the sub-markers, use the marker list to display the
difference between reference the marker and the sub-markers.
CH1 5 Spectrum 10 dB, REF OO am 743.316 da
+
100 мно}
АМК:
A cs À
Le
ta iaa rapatriement art
вау 10 kHz YE 10 kHz A TN 15 ав = a 98 sec
START 50 MHZ STOP ео мых
Figure 2-20, AMarker
2:30 Recommended Spectrum Measurement Task Sequence
Reading the Measured Result
To Search For a Single Peak on the Trace
1. Press (Search).
2. Press SEARCH: PEAK
: to search a maximum peak.
3. If you want to search for another peak:
To search next peak for Press
2nd highest peak NEXT PEAK
Peak just to the left NEXT PEAK LEFT
Peak just to the right NEXT PEAK RIGHT
LN
ci
=
=
=
CHI OS была = ССБ г 10 аВ/ REF D «48m "20 8654 dem
19.977 MHz
=
e
|
4
=
ja;
:
=
a.
À.
pr
at
ut
A
NS
NEXT PEAK
PEAK
or ^^
NEXT PEAK NEXT PEAK >
sisi LEFT: LEFT À
V NEXT PEAK
oo RIGHT:
are
REA 30 kHz мам 3 KHZ ATH 10 dB Sh 3.2 вес
START 10 MHZ STOR FO MHz
Figure 2-21, Peak Search
Recommended Spectrum Measurement Task Sequence 2-31
Reading the Measured Result
To Search For Multiple Peaks
CHI 5 Spectrum
I
2. Do any of following:
To search for peaks Press
For the all peaks SEARCH: PEAKS ALL.
For peaks on the right PEAKS RIGHT
For peaks on the left PEAKS LEFT
3. Press (Uti). Toggle MKR LIST on OFF to ON off to list all
marker values.
When this function is enabled, the marker is placed on the maximum
peak and the sub-markers are placed on up to seven other peaks.
PEAKS ALL searches for all the peaks and places the sub-markers in
the order of "реак level.
the peak and place the sub- markers on peaks in the order found.
If the frequency of the carrier is unstable, use the search track
function by toggling (Search) Search) SEARCH ТВК on OFF to ON off. The
analyzer searches for the peaks each sweep to capture the shifted
carrier and any harmonics or sidebands.
If the marker is to search for peaks other than harmonics, specify
the peak threshold for the search function. This makes the search
function ignore the peaks that have a lower level than the threshold
level. See the “To Ignore Small Peaks” procedure.
10 day REF O0 cfm “14.559 dam cil 5 Зрес тым 10 de REF O dem о св
E
U HZ
8 зе 5990755649 MHZ
АМК
!
| JL
EE Ww 3 =Hz
VBW 300 HE 16 ва cap 1.915 sec a 100 KE WHEW 100 KZ ATH 10 of SWE “EO maac
ENTER вЫ очное АВ мыл БР АМ 1 MX START BO MHZ STOP 250 MHT
SWE PARAM VAL Mi SWE PARAM VAL
о 399 990075548 MET -14.959 сВт о о я; 9 08
1 39 599075648 MHz -26. 508 dëm 4 98.75 MHz “43.599 de
2 190 095075648 MHZ -28,67 dBm 2 199.5 MHZ -51.512 cB
3 100190075648 MHZ -54.55 d8m 3 299.9625 MHz -53.798 dB
A 99 300325649 MHz „89.704 Bm 4 389.7125 MHz -51.908 dB
5 100.297825649 MHZ -65. 179 dem 5 A499. 4625 MHz -57 11 ds
5 39 7002325648 MHz -58.484 dem
7 {00.3978256408 MHz «78.953 g&m a 93.95 MHz -15.104 dem
PEAKS : ALL PEAKS RIGHT with Amarker
Figure 2-22. Searching for Muitiple Peaks
2-32 Recommended Spectrum Measurement Task Sequence
Reading the Measured Result
To Specify the Search Range
You can set the search function to search within a specified range. To
specify the search range, use one of the following two procedures:
= Using the marker
E Using the Amarker
Using the Marker
1. Press (Search).
3. Toggle PART SRCH on OFF to ON off .
Le]
e)
en
с
3
4. Move the marker to the start point of the search range.
on
- Press MKR—LEFT RNG to set the marker position as the left edge of |
the range.
=
D
ue)
9
au
TE
La»)
3
ar
=
Le
as)
Un
ir
6. Move the marker to the end point of the search range.
7. Press MER RIGHT RANG: to set the marker position to the right edge
of the range.
8. Press RETURN
Using the AMarker
1. Press (Marker).
Move the marker to the start point of the search range,
Press AMODE MENU.
о © DD
Press AMKR
Move the marker to the end point of the search range.
Press (Search).
o NA SS =
Toggle PART SRCH on OFF to ON off to enable the search range.
All the search functions search within a specified search range. You
can specify the search range for each channel individually, The
triangle-shaped indicator at the bottom of the grid shows the current
search range (see Figure 2-23). In this figure, PEAK searches for the
highest peak within the specified range. It does not search all of the
grid.
Recommended Spectrum Measurement Task Sequence 2-33
Reading the Measured Result
сна 5 Spectrum 10 AB, REF O dam “56,584 dam
299 41% MHZ
PEAK searches
Не.
ar this peak.
REA 100 HZ УВЫ 100 KHZ AT 10 ag => wi 580 msec
START 80 MHZ STOR 550 Mz
pare ora.
E 2
search Range
Figure 2-23. Search Range
To turn off the part search, toggle PART SRCH ON off to on OFF.
2-34 Recommended Spectrum Measurement Task Sequence
Reading the Measured Result
To Ignore Small Peaks You can set the search function to ignore small peaks (such as noise)
by defining the peak. The analyzer accept the following two types of
peak definition.
m Peak threshold
a Peak height
Defining the Peak Threshold
Using Rotary Knob.
1. Press (Search).
line,
4. Press THRESHOLD VALUE. Then set the threshold value using the
following:
w
za
{D
E
Fie
==
«=
=
=
les)
[a+]
I
=
ol
3
D
=
|
pes)
He A
o
wm Enter the threshold value using numerical keys.
m Turn the rotary knob to move the threshold line to the
appropriate position.
5. Press RETURN
Using the Marker.
I. Press SEARCH: PEAK.
2. Move the marker to the point you want to set as a threshoid value,
When the peak threshold is activated, the red threshoid line is
displayed. The marker search function searches only for peaks above
the threshold line.
Recommended Spectrum Measurement Task Sequence 2.35
Reading the Measured Result
CHT 5 Spectrum 10 dB, REF 3d dem -i4. $27 dam сна 5 trum 19 des AEF 0 dBm — 14.926 car
‚4 отнес : „4
CENTER 100 MHZ SPAN $ MHZ CENTER 100 MHz SPAM 1 MHz
SWE PARAM VAL N SWF PARAM VAL
=z
100 MHZ ~14 927 dBm
100,1 MZ -25, 5532 dem
160. 1128 MHz -88.291 dBm
100.12 MHz 102,53 cam
100. 12828 Miz -91 205 com
100. 13875 MHZ 54.355 dm
ICO, 2525 MHZ -88. 242 dBm
100. 28428 MHz -93.883 dBm
100 MHZ 14.529 dem
100.1 Mhz —-26.559 dim
160 = Mhz -54 3804 dim
100, 208076 MZ -64. 549 dam
100, 39075 MH „77 542 J8m
Bold D = Y
~ Mm {A Во Бр об ня Са
Before Defining the Threshold After Defining the Threshold
Figure 2-24. Threshold Function
Defining Peak Height
1. Press (Search).
2. Press SEARCH:PEAK PEAK DEF MENU.
4. Enter a peak height using the numerical keys and the units
terminator keys.
5. Press RETURN
For more information about peak definition, see chapter 12 of the
Function Reference manual.
2-36 Recommended Spectrum Measurement Task Sequance
Typical Spectrum Measurement Techniques
This chapter describes typical measurement techniques using the
spectrum analyzer mode of operation.
The measurement techniques described in this chapter are as follows:
m To measure the noise level
w To measure the carrier to noise ratio
u To perform the time gated spectrum analvsis
# To measure zero span (time domain measurement)
w To track unstable harmonies using search track
= To track and zoom a signal
[EA LEE
«a
=
or
a
ls
с
=
En)
AN
in
у
=,
e
=
(49)
=
—
Typicai Spectrum Measurement Techniques 3-1
To Measure the Noise Level
To Measure the Noise Level
1. Press (Format).
3. Press (Scale Ref). Then press ([) until the noise trace closes to the
reference level.
4. Press (Bw/Avg). Then press VIDEO BW.
5. Press D to flatten the noise trace.
0 Press (Marker). Then turn the ©) and read the normalized noise
level.
The marker readout unit becomes “dBm/Hz"” and is normalized by
the 1 Hz equivalent noise bandwidth (ENBW). To convert the ENBW,
see the “To Convert to a Different Equivalent Noise Bandwidth”
procedure.
CHI 5 BOHOL HE 10 da, REF —-156 dom “1283. 73 семи НЕ
1
‚ Ea
CENTER 1 GMX “PAR 1 MHz
Figure 3-1. Noise Readout
Ñ When you change the format to a noise format, the analyzer changes
co the detection mode to sample detection. If you return the format to
SPECTRUM, the detection mode automaticaliy is set to the positive
peak detection mode. This happens even if you selected the negative
detection mode before changing to the noise format.
Note
3.2 Typical Spectrum Measurement Techniques
To Measure the Noise Level
To Convert to a Different Equivalent Noise Bandwidth
1. Calculate the conversion factor by using the following equations
with displayed units:
Unit Use
dBm/Hz K
dBV/Hz and dBuV/Hz K
V/Hz and W/Hz K
|
10log £2
2010g 27
BW
i
Il
Where, BW is the different equivalent noise bandwidth.
8 Press OFFSET for dBm/Hz, dBV/Hz, and dBuV/Hz.
® Press GAIN for V/Hz and W/HZ.
3. Enter K, then press (X1).
ize] le FE
cn
T3
Len)
ra
=
к
3
<
ВЕ
a.
oN
jan
ay
vb
ar
ja
_—
Typical Spectrum Measurement Techniques 3-3
To Measure the Carrier to Noise Ratio
To Measure the Carrier to Noise Ratio
1. Set up the frequency range to measure a carrier signal,
2. Press SEARCH: PEAK to place the marker on the carrier
signal.
carrier Soe tL eve
4. Adjust the scale/div to display the carrier and noise floor. Use
(Scale Ref) SCALE/DIV.
9. Press (Marker) AMODE MENU AMKR to place the reference marker on
the carrier signal.
6. Press (Bw/Avg). Then press VIDEO BW.
7. Enter an appropriate video bandwidth to reduce the variation.
8. Press (Marker). Then do either of the following:
m Enter the offset frequency by using the numeric Keys.
m Move the marker into the noise level of the trace by using the
rotary knob.
9. If you want to normalize the marker readout with the RBW filter,
press (Utility) and toggie NOISE FORM on OFF to ON off.
10. Read the difference from the reference marker.
CHI 5 Br La 10 das REF 16.27 ем “1153 à JE HE
aac
CENTER во мну SPAN 100 WZ
Figure 3-2. C/N Measurement
34 Typical Spectrum Measurement Techniques
To Perform the Time Gated Spectrum Analysis
To Perform the Time Gated Spectrum Analysis
Do the following steps to perform a time gated spectrum analysis:
Adjusting Gate Trigger
о N BO OD tm
Measuring
Determining Gate Trigger Parameters
Gate Trigger Source Connection
Setting Center and Span Frequency
Setting RBW, VBW, and Averaging
Note
Y
i This function is only available with the option 1D6.
Step 1: Determining Gate Trigger Parameters
1. Connect the target signal and the trigger signal to an oscilloscope
input (see Figure 3-3).
SIGNAL GENERATOR
©
RF QUT TRIGGER
OUT
OSCILLOSCOPE
CHI CH2
25203004
Figure 3-3. Time Domain Measurement Configuration
2. Adjust the oscilloscope to display the two signals.
Typical Spectrum Measurement Techniques 3-5
0
Le
qe)
Go.
Lam
pa
©
В
=
AY;
GA
с
—
0
=
4
В
Е
feaidAj ge
To Perform the Time Gated Spectrum Analysis
3. Using the oscilloscope, check the following parameters:
m For the target signal:
cl Signal width (7)
cl Signal delay (SD)
un For the trigger signal:
2 Pulse width (if you use the level trigger mode)
The signal delay (SD) is the delay inherent in the signal (that is, SD is
the length of time after the trigger, but before the signal of interest
occurred and becomes stable).
Burst |
Signal
Trigger || |
Signal
SD Zz
PRI
C5203005
Figure 3-4. Target and Trigger Signal Timing on the Oscilloscope
3-6 Typical Spectrum Measurement Techniques
To Perform the Time Gated Spectrum Analysis
4. Calculate the set up time (SUT) using, SUT = 7/2.
5. Determine the gate parameters using the following equations:
м Gate delay = SUT + SD
# Gate length = r/4
Figure 3-5 shows the scheme of these parameters,
Open the “gate” during the time the signal is in a stable condition.
The time from the start time of a signal and the open time of a gate
is the “set up time” (SUT). Generally, SUT is set to half the pulse
width. This is done so that you can allow the maximum time for the
signal and RBW filter of the analyzer to become stable. You must also
consider the end of the gate. Shut the gate before the last quarter of
the pulse width to maintain a stable condition during the time the
gate is open.
Burst |
Signal
|
mem
ee
E
E
Cel TAR)
OPEN
Gate
Condition
CLOSE
wn.
Oo
=
Q
ir
ыы 1
=
3
=
ws
a
7,
с
чт
MD
3
a
on
=
Cambil a ie
Г Comi Lal
Gate Gate
Delay Length
CE 203007
Figure 3-5. Gate Parameters
Typical Spectrum Measurement Techniques 3-7
To Perform the Time Gated Spectrum Analysis
Step 2: Gate Trigger Source Connection
1. Connect the RF signal source to the S input of the analyzer.
2. Connect the trigger output from the signal source to the EXT
TRIGGER connector on the rear panel of the analyzer.
External Trigger
SIGNAL GENERATOR
RF QUT TRIGGER
QUT
©
C5203006
Figure 3-6. Time Gated Measurement Configuration
Step 3: Setting Center and Span Frequency
шв Set up the center and span frequency of the analyzer to display the
target signal.
3-8 Typical Spectrum Measurement Techniques
To Perform the Time Gated Spectrum Analysis
Step 4: Adjusting Gate Trigger
1. Press CONTINUOUS to activate a gate trigger.
2. Press TRIGGER: i [FREE RUN]
4. Select the gate control mode. Select LEVEL or EDGE by toggling
GATE CTL: “LEVEL and EDGE to the required mode.
5, If you selected the LEVEL trigger mode, set the trigger polarity for
starting the gate.
7. Set a gate delay time.
8. If you select the EDGE trigger mode, press GATE LENGTH. Then
set the gate open length.
You can see the gate trigger condition by monitoring the GATE Output
terminal using an oscilloscope. The GATE Output terminal is located
on the analyzer's rear panel,
For detailed information about the EDGE and LEVEL gate control
modes, see the Function Reference.
Zee
cn
Lo
D
(a
[ul
—
cl
3
=
pan]
a
=
=
qu)
3
qr]
Typical Spectrum Measurement Techniques 3-9
To Perform the Time Gated Spectrum Analysis
Step 5: Setting RBW, VBW, and Averaging
Note uz
To Set the Resolution Bandwidth
1. Press (Bw/Avg)-
2. Set the resolution bandwidth wider than sr.
The RBW setting you can use is limited by the gate open position. You
can adjust a longer gate delay for a narrower RBW in step 5. This
is because the RBW filters need charge time until normal condition.
Therefore, you need to consider the balanced point between SUT and
RBW. Generally, the RBW filter's charge time is defined as 2/RBW.
Therefore, the SUT must be longer than 2/RBW or the RBW must be
wider than 2/SUT.
If the RBW is set narrower than 3 kHz, the analyzer turns into the
stepped FFT mode. In the stepped FFT mode, the gate length must be
longer than one FFT sampling step time. You must set the gate length
longer than the minimum gate length that is listed in Table 3-1.
Table 3-1.
Minimum Gate Length setting with RBW setting
REW Allowable Gate Length
1 Hz | >5.1857 s
3 Hz >1.6595 s
10 Hz >0.51858 s
30 Hz >0.13457 s
100 Hz >0.051213 s
300 Hz >0.012813 s
1 kHz >0.0032125 s
3 kHz >0.0016125 s
To Set the VBW
2. Set the video bandwidth.
You can set any video bandwidth (VBW) without concern for the gate
length setting. The analyzer implements the video filter using digital
processing. The video filter of the analyzer requires no settling time
for normal operation. Therefore, it is not affected by the gate length
setting.
You can also use the averaging function to reduce the variation of the
trace. The averaging function converges to the top of the variation.
This is different from the VBW, which converges to the middle of the
variation.
3-10 Typical Spectrum Measurement Techniques
To Perform the Time Gated Spectrum Analysis
Step 6: Measuring 1. Adjust the span setting to fit the trace to your requirement.
2. Perform your measurement.
Сна = Spectrum 10 das ВЕР О О ам cri 5 Soectrum 10 der REF © gfim
hl
тиф
Ш НИМ
HAM 100 KHZ VEW 100 =hz ATH 10 da Swb 20 mae
CENTER БО мнт SPAN 10 MHz CENTER 60 MEZ SPAN 10 MHz
за с
Before Time Gated After Time Gated
Figure 3-7. Time Gated Spectrum Analysis
jeoidA1:E
en
<
BD
o.
ma
ur
ES
“o
AV
Г
=
т
{D
pal
{D
a
ré
Typical Spectrum Measurement Techniques 3-11
To Measure Zero Span
To Measure Zero Span
1. Determine the following parameters:
E Sweep Time
s Display Number of Points (NOP)
2. Press (Center). Then enter the frequency of the target signal.
3. Press ZERO SPAN to set the frequency span to 0 Hz.
4. Press (Sweep).
5. Select the sampling mode:
® If (Sweep Time) / (NOP—1) > 25 us, then toggle to
SAMPLING [NORM rept]. And Do both of step 6 and 7.
m If (Ewer. Time) / (NOP— 1) < 25 us, then toggle to
à REPT |. And do either step 6 or 7.
6. Set the sweep time, press SRE TIME a then enter the
sweep time.
7. Set the number of points (NOP), by pressing (Sweep)
NUMBER: of POINTS and entering the NOP.
The allowable minimum sweep time is determined by the sampling
mode and NOP. In the normal sampling mode, the minimum sweep
time is 25 us x NOP.
Int the repetitive sampling mode, the sweep time is determined by
0.5 us x NOP. This is because that the time resolution is fixed at
0.5 ps in the repetitive sampling mode.
Notes You can set the RBW greater than 10 kHz. If you enter less than 10
kHz for the RBW, it is set to 10 kHz.
You must set the trigger source either EXTERNAL. or VIDEO “to select
the repetitive sampling mode.
The detection mode is automatically set to the sample detection mode.
To Stabilize the Trace Using the Video Trigger
1. Press (Trigger).
2. Press TRIGGER: [FREE RUN].
3. Press VIDEO
4. Adjust the video trigger level by using © to trigger the sweep at
appropriate trace level.
If the sweep time and the pulse repetition rate (PRI) are not
synchronized, the trace does not appear in the same position on the
grid on every sweep. To avoid this, change the video trigger setting as
appropriate.
3-12 Typical Spectrum Measurement Techniques
To Measure Zero Span
To Read a Time Transition Using the Marker
1. Press (Utility).
3.
Move the marker by using the ©).
4. Read the transition time that is displayed on the upper right of the
grid.
When in zero span measurement, the marker displays the same
frequency on every point of trace. Using the marker time function,
you can change the marker display to the time format instead of the
frequency. The marker displays a time transition from the left end of
the grid.
сна ое rum +5 08, REF 9 эВ — 0.20% dem
1%
[2] E ща
on
a
©
e
hoes
=
=
=
‚©
a
in
o
a |
©
3
{D
3
~
CENTER amg мнт BRAN @ Hz
Figure 3-8. Marker Time
Typical Spectrum Measurement Techniques 3-13
To Track Unstable Harmonics Using Search Track
To Track Unstable Harmonics Using Search Track
1. Set the frequency range to display the carrier and the harmonics.
2. Press SEARCH:PEAK to move the marker to the peak.
a reference Amarker that can move with the carrier.
4. Toggle SEARCH TRK on OFF to ON off to enable the search
function on every sweep.
carrier and harmonics under the search track.
6. Press (Utility). Then toggle MKR LIST on OFF to ON off.
Even if the frequency of a carrier changes, the analyzer automatically
tracks the carrier and the harmonics on the end of the sweep.
Then the anaiyzer lists the difference between the carrier and the
harmonics on the lower display.
If necessary, use the peak threshold to ignore the peaks other than
the harmonics. See “To Ignore Small Peaks” in Chapter 2.
сна 5 Брест тым 10 dB, REF Í dam “10,473 Cde CHi 5 Saoectrem 10 dae REF С см -13.a37 da
Pl tek Bar TER
к . ‚ ec
START O Hz STOR SOC MHZ START © HZ sos “OO мы
N SWH PARAM VAL M SHE PARAM VAL
50 MHz 46.579 dea
100 MHZ 52.01 de
130 MZ 54.185 de
200 MZ -53.585 de
250 MHZ =D. 747 de
299,375 МЫ: -51.059 GB
350 MHz -67 855 de
55 MHZ 45.295 dB
110 MHZ -51 081 dB
155 MHz Se 848 d8
220 MHz “52,463 «В
74.375 MHz -56.63 de
329. 37% MHz -67 221 08
384,375 MHI -53 539 de
E AA bd as
OE à UD H
A Se Mhz 15.473 dBm ñ 8% MHz #19 492 d8m
Carrier Frequency: 50 MHz 55 MHz
Figure 3-9. Tracking Unstable Harmonics Using Search Track
3-14 Typical Spectrum Measurement Techniques
To Track and Zoom a Signal
To Track and Zoom a Signal
Step 1: Setting the Wide Frequency Range
1. Set both channels to the spectrum analyzer mode.
2. Press (Display). Then toggle DUAL CHAN on OFF to ON | off.
3. Select either channel to track the signal in wide span. Then set
a freguency range that can display the signal as you change the
frequency,
4. Press (Marker—).
5. Toggle CROSS CHAN on OFF to ON off
Step 2: Setting the Narrow Frequency Range for the Other Channel
1. Select the other channel to display the zoomed signal in a narrow
span.
2. Press (Span).
3. Enter the frequency span to display the detail of the target signal,
Note that the span of the zoomed channel must be wider than the
frequency resolution x 2 of the channel that is set in step 1.
4. Press (Search). Then toggle SEARCH TRK ; on OFF to ON off.
ole ЛИ о
Le
‘о
+.
че
hci 4
ни
3
=
we
63
un
a
=
Eu
3
a
pa
pro
9 Use PEAK (or the marker search functions) to analyze the target
signal.
The analyzer displays a wide view on the wide span channel and a
detailed view on the zoomed channel. When the frequency of the
signal is changed, the wide span channel tracks the signal and the
center frequency of the zoomed channel automatically changes to
display the target signal.
When the marker list is turned on, wide span channel disappears from
the display. However, the wide span channel keeps tracking the signal
in the background and displays the results on the zoomed channel.
For more information about frequency resolution, see “To Read a
Value Using the Marker” in Chapter 2.
Typical Spectrum Measurement Techniques 3-15
To Track and Zoom a Signal
Сна 5 Cru 10 dear REF -3.1 com = 15. Ваб ст HI 5 Spectrum 10 cas REF -3.1 25m - 15.755 dam
+
CHT CENTER 300 MHz SPAN 100 MHz CHi CENTER 300 MHz SPAN 100 MHz
CHEZ 5 Spectrum 10 d8/ REF d dam - 16.559 cem CH 5 Spectrum 10 38,5 REF 0 dam = 15.538 #Bm
3
pe Élu
+
* . sac
CHZ CEMTER 300 MHz SPAH = MHZ CHE CENTER 315 MHZ SPa 2 MHZ
300 MHz Carrier 315 MHz Carrier
Figure 3-10. Tracking and Zooming a Signal
Note i If the span of the zoomed channel is wider than the RBW of the wide
чо channel, you can reduce the sweep time of the wide span channel.
If the sweep time is reduced, the analyzer can track the faster —
movement of the target signal.
1. Press or to activate the wide span channel that has the
active signal track function.
2. Press (Bw/Avg). Then set the RBW to the maximum setting that is
narrower than the span of the zoomed channel.
3. Press (Sweep) pl. Then press SWEEP TIME.
4. Press (0) (x1).
3-16 Typical Spectrum Measurement Techniques
4
Recommended Network Measurement Task Sequence
This chapter describes a typical task sequence for any measurement
using the network analyzer mode.
If you are using the analyzer for the first time, see the User's Guide
first. The User's Guide provides the information needed to install and
set up the analyzer, and a quick start guide to introduce you to the
analyzer.
The measurement tasks described in this chapter are as follows:
m Step 1: Preparing for a measurement
m Step 2: Setting the sweep
a Step 3: Selecting the measurement format
# Step 4: Setting the sweep parameter
E Step 5: Setting the vertical settings
m Step 6: Tuning the settings
m Step 7: Performing calibration
wm Step 8: Reading the measured result
Generally, you can make a measurement by performing these steps. If
you want to perform a more complex network measurement, chapter
5 provides additional measurement techniques.
E
Z
o A
=
A
D
=
=
®
©
N
te
ho |
D
3
©
3
p—
а,
№
©
а
Recommendad Network Measurement Task Sequence 4.1
Preparing for a Measurement
Step 1: Preparing for a Measurement
This step provides the procedures needed to prepare for a network
measurement. You must perform the following tasks before you select
measurement parameters {such as frequency range):
& To connect the test device
u To preset the analyzer
м To select the active channel
m To select the network analyzer mode
4-2 Recommended Network Measurement Task Sequence
Preparing for a Measurement
To Connect the Test Device
You must setup the test set before performing the network
measurement. See appendix A of the User's Guide for the set up
information of the test sets.
m Connect the device under test (DUT) as shown in Figure 4-1 or
Figure 4-2.
Tl nto. ]
=
=i
=
cmd |
ит (|
EA
== |
=
E ee”
\
TAT
Figure 4-1. Using the Transmission/Reflection Test Set
: —]][———;]—]][];—i——Ú—
2 =
se | . 0
wm [aa o =
=== os ;
= , =
TT =
o
DUT |
Figure 4-2. Using the S-Parameter Test Set
Recommended Network Measurement Task Sequence 4-3
Preparing for a Measurement
To Preset the Analyzer
в In the INSTRUMENT STATE block, press the green key to set
the analyzer to the preset state,
For additional information about the preset state, see the Function
Reference.
To Select the Active Channel
® In the ACTIVE CHANNEL block, press (channel 1) or
(channel 2) to select the active channel.
The analyzer has two independent channels. Each channel can have
a different setting that includes whether the mode of operation is
network analyzer or spectrum analyzer. Select the active channel
before you set up any other settings.
Using this feature, you can change immediately to either of different
two settings by pressing a single key.
To Select the Network Analyzer Mode
I. Press (Meas).
2. Press ANALYZER TYPE NETWORK ANALYZER.
When you change the analyzer type, the analyzer is set to the preset
state. So, when you want to change the analyzer type, you must
select it before you set up the other settings or just after you select
the active channel.
44 Recommended Network Measurement Task Seguence
Setting the Sweep
Step 2: Setting the Sweep
This step selects the trigger source and the sweep condition,
m Tb select the trigger mode
ci To use the external trigger
d To trigger on each display point
a To select the sweep condition
a To select the sweep type
D To use the power sweep
To Select the Trigger Mode
1. Press (Trigger).
3. Select the trigger mode:
To Select a Trigger to Press
Free run FREE RUN.
External trigger source EXTERNAL !
1 See the “To Use the External Trigger" procedure.
VIDEO and GATE (option 1D6 only) are only used for the spectrum
measurements.
=
>
© я
<
en
ra
=
La
a
y
pau
o
a
=
an)
=
=
ue,
pu
A
7
Recommended Network Measurement Task Sequence 4-5
4.5
Setting the Sweep
To Use the External Trigger
1. Connect the trigger source to the EXT TRIGGER connector on the
rear panel of the analyzer.
2. Press (Trigger).
3. Press TRIGGER: [FREE RUN]
5. Input a trigger signal to the analyzer.
The external trigger signal level must be TTL Level.
"lon
O
2
>
>
\ 1 FE
gs
EA
o
OO ©
©
№7
НЫ
CEO
Figure 4-3. Location of EXT TRIGGER Connector
To Set the Trigger Signal Polarity,
1. Press (Trigger).
2. Press TRIGGER: [FREE RUN]
polarity to the negative logic.
Recommended Network Measurement Task Sequence
Setting the Sweep
To Trigger on Each Display Point
1. Press (Trigger).
3. Select a trigger source:
Trigger source Do
Manual Press MANUAL.
External Press EXTERNAL.
4. Toggle TRIG. EVENT fon SWEEP] to [ом POINT].
о. Apply a trigger event by pressing MANUAL (for MANUAL ) or entering
the external trigger signal (for EXTERNAL).
The sweep indicator (“17) is moved to each point by the trigger event.
You can select this mode only for MANUAL, EXTERNAL, or the bus
trigger mode. For more information about the bus trigger mode, see
the HP-IB Command Reference.
To Select the Sweep Condition
To Select the Sweep Type
1. Press (Trigger).
à. Choose one of the following:
To Sweep Do
Continuously Press CONTINUOUS .
Single Time Press SINGLE.
Specified Times Press NUMBER” of GROUPS Then enter the
number of times to sweep.
=;
{D
a
in
| Press SWEEP TYPE MENU. E
2. Choose one of the following: =
Sweep type Do x
Linear Frequency Press LIN FREQ.
Log Frequency Press LOG FREQ.
List Frequency See “To Make a List Sweep” in Chapter 6.
Power Sweep See the “To Use the Power Sweep” procedure,
Recommended Network Measurement Task Sequence 4.7
Setting the Sweep
To Use the Power Sweep
1. Press CW FREQ. Then enter the CW frequency.
2. Press (Sweep).
3. Press SWEEP TYPE MENU.
+. Press POWER SHEEP.
5. Enter the start and stop power.
For example, to sweep from --20 dBm to 10 dBm, press ©) (=)
GD. ©) Са)
You can set the sweep power with 0.1 dB resolution.
4.8 Recommended Network Measurement Task Sequence
Selecting the Measurement Format
Step 3: Selecting the Measurement Format
To Select the Input Port
This step provides following procedures for selecting measurement
format:
wm To select the input port
w To select the measurement format
w To display trace in a smith chart
w To use the impedance conversion function
With the T/R Test Set
æ Press (Meas).
To measure Type Press
Reflection Ratio A/R
Transmission Ratio B/R
Reflection | Absolute
Transmission Absolute
Source Absolute
With the S-Parameter Test Set
1. Set up the S-parameter test set. See Appendix A of the User's
Guide.
2. Press (Meas).
To measure Direction Press
Reflection Forward Refl: FWD. sii [a/ R]
‘Transmission Forward Trans:FWD $21 | [B/ R]
Transmission Reverse Trans:REV S12 [B/R]
Reflection Reverse Refl:REV 522 ГА/ RI
Recommended Network Measurement Task Sequences 4-9
=
LO;
a,
2
—
a
3
{D
|
im
at
y
~
>
A
>
ны
o
к
x
Selecting the Measurement Format
To Select the Measurement Format
1. Press (Format).
2. Select a measurement format from the following:
To Select
Press
LOG Magnitude
Phase
Group Delay
Smith Chart
Polar Chart
Liner Magnitude
Standing Wave Ratio (SWR)
Real Part Only
Imaginary Part Only
Expanded Phase
Admittance Chart (Inv. Smith
Chart)
LIN MAG
1 See “To Display the Group Delay" in Chapter 5.
2 See the “To Display Trace As a Smith Chart” procedure.
If you selected an absolute measurement by selecting R, À or B
under the key, only the following formats can be selected:
To Select
Press
LOG Magnitude
Liner Magnitude
Standing Wave Ratio (SWR)
LIN MAG
SWR.
For more information about the measurement format, refer to chapter
5 of the Function Reference manual.
4-10 Recommended Network Measurement Task Sequence
Selecting the Measurement Format
To Display Trace As a Smith Chart
1. Press (Format).
2. Press SMITH
+ CHART to display the smith chart.
3. Use the marker to read a measured value, by pressing and
.
rotating ©).
Crt BSR Fie 1 LS 12.374 1-28. 9683 [1 78.5063 BE
| =
TO MHZ
car
IF BW 40 kHzZ POWER Dd dm SWR SO msec
CENTER 70 MHZ 57 AH SO kHz
Figure 4-4. Smith Chart
To change the marker readout format, use the following procedure:
To Change Marker Readout Format
1. Press SMTH (POLAR MENU.
2. Select display format using the following keys:
pr
D Я
=
©
"=
Format Press
Real and Imaginary CHART FMT: REAL IMAG
Linear Magnitude and Phase LIN MAG PHASE
Log Magnitude and Phase LOG MAG PHASE
Impedance R+j X
Admittance G+jB
SWR and Phase SWR PHASE
=
(D
AY]
ME
=
pa
®
=
£D
=
Fo
ud
a
on.
ro
Recommended Network Measurement Task Sequence 4-11
Selecting the Measurement Format
To Use Impedance Conversion Function
1. Press (Meas).
3. Select one of the formats listed below:
Convert to Selected Port Press
Impedance A/R, S11, or S12 Z:Refl
B/R, S21, or $22 Z:Trans
Admittance A/R, S11, or S12 Y:Refl
BR, 521, or $22 Y:Trans
The marker readout value is a linear impedance or admittance value
even if the LOG MAG format is selected.
For additional information about the impedance conversion function,
see the Function Reference.
4-12 Recommended Network Measurement Task Sequence
Setting the Sweep Parameter
Step 4: Setting the Sweep Parameter
To Set the Sweep Parameter Using and
1. Press to activate the start frequency function.
2. Change the start frequency setting using the following keys:
To Use
Set directly (0)... (9) and units terminator
keys
. FA
Change continuousiy ©)
Change with 1-2-5 steps DE)
3. Press (Stop).
4, Enter the stop frequency in a similar way.
START STOP
CENTER
eS,
=
O
+
~~
SPAN
{5204011
Figure 4-5. Sweep Parameter Setting
=
a
. ©
an
ВЕ ем
my
un]
=
Les)
3
Fans ai
if
a
un
-
You can set the sweep parameter using and instead
of and (Stop). See “Step 4: Setting the Frequency Range” in
Chapter 2.
"Recommended Network Measuremsnt Task Sequence 4-13
Setting the Vertical Settings
Step 5: Setting the Vertical Settings
It is necessary to change a vertical setting if the trace is out of
the grid or is too flat to see the required characteristics. This step
provides the procedure needed to set the vertical scaling of the
analyzer:
u To set the scale and reference automatically
To Set the Scale and Reference Automatically
1. Press (Scale Ref).
2. Press AUTO SCALE to fit the trace within the grid.
The scale and reference are automatically adjusted to obtain an
optimum trace display.
сна вх 1 MAD Z dar REF +50 ob сна в7А I MAG 10 day REF -ad gga
SPAN 100 kHz CENTER 70 MHz SPAN 100 kHz
CENTER 70 MHZ
Before Auto Scale After Auto Scale
Figure 4-6. Autoscale Function
4-14 Recommended Network Measurement Task Sequence
Setting the Vertical Settings
Notes If you want to set the scale and reference value manually, the
following functions are available:
® To change the scale per division setting, press SCALE/DIV
m To change the reference position that is shown as * »”, use
REFERENCE POSITION and (M) D keys.
E "o change the reference value, use REFERENCE VALUE ,
If you are displaying a data trace and a memory trace together, you
need to consider whether you want to change the scale for one or
both traces. You can change the traces as follows:
и If you want to change the scale setting for the data trace only, set
CALE “FOR. 5 [DATA]. and DEM: SCALE [UNCOUPLE] under
® If you want to change the scale setting for the memory trace only,
set SCALE. FOR [MEMORY] and D&M SCALE [UNCOUPLE] .
w If you want to change the scale settings for the both traces, set
D&M SCALE [COUPLE].
pa
e
<
q
~~
=
ED.
©
A
a
hin)
©
>
®
=
—
3
5
D
x
Recommended Network Measurement Task Sequence 4-15
Tuning the Settings
Step 6: Tuning the Settings
This step provides the following procedure:
m To increase the dynamic range
To Increase the Dynamic Range (Setting IF Bandwidth)
1. Press (Bw/Avg).
3. Press (1) or (7), or enter an IF bandwidth value directly from the
numeric keypad.
Narrowing the IF bandwidth setting increases the dynamic range but
it makes the sweep speed slower,
HT EA E MAD ео dB, REF +60 de CHI BSA i MAG 20 dB, REF +80 of
CENTER 70 MHz SPAM 200 kHz CENTER 70 MHz SPAN 200 kHz
IF Bandwidth 40 kHz [F Bandwidth 100 Hz
Figure 4-7. Setting IF Bandwidth (IFBW)
Notes You can increase the dynamic range by using the following
techniques:
E Apply the highest allowable power. The output power can be set by
pressing POWER.
m Use the averaging. See “To Reduce Variation of the Measurement
Trace Using Averaging”.
4-16 Recommended Network Measurement Task Sequence
Performing Calibration
Step 7: Performing Calibration
This step provide procedures for performing calibration. The
calibration cancels the errors and improves the measurement
accuracy. The analyzer has six different methods of calibration. You
can select the method that fits your measurement requirement by
reading “To Select an Appropriate Calibration Method” procedure.
This step also contains a procedure to customize a calibration kit.
uw To select an appropriate calibration method
a To perform a response calibration
# To perform a response & isolation calibration
# To perform an S11 1-port calibration
E To perform an $22 1-port calibration
E To perform a full 2-port calibration
m To perform a 1-path 2-port calibration
u To select the calibration kit
a To customize the user defined calibration kit
To Select an Appropriate Calibration Method
The analyzer has six calibration methods. You can choose the
appropriate calibration method to fit your measurement by using
Table 4-1.
Table 4-1. Calibration Method Selection Table
Measurement Type Calibration | Complexity See
Method
Transmission or reflection measurement Response simple “To Perform a Response
when the highest accuracy is not required. Calibration” I
ZZ
Transmission of high insertion loss devices |Response & | simple “To Perform a 3 >
or reflection of high return loss devices. Not | isolation Respornse & Isolation 25
as accurate as 1-port or 2-port calibration. Calibration” 3 x
Reflection of any one-port device or well бы !-port slightiy “To Perform an $11 5
terminated two-port device. complex 1-Port Calibration” =
wn
Reflection of any one-port device or well 592 1-port slightly “To Perform an S22 A
terminated two-port device. complex 1-Port Calibration”
Transmission or reflection of highest Full 2-port complex “To Make Full 2-Port
accuracy for two-port devices. S-parameter Calibration”
Test Set is required.
Transmission or reflection of highest One-path complex “To Perform a !-Path
accuracy for two-port devices. {Reverse test | 2-port 2-Port Calibration”
device between forward and reverse
measurements.)
Recommended Network Measurement Task Sequences 4-17
Performing Calibration
To Perform a Response Calibration
1. Press (Cal) (Cal) CALIBRATE MENU RESPONSE to display the response
calibration menu.
à. Connect one of following standards. Then press the corresponding
key.
Measurement Type Connect Standard Press
Transmission Measurement THRU THRU
Reflection Measurement OPEN OPEN
SHORT SHORT
To Perform a Response & Isolation Calibration
1. Press (Cal) CALIBRATE MENU RESPONSE 2 ISOL'N to display the
response and isolation calibration menu.
Press RESPONSE.
See 2 of the “To Perform a Response Calibration” procedure.
Connect isolation standard (LOAD).
Press ISOL'N STD.
NS NN ESG DB
4-18 Recommended Network Measurement Task Sequence
Performing Calibration
To Perform an S11 1-Port Calibration
Step 1: Opening the S-11 1-Port Calibration Menu
1. Press (Cal).
2. Select the proper calibration kit. If the connector type or
calibration kit name shown in the CAL KIT softkey label is not
the same as the calibration kit to be used, see the “To Select the
Calibration Kit” procedure.
Step 2: Measuring the OPEN
1. Connect OPEN standard to port 1.
a. Press (S11) :0PEN (for the 7 mm or 3.5 mm cal kit) or
(511) : OPENS (for the type-N cal kit).
When the 7 mm or 3.5 mm calibration kit is selected, the message
“WAIT - MEASURING CAL STANDARD” is displayed while the OPEN
data is measured. The softkey label OPEN is then underlined. Skip
to step 3.
3. If the type-N calibration kit is selected, do the following.
à. Press OPEN- [M] (for a male port connector) or press OPEN LF]
(for a female port connector).
The OPEN data is measured and the softkey label is then
underlined. |
Step 3: Measuring the SHORT
1. Disconnect the OPEN. Then connect a SHORT standard to port 1.
—2. Press SHORT (for the 7 mm or 3.5 mm calibration kit) or SHORTS
(for the type-N calibration kit).
When the 7 mm or 3.5 mm calibration kit is selected, the SHORT
data is measured and the softkey label is underlined. Skip to step
4,
3. If the type-N calibration kit is selected, do the following.
a
Zz
D .
=
e
-
pa
=
{D
a
y
<
Ми 3
с
=
М
=
E
5
Un
a. Press SHORT. [M] (for a male port connector) or press
SHORT. [F]: (for a female port connector).
The SHORT data is measured and the softkey label is then
underlined.
b. Press DONE: SHORTS
Step 4: Measuring the LOAD
1. Disconnect the SHORT, and connect an impedance-matched LOAD
(usually 50 or 75 0) at port 1.
Recommended Network Measurement Task Seguence 4-19
Performing Calibration
2. Press LOAD Then wait the LOAD is measured and the LOAD
softkey is underlined.
Step 5: Completing the Calibration
1. Press DONE 1-PORT CAI AL to complete the calibration.
The error coefficients are computed, and the correction menu is
returned to the screen with CORRECTION oN. A corrected S11 trace is
displayed, and “Cor” appears at the left side of the screen.
If you press DONE without measuring all the required standards, the
message “CAUTION: ADDITIONAL STANDARDS NEEDED” is displayed.
To Perform an S22 1-Port Calibration
This calibration is similar to the Sil 1-port calibration except that S22
is selected automatically, It is used only with an S-parameter test set.
For S-parameter measurements in the reverse direction with a
transmission/reflection test kit, use the S11 i-port or i-path 2-port
calibration and reverse the DUT between measurement sweeps.
4.20 Recommended Network Measurement Task Sequence
Performing Calibration
To Make Full 2-Port Calibration
Step 1: Calling the Full 2-Port Calibration Menu
1. Press (Cal).
2. Select the proper calibration kit. If the connector type or
calibration kit name shown in the CAL KIT. softkey label is not
the same as the calibration kit to be used, see the “To Select the
Calibration Kit” procedure.
3. Press CALIBRATE MENU FULL 2-PORT REFLECT’N.
Step 2: Measuring the Reflection
I. Connect a shieided OPEN to port 1.
) EN (for the 7 mm or 3.5 mm calibration kit) or
JPENS (for the type-N calibration kit).
When the 7 mm or 3.5 mm calibration kit is selected in step 1, the
OPEN data is measured and the softkey label OPEN is underlined.
3. If the type-N calibration kit is selected, do the following.
om (for a male port connector) or press
OPEN Fr] (for a female port connector).
The e OPEN data is measured. The softkey label is then
underlined.
4. Disconnect the OPEN and connect the SHORT to port 1,
5. Press ( SHORT (for the 7 mm or 3.5 mm calibration kit) or
(S11): SHORTS (for the type-N calibration kit).
When the 7 mm or 3.5 mm calibration kit is selected, the SHORT
data is measured and the softkey label SHORT: is underlined.
6. If the type-N calibration kit is selected, do the following.
e
a
o
il
à. Press SHORT [M] ; (for a male port connector) or press
SHORT [F] (for a female port connector).
The SHORT data is measured and the softkey label is then
underlined.
=
®
i
©
=
=
o
3
®
ка
Fa ul a
=
a
=
x
7. Disconnect the SHORT and connect an impedance-matched LOAD
(usually 50 or 75 0) at port 1.
8. Press (511): “LOAD, Then confirm the LOAD softkey label is
underlined.
9. Repeat the OPEN-SHORT-LOAD measurements described above,
connecting the devices in turn to port 2 and using the ($22)
softkeys.
Recommended Network Measurement Task Sequence 4-21
Performing Calibration
10. Press REFLECT?N DONE.
The reflection calibration coefficients are computed and stored. The
two-port calibration menu is displayed (with the REFLECT'N softkey
underlined).
Step 3: Measuring the Transmission
1. Press TRANSMISSION.
2. Connect a THRU connection between port 1 and port 2 at the
points where the test device is connected.
3. When the trace settles, press FWD. TRAN Ss. THRU. Then wait
521 frequency response is measured and the softkey label is
underlined.
4,
5. REV. T TRANS. THRU. Then wait the S12 frequency response
is measured and the e softkey label is underlined.
6.
7.
The transmission coefficients are computed and stored. The two-port
calibration menu is displayed (with the TRANSMISSION softkey
underlined).
Step 4: Measuring the Isolation
I. If correction for isolation is not required, press ISOLATION
MIT ISOLATION ISOLATION DONE. Then skip to step 5.
2. If correction for isolation is required, connect impedance-matched
LOADs to port I and port 2.
3. Press FWD. ISOL'N :ISOL? N: STD. Then wait the S21 isolation is
measured and the softkey label is underlined.
4. Press REV ISOLN ISOL'N STD. Then wait the S12 isolation is
measured and the softkey label is underlined.
9. Press ISOLATION DONE.
The isolation error coefficients are stored. The two-port calibration
menu is displayed (with the ISOLATION softkey underlined).
Step 5: Completing the Calibration
1. Press DONE: 2-PORT CAL to complete the calibration.
The error coefficients are computed and stored. The correction menu
is displayed (with CORRECTION 0%). A corrected trace is displayed.
The notation “C2” at the left of the screen indicates that two- -port
error correction is ON,
4-22 Recommended Network Measurement Task Sequence
Performing Calibration
Now the test device can be connected and measured. Save the
calibration data on the built-in disk drive.
B
=
©
=
o
=
=
Eb
a
7
<
hrs |
©
3
®.
=
ie
=
An
7
Xx
Recommended Network Measurement Task Sequence 4-23
Performing Calibration
To Perform a 1-Path 2-Port Calibration
Step 1: Calling the 1-Path 2-Port Calibration Menu
I.
2.
3.
Press (Cai).
Select the proper calibration kit. If the connector type or
calibration kit name shown in the CAL. KIT softkey label is not
the same as the calibration kit to be used, see the “To Select the
Calibration Kit” procedure.
Press CALIBRATE MENU ONE-PATH- 2-PORT REFLECT*N.
Step 2: Measuring the Reflection
I.
2.
Connect a shielded OPEN to the test port.
Press (S11): OPEN (for the 7 mm calibration kit) or
(511): OPENS (for the type-N calibration kit).
The OPEN data is measured, and the softkey label OPEN is
underlined.
If the type-N calibration kit is selected, do the following.
à. Press OPEN [M] (for a male port connector) or press OPEN [Fi
(for a female port connector).
The OPEN data is measured and the softkey label is then
underlined.
Disconnect the OPEN and connect a SHORT to the test port.
5. Press SHORT. (for the 7 mm or 3.5 mm calibration kit) or SHORTS.
{for the type-N calibration kit).
When the 7 mm or 3.5 mm calibration Kit is selected, the SHORT
data is measured and the softkey label SHORT: is underlined.
. Tf the type-N calibration Kit is selected, do the following.
a. Press SHORT mM (for a male port connector) or press
The SHORT data is measured and the softkey label is then
underlined.
. Disconnect the SHORT and connect an impedance-matched LOAD
(50 or 75 1) to the test port.
- Press LOAD. Then wait the LOAD is measured and the softkey
label LOAD is underlined.
- Press REFLECT , N | DONE .
4-24 Recommended Network Measurement Task Sequence
Performing Calibration
The reflection calibration coefficients are computed and stored. The
two-port calibration menu is displayed (with the REFLECT’N. softkey
underlined).
Step 3: Measuring the Transmission
I. Connect a THRU between the test port and the return cable to
the analyzer {connect to the points at which the test device is
connected).
9. Press FWD. TRANS. THRU. Then wait the $21 frequency response
is measured and the softkey label is underlined.
4. Press FWD, MATCH THRU. Then wait the S11 load match is
measured and the softkey label is underlined.
5. Press TRANS. DONE.
The transmission coefficients are computed and stored. The two-port
calibration menu is displayed (with the TRANSMI SSI ON softkey
underlined).
Step 4: Measuring the Isolation
1. If correction for isolation is not required, press ISOLATION
OMIT ISOLATION ISOLATION. DONE”. Skip to step 5.
2. If correction for isolation is required, connect impedance-matched
LOADs to the test port and the return port,
3. Press FWD ISOL'N. ISOLN STD. Then wait the S21 isolation is
measured and the e softkey label is underlined.
The isolation error r coefficients are stored. The two-port calibration
menu is displayed (with the ISOLATION softkey underlined).
Step 5: Completing the Calibration
l. Press DONE 2-PORT CAL to complete the calibration.
7
=
©
o
prod
The error coefficients are computed and stored. The correction menu
is displayed with CORRECTION oN. A corrected trace is displayed.
The notation “C2” at the left of the screen indicates that 2-port error
correction is ON, |
=
XD
A
n
с
Бы
№
=
o
=
Fo
|
a
us
re
Step 6: Performing the Measurement
1. Connect the test device in the reverse direction. Then press
PRESS 1 to: “CONTINUE.
2. Reconnect the test device in the forward direction. Then press
PRESS to CONTINUE.
Recommended Network Measurement Task Sequence 4-25
Performing Calibration
Now the error corrected trace is displayed. If you measure the other
test device, press MEASUREMENT RESTART. Then perform the
procedure of step 6.
Save the calibration data on a disk or RAM disk.
For additional information about calibration, see chapter 5 of the
Function Reference.
4-25 Recommended Network Measurement Task Sequence
Performing Calibration
To Select the Calibration Kit
1. Press (Cal).
2. Press GAL KIT F.1.1.
3. Press one of the following keys:
Calibration Kit Press
7 mm calibration kit CAL KIT : 70m
3.5 mm calibration kit q Sm
50 9 N type N son
75 Y N type N 7850.
User defined calibration kit USER KIT
To Customize the User Defined Calibration Kit
To Define the Standard Definition
Step 1: Preparation.
1. Prepare the “Standard Definitions” table of the standard kit you
want to use.
Tabie 4-2 is an example of a standard definition table.
Table 4-2.
Example of the Standard Definitions (HP 85032B 500 Type-N Calibration Kit)
STANDARD OFFSET FREQUENCY (GHz)
co Gi C2 cs FIXED OR COAX or | STANDARD
TYPE x 10°F] x1027F | x 103% mz | x 10°4%F/Hz | SLIDING | DELAY |LOSS MINIMUM | MAXIMUM | WAVEGUIDE! LABEL
ps Mil/s
== SS
SHORT 0 700 G 999 COAX SHORTM)
OPEN 108 55 130 0 0 700 | 60 0 998 COAX OPEN(M)
LOAD FIXED 0 700 F50 0 999 COAX BROAD-BAND
DELAY/THRU 0 700 50 0 999 COAX THRU
ух
Zz
©
а
o
po
ry
=
{D
ar,
Ly
to
Ч
a
À
(D
=
per
=
a
E
x
SHORT 17.544 | 700 | 50 0 998 COAX SHORT(F)
OPEN 62 17 28 0 17.544 | 700 | 60 0 999 COAX OPEN(F)
Step 2: Activating the Define Standard Menu.
1. Press (Cal).
3. Press MODIFY: | С. я 3.
5. Select standard number.
Recommended Network Measurement Task Sequence 4-27
Performing Calibration
6. Select standard type.
If you did not select standard type as OPEN in step 2, skip to step 4.
Step 3: Entering a C Parameters.
1. Press CO. Then enter CO (x10-15F).
2. Press C1. Then enter CI (x10?7F/Hz).
3. Press C2. Then enter C2 (x 10-3%F/Hz?).
Step 4: Entering an OFFSET Parameters.
I. Press SPECIFY OFFSET.
. Then enter DELAY.
2. Enter a standard label up to 10 characters.
3. Press DONE.
Step 6: Compieting the Definition of a Calibration Kit.
?. Press KIT DONE (MODIFIED).
4-28 Recommended Network Measurement Task Sequence
Performing Calibration
To Define a Class Assignment
Step 1: Preparing for the Class Assignment.
1. Prepare the standard class assignment table for your calibration
kit.
Table 4-3.
Standard Class Assignment of the HP 85032B
A|BICIDILEIFFG STANDARD
CLASS LABEL
S::A 2 | 8 OPENS
8; В 1 | 7 SHORTS
SiC 3 LOAD
A 2 | 8 OPENS
5228 117 SHORTS
SC 3 LOAD
Forward Transmission 4 Fwd. Trans Thru
Reverse Transmission 4 Rev. Trans Thru
Forward Match 4 Fwd. Match Thru
Reverse Match 4 Rev. Match Thru
Response 11712181 4 RESPONSE
Response & Isolation 11712 4:81] 4 Response & Isoi’n
>
pd
©
а
©)
on
a
=
D
0
7
od
=
®
3
©
=
—
e
ZA
xi
Recommended Network Measurement Task Sequence 4-29
Performing Calibration
Step 2: Specifying the Class.
1.
2.
Select standard class.
To Select Press
SB s11B
5110 sic
5228
S220
Forward Transmission MORE SPECIFY: FWD. TRANS.
Reverse Transmission MORE REV.TRANS.
Forward Match MORE FWD. “MATCH.
Reverse Match MORE REV.MATCH
Response MORE RESPONSE
Response & Isolation MORE RESPONSE & ISOL’N
3.
4,
Enter the standard number from A to G.
Step 3: Labeling the Standard Class Label.
I.
2.
3.
4.
Press LABEL CLASS to label the standard class.
Select the standard class.
See 2 of Step 2.
Enter or modify the correspondent standard class label.
To Label and Save Calibration Kit.
1.
Press LABEL KIT.
2. Enter label.
3.
4
5.
Press RETI UR №.
After the user-defined calibration kit is defined, you can verify the
definition using the copy function that lists standard parameters and
class assignment.
4.30 Recommended Network Measurement Task Sequence
Performing Calibration
To Verify Definition e of User-Defined Calibration Kit.
1. Press (Cal) САБ К. ct. USER KIT to specify the calibration kit
as a user- “defined kit.
2. Press (Copy) MORE CAL KIT DEFINITION.
= To display the standard parameters defined, press
STANDARD DEFINITON. Then press the softkey labeled standard
number if you want to list the defined parameters.
« To display the defined class assignment, press
3. To make a hardcopy, press PRINT [STANDARD] .
4. To return to the normal display, press RESTORE DISPLAY |
+
zZ
ЧН
=
9
=
=
©
a
©
Ч
—
®
3
o
wd
rien
=
e
7
pul
Recommended Network Measurement Task Sequence 4.31
Reading the Measured Result
Step 8: Reading the Measured Result
If you can obtain the correct trace on the display, you can readout
the trace gain and frequency by using the marker. The analyzer can
search for specific points (like peaks or ripples) by using the marker
search function. This step provides procedures for reading values
using the marker and the marker search functions.
и To read a value using the marker
# To stabilize the trace
m To use the sub-markers
® To use the Amarker
a “o search for a point which has the target value
# To search for the peak-to-peak of ripples using the statistics
function |
m To define the peak for search
To Read a Value Using the Marker
1. Press (Marker).
2. Move the marker to the point you want to read using the ©.
3. Read the marker value displayed on the upper right of the display.
CHE B/F loa MAG 10 687 BEF -40 dB „СЗ ases 06 ^
N AS MZ
JE,
Cor Ф
—
MARKER f
mes
76 MHz / \
7 y
и N
Me
N
IF Eh 1 mhz FORER о абы EWP BBO meee
CENTER 70 MHz SPAN 100 kz
Figure 4-8. Marker Readout
4-32 Recommended Network Measurement Task Sequence
Reading the Measured Result
To Stabilize the Trace When the marker value changes frequently and it is difficult to read
the value, you can use the following techniques to stabilize the trace:
x Stop the sweep.
æ Use the averaging function.
To Stop the Sweep
1. Press (Trigger).
The sweep is stopped immediately (even if the sweep is in progress).
If you want to restart the sweep, press CONTINUOUS .
To Reduce Variation of the Measurement Trace Using
Averaging |
1. Press (Bw/Avg).
3. Enter the number of times to average. Then press (x1).
"Avg!" appears on the left side of display when averaging is turned on.
The averaging notation counts the averaging factor during averaging
until it reaches the specified averaging factor. When averaging is
completed, the counter halts and the trace continues updating with
each sweep.
The averaging factor can be set from 0 10 999.
If you want to change the setting of any parameter when averaging,
you can restart averaging from the 0 count,
To Restart the Averaging,
1. Press (Bw/Aw).
+
z
=
=
2
==
x
This resets the averaging counter to 0 and the counter starts
incrementing with every sweep.
=
LU
3
A
2
rs |
e)
3
D
=
ps
veu
®
Dn
x
Recommended Network Measurement Task Sequence 4.33
Reading the Measured Result
To Use the Sub-markers
Press (Marker).
Move the marker to a point where you want to set a sub-marker
Press SUB MER.
E DD
Select from SUB MKR 1 to 7.
5. Press (Utility).
The sub-marker appears at the point of that the marker is displayed.
Sub-markers are fixed horizontally and you cannot move them.
The sub-marker value can only be displayed by using the marker list.
To clear a sub-marker, press CLEAR SUB MKR. Then press the
sub-marker number that you want to erase from the display.
To clear all the markers, press PRESET MKRS .
CH1 S21 log MAG 1 98/ REF O dB -3. 438 08
Cor
BW 1 kHz =>wP msec
CENTER 70 MHZ SPAN 100 kHz
N SWP PARAM VAL
о BES. 9885 MMZ -3.438 dB
3 69.9844 MHZ -5.4504 dB
= 69.0925 MHz «à 4086 ав
99.990865 MHZ -3.51899 dB
Figure 4-9. Sub-markers
4-34 Recommended Network Measurement Task Sequence
Reading the Measured Result
Jd,
To Use the AMarker . Press (Marker).
2. Place the marker on the point you want use as a reference point
using the ©.
>. Press AMODE MENU.
4. Press AMKR. The reference marker appears at the marker place.
5. Move the marker by using the following procedures:
m Enter a difference frequency {or power) by using the numerical
keys.
# Turn the rotary knob until the marker moves to the point you
want to read the value.
6. Read the gain and the frequency (or power) differences from the
reference marker that are displayed on the upper right of the grid.
сна вия 3 MA 10 58, REF -40 зв 5.013 ав
: Beda к
CENTER 70 MRT SPAM 100 MZ
Figure 4-10. AMarker
Z
rm
=
La
x
Fo
®
a
7
us
pra
e
=
D
3
lo
=
D
7
№
Recommended Network Measurement Task Sequence 4-35
Reading the Measured Result
To Search For a Point that has the Target Value
1. Press (Search).
2. Press TARGET.
3. Enter the target value using (@) ... (3) and the unit terminator
keys.
To search for a target on Press
All of the display TARGET
Left side of the marker SEARCH LEFT
Right side of the marker SEARCH RIGHT
When the Amarker is active, the target value becomes the difference
from the reference marker, not an absolute value. For exampie, you
can search for the -3 dB cutoff point of a filter by mixing the Amarker
and the target search function.
4-36 Recommended Network Measurement Task Sequence
Reading the Measured Result
To Search for the Peak-to-Peak of Ripples Using the Statistics Function
Step 1: To Specify the Search Range
1. Press (Marker). Then move the marker to the start point of the
range.
2. Press AMODE MENU AMER to place the reference marker on the
start point of the range.
3. Move the marker to the end point of the range,
4. Press (Search) (earch) SEARCH RANGE MENU.
RCH on OFF to ON off.
6. Press MKRA—SEARCH RNG to set the range defined by the reference
marker and the marker as the search range.
Triangle-shaped indicator (A) at the bottom of the grid shows current
search range.
Step 2: To Search For the Ripple
1. Press (Utility Lam).
a dev). ‘and the peak-to-peak value (p-p) of the ripple within the
specified range of the active channel. This information is displayed on
the upper right of the display (see Figure 4-11). If you did not specify
the search range, the analyzer searches within the displayed area.
CH BA 1 MAS Вос, REF «29 98 - #7 dB
уж
en
g
oO
e
A
=
qe
gt
LE)
с
=
{D
=
en
J
vit:
ou
a)
LA
‚Ч
эп в С
LENTER 200 MHI SPAR 100 MHZ
Figure 4-11. Ripple Parameters Readout
Recommended Network Measurement Task Sequence 4-37
Reading the Measured Result
To Define the Peak for Search
You can define the target peak for the search function using the
following techniques:
m Defining the peak slope to ignore the relatively broad peaks.
m Specifying the peak threshold to ignore the absolutely smail peaks.
Defining the Peak Slope to Ignore the Relatively Broad Peaks
Entering Directly.
3. Press PEAK
Using the Marker.
1. Press (Marker). Then move the marker on the local maximum you
want to search.
2. Press AMODE MENU AMKR
4. Move the marker to the foot of the peak.
This parameter defines the slope of the peak. The definition is made
by defining AX and AY as shown in Figure 4-12. The search function
searches only for peaks that are steeper than the specified slope. Use
this function when the search function searches for a peak that has a
gentle slope,
4.38 Recommended Network Measurement Task Sequence
Reading the Measured Result
AX, AY are defined as follows
AY - AY. < AY?
AX1 АХ 5 AX2
Then, Local MAX Is here,
2204013
Figure 4-12. Peak Definition
Specifying the Peak Threshold to Ignore the Absolutely
Smali Peaks
Entering Directly.
3. Enter a threshold value,
4. Toggle THRESHOLD on OFF to ON off.
‘The red threshold line is displayed. The all search function searches
for only the upper side of the threshold line.
Using the Marker,
1. Press (Search).
pd
qu
=
e
3. Move the marker to the point you want fo set as the threshold
value,
=
O
a
(77)
a
—
m
=
as
=
Fo
—|
a+
9D
Xx
For more information about a peak definition, see chapter 12 of the
Function Reference.
Recommended Network Measurement Task Sequenca 4-39
Typical Network Measurements
This chapter provides the following typical measurement techniques
using the network analyzer mode of operation:
® To measure the 3 dB bandwidth using the width function
m To monitor the spectrum of the network measurement input
w To measure the electrical length
m To measure the phase deviation
a To cancel an extension of a measurement cable
<
. (D
©
Gr
&
pur
a
|
LP
=
Fam 8
PRINCI NR [= oT I
Typical Network Measurements 5-1
То Measure the 3 dB Bandwidth Using the Width Function
To Measure the 3 dB Bandwidth Using the Width Function
5-2 Typical Network Measurements
1. Press (Search).
2. Do either one of the following:
To Use Do
Maximum point as a reference Press MAX.
Nominal frequency as a reference Enter the nominal frequency using
the numerical keys.
3. Press AMODE MENU AMER to make the marker a reference.
5. Press (7) to enter —3 dB.
5. Toggle WIDTH on OFF to ON off.
The sub-markers appear at a specified level down on both sides of the
reference marker and the center of the two sub-markers, as shown in
Figure 5-1. The bandwidth (BW), center frequency (cent), Q factor
(Q), insertion loss (Loss), and left and right hand bandwidth from the
center frequency (AL .F and AR.F) are displayed on the upper right of
the grid.
You can move the reference marker using the rotary knob. When
you enable the width function, the reference marker automatically
turns into a tracking Amarker that allows you to move the reference
marker.
For more information about the width function, see chapter 12 of the
function Reference manual.
CHE B/R 1 10 dea, REF +40 da -3.15a47 da
‚еб
Tre
CENTER O MZ SAN 109 «Hz
Figure 5-1,
Bandwidth Measurement Using Width Function
To Monitor the Spectrum of the Network Measurement Input
To Monitor the Spectrum of the Network Measurement Input
1. Press (Display). Then toggle DUAL CHAN on OFF to ON off.
2. Press or to activate the other channel (that is, the
channel that was not used for the network measurement).
4. Press SPECTRUM ANALYZER to set the spectrum analyzer mode.
5. Set the same frequency setting for both channels,
6. Press (Meas). Then select the input port (4 or B) that you used for
the network measurement.
You can monitor the spectrum of the network input without
reconnecting the cables. This feature allows you to analyze the
network characteristics while separating the effect of unknown
signals (for example spurious signals) without performing any
additional procedures.
Сна вия log MAG 5 BB, REF -25 08
Ta,
Tres
HI
IF BW 40 kHz POWER © den Сер ño msec
ci CENTER 230 MHz SPAN 100 tt
CHE В Spectrum 15 da, REF -AÑ4 CEM
| | | |
Hid ; | : ` |
FEW 100 kHz VEW 100 kHz ATM 0B af WP 1100 msec
CHE CENTER 230 MHI SPAN 100 MHz
Figure 5-2. Spectrum Monitoring in the Network Measurement
=
D
0)
о
=
TR
®
3
©
=
rie
440MJaN ее ЕВ
Typical Network Measurements 5-3
To Measure the Electrical Length
To Measure the Electrical Length
1. Select the phase format.
2. Do one of the following procedure;
_ # Using the marker:
. Press (Marker).
a
b. Turn the rotary knob to position the marker at the center of
the display.
C. Press (Scale Ref) ELECT RICAL DELAY: MENU.
d. Press MKR—DELAY.
nm Using the rotary knob:
a. Press Gare) El Ref ELE LECTRICAL ! DELAY MENU
D. Press ELECTRÍCI AL DELAY.
¢. Turn the rotary knob until the trace becomes flat at the
interested frequency.
3. Press ELECTRICAL DELAY. Then read the electrical length that is
displayed under the electrical delay time.
CH1 BAA 30 y REF OC 121,71 m” CHE B/R 50 TS RÉF 0 0" 27.976 "
1
Cor
Dal
Maa
CENTER 9.9960 MHz SPAM 30 кн CENTER 65,995 HHZ SPAN 30 «Hz
Before Adding the Electrical Length After Adding the Electrical Length
Figure 5-3. Adding Electrical Length
If the average relative permitivity (ex) of the DUT is known over
the frequency span, the length calculation can be adjusted to better
indicate the actual length of the DUT, This can be done by entering
the relative velocity factor for the DUT.
5-4 Typical Network Measurements
To Measure the Electrical Length
To Set Velocity Factor of a Cable
1. Press (Cal).
2. Press MORE
4. Enter a new value, Then press (x1).
The relative velocity factor for a given dielectric can be calculated by:
1
И = =
Default setting of the velocity factor is |.
EEN
PENE NA 20 (67 TES]
Typical Network Measurements 5-5 a
To Measure the Phase Deviation
To Measure the Phase Deviation
To Display the Deviation from the Linear Phase
1. Set up the frequency range.
2. Display the phase trace by pressing PHASE.
3. Adjust the scale settings by pressing AUTO. SCALE.
4. Press (Marker). Then move the marker to any of the points where
the sloping trace crosses the center (place the marker on the
sloping portion © of the trace, not the vertical | phase “wrap-around”).
electrical o Tongth t to match the group delay © present at the marker
frequeney.
6. Read the phase value as a deviation from the linear phase.
By adding the electrical length to flatten the phase response, the
linear phase shift caused by the DUT is removed. The displayed
response is the deviation from the linear phase.
To turn off the electrical length function, press {
ELEC DELAY: MENU ELECTRICAL: DELAY. (9) 1).
xi HA phase GO CF REF Q " > Ove "
Car
Del
maz
CENTER 89.995 Mhz SPAM 30 «Hz
Figure 5-4. Deviation from the Linear Phase
5-6 Typical Network Measurements
To Measure the Phase Deviation
To Display the Group Delay
1. Press (Format).
2. Press DELAY.
The group delay format displays phase deviation to group delay
aperture. Therefore, setting the group delay aperture affects the
trace shape. Setting a wider aperture makes the trace smoother. The
default setting of the aperture is 1% of span.
To Set the Group Delay Aperture
1. Press (Bw/Avg).
3. Enter group delay aperture value as a percentage of the span.
The Group delay aperture is based on the number of points, not the
real aperture, For example, if the number of points is 201, a 1%
group delay aperture calculates the group delay using the adjacent
measurement points on both sides. Therefore, the group delay trace
is different by the number of points setting even if the group delay
aperture is the same setting.
сна вия mel 1 a. REF = mm CHI BAR севу i mx, REF 2 mm
с Mac
CENTER *0 MHz SFA 39 Hz CENTER 70 MHZ EPAN 30 kHz
тв а
Aperture 1% Aperture 5%
Figure 5-5. Setting Group Delay Aperture
For more information about a group delay, see chapter 12 of the
Function Reference.
XIOMjaN jpoidA; :G
=
en
LH
E
cr
pret
eb
=
O
=
Fa
Typical Network Measurements 5-7
To Cancel an Extension of a Measurement Cable
To Cancel an Extension of a Measurement Cable
If the Electrical Delay of the Extended Cable is Known
5-8 Typical Network Measurements
1. Press (Cal) MORE PORT EXTENSION to call the port extension menu.
2. Enter the electrical delay values for each input.
w If you do not use the S-parameter test set:
D Press EXTENSION INPUT
EXTENSION INPI TR. Then enter the electrical delay of
the cable that is connected to the R input.
Cl Press EXTENSION INPUT A. Then enter the electrical delay of
the A input.
3 Press EXTENSION INPUT B. Then enter the electrical delay of
the B input,
If you use the transmission/reflection (T/R) test set, enter the
electrical delay of the cable that is connected to the TEST PORT
(for the R and A inputs).
| RFOUT KR A В
or
RE
od
TEST.
PORT
Electrical delay of this cable is ciectrical delay of this cable is
applied for both R and A input, applied for B input.
CHE2050GM
Figure 5-6. Port Extension With the T/R Test Set
To Cancel an Extension of a Measurement Cable
m If you use the S-parameter test set:
EXTENSION INPUT B to clear the port extension of the R, A
and B inputs.
O Press EXTENSION PORT 1. Then enter the electrical delay of
the PORT 1.
o Press EXTENSION PORT 2. Then enter the electrical delay of
the PORT 2.
3. Toggle EXTENSION on OFF to ON off to enable the port
extension.
<
©.
hy
in
=
=
o
=
Dm
= A
5
TIN ZST 26
Typical Network Measurements 5.9 |
To Cancel an Extension of a Measurement Cable
H the Electrical Delay of the Extended Cable is Unknown
You can determine the electrical delay of the cable by following
methods:
a Measuring the electrical length of the cable.
m Measuring the OPENed or SHORTed cable reflection.
Measuring the Electrical Length of the Cable
I.
2.
3.
O
Connect the cable as shown in Figure 5-7.
Set up the frequency range to the measurement condition.
transmission measurement.
. Press PHASE to select the phase format.
. Press (Marker). Then move the marker to the sloping trace that
crosses the center of the display.
: Press ELEC DELAY MENU ELECTRICAL DELAY
MKR-+DELAY , then read the electrical delay of the cable.
7. Press (0) to clear the electrical delay offset.
8. Enter a measured electrical delay as described in the “If the
Electrical Delay of the Extended Cable is Known” procedure.
Extend Cable Extend Cable
HP 87512A/B
T/R Test Set HP 85064A/B
S-Parameter Test Set
Extend Cable
ES 205004
Figure 5-7, Cable Measurement Configuration
5-10 Typical Network Measurements
To Cancel an Extension of a Measurement Cable
Measuring the OPENed or SHORTed Cable Reflection
1. Connect the cable as shown in Figure 5-8.
2. Set up the frequency range for the measurement condition.
3. Press (Mess) A/R (or Ref1:FWD S11. [A/R]) to select the reflection
measurement.
4. Press PHASE to select the phase format.
Oh
Press (Marker). Then move the marker to the sloping trace that
crosses the center of the display.
6. Press (Scale Ref) Scale Ref) ELEC DELAY MENU ELECTRICAL DELAY
MKR—DELAY, then read the electrical delay of the cable. Note that
this value is twice the real delay because there is an output and a
return paths.
7. Press (0) to clear the electrical delay offset.
8. Enter half the value of the measured electrical delay as described
in the “If the Electrical Delay of the Extended Cable is Known”
procedure.
Power : [V1
Splitter | X Directional HP 875128B— L
= Coupler TR Test Set | HP 85084A/8
и 4 S-Parameter Test Set
~~ Extend Cable
и я
Extend Cable — Extend Cable
» =
— OPEN or SHORT OPEN or SHORT
(OO
Figure 5-8, Cable Measurement Configuration
Notes For more information about Electrical delay and port extension, refer
to chapter 5 of the Function Reference.
a
D.
D
Dn
=
т
=)
o
=
me ий
YJOAYON JESIdÁ] :5
Typical Network Measurements 5-11
b
Using Features Common to Both Modes of Operation
This chapter provides procedures for the analyzer features that can be
used in both the spectrum and network analyzer modes of operation.
This chapter provides the following procedures:
m To perform GO/NO-GO testing
æ To offset the limit line
m To make a list sweep
æ To use the trace memory
3m To offset the trace
m To use the trace math functions
m To print and plot
m To save and recall
Using Features Common to Both Modes of Operation 6-1
EN
o
©
_
mn
sn
HH)
e
©
=
<<
и
—
o
To Perform GO/NO-GO Testing
To Perform GO/NO-GO Testing
Step 1: Planning the Limit Lime
1. Determine the following parameters before editing the limit line:
Parameter Description
Sweep Parameter Frequency of each segment.
Upper Limit Upper limit level of each segment.
Lower Limit Lower limit level of each segment.
The limit line is constructed by connecting the segment points as
shown in Figure 6-1.
Segment 1 2 3 4 5 6
Upper Limit Line
Lower Limit L:
“520600
Figure 6-1. Limit Line Image
For example, if you want to specify four points for the limit test, the
limit line image is as shown in Figure 6-2. Each point has frequency
information and an upper and a lower limit value. Enter these values
as described in the “Step 2: Editing a Limit Line Table” procedure.
5-2 Using Features Common to Both Modes of Operation
To Perform GO/NO-GO Testing
SEG SWP PARAM UPPER LOWER
1 >
2 2 2>
3 >
> 4 > >
C5206003
Figure 6-2. Frequency, Upper and Lower Limit
In this example, the limit line connects four limit points, If a
measured trace exceeds the upper or lower limit line, the limit test
fails.
Step 2: Editing a Limit Line Table
1. Set up the frequency range of the grid before starting the limit
line edit.
2. Press
3. Press LIMIT MENU. Then toggle LIMIT LINE on OFF to ON.
This makes it easier to understand the status of the limit line
while you are editing it.
4. Press EDIT LIMIT LINE. to cali the limit line editor.
5. If an old limit line table is still in the limit line editor, press
CLEAR. LIST CLEAR LIST. YES to clear it.
6. Press EDIT to edit the first segment.
Using Features Common to Both Modes of Operation 6-3
sapoy u10g
a
A
=
D
a
e
e)
=
=
eu
=
©
To Perform GO/NO-GO Testing
10.
il.
12.
13.
Hi EA За MAG
30 del, ВЕР BD de
+
CENTER 70 MHz SPAN Z00 kHz
SES SWP PARAM UPPER LOWER
> 1 100 MHz 0 de Q de
ENT
Figure 6-3. Limit Line Editor
. Enter the frequency of the segment in one of the following ways:
a Press SWP PARAM. Then enter the frequency of the segment.
um Move the marker to the point you want to use as the frequency
of the segment. Then press MKR—SWP. PARAM.
+ Press UPPER LIMIT. Then enter a upper limit value.
Press LOWER LIMIT. Then enter a lower limit value.
Press DONE to end editing the segment.
Press ADD to edit the next segment.
Repeat list item 7 to list item 11 until all segments are defined.
When you finish editing all segments, press DONE to complete
editing the limit line table.
You can enter the limit value using the middle and width method
by pressing MIDDLE VALUE and DELTA: LIMIT. You then enter the
amplitude value as a middle amplitude value with a delta limit. The
upper and lower limit lines appear at an equal positive and negative
. distance from the specified middle amplitude.
64 Using Features Common to Both Modes of Operation
To Perform GO/NO-GO Testing
To Modify or Delete the Segment
1. Press SEGMENT.
SIPON he:
2. Select the segment you want to delete or modify:
» Enter the segment number you want to modify. Then press (x1).
ui Move cursor, “>”, to the segment you want to modify by using
the (1), the (7), or the ©.
3. Do either of the following:
2
7
3
+—
a
=
Let]
ei
e
o
=
3
<
wt
3
e]
To Press
Modify specified segment EDIT
Delete specified segment DELETE
Step 3: Executing a Limit Line Test
To Make a Limit Line Test Active
1. Press (System).
2. Press LIMIT MENU.
>. Toggle LIMIT TEST on OFF to ON off.
If the limit line test passes, a green PASS message appears on the
right of the grid, If it fails, a red FAIL message is displayed. You can
set the analyzer to beep if the limit line test fails, (See the “To Beep
When the Limit Test is Failed” procedure.)
= Ао ев
CHL BSR 1 MALY 20 ав, REF
. sec
SR AN 200 Hz
CENTER то MZ
Figure 6-4, Limit Line Test
Using Features Common to Both Modes of Operation 6-5
To Perform GO/NO-GO Testing
To Beep When the Limit Test is Failed
1. Press (System).
3. Toggle BEEP FAIL on OFF to ON off
Notes You can save the edited limit line table with all other instrument
settings by pressing STATE. See “To Save an Analyzer Setting or
Measurement Data” for more information.
6-6 Using Features Common to Both Modes of Operation
To Offset the Limit Line
To Offset the Limit Line
SSPOIN YIOG
a
qu
3
hi
D
a
©
3
=
|
©
3. Press the following keys:
To move line Press
Horizontally SWP PARAM OFFSET
Vertically AMPLITUDE OFFSET
4. Then move the limit line by entering an offset value using one of
the following:
To Use
Move continuously ©
Move with steps DO
Enter offset value directly (0)... (9) and unit keys
5. To move the limit line vertically to the marker position:
a. Press Then move the marker to the point you want to
set as the offset value,
6. When you are finished offsetting the limit line, press RETURN.
Using Features Common to Both Modes of Operation 6-7
To Offset the Limit Line
Emi BR 1 MAG 20 dB, REF -60 ob
Cor
CENTER 70 Mz SPAM 200 «Hz
Before Offset
CH1 8/A 1 HALE 20 der REF -50 dB
car
пас
CENTER 70 MHz SPAN 200 kHz
After Offset
Figure 6-5. Offsetting Limit Lines
To clear the offset, enter 0 for all the offset values.
6-8 Using Features Common to Both Modes of Operation
To Make a List Sweep
To Make a List Sweep
Step 1: Planning the List Sweep
1. Determine the following parameters before editing the sweep list.
Parameter
Sweep Parameter
Number of points
RBW
IF BW
Output Power
* RBW>10 kHz only,
sa e 4 109
e
e
E
E
Lu
Боны Y
4]
ow
e
o
=
=
=r
„=
=
Description
Frequency (or power for the power sweep)
of each segment. Each segment cannot be
continuous. You can reduce the sweep time
by setting the segment only for the required
part of the trace.
Number of display points. You can adjust the
display area for each segment by setting this
parameter.
This parameter is for the spectrum analyzer
mode. You can set the resolution bandwidth
for the each segment individually. This
is useful if you want to display higher
resolution only for the specific segment.
This parameter for the network analyzer
mode. You can set the IF bandwidth for
each segment individually. This is useful if
you want to display higher dynamic range
only for the specific segment.
Output power from the RF OUT port of each
segment. The allowable range is -70 dBm
to +20 dBm. When you want to use the
internal tracking generator for spectrum
measurement, you can set this parameter in
the spectrum analyzer mode. *
Using Features Common to Both Modes of Operation 5-9
To Make a List Sweep
Crit = Soectrum 10 dar REF —-20.8 dBm
= 300 Hz VEW 300 Mr ATM 10 de SWF 711 4 sec
CHA CENTER 30 MHZr SPAN
CH? 5 On um 10 В REF +20. cm
X
REWk S00 Hz VBW 300 H АТМ 10 dB SWE AS STE
CHa CENTER 30 MHZ © DAN SES
Figure 6-6. List Sweep (Upper) Reduces Sweep Time
Step 2: Editing a Sweep List
1. Press SWEEP TYPE MENU ÉDIT LIST to cail the sweep list
editor,
2. Press EDIT to edit the sweep list.
CHL BAR log MAG 10 dB, BEF ~40 ее’
+
msec
CENTER 70 MHZ SPAM 100 kHX
SEG START STOP POINTS POWER IFSW
> 1 100 kHz 100 kHz 2 9 gsm 40 kHz
END
Figure 6-7. List Sweep Editor
3. Enter the frequency (or power) range of the segment.
6-10 Using Features Common to Both Modes of Operation
To Make a List Sweep
m Move the marker to the start point. Then press
# Move the marker to the stopping point. Then press MKR—STOP.
m Press to enter the start sweep parameter. Then press
to enter the stop sweep parameter. |
4. Press NUMBER of POINTS. Then enter the number of points for
the segment.
5. Set the output power:
m When in spectrum analyzer mode, ignore this parameter unless
you are using the internal tracking generator, The default value
(0 dBm) is not applied until you turn on the RF Output.
m Press POWER. Then enter the output power level for the
segment.
0. Set the internal filter bandwidth:
# When in spectrum analyzer mode, press RES BW to set the
resolution bandwidth.
m When in network analyzer mode, press IF BW to set the IF
bandwidth.
7. Press SEGMENT DONE to complete editing the segment.
8. Press ADD to edit the next segment.
9, Repeat list item 3 to list item 8 until you complete editing of all
required segments,
10. When you finish editing all the segments, press LIST DONE to
complete the sweep list.
To Modify or Delete the Segment
1. Press SEGMENT.
2. Select the segment you want to delete or modify:
# Enter the segment number you want to modify. Then press (x1).
mu Move the cursor, “>”, to the segment you want to modify by
using the (7), the (X), or the ©.
3. Do either of the following:
To Press
Modify specified segment EDIT
Delete specified segment DELETE
Using Features Common to Both Modes of Operation — 6-11
Eee ete
a
Ф
0
Fond
=
o
7
e
2
4
=
ig
3
gl
©)
To Make a List Sweep
Step 3: Activating the List Sweep
1. Press (Sweep)
3. Press ar
4. If you use the output power in the Spectrum analyzer mode, press
. Then toggle RF OUT on | OFF to ON off.
Notes It you want o delete 2 an edited | sweep I list, press |
Gf TE. See “To Save an Analyzer Setting or
Measurement Data” ue more information.
For more information about the list sweep, see chapter 6 of the
Function Reference.
6-12 Using Features Common to Both Modas of Operation
To Use the Trace Memory
To Use the Trace Memory
Step 1: To Store the Trace into the Trace Memory
1. Display the trace you want to store into the trace memory.
2. Press (Display).
This operation only stores the digitized trace data into the trace
memory (not the display on CRT). You can store the trace data for the
trace memory of each channel individually. The stored trace data is
retained until new data is stored, the analyzer is preset, or power is
turned off,
Step 2: To Display Memory Traces
Notes
1. Press (Display).
2. Select the display trace:
To display Press
Memory trace MEMORY
Data and memory trace together DATA and MEMORY
Data trace DATA
Memory traces are displayed as green (channel 1) or red (channel 2)
to distinguish between the two traces. You can change this color by
using the modify colors menu under (Display) MORE ADJUST DISPLAY.
If the trace memory of the active channel is empty, the error message
(CAUTION: NO VALID MEMORY TRACE) is displayed.
The scale of the memory trace is coupling with the data trace. If you
want to change the scale setting for only the data or memory trace,
toggle (Scale Re) DEM SCALE [COUPLE] to [UNCOUPLE] . Then toggle
SCALE. FOR [DATA] or [MEMORY] before you change the settings.
For more information about trace memory, see chapter 5 of the
Function Reference.
Using Features Common to Both Modes of Operation 6-13
io
©
Fi
DO
6
a
Lam
=
@
о
E,
(o)
3
=
or
3
Fa
o
To Offset the Trace
сна ов 10 des REF О dam ER ©& Sgectrum 10 dar НЕЕ © am
To Offset the Trace 1. Press (play).
2. Press DATA -
To Press
Set the marker position to the offset, value MKR—OFFSET
Enter the offset value directly OFFSET. Then
enter the offset
value
For example, if an attenuator is inserted between a signal source
and the input port of the analyzer, the offset function corrects the
attenuation of the input signal and displays the trace referenced to
the input signal to the attenuator.
Offset indicator, -0, appears on the left side of the grid.
- га @ с
CENTER 1 GHz SPAN BSO kHZ CENTER t Grez SPAM 500 kh
6 dB Attenuated Signal After Offset
Figure 6-8. Offsetting the Trace
To Clear the Offset 1. Press (Display).
3. Press DEFAULT GAIN & OFS.
Notes For more information about offsetting and multiplying traces, see the
Function Reference.
5-14 Using Features Common to Both Modes of Operation
To Use the Trace Math Function
To Use the Trace Math Function
1. Press (Display ).
e Ue
3. Do one of the following:
9)
ui)
Las)
2
pr aa
=
=
(D
LA
@
co
=
=}
Ley
2
Pret
Q a
To Press
Add Trace with Memory Trace DATA+MEM
Subtract Trace with Memory Trace DATA-MEM
Divide Trace with Memory Trace DATA/ MEM
To Turn Off the Data Math Function
1. Press (Display).
To Multiply the Trace 1. Press (Display).
3. Press GAIN. Then enter a multiplication factor:
To Use
Change value continuousiy ©
Change value with 1-2-5 steps DE)
Enter value directly (0)... (9) and unit keys
To Clear a Multiplied Trace
1. Press (Display).
Using Features Common to Both Modes of Operation 6-15
To Print and Plot
To Print and Plot This step provides the following procedures for printing and plotting:
m To print out a display image
® To see or print a measured value list
m 10 print an analyzer setting
sm To plot a display image
3m To plot to a transparent sheet
m To use a different HP-IB address for the printer/plotter
To Print Out a Display Image
1.
Connect the printer to the analyzer with an HP-IB cable.
2. Set the HP-IB address of the printer to 1.
3. Verify that the printer is NOT set to the “Listen Always” mode.
4,
5
+ Press (Copy) PRINT [STANDARD] to print out a display image
To stop printing or plotting in progress, press (Copy) COPY ABORT.
To See or Print a Measured Value List
1.
Press (Copy).
2, Press MORE: LIST VALUES to display the measured value list.
# To see ali of the measured value list, press NEXT PAGE or
PREV
PAGE to turn the pages.
" To print or plot out the measured value list, press
PRINT [STANDARD] or PLOT respectively.
# To return to the measurement display, press RESTORE DISPLAY .
6-16 Using Features Common to Both Madas of Operation
To Print an Analyzer Setting
To Plot a Display Image
1. Press (Copy).
To Print and Plot
2. Press MORE OPERATING PARAMETERS to display the analyzer
setting table as shown below.
3. Press PRINT [STANDARD] to print out the settings.
4. To return to the measurement display, press RESTORE DISPLAY .
Analyzer Setting Tabie
OPERATING PARAMETER
ANALYZER TYPE
SWEEP TYPE
NUMBER of POINTS
RF OUT
PORT 1 ATTEN.
PORT 2 ATTEN.
GROUP DELAY APERTURE
PHASE OFFSET
PORT 1 EXTENSION
PORT 2 EXTENSION
INPUT R EXTENSION
INPUT A EXTENSION
INPUT B EXTENSION
VELOCITY FACTOR
CAL KIT
40
CAL TYPE
CHi
NA
LIN FREQ
201
ON
0 dB
O de
1 % SPAN
0?
0s
ов
О в
0s
О 8
OFF
i
Tmm
50 ohm
NONE
CH2
NA
LIN FREQ
201
UN
0 dB
0 dB
1 % SPAN
0
О в
0
О в
0
0
OFF
mm
50 ohm
NONE
1. Connect an HP-IB plotter to the analyzer with an HP-IB cable.
2. Set the HP-IB address of the plotter to 5.
3. Press (Local). Then press SYSTEM CONTROLLER
4. Press PLOT to plot out a display image.
To stop printing or plotting in progress, press COPY ABORT
Using Features Common to Both Modes of Operation — 6-17
Ee:
о
и
т
Q
rie
ие
hii |
T
НН
e
o
3
=
Li
=
ni
©
To Print and Plot
To Plot to a Transparent Sheet
*. Toggle PLOT SPEED to [SLOW].
3. Set a transparent sheet on the plotter.
4. Plot the image as described in the “To Plot a Display Image”
procedure,
To Use a Different HP-IB Address for the Printer/Plotter
2. Press ADDRESS: PLOTTER or ADDRESS: PRINTER. Then enter a
new HP-IB address.
3. Press RETURN to return to the top menu.
Notes Available printers and plotters are listed in chapter 9 of the Function
Reference.
6-18 Using Features Common to Both Modes of Operation
To Save and Recall
To Save and Recall me
This step provides the following procedures for saving and recalling:
m Tb save an analyzer setting or measurement data
@ To recall a saved analyzer setting
sm To save a display image to an HP-GL file
m То save measured data for a spreadsheet
a To copy the file
u To initialize a disk for use
# To initialize the RAM disk for use
To Save an Analyzer Setting or Measurement Data
Note
1. Insert a LIF or DOS formatted 3.5 inch disk into the built-in disk
drive (if you are recalling an instrument state file from the RAM
disk, skip this step).
2. Press (Save).
3. Select a save data type:
Save Data Type Press
Instrument states only STATE
Measurement data only! DATA ONLY (binary)
1 You can specify a data array type. See the “To Specify a Data Array Type”
procedure.
4. Select where the file is stored by pressing either
STOR. DEV. [DISK] (for the built-in disk drive) or
9. Enter a filename. Then press DONE.
The analyzer automatically detects the disk format as either the LIF
(Logical Interchange Format) or DOS (Disk Operating System). If you
insert an any other format type disk, an error message is displayed.
For more information, appendix C of the Function Reference provides
a complete list of the instrument state to be saved,
You can automatically recall the instrument state every time the
analyzer is turned ON. Use “AUTOREC” as a filename. The analyzer
recalls this file from a disk that is inserted in the built-in disk drive
when it is turned ON.
Using Features Common to Both Modes of Operation 6-19
Sapo А] yiog
“Hi
a
D
ml
=
O
n
o
|
3
Cr
o
To Save and Recall
To Specify a Data Array Type
2. Toggle to ON off the item what you want to save:
Data array
Raw data array
Calibration data array
Data array
Memory array
Data Trace array
Memory Trace array
Toggle
DATA on OFF to ON off :
E OFF to ON: off
RACE on, Ol OFF to on. off
3. Press RETURN to return to the top menu.
To Recall a Saved Analyzer Setting
1. Insert a disk (if you are recalling an instrument state file from the
RAM disk, skip this step).
2. Press (Recall).
à. Select where the file is stored by pressing either
STOR. DEV. [DISK] (for a built-in disk drive) or
STOR DEV [MEMORY] (for a RAM disk).
4. Search for the filename you want to recall (the files are listed on
the softkey label),
5. If a target file is not listed on the softkey label, turn the label page
by pressing PREV FILES or NEXT FILES.
6. Press the softkey corresponding to the filename label.
6-20 Using Features Commen to Both Modes of Operation
To Save and Recall
To Save a Display Image to an HP-GL File
sapoy uieg
3. Select where to store the file yp pressing either * STOR DEV [DISK]
о
RU
Ф.
T
jy
=
qu
N
e
e
3
=
©
ко]
>
©!
4. Enter filename. Then press mis.
The analyzer saves an HP-GL file with an extension, “.HPG” for a DOS
format, or a suffix, “.G” for a LIF format.
If you want to change the extension for a DOS format, press
ASCIT SAVE DEFINE EXTENSION GRAPHICS Г. HPG] to call the
extension defining menu. Then enter a new extension, This feature is
only available for a DOS format disk.
If there is a file that has the same name you entered on the disk, the
error message, “filename error” will be displayed. To save the file,
use the other filename to save or purge the old file. To purge a file,
press (Save) FILE UTILITIES PURGE FILE then select the displayed
filename by pressing the associated softkey.
Using Features Common to Both Modes of Operation 6-21
To Save and Recall
To Save Measured Data for a Spreadsheet
1. Insert a DOS format disk into the built-in disk drive.
9. Enter a filename. Then press DONE.
The analyzer saves an ASCIH file with a “. TXT” extension, If you want
to o change the extension, press (Save) (Save) ASCII SAVE DEFINE EXTENSION
cl XT] to call the extension defining menu. Then enter a
new extension.
The measured data is saved as ASCII text. Each value is separated by
à tab. When you open this file from the spreadsheet software, specify
the file format as the “TEXT with TAB delimifer”.
Figure 6-9. Reading Saved Data from Spreadsheet Software
6-22 Using Features Common to Both Modes of Operation
To Save and Recall
To Copy the File 1. Press (Sao) FILE UTILITIES.
2. Press COPY FILE.
EE Me
J. Select a storage device where the file is stored by toggling
Вр
au
a
ть
a
un
O
©
3
=
=
per
—
La
4. Search for the filename you want to recall (the files are listed on
the softkey label).
5. If a target file is not listed on the softkey labels, turn the label page
by pressing PREV. PACE or NEXT PAGE.
6. Press the softkey corresponding to the filename label.
7. Enter the filename of the target file,
8. Select the target storage device by toggling STOR. DEV [DISK] or
DRENORY]
- Press DONE to copy the file.
You cannot copy a file between the LIF and DOS formats. When you
want to copy a file on a DOS formatted disk to the RAM disk, you
must initialize the RAM disk to the DOS format.
o
To Initialize a Disk for Use
i Initializing the disk erases all data on the disk.
Y
Note
Verify that the disk is not write protected.
Insert the disk.
Select the disk format + (ete DOS or LIF) by toggling
E
сл
Toggle to to SPORE Dé to select the disk drive,
7. Press INITIALI ZE DISK: YES to initialize the disk.
Using Features Common to Both Modes of Operation 6-23
To Save and Recall
To Initialize the RAM Disk for Use
Note xx Initializing the RAM disk erases all data on the RAM disk.
2. Select the disk format (either DOS or LIF) by toggling
FORMAT [DOS] or [LIF].
3. Toggle to STOR DEV. [MEMORY]: to select the RAM disk.
The files on the RAM disk are kept until the analyzer is turned off.
When the analyzer is turned off, the data on the RAM disk is lost.
The format is retained in the backup memory, The analyzer initializes
the RAM disk automatically every time it is turned ON (using the
format in the backup memory).
Notes For more information about saving data, see chapter 8 of the
| Function Reference.
6-24 Using Features Common to Both Modes of Operation
A
Manual Changes
Introduction This appendix contains the information required to adapt this manual
to earlier versions or configurations of the HP 4396A than the current
printing date of this manual. The information in this manual applies
directly to the HP 4396 A Network/Spectrum Analyzer serial number
prefix listed on the title page of this manual.
>
ых
pa)
c
D
e
ye
tm
=
a
T
Ne
Manual Changes To adapt this manual to your HP 4396A, refer to Table A-1 and
Table A-2, and make all of the manual changes listed opposite your
instrument’s serial number and firmware version.
Instruments manufactured after the printing of this manual may be
different than those documented in this manual. Later instrument
versions will be documented in a manual changes supplement that
will accompany the manual shipped with that instrument. If your
instrument’s serial number is not listed on the title page of this
manual or in Table A-1, it may be documented in a yellow MANUAL
CHANGES supplement,
Turn on the line switch or execute the “*IDN?” command by HP-IB
to confirm the firmware version. See HP-IB Command Reference tor
information on the “*IDN7” command. For additional information on
serial number coverage, see chapter 1 of the Function Reference.
Table A-1. Manual Changes by Serial Number
Serial Prefix or Make Manual
Number Changes
Table A-2. Manual Changes by Firmware Version
Version Make Manual
Changes
Manual Changes A-1
To Save and Recall
Serial Number Hewlett-Packard uses a two-part, nine-character serial number that is
stamped on the serial number plate (see Figure A-1) attached to the
rear panel. The first four digits and the letter are the serial prefix and
the last five digits are the suffix.
(_ (68) YOKOGAWA HEWLETT-PACKARD |
SER.NO. 3241J00101
Ea — MADE IN JAPAN 33
‘ий
PREFIX SUFFIX
CASÓ
Figure A-1, Serial Number Plate
A-2 Manual Changes
50 Um)/75 1) minimum loss pad, 2-22
7
75 0 N to 50 BNC adapter , 2-22
ADDRESS | 6-16
admittance , 49
ADMITTI ANCE CHART , 4-7
analyzer mode
network , 4-3
spectrum, 2 3
ASCII save , 6- 19
AUTOREC , 6- 17
AUTO. SCALE , 4-12
averaging , 2- 25, 4-28
AVERAGING FACTOR , 2-25, 4-28
B
В, 4-7
EsTe) 12. 1
BACK: SPACE,
DO, 12
B/R , 4-7
built-in disk drive , 6-17
(Bw/Avg) , 2-17
C
calibration
1-path 2-port , 4-21
75 Q configuration , 2-22
external reference , 2-21
full 2-port , 4-19
kit , 4-23
response , 4-16
response & isolation , 4-16.
S-11 1-port , 4-17
S-22 1-port , 4-18
turning off reference levei calibration ,
2-21
calibration , 4-15
calibration data , 6-17
calibration for spectrum measurement , 2-20
calibration method , 4-15
CAL OUT output 2-20
capturing unstable signal , 2-26
carrier to noise ratio , 3-4
; 2-7
center frequency
marker , 2-7
peak— , 2-8
center frequency , 2-7
center step
setting , 2-9 —
CENTER STEP. SIZE , 2-9
EI), 2-3, 4-3
‚ 2-3, 4-3
channel
active , 2-3, 4-3
dual , 2-3
split , 2-3
character entry , 1-2
CLEAR SUB MER: 2-27, 4-28
connect
unknown signal , 2-2
CONTINUOUS , 2-5, 2-25, 4-6
CROSS CHAN , 2-13, 3-14
CW FREQ , 4-6
D
DATA. and MEMORY , 6-10
data array , 6-17
data hold
maximum , 2-25
minimum , 2-25
DATA HOLD , 2-25
DATA MATH , 6-13
DATA ONLY , 6-17
DATA—. MEMORY: , 6-10
data trace array , 6-17
Index-1
dBm/Hz , 3-2
detection mode
sample , 3-2
deviation , 5-6
disk
initialize , 6-20
display
overlap channel , 2-3
split channel , 2- 3
DEM. SCALE([UNCOUPLE] , 4-12
ELECTRIC AL DELAY | 5-4, 5-6
electrical length , 5-4
entry
character , 1-2
numerical data , 1-2
Exp, 12
equivalent noise bandwidth , 3-2
Е , 1-3
EXECUTE Ter di 2-20, 2-22
EXPANDED PHASE ‚ 4-7
extended cable , 5- 8
extension , ‚ 6- 18
EXTERNAL , 2-4, 4-4
EXT TRIGGER connector , 2-4, 4-4
F
file
copy , 6-19
purge , 6-18
file format
DOS , 6-20
LIF | 6-20
filter , 5-2
format
group delay , 5-7
network analyzer , 4-7
noise , 3-2
smith chart , 4-8
, 2-0, 4-7
FREE RUN 4-4
frequency
center , 2-7
full span , 2-11
span , 2-11
index-2
zero span , 3-11
frequency resolution , 2-23
gate trigger
averaging , 3-9
edge mode , 3-8
gate delay , 3-5
gate length , 3-5
level mode , 3-8
RBW , 3-8
VBW , 3-9
gate trigger , 3-5
go/no-go testing , 6-2
group delay , 5-7
group delay aperture , 5-7
H
hardkey , 1-1
harmonics
displaying , 2-9
HP 118528 option C04 , 2-22 -
HP-GL , 6-18
HP-IB address , 6-14, 6-16
I
IF bandwidth , 4-14
IF BW , 4-14
IMAGINARY | 4-7
impedance , 4 9
initialize disk , 6-20
initialize RAM disk , 6-20
input impedance , 2-22
input port, 4-7
INPUT. Z , 2-22
instrument state , 6-17
K
keyboard , 1-3
key operation , 1-1
L
LIF , 6-17
limit line
table , 6-3
to edit , 6-3
limit line test
activating , 6-5
beep , 6-H
display line , 6-3
modify table , 6-4
offset line , 6-6
limit line test , 6-2
linear phase , 5-6
listen always , 6-14
list t sweep , | 6- 7
manual changes , A-1
marker
displaying difference , 2-28, 4-29
fixed Amarker , 3-4
marker list , 2-27, 2-30, 4-28
noise marker , 3-4
reading value , 2-23, 4-27
to center , 2-7
tracking Amarker , 3-13
transition time , 3-11
Amarker , 2-28, 4-20
(Marker) , 2-23, 4-27
max hold , 2-25
measurement
3 dB bandwidth , 5-2
cable electrical length , 5-9
carrier to noise ratio (C/N) , 3-4
noise level , 3-2
peak to peak of ripple , 4-31
ripple parameters , 4-31
time domain , 3-11
time gated , 3-b
zero span , 3-11
MEMORY , 6-10
memory array , 6-17
memory trace , 6-13
memory trace array , 6-17
microfiche , x
MKR LIST , 2-27, 2-30, 4-28
MKR—CENTER , 2-7
MKR—CNTR STEP , 2-9
MKR-—DELAY , 5-6
MKR—LEFT RNG , 2-31
MKR— REFERENCE , 2-15
MKR—RIGHT 1 RNG , 2-31
MKRSA—SPAN , 2- 14
MKR TIME , 3-11
MKRA— SEARCH. RNG , 2-31
multiply trace , 6-13
N
N- BNC adapter , 2-2, 2-20
NEXT PEAR. , 2-29
NOISE , 3-2
NOISE: FORM ‚ 3-4
noise marker , 3-4
NUMBER. of. GROUPS | 2-5, 4-6
numerical keys | 1-2
O
OFFSET, 3-2
opened cable reflection , 5-9
OPERATING PARAMETERS ‚ 6-14
option 1D6 , 3-5
oscilloscope , 3-5
P
PART SRCH , 2-31, 4-31
peak
defining peak specification , 4-32
setting to center , 2-8
to search multiple peaks , 2-30
to search single peak , 2-29
PEAK ALL , 2-30
PEAK DEF MENU , 2-33, 2-34, 4-32, 4-33
PEAK—CENTER , 2-8
PEAKS LEFT 2 30
PEAKS RIGHT , 2-30
peak threshold , 2-33
PHASE , 4-7
plot
display image , 6-15
_ transparent sheet , 6-15
POLAR CHART , 4-7
port extension , 5-8
PORT EXTENSION , 5-8
power , 2- 6
POWER" SWEEP , 4-6
(Preset) д. 2, 4- 3
print
analyzer setting , 6-14
display image , 6-14
list values , 6-14
PRINT ‚ 6- 14
purge file 6-18
Index-3
R
R , 4-7
RAM disk
initialize , 6-20
raw data , 6-17
RBW
to set , 3-8
REAL 47
recall
analyzer setting , 6-18
automatically , 6-17
reference level
marker— , 2-15
setting , 2-15
reference level calibration , 2-20
REFERENCE POSITION , 4- 12
REFERENCI VALUE ‚ 2-15, 4-12
Refl:FWD su [A/A] | 4-7
Refi:REV. $22 [A/R] , 4-7
relative permitivity (Er) , 5-5
repetitive sampling mode , 3-11
RES BW , 2-17
resolution , 2-23
resolution bandwidth (RBW) , 2-17
RESPONSE: , 4- 16
RESPONSE: E ISOLN , 4-16
rotary knob | 1-2
5
sampie detection , 3-2
sampling mode , 3-11
save
analyzer setting , 6-17
data array type , 6-17
display image , 6-18
extension , 6-18
measurement data , 6-17
SCALE/DIV , 2-16
scale/division
setting , 2-16
scale/division , 4-12
search
multipie peaks , 2-30
peak definition , 4-32
range , 4-31
search range , 2-31
target value , 4-30
to define peak shape , 2-34
to define peak threshold , 2-33
SEARCH TRK , 2-0, 3-13
SEGMENT 64
Index-4
serial number , A-2
set up time (SUT) , 3-5, 3-8
shorted cable reflection , 5-9
signal delay (SD) , 3-5
signal track
cross channel , 3-14
signal track , 2- 12, 2-26
SIGNAL TRK , 2- 2 2-26, 3-14
signal width (т)
SINGLE , 2-5, va 6
S input, 2. 2
SMITH CHART | 4-7
SMTH/POLAR MENU , 4-9
softkey , 1-1
span
full , 2-11
narrowing , 2-12
setting , 2-11
Amarker— , 2-14
zooming , 2-13
, 2-11
S-parameter test set , 4-2, 4-7
spectrum monitoring , 5- 3
SPLIT DISP 2-3
spreadsheet | 6- 19
standard class
assignment , 4-25
label , 4-24
specifying , 4-25
standard definition
table , 4-23
, 4-11
STATE , 6-17
STATISTICS , 4-31
(Stop) , 4-11
sub-marker
) Using, > 27, 4-28
SUB. ‚ 2-47, 4-28
sweep
linear , 4-6
log , 4-6
power , 4-6
to stop , 2-25, 4-28
sweep condition , 4-6
SWEEP: HOLD. 2 20, 4-28
sweep time
minimize , 2-19
SWEEP TINE | 3-15
sweep type , 4- 6
swept harmonics , 3-13
SWR. , 4-7
T es ESHOLD | 2-33, 4-33
time gated spectrum analysis , 3-5
toggle Keys , 1-1
trace arithmetic , 6-13
trace math
to add , 6-13
to divide , 6-13
to subtract , 6-13
trace math , 6-13
trace memory , 6-10
trace offset
clear , 6-12
_setting , 6-11
TRACKIN G AMKR | 3-13
Shae Зоб ИЕ R] , 4-7
transmission/reflection ( (T/R) test set , 4-2,
cesser event | 4-5
trigger mode , 2-4, 4-4
trigger signal
negative , 2-5, 4-5
positive , 2-5, 4-5
trigger source
external , 2-4, 4-4
internal , 2 4
TRIG PLATY , 2-5, 4-5
О
AMKR |, 2-28, 4-29
unit , 2.6
Vv
VELOCITY. FACTOR , 5-5
VIDED 3-11
video bandwidth (VBW) , 2-18
VIDEO: BW , 4-18
video trigger , 3-11
voltage , 2-6
wo
WIDTH , 5-2
Y
Y
_ converting , 4-9
a у 4-9
converting , 4-9
zooming
setting magnification , 2-13
Amarker , 2-14
zooming , 2- 13
ZOOMING: APERTURE , 2-13
2: Ref! , 4-9
Z: Trans , 4-9
Index-5
REGIONAL SALES AND SUPPORT OFFICES
For information relating to Sales or Support of Hewlett-Packard products first contact your local Hewlett-Packard office
listed in the white pages of your telephone directory. If none is listed locally, contact one of the addresses listed below to
obtain the address or phone number of the Hewlett-Packard Sales or Support office nearest you.
ASIA
Hewlett-Packard Asia Ltd.
47/F, 26 Harbour Road,
Wanchai, HONG KONG
С.Р.О. Вох 863, Hong Kong
Tel: (852)5-8330833
Telex: 76793 HPA HX
Cable HPASIAL TD
AUSTRALASIA
Hewlett-packard Australia Ltd.
31-41 Joseph Street
BLACKBURN, Victoria 3130
Australia
Tel: (61)895-2805
Telex: 31-024
Cable: HEWPARD Melbourne
CANADA
Hewlett-Packard (Canada) Ltd.
6877 Goreway Drive
MISSISSAUGA, Ontario L4V 1M8
