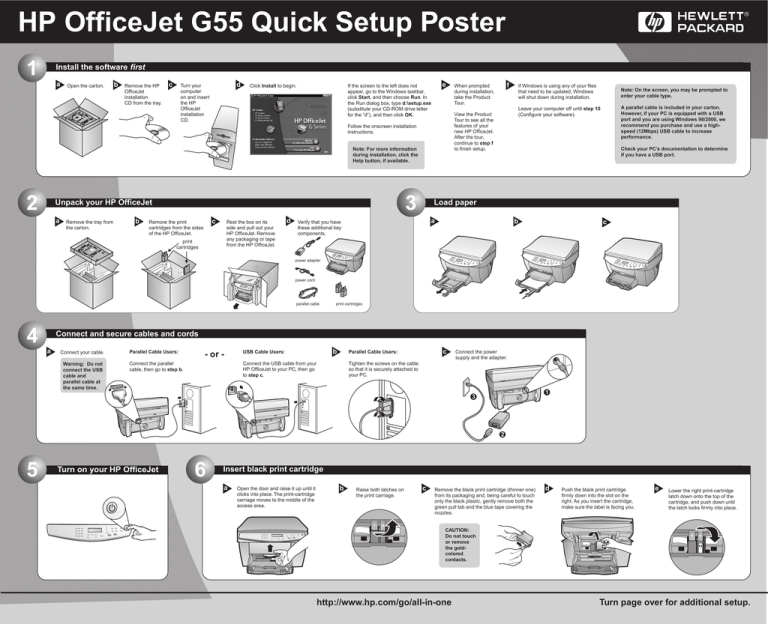

HP OfficeJet G55 Quick Setup Poster 1 Install the software first a Open the carton. b Remove the HP OfficeJet installation CD from the tray. c d Turn your computer on and insert the HP OfficeJet installation CD. e If the screen to the left does not appear, go to the Windows taskbar, click Start, and then choose Run. In the Run dialog box, type d:\setup.exe (substitute your CD-ROM drive letter for the “d”), and then click OK. Click Install to begin. Note: For more information during installation, click the Help button, if available. 3 Unpack your HP OfficeJet a Remove the tray from the carton. b c Remove the print cartridges from the sides of the HP OfficeJet. Rest the box on its side and pull out your HP OfficeJet. Remove any packaging or tape from the HP OfficeJet. print cartridges d If Windows is using any of your files that need to be updated, Windows will shut down during installation. Note: On the screen, you may be prompted to enter your cable type. A parallel cable is included in your carton. However, if your PC is equipped with a USB port and you are using Windows 98/2000, we recommend you purchase and use a highspeed (12Mbps) USB cable to increase performance. Leave your computer off until step 10 (Configure your software). View the Product Tour to see all the features of your new HP OfficeJet. After the tour, continue to step f to finish setup. Follow the onscreen installation instructions. 2 f When prompted during installation, take the Product Tour. Check your PC’s documentation to determine if you have a USB port. Load paper a Verify that you have these additional key components. b c power adapter power cord parallel cable 4 print cartridges Connect and secure cables and cords a Connect your cable. Warning: Do not connect the USB cable and parallel cable at the same time. Parallel Cable Users: - or - b USB Cable Users: Connect the power supply and the adapter. Tighten the screws on the cable so that it is securely attached to your PC. Connect the USB cable from your HP OfficeJet to your PC, then go to step c. Connect the parallel cable, then go to step b. c Parallel Cable Users: 1 3 2 5 Turn on your HP OfficeJet 6 Insert black print cartridge a Open the door and raise it up until it clicks into place. The print-cartridge carriage moves to the middle of the access area. b Raise both latches on the print carriage. c Remove the black print cartridge (thinner one) from its packaging and, being careful to touch only the black plastic, gently remove both the green pull tab and the blue tape covering the nozzles. d Push the black print cartridge firmly down into the slot on the right. As you insert the cartridge, make sure the label is facing you. e Lower the right print-cartridge latch down onto the top of the cartridge, and push down until the latch locks firmly into place. CAUTION: Do not touch or remove the goldcolored contacts. http://www.hp.com/go/all-in-one Turn page over for additional setup. 7 Insert color print cartridge a Remove the color print cartridge (wider one) from its packaging and, being careful to touch only the black plastic, gently remove both the green pull tab and the blue tape covering the nozzles. b c Push the color print cartridge firmly down into the slot on the left. Lower the left print-cartridge latch down onto the top of the cartridge, and push down until the latch locks firmly into place. Pull the handle down to close the door. CAUTION: Do not touch or remove the goldcolored contacts. 8 9 Select your language Look at your display for the language list. Enter the code for your language, and then confirm your selection. Keypad Print an alignment page Make sure paper is loaded in your HP OfficeJet. ENTER The message “Press ENTER to Align Cartridges” appears in the display. Press the ENTER key to enable the HP OfficeJet to perform the alignment. After a page prints, the alignment is complete. Display Look at the alignment page for green check marks, and then recycle or discard the page. 10 Configure your software a b Turn on your computer. Windows software automatically configures your HP OfficeJet. Note to USB Users: These screens may have already appeared on your PC while you were setting up. A series of Microsoft “New Hardware Found” messages appear. The configuration may take a few moments. Click OK to complete the software setup. If this screen does not appear, see Chapter 1, “Additional Setup Information” in the Basic Guide. Note to Windows NT 4 Users: The message, "HP OfficeJet G Series Configuration done" appears instead. See step b. If you need more help, see Chapter 1, "Additional Setup Information" in the Basic Guide. . 11 Congratulations! You can now print, copy, and scan with your new HP OfficeJet. Additional software programs may be available with your HP OfficeJet. a To install the programs, do the following: Remove and reinsert your HP OfficeJet installation CD in your CD-ROM drive. b 12 The HP OfficeJet software installation menu appears. The Productivity Section lists additional programs you can install. Click the program name and follow the onscreen installation instructions. Get to know the front panel Here are some features of your new HP OfficeJet: Use the ENTER key to make selections. Use the Scan To key to select a specific PC or program destination. Use the Start Scan key after you make a selection from the Scan To list. Use the Special Features key to access copying features, such as Fit to Page, Poster and Clone. Select one of these keys to begin copying. Use the Keypad to enter the number of copies or change the reduce/enlarge percentage. *C6736-90116* *C6736-90116* C6736-90116 Copyright Hewlett-Packard Company 2000. Printed in the USA, Germany, or Singapore. HP OfficeJet G55 Quick Setup Poster, Page 2 For troubleshooting, refer to the HP OfficeJet G Series: Your Basic Guide and the HP OfficeJet G Series: Onscreen Guide. Save this sheet for future reference.
