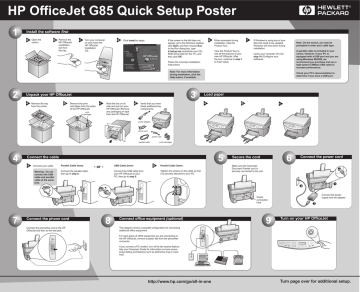

HP OfficeJet G85 Quick Setup Poster
1
Install the software first
a
Open the
carton.
b
Remove the
HP OfficeJet
installation
CD from
the tray.
c
d
Turn your computer
on and insert the
HP OfficeJet
installation
CD.
e
If the screen to the left does not
appear, go to the Windows taskbar,
click Start, and then choose Run.
In the Run dialog box, type
d:\setup.exe (substitute your CDROM drive letter for the “d”), and
then click OK.
Click Install to begin.
f
When prompted during
installation, take the
Product Tour.
View the Product Tour to
see all the features of your
new HP OfficeJet. After
the tour, continue to step f
to finish setup.
Follow the onscreen installation
instructions.
If Windows is using any of your
files that need to be updated,
Windows will shut down during
installation.
Note: On the screen, you may be
prompted to enter your cable type.
A parallel cable is included in your
carton. However, if your PC is
equipped with a USB port and you are
using Windows 98/2000, we
recommend you purchase and use a
high-speed (12Mbps) USB cable to
increase performance.
Leave your computer off until
step 14 (Configure your
software).
Note: For more information
during installation, click the
Help button, if available.
2
3
Unpack your HP OfficeJet
a
Remove the tray
from the carton.
b
Remove the print
cartridges from the sides
of the HP OfficeJet.
c
print
cartridges
Rest the box on its
side and pull out your
HP OfficeJet. Remove
any packaging or tape
from the HP OfficeJet.
d
Verify that you have
these additional key
components.
Check your PC’s documentation to
determine if you have a USB port.
Load paper
a
b
c
power adapter
phone cord
power cord
parallel cable
4
print cartridges
5
Connect the cable
a
Connect your cable.
Warning: Do not
connect the USB
cable and parallel
cable at the same
time.
Parallel Cable Users:
USB Cable Users:
- or -
Connect the parallel cable,
then go to step b.
Connect the USB cable from
your HP OfficeJet to your
PC, then go to step 5.
b
Parallel Cable Users:
Tighten the screws on the cable so that
it is securely attached to your PC.
6
Secure the cord
Connect the power cord
Make sure the Automatic
Document Feeder cord is
securely connected to the unit.
1
3
Check
connection
here
7
Connect the phone cord
Connect the phone/fax cord to the HP
OfficeJet and then to the wall jack.
8
Connect office equipment (optional)
9
Connect the power
supply and the adapter.
2
Turn on your HP OfficeJet
This diagram shows a possible configuration for connecting
additional office equipment.
For each piece of office equipment you are connecting to
the HP OfficeJet, remove a plastic tab from the phone/fax
connector.
If you connect a PC modem, turn off its fax-receive feature.
See your Onscreen Guide for information on tone versus
pulse dialing and features such as distinctive ring or voice
mail.
http://www.hp.com/go/all-in-one
Turn page over for additional setup.
10
Insert black print cartridge
Open the door
and raise it up
until it clicks
into place. The
print-cartridge
carriage
moves to the
middle of the
access area.
a
11
b
Raise both latches on the
print carriage.
c
Remove the black print cartridge (thinner one)
from its packaging and, being careful to touch
only the black plastic, gently remove both the
green pull tab and the blue tape covering the
nozzles.
d
Push the black print cartridge firmly
down into the slot on the right. As you
insert the cartridge, make sure the
label is facing you.
12
Remove the color print cartridge (wider
one) from its packaging and, being careful
to touch only the black plastic, gently
remove both the green pull tab and the
blue tape covering the nozzles.
b
Push the color print cartridge firmly down into
the slot on the left. Lower the left print-cartridge
latch down onto the top of the cartridge, and
push down until the latch locks firmly into place.
c
(Outside U.S. only) Select your country and language
a
Pull the handle
down to close the
door.
Keypad
14
ENTER
Turn on your computer. Windows software
automatically configures your HP OfficeJet.
A series of Microsoft “New Hardware Found”
messages appear. The configuration may
take a few moments.
Look at the alignment page for
green check marks, and then
recycle or discard the page.
If the Fax Setup Wizard does not appear
on your screen, double-click the HP
OfficeJet G Series Director icon on your
desktop, point to Settings, and then
choose Fax Setup Wizard.
*C6737-90101*
*C6737-90101*
C6737-90101
b
Note to USB Users: These screens
may have already appeared on your
PC while you were setting up.
Click OK to complete the software setup.
If this screen does not appear, see
Chapter 1,“Additional Setup Information”
in the Basic Guide.
Note to Windows NT 4 Users: The
message, "HP OfficeJet G Series
Configuration done" appears
instead. See step b.
If you need more help, see Chapter 1,
"Additional Setup Information" in the
Basic Guide.
16
Set up faxing
The Fax Setup Wizard is the easiest way
to enter the required header information
for your fax. Follow the onscreen
instructions to enter your name, phone
number and other important settings.
Display
Configure your software
a
Make sure paper is loaded in your
HP OfficeJet.
15
If prompted on the display, enter the code
for your language on the keypad, and then
confirm your selection.
Enter the code for your country on
the keypad, and then confirm your
selection.
Print an alignment page
The message “Press ENTER to
Align Cartridges” appears in the
display. Press the ENTER key to
enable the HP OfficeJet to perform
the alignment. After a page prints,
the alignment is complete.
b
Look at the display on your HP
OfficeJet for a country list.
(U.S. users go to step 13.)
CAUTION:
Do not touch
or remove
the goldcolored
contacts.
13
Lower the right print-cartridge
latch down onto the top of the
cartridge, and push down until
the latch locks firmly into place.
CAUTION:
Do not touch
or remove
the goldcolored
contacts.
Insert color print cartridge
a
e
Note: We strongly recommend
that you use the Fax Setup Wizard.
If you wish, you can use the front
panel to set up your fax. Follow
the instructions in the Basic
Guide.
Copyright Hewlett-Packard Company 2000.
Printed in the USA, Germany, or Singapore.
You can now print, copy, scan, and fax with your new HP OfficeJet.
Additional
software
programs may
be available
with your HP
OfficeJet.
a
HP OfficeJet G85 Quick Setup Poster, Page 2
To install the programs, do the
following:
Remove and reinsert
your HP OfficeJet
installation CD
in your
CD-ROM
drive.
b
The HP OfficeJet software installation menu
appears. The Productivity Section lists additional
programs you can install. Click the program name
and follow the onscreen installation instructions.
For troubleshooting, refer to the HP OfficeJet G Series: Your Basic Guide and
the HP OfficeJet G Series: Onscreen Guide. Save this sheet for future reference.
