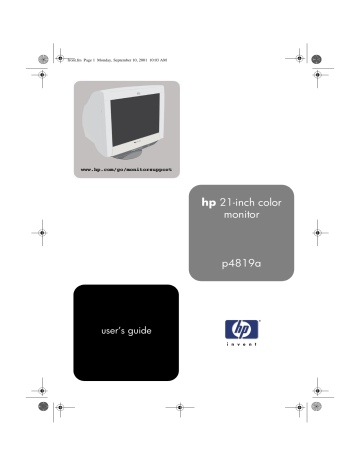

front.fm Page 1 Monday, September 10, 2001 10:03 AM

www.hp.com/go/monitorsupport hp

21-inch color monitor p4819a user’s guide

P4819A_us.fm Page 1 Friday, September 21, 2001 4:00 AM

Full scan screen that gives an edge-to-edge image

0.24 mm Aperture Grill Pitch

F D Trinitron®, anti-reflective and anti-static screen coating

Input Switch lets you connect two computers through Input 1 and

Input 2

Brightness and

Contrast controls for easy image adjustment

User’s Guide hp p1130

P4819A

21-inch Color Monitor

(19.8-inch Viewable Image)

Power: On/Off switch & LED

Status Indicator

P4819A_us.fm Page 2 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Notice

Notice

The information contained in the documents accompanying this product is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

HP shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

HP assumes no responsibility for the use or reliability of its software on equipment that is not furnished by HP.

These documents contain proprietary information that is protected by copyright. All rights are reserved. No part of these documents may be photocopied, reproduced, or translated to another language without the prior written consent of HP.

F D Trinitron

®

is a registered trademark of Sony Corporation.

© Copyright Hewlett-Packard Company, 2001. All rights reserved.

2

English

English

P4819A_us.fm Page 3 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Important Safety Instructions

Important Safety Instructions

WARNING

For your safety always connect equipment to a grounded wall outlet.

Always use a power cord with a properly grounded plug, such as the one provided with the equipment, or one in compliance with your national safety standards. This equipment can be disconnected from the power by removing the power cord from the power outlet. This means the equipment must be located close to an easily accessible power outlet.

To avoid electrical shock, do not open the monitor's cover. There are no user-serviceable parts inside. Only qualified service personnel should service these parts.

Make sure your PC is powered off before connecting or disconnecting a display peripheral.

Working in

Comfort

CAUTION

Thank you for selecting HP monitor equipment.

To optimize your comfort and productivity, it's important that you set up your work area correctly and use your HP equipment properly.

With that in mind, we have developed some setup and use recommendations for you to follow based on established ergonomic principles.

You can consult the online version of Working in Comfort preloaded on the hard disk of HP computers, or visit HP's Working in Comfort web site at:

http://www.hp.com/ergo/

The monitor is quite heavy (the weight is shown in the technical specifications). We recommend you ask the assistance of a second person when lifting or moving it.

The lightning flash with arrowhead symbol, situated within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage which may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance.

English

English

3

P4819A_us.fm Page 4 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Important Safety Instructions

Minimizing Eye Strain

To avoid screen flicker and minimize eye strain, use the highest supported image refresh rate for the chosen resolution. It is recommended that you use a refresh rate of 85 Hz. The image refresh rate is the number of times per second that the image is refreshed.

Minimizing Energy Consumption

If your computer supports VESA monitor power management

(available on many HP computers), you can minimize the power consumed by the monitor. There is one power saving mode:

• Active off mode

1

(uses less than or equal to 3W). In this mode, the monitor's front panel indicator light is amber.

To set these power saving modes, refer to the manual that came with your computer. If your screen is not displaying an image, check the front panel indicator light first as your monitor may be in a power saving mode.

1.

Unique power saving mode which is activated if SYNC, H SYNC or V SYNC inactive.

4

English

English

P4819A_us.fm Page 5 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

What Your New Monitor Offers

What Your New Monitor Offers

Your HP monitor is an FD Trinitron 21-inch (19.8-inch viewable image), high resolution, multi-synchronous color monitor. Multisynchronous means that the monitor supports a range of video modes. It is optimized for use with all Hewlett-Packard computers.

Your HP color monitor has the following features:

• A 21-inch FD Trinitron tube with a 19.8-inch viewable image, 0.24 mm aperture grill pitch for excellent graphics and an anti-glare coating to minimize reflection

• Support of video modes up to 2048 x 1536 at 75 Hz refresh rates

• Image adjustment using on-screen display menus. Includes color temperature adjustment and image manipulation controls to optimize the quality and position of the image

• Monitor power management system (VESA

1

standard) controlled from suitably equipped HP computers to automatically reduce the power consumption of the monitor. As an ENERGY

2

partner, HP has determined that this product meets the ENERGY STAR guidelines for energy efficiency

• Monitor Plug and Play capability (VESA DDC1/2B standard) that enables the monitor to identify itself to suitably equipped HP computers

• Two video inputs to connect to two PCs

• Compliance with ISO 9241-3/-7/-8 ergonomic standards

• Complies with MPRII guidelines for upper limits of electrostatic and magnetic field emissions, from the Swedish National Board for

Measurement and Testing

• Your HP monitor complies with TCO99 requirements. (Refer to

“TCO99 Ecology Energy Emissions Ergonomics” on page 40).

1.

2.

VESA is the Video Electronics Standards Association

ENERGY STAR is a trademark of United States Environmental Protection Agency (EPA)

English

English

5

P4819A_us.fm Page 6 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Setting Up Your Monitor

Setting Up Your Monitor

Where to Place the Monitor

Place your monitor on a flat sturdy surface. Ensure the operating site is free from excessive heat, moisture, and sources of electromagnetic fields. Sources of electromagnetic fields include transformers, motors and other monitors.

Connecting the Cables

1 Before you connect any cables, refer to the safety instructions at the beginning of this manual. Make sure your computer and monitor are switched off.

2 Connect the video input cable (it has a 15-pin plug) to one of the video outlets on your computer. You can use both outlets to connect two computers.

3 Tighten the thumbscrews on the plug.

4 Connect the power cord to the monitor.

5 Plug the power cord into the power outlet.

Video Cables

NOTE

Video Cable

Power Cords

The location of your computer's video cable connector may be different to the one shown. Refer to the manual that came with your computer, if necessary.

6

English

English

P4819A_us.fm Page 7 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

How To Install The Drivers

How To Install The Drivers

Windows 2000:

To install the driver:

1 Click Start, select Settings, then click Control Panel.

2 Double-click Display and select the Settings tab.

3 Click Advanced Properties or Advanced, and select the Monitor tab.

4 Click Properties.

5 Select the Driver tab.

6 Click Update Driver and click Next.

7 Select the recommended option and click Next.

8 Select the Specify a Location box.

9 Find and open the *.inf file.

10 Click Next to install the selected monitor driver.

Windows XP:

To install the driver:

1 Click Start, then click Control Panel.

2 Click Appearance and Themes.

3 Select Display and then Settings.

4 Click Advanced and select the Monitor tab.

5 Click Properties and select the Drivers tab.

6 Click update Driver.

7 Insert the Windows CD-ROM.

8 Select ‘Install from a list’ option for automatic selection or manually specify the path yourself.

9 Click Next.

10 If you are using a CD-ROM, select the ‘Search removable media’ option. If you are not using a CD-ROM, select the ‘Include this location in the search’ option to browse.

English

English

7

P4819A_us.fm Page 8 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

How To Install The Drivers

Windows 95 or Windows 98:

In order to take advantage of the Plug & Play functionality of your

Windows 95/98 operating system, HP Monitors come with a driver that lets you gain full optimization of your monitor.

To install this driver follow these steps:

1 Click the Start button, select Settings, then click Control Panel.

2 Double-click the Display icon and select the Settings tab.

3 Click Advanced Properties or Advanced, and select the Monitor tab.

4 Click the Change button in order to select the model of HP Monitor you are using.

5 Click the Have Disk... button.

6 Click the Browse... button.

7 Find and select the *.inf file.

8 Press the OK button and select your monitor type in the Models box.

Your operating system and your HP Monitor are now set up to work in optimum conditions.

If your Windows 95/98 version is different or you need more detailed installation information, please refer to Windows 95/98 user's manual.

HP regularly updates the driver each time a new monitor is released.

To download the latest up-to-date version, visit our HP Monitors

Support web site at:

http://www.hp.com/go/monitorsupport

8

English

English

P4819A_us.fm Page 9 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Using Your Monitor

Using Your Monitor

The illustration below shows the location of the function keys which operate the monitor.

&

!

' % $ # "

!

Power Switch

This button switches the monitor on and off.

"

Adjustment Button +

This button increases the level of the selected function.

#

Adjustment Button -

This button decreases the level of the selected function.

$

Menu Button

Use this button to select the menu and select the highlighted function.

English

English

9

P4819A_us.fm Page 10 Friday, September 21, 2001 4:00 AM

NOTE

HP 21” Color Monitor User’s Guide

Using Your Monitor

%

Brightness and Scroll Up Button

This button selects the Brightness menu and scrolls up in menus.

'

Contrast and Scroll Down Button

This button selects the Contrast menu and scrolls down in menus.

&

Input Switch

This button selects INPUT 1 (video input 1 connector) or

INPUT 2 (video input 2 connector).

If the power management function of your computer is working properly, you do not need to switch the monitor off or on. This occurs automatically.

10

English

English

P4819A_us.fm Page 11 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Using the On-Screen Menu

Using the On-Screen Menu

The following is an overview showing how to use the On-Screen

Menu facility using the

/

and buttons.

To display the MENU.

Press the button to display the MENU on your screen.

To select the menu you want to adjust.

Press the the

/ buttons to highlight the desired menu. Press

button to select the menu item.

To adjust the menu.

1 Press adjust.

/

2 Press the /

the buttons to select the item you want to

buttons to make the adjustment.

To close the menu.

Use the / buttons to select EXIT. If no buttons are pressed, the menu closes automatically after about 30 seconds.

English

English

11

P4819A_us.fm Page 12 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Selecting the On-Screen Menu Language

Selecting the On-Screen Menu Language

English, French, German, Spanish, Italian, Dutch, Swedish, Russian and Japanese versions of the on-screen menus are available. The default setting is English.

To select a language of your choice

1 Press the button.

2 Press the the

/

OPTION and press

button again.

3 Press the / buttons to select LANGUAGE and press

4

Press / and press the

the buttons to select the language you want

button once more to confirm your selection.

5 To close the menu use the / buttons to select

EXIT. If no buttons are pressed, the menu closes automatically after about 30 seconds.

To reset to English

Repeat steps 1-5 and select English as the chosen language.

12

English

English

P4819A_us.fm Page 13 Friday, September 21, 2001 4:00 AM

NOTE

HP 21” Color Monitor User’s Guide

Selecting the Input Signal

Selecting the Input Signal

You can connect two computers to this monitor using the video input

1 and video input 2 connectors. To select one of the two computers:

1 Move the

1 or 2 switch on the front of the monitor to either

2 The selected input (INPUT 1 or INPUT 2) appears on the screen for 3 seconds.

If no signal is input to the selected connector, the message NO

SIGNAL appears on the screen. After a few seconds, the monitor enters power saving mode. If this happens, switch to the other connector.

Displaying the Current Input Signal

Pressing the button displays the horizontal and vertical frequencies of the current input signal. If the signal matches one of the monitor’s factory preset modes, the resolution is displayed.

English

English

13

P4819A_us.fm Page 14 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Navigating the menu

Navigating the menu

1 Press the button to display the MENU on your screen.

2 Use the / and buttons to select one of the following menus. The icons on the left of the MENU show the currently selected function.

3 Select EXIT to close the menu.

1. Exit Select to exit the on-screen menu

2. Contrast/Brightness Adjusts the picture’s contrast and brightness

3. Size/Center

4. Geometry

Adjusts the picture’s size, centering or zoom

Adjusts the picture’s rotation and shape

14

English

English

P4819A_us.fm Page 15 Friday, September 21, 2001 4:00 AM

5. Convergence

6. Screen

7. Color

8. Option

9. Reset

10. Resolution

11. Refresh

HP 21” Color Monitor User’s Guide

Navigating the menu

Adjusts the picture’s horizontal and vertical convergence

Adjusts the landing (the color purity in the 4 corners), moire cancellation effect and manually degausses the monitor.

Adjusts the picture’s color temperature. You can use this to match the colors of a printed picture.

Selects the chosen language, locks the OSD and changes the menu’s on-screen position

Resets the settings of your monitor

Displays the current resolution of your monitor

Displays the current refresh rate

English

English

15

P4819A_us.fm Page 16 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Customizing Your Monitor

Customizing Your Monitor

You can make numerous adjustments to your monitor using the On-

Screen Menu.

Adjusting the brightness and contrast

Brightness and contrast adjustments are made using a separate

BRIGHTNESS/CONTRAST menu.

These settings are stored in memory for the signals from the currently selected input connector.

1 Press either the BRIGHTNESS or CONTRAST button. The

CONTRAST/BRIGHT menu appears on the screen.

NOTE

2 Press the contrast.

/

If you are using the sRGB mode

buttons to adjust the brightness or

If you selected the sRGB mode in the COLOR MODE of the OPTIONS menu, the following BRIGHTNESS/CONTRAST menu appears on the screen.

For more information about using the sRGB mode, see page 24.

16

English

English

P4819A_us.fm Page 17 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Adjusting the picture (SIZE/CENTER)

Adjusting the picture (SIZE/CENTER)

Adjusting the size of the picture (SIZE/CENTER)

This setting is stored in memory for the current input signal.

1 Press the button. The MENU appears on the screen.

2 Press the and press the

/ appears on the screen.

buttons to highlight SIZE/CENTER

button again. The SIZE/CENTER menu

3 Press the / buttons to select for horizontal adjustment, or for vertical adjustment and then press the

button.

4 Press the / buttons to adjust the size.

Adjusting the centering of the picture (SIZE/CENTER)

This setting is stored in memory for the current input signal.

1 Press the button. The MENU appears on the screen.

2 Press the and press the

/ appears on the screen.

buttons to highlight SIZE/CENTER

button again. The SIZE/CENTER menu

3 Press the / buttons to select for horizontal adjustment, or for vertical adjustment and then press the

button.

4 Press the / buttons to adjust the centering.

Automatically sizing and centering the picture (AUTO)

This setting is stored in memory for the current input signal.

1 Press the button. The MENU appears on the screen.

2 Press the and press the

/ appears on the screen.

buttons to highlight SIZE/CENTER

button again. The SIZE/CENTER menu

3 Press the press the screen.

/ buttons to select AUTO and then

button. The adjustment window appears on the

4 Press the / buttons to select OK. The picture will automatically fill the screen.

English

English

17

P4819A_us.fm Page 18 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Adjusting the shape of the picture (GEOMETRY)

Adjusting the shape of the picture (GEOMETRY)

The GEOMETRY settings allow you to adjust the rotation and shape of the picture.

The (rotation) setting is stored in memory for all input signals. All other settings are stored in memory for the current input signal.

1 Press the button. The MENU appears on the screen.

2 Press the press the the screen.

button again. The GEOMETRY menu appears on

3 Press the / item and press the the screen.

4 Press the

/

/ buttons to highlight GEOMETRY and buttons to select the desired adjustment

button. The adjustment bar appears on buttons to make the adjustment.

Select To

rotate the picture expand or contract the picture sides shift the picture sides to the left or right adjust the picture width at the top of the screen shift the picture to the left or right at the top of the screen reset all the GEOMETRY settings

18

English

English

P4819A_us.fm Page 19 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Adjusting the convergence (CONVERGENCE)

Select

T

TOP

B

BOTTOM

Adjusting the convergence (CONVERGENCE)

The CONVERGENCE settings allow you to adjust the quality of the picture by controlling the convergence. The convergence refers to the alignment of the red, green, and blue color signals.

If you see red or blue shadows around letters or lines, adjust the convergence.

These settings are stored in memory for all input signals.

1 Press the button. The MENU appears on the screen.

2 Press the / buttons to highlight

CONVERGENCE and press the button again. The

CONVERGENCE menu appears on the screen.

3 Press the the screen.

/ item and press the buttons to select the desired adjustment

button. The adjustment bar appears on

4 Press the / buttons to make the adjustment.

To

horizontally shift red or blue shadows vertically shift red or blue shadows vertically shift red or blue shadows at the top of the screen vertically shift red or blue shadows at the bottom of the screen reset all the CONVERGENCE settings

English

English

19

P4819A_us.fm Page 20 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Adjusting the quality of the picture (SCREEN)

Adjusting the quality of the picture (SCREEN)

The SCREEN settings allow you to adjust the quality of the picture by controlling the moire and the landing.

• If the color is irregular at the corners of the screen, adjust the landing.

• If elliptical or wavy patterns appear on the screen, cancel the moire.

The CANCEL MOIRE and MOIRE ADJUST settings are stored in memory for the current input signal. All other settings are stored in memory for all input signals.

1 Press the button. The MENU appears on the screen.

2 Press the press the screen.

/ buttons to highlight SCREEN and

button. The SCREEN menu appears on the

3 Press the

/

item. Then press the buttons to select the desired adjustment

button.

4 Press the / buttons to make the adjustment.

Select

LANDING

LANDING

LANDING

LANDING

CANCEL MOIRE

To

reduce any color irregularities in the screen’s top left corner to a minimum.

reduce any color irregularities in the screen’s top right corner to a minimum.

reduce any color irregularities in the screen’s bottom left corner to a minimum.

reduce any color irregularities in the screen’s bottom right corner to a minimum.

adjust the level of moire cancellation until it is at minimum.

degauss the monitor.

reset all SCREEN settings.

20

English

English

P4819A_us.fm Page 21 Friday, September 21, 2001 4:00 AM

NOTE

HP 21” Color Monitor User’s Guide

Adjusting the quality of the picture (SCREEN)

Moire is a type of natural interference which produces soft, wavy lines on your screen. It may appear due to interference between the pattern of the picture on the screen and the phosphor pitch pattern of the monitor.

Example of moire

NOTE

The picture may become fuzzy when CANCEL MOIRE is set to activated.

English

English

21

P4819A_us.fm Page 22 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Adjusting the color of the picture (COLOR)

Adjusting the color of the picture (COLOR)

The COLOR settings allow you to adjust the picture’s color temperature by changing the color level of the white color field.

Colors appear reddish if the temperature is low, and bluish if the temperature is high. This adjustment is useful for matching the monitor’s color to a printed picture’s colors.

Selecting the color mode

There are four color adjustment modes: PRESET, VARIABLE,

EXPERT and sRGB. To select one of the four modes:

1 Press the button. The MENU appears on the screen.

2 Press the press the screen.

3 Press the and press the

4 Press the

/ buttons to highlight OPTION and

button again. The OPTION menu appears on the

/

/ buttons to select

button again.

COLOR MODE buttons to select the COLOR MODE.

PRESET mode

1 Press the button. The MENU appears on the screen.

2 Press the press the screen.

/ buttons to highlight COLOR and

button again. The COLOR menu appears on the

3 Press the / buttons to highlight

button again. The adjustment bar appears.

and press the

4 Use the / buttons to select the desired temperature.

22

English

English

P4819A_us.fm Page 23 Friday, September 21, 2001 4:00 AM

NOTE

HP 21” Color Monitor User’s Guide

Adjusting the color of the picture (COLOR)

Lowering the temperature below 9300K may cause the whites to change from a bluish hue to red.

VARIABLE mode

1 Press the button. The MENU appears on the screen.

2 Press the press the screen.

/ buttons to highlight COLOR and

button again. The COLOR menu appears on the

3 Press the / buttons to highlight

button again. The adjustment bar appears.

and press the

4

Use the

/ buttons to adjust the color temperature.

The new setting will be stored in memory.

EXPERT mode

You can make additional adjustments to the color in greater detail by selecting the EXPERT mode.

1 Press the button. The MENU appears on the screen.

2

Press the press the screen.

/ buttons to highlight COLOR and

button again. The COLOR menu appears on the

English

English

23

P4819A_us.fm Page 24 Friday, September 21, 2001 4:00 AM

NOTE

HP 21” Color Monitor User’s Guide

Adjusting the color of the picture (COLOR)

3 Press the / buttons to select the R (red), G (green) or B (blue) component of the input signal for both GAIN ( ) and

BIAS ( ).

4 Press the / buttons to make the adjustment.

sRGB mode

The sRGB color setting is an industry standard color space protocol designed to correlate the displayed and printed colors of sRGB compliant computer products. To adjust the colors to the sRGB profile, simply select sRGB mode in the COLOR menu of the OPTION menu.

However, in order to display the sRGB colors correctly (

γ

=2.2,

6500K), you must set your computer to the sRGB profile and adjust the brightness ( ) and contrast. For information on how to change the brightness (

) and contrast, see page 16.

Your computer and other connected products (such as a printer), must be sRGB compliant.

Restoring the color from the EASY or sRGB menus

The colors of most display monitors tend to gradually lose brilliance over several years of service. The COLOR RETURN feature found in the PRESET, VARIABLE and sRGB modes allows you to restore the color to the original factory quality levels. The explanation below explains how to restore the monitor’s color from the PRESET menu.

1 Press the button. The MENU appears on the screen.

2 Press the press the screen.

/

3 Press the /

RETURN and press the

4 Press the / buttons to highlight buttons to select

button again.

buttons to select OK.

COLOR and

button again. The COLOR menu appears on the

COLOR

24

English

English

P4819A_us.fm Page 25 Friday, September 21, 2001 4:00 AM

NOTE

HP 21” Color Monitor User’s Guide

Adjusting the color of the picture (COLOR)

Before using this feature, the monitor must be in normal operation mode (green power indicator on) for at least 30 minutes. If the monitor goes into power saving mode, you must return the monitor to normal operation mode and wait for 30 minutes for the monitor to be ready. You may need to adjust your computer’s power saving settings to keep the monitor in normal operation mode for the full 30 minutes.

If the monitor is not ready, the following message will appear:

The monitor may gradually lose its ability to perform this function due to the natural aging of the picture tube.

English

English

25

P4819A_us.fm Page 26 Friday, September 21, 2001 4:00 AM

NOTE

HP 21” Color Monitor User’s Guide

Additional settings (OPTION)

Additional settings (OPTION)

You can manually degauss the monitor, change the menu position, and lock the controls. To adjust one of the OPTION menu adjustment items:

1 Press the button. The MENU appears on the screen.

2 Press the press the screen.

/ buttons to highlight OPTION and

button again. The OPTION menu appears on the

3 Press the / buttons to select the desired adjustment item. Adjust the selected item according to the following instructions.

Degaussing the screen

The monitor is automatically degaussed when the power is turned on.

Changing the menu position

Change the menu position if it is blocking an image on the screen.

To change the menu on-screen position:

Press the / buttons to select OSD POSITION for horizontal adjustment, or OSD POSITION for vertical adjustment. Then press the screen menu.

/ buttons to shift the on-

Locking the controls

To protect adjustment data by locking the controls

Press the and press the to select ON.

/ buttons to select CONTROL LOCK

button. Then press the / buttons

Only the POWER switch, MENU button, INPUT switch, and

CONTROL LOCK of the OPTION menu will operate. If any other items are selected, the mark appears on the screen.

To cancel the control lock

Repeat the procedure above and set CONTROL LOCK to OFF.

26

English

English

P4819A_us.fm Page 27 Friday, September 21, 2001 4:00 AM

NOTE

HP 21” Color Monitor User’s Guide

Resetting the adjustments

Resetting the adjustments

This monitor has three reset methods. Use the RESET button to reset the adjustments.

Resetting all the adjustment data for the current input signal

1 Press the button. The MENU appears on the screen.

2 Press the press the

3 Press the

/ buttons to highlight

button again.

/

button again.

RESET and buttons to select 1 and press the

The following items are not reset by this method:

• on-screen menu language

• adjustment mode in the COLOR menu (PRESET, VARIABLE,

EXPERT, sRGB)

• on-screen menu position

• color temperature setting in the PRESET mode.

Resetting all of the adjustment data for all input signals

Follow the above procedure but select 2 during step 3.

The (reset) button does not function when

CONTROL LOCK is set to ON.

English

English

27

P4819A_us.fm Page 28 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Supported Video Modes

Supported Video Modes

Your monitor comes with the standard modes shown in the table below. It also supports intermediate video modes. With the intermediate modes, the displayed image may need to be optimized using the buttons on the front panel. All modes are non-interlaced.

Your monitor is GTF

1

compatible.

Factory Optimized Modes:

640 x 400

640 x 480

800 x 600

1024 x 768

1280 x 1024

1600 x 1200

1800 x 1440

1920 x 1440

70

60, 75, 85

75, 85

75, 85

75, 85

75, 85, 85GTF*

80GTF*

85

1.

GTF - General Timing Formula

.

28

English

English

P4819A_us.fm Page 29 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Troubleshooting

Troubleshooting

Refer to this section, before contacting technical support.

If thin lines appear on your screen (damper wires)

The lines you are experiencing on your screen are normal for the

Trinitron monitor and are not a malfunction. These are shadows from the damper wires used to stabilize the aperture grille and are most noticeable when the screen’s background is light (usually white). The aperture grille is the essential element that makes a Trinitron picture tube unique by allowing more light to reach the screen, resulting in a brighter, more detailed picture.

Damper wires

On-screen messages

If there is something wrong with the input signal, one of the following messages appears on the screen.

If NO INPUT SIGNAL appears on the screen

This message shows the currently selected INPUT.

NO INPUT SIGNAL. This indicates that no signal is input from the selected connector.

English

English

29

P4819A_us.fm Page 30 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Troubleshooting

The Remedies

One or more of the following messages may appear on the screen.

If ACTIVATE USING PC appears on the screen, try pressing any key on the computer, and confirm that your computer’s graphic board is completely seated in the correct bus slot.

If CHECK INPUT SELECTOR appears on the screen, try changing the input signal.

If CHECK SIGNAL CABLE appears on the screen, check that the monitor is correctly connected to the computer.

If OUT OF SCAN RANGE appears on the screen

This message shows the currently selected connector

(INPUT 1 or INPUT 2). If the monitor recognizes the frequencies of the current input signal, the horizontal and vertical frequencies are also displayed.

This indicates that the input signal is not supported by the monitor’s specifications.

If you are replacing an old monitor with this monitor, reconnect the old monitor. Then adjust the computer’s graphics card so that the horizontal frequency is between 30 -

130 kHz, and the vertical frequency is between 48 - 170 Hz.

30

English

English

P4819A_us.fm Page 31 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Troubleshooting

No picture and LED is off

• Check if monitor is switched ON

• Check if power cord is properly connected

• Check if electrical outlet is connected

• Test if monitor works on another PC previously set to monitor’s supported resolution

No picture and LED is on

• Check if monitor is not in power saving mode

• Try changing the video input selection

• Adjust contrast and brightness through Menu using the control buttons

• Check if PC is switched on

• Check if video cable has no bent pins

• Test if monitor works

Colors are not pure

• Degauss your monitor

• Shut down your monitor and switch it on after 30 minutes

Picture is not centered

• Adjust picture through Menu using the control buttons

Picture is fuzzy

• Use the Recall function

• Reduce contrast through Menu using the control buttons

• Adjust moire reduction to zero

English

English

31

P4819A_us.fm Page 32 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Technical Specifications

Technical Specifications

PICTURE TUBE

Size 21-inch,

19.8-inch viewable image

Aperture Grill Pitch

Face Plate

0.24 mm (0, 24 mm) wide anti-reflective anti static-coating

Detachable Video Cable with 15-pin mini D-SUB Connector

INTERFACE

SCANNING FREQUENCY

MAX. RESOLUTION

Horizontal

Vertical

2048 x 1536 (75 Hz)

RECOMMENDED

RESOLUTION:

30 to 130 kHz

50 to 170 Hz

From 1280 x 1024 (85 Hz) to 1920 x 1440 (85 Hz)

WARM-UP TIME

30 minutes to reach optimum performance level

Max PIXEL CLOCK

<370 MHz

IMAGE SIZE

POWER MANAGEMENT

Standard: 388 (W)

×

291 (H) mm or 15.2 (W) x 11.4 (H) in

Max: 404 (W)

×

302 (H) mm or 15.9 (W) x 11.9 (H) in

On 135W (max) Constant green LED

Active Off 3W (max)

Power Off 0W

Constant Amber LED

LED is Off

AC 90 to 264 V, 50/60 Hz (max current) 2A

POWER SOURCE

Temperature

STORAGE ENVIRONMENT

Temperature

Humidity

SHIPPING ENVIRONMENT

Temperature:

10

°

C to 40

°

C

OPERATING

ENVIRONMENT with PACKAGING

Humidity

Humidity

10% RH through 80% RH (without condensation)

0

°

C to 60

°

C

5% RH through 90% RH (without condensation)

- 40

°

to +60

°

5% RH through 95%

°

RH (without condensation)

CABINET DIMENSIONS

502 (H) 497 (W) 490 (D) mm or 19.7 (H) x 19.6 (W) x 19.3 (D) in

WEIGHT

TILT/SWIVEL STAND

30.5 kg (30, 5 kg) or 67.2 lbs (67, 2 lbs)

Tilt Angle

Swivel Angle

- 5

°

to 15

°

- 90

°

to 90

°

32

English

English

P4819A_us.fm Page 33 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Care and Cleaning

Care and Cleaning

Do not place anything on top of the monitor. Doing so may block the monitor vents and cause damage to the monitor due to overheating.

Do not let liquid get on or into the monitor. To maximize screen life and prevent damage to the picture tube (such as burned phosphor due to leaving the same image on the screen for a long time), it is recommended that you:

• Use the monitor power management system (on HP computers) or a screen saver program.

• Avoid setting contrast and brightness to their maximum levels for prolonged periods.

• If you do not have a power management system or a screen saver program, switch the monitor off or reduce the brightness and contrast to minimum levels when the monitor is not in use.

Your monitor has an anti-glare, anti-static screen coating. To prevent damage to the monitor screen's coating, use a regular household glass cleaner when cleaning the screen. To clean the screen:

1 Switch the monitor off and remove the power plug (pull the plug, not the cable).

2 Wet a soft cotton cloth with the cleaning solution and gently wipe the screen. Do not spray cleaner onto the screen because the cleaner may drip inside the monitor.

3 Dry with a clean, soft cotton cloth. Do not use any type of abrasive pad, alkaline cleaner, scouring powder or solvents such as alcohol or benzine as they might damage the anti-reflective coating.

Environmental Information

HP has a strong commitment toward the environment. Your HP monitor has been designed to respect the environment as much as possible.

HP can also take back your old monitor for recycling when it reaches the end of its useful life. In fact, HP has a product take-back program in several countries. The collected equipment is sent to one of HP's recycling facilities in Europe or the USA. As many parts as possible are reused. The remainder is recycled. Special care is taken for batteries and other potentially toxic substances, which are reduced to non-harmful components through a special chemical process. If you require more details about HP's product take-back program, contact your dealer or your nearest HP Sales Office.

English

English

33

P4819A_us.fm Page 34 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Hardware Warranty

Hardware Warranty

PART I - HP General Hardware Warranty

General

This HP Monitor Hardware Warranty Statement gives you, the customer, express warranty rights from HP, the manufacturer.

FOR CONSUMER TRANSACTIONS IN AUSTRALIA AND NEW ZEALAND:

THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO

THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT

OR MODIFY AND ARE IN ADDITION TO THE MANDATORY STATUTORY

RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT TO YOU.

THE LAWS OF YOUR COUNTRY MAY PROVIDE FOR DIFFERENT

WARRANTY RIGHTS. IF SO, YOUR AUTHORIZED HP DEALER OR HP

SALES AND SERVICE OFFICE CAN PROVIDE YOU WITH DETAILS.

Warranty repair or replacement

.

Model

P4819A

Warranty Period Service Provided

3 years international limited

Hardware Warranty

1 year

Rest of Aisa Pacific: 3 years parts and labor on-site service for first year, and return to HP repair or authorized service center for the following 2 years

USA and Canada: 3 years on-site next second business day exchange

Europe: 3 years parts and labor next business day exchange

Jap a n: 1 year parts and labor return to bench

A

F

E

D

Hewlett-Packard (HP) warrants this monitor hardware product, or accessory against defects in materials and workmanship for the applicable warranty period stated above, commencing from the date of delivery of the product to the end-user customer.

HP does not warrant that the HP hardware will operate uninterrupted or error free.

If, during the product warranty period, HP is unable, within a reasonable time, to repair or replace your product to the condition as warranted, you will be entitled to a refund (in the amount of the product purchase price) upon prompt return of the product to your authorized HP dealer or other HP designate. Unless otherwise stated or agreed upon in writing with HP, all hardware components must be returned for refund with the entire system process unit. HP software is covered by the HP Software Product Limited

Warranty located in your HP product manual. Unless otherwise stated, and to the extent permitted by local law, hardware products may contain remanufactured parts (equivalent to new in performance) or parts which may have been subject to prior incidental use. HP may repair or replace

34

English

English

P4819A_us.fm Page 35 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Hardware Warranty

hardware products (i) with products which are equivalent in performance to the products being repaired or replaced but which may have been subject to prior use, or (ii) with products which may contain remanufactured parts equivalent to new in performance or parts which may have been subject to prior incidental use.

Proof of Purchase and Warranty Period

In order to receive service or support for your hardware product for the warranty period, proof of the original purchase date of the product may be required in order to establish the delivery date of your product. If the delivery date is not available, either the purchase date or the manufacturer's date (located on the product) becomes the beginning of the warranty period.

Limitation of Warranty

Warranty does not apply to defects resulting from: (a) improper or inadequate maintenance or calibration; (b) software, interfacing, parts or supplies not supplied by HP; (c) unauthorized repair, maintenance, modification or misuse; (d) operation outside of the published operating specifications for the product; (e) improper site preparation or maintenance; or (f) such other exclusions as may be expressly set forth in this Warranty

Statement.

HP MAKES NO OTHER EXPRESS WARRANTY, WHETHER WRITTEN OR

ORAL, WITH RESPECT TO THIS PRODUCT.

TO THE EXTENT ALLOWED BY APPLICABLE LOCAL LAW, ANY IMPLIED

WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY

SET FORTH ABOVE.

Limitation of Liability and Remedies

TO THE EXTENT ALLOWED BY APPLICABLE LOCAL LAW, THE

REMEDIES IN THIS WARRANTY STATEMENT ARE YOUR SOLE AND

EXCLUSIVE REMEDIES. IN NO EVENT SHALL HP BE LIABLE FOR LOSS

OF DATA OR FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR

CONSEQUENTIAL DAMAGE, WHETHER BASED ON WARRANTY

CONTRACT, TORT, OR ANY OTHER LEGAL THEORY.

The foregoing limitation of liability shall not apply in the event that any HP product sold hereunder is determined by a court of competent jurisdiction to be defective and to have directly caused bodily injury, death, or property damage. To the extent allowed by applicable local law, HP's liability for property damage does not exceed the greater of $50,000 or the purchase price of the specific product that caused such damage.

English

English

35

P4819A_us.fm Page 36 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Hardware Warranty

PART II - Year 2001 Warranty

Subject to all of the terms and limitations of the HP Limited Warranty

Statement provided with this HP Product, HP warrants that this HP Product will be able to accurately process date data (including, but not limited to, calculating, comparing, and sequencing) from, into, and between the twentieth and twenty-first centuries, and the years 1999 and 2000, including leap year calculations, when used in accordance with the Product documentation provided by HP (including any instructions for installing patches or upgrades), provided that all other products (e.g. hardware, software, firmware) used in combination with such HP Product(s) properly exchange date data with it. The duration of the Year 2000 warranty extends through January 31, 2001.

36

English

English

P4819A_us.fm Page 37 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Regulatory Information

Regulatory Information

DECLARATION OF CONFORMITY

According to ISO/IEC Guide 22 and CEN/CENELEC EN 45014

Manufacturer's Name:

Manufacturer's Address:

HEWLETT-PACKARD France

5, Avenue Raymond Chanas - EYBENS

38053 GRENOBLE CEDEX 09 -FRANCE

Declares, that the products:

Product Name:

HP 21” CRT color Monitor P4819**

(* can be any alphanumerical character)

Conform(s) to the following Product Specifications:

SAFETY

International: IEC 60950:1991 +A1 +A2 +A3 +A4 / GB4943-1995.

-Europe: EN 60950:1992 +A1 +A2 +A3 +A4 +A11.

ELECTRO MAGNETIC COMPATIBILITY

- CISPR22:1997 / EN55022:1998 Class B

- CISPR24:1997 / EN55024:1998

- IEC 61000-3-3:1994 / EN61000-3-3:1995

- GB9254-1998

- FCC Title 47 CFR, Part 15 Class B

(1)

- ICES-003, Issue 3

- VCCI-B

- AS/NZ 3548:1995

Products bearing the CE marking

(2) also comply with:

IEC 61000-3-2:1995 / EN 61000-3-2:1995. + A14

Those products comply with the requirements of the following Directives and carry the CE-marking accordingly:

EMC Directive 89/336/EEC and Low Voltage Directive 73/23/EEC, both amended by the Directive 93/68/EEC.

(1)

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: a- This device may not cause harmful interference, and b- This device must accept any interference received, including interference that may cause undesired operation.

(2)

All products sold in the European Economic Area (EEA) bear the CE marking.

Grenoble

August 2001

USA contact: Hewlett Packard Company,

Corporate Product Regulations Manager,

3000 Hanover Street,

Palo Alto, CA 94304.

(Phone (+1) (650) 857-1501)

Didier CABARET

Quality Manager

English

English

37

P4819A_us.fm Page 38 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Regulatory Information

Notice for the USA: FCC Class B Statement

Federal Communications Commission Radio Frequency Interference Statement Warning:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the distance between the equipment and the receiver.

Connect the equipment to an outlet on a different circuit to the one the receiver is connected to.

Consult your dealer or an experienced radio/TV technician for help.

Safety Warning for USA

If the power cord is not supplied with your monitor, select the proper power cord according to your national electric specifications.

USA: use a UL listed type SVT detachable power cord

Notice for Canada

This Class "B" digital apparatus complies with all requirements of the Canadian

Interference-Causing Equipment Regulations (ICES.003).

Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.

X-Ray Radiation Notice

When operating, this product emits x-rays; however, it is well shielded and meets the safety and health requirements of various countries, such as the Radiation Act of

Germany and the Radiation Control for Health and Safety Act of the United States.

Radiation emitted by this product is less than 0.1 mR/hr (1uSv/hr) at a distance of 10 centimeters from the surface of the cathode ray tube. The x-ray radiation primarily depends on the characteristics of the cathode ray tube and its associated low voltage and high voltage circuitry. Internal controls have been adjusted to ensure safe operation. Only qualified personnel should perform any internal adjustments as specified in the service manual for this product. Replace the cathode ray tube with an identical CRT only.

38

English

English

P4819A_us.fm Page 39 Friday, September 21, 2001 4:00 AM

Notice for Korea

HP 21” Color Monitor User’s Guide

Regulatory Information

Notice for Germany

Hinweis für Deutschland: Geräuschemission

Lärmangabe nach Maschinenlärmverordnung - 3 GSGV

(Deutschland)

LpA < 70db am Arbeitsplattz normaler Betrieb nach EN27779:

11.92

Notice for Japan (Class B)

English

English

39

P4819A_us.fm Page 40 Friday, September 21, 2001 4:00 AM

TCO 99

Congratulations! You have just purchased a TCO'99 approved and labelled product!

Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural

(external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of

Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for

Nature Conservation) and Statens Energimyndighet (The Swedish National Energy

Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

P4819A_us.fm Page 41 Friday, September 21, 2001 4:00 AM

HP 21” Color Monitor User’s Guide

Regulatory Information

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: +46 8 782 92 07

Email (Internet): [email protected]

Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative

1

processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine.

Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium

2

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury

2

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead

2

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant

TCO´99 requirement permits the inclusion of lead since no replacement has yet been developed.

1.

2.

Bio-accumulative is defined as substances which accumulate within living organisms

Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

English

English

41

back.fm Page 1 Monday, September 10, 2001 10:03 AM

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
