HP | PAVILION MX703 | User's Manual | HP PAVILION MX703 User's Manual

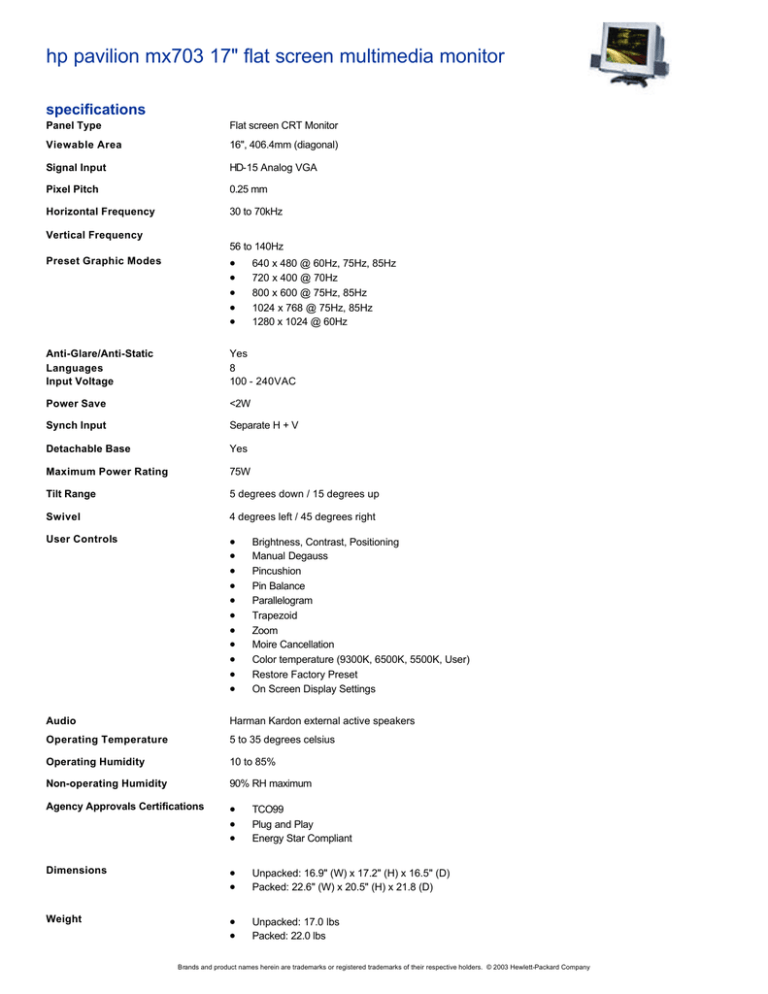

hp pavilion mx703 17" flat screen multimedia monitor
specifications
Panel Type
Flat screen CRT Monitor
Viewable Area
16", 406.4mm (diagonal)
Signal Input
HD-15 Analog VGA
Pixel Pitch
0.25 mm
Horizontal Frequency
30 to 70kHz
Vertical Frequency
56 to 140Hz
Preset Graphic Modes
•
•
•
•
•
Anti-Glare/Anti-Static
Languages
Input Voltage
Yes
8
100 - 240VAC
Power Save
<2W
Synch Input
Separate H + V
Detachable Base
Yes
Maximum Power Rating
75W
Tilt Range
5 degrees down / 15 degrees up
Swivel
4 degrees left / 45 degrees right
User Controls
•
•
•
•
•
•
•
•
•
•
•
Audio
Harman Kardon external active speakers
Operating Temperature
5 to 35 degrees celsius
Operating Humidity
10 to 85%
Non-operating Humidity
90% RH maximum
Agency Approvals Certifications
•
•
•
TCO99
Plug and Play
Energy Star Compliant
Dimensions
•
•
Unpacked: 16.9" (W) x 17.2" (H) x 16.5" (D)
Packed: 22.6" (W) x 20.5" (H) x 21.8 (D)
Weight
•
•
Unpacked: 17.0 lbs
Packed: 22.0 lbs
640 x 480 @ 60Hz, 75Hz, 85Hz
720 x 400 @ 70Hz
800 x 600 @ 75Hz, 85Hz
1024 x 768 @ 75Hz, 85Hz
1280 x 1024 @ 60Hz
Brightness, Contrast, Positioning
Manual Degauss
Pincushion
Pin Balance
Parallelogram
Trapezoid
Zoom
Moire Cancellation
Color temperature (9300K, 6500K, 5500K, User)
Restore Factory Preset
On Screen Display Settings
Brands and product names herein are trademarks or registered trademarks of their respective holders. © 2003 Hewlett-Packard Company
