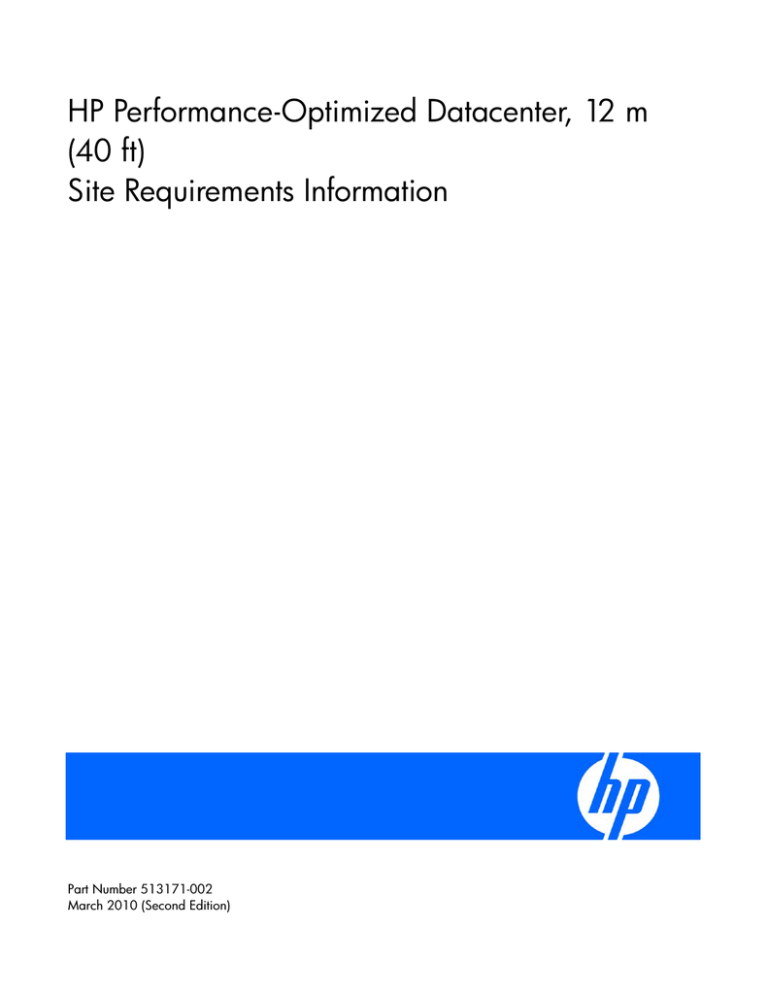

HP Performance-Optimized Datacenter, 12 m
(40 ft)
Site Requirements Information
Part Number 513171-002
March 2010 (Second Edition)
© Copyright 2009, 2010 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP
shall not be liable for technical or editorial errors or omissions contained herein.
Intended audience
This document is for the person who installs, administers, and troubleshoots servers and storage systems. HP assumes you are qualified in the
servicing of computer equipment and trained in recognizing hazards in products with hazardous energy levels.
Contents
Site requirements .......................................................................................................................... 4
About this document ..................................................................................................................................... 4
Site preparation ........................................................................................................................................... 4
Safety information ........................................................................................................................................ 4
System utilities.............................................................................................................................................. 5
Power ............................................................................................................................................... 5
Drainage........................................................................................................................................... 6
Optional connections to central facility infrastructure ........................................................................................ 6
Environmental considerations .............................................................................................................. 6
Environmental specifications ................................................................................................................ 6
Lightning protection ............................................................................................................................ 7
HP POD specifications ................................................................................................................... 8
Dimensions .................................................................................................................................................. 8
Weight ....................................................................................................................................................... 8
External cold aisle view ...................................................................................................................... 8
Required clearances ..................................................................................................................................... 9
Water supply specifications ........................................................................................................................ 11
Water quality requirements .......................................................................................................... 12
Water quality requirements and specifications .............................................................................................. 12
Acceptable water quality specifications .............................................................................................. 12
Piping materials ............................................................................................................................... 13
Water precautions ..................................................................................................................................... 13
Condensation management ......................................................................................................................... 13
Power management .................................................................................................................... 14
Connection requirements ............................................................................................................................. 14
Power requirements .................................................................................................................................... 14
Standard density HP POD ................................................................................................................. 14
High density HP POD ....................................................................................................................... 16
HP POD control power ............................................................................................................................... 17
Supported facility connections ...................................................................................................... 18
Humidifier specifications ............................................................................................................................. 18
Convenience outlets.................................................................................................................................... 18
Grounding requirements ............................................................................................................................. 18
IT cable portals .......................................................................................................................................... 19
HP POD security......................................................................................................................................... 19
HP POD Environmental Control System ......................................................................................................... 19
Fire, safety, and security notifications ........................................................................................................... 20
Acronyms and abbreviations ........................................................................................................ 21
Site requirements
About this document
This document outlines the installation requirements for a 12 m (40 ft) HP POD. These guidelines are for a
qualified architectural or consulting engineering team to generate site-specific documents for each HP
POD installation. The site-specific installation documentation must comply with local building code
jurisdictions.
Site preparation
The HP POD must be installed on a surface capable of supporting approximately 50,456 kg (111,000
lb). The site location for the HP POD must be level +/- 0.5 degrees tolerance. Appropriate clearance for
installation, service, and system utilities (power and water) must also be considered.
IMPORTANT: Before installing the HP POD, consult your local AHJ for applicable codes and
to review site-specific location guidelines.
IMPORTANT: The HP POD is designed for ground level installation. If you install the HP POD
on an elevated surface, make sure the minimum height requirements for circuit breaker
actuators are considered per local and national electric code requirements.
The area in front of the outside panels must include a work platform. The distance from the
work platform surface to the center of any circuit breaker actuator handle must not exceed
183 cm (72 inches). The platform must be a minimum of 91 cm (36 inches) wide for free air,
and if the platform construction is grounded metal, must be a minimum of 107 cm (42 inches)
wide.
Safety information
The HP POD is certified to UL 69050/IEC 60950 as an Information Technology Product and Classified
according to the National Electric Code NFPA-70, 2008
The HP POD is not suitable for long term human occupancy. The HP POD has service access areas for
periodic maintenance and service. These areas must be used only by owner-authorized personnel who
are trained in the maintenance and service of the HP POD IT components.
IMPORTANT: Before installing the HP POD, consult your local AHJ for applicable codes and
to review site-specific location guidelines. If needed, obtain any necessary permits.
Before installing your HP POD, verify that the following prerequisites have been met:
•
All components have been delivered to your facility.
•
The HP POD, power distribution components, and water distribution components are in their final
location.
•
You have facility power at your final location.
Site requirements
4
•
You have chilled water at your final location.
•
You have made provisions for properly grounding the HP POD.
System utilities
Your site location must accommodate the following utilities:
•
Cooling water
•
Electrical power ("Power" on page 5)
•
Drainage (on page 6)
Power
Item
Description
1
Main input power junction box
2
Chilled water return connection
3
Chilled water supply connection
4
IT cable portals
Site requirements
5
Drainage
Item
Component
1
Heat exchanger condensate drains
2
Water main supply/return drain
3
Humidifier drain
Optional connections to central facility infrastructure
•
HP POD ECS
•
Life safety systems
•
Convenience outlet power
•
Site networking connection
•
Domestic water for optional humidifier
•
Security system (optional)
Environmental considerations
•
(Optional) Install a properly engineered awning.
•
Install lightning protection for the HP POD.
•
Make sure that the HP POD is installed in a well lit area that complies with local workplace lighting
regulations.
•
Make sure that the HP POD is properly grounded.
•
Avoid placing the HP POD directly along a drainage path or in an area prone to flooding.
Environmental specifications
Features
Operating temperature
Specifications
-18ºC to 54ºC (-0ºF to 130ºF).
Supports to -29ºC (-20ºF) with optional cold weather
protection installation.
Non-operating
-29ºC to 54ºC (-20ºF to 130ºF)
Site requirements
6
Features
Specifications
temperature*
Operating humidity
•
0% to 100% relative noncondensing
Non-operating humidity*
•
•
5 to 95% relative noncondensing
39ºC (102ºF) maximum wet bulb temperature
Operating altitude
-76.2 to 3,048 m (-250 to 10,000 ft)
Non-operating altitude
-76.2 to 9,144 m (-250 to 30,000 ft)
*For nonoperating specifications, consider the temperature of computer and IT equipment inside the HP POD.
The HP POD must be drained before it is moved to a new location.
For areas prone to freezing, take the appropriate water freeze protection precautions.
Lightning protection
If the HP POD is installed in an outdoor environment, HP recommends hiring a lightning protection
consultant to evaluate potential lightning risks and assess possible HP POD lightning protection schemes.
Site requirements
7
HP POD specifications
Dimensions
The HP POD is approximately 12.2 m (40 ft) long, 2.4 m (8 ft) wide, and 2.9 m (9.5 ft) tall.
Weight
HP POD weight varies, depending on whether the HP POD is empty or configured with IT equipment.
Computer racks and IT equipment add incremental weight to an empty HP POD and vary, depending on
customization.
Specification
Approximate weight
Empty HP POD
15,454 kg (34,000 lb)
Maximum weight of IT
equipment for each rack
1,364 kg (3,000 lb)
Maximum weight of IT
equipment per HP POD
30,000 kg (66,000 lb)
Fully outfitted HP POD
47,854 kg (105,500 lb)
IMPORTANT: Before moving the HP POD to a new location, HP recommends contacting the
local Department of Transportation for permit loads and other transportation requirements.
External cold aisle view
Item
Component
1*
Electrical busway 225A enclosed circuit breaker
2
ECS panel
3
Auxiliary single phase branch circuit power
HP POD specifications 8
Item
Component
4
Fan control panel
5
Redundant relay panel
6
House panels
7
Main input power junction boxes
8
Security panel
9
Humidifier (optional)
10
EPO button
11
ASSD panel
12
Fire alarm XFMR
13
Fire alarm control panel
14
EPO panel
The middle 225A busway circuit breakers are present in the high density HP POD only.
Required clearances
NOTE: Shaded areas indicate required clearances.
Top view
HP POD specifications 9
Water input side view
Callout
Feature
1
CWR/CWS portal 2.7 m (9 ft)
2
IT cable portals 2 m (7 ft)
3
Central facility infrastructure connection:
•
•
•
•
Fire
Security
Phone
Convenience power outlet
Double door end view
Callout
Feature
1
IT cable portals
HP POD specifications 10
External hot aisle view
Water supply specifications
Feature
Specification
Facility input temperature to HP POD
12º to 24ºC (55º to 75ºF)
Working pressure
1034 kPa (150 psi)
HP POD pressure drop
1732 kPa (25 psi)
HP POD water flow rate
908.5 l/min (240 gal/min)
Cooling water supply and return
connections
Two 10.16 cm (4 in)
ANSI/ASME 150# flanges
Humidifier
See the humidifier manual for
exact humidifier requirements
HP POD specifications 11
Water quality requirements
Water quality requirements and specifications
•
Closed-loop water must not contain any lime scale deposits or loose debris.
•
The chilled water temperature to be supplied to the HP POD must be 12º to 24ºC (55º to 75ºF).
NOTE: Freezing water might cause a blockage and damage to the unit. In outside locations
subject to freezing temperatures, an additive such as glycol might be necessary to lower the
freezing point. However, since the heat transfer potential of water with glycol is lower, the HP
POD must be derated accordingly.
NOTE: The water cycle must be drained completely, and then purged using compressed air
when storing or transporting at or below freezing temperatures.
Acceptable water quality specifications
Water must be maintained per the following acceptable water quality standards.
Parameter
Range
pH
8.0–10
Specific conductance at 25ºC
(77ºF)
0–2500 µmhos/cm
Alkalinity ("M" as CaCO3)
150–1000 ppm
Sulfur (SO4)
0–150 ppm
Chloride (Cl)
0–100 ppm
Hardness (CaCO3)
0–350 ppm
Calcium hardness (CaCO3)
0–200 ppm
Magnesium hardness (CaCO3)
0–150 ppm
Copper (Cu)
< 0.20 ppm
Iron (Fe)
< 3.0 ppm
Aluminum (Al)
< 0.50 ppm
Sodium (Na)
0–1000 ppm
Silica (SiO2)
0–150 ppm
Zinc (Zn)
< 1.0 ppm
Manganese (Mn)
< 0.1 ppm
Phosphate Ortho- (PO4)
< 3 ppm
Bacteria
< 1000 CFU/ml
Suspended solids
< 10 ppm
If your water is out of range, consult a water quality expert.
Water quality requirements
12
Piping materials
Do not use the following interconnecting piping materials in a closed water system:
•
Oxidizing biocides
•
Aluminum components
•
Brass components with high levels of zinc
•
Non-stainless steel iron components
Water precautions
Take the following precautions before installation of the HP POD:
•
Verify that all foreign matter and particulates are flushed from the system. Water might be discolored
during the initial flushing of the system. Clear running water is the sign that all foreign matter and
particulates have been flushed from the system.
•
Evaluate the short-term and long-term system requirements against the available water capacity.
•
Ensure that the chilled water loop is properly designed for liquid cooling systems and is separate
from the sanitary water systems in your building (bathroom, sink, drinking water).
•
Ensure facility managers are aware of the additional load being added to the chilled water supply of
the building. Be aware that the added heat load might affect other components being cooled by the
chilled water plant.
Condensation management
CAUTION: During operation, avoid leaving the HP POD doors open, to maintain accurate
environmental conditions inside the HP POD.
Supply cooling water that is above the dew point inside the HP POD to prevent condensation forming on
the heat exchangers.
The heat exchanger drip tray collects any condensation that forms on the heat exchangers. This collected
condensate drains out of the HP POD through the heat exchanger condensate drains. HP recommends
connecting condensate drains on the HP POD to a facility drain to prevent collection of water near the HP
POD.
There are three 1.91 cm (¾ inch) condensate drain outlets are across the rear of the HP POD directly
connected to the heat exchanger drip trays. There are two drains for the water main supply and return
lines located on the front of the HP POD.
To avoid excessive buildup of condensate and to conserve energy, raise the cooling water temperature to
above the dewpoint to manage condensation while maintaining the necessary cooling capacity.
Water quality requirements
13
Power management
Connection requirements
When determining the final location of your power and water connections, consider the distance between
the facility utilities and the HP POD.
The facility power connection must be installed in compliance with local electrical codes and regulations.
HP reference electrical installation design is based on a maximum distance of 15.2 m (50 ft) or line of
sight between the switchboard and the HP POD.
HP can provide engineering services to develop the site installation plan and drawings as a supplemental
service.
All 3-phase HP POD feeders require that the neutrals and the equipment grounding conductors remain
isolated. Bonding of the two conductors is allowed at the power source only.
Power requirements
The HP POD is available in both standard and high density models.
North America
•
The standard density HP POD can be configured for 291 kW redundant power paths for maximum
reliability or 380 kW power paths for maximum capacity.
•
The high density HP POD can be configured for 380 kW redundant power paths for maximum
reliability or 600 kW power paths for maximum capacity.
International
•
The standard density HP POD can be configured for 291 kW redundant power paths for maximum
reliability or 450 kW power paths for maximum capacity.
•
The high density HP POD can be configured for 436 kW redundant power paths for maximum
reliability or 600 kW power paths for maximum capacity.
Standard density HP POD
The standard density HP POD must be supplied with four feeders.
•
3-phase
•
380 to 415V wye connected
•
225A
•
50 to 60 Hz
Each feeder must contain three phase conductors, one neutral conductor, and one equipment ground
conductor.
Power management
14
Standard density HP POD with redundant power
Component
Quantity
Phases
Amps
Volts
Description
Primary feeders
2
3
225
415/240
Supply primary power path to IT
equipment.
House power
feeders
2
3
100
415/240
•
One 100A feed to house panel A
to power HP POD ECS,
convenience outlet, lighting, and
auxiliary equipment provided with
the HP POD.
•
The second 100A feed supplies an
alternate source of power to house
panel B if power path A fails.
All house panel loads are supplied
from either house power panel A or B
through high speed contactors.
2
Redundant
feeders
3
225
415/240
Supply secondary power path to IT
equipment.
Either the customer or HP (optional) supplies transformers to convert 3-phase, 480V delta power to 3phase, 415V wye power, and switchboards to distribute branch circuit inputs to the HP POD.
NOTE: For locations outside North America, consult with HP regarding the requirements and
specifications of transformers.
The customer must supply two 480V, 450A feeders to the transformers that will supply 415V 3-phase
power to the HP POD. Each power source is capable of supporting the HP POD in the event of a power
failure or planned maintenance.
Final connections to the HP POD can be supplied by the customer or by HP at additional cost.
Standard density HP POD without redundancy
Component
Quantity
Phases
Amps
Volts
Description
Primary
feeders
2
3
225
415/240
Supply primary power path to IT
equipment
House power
feeders
1
3
100
415/240
House panel A supplies power to HP POD
ECS, convenience outlet, lighting, and
auxiliary equipment provided with the HP
POD.
Primary
feeders
2
3
225
415/240
Supply power path to IT equipment
Either the customer or HP (optional) supplies transformers to convert 3-phase, 480V delta power to 3phase, 415V wye power, and switchboards to distribute branch circuit inputs to the HP POD.
NOTE: For locations outside North America, consult with HP regarding the requirements and
specifications of transformers.
The customer must supply one 480V, 3-phase, 800A feeder to the transformer that will supply 415V 3
phase power to the HP POD.
Final connections to the HP POD can be supplied by the customer or by HP at additional costs.
Power management
15
High density HP POD
The high density HP POD must be supplied with six feeders.
•
3-phase
•
380 to 415V wye connected
•
50 to 60 Hz
•
225A
Each feeder must contain three phase conductors, one neutral conductor and one equipment ground
conductor.
High density HP POD with redundant power
Component
Quantity
Phases
Amps
Volts
Description
Primary feeders
3
3
225
415/240
Supply primary power path to IT
equipment.
House power
feeders
2
3
100
415/240
•
One 100A feed to house panel A
to power convenience outlet,
lighting, and auxiliary equipment
provided with the HP POD.
•
The second 100A feed supplies
an alternate source of power to
house panel B if power path A
fails.
All house panel loads are supplied
from either house power panel A or B
through high speed contactors.
Redundant feeders
3
3
225
415/240
Supply secondary power path to IT
equipment.
Either the customer or HP (optional) supplies transformers to convert 3-phase, 480V delta power to 3phase, 415V wye power, and switchboards to distribute branch circuit inputs to the HP POD.
NOTE: For locations outside North America, consult with HP regarding the requirements and
specifications of transformers.
The customer must supply two 800A, 480V delta, 3-phase feeders to the transformers that will supply
415V 3 phase power to the HP POD. Each power source is capable of supporting the HP POD in the
event of a power failure or planned maintenance.
Final connections to the HP POD can be supplied by the customer or by HP at additional cost.
High density HP POD without redundancy
Component
Quantity
Phases
Amps
Volts
Description
Primary feeders
3
3
225
415/240
Supply primary power path to IT
equipment.
House power
feeders
1
3
100
415/240
House panel A supplies power to HP
POD ECS, convenience outlet, lighting,
and auxiliary equipment provided with
Power management
16
Component
Quantity
Phases
Amps
Volts
Description
the HP POD.
Primary feeders
3
3
225
415/240
Supply power path to IT equipment.
Either the customer or HP (optional) supplies transformers to convert 3-phase, 480V delta power to 3phase, 415V wye power, and switchboards to distribute feeder inputs to the HP POD.
NOTE: For locations outside North America, consult with HP regarding the requirements and
specifications of transformers.
The customer must supply one 1200A, 480V delta, 3-phase feeder to the transformer that will supply
415V 3 phase power to the HP POD.
Final connections to the HP POD can be supplied by the customer or by HP at additional costs.
HP POD control power
HP POD control power is supplied by two redundant power house panels that are supplied with:
•
3-phase
•
380 to 415V wye connected
•
50 to 60 Hertz
•
100A
NOTE: Only one control power panel is required in the non-redundant power path
configuration.
All 3-phase HP POD feeders require that the neutrals and the equipment grounding conductors remain
isolated. Bonding of the two conductors is allowed at the power source only.
Power management
17
Supported facility connections
Humidifier specifications
A dedicated supply of domestic water is required if the optional humidifier is installed. For specifications,
see the humidifier manual supplied with the HP POD.
Item
Component
1
Humidifier drain and water supply
For more information about the humidifier, see the documentation developed by the humidifier
manufacturer.
Convenience outlets
The HP POD is prewired for a convenience outlet on the inside of the unit. This circuit is not part of the
power provided by the main switchboard feeding the 3 phase power to the HP POD. To energize this
circuit, you must supply a dedicated single phase, 16-or 20-amp branch circuit from your facility at the
appropriate voltage. Make sure that the branch circuit is connected to the prewired exterior mounted
junction box and that it is wired in accordance with local regulations and codes.
Grounding requirements
The neutrals and equipment grounding conductors for all 3-phase HP POD feeders must remain isolated.
The two conductors can be bonded at the power source only.
Functional and supplementary grounding straps are provided between each rack and HP POD.
IMPORTANT: Before installing the HP POD, consult your local AHJ for applicable codes and
to review site-specific location guidelines. If needed, obtain any necessary permits.
Supported facility connections 18
IMPORTANT: For full protection, you must ground the HP POD, power distribution
components and the water distribution kit to your ground grid system.
IT cable portals
Six 6.35 cm (2 ½-inch) IT cable portals on each side of the HP POD are available for optional Ethernet,
fiber optic, and IT cable configuration. These components are also used for ECS connections and can
support dedicated lines, a customer network, and various other communications service options. You can
install a weatherproof box for termination points over the cable portals on the outside of the HP POD.
Examples of cables that can run into the 6.35 cm (2 ½ inch) portals are as follows:
•
48 Cat-6 cables
•
39 12 strand multi-mode or single-mode fiber optic cables
HP POD security
The HP POD is equipped with standard key lock hardware at each entry door and external panel.
Conduit and junction boxes are provided for customer installed controlled access systems.
Optional controlled access security includes a 12-digit security code keypad and magnetic locks on each
entry door.
HP POD Environmental Control System
The HP POD ECS is a stand-alone system that does not require any connections to existing facility
management infrastructure. You can choose to connect to the facility BMS at an additional cost. BMS
configuration communicates through an Ethernet cable connected to the internal HP POD ECS panel jack
located underneath the IT cable portals. HP POD ECS data can be sent and viewed using a set IP
address.
The HP POD ECS communicates through the standard BMS protocol, which is a data communication
protocol for building automation and control networks.
Supported facility connections 19
The HP POD ECS offers:
•
The ability to monitor the status of water and air temperatures, water pressures, and water flow rates
•
Immediate notification of supported alarm messages
For additional points that can be monitored, see the I/O (Input/Output) Controls Points List.
Fire, safety, and security notifications
Dry contacts are provided to enable the connection between the fire alarm system and the central facility
fire detection system, relay alarm, and trouble conditions at each HP POD.
Your building fire, safety, and security system relays the following HP POD-initiated alarms, which operate
independently of each other.
Alarm
Meaning
Solution
Smoke alarm
Smoke has been detected in the HP
POD.
Activate the EPO. Follow standard
emergency procedures for your
facility.
Security
A security breach has occurred.
Follow standard emergency
procedures for your facility.
EPO
Someone has activated the EPO
system and shut down the HP POD.
Follow standard emergency
procedures for your facility.
The electrical layout of the fire alarm system is as described in the schematic drawing that is supplied with
the HP POD.
Supported facility connections 20
Acronyms and abbreviations
ASSD
air sampling smoke detector
BMS
building management system
ECS
environmental control system
EPO
emergency power off
POD
Performance-Optimized Datacenter
TVSS
Transient Voltage Surge Suppression
Acronyms and abbreviations
21
Download PDF

advertising
