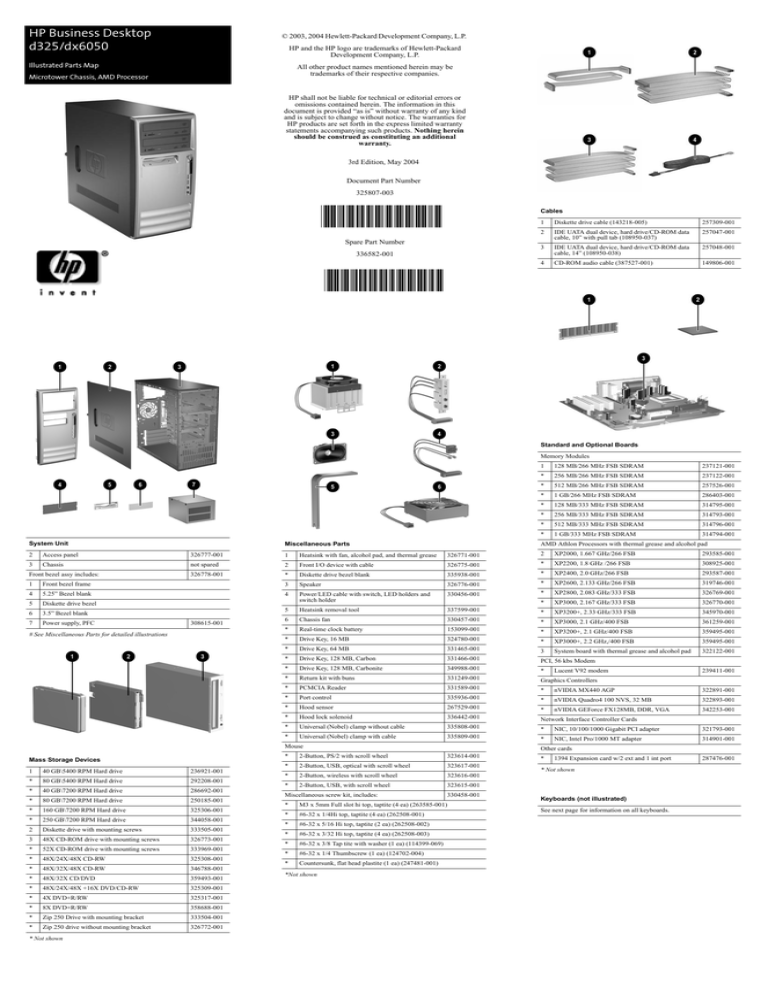

HP Business Desktop
d325/dx6050
© 2003, 2004 Hewlett-Packard Development Company, L.P.
HP and the HP logo are trademarks of Hewlett-Packard
Development Company, L.P.
Illustrated Parts Map
All other product names mentioned herein may be
trademarks of their respective companies.
Microtower Chassis, AMD Processor
HP shall not be liable for technical or editorial errors or
omissions contained herein. The information in this
document is provided “as is” without warranty of any kind
and is subject to change without notice. The warranties for
HP products are set forth in the express limited warranty
statements accompanying such products. Nothing herein
should be construed as constituting an additional
warranty.
3rd Edition, May 2004
Document Part Number
325807-003
Cables
Spare Part Number
1
Diskette drive cable (143218-005)
257309-001
2
IDE UATA dual device, hard drive/CD-ROM data
cable, 10” with pull tab (108950-037)
257047-001
3
IDE UATA dual device, hard drive/CD-ROM data
cable, 14” (108950-038)
257048-001
4
CD-ROM audio cable (387527-001)
149806-001
336582-001
Standard and Optional Boards
Memory Modules
System Unit
Miscellaneous Parts
1
128 MB/266 MHz FSB SDRAM
237121-001
*
256 MB/266 MHz FSB SDRAM
237122-001
*
512 MB/266 MHz FSB SDRAM
257526-001
*
1 GB/266 MHz FSB SDRAM
286403-001
*
128 MB/333 MHz FSB SDRAM
314795-001
*
256 MB/333 MHz FSB SDRAM
314793-001
*
512 MB/333 MHz FSB SDRAM
314796-001
*
1 GB/333 MHz FSB SDRAM
314794-001
AMD Athlon Processors with thermal grease and alcohol pad
2
Access panel
326777-001
1
Heatsink with fan, alcohol pad, and thermal grease
326771-001
2
XP2000, 1.667 GHz/266 FSB
293585-001
3
Chassis
not spared
2
Front I/O device with cable
326775-001
*
XP2200, 1.8 GHz /266 FSB
308925-001
326778-001
*
Diskette drive bezel blank
335938-001
*
XP2400, 2.0 GHz/266 FSB
293587-001
Front bezel assy includes:
1
Front bezel frame
3
Speaker
326776-001
*
XP2600, 2.133 GHz/266 FSB
319746-001
4
5.25” Bezel blank
4
330456-001
*
XP2800, 2.083 GHz/333 FSB
326769-001
5
Diskette drive bezel
Power/LED cable with switch, LED holders and
switch holder
*
XP3000, 2.167 GHz/333 FSB
326770-001
6
3.5” Bezel blank
5
Heatsink removal tool
337599-001
*
XP3200+, 2.33 GHz/333 FSB
345970-001
7
Power supply, PFC
6
Chassis fan
330457-001
*
XP3000, 2.1 GHz/400 FSB
361259-001
*
Real-time clock battery
153099-001
*
XP3200+, 2.1 GHz/400 FSB
359495-001
*
Drive Key, 16 MB
324780-001
*
XP3000+, 2.2 GHz,/400 FSB
359495-001
*
Drive Key, 64 MB
331465-001
3
System board with thermal grease and alcohol pad
322122-001
*
Drive Key, 128 MB, Carbon
331466-001
PCI, 56 kbs Modem
*
Drive Key, 128 MB, Carbonite
349988-001
*
*
Return kit with buns
331249-001
Graphics Controllers
*
PCMCIA Reader
331589-001
*
nVIDIA MX440 AGP
322891-001
*
Port control
335936-001
*
nVIDIA Quadro4 100 NVS, 32 MB
322893-001
*
Hood sensor
267529-001
*
nVIDIA GEForce FX128MB, DDR, VGA
342253-001
*
Hood lock solenoid
336442-001
Network Interface Controller Cards
*
Universal (Nobel) clamp without cable
335808-001
*
NIC, 10/100/1000 Gigabit PCI adapter
321793-001
*
Universal (Nobel) clamp with cable
335809-001
*
NIC, Intel Pro/1000 MT adapter
314901-001
308615-001
# See Miscellaneous Parts for detailed illustrations
Mouse
Mass Storage Devices
1
40 GB\5400 RPM Hard drive
236921-001
*
80 GB\5400 RPM Hard drive
292208-001
*
40 GB\7200 RPM Hard drive
286692-001
*
80 GB\7200 RPM Hard drive
250185-001
*
160 GB\7200 RPM Hard drive
325306-001
*
250 GB\7200 RPM Hard drive
344058-001
2
Diskette drive with mounting screws
333505-001
3
48X CD-ROM drive with mounting screws
326773-001
*
52X CD-ROM drive with mounting screws
333969-001
*
48X/24X/48X CD-RW
325308-001
*
48X/32X/48X CD-RW
346788-001
*
48X/32X CD/DVD
359493-001
*
48X/24X/48X +16X DVD/CD-RW
325309-001
*
4X DVD+R/RW
325317-001
*
8X DVD+R/RW
358688-001
*
Zip 250 Drive with mounting bracket
333504-001
*
Zip 250 drive without mounting bracket
326772-001
* Not shown
2-Button, PS/2 with scroll wheel
323614-001
*
2-Button, USB, optical with scroll wheel
323617-001
*
2-Button, wireless with scroll wheel
323616-001
*
2-Button, USB, with scroll wheel
323615-001
330458-001
*
M3 x 5mm Full slot hi top, taptite (4 ea) (263585-001)
*
#6-32 x 1/4Hi top, taptite (4 ea) (262508-001)
*
#6-32 x 5/16 Hi top, taptite (2 ea) (262508-002)
*
#6-32 x 3/32 Hi top, taptite (4 ea) (262508-003)
*
#6-32 x 3/8 Tap tite with washer (1 ea) (114399-069)
*
#6-32 x 1/4 Thumbscrew (1 ea) (124702-004)
*
Countersunk, flat head plastite (1 ea) (247481-001)
*Not shown
239411-001
Other cards
*
Miscellaneous screw kit, includes:
Lucent V92 modem
*
1394 Expansion card w/2 ext and 1 int port
* Not shown
Keyboards (not illustrated)
See next page for information on all keyboards.
287476-001
Diagnostic LEDs
LED
Color
LED Activity
State/Message
Power
Green
On
(S0) Computer on
Power
Green
1 blink every 2 seconds
(S1) Normal Suspend Mode
Power
Green
1 blink every 2 seconds
(S3) Suspend to RAM
Power
Clear
Off
(S4) Suspend to Disk (if applicable)
Power
Clear
Off
(S5) Computer off
Power
Red/Green
Red when flashing ROM;
Green 1 blink every second
when user can restart
Boot block recovery w/Embedded Video
Power
Red
3 blinks 1 every second, then 2
second pause
CPU not installed
Power
Red
4 blinks 1 every second, then 2
second pause
CPU thermal shutdown
Power
Red
5 blinks 1 every second, then 2
second pause. 5 Beeps
Memory error
Power
Red
6 blinks 1 every second, then 2
second pause.6 Beeps
Graphics error
Power
Red
7 blinks 1 every second, then 2
second pause. 7 Beeps
System board failure
Power
Red
8 blinks 1 every second, then 2
second pause. 8 Beeps
Invalid ROM
Hard Drive
Green
Blinking
Hard drive activity
System Board Connectors and Jumpers
E49
Password jumper
P21
Secondary IDE
J20
PCI expansion slot 1
P23
Audio
J21
PCI expansion slot 2
P24
Front USB
J22
PCI expansion slot 3
P29
SCSI LED
Keyboard Diagnostic LEDs
J40
AGP connector
P52
Serial port
LED
Color
LED Activity
State/Message
P1
Main power connector
P70
CPU fan
Num, Caps,
Scroll Lock
Green
Flash On-Off 2 times (Beeps 1L, 3S)
Invalid system ROM detected. ROM forces
reflash.
P3
CPU 12V reg input
P124
Hood lock
On (Rising Tone)
ROM reflashed successfully
Power button/LED
P125
Hood sensor
Num, Caps,
Scroll Lock
Green
P5
P6
Internal speaker
SW3
Safe Mode jumper (default = 1-2)
Num Lock
Green
On
P7
CD audio
SW50
CMOS reset
ROMPaq diskette not present, is bad, or drive
not ready.*
P8
Chassis fan
XBT1
Real-time clock battery
P10
Diskette drive
XMM1
Memory
P11
Aux audio
XMM2
Memory
P20
Primary IDE
XU1
Processor
Caps Lock
Green
On
Enter password.
Num, Caps,
Scroll Lock
Green
Blink On in sequence, one at a
time - N, C, SL
Keyboard locked in network mode
* Insert valid ROMPaq diskette in drive A. Turn power switch off, then on to reflash ROM. If ROM flash is successful, all
three keyboard LEDs will light up, and you will hear a rising tone series of beeps. Remove diskette and turn power off,
then on to restart the computer. For more information about flashing the ROM, refer to the Troubleshooting guide.
Heatsink Removal
Interrupts
IRQ
System Resource
IRQ
System Resource
0
Reserved, interval timer
12
Onboard mouse port
1
Reserved, keyboard buffer full
13
Reserved, numeric data coprocessor
4
Serial Port (COM 1)
14
Primary IDE controller
5
PCI system management
15
Secondary IDE controller
6
Diskette drive controller
19
Integrated graphics (GPU)
8
Real-time clock
21
Integrated audio/USB host controller
9
ACPI-compliant system
22
Network interface card (NIC)
Computer Setup (F10) Utility Features (not all features may be available)
File
System Information
About
Set Time and Date
Save to Diskette
Restore From Diskette
Set Defaults and Exit
Ignore Changes and Exit
Save Changes and Exit
Storage
Device Configuration
Storage Options
IDE DPS Self-Test
Controller Order
Boot Order
Security
Setup Password
Power-On Password
Password Options
Embedded Security
Smart Cover
Smart Sensor
DriveLock
System IDs
Master Boot Record Security
Save Master Boot Record
Restore Master Boot Record
Device Security
Network Service Boot
Advanced
Power-On Options
BIOS Wakeup
Onboard devices
PCI Devices
Bus Options
Devise Options
PCI VGA Configuration
Keyboards (not illustrated)
Easy Access Keyboard, PS/2
323686-001-xxx
324634-001-xxx
Europe*
-021
International**
-B31
Thai
-281
French Canadian
-121
Latin American Spanish
-161
U.S.
-001
Japanese
-291
People’s Republic of China -AA1
Korean (Hanguel)
-AD1
Taiwanese
-AB1
*For 324634-xxx keyboard only
**For 323686-xxx keyboard only
Keyboard, Wireless
323745-xxx
French Canadian
-121
International
-B31
Taiwanese
-AB1
Japanese
-291
Latin American Spanish
-161
Thai
-281
Korean (Hanguel)
-AD1
People’s Republic of China -AA1
U.S.
-001
Note: See Computer Setup (F10) Utility Guide on the Documentation Library CD.
Clearing CMOS
1.
2.
3.
4.
5.
6.
Turn off the computer and any external devices, then disconnect the power cord from the power outlet.
Remove the access panel.
Locate the switch SW50 and press the button, holding it down for 5 seconds.
Replace the access panel.
Connect the power cord to the power outlet.
Turn on the computer, allow it to start.
Smartcard, Easy Access
Keyboard, USB
323746-xxx
French Canadian
-121
International
-B31
Taiwanese
-AB1
Japanese
-291
Latin American Spanish
-161
Thai
-281
Korean (Hanguel)
-AD1
People’s Republic of China -AA1
U.S.
-001
U.S.
-001
Keyboard, Basic, USB
Keyboard, Basic, PS/2
Clearing and Setting the Setup and Power-On Passwords
1.
2.
3.
4.
5.
6.
Turn off the computer and any external devices, then disconnect the power cord from the power outlet.
Remove the access panel.
Locate the header labeled E49.
Move the jumper from pins 1 & 2 to pins 2 & 3.
Replace the access panel.
Connect the power cord to the power outlet.
NOTE: Placing the jumper on pins 2 & 3 and restarting the computer clears the current passwords and disables the
password features.
7.
8.
To re-enable the password features, repeat steps 1-3, then replace the jumper on pins 1 & 2 (safe position).
Repeat steps 5-6, then establish new passwords.
NOTE: All passwords will be cleared.
French Canadian
355631-xxx
355630-xxx
-121
Latin American Spanish
-161
