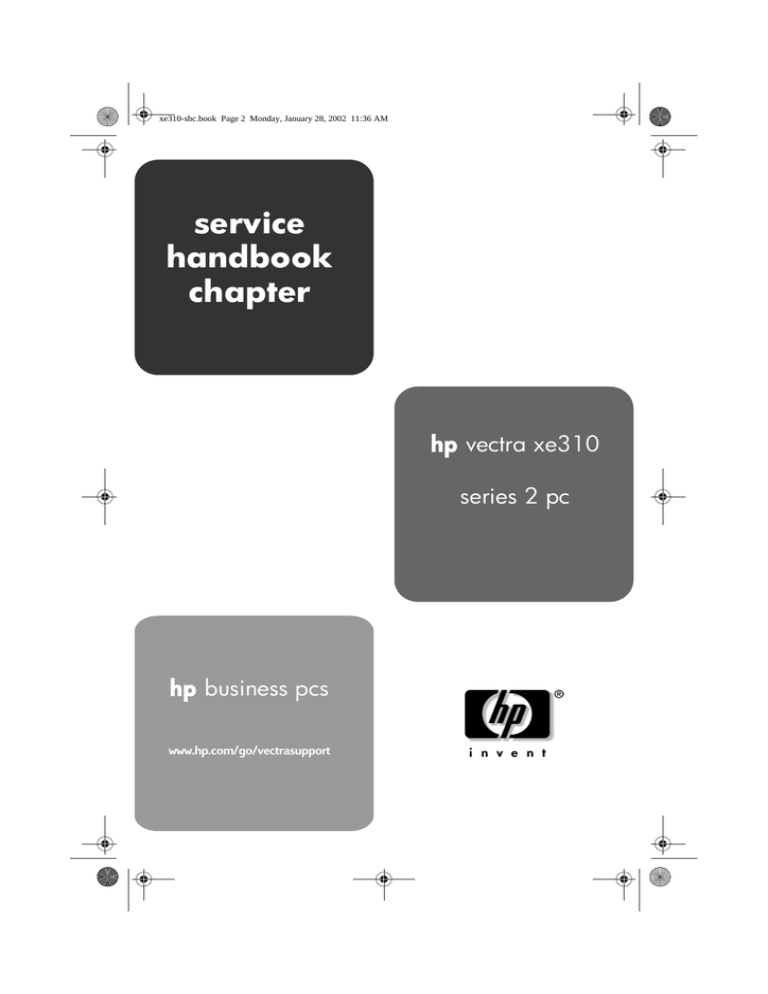

xe310-shc.book Page 2 Monday, January 28, 2002 11:36 AM
service
handbook
chapter
hp vectra xe310
series 2 pc
hp business pcs
www.hp.com/go/vectrasupport
xe310-shc.book Page 3 Monday, January 28, 2002 11:36 AM
notice
Information contained in this document is subject to change without notice.
Hewlett-Packard makes no warranty of any kind with regard to this material,
including, but not limited to, the implied warranties of merchantability and
fitness for a particular purpose. Hewlett-Packard shall not be liable for errors
contained herein or for incidental or consequential damages in connection with
the furnishing, performance, or use of this material.
Hewlett-Packard assumes no responsibility for the use or reliability of its
software on equipment that is not furnished by Hewlett-Packard.
This document contains proprietary information that is protected by copyright.
All rights are reserved. No part of this document may be photocopied,
reproduced, or translated into another language without the prior written
consent of Hewlett-Packard Company.
3Com and EtherLink are registered trademarks of 3Com Corporation.
Intel, Celeron, and Pentium are either registered trademarks or trademarks of Intel.
Microsoft, MS, MS-DOS, Windows and Windows NT are either registered trademarks or
trademarks of Microsoft Corp. in the United States and/or other countries.
Analog Devices is a registered trademark of Analog Devices, Inc.
© 2002 Hewlett-Packard Company
contents
This chapter provides:
❒
❒
❒
❒
Product model numbers
Supported Accessories
System Board, BIOS, and memory information
Part numbers
replacement and exchange parts
The difference between a replacement and an exchange part is that when using
an exchange part you should return the replaced part to HP.
Replacement and exchange parts listed in this manual are subject to change.
However, updated part numbers are automatically cross-referenced to the old
number. This means that you will receive the correct part using the numbers
listed in this manual (even if the part’s actual number has been updated).
ordering parts
Contact your local HP Customer Care Center or an HP Authorized support
provider to get parts. Diagnostic is required in both cases, prior to any shipments.
For HP Customer Care Centers
www.hp.com/go/vectrasupport and select contact hp
xe310-shc.book Page 1 Monday, January 28, 2002 11:36 AM
1
hp vectra xe310 series 2 pc
models and accessories
product
number
hard
drive
video
controller
std.
RAM
multimedia
Modem/
LAN
OS1
Vectra XE310 Series 2 PC
Models with Intel Celeron Processor,
100 MHz System Bus Speed, and 128 KB Level 2 Cache Memory
HP Vectra XE310 PC 950/100 (CPL: 01/2002 )
P6901B
20 GB IDE, Direct AGP 128 MB
5400 rpm
integrated SDRAM
48 ✕ Max IDE no
CD-ROM
XP HE
P7916B
40 GB IDE,
5400 rpm
48 ✕ Max IDE HP 10/100
CD-ROM
BT
Linux
microtower vectras
hp vectra xe310 series 2 pc 1-1
1
xe310-shc.book Page 2 Monday, January 28, 2002 11:36 AM
hp vectra xe310 series 2 pc
product
number
hard
drive
video
controller
std.
RAM
multimedia
Modem/
LAN
OS1
HP Vectra XE310 PC 1000/100 (CPL: 01/2002 )
1
P7257A
20 GB IDE, Direct AGP 128 MB
5400 rpm
integrated SDRAM
no
P7258A
40 GB IDE,
5400 rpm
48 ✕ Max IDE
CD-ROM
P7284B
20 GB IDE,
5400 rpm
P7604B
no
XP Pro
XP HE
no
48 ✕ Max IDE
CD-ROM
P7605B
P7606B
XP Pro
no
P7607T
Linux
XP HE
P7608T
48 ✕ Max IDE
CD-ROM
P7609T
P7610T
no
P7618A
40 GB IDE,
5400 rpm
Linux
XP HE
HP 10/100
BT
XP HE
48 ✕ Max IDE 56K V90 PCI XP HE
CD-ROM
HP 10/100
BT
P7909B
P7910B
P7911B
56K V90 PCI
no
P7617B
P7908B
XP HE
20 GB IDE,
5400 rpm
1-2 hp vectra xe310 series 2 pc
256 MB
SDRAM
16✕10✕40
IDE CD-RW
64 MB
SDRAM
48 ✕ Max IDE
CD-ROM
HP 10/100
BT
XP HE
Linux
microtower vectras
xe310-shc.book Page 3 Monday, January 28, 2002 11:36 AM
hp vectra xe310 series 2 pc
product
number
hard
drive
video
controller
std.
RAM
multimedia
Modem/
LAN
OS1
HP Vectra XE310 PC 1100/100 (CPL: 01/2002 )
P7259A
20 GB IDE, Direct AGP 128 MB
5400 rpm
integrated SDRAM
P7260A
40 GB IDE,
5400 rpm
48 ✕ Max IDE no
CD-ROM
XP HE
XP Pro
1
HP Vectra XE310 PC 1200/100 (CPL: 01/2002 )
P7261A
P7262A
P7280A
P7281A
40 GB IDE, Direct AGP 128 MB
5400 rpm
integrated SDRAM
48 ✕ Max IDE no
CD-ROM
20 GB IDE,
5400 rpm
no
48 ✕ Max IDE
CD-ROM
P7282A
no
P7283A
48 ✕ Max IDE
CD-ROM
P7611T
no
P7612T
48 ✕ Max IDE
CD-ROM
P7613T
HP 10/100
BT
XP HE
XP Pro
Linux
XP HE
no
P7619A
no
P7620A
48 ✕ Max IDE
CD-ROM
XP Pro
XP Pro+
Off SBE
XP Pro
HP Vectra XE310 PC 1300/100 (CPL: 01/2002 )
P7263A
P7264A
40 GB IDE, Direct AGP 128 MB
5400 rpm
integrated SDRAM
microtower vectras
48 ✕ Max IDE no
CD-ROM
XP HE
XP Pro
hp vectra xe310 series 2 pc 1-3
xe310-shc.book Page 4 Monday, January 28, 2002 11:36 AM
hp vectra xe310 series 2 pc
product
number
hard
drive
video
controller
std.
RAM
multimedia
Modem/
LAN
OS1
Vectra XE310 Series 2 PC
Models with Intel Pentium III Processor FCPGA3 package (socket 370),
133 MHz System Bus Speed and 256 KB Level 2 Cache Memory
HP Vectra XE310 PC 1000/133 (CPL: 01/2002 )
1
A7725T
20 GB IDE, Direct AGP 256 MB
5400 rpm
integrated SDRAM
A8213S
40 GB IDE,
5400 rpm
P7614T
20 GB IDE,
5400 rpm
P7615T
48 ✕ Max IDE no
CD-ROM
128 MB
SDRAM
XP
XP HE
XP HE
XP Pro
P7621A
no
XP HE
P7622A
48 ✕ Max IDE
CD-ROM
XP Pro
P7623A
no
P7912B
P7913B
P7914B
P7915B
48 ✕ Max IDE HP 10/100
CD-ROM
BT
40 GB IDE,
5400 rpm
20 GB IDE,
5400 rpm
256 MB
SDRAM
56K V90 PCI
HP 10/100
BT
64 MB
SDRAM
HP 10/100
BT
XP Pro
XP HE
Linux
HP Vectra XE310 PC 1130/133 (CPL: 01/2002 )
A7728S
20 GB IDE, Direct AGP 256 MB
5400 rpm
integrated SDRAM
P7616B/T
128 MB
SDRAM
16✕10✕40
IDE CD-RW
48 ✕ Max IDE
CD-ROM
1-4 hp vectra xe310 series 2 pc
XP HE
XP Pro+
Off SBE
XP Pro
P7624A
P7625A
no
16 ✕/40 ✕ IDE
DVD-ROM
microtower vectras
xe310-shc.book Page 5 Monday, January 28, 2002 11:36 AM
hp vectra xe310 series 2 pc
product
number
hard
drive
video
controller
std.
RAM
multimedia
Modem/
LAN
OS1
Vectra XE310 series 2 PC
Models with User Defined Processor, Main Memory, and Hard Disk
HP Vectra XE310 PC2 (CPL: 01/2002 )
P6900AV
1.
2.
User defined
Indicates operating system and other preloaded software. W98 = Windows 98,
W2000 = Windows 2000, NT4 = Windows NT4, XP Pro = Windows XP Professional,
XP HE = Windows XP Home Edition, Off SBE = Microsoft Office XP Small Business
Edition.
Models with Windows XP Professional operating system come with a CD-ROM for
recovering Windows XP Professional or downgrade to Windows 2000.
Channel Assembly Program (CAP) models: Processor type and speed, hard disk size,
memory and operating system is user defined.
note
All models have:
❒ Integrated Analog Devices AD1885 AC’97 stereo audio codec.
❒ Integrated Direct AGP video controller.
❒ Integrated Intel PRO/100 VE network controller.
microtower vectras
hp vectra xe310 series 2 pc 1-5
1
xe310-shc.book Page 6 Monday, January 28, 2002 11:36 AM
hp vectra xe310 series 2 pc
supported accessories
Memory
1
64-MB SDRAM, non-ECC PC133 main memory module
P1536A
64-MB SDRAM, non-ECC PC133 main memory module (pack of 10)
P5100A
128-MB SDRAM, non-ECC PC133 main memory module
P1537A
128-MB SDRAM, non-ECC PC133 main memory module (pack of 10)
P5101A
256-MB SDRAM, non-ECC PC133 main memory module
P1538A
256-MB SDRAM, non-ECC PC133 main memory module (pack of 10)
P5102A
Monitors
All current HP Monitors (see the HP Monitors Service Handbook)
Multimedia
48✕ Max IDE CD-ROM drive
D9444A
HP 16✕ 10✕ 40✕ Max Speed IDE CD-RW drive
P1534B
HP 16✕ Max Speed IDE DVD-ROM drive
P1544B
Input Devices
HP PS2 Windows Keyboard
HP PS2 Scrolling Mouse
C4735B/C
C4736B
Data Communications and LAN Adapter Boards
HP External USB Modem
P1979A
Audio
HP Amplified External Speakers 9.6WRMS
P1534A
HP Headset with microphone
P1968A
1-6 hp vectra xe310 series 2 pc
microtower vectras
xe310-shc.book Page 7 Monday, January 28, 2002 11:36 AM
hp vectra xe310 series 2 pc
system board, BIOS, and memory
Main Memory:
Two DIMM sockets which support up to
a maximum of 512 MB.
Install 64 MB, 128 MB or 256 MB SDRAM
modules.
1
Processor:
Intel Pentium III or
Intel Celeron FC-PGA
package with Zero
Insertion Force (ZIF)
socket.
Clear CMOS (J27)
Default position
Clear CMOS
Clear Passwords (J29)
Default position
Clear Passwords
microtower vectras
hp vectra xe310 series 2 pc 1-7
xe310-shc.book Page 8 Monday, January 28, 2002 11:36 AM
hp vectra xe310 series 2 pc
system board jumpers
Jumper
J27
J29
1
Function
CLEAR
Default
Clears CMOS (to reload the Setup program defaults)
NORMAL
Normal operation
CLEAR
Clears User and Administrator passwords
NORMAL
Normal operation
NORMAL
NORMAL
BIOS history
For the latest BIOS, the flasher utility program, and the BIOS history refer to the
HP’s Web site.
http://www.hp.com/go/vectrasupport/
beep codes for hp vectra xe310 series 2
Beep Pattern
Beep Code
Numeric
Code
Description
— -- -- --— --- — —
1-2-2-3
1-3-1-1
16h
20h
BIOS ROM check-sum failure
DRAM refresh test failure
— --- — --— --- --- —
1-3-1-3
1-3-3-1
22h
2Ch
8042 Keyboard controller test failure
Autosize DRAM failure (RAM
module missing or not installed
correctly)
— - - - - - - - — 1-3-4-1
— - - - - - - - - - - 1-3-4-3
2Ch
2Eh
— ---- — —
1-4-1-1
30h
RAM failure on address line xxxx1
RAM failure on data bits xxxx1 of
low byte of memory bus
RAM failure on data bits xxxx1 of
high byte of memory bus
-- — -- ---- -- --- —
2-1-2-3
2-2-3-1
46h
58h
ROM copyright notice check failure
Unexpected interrupts test failure
— --
1-2
98h
-
1
B4h
Video configuration failure or option
ROMs check-sum failure
This does not indicate an error.
There is one short beep before
system startup.
1.
If the BIOS detects error 2C or 2E (base 512K RAM error), it displays an additional wordbitmap (xxxx) indicating the address line or bits that failed. For example, “2C 0002” means
address line 1 (bit one set) has failed. “2E 1020” means data bits 12 and 5 (bits 12 and 5 set)
have failed in the lower 16 bits.
1-8 hp vectra xe310 series 2 pc
microtower vectras
xe310-shc.book Page 9 Monday, January 28, 2002 11:36 AM
hp vectra xe310 series 2 pc
part numbers
1
1
2
3
4
5
6
7
9
8
10
11
12
13
microtower vectras
hp vectra xe310 series 2 pc 1-9
xe310-shc.book Page 10 Monday, January 28, 2002 11:36 AM
hp vectra xe310 series 2 pc
parts list for hp vectra xe310 series 2 pc
Item
1
1
2
3
4
5
6
7
8
9
Description
Chassis barebone1
•North America, Latin America
•Asia Pacific, Europe
Plastic parts kit2
Floppy disk drive (bezel-less)
Power supply
PFC (Europe/Asia Pacific)3
non-PFC (US/Latin America)
Cable Kit (including FDD, CD-ROM, HDD
and CD audio connector cables)
Internal PCI modem:
48X IDE CD-ROM drive
16X 10X 40X IDE CD-RW Multiread drive
16X/40X IDE DVD-ROM drive
IDE hard disk drive:
20GB 5400 rpm Maxtor
20GB 5400 rpm Seagate
40 GB 5400 rpm Maxtor
40 GB 5400 rpm Seagate
20GB 7200 rpm Quantum
Scrolling mouse
1-10 hp vectra xe310 series 2 pc
Repl.
Part Number
Exchange
Part Number
5065-7301
5065-7302
5065-8935
P4680-63012
—
—
—
—
P4680-63021
P4680-63022
P6901-63041
—
—
—
P4680-63041
D4389-60052
—
—
—
—
D4389-69181
P4388-69016
—
—
—
—
—
C4737-60001
P4447-69001
P4738-69001/3
P4448-69001
P4737-69001/3
P2812-69005
—
microtower vectras
xe310-shc.book Page 11 Monday, January 28, 2002 11:36 AM
hp vectra xe310 series 2 pc
parts list for hp vectra xe310 series 2 pc
Item
10
Description
Telephone Cable for4:
#AB0, #AB1, #AB2, #AB4, #AB6, #ABA,
#ABB, #ABC, #ABM, #ABT, #ABV, #AC8,
#AKB, #AKL, #AKR, #AKV, #AR6, #ARL
#ABE
#ABD
#ABF
#ABH
#AB5, #ABU, #ACJ
#ABG
#ABS
#AB9, #ABY
#ABZ
#ABN, #ABX
#ABW
#AB7
#AB8
#ABJ
11
External USB e- Modem4
#AB0, #AB1, #AB2, #AB4, #AB5, #ABA,
#ABC, #ABJ, #ABM, #AC8, #ACJ, #AKL,
#AKV, #AR6
AB6, #AB7, #AB8, #AB9, #ABB, #ABD,
#ABE, #ABF, #ABG, #ABH, #ABN, #ABS,
#ABT, #ABU, #ABV, #ABW, #ABX, #ABY,
#ABZ, #AKB, #AKR, #ARL
12
System board
13
Rear panel I/O gasket
not Standard keyboard (not shown)
shown Power Cord (not shown)
On-Off LED Cable Assembly (not shown)
1.
2.
3.
4.
Repl.
Part Number
Exchange
Part Number
5182-5432
—
5182-5434
5182-5435
5182-5436
5182-5437
5182-5438
5182-5438
5184-3806
5182-5439
5182-5441
5182-5442
5183-9453
5184-1599
5184-2043
5182-5432
5184-3803
5184-3805
—
—
—
—
—
—
—
—
—
—
—
—
—
—
5065-2590
—
5065-2591
—
See PC’s system board parts list
5002-6282
—
C4739-601xx
—
8120-xxxx
—
P4680-63031
—
Includes chassis frame, side covers, front bezel, top cover, foot, airflow guide, floppy drive,
floppy and hard drive bay, I/O plate, 5.25 inch fillers, PSU, FDD, CD cables
Includes front bezel, foot, top cover and two 5.25 inch fillers.
PFC=Power Factor Correction. PFC power supplies should be used in the EU as of
December 1, 2000 in compliance with EU standards.
See localization option codes table below.
microtower vectras
hp vectra xe310 series 2 pc 1-11
1
xe310-shc.book Page 12 Monday, January 28, 2002 11:36 AM
hp vectra xe310 series 2 pc
localization option codes
1
Loc.
#AB0
#AB1
#AB2
#AB4
#AB5
#AB6
#AB7
#AB8
#AB9
#ABA
#ABB
#ABC
#ABD
#ABE
#ABF
#ABG
#ABH
#ABJ
#ABM
#ABN
#ABP
#ABQ
Country or Area
Taiwan
Korea
China
Singapore/Malaysia
Hong Kong
Arabia/French
Greece
Turkey
Portugal
USA/English
Europe/English
Canada/French
Germany
Spain
France
Australia
Netherlands
Japan
Latin America/Spanish
Norway
Switzerland/German
Switzerland/French
1-12 hp vectra xe310 series 2 pc
Loc
#ABS
#ABT
#ABU
#ABV
#ABW
#ABX
#ABY
#ABZ
#AC4
#AC8
#ACB
#ACJ
#ACQ
#AKB
#AKC
#AKD
#AKL
#AKN
#AKR
#AKV
#AR6
#ARL
Country or Area
Sweden
Hebrew
UK/English
Arabia/English
Belgium/Flemish
Finland
Denmark
Italy
Brazil
Argentina/Spanish
Russia
India/English
South Africa
Czech Republic
Hungary
Poland
Thailand
Slovenia
Slovakia
South America/Spanish
Indonesia/English
Baltic States
microtower vectras
xe310-shc.book Page 13 Monday, January 28, 2002 11:36 AM
hp vectra xe310 series 2 pc
system board parts list for hp vectra xe310 series 2 pc
Description
Repl.
Part Number
System board:
Vectra XE310 Series 2 system board with
—
audio subsystem
Processors (FC-PGA and FC-PGA2 package):
Intel Celeron 800/100 128KB L2 cache
P1841-63001
Intel Celeron 850/100 128KB L2 cache
P1842-63001
Intel Celeron 900/100 128KB L2 cache
P1843-63001
Intel Celeron 950/100 128KB L2 cache
P1844-63001
Intel Celeron 1000/100 128KB L2 cache
P1845-63001
Intel Celeron 1100/100 128KB L2 cache
P1846-63001
Intel Celeron 1200/100 256KB L2 cache
P6095-63001
Intel Celeron 1300/100 256KB L2 cache
P6096-63001
Intel Pentium III 866/133 256KB L2 cache
—
Intel Pentium III 933/133 256KB L2 cache
—
Intel Pentium III 1000/133 256KB L2 cache
—
Intel Pentium III 1133/133 256KB L2 cache
—
Intel Pentium III 1200/133 256KB L2 cache
—
Heatsink (up to Celeron 1100 MHz
5065-1297
processors)
Active Heatsink (Celeron/Pentium III 1200
5065-4275
MHz and higher frequency processors)
Main memory modules:
1 ✕ 64-MB non-ECC PC133 SDRAM
P1536-63010
1 ✕ 128-MB non-ECC PC133 SDRAM
P1537-63010
1 ✕ 256-MB non-ECC PC133 SDRAM
P1538-63010
Exchange
Part Number
P6901-69001
—
—
—
—
—
—
—
—
D9873-69001
D9486-69001
P1579-69001
P3339-69001
P4787-69001
—
—
—
—
—
software recovery CD-ROMs
Image Creation & Recovery CD-ROM (Windows XP Professional
and Windows 2000)
Image Creation & Recovery CD-ROM (Windows XP Home
Edition)
5970-0550-xx1
Image Library & Diagnostics CD-ROM
5970-4641
1.
5970-0541-xx1
Where “xx” is the code for your language.
manuals and documentation for hp vectra xe310 series 2 pc
Quick User’s Guide
5070-5250
Technical Reference Manual
no number1
Upgrade Guide
no number1
Troubleshooting Guide
no number1
1.
Electronic files available on HP’s Web site.
microtower vectras
hp vectra xe310 series 2 pc 1-13
1
xe310-shc.book Page 14 Monday, January 28, 2002 11:36 AM
hp vectra xe310 series 2 pc
1
1-14 hp vectra xe310 series 2 pc
microtower vectras
Download PDF

advertising
