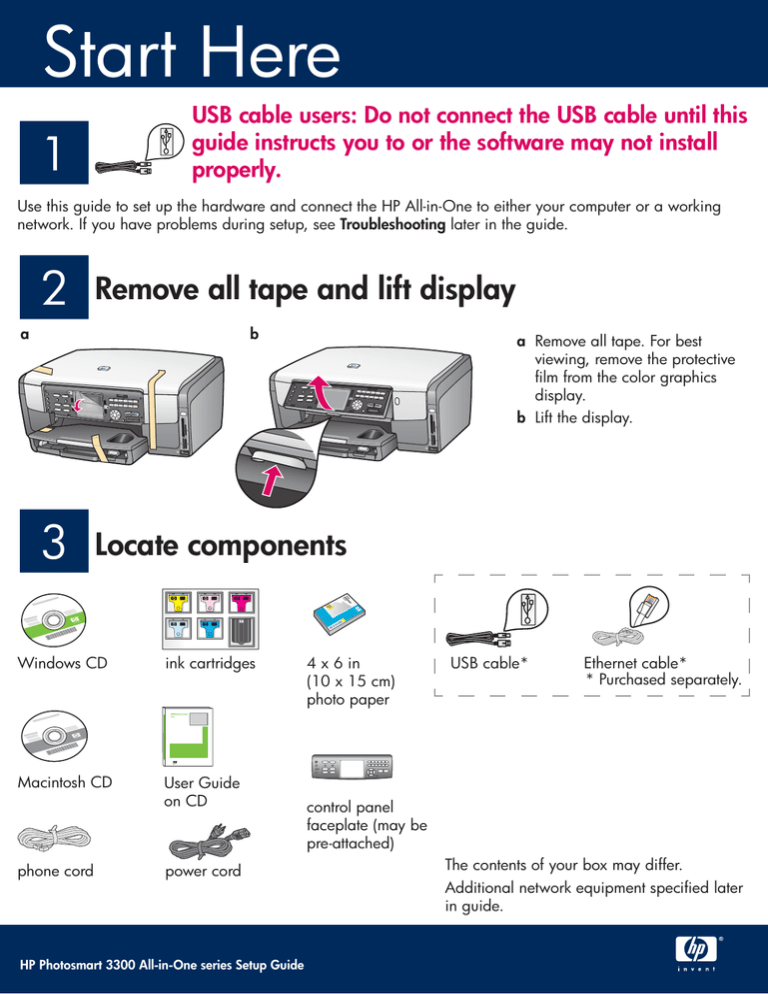

Start Here
USB cable users: Do not connect the USB cable until this
guide instructs you to or the software may not install
properly.
1
Use this guide to set up the hardware and connect the HP All-in-One to either your computer or a working
network. If you have problems during setup, see Troubleshooting later in the guide.
2
Remove all tape and lift display
a
b
3
a Remove all tape. For best
viewing, remove the protective
film from the color graphics
display.
b Lift the display.
Locate components
Windows CD
ink cartridges
4 x 6 in
(10 x 15 cm)
photo paper
USB cable*
Ethernet cable*
* Purchased separately.
HP Photosmart 2600/2700 series all-in-one
User Guide
Macintosh CD
phone cord
User Guide
on CD
power cord
HP Photosmart 3300 All-in-One series Setup Guide
control panel
faceplate (may be
pre-attached)
The contents of your box may differ.
Additional network equipment specified later
in guide.
4
Attach the control panel faceplate
(if not attached)
a
b
a Lift the lid.
c
b Position the control panel faceplate
over the buttons on the device.
c Press down firmly on all edges of the overlay
to secure it. Make sure all buttons are visible
and not blocked.
The control panel faceplate must be attached for the HP All-in-One to work!
5
Load paper trays
Main tray:
a
b
c
d
Load plain white paper in the bottom paper tray. Plain paper is needed for alignment.
Photo paper tray:
e
f
g
Load the 4 x 6 in (10 x 15 cm) photo paper with the glossy side down in the photo tray located underneath
the output tray. (If paper is tabbed, make sure the tab is towards you.)
h
2 • HP All-in-One
i
Tip: Pull out, and then flip the
paper tray extender to catch
pages.
6
Connect the supplied phone cord
Connect one end of the supplied phone cord to the
phone port on the left (1-LINE) and the other to a wall
jack.
To connect an answering machine or use your own
phone cord, see the User Guide.
7
Connect the power cord
USB cable users: Do not connect the USB cable until
instructed later in this guide.
8
On
9
a
Press the On button and configure
a After you press the On button, the blue light flashes, and then
becomes solid. This may take up to a minute.
b Wait for the language prompt before continuing. Use the arrow
keys to select your language, press OK, and then confirm. Use
the arrow keys to select your country/region, press OK, and
then confirm.
Open the access door
b
HP All-in-One • 3
10 Lift latches inside of the device
a
a Squeeze the bottom of each latch to release it, and then lift
the latch.
b Lift all six latches.
b
11 Insert all six ink cartridges
a
Match the color and pattern of the ink cartridge to the color
and pattern on the print carriage.
a Push the black ink cartridge into the first slot on the left.
Close the latch.
b Repeat with each of the color ink cartridges.
c Make sure each latch is secure.
b
c
4 • HP All-in-One
12
a
Close the access door and follow the prompts
a After you close the access door, a prompt appears to
load plain white paper. Make sure paper is loaded, and
then press OK to start the process.
The device initializes the ink cartridges and aligns the
printer. This takes approximately 5 minutes.
b
Do not disconnect or turn off the HP All-in-One
during this time. You may hear the device making noises.
b After the page prints, the printer is aligned. Check the
color graphics display for the status, and then press OK.
Recycle or discard the alignment page.
13
Turn on your computer
a Turn on your computer, login if necessary, and then wait
for the desktop to appear.
b Close any open programs.
HP All-in-One • 5
14
Choose ONE connection type (A or B or C)
A: USB Connection - Do not connect yet.
Use this connection type if you want to connect the device directly
to one computer. (Do not connect until the software instructs you
to.)
Equipment needed: USB cable.
For a USB connection, go to Section A (page 7) for instructions.
B: Ethernet (Wired) Network
Use this connection type if you want an Ethernet cable connection
between the device and your network.
Equipment needed: hub/router/switch and Ethernet cable.
For an Ethernet cable connection, go to Section B (page 9) for
instructions.
C: Wireless (Access Point) Connection
Use this connection type if you want a wireless (802.11 b or g)
connection between the device and your network.
Equipment needed: wireless hub or access point*.
For easiest setup, move the HP All-in-One next to the access point.
For a wireless access point connection, go to Section C (page 11)
for instructions.
*Note: If you do not have an access point, but want to connect your wireless computer to the device, see
the Wireless Ad Hoc Network Setup section in the User Guide.
6 • HP All-in-One
Section A: USB Connection
A1
Insert the correct CD
Windows Users:
Macintosh Users:
Note: If the startup screen
does not appear after you
insert the CD, double-click
My Computer, double-click
the CD-ROM icon, and then
double-click setup.exe.
a Insert the HP All-in-One Windows CD.
b Follow the onscreen instructions to install the software.
c On the Connection Type screen, make sure to select
directly to this computer. Continue to the next page.
a Locate the HP All-in-One Macintosh CD.
b Continue to the next page.
HP All-in-One • 7
A2
Connect the USB cable
Windows Users:
Macintosh Users:
a Follow the onscreen instructions until you see the
prompt to connect the USB cable. (This may take
several minutes.)
Once the prompt appears, connect the USB cable to
the port on the back of the
HP All-in-One, and then to any USB port on your
computer.
a Connect the USB cable from your computer
to the USB port on the back of the device.
b Double-click the HP All-in-One installer icon.
c Make sure you complete all screens, including
the Setup Assistant.
b Follow the onscreen instructions. Complete the Fax
Setup Wizard and the Sign up now screens.
A3
Go to back of the guide to make a test copy
8 • HP All-in-One
Section B: Ethernet (wired) network
B1
a
Connect the Ethernet cable
a Remove the yellow plug from the back of the device.
b Connect one end of the Ethernet cable to the Ethernet port on
the back of the device.
c Connect the other end of the Ethernet cable to the hub/
router/switch. If the cable is not long enough, you can
purchase a longer cable.
b
Important: Do not connect the Ethernet cable to a cable
modem.
c
You must have a working network. If you already connected
the USB cable, do not connect the Ethernet cable.
HP All-in-One • 9
B2
Insert the correct CD
Windows Users:
Macintosh Users:
Note: If the startup screen
does not appear after you
insert the CD, double-click
My Computer, double-click
the CD-ROM icon, and then
double-click setup.exe.
a Insert the HP All-in-One Windows CD.
b Follow the onscreen instructions to install the
software.
c On the Connection Type screen, make sure to
select through the network. Follow the onscreen
instructions.
d You must choose unblock or accept on all firewall
messages or setup will fail. Follow all onscreen
instructions. To install software on additional
computers, go to page 14.
a Insert the HP All-in-One Macintosh CD.
b Double-click the HP All-in-One installer icon.
c Make sure you complete all screens,
including the Setup Assistant. To install
software on additional computers, go to
page 14.
Questions: Anti-virus, Anti-Spyware, or firewall
programs can block software installation.
For details, go to www.hp.com/support, enter
Photosmart 3300, and then search for Firewalls.
B3
Go to back of the guide to make a test copy
10 • HP All-in-One
Section C: Wireless (Access Point) Network
C1
Locate wireless settings
You must have your wireless settings to add the HP All-in-One to your wireless network. If you have Connect
Now Technology or SecureEZSetup, see the next section on this page.
If you do not have Connect Now Technology or SecureEZSetup or are unfamiliar with these terms, follow
these steps:
a Locate and write down your settings.
Network Name (also called SSID):____________________________________________________
WEP key/WPA Passphrase (if needed):________________________________________________
b Continue to step C2 on the next page.
If you do not know your settings, see the documentation that came with your wireless access point.
Shortcut methods (See requirements below.)
Connect Now Technology (Windows XP Service Pack 2 or newer)
Or
Requirements: You must have a Connect Now compatible access point, Windows XP Service Pack
2, and saved settings to use this option. If you set up your wireless network using the Windows
Connect Now option with a USB flash drive, you can use that USB flash drive to add the HP Allin-One to your wireless network. (If you saved your settings to a memory device, you can also
use that device.)
Steps:
a Insert the USB flash drive into the front USB port on the HP All-in-One. (For memory devices,
insert the card into the matching card slot on the front of the HP All-in-One.)
b A prompt appears on the HP All-in-One. Press OK to accept. Skip the next page and continue
to step C4 on page 13.
SecureEasySetup
Requirements: You must have an access point with SecureEasySetup logo.
Important: You have a limited time to complete the next step after starting the SecureEasySetup.
Steps:
a Put the access point in SecureEasySetup mode. See the documentation that came with the
access point if you questions.
b Continue to step C2 on the next page.
HP All-in-One • 11
C2
Start the Wireless Setup Wizard
Setup
a On the control panel of the HP All-in-One, press the Setup button.
b Press 7 for the Network menu.
c When the Network menu appears, press 4 for the Wireless Setup Wizard.
C3
Follow the display instructions
A list of detected networks appears on the display. The networks with the strongest signals appear first.
Note: If you are using Connect Now Technology or SecureEasySetup, you can skip this step.
a Highlight the name of the network that you wrote down in Step C1, and then press OK. (If your network is
not listed, select Enter a New Network Name (SSID) and enter your Network Name (SSID). Make sure there
are no obstructions between the access point and your HP All-in-One.)
b If your network is encrypted, a prompt appears for the WEP key or WPA passphrase. Both are case
sensitive. See Display keyboard tips at the bottom of this page.
c Follow the prompts on the display. If the connection is successful, go to the next step.
HP Photosmart 2600/2700 series all-in-one
User Guide
Display keyboard tips:
To Select: Use Arrow keys to highlight, and then press OK.
For mistakes: Select Clear
For lowercase: Select abc
For numbers: Select 123
When you are finished: Highlight Done, and then press
OK.
12 • HP All-in-One
If you have problems
connecting to the network, see
the User Guide for additional
setup information.
C4
Insert the correct CD
Windows Users:
Macintosh Users:
Note: If the startup screen does
not appear after you insert the
CD, double-click My Computer,
double-click the CD-ROM icon,
and then double-click
setup.exe.
a Insert the HP All-in-One Windows CD.
b Follow the onscreen instructions to install the software.
c On the Connection Type screen, make sure to
select through the network. Follow the onscreen
instructions.
d You must choose unblock or accept on all firewall
messages or setup will fail. Follow all onscreen
instructions. Continue to the next page.
a Insert the HP All-in-One Macintosh CD.
b Double-click the HP All-in-One installer icon.
c Make sure you complete all screens,
including the Setup Assistant. Continue to
the next page.
Questions: Anti-virus, Anti-Spyware, or firewall
programs can block software installation.
For details, go to www.hp.com/support, enter
Photosmart 3300, and then search for Firewalls.
HP All-in-One • 13
15
Install software on additional computers
If you have additional computers on your network, install the
HP All-in-One software on each computer. Choose the correct
HP All-in-One CD for each installation.
Follow the onscreen instructions. Make sure that you choose the connection type
between the network and your HP All-in-One (not between your computer and the
network).
16
Go to back of the guide to make a test copy
Troubleshooting
Problem: A Paper Jam message appears.
Action: Remove the back access door, and then gently pull out any paper. Turn the
device off, and then on. Load the paper again.
Problem: You did not see the screen prompting you to connect the USB cable.
Action: Remove, and then re-insert the HP All-in-One Windows CD. Refer to Section
A.
Problem: The Microsoft Add Hardware screen appears.
Action: Click Cancel. Unplug the USB cable, and then insert the HP All-in-One
Windows CD. Refer to Section A.
Problem: The Device Setup Has Failed To Complete screen appears.
Action: Verify that the control panel faceplate is firmly attached. Unplug the
HP All-in-One and plug it in again. Check all connections. Make sure the USB cable
is plugged into the computer. Do not plug the USB cable into a keyboard or nonpowered hub. Refer to Section A.
14 • HP All-in-One
Network Troubleshooting
?
Problem: You are not sure if your network is set up properly.
Action: For information on how to set up a network, go to www.hp.com/support. Enter
Photosmart 3300, and then search for Network Setup.
Problem: You are trying to set up a wireless connection through the control panel, and
the device does not connect to the network.
Action:
• On the access point, turn on broadcast network name options, and turn off silent
broadcast name.
• Move the access point closer to the HP All-in-One and make sure there are no
obstructions.
• Turn the access point off, wait 30 seconds, and then on again.
• Make sure you entered the correct wireless communication mode and authentication
type. See steps C1 through C3.
• See the User Guide for more details and troubleshooting information.
Problem: The Printer Not Found messages appears.
Action: First make sure that you have an active connection with the device. Check
your color graphics display for an icon. If you do not see an icon, go back to your
connection type Section (B or C).
If you have an active connection, try the following:
• Turn your device off, wait 30 seconds, and then on.
• Try temporarily disconnecting your firewall.
Wired (Ethernet) network users: Make sure your cables are connected.
• Check the cable between the router and the device.
• Check the cable between your computer and the device.
• Make sure your LAN card is set up properly.
HP Photosmart 2600/2700 series all-in-one
User Guide
See the User Guide for more troubleshooting and additional setup information.
HP All-in-One • 15
*Q5861-90277*
*Q5861-90277*
Make a test copy
Q5861-90277
Now that you have finished setup, it is time to use your HP All-in-One. Make a copy of a favorite photo and
see the new copy preview feature.
1
1 Find a 4 x 6 in (10 x 15 cm) photo.
2
2 Place the photo (face down) on the right front corner
of the glass. Make sure the long edge of the photo is
along the front of the glass. Close the lid.
3
3 Make sure you have the photo paper loaded in the
paper tray (see page 2), and then press the Copy
button.
Copy
4
4 Press the Photo Tray button. The device scans the
photo, and then shows a preview on the color
graphics display.
Photo Tray
5
5 Press the Start Color button.
Start Color
The HP All-in-One makes a copy of your original photo.
To learn about printing photos from memory cards and
other features, see the User Guide and online help. For
additional help, see www.hp.com/support.
Printed on 100% recycled paper.
© Copyright 2005 Hewlett-Packard Development Company, L.P.
Printed in [].
Download PDF

advertising
