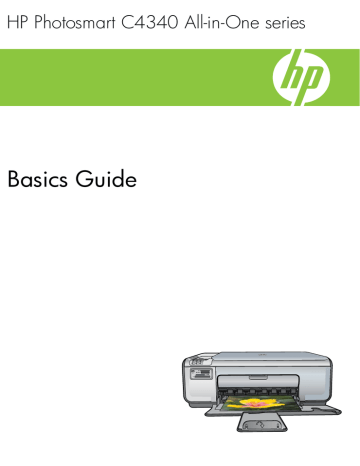

HP Photosmart C4340 All-in-One series
Basics Guide
5
6
7
8
9
*
0
#
Hewlett-Packard Company notices
The information contained in this document is subject to change without notice.
All rights reserved. Reproduction, adaptation, or translation of this material is prohibited without prior written permission of Hewlett-Packard, except
as allowed under copyright laws. The only warranties for HP products and services are set forth in the express warranty statements accompanying
such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
© 2007 Hewlett-Packard Development Company, L.P.
Windows, Windows 2000, and Windows XP are U.S. registered trademarks of Microsoft Corporation.
Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
Intel and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
1
HP All-in-One overview
The HP All-in-One at a glance....................................................................................................2
Control panel buttons.................................................................................................................3
Find more information.................................................................................................................4
2
Fax setup
Set up the HP All-in-One for faxing............................................................................................6
Change settings on the HP All-in-One to receive faxes...........................................................24
Set the fax header....................................................................................................................25
Test your fax setup...................................................................................................................25
3
Use the HP All-in-One features
Load originals and load paper..................................................................................................27
Avoid paper jams......................................................................................................................28
Print 10 x 15 cm (4 x 6 inch) photos.........................................................................................28
Scan an image..........................................................................................................................29
Make a copy.............................................................................................................................30
Send a basic fax.......................................................................................................................30
Receive a fax............................................................................................................................31
Replace the print cartridges......................................................................................................32
Clean the HP All-in-One...........................................................................................................35
4
Troubleshooting and support
Uninstall and reinstall the software...........................................................................................37
Setup troubleshooting...............................................................................................................38
Fax setup troubleshooting........................................................................................................41
Clear paper jams......................................................................................................................57
Print cartridge troubleshooting..................................................................................................58
Support process.......................................................................................................................58
5
Technical information
System requirements................................................................................................................59
Product specifications...............................................................................................................59
Regulatory notices....................................................................................................................59
Warranty...................................................................................................................................60
1
Contents
Contents
1
HP All-in-One overview
Use the HP All-in-One to quickly and easily accomplish tasks such as making a copy,
scanning documents, printing photos, or sending and receiving faxes You can access
many HP All-in-One functions directly from the control panel, without turning on your
computer.
NOTE: This guide introduces basic operations and troubleshooting, as well as
provides information for contacting HP support and ordering supplies.
The onscreen Help details the full range of features and functions, including use of
the HP Photosmart software that came with the HP All-in-One.
The HP All-in-One at a glance
HP All-in-One overview
2
Label
Description
1
Control panel
2
On button
3
Keypad
4
Memory card slots and Photo light
5
Input tray
6
Tray extender
7
Paper-width guide
8
Print cartridge door
9
Glass
10
Lid backing
HP All-in-One overview
(continued)
Label
Description
11
Rear door
12
Rear USB port
13
Power connection*
14
1-LINE (fax) port
15
2-EXT (phone) port
* Use only with the power adapter supplied by HP.
Control panel buttons
HP All-in-One overview
The following diagram and related table provide a quick reference to the HP All-in-One
control panel features.
Label
1
Icon
Name and Description
On: Turns the product on or off. When the product is off, a
minimal amount of power is used by it. You can further reduce
power consumption by holding down the On button for three
seconds. This puts the product in Standby/Off state. To
completely remove power, turn off the product, and then
unplug the power cord.
Control panel buttons
3
Chapter 1
(continued)
Label
Icon
Name and Description
HP All-in-One overview
2
Quality: Changes the copy quality or the quality of photos you
print from a memory card. One star represents fast quality, two
stars represent normal quality, and three stars represent best
quality. However, the quality produced varies depending on
the paper type. The default quality for plain paper is two stars
and photo paper is three stars.
3
Size: Changes the image size to 100% (Actual Size), fits it to
the page (Resize to Fit), or prints borderless images
(Borderless). The default setting is 100% for plain paper and
borderless for photo paper.
4
Copies: Specifies the number of copies.
5
Cancel: Stops a task (such as scanning, copying, or faxing)
or resets settings (such as Quality, Size, and Copies). If an
error occurs, it cancels the error and resumes printing when
pressed once.
6
Scan/Fax: Opens the Scan/Fax menu. When a memory card
is inserted, this button advances to the next photo on the
memory card when pressed.
7
Start Copy Black: Starts a black-and-white copy. When a
memory card is inserted, this button acts as a previous image
button.
8
Start Copy Color: Starts a color copy. When a memory card
is inserted, this button starts printing the image currently on
the display. In certain situations (for example, after clearing a
paper jam), this button resumes printing or confirms the
settings.
9
Keypad: Enters fax numbers, values, or text.
10
* (Space and Symbols):Enters asterisks, spaces, and
symbols for fax-related tasks.
# (Backspace): Enters pound signs and clears the incorrect
entry for fax-related tasks.
Find more information
A variety of resources, both printed and onscreen, provide information about setting up
and using the HP All-in-One.
4
HP All-in-One overview
•
•
Setup Guide
The Setup Guide provides instructions for setting up the HP All-in-One and installing
software. Make sure you follow the steps in the Setup Guide in order.
If you have problems during setup, see Troubleshooting in the last section of the
Setup Guide, or see “Troubleshooting and support” on page 37 in this guide.
Onscreen Help
The onscreen Help provides detailed instructions on features of the HP All-in-One
that are not described in this Basics Guide, including features that are only available
using the software you installed with the HP All-in-One.
www.hp.com/support
If you have Internet access, you can get help and support from the HP Web site. This
Web site offers technical support, drivers, supplies, and ordering information.
HP All-in-One overview
•
Find more information
5
2
Fax setup
After completing all the steps in the Setup Guide, use the instructions in this section to
complete your fax setup. Please keep your Setup Guide for later use.
In this section, you will learn how to set up the HP All-in-One so that faxing works
successfully with equipment and services you might already have on the same phone
line as the HP All-in-One.
TIP: You can also use the Fax Setup Wizard (Windows) or Fax Setup Utility (Mac)
to help you quickly set up some important fax settings such as the answer mode and
fax header information. You can access the Fax Setup Wizard (Windows) or Fax
Setup Utility (Mac) through the software you installed with the HP All-in-One. After
you run the Fax Setup Wizard (Windows) or Fax Setup Utility (Mac), follow the
procedures in this section to complete your fax setup.
Set up the HP All-in-One for faxing
Before you begin setting up the HP All-in-One for faxing, determine which kind of phone
system your country/region uses. The instructions for setting up the HP All-in-One for
faxing differ depending on whether you have a serial- or parallel-type phone system.
•
If you do not see your country/region listed in the table below, you probably have a
serial-type phone system. In a serial-type phone system, the connector type on your
shared telephone equipment (modems, phones, and answering machines) does not
allow a physical connection to the "2-EXT" port on the HP All-in-One. Instead, all
equipment must be connected at the telephone wall jack.
NOTE: In some countries/regions that use serial-type phone systems, the phone
cord that came with the HP All-in-One might have an additional wall plug attached
to it. This enables you to connect other telecom devices to the wall jack where
you plug in the HP All-in-One.
•
Fax setup
If your country/region is listed in the table below, you probably have a parallel-type
telephone system. In a parallel-type phone system, you are able to connect shared
telephone equipment to the phone line by using the "2-EXT" port on the back of the
HP All-in-One.
NOTE: If you have a parallel-type phone system, HP recommends you use the
2-wire phone cord supplied with the HP All-in-One to connect the HP All-in-One
to the telephone wall jack.
Table 2-1 Countries/regions with a parallel-type phone system
6
Argentina
Australia
Brazil
Canada
Chile
China
Colombia
Greece
India
Indonesia
Ireland
Japan
Fax setup
Countries/regions with a parallel-type phone system (continued)
Korea
Latin America
Malaysia
Mexico
Philippines
Poland
Portugal
Russia
Saudi Arabia
Singapore
Spain
Taiwan
Thailand
USA
Venezuela
Vietnam
If you are unsure which kind of telephone system you have (serial or parallel), check with
your telephone company.
Choose the correct fax setup for your home or office
To fax successfully, you need to know what types of equipment and services (if any) share
the same phone line with the HP All-in-One. This is important because you might need
to connect some of your existing office equipment directly to the HP All-in-One, and you
might also need to change some fax settings before you can fax successfully.
To determine the best way to set up the HP All-in-One in your home or office, first read
through the questions in this section and record your answers. Next, refer to the table in
the following section and choose the recommended setup case based on your answers.
1. Do you have a digital subscriber line (DSL) service through your telephone company?
(DSL might be called ADSL in your country/region.)
❑ Yes, I have DSL.
❑ No.
If you answered Yes, proceed directly to “Case B: Set up the HP All-in-One with
DSL” on page 11. You do not need to continue answering questions.
If you answered No, please continue answering questions.
2. Do you have a private branch exchange (PBX) phone system or an integrated
services digital network (ISDN) system?
If you answered Yes, proceed directly to “Case C: Set up the HP All-in-One with a
PBX phone system or an ISDN line” on page 12. You do not need to continue
answering questions.
If you answered No, please continue answering questions.
3. Do you subscribe to a distinctive ring service through your telephone company that
provides multiple phone numbers with different ring patterns?
❑ Yes, I have distinctive ring.
❑ No.
If you answered Yes, proceed directly to “Case D: Fax with a distinctive ring service
on the same line” on page 13. You do not need to continue answering questions.
If you answered No, please continue answering questions.
Are you unsure if you have distinctive ring? Many phone companies offer a distinctive
ring feature that allows you to have several phone numbers on one phone line.
When you subscribe to this service, each phone number will have a different ring
pattern. For example, you can have single, double, and triple rings for the different
numbers. You might assign one phone number with a single ring to your voice calls,
Set up the HP All-in-One for faxing
7
Fax setup
Make sure to read and answer the following questions in the order they are presented.
Chapter 2
4.
5.
6.
7.
and another phone number with double rings to your fax calls. This allows you to tell
the difference between voice and fax calls when the phone rings.
Do you receive voice calls at the same phone number you will use for fax calls on the
HP All-in-One?
❑ Yes, I receive voice calls.
❑ No.
Please continue answering questions.
Do you have a computer dial-up modem on the same phone line as the HP All-inOne?
❑ Yes, I have a computer dial-up modem.
❑ No.
Are you unsure if you use a computer dial-up modem? If you answer Yes to any of
the following questions, you are using a computer dial-up modem:
• Do you send and receive faxes directly to and from your computer software
applications through a dial-up connection?
• Do you send and receive e-mail messages on your computer through a dial-up
connection?
• Do you access the Internet from your computer through a dial-up connection?
Please continue answering questions.
Do you have an answering machine that answers voice calls at the same phone
number you will use for fax calls on the HP All-in-One?
❑ Yes, I have an answering machine.
❑ No.
Please continue answering questions.
Do you subscribe to a voice mail service through your telephone company at the same
phone number you will use for fax calls on the HP All-in-One?
❑ Yes, I have a voice mail service.
❑ No.
After you have completed answering the questions, proceed to the next section to
select your fax setup case.
Select your fax setup case
Fax setup
Now that you have answered all the questions about the equipment and services that
share the phone line with the HP All-in-One, you are ready to choose the best setup case
for your home or office.
From the first column in the following table, choose the combination of equipment and
services applicable to your home or office setting. Then look up the appropriate setup
case in the second or third column based on your phone system. Step-by-step
instructions are included for each case in the sections that follow.
If you have answered all the questions in the previous section and have none of the
described equipment or services, choose "None" from the first column in the table.
NOTE: If your home or office setup is not described in this section, set up the HP Allin-One as you would a regular analog phone. Make sure you use the phone cord
supplied in the box to connect one end to your telephone wall jack and the other end
to the port labeled 1-LINE on the back of the HP All-in-One. If you use another phone
cord, you might experience problems sending and receiving faxes.
8
Fax setup
Other equipment/services
sharing your fax line
Recommended fax setup for
parallel-type phone systems
Recommended fax setup for
serial-type phone systems
None
“Case A: Separate fax line (no
voice calls received)”
on page 10
“Case A: Separate fax line (no
voice calls received)”
on page 10
“Case B: Set up the HP All-inOne with DSL” on page 11
“Case B: Set up the HP All-inOne with DSL” on page 11
“Case C: Set up the HP All-inOne with a PBX phone system
or an ISDN line” on page 12
“Case C: Set up the HP All-inOne with a PBX phone system
or an ISDN line” on page 12
“Case D: Fax with a distinctive
ring service on the same line”
on page 13
“Case D: Fax with a distinctive
ring service on the same line”
on page 13
“Case E: Shared voice/fax
line” on page 14
“Case E: Shared voice/fax
line” on page 14
“Case F: Shared voice/fax line
with voice mail” on page 15
“Case F: Shared voice/fax line
with voice mail” on page 15
“Case G: Fax line shared with
computer dial-up modem (no
voice calls received)”
on page 16
Not applicable.
“Case H: Shared voice/fax line
with computer dial-up modem”
on page 17
Not applicable.
Voice calls and answering
machine
(You answered Yes to
questions 4 and 6 only.)
“Case I: Shared voice/fax line
with answering machine”
on page 19
Not applicable.
Voice calls, computer dial-up
modem, and answering
machine
“Case J: Shared voice/fax line
with computer dial-up modem
and answering machine”
on page 20
Not applicable.
“Case K: Shared voice/fax line
with computer dial-up modem
and voice mail” on page 22
Not applicable.
(You answered No to all
questions.)
DSL service
(You answered Yes to question
1 only.)
PBX or ISDN system
(You answered Yes to question
2 only.)
Distinctive ring service
(You answered Yes to question
3 only.)
Voice calls
(You answered Yes to question
4 only.)
Voice calls and voice mail
service
Computer dial-up modem
(You answered Yes to question
5 only.)
Voice calls and computer dialup modem
(You answered Yes to
questions 4 and 5 only.)
(You answered Yes to
questions 4, 5, and 6 only.)
Voice calls, computer dial-up
modem, and voice mail service
(You answered Yes to
questions 4, 5, and 7 only.)
Fax setup
(You answered Yes to
questions 4 and 7 only.)
For additional fax setup information, in specific countries/regions, see the Fax
Configuration Web site listed below.
Austria
www.hp.com/at/faxconfig
Set up the HP All-in-One for faxing
9
Chapter 2
(continued)
Germany
www.hp.com/de/faxconfig
Switzerland (French)
www.hp.com/ch/fr/faxconfig
Switzerland (German)
www.hp.com/ch/de/faxconfig
United Kingdom
www.hp.com/uk/faxconfig
Spain
www.hp.es/faxconfig
The Netherlands
www.hp.nl/faxconfig
Belgium (French)
www.hp.be/fr/faxconfig
Belgium (Dutch)
www.hp.be/nl/faxconfig
Portugal
www.hp.pt/faxconfig
Sweden
www.hp.se/faxconfig
Finland
www.hp.fi/faxconfig
Denmark
www.hp.dk/faxconfig
Norway
www.hp.no/faxconfig
Ireland
www.hp.com/ie/faxconfig
France
www.hp.com/fr/faxconfig
Italy
www.hp.com/it/faxconfig
Case A: Separate fax line (no voice calls received)
If you have a separate phone line on which you receive no voice calls, and you have no
other equipment connected on this phone line, set up the HP All-in-One as described in
this section.
Figure 2-1 Back view of the HP All-in-One
Fax setup
10
1
Telephone wall jack
2
Use the phone cord supplied in the box with the HP All-in-One to connect to the "1-LINE" port
Fax setup
To set up the product with a separate fax line
1. Using the phone cord supplied in the box with the product, connect one end to your
telephone wall jack, then connect the other end to the port labeled 1-LINE on the back
of the product.
NOTE: If you do not use the supplied cord to connect from the telephone wall
jack to the product, you might not be able to fax successfully. This special phone
cord is different from the phone cords you might already have in your home or
office.
2. Change the Auto Answer setting to the lowest number of rings to wait before
answering (two rings).
3. Run a fax test.
When the phone rings, the product will answer automatically after the number of rings
you set in the Auto Answer setting. Then it will begin emitting fax reception tones to the
sending fax machine and receive the fax.
Case B: Set up the HP All-in-One with DSL
If you have a DSL service through your telephone company, use the instructions in this
section to connect a DSL filter between the telephone wall jack and the HP All-in-One.
The DSL filter removes the digital signal that can interfere with the HP All-in-One, so the
HP All-in-One can communicate properly with the phone line. (DSL might be called ADSL
in your country/region.)
NOTE: If you have a DSL line, ensure that the DSL Filter is connected. Otherwise,
you will not be able to send and receive faxes with the HP All-in-One.
Fax setup
Figure 2-2 Back view of the HP All-in-One
1
Telephone wall jack
2
DSL filter and cord supplied by your DSL provider
3
Use the phone cord supplied in the box with the HP All-in-One to connect to the "1-LINE" port
Set up the HP All-in-One for faxing
11
Chapter 2
To set up the product with DSL
1. Obtain a DSL filter from your DSL provider.
2. Connect the DSL filter cord to the telephone wall jack.
NOTE: If you do not use the supplied cord to connect from the telephone wall
jack to the product, you might not be able to fax successfully. This special phone
cord is different from the phone cords you might already have in your home or
office.
3. Using the phone cord supplied in the box with the product, connect one end to the
DSL filter in your telephone wall jack, then connect the other end to the port labeled
1-LINE on the back of the product.
NOTE: If you have other office equipment or services attached to this phone line,
such as a distinctive ring service, answering machine, or voice mail, see the
appropriate section in this section for additional setup guidelines.
4. Run a fax test.
Case C: Set up the HP All-in-One with a PBX phone system or an ISDN line
If you are using a PBX phone system, do the following:
•
•
•
Connect the product to the port that is designated for fax and phone use.
Make sure you use the supplied cord to connect from the telephone wall jack to the
product.
Set the call waiting tone to Off.
NOTE: Many digital PBX systems include a call-waiting tone that is set to "on"
by default. The call waiting tone will interfere with any fax transmission, and you
will not be able to send or receive faxes with the HP All-in-One. Refer to the
documentation that came with your PBX phone system for instructions on how to
turn off the call-waiting tone.
•
Dial the number for an outside line before dialing the fax number.
If you are using an ISDN converter/terminal adaptor, do the following:
•
Connect the product to the port that is designated for fax and phone use.
Fax setup
NOTE: Some ISDN systems allow you to configure the ports for specific phone
equipment. For example, you might have assigned one port for telephone and
Group 3 fax and another port for multiple purposes. If you have problems when
connected to the fax/phone port of your ISDN converter, try using the port
designated for multiple purposes; it might be labeled "multi-combi" or something
similar.
•
•
12
Make sure you use the supplied cord to connect from the telephone wall jack to the
product. If you do not, you might not be able to fax successfully. This special phone
cord is different from the phone cords you might already have in your home or office.
If the supplied phone cord is too short, you can purchase a coupler from your local
electronics store and extend it.
Make sure that the terminal adapter is set to the correct switch type for your country/
region, if possible.
Fax setup
Case D: Fax with a distinctive ring service on the same line
If you subscribe to a distinctive ring service (through your telephone company) that allows
you to have multiple phone numbers on one phone line, each with a different ring pattern,
set up the HP All-in-One as described in this section.
Figure 2-3 Back view of the HP All-in-One
1
Telephone wall jack
2
Use the phone cord supplied in the box with the HP All-in-One to connect to the "1-LINE" port
To set up the product with a distinctive ring service
1. Using the phone cord supplied in the box with the product, connect one end to your
telephone wall jack, then connect the other end to the port labeled 1-LINE on the back
of the product.
2. Change the Auto Answer setting to the lowest number of rings to wait before
answering (two rings).
3. Change the Distinctive Ring setting to match the pattern that the telephone company
assigned to your fax number.
NOTE: By default, the product is set to answer all ring patterns. If you do not set
the Distinctive Ring to match the ring pattern assigned to your fax number, the
product might answer both voice calls and fax calls or it might not answer at all.
4. Run a fax test.
The HP All-in-One will automatically answer incoming calls that have the ring pattern you
selected (Distinctive Ring setting) after the number of rings you selected (Auto
Answer setting). Then it will begin emitting fax reception tones to the sending fax machine
and receive the fax.
Set up the HP All-in-One for faxing
13
Fax setup
NOTE: If you do not use the supplied cord to connect from the telephone wall
jack to the product, you might not be able to fax successfully. This special phone
cord is different from the phone cords you might already have in your home or
office.
Chapter 2
Case E: Shared voice/fax line
If you receive both voice calls and fax calls at the same phone number, and you have no
other office equipment (or voice mail) on this phone line, set up the HP All-in-One as
described in this section.
Figure 2-4 Back view of the HP All-in-One
1
Telephone wall jack
2
Use the phone cord supplied in the box with the HP All-in-One to connect to the "1-LINE" port
3
Telephone (optional)
To set up the product with a shared voice/fax line
1. Using the phone cord supplied in the box with the product, connect one end to your
telephone wall jack, then connect the other end to the port labeled 1-LINE on the back
of the product.
NOTE: If you do not use the supplied cord to connect from the telephone wall
jack to the product, you might not be able to fax successfully. This special phone
cord is different from the phone cords you might already have in your home or
office.
Fax setup
2. Now you need to decide how you want the product to answer calls, automatically or
manually:
• If you set up the product to answer calls automatically, it answers all incoming
calls and receives faxes. The product will not be able to distinguish between fax
and voice calls in this case; if you suspect the call is a voice call, you will need to
answer it before the product answers the call. To set up the product to answer
calls automatically, turn on the Auto Answer setting.
• If you set up the product to answer faxes manually, you must be available to
respond in person to incoming fax calls or the product cannot receive faxes. To
set up the product to answer calls manually, turn off the Auto Answer setting.
14
Fax setup
3. Do one of the following, depending on your phone system:
• If you have a parallel-type phone system, remove the white plug from the port
labeled 2-EXT on the back of the product, and then connect a phone to this port.
• If you have a serial-type phone system, you might plug your phone directly on top
of the product cable which has a wall plug attached to it.
4. Run a fax test.
If you pick up the phone before the product answers the call and hear fax tones from a
sending fax machine, you will need to answer the fax call manually.
Case F: Shared voice/fax line with voice mail
If you receive both voice calls and fax calls at the same phone number, and you also
subscribe to a voice mail service through your telephone company, set up the HP All-inOne as described in this section.
NOTE: You cannot receive faxes automatically if you have a voice mail service at
the same phone number you use for fax calls. You must receive faxes manually; this
means you must be available to respond in person to incoming fax calls. If you want
to receive faxes automatically instead, contact your telephone company to subscribe
to a distinctive ring service, or to obtain a separate phone line for faxing.
1
Telephone wall jack
2
Use the phone cord supplied in the box with the HP All-in-One to connect to the "1-LINE" port
Set up the HP All-in-One for faxing
15
Fax setup
Figure 2-5 Back view of the HP All-in-One
Chapter 2
To set up the product with voice mail
1. Using the phone cord supplied in the box with the product, connect one end to your
telephone wall jack, then connect the other end to the port labeled 1-LINE on the back
of the product.
NOTE: If you do not use the supplied cord to connect from the telephone wall
jack to the product, you might not be able to fax successfully. This special phone
cord is different from the phone cords you might already have in your home or
office.
2. Turn off the Auto Answer setting.
3. Run a fax test.
You must be available to respond in person to incoming fax calls, or the product cannot
receive faxes.
Case G: Fax line shared with computer dial-up modem (no voice calls received)
If you have a fax line on which you receive no voice calls, and you also have a computer
dial-up modem connected on this line, set up the HP All-in-One as described in this
section.
Since your computer dial-up modem shares the phone line with the HP All-in-One, you
will not be able to use both your modem and the HP All-in-One simultaneously. For
example, you cannot use the HP All-in-One for faxing if you are using your computer dialup modem to send an e-mail or access the Internet.
Figure 2-6 Back view of the HP All-in-One
Fax setup
1
Telephone wall jack
2
Use the phone cord supplied in the box with the HP All-in-One to connect to the "1-LINE" port
3
Computer with modem
To set up the product with a computer dial-up modem
1. Remove the white plug from the port labeled 2-EXT on the back of the product.
2. Find the phone cord that connects from the back of your computer (your computer
dial-up modem) to a telephone wall jack. Disconnect the cord from the telephone wall
jack and plug it into the port labeled 2-EXT on the back of the product.
16
Fax setup
3. Using the phone cord supplied in the box with the product, connect one end to your
telephone wall jack, then connect the other end to the port labeled 1-LINE on the back
of the product.
NOTE: If you do not use the supplied cord to connect from the telephone wall
jack to the product, you might not be able to fax successfully. This special phone
cord is different from the phone cords you might already have in your home or
office.
4. If your modem software is set to receive faxes to your computer automatically, turn
off that setting.
NOTE: If you do not turn off the automatic fax reception setting in your modem
software, the product will not be able to receive faxes.
5. Change the Auto Answer setting to the lowest number of rings to wait before
answering (two rings).
6. Run a fax test.
When the phone rings, the product will answer automatically after the number of rings
you set in the Auto Answer setting. Then it will begin emitting fax reception tones to the
sending fax machine and receive the fax.
Case H: Shared voice/fax line with computer dial-up modem
If you receive both voice calls and fax calls at the same phone number, and you also have
a computer dial-up modem connected on this phone line, set up the HP All-in-One as
described in this section.
Since your computer dial-up modem shares the phone line with the HP All-in-One, you
will not be able to use both your modem and the HP All-in-One simultaneously. For
example, you cannot use the HP All-in-One for faxing if you are using your computer dialup modem to send an e-mail or access the Internet.
•
•
If your computer has only one phone port, you will need to purchase a parallel splitter
(also called a coupler). Refer to the onscreen help for specific setup instructions.
If your computer has two phone ports, set up the HP All-in-One as described below.
Figure 2-7 Back view of the HP All-in-One
Set up the HP All-in-One for faxing
17
Fax setup
There are two different ways to set up the HP All-in-One with your computer based on
the number of phone ports on your computer. Before you begin, check your computer to
see if it has one or two phone ports.
Chapter 2
1
Telephone wall jack
2
"IN" phone port on your computer
3
"OUT" phone port on your computer
4
Telephone
5
Computer with modem
6
Use the phone cord supplied in the box with the HP All-in-One to connect to the "1-LINE"
port
To set up the product on the same phone line as a computer with two phone ports
1. Remove the white plug from the port labeled 2-EXT on the back of the product.
2. Find the phone cord that connects from the back of your computer (your computer
dial-up modem) to a telephone wall jack. Disconnect the cord from the telephone wall
jack and plug it into the port labeled 2-EXT on the back of the product.
3. Connect a phone to the "OUT" port on the back of your computer dial-up modem.
4. Using the phone cord supplied in the box with the product, connect one end to your
telephone wall jack, then connect the other end to the port labeled 1-LINE on the back
of the product.
Fax setup
NOTE: If you do not use the supplied cord to connect from the telephone wall
jack to the product, you might not be able to fax successfully. This special phone
cord is different from the phone cords you might already have in your home or
office.
5. If your modem software is set to receive faxes to your computer automatically, turn
off that setting.
NOTE: If you do not turn off the automatic fax reception setting in your modem
software, the product will not be able to receive faxes.
18
Fax setup
6. Now you need to decide how you want the product to answer calls, automatically or
manually:
• If you set up the product to answer calls automatically, it answers all incoming
calls and receives faxes. The product will not be able to distinguish between fax
and voice calls in this case; if you suspect the call is a voice call, you will need to
answer it before the product answers the call. To set up the product to answer
calls automatically, turn on the Auto Answer setting.
• If you set up the product to answer faxes manually, you must be available to
respond in person to incoming fax calls or the product cannot receive faxes. To
set up the product to answer calls manually, turn off the Auto Answer setting.
7. Run a fax test.
If you pick up the phone before the product answers the call and hear fax tones from a
sending fax machine, you will need to answer the fax call manually.
Case I: Shared voice/fax line with answering machine
If you receive both voice calls and fax calls at the same phone number, and you also have
an answering machine that answers voice calls at this phone number, set up the HP Allin-One as described in this section.
Figure 2-8 Back view of the HP All-in-One
Telephone wall jack
2
"IN" port on your answering machine
3
"OUT" port on your answering machine
4
Telephone (optional)
5
Answering machine
6
Use the phone cord supplied in the box with the HP All-in-One to connect to the "1-LINE" port
Fax setup
1
Set up the HP All-in-One for faxing
19
Chapter 2
To set up the product with a shared voice/fax line with answering machine
1. Remove the white plug from the port labeled 2-EXT on the back of the product.
2. Unplug your answering machine from the telephone wall jack, and connect it to the
port labeled 2-EXT on the back of the product.
NOTE: If you do not connect your answering machine directly to the product, fax
tones from a sending fax machine might be recorded on your answering machine,
and you probably will not be able to receive faxes with the product.
3. Using the phone cord supplied in the box with the product, connect one end to your
telephone wall jack, then connect the other end to the port labeled 1-LINE on the back
of the product.
NOTE: If you do not use the supplied cord to connect from the telephone wall
jack to the product, you might not be able to fax successfully. This special phone
cord is different from the phone cords you might already have in your home or
office.
4. (Optional) If your answering machine does not have a built-in phone, for convenience
you might want to connect a phone to the back of your answering machine at the
"OUT" port.
NOTE: If your answering machine does not let you connect an external phone,
you can purchase and use a parallel splitter (also known as a coupler) to connect
both the answering machine and telephone to the HP All-in-One. You can use
standard phone cords for these connections.
5. Set your answering machine to answer after a low number of rings.
6. Change the Auto Answer setting to the maximum number of rings supported by your
device. (The maximum number of rings varies by country/region.)
7. Run a fax test.
When the phone rings, your answering machine will answer after the number of rings you
have set, and then play your recorded greeting. The HP All-in-One monitors the call during
this time, "listening" for fax tones. If incoming fax tones are detected, the HP All-in-One
will emit fax reception tones and receive the fax; if there are no fax tones, the HP All-inOne stops monitoring the line and your answering machine can record a voice message.
Fax setup
Case J: Shared voice/fax line with computer dial-up modem and answering
machine
If you receive both voice calls and fax calls at the same phone number, and you also have
a computer dial-up modem and answering machine connected on this phone line, set up
the HP All-in-One as described in this section.
Since your computer dial-up modem shares the phone line with the HP All-in-One, you
will not be able to use both your modem and the HP All-in-One simultaneously. For
example, you cannot use the HP All-in-One for faxing if you are using your computer dialup modem to send an e-mail or access the Internet.
There are two different ways to set the HP All-in-One with your computer based on the
number of phone ports on your computer. Before you begin, check your computer to see
if it has one or two phone ports.
20
Fax setup
•
•
If your computer has only one phone port, you will need to purchase a parallel splitter
(also called a coupler). Refer to the onscreen help for specific setup instructions.
If your computer has two phone ports, set up the HP All-in-One as described below.
1
Telephone wall jack
2
"IN" phone port on your computer
3
"OUT" phone port on your computer
4
Telephone (optional)
5
Answering machine
6
Computer with modem
7
Use the phone cord supplied in the box with the HP All-in-One to connect to the "1-LINE"
port
To set up the product on the same phone line as a computer with two phone ports
1. Remove the white plug from the port labeled 2-EXT on the back of the product.
2. Find the phone cord that connects from the back of your computer (your computer
dial-up modem) to a telephone wall jack. Disconnect the cord from the telephone wall
jack and plug it into the port labeled 2-EXT on the back of the product.
3. Unplug your answering machine from the telephone wall jack, and connect it to the
“OUT” port on the back of your computer modem.
This allows a direct connection between the HP All-in-One and your answering
machine, even though the computer modem is connected first in line.
NOTE: If you do not connect your answering machine in this way, fax tones from
a sending fax machine might be recorded on your answering machine, and you
might not be able to receive faxes with the product.
Set up the HP All-in-One for faxing
21
Fax setup
Figure 2-9 Back view of the HP All-in-One
Chapter 2
4. Using the phone cord supplied in the box with the product, connect one end to your
telephone wall jack, then connect the other end to the port labeled 1-LINE on the back
of the product.
NOTE: If you do not use the supplied cord to connect from the telephone wall
jack to the product, you might not be able to fax successfully. This special phone
cord is different from the phone cords you might already have in your home or
office.
5. (Optional) If your answering machine does not have a built-in phone, for convenience
you might want to connect a phone to the back of your answering machine at the
"OUT" port.
NOTE: If your answering machine does not let you connect an external phone,
you can purchase and use a parallel splitter (also known as a coupler) to connect
both the answering machine and telephone to the HP All-in-One. You can use
standard phone cords for these connections.
6. If your modem software is set to receive faxes to your computer automatically, turn
off that setting.
NOTE: If you do not turn off the automatic fax reception setting in your modem
software, the product will not be able to receive faxes.
7. Set your answering machine to answer after a low number of rings.
8. Change the Auto Answer setting to the maximum number of rings supported by your
product. (The maximum number of rings varies by country/region.)
9. Run a fax test.
When the phone rings, your answering machine will answer after the number of rings you
have set, and then play your recorded greeting. The HP All-in-One monitors the call during
this time, "listening" for fax tones. If incoming fax tones are detected, the HP All-in-One
will emit fax reception tones and receive the fax; if there are no fax tones, the HP All-inOne stops monitoring the line and your answering machine can record a voice message.
Case K: Shared voice/fax line with computer dial-up modem and voice mail
Fax setup
If you receive both voice calls and fax calls at the same phone number, use a computer
dial-up modem on the same phone line, and subscribe to a voice mail service through
your telephone company, set up the HP All-in-One as described in this section.
NOTE: You cannot receive faxes automatically if you have a voice mail service at
the same phone number you use for fax calls. You must receive faxes manually; this
means you must be available to respond in person to incoming fax calls. If you want
to receive faxes automatically instead, contact your telephone company to subscribe
to a distinctive ring service, or to obtain a separate phone line for faxing.
Since your computer dial-up modem shares the phone line with the HP All-in-One, you
will not be able to use both your modem and the HP All-in-One simultaneously. For
example, you cannot use the HP All-in-One for faxing if you are using your computer dialup modem to send an e-mail or access the Internet.
There are two different ways to set up the HP All-in-One with your computer based on
the number of phone ports on your computer. Before you begin, check your computer to
see if it has one or two phone ports.
22
Fax setup
•
•
If your computer has only one phone port, you will need to purchase a parallel splitter
(also called a coupler). Refer to the onscreen help for specific setup instructions.
If your computer has two phone ports, set up the HP All-in-One as described below.
1
Telephone wall jack
2
"IN" phone port on your computer
3
"OUT" phone port on your computer
4
Telephone
5
Computer with modem
6
Use the phone cord supplied in the box with the HP All-in-One to connect to the "1-LINE"
port
To set up the product on the same phone line as a computer with two phone ports
1. Remove the white plug from the port labeled 2-EXT on the back of the product.
2. Find the phone cord that connects from the back of your computer (your computer
dial-up modem) to a telephone wall jack. Disconnect the cord from the telephone wall
jack and plug it into the port labeled 2-EXT on the back of the product.
3. Connect a phone to the "OUT" port on the back of your computer dial-up modem.
4. Using the phone cord supplied in the box with the product, connect one end to your
telephone wall jack, then connect the other end to the port labeled 1-LINE on the back
of the product.
NOTE: If you do not use the supplied cord to connect from the telephone wall
jack to the product, you might not be able to fax successfully. This special phone
cord is different from the phone cords you might already have in your home or
office.
5. If your modem software is set to receive faxes to your computer automatically, turn
off that setting.
NOTE: If you do not turn off the automatic fax reception setting in your modem
software, the product will not be able to receive faxes.
6. Turn off the Auto Answer setting.
7. Run a fax test.
Set up the HP All-in-One for faxing
23
Fax setup
Figure 2-10 Back view of the HP All-in-One
Chapter 2
You must be available to respond in person to incoming fax calls, or the HP All-in-One
cannot receive faxes.
Change settings on the HP All-in-One to receive faxes
In order to receive faxes successfully, you might need to change some settings on the
HP All-in-One. If you are unsure which setting to choose for a specific fax option, refer to
the detailed fax setup instructions provided in the printed documentation.
This section contains the following topics:
Choose the recommended answer setting for your setup
The Auto Answer setting determines whether or not the HP All-in-One answers incoming
calls, as well as how many rings to wait before answering. The correct setting depends
on how your home or office is set up. For information on which setting to choose, refer to
the setup instructions for your specific case in the previous pages.
To set the Auto Answer setting
1. Press the button next to Scan/Fax.
2. Press the button next to Fax Menu.
3. Press the button next to Fax Setup.
4. Press the button next to the down arrow to highlight Auto Answer, and then press
the button next to OK.
5. Press the button next to the appropriate setting and then press the button next to
OK.
Change the answer ring pattern for distinctive ringing
Many phone companies offer a distinctive ringing feature that allows you to have several
phone numbers on one phone line. When you subscribe to this service, each number will
have a different ring pattern. You can set up the HP All-in-One to answer incoming calls
that have a specific ring pattern.
Fax setup
If you connect the HP All-in-One to a line with distinctive ringing, have your telephone
company assign one ring pattern to voice calls and another ring pattern to fax calls. HP
recommends that you request double or triple rings for a fax number. When the HP Allin-One detects the specified ring pattern, it will answer the call and receive the fax.
If you do not have a distinctive ring service, use the default ring pattern, which is All
Rings.
To change the distinctive ring pattern from the control panel
1. Verify that the product is set to answer fax calls automatically after a specified number
of rings.
2. Press the button next to Scan/Fax.
3. Press the button next to Fax Menu.
4. Press the button next to Fax Setup.
24
Fax setup
5. Press the button next to the down arrow to highlight Distinctive Ring, and then press
the button next to OK.
6. Press the button next to the down arrow to highlight the appropriate option, and then
press the button next to OK.
When the phone rings with the ring pattern assigned to your fax line, the product
answers the call and receives the fax.
Set the fax header
The fax header prints your name and fax number on the top of every fax you send. HP
recommends that you set up the fax header by using the software that you installed with
the HP All-in-One. You can also set up the fax header from the control panel, as described
here.
NOTE: In some countries/regions the fax header information is a legal requirement.
To set a fax header from the control panel
1. Press the button next to Scan/Fax.
2. Press the button next to Fax Menu.
3. Press the button next to Fax Setup.
4. Press the button next to the down arrow to highlight Fax Header, and then press the
button next to OK.
5. Use the keypad to enter your personal or company name. When you have finished,
press the button next to OK.
6. Use the keypad to enter your fax number, and then press the button next to OK.
Test your fax setup
You can test your fax setup to check the status of the HP All-in-One and to make sure it
is set up properly for faxing. Perform this test after you have completed setting up the
HP All-in-One for faxing. The test does the following:
Tests the fax hardware
Verifies the correct type of phone cord is connected to the HP All-in-One
Checks that the phone cord is plugged into the correct port
Checks for a dial tone
Checks for an active phone line
Tests the status of your phone line connection
Fax setup
•
•
•
•
•
•
The HP All-in-One prints a report with the results of the test. If the test fails, review the
report for information on how to fix the problem and rerun the test.
To test your fax setup from the control panel
1. Set up the product for faxing according to your particular home or office setup
instructions.
2. Insert the print cartridges and load full-size paper in the input tray before starting the
test.
3. Press the button next to Scan/Fax.
4. Press the button next to Fax Menu.
Test your fax setup
25
Chapter 2
5. Press the button next to Fax Setup.
6. Press the button next to the down arrow to highlight Run Fax Test, and then press
the button next to OK.
The status of the test appears on the display. The product also prints a detailed report.
7. Review the report.
• If the test passes and you are still having problems faxing, check the fax settings
listed in the report to verify the settings are correct. A blank or incorrect fax setting
can cause problems faxing.
• If the test fails, review the report for more information on how to fix any problems
found.
8. After you pick up the fax report, press the button next to OK.
If necessary, resolve any problems found and rerun the test.
Fax setup
26
Fax setup
3
Use the HP All-in-One features
This chapter includes information about how to use the HP All-in-One for basic
operations. In addition, it provides instructions about how to load paper and replace the
print cartridges.
Load originals and load paper
You can copy, scan, or fax up to letter- or A4-size originals and thick publications by
loading them on the glass.
To load an original on the glass
1. Lift the lid to the open position.
2. Load your original print side down on the right front corner of the glass.
TIP: To get the correct copy size, make sure that there is no tape or other foreign
object on the glass.
3. Close the lid.
Use the HP All-in-One features
To load small-size photo paper in the input tray
1. Slide the paper-width guide to its outermost position.
Load originals and load paper
27
Chapter 3
2. Insert the stack of photo paper into the far-right side of the input tray with the short
edge forward and the print side down. Slide the stack of photo paper forward until it
stops.
If the photo paper you are using has perforated tabs, load the photo paper so that the
tabs are closest to you.
3. Slide the paper-width guide inward until it stops at the edge of the paper.
Do not overload the input tray; make sure the stack of paper fits within the input tray
and is no higher than the top of the paper-width guide.
Avoid paper jams
To help avoid paper jams, follow these guidelines.
•
•
•
•
•
•
•
•
Remove printed papers from the output tray frequently.
Prevent curled or wrinkled photo paper by storing all unused photo paper flat in a
resealable bag.
Ensure that paper loaded in the input tray lays flat and the edges are not bent or torn.
Do not combine different paper types and paper sizes in the input tray; the entire stack
of paper in the input tray must be the same size and type.
Adjust the paper-width guide in the input tray to fit snugly against all paper. Make sure
the paper-width guide does not bend the paper in the input tray.
Do not overload the input tray; make sure the stack of paper fits within the input tray
and is no higher than the top of the paper-width guide.
Do not force paper too far forward in the input tray.
Use paper types that are recommended for the product.
Print 10 x 15 cm (4 x 6 inch) photos
You can select specific photos on your memory card to print as 10 x 15 cm (4 x 6 inch)
photos.
Use the HP All-in-One features
To print one or more 10 x 15 cm (4 x 6 inch) photos
1. Load 10 x 15 cm (4 x 6 inch) photo paper in the input tray.
2. Insert your memory card into the appropriate slot on the product.
28
Use the HP All-in-One features
1
xD-Picture Card
2
Memory Stick, Memory Stick Pro, Memory Stick Select, Memory Stick Magic Gate,
Memory Stick Duo or Duo Pro (adapter optional), or Memory Stick Micro (adapter required)
3
Secure Digital (SD), Secure Digital Mini (adapter required), Secure Digital High Capacity
(SDHC), MultiMediaCard (MMC), MMC Plus, MMC Mobile (RS-MMC; adapter required),
TransFlash MicroSD Card, or Secure MultiMedia Card
4
CompactFlash (CF) types I and II
The most recent image on the card appears on the display.
3. Press the buttons next to the up arrow or down arrow icons on the display to scroll
through the photos on your memory card until the photo you want to print appears.
4. Leave the default Size setting as Borderless.
NOTE: The Quality setting is set to best mode (as indicated by the three star
icons on the display) and cannot be changed.
5. Press the Copies button until the number of copies you want to print appears on the
display.
6. Press the button next to Print on the display.
Scan an image
For original documents or images placed on the glass, you can start a scan from your
computer or from the HP All-in-One. This section explains the second option: how to scan
from the control panel of the HP All-in-One to a computer.
To use the scan features, the HP All-in-One and computer must be connected and turned
on. The HP Photosmart Software must also be installed and running on your computer
prior to scanning. To verify that the HP Photosmart Software is running on a Windows
computer, look for the HP Digital Imaging Monitor icon in the system tray at the lower
right side of the screen, near the time.
Scan an image
29
Use the HP All-in-One features
TIP: While the photo is printing, you can continue scrolling through the photos
on your memory card. When you see a photo you want to print, you can press the
Print button to add that photo to the print queue.
Chapter 3
NOTE: Closing the HP Digital Imaging Monitor icon in the Windows system tray
can cause the HP All-in-One to lose some of its scan functionality. If this happens,
you can restore full functionality by restarting your computer.
To scan to a computer
1. Load your original print side down on the right front corner of the glass.
NOTE: Ensure that there are no memory cards inserted in the memory card slots
on the product.
2. Press the button next to Scan/Fax.
The Scan/Fax menu appears.
3. Press the button next to Start Scan.
A preview image of the scan appears on your computer, where you can edit it. Any
edits that you make apply to the current scan session only.
The HP Photosmart Software has many tools that you can use to edit your scanned
image. You can improve the overall image quality by adjusting the brightness,
sharpness, color tone, and saturation. You can also crop, straighten, rotate, or resize
the image.
4. Make any edits to the preview image, and then click Accept when you are finished.
Make a copy
You can make quality copies from the control panel.
To make a copy from the control panel
1. Load paper in the input tray.
2. Load your original print side down on the right front corner of the glass.
3. Press the button next to Start Copy Black or Start Copy Color to begin copying.
Send a basic fax
You can easily send a single- or multiple-page black-and-white or color fax using the
control panel, as described here.
NOTE: If you need printed confirmation that your faxes were successfully sent,
enable fax confirmation before sending any faxes.
NOTE: If the fax number you are dialing is busy or if there is no answer, the product
automatically redials the number several times. If you do not want to redial the
number, press Cancel when the product is dialing.
Use the HP All-in-One features
TIP: You can also send a fax manually by dialing from a phone or by using the
monitor dialing feature from the control panel. These features allow you to control the
pace of your dialing. They are also useful when you want to use a calling card to
charge the call and you need to respond to tone prompts while dialing.
30
Use the HP All-in-One features
To send a basic fax from the control panel
1. Press the button next to Scan/Fax.
2. Press the button next to Start Fax.
The Send Fax screen appears.
3. Press the button next to the down arrow to highlight Black & White or Color, and
then press the button next to OK.
The Enter Number screen appears.
4. Enter the fax number using the keypad or press the button next to the up or down
arrow to redial a recently dialed number, and then press the button next to OK.
The Load Originals screen appears.
5. Load your original print side down on the right front corner of the glass, and then press
the button next to OK.
NOTE: If you are sending a color fax, the fax is sent immediately. If you are
sending a black and white fax, the fax is stored in memory until you have scanned
each page of the original.
The Another page? screen appears.
6. Do the following:
If you have another page to fax
a. Press the button next to OK to select Yes.
b. Repeat steps 5 and 6.
If you do not have another page to fax
▲ Press the button next to the down arrow to select No, and then press the button
next to OK.
The product sends the fax.
Receive a fax
The HP All-in-One can receive faxes automatically or manually. If you turn on the Auto
Answer option by setting the number of rings to wait, the HP All-in-One automatically
answers incoming calls and receives faxes. If you turn off the Auto Answer option, you
will need to receive faxes manually.
When you are on the phone, the person you are speaking with can send you a fax while
you are still connected. This is referred to as manual faxing. Use the instructions in this
section to receive a manual fax.
You can receive faxes manually from a phone that is:
•
•
Directly connected to the HP All-in-One (on the 2-EXT port)
On the same telephone line, but not directly connected to the HP All-in-One
Receive a fax
31
Use the HP All-in-One features
NOTE: If you receive a legal-size fax, the HP All-in-One reduces the fax so that it
fits on the paper that is loaded in the input tray. If the fax size is so large that it requires
more than a 60% reduction, the HP All-in-One might print the fax on more than one
page.
Chapter 3
To receive a fax manually
1. Make sure the product is turned on and you have paper loaded in the input tray.
2. Make sure the Auto Answer setting is set to Don't answer or to a higher number of
rings so that you are able to answer the call before the product answers.
3. If you are currently on the phone with the sender, instruct the sender to press Start
on their fax machine.
You will hear fax tones from a sending fax machine.
4. Press the button next to Scan/Fax.
5. Press the button next to Start Fax.
The Fax Mode screen appears.
6. Press the button next to the down arrow to highlight Receive Fax Manually, and then
press the button next to OK.
After the product begins to receive the fax, you can hang up the phone or remain on
the line. The phone line is silent during fax transmission.
Replace the print cartridges
Follow these instructions to replace print cartridges. Following these instructions might
also help solve print quality issues related to the cartridges.
NOTE: When the ink level for the print cartridge is low, a message appears on your
computer screen. You can also check the ink levels by using the software installed
with the HP All-in-One.
When you receive a low-ink warning message, make sure you have a replacement print
cartridge available. You should also replace the print cartridges when you see faded text
or if you experience print quality issues related to the print cartridges.
To order print cartridges for the HP All-in-One, go to www.hp.com/buy/supplies. If
prompted, choose your country/region, follow the prompts to select your product, and
then click one of the shopping links on the page.
To replace the print cartridges
1. Make sure the product is turned on.
CAUTION: If the product is turned off when you open the print cartridge door to
access the print cartridges, it will not release the cartridges for changing. You
might damage the product if the print cartridges are not docked safely when you
try to remove them.
Use the HP All-in-One features
2. Make sure you have letter or A4 unused plain white paper loaded in the input tray.
3. Open the print cartridge door.
The print carriage moves to the far right side of the product.
32
Use the HP All-in-One features
4. Wait until the print carriage is idle and silent. Lightly press down on a print cartridge
to release it, and then pull the print cartridge toward you out of its slot.
If you are replacing the tri-color print cartridge, remove the print cartridge from the
slot on the left.
If you are replacing the black or photo print cartridge, remove the print cartridge from
the slot on the right.
1
Print cartridge slot for the tri-color print cartridge
2
Print cartridge slot for the black and photo print cartridges
TIP: If you are removing the black print cartridge in order to install the photo print
cartridge, store the black print cartridge in the print cartridge protector or an airtight
plastic container.
Use the HP All-in-One features
5. Remove the new print cartridge from its packaging and, being careful to touch only
the black plastic, gently remove the plastic tape by using the pink pull tab.
Replace the print cartridges
33
Chapter 3
1
Copper-colored contacts
2
Plastic tape with pink pull tab (must be removed before installing)
3
Ink nozzles under tape
CAUTION: Do not touch the copper-colored contacts or ink nozzles. Also, do
not re-tape the print cartridges. Doing so can result in clogs, ink failure, and bad
electrical connections.
6. Hold the print cartridge with the HP logo on top, and insert the new print cartridge into
the empty cartridge slot. Make sure you push the print cartridge in firmly until it snaps
into place.
If you are installing the tri-color print cartridge, slide it into the left slot.
If you are installing a black or photo print cartridge, slide it into the right slot.
Use the HP All-in-One features
7. Close the print cartridge door.
34
Use the HP All-in-One features
8. When prompted, press the button next to OK.
The product prints a print cartridge alignment page.
NOTE: If you have colored paper loaded in the input tray when you align the print
cartridges, the alignment will fail. Load unused plain white paper into the input
tray, and then try the alignment again.
9. Load the page print side down on the right front corner of the glass, and then press
the button next to OK to scan the page.
10. When the On light stops flashing, the alignment is complete. Remove the alignment
page and recycle or discard it.
Clean the HP All-in-One
To ensure that your copies and scans remain clear, you might need to clean the glass
and lid backing. You might also want to dust the exterior of the HP All-in-One.
Clean the glass
Fingerprints, smudges, hair, and dust on the main glass surface slow down performance
and affect the accuracy of the copy and scan features.
To clean the glass
1. Turn off the product, unplug the power cord, and raise the lid.
2. Clean the glass with a soft cloth or sponge slightly moistened with a nonabrasive
glass cleaner.
CAUTION: Do not use abrasives, acetone, benzene, or carbon tetrachloride on
the glass, since they can damage it. Do not place or spray liquid directly on the
glass. The liquid might seep under the glass and damage the product.
Clean the lid backing
Minor debris can accumulate on the white document backing located underneath the lid
of the HP All-in-One.
To clean the lid backing
1. Turn off the product, unplug the power cord, and raise the lid.
2. Clean the white document backing with a soft cloth or sponge slightly moistened with
a mild soap and warm water.
Wash the backing gently to loosen debris. Do not scrub the backing.
Clean the HP All-in-One
35
Use the HP All-in-One features
3. Dry the glass with a dry, soft, lint-free cloth to prevent spotting.
4. Turn on the product.
Chapter 3
3. Dry the backing with a dry, soft, lint-free cloth.
CAUTION: Do not use paper-based wipes, as these might scratch the backing.
4. If further cleaning is needed, repeat the previous steps using isopropyl (rubbing)
alcohol, and wipe the backing thoroughly with a damp cloth to remove any residual
alcohol.
CAUTION: Be careful not to spill alcohol on the glass or exterior of the product,
as this might damage it.
5. Plug in the power cord, and then turn on the product.
Use the HP All-in-One features
36
Use the HP All-in-One features
Troubleshooting and support
This chapter contains troubleshooting information for the HP All-in-One. Specific information is
provided for installation and configuration issues, and some operational topics. For more
troubleshooting information, see the onscreen Help that came with your software.
Many issues are caused when the HP All-in-One is connected to the computer using a USB cable
before the HP All-in-One software is installed on the computer. If you connected the HP All-in-One
to your computer before the software installation screen prompts you to do so, you must follow these
steps:
Troubleshooting common setup issues
1. Disconnect the USB cable from the computer.
2. Uninstall the software (if you have already installed it).
3. Restart your computer.
4. Turn off the product, wait one minute, then restart it.
5. Reinstall the product software.
CAUTION: Do not connect the USB cable to the computer until prompted by the software
installation screen.
For support contact information, see the inside back cover of this guide.
Uninstall and reinstall the software
If your installation is incomplete, or if you connected the USB cable to the computer before prompted
by the software installation screen, you might need to uninstall and then reinstall the software. Do
not simply delete the HP All-in-One application files from your computer. Make sure to remove them
properly using the uninstall utility provided when you installed the software that came with the HP Allin-One.
To uninstall and reinstall the software
1. On the Windows taskbar, click Start, Settings, Control Panel (or just Control Panel).
2. Double-click Add/Remove Programs (or click Uninstall a program).
3. Select HP Photosmart All-In-One Driver Software, and then click Change/Remove.
Follow the onscreen instructions.
4. Disconnect the product from your computer.
5. Restart your computer.
NOTE: It is important that you disconnect the product before restarting your computer. Do
not connect the product to your computer until after you have reinstalled the software.
6.
Insert the product CD-ROM into your computer’s CD-ROM drive and then start the Setup
program.
NOTE: If the Setup program does not appear, locate the setup.exe file on the CD-ROM
drive and double-click it.
NOTE: When the computer is turned on, a software group called the Terminate and Stay
Resident (TSR) programs automatically loads. These programs activate some of the
computer utilities, such as the anti-virus software, that are not required for the computer to
function. Occasionally, TSR's prevent the HP software from loading so that it does not install
properly. In Windows Vista and Windows XP, use the MSCONFIG utility to prevent TSR
programs and services from starting up.
7.
Follow the onscreen instructions and the instructions provided in the Setup Guide that came
with the product.
Uninstall and reinstall the software
37
Troubleshooting and support
4
Chapter 4
Troubleshooting and support
When the software installation is complete, the HP Digital Imaging Monitor icon appears in the
Windows system tray.
To verify that the software is properly installed, double-click the HP Solution Center icon on the
desktop. If the HP Solution Center shows the essential icons (Scan Picture and Scan
Document), the software has been properly installed.
Setup troubleshooting
Use this section to solve any problems you might encounter while setting up the HP All-in-One
hardware.
The product will not turn on
Try the following solutions if there are no light indications, no noise, and no movement from the
product when you turn it on.
Solution 1: Make sure you use the power cord that came with the product
Solution
•
Make sure the power cord is firmly connected to both the product and the power adapter.
Plug the power cord into a power outlet, surge protector, or power strip.
1
Power connection
2
Power cord and adapter
3
Power outlet
•
If you are using a power strip, make sure the power strip is turned on. Or, try plugging the
product directly into a power outlet.
•
Test the power outlet to make sure it is working. Plug in an appliance that you know works,
and see if the appliance has power. If not, then there might be a problem with the power
outlet.
•
If you plugged the product into a switched outlet, make sure the outlet is switched on. If it
is switched to on but still does not work, then there might be a problem with the power outlet.
Cause: The product was not being used with the power cord provided.
If this did not solve the issue, try the next solution.
Solution 2: Reset the product
Solution: Turn off the product, and then unplug the power cord. Plug the power cord back in,
and then press the On button to turn on the product.
38
Troubleshooting and support
Solution 3: Press the On button more slowly
Solution: The product might not respond if you press the On button too quickly. Press the
On button once. It might take a few minutes for the product to turn on. If you press the On button
again during this time, you might turn the product off.
CAUTION: If the product still does not turn on, it might have a mechanical failure. Unplug
the product from the power outlet.
Contact HP support for service.
Go to: www.hp.com/support. If prompted, choose your country/region, and then click
Contact HP for information on calling for technical support.
Cause: You pressed the On button too quickly.
If this did not solve the issue, try the next solution.
Solution 4: Contact HP to replace the power supply
Solution: Contact HP support to request a power supply for the product.
Go to: www.hp.com/support.
If prompted, choose your country/region, and then click Contact HP for information on calling
for technical support.
Cause: The power supply was not intended for use with this product.
If this did not solve the issue, try the next solution.
Solution 5: Contact HP support for service
Solution: If you have completed all of the steps provided in the previous solutions and are still
having a problem, contact HP support for service.
Go to: www.hp.com/support.
If prompted, choose your country/region, and then click Contact HP for technical support.
Cause: You might need assistance to enable the product or software to function properly.
I connected the USB cable, but I am having problems using the product with my
computer
Solution: You must first install the software that came with the product before connecting the
USB cable. During installation, do not plug in the USB cable until prompted by the onscreen
instructions.
Once you have installed the software, connecting your computer to the product with a USB cable
is straightforward. Simply plug one end of the USB cable into the back of your computer and the
other into the back of the product. You can connect to any USB port on the back of your
computer.
Setup troubleshooting
39
Troubleshooting and support
Cause: The product experienced an error.
If this did not solve the issue, try the next solution.
Chapter 4
Troubleshooting and support
For more information on installing the software and connecting the USB cable, see the Setup
Guide that came with the product.
Cause: The USB cable was connected before the software was installed. Connecting the USB
cable before you are prompted can cause errors.
After setting up the product, it does not print
Solution: If the product and computer are not communicating with each other, try the following:
•
Look at the On light located on the product. If it is not lit, the product is turned off. Make sure
the power cord is firmly connected to the product and plugged into a power outlet. Press
the On button to turn on the product.
•
Make sure the print cartridges are installed.
•
Make sure you have paper loaded in the input tray.
•
Check that the product does not have a paper jam.
•
Check that the print carriage is not jammed.
Open the print cartridge door to access the print carriage area. Remove any objects that
are blocking the print carriage, including any packing materials. Turn the product off and
then turn it on again.
•
Check that the product print queue is not paused (Windows) or stopped (Mac). If it is, choose
the appropriate setting to resume printing. For more information about accessing the print
queue, see the documentation that came with the operating system installed on your
computer.
•
Check the USB cable. If you are using an older cable, it might not be working properly. Try
connecting it to another product to see if the USB cable works. If you experience problems,
the USB cable might need to be replaced. Also verify that the cable does not exceed 3
meters (9.8 feet) in length.
•
Check the connection from the product to your computer. Verify that the USB cable is
securely plugged into the USB port on the back of the product. Make sure the other end of
the USB cable is plugged into a USB port on your computer. After the cable is connected
properly, turn the product off and then on again.
•
If you are connecting the product through a USB hub, make sure the hub is turned on. If the
hub is on, try connecting directly to your computer.
•
Check other printers or scanners. You might need to disconnect older products from your
computer.
•
Try connecting the USB cable to another USB port on your computer. After you check the
connections, try restarting your computer. Turn the product off and then on again.
•
If the product is offline, turn the product off and on again. Start a print job.
•
If necessary, remove and then install the software you installed with the product again.
40
Troubleshooting and support
Fax setup troubleshooting
This section contains fax setup troubleshooting information for the HP All-in-One. If the HP All-inOne is not set up properly for faxing, you might experience problems when sending faxes, receiving
faxes, or both.
The product is having problems sending and receiving faxes
Try the following solutions to resolve the issue. Solutions are listed in order, with the most likely
solution first. If the first solution does not solve the problem, continue trying the remaining solutions
until the issue is resolved.
Solution 1: Make sure you set up the product as described in the printed
documentation
Solution: Follow the instructions in your printed documentation to set up the product properly
for faxing, based on the equipment and services you have on the same phone line as the product.
Then, run a fax test to check the status of the product and to make sure you set it up properly.
The product prints a report with the results of the test. If the test fails, review the report for
information on how to fix the problem.
Cause: The product was not set up properly for faxing.
If this did not solve the issue, try the next solution.
Solution 2: Turn on the product
Solution: Look at the display on the product. If the display is blank and the On light is not lit,
the product is turned off. Make sure the power cord is firmly connected to the product and
plugged into a power outlet. Press the On button to turn on the product.
Cause: The product was turned off.
If this did not solve the issue, try the next solution.
Solution 3: Make sure you are using the correct type of phone cord
Solution
NOTE: This possible solution applies only in the countries/regions that receive a 2-wire
phone cord in the box with the product, including: Argentina, Australia, Brazil, Canada, Chile,
China, Colombia, Greece, India, Indonesia, Ireland, Japan, Korea, Latin America, Malaysia,
Mexico, Philippines, Poland, Portugal, Russia, Saudi Arabia, Singapore, Spain, Taiwan,
Thailand, USA, Venezuela, and Vietnam.
This special 2-wire phone cord is different from the more common 4-wire phone cords you might
already have in your office. Check the end of the cord and compare it to the two types of cords
shown below.
Fax setup troubleshooting
41
Troubleshooting and support
For more information on setting up the product and connecting it to your computer, see the Setup
Guide that came with the product.
Cause: There was some communication problem between the product and the computer.
Chapter 4
Troubleshooting and support
Make sure you used the phone cord supplied in the box with the product to connect to the
telephone wall jack.
One end of this special 2-wire phone cord should be connected to the port labeled 1-LINE on
the back of the product and the other end to your telephone wall jack, as shown below.
1
Telephone wall jack
2
Use the phone cord supplied in the box with the product
If you used a 4-wire phone cord, disconnect it, find the supplied 2-wire phone cord, and then
connect the 2-wire phone cord to the port labeled 1-LINE on the back of the product.
If the product came with a 2-wire phone cord adapter, you can use it with a 4-wire phone cord,
in case the supplied 2-wire phone cord is too short. Attach the 2-wire phone cord adapter to the
port labeled 1-LINE on the back of the product. Attach your 4-wire phone cord to the open port
on the adapter and to the telephone wall jack. For more information on using the 2-wire phone
cord adapter, see the documentation that came with it.
For more information on setting up the product, see the printed documentation that came with
the product.
Cause: The wrong phone cord was used to connect the product or the phone cord was plugged
into the wrong port.
If this did not solve the issue, try the next solution.
Solution 4: Make sure other office equipment is connected correctly
Solution
NOTE: This possible solution applies only in the countries/regions that receive a 2-wire
phone cord in the box with the product, including: Argentina, Australia, Brazil, Canada, Chile,
China, Colombia, Greece, India, Indonesia, Ireland, Japan, Korea, Latin America, Malaysia,
Mexico, Philippines, Poland, Portugal, Russia, Saudi Arabia, Singapore, Spain, Taiwan,
Thailand, USA, Venezuela, and Vietnam.
Make sure you have correctly connected the product to the telephone wall jack, and correctly
connected any additional equipment and services that share the phone line with the product.
Use the port labeled 1-LINE on the back of the product to connect to the telephone wall jack.
Use the 2-EXT port to connect to any other equipment, such as an answering machine or a
telephone, as shown below.
42
Troubleshooting and support
Troubleshooting and support
1
Telephone wall jack
2
Use the phone cord supplied in the box with the product
3
Telephone (optional)
For more information on setting up the product, see the printed documentation that came with
the product.
Cause: Other office equipment (such as an answering machine or a telephone) was not set
up properly with the product.
If this did not solve the issue, try the next solution.
Solution 5: Try removing the splitter
Solution: A phone line splitter can cause faxing problems. (A splitter is a two-cord connector
that plugs into a telephone wall jack.) If you are using a splitter, remove it and connect the product
directly to the telephone wall jack.
Cause: You were using a phone line splitter.
If this did not solve the issue, try the next solution.
Solution 6: Make sure the telephone wall jack works properly
Solution: Try connecting a working telephone and phone cord to the telephone wall jack you
are using for the product and check for a dial tone. If you do not hear a dial tone, call your local
telephone company for service.
Cause: The telephone wall jack was not working properly.
If this did not solve the issue, try the next solution.
Solution 7: Check the phone line for noise
Solution: You can check the sound quality of the phone line by plugging a phone into the
telephone wall jack and listening for static or other noise. If the failure was due to noise on the
phone line, contact the sender to have them resend the fax. The quality might be better when
you try again. If the problem persists, turn Error Correction Mode (ECM) off and contact your
telephone company.
Cause: The phone line connection was noisy. Phone lines with poor sound quality (noise) can
cause faxing problems.
If this did not solve the issue, try the next solution.
Fax setup troubleshooting
43
Chapter 4
Solution 8: Make sure extension phones or other equipment on the phone line are
not in use
Troubleshooting and support
Solution: Make sure extension phones (phones on the same phone line, but not connected
to the product) or other equipment are not in use or off the hook. For example, you cannot use
the product for faxing if an extension phone is off the hook, or if you are using a computer dialup modem to send e-mail or access the Internet.
Cause: Other equipment that uses the same phone line as the product might have been in
use.
If this did not solve the issue, try the next solution.
Solution 9: Make sure the product is connected to an analog phone line
Solution: Make sure you connect the product to an analog phone line or you will not be able
to send or receive faxes. To check if your phone line is digital, connect a regular analog phone
to the line and listen for a dial tone. If you do not hear a normal sounding dial tone, it might be
a phone line set up for digital phones. Connect the product to an analog phone line and try
sending or receiving a fax.
NOTE: If you are unsure of the kind of phone line you have (analog or digital), check with
your service provider.
Cause: The product might have been connected to a telephone wall jack that was set up for
digital phones.
If this did not solve the issue, try the next solution.
Solution 10: If you use a DSL service, make sure you have a DSL filter installed
Solution: If you use a DSL service, make sure that you have a DSL filter connected or you
will not be able to fax successfully. The DSL service sends out a digital signal on the phone line
that can interfere with the product, preventing the product from sending and receiving faxes.
The DSL filter removes the digital signal and allows the product to communicate properly with
the phone line.
To check if you already have a filter installed, listen to your phone line or dial tone. If you hear
noise or static on the line, you probably do not have a DSL filter installed, or it is installed
incorrectly. Obtain a DSL filter from your DSL provider. If you already have a DSL filter, make
sure it is connected correctly.
Cause: The product shares the same phone line with a DSL service and a DSL filter was not
connected.
If this did not solve the issue, try the next solution.
Solution 11: If you use a DSL service, make sure the DSL modem is properly
grounded
Solution: If the DSL modem is not properly grounded, it can create noise on the phone line.
Phone lines with poor sound quality (noise) can cause faxing problems. You can check the sound
quality of the phone line by plugging a phone into the telephone wall jack and listening for static
or other noise.
If you hear noise, turn off your DSL modem.
NOTE: For information on turning your DSL modem off, contact your DSL provider for
support.
44
Troubleshooting and support
NOTE: You might notice static on the phone line again in the future. If the product
stops sending and receiving faxes, repeat this process.
•
If the phone line is still noisy, contact your phone company.
Cause: The product shares the same phone line with a DSL service and the DSL modem
might not have been properly grounded.
If this did not solve the issue, try the next solution.
Solution 12: If you use a PBX or ISDN converter, make sure you are using a port
designated for fax and phone use
Solution: Make sure the product is connected to the port that is designated for fax and phone
use. Also, make sure that the terminal adapter is set to the correct switch type for your country/
region, if possible.
NOTE: Some ISDN systems allow you to configure the ports for specific phone equipment.
For example, you might have assigned one port for telephone and Group 3 fax and another
port for multiple purposes. If you have problems when connected to the fax/phone port of
your ISDN converter, try using the port designated for multiple purposes; it might be labeled
"multi-combi" or something similar.
For more information on how to set up the product with a PBX phone system or ISDN line, see
the printed documentation that came with the product.
Cause: You were using either a PBX or an ISDN converter/terminal adapter.
If this did not solve the issue, try the next solution.
Solution 13: Check for and resolve any error messages
Solution: Check the display or your computer for an error message providing information
about the problem and how to solve it. If there is an error, the product will not send or receive a
fax until the error condition is resolved.
You can also check the status of the product by clicking Status in the HP Solution Center.
Cause: Another process caused an error in the product.
If this did not solve the issue, try the next solution.
Solution 14: Lower the fax speed
Solution: You might need to send and receive faxes at a slower rate. Try setting the Fax
Speed to Medium (14400) or Slow (9600) if you use one of the following:
•
An Internet phone service
•
A PBX system
•
Fax over Internet Protocol (FoIP)
•
An ISDN service
Cause: The Fax Speed setting was set too fast.
If this did not solve the issue, try the next solution.
Solution 15: If you are faxing over the Internet using IP phone, resend the fax at a
later time
Solution: Try resending your fax at a later time. Also, make sure your Internet service provider
supports faxing over the Internet.
If the problem persists, contact your Internet service provider.
Fax setup troubleshooting
45
Troubleshooting and support
Completely remove power for at least 15 minutes, and then turn the DSL modem back on.
Listen to the dial tone again.
•
If the dial tone sounds clear (no noise or static), try sending or receiving a fax.
Chapter 4
Cause: You were faxing over the Internet using an IP phone, and there was a problem with
the transmission.
Troubleshooting and support
The product cannot receive faxes, but can send faxes
Try the following solutions to resolve the issue. Solutions are listed in order, with the most likely
solution first. If the first solution does not solve the problem, continue trying the remaining solutions
until the issue is resolved.
Solution 1: Make sure you set up the product as described in the printed
documentation
Solution: Follow the instructions in your printed documentation to set up the product properly
for faxing, based on the equipment and services you have on the same phone line as the product.
Then, run a fax test to check the status of the product and to make sure you set it up properly.
The product prints a report with the results of the test. If the test fails, review the report for
information on how to fix the problem.
Cause: The product was not set up properly for faxing.
If this did not solve the issue, try the next solution.
Solution 2: Check the Auto Answer setting
Solution: Depending on your office setup, you might be able to set the product to answer
incoming calls automatically. To find out what the recommended answer mode is for your office
setup, see the printed documentation that came with the product.
If you must have Auto Answer off, you will need to press Scan/Fax and Start Fax to receive a
fax.
Cause: Auto Answer was turned off, which means that the product would not answer
incoming calls. You must be available to respond in person to incoming fax calls in order to
receive faxes.
If this did not solve the issue, try the next solution.
Solution 3: Set the product to answer faxes manually
Solution: Set the product to answer faxes manually. You cannot receive faxes automatically
if you have a voice mail service at the same phone number you use for fax calls. You must
receive faxes manually; this means you must be available to respond in person to incoming fax
calls.
For more information on how to set up the product when you have a voice mail service, see the
printed documentation that came with the product.
Cause: You subscribed to a voice mail service at the same phone number you used for fax
calls.
If this did not solve the issue, try the next solution.
Solution 4: If you have a computer dial-up modem on the same phone line as the
product, make sure the modem software is not intercepting the fax
Solution: If you have a computer dial-up modem on the same phone line as the product, check
to make sure that the software that came with your modem is not set to receive faxes
automatically. Modems that are set up to receive faxes automatically take over the phone line
to receive all incoming faxes, which prevents the product from receiving fax calls.
Cause: You had a computer dial-up modem on the same phone line as the product.
If this did not solve the issue, try the next solution.
46
Troubleshooting and support
Solution: Disconnect the answering machine and then try receiving a fax. If faxing is
successful without the answering machine, the answering machine might be causing the
problem. Reconnect the answering machine and record your outgoing message again.
•
Record a message that is approximately 10 seconds in duration.
•
Speak slowly and at a low volume when recording your message.
•
Leave at least 5 seconds of silence at the end of the voice message.
•
There should be no background noise when recording this silent time.
Cause: If you had an answering machine on the same phone line with the product, you might
have had one of the following problems:
•
Your outgoing message might have been too long or too loud to allow the product to detect
fax tones, and the sending fax machine might have disconnected.
•
Your answering machine might not have had enough quiet time after your outgoing message
to allow the product to detect fax tones. This problem is most common with digital answering
machines.
If this did not solve the issue, try the next solution.
Solution 6: If you have an answering machine on the same phone line as the
product, make sure it is connected to the correct port
Solution
NOTE: This possible solution applies only in the countries/regions that receive a 2-wire
phone cord in the box with the product, including: Argentina, Australia, Brazil, Canada, Chile,
China, Colombia, Greece, India, Indonesia, Ireland, Japan, Korea, Latin America, Malaysia,
Mexico, Philippines, Poland, Portugal, Russia, Saudi Arabia, Singapore, Spain, Taiwan,
Thailand, USA, Venezuela, and Vietnam.
When you have an answering machine on the same phone line you use for fax calls, you must
connect the answering machine directly to the product using the port labeled 2-EXT, as shown
below. You also need to set the correct number of rings to answer for both the answering
machine and product.
1
Telephone wall jack
2
Connect to the IN port on the answering machine
3
Connect to the OUT port on the answering machine
4
Telephone (optional)
Fax setup troubleshooting
47
Troubleshooting and support
Solution 5: If you have an answering machine on the same phone line as the
product, record a new outgoing message
Chapter 4
5
Answering machine
6
Use the phone cord supplied in the box with the product
Troubleshooting and support
Make sure the product is set to receive faxes automatically and that the number of rings to wait
setting is correct. The number of rings to answer for the product should be greater than the
number of rings to answer for the answering machine. Set your answering machine to a low
number of rings and the product to answer in the maximum number of rings supported by your
product. (The maximum number of rings varies by country/region.) In this setup, the answering
machine will answer the call and the product will monitor the line. If the product detects fax tones,
the product will receive the fax. If the call is a voice call, the answering machine will record the
incoming message.
For more information on setting up the product, see the printed documentation that came with
the product.
Cause: The answering machine was not set up properly with the product.
If this did not solve the issue, try the next solution.
Solution 7: If you use a distintive ring service, make sure the Distinctive Ring
setting matches the ring pattern for your fax number
Solution: If you have a special ring pattern for your fax phone number (using a distinctive ring
service through your telephone company), make sure that the Distinctive Ring setting on the
product is set to match. For example, if the phone company has assigned your number a double
ring pattern, make sure Double Rings is selected as the Distinctive Ring setting.
NOTE: The product cannot recognize some ring patterns, such as those with alternating
short and long ringing patterns. If you are having problems with a ring pattern of this type,
ask your phone company to assign a non-alternating ring pattern.
If you are not using a distinctive ring service, make sure that the Distinctive Ring setting on the
product is set to All Rings.
Cause: You had a special ring pattern for your fax phone number (using a distinctive ring
service through your telephone company), and the Distinctive Ring setting on the product did
not match.
If this did not solve the issue, try the next solution.
Solution 8: If you do not use a distintive ring service, make sure the Distinctive
Ring setting is set to All Rings
Solution: If you are not using a distinctive ring service, make sure that the Distinctive Ring
setting on the product is set to All Rings.
Cause: The Distinctive Ring setting was not set to All Rings (and you were not using a
distinctive ring service).
If this did not solve the issue, try the next solution.
Solution 9: Make sure other equipment on the phone line is not reducing the fax
signal
Solution: If the product shares the same phone line with other types of phone equipment,
such as an answering machine, a computer dial-up modem, or a multi-port switch box, the fax
signal level might be reduced. The signal level can also be reduced if you use a splitter or connect
48
Troubleshooting and support
Solution 10: Clear the memory of the product
Solution: If Backup Fax Reception is enabled and there is an error condition on the product,
the memory might become full of faxes that have not yet been printed and the product will stop
answering calls. If an error condition exists that is preventing the product from printing faxes,
review the display for information on the error condition. Make sure:
•
The product is set up correctly for faxing. See the printed documentation for more
information.
•
There is paper loaded in the input tray.
•
There is no paper jam.
•
The print cartridge door is closed. If not, close the print cartridge door, as shown below:
•
The print carriage is not stalled or blocked. Turn off the product, remove any objects that
are blocking the print cartridge carriage (including any packing materials), and then turn on
the product again.
Resolve any problems found. The product automatically begins printing all the unprinted faxes
from memory. To clear the memory, you can also delete the faxes stored in memory by turning
off the product.
Cause: The memory of the product was full.
If this did not solve the issue, try the next solution.
Solution 11: Check for error messages on the display
Solution: If an error condition exists that is preventing the product from printing faxes, review
the display for information on the error condition. Make sure:
•
The product is on. Press the On button to turn on the product.
•
The product is set up correctly for faxing. See the printed documentation for more
information.
•
There is paper loaded in the input tray.
•
There is no paper jam.
Fax setup troubleshooting
49
Troubleshooting and support
extra cables to extend the length of your phone. A reduced fax signal can cause problems during
fax reception.
•
If you are using a splitter or extension cables, try removing them and connecting the product
directly to the telephone wall jack.
•
To find out if other equipment is causing a problem, disconnect everything except the
product from the phone line, and then try to receive a fax. If you can receive faxes
successfully without the other equipment, one or more pieces of the other equipment is
causing problems; try adding them back one at a time and receiving a fax each time, until
you identify which equipment is causing the problem.
Cause: The fax signal level might not have been strong enough, which can cause fax reception
problems.
If this did not solve the issue, try the next solution.
Chapter 4
•
Troubleshooting and support
•
The print carriage is not stalled or blocked. Turn off the product, remove any objects that
are blocking the print cartridge carriage (including any packing materials), and then turn on
the product again.
The print cartridge door is closed. If not, close the print cartridge door, as shown below:
NOTE: If the product has an alignment message, you might be able to press the button
next to OK to clear the message and resume faxing.
After you resolve any problems found, the product can begin answering incoming fax calls.
Cause: An error condition was preventing the product from receiving faxes and Backup Fax
Reception was set to Off.
Fax tones are recorded on my answering machine
Try the following solutions to resolve the issue. Solutions are listed in order, with the most likely
solution first. If the first solution does not solve the problem, continue trying the remaining solutions
until the issue is resolved.
Solution 1: Make sure the answering machine is connected to the correct port
Solution
NOTE: This possible solution applies only in the countries/regions that receive a 2-wire
phone cord in the box with the product, including: Argentina, Australia, Brazil, Canada, Chile,
China, Colombia, Greece, India, Indonesia, Ireland, Japan, Korea, Latin America, Malaysia,
Mexico, Philippines, Poland, Portugal, Russia, Saudi Arabia, Singapore, Spain, Taiwan,
Thailand, USA, Venezuela, and Vietnam.
When you have an answering machine on the same phone line you use for fax calls, you must
connect the answering machine directly to the product using the port labeled 2-EXT, as shown
below.
50
Troubleshooting and support
Troubleshooting and support
1
Telephone wall jack
2
Connect to the IN port on the answering machine
3
Connect to the OUT port on the answering machine
4
Telephone (optional)
5
Answering machine
6
Use the phone cord supplied in the box with the product
Make sure the product is set to receive faxes automatically and that the number of rings to wait
setting is correct. The number of rings to wait for the product should be greater than the number
of rings to answer for the answering machine. If the answering machine and the product are set
to the same number of rings to answer, both devices will answer the call and fax tones will be
recorded on the answering machine.
Set your answering machine to a low number of rings and the product to answer in the maximum
number of rings supported. (The maximum number of rings varies by country/region.) In this
setup, the answering machine will answer the call and the product will monitor the line. If the
product detects fax tones, the product will receive the fax. If the call is a voice call, the answering
machine will record the incoming message.
For more information on setting up the product when you have an answering machine, see the
printed documentation that came with the product.
Cause: The answering machine was not set up properly with the product or the number or
rings to wait setting was not correct.
If this did not solve the issue, try the next solution.
Solution 2: Set up the product to answer faxes automatically
Solution: Set up the product to answer incoming calls automatically by turning on Auto
Answer. If it is turned off, the product will not monitor incoming calls and receive faxes. In this
case, the answering machine will answer the fax call and record the fax tones.
For more information on setting up the product when you have an answering machine, see the
printed documentation that came with the product.
Cause: The product was set up to receive faxes manually, which means that the product would
not answer incoming calls. You must be available to respond in person to incoming fax calls, or
the product will not receive the fax and your answering machine will record the fax tones.
Fax setup troubleshooting
51
Chapter 4
The product cannot send faxes, but can receive faxes
Troubleshooting and support
Try the following solutions to resolve the issue. Solutions are listed in order, with the most likely
solution first. If the first solution does not solve the problem, continue trying the remaining solutions
until the issue is resolved.
Solution 1: Make sure you set up the product as described in the printed
documentation
Solution: Follow the instructions in your printed documentation to set up the product properly
for faxing, based on the equipment and services you have on the same phone line as the product.
Then, run a fax test to check the status of the product and to make sure you set it up properly.
The product prints a report with the results of the test. If the test fails, review the report for
information on how to fix the problem.
Cause: The product was not set up properly for faxing.
If this did not solve the issue, try the next solution.
Solution 2: Check the fax number
Solution: Check to see that the fax number you entered is correct and in the proper format.
For example, you might need to dial a "9" prefix, depending on your phone system.
If your phone line has a PBX system, make sure you are dialing the number for an outside line
before dialing the fax number.
Cause: The number you entered when sending the fax was not in the proper format.
If this did not solve the issue, try the next solution.
Solution 3: Dial the fax number more slowly
Solution: Insert some pauses in the number sequence to slow the dialing pace. For example,
if you need to access an outside line before dialing the phone number, insert a pause following
the access number. If your number is 95555555, and 9 accesses an outside line, you might
insert pauses as follows: 9-555-5555. To enter a pause in the fax number you are typing, press
the symbols button on the keypad (indicated by an asterisk) until a dash (-) appears on the
display.
You can also send the fax using monitor dialing. This enables you to listen to the phone line as
you dial. You can set the pace of your dialing and respond to prompts as you dial.
Cause: The product might have been dialing too fast or too soon.
If this did not solve the issue, try the next solution.
Solution 4: Check the receiving fax machine for problems
Solution: Try calling the fax number from a telephone and listen for fax tones. If you cannot
hear fax tones, the receiving fax might not be turned on or connected, or a voice mail service
could be interfering with the recipient's phone line. You can also ask the recipient to check the
receiving fax machine for any problems.
Cause: The receiving fax machine was having problems.
The fax test failed
If you tried to run the fax test from your computer and the fax test failed to run, the product might be
busy with another task or have an error condition preventing it from running the fax test.
What to check
•
The product is set up properly, connected to a power supply, and is connected to your computer.
For more information on setting up the product, see the Setup Guide that came with the product.
•
The product is turned on. If it is not, press the On button to turn on the product.
•
The print cartridges are installed correctly, the print cartridge carriage is not blocked, and the
print cartridge door is closed.
52
Troubleshooting and support
The product is not currently busy with another task such as aligning the printer. Check the
display. If the product is busy, wait until it completes the current task and run the fax test again.
•
The rear door is attached to the back of the product.
•
There are no error messages on the display. If there is an error message, resolve the problem
and run the fax test again.
If you run the fax test and the product reports that the test failed, read the following information
carefully to determine how to correct any problems with your fax setup. Different portions of the fax
test might fail for different reasons.
The "Fax Hardware Test" failed
Solution
•
Turn off the product by pressing the On button located on the control panel and then unplug
the power cord from the back of the product. After a few seconds, plug the power cord back
in and turn the power on. Run the test again. If the test fails again, continue reviewing the
troubleshooting information in this section.
NOTE: Depending how long the product is unplugged, the date and time might be
erased. You might need to reset the date and time later, when you plug the power cord
back in.
•
Try to send or receive a test fax. If you can send or receive a fax successfully, there might
not be a problem.
•
If you are running the test from the Fax Setup Wizard, make sure the product is not busy
completing another task, such as making a copy. Check the display for a message indicating
that the product is busy. If it is busy, wait until it is finished and in the idle state, before
running the test.
After you resolve any problems found, run the fax test again to make sure it passes and the
product is ready for faxing. If the Fax Hardware Test continues to fail and you experience
problems faxing, contact HP Support. Go to www.hp.com/support. If prompted, choose your
country/region, and then click Contact HP for information on calling for technical support.
The "Fax Connected to Active Telephone Wall Jack" test failed
Solution
•
Check the connection between the telephone wall jack and the product to make sure the
phone cord is secure.
•
Make sure you use the phone cord that came with the product. If you do not use the supplied
phone cord to connect from the telephone wall jack to the product, you might not be able to
send or receive faxes. After you plug in the phone cord that came with the product, run the
fax test again.
•
Make sure you have correctly connected the product to the telephone wall jack. Using the
phone cord supplied in the box with the product, connect one end to your telephone wall
jack, then connect the other end to the port labeled 1-LINE on the back of the product. For
more information on setting up the product for faxing, see the printed documentation.
Fax setup troubleshooting
53
Troubleshooting and support
•
Chapter 4
Troubleshooting and support
1
Telephone wall jack
2
Use the phone cord supplied in the box with the product
•
If you are using a phone splitter, this can cause faxing problems. (A splitter is a two-cord
connector that plugs into a telephone wall jack.) Try removing the splitter and connecting
the product directly to the telephone wall jack.
•
Try connecting a working phone and phone cord to the telephone wall jack that you are
using for the product and check for a dial tone. If you do not hear a dial tone, contact your
telephone company and have them check the line.
•
Try to send or receive a test fax. If you can send or receive a fax successfully, there might
not be a problem.
After you resolve any problems found, run the fax test again to make sure it passes and the
product is ready for faxing.
The "Phone Cord Connected to Correct Port on Fax" test failed
Solution:
Plug the phone cord into the correct port.
To plug the phone cord into the correct port
1. Using the phone cord supplied in the box with the product, connect one end to your
telephone wall jack, then connect the other end to the port labeled 1-LINE on the back of
the product.
NOTE: If you use the 2-EXT port to connect to the telephone wall jack, you will not be
able to send or receive faxes. The 2-EXT port should only be used to connect other
equipment, such as an answering machine or a telephone.
54
Troubleshooting and support
Troubleshooting and support
2.
3.
1
Telephone wall jack
2
Use the phone cord supplied in the box with the product
After you have connected the phone cord to the port labeled 1-LINE, run the fax test again
to make sure it passes and the product is ready for faxing.
Try to send or receive a test fax.
The "Using Correct Type of Phone Cord with Fax" test failed
Solution
•
Make sure you used the phone cord supplied in the box with the product to connect to the
telephone wall jack. One end of the phone cord should be connected to the port labeled 1LINE on the back of the product and the other end to your telephone wall jack, as shown
below.
•
1
Telephone wall jack
2
Phone cord supplied in the box with the product
Check the connection between the telephone wall jack and the product to make sure the
phone cord is secure.
Fax setup troubleshooting
55
Chapter 4
The "Fax Line Condition" test failed
Troubleshooting and support
Solution
•
Make sure you connect the product to an analog phone line or you will not be able to send
or receive faxes. To check if your phone line is digital, connect a regular analog phone to
the line and listen for a dial tone. If you do not hear a normal sounding dial tone, it might be
a phone line set up for digital phones. Connect the product to an analog phone line and try
sending or receiving a fax.
•
Check the connection between the telephone wall jack and the product to make sure the
phone cord is secure.
•
Make sure you have correctly connected the product to the telephone wall jack. Using the
phone cord supplied in the box with the product, connect one end to your telephone wall
jack, then connect the other end to the port labeled 1-LINE on the back of the product. For
more information on setting up the product for faxing, see the printed documentation that
came with the product.
•
Other equipment, which uses the same phone line as the product, might be causing the test
to fail. To find out if other equipment is causing a problem, disconnect everything except
the product from the phone line, and then run the test again.
◦
If the Fax Line Condition Test passes without the other equipment, then one or more
pieces of the equipment is causing problems; try adding them back one at a time and
rerunning the test each time, until you identify which piece of equipment is causing the
problem.
◦
If the Fax Line Condition Test fails without the other equipment, connect the product
to a working phone line and continue reviewing the troubleshooting information in this
section.
•
If you are using a phone splitter, this can cause faxing problems. (A splitter is a two-cord
connector that plugs into a telephone wall jack.) Try removing the splitter and connecting
the product directly to the telephone wall jack.
After you resolve any problems found, run the fax test again to make sure it passes and the
product is ready for faxing. If the Fax Line Condition Test continues to fail and you experience
problems faxing, contact your telephone company and have them check the phone line.
NOTE: If you are unsure of the kind of phone line you have (analog or digital), check with
your service provider.
The "Dial Tone Detection" test failed
Solution
•
Other equipment, which uses the same phone line as the product, might be causing the test
to fail. To find out if other equipment is causing a problem, disconnect everything except
the product from the phone line, and then run the test again. If the Dial Tone Detection
Test passes without the other equipment, then one or more pieces of the equipment is
causing problems; try adding them back one at a time and rerunning the test each time,
until you identify which piece of equipment is causing the problem.
•
Try connecting a working phone and phone cord to the telephone wall jack that you are
using for the product and check for a dial tone. If you do not hear a dial tone, contact your
telephone company and have them check the line.
•
Make sure you have correctly connected the product to the telephone wall jack. Using the
phone cord supplied in the box with the product, connect one end to your telephone wall
jack, then connect the other end to the port labeled 1-LINE on the back of the product. For
more information on setting up the product for faxing, see the printed documentation that
came with the product.
56
Troubleshooting and support
Troubleshooting and support
•
•
•
•
1
Telephone wall jack
2
Use the phone cord supplied in the box with the product
If you are using a phone splitter, this can cause faxing problems. (A splitter is a two-cord
connector that plugs into a telephone wall jack.) Try removing the splitter and connecting
the product directly to the telephone wall jack.
If your telephone system is not using a standard dial tone, such as some PBX systems, this
might cause the test to fail. This will not cause a problem sending or receiving faxes. Try
sending or receiving a test fax.
Check to make sure the country/region setting is set appropriately for your country/region.
If the country/region setting is not set or is set incorrectly, the test might fail and you might
have problems sending and receiving faxes.
Make sure you connect the product to an analog phone line or you will not be able to send
or receive faxes. To check if your phone line is digital, connect a regular analog phone to
the line and listen for a dial tone. If you do not hear a normal sounding dial tone, it might be
a phone line set up for digital phones. Connect the product to an analog phone line and try
sending or receiving a fax.
NOTE: If you are unsure of the kind of phone line you have (analog or digital), check
with your service provider.
After you resolve any problems found, run the fax test again to make sure it passes and the
product is ready for faxing. If the Dial Tone Detection Test continues to fail, contact your
telephone company and have them check the phone line.
Clear paper jams
In case of a paper jam, check the rear door. You might need to clear the paper jam from the rear
door.
To clear a paper jam from the rear door
1. Press in the tab on the left side of the rear door to release the door. Remove the door by pulling
it away from the product.
Clear paper jams
57
Chapter 4
Troubleshooting and support
2.
Gently pull the paper out of the rollers.
CAUTION: If the paper tears when you are removing it from the rollers, check the rollers
and wheels for torn pieces of paper that might be remaining inside the product. If you do not
remove all the pieces of paper from the product, more paper jams are likely to occur.
3.
Replace the rear door. Gently push the door forward until it snaps into place.
4.
Press the button next to OK to continue the current job.
Print cartridge troubleshooting
If you are experiencing problems with printing, you might have a problem with one of the print
cartridges. For more information, see “Replace the print cartridges” on page 32 in this guide.
Support process
If you have a problem, follow these steps:
1. Check the documentation that came with the HP All-in-One.
2. Visit the HP online support Web site at www.hp.com/support. HP online support is available to
all HP customers. It is the fastest source for up-to-date device information and expert assistance
and includes the following features:
•
Fast access to qualified online support specialists
•
Software and driver updates for the HP All-in-One
•
Valuable HP All-in-One and troubleshooting information for common problems
•
Proactive device updates, support alerts, and HP newsgrams that are available when you
register the HP All-in-One
3. Call HP support. Support options and availability vary by device, country/region, and language.
For a list of support phone numbers, see the printed documentation that came with the product.
58
Troubleshooting and support
5
Technical information
The technical specifications and international regulatory information for the HP All-in-One are
provided in this section.
For additional regulatory and environmental information, including the Declaration of Conformity
statement, see the onscreen Help.
System requirements
Software system requirements are located in the Readme file.
Product specifications
For product specifications, go to the HP Web site at www.hp.com/support.
Paper specifications
•
Input tray capacity: Plain paper sheets: Up to 100 (20 lb./75 gsm. paper)
•
Output tray capacity: Plain paper sheets: Up to 50 (20 lb./75 gsm. paper)
Technical information
NOTE: For a complete list of supported media sizes, see the printer software.
Physical specifications
•
Height: 16.97 cm (7.0 inches)
•
Width: 44 cm (16.8 inches)
•
Depth: 25.9 cm (10.2 inches)
•
Weight: 4.5 kg (10 pounds)
Power specifications
•
Power consumption: 25 watts maximum (average printing)
•
Input voltage(0957-2231): AC 100 to 240 V ~ 600 mA 50–60 Hz
•
Input voltage (0957-2248) : AC 200 to 240 V ~ 400 mA 50-60 Hz
•
Output voltage: DC 32 V===375 mA, 16 V===500 mA
NOTE: Use only with the power adapter supplied by HP.
Environmental specifications
•
Recommended operating temperature range: 15 ºC to 32 ºC (59 ºF to 90 ºF)
•
Allowable operating temperature range: 5 ºC to 35 ºC (41 ºF to 95 ºF)
•
Humidity: 15% to 80% RH non-condensing
•
Non-operating (Storage) temperature range: –20 ºC to 50 ºC (–4 ºF to 122 ºF)
•
In the presence of high electromagnetic fields, it is possible the output from the HP All-in-One
may be slightly distorted
•
HP recommends using a USB cable less than or equal to 3 m (10 feet) in length to minimize
injected noise due to potential high electromagnetic fields
Regulatory notices
The HP All-in-One meets product requirements from regulatory agencies in your country/region. For
a complete listing of regulatory notices, see the onscreen Help.
Regulatory model identification number
For regulatory identification purposes, your product is assigned a Regulatory Model Number. The
Regulatory Model Number for your product is SNPRB-0722. This regulatory number should not be
confused with the marketing name (HP Photosmart C4340 All-in-One series, etc.) or product
numbers (CC270A, etc.).
Regulatory notices
59
Chapter 5
Warranty
HP product
Duration of limited warranty
Software Media
90 days
Printer
1 year
Print or Ink cartridges
Until the HP ink is depleted or the “end of warranty” date printed
on the cartridge has been reached, whichever occurs first. This
warranty does not cover HP ink products that have been refilled,
remanufactured, refurbished, misused, or tampered with.
Accessories
1 year unless otherwise stated
Technical information
A. Extent of limited warranty
1. Hewlett-Packard (HP) warrants to the end-user customer that the HP products specified above will be free from defects
in materials and workmanship for the duration specified above, which duration begins on the date of purchase by the
customer.
2. For software products, HP’s limited warranty applies only to a failure to execute programming instructions. HP does not
warrant that the operation of any product will be interrupted or error free.
3. HP's limited warranty covers only those defects that arise as a result of normal use of the product, and does not cover
any other problems, including those that arise as a result of:
a. Improper maintenance or modification;
b. Software, media, parts, or supplies not provided or supported by HP;
c. Operation outside the product's specifications;
d. Unauthorized modification or misuse.
4. For HP printer products, the use of a non-HP cartridge or a refilled cartridge does not affect either the warranty to the
customer or any HP support contract with the customer. However, if printer failure or damage is attributable to the use of
a non-HP or refilled cartridge or an expired ink cartridge, HP will charge its standard time and materials charges to
service the printer for the particular failure or damage.
5. If HP receives, during the applicable warranty period, notice of a defect in any product which is covered by HP's
warranty, HP shall either repair or replace the product, at HP's option.
6. If HP is unable to repair or replace, as applicable, a defective product which is covered by HP's warranty, HP shall,
within a reasonable time after being notified of the defect, refund the purchase price for the product.
7. HP shall have no obligation to repair, replace, or refund until the customer returns the defective product to HP.
8. Any replacement product may be either new or like-new, provided that it has functionality at least equal to that of the
product being replaced.
9. HP products may contain remanufactured parts, components, or materials equivalent to new in performance.
10. HP's Limited Warranty Statement is valid in any country where the covered HP product is distributed by HP. Contracts
for additional warranty services, such as on-site service, may be available from any authorized HP service facility in
countries where the product is distributed by HP or by an authorized importer.
B. Limitations of warranty
TO THE EXTENT ALLOWED BY LOCAL LAW, NEITHER HP NOR ITS THIRD PARTY SUPPLIERS MAKES ANY
OTHER WARRANTY OR CONDITION OF ANY KIND, WHETHER EXPRESS OR IMPLIED WARRANTIES OR
CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR
PURPOSE.
C. Limitations of liability
1. To the extent allowed by local law, the remedies provided in this Warranty Statement are the customer's sole and
exclusive remedies.
2. TO THE EXTENT ALLOWED BY LOCAL LAW, EXCEPT FOR THE OBLIGATIONS SPECIFICALLY SET FORTH IN
THIS WARRANTY STATEMENT, IN NO EVENT SHALL HP OR ITS THIRD PARTY SUPPLIERS BE LIABLE FOR
DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER BASED ON
CONTRACT, TORT, OR ANY OTHER LEGAL THEORY AND WHETHER ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
D. Local law
1. This Warranty Statement gives the customer specific legal rights. The customer may also have other rights which vary
from state to state in the United States, from province to province in Canada, and from country to country elsewhere in
the world.
2. To the extent that this Warranty Statement is inconsistent with local law, this Warranty Statement shall be deemed
modified to be consistent with such local law. Under such local law, certain disclaimers and limitations of this Warranty
Statement may not apply to the customer. For example, some states in the United States, as well as some governments
outside the United States (including provinces in Canada), may:
a. Preclude the disclaimers and limitations in this Warranty Statement from limiting the statutory rights of a consumer
(e.g., the United Kingdom);
b. Otherwise restrict the ability of a manufacturer to enforce such disclaimers or limitations; or
c. Grant the customer additional warranty rights, specify the duration of implied warranties which the manufacturer
cannot disclaim, or allow limitations on the duration of implied warranties.
3. THE TERMS IN THIS WARRANTY STATEMENT, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT
EXCLUDE, RESTRICT, OR MODIFY, AND ARE IN ADDITION TO, THE MANDATORY STATUTORY RIGHTS
APPLICABLE TO THE SALE OF THE HP PRODUCTS TO SUCH CUSTOMERS.
HP Limited Warranty
Dear Customer,
You will find below the name and address of the HP entity responsible for the performance of the HP Limited Warranty in your
country.
You may have additional statutory rights against the seller based on your purchase agreement. Those rights are not
in any way affected by this HP Limited Warranty.
Ireland: Hewlett-Packard Ireland Ltd. 30 Herbert Street IRL-Dublin 2
United Kingdom: Hewlett-Packard Ltd, Cain Road, Bracknell, GB-Berks RG12 1HN
60
Technical information
www.hp.com/support
$IULFD(QJOLVKVSHDNLQJ
-DPDLFD
$IULTXHIUDQFRSKRQH
㡴㦻
‫ﺍﻟﺠﺰﺍﺋﺮ‬
‫ﺍﻷﺭﺩﻥ‬
$UJHQWLQD%XHQRV$LUHV
뼑霢
$UJHQWLQD
/X[HPERXUJ)UDQ©DLV
$XVWUDOLD
/X[HPEXUJ'HXWVFK
$XVWUDOLDRXWRIZDUUDQW\
0DOD\VLD
˜VWHUUHLFK
0DXULWLXV
0«[LFR&LXGDGGH0«[LFR
0«[LFR
‫ﺍﻟﺒﺤﺮﻳﻦ‬
%HOJL­
%HOJLTXH
%UDVLO6DR3DXOR
1HGHUODQG
%UDVLO
1HZ=HDODQG
&DQDGD
KS
LQYHQW
1LJHULD
1RUJH
&HQWUDO$PHULFD7KH&DULEEHDQ ZZZKSFRPVXSSRUW
&KLOH
Ё೑
Ё೑
&RORPELD%RJRW£
&RORPELD
&RVWD5LFD
ÎHVN£UHSXEOLND
'DQPDUN
(FXDGRU$QGLQDWHO
(FXDGRU3DFLILWHO
℡ ‫ﻣﺼﺮ‬
(O6DOYDGRU
(VSD³D
)UDQFH
'HXWVFKODQG
˃˨˨˙ˡ˞˞˭˹˱ˬˢ˫˶˱ˢˮ˦˧˹
˃˨˨˙ˡ˞ˢ˪˱˹˯˃˨˨˙ˡ˞˯
˃˨˨˙ˡ˞˞˭˹̱˺˭ˮˬ
*XDWHPDOD
佭␃⡍߹㸠ᬓऔ
0DJ\DURUV]£J
,QGLD
,QGLD
,QGRQHVLD
3DQDP£
3DUDJXD\
3HU¼
3KLOLSSLQHV
3ROVND
3RUWXJDO
3XHUWR5LFR
5HS¼EOLFD'RPLQLFDQD
5HXQLRQ
5RP¤QLD
̷͕͘͘͏̳͕͉͇ͦ͑͘
̷͕͘͘͏̸̶͇͔͙͙͈͚ͦ͑͌͌͗͗͊
‫ﺍﻟﺴﻌﻮﺑﻴﺔ‬
6LQJDSRUH
6ORYHQVNR
6RXWK$IULFD56$
6XRPL
6YHULJH
6ZLW]HUODQG
㟎☷
ࡷࡎ࡙
‫ﺗﻮﻧﺲ‬
7ULQLGDG7REDJR
7¾UNL\HòVWDQEXO$QNDUDò]PLU %XUVD
‫ﺍﻟﻌﺮﺍﻕ‬
‫ﺍﻟﻜﻮﻳﺖ‬
‫ﻟﺒﻨﺎﻥ‬
8QLWHG.LQJGRP
‫ﻗﻄﺮ‬
8QLWHG6WDWHV
‫ﺍﻟﻴﻤﻦ‬
8UXJXD\
9HQH]XHOD&DUDFDV
9HQH]XHOD
9L¬W1DP
,UHODQG
‫ישראל‬
,WDOLD
‫ُﻋﻤﺎﻥ‬
℡
‫ﺍﻟﻤﻐﺮﺏ‬
̺͇͔͇͑͗ͭ
‫ﺍﻟﻤﺘﺤﺪﺓ ﺍﻟﻌﺮﺑﻴﺔ ﺍﻹﻣﺎﺭﺍﺕ‬
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
