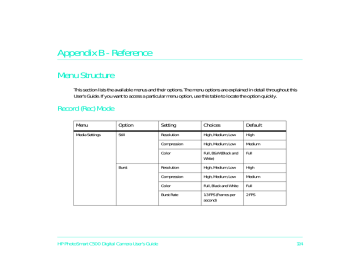

Appendix B - Reference
Menu Structure
This section lists the available menus and their options. The menu options are explained in detail throughout this
User’s Guide. If you want to access a particular menu option, use this table to locate the option quickly.
Record (Rec) Mode
Menu
Option
Setting
Choices
Default
Media Settings
Still
Resolution
High, Medium, Low
High
Compression
High, Medium, Low
Medium
Color
Full, B&W (Black and
White)
Full
Resolution
High, Medium, Low
High
Compression
High, Medium, Low
Medium
Color
Full, Black and White
Full
Burst Rate
1-3 FPS (Frames per
second)
2 FPS
Burst
HP PhotoSmart C500 Digital Camera User’s Guide
124
Menu Structure
Menu
Option
Setting
Choices
Default
Media Settings (cont.)
Timelapse
Resolution
High, Medium, Low
High
Compression
High, Medium, Low
Medium
Color
Full, Black and White
Full
Interval
1, 2, 3, 4, 5, 10, 20, 30,
50 min, 1, 2, 3, 4, 8, 12,
24 hr
1 min
# Images
2-1000
10
EV
-1.5 - +1.5
(0.3 increments)
0
AE Method
Matrix, Spot
Matrix
Photo Assist
Exposure
White Balance
Auto
Auto
Daylight
Fluorescent
Tungsten
Flash
HP PhotoSmart C500 Digital Camera User’s Guide
125
Menu Structure
Menu
Option
Setting
Choices
Default
Preferences
LCD Brightness
Set Brightness
1-7
4
Capture
Eye Start
On, Off
On
Instant Review
On, Off
Off
Flash
Auto, On, Off, Red-Eye
Auto
Self Timer
3, 5, 10, 20, 30
(seconds)
10
Hand Held
On, Off
On
Counter Reset
On, Off
Off
Meter
Continuous AE
Continuous AE
Auto Exposure Lock
Date & Time
Set Date & Time
Format
Depends on language
Camera Name
Enter Camera Name
HP C500
General
Beep
On, Off
On
Auto Shutoff
On, Off
On
HP PhotoSmart C500 Digital Camera User’s Guide
126
Menu Structure
Review (Rev) Mode
Menu
Option
Setting
Choices
Edit
Delete
Create/Add
Groups that you have
created
Add current/marked
Add to DPOF
1-50
Add all
Add to DPOF
1-50
Group
Default
Protect
JetSend
Current/Marked
All
DPOF
Delete form
Transmit
Camera to Camera
Send
Receive
Find
Preferences
By Date
Select Date
By Category
Select Category
Landscape, Vacation,
Friends, Family, Pets,
Work, Triangle, Square,
Circle
Language
Select Language
English, Français,
Italiano, Español,
Deutsch
HP PhotoSmart C500 Digital Camera User’s Guide
Current date
Depends on where you
bought the camera
127
Menu Structure
Play Mode
Menu
Option
Setting
Choices
Default
Play Settings
Slideshow
Content
All, Category
All
Duration
30, 45, 60 sec
30 sec
Loop
On, Off
On
Timelapse
30, 45, 60 sec
30 sec
Burst
30, 45, 60 sec
30 sec
Group
30, 45, 60 sec
30 sec
Video Out
PAL, NTSC
Depends on where you
bought the camera
Playback Rate
Video
HP PhotoSmart C500 Digital Camera User’s Guide
128
Icons
Icons
Color LCD
Mode
Rec (Record)
Icon
Meaning
Location
Still
These media settings icons appear on the left of the
lower overlay bar. Only one of the three icons appears at
a time, depending on whether you are taking a Still,
Burst, or Timelapse photo.
Burst
Timelapse
Self-timer
Macro mode
The Self-timer and Macro mode icons appear in the
center of the lower overlay bar. If the icons appear in
color, the setting is active. If they appear in gray, the
setting is inactive.
Digital Zoom
This icon appears on the right of the upper overlay bar.
The icon only appears if you have activated digital zoom.
Memory Card Status
This icon appears on the left of the upper overlay bar
and indicates how much space is available on the
memory card.
HP PhotoSmart C500 Digital Camera User’s Guide
129
Icons
Mode
Rec (cont.)
Icon
Meaning
Location
Memory Card Inserted
These icons appear at the top of the Status menu. With
the camera in Rec mode, press the Status button (right
soft key) to see the Status menu.
Coin Battery
Media Settings menu
These icons appear when you press the Menu button.
They indicate the menus that are available.
Photo Assist menu
Preferences menu
Rev (Review)
Still
Grouped Images
These media settings icons appear in the photo
information. Only one of the icons appears at a time,
depending on whether the photo you are viewing is a
Still, Burst, or Timelapse photo, or a photo representing a
group of photos.
Burst
Timelapse
HP PhotoSmart C500 Digital Camera User’s Guide
130
Icons
Mode
Rev (cont.)
Icon
Meaning
Location
Find
The Find icon appears in the photo information to
indicate that the photo you are viewing is the result of a
search by date and time, or by category.
Protected
The Protected icon appears in the photo information to
indicate that the photo you are viewing is protected.
DPOF
The DPOF icon appears in the photo information to
indicate that there is a DPOF file on the memory card.
Edit menu
These icons appear when you press the Menu button.
They indicate the menus that are available.
JetSend menu
DPOF menu
Transmit menu
Find menu
Preferences menu
Play
Play Settings menu
HP PhotoSmart C500 Digital Camera User’s Guide
This icon appears when you press the Menu button. It
indicates the menu that is available.
131
Icons
Categories
Icon
Meaning
Location
Landscape
These icons appear in the photo
information to indicate that the photo you
are viewing is part of a category.
Vacation
Friends
Family
Pets
Work
Triangle
Square
Circle
HP PhotoSmart C500 Digital Camera User’s Guide
132
Icons
Status LCD
Icon
Meaning
NiMH batteries empty
NiMH batteries fully charged
NiMH batteries partially charged
Automatic flash
No flash
Flash
Automatic flash with red-eye reduction
E-mail photo quality
Basic photo quality
Fine photo quality
Super-fine photo quality
Memory card installed
No memory card installed
HP PhotoSmart C500 Digital Camera User’s Guide
133
Error Messages
Error Messages
Color LCD
Message
What you should do
Not Ready
Wait until the message disappears.
No Flash Card
Insert a memory card.
No Space On Card
Insert a new memory card or delete photos from the current memory card.
Processing Pictures
Wait until the message disappears.
Slow Shutter
Increase light on the subject or turn on the flash, or turn Hand Held off. Or use a tripod with the
camera, or hold the camera steady.
No Focus
Zoom out, move the camera farther away from the subject, or increase the amount of light on
the subject.
Status LCD
Camera error messages numbered Ec0-9, Eca, and Ed0-6 appear on the status LCD. If the camera doesn’t turn off:
1.
Try turning the camera off and then on again.
2. Try unplugging the AC power adapter or removing the NiMH batteries, and then reinstalling them.
3. If the error persists, contact HP Customer Care.
HP PhotoSmart C500 Digital Camera User’s Guide
134
Camera Specifications
Camera Specifications
Resolution
2 megapixels (1600x1200 pixels)
Exposure
ISO 80
Memory card
16 MB CompactFlash
Lens system
Wide: F2.8/F6.3
Tele: F4.6/F9.0
6.9mm to 20.7mm focal length (equivalent to 38mm to 115mm format)
Features
Color 2-in LCD; 3x optical zoom, 2x digital zoom; fast autofocus; burst mode;
accepts 37mm lens filters and lenses
Interface
HP JetSend, USB, Serial
Power supply
3 AA NiMH rechargeable batteries and battery recharger, or AC adapter
(optional); coin battery included in camera
Dimensions
6 x 3.4 x 2.7 in (153 x 85 x 64 mm)
Weight
0.82 lb (370 gm) without batteries
HP PhotoSmart C500 Digital Camera User’s Guide
135
