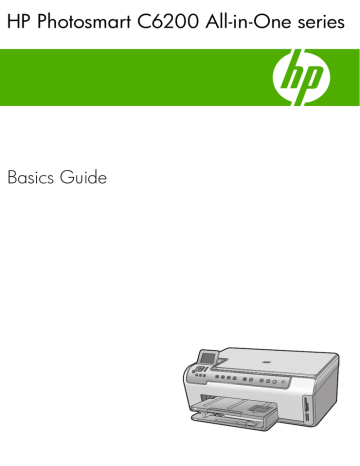

HP Photosmart C6200 All-in-One series
Basics Guide
Hewlett-Packard Company notices
The information contained in this document is subject to change without notice.
All rights reserved. Reproduction, adaptation, or translation of this material is prohibited without prior written permission of Hewlett-Packard, except
as allowed under copyright laws. The only warranties for HP products and services are set forth in the express warranty statements accompanying
such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
© 2007 Hewlett-Packard Development Company, L.P.
Windows, Windows 2000, and Windows XP are U.S. registered trademarks of Microsoft Corporation.
Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
Intel and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
1
HP All-in-One overview
The HP All-in-One at a glance....................................................................................................2
Control panel features................................................................................................................3
Find more information.................................................................................................................4
2
Network setup
Wired network setup...................................................................................................................6
Install the software for a network connection.............................................................................8
Connect to additional computers on a network..........................................................................9
Change the HP All-in-One from a USB connection to a network connection.............................9
Manage your network settings....................................................................................................9
3
Use the HP All-in-One features
Load originals and load paper..................................................................................................12
Avoid paper jams......................................................................................................................15
View and select photos.............................................................................................................15
Scan an image..........................................................................................................................16
Make a copy.............................................................................................................................17
Replace the ink cartridges........................................................................................................17
Clean the HP All-in-One...........................................................................................................20
4
Troubleshooting and support
Uninstall and reinstall the software...........................................................................................22
Hardware setup troubleshooting...............................................................................................22
Network troubleshooting...........................................................................................................25
Clear paper jams......................................................................................................................26
Information on ink cartridges and the print head......................................................................27
Support process.......................................................................................................................28
5
Technical information
System requirements................................................................................................................29
Product specifications...............................................................................................................29
Ink cartridge yield.....................................................................................................................29
Regulatory notices....................................................................................................................30
Warranty...................................................................................................................................31
1
Contents
Contents
1
HP All-in-One overview
Use the HP All-in-One to quickly and easily accomplish tasks such as making a copy,
scanning documents, or printing photos. You can access many HP All-in-One functions
directly from the control panel, without turning on your computer.
NOTE: This guide introduces basic operations and troubleshooting, as well as
provides information for contacting HP support and ordering supplies.
The onscreen Help details the full range of features and functions, including use of
the HP Photosmart software that came with the HP All-in-One.
The HP All-in-One at a glance
HP All-in-One overview
2
Label
Description
1
Color graphics display (also referred to as the
display)
2
Control panel
3
Output tray (currently shown in the up position)
4
Paper-width guide for the main input tray
5
Main input tray (also referred to as the input tray)
6
Paper tray extender (also referred to as the tray
extender)
7
Paper-width and paper-length guides for the
photo tray
8
Photo tray
9
Paper-length guide for the main input tray
10
Ink cartridge door
HP All-in-One overview
(continued)
*
Label
Description
11
Memory card slots
12
Glass
13
Lid backing
14
Ethernet port
15
USB port
16
Power connection*
17
Two-sided printing accessory
Use only with the power adapter supplied by HP.
The following diagram and related table provide a quick reference to the HP All-in-One
control panel features.
Label
Icon
Name and Description
1
Color graphics display (also referred to as the display): Displays menus, photos,
and messages. The display can be pulled up and angled for better viewing.
2
Attention light: Indicates a problem occurred. See the display for more information.
3
Back: Returns to the previous screen on the display.
4
Setup: Opens the Setup menu where you can generate reports, change device
settings, and perform maintenance functions.
5
Help: Opens the Help Menu menu on the display where you can select a topic to
learn more about it. From the idle state, pressing Help lists a menu of items for which
help is available. Depending on the topic you select, the topic will appear on your
display or on your computer screen. When viewing screens other than Idle, the
Help button provides context sensitive help.
Control panel features
3
HP All-in-One overview
Control panel features
Chapter 1
(continued)
Label
Icon
Name and Description
HP All-in-One overview
6
Cancel: Stops the current operation.
7
Photo Menu: Launches the Photosmart Express menu for printing, saving, editing,
and sharing photos.
8
Red Eye Removal: Turns the Red Eye Removal feature on or off. By default, this
feature is turned off. When the feature is turned on, the HP All-in-One automatically
corrects red eye coloring in the photo currently shown on the display.
9
Photo Reprints: Enables you to make a copy of an original photo placed on the
glass.
10
Print Photos: Depending on whether you access your photos from the View,
Print, or Create menu, the Print Photos button will display the Print Preview screen
or it will print any selected photo(s). If no photos are selected, a prompt appears
asking if you want to print all the photos on your card.
11
Scan Menu: Opens the Scan Menu where you can select a destination for your
scan.
12
Start Scan: Starts a scan.
13
Copy Menu: Opens the Copy Menu where you can select copy options, such as
number of copies, paper size, and paper type.
14
Start Copy Black: Starts a black-and-white copy.
15
Start Copy Color: Starts a color copy.
16
On: Turns the HP All-in-One on or off. When the HP All-in-One is off, a minimal
amount of power is still supplied to the device. You can further reduce power supply
by holding down the On button for 3 seconds. This will put the HP All-in-One in
Standby/Off state. To completely remove power, turn the HP All-in-One off, and then
unplug the power cord.
17
Zoom out - (magnifying glass icon): Zooms out to show more of a photo. If you press
this button when a photo is shown on the display at 100%, the Fit to Page feature is
applied to the photo automatically.
18
Zoom in + (magnifying glass icon): Zooms in to enlarge the image on the display.
You can also use this button together with the arrows on the directional pad to adjust
the crop box for printing.
19
OK: Selects a menu setting, value, or photo on the display.
20
Directional pad: Allows you to navigate through photos and menu options by
pressing the up, down, left, or right arrow buttons.
If you are zooming in on a photo, you can also use the arrow buttons to pan around
the photo and select a different area to print.
Find more information
A variety of resources, both printed and onscreen, provide information about setting up
and using the HP All-in-One.
4
HP All-in-One overview
•
•
Setup Guide
The Setup Guide provides instructions for setting up the HP All-in-One and installing
software. Make sure you follow the steps in the Setup Guide in order.
If you have problems during setup, see Troubleshooting in the last section of the
Setup Guide, or see “Troubleshooting and support” on page 22 in this guide.
Onscreen Help
The onscreen Help provides detailed instructions on features of the HP All-in-One
that are not described in this Basics Guide, including features that are only available
using the software you installed with the HP All-in-One.
www.hp.com/support
If you have Internet access, you can get help and support from the HP Web site. This
Web site offers technical support, drivers, supplies, and ordering information.
HP All-in-One overview
•
Find more information
5
2
Network setup
This section describes how to connect the HP All-in-One to a network and how to view
and manage network settings.
If you want to:
See this section:
Connect to a wired (Ethernet) network.
“Wired network setup” on page 6
Install the HP All-in-One software for use in a
networked environment.
“Install the software for a network connection”
on page 8
Add connections to more computers on the
network.
“Connect to additional computers on a
network” on page 9
Change the HP All-in-One from a USB
connection to a network connection.
“Change the HP All-in-One from a USB
connection to a network connection”
on page 9
NOTE: Use the instructions in this section if
you first installed the HP All-in-One with a USB
connection, and you now want to change to an
Ethernet network connection.
View or change the network settings.
“Manage your network settings” on page 9
Find troubleshooting information.
“Network troubleshooting” on page 25
Wired network setup
This section describes how to connect the HP All-in-One to a router, switch, or hub using
an Ethernet cable and how to install the HP All-in-One software for a network connection.
This is known as a wired or Ethernet network.
Network setup
6
To set up the HP All-in-One on a wired
network, you need to do the following:
See this section:
First, collect all of the required materials.
“What you need for a wired network”
on page 7
Next, connect to a wired network.
“Connect the HP All-in-One to the network”
on page 7
Finally, install the software.
“Install the software for a network connection”
on page 8
Network setup
What you need for a wired network
Before you connect the HP All-in-One to a network, make sure you have all of the required
materials.
❑ A functional Ethernet network that includes a router, switch, or hub with an Ethernet
port.
❑ CAT-5 Ethernet cable.
Although standard Ethernet cables look similar to standard telephone cables, they
are not interchangeable. There is a different number of wires in each one, and each
has a different connector. An Ethernet cable connector (also called an RJ-45
connector) is wider and thicker and always has 8 contacts on the end. A phone
connector has between 2 and 6 contacts.
❑ A desktop computer or laptop with an Ethernet connection.
NOTE: The HP All-in-One supports both 10 Mbps and 100 Mbps Ethernet
networks. If you are purchasing, or have purchased, a network interface card
(NIC), make sure it can operate at either speed.
Connect the HP All-in-One to the network
To connect the HP All-in-One to the network, use the Ethernet port on the back of the
device.
Network setup
To connect the HP All-in-One to the network
1. Remove the yellow plug from the back of the HP All-in-One.
2. Connect the Ethernet cable to the Ethernet port on the back of the HP All-in-One.
Wired network setup
7
Chapter 2
3. Connect the other end of the Ethernet cable to an available port on your Ethernet
router, switch, or wireless router.
4. Once you have connected the HP All-in-One to the network, install the software as
described in “Install the software for a network connection” on page 8.
Install the software for a network connection
Use this section to install the HP All-in-One software on a computer connected to a
network. Before you install the software, make sure you have connected the HP All-inOne to a network.
NOTE: If your computer is configured to connect to a series of network drives, make
sure that your computer is currently connected to these drives before installing the
software. Otherwise, HP All-in-One installation software might try to use one of the
reserved drive letters, and you will not be able to access that network drive on your
computer.
Network setup
NOTE: Installation time can range from 20 to 45 minutes depending on your
operating system, the amount of available space, and the processor speed of your
computer.
To install the Windows HP All-in-One software
1. Quit all applications running on your computer, including any virus detection software.
2. Insert the Windows CD that came with the HP All-in-One into the CD-ROM drive on
your computer and follow the onscreen instructions.
3. If a dialog box about firewalls appears, follow the instructions. If you see firewall popup messages, you must always accept or allow the pop-up messages.
4. On the Connection Type screen, select Through the network, and then click
Next.
The Searching screen appears as the Setup program searches for the HP All-in-One
on the network.
8
Network setup
5. On the Printer Found screen, verify that the printer description is correct.
If more than one printer is found on the network, the Printers Found screen appears.
Select the HP All-in-One you want to connect.
6. Follow the prompts to install the software.
When you have finished installing the software, the HP All-in-One is ready for use.
7. If you disabled any virus detection software on your computer, make sure to enable
it again.
8. To test your network connection, go to your computer and print a self-test report to
the HP All-in-One.
Connect to additional computers on a network
You can connect the HP All-in-One to more than one computer on a small network of
computers. If the HP All-in-One is already connected to a computer on a network, for
each additional computer you must install the HP All-in-One software. Once you have set
up the HP All-in-One on the network you will not need to configure it again when you add
additional computers.
Change the HP All-in-One from a USB connection to a
network connection
Manage your network settings
You can manage network settings for the HP All-in-One through the HP All-in-One control
panel. Additional advanced settings are available in the Embedded Web Server, a
configuration and status tool you access from your Web browser using an existing
network connection to the HP All-in-One.
Change basic network settings from the control panel
You can perform a variety of network management tasks from the control panel, such as
printing the network settings and restoring network defaults.
View and print network settings
You can display a summary of the network settings on the HP All-in-One control panel,
or you can print a more detailed configuration page. The network configuration page lists
all of the important network settings such as the IP address, link speed, DNS, and mDNS.
Connect to additional computers on a network
9
Network setup
If you first install the HP All-in-One with a USB connection, you can later change to an
Ethernet network connection. If you already understand how to connect to a network, you
can use the general directions below.
To change a USB connection to a wired (Ethernet) connection
1. Unplug the USB connection from the back of the HP All-in-One.
2. Connect an Ethernet cable from the Ethernet port on the back of the HP All-in-One
to an available Ethernet port on the router or switch.
3. Install the software for a network connection, choose Add a Device, and then choose
Through the network.
4. When the installation is complete, open Printers and Faxes (or Printers) in the
Control Panel and delete the printers from the previous USB installation.
Chapter 2
1. On the control panel of the HP All-in-One, press Setup.
2. Press until Network is highlighted, and then press OK.
The Network Menu appears.
3. Press until View Network Settings is highlighted, and then press OK.
The View Network Settings Menu appears.
4. Do one of the following:
• To display wired network settings, press until Display Wired Summary is
highlighted, and then press OK.
This displays a summary of the wired (Ethernet) network settings.
• To print the network configuration page, press until Print Network
Configuration Page is highlighted, and then press OK.
This prints the network configuration page.
Restore network defaults
You can reset the network settings to what they were when you purchased the HP All-inOne.
1.
2.
3.
4.
On the control panel of the HP All-in-One, press Setup.
Press until Network is highlighted, and then press OK.
Press until Restore Network Defaults is highlighted, and then press OK.
Press OK to confirm that you want to restore the network defaults.
Change advanced network settings from the control panel settings
The advanced network settings are provided for your convenience. However, unless you
are an advanced user, you should not change any of these settings.
Set link speed
You can change the speed at which data is transmitted over the network. The default is
Automatic.
Network setup
1. Press Setup.
2. Press until Network is highlighted, then press OK.
The Network Menu appears.
3. Press until Advanced Setup is highlighted, and then press OK.
Press until Set Link Speed is highlighted, and then press OK.
4. Press to select the link speed that matches your network hardware, and then press
OK to confirm the setting.
• Automatic
• 10-Full
• 10-Half
• 100-Full
• 100-Half
Change IP settings
The default setting for the IP settings is Automatic, which sets the IP settings
automatically. However, if you are an advanced user, you might want to manually change
the IP address, subnet mask, or the default gateway. To see the IP address and subnet
mask of the HP All-in-One, print a network configuration page from the HP All-in-One.
10
Network setup
NOTE: When manually entering an IP setting, you must already be connected to an
active network, otherwise the setting will not stay when you exit from the menu.
CAUTION: Be careful when manually assigning an IP address. If you enter an invalid
IP address during the installation, your network components will not be able to connect
with the HP All-in-One.
Network setup
1. Press Setup.
2. Press until Network is highlighted, then press OK.
The Network Menu appears.
3. Press until Advanced Setup is highlighted, and then press OK.
4. Press until IP Settings is highlighted, and then press OK.
If the HP All-in-One is already connected to a wired network, you are prompted to
confirm that you want to change the IP settings. Press OK.
5. Press until Manual is highlighted, and then press OK.
6. Press to highlight one of the following IP settings, and then press OK.
• IP Address
• Subnet Mask
• Default Gateway
7. Enter your changes, and then press OK to confirm the setting.
Manage your network settings
11
3
Use the HP All-in-One features
This chapter includes information about how to use the HP All-in-One for basic
operations. In addition, it provides instructions about how to load paper and replace the
ink cartridges.
Load originals and load paper
You can load many different types and sizes of paper in the HP All-in-One, including letter
or A4 paper, legal paper, photo paper, transparencies, envelopes, and HP CD/DVD tattoo
labels. By default, the HP All-in-One is set to detect the size and type of paper you load
in the input tray automatically and then adjust its settings to generate the highest quality
output for that paper.
If you are using special papers, such as photo paper, transparency film, envelopes, or
labels, or if you experience poor print quality using the automatically-adjusted settings,
you can manually set the paper size and type for print and copy jobs.
Load an original on the glass
You can copy or scan up to letter- or A4-size originals by loading them on the glass.
To load an original on the scanner glass
1. Lift the lid on the HP All-in-One.
2. Load your original print side down on the right front corner of the glass.
TIP: For more help on loading an original, refer to the engraved guides along the
edge of the glass.
Use the HP All-in-One features
3. Close the lid.
Load full-size paper
You can load many types of letter, A4, or legal paper into the main input tray of the HP Allin-One.
12
Use the HP All-in-One features
To load full-size paper
1. Pull out the main input tray, and then slide the paper-width and paper-length guides
to their outermost positions.
2. Tap a stack of paper on a flat surface to align the edges, and then check the paper
for the following:
• Make sure it is free of rips, dust, wrinkles, and curled or bent edges.
• Make sure all the paper in the stack is the same size and type.
3. Insert the stack of paper into the main input tray with the short edge forward and the
print side down. Slide the stack of paper forward until it stops.
TIP: If you are using letterhead, insert the top of the page first with the print side
down. For more help on loading full-size paper and letterhead, refer to the diagram
engraved in the base of the input tray.
Use the HP All-in-One features
4. Slide the paper-width and paper-length guides inward until they stop at the edges of
the paper.
Do not overload the main input tray; make sure the stack of paper fits within the input
tray and is no higher than the top of the paper-width guide.
Load originals and load paper
13
Chapter 3
5. Push the main input tray back into the HP All-in-One.
6. Pull the output tray extender toward you, as far as it will go. Flip the paper catch at
the end of the output tray extender to open the extender the rest of the way.
NOTE: When you use legal-size paper, leave the tray extender closed.
Load 10 x 15 cm (4 x 6 inch) photo paper
You can load up to 10 x 15 cm (4 x 6 inch) photo paper into the photo tray of the HP Allin-One. For the best results, use 10 x 15 cm (4 x 6 inch) HP Premium Plus Photo
Paper or HP Premium Photo Paper.
To load 10 x 15 cm (4 x 6 inch) photo paper in the photo tray
1. Raise the output tray, and then pull out the photo tray.
NOTE: You can also remove the entire photo tray assembly to load photo paper
into the photo tray.
Use the HP All-in-One features
2. Insert the stack of photo paper into the photo tray with the short edge forward and the
print side down. Slide the stack of photo paper forward until it stops.
If the photo paper you are using has perforated tabs, load the photo paper so that the
tabs are closest to you.
3. Slide the paper-length and paper-width guides inward against the stack of photo
paper until the guides stop.
Do not overload the photo tray; make sure the stack of photo paper fits within the
photo tray and is no higher than the top of the paper-width guide.
14
Use the HP All-in-One features
4. Push in the photo tray, and then lower the output tray.
Avoid paper jams
To help avoid paper jams, follow these guidelines.
•
•
•
•
Remove printed papers from the output tray frequently.
Prevent curled or wrinkled paper by storing all unused paper flat in a resealable bag.
Ensure that paper loaded in the input tray lays flat and the edges are not bent or torn.
If you are printing labels, ensure that the label sheets are no more than two years old.
Labels on older sheets might peel off when the paper is pulled through the HP All-inOne, and cause paper jams.
Do not combine different paper types and paper sizes in the input tray; the entire stack
of paper in the input tray must be the same size and type.
Adjust the paper-width guide in the input tray to fit snugly against all paper. Make sure
the paper-width guide does not bend the paper in the input tray.
Do not force paper too far forward in the input tray.
Use paper types that are recommended for the HP All-in-One.
•
•
•
•
View and select photos
1
CompactFlash (CF) types I and II
2
Secure Digital (SD), Secure Digital Mini (adapter required), Secure Digital High Capacity
(SDHC), MultiMediaCard (MMC), MMC Plus, MMC Mobile (RS-MMC; adapter required),
TransFlash MicroSD Card, or Secure MultiMedia Card
3
Memory Stick, Memory Stick Pro, Memory Stick Select, Memory Stick Magic Gate, Memory
Stick Duo or Duo Pro (adapter optional), or Memory Stick Micro (adapter required)
Avoid paper jams
15
Use the HP All-in-One features
You can view and select photos on your memory card before or while printing them.
Chapter 3
4
xD-Picture Card
To view, select, and print photos
1. Insert a memory card into the appropriate slot on the HP All-in-One.
The Photosmart Express appears with the most recent photo shown on the display.
2. Load up to 10 x 15 cm (4 x 6 inch) photo paper in the photo tray or full-size photo
paper in the main input tray.
3. Press until View is highlighted, and then press OK.
The View Photos screen appears.
4. Press or to scroll through the thumbnails of your photos.
5. When the thumbnail of the photo you want to view is highlighted, press OK.
6. When the photo appears by itself on the display, press OK again.
The Photo Options screen appears.
7. With Print Preview highlighted, press OK.
The Print Preview screen appears, showing how your photo will look when printed.
8. If you want to select additional photos to view and print, press to highlight Add
More, press OK, and repeat steps 4–6.
Or, once you're in the Add Photos screen, the quickest way to select multiple photos
(if you don't need the option to edit them) is to press to select a photo, and then
press or to scroll through more photos to select.
9. (Optional) If you want to check and/or modify any of your print settings, press to
highlight Settings, and then press OK.
10. To print the photo(s), use or to highlight Print Now (or press the Print Photos
button on the control panel).
A print status screen displays the number of pages to print and the estimated time to
complete.
Scan an image
You can start a scan from your computer or from the control panel of the HP All-in-One.
This section explains how to scan from the control panel of the HP All-in-One only.
NOTE: You can also use the software you installed with the HP All-in-One to scan
images. Using this software, you can edit a scanned image and create special projects
using a scanned image.
Scan an original to a computer
You can scan originals placed on the glass by using the control panel.
Use the HP All-in-One features
To scan to a computer
1. Load your original print side down on the right front corner of the glass.
2. Press Scan Menu.
3. Press to highlight Scan to Computer, and then press OK.
16
Use the HP All-in-One features
4. If the HP All-in-One is connected to one or more computers on a network, do the
following:
a. Press OK to select Select Computer.
A list of the computers connected to the HP All-in-One appears on the display.
NOTE: The Select Computer menu might list computers with a USB
connection in addition to those connected through the network.
b. Press OK to select the default computer, or press to select a different computer,
and then press OK.
The Scan To menu appears on the display, listing the applications on the selected
computer.
If the HP All-in-One is connected directly to a computer with a USB cable, proceed
to step 5.
5. Press OK to select the default application to receive the scan, or press to select a
different application, and then press OK.
A preview image of the scan appears on your computer, where you can edit it.
6. Make any edits to the preview image, and then click Accept when you are finished.
Scan an original to a memory card
You can send the scanned image as a JPEG image to the memory card that is currently
inserted. This enables you to use the photo print options to print borderless prints and
album pages from the scanned image.
NOTE: If the HP All-in-One is connected to a network, you can access the scanned
image only if the memory card is being shared across the network.
To save a scan to a memory card
1. Make sure your memory card is inserted into the appropriate slot on the HP All-inOne.
2. Load your original print side down on the right front corner of the glass.
3. Press Scan Menu on the control panel.
4. Press to highlight Scan to Memory Card, and then press OK.
NOTE: Alternatively, you can press Start Scan instead of OK.
The HP All-in-One scans the image and saves the file to the memory card in the JPEG
format.
Make a copy
Use the HP All-in-One features
You can make quality copies from the control panel.
To make a copy from the control panel
1. Make sure you have paper loaded in the input tray.
2. Load your original print side down on the right front corner of the glass.
3. Press Start Copy Black or Start Copy Color to begin copying.
Replace the ink cartridges
Follow these instructions when you need to replace ink cartridges.
Make a copy
17
Chapter 3
NOTE: If you are installing ink cartridges in the HP All-in-One for the first time, be
sure to use only the ink cartridges that came with the device. The ink in these
cartridges is specially formulated to mix with the ink in the print head assembly at firsttime setup.
If you do not already have replacement ink cartridges for the HP All-in-One, you can order
them by clicking the Shop for HP Supplies icon on your computer. On a Windows
computer this is located in the HP folder in the Start menu.
For more information see www.hp.com/buy/supplies.
To replace the ink cartridges
1. Make sure the HP All-in-One is turned on.
2. Open the ink cartridge door by lifting from the front center of the device, until the door
locks into place.
3. Squeeze the bottom of the latch below the ink cartridge you want to replace, and then
lift the latch.
If you are replacing the black ink cartridge, lift the latch on the far left.
If you are replacing one of the five color ink cartridges, such as yellow, light cyan
(blue), cyan, light magenta (pink), or magenta, lift the appropriate latch in the center
area.
Use the HP All-in-One features
18
1
Ink cartridge latch for the black ink cartridge
2
Ink cartridge latches for the color ink cartridges
Use the HP All-in-One features
4. Pull the ink cartridge toward you out of its slot to remove it.
5. Remove the new ink cartridge from its packaging, and then, holding it by the handle,
push the ink cartridge into the empty slot.
Match the color and pattern of the ink cartridge to the color and pattern on the print
carriage.
Use the HP All-in-One features
6. Close the latch and make sure it is secure.
7. Repeat steps 3 through 6 for each ink cartridge you are replacing.
8. Close the ink cartridge door.
Replace the ink cartridges
19
Chapter 3
Clean the HP All-in-One
To ensure that your copies and scans remain clear, you might need to clean the glass
and lid backing. You might also want to dust the exterior of the HP All-in-One.
TIP: You can purchase an HP Cleaning Kit for Inkjet Printers and All-in-Ones
(Q6260A) that provides everything needed to safely clean your HP device. For more
information, go to: www.shopping.hp.com/accessories-store/printer.
Clean the glass
Fingerprints, smudges, hair, and dust on the main glass surface slow down performance
and affect the accuracy of the copy and scan features.
To clean the glass
1. Turn off the HP All-in-One, and raise the lid.
2. Clean the glass with a soft cloth or sponge slightly moistened with a nonabrasive
glass cleaner.
CAUTION: Do not use abrasives, acetone, benzene, or carbon tetrachloride on
the glass, since they can damage it. Do not place or spray liquid directly on the
glass. The liquid might seep under the glass and damage the device.
3. Dry the glass with a dry, soft, lint-free cloth to prevent spotting.
4. Turn on the HP All-in-One.
Clean the lid backing
Minor debris can accumulate on the white document backing located underneath the lid
of the HP All-in-One.
Use the HP All-in-One features
To clean the lid backing
1. Turn off the HP All-in-One, and raise the lid.
2. Clean the white document backing with a soft cloth or sponge slightly moistened with
a mild soap and warm water.
Wash the backing gently to loosen debris. Do not scrub the backing.
20
Use the HP All-in-One features
3. Dry the backing with a dry, soft, lint-free cloth.
CAUTION: Do not use paper-based wipes, as these might scratch the backing.
4. If further cleaning is needed, repeat the previous steps using isopropyl (rubbing)
alcohol, and wipe the backing thoroughly with a damp cloth to remove any residual
alcohol.
Use the HP All-in-One features
CAUTION: Be careful not to spill alcohol on the glass or exterior of the HP Allin-One, as this might damage the device.
Clean the HP All-in-One
21
Troubleshooting and support
4
Troubleshooting and support
This chapter contains troubleshooting information for the HP All-in-One. Specific information is
provided for installation and configuration issues, and some operational topics. For more
troubleshooting information, see the onscreen Help that came with your software.
This chapter also provides warranty and support information. For support contact information, see
the inside back cover of this guide.
Many issues are caused when the HP All-in-One is connected to the computer using a USB cable
before the HP All-in-One software is installed on the computer. If you connected the HP All-in-One
to your computer before the software installation screen prompts you to do so, you must follow these
steps:
Troubleshooting common setup issues
1. Disconnect the USB cable from the computer.
2. Uninstall the software (if you have already installed it).
3. Restart your computer.
4. Turn off the HP All-in-One, wait one minute, then turn it on.
5. Reinstall the HP All-in-One software.
CAUTION: Do not connect the USB cable to the computer until prompted by the software
installation screen.
Uninstall and reinstall the software
If your installation is incomplete, or if you connected the USB cable to the computer before prompted
by the software installation screen, you might need to uninstall and then reinstall the software. Do
not simply delete the HP All-in-One application files from your computer. Make sure to remove them
properly using the uninstall utility provided when you installed the software that came with the HP Allin-One.
To uninstall from a Windows computer and then reinstall
1. On the Windows taskbar, click Start, Settings, Control Panel (or just Control Panel).
2. Double-click Add/Remove Programs (or click Uninstall a program).
3. Select HP Photosmart Driver Software, and then click Change/Remove.
Follow the onscreen instructions.
4. Disconnect the HP All-in-One from your computer.
5. Restart your computer.
NOTE: It is important that you disconnect the HP All-in-One before restarting your
computer. Do not connect the HP All-in-One to your computer until after you have reinstalled
the software.
6.
7.
Insert the HP All-in-One CD-ROM into your computer’s CD-ROM drive and then start the Setup
program.
Follow the onscreen instructions and the instructions provided in the Setup Guide that came
with the HP All-in-One.
Hardware setup troubleshooting
Use this section to solve any problems you might encounter while setting up the HP All-in-One
hardware.
The HP All-in-One will not turn on
Cause: The HP All-in-One is not properly connected to a power supply.
22
Troubleshooting and support
•
•
•
1
Power connection
2
Power cord and adapter
3
Grounded power outlet
If you are using a power strip, make sure the power strip is on. Or, try plugging the HP Allin-One directly into a grounded power outlet.
Test the power outlet to make sure it is working. Plug in an appliance that you know works,
and see if the appliance has power. If not, then there might be a problem with the power
outlet.
If you plugged the HP All-in-One into a switched outlet, make sure the switch is on. If it is
switched to on but still does not work, then there might be a problem with the power outlet.
Cause: You pressed the On button too quickly.
Solution: The HP All-in-One might not respond if you press the On button too quickly. Press
the On button once. It might take a few minutes for the HP All-in-One to turn on. If you press
the On button again during this time, you might turn the device off.
CAUTION: If the HP All-in-One still does not turn on, it might have a mechanical failure.
Unplug the HP All-in-One from the power outlet and contact HP. Go to: www.hp.com/
support. If prompted, choose your country/region, and then click Contact HP for information
on calling for technical support.
I connected the USB cable, but I am having problems using the HP All-in-One with
my computer
Cause: The USB cable was connected before the software was installed. Connecting the USB
cable before prompted can cause errors.
Solution: You must first install the software that came with the HP All-in-One before
connecting the USB cable. During installation, do not plug in the USB cable until prompted by
the onscreen instructions.
Once you have installed the software, connecting your computer to the HP All-in-One with a
USB cable is straightforward. Simply plug one end of the USB cable into the back of your
computer and the other into the back of the HP All-in-One. You can connect to any USB port on
the back of your computer.
Hardware setup troubleshooting
23
Troubleshooting and support
Solution
•
Make sure the power cord is firmly connected to both the HP All-in-One and the power
adapter. Plug the power cord into a grounded power outlet, surge protector, or power strip.
Chapter 4
Troubleshooting and support
For more information on installing the software and connecting the USB cable, see the Setup
Guide that came with the HP All-in-One.
The HP All-in-One does not print
Solution: If the HP All-in-One and computer are not communicating with each other, try the
following:
•
Look at the On light located on the front of the HP All-in-One. If it is not lit, the HP All-inOne is turned off. Make sure the power cord is firmly connected to the HP All-in-One and
plugged into a power outlet. Press the On button to turn on the HP All-in-One.
•
Make sure the ink cartridges are installed.
•
Make sure you have paper loaded in the input tray.
•
Check that the HP All-in-One does not have a paper jam.
•
Check that the print carriage is not jammed.
Open the ink cartridge door to access the print carriage area. Remove any objects that are
blocking the print carriage, including any packing materials. Turn the HP All-in-One off and
then turn it on again.
•
Check that the HP All-in-One print queue is not paused (Windows) or stopped (Mac). If it
is, choose the appropriate setting to resume printing. For more information about accessing
the print queue, see the documentation that came with the operating system installed on
your computer.
•
Check the USB cable. If you are using an older cable, it might not be working properly. Try
connecting it to another product to see if the USB cable works. If you experience problems,
the USB cable might need to be replaced. Also verify that the cable does not exceed 3
meters (9.8 feet) in length.
•
Make sure your computer is USB ready. Some operating systems, such as Windows 95
and Windows NT, do not support USB connections. Check the documentation that came
with your operating system for more information.
•
Check the connection from the HP All-in-One to your computer. Verify that the USB cable
is securely plugged into the USB port on the back of the HP All-in-One. Make sure the other
end of the USB cable is plugged into a USB port on your computer. After the cable is
connected properly, turn the HP All-in-One off and then on again.
•
If you are connecting the HP All-in-One through a USB hub, make sure the hub is turned
on. If the hub is on, try connecting directly to your computer.
•
Check other printers or scanners. You might need to disconnect older products from your
computer.
•
Try connecting the USB cable to another USB port on your computer. After you check the
connections, try restarting your computer. Turn the HP All-in-One off and then on again.
24
Troubleshooting and support
Network troubleshooting
This section addresses problems you might encounter setting up a wired network.
The computer is unable to discover the HP All-in-One
Cause: Cables are not connected properly.
Solution: Check the following cables to ensure they are connected properly.
•
Cables between the HP All-in-One and the hub or router
•
Cables between the hub or router and your computer
•
Cables to and from your modem or HP All-in-One Internet connection (if applicable)
Cause: Your computer's Local Area Network card (LAN card) is not set up properly.
Solution: Make sure that your LAN card is set up properly.
To check your LAN card (Windows 2000 and XP)
1. Right-click My Computer.
2. In the System Properties dialog box, click the Hardware tab.
3. Click Device Manager.
4. Make sure your card shows up under Network Adapters.
5. Refer to the documentation that came with your card.
To check your LAN card (Windows Vista)
1. On the Windows taskbar, click Start, Computer, and then click Properties.
2. Click Device Manager.
3. Make sure your card shows up under Network Adapters.
4. Refer to the documentation that came with your card.
Cause: You do not have an active network connection.
Solution: Check to see if you have an active network connection.
To see if you have an active network connection
▲ Check the two Ethernet indicator lights on the top and bottom of the RJ-45 Ethernet jack on
the back of the HP All-in-One. The lights indicate the following:
a. Top light: If this light is a solid green, the device is properly connected to the network,
and communications have been established. If the top light is off, there is no network
connection.
b. Bottom light: This yellow light flashes when data is being sent or received by the device
over the network.
To establish an active network connection
1. Check the cable connections from the HP All-in-One to your gateway, router, or hub to
ensure connections are secure.
2. If the connections are secure, press the On button on the control panel to turn the HP Allin-One off. Then turn off the power on your router or hub. Turn on the router or hub first,
and then press the On button to turn the HP All-in-One on.
Cause: You were able to connect the HP All-in-One to the network previously, but now it will
not connect.
Network troubleshooting
25
Troubleshooting and support
•
If the HP All-in-One is offline, turn the HP All-in-One off and on again. Start a print job.
•
If necessary, remove and then install the software you installed with the HP All-in-One again.
For more information on setting up the HP All-in-One and connecting it to your computer, see
the Setup Guide that came with the HP All-in-One.
Chapter 4
Solution: Turn off the HP All-in-One, the computer, and the router. Wait a few seconds. Turn
on the router first, and then turn on the HP All-in-One and the computer.
Troubleshooting and support
Cause: The HP All-in-One and computer are not connected to the same network.
Solution: Try accessing the Embedded Web Server on the HP All-in-One. To find the IP
address, print a network configuration page.
The Printer not Found screen appears during installation
Cause: The HP All-in-One is not turned on.
Solution: Turn on the HP All-in-One.
Cause: You do not have an active network connection.
Solution: Make sure you have an active network connection.
To make sure your network connection is active
1. If the connections are secure, turn off the power on the HP All-in-One, and then turn it on
again. Press the On button on the control panel to turn the HP All-in-One off, and press it
again to turn the device on. Also, turn off the power on your router or hub, and then turn it
on again.
2. Check the cable connections from the HP All-in-One to your gateway, router, or hub to
ensure connections are secure.
3. Make sure the HP All-in-One is connected to the network with a CAT-5 Ethernet cable.
Cause: Cables are not connected properly.
Solution: Check the following cables to ensure they are connected properly:
•
Cables between the HP All-in-One and the hub or router
•
Cables between the hub or router and your computer
•
Cables to and from your modem or HP All-in-One Internet connection (if applicable)
Cause: A firewall, anti-virus, or anti-spyware application is preventing the HP All-in-One from
accessing your computer.
Solution: Uninstall the HP All-in-One software, and then restart your computer. Temporarily
disable anti-virus or anti-spyware applications, and then reinstall the HP All-in-One software.
You can re-enable your anti-virus or anti-spyware applications after installation is complete. If
you see firewall pop-up messages, you must always accept or allow the pop-up messages.
If the screen still appears, try uninstalling the HP All-in-One software, restarting your computer,
and temporarily disabling your firewall before reinstalling the HP All-in-One software. You can
re-enable your firewall application after installation is complete. If you still see firewall pop-up
messages, you must always accept or allow the pop-up messages.
For more information, see the documentation provided with the firewall software.
Cause: A Virtual Private Network (VPN) is preventing the HP All-in-One from accessing your
computer.
Solution: Try temporarily disabling the VPN before proceeding with the installation.
NOTE: The HP All-in-One functionality will be limited during VPN sessions.
Clear paper jams
If the HP All-in-One has a paper jam, check the Two-sided printing accessory.
26
Troubleshooting and support
CAUTION: Trying to clear a paper jam from the front of the HP All-in-One can damage the
print mechanism. Always access and clear paper jams from the Two-sided printing
accessory of the HP All-in-One.
3.
Gently pull the paper out of the rollers.
CAUTION: If the paper tears when you are removing it from the rollers, check the rollers
and wheels for torn pieces of paper that might be remaining inside the device. If you do not
remove all the pieces of paper from the HP All-in-One, more paper jams are likely to occur.
4.
5.
6.
If the paper jam is cleared, proceed to step 5.
If the paper jam is not cleared, do the following:
a. Open the Two-sided printing accessory by pulling the tabs up.
b. Remove any paper from inside the accessory.
c. Close the Two-sided printing accessory by pressing the tabs down until they lock into place.
Replace the Two-sided printing accessory. Gently push the accessory forward until it snaps into
place.
Turn on the HP All-in-One, and then press OK to continue the current job.
Information on ink cartridges and the print head
The following tips help maintain HP ink cartridges and ensure consistent print quality.
•
Install the ink cartridge on or before the install by date, which is printed on the ink cartridge
package.
•
Keep all ink cartridges in the original sealed packages until they are needed.
•
Turn off the HP All-in-One by pressing the On button located on the device. Do not turn off the
device by turning off a power strip or unplugging the power cord from the HP All-in-One. If you
improperly turn off the HP All-in-One, the print head assembly might not return to the correct
position.
•
Store ink cartridges at room temperature (15.6°-26.6° C or 60°-78° F).
•
HP recommends that you do not remove the ink cartridges from the HP All-in-One until you have
replacement cartridges available to install.
If you are transporting the HP All-in-One make sure you turn off the device by pressing the
On button to power it down properly. Also, make sure you leave the ink cartridges installed.
Doing these actions will prevent ink leaking from the print head assembly.
•
Clean the print head when you notice a significant decrease in print quality.
•
Do not clean the print head unnecessarily. This wastes ink and shortens the life of the cartridges.
•
Handle ink cartridges carefully. Dropping, jarring, or rough handling during installation can cause
temporary printing problems.
Information on ink cartridges and the print head
27
Troubleshooting and support
To clear a paper jam from the Two-sided printing accessory
1. Turn off the HP All-in-One.
2. Press in the tabs on the left and right side of the Two-sided printing accessory. Remove the
accessory by pulling it away from the HP All-in-One.
Chapter 4
Support process
Troubleshooting and support
If you have a problem, follow these steps:
1. Check the documentation that came with the HP All-in-One.
2. Visit the HP online support Web site at www.hp.com/support. HP online support is available to
all HP customers. It is the fastest source for up-to-date device information and expert assistance
and includes the following features:
•
Fast access to qualified online support specialists
•
Software and driver updates for the HP All-in-One
•
Valuable HP All-in-One and troubleshooting information for common problems
•
Proactive device updates, support alerts, and HP newsgrams that are available when you
register the HP All-in-One
3. Call HP support. Support options and availability vary by device, country/region, and language.
For a list of support phone numbers, see the inside back cover of this guide.
28
Troubleshooting and support
5
Technical information
The technical specifications and international regulatory information for the HP All-in-One are
provided in this section.
System requirements
Software system requirements are located in the Readme file.
Product specifications
For product specifications, go to the HP Web site at www.hp.com/support.
Paper specifications
•
Input tray capacity: Plain paper sheets: Up to 125 (20 lb./75 gsm. paper)
•
Output tray capacity: Plain paper sheets: Up to 50 (20 lb./75 gsm. paper)
•
Photo tray capacity: 10 x 15 cm (4 x 6 inch) Photo paper: Up to 25(145 lb /236 gsm paper)
Technical information
NOTE: For a complete list of supported media sizes, see the printer software.
Physical specifications
•
Height: 24.1 cm (9.5 inches)
•
Width: 45 cm (17.7 inches)
•
Depth: 44.3 cm (17.4 inches)
•
Weight: 11 kg (24.3 lbs)
Power specifications
•
Power consumption: 32.5 W (Peak) 20.1 W (Average)
•
Input voltage: AC 100 to 240 V ~1A 50–60 Hz
•
Output voltage: DC 32 V===1560 mA
NOTE: Use only with the power adapter supplied by HP.
NOTE: When the HP All-in-One is off, some amount of energy is still being consumed. Energy
consumption can be lessened by enabling the Standby/Off state. To enable the Standy/Off state,
press and hold the On button for 3 seconds until the HP All-in-One turns off. When the HP Allin-One is in the Standby/Off state, it will take longer than usual to turn back on.
Environmental specifications
•
Recommended operating temperature range: 15º to 32 ºC (59º to 90 ºF)
•
Allowable operating temperature range: 5º to 40º C (41º to 104º F)
•
Humidity: 20% to 80% RH non-condensing
•
Non-operating (Storage) temperature range: –20º to 60º C (–4º to 140º F)
•
In the presence of high electromagnetic fields, it is possible the output from the HP All-in-One
may be slightly distorted
•
HP recommends using a USB cable less than or equal to 3 m (10 feet) in length to minimize
injected noise due to potential high electromagnetic fields
Ink cartridge yield
Ink from the cartridges is used in the printing process in a number of different ways, including in the
initialization process, which prepares the device and cartridges for printing, and in printhead
servicing, which keeps print nozzles clear and ink flowing smoothly. In addition, some residual ink
is left in the cartridge after it is used. For more information, see www.hp.com/go/inkusage.
Visit www.hp.com/pageyield for more information on estimated cartridge yields.
Technical information
29
Chapter 5
Regulatory notices
The HP All-in-One meets product requirements from regulatory agencies in your country/region. For
a complete listing of regulatory notices, see the onscreen Help.
Regulatory model identification number
For regulatory identification purposes, your product is assigned a Regulatory Model Number. The
Regulatory Model Number for your product is SDGOB-0714. This regulatory number should not be
confused with the marketing name (HP Photosmart C6200 All-in-One series, etc.) or product
numbers (CC985A, etc.).
Technical information
30
Technical information
Technical information
Warranty
Warranty
31
Chapter 5
Technical information
32
Technical information
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
