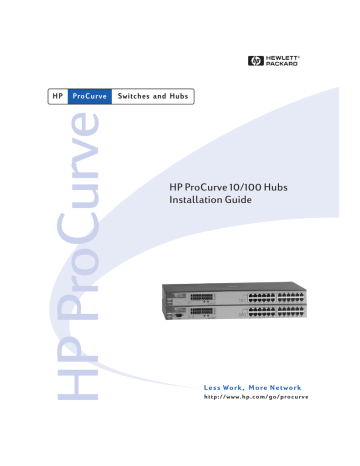

HP
ProCurve
Switches and Hubs
HP ProCurve 10/100 Hubs
Installation Guide
L e s s Wo r k , M o r e N e t w o r k
http://www.hp.com/go/procurve
9934.book Page i Thursday, January 14, 1999 12:39 PM
HP ProCurve 10/100 Hubs
Installation Guide
9934.book Page ii Thursday, January 14, 1999 12:39 PM
© Copyright 1999 Hewlett-Packard Company
All Rights Reserved.
This document contains information which is protected by
copyright. Reproduction, adaptation, or translation without
prior permission is prohibited, except as allowed under the
copyright laws.
Publication Number
5967-9934
January 1999
Disclaimer
The information contained in this document is subject to
change without notice.
HEWLETT-PACKARD COMPANY MAKES NO WARRANTY
OF ANY KIND WITH REGARD TO THIS MATERIAL,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not
be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing,
performance, or use of this material.
Applicable Products
Hewlett-Packard assumes no responsibility for the use or
reliability of its software on equipment that is not furnished
by Hewlett-Packard.
HP ProCurve 10/100 Hub 12 (HP J3294A)
HP ProCurve 10/100 Hub 24 (HP J3295A)
HP ProCurve 10/100 Hub 12M (HP J3288A)
HP ProCurve 10/100 Hub 24M (HP J3289A)
Warranty
See the Customer Support/Warranty booklet included with
the product.
A copy of the specific warranty terms applicable to your
Hewlett-Packard products and replacement parts can be
obtained from your HP Sales and Service Office or
authorized dealer.
Safety
Before installing and operating these products, please read
the “Installation Precautions” in chapter 2, “Installing the
HP 10/100 Hubs”, and the safety statements in appendix C,
“Safety and EMC Regulatory Statements”.
Hewlett-Packard Company
8000 Foothills Boulevard, m/s 5552
Roseville, California 95747-5552
http://www.hp.com/go/procurve
9934.book Page iii Thursday, January 14, 1999 12:39 PM
Contents
1 Introducing the HP ProCurve 10/100 Hubs
Front of the Hubs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Network Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Port LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
LEDs for the 10/100Base-T Hubs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Console Port (Hub 12M and Hub 24M) . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Clear Button (Hub 12M and Hub 24M) . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Back of the Hubs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
2 Installing the HP 10/100 Hubs
Included Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Installation Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
1. Prepare the Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
2. Verify the Hub Passes Its Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
LED Behavior: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
3. Mount the Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rack or Cabinet Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horizontal Surface Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-6
2-6
2-8
2-9
4. Connect the Hub to a Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
5. Connect the Network Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
6. (Optional) Connect a Console to the Hub
(Hub 12M and Hub 24M only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Terminal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Direct Console Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Telnet Console Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-11
2-11
2-12
2-12
iii
9934.book Page iv Thursday, January 14, 1999 12:39 PM
Sample Network Topologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Connecting End Nodes to HP 10/100 Hubs . . . . . . . . . . . . . . . . . . . . . 2-13
Cascading HP 10/100 Hubs – 10Base-T Networks . . . . . . . . . . . . . . . . 2-14
Cascading HP 10/100 Hubs – 100Base-TX Networks . . . . . . . . . . . . . 2-15
Cascading HP 10/100 Hubs – 10 and 100 Mbps . . . . . . . . . . . . . . . . . . 2-16
Connecting HP 10/100 Hubs to Switches . . . . . . . . . . . . . . . . . . . . . . . 2-17
Where to Go From Here . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
3 Troubleshooting
Basic Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Diagnosing with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Proactive Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Hardware Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Testing the Hub by Resetting It . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Testing Twisted-Pair Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Testing Hub-to-Device Network Communications
(Hub 12M and Hub 24M only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Testing End-to-End Network Communications . . . . . . . . . . . . . . . . . . 3-8
HP Customer Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
A Specifications
Physical
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Acoustic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
iv
9934.book Page v Thursday, January 14, 1999 12:39 PM
B Cables and Connectors
Twisted-Pair Cable/Connector Pin-Outs . . . . . . . . . . . . . . . . . . . . . . . B-1
Twisted-Pair Cable for Hub (MDI-X) to
Computer (MDI) 10 Mbps or 100 Mbps Network Connection . . . . . . B-2
Twisted-Pair Cable for Hub (MDI-X) to
Hub (MDI-X) 10 Mbps or 100 Mbps Network Connection . . . . . . . . . B-3
Twisted-Pair Cable Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . B-4
Twisted-Pair Straight-Through Cable . . . . . . . . . . . . . . . . . . . . . . B-4
Twisted-Pair Crossover Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4
C Safety and EMC Regulatory Statements
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1
EMC Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8
Index
v
9934.book Page vi Thursday, January 14, 1999 12:39 PM
9934.book Page 1 Thursday, January 14, 1999 12:39 PM
1
The HP ProCurve 10/100 hubs are low-cost multiport, dual-speed (10- and 100Mbps) repeaters that can be used to build high-performance workgroup
networks. These hubs are autosensing and autonegotiating devices that
provide the flexibility of adjusting to different network connection speed
settings. The hub ports always operate at half-duplex.
There are four hub models. Two are managed:
■
HP ProCurve 10/100 Hub 12M (HP J3288A)
■
HP ProCurve 10/100 Hub 24M (HP J3289A)
and two are unmanaged:
■
HP ProCurve 10/100 Hub 12 (HP J3294A)
■
HP ProCurve 10/100 Hub 24 (HP J3295A)
Throughout this manual, these hubs will be abbreviated as the HP 10/100 hubs,
or they may be described as the Hub 12, Hub 24, Hub 12M, and Hub 24M.
With these hubs you can build a network infrastructure by connecting the hubs
to other hubs, switches, or routers, or you can directly connect computers,
printers, and servers to these hubs to provide shared 10- or 100-Mbps bandwidth to those devices.
This chapter describes your HP 10/100 hubs:
■
Front and back of the hubs
■
Network Ports
■
Port and Hub LEDs
■
Features
■
Hub operation overview
1-1
Introducing the HP ProCurve
10/100 Hubs
Introducing the HP ProCurve 10/100 Hubs
9934.book Page 2 Thursday, January 14, 1999 12:39 PM
Introducing the HP ProCurve
10/100 Hubs
Introducing the HP ProCurve 10/100 Hubs
Front of the Hubs
Front of the Hubs
These illustrations show the Hub 24 and Hub 24M. The Hub 12 and Hub 12M
have the same physical characteristics with 12 fewer 10/100 ports.
10/100Base-T RJ-45 ports
Port
LEDs
Power
LED
HP ProCurve 10/100 Hub 24
Fault
LED
Reset button
Collision LED
MDI/MDI-X
Button for Port 1
Activity LED
HP ProCurve 10/100 Hub 24M
Console Port
(Hub 12M and 24M only)
1-2
Clear Button
(Hub 12M and 24M only)
9934.book Page 3 Thursday, January 14, 1999 12:39 PM
Introducing the HP ProCurve 10/100 Hubs
Front of the Hubs
The HP 10/100 hubs have 12 or 24 RJ-45 ports that can be used for either
10Base-T or 100Base-TX connections.
Ports 2 through 12 or 24 are wired as MDI-X. Therefore, to connect end nodes
or other MDI-type devices to these ports, use “straight-through” twisted-pair
cable; to connect hubs, switches, or other MDI-X-type devices to these ports,
use “crossover” twisted-pair cable. See Appendix B, “Cables and Connectors”
for descriptions of these cables.
Port 1 can operate as either an MDI-X or MDI port, controlled by the MDI-X/
MDI button on the front of the hub. If you have only straight-through cable,
you can use Port 1 with the button in the MDI position to connect the hub to
switches, other hubs, and other MDI-X devices. In the MDI position, the button
crosses the cable pairs on Port 1 so that the Transmit and Receive pins on
connecting devices exchange signals correctly when using straight-through
cable. With the button in the MDI-X position, Port 1 operates the same as the
other ports.
Port LEDs
For each network port on the hub, there are two LEDs:
Link. This LED highlights the port number, and when lit, indicates the port
has detected a valid link with a connected device.
100. This LED when lit, indicates that the port is connected to an attached
device operating at 100 Mbps. If the 100 LED is not lit, and the Link LED
indicates a valid connection, then the port is operating at 10 Mbps. See the
following sections for more details on the LEDs.
Link LED. Indicates
whether the port has
detected the link
beat signal from an
attached device.
100 LED. Indicates whether
the associated port is
operating at 100 Mbps. If the
100 LED is not lit, then the port
is operating at 10 Mbps
1-3
Introducing the HP ProCurve
10/100 Hubs
Network Ports
9934.book Page 4 Thursday, January 14, 1999 12:39 PM
Introducing the HP ProCurve 10/100 Hubs
Front of the Hubs
Introducing the HP ProCurve
10/100 Hubs
LEDs for the 10/100Base-T Hubs
The following table describes the hub’s LED displays.
Hub Status LED State
Meaning
Power (Green)
The hub is receiving power.
Fault (Orange)
Act (activity Green)
Col (collision Orange)
On
Off
The hub is NOT receiving power.
Off
The normal state. Indicates that there are no fault conditions
on the hub.
On
The hub is in self test after being powered on or reset. If on
for a prolonged time, the hub has failed its self test. See
“Diagnosing with the LEDs” in chapter 3, “Troubleshooting”
for more information.
On/
Flickering
The hub is receiving packets on at least one of its ports. If it
appears to be on continuously, network traffic is excessive.
Off
The hub is not receiving packets from any attached device.
On/
Flickering
A network collision has been detected on any of the hub
ports. If the LED is on solid, a heavy collision rate is
occurring.
Off
Collisions are not occurring on the network.
On
The port detects an attached device.
Off
The port has not detected another device.
Link LEDs
Link
Slow Blink* The port has been autopartitioned due to excessive
collisions.
Fast Blink†
A security violation has been detected on the port (Hub 12M
and Hub 24M only)
* The slow blink behavior is a regular pulse, once every 1.6 seconds, approximately.
† The fast blink behavior is a regular pulse, once every 0.8 seconds, approximately.
100 LEDs
100 Mbps
Indicator LED
1-4
On
The port is operating at 100 Mbps.
Off
The port is operating at 10 Mbps.
(This LED is meaningful only if the Link LED is lit for the port.)
9934.book Page 5 Thursday, January 14, 1999 12:39 PM
Introducing the HP ProCurve 10/100 Hubs
Back of the Hubs
Console Port (Hub 12M and Hub 24M)
Reset Button
This button is used to reset the hub while it is powered on. This action clears
any temporary error conditions that may have occurred, restarts the hub and
executes the hub self test. A typical instance of where you might use the Reset
button is in the event of a hub malfunction or error condition.
Clear Button (Hub 12M and Hub 24M)
This button is used for deleting any hub console and web browser interface
passwords that you have configured for the hub. When pressed for at least ten
seconds, the button deletes the passwords. Use this feature if you have
misplaced the password and need console access.
Note
This button is provided for your convenience, but its presence means that if
you are concerned with the security of the hub configuration and operation,
you should make sure the hub is installed in a secure location, such as a locked
wiring closet.
Back of the Hubs
Power Connector
The 10/100 hubs do not have a power switch; they are powered on when
connected to an active AC power source. The hubs automatically adjust to
various voltages (depending on the country) between 100-127 and 200-240
volts and either 50 or 60 Hz. There are no voltage range settings required.
AC Power
Connector
Cooling vents - make sure
these are not obstructed for
proper hub operation
1-5
Introducing the HP ProCurve
10/100 Hubs
This port is used to connect a console to the hub by using the serial cable
supplied with the hub. This connection is described under “connect a Console
to the Hub” in chapter 2, “Installing the 10/100 Hubs”. The console can be a
PC or workstation running an ASCII (TTY) or VT-100 terminal emulator, or an
actual ASCII or VT-100 terminal.
9934.book Page 6 Thursday, January 14, 1999 12:39 PM
Introducing the HP ProCurve
10/100 Hubs
Introducing the HP ProCurve 10/100 Hubs
Features
Features
The features of the HP ProCurve 10/100 hubs include:
1-6
■
12 or 24 Ethernet 10/100Base-T ports with RJ-45 connectors
■
plug-and-play networking—all ports are enabled—just connect the
network cables to active Ethernet or Fast Ethernet network devices and
your network is operational
■
all ports can autonegotiate the connection speed (10 or 100 Mbps) with
the connected device
■
a built-in bridge connects 10 Mbps and 100 Mbps devices automatically,
with nothing else to buy
■
per port LEDs showing link status and whether the port is operating at
100 Mbps or 10 Mbps
■
Activity and Collision LEDs showing general levels of network activity
and collisions on the hub
■
push-button MDI/MDI-X selection on Port 1 to allow a straight-through
cable to be used for cascading to another hub or switch
■
rack- or wall-mountable with mounting hardware included
■
additional management features such as per-port security, and hub control
through a full-featured hub console, through the built-in web browser
interface, and through HP TopTools for Hubs & Switches is available for
the Hub 12M and Hub 24M
9934.book Page 1 Thursday, January 14, 1999 12:39 PM
2
Installing the HP 10/100 Hubs
The HP 10/100 hubs are easy-to-install. Each comes with an accessory kit that
includes the brackets for mounting the hub in a standard 19-inch telco rack
or equipment cabinet, or on a wall, and also includes rubber feet that can be
attached to the hub so it can be securely located on a horizontal surface. The
brackets are designed to allow mounting the hubs in a variety of orientations.
Included Parts
The HP 10/100 hubs have the following components shipped with them:
■
HP ProCurve 10/100 Hubs Installation Guide (5967-9934), this manual
■
Connectivity Rules for 100T Networks (5967-2281)
■
HP ProCurve 10/100 Hub 12M and Hub 24M Management and Configuration Guide (5967-9933) -- for Hub 12M and Hub 24M only
■
HP TopTools for Hub & Switches - CD-ROM and booklet -- for Hub 12M
and Hub 24M only
■
Customer Support/Warranty booklet
■
Accessory kit (5064-2085):
• two mounting brackets
• four 8 mm M4 screws to attach the mounting brackets to the hub
• four 5/8-inch number 12-24 screws to attach the brackets to a rack
• four rubber feet
■
Console cable -- Hub 12M and Hub 24M only
■
Power cord, one of the following:
Australia/New Zealand
China
Continental Europe
Denmark
Japan
Switzerland
United Kingdom/Hong Kong/Singapore
United States/Canada/Mexico
8120-6803
8120-8377
8120-6802
8120-6806
8120-6804
8120-6807
8120-8709
8120-6805
2-1
Installing the HP 10/100 Hubs
This chapter shows you how to install your HP 10/100 hub.
9934.book Page 2 Thursday, January 14, 1999 12:39 PM
Installing the HP 10/100 Hubs
Installation Procedures
Installation Procedures
Summary
Installing the HP 10/100 Hubs
Follow these easy steps to install your hub. The rest of this chapter provides
details on these steps.
1.
Prepare the installation site (page 2-4). Make sure that the physical
environment into which you will be installing the hub is properly prepared
including having the correct network cabling ready to connect to the hub,
and having a good location for the hub. Please see page 2-3 for some
installation precautions.
2.
Verify that the hub passes self test (page 2-5). This is a simple process
of plugging the hub into a power source and observing that the LEDs on
the hub’s front panel show correct operation.
3.
Mount the hub (page 2-6). The hub can be mounted in a 19-inch telco
rack, in an equipment cabinet, on a wall, or on a horizontal surface.
4.
Connect power to the hub (page 2-9). Once the hub is mounted, plug
it in to the nearby main power source.
5.
Connect the network devices (page 2-10). Using the appropriate
network cables, connect other hubs, switches, routers, computers,
servers, printers, and other network devices to the hub ports.
6.
Connect a console to the hub (optional on Hub 12M and Hub 24M
only—page 2-11). You may wish to modify the hub’s configuration, for
example to configure an IP address on the hub so it can be managed using
a web browser, from an SNMP network management station, or through
a telnet session to the hub console. Configuration changes can be made
easily by using the included console cable to connect a PC to the hub’s
console port.
At this point, the hub is fully installed and your network should be up and
running. See the rest of this chapter if you need more detailed information on
any of these installation steps.
2-2
9934.book Page 3 Thursday, January 14, 1999 12:39 PM
Installing the HP 10/100 Hubs
Installation Procedures
Installation Precautions
Follow these precautions when installing your HP 10/100 hub.
The rack or cabinet should be adequately secured to prevent it from
becoming unstable and/or falling over. The hub should be mounted in a
position toward the bottom of the rack for stability and to make it easier to
place the other hubs on top.
Cautions
■
Make sure that the power source circuits are properly grounded, then
use the power cord supplied with the hub to connect it to the power
source.
If your installation requires a different power cord than the one supplied
with the hub, be sure to use a power cord displaying the mark of the
safety agency that defines the regulations for power cords in your
country. The mark is your assurance that the power cord can be used
safely with the hub.
■
Make sure that the HP 10/100 hub does not overload the power circuits,
wiring, and over-current protection at your site. To determine the possibility of overloading the supply circuits, add together the amperage
ratings from all of the equipment installed on the same circuit as the hub
and compare the total with the rating limits for the supply circuit. The
maximum amperage ratings are usually printed on the devices near the
AC power connectors.
■
When installing the hub, note that the AC outlet must be installed near
the equipment and should be easily accessible.
■
Do not install the hub in an environment where the operating ambient
temperature might exceed 55°C (131°F).
■
Do not block airflow around the sides and the back of the hub.
2-3
Installing the HP 10/100 Hubs
Warning
9934.book Page 4 Thursday, January 14, 1999 12:39 PM
Installing the HP 10/100 Hubs
Installation Procedures
1. Prepare the Installation Site
Installing the HP 10/100 Hubs
■
■
2-4
Cabling Infrastructure - Ensure that the cabling infrastructure meets
the necessary network specifications. See the following table for cable
types and lengths, and see Appendix B, “Cables and Connectors” for more
information:
Connection
Type
Cable Type
Length Limits
10Base-T
category 3, 4, or 5, fourpair, 100 ohm UTP
(unshielded twisted-pair)
Up to 100 meters.
100Base-TX
category 5, 100-ohm UTP
Connections are typically up to 100 meters
to end nodes and to switches, and 5
meters for the single cascade connection
to another (Class II repeater) hub, as
allowed by the 100Base-T topology rules.
See the section covering twisted pair
cabling in Appendix B, “Cables and
Connectors” for more information.
Installation Location - Before mounting a hub, plan its location and
orientation relative to other devices and equipment. Also consider the
cabling that will be attached to the hub and the ports that will be used.
Allow at least 2.54 cm (1 inch) in the front of the hub for the twisted-pair
cabling. In the back of the hub, allow at least 3.8 cm (1 1/2 inches) of space
for the power cord.
9934.book Page 5 Thursday, January 14, 1999 12:39 PM
Installing the HP 10/100 Hubs
Installation Procedures
2. Verify the Hub Passes Its Self Test
Before mounting the hub in its network location, you should first verify that
it is working properly by plugging it into a power source and verifying that it
passes its self test.
1.
Connect the power cord supplied with the hub to the power connector on
the back of the hub, and then into a properly grounded electrical outlet.
Note
The HP 10/100 hubs do not have a power switch. They are powered on when
the power cord is connected to the hub and to a power source.
2.
Check the LEDs on the hub.
Hub Port LEDs
Power and Fault LEDs
When the hub is powered on, it performs its diagnostic self test. The selftest takes approximately three seconds to complete for the Hub 12 and
Hub 24, and approximately 30 seconds for the Hub 12M and Hub 24M.
LED Behavior:
During the self test: Initially, all the hub and port LEDs are on. After
approximately three seconds, the “100” LEDs for all the ports, and the
Activity and Collision LEDs go off.
When the self test completes successfully:
•
The Power LED stays on.
•
The Fault LED goes off.
•
The port LEDs and Act and Col LEDs go into their normal operational
mode.
2-5
Installing the HP 10/100 Hubs
Connect power cord
to power connector
9934.book Page 6 Thursday, January 14, 1999 12:39 PM
Installing the HP 10/100 Hubs
Installation Procedures
If the LED display is different than what is described above especially if
the Fault LED stays on for more than 5 seconds for the Hub 12 and Hub
24, and more than 35 seconds for the Hub 12M and Hub 24M, or the Fault
LED flashes, the self test has not completed correctly. Refer to chapter 3,
“Troubleshooting” for diagnostic help.
3. Mount the Hub
After you have verified that the hub passes self test, it is ready to be mounted
in the location you have prepared. The hub can be mounted in these ways:
Installing the HP 10/100 Hubs
■
■
■
in a rack or cabinet
on a wall
on a horizontal surface
Rack or Cabinet Mounting
The HP 10/100 hubs are designed to be mounted in any EIA-standard 19-inch
telco rack or in an equipment cabinet such as a server cabinet.
Caution
For safe operation, please read the mounting precautions in
the section, “Installation Precautions” earlier in this chapter before
mounting a hub.
1.
8 mm M4 screws
2-6
Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the hub with the included 8-mm M4 screws.
9934.book Page 7 Thursday, January 14, 1999 12:39 PM
Installing the HP 10/100 Hubs
Installation Procedures
2.
Partially install a screw (5/8-inch number 12-24) into the top hole of a pair
of holes that are 0.5 inches apart in each rack/cabinet upright as shown
in the illustration below. Ensure that the screws are at the same level in
each upright.
Partially install a screw
into the top hole of a
close (0.5-inch) pair on
both sides of the rack
3.
Place the hub in the rack and lower it so the notches in the bottom of the
bracket slide onto the screws, then tighten these screws.
lower the hub with the
mounting brackets onto
the partially installed
screws
2-7
Installing the HP 10/100 Hubs
.
9934.book Page 8 Thursday, January 14, 1999 12:39 PM
Installing the HP 10/100 Hubs
Installation Procedures
4.
Install the other number 12-24 screw into the upper hole in each bracket.
Tighten these screws.
Installing the HP 10/100 Hubs
install additional
screw
Horizontal Surface Mounting
Place the hub on a table or other horizontal surface. Use a sturdy surface in
an uncluttered area. You may want to secure the networking cables and hub
power cord to the table leg or other part of the surface structure to help
prevent people from tripping over the cords.
Note
2-8
Make sure the air flow is not restricted around the sides and back of the hub.
9934.book Page 9 Thursday, January 14, 1999 12:39 PM
Installing the HP 10/100 Hubs
Installation Procedures
Wall Mounting
You can mount the hub on a wall. Note that the hub should be mounted only
to a wall or wood surface that is at least 1/2-inch plywood or its equivalent.
1.
Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the hub with the included 8-mm M4 screws as shown in the
illustration below.
2.
Attach the hub to the wall or wood surface with two 5/8-inch number 12
wood screws (not included}.
Installing the HP 10/100 Hubs
8 mm M4 screws
5/8-inch
wood screws
4. Connect the Hub to a Power Source
1.
Plug the included power cord into the hub’s power connector and into a
nearby AC power source.
2.
Re-check the LEDs during self test. See “LED Behavior” on page 2-5.
For power precautions, see the section, “Installation Precautions” earlier in
this chapter. The HP 10/100 hubs do not have a power switch. They are
powered on when the power cord is connected to the hub and to a power
source.
2-9
9934.book Page 10 Thursday, January 14, 1999 12:39 PM
Installing the HP 10/100 Hubs
Installation Procedures
5. Connect the Network Cables
Connect the network cables, described under “Cabling Infrastructure” (page
2-4), from the network devices or your patch panels to the RJ-45 ports on the
hub.
Installing the HP 10/100 Hubs
To connect the cables:
Push the RJ-45 plug into the RJ-45 jack
until the tab on the plug clicks into place.
When power is on for the hub and for the
connected device, the Link LED for the
port should light to confirm a poweredon device (for example, an end node) is
at the other end of the cable.
2X
3X
4X
5X
6X
8X
9X
10X
11X
12X
RJ-45 plug
If the Link LED does not go on when
the network cable is connected to the
port, see “Diagnosing With the LEDs”
in chapter 3, “Troubleshooting”.
To disconnect:
Press the small tab on the plug and pull
the plug out of the jack.
2-10
Unshielded twisted-pair cable:
• Category 3, 4, or 5 for 10 Mbps ports
• Category 5 only for 100 Mbps ports
Maximum distance: 100 meters
9934.book Page 11 Thursday, January 14, 1999 12:39 PM
Installing the HP 10/100 Hubs
Installation Procedures
6. (Optional) Connect a Console to the Hub (Hub 12M
and Hub 24M only)
The Hub 12M and Hub 24M have a full-featured, easy to use console interface
for performing the following tasks:
Monitor hub and port status and observe network activity counters
■
Modify the hub’s configuration
■
Access diagnostic tools to help in troubleshooting
■
Download new software to the hub
■
Add passwords to control console, web browser interface, and
network management access to the hub
The console can be accessed through these methods:
■
Out-of-band: The Hub 12M and Hub 24M come with a serial cable for
connecting a PC, or ASCII or VT-100 terminal to be used as a console
directly to the hub. If the PC or terminal has a 25-pin serial connector, you
can use a readily available 9-pin to 25-pin serial cable, or attach a 9-to-25
pin adapter to the end of the supplied cable.
■
In-Band: Access the console using Telnet from a PC or UNIX station on
the network, and an ASCII or VT-100 terminal emulator. This method
requires that you first configure the hub with an IP address and subnet
mask by using either out-of-band console access or through DHCP/Bootp.
The hub 12M and Hub 24M can, at any given time, support one console session
through the Console Port or one Telnet console session. There is no restriction
on the number of web browser interface sessions with the hub.
Terminal Configuration
To connect a console to the hub, configure the PC terminal emulator as an
ASCII (TTY) or VT-100 (ANSI) terminal or use an ASCII or VT-100 terminal and
configure it to operate with these settings:
■
any baud rate from 2400 to 115200 (the hub senses the speed)
■
8 data bits, 1 stop bit, no parity, XON/XOFF flow control
■
For Windows Terminal program, also disable (uncheck) the “Use Function, Arrow, and Ctrl Keys for Windows” option.
■
For the Hilgrave HyperTerminal program, select the “Windows keys”
option for the “Function, arrow, and ctrl keys act as” parameter.
If you want to operate the console using a different configuration, make sure
you change the settings on both the terminal and on the hub. Change the hub
settings first, then change the terminal settings, and reestablish the console
session.
2-11
Installing the HP 10/100 Hubs
■
9934.book Page 12 Thursday, January 14, 1999 12:39 PM
Installing the HP 10/100 Hubs
Installation Procedures
Direct Console Access
To connect a console to the
hub, follow these steps:
Installing the HP 10/100 Hubs
1.
Connect the PC or
terminal to the hub’s
Console Port using the
console cable included
with the hub. (If your PC
or terminal has a 25-pin
serial connector, first
attach a 9-pin to 25-pin
adapter at one end of the
console cable.)
console port
console cable supplied
with the hub
PC running a terminal
emulator program, or
a VT-100 terminal
2.
Turn on the terminal or
PC’s power and, if using a
PC, start the PC terminal
program.
3.
Press [Enter] two or three times and you will see the hub identification
information and the message “Press any key to continue”. Press a key, and
you will then see the hub console commands.
Telnet Console Access
To access the hub through a telnet session, follow these steps:
1.
Make sure the hub is configured with an IP address and that the hub is
reachable from the telnet workstation (for example by using a Ping
command to the hub’s IP address)
2.
Start the telnet program and connect to the hub’s IP address.
3.
You will see the hub identification information and the message “Press
any key to continue”. Press a key, and you will then see the hub console
commands.
If you want to continue with console management of the hub at this time, refer
to the HP ProCurve 10/100 Hub 12M and Hub 24M Management and
Configuration Guide that came with your hub.
2-12
9934.book Page 13 Thursday, January 14, 1999 12:39 PM
Installing the HP 10/100 Hubs
Sample Network Topologies
Sample Network Topologies
This section shows you a few sample network topologies in which the HP 10/
100 Hubs are implemented. For more topology information, see the document
Designing HP AdvanceStack Workgroup Networks, which can be found on
the HP network products World Wide Web site, http://www.hp.com/go/
procurve.
Connecting End Nodes to HP 10/100 Hubs
Server with
“Fast” Ethernet
NIC
Category 5 cable for
100 Mbps connection
to the server
HP 10/100 Hub
“straight-through”
twisted-pair
cables
PCs and
peripherals
Description
Connect end nodes (PCs, workstations, servers, printers and other peripherals) to the HP 10/100
hubs by using “straight-through” twisted-pair cables, as shown in the above illustration. The server
should be connected at 100 Mbps to reduce bottlenecks as multiple users attempt to access the
server.
Cables Used
10 Mbps connections: Category 3, 4, or 5 100-ohm “straight-through” unshielded twisted pair cable
100 Mbps connections: Category 5 “straight-through” unshielded twisted pair cable only
Maximum
Connection
Lengths
100 meters for both 10 Mbps and 100 Mbps connections to end nodes
2-13
Installing the HP 10/100 Hubs
For information on 100Base-T network topology rules, see the card “Connectivity Rules for 100T Networks” that is included with your hub.
9934.book Page 14 Thursday, January 14, 1999 12:39 PM
Installing the HP 10/100 Hubs
Sample Network Topologies
Cascading HP 10/100 Hubs – 10Base-T Networks
10/100 Hub 24M
category 5 twisted-pair “straight-through”
cable for 100 Mbps connection to server
twisted-pair “crossover”
cables to other hubs, or
“straight-through” cable if
hub port 1 is used and set to
MDI mode
Server with
“Fast” Ethernet
NIC
HP 10/100 Hubs
Installing the HP 10/100 Hubs
connected at
10 Mbps
twisted-pair
“straight-through”
cables to end
nodes
PCs,
printers,
and local
servers
Description
For 10Base-T networks, up to five hubs may be cascaded together. Three hubs are shown in the
above illustration. The server should be connected at 100 Mbps to reduce bottlenecks as multiple
users attempt to access the server.
Cables Used
10 Mbps connections: Category 3, 4, or 5 “crossover” twisted pair cable for hub-to-hub (MDI-X–
to–MDI-X) connections. Use “straight-through” cable if one of the hub ports used in the connection
is set to MDI mode. For connections to end nodes (PCs, workstations, servers, printers and other
peripherals), use straight-through cable.
100 Mbps connections: Category 5 “straight-through” twisted pair cable only
Maximum
Connection
Lengths
10 Mbps connections: 100 meters for both hub-to-end node and hub-to-hub connections
100 Mbps connections: 100 meters for connections to end nodes
2-14
9934.book Page 15 Thursday, January 14, 1999 12:39 PM
Installing the HP 10/100 Hubs
Sample Network Topologies
Cascading HP 10/100 Hubs – 100Base-TX Networks
Server with
“Fast” Ethernet
NIC
“straight-through” cable for
connection to server
10/100 Hub 24M
10/100 Hub 24
twisted-pair
“straight-through”
cables to end
nodes
Installing the HP 10/100 Hubs
twisted-pair “crossover”
cables between hubs, or
“straight-through” cable if
hub port 1 is used and set to
MDI mode
PCs,
printers,
and local
servers
Description
For 100Base-T networks, only two hubs may be cascaded together, as shown in the above
illustration. Connect end nodes (PCs, workstations, servers, printers, and other peripherals) to the
HP 10/100 hubs by using “straight-through” twisted-pair cables. The server should be connected
at 100 Mbps to reduce bottlenecks as multiple users attempt to access the server.
Cables Used
100 Mbps connections: 100 ohm, Category 5 unshielded twisted pair cable only. For the connection
between the hubs, use crossover cable, unless one the hub ports used in the connection is set to
MDI mode; then use straight-through cable. For connections to the end nodes, use straight-through
cables.
Maximum
Connection
Lengths
Hub-to-Hub connection: 5 meters for 100 Mbps
Hub-to-end node connections: 100 meters
2-15
9934.book Page 16 Thursday, January 14, 1999 12:39 PM
Installing the HP 10/100 Hubs
Sample Network Topologies
Cascading HP 10/100 Hubs – 10 and 100 Mbps
“straight-through” cable for
connection to server
10/100 Hub 24M
100 Mbps cascade
connection. Only 2 Class II
hubs can be cascaded at
100 Mbps
Installing the HP 10/100 Hubs
10/100 Hub 24
10 Mbps cascade
connections. Up to 5 hubs
can be cascaded at 10 Mbps
10/100 Hub 12
twisted-pair
“straight-through”
cables to end
nodes
PCs,
printers,
and local
servers
Description
The two previous topologies could be combined. Because the HP 10/100 hubs can connect to both
10 Mbps and 100 Mbps devices simultaneously, a topology similar to the one in the above illustration
is possible. The 10 Mbps and 100 Mbps end nodes communicate with each other through the “speed
matching” bridge that is internal in each of the HP 10/100 hubs.
Cables Used
10 Mbps connections: category 3, 4, or 5 100 ohm unshielded twisted-pair cable.
100 Mbps connections: 100 ohm, Category 5 unshielded twisted pair cable only. For the connection
between the hubs, use crossover cable, unless one the hub ports used in the connection is set to
MDI mode; then use straight-through cable. For connections to the end nodes, use straight-through
cables.
Maximum
Connection
Lengths
Hub-to-Hub connections: 5 meters for 100 Mbps; 100 meters for 10 Mbps
Hub-to-end node connections: 100 meters for 10 or 100 Mbps
2-16
9934.book Page 17 Thursday, January 14, 1999 12:39 PM
Installing the HP 10/100 Hubs
Sample Network Topologies
Connecting HP 10/100 Hubs to Switches
Switch 1600M
to Gigabit-Ethernet
backbone
twisted-pair
“straight-through”
cables to end
nodes
Installing the HP 10/100 Hubs
twisted-pair “crossover” cable for
hub-to-switch connection, or
“straight-through” cable if hub
port 1 is used and set to MDI mode
10/100 Hub 24M
PCs,
printers,
and local
servers
Description
Most twisted-pair switch ports are wired the same as hub ports: MDI-X, so the type of cable to use
is the same as for a hub-to-hub connection. Note: You do not need to use an external switch or
bridge to provide communication between the 10 Mbps and 100 Mbps end nodes connected to the
hub. The HP 10/100 hubs have an internal bridge that provides that connection. The illustration
shows a 10/100 hub connected to a switch as a way to extend your network, and to provide
connections to high-speed campus backbones.
Cables Used
10 Mbps connections: category 3, 4, or 5 100 ohm unshielded twisted-pair cable.
100 Mbps connections: 100 ohm, Category 5 unshielded twisted pair cable only. For the connection
between the hub and the switch, use crossover cable, unless one the hub ports used in the
connection is set to MDI mode; then use straight-through cable. For connections to the end nodes,
use straight-through cables.
Maximum
Connection
Lengths
Hub-to-switch connection: 100 meters for 10 or 100 Mbps
Hub-to-end node connections: 100 meters for 10 or 100 Mbps
2-17
9934.book Page 18 Thursday, January 14, 1999 12:39 PM
Installing the HP 10/100 Hubs
Where to Go From Here
Where to Go From Here
Installing the HP 10/100 Hubs
Your hub is now correctly installed and is able to send and receive data
between end nodes, servers, and printers.
The HP 10/100 hubs are plug-and-communicate network devices requiring no
configuration. The Hub 12M and Hub 24M are managed hubs. If you wish to
manage these hubs from an SNMP-based network management station, you
will need to configure the IP address on the hubs. See the HP ProCurve 10/
100 Hub 12M and Hub 24M Management and Configuration Guide that
came with your hub for information on how to use the hub console to
configure the IP address.
Note
2-18
The Hub 12M and Hub 24M can also be managed through a graphical interface
that you can access from any PC or workstation on the network by running
your web browser and typing in the hub’s IP address as the URL. No additional
software installation is required to make this interface available; it is included
in the hub’s onboard software.
9934.book Page 1 Thursday, January 14, 1999 12:39 PM
3
Troubleshooting
This chapter describes how to troubleshoot your HP 10/100 hub. This chapter
describes the following:
■
basic troubleshooting tips (page 3-2)
■
diagnosing with the LEDs (page 3-4)
■
Proactive Networking tools (page 3-6)
■
hardware diagnostic tests (page 3-7)
■
HP Customer Support Services (page 3-9)
Troubleshooting
3-1
9934.book Page 2 Thursday, January 14, 1999 12:39 PM
Troubleshooting
Basic Troubleshooting Tips
Basic Troubleshooting Tips
Most problems are caused by the following situations:
■
Incorrect hub-to-switch or hub-to-hub connections. Check your
cable type:
•
The HP 10/100 hub ports as standard Ethernet ports, are wired as
MDI-X ports. When connecting to another MDI-X device such as
another hub or switch, use a crossover cable. You can also use a
straight-through cable connected to Port 1 with the MDI/MDI-X
button in the MDI position.
•
When connecting to an MDI device such as network interface cards
in computers and other end nodes, and some hub and switch ports,
use a straight-through cable.
Troubleshooting
See Appendix B, “Cables and Connectors” for pinouts and correct cable
wiring for crossover and straight-through twisted-pair cables.
■
Non-standard cables. Non-standard and miswired cables may cause
network collisions and noise, and can seriously impair network performance. 100Base-T networks are more sensitive to miswired cables than
10Base-T networks, and they must be cabled with Category 5 UTP cable
only. Use a new correctly-wired cable or compare your cable to the cable
in Appendix B, “Cables and Connectors” for pinouts and correct cable
wiring. A category 5 cable tester is a recommended tool for every
100Base-T network installation.
■
Improper Network Topologies. It is important to make sure you have
a valid network topology. Common topology faults include excessive
cable length and excessive numbers of repeaters between nodes. For
10Base-T networking, the standard allows at most five repeaters (hubs)
between any two end nodes. For 100Base-T, see the topology rules below.
If you have network problems after recent changes to the network, change
back to the previous topology. If you no longer experience the problems,
the new topology is probably at fault. Refer to the guide entitled
Designing HP ProCurve Workgroup Networks for topology configuration
guidelines. This guide can be found online at the HP World Wide Web site,
http://www.hp.com/go/procurve.
In addition, you should make sure that your network topology contains
no data path loops. Between any two end nodes, there should be only one
active cabling path at any time. Data path loops will cause broadcast
storms that will severely impact your network performance.
3-2
9934.book Page 3 Thursday, January 14, 1999 12:39 PM
Troubleshooting
Basic Troubleshooting Tips
•
100Base-T topology rules: Be aware that the topology rules for
100Base-T networks are much more restrictive than for 10Base-T.
You may have to redo an existing 10Base-T topology for 100Base-T
products.
The HP 10/100 hubs operate as Class II hubs when being used for
100Base-T networking. Some basic Class II 100Base-T Hub rules are
as follows:
– The maximum segment length for a hub-to-end node connection
is 100 meters.
– At most one hub can be cascaded from any of the hub ports that
are operating at 100 Mbps.
– Do not mix Class I and Class II hubs when cascading.
– When cascading two hubs together, the maximum distance separating them is 5 meters.
– You must use 100-ohm Category 5 UTP cable in the 100Base-T
installations.
See the card “Connectivity Rules for 100T Networks” included with
your hub for illustrations of these rules.
Full-duplex link to the hub. Regular hub ports, including the ports on
the HP 10/100 hubs, only operate in half-duplex mode. If the attached
device is running in full-duplex mode, it will cause a high number of late
collisions on the network, degrading performance for all nodes. The HP
10/100 hubs must not be connected to devices that are configured for fullduplex operation.
■
Non-compatible Speed Configuration. For the Hub 12M and Hub 24M,
make sure that you have not configured any port to operate at a speed
that is not compatible with the attached device (10 Mbps or 100 Mbps).
■
Faulty or loose network cables. Look for loose or obviously faulty
connections. If they appear to be OK, try a different cable.
3-3
Troubleshooting
■
9934.book Page 4 Thursday, January 14, 1999 12:39 PM
Troubleshooting
Diagnosing with the LEDs
Diagnosing with the LEDs
The following table shows LED patterns on the hubs that indicate problem
conditions.
LED patterns indicating problems
Power
Fault
Link
(per port)
Activity
Collision
OFF
OFF
OFF
–
–
➊
ON
OFF
OFF with a
network
cable
connected
–
–
➋
OFF
Slow Blink†
–
–
➌
ON
ON for a
prolonged
period
Variable, all
may be ON
–
–
➍
ON
Off
Fast Blink‡
–
–
➎
ON
OFF
ON
ON
continuously
ON
continuously
➏
ON
Troubleshooting
Diagnostic
Tips
† The slow blink behavior is an on/off cycle once every 1.6 seconds
‡ The fast blink behavior is an on/off cycle once every 0.8 seconds
Diagnostic Tips:
Tip
Problem
Solution
➊
The hub is not
plugged into an
active AC power
source, or the
hub’s power
supply may have
failed.
1. Verify that the power cord is plugged into an active power source and to the hub. Make
sure these connections are snug.
2. Try power cycling the hub by unplugging and plugging the power cord back in.
3. If the Power LED is still not on, verify that the AC power source works by plugging
another device into the outlet. Or try plugging the hub into a different outlet or try a
different power cord.
If the power source and power cord are OK and this condition persists, the hub power
supply may have failed. Call your HP-authorized LAN dealer, or use the electronic support
services from HP to get assistance. See the Customer Support/Warranty card for more
information.
3-4
9934.book Page 5 Thursday, January 14, 1999 12:39 PM
Troubleshooting
Diagnosing with the LEDs
Problem
Solution
➋
The network
connection is not
working
properly.
Try the following procedures:
• Verify that the connected device and the hub are both powered on and are operating
correctly.
• Verify that all connections in the cable path between the hub and the connected device
are OK.
• Verify that you have used the correct cable type for the connection.
For twisted-pair connections, in general, for connecting an end node or other MDI
device to the hub, use “straight- through” cable; for connecting MDI-X ports on other
hubs or switches, use “crossover” cable.
• For the 100 Mbps connections, verify that you are using category 5, or better, UTP
cable.
• For the Hub 12M and Hub 24M: Verify that the port has not been disabled through a
configuration change.
You can use the hub console interface, or, if you have configured an IP address on the
hub, use the web browser interface, or HP TopTools for Hubs & Switches network
management software to determine the state of the port and re-enable the port if
necessary.
• If the other procedures don’t resolve the problem, try using a different port or a
different cable.
➌
The port has
been
autopartitioned
due to excessive
collisions.
This usually occurs because of faulty or improper cabling or a network loop. Or it may
occur because of a jabbering end node. When the condition is corrected and the normal
network traffic is restored, the port will automatically return to normal operation and the
Link LED will stop blinking.
➍
A hub hardware
failure was
detected during
self test.
Self test does not complete so the Fault LED will stay on longer than 5 seconds for the
Hub 12 and Hub 24, and longer than 35 seconds for the Hub 12M and Hub 24M.
➎
A security
violation has
been detected on
the port.
Per port security is configurable on the Hub 12M and Hub 24M only. A network device
with an address that is not in the list of authorized addresses for the port has attempted
network communication through the hub.
➏
Hub 12M and Hub
24M only. The
10Base-T
functionality of
the hub is locked
up in a “jabber”
condition.
This condition can occur if you have configured a port to operate specifically at only 10
Mbps, and then a 100 Mbps-only device is connected to that port.
Locate the port with this speed mismatch condition, and unplug the cable to relieve the
condition. You may have to simply unplug cables one at a time until you see the Activity
LED go back into normal flickering operation. Then, reconfigure the port for speed
compatibility with the device before reconnecting the cable from that device.
Power cycle the hub by unplugging the power cord, waiting several seconds, and then
plugging the power cord back in to the hub. If this condition persists, the hub may have
to be replaced. Contact your HP-authorized LAN dealer or HP representative for
assistance.
Try power cycling the hub. If the fault indication reoccurs, the hub may have failed. Call
your HP-authorized LAN dealer, or use the electronic support services from HP to get
assistance. See the Customer Support/Warranty card for more information.
3-5
Troubleshooting
Tip
9934.book Page 6 Thursday, January 14, 1999 12:39 PM
Troubleshooting
Proactive Networking
Proactive Networking
The Hub 12M and Hub 24M have built-in management capabilities that proactively help you manage your network including:
■
finding and helping you fix the most common network error conditions
(for example, faulty network cabling, and non-standard network topologies)
■
informing you of the problem with clear, easy-to-understand messages
■
recommending network configuration changes to enhance the performance of your network
■
per-port security to allow you to designate authorized network users
Troubleshooting
The following interfaces provide tests, indicators, and an event log that can
be used to monitor the hub and its network connections and to help you take
advantage of these proactive networking features:
■
HP TopTools for Hubs & Switches - an SNMP-based network management
tool that is included with your hub.
■
A graphical web browser interface that you can use to manage your hub
from a PC running a supported web browser, for example Microsoft
Internet Explorer or Netscape Communicator.
■
A full-featured easy-to-use console interface that you can access by
merely connecting a standard terminal or PC running a terminal emulator
to the hub’s console port. The cable to make that connection is provided
with your Hub 12M and Hub 24M. The console interface is also accessible
through a telnet connection.
See chapter 8, “Troubleshooting”, in the Management and Configuration
Guide that came with your hub for more information on using these software
tools to diagnose and manage your hub.
3-6
9934.book Page 7 Thursday, January 14, 1999 12:39 PM
Troubleshooting
Hardware Diagnostic Tests
Hardware Diagnostic Tests
Testing the Hub by Resetting It
If you believe that the hub is not operating correctly, you can reset it to test
its circuitry and operating code. To reset a hub, either:
■
Unplug and plug back in the power cord (power cycle)
■
Press the reset button on the front of the hub
Power cycling the hub and pressing the Reset button both cause the hub to
perform its power-on self-test, which may resolve any temporary operational
problems.
The self-test passes if the Fault LED on the front of the hub goes off after
approximately 3 seconds for the Hub 12 and Hub 24, and approximately 30
seconds for the Hub 12M and Hub 24M. If the Fault LED stays on longer than
these normal self test times, the hub may have to be replaced. Contact your
HP-authorized dealer or HP representative for assistance. See the Customer
Support/Warranty booklet that came with your hub for more information.
Testing Twisted-Pair Cabling
HP also offers a wire testing service. Contact your HP-authorized LAN dealer
or your local HP sales office for more information.
Note
Make sure that you are using the correct cabling type for each connection.
The hub ports are all wired as MDI-X. For connecting end nodes and other
MDI-type devices, use “straight-through” cable. For connecting switches,
other hubs, and other MDI-X devices, use “crossover” cable; or, you can use a
straight-through cable by connecting the MDI-X device to Port 1 and change
the port setting to MDI by depressing the MDI-X/MDI button on the front of
the hub to the MDI position. See Appendix B, “Cables and Connectors” for the
pinouts for straight-through and crossover cables.
3-7
Troubleshooting
If you think the cable should work but still isn’t working, it may not be
compatible with the IEEE 802.3 Type 10Base-T or IEEE 802.3u 100Base-T
standards. The twisted-pair cables attached to the HP 10/100 hub must be
compatible with these standards. To verify that your cable is compatible with
these standards, use a qualified cable test device.
9934.book Page 8 Thursday, January 14, 1999 12:39 PM
Troubleshooting
Hardware Diagnostic Tests
Testing Hub-to-Device Network Communications (Hub
12M and Hub 24M only)
You can perform the following communication tests to verify that the network
is operating correctly between the Hub 12M or Hub 24M and any connected
device that can respond correctly to the communication test.
■
Link Test -- a physical layer test that sends IEEE 802.2 test packets to any
device identified by its MAC address
■
Ping Test -- a network layer test used on IP networks that sends test
packets to any device identified by its IP address
These tests can be performed through the hub console interface from a
terminal connected to the hub or through a telnet connection, or from the
hub’s web browser interface. See the Management and Configuration Guide
that came with your hub for more information.
These tests can also be performed from an SNMP network management
station running a program that can manage the hub, for example, HP TopTools
for Hubs & Switches.
Testing End-to-End Network Communications
Troubleshooting
Both the hub and the cabling can be tested by running an end-to-end communications test -- a test that sends known data from one network device to
another through the hub. For example, if you have two PCs on the network
that have LAN adapters between which you can run a link-level test or Ping
test through the hub, you can use this test to verify that the entire communication path between the two PCs is functioning correctly. See your LAN
adapter (NIC) documentation for more information on running a link test or
Ping test.
3-8
9934.book Page 9 Thursday, January 14, 1999 12:39 PM
Troubleshooting
HP Customer Support Services
HP Customer Support Services
If you are still having trouble with your hub, Hewlett-Packard offers support
24 hours a day, seven days a week through the use of a number of automated
electronic services. See the Customer Support/Warranty booklet that came
with your hub for information on how to use these services to get technical
support. The HP networking products World Wide Web site,
http://www.hp.com/go/procurve, also provides up-to-date support information.
Your HP-authorized network reseller can also provide you with assistance,
both with services that they offer and with services offered by HP.
Troubleshooting
3-9
9934.book Page 10 Thursday, January 14, 1999 12:39 PM
9934.book Page 1 Thursday, January 14, 1999 12:39 PM
A
Specifications
Except where otherwise noted, the following specifications apply to all of the
HP 10/100 hubs: Hub 12, Hub 24, Hub 12M, and Hub 24M
Physical
Width:
44.2 cm (17.4 in)
Depth:
20.4 cm (8.0 in)
Height:
4.4 cm (1.7 in)
Weight :
2.2 kg (4.8 lbs)
Electrical
The hubs automatically adjust to any voltage between 100-127 and 200-240
volts and either 50 or 60 Hz.
AC voltage:
100–127 volts
200–240 volts
Maximum current:
1.0A
0.5A
Frequency range:
50/60 Hz
50/60 Hz
Environmental
Non-Operating
Temperature:
0°C to 55°C (32°F to 131°F)
-40°C to 70°C (-40°F to 158°F)
Relative humidity:
(non-condensing)
15% to 95% at 40°C (104°F)
10% to 90% at 65°C (149°F)
Maximum altitude:
4.6 Km (15,000 ft)
4.6 Km (15,000 ft)
Specifications
Operating
A-1
9934.book Page 2 Thursday, January 14, 1999 12:39 PM
Specifications
Acoustic
Geraeuschemission LwA=51 dB am fiktiven Arbeitsplatz nach DIN 45635 T.19
Connectors
■
The 10/100 Mbps RJ-45 twisted-pair ports are compatible with the IEEE
802.3 Type 10Base-T and 802.3u 100Base-TX standards respectively.
Specifications
Safety
A-2
■
EN60950 / IEC 950
■
CSA 22.2 No. 950
■
UL 1950, 3rd edition
9934.book Page 1 Thursday, January 14, 1999 12:39 PM
B
This appendix includes hub connector information and network cable information for cables that should be used with the HP 10/100 hubs, including
minimum pin-out information for twisted-pair cables.
Note
Incorrectly wired cabling is the most common cause of problems for LAN
communications. HP recommends that you work with a qualified LAN cable
installer for assistance with your cabling requirements.
Twisted-Pair Cable/Connector Pin-Outs
The RJ-45 10/100Base-T ports on the HP 10/100 hubs are wired as MDI-X ports.
Port 1 on each hub can be changed to an MDI port by pressing the MDI-X/MDI
switch on the front of the hub to the MDI position. The type of twisted-pair
cable you connect to these ports (either “straight-through” or “crossover”)
depends on the type of device at the other end of the cable.
The basic rule is, when connecting same-type ports together (for example
MDI-X-to-MDI-X), use crossover cable; when connecting opposite-type ports
together (for example MDI-X-to-MDI), use straight-through cable.
These additional rules apply:
■
All twisted-pair wires used for 10 Mbps and 100 Mbps operation must be
twisted through the entire length of the cable. The wiring sequence must
conform to EIA/TIA 568-B (not USOC). See “Twisted-Pair Cable Pin
Assignments” later in this appendix for a listing of the signals used on each
pin.
■
For 10 Mbps connections to the ports, you can use Category 3, 4, or 5
unshielded twisted-pair cable, as supported by the IEEE 802.3 Type
10Base-T standard.
■
For 100 Mbps connections to the ports, use 100-ohm Category 5 UTP cable
only, as supported by the IEEE 802.3u Type 100Base-TX standard.
B-1
Cables and Connectors
Cables and Connectors
9934.book Page 2 Thursday, January 14, 1999 12:39 PM
Cables and Connectors
Twisted-Pair Cable/Connector Pin-Outs
Cables and Connectors
Twisted-Pair Cable for Hub (MDI-X) to
Computer (MDI) 10 Mbps or 100 Mbps Network
Connection
To connect PCs or other MDI network devices to these ports, use a “straightthrough” cable.
Connector “A”
Connector “B”
Straight-Through Cable
White/Orange
Orange/White
White/Green
Green/White
Note
Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 4, 5, 7, and 8 are not used in this application, although they may be wired
in the cable.
.
B-2
9934.book Page 3 Thursday, January 14, 1999 12:39 PM
Cables and Connectors
Twisted-Pair Cable/Connector Pin-Outs
To connect hubs or switches or other MDI-X network devices to these ports,
use a “crossover” cable.
Connector “A”
Connector “B”
Crossover Cable
White/Orange
Orange/White
White/Green
Green/White
Note
Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 4, 5, 7, and 8 are not used in this application, although they may be wired
in the cable.
.
B-3
Cables and Connectors
Twisted-Pair Cable for Hub (MDI-X) to
Hub (MDI-X) 10 Mbps or 100 Mbps Network Connection
9934.book Page 4 Thursday, January 14, 1999 12:39 PM
Cables and Connectors
Twisted-Pair Cable/Connector Pin-Outs
Cables and Connectors
Twisted-Pair Cable Pin Assignments
Twisted-Pair Straight-Through Cable
Hub End (MDI-X)
Computer, Transceiver, or
Other MDI Port End
Signal
Pins
Pins
Signal
receive +
receive transmit +
transmit -
1
2
3
6
1
2
3
6
transmit +
transmit receive +
receive -
Twisted-Pair Crossover Cable
B-4
Hub End (MDI-X)
Hub or Switch Port, or Other
MDI-X Port End
Signal
Pins
Pins
Signal
receive +
receive transmit +
transmit -
1
2
3
6
6
3
2
1
transmit transmit +
receive receive +
9934.book Page 1 Thursday, January 14, 1999 12:39 PM
C
Safety and EMC Regulatory Statements
Safety Information
WARNING
A WARNING in the manual denotes a hazard that can cause injury
or death.
CAUTION
A CAUTION in the manual denotes a hazard that can damage
equipment.
Safety and EMC Regulatory
Statements
!
Documentation reference symbol. If the product is marked with this
symbol, refer to the product documentation to get more information
about the product.
Do not proceed beyond a WARNING or CAUTION notice until you
have understood the hazardous conditions and have taken appropriate steps.
Grounding
These are safety class I products and have protective earthing terminals. There
must be an uninterruptible safety earth ground from the main power source
to the product’s input wiring terminals, power cord, or supplied power cord
set. Whenever it is likely that the protection has been impaired, disconnect
the power cord until the ground has been restored.
For LAN cable grounding:
■
If your LAN covers an area served by more than one power distribution system, be sure their safety grounds are securely interconnected.
■
LAN cables may occasionally be subject to hazardous transient voltages (such as lightning or disturbances in the electrical utilities power
grid). Handle exposed metal components of the network with caution.
Servicing
There are no user-serviceable parts inside these products. Any servicing,
adjustment, maintenance, or repair must be performed only by service-trained
personnel.
These products do not have a power switch; they are powered on when the
power cord is plugged in.
C-1
9934.book Page 2 Thursday, January 14, 1999 12:39 PM
Safety and EMC Regulatory Statements
Informations concernant la sécurité
Informations concernant la sécurité
Safety and EMC Regulatory
Statements
!
Symbole de référence à la documentation. Si le produit est marqué de
ce symbole, reportez-vous à la documentation du produit afin d'obtenir
des informations plus détaillées.
WARNING
Dans la documentation, un WARNING indique un danger susceptible
d'entraîner des dommages corporels ou la mort.
CAUTION
Un texte de mise en garde intitulé CAUTION indique un danger susceptible de causer des dommages à l'équipement.
Ne continuez pas au-delà d'une rubrique WARNING ou CAUTION avant
d'avoir bien compris les conditions présentant un danger et pris les
mesures appropriées.
Cet appareil est un produit de classe I et possède une borne de mise à la terre. La source
d'alimentation principale doit être munie d'une prise de terre de sécurité installée aux
bornes du câblage d'entrée, sur le cordon d'alimentation ou le cordon de raccordement
fourni avec le produit. Lorsque cette protection semble avoir été endommagée,
débrancher le cordon d'alimentation jusqu'à ce que la mise à la terre ait été réparée.
Mise à la terre du câble de réseau local:
■
si votre réseau local s'étend sur une zone desservie par plus d'un système de
distribution de puissance, assurez-vous que les prises de terre de sécurité
soient convenablement interconnectées.
■
Les câbles de réseaux locaux peuvent occasionnellement être soumis à des
surtensions transitoires dangereuses (telles que la foudre ou des perturbations dans le réseau d'alimentation public). Manipulez les composants
métalliques du réseau avec précautions.
Aucune pièce contenue à l'intérieur de ce produit ne peut être réparée par l'utilisateur.
Tout dépannage, réglage, entretien ou réparation devra être confié exclusivement à un
personnel qualifié.
Cet appareil ne comporte pas de commutateur principal ; la mise sous tension est
effectuée par branchement du cordon d'alimentation.
C-2
9934.book Page 3 Thursday, January 14, 1999 12:39 PM
Safety and EMC Regulatory Statements
Hinweise zur Sicherheit
Hinweise zur Sicherheit
!
Symbol für Dokumentationsverweis. Wenn das Produkt mit diesem
Symbol markiert ist, schlagen Sie bitte in der Produktdokumentation
nach, um mehr Informationen über das Produkt zu erhalten.
WARNING
Eine WARNING in der Dokumentation symbolisiert eine Gefahr, die
Verletzungen oder sogar Todesfälle verursachen kann.
CAUTION
CAUTION in der Dokumentation symbolisiert eine Gefahr, die dis
Gerät beschädigen kann.
Dies ist ein Gerät der Sicherheitsklasse I und verfügt über einen schützenden Erdungsterminal. Der Betrieb des Geräts erfordert eine ununterbrochene Sicherheitserdung
von der Hauptstromquelle zu den Geräteingabeterminals, den Netzkabeln oder dem
mit Strom belieferten Netzkabelsatz voraus. Sobald Grund zur Annahme besteht, daß
der Schutz beeinträchtigt worden ist, das Netzkabel aus der Wandsteckdose herausziehen, bis die Erdung wiederhergestellt ist.
Für LAN-Kabelerdung:
■
Wenn Ihr LAN ein Gebiet umfaßt, das von mehr als einem Stromverteilungssystem beliefert wird, müssen Sie sich vergewissern, daß die
Sicherheitserdungen fest untereinander verbunden sind.
■
LAN-Kabel können gelegentlich gefährlichen Übergangsspannungen ausgesetzt werden (beispielsweise durch Blitz oder Störungen in dem
Starkstromnetz des Elektrizitätswerks). Bei der Handhabung exponierter
Metallbestandteile des Netzwerkes Vorsicht walten lassen.
Dieses Gerät enthält innen keine durch den Benutzer zu wartenden Teile. Wartungs-,
Anpassungs-, Instandhaltungs- oder Reparaturarbeiten dürfen nur von geschultem
Bedienungspersonal durchgeführt werden.
Dieses Gerät hat keinen Netzschalter; es wird beim Anschließen des Netzkabels
eingeschaltet.
C-3
Safety and EMC Regulatory
Statements
Fahren Sie nach dem Hinweis WARNING oder CAUTION erst fort,
nachdem Sie den Gefahrenzustand verstanden und die entsprechenden Maßnahmen ergriffen haben.
9934.book Page 4 Thursday, January 14, 1999 12:39 PM
Safety and EMC Regulatory Statements
Considerazioni sulla sicurezza
Considerazioni sulla sicurezza
Safety and EMC Regulatory
Statements
!
Simbolo di riferimento alla documentazione. Se il prodotto è contrassegnato da questo simbolo, fare riferimento alla documentazione sul
prodotto per ulteriori informazioni su di esso.
WARNING
La dicitura WARNINGdenota un pericolo che può causare lesioni o
morte.
CAUTION
La dicituraCAUTION denota un pericolo che può danneggiare le
attrezzature.
Non procedere oltre un avviso di WARNING o di CAUTIONprima di
aver compreso le condizioni di rischio e aver provveduto alle misure
del caso.
Questo prodotto è omologato nella classe di sicurezza I ed ha un terminale protettivo
di collegamento a terra. Dev'essere installato un collegamento a terra di sicurezza, non
interrompibile che vada dalla fonte d'alimentazione principale ai terminali d'entrata,
al cavo d'alimentazione oppure al set cavo d'alimentazione fornito con il prodotto.
Ogniqualvolta vi sia probabilità di danneggiamento della protezione, disinserite il cavo
d'alimentazione fino a quando il collegaento a terra non sia stato ripristinato.
Per la messa a terra dei cavi LAN:
■
se la vostra LAN copre un'area servita da più di un sistema di distribuzione
elettrica, accertatevi che i collegamenti a terra di sicurezza siano ben collegati
fra loro;
■
i cavi LAN possono occasionalmente andare soggetti a pericolose tensioni
transitorie (ad esempio, provocate da lampi o disturbi nella griglia d'alimentazione della società elettrica); siate cauti nel toccare parti esposte in metallo
della rete.
Nessun componente di questo prodotto può essere riparato dall'utente. Qualsiasi
lavoro di riparazione, messa a punto, manutenzione o assistenza va effettuato esclusivamente da personale specializzato.
Questo apparato non possiede un commutatore principale; si mette scotto tensione
all'inserirsi il cavo d'alimentazione.
C-4
9934.book Page 5 Thursday, January 14, 1999 12:39 PM
Safety and EMC Regulatory Statements
Consideraciones sobre seguridad
Consideraciones sobre seguridad
!
Símbolo de referencia a la documentación. Si el producto va
marcado con este símbolo, consultar la documentación del
producto a fin de obtener mayor información sobre el producto.
WARNING
Una WARNING en la documentación señala un riesgo que podría
resultar en lesiones o la muerte.
CAUTION
Una CAUTION en la documentación señala un riesgo que podría
resultar en averías al equipo.
Este aparato se enmarca dentro de la clase I de seguridad y se encuentra protegido por
una borna de puesta a tierra. Es preciso que exista una puesta a tierra continua desde
la toma de alimentación eléctrica hasta las bornas de los cables de entrada del aparato,
el cable de alimentación o el juego de cable de alimentación suministrado. Si existe la
probabilidad de que la protección a tierra haya sufrido desperfectos, desenchufar el
cable de alimentación hasta haberse subsanado el problema.
Puesta a tierra del cable de la red local (LAN):
■
Si la LAN abarca un área cuyo suministro eléctrico proviene de más de una
red de distribución de electricidad, cerciorarse de que las puestas a tierra
estén conectadas entre sí de modo seguro.
■
Es posible que los cables de la LAN se vean sometidos de vez en cuando a
voltajes momentáneos que entrañen peligro (rayos o alteraciones en la red
de energía eléctrica). Manejar con precaución los componentes de metal de
la LAN que estén al descubierto.
Este aparato no contiene pieza alguna susceptible de reparación por parte del usuario.
Todas las reparaciones, ajustes o servicio de mantenimiento debe realizarlos solamente el técnico.
Este producto no tiene interruptor de potencia; se activa cuando se enchufa el cable
de alimentación.
C-5
Safety and EMC Regulatory
Statements
No proseguir después de un símbolo de WARNING o CAUTION hasta
no haber entendido las condiciones peligrosas y haber tomado las
medidas apropiadas.
9934.book Page 6 Thursday, January 14, 1999 12:39 PM
Safety and EMC Regulatory Statements
Safety Information (Japan)
Safety and EMC Regulatory
Statements
Safety Information (Japan)
C-6
9934.book Page 7 Thursday, January 14, 1999 12:39 PM
Safety and EMC Regulatory Statements
Safety Information (China)
Safety Information (China)
Safety and EMC Regulatory
Statements
C-7
9934.book Page 8 Thursday, January 14, 1999 12:39 PM
Safety and EMC Regulatory Statements
EMC Regulatory Statements
EMC Regulatory Statements
U.S.A.
FCC Class A
Safety and EMC Regulatory
Statements
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause interference to
radio communications. Operation of this equipment in a residential area may
cause interference in which case the user will be required to correct the
interference at his own expense.
Canada
This product complies with Class A Canadian EMC requirements.
Australia/New Zealand
This product complies with Australia/New Zealand EMC Class A
requirements.
Japan
VCCI Class A
C-8
9934.book Page 9 Thursday, January 14, 1999 12:39 PM
Safety and EMC Regulatory Statements
EMC Regulatory Statements
Korea
Safety and EMC Regulatory
Statements
Taiwan
C-9
9934.book Page 10 Thursday, January 14, 1999 12:39 PM
Safety and EMC Regulatory Statements
EMC Regulatory Statements
European Community
Safety and EMC Regulatory
Statements
Declaration for Hub 12M and Hub 24M
C-10
9934.book Page 11 Thursday, January 14, 1999 12:39 PM
Safety and EMC Regulatory Statements
EMC Regulatory Statements
Declaration for Hub 12 and Hub 24
Safety and EMC Regulatory
Statements
C-11
9934.book Page 12 Thursday, January 14, 1999 12:39 PM
9934.book Page 1 Thursday, January 14, 1999 12:39 PM
Index
Numerics
100Base-T
cascading hubs … 2-16
topology rules … 3-3
100Base-TX
cascading hubs … 2-15
100Base-TX ports
cables used with … 2-4
10Base-T
cascading hubs … 2-14, 2-16
10Base-T ports
cables used with … 2-4
A
Act LED for activity indication … 1-4
B
back of hub
description … 1-5
power connector … 1-5
Bootp
for in-band access … 2-11
bridge, internal … 1-6, 2-16
cabinet
mounting the hub in … 2-6
cables
category 3, 4, 5 … B-1
connecting cables to hub ports … 2-10
crossover cable pinout … B-4
for cascading hubs, 10 and 100 Mbps … 2-16
for cascading hubs, 10 Mbps … 2-14
for cascading hubs, 100 Mbps … 2-15
for connecting end nodes … 2-13
for connecting switches … 2-17
infrastructure requirements … 2-4
length limitations
cascading hubs, 10 Mbps … 2-14, 2-16
cascading hubs, 100 Mbps … 2-15–2-16
connections to a switch … 2-17
D
deleting passwords … 1-5
description
back of hubs … 1-5
DHCP
for in-band access … 2-11
diagnostic tests … 3-7
end-to-end connectivity … 3-8
testing the hub only … 3-7
testing twisted-pair cabling … 3-7
Index – 1
Index
C
end node connections … 2-13
serial, for direct console connection … 2-12
straight-through cable pinout … B-4
twisted-pair connector pin-outs … B-1
cabling infrastructure … 2-4
cascading hubs
10 and 100 Mbps sample topology … 2-16
10 Mbps sample topology … 2-14
100 Mbps sample topology … 2-15
Class II hub, topology rules … 3-3
Clear button
deleting passwords … 1-5
Col LED for collision indication … 1-4
connecting end nodes
sample topology … 2-13
connecting to a switch
sample topology … 2-17
connector specifications … A-2
console
displaying the Main menu … 2-12
features … 2-11
how to connect in-band … 2-11
how to connect out-of-band … 2-11
serial cable connection … 2-12
Telnet access … 2-12
terminal configuration … 2-11
using Telnet … 2-11
crossover cable
pin-out … B-4
9934.book Page 2 Thursday, January 14, 1999 12:39 PM
E
electrical specifications … A-1
EMC regulatory statements … C-8
environmental specifications … A-1
installing
10/100 hub 12/24 … 2-1
internal bridge … 1-6
L
F
Fault LED … 1-4, 2-5, 3-4
features
console … 2-11
HP 10/100 Hubs … 1-6
flashing LED
error indications … 3-4
front of hub
illustration … 1-2
H
Index
horizontal surface
mounting hub on … 2-8
hub
description … 1-1
diagnostics tests … 3-7
features … 1-6
mounting in a rack or cabinet … 2-6
mounting on a wall … 2-9
mounting on horizontal surface … 2-8
hub operation
verifying after installation … 2-5
I
illustration
front of hubs … 1-2
in-band console access
types of … 2-11
included parts … 2-1
installation
connecting a console to the hub … 2-11
connecting network cables to the hub … 2-10
connecting the hub to a power source … 2-9
horizontal surface mounting … 2-8
network cable requirements … 2-4
rack mounting … 2-6
site preparation … 2-4
summary of steps … 2-2
verifying hub operation … 2-5
wall mounting … 2-9
2 – Index
LEDs
Act for activity indication … 1-4
behavior during self test … 2-5
Col for collision indication … 1-4
descriptions of … 1-4
error indications … 3-4
Fault … 1-4
Link … 1-4
Power … 1-4
length limitations, cables
cascading hubs, 10 Mbps … 2-14, 2-16
cascading hubs, 100 Mbps … 2-15–2-16
connections to a switch … 2-17
end node connections … 2-13
link test … 3-8
M
Main menu, console
displaying … 2-12
MDI-X to MDI network cable … B-2
MDI-X to MDI-X network cable … B-3
mounting the hub
in a rack … 2-6
on a horizontal surface … 2-8
on a wall … 2-9
N
network cables
100Base-TX connections … 2-4
10Base-T connections … 2-4
for cascading hubs, 10 and 100 Mbps … 2-16
for cascading hubs, 10 Mbps … 2-14
for cascading hubs, 100 Mbps … 2-15
for connecting end nodes … 2-13
for connecting switches … 2-17
required types … 2-4
network ports
connecting to … 2-10
LEDs for … 1-4
types of … 1-3
9934.book Page 3 Thursday, January 14, 1999 12:39 PM
network topologies
cascading hubs, 10 and 100 Mbps … 2-16
cascading hubs, 10 Mbps … 2-14
cascading hubs, 100 Mbps … 2-15
Class II hub rules … 3-3
connecting end nodes … 2-13
connecting to a switch … 2-17
rules for 100Base-T … 3-3
samples … 2-13
O
out-of-band console access … 2-12
P
passwords, deleting … 1-5
physical specifications of hubs … A-1
Ping test … 3-8
ports
connecting to … 2-10
console … 2-11
LEDs for … 1-3–1-4
power connector … 1-5
Power LED … 1-4, 2-5, 3-4
Proactive Network tools
diagnostics with … 3-6
R
mounting the hub in … 2-6
regulatory statements … C-8
resetting the hub
troubleshooting procedure … 3-7
S
safety and regulatory statements … C-1
sample network topologies … 2-13
sample topologies
cascading hubs, 10 and 100 Mbps … 2-16
cascading hubs, 10 Mbps … 2-14
cascading hubs, 100 Mbps … 2-15
connecting end nodes … 2-13
connecting to a switch … 2-17
self test
hub LED behavior during … 2-5
T
Telnet access to the console … 2-12
terminal configuration … 2-11
testing
end-to-end communications … 3-8
link test … 3-8
Ping test … 3-8
twisted-pair cabling … 3-7
topologies
cascading hubs, 10 and 100 Mbps … 2-16
cascading hubs, 10 Mbps … 2-14
cascading hubs, 100 Mbps … 2-15
Class II hub rules … 3-3
connecting end nodes … 2-13
connecting to a switch … 2-17
effects of improper topology … 3-2
rules for 100Base-T … 3-3
samples … 2-13
troubleshooting … 3-1
common network problems … 3-2
diagnostic tests … 3-7
effects of improper topology … 3-2
effects of non-standard cables … 3-2
link test … 3-8
Ping test … 3-8
Proactive Network tools … 3-6
testing end-to-end communications … 3-8
testing the hub … 3-7
testing the twisted-pair cables … 3-7
Index – 3
Index
rack
serial cable
for direct console connection … 2-12
slow flash rate definition … 1-4
specifications … A-1
connectors … A-2
electrical … A-1
electromagnetic … A-2
environmental … A-1
physical … A-1
speed-matching bridge … 2-16
straight-through cable
pin-out … B-4
summary of hub installation … 2-2
switch
connecting hub to … 2-17
9934.book Page 4 Thursday, January 14, 1999 12:39 PM
twisted-pair cable
crossover cable pin-out … B-4
hub- to-hub or hub (MDI-X) connection … B-3
hub-to-computer connection … B-2
pin-outs … B-1, B-4
straight-through cable pin-out … B-4
testing … 3-7
twisted-pair port LEDs
100 Mbps … 1-4
Link … 1-4
V
VT-100 terminal
serial cable connection for … 2-12
W
wall
Index
mounting hub on … 2-9
4 – Index
Technical information in this document
is subject to change without notice.
©Copyright Hewlett-Packard Company
1998. All rights reserved. Reproduction,
adaptation, or translation without prior
written permission is prohibited except
as allowed under the copyright laws.
Printed in Singapore 01/99
Manual Part Number
5967-9934
*5967-9934*
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
