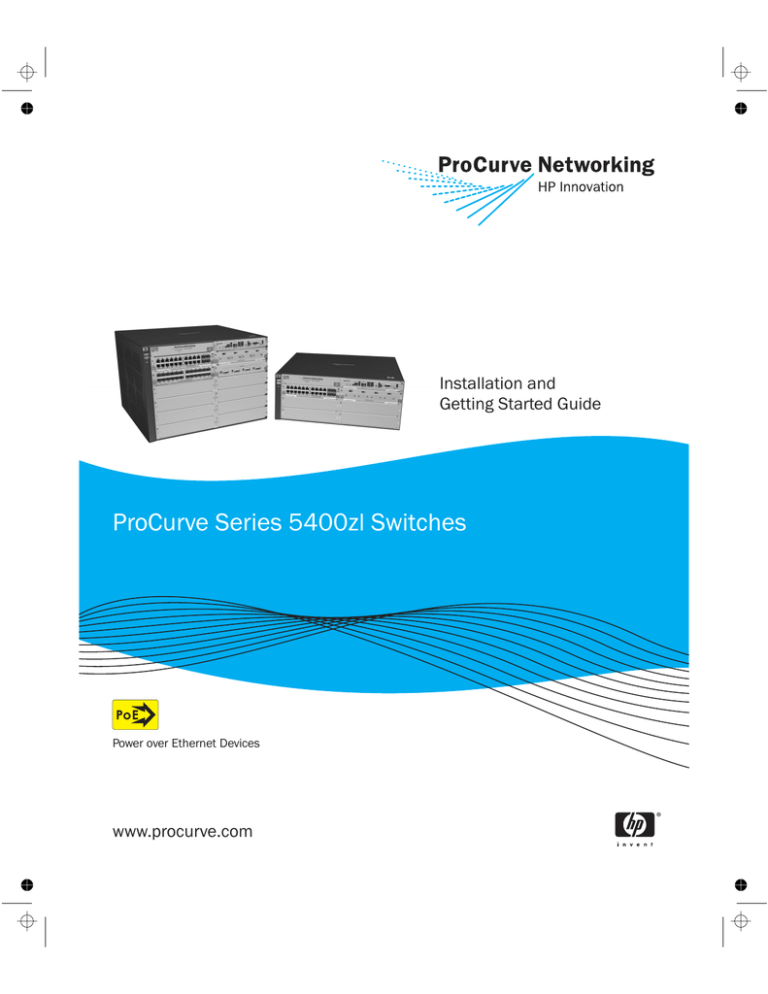

Installation and
Getting Started Guide
ProCurve Series 5400zl Switches
PoE
Power over Ethernet Devices
www.procurve.com
ProCurve Series 5400zl Switches
Installation and Getting Started Guide
© Copyright 2005 - 2007 Hewlett-Packard Development Company,
L.P. The information contained herein is subject to change
without notice.
This document contains proprietary information, which is
protected by copyright. No part of this document may be
photocopied, reproduced, or translated into another
language without the prior written consent of
Hewlett-Packard.
Disclaimer
HEWLETT-PACKARD COMPANY MAKES NO WARRANTY
OF ANY KIND WITH REGARD TO THIS MATERIAL,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not
be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing,
performance, or use of this material.
The only warranties for HP products and services are set
forth in the express warranty statements accompanying
such products and services. Nothing herein should be
construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions
contained herein.
Publication Number
5991-4741
February 2007
Applicable Products
ProCurve Switch 5406zl
(J8697A)
ProCurve Switch 5406zl-48G
(J8699A)
ProCurve Switch 5412zl
(J8698A)
ProCurve Switch 5412zl-96G
(J8700A)
ProCurve Switch zl Power Supply Shelf
(J8714A)
Hewlett-Packard assumes no responsibility for the use or
reliability of its software on equipment that is not furnished
by Hewlett-Packard.
Warranty
See the Customer Support/Warranty booklet included with
the product.
A copy of the specific warranty terms applicable to your
Hewlett-Packard products and replacement parts can be
obtained from your HP Sales and Service Office or
authorized dealer.
Safety
Before installing and operating these products, please read
the “Installation Precautions” in chapter 2, “Installing the
Series 5400zl Switches”, and the safety statements in
appendix C, “Safety and Regulatory Statements”.
Hewlett-Packard Company
8000 Foothills Boulevard, m/s 5552
Roseville, California 95747-5552
http://www.procurve.com
Contents
1 Introducing the ProCurve Series
5400zl Switches
Front of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
LED Mode Select Button and Indicator LEDs . . . . . . . . . . . . . . . . . . . . 1-9
Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Back of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Redundant Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Switch Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
2 Installing the Series 5400zl Switches
Included Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
1. Prepare the Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Cabling Infrastructure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
2. Install Switch Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
3. (Optional) Install Another Power Supply . . . . . . . . . . . . . . . . . . . . . 2-12
4. Verify the Switch Passes Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
LED Behavior: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
5.Mount the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rack or Cabinet Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
......................................................
Horizontal Surface Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-17
2-17
2-20
2-20
6. Install the Grounding Wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
7. Connect the Switch to a Power Source . . . . . . . . . . . . . . . . . . . . . . 2-21
iii
8. (Optional) Connect a Power Supply Shelf
to the switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EPS Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Characteristics of the EPS (J8714A) . . . . . . . . . . . . . .
Power Supply Shelf LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Power Supply Shelf . . . . . . . . . . . . . . . . . . . . . . .
2-22
2-22
2-23
2-23
2-24
9. Connect the Network Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-25
10. (Optional) Connect a Console to the Switch . . . . . . . . . . . . . . . . .
Terminal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Direct Console Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Telnet Console Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-26
2-26
2-27
2-27
Hot Swapping Switch Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-28
Adding or Replacing Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-28
Changing the Module Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-28
Example Network Topologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-29
Basic Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-29
Use as an Edge Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-30
3 Getting Started With Switch Configuration
Recommended Minimal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Using the Switch Setup Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Where to Go From Here . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Using the IP Address for Remote Switch Management . . . . . . . . . . . . . . . . 3-5
Starting a Telnet Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Starting a Web Browser Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
4 Replacing Components
Replacing Power Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Replacing Fan Trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Replacing the Management Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Replacing the Management Module Compact Flash Card . . . . . . . . . . . . . 4-6
Installing a Compact Flash Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Replacing the Management Module Battery . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Installing a New Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
iv
5 Troubleshooting
Basic Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Diagnosing with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Proactive Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
Hardware Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Testing the Switch by Resetting It . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Checking the Switch LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Checking Console Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Testing Twisted-Pair Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11
Testing Switch-to-Device Network Communications . . . . . . . . . . . . 5-11
Testing End-to-End Network Communications . . . . . . . . . . . . . . . . . 5-11
Restoring the Factory Default Configuration . . . . . . . . . . . . . . . . . . . . . . . 5-12
Downloading New Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13
HP Customer Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13
Before Calling Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13
A Specifications
Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Acoustic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
Switch 5400zl and 5406zl-48G: . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
Switch 5412zl and 5412zl-96G: . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
Network Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
Lasers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4
B Switch Ports and Network Cables
Switch Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
Twisted Pair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
Fiber-Optic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
v
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Twisted-Pair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fiber-Optic Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Copper Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
B-2
B-2
B-3
B-4
Mode Conditioning Patch Cord for Gigabit-LX . . . . . . . . . . . . . . . . . . . . . B-5
Installing the Patch Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-6
Twisted-Pair Cable/Connector Pin-Outs . . . . . . . . . . . . . . . . . . . . . . . . . . . B-6
Straight-Through Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connections . . . . . . . . . . . . . . . . . . . . B-8
Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8
Crossover Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connection . . . . . . . . . . . . . . . . . . . . . B-9
Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9
Straight-Through Twisted-Pair Cable for
1000 Mbps Network Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-10
Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-10
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-10
C Safety and Regulatory Statements
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1
Informations concernant la sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2
Hinweise zur Sicherheit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3
Considerazioni sulla sicurezza . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4
Consideraciones sobre seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5
Safety Information (Japan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-6
Safety Information (China) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-7
EMC Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8
U.S.A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8
Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8
Australia/New Zealand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8
Japan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8
Korea . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-9
Taiwan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-9
Regulatory Model Identification Number . . . . . . . . . . . . . . . . . . . . . . C-9
Regulatory Information (China) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-11
vi
D Recycle Statements
Waste Electrical and Electronic Equipment (WEEE) Statements . . . . . . D-1
Index
vii
1
The ProCurve Series 5400zl Switches include the Switch 5406zl, 5412zl and
their bundles, the Switch 5406zxl-48G and Switch 5412zl-96G. They are multiport modular switches that provide Layer 3 routing features, and that feature
low latency for high-speed networking.
This chapter describes your Series 5400zl Switches including:
■
Front and back of the switches
■
Features
■
Switch operation overview
Switch 5406zl, Switch 5406zl-48G. The Switch 5406zl is available as an
open 6-slot chassis (J8697A) and as the Switch 5406zl-48G bundle (J8699A)
with two 24-port 10/100/1000-T zl Modules pre-installed.
Note
The open 6-slot chassis (J8697A) does not ship with any power supplies. The
switch needs at least one power supply to operate.
Figure 1-1. ProCurve Switch 5406zl (J8697A)
1-1
Introducing the ProCurve
Series 5400zl Switches
Introducing the ProCurve Series
5400zl Switches
Introducing the ProCurve
Series 5400zl Switches
Introducing the ProCurve Series 5400zl Switches
Note
The 5406zl-48G bundle (J8699A) does ship with one power supply, the J8712A.
Figure 1-2. ProCurve Switch 5406zl-48G bundle (J8699A) with two 10/100/1000-T
zl Modules
1-2
Introducing the ProCurve Series 5400zl Switches
Figure 1-3. ProCurve Switch 5412zl (J8698A)
1-3
Introducing the ProCurve
Series 5400zl Switches
Switch 5412zl, Switch 5412zl-96G. The Switch 5412zl is available as an
open 12-slot chassis (J8698A) and as the Switch 5412zl-96G bundle (J8700A)
with four 24-port 10/100/1000-T zl Modules pre-installed.
Introducing the ProCurve
Series 5400zl Switches
Introducing the ProCurve Series 5400zl Switches
Note
The 5412zl-96G bundle (J8700A) ships with two power supplies, the J8712A.
Figure 1-4. ProCurve Switch 5412zl-96G (J8700A)
See “Switch Features” on page 1-13 for a list of the switch modules that can
be installed in the ProCurve Series 5400zl Switches (modules available when
this manual was printed).
1-4
Introducing the ProCurve Series 5400zl Switches
Front of the Switch
Status LEDs for the
Fans, Power Supplies,
and Switch Modules
Power
and Fault
LEDs
LED Mode Select button
and indicator LEDs
Locator LED
Reset and Clear
buttons
Module Link
and Mode LEDs
Auxiliary Port
Console
Port
Self Test LED
Switch Modules and slots
with Link and Mode LEDs for each port located on each module
Figure 1-5. Front of 5406zl-48G Switch
This illustration shows the 5406zl-48G (J8699A), but the labeling and descriptions apply to all of the ProCurve Series 5400zl switches.
1-5
Introducing the ProCurve
Series 5400zl Switches
Front of the Switch
Introducing the ProCurve Series 5400zl Switches
Front of the Switch
Introducing the ProCurve
Series 5400zl Switches
LEDs
As described in the next two tables, there are LEDs on the switch chassis and
on the switch modules that keep you informed of the status of the switch and
the network connections.
Table 1-1.
Switch Chassis LEDs
LEDs
State
Meaning
Power
(green)
On
The switch is receiving power.
Off
The switch is NOT receiving power.
Fault
(orange)
Off
The normal state; indicates that there are no fault conditions on the switch.
Blinking1
A fault has occurred on the switch, one of the switch modules, an individual port, a power
supply, or a fan. The Status LED for the module or other device with the fault will flash
simultaneously.
On
On briefly at the beginning of switch self test after the switch is powered on or reset. If on
for a prolonged time, the switch has encountered a fatal hardware failure, or has failed its
self test. See chapter 4, “Troubleshooting” for more information.
Locator
Test
(green/Orange)
Reserved for future releases.
Off
The normal operational state; the switch is not undergoing self test.
On
The switch self test and initialization are in progress after you have power cycled or reset
the switch. The switch is not operational until this LED goes off. The Self Test LED also
comes on briefly when you “hot swap” a module into the switch and the module is
automatically self tested.
Blinking1 A component of the switch has failed its self test. The Status LED for that component, for
example a switch module, and the switch Fault LED will flash simultaneously.
DIMM
(green/Orange)
On
Off
Blinking
Chas
(green)/Orange
Flash
(green/Orange)
DIMM status is known and fault free.
DIMM status is unknown.
1
If DIMM, Fault, and Self Test LEDs are blinking, DIMM failed self-test.
If DIMM and Fault LEDs are blinking, an operational fault has occurred.
If fast blinking (400ms On and 400ms Off), an operational alert occurred and is unresolved.
Reserved for future releases.
On
Flash Card status is known and fault free
Off
Flash Card status is unknown.
Blinking1 If Flash, Fault, and Self Test LEDs are blinking, Flash Card failed self-test.
If Flash and Fault LEDs are blinking, an operational fault has occurred.
If fast blinking (400ms On and 400ms Off), an operational alert occurred and is unresolved
(e.g., Flash Card not present).
1-6
Introducing the ProCurve Series 5400zl Switches
Front of the Switch
State
Meaning
Mgmt
(green/Orange)
On
A Management module is present and fault free.
Off
The switch is powered off.
Blinking1 There is a fault on the Management module.
PoE
(green/Orange)
On
Off
Introducing the ProCurve
Series 5400zl Switches
LEDs
If any PoE modules are installed.
If no PoE modules are installed.
Blinking1 Internal PoE fault.
Blinking2 External load fault or denied PoE power.
Temp
(green/Orange)
Off
Fan
(green/Orange)
On
Switch temperature is normal.
Blinking1 An over temperature condition has been detected.
Blinking
The cooling fans are operating normally.
1
Internal Power
On
(green/Orange numbers
corresponding to
the power supply Off
positions)
Blinking1
EPS
(green/Orange)
On
Off
One or more of the cooling fans have failed. The switch Fault LED will be blinking
simultaneously.
A power supply is installed in the position in the back of the switch corresponding to the
number, and the supply is plugged in to an active AC power source. As shipped, the switch
has a single power supply in position 1.
A power supply is not installed in the position corresponding to the number.
The power supply installed in the position corresponding to the number is not plugged in
to an active AC power source, or has experienced a fault. The switch Fault LED will be
blinking simultaneously.
An External Power Supply is connected.
No External Power Supply is connected.
Blinking1 The External Power Supply has a fault, or is connected but not plugged into AC power.
Modules (green - On
letters
corresponding to
the switch
Off
module slots)
A module is installed in the switch module slot corresponding to the letter and the module
is undergoing or has passed self test. This also occurs when you install a module when
the switch is already powered on (“hot swap”).
A module is not installed in the switch module slot corresponding to the letter.
Blinking1 The module status LED flashes very briefly when a module is being hot swapped. If the LED
flashes for a prolonged time, the module in the slot corresponding to the letter has failed
self test or encountered some other fault condition. See chapter 4, “Troubleshooting” for
a more information.
In PoE Mode:
On
Blinking1
Blinking2
Off
PoE is ok for this slot.
PoE internal fault for this slot.
PoE load fault or insufficient power for this slot.
The module in this slot is not a PoE module.
1-7
Introducing the ProCurve Series 5400zl Switches
Front of the Switch
Introducing the ProCurve
Series 5400zl Switches
LEDs
State
Meaning
LED Mode Select Act
(5 green LEDs)
FDx
Indicates that the port Mode LEDs are displaying network activity information.
Indicates that the port Mode LEDs are lit for ports that are in Full Duplex Mode.
PoE
Indicates which ports are supplying PoE power.
• If the Mode LED is on the port is providing PoE power.
• If the Mode LED is off the port is not providing PoE power.
• If the Link LED is on the port is enabled for PoE.
• If the Link LED is off the port is disabled for PoE.
• If the Link LED is blinking, the port has an error or the port is denied power due to
insufficient power.
Spd
Indicates the Port LEDs are displaying the connection speed at which each port is
operating:
• if the Port LED is off, the port is operating at 10 Mbps
• if the Port LED is blinking, the port is operating at 100 Mbps
• if the Port LED is on continuously, the port is operating at 1000 Mbps
Usr
Reserved for future development
Auxiliary (green/
Orange)
Reserved for future development
1 The blinking behavior is an on/off cycle once every 1.6 seconds, approximately.
2 The blinking behavior is an on/off cycle once every 0.5 seconds, approximately.
Table 1-2.
Switch Module LEDs
These LEDs are located on the modules themselves, one pair for each port.
LED
State
Meaning
Link
On
Indicates the port is enabled and receiving a link beat signal (for the twisted-pair
ports), or a strong enough light level (for the fiber-optic ports) from the connected
device.
Off
One of these conditions exists:
• no active network cable is connected to the port
• the port is not receiving link beat or sufficient light
• the port has been disabled through the switch console, the web browser
interface, ProCurve Manager, or other network management tool.
Blinking1
The port has failed self test. The switch Fault, Self Test LEDs, and appropriate
module status LEDs will flash simultaneously.
Mode
1
1-8
Depending on the mode selected, displays the following: network activity information, whether
the port is configured for Full Duplex operation, maximum speed operation, or whether PoE
power is being supplied or not. See “LED Mode Select Button and Indicator LEDs” below for
more information.
The blinking behavior is an on/off cycle once every 1.6 seconds, approximately.
Introducing the ProCurve Series 5400zl Switches
Front of the Switch
LED Mode Select Button and Indicator LEDs
Mode LEDs
(one for each port)
LED Mode Select button
and indicator LEDs
Figure 1-6. Mode LEDs and LED Mode Select Button
■
If the Activity Act indicator LED is lit, each port Mode LED displays
activity information for the port—it flickers as network traffic is received
and transmitted through the port.
■
If the Full Duplex FDx indicator LED is lit, the port Mode LEDs light for
those ports that are operating in full duplex.
■
If the speed Spd indicator LED is lit, the port LEDs behave as follows to
indicate the connection speed for the port:
■
•
Off = 10 Mbps
•
Blinking = 100 Mbps (the blinking behavior is a repeated on/off cycle
once every 0.5 sec.)
•
On = 1000 Mbps
If the PoE PoE indicator LED is lit, the Link and Mode LEDs indicate PoE
status:
Link LED:
•
On = PoE is enabled on this port
•
Off = PoE is disabled on this port.
1-9
Introducing the ProCurve
Series 5400zl Switches
To optimize the amount of information that can be displayed for each of the
switch ports, the Series 5400zl Switches use a Mode LED for each port. The
operation of this LED is controlled by the LED Mode Select button on the
switch chassis, and the current selection is indicated by the mode indicator
LEDs near the button. Press the button to change from one mode to the next.
Introducing the ProCurve
Series 5400zl Switches
Introducing the ProCurve Series 5400zl Switches
Front of the Switch
•
Slow Blinking = Internal PoE fault on this port.
•
Fast Blinking = This port is denied PoE power or has an external load
fault.
Mode LED:
•
On = PoE power is be supplied on this port
•
Off = PoE is not being supplied on this port.
Console Port
This port is used to connect a console to the switch by using the serial cable
supplied with the switch. This connection is described under “Connecting a
Console to the Switch” in chapter 2, “Installing the Series 5400zl Switches”.
The console is a full-featured interface that can be used to configure, monitor,
and troubleshoot the switch. It can be run on a PC, laptop, or handheld device
emulating a VT-100 terminal, or on a standard VT-100 terminal.
Reset Button
This button will reset the switch when powered on. This action clears any
temporary error conditions that may have occurred, executes the switch self
test, and resets all network activity counters to zero. The counters are
displayed in the switch console interface, the switch web browser interface,
and through SNMP network management applications, such as ProCurve
Manager.
Press the Reset button also after changing the module type that is installed in
any of the switch module slots while the switch is powered on. In this case,
the switch must be reset to initialize the new module type. See “Hot Swapping
Switch Modules” on page 2-28.
Clear Button
This button is used for the following purposes:
■
Deleting Passwords - When pressed by itself for at least one second, the
Clear button deletes any switch console access passwords that you may
have configured. Use this feature if you have misplaced the password and
need console access.
This button is provided for your convenience, but its presence means that
if you are concerned with the security of the switch configuration and
operation, you should make sure the switch is installed in a secure
location, such as a locked wiring closet.
1-10
Introducing the ProCurve Series 5400zl Switches
Back of the Switch
■
Back of the Switch
.
AC power connector
Grounding lug
mounting holes
Slot for installing optional
redundant power supply
Power and Fault LEDs
Figure 1-7. Back of a 5406zl Switch with One Power Supply
External PoE
power connectors
Figure 1-8. Back of a 5412zl Switch with two Power Supplies
1-11
Introducing the ProCurve
Series 5400zl Switches
Restoring Factory Default Configuration - When pressed with the
Reset button in a specific pattern, the Clear button clears any configuration changes you may have made through the switch console, the web
browser interface, or SNMP management, and restores the factory default
configuration to the switch. For the specific method to restore the factory
default configuration, see “Restoring the Factory Default Configuration”
in chapter 4, “Troubleshooting” of this manual.
Introducing the ProCurve Series 5400zl Switches
Back of the Switch
Introducing the ProCurve
Series 5400zl Switches
Power Connector
The Series 5400zl Switches do not have a power switch; they are powered on
when connected to an active AC power source. The Series 5400zl Switches
automatically adjust to any voltage between 100-127 and 200-240 volts when
using the J8712A power supply, and 200-240 volts only when using the J8713A
power supply, and either 50 or 60 Hz.There are no voltage range settings
required.
Redundant Power Supply
Load-sharing redundant power supplies (ProCurve Switch zl 875 W Power
Supply, J8712A or a ProCurve Switch zl 1500 W Power Supply J8713A) can be
installed in the back of the Series 5400zl Switches. To provide redundancy,
each power supply should be connected to different AC power sources. Then,
if one AC power source fails, the switch will continue to run.
Caution
The switch redundant power supply is hot swappable, but, as indicated by the
caution statement on the power supply, it must be disconnected from AC
power before being installed or removed.
CAUTION:
. Refer to the installation guide for proper power cord selection
.Disconnect AC power from the power supply BEFORE installing or
removing the supply. Otherwise, damage to the. equipment may result.
Because the switch can run on a single supply, removing a redundant supply
will not interrupt switch operation. However, on the 5412zl one power supply
will only supply enough power to run the module slots A-F. Slots G-L will not
receive any power unless there are at least two power supplies installed. For
more information regarding power see the:
1-12
■
ProCurve Switch zl Internal Power Supply Installation Guide.
■
ProCurve Power over Ethernet (PoE) for zl and yl Products Planning
and Implementation Guide.
Introducing the ProCurve Series 5400zl Switches
Switch Features
The features of the Series 5400zl Switches include:
■
6 or 12 slots for installing any of the available Switch zl Modules.
Supported Modules: As of this printing, the supported zl modules
include:
•
24-port 10/100/1000-T zl PoE Module (J8702A) -- which can provide
Power over Ethernet (PoE) power to 802.3af compliant (and some
pre-standard) devices. For more information on PoE power refer to
the ProCurve PoE Planning and Implementation Guide. For more
information on the J8702A module refer to the ProCurve Switch zl
Modules Installation Guide.
•
20-port Gig-T and 4-port mini-GBIC/SFP zl PoE Module (J8705A)-- into
which you can install the supported mini-GBICs and SFP transceivers:
• Gigabit-SX LC mini-GBIC (J4858B)
• Gigabit-LX LC mini-GBIC (J4859B)
• Gigabit-LH LC mini-GBIC (J4860B)
• 1000Base-T mini-GBIC (J8177B)
• 100-FX SFP-LC transceiver (J9054B)
•
24-port mini-GBIC zl Module (8706A) -- into which you can install the
supported mini-GBICs or SFPs, see above.
•
4-port 10Gig-X2 zl Module (J8707A) -- into which you can install the
supported X2 fiber optic transceivers:
• 10 Gigabit-X2-SC SR Optic transceiver (J8436A)
• 10 Gigabit-X2-SC LR Optic transceiver (J8437A)
• 10 Gigabit-X2-SC ER Optic transceiver (J8438A)
• 10 Gigabit-X2-CX4 copper transceiver (J8440B)
• 10 Gigabit-X2-CX4 Optical Media Converter (J8439A)
•
4-port 10Gig-CX4 zl Module (J8708A)
■
the modules can be installed in any order and in any combination and can
be “hot swapped”.
■
the supported mini-GBICs can be hot swapped into the mini-GBIC zl
Module.
■
high performance—The 5406 Switch has a routing/switching capacity of
288 Gbps, with a switch fabric speed of 346 Gbps and a throughput of 214
Mpps. The 5412 Switch has a routing/switching capacity of 576 Gbps, with
a switch fabric speed of 692 Gbps and a throughput of 428 Mpps.
■
plug-and-play networking—all ports are enabled—just connect the
network cables to active network devices and your switched network is
operational.
1-13
Introducing the ProCurve
Series 5400zl Switches
Switch Features
Introducing the ProCurve
Series 5400zl Switches
Introducing the ProCurve Series 5400zl Switches
Switch Features
1-14
■
automatic learning of the network addresses in the switch’s 16,000address forwarding table, with configurable address aging value.
■
full-duplex operation available on all ports.
■
easy management of the switch through several available interfaces:
•
web browser interface—an easy to use built-in graphical interface
that can be accessed from common web browsers.
•
console interface—a full featured, easy to use, VT-100 terminal interface for out-of-band switch management, or for telnet access to the
switch. The console includes complete switch management through
a command line interface (CLI) and a slightly reduced feature set
accessible through an intuitive menu interface.
•
ProCurve Manager—an SNMP-based graphical interface that is used
to manage your entire network, included with your new switch.
•
Supported by ProCurve Network Manager—an HP OpenView application that accurately displays your switch on network maps and
provides a graphical interface for configuring and monitoring your
switch.
■
support for the Spanning Tree Protocol to eliminate network loops.
■
support for up to 256 IEEE 802.1Q-compliant VLANs so you can divide the
attached end nodes into logical groupings that fit your business needs.
■
Layer 3 routing functionality:
•
IP static routes
•
RIP V1 and V2
•
IRDP - ICMP Router Discovery Protocol
•
OSPF- Open Shortest Path First
•
DHCP relay
■
support for many other advanced features to enhance network performance, security, and control— for a description, see the Management and
Configuration Guide which is on the ProCurve Web site. See page 5-1 for
details.
■
The auxiliary port is reserved for future development.
■
Support for IEEE 802.3af standard and pre-standard PoE devices.
2
Installing the Series 5400zl Switches
The Series 5400zl Switches are easily installed. They come with an accessory
kit that includes the brackets for mounting the switch in a standard 19-inch
telco rack, or in an equipment cabinet. The switches have rubber feet already
attached so they can be securely located on a horizontal surface. This chapter
shows you how to install your Series 5400zl Switches.
The Series 5400zl Switches have the following components shipped with them:
■
ProCurve Series 5400zl Switches Installation and Getting Started
Guide, this manual
■
ProCurve Manager - CD ROM and booklet
■
Customer Support/Warranty booklet
■
Accessory kits
5406zl Accessory Kit (5069-8561)
5412zl Accessory Kit (5069-8562)
two mounting brackets
two mounting brackets - these
brackets are twice as long as the
brackets for the 5406zl switches
eight 10 mm M4 screws to attach
the mounting brackets to the
switch
eight 10 mm M4 screws to attach
the mounting brackets to the
switch
four 5/8-inch number 12-24
screws to attach the switch to a
rack
four 5/8-inch number 12-24
screws to attach the switch to a
rack
■
Console cable (5184-1894)
■
Power cord, one of the following:
2-1
Installing the Series 5400zl
Switches
Included Parts
Installing the Series 5400zl Switches
Included Parts
Installing the Series 5400zl
Switches
Region
Australia/New Zealand
China
Continental Europe
Denmark
Japan
Switzerland
United Kingdom/
Hong Kong/Singapore
United States/Canada/
Mexico
South Africa
Taiwan
Israel
Thailand
Japan Power
Cord Warning
2-2
J8712A
J8713A
8120-5335
8121-1034
8120-5336
8120-5340
8120-5342
8120-5339
8121-0871
8121-0924
8120-6899
8120-6897
8120-6903
8120-6897
8120-5334
8120-6898
8121-0973
8120-5341
8121-0941
8121-1009
8121-0671
8120-6903*
8121-0915
8120-6903
8121-1010
8121-0675
Installing the Series 5400zl Switches
Installation Procedures
Installation Procedures
Summary
Follow these easy steps to install your switch. The rest of this chapter provides
details on these steps.
Prepare the installation site (page 2-7). Make sure the physical
environment into which you will be installing the switch is properly
prepared including having the correct network cabling ready to connect
to the switch, and having a good location for the switch. See page 2-6 for
some installation precautions.
2.
Install switch modules (page 2-9). The Series 5400zl Switches have six
or 12 universal slots for installing any of the ProCurve Switch zl modules.
The Switch 5406zl-48G has two 24-port 10/1001000-T zl Modules
preinstalled and the 5412zl-96G has four 24-port 10/1001000-T zl Modules
preinstalled. Depending on where you will install your Series 5400zl
Switch, it may be easier to install the modules first. The modules are “hot
swappable” though, so they can also be installed and removed after the
switch is powered on.
Note
Make sure you use only ProCurve Switch zl Modules in your Series 5400zl
Switches.
3.
Install power supplies (page 2-12). The Series 5406zl Switches supports
up to two power supplies. It may be easier to install the power supplies
before mounting the switch. The switch must have at least one power
supply to operate.
4.
Verify the switch passes self test (page 2-15). This is a simple process
of plugging the switch into a power source and observing that the LEDs
on the switch’s front panel and on the modules show correct operation.
It may be easier to verify if the switch passes self test before mounting
the switch.
5.
Mount the switch (page 2-17). The Series 5400zl Switches can be
mounted in a 19-inch telco rack, in an equipment cabinet, or on a
horizontal surface. An optional Rail Mounting Kit (5070-0145) is available
for mounting Series 5400zl Switches in a cabinet suitable for shipping. See
the installation details for more information.
6.
Install the Grounding Wire (page 2-21). If a grounding wire is to be
attached to the switch chassis, the grounding lug must be removed and a
wire crimped to it and the grounding lug must be reinstalled.
2-3
Installing the Series 5400zl
Switches
1.
Installing the Series 5400zl
Switches
Installing the Series 5400zl Switches
Installation Procedures
Note
7.
Connect the switch to a power source (page 2-21). Once the switch
is mounted, plug it in to the nearby main power source.
8.
Connect a Power Supply Shelf (optional—page 2-22). You may wish
to use a Power Supply Shelf with your switch. To do so you must connect
the external power supply using the EPS cables supplied with the Power
Supply Shelf.
9.
Connect the network devices (page 2-25). Using the appropriate
network cables, connect other switches, hubs, routers, computers,
servers, printers, and other network devices to the switch ports. For more
information, see “Connect the Network Devices” on page 2-25.
The 10/100/1000-T ports on the zl Modules comply with IEEE 802.3x
standard which includes the Auto MDI/MDI-X feature. This feature
allows you to use straight-through twisted-pair cable for all of your
twisted-pair network connections.
10. Connect a console to the switch (optional—page 2-26). You may wish
to modify the switch’s configuration, for example, to configure an IP
address so it can be managed using a web browser or from an SNMP
network management station. Configuration changes can be made easily
through the switch’s console interface.
At this point, the switch is fully installed. See the rest of this chapter if you
need more detailed information on any of these installation steps.
2-4
Installing the Series 5400zl Switches
Installation Procedures
Installation Precautions
Follow these precautions when installing your Series 5400zl Switch:
WARNING
■
Devices installed in a rack or cabinet should be mounted as low
as possible, with the heaviest device at the bottom and progressively lighter devices installed above.
The rack or cabinet should be adequately secured to prevent it
from becoming unstable and/or falling over.
Ensure a cover plate is installed on any empty switch power
supply or module slot. A cover plate is required for safe
operation, and to ensure proper switch cooling. Never have
more than one power supply or module slot uncovered at a
time while the switch is powered on.
■
To avoid energy and mechanical hazards, never allow any part
of your body, jewelry, tool, or other foreign object to enter any
module or power supply slots.
■
This unit may have more than one power supply cable. To fully
power down the switch, you must disconnect all power supply
cables from the unit.
Installing the Series 5400zl
Switches
■
2-5
Installing the Series 5400zl Switches
Installation Procedures
Installation Precautions (continued)
Installing the Series 5400zl
Switches
Cautions
■
If the switch is to be shipped in a rack, use only an HP 10000 series rack
and a rail mounting kit (5070-0145) for each switch.
■
Ensure the power source circuits are properly grounded, then use the
power cord supplied with the switch to connect it to the power source.
■
If your installation requires a different power cord than the one supplied
with the switch and power supply, be sure the cord is adequately sized
for the switch’s current requirements. In addition, be sure to use a power
cord displaying the mark of the safety agency that defines the regulations
for power cords in your country. The mark is your assurance that the
power cord can be used safely with the switch and power supply.
■
When installing the switch, note that the AC outlet should be near the
switch and should be easily accessible in case the switch must be
powered off.
■
Ensure the switch does not overload the power circuits, wiring, and overcurrent protection. Each power supply should be connected to a dedicated branch circuit to prevent tripping building circuit breakers. To
determine the possibility of overloading the supply circuits, add together
the ampere ratings of all devices installed on the same circuit as the
switch and compare the total with the rating limit for the circuit. The
maximum ampere ratings are usually printed on the devices near the AC
power connectors.
■
Do not install the switch in an environment where the operating ambient
temperature might exceed 55°C (131°F)1.
■
Allow three to four inches of space around the sides and back of the
switch to make sure the air flow for the switch is not restricted.
1
If you are installing any of the X2 transceivers the operating ambient temperature
should not exceed 40°C (104°F). See transceiver specifications in Appendix A
(page A-1).
2-6
Installing the Series 5400zl Switches
Installation Procedures
1. Prepare the Installation Site
Cabling Infrastructure
Ensure the cabling infrastructure meets the necessary network specifications.
See the following table for cable types and lengths, and see appendix B,
“Switch Ports and Network Cables” on page B-1 for more information:
Table 2-1.
Port Type
Summary of Cable Types to Use with the Switch
Cable Type
Length Limits
Twisted-Pair Cables
For either 10, 100 Mbps or 1000 Mbps
operation:
Category 5 or better, 100-ohm UTP or shielded
twisted-pair (STP) balanced cable. For 1000
Mbps (gigabit) operation, Category 5e cabling
or better is recommended.
100 meters
Note: The ProCurve 10/100/1000-T zl
Modules and 100/1000-T Transceiver are
compatible with the IEEE 802.3ab standard
including the “Auto MDI/MDI-X” feature,
which allows use either straight-through or
crossover twisted-pair cables for
connecting to any network devices
including end nodes, such as computers, or
to other switches, hubs, and routers.
The Auto MDI/MDI-X feature only works
when the port is in auto-negotiation mode.
Fiber Optic Cables
Gigabit-SX
(on Gigabit-SX-LC
mini-GBIC)
Multimode fiber-optic cables fitted with LC
connectors
220 meters to 550 meters depending on the
cable used. See “Fiber-Optic Cables” on
page B-3 for more information.
Gigabit-LX
(on Gigabit-LX-LC
mini-GBIC)
Single-mode fiber-optic cables fitted with LC
connectors.
The multimode cables specified for the GigabitSX mini-GBIC may also be used, but a modeconditioning patch cord may be needed — See
the Installation Guide that came with your
module for more information.
• single-mode cable = 10 kilometers
• multimode cable = 550 meters
Gigabit-LH
(on Gigabit-LH-LC
mini-GBIC)
The same single-mode fiber-optic cables as for
Gigabit-LX.
• 70 kilometers
Note:
Gigabit-LH - Between the transmit and receive ends of the cable, at least 5db of attenuation is required for a reliable
connection. This is equivalent to 20km of the fiber-optic cable. For distances less than 20km, you must add attenuators
to bring the total attenuation to at least 5db. Most cable vendors carry attenuators.
2-7
Installing the Series 5400zl
Switches
10/100/1000BASE-T
Installing the Series 5400zl
Switches
Installing the Series 5400zl Switches
Installation Procedures
Port Type
Cable Type
Length Limits
10-GbE SR
Multimode fiber-optic cable designed for
Gigabit Ethernet: 62.5/125 μm (core/cladding)
diameter or 50/125 μm, 850 nm, low metal
content, complying with the ITU-T G.652 and
ISO/IEC 793-2 Type B1 standards.
■
10-GbE LR
9/125 μm (core/cladding) diameter, 1480 nm,
low metal content, single mode fiber-optic
cables, complying with the ITU-T G.652 and
ISO/IEC 793-2 Type B1 standards.
single-mode cable: 2-10 kilometers
10-GbE ER
9/125 μm (core/cladding) diameter, 1480 nm,
low metal content, single mode fiber-optic
cables, complying with the ITU-T G.652 and
ISO/IEC 793-2 Type B1 standards.
single-mode cable: 2-30 kilometers (40
kilometers, on an engineered fiber optic link
that meets standards in the specification).
■
62.5 μm cable:
•
160 Mhz/km = 2-26 meters
•
200 Mhz/km = 2-33 meters
50 μm cable:
•
400 Mhz/km = 2-66 meters
•
500 Mhz/km = 2-82 meters
•
2000 Mhz/km = 2-300 meters
Note: Conditioning patch cord cables are not supported on 10-GbE.
OMC CX4 Fiber
Optical Media
Converter
12 fiber 50/125 μm (core/cladding) diameter,
multimode Fiber ribbon cable. 12 fiber 62.5/125
μm (core/cladding) diameter, multimode Fiber
ribbon cable is also supported.
50 μm cable or 62.5 μm cable: 100 meters
Copper Cables
Port Type
Cable Specifications
CX4
Speed 3.125Gbx4
(Cables compliant with the 802.3ak standard)
Connector Type
CX4
Installation Location
Before installing the switch, plan its location and orientation relative to other
devices and equipment:
2-8
■
In the front of the switch, allow at least 7.6 cm (3 inches) of space for the
twisted-pair and fiber-optic cabling.
■
In the back of the switch, allow at least 10.2 cm (4 inches) of space for the
power cord and cooling.
■
On the sides of the switch, leave at least 7.6 cm (3 inches) for cooling.
Installing the Series 5400zl Switches
Installation Procedures
2. Install Switch Modules
Install switch modules into the slots as shown in the illustration below. For
installation details, see the instructions in the manual that comes with the
module.
Caution
Make sure you install only ProCurve Switch zl Modules.
Avoid any electrostatic discharge problems by handling the modules only by
their bulkheads.
Module
Installation
Notes
■
Any of the supported Switch zl Modules can be installed in any of the slots.
■
The modules can be “hot swapped”, installed after the switch is already
powered on, and normally will be immediately operational. But, if you are
replacing a module with a different type than what was previously
installed in the slot, the switch must be rebooted after the module is
installed. See “Hot Swapping the Switch Module” on page 2-28.
■
Ensure you fully insert the modules. That is, press the module into
the slot using the extractor handles, until the bulkhead on the module is
contacting the front face of the switch chassis.
■
Once the module is fully inserted, screw in the two retaining screws to
secure the module in place. The screws should be tightened until they are
secure, but not overtightened.
■
If you do not use one or more of the slots, ensure the slot cover plate is
still attached over the slot for safe operation and proper switch cooling.
For safety, you should not have more than one module slot uncovered at
a time.
■
Although these procedures show the 6-slot chassis, the procedures are
the same for the 12-slot chassis.
2-9
Installing the Series 5400zl
Switches
The slot cover can be removed, and the module can be installed with either a
flat-bladed or Torx T-10 screwdriver. Retain the slot cover for future use.
Installing the Series 5400zl Switches
Installation Procedures
Installing the Series 5400zl
Switches
Insert module into the guides and
slide it in until it is fully inserted.
Open extractor handles
Figure 2-1. Module Being Installed in a Chassis
2-10
Installing the Series 5400zl Switches
Installation Procedures
Use the extractor handles to
seat the module completely.
Installing the Series 5400zl
Switches
Then tighten the retaining screws
on the module until they are secure,
but do not overtighten them.
Figure 2-2. Generic Chassis with Module Fully Installed
2-11
Installing the Series 5400zl Switches
Installation Procedures
3. (Optional) Install Another Power Supply
Caution
The Series 5400zl switches are designed to provide continuously operating
PoE power in the event of a single power supply failure with only a loss of
PoE power to lower priority ports.
If more than one power supply fails while the switch is at or near maximum
operating power (that is: the sum total of all PoE supply capacity minus the
largest supply, see chapter 2 and 4 of the ProCurve Power over Ethernet (PoE)
for zl and yl Products), loss of all PoE power may result.
Installing the Series 5400zl
Switches
To return PoE power to the ports, without causing the switch to reboot, when
there are two or more power supplies still supplying 12V power, unplug the
power cord for 5 seconds and replug it for each power supply one at a time.
Another, load-sharing redundant power supply (either a ProCurve Switch zl
875 W Power Supply (J8712A), or a ProCurve Switch zl 1500 W Power Supply
(J8713A) can be installed in the back of the switch. The 5406zl can hold up to
two power supplies and the 5412zl can hold up to four power supplies.
The 875 W Power Supply (J8712A) can supply up to 273 watts for PoE power.
The 1500 W Power Supply (J8713A) can supply up to 900 watts at 220 volts for
PoE power.
To prevent overloading of the building circuits breakers, the second power
supply must be connected to a different AC power source from the other
supply. This also helps with redundancy, if one AC power source fails, the
switch will continue to run.
Install the second power supply into power slot number 2 as shown in Figure
2-3. Although these procedures show the 6-slot chassis, the procedures are
the same for the 12-slot chassis.
The slot cover can be removed with either a flat-bladed or Torx T-10 screwdriver. Retain the slot cover for future use.
2-12
Installing the Series 5400zl Switches
Installation Procedures
Caution
The switch power supplies are hot swappable; they can be installed while the
switch is receiving power from the supply in the other slot. But, as indicated
by the caution statement on the power supply, the supply must not be
connected to AC power before being installed or removed.
CAUTION:
. Refer to the installation guide for proper power cord selection
.Disconnect AC power from the power supply BEFORE installing or
removing the supply. Otherwise, damage to the. equipment may result.
For installation details, see the instructions in the manual that comes with the
power supply.
Insert the power supply into the
opening, then slide it all the way in
until it connects to the switch. The
power supply face plate will be
flush with the back face of the
switch.
Figure 2-3. Installing a Power Supply
2-13
Installing the Series 5400zl
Switches
For safety and proper switch cooling, if either of the power supply slots are
not being used, make sure to attach the cover plate over the slot. Please see
the “Installation Precautions” on page 2-6 for more information.
Installing the Series 5400zl Switches
Installation Procedures
Once the power supply is installed, tighten the four retaining screws that hold
it in place. The screws can be tightened with either a flat-bladed or Torx T-10
screwdriver. Be careful not to overtighten the screws.
Installing the Series 5400zl
Switches
tighten the four screws
Figure 2-4. Back of Switch with Power Supply Fully Installed
2-14
Installing the Series 5400zl Switches
Installation Procedures
4. Verify the Switch Passes Self Test
After you have installed any modules and the optional second power supply,
but before mounting the switch in its network location, you should first verify
it is working properly by plugging it into a power source and verifying it passes
its self test.
If you have installed a second power supply, repeat these procedures with the
second power supply to verify it works correctly also.
1.
Connect the power cord supplied with the switch to the power connector
on the back of the switch, and then into a properly grounded electrical
outlet.
Installing the Series 5400zl
Switches
Connect power cord to
power connector
Figure 2-5. Power Connector on Back of Switch
Note
The Series 5400zl Switches do not have a power switch. They are powered on
when the power cord is connected to the switch and to a power source.
If your installation requires a different power cord than the one supplied with
the switch, please see the “Installation Precautions” on page 2-6.
2.
Check the LEDs on the switch and on each of the switch modules. The
LED behavior is described on the next page.
If the LED display is different than what is described, especially if the
Fault LED stays on for more than approximately 120 seconds or it starts
blinking, the self test has not completed correctly. Refer to chapter 4,
“Troubleshooting” for diagnostic help.
2-15
Installing the Series 5400zl Switches
Installation Procedures
Installing the Series 5400zl
Switches
Switch Fault LED
Switch Module LEDs:
Link and Mode LEDs
for each port
Switch Chassis LEDs
Figure 2-6. Switch Fault, Module, and Chassis LEDs
When the switch is powered on, it performs its diagnostic self test. The entire
download, initialization, and self test process can take up to 2 minutes for a
fully loaded chassis, depending on the number and type of modules installed
in the switch.
LED Behavior:
During the self test:
■
Initially, Power, Fault, Locator, and all the switch chassis LEDs are on. Then,
after approximately 30 seconds, all the module LEDs go on as the modules
receive power and code is downloaded to them, the Fault LED goes off,
and the chassis LEDs turn orange and then go off except Test, Fan, and
Power, which turn green.
■
When the download of code to the modules is completed, the module
LEDs go off. You may see each port LED go on briefly, in sequence, as the
port is tested.
■
For the duration of the self test, the Test LED stays on.
When the test completes successfully:
2-16
■
The Power LED stays on, and the Status LEDs on the switch chassis stay
on for the devices installed: one for each switch module installed, one for
each power supply installed, and one for all the fans.
■
The Fault, Locator, and Test LEDs are off.
■
The port LEDs on the switch modules go into their normal operational
mode:
Installing the Series 5400zl Switches
Installation Procedures
•
•
If the ports are connected to active network devices, the Link LEDs
stay on and the Mode LEDs behave according to the mode selected.
In the default mode (Activity), the Mode LEDs should flicker showing
network activity on the port.
If the ports are not connected to active network devices, the LEDs
will stay off.
5.Mount the Switch
■
in a rack or cabinet
■
on a horizontal surface
Rack or Cabinet Mounting
The Series 5400zl Switches are designed to be mounted in any EIA-standard
19-inch telco rack or in an equipment cabinet such as a server cabinet. If you
are installing the switch in an equipment cabinet, read the following “Equipment Cabinet Note” on page 2-17.
Equipment
Cabinet
Note
If you are installing the switch in an equipment cabinet, in place of the
12-24 screws supplied with the switch, use the clips and screws that came with
the cabinet. Plan which four holes you will be using in the cabinet and install
all four clips and partially install the two bottom screws, as described in step
2 on the previous page, before proceeding to step 3.
WARNING
For safe operation, please read the “Installation Precautions” on page
2-5 and page 2-6 before mounting the switch.
1.
Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the switch with the included 8-mm M4 screws.
For the Switch 5406zl, each bracket is attached with four screws as shown
in the following illustration.
Although these procedures show the 6-slot chassis, the procedures are
the same for the 12-slot chassis.
2-17
Installing the Series 5400zl
Switches
After the modules and optional power supply are installed and you have
verified the switch passes self test, you are ready to mount the switch in a
stable location. The Series 5400zl Switches can be mounted in these ways:
Installing the Series 5400zl
Switches
Installing the Series 5400zl Switches
Installation Procedures
8 mm
M4 screws
Figure 2-7. Attaching Brackets to the 5400zl Switch
2.
Partially install a screw into the top hole of a pair of holes that are 0.5
inches apart in each rack/cabinet upright as shown in the illustration
below. Ensure that the screws are at the same level in each upright.
Partially install a screw
into the top hole of a
close (0.5-inch) pair on
both sides of the rack
Figure 2-8. Mounting Screw Positioning
3.
2-18
Place the switch in the rack and lower it so the notches in the bottom of
the bracket slide onto the screws, then tighten these screws.
Installing the Series 5400zl Switches
Installation Procedures
lower the switch with
mounting brackets onto the
partially installed screws,
then tighten these screws
Installing the Series 5400zl
Switches
Figure 2-9. Notches in Bracket Being Installed
2-19
Installing the Series 5400zl Switches
Installation Procedures
4.
Install the other screw into the upper hole in each bracket. Tighten these
screws.
Installing the Series 5400zl
Switches
install and tighten the
other 12-24 screws
Figure 2-10. Screws in Bracket Being Installed
Horizontal Surface Mounting
Place the switch on a table or other horizontal surface. Use a sturdy surface
in an uncluttered area. You may want to secure the networking cables and
switch power cord to the table legs or other part of the surface structure to
help prevent people from tripping over the cords.
Note
2-20
Ensure the air flow is not restricted around the sides and back of the switch.
Installing the Series 5400zl Switches
Installation Procedures
6. Install the Grounding Wire
If a grounding wire is to be attached to the switch chassis, the grounding lug
must be removed and a wire crimped to it and the grounding lug must be
reinstalled.
1.
Use a #1 Phillips (cross-head) screwdriver and remove the grounding lug
and two screws from the back of the switch.
2.
Crimp the grounding lug to a properly grounded grounding wire.
3.
Re-attach the grounding lug to the switch with the two screws.
Installing the Series 5400zl
Switches
Grounding lug
Grounding
lug screws
Figure 2-11. Attaching Grounding Lug to the 5400zl Switch
7. Connect the Switch to a Power Source
1.
Plug the included power cord into the switch’s power connector and into
a nearby properly grounded AC power source.
If a redundant power source is available, it is desirable to power one
switch power supply from the regular AC source, and the other power
supply from the redundant AC source. This will provide redundancy in AC
power to the switch, as long as the switch PoE power usage falls within
the capability of one power supply. If both power supplies are plugged
into a common AC source, there is still power supply redundancy, that is,
protection against power supply failure, but if the AC source fails, the
switch will lose all power.
2.
Re-check the LEDs during self test. See “LED Behavior” on page 2-16.
2-21
Installing the Series 5400zl Switches
Installation Procedures
8. (Optional) Connect a Power Supply Shelf
to the switch
1.
Connect the supplied external power supply (EPS) cables to the switch
and to the Power Supply Shelf.
2.
Tighten the thumb screws on all connectors to prevent any accidental
disconnects.
3.
Plug the power supply cords into the power connector and into a nearby
properly grounded AC power source.
Installing the Series 5400zl
Switches
The ProCurve Switch zl Power Supply Shelf, (J8714A), hereafter referred to
as the EPS, is an accessory product for the Series 5400zl switches. The EPS
provides External Power-over-Ethernet (PoE) power for up to two 5400zl
switch products.
The EPS can supply up to 1800 watts (depending upon which power supplies
are installed) of PoE power to the switch if the internal PoE power supply
should fail, or as additional PoE power to be made available to the switch’s
PoE ports. For further information regarding the EPS PoE capabilities, see
the ProCurve Power over Ethernet (PoE) for zl and yl Products Planning
and Implementation Guide and the ProCurve Power Supply Shelf
Installation and Getting Started Guide, which are on the ProCurve Web site
at www.procurve.com. See page 5-1 for details.
The EPS is an unmanaged power supply that only provides information by
way of LEDs.
EPS Operation
The EPS has a mechanism for detecting that it is connected to a valid switch
with an EPS cable. When the EPS is connected to a powered switch it will
provide additional PoE power to the switch within 2 seconds.
Caution
2-22
Disconnecting the EPS (PoE power) cable with power flowing is not
supported, and could cause loss of PoE power to all network devices
connected to the switch. The Power Supply Shelf must be powered down
before disconnecting the EPS (PoE power) cable, if power is flowing. Only
the power supply to be disconnected must be powered down. The EPS cable
may be connected at any time.
Installing the Series 5400zl Switches
Installation Procedures
Operating Characteristics of the EPS (J8714A)
Power Supply Shelf LEDs
The EPS LEDs are duplicated on the front and back of the device. The
following graphic shows an example of the front of the EPS. There are two
dual colored (green/orange) LEDs for each EPS port:
■
Device Connected
■
Power Status
ProCurve Switch zl
Power Supply Shelf
J8714A
PoE
Power
Fault
Power
Supply
Status
EPS Port
Status
E1
E2 – Device Connected
– Power Status
Power Status LEDs
Device Connected LEDs
2-23
Installing the Series 5400zl
Switches
The Power Supply Shelf has two EPS Ports. The EPS can provide a maximum
of up to 900 watts of PoE power to each of the two EPS ports depending on
which power supply is used. It is important to understand the PoE power
requirements of the 5400zl Series switches because if the PoE power is not
planned and implemented correctly the end devices connected to the switch
ports may not receive power if an internal switch PoE power supply should
fail. For further information regarding the Power Supply Shelf PoE
capabilities, see the ProCurve Power over Ethernet (PoE) for zl and yl
Products Planning and Implementation Guide and the ProCurve Power
Supply Shelf Installation and Getting Started Guide, which is on the
ProCurve Web site. See page 5-1 for details.
Installing the Series 5400zl Switches
Installation Procedures
Connecting the Power Supply Shelf
To Power
Source
To Power
Source
Installing the Series 5400zl
Switches
5406zl
EPS Cables
Figure 2-12. Connecting the EPS to one 5406zl switch
To Power
Source
To Power
Source
5406zl
5406zl
EPS Cables
Figure 2-13. Connecting the EPS to two 5406zl switches
Although these examples show the EPS connecting to the 5406zl switch, it can
also be connected to a 5412zl switch in the same manner. These examples also
show the switch and the EPS using the J8713A power supply, the J8712A
power supply can also be used. It depends on how much PoE power is
required.
For more information on PoE requirements see the Power over Ethernet
(PoE) for zl and yl Products, Planning and Implementation Guide.
2-24
Installing the Series 5400zl Switches
Installation Procedures
9. Connect the Network Devices
The type of network connections you will need to use depends on the types
of switch modules you have installed in your Series 5400zl Switch. See the
documentation accompanying the modules for cabling configurations and
procedures for those modules.
In general for all the modules, when a network cable from an active network
device is connected to the switch, the Link LED for the switch port should go
on. If the Link LED does not go on, use the table below to help solve the
problem, and see the module documentation for troubleshooting procedures.
Diagnostic Tip
Port LED is
Try the following procedures:
still off when • For the indicated port, verify both ends of the cabling, at the switch and the connected device, are
a cable is
securely connected.
connected
• Verify the connected device and switch are both powered on and operating correctly.
• Verify you have used the correct cable type for the connection:
– for all twisted-pair connections, the RJ-45 connectors on the Series 5400zl Switches allow you
to use either straight-through cable or crossover cable when the port is in the “Auto”
configuration.
– for fiber-optic connections, verify the transmit port on the switch is connected to
the receive port on the connected device, and the switch receive port is connected to
the transmit port on the connected device.
See appendix B, “Switch Ports and Network Cables” for information on cables.
• Verify the port has not been disabled through a switch configuration change.
• Verify the connection parameters in the configurations of the switch port and the connected
device match. Mismatched configurations are a frequent cause of connection problems.
You can use the console interface, or, if you have configured an IP address on the switch, use the
web browser interface, or ProCurve Manager network management software to determine the
state and configuration of the port and re-enable the port if necessary.
• If the other procedures don’t resolve the problem, try using a different port or a different cable.
2-25
Installing the Series 5400zl
Switches
Condition
Installing the Series 5400zl Switches
Installation Procedures
10. (Optional) Connect a Console to the Switch
Installing the Series 5400zl
Switches
The Series 5400zl Switches have a full-featured, easy to use console interface
for performing the following tasks:
■
Monitor switch and port status and observe network activity counters
■
Modify the switch’s configuration
■
Read the event log and access diagnostic tools to help in troubleshooting
■
Download new software to the switch
■
Add passwords and other security features to control access to the switch
from the console, web browser interface, and network management
stations
The console can be accessed through these methods:
■
Out-of-band: Connect a PC or VT-100 terminal, to be used as a console,
directly to the switch using the serial cable that comes with the Series
5400zl Switches. If the PC or terminal has a 25-pin serial connector, you
can use a readily available 9-pin to 25-pin serial cable, or attach a 9-to-25
pin straight-through adapter to the PC end of the cable.
■
In-Band: Access the console using telnet from a PC or UNIX station on
the network, and a VT-100 terminal emulator. This method requires that
you first configure the switch with an IP address and subnet mask by using
either out-of-band console access or through DHCP/Bootp.
The Series 5400zl Switches can simultaneously support one out-of-band
console session through the Console Port and one in-band telnet session.
Terminal Configuration
To connect a console to the switch, configure the PC terminal emulator as a
VT-100 or DEC VT-100 (ANSI) terminal, or use a VT-100 terminal and configure
it to operate with these settings:
■
any baud rate from 2400 to 115200 (the switch automatically senses the
speed)
■
8 data bits, 1 stop bit, no parity, and flow control set to None
■
for Windows Terminal program, also disable (uncheck) the “Use Function,
Arrow, and Ctrl Keys for Windows” option
■
for the Hilgrave HyperTerminal program, select the “Terminal keys”
option for the “Function, Arrow, and Ctrl keys act as” parameter
If you want to operate the console using a different configuration, ensure you
change the settings on both the terminal and on the switch. Change the switch
settings first, then change the terminal settings, and reestablish the console
session.
2-26
Installing the Series 5400zl Switches
Installation Procedures
Direct Console Access
To connect a console to the
switch, follow these steps:
1.
3.
Turn on the terminal or
PC’s power and, if using a
PC, start the PC terminal
program.
console port
console cable supplied
with the switch
Installing the Series 5400zl
Switches
2.
Connect the PC or
terminal to the switch’s
Console Port using the
console cable included
with the switch. (If your
PC or terminal has a 25pin serial connector, first
attach a 9-pin to 25-pin
straight-through adapter
to the PC end of the
console cable.)
PC running a terminal
emulator program, or
a VT-100 terminal
Press the Enter key two
or three times and you
will see the copyright
Figure 2-14. Console Connected to Switch
page and the message
“Press any key to
continue”. Press a key, and you will then see the switch console CLI
prompt.
Telnet Console Access
To access the switch through a telnet session, follow these steps:
1.
Ensure the switch is configured with an IP address and that the switch is
reachable from the telnet workstation (for example by using a Ping
command to the switch’s IP address)
2.
Start the telnet program and connect to the switch’s IP address.
3.
The copyright page and the message “Press any key to continue” will
display. Press a key, and the switch console CLI prompt will display.
If you want to continue with console management of the switch at this time
through either a direct connection or a telnet session, see chapter 3, “Getting
Started With Switch Configuration” for some basic configuration steps. For
more detailed information, refer to the Management and Configuration
Guide which is on the ProCurve Web site. See page 5-1 for details.
2-27
Installing the Series 5400zl Switches
Hot Swapping Switch Modules
Hot Swapping Switch Modules
The switch modules can be “hot swapped” (except for the Management
Module, it is not hot swappable), that is installed or replaced while the switch
is powered on (See Module Installation Notes on page 2-9). The procedures
differ slightly, though between adding new modules to an empty slot or
replacing modules with the same type, and exchanging the module with a
different type.
Installing the Series 5400zl
Switches
Adding or Replacing Modules
If a module has to be replaced with one of the same type, or you are expanding
the switch capability by adding a module in a slot where one was not previously installed (since the last switch reboot), the replaced or new module is
immediately operational; there is no interruption to the switch operation.
Changing the Module Type
If you exchange a module with a different type of module though, for example
a 10/100/1000-T zl Module is installed in place of a 4 port 10G X2 Module that
was in the slot, the switch must be rebooted after the new module is installed
so the switch processor can properly initialize and configure the new module
type.
You can reboot the switch by any of the following methods:
■
Pressing the Reset button on the front of the switch.
■
Unplugging and plugging in the power cord (power cycle). If two power
supplies are installed, both power cords would have to be unplugged.
■
Issuing the boot command from the switch console CLI, or selecting the
boot Switch option from the switch console menu, the web browser
interface, or ProCurve Manager.
Until the switch is rebooted, the module will not operate and the Module
Status LED for the affected slot will continue to flash.
2-28
Installing the Series 5400zl Switches
Example Network Topologies
Example Network Topologies
This section shows a few example network topologies in which the Series
5400zl Switches can be implemented. Although these examples show the
6-slot chassis, the principles are the same for the 12-slot chassis.
Basic Connectivity
Installing the Series 5400zl
Switches
Series 5400zl Switch
Phones, APs and other peripherals
Figure 2-15. Basic Switch Connectivity
The Series 5400zl Switches can provide basic network connectivity to a high
number of PoE devices. These devices can be easily connected, as shown in
the above illustration.
2-29
Installing the Series 5400zl Switches
Example Network Topologies
Use as an Edge Switch
Trunked
redundant Gigabit
fiber-optic cables
Series 5406zl
Switch
Installing the Series 5400zl
Switches
Series 5406zl
Switch
ProCurve
Routing Switch 9308
Figure 2-16. Edge Switch Configuration
When your network expands and the users need to access resources beyond
the edge of the local network, the Series 5400zl Switches are excellent
platforms for that expansion. With the flexibility of 6 slots, the high port count
10/100/1000-T zl Modules for local connections, and the availability of Gigabit
speeds on both copper and fiber cables, the Series 5400zl Switches can provide
that access beyond the edge for a high number of network users.
In the above illustration, two Switch 5406zls are connected to a ProCurve
Routing Switch 9308, which can serve as a campus backbone or core switch.
The 1000 Mbps fiber-optic connections between the two Switch 5406zls and
the Routing Switch 9308 is by way of Gigabit-LX mini-GBICs installed in
the mini-GBIC port on the 20 port Gig-T plus 4 mini-GBIC zl Module in the
Switch 5406zls and Gigabit-LX ports on the Routing Switch 9308. With the
Gigabit-LX connections, the distance between the Switch 5406zls and the
Routing Switch 9308 can be up to ten kilometers.
The connections are trunked, through a configuration change on the Switch
5406zl, to provide redundancy and load sharing for higher bandwidth.
2-30
3
Getting Started With Switch Configuration
This chapter is a guide for using the console Switch Setup screen to quickly
assign an IP (Internet Protocol) address and subnet mask to the switch, set a
Manager password, and, optionally, configure other basic features.
For more information on using the switch console and the other switch
management interfaces: the web browser interface and the SNMP management tool, ProCurve Manager, please see the Management and Configuration
Guide which is on the ProCurve Web site. See page 5-1 for details.
Recommended Minimal Configuration
Many other features can be configured through the switch’s console interface,
to optimize the switch’s performance, to enhance your control of the network
traffic, and to improve network security. Once an IP address has been configured on the switch, these features can be accessed more conveniently through
a remote Telnet session, through the switch’s web browser interface, and from
an SNMP network management station running a network management
program, such as ProCurve Manager. For a listing of switch features available
with and without an IP address, refer to “How IP Addressing Affects Switch
Operation” in the Management and Configuration Guide which is on the
ProCurve Web site. See page 5-1 for details.
For more information on IP addressing, refer to “IP Configuration” in the
Management and Configuration Guide.
3-1
Getting Started With Switch
Configuration
In the factory default configuration, the switch has no IP (Internet Protocol)
address and subnet mask, and no passwords. In this state, it can be managed
only through a direct console connection. To manage the switch through inband (networked) access, you should configure the switch with an IP address
and subnet mask compatible with your network. Also, you should configure
a Manager password to control access privileges from the console and web
browser interface. Other parameters in the Switch Setup screen can be left at
their default settings or you can configure them with values you enter.
Getting Started With Switch Configuration
Note
By default, the switch is configured to acquire an IP address configuration
from a DHCP or Bootp server. To use DHCP/Bootp instead of the manual
method described in this chapter, see “DHCP/Bootp Operation” in the
Management and Configuration Guide which is on the ProCurve Web site.
See page 5-1 for details.
Using the Switch Setup Screen
The quickest and easiest way to minimally configure the switch for management and password protection in your network is to use a direct console
connection to the switch, start a console session, and access the Switch Setup
screen.
1.
Using the method described in the preceding section, connect a terminal
device to the switch and display the switch console command (CLI)
prompt (the default display).
The CLI prompt appears displaying the switch model number, for
example:
ProCurve 5400zl#
Getting Started With Switch
Configuration
2.
At the prompt, enter the setup command to display the Switch Setup
screen. The following illustration is an example of a Setup screen with
default settings.
ProCurve Switch 5406zl
xl
5
ProCurve Switch 5406zl
T imeP Mode [Disabled]
:
T IMEP
Disabled
Figure 3-1. Switch Setup Screen
3-2
xl
Getting Started With Switch Configuration
3.
Use the Tab key to select the Manager Password field and enter a manager
password of up to 16 characters.
4.
Tab to the IP Config (DHCP/Bootp) field and use the Space bar to select the
Manual option.
5.
Tab to the IP Address field and enter the IP address that is compatible with
your network.
6.
Tab to the Subnet Mask field and enter the subnet mask used for your
network.
7.
Press Enter, then S (for Save).
The following is information on the fields in the Setup screen. For more
information on these fields, see the Management and Configuration Guide
which is on the ProCurve Web site. See page 5-1 for details.
Default
System Name
blank
Optional; up to 25 characters, including spaces
System Contact
blank
Optional; up to 48 characters, including spaces
Manager Password
blank
Recommended; up to 16 characters (no blank spaces)
Logon Default
CLI
The default setting selects the command line interface for console access.
The alternative is the Menu interface.
Time Zone
0 (none)
Optional; 1440 to -1440. The number of minutes your location is to the
West (-) or East (+) of GMT.
Community Name
public
Default setting recommended.
Spanning Tree Enabled
No
Default setting recommended unless STP is already running on your network
or the switch will be used in complex network topologies.
Default Gateway
blank
Recommended; Enter the IP address of the next-hop gateway node if network
traffic needs to be able to reach off-subnet destinations.
Time Sync Method
TimeP
Optional; The protocol the switch uses to acquire a time signal. The options
are SNTP and TimeP.
TimeP Mode
Disabled
Synchronizes the time kept on the switch to the TimeP server.
IP Config
DHCP/Bootp
Set to Manual unless a DHCP/Bootp server is used on your network to
configure IP addressing.
IP Address
xxx.xxx.xxx.xxx Recommended; If you set IP Config to Manual, then enter an IP address
compatible with your network.
Note: The IP address and subnet mask assigned for the switch must be compatible with the IP addressing used in
your network. For more information on IP addressing, see the Management and Configuration Guide which is on
the ProCurve Web site. See page 5-1 for details.
Subnet Mask
xxx.xxx.xxx.xxx Recommended; If you entered an IP address, then enter a subnet mask
compatible with your network.
3-3
Getting Started With Switch
Configuration
Parameter
Getting Started With Switch Configuration
Where to Go From Here
The above procedure configures your switch with a Manager password, IP
address, and subnet mask. As a result, with the proper network connections,
you can now manage the switch from a PC equipped with Telnet, a web
browser interface, or from an SNMP-based network management station
using a tool such as ProCurve Manager.
Some basic information on managing your switch is included in the next
section. For more information on the console, web browser, and SNMP
management interfaces and all the features that can be configured on the
Series 5400zl Switches, please see the Management and Configuration Guide
which is on the ProCurve Web site. See page 5-1 for details.
Getting Started With Switch
Configuration
To Recover from a Lost Manager Password: If you cannot start a console session at the manager level because of a lost Manager password, you
can clear all passwords and user names by getting physical access to the
switch and pressing and holding the Clear button for a full second.
3-4
Getting Started With Switch Configuration
Using the IP Address for Remote Switch Management
Using the IP Address for Remote Switch
Management
With your Series 5400zl Switches, you can use the switch’s IP address to
manage the switch from any PC that is on the same subnet as the switch. You
can use either a Telnet session or a standard web browser to manage the
switch.
Starting a Telnet Session
To access the switch through a Telnet session, follow these steps:
Ensure the switch is configured with an IP address and that the switch is
reachable from the PC that is running the Telnet session (for example, by
using a ping command to the switch’s IP address).
2.
Start the Telnet program on a PC that is on the same subnet as the switch
and connect to the switch’s IP address.
3.
You will see the copyright page and the message “Press any key to
continue”. Press a key, and you will then see the switch console command
(CLI) prompt, for example (assuming there is no password):
ProCurve 5400zl#
Enter help or ? to see a list of commands that can be executed at the
prompt. Entering any command followed by help provides more detailed
context help information about the command. Entering any command
followed by ? displays a list of options that are available at that point in
the command entry.
Starting a Web Browser Session
Your Series 5400zl Switch can be managed through a graphical interface that
you can access from any PC or workstation on the network by running your
web browser and typing in the switch’s IP address as the URL. No additional
software installation is required to make this interface available; it is included
in the switch’s onboard software.
An example web browser interface screen is shown in the next illustration.
3-5
Getting Started With Switch
Configuration
1.
Getting Started With Switch Configuration
Using the IP Address for Remote Switch Management
ProCurve Switch 5406zl - Status:
Information
xl
xl
J8699A ProCurve Switch 5406zll
PoE Status
Getting Started With Switch
Configuration
Figure 3-2. Switch Web Browser Interface - Status Overview
For more information on using the web browser interface, please see the
Management and Configuration Guide which is on the ProCurve Web site.
See page 5-1 for details.
An extensive help system is also available for the web browser interface. To
access the help system though, the subnet on which the switch is installed
must have access to the internet, or ProCurve Manager needs to be installed
on a network management station that is on the subnet.
3-6
4
Replacing Components
This chapter shows you how to remove and install the following components:
■
Power supplies (see page 4-2)
■
Fan trays (see page 4-4)
■
Management module (see page 4-5)
■
Management module components Flash Disk (see page 4-6), and Battery
(see page 4-7)
For a complete list of parts and part numbers, see page 2-1.
Hot Swapping
The ProCurve Switch 5400zl supports “hot swapping” - the ability to replace
the following hardware components while the switch is operating: a fan tray,
power supply (if a second power supply is installed), interface module.
The Management module and its components are not hot swappable.
The hot swapping feature allows you to remove or install modules without
powering off or rebooting the switch. Swapped-in modules are recognized by
the switch and begin functioning immediately after they are installed.
The ProCurve 5400zl Switch and its components are sensitive to static
discharge. Use an antistatic wrist strap and observe all static precautions
when hot swapping components. For example, connect your antistatic wrist
strap to the ground point on the front of the switch, above the rightmost power
supply bay.
WARNING
This unit may have more than one power supply cable. To fully power
down the switch, you must disconnect all power supply cables from the
unit.
4-1
Replacing Components
Caution
Replacing Components
Replacing Power Supplies
Replacing Power Supplies
If your ProCurve 5400zl Switch is configured with redundant power supplies,
you will not suffer any loss of traffic or performance if a power supply fails.
Replace the failed component as soon as possible. One of the Internal Power
LEDs on the management module will blink simultaneously with the switch
Fault LED indicating which power supply failed.
Although these procedures show the 6-slot chassis, the procedures are the
same for the 12-slot chassis.
Replacing Components
To remove an AC power supply:
1.
Ensure the AC power supply is not plugged into an AC power source on
the failed power supply.
2.
Using either a flat-bladed or Torx T-10 screwdriver loosen the retaining
screws and remove the failed power supply.
Figure 4-1. Power Supply Removal
4-2
Replacing Components
Replacing Power Supplies
3.
Insert the power supply into the opening. Slide it all the way in until it
connects to the switch. The power supply face plate will be flush with the
back face of the switch.
tighten the four screws
Figure 4-2. Power Supply Installation
4.
Tighten the four retaining screws that hold it in place. Be careful not to
overtighten the screws.
For more detail refer to the ProCurve Switch zl Internal Power Supply
Installation Guide (5991-3787).
Replacing Components
4-3
Replacing Components
Replacing Fan Trays
Replacing Fan Trays
When a fan fails the Fan Status LED on the switch chassis will blink
simultaneously with the switch Fault LED. In this case, the entire fan tray
needs to be replaced. You cannot replace individual fans.
The fan tray is hot swappable. It can be removed and replaced without
removing power from the switch. However, install the new fan tray
immediately (within two minutes) after removing the old fan tray to avoid
overheating and switch shutdown (within three minutes).
Although these procedures show the 6-slot chassis, the procedures are the
same for the 12-slot chassis.
WARNING
To avoid contact with spinning fans, if you are hot swapping out the
fan tray assembly, pull the assembly out one-inch and allow the fans
to stop rotating (approximately 20 seconds) before pulling it all the
way out.
Replacing Components
To replace a fan tray:
1.
Using either a flat-bladed or Torx T-10 screwdriver loosen the retaining
screws holding the fan tray assembly and pull the fan tray assembly out.
2.
Install the new fan tray assembly and tighten the retaining screws.
Handle
Figure 4-3. Fan Tray Removal and Installation
4-4
Retaining Screws
Replacing Components
Replacing the Management Module
Replacing the Management Module
The switch does not have to be powered off to remove the management
module, however when the management module is removed all ports will lose
communication. ProCurve Networking recommends replacing the Management module, flash disk and battery (on the Management module) during
scheduled down time.
To install (or replace) a Management Module:
1.
On the module unscrew the retaining screws enough to disconnect them
from the threaded holes in the switch.
2.
Using the extractor handles, pull the module out from the slot.
3.
Remove the flash disk from the failed module and install it into the
replacement module.
4.
Remove the battery from the failed module and dispose of properly.
5.
Install the new battery that came with the replacement module. See the
following pages for replacement instructions.
6.
Install the replacement module into the switch.
7.
Use an equal amount of pressure and push both extractor handles closed
to completely seat the module.
8.
Tighten the retaining screws.
Retaining Screws
Extractor Handles
Replacing Components
4-5
Replacing Components
Replacing the Management Module Compact Flash Card
Replacing the Management Module
Compact Flash Card
The Compact Flash card is the primary non-volatile storage medium located
on the management module that contains both the boot software and
configuration files. When a Flash card fails the Flash status LED on the
management module will blink simultaneously with the switch Fault LED.
Installing a Compact Flash Card
To install (or replace) a Compact Flash card:
1.
Using either a flat-bladed or Torx T-10 screwdriver loosen the retaining
screws securing the management module. (You cannot access the
Compact Flash when the management module is installed. This prevents
inadvertent removal of the system image while the system is running.)
2.
Using the extractor handles, pull the management module out from the
slot.
Slide out
Compact Flash
Memory disk
Replacing Components
Figure 4-4. Management Module Removal
4-6
3.
Slide out the old flash card.
4.
Slide in the new flash card being careful not to bend any pins.
5.
Reinstall the management module into the switch.
6.
Use an equal amount of pressure and push both extractor handles closed
to completely seat the module.
7.
Tighten the retaining screws.
Replacing Components
Replacing the Management Module Battery
Replacing the Management Module Battery
The battery on the management module is used to keep time for the internal
switch clock. There is no indicator LED for when the battery dies. The only
indication will be the internal clock will not keep the correct time.
WARNING
■
The battery requires special handling at end-of-life. The battery
can explode or cause burns if disassembled, charged, or exposed
to water, fire or high temperature. After replacing the battery,
properly dispose of used battery according to instructions.
■
There is a risk of explosion if the battery is replaced by an
incorrect type. Ensure to replace the battery with the same type.
■
To avoid shorting of battery, remove and properly dispose of
battery before returning the Management Module for repair.
Installing a New Battery
To install (or replace) a New Battery:
1.
Using either a flat-bladed or Torx T-10 screwdriver loosen the retaining
screws securing the management module. (You cannot access the battery
when the management module is installed.)
2.
Using the extractor handles, pull the module out from the slot.
Battery
Replacing Components
Figure 4-5. Battery Location on Management Module
4-7
Replacing Components
Replacing the Management Module Battery
AT T E N T I O N
3.
Remove the old battery and dispose of properly.
4.
Insert the new battery with the lettering and the plus “+” sign facing up.
5.
Reinstall the management module into the switch.
6.
Use an equal amount of pressure and push both extractor handles closed
to completely seat the module.
7.
Tighten the retaining screws.
ll y a danger d'explosion s'il y a remplacement incorrect de la batterie.
Remplacer uniquement avec une batterie du même type ou d'un type
équivalent recommandé par le constructeur.
Mettre au rebut les batteries usagées conformément aux instructions du
fabricant.
AT T E N T I O N
If this product contains a real-time clock battery or coin cell battery it may
contain perchlorate and may require special handling when recycled or
disposed of in California and other certain states.
Perchlorate material - special handling may apply see:
Replacing Components
www.dtsc.ca.gov/hazardouswaste/perchlorate Web site for more information.
4-8
5
Troubleshooting
Troubleshooting
This chapter describes how to troubleshoot your Series 5400zl Switches. Note
that this document describes troubleshooting mostly from a hardware
perspective. You can perform more in-depth troubleshooting using the software tools available with the switch, including the full-featured console
interface, the built-in web browser interface, and ProCurve Manager, the
SNMP-based network management tool. For more information, see the
chapter “Troubleshooting” in the Management and Configuration Guide,
which is on the ProCurve Web site at www.procurve.com. To display the list
of downloadable manuals, click on the following links:
Technical support
Product manuals (all)
ProCurve Switch 3500yl or 6200yl Series.
(You may want to bookmark this Web page for easy access in the future.)
This chapter describes the following:
■
basic troubleshooting tips (page 5-1)
■
diagnosing with the LEDs (page 5-4)
■
Proactive Networking tools (page 5-9)
■
hardware diagnostic tests (page 5-10)
■
restoring the factory default configuration (page 5-12)
■
downloading new code (page 5-13)
■
HP Customer Support Services (page 5-13)
Basic Troubleshooting Tips
Most problems are caused by the following situations. Check for these items
first when starting your troubleshooting:
■
Faulty or loose cables. Look for loose or obviously faulty connections.
If they appear to be OK, make sure the connections are snug. If that does
not correct the problem, try a different cable.
5-1
Troubleshooting
Troubleshooting
Basic Troubleshooting Tips
■
Non-standard cables. Non-standard and miswired cables may cause
network collisions and other network problems, and can seriously impair
network performance. Use a new correctly-wired cable or compare your
cable to the cable in appendix B, “Switch Ports and Network Cables” for
pinouts and correct cable wiring. A category 5 cable tester is a recommended tool for every 100Base-TX and 1000Base-T network installation.
■
Improper Network Topologies. It is important to make sure you have
a valid network topology. Common topology faults include excessive
cable length and excessive repeater delays between end nodes. If you have
network problems after recent changes to the network, change back to
the previous topology. If you no longer experience the problems, the new
topology is probably at fault.
In addition, you should make sure that your network topology contains
no data path loops. Between any two end nodes, there should be only
one active cabling path at any time. Data path loops will cause broadcast
storms that will severely impact your network performance.
With your Series 5400zl Switches, if you wish to build redundant paths
between important nodes in your network to provide some fault tolerance, you should enable Spanning Tree Protocol support on the switch.
This ensures that only one of the redundant paths is active at any time,
thus avoiding data path loops. Spanning Tree can be enabled through the
switch console, the web browser interface, or ProCurve Manager.
The Series 5400zl Switches also support Trunking, which allows multiple
network cables to be used for a single network connection without
causing a data path loop. See the Management and Configuration Guide
for more information on Spanning Tree and on Trunking, which is on the
ProCurve Web site. See page 5-1 for details.
■
5-2
Connecting to devices that have a fixed full-duplex configuration.
The RJ-45 ports on the Series 5400zl Switches are all configured as “Auto”.
That is, when connecting to attached devices, the switch will operate in
one of two ways to determine the link speed and the communication mode
(half duplex or full duplex):
•
if the connected device is also configured to Auto, the switch will
automatically negotiate both link speed and communication mode
•
if the connected device has a fixed configuration, for example 100
Mbps, at half or full duplex, the switch will automatically sense the
link speed, but will default to a communication of half duplex
Troubleshooting
Basic Troubleshooting Tips
Ensure that all devices connected to the Series 5400zl Switches are
configured to auto negotiate, or are configured to connect at half duplex
(all hubs are configured this way, for example).
If necessary though, you can modify the configuration of the ports on the
Series 5400zl Switches to match the configuration of the connected
device. Use the switch console, the web browser interface, or ProCurve
Manager to modify the port configuration.
■
Check the port configuration. A port on your Series 5400zl Switch may
not be operating as you expect because it has been put into a “blocking”
state by Spanning Tree, GVRP (automatic VLANs), or LACP (automatic
trunking). (Note that the normal operation of the Spanning Tree, GVRP,
and LACP features may put the port in a blocking state.) Or, the port just
may have been configured as disabled through software.
Use the switch console to determine the port’s configuration and verify
that there is not an improper or undesired configuration of any of the
switch features that may be affecting the port. See the Management and
Configuration Guide which is on the ProCurve Web site. See page 5-1 for
details.
For more information on possible network problems and their solutions, refer
to the technical note “Troubleshooting LAN Performance and Intermittent
Connectivity Problems”, which can be found on the ProCurve Networking
Web site, www.procurve.com, in the Reference Library section.
5-3
Troubleshooting
Because the Series 5400zl Switches behave in this way (in compliance
with the IEEE 802.3 standard), if a device connected to the switch has
a fixed configuration at full duplex, the device will not connect correctly
to the switch. The result will be high error rates and very inefficient
communications between the switch and the device.
Troubleshooting
Diagnosing with the LEDs
Troubleshooting
Diagnosing with the LEDs
Table 5-1 shows LED patterns on the switch and the switch modules that
indicate problem conditions.
1.
Check in the table for the LED pattern you see on your switch
2.
Refer to the corresponding diagnostic tip on the next few pages.
Table 5-1.
LED Error Indicators
Port Link
Power
(one LED per
power supply)
Module Status
(one LED per
module)
1
1
1
1
1
1
➊
On
Prolonged
On
Prolonged
On
1
1
1
1
➋
On
Blinking2
Blinking2
Off
1
1
1
➌
On
Blinking2
Blinking2
Blinking2
1
1
Never On
➍
On
Blinking2
Blinking2
Blinking2
1
1
On briefly,
then Off
➎
On
Off
Off
Blinking2
1
1
1
➏
2
1
Blinking
➐
2
2
Fan
Test
Off with
power cord
plugged in
2
Blinking
Blinking
1
Blinking2
Off
1
Blinking†
*
1
➑
On
Blinking2
Off
1
1
Blinking†
1
➒
On
Off
Off
Off
1
1
Fast blinking3
➓
On
1
1
Off with cable
connected
11l
On
Blinking
On
On
1
Off
Off
This LED is not important for the diagnosis.
2 The blinking behavior is an on/off cycle once every 1.6 seconds, approximately.
3
The fast blinking behavior is an on/off cycle once every 0.8 seconds, approximately
5-4
Diagnostic
Tips
Fault
Power
LED Pattern Indicating Problems
Troubleshooting
Diagnosing with the LEDs
Diagnostic Tips:
Problem
Solution
➊
The power supplies
installed in the
switch are not
plugged into active
AC power sources,
or the power supply
may have failed.
1. Verify the power cord is plugged into an active power source and to the switch.
Ensure these connections are snug.
2. Try power cycling the switch by unplugging and plugging the power cord back in.
3. If the Power LED is still not on, verify the AC power source works by plugging
another device into the outlet. Or try plugging the switch into a different outlet or
try a different power cord.
If the power source and power cord are OK and this condition persists, the switch
power supply may have failed. Call your ProCurve authorized LAN dealer, or use the
electronic support services from ProCurve to get assistance. See the Customer
Support/Warranty card for more information.
➋
A switch hardware
failure has
occurred. All the
LEDs will stay on
indefinitely.
Try power cycling the switch. If the fault indication reoccurs, the switch may have
failed. Call your ProCurve authorized LAN dealer, or use the electronic support
services from ProCurve to get assistance. See the Customer Support/Warranty card
for more information.
➌
The switch has
experienced a
backplane failure
during self test.
The failure may be just in the communications with a single module slot, or it might
be more significant. Start a console session with the switch, and at the CLI prompt
issue the command show logging. In the event log that is displayed, there will
be messages that describe the extent of the problem. If the problem is with individual
slots, the remainder of the switch slots will be fully operational and can be used until
you get a chance to replace the switch.
If necessary to resolve the problem, contact your ProCurve authorized LAN dealer,
or use the electronic support services from ProCurve to get assistance. See the
Customer Support/Warranty card for more information.
➍
The module
installed in the slot
that corresponds to
the letter that is
blinking is an
invalid module.
The fact that the Link and Mode LEDs never are lit on the module indicates that it is
a ProCurve Switch gl module and should not be used in your zl switch.
Ensure you have installed a zl module in the slot. ProCurve xl/gl modules
Zl
will fit in the slot, but they are not compatible with your ProCurve zl switch.
module Check to ensure the module has a Blue “zl module” symbol on it.
Remove the module from the switch and replace it with a zl module, or
recover the slot with the cover plate. You can remove and replace the module
without having to power down the switch. Call your ProCurve authorized LAN dealer,
or use the electronic support services from ProCurve to get information on
supported Switch zl modules. The modules that are available as of the printing of
this manual are listed on page 1-13.
5-5
Troubleshooting
Tip
Number
Troubleshooting
Diagnosing with the LEDs
Troubleshooting
Tip
Number
5-6
Problem
Solution
➎
The module
installed in the slot
that corresponds to
the letter that is
blinking has
experienced a self
test or initialization
fault.
The modules are all tested whenever the switch is powered on, or reset (through
the Reset button on the switch, or the Boot or Reset options in the console or web
browser interface), and when they are hot swapped (installed when the switch is
powered on).
Since the Link and Mode LEDs on the module were lit at least briefly, that indicates
that the module did receive power from the switch, but the subsequent download
process failed. Either the module is faulty, or it is a new module type that is not yet
supported by the operating code on the switch.
As ProCurve Networking introduces new modules for your ProCurve Switch zl, you
may have to update the switch with new operating code that supports the new
module. The documentation that came with the module will indicate which version
of the operating code is needed to support the module. The modules that are
supported in your Switch zl, as of the printing of this manual, are listed on
page 1-13 under “Switch Features”. The latest code can be downloaded from the
ProCurve Networking Web site at www.procurve.com.
First verify the switch has a version of code that supports the module that is
indicating the fault. If the module is not one of the ones listed on page 1-13, check
the module documentation to see what version of switch code is needed. Download
the new code and retest the module.
If you have the correct code installed in the switch, try removing and reinstalling the
module. You can do this without having to power down the switch. When the module
is reinstalled, it will be retested automatically.
If the fault indication reoccurs, the module may have failed. Remove the module from
the switch and replace it with another module, or recover the slot with the cover
plate. Call your ProCurve authorized LAN dealer, or use the electronic support
services from ProCurve to get assistance. See the Customer Support/Warranty card
for more information.
➏
In the slot
corresponding to
the letter that is
blinking, a module
was installed that is
a different type
than the previously
installed module,
and the switch has
not yet been reset.
When you “hot swap” modules in the switch slots, if you install a different module
type than the one that was previously installed in the slot, you must reset the switch
so the switch processor can properly initialize and configure the new module type.
The blinking LED informs you that this change of module types has occurred. The
module will not work properly until the switch is reset.
You can reset the switch by any of these methods:
• pressing the Reset button.
• power cycling the switch.
• selecting the reset or reboot option from the console, web browser interface, or
ProCurve Manager.
Troubleshooting
Diagnosing with the LEDs
Tip
Number
Solution
➐
The network port
for which the Link
LED is blinking has
experienced a self
test or initialization
failure.
During the module self test, described in tip number 4 earlier in this table, each
network port is also tested. If the port self test fails, the individual port is not usable,
but the rest of the ports on the module, which have passed their self test, will
continue to operate normally.
If the port is a mini-GBIC, verify it is one of the mini-GBICs supported by the
mini-GBIC zl Module. Unsupported mini-GBICs will be identified with this fault
condition. The supported mini-GBICs are listed in the module Installation Guide. The
mini-GBICs are also tested when they are “hot-swapped”--installed or changed
after the mini-GBIC zl Module is installed and receiving power from the switch.
To verify the port has failed, try removing and reinstalling the module, as described
in tip number 4. For the mini-GBICs, you can just remove and reinstall the
mini-GBIC without having to remove the module. If the port fault indication reoccurs,
and you need to be able to use the port, you will have to replace the mini-GBIC or
the module. In the mean time, all the other module ports will operate normally.
➑
A fault condition
has been detected
on the power
supply installed in
the slot
corresponding to
the blinking
number.
Try removing and reinstalling the power supply.
Caution: Ensure the AC power cord is disconnected from the supply before removing
and reinstalling the supply.
Reconnect the power supply to the AC power source. If the error indication reoccurs
after the supply is reinstalled, the power supply may be faulty. Call your ProCurve
authorized LAN dealer, or use the electronic support services from ProCurve
Networking to get assistance. See the Customer Support/Warranty card for more
information.
➒
One or more of the
switch cooling fans
may have failed.
Try disconnecting power from the switch and wait a few moments. Then reconnect
the power to the switch and check the LEDs again. If the error indication reoccurs,
one or more of the fans has failed. The switch has multiple fans and may continue
to operate OK under this condition if the ambient temperature does not exceed
normal room temperature, but for best operation, the switch should be replaced.
Contact your ProCurve authorized LAN dealer, or use the electronic support
services from ProCurve Networking to get assistance. See the Customer Support/
Warranty card for more information.
➓
The network port
for which the Link
LED is blinking has
been disabled
because port
security has been
configured on the
switch and a
security violation
has been detected
on the port.
For the Port Security feature, you can configure the switch so that whenever a
security violation is detected on a port, the switch will disable the port. When a port
is disabled by this feature, the port Link LED will be continuously flashed at the fast
rate of 0.8 seconds per cycle. The blinking continues until you clear the security
violation through the switch console. In the console, you can view the identity of the
connected device that committed the security violation.
Once the security violation is cleared, you must re-enable the port through the
console.
For more information on the Port Security feature, see the Management and
Configuration Guide which is on the ProCurve Web site. See page 5-1 for details.
5-7
Troubleshooting
Problem
Troubleshooting
Diagnosing with the LEDs
Troubleshooting
Tip
Number
l
Problem
The network
connection is not
working properly.
Solution
Try the following procedures:
• For the indicated port, verify both ends of the cabling, at the switch and the
connected device, are securely connected.
• Verify the connected device and switch are both powered on and operating
correctly.
• Verify you have used the correct cable type for the connection.
– for any of the twisted-pair connections, in the default configuration (Auto),
either a straight-through or a crossover cable can be used and the switch will
automatically adjust its operation. See the “HP Auto-MDIX Feature”
description on page B-6 for more information.
Note: If the module configuration is changed to one of the fixed
configuration options though (for example, 100-Full Duplex), then the port
operates as MDI-X only and the correct type of cable must be used. in
general, for connecting to an end node (MDI port), use straight-through
cable; for connecting to MDI-X ports on hubs, other switches, and routers,
use crossover cable.
– for fiber-optic connections, verify that the transmit port on the switch is
connected to the receive port on the connected device, and the switch
receive port is connected to the transmit port on the connected device, and
that both devices are transmitting correctly.
• For a 1000 Mbps connection, verify the network cabling complies with the IEEE
802.3ab standard. The cable should be installed according to the ANSI/TIA/EIA568-A-5 specifications. Cable testing should comply with the stated limitations
for Attenuation, Near-End Crosstalk, Far-End Crosstalk, Equal-Level Far-End
Crosstalk (ELFEXT), Multiple Disturber ELFEXT, and Return Loss.
The cable verification must include all patch cables from any end devices,
including the switch, to any patch panels in the cabling path.
• Verify the port has not been disabled through a switch configuration change.
You can use the console interface, or, if you have configured an IP address on
the switch, use the web browser interface, or ProCurve Manager network
management software to determine the state of the port and re-enable the port
if necessary.
• Verify the switch port configuration matches the configuration of the attached
device. For example, if the switch port is configured as “Auto”, the port on the
attached device also MUST be configured as “Auto”. Depending on the port type,
twisted-pair or fiber-optic, if the configurations don’t match, the results could be
a very unreliable connection, or no link at all.
If the other procedures don’t resolve the problem, try using a different port or a
different cable.
5-8
Troubleshooting
Proactive Networking
Proactive Networking
■
finding and helping you fix the most common network error conditions
(for example, faulty network cabling, and non-standard network
topologies)
■
informing you of the problem with clear, easy-to-understand messages
■
recommending network configuration changes to enhance the
performance of your network
The following interfaces provide tests, indicators, and an event log that can
be used to monitor the switch and its network connections, and to help you
take advantage of these proactive networking features:
■
ProCurve Manager - an SNMP-based network management tool included
with your switch
■
A graphical web browser interface you can use to manage your switch
from a PC that is running a supported web browser, for example Microsoft
Internet Explorer or Netscape Communicator.
■
A full-featured easy-to-use console interface you can access by merely
connecting a standard terminal or PC running a terminal emulator to the
switch’s console port. The cable to make that connection is provided with
your switch. The console interface is also accessible through a telnet
connection.
See the “Troubleshooting” chapter in the Management and Configuration
Guide for more information on using these software tools to diagnose and
manage your switch, which is on the ProCurve Web site. See page 5-1 for
details.
5-9
Troubleshooting
The Series 5400zl Switches have built-in management capabilities that
proactively help you manage your network including:
Troubleshooting
Hardware Diagnostic Tests
Troubleshooting
Hardware Diagnostic Tests
Testing the Switch by Resetting It
If you believe the switch is not operating correctly, you can reset the switch
to test its circuitry and operating code. To reset a switch, either:
■
Unplug and plug in the power cord (power cycling)
■
Press the Reset button on the front of the switch
■
Select the reset or reboot option from the console, web browser interface,
or ProCurve Manager.
Power cycling the switch, pressing the Reset button, and the software reset
or reboot options all cause the switch to perform its power-on self-test, which
almost always will resolve any temporary operational problems. These reset
processes also cause any network traffic counters to be reset to zero and cause
the System Up Time timer to reset to zero. Neither of these reset procedures
causes any changes to the switch configuration.
Checking the Switch LEDs
The self-test passes if the Fault and Test LEDs on the front of the switch go
off after approximately 90 to 150 seconds depending on the number and type
of modules installed in the switch. If these LEDs stay on longer than 180
seconds or begin blinking, the switch, or a module, or an individual mini-GBIC
may have to be replaced as indicated by the LEDs.
See “Diagnosing With the LEDs” on page 5-4 for information on interpreting
the LED patterns.
Checking Console Messages
Useful diagnostic messages may be displayed on the console screen when the
switch is reset. As described in chapter 2 under step 8, “Connect a Console to
the Switch”, connect a PC running a VT-100 terminal emulator program or a
standard VT-100 terminal to the switch’s Console Port and configure it to run
at 9600 baud and with the other terminal communication settings shown on
page 2-26. Then, when you reset the switch, note the messages that are
displayed.
5-10
Troubleshooting
Hardware Diagnostic Tests
Testing Twisted-Pair Cabling
ProCurve Networking also offers a wire testing service. Contact your
ProCurve authorized LAN dealer or your local ProCurve Networking sales
office for more information.
Testing Switch-to-Device Network Communications
You can perform the following communication tests to verify the network is
operating correctly between the switch and any connected device that can
respond correctly to the communication test.
■
Link Test -- a physical layer test that sends IEEE 802.2 test packets to any
device identified by its MAC address
■
Ping Test -- a network layer test used on IP networks that sends test
packets to any device identified by its IP address
These tests can be performed through the switch console interface from a
terminal connected to the switch or through a telnet connection, or from the
switch’s web browser interface. See the Management and Configuration
Guide which is on the ProCurve Web site. See page 5-1 for details.
These tests can also be performed from an SNMP network management
station running a program that can manage the switch, for example, ProCurve
Manager.
Testing End-to-End Network Communications
Both the switch and the cabling can be tested by running an end-to-end
communications test -- a test that sends known data from one network device
to another through the switch. For example, if you have two PCs on the
network that have LAN adapters between which you can run a link-level test
or Ping test through the switch, you can use this test to verify the entire
communication path between the two PCs is functioning correctly. See your
LAN adapter documentation for more information on running the a link test
or Ping test.
5-11
Troubleshooting
If you think the cable should work but still isn’t working, it may not be
compatible with the IEEE 802.3 Type 10Base-T, 100Base-TX, or 1000Base-T
standards, as appropriate for the switch port type that the cable is connected
to. The twisted-pair cables attached to the Series 5400zl Switches must be
compatible with these standards.To verify your cable is compatible with these
standards, use a qualified cable test device.
Troubleshooting
Restoring the Factory Default Configuration
Troubleshooting
Restoring the Factory Default
Configuration
As part of your troubleshooting process, it may become necessary to return
the switch configuration to the factory default settings. This process momentarily interrupts the switch operation, clears any passwords, clears the console
event log, resets the network counters to zero, performs a complete self test,
and reboots the switch into its factory default configuration including deleting
an IP address, if one is configured.
Note
This process removes all switch configuration changes that you have made
from the factory default settings. This includes, for example, configuration of
VLANs, spanning tree, trunks, stacking, meshing, routing, and security.
Returning the configuration of these features to their factory default settings
(usually disabling them) may result in network connectivity issues.
If the switch has a valid configuration, and you are restoring the factory default
settings for a reason other than configuration problems, you should save the
switch configuration prior to performing the factory default reset. Then, after
the reset and resolution of the original problem, you can restore the saved
configuration to the switch. For both the save and restore processes, you can
use the console copy command. See the switch Management and Configuration Guide which is on the ProCurve Web site. See page 5-1 for details.
You can restore the factory default configuration either on the switch itself or
through the switch console.
To execute the factory default reset on the switch, perform these steps:
1.
Using pointed objects, simultaneously press both the Reset and Clear
buttons on the front of the switch.
2.
Continue to press the Clear button while releasing the Reset button.
3.
As soon as the Test LED begins to flash, release the Clear button.
The switch will then complete its self test and begin operating with its
configuration restored to the factory default settings.
To restore the factory default configuration using the console, execute the
erase startup config command from the console command prompt.
5-12
Troubleshooting
Downloading New Code
Downloading New Code
The new code would be available on the ProCurve Networking Web site,
www.procurve.com.
HP Customer Support Services
If you are still having trouble with your switch, Hewlett-Packard offers support
24 hours a day, seven days a week through the use of a number of automated
electronic services. See the Customer Support/Warranty booklet that came
with your switch for information on how to use these services to get technical
support. The ProCurve Networking Web site, www.procurve.com also
provides up-to-date support information.
Additionally, your ProCurve authorized network reseller can provide you with
assistance, both with services that they offer and with services offered by
ProCurve Networking.
Before Calling Support
Before calling your networking dealer or ProCurve Support, to make the
support process most efficient, retrieve the following information:
Information Item
Information Location
• product identification, including the chassis,
modules, and mini-GBICs
the front of the switch, and on the
modules and mini-GBICs
• details about the switch’s status including the OS
(software) version, a copy of the switch configuration, a copy of the switch Event Log, and a
copy of the switch status and counters information
switch console: show tech
command
• copy of your network topology map, including
network addresses assigned to the relevant devices
your network records
5-13
Troubleshooting
When product enhancements occur for the Series 5400zl Switches, new code
can be downloaded to the switch through several methods, for product
enhancements and new features. Please see the Management and Configuration Guide which is on the ProCurve Web site. See page 5-1 for details.
A
Specifications
Physical
44.2 cm (17.4 in)
Depth:
45.0 cm (17.7 in)
Height:
• Switch 5406zl
• Switch 5412zl
17.5 cm (6.8 in)
30.74 cm (12.1 in)
Weight:
• Switch 5406zl
• Switch 5406zl-48G
• 10.68 kg (23.55 lbs)
• 15.54 kg (34.25 lbs) – includes two modules and one
power supply
• 15.86 kg (34.95 lbs)
• 26.32 kg (58.0 lbs) – includes four modules and two
power supply
• Switch 5412zl
• Switch 5412zl-96G
Electrical
The Series 5400zl Switches automatically adjust to any voltage between
100-127 and 200-240 volts when using the J8712A power supply, and 200-240
volts only when using the J8713A power supply, and either 50 or 60 Hz.
J8712A
J8713A
AC voltage:
100–127 volts
200–240 volts 200–240 volts only
Maximum current:
12 A
5A
10 A
Frequency range:
50/60 Hz
50/60 Hz
50/60 Hz
Maximum continuous
output power:
875W
875W
1500W
Each installed module may draw 369.6W@50V for PoE
A-1
Specifications
Width:
Specifications
Environmental
Operating
Non-Operating
1
Temperature:
0°C to 55°C (32°F to 131°F)
-40°C to 70°C (-40°F to 158°F)
Relative humidity:
(non-condensing)
15% to 80% at 55°C (131°F)
15% to 90% at 65°C (149°F)
Maximum altitude:
4.6 km (15,000 ft)
4.6 km (15,000 ft)
1
If you are installing either the J8705A or J8707A modules, or any of the X2 transceivers, the
operating ambient temperature should not exceed 40°C (104°F). See transceiver specifications
Specifications
below.
TRANSCEIVERS
Temperature:
SR Optic J8436A
LR Optic J8437A
ER Optic J8438A
Copper J8440B
A-2
0°C to 40°C (32°F to 104°F)
Relative humidity:
(non-condensing)
15% to 95% at 40°C (104°F)
Maximum altitude:
4.6 Km (15,000 ft)
Running H/F 1
Acoustic
Switch 5400zl and 5406zl-48G:
Geräuschemission LpA = 40.2 dB am fiktiven Arbeitsplatz nach
DIN 45635 T.19
Noise Emission LpA = 40.2 dB in a virtual workspace according to
DIN 45635 T.19
Switch 5412zl and 5412zl-96G:
Geräuschemission LpA = 45.8 dB am fiktiven Arbeitsplatz nach
DIN 45635 T.19
Specifications
Noise Emission LpA = 45.8 dB in a virtual workspace according to
DIN 45635 T.19
Network Connectors
■
The 10/100 Mbps RJ-45 twisted-pair ports on the 10/100-TX zl Module are
compatible with the IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX
standards.
■
The 100/1000 Mbps RJ-45 twisted-pair ports on the 100/1000-T zl Module
are compatible with the IEEE 802.3u 100Base-TX and IEEE 802.3ab
1000Base-T standards.
■
The 1000 Mbps fiber-optic ports on the Gigabit-SX and Gigabit-LX
mini-GBICs are compatible with the IEEE 802.3z Gigabit-SX and
Gigabit-LX standards respectively.
■
The copper ports are compatible with the IEEE 802.1ak standards.
■
The fiber-optic ports are compatible with the IEEE 802.1ae standards.
■
The console port is a standard RS-232, (standard DB-9) connector.
Safety
■
EN60950
■
CSA 22.2 No. 60950
■
UL 60950
■
IEC 60950
A-3
Specifications
Lasers
The following products are Class 1 Laser Products.
■
Laser Klasse 1:The 10-GbE X2-SC SR transceiver
■
The 10-GbE X2-SC LR transceiver
■
The 10-GbE X2-SC ER transceiver
The following products are Class 1m Laser Products.
Laser Klasse 1m:
■
The 10-GbE X2 SR-SC transceiver
Specifications
The transceivers comply with IEC 60825.
A-4
B
Switch Ports and Network Cables
This appendix includes switch connector information and network cable
information for cables that should be used with the Series 5400zl Switches,
including minimum pin-out information and specifications for twisted-pair
cables.
Note
Incorrectly wired cabling is the most common cause of problems for LAN
communications. It is recommended that you work with a qualified LAN cable
installer for assistance with your cabling requirements.
Switch Ports
Twisted Pair
■
The RJ-45 ports on the modules accept 100-ohm differential unshielded
and shielded twisted-pair cable with RJ-45 connectors as described on the
next page.
■
The LC-type connector port on the Gigabit-SX mini-GBIC transmits at
850 nm wavelength, and accepts the low metal content, multimode fiberoptic cables for Gigabit-SX described on page B-3.
■
The LC-type connector port on the Gigabit-LX mini-GBIC transmits at
1310 nm wavelength, and accepts the low metal content, single-mode or
multimode fiber-optic cables for Gigabit-LX described on page B-3.
■
The LC-type connector port on the Gigabit-LH mini-GBIC transmits at
1550 nm wavelength, and accepts the low metal content, single-mode or
multimode fiber-optic cables for Gigabit-LH described on page B-3.
B-1
Switch Ports and Network
Cables
Fiber-Optic
Switch Ports and Network Cables
Cables
Twisted-Pair
10 Mbps Operation
Category 3, 4, or 5 100-ohm differential unshielded twistedpair (UTP) or shielded twisted-pair (STP) cable, complying
with IEEE 802.3 Type 10Base-T specifications, fitted with
RJ-45 connectors.
100 Mbps Operation
Category 5 100-ohm differential UTP or STP cable,
complying with IEEE 802.3u 100Base-TX specifications,
fitted with RJ-45 connectors.
1000 Mbps Operation Category 5 100-ohm differential 4-pair UTP or STP cable,
complying with IEEE 802.3ab 1000Base-T specifications,
fitted with RJ-45 connectors—Category 5e or better is
recommended.
(See “Note on 1000Base-T Cable Requirements”, below)
Switch Ports and Network
Cables
Note on 1000Base-T Cable Requirements. The Category 5 networking
cables that work for 100Base-TX connections should also work for
1000Base-T, as long as all four-pairs are connected. But, for the most robust
connections you should use cabling that complies with the Category 5e
specifications, as described in Addendum 5 to the TIA-568-A standard (ANSI/
TIA/EIA-568-A-5).
Because of the increased speed provided by 1000Base-T (Gigabit-T), network
cable quality is more important than for either 10Base-T or 100Base-TX. Site
cabling that is being used to carry 1000Base-T networking must comply with
the IEEE 802.3ab standards. In particular, the cabling must pass tests for
Attenuation, Near-End Crosstalk (NEXT), and Far-End Crosstalk (FEXT).
Additionally, unlike the cables for 100Base-TX, the 1000Base-T cables must
pass tests for Equal-Level Far-End Crosstalk (ELFEXT), Multiple Disturber
ELFEXT, and Return Loss.
When testing your cabling, be sure to include the patch cables that connect
the switch and other end devices to the patch panels on your site. The patch
cables are frequently overlooked when testing cable and they must also
comply with the cabling standards.
B-2
Switch Ports and Network Cables
Fiber-Optic Cables
Port Type
Cable Specifications
Connector Type
Maximum Length
Gigabit-SX
62.5/125 μm or 50/125 μm (core/cladding)
diameter, graded-index 850 nm, low metal
content, multimode fiber-optic cables,
complying with the ITU-T G.651 and ISO/IEC
793-2 Type A1b or A1a respectively.
LC - Gigabit-SX
mini-GBIC
SC - Gigabit-SX
transceiver
• 62.5 μm cable:
– 160 MHz*km=220 meters
– 200 MHz*km=275 meters
• 50 μm cable:
– 400 MHz*km=500 meters
– 500 MHz*km=550 meters
Gigabit-LX
9/125 μm (core/cladding) diameter, gradedindex 1310 nm, low metal content, single
mode fiber-optic cables, complying with the
ITU-T G.652 and ISO/IEC 793-2 Type B1
standards.
OR
the multimode fiber-optic cables listed for
Gigabit-SX.
LC - Gigabit-LX
mini-GBIC
SC - Gigabit-LX
transceiver
• single-mode cable:
10 kilometers
• Multimode cable:
550 meters
Note: To use multimode cables for Gigabit-LX, a mode conditioning patch cord may be needed - See the
Installation Guide that came with your module for more information.
Gigabit-LH
LC - Gigabit-LH
mini-GBIC
70 kilometers
Note: Between the transmit and receive ends of the cable, at least 5db of attenuation is required for a
reliable connection. This is equivalent to 20Km of the fiber-optic cable. For distances less than 20Km,
you must add attenuators to bring the total attenuation to at least 5db. Most cable vendors carry
attenuators.
10-GbE SR
10-GbE LR
Multimode fiber-optic cable designed for
Gigabit Ethernet: 62.5/125 μm (core/
cladding) diameter or 50/125 μm, 850 nm, low
metal content,
complying with the ITU-T G.652 and ISO/IEC
793-2 Type B1 standards.
SC
9/125 μm (core/cladding) diameter, 1310 nm,
low metal content, single mode fiber-optic
cables, complying with the ITU-T G.652 and
ISO/IEC 793-2 Type B1 standards.
SC
■
■
62.5 μm cable:
•
160 Mhz*km = 2-26 meters
•
200 Mhz*km = 2-33 meters
50 μm cable:
•
400 Mhz*km = 2-66 meters
•
500 Mhz*km = 2-82 meters
•
2000 Mhz*km = 2-300
meters
single-mode cable: 2-10 kilometers
B-3
Switch Ports and Network
Cables
9/125 μm (core/cladding) diameter, gradedindex 1550 nm, low metal content, single
mode fiber-optic cables, complying with the
ITU-T G.652 and ISO/IEC 793-2 Type B1
standards.
Switch Ports and Network Cables
Port Type
Cable Specifications
10-GbE ER
9/125 μm (core/cladding) diameter, 1550 nm,
low metal content, single mode fiber-optic
cables, complying with the ITU-T G.652 and
ISO/IEC 793-2 Type B1 standards.
Connector Type
SC
Maximum Length
single-mode cable: 2-30 kilometers
(40 kilometers, on an engineered
fiber optic link that meets standards
in the specification).
Note: Conditioning patch cord cables are not supported for 10-GbE.
OMC CX4
Fiber
12 fiber 50/125 μm (core/cladding) diameter,
multimode Fiber ribbon cable. 12 fiber 62.5/
125 μm (core/cladding) diameter, multimode
Fiber ribbon cable is also supported.
Optical Media
Converter
1-300 meters
Copper Cables
Cable Specifications
CX4
Speed 3.125Gbx4
(Cables compliant with the 802.3ak standard)
Switch Ports and Network
Cables
Port Type
B-4
Connector
Type
CX4
Supported Length
0.5-15 meters
Switch Ports and Network Cables
Mode Conditioning Patch Cord for Gigabit-LX
Mode Conditioning Patch Cord for
Gigabit-LX
The following information applies to installations in which multimode fiberoptic cables are connected to a Gigabit-LX port.
Note
Mode Conditioning Patch Cord cables only apply to one Gigabit operation.
Mode Conditioning Patch Cord cables are not supported for 10 Gigabit
operation.
Unlike Gigabit-SX, which connects to only multimode fiber-optic cabling,
Gigabit-LX can use either single-mode or multimode cable. Multimode cable
has a design characteristic called “Differential Mode Delay”, which requires
that the transmission signals be “conditioned” to compensate for the cable
design and thus prevent resulting transmission errors. Since Gigabit-SX is
designed to operate only with multimode cable, Gigabit-SX mini-GBICs can
provide that transmission conditioning internally.
If you experience a high number of transmission errors on the Gigabit-LX
ports, usually CRC or FCS errors, you may need to install one of these patch
cords between the Gigabit-LX port in your switch and your multimode fiberoptic network cabling, and between the Gigabit-LX transmission device and
the network cabling at the other end of the multimode fiber-optic cable run.
A patch cord must be installed at both ends.
The patch cord consists of a short length of single-mode fiber cable coupled
to graded-index multimode fiber cable on the transmit side, and only
multimode cable on the receive side. The section of single-mode fiber is
connected in such a way that it minimizes the effects of the differential mode
delay in the multimode cable.
Note
If you are using good quality graded-index multimode fiber cable that adheres
to the standards listed on page 3, there should not be a need to use mode
conditioning patch cords. This is especially true if the fiber runs in your
network are relatively short. If you are using single-mode fiber-optic cabling,
there is no need to use mode conditioning patch cords. Connect the singlemode network cable directly to the Gigabit-LX mini-GBIC.
B-5
Switch Ports and Network
Cables
Gigabit-LX mini-GBICs, since they are designed to operate with both singlemode and multimode cable, do not provide the transmission conditioning
internally. Thus, under certain circumstances, depending on the cable used
and the lengths of the cable runs, an external Mode Conditioning Patch
Cord may need to be installed between the Gigabit-LX transmitting device
and the multimode network cable to provide the transmission conditioning.
Switch Ports and Network Cables
Twisted-Pair Cable/Connector Pin-Outs
Installing the Patch Cord
As shown in the illustration below, connect the patch cord to the Gigabit-LX
mini-GBIC with the section of single-mode fiber plugged in to the Tx (transmit)
port. Then, connect the other end of the patch cord to your network cabling
patch panel, or directly to the network multimode fiber.
If you connect the patch cord directly to the network cabling, you may need
to install a female-to-female adapter to allow the cables to be connected
together.
Gigabit-LX port
LX connector
To network
multimode
cabling
Switch Ports and Network
Cables
The multimode cable in the patch cord
must match the characteristics of your
network cable
Single-mode section plugs into Tx
port on Gigabit-LX Transceiver or
Gigabit-LX mini-GBIC
Figure B-1. Mode Conditioning Patch Cord
Make sure you purchase a patch cord that has LC connectors on the end that
connects to the Gigabit-LX mini-GBIC, and has multimode fibers that match
the characteristics of the multimode fiber in your network.
Twisted-Pair Cable/Connector Pin-Outs
The HP Auto-MDIX Feature. In the default configuration, “Auto”, the
10/100Base-TX ports on the 10/100-TX and PoE xl Modules used in the Series
5400zl Switches all automatically detect the type of port on the connected
device and operate as either an MDI or MDI-X port, whichever is appropriate.
So for any connection, a straight-through twisted-pair cable can be used -- you
no longer have to use crossover cables, although crossover cables can also be
used for any of the connections. The 100/1000-T xl Module supports the IEEE
802.3ab standard, which includes the “Auto MDI/MDI-X” feature, which operates the same way.
B-6
Switch Ports and Network Cables
Twisted-Pair Cable/Connector Pin-Outs
Note
HP Auto-MDIX was developed and shared with the IEEE for the development
of the IEEE 802.3ab standard. HP Auto-MDIX and the IEEE 802.3ab Auto MDI/
MDI-X feature are completely compatible.
If you connect a Series 5400zl Switch twisted-pair port to another switch or
hub, which typically have MDI-X ports, the Series 5400zl Switch port automatically operates as an MDI port. If you connect it to an end node, such as a
server or PC, which typically have MDI ports, the Series 5400zl Switch port
operates as an MDI-X port. In all cases, you can use standard straight through
cables.
If you happen to use a correctly wired crossover cable, though, the switch will
still be able to automatically detect the MDI/MDI-X operation and link
correctly to the connected device.
If the port configuration is changed to any of the fixed configurations
though, for example 100 Mbps/full duplex, the port operates as MDI-X only
and the correct cable type must be used. In general, for connections to MDI
ports, such as end nodes, use a straight-through cable; for connections to MDIX ports, such as on hubs and other switches, use a crossover cable.
Other Wiring Rules:
All twisted-pair wires used for 10 Mbps, and 100 Mbps operation must be
twisted through the entire length of the cable. The wiring sequence must
conform to EIA/TIA 568-B (not USOC). See the Pin Assignment tables
below the cable illustrations later in this appendix for a listing of the
signals used on each pin.
■
For 1000Base-T connections, all four pairs of wires in the cable must be
available for data transmission. See “Note on 1000Base-T Cable Requirements” on page B-2 for more information on 1000Base-T cabling.
■
For 10 Mbps connections to the ports, you can use Category 3, 4, or 5
100-ohm differential unshielded twisted-pair (UTP) or shielded twistedpair (STP) cable, as supported by the IEEE 802.3 10Base-T standard.
■
For 100 Mbps connections to the ports, use Category 5 100-ohm differential UTP or STP cable only, as supported by the IEEE 802.3u 100Base-TX
standard.
■
For 1000 Mbps connections, Category 5 or better 100-ohm differential UTP
or STP cable only, as supported by the IEEE 802.3ab 1000Base-T standard;
Category 5e or better is recommended.
B-7
Switch Ports and Network
Cables
■
Switch Ports and Network Cables
Twisted-Pair Cable/Connector Pin-Outs
Straight-Through Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connections
Because of the HP Auto-MDIX operation of the 10/100 ports on the switches,
for all network connections, to PCs, servers or other end nodes, or to hubs or
other switches, you can use straight-through cables.
If any of these ports are given a fixed configuration, for example 100 Mbps/
Full Duplex, the ports operate as MDI-X ports, and straight-through cables
must be then used for connections to PC NICs and other MDI ports.
Switch Ports and Network
Cables
Cable Diagram
Figure B-2. Straight-through Cable Diagram for 10/100 Mbps Network Connection
Note
Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 4, 5, 7, and 8 are not used in this application, although they may be wired
in the cable.
.
Pin Assignments
B-8
Switch End (MDI-X)
Computer, Transceiver, or Other End
Signal
Pins
Pins
Signal
receive +
receive transmit +
transmit -
1
2
3
6
1
2
3
6
transmit +
transmit receive +
receive -
Switch Ports and Network Cables
Twisted-Pair Cable/Connector Pin-Outs
Crossover Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connection
The HP Auto-MDIX operation of the 10/100 ports on the switches also allows
you to use crossover cables for all network connections, to PCs, servers or
other end nodes, or to hubs or other switches.
If any of these ports are given a fixed configuration, for example 100 Mbps/
Full Duplex, the ports operate as MDI-X ports, and crossover cables must be
then used for connections to hubs or switches or other MDI-X network
devices.
Cable Diagram
Note
Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 4, 5, 7, and 8 are not used in this application, although they may be wired
in the cable.
.
Pin Assignments
Switch End (MDI-X)
Hub or Switch Port, or Other MDI-X Port End
Signal
Pins
Pins
Signal
receive +
receive transmit +
transmit -
1
2
3
6
6
3
2
1
transmit transmit +
receive receive +
B-9
Switch Ports and Network
Cables
Figure B-3. Cross-over Cable Diagram for 10/100 Mbps Network Connection
Switch Ports and Network Cables
Twisted-Pair Cable/Connector Pin-Outs
Straight-Through Twisted-Pair Cable for
1000 Mbps Network Connections
1000Base-T connections require that all four pairs or wires be connected.
Switch Ports and Network
Cables
Cable Diagram
Figure B-4. Straight-through Cable Diagram for 1000 Mbps Network Connection
Note
Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 4 and 5 on connector “A” must be wired as a twisted pair to pins 4 and 5
on connector “B”.
Pins 7 and 8 on connector “A” must be wired as a twisted pair to pins 7 and 8
on connector “B”.
.
Pin Assignments
For 1000Base-T operation, all four pairs of wires are used for both transmit
and receive.
B-10
C
Safety and Regulatory Statements
Safety Information
!
Documentation reference symbol. If the product is marked with this
symbol, refer to the product documentation to get more information
about the product.
WARNING
A WARNING in the manual denotes a hazard that can cause injury
or death.
Caution
A Caution in the manual denotes a hazard that can damage
equipment.
Do not proceed beyond a WARNING or Caution notice until you
have understood the hazardous conditions and have taken appropriate steps.
Grounding
These are safety class I products and have protective earthing terminals. There
must be an uninterruptible safety earth ground from the main power source
to the product's input wiring terminals, power cord, or supplied power cord
set. Whenever it is likely that the protection has been impaired, disconnect
the power cord until the ground has been restored.
For LAN cable grounding:
If your LAN covers an area served by more than one power distribution system, be sure their safety grounds are securely interconnected.
■
LAN cables may occasionally be subject to hazardous transient voltages (such as lightning or disturbances in the electrical utilities power
grid). Handle exposed metal components of the network with
Caution.
Servicing
There are no user-serviceable parts inside these products. Any servicing,
adjustment, maintenance, or repair must be performed only by service-trained
personnel.
These products do not have a power switch; they are powered on when the
power cord is plugged in.
C-1
Safety and Regulatory
Statements
■
Safety and Regulatory Statements
Informations concernant la sécurité
Informations concernant la sécurité
!
Symbole de référence à la documentation. Si le produit est marqué de
ce symbole, reportez-vous à la documentation du produit afin d'obtenir
des informations plus détaillées.
WARNING
Dans la documentation, un WARNING indique un danger susceptible
d'entraîner des dommages corporels ou la mort.
Caution
Un texte de mise en garde intitulé Caution indique un danger susceptible de causer des dommages à l'équipement.
Ne continuez pas au-delà d'une rubrique WARNING ou Caution avant
d'avoir bien compris les conditions présentant un danger et pris les
mesures appropriées.
Cet appareil est un produit de classe I et possède une borne de mise à la terre. La source
d'alimentation principale doit être munie d'une prise de terre de sécurité installée aux
bornes du câblage d'entrée, sur le cordon d'alimentation ou le cordon de raccordement
fourni avec le produit. Lorsque cette protection semble avoir été endommagée,
débrancher le cordon d'alimentation jusqu'à ce que la mise à la terre ait été réparée.
Mise à la terre du câble de réseau local:
■
si votre réseau local s'étend sur une zone desservie par plus d'un système de
distribution de puissance, assurez-vous que les prises de terre de sécurité
soient convenablement interconnectées.
■
Les câbles de réseaux locaux peuvent occasionnellement être soumis à des
surtensions transitoires dangereuses (telles que la foudre ou des perturbations dans le réseau d'alimentation public). Manipulez les composants
métalliques du réseau avec précautions.
Aucune pièce contenue à l'intérieur de ce produit ne peut être réparée par l'utilisateur.
Tout dépannage, réglage, entretien ou réparation devra être confié exclusivement à un
personnel qualifié.
Safety and Regulatory
Statements
Cet appareil ne comporte pas de commutateur principal ; la mise sous tension est
effectuée par branchement du cordon d'alimentation.
C-2
Safety and Regulatory Statements
Hinweise zur Sicherheit
Hinweise zur Sicherheit
!
Symbol für Dokumentationsverweis. Wenn das Produkt mit diesem
Symbol markiert ist, schlagen Sie bitte in der Produktdokumentation
nach, um mehr Informationen über das Produkt zu erhalten.
WARNING
Symbol für Dokumentationsverweis. Wenn das Produkt mit diesem
Symbol markiert ist, schlagen Sie bitte in der Produktdokumentation
nach, um mehr Informationen über das Produkt zu erhalten.
Caution
Symbol für Dokumentationsverweis. Wenn das Produkt mit diesem
Symbol markiert ist, schlagen Sie bitte in der Produktdokumentation
nach, um mehr Informationen über das Produkt zu erhalten.
Fahren Sie nach dem Hinweis WARNING oder Caution erst fort,
nachdem Sie den Gefahrenzustand verstanden und die entsprechenden Maßnahmen ergriffen haben.
Dies ist ein Gerät der Sicherheitsklasse I und verfügt über einen schützenden Erdungsterminal. Der Betrieb des Geräts erfordert eine ununterbrochene Sicherheitserdung
von der Hauptstromquelle zu den Geräteingabeterminals, den Netzkabeln oder dem
mit Strom belieferten Netzkabelsatz voraus. Sobald Grund zur Annahme besteht, daß
der Schutz beeinträchtigt worden ist, das Netzkabel aus der Wandsteckdose herausziehen, bis die Erdung wiederhergestellt ist.
Für LAN-Kabelerdung:
■
Wenn Ihr LAN ein Gebiet umfaßt, das von mehr als einem Stromverteilungssystem beliefert wird, müssen Sie sich vergewissern, daß die
Sicherheitserdungen fest untereinander verbunden sind.
■
LAN-Kabel können gelegentlich gefährlichen Übergangsspannungen ausgesetzt werden (beispielsweise durch Blitz oder Störungen in dem
Starkstromnetz des Elektrizitätswerks). Bei der Handhabung exponierter
Metallbestandteile des Netzwerkes Vorsicht walten lassen.
Dieses Gerät enthält innen keine durch den Benutzer zu wartenden Teile. Wartungs-,
Anpassungs-, Instandhaltungs- oder Reparaturarbeiten dürfen nur von geschultem
Bedienungspersonal durchgeführt werden.
Safety and Regulatory
Statements
Dieses Gerät hat keinen Netzschalter; es wird beim Anschließen des Netzkabels
eingeschaltet.
C-3
Safety and Regulatory Statements
Considerazioni sulla sicurezza
Considerazioni sulla sicurezza
!
Simbolo di riferimento alla documentazione. Se il prodotto è contrassegnato da questo simbolo, fare riferimento alla documentazione sul
prodotto per ulteriori informazioni su di esso.
WARNING
La dicitura WARNING denota un pericolo che può causare lesioni o
morte.
Caution
La dicitura Caution denota un pericolo che può danneggiare le
attrezzature.
Non procedere oltre un avviso di WARNING o di Caution prima di
aver compreso le condizioni di rischio e aver provveduto alle misure
del caso.
Questo prodotto è omologato nella classe di sicurezza I ed ha un terminale protettivo
di collegamento a terra. Dev'essere installato un collegamento a terra di sicurezza, non
interrompibile che vada dalla fonte d'alimentazione principale ai terminali d'entrata,
al cavo d'alimentazione oppure al set cavo d'alimentazione fornito con il prodotto.
Ogniqualvolta vi sia probabilità di danneggiamento della protezione, disinserite il cavo
d'alimentazione fino a quando il collegaento a terra non sia stato ripristinato.
Per la messa a terra dei cavi LAN:
■
se la vostra LAN copre un'area servita da più di un sistema di distribuzione
elettrica, accertatevi che i collegamenti a terra di sicurezza siano ben collegati
fra loro;
■
i cavi LAN possono occasionalmente andare soggetti a pericolose tensioni
transitorie (ad esempio, provocate da lampi o disturbi nella griglia d'alimentazione della società elettrica); siate cauti nel toccare parti esposte in metallo
della rete.
Nessun componente di questo prodotto può essere riparato dall'utente. Qualsiasi
lavoro di riparazione, messa a punto, manutenzione o assistenza va effettuato esclusivamente da personale specializzato.
Safety and Regulatory
Statements
Questo apparato non possiede un commutatore principale; si mette scotto tensione
all'inserirsi il cavo d'alimentazione.
C-4
Safety and Regulatory Statements
Consideraciones sobre seguridad
Consideraciones sobre seguridad
!
Símbolo de referencia a la documentación. Si el producto va
marcado con este símbolo, consultar la documentación del
producto a fin de obtener mayor información sobre el producto.
WARNING
Una WARNING en la documentación señala un riesgo que podría
resultar en lesiones o la muerte.
Caution
Una Caution en la documentación señala un riesgo que podría
resultar en averías al equipo.
No proseguir después de un símbolo de WARNING o Caution hasta
no haber entendido las condiciones peligrosas y haber tomado las
medidas apropiadas.
Este aparato se enmarca dentro de la clase I de seguridad y se encuentra protegido por
una borna de puesta a tierra. Es preciso que exista una puesta a tierra continua desde
la toma de alimentación eléctrica hasta las bornas de los cables de entrada del aparato,
el cable de alimentación o el juego de cable de alimentación suministrado. Si existe la
probabilidad de que la protección a tierra haya sufrido desperfectos, desenchufar el
cable de alimentación hasta haberse subsanado el problema.
Puesta a tierra del cable de la red local (LAN):
■
Si la LAN abarca un área cuyo suministro eléctrico proviene de más de una
red de distribución de electricidad, cerciorarse de que las puestas a tierra
estén conectadas entre sí de modo seguro.
■
Es posible que los cables de la LAN se vean sometidos de vez en cuando a
voltajes momentáneos que entrañen peligro (rayos o alteraciones en la red
de energía eléctrica). Manejar con precaución los componentes de metal de
la LAN que estén al descubierto.
Este aparato no contiene pieza alguna susceptible de reparación por parte del usuario.
Todas las reparaciones, ajustes o servicio de mantenimiento debe realizarlos solamente el técnico.
C-5
Safety and Regulatory
Statements
Este producto no tiene interruptor de potencia; se activa cuando se enchufa el cable
de alimentación.
Safety and Regulatory Statements
Safety Information (Japan)
Safety and Regulatory
Statements
Safety Information (Japan)
C-6
Safety and Regulatory Statements
Safety Information (China)
Safety Information (China)
Safety and Regulatory
Statements
C-7
Safety and Regulatory Statements
EMC Regulatory Statements
EMC Regulatory Statements
U.S.A.
FCC Class A
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause interference to
radio communications. Operation of this equipment in a residential area may
cause interference in which case the user will be required to correct the
interference at his own expense.
Canada
This product complies with Class A Canadian EMC requirements.
Australia/New Zealand
This product complies with Australia/New Zealand EMC Class A
requirements.
Japan
Safety and Regulatory
Statements
VCCI Class A
C-8
Safety and Regulatory Statements
EMC Regulatory Statements
Korea
Taiwan
Regulatory Model Identification Number
C-9
Safety and Regulatory
Statements
For regulatory identification purposes, the ProCurve Series
5400zl Switches are assigned a Regulatory Model Number.
The Regulatory Model Number for these switches is RSVLC0503.
This regulatory number should not be confused with the
marketing name (ProCurve Series 5400zl Switches), or
product numbers (J8697A, J8698A, J8699A, and J8700A).
Safety and Regulatory Statements
EMC Regulatory Statements
European Community
DECLARATION OF CONFORMITY
according to ISO/IEC Guide 22 and EN 45014
______________________________________________________________________
Supplier's Name:
Hewlett-Packard Company
Supplier's Address:
8000 Foothills Blvd.
Roseville, CA 95747-5502
U.S.A.
declares, that the product
Product Name:
ProCurve Switch 5406zl Chassis Edge Switch, ProCurve Switch
5412zl Chassis Edge Switch, ProCurve Switch 5406zl Bundle,
ProCurve Switch 5412zl Bundle,
Product Number(s):
J8697A, J8698A, J8699A, J8700A
Regulatory Model:
RSVLC-0503
Product Options:
J8736A, J8702A, J8705A, J8706A, J8707A, J8708A, J8712A,
J8713A, J8714A, J4858B, J4859B, J4860B, J8177B, J8436A,
J8437A, J8438A, J8439A, J8440A
conforms to the following Product Specifications:
Safety:
EN 60950:2001 / IEC 60950-1:2001
EN 60825-1:1994 +A1+A2 / IEC 60825-1:1993 +A2 Class 1
EMC:
EN 55022:1998 +A1(2000) +A2(2003) Class A
CISPR 22:2005 +A1(2005) +A2(2006) Class A
EN 55024:1998 +A1+A2 (2003) / CISPR 24:1997 +A1+A2(2002)
EN 61000-3-2:2006 (Class A)
EN 61000-3-3:1995 +A1(2001) +A2(2005)
Supplementary Information:
The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC
and the EMC Directive 89/336/EEC and carries the CE marking accordingly.
Safety and Regulatory
Statements
The product was tested with Hewlett-Packard branded products only.
Roseville, 30 Jan 2007
____________________________________
Michael E. Avery, Regulatory Engineering Mgr.
European Contact: Your local Hewlett-Packard Sales and Service Office or Hewlett-Packard GmbH, Department HQTRE, Herrenberger Straße 140, D-71034 Böblingen (FAX: + 49-7031-14-3143)
C-10
D
Recycle Statements
Recycle Statements
Waste Electrical and Electronic
Equipment (WEEE) Statements
Disposal of Waste Equipment by Users in Private Household in the European Union
This symbol on the product or on its packaging indicates that this product must not be disposed of with
your other household waste. Instead, it is your responsibility to dispose of your waste equipment by
handing it over to a designated collection point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment at the time of disposal will
help to conserve natural resources and ensure that it is recycled in a manner that protects human health
and the environment. For more information about where you can drop off your waste equipment for
recycling, please contact your local city office, your household waste disposal service or the shop where
you purchased the product.
Likvidace zařízení soukromými domácími uživateli v Evropské unii
Tento symbol na produktu nebo balení označuje výrobek, který nesmí být vyhozen spolu s ostatním
domácím odpadem. Povinností uživatele je předat takto označený odpad na předem určené sběrné
místo pro recyklaci elektrických a elektronických zařízení. Okamžité třídění a recyklace odpadu
pomůže uchovat přírodní prostředí a zajistí takový způsob recyklace, který ochrání zdraví a životní
prostředí člověka. Další informace o možnostech odevzdání odpadu k recyklaci získáte na
příslušném obecním nebo městském úřadě, od firmy zabývající se sběrem a svozem odpadu nebo v
obchodě, kde jste produkt zakoupili.
Bortskaffelse af affald fra husstande i den Europæiske Union
Hvis produktet eller dets emballage er forsynet med dette symbol, angiver det, at produktet ikke må
bortskaffes med andet almindeligt husholdningsaffald. I stedet er det dit ansvar at bortskaffe kasseret
udstyr ved at aflevere det på den kommunale genbrugsstation, der forestår genvinding af kasseret
elektrisk og elektronisk udstyr. Den centrale modtagelse og genvinding af kasseret udstyr i forbindelse
med bortskaffelsen bidrager til bevarelse af naturlige ressourcer og sikrer, at udstyret genvindes på en
måde, der beskytter både mennesker og miljø. Yderligere oplysninger om, hvor du kan aflevere kasseret
udstyr til genvinding, kan du få hos kommunen, den lokale genbrugsstation eller i den butik, hvor du købte
produktet.
Seadmete jäätmete kõrvaldamine eramajapidamistes Euroopa Liidus
See tootel või selle pakendil olev sümbol näitab, et kõnealust toodet ei tohi koos teiste majapidamisjäätmetega kõrvaldada. Teie kohus on oma seadmete jäätmed kõrvaldada, viies need elektri- ja elektroonikaseadmete jäätmete ringlussevõtmiseks selleks ettenähtud kogumispunkti. Seadmete jäätmete eraldi
kogumine ja ringlussevõtmine kõrvaldamise ajal aitab kaitsta loodusvarasid ning tagada, et ringlussevõtmine toimub viisil, mis kaitseb inimeste tervist ning keskkonda. Lisateabe saamiseks selle kohta, kuhu
oma seadmete jäätmed ringlussevõtmiseks viia, võtke palun ühendust oma kohaliku linnakantselei,
majapidamisjäätmete kõrvaldamise teenistuse või kauplusega, kust Te toote ostsite.
D-1
Recycle Statements
Waste Electrical and Electronic Equipment (WEEE) Statements
Recycle Statements
Laitteiden hävittäminen kotitalouksissa Euroopan unionin alueella
Jos tuotteessa tai sen pakkauksessa on tämä merkki, tuotetta ei saa hävittää kotitalousjätteiden mukana.
Tällöin hävitettävä laite on toimitettava sähkölaitteiden ja elektronisten laitteiden kierrätyspisteeseen.
Hävitettävien laitteiden erillinen käsittely ja kierrätys auttavat säästämään luonnonvaroja ja
varmistamaan, että laite kierrätetään tavalla, joka estää terveyshaitat ja suojelee luontoa. Lisätietoja
paikoista, joihin hävitettävät laitteet voi toimittaa kierrätettäväksi, saa ottamalla yhteyttä jätehuoltoon tai
liikkeeseen, josta tuote on ostettu.
Élimination des appareils mis au rebut par les ménages dans l'Union européenne
Le symbole apposé sur ce produit ou sur son emballage indique que ce produit ne doit pas être jeté avec
les déchets ménagers ordinaires. Il est de votre responsabilité de mettre au rebut vos appareils en les
déposant dans les centres de collecte publique désignés pour le recyclage des équipements électriques
et électroniques. La collecte et le recyclage de vos appareils mis au rebut indépendamment du reste
des déchets contribue à la préservation des ressources naturelles et garantit que ces appareils seront
recyclés dans le respect de la santé humaine et de l'environnement. Pour obtenir plus d'informations
sur les centres de collecte et de recyclage des appareils mis au rebut, veuillez contacter les autorités
locales de votre région, les services de collecte des ordures ménagères ou le magasin dans lequel vous
avez acheté ce produit.
Entsorgung von Altgeräten aus privaten Haushalten in der EU
Das Symbol auf dem Produkt oder seiner Verpackung weist darauf hin, dass das Produkt nicht über den
normalen Hausmüll entsorgt werden darf. Benutzer sind verpflichtet, die Altgeräte an einer Rücknahmestelle für Elektro- und Elektronik-Altgeräte abzugeben. Die getrennte Sammlung und ordnungsgemäße Entsorgung Ihrer Altgeräte trägt zur Erhaltung der natürlichen Ressourcen bei und garantiert
eine Wiederverwertung, die die Gesundheit des Menschen und die Umwelt schützt. Informationen dazu,
wo Sie Rücknahmestellen für Ihre Altgeräte finden, erhalten Sie bei Ihrer Stadtverwaltung, den örtlichen
Müllentsorgungsbetrieben oder im Geschäft, in dem Sie das Gerät erworben haben
Απόρριψη άχρηστου εξοπλισμού από χρήστες σε ιδιωτικά νοικοκυριά στην Ευρωπαϊκή
Ένωση
Το σύμβολο αυτό στο προϊόν ή τη συσκευασία του υποδεικνύει ότι το συγκεκριμένο προϊόν δεν
πρέπει να διατίθεται μαζί με τα άλλα οικιακά σας απορρίμματα. Αντίθετα, είναι δική σας ευθύνη να
απορρίψετε τον άχρηστο εξοπλισμό σας παραδίδοντάς τον σε καθορισμένο σημείο συλλογής για την
ανακύκλωση άχρηστου ηλεκτρικού και ηλεκτρονικού εξοπλισμού. Η ξεχωριστή συλλογή και
ανακύκλωση του άχρηστου εξοπλισμού σας κατά την απόρριψη θα συμβάλει στη διατήρηση των
φυσικών πόρων και θα διασφαλίσει ότι η ανακύκλωση γίνεται με τρόπο που προστατεύει την
ανθρώπινη υγεία και το περιβάλλον. Για περισσότερες πληροφορίες σχετικά με το πού μπορείτε να
παραδώσετε τον άχρηστο εξοπλισμό σας για ανακύκλωση, επικοινωνήστε με το αρμόδιο τοπικό
γραφείο, την τοπική υπηρεσία διάθεσης οικιακών απορριμμάτων ή το κατάστημα όπου αγοράσατε το
προϊόν.
Készülékek magánháztartásban történő selejtezése az Európai Unió területén
A készüléken, illetve a készülék csomagolásán látható azonos szimbólum annak jelzésére szolgál,
hogy a készülék a selejtezés során az egyéb háztartási hulladéktól eltérő módon kezelendő. A
vásárló a hulladékká vált készüléket köteles a kijelölt gyűjtőhelyre szállítani az elektromos és
elektronikai készülékek újrahasznosítása céljából. A hulladékká vált készülékek selejtezéskori
begyűjtése és újrahasznosítása hozzájárul a természeti erőforrások megőrzéséhez, valamint
biztosítja a selejtezett termékek környezetre és emberi egészségre nézve biztonságos feldolgozását.
A begyűjtés pontos helyéről bővebb tájékoztatást a lakhelye szerint illetékes önkormányzattól, az
illetékes szemételtakarító vállalattól, illetve a terméket elárusító helyen kaphat.
D-2
Recycle Statements
Waste Electrical and Electronic Equipment (WEEE) Statements
Nolietotu iekārtu iznīcināšanas noteikumi lietotājiem Eiropas Savienības privātajās
mājsaimniecībās
Šāds simbols uz izstrādājuma vai uz tā iesaiņojuma norāda, ka šo izstrādājumu nedrīkst izmest kopā ar
citiem sadzīves atkritumiem. Jūs atbildat par to, lai nolietotās iekārtas tiktu nodotas speciāli iekārtotos
punktos, kas paredzēti izmantoto elektrisko un elektronisko iekārtu savākšanai otrreizējai pārstrādei.
Atsevišķa nolietoto iekārtu savākšana un otrreizējā pārstrāde palīdzēs saglabāt dabas resursus un
garantēs, ka šīs iekārtas tiks otrreizēji pārstrādātas tādā veidā, lai pasargātu vidi un cilvēku veselību.
Lai uzzinātu, kur nolietotās iekārtas var izmest otrreizējai pārstrādei, jāvēršas savas dzīves vietas
pašvaldībā, sadzīves atkritumu savākšanas dienestā vai veikalā, kurā izstrādājums tika nopirkts.
Vartotojų iš privačių namų ūkių įrangos atliekų šalinimas Europos Sąjungoje
Šis simbolis ant gaminio arba jo pakuotės rodo, kad šio gaminio šalinti kartu su kitomis namų ūkio
atliekomis negalima. Šalintinas įrangos atliekas privalote pristatyti į specialią surinkimo vietą elektros ir
elektroninės įrangos atliekoms perdirbti. Atskirai surenkamos ir perdirbamos šalintinos įrangos atliekos
padės saugoti gamtinius išteklius ir užtikrinti, kad jos bus perdirbtos tokiu būdu, kuris nekenkia žmonių
sveikatai ir aplinkai. Jeigu norite sužinoti daugiau apie tai, kur galima pristatyti perdirbtinas įrangos
atliekas, kreipkitės į savo seniūniją, namų ūkio atliekų šalinimo tarnybą arba parduotuvę, kurioje
įsigijote gaminį.
Verwijdering van afgedankte apparatuur door privé-gebruikers in de Europese Unie
Dit symbool op het product of de verpakking geeft aan dat dit product niet mag worden gedeponeerd bij
het normale huishoudelijke afval. U bent zelf verantwoordelijk voor het inleveren van uw afgedankte
apparatuur bij een inzamelingspunt voor het recyclen van oude elektrische en elektronische apparatuur.
Door uw oude apparatuur apart aan te bieden en te recyclen, kunnen natuurlijke bronnen worden
behouden en kan het materiaal worden hergebruikt op een manier waarmee de volksgezondheid en het
milieu worden beschermd. Neem contact op met uw gemeente, het afvalinzamelingsbedrijf of de winkel
waar u het product hebt gekocht voor meer informatie over inzamelingspunten waar u oude apparatuur
kunt aanbieden voor recycling.
Pozbywanie się zużytego sprzętu przez użytkowników w prywatnych gospodarstwach
domowych w Unii Europejskiej
Ten symbol na produkcie lub jego opakowaniu oznacza, że produktu nie wolno wyrzucać do zwykłych
pojemników na śmieci. Obowiązkiem użytkownika jest przekazanie zużytego sprzętu do
wyznaczonego punktu zbiórki w celu recyklingu odpadów powstałych ze sprzętu elektrycznego i
elektronicznego. Osobna zbiórka oraz recykling zużytego sprzętu pomogą w ochronie zasobów
naturalnych i zapewnią ponowne wprowadzenie go do obiegu w sposób chroniący zdrowie człowieka
i środowisko. Aby uzyskać więcej informacji o tym, gdzie można przekazać zużyty sprzęt do
recyklingu, należy się skontaktować z urzędem miasta, zakładem gospodarki odpadami lub sklepem,
w którym zakupiono produkt.
D-3
Recycle Statements
Smaltimento delle apparecchiature da parte di privati nel territorio dell'Unione Europea
Questo simbolo presente sul prodotto o sulla sua confezione indica che il prodotto non può essere
smaltito insieme ai rifiuti domestici. È responsabilità dell'utente smaltire le apparecchiature consegnandole presso un punto di raccolta designato al riciclo e allo smaltimento di apparecchiature elettriche ed
elettroniche. La raccolta differenziata e il corretto riciclo delle apparecchiature da smaltire permette di
proteggere la salute degli individui e l'ecosistema. Per ulteriori informazioni relative ai punti di raccolta
delle apparecchiature, contattare l'ente locale per lo smaltimento dei rifiuti, oppure il negozio presso il
quale è stato acquistato il prodotto.
Recycle Statements
Waste Electrical and Electronic Equipment (WEEE) Statements
Recycle Statements
Descarte de Lixo Elétrico na Comunidade Européia
Este símbolo encontrado no produto ou na embalagem indica que o produto não deve ser descartado
no lixo doméstico comum. É responsabilidade do cliente descartar o material usado (lixo elétrico),
encaminhando-o para um ponto de coleta para reciclagem. A coleta e a reciclagem seletivas desse
tipo de lixo ajudarão a conservar as reservas naturais; sendo assim, a reciclagem será feita de uma
forma segura, protegendo o ambiente e a saúde das pessoas. Para obter mais informações sobre locais
que reciclam esse tipo de material, entre em contato com o escritório da HP em sua cidade, com o serviço
de coleta de lixo ou com a loja em que o produto foi adquirido.
Likvidácia vyradených zariadení v domácnostiach v Európskej únii
Symbol na výrobku alebo jeho balení označuje, že daný výrobok sa nesmie likvidovať s domovým
odpadom. Povinnosťou spotrebiteľa je odovzdať vyradené zariadenie v zbernom mieste, ktoré je
určené na recykláciu vyradených elektrických a elektronických zariadení. Separovaný zber a
recyklácia vyradených zariadení prispieva k ochrane prírodných zdrojov a zabezpečuje, že recyklácia
sa vykonáva spôsobom chrániacim ľudské zdravie a životné prostredie. Informácie o zberných
miestach na recykláciu vyradených zariadení vám poskytne miestne zastupiteľstvo, spoločnosť
zabezpečujúca odvoz domového odpadu alebo obchod, v ktorom ste si výrobok zakúpili.
Odstranjevanje odslužene opreme uporabnikov v zasebnih gospodinjstvih v Evropski uniji
Ta znak na izdelku ali njegovi embalaži pomeni, da izdelka ne smete odvreči med gospodinjske
odpadke. Nasprotno, odsluženo opremo morate predati na zbirališče, pooblaščeno za recikliranje
odslužene električne in elektronske opreme. Ločeno zbiranje in recikliranje odslužene opreme
prispeva k ohranjanju naravnih virov in zagotavlja recikliranje te opreme na zdravju in okolju neškodljiv
način. Za podrobnejše informacije o tem, kam lahko odpeljete odsluženo opremo na recikliranje, se
obrnite na pristojni organ, komunalno službo ali trgovino, kjer ste izdelek kupili.
Eliminación de residuos de equipos eléctricos y electrónicos por parte de usuarios particulares en la
Unión Europea
Este símbolo en el producto o en su envase indica que no debe eliminarse junto con los desperdicios
generales de la casa. Es responsabilidad del usuario eliminar los residuos de este tipo depositándolos
en un "punto limpio" para el reciclado de residuos eléctricos y electrónicos. La recogida y el reciclado
selectivos de los residuos de aparatos eléctricos en el momento de su eliminación contribuirá a
conservar los recursos naturales y a garantizar el reciclado de estos residuos de forma que se proteja
el medio ambiente y la salud. Para obtener más información sobre los puntos de recogida de residuos
eléctricos y electrónicos para reciclado, póngase en contacto con su ayuntamiento, con el servicio de
eliminación de residuos domésticos o con el establecimiento en el que adquirió el producto.
Bortskaffande av avfallsprodukter från användare i privathushåll inom Europeiska Unionen
Om den här symbolen visas på produkten eller förpackningen betyder det att produkten inte får
slängas på samma ställe som hushållssopor. I stället är det ditt ansvar att bortskaffa avfallet genom att
överlämna det till ett uppsamlingsställe avsett för återvinning av avfall från elektriska och elektroniska
produkter. Separat insamling och återvinning av avfallet hjälper till att spara på våra naturresurser och
gör att avfallet återvinns på ett sätt som skyddar människors hälsa och miljön. Kontakta ditt lokala
kommunkontor, din närmsta återvinningsstation för hushållsavfall eller affären där du köpte produkten
för att få mer information om var du kan lämna ditt avfall för återvinning.
D-4
Index
Numerics
A
Act LED … 1-8
auto MDI/MDI-X operation … B-8, B-10
HP Auto-MDIX feature … B-6
auxiliary or USB port
location on switch … 1-5
B
back of switch
description … 1-11
power connector … 1-12
slot for redundant power supply … 1-12
basic connectivity, example topology … 2-29
basic switch configuration
IP address … 3-3
manager password … 3-3
subnet mask … 3-3
Switch Setup screen … 3-2
Index
100/1000Base-T
connections, length limitations … 2-7
note on cable requirements … B-2
ports, cables used with … 2-7, B-2
twisted-pair cable specifications … B-2
1000Base-LH
connections, length limitations … 2-7
ports, cables used with … 2-7
1000Base-LX
connections, length limitations … 2-7
ports, cables used with … 2-7
1000Base-SX
connections, length limitations … 2-7
ports, cables used with … 2-7
100Base-TX
ports, cables used with … B-2
twisted-pair cable specifications … B-2
10Base-T
ports, cables used with … B-2
twisted-pair cable specifications … B-2
battery
replacing battery … 4-7
blinking LEDs
error indications … 5-4
Bootp
automatic switch configuration … 3-2
for in-band console access … 2-26
buttons
Clear button … 1-10
LED Mode Select button … 1-9
Reset button … 1-10
C
cabinet
mounting the switch in … 2-17
note on mounting screws … 2-17
cables
100/1000Base-T
cable specifications … B-2
connections … 2-7
note on cable requirements … B-2
1000Base-LH
connections … 2-7
fiber-optic cable specifications … B-3
1000Base-LX
connections … 2-7
fiber-optic cable specifications … B-3
1000Base-SX
connections … 2-7
fiber-optic cable specifications … B-3
100Base-TX
cable specifications … B-2
10Base-T
cable specifications … B-2
connecting cables to switch ports … 2-25
effects of non-standard cables … 5-2
fiber-optic, specifications … B-3
infrastructure requirements … 2-7
length limitations … 2-7
required types … 2-7
serial for direct console connection … 2-27
Index – 1
Index
cables, twisted pair
category 3, 4, 5 … B-7
connector pin-outs … B-6
crossover cable pin-out … B-9
HP Auto-MDIX feature … B-6
MDI-X to MDI connections … B-8, B-10
MDI-X to MDI-X connections … B-9
note on requirements for 1000Base-T … B-2
pin-outs … B-8, B-10
specifications … B-2
straight-through cable pin-out … B-8, B-10
switch-to-computer connection … B-8, B-10
switch-to-switch or hub connection … B-9
wiring rules … B-7
cabling infrastructure … 2-7
Clear button
deleting passwords … 1-10
description … 1-10
location on switch … 1-5, 1-10
restoring factory default configuration … 1-11,
5-12
to delete password protection … 3-4
CLI prompt, console
displaying … 2-27
configuration
checking when troubleshooting … 5-3
DHCP/Bootp … 3-2
IP address … 3-3
IP address, manually … 3-3
manager password … 3-3
restoring factory defaults … 1-11, 5-12
subnet mask … 3-3
Switch Setup screen … 3-2
connecting the switch to a power source … 2-21
connector specifications … A-3
console
checking messages during
troubleshooting … 5-10
displaying the CLI prompt … 2-27
features … 2-26
how to connect in-band … 2-26
how to connect out-of-band … 2-26
serial cable connection … 2-27
Switch Setup screen … 3-2
telnet access … 2-27, 3-5
terminal configuration … 2-26
2 – Index
console port
description … 1-10
location on switch … 1-5
crossover cable
pin-out … B-9
use with fixed port configurations … B-7
D
deleting passwords … 1-10
description
back of switches … 1-11
front of switches … 1-5
LEDs … 1-6
DHCP
automatic switch configuration … 3-2
for in-band console access … 2-26
diagnostic tests … 5-10
checking the console messages … 5-10
checking the LEDs … 5-4, 5-10
end-to-end connectivity … 5-11
testing the switch only … 5-10
testing twisted-pair cabling … 5-11
downloading new code … 5-13
E
edge switch, example topology as … 2-30
electrical specifications … A-1
EMC regulatory statements … C-8
environmental specifications … A-2
EPS
LEDs … 2-23
operating characteristics … 2-23
operation … 2-22
EPS (PoE) power … 2-22
equipment cabinet
mounting the switch in … 2-17
note on mounting screws … 2-17
example network topologies … 2-29
as an edge switch … 2-30
basic connectivity … 2-29
F
factory default configuration, restoring … 1-11, 5-12
Fan Status LED … 1-6, 1-7
showing error conditions … 5-4
fans
G
Gigabit-LH
ports, cables used with … B-3
Gigabit-LX
ports, cables used with … B-3
Gigabit-SX
ports, cables used with … B-3
H
horizontal surface, mounting switch on … 2-20
hot swap
mini-GBICs … 1-13
modules … 1-13
hot swapping … 4-1
redundant power supply … 1-12, 2-12
resetting the switch for new module type … 2-28
switch modules … 2-28
HP Auto-MDIX
feature description … B-6
I
in-band
console access, types of … 2-26
managing the switch … 3-1
included parts … 2-1
installation
connecting the switch to a power source … 2-21
horizontal surface mounting … 2-20
network cable requirements … 2-7
optional modules … 2-9
precautions … 2-5, 2-6
rack or cabinet mounting … 2-17
redundant power supply … 2-12
Series 5400zl Switches … 2-1
site preparation … 2-7
summary of steps … 2-3
IP address
configuring … 3-3
using for switch management … 3-5
L
LED Mode Select
button … 1-9
indicator LEDs … 1-8, 1-9
LEDs
Act … 1-8
behavior during self test … 2-16
blanking definition … 1-8
blinking definition … 1-8
checking during troubleshooting … 5-10
descriptions of … 1-6
error indications … 5-4
Fan Status … 1-6, 1-7
showing error conditions … 5-4
Fault … 1-6
behavior during self test … 2-16
showing error conditions … 5-4
FDx … 1-8
Link … 1-8
Max … 1-8
Mode
description … 1-8
Index – 3
Index
replacing fan trays … 4-4
Fault LED
behavior during self test … 2-16
blinking definition … 1-8
description … 1-6
location on switch … 1-5
showing error conditions … 5-4
FDx LED … 1-8
features
console … 2-26
Series 5300XL Switches … 1-13
fiber-optic cables … B-3
1000Base-LH … B-3
1000Base-LX … B-3
1000Base-SX … B-3
flash memory
replacing PCMCIA card … 4-5, 4-6
front of switch
Clear button … 1-10
console port … 1-10
description … 1-5
LEDs … 1-6
Mode Select button and indicator LEDs … 1-9
Reset button … 1-10
full-duplex fixed configuration
effects on network connections … 5-2
Index
selecting the display … 1-9
mode select indicators … 1-8
Module Status … 1-7
showing error conditions … 5-4
on switch chassis … 1-6
on switch modules … 1-8
Power … 1-6
behavior during error conditions … 5-4
behavior during self test … 2-16
Power Status … 1-7
behavior during self test … 2-16
showing error conditions … 5-4
Self Test … 1-6
behavior during self test … 2-16
showing error conditions … 5-4
length limitations
100/1000Base-T connections … 2-7
1000Base-LH connections … 2-7
1000Base-LX connections … 2-7
1000Base-SX connections … 2-7
Link LEDs … 1-8
link test … 5-11
M
Max LED … 1-8
MDI-X to MDI network cable … B-8, B-10
MDI-X to MDI-X network cable … B-9
mini-GBICs … 1-13
hot swap feature … 1-13
indications of unsupported … 5-7
supported types … 1-13
Mode LEDs
description … 1-8
selecting the display … 1-9
module slots
location on switch … 1-5
Module Status LEDs … 1-7
showing error conditions … 5-4
modules, switch
hot swapping … 2-28
installing … 2-9
LEDs … 1-8
list of available types … 1-13
mounting the switch
in a rack or cabinet … 2-17
precautions … 2-5, 2-6
on a horizontal surface … 2-20
4 – Index
N
network cables
100/1000Base-T
connections … 2-7
1000Base-LH connections … 2-7
1000Base-LX connections … 2-7
1000Base-SX connections … 2-7
fiber-optic, specifications … B-3
HP Auto-MDIX feature … B-6
required types … 2-7
twisted-pair connector pin-outs … B-6
twisted-pair, specifications … B-2
twisted-pair, wiring rules … B-7
network devices
connecting to the switch … 2-25
network ports
connecting to … 2-25
LEDs for … 1-8
standards compliance … A-3
types of … 2-7
network topologies, examples of … 2-29
non-standard network cables, effects … 5-2
O
out-of-band console access … 2-26, 3-5
P
parts included with the switch … 2-1
passwords
configuring … 3-3
deleting … 1-10
deleting with the Clear button … 3-4
if you lose the password … 3-4
physical specifications, switch … A-1
Ping test … 5-11
pin-outs, twisted-pair cables … B-6
port configuration
checking when troubleshooting … 5-3
port LEDs
Link … 1-8
Mode … 1-8
ports
console … 2-26
HP Auto-MDIX feature … B-6
network connections … 2-25
power connector … 1-12
R
rack
mounting the switch in … 2-17
rebooting the switch
to initialize changed module type … 2-9
recycle statements … D-1
redundant power connections … 2-21
redundant power supply
installation cautions … 1-12, 2-12
installing … 2-12
slot for installing … 1-12
regulatory statements … C-8
replacing components
management module battery … 4-7
power supply … 4-2
replacing hardware
fans … 4-4
flash memory card … 4-5, 4-6
Reset button
description … 1-10
location on switch … 1-5, 1-10
restoring factory default configuration … 5-12
resetting the switch
factory default reset … 5-12
for module hot swap … 2-28
location of Reset button … 1-10
troubleshooting procedure … 5-10
routing features … 1-14
S
safety and regulatory statements … C-1
safety specifications … A-3
selecting the Mode LED display … 1-9
self test
Fault LED behavior … 2-16
LED behavior during … 2-16
Power LED behavior … 2-16
Self Test LED behavior … 2-16
Self Test LED
behavior during factory default reset … 5-12
behavior during self test … 2-16
description … 1-6
showing error conditions … 5-4
serial cable
for direct console connection … 2-27
slots for modules
location on switch … 1-5
specifications
connectors … A-3
electrical … A-1
environmental … A-2
physical … A-1
safety … A-3
straight-through cable
pin-out … B-8, B-10
use with fixed port configurations … B-7
subnet mask, configuring … 3-3
summary
of cables used with the switch … 2-7
of switch installation … 2-3
supported mini-GBICs … 1-13
supported mini-GBICs and SFPs … 1-13
supported SPFs
supported types … 1-13
supported X2 fiber optic transceivers … 1-13
Index – 5
Index
Power LED
behavior during error conditions … 5-4
behavior during self test … 2-16
description … 1-6
location on switch … 1-5
Power Status LEDs … 1-7
behavior during self test … 2-16
showing error conditions … 5-4
power supply
connecting to a power source … 2-21
installation cautions … 1-12, 2-12
making redundant power connections … 2-21
replacing … 4-2
power supply shelf … 2-22
EPS (PoE) power … 2-22
Power-over-Ethernet
PoE … 2-22
precautions
installing power supply … 1-12, 2-12
mounting the switch in a rack or cabinet … 2-5,
2-6
power requirements … 2-5, 2-6
preparing the installation site … 2-7
Proactive Network tools
diagnostics with … 5-9
Index
switch
connecting to a power source … 2-21
description … 1-1
electrical specifications … A-1
environmental specifications … A-2
features … 1-13
front panel description … 1-5
included parts … 2-1
mounting in a rack or cabinet … 2-17
mounting on a horizontal surface … 2-20
physical specifications … A-1
switch chassis
LED descriptions … 1-6
switch modules
booting the switch to initialize changed module
type … 2-9
hot swapping … 2-28
installing … 2-9
LEDs descriptions … 1-8
list of available types … 1-13
switch operation
verifying after installation … 2-15
Switch Setup screen … 3-2
configuring a subnet mask … 3-3
configuring an IP address … 3-3
field descriptions … 3-3
troubleshooting … 5-1
basic tips … 5-1
checking port configuration … 5-3
checking the console messages … 5-10
checking the LEDs … 5-10
common network problems … 5-1
connecting to fixed full-duplex devices … 5-2
diagnostic tests … 5-10
effects of improper topology … 5-2
effects of non-standard cables … 5-2
link test … 5-11
Ping test … 5-11
Proactive Network tools … 5-9
restoring factory default configuration … 5-12
testing connections to other devices … 5-11
testing end-to-end communications … 5-11
testing the switch … 5-10
testing the twisted-pair cables … 5-11
twisted-pair cable … B-2
crossover cable pin-out … B-9
pin-outs … B-6, B-8, B-10
straight-through cable pin-out … B-8, B-10
switch-to-computer connection … B-8, B-10
switch-to-switch or hub connection … B-9
testing … 5-11
twisted-pair ports
HP Auto-MDIX feature … B-6
T
telnet access to the console … 2-27, 3-5
terminal configuration … 2-26
testing
checking the console messages … 5-10
checking the LEDs … 5-10
diagnostic tests … 5-10
end-to-end communications … 5-11
link test … 5-11
Ping test … 5-11
switch operation … 5-10
switch-to-device communications … 5-11
twisted-pair cabling … 5-11
tips for troubleshooting … 5-1
topologies
effects of improper topology … 5-2
examples of … 2-29
as an edge switch … 2-30
basic connectivity … 2-29
6 – Index
V
VT-100 terminal
serial cable connection for … 2-27
W
wiring rules for twisted-pair cables … B-7
X
X2 transceivers
supported types … 1-13
