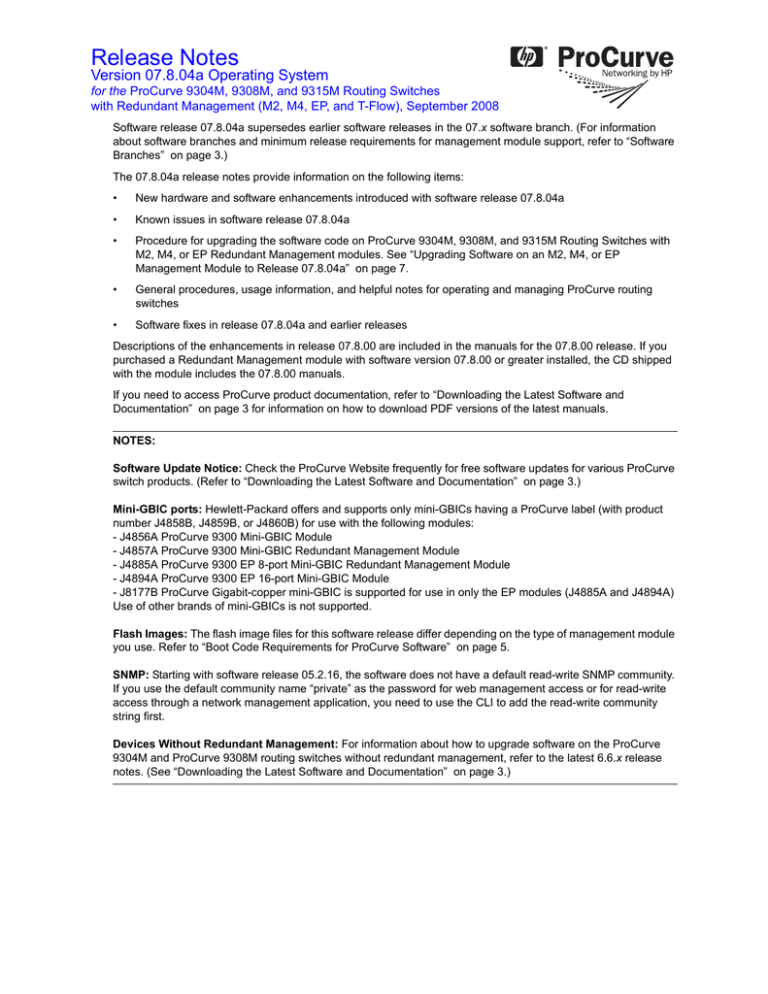

Release Notes
Version 07.8.04a Operating System
for the ProCurve 9304M, 9308M, and 9315M Routing Switches
with Redundant Management (M2, M4, EP, and T-Flow), September 2008
Software release 07.8.04a supersedes earlier software releases in the 07.x software branch. (For information
about software branches and minimum release requirements for management module support, refer to “Software
Branches” on page 3.)
The 07.8.04a release notes provide information on the following items:
•
New hardware and software enhancements introduced with software release 07.8.04a
•
Known issues in software release 07.8.04a
•
Procedure for upgrading the software code on ProCurve 9304M, 9308M, and 9315M Routing Switches with
M2, M4, or EP Redundant Management modules. See “Upgrading Software on an M2, M4, or EP
Management Module to Release 07.8.04a” on page 7.
•
General procedures, usage information, and helpful notes for operating and managing ProCurve routing
switches
•
Software fixes in release 07.8.04a and earlier releases
Descriptions of the enhancements in release 07.8.00 are included in the manuals for the 07.8.00 release. If you
purchased a Redundant Management module with software version 07.8.00 or greater installed, the CD shipped
with the module includes the 07.8.00 manuals.
If you need to access ProCurve product documentation, refer to “Downloading the Latest Software and
Documentation” on page 3 for information on how to download PDF versions of the latest manuals.
NOTES:
Software Update Notice: Check the ProCurve Website frequently for free software updates for various ProCurve
switch products. (Refer to “Downloading the Latest Software and Documentation” on page 3.)
Mini-GBIC ports: Hewlett-Packard offers and supports only mini-GBICs having a ProCurve label (with product
number J4858B, J4859B, or J4860B) for use with the following modules:
- J4856A ProCurve 9300 Mini-GBIC Module
- J4857A ProCurve 9300 Mini-GBIC Redundant Management Module
- J4885A ProCurve 9300 EP 8-port Mini-GBIC Redundant Management Module
- J4894A ProCurve 9300 EP 16-port Mini-GBIC Module
- J8177B ProCurve Gigabit-copper mini-GBIC is supported for use in only the EP modules (J4885A and J4894A)
Use of other brands of mini-GBICs is not supported.
Flash Images: The flash image files for this software release differ depending on the type of management module
you use. Refer to “Boot Code Requirements for ProCurve Software” on page 5.
SNMP: Starting with software release 05.2.16, the software does not have a default read-write SNMP community.
If you use the default community name “private” as the password for web management access or for read-write
access through a network management application, you need to use the CLI to add the read-write community
string first.
Devices Without Redundant Management: For information about how to upgrade software on the ProCurve
9304M and ProCurve 9308M routing switches without redundant management, refer to the latest 6.6.x release
notes. (See “Downloading the Latest Software and Documentation” on page 3.)
Release Notes for 07.8.04a
© Copyright 2001, 2008 Hewlett-Packard Development Company, L.P. The information contained herein
is subject to change without notice.
Publication Number
5991-4722
September 2008
Applicable ProCurve 9300 (Current) Products
9304M Routing Switch . . . . . . . . . . . . . . . . . . (J4139A)
9308M Routing Switch . . . . . . . . . . . . . . . . . . (J4138A)
9315M Routing Switch . . . . . . . . . . . . . . . . . . (J4874A)
EP 10/100-TX RJ-45 Module . . . . . . . . . . . . .
EP 10/100-TX Telco (RJ-21) Module . . . . . . .
EP Mini-GBIC RM Module . . . . . . . . . . . . . . .
EP Mini-GBIC Module. . . . . . . . . . . . . . . . . . .
EP 100/1000-T Module. . . . . . . . . . . . . . . . . .
2-Port 10 Gigabit Ethernet Module . . . . . . . .
EP 100Base-FX Module . . . . . . . . . . . . . . . . .
(J4881B)
(J4889B)
(J4885A)
(J4894A)
(J4895A)
(J8174A)
(J8178A)
Gigabit-SX-LC Mini-GBIC . . . . . . . . . . . . . . .
Gigabit-LX-LC Mini-GBIC . . . . . . . . . . . . . . .
Gigabit-LH-LC Mini-GBIC . . . . . . . . . . . . . . .
1000Base-T Mini-GBIC. . . . . . . . . . . . . . . . . .
(J4858B)
(J4859B)
(J4860B)
(J8177B)
10 Gigabit Ethernet LR Optic . . . . . . . . . . . . . (J8173A)
10 Gigabit Ethernet SR Optic . . . . . . . . . . . . (J8175A)
10 Gigabit Ethernet ER Optic . . . . . . . . . . . . (J8176A)
9304M/9308M Redundant Power Supply . . . . (J4147A)
9315M Redundant Power Supply . . . . . . . . . . (J4875A)
Trademark Credits
Microsoft®, Windows®, and Windows NT® are
trademarks of Microsoft Corporation. Adobe® and
Acrobat® are trademarks of Adobe Systems
Incorporated.
Hewlett-Packard Company
8000 Foothills Blvd.
Roseville, CA 95747-5551
USA
http://www.procurve.com
ii
Disclaimer
The information contained in this document is subject to
change without notice.
HEWLETT-PACKARD COMPANY MAKES NO
WARRANTY OF ANY KIND WITH REGARD TO THIS
MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. HewlettPackard shall not be liable for errors contained herein or
for incidental or consequential damages in connection
with the furnishing, performance, or use of this material.
The only warranties for HP products and services are set
forth in the express warranty statements accompanying
such products and services. Nothing herein should be
construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions
contained herein.
Hewlett-Packard assumes no responsibility for the use or
reliability of its software on equipment that is not furnished
by Hewlett-Packard.
Warranty
See the Customer Support/Warranty booklet included with
the product.
A copy of the specific warranty terms applicable to your
Hewlett-Packard products and replacement parts can be
obtained from your HP Sales and Service Office or
authorized dealer.
Release Notes for 07.8.04a
Contents
Terminology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Product Documentation for Software Release 07.8.04a . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Downloading the Latest Software and Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Software Branches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Software Requirements for Management Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Software Supported on ProCurve Routing Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Boot Code Requirements for ProCurve Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Upgrading Software on an M2, M4, or EP Management Module to Release 07.8.04a. . . . . . . . . . . . . . . . 7
Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Upgrading to Software Release 07.8.04a: Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
A. Upgrading Boot Code on a Management Module to Version 07.06.05 . . . . . . . . . . . . . . . . . . . . . . 8
B. Upgrading Software on a Management Module From a Release Earlier than 07.6.01b . . . . . . . . . 8
C. Upgrading Software on a Management Module From Release 07.6.01b or Greater . . . . . . . . . . . . 9
Using SNMP to Upgrade Software on a Management Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Upgrading the FPGA on a 10 Gigabit Ethernet Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Using Different Combinations of Management Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Non-Redundant Management on ProCurve 9304M and ProCurve 9308M Routing Switches . . . . . . . . . 13
Maximum Size of Startup-Config and Running-Config Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Removing a Module from an Active Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Configuring the ProCurve 9315M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Minimum Software Release Supported. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Inserting or Removing an EP Module on a ProCurve 9315M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Slot Locations for Redundant Management Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
MAC Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Server Trunk Groups. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
VLANs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Enhancements and Configuration Notes in 07.8.03 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Software Fixes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Known Issues in 07.8.03 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
ProCurve 9300M Series Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
iii
Release Notes for 07.8.04
Terminology
Terminology
The following table defines basic product terms used in ProCurve routing switch documentation.
Term
Definition
chassis device or chassis
A routing switch that accepts optional modules or power supplies. The
ProCurve 9315M, ProCurve 9304M, and ProCurve 9308M routing switches
are chassis devices.
EP (Enhanced Performance)
and Standard
Routing switches can be EP or Standard devices, depending on whether the
management module is an EP or Standard (M2 or M4) module. For a listing of
ProCurve routing switches and their product numbers, see Table 4 on page 5.
routing switch or router
A Layer 3 device that switches and routes network traffic. The term router is
sometimes used in this document in descriptions of a routing switch’s Layer 3
routing protocol features.
switch
A Layer 2 device that switches network traffic.
ProCurve 9300#
An example Command Line Interface (CLI) prompt. Actual prompts show the
product number for the routing switch, such as ProCurve 9300#.
Product Documentation for Software Release 07.8.04a
Software release 07.8.04a includes all of the features in release 07.8.00a, plus several new features.
•
For documentation on the features in 07.8.04a that were available in earlier releases, refer to the product
documentation set identified for “Software Version 07.8.00a”.
Table 1 describes the main topics covered in the ProCurve Routing Switch documentation set. If you do not
already have a PDF version of the 07.8.00a documentation set, refer to “Downloading the Latest Software and
Documentation” on page 3.
1
Product Documentation for Software Release 07.8.04a
Release Notes for 07.8.04
Table 1: Where To Get More Information
Title
Contents
Installation and Basic
Configuration Guide
•
Installation
•
Basic Features
Security Guide
Advanced Configuration and
Management Guide
2
•
System (SNMP, SNTP, Syslog, broadcast and multicast throttling)
•
Port configuration (speed, mode)
•
Layer 2 (MAC table parameters, MAC filters, broadcast and multicast
filters, port locks)
•
Parameter table resizing
•
Port monitoring
•
Link Aggregation
•
Spanning Tree Protocol
•
Virtual LANs
•
Layer 2 Multicast
•
Base Layer 3
•
Upgrading Software (Important: See also “Upgrading Software on an M2,
M4, or EP Management Module to Release 07.8.04a” on page 7 in this
document.)
•
Hardware Specifications and RFCs
•
Security (passwords, user accounts, AAA, RADIUS, and TACACS/TACACS+)
•
Secure Shell (SSH)
•
Denial of Service Protection
•
QoS
•
ACLs
•
EP rate limiting
•
Standard rate limiting
•
IP
•
RIP
•
IP Multicast
•
OSPF
•
BGP4
•
Network Address Translation
•
VRRP and VRRPE
•
IPX
•
AppleTalk
Command Line Interface
Reference
Syntax information for all CLI commands.
Diagnostics Guide
•
Diagnostic commands
•
Backplane debugging commands
•
Changing CAM partitions
Release Notes for 07.8.04
Downloading the Latest Software and Documentation
Downloading the Latest Software and Documentation
You can download software version 07.8.04a and the latest routing switch product documentation from the
ProCurve website as described below.
To Download a Software Version:
1. Go to the ProCurve website at http://www.procurve.com.
2.
Click on software (in the sidebar).
3.
Under “latest software”, click on switches.
NOTE: If you are downloading software for the ProCurve 9304M or ProCurve 9308M, select the option that
matches the type of management module(s) you are using in the routing switch—with redundant management or
without redundant management.
To Download Product Documentation:
For the latest version of product documentation for ProCurve routing switches:
1.
Go to the ProCurve website at http://www.procurve.com.
2.
Click on technical support, then manuals.
3.
Click on the name of the product for which you want manuals.
4.
On the page listing the manuals, find the latest manuals under the heading “For software version 7.8.00a”.
You will need the Adobe® Acrobat® Reader (version 4.0 or greater) to view or print the manuals.
Software Branches
Starting with software releases 06.6.28 and 07.1.10, ProCurve offers the software branches described in Table 2:
Table 2: Software Branches
Software Release
Includes:
Operates on:
06.6.28 and later 06.x
releases
Bug fixes
ProCurve 9304M and ProCurve 9308M routing
switches without redundant management (that is,
with M1 modules)
ProCurve 6308M-SX routing switch
ProCurve 6208M-SX switch
07.1.10 and later 07.1.x
releases
Bug fixes, new features, and
enhancements to existing
features
ProCurve 9304M and ProCurve 9308M routing
switches with redundant management (M2
modules)
07.5.04 release
Bug fixes, new features, and
enhancements to existing
features
ProCurve 9304M, ProCurve 9308M, and ProCurve
9315M routing switches with redundant
management (M2 and M4 modules)
07.6.00 and 07.6.01b
releases
Bug fixes, new features, and
enhancements to existing
features
ProCurve 9304M, ProCurve 9308M, and ProCurve
9315M routing switches with redundant
management (M2, M4, EP, and T-Flow) and 1-port
10GB modules
07.6.04 release
07.7.01 release
Bug fixes, new features, and
enhancements to existing
features, including support
for the 2-port 10GB module
ProCurve 9304M, ProCurve 9308M, and ProCurve
9315M routing switches with redundant
management (M2, M4, EP, and T-Flow) and 2-port
10GB modules
3
Software Requirements for Management Modules
Release Notes for 07.8.04
Table 2: Software Branches
Software Release
Includes:
Operates on:
07.7.01b release
Bug fixes, 07.7.01 features
and enhancements to
existing features, and a new
procedure for upgrading
software code
ProCurve 9304M, ProCurve 9308M, and ProCurve
9315M routing switches with redundant
management (M2, M4, EP, and T-Flow) and 2-port
10GB modules
07.8.00a release
Bug fixes, new 07.8.00a
hardware and software
features, and enhancements
to existing features
ProCurve 9304M, ProCurve 9308M, and ProCurve
9315M routing switches with redundant
management (M2, M4, EP, and T-Flow) and 2-port
10GB modules
Software Requirements for Management Modules
Table 3 shows the minimum software releases required to run redundant management modules.
Table 3: Minimum Software Requirements for Management Modules
4
Minimum Software
Release Required
ProCurve 9300 Series Redundant Management Modules Supported
07.1.10
Supported only on
ProCurve 9304M and
9308M
J4845A ProCurve 9300 GigLX Redundant Management Module (8-port, M2)
07.1.19
Supported only on
ProCurve 9304M and
9308M
All of the redundant management modules supported for release 07.1.10
07.5.04
Supported on ProCurve
9304M, 9308M, and
9315M
All of the redundant management modules supported for release 07.1.19
07.6.00
Supported on ProCurve
9304M, 9308M, and
9315M
All of the redundant management modules supported for release 07.5.04
J4846A ProCurve 9300 GigSX Redundant Management Module (8-port, M2)
J4847A ProCurve 9300 Redundant Management Module (0-port, M2)
J4857A ProCurve 9300 Mini-GBIC Redundant Management Module (8-port, M4)
J4879A ProCurve 9300 T-Flow Redundant Management Module
J4885A ProCurve 9300 EP Mini-GBIC Redundant Management Module
Release Notes for 07.8.04
Software Supported on ProCurve Routing Switches
Software Supported on ProCurve Routing Switches
Table 4 shows the software releases supported on each ProCurve routing switch.
Table 4: Software Releases Supported on ProCurve Routing Switches
Routing Switch
Software Releases Supported
M2 or M4
Redundant Mgmt
M2 or M4
Redundant Mgmt
M1 Router
Code only
M1 Switch
Code only
H2R05216.BIN
H2R06605.BIN
H2R06616.BIN
H2R07110.BIN
H2R07119.BIN
H2R07122.BIN
H2R07124.BIN
H2R07504.BIN1
HPR05216.BIN
HPR06605.BIN
HPR06616.BIN
HPR06628.BIN
HPR06633.BIN
HPR06636.BIN
HPS05216.BIN
HPS06605.BIN
HPS06616.BIN
HPS06628.BIN
HPS06633.BIN
HPS06636.BIN
ProCurve 9315M (J4874A)
Routing Switch with EP or
Standard (M2 or M4)
Redundant Management
Module(s)
No
Yes
No
No
ProCurve 9304M (J4139A)
and 9308M (J4138A) Routing
Switches with EP or Standard
(M2 or M4) Redundant
Management Module(s)
Yes
Yes
No
No
ProCurve 9304M (J4139A)
and 9308M (J4138A) Routing
Switches without Redundant
Management (with M1
Management Module)
No
No
Yes
No
ProCurve 6308M-SX (J4840A)
Routing Switch
No
N/A
Yes
No
ProCurve 6208M-SX (J4841A)
Switch
No
N/A
No
Yes
2
H2R07600.BIN
H2R07601.BIN
H2R07604c.BIN
H2R07701b.BIN
H2R07800a.BIN
H2R07801d.BIN
H2R07803.BIN
1
First software release to support the ProCurve 9315M routing switch and the J4879A T-Flow module
2
First software release to support the EP (Enhanced Performance) modules.
Boot Code Requirements for ProCurve Software
To run a software release on a ProCurve routing switch, you must use the minimum version of boot code for each
software image described in Table 5.
5
Boot Code Requirements for ProCurve Software
Release Notes for 07.8.04
Table 5: Boot Code Requirements
Routing
Switch
Modules
Software Image
Minimum Boot Code
Required
ProCurve 9304M
ProCurve 9308M
With one of the following
HPR06636.bin2
M1B07108.bin or greater
recommended
With any one or two of the
following Redundant
Management: modules
For M2, M4, and EP
Redundant Management
modules:
For M2, M4, and EP
Redundant Management
modules:
J4846A Gigabit SX2 (M2)
- H2R07803.bin
- M2B07605.bin or greater
M11 modules (without
Redundant Management):
J4141A 10/100
J4144A Gigabit SX
J4146A Gigabit 4LX/4SX
ProCurve 9304M
ProCurve 9308M
ProCurve 9315M
2
J4845A Gigabit LX (M2)
J4847A 0-Port (M2)
J4857A Mini-GBIC (M4)
J4885A EP
J4879A T-Flow
For T-Flow Redundant
Management modules:
10 Gigabit Ethernet (10GE)
Modules
The Field-Programmable
Gate Arrays (FPGAs) in 10
Gigabit Ethernet Modules
use the following software.
2
—
Note: To upgrade FPGA
code, refer to “Upgrading
the FPGA on a 10 Gigabit
Ethernet Module” on
page 11.
- TSP07801d.bin
For T-Flow Redundant
Management modules:
- M2B07605.bin (all MP
images)
- VSB07100.bin (VSM code)
10 Gigabit Ethernet modules
do not use any of the boot
images listed above.
J4891A FPGA:
rxbmgr.bin – version 80,
revision 6
rxpp.bin – version 81,
revision 16
txaccum.bin – version 82,
revision 6
txpp.bin – version 83,
revision 13
ageram.bin – version 84,
revision 4
J8174A FPGA:
xpp.bin – version 88, revision
37
xtm.bin – version 89, revision
39
Note: To determine the
FPGA versions running on a
10GE module, enter show
flash. The version
information is listed
separately for each 10
Gigabit Ethernet module in
the chassis.
ProCurve 6308MSX
6
—
HPR06636.bin2
M1B07108.bin or greater
recommended
Release Notes for 07.8.04
Upgrading Software on an M2, M4, or EP Management Module to Release 07.8.04a
Routing
Switch
Modules
Software Image
Minimum Boot Code
Required
ProCurve 6208MSX
—
HPS06636.bin2
M1B07108.bin or greater
recommended
1
M1 management modules (without Redundant Management) have been discontinued.
2
Does not support Secure Shell (SSH) version 1.
Upgrading Software on an M2, M4, or EP Management Module to
Release 07.8.04a
This section explains how to upgrade the software used on M2, M4, and EP redundant management modules on
a ProCurve 9304M, ProCurve 9308M, or ProCurve 9315M routing switch to release 07.8.04a.
NOTE: As shown in Table 5, newer software versions require newer versions of boot code. Software versions
use a five-digit number in the format: xx.x.xx; for example, 07.8.04a. Boot code versions use a six-digit number in
the format: xx.xx.xx; for example, 07.06.05.
Different procedures are used to upgrade an M2, M4, or EP management module, depending on the version of
software running on the module:
•
A software release earlier than 07.6.01b
•
Software release 07.6.01b or greater
NOTE: M1 Management modules (discontinued) do not support software releases 07.x.xx, and are, therefore,
not described in this section. The latest software release supported on an M1 management module is 06.6.36.
Restrictions
•
Software release 07.8.04a requires boot code version 07.06.05 to support all hardware modules and
decompress new software images.
A new compression algorithm was introduced in software releases greater than 07.6.01b to generate
software images. The new compression algorithm allows a software image to contain more features.
Software release 07.6.01b was introduced as a special release that is used as an intermediate step when you
upgrade to a later software release. After you install release 07.6.01b and reboot a routing switch, the switch
is able to copy the latest software images to flash memory.
•
On an M2, M4, or EP redundant management module, boot code is not automatically copied from the active
to the standby management module. (However, software code is automatically copied to a standby
management module.)
To copy boot code from the active to a standby management module, you must enter the sync boot
command.
•
On a ProCurve 9315M, software release 07.5.04 is the earliest release supported. If a management module
is running software earlier than release 07.5.04, you cannot upgrade the module in a 9315M chassis. Instead,
you must upgrade it in a 9304M or 9308M chassis.
Upgrading to Software Release 07.8.04a: Overview
To upgrade an M2, M4, or EP management module to release 07.8.04a, you must follow these general steps:
A. Upgrade the boot code on the management module to version 07.06.05. If necessary, use the sync boot
command to copy boot code from the active to a standby management module in the routing switch. Then reboot
the routing switch to load boot code 07.06.05.
7
Upgrading Software on an M2, M4, or EP Management Module to Release 07.8.04a
Release Notes for 07.8.04
B. If the routing switch is running software EARLIER than release 07.6.01b, copy release 07.6.01b to flash
memory. Then reboot the device to load the 07.6.01b software.
C. Copy release 07.8.04a to flash memory, and reboot the routing switch to load 07.8.04a software.
A. Upgrading Boot Code on a Management Module to Version 07.06.05
To upgrade the boot code on an M2, M4, or EP management module to version 07.06.05:
1.
Store boot code version 07.06.05 (filename: M2B07605.bin) on a TFTP server that the routing switch can
access.
2.
Enter the following command at the privileged EXEC level of the CLI (for example: ProCurve 9300#) to copy
the boot code from the TFTP server into the flash memory of the management module:
copy tftp flash <ip-addr> <image-file-name> boot
3.
Verify that the code has been successfully copied by entering the following command at any level of the CLI:
show flash
The boot code version is displayed on the line that begins with “Boot Image size”. Ensure that boot code
version 07.06.05 is displayed for the active management module.
4.
If a standby (redundant) management module is installed in the routing switch, synchronize the boot code on
the standby management module by entering the sync boot command.
Verify that boot code 07.06.05 has been successfully copied on the standby management module by entering
the show flash command.
5.
Reboot the routing switch to load boot code 07.06.05.
B. Upgrading Software on a Management Module From a Release Earlier than
07.6.01b
To upgrade the software on an M2, M4, or EP management module from a release EARLIER than 07.6.01b to
release 07.8.04a:
1.
Verify the version of boot code installed on the management module by entering the show flash command.
The boot code version is displayed at the end of the line that begins with “Boot Image size”. Ensure that boot
code version 07.06.05 is displayed.
NOTE: The show flash command only displays the version of boot code installed on the device. It does not
display the version of boot code running on the device.
If you rebooted the routing switch after installing boot code 07.06.05 (as described in “A. Upgrading Boot
Code on a Management Module to Version 07.06.05”), the required boot code is running. If you are not sure,
ProCurve recommends that you reboot the device now.
2.
Store software release 07.6.01b (filename: H2R07601b.bin) on a TFTP server that the routing switch can
access.
3.
Upgrade the software on the management module to version 07.6.01b by entering the following command:
copy tftp flash <ip-address> H2R07601b.bin [primary | secondary]
Where:
primary copies software to the primary (default) storage area in flash memory.
secondary copies software to the secondary area in flash memory.
If no redundant management module is installed, the message TFTP to Flash Done is displayed when the
upgrade is complete.
If a redundant management module is installed, the message Sync Secondary code in flash...Done
8
Release Notes for 07.8.04
Upgrading Software on an M2, M4, or EP Management Module to Release 07.8.04a
is displayed when the flash images are synchronized and the upgrade is complete.
4.
Verify that the software has been successfully copied by entering the show flash command at any level of the
CLI:
•
The software release in the primary flash is displayed at the end of the line that begins with “Compressed
Pri Code Size”.
•
The software release in the secondary flash is displayed at the end of the line that begins with
“Compressed Sec Code Size”.
Ensure that software release 07.6.01b is stored in the primary or secondary flash area.
5.
Reboot the routing switch to load software release 07.6.01b from the area of flash memory (primary or
secondary) where you stored it.
6.
Continue with “C. Upgrading Software on a Management Module From Release 07.6.01b or Greater” to
upgrade the software to release 07.8.04a.
C. Upgrading Software on a Management Module From Release 07.6.01b or
Greater
To upgrade the software on an M2, M4, or EP management module from release 07.6.01b or greater to release
07.8.04a:
1.
Verify the version of boot code running on the management module by entering the show flash command.
The boot code version is displayed at the end of the line that begins with “Boot Image size”. Ensure that boot
code version 07.06.05 is displayed.
NOTE: The show flash command only displays the version of boot code installed on the device. It does not
display the version of boot code running on the device.
If you rebooted the routing switch after installing boot code 07.06.05 (as described in “A. Upgrading Boot
Code on a Management Module to Version 07.06.05”), the required boot code is running. If you are not sure,
ProCurve recommends that you reboot the device now.
2.
Store software release 07.8.04a (filename: H2R07801d.bin) on a TFTP server that the routing switch can
access.
3.
Upgrade the software on the management module to version 07.8.04a by entering the following command:
copy tftp flash <ip-address> H2R07801d.bin [primary | secondary]
Where:
primary copies software to the primary (default) storage area in flash memory.
secondary copies software to the secondary storage area.
If no redundant management module is installed, the message TFTP to Flash Done is displayed when the
upgrade is complete.
If a redundant management module is installed, the message Sync Secondary code in flash...Done
is displayed when the flash images are synchronized and the upgrade is complete.
4.
Verify that the software has been successfully copied by entering the show flash command at any level of the
CLI:
•
The software release in the primary flash is displayed at the end of the line that begins with “Compressed
Pri Code Size”.
•
The software release in the secondary flash is displayed at the end of the line that begins with
“Compressed Sec Code Size”.
Ensure that software release 07.8.04a is stored in the primary or secondary flash area.
9
Using SNMP to Upgrade Software on a Management Module
5.
Release Notes for 07.8.04
Reboot the routing switch to load software release 07.8.04a from the area of flash memory (primary or
secondary) where you stored it.
NOTE: When you reload the software after upgrading the software to release 07.8.04a, the routing switch
displays a message to say that the configuration has changed and prompts you to save the changes. This
message is displayed even if you do not make any configuration changes because the software records its
release number in the running-config file when the software is loaded onto the switch. Enter Y to reload
without saving the change or save the change and reload.
Using SNMP to Upgrade Software on a Management Module
Third-party SNMP management applications such as HP OpenView can upgrade software on a routing switch.
NOTE: In software releases earlier than 07.5.04, the SNMP agent does not check for type validity with the
SNMP version. In software release 07.5.04 and greater, the SNMP agent does not send a reply for a varbind, if the
type of the varbind is not a known type for that version of SNMP. For example, MIB objects of type Counter64
cannot be retrieved using a v1 packet, as Counter64 is a v2c and v3 type.
Make sure you use the correct procedure for your device and processor type. For example, do not use the
Management Processor procedure to upgrade the switching processors on a T-Flow module.
The syntax shown in this section assumes that you have installed HP OpenView in the “/usr” directory.
ProCurve recommends that you make a backup copy of the startup-config file before you upgrade the software. If
you need to run an older release, you will need to use the backup copy of the startup-config file.
Upgrading a Management Processor using SNMP
Use the following procedure to upgrade:
•
An M2, M4, or EP module
•
Management processor on the T-Flow module
To upgrade software code on the Management Processor:
1.
Configure a read-write community string on the ProCurve device, if one is not already configured. To
configure a read-write community string, enter the following command from the global CONFIG level of the
CLI:
snmp-server community <string> rw
where <string> is the community string and can be up to 32 characters long.
2.
On the ProCurve device, enter the following command from the global CONFIG level of the CLI:
no snmp-server pw-check
This command disables password checking for SNMP set requests. If a third-party SNMP management
application does not add a password to the password field when it sends SNMP set requests to an ProCurve
device, by default the ProCurve device rejects the request.
3.
From the command prompt in the UNIX shell, enter the following command:
/usr/OV/bin/snmpset -c <rw-community-string> <hp-ip-addr> 1.3.6.1.4.1.1991.1.1.2.1.5.0
ipaddress <tftp-ip-addr> 1.3.6.1.4.1.1991.1.1.2.1.6.0 octetstringascii <file-name>
1.3.6.1.4.1.1991.1.1.2.1.7.0 integer <command-integer>
Where:
<rw-community-string> is a read-write community string configured on the ProCurve device.
<hp-ip-addr> is the ProCurve device’s IP address.
10
Release Notes for 07.8.04
Upgrading the FPGA on a 10 Gigabit Ethernet Module
<tftp-ip-addr> is the TFTP server’s IP address.
<file-name> is the image file name.
<command-integer> is one of the following values:
20 – Downloads the software code into the device’s primary flash area.
22 – Downloads the software code into the device’s secondary flash area.
Upgrading the FPGA on a 10 Gigabit Ethernet Module
This section explains how to upgrade an FPGA (Field-Programmable Gate Array) on a 10 Gigabit Ethernet
module. 10 Gigabit Ethernet modules do not have boot code separate from the management module. However,
they do have FPGAs that require separate software.
NOTE: The J8174A 2-port 10 Gigabit Ethernet module with XENPAK optics uses a different FPGA file than the
older J4891A 1-port 10 Gigabit Ethernet module. See Table 5 on page 6 for a list of the FPGA files supported on
both the 1-port and 2-port 10 Gigabit Ethernet modules.
The J8174A 2-port 10 Gigabit Ethernet module with XENPAK optics can function in the same chassis with the
older J4891A 1-port 10 Gigabit Ethernet module.
If an upgrade is required for any of the FPGA files, you must upgrade all the FPGA files.
To upgrade the FPGA on a 10 Gigabit Ethernet module:
1.
Complete the upgrades of the boot code and software code, if required.
2.
Enter the following command for the 10 Gigabit Ethernet module at the privileged EXEC level of the CLI:
10gig copy tftp flash <ip-addr> <filename> [module <slotnum>]
Where:
tftp specifies the location of the FPGA file. The tftp parameter shows that the file is on a TFTP server.
<ip-addr> specifies the IP address of the TFTP server, if you specify tftp.
<filename> specifies the FPGA file name. The 2-port 10 Gigabit Ethernet module has only two FPGA files;
xpp.bin and xtm.bin. For more information on the supported FPGA files, see Table 5 on page 6.
module <slotnum> is an optional parameter that specifies the modules on which you want to install the
upgrade. If you do not specify a slot number, the command upgrades the FPGA on all 10 Gigabit Ethernet
modules in the chassis.
Example
ProCurve
ProCurve
ProCurve
ProCurve
ProCurve
9300#
9300#
9300#
9300#
9300#
10gig
10gig
10gig
10gig
10gig
copy
copy
copy
copy
copy
tftp
tftp
tftp
tftp
tftp
flash
flash
flash
flash
flash
10.10.10.10
10.10.10.10
10.10.10.10
10.10.10.10
10.10.10.10
rxbmgr.bin
rxpp.bin
txaccum.bin
txpp.bin
ageram.bin
NOTE: You can store and copy the FPGA files using any valid filename. You are not required to store and
copy the files using the names listed in “Boot Code Requirements for ProCurve Software” on page 5. The
device uses information within the files to install them in the correct FPGAs, and the show flash command
lists the FPGAs according to the names in “Boot Code Requirements for ProCurve Software” on page 5.
3.
Reload the software by entering one of the following commands:
•
reload (this command boots from the default boot source, which is the primary flash area by default)
•
boot system flash primary | secondary
11
Using Different Combinations of Management Modules
Release Notes for 07.8.04
NOTE: The show flash command will list the new FPGA code versions but the new versions do not take
effect until you reload the software.
Using Different Combinations of Management Modules
This section describes the different combinations of M1, M2, M4, EP, and T-Flow management modules supported
on ProCurve 9304M, ProCurve 9308M, and ProCurve 9315M routing switches.
Table 6: Supported Management Module Combinations
Primary Management Module
Secondary Management
Module
Notes
J4885A EP Mini-GBIC Redundant
Management Module
Another EP Redundant
Management Module
—
Any M2 or M4 Redundant
Management Module (Discontinued)
Another M2 or M4
Redundant Management
Module
When you use an M2 and M4 in the same
switch, ProCurve recommends using the
faster M4 as the primary redundant
management module. If the M4 fails, the
system will use the slower M2 module.
J4879A T-Flow Redundant
Management Module (Discontinued)
Another J4879A T-Flow
Redundant Management
Module
—
Any M1 Management Module
(Discontinued)
N/A
Supported only in the ProCurve 9304M
and ProCurve 9308M routing switches. No
redundant management options.
NOTE: The following types of management modules are mutually exclusive:
- M1 management modules
- M2 or M4 redundant management modules
- EP redundant management modules
- T-Flow redundant management modules
A ProCurve routing switch does not operate if two redundant management modules of different types are installed.
Also, M1 management modules do not operate in a ProCurve 9315M routing switch.
Redundant management means that a device can operate with two management modules installed; one active
(primary) and one standby (secondary). If the active management module becomes unavailable, the standby
management module automatically takes over system operation.
Management modules with redundant management capabilities include the following M2, M4, EP, and T-Flow
modules:
•
J4885A ProCurve 9300 EP Mini-GBIC Redundant Management Module (8-port)
•
J4879A ProCurve 9300 T-Flow Redundant Management Module (0-port — discontinued)
•
J4857A ProCurve 9300 Mini-GBIC Redundant Management Module (8-port, M4 — discontinued)
•
J4845A ProCurve 9300 GigLX Redundant Management Module (8-port, M2 — discontinued)
•
J4846A ProCurve 9300 GigSX Redundant Management Module (8-port, M2 — discontinued)
•
J4847A ProCurve 9300 Redundant Management Module (0-port, M2 — discontinued)
If you are using a Redundant Management module, you can install either one or two such modules in the routing
switch, as shown in Table 6. For more information, see “Using Redundant Management Modules” in the
Installation and Basic Configuration Guide included on the Documentation CD-ROM shipped with your
12
Release Notes for 07.8.04 Non-Redundant Management on ProCurve 9304M and ProCurve 9308M Routing Switches
management module, and also downloadable from the ProCurve website (see “To Download Product
Documentation:” on page 3).
Non-Redundant Management on ProCurve 9304M and ProCurve
9308M Routing Switches
Management modules without Redundant Management are sometimes termed “M1” modules (for “Management
1”). These modules, now discontinued, operate only in the ProCurve 9304M and ProCurve 9308M routing
switches. M1 modules include:
•
J4141A ProCurve 9300 10/100 Management Module (16-port — discontinued)
•
J4144A ProCurve 9300 Gigabit SX Management Module (8-port — discontinued)
•
J4146A ProCurve 9300 Gigabit 4LX/4SX Management Module (8-port — discontinued)
NOTE: M1 management modules do not operate in the ProCurve 9315M routing switch. Also, if you are using an
M1 management module in a ProCurve 9304M or ProCurve 9308M, no other management module (nonredundant or redundant) can be installed in the routing switch.
Maximum Size of Startup-Config and Running-Config Files
Each ProCurve device has a maximum supported size for the running-config and the startup-config file. If you use
TFTP to load additional information into a device’s running-config or startup-config file, it is possible to exceed the
maximum supported size. If this occurs, you will not be able to save the configuration changes.
Table 7 lists the maximum size of the running-config and the startup-config files on ProCurve devices.
Table 7: Maximum Sizes Supported for running-config and the startup-config Files
Device
Maximum Size of running-config
and startup-config files
ProCurve 9315 using Management II or
higher
256 kilobytes (KB)
ProCurve 9304M or ProCurve 9308M
using Management II or higher
256 KB
ProCurve 9304M or ProCurve 9308M
using Management I (discontinued)
128 KB
ProCurve 6308M-SX or ProCurve
6208M-SX (discontinued)
64 KB
NOTE: The maximum supported file size of each file is not the combined size of the running-config and startupconfig files. The running-config and startup-config files can each be the size listed in Table 7.
To determine the size of an ProCurve device’s running-config or startup-config file, copy the file to a TFTP server.
Then use the directory services on the server to list the size of the copied file. To copy the running-config or
startup-config file to a TFTP server, use one of the following commands.
•
To copy the running-config to a TFTP server:
copy running-config tftp <ip-addr> <filename>
•
To copy the startup-config file to a TFTP server:
copy startup-config tftp <ip-addr> <filename>
13
Removing a Module from an Active Device
Release Notes for 07.8.04
Removing a Module from an Active Device
Before you remove a module from a routing switch in operation, first disable the module. Disabling the module
before removing it prevents a brief service interruption on other unmanaged modules. The brief interruption can be
caused by the device re-initializing other modules when you remove an enabled module.
NOTE: This section does not apply to the active or standby Redundant Management modules. The disable
module and enable module commands are not supported on management modules.
To disable a module, enter the following command at the Privileged EXEC level of the CLI:
disable module <slot-num>
Where <slot-num> specifies the slot number as follows:
•
Slots in a 4-slot chassis are numbered 1 – 4, from top to bottom.
•
Slots in an 8-slot chassis are numbered 1 – 8, from left to right.
•
Slots in a 15-slot chassis are numbered 1 – 15, from left to right.
Example
ProCurve 9300# disable module 3
This command disables the module in slot 3.
NOTE: If you remove the module without first disabling it, the routing switch re-initializes the other modules in the
device, causing a brief interruption in service after which the device resumes normal operation.
You do not have to enable a module after inserting it in the chassis. The module is automatically enabled when
you insert the module into a running device or when you power on the device.
To replace a removed module with a different type of module, you must configure the slot for the new module. To
configure a slot for a module, use the module command at the global CONFIG level of the CLI.
After disabling a module, if you decide not to remove the module, re-enable the module using the following
command:
enable module <slot-num>
Example
The following command re-enables the module in slot 3:
ProCurve 9300# enable module 3
Configuring the ProCurve 9315M
When configuring a ProCurve 9315M 15-slot routing switch, take into account the guidelines and restrictions in
this section.
Minimum Software Release Supported
The ProCurve 9315M requires software release 07.5.04 or greater.
NOTE: On a ProCurve 9315M, software release 07.5.04 is the earliest release supported. If a management
module is running software earlier than release 07.5.04, you cannot upgrade the module in a 9315M chassis.
Instead, you must upgrade it in a 9304M or 9308M chassis. For more information, see “Upgrading Software on an
M2, M4, or EP Management Module to Release 07.8.04a” on page 7.
14
Release Notes for 07.8.04
Enhancements and Configuration Notes in 07.8.03
Inserting or Removing an EP Module on a ProCurve 9315M
NOTE: This section applies only to a ProCurve 9315M (15-slot chassis) with EP modules.
Do not insert or remove EP modules in a ProCurve 9315M until the device has fully booted. Generally, booting
takes around two minutes. You can determine whether the device has fully booted by looking at the management
console. Once the device boots, a command prompt or login prompt is displayed.
After the device has booted, allow time for the device to fully complete the removal or insertion before removing or
inserting another module. Generally, this takes about 30 seconds. After you remove or insert a module, the CLI
displays a message confirming completion of the change. Wait for this message before removing or inserting
another module.
Slot Locations for Redundant Management Modules
The 15 slots in the ProCurve 9315M are divided among 4 internal regions. Slots 1 – 4 belong to the same region;
slots 5 – 8 belong to the same region; slots 9 – 12 belong to the same region, and slots 13 – 15 belong to the
same region. If you are using redundant management modules, ProCurve recommends that you place both
management modules in slots belonging to the same region. For example, if you place one management module
in slot 5, ProCurve recommends that you place the other management module in slot 6, 7, or 8.
MAC Addresses
The ProCurve 9315M makes use of locally administered MAC addresses. If your site already uses locally
administered MAC addresses of the vendor OUI, which is 00e052, there could be a MAC address conflict with one
of the ports on the ProCurve device.
Server Trunk Groups
If you plan to configure ports on a module into a server trunk group, use the following guideline:
•
For a multi-slot trunk group (one configured on two forwarding modules), the modules must both be in the
same set of slots (slots 1 – 7 or 9 – 15).
You do not need to follow this guideline for a switch trunk group.
NOTE: In software releases earlier than 07.6.00, the management module(s) and the module that had the server
trunk group’s ports were required to be in the same set of slots (slots 1 – 7 or 9 – 15). In software release 07.6.00
and later, there is no longer a restriction on the location of the management module relative to the module used for
server trunking. However, it is still a requirement that the module that has the server trunk group’s lead ports
cannot reside in slot 8.
VLANs
In release 07.6.01b, you could configure only up to 2195 Layer 2 VLANs on the ProCurve 9315M routing switch.
The system-max vlan <num> command allowed you to allocate a higher number of VLANs, but the software
allowed you to actually create only 2195 of the allocated VLANs.
Starting with release 07.6.04, this restriction has been removed. You can create the full number of allocated Layer
2 VLANs on the 15-slot ProCurve 9315M routing switch, up to 4095.
Enhancements and Configuration Notes in 07.8.03
On ProCurve 9300M Series routing switches, no new software enhancements are supported in software release
07.8.03.
15
Software Fixes
Release Notes for 07.8.04
Software Fixes
The fixes for software bugs found on ProCurve 9300M Series routing switches in software releases 07.8.00h
through 07.8.03 are described in the following table. Software fixes are listed by bug ID for the software release in
which they were implemented.
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
07.8.00h
25991
In the display of InUcastPkts and OutUcastPkt 64bit packet counters, the packet counts wrap after 32
bits.
Other
07.8.00
31045
The default route learned through OSPF is not
displayed in the routing table if you enter the clear
ip route 0.0.0.0/0.0.0.0 command.
OSPF
07.8.00
32896
802.1w packets are not forwarded by the routing
switch.
Spanning Tree
07.8.00
35710
If you enter the no web management command,
access on port 80 is disabled while access on port
280 is allowed.
Web
Management
07.8.00
35727
During a system reload, the following error
message is displayed even when the number of
Spanning Tree Protocol (STP) instances is reduced
by using topology groups:
Error - failed to bind STP to vlan xxx
Spanning Tree
07.8.00
3676
After you modify an access control list (ACL),
protection against a reload is performed.
ACL
07.8.00
40829
A Border Gateway Protocol (BGP) reload is
performed when the preceding NLRI entry is NULL.
BGP
07.8.00
41630
When private VLANs are configured, if you remove
the lowest numbered port mapping in the primary
VLAN, higher port mappings are disabled.
VLAN
07.8.00
44374
An error message is displayed when you configure
multiple IP address on a group router interface.
Other
07.8.00
44949
ARP learning is performed much slower when
Layer 3 bidirectional traffic is transmitted at a 100M
rate.
Other
07.8.00
45104
A watchdog reset is caused when BGP passes out
of the Direct Memory Access (DMA) range.
BGP
07.8.00
45198
Port 280 remains up if you enter the no webmanagement http command followed by the no
web-management hp-top-tools command.
Web
Management
07.8.00
45277
A system reload is performed following a link-list
subroutine error.
Other
07.8.00
16
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
45318
After you disable and swap a module, the active
management module crashes.
System
07.8.00
45319
When you enter the ip rebind-acl all command, the
following message is logged:
Exceed max DMA 9 L4 cam resource,
using flow based ACL instead
ACL
07.8.00
45415
SSH may reload if a different client public-key is
received for authentication.
SSH
07.8.00
45550
A 10 Gigabit Ethernet port is not displayed in show
fdp interface command output.
CLI
07.8.00
46777
The globally configured value for the sFlow
sampling rate is not applied to the secondary trunk
links when you enter the config-trunk-ind
command in the startup configuration.
sFlow
07.8.00
46924
The sflow sample command entered at the trunk
level is not supported on a routing switch during a
reload.
sFlow
07.8.00
47464
A variable is not initialized to zero. As a result, a
large data chunk may be allocated, causing a
system reload.
System
07.8.00
47599
If route-only mode is configured, forwarding stops
when you exit from monitor mode.
System
07.8.00
47855
The OSPF timer displays the following message:
Warning Checksum bad in Link State
Database error.
OSPF
07.8.00
48115
The debug ip igmp physical_port command is not
performed on ports 32 to 48 on an EP 48-Port 10/
1000-TX RJ45 module.
IGMP
07.8.00
48132
When a trunk server is used, the first packet in a
flow is sent twice.
System
07.8.00
48313
A Protocol Independent Multicast (PIM) reload is
performed after detecting a virtual port (instead of a
physical port) configured in the forwarding OIF.
PIM
07.8.00
48383
ACL-denied packets are not copied to a redirected
interface.
ACL
07.8.00
48442
The BGP route dampening feature does not always
dampen flapping routes after four flaps. Some
routes are still dampened after two flaps.
BGP
07.8.00
48721
The routing switch reloads if an SSH client starts a
session when SSH debugging is enabled.
SSH
07.8.00
48823
If you configure multiple addresses on an interface
and reload the switch, RIPv2 advertises from only
the lowest IP address.
RIPv2
07.8.00
17
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
48927
Port-based rate-limiting on outbound traffic may not
function properly if a large output rate is configured.
Rate Limiting
07.8.00
07.8.00i
29031
In show ip nat trans command output, a maximum
of 3000 Network Address Translation (NAT)
sessions are displayed.
NAT
07.8.00
29530
A write error message for the VLAN table is
displayed:
00d00h00m00s:E:Vlan table write
error(00070064: 00801cac(40a10001).
VLAN
07.8.00
33503
An interior Border Gateway Protocol (IBGP) route is
selected over an OSPF route after exterior Border
Gateway Protocol (EBGP) routes are withdrawn.
BGP
07.8.00
34609
A 10 Gigabit Ethernet link stays up when the peer
on the other side of the link is disabled. No link-fault
signal (LFS) is configured.
System
07.8.00
35968
A Web server is not functional and shows XSS
vulnerability after running NeWT (Nessus Windows
Technology).
System
07.8.00
40784
When a new RSA key is being generated, an error
message is displayed:
RSA key can not be generated now,
please try later.
RSA
07.8.00
42047
An interface with advanced Quality of Service
(QoS) policy configured stops responding to pings if
a different interface is configured with an ACL on
incoming traffic.
ACL
07.8.00
43253
In dot1x-enable configuration mode, the configured
mac-session-aging max-age value is not
displayed in the show running config command
output.
CLI
07.8.00
43721
After you insert a 2-Port 10 Gigabit Ethernet
module, entering the dm delete
mod_slot<number> command causes a system
reload.
CLI
07.8.00
44996
A PC cannot ping the Virtual Switch Redundancy
Protocol (VSRP) virtual IP address (VIP) when it is
connected to a port configured for no include and
when the only other port that is up is on the
management module.
VSRP
07.8.00
47159
When you configure the mac-session-aging maxage value, the mac-session-aging no-aging
permitted-mac-only value needs to be
unconfigured.
System
07.8.00
18
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
47395
If the primary link in an Link Aggregation Control
Protocol (LACP) 802.3ad trunk goes down for more
than 90 seconds and then comes back up, port
flapping occurs.
LACP
07.8.00
47826
The system reloads when the ARP table contains
more entries than the configured maximum arp
table value.
System
07.8.00
47830
When an incorrect virtual router ID (vrid) value is
configured, Virtual Router Redundancy Protocol
(VRRP) corruption occurs.
VRRP
07.8.00
48064
In OSPF, a double link-list operation is faulty.
OSPF
07.8.00
48859
A BGP tag change is not updated in an OSPF route.
BGP
07.8.00
49028
When you enable Multicast forwarding, the routing
switch runs out of valid forwarding identifiers (FIDs).
Multicast
07.8.00
49135
If an existing OSPF route with the same prefix as an
EBGP route is removed, the EBGP route is not
installed.
OSPF
07.8.00
49319
OSPF cannot add a route from the link-state (LS)
database after you enter the no ip forward route
command.
OSPF
07.8.00
49434
Continuous pings received on a virtual routing
interface (VE) from a PC directly connected to the
routing switch results in intermittent timeouts.
VE
07.8.00
49614
If you enter logging host followed by any single
letter and then press the Tab key, the udp-port
attribute is appended.
CLI
07.8.00
49695
OSPF sends an link-state (LS) update with an age
time-out value of 3600 when the route map is
changed.
OSPF
07.8.00
49839
When an ACL is applied to inbound traffic, routed
packets for non-direct destinations are not sampled
by sFlow.
ACL
07.8.00
49848
When you enter the show support l4 command,
the system reloads.
CLI
07.8.00
49914
When you reconfigure the router ID (by modifying
the IP address of the loopback interface), OSPF
stops advertising the default route.
OSPF
07.8.00
49934
A routing switch crashes continuously during bootup when loading a customer configuration file.
System
07.8.00
50091
When you enter the no interface command, the
fixed speed and duplex settings are not removed
from an interface.
CLI
07.8.00
19
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
50092
When you enter the no speed-duplex command
including speed and duplex attributes, the specified
fixed speed and duplex settings are not removed.
CLI
07.8.00
50203
A routing switch does not flush a MAC address on
the Metro Ring Protocol (MRP).
MRP
07.8.00
50347
Multicast forwarding is not supported with jumbo
packets.
Multicast
07.8.00
50429
A system reload may occur after you disable
multicast forwarding.
Multicast
07.8.00
50441
A watchdog reset is performed in the SSH code.
SSH
07.8.00
50592
Multicast forwarding of jumbo packets is not
supported on a 10 Gigabit Ethernet module.
Multicast
07.8.00
50659
A system reload is performed during a Secure Copy
(SCP) operation when a startup configuration is
copied from Linux to a ProCurve 9300M Series
routing switch.
System
07.8.00
51175
After you enter the management-ip-disable
command on a VE interface and then enter the
sflow enable command at the global configuration
level, the routing switch fails to boot up properly.
VE
07.8.00
51394
When a Prune message is received, the routing
switch stops sending multicast traffic to a client
connected on the same port.
Multicast
07.8.00
51495
In a group VLAN, when a port is brought up or goes
down, the console hangs and inbound and
outbound traffic on the VE interface is dropped.
VLAN
07.8.00
System
07.8.00
07.8.00j
47730
After a reboot, the management module may reload
with the following error message:
Active management module crashed.
07.8.00k
35631
The routing switch crashes when running an IWL
RMON test suite after you enter the show run
command.
RMON
07.8.00
40149
When you enable monitoring, routing is stopped.
System
07.8.00
42129
The debug ip arp command output is displayed on
the console when the destination value is set to
telnet.
System
07.8.00
44892
The MTU in OSPF database description (DBD)
packets is set to a non-zero value even when the
no rfc1583-compatibility attribute is not
configured.
OSPF
07.8.00
20
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
49218
LACP implementation causes a trunk instance to be
recreated if a primary trunk port attached to a
Cisco 6500 goes down or comes up.
LACP
07.8.00
49294
If you do not enter the no rfc153-compatibility
command, type 3 summary link-state
advertisements (LSAs) with maximum cost are
sent. To activate the software fix, refer to the RFC
1583-type3-cost.
LSA
07.8.00
51320
In show support l4 command output, IP Content
Addressable Memory (CAM) information is listed for
all slots but is truncated and not displayed after the
first eighteen lines.
CLI
07.8.00
51505/
51606
A memory leak in the web engine occurs because
the http_receive_packet routine is not freed
correctly when a client resets the connection.
System
07.8.00
51959
After you enter the debug ip ospf flood command,
messages are displayed even if LSAs are sent to
the adjacent router.
OSPF
07.8.00
52399
The no ip follow acl command does not work
properly.
ACL
07.8.00
52419
During an SSH session, an SSH client is
disconnected after the configured idle timer expires.
SSH
07.8.00
52617
The system reloads when you add a tagged port to
a VLAN.
VLAN
07.8.00
07.8.00m
36085
A system reload may occur if the MRP ring interface
is enabled.
MRP
07.8.00
42147
There is no command to disable the sending of
SNMP traps for ACL log messages.
ACL
07.8.00
47254
On a tagged port, the incorrect ACL is applied to
packets.
ACL
07.8.00
48029
The system may reload if MRP is configured.
MRP
07.8.00
50734
A log entry is only generated for permitted host; a
log entry is not generated for a permitted network.
System
07.8.00
50939
The no access-list command leaks a denied
packet although the ACL is not related to the
interface.
ACL
07.8.00
51696
An SSHv2 key sometimes fails synchronize with a
standby module after you enter the write memory
command or after a boot-up.
SSH
07.8.00
21
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
52419
SSH disconnects an SSH client after the configured
idle time expires even during an active SSH
session.
SSH
07.8.00
53721
A reload is performed due to the lack of memory
allocated to the "vlan_router_int_list" pointer.
VLAN
07.8.00
54207
A Data Access Exception reload in the
cam_clear_dma_flags routine occurs.
System
07.8.00
54250
The debug span all_802_1D_events vlan
command is not supported although it is displayed
as a valid command option.
Spanning Tree
07.8.00
54251
The debug 802.1w all_802_1W_events vlan
command does not send output to a console,
Telnet, or SSH session.
Spanning Tree
07.8.00
54269
When Internet Group Management Protocol (IGMP)
snooping is configured on a routing switch, it
performs Layer 2 forwarding if there is no client
session on the port.
IGMP
07.8.00
54375
A Data Access Exception crash occurs after you
enter the no untagged ethernet 21 ethernet 22
ethernet 23 ethernet 24 command.
System
07.8.00
54449
When a tagged port is assigned to multiple VE
interfaces running OSPF, slow convergence is
detected if the port goes down.
OSPF
07.8.00
54527
The debug ip ssh command supports level 0 as a
valid attribute.
SSH
07.8.00
54542
If you delete a group VLAN ID from the routing
table, the route is not deleted.
VLAN
07.8.00
54655
The show run command output does not display
the gig-default neg-off value configured on the
secondary port when link aggregation is performed.
CLI
07.8.00
54752
After a route table is full, it sends a new link-state
advertisement (LSA) only after five seconds.
System
07.8.00
54791
When a tagged port configured with two VLANS
that use the same MAC address goes down, only
one MAC address in one of the VLANs is aged out.
VLAN
07.8.00
55122
A Data Access Exception
(l2_flooding_entry_refresh_impl) crash occurs
when you enter the trunk deploy command.
Trunking
07.8.00
System
07.8.00
07.8.00n
44687
22
When creating a Reverse Path Forwarding (RPF)
route, the switch software does not check for a valid
port.
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
50323
802.1w is disabled if you configure a topology group
(802.1w in the master VLAN) and more VLANs than
the configured system-max spanning-tree value.
VLAN
07.8.00
51621
A GBIC that is installed in an SFP slot, which is
configured for the Simple Network Time Protocol
(SNTP) but has no cable attached, shows port
flapping (up and down).
SNTP
07.8.00
52810
After you apply an ACL that filters a TCP range,
connections using the upper TCP value appear to
be switched instead of routed.
ACL
07.8.00
53925
A Data Access Exception reload occurs when there
is a change in port membership in a VLAN. The
routing switch does not check for a valid port.
VLAN
07.8.00
55204
ACL-based QoS is not applied to incoming frames
that have a port-priority virtual MAC address as the
destination address.
ACL
07.8.00
55379
A Data Access Exception reload occurs in NAT.
NAT
07.8.00
55657
A system reload was caused through input from the
web management interface.
Web
Management
07.8.00
56011
TACACS authentication is not supported in release
07.8.01 and greater.
TACACS
07.8.00
55559
The MAC address filter does not filter MAC address
over a trunk server configuration.
System
07.8.00
56816
After you apply an ACL that contains a qos-tos
mapping, the routing switch cannot ping a directly
connected host.
ACL
07.8.00
07.8.00o
32021
The routing switch ignores the VSRP TTL value.
VSRP
07.8.00
32502
The following error message is displayed on the
console:
Error: Inconsistent cam index free
list! dma=57
System
07.8.00
47724
In show ip bgp nei adv command output, all
advertised routes are sometimes not displayed.
(This is a display issue only.)
CLI
07.8.00
48614
A Data Access Exception crash occurred.
System
07.8.00
51302
When using a RADIUS server for 802.1x
authentication for any authentication method, the
missing RADIUS error message (#24) in accesschallenge sets the RADIUS server in an unavailable
state, causing authentication sessions to fail.
RADIUS
07.8.00
23
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
51933
A traffic flow is over-reporting the number of
outbound bytes transmitted as compared with the
number of interface counters recorded by SNMP.
SNMP
07.8.00
52074
When NAT and ACL are configured on the same
interface, NAT does not translate packets after you
modify the ACL configuration.
NAT
07.8.00
52269
ARP does not synchronize between the backplane
and management plane on a routing switch.
System
07.8.00
52503
Unsuccessful logins via HTTPS lock up a Web
management session.
Web
Management
07.8.00
54854
A Program Exception crash occurred.
System
07.8.00
55268
The system crashed during a management session
through the Web interface.
Web
Management
07.8.00
55495
A BGP route cannot be deleted when a
replacement route with the same local autonomous
system (AS) is received.
BGP
07.8.00
55620
A Data Access Exception crash occurred.
System
07.8.00
56017
After a system reload, the mirroring configuration on
an individual trunk is changed.
Port Mirroring
07.8.00
56317
A crash occurred in Multicast IGMP snooping.
Multicast
07.8.00
56400
The configuration of an ACL entry is supported after
the system-max threshold configured with the ipfilter-sys command is reached.
ACL
07.8.00
56401
A Data Access Exception crash occurred.
System
07.8.00
56487
Multicast packets are transmitted on an MRPblocked port.
Multicast
07.8.00
56946
An invalid ACL configuration is supported when a
port already configured with an ACL-based rate limit
allows an ACL binding to a VE interface to be
configured on the port.
ACL
07.8.00
57172
The output port number in the PIM mcache is not
correct.
PIM
07.8.00
57315
Two equal secure MAC addresses in different
VLANs on the same port do not properly age out.
VLAN
07.8.00
57447
After system reload, a 10 Gigabit Ethernet module
does not boot and displays the following error
message because the configured module type does
not match the hardware type:
The Module is "Marked Not Operational”.
System
07.8.00
57475
A Data Access Exception crash occurred.
System
07.8.00
57564
OSPF deletes summary routes when interfaces in
area 0 come up.
OSPF
07.8.00
24
Version
Found
Version
Fixed
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
57594
The child route (more specific route) ages out from
CAM before the parent route, resulting in
blackholing of traffic.
System
07.8.00
57774
A Data Access Exception crash occurs when a
trunk is created without entering the trunk deploy
command and when the lead port is configured for
802.1w admin-pt2pt.
Spanning Tree
07.8.00
07.8.00p
57806
When you enter the no port security command, all
interface-level configurations are deleted.
Port Security
07.8.00
58718
FDP packets sent on a 10 Gigabit tagged interface
have incorrect VLANs. As a result, the FDP
neighbors are not seen.
FDP
07.8.00
58852
Software images earlier than release 07.8.00p
stored BGP community attributes that are only 256
bytes long.
BGP
07.8.00
Starting in release 07.8.00p, BGP community
attributes with lengths up to 4096 bytes can be
stored.
59014
Removing a VLAN group from a routing switch, on
which a large number of VLANs are configured,
causes a watchdog reset.
VLAN
07.8.00
59277
When you configure port mirroring and monitoring
using the Web interface, an error message is
displayed.
Web interface
07.8.00
59582
OSPF routes associated with an area are displayed
in the routing table for 60 minutes after changing the
area ID.
OSPF
07.8.00
60358
If the routing switch detects a BGP AS Path pointer
to be invalid, the switch resets the pointer to Null.
BGP
07.8.00
60732
When the PIM multicast routing protocol is enabled
for VLANs with tagged ports, the multicast packets
cause loss of buffers on the second packet
processor on the routing switch. Over time, this
results in buffer depletion and causes a loss of
connectivity.
PIM
07.8.00
61237
SSH corrupts data when the length of keys stored in
EEPROM is invalid.
SSH
07.8.00
61547
A memory leak occurs over time if you use SSHv2
to connect to the routing switch.
SSH
07.8.00
25
Software Fixes
Bug ID
Release Notes for 07.8.04
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
07.8.01
14668
Although rare in occurrence, in some configurations
with EBGP, IBGP, and OSPF routes, a routing
switch may not always select the best route. For
example, the device might install an IBGP route in
the routing table, even though the IBGP route has a
higher administrative distance than OSPF. This
could happen if the switch previously selected an
EBGP route as the best route.
BGP
07.8.01
CLI
07.8.01
If this problem occurs, you must clear the routing
table for a routing switch to select the best route.
25042
On the EP 8 Port Mini-GBIC Redundant
Management module, if you configure a port name
on the primary port of a trunk group, the switch
generates an error message when it boots up. For
example, the following configuration generates an
error at boot-up:
ProCurve(config)#interface ethernet
1/3
ProCurve(config-if-e1000-1/3)# portname “testtrunk”
However, if you configure a port name on all of the
members of the trunk group, this error does not
occur. For example:
ProCurve(config)#trunk switch ethernet
1/3 to 1/4
ProCurve(config-trunk-1/3-1/4)#portname “testtrunk”
25049,
25455
A port operating at 10-half (10 Mbps at half duplex)
drops 80% of broadcast traffic to other ports in the
VLAN. This does not occur if the port is configured
to operate at 100-full.
IP Stack
07.8.01
29177
On an 8 Port Mini-GBIC Redundant Management
module, a deny clause in an outbound ACL does
not filter traffic correctly if the destination IP address
has been aggregated using the IP net aggregate
command.
ACL
07.8.01
29465
On an EP 24 Port 100Base-FX module (J8178A),
MRP disables 10/100 copper MRP ring interfaces
that are set to 100-full speed and duplex mode. In
addition, the show interface brief command output
displays the interfaces as “blocked”.
24-port 10/100
Module
07.8.01
29469
The peer MAC address or IP field for the VSRP
standby displays “unknown” even if the VSRP
standby knows the IP address of the master routing
switch.
VSRP
07.8.01
26
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
29670
If you enable 802.1w (spanning-tree command) on
a port-based VLAN before configuring the port as
tagged or untagged, 802.1w fails to initialize. In
addition, the show 802-1w command output shows
that Rapid Spanning Tree Protocol (RSTP) is not
configured. Note that if you define the port as
tagged or untagged before enabling 802.1w, this
problem does not occur.
RSTP - IEEE
802.1w
07.8.01
29755
The following display message contains a typo:
Jumbo IP
Packet
Support
07.8.01
mtu config change detected, if NOT hot
swaping, please save and reload!
Version
Found
Version
Fixed
The message should read “swapping” instead of
“swaping”.
29759
If jumbo packets (default-mtu 14336 command)
are enabled globally on a routing switch and the
switch has an empty module slot or slots, the ports
on the empty module slots are configured with mtu
1518 instead of mtu 14336. This occurs after you
enter the write memory command.
Jumbo IP
Packet
Support
07.8.01
29846
If you hot swap a module by inserting it in a switch
that is globally configured to support jumbo frames
(default-mtu 14336 command), the newly installed
module should automatically inherit the jumbo
configuration without requiring a system reload.
However, this does not occur and jumbo frame
support is not recognized on the newly installed
module unless you reload the switch.
Jumbo IP
Packet
Support
07.8.01
30248
If a routing switch has numerous BGP entries, the
page break (page display) does not work properly
with the show ip bgp peer command. After
entering the show ip bgp peer command, the
command output scrolls continuously on the screen
at first, then goes into page-by-page prompting
mode.
BGP
07.8.01
30685
A routing switch deletes a route from the routing
table even though the same entry exists in the
OSPF LSA database.
OSPF
07.8.01
30702
The no ip ospf cost command does not apply the
default value to the OSPF cost.
OSPF
07.8.01
30998
A routing switch prefers OSPF routes instead of
EBGP routes after a system reload. If you clear
BGP sessions or IP routes, this problem does not
occur.
BGP
07.8.01
31047
If a routing switch has one BGP neighbor, the
switch increases the ARP timer and eventually ages
out the ARP entry for the peer. This error does not
occur if there are two BGP neighbors. In this case,
the ARP timers remain between 0 and 1.
BGP4+
07.8.01
27
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
31084
On an EP 8 Port Mini-GBIC Redundant
Management module, a system reload occurs when
a BGP packet with an invalid header length is
received.
BGP4+
07.8.01
31157
A BGP routing switch fails to send notification after
clearing a peer session.
BGP4+
07.8.01
31166
OSPF fails to delete a redistributed static route from
the routing table even though the static route has
been removed.
OSPF
07.8.01
31543
On an EP 8 Port Mini-GBIC Redundant
Management module, a system reload may occur in
an OSPF configuration when Remote Fault
Notification (RFN) is enabled or disabled on a
Gigabit Ethernet fiber port.
OSPF
07.8.01
31649
If the active EP 8 Port Mini-GBIC Redundant
Management module fails over to the standby
management module, the standby management
module does not inherit the jumbo frame
configuration from the active management module.
Jumbo IP
Packet
Support
07.8.01
31734
A routing switch reloads if its configuration includes
Internet Group Management Protocol (IGMP)
snooping and the hash table has a NULL value.
Other
07.8.01
31925
The copper mini-GBICs can operate in 1000 Mbps
auto-negotiation mode only. You cannot configure
them to operate in other modes. However, if you
insert a mini-GBIC (M-TX) into an LX or SX port, the
CLI allows you to configure the mini-GBIC to a
speed other than 1000 Mbps.
CLI
07.8.01
32021
The routing switch does not decrease the time-tolive (TTL) value when a VSRP packet is
transmitted.
VSRP
07.8.01
32192
VRRP-E link state flapping (fluctuating between up
and down) causes a system reload. This occurs on
a routing switch in which a non-T-Flow
management module is installed.
Other
07.8.01
32230
On an 8 Port Mini-GBIC Redundant Management
module, when a TCP-established clause is used in
an ACL, the ACL incorrectly permits a series of
synchronization (SYN) packets after it receives an
acknowledgement (ACK) packet with a TTL of 0
(zero).
ACL
07.8.01
28
Version
Found
Version
Fixed
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
32360
On an EP 48-Port 10/1000-TX RJ45 module, the
routing switch does not successfully remove some
ACL remarks and line entries from the
configuration. This occurs if you delete an ACL (for
example, no access-list 130) and then later create
an ACL with the same ACL number (for example,
access-list 130). In this case, the system
incorrectly inserts some of the remarks and entries
from the previously deleted ACL.
ACL
07.8.01
32448
On an EP 8 Port Mini-GBIC Redundant
Management module, PIM registration packets are
sent with an incorrect source IP address.
PIM Sparse
07.8.01
32462
The show debug command output does not
indicate that debug span or debug 802.1w
commands are enabled on the routing switch.
CLI
07.8.01
32735
The routing switch corrupts the Autonomous
System (AS) path if all three of the following
conditions exist:
BGP
07.8.01
•
The routing switch is configured (using the
remove-private-as command) to remove
private AS numbers from update messages
sent to a neighboring device.
•
The routing switch is configured (using the asset parameter in the aggregate-address
command) to aggregate AS path information
for all the routes in the aggregate.
•
The first as-set segment has a private AS
number.
Version
Found
Version
Fixed
32854
On an EP 24 Port 100Base-FX module (J8178A), a
port’s Full Duplex (FDX) LED does not illuminate
even though the port has a fixed configuration of
100 full-duplex, and the port is connected to another
routing switch that also has a fixed 100 full-duplex
configuration.
MAC
07.8.01
32857
Connectivity issues may occur If MAC
authentication is enabled on an M4 Redundant
Management module.
MAC
Authorization
07.8.01
32906
The system truncates the number of days
timestamp for buffered Syslog messages. For
example, if the actual system uptime is:
Syslog
07.8.01
382 days 23 hours 17 minutes 26 seconds
The software displays:
38 days 23 hours 17 minutes 26 seconds
29
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
33511
If a port in a trunk group goes down then comes up
again, the routing switch incorrectly load balances
traffic across the ports in the trunk group. In normal
operation, the switch re-balances the traffic so that
all of the ports in the trunk group are properly
utilized.
Other
07.8.01
33834
The software incorrectly attempts to free a
transmission control block (TCB) that was already
previously released. This causes the routing switch
to display a warning message on the console.
TCP Stack
07.8.01
34493
If an ACL statement contains a range of values, the
ACL log option, dscp-marking, and other ACL
options may not be available in the CLI. For
example, if you create an ACL entry that denies a
TCP port range (for example, access-list 1 deny
tcp any any range 127 129), some ACL
configuration options that are normally available
immediately following this command are not
supported.
ACL
07.8.01
34507
In an MRP configuration with four devices in a ring
and two rings in two different VLANs (for example,
one ring in VLAN 10 and another ring in VLAN 30),
an MRP ring fails to come up after a reboot.
MRP
07.8.01
07.8.01a
34160
When port mirror and monitoring is enabled, routing
to the monitor port is stopped. (Duplicate of
software fix 40149.)
Port Mirroring
07.8.01a
35710
The no web management command disables
access on port 80, but access on port 280 is
permitted.
Web
Management
07.8.01a
37911
The radius-server <hostname> command reorders parameters incorrectly.
RADIUS
07.8.01a
40619
The crypto random gen command is incomplete.
Encryption
07.8.01a
43703
Management access is granted to a routing switch
without password verification.
Password
07.8.01a
07.8.01b
31957
When you enter the write memory command from
a Telnet session, an error message is displayed:
w_mtu_buffer_type_config_write() to
standby management jumbo e2 prom error
CLI
07.8.00
07.8.01b
33508
CPU utilization increases when you enter the show
tech command from an SSH session. As a result,
VRRP failovers and some 802.1w transitions may
occur.
VRRP-E,
RSTP, 802.1w
07.6.06
07.8.01b
30
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
34609
A 10 Gigabit Ethernet link stays up when the egress
side of the link is disabled. No link-fault signal (LFS)
is configured.
10GE link
07.6.06
07.8.01b
35199
When forwarding sFlow packets, the routing switch
crashes with a data access exception in the
“sw_12_get_outgoing_port_by_da_match” routine
due to an invalid port number.
sFlow
07.6.06
07.8.01b
36363
After you add a VLAN group with a large number of
configured VLANs or after a system reload, the
following error message is displayed repeatedly:
WARN: Out of timer entry
VLAN
07.8.01
07.8.01b
41689
The show pid value displayed in show tech
command output causes a brief CPU utilization
spike.
CPU
07.6.06
07.8.01b
43660
If you generate an SSH key by entering the crypto
key generate rsa command, the routing switch
crashes with a Data Access Exception in the “sshvsnprintf_internal” routine.
SSHv2
07.8.01
07.8.01b
43861
When you enable SSH, a routing switch may reload
with a Program Exception in the
“ssh_private_key_derive_public_key” routine.
SSH
07.8.00
07.8.01b
44042
A system reload may occur when you start an SSH
session on a routing switch with a crash dump that
includes “ssh_server_destroy”.
SSH
07.8.00
07.8.01b
44364
The OSPF neighbor fails to come up because of an
authentication key failure.
OSPF
07.6.06
07.8.01b
45071
After you delete the ACL statement, access-list
100 deny ip 0.0.0.0 0.255.255.255 any, error
messages and locked CAM entries are displayed.
ACL, CAM
07.6.06
07.8.01b
45198
Port 280 stays open if you enter the following
commands:
Web
Management
07.8.01
07.8.01b
no web-management http
no web-management hp-top-tools
45319
When you enter the ip rebinding acl all command,
the following error message is displayed in the log:
Exceed max DMA 9 L4 cam resource,
using flow-based ACL instead.
ACL
07.8.00
07.8.01b
46742
An ACL on a Web access-group router does not
send a reset (RST) bit until after the TCP 3-way
handshake completes.
ACL
07.8.01
07.8.01b
46777
When the config-trunk-ind value is configured, the
global configuration of the sFlow sampling rate is
not applied to secondary trunk links on system
startup.
sFlow
07.6.06
07.8.01b
31
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
46924
After a system reload, the sFlow sample command
at the trunk configuration level is no longer
supported.
sFlow
07.6.06
07.8.01b
47724
The show ip bgp nei adv command output may
not display all advertised routes. (This is a display
issue only.)
CLI
07.8.00
07.8.01b
47855
The following error message is displayed
continuously:
OSPF TIMER: Warning Checksum bad in
Link State Database!
OSPF
07.8.00
07.8.01b
48823
If you configure multiple addresses on an interface
and reload the routing switch, RIPv2 advertises
from only the lowest IP address.
RIPv2
07.8.00
07.8.01b
49395
On a switch trunk configured in a Layer 3
environment, if one of the trunk ports goes down
and comes up again, outgoing traffic is not
redistributed correctly on the member ports of the
trunk group.
Trunk Group
07.6.06
07.8.01b
49672
If you configure a high numeric port number, the
routing switch crashes during the “12kapre_process_port_event” routine.
System
07.8.01
07.8.01b
49695
OSPF send a link-state update with age=3600
when you modify the route map.
OSPF
07.6.06
07.8.01b
49914
When you reconfigure the router ID by changing the
IP address assigned to the loopback interface,
OSPF stops advertising the default route.
OSPF
07.8.01
07.8.01b
07.8.01c
22489
When the primary link-aggregation (802.3ad) LACP
port is disconnected, the secondary port enters into
an STP “disabled” state.
LACP
07.6.04
07.8.01c
33503
BGP routes are selected instead of an OSPF route
after the BGP routes are withdrawn.
BGP, OSPF
07.8.00
07.8.01c
33598
A routing switch responds to SNMP get requests
sent to destination IP address X.X.X. X. and MAC
address FFFF.FFFF.FFFF.
SNMP
07.8.00
07.8.01c
35968
After running NeWT (Nessus Windows Technology)
on a web server, the server is not functional and
exhibits XSS Vulnerability.
Web
Management
07.8.00
07.8.01c
40784
When you try to generate a new RSA key, the
following error message is displayed:
RSA key cannot be generated now,
please try later.
RSA
07.6.05
07.8.01c
32
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
43721
After you install a 2-port 1-Gigabit Ethernet module,
the dm delete <slot-number> command causes the
routing switch to reload.
10GE link
07.6.05
07.8.01c
44138
CPU spikes occur for about 8 seconds when you
add or remove ports with an outbound ACL on a
VLAN.
CPU, ACL
07.6.06
07.8.01c
45057
The show cpu command displays 1% CPU
utilization even though there are a very large
number of packets transmitted through the CPU.
CPU
07.8.00
07.8.01c
47395
If the primary link in an LACP 802.3ad trunk goes
down for more than 90 seconds, then comes back
up, port flapping occurs.
LACP
07.8.00
07.8.01c
47584
When you add a MAC address in a trunk group, a
data access exception may occur in the
“ipc_r_read” routine.
Trunk Group
07.6.06
07.8.01c
47825
RIP redistribution does not update the OSPF
forwarding address field when RIP is updated.
RIP, OSPF
07.6.06
07.8.01c
48859
BGP router A redistributes a tagged BGP route as
an OSPF link-state advertisement (LSA) to router B
running OSPF. Router B sends the OSPF LSA to
router C. If BGP router A changes the tag, router
C’s OSPF database is updated, but not the OSPF
route.
BGP, OSPF
07.6.06
07.8.01c
49240
If you disconnect a 10 Gigabit Ethernet port when a
large number of modules are installed in a switch,
packet loss may result in a 10GE link for three to
five seconds.
10GE link
07.6.04
07.8.01c
49319
After you enter the no ip forward route command,
OSPF cannot add a route from link-state (LS)
database.
OSPF
07.6.00
07.8.01c
49731
The trunk threshold command does not take effect
until you reload the routing switch. Also, when you
remove a trunk and re-create a new trunk, the
existing threshold value is applied to the newly
created trunk.
Trunk Group
07.8.1
07.8.01c
49914
When you change the router ID (by modifying the IP
address of loopback), OSPF stops advertising the
default route. This problem is not detected when the
the default-information-originate value is
configured.
OSPF
07.8.00
07.8.01c
50203
The routing switch does not flash a MAC address
when the MRP topology changes, even if the
routing switch receives a topology change packet.
MRP
07.8.00
07.8.01c
50541
Network latency jumps from sub-millisecond to
300+ milliseconds when MAC filters are applied.
MAC filters
07.8.01
07.8.01c
33
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
50592
Multicast jumbo packets are not supported on the
10 Gigabit Ethernet module.
Multicast
all
07.8.01c
51482
The system reloads when you enter the ip tftp
source loopback 19899960 command in config
mode. This is because the Valid Port Range value is
not checked.
CLI
07.8.00
07.8.01c
07.8.01d
34400
sFlow does not detect an IP router ID or any
physical address other than the default value. If
sFlow is running when you modify the address, the
new agent address is displayed in show sflow
command output displays, but is not displayed in a
trace. (The trace displays the default address.)
sFlow
07.8.00
07.8.01d
44260
Accessing HTTP may cause the system to reload at
“ProcessCookie”.
HTTP
07.8.01
07.8.01d
45319
When you enter the ip rebind-acl all command, the
following error message is displayed:
Exceed max DMA 9 L4 cam resource,
using flow based ACL instead.
ACL
07.6.06
07.8.01d
47254
On a tagged port, an incorrect ACL value is applied
to filter packets
ACL
07.8.00
07.8.01d
51175
A route fails to boot up properly when you configure
sFlow globally by entering the sflow enable
command and disable remote access to
management functions by entering the
management-ip-disable command on a VE
interface.
sFlow
07.8.00
07.8.01d
51482
The system crashes at “ip_get_port_ip_address”
after you enter the ip tftp source loopback
19899960 command because the valid port range
value is not checked.
CLI
07.8.00
07.8.01d
52419
SSH disconnects the SSH client after the
configured idle time expires even during active CLI
activity in an SSH session.
SSH
07.8.00
07.8.01d
52659
An IGMP query (for example, to 224.0.0.1) is sent
on a blocking port. This happens only with different
IGMP versions or when one port in the VLAN is a
non-querier.
IGMP
07.8.01
07.8.01d
53881
SNMP OID “snAgentConfigModule” type displays
the incorrect type for certain modules.
SNMP
07.8.00
07.8.01d
54208
The configuration of a TFTP or Telnet source
interface is not supported.
CLI
07.8.01
07.8.01d
54250
The debug span all_802_1D_events vlan <vlanid> command is not supported even though it is
listed as a valid command option.
802.1d, CLI
07.8.00
07.8.01d
34
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
54251
The debug 802.1w all_802_1W_events vlan
command does not send output to a console,
Telnet, or SSH session.
802.1d, CLI
07.8.00
07.8.01d
54375
A Data Access Exception crash occurs when you
enter the no untagged ethernet 21 ethernet 22
ethernet 23 ethernet 24 command after you enter
the qos-tos trust dscp command.
DSCP, QOS
07.8.00
07.8.01d
54527
The debug ip ssh command supports “level 0” as a
valid value.
CLI, SSH
07.8.00
07.8.01d
54542
When deleting a group VLAN, if you enter the no
topology-group 1 or no vlan-group 1 command to
delete the virtual group router-interface, the route is
not deleted from the routing table.
CLI
07.8.00
07.8.01d
54572
During an SSH connection attempt, the routing
switch reloaded and displayed the message:
TRAP REASON - External Interrupt
SSH
07.8.01
07.8.01d
55039
The OSPF age value in a link-state (LS) update or
Data description packet may get corrupted.
OSPF
07.8.01
07.8.01d
CLI
07.8.00
07.8.01d
For example, the configured OSPF link-state
advertisement (LSA) age is 19218 on two routing
switches. This setting causes the switches to send
LSA updates to each other every second. These
LSAs cannot be aged out.
55290
The de buffers command causes display buffer
leak. The “INFO: all 11 display buffers are busy”
message is displayed in show command output.
07.8.02
31281
When you unlock a locked Gigabit Ethernet port,
the DMA chip may be initialized incorrectly, resulting
in a Data Access Exception.
ACL
07.8.02
31779
On an EP 16-Port 10/1000-T module, reconfiguring
the port speed to 1000-F or 1000-M prevents the
routing switch from communicating with a server.
Autonegotiation
07.8.02
32534
A routing switch rejects a 2-Port 10 Gigabit Ethernet
module when the module is inserted after the switch
reboots.
System
07.8.02
32541
The hot swapping of a a 2-Port 10 Gigabit Ethernet
module or its Xenpak modules causes the DMA
CAM entries to be deleted.
System
07.8.02
34508
When you enter the no cpupro-action hardwareflooding enable command, the switch takes an
excessively long time to delete the CAM entries,
causing a system reload.
Other
07.8.02
35
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
36440
The routing switch does not forward the MAC group
address 01-80-C2-00-00-03 that was filtered by an
IEEE 802.1D MAC bridge.
MAC
Addressing
07.8.02
38066
When you add a single, multicast static MAC
address to a port that is a member of a VLAN may
result in packet loss.
MAC
Addressing
07.8.02
38276
When you install a n EP 8 Port Mini-GBIC
Redundant Management module in a routing
switch, an error message indicating an unsupported
DMA version is displayed.
System
07.8.02
38383
When you remove a 1-Port 10 Gigabit Ethernet
module, the following error message is displayed:
Error - IP routing was configured on
ports 14/48
System
07.8.02
39902
A routing switch configured with rate limiting caused
a system reload when an invalid port data entry was
accessed.
Rate Limiting
07.8.02
40150
Adding a VLAN to a VLAN group creates an invalid
VLAN number. For example, if you add VLAN 181
to VLAN Group 200, VLAN 181200 is added to the
VLAN group.
VLAN
07.8.02
41967
Changes to the running configuration and startup
configuration during an SSH session may report the
IP address 0.0.0.0 in the trap and Syslog messages
for the Telnet client.
SSH
07.8.02
43422
A next-hop movement message is displayed on the
console when a station is moved and an ARP entry
is deleted.
IP Stack
07.8.02
44042
On an EP 8 Port Mini-GBIC Redundant
Management module, a system reload occurs when
an SSH session is closed with inconsistent data.
SSH
07.8.02
44046
When you connect an Ethernet loopback cable to a
port on an EP 48-Port 10/1000-TX RJ45 module,
the port goes into forwarding state and interrupts
the flow of traffic.
System
07.8.02
45575
A routing switch sends the configured nas-porttype value to the RADIUS server instead of to the
NAS port for MAC authentication.
MAC
Authentication
07.8.02
47163
On an EP 8 Port Mini-GBIC Redundant
Management module, a start-of-packet counter is
incorrectly displayed in the RX_NO_SOP_CNT
counters.
System
07.8.02
36
Version
Found
Version
Fixed
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
47254
On an EP 8 Port Mini-GBIC Redundant
Management module, when you configure sFlow
and an ACL so that packets that were being
forwarded by the CPU are filtered by the ACL, an
incorrect VLAN ID is matched with the ACL.
ACL
07.8.02
47542
A system reload may occur when you enter a show
run command during a Telnet session in which you
bind ACLs to a port.
ACL/Telnet
07.8.02
47724
When you enter the show ip bgp neighbor <x>
adv command, all advertised routes are not always
displayed, although the routes are advertised
correctly.
BGP
07.8.02
47725
On an EP 48-Port 10/1000-TX RJ45 module,
binding and unbinding a single ACL-based rate
limiting policy too many times causes memory
corruption and results in a system reload.
Rate Limiting
07.8.02
48474
On an EP 8 Port Mini-GBIC Redundant
Management module, when MRP2 is enabled and
hellos are sent, a member ring blocked the port,
instead of processing and forwarding hellos. Only
the master ring should block the port.
MRP2
07.8.02
48521
On an EP 8 Port Mini-GBIC Redundant
Management module, disabling a port on one MRP
ring causes a port on a different ring in a blocking
state to transit through the forwarding state.
MRP
07.8.02
48525
On an EP 8 Port Mini-GBIC Redundant
Management module, you are not allowed to
configure a static trunk if the ports in the trunk are
members of an MRP2 ring.
MRP
07.8.02
48587
On an EP 8 Port Mini-GBIC Redundant
Management module, when you change the
primary and secondary port of a lower priority ring,
ports on the higher priority ring are affected.
MRP
07.8.02
48660
On an EP 8 Port Mini-GBIC Redundant
Management module, after an SSH key is
generated, you are incorrectly prompted for a
configuration change immediately after you enter
the write memory command.
System
07.8.02
48747
When you reboot a routing switch with an EP 48Port 10/1000-TX RJ45 module on which MRP is
configured, a debug error message is displayed on
neighbor devices, even after a neighbor has
stabilized.
MRP
07.8.02
48753
On an EP 8 Port Mini-GBIC Redundant
Management module, 10 seconds to 3 minutes are
required for traffic to recover after a failed MRP link
returns to a forwarding state.
MRP
07.8.02
37
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
49141
On an EP 8 Port Mini-GBIC Redundant
Management module, you cannot reassign the
same interfaces to an MRP ring.
MRP
07.8.02
49240
On a 2-Port 10 Gigabit Ethernet module, when you
configure a jumbo MTU, packet loss may result
when a link on a 10 Gigabit port is removed and reinserted.
System
07.8.02
49461
On an EP 8 Port Mini-GBIC Redundant
Management module, transient Ring Health packets
(RHPs) are flushed during a topology change,
causing high CPU usage.
MRP
07.8.02
50203
When MRP2 is configured, the routing switch does
not flush out learned MAC addresses during
topology changes, even if the device receives a
Topology Change (TC) packet.
MRP
07.8.02
50541
On an EP 8 Port Mini-GBIC Redundant
Management module on a POE switch, network
latency jumps from sub-millisecond to 300+
milliseconds when MAC filters are applied.
System
07.8.02
50550
On an EP 8 Port Mini-GBIC Redundant
Management module, when you remove the trunk
port mirroring configuration, a trunk port continues
to mirror outbound packets.
Port Mirroring
07.8.02
50685
Applying outbound rate limiting on a port several
times may cause that port to toggle between a link
up or link down state.
Rate Limiting
07.8.02
50735
On an EP 48-Port 10/1000-TX RJ45 module, the
show rate hardware command output does not
display the rate limiting that was configured on the
port.
Rate Limiting
07.8.02
52810
On an EP 8 Port Mini-GBIC Redundant
Management module, if an ACL with a DiffServ
Control Point (DSCP) mapping is applied to a virtual
routing interface, the ACL incorrectly matches the
VLAN. This causes control packets, such as OSPF
packets, to be discarded.
OSPF
07.8.02
53602
Uni-Directional Link Detection (UDLD) does not
function properly or does not recover after a system
reload.
UDLD
07.8.02
54375
Entering the no untag command with the qos-tos
trust DSCP attribute may cause a stack overflow,
which can result in a system reload.
System
07.8.02
54502
A routing switch that has 802.1w and many VLANs
configured lost one link in a trunk group, causing a
console lockup and topology change.
VLAN
07.8.02
38
Version
Found
Version
Fixed
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
54622
On an EP 8 Port Mini-GBIC Redundant
Management module, a port in a virtual router
interface on which an ACL is applied was changed,
added, or removed and the ACL was re-applied.
This behavior may result in a system reload.
ACL
07.8.02
54724
Installing an EP 48-Port 10/1000-TX RJ45 module
in one slot can result in a packet loss on interfaces
on a module in a different slot, on which outbound
ACLs are configured. When an outbound ACL is
configured, CAM entries are incorrectly aged out.
ACL
07.8.02
55354
On an EP 8 Port Mini-GBIC Redundant
Management module, starting in release 07.8.02,
BGP route selection is based on administrative cost
rather than selecting a local route with a lower
precedence over a BGP-advertised route from a
peer device (as in earlier releases).
BGP
07.8.02
55572
On an EP 8 Port Mini-GBIC Redundant
Management module, several topology changes
caused the system to reload. This resulted in
accessing an invalid VLAN index.
Spanning Tree
07.8.02
55689
When you enter the ip access-group 0 in
command, all configured ACL entries are removed
from physical and virtual routing interfaces.
ACL
07.8.02
55772
The routing switch performed a system reload
triggered by the watchdog timer when a large
number of CAM entries were aged out.
System
07.8.02
55773
A system reload occurs when an ACL is modified to
re-assign traffic to a different priority queue.
ACL
07.8.02
56078
Valid values for Virtual Router Redundancy Protocol
Extended (VRRPE) slow-start are 1-255, but the
values 0 to 65535 can be entered.
VRRPE
07.8.02
56079
When ACL clauses are configured with the IP
address 0.0.0.0 and with varying masks, the mask
is not checked when you delete the clauses.
ACL
07.8.02
56080
ACLs configured with clauses containing DSCP
mapping or priority mapping do not match the
DSCP map or priority mapping field. As a result, if
there are multiple clauses, packets are matched
incorrectly.
ACL
07.8.02
56083
If you delete an EP 8 Port Mini-GBIC Redundant
Management module and then re-insert the module
back into the device after the aggregated-vlan
command and the default maximum transmission
unit (MTU) value are configured, the MTU changes
back to the default value after the insertion.
System
07.8.02
39
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
56399
When rate limiting is enabled, the ip rebind [aclnum] command does not function correctly and
some ACL definitions are changed.
ACL
07.8.02
56846
When an EP 8 Port Mini-GBIC Redundant
Management module is installed, if you configure
the ip high-perf command on a ProCurve module,
the UDLD configuration does not recover after a
system reload.
UDLD
07.8.02
56946
You can bind ACLs to a virtual routing interface
even if one or more ports that belong to the virtual
routing interface have an ACL-based rate limiting
policy configured.
ACL
07.8.02
If an ACL-based rate limit is configured on a port, no
ACL can be configured on that port or any virtual
routing interface that includes the port. The ACLbased rate limiting policy needs to be removed
before you can apply the ACL to the port or any
virtual routing interface that includes the port.
56961
The no access-list <group-number> command is
not supported to remove all ACL entries from a
group.
ACL
07.8.02
57006
On an EP 8 Port Mini-GBIC Redundant
Management module, ACL statements that contain
tos-masking and tos-marking entries are not
checked for duplicated entries.
ACL
07.8.02
57387
When an EP 8 Port Mini-GBIC Redundant
Management module is deleted from the routing
switch, the CPU deletes the Layer 4 CAM entry
from the module. The software then accesses the
incorrect hardware device, causing a system
reload.
System
07.8.02
57422
On an EP 8 Port Mini-GBIC Redundant
Management module, an incorrect MAC address for
an unsuccessful SSH session is displayed in show
log command output.
SSH
07.8.02
57588
On the EP 8 Port Mini-GBIC Redundant
Management module, enabling the CPU Protection
feature causes OSPF to drop adjacencies.
OSPF
07.8.02
57678
The routing switch translates the destination of NAT
packets incorrectly when the following conditions
apply:
NAT
07.8.02
40
•
When an IP address in the NAT destination
with static port mapping is used.
•
If more than one port mapping is configured for
same IP address.
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
57758
On a network with OSPF Equal-Cost Multi-Path
(ECMP) enabled, only the two next hops can be
viewed when four next-hops exist.
OSPF
07.8.02
57806
When you enter the no port security command, all
interface-level configurations are removed.
Port Security
07.8.02
57847
On an EP 24 Port 100Base-FX module (J8178A),
when an outbound ACL is applied to a virtual
routing interface, the ACL does not block traffic from
interfaces on the same module.
ACL
07.8.02
58095
After you enter the show version command, the
following error message is displayed to indicate an
incorrect device ID for E2PROM:
Read from device id 6 failed.
ACL
07.8.02
Starting in release 07.8.02, the valid device ID is
checked before it is accessed.
58101
Secure MAC addresses configured for a port are
displayed in show mac command output, even
though port security was disabled on the port.
Port Security
07.8.02
58397
When rate-limiting is configured, the correct value
for port utilization is not displayed in show stat
command output.
SNMP
07.8.02
58420
Data exception messages are displayed when you
click the logout button on the Web management
interface on a device that has the allow-nopassword setting configured for web management.
Web
Management
07.8.02
58428
On a 2-Port 10 Gigabit Ethernet module, a memory
leak occurs on a 2-port trunk when the trunk is
configured and then unconfigured.
Trunking
07.8.02
58567
On an EP 8 Port Mini-GBIC Redundant
Management module, when you configure port
security on a tagged port, MAC addresses are
learned on an incorrect VLAN.
Port Security
07.8.02
58718
On a 1-Port 10 Gigabit Ethernet module, the HP
Discovery Protocol (FDP) cannot transmit traffic on
an outbound 10 Gigabit tagged port.
FDP
07.8.02
58732
When a routing switch forwards a packet via the
CPU, the port mask may be sometimes accessed
incorrectly, resulting in a system reload.
IP Stack
07.8.02
58831
A packet is not flooded in a port VLAN when its
destination IP address does not match any of the
configured IP subnet VLANs.
VLAN
07.8.02
58852
Earlier software images stored BGP community
attributes that can be up to 256 bytes long. Starting
in release 07.8.02, BGP community attributes with
lengths up to 4096 bytes are supported.
BGP
07.8.02
41
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
58868
You cannot disable the HP Discovery Protocol
(FDP) or Cisco Discovery Protocol (CDP) on a
secondary trunk port if you have entered the no fdp
enable or no cdp enable command on a primary
trunk port.
FDP and CDP
07.8.02
58909
A route learned via RIPv1 disappears if a port in the
RIPv1 route has a statically added route.
RIPv1
07.8.02
59169
A routing switch does not properly flush the PIM
mcache after an MRP master goes down. As a
result, packets are forwarded to the interface on
which they are dropped.
PIM
07.8.02
59519
When OSPF is configured on fixed full-duplex (10Full or 100-Full) interfaces, the external route
summarization fails when the configuration is
loaded during system boot.
OSPF
07.8.02
59698
On an EP 8 Port Mini-GBIC Redundant
Management module, the incorrect MAC address
that is used in an unsuccessful SSH session is
displayed in show log command output.
SSH
07.8.02
59749
When you enter the OSPF area range advertise
command, a specific summary route is not
advertised if a route first matches another area
range command that has a less specific route.
ACL
07.8.02
59925
If CAM entries are inconsistent on a routing switch,
a system reload can occur when you enter the no
vlan command.
VLAN
07.8.02
60057
On an EP 8 Port Mini-GBIC Redundant
Management module, OSPF external routes are not
matched correctly with the subnet mask. As a
result, these routes are incorrectly deleted.
Other
07.8.02
60249
When a new BGP route is being processed in a
routing switch, the BGP route is missing from the
Patricia Tree in some error situations. This may
cause a system reload when the route is added to
the BGP routing table.
BGP
07.8.02
60277
When a large number of CAM entries are being
processed on an EP 8 Port Mini-GBIC Redundant
Management module, a system reload may occur.
System
07.8.02
60330
The routing switch either performs a software reload
or locks the console for 40 seconds when you add
or remove ports from a VLAN.
ACL
07.8.02
60358
On an EP 16-Port 10/1000-T module, if the routing
switch detects a BGP AS path pointer to be invalid,
the switch resets the pointer to Null.
BGP
07.8.02
42
Version
Found
Version
Fixed
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
60395
Although a device has a route in the OSPF routing
table, the device may add an IP cache entry that is
flagged as "DI", meaning the packet destination is
unknown. This problem occurs when you disable IP
load-sharing.
OSPF
07.8.02
60400
If you reconfigure OSPF by modifying hello and
dead intervals and then reload the routing switch,
the link between OSPF neighbors can go down
during a two-way handshake.
ACL
07.8.02
60732
When PIM multicast routing protocol is enabled for
VLANs with tagged ports, the multicast packets
cause loss of buffers on the second packet
processor on ProCurve 9300M Series modules.
Over time, this results in buffer depletion, causing
loss of connectivity.
PIM
07.8.02
61581
Configuring OSPF point-to-point results in loss of
buffers, which then results in buffer depletion. This
affects the IP connectivity to the device.
ACL
07.8.02
61653
On an EP 16-Port 10/1000-T module which has a
large number of port VLANs and a large number of
entries in the ARP table configured, and has
multiple outbound mirror ports enabled, the switch
intermittently loses connectivity to the directly
connected hosts and displays pending entries in the
ARP table.
IP Stack
07.8.02
62312
A system reload occurs when a routing switch
accesses an internal port data entry that has been
freed.
IP Stack
07.8.02
07.8.02b
43300
When a variable related to the ACL processing is
not correctly freed after use, a system reload may
occur.
System
44945
When static routes are configured, when you
configure the cost or administrative distance of a
static route, the route table is not updated.
IP Routing
07.8.02
52397
If sFlow is configured, the no sflow agentip
command is not supported.
SFlow
07.8.02
59070
If you configure Policy Based Routing (PBR) and a
router map has two instances with a different nexthop, the next hop for the second instance is never
selected.
PBR
07.8.02
59277
When you configure port mirroring and monitoring
on a routing switch using the Web interface, an
error message is displayed.
Web
Management
07.8.02
43
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
59468
If OSPF is configured, the OSPF configuration is
not displayed in show ip ospf config command
output until the configuration is saved and the
switch is rebooted.
OSPF
07.8.02
59698
If SSH is configured, a system reload sometimes
occurs due to insufficient stack space.
SSH
07.8.02
59925
The incorrect deletion of CAM entries may cause a
routing switch to reload.
System
07.8.02
60117
If you enable the VSRP and CPU Protection
features, when a link flaps, the VSRP forwarding
state is not correctly set. As a result, the CAM for
the master is not updated correctly, resulting in a
Layer 2 packet loop.
VSRP
07.8.02
60227
When you configure an incorrect speed on a virtual
interface, the valid physical port is not checked,
resulting in a system reload.
System
07.8.02
60249
If BGP4 is configured and a BGP update is received
for an existing prefix, in some cases the BGP route
does not include the BGP tree node. This can
cause the system to reload.
BGP4
07.8.02
60330
If a large number of VLANs are configured, when
you remove or add a tagged port from a VLAN, high
CPU utilization occurs.
System
07.8.02
60396
When a static MAC address is configured on
multiple ports, the address is not displayed on all
ports in show mac ethernet <slot/port> command
output.
System
07.8.02
60401
When you configure a username password using all
numeric characters, it is necessary to re-enter the
service password-encryption command after you
add each password.
System
07.8.02
To create an MD5 password, use one of the
following commands:
•
username <username> create-password
<password-string>
•
username <username> privilege <number>
create-password <password-string>
Both commands generate the same syntax.
•
username <username> password <number>
<encryptedpassword-string>
Or
•
44
username <username> privilege <number>
password <number> <encrypted-passwordstring>
Version
Found
Version
Fixed
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
60916
Traffic is not evenly balanced on the members of a
trunk after you enter the ip net-aggregate
command and configure multislot switch trunks.
IP Routing
07.8.02
60979
If BGP4 is configured and you enter the remove
private-as command on a neighboring device so
that the routing switch receives an update from a
private AS for which it is configured, the BGP
update is sent out with the AS numbers stripped
out.
BGP4
07.8.02
If the AS numbers are private only, the AS path
attribute will be empty. This causes the neighbor to
reset the BGP peering.
61211
If you configure a Gigabit fiber port using the
gigabit auto rfn command, and the port is
physically connected and then disconnected to a
Cisco router, the port does not always come up.
System
07.8.02
61383
When an ACL is configured, the ip access-group
in ethernet <slot/port> command does not correctly
apply the ACL to only the specified port.
ACL
07.8.02
61434
When the STP boundary is changed dynamically,
the new value is not displayed in show superspan
command output.
Spanning Tree
07.8.02
The workaround is to remove the value by entering
the no stp-boundary <value> command before
configuring a new value.
61501
If a spanning tree is configured and a port is tagged
for the default VLAN, the spanning tree state on the
default VLAN is not updated. As a result, the
outbound traffic is forwarded on the blocked port
causing a loop.
Spanning Tree
07.8.02
62071
If OSPF is configured and there are multiple
neighbors on an interface, the OSPF routes are not
learned from the interface unless all the neighbors
are established.
OSPF
07.8.02
62367
If VSRP is configured, port indication on a change
in the port state incorrectly programs forwarding
information. As a result, port 1/1 does not send
outbound traffic.
VSRP
07.8.02
62826
If UDLD is configured, an incorrect error message
may be displayed:
Link-keepalive and trunk-threshold
cannot be enabled.
UDLD
07.8.02
62893
If the primary port of the trunk goes down due to a
port security violation, the other members of the
trunk are displayed incorrectly as “state: Down”.
Port Security
07.8.02
45
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
62894
If the ports within a trunk are disabled due to a port
security violation, the disable command is not
displayed as part of the show running-config
command output.
Port Security
07.8.02
63138
On an interface on which both sFlow and an
inbound ACL are configured, in the display of sFlow
traffic statistics, the number of packets received is
lower than the actual number received.
sFlow
07.8.02
63138
The following debug message may incorrectly be
displayed on the console:
Warning: Shadow CAM data Entry
System
07.8.02
63525
When you configure IP multicast snooping on a
routing switch, the switch can perform a system
reload due to corruption of multicast snooping
database entries.
IP Multicast
Snooping
07.8.02
63525
When you enable IGMP snooping by entering the ip
multicast active and ip multicast filter
commands, a routing switch performs a system
reload.
PIM Dense
07.8.02
64104
When a routing switch is configured with output
ACLs, sFlow, and multi-slot trunks, the
management module may show high CPU usage.
ACL
07.8.02
64169
If sFlow is configured and a broadcast or multicast
packet is sampled for exporting, it may cause the
management module to reset.
sFlow
07.8.02
07.8.02c
61801
If BGP4 is configured, when an aggregate route is
advertised using a route map that contains the asset and summary-only attributes, the advertised
route does not inherit the AS number from the
component routes.
BGP4
07.8.02
62627
If IP routing is configured, the addition of a static
route via an SNMP set request does not install an
IP route in the routing table.
SNMP
07.8.02
63329
If trunk and port security are configured and you
have not entered the config-trunk-ind command to
enable or monitor individual trunk ports, a violation
on a secondary member disables only one of the
members.
Port Security
07.8.02
63429
When a configuration file containing an ACL is
downloaded via TFTP on a routing switch, the
system may reload.
ACL
07.8.02
63629
If OSPF is configured, the show ip ospf routes
command displays the last route twice.
OSPF
07.8.02
46
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
63975
A routing switch in which ProCurve 9300M Series
modules are installed can sometimes reload due to
incorrect logic for lockup detection.
System
07.8.02
07.8.02d
62862
If RIP routes are configured and redistributed to
OSPF, when an interface that is learning RIP routes
is temporarily disabled, the RIP routes that are
redistributed to OSPF are removed correctly, but
are not restored when the interface comes back up.
RIP
07.8.02
63310
If IP multicast is configured, IP control packets in
the range 224.0.0.1 to 224.0.0.255 may be
incorrectly discarded.
System
07.8.02
64951
If SSH is configured and you reload the switch, the
configuration may sometimes reset due to invalid
length of SSH keys.
SSH
07.8.02
65342
The lockup detection mechanism is sometimes
applied incorrectly, resulting in a system reload.
System
07.8.02
65869
If the SuperSpan feature is globally enabled and
you remove the SuperSpan configuration at the
VLAN level, it is also removed at the global
configuration level.
SuperSpan
07.8.02
65957
During the reload of a routing switch on which
Policy Based Routing (PBR) is configured, the time
required to resolve next-hop ARP entries and
program the CAM is significantly longer, resulting in
a delay when accessing the console.
PBR
07.8.02
07.8.02f
34083
If BGP is configured, the switch takes a long time to
transmit the complete BGP route table to a
neighboring peer.
BGP
07.8.02
54245
When you delete CAM entries with MAC addresses,
a system reload may occur.
System
07.8.02
54250
If the Spanning Tree Protocol (STP) is configured,
the debug span all_802_1d_events vlan
<vlan_id> command is not parsed correctly as a
valid command.
Spanning Tree
07.8.02
54251
If the Rapid Spanning Tree Protocol (RSTP) is
configured, the debug 802.1w all_802_1d_events
vlan <vlan_id> command does not send debug
events to a console, Telnet, or SSH session.
RSTP
07.8.02
47
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
59279
If supernet routes are used and the IP Routing
feature is configured, the CAM entry of a child route
sometimes gets aged out, leaving the CAM entry of
parent route programmed. This can cause
misforwarding of traffic.
IP Routing
07.8.02
59502
A system reload is sometimes performed if the IP
Routing feature configured when the system runs
out of IP cache entries and frees an existing entry.
IP Routing
07.8.02
60525
A system reload is sometimes performed if the IP
Routing feature configured if the outbound interface
used to forward IP traffic is invalid.
IP Routing
07.8.02
64091
Entering the show flash command over a Telnet
connection to a routing switch may cause a system
reload.
System
07.8.02
64230
If the Multicast Source Discovery Protocol (MSDP)
and BGP are configured, the TCP pool can
sometimes be corrupted by MSDP and cause a
system reload.
IP Routing
07.8.02
64339
If OSPF is configured, when an Equal-Cost MultiPath (ECMP) route is received with an overlapping
route in the route table, the ECMP route is not
added to the IP route table.
IP Routing
07.8.02
64605
If a tag type is configured and you delete the tag
type using the no tag-type command, the tag-type
value is not checked.
System
07.8.02
64621
If the authentication, authorization, and accounting
(AAA) feature is configured using a RADIUS server
as the default, you must press “CR” key twice after
you enter a password to gain access to the switch.
AAA
07.8.02
64910
If VSRP is configured, the number of active ports
does not include the lowest numbered port. You
must disable the port and then re-enable it in order
for the correct number of active VSRP ports to be
used. This action may result in a loss of
connectivity.
VSRP
07.8.02
64961
A system reload may occur when packets that
match a Layer 3 CAM entry are sent to the
processor.
System
07.8.02
65231
On an EP 16-Port 10/1000-T module, a Gigabit
interface does not exchange 802.3x flow control
capability in auto-negotiation mode with a link
partner.
System
07.8.02
65286
When you start an outbound Telnet session on a
routing switch, the switch incorrectly uses the “CR”
character instead of the key sequence “CR NULL”.
System
07.8.02
48
Version
Found
Version
Fixed
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
65342
When detecting a port lockup condition on a routing
switch, a system reload may occur.
System
07.8.02
65418
If you configure the Port Security feature with an
ACL that permits Internet Control Message Protocol
(ICMP) traffic, ICMP packets may sometimes be
dropped.
System
07.8.02
65740
If IGMP snooping is configured, the switch
incorrectly forwards the IGMP report to a client port,
causing the host to suppress its reports. This results
in the multicast stream being pruned prematurely.
IGMP
Snooping
07.8.02
66444
A system reload may occur on a routing switch
when a packet with an invalid source port field in the
internal packet header is received.
System
07.8.02
67266
If sFlow and Layer 4 services are configured,
collecting sFlow-specific Layer 3 information for
export from a sampled packet may result in a
system reload.
sFlow
07.8.02
67734
On an interface on which UDLD is configured, the
logical link does not come up.
UDLD
07.8.02
07.8.03
55771
If OSPF is configured, an OSPF route is not
removed from the OSPF routing table when the
source of the route is removed.
OSPF
07.8.03
56958
Deleting a MAC address entry from CAM can
sometimes cause a system reload.
System
07.8.03
62887
If OSPF is configured, the OSPF cost configured on
Gigabit interfaces does not take effect.
OSPF
07.8.03
62982
On an EP 48-Port 10/1000-TX RJ45 module, MDI/
MDIX capability does not function correctly after you
reconfigure an interface from 100M full-duplex to
auto-negotiation mode.
System
07.8.03
63081
On an EP 48-Port 10/1000-TX RJ45 module, a 10M
full-duplex interface shows some packet loss while
processing incoming packets.
System
07.8.03
63830
If VRRP is configured, if the interface using the
VRRP master port is disabled, a gratuitous ARP
packet with the physical MAC address is
transmitted.
VRRP
07.8.03
65526
After you remove a 10 Gigabit Ethernet module with
XENPAK optics from a routing switch, the module
cannot be re-inserted without causing a system
reload.
System
07.8.03
49
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
65528
Removing a module from a routing switch may
cause Port Database entries on the module to be
inaccessible, resulting in a system reload.
System
07.8.03
66003
After a module is removed from a routing switch, a
syslog message is sometimes generated that lacks
information to sufficiently describe the cause. This
fix provides the following possible causes in the
syslog:
System
07.8.03
•
The module is removed by the user.
•
Hardware failure of the module occurred.
•
A failure to read Board ID occurred.
Version
Found
Version
Fixed
66207
When 10 Gigabit Ethernet modules (MSA) are
installed, entering the debug command to perform
backplane debugging can sometimes cause a
system reload.
System
07.8.03
67109
If RIPv2 and redistribution are configured and you
remove a static route, an incorrect metric instead of
a poison metric of 16 is sent out.
RIPv2
07.8.03
67172
An Inter Process Communication-related message
may cause a system reload.
System
07.8.03
67848
If you configure an IP MTU, the show ip interface
<slot/port> command does not correctly display the
configured IP MTU value.
IP Stack
07.8.03
67854
If you configure an IP MTU and later modify the
MTU value, the new value is not updated.
IP Stack
07.8.03
68140
If you configure OSPF and enable traps, OSPF
neighbor state changes are not logged if the
interface is not the designated router (DR).
OSPF
07.8.03
68295
The configuration of time zones in 30-second
increments is not supported on the Simple Network
Time Protocol (SNTP) clock.
SNTP
07.8.03
68645
When you download an image via INM with the
option to save the configuration on a routing switch,
a log message is generated with an invalid user
name and remote IP address.
System
07.8.03
69093
When you run diagnostics on a routing switch by
using the dm diag command, a system reload may
occur.
System
07.8.03
69140
If you configure a single spanning tree, if the
configuration has a large number of VLANs (several
hundred), a system reload may occur when you
enter the show span command.
Spanning Tree
07.8.03
07.8.03a
50
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
69334
In a Switch/Router configured with outbound ACLs
using the ip access-policy command, the L4 CAM
entry is not programmed causing the packets to be
forwarded via the Processor.
ACL
07.8.03a
60525
In a Router configured with a routing protocol,
occasionally the forwarding entry can point to an
invalid port causing the system to reset.
IP Stack
07.8.03a
67420
In a Switch/Router, the power supply log incorrectly
skips the log for a power supply going down.
IP Stack
07.8.03a
70684
In a Router, accessing an invalid forwarding cache
entry can cause a system reset.
IP Stack
07.8.03a
71019
In a Router, the transmission of pending packets
waiting on an ARP resolution can occasionally
cause a system reset.
IP Stack
07.8.03a
69855
In a Switch/Router, the MRP member interface
shows a state of Disable after the system is
reloaded.
MRP
07.8.03a
70110
In a Router configured with OSPF, if there are
multiple routes in the routing table, issuing a show
ip ospf routes command to show the OSPF routing
table can occasionally cause a system reset.
OSPF
07.8.03a
59070
In a Router configured with PBR, if there are two
instances of a route-map, the next hop
corresponding to the second route-map is not
selected when ACL conditions are matched.
Policy Based
Routing
07.8.03a
70272
In a Router configured with PBR, if there a route
map that has two different next-hops and the first
one becomes un-available, the second next-hop is
not selected by the hardware.
Policy Based
Routing
07.8.03a
65398
In a Switch/Router, configuring the auto-camrepaint command on a non-EP module can
occasionally cause a system reset.
System
07.8.03a
70067
In a Switch/Router, accessing data structures
associated with a CAM entry using an invalid CAM
index can occasionally cause a system reset.
System
07.8.03a
70367
In a Switch/Router, a system reset can occur when
a calling stack for watchdog timeout debugging is
saved.
System
07.8.03a
70413
In a Switch/Router, a system reset can occur when
a VLAN is configured with a large number of ports
that spans more than a page in length and that
VLAN is parsed.
System
07.8.03a
70417
In a Switch/Router, a system reset occurs when the
system accesses an invalid buffer address while it
is processing a received packet.
System
07.8.03a
51
Software Fixes
Bug ID
Release Notes for 07.8.04
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
07.8.03b
67638
Module: N/A
AAA
07.8.03b
ACL
07.8.03b
BGP4
07.8.03b
CLI
07.8.03b
IP Stack
07.8.03b
Symptom: In a Switch or Router configured with the
AAA authentication login command using the line
method keyword, all the available commands do not
appear with the CLI prompt.
Resolution: Fixed in this release.
66617
Module: N/A
Symptom: In a Switch or Router configured with line
modules, certain ACL configurations may result in
packets being forwarded to the CPU, causing high
CPU utilization,
Resolution: Fixed in this release.
66686
Module: N/A
Symptom: In a Router configured with BGP4 and
route dampening, the dampened routes are not
handled correctly during a state change, causing
BGP4 memory corruption
Resolution: Fixed in this release.
72584
Module: N/A
Symptom: In a Switch or Router configuration, the
ICMP and TCP burst limit on a virtual routing
interface is not deleted correctly. This is apparent in
the running-config when the VLAN to which the
virtual routing interface is bound is deleted and then
the virtual routing interface is configured again.
The following configuration shows the ICMP and
TCP burst configuration for a virtual routing
interface:
Interface ve 1
ip icmp burst-normal 1000 burst-max 2000 lockup 1
ip tcp burst-normal 1000 burst-max 2000 lockup 1
Resolution: Fixed in this release.
71019
Module: N/A
Symptom: In a Router configuration, the transmit
data packets waiting for ARP resolution are
sometimes queued to an invalid port, causing a
system reset.
Resolution: Fixed in this release.
52
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
73502
Module: N/A
L2 Forwarding
07.8.03b
PIM
07.8.03b
System
07.8.03b
System
07.8.03b
Web Agent
07.8.03b
ACLs
07.8.03c
Symptom: In a Router configuration with ACL
configured in flow mode, the switched packets with
TCP SYN and ACK flag are incorrectly discarded.
Resolution: Fixed in this release.
70722
Module: 2404 Management
Symptom: In a Router configured with PIM, the
unicast packets are not forwarded from the
backplane to some of the slots. This is only
applicable to 15K chassis with 2404 Management
module.
Resolution: Fixed in this release.
67407
Module: N/A
Symptom: In a Router configured with VRRPe, the
number of events in the “Duplicate IP address” log
message does not correspond to the actual number
of events.
Resolution: Fixed in this release.
73569
Module: N/A
Symptom: In a Router configured with VRRPe, the
“Duplicate IP packet” log is sometimes
accompanied by the following warning message:
WARN: Out of timer entry
stack: 201F9B84 201F223C 205A803C 205AA610
2022D688 2022CF20 2020DC10 20316610
201F1734 200052B8
Resolution: Fixed in this release.
43428
Module: N/A
Symptom: In a Switch or Router configuration,
sometimes buffers in the HTTP module are not
correctly freed after the session is terminated. This
can cause memory corruption.
Resolution: Fixed in this release.
07.8.03c
56947
Module: N/A
Symptom: In a Router configured with ACL based
Rate Limit, Rule-based ACL and multiple virtual
routing interface, if when an ACL based Rate Limit
is applied to one port on a virtual interface and the
same ACL is applied to another virtual routing
interface, the traffic is not rate-limited.
Resolution: Fixed in this release.
53
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
74773
Module: N/A
MAC
Authentica-tion
07.8.03c
NAT
07.8.03c
Rapid STP
07.8.03c
System
07.8.03c
System
07.8.03c
Telnet
07.8.03c
VRRP
07.8.03c
Symptom: In a Switch or Router configured with
MAC Authentication, if when an authenticated MAC
moves from one port to another port, this can
sometimes cause a system reset.
Version
Found
Version
Fixed
Resolution: Fixed in this release.
72954
Module: N/A
Symptom: In a Router configured with static NAT,
the NAT sessions are not established again after
issuing clear ip nat all command.
Resolution: Fixed in this release.
73304
Module: N/A
Symptom: In a Switch or Router configured with
Rapid Spanning Tree, the topology does not
converge when interworking with Cisco switches
running Rapid PVST+.
Resolution: Fixed in this release.
74430
Module: N/A
Symptom: In a Switch or Router configured with
input monitoring and sFlow, the traffic received from
the monitored port is sometimes discarded.
Resolution: Fixed in this release.
74661
Module: N/A
Symptom: In a Switch or Router configured with
MRP and gig-default neg-off globally, the interface
configured with MRP remains in a DOWN state
after a reload.
Resolution: Fixed in this release.
72228
Module: N/A
Symptom: In a Switch or Router, the Telnet session
is closed immediately on receiving a remote FIN
even if there is data to be sent to the remote Telnet
client.
Resolution: Fixed in this release.
70254
Module: N/A
Symptom: In a Router configured with VRRP and
VRID assigned with multiple Virtual IP addresses, if
when the owner VRRP router transitions from
Master to Backup, the interface routes associated
with secondary Virtual IP address are present in the
Routing table after the transition.
Resolution: Fixed in this release.
54
Release Notes for 07.8.04
Bug ID
Software Fixes
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
07.8.03d
76148
Module: N/A
AAA
07.8.03d
ACL
07.8.03d
ACL
07.8.03d
L2-Trace
07.8.03d
NAT
07.8.03d
SNTP
07.8.03d
Symptom: In a Switch or Router configured with
AAA and authentication using TACACS+ server for
user access through the Web Management
interface, authentication requests after an
unsuccessful login do not cease to be sent to the
server.
Resolution: Fixed in this release.
74767
Module: BxGMR4
Symptom: In a Switch or Router configured with
outbound ACL, the packets matching the ACL are
incorrectly sent for CPU processing causing high
CPU condition.
Resolution: Fixed in this release.
76014
Module: N/A
Symptom: In a Switch or Router if an ACL is
configured for permitting ICMP Echo and Reply
packets, they are incorrectly discarded.
Resolution: Fixed in this release.
75897
Module: N/A
Symptom: In a Switch or Router configured with
Virtual Interface, if the L2 Trace packets are
received on a Route-only configured Virtual
Interface, the packets are incorrectly switched out
on the L2 VLAN.
Resolution: Fixed in this release.
75336
Module: N/A
Symptom: In a Router configured with ACL and
NAT, the packets are incorrectly forwarded after the
NAT processing when the ACL is configured to
discard them.
Resolution: Fixed in this release.
71798
Module: N/A
Symptom: In a Switch or Router, the SNTP server
status is not updated when the connectivity to the
SNTP server fails.
Resolution: Fixed in this release.
55
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
75878
Module: N/A
SSH
07.8.03d
UDLD
07.8.03d
VRRP
07.8.03d
ACL
07.8.03e
System
07.8.03e
Symptom:
In a Switch or Router if the SSH is used for
management, occasionally this can cause a system
reset.
Resolution: Fixed in this release.
76577
Module: N/A
Symptom: In a Switch or Router configured with
UDLD and Holddown Threshold, if the UDLD
configured interface is disabled due to reaching the
threshold, the UDLD KeepAlive packets continue to
be sent out causing the remote end to falsely keep
the UDLD interface active.
Resolution: Fixed in this release.
72430
Module: N/A
Symptom: In a Router configured with VRRP, the
ICMP PING is not responded to when the VRID on
the interface configured with the Master VRRP is
disabled.
Resolution: Fixed in this release.
07.8.03e
74759
Module: N/A
Symptom: In a Switch or Router, when an extended
Access Control List is configured using a port range
for the Source Port and the Destination Port, the
Access Control List is incorrectly saved in the
configuration.
Resolution: Fixed in this release.
77627
Module: N/A
Symptom: In a Switch or Router configured with a
Redundant Management Module, the configuration
file is not synchronized when executing the “Write
Memory” command. The following error message is
seen:
Sync config data in flash...Flash is in use, aborted
Resolution: Fixed in this release.
07.8.03f
56
Release Notes for 07.8.04
Software Fixes
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
77253
Module: N/A
ACL
07.8.03f
System
07.8.03f
System
07.8.03f
System
07.8.03f
System
07.8.03f
BGP
07.8.04a
Symptom: In a Switch or Router running 07.8.03e
and 07.8.03d, an ACL configured with Rate Limit
can occasionally cause high CPU usage due to
traffic that is incorrectly coming to CPU. This
problem does not exist in patches prior to 07.8.03d.
Resolution: Fixed in this release.
77119
Module: N/A
Symptom: In a Router, a static MAC address
configured for a port is not updated on a Link Down
event, causing the MAC address to be available
even after the link is down.
Resolution: Fixed in this release.
77217
Module: N/A
Symptom: In a Router with 15K Chassis configured
with IP Routing and a large number of virtual routing
interfaces, sometimes, a system reset may occur if
a module is hot-swapped while traffic is being
forwarded from that module.
Resolution: Fixed in this release.
78172
Module: N/A
Symptom: In a Switch or Router, corruption of a
global data structure for VLAN Rate Limit can
sometimes result in a system reset.
Resolution: Fixed in this release.
78495
Module: N/A
Symptom: In a Router with OSPF and static route
configuration, if a route configured as static can also
be learned using OSPF, clearing the IP Routes from
the routing table can sometimes cause a system
reset.
Resolution: Fixed in this release.
07.8.04a
72376
Module: N/A
Symptom: In a Router configured with BGP, OSPF
and BGP redistribution into OSPF, prefixes with
varying masks are not correctly redistributed.
Resolution: Fixed in this release.
57
Software Fixes
Release Notes for 07.8.04
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
36440
Module: N/A
Layer 2
07.8.04a
Layer 2
07.8.04a
OSPF
07.8.04a
OSPF
07.8.04a
OSPF
07.8.04a
CSP
07.8.04a
sFlow
07.8.04a
Symptom: The Switch or Router forwards the
packet with Destination MAC address of
01:80:c2:00:00:0x. These packets should be
discarded.
Resolution: Fixed in this release.
81853
Module: N/A
Symptom: The switch or router incorrectly floods
the Multicast packets to the entire VLAN when a
static MAC address is configured to forward to
specific ports.
Resolution: Fixed in this release.
72324
Module: N/A
Symptom: In a Router configured with OSPF, if a
static route that replaces a summary route is
configured using the summary-address command,
removing the static route does not restore the
summary route.
Resolution: Fixed in this release.
65123,
69858
Module: N/A
Symptom: In a Router, the static route redistribution
does not work when a route with conflicting LSID is
added to an existing host route with same LS ID.
Resolution: Fixed in this release.
72815,
78978
Module: N/A
Symptom: In a Router configured with OSPF, a nonABR router incorrectly generates a Summary LSA
when an interface goes down.
Resolution: Fixed in this release.
82228
Module: N/A
Symptom: In a Router with SSH configured, a
PSCP client cannot use SCP to copy a
configuration file bigger than 100K.
Resolution: Fixed in this release.
82290
Module: N/A
Symptom: Occasionally, the system performs a
reset when reading port traffic counters in a Switch
or Router configured with sFlow using sflow trafficmonitor enable.
Resolution: Fixed in this release.
58
Release Notes for 07.8.04
Known Issues in 07.8.03
Bug ID
Bug Description
Protocol/
Feature
Version
Found
Version
Fixed
82608
Module: N/A
System
07.8.04a
System
07.8.04a
Symptom: In a Switch or Router, the link activity
LED on the port with ER-Xenpak optics is off on
either end, while the traffic is passing uninterrupted.
Resolution: Fixed in this release.
85354
Module: N/A
Symptom: In a Switch or Router, sometimes a
corrupt or inconsistent port data structure can cause
a system reset.
Resolution: Fixed in this release.
Known Issues in 07.8.03
This section lists the known issues in software release 07.8.03.
Table 8: Known Software Issues in Release 07.8.03
Bug ID
Bug Description
Protocol
Feature
59070
When PBR is configured with a route map that has multiple instances, each
with a different match criteria and respective next-hop, the CAM entries are
programmed for matched traffic with the next hop of the first instance. If the
other instances of the route map match, the CAM is still programmed with
the next hop of the first instance of route-map.
PBR
60396
A static MAC address for only one port is displayed in show interface
command output if the address is configured for multiple ports.
Static MAC
61392
When CPU protection is enabled, a hardware flooding CAM entry does not
match the unknown traffic. As a result, these packets are not forwarded or
are discarded in hardware.
CPU
Protection
61914
Strict security is not supported by 802.1X.
802.1X
62370
When CPU protection is enabled, CPU utilization is always around 50%
when sending unknown unicast traffic.
CPU
Protection
62562
Changes in an outbound rate-limiting configuration may require 300
seconds to take effect.
EP Rate
Limiting
ProCurve 9300M Series Modules
Table 9 lists the modules that are currently available for use in ProCurve 9300M Series routing switches.
(Discontinued modules are also listed.)
59
ProCurve 9300M Series Modules
Release Notes for 07.8.04
Table 9: ProCurve 9300M Series Modules
Module Type
Part Number and Description
Module String
EP Redundant
Management Modules
J4885A ProCurve 9300 EP 8-Port
Mini-GBIC Redundant Management Module
EP-8-port-mini-GBIC-management
EP Non-Management
Modules
J4881B ProCurve 9300 EP 48-Port
10/100-TX RJ-45 Module
EP-48-port-10/100-TX-RJ45module
J4889B ProCurve 9300 EP 48-Port
10/100-TX Telco (RJ-21) Module
EP-48-port-10/100-TX-telcomodule
J4894A ProCurve 9300 EP 16-Port Mini-GBIC
Module
EP-16-port-mini-GBIC-module
J4895A ProCurve 9300 EP 16-Port
100/1000-T Module
EP-16-port-100/1000-T-module
J8178A ProCurve 9300 EP 24-Port 100BaseFX Module
EP 24 Port 100Base-FX Module
J4845A ProCurve 9300 GigLX Redundant
Management Module (8-port)
8-port-gig-management-module
J4846A ProCurve 9300 GigSX Redundant
Management Module (8-port)
8-port-gig-management-module
J4847A ProCurve 9300 Redundant
Management Module (0-port)
0-port-management-module
J4857A ProCurve 9300 Mini-GBIC Redundant
Management Module (8-port)
8-port-gig-m4-managementmodule
Redundant
Management modules
(M2 and M4)
Discontinued
Discontinued
Discontinued
Discontinued
Management modules
(M1)
Supported only on the
ProCurve 9304M and
ProCurve 9308M.
(M1 modules are not
supported on the
ProCurve 9315M.)
60
J4879A ProCurve 9300 T-Flow Redundant
Management Module (0-port)
—
J4141A ProCurve 9300 10/100 Management
Module (16-port)
16-port-copper-managementmodule
Discontinued
Discontinued
J4144A ProCurve 9300 Gigabit SX
Management Module (8-port)
8-port-gig-management-module
J4146A ProCurve 9300 Gigabit 4LX/4SX
Management Module (8-port)
8-port-gig-management-module
Discontinued
Discontinued
Release Notes for 07.8.04
ProCurve 9300M Series Modules
Module Type
Part Number and Description
Module String
Unmanaged Modules
(Standard, non-EP)
J4140A ProCurve 9300 10/100 Module
(24-port)
24-port-copper-module
J4142A ProCurve 9300 100Base FX Module
(24-port MT-RJ)
24-port-100fx-module
J4143A ProCurve 9300 Gigabit SX Module
(8-port)
8-port-gig-module
J4145A ProCurve 9300 Gigabit 4LX/4SX
Module (8-port)
8-port-gig-module
J4842A ProCurve 9300 1000Base-T Module
(8-port)
8-port-gig-copper-module
J4844A ProCurve 9300 GigLX Module
(8-port)
8-port-gig-module
J4856A ProCurve 9300 Mini-GBIC Module
(8-port)
8-port-gig-module
J4891A ProCurve 9300 1-port 10 Gb Module
1-port-10Gig-module
10 Gigabit Ethernet
Modules (Unmanaged,
supported with both
Standard and EP
Management Modules)
Discontinued
Discontinued
Discontinued
Discontinued
Discontinued
Discontinued
Discontinued
Discontinued
J8174A ProCurve 9300 2-port 10 Gb Module
2-port-10Gig-module
61
ProCurve 9300M Series Modules
Release Notes for 07.8.04
—This page intentionally left blank—
62
Release Notes for 07.8.04
© Copyright 2001, 2008 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
ProCurve 9300M Series Modules
5991-4722
September 2008
63
Download PDF

advertising
