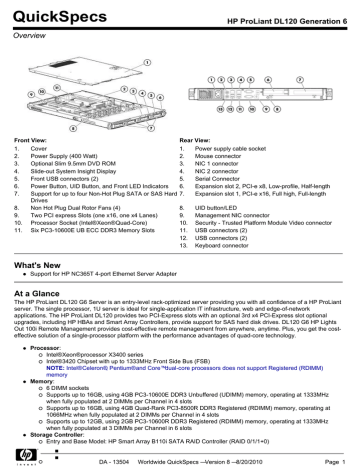

QuickSpecs
HP ProLiant DL120 Generation 6
Overview
Front View:
1.
Cover
2.
Power Supply (400 Watt)
3.
Optional Slim 9.5mm DVD ROM
4.
Slide-out System Insight Display
5.
Front USB connectors (2)
6.
Power Button, UID Button, and Front LED Indicators
7.
Support for up to four Non-Hot Plug SATA or SAS Hard
Drives
8.
Non Hot Plug Dual Rotor Fans (4)
9.
Two PCI express Slots (one x16, one x4 Lanes)
10. Processor Socket (Intel® Xeon® Quad-Core)
11. Six PC3-10600E UB ECC DDR3 Memory Slots
Rear View:
1.
Power supply cable socket
2.
Mouse connector
3.
NIC 1 connector
4.
NIC 2 connector
5.
Serial Connector
6.
Expansion slot 2, PCI-e x8, Low-profile, Half-length
7.
Expansion slot 1, PCI-e x16, Full high, Full-length
8.
9.
10.
11.
12.
13.
UID button/LED
Management NIC connector
Security - Trusted Platform Module Video connector
USB connectors (2)
USB connectors (2)
Keyboard connector
What's New
Support for HP NC365T 4-port Ethernet Server Adapter
At a Glance
The HP ProLiant DL120 G6 Server is an entry-level rack-optimized server providing you with all confidence of a HP ProLiant
server. The single processor, 1U server is ideal for single-application IT infrastructure, web and edge-of-network
applications. The HP ProLiant DL120 provides two PCI-Express slots with an optional 3rd x4 PCI-Express slot optional
upgrades, including HP HBAs and Smart Array Controllers, provide support for SAS hard disk drives. DL120 G6 HP Lights
Out 100i Remote Management provides cost-effective remote management from anywhere, anytime. Plus, you get the costeffective solution of a single-processor platform with the performance advantages of quad-core technology.
Processor:
Intel® Xeon® processor X3400 series
Intel® 3420 Chipset with up to 1333MHz Front Side Bus (FSB)
NOTE: Intel® Celeron®, Pentium® and Core™ dual-core processors does not support Registered (RDIMM)
memory
Memory:
6 DIMM sockets
Supports up to 16GB, using 4GB PC3-10600E DDR3 Unbuffered (UDIMM) memory, operating at 1333MHz
when fully populated at 2 DIMMs per Channel in 4 slots
Supports up to 16GB, using 4GB Quad-Rank PC3-8500R DDR3 Registered (RDIMM) memory, operating at
1066MHz when fully populated at 2 DIMMs per Channel in 4 slots
Supports up to 12GB, using 2GB PC3-10600R DDR3 Registered (RDIMM) memory, operating at 1333MHz
when fully populated at 3 DIMMs per Channel in 6 slots
Storage Controller:
Entry and Base Model: HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 1
QuickSpecs
HP ProLiant DL120 Generation 6
Overview
NOTE: Transfer rate: 3Gb/s SATA
NOTE: Available upgrade: HP Smart Array Hot Plug Advance Pack for B110i
Performance Model: HP Smart Array P212/256MB Controller (RAID 0/1/1+0/5/5+0)
NOTE: Available upgrades: Battery Kit upgrade (for BBWC), and Smart Array Advanced Pack (SAAP)
Internal Drive Support:
Up to 4 LFF SATA/SAS HDD drive bays
(1) Optional slim 9.5mm DVD-ROM or DVD RW
Network Controller:
Embedded HP NC107i PCI Express Gigabit Server Adapter
Expansion Slots:
Two total slots:
(1) Full length PCI Express Gen 2 x16 slot (x16 connector)
(1) Half-length, low-profile PCI Express x4 slot (x8 connector)
Optional (1) PCI-X 1 x1 (x4 connector)
USB 2.0 Ports:
Up to 7 Total: (2) front; (1) internal; (4) rear accessible ports
Internal USB port (optional) for flexible storage, security, or USB drive key deployment
Infrastructure Management:
HP ProLiant Lights-Out 100 simplifies server setup, health monitoring, control, and Lights-Out 100 remote
administration. Can be upgraded with a Lights-Out 100 Advanced License for Virtual KVM (remote graphical
console) and Virtual Media.
With G6, ProLiant 100-series server administrators are able to deploy and monitor their servers using methods
similar to 300 series servers and above. Agents and the Easy Set-up CD are available that provide a user
experiences consistent with 300 series and above.
With Easy Set-up CD, customers get SmartStart "like" deployment tools that reduce the time required for
server setup and updates. Easy Set-up CDs and their ISO images are provided with each ProLiant G6
100-series server and are used to perform assisted installations for one or two servers. Users performing
multi-server installations involving large numbers of servers may require the following deployment tools:
SmartStart Scripting Toolkit - Automated scalable deployment utility
Smart Components - a self-executable software consisting of driver and firmware
With agents and providers, ProLiant 100 series servers get environmental monitoring that is similar and
consistent to that of ProLiant 300 series servers and above. This server now offers the HP Insight
Management Agents and HP Insight Management WBEM Providers, two well established sets of
management and Internet standards technologies that provide capabilities which provide integration to HP
Systems Insight Manager (SIM).
Form Factor:
1U (1.69" / 4.32 cm) Rack Mount Chassis
27.6" (70.0cm) Deep
New fixed mounting rails included with all models
Warranty:
This product is covered by a global limited warranty and supported by HP Services and a worldwide network of
HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years
from date of purchase. Support for software and initial setup is available for 90 days from date of purchase.
Enhancements to warranty services are available through HP Care Pack services or customized service
agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive
QuickSpecs for details.
NOTE: Server Warranty includes 3 year Next Day Parts replacement, 0-Years Labor, 0-Years Onsite support.
(3-1-1 warranty in APJ). Additional information regarding worldwide limited warranty and technical support is
available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 2
QuickSpecs
HP ProLiant DL120 Generation 6
Standard Features
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information Factory Integrated Models" section.
Processor
Quad-Core Processors
One of the following
Intel® Xeon® processor HP X3430 (2.40GHz, 95W, 8MB, 1333, Turbo 1/1/2/3)
depending on Model
Intel® Xeon® processor HP X3440 (2.53GHz, 95W, 8MB, 1333, HT, Turbo 1/1/2/3)
NOTE: Available through Configure To Order only. See Factory Integration Models section for
more details.
Intel® Xeon® processor HP X3450 (2.67GHz, 95W, 8MB, 1333, HT, Turbo 1/1/4/4)
Intel® Xeon® processor HP X3460 (2.80GHz, 95W, 8MB, 1333, HT, Turbo 1/1/4/5)
NOTE: Available through Configure To Order only. See Factory Integration Models section for
more details.
Intel® Xeon® processor HP X3470 (2.93GHz, 95W, 8MB, 1333, HT, Turbo 1/1/4/5)
NOTE: Available through Configure To Order only. See Factory Integration Models section for
more details.
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE: Turbo indicates the maximum potential frequency increment when using Intel® Turbo
Boost Technology, with 4, 3, 2, and 1 cores are active.
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may
depend on the quantity and type of DIMMs installed.
Dual-Core Processors
Intel® Celeron® processor G1101 (2.26GHz, 73W, 2MB, 1066)
NOTE: Available through Configure To Order only. See Factory Integration Models section for
more details.
Intel® Pentium® processor G6950 (2.8GHz, 73W, 3MB, 1066, HT)
Intel® Xeon® processor L3406 (2.28GHz, 30W, 4MB, 1066, HT, Turbo 2/2)
NOTE: Available through Configure To Order only. See Factory Integration Models section for
more details.
Intel® Core™ processor i3-530 (2.93GHz, 73W, 4MB, 1333, HT)
NOTE: Available through Configure To Order only. See Factory Integration Models section for
more details.
Intel® Core™ processor i3-540 (3.06GHz, 73W, 4MB, 1333, HT)
NOTE: Available through Configure To Order only. See Factory Integration Models section for
more details.
Cache Memory
Integrated 1x8MB Level3 Intel® Smart Cache
Chipset
Intel® 3420 Chipset
Memory Protection
ECC
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 3
QuickSpecs
HP ProLiant DL120 Generation 6
Standard Features
Memory
One of the following
depending on Model
Type
Standard (Entry Model)
Standard (Base Models)
Standard (Performance
Models)
Maximum Memory
DDR3 1066/1333MHz Unbuffered (UDIMM) and Registered (RDIMM)
2GB (1x2GB) UDIMM
2GB (1x2GB) UDIMM
4GB (2x2GB) RDIMM
Supports up to 16GB DDR3 1066/1333 Unbuffered ECC DIMM or 16GB
DDR3 800/1066/1333 Registered DIMM.
Supports up to 4 UDIMMs or 6 dual rank RDIMMs
NOTE: Depending on the memory configuration and processor model, the memory speed may run
at 1333MHz, 1066MHz, or 800MHz. Please see the Online Memory Configuration Tool at:
www.hp.com/go/ddr3memory-configurator.
Network Controller
Embedded NC107i Gigabit Server Adapter
Expansion Slots
Technology
1
(Standard)
2
(Standard)
1
(Optional)
Storage Controllers
Bus
Width***
X16
Form
Notes
Factor
PCIe G2
1
Full length,
full height
slot
PCIe G1
X4
x8
0
28
Half height,
low profile
slot
PCI-X
64-bit
N/A
0
1
Full length,
(133MHz,
full height
3.3Volt)
slot
* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus
assignment number.
** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest
Device ID by bus (starting with the lowest bus)
*** Indicates the number of physical electrical lanes running to a PCI-e connector.
Entry and Base Model
Performance Model
DA - 13504
Connector
Width
x16
Bus
Number*
0
Device No.**
HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
NOTE: Transfer rate: 3Gb/s SATA
NOTE: SATA Hot Plug available via Hot Plug Advance Pack for B110i
NOTE: Hot Plug SAS and SATA controllers available via PCI card
option.
NOTE: Smart Array SAS Controller requires the HP CA ASSY 384SATA
to MINI-SAS Kit (P/N 487734-B21) must be ordered.
HP Smart Array P212/256MB Controller (RAID 0/1/1+0/5/5+0)
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 4
QuickSpecs
HP ProLiant DL120 Generation 6
Standard Features
Storage
Optical Drive
Hard Drives
Optional 9.5mm DVD-ROM, or DVD-RW Drive
Entry Model
Up to 4 non-hot plug SATA/SAS 3.5" drives
supported. 1x160GB non hot plug SATA 3.5"
drive ships standard
NOTE: SAS requires optional HBA or SA card
Base Model
Up to 4 non-hot plug SATA/SAS 3.5" drives
(Cold Plug)
supported. None ships standard
NOTE: SAS requires optional HBA or SA
card.
NOTE: SATA Hot Plug available via Hot Plug
Advance Pack for B110i
NOTE: Support for additional SAS/SATA hot
plug drives requires HP Smart Array
Controller.
Performance Model
Up to 4 hot plug SATA/SAS 3.5" drives
(Hot Plug)
supported. None ships standard
Maximum Internal
Storage Type
Hot Plug SAS
8.0TB
(4 x 2TB) 3.5" SAS
Non-Hot Plug SATA
8.0TB
(4 x 2TB) 3.5" SATA
Interfaces
Serial
Pointing Device
Keyboard
Graphics
Network RJ-45
USB 2.0
1
1
1
1 (rear)
2
7 (2 front, 1 internal, 4 rear)
NOTE: Please see the following URL for additional information
regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usbsupport.html
Graphics
64MB shared supports all display resolutions up to 1600 x 1200 16bpp @ 75Hz
Form Factor
Rack (1U), (1.69 in/4.32 cm), 27.56" deep
Embedded
Manageability
HP ProLiant LO100
HP ProLiant Lights-Out 100, simplifies server setup, control, and lightsout remote administration of ProLiant 100 Series servers and functions
without additional software. It can be accessed from any location via
LAN or Internet and works hand-in-hand with HP Systems Insight
Manager (SIM), helping customers unlock the value of the ProLiant
platform and deliver the highest possible quality of IT service to the
business. Advanced Licenses are required for Virtual KVM and Virtual
Media feature activation.
Key features of LO100 are:
IPMI 2.0 & SMASH CLP support
ROM Setup Utility
Improvements to virtual media with the addition of USB 2.0 drives
and protocol support for much faster transfer speeds and DVDROM support plus simplified virtual media (floppy and CD with no
FTTP server requirements)
Enhanced browser interface and embedded KVM over IP provides
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 5
QuickSpecs
HP ProLiant DL120 Generation 6
Standard Features
OS-independent remote graphical console
24x7 Technical Support and Update (TSU) 1 year support and
license upgrades included in Advanced license
HP Insight Control
Insight Control server
management software deployment
NOTE: For more information, see: http://www.hp.com/go/lo100
HP Insight Control server deployment is a deployment solution for HP
ProLiant and Integrity servers hosted on a Windows CMS. It automates
the process of deploying and provisioning server software, enabling
companies to quickly and easily adapt to changing business demands.
Insight Control server deployment includes software optimizations for
HP servers, including the HP scripting toolkits, configuration jobs for
leading industry-standard operating systems, sample unattended files,
and HP server support packs that include software drivers, management
agents, and important documentation. Deploying servers can be
accomplished either through imaging or through scripting.
Insight Control server deployment is hosted on a Windows server and is
intended for heterogeneous environments deploying Windows, Linux,
VMware ESX and Microsoft Hyper-V systems.
Core Server
Management
Insight Control server deployment includes one year of 24 x 7 HP
Software Technical Support and Update Service ensuring rapid access
to HP support staff and proactive delivery of software updates. For more
information about this service, please visit:
http://www.hp.com/services/insight.
ProLiant 100 Series G6 HP provides management solutions that are designed to simplify a
Core Management
server's installation, configuration, and maintenance throughout the
Software for ProLiant entire server lifecycle. This provides the customers with higher levels of
100 Series Servers
operational efficiency and highly reliable systems.
While ProLiant 100 series G6 servers do not support the Insight
Foundation Suite for ProLiant, they support a key subset of this
important suite software tools and utilities which are very suitable for this
class of server: SIM, SMH, agents, providers, and a SmartStart 'like'
deployment CD called Easy Set-up which greatly simplifies server setup. Additionally the ProLiant DL100 and SL100 G6 models support the
SmartStart Scripting Toolkit (SSSTK), an automated scalable
deployment utility.
Information on core management supported on ProLiant 100 series G6
servers can be found at these URLS:
Core Infrastructure
Management
HP Systems Insight
Manager
Insight Management
Agents
Core Management: http://www.hp.com/go/coremanagement
HP ProLiant 100 series Easy Set-up CDs:
www.hp.com/servers/easysetup
HP Systems Insight Manager (HP SIM) provides a unified, secure and
extensible standards-based environment to centrally manage servers,
storage and other infrastructure devices, (both HP and non-HP) across
multiple operating system platforms.
HP Insight Management Agents and Insight Management Providers are
available for HP Systems Insight Manager (SIM) Integration.
ProLiant 100-series G6 servers can use the same SNMP based Insight
Management Agents supported by other ProLiant servers. As a result,
administrators can use HP Systems Insight Manager (SIM) 5.3 and
greater to manage ProLiant 100-series G6 servers. Administrators can
also use any other SNMP- based management tool. These agents are
obtained as part of the ProLiant 100-series model-specific "Easy Set-up"
CDs, or through http://www.hp.com/servers/easysetup
The following capabilities are enabled on the 100-series G6 servers by
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 6
QuickSpecs
HP ProLiant DL120 Generation 6
Standard Features
the SNMP agents:
Health monitoring capabilities, including monitoring for drives,
fans, network, power supplies, and temperature
Alerting capabilities, including basic alert notification for Smart
Array drive pre-failure only
Performance monitoring capabilities providing information on
processor, memory, disk free space, network utilization
For additional information, please see: http://www.hp.com/go/insight
Easy Set-up CDs are available on all 100-series G6 servers and are
also available as an ISO image web download. HP ProLiant Easy Setup CDs provide easy, step-by-step, single and multi-server server
utilities for the ProLiant 100-series G6 servers to streamline server
setup for 100-series G6 servers. The user experience is consistent with
SmartStart and offers the following capabilities:
Easy Set-up CD
Boot environment and GUI
Assisted Installation: Windows 2003 Server and Windows 2008
Server drivers
Manual installation: Windows 2003 Server, Windows 2008 Server,
and Linux drivers (specific OS support varies by server. Refer to
each server's QuickSpecs for supported versions)
HP Insight Diagnostics
AutoRun
Array Configuration Utility (ACU) has been combined with Array
Diagnostics Utility (ADU) to offer both configuration of array
controllers and storage devices and testing of array controller
hardware
SmartStart Scripting Toolkit (SSSTK) and Smart Components for
software and drivers for DL100 and SL100 servers
NOTE: OS and SW available for Manual Installation are listed on each
servers' QuickSpecs.
The SmartStart Scripting Toolkit is a server deployment product that
delivers an unattended automated installation for high-volume server
deployments. The SmartStart Scripting Toolkit includes a set of utilities
for configuring and deploying servers in a customized, predictable, and
unattended manner. These utilities enable you to duplicate the
configuration of a source server on target servers with minimum user
interaction.
SmartStart Scripting
Toolkit (SSSTK)
The Toolkit is designed for IT experts with experience in scripting
operating system installations and configuring ProLiant server hardware.
Subscriber's Choice
ROMPaq, software and
latest drivers
For additional information, please see:
http://h18004.www1.hp.com/products/servers/management/toolkit/
index.html
Subscriber's Choice Driver and Support Alerts/Notifications is a webbased email subscription service that provides software and driver
change notifications for ProLiant products. Sign up at:
http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
The latest software, drivers, and firmware fully optimized and tested for
your ProLiant server and options; downloaded from Software and
Drivers download pages website at: http://www.hp.com/go/support and
from www.hp.com/servers/easysetup. Contains the following:
HP Insight Management Agents for Systems Insight Manager
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 7
QuickSpecs
HP ProLiant DL120 Generation 6
Standard Features
(SIM) Integration
HP Systems Management Homepage
Array Configuration Utility (ACU)
Array Diagnostics Utility (ADU)
HP Insight Diagnostics
Industry Standard
Compliance
ACPI 3.0a
PCI 2.3 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications
USB 2.0
IPMI 2.0
DCMI 1.0
Intelligent
Manageability
HP ProLiant Lights-Out 100 with optional LO100 Advanced Licenses for Virtual KVM and Virtual
Media.
Embedded IPMI standard reporting
Easy Set-up CD and ISO Image Web downloads
Array Configuration Utility (ACU)
Array Diagnostics Utility (ADU)
HP Insight Diagnostics
HP Insight Management Agents and Insight Management Providers for Systems Insight Manager
(SIM) Integration
Security
Power-on password
Keyboard password
USB Port control
Removable DVD-ROM Drive Assembly (optional)
Dedicated/Shared LO100 management NIC port
Administrator's password
Security - Trusted
Platform Module
The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used
to authenticate the server platform. These artifacts can include passwords, certificates and
encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature
available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a
Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user
data and to ensure that a server running Windows Server 2008 has not been tampered with while
the system was offline.
NOTE: For more information about TPM, including a white paper, go to www.hp.com/go/TPM
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or
losing the key could result in data loss.
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 8
QuickSpecs
HP ProLiant DL120 Generation 6
Standard Features
Server Power Cords
North America
Japan
One 6' Highline (IEC-IEC) power cord ships standard
One 6' Highline (IEC) power cord and one 6' Lowline power cord ship
standard
ROW
One 6' Highline (IEC) power cord ships standard
NOTE: HP ProLiant DL120 G6 server ship standard worldwide with a C13 to C14 2M Highline
jumper cord. Japanese models also include a 2M Lowline power cord. If customers require a local
power cord, they can check the power cord matrix for the appropriate country specific cord.
Please see the following power cord matrix: http://www.hp.com/go/powercordmatrix.
Power Supply
Auto-sensing 400-Watt PFC Power Supply, CE Mark Compliant
UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page.
Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions,
requirements, and specifications for UPS and PDU units. Please see the following link:
www.hp.com/products/powercords.
System Fans
4 dual rotor fans ship standard.
Required Cabling
For required cabling information, refer to the Web site at:
http://h10010.www1.hp.com/wwpc/us/en/sm/WF05a/15351-15351-3328412-241644-2414753579703.html.
Operating Systems and Microsoft Windows Server
Virtualization Software Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and
Virtualization Software and latest listing of software drivers available for your server, please visit
our Support Matrix at: http://www.hp.com/go/supportos and our driver download page
http://www.hp.com/support/DL120G6
Rack Airflow
Requirements
Rack 10000 G2 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling
efficiency for rack-mounted servers. The 10000 G2 Series Racks provide enhanced airflow for
maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional requirements to ensure
adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing front and rear doors, you must
allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to
permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
Side: The clearance between the installed rack component and the side panels of the rack
must be a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack.
This arrangement ensures proper airflow. Using a rack without blanking panels results in improper
cooling that can lead to thermal damage.
NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation
CD provided with the server.
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 9
QuickSpecs
HP ProLiant DL120 Generation 6
Standard Features
Rack Kit
Quick deploy rail system provides tool-free support for racks with square or round mounting holes
(including Compaq/HP 7000, 9000, 10000 G2 and HP series), with an adjustment range of 24" 36". The ambidextrous cable management arm can be mounted on either the left or right side for
improved cable management.
Telco Rack Kit
Installation into Telco 2 post, and 4 post, or threaded holes racks requires a 3rd party option kit.
Go to: www.hp.com/go/rackandpower for more information.
Factory Express
Portfolio for Servers
and Storage
HP Factory Express offers configuration, customization, integration and deployment services for
HP servers and storage products. Customers can choose how their factory solutions are built,
tested, integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading,
asset tagging, and custom packaging. HP products supported through Factory Express include a
wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP
BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries
and configurable network switches.
For more information on Factory Express services for your specific server model please contact
your sales representative or go to: http://www.hp.com/go/factory-express.
HP Enterprise
Configurator
The HP eConfigure-Enterprise Configurator now provides factory default racking for our HP
hardware portfolio. This approach is aligned with our strategic direction to meet the needs and
expectations of our valued customers. If you require "custom" rack configuration, please contact
HP's Customer Business Center or an Authorized Partner for assistance.
http://www.hp.com/products/configurator.
Service and Support
HP Care Pack Services provide total care and support expertise with committed response times
designed to meet your IT and business needs.
HP Care Pack services include coverage for the HP branded hardware options qualified for the
server that are purchased at the same time or afterward and internal to the enclosure. It also
includes the 22-inch and smaller external monitors and tower UPS options up to 3kVA. These
items will be covered at the same service level and for the same coverage period as the server.
Coverage of UPS Battery is not included and standard warranty terms & conditions apply. For
servers or storage systems installed within a rack, service also covers all HP qualified rack
options installed within the same rack.
To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who
thoroughly understands your server technology and systems environment. HP Services, an
industry leader in provision of support solutions provides a range of support services designed to
meet the varying needs of your business. Whether an SMB, or large global corporation, HP has
ProLiant server support offers to help you speedily deploy and maximize system uptime.
Recommended Service - simplify ProLiant solution implementation, maintenance, and
management.
Support - 3-Year 24x7 4 hr Response service support coverage
Deployment Service - HW Installation only
Enhanced Service - optimize service level to increase IT performance and availability.
Support - 3-Year 24x7 24 hr Call to repair service support coverage
Support -3-Year 24x7 6 hr Call to repair service support coverage
Support Plus -24x7 4 hr Response service support including OS coverage
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 10
QuickSpecs
HP ProLiant DL120 Generation 6
Standard Features
Refer to the information on the Installation of a ProLiant on the ProLiant Data Sheet; to be
delivered on a scheduled basis 8am-5pm, M-F, excluding HP holidays.
NOTE: For a complete listing of service offerings and information visit:
http://www.hp.com/services/proliantservices
http://h20219.www2.hp.com/services/us/en/warranty/carepack-servers-proliant.html
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 11
QuickSpecs
HP ProLiant DL120 Generation 6
Models
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information Factory Integrated Models" section.
Entry Model
Processor
(1) Intel® Pentium® processor G6950 (2.8GHz, 73W, 3MB, 1066)
Cache Memory
3MB Intel® Smart Cache
HP DL120 G6 G6950
Memory
2GB (1x2GB) PC3-10600E DDR3 UB ECC
NHP SATA
Network Controller
Embedded HP NC107i PCI Express Gigabit Server Adapter
490930-xx1
Storage Controller
HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
Hard Drives
1 x 160GB 3.5" Non-hot plug SATA
Internal Storage
Up to 4 large form factor Non-hot plug SAS/Non-hot plug SATA
NOTE: SAS support requires Smart Array Controller and HP CA ASSY
38" 4 SATA to MINI-SAS Kit (P/N 591475-B21).
Optical Drive
None Ships Standard
Power Supply
Auto-sensing 400-Watt PFC Power Supply, CE Mark Compliant
Form Factor
1U
Base Model
Processor
HP DL120 G6 X3430
Pluggable SATA
490931-xx1
Cache Memory
Memory
Network Controller
Storage Controller
Hard Drives
Internal Storage
Optical Drive
Power Supply
Form Factor
Performance Model
Processor
HP DL120 G6 X3450 HP Cache Memory
SAS
Memory
490932-xx1
Network Controller
Storage Controller
Hard Drives
Internal Storage
Optical Drive
Power Supply
Form Factor
Country Code Key
xx=00
xx=29
xx=37
xx=42
xx=AA
DA - 13504
(1) Intel® Xeon® processor X3430 (2.40GHz, 95W, 8MB, 1333, Turbo
1/1/2/3)
8MB Intel® Smart Cache
2GB (1x2GB) PC3-10600E DDR3 UB ECC
Embedded HP NC107i PCI Express Gigabit Server Adapter
HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
None Ships Standard
Up to 4 large form factor Hot Plug drives (cold pluggable only)
NOTE: Hot Plug support requires HP Smart Array Hot Plug Advance
Pack for B110i or Smart Array Controller and HP CA ASSY 38" 4 SATA
to MINI-SAS Kit (P/N 591475-B21).
None Ships Standard
Auto-sensing 400-Watt PFC Power Supply, CE Mark Compliant
1U
(1) Intel® Xeon® processor X3450 (2.67GHz, 95W, 8MB, 1333, HT,
Turbo 1/1/4/4)
8MB Intel® Smart Cache
4GB (2x2GB) PC3-10600R-9 DDR3 RDIMM
Embedded HP NC107i PCI Express Gigabit Server Adapter
HP Smart Array P212/256MB Controller
None Ships Standard
Up to 4 large form factor Hot Plug drives
None Ships Standard
Autosensing 400-Watt PFC Power Supply, CE Mark Compliant
1U
US
Japan
APD (Asia excluding Japan)
EURO
PRC
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 12
QuickSpecs
HP ProLiant DL120 Generation 6
Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid
configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales
representative for information on CTO product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must
start with a CTO Chassis.
NOTE: FIO indicates that this option only available as a Factory Installable Option.
Step 1: Base Configuration (choose one of the following configurable models)
Models
HP DL120G6 NHP CTO Chassis
Includes:
Embedded NC107i Gigabit Server Adapter
1 full length PCI Express Gen2 x16 slot (x16 connector) and 1 half length low
profile PCI Express x4 slot (x8 connector)
HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
Rack (1U) form factor, (1.7 in/4.32 cm)
Fixed, mounting rails
HP DL120G6 HP CTO Chassis
490933-B21
583183-B21
Includes:
Embedded NC107i Gigabit Server Adapter
Hot-Plug drive cage, including cables
1 full length PCI Express x16 slot (x16 lane) and 1 half length low profile PCI
Express x4 slot (x8 lane)
HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
Rack (1U) form factor, (1.7 in/4.32 cm)
Fixed, mounting rails
Step 2: Choose Required Options (only one of the following from each list unless
otherwise noted)
HP Processor
HP Memory
Quad-Core
Intel® Xeon® processor HP X3430 (2.40GHz, 95W, 8MB, 1333, Turbo 1/1/2/3),
FIO
Intel® Xeon® processor HP X3440 (2.53GHz, 95W, 8MB, 1333, HT, Turbo
1/1/2/3), FIO
Intel® Xeon® processor HP X3450 (2.67GHz, 95W, 8MB, 1333, HT, Turbo
1/1/4/4), FIO
Intel® Xeon® processor HP X3460 (2.80GHz, 95W, 8MB, 1333, HT, Turbo
1/1/4/5), FIO
Intel® Xeon® processor X3470 processor (2.93GHz, 95W, 8MB, 1333, HT,
Turbo 1/1/4/5), FIO
Dual-Core Processors
Intel® Celeron® processor G1101 (2.26GHz, 73W, 2MB, 1066), FIO
Intel® Pentium® processor G6950 (2.8GHz, 73W, 3MB, 1066), FIO
Intel® Xeon® processor L3406 (2.28GHz, 30W, 4MB, 1066, HT, Turbo 2/2), FIO
Intel® Core™ processor i3-530 (2.93GHz, 73W, 4MB, 1333, HT), FIO
Intel® Core™ processor i3-540 (3.06GHz, 73W, 4MB, 1333, HT), FIO
Unbuffered with ECC DIMMs (UDIMM)
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
581869-L21
578471-L21
581870-L21
578473-L21
578475-L21
599309-L21
599308-L21
611530-L21
599310-L21
599311-L21
500668-B21
500670-B21
Page 13
QuickSpecs
HP ProLiant DL120 Generation 6
Configuration Information - Factory Integrated Models
HP Hard Drives
HP Power Supplies
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
Registered DIMMs (RDIMM)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9
Memory Kit
HP 4GB (1x4GB) Quad Rank x8 PC3-8500 (DDR3-1066) Registered CAS-7 Low
Power Memory Kit
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed
memory configuration rules and guidelines, please use the Online DDR3
Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on
ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient
NOTE: The components of a storage subsystem (e.g. the drive, the
HBA/controller, firmware, and the server backplane) should operate at the same
data transfer rate or the system bandwidth will be negotiated down to an
acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the
specific hard drive QuickSpecs for details.
NOTE: The below Hard drives can only be selected with the Non-Hot Plug CTO
Chassis (P/N 490933-B21)
SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 450GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise
3yr Warranty Hard Drive
HP 300GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise
3yr Warranty Hard Drive
HP 146GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise
3yr Warranty Hard Drive
SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty
Hard Drive
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty
Hard Drive
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty
Hard Drive
SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty
Hard Drive
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty
Hard Drive
HP 400W Power Supply FIO Kit
HP 500W NHP Power Supply Option Kit
500672-B21
500656-B21
500660-B21
454234-B21
417950-B21
417855-B21
507774-B21
507772-B21
458941-B21
571232-B21
458947-B21
515739-B21
583437-B21
Step 3: Choose Additional Options for Factory Integration (only one of the
following from each list unless otherwise noted)
HP Storage Controllers SAS Controllers (Required if NHP SAS Hard Drive selected in Step 2)
HP Smart Array P212/256 MB w/Battery FIO
HP Smart Array P411/256 w/Battery FIO
HP Smart Array P212/256MB Controller
HP Smart Array P212/Zero Memory (ZM) Controller
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
491191-B21
491193-B21
462834-B21
462828-B21
Page 14
QuickSpecs
HP ProLiant DL120 Generation 6
Configuration Information - Factory Integrated Models
Step 4: Choose Additional Factory Integratable Options
NOTE: For additional options, please refer to the "Core Options and Additional Options" section below.
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 15
QuickSpecs
HP ProLiant DL120 Generation 6
Core Options
NOTE: Some options may not be factory integratable. Contact your local sales representative for additional information.
HP Unique Options
HP Internal USB Cable G6 Kit
536769-B21
NOTE: This option required to connect a USB device internally.
HP Memory
Unbuffered with ECC DIMMs (UDIMM)
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
Registered DIMMs (RDIMM)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9
Memory Kit
HP 4GB (1x4GB) Quad Rank x8 PC3-8500 (DDR3-1066) Registered CAS-7 Low
Power Memory Kit
500668-B21
500670-B21
500672-B21
500656-B21
500660-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed
memory configuration rules and guidelines, please use the Online DDR3
Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on
ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient
HP Optical Drives
HP 9.5mm SATA DVD-ROM Optical Drive
HP 9.5mm SATA DVD RW Optical Drive
HP Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the
HBA/controller, firmware, and the server backplane) should operate at the same
data transfer rate or the system bandwidth will be negotiated down to an
acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the
specific hard drive QuickSpecs for details.
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
HP 450GB 3G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
HP 300GB 3G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
HP 146GB 3G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty
Hard Drive
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard
Drive
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard
Drive
HP 1TB 3G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard
Drive
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
481045-B21
481047-B21
516828-B21
516816-B21
454232-B21
516814-B21
416127-B21
384854-B21
507616-B21
507614-B21
461137-B21
Page 16
QuickSpecs
HP ProLiant DL120 Generation 6
Core Options
HP 750GB 3G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty
Hard Drive
SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise
3yr Warranty Hard Drive
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise
3yr Warranty Hard Drive
HP 450GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise
3yr Warranty Hard Drive
HP 300GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise
3yr Warranty Hard Drive
HP 146GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise
3yr Warranty Hard Drive
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html
(Worldwide)
SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
461135-B21
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty
Hard Drive
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty
Hard Drive
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty
Hard Drive
SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty
Hard Drive
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty
Hard Drive
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13201_div/13201_div.html
(Worldwide)
507632-B21
454146-B21
458928-B21
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
516830-B21
516826-B21
454234-B21
417950-B21
417855-B21
507774-B21
507772-B21
458941-B21
571230-B21
458945-B21
571232-B21
458947-B21
Page 17
QuickSpecs
HP ProLiant DL120 Generation 6
Core Options
HP Networking
HP NC112T PCI Express Gigabit Server Adapter
HP NC360T PCI Express Dual Port Gigabit Server Adapter
HP NC364T PCI Express Quad Port Gigabit Server Adapter
HP NC365T 4-port Ethernet Server Adapter
HP NC373F PCI Express Multifunction Gigabit Server Adapter
HP NC373T PCI Express Multifunction Gigabit Server Adapter
HP NC375T PCI Express Quad Port Gigabit Server Adapter
HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information: www.hp.com/go/ProLiantNICs
503746-B21
412648-B21
435508-B21
593722-B21
394793-B21
394791-B21
538696-B21
458492-B21
HP I/O Expansion
Options
HP 1U PCI-X Riser Option Kit
NOTE: For PCI-X Card support only.
NOTE: The PCI-X Riser option is available to convert the full-length, full-height
PCI-Express slot to PCI-X slot for PCI-X cards only.
516230-B21
HP Power Supplies
HP 500W NHP Power Supply Option Kit
583437-B21
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 18
QuickSpecs
HP ProLiant DL120 Generation 6
Additional Options
Entry-Level Server
Management
HP LO100i Advanced Pack License, including 1 year of 24x7 Technical Support
and Updates, Electronic
NOTE: Electronic LTUs are only available through limited points of sales; if not
available, order a printed license entitlement certificate (xxxxxx-B2x) instead.
HP Insight Software
HP Insight Control server deployment
HP Insight Control server deployment, Electronic License including 1 year of
24x7 Technical Support and Updates
HP Insight Control server deployment , No Media, 1-Server License, including 1
year of 24x7 Technical Support and Updates
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase
multiple licenses with a single activation key.
NOTE: Electronic software is available in all countries except China and Japan.
Customers in China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate. The license
entitlement certificate must be redeemed online or via fax in order to obtain the
license activation key(s). Includes one year of 24 x 7 HP Software Technical
Support and Update Service.
NOTE: Licenses ship without media. The Insight Software Media Kit can be
ordered separately, or can be downloaded at:
http://www.hp.com/go/insightcontrol (click on Download button).
NOTE: For additional license options please see the Insight Control QuickSpecs
at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html
HP Security-TPM
HP Trusted Platform Module Option Kit
HP Storage Controllers SAS Controllers
Smart Array P212 Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
Smart Array P411 Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB Battery Backed Write Cache
Optional Upgrades
1G Flash Backed Write Cache
512MB Flash Backed Write Cache
HP Smart Array P411/1G Flash Backed Write Cache
HP Smart Array P411/512MB Flash Backed Write Cache
256 MB Cache Module
NOTE: Supported on HP Smart Array P212 Controller only.
512MB BBWC
NOTE: Supported on HP Smart Array P411 Controller only.
Battery Kit upgrade
NOTE: To enable BBWC on the 256MB cache.
NOTE: Supported on HP Smart Array P212 Controller, and HP Smart Array
P411only.
HP Smart Array Advanced Pack No Media 1-Server license including 1yr 24x7
Technical Support
NOTE: This part number can be used to purchase a single license or to order
multiple licenses with a single activation key. Customers will receive a license
entitlement certificate via e-mail. The license entitlement certificate must be
redeemed online or via fax in order to obtain the license activation key(s).
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
TA859AAE
T9082AAE
452151-B21
488069-B21
462828-B21
462834-B21
462830-B21
462832-B21
534562-B21
534916-B21
572531-B21
578229-B21
462968-B21
462967-B21
462969-B21
516471-B21
Page 19
QuickSpecs
HP ProLiant DL120 Generation 6
Additional Options
Include one year of 24x7 HP Software Technical Support Services.
HP CA ASSY 38" 4 SATA to MINI-SAS Kit
SCSI HBA
HP SC11Xe Host Bus Adapter
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13202_div/13202_div.html
(Smart Array P411 Controller)
http://h18000.www1.hp.com/products/quickspecs/13200_div/13200_div.html
(Smart Array Advanced Pack)
http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html
(SC11Xe HBA)
HP Backup & Recovery Data Protector Express
Software
HP Data Protector Express 4.0 SP1 Backup Server
HP Data Protector Express 4.0 SP1 for Microsoft Small Business Server
HP Data Protector Express Backup Server 4.0 SP1 Upgrade from Data Protector
Express Single Server Edition
591475-B21
412911-B21
BB117BA
BB118BA
BB117BT
NOTE: Only one of these Data Protector Express base products is required. To
see available options: http://www.hp.com/go/dataprotectorexpress
HP Tape Backup
NOTE: For the complete range of StorageWorks tape drives, autoloaders,
libraries and media see: http://www.hp.com/go/tape. For hardware and software
compatibility of HP StorageWorks tape backup products see:
http://www.hp.com/go/connect.
HP StorageWorks DAT 160 SAS Internal Tape Drive
NOTE: For installation into 1U SAS Rack-Mount Kit (AE459B) or 3U SAS RackMount Kit (AG576B). No peripheral bay available for installation into the server.
Connection using the HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
HP StorageWorks 1U USB Rack-Mount Kit with one DAT 320 USB Tape Drive
HP StorageWorks DAT 320 SAS Internal Tape Drive
NOTE: For installation into 1U SAS Rack-Mount Kit (AE459B) or 3U SAS RackMount Kit (AG576B). No peripheral bay available for installation into the server.
Connection using the HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive
NOTE: For installation into 1U SAS Rack-Mount Kit (AE459B) or 3U SAS RackMount Kit (AG576B). No peripheral bay available for installation into the server.
Connection using the HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive
NOTE: For installation into 1U SAS Rack-Mount Kit (AE459B) or 3U SAS RackMount Kit (AG576B). No peripheral bay available for installation into the server.
Connection using the HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Tape Autoloader
NOTE: Requires HP 1U Tape Autoloader Rack-Mount Kit (AH166A) for rack
installation. Connection using the HP SC44Ge SAS Host Bus Adapter (416096B21) recommended.
HP StorageWorks MSL2024 Tape Library with one LTO-3 Ultrium 920 SAS
Drive
NOTE: Connection using the HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Q1587A
AP835A
AJ830A
DW085A
EH847A
AH558A
AH559A
Page 20
QuickSpecs
HP ProLiant DL120 Generation 6
Additional Options
HP Disk Backup
NOTE: For the complete range of StorageWorks D2D Backup Systems see:
http://www.hp.com/go/d2d. For the complete range of StorageWorks RDX drives
and media see: http://www.hp.com/go/rdx. For hardware and software
compatibility of HP StorageWorks disk backup products see:
http://www.hp.com/go/connect.
HP StorageWorks D2D Backup Systems with Backup Data Deduplication
HP StorageWorks D2D2502i Backup System
NOTE: 1.5TB of usable network disk backup capacity. Network connected
appliance with connectivity using the iSCSI protocol. If the server requires a
hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is
recommended.
HP StorageWorks D2D2504i Backup System
NOTE: 3.0TB of usable network disk backup capacity. Network connected
appliance with connectivity using the iSCSI protocol. If the server requires a
hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is
recommended.
USB Removable Media RDX Disk Backup Systems
USB Removable Media RDX Disk Backup Systems
HP StorageWorks RDX320 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay
available for drive installation into the server. 320GB of disk capacity per data
cartridge.
HP StorageWorks RDX500 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay
available for drive installation into the server. 500GB of disk capacity per data
cartridge.
HP StorageWorks RDX750 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay
available for drive installation into the server. 750GB of disk capacity per data
cartridge.
HP Uninterruptible
Power Systems
HP Rack-mountable UPS
HP UPS R1500 G2
HP, R1.5kVA UPS, 1U, NA
HP, R1.5kVA UPS, 1U, INTL
HP, R1.5kVA UPS, 1U, JPN/TW
NOTE: Please see QuickSpecs Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12507_div/12507_div.html
(Worldwide)
HP R/T3000 UPS
HP R/T3000 UPS, High voltage, NA/JPN
HP R/T3000 UPS, High voltage, detachable inlet cord INTL
NOTE: Please see QuickSpecs Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/10671_div/10671_div.html
(Worldwide)
HP Rack-Mountable R5500 UPS
HP R5500 VA UPS, INTL
HP R5500 VA UPS, NA/JPN
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
EJ001B
EJ002B
AJ767A
AJ934A
AW577A
AF419A
AF418A
AF421A
AF453A
AF454A
AF416A
AF426A
Page 21
QuickSpecs
HP ProLiant DL120 Generation 6
Additional Options
NOTE: Please see QuickSpecs Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/11871_div/11871_div.html
(Worldwide)
HP Power Distribution HP Monitored Power Distribution Unit: Full Rack Version
Units
HP 8.6 kVA S1324 Monitored PDU- single input, 3Ø, 24A (NA/JPN)
HP 8.3 S1140 Monitored PDU- single input, 1Ø, 40A (NA/JPN)
HP 11 kVA S1316 Monitored PDU- single input, 3Ø, 16A (INTL)
HP 7.3 kVA S1132 Monitored PDU- single input, 1Ø, 32A (INTL)
HP Monitored Power Distribution Unit: Half Rack Version
HP 4.9 kVA S124 Monitored PDU- single input, 1Ø, 24A (NA/JPN)
HP 7.3 kVA S132 Monitored PDU- single input, 1Ø, 32A (INTL)
Modular Power Distribution Units 1U/0U (Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with the unit (optimized for 10000 and
9000 series racks).
HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240
VAC) (NA, Japan)
HP Modular Power Distribution Units (mPDU), High Voltage 8.3 kVA Modular
PDU, 40A, NA/JPN
HP Modular Power Distribution Units (mPDU), High Volt Model, 32A (200-240
VAC) (Int'l)
HP Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240
VAC) (WW)
NOTE: This PDU has a detachable input power cord and allows for adaptability
to country specific power requirements.
NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U
Modular PDUs) QuickSpecs for additional options including shorter jumper
cables and country specific power cords:
http://h18000.www1.hp.com/products/quickspecs/11041_div/11041_div.html
(Worldwide)
NOTE: For additional information on HP Power Distribution Units including
accessories please go to: www.hp.com/go/pdu.
HP Rack Series
10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html
(Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the
following URL: http://www.hp.com/go/rackandpower.
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
AF504A
AF506A
AF508A
AF510A
AF914A
AF915A
252663-D72
252663-D73
252663-B31
252663-B24
AF001A
AF002A
Page 22
QuickSpecs
HP ProLiant DL120 Generation 6
Additional Options
HP Rack Options
HP KVM Switch Options
HP 0x2x16 KVM SVR CNSL G2 VM CAC SW
HP 0x2x32 KVM SVR CNSL G2 VM CAC SW
HP 1x1Ex8 KVM IP CNSL G2 VM CAC SW
HP 2x1Ex16 KVM IP CNSL G2 VM CAC SW
HP 4x1Ex32 KVM IP CNSL G2 VM CAC SW
HP Serial Console Server Options
Server console switch 0x2x8
Server console switch 0x2x16
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console
Servers. Additional Serial Adapters and Cat5e cables can be found at the
following URL: http://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console
servers, rack mount monitors, keyboards and all related options please see the
following URL: http://www.hp.com/go/kvm.
AF618A
AF619A
AF620A
AF621A
AF622A
AF616A
AF617A
HP Care Pack Services Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
Hardware Services Next Business Day On-Site Service
9-Hour x 5-Day Coverage, 3 Years, Electronic
Installation Services
Hardware Services 6-Hour Call to Repair On-Site Service
Hardware Installation, Electronic
NOTE: For more information, customer/resellers can contact:
http://www.hp.com/hps/
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
UJ252E
UJ253E
UJ251E
UJ254E
UJ261E
Page 23
QuickSpecs
HP ProLiant DL120 Generation 6
Memory
HP ProLiant DL120 G6 Models
NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
Standard Memory
SATA Models:
4GB of PC3-10600E DDR3 UDIMM running at 1333MHz with ECC capabilities memory installed.
SAS Models
4GB of PC3-10600R RDIMM running at 1333MHz
Standard Memory Plus Optional Memory
Up to 16 GB memory is available with the optional installation of 4 x 4GB PC3-10600E UDIMM ECC DDR3 SDRAM DIMM
Memory kits.
Up to 12GB memory is available with the optional installation of 6 x 2GB PC3-10600R RDIMM DDR3 SDRAM DIMM
Memory kits
Up to 16 GB memory is available with the optional installation of 4 x 4GB PC3-8500R RDIMM DDR3 DIMM Memory kits.
NOTE: The below chart does not represent all possible memory configurations.
NOTE: For best performance, it is recommended that customer installs memory in identical pairs (Slots 1 and 3 are
interleaving pair. Slots 2 and 4 are interleaving pair).
Some DIMM installation guidelines are summarized below:
For the HP ProLiant DL120 G6 server with six (6) memory slots
There are two (2) channels per server
There are three (3) DIMM slots for each memory channel; six (6) total slots
Memory channel 1 consists of the three (3) DIMMs that are closest to the processor
Memory channel 2 consists of the three (3) DIMMs that are furthest from the processor
Different processor (CPU) has different memory support
Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)
It is not required, but it is recommended to load the channels similarly if possible
Support up to 4 DIMMs (2 DIMMs per channel) max 8GB PC3 10600E (DDR3 1333 MHz)
Support up to 4 DIMMs ( 2 DIMMs per channel) max 16GB PC3-8500R (DDR3-1066 MHz)
Support up to 6 DIMMs (3 DIMMs per channel) max 12GB PC3-10600R (DDR3-1333 MHz). Support single, double
and quad ranks of DIMM
Populate DIMMs from heaviest load (double-rank) to lightest load (single-rank) within a channel
Heaviest load (DIMM with most ranks) within a channel goes furthest from the CPU
No mixing DIMM voltage; all DIMMs must be the same voltage
The UDIMM installing sequence:
DIMM1E
1 DIMMs
Empty
2 DIMMs
Empty
4 DIMMs
Empty
DIMM2C
Empty
Empty
DIMM
DIMM3A
DIMM
DIMM
DIMM
DIMM4F
Empty
Empty
Empty
DIMM5D
Empty
Empty
DIMM
DIMM6B
Empty
DIMM
DIMM
The RDIMM installing sequence:
DIMM1E
1 DIMMs
Empty
2 DIMMs
Empty
4 DIMMs
Empty
6 DIMMs
DIMM
DIMM2C
Empty
Empty
DIMM
DIMM
DIMM3A
DIMM
DIMM
DIMM
DIMM
DIMM4F
Empty
Empty
Empty
DIMM
DIMM5D
Empty
Empty
DIMM
DIMM
DIMM6B
Empty
DIMM
DIMM
DIMM
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 24
QuickSpecs
HP ProLiant DL120 Generation 6
Memory
Following are memory options available from HP:
HP Memory
Unbuffered with ECC DIMMs (UDIMM)
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
Registered DIMMs (RDIMM)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9
Memory Kit
HP 4GB (1x4GB) Quad Rank x8 PC3-8500 (DDR3-1066) Registered CAS-7 Low
Power Memory Kit
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed
memory configuration rules and guidelines, please use the Online DDR3
Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on
ProLiant energy efficient features, see: www.hp.com/go/proliant-energy-efficient
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
500668-B21
500670-B21
500672-B21
500656-B21
500660-B21
Page 25
QuickSpecs
HP ProLiant DL120 Generation 6
Storage
1- 4
A
Four SATA or SAS drive bays
Optical Drive Bay: Optional DVD-ROM, or DVD-RW
drive
Drive Support
Removable Media
9.5mm IDE DVD-ROM or
DVD-RW Drive
Quantity
Supported
Position
Supported
Up to 1
A
Controller
HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
NOTE: Transfer rate:3Gb/s SATA
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane)
should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all
components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
Quantity
Position
Supported
Supported Controller
600GB 6G SAS 15K DP
Up to 4
1-4
HP Smart Array P212 Controller
450GB 6G SAS 15K DP
NOTE: Support for transfer rates up to 3 Gb/s
450GB 3G SAS 15K DP
300GB 6G SAS 15K DP
300GB 3G SAS 15K DP
146GB 3G SAS 15K DP
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
Quantity
Position
Supported
Supported
1TB 3G SAS 7.2K DP
Up to 4
1-4
750GB 3G SAS 15K DP
Controller
HP Smart Array P212 Controller
NOTE: Support for transfer rates up to 3 Gb/s
SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
Quantity
Position
Supported
Supported Controller
600GB 6G SAS 15K DP
Up to 4
1-4
HP Smart Array P212 Controller
450GB 6G SAS 15K DP
NOTE: Support for transfer rates up to 3 Gb/s
450GB 3G SAS 15K DP
300GB 3G SAS 15K DP
146GB 3G SAS 15K DP
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 26
QuickSpecs
HP ProLiant DL120 Generation 6
Storage
SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
Quantity
Position
Supported
Supported
2TB 3G SATA 7.2K
Up to 4
1-4
1TB 3G SATA 7.2K
750GB 3G SATA 7.2K
500GB 3G SATA 7.2K
250GB 3G SATA 7.2K
SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
Quantity
Position
Supported
Supported
2TB 3G SATA 7.2K
Up to 4
1-4
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives
Quantity
Position
Supported
Supported
250GB 3G SATA 7.2K
Up to 4
1-4
160GB 3G SATA 7.2K
SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives
Quantity
Position
Supported
Supported
250GB 3G SATA 7.2K
Up to 4
1-4
160GB 3G SATA 7.2K
SATA Non-Hot Plug LFF (3.5-inch) Drives
Quantity
Position
Supported
Supported
250GB 1.5G SATA 7.2K
Up to 4
1-4
160GB 1.5G SATA 7.2K
Controller
HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
NOTE: Transfer rate:3Gb/s SATA
Controller
HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
NOTE: Transfer rate:3Gb/s SATA
Controller
HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
NOTE: Transfer rate:3Gb/s SATA
Controller
HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
NOTE: Transfer rate:3Gb/s SATA
Controller
HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
NOTE: Transfer rate:3Gb/s SATA
Maximum Storage Capacity - (SAS drives)
Internal
8.0TB (4 x 2TB SAS)
External
28.0TB (1 x (14 x 2TB SAS))
Total
36.0TB
Maximum Storage Capacity - (SATA Drives)
Internal
8.0TB (4 x 2TB SATA)
External
24.0TB [1 x (12 x 2TGB SATA)]
Total
32.0TB
NOTE: In order to implement integrated SATA RAID with Easy 'set-up CD' on Windows 2000/2003, the use of a floppy drive
is necessary.
Tape and Disk Backup
NOTE: For the complete range of StorageWorks tape drives, autoloaders, libraries and media, including the internal fitting
models, see: http://www.hp.com/go/tape. For the complete range of StorageWorks D2D Backup Systems see:
http://www.hp.com/go/d2d. For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx.
For hardware and software compatibility of HP StorageWorks disk and tape backup products see:
http://www.hp.com/go/connect.
Position
Recommended Controller
Part Number
HP StorageWorks SCSI
External
HP SC11Xe Host Bus Adapter
412911-B21
Tape Drives
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 27
QuickSpecs
HP ProLiant DL120 Generation 6
Storage
Please check the full compatibility information at:
http://www.hp.com/go/connect
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit
HP StorageWorks USB
Tape Drives
DAT 40
DAT 72
DAT 160
DAT 320
1U USB Rack-Mount Kit
External
USB 2.0 Port
HP StorageWorks SAS
Tape Drives
DAT 160
DAT 320
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-4 Ultrium 1760
LTO-4 Ultrium 1840
LTO-5 Ultrium 3000
LTO-5 Ultrium 3280
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP Smart Array P212 SAS controller
HP StorageWorks SCSI
Tape Autoloaders
DAT 72x10 Autoloader
1/8 G2 Autoloader
External
HP StorageWorks SCSI
Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External
HP StorageWorks SAS
Tape Autoloaders and
Libraries
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
External
N/A
462828-B21
Please check the full compatibility information at:
http://www.hp.com/go/connect
HP SC11Xe Host Bus Adapter
412911-B21
Please check the full compatibility information at:
http://www.hp.com/go/connect
HP U320e SCSI Dual Channel Controller
AH627A
Please check the full compatibility information at:
http://www.hp.com/go/connect
HP Smart Array P212 SAS controller
462828-B21
Please check the full compatibility information at:
http://www.hp.com/go/connect
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 28
QuickSpecs
HP ProLiant DL120 Generation 6
Storage
HP StorageWorks Fibre
Channel Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External
Please consult the EBS connectivity matrix at:
http://www.hp.com/go/ebs for connectivity information
and the supported Fibre Channel HBAs shown in this
QuickSpecs.
HP StorageWorks USB
RDX Removable Disk
Backup System
RDX160
RDX320
RDX500
RDX750
External
USB 2.0 port
HP StorageWorks D2D
Backup Systems, iSCSI
D2D2500i
D2D4000i
External
Embedded Network Controller. If the server requires a
hardware iSCSI initiator, the QLogic QLA4050 Host
Bus Adapter is recommended.
HP StorageWorks D2D
Backup Systems, Fibre
Channel
D2D4000fc
External
Direct server attach is not supported, requires
connection via SAN fabric. See:
http://www.hp.com/go/connect
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
N/A
Page 29
QuickSpecs
HP ProLiant DL120 Generation 6
Technical Specifications
System Unit
Dimensions (H x W x D) 4.32 x 44.81 x 70.0 mm (1.69" x 17.64" x 27.56")
(with bezel)
Weight
Maximum
31.49 lb (14.3kg)
(approximate)
(four hard drives, power
supply, and processor
installed)
Minimum
28.2lb (12.8kg)
(one hard drive, power
supply, and processor
installed)
Input Requirements
Range Line Voltage
90 - 132 VAC,
(per power supply)
180 - 264 VAC
Rated Input Current
6 A (at 100 VAC),
3 A (at 200 VAC)
Rated Input Frequency 47 to 63 Hz
Rated Input Power
<550W (at 100 VAC)
550W (at 200 VAC)
BTU Rating
Maximum
1314 BTU/hr (at 100 VAC),
1314 BTU/hr (at 200 VAC)
Power Specifications To review typical system power ratings use the Power Advisor which is
available via the online tool located at URL: www.hp.com/go/proliantenergy-efficient or www.hp.com/go/hppoweradvisor
Power Supply Output
(per power supply)
System Inlet
Temperature
Relative Humidity
(non-condensing)
Altitude
DA - 13504
- Click on the system of interest. Example: DL120 G6
- Follow the instructions of the next screens.
Rated Steady-State
400 W (at 100 VAC),
Power
400 W (at 200 VAC)
Maximum Peak Power 430 W (at 100 VAC),
430 W (at 200 VAC)
Operating
10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 305 m
(1.8°F per every 1000 ft) above sea level to a
maximum of 3050 m (10,000 ft), no direct
sustained sunlight. Maximum rate of change
is 10°C/hr (18°F/hr). The upper limit may be
limited by the type and number of options
installed.
System performance may be reduced if
operating with a fan fault or above 30°C
(86°F).
Non-operating
-30° to 65°C (-22° to 149°F). Maximum rate of
change is 20°C/hr (36°F/hr).
Operating
10 to 90% relative humidity (Rh), 28°C
(82.4°F) maximum wet bulb temperature, noncondensing.
Non-operating
5 to 95% relative humidity (Rh), 38.7°C
(101.7°F) maximum wet bulb temperature,
non-condensing.
Operating
3050 m (10,000 ft). This value may be limited
by the type and number of options installed.
Maximum allowable altitude change rate is
457 m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft). Maximum allowable
altitude change rate is 457 m/min (1500
ft/min).
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 30
QuickSpecs
HP ProLiant DL120 Generation 6
Technical Specifications
Acoustic Noise
Emissions
Classification (EMC)
Power Supply
Input voltage
specifications
Input Specifications
BTU Rating
Ambient temperature
range
Relative humidity
(non-condensing)
Dielectric voltage
withstand
Maximum Wet Bulb
Temperature
DA - 13504
Listed are the declared A-Weighted sound power levels (LWAd) and
declared average bystander position A-Weighted sound pressure levels
(LpAm) when the product is operating in a 23°C ambient environment.
Noise emissions were measured in accordance with ISO 7779 (ECMA
74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
LWAd
6.30 B
LpAm
44.1 dBA
Operating
LWAd
6.34 B
LpAm
44.4 dBA
FCC Rating
Class A
Normative Standards CISPR 22; EN55022; EN55024; FCC CFR 47,
Pt 15; ICES-003; CNS13438; GB9254; EN
61000-3-2; EN 61000-3-3; EN 60950-1; IEC
60950-1
NOTE: Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family
of products is eligible to bear the appropriate compliance logos and
statements.
Rated input voltage
100 VAC to 240 VAC
Rated input line
Frequency range
Rated input power
90 VAC to 264VAC
47 to 63 Hz
@ 115V input, Rated input power = 500W
(assume output wattage=400W
@ 230V input, Rated input power = 500W
(assume output wattage=400W)
6 A, 3 A (110 V, 220 V)
400W (rated)
Rated input current
Steady state power
1710 BTU/hr
Operating
Non-operating
Operating
Non-operating
Input to output
Input to ground
104° F (40° C)
41° to 122° F (5° to 50° C)
-40° to 167° F (-40° to 75° C)
5% to 95%
5% to 95%
2150 VDC minimum, withstand 1 min
2150 VDC minimum, withstand 1 min
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 31
QuickSpecs
HP ProLiant DL120 Generation 6
Technical Specifications
Integrated Serial ATA Simultaneous drive
Controller
transfer channels
Transfer rate
synchronous
(maximum theoretical)
Data transfer method
4 channels
150 MB/s per channel; 300 MB/s in RAID 0 pair
Intel® 82801IR Integrated Serial ATA Host Controller (non-RAID mode)
Intel® 82801IR Integrated Serial ATA Host Controller (RAID Mode)
Drive support
Serial ATA
Data transfer modes
Legacy Mode
Combined Mode
Protocol
Serial ATA
Feature
NCQ (Native Command Queuing); AHCI (Advanced Host Controller
Interface)
RAID levels supported 0, 1
RAID Features
Supports multiple logical volumes
Setup through ROM based Array Configuration Utility
Installation scripting support
NOTE: This controller does not support Hot Plug functions or LED
functions.
RAID OS Support
Microsoft Windows Server 2003
NOTE: In order to implement integrated SATA RAID with Smart Start
7.90 on Windows 2000/2003, the use of a floppy drive is necessary.
Linux (Red Hat, SuSE, UnitedLinux)
Embedded HP NC107i Network Interface
PCIe Gigabit Server
Adapter
10Base-T/
100Base-TX/
1000Base-TX
Combines a triple-speed IEEE 802.3TM - Compliant Media Access
Controller (MAC) with a triple-speed Ethernet transceiver.
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method Four lane (x4), 100MHz PCI Express Reference Clock
Controller
BCM5723
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half100 Mb/s
Duplex)
100Base-TX (Full200 Mb/s
Duplex)
1000Base-TX (Half and 2000Mb/s
Full-Duplex)
Connector
RJ-45 connector
Cable Support
10Base-T
Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX
Category 5 UTP; up to 328 ft (100 m)
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 32
QuickSpecs
HP ProLiant DL120 Generation 6
Technical Specifications
HP 160GB 3G SATA
7.2K rpm LFF (3.5-inch)
Non-hot Plug Entry 1yr
Warranty Hard Drive
458947-B21
Capacity
Height
Maximum drive
dimension
Width
Depth
Maximum drive
dimension
Interface
Transfer Rate
(Maximum)
Native Command
Queuing
Seek Time
(typical reads, including
settling)
160,041MB
1.028 in. (26.1 mm)
4.00 in (101.6 mm)
5.787 in (147.0 mm)
Serial ATA
3Gb/s
Supported
Single Track
Average
Full-Stroke
Rotational Speed
2.0 ms
<11 ms
22.0 ms
7,200 rpm
Physical Configuration Bytes/Sector
512
Logical Blocks
312,581,808
Operating Temperature50° to 95° F (10° to 35° C)
(system inlet air
temperature)
Environment-friendly
Products and
Approach
End-of-life
Management and
Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and
recycling programs in many geographic areas. For trade-in information,
please go to: http://www.hp.com/go/green. To recycle your product,
please go to: http://www.hp.com/go/green or contact your nearest HP
sales office. Products returned to HP will be recycled, recovered or
disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to
provide treatment information for each product type for use by treatment
facilities. This information (product disassembly instructions) is posted
on the Hewlett Packard web site at: http://www.hp.com/go/green. These
instructions may be used by recyclers and other WEEE treatment
facilities as well as HP OEM customers who integrate and re-sell HP
equipment.
© Copyright 2010 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation.
Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
DA - 13504
Worldwide QuickSpecs — Version 8 — 8/20/2010
Page 33
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
