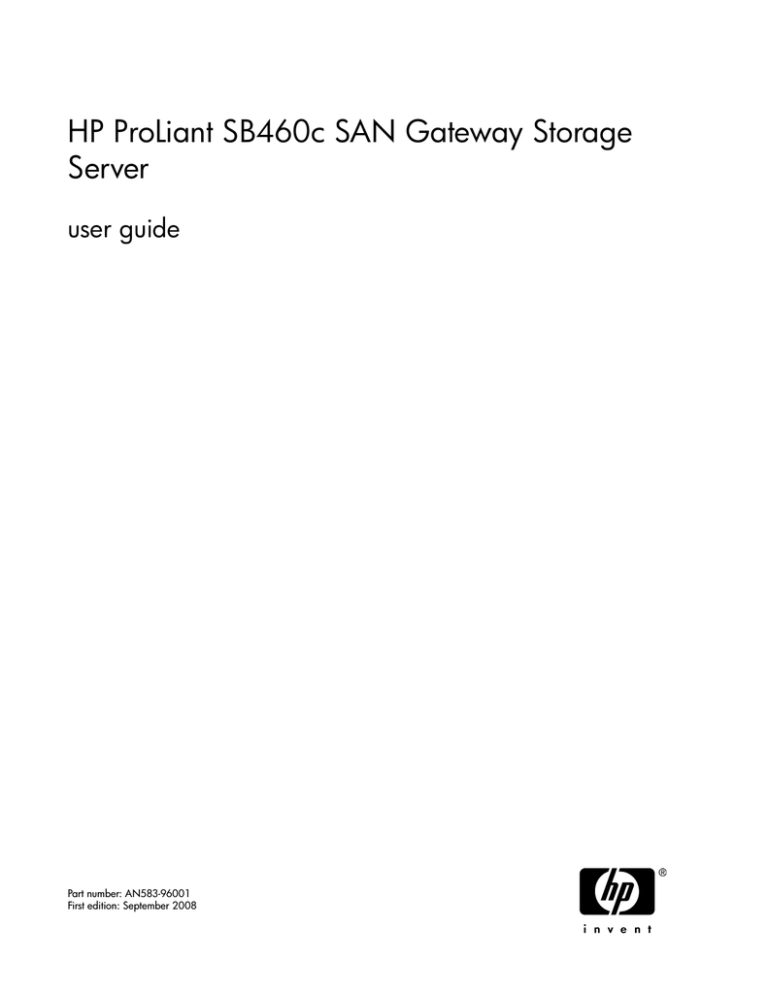

HP ProLiant SB460c SAN Gateway Storage
Server
user guide
Part number: AN583-96001
First edition: September 2008
Legal and notice information
© Copyright 1999, 2008 Hewlett-Packard Development Company, L.P.
Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211
and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items
are licensed to the U.S. Government under vendor's standard commercial license.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set
forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Intel, Itanium, Pentium, Intel Inside, and the Intel Inside logo are trademarks or registered trademarks of Intel Corporation or
its subsidiaries in the United States and other countries.
Microsoft, Windows, Windows XP, and Windows NT are U.S. registered trademarks of Microsoft Corporation.
Adobe and Acrobat are trademarks of Adobe Systems Incorporated.
Java is a US trademark of Sun Microsystems, Inc.
Oracle is a registered US trademark of Oracle Corporation, Redwood City, California.
UNIX is a registered trademark of The Open Group.
Contents
About this guide ................................................................................. 11
Intended audience ....................................................................................................................
Related documentation ..............................................................................................................
Document conventions and symbols .............................................................................................
Rack stability ............................................................................................................................
HP technical support .................................................................................................................
Customer self repair ..................................................................................................................
Product warranties ....................................................................................................................
Subscription service ..................................................................................................................
HP websites .............................................................................................................................
Documentation feedback ...........................................................................................................
11
11
11
12
13
13
13
13
13
14
1 Storage management overview .......................................................... 15
Storage management elements ...................................................................................................
Storage management example .............................................................................................
Physical storage elements ....................................................................................................
Arrays ........................................................................................................................
Fault tolerance .............................................................................................................
Online spares .............................................................................................................
Logical storage elements .....................................................................................................
Logical drives (LUNs) ....................................................................................................
Partitions ....................................................................................................................
Volumes .....................................................................................................................
File system elements ............................................................................................................
File sharing elements ..........................................................................................................
Volume Shadow Copy Service overview ................................................................................
Using storage elements .......................................................................................................
Clustered server elements ....................................................................................................
Network adapter teaming ..........................................................................................................
Management tools ....................................................................................................................
HP Systems Insight Manager ................................................................................................
Management Agents ..........................................................................................................
15
15
16
17
18
18
18
18
19
19
20
20
20
21
21
21
21
21
22
2 File server management .................................................................... 23
File services features in Windows Storage Server 2003 R2 ............................................................
Storage Manager for SANs .................................................................................................
Single Instance Storage .......................................................................................................
File Server Resource Manager ..............................................................................................
Windows SharePoint Services ..............................................................................................
HP Storage Server Management Console ..............................................................................
File services management ..........................................................................................................
Configurable and pre-configured storage ..............................................................................
Storage management utilities ...............................................................................................
Array management utilities ............................................................................................
HP ProLiant SB460c SAN Gateway Storage Server
23
23
23
23
24
24
24
25
25
25
3
Array Configuration Utility ............................................................................................ 26
Disk Management utility ............................................................................................... 27
Guidelines for managing disks and volumes .......................................................................... 27
Scheduling defragmentation ................................................................................................ 27
Disk quotas ....................................................................................................................... 28
Adding storage .................................................................................................................. 29
Expanding storage ...................................................................................................... 29
Extending storage using Windows Storage Utilities .......................................................... 29
Expanding storage for EVA arrays using Command View EVA ........................................... 30
Expanding storage using the Array Configuration Utility ................................................... 30
Volume shadow copies .............................................................................................................. 31
Shadow copy planning ....................................................................................................... 31
Identifying the volume .................................................................................................. 31
Allocating disk space ................................................................................................... 32
Identifying the storage area .......................................................................................... 33
Determining creation frequency ..................................................................................... 33
Shadow copies and drive defragmentation ............................................................................ 33
Mounted drives .................................................................................................................. 34
Managing shadow copies ................................................................................................... 34
The shadow copy cache file .......................................................................................... 35
Enabling and creating shadow copies ............................................................................ 36
Viewing a list of shadow copies ..................................................................................... 37
Set schedules .............................................................................................................. 37
Viewing shadow copy properties ................................................................................... 37
Redirecting shadow copies to an alternate volume ........................................................... 38
Disabling shadow copies .............................................................................................. 38
Managing shadow copies from the storage server desktop ...................................................... 39
Shadow Copies for Shared Folders ....................................................................................... 39
SMB shadow copies .................................................................................................... 40
NFS shadow copies ..................................................................................................... 41
Recovery of files or folders ............................................................................................ 42
Recovering a deleted file or folder .................................................................................. 42
Recovering an overwritten or corrupted file ...................................................................... 43
Recovering a folder ...................................................................................................... 43
Backup and shadow copies .......................................................................................... 44
Shadow Copy Transport ...................................................................................................... 44
Folder and share management ................................................................................................... 45
Folder management ............................................................................................................ 45
Share management ............................................................................................................ 51
Share considerations .................................................................................................... 51
Defining Access Control Lists ......................................................................................... 52
Integrating local file system security into Windows domain environments ............................. 52
Comparing administrative (hidden) and standard shares ................................................... 52
Managing shares ........................................................................................................ 53
File Server Resource Manager .................................................................................................... 53
Quota management ........................................................................................................... 53
File screening management ................................................................................................. 54
Storage reports .................................................................................................................. 54
Other Windows disk and data management tools ......................................................................... 54
Additional information and references for file services .................................................................... 54
Backup ............................................................................................................................. 54
HP StorageWorks Library and Tape Tools .............................................................................. 55
Antivirus ............................................................................................................................ 55
Security ............................................................................................................................ 55
More information ............................................................................................................... 55
4
3 Print services ................................................................................... 57
Microsoft Print Management Console ..........................................................................................
New or improved HP print server features ....................................................................................
HP Web Jetadmin ..............................................................................................................
HP Install Network Printer Wizard ........................................................................................
HP Download Manager for Jetdirect Printer Devices ................................................................
Microsoft Print Migrator utility ..............................................................................................
Network printer drivers .......................................................................................................
Print services management .........................................................................................................
Microsoft Print Management Console ....................................................................................
HP Web Jetadmin installation ..............................................................................................
Web-based printer management and Internet printing .............................................................
Planning considerations for print services ...............................................................................
Print queue creation ............................................................................................................
Sustaining print administration tasks ............................................................................................
Driver updates ...................................................................................................................
Print drivers .................................................................................................................
User-mode vs. kernel-mode drivers ..................................................................................
Kernel-mode driver installation blocked by default ............................................................
HP Jetdirect firmware ....................................................................................................
Printer server scalability and sizing .......................................................................................
Backup .............................................................................................................................
Best practices ...........................................................................................................................
Troubleshooting ........................................................................................................................
Additional references for print services .........................................................................................
57
57
57
57
57
57
58
58
58
58
58
59
59
60
60
60
60
60
60
61
61
61
62
62
4 Microsoft Services for Network File System (MSNFS) ............................. 63
MSNFS Features .......................................................................................................................
UNIX Identity Management .................................................................................................
MSNFS use scenarios ................................................................................................................
MSNFS components ...........................................................................................................
Administering MSNFS ..................................................................................................
Server for NFS ............................................................................................................
User Name Mapping ...................................................................................................
Microsoft Services for NFS troubleshooting ......................................................................
Microsoft Services for NFS command-line tools ................................................................
Optimizing Server for NFS performance .........................................................................
Print services for UNIX ..................................................................................................
63
63
64
64
65
65
70
72
72
72
72
5 Other network file and print services ................................................... 75
File and Print Services for NetWare (FPNW) ................................................................................
Installing Services for NetWare ............................................................................................
Managing File and Print Services for NetWare ......................................................................
Creating and managing NetWare users ................................................................................
Adding local NetWare users .........................................................................................
Enabling local NetWare user accounts ...........................................................................
Managing NCP volumes (shares) .........................................................................................
Creating a new NCP share ...........................................................................................
Modifying NCP share properties ...................................................................................
Print Services for NetWare ..................................................................................................
Point and Print from Novell to Windows Server 2003 .......................................................
Additional resources ....................................................................................................
AppleTalk and file services for Macintosh .....................................................................................
HP ProLiant SB460c SAN Gateway Storage Server
75
75
76
77
78
78
79
80
80
80
80
81
81
5
Installing the AppleTalk protocol ...........................................................................................
Installing File Services for Macintosh .....................................................................................
Completing setup of AppleTalk protocol and shares ................................................................
Print services for Macintosh ..................................................................................................
Installing Print Services for Macintosh ....................................................................................
Point and Print from Macintosh to Windows Server 2003 ........................................................
81
81
81
82
82
82
6 Enterprise storage servers .................................................................. 83
Windows Server Remote Administration Applet ............................................................................
Microsoft iSCSI Software Target ..................................................................................................
Virtual disk storage .............................................................................................................
Snapshots .........................................................................................................................
Wizards ............................................................................................................................
Create iSCSI Target Wizard ..........................................................................................
Create Virtual Disk Wizard ...........................................................................................
Import Virtual Disk Wizard ............................................................................................
Extend Virtual Disk Wizard ...........................................................................................
Schedule Snapshot Wizard ...........................................................................................
Hardware provider .............................................................................................................
Cluster support ...................................................................................................................
83
84
84
84
85
85
86
87
87
87
88
88
7 Cluster administration ....................................................................... 89
Cluster overview ....................................................................................................................... 89
Cluster terms and components .................................................................................................... 90
Nodes .............................................................................................................................. 90
Resources .......................................................................................................................... 90
Cluster groups ................................................................................................................... 91
Virtual servers .................................................................................................................... 91
Failover and failback .......................................................................................................... 91
Quorum disk ..................................................................................................................... 91
Cluster concepts ....................................................................................................................... 92
Sequence of events for cluster resources ................................................................................ 92
Hierarchy of cluster resource components .............................................................................. 93
Cluster planning ....................................................................................................................... 93
Storage planning ............................................................................................................... 94
Network planning .............................................................................................................. 94
Protocol planning ............................................................................................................... 95
Preparing for cluster installation .................................................................................................. 96
Before beginning installation ............................................................................................... 96
Using multipath data paths for high availability ...................................................................... 96
Enabling cluster aware Microsoft Services for NFS (optional) .................................................... 96
Checklists for cluster server installation .................................................................................. 97
Network requirements .................................................................................................. 97
Shared disk requirements .............................................................................................. 98
Cluster installation ..................................................................................................................... 98
Setting up networks ............................................................................................................ 99
Configuring the private network adapter ......................................................................... 99
Configuring the public network adapter .......................................................................... 99
Renaming the local area connection icons ...................................................................... 99
Verifying connectivity and name resolution ...................................................................... 99
Verifying domain membership ..................................................................................... 100
Setting up a cluster account ........................................................................................ 100
About the Quorum disk .............................................................................................. 100
Configuring shared disks ............................................................................................ 100
6
Verifying disk access and functionality ..........................................................................
Configuring cluster service software ...........................................................................................
Using Cluster Administrator ...............................................................................................
Using Cluster Administrator remotely ............................................................................
The HP Storage Server Management Console ................................................................
Creating a cluster .............................................................................................................
Adding nodes to a cluster ..................................................................................................
Geographically dispersed clusters ......................................................................................
Cluster groups and resources, including file shares ......................................................................
Cluster group overview .....................................................................................................
Node-based cluster groups .........................................................................................
Load balancing .........................................................................................................
File share resource planning issues .....................................................................................
Resource planning .....................................................................................................
Permissions and access rights on share resources ...........................................................
NFS cluster-specific issues ...........................................................................................
Non cluster aware file sharing protocols ..............................................................................
Adding new storage to a cluster .........................................................................................
Creating physical disk resources ..................................................................................
Creating file share resources .......................................................................................
Creating NFS share resources .....................................................................................
Shadow copies in a cluster ................................................................................................
Extend a LUN in a cluster ..................................................................................................
MSNFS administration on a server cluster ............................................................................
Best practices for running Server for NFS in a server cluster .............................................
Print services in a cluster ..........................................................................................................
Creating a cluster printer spooler ........................................................................................
Advanced cluster administration procedures ...............................................................................
Failing over and failing back .............................................................................................
Restarting one cluster node ................................................................................................
Shutting down one cluster node ..........................................................................................
Powering down the cluster .................................................................................................
Powering up the cluster .....................................................................................................
Additional information and references for cluster services .............................................................
100
100
101
101
101
101
101
102
102
102
102
103
103
103
103
104
104
104
105
105
105
105
106
106
106
107
107
108
108
108
108
109
109
110
8 Troubleshooting, servicing, and maintenance ..................................... 111
Troubleshooting the storage server ............................................................................................ 111
WEBES (Web Based Enterprise Services) ................................................................................... 112
Maintenance and service ......................................................................................................... 112
Maintenance and service documentation ............................................................................. 112
Maintenance updates ....................................................................................................... 112
System updates .......................................................................................................... 112
Firmware updates ............................................................................................................. 112
Certificate of Authenticity ......................................................................................................... 113
9 System recovery ............................................................................. 115
The System Recovery DVD ........................................................................................................ 115
To restore a factory image ....................................................................................................... 115
Systems with a DON'T ERASE partition ...................................................................................... 115
Managing disks after a restoration ............................................................................................ 115
A Regulatory compliance and safety ................................................... 117
Federal Communications Commission notice .............................................................................. 117
HP ProLiant SB460c SAN Gateway Storage Server
7
Class A equipment ...........................................................................................................
Class B equipment ............................................................................................................
Declaration of conformity for products marked with the FCC logo, United States only ................
Modifications ..................................................................................................................
Cables ............................................................................................................................
Laser compliance ....................................................................................................................
International notices and statements ..........................................................................................
Canadian notice (Avis Canadien) .......................................................................................
Class A equipment .....................................................................................................
Class B equipment .....................................................................................................
European Union notice ......................................................................................................
BSMI notice .....................................................................................................................
Japanese notice ...............................................................................................................
Korean notice A&B ...........................................................................................................
Class A equipment .....................................................................................................
Class B equipment .....................................................................................................
Safety ...................................................................................................................................
Battery replacement notice ................................................................................................
Taiwan battery recycling notice ..........................................................................................
Power cords .....................................................................................................................
Japanese power cord notice ..............................................................................................
Electrostatic discharge .......................................................................................................
Preventing electrostatic discharge .................................................................................
Grounding methods ...................................................................................................
Waste Electrical and Electronic Equipment (WEEE) directive .........................................................
Czechoslovakian notice .....................................................................................................
Danish notice ..................................................................................................................
Dutch notice ....................................................................................................................
English notice ..................................................................................................................
Estonian notice ................................................................................................................
Finnish notice ...................................................................................................................
French notice ...................................................................................................................
German notice .................................................................................................................
Greek notice ....................................................................................................................
Hungarian notice .............................................................................................................
Italian notice ....................................................................................................................
Latvian notice ..................................................................................................................
Lithuanian notice ..............................................................................................................
Polish notice ....................................................................................................................
Portuguese notice .............................................................................................................
Slovakian notice ...............................................................................................................
Slovenian notice ...............................................................................................................
Spanish notice .................................................................................................................
Swedish notice .................................................................................................................
117
117
118
118
118
118
119
119
119
119
119
120
120
120
120
120
121
121
121
121
122
122
122
122
122
122
123
123
123
124
124
124
124
125
125
125
125
126
126
126
127
127
127
127
Index ............................................................................................... 129
8
Figures
1 Storage management process example ...................................................................... 16
2 Configuring arrays from physical drives ...................................................................... 17
3 RAID 0 (data striping) (S1-S4) of data blocks (B1-B12) ................................................ 17
4 Two arrays (A1, A2) and five logical drives (L1 through L5) spread over five physical
drives .................................................................................................................... 19
5 System administrator view of Shadow Copies for Shared Folders ................................... 35
6 Shadow copies stored on a source volume ................................................................. 35
7 Shadow copies stored on a separate volume .............................................................. 36
8 Accessing shadow copies from My Computer ............................................................. 39
9 Client GUI ............................................................................................................. 41
10 Recovering a deleted file or folder ............................................................................. 43
11 Properties dialog box, Security tab ............................................................................ 46
12 Advanced Security settings dialog box, Permissions tab ............................................... 47
13 User or group Permission Entry dialog box ................................................................. 48
14 Advanced Security Settings dialog box, Auditing tab ................................................... 49
15 Select User or Group dialog box ............................................................................... 49
16 Auditing Entry dialog box for folder name NTFS Test ................................................... 50
17 Advanced Security Settings dialog box, Owner tab ..................................................... 51
18 Accessing MSNFS from HP Storage Server Management console .................................. 65
19 File and Print Services for NetWare dialog box ........................................................... 77
20 New User dialog box .............................................................................................. 78
21 NetWare Services tab ............................................................................................. 79
22 iSCSI Initiators Identifiers page ................................................................................. 85
23 Advanced Identifiers page ....................................................................................... 86
24 Add/Edit Identifier page .......................................................................................... 86
25 Storage server cluster diagram .................................................................................. 90
26 Cluster concepts diagram ......................................................................................... 92
HP ProLiant SB460c SAN Gateway Storage Server
9
Tables
1 Document conventions ............................................................................................. 11
2 Summary of RAID methods ....................................................................................... 18
3 Tasks and utilities needed for storage server configuration ............................................ 25
4 Authentication table ................................................................................................ 66
5 MSNFS command-line administration tools ................................................................. 72
6 Sharing protocol cluster support ................................................................................ 95
7 Power sequencing for cluster installation ..................................................................... 98
10
About this guide
This guide provides information about configuring, managing, and troubleshooting the HP ProLiant
SB460c SAN Gateway Storage Server.
Intended audience
This guide is intended for technical professionals with knowledge of:
• Microsoft® administrative procedures
• System and storage configurations
Related documentation
The following documents [and websites] provide related information:
• HP Integrated Lights-Out 2 User Guide
• HP ProLiant Lights-Out 100 Remote Management User Guide
You can find these documents from the Manuals page of the HP Business Support Center website:
http://www.hp.com/support/manuals
In the Storage section, click Disk Storage Systems and then select your product.
Document conventions and symbols
Table 1 Document conventions
Convention
Element
Blue text: Table 1
Cross-reference links and e-mail addresses
Blue, underlined text: http://www.hp.com
Website addresses
• Keys that are pressed
Bold text
Italic text
• Text typed into a GUI element, such as a box
• GUI elements that are clicked or selected, such as menu
and list items, buttons, tabs, and check boxes
Text emphasis
• File and directory names
Monospace text
• System output
• Code
• Commands, their arguments, and argument values
HP ProLiant SB460c SAN Gateway Storage Server
11
Convention
Element
Monospace, italic
Monospace, bold
text
text
• Code variables
• Command variables
Emphasized monospace text
WARNING!
Indicates that failure to follow directions could result in bodily harm or death.
CAUTION:
Indicates that failure to follow directions could result in damage to equipment or data.
IMPORTANT:
Provides clarifying information or specific instructions.
NOTE:
Provides additional information.
TIP:
Provides helpful hints and shortcuts.
Rack stability
Rack stability protects personnel and equipment.
WARNING!
To reduce the risk of personal injury or damage to equipment:
• Extend leveling jacks to the floor.
• Ensure that the full weight of the rack rests on the leveling jacks.
• Install stabilizing feet on the rack.
• In multiple-rack installations, fasten racks together securely.
• Extend only one rack component at a time. Racks can become unstable if more than one component
is extended.
12
About this guide
HP technical support
For worldwide technical support information, see the HP support website:
http://www.hp.com/support
Before contacting HP, collect the following information:
•
•
•
•
•
•
Product model names and numbers
Technical support registration number (if applicable)
Product serial numbers
Error messages
Operating system type and revision level
Detailed questions
Customer self repair
HP customer self repair (CSR) programs allow you to repair your StorageWorks product. If a CSR
part needs replacing, HP ships the part directly to you so that you can install it at your convenience.
Some parts do not qualify for CSR. Your HP-authorized service provider will determine whether a
repair can be accomplished by CSR.
For more information about CSR, contact your local service provider. For North America, see the CSR
website:
http://www.hp.com/go/selfrepair
Product warranties
For information about HP StorageWorks product warranties, see the warranty information website:
http://www.hp.com/go/storagewarranty
Subscription service
HP recommends that you register your product at the Subscriber's Choice for Business website:
http://www.hp.com/go/e-updates
After registering, you will receive e-mail notification of product enhancements, new driver versions,
firmware updates, and other product resources.
HP websites
For additional information, see the following HP websites:
•
•
•
•
•
http://www.hp.com
http://www.hp.com/go/storage
http://www.hp.com/service_locator
http://www.hp.com/support/manuals
http://www.hp.com/support/downloads
HP ProLiant SB460c SAN Gateway Storage Server
13
Documentation feedback
HP welcomes your feedback.
To make comments and suggestions about product documentation, please send a message to
storagedocsFeedback@hp.com. All submissions become the property of HP.
14
About this guide
1 Storage management overview
This chapter provides an overview of some of the components that make up the storage structure of
the HP ProLiant Storage Server.
Storage management elements
Storage is divided into four major divisions:
•
•
•
•
Physical storage elements
Logical storage elements
File system elements
File sharing elements
Each of these elements is composed of the previous level's elements.
Storage management example
Figure 1 depicts many of the storage elements that one would find on a storage device. The following
sections provide an overview of the storage elements.
HP ProLiant SB460c SAN Gateway Storage Server
15
Physical Disks
Single Server
Cluster Implementation
RAID Arrays
Storage
Elements
Logical Drives
Selective Storage
Presentaion
Visible Disks
Logical
Storage
Elements
Partitioning
NTFS Volumes
Q:
File
System
Elements
Shadow Copy
Elements
File Folders
Shadow Copies
(Snapshots)
\Engineering
\Marketing
\Users
\Sales
\Users
from 02/10/03 09:30 \snapshot.0
R:
from 02/10/03 09:30 \snapshot.0
from 02/10/03 11:30 \snapshot.1
R:
from 02/10/03 11:30 \snapshot.1
R:
S:
\\VirtualServerA
IP Addresss 172.1.1.1.
\Users
\Sales
\Marketing
\Engineering
\Snapshot.0
\Snapshot.1
CIFS and NFS
File Shares
File
Sharing
Elements
\Sales
\Marketing
\Engineering
\Snapshot.0
\Snapshot.1
U:
\Sales
Q:
Cluster Virtual
Server Groups
(Network Name)
(IP Address)
(Cluster Admin)
Fault-tolerant
CIFS/SMB and
NFS File Shares
\Engineering
\Marketing
T:
Q:
Cluster Physical
Disk Resources
Cluster
Elements
S:
R:
\Customers
T:
U:
\\VirtualServerA
IP Addresss 172.1.1.2.
\Users
\Customers
gl0044
Figure 1 Storage management process example
Physical storage elements
The lowest level of storage management occurs at the physical drive level. Minimally, choosing the
best disk carving strategy includes the following policies:
• Analyze current corporate and departmental structure.
• Analyze the current file server structure and environment.
• Plan properly to ensure the best configuration and use of storage.
• Determine the desired priority of fault tolerance, performance, and storage capacity.
• Use the determined priority of system characteristics to determine the optimal striping policy
and RAID level.
16
Storage management overview
• Include the appropriate number of physical drives in the arrays to create logical storage elements
of desired sizes.
Arrays
See Figure 2. With an array controller installed in the system, the capacity of several physical drives
(P1–P3) can be logically combined into one or more logical units (L1) called arrays. When this is
done, the read/write heads of all the constituent physical drives are active simultaneously, dramatically
reducing the overall time required for data transfer.
NOTE:
Depending on the storage server model, array configuration may not be possible or necessary.
L1
P1
P2
P3
gl0042
Figure 2 Configuring arrays from physical drives
Because the read/write heads are simultaneously active, the same amount of data is written to each
drive during any given time interval. Each unit of data is termed a block. The blocks form a set of
data stripes over all the hard drives in an array, as shown in Figure 3.
S1
B1
B2
B3
S2
B4
B5
B6
S3
B7
B8
B9
S4
B10
B11
B12
gl0043
Figure 3 RAID 0 (data striping) (S1-S4) of data blocks (B1-B12)
For data in the array to be readable, the data block sequence within each stripe must be the same.
This sequencing process is performed by the array controller, which sends the data blocks to the drive
write heads in the correct order.
A natural consequence of the striping process is that each hard drive in a given array contains the
same number of data blocks.
NOTE:
If one hard drive has a larger capacity than other hard drives in the same array, the extra capacity is
wasted because it cannot be used by the array.
HP ProLiant SB460c SAN Gateway Storage Server
17
Fault tolerance
Drive failure, although rare, is potentially catastrophic. For example, using simple striping as shown
in Figure 3, failure of any hard drive leads to failure of all logical drives in the same array, and hence
to data loss.
To protect against data loss from hard drive failure, storage servers should be configured with fault
tolerance. HP recommends adhering to RAID 5 configurations.
The table below summarizes the important features of the different kinds of RAID supported by the
Smart Array controllers. The decision chart in the following table can help determine which option is
best for different situations.
Table 2 Summary of RAID methods
RAID 0
Striping (no
fault tolerance)
RAID 1+0
Mirroring
RAID 5
Distributed
Data Guarding
RAID 6 (ADG)
Maximum number of hard
drives
N/A
N/A
14
Storage system dependent
Tolerant of single hard
drive failure?
No
Yes
Yes
Yes
No
If the failed
drives are not
mirrored to
each other
No
Yes (two drives can fail)
Tolerant of multiple
simultaneous hard drive
failures?
Online spares
Further protection against data loss can be achieved by assigning an online spare (or hot spare) to
any configuration except RAID 0. This hard drive contains no data and is contained within the same
storage subsystem as the other drives in the array. When a hard drive in the array fails, the controller
can then automatically rebuild information that was originally on the failed drive onto the online spare.
This quickly restores the system to full RAID level fault tolerance protection. However, unless RAID
Advanced Data Guarding (ADG) is being used, which can support two drive failures in an array, in
the unlikely event that a third drive in the array should fail while data is being rewritten to the spare,
the logical drive still fails.
Logical storage elements
Logical storage elements consist of those components that translate the physical storage elements to
file system elements. The storage server uses the Window Disk Management utility to manage the
various types of disks presented to the file system. There are two types of LUN presentation: basic
disk and dynamic disk. Each of these types of disk has special features that enable different types of
management.
Logical drives (LUNs)
While an array is a physical grouping of hard drives, a logical drive consists of components that
translate physical storage elements into file system elements.
18
Storage management overview
It is important to note that a LUN may span all physical drives within a storage controller subsystem,
but cannot span multiple storage controller subsystems.
A1
A2
L3
L1
L4
L2
L5
gl0045
Figure 4 Two arrays (A1, A2) and five logical drives (L1 through L5) spread over five physical drives
NOTE:
This type of configuration may not apply to all storage servers and serves only as an example.
Through the use of basic disks, you can create primary partitions or extended partitions. Partitions
can only encompass one LUN. Through the use of dynamic disks, you can create volumes that span
multiple LUNs. You can use the Windows Disk Management utility to convert disks to dynamic and
back to basic and to manage the volumes residing on dynamic disks. Other options include the ability
to delete, extend, mirror, and repair these elements.
Partitions
Partitions exist as either primary partitions or extended partitions and can be composed of only one
basic disk no larger than 2 TB. Basic disks can also only contain up to four primary partitions, or
three primary partitions and one extended partition. In addition, the partitions on them cannot be
extended beyond the limits of a single LUN. Extended partitions allow the user to create multiple
logical drives. These partitions or logical disks can be assigned drive letters or be used as mount
points on existing disks. If mount points are used, it should be noted that Services for UNIX (SFU) does
not support mount points at this time. The use of mount points in conjunction with NFS shares is not
supported.
Volumes
When planning dynamic disks and volumes, there is a limit to the amount of growth a single volume
can undergo. Volumes are limited in size and can have no more than 32 separate LUNs, with each
LUN not exceeding 2 terabytes (TB), and volumes totaling no more than 64 TB of disk space.
The RAID level of the LUNs included in a volume must be considered. All of the units that make up a
volume should have the same high-availability characteristics. In other words, the units should all be
of the same RAID level. For example, it would not be a good practice to include both a RAID 1+0
and a RAID 5 array in the same volume set. By keeping all the units the same, the entire volume retains
the same performance and high-availability characteristics, making managing and maintaining the
volume much easier. If a dynamic disk goes offline, the entire volume dependent on the one or more
dynamic disks is unavailable. There could be a potential for data loss depending on the nature of the
failed LUN.
Volumes are created out of the dynamic disks, and can be expanded on the fly to extend over multiple
dynamic disks if they are spanned volumes. However, after a type of volume is selected, it cannot be
altered. For example, a spanning volume cannot be altered to a mirrored volume without deleting
and recreating the volume, unless it is a simple volume. Simple volumes can be mirrored or converted
to spanned volumes. Fault-tolerant disks cannot be extended. Therefore, selection of the volume type
HP ProLiant SB460c SAN Gateway Storage Server
19
is important. The same performance characteristics on numbers of reads and writes apply when using
fault-tolerant configurations, as is the case with controller-based RAID. These volumes can also be
assigned drive letters or be mounted as mount points off existing drive letters.
The administrator should carefully consider how the volumes will be carved up and what groups or
applications will be using them. For example, putting several storage-intensive applications or groups
into the same dynamic disk set would not be efficient. These applications or groups would be better
served by being divided up into separate dynamic disks, which could then grow as their space
requirements increased, within the allowable growth limits.
NOTE:
Dynamic disks cannot be used for clustering configurations because Microsoft Cluster only supports basic
disks.
File system elements
File system elements are composed of the folders and subfolders that are created under each logical
storage element (partitions, logical disks, and volumes). Folders are used to further subdivide the
available file system, providing another level of granularity for management of the information space.
Each of these folders can contain separate permissions and share names that can be used for network
access. Folders can be created for individual users, groups, projects, and so on.
File sharing elements
The storage server supports several file sharing protocols, including Distributed File System (DFS),
Network File System (NFS), File Transfer Protocol (FTP), Hypertext Transfer Protocol (HTTP), and
Microsoft Server Message Block (SMB). On each folder or logical storage element, different file sharing
protocols can be enabled using specific network names for access across a network to a variety of
clients. Permissions can then be granted to those shares based on users or groups of users in each of
the file sharing protocols.
Volume Shadow Copy Service overview
The Volume Shadow Copy Service (VSS) provides an infrastructure for creating point-in-time snapshots
(shadow copies) of volumes. VSS supports 64 shadow copies per volume.
Shadow Copies of Shared Folders resides within this infrastructure, and helps alleviate data loss by
creating shadow copies of files or folders that are stored on network file shares at pre-determined
time intervals. In essence, a shadow copy is a previous version of the file or folder at a specific point
in time.
By using shadow copies, a storage server can maintain a set of previous versions of all files on the
selected volumes. End users access the file or folder by using a separate client add-on program, which
enables them to view the file in Windows Explorer.
Shadow copies should not replace the current backup, archive, or business recovery system, but they
can help to simplify restore procedures. For example, shadow copies cannot protect against data loss
due to media failures; however, recovering data from shadow copies can reduce the number of times
needed to restore data from tape.
20
Storage management overview
Using storage elements
The last step in creating the element is determining its drive letter or mount point and formatting the
element. Each element created can exist as a drive letter, assuming one is available, and/or as mount
points on an existing folder or drive letter. Either method is supported. However, mount points cannot
be used for shares that will be shared using Microsoft Services for Unix. They can be set up with both
but the use of the mount point in conjunction with NFS shares causes instability with the NFS shares.
Formats consist of NTFS, FAT32, and FAT. All three types can be used on the storage server. However,
VSS can only use volumes that are NTFS formatted. Also, quota management is possible only on
NTFS.
Clustered server elements
Select storage servers support clustering. The HP ProLiant Storage Server supports several file sharing
protocols including DFS, NFS, FTP, HTTP, and Microsoft SMB. Only NFS, FTP, and Microsoft SMB
are cluster-aware protocols. HTTP can be installed on each node but the protocols cannot be set up
through cluster administrator, and they will not fail over during a node failure.
CAUTION:
AppleTalk shares should not be created on clustered resources as this is not supported by Microsoft
Clustering, and data loss may occur.
Network names and IP address resources for the clustered file share resource can also be established
for access across a network to a variety of clients. Permissions can then be granted to those shares
based on users or groups of users in each of the file sharing protocols.
Network adapter teaming
Network adapter teaming is software-based technology used to increase a server's network availability
and performance. Teaming enables the logical grouping of physical adapters in the same server
(regardless of whether they are embedded devices or Peripheral Component Interconnect (PCI)
adapters) into a virtual adapter. This virtual adapter is seen by the network and server-resident
network-aware applications as a single network connection.
Management tools
HP Systems Insight Manager
HP SIM is a web-based application that allows system administrators to accomplish normal
administrative tasks from any remote location, using a web browser. HP SIM provides device
management capabilities that consolidate and integrate management data from HP and third-party
devices.
IMPORTANT:
You must install and use HP SIM to benefit from the Pre-Failure Warranty for processors, SAS and SCSI
hard drives, and memory modules.
HP ProLiant SB460c SAN Gateway Storage Server
21
For additional information, refer to the Management CD in the HP ProLiant Essentials Foundation Pack
or the HP SIM website (http://www.hp.com/go/hpsim).
Management Agents
Management Agents provide the information to enable fault, performance, and configuration
management. The agents allow easy manageability of the server through HP SIM software, and
thirdparty SNMP management platforms. Management Agents are installed with every SmartStart
assisted installation or can be installed through the HP PSP. The Systems Management homepage
provides status and direct access to in-depth subsystem information by accessing data reported through
the Management Agents. For additional information, refer to the Management CD in the HP ProLiant
Essentials Foundation Pack or the HP website (http://www.hp.com/servers/manage).
22
Storage management overview
2 File server management
This chapter begins by identifying file services in Windows Storage Server 2003 R2. The remainder
of the chapter describes the many tasks and utilities that play a role in file server management.
File services features in Windows Storage Server 2003 R2
Storage Manager for SANs
The Storage Manager for SANs (also called Simple SAN) snap-in enables you to create and manage
the LUNs that are used to allocate space on storage arrays. Storage Manager for SANs can be used
on SANs that support Virtual Disk Server (VDS). It can be used in both Fibre Channel and iSCSI
environments.
For more information on Storage Manager for SANs, see the online help. A Microsoft document titled
Storage Management in Windows Storage Server 2003 R2: File Server Resource Manager and
Storage Manager for Storage Area Networks is available at http://download.microsoft.com/
download/7/4/7/7472bf9b-3023-48b7-87be-d2cedc38f15a/WS03R2_Storage_Management.doc.
NOTE:
Storage Manager for SANs is only available on Standard and Enterprise editions of Windows Storage
Server 2003 R2.
Single Instance Storage
Single Instance Storage (SIS) provides a copy-on-write link between multiple files. Disk space is
recovered by reducing the amount of redundant data stored on a server. If a user has two files sharing
disk storage by using SIS, and someone modifies one of the files, users of the other files do not see
the changes. The underlying shared disk storage that backs SIS links is maintained by the system and
is only deleted if all the SIS links pointing to it are deleted. SIS automatically determines that two or
more files have the same content and links them together.
NOTE:
Single Instance Storage is only available on Standard and Enterprise editions of Windows Storage Server
2003 R2.
File Server Resource Manager
File Server Resource Manager is a suite of tools that allows administrators to understand, control, and
manage the quantity and type of data stored on their servers. By using File Server Resource Manager,
HP ProLiant SB460c SAN Gateway Storage Server
23
administrators can place quotas on volumes, actively screen files and folders, and generate
comprehensive storage reports.
By using File Server Resource Manager, you can perform the following tasks:
• Create quotas to limit the space allowed for a volume or folder and to generate notifications when
the quota limits are approached and exceeded.
• Create file screens to screen the files that users can save on volumes and in folders and to send
notifications when users attempt to save blocked files.
• Schedule periodic storage reports that allow users to identify trends in disk usage and to monitor
attempts to save unauthorized files, or generate the reports on demand.
Windows SharePoint Services
Windows SharePoint Services is an integrated set of collaboration and communication services
designed to connect people, information, processes, and systems, within and beyond the organization
firewall.
NOTE:
Windows SharePoint Services is only available on Standard and Enterprise editions of Windows Storage
Server 2003 R2.
HP Storage Server Management Console
The HP Storage Server Management Console is a user interface in Windows Storage Server 2003
R2 and Windows Unified Data Storage Server 2003 that provides one place to manage files or print
serving components. The console is accessible using Remote Desktop or a web browser.
The Storage Management page provides a portal to:
•
•
•
•
•
•
•
File Server Resource Manager
DFS Management
Disk and Volume Management
Single Instance Storage
Indexing Service
MSNFS (under Share folder)
Cluster Management (under “Utilities”)
The Share Folder Management page provides a portal to Shared Folders, consisting of:
• Shares
• Sessions
• Open files
File services management
Information about the storage server in a SAN environment is provided in the HP ProLiant Storage
Server SAN Connection and Management document located on the HP web site at http://
h20000.www2.hp.com/bc/docs/support/SupportManual/c00663737/c00663737.pdf.
24
File server management
Configurable and pre-configured storage
Certain storage servers ship with storage configured only for the operating system. The administrator
must configure data storage for the storage server. Other storage servers ship with pre-configured
storage for data. Depending on the type of storage server purchased, additional storage configuration
is required.
Configuring additional storage involves creating arrays, logical disks, and volumes. Table 3 shows
the general task areas to be performed as well as the utilities needed to configure storage for an HP
Smart Array-based storage server.
Table 3 Tasks and utilities needed for storage server configuration
Task
Storage management utility
Create disk arrays
HP Array Configuration Utility or Storage Manager
Create logical disks from the array space
HP Array Configuration Utility or Storage Manager
Verify newly created logical disks
Windows Disk Management
Create a volume on the new logical disk
Windows Disk Management
• Create disk arrays—On storage servers with configurable storage, physical disks can be arranged
as RAID arrays for fault tolerance and enhanced performance, and then segmented into logical
disks of appropriate sizes for particular storage needs. These logical disks then become the volumes
that appear as drives on the storage server.
CAUTION:
The first two logical drives are configured for the storage server operating system and should not
be altered in any manner. If the first two logical drives are altered, the system recovery process
may not function properly when using the System Recovery DVD. Do not tamper with the “DON’T
ERASE” or local C: volume. These are reserved volumes and must be maintained as they exist.
The fault tolerance level depends on the amount of disks selected when the array was created. A
minimum of two disks is required for RAID 0+1 configuration, three disks for a RAID 5 configuration,
and four disks for a RAID 6 (ADG) configuration.
• Create logical disks from the array space—Select the desired fault tolerance, stripe size, and size
of the logical disk.
• Verify newly created logical disks—Verify that disks matching the newly created sizes are displayed.
• Create a volume on the new logical disk—Select a drive letter and enter a volume label, volume
size, allocation unit size, and mount point (if desired).
Storage management utilities
The storage management utilities preinstalled on the storage server include the HP Array Configuration
Utility (ACU).
Array management utilities
Storage devices for RAID arrays and LUNs are created and managed using the array management
utilities mentioned previously. For HP Smart Arrays use the ACU.
HP ProLiant SB460c SAN Gateway Storage Server
25
NOTE:
The ACU is used to configure and manage array-based storage. Software RAID-based storage servers use
Microsoft Disk Manager to manage storage. You need administrator or root privileges to run the ACU.
Array Configuration Utility
The HP ACU supports the Smart Array controllers and hard drives installed on the storage server.
To open the ACU from the storage server desktop:
NOTE:
If this is the first time that the ACU is being run, you will be prompted to select the Execution Mode for
ACU. Selecting Local Application Mode allows you to run the ACU from a Remote Desktop, remote console,
or storage server web access mode. Remote service mode allows you to access the ACU from a remote
browser.
1.
Select Start > Programs > HP Management Tools > Array Configuration Utility.
2.
If the Execution Mode for ACU is set to Remote Mode, log on to the HP System Management
Homepage. The default user name is administrator and the default password is hpinvent.
To open the ACU in browser mode:
NOTE:
Confirm that the ACU Execution Mode is set to remote service.
1.
Open a browser and enter the server name or IP address of the destination server. For example,
http://servername:2301 or http://192.0.0.1:2301.
2.
Log on to the HP System Management Homepage. The default user name is administrator and
the default password is hpinvent.
3.
Click Array Configuration Utility on the left side of the window. The ACU opens and identifies
the controllers that are connected to the system.
Some ACU guidelines to consider:
• Do not modify the first two logical drives of the storage server; they are configured for the storage
server operating system.
• Spanning more than 14 disks with a RAID 5 volume is not recommended.
• Designate spares for RAID sets to provide greater protection against failures.
• RAID sets cannot span controllers.
• A single array can contain multiple logical drives of varying RAID settings.
• Extending and expanding arrays and logical drives is supported.
The HP Array Configuration Utility User Guide is available for download at http://www.hp.com/
support/manuals.
26
File server management
Disk Management utility
The Disk Management tool is a system utility for managing hard disks and the volumes, or partitions,
that they contain. Disk Management is used to initialize disks, create volumes, format volumes with
the FAT, FAT32, or NTFS file systems, and create fault-tolerant disk systems. Most disk-related tasks
can be performed in Disk Management without restarting the system or interrupting users. Most
configuration changes take effect immediately. A complete online help facility is provided with the
Disk Management utility for assistance in using the product.
NOTE:
• When the Disk Management utility is accessed through a Remote Desktop connection, this connection
can only be used to manage disks and volumes on the server. Using the Remote Desktop connection
for other operations during an open session closes the session.
• When closing Disk Management through a Remote Desktop connection, it may take a few moments
for the remote session to log off.
Guidelines for managing disks and volumes
• The first two logical drives are configured for the storage server operating system and should not
be altered in any manner. If the first two logical drives are altered, the system recovery process
may not function properly when using the System Recovery DVD. Do not tamper with the “DON’T
ERASE” or local C: volume. These are reserved volumes and must be maintained as they exist.
• HP does not recommend spanning array controllers with dynamic volumes. The use of software
RAID-based dynamic volumes is not recommended. Use the array controller instead; it is more
efficient.
• Use meaningful volume labels with the intended drive letter embedded in the volume label, if
possible. (For example, volume e: might be named “Disk E:.”) Volume labels often serve as the
only means of identification.
• Record all volume labels and drive letters in case the system needs to be restored.
• When managing basic disks, only the last partition on the disk can be extended unless the disk
is changed to dynamic.
• Basic disks can be converted to dynamic, but cannot be converted back to basic without deleting
all data on the disk.
• Basic disks can contain up to four primary partitions (or three primary partitions and one extended
partition).
• Format drives with a 16 K allocation size for best support of shadow copies, performance, and
defragmentation.
• NTFS formatted drives are recommended because they provide the greatest level of support for
shadow copies, encryption, and compression.
• Only basic disks can be formatted as FAT or FAT32.
• Read the online Disk Management help found in the utility.
Scheduling defragmentation
Defragmentation is the process of analyzing local volumes and consolidating fragmented files and
folders so that each occupies a single, contiguous space on the volume. This improves file system
performance. Because defragmentation consolidates files and folders, it also consolidates the free
space on a volume. This reduces the likelihood that new files will be fragmented.
HP ProLiant SB460c SAN Gateway Storage Server
27
Defragmentation for a volume can be scheduled to occur automatically at convenient times.
Defragmentation can also be done once, or on a recurring basis.
NOTE:
Scheduling defragmentation to run no later than a specific time prevents the defragmentation process from
running later than that time. If the defragmentation process is running when the time is reached, the process
is stopped. This setting is useful to ensure that the defragmentation process ends before the demand for
server access is likely to increase.
If defragmenting volumes on which shadow copies are enabled, use a cluster (or allocation unit) size
of 16 KB or larger during the format. Otherwise defragmentation registers as a change by the Shadow
Copy process. This increase in the number of changes forces Shadow Copy to delete snapshots as
the limit for the cache file is reached.
CAUTION:
Allocation unit size cannot be altered without reformatting the drive. Data on a reformatted drive cannot
be recovered.
For more information about disk defragmentation, read the online help.
Disk quotas
Disk quotas track and control disk space use in volumes.
NOTE:
To limit the size of a folder or share, see “Quota management” on page 53 .
Configure the volumes on the server to perform the following tasks:
• Prevent further disk space use and log an event when a user exceeds a specified disk space limit.
• Log an event when a user exceeds a specified disk space warning level.
When enabling disk quotas, it is possible to set both the disk quota limit and the disk quota warning
level. The disk quota limit specifies the amount of disk space a user is allowed to use. The warning
level specifies the point at which a user is nearing his or her quota limit. For example, a user's disk
quota limit can be set to 50 megabytes (MB), and the disk quota warning level to 45 MB. In this case,
the user can store no more than 50 MB on the volume. If the user stores more than 45 MB on the
volume, the disk quota system logs a system event.
In addition, it is possible to specify that users can exceed their quota limit. Enabling quotas and not
limiting disk space use is useful to still allow users access to a volume, but track disk space use on a
per-user basis. It is also possible to specify whether or not to log an event when users exceed either
their quota warning level or their quota limit.
When enabling disk quotas for a volume, volume usage is automatically tracked from that point
forward, but existing volume users have no disk quotas applied to them. Apply disk quotas to existing
volume users by adding new quota entries on the Quota Entries page.
28
File server management
NOTE:
When enabling disk quotas on a volume, any users with write access to the volume who have not exceeded
their quota limit can store data on the volume. The first time a user writes data to a quota-enabled volume,
default values for disk space limit and warning level are automatically assigned by the quota system.
For more information about disk quotas, read the online help.
Adding storage
Expansion is the process of adding physical disks to an array that has already been configured.
Extension is the process of adding new storage space to an existing logical drive on the same array,
usually after the array has been expanded.
Storage growth may occur in three forms:
• Extend unallocated space from the original logical disks or LUNs.
• Alter LUNs to contain additional storage.
• Add new LUNs to the system.
The additional space is then extended through a variety of means, depending on which type of disk
structure is in use.
NOTE:
This section addresses only single storage server node configurations. If your server has Windows Storage
Server 2003 R2 Enterprise Edition, see the Cluster Administration chapter for expanding and extending
storage in a cluster environment.
Expanding storage
Expansion is the process of adding physical disks to an array that has already been configured. The
logical drives (or volumes) that exist in the array before the expansion takes place are unchanged,
because only the amount of free space in the array changes. The expansion process is entirely
independent of the operating system.
NOTE:
See your storage array hardware user documentation for further details about expanding storage on the
array.
Extending storage using Windows Storage Utilities
Volume extension grows the storage space of a logical drive. During this process, the administrator
adds new storage space to an existing logical drive on the same array, usually after the array has
been expanded. An administrator may have gained this new storage space by either expansion or
by deleting another logical drive on the same array. Unlike drive expansion, the operating system
must be aware of changes to the logical drive size.
You extend a volume to:
HP ProLiant SB460c SAN Gateway Storage Server
29
• Increase raw data storage
• Improve performance by increasing the number of spindles in a logical drive volume
• Change fault-tolerance (RAID) configurations
For more information about RAID levels, see the Smart Array Controller User Guide, or the document
titled Assessing RAID ADG vs. RAID 5 vs. RAID 1+0. Both are available at the Smart Array controller
web page or at http://h18000.www1.hp.com/products/servers/proliantstorage/arraycontrollers/
documentation.html.
Extend volumes using Disk Management
The Disk Management snap-in provides management of hard disks, volumes or partitions. It can be
used to extend a dynamic volume only.
NOTE:
Disk Management cannot be used to extend basic disk partitions.
Guidelines for extending a dynamic volume:
•
•
•
•
Use the Disk Management utility.
You can extend a volume only if it does not have a file system or if it is formatted NTFS.
You cannot extend volumes formatted using FAT or FAT32.
You cannot extend striped volumes, mirrored volumes, or RAID 5 volumes.
For more information, see the Disk Management online help.
Expanding storage for EVA arrays using Command View EVA
Presenting a virtual disk offers its storage to a host. To make a virtual disk available to a host, you
must present it. You can present a virtual disk to a host during or after virtual disk creation. The virtual
disk must be completely created before the host presentation can occur. If you choose host presentation
during virtual disk creation, the management agent cannot complete any other task until that virtual
disk is created and presented. Therefore, HP recommends that you wait until a virtual disk is created
before presenting it to a host.
For more information, see the HP StorageWorks Command View EVA User Guide.
Expanding storage using the Array Configuration Utility
The Array Configuration Utility enables online capacity expansion of the array and logical drive for
specific MSA storage arrays, such as the MSA1000 and MSA1500. For more information, use the
ACU online help, or the procedures to “Expand Array” in the HP Array Configuration Utility User
Guide
Expand logical drive
This option in the ACU increases the storage capacity of a logical drive by adding unused space on
an array to the logical drive on the same array. The unused space is obtained either by expanding
an array or by deleting another logical drive on the same array. For more information, use the ACU
online help, or the “Extend logical drive” procedure in the HP Array Configuration Utility User Guide
30
File server management
Volume shadow copies
NOTE:
Select storage servers can be deployed in a clustered as well as a non-clustered configuration. This chapter
discusses using shadow copies in a non-clustered environment.
The Volume Shadow Copy Service provides an infrastructure for creating point-in-time snapshots
(shadow copies) of volumes. Shadow Copy supports 64 shadow copies per volume.
A shadow copy contains previous versions of the files or folders contained on a volume at a specific
point in time. While the shadow copy mechanism is managed at the server, previous versions of files
and folders are only available over the network from clients, and are seen on a per folder or file level,
and not as an entire volume.
The shadow copy feature uses data blocks. As changes are made to the file system, the Shadow Copy
Service copies the original blocks to a special cache file to maintain a consistent view of the file at a
particular point in time. Because the snapshot only contains a subset of the original blocks, the cache
file is typically smaller than the original volume. In the snapshot's original form, it takes up no space
because blocks are not moved until an update to the disk occurs.
By using shadow copies, a storage server can maintain a set of previous versions of all files on the
selected volumes. End users access the file or folder by using a separate client add-on program, which
enables them to view the file in Windows Explorer. Accessing previous versions of files, or shadow
copies, enables users to:
• Recover files that were accidentally deleted. Previous versions can be opened and copied to a
safe location.
• Recover from accidentally overwriting a file. A previous version of that file can be accessed.
• Compare several versions of a file while working. Use previous versions to compare changes
between two versions of a file.
Shadow copies cannot replace the current backup, archive, or business recovery system, but they
can help to simplify restore procedures. Because a snapshot only contains a portion of the original
data blocks, shadow copies cannot protect against data loss due to media failures. However, the
strength of snapshots is the ability to instantly recover data from shadow copies, reducing the number
of times needed to restore data from tape.
Shadow copy planning
Before setup is initiated on the server and the client interface is made available to end users, consider
the following:
•
•
•
•
From what volume will shadow copies be taken?
How much disk space should be allocated for shadow copies?
Will separate disks be used to store shadow copies?
How frequently will shadow copies be made?
Identifying the volume
Shadow copies are taken for a complete volume, but not for a specific directory. Shadow copies
work best when the server stores user files, such as documents, spreadsheets, presentations, graphics,
or database files.
HP ProLiant SB460c SAN Gateway Storage Server
31
NOTE:
Shadow copies should not be used to provide access to previous versions of application or e-mail databases.
Shadow copies are designed for volumes that store user data such as home directories and My
Documents folders that are redirected by using Group Policy or other shared folders in which users
store data.
Shadow copies work with compressed or encrypted files and retain whatever permissions were set
on the files when the shadow copies were taken. For example, if a user is denied permission to read
a file, that user would not be able to restore a previous version of the file, or be able to read the file
after it has been restored.
Although shadow copies are taken for an entire volume, users must use shared folders to access
shadow copies. Administrators on the local server must also specify the \\servername\sharename
path to access shadow copies. If administrators or end users want to access a previous version of a
file that does not reside in a shared folder, the administrator must first share the folder.
NOTE:
Shadow copies are available only on NTFS, not FAT or FAT32 volumes.
Files or folders that are recorded by using Shadow Copy appear static, even though the original data
is changing.
Allocating disk space
When determining the amount of space to allocate for storing shadow copies, consider both the
number and size of files that are being copied, as well as the frequency of changes between copies.
For example, 100 files that only change monthly require less storage space than 10 files that change
daily. If the frequency of changes to each file is greater than the amount of space allocated to storing
shadow copies, no shadow copy is created.
Administrators should also consider user expectations of how many versions they will want to have
available. End users might expect only a single shadow copy to be available, or they might expect
three days or three weeks worth of shadow copies. The more shadow copies users expect, the more
storage space administrators must allocate for storing them.
Setting the limit too low also affects backup programs that use shadow copy technology because
these programs are also limited to using the amount of disk space specified by administrators.
NOTE:
Regardless of the volume space that is allocated for shadow copies, there is a maximum of 64 shadow
copies for any volume. When the 65th shadow copy is taken, the oldest shadow copy is purged.
The minimum amount of storage space that can be specified is 350 megabytes (MB). The default
storage size is 10 percent of the source volume (the volume being copied). If the shadow copies are
stored on a separate volume, change the default to reflect the space available on the storage volume
instead of the source volume. Remember that when the storage limit is reached, older versions of the
shadow copies are deleted and cannot be restored.
32
File server management
CAUTION:
To change the storage volume, shadow copies must be deleted. The existing file change history that is kept
on the original storage volume is lost. To avoid this problem, verify that the storage volume that is initially
selected is large enough.
Identifying the storage area
To store the shadow copies of another volume on the same file server, a volume can be dedicated
on separate disks. For example, if user files are stored on H:\, another volume such as S:\can be
used to store the shadow copies. Using a separate volume on separate disks provides better
performance and is recommended for heavily used storage servers.
If a separate volume will be used for the storage area (where shadow copies are stored), the maximum
size should be changed to No Limit to reflect the space available on the storage area volume instead
of the source volume (where the user files are stored).
Disk space for shadow copies can be allocated on either the same volume as the source files or a
different volume. There is a trade-off between ease of use and maintenance versus performance and
reliability that the system administrator must consider.
By keeping the shadow copy on the same volume, there is a potential gain in ease of setup and
maintenance; however, there may be a reduction in performance and reliability.
CAUTION:
If shadow copies are stored on the same volume as the user files, note that a burst of disk input/output
(I/O) can cause all shadow copies to be deleted. If the sudden deletion of shadow copies is unacceptable
to administrators or end users, it is best to use a separate volume on separate disks to store shadow copies.
Determining creation frequency
The more frequently shadow copies are created, the more likely that end users will get the version
that they want. However, with a maximum of 64 shadow copies per volume, there is a trade-off
between the frequency of making shadow copies and the amount of time that the earlier files will be
available.
By default, the storage server creates shadow copies at 0700 and 1200, Monday through Friday.
However, these settings are easily modified by the administrator so that the shadow copy schedule
can better accommodate end user needs.
Shadow copies and drive defragmentation
When running Disk Defragmenter on a volume with shadow copies activated, all or some of the
shadow copies may be lost, starting with the oldest shadow copies.
If defragmenting volumes on which shadow copies are enabled, use a cluster (or allocation unit) size
of 16 KB or larger. Using this allocation unit size reduces the number of copy outs occurring on the
snapshot. Otherwise, the number of changes caused by the defragmentation process can cause
shadow copies to be deleted faster than expected. Note, however, that NTFS compression is supported
only if the cluster size is 4 KB or smaller.
HP ProLiant SB460c SAN Gateway Storage Server
33
NOTE:
To check the cluster size of a volume, use the fsutil fsinfo ntfsinfo command. To change the
cluster size on a volume that contains data, back up the data on the volume, reformat it using the new
cluster size, and then restore the data.
Mounted drives
A mounted drive is a local volume attached to an empty folder (called a mount point) on an NTFS
volume. When enabling shadow copies on a volume that contains mounted drives, the mounted drives
are not included when shadow copies are taken. In addition, if a mounted drive is shared and shadow
copies are enabled on it, users cannot access the shadow copies if they traverse from the host volume
(where the mount point is stored) to the mounted drive.
For example, assume there is a folder F:\data\users, and the Users folder is a mount point for
G:\. If shadow copies are enabled on both F:\ and G:\, F:\data is shared as \\server1\data,
and G:\data\users is shared as \\server1\users. In this example, users can access previous
versions of \\server1\data and \\server1\users but not \\server1\data\users.
Managing shadow copies
The vssadmin tool provides a command line capability to create, list, resize, and delete volume shadow
copies.
The system administrator can make shadow copies available to end users through a feature called
“Shadow Copies for Shared Folders.” The administrator uses the Properties menu (see Figure 5) to
turn on the Shadow Copies feature, select the volumes to be copied, and determine the frequency
with which shadow copies are made.
34
File server management
Figure 5 System administrator view of Shadow Copies for Shared Folders
The shadow copy cache file
The default shadow copy settings allocate 10 percent of the source volume being copied (with a
minimum of 350 MB), and store the shadow copies on the same volume as the original volume. (See
Figure 6). The cache file is located in a hidden protected directory titled “System Volume Information”
off of the root of each volume for which shadow copy is enabled.
F:
G:
H:
cache file
cache file
cache file
Figure 6 Shadow copies stored on a source volume
The cache file location can be altered to reside on a dedicated volume separate from the volumes
containing files shares. (See Figure 7).
HP ProLiant SB460c SAN Gateway Storage Server
35
F:
G:
H:
L:
cache file
cache file
cache file
Figure 7 Shadow copies stored on a separate volume
The main advantage to storing shadow copies on a separate volume is ease of management and
performance. Shadow copies on a source volume must be continually monitored and can consume
space designated for file sharing. Setting the limit too high takes up valuable storage space. Setting
the limit too low can cause shadow copies to be purged too soon, or not created at all. By storing
shadow copies on a separate volume space, limits can generally be set higher, or set to No Limit.
See the online help for instructions on altering the cache file location.
CAUTION:
If the data on the separate volume L: is lost, the shadow copies cannot be recovered.
Enabling and creating shadow copies
Enabling shadow copies on a volume automatically results in several actions:
• Creates a shadow copy of the selected volume.
• Sets the maximum storage space for the shadow copies.
• Schedules shadow copies to be made at 7 a.m. and 12 noon on weekdays.
NOTE:
Creating a shadow copy only makes one copy of the volume; it does not create a schedule.
36
File server management
NOTE:
After the first shadow copy is created, it cannot be relocated. Relocate the cache file by altering the cache
file location under Properties prior to enabling shadow copy. See
“Viewing shadow copy properties” on page 37.
Viewing a list of shadow copies
To view a list of shadow copies on a volume:
1.
Access Disk Management.
2.
Select the volume or logical drive, then right-click on it.
3.
Select Properties.
4.
Select Shadow Copies tab.
All shadow copies are listed, sorted by the date and time they were created.
NOTE:
It is also possible to create new shadow copies or delete shadow copies from this page.
Set schedules
Shadow copy schedules control how frequently shadow copies of a volume are made. There are a
number of factors that can help determine the most effective shadow copy schedule for an organization.
These include the work habits and locations of the users. For example, if users do not all live in the
same time zone, or they work on different schedules, it is possible to adjust the daily shadow copy
schedule to allow for these differences.
Do not schedule shadow copies more frequently than once per hour.
NOTE:
When deleting a shadow copy schedule, that action has no effect on existing shadow copies.
Viewing shadow copy properties
The Shadow Copy Properties page lists the number of copies, the date and time the most recent
shadow copy was made, and the maximum size setting.
NOTE:
For volumes where shadow copies do not exist currently, it is possible to change the location of the cache
file. Managing the cache files on a separate disk is recommended.
HP ProLiant SB460c SAN Gateway Storage Server
37
CAUTION:
Use caution when reducing the size limit for all shadow copies. When the size is set to less than the total
size currently used for all shadow copies, enough shadow copies are deleted to reduce the total size to
the new limit. A shadow copy cannot be recovered after it has been deleted.
Redirecting shadow copies to an alternate volume
IMPORTANT:
Shadow copies must be initially disabled on the volume before redirecting to an alternate volume. If shadow
copies are enabled and you disable them, a message appears informing you that all existing shadow
copies on the volume will be permanently deleted.
To redirect shadow copies to an alternate volume:
1.
Access Disk Management.
2.
Select the volume or logical drive, then right-click on it.
3.
Select Properties.
4.
Select the Shadow Copies tab.
5.
Select the volume that you want to redirect shadow copies from and ensure that shadow copies
are disabled on that volume; if enabled, click Disable.
6.
Click Settings.
7.
In the Located on this volume field, select an available alternate volume from the list.
NOTE:
To change the default shadow copy schedule settings, click Schedule.
8.
Click OK.
9.
On the Shadow Copies tab, ensure that the volume is selected, and then click Enable.
Shadow copies are now scheduled to be made on the alternate volume.
Disabling shadow copies
When shadow copies are disabled on a volume, all existing shadow copies on the volume are deleted
as well as the schedule for making new shadow copies.
CAUTION:
When the Shadow Copies Service is disabled, all shadow copies on the selected volumes are deleted.
Once deleted, shadow copies cannot be restored.
38
File server management
Managing shadow copies from the storage server desktop
To access shadow copies from the storage server desktop:
The storage server desktop can be accessed by using Remote Desktop to manage shadow copies.
1.
On the storage server desktop, double-click My Computer.
2.
Right-click the volume name, and select Properties.
3.
Click the Shadow Copies tab. See Figure 8.
Figure 8 Accessing shadow copies from My Computer
Shadow Copies for Shared Folders
Shadow copies are accessed over the network by supported clients and protocols. There are two sets
of supported protocols, SMB and NFS. All other protocols are not supported; this includes HTTP, FTP,
AppleTalk, and NetWare Shares. For SMB support, a client-side application denoted as Shadow
Copies for Shared Folders is required. The client-side application is currently only available for
Windows XP and Windows 2000 SP3+.
No additional software is required to enable UNIX users to independently retrieve previous versions
of files stored on NFS shares.
NOTE:
Shadow Copies for Shared Folders supports retrieval only of shadow copies of network shares. It does not
support retrieval of shadow copies of local folders.
HP ProLiant SB460c SAN Gateway Storage Server
39
NOTE:
Shadow Copies for Shared Folders clients are not available for HTTP, FTP, AppleTalk, or NetWare shares.
Consequently, users of these protocols cannot use Shadow Copies for Shared Folders to independently
retrieve previous versions of their files. However, administrators can take advantage of Shadow Copies
for Shared Folders to restore files for these users.
SMB shadow copies
Windows users can independently access previous versions of files stored on SMB shares by using
the Shadow Copies for Shared Folders client. After the Shadow Copies for Shared Folders client is
installed on the user's computer, the user can access shadow copies for a share by right-clicking on
the share to open its Properties window, clicking the Previous Versions tab, and then selecting the
desired shadow copy. Users can view, copy, and restore all available shadow copies.
Shadow Copies for Shared Folders preserves the permissions set in the access control list (ACL) of
the original folders and files. Consequently, users can only access shadow copies for shares to which
they have access. In other words, if a user does not have access to a share, he also does not have
access to the share's shadow copies.
The Shadow Copies for Shared Folders client pack installs a Previous Versions tab in the Properties
window of files and folders on network shares.
Users access shadow copies with Windows Explorer by selecting View, Copy, or Restore from the
Previous Versions tab. (See Figure 9). Both individual files and folders can be restored.
40
File server management
Figure 9 Client GUI
When users view a network folder hosted on the storage server for which shadow copies are enabled,
old versions (prior to the snapshot) of a file or directory are available. Viewing the properties of the
file or folder presents users with the folder or file history—a list of read-only, point-in-time copies of
the file or folder contents that users can then open and explore like any other file or folder. Users can
view files in the folder history, copy files from the folder history, and so on.
NFS shadow copies
UNIX users can independently access previous versions of files stored on NFS shares via the NFS
client; no additional software is required. Server for NFS exposes each of a share's available shadow
copies as a pseudo-subdirectory of the share. Each of these pseudo-subdirectories is displayed in
exactly the same way as a regular subdirectory is displayed.
The name of each pseudo-subdirectory reflects the creation time of the shadow copy, using the format
.@GMT-YYYY.MM.DD-HH:MM:SS. To prevent common tools from needlessly enumerating the
pseudo-subdirectories, the name of each pseudo-subdirectory begins with the dot character, thus
rendering it hidden.
The following example shows an NFS share named “NFSShare” with three shadow copies, taken on
April 27, 28, and 29 of 2003 at 4 a.m.
NFSShare
.@GMT-2003.04.27-04:00:00
.@GMT-2003.04.28-04:00:00
.@GMT-2003.04.29-04:00:00
HP ProLiant SB460c SAN Gateway Storage Server
41
Access to NFS shadow copy pseudo-subdirectories is governed by normal access-control mechanisms
using the permissions stored in the file system. Users can access only those shadow copies to which
they have read access at the time the shadow copy is taken. To prevent users from modifying shadow
copies, all pseudo-subdirectories are marked read-only, regardless of the user's ownership or access
rights, or the permissions set on the original files.
Server for NFS periodically polls the system for the arrival or removal of shadow copies and updates
the root directory view accordingly. Clients then capture the updated view the next time they issue a
directory read on the root of the share.
Recovery of files or folders
There are three common situations that may require recovery of files or folders:
• Accidental file deletion, the most common situation
• Accidental file replacement, which may occur if a user selects Save instead of Save As
• File corruption
It is possible to recover from all of these scenarios by accessing shadow copies. There are separate
steps for accessing a file compared to accessing a folder.
Recovering a deleted file or folder
To recover a deleted file or folder within a folder:
1.
Access to the folder where the deleted file was stored.
2.
Position the cursor over a blank space in the folder. If the cursor hovers over a file, that file is
selected.
3.
Right-click, select Properties from the bottom of the menu, and then click the Previous Versions
tab.
4.
Select the version of the folder that contains the file before it was deleted, and then click View.
5.
View the folder and select the file or folder to recover. The view may be navigated multiple folders
deep.
6.
Click Restore to restore the file or folder to its original location. Click Copy... to allow the placement
of the file or folder to a new location.
42
File server management
Figure 10 Recovering a deleted file or folder
Recovering an overwritten or corrupted file
Recovering an overwritten or corrupted file is easier than recovering a deleted file because the file
itself can be right-clicked instead of the folder. To recover an overwritten or corrupted file:
1.
Right-click the overwritten or corrupted file, and then click Properties.
2.
Click Previous Versions.
3.
To view the old version, click View. To copy the old version to another location, click Copy... to
replace the current version with the older version, click Restore.
Recovering a folder
To recover a folder:
1.
Position the cursor so that it is over a blank space in the folder to be recovered. If the cursor
hovers over a file, that file is selected.
2.
Right-click, select Properties from the bottom of the menu, and then click the Previous Versions
tab.
3.
Click either Copy... or Restore.
Clicking Restore enables the user to recover everything in that folder as well as all subfolders.
Clicking Restore does not delete any files.
HP ProLiant SB460c SAN Gateway Storage Server
43
Backup and shadow copies
Shadow copies are only available on the network via the client application, and only at a file or
folder level as opposed to the entire volume. Hence, the standard backup associated with a volume
backup will not work to back up the previous versions of the file system. To answer this particular
issue, shadow copies are available for backup in two situations. If the backup software in question
supports the use of shadow copies and can communicate with underlying block device, it is supported,
and the previous version of the file system will be listed in the backup application as a complete file
system snapshot. If the built-in backup application NTbackup is used, the backup software forces a
snapshot, and then uses the snapshot as the means for backup. The user is unaware of this activity
and it is not self-evident although it does address the issue of open files.
Shadow Copy Transport
Shadow Copy Transport provides the ability to transport data on a Storage Area Network (SAN).
With a storage array and a VSS-aware hardware provider, it is possible to create a shadow copy
on one server and import it on another server. This process, essentially “virtual” transport, is
accomplished in a matter of minutes, regardless of the size of the data.
NOTE:
Shadow copy transport is supported only on Windows Server 2003 Enterprise Edition, Windows Storage
Server 2003 Enterprise Edition, and Windows Server 2003 Datacenter Edition. It is an advanced solution
that works only if it has a hardware provider on the storage array.
A shadow copy transport can be used for a number of purposes, including:
• Tape backups
An alternative to traditional backup to tape processes is transport of shadow copies from the
production server onto a backup server, where they can then be backed up to tape. Like the other
two alternatives, this option removes backup traffic from the production server. While some backup
applications might be designed with the hardware provider software that enables transport, others
are not. The administrator should determine whether or not this functionality is included in the
backup application.
• Data mining
The data in use by a particular production server is often useful to different groups or departments
within an organization. Rather than add additional traffic to the production server, a shadow copy
of the data can be made available through transport to another server. The shadow copy can
then be processed for different purposes, without any performance impact on the original server.
The transport process is accomplished through a series of DISKRAID command steps:
1.
Create a shadow copy of the source data on the source server (read-only).
2.
Mask off (hide) the shadow copy from the source server.
3.
Unmask the shadow copy to a target server.
4.
Optionally, clear the read-only flags on the shadow copy.
The data is now ready to use.
44
File server management
Folder and share management
The HP ProLiant Storage Server supports several file-sharing protocols, including DFS, NFS, FTP, HTTP,
and Microsoft SMB. This section discusses overview information as well as procedures for the setup
and management of the file shares for the supported protocols. Security at the file level and at the
share level is also discussed.
NOTE:
Detailed information on setting up and managing NFS and NCP shares is discussed in
Microsoft Services for Network File System (MSNFS).
NOTE:
Select servers can be deployed in a clustered or non-clustered configuration. This section discusses share
setup for a non-clustered deployment.
Folder management
Volumes and folders on any system are used to organize data. Regardless of system size, systematic
structuring and naming conventions of volumes and folders eases the administrative burden. Moving
from volumes to folders to shares increases the level of granularity of the types of data stored in the
unit and the level of security access allowed.
Folders can be managed using the HP Storage Server Management Console. Tasks include:
•
•
•
•
•
•
Accessing a specific volume or folder
Creating a new folder
Deleting a folder
Modifying folder properties
Creating a new share for a volume or folder
Managing shares for a volume or folder
Managing file-level permissions
Security at the file level is managed using Windows Explorer.
File level security includes settings for permissions, ownership, and auditing for individual files.
To enter file permissions:
1.
Using Windows Explorer, access the folder or file that needs to be changed, and then right-click
the folder.
HP ProLiant SB460c SAN Gateway Storage Server
45
2.
Click Properties, and then click the Security tab.
Figure 11 Properties dialog box, Security tab
Several options are available on the Security tab:
• To add users and groups to the permissions list, click Add. Follow the dialog box instructions.
• To remove users and groups from the permissions list, highlight the desired user or group,
and then click Remove.
• The center section of the Security tab lists permission levels. When new users or groups are
added to the permissions list, select the appropriate boxes to configure the common file-access
levels.
46
File server management
3.
To modify ownership of files, or to modify individual file access level permissions, click Advanced.
Figure 12 illustrates the properties available on the Advanced Security Settings dialog box.
Figure 12 Advanced Security settings dialog box, Permissions tab
Other functionality available in the Advanced Security Settings dialog box is illustrated in Figure
12 and includes:
• Add a new user or group—Click Add, and then follow the dialog box instructions.
• Remove a user or group— Click Remove.
• Replace permission entries on all child objects with entries shown here that apply to child
objects—This allows all child folders and files to inherit the current folder permissions by
default.
• Modify specific permissions assigned to a particular user or group—Select the desired user
or group, and then click Edit.
HP ProLiant SB460c SAN Gateway Storage Server
47
4.
Enable or disable permissions by selecting the Allow box to enable permission or the Deny box
to disable permission. If neither box is selected, permission is automatically disabled. Figure 13
illustrates the Edit screen and some of the permissions.
Figure 13 User or group Permission Entry dialog box
Another area of the Advanced Security Settings is the Auditing tab. Auditing allows you to set
rules for the auditing of access, or attempted access, to files or folders. Users or groups can be
added, deleted, viewed, or modified through the Advanced Security Settings Auditing tab.
48
File server management
Figure 14 Advanced Security Settings dialog box, Auditing tab
5.
Click Add to display the Select User or Group dialog box.
Figure 15 Select User or Group dialog box
NOTE:
Click Advanced to search for users or groups.
6.
Select the user or group.
HP ProLiant SB460c SAN Gateway Storage Server
49
7.
Click OK.
The Auditing Entry dialog box is displayed.
Figure 16 Auditing Entry dialog box for folder name NTFS Test
8.
Select the desired Successful and Failed audits for the user or group.
9.
Click OK.
NOTE:
Auditing must be enabled to configure this information. Use the local Computer Policy Editor to configure
the audit policy on the storage server.
The Owner tab allows taking ownership of files. Typically, administrators use this area to take ownership
of files when the file ACL is incomplete or corrupt. By taking ownership, you gain access to the files,
and then manually apply the appropriate security configurations.
50
File server management
Figure 17 Advanced Security Settings dialog box, Owner tab
The current owner of the file or folder is listed at the top of the screen. To take ownership:
1.
Click the appropriate user or group in the Change owner to list.
2.
If it is also necessary to take ownership of subfolders and files, enable the Replace owner on
subcontainers and objects box.
3.
Click OK.
Share management
There are several ways to set up and manage shares. Methods include using Windows Explorer, a
command line interface, or the HP Storage Server Management Console.
NOTE:
Select servers can be deployed in a clustered as well as a non-clustered configuration. This chapter discusses
share setup for a non-clustered deployment.
As previously mentioned, the file-sharing security model of the storage server is based on the NTFS
file-level security model. Share security seamlessly integrates with file security. In addition to discussing
share management, this section discusses share security.
Share considerations
Planning the content, size, and distribution of shares on the storage server can improve performance,
manageability, and ease of use.
HP ProLiant SB460c SAN Gateway Storage Server
51
The content of shares should be carefully chosen to avoid two common pitfalls: either having too many
shares of a very specific nature, or of having very few shares of a generic nature. For example, shares
for general use are easier to set up in the beginning, but can cause problems later. Frequently, a
better approach is to create separate shares with a specific purpose or group of users in mind.
However, creating too many shares also has its drawbacks. For example, if it is sufficient to create
a single share for user home directories, create a “homes” share rather than creating separate shares
for each user.
By keeping the number of shares and other resources low, the performance of the storage server is
optimized. For example, instead of sharing out each individual user's home directory as its own share,
share out the top-level directory and let the users map personal drives to their own subdirectory.
Defining Access Control Lists
The Access Control List (ACL) contains the information that dictates which users and groups have
access to a share, as well as the type of access that is permitted. Each share on an NTFS file system
has one ACL with multiple associated user permissions. For example, an ACL can define that User1
has read and write access to a share, User2 has read only access, and User3 has no access to the
share. The ACL also includes group access information that applies to every user in a configured
group. ACLs are also referred to as permissions.
Integrating local file system security into Windows domain environments
ACLs include properties specific to users and groups from a particular workgroup server or domain
environment. In a multidomain environment, user and group permissions from several domains can
apply to files stored on the same device. Users and groups local to the storage server can be given
access permissions to shares managed by the device. The domain name of the storage server supplies
the context in which the user or group is understood. Permission configuration depends on the network
and domain infrastructure where the server resides.
File-sharing protocols (except NFS) supply a user and group context for all connections over the
network. (NFS supplies a machine-based context.) When new files are created by those users or
machines, the appropriate ACLs are applied.
Configuration tools provide the ability to share permissions out to clients. These shared permissions
are propagated into a file system ACL, and when new files are created over the network, the user
creating the file becomes the file owner. In cases where a specific subdirectory of a share has different
permissions from the share itself, the NTFS permissions on the subdirectory apply instead. This method
results in a hierarchical security model where the network protocol permissions and the file permissions
work together to provide appropriate security for shares on the device.
NOTE:
Share permissions and file-level permissions are implemented separately. It is possible for files on a file
system to have different permissions from those applied to a share. When this situation occurs, the file-level
permissions override the share permissions.
Comparing administrative (hidden) and standard shares
CIFS supports both administrative shares and standard shares.
• Administrative shares are shares with a last character of $. Administrative shares are not included
in the list of shares when a client browses for available shares on a CIFS server.
52
File server management
• Standard shares are shares that do not end in a $ character. Standard shares are listed whenever
a CIFS client browses for available shares on a CIFS server.
The storage server supports both administrative and standard CIFS shares. To create an administrative
share, end the share name with the $ character when setting up the share. Do not type a $ character
at the end of the share name when creating a standard share.
Managing shares
Shares can be managed using the HP Storage Server Management Console. Tasks include:
•
•
•
•
Creating a new share
Deleting a share
Modifying share properties
Publishing in DFS
NOTE:
These functions can operate in a cluster on select servers, but should only be used for non-cluster-aware
shares. Use Cluster Administrator to manage shares for a cluster. The page will display cluster share
resources.
CAUTION:
Before deleting a share, warn all users to exit that share and confirm that no one is using that share.
File Server Resource Manager
File Server Resource Manager (FSRM) is a suite of tools that allows administrators to understand,
control, and manage the quantity and type of data stored on their servers. Some of the tasks you can
perform are:
• Quota management
• File screening management
• Storage reports
The HP Storage Server Management Console provides access to FSRM tasks.
For procedures and methods beyond what are described below, see the online help. In addition, see
a Microsoft File Server Resource Manager white paper available at http://download.microsoft.com/
download/7/4/7/7472bf9b-3023-48b7-87be-d2cedc38f15a/WS03R2_Storage_Management.doc
.
Quota management
On the Quota Management node of the File Server Resource Manager snap-in, you can perform the
following tasks:
• Create quotas to limit the space allowed for a volume or folder and generate notifications when
the quota limits are approached or exceeded.
• Generate auto quotas that apply to all existing folders in a volume or folder, as well as to any
new subfolders created in the future.
HP ProLiant SB460c SAN Gateway Storage Server
53
• Define quota templates that can be easily applied to new volumes or folders and that can be used
across an organization.
File screening management
On the File Screening Management node of the File Server Resource Manager snap-in, you can
perform the following tasks:
• Create file screens to control the types of files that users can save and to send notifications when
users attempt to save blocked files.
• Define file screening templates that can be easily applied to new volumes or folders and that can
be used across an organization.
• Create file screening exceptions that extend the flexibility of the file screening rules.
Storage reports
On the Storage Reports node of the File Server Resource Manager snap-in, you can perform the
following tasks:
• Schedule periodic storage reports that allow you to identify trends in disk usage.
• Monitor attempts to save unauthorized files for all users or a selected group of users.
• Generate storage reports instantly.
Other Windows disk and data management tools
When you install certain tools, such as Windows Support Tools or Windows Resource Kit Tools,
information about these tools might appear in Help and Support Center. To see the tools that are
available to you, look in the Help and Support Center under Support Tasks, click Tools, and then click
Tools by Category.
NOTE:
The Windows Support Tools and Windows Resource Kit Tools, including documentation for these tools,
are available in English only. If you install them on a non-English language operating system or on an
operating system with a Multilingual User Interface Pack (MUI), you see English content mixed with
non-English content in Help and Support Center. To see the tools that are available to you, click Start, click
Help and Support Center, and then, under Support Tasks, click Tools.
Additional information and references for file services
Backup
HP recommends that you back up the print server configuration whenever a new printer is added to
the network and the print server configuration is modified. For details on implementing the backup
solution, see the Medium Business Guide for Backup and Recovery. The guide can be viewed or
downloaded from Microsoft at http://www.microsoft.com/technet/itsolutions/smbiz/mits/br/
mit_br.mspx.
54
File server management
HP StorageWorks Library and Tape Tools
HP StorageWorks Library and Tape Tools (L&TT) provides functionality for firmware downloads,
verification of device operation, maintenance procedures, failure analysis, corrective service actions,
and some utility functions. It also provides seamless integration with HP hardware support by generating
and e-mailing support tickets that deliver a snapshot of the storage system.
For more information, and to download the utility, see the StorageWorks L&TT web site at http://
h18006.www1.hp.com/products/storageworks/ltt.
Antivirus
The server should be secured by installing the appropriate antivirus software. For details on
implementing antivirus, see the Medium Business Guide for Antivirus. The guide can be viewed or
downloaded from Microsoft at http://www.microsoft.com/technet/itsolutions/smbiz/mits/av/
mit_av.mspx.
Security
For guidance on hardening file servers, see the Microsoft Windows Server 2003 Security Guide. The
guide can be viewed or downloaded at http://www.microsoft.com/technet/security/prodtech/
windowsserver2003/w2003hg/sgch00.mspx.
More information
The following web sites provide detailed information for using print services with Windows Server
2003, which also applies to Windows Storage Server 2003.
• Microsoft Storage
http://www.microsoft.com/windowsserversystem/storage/default.mspx
• Microsoft Windows Storage Server 2003
http://www.microsoft.com/windowsserversystem/wss2003/default.mspx
• Performance Tuning Guidelines for Windows Server 2003
http://www.microsoft.com/windowsserver2003/evaluation/performance/tuning.mspx
• Windows SharePoint Services
http://www.microsoft.com/windowsserver2003/technologies/sharepoint/default.mspx
HP ProLiant SB460c SAN Gateway Storage Server
55
56
File server management
3 Print services
Microsoft Print Management Console
Print Management in the Microsoft Windows Server 2003 R2 operating system is a Microsoft
Management Console (MMC) snap-on that system administrators can use to perform common print
management tasks in a large enterprise. It provides a single interface that administrators can use to
perform printer and print server management tasks efficiently with detailed control. You can use Print
Management from any computer running Windows Server 2003 R2, and you can manage all network
printers on print servers running Windows 2000 Server, Windows Server 2003, or Windows Server
2003 R2.
New or improved HP print server features
HP Web Jetadmin
HP Web Jetadmin (WJA )is a web-based tool for remotely installing, configuring, and managing a
wide variety of HP and non-HP network peripherals using only a web browser. It supports a modular
design whereby plug-ins can be installed to provide additional device, language, and application
functionality. WJA is not preinstalled on the storage server, but can be installed (see
“HP Web Jetadmin installation” on page 58).
HP Install Network Printer Wizard
The inclusion of the HP Install Network Printer Wizard (INPW) utility on the factory image is new.
INPW simplifies the process of installing network printers, including configuration settings on the print
server. INPW identifies HP Jetdirect network print devices and allows the user to select the printer to
install on the print server.
HP Download Manager for Jetdirect Printer Devices
The inclusion of the HP Download Manager (DLM) for Jetdirect Printer Devices on the factory image
is new. DLM is used to upgrade HP Jetdirect print server firmware on HP network printers. The utility
obtains the latest firmware catalog from either from the Internet or from a computer with the download
firmware images already in place. The DLM discovers all or user-selected Jetdirect devices and
upgrades those based on the firmware catalog.
Microsoft Print Migrator utility
The inclusion of the Microsoft Print Migrator utility on the factory image is new. The utility provides
complete printer configuration backup of the print server to a user-specified CAB file. Print Migrator
supports migration of print configuration data between different versions of Windows, and supports
conversion of line printer remote (LPR) ports to the Standard TCP/IP Port Monitor on Windows 2000,
Windows XP, and Windows Server 2003.
HP ProLiant SB460c SAN Gateway Storage Server
57
Network printer drivers
Updated print drivers for HP network printers are preinstalled on the storage server. If a Service
Release DVD has been run on the server, there are updated HP network print drivers in the
C:\hpnas\PRINTERS folder.
Print services management
Print services information to plan, set up, manage, administer, and troubleshoot print servers and print
devices are available online using the Help and Support Center feature. To access the Help and
Support Center, select Start > Help and Support, then Printers and Faxes under Help Contents.
Microsoft Print Management Console
The Print Management Console (PMC) can be started from the HP Storage Server Management
Console, or the PMC snap-in can be added to the Microsoft Management Console.
HP recommends that you use the Microsoft Print Management Step-by-Step Guide on the Documentation
CD for print concepts, use of the PMC, and management of network printers. The guide can also be
downloaded from http://www.microsoft.com/printserver.
When running the PMC on a server that has Windows Firewall enabled, no printers will be displayed
in the printers folder of the PMC. In order for printers to be displayed, you need to open the file and
print sharing ports (TCP 139 and 445, and UDP 137 and 138). If this does not fix the problem, or
if these ports are already open, you may need to turn off the Windows Firewall to display printers.
To open the file and print sharing ports:
1.
Click Start, point to Control Panel, and click Windows Firewall.
2.
On the Exceptions tab, ensure that the File and Printer Sharing check box is selected and click
OK.
To turn off Windows Firewall:
1.
Click Start, point to Control Panel, and click Windows Firewall.
2.
Select Off (not recommended) and click OK.
HP Web Jetadmin installation
HP Web Jetadmin is used to manage a fleet of HP and non-HP network printers and other peripherals
using a web browser. Although not preinstalled, the Web Jetadmin software is located in the
C:\hpnas\Components\WebJetadmin folder, and can be installed by running the setup program.
Follow the installation wizard and supply a password for the local “Admin” username account and
a system name.
For more information about Web Jetadmin and Web Jetadmin plug-ins, see http://www.hp.com/
go/webjetadmin. For an article on optimizing performance, go to http://h10010.www1.hp.com/
wwpc/pscmisc/vac/us/product_pdfs/weboptim.pdf.
Web-based printer management and Internet printing
Internet printing is enabled by default on the print server. Internet printing consists of two main
components:
58
Print services
• Web-based printer management with the ability to administer, connect to, and view printers
through a web browser.
• Internet printing enabling users to connect to a printer using the printer's URL.
A Microsoft white paper discussing the uses of both components can be obtained at http://
www.microsoft.com/windowsserver2003/techinfo/overview/internetprint.mspx.
Planning considerations for print services
Before configuring the print server, the following checklist of items should be followed:
1.
Determine the operating system version of the clients that will send jobs to this printer. This
information is used to select the correct client printer drivers for the client and server computers
using the printer. Enabling this role on the print server allows the automatic distribution of these
drivers to the clients. Additionally, the set of client operating systems determines which of these
drivers need to be installed on the server during the print server role installation.
2.
At the printer, print a configuration or test page that includes manufacturer, model, language,
and installed options. This information is needed to choose the correct printer driver. The
manufacturer and model are usually enough to uniquely identify the printer and its language.
However, some printers support multiple languages, and the configuration printout usually lists
them. Also, the configuration printout often lists installed options, such as extra memory, paper
trays, envelope feeders, and duplex units.
3.
Choose a printer name. Users running Windows-based client computers choose a printer by using
the printer name. The wizard that you will use to configure your print server provides a default
name, consisting of the printer manufacturer and model. The printer name is usually fewer than
31 characters in length.
4.
Choose a share name. A user can connect to a shared printer by entering this name, or by
selecting it from a list of share names. The share name is usually fewer than 8 characters for
compatibility with MS-DOS and Windows 3.x clients.
5.
(Optional) Choose a location description and a comment. These can help identify the location of
the printer and provide additional information. For example, the location could be “Second floor,
copy room” and the comment could be “Additional toner cartridges are available in the supply
room on floor 1."
6.
Enable management features for Active Directory and Workgroup Environments. If the print server
is part of an Active Directory domain rather than Workgroup, the print server enables the following
management features:
7.
8.
• Restrict access to printer-based domain user accounts.
• Publish shared printers to Active Directory to aid in search for the resource.
Deploy printers using group policy. Print management can be used with Group Policy to
automatically add printer connections to a server's Printers and Faxes folder. For more information,
see the Microsoft article at http://technet2.microsoft.com/WindowsServer/en/Library/
ab8d75f8-9b35-4e3e-a344-90d7799927231033.mspx.
Determine whether printer spooling be enabled. Two or more identical printers that are connected
to one print server can act as a single printer. As a means to load-balance print queues when
you print a document, the print job is sent to the first available printer in the pool. See “Setting
printer properties” in the Windows online help for additional information.
Print queue creation
In addition to Windows Printer and Faxes, Add Printer Wizard, the HP Install Network Printer Wizard
(INPW) utility discovers HP Jetdirect network printers on the local network and allows print queues to
HP ProLiant SB460c SAN Gateway Storage Server
59
be created on the print server. The utility is located on the storage server in the
C:\hpnas\Components\Install Network Printer Wizard folder.
Sustaining print administration tasks
Tasks that need to be performed regularly to support the print services include:
• Monitoring print server performance using the built-in performance monitoring tool in the Windows
Server operating system.
• Supporting printers that include adding, moving, and removing printers as requirements change.
• Installing new printer drivers.
• Recording information about the printer's name, share names, printer features, and the location
where the printers are physically installed. This information should be kept in an easily accessible
place.
For process suggestions for recurring tasks, see the Microsoft Print Service Product Operations Guide
at http://www.microsoft.com/technet/itsolutions/cits/mo/winsrvmg/pspog/pspog3/mspx.
Driver updates
Print drivers
The latest print drivers for many HP network printers are supplied on the Service Release DVD. If
selected as part of the service release installation process, updated print drivers are copied to the
print drivers folder C:\hpnas\PRINTERS on the storage server. Print drivers are also available for
download on the HP Support web site for individual network printers.
User-mode vs. kernel-mode drivers
Drivers can be written in either user mode (also called version 3 drivers) or kernel mode (also called
version 2 drivers). Native drivers on Windows 2000 and later run in user mode. Windows Server
2003 and Windows Storage Server 2003 can run kernel-mode drivers, although this is not
recommended for stability reasons.
Kernel-mode driver installation blocked by default
In Windows Server 2003 and Windows Storage Server 2003, installation of kernel-mode drivers is
blocked by default.
To allow kernal-mode drivers to be installed, perform the following steps:
1.
Open Group Policy, click Start > Run, then type gpedit.msc, and press Enter.
2.
Under Local Computer Policy, double-click Computer Configuration.
3.
Right-click Disallow installation of printers using kernel-mode drivers, and then click Properties.
4.
On the Setting tab, click either Not Configured or Disabled, and then click OK.
HP Jetdirect firmware
The HP Download Manager (DLM) utility for Jetdirect printers provides upgrades of HP Jetdirect print
server firmware on HP network printers. The utility is located on the storage server in the
C:\hpnas\Components\Download Manager for Jetdirect folder. A connection to the
60
Print services
Internet is required, or the utility can be pointed to a local location where the firmware images are
stored. For more information on upgrading HP Jetdirect print server firmware, see http://
h20000.www2.hp.com/bizsupport/TechSupport/Document.jsp?objectID=bpj06917.
Printer server scalability and sizing
A Microsoft technical paper overviews several key factors that influence the capacity of a given print
server configuration. While this paper cannot provide a predictive formula to determine the printing
throughput of a given configuration, it does describe several reference systems and their capacity.
This paper also presents the information necessary to help the system administrator or capacity planner
estimate, and later monitor, their server workload. The current version of this paper is maintained at
http://www.microsoft.com/printserver.
Backup
It is recommended that you back up the print server configuration whenever a new printer is added
to the network and the print server configuration is modified. For details on implementing the backup
solution, see the Medium Business Guide for Backup and Recovery. The guide can be viewed or
downloaded from Microsoft at http://www.microsoft.com/technet/itsolutions/smbiz/mits/br/
mit_br.mspx.
The Print Migrator utility is recommended as a print-specific alternative to backing up print configuration
settings on the print server. The Print Migrator utility is located in the
C:\hpnas\Components\PrintMigrator folder on the storage server.
For more information about the Print Migrator utility, see http://www.microsoft.com/
WindowsServer2003/techinfo/overview/printmigrator3.1.mspx.
Best practices
The following is practical advice for managing print devices:
•
•
•
•
•
•
•
•
•
•
Printers and print servers should be published in Active Directory.
Locate printers in common areas, such as near conference rooms.
Protect print servers using antivirus software.
Ensure the print server is included in the backup configuration.
Use Microsoft Printer Migrator to back up a print server configuration and restore settings on a
new print server. This eliminates the need to manually re-create print queues and printer ports,
install drivers, and change the IP configuration.
Use Microsoft Printer Migrator to backup new printers configured on the print server.
Use Microsoft Printer Migrator when migrating to new print servers.
Perform a full backup of the print server, including the state information, before releasing the
system to the users in the production environment.
Whenever a new configuration is made or existing configuration is modified, a backup should
be performed.
To optimize performance, move the print spooler to another disk, separate from the disk supporting
the operating system. To move the print spooler to another disk:
• Start Printer and Faxes.
• On the File menu, click Server Properties, and then click the Advanced tab.
• In the Spool folder window, enter the path and the name of the new default spool folder for
the print server and then click Apply or OK.
HP ProLiant SB460c SAN Gateway Storage Server
61
• Stop and restart the spooler service, or restart the print server.
Troubleshooting
The online help or Help and Support Center feature should be used to troubleshoot general and
common print-related problems. Printing help can be accessed by selecting Start > Help and Support,
then the Printers and Faxes selection under Help Contents.
The same print troubleshooting information can be accessed at http://www.microsoft.com/technet/
prodtechnol/windowsserver2003/library/ServerHelp/
2048a7ba-ec57-429c-95a3-226eea32d126.mspx
Specific print server related problems as well as other system related known issues and workarounds
are addressed in release notes. To view the latest version, visit http://www.hp.com/go/support.
Select See support and troubleshooting information and enter a product name/number. Under self-help
resources, select the manuals (guides, supplements, addendums, etc) link.
Additional references for print services
The following web sites provide detailed information for using print services with Windows Server
2003, which also applies to Windows Storage Server 2003.
• Windows Server 2003 print services home page at http://www.microsoft.com/
windowsserver2003/technologies/print/default.mspx
• Medium Business Solution for Print Services at http://www.microsoft.com/technet/itsolutions/
smbiz/mits/ps/mit_ps.mspx.
62
Print services
4 Microsoft Services for Network File System
(MSNFS)
This chapter discusses networking features in Microsoft Services for Network File System (MSNFS).
MSNFS Features
MSNFS is an update to the NFS components that were previously available in Services for UNIX 3.5.
MSNFS includes the following new features:
• Updated administration snap-in—MSNFS Administration
• Active Directory Lookup—The Identity Management for UNIX Active Directory schema extension,
available in Microsoft Windows Server 2003 R2, includes UNIX user identifier (UID) and group
identifier (GID) fields, which enables Server for NFS and Client for NFS to look up Windows-to-UNIX
user account mappings directly from Active Directory. Identity Management for UNIX simplifies
Windows-to-UNIX user account mapping management in Active Directory.
• Enhanced server performance—Microsoft Services for NFS includes a file filter driver, which
significantly reduces common server file access latencies.
• UNIX special device support—Microsoft Services for NFS supports UNIX special devices (mknod).
• Enhanced UNIX support—Microsoft Services for NFS now supports the following versions of UNIX:
• Hewlett Packard HP-UX version 11i
• IBM AIX version 5L 5.2
• Red Hat Linux version 9
• Sun Microsystems Solaris version 9
The following features that were previously available in Services for UNIX 3.5 are not included in
MSNFS:
• Gateway for NFS
• Server for PCNFS
• All PCNFS components of Client for NFS
UNIX Identity Management
Identity Management for UNIX makes it easy to integrate users of Windows operating systems into
existing UNIX environments. It provides manageability components that simplify network administration
and account management across both platforms.
With Identity Management for UNIX, the administrator can:
• Manage user accounts and passwords on Windows and UNIX systems using Network Information
Service (NIS).
• Automatically synchronize passwords between Windows and UNIX operating systems.
UNIX Identity Management consists of the following components:
HP ProLiant SB460c SAN Gateway Storage Server
63
• Administration components
• Password synchronization
• Server for NIS
The UNIX Identity Management component is not enabled by default on the storage server. To install
this component:
1.
Access Add/Remove Programs.
2.
Select Add/Remove Windows Components > Active Directory Services > Details.
3.
Install Identity Management for UNIX.
MSNFS use scenarios
The following use scenarios are supported by MSNFS file services:
• Allow UNIX clients to access resources on computers running Windows Server 2003 R2.
Your company may have UNIX clients accessing resources, such as files, on UNIX file servers. To
take advantage of new Windows Server 2003 features, such as Shadow Copies for Shared
Folders, you can move resources from your UNIX servers to computers running Windows Server
2003 R2. You can then set up MSNFS to enable access by UNIX clients that are running NFS
software. All of your UNIX clients will be able to access the resources using the NFS protocol with
no changes required.
• Allow computers running Windows Server 2003 R2 to access resources on UNIX file servers.
Your company may have a mixed Windows and UNIX environment with resources, such as files,
stored on UNIX file servers. You can use MSNFS to enable computers running Windows Server
2003 R2 to access these resources when the file servers are running NFS software.
NOTE:
Services for NFS can be implemented in both clustered and non-clustered environments using select storage
servers. This chapter discusses Services for NFS in a non-clustered deployment. If your storage server is
capable of using clusters, see the Cluster administration chapter for more information. (This chapter is not
in manuals for those models that cannot use clusters.)
MSNFS components
MSNFS comprises the following three main components:
• Username Mapping Server
Username Mapping Server maps user names between Windows and UNIX user accounts. In a
heterogeneous network, users have separate Windows and UNIX security accounts. Users must
provide a different set of credentials to access files and other resources, depending on whether
they are stored on a Windows or UNIX file server. To address this issue, Username Mapping
Server maps the Windows and UNIX user names so that users can log on with either their Windows
or UNIX credentials and access resources regardless of whether they are stored on a Windows
or UNIX file server.
• Server for NFS
Normally, a UNIX computer cannot access files on a Windows-based computer. A computer
running Windows Server 2003 R2 and Server for NFS, however, can act as a file server for both
Windows and UNIX computers.
64
Microsoft Services for Network File System (MSNFS)
• Client for NFS
Normally, a Windows-based computer cannot access files on a UNIX computer. A computer
running Windows Server 2003 R2 and Client for NFS, however, can access files stored on a
UNIX-based NFS server.
The Client for NFS feature of the Microsoft Services for NFS component is not preinstalled on the
storage server although information about this feature appears in the online help. To enable Client
for NFS:
1.
Go to Add/Remove Programs.
2.
Select Add/Remove Windows Components > Other Network File and Print Services > Microsoft
Services for NFS > Details.
3.
Install Client for NFS.
Administering MSNFS
To access Microsoft Services for Network File System from the Start menu:
1.
Select Start > Programs > Administrative Tools.
2.
Click Microsoft Services for Network File System.
To access Microsoft Services for Network File System from the HP Storage Server Management console:
1.
Access the HP Storage Server Management console by clicking on the shortcut icon on the
desktop.
2.
In the left pane of the console, select the Share Folder Management listing.
3.
In the center pane, under Share Utilities, select Microsoft Services for NFS (see Figure 18).
Figure 18 Accessing MSNFS from HP Storage Server Management console
Server for NFS
With Server for NFS, a computer running the Microsoft Windows Server 2003 R2 operating system
can act as a Network File System (NFS) server. Users can then share files in a mixed environment of
computers, operating systems, and networks. Users on computers running NFS client software can
gain access to directories (called shares) on the NFS server by connecting (mounting) those directories
to their computers. From the viewpoint of the user on a client computer, the mounted files are
indistinguishable from local files.
HP ProLiant SB460c SAN Gateway Storage Server
65
UNIX computers follow advisory locking for all lock requests. This means that the operating system
does not enforce lock semantics on a file, and applications that check for the existence of locks can
use these locks effectively. However, Server for NFS implements mandatory locks even for those
locking requests that are received through NFS. This ensures that locks acquired through NFS are
visible through the server message block (SMB) protocol and to applications accessing the files locally.
Mandatory locks are enforced by the operating system.
Server for NFS Authentication DLL versus Service for User for Active Directory domain controllers
On a Windows Storage Server 2003 R2 storage server, Server for NFS depends on a domain
controller feature called Service for User (S4U) to authenticate UNIX users as their corresponding
Windows users. Windows Server operating systems prior to Windows Server 2003 and Windows
Storage Server 2003 do not support S4U. Also, in mixed domain environments, legacy Services for
UNIX (SFU), Services for NFS and Windows Storage Server 2003 NFS deployments do not use the
S4U feature and still depend on the Server for NFS Authentication DLL being installed on domain
controllers.
Therefore, the administrator needs to install the Server for NFS Authentication DLL on Windows 2000
domain controllers when:
• The NFS file serving environment uses previous NFS releases (NAS, SFU, and so on).
• The Windows domain environment uses pre-2003 domain controllers.
See Table 4 for guidance as to when to use NFS Authentication DLL instead of S4U legacy NFS and
R2 MSNFS.
Table 4 Authentication table
Domain controller type
Legacy NFS (pre-WSS2003
R2)
MSNFS (WSS2003 R2)
Legacy domain controller
(pre-WSS2003)
Requires NFS Authentication
DLL on domain controller
Requires NFS Authentication DLL on domain
controller
Recent domain
controllers (WSS2003
and later)
Requires NFS Authentication
DLL on domain controller
Uses the built-in S4U (on the domain controller). It
is unaffected by the NFS Authentication DLL on the
domain controller.
The S4U set of extensions to the Kerberos protocol consists of the Service-for-User-to-Proxy (S4U2Proxy)
extension and the Service-for-User-to-Self (S4U2Self) extension. For more information about the S4U2
extensions, see the Kerberos articles at the following URLs: http://
searchwindowssecurity.techtarget.com/originalContent/0,289142,sid45_gci1013484,00.html
(intended for IT professionals) and http://msdn.microsoft.com/msdnmag/issues/03/04/SecurityBriefs/
default.aspx (intended for developers).
Installing NFS Authentication DLL on domain controllers
NOTE:
If the authentication software is not installed on all domain controllers that have user name mappings,
including primary domain controllers, backup domain controllers, and Active Directory domains, then
domain user name mappings will not work correctly.
You need to install the version of NFS Authentication included with Services for UNIX 3.5. You can download
Services for UNIX 3.5 at no charge from http://go.microsoft.com/fwlink/?LinkId=44501.
66
Microsoft Services for Network File System (MSNFS)
To install the Authentication software on the domain controllers:
1.
From the SFU 3.5 files, locate the directory named SFU35SEL_EN.
2.
On the domain controller where the Authentication software is being installed use Windows
Explorer to:
a.
Open the shared directory containing setup.exe.
b.
Double-click the file to open it. Windows Installer is opened.
NOTE:
If the domain controller used does not have Windows Installer installed, locate the file
InstMSI.exe on the SFU 3.5 directory and run it. After this installation, the Windows
Installer program starts when opening setup.exe.
3.
In the Microsoft Windows Services for UNIX Setup Wizard dialog box, click Next.
4.
In the User name box, enter your name. If the name of your organization does not appear in the
Organization box, enter the name of your organization there.
5.
Read the End User License Agreement carefully. If you accept the terms of the agreement, click
I accept the terms in the License Agreement, and then click Next to continue installation. If you
click I do not accept the License Agreement (Exit Setup), the installation procedure terminates.
6.
Click Custom Installation, and then click Next.
7.
In the Components pane, click the down arrow next to Windows Services for UNIX, and then
click Entire component will not be available.
8.
Click the plus sign (+) next to Authentication Tools.
9.
In the Components pane, click the plus sign (+) next to Authentication Tools.
10. Click Server for NFS Authentication, click Will be installed on local hard drive, and then click
Next.
11. Follow the remaining instructions in the Wizard.
NOTE:
NFS users can be authenticated using either Windows domain accounts or local accounts on the Windows
server. Server for NFS Authentication must be installed on all domain controllers in the domain if NFS
users will be authenticated using domain accounts. Server for NFS Authentication is always installed on
the computer running Server for NFS.
Elevate S4U2 functionality on Windows Server 2003 domain controllers
NOTE:
The S4U2 functionality does not work until the domain functional level is elevated to Windows Server 2003.
To elevate the functional level to Windows Server 2003:
1.
On the Windows 2003 domain controller, open Active Directory Domains and Trusts.
HP ProLiant SB460c SAN Gateway Storage Server
67
2.
In the console tree, right-click the domain for which you want to raise functionality, and then click
Raise Domain Functional Level.
3.
In Select an available domain functional level, click Windows Server 2003.
4.
Click Raise.
Server for NFS administration
The Server for NFS administration online help contains information for the following topics:
•
•
•
•
•
•
•
•
•
•
Understanding the Server for NFS component
Starting and stopping Server for NFS
Configuring Server for NFS
Securing Server for NFS
Optimizing Server for NFS performance
Using file systems with NFS
Managing NFS shares
Managing NFS client groups
Using Microsoft Services for NFS with server clusters
Server for NFS Authentication
Accessing NFS resources for Windows users and groups
Server for NFS allows Windows clients to access NFS resources on the storage server without separately
logging on to Server for NFS. The first time users attempt to access an NFS resource, the Server for
NFS looks up the user’s UNIX UID and GID information in either Windows Active Directory or the
User Name Mapping function on the storage server. If the UNIX UID and GID information is mapped
to a Windows user and group accounts, the Windows names are returned to Server for NFS, which
then uses the Windows user and group names to grant file access. If the UNIX UID and GID information
is not mapped, then Server for NFS will deny file access.
There are two ways to specify how Server for NFS on the storage server obtains Windows user and
group information:
• Using the Windows interface
• Using a command line (nfsadmin.exe)
IMPORTANT:
• Before using Active Directory Lookup, administrators must install and populate the Identity Management
for UNIX Active Directory schema extension, included in Windows Server 2003 R2, or have an equivalent
schema which includes UNIX UID and GID fields.
• The IP address of the User Name Mapping server can be specified instead of the name of the server.
• Before using User Name Mapping, the computer running Server for NFS must be listed in the .maphosts
file on the computer running User Name Mapping. For more information, see “Securing access to the
User Name Mapping server.”
For additional information about accessing NFS resources, see the MSNFS online help. For additional
information about Identity Management for UNIX, see the UNIX Identify Management online help
68
Microsoft Services for Network File System (MSNFS)
Managing access using the .maphosts file
The User Name Mapping component of MSNFS acts as an intermediary between NFS servers and
NFS clients on a network containing UNIX hosts and Windows-based computers. To maintain the
implicit trust relationship between NFS client and host computers, administrators can control which
computers can access User Name Mapping by editing the .maphosts in the %windir%\msnfs directory
of the storage server. Conditions to allow or deny access include:
• If the .maphosts file is present but not empty, then only those computers allowed access by entries
in the file can access User Name mapping.
• If the .maphosts file is present but empty (the default), no computers except the computer running
User Name Mapping itself can access User Name Mapping.
• If the .maphosts file is not present, no computers (including the computer running User Name
Mapping) can access User Name Mapping.
The ordering of entries is important as User Name Mapping searches the .maphosts file from the top
down until it finds a match.
For additional information about the .maphosts file, see the MSNFS online help.
Allowing anonymous access to resources by NFS clients
You may want to add anonymous access to a share, for example when it is not desirable or possible
to create and map a UNIX account for every Windows user. A UNIX user whose account is not
mapped to a Windows account is treated by Server for NFS as an anonymous user. By default, the
user identifier (UID) and group identifier (GID) is -2.
For example, if files are created on an NFS Share by UNIX users who are not mapped to Windows
users, the owner of those files are listed as anonymous user and anonymous group, (-2,-2).
By default, Server for NFS does not allow anonymous users to access a shared directory. When an
NFS share is created, the anonymous access option can be added to the NFS share. The values can
be changed from the default anonymous UID and GID values to the UID and GID of any valid UNIX
user and group accounts.
NOTE:
In Windows Server 2003, the Everyone group does not include anonymous users by default.
When allowing anonymous access to an NFS Share, the following must be performed by a user with
administrative privileges due to Windows Storage Server 2003 security with anonymous users and
the Everyone group.
1.
Click Remote Desktop. Log on to the storage server.
2.
Click Start >Control Panel > Administrative Tools, and then click Local Security Policy.
3.
In Security Settings, double-click Local Policies, and then click Security Options.
4.
Right-click Network access: Let Everyone permissions apply to anonymous users, and then click
Properties.
5.
To allow permissions applied to the Everyone group to apply to anonymous users, click Enabled.
The default is Disabled.
6.
Restart the NFS server service. From a command prompt, enter net stop nfssvc. Then enter
net start nfssvc. Notify users before restarting the NFS service.
HP ProLiant SB460c SAN Gateway Storage Server
69
7.
Assign the Everyone group the appropriate permissions on the NFS Share.
8.
Enable anonymous access to the share.
To enable anonymous access to an NFS share, do the following:
1.
Open Windows Explorer by clicking Start > Run, and entering Explorer.
2.
Navigate to the NFS share.
3.
Right-click the NFS Share, and then click Properties.
4.
Click NFS Sharing.
5.
Select the Allow Anonymous Access checkbox.
6.
Change from the default of -2,-2, if desired.
7.
Click Apply.
8.
Click OK.
Best practices for running Server for NFS
• Provide user-level security.
•
•
•
•
•
Secure files.
Secure new drives.
Allow users to disconnect before stopping the Server for NFS service.
Use naming conventions to identify shares with EUC encoding.
Protect configuration files.
For further details, see the online help for Microsoft Services for Network File System.
User Name Mapping
The User Name Mapping component provides centralized user mapping services for Server for NFS
and Client for NFS. User Name Mapping lets you create maps between Windows and UNIX user
and group accounts even though the user and group names in both environments may not be identical.
User Name Mapping lets you maintain a single mapping database making it easier to configure
account mapping for multiple computers running MSNFS.
In addition to one-to-one mapping between Windows and UNIX user and group accounts, User Name
Mapping permits one-to-many mapping. This lets you associate multiple Windows accounts with a
single UNIX account. This can be useful, for example, when you do not need to maintain separate
UNIX accounts for individuals and would rather use a few accounts to provide different classes of
access permission.
You can use simple maps, which map Windows and UNIX accounts with identical names. You can
also create advanced maps to associate Windows and UNIX accounts with different names, which
you can use in conjunction with simple maps.
User Name Mapping can obtain UNIX user, password, and group information from one or more
Network Information Service (NIS) servers or from password and group files located on a local hard
drive. The password and group files can be copied from a UNIX host or from a NIS server.
User Name Mapping periodically refreshes its mapping database from the source databases, ensuring
that it is always kept up-to-date as changes occur in the Windows and UNIX name spaces. You can
also refresh the database anytime you know the source databases have changed.
70
Microsoft Services for Network File System (MSNFS)
You can back up and restore User Name Mapping data at any time. Because the database is backed
up to a file, you can use that file to copy the mapping database to another server. This provides
redundancy for the sake of fault tolerance.
NOTE:
If you obtain information from multiple NIS domains, it is assumed that each domain has unique users and
user identifiers (UIDs). User Name Mapping does not perform any checks.
User Name Mapping associates Windows and UNIX user names for Client for NFS and Server for
NFS. This allows users to connect to Network File System (NFS) resources without having to log on
to UNIX and Windows systems separately.
NOTE:
Most of the functionality of User Name Mapping has been replaced by Active Directory Lookup. Active
Directory Lookup enables Client for NFS and Server for NFS to obtain user identifier (UID) and group
identifier (GID) information directly from Active Directory. For information about storing UNIX user data
in Active Directory, see documentation for Identity Management for UNIX. For information about enabling
Active Directory Lookup, see “Specifying how Server for NFS obtains Windows user and group information”
available in the online help.
User Name Mapping Administration
The User Name Mapping administration online help contains information for the following topics:
•
•
•
•
•
•
Understanding the User Name Mapping component
Starting and stopping User Name Mapping
Configuring User Name Mapping
Securing access to the User Name Mapping server
Managing maps
Managing groups
Best practices for User Name Mapping
• Install User Name Mapping on a domain controller.
• Create a User Name Mapping server pool.
• Configure User Name Mapping on a server cluster.
• Make sure User Name Mapping can download users from all domains.
• Refresh data whenever a user is added or changed.
• Place password and group files on the User Name Mapping server.
• Use appropriate permissions to protect password and group files.
• Ensure consistency of group mapping.
• Specify the computers that can access User Name Mapping.
For further details, see the online help for Microsoft Services for Network File System.
HP ProLiant SB460c SAN Gateway Storage Server
71
Microsoft Services for NFS troubleshooting
The following information on how to troubleshoot issues with Microsoft Services for NFS is available
using the online help:
• General issues
• Troubleshooting Server for NFS
• Troubleshooting User Name Mapping
For further details, see the online help for Microsoft Services for Network File System.
Microsoft Services for NFS command-line tools
Table 5 provides a listing of Windows command-line administration tools.
Table 5 MSNFS command-line administration tools
Command
Function
mapadmin
Adds, lists, deletes, or changes user name mappings
mount
Mounts NFS network exports (shares)
nfsadmin
Manages Server for NFS and Client for NFS
nfsshare
Displays, adds, and removes exported NFS shares
nfsstat
Views statistics by NFS operation type
showmount –a
Views users who are connected and what the user currently has mounted
showmount –e
Views exports from the server and their export permissions
unmount
Removes NFS-mounted drives
For further details, see the online help for Microsoft Services for Network File System.
Optimizing Server for NFS performance
The following sources provide useful information on how to optimize performance for Microsoft
Services for NFS.
The MSNFS online help covers the following topic areas:
• Adding performance counters
• Monitoring and tuning performance
• Changing the directory cache memory setting
For further details, see the online help for Microsoft Services for Network File System.
A technical paper titled Performance Tuning Guidelines for Microsoft Services for Network File System
is available at http://www.microsoft.com/technet/interopmigration/unix/sfu/perfnfs.mspx.
Print services for UNIX
Network clients with UNIX-based operating systems that use the client program line printer remote
(LPR) can send printing jobs to the line printer daemon (LPD) on the storage server. LPR clients must
72
Microsoft Services for Network File System (MSNFS)
comply with Request for Comments (RFC) 1179. The combination of the LPR and LPD are included in
print services for UNIX. Print services for UNIX is not preinstalled on the print server.
To install print services for UNIX:
1.
Log on as administrator or as a member of the Administrators group.
2.
Select Start > Control Panel, and then click Add or Remove Programs.
3.
Click Add/Remove Windows Components.
4.
In the Components list, click Other Network File and Print Services (but do not select or clear the
check box), and then click Details.
5.
In the Subcomponents of Other Network File and Print Services list, select Print Services for UNIX,
if appropriate to the print services that you want to install:
Print Services for UNIX: This option permits UNIX clients to print to any printer that is available
to the print server.
NOTE:
When installing Print Services for UNIX, this automatically installs the LPR port and the
TCP/IP Print Server service.
6.
Click OK, and then click Next.
7.
Click Finish.
Point and print from UNIX to Windows Server 2003
Point-and-Print behavior from UNIX clients to Windows Server 2003 and Windows Storage Server
2003 is similar to the behavior for Windows 95, Windows 98, and Windows Millennium Edition
clients, because all these clients create SMB connections. However, the non–Windows operating
systems maintain their own driver model, so these clients do not automatically get the driver during
Point and Print; they must install the driver locally. Like the Windows 95, Windows 98, and Windows
Millennium clients, these non–Windows clients do not receive driver updates from the print server
after a driver is initially downloaded. The same connection methods are available: drag and drop,
the Add Printer Wizard, referencing a UNC path, or double-clicking the shared printer icon.
Additional resources
Consult the following resources for more information about using and configuring Print Services for
UNIX:
• How To: Install and Configure Print Services for UNIX
http://support.microsoft.com/kb/324078
• How To: Install Print Services for UNIX in Windows Server 2003
http://support.microsoft.com/?scid=kb;en-us;323421
HP ProLiant SB460c SAN Gateway Storage Server
73
74
Microsoft Services for Network File System (MSNFS)
5 Other network file and print services
This chapter discusses file and print services for NetWare and Macintosh.
File and Print Services for NetWare (FPNW)
File and Print Services for NetWare (FPNW) is one part of the Microsoft software package called
Services for NetWare. The most common use of the NetWare network operating system is as a file
and print server. FPNW eases the addition of the storage server into a mixed infrastructure by providing
a NetWare user interface (UI) to a Windows Storage Server 2003-based server; administrators and
users see their same, familiar NetWare UI. Additionally, the same logon for clients is maintained
without a need for any client configuration changes.
This service also provides the ability to create Novell volumes, which are actually NTFS shares, from
which users can map drives and access resources. Novell Login scripts are supported on the storage
server or through an existing NDS (Novell Directory Services) account. This requires no changes or
additions to the software on the NetWare client computers.
NOTE:
FPNW is not a clusterable protocol. With FPNW on both nodes of a cluster, the shares do not fail over
because the protocol is not cluster-aware.
NOTE:
IPX/SPX protocol is required on the Novell servers.
Installing Services for NetWare
The installation of FPNW on the storage server allows for a smooth integration with existing Novell
servers. FPNW allows a Windows Storage Server 2003 based server to emulate a NetWare file and
print server to users, clients, and administrators. This emulation allows authentication from Novell
clients, the use of Novell logon scripts, the creation of Novell volumes (shares), the use of Novell file
attributes, and many other Novell features.
Information on Microsoft Directory Synchronization Services and the File Migration Utility can be
found at
http://www.microsoft.com/WINDOWS2003/guide/server/solutions/NetWare.asp
To install Services for NetWare, , naviagte to the c:\hpnas\components\SFN5.003SP2 folder
and run the FPNW 5.02.exe setup executable file.
HP ProLiant SB460c SAN Gateway Storage Server
75
Managing File and Print Services for NetWare
FPNW resources are managed through Server Manager. Server Manager can be used to modify
FPNW properties and manager shared volumes.
Use File and Print Services for NetWare to:
• Access files, modify file settings and permissions from Computer Management, and use third party
tools that can be used with NetWare servers.
• Create and manage user accounts by using Active Directory Users and Computers.
• Perform secured log-ons.
• Support packet burst and Large Internet Packet (LIP).
• Support NetWare locking and synchronization primitives that are used by some NetWare-specific
applications.
• Support long file names, compatible with OS/2 long file name (LFN) support.
File and Print Services for NetWare does not support the following NetWare groups and functions:
•
•
•
•
•
•
Workgroup Managers
Accounting
User disk volume restrictions
Setting Inherited Rights Masks (IRMs)
NetWare loadable modules
Transaction Tracking System (TTS)
To access FPNW:
1.
76
From the desktop of the storage server, select Start > Settings > Control Panel > Administrative
Tools > Server Manager.
Other network file and print services
2.
Select FPNW, and then click Properties.
Figure 19 File and Print Services for NetWare dialog box
3.
Enter an FPNW Server Name and Description.
This server name must be different from the server name used by Windows or LAN Manager-based
clients. If changing an existing name, the new name is not effective until stopping and restarting
FPNW. For example, in Figure 19 the Windows server name is Alamo and the FPNW server
name is Alamo_FPNW.
4.
Indicate a Home directory root path.
This path is relative to where the Sysvol volume is installed. This is the root location for the
individual home directories. If the directory specified does not already exist, it must first be
created.
5.
Click Users to:
See connected users, disconnect users, send broadcast messages to all users connected to the
server, and to send a message to a specific user.
6.
Click Volumes to:
See users connected to specific volume and to disconnect users from a specific volume.
7.
Click Files to:
View open files and close open files.
Creating and managing NetWare users
To use Services for NetWare, the Novell clients must be entered as local users on the storage server.
HP ProLiant SB460c SAN Gateway Storage Server
77
Adding local NetWare users
1.
From the storage server desktop, click the Management Console icon, click Core Operating
System, and then click Local Users and Groups.
2.
Right-click the Users folder, and then click New User.
Figure 20 New User dialog box
3.
Enter the user information, including the user's User name, Full name, Description, and Password.
4.
Click Create.
5.
Repeat these steps until all NetWare users have been entered.
Enabling local NetWare user accounts
1.
78
In the Users folder (MC, Core Operating System, Local Users and Groups), right-click an NCP
client listed in the right pane of the screen, and then click Properties.
Other network file and print services
2.
Click the NetWare Services tab.
Figure 21 NetWare Services tab
3.
Select Maintain NetWare compatible login.
4.
Set other NetWare options for the user, and then click OK.
NOTE:
The installation of File and Print Services for NetWare also creates a supervisor account,
which is used to manage FPNW. The supervisor account is required if the storage server
was added as a bindery object into NDS.
Managing NCP volumes (shares)
NCP file shares are created the same way as other file shares; however, there are some unique
settings. NCP shares can be created and managed using Server Manager.
NOTE:
NCP shares can be created only after FPNW is installed. See the previous section
“Installing Services for Netware” for instructions on installing FPNW.
HP ProLiant SB460c SAN Gateway Storage Server
79
Creating a new NCP share
To create a new file share:
1.
From the storage server desktop, select Start > Settings > Control Panel > Administrative Tools
> Server Manager.
2.
Select File and Print Service for NetWare> Shared Volumes.
3.
Click Create Volume.
4.
Specify the volume name and path.
5.
Click Permissions to set permissions.
6.
Click Add to add additional users and groups, and to set their permissions.
7.
Highlight the desired user or group, and then click Add.
8.
Select the Type of Access in the drop down list.
Type of Access can also be set from the Access Through Share Permissions dialog box.
9.
Click OK when all users and groups have been added.
10. Click OK in the Create Volume dialog box.
11. Click Close.
Modifying NCP share properties
To modify a file share:
1.
From the storage server desktop, select Start > Settings > Control Panel > Administrative Tools
> Server Manager.
2.
Select File and Print Services for NetWare > Shared Volumes.
3.
Highlight the volume to modify.
4.
Click Properties.
Print Services for NetWare
With File and Print Services for NetWare installed, the print server appears to a NetWare client as
a NetWare 3.x–compatible print server. Print services presents the same dialog boxes to the client
as a NetWare-based server uses to process a print job from a client. A user can display and search
for printers on the print server just like in a NetWare environment.
Installing Print Services for NetWare
See the previous section “Installing Services for Netware” for information on installing Print Services
for NetWare.
Point and Print from Novell to Windows Server 2003
Point-and-Print behavior from Novell clients to Windows Server 2003 and Windows Storage Server
2003 is similar to the behavior for Windows 95, Windows 98, and Windows Millennium Edition
clients, because all these clients create SMB connections. However, the non–Windows operating
systems maintain their own driver model, so these clients do not automatically get the driver during
Point and Print—they must install the driver locally. Like the Windows 95, Windows 98, and Windows
80
Other network file and print services
Millennium clients, these non–Windows clients do not receive driver updates from the print server
after a driver is initially downloaded. The same connection methods are available: drag and drop,
the Add Printer Wizard, referencing a UNC path, or double-clicking the shared printer icon.
Additional resources
For more information about using and configuring File and Print Services for NetWare, see the online
help.
AppleTalk and file services for Macintosh
The AppleTalk network integration allows the storage server to share files and printers between your
server and any Apple Macintosh clients that are connected to your network. After installing Microsoft
Windows Services for Macintosh, the administrator can use the AppleTalk protocol to configure the
storage server to act as an AppleTalk server. The AppleTalk protocol is the communications protocol
used by clients running a Macintosh operating system. The Macintosh computers need only the
Macintosh OS software to function as clients; no additional software is required.
AppleTalk network integration simplifies administration by maintaining just one set of user accounts
instead of separate user accounts, for example, one on the Macintosh server and another on the
computer running Windows server software.
Installing the AppleTalk protocol
1.
From the desktop of the storage server, select Start > Settings > Network Connections. Right-click
Local Area Connection, and then click Properties.
2.
Click Install.
3.
Select Protocol, and then click Add.
4.
Select AppleTalk Protocol, and then click OK.
Installing File Services for Macintosh
To install File Services for Macintosh, perform the following steps:
1.
Access the desktop on the storage server.
2.
Open Add or Remove Programs from the Control Panel.
3.
Click Add or Remove Windows Components.
4.
Double-click Other Network File and Print Services.
5.
Select File Services for Macintosh, and then click OK.
6.
Click Next.
7.
Click Finish.
Completing setup of AppleTalk protocol and shares
See the online help to complete the following setup and configurations tasks:
• To set up AppleTalk protocol properties
AppleTalk shares can be set up only after AppleTalk Protocol and File Services for Macintosh have
been installed on the storage server.
HP ProLiant SB460c SAN Gateway Storage Server
81
CAUTION:
AppleTalk shares should not be created on clustered resources because data loss can occur due
to local memory use.
• To set up AppleTalk shares
• To configure AppleTalk sharing properties
• To allow client permission to an AppleTalk share
If AppleTalk is enabled for your server configuration, specify which AppleTalk clients are granted
access to each share. Access can be granted or denied on the basis of client host name. Access
can also be granted or denied on the basis of client groups, where a client group contains one
or more client host names.
Print services for Macintosh
Macintosh clients can send print jobs to a print server when Print Server for Macintosh is installed on
the server. To the Macintosh-based client, the print server or FPA appears to be an AppleTalk printer
on the network, and no reconfiguration of the client is necessary.
Installing Print Services for Macintosh
Consult the following resource for information about installing Print Services for Macintosh:
• How To: Install Print Services for Macintosh in Windows Server 2003
http://support.microsoft.com/?scid=kb;en-us;323421
Point and Print from Macintosh to Windows Server 2003
Point-and-Print behavior from Macintosh clients to Windows Server 2003 or Windows Storage Server
2003 is similar to the behavior for Windows 95, Windows 98, and Windows Millennium Edition
clients, because all these clients create SMB connections. However, the non-Windows operating
systems maintain their own driver model, so these clients do not automatically get the driver during
Point and Print; they must install the driver locally. Like the Windows 95, Windows 98, and Windows
Millennium clients, these non-Windows clients do not receive driver updates from the print server after
a driver is initially downloaded. The same connection methods are available: drag and drop, the
Add Printer Wizard, referencing a UNC path, or double-clicking the shared printer icon.
82
Other network file and print services
6 Enterprise storage servers
Some HP ProLiant Storage Servers use the Microsoft® Windows® Unified Data Storage Server 2003
operating system. This operating system provides unified storage server management capabilities,
simplified setup and management of storage and shared folders, and support for Microsoft iSCSI
Software Target. It is specially tuned to provide optimal performance for network-attached storage
and provides significant enhancements in share and storage management scenarios, as well as
integration of storage server management components and functionality. This chapter describes
features of the Microsoft® Windows® Unified Data Storage Server 2003 operating system.
NOTE:
Not all HP ProLiant Storage Servers use the Microsoft® Windows® Unified Data Storage Server 2003,
Enterprise x64 Edition operating system. See the HP ProLiant Storage Server QuickSpecs to determine if
your storage server runs this operating system.
IMPORTANT:
The Microsoft® Windows® Unified Data Storage Server 2003, Enterprise x64 Edition operating system
is designed to support 32–bit applications without modification; however, any 32–bit applications that are
run on this operating system should be thoroughly tested before releasing the storage server to a production
environment.
Windows Server Remote Administration Applet
Remote administration from non-Microsoft computers uses the Windows Server Remote Administration
Applet and is accessed from a browser. The browser on the client computer can be any of the following:
• Firefox version 1.0.6 (or later)
• Mozilla version 1.7.11 (or later)
Use of Windows Server Remote Administration Applet is supported by clients running Java 2 Runtime
Environment, version 1.4.2 on any of the following:
• A computer running a Windows operating system and Internet Explorer 6 or later browser
• Any of the following non-Microsoft operating systems: Red Hat Enterprise Linux 3 WS, Red Hat
Enterprise Linux 4 WS, SuSE Linux Enterprise Server 9, SuSE Linux Enterprise Server 10
Establishing a connection is done directly through the browser. Windows Server Remote Administration
Applet does not support sound redirection, printer or port redirection, or automatically starting
applications.
To establish a browser-based connection to Windows Unified Data Storage Server 2003
1.
Open the browser on the client computer.
HP ProLiant SB460c SAN Gateway Storage Server
83
2.
Type the network name or the network IP address of the storage server followed by /admin (for
example, http://myStorageServer/admin).
3.
In Remote Administration Desktop, provide the appropriate credentials.
NOTE:
Administrative credentials are not required to establish a browser-based connection, but are required to
manage the storage server.
NOTE:
If Java Runtime Environment (JRE) is not installed correctly, the Additional plug-ins are required to display
all the media on this page message may be displayed. For information about installing JRE on a
non-Microsoft system, see Installation Instructions (http://go.microsoft.com/fwlink/?LinkId=70026).
Microsoft iSCSI Software Target
The Microsoft iSCSI Software Target snap-in is a standard feature of Windows Unified Data Storage
Server 2003. This snap-in makes it possible not only for the storage server to connect to remote iSCSI
targets, but also to serve as an iSCSI target. With Microsoft iSCSI Software Target, you can create
and manage iSCSI targets, create and manage disks for storage, and implement backup and recovery
support using snapshots.
Virtual disk storage
The disks you create using iSCSI Software Target are iSCSI virtual disks, which are files in the virtual
hard disk (VHD) format. These virtual disks offer flexible and effective storage. They are dynamically
extendable to provide extra capacity on demand, enable efficient storage utilization, and minimize
the time required to create new disks and the down time typically required to install new disks.
Snapshots
To facilitate backup and recovery operations, you can schedule and create snapshots of iSCSI virtual
disks. A snapshot is a point-in-time, read-only copy of an iSCSI virtual disk. Snapshots are typically
used as interim copies of data that has been modified since the most recent backup. Snapshots offer
the following advantages:
• Snapshots can be scheduled to be created automatically.
• Snapshots are space-efficient because they are differential copies.
• It is not necessary to close files or stop programs when creating snapshots, so application servers
can continue servicing clients without disruption.
• Each snapshot is typically created in less than one minute—regardless of the amount of data.
• Snapshots are useful for fast system recovery of files and volumes, in case of accidental data
deletion by a user, overwritten data, or data corruption resulting from a malicious program.
• Snapshots can be mounted locally or exported to facilitate backup and recovery operations.
84
Enterprise storage servers
Wizards
To support creation and management of iSCSI targets, virtual disks, and snapshots, the iSCSI Software
Target snap-in provides several wizards.
Create iSCSI Target Wizard
This section describes how to create an iSCSI Target using the Create iSCSI Target Wizard.
1.
2.
3.
4.
5.
6.
Log on to the storage server using an account with administrative privileges.
Open the Microsoft iSCSI Software Target MMC snap-in by clicking Start > Programs >
Administrative Tools > Microsoft iSCSI Software Target.
Click the iSCSI Targets node. On the details view (right pane), right-click and select Create iSCSI
Target.
Click Next on the Welcome page of the wizard.
On the iSCSI Target Identification page, type a name and description for the iSCSI Target and
then click Next.
On the iSCSI Initiators Identifiers page, type the iSCSI Qualified Name (IQN) of the iSCSI initiator
requesting access to the iSCSI Target in the IQN identifier field. The IQN is found on the General
tab of the Microsoft iSCSI Initiator interface.
Figure 22 iSCSI Initiators Identifiers page
7.
To enter additional identifiers, or if you are using an identifier other than an IQN (DNS domain
name, IP address, or MAC address):
a. Click Advanced.
b. On the Advanced Identifiers page, click Add.
c. Select the identifier type from the Identifier Type list and type the identifier in the Value field.
d. Repeat steps b and c for each identifier you want to add.
e. Click OK.
f. Click OK again to close the Advanced Identifiers page.
HP ProLiant SB460c SAN Gateway Storage Server
85
Figure 23 Advanced Identifiers page
Figure 24 Add/Edit Identifier page
8.
9.
Click Next.
Click Finish to complete the wizard and create the iSCSI Target.
Create Virtual Disk Wizard
This section describes how to create an iSCSI Virtual Disk using the Create Virtual Disk Wizard.
NOTE:
In order to create iSCSI Virtual Disks, it is required that physical disks are formatted as NTFS.
1.
2.
3.
4.
5.
86
In the Microsoft iSCSI Software Target MMC snap-in, click the Devices node.
On the details view (right pane) of the Devices node, right-click a volume and select Create Virtual
Disk.
Click Next on the Welcome page of the wizard.
On the File page, specify the full path to use as the virtual disk and click Next.
On the Size page, specify the size to use for the virtual disk and click Next. If the file already
exists, you cannot specify a new size.
Enterprise storage servers
6.
7.
8.
9.
Enter a description for the iSCSI virtual disk (optional) and click Next.
On the Access page, click Add to assign the iSCSI virtual disk to an iSCSI Target.
On the Add Targets dialog box, select a Target and click OK.
Click Finish to complete the wizard and create the iSCSI virtual disk.
NOTE:
If you delete a virtual disk, it is removed from the iSCSI Software Target MMC snap-in, but the virtual disk
file (.vhd) is not removed from the physical disk. In order to permanently remove the virtual disk file, locate
the file on the physical disk using Windows Explorer and manually delete it.
Import Virtual Disk Wizard
This section describes how to import a virtual disk using the Import Virtual Disk Wizard.
1.
2.
3.
4.
5.
6.
In the Microsoft iSCSI Software Target MMC snap-in, click the Devices node.
On the details view (right pane) of the Devices node, right-click a volume and select Import Virtual
Disk.
Click Next on the Welcome page of the wizard.
On the Files page, click Browse, navigate to the virtual disk file (.vhd) you want to import, select
it, and then click OK.
Repeat step 4 for each virtual disk you want to import.
Click Next and then click Finish to complete the wizard and import the virtual disk(s).
Extend Virtual Disk Wizard
This section describes how to extend a virtual disk using the Extend Virtual Disk Wizard.
1.
2.
3.
4.
5.
In the Microsoft iSCSI Software Target MMC snap-in, click the Devices node.
On the details view (right pane) of the Devices node, right-click a virtual disk and select Extend
Virtual Disk.
Click Next on the Welcome page of the wizard.
On the Size page, type the amount of space you want to add to the virtual disk in the Additional
virtual space capacity field and then click Next.
Click Finish to complete the wizard and extend the virtual disk.
Schedule Snapshot Wizard
This section describes how to schedule a snapshot using the Schedule Snapshot Wizard.
1.
2.
3.
4.
5.
6.
7.
8.
In the Microsoft iSCSI Software Target MMC snap-in, expand the Snapshots node.
Right-click Schedule and select Create Schedule.
Click Next on the Welcome page of the wizard.
On the Schedule Actions page, specify whether the snapshots should be mounted locally or not.
On the Name page, type a name for the snapshot and then click Next.
On the Virtual Disks page, specify the virtual disks to include in the snapshot schedule.
On the Frequency page, select how often snapshots should be taken.
On the Schedule page, specify snapshot details according to the frequency selected on the
previous page and then click Next.
HP ProLiant SB460c SAN Gateway Storage Server
87
9.
Click Finish to complete the wizard and schedule snapshots.
Hardware provider
To support advanced management of iSCSI virtual disks and snapshots, you can use the Microsoft
iSCSI Software Target Virtual Disk Service Hardware Provider, which comes preinstalled on the HP
ProLiant Storage Server.
Microsoft Windows Server 2003 introduced Virtual Disk Service (VDS), a set of application
programming interfaces (APIs) that provides a single interface for managing disks. VDS provides an
end-to-end solution for managing storage hardware and disks, and for creating volumes on those
disks. The Microsoft iSCSI Software Target VDS Hardware Provider is required to manage virtual
disks on a storage subsystem.
You install the Microsoft iSCSI Software Target VDS Hardware Provider on each iSCSI initiator
computer running a storage management application (such as Storage Manager for SANs) that uses
the hardware provider to manage storage.
• Microsoft iSCSI Software Target Volume Shadow Copy Service Hardware Provider
iSCSI snapshots are created using Volume Shadow Copy Service and a storage array with a hardware
provider designed for use with Volume Shadow Copy Service. A Microsoft iSCSI Software Target
VSS Hardware Provider is required to create transportable snapshots of iSCSI virtual disks and create
application consistent snapshots from iSCSI initiators.
You install this hardware provider on the iSCSI initiator server and the server that is to perform backups.
The backup software you use must support transporting snapshots.
Cluster support
In a cluster with servers running Windows Unified Data Storage Server 2003, Enterprise Edition and
using an external storage array as the shared cluster disk, you can use iSCSI Software Target to share
highly available storage. To do this, use Cluster Administrator to configure the iSCSI target as a
Generic Service cluster resource. iSCSI virtual disks can then be created from the generic cluster disk
and exported to iSCSI initiators.
IMPORTANT:
A single-server iSCSI software target cluster configuration does not provide the redundant components of
a hardware-based shared disk resource, making it a potential single point of failure. In most cases, this
type of configuration does not provide the level of availability typically required in a production environment.
For detailed instructions on how to set up a cluster using Microsoft iSCSI Target as the shared-cluster
disk provider, see the HP white paper Using Microsoft iSCSI Software Target to Provide Shared-Disk
Resources to Clusters at http://h71028.www7.hp.com/ERC/downloads/4AA1-0720ENW.pdf.
For detailed instructions on how to set up an iSCSI software target cluster, see the HP white paper
Configuring Microsoft iSCSI Software Target in a Microsoft Cluster at http://h71028.www7.hp.com/
ERC/downloads/4AA1-2898ENW.pdf.
88
Enterprise storage servers
7 Cluster administration
NOTE:
Not all HP ProLiant Storage Servers can be clustered. See the HP ProLiant Storage Server QuickSpecs to
determine if your storage server can be clustered. Windows Storage Server 2003 Release 2 clusters can
include up to eight nodes.
One important feature of the HP ProLiant Storage Server clusterable models is that they can operate
as a single node or as a cluster. This chapter discusses cluster installation and cluster management
issues.
Cluster overview
Up to eight server nodes can be connected to each other and deployed as a no single point of failure
(NSPOF) cluster. Utilizing a private network allows communication amongst themselves in order to
track the state of each cluster node. Each node sends out periodic messages to the other nodes; these
messages are called heartbeats. If a node stops sending heartbeats, the cluster service fails over any
resources that the node owns to another node. For example, if the node that owns the Quorum disk
is shut down for any reason, its heartbeat stops. The other nodes detect the lack of the heartbeat and
another node takes over ownership of the Quorum disk and the cluster.
Clustering servers greatly enhances the availability of file serving by enabling file shares to fail over
to additional storage servers if problems arise. Clients see only a brief interruption of service as the
file share resource transitions from one server node to the other.
HP ProLiant SB460c SAN Gateway Storage Server
89
Cluster Node A
Cluster Node B
Private Network
Node A
HBA 2
Node A
HBA 1
+
+
+
+
+
+
+
+
+++++++++++++++++++++++++++++++++++++++++++++++++++
+
+
+
Node B
+
Node B
HBA 1
HBA 2
SAN Switch
SAN Switch
Storage Area Network
Cluster
Quorum
Mirrorset
LUN 1
Data RAID set
Node A
LUN 2
Data RAID set
Node B
LUN 3
Figure 25 Storage server cluster diagram
Cluster terms and components
Nodes
The most basic parts of a cluster are the servers, referred to as nodes. A server node is any individual
server in a cluster, or a member of the cluster.
Resources
Hardware and software components that are managed by the cluster service are called cluster
resources. Cluster resources have three defining characteristics:
• They can be brought online and taken offline.
• They can be managed in a cluster.
• They can be owned by only one node at a time.
Examples of cluster resources are IP addresses, network names, physical disk resources, and file
shares. Resources represent individual system components. These resources are organized into groups
and managed as a group. Some resources are created automatically by the system and other resources
must be set up manually. Resource types include:
•
•
•
•
•
90
IP address resource
Cluster name resource
Cluster quorum disk resource
Physical disk resource
Virtual server name resources
Cluster administration
•
•
•
•
CIFS file share resources
NFS file share resources
FTP file share resources
iSCSI resources
Cluster groups
Cluster resources are placed together in cluster groups. Groups are the basic unit of failover between
nodes. Resources do not fail over individually; they fail over with the group in which they are contained.
Virtual servers
A virtual server is a cluster group that consists of a static IP Address resource and a Network Name
resource. Several virtual servers can be created. By assigning ownership of the virtual servers to the
different server nodes, the processing load on the storage servers can be distributed between the
nodes of a cluster.
The creation of a virtual server allows resources dependent on the virtual server to fail over and fail
back between the cluster nodes. Cluster resources are assigned to the virtual server to ensure
non-disruptive service of the resources to the clients.
Failover and failback
Failover of cluster groups and resources happens:
• When a node hosting the group becomes inactive.
• When all of the resources within the group are dependent on one resource, and that resource
fails.
• When an administrator forces a failover.
A resource and all of its dependencies must be located in the same group so that if a resource fails
over, all of its dependent resources fail over.
When a resource is failed over, the cluster service performs certain procedures. First, all of the resources
are taken offline in an order defined by the resource dependencies. Secondly, the cluster service
attempts to transfer the group to the next node on the preferred owner's list. If the transfer is successful,
the resources are brought online in accordance with the resource dependency structure.
The system failover policy defines how the cluster detects and responds to the failure of individual
resources in the group. After a failover occurs and the cluster is brought back to its original state,
failback can occur automatically based on the policy. After a previously failed node comes online,
the cluster service can fail back the groups to the original host. The failback policy must be set before
the failover occurs so that failback works as intended.
Quorum disk
Each cluster must have a shared disk called the Quorum disk. The Quorum disk is the shared storage
used by the cluster nodes to coordinate the internal cluster state. This physical disk in the common
cluster disk array plays a critical role in cluster operations. The Quorum disk offers a means of persistent
storage. The disk must provide physical storage that can be accessed by all nodes in the cluster. If a
node has control of the quorum resource upon startup, it can initiate the cluster. In addition, if the
node can communicate with the node that owns the quorum resource, it can join or remain in the
cluster.
The Quorum disk maintains data integrity by:
HP ProLiant SB460c SAN Gateway Storage Server
91
• Storing the most current version of the cluster database
• Guaranteeing that only one set of active communicating nodes is allowed to operate as a cluster
Cluster concepts
Figure 26 illustrates a typical cluster configuration with the corresponding storage elements. The
diagram progresses from the physical disks to the file shares, showing the relationship between both
the cluster elements and the physical devices underlying them. While the diagram only illustrates two
nodes, the same concepts apply for multi-node deployments.
Node 1
Node 2
Cluster Group
FS1Eng
Cluster Group
FS1Market
Cluster
Resource:
IP Address
172.18.1.99
Cluster
Resource:
Disk E
Cluster
Resource:
Disk F
5
Cluster
Resource:
Network
Name
Fileserver1
Cluster
Resource:
File Share
Eng1
E:\eng1
Cluster
Resource:
File Share
Mar1
F:\Mar1
Cluster
Resource:
Disk G
Cluster
Resource:
File Share
Mar4
G:\Mar4
Cluster
Resource:
IP Address
172.18.1.98
Cluster
Resource:
Network
Name
Fileserver2
4
E:\eng1
E:\eng2
E:\eng3
F:\Mar1
F:\Mar2
F:\Mar3
G:\Mar4
G:\Mar5
G:\Mar6
3
Cluster Resource
Physical Disk E
Cluster Resource
Physical Disk F
Cluster Resource
Physical Disk G
2
Basic
Disk E:
Basic
Disk F:
Basic
Disk G:
Raidsets 1-3
Raidsets 4-5
Raidsets 6
1
Physical Disks 1-4
Physical Disks 9-12
Physical Disks 13-16
Physical Disks 20-23
Figure 26 Cluster concepts diagram
Sequence of events for cluster resources
The sequence of events in the diagram includes:
1.
Physical disks are combined into RAID arrays and LUNs.
2.
LUNS are designated as basic disks, formatted, and assigned a drive letter via Disk Manager.
92
Cluster administration
3.
Physical Disk resources are created for each basic disk inside Cluster Administrator.
4.
Directories and folders are created on assigned drives.
5.
Cluster components (virtual servers, file shares) are created, organized in groups, and placed
within the folders using Cluster Administrator exclusively.
Hierarchy of cluster resource components
Figure 26 depicts the cluster resource hierarchy as follows:
• Physical Disk resources are placed in a cluster group and relate to the basic disk. When a Physical
Disk resource is created through Cluster Administrator, the resource should be inserted into an
existing cluster group or a corresponding group should be created for the resource to reside in.
• File share resources are placed in a group and relate to the actual directory on the drive on which
the share is being created.
• An IP Address resource is formed in the group and relates to the IP address by which the group's
virtual server is identified on the network.
• A Network Name resource is formed in the group and relates to the name published on the network
by which the group is identified.
• The Group is owned by one of the nodes of the cluster, but may transition to the other nodes during
failover conditions.
The diagram illustrates a cluster containing two nodes. Each node has ownership of one group.
Contained within each group are file shares that are known on the network by the associated Network
Name and IP address. In the specific case of Node1, file share Eng1 relates to E:\Eng1. This file
share is known on the network as \\Fileserver1\Eng1 with an IP address of 172.18.1.99.
For cluster resources to function properly, two very important requirements should be adhered to:
• Dependencies between resources of a group must be established. Dependencies determine the
order of startup when a group comes online. In the above case, the following order should be
maintained:
1. File Share—Dependent on Physical Disk Resource and Network Name
2. Network Name—Dependent on IP Address
Failure to indicate the dependencies of a resource properly may result in the file share attempting
to come online prior to the physical disk resource being available, resulting in a failed file share.
• Groups should have a Network Name resource and an IP Address resource. These resources are
used by the network to give each group a virtual name. Without this virtual reference to the group,
the only way to address a share that is created as a clustered resource is by node name. Physical
node names do not transition during a failover, whereas virtual names do.
For example, if a client maps a network share to \\Node1\Eng1 instead of \\Fileserver1\Eng1,
when Node1 fails and Node2 assumes ownership, the map will become invalid because the reference
in the map is to \\Node1. If the map were created to the virtual name and Node1 were to fail, the
map would still exist when the group associated with Eng1 failed over to Node2.
The previous diagram is an example and is not intended to imply limitations of a single group or
node. Groups can contain multiple physical disks resources and file shares and nodes can have
multiple groups, as shown by the group owned by Node2.
Cluster planning
Requirements for taking advantage of clustering include:
HP ProLiant SB460c SAN Gateway Storage Server
93
• Storage planning
• Network planning
• Protocol planning
Storage planning
For clustering, a basic disk must be designated for the cluster and configured as the Quorum disk.
Additional basic disks are presented to each cluster node for data storage as physical disk resources.
The physical disk resources are required for the basic disks to successfully work in a cluster environment,
protecting it from simultaneous access from each node.
The basic disk must be added as a physical disk resource to an existing cluster group or a new cluster
group needs to be created for the resource. Cluster groups can contain more than one physical disk
resource depending on the site-specific requirements.
NOTE:
The LUN underlying the basic disk should be presented to only one node of the cluster using selective
storage presentation or SAN zoning, or having only one node online at all times until the physical resource
for the basic disk is established.
In preparing for the cluster installation:
• All software components listed in the HP ProLiant Storage Server SAN Connection and Management
white paper (located on the HP web site at http://h20000.www2.hp.com/bc/docs/support/
SupportManual/c00663737/c00663737.pdf) must be installed and the fiber cables attached
to the HBAs before the cluster installation is started.
• All shared disks, including the Quorum disk, must be accessible from all nodes. When testing
connectivity between the nodes and the LUN, only one node should be given access to the LUN
at a time.
• All shared disks must be configured as basic (not dynamic).
• All partitions on the disks must be formatted as NTFS.
Network planning
Clusters require more sophisticated networking arrangements than a stand alone storage server. A
Windows NT domain or Active Directory domain must be in place to contain the cluster names, virtual
server names, and user and group information. A cluster cannot be deployed into a non domain
environment.
All cluster deployments have at least six network addresses and four network names:
•
•
•
•
•
The cluster name (Unique NETBIOS Name) and IP address
Node A's name and IP address
Node B's name and IP address
At least one virtual server name and IP address for virtual server A
Cluster Interconnect static IP addresses for Node A and Node B
In multi-node deployments, additional network addresses are required. For each additional node,
three static IP addresses are required.
94
Cluster administration
Virtual names and addresses are the only identification used by clients on the network. Because the
names and addresses are virtual, their ownership can transition from one node to the other during a
failover, preserving access to the resources in the cluster group.
A cluster uses at least two network connections on each node:
• The private cluster interconnect or “heartbeat” crossover cable connects to one of the network
ports on each cluster node. In more than two node deployments, a private VLAN on a switch or
hub is required for the cluster interconnect.
• The public client network subnet connects to the remaining network ports on each cluster node.
The cluster node names and virtual server names have IP addresses residing on these subnets.
NOTE:
If the share is to remain available during a failover, each cluster node must be connected to the same
network subnet. It is impossible for a cluster node to serve the data to a network to which it is not connected.
Protocol planning
Not all file sharing protocols can take advantage of clustering. If a protocol does not support clustering,
it will not have a cluster resource and will not failover with any cluster group. In the case of a failover,
a client cannot use the virtual name or virtual IP address to access the share since the protocol cannot
failover with the cluster group. The client must wait until the initial node is brought back online to
access the share.
HP recommends placing cluster aware and non cluster aware protocols on different file shares.
Table 6 Sharing protocol cluster support
Protocol
Client Variant
Cluster Aware
(supports failover)
Supported on cluster
nodes
CIFS/SMB
Windows NT
Yes
Yes
Yes
Yes
Windows 2000
Windows 95
Windows 98
Windows ME
NFS
UNIX
Linux
HTTP
Web
No
Yes
FTP
Many
Yes
Yes
NCP
Novell
No
Yes
AppleTalk
Apple
No
No
iSCSI
Standards-based iSCSI
initiator
Yes
Yes
HP ProLiant SB460c SAN Gateway Storage Server
95
NOTE:
AppleTalk is not supported on clustered disk resources. AppleTalk requires local memory for volume
indexing. On failover events, the memory map is lost and data corruption can occur.
Preparing for cluster installation
This section provides the steps necessary to cluster HP ProLiant Storage Servers.
Before beginning installation
Confirm that the following specifications have been met before proceeding:
• The procedures in the HP ProLiant Storage Server SAN Connection and Management white paper
(located on the HP web site at http://h20000.www2.hp.com/bc/docs/support/SupportManual/
c00663737/c00663737.pdf) must be completed and all the necessary software components for
connecting to the desired storage must be installed before the configuration of cluster services.
• The Quorum disk has been created from shared storage and is at least 50 MB. (500 MB is
recommended.) Additional LUNs may also be presented for use as shared disk resources.
• Cluster configurations should be deployed with dual data paths for high availability. Dual data
paths from each node enable a path failure to occur that does not force the failover of the node.
Clusters can be configured with single path, but if a failure in the path does occur, all of the node
resources will be failed to the non-affected node.
Using multipath data paths for high availability
HP recommends that cluster configurations be deployed with dual data paths for high availability.
Clusters can be configured with single path, but if a failure in the path occurs, all of the node resources
will be failed to the non-affected node. Pathing software is required in configurations where multipathing
to the storage is desired or required. Multipathing software allows for datapath failure to occur without
forcing a node failover. See the HP ProLiant Storage Server SAN Connection and Management white
paper (located on the HP web site at http://h20000.www2.hp.com/bc/docs/support/
SupportManual/c00663737/c00663737.pdf) for additional information on multipath software.
Enabling cluster aware Microsoft Services for NFS (optional)
The server comes with Microsoft Services for Network File System (NFS) preinstalled. Microsoft has
identified an issue that requires that NFS be uninstalled prior to installing clustering on the storage
server. This only applies if you want NFS share resources on the storage server within the clustering
environment. After clustering is installed, then NFS can be installed if you desire this feature.
NOTE:
Failure to uninstall Microsoft NFS prior to the installation of clustering results in no NFS resource types
being available in the clustering environment.
To uninstall Microsoft NFS:
1.
96
From the storage server desktop, select Start > Settings > Control Panel > Add or Remove Programs.
The Add or Remove Programs window is displayed.
Cluster administration
2.
On the left side of the window, select Add/Remove Windows Components. The Windows
Components Wizard appears.
3.
Select Other Network File and Print Services and click the Details button. The Other Network File
and Print Services window is displayed.
4.
Uncheck the Microsoft Services for NFS subcomponent.
5.
Click OK, then Next, followed by Finish.
NOTE:
Uninstalling Microsoft Services for NFS removes two primary services:
• Server for NFS
• User Name Mapping
After setting up clustering, should you choose to reinstall Microsoft NFS, follow these steps:
1.
Select Start > Settings > Control Panel > Add or Remove Programs. The Add or Remove Programs
window is displayed.
2.
On the left side of the window, select Add/Remove Windows Components. The Windows
Components Wizard appears.
3.
Select Other Network File and Print Services and click the Details button. The Other Network File
and Print Services window is displayed.
4.
Check the Microsoft Services for NFS subcomponent.
5.
Click OK, then Next, followed by Finish.
6.
After NFS is installed, you can view the details of the Microsoft Services for NFS subcomponent
to see which of its subcomponents were installed. The subcomponents listed below are preinstalled
at the factory. Verify that the Server for NFS and User Name Mapping services have been
reinstalled.
•
•
•
•
•
•
Microsoft Services for NFS Administration
RPC External Data Representation
RPC Port Mapper
Server for NFS
Server for NFS Authentication
User Name Mapping
Checklists for cluster server installation
These checklists assist in preparing for installation. Step-by-step instructions begin after the checklists.
Network requirements
• A unique NetBIOS cluster name
• For each node deployed in the cluster the following static IP addresses are required:
• One for the network adapters on the private network
• One for the network adapters on the public network
• One for the virtual server itself
A single static cluster IP address is required for the entire cluster.
HP ProLiant SB460c SAN Gateway Storage Server
97
• A domain user account for Cluster service (all nodes must be members of the same domain)
• Each node should have at least two network adapters—one for connection to the public network
and the other for the node-to-node private cluster network. If only one network adapter is used for
both connections, the configuration is unsupported. A separate private network adapter is required
for HCL certification.
Shared disk requirements
NOTE:
Do not allow more than one node access the shared storage devices at the same time until Cluster service
is installed on at least one node and that node is online. This can be accomplished through selective storage
presentation, SAN zoning, or having only one node online at all times.
• All software components listed in the HP ProLiant Storage Server SAN Connection and Management
white paper (located on the HP web site at http://h20000.www2.hp.com/bc/docs/support/
SupportManual/c00663737/c00663737.pdf) must be installed and the fiber cables attached
to the HBAs before the cluster installation is started.
• All shared disks, including the Quorum disk, must be accessible from all nodes. When testing
connectivity between the nodes and the LUN, only one node should be given access to the LUN
at a time.
• All shared disks must be configured as basic (not dynamic).
• All partitions on the disks must be formatted as NTFS.
Cluster installation
During the installation process, nodes are shut down and rebooted. These steps guarantee that the
data on disks that are attached to the shared storage bus is not lost or corrupted. This can happen
when multiple nodes try to simultaneously write to the same disk that is not yet protected by the cluster
software.
Use Table 7 to determine which nodes and storage devices should be presented during each step.
Table 7 Power sequencing for cluster installation
Step
Node 1
Additional
Nodes
Storage
Comments
Setting up
networks
On
On
Not
Presented
Verify that all storage devices on the
shared bus are not presented; Power on
all nodes.
Setting up
shared disks
(including the
Qurom disk)
On
Off
Presented
Shut down all nodes. Present the shared
storage, then power on the first node.
Verifying disk
configuration
Off
On
Presented
Shut down first node, power on next
node. Repeat this process for all cluster
nodes.
Configuring the
first node
On
Off
Presented
Shut down all nodes; power on the first
node.
98
Cluster administration
Step
Node 1
Additional
Nodes
Storage
Comments
Configuring
additional nodes
On
On
Presented
Power on the next node after the first
node is successfully configured.
Complete this process for all cluster
nodes.
Post-installation
On
On
Presented
At this point all cluster nodes should be
on.
To configure the Cluster service on the storage server, an account must have administrative permissions
on each node.
Setting up networks
Verify that all network connections are correct, with private network adapters connected to other
private network adapters only, and public network adapters connected to the public network.
Configuring the private network adapter
The following procedures are best practices provided by Microsoft and should be configured on the
private network adapter.
• On the General tab of the private network adapter, ensure that only TCP/IP is selected.
• Ensure that the Register this connection's address in DNS is not selected in the DNS tab under
advanced settings for Internet Protocol (TCP/IP) Properties.
• In all cases, set static IP addresses for the private network connector.
Configuring the public network adapter
While the public network adapter's IP address can be automatically obtained if a DHCP server is
available, this is not recommended for cluster nodes. HP strongly recommends setting static IP addresses
for all network adapters in the cluster, both private and public. If IP addresses are obtained though
DHCP, access to cluster nodes could become unavailable if the DHCP server goes down. If DHCP
must be used for the public network adapter, use long lease periods to assure that the dynamically
assigned lease address remains valid even if the DHCP service is temporarily lost. Keep in mind that
Cluster service recognizes only one network interface per subnet.
Renaming the local area connection icons
HP recommends changing the names of the network connections for clarity. The naming helps identify
a network and correctly assign its role. For example, “Cluster interconnect” for the private network
and “Public connection” for the public network.
Verifying connectivity and name resolution
To verify name resolution, ping each node from a client using the node's machine name instead of
its IP address.
HP ProLiant SB460c SAN Gateway Storage Server
99
Verifying domain membership
All nodes in the cluster must be members of the same domain and able to access a domain controller
and a DNS Server.
Setting up a cluster account
The Cluster service requires a domain user account under which the Cluster service can run. This user
account must be created before installing Cluster service, because setup requires a user name and
password. This user account should be a unique domain account created specifically to administer
this cluster. This user account will need to be granted administrator privileges.
About the Quorum disk
HP makes the following Quorum disk recommendations:
• Dedicate a separate disk resource for a Quorum disk. Because the failure of the Quorum disk
would cause the entire cluster to fail, HP strongly recommends that the disk resource be a RAID 1
configuration.
• Create a partition with a minimum of 50 megabytes (MB) to be used as a Quorum disk. HP
recommends a Quorum disk be 500 MB.
HP recommends assigning the drive letter Q for the Quorum disk. It is also helpful to label the volume
Quorum.
NOTE:
It is possible to change the Quorum disk by clicking the Quorum button. This displays a list of available
disks that can be used for the Quorum disk. Select the appropriate disk, and then click OK to continue.
Configuring shared disks
Use the Windows Disk Management utility to configure additional shared disk resources. Verify that
all shared disks are formatted as NTFS and are designated as Basic.
Additional shared disk resources are automatically added into the cluster as physical disk resources
during the installation of cluster services.
Verifying disk access and functionality
Write a file to each shared disk resource to verify functionality.
At this time, shut down the first node, power on the next node and repeat the Verifying Disk Access
and Functionality step above for all cluster nodes. When it has been verified that all nodes can read
and write from the disks, turn off the cluster nodes and power on the first, and then continue with this
guide.
Configuring cluster service software
Cluster Administrator (cluadmin) provides the ability to manage, monitor, create and modify clusters
and cluster resources.
100
Cluster administration
Using Cluster Administrator
Cluster Administrator shows information about the groups and resources on all of your clusters and
specific information about the clusters themselves. A copy of Cluster Administrator is automatically
installed on a cluster node when the Cluster service is installed.
Using Cluster Administrator remotely
For remote administration, copies of Cluster Administrator can be installed on other computers on
your network. The remote and local copies of Cluster Administrator will be identical. It is also possible
to administer an HP ProLiant Storage Server cluster remotely from a computer running Windows NT
4.0 Service Pack 3 or later, Windows 2000 or Windows 2003 using the Cluster Administrator tool.
The HP Storage Server Management Console
Cluster Administrator is available from the HP Storage Server Management Console under the Utilities
folder. The HP Storage Server Management Console is accessible using Remote Desktop or a web
browser.
Creating a cluster
During the creation of the cluster, Cluster Administrator will analyze and verify the hardware and
software configuration and identify potential problems. A comprehensive and easy-to-read report is
created, listing any potential configuration issues before the cluster is created.
Some issues that can occur are:
• No shared disk for the Quorum disk. A shared disk must be created with a NTFS partition at least
50 MB in size.
• Use of DHCP addresses for network connections. All Network adapters must be configured with
static IP addresses in a cluster configuration.
• File Services for Macintosh and Service for NetWare are not supported in a cluster configuration.
• Dynamic Disks are not supported in a cluster configuration.
• Errors appear on a network adapter that is not configured or does not have an active link. If the
network adapter is not going to be used it should be disabled.
Adding nodes to a cluster
Only the Quorum disk should be accessible by the new node while the new node is not a member
of the cluster. The new node should not have access to the other LUNs in the cluster until after it has
joined the cluster. After the node has joined the cluster, the LUNs may be presented to the new node.
Move the physical disk resources over to the new node to confirm functionality.
CAUTION:
Presenting other LUNs to the non-clustered system could lead to data corruption.
HP ProLiant SB460c SAN Gateway Storage Server
101
Geographically dispersed clusters
Cluster nodes can be geographically dispersed to provide an additional layer of fault tolerance.
Geographically dispersed clusters are also referred to as stretched clusters.
The following rules must be followed with geographically dispersed clusters:
• A network connection with latency of 500 milliseconds or less ensures that cluster consistency can
be maintained. If the network latency is over 500 milliseconds, the cluster consistency cannot be
easily maintained.
• All nodes must be on the same subnet.
Cluster groups and resources, including file shares
The Cluster Administrator tool provides complete online help for all cluster administration activities.
Cluster resources include administrative types of resources as well as file shares. The following
paragraphs include overview and planning issues for cluster groups, cluster resources, and clustered
file shares.
Creating and managing these resources and groups must be managed through Cluster Administrator.
Cluster group overview
A default cluster group is automatically created when the cluster is first created. This default cluster
group contains an Internet Protocol (IP) Address resource, a Network Name resource, and the Quorum
disk resource. When the new cluster is created, the (IP) address and the cluster name that were
specified during setup are set up as the IP address and network name of this default cluster group.
CAUTION:
Do not delete or rename the Cluster Group or IP Address. Doing so results in losing the cluster and requires
reinstallation of the cluster.
When creating groups, the administrator's first priority is to gain an understanding of how to manage
the groups and their resources. Administrators may choose to create a resource group and a virtual
server for each node that will contain all resources owned by that node, or the administrator may
choose to create a resource group and virtual server for each physical disk resource. Additionally,
the administrator should try to balance the load of the groups and their resources on the cluster
between the nodes.
Node-based cluster groups
Creating only one resource group and one virtual server for each node facilitates group and resource
administration. This setup allows administrators to include all file share resources under one group.
Clients access all of the resources owned by one node through a virtual server name.
In node-based cluster groups, each group has its own network name and IP address. The administrator
decides on which node to place each physical disk resource. This configuration provides a very coarse
level of granularity. All resources within a group must remain on the same node. Only two IP addresses
and network names are required. This configuration creates less overhead for resource and network
administration. A possible disadvantage of this approach is that the resource groups can potentially
grow large when many file shares are created.
102
Cluster administration
Load balancing
The creation of separate cluster groups for each virtual server provides more flexibility in balancing
the processing load on the cluster between the two nodes. Each cluster group can be assigned to a
cluster node with the preferred owner parameter. For example, if there are two cluster groups, the
cluster could be set up to have the first cluster group owned by Node A and the second cluster group
owned by Node B. This allows the network load to be handled by both devices simultaneously. If
only one cluster group exists, it can only be owned by one node and the other node would not serve
any network traffic.
File share resource planning issues
CIFS and NFS are cluster-aware protocols that support the Active/Active cluster model, allowing
resources to be distributed and processed on both nodes at the same time. For example, some NFS
file share resources can be assigned to a group owned by a virtual server for Node A and additional
NFS file share resources can be assigned to a group owned by a virtual server for Node B.
Configuring the file shares as cluster resources provides for high availability of file shares. Because
the resources are placed into groups, ownership of the files can easily move from one node to the
other, as circumstances require. If the cluster node owning the group of file shares should be shut
down or fail, the other node in the cluster will begin sharing the directories until the original owner
node is brought back on line. At that time, ownership of the group and its resources can be brought
back to the original owner node.
Resource planning
1.
Create a cluster group for each node in the cluster with an IP address resource and a network
name resource.
Cluster resource groups are used to balance the processing load on the servers. Distribute
ownership of the groups between the virtual servers.
2.
For NFS environments, configure the NFS server.
NFS specific procedures include entering audit and file lock information as well as setting up
client groups and user name mappings. These procedures are not unique to a clustered deployment
and are detailed in the Microsoft Services for NFS section within the “Other network file and
print services” chapter. Changes to NFS setup information are automatically replicated to all
nodes in a cluster.
3.
Create the file share resources.
4.
Assign ownership of the file share resources to the resource groups.
a.
b.
c.
Divide ownership of the file share resource between the resource groups, which are in turn
distributed between the virtual servers, for effective load balancing.
Verify that the physical disk resource for this file share is also included in this group.
Verify that the resources are dependent on the virtual servers and physical disk resources
from which the file share was created.
Permissions and access rights on share resources
File Share and NFS Share permissions must be managed using the Cluster Administrator tool versus
the individual shares on the file system themselves via Windows Explorer. Administering them through
the Cluster Administrator tool allows the permissions to migrate from one node to other. In addition,
permissions established using Explorer are lost after the share is failed or taken offline.
HP ProLiant SB460c SAN Gateway Storage Server
103
NFS cluster-specific issues
For convenience, all suggestions are listed below:
• Back up user and group mappings.
To avoid loss of complex advanced mappings in the case of a system failure, back up the mappings
whenever the mappings have been edited or new mappings have been added.
• Map consistently.
Groups that are mapped to each other should contain the same users and the members of the
groups should be properly mapped to each other to ensure proper file access.
• Map properly.
• Valid UNIX users should be mapped to valid Windows users.
• Valid UNIX groups should be mapped to valid Windows groups.
• Mapped Windows user must have the “Access this computer from the Network privilege” or
the mapping will be squashed.
• The mapped Windows user must have an active password, or the mapping will be squashed.
• In a clustered deployment, create user name mappings using domain user accounts.
Because the security identifiers of local accounts are recognized only by the local server, other
nodes in the cluster will not be able to resolve those accounts during a failover. Do not create
mappings using local user and group accounts.
• In a clustered deployment, administer user name mapping on a computer that belongs to a trusted
domain.
If NFS administration tasks are performed on a computer that belongs to a domain that is not
trusted by the domain of the cluster, the changes are not properly replicated among the nodes in
the cluster.
• In a clustered deployment, if PCNFS password and group files are being used to provide user
and group information, these files must be located on each node of the system.
Example: If the password and group files are located at c:\maps on node 1, then they must also
be at c:\maps on node 2. The contents of the password and group files must be the same on
both nodes as well.
These password and group files on each server node must be updated periodically to maintain
consistency and prevent users or groups from being inadvertently squashed.
Non cluster aware file sharing protocols
Services for Macintosh (SFM), File and Print Services for NetWare, HTTP file sharing protocols are
not cluster aware and will experience service interruption if installed on a clustered resource during
failover events of the resource. Service interruptions will be similar to those experienced during a
server outage. Data that has not been saved to disk prior to the outage will experience data loss. In
the case of SFM, it is not supported because SFM maintains state information in memory. Specifically,
the Macintosh volume index is located in paged pool memory. Using SFM in clustered mode is not
supported and may result in data loss similar in nature to a downed server should the resource it is
based on fails over to the opposing node.
Adding new storage to a cluster
Present the new storage to one node in the cluster. This can be accomplished through selective storage
presentation or through SAN zoning.
104
Cluster administration
The tasks described below are used to add storage to a cluster. See the online help for clustering for
additional details.
Creating physical disk resources
A physical disk resource must reside within a cluster group. An existing cluster group can be used or
a new cluster group must be created. For information on creating disk resources, see the cluster online
help topic Physical Disk resource type.
NOTE:
• Physical disk resources usually do not have any dependencies set.
• In multi-node clusters it is necessary to specify the node to move the group to. When a cluster group is
moved to another node, all resources in that group are moved.
• When a physical disk resource is owned by a node, the disk appears as an unknown, unreadable disk
to all other cluster nodes. This is a normal condition. When the physical disk resource moves to another
node, the disk resource then becomes readable.
Creating file share resources
To create a file share resource, see two clustering online help topics:
• Create a cluster-managed file share
• Using a server cluster with large numbers of file shares
NOTE:
• A file share resource must reside in the same cluster group as the physical disk resource it will reside
on.
• The physical disk resource specified in this step must reside in the same cluster group as specified in
the beginning of this wizard.
Creating NFS share resources
To create an NFS share resource, see “MSNFS administration on a server cluster” on page 106.
Shadow copies in a cluster
It is recommended that the location of the cache file be placed on a separate disk from the original
data. In this case, a physical disk resource for the cache file disk should be created in the same cluster
group as the intended Shadow Copy resource and the volume for which snapshots will be enabled.
The resource should be created prior to the establishment of Shadow Copies. The Shadow Copy
resource should be dependent on both the original physical disk resource and the physical disk
resource that contains the cache file.
For more information, see the following topics in the clustering online help:
• Using Shadow Copies of Shared Folders in a server cluster
• Enable Shadow Copies for shared folders in a cluster
HP ProLiant SB460c SAN Gateway Storage Server
105
Extend a LUN in a cluster
To extend a LUN on a storage array in a cluster, review the requirements and procedures from the
storage array hardware provider for expanding or extending storage.
For additional information associated with extending a LUN in a cluster, see the following Microsoft
Knowledge Base articles:
• How to extend the partition of a cluster shared disk
http://support.microsoft.com/default.aspx?scid=kb;en-us;304736
• How to replace a disk that is in a cluster and use of the Cluster Recovery utility
http://support.microsoft.com/kb/305793
MSNFS administration on a server cluster
The Microsoft Services for Network File System (NFS) online help provides server cluster information
for the following topics:
• Configuring shared folders on a server cluster
• Configuring an NFS share as a cluster resource
• Modifying an NFS shared cluster resource
• Deleting an NFS shared cluster resource
• Using Microsoft Services for NFS with server clusters
• Understanding how Server for NFS works with server clusters
• Using Server for NFS on a server cluster
• Configuring User Name Mapping on a server cluster
For further details, see the online help for Microsoft Services for Network File System.
Best practices for running Server for NFS in a server cluster
•
•
•
•
•
•
•
•
•
•
•
•
•
Stop Server for NFS before stopping the server cluster.
Ensure share availability when a node fails.
Use the appropriate tool to manage Network File System (NFS) share cluster resources.
Avoid conflicting share names.
Ensure the availability of audit logs.
Move file shares or take them offline before stopping Server for NFS.
Take resources offline before modifying.
Administer Server for NFS only from computers in a trusted domain.
Restart the Server for NFS service after the cluster service restarts.
Choose the appropriate sharing mode.
Use the command line properly when creating or modifying NFS share cluster resources.
Use hard mounts.
Use the correct virtual server name.
106
Cluster administration
Print services in a cluster
The Windows Server 2003 Cluster service implementation increases availability of critical print servers.
A print spooler service on a clustered print server may be hosted on any of the nodes in the cluster.
As with all cluster resources, clients should access the print server by its virtual network name or virtual
IP address.
Creating a cluster printer spooler
Printer spoolers should be created in a separate group dedicated to this purpose for ease of
management. For each printer spooler, a physical resource is required to instantiate the print spooler
resource. In some cases, dedicated physical resources are not available and hence sharing of the
physical resource among other members of the group is acceptable, remembering that all members
of a group are managed as a unit. Hence, the group will failover and failback as a group.
To create a printer spooler:
1.
Create a dedicated group (if desired).
2.
Create a physical resource (disk) (if required, see note).
3.
Create an IP address resource for the Virtual Server to be created (if required, see note).
4.
Create a Virtual Server Resource (Network Name) (if required, see note).
NOTE:
If the printer spool resource is added to an existing group with a physical resource, IP
address, and virtual server resource, steps 1-4 are not required.
5.
Create a Print Spool resource.
6.
To add a printer to the virtual server:
a.
b.
c.
d.
e.
f.
g.
h.
i.
j.
k.
l.
Double-click the printers and faxes icon.
Right-click the new screen, and then click add printer. A wizard starts.
Click create a new port, and then click Next.
Enter the IP address of the network printer.
Update the Port Name if desired, click Next, and then click Finish.
Select the appropriate driver, and then click Next.
If presented with a dialog to replace the driver present, click keep the driver, and then click
Next.
Name the printer, and then click Next.
Provide a share name for the printer for network access, and then click Next.
Provide location information and comments, and then click Next.
Click Yes to print a test page, click Next, and then click Finish.
A dialog box appears regarding the test page. Select the appropriate answer.
The Printer Spool is now a clustered resource.
HP ProLiant SB460c SAN Gateway Storage Server
107
Advanced cluster administration procedures
Failing over and failing back
As previously mentioned, when a node goes offline, all resources dependent on that node are
automatically failed over to another node. Processing continues, but in a reduced manner, because
all operations must be processed on the remaining node(s). In clusters containing more than two
nodes, additional fail over rules can be applied. For instance, groups can be configured to fail over
different nodes to balance the additional work load imposed by the failed node. Nodes can be
excluded from the possible owners list to prevent a resource from coming online on a particular node.
Lastly the preferred owners list can be ordered, to provide an ordered list of failover nodes. Using
these tools, the failover of resources can be controlled with in a multinode cluster to provide a controlled
balanced failover methodology that balances the increased work load.
Because operating environments differ, the administrator must indicate whether the system will
automatically fail the resources (organized by resource groups) back to their original node or will
leave the resources failed over, waiting for the resources to be moved back manually.
NOTE:
If the storage server is not set to automatically fail back the resources to their designated owner, the resources
must be moved back manually each time a failover occurs.
Restarting one cluster node
CAUTION:
Restarting a cluster node should be done only after confirming that the other node(s) in the cluster are
functioning normally. Adequate warning should be given to users connected to resources of the node being
restarted. Attached connections can be viewed through the Management Console on the storage server
Desktop using Terminal Services. From the Management Console, select
File Sharing > Shared Folders > Sessions.
The physical process of restarting one of the nodes of a cluster is the same as restarting a storage
server in single node environment. However, additional caution is needed.
Restarting a cluster node causes all cluster resources served by that node to fail over to the other nodes
in the cluster based on the failover policy in place. Until the failover process completes, any currently
executing read and write operations will fail. Other node(s) in the cluster will be placed under a
heavier load by the extra work until the restarted node comes up and the resources are moved back.
Shutting down one cluster node
CAUTION:
Shutting down a cluster node must be done only after confirming that the other node(s) in the cluster are
functioning normally. Adequate warning should be given to users connected to resources of the node being
shutdown.
108
Cluster administration
Shutting down a cluster node causes all cluster resources served by that node to fail over to the other
node(s). This causes any currently executing client read and write operations to fail until the cluster
failover process completes. The other node(s) are placed under a heavier load by the extra work until
the second node is powered up and rejoins the cluster.
Powering down the cluster
The power down process for the storage server cluster is similar to the process for a single node, but
with the cluster, extra care must be taken with the storage subsystem and the sequence of the shutdown.
The power down process is divided into two main steps:
1.
Shutting down the cluster nodes
2.
Removing power from the cluster nodes
The sequence of these steps is critical. The devices must be shut down before the storage subsystem.
Improperly shutting down the nodes and the storage subsystem causes corruption and loss of data.
CAUTION:
Before powering down the cluster nodes, follow the proper shutdown procedure as previously illustrated.
See “Shutting down one cluster node.” Only one cluster node should be shut down at a time.
Powering up the cluster
The power up process for the storage server cluster is more complex than it is for a single node because
extra care must be taken with the storage subsystem.
The sequence of the power up steps is critical. Improper power up procedures can cause corruption
and loss of data.
CAUTION:
Do not power up the cluster nodes without first powering up the storage subsystem, and verifying it is
operating normally.
Nodes should be powered up separately allowing one node to form the cluster prior to powering up
the additional node(s). To power up the cluster nodes:
1.
After the storage subsystem is confirmed to be operating normally, power up a single node. Wait
for the node to come completely up before powering up the subsequent node(s).
If more than one node is powered up at the same time, the first node that completes the sequence
gains ownership of the cluster quorum and controls the cluster database. Designate a particular
node as the usual cluster quorum owner by always powering up that node first and letting it
completely restart before powering up additional cluster node(s).
2.
Power up the additional cluster node(s). Each node should be allowed to start fully, prior to
starting a subsequent node.
HP ProLiant SB460c SAN Gateway Storage Server
109
Additional information and references for cluster services
The following web sites provide detailed information for clustered environments for Windows Server
2003, which also applies to Windows Storager Server 2003:
• Cluster services
http://www.microsoft.com/windowsserver2003/technologies/clustering/default.mspx
• How to: Set up a clustered print server
http://support.microsoft.com/default.aspx?scid=kb;en-us;278455
• How to: Set up a print spooler on Microsoft Cluster Server
http://support.microsoft.com/kb/197046/
• How to: Troubleshoot printing issues on a Windows Server 2003 Cluster
http://support.microsoft.com/default.aspx?scid=kb;en-us;302539
• Creating and configuring a highly available print server under Microsoft Windows Server 2003
using a server cluster
http://www.microsoft.com/WindowsServer2003/techinfo/overview/availableprinter.mspx
110
Cluster administration
8 Troubleshooting, servicing, and
maintenance
Troubleshooting the storage server
The “Support and troubleshooting” task at the HP Support & Drivers web site (http://www.hp.com/
go/support) can be used to troubleshoot problems with the storage server. After entering the storage
server name and designation (for example, ML110 G5 storage server) or component information (for
example, Array Configuration Utility), use the following links for troubleshooting information:
• Download drivers and software—This area provides drivers and software for your operating
system.
• Troubleshoot a problem—This area provides a listing of customer notices, advisories, and bulletins
applicable for the product or component.
• Manuals—This area provides the latest user documentation applicable to the product or component.
User guides can be a useful source for troubleshooting information. For most storage server
hardware platforms, the following ProLiant server manuals may be useful for troubleshooting
assistance:
• HP ProLiant <model> Server User Guide or HP ProLiant <model> Server Maintenance and
Service Guide (where <model> is the product model of the storage server, such as ML110
G5).
These guides contain specific troubleshooting information for the server. The guides are available
by selecting the applicable ProLiant Server series model, then the Manuals (guides, supplements,
addendums, etc.) link.
For example, instead of using “ML110 G5 storage server,” enter “ML110 G5 server” for the
product to search, then select the “HP ProLiant ML110 Server series” link, then the Manuals
(guides, supplements, addendums, etc.) link to locate the guide.
• HP ProLiant Servers Troubleshooting Guide
The guide provides common procedures and solutions for many levels of troubleshooting with
a ProLiant server. The guide is available at http://h20000.www2.hp.com/bc/docs/support/
SupportManual/c00300504/c00300504.pdf.
IMPORTANT:
Not all troubleshooting procedures found in ProLiant server guides may apply to the ProLiant Storage
Server. If necessary, check with your HP Support representative for further assistance.
For software related components and issues, online help or user guide documentation may offer
troubleshooting assistance. The release notes for the storage server product line is updated frequently.
The document contains issues and workarounds to a number of categories for the storage servers.
HP ProLiant SB460c SAN Gateway Storage Server
111
Known issues and workarounds for the storage server products and the service release are addressed
in release notes. To view the latest release notes, go to http://www.hp.com/support/manuals. Under
the storage section, click NAS and then select your product.
WEBES (Web Based Enterprise Services)
WEBES is a tool suite aimed at preventing or reducing your system's down time. The tool suite has
the following components:
• CCAT (Computer Crash Analysis Tool)
• SEA (System Event Analyzer)
If you have a warranty or service contract with HP you are entitled to these tools free of charge. You
must, however, upgrade the tools at least once a year because the software expires after one year.
For more information about WEBES, see http://h18023.www1.hp.com/support/svctools/webes/.
To install WEBES on your storage server, run the setup executable located in the
C:\hpnas\Components\WEBES folder.
Maintenance and service
HP provides specific documentation for maintaining and servicing your storage server and offers a
customer self repair program.
Maintenance and service documentation
For specific documentation for the maintenance and servicing of HP ProLiant Storage Servers, see the
HP ProLiant <model> Server Maintenance and Service Guide for your storage server model. This
document can be obtained at http://www.hp.com/support/manuals. Under the servers section, select
ProLiant and tc series servers, and then select your product.
Additional documentation can also be found on the inside of the access panel of certain server models.
Maintenance updates
Regular updates to the storage server are supplied on the HP ProLiant Storage Server Service Release
DVD. The Service Release DVD can be obtained at http://www.software.hp.com.
Individual updates for each product are available for download from the HP Support web site at
http://h18023.www1.hp.com/support/selfrepair/na/replace_part.asp.
System updates
System updates to the hardware (BIOS, firmware, drivers), critical updates, and hotfixes for the
operating system and other related software updates are bundled on the Service Release DVD.
Firmware updates
Firmware is software that is stored in Read-Only Memory (ROM). Firmware is responsible for the
behavior of the system when it is first switched on and for passing control of the server to the operating
system. When referring to the firmware on the system board of the server, it is called the System ROM
or the BIOS. When referring to the firmware on another piece of hardware configured in the server,
it is called Option ROM. ProLiant servers have hard drives, Smart Array Controllers, Remote Insight
112
Troubleshooting, servicing, and maintenance
Lights-Out Edition (RILOE), Remote Insight Lights-Out Edition II (RILOE II) and Integrated Lights-Out
options that have firmware that can be updated.
It is important to update the firmware (also called “flashing the ROM”) as part of regular server
maintenance. In addition, checking for specific firmware updates in between regular updates helps
to keep the server performing optimally. HP recommends checking for a firmware update before
sending a part back to HP for replacement.
Certificate of Authenticity
The Certificate of Authenticity (COA) label is used to:
• Upgrade the factory-installed operating system using the Microsoft Upgrade program for license
validation.
• Reinstall the operating system because of a failure that has permanently disabled it.
The COA label location varies by server model. On rack-mounted server models, the COA label is
located either on the front section of the right panel or on the right front corner of the top panel. On
tower models, the COA label is located toward the rear of the top panel of the server.
HP ProLiant SB460c SAN Gateway Storage Server
113
114
Troubleshooting, servicing, and maintenance
9 System recovery
This chapter describes how to use the System Recovery DVD that is provided with your storage server.
The System Recovery DVD
The HP ProLiant Storage Server System Recovery DVD that is provided with your storage server allows
you to install an image or recover from a catastrophic failure.
At any later time, you may boot from the DVD and restore the server to the factory condition. This
allows you to recover the system if all other means to boot the server fail.
While the recovery process makes every attempt to preserve the existing data volumes, you should
have a backup of your data if at all possible before recovering the system.
To restore a factory image
1.
Insert the System Recovery DVD. The main window appears.
2.
Choose Restore Factory Image.
Systems with a DON'T ERASE partition
The DON'T ERASE logical disk supports the restoration process only and does not host a secondary
operating system. Be sure to back up your user data, and then use the Recovery and Installation DVD
to restore the server to the factory state.
Managing disks after a restoration
After a system has been restored, drive letters may be assigned to the wrong volume. Windows
Storage Server 2003 assigns drive letters after the restoration in the order of discovery. To help
maintain drive letter information, placing the drive letter into a volume label is recommended. To
change the drive letters to the appropriate one, go into Disk Management and perform the following
steps for each volume:
1.
Right-click the volume that needs to be changed.
2.
Select Change drive Letter and Paths.
3.
In the Change drive Letter and Paths dialog box, select Change.
4.
Select the appropriate drive letter, then click OK.
5.
Click Yes to confirm the drive letter change.
6.
Click Yes to continue. If the old drive letter needs to be re-used, reboot the server after clicking
Yes.
HP ProLiant SB460c SAN Gateway Storage Server
115
116
System recovery
A Regulatory compliance and safety
Federal Communications Commission notice
Part 15 of the Federal Communications Commission (FCC) Rules and Regulations has established
Radio Frequency (RF) emission limits to provide an interference-free radio frequency spectrum. Many
electronic devices, including computers, generate RF energy incidental to their intended function and
are, therefore, covered by these rules. These rules place computers and related peripheral devices
into two classes, A and B, depending upon their intended installation. Class A devices are those that
may reasonably be expected to be installed in a business or commercial environment. Class B devices
are those that may reasonably be expected to be installed in a residential environment (personal
computers, for example). The FCC requires devices in both classes to bear a label indicating the
interference potential of the device as well as additional operating instructions for the user.
The rating label on the device shows which class (A or B) the equipment falls into. Class B devices
have an FCC logo or FCC ID on the label. Class A devices do not have an FCC logo or FCC ID on
the label. Once the class of the device is determined, see the following corresponding statement.
Class A equipment
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference, in which case the user
will be required to correct the interference at personal expense.
Class B equipment
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio or television technician for help.
HP ProLiant SB460c SAN Gateway Storage Server
117
Declaration of conformity for products marked with the FCC logo, United States
only
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
For questions regarding your product, contact:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call
1-800- 652-6672
For questions regarding this FCC declaration, contact:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call
(281) 514-3333
To identify this product, see the Part, Series, or Model number found on the product.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that
are not expressly approved by Hewlett-Packard Company may void the user's authority to operate
the equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods
in order to maintain compliance with FCC Rules and Regulations.
Laser compliance
This product may be provided with an optical storage device (that is, CD or DVD drive) and/or fiber
optic transceiver. Each of these devices contains a laser that is classified as a Class 1 Laser Product
in accordance with US FDA regulations and the IEC 60825–1. The product does not emit hazardous
laser radiation.
118
Regulatory compliance and safety
WARNING!
Use of controls or adjustments or performance of procedures other than those specified herein or in the
installation guide of the laser product may result in hazardous radiation exposure. To reduce the risk of
exposure to hazardous radiation:
• Do not try to open the module enclosure. There are no user-serviceable components inside.
• Do not operate controls, make adjustments, or perform procedures to the laser device other than those
specified herein.
• Allow only HP authorized service technicians to repair the unit.
The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration
implemented regulations for laser products on August 2, 1976. These regulations apply to laser
products manufactured from August 1, 1976. Compliance is mandatory for products marketed in the
United States.
International notices and statements
Canadian notice (Avis Canadien)
Class A equipment
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Class B equipment
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
European Union notice
Products bearing the CE marking comply with the EMC Directive (89/336/EEC) and the Low
Voltage Directive (73/23/EEC) issued by the Commission of the European Community and if this
product has telecommunication functionality, the R&TTE Directive (1999/5/EC).
Compliance with these directives implies conformity to the following European Norms (in parentheses
are the equivalent international standards and regulations):
•
•
•
•
•
EN 55022 (CISPR 22) - Electromagnetic Interference
EN55024 (IEC61000-4-2, 3, 4, 5, 6, 8, 11) - Electromagnetic Immunity
EN61000-3-2 (IEC61000-3-2) - Power Line Harmonics
EN61000-3-3 (IEC61000-3-3) - Power Line Flicker
EN 60950 (IEC 60950) - Product Safety
HP ProLiant SB460c SAN Gateway Storage Server
119
BSMI notice
Japanese notice
Korean notice A&B
Class A equipment
Class B equipment
120
Regulatory compliance and safety
Safety
Battery replacement notice
WARNING!
The computer contains an internal lithium manganese dioxide, a vanadium pentoxide, or an alkaline
battery pack. A risk of fire and burns exists if the battery pack is not properly handled. To reduce the risk
of personal injury:
• Do not attempt to recharge the battery.
• Do not expose the battery to temperatures higher than 60˚C (140˚F).
• Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
Batteries, battery packs, and accumulators should not be disposed of together with the general
household waste. To forward them to recycling or proper disposal, please use the public collection
system or return them to HP, an authorized HP Partner, or their agents.
For more information about battery replacement or proper disposal, contact an authorized reseller
or an authorized service provider.
Taiwan battery recycling notice
The Taiwan EPA requires dry battery manufacturing or importing firms in accordance
with Article 15 of the Waste Disposal Act to indicate the recovery marks on the batteries used in
sales, giveaway or promotion. Contact a qualified Taiwanese recycler for proper battery disposal.
Power cords
The power cord set must meet the requirements for use in the country where the product was purchased.
If the product is to be used in another country, purchase a power cord that is approved for use in that
country.
The power cord must be rated for the product and for the voltage and current marked on the product
electrical rating label. The voltage and current rating of the cord should be greater than the voltage
and current rating marked on the product. In addition, the diameter of the wire must be a minimum
of 1.00 mm2 or 18 AWG, and the length of the cord must be between 1.8 m (6 ft) and 3.6 m (12
ft). If you have questions about the type of power cord to use, contact an HP authorized service
provider.
NOTE:
Route power cords so that they will not be walked on and cannot be pinched by items placed upon or
against them. Pay particular attention to the plug, electrical outlet, and the point where the cords exit from
the product.
HP ProLiant SB460c SAN Gateway Storage Server
121
Japanese power cord notice
Electrostatic discharge
To prevent damage to the system, be aware of the precautions you need to follow when setting up
the system or handling parts. A discharge of static electricity from a finger or other conductor may
damage system boards or other static-sensitive devices. This type of damage may reduce the life
expectancy of the device.
Preventing electrostatic discharge
To prevent electrostatic damage, observe the following precautions:
•
•
•
•
•
Avoid hand contact by transporting and storing products in static-safe containers.
Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.
Place parts on a grounded surface before removing them from their containers.
Avoid touching pins, leads, or circuitry.
Always be properly grounded when touching a static-sensitive component or assembly.
Grounding methods
There are several methods for grounding. Use one or more of the following methods when handling
or installing electrostatic-sensitive parts:
• Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis.
Wrist straps are flexible straps with a minimum of 1 megohm ± 10 percent resistance in the ground
cords. To provide proper grounding, wear the strap snug against the skin.
• Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet
when standing on conductive floors or dissipating floor mats.
• Use conductive field service tools.
• Use a portable field service kit with a folding static-dissipating work mat.
If you do not have any of the suggested equipment for proper grounding, have an authorized reseller
install the part.
NOTE:
For more information on static electricity, or for assistance with product installation, contact your authorized
reseller.
Waste Electrical and Electronic Equipment (WEEE) directive
Czechoslovakian notice
Likvidace za ízení soukromými domácími uživateli v Evropské unii
122
Regulatory compliance and safety
Tento symbol na produktu nebo balení ozna uje výrobek, který nesmí být vyhozen spolu s ostatním
domácím odpadem. Povinností uživatele je p edat takto ozna ený odpad na p edem ur ené sb rné
místo pro recyklaci elektrických a elektronických za ízení. Okamžité t íd ní a recyklace odpadu pom že
uchovat p írodní prost edí a zajistí takový zp sob recyklace, který ochrání zdraví a životní
prost edí lov ka. Další informace o možnostech odevzdání odpadu k recyklaci získáte na p íslušném
obecním nebo m stském ú ad , od firmy zabývající se sb rem a svozem odpadu nebo v obchod , kde
jste produkt zakoupili.
Danish notice
Bortskaffelse af affald fra husstande i den Europæiske Union
Hvis produktet eller dets emballage er forsynet med dette symbol, angiver det, at produktet ikke
må bortskaffes med andet almindeligt husholdningsaffald. I stedet er det dit ansvar at bortskaffe
kasseret udstyr ved at aflevere det på den kommunale genbrugsstation, der forestår genvinding af
kasseret elektrisk og elektronisk udstyr. Den centrale modtagelse og genvinding af kasseret udstyr i
forbindelse med bortskaffelsen bidrager til bevarelse af naturlige ressourcer og sikrer, at udstyret
genvindes på en måde, der beskytter både mennesker og miljø. Yderligere oplysninger om, hvor du
kan aflevere kasseret udstyr til genvinding, kan du få hos kommunen, den lokale genbrugsstation eller
i den butik, hvor du købte produktet.
Dutch notice
Verwijdering van afgedankte apparatuur door privé-gebruikers in de Europese Unie
Dit symbool op het product of de verpakking geeft aan dat dit product niet mag worden
gedeponeerd bij het normale huishoudelijke afval. U bent zelf verantwoordelijk voor het inleveren
van uw afgedankte apparatuur bij een inzamelingspunt voor het recyclen van oude elektrische en
elektronische apparatuur. Door uw oude apparatuur apart aan te bieden en te recyclen, kunnen
natuurlijke bronnen worden behouden en kan het materiaal worden hergebruikt op een manier
waarmee de volksgezondheid en het milieu worden beschermd. Neem contact op met uw gemeente,
het afvalinzamelingsbedrijf of de winkel waar u het product hebt gekocht voor meer informatie over
inzamelingspunten waar u oude apparatuur kunt aanbieden voor recycling.
English notice
Disposal of waste equipment by users in private household in the European Union
This symbol on the product or on its packaging indicates that this product must not be disposed
of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment
by handing it over to a designated collection point for recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment at the time of disposal will
help to conserve natural resources and ensure that it is recycled in a manner that protects human
health and the environment. For more information about where you can drop off your waste equipment
for recycling, please contact your local city office, your household waste disposal service, or the shop
where you purchased the product.
HP ProLiant SB460c SAN Gateway Storage Server
123
Estonian notice
Seadmete jäätmete kõrvaldamine eramajapidamistes Euroopa Liidus
See tootel või selle pakendil olev sümbol näitab, et kõnealust toodet ei tohi koos teiste
majapidamisjäätmetega kõrvaldada. Teie kohus on oma seadmete jäätmed kõrvaldada, viies need
elektri- ja elektroonikaseadmete jäätmete ringlussevõtmiseks selleks ettenähtud kogumispunkti. Seadmete
jäätmete eraldi kogumine ja ringlussevõtmine kõrvaldamise ajal aitab kaitsta loodusvarasid ning
tagada, et ringlussevõtmine toimub viisil, mis kaitseb inimeste tervist ning keskkonda. Lisateabe
saamiseks selle kohta, kuhu oma seadmete jäätmed ringlussevõtmiseks viia, võtke palun ühendust
oma kohaliku linnakantselei, majapidamisjäätmete kõrvaldamise teenistuse või kauplusega, kust Te
toote ostsite.
Finnish notice
Laitteiden hävittäminen kotitalouksissa Euroopan unionin alueella
Jos tuotteessa tai sen pakkauksessa on tämä merkki, tuotetta ei saa hävittää kotitalousjätteiden
mukana. Tällöin hävitettävä laite on toimitettava sähkölaitteiden ja elektronisten laitteiden
kierrätyspisteeseen. Hävitettävien laitteiden erillinen käsittely ja kierrätys auttavat säästämään
luonnonvaroja ja varmistamaan, että laite kierrätetään tavalla, joka estää terveyshaitat ja suojelee
luontoa. Lisätietoja paikoista, joihin hävitettävät laitteet voi toimittaa kierrätettäväksi, saa ottamalla
yhteyttä jätehuoltoon tai liikkeeseen, josta tuote on ostettu.
French notice
Élimination des appareils mis au rebut par les ménages dans l'Union européenne
Le symbole apposé sur ce produit ou sur son emballage indique que ce produit ne doit pas être
jeté avec les déchets ménagers ordinaires. Il est de votre responsabilité de mettre au rebut vos appareils
en les déposant dans les centres de collecte publique désignés pour le recyclage des équipements
électriques et électroniques. La collecte et le recyclage de vos appareils mis au rebut indépendamment
du reste des déchets contribue à la préservation des ressources naturelles et garantit que ces appareils
seront recyclés dans le respect de la santé humaine et de l'environnement. Pour obtenir plus
d'informations sur les centres de collecte et de recyclage des appareils mis au rebut, veuillez contacter
les autorités locales de votre région, les services de collecte des ordures ménagères ou le magasin
dans lequel vous avez acheté ce produit.
German notice
Entsorgung von Altgeräten aus privaten Haushalten in der EU
Das Symbol auf dem Produkt oder seiner Verpackung weist darauf hin, dass das Produkt nicht
über den normalen Hausmüll entsorgt werden darf. Benutzer sind verpflichtet, die Altgeräte an einer
Rücknahmestelle für Elektro- und Elektronik-Altgeräte abzugeben. Die getrennte Sammlung und
ordnungsgemäße Entsorgung Ihrer Altgeräte trägt zur Erhaltung der natürlichen Ressourcen bei und
124
Regulatory compliance and safety
garantiert eine Wiederverwertung, die die Gesundheit des Menschen und die Umwelt schützt.
Informationen dazu, wo Sie Rücknahmestellen für Ihre Altgeräte finden, erhalten Sie bei Ihrer
Stadtverwaltung, den örtlichen Müllentsorgungsbetrieben oder im Geschäft, in dem Sie das Gerät
erworben haben.
Greek notice
Hungarian notice
Készülékek magánháztartásban történ selejtezése az Európai Unió területén
A készüléken, illetve a készülék csomagolásán látható azonos szimbólum annak jelzésére szolgál,
hogy a készülék a selejtezés során az egyéb háztartási hulladéktól eltér módon kezelend . A vásárló
a hulladékká vált készüléket köteles a kijelölt gy jt helyre szállítani az elektromos és elektronikai
készülékek újrahasznosítása céljából. A hulladékká vált készülékek selejtezéskori begy jtése és
újrahasznosítása hozzájárul a természeti er források meg rzéséhez, valamint biztosítja a selejtezett
termékek környezetre és emberi egészségre nézve biztonságos feldolgozását. A begy jtés pontos
helyér l b vebb tájékoztatást a lakhelye szerint illetékes önkormányzattól, az illetékes szemételtakarító
vállalattól, illetve a terméket elárusító helyen kaphat.
Italian notice
Smaltimento delle apparecchiature da parte di privati nel territorio dell’Unione Europea
Questo simbolo presente sul prodotto o sulla sua confezione indica che il prodotto non può
essere smaltito insieme ai rifiuti domestici. È responsabilità dell'utente smaltire le apparecchiature
consegnandole presso un punto di raccolta designato al riciclo e allo smaltimento di apparecchiature
elettriche ed elettroniche. La raccolta differenziata e il corretto riciclo delle apparecchiature da smaltire
permette di proteggere la salute degli individui e l'ecosistema. Per ulteriori informazioni relative ai
punti di raccolta delle apparecchiature, contattare l'ente locale per lo smaltimento dei rifiuti, oppure
il negozio presso il quale è stato acquistato il prodotto.
Latvian notice
Nolietotu iek rtu izn cin šanas noteikumi lietot jiem Eiropas Savien bas priv taj s m jsaimniec b s
HP ProLiant SB460c SAN Gateway Storage Server
125
Š ds simbols uz izstr d juma vai uz t iesai ojuma nor da, ka šo izstr d jumu nedr kst izmest kop
ar citiem sadz ves atkritumiem. J s atbildat par to, lai nolietot s iek rtas tiktu nodotas speci li iek rtotos
punktos, kas paredz ti izmantoto elektrisko un elektronisko iek rtu sav kšanai otrreiz jai p rstr dei.
Atseviš a nolietoto iek rtu sav kšana un otrreiz j p rstr de pal dz s saglab t dabas resursus un garant s,
ka š s iek rtas tiks otrreiz ji p rstr d tas t d veid , lai pasarg tu vidi un cilv ku vesel bu. Lai uzzin tu,
kur nolietot s iek rtas var izmest otrreiz jai p rstr dei, j v ršas savas dz ves vietas pašvald b , sadz ves
atkritumu sav kšanas dienest vai veikal , kur izstr d jums tika nopirkts.
Lithuanian notice
Vartotoj iš priva i nam ki rangos atliek šalinimas Europos S jungoje
Šis simbolis ant gaminio arba jo pakuot s rodo, kad šio gaminio šalinti kartu su kitomis nam kio
atliekomis negalima. Šalintinas rangos atliekas privalote pristatyti speciali surinkimo viet elektros
ir elektronin s rangos atliekoms perdirbti. Atskirai surenkamos ir perdirbamos šalintinos rangos
atliekos pad s saugoti gamtinius išteklius ir užtikrinti, kad jos bus perdirbtos tokiu b du, kuris nekenkia
žmoni sveikatai ir aplinkai. Jeigu norite sužinoti daugiau apie tai, kur galima pristatyti perdirbtinas
rangos atliekas, kreipkit s savo seni nij , nam kio atliek šalinimo tarnyb arba parduotuv , kurioje
sigijote gamin .
Polish notice
Pozbywanie si zu ytego sprz tu przez u ytkowników w prywatnych gospodarstwach domowych w
Unii Europejskiej
Ten symbol na produkcie lub jego opakowaniu oznacza, e produktu nie wolno wyrzuca do
zwykłych pojemników na mieci. Obowi zkiem u ytkownika jest przekazanie zu ytego sprz tu do
wyznaczonego punktu zbiórki w celu recyklingu odpadów powstałych ze sprz tu elektrycznego i
elektronicznego. Osobna zbiórka oraz recykling zu ytego sprz tu pomog w ochronie zasobów
naturalnych i zapewni ponowne wprowadzenie go do obiegu w sposób chroni cy zdrowie człowieka
i rodowisko. Aby uzyska wi cej informacji o tym, gdzie mo na przekaza zu yty sprz t do recyklingu,
nale y si skontaktowa z urz dem miasta, zakładem gospodarki odpadami lub sklepem, w którym
zakupiono produkt.
Portuguese notice
Descarte de Lixo Elétrico na Comunidade Européia
Este símbolo encontrado no produto ou na embalagem indica que o produto não deve ser
descartado no lixo doméstico comum. É responsabilidade do cliente descartar o material usado (lixo
elétrico), encaminhando-o para um ponto de coleta para reciclagem. A coleta e a reciclagem seletivas
desse tipo de lixo ajudarão a conservar as reservas naturais; sendo assim, a reciclagem será feita
de uma forma segura, protegendo o ambiente e a saúde das pessoas. Para obter mais informações
sobre locais que reciclam esse tipo de material, entre em contato com o escritório da HP em sua
cidade, com o serviço de coleta de lixo ou com a loja em que o produto foi adquirido.
126
Regulatory compliance and safety
Slovakian notice
Likvidácia vyradených zariadení v domácnostiach v Európskej únii
Symbol na výrobku alebo jeho balení ozna uje, že daný výrobok sa nesmie likvidova s domovým
odpadom. Povinnos ou spotrebite a je odovzda vyradené zariadenie v zbernom mieste, ktoré je
ur ené na recykláciu vyradených elektrických a elektronických zariadení. Separovaný zber a recyklácia
vyradených zariadení prispieva k ochrane prírodných zdrojov a zabezpe uje, že recyklácia sa
vykonáva spôsobom chrániacim udské zdravie a životné prostredie. Informácie o zberných miestach
na recykláciu vyradených zariadení vám poskytne miestne zastupite stvo, spolo nos zabezpe ujúca
odvoz domového odpadu alebo obchod, v ktorom ste si výrobok zakúpili.
Slovenian notice
Odstranjevanje odslužene opreme uporabnikov v zasebnih gospodinjstvih v Evropski uniji
Ta znak na izdelku ali njegovi embalaži pomeni, da izdelka ne smete odvre i med gospodinjske
odpadke. Nasprotno, odsluženo opremo morate predati na zbirališ e, pooblaš eno za recikliranje
odslužene elektri ne in elektronske opreme. Lo eno zbiranje in recikliranje odslužene opreme prispeva
k ohranjanju naravnih virov in zagotavlja recikliranje te opreme na zdravju in okolju neškodljiv na in.
Za podrobnejše informacije o tem, kam lahko odpeljete odsluženo opremo na recikliranje, se obrnite
na pristojni organ, komunalno službo ali trgovino, kjer ste izdelek kupili.
Spanish notice
Eliminación de residuos de equipos eléctricos y electrónicos por parte de usuarios particulares en la
Unión Europea
Este símbolo en el producto o en su envase indica que no debe eliminarse junto con los
desperdicios generales de la casa. Es responsabilidad del usuario eliminar los residuos de este tipo
depositándolos en un "punto limpio" para el reciclado de residuos eléctricos y electrónicos. La
recogida y el reciclado selectivos de los residuos de aparatos eléctricos en el momento de su
eliminación contribuirá a conservar los recursos naturales y a garantizar el reciclado de estos residuos
de forma que se proteja el medio ambiente y la salud. Para obtener más información sobre los puntos
de recogida de residuos eléctricos y electrónicos para reciclado, póngase en contacto con su
ayuntamiento, con el servicio de eliminación de residuos domésticos o con el establecimiento en el
que adquirió el producto.
Swedish notice
Bortskaffande av avfallsprodukter från användare i privathushåll inom Europeiska Unionen
Om den här symbolen visas på produkten eller förpackningen betyder det att produkten inte får
slängas på samma ställe som hushållssopor. I stället är det ditt ansvar att bortskaffa avfallet genom
att överlämna det till ett uppsamlingsställe avsett för återvinning av avfall från elektriska och elektroniska
produkter. Separat insamling och återvinning av avfallet hjälper till att spara på våra naturresurser
HP ProLiant SB460c SAN Gateway Storage Server
127
och gör att avfallet återvinns på ett sätt som skyddar människors hälsa och miljön. Kontakta ditt lokala
kommunkontor, din närmsta återvinningsstation för hushållsavfall eller affären där du köpte produkten
för att få mer information om var du kan lämna ditt avfall för återvinning.
128
Regulatory compliance and safety
Index
A
access rights, managing, 103
ACL, defining, 52
Active Directory Lookup, 63
AppleTalk, 21
Array Configuration Utility, 26
array controller, purpose, 17
arrays, defined, 17
audience, 11
B
backup, printer, 61
backup, with shadow copies, 44
basic disks, 19, 19, 20
battery replacement notice, 121
C
cables, 118
cache file, shadow copies, 35
CIFS, share support, 53
Class A equipment, 117
Class B equipment, 117
cluster
adding new storage, 104
analysis, 101
concepts, 92
concepts, diagram, 92
diagram, 90
dual data paths, 96
geographically dispersed, 102
group, 102
groups, node-based, 102
installation, 98
installation checklist, 97
load balancing, 103
managing access rights, 103
managing file share permissions, 103
network requirements, 97
nodes
powering down, 109
powering up, 109
restarting, 108
overview, 89, 89
preparing for installation, 96
printer spooler, 107
protocols, non cluster aware, 104
resources, 102
resources, defined, 90
setting up user account, 100
clustered server elements, 21
Command View EVA
expanding storage, 30
configuring
private network adapter, 99
shared disks, 100
connectivity, verifying, 99
conventions
document, 11
text symbols, 12
customer self repair, 13
D
data blocks, 17
data striping, 17
disk access, verifying, 100
Disk Management
extending volumes, 30
HP ProLiant SB460c SAN Gateway Storage Server
129
document
conventions, 11
related documentation, 11
documentation
HP website, 11
providing feedback, 14
domain membership, verifying, 100
dual data paths, 96
dynamic disks
clustering, 20
spanning multiple LUNs, 19
E
electrostatic discharge, 122
European Union notice, 119
expanding storage
Array Configuration Utility, 30
Command View EVA, 30
extending volumes
Disk Management, 30
F
failover
automatic, 108
defined, 91
resources, 91
fault tolerance, 18
FCC notice, 117
file share permissions, managing, 103
file share resource planning, 103
file share resources, 93
File and Print Services for NetWare.
See FPNW
file level permissions, 45
file recovery, 42
file screening management, 54
File Server Resource Manager, 23, 53
file services management, 24
file share resources, 105
file system elements, 20
file-sharing protocols, 20
files, ownership, 50
folder management, 45
folder recovery, 42
folders
auditing access, 48
managing, 45
FPNW
accessing, 76
described, 75
installing, 75
G
grounding methods, 122
group, cluster, 93
groups, adding to permissions list, 46
H
help
obtaining, 13
HP
Array Configuration Utility, 25
Storage Manager, 26
Storage Server Management Console, 24,
53, 65, 101
technical support, 13
Web Jetadmin, 58
I
installation, cluster, preparing for, 96
international notices and statements, 119
IP address resource, 93
K
kernel-mode drivers
check for, 60
installation blocked, 60
L
LAN icons, renaming, 99
laser compliance, 118
load balancing, 103
logical storage elements, 18, 20
LUNs
described, 19
presenting to cluster node, 101
M
Microsoft Print Management Console, 58
Microsoft Printer Migrator, 61
Microsoft Services for NFS
uninstalling and reinstalling, 96
mount points
not supported with NFS, 19
mount points
creating, 19
mounted drives and shadow copies, 34
N
NCP, creating new share, 80, 80
130
Index
NetWare
adding local users, 78
enabling user accounts, 78
installing services for, 75
supervisor account, 79
network name resource, 93
network planning, 94
network requirements, cluster, 97
NFS share resource, 105
node, server, 90
RAID
data striping, 17
LUNs in volumes, 19
summary of methods, 18
regulatory compliance, 117
related documentation, 11
resources, cluster, 90
S
O
online spares, 18
P
partitions
extended, 19
primary, 19
permissions
file level, 45
list
adding users and groups, 46
removing users and groups, 46
modifying, 47
resetting, 47
physical disk resources, 93, 105
physical storage elements, 16
planning
network, 94
protocol, 95
storage, 94
power cords, 121
print services for UNIX, 73
printer spooler, creating in a cluster, 107
printer backup, 61
private network adapter, configuring, 99
protocols
non cluster aware, 104
planning, 95
public network adapter, configuring, 99
Q
Quorum disk
defined, 91
recommendations, 100
quota management, 53
R
rack stability
warning, 12
safety, 121
SAN Connection and Management white paper,
96
SAN Connection and Management white paper,
24, 98, 96, 98
SAN environment, 24
security
auditing, 48
file level permissions, 45
ownership of files, 50
Server for NFS
Authentication DLL, 66
described, 65
Service for User
for Active Domain controllers, 66
services for AppleTalk, installing, 81
Services for UNIX, 19, 21
shadow copies
cache file, 35
mounted drives, 34
shadow copies, 20
backups, 44
defragmentation, 33
described, 31
disabling, 38
file or folder recovery, 42
in a cluster, 105
managing, 34
on NFS shares, 41
on SMB shares, 40
planning, 31
redirecting, 38
scheduling, 37
uses, 31
viewing list, 37
Shadow Copies for Shared Folders, 39
share management, 51
shared disks, configuring, 100
shares
administrative, 53
creating new NCP, 80, 80
managing, 51
NCP, 79
standard, 53
Single Instance Storage, 23
HP ProLiant SB460c SAN Gateway Storage Server
131
storage management
elements, 15
overview, 15
process, 16
Storage Manager for SANs, 23
storage reports, 54
storage, adding to a cluster, 104
Subscriber's Choice, HP, 13
symbols in text, 12
system updates, 112
T
technical support
HP, 13
service locator website, 13
text symbols, 12
troubleshooting, 111
U
UNIX, print services, 73
user account, setting up, 100
user-mode drivers, 60
users
adding to permission list, 46
NetWare
adding, 78
enabling, 78
V
verifying
connectivity, 99
disk access, 100
domain membership, 100
name resolution, 99
virtual server, defined, 91
Volume Shadow Copy Service, 31
volumes
creating Novell, 75
NCP, 79
planning, 19
vssadmin tool, 34
W
warning
rack stability, 12
WEBES (Web Based Enterprise Services, 112
websites
customer self repair, 13
HP , 13
HP Subscriber's Choice for Business, 13
product manuals, 11
132
Index
WEEE directive, 122
