HP StorageWorks RDX DL Server Module

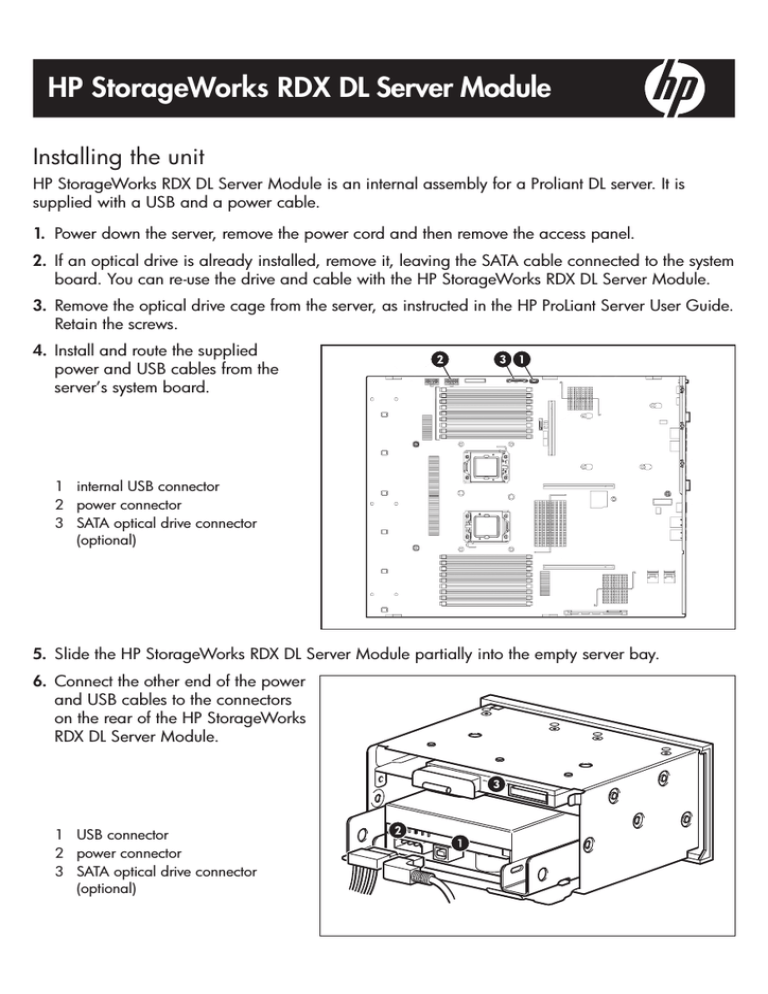

Installing the unit
HP StorageWorks RDX DL Server Module is an internal assembly for a Proliant DL server. It is
supplied with a USB and a power cable.
1. Power down the server, remove the power cord and then remove the access panel.
2. If an optical drive is already installed, remove it, leaving the SATA cable connected to the system
board. You can re-use the drive and cable with the HP StorageWorks RDX DL Server Module.
3. Remove the optical drive cage from the server, as instructed in the HP ProLiant Server User Guide.
Retain the screws.
4. Install and route the supplied
power and USB cables from the
server’s system board.
1 internal USB connector
2 power connector
3 SATA optical drive connector
(optional)
5. Slide the HP StorageWorks RDX DL Server Module partially into the empty server bay.
6. Connect the other end of the power
and USB cables to the connectors
on the rear of the HP StorageWorks
RDX DL Server Module.
1 USB connector
2 power connector
3 SATA optical drive connector
(optional)
7. If you wish to use the optical drive, remove the blank from the HP StorageWorks RDX DL Server
Module and insert the CD or DVD drive that you removed in step 2. Reconnect the SATA cable
to the rear of the optical drive.
8. Push the HP StorageWorks RDX DL
Server Module fully into the bay
and secure it using the screws that
you removed in step 3.
1 Install HP StorageWorks RDX DL
Server Module
2 Secure with screws
9. Replace the server covers and power cable, power up the server, as instructed in the HP ProLiant
Server User Guide. Refer to the HP RDX Backup System User Guide for operating and
troubleshooting information.
Returning the unit
IMPORTANT: Do not return the complete HP StorageWorks RDX DL Server Module.
Follow the troubleshooting processes in the appropriate optical drive or RDX user guide. If
there is an issue that requires replacement, follow the instructions below.
If there is a problem with the optical drive, remove it and return for servicing.
If there is a problem with the RDX
Removable Disk Backup System, detach the
cables, remove the four screws that secure
the RDX unit to the module and keep them
safe for use with the replacement module.
Remove the RDX unit from the module and
return it for servicing. It is important to
retain the cables; the replacement unit
does not include cables.
Return details are different for the two
units; details can be found on the base of
the units after you remove them.
