hp StorageWorks
modular SAN array 1000
specific for Tru64 UNIX and OpenVMS only
QuickSpecs

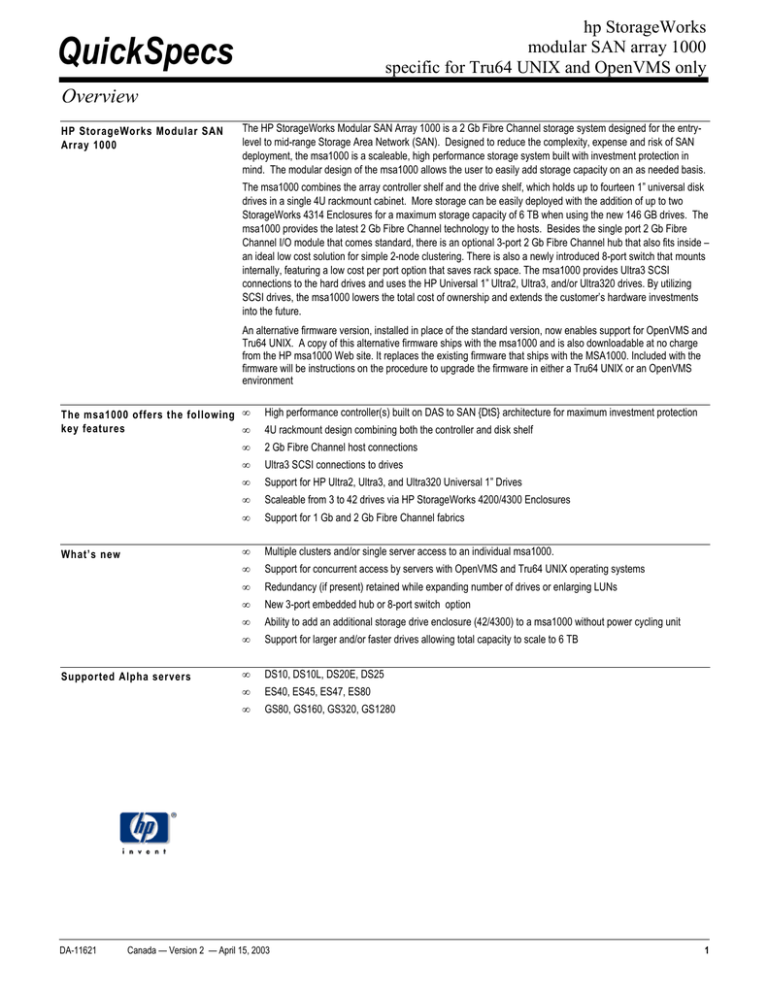

Overview
HP StorageWorks Modular SAN
Array 1000
The HP StorageWorks Modular SAN Array 1000 is a 2 Gb Fibre Channel storage system designed for the entrylevel to mid-range Storage Area Network (SAN). Designed to reduce the complexity, expense and risk of SAN
deployment, the msa1000 is a scaleable, high performance storage system built with investment protection in
mind. The modular design of the msa1000 allows the user to easily add storage capacity on an as needed basis.
The msa1000 combines the array controller shelf and the drive shelf, which holds up to fourteen 1” universal disk
drives in a single 4U rackmount cabinet. More storage can be easily deployed with the addition of up to two
StorageWorks 4314 Enclosures for a maximum storage capacity of 6 TB when using the new 146 GB drives. The
msa1000 provides the latest 2 Gb Fibre Channel technology to the hosts. Besides the single port 2 Gb Fibre
Channel I/O module that comes standard, there is an optional 3-port 2 Gb Fibre Channel hub that also fits inside –
an ideal low cost solution for simple 2-node clustering. There is also a newly introduced 8-port switch that mounts
internally, featuring a low cost per port option that saves rack space. The msa1000 provides Ultra3 SCSI
connections to the hard drives and uses the HP Universal 1” Ultra2, Ultra3, and/or Ultra320 drives. By utilizing
SCSI drives, the msa1000 lowers the total cost of ownership and extends the customer’s hardware investments
into the future.
An alternative firmware version, installed in place of the standard version, now enables support for OpenVMS and
Tru64 UNIX. A copy of this alternative firmware ships with the msa1000 and is also downloadable at no charge
from the HP msa1000 Web site. It replaces the existing firmware that ships with the MSA1000. Included with the
firmware will be instructions on the procedure to upgrade the firmware in either a Tru64 UNIX or an OpenVMS
environment
The msa1000 offers the following •
key features
•
What’s new
Supported Alpha servers
DA-11621
High performance controller(s) built on DAS to SAN {DtS} architecture for maximum investment protection
4U rackmount design combining both the controller and disk shelf
•
2 Gb Fibre Channel host connections
•
Ultra3 SCSI connections to drives
•
Support for HP Ultra2, Ultra3, and Ultra320 Universal 1” Drives
•
Scaleable from 3 to 42 drives via HP StorageWorks 4200/4300 Enclosures
•
Support for 1 Gb and 2 Gb Fibre Channel fabrics
•
Multiple clusters and/or single server access to an individual msa1000.
•
Support for concurrent access by servers with OpenVMS and Tru64 UNIX operating systems
•
Redundancy (if present) retained while expanding number of drives or enlarging LUNs
•
New 3-port embedded hub or 8-port switch option
•
Ability to add an additional storage drive enclosure (42/4300) to a msa1000 without power cycling unit
•
Support for larger and/or faster drives allowing total capacity to scale to 6 TB
•
DS10, DS10L, DS20E, DS25
•
ES40, ES45, ES47, ES80
•
GS80, GS160, GS320, GS1280
Canada — Version 2 — April 15, 2003
1
hp StorageWorks
modular SAN array 1000
specific for Tru64 UNIX and OpenVMS only
QuickSpecs
MSA1000 Highlights
High Levels of Performance,
Scalability, and Functionality
Low Total Cost of Ownership
•
Performance – The msa1000 and its components have been designed using the latest industry standard 2
Gb interconnects and Fibre Channel technology. Performance tests indicate a data transmission rate of
over 30, 000 IOPS and bandwidth of up to 200 MB per second. (Single msa1000 Controller)
•
Modular Chassis – The modular design of the msa1000 cabinet supports up to fourteen 1” Universal hard
drives, redundant controllers, 2 Gb embedded fabric switches or hubs, fans and power supplies in a 4U
rackmount cabinet.
•
Scalability – The msa1000 is easily expanded. The msa1000 cabinet scales to 2.0 TB, using fourteen, 146
GB, 1” HP Universal hard drives. By simply adding additional StorageWorks 4200/4300 Enclosures (two
enclosures max), the msa1000 scales to 6.0 TB, using forty-two, 146 GB, 1” HP Universal hard drives – all
within 10U of rack space.
•
msa Hub 2/3 – The optional msa Hub 2/3, to be installed within the msa1000, offers 2 Gb performance. With
two ports accessible by the user, the msa hub 2/3 is the ideal interconnect for low-cost 2-node clustering or
simple attaching two servers. A second msa hub 2/3 can be installed for redundancy. This hub ships with
two SFPs included.
•
msa SAN switch 2/8 – The optional msa SAN switch 2/8 can also be installed within the msa1000. With
seven ports accessible by the user, the msa SAN switch 2/8 is the ideal interconnect for cost effective
multiple clusters or nodes or connection to other hp SAN switches from the hp interconnect family of
switches. A second msa SAN switch 2/8 can be installed for redundancy. This switch ships with four SFPs
included.
•
Hot Plug Expansion and Replacement Support – The msa1000 supports hot plug expansion and
replacement of hard drives, redundant controllers, fabric switches or hubs for simple, fast installation and
maintenance. Fans and power supplies are also hot plug replaceable.
•
Advanced Data Guarding (RAID ADG) Fault Tolerance – This is the highest level of fault tolerance. It
allocates two sets of parity data across drives and allows simultaneous write operations. This level of fault
tolerance can withstand two simultaneous drive failures without downtime or data loss.
The modular and scalable design of the msa1000 provides an extremely flexibly platform. You can buy what you
need today and purchase additional capacity and performance as your data storage needs grow, instead of
making a large up-front investment. Additional drives, controllers, cache, fabric switches and storage enclosures
can easily be added, as your storage needs change.
•
Fabric Support for 1 Gb and 2 Gb Infrastructure – The msa1000 supports both 1 Gb and 2 Gb Fibre
Channel fabrics to ensure that your investment in 1 Gb infrastructure is protected.
•
Optional embedded interconnects – The msa SAN switch 2/8 or the msa hub 2/3 require no rack space as
they are installed in the msa1000’s chassis. This not only saves valuable rack space (up to 2U saved) but
also eliminates some of the cabling needed with external interconnects.
•
Universal Hard Drive – Since the msa1000 supports HP Universal 1” Ultra2, Ultra3 and Ultra320 drives,
cost is minimized as you add new drives
Configuration
DA-11621
Canada — Version 2 — April 15, 2003
•
Command Line Interface (CLI) – A connection between a standard ANSI
terminal or terminal emulator and the msa1000 is required to use the
command line interface (CLI) to configure and manage the msa1000. A
custom serial cable, part number 259992-001, is required for this
connection and ships with the MSA1000. CLI commands are documented
in the HP StorageWorks Modular SAN Array 1000 User Guide.
•
Management − msa1000 events are logged in the OpenVMS or Tru64
UNIX error log and can be monitored with HP Analyze or other error log
analysis tools.
2
hp StorageWorks
modular SAN array 1000
specific for Tru64 UNIX and OpenVMS only
QuickSpecs
Models
HP StorageWorks Modular SAN
Array 1000 For Alpha Server
Systems w/ OpenVMS and Tru64
UNIX
msa1000, with 256MB cache
msa1000 Controller, with 256MB cache
256 MB Cache Module for Controller
msa Fibre Channel I/O Module
msa SAN Switch 2/8 (integrated)
msa HUB 2/8 (integrated)
FCA2354 Host Adapter (Open VMS/Tru64 UNIX)
2 Gb SFP SW Transceiver Kit
HP StorageWorks Enclosure Model 4314R
HP StorageWorks Dual bus Enclosure Model 4354R
DA-11621
Canada — Version 2 — April 15, 2003
201723-B22/
3R-A4328-AA
218231-B22/
3R-A4330-AA
254786-B21/
3R-A3954-AA
218960-B21/
3R-A2969-AA
288247-B21/
3R-A4289-AA
286763-B21/
3R-A3907-AA
261329-B21/
DS-KGPSA-DA
221470-B21/
3R-A2973-AA
190209-001/
DS-SL13R-AA
190211-001/
DS-SL13R-BA
3
hp StorageWorks
modular SAN array 1000
specific for Tru64 UNIX and OpenVMS only
QuickSpecs
MSA1000 Components
With the following components, your storage capacity and performance can be scaled to new levels
The 4U cabinet houses up to fourteen 1” Universal hot pluggable Ultra2, Ultra3, and/or Ultra320 drives. Each
Modular SAN Array 1000
msa1000 includes the following standard components: (1) msa1000 Controller, (1) msa Fibre Channel I/O Module
with a single SFP, dual hot pluggable fans/power supplies and power cables, (2) 3’ VHDCI to VHDCI SCSI cables
to connect expansion enclosures, documentation and a CD Kit containing firmware upgrade code for Tru64 and
OpenVMS and a support software CD.
The modular design of the msa1000 makes it possible to add redundant controllers, redundant single port Fibre
Channel I/O Modules, 3-port hub, or msa SAN switch 2/8 and storage expansion enclosures.
msa1000 Controller
The msa1000 Controller is an integrated RAID controller with an integrated LCD/LED status display and 256 MB
read/write battery-backed cache (expandable to 512 MB per controller). One msa1000 Controller is included with
the msa1000; a redundant msa1000Controller is an option.
•
Redundant controller support with mirrored cache
Key Features
msa1000 Controller
Management Features
Fault Tolerance
Fault Recovery
msa Fibre Channel I/O Module
DA-11621
•
Fabric, Private Loop & Public Loop Support
•
Auto Negotiated F, FL & L Port Login
•
RAID 0, 1, 1+0, 5 and ADG
•
2 Gb/1 Gb Frequency Agile
•
Primary & Secondary Inter-Controller Link (ICL)
•
configurable with Command Line Interface (CLI)
•
Online RAID Level Migration: allows for online post-configuration change to
RAID level without destroying data or volume information.
•
Online Capacity Expansion: lets you add storage to an operational
msa1000—reducing expensive server downtime.
•
Global Online Spare: reduces the risk of data loss by facilitating automatic
rebuilds after a drive failure
Several fault tolerant configurations, which keep data available and servers
running while drives are being replaced, are supported including:
•
Advanced Data Guarding (RAID ADG): Allocates the equivalence of two
parity drives across multiple drives and allows simultaneous write
operations.
•
Distributed Data Guarding (RAID 5): Allocates parity data across multiple
drives and allows simultaneous write operations.
•
Drive Mirroring (RAID 1, (1+0 Striped Mirroring)): Allocates half of the drive
array to data and the other half to mirrored data, providing two copies of
every file.
•
Minimizes downtime, reconstructs data, and facilitates a quick recovery
from drive failure
•
Online Spares: If a failure occurs, recovery begins with an online spare and
data is reconstructed automatically. Multiple online spares can be
assigned per array and used across multiple arrays. It is also possible to
assign different online spares across different arrays.
•
Array Accelerator: Onboard, battery-backed cache memory protects data in
the event of a power failure. In the unlikely event of a controller failure, the
battery-backed cache will save critical user data for up to three days
Provides a single 2 Gb Fibre Channel connection per controller from the host side into the msa1000. The msa
Fibre Channel I/O Module includes one 2 Gb, Short Wave, Small-Form-Factor-Pluggable Transceiver (SFP). A
second msa Fibre Channel I/O Module can be installed for redundancy when a redundant controller is used.
Canada — Version 2 — April 15, 2003
4
hp StorageWorks
modular SAN array 1000
specific for Tru64 UNIX and OpenVMS only
QuickSpecs
MSA1000 Components
The HP StorageWorks msa Hub 2/3 is a low-cost interconnect designed for clustering or low cost, high speed
attachment of two servers to the msa1000, an entry-level storage area network (SAN) solution. The msa Hub 2/3
is a 3-port Fibre Channel Arbitrated Loop hub that is mounted on a blade that easily installs inside the msa1000
storage unit, saving valuable rack space. Two of these hubs may be installed for redundancy within the msa1000.
The msa Hub 2/3 is not cascadable.
msa Hub 2/3
The hub presents the user with two SFP ports for simple direct attachment to two single or clustered servers
without having to purchase an external interconnect device. It offers the most cost-effective solution for a user to
enable a clustered server environment.
msa SAN switch 2/8
•
high-performance: supports msa1000 with a 2 Gb interconnect capable of 200 MB/s speed
•
low cost: supports the entry-level SAN array with the most cost effective option for 2-node clustering
•
compact: imbeds in the msa1000, replacing the I/O module, saving valuable rack space
•
complete: comes with two SW SFPs – no need for further investment
The hp StorageWorks msa SAN switch 2/8 ia a new optional switch embedded on a blade, for mounting internal
to an msa1000. The msa SAN Switch 2/8 offers low price per port and full scalability, doing so while taking zero
rack space, even in a redundant configuration. It ships with four SFPs installed. Because of its’ low cost per port it
is the most cost effective method of enabling the larger SAN. It is interoperable with the hp line of SAN
interconnect family of FC switches.
•
eight 2 Gb ports: 1 to controller, 7 user accessible
•
product ships with 4 SFPs installed
•
no E-port restriction, accepts all optional software
•
interoperates with external SAN Switch 2 Gb switches
•
configuration and management methodology common with SAN Switch product line, same methods as
installed base of 30,000+ HP SAN Switches
2 Gb Small Form Factor Pluggable 2 Gb Small-Form-Factor-Pluggable (SFP) SW Transceivers are industry standard connection devices, which hot
plug into 2 Gb infrastructure components such as 2 Gb Fabric Switches. StorageWorks 2 Gb SFP SW
(SFP) SW Transceiver Kit
Transceivers support distances up to 300 metres at 2 Gb and 500 metres at 1 Gb using multi-mode fiber optic
cable.
Multi-Mode Fibre Channel Cables Multi-Mode Fibre Channel cables provide a thin, flexible cabling solution that is immune to electromagnetic
interference. HP offers cables to connect the msa1000 to both 2 Gb and 1 Gb Fibre Channel infrastructures. LC
to LC cables are used when connecting the msa1000 to other 2 Gb Fibre Channel components because both
connections will utilize small form factor transceivers. LC to SC cables are used when connecting the msa1000 to
1 Gb Fibre Channel components. 1 Gb components use the larger GBIC style transceivers.
SOFTWARE COMPONENTS
Command Line Interface (CLI)
The command line interface (CLI) is used to configure and manage the MSA1000. Additionally, the CLI can be
used to display system information and status. See the HP StorageWorks Modular SAN Array 1000 User Guide
for more information on the CLI commands
OS Support
Tru64 UNIX Support
OpenVMS Support
DA-11621
Canada — Version 2 — April 15, 2003
•
Tru64 UNIX v5.1A with PK4 and NHD6
•
Tru64 UNIX v5.1B with IPK
•
OpenVMS v7.3-1 with TIMA (ECO) Kit
•
OpenVMS v7.2-2 with TIMA (ECO) Kit
•
OpenVMS v7.3 with TIMA (ECO) Kit
5
hp StorageWorks
modular SAN array 1000
specific for Tru64 UNIX and OpenVMS only
QuickSpecs
Service & Support, CarePaq and Warranty Information
Storage Service Packages
The Storage Services Packaging takes the existing storage product along with the existing services and creates a
package of the storage hardware and appropriate services. The increased level of support provides for a higher
level of storage system availability for the customer. The package includes 24x7 support with a 4-hour response
for 3 years as well as installation and startup service.
Warranty
Three-year Limited Warranty for msa1000s, Fibre Channel Cables and SFP Transceivers; 3 years parts
exchange; 1 year labour; 1 year on-site; next business day response. Options for the msa1000 carry their own
warranty. Refer to HP's Limited Warranty Statement for further details.
Service & Support, CarePaq and
Warranty Information
Software Product Services
Hardware Product Services
Installation and Startup
Services
Warranty Upgrade Options
DA-11621
Canada — Version 2 — April 15, 2003
•
HP warrants only that the Software media will be free of physical defects
for a period of ninety (90) days from delivery.
•
Upgrades to the 90 day media defect warranty are available as CarePaq
services. These services are available to upgrade the warranty to (1 or 3)
full year of 9 hours by 5 days (or 24x7) software advisory and remedial
software telephone support, new version license rights, and media and
documentation distribution service.
•
Installation services
•
On-site maintenance (includes warranty support)
•
Response time upgrades during the warranty period
•
Post-warranty coverage
•
RAID setup and performance consulting via statement of work
•
Migration service consulting via statement of work
The Installation and Startup Service package provides installation and
configuration of HP StorageWorks products. Major categories of work could
include:
•
Pre-installation consulting and planning
•
Hardware installation, configuration and verification
•
RAID array configuration and initialization
•
Installation, configuration and verification of StorageWorks software
•
Service tools installed, configured and verified
•
Customer orientation
•
Response – Upgrade on-site response from next business day to same
day 4 hours
•
Coverage – Extend hours of coverage from 9 hours x 5 days to 24 hours x
7 days
•
Duration – Select duration of coverage for a period of 1, 3, or 5 years
6
hp StorageWorks
modular SAN array 1000
specific for Tru64 UNIX and OpenVMS only
QuickSpecs
Service & Support, CarePaq and Warranty Information
CarePaq Information
Sample part numbers :
DA-11621
9x5, Next Business Day, On-Site Coverage, 3 years
FM-FCXHW-36
103840-002
9x5, 4-Hour Response, On-Site Coverage, 3 years
FM-FC4HR-36
402165-002
24x7, 4-Hour Response, On-Site Coverage, 3 years
FM-FC724-36
402164-002
9x5, Next Business Day, On-Site Coverage, 5 years
FM-FCXHW-60
170183-002
9x5, 4-Hour Response, On-Site Coverage, 5 years
FM-FC4HR-60
170185-002
24x7, 4-Hour Response, On-Site Coverage, 5 years
FM-FC724-60
170187-002
Hardware Installation
FM-FCINS-IN
402162-002
•
CarePaq is defined as an upgrade to the product warranty attribute, available for a specific duration and
hours of coverage.
•
CarePaq is not available for less than the product’s warranty duration.
•
CarePaq is available for sale anytime during the warranty period for most products, but the commencement
date will be the same as the Warranty Start Date (delivery date to end user customer). Proof of purchase
may be required.
•
CarePaq services are prepaid.
NOTE: For additional CarePaq (hardware & software) information, as well as orderable part numbers, please
refer to the URL listed below:
English: http://www.compaq.ca/English/productinfo/storage/storageworks.htm
French: http://www.compaq.ca/Francais/Produits/stockage/Storageworksf.htm
Canada — Version 2 — April 15, 2003
7
hp StorageWorks
modular SAN array 1000
specific for Tru64 UNIX and OpenVMS only
QuickSpecs
Configuration Information
STEP 1 – ORDER REQUIRED ITEMS
HP StorageWorks Modular SAN Array 1000
Includes
DA-11621
Canada — Version 2 — April 15, 2003
201723-B22
•
(1) msa1000 Controller with 256 MB cache
•
(1) MSA Fibre Channel I/O Module with 2 Gb SFP SW Transceiver
•
Redundant Hot Pluggable Power Supply/blower assemblies
•
Universal Rackmounting Kit
•
msa1000 Support CD & Documentation
•
(2) Power cables
•
(2) 3-ft VHDCI to VHDCI SCSI cables
NOTE: Fibre Channel cables are ordered separately.
8
hp StorageWorks
modular SAN array 1000
specific for Tru64 UNIX and OpenVMS only
QuickSpecs
Configuration Information
STEP 2 – SELECT OPTIONAL NON-REDUNDANT MSA1000 SYSTEM OPTIONS
msa SAN Switch 2/8 (integrated) (Includes four 2Gb SFPs)
msa Hub 2/3 (integrated) (Includes two 2 Gb SFP transceivers)
NOTE: The msa Hub 2/3 has two external Fibre Channel ports, both of which already
have 2 Gb transceivers installed. The msa SAN switch 2/8 has seven external
ports, four of which have transceivers installed.
DA-11621
Canada — Version 2 — April 15, 2003
288247-B21
286763-B21
9
hp StorageWorks
modular SAN array 1000
specific for Tru64 UNIX and OpenVMS only
QuickSpecs
Configuration Information
STEP 3 – CHOOSE REDUNDANT MSA1000 SYSTEM OPTIONS
Redundant Configuration
msa1000 Controller
218231-B22
NOTE: Redundant configurations require two Host Adapters per server, an additional
controller for each server. Mixing of the msa Fibre Channel I/O Modular and the
msa Hub 2/3 is not supported. When configuring the msa1000 for redundant
controllers use either two msa Fibre Channel I/O Modules, two msa SAN switch
2/8s, or two msa Hub 2/3s.
msa Fibre Channel I/O Module (Includes 2 Gb SFP transceiver)
msa Hub 2/3 (integrated) (Includes two 2Gb SFP transceivers)
msa SAN Switch 2/8 (integrated) (Includes four 2Gb SFP transceivers)
DA-11621
Canada — Version 2 — April 15, 2003
218960-B21
286763-B21
288247-B21
10
hp StorageWorks
modular SAN array 1000
specific for Tru64 UNIX and OpenVMS only
QuickSpecs
Configuration Information
STEP 4 – CHOOSE SUPPORTED OPTIONS F OR 2 GB OR 1 GB INFRASTRUCTURE
2 Gb Fibre Channel Transceiver
(SFP)
2 Gb SFP SW Transceiver Kit
2 Gb Fibre Channel Fabric
“Infrastructure” family of
switches
NOTE: “Infrastructure” switches above are interoperable only with HP StorageWorks
MSA SAN Switch 2/8, SAN Switch 2/8EL, 2/16, 2/32, core 2/64 products and all
Power Pak models. They are also interoperable with designated discontinued 1
Gb SAN Switch models.
221470-B21
HP StorageWorks core 2/64 PowerPak
332178-B21
HP StorageWorks core 2/64
254508-B21
HP StorageWorks SAN Switch 2/32 PowerPak
333764-B21
HP StorageWorks SAN Switch 2/32
240603-B21
HP StorageWorks SAN Switch 2/16 PowerPak
322119-B21
HP StorageWorks SAN Switch 2/16
322118-B21
HP StorageWorks SAN Switch 2/16-EL
283056-B21
HP StorageWorks SAN Switch 2/8 PowerPak
322121-B21
HP StorageWorks SAN Switch 2/8-EL
322120-B21
HP StorageWorks MSA SAN Switch 2/8 (Includes four 2 Gb SFP transceivers)
288247-B21
Fabric Watch for 8 and 16 port switches
324504-B21
ISL Trunking kit for 8 and 16 port switches
324506-B21
Advanced Performance Monitor for 8 and 16 port switches
324507-B21
Quick Loop for 8 and 16 port switches
324508-B21
Remote Switch for 8 and 16 port switches
325891-B21
Extended Fabric for 8 and 16 port switches
324505-B21
HP StorageWorks PowerPak Bundle for 2 Gb Brocade Based 8 and 16 port
Switches(Trunking, Perf Monitor, remote switch, fabric watch, extended fabric)
HP Storageworks 2/8-EL Upgrade license
325892-B21
Optional Rack mount kit for SAN Switch 2/8-EL and SAN Switch 2/16
331148-B21
Remote Switch for HP StorageWorks 2/64
330883-B21
325888-B21
ISL trunking for HP StorageWorks 2/64
•
2 Gb Fibre Channel Fabric
Switches, “High Availability”
family of switches
2 Gb Fibre Channel Integrated
Hub
DA-11621
Extended fabric for HP StorageWorks 2/64
325887-B21
•
325886-B21
NOTE: “High Availability” switches above are interoperable only with HP StorageWorks
Director 2/140. Director 2/64, Edge Switch 2/32, Edge Switch 2/24, and the
discontinued Edge Switch 2/16 products.
HP StorageWorks Director 2/140 (64-ports active)
316094-B21
HP StorageWorks director 2/64
286809-B21
HP StorageWorks edge switch 2/32 (16 active ports)
286810-B21
8-FlexPort upgrade for edge 2/32
302660-B21
HP StorageWorks Edge switch 2/24 (8 ports active)
316095-B21
8-FlexPort upgrade for edge 2/24
316096--B21
MSA Hub 2/3 (integrated option, comes complete with two SFPs)
286763-B21
Canada — Version 2 — April 15, 2003
11
hp StorageWorks
modular SAN array 1000
specific for Tru64 UNIX and OpenVMS only
QuickSpecs
Configuration Information
S T E P 4 – C H O O S E S U P P O R T E D O P T I O N S F O R 2 G B O R 1 G B I N F R A S T R U C T U R E (continued)
2 Gb Fibre Channel HBAs
FCA2354 Host Adapter (Tru64 UNIX, OpenVMS)
Fibre Channel Cables for 2 Gb
Infrastructure
Use 2 Gb Fibre Channel cables when connecting the msa Fibre Channel I/O Module or
the msa Fabric Switch 6 to FCA2101 HBA(s)
Fibre Channel Cables for 1 Gb
Fabric Switches and Hub
STEP 5 –
Hard Drives
DA-11621
261329-B21
2 m LC-LC Multi-Mode Fibre Channel Cable
221692-B21
5 m LC-LC Multi-Mode Fibre Channel Cable
221692-B22
15 m LC-LC Multi-Mode Fibre Channel Cable
221692-B23
30 m LC-LC Multi-Mode Fibre Channel Cable
221692-B26
50 m LC-LC Multi-Mode Fibre Channel Cable
221692-B27
Use 1 Gb Fibre Channel cables when connecting the msa Fibre Channel I/O Module
and FCA2354 HBA(s) to 1 Gb fabric switches or hubs.
2 m LC-SC Multi-Mode Fibre Channel Cable
221691-B21
5 m LC-SC Multi-Mode Fibre Channel Cable
221691-B22
15 m LC-SC Multi-Mode Fibre Channel Cable
221691-B23
30 m LC-SC Multi-Mode Fibre Channel Cable
221691-B26
50 m LC-SC Multi-Mode Fibre Channel Cable
221691-B27
CHOOSE HARD DRIVES & STORAGEWORKS ENCLOSURES
36.4 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1″)
286713-B22
72.8 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1″)
286714-B22
146.8 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1″)
286716-B22
18.2 GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1″)
286775-B22
36.4 GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1″)
286776-B22
72.8 GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1″)
*NOTE: All Ultra320 Universal Hard Drives are backward compatible to U2 or U3
speeds.
NOTE: For complete compatibility information, refer to the HP SCSI Hard Drive
Compatibility table located at: http://www.hp.com/.
NOTE: This Web site is available in English only.
286778-B22
Canada — Version 2 — April 15, 2003
12
hp StorageWorks
modular SAN array 1000
specific for Tru64 UNIX and OpenVMS only
QuickSpecs
Configuration Information
S T E P 5 – C H O O S E H A R D D R I V E S & S T O R A G E W O R K S E N C L O S U R E S (continued)
StorageWorks Enclosures
The msa1000 cabinet holds fourteen 1” Universal Drives. Add one StorageWorks
Enclosure to increase capacity up to 28 drives. Add two HP StorageWorks Enclosures
to increase capacity up to the maximum of 42 drives.
HP StorageWorks Enclosure Model 4314R (Maximum of two can be connected to the
msa1000)
HP StorageWorks Enclosure Model 4354R (Maximum of one can be connected to the
msa1000)
190209-001
190211-001
STEP 6 – CHOOSE RACK OPTIONS
DA-11621
9142 Rack
120663-B21, -B22, -B23
9136 Rack
120664-B21, -B22, -B23
9122 Rack
120665-B21, -B22, -B23
9842 Rack
222192-B21
10647 (47U) rack
245160-B21, -B23
10642 (42U) rack
245161-B21, -B22, -B23
10636 (36U) rack
245162-B21, -B22, -B23
10622 (22U) rack
245163-B21, -B22, -B23
H9A10 Cab
H9A10-XX
H9A15 Cab
H9A15-XX
Canada — Version 2 — April 15, 2003
13
QuickSpecs
hp StorageWorks
modular SAN array 1000
specific for Tru64 UNIX and OpenVMS only
Configuration Information
CONFIGURATION EXAMPLES
Two Node Redundant Cluster Solution
Description
HP StorageWorks Modular SAN Array 1000
msa1000 Controller
msa Hub 2/3
Part Number
201723-B22
218231-B22
286763-B21
4
Host Adapter
261329-B21
4
14
2 m LC-LC Multi-Mode Fibre Channel Cable
36.4 GB Pluggable Ultra320 Universal Hard Drive, 15K
221692-B21
286776-B21
Quantity
1
1
2
Quantity
1
1
2
2
8
8
2
42
DA-11621
4 Host, 6TB, Redundant SAN Solution
Description
HP StorageWorks Modular SAN Array 1000
msa1000 Controller
256 MB Cache Modules for Controller (one additional for each controller)
msa SAN Switch 2/8 (Includes four 2Gb SFP transceivers)
Host Adapter (appropriate model for operating system)
2 m LC-LC Multi-Mode Fibre Channel Cable
StorageWorks Enclosure Model 4314R
146.8 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1″)
Canada — Version 2 — April 15, 2003
Part Number
201723-B22
218231-B22
254786-B21
288247-B21
221692-B21
190209-001
286716-B22
14
hp StorageWorks
modular SAN array 1000
specific for Tru64 UNIX and OpenVMS only
QuickSpecs
Technical Specifications
MODULAR SAN ARRAY 1000
LED Indicators on Front (3)
Power
Fault detected in one or more sub-systems
Fault in Enclosure Management
LED Indicators for Drive
Modules (3)
Drive Access (centre)
Online (left)
Drive Failure (right)
LED Indicators on Rear Panel
(4)
Power Supply/Blower Assembly Fault (1)
Interface
Ultra3 SCSI to Hard Drives
EMU (3) Power, A bus, B bus
2 Gb Fibre Channel to Hosts
Maximum Number of Drives
Fourteen, 1-inch HP Ultra2, Ultra3 or Ultra 320 Universal Hard Drives (msa1000 Cabinet); expandable to 42 using
two additional StorageWorks 4200/4300 Enclosures
Temperature Range
Operating
50° to 95°F/10° to 35°C
Shipping
–22° to 122°F/–30° to 50°C
NOTE: Derated 1°C per 1,000 feet of elevation to 10,000 ft.
Relative Humidity
Input Power Requirements
Heat Dissipation (max)
Operating
10% to 90%
Non-operating
Up to 95%
Rated Input Voltage
100 to 240 VAC
Rated Input Frequency
50 to 60 Hz
Rated Input Current
6 A Max
Input Power (max)
549 W*
1876 Btu/hr*
* Input Power and Heat Dissipation specifications are maximum values and apply to worst-case conditions at full
rated power supply load. The power/heat dissipation for your installation will vary depending on the equipment
configuration.
msa1000 Cabinet
Shipping Packaging
DA-11621
4U Rack Form Factor
Dimensions (H x W x D)
6.9 x 19 x 20.5 in/17.5 x 48.3 x 52.1 cm
Weight
Net 55 to 85 lb/24.95 to 38.56 kg
Dimensions (L x W x D)
28.5 x 14.81 x 33.13 in/72.4 x 37.6 x 84.1 cm
Weight
Gross 75 to 105 lb/34.02 to 47.63 kg
Canada — Version 2 — April 15, 2003
15
hp StorageWorks
modular SAN array 1000
specific for Tru64 UNIX and OpenVMS only
QuickSpecs
Technical Specifications
MODULAR SAN ARRAY 1000 CONTROLLER
User Interface
Controller Display with Status Indicators (2) and Push Buttons (4)
Status Indicators on front of Controller (16)
Electrical Interface
LVD (Low Voltage Differential)
Protocol Support
Wide Ultra3 SCSI (160 MB/s per channel)
SCSI Ports
4-channel: 2 external/2 Internal
Drives Supported
Up to 42 drives
Maximum Capacity
6.0 TB (42 drives x 146 GB)
Logical Drives
Up to 32 logical drives
RAID Support
RAID ADG (Advanced Data Guarding)
RAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Cache Memory
Up to 512 MB Read/Write (256-MB modules). Added cache size must match original and if a second controller is
employed, it too must have equally configured cache.
ECC protection, battery-backed, and removable
Standard, starting November 19, 2002: 256 MB cache memory (single module)
Cache Batteries
Up to three days of redundant battery life, removable for easy replacement
Upgradeable Firmware
2 MB flashable ROM
Disk Drive and Enclosure
Protocol Support
HP Ultra 320, Ultra3, and Ultra2 SCSI 1-inch Universal drives
Packaging
Dimensions (L x W x D)
17 x 12.5 x 7.75 in/43.2 x 31.75 x 19.7 cm
Weight
Gross 6 lb/2.72 kg
MODULAR SAN ARRAY FIBRE CHANNEL I/O MODULE
Connector Type
LC
Number of Fibre Channel Ports One 2 Gb Fibre Channel Port using removable Small-Form-Factor-Pluggable Transceiver (SFP)
Bandwidth
200 MB/s
Operation Modes
Fibre Channel Class 2 and 3 connectionless service
Protocols Supported
Fibre Channel
Packaging
Dimensions (L x W x D)
17 x 12.5 x 7.75 in/43.2 x 31.75 x 19.7 cm
Weight
Gross 6 lb/2.72 kg
FCA2354 HOST ADAPTER
Connector Type
LC
Protocol
SCSI, IP
Data Transfer Method
64-bit/66 MHz PCI
Maximum Transfer Rate
200 MB/s
Packaging
Dimensions (L x W x D)
11 x 8.5 x 3 in/27.9 x 21.6 x 7.6 cm
Weight
Gross 1 lb/0.45 kg
DA-11621
Canada — Version 2 — April 15, 2003
16
QuickSpecs
hp StorageWorks
modular SAN array 1000
specific for Tru64 UNIX and OpenVMS only
Technical Specifications
MULTI-MODE FIBRE CHANNEL CABLES KITS
Cable Type
Available Cable Lengths
Packaging
LC-LC (2 Gb to 2 Gb connections) and LC-SC (2 Gb to 1 Gb connections) 50 Micron multi-mode fibre
6.5 ft, 16.4 ft, and 49.2 ft/2 m, 5 m, and 15 m
Dimensions (L x W x D)
11.5 x 9 x 1.5 in/29.2 x 22.8 x 3.8 cm
Weight
Gross 0.75 to 1 lb/0.34 to 0.45 kg
© 2003 Compaq Canada Corp. (an HP Company) All rights reserved. Printed in Canada.
Hewlett-Packard, the Hewlett-Packard logo, CarePaq, Open VMS, ProLiant, StorageWorks and Tru64 are trademarks of Hewlett-Packard Company in the
U.S. and/or other countries. UNIX is a registered trademark or trademark of The Open Group in the U.S. and/or other countries. All other product names
mentioned herein may be trademarks of their respective companies.
Hewlett-Packard shall not be liable for technical or editorial errors or omissions contained herein. The information is provided “as is” without warranty of any
kind and is subject to change without notice. The warranties for Hewlett-Packard products are set forth in the express limited warranty statements
accompanying such products. Nothing herein should be construed as constituting an additional warranty.
DA-11621
Canada — Version 2 — April 15, 2003
17
Download PDF

advertising
