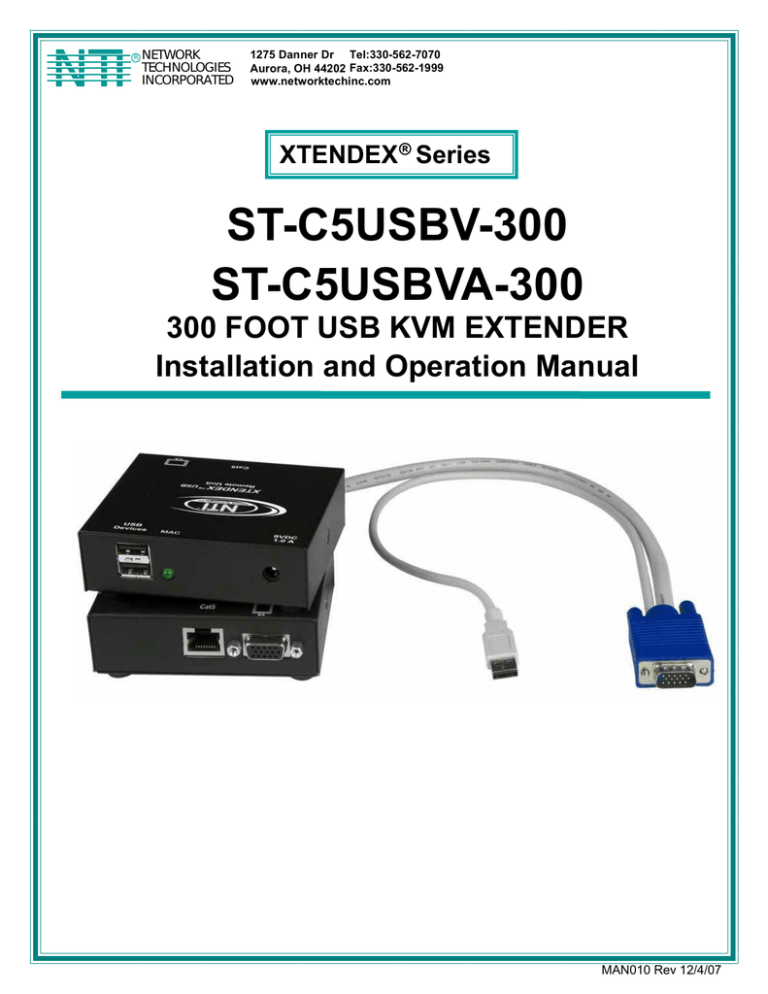

NTI
R
NETWORK
TECHNOLOGIES
INCORPORATED
1275 Danner Dr Tel:330-562-7070
Aurora, OH 44202 Fax:330-562-1999
www.networktechinc.com
XTENDEX® Series
ST-C5USBV-300
ST-C5USBVA-300
300 FOOT USB KVM EXTENDER
Installation and Operation Manual
MAN010 Rev 12/4/07
TRADEMARK
XTENDEX is a registered trademark of Network Technologies Inc in the U.S. and other countries.
COPYRIGHT
Copyright © 2007 by Network Technologies Inc, all rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202. For more information
please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070.
CHANGES
The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the
right to make changes in the product design without reservation and without notification to its users.
Note: CAT5 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products
should not be run underground, outdoors or between buildings.
!
WARNING: Outdoor or underground runs of CAT5 cable could be dangerous and will void the warranty.
MAN010 Rev 12/4/07
Table of Contents
Introduction...................................................................................................................................................................... 1
Features....................................................................................................................................................................... 1
Types of User Input Devices Supported:..................................................................................................................... 1
Operating Systems Supported .................................................................................................................................... 1
Limitations.................................................................................................................................................................... 2
Materials .......................................................................................................................................................................... 2
Features and Functions................................................................................................................................................... 3
Preparation for Installation .............................................................................................................................................. 4
Installation ....................................................................................................................................................................... 5
The Local Unit.............................................................................................................................................................. 5
Connect to the CPU .................................................................................................................................................. 5
Connect the Local Devices ....................................................................................................................................... 6
Connect the CAT5 Cable.......................................................................................................................................... 7
The Remote Unit.......................................................................................................................................................... 7
Connect the Remote Devices ................................................................................................................................... 7
Connect the CAT5 cable........................................................................................................................................... 9
Plug-in and Boot Up..................................................................................................................................................... 9
Command Mode............................................................................................................................................................ 10
MAC Mode................................................................................................................................................................. 11
DDC Support ................................................................................................................................................................. 11
Common Applications ................................................................................................................................................... 12
Technical Specifications................................................................................................................................................ 13
Interconnection Cable Wiring Method ........................................................................................................................... 14
Keyboard Translation .................................................................................................................................................... 15
Key Equivalents ......................................................................................................................................................... 15
SUN’s 16 Extra Keys ................................................................................................................................................. 15
Troubleshooting............................................................................................................................................................. 17
Index.............................................................................................................................................................................. 18
Warranty Information..................................................................................................................................................... 18
Table of Figures
Figure 1- Connect the Local Unit to a CPU........................................................................................................................................ 5
Figure 2- Local unit with audio support connects to CPU .................................................................................................................. 6
Figure 3- Connect local user devices to the Local Unit ...................................................................................................................... 6
Figure 4- Connect stereo speakers to XTENDEX Local Unit with audio support ............................................................................... 7
Figure 5- Connect the CAT5 cable to the Local Unit.......................................................................................................................... 7
Figure 6- Connect the Monitor and Devices to the Remote Unit........................................................................................................ 8
Figure 7- Connect remote self-powered speakers to Remote Unit .................................................................................................... 8
Figure 8- Connect CAT5 cable to the Remote Unit............................................................................................................................ 9
Figure 9- Connect AC adapters ......................................................................................................................................................... 9
Figure 10- MAC LED........................................................................................................................................................................ 11
Figure 11- Examples of common applications for the ST-C5USBV-300 USB KVM Extender.......................................................... 12
Figure 12- Pin positions in female RJ45 connector.......................................................................................................................... 14
Figure 13- Keyboard Layouts........................................................................................................................................................... 16
ii
INTRODUCTION
The ST-C5USBV-300 USB Extender (XTENDEX) is designed to enable the relocation of a monitor, USB keyboard, and USB
mouse from a USB CPU or NTI USB KVM switch by as much as 300 feet via CAT5 cable in addition to having a monitor, USB
keyboard, and USB mouse connected locally. It is extremely simple to install and has been thoroughly tested to insure reliable
performance. Through the use of Category 5 shielded or unshielded twisted-pair cable (STP/UTP) or Category 6 unshielded
twisted-pair cable (UTP), it is possible to economically increase the flexibility of a computer system.
Optional Audio Support- The ST-C5USBV-300 can be ordered to include support for extending self-powered stereo speakers
by adding “A” to the model number (i.e. ST-C5USBVA-300)
Features
• Allows the placement of a monitor, USB keyboard, and USB mouse in a location where only these
parts are needed without having the CPU there too, taking up valuable space and adding to room noise.
• Provides crisp and clear resolution when used in accordance with the chart below:
CAT5eSTP, CAT6 UTP
Resolution
Cable length
1024 x 768 /60Hz
300 feet
1280 x 1024 /60Hz
150 feet
1600 x 1200 /60Hz
100 feet
CAT5/5E UTP cable
Resolution
1280 x 1024 /60Hz
1600 x 1200 /60Hz
1920 x 1440 /60Hz
Cable length
300 feet
150 feet
100 feet
• Video quality is easily adjusted using keyboard controls
• Installation can be between a CPU and devices (keyboard, mouse, and monitor), between a CPU and
NTI USB switch, or between a NTI USB switch and devices.
• Allows hot-plugging of keyboards and mice
• DDC Support (Local monitor only)
Types of User Input Devices Supported:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Compatible with all video resolutions up to WUXGA (dependant upon CAT5/5e/6 extension distance)
All NTI USB switches
Microsoft, Logitech or Kensington Wheelmouse or Trackball on MAC CPUs with manufacturer's drivers
USB keyboard with Windows® layout
USB keyboard with SUN layout
USB keyboard with MAC layout
USB Mouse - (up to 3 buttons)
USB IntelliMouse® (scrollwheel)
Logitech Cordless Elite Duo keyboard and mouse
Crystal Vision keyboard with touchpad
Gyration keyboard and mouse
NTI USB-PS/2 Adapter
NTI USB-SUN Adapter
Logitech wireless (S510, EX110, diNovo, LX10)
Belkin wireless F8E832-BNDL
Kensington wireless (64379)
MS Wireless Optical Desktop (3000 and 4000)
HP P2360AA
Fellowes wireless keyboard (KBR0108) with mouse (MSR0238T)
Creative Desktop Wireless 8000
Operating Systems Supported
•
•
•
•
Windows 98SE
Windows 2000
Windows ME
Window XP
•
•
•
•
Linux 7.1 2.2 Kernel or greater
Sun-Solaris 8 or greater
MAC OS 9.1 or greater
HP UNIX J5000
1
Limitations
•
The XTENDEX will only work with USB keyboards and mice, other USB devices are not supported.
•
PS/2 devices can be connected to the XTENDEX through an NTI USB-PS/2 adapter, however the translation keys described
on page 15 will not function in this application.
•
The XTENDEX can be used between two cascaded NTI switches, but the master switch in the configuration will not be able
to list the CPUs connected to the extended slave. The OSD menu in the extended slave would have to be used to monitor
CPUs connected to it. (This can be done by configuring command mode for the slave switch with an Alternate OSD
Command Sequence).
MATERIALS
Materials supplied with this kit:
9
9
9
9
NTI ST-C5USBV-300 USB Extender Local Unit
NTI ST-C5USBV-300 USB Extender Remote Unit
2-120VAC or 240VAC 50 or 60Hz-9VDC/1A AC Adapters
CD with a pdf file of this owner's manual
Additional materials may need to be ordered, depending upon the configuration :
¾
¾
¾
Video adapter for connection between the Local and a non-VGA SUN CPU (13W3M-15HDF)
USBVEXT-3/6/10 (15HD Male-to-Female and USB Type A Male-to-Female Extension cable) if the Local Unit will be located
further than 15" from the CPU or KVM switch
CAT5/5e shielded/unshielded twisted-pair cable(s) terminated with RJ45 connectors wired straight thru- pin 1 to pin 1, etc.
(see pg. 14 for proper EIA/TIA 568B wiring method)
-ORCAT6 unshielded twisted-pair cable(s) terminated with RJ45 connectors wired straight thru- pin 1 to pin 1,
etc. (see pg. 14 for proper EIA/TIA 568B wiring method)
Contact your nearest NTI distributor or NTI directly for all of your KVM needs at 800-742-8324 (800-RGB-TECH) in US & Canada
or 330-562-7070 (Worldwide) or at our website at http://www.networktechinc.com and we will be happy to be of assistance.
2
FEATURES AND FUNCTIONS
4 5
3
-
6
+
R
Network Technologies Inc
Network Technologies Inc
-
R
XTENDEX USB
NTI
NTI
XTENDEX USB
2
1
+
(Rear View)
(Front View)
ST-C5USBVA-300 (Remote Unit)
+
9
NTI
XTENDEX USB
-
R
Network Technologies Inc
6
Network Technologies Inc
NTI
+
7
(Front View)
2b
8
-
R
XTENDEX USB
(Rear View)
2a
2
10
11
12
ST-C5USBVA-300 (Local Unit)
Audio Jack- 3.5mm stereo audio jack- for connecting to remote speakers (ST-C5USBVA-300 only)
CAT5- RJ45 female for connection of CAT5 cable between Local Unit and Remote Unit
2a. Green LED- power indicator- illuminates when power has been supplied to the unit
2b. Yellow LED-communication indicator- blinks when there is valid communication between the Local and Remote Units.
3. Monitor (symbol)-15HD female for connection of video cable from remote monitor
4. USB DEVICES- USB type A female for connection of remote user USB device(s)
5. MAC LED- for visual indication of connection to a MAC CPU
6. 9VDC- connection jack for AC adapter
7. Audio Jack- 3.5mm stereo audio jack- for connecting to local speakers (ST-C5USBVA-300 only)
8. Monitor- 15HD female for connection of video cable from local monitor
9. USB DEVICES- USB Type A female for connection of local user USB device(s)
10. Video Cable- 15HD male for connection to video connector of CPU
11. Devices Cable- USB Type A male connector for connection to CPU
12. Audio Plug- 3.5mm stereo audio plug- for connecting to CPU audio line out (ST-C5USBVA-300 only)
1.
2.
3
PREPARATION FOR INSTALLATION
•
A location should be chosen for the monitor, mouse, and keyboard that also has space to mount the Remote Unit within the
distance provided by the cables from the monitor, mouse, and keyboard. If extension cables are needed, contact NTI for the
cables required. If a local user will be connected, a proper location must be chosen for these devices too.
•
The CAT5 cable(s) must be run to the locations where the Remote and Local Units will be placed. Be careful to route the
cables away from any sources of magnetic fields or electrical interference that might reduce the quality of the video signal
(i.e. AC motors, welding equipment, etc.). NOTE: If CAT5 cable is already installed in the wall and there are RJ45 wall
outlets, it will be necessary to obtain male-to-male straight through connection cables long enough to reach from the wall
outlets to the mounting locations of the Remote and Local Units.
•
A properly grounded, polarized, and preferably surge-protected 120V or 240V electrical outlet (depending on the AC adapter
being used) must be installed close enough to the mounting location of the Remote Unit and monitor to plug them into.
•
All cables should be installed in a fashion that will avoid stress on their connections to the equipment. Extended lengths of
cable hanging from a connection may interfere with the quality of that connection. Secure cables as needed to prevent this.
•
Properly shut down and disconnect the power of the CPU and monitor. Disconnect the monitor, keyboard, and mouse.
other equipment is involved whose connections are being interrupted, be sure to refer to the instruction manuals for that
equipment for proper disconnection and re-connection procedures before proceeding.
If
Note: CAT5 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products
should not be run underground, outdoors or between buildings.
!
WARNING: Outdoor or underground runs of CAT5 cable could be dangerous and will void the warranty.
4
INSTALLATION
The Local Unit
Connect to the CPU
1.
Plug the cables of the Local Unit into the back of the CPU. (See Fig. 1.)
a)
Connect the blue 15HD cable from the Local Unit to the female VGA port on the back of the CPU.
b)
Connect the USB Type A cable from the Local Unit to a female USB Type A port on the back of the CPU.
Note: If a SUN CPU is being connected, depending upon the video connector of the SUN CPU, it may be necessary to
attach an NTI #13W3M-15HDF (SUN video port-to-VGA adapter) to the video port on the CPU first, and then connect the
video cable to the adapter.
Sun 13W3 Video Connector
USB Type A male
NTI
R
Network Technologies Inc
XTENDEX USB
-
+
(Rear View)
ST-C5USBV-300 Local Unit
(BLUE- VIDEO)
USB CPU
15HD male
Video Connector
Figure 1- Connect the Local Unit to a CPU
c)
If the Local Unit has Audio support (ST-C5USBVA-300 only), connect the black 3.5mm stereo plug into the "line
out", "spkr", or "headphones" jack on the back of the CPU. (See Fig. 2)
Notes:
If all 3 jacks are available, use the jack marked "line out".
The "line out" jack is typically lime green and may be marked with this symbol
The "spkr" jack is typically orange, and may be marked with this symbol
The "headphones" jack may be marked with this symbol
5
USB Type A male
XTENDEX USB
Network Technologies Inc
NTI
+
line
out
ST-C5USBVA-300
Local Unit
(Rear View)
(BLUE- VIDEO)
ONE WILL BE MARKED "line
out" ,"spkr", "headphones"
OR WITH THIS SYMBOL
-
R
AUDIO CONNECTOR
(BLACK- AUDIO)
USB CPU
15HD male
Video Connector
3.5mm Stereo Plug
Figure 2- Local unit with audio support connects to CPU
Connect the Local Devices
If desired, connect the local user devices to the Local Unit as shown in Fig. 3.
1.
Connect a USB keyboard and mouse to the USB type A female connectors on the Local Unit.
2.
Connect a monitor to the 15HD female connector on the Local Unit.
ST-C5USBV-300 (Local Unit)
(Front View)
USB Type A Female
R
Network Technologies Inc
Network Technologies Inc
-
R
XTENDEX USB
NTI
NTI
XTENDEX USB
-
(Rear View)
+
+
USB Type A male
15HD Female
Video Connector
15HD male
Video Connector
Cable to CPU
VGA
Multi-Scan
Monitor
USB Type A
male connectors
USB Keyboard
Figure 3- Connect local user devices to the Local Unit
6
USB
Mouse
3.
If the Local Unit has audio support (ST-C5USBVA-300) , connect the cable from the local self-powered
stereo speakers to the 3.5mm stereo audio jack on the Local Unit. (See Fig. 4)
ST-C5USBVA-300 (Local Unit)
-
+
NTI
R
Network Technologies Inc
XTENDEX USB
3.5mm Stereo
Audio Jack
(Front View)
Self-Powered
Stereo Speakers
Figure 4- Connect stereo speakers to XTENDEX Local Unit with audio support
Connect the CAT5 Cable
Connect the CAT5 cable to the “CAT5” port on the rear of the
Local Unit (see Fig. 5). (If an RJ45 wall outlet is being used,
connect the other end of the extension cable to it.) When
properly inserted the cable end should snap into place.
ST-C5USBV-300 (Local Unit)
(Front View)
-
+
NTI
R
Network Technologies Inc
XTENDEX USB
CAT5 Cable to
Remote
Figure 5- Connect the CAT5 cable to the Local Unit
The Remote Unit
Connect the Remote Devices
Position the Remote Unit such that the CAT5 cable, the monitor cable, the keyboard and mouse, and the AC adapter
power connector can each reach the Remote Unit comfortably.
1.
Connect the monitor cable to the 15HD female VIDEO port on the back of the Remote Unit. (See Fig. 6)
2.
Connect the devices to the Remote Unit.
a. Connect the USB keyboard cable (or wireless adapter) to one of the USB Type A female ports labeled "USB
DEVICES" on the back of the Remote Unit. (Either one will work.)
b. Connect the USB mouse cable (or wireless adapter) to the remaining USB Type A female port on the back of
the Remote Unit.
7
ST-C5USBV-300 Remote Unit
(Front View)
USB Type A Female
(Rear View)
+
R
Network Technologies Inc
R
XTENDEX USB
-
NTI
Network Technologies Inc
NTI
-
XTENDEX USB
Yellow Communication LED
Green Power LED
+
15HD Female
Video Connector
CAT5 Cable to
Local Unit
USB Type A male
USB Type A
male connectors
VGA
Multi-Scan
Monitor
15HD male
Video Connector
USB Keyboard
USB
Mouse
Figure 6- Connect the Monitor and Devices to the Remote Unit
4.
If the Remote Unit has audio support (ST-C5USBVA-300) , connect the cable from the remote self-powered
stereo speakers to the 3.5mm stereo audio jack on the Remote Unit. (See Fig. 7)
ST-C5USBVA-300 Remote Unit
-
+
NTI
R
Network Technologies Inc
XTENDEX USB
3.5mm Stereo
Audio Jack
(Front View)
Stereo
Speakers
Figure 7- Connect remote self-powered speakers to Remote Unit
8
Connect the CAT5 cable
Connect the CAT5 cable to the “CAT5” port on the rear of
the Remote Unit (see Fig. 8). (If an RJ45 wall outlet is
being used, connect the other end of the extension cable
to it.) When properly inserted the cable end should snap
into place.
ST-C5USBV-300 Remote Unit
(Front View)
-
+
NTI
R
Network Technologies Inc
Yellow CommunicationLED
XTENDEX USB
Green Power LED
!
WARNING: Never connect the ST-C5USBV-300
Extender to an Ethernet card, Ethernet router,
hub or switch or other Ethernet RJ45 connector
of an Ethernet device. Damage to devices
connected to the Ethernet may result.
CAT5 Cable to
Local Unit
Figure 8- Connect CAT5 cable to the Remote Unit
Plug-in and Boot Up
1.
Plug the power cord(s) from the monitor(s) into power outlet(s).
2.
Connect the AC adapter power connectors to the 9VDC ports on the Remote and Local Units. (AC adapter shown in Fig. 9)
3.
Plug the AC adapters into power outlets. The “Power” LED (Green) on the CAT5 connector of each unit should illuminate,
indicating that a proper power connection has been made.
4.
Turn ON the CPU and monitor(s). The CPU and monitor(s) should each react as if they were directly connected to each
other.
The yellow communication LEDs on the Remote and Local Units (see Fig. 8) should blink indicating there is proper
communication between them.
Note: A loss of signal (blank screen) may be
experienced for an instant during the autocompensation process after powering-up (STC5USBVA model only). This may also occur if the
XTENDEX senses a loss of or weak signal connection
in the CAT5 cable.
ST-C5USBV-300
Remote Unit
XTENDEX USB
Network Technologies Inc
NTI
-
R
+
9 VDC
Adapter
ADAPTER
(Rear View)
Barrel
Power Connector
9VDC @ 1.0A OUTPUT
(Outside
(Inside
barrel)
barrel)
2.1 mm x 5.5 mm Female
Figure 9- Connect AC adapters
9
COMMAND MODE
The XTENDEX has two areas of user control that can be used as needed. The user can adjust video quality (described
below) , or enable/disable MAC mode (see page 11) These controls are accessed by entering Command Mode.
To enter Command Mode, simultaneously press the left and right <Shift> keys on the keyboard connected to the Remote
Unit. The keyboard LEDs will illuminate.
To exit Command Mode, press <Esc>.
Automatic Video Quality Adjustment
(ST-C5USBVA-300 only)
Video quality adjustment is done automatically to assure the image is as clear as possible.
Note: If a different type of cable is used (i.e. shielded cable) and the image is not crisp and clear, there may be a need for
fine adjustment.. For fine adjustment, follow the same procedure as described under “Manual Video Quality Adjustment”
below.
Manual Video Quality Adjustment (ST-C5USBV-300 only)
It is possible that on initial startup the image on the monitor will not be as crisp as the image normally is. This is due to the
frequency characteristics of the CAT5 cable. It may be necessary to enter Command Mode (described above) and press
the ▲ (up arrow) or ▼(down arrow) keys on the remote keyboard until the image is crisp and clear.
• Press ▲ (up arrow) key if the image is not crisp and clear enough.
• Press the ▼(down arrow) key if the image has been over-corrected (such that horizontal lines appear to trail or
shadow at the edge of an open window).
• A momentary press of either key will make a minor change in the image.
Ultimately, the image quality should improve to a satisfactory level. Once the adjustment is made, it should not be necessary to
change it again, as the new settings are stored in memory and become the default settings with each startup. To exit Command
Mode, press <Esc>.
Note: For additional quality adjustment, it may be necessary to adjust the brightness and contrast settings of the
monitor.
Note: The video quality adjustment procedure can only be performed from the keyboard connected to the Remote Unit.
10
MAC Mode
MAC Mode enables the user to connect the Local Unit to a MAC CPU. MAC Mode configures the Local Unit for passing mouse
information to the MAC CPU. This is useful when the user wants to use mouse drivers provided by the mouse vendor, which
allows the use of programmable functions for each mouse button. The Local Unit can be configured whenever necessary.
NOTE: When the port is connected to a PC or SUN CPU, MAC Mode should be OFF (the default setting).
To do this;
1. Enter Command Mode. (Simultaneously press the left and right <Shift> keys on the keyboard connected to the Remote
Unit. The keyboard LEDs will illuminate. )
2. If a MAC CPU is connected, press the <M> key. The keyboard LEDs will momentarily flash and the “MAC” LED on the
Remote Unit will illuminate to indicate MAC Mode is ON. (See Fig. 10)
3. To reconnect the XTENDEX to a SUN or Windows CPU (the default setting) , press the <W> key and the “MAC” LED will
go OFF.
ST-C5USBV-300
Remote Unit
(Rear View)
XTENDEX USB
Network Technologies Inc
NTI
-
R
+
MAC port configuration LED
Figure 10- MAC LED
After setting, the configuration is stored in memory and will be retrieved whenever the XTENDEX is powered ON.
Note: MAC Mode can only be enabled from the keyboard connected to the Remote Unit.
DDC SUPPORT
DDC information allows the CPU to automatically detect the video capability of your monitor. The DDC information is updated
automatically at initial power-ON of the ST-C5USBV-300 Extender or whenever a different monitor is connected to the Extender.
DDC is only supported for the monitor connected to the Local Extender and it is recommended that the monitor connected to the
remote be the same model. The Local Extender and the monitor must both be powered ON prior to the CPU in order to update
the DDC information.
11
COMMON APPLICATIONS
Figure 11 (below) illustrates three common applications for the ST-C5USBV-300 USB KVM Extender.
Existing Local Unit Cable
VGA
Multi-Scan
Monitor
VGA
Multi-Scan
Monitor
ST-C5USBV-300
LOCAL UNIT
USBVEXT-xx-MM
Existing Local Unit Cable
NTI USB
KVM
SWITCH
ST-C5USBV-300
LOCAL UNIT
(UNIMUX-xU)
Existing Local Unit Cable
USB Mouse
USB Keyboard
USB Mouse
Local User
CAT5 Cable
USB Keyboard
Local User
CAT5 Cable
ST-C5USBV-300
REMOTE UNIT
VGA
Multi-Scan
Monitor
ST-C5USBV-300
LOCAL UNIT
ST-C5USBV-300
REMOTE UNIT
USB Mouse
USB Keyboard
Local User
USBVEXT-xx-MM
VGA
Multi-Scan
Monitor
NTI USB
KVM MATRIX
SWITCH
(UNIMUX-nXm-U)
VGA
Multi-Scan
Monitor
USB Mouse
USB Keyboard
CAT5 Cable
ST-C5USBV-300
REMOTE UNIT
VGA
Multi-Scan
Monitor
STANDARD APPLICATION
BETWEEN USERS AND CPU
USB Mouse USB Keyboard
BETWEEN CPU AND
MULTI-USER MATRIX
SWITCH
Figure 11- Examples of common applications for the ST-C5USBV-300 USB KVM Extender
12
USB Mouse USB Keyboard
BETWEEN SINGLEUSER KVM SWITCH
AND USERS
TECHNICAL SPECIFICATIONS
Maximum Resolution w/ CAT5/5e UTP
(refresh frequency 60Hz)
Maximum Resolution w/ CAT5/5e STP
Or CAT6 UTP (refresh frequency 60Hz)
Video Compatibility
Video Quality
Video Coupling
Video Connectors
Sync Types Supported
Video Signal Type
Maximum Input/Output Levels
Input / Output Impedance
Input Horizontal Frequency Range
Input Vertical Frequency Range
Keyboard/Mouse Connectors
Interconnect Cable
Remote and Local Unit Power
Operating Temperature Range
ESD protection
CE Mark
RoHS
Dimensions WxDxH (In.) (Local or Remote)
AUDIO
Signal Type
Connectors
Maximum Input Level
Input Impedance
Maximum Output Level
Frequency Response
THD+N
S/N
Stereo Channel Separation
1280 x 1024 @ 60Hz- up to 300 feet
1600 x 1200 @ 60Hz- up to 150 feet
1920 x 1440 @ 60 Hz- up to 100 feet
1024 x 768 @ 60Hz- up to 300 feet
1280 x 1024 @ 60Hz- up to 150 feet
1600 x 1200 @ 60Hz- up to 100 feet
WUXGA,UXGA,SXGA, XGA, SVGA, VGA
Variable for up to 300 feet of CAT5 cable
DC
HD15 male to CPU
HD15 female to local and remote monitors
Separate and composite TTL Level
Analog RGBHV,RGBS
1.45Vp-p (no offset)
75 Ohms
15kHz to 130 kHz
30 Hz to 150 Hz
USB Type A female- to local and remote keyboard/mouse
USB Type A male- to CPU
CAT5/5e Solid UTP/STP EIA/TIA 568B wiring w/ male RJ45 connectors
- ORCAT6 Solid UTP EIA/TIA 568B wiring w/ male RJ45 connectors
120V or 240V (50 or 60Hz) 9VDC/1.0A AC Adapters
+10°C to +40°C
Complies with EN61000-4-2 Specification
Complies with EN55022
Compliant
3.5x3.1x1.2
Line Level, stereo, unbalanced
Local Unit: 3.5mm Stereo Plug, Pigtail,
3.5mm Stereo Jack, PCB
Remote Unit: 3.5mm Stereo Jack, PCB
2.82 Vp-p (unbalanced)
10 kohms
3.1 Vp-p
20 Hz to 20 kHz, + 1dB
<0.017%
>76dB (it should be tested with the new PCB)
>70dB @ 1 kHz (it should be tested with the new PCB)
13
INTERCONNECTION CABLE WIRING METHOD
The connection cable between the remote and local is terminated with RJ45 connectors and must be wired according to the
EIA/TIA 568B industry standard. Wiring is as per the table and drawing below.
Pair 3
Pair 2
Pin
1
2
3
4
5
6
7
8
Wire Color
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
Pair
2
2
3
1
1
3
4
4
Function
T
R
T
R
T
R
T
R
Pair 1
Pair 4
T R T R T R T R
1 2 3 4 5 6 7 8
+ - + - + - + -
(View looking into RJ45 female)
Figure 12- Pin positions in female RJ45 connector
Note: CAT5 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products
should not be run underground, outdoors or between buildings.
!
WARNING: Outdoor or underground runs of CAT5 cable could be dangerous and will void the warranty.
14
KEYBOARD TRANSLATION
Key Equivalents
Using the chart below, find the character needed to be typed on the CPU being accessed, then follow the row across for the
equivalent on the keyboard being used. (See Fig. 13 on page 16 for reference.)
USB 101
WINxx
MAC
SUN
(Apple USB)
L-Ctrl
L-Ctrl
L-Ctrl
L-Ctrl
L-Alt
L-Alt
L-Option
L-Alt
SB+F12
Application
SB+F12
Compose
R-Alt
R-Alt
R-Option
Alt-Graph
SB+Alt
Windows Logo
Command
Meta
SB+R Arrow
SB+R Arrow
Power
Suspend
SB = Space Bar
L and R = Left and Right keys when two keys are marked the same on a keyboard.
SUN’s 16 Extra Keys
Use the chart below to type SUN's additional 16 keys using a 101, WINxx, or MAC (Apple) USB keyboard).
101,WINxx,MAC
Keyboards
SUN Extras
101,WINxx,MAC
Keyboards
SUN Extras
SB+F1
Stop (L1)
SB+F9
Find (L9)
SB+F2
Again (L2)
SB+F10
Cut (L10)
SB+F3
Props (L3)
SB+F11
Help
SB+F4
Undo (L4)
SB+F12
Compose
SB+F5
Front (L5)
SB + Up Arrow
Vol +
SB+F6
Copy (L6)
SB + Down Arrow
Vol -
SB+F7
Open (L7)
SB + L Arrow
Mute
SB+F8
Paste (L8)
SB + R Arrow
Suspend
SB = Spacebar
15
Esc
~
`
Num
Lock
Backspace
Tab
Enter
Caps Lock
Shift
Shift
Enter
Ctrl
Alt
Ctrl
Alt
Typical 101 Keyboard
Esc
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11
~
`
Print
Screen
SysRq
F12
Scroll
Lock
Pause
Break
Num
Lock
Backspace
Tab
Enter
Caps Lock
Shift
Shift
Enter
Ctrl
Alt
Ctrl
Alt
Windows Logo Key Application Key
Windows Logo Key
Windows USB Keyboard
CD Eject
Key
F1
esc
F2
F3
F4
F5
F6
F7
F8
F9
F11
F10
~
`
F12
F13
F14
F15
num
lock
delete
clear
=
/
*
tab
return
caps Lock
shift
control
shift
alt
alt
option
option
enter
Command Key
control
Command Key
Apple Pro USB Keyboard
Power
key
Help
Stop
Again
Esc
Props
Undo
Tab
Front
Copy
Open
Paste
Find
Cut
Backspace
Num
Lock
Return
Control
Shift
Shift
Enter
Capslock
Compose
Alt
Meta Key
Meta Key
SUN USB Keyboard
Figure 13- Keyboard Layouts
16
Alt
Graph
TROUBLESHOOTING
Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We
make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing
this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise. If the
answer is not found in the chart, please check the FAQs (Frequently Asked Questions) at our website at
http://www.networktechinc.com or contact us directly for help at 1-800-742-8324 (800-RGB-TECH) in US & Canada or 1-330-5627070. We will be happy to assist in any way we can.
Problem
Cause
Solution
Remote Unit power
LED does not
illuminate
Local Unit power LED
does not illuminate
•
Power supply is not connected or
plugged-in.
•
•
•
Power supply is not connected or
plugged-in.
•
•
Make sure outlet is live and transformer is plugged-in.
Make sure 9VDC jack is fully connected to the Remote
Unit.
Make sure outlet is live and transformer is plugged-in.
Make sure 9VDC jack is fully connected to the Local Unit.
No video on monitor
•
One or more video cables is loose or
disconnected.
No Power to Remote or Local Units.
•
Check all video cable connections
•
•
Video Cable was not attached when
CPU was booted.
•
•
•
Make sure power LED is illuminated for local and remote.
If not, see both solutions above.
With all the cables properly connected, reboot the CPU.
Check cable connections. Make sure they are snapped-in
properly and completely.
CAT5 cable is not connected.
•
Video picture is not
sharp or is smeared
Monitor sometimes
loses sync, causing it
to go blank for a
second or two
The picture on the
monitor is black and
white, rather than color
A constant vertical
wobble appears down
the screen
PC boots with no error
messages, but the
keyboard does not
work
Wrong or missing
characters from those
typed
Connecting the
keyboard effects the
video
Mouse cursor appears
on the screen, but the
mouse does not work
Cannot enter
Command Mode
Mouse is not working
as configured when
connected to a MAC
•
Check cable connections. Make sure they are snapped-in
properly and completely.
•
All Video Cables are not firmly
seated.
•
CAT5 cable is too long.
•
The CAT5 cable is not properly
connected.
•
Video quality is not set properly.
•
Electrical power system is very noisy,
particularly the ground.
•
The CAT5 cable is not properly
connected.
The video cable was not attached to the
CPU when it was booted.
•
CAT5 cable is too close to a strong power
source.
Reroute CAT5 cable if possible.
•
•
•
•
Reseat Keyboard cable and check again.
Make sure Keyboard is directly connected, not
through a PS/2 to USB adapter.
The keyboard may be in the wrong mode.
•
•
Disconnect keyboard at Remote Unit end and reconnect.
Reboot the system.
Older keyboards may require higher
current than our unit supplies.
Change to a newer keyboard.
•
•
Keyboard cable is loose.
Keyboard in use is not compatible.
Mouse cable is loose or
disconnected.
•
Mouse is not compatible.
•
Remote connections didn’t
initialize.
User is trying to access Command
Mode from the devices connected to
the Local Unit
ST-C5USBV-300 is not operating in MAC
mode
17
Check all connections. Make sure all cables are fully
seated.
•
Verify length is within specified limits-300'.
•
Check cable connections. Make sure they are snapped-in
properly and completely.
•
See pg. 10 for instruction on "Video Quality Adjustment".
•
Make sure the interconnection cable is not near any power
lines.
•
Check cable connections. Make sure they are snapped-in
properly and completely.
With the cables all properly connected, reboot the CPU.
•
•
Check for quality cable connections to mouse at Remote
Unit end.
Make sure mouse is USB type.
Power down the Remote Unit and then power up again.
Command Mode is not accessible at the Local Unit. Try again
from devices connected to the Remote Unit. (See page 10.)
Check to see if MAC mode LED is illuminated. If not, enable
MAC mode (see page 11)
INDEX
CAT5 Cable Spec, 14
CAT5 LEDs, 9
Command Mode, 10
DDC support, 11
Devices Supported, 1
Installation, 5
Key Equivalents, 15
limitations, 2
MAC LED, 3
MAC Mode, 11
Specifications, 13
SUN extra keys, 15
Troubleshooting, 17
Video quality adjustment, 10
WARRANTY INFORMATION
The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network
Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com
for information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.
Note: CAT5 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products
should not be run underground, outdoors or between buildings.
!
WARNING: Outdoor or underground runs of CAT5 cable could be dangerous and will void the warranty.
Man010 Rev 12/4/07
18
Download PDF

advertising
