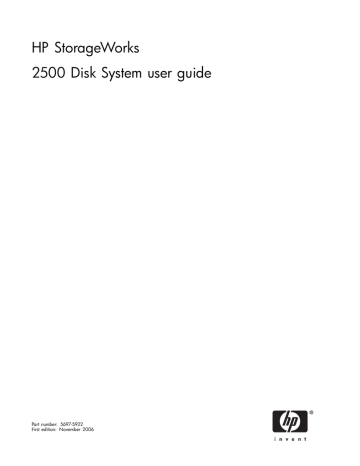

HP StorageWorks
2500 Disk System user guide
Part number: 5697-5922
First edition: November 2006
Legal and notice information
© Copyright 2006 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth
in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting
an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Contents
About this guide
. . . . . . . . . . . . . . . . . . . . . . . . . .
Intended audience . . . . . . . .
Related documentation . . . . . .
Document conventions and symbols
Rack stability . . . . . . . . . .
HP technical support . . . . . . .
Customer self repair . . . . . . .
Subscription service . . . . . . .
Other HP web sites . . . . . . .
Documentation feedback . . . . .
1 Overview
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. . . . . . . . . . . . . . . . . . . . . . . . . . .
General description . . . . .
Features . . . . . . . . . .
Components . . . . . . . .
DS2500 front view . . . .
DS2500 rear view . . . .
Status indicators . . . . . . .
System requirements . . . . .
Operating system software
Hard disk drive firmware .
HBAs . . . . . . . . .
Disk drives . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
2 Components . . . . . . . . . . . . . . . . . . . . . . . . . .
List of parts . . . . . . . . . . . . . . .
EMU . . . . . . . . . . . . . . . . . .
EMU functions . . . . . . . . . . .
Controls and displays . . . . . . . .
I/O modules . . . . . . . . . . . . . .
Power supply and blower assembly . . . .
Features . . . . . . . . . . . . . .
Power supply and blower status indicator
Fibre Channel disks . . . . . . . . . . .
Disk drive status indicators . . . . . .
Drive blanks . . . . . . . . . . . .
Cables and cabling . . . . . . . . . . .
Transceivers . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparing to install a DS2500 . . . . . . . . . . . .
Unpacking the shipping carton . . . . . . . . . . .
Installing the DS2500 . . . . . . . . . . . . . . .
Installing the snap-in rails . . . . . . . . . . . .
Converting the rails for round-hole racks . . .
Installing the rails . . . . . . . . . . . . .
Reducing the enclosure weight . . . . . . . . . .
Removing the drive blanks . . . . . . . . .
Removing the power supply/blower assemblies
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
2500 Disk System user guide
9
. . 9
. . 9
. . 9
.
10
.
10
.
11
.
11
.
11
.
11
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
13
13
13
14
14
14
15
15
15
16
16
16
17
17
17
17
18
19
21
21
21
22
22
24
24
24
25
25
25
26
26
27
27
29
29
30
3
Removing the EMU . . . .
Removing the I/O modules .
Installing the DS2500 in the rack
Connecting the cables . . . . .
Setting the enclosure ID (En) . . .
Setting the enclosure loop ID (Li) .
Disk drive loop ID . . . . . . .
Verifying the installation . . . . . .
Adding drives to an existing DS2500 .
Installing multiple disk drives . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
4 Using the EMU . . . . . . . . . . . . . . . . . . . . . . . . .
Alphanumeric display . . . . . .
Display groups . . . . . . . . .
Encoding the enclosure ID (En)
Loop ID (Li) . . . . . . . . .
Audible alarm (Au) . . . . .
Enabling the audible alarm
Muting the audible alarm .
Firmware revision (Fr) . . . . .
Error condition report (Er) . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
5 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . .
Event monitor tools . . . . . . . . . . . . . . . . .
EMU error condition report . . . . . . . . . . . . .
Severity levels . . . . . . . . . . . . . . . . .
Error condition reports . . . . . . . . . . . . .
Status indicators . . . . . . . . . . . . . . . . . .
Audible error indicators . . . . . . . . . . . .
Visual error indicators . . . . . . . . . . . . .
I/O module and transceivers . . . . . . . .
Disk drives . . . . . . . . . . . . . . . .
Catastrophic errors . . . . . . . . . . . . . . . . .
EMU temperature warning and shutdown operation
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
6 Customer self repair . . . . . . . . . . . . . . . . . . . . . . .
Customer self repair . . . . . . . . . . . . .
Parts-only warranty service . . . . . . . .
Best practices for replacing hardware components
Verifying component failure . . . . . . . .
Procuring the spare part . . . . . . . . .
Returning the defective part . . . . . . . .
Replacing a power supply/blower assembly . . .
Before you begin . . . . . . . . . . . .
Removing a power supply . . . . . . . .
Replacing a power supply . . . . . . . .
Removing a blower . . . . . . . . . . .
Replacing a blower . . . . . . . . . . .
Replacing a disk drive . . . . . . . . . . . .
Before you begin . . . . . . . . . . . .
Removing a disk drive . . . . . . . . . .
Replacing a disk drive . . . . . . . . . .
A Specifications
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. . . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Physical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Environmental specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
30
31
31
33
34
35
36
36
36
37
39
39
39
39
40
41
41
41
42
42
45
45
48
48
48
48
50
50
50
51
52
53
55
55
55
56
56
56
57
57
57
57
58
58
59
60
60
60
62
63
63
63
64
B Regulatory notices . . . . . . . . . . . . . . . . . . . . . . . .
Federal Communications Commission (FCC) notice
FCC Class A certification . . . . . . . . .
Class A equipment . . . . . . . . . . . .
Class B equipment . . . . . . . . . . . .
Declaration of conformity for products marked
Modifications . . . . . . . . . . . . . .
Cables . . . . . . . . . . . . . . . . .
Laser devices . . . . . . . . . . . . . . . .
Laser safety warnings . . . . . . . . . .
Compliance with CDRH regulations . . . .
Certification and classification information . . . .
Canadian notice (avis Canadien) . . . . . . .
Class A equipment . . . . . . . . . . . .
Class B equipment . . . . . . . . . . . .
European union notice . . . . . . . . . .
Notice for France . . . . . . . . . . . .
WEEE Recycling Notices . . . . . . . . .
English notice . . . . . . . . . . . .
Dutch notice . . . . . . . . . . . .
Czechoslovakian notice . . . . . . . .
Estonian notice . . . . . . . . . . .
Finnish notice . . . . . . . . . . . .
French notice . . . . . . . . . . . .
German notice . . . . . . . . . . .
Greek notice . . . . . . . . . . . .
Hungarian notice . . . . . . . . . .
Italian notice . . . . . . . . . . . .
Latvian notice . . . . . . . . . . . .
Lithuanian notice . . . . . . . . . .
Polish notice . . . . . . . . . . . .
Portuguese notice . . . . . . . . . .
Slovakian notice . . . . . . . . . . .
Slovenian notice . . . . . . . . . . .
Spanish notice . . . . . . . . . . .
Swedish notice . . . . . . . . . . .
Germany noise declaration . . . . . . . .
Japanese notice . . . . . . . . . . . . .
Harmonics conformance (Japan) . . . .
Taiwanese notice . . . . . . . . . . . .
Japanese power cord notice . . . . . . . .
Country-specific certifications . . . . . . .
. .
. .
. .
. .
with
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. . . .
. . . .
. . . .
. . . .
the FCC
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
logo, United States only
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
C EMU-generated error condition reports . . . . . . . . . . . . . . .
Error condition report format . . . . . .
Correcting error conditions . . . . . . .
Disk drive error conditions . . . . .
Power supply error conditions . . . .
Blower error conditions . . . . . . .
Temperature error conditions . . . .
EMU error conditions . . . . . . .
Resetting the EMU . . . . . . .
Transceiver error conditions . . . . .
Voltage sensor and current sensor error
Backplane error conditions . . . . .
I/O module error conditions . . . .
. . . . .
. . . . .
. . . . .
. . . . .
. . . . .
. . . . .
. . . . .
. . . . .
. . . . .
conditions
. . . . .
. . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2500 Disk System user guide
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
67
67
67
67
67
68
68
68
68
68
68
69
69
69
69
69
69
70
70
70
70
70
71
71
71
71
72
72
72
72
73
73
73
73
74
74
74
74
75
75
75
75
77
77
78
78
78
79
80
81
82
82
83
84
84
87
5
Figures
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
6
..FC-AL loops (direct connect) . . . . . . . . .
..DS2500—front and rear views . . . . . . . .
..EMU controls and displays . . . . . . . . .
..Redundant disk connections . . . . . . . . .
..I/O module . . . . . . . . . . . . . . . .
..Power supply and blower assembly components
..HP FC disk drive . . . . . . . . . . . . . .
..Disk drive status indicators . . . . . . . . . .
..Drive blank . . . . . . . . . . . . . . . .
..Contents of snap-in rail-mounting kit . . . . . .
..Converting the rails for round-hole racks . . . .
..Engaging the scissor-type locking latches . . .
..Inserting the rail into the rear rack column . . .
..Disengaging the shipping bracket . . . . . .
..Drive blank . . . . . . . . . . . . . . . .
..Removing a power supply/blower assembly . .
..Removing the EMU . . . . . . . . . . . . .
..Removing an I/O module . . . . . . . . . .
..Enclosure thumbscrews . . . . . . . . . . .
..Installing a disk drive . . . . . . . . . . . .
..EMU alphanumeric display and controls . . . .
..Enclosure operational status indicators . . . . .
..FC-AL loops . . . . . . . . . . . . . . . .
..Drive blank . . . . . . . . . . . . . . . .
..Installing a disk drive . . . . . . . . . . . .
..LEDs in the operational state . . . . . . . . .
..I/O module status LEDs . . . . . . . . . . .
..Disk drive status indicators . . . . . . . . . .
..Typical product label . . . . . . . . . . . .
..Removing a power supply . . . . . . . . . .
..Replacing a power supply . . . . . . . . . .
..Removing a blower . . . . . . . . . . . . .
..Replacing a blower . . . . . . . . . . . . .
..Removing a disk drive . . . . . . . . . . . .
..Replacing a disk drive . . . . . . . . . . .
..Typical enclosure certification label . . . . . .
..Transceiver element numbers . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
14
15
18
19
20
21
22
23
24
26
27
28
28
29
30
30
31
31
32
32
33
33
34
36
37
50
51
52
57
58
58
59
60
62
62
75
83
Tables
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
..Document conventions . . . . . . . . . . . . . . .
..Disk drive status indicator descriptions . . . . . . . . .
..Enclosure ID and corresponding loop IDs . . . . . . .
..EMU display groups . . . . . . . . . . . . . . . .
..Enclosure ID and corresponding loop IDs . . . . . . .
..Element types . . . . . . . . . . . . . . . . . . .
..Enclosure status icon displays . . . . . . . . . . . .
..EMU status indicators . . . . . . . . . . . . . . . .
..Audible alarm sound patterns . . . . . . . . . . . .
..I/O module status LEDs . . . . . . . . . . . . . . .
..Disk drive status indications . . . . . . . . . . . . .
..Disk drive loop IDs . . . . . . . . . . . . . . . . .
..DS2500 physical specifications . . . . . . . . . . . .
..Environmental operating specifications . . . . . . . . .
..Environmental shipping or short-term storage specifications
..DS2500 AC input line voltages . . . . . . . . . . . .
..AC input current and wattage . . . . . . . . . . . .
..Output voltage and current specifications . . . . . . .
..Power specifications . . . . . . . . . . . . . . . .
..Element type . . . . . . . . . . . . . . . . . . . .
..Disk drive error conditions . . . . . . . . . . . . . .
..Power supply error conditions . . . . . . . . . . . .
..Blower error conditions . . . . . . . . . . . . . . .
..Temperature sensor element numbers . . . . . . . . .
..Temperature threshold error conditions . . . . . . . . .
..EMU error conditions . . . . . . . . . . . . . . . .
..Transceiver error conditions . . . . . . . . . . . . .
..Voltage and current sensor locations . . . . . . . . .
..Voltage and current threshold error conditions . . . . .
..Backplane error conditions . . . . . . . . . . . . .
..I/O module error conditions . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. . 9
.
23
.
35
.
39
.
40
.
43
.
49
.
49
.
50
.
51
.
52
.
61
.
63
.
63
.
64
.
64
.
65
.
65
.
65
.
77
.
78
.
79
.
80
.
80
.
81
.
82
.
83
.
84
.
84
.
84
.
85
2500 Disk System user guide
7
8
About this guide
This guide provides information about:
•
•
•
•
Installing an HP StorageWorks 2500 Disk System (DS2500)
Using the Environmental Monitoring Unit (EMU) to determine the status of DS2500 components
Troubleshooting problems within the DS2500
Replacing customer replaceable units (CRUs)
Intended audience
This guide is intended for system administrators with knowledge of:
• Storage area networks (SANs)
• Basic HP-UX operating system commands and utilities
Related documentation
The following documents provide related information:
• HP StorageWorks SAN design guide
• HP EMS hardware monitor user guide
You can find these documents on the HP web site:
http://www.hp.com/support/manuals
In the Storage section, click Disk Storage Systems and then select your product.
Document conventions and symbols
Table 1 Document conventions
Convention
Element
Blue text: Table 1
Cross-reference links and e-mail addresses
Blue, underlined text: http://www.hp.com
Web site addresses
Bold text
• Keys that are pressed
• Text typed into a GUI element, such as a box
• GUI elements that are clicked or selected, such as
menu and list items, buttons, tabs, and check boxes
Italic text
Text emphasis
Monospace text
•
•
•
•
Monospace, italic text
• Code variables
• Command variables
Monospace, bold text
Emphasized monospace text
File and directory names
System output
Code
Commands, their arguments, and argument values
2500 Disk System user guide
9
WARNING!
Indicates that failure to follow directions could result in bodily harm or death.
CAUTION:
Indicates that failure to follow directions could result in damage to equipment or data.
IMPORTANT:
Provides clarifying information or specific instructions.
NOTE:
Provides additional information.
TIP:
Provides helpful hints and shortcuts.
Rack stability
Rack stability protects personnel and equipment.
WARNING!
To
•
•
•
•
•
reduce the risk of personal injury or damage to equipment:
Extend leveling jacks to the floor.
Ensure that the full weight of the rack rests on the leveling jacks.
Install stabilizing feet on the rack.
In multiple-rack installations, fasten racks together securely.
Extend only one rack component at a time. Racks can become unstable if more than one
component is extended.
HP technical support
Telephone numbers for worldwide technical support are listed on the HP support web site:
http://www.hp.com/support/.
Collect the following information before calling:
•
•
•
•
•
•
Technical support registration number (if applicable)
Product serial numbers
Product model names and numbers
Error messages
Operating system type and revision level
Detailed questions
For continuous quality improvement, calls may be recorded or monitored.
10
About this guide
Customer self repair
HP customer self repair (CSR) programs allow you to repair your StorageWorks product. If a CSR
part needs replacing, HP ships the part directly to you so that you can install it at your convenience.
Some parts do not qualify for CSR. Your HP-authorized service provider will determine whether a
repair can be accomplished by CSR.
For more information about CSR, contact your local service provider. For North America, see the
CSR website: http://www.hp.com/go/selfrepair.
Subscription service
HP strongly recommends that customers register online using the Subscriber's choice web site:
http://www.hp.com/go/e-updates.
Subscribing to this service provides you with e-mail updates on the latest product enhancements,
newest driver versions, and firmware documentation updates, as well as instant access to numerous
other product resources.
After subscribing, locate your products by selecting Business support, and then Storage under Product
Category.
Other HP web sites
For additional information, see the following HP web sites:
•
•
•
•
http://www.hp.com
http://www.hp.com/go/storage
http://www.hp.com/support/manuals
http://www.hp.com/support/downloads
Documentation feedback
HP welcomes your feedback.
To make comments and suggestions about product documentation, please send a message to
storagedocs.feedback@hp.com. All submissions become the property of HP.
2500 Disk System user guide
11
12
About this guide
1 Overview
This chapter includes the following topics:
•
•
•
•
•
General description, page 13
Features, page 13
Components, page 14
Status indicators, page 15
System requirements, page 15
General description
The DS2500 is a dual-redundant Fibre Channel (FC) loop storage system used on systems running HP-UX
operating system software. The DS2500 occupies 3 EIA units in a standard 19-inch rack. Up to 14
disk drives can be mounted in the front of the enclosure. Up to 4 DS2500s can be daisy-chained
together to create a storage ring.
Features
The DS2500 disk enclosure provides:
• Redundant power supplies and blowers
Only one operational power supply and one operational blower are required for the DS2500
to function.
• FC disk drives that can be added or replaced with the system on (although the affected file
systems must be taken offline)
• Environmental services sensors that monitor the disk enclosure and provide real-time error
reporting
• High-availability to minimize unplanned downtime
• Customer-replaceable components
Each DS2500 is connected to Host Bus Adapters (HBAs) through two independent Fibre Channel
Arbitrated Loop (FC-AL) buses, also known as loops, to provide no single point of failure (NSPOF). Each
disk drive connects to loop A through I/O module A, and to loop B through I/O module B. Figure 1
shows the maximum configuration of four DS2500s.
The disk enclosure supports high-availability requirements through the following features:
•
•
•
•
•
•
•
Hot-pluggable components
High-capacity, high-speed disks
Redundant, customer replaceable power supplies and blowers
Redundant I/O modules
Support for mirrored disks in the HP-UX environment
Online firmware upgrades
Hardware event monitoring and real-time error reporting
2500 Disk System user guide
13
3
1
10
4
2
25176a
1. Loop B—Connects to an HBA
3. Loop A—Connects to an HBA
2. Loop B—Connects to an HBA
4. Loop A—Connects to an HBA
Figure 1 FC-AL loops (direct connect)
Components
Figure 2 shows the components of the DS2500 from front and rear views.
DS2500 front view
The front of the DS2500 holds the following components:
• Up to 14 FC disk drives mount in bays numbered 1 through 14 sequentially, from left to right. For
simplicity, a drive is referred to by its bay number.
• Enclosure status indicators located in the lower corner to the right of bay 14.
DS2500 rear view
The rear of the DS2500 holds the following components:
• An Environmental Monitoring Unit (EMU) that provides protection against catastrophic failures. It
monitors, records and reports disk enclosure status conditions to the operating system software.
• Redundant power supply and blower assemblies that provide protection against power overloads,
short circuits, and overheating
• Redundant I/O modules that provide an interface between the disks and the HBA
14
Overview
1
2
10
10
3
4
5
6
7
8
9
25203a
Figure 2 DS2500—front and rear views
1. Drive bay 1
6. Blower 1
2. Drive bay 14
7. Power supply 2
3. EMU
8. Blower 2
4. I/O module B
9. I/O module A
5. Power supply 1
10. Status indicators (EMU heartbeat, enclosure power,
enclosure fault)
Status indicators
You can monitor DS2500 performance by observing various status indicators:
• Indicators on the front of each disk drive report individual disk drive status.
• Indicators on the front lower corner of the enclosure report overall DS2500 status.
• Indicators on the top rear of the EMU report overall DS2500 status (duplicates of the indicators
on the front of the enclosure).
• A status LED on each power supply/blower assembly verifies proper operation of the assembly.
• Status LEDs on each I/O module indicate the detection of transceiver signals and power.
• An audible alarm alerts you to an error condition.
Specific LED information is provided in the description of the individual components in Chapter 2.
System requirements
Operating system software
The DS2500 is supported on the following HP-UX systems:
• For PA-RISC: HP-UX 11.11 and 11.23
• For IPF: HP-UX 11.23
2500 Disk System user guide
15
Hard disk drive firmware
You can download the latest hard disk drive (HDD) firmware from the HP support web site:
http://www.hp.com/support/downloads
1. Under maintenance and support, click downline drivers and firmware.
2. Under storage, click Disk Storage Systems.
3. Click 2500 Disk System.
For installation instructions, double-click on the firmware description, and then select the Release
Notes tab.
HBAs
The DS2500 is supported with 2 Gb and 4 Gb Host Bus Adapters (HBAs). For a list of supported HBAs,
see the DS2500 QuickSpecs on the HP storage web site:
http://www.hp.com/support/manuals
In the Storage section, click Disk Storage Systems and then select your product.
In the Resources for my selected product section, select See more, and then HP product bulletins
(QuickSpecs).
Disk drives
The DS2500 supports high-speed FC disk drives. For a list of supported disk drives, see the DS2500
QuickSpecs on the HP storage web site:
http://www.hp.com/support/manuals
In the Storage section, click Disk Storage Systems and then select your product.
In the Resources for my selected product section, select See more, and then HP product bulletins
(QuickSpecs).
16
Overview
2 Components
This chapter contains information about the components of the DS2500, including:
•
•
•
•
•
•
•
List of parts, page 17
EMU, page 17
I/O modules, page 19
Power supplies and blowers, page 21
FC disks, page 22
Cables and cabling, page 24
Transceivers, page 24
List of parts
The DS2500 consists of:
•
•
•
•
•
•
•
•
•
•
A Dual loop chassis
14 disk bays
Up to 14 FC disk drives
Drive blanks
An EMU
2 I/O modules
2 power supplies
2 blowers
Small Form-factor Pluggable (SFP) transceivers
Fiber optic cables
EMU
The EMU monitors and records disk enclosure status information.
EMU functions
The primary functions of the EMU include:
•
•
•
•
•
•
Display or change the enclosure ID (En)
Display or change the enclosure loop ID
Monitor enclosure operation
Detect, report, record, and display enclosure error status conditions
Implement automatic corrective actions for some conditions
Provide a means for you to view error condition reports
2500 Disk System user guide
17
Whenever the EMU detects a condition that could affect operation, it performs the following operations:
•
•
•
•
Generates an audible alarm
Displays status in visual indicators
Generates an error condition report
Reports the condition to the HP-UX application software
Controls and displays
Figure 3 identifies the EMU displays, controls, and connectors.
25236a
Figure 3 EMU controls and displays
1.
Status indicators:
a. EMU heartbeat—Flashing green signifies an operational EMU
b. DS2500 power—Solid green signifies that the +5 VDC and +12 VDC signals are within
an acceptable range
c. DS2500 fault—Solid amber indicates that an enclosure error condition exists (normally off)
2. Alphanumeric display—A two-character display of the enclosure functions and status (typically
displays the enclosure ID).
3. Function select push button and back light—Enables you to specify what information appears
in the alphanumeric display. Pressing and releasing, or tapping the function select button
allows you to sequence through the different sublevels of a display group. The back light is
on when an error condition exists.
4. Display group select push button and back light—Enables you to view display groups and
control the audible alarm. The back light is on when the audible alarm is muted or disabled.
5. Communication ports—Unused in a JBOD environment
18
Components
I/O modules
Two I/O modules provide an interface between the disks and the host system. The I/O modules are used
to route data to and from the disks in a dual-loop configuration to eliminate a single point of failure.
Each disk drive is connected to both I/O module A and I/O module B (Figure 4-3). Each I/O module is
connected to an independent, external FC loop. I/O module A connects to loop A, and I/O module B
connects to loop B (see Figure 1 on page 14).
CAUTION:
Keep the loops completely separate to ensure that the failure of a single component (I/O module,
transceiver, or cable) does not stop data transmissions to active drives.
1
2
3
4
5
25175a
1. FC loop B
4. I/O module A
2. I/O module B
5. FC loop A
3. FC disks (3 are shown, but up to 14 disks are supported in each DS2500)
Figure 4 Redundant disk connections
The operation and function of both I/O modules are identical. Each I/O module has two ports that
can transmit and receive data for bidirectional operation. Port use and connections are configuration
dependent (see "Cables and cabling" on page 24). Each port is identified with a transceiver element
number, and its status is displayed on an LED (Figure 5). Port 1 is the bottom loop port, and port
2 is the top loop port.
• Port 2 LED—On indicates that a signal was detected at the top transceiver.
• Power LED—On indicates that power is present on the I/O module.
• Port 1 LED—On indicates that a signal was detected at the bottom transceiver.
2500 Disk System user guide
19
2
1
3
0107a
Figure 5 I/O module
1. Status LEDs
2. Port 2
3. Port 1
NOTE:
Although the I/O modules are similar in appearance, they are not interchangeable. Physical differences
between the modules require you to install:
• I/O module A at the right side of the enclosure, behind drive bay 1.
• I/O module B at the left side of the enclosure, next to the EMU.
20
Components
Power supply and blower assembly
Figure 6 shows the power supply and blower assembly components.
1
5
6
2
3
4
5
25206a
Figure 6 Power supply and blower assembly components
1. Power supply assembly
4. Module latch
2. Status LED
5. Blower tabs (2)
3. AC input connector with bail lock
6. Blower
Features
Only one operational power supply and one operational blower are required to keep the enclosure fully
functional. However, in the event of a component failure, HP strongly recommends that a replacement is
installed as soon as possible.
NOTE:
When a power supply fails, the associated blower is disabled.
The power supply circuitry monitors input voltage, current, and temperature. If it detects an unacceptable
level of any of these elements, the status indicator turns off and an error is reported to the EMU.
The EMU uses the temperature sensor signal to adjust the speed of the blowers. If one blower fails or
spins at a reduced speed, the speed of the other blower increases to provide adequate air flow.
Power supply and blower status indicator
A green LED on the blower (Figure 6-2) indicates the operational status of the power supply and the
blower. If either component fails, the LED turns off and an error alarm sounds. The failing component
should be replaced as soon as possible.
2500 Disk System user guide
21
Fibre Channel disks
Up to 14 HP FC disk drives can be installed in a DS2500. Only HP-supplied FC disk drives are
supported in a DS2500. Figure 7 shows an FC disk drive.
CXO6695B
Figure 7 HP FC disk drive
CAUTION:
To control air flow within the enclosure, you must install a disk drive or a drive blank in each bay.
To avoid overheating, never remove more than one disk or drive blank from an operating enclosure
at the same time.
Disk drive status indicators
Three status indicators (Ready, Online, and Fault) show the drive operational status (Figure 8). Table 2
provides a description of each status indicator.
22
Components
1. Ready
2. Online
3. Fault
Figure 8 Disk drive status indicators
Table 2 Disk drive status indicator descriptions
Status indicator
Description
Ready
Flashing indicates that the disk drive is being accessed
On indicates that the drive is idle
Online
On indicates that the disk drive is online and operating
normally
Off indicates that there is a problem:
• This disk drive is not connected to an HBA
• +5.1 VDC is not detected
• The drive is not properly installed in the enclosure
On indicates a disk drive failure
Fault
Additional status codes are described in "Disk drives" on page 51.
2500 Disk System user guide
23
Drive blanks
To maintain proper air flow in the enclosure, a drive blank must be present in each bay that does not
contain a disk drive.
CXO6824B
Figure 9 Drive blank
Cables and cabling
The DS2500 uses 50 micron (μm) diameter, multimode fibre cables.
The input port connects to an HBA or the previous enclosure in the loop, and the output port connects to
the next enclosure or an HBA on the loop.
Transceivers
The DS2500 uses a short-wavelength fiber optic transceiver called a Small Form-factor pluggable (SFP)
that does not pose a threat to the human eye. SFPs are installed in the I/O module ports.
24
Components
3 Installation
This chapter includes the following topics:
•
•
•
•
•
Preparing to install a DS2500, page 25
Unpacking the shipping carton, page 25
Installing the DS2500, page 26
Verifying the installation, page 36
Adding drives to an existing DS2500, page 36
Preparing to install a DS2500
Before installing the DS2500:
• Ensure that electrical wiring and breakers meet the requirements described in Appendix B.
• Ensure that the supported HP-UX operating software is installed on the host. See "System
requirements" on page 15 for the minimum version of supported software.
• If you are adding to an existing storage system, ensure that the existing storage system is
operating properly before proceeding.
• Locate a No. 2 Phillips screwdriver.
HP recommends that you remove the rack side panel for easier access.
WARNING!
A DS2500 with all components installed weighs more than 29.5 kg (65 lb.) and requires a minimum of
two people to move. To safely and easily install the DS2500, using antistatic protection remove the
drive blanks, power supply/blower assemblies, EMU, and I/O modules. This reduces the weight of
the DS2500 to approximately 11.0 kg (24 lb). Even though a single person can lift this weight, the
DS2500 is difficult to install because of its physical size. Therefore, HP recommends that a minimum of
two people install an empty DS2500 in a rack.
Unpacking the shipping carton
Inspect the contents of the shipping carton. If anything is missing or appears damaged, contact an
HP sales representative.
The carton contains:
• DS2500 disk enclosure with disk blanks, I/O modules, EMU, and power supply/blower
assemblies
• Two power cords
• FC SFPs
• HP StorageWorks 2500 Disk System read me first document
• Snap-in rail kit
• Eight round-hole conversion pins
• Rack template
2500 Disk System user guide
25
Locate the following components, which were ordered separately:
• Disk drives
• FC cables
• FC cable labels
Installing the DS2500
This section describes the procedure to install the DS2500:
1. Installing the snap-in rails, page 26
2. Reducing the enclosure weight, page 29
3. Installing the DS2500 in the rack, page 31
4. Connecting the cables, page 33
5. Setting the enclosure ID (En), page 34
6. Setting the enclosure loop ID (Li), page 35
7. Verifying the installation, page 36
NOTE:
HP recommends that you install the heaviest components low in the rack to ensure rack stability.
Installing the snap-in rails
1
2
3
CXO8193A
1. Left rack rail
2. Right rack rail
3. Pins for round-hole rack conversion (8)
Figure 10 Contents of snap-in rail-mounting kit
You can identify the left and right rack rails by the markings (L) and (R) stamped into the sheet metal.
NOTE:
The rail kit contains adapter brackets that are used when mounting some devices in the rails; however
these brackets are not used when mounting a DS2500.
26
Installation
Converting the rails for round-hole racks
By default, the rack rails are configured for square-hole racks with load-bearing pins designed to
fit through the U-holes.
• If you are installing the disk enclosure in a square-hole rack, skip this section and continue with
"Installing the rails" on page 27. Do not remove the pins from the ends of the rails.
• If you are installing the disk enclosure in a round-hole rack, you must convert the rails as follows:
1. Locate the bag of miscellaneous hardware that is shipped with the rack rails.
2. Locate the eight round-hole pins.
3. Use a No. 2 Phillips screwdriver to remove the standard pins from the front and back ends of a rail.
4. Install four round-hole pins into the rail (Figure 11).
5. Repeat steps 3 and 4 on the other rail.
CXO8194A
Figure 11 Converting the rails for round-hole racks
Installing the rails
For each rail:
1. Determine where the rails will be mounted and use the rack template to mark the U-holes through
which the pins will extend.
2. Insert the front of the rail into the inside front column of the rack, making sure that the pins extend
through the U-holes marked in the previous step.
CAUTION:
Ensure that the scissor-type locking latches engage when the ends of the rail seat into the
rack columns, as shown in Figure 12 inset. Failure to do so could result in an unstable rail.
2500 Disk System user guide
27
CXO8195A
Figure 12 Engaging the scissor-type locking latches
3. Slide the back end of the rack rail into the inside rear column of the rack, making sure that the
pins extend through the U-holes marked in Step 1, and the scissor-type locking latch is fully
engaged (Figure 13).
CXO8196A
Figure 13 Inserting the rail into the rear rack column
4. Locate the shipping bracket on the rail (Figure 14).
5. Use a No. 2 Phillips screwdriver to loosen the shipping bracket and slide the bracket toward
the back of the rack.
6. Install the other rail by repeating Step 1 through Step 5.
28
Installation
2
1
CXO8197A
Figure 14 Disengaging the shipping bracket
Reducing the enclosure weight
Before you install a DS2500, reduce its weight by removing the drive blanks, power supply/blower
assemblies, EMU, and I/O modules. The removal procedures in this section do not apply to an
operating enclosure, as they assume that there are no cables attached to the components, and no
power is connected.
WARNING!
A DS2500 with all components installed weighs more than 29.5 kg (65 lb) and requires a minimum of
two people to move. To safely and easily install the DS2500, remove the components as described in
this section. This reduces the DS2500 weight to approximately 11.0 kg (24 lb).
CAUTION:
Parts can be damaged by electrostatic discharge. Use proper antistatic protection as described in the
documentation that shipped with your system.
Removing the drive blanks
To remove a drive blank:
1. Grasp the drive blank by the two tabs (Figure 15).
2. Lift up on the bottom tab and pull the blank out of the enclosure.
2500 Disk System user guide
29
2
1
25205a
Figure 15 Drive blank
Removing the power supply/blower assemblies
To remove a power supply/blower assembly:
1. Lift the mounting latch (Figure 16-2), grasp the blower and pull the power supply/blower assembly
out of the enclosure.
2. Place the power/supply blower assembly on an antistatic work space.
1. Power cord lock
2. Mounting latch
3. Blower
Figure 16 Removing a power supply/blower assembly
Removing the EMU
To remove the EMU:
1. Grasp the EMU handle Figure 17-1) and taking care not to tilt it, pull the EMU module straight
out of the enclosure (Figure 17-2).
2. Place the EMU on an antistatic surface.
30
Installation
1
2
Figure 17 Removing the EMU
Removing the I/O modules
To remove an I/O module:
1. Grasp the I/O module handle (Figure 18-1), press down on the module latch (Figure 18-2) and
pull the I/O module straight out of the enclosure (Figure 18-3). Take care not to tilt the module or
bring it in contact with the sides of the rack or other components.
2. Place the I/O module on an antistatic surface.
Figure 18 Removing an I/O module
Installing the DS2500 in the rack
WARNING!
A DS2500 without components installed weighs approximately 11.0 kg (24 lb). Even though a single
person can lift this weight, the DS2500 is difficult to install because of its physical size. Therefore, HP
recommends that a minimum of two people install an empty DS2500 in a rack.
To install a DS2500:
1. From the front of the rack, slide the DS2500 onto the rails.
2. Secure the DS2500 to the front of the rack by tightening the four thumbscrews (Figure 19).
2500 Disk System user guide
31
25218a
Figure 19 Enclosure thumbscrews
3. Replace the EMU, I/O modules, and power supply/blower assemblies that you removed to lessen
the weight of the enclosure, reversing the procedures that you used to remove them.
4. Install the disk drives:
1.
Push in the ejector button on the disk drive and pull the release lever down to the full
open position.
2. Insert the drive into the enclosure as far as it will go (Figure 20-1).
3. Close the release lever until the ejector button engages and the disk drive engages in the
backplane (Figure 20-2).
Figure 20 Installing a disk drive
5. Install disk blanks in all bays that do not contain a disk drive.
6. Connect a power cord to each power supply and engage the cord locks.
7. Plug the power cords into separate AC power receptacles.
TIP:
Using separate power receptacles provides no single point of failure (NSPOF).
8. After the disks spin up, check the following for operational status.
a. The disk drives indicators
b. The EMU alphanumeric display for error status (Figure 21-1).
If Er is displayed, resolve the error before continuing.
32
Installation
1
2
3
CXO7373A
1. EMU alphanumeric display
2. Function select
3. Display group select
Figure 21 EMU alphanumeric display and controls
c.
Verify the state of the following status indicators (Figure 22).
• Both power supply status indicators are on.
• The EMU heartbeat is flashing.
• The EMU enclosure power LED is on.
• Both I/O module power status indicators are on.
• All four I/O module port status indicators are off.
25204a
Figure 22 Enclosure operational status indicators
Connecting the cables
Figure 23 shows a FC-AL configuration with the maximum allowed DS2500s.
To connect fibre optic cables on a direct connect model:
1. Remove the dust covers from the I/O module ports.
2. Insert an SFP in each I/O port.
3. Attach one end of an FC cable to I/O module A—port 2 SFP, and the other end of the cable to
either:
• The SFP in port 1 of I/O module A on the preceding enclosure if you are adding the DS2500 to
an existing storage system, or
• The HBA if the DS2500 is the first or only enclosure.
2500 Disk System user guide
33
4. Attach one end of an FC cable to the SFP in port 1 on I/O module A and the other end of the
cable to either:
• The SFP in port 2 on I/O module A on the next enclosure, if one exists, or
• The HBA if you are installing the last DS2500 in the loop
5. Coil the excess cable and secure the coiled cable behind the rail with cable ties.
CAUTION:
Avoid coiling the FC cable tighter then the acceptable bend radius of 1.375 inches.
6. Connect the FC cables on the B loop by repeating Step 3 through Step 5.
7. Verify the FC connections by observing that the port status indicators are on and steady.
8. Verify that the EMU heartbeat indicator is flashing.
9. Verify that the disk drives are online by observing their online LEDs.
3
1
10
4
2
25176a
1. Loop B—Connects to HBA
3. Loop A—Connects to HBA
2. Loop B—Connects to HBA
4. Loop A—Connects to HBA
Figure 23 FC-AL loops
Setting the enclosure ID (En)
You must assign a unique enclosure ID and corresponding loop ID to each DS2500 in a loop. See Table
3 for acceptable enclosure IDs and the corresponding loop IDs.
NOTE:
All enclosures must have a hard address in order to function properly with HP-UX software.
34
Installation
Table 3 Enclosure ID and corresponding loop IDs
Enclosure ID
Loop ID
1
62
2
54
3
46
4
38
5
2A
6
1C
15
0E
16
00
17
70
To change the enclosure ID:
1. Press and hold the top push button until the alphanumeric display blinks.
2. Tap the top push button until the desired enclosure ID is displayed.
3. Press and hold the lower push button until the alphanumeric display is En.
The updated enclosure ID appears in the alphanumeric display upon completion of the enable
procedure.
4. Set the loop ID to correspond with the updated enclosure ID (see Setting the enclosure loop ID (Li)).
Setting the enclosure loop ID (Li)
Set the loop ID to correspond with the enclosure ID. See Table 3 for the enclosure ID and loop ID pairs.
To set the loop ID:
1. Tap the bottom push button until the alphanumeric display is Li.
2. Tap the top push button.
The loop ID appears in the alphanumeric display.
3. If the loop ID is set to the correct value (based on the enclosure ID), skip to Step 6, otherwise
continue with Step 4.
4. Press and hold the top push button until the alphanumeric display blinks.
5. Tap the top push button until the loop ID that corresponds with the enclosure ID is displayed (see
Table 3).
TIP:
You can press and hold the top push button to scan through the numbers quickly. Release
the push button as the desired loop ID approaches, and tap the push button until the
correct loop ID appears.
6. To exit the loop ID display, tap the bottom push button.
The display returns to Li.
7. Tap the bottom push button until the alphanumeric display is En.
8. Tap the top push button.
The enclosure ID appears in the alphanumeric display.
2500 Disk System user guide
35
9. Disengage the power cord locks and remove both AC power cords from the power supplies for
approximately 15 seconds.
10. Reattach the AC power cords to the power supplies and engage the power cord locks.
11. Verify that the server recognizes the DS2500 enclosure with the updated settings.
Disk drive loop ID
The EMU assigns a loop ID to each disk drive based on the enclosure ID and bay in which the disk is
installed. HP-UX stores the loop ID and WWN of each disk, and uses them to authenticate the disk.
Verifying the installation
Use IOSCAN to verify that the S/W state of the disks is CLAIMED.
Adding drives to an existing DS2500
You can add disk drives to an existing DS2500 without interrupting enclosure operation.
CAUTION:
Parts can be damaged by electrostatic discharge. Use proper antistatic protection as described in the
documentation that shipped with your system.
2
1
25205a
Figure 24 Drive blank
To remove a drive blank:
1. Grasp the drive blank by the two tabs (Figure 24).
2. Lift the bottom tab and pull the blank out of the enclosure.
CAUTION:
To ensure proper airflow, remove only one drive blank at a time from an operating
enclosure.
To install a disk drive:
1.
36
Push the ejector button on the disk drive and pull the release lever down to the full open position.
Installation
2. Align the drive in an enclosure bay, and slide the drive into the enclosure as far as it will
go (Figure 25-1).
3. Close the release lever until the ejector button engages, and the disk drive seats in the
backplane (Figure 25-2).
4. Verify the drive status online indicator is on.
Figure 25 Installing a disk drive
Installing multiple disk drives
HP recommends that you install a maximum of four disk drives at one time. If you need to install more
than four drives in an operational system, complete the procedure for each of the four disks (one at a
time), and then repeat it for another set of four until all drives have been added.
CAUTION:
To ensure proper airflow, remove only one drive blank at a time from an operating enclosure.
NOTE:
This procedure applies to the physical installation of disks into DS2500 bays.
1. Insert up to four disk drives into their respective DS2500 bays as described in "Adding drives to
an existing DS2500" on page 36.
2. Wait until the ready indicator (the downward arrow) on each drive you inserted has remained
solid green for at least 10 seconds.
a. If after 70 seconds any of the disk drives you inserted has not lit its ready indicator solid
green, remove the drive and check for a damaged connector on the disk drive and the
DS2500 bay.
b. If no damage is found, reseat the drive and wait for the ready light again.
c. If the drive continues to fail after two reseats, it may be defective. Try another drive.
3. When all of the drives you inserted in Step 1 have displayed a solid green ready indicator for at
least 10 seconds, you can repeat this procedure with another set of up to four drives.
4. When all drives have been inserted, verify the addition of the new drives (see "Verifying the
installation" on page 36).
2500 Disk System user guide
37
38
Installation
4 Using the EMU
This chapter contains the following topics:
• Alphanumeric display, page 39
• Display groups, page 39
Alphanumeric display
The EMU stores information about the status of the DS2500. You can use the EMU alphanumeric display
to view the status information. The push buttons below the display provide a way to select which
data is displayed and to enter data.
The alphanumeric display shows multiple levels of information. The top level shows a display group
(see Table 4). Each display group has supporting data in sublevels.
• The bottom push button allows you to sequentially view and select the display groups.
• The top push button allows you to sequentially view the levels within a display group.
The push buttons double as status indicators:
• The top push button lights when an error condition exists.
• For a single error, the push button stays lit until the error condition report is viewed.
• For multiple errors, the push button remains lit until the last error condition report is viewed.
• The bottom push button lights when the audible alarm is muted or disabled.
Display groups
By default, the enclosure ID (En) appears in the alphanumeric display. When you press and release the
bottom push button, the display cycles among the display groups listed in Table 4.
A flashing alphanumeric display indicates that you can edit the contents of a display group.
Table 4 EMU display groups
Description
Display group
Display
Encoding
En
Used to encode or assign the enclosure ID.
Loop ID
Li
Identifies the enclosure loop ID.
Reporting Group
rG
Not used in a JBOD environment.
Audible alarm
Au
Allows you to control the audible alarm or horn. The sublevel
displays are audible alarm enabled (On) or audible alarm
disabled (OF).
Firmware revision
Fr
Displays the EMU firmware version.
Error condition
Er
Indicates an error condition.
Encoding the enclosure ID (En)
All enclosures must have a hard address to function properly with HP-UX operating software. You must
assign a unique enclosure ID and corresponding loop ID to each DS2500. There are nine allowable
enclosure ID/loop ID pairs. See Table 5 for enclosure IDs and the corresponding loop ID numbers.
2500 Disk System user guide
39
Table 5 Enclosure ID and corresponding loop IDs
Enclosure ID
Loop ID
1
62
2
54
3
46
4
38
5
2A
6
1C
15
0E
16
00
17
70
By default, the enclosure ID appears in the EMU alphanumeric display.
To display the En when the EMU is in another display mode:
1. Tap the bottom push button until the alphanumeric display changes to En.
2. Tap the top push button.
The enclosure ID appears in the alphanumeric display.
1. Press and hold the top push button until the alphanumeric display blinks.
2. Tap the top push button until the desired enclosure ID is displayed.
3. Press and hold the lower push button until the alphanumeric display is En.
The updated enclosure ID appears in the alphanumeric display upon completion of the enable
procedure.
4. Set the loop ID to correspond with the updated enclosure ID (see Loop ID (Li)).
Loop ID (Li)
The loop ID is a hexadecimal number that you must set to correspond with the enclosure ID. See Table 5
for the enclosure ID and loop ID pairs.
To set the loop ID:
1. Tap the bottom push button until the alphanumeric display is Li.
2. Tap the top push button.
The loop ID appears in the alphanumeric display.
3. If the loop ID is set to the correct value (based on the enclosure ID), skip to Step 6, otherwise
continue with Step 4.
4. Press and hold the top button until the alphanumeric display blinks.
5. Tap the top push button until the loop ID that corresponds with the enclosure ID is displayed (see
Table 5).
TIP:
You can press and hold the top push button to scan through the numbers quickly. Release
the push button as the desired loop ID approaches, and then tap the push button until the
correct loop ID appears.
6. To exit the loop ID display, press and release the bottom push button. The display returns to Li.
40
Using the EMU
7. Press the bottom push button until alphanumeric display is En.
8. Tap the top push button.
The enclosure ID appears in the alphanumeric display.
9. Remove both AC power cords from the enclosure for approximately 15 seconds.
10. Reattach the AC power cords.
11. Verify that the server recognizes the DS2500 enclosure with the updated settings.
Audible alarm (Au)
When an error condition exists, the alarm sounds until one of the following events occurs.
• The error is corrected.
• You mute the alarm (if a new error occurs, the alarm sounds).
Using the mute feature keeps you informed of new errors as they occur.
• You disable the alarm.
The disable feature prevents any error conditions from sounding the alarm; however, the EMU
alphanumeric display continues to display Er.
When the alarm is enabled (On), the bottom push button status indicator is off. You can use the push
buttons to mute, enable, or disable the audible alarm.
NOTE:
Er is displayed in the alphanumeric display when an error condition is present, regardless of the
audible alarm status.
Enabling the audible alarm
To enable or disable the audible alarm:
1. Tap the bottom push button until Au appears in the alphanumeric display.
2. Press and hold the top push button until the alphanumeric display flashes.
3. Tap the top push button until the display shows the state that you want the audible alarm to be in:
On (audible alarm on), or OF (audible alarm off).
4. Press and release the bottom push button to accept the change.
The display shows Au. The bottom push button indicator is off when the audible alarm is enabled,
and on when the alarm is disabled.
Muting the audible alarm
You can mute the alarm if one of the following conditions is present:
• The error does not require immediate corrective action.
• You cannot correct the error at this time.
To mute the audible alarm:
1. Press and hold the bottom push button until the status indicator is on.
A muted alarm remains off until a new error condition occurs.
2. To enable a muted alarm, press and hold the bottom push button until the status indicator is off.
When a new error condition occurs, the alarm sounds.
2500 Disk System user guide
41
Firmware revision (Fr)
You can use the firmware revision (Fr) display group to determine the version of EMU firmware.
To view the EMU firmware revision:
1. Tap the bottom push button until the alphanumeric display shows Fr.
2. Tap the top push button to cycle through four pairs of digits that indicate the firmware revision.
• The first pair of digits is the major version number, displayed with both decimal points off
(for example 01).
• The second pair of digits is the minor version number, displayed with the left decimal point off
and the right decimal point on (for example 01.).
• The third pair of digits is the first half of the build number, displayed with the left decimal point
on and the right decimal point off (for example 0.1).
• The fourth pair of digits is the second half of the build number, displayed with both decimal
points on (for example 0.1.).
For example, EMU firmware revision 2.2.68 is displayed as:
02 02. 0.0 6.8.
The display cycle is repeated if the top push button is tapped again.
3. To exit the firmware revision display, press and release the bottom push button.
The display returns to Fr.
Error condition report (Er)
You can use the error condition report (Er) display group to determine the source of an error. When
an error occurs, the EMU generates an error condition report. You can use the push buttons view the
six-digit error condition report:
• The first two digits identify the component or element type (et) that is the source of the error,
displayed with both decimal points on (for example, 0.1.).
Table 6 lists the et codes.
• The next two digits identify the specific component or element number (en) that produced the
condition, displayed with the left decimal point off and the right decimal point on (for example,
01.).
• The last two digits is an error code (ec), displayed with both decimal points off (for example, 01).
For example, a left blower failure appears as:
0.3. 01. 03
The display cycle is repeated if the top push button is pressed. You can tell which pair of digits are
displayed by the decimal points.
42
Using the EMU
Table 6 Element types
Et Code
Component
0.1.
Disk drive
0.2.
Power supply
0.3.
Blower
0.4.
Temperature sensor
0.6
Audible alarm1
0.7.
EMU
0.F.
Transceivers
1.0.
Language1
1.1.
Communication port1
1.2.
Voltage sensor
1.3
Current sensor
8.0
DS2500 enclosure1
8.2.
DS2500 backplane
8.7.
I/O module
1Does not generate a condition report. However, for any error, you should record the error code and implement the
recommended corrective action.
Viewing an error condition report
IMPORTANT:
Always write down the error condition report contents, including the decimal points. You can tell which
digits are displayed by the position of the decimal points.
To view the error condition report:
1. Tap the bottom push button until Er appears in the alphanumeric display, if necessary.
2. Press and hold the top push button until the display changes to the first two digits of the error
condition report. (For example, 0.3.)
3. Tap the top push button to display the next two digits of the error condition report. (For example, 01.)
4. Tap the top push button again to display the last two digits of the error condition report. (For
example, 03)
If you tap the top push button again, the current error condition will cycle through the alphanumeric
display.
5. If the top push button orange LED is lit after viewing the error condition report, another error code is
active in the queue. Repeat Step 2 through Step 4 to view the error condition report.
6. Tap the bottom push button to return to the Er display.
See Appendix C for a description of the EMU-generated error condition reports and corrective actions.
2500 Disk System user guide
43
44
Using the EMU
5 Troubleshooting
This chapter provides information to help you troubleshoot DS2500 error conditions. Topics include:
•
•
•
•
Event monitor tools, page 45
EMU error condition report, page 48
Status indicators, page 48
Catastrophic errors, page 52
Event monitor tools
The EMS Disk Monitor (disk_em) and the HP High Availability Storage System Monitor (ds_ses_enclosure)
monitor the disks in the DS2500. For information about these monitoring tools, see HP EMS Hardware
Monitors User’s Guide at the following web site:
http://www.docs.hp.com/en/diag.html
The monitoring tools report changes in disk status by sending an e-mail to the root account. These
messages provide early notification of a disk problem. Events reported include media errors, failed read
and write attempts, invalid commands, changed operating parameters, and failed diagnostics. Event are
assigned to one of the following severity levels:
• Critical—An event that causes data loss, host system downtime, or other loss of service. Continued
use the enclosure will negatively impact host system operation. Immediate action is required.
• Serious—An event that can cause data loss, host system downtime, or other loss of service if left
uncorrected. Host system and hardware operation may be adversely affected. The problem needs
repair as soon as possible.
• Warning—An event that could escalate to a serious condition if not corrected. Host system operation
should not be affected and normal use of the enclosure can continue. Repair is needed but at a
convenient time.
• Information—An event that is expected as part of the normal operation of the hardware. No action
is required.
Example 1 shows an example of a hardware event notification. The notification provides the following
types of information:
• Message data—Date and time the message was sent, the source and destination of the message,
and the severity level of the event.
• Event data—Date and time of the event, the host, event ID, name of the monitor, event number, event
class, severity level, hardware path,and associated OS error log entry ID.
• Description of Error—Narrative information indicating the component that experienced the event
and the nature of the event.
• Probable Cause / Recommended Action—The cause of the event and suggested steps toward a
solution. This information should be the first step in troubleshooting.
2500 Disk System user guide
45
Example 1. Hardware event notification
>------------ Event Monitoring Service Event Notification ------------<
Notification Time: Thu Aug 17 17:36:29 2006
rxtest1 sent Event Monitor notification information:
/storage/events/enclosures/gazemon/0_3_1_0.8.0.255.5.4.0
is >= 1.
Its current value is INFORMATION(1).
Event data from monitor:
Event Time..........: Thu Aug 17 17:36:29 2006
Severity............: INFORMATION
Monitor.............: gazemon
Event #.............: 112
System..............: rxtest1.india.hp.com
Summary:
Enclosure at hardware path 0/3/1/0.8.0.255.5.4.0 : Hot Plugs Removed /
Inserted
Description of Error:
Disk Drive
2 is missing.
Probable Cause / Recommended Action:
Install Number Disk drive or blank.
Additional Event Data:
System IP Address...: 15.70.197.15
Event Id............: 0x44e45bc500000000
Monitor Version.....: B.01.00
Event Class.........: I/O
46
Troubleshooting
Client Configuration File...........:
/var/stm/config/tools/monitor/default_gazemon.clcfg
Client Configuration File Version...: A.01.01
Qualification criteria met.
Number of events..: 1
Associated OS error log entry id(s):
None
Additional System Data:
System Model Number.............: ia64 hp server rx2600
EMS Version.....................: A.04.20
STM Version.....................: C.53.00
Latest information on this event:
http://docs.hp.com/hpux/content/hardware/ems/gazemon.htm#112
v-v-v-v-v-v-v-v-v-v-v-v-v
D
E
T
A
I
L
S
v-v-v-v-v-v-v-v-v-v-v-v-v
Component Data:
Firmware Version.......: 3BE6
Serial Number..........: 3ET0WYKT00007316EQTE
Inquiry Product ID.....: BF03654564
Inquiry Vendor ID......: COMPAQ
Product/Device Identification Information:
Logger ID.........: sdisk
Product Identifier: JBOD
Product Qualifier.: M5214 ENCLOSURE
SCSI Target ID....: 0x04
SCSI LUN..........: 0x00
>---------- End Event Monitoring Service Event Notification ----------<
2500 Disk System user guide
47
EMU error condition report
The EMU constantly monitors enclosure operation and notifies the user of conditions that could affect
operation. When an error condition is detected, the EMU:
•
•
•
•
•
Displays Er in the alphanumeric display
Generates an audible alarm (if enabled)
Updates the visual indicators
Generates a condition report
Reports the condition to the HP-UX application software
Severity levels
DS2500 error conditions are grouped into one of four severity types:
• Unrecoverable—This category is the most severe condition. It occurs when one or more enclosure
components have failed and some enclosure functions are disabled.
HP recommends implementing corrective action immediately for an unrecoverable condition.
• Critical—Occurs when one or more enclosure components have failed or are operating outside
of their specification, and normal operation of at least one component is impossible.
HP recommends prompt corrective action to prevent system degradation.
• Noncritical—Occurs when one or more enclosure components have failed or are operating
outside of their specifications, but normal operation of the enclosure is possible. Additional
errors, however, could affect the ability of the devices to operate correctly.
• Information—Advises you that a condition exists that could become an error and require
corrective action. In effect, an information condition provides an early warning, which enables
you to prepare to implement corrective action before a component fails.
Error condition reports
NOTE:
An error always generates a condition report. However, condition reports may also be generated
for circumstances other than errors.
The EMU stores each condition report in an error queue for at least 15 seconds after the error is reported.
This ensures that all errors are displayed in the event of multiple or recurring errors. The complete report
is stored in the error queue. When you correct the error, the condition report is removed from the queue.
You can the use the EMU push buttons to display the condition report in the alphanumeric display.
IMPORTANT:
Always record the 6-digit error code, and call your HP service representative for a plan of action.
See "Error condition report (Er)" on page 42 for information about viewing the error condition reports.
To decode the error condition report, see Appendix C.
Correcting the error removes the condition report from the error queue. An information error doesn't
require repair, and is removed from the queue after a fixed period of time.
Status indicators
LEDs indicating DS2500 status are located on the front and rear of each enclosure.
48
Troubleshooting
Enclosure status icons are located on the front, lower right of the enclosure. These same icons can be
seen from the rear of the enclosure on the top of the EMU.
• Table 7 shows the enclosure icons.
• Table 8 describes the status of these icons and recommended action for each.
Table 7 Enclosure status icon displays
Icon
On
Off
Flashing
EMU heartbeat icon (green LED)
Enclosure power icon (green LED)
Enclosure fault icon (orange LED)
Table 8 EMU status indicators
EMU heartbeat
(green)
Power (green)
Fault (amber)
Status and recommended actions
Flashing
Flashing
Flashing
The EMU locate function is active.
Flashing
On
Off
The EMU is operational, the enclosure
power is correct, and there are no
enclosure faults.
Flashing
On
On
The EMU is operational, but there is an
enclosure fault.
Check the alphanumeric display error code
for information about the problem.
Flashing
Off
Off
The EMU is operational. (This display may
appear when power is initially applied to
the enclosure.)
On
On
Off
There is an EMU fault, and the enclosure is
operational.
Off
On
Off
There is an EMU fault, and the enclosure is
operational.
Off
Off
Off
There is an enclosure fault, most likely, a
power problem.
2500 Disk System user guide
49
LEDs on the rear of the enclosure indicate the status of the EMU, I/O modules, and power supply/blower
assemblies. Operational states of the LEDs are shown in Figure 26.
CXO7959A
Figure 26 LEDs in the operational state
Audible error indicators
If enabled, the audible alarm sounds when the EMU detects an error. The sound pattern identifies the
error severity. Table 9 shows the duration of the different alarms. See "Audible alarm" on page 41
for instructions to control the alarm.
Table 9 Audible alarm sound patterns
Error severity
Cycle 1
Cycle 2
Unrecoverable
Critical
Noncritical
Information
Legend
Alarm on
Alarm off
Visual error indicators
I/O module and transceivers
LEDs on the I/O module report the status of transceiver signals and I/O module power. Use Figure 27
and Table 10 to interpret the I/O module errors and determine what action to take.
50
Troubleshooting
1
2
3
CXO7488A
1. Port 2 status
2. Power status
3. Port 1 status
Figure 27 I/O module status LEDs
Table 10 I/O module status LEDs
Port 2
status
Power
Port 1
status
Problem description and recommended action
On
On
On
Normal operational status
On
On
Off
No signal is detected on port 1.
Check the transceiver and fiber cable connections.
Off
On
On
No signal is detected on port 2.
Check transceiver and fiber cable connections.
Flashing
On
On
Port 2 is being located.
On
On
Flashing
Port 1 is being located.
Off
Off
Off
No I/O module power.
The I/O module is not operational. Check power supplies. If
power supplies are operational, replace I/O module.
Disk drives
Three status indicators show the drive operational status. Use Figure 28 and Table 11 to interpret
disk errors and determine what action to take.
2500 Disk System user guide
51
1. Ready
2. Online
3. Fault
Figure 28 Disk drive status indicators
Table 11 Disk drive status indications
Ready
Online
Fault
Description
On
On
Off
Normal operational status.
Drive is idle.
Flashing
On
Off
Normal operational status.
Drive is being accessed.
On
On
On
Displays on the first disk in the enclosure to indicate
the disk drive is not connected to either I/O module.
Verify the FC cable connections to an HBA.
On
Off
Flashing
Indicates disk drive error/not active.
Verify FC loop continuity.
Catastrophic errors
The design of the DS2500 allows it to continue operating in the presence of faulty hardware. However,
a critically-high temperature in the enclosure can cause hardware failure and compromise data integrity.
To prevent catastrophic data loss and further damage to components, the following conditions cause the
DS2500 to shut down:
• A power supply removed from the enclosure
• No operational blowers
• An unacceptable temperature level in the enclosure
If any of these conditions exists, the EMU starts a timer to shut down the enclosure in 7 minutes. If the
condition is corrected before the 7 minute countdown is completed, the EMU aborts the shutdown
and normal operation resumes.
52
Troubleshooting
EMU temperature warning and shutdown operation
The EMU uses multiple temperature sensors to monitor enclosure conditions. A sensor is located in:
• Each power supply
• Each disk drive
• The EMU
An algorithm involving data from multiple sensors determines the temperature in the enclosure. The
following occurs when an unacceptable temperature condition exists:
• As the temperature approches a critical temperature condition, a noncritical alarm sounds to provide
time for corrective action before shutdown occurs.
• If the temperature reaches a critical level, the EMU activates the alarm and starts a timer which
shuts down the enclosure in 7 minutes.
2500 Disk System user guide
53
54
Troubleshooting
6 Customer self repair
This chapter describes the procedures for replacing customer replaceable units (CRUs).
Customer self repair
The DS2500 is designed with three Customer Self Repair (CSR) parts to minimize repair time and allow
for greater flexibility in replacing defective parts. If during the diagnosis period an HP-authorized service
representative or support specialist determines that the repair requires a CSR part, HP will ship that part
directly to you for replacement. There are two categories of CSR parts:
• Mandatory—Parts for which CSR is mandatory. If you request that HP replace these parts, you
will be charged for the travel and labor costs of this service.
• Optional—Parts for which CSR is optional. These parts are designed for customer self repair. If,
however, you require that HP replace them for you, there may be additional charges, depending
on the type of warranty service designated for your product.
The DS2500 parts identified for optional CSR are:
• Disk drives
• Blowers
• Power supplies
There are no mandatory CSR parts in the disk enclosure.
NOTE:
Some HP parts are not designed for CSR. In order to satisfy the customer warranty, HP requires that an
HP-authorized service provider replace the part.
A support specialist will work with you to diagnose and assess whether a replacement component
is required to address a system problem. The specialist will also help you determine whether you
can perform the replacement yourself.
Based on availability and where geography permits, standard HP CSR part delivery is next business
day. Ask your support specialist if same business day delivery options are available in your area.
Replacement instructions are included in this chapter, in spare kits, and at http://www.hp.com. If
further assistance is required, you can call the HP Technical Support Center and a support specialist
will help you over the phone.
For more information about HP's Customer Self Repair program, contact your local service provider. For
the North American program, see the HP web site http://www.hp.com/go/selfrepair.
CSR is available for most HP products currently under warranty. For more information on warranty
service see http://h18006.www1.hp.com/products/storageworks/warranty.html.
Parts-only warranty service
Your HP Limited Warranty may include a parts-only warranty service. Under the terms of parts-only
warranty service, HP will provide replacement parts free of charge. For parts-only warranty service,
CSR part replacement is mandatory.
2500 Disk System user guide
55
Best practices for replacing hardware components
The following information will help you replace the hardware components on your DS2500 successfully.
Follow these tips any time you replace a component.
CAUTION:
Removing a component significantly changes the air flow within the enclosure. All components must be
installed for the enclosure to cool properly. If a component fails, leave it installed until a replacement is
available.
Components can be damaged by electrostatic discharge (ESD). Use proper antistatic protection as
follows:
• Always transport and store CRUs in an ESD protective enclosure.
• Do not remove the CRU from the ESD protective enclosure until you are ready to install it.
• Always use ESD precautions, such as a wrist strap, heel straps on conductive flooring, and an
ESD protective smock when handling ESD sensitive equipment.
• Avoid touching the CRU connector pins, leads, or circuitry.
• Do not place ESD generating material such as paper or non-antistatic (pink) plastic in an ESD
protective enclosure with ESD sensitive equipment.
• Wait until periods of low storage system activity to replace a component.
When replacing components at the rear of the rack, cabling may obstruct access to the component.
Carefully move any cables out of the way to avoid loosening any connections. In particular, avoid
cable damage that may be caused by:
• Kinking or bending tighter than a 1.375-inch bend radius.
• Placing removed cables on the floor or other surfaces, where they may be walked on or
otherwise compressed.
• Disconnecting cables without installing a dust cap. If a cable is uncapped, its performance may
be impaired by contact with dust, metal or other surfaces.
CAUTION:
Fiber optic cables do not transmit data consistently when compromised by dust and debris. To protect
the connectors, always install the dust covers whenever a transceiver or a fiber cable is disconnected.
When connecting a transceiver or fiber cable, remove, but do not discard the dust covers or dust caps.
Verifying component failure
Confer with HP technical support to verify that the hardware component has failed and that you are
authorized to replace it yourself.
Multiple hardware failures can complicate component replacement. Check the System Event Analyzer to
detect any additional hardware problems.
Procuring the spare part
Parts have a nine-character spare component number on their label (Figure 29-1). The first six characters
(123479) identify the component; the last three characters (002 in this example) define the revision level.
The replacement component revision level must be the same as, or greater than, the number on the
component being replaced. The higher the revision level, the later the revision.
56
Customer self repair
1
8053A-ST
Figure 29 Typical product label
Returning the defective part
In the materials shipped with a replacement SCR part, HP specifies whether or not the defective
component must be returned to HP. Where required, you must ship the defective component back to HP
within a defined period of time, normally five business days. The defective component must be returned
with the associated documentation provided in the shipping material. Failure to return the defective
component may result in HP billing you for the replacement. HP pays all shipping and return costs for
CSR components, and determines the courier/carrier used.
Replacing a power supply/blower assembly
The power supply and blower are separately replaceable components. It is not necessary to remove the
power supply to replace a failed blower.
Before you begin
Always use proper antistatic protection as described in the documentation that shipped with your system.
You do not need to power off the enclosure to replace a power supply.
Be aware that the power supply may be hot to the touch.
Verify that the status LED is out on the power supply/blower assembly that you are replacing.
CAUTION:
You have only 7 minutes to complete the power supply replacement! Both power supplies must be
installed for the enclosure to cool properly. When a power supply is removed, the enclosure can
overheat and shutdown in approximately 7 minutes. If a power supply fails, leave it installed until
a replacement is available.
Removing a power supply
To remove a power supply:
1.
Disengage the power cord lock (Figure 30-1), and then disconnect the AC power cord from the
power supply.
TIP:
When removing the left power supply, ensure that the cord lock on the right power supply is
engaged to avoid inadvertently disconnecting the right power supply. Also, take care to avoid
disrupting the cables on the I/O module to the left of the power supply.
2. Lift up on the mounting latch (Figure 30-2), grasp the blower (Figure 30-3) and pull the power
supply out of the enclosure.
2500 Disk System user guide
57
Figure 30 Removing a power supply
Replacing a power supply
To replace a power supply:
1. Align the power supply with the enclosure opening.
2. Lift the module latch (Figure 31-1) and slide the power supply into the enclosure until it is
fully seated.
3. Remove the blower from the defective power supply and install it on the replacement power
supply (see "Removing a blower" on page 58).
4. Connect the power cord to the power supply and engage the power cord lock.
5. Verify that the blower starts and the power supply/blower assembly LED is on.
Figure 31 Replacing a power supply
Removing a blower
You can replace the blower without removing the power supply.
58
Customer self repair
WARNING!
The blower motor does not stop immediately when the blower power is removed. Keep your fingers
away from the blower blades until the motor stops.
To remove a blower:
While pushing in on the two mounting tabs (Figure 32-1), pull the blower (Figure 32-2) away from
the power supply.
1. Mounting tabs (2)
2. Blower
Figure 32 Removing a blower
Replacing a blower
CAUTION:
Pressing on the center section of the blower can damage the blades or the housing. Only press on
the outer edge of the blower.
To replace a blower:
1.
Align the blower guide post (Figure 33-2) with the mounting hole next to the power supply
connector (Figure 33-1).
2. Slide the blower onto the blower base (Figure 33-4) until the mounting tabs (Figure 33-3)
snap into place.
3. Verify that the blower starts and the power supply/blower assembly LED is on.
2500 Disk System user guide
59
1. Mounting hole
3. Mounting tabs (4)
2. Guide post
4. Blower base
Figure 33 Replacing a blower
Replacing a disk drive
Before you begin
Always use proper antistatic protection as described in the documentation that shipped with your system.
Do not remove more than one disk drive or drive blank from an operating DS2500. Doing so impacts
air flow of the enclosure, and may cause data loss.
HP recommends installing a disk of equal or greater capacity, or a drive blank, as soon as possible.
Prevent possible data loss by verifying that the disk to be removed is in a failed state.
IMPORTANT:
When the system boots, HP-UX retrieves the loop ID and WWN of each disk and stores the information
for disk authentication. When you replace a disk drive, the authentication fails because the WWN has
changed. You must use fcmsutil to instruct the FC driver to ignore the authentication.
Removing a disk drive
Record the loop ID of the disk drive to be replaced. Use Table 12 to determine the loop ID based on the
enclosure ID and the bay in which the disk drive resides.
60
Customer self repair
Table 12 Disk drive loop IDs
Enclosure
ID
Bay
1
Bay
2
Bay
3
Bay
4
Bay
5
Bay
6
Bay
7
Bay
8
Bay
9
Bay
10
Bay
11
Bay
12
Bay
13
Bay
14
1
36
35
34
33
32
31
2E
2D
2C
2B
2A
29
27
26
2
51
4E
4D
4C
4B
4A
49
47
46
45
43
3C
3A
39
3
6A
69
67
66
65
63
5C
51
59
56
55
54
53
52
4
80
7C
7A
79
76
75
74
73
72
71
6E
6D
6C
6B
5
A5
A3
9F
9E
9D
9B
98
97
90
8F
88
84
82
81
6
B6
B5
B4
B3
B2
B1
AE
AD
AC
AB
AA
A9
A7
A6
15
D1
CE
CD
CC
CB
CA
C9
C7
C6
C5
C3
BC
BA
B9
16
EF
E8
E4
E2
E1
E9
DC
DA
D9
D6
D5
D4
D3
D2
17
25
23
1F
1E
1D
1B
18
17
10
0F
08
04
02
01
Use ioscan –fn to determine the device file (HBA number).
Example 2. ioscan –fn command
ioscan -fn
Class
I H/W Path Driver S/W State
H/W Type
Description
=================================================================
fc
0 0/6/0/0
td
CLAIMED
INTERFACE
HP Tachyon XL2 Fibre Channel Mass
Storage Adapter
/dev/td0
fc
1 0/6/2/0
fcd CLAIMED
INTERFACE
HP A6826-60001 2Gb Dual Port PCI/PCI-X
Fibre Channel Adapter (FC Port 1)
/dev/fcd1
fc
2 0/6/2/1
fcd CLAIMED
INTERFACE
HP A6826-60001 2Gb Dual Port PCI/PCI-X
Fibre Channel Adapter (FC Port 2)
/dev/fcd2
=========================================================================
Enter the following command to allow HP-UX to ignore the disk authentication for the replacement disk.
fcmsutil /dev/device_file replace_dsk –l disk_loop_ID
For example, if you are replacing the disk drive installed in bay 5 in an enclosure with an ID 2
attached to HBA td1, enter:
fcmsutil /dev/td1 replace_dsk -l 4B
IMPORTANT:
You must run the fcmsutil replace_dsk command on all HBAs that can access the disk drive.
CAUTION:
Spinning media can make the disk drive difficult to handle. To avoid damaging the disk drive, wait
approximately 30 seconds for the media to stop rotating before removing the drive from the enclosure.
To remove a disk drive:
1.
Push the ejector button (Figure 34-1) and pull the release lever (Figure 34-2) down to the full
open position.
2500 Disk System user guide
61
2. Pull the disk drive part way out of the enclosure (Figure 34-3) and wait for the media to stop
spinning.
3. Remove the disk drive from the enclosure (Figure 34-3).
Figure 34 Removing a disk drive
Replacing a disk drive
To replace a disk drive:
1. Push the ejector button on the disk drive, and pull the release lever down to the full open position.
2. Align the drive with the bay, and slide the drive into the enclosure as far as it will go (Figure
35-1).
3. Close the release lever until it engages the ejector button, and the disk drive plugs into the
backplane (Figure 35-2).
4. Press in firmly on the disk drive to ensure that it is seated properly.
5. Verify that the drive activity indicator remains on for at least 10 seconds.
Figure 35 Replacing a disk drive
62
Customer self repair
A Specifications
This appendix defines the physical, environmental, and power specifications of the DS2500 components.
Physical specifications
This section describes the physical specifications of the DS2500.
Table 13 lists the dimensions and weights of the enclosure.
Table 13 DS2500 physical specifications
Empty
With components
installed
Shipping Carton
Carton and pallet
Height
131 mm
(5.16 in)
131 mm
(5.16 in.)
641 mm
(25.25 in.)
768 mm
(30.25 in.)
Width
505 mm
(19.875 in)
505 mm
(19.875 in.)
318 mm
(12.5 in.)
610 mm
(24 in.)
Depth
448 mm
(17.625 in)
448 mm
(17.625 in.)
597 mm
(23.5 in.)
1016 mm
(40 in.)
Weight
10.9 kg
(24 lb)
30.9 kg
(68 lb)
43.6 kg
(96 lb)
49 kg
(108 lb)
NOTE: Metric dimensions are expressed in whole numbers. For example, 10.795 cm is expressed as
108 mm. Millimeter dimensions are always expressed in whole numbers.
WARNING!
An assembled enclosure (all components installed) weighs more than 29.5 kg (65 lb) and requires a
minimum of two individuals to move.
Environmental specifications
To ensure optimum product operation, you must maintain the operational environmental specifications
listed in Table 14. The ambient temperature (the enclosure air intake or room temperature) is especially
critical.
Table 14 Environmental operating specifications
Ambient temperature: +10°C to +35°C (+50°F to +95°F) with an average rate of change of 1°C/hour
maximum, and a step change of 3°C or less.
Maintaining the ambient temperature within the specified range ensures that the internal operating
temperatures support the drive manufacturer’s specifications.
Relative humidity: 40% to 60% (noncondensing) with a step change of 10% or less (noncondensing)
Air quality: Not to exceed a maximum of 500,000 particles, 0.5 micron or larger, per cubic foot of air
Heat dissipation: 1600 BTUs per hour
2500 Disk System user guide
63
When shipping, or placing this product in short term storage, HP recommends maintaining the
environmental conditions listed in Table 15.
Table 15 Environmental shipping or short-term storage specifications
Ambient temperature: -40°C to +66°C (-40°F to +151°F)
Relative humidity: 10% to 80% (noncondensing)
Altitude: 15,240 m (50,000 ft)
Power specifications
The input voltage to the DS2500 power supplies is a function of the country-specific input voltage to
storage system rack power distribution units (PDUs). Table 16 defines the AC input power available to
the DS2500 power supplies.
CAUTION:
The AC power distribution within a rack ensures a balanced load to each PDA and reduces the
possibility of an overload condition. Changing the cabling to or from a PDM could cause an overload
condition.
Table 16 DS2500 AC input line voltages
Minimal
Nominal
Maximum
AC line frequency
57 Hz
60 Hz
63 Hz
AC line voltage—Japan
180 VAC
202 VAC
220 VAC
AC line voltage—North America
180 VAC
208 VAC
220 VAC
AC line voltage—Europe
208 VAC
240 VAC
254 VAC
AC line frequency
47 Hz
50 Hz
53 Hz
AC line voltage—Japan
180 VAC
202 VAC
220 VAC
AC line voltage—North America
190 VAC
220 VAC
235 VAC
AC line voltage—North America
200 VAC
230 VAC
244 VAC
AC Line Voltage—Europe
208 VAC
240 VAC
254 VAC
Specification
60 Hz service
50 Hz service
64
Specifications
Table 17 AC input current and wattage
Input voltage
Maximum
Nominal
Amps
Watts
Amps
Watts
100 VAC—JBOD
4.35
436
6.41
641
208 VAC—North
America
2.03
419
2.94
609
120 VAC—JBOD
3.59
419
5.27
633
220 VAC—North
America
1.92
418
2.78
608
230 VAC—North
America
1.92
418
2.78
608
240 VAC—Europe
1.76
416
2.55
607
60 Hz input
50 Hz Input
Table 18 Output voltage and current specifications
Specification
Range
Minimum
Nominal
Maximum
+5.13 VDC, 1.0 A
+5.18 VDC N/A
+5.23 VDC, 26.0 A
+12.25 VDC N/A
+12.37 VDC, 26.0 A
+12.50 VDC N/A
+12.75 VDC, 2.0 A
+5.1 VDC
Initial voltage, steady state
current
+12.2 VDC (Disk drive voltage)
Initial voltage, steady state
current
+12.13 VDC, 1.0 A
+12.5 VDC (Disk drive voltage)
Initial voltage, steady state
current
+12.25 VDC, 0.0 A
Table 19 Power specifications
Current
Power
+5.1 VDC (with a minimum
+12.2 VDC load of 0A)
26.0 A
132 W
+12.2 VDC (with a minimum +5
VDC load of 4A)
28.0 A
342 W
+12.5 VDC
2.0 A
25 W
Voltage
Maximum continuous current
499 W (Total)
Maximum peak current (simultaneous seek activity)
+5.1 VDC
26.0 A
132 W
+12.2 VDC
43.0 A
524 W
+12.5 VDC
2.0 A
25 W
681 W (Total)
2500 Disk System user guide
65
66
Specifications
B Regulatory notices
Federal Communications Commission (FCC) notice
Part 15 of the Federal Communications Commission (FCC) Rules and Regulations has established Radio
Frequency (RF) emission limits to provide an interference-free radio frequency spectrum. Many electronic
devices, including computers, generate RF energy incidental to their intended function and are, therefore,
covered by these rules. These rules place computers and related peripheral devices into two classes, A
and B, depending upon their intended installation. Class A devices are those that may reasonably be
expected to be installed in a business or commercial environment. Class B devices are those that may
reasonably be expected to be installed in a residential environment (for example, personal computers).
The FCC requires devices in both classes to bear a label indicating the interference potential of the
device as well as additional operating instructions for the user.
The rating label on the device shows the classification (A or B) of the equipment. Class B devices have
an FCC logo or FCC ID on the label. Class A devices do not have an FCC logo or FCC ID on the label.
After the class of the device is determined, refer to the corresponding statement in the following sections.
FCC Class A certification
This equipment generates, uses, and may emit radio frequency energy. The equipment has been type
tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC
rules, which are designed to provide reasonable protection against such radio frequency interference.
Operation of this equipment in a residential area may cause interference, in which case the user
at the user’s own expense will be required to take whatever measures may be required to correct
the interference.
Any modifications to this device—unless approved by the manufacturer—can void the user’s authority to
operate this equipment under Part 15 of the FCC rules.
Class A equipment
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case the user will be required to correct
the interference at personal expense.
Class B equipment
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
2500 Disk System user guide
67
• Connect the equipment into an outlet on a circuit that is different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio or television technician for help.
Declaration of conformity for products marked with the FCC logo, United States
only
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
For questions regarding your product, refer to http://www.hp.com.
For questions regarding this FCC declaration:
• Contact Hewlett-Packard Company Product Regulations Manager 3000 Hanover St. Palo Alto,
CA 94304
• Call 1-650-857-1501
To identify this product, refer to the part, series, or model number found on the product.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that
are not expressly approved by Hewlett-Packard Company may void the user's authority to operate the
equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods
in order to maintain compliance with FCC Rules and Regulations.
Laser devices
All Hewlett-Packard systems equipped with a laser device comply with safety standards, including
International Electrotechnical Commission (IEC) 825. With specific regard to the laser, the equipment
complies with laser product performance standards set by government agencies as a Class 1 laser
product. The product does not emit hazardous light; the beam is totally enclosed during all modes of
customer operation and maintenance.
Laser safety warnings
Heed the following warning:
WARNING!
To reduce the risk of exposure to hazardous radiation:
• Do not try to open the laser device enclosure. There are no user-serviceable components inside.
• Do not operate controls, make adjustments, or perform procedures to the laser device other than
those specified herein.
• Allow only HP-authorized service technicians to repair the laser device.
Compliance with CDRH regulations
The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration
implemented regulations for laser products on August 2, 1976. These regulations apply to laser products
manufactured from August 1, 1976. Compliance is mandatory for products marketed in the United States.
68
Regulatory notices
Certification and classification information
This product contains a laser internal to the Optical Link Module (OLM) for connection to the Fibre
communications port.
In the USA, the OLM is certified as a Class 1 laser product conforming to the requirements contained
in the Department of Health and Human Services (DHHS) regulation 21 CFR, Subchapter J. The
certification is indicated by a label on the plastic OLM housing.
Outside the USA, the OLM is certified as a Class 1 laser product conforming to the requirements
contained in IEC 825-1:1993 and EN 60825-1:1994, including Amendment 11:1996.
The OLM includes the following certifications:
•
•
•
•
UL Recognized Component (USA)
CSA Certified Component (Canada)
TUV Certified Component (European Union)
CB Certificate (Worldwide)
Canadian notice (avis Canadien)
Class A equipment
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Class B equipment
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
European union notice
Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage
Directive (73/23/EEC) issued by the Commission of the European Community.
Compliance with these directives implies conformity to the following European Norms (the equivalent
international standards are in parentheses):
•
•
•
•
•
EN55022 (CISPR 22)—Electromagnetic Interference
EN55024 (IEC61000-4-2, 3, 4, 5, 6, 8, 11)—Electromagnetic Immunity
EN61000-3-2 (IEC61000-3-2)—Power Line Harmonics
EN61000-3-3 (IEC61000-3-3)—Power Line Flicker
EN60950 (IEC950)—Product Safety
Notice for France
DECLARATION D'INSTALLATION ET DE MISE EN EXPLOITATION d'un matériel de traitement de
l'information (ATI), classé A en fonction des niveaux de perturbations radioélectriques émis, définis dans
la norme européenne EN 55022 concernant la Compatibilité Electromagnétique.
2500 Disk System user guide
69
WEEE Recycling Notices
English notice
Disposal of waste equipment by users in private household in the European Union
This symbol on the product or on its packaging indicates that this product must not be disposed of
with your other household waste. Instead, it is your responsibility to dispose of your waste equipment
by handing it over to a designated collection point for recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment at the time of disposal will
help to conserve natural resources and ensure that it is recycled in a manner that protects human health
and the environment. For more information about where you can drop off your waste equipment for
recycling, please contact your local city office, your household waste disposal service, or the shop where
you purchased the product.
Dutch notice
Verwijdering van afgedankte apparatuur door privé-gebruikers in de Europese Unie
Dit symbool op het product of de verpakking geeft aan dat dit product niet mag worden
gedeponeerd bij het normale huishoudelijke afval. U bent zelf verantwoordelijk voor het inleveren
van uw afgedankte apparatuur bij een inzamelingspunt voor het recyclen van oude elektrische en
elektronische apparatuur. Door uw oude apparatuur apart aan te bieden en te recyclen, kunnen
natuurlijke bronnen worden behouden en kan het materiaal worden hergebruikt op een manier
waarmee de volksgezondheid en het milieu worden beschermd. Neem contact op met uw gemeente,
het afvalinzamelingsbedrijf of de winkel waar u het product hebt gekocht voor meer informatie over
inzamelingspunten waar u oude apparatuur kunt aanbieden voor recycling.
Czechoslovakian notice
Likvidace zařízení soukromými domácími uživateli v Evropské unii
Tento symbol na produktu nebo balení označuje výrobek, který nesmí být vyhozen spolu s
ostatním domácím odpadem. Povinností uživatele je předat takto označený odpad na předem určené
sběrné místo pro recyklaci elektrických a elektronických zařízení. Okamžité třídění a recyklace odpadu
pomůže uchovat přírodní prostředí a zajistí takový způsob recyklace, který ochrání zdraví a životní
prostředí člověka. Další informace o možnostech odevzdání odpadu k recyklaci získáte na příslušném
obecním nebo městském úřadě, od firmy zabývající se sběrem a svozem odpadu nebo v obchodě, kde
jste produkt zakoupili.
Estonian notice
Seadmete jäätmete kõrvaldamine eramajapidamistes Euroopa Liidus
See tootel või selle pakendil olev sümbol näitab, et kõnealust toodet ei tohi koos teiste
majapidamisjäätmetega kõrvaldada. Teie kohus on oma seadmete jäätmed kõrvaldada, viies need
elektri- ja elektroonikaseadmete jäätmete ringlussevõtmiseks selleks ettenähtud kogumispunkti. Seadmete
jäätmete eraldi kogumine ja ringlussevõtmine kõrvaldamise ajal aitab kaitsta loodusvarasid ning tagada,
et ringlussevõtmine toimub viisil, mis kaitseb inimeste tervist ning keskkonda. Lisateabe saamiseks
70
Regulatory notices
selle kohta, kuhu oma seadmete jäätmed ringlussevõtmiseks viia, võtke palun ühendust oma kohaliku
linnakantselei, majapidamisjäätmete kõrvaldamise teenistuse või kauplusega, kust Te toote ostsite.
Finnish notice
Laitteiden hävittäminen kotitalouksissa Euroopan unionin alueella
Jos tuotteessa tai sen pakkauksessa on tämä merkki, tuotetta ei saa hävittää kotitalousjätteiden
mukana. Tällöin hävitettävä laite on toimitettava sähkölaitteiden ja elektronisten laitteiden
kierrätyspisteeseen. Hävitettävien laitteiden erillinen käsittely ja kierrätys auttavat säästämään
luonnonvaroja ja varmistamaan, että laite kierrätetään tavalla, joka estää terveyshaitat ja suojelee
luontoa. Lisätietoja paikoista, joihin hävitettävät laitteet voi toimittaa kierrätettäväksi, saa ottamalla
yhteyttä jätehuoltoon tai liikkeeseen, josta tuote on ostettu.
French notice
Élimination des appareils mis au rebut par les ménages dans l'Union européenne
Le symbole apposé sur ce produit ou sur son emballage indique que ce produit ne doit pas
être jeté avec les déchets ménagers ordinaires. Il est de votre responsabilité de mettre au rebut vos
appareils en les déposant dans les centres de collecte publique désignés pour le recyclage des
équipements électriques et électroniques. La collecte et le recyclage de vos appareils mis au rebut
indépendamment du reste des déchets contribue à la préservation des ressources naturelles et garantit
que ces appareils seront recyclés dans le respect de la santé humaine et de l'environnement. Pour
obtenir plus d'informations sur les centres de collecte et de recyclage des appareils mis au rebut, veuillez
contacter les autorités locales de votre région, les services de collecte des ordures ménagères ou le
magasin dans lequel vous avez acheté ce produit.
German notice
Entsorgung von Altgeräten aus privaten Haushalten in der EU
Das Symbol auf dem Produkt oder seiner Verpackung weist darauf hin, dass das Produkt nicht
über den normalen Hausmüll entsorgt werden darf. Benutzer sind verpflichtet, die Altgeräte an
einer Rücknahmestelle für Elektro- und Elektronik-Altgeräte abzugeben. Die getrennte Sammlung
und ordnungsgemäße Entsorgung Ihrer Altgeräte trägt zur Erhaltung der natürlichen Ressourcen
bei und garantiert eine Wiederverwertung, die die Gesundheit des Menschen und die Umwelt
schützt. Informationen dazu, wo Sie Rücknahmestellen für Ihre Altgeräte finden, erhalten Sie bei Ihrer
Stadtverwaltung, den örtlichen Müllentsorgungsbetrieben oder im Geschäft, in dem Sie das Gerät
erworben haben.
Greek notice
Απόρριψη άχρηστου εξοπλισμού από χρήστες σε ιδιωτικά νοικοκυριά στην Ευρωπαϊκή Ένωση
Το σύμβολο αυτό στο προϊόν ή τη συσκευασία του υποδεικνύει ότι το συγκεκριμένο προϊόν δεν
πρέπει να διατίθεται μαζί με τα άλλα οικιακά σας απορρίμματα. Αντίθετα, είναι δική σας ευθύνη να
απορρίψετε τον άχρηστο εξοπλισμό σας παραδίδοντάς τον σε καθορισμένο σημείο συλλογής για την
ανακύκλωση άχρηστου ηλεκτρικού και ηλεκτρονικού εξοπλισμού. Η ξεχωριστή συλλογή και ανακύκλωση
του άχρηστου εξοπλισμού σας κατά την απόρριψη θα συμβάλει στη διατήρηση των φυσικών πόρων
και θα διασφαλίσει ότι η ανακύκλωση γίνεται με τρόπο που προστατεύει την ανθρώπινη υγεία και το
2500 Disk System user guide
71
περιβάλλον. Για περισσότερες πληροφορίες σχετικά με το πού μπορείτε να παραδώσετε τον άχρηστο
εξοπλισμό σας για ανακύκλωση, επικοινωνήστε με το αρμόδιο τοπικό γραφείο, την τοπική υπηρεσία
διάθεσης οικιακών απορριμμάτων ή το κατάστημα όπου αγοράσατε το προϊόν.
Hungarian notice
Készülékek magánháztartásban történő selejtezése az Európai Unió területén
A készüléken, illetve a készülék csomagolásán látható azonos szimbólum annak jelzésére szolgál,
hogy a készülék a selejtezés során az egyéb háztartási hulladéktól eltérő módon kezelendő. A vásárló
a hulladékká vált készüléket köteles a kijelölt gyűjtőhelyre szállítani az elektromos és elektronikai
készülékek újrahasznosítása céljából. A hulladékká vált készülékek selejtezéskori begyűjtése és
újrahasznosítása hozzájárul a természeti erőforrások megőrzéséhez, valamint biztosítja a selejtezett
termékek környezetre és emberi egészségre nézve biztonságos feldolgozását. A begyűjtés pontos
helyéről bővebb tájékoztatást a lakhelye szerint illetékes önkormányzattól, az illetékes szemételtakarító
vállalattól, illetve a terméket elárusító helyen kaphat.
Italian notice
Smaltimento delle apparecchiature da parte di privati nel territorio dell’Unione Europea
Questo simbolo presente sul prodotto o sulla sua confezione indica che il prodotto non può
essere smaltito insieme ai rifiuti domestici. È responsabilità dell'utente smaltire le apparecchiature
consegnandole presso un punto di raccolta designato al riciclo e allo smaltimento di apparecchiature
elettriche ed elettroniche. La raccolta differenziata e il corretto riciclo delle apparecchiature da smaltire
permette di proteggere la salute degli individui e l'ecosistema. Per ulteriori informazioni relative ai
punti di raccolta delle apparecchiature, contattare l'ente locale per lo smaltimento dei rifiuti, oppure il
negozio presso il quale è stato acquistato il prodotto.
Latvian notice
Nolietotu iekārtu iznīcināšanas noteikumi lietotājiem Eiropas Savienības privātajās mājsaimniecībās
Šāds simbols uz izstrādājuma vai uz tā iesaiņojuma norāda, ka šo izstrādājumu nedrīkst izmest
kopā ar citiem sadzīves atkritumiem. Jūs atbildat par to, lai nolietotās iekārtas tiktu nodotas speciāli
iekārtotos punktos, kas paredzēti izmantoto elektrisko un elektronisko iekārtu savākšanai otrreizējai
pārstrādei. Atsevišķa nolietoto iekārtu savākšana un otrreizējā pārstrāde palīdzēs saglabāt dabas
resursus un garantēs, ka šīs iekārtas tiks otrreizēji pārstrādātas tādā veidā, lai pasargātu vidi un cilvēku
veselību. Lai uzzinātu, kur nolietotās iekārtas var izmest otrreizējai pārstrādei, jāvēršas savas dzīves
vietas pašvaldībā, sadzīves atkritumu savākšanas dienestā vai veikalā, kurā izstrādājums tika nopirkts.
Lithuanian notice
Vartotojų iš privačių namų ūkių įrangos atliekų šalinimas Europos Sąjungoje
Šis simbolis ant gaminio arba jo pakuotės rodo, kad šio gaminio šalinti kartu su kitomis namų
ūkio atliekomis negalima. Šalintinas įrangos atliekas privalote pristatyti į specialią surinkimo vietą
elektros ir elektroninės įrangos atliekoms perdirbti. Atskirai surenkamos ir perdirbamos šalintinos įrangos
atliekos padės saugoti gamtinius išteklius ir užtikrinti, kad jos bus perdirbtos tokiu būdu, kuris nekenkia
žmonių sveikatai ir aplinkai. Jeigu norite sužinoti daugiau apie tai, kur galima pristatyti perdirbtinas
72
Regulatory notices
įrangos atliekas, kreipkitės į savo seniūniją, namų ūkio atliekų šalinimo tarnybą arba parduotuvę,
kurioje įsigijote gaminį.
Polish notice
Pozbywanie się zużytego sprzętu przez użytkowników w prywatnych gospodarstwach domowych w
Unii Europejskiej
Ten symbol na produkcie lub jego opakowaniu oznacza, że produktu nie wolno wyrzucać do
zwykłych pojemników na śmieci. Obowiązkiem użytkownika jest przekazanie zużytego sprzętu do
wyznaczonego punktu zbiórki w celu recyklingu odpadów powstałych ze sprzętu elektrycznego i
elektronicznego. Osobna zbiórka oraz recykling zużytego sprzętu pomogą w ochronie zasobów
naturalnych i zapewnią ponowne wprowadzenie go do obiegu w sposób chroniący zdrowie człowieka i
środowisko. Aby uzyskać więcej informacji o tym, gdzie można przekazać zużyty sprzęt do recyklingu,
należy się skontaktować z urzędem miasta, zakładem gospodarki odpadami lub sklepem, w którym
zakupiono produkt.
Portuguese notice
Descarte de Lixo Elétrico na Comunidade Européia
Este símbolo encontrado no produto ou na embalagem indica que o produto não deve ser
descartado no lixo doméstico comum. É responsabilidade do cliente descartar o material usado (lixo
elétrico), encaminhando-o para um ponto de coleta para reciclagem. A coleta e a reciclagem seletivas
desse tipo de lixo ajudarão a conservar as reservas naturais; sendo assim, a reciclagem será feita de
uma forma segura, protegendo o ambiente e a saúde das pessoas. Para obter mais informações sobre
locais que reciclam esse tipo de material, entre em contato com o escritório da HP em sua cidade, com
o serviço de coleta de lixo ou com a loja em que o produto foi adquirido.
Slovakian notice
Likvidácia vyradených zariadení v domácnostiach v Európskej únii
Symbol na výrobku alebo jeho balení označuje, že daný výrobok sa nesmie likvidovať s
domovým odpadom. Povinnosťou spotrebiteľa je odovzdať vyradené zariadenie v zbernom mieste,
ktoré je určené na recykláciu vyradených elektrických a elektronických zariadení. Separovaný zber a
recyklácia vyradených zariadení prispieva k ochrane prírodných zdrojov a zabezpečuje, že recyklácia
sa vykonáva spôsobom chrániacim ľudské zdravie a životné prostredie. Informácie o zberných miestach
na recykláciu vyradených zariadení vám poskytne miestne zastupiteľstvo, spoločnosť zabezpečujúca
odvoz domového odpadu alebo obchod, v ktorom ste si výrobok zakúpili.
Slovenian notice
Odstranjevanje odslužene opreme uporabnikov v zasebnih gospodinjstvih v Evropski uniji
Ta znak na izdelku ali njegovi embalaži pomeni, da izdelka ne smete odvreči med gospodinjske
odpadke. Nasprotno, odsluženo opremo morate predati na zbirališče, pooblaščeno za recikliranje
odslužene električne in elektronske opreme. Ločeno zbiranje in recikliranje odslužene opreme prispeva k
ohranjanju naravnih virov in zagotavlja recikliranje te opreme na zdravju in okolju neškodljiv način. Za
2500 Disk System user guide
73
podrobnejše informacije o tem, kam lahko odpeljete odsluženo opremo na recikliranje, se obrnite na
pristojni organ, komunalno službo ali trgovino, kjer ste izdelek kupili.
Spanish notice
Eliminación de residuos de equipos eléctricos y electrónicos por parte de usuarios particulares en
la Unión Europea
Este símbolo en el producto o en su envase indica que no debe eliminarse junto con los
desperdicios generales de la casa. Es responsabilidad del usuario eliminar los residuos de este tipo
depositándolos en un "punto limpio" para el reciclado de residuos eléctricos y electrónicos. La recogida
y el reciclado selectivos de los residuos de aparatos eléctricos en el momento de su eliminación
contribuirá a conservar los recursos naturales y a garantizar el reciclado de estos residuos de forma que
se proteja el medio ambiente y la salud. Para obtener más información sobre los puntos de recogida de
residuos eléctricos y electrónicos para reciclado, póngase en contacto con su ayuntamiento, con el
servicio de eliminación de residuos domésticos o con el establecimiento en el que adquirió el producto.
Swedish notice
Bortskaffande av avfallsprodukter från användare i privathushåll inom Europeiska Unionen
Om den här symbolen visas på produkten eller förpackningen betyder det att produkten inte får
slängas på samma ställe som hushållssopor. I stället är det ditt ansvar att bortskaffa avfallet genom att
överlämna det till ett uppsamlingsställe avsett för återvinning av avfall från elektriska och elektroniska
produkter. Separat insamling och återvinning av avfallet hjälper till att spara på våra naturresurser och
gör att avfallet återvinns på ett sätt som skyddar människors hälsa och miljön. Kontakta ditt lokala
kommunkontor, din närmsta återvinningsstation för hushållsavfall eller affären där du köpte produkten för
att få mer information om var du kan lämna ditt avfall för återvinning.
Germany noise declaration
Schalldruckpegel Lp = 70 dB(A)
Am Arbeitsplatz (operator position)
Normaler Betrieb (normal operation)
Nach ISO 7779:1999 (Typprüfung)
Japanese notice
74
Regulatory notices
Harmonics conformance (Japan)
Taiwanese notice
Japanese power cord notice
Country-specific certifications
HP tests electronic products for compliance with country-specific regulatory requirements, as an
individual item or as part of an assembly. The product label (see Figure 36) specifies the regulations with
which the product complies.
NOTE:
Components without an individual product certification label are qualified as part of the next higher
assembly (for example, enclosure, rack, or tower).
Figure 36 Typical enclosure certification label
NOTE:
The certification symbols on the label depend upon the certification level. For example, the FCC Class A
certification symbol is not the same as the FCC Class B certification symbol.
2500 Disk System user guide
75
76
Regulatory notices
C EMU-generated error condition
reports
Error condition report format
When the EMU alphanumeric display is Er, three sub-levels of information provide details about the error
condition: the element or component type, the specific component, and the error code. You can use
this information to determine the probable cause of the problem.
• The first sub-level displays the element type (et), which identifies the type of component affected.
See Table 20 to decipher the element type code.
• The second sub-level displays the element number (en), which identifies the exact component
affected.
• The third sub-level display provides an error code (ec), which defines a specific problem.
NOTE:
The conventions used to differentiate between the bytes of the condition report are:
• Element type—Period after each character (0.1.)
• Element number—Period after the second character (01.)
• Error code—No periods (01)
Table 20 lists the element type codes assigned to the DS2500 components.
Table 20 Element type
Element type (et)
Component
0.1.
Disk drive
0.2.
Power supply
0.3.
Blower
0.4.
Temperature sensor
0.6
Audible alarm1
0.7.
EMU
0.F.
Transceivers
1.0.
Language1
1.1.
Communication port1
1.2.
Voltage sensor
1.3
Current sensor
8.0
DS2500 enclosure1
8.2.
DS2500 backplane
8.7.
I/O module
1Does not generate a condition report. However, for any error, you should record the error code. Then, implement
the recommended corrective action.
2500 Disk System user guide
77
Correcting error conditions
Correcting an error may require you to perform a specific set of actions. Your authorized-HP service
representative can help you determine the corrective action to take.
Disk drive error conditions
The format of a disk drive error condition report is 0.1.en.ec, where:
• 0.1. identifies a disk problem.
• en. identifies the affected disk drive bay number.
A direct correlation exists between the disk drive element number and the bay number.
The bays are numbered sequentially 1 through 14 from left to right.
• ec is the error code.
Table 21 Disk drive error conditions
Error
condition
Severity
Description
Actions
0.1.en.01
Critical
Drive configuration or drive link rate
error:
The drive in bay en is either not
FC-compatible or is unable to operate
at the link rate established by the I/O
module.
1.
0.1.en.02
Information
Drive is missing from bay en.
1.
If the bay is empty, install a
drive or a drive blank.
2. Reseat the drive to ensure that
it is properly installed.
3. Install a replacement drive or
drive blank.
0.1.en.03
Information
Drive removed after the HP-UX software
activated the drive lock.
Unlock the drive using HP-UX
software.
0.1.en.04
Critical
Loop A drive link rate incorrect.
The drive in bay en is capable
of operating at the loop link rate
established by I/O module A, but is
running at a different rate.
1.
0.1.en.05
Critical
Loop B drive link rate incorrect.
The drive in bay en is capable
of operating at the loop link rate
established by I/O module B, but is
running at a different rate.
1.
If the drive is not
FC-compatible, replace it
with a FC-compatible drive or
a drive blank.
2. Replace the drive with a FC
drive capable of operating at
a link rate established by the
I/O module.
Reseat the drive to ensure that
it is properly installed.
2. Replace the drive.
Reseat the drive to ensure that
it is properly installed.
2. Replace the drive.
Power supply error conditions
The format of a power supply error condition report is 0.2.en.ec, where:
• 0.2. identifies a power supply error.
• en. identifies which power supply is affected
78
EMU-generated error condition reports
From the back of the enclosure, power supply 01 is on the left, and power supply 02 is on the right.
• ec is the error code.
The following sections define the power supply condition reports.
Table 22 Power supply error conditions
Error
condition
Severity
Description
Actions
0.2.en.01
Noncritical
AC input power is missing from the
power supply en.
1.
0.2.en.02
Unrecoverable
Power supply is missing from location
en.
Enclosure shutdown is imminent.
Replace the power supply as
soon as possible.
A missing power supply
affects airflow and causes an
overheating condition. Even if
the power supply has failed,
leave it in the enclosure until a
replacement is available.
0.2.en.03
Critical
Unbalanced power supply load
A component in power supply en has
failed.
1.
Verify that the power supply
AC power cord is properly
connected.
2. Verify that the source circuit
breaker is on.
3. If there is no AC power,
contact building facilities
management.
Verify that the blower on the
power supply is functioning
properly. If not, replace the
blower.
2. Replace the power supply
as soon as possible.
Blower error conditions
The format of a blower error condition report is 0.3.en.ec, where:
• 0.3. identifies a blower error.
• en. identifies which blower is failing.
From the back of the enclosure, blower 01 is on the left, and blower 02 is on the right.
• ec is the error code.
CAUTION:
A single blower operating at high speed can provide sufficient air flow to cool an enclosure and the
components for up to 100 hours. However, operating an enclosure at temperatures approaching
an overheating threshold can damage components. Immediate replacement of the defective blower
is required.
2500 Disk System user guide
79
Table 23 Blower error conditions
Error
condition
Severity
Description
Actions
0.3.en.03
Unrecoverable
Blower en has stopped.
0.3.en.04
Unrecoverable
Power supply en has detected an
internal blower error.
Replace the blower as soon as
possible.
0.3.en.05
Noncritical
Blower en is missing or is improperly
installed.
0.3.en.06
Unrecoverable
No blowers are installed.
Enclosure shutdown is imminent.
When this condition exists there will be
two error messages:
• 0.3.en.05 identifies the first blower
• 0.3.en.06 identifies the second
blower
The EMU will shut down the
enclosure in 7 minutes unless
you install blowers.
Temperature error conditions
The format of a temperature sensor condition report is 0.4.en.ec, where:
• 0.4. identifies a temperature sensor error.
• en. identifies the location of the affected temperature sensor.
• ec provides details about the error.
See Table 24 to determine the location of each temperature sensor.
Table 24 Temperature sensor element numbers
Element number
(en.)
Sensor location
Element number
(en.)
Sensor location
01.
Power supply 1
10.
Drive bay 7
02.
Power supply 2
11.
Drive bay 8
03.
EMU
12.
Drive bay 9
04.
Drive bay 1
13.
Drive bay 10
05.
Drive bay 2
14.
Drive bay 11
06.
Drive bay 3
15.
Drive bay 12
07.
Drive bay 4
16.
Drive bay 13
08.
Drive bay 5
17.
Drive bay 14
09.
Drive bay 6
80
EMU-generated error condition reports
Table 25 Temperature threshold error conditions
Error
condition
Severity
Description
Actions
0.4.en.01
Noncritical
The component in location en is
approaching the high temperature
critical threshold.
1.
0.4.en.02
Critical
The component in location en has
reached a temperature above the
high temperature critical threshold.
CAUTION:
Continued operation under these
conditions may result in component
failure.
Ensure that all components
are properly installed to
maintain proper air flow.
2. Ensure that nothing is
obstructing the air flow
at either the front of the
enclosure or the rear of the
blowers.
3. Ensure that both blowers
are operating properly (the
indicators are on).
Replace blower if necessary.
4. Verify that the ambient
temperature is in the range of
10°C to 35°C (50°F to 95°F).
5. Contact your HP-authorized
service representative.
0.4.en.03
Noncritical
The component in location
en is approaching the low
temperature-critical threshold.
0.4.en.04
Critical
The component in location en has
reached a temperature below the low
temperature-critical threshold.
0.4.en.05
Unrecoverable
The EMU has determined that the
average temperature of two of the
three component areas (EMU, disk
drives, and power supplies) exceeds
the critical level.
Enclosure shutdown is imminent.
1.
Verify that the ambient
temperature is in the range of
10°C to 35°C (50°F to 95°F).
2. Contact your HP-authorized
service representative.
An automatic shutdown and
possible data corruption may
result if the procedure below is not
performed immediately.
1. Ensure that all components
are properly installed to
maintain proper air flow.
2. Ensure that nothing is
obstructing the air flow
at either the front of the
enclosure or the rear of the
blowers.
3. Ensure that both blowers
are operating properly (the
indicators are on).
Replace blower if necessary.
4. Verify that the ambient
temperature is in the range of
10°C to 35°C (50°F to 95°F).
5. Contact your HP-authorized
service representative.
EMU error conditions
The format of an EMU error condition report is 0.7.01.ec, where:
• 0.7. identifies an EMU error.
• 01. Because there is only one EMU in a DS2500, the element number is always 01.
• ec is the error code.
2500 Disk System user guide
81
In most cases, the corrective action for an EMU error is for an HP-authorized service representative to
replace the EMU.
Table 26 EMU error conditions
Error
condition
code
Severity
Description
Actions
07.01.02
Unrecoverable
The Inter-IC (I2C) bus is not processing
data and the EMU is unable to monitor
or report status
Immediate corrective action is required
to ensure proper enclosure operation.
Contact your HP-authorized
service representative.
0.7.01.10
Noncritical
Invalid data in the EMU NVRAM
The EMU initiates automatic recovery
procedures.
If the problem is not automatically
corrected after one minute,
contact your HP-authorized
service representative.
0.7.01.11
Noncritical
The EMU cannot write to the NVRAM.
0.7.01.12
Noncritical
The EMU cannot read the NVRAM.
Contact your HP-authorized
service representative.
0.7.01.13
Unrecoverable
EMU load failure
0.7.01.14
Noncritical
EMU enclosure address error
0.7.01.15
Unrecoverable
EMU internal hardware problem
0.7.01.16
Information
EMU internal ESI data corrupted
None
0.7.01.17
Unrecoverable
A power supply did not respond to
an EMU or power supply shutdown
command.
1.
0.7.01.18
Unrecoverable
EMU internal hardware problem
Contact your HP-authorized
service representative.
Disconnect the AC power
cord from the power supply.
2. Contact your HP-authorized
service representative.
Resetting the EMU
If your HP-authorized service representative instructs you to reset the EMU:
1.
Firmly grasp the EMU mounting handle and pull the EMU partially out of the enclosure.
CAUTION:
Do not remove the EMU from the enclosure. You must avoid putting any strain on the cables
or connectors.
2. Wait 30 seconds, and then push the EMU in until it is fully seated in the backplane. The EMU
should display any enclosure condition report within two minutes.
Transceiver error conditions
The format of a transceiver condition report is 0.F.en.ec, where:
• 0.F. identifies a transceiver error.
• en. identifies which transceiver is affected (see Figure 37).
• ec is the error code.
82
EMU-generated error condition reports
4
2
3
1
CXO7461A
1. Transceiver 01
2. Transceiver 02
3. Transceiver 03
4. Transceiver 04
Figure 37 Transceiver element numbers
Table 27 Transceiver error conditions
Error
condition
code
Severity
Description
Actions
0.F.en.01
Critical
Transceiver en is incompatible with the
I/O module.
Contact your HP-authorized
service representative.
0.F.en.02
Critical
Transceiver en can not detect a data
signal.
0.F.en.03
Critical
Fibre Channel DS2500 bus fault involving
transceiver en
0.F.en.04
Critical
The EMU detects that transceiver en has
been removed.
Install a new transceiver.
0.F.en.05
Critical
An invalid Fibre Channel character was
detected in the incoming data stream on
transceiver en.
Contact your HP-authorized
service representative.
Voltage sensor and current sensor error conditions
The format of a sensor error condition reports is 1.2.en.ec for a voltage sensor, and 1.3.en.ec for a
current sensor, where:
• 1.2. identifies a voltage sensor error.
• 1.3.identifies a current sensor error.
• en. identifies the location of the affected sensor (see Table 28).
When viewed from the rear of the enclosure, power supply 1 is on the left, and power supply 2
is on the right.
• ec is the error code.
2500 Disk System user guide
83
Table 28 Voltage and current sensor locations
Element number (en.)
Location
01.
Power supply 1, +5 VDC
02.
Power supply 1, +12 VDC
03.
Power supply 2, +5 VDC
04.
Power supply 2, +12 VDC
Table 29 Voltage and current threshold error conditions
Error
condition
Severity
Description
Actions
1.2.en.01
Noncritical
Location en is approaching the critical
threshold for high voltage.
Contact your HP-authorized
service representative.
1.2.en.02
Critical
Location en has reached the critical
threshold for high voltage.
1.2.en.03
Noncritical
Location en is approaching the critical
threshold for low voltage.
1.2.en.04
Critical
Location en has reached the critical
threshold for low voltage.
1.3.en.01
Noncritical
Location en is approaching the critical
threshold for high current.
1.3.en.02
Critical
Location en has reached the critical
threshold for high current.
Backplane error conditions
The format of a backplane error condition report is 8.2.01.ec, where:
• 8.2. identifies a backplane error.
• 01. is the two-character backplane element number.
• ec is the error code.
Table 30 Backplane error conditions
Error
condition
Severity
Description
Actions
8.2.01.10
Noncritical
Invalid backplane NVRAM read.
The EMU begins an automatic recovery
process.
If the automatic recovery does
not correct the problem, contact
your HP-authorized service
representative.
8.2.01.11
Noncritical
Backplane NVRAM write error
8.2.01.12
Noncritical
Backplane NVRAM read error
Contact your HP-authorized
service representative.
8.2.01.13
Noncritical
Backplane WWN read error
I/O module error conditions
The format of an I/O module error condition report is 8.7.en.ec, where:
• 8.7. identifies an I/O module error.
• en. identifies which I/O module is affected.
84
EMU-generated error condition reports
When viewed from the rear of the enclosure, I/O Module A (01.) is on the right, and I/O Module
B (02.) is on the left.
• ec is the error code.
Table 31 I/O module error conditions
Error
condition
Severity
Description
Actions
8.7.en.01
Critical
The Fibre Channel link speed for the
I/O module en is not supported.
Contact your HP-authorized
service representative.
8.7.en.02
Critical
I/O module en is unable to
communicate with the EMU.
8.7.en.10
Noncritical
I/O module en NVRAM read error
8.7.en.11
Noncritical
I/O module NVRAM en write error
8.7.en.12
Noncritical
I/O module en NVRAM read error
8.7.en.13
Noncritical
I/O module en has been removed.
2500 Disk System user guide
85
86
EMU-generated error condition reports
Index
A
AC power specifications, 65
adding disk drives, 37
air quality
environmental specifications, 63
alphanumeric display, 18, 39
ambient temperature
environmental specifications, 63
shipping and storage, 64
antistatic protection, 56
audible alarm (Au)
enabling, 41
muting, 41
sound patterns, 50
audience, 9
B
backplane
error conditions, 84
bays, 14
blower, 21
error conditions, 79
removing, 58
replacing, 59
speed, 21
status LED, 21
C
cables
FCC compliance statement, 68
fibre optic, 24
catastrophic errors, 52
CDRH, compliance regulations, 68
Center for Devices and Radiological Health, 68
certification product labels, 75
components
listing of, 17
condition report
See error condition report (Er)
viewing, 42
conventions
document, 9
text symbols, 10
cooling, 21
country-specific certifications, 75
critical error, 48
audible alarm, 50
current sensors, 83
customer self repair, 11
customer self repair (CSR), 55
blower, 58
defective part return, 57
disk drive, 60
power supply, 57
spare part procurement, 56
D
DC power specifications, 65
disk drive, 22
status indicators, 22
non-operational, 51
adding, 36
error conditions, 78
installing, 32
installing multiple, 37
replacing, 62
disk monitoring tools, 45
disk_em, 45
display group select push button, 18
display groups, 39
audible alarm (Au), 41
enclosure ID (En), 39
error (Er), 42
firmware revision (Fr), 42
loop ID (Li), 40
document
conventions, 9
related documentation, 9
documentation
HP web site, 9
providing feedback, 11
drive blank, 24
removing, 29, 36
DS2500
installation, 31
ds_ses_enclosure, 45
E
Element type (et), 77
EMS disk monitor, 45
2500 Disk System user guide
87
EMU
fault indicator, 49
power indicator, 49
alphanumeric display, 39
controls, 18
error conditions, 81
firmware revision, 42
heartbeat indicator, 49
removing, 30
resetting, 82
status icons, 49
enabling the audible alarm, 41
enclosure certification label, 75
enclosure ID (En), 17
setting, 34, 39
enclosure shutdown
temperature warning , 52
Environmental Monitoring Unit
See EMU
environmental specifications, 63
error condition
severity, 48
error condition report (Er), 42, 77
queue, 48
error conditions, 48
backplane, 84
blower, 79
current sensor, 83
disk drive, 78
EMU, 81
I/O modules, 84
power supply, 78
temperature, 80
transceivers, 83
voltage sensor, 83
event notification, 45
F
FC cables
connecting, 33
FC loops, 13, 19
FC-AL bus
See FC loops
FCC
Class A Equipment, compliance notice, 67
Class B Equipment, compliance notice, 67
Declaration of conformity, 68
modifications, 68
FCC Class A certification, 67
features, 13
Federal Communications Commission (FCC)
notice, 67
fiber optic cables, 19
dust covers, 56
firmware revision (Fr)
EMU, 42
function select push button, 18
H
heartbeat
icon, 49
heat dissipation
specifications, 63
help
obtaining, 10
high availability storage system monitor, 45
HP
storage web site, 11
Subscriber's choice web site, 11
technical support, 10
I
I/O module, 19
error conditions, 84
LEDs, 19
non-operational, 50
removing, 31
information error, 48
audible alarm, 50
installation
disk drive, 32
DS2500, 31
FC cables, 33
preparing for, 25
rail kit, 26
verification, 36
IOSCAN, 36
L
labels
enclosure certification, 75
product certification, 75
laser device
regulatory compliance notice, 68
lasers
radiation warning, 68
LEDs
power supply, 21
disk drives, 22, 51
EMU, 18
enclosure status, 48
I/O module, 19, 50
operational states, 50
power supply and blower, 21
loop ID (Li), 17
setting, 35, 40
N
noncritical error, 48
audible alarm, 50
P
physical specifications, 63
power specifications, 64
88
power supply, 21
error conditions, 78
replacing, 57
status LED, 21
power supply/blower assembly
removing, 30
problem solving, 45
product certification, 75
push buttons
EMU, 18, 39, 48
R
rack stability
warning, 10
rail kit, 26
shipping brackets, 28
regulatory compliance notices
Canadian, 69
European Union, 69
Taiwan, 75
WEEE recycling notices, 70
regulatory notices, 67
related documentation, 9
relative humidity
environmental specifications, 63
S
SFP, 24
spare part
procurement, 56
specifications
environmental, 63
physical, 63
power, 64
status LEDs
See LEDs
Subscriber's choice, HP, 11
symbols in text, 10
T
technical support
HP, 10
temperature
ambient, 81
error condition, 80
sensing, 21
sensors, 53
warning and shutdown, 53
text symbols, 10
transceiver, 24
error conditions, 82
status, 50
troubleshooting, 45
U
unrecoverable error, 48
audible alarm, 50
V
voltage sensors, 83
W
warnings
lasers, radiation, 68
rack stability, 10
web sites
HP documentation, 9, 11
HP storage, 11
HP Subscriber's choice, 11
HP support, 10
websites
customer self repair, 11
WEEE recycling notices, 70
2500 Disk System user guide
89
