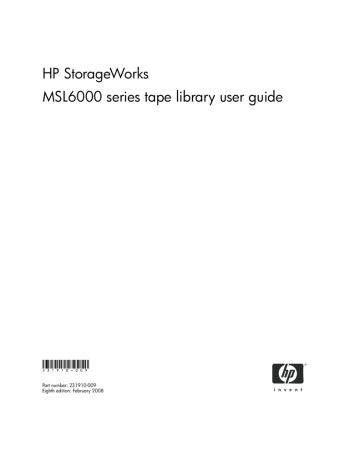

HP StorageWorks
MSL6000 series tape library user guide
231910-009
Part number: 231910-009
Eighth edition: February 2008
Legal and notice information
© Copyright 2003-2007 Hewlett-Packard Development Company, L.P.
Hewlett-Packard Company makes no warranty of any kind with regard to this material, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or
for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied,
reproduced, or translated into another language without the prior written consent of Hewlett-Packard. The information is provided
“as is” without warranty of any kind and is subject to change without notice. The only warranties for HP products and services are
set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Compaq Computer Corporation is a wholly-owned subsidiary of Hewlett-Packard Company.
Microsoft®, Windows®, Windows NT®, and Windows XP® are U.S. registered trademarks of Microsoft Corporation.
MSL6000 series tape library user guide
Eighth edition (August 2007)
Part number: 231910-009
Regulatory model number: ED1005
Contents
About this guide . . . . . . . . . . . . . . . Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Related documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Document conventions and symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HP technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HP-authorized reseller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Helpful web sites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
12
13
13
13
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tape Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ultrium Tape Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ultrium Tape Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SDLT Tape Drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SDLT Tape Cartridges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Magazines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Robotics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Library Controller Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Factory-Defined Accessory PCI Slots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Embedded Network Storage Router (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Panel Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi Unit Library Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
16
16
17
18
19
20
21
22
23
23
25
26
26
27
2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Converting a Tabletop Model to a Rackmount Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting Up the Rackmount Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Converting a Rackmount Model to a Tabletop Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Applying Power to the Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cabling for SCSI Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Supported SCSI Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Two Tape Drives, Dual Host System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Four Tape Drives, Dual Host System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29
30
34
35
36
37
37
38
3 Library Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Changing Default Configuration Settings .
Setting a SCSI ID . . . . . . . . . . . . . . . . .
Setting Up a Reserved Slot. . . . . . . . . . .
Reserved Slot Numbering . . . . . . . . .
Configuring the Network Settings . . . . . .
.
.
.
.
.
..
..
..
..
..
.
.
.
.
.
..
..
..
..
..
..
..
..
..
..
.
.
.
.
.
..
..
..
..
..
..
..
..
..
..
.
.
.
.
.
..
..
..
..
..
.
.
.
.
.
..
..
..
..
..
..
..
..
..
..
.
.
.
.
.
..
..
..
..
..
..
..
..
..
..
.
.
.
.
.
.............
.............
.............
.............
.............
MSL6000 series tape library user guide
39
39
41
42
47
3
4 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Magazine Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Panel and Media Security Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GUI Touch Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Host System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Library Display Screens and Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initialization Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Library Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Support Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mail Slot Access (Left-hand Magazines Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Magazine Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Move Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GUI Contrast Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cartridge Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Online. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Menu Selections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View System Data Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Library Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SCSI Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Network Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Library Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Edit Options Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Library. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SCSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Utilities Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Factory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Security Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inserting and Removing Tape Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing Magazines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inserting Cartridges into a Magazine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using Mail Slots (Left-hand Magazines Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Labeling Tape Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ultrium Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SDLT Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Media Label Identifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
49
49
51
51
51
53
53
53
53
55
55
55
56
57
57
58
59
59
59
60
60
60
63
67
68
68
68
69
70
70
70
71
71
72
72
72
73
74
74
75
76
77
78
5 Remote Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
4
Accessing the Remote Management Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using Menu Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Move Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Library Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SCSI Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drive Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the Remote Management Interface Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
80
82
82
83
84
85
86
86
87
88
88
6 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Using the Library Maintenance Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintaining Tape Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ultrium Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SDLT Cartridges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Running a Cleaning Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatically Running a Cleaning Cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manually Running a Cleaning Cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Running a Cleaning Cartridge from a Mail Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Running a Cleaning Cartridge from a Tape Cartridge Slot . . . . . . . . . . . . . . . . . . . . . . . .
Running a Cleaning Cartridge from a Cleaning Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing a Cleaning Cartridge in a Reserved Slot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing a Cleaning Cartridge in a Right Magazine . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing a Cleaning Cartridge in a Mail Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Updating Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the Firmware Revision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Remote Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using HP StorageWorks Library & Tape Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using a Serial Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Firmware Flashing Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
91
92
93
93
93
94
94
95
95
95
96
96
96
97
97
97
98
98
99
7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Identifying Platform Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Performing Error Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fault Symptom Codes (FSCs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting General Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using Diagnostic Support Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HP StorageWorks Library and Tape Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MSLUtil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Running Library Diagnostic Tests. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
101
102
103
135
140
141
141
141
A Regulatory compliance notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Regulatory compliance identification numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Federal Communications Commission notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FCC rating label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Class A equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MSL6000 series tape library user guide
143
143
143
143
5
Class B equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Declaration of Conformity for products marked with the FCC logo, United States only.. . . . . .
Modification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Canadian notice (Avis Canadien). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Class A equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Class B equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
European Union notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Japanese notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Japanese power cord statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Korean notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Class A equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Class B equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Taiwanese notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BSMI Class A notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Taiwan battery recycle statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Laser compliance notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dutch laser notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
French laser notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
German laser notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Italian laser notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Japanese laser notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spanish laser notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recycling notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disposal of waste equipment by users in private household in the European Union . . . . . . . .
Danish notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dutch notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Czecholslovakian notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Estonian notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Finnish notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
French notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
German notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Greek notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hungarian notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Italian notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Latvian notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lithuanian notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Polish notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Portuguese notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Slovakian notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Slovenian notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spanish notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Swedish notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
144
144
144
144
144
144
145
145
145
146
146
146
146
146
146
147
147
148
148
149
149
150
150
150
150
151
151
151
152
152
152
153
153
154
154
155
155
156
156
157
157
157
158
B Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
6
Environmental (All Models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Safety and Regulatory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
C Electrostatic Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Grounding Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
D Configuration Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
SCSI Cable Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Configuration Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
E Optional Fibre Channel Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Host Prerequisites . . . . . . . . . .
Connectors and Indicators . . . .
Power Indicator . . . . . . . . .
Serial Port. . . . . . . . . . . . .
Ethernet Port . . . . . . . . . . .
Fibre Channel Port . . . . . . .
SCSI VHDCI Connectors . . .
Configuration. . . . . . . . . . . . .
Default Ethernet Settings . . .
Configuration Examples . . .
..............................................
..............................................
..............................................
..............................................
..............................................
..............................................
..............................................
..............................................
..............................................
..............................................
167
168
168
168
169
169
169
169
169
170
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Figures
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Library tape drive locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
HP Ultrium 960 format trademark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Library magazines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Library power supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Library robotics (top cover removed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Library controller board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Library controller board connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Library card cages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Library front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Library PTM mounting location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Converting a tabletop model (four-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Library template (10000 rack enclosure shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Installing the rails. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Installing the library (two-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Securing the library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Converting a rackmount model (two-drive model shown). . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Applying power to the library (four-drive rackmounted library shown) . . . . . . . . . . . . . . . . . . 36
MSL6030/MSL6026 library SCSI cable configuration (two tape drives, dual host system) . . . . 37
MSL6060/MSL6052 library SCSI cable configuration (four tape drives, dual host system) . . . . 38
SCSI option selection screen (two-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Drive 0 bus ID screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
SCSI ID confirmation screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
MSL6000 series tape library user guide
7
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
8
Drive 0 bus ID data field screen (two-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Reserved slot locations, SDLT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Reserved slot locations, Ultrium (MSL6030). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Reserved slot locations, lower module, SDLT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Reserved slot locations, lower module, Ultrium (MSL6060) . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Total reserved slots screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Reserved slots numeric keypad screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Total reserved slots confirmation screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
IP address determination screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
User-specified IP address screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Fixed IP address screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Library front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Magazine door mechanical releases (emergency access) . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Library indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Password levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Initialization screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Library status screen (two-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Technical support information screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Mail slot access screen (four-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Magazine access screen (two-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Move media screen (two-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Power-down confirmation message screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Status screen (four-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Cartridge map screen (two-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Menu screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
View library options screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
View SCSI options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Default view network options screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
View library info screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Edit library options screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Edit SCSI options screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Edit network options screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Edit passwords options screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Maintenance screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Diagnostics screen (four-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Security level screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Removing tape cartridge magazines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Inserting a tape cartridge (left-hand magazine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Left-hand magazine mail slot (two-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Attaching a bar code label to an Ultrium tape cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Proper Ultrium bar code label placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Attaching a bar code label to an SDLT tape cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Remote Management Interface login screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Remote Management Interface main screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Status screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Move media screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Setup screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
Tables
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Library configuration screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
SCSI configuration screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Drive configuration screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Functions screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
History screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
SDLT buckle leaders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Updating firmware using the Remote Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . 97
Copying firmware using the Remote Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . 98
Confirming the Flash operation using the Remote Management Interface . . . . . . . . . . . . . . . . 98
Troubleshooting flow chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
MSL6030/MSL6026, 2 hosts/2 drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Single MSL6060/MSL6052, 4 hosts/4 drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Connectors and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
MSL6030/MSL6026 standalone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
MSL6060/MSL6052 standalone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Document conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Ultrium Tape Drive Capacity and Data Transfer Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
SDLT Tape Drive Capacity and Data Transfer Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Library Status LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
View Library Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
View SCSI Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
View Network Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Media Label Identifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Maintenance Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Fault Symptom Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Troubleshooting General Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Library Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Power Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Rackmount Model Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Operating Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Packed or Unpacked Environmental Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Transit -- Short Term Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Acoustic Noise Declared per ISO 9296 and ISO 7779 . . . . . . . . . . . . . . . . . . . . . . . . 161
Schallemissionswerte - Werteangaben nach ISO 9296 und ISO 7779/DIN 27779 . . . . 161
Regulatory and Product Safety Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
MSL6000 series tape library user guide
9
10
About this guide
This guide provides information about:
• Becoming familiar with library components.
• Installing the library.
• Configuring the library.
• Operating the front panel.
• Using the remote management interface.
• Performing maintenance procedures.
• Troubleshooting the library.
Related documentation
In addition to this guide, please refer to other documents for this product:
• HP StorageWorks MSL Series Pass-Through Mechanism Reference Guide
• HP StorageWorks Network Storage Router User Guide
These and other HP documents can be found on an HP web site: http://www.docs.hp.com.
MSL6000 series tape library user guide
11
Document conventions and symbols
Table 1
Document conventions
Convention
Element
Medium blue text: Figure 1
Cross-reference links and e-mail addresses
Medium blue, underlined text
(http://www.hp.com)
Web site addresses
Bold font
•
•
•
Italics font
Text emphasis
Monospace font
•
•
•
•
File and directory names
System output
Code
Text typed at the command-line
Monospace, italic font
•
•
Code variables
Command-line variables
Monospace, bold font
Emphasis of file and directory names, system output, code, and
text typed at the command-line
Indicates that failure to follow directions could result in bodily harm or death.
WARNING!
CAUTION:
!
Indicates that failure to follow directions could result in damage to equipment or data.
IMPORTANT:
NOTE:
Key names
Text typed into a GUI element, such as into a box
GUI elements that are clicked or selected, such as menu
and list items, buttons, and check boxes
Provides clarifying information or specific instructions.
Provides additional information.
TIP: Provides helpful hints and shortcuts.
12
HP technical support
Telephone numbers for worldwide technical support are listed on the HP web site:
http://www.hp.com/support/.
Collect the following information before calling:
• Technical support registration number (if applicable)
• Product serial numbers
• Product model names and numbers
• Applicable error messages
• Operating system type and revision level
• Detailed, specific questions
For continuous quality improvement, calls may be recorded or monitored.
HP strongly recommends that customers sign-up online using the Subscriber's choice web site at
http://www.hp.com/go/e-updates.
• Subscribing to this service provides you with e-mail updates on the latest product enhancements,
newest versions of drivers, and firmware documentation updates as well as instant access to
numerous other product resources.
• After signing-up, you can quickly locate your products by selecting Business support, and then
Storage under Product Category.
HP-authorized reseller
For the name of your nearest HP-authorized reseller:
• In the United States, call 1-800-345-1518.
• Elsewhere, visit http://www.hp.com and click Contact HP to find locations and telephone
numbers.
Helpful web sites
For product information, see the following web sites:
• http://www.hp.com
• http://www.hp.com/go/storage
• http://www.hp.com/support/
• http://www.docs.hp.com
• http://www.hp.com/go/ebs
MSL6000 series tape library user guide
13
14
1
Introduction
Designed for backup operations with high-end networks and high-performance servers, the HP
StorageWorks MSL 6000 Series tape libraries are the next generation performers in high-volume
backup and archival service. The libraries also feature high availability, maximum storage density,
and easy serviceability.
The library SCSI interface-to-host system supports Low Voltage Differential (LVD). The tape drives and
the robotics control functions each use separate SCSI connections and SCSI ID addresses. Library
SCSI I/O is provided through two VHDCI-series, 68-pin, Micro-D SCSI connectors located at the
rear of the unit on each tape drive. Robotics SCSI I/O is provided through two VHDCI-series,
68-pin, Micro-D SCSI connectors located on the library controller board.
The remainder of this chapter describes the major components of the library, including:
• Models, page 15
• Accessories, page 16
• Tape Drives, page 16
• Magazines, page 21
• Power Supplies, page 22
• Robotics, page 23
• Library Controller Board, page 23
• Factory-Defined Accessory PCI Slots, page 25
• Front Panel Indicators, page 26
• Multi Unit Library Systems, page 27
Models
The MSL Series tape library family includes the following models:
• Two-drive models:
• MSL6030
• MSL6026
• Four-drive models:
• MSL6060
• MSL6052
NOTE: MSL6030/MSL6060 libraries operate with Ultrium LTO drive technology;
MSL6026/MSL6052 libraries operate with SDLT drive technology.
MSL6000 series tape library user guide
15
NOTE: Two-drive models are 8.75 in (22.23 cm) in height, sometimes referred to as 5U. Four-drive
models are 17.50 in (44.45 cm) in height, sometimes referred to as 10U.
Any MSL Series tape library can operate as a standalone unit or can be installed in a rack to form
a larger integrated multi unit library configuration. MSL6030/MSL6026 libraries contain up to two
tape drives, two removable tape cartridge magazines, and robotics capable of random or
sequential tape cartridge operation. MSL6060/MSL6052 libraries contain up to four tape drives,
four removable tape cartridge magazines, and robotics capable of random tape cartridge
operation.
NOTE: Throughout this manual, MSL6030/MSL6026 libraries will be referred to as two-drive
models. MSL6060/MSL6052 libraries will be referred to as four-drive models.
Accessories
Contact your authorized service provider or visit the HP website at http://www.hp.com/go/automation
for the most current list of accessories that are available for an MSL Series library.
Tape Drives
MSL Series tape libraries support up to four tape drives (see Figure 1). SCSI I/O is accomplished
through two VHDCI-series, 68-pin, Micro-D SCSI connectors located at the rear of the library on
each tape drive. The drives are numbered beginning with 0: the first tape drive is Drive 0, the
second is Drive 1, etc.
16
Introduction
1
Tape Drive 0
3
Tape Drive 2
2
Tape Drive 1
4
Tape Drive 3
Figure 1 Library tape drive locations
CAUTION: It is critical to ensure that the media you use matches the format of your tape drive.
Cleaning cartridges and formatted data cartridges are unique for each drive technology. Damage
may occur if inappropriate media is used in tape drives.
NOTE:
If using mixed media, ensure your software application supports it.
NOTE: SDLT 600, Ultrium 1840, Ultrium 960, and Ultrium 460 tape drives do not offer hot-plug
capability.
Ultrium Tape Drives
The Ultrium tape drive is a high-performance streaming tape drive that uses Linear Tape-Open (LTO)
technology. An Ultrium 460 tape drive is capable of storing up to 200 GB (native) or 400 GB (2:1
compression) of data per cartridge. An Ultrium 960 tape drive is capable of storing up to 400 GB
(native) or 800 GB (2:1 compression) of data per cartridge. An Ultrium 1840 tape drive is capable
of storing up to 800 GB (native) or 1600 GB (2:1 compression) of data per cartridge. Access the
HP StorageWorks Ultrium Tape Drive User’s Guide from http://www.hp.com/support for more
information about its features and capabilities.
MSL6000 series tape library user guide
17
Table 2
Ultrium Tape Drive Capacity and Data Transfer Rate
Drive Model
Data Capacity
Sustained Data Transfer Rate
Ultrium 460
200 GB (native)
30 MB/sec (216 GB/hour)
400 GB (compressed)
60 MB/sec (432 GB/hour)
400 GB (native)
80 MB/sec (576 GB/hour)
800 GB (compressed)
160 MB/sec (1152 GB/hour)
800 GB (native)
120 MB/sec (864 GB/hour)
1600 GB (compressed)
240 MB/sec (1728 GB/hour)
Ultrium 960
Ultrium 1840
NOTE:
Compressed capacity assumes a 2:1 compression ratio.
Ultrium Tape Cartridges
NOTE: In addition to the information provided in this manual, refer to the documentation provided
with your media for more information. Also see ”Maintaining Tape Cartridges” on page 92.
CAUTION: HP Ultrium tape drives require special cleaning cartridges and data cartridges
formatted specifically for HP Ultrium. To avoid damage to your tape drive, it is critical to use
appropriate cleaning cartridges, and properly formatted data cartridges.
Approved media will have the Ultrium format trademark which indicates that the media has passed
Ultrium format compliance testing (see Figure 2 for an example of the Ultrium 3 format trademark).
Figure 2 HP Ultrium 960 format trademark
For best results, always use HP branded media. For data and cleaning cartridges for your tape
library, see www.hp.com/go/media
CAUTION: Do not bulk erase Ultrium formatted cartridges. This will destroy pre-recorded servo
information and make the cartridge unusable.
18
Introduction
Make it a practice to visually inspect your tape cartridges when loading or removing them from your
tape library. Taking a few minutes to check the condition of your cartridges will lower the risk of
repeated failures and help ensure uninterrupted backup.
CAUTION: Always discard damaged tape cartridges. If a defective tape cartridge is loaded into a
tape drive, it may in turn damage the drive, potentially requiring drive replacement.
NOTE:
For information on labeling tape cartridges, see ”Labeling Tape Cartridges” on page 75.
SDLT Tape Drives
NOTE: In addition to the information provided in this manual, refer to the documentation provided
with your media for more information. Also see Chapter 7, ”Troubleshooting” beginning on
page 101.
The SDLT tape drive is a high-capacity, high-performance streaming tape drive that uses Laser
Guided Magnetic Recording (LGMR) technology to maximize the amount of data that can be stored
on a tape. An SDLT 320 tape drive is capable of storing up to 160 GB (native) or 320 GB (2:1
compression) of data per cartridge. An SDLT 600 tape drive is capable of storing up to 300 GB
(native) or 600 GB (2:1 compression) of data per cartridge. Access the HP StorageWorks SDLT Tape
Drive Reference Guide from http://www.hp.com/support for more information about its features and
capabilities.
Table 3
SDLT Tape Drive Capacity and Data Transfer Rate
Drive Model
Data Capacity
Sustained Data Transfer Rate
SDLT 160/320
160 GB (native)
16 MB/sec (115.2 GB/hour)
320 GB (compressed)
32 MB/sec (230.4 GB/hour)
300 GB (native)
36 MB/sec (259.2 GB/hour)
600 GB (compressed)
72 MB/sec (518.4 GB/hour)
SDLT 300/600
NOTE:
Compressed capacity assumes a 2:1 compression ratio.
MSL6000 series tape library user guide
19
SDLT Tape Cartridges
NOTE: In addition to the information provided in this manual, refer to the documentation provided
with your media for more information.
CAUTION: SDLT tape drives require special cleaning cartridges and data cartridges formatted
specifically for SDLT. To avoid damage to your tape drive, it is critical to use appropriate cleaning
cartridges, and properly formatted data cartridges.
Make it a practice to visually inspect your tape cartridges when loading or removing them from your
tape library. Taking a few minutes to check the condition of your cartridges will lower the risk of
repeated failures and help ensure uninterrupted backup.
CAUTION: Always discard damaged tape cartridges. If a defective tape cartridge is loaded into a
tape drive, it may in turn damage the drive, potentially requiring drive replacement.
NOTE:
20
Introduction
For information on labeling tape cartridges, see ”Labeling Tape Cartridges” on page 75.
Magazines
MSL Series tape libraries contain two or four removable tape cartridge magazines that are
accessible through the front doors (see Figure 3).
1
2
1
1
2
2
1
Left Magazine(s), with integrated mail slot
2
Right Magazine(s)
Figure 3 Library magazines
Looking from the front of the library, each left tape magazine includes a mail slot, which is
accessible when that magazine door is open. When this mail slot pivots forward, you can insert or
remove a single tape without having to unlock, remove, and reinventory the magazine. If a full tape
cartridge magazine is required, the library can be reconfigured to recognize each mail slot as a
standard data slot. The right tape magazine contains fixed cartridge slots (no mail slot feature), so it
retains its full capacity at all times.
NOTE: The slots and mail slots are numbered beginning with 0: the first slot is Slot 0, the second is
Slot 1, etc. SDLT magazine maximum capacity is 26 slots; LTO magazine maximum capacity is 30
slots.
MSL6000 series tape library user guide
21
Power Supplies
MSL Series tape libraries support one or two power supplies depending upon the model (see
Figure 4). These auto-ranging power supplies are capable of using any nominal AC voltage
between 100 VAC and 240 VAC power, at 50 Hz or 60 Hz.
Power to the library is supplied through AC connectors at the rear panel of each power supply
receiver. Library power is normally controlled from the graphical user interface (GUI) touch screen;
however, a manual power disconnect switch is located at the rear of each power supply.
CAUTION: The power supply is generally not to be removed by the operator. Hazardous voltage is
present in the cavity if the power cord is not removed. If a faulty power supply exists, contact your
authorized service provider.
For the four-drive models, two power supplies are supported to provide redundancy for mission
critical operations. Both power supplies share the load under normal operating conditions, but if
one of the power supplies fails, the remaining power supply assumes the full load (see Figure 4 on
page 22). For the two-drive models, only one power supply is supported.
1
Power Switch
2
Power Supply
3
AC Power Cord(s)
Figure 4 Library power supplies
NOTE: For the four-drive models, the left AC power receptacle is for the bottom power supply. The
right AC power receptacle is for the top power supply.
22
Introduction
Robotics
MSL Series tape library robotics consist of a cartridge shuttle, motor hardware, motor drives, and
other support electronics (see Figure 5). The four-drive models also contain a vertical axis
mechanism that enables the robotics to travel between the upper and lower tape cartridge
magazines. These robotics are capable of picking and placing tapes throughout a 180-degree arc
that consists of the tape drives, tape cartridge magazines, and an optional Pass-Through
Mechanism (PTM).
The cartridge shuttle assembly includes a mounted bar code reader for scanning labeled tape
cartridges installed in the magazines and tape drives.
NOTE: Both full bar code reader scan and physical scan are conducted each time the library is
initially powered up, or each time a tape magazine is accessed using normal operational modes.
In four-drive models, the robotic-PTM interface is at the lower vertical axis PTM elevator position only.
Figure 5 Library robotics (top cover removed)
SHR-9014
Library Controller Board
The library controller board contains a single microprocessor and associated logic devices to
control all robotics operations and manage overall library functions. The microprocessor enables the
SCSI interface between the library and the host system.
The library controller board is installed in a card cage at the rear of the library. In four-drive models,
the library controller board can be serviced with a #1 Phillips screwdriver (see Figure 6). If a
replacement controller board is needed, contact your authorized service provider. Step-by-step
MSL6000 series tape library user guide
23
procedures will be included with the replacement. In two-drive models, the library controller board
cannot be removed.
.
1
Library Controller Board
2
Factory-Defined Accessory PCI Slots (up to 5)
Figure 6 Library controller board
NOTE:
24
Introduction
The library controller board is not removable in two-drive libraries.
NOTE: For MSL Series libraries, the library controller board must be installed in the right-hand slot
of the card cage area (upper card cage area for the four-drive models). The remaining slots on the
library do not support the connections that are required for the library controller board to operate
correctly.
.
1
SCSI VHDCI connector
4
Ethernet RJ-45 connector
2
SCSI VHDCI connector
5
Serial RS232 connector
3
Mode toggle switch
Figure 7 Library controller board connections
NOTE:
The mode toggle switch is not active.
Factory-Defined Accessory PCI Slots
MSL Series tape libraries contain one or two rear-access card cages, and one or two 32-bit,
33-MHz Compact PCI backplanes (see Figure 8). These backplanes contain the plug-in connectors
for a library controller board, and up to five optional HP-defined PCI add-in cards.
CAUTION: Use of non-HP qualified PCI option cards can damage your MSL Series library and will
void product warranty. Follow all operating instructions shipped with the optional card upgrade kit.
MSL6000 series tape library user guide
25
NOTE: The library controller board must be installed in the right slot of the card cage area (upper
card cage area for the four-drive models).
1
Library Controller Board
2
Optional Embedded Fibre Channel Board
3
Factory-Defined Accessory PCI Slots (up to 5)
Figure 8 Library card cages
Embedded Network Storage Router (Optional)
Some library models ship with an optional embedded Network Storage Router in the slot next to the
library controller board.
This board provides bidirectional connectivity in a Fibre Channel Switched Fabric supporting Fibre
Channel and SCSI devices. See ”Optional Fibre Channel Card” on page 167 for additional
information on configuring and using the optional Fibre Channel board.
Front Panel Indicators
The library front panel indicators consist of the following:
• Viewing window—Lets you visually check the internal operations of the library.
• GUI touch screen—Manually operated to set up and configure the library.
• Library status LED—Displays the library operational status of the library.
26
Introduction
1
2
1
Viewing Window
2
GUI Touch Screen
3
Library Status LED
3
Figure 9 Library front panel
Multi Unit Library Systems
MSL Series tape libraries can be stacked in a scalable combination with additional two-drive and
four-drive models to form a multi unit library configuration. Through use of a rear-mounted
Pass-Through Mechanism (PTM), all libraries in a multi unit library configuration can operate
together as a single virtual library system. Stacked libraries are interconnected through their rear
panel Ethernet connections to a supplied LAN hub that mounts to the rack enclosure. The LAN hub
also provides a wide area network (WAN) connector when libraries are combined in their
maximum stacked height.
A maximum of four four-drive models or eight two-drive models can be connected together in this
manner. Any combination of libraries, not exceeding 40 Units (40U) in total stacked height, can
also be used. A multi unit library configuration appears as a single library to the host computer
system and application software. For multi unit applications, the top library becomes the master unit
and all other libraries are slave units.
WARNING! The PTM continues to function each time a slave library is physically removed from the
rack enclosure configuration during normal library operation. Refer to the HP StorageWorks MSL
Series Pass-Through Mechanism Reference Guide for detailed installation, configuration, and
operation information.
The library robotics can pick and place tape cartridges into a movable elevator that encompasses
the full length of the PTM. In this manner, individual tapes can be passed up or down between the
libraries contained in the multi unit library configuration under the master library control. Robotics
MSL6000 series tape library user guide
27
access to the PTM is located at the rear of the library beneath the PTM cover (see Figure 10 on
page 28).
1
PTM Interface Connector
2
PTM Mounting Cover (removal required for PTM installation)
Figure 10 Library PTM mounting location
28
Introduction
2
Installation
This chapter explains how to install an HP StorageWorks MSL Series tape library. Sections in this
chapter include:
• Converting a Tabletop Model to a Rackmount Model, page 29
• Setting Up the Rackmount Model, page 30
• Converting a Rackmount Model to a Tabletop Model, page 34
• Applying Power to the Library, page 35
• Cabling for SCSI Configurations, page 36
NOTE: Be sure to keep and store all shipping materials from your MSL Series tape library for
potential future use.
Converting a Tabletop Model to a Rackmount Model
To make a tabletop library ready for rack enclosure installation:
1. Remove the rubber feet.
2. Remove the cover.
3. Attach the inner rails to the library using the supplied Allen wrench and screws. Tighten the
screws until snug.
MSL6000 series tape library user guide
29
Figure 11 Converting a tabletop model (four-drive model shown)
Setting Up the Rackmount Model
WARNING!
To reduce the risk of personal injury or damage to the equipment, be sure that:
• The leveling jacks are extended to the floor.
• The full weight of the rack rests on the leveling jacks.
• In single rack installations, the stabilizing feet are attached to the rack.
• In multiple rack installations, the racks are coupled.
• Only one rack component is extended at any time. A rack may become unstable if more than
one rack component is extended for any reason.
Setting up the rackmount model requires a template, rack enclosure slide rails, and two people or a
mechanical lift to physically install the library in a rack enclosure.
To set up the rackmount model:
1. Use the template that shipped with the library to mark the location of the mounting hardware on
the mounting rails of the rack enclosure (see Figure 12). The black dots along the sides of the
template indicate the top of a U.
30
Installation
Figure 12 Library template (10000 rack enclosure shown)
NOTE: For HP rack system/e and AlphaServer H9A rack enclosures, refer to the appropriate rack
rail adapter kit.
2. Remove the template and then attach the rails using the supplied fasteners (see Figure 12). The
front rail brackets are threaded to directly accept screws. The rear brackets are not threaded and
require cage/clip nuts in the rack enclosure rear vertical rails.
NOTE: Refer to the Compaq Rack Products Reference Guide for detailed cage nut installation
instructions on 10000 racks.
NOTE: Fully tighten the front rail screws. Leave the rear rail screws “finger tight” to prevent binding
when mounting the library.
a. Fully extend the slide rails X on both sides of the rack enclosure until they lock.
b. Slide the inner guide rail Y as far as possible to the front of the rail assembly.
MSL6000 series tape library user guide
31
2
1
Figure 13 Installing the rails
3. Install the two slide-on clip nuts (previously marked using the template, two holes above the top
bracket screw holes) on each of the front rack enclosure vertical rails (Figure 13).
WARNING! Two people should perform the next step. Make certain, when the library is fully
extended, that a force of 20% of the rack enclosure’s weight, but not more than 57 pounds (26 kg),
applied in any direction other than upwards, does not cause the rack enclosure to overbalance.
CAUTION:
The library is heavier toward the tape drive end (rear).
4. Using two people, lift the library and visually align the inner and intermediate slide rails.
5. Carefully insert the library’s inner slide rails Z into the extended intermediate slide rails Y (see
Figure 14).
6. Slide the library into the rack enclosure until the rail locks are engaged.
WARNING! A rack enclosure might become unstable if more than one library is extended for any
reason. Extend only one library at a time.
7. Push in on the rail locks to release the library and slide the library completely into the rack
enclosure.
8. Fully tighten the rear rail screws.
32
Installation
Figure 14 Installing the library (two-drive model shown)
9. Remove the tape to open the doors for installation.
10.Remove and discard the pull-tabs used to block the latch mechanism.
NOTE: Do not close the doors. You must have access to the retaining screws to complete the
installation. (If necessary, see Chapter 4, ”Operation” on page 49 for information on how to
manually open the library doors.)
11.With the doors open, secure the front panel to the rack enclosure using the retaining screws (see
Figure 15).
12.Close the doors. You can now cable the library.
MSL6000 series tape library user guide
33
1
Left Retaining Screw
2
Right Retaining Screw
Figure 15 Securing the library
NOTE: Two-drive libraries require four retaining screws; four-drive libraries require two retaining
screws.
Converting a Rackmount Model to a Tabletop Model
Converting to a tabletop model requires a tabletop conversion kit and two people or a mechanical
lift to physically install the library into the tabletop base.
To make a two-drive library ready for tabletop use:
1. Position the tabletop base at the desired installation location.
2. Lift the library and place it on the base.
3. Place the top cover over the library and slide the locking tabs into the slots in the base.
4. Slide the cover forward into place.
5. Tighten the two thumb screws at the back of the library to lock the two parts together.
6. Tighten the four rack mount fasteners at the front of the library to secure it in the case.
34
Installation
Figure 16 Converting a rackmount model (two-drive model shown)
Applying Power to the Library
To apply power to the library (see Figure 17):
1. Connect each supplied power cord X to each power supply receptacle.
NOTE: For four-drive models only, the left-hand AC power receptacle is for the bottom power
supply. The right-hand AC receptacle is for the top power supply.
2. Toggle each power switch Y on.
MSL6000 series tape library user guide
35
NOTE: You can remove the appliqué from the GUI touch screen by catching one corner and
carefully lifting it.
3. Wait for power to come on and graphical user interface (GUI) touch screen Z to activate the
display.
1
Figure 17 Applying power to the library (four-drive rackmounted library shown)
Cabling for SCSI Configurations
This section describes supported SCSI cable configurations for the library.
The following SCSI configurations are detailed in this section:
• Two tape drives, dual host system (MSL6030/MSL6026)
• Four tape drives, dual host system (MSL6060/MSL6052)
NOTE: MSL Series libraries support SCSI cable configuration for one to four hosts and one to four
tape drives. Contact your authorized reseller for a list of supported configurations.
NOTE:
36
Installation
Host cables are not supplied with the MSL Series library.
See Appendix D, ”Configuration Examples” beginning on page 165 for a complete listing of
potential configurations.
Supported SCSI Cables
NOTE: For optimum performance, a maximum of one tape drive per SCSI bus is recommended for
Ultrium 460, Ultrium 960, and Ultrium 1840 tape drives.
Each of the tape drives and the library controller constitute an independent SCSI target. When any
two or more devices are connected to the same SCSI bus, each separate SCSI device must be
assigned a unique SCSI ID. For information on assigning SCSI IDs, see Chapter 3, ”Library
Configuration” on page 39.
NOTE: SCSI IDs are set at the factory. If you want to change any of the firmware defaults, you can
do so using the GUI touch screen.
To connect a library to a host system, the host system must have at least one Wide LVD controller
and the appropriate driver software.
Two Tape Drives, Dual Host System
Figure 18 shows a typical SCSI cable configuration for a library with two tape drives installed using
a dual host system.
1
SCSI Terminator
3
Host cable (Bus 1, to host system)
2
0.5 m cable (to library controller card)
4
Host cable (Bus 0, to host system)
Figure 18 MSL6030/MSL6026 library SCSI cable configuration (two tape drives, dual host system)
MSL6000 series tape library user guide
37
Four Tape Drives, Dual Host System
Figure 19 shows a typical SCSI cable configuration for a library with four tape drives installed using
a dual host system.
1
2
1
1
4
5
6
3
1
1
SCSI Terminator
4
Host cable (Bus 3, to host system)
2
0.5 m cable (to library controller card)
5
Host cable (Bus 2, to host system)
3
Host cable (Bus 1, to host system)
6
Host cable (Bus 0, to host system)
Figure 19 MSL6060/MSL6052 library SCSI cable configuration (four tape drives, dual host system)
NOTE: Daisy-chaining Ultrium 1840, 960 and 460 drives is not recommended due to degraded
performance.
CAUTION:
board.
38
Installation
Use the 19.8-inch (0.5m) cable Y to connect the tape drive and the library controller
3
Library Configuration
This chapter explains how to configure an HP StorageWorks MSL Series tape library for normal
operation. Sections in this chapter include:
• Changing Default Configuration Settings, page 39
• Setting a SCSI ID, page 39
• Setting Up a Reserved Slot, page 41
• Configuring the Network Settings, page 47
Changing Default Configuration Settings
For most applications, you do not have to change the default settings; however, if you do need to
change a configuration setting, use the procedures provided in the following sections. If you are
uncertain whether you need to change a setting, contact your authorized service provider.
Configuration settings that might need to be changed include:
• Setting a SCSI ID, page 39
• Setting Up a Reserved Slot, page 41t
• Configuring the Network Settings, page 47
Change configuration settings using the graphical user interface (GUI) touch screen. For a complete
description of how the GUI touch screen works, see Chapter 4, ”Operation” on page 49.
Setting a SCSI ID
Each tape drive installed in the library requires a unique SCSI ID. The information provided in this
section shows you how to set a SCSI ID.
To set a SCSI ID:
1. Turn the library on and wait until the Power-On Self Test (POST) concludes and the Status
screen is displayed.
2. Select the Menu option.
3. Select SCSI in the Edit Options area to display the following screen.
MSL6000 series tape library user guide
39
Figure 20 SCSI option selection screen (two-drive model shown)
NOTE:
You can move to the next sequential SCSI options screen by touching the T.
For example, to set the Drive 0 Bus ID to 3:
a. Select the box next to the text “Drive 0 Bus ID:.” The resulting screen (see Figure 21) displays
the current Drive 0 Bus ID along with the new value that you request.
Figure 21 Drive 0 bus ID screen
b. Touch the block that contains the number 3. This places your request into the New data
field.
c. Touch the Save option to confirm your request. A confirmation screen is displayed (see
Figure 22).
40
Library Configuration
Figure 22 SCSI ID confirmation screen
d. Touch OK to confirm. A new SCSI ID now appears in the Drive 0 Bus ID data field (see
Figure 23).
Figure 23 Drive 0 bus ID data field screen (two-drive model shown)
4. Repeat this procedure to set any remaining SCSI IDs.
!
IMPORTANT:
Do not set duplicate IDs, all SCSI IDs must be unique.
5. Touch the Back button repeatedly to return to the Main menu screen.
Setting Up a Reserved Slot
Use this option to designate one or more tape cartridge data storage slots as a cleaning slot, or to
reduce the number of storage elements visible to the application software (for licensing reasons).
MSL6000 series tape library user guide
41
NOTE:
Reserved slots may be incompatible with some application software.
Reserved Slot Numbering
Standard tape cartridge slots are numbered from the front of the magazine to the rear (see
Figure 24 through Figure 27). If you reserve one slot, it becomes Cleaning Slot #0 in the last slot of
the last magazine. Additional reserved slots continue in this front-to-rear pattern.
1
#11
4
#24
#23
#22
#21
#20
#19
#18
#17
#16
#15
#14
#13
#12
#10
#9
#8
#7
#6
#5
#4
#3
#2
#1
#0
3
1
Cleaning Slot #2
3
Cleaning Slot #0
2
Cleaning Slot #1
4
Mail Slot (Left Magazine Only, If Configured)
Figure 24 Reserved slot locations, SDLT
42
2
Library Configuration
1
4
#13
#28
#12
#27
#11
#26
#10
#25
#9
#24
#8
#23
#7
#22
#6
#21
#5
#20
#4
#19
#3
#18
#2
#17
#1
#16
#0
#15
2
3
#14
1
Cleaning Slot #2
3
Cleaning Slot #0
2
Cleaning Slot #1
4
Mail Slot (Left Magazine Only, If Configured)
Figure 25 Reserved slot locations, Ultrium (MSL6030)
MSL6000 series tape library user guide
43
1
#36
4
#49
#48
#47
#46
#45
#44
#43
#42
#41
#40
#39
#38
#37
#35
#34
#33
#32
#31
#30
#29
#28
#27
#26
#25
3
1
Cleaning Slot #2
3
Cleaning Slot #0
2
Cleaning Slot #1
4
Mail Slot (Left Magazine Only, If Configured)
Figure 26 Reserved slot locations, lower module, SDLT
44
2
Library Configuration
1
4
#42
#57
#41
#56
#40
#55
#39
#54
#38
#53
#37
#52
#36
#51
#35
#50
#34
#49
#33
#48
#32
#47
#31
#46
#30
#45
#29
#44
2
3
#43
1
Cleaning Slot #2
3
Cleaning Slot #0
2
Cleaning Slot #1
4
Mail Slot (Left Magazine Only, If Configured)
Figure 27 Reserved slot locations, lower module, Ultrium (MSL6060)
To reserve a slot:
1. On the Menu screen, touch the Library option in the Edit Options area.
2. On the Library options screen, press the T to scroll to the screen that contains the Total
Reserved Slots option (see Figure 28).
Figure 28 Total reserved slots screen
3. Press the associated box next to the Total Reserved Slots option (see Figure 29).
MSL6000 series tape library user guide
45
Figure 29 Reserved slots numeric keypad screen
4. Enter the number of slots to reserve and then press Save to confirm your change. On the
resulting confirmation screen (see Figure 30), press OK to save.
Figure 30 Total reserved slots confirmation screen
5. Press the Back button repeatedly to return to the Main menu screen.
NOTE:
Your choice takes effect the next time you boot the library.
NOTE: Changes to this option may require reconfiguring the software application in order to
accommodate the change in storage slots.
46
Library Configuration
Configuring the Network Settings
The library automatically obtains an IP address from a DHCP server when the library is powered up.
The library also supports user-specified fixed addresses through the front panel. To set a fixed
address:
1. On the Menu screen, touch Network in the Edit Options area.
2. The IP Address Determination screen appears (see Figure 31).
Figure 31 IP address determination screen
3. Touch the IP Address Determination option (see Figure 31) and then the User Specified
IP Address option (see Figure 32).
Figure 32 User-specified IP address screen
4. Touch OK to confirm your selection.
5. Touch each IP Address option and then use the keypad to enter each IP address (see
Figure 33).
6. Save and confirm your selections.
MSL6000 series tape library user guide
47
Figure 33 Fixed IP address screen
7. Press the Back button repeatedly to return to the Main menu screen.
NOTE:
48
You must reboot the library for settings to take effect.
Library Configuration
4
Operation
This chapter describes how to operate an HP StorageWorks MSL Series tape library. Sections in this
chapter include the following:
• Front Panel, page 49
• Library Display Screens and Options, page 53
• Menu Selections, page 60
• Inserting and Removing Tape Cartridges, page 72
Front Panel
The front panel of the library includes the following (see Figure 34):
• Magazine doors (left- and right-hand)
• Graphical user interface (GUI) touch screen
• Library status LED
• Viewing window
1
2
1
2
3
4
5
3
4
5
1
Left-hand Magazine Door
4
Library Status LED
2
Viewing Window
5
Right-hand Magazine Door
3
GUI Touch Screen
Figure 34 Library front panel
Magazine Doors
The magazine doors have both an electrical release (via the GUI touch screen) and a manual
release. It is always recommended that you open the magazine doors using the GUI touch screen.
However, if the GUI touch screen fails, or if the magazines need to be accessed when power is off,
MSL6000 series tape library user guide
49
you can manually open the magazine doors by pushing a small metal pin or paper clip into the
mechanical releases (see Figure 35).
CAUTION: The magazine doors must only be opened manually in an emergency. Failure to
follow normal procedures can cause data loss and equipment damage.
NOTE: The library may not perform a complete inventory each time a magazine is manually
removed and then replaced using the emergency release.
1
2
1
Left-hand Magazine Door Release
2
Library Status LED
3
1
3
2
Right-hand Magazine Door Release
Figure 35 Magazine door mechanical releases (emergency access)
50
Operation
3
Indicators
The library front panel indicators consist of a GUI touch screen and a library status LED (see
Figure 36 and Table 4).
1
1
GUI Touch Screen
2
Library Status LED
2
Figure 36 Library indicators
Table 4
Library Status LED
Indicator
Description
Solid green
The library is operating correctly under normal
conditions.
Flashing green
The library is operating correctly; however, a change is
being made on the GUI touch screen that interrupts the
current library operation (off-line).
Solid amber
The library is in a fault state as detailed by the error
message on the GUI touch screen.
Front Panel and Media Security Locks
The following security features are available to help you avoid accidental interruption of library
operation.
GUI Touch Screen
The GUI touch screen offers three levels of security (see Figure 37):
• User Level 1—allows access to the mail slot(s).
• User Level 2—allows magazine access, mail slot access, SCSI options, diagnostics, and lets you
move media.
MSL6000 series tape library user guide
51
• Service—allows access to the administrative menu that lets you view/edit library and SCSI
options.
NOTE:
The library ships with a default service password of 5566.
Figure 37 Password levels
Each password is represented by four decimal digits that are stored in NVRAM in a range of 0001
to 9999.
NOTE:
0000 is used to disable password verification for each level.
Enabling a password at a lower level re-enables disabled higher levels to that value. As a result,
prior to accessing any higher level operation, you are prompted first to enter the new higher level
password.
You can also use a higher level password to gain access to a lower level operation. For example,
use the Service password to access the Move Media operation. Using the Service password to
access the Menu option also gives full access (without validating) to the Service operations.
NOTE: To restore passwords if forgotten, use Set User Defaults on the Maintenance screen of the
GUI. Note that any configuration that was previously set will be lost. If necessary, record all
configuration settings before resetting the password.
CAUTION:
52
Operation
Do not use Set Factory Defaults or library damage may occur.
Host System
Media can also be reserved by software running on the host. The library provides no GUI touch
screen override for this command. Usually, exiting the host software restores media access. In the
event of host failure, you can restore media access by cycling the library power.
Library Display Screens and Options
The library GUI touch screen displays graphics and text characters in the form of easy-to-understand
messages. Graphics and text messages, along with their functions, are described in this section.
Initialization Screen
When power is first applied to the library, a series of Power-On Self Test (POST) diagnostics are
performed. After the POST completes, the following initialization screen appears during the library
inventory and scalability configuration.
Figure 38 Initialization screen
Library Status Screen
After the POST executes successfully and the library initialization completes (approximately 45
seconds), the following library Status screen appears (see Figure 39):
1
Technical Support Information (HP logo)
2
LCD Contrast Controls (reset and power-up)
MSL6000 series tape library user guide
53
1
2
Figure 39 Library status screen (two-drive model shown)
The library Status screen lets you select the following options:
• Mail Slot Access
• Magazine Access
• Move Media
• LCD Contrast Controls
• Menu
• Online/Offline
• Status
• Power
54
Operation
Technical Support Information
Selecting this option via the HP logo displays HP-specific technical support assistance information,
including the HP StorageWorks and the HP technical support websites (see Figure 40).
Figure 40 Technical support information screen
Mail Slot Access (Left-hand Magazines Only)
Select this option to display the Mail Slot Access screen (Figure 41). This option provides access
to a mail slot while the library remains powered up. Note that a mail slot is reserved for the first
tape cartridge slot in a left-hand magazine, and can be password protected or fully disabled. If the
mail slot is disabled, this menu button is absent. On four-drive models, solenoids restrict access to
the selected mail slots.
Figure 41 Mail slot access screen (four-drive model shown)
Magazine Access
Select this option to display the Magazine Access screen (Figure 42). For two-drive models, this
option lets you gain access to the left or right-hand magazine doors separately, or both magazine
doors for tape cartridge placement or removal. For four-drive models, this option provides access to
the upper-left, lower-left, or right-hand magazines separately, or both magazine doors for tape
cartridge placement or removal.
MSL6000 series tape library user guide
55
NOTE:
The Magazine Access option can be password protected.
Figure 42 Magazine access screen (two-drive model shown)
Move Media
Select this option to display the Move Media screen (see Figure 43). The Move Media option
lets you remove a cartridge from a tape drive, a data slot in any magazine, or a mail slot in a
left-hand magazine. This option also lets you load and unload tape cartridges from the installed
tape drives.
See the section on ”Replacing a Cleaning Cartridge in a Reserved Slot” on page 96 for detailed
removal information.
CAUTION: To reduce the risk of drive damage, use SDLT and Ultrium cleaning cartridges only in
their respective drive types.
56
Operation
CAUTION:
Remove media from all drives and slots prior to library transport.
Figure 43 Move media screen (two-drive model shown)
GUI Contrast Controls
Select these options to increase or decrease the contrast of the GUI display (see Figure 39).
Incremental steps are set by adjusting the GUI contrast controls from the library Status screen.
Incremental steps can range from 0 to 31 depending on your preference. These settings are volatile
and are restored to default values upon reboot or power cycling.
Power
Select this option to initiate a library power-down operation. After a successful power-down, a
confirmation message appears (see Figure 44).
NOTE:
After you power-down the library, you must power it back up through the GUI display.
NOTE: The library moves the shuttle assembly to the parked position before powering down. This
position is a prerequisite for any library transport.
MSL6000 series tape library user guide
57
Figure 44 Power-down confirmation message screen
Status
Select this option to display the information Status screen (Figure 45). From this screen, touch a
magazine icon to display detailed information about the cartridges in that magazine. Touch a drive
icon to view drive ID information, cleaning information, tape cartridge information, and drive status.
Figure 45 Status screen (four-drive model shown)
58
Operation
Cartridge Map
Selecting this option provides you with a layout of the slots and cartridges that are currently being
used in the library. Bar code labels are displayed if enabled and in use.
Figure 46 Cartridge map screen (two-drive model shown)
Online
Selecting this option places the library online or offline.
NOTE: The library automatically comes online after a power-up initialization. You can use this
option to place the library offline.
Menu
Selecting this option lets you view, configure, and use the library (Figure 47). The Menu option
displays three distinct areas:
• View System Data
• Utilities
• Edit Options
MSL6000 series tape library user guide
59
Figure 47 Menu screen
Menu Selections
This section describes the three Menu areas:
• View System Data
• Edit Options
• Utilities
View System Data Area
The View System Data area lets you select the following screens:
• Library Options
• SCSI Options
• Network Options
• Library Info
• Cartridge Map
Library Options
Selecting this option lets you view the library settings. These settings are defined from the Library
option in the Edit Options area (see Figure 48 on page 61).
NOTE:
60
Operation
You can move to the next subsequent Library Options screen by selecting the T button.
Figure 48 View library options screen
Table 5 lists and describes the available Library options.
Table 5
View Library Options
Option
Description
Library Remains Offline After
Power-up Initialization
Library does not go online after power-up initialization. You
must select the Online option from the Menu screen on the GUI
touch screen. The default is Disabled.
Auto Power-Up An Installed
Drive After Timeout
Enables a tape drive to be automatically powered up (after a
delay), after replacing a tape drive if you do not explicitly power
up the tape drive from the GUI touch screen. The default is
Enabled.
Unload Mode
Lets you determine whether a SCSI MOVE MEDIUM command
is interpreted as Implicit or Explicit. If Implicit, the library unloads
a tape drive before attempting to move a cartridge from that
tape drive. If Explicit, the host must issue a SCSI UNLOAD
command to a tape drive before each MOVE MEDIUM
command that removes a cartridge from that tape drive. The
default is Implicit.
Total Reserved Slots
Lets you reduce a specified number of slots at the rear of a
magazine. Some host software imposes size limits on library
magazines for licensing purposes, and does not operate with a
library that exceeds the licensed size. The default is 0.
Auto Clean Mode
Lets you enable an automatic tape drive cleaning cycle. To use
this option, you must have reserved a slot for a cleaning
cartridge using the Total Reserved Slots option. The default is
Disabled.
MSL6000 series tape library user guide
61
Table 5
62
View Library Options (continued)
Option
Description
Drive and Slot Numbering
Lets you specify whether SCSI elements in the library displays
with either zero based or one based. Note that this only affects
the GUI touch screen, not the actual SCSI element addresses. The
default is Zero Based.
Library Mode
Lets you set the robotics operating mode to Random, Sequential
Drv0, Sequential Drv n (two or more drives), or Sequential Split.
Sequential Drive n and Sequential Split require two or more
drives in the library. Sequential mode is not available with
multi-module configurations. The default is Random.
Sequential Mode
Sequential Mode is locally controlled. Sequential operations
begin with any cartridge loaded into Drive 0. The library
monitors the drive status, and when the host unloads a cartridge
from the drive, it returns the cartridge to the magazine, and then
loads the next cartridge in magazine numerical order. This
operation continues until all cartridges have been loaded, or
until an empty slot is encountered. Two options are available:
Normal (same as Library Mode above) and Recirculate. Instead
of stopping after the cartridge in the last slot for the drive has
been unloaded by the host, Recirculate mode continues the
operation by loading the first cartridge for the drive.
Recirculation will continue until an empty slot is encountered, or
the operator unloads the tape using the GUI touch screen.
LCD Contrast Adjust
The LCD contrast controls let you increase or decrease the
contrast of the LCD display. The incremental steps are set by
adjusting the LCD Contrast Adjust option from the Library option.
Incremental steps can range from 0 to 31 depending on your
preference. The default is 16.
Mail-Slot Mode
Lets you enable or disable the mail slot(s) in a library. For the
two-drive models, the default is Mail Slot Enabled. For the
four-drive models, the default is Both Mail Slots Enabled.
Barcode Label Size
Lets you limit the length of the bar code label. Possible settings
are 1 through 8. The default is 8.
Barcode Label Assignment
Lets you specify the alignment of a bar code label. The options
are Left or Right. When used in conjunction with the Barcode
Label Size option, this option strips unwanted trailing characters
(left alignment) or leading characters (right alignment). The
default is Left Align.
Barcode Label Check Digit
Lets you specify whether to enable or disable the verification of a
check digit character in the bar code label. The default is
Disabled.
Operation
Table 5
View Library Options (continued)
Option
Description
Barcode Reader
Lets you enable or disable the bar code reader retries option.
The default is Retries Enabled.
Module Configuration
Lets you configure a library for Standalone, Master, or Slave
operation. The default is Standalone.
Library Auto Power-On Mode
Lets you enable or disable an automatic library power-on after a
power loss without the need to touch the GUI screen. The default
is Enabled.
SCSI Options
Selecting this option lets you view the settings defined from the SCSI option in the Edit Options
area (see Figure 49).
NOTE: You can move to the next sequential SCSI Options screen by selecting the T. To return to
the previous SCSI Options screen, select the S or Back button to return to the Menu screen.
Figure 49 View SCSI options
Table 6 lists and describes the available SCSI Options selections. (See ”Tape Drives” on page 16
for an illustration of the drive numbering scheme.)
MSL6000 series tape library user guide
63
Table 6
View SCSI Options
Option
Description
Drive 0 Bus ID
Lets you set the SCSI addresses of drive 0. The designators
Drive 0 (outer tape drive) through Drive n refer to the first
through nth drives, counting from right to left starting with
the master unit in a scaled Library system. Default is 1.
Drive 1 Bus ID
Lets you set the SCSI addresses of drive 1. The designators
Drive 1 (inner tape drive) through Drive n refer to the
second through nth drives, counting from right to left
starting with the master unit in a scaled Library system.
Default is 2.
Drive 2 Bus ID
Lets you set the SCSI addresses of drive 2. The designators
Drive 2 (lower, outer tape drive) through Drive n refer to
the third through nth drives, counting from right to left
starting with the master unit in a scaled Library system.
Default is 3.
Drive 3 Bus ID
Lets you set the SCSI addresses of drive 3. The designators
Drive 3 (lower, inner tape drive) through Drive n refer to
the fourth through nth drives, counting from right to left
starting with the master unit in a scaled Library system.
Default is 4.
Library SCSI Bus ID
Lets you set the SCSI addresses for the library robotics. The
default is 0.
Library SCSI Bus Parity
Lets you enable or disable the library robotics SCSI bus
parity checking. The default is Enabled.
Mail Slot Access
This option controls access to the mail slot and media
removal. “Prevent Allow” Command Inhibits allows access
to the mail slot via the GUI control panel and allows
media removal. “Prevent Allow” Command Ignored
prevents access to the mail slot and removal of media. This
option is used for some backup applications. The default is
“Prevent Allow” Command Inhibits.
SCSI Mode
Defines the loader as SCSI-2 or SCSI-3. The default is
SCSI-3.
Unit Attention
Reporting
Lets you select reporting of all or only one stacked-unit
attention conditions. If set to Report All, the unit reports all
unit attention conditions in sequence; if set to Report One,
the unit reports only the highest priority condition. The
default is Report All.
(four-drive models
only)
(four-drive models
only)
64
Operation
Table 6
View SCSI Options (continued)
Option
Description
Init Element Status
Lets you specify the library’s response to the SCSI
INITIALIZE ELEMENT STATUS command. The
possible settings are No Inventory, Force Inventory, and
Force Label Scan. The default is Force Inventory.
Test Unit Ready
Reporting
Lets you specify the response to a TEST UNIT READY
command if the library is in Sequential Mode. The
possible settings are Standard or Custom. The default is
Custom.
Device Capability Page
Length
Lets you choose between two lengths of the mode
sense/select device capabilities page (SCSI page 1Fh),
which are Short (14 bytes) and Long (18 bytes), to
accommodate different SCSI device implementations of
this page. The default is Short (14 bytes).
Transport Element
Base Address
Lets you set the base address for the robotics mechanism.
The default is 0x0.
Storage Element
Base Address
Lets you set the base address for the magazine slots. The
default is 0x20.
Transfer Element
Base Address
Lets you set the base address for the tape drives. The
default is 0x1E0.
Import/Export Element
Base Address
Lets you set the base address for the mail slot. The default
is 0x1C0.
Product Identification
(PID)
Lets you specify the response of the library’s robotics to the
SCSI INQUIRY command in the Product Identification
field. The default is MSL6000 Series.
Vendor Identification
(VID)
Lets you specify the response of the library’s robotics to the
SCSI INQUIRY command in the Vendor Identification
field. The default is HP.
Post Recovered Errors
Lets you specify whether or not recovered errors are
posted. The default is Disabled.
MSL6000 series tape library user guide
65
Table 6
View SCSI Options (continued)
Option
Description
TapeAlert Mode
Specifies conditions for logging and reporting the
following Tape Alert data options. The default is
Unconditionally Generate Recovered Error.
• Logging Disabled: Inhibits the logging
feature.
• No Exceptions: The library must not report
information exceptions.
• Generate Unit Attention: Reports
information exceptions with a Unit Attention
sense key and an ASC/ASCQ of 5D/00.
• Conditionally Generate Recovered Error:
Reports information exceptions with a
Recovered Error sense key and an
ASC/ASCQ of 5D/00, if Recovered Error
Reporting is enabled.
• Unconditionally Generate Recovered
Error: Unconditionally reports information
exceptions with a Recovered Error sense key
and an ASC/ASCQ of 5D/00.
• Generate No Sense: Reports information
exceptions with a No Sense sense key and an
ASC/ASCQ of 5D/00.
• Report on Unsolicited Request Sense:
Reports information exceptions with a No
Sense sense key and an ASC/ASCQ of
5D/00, only in response to an unsolicited
REQUEST SENSE command.
66
Abort Move Status
Lets you specify the SCSI response while aborting a SCSI
command. The possible settings are Busy or Not Ready.
The default is Not Ready.
Door Open Response
Lets you specify the SCSI response when a library door is
open. The settings are Ready or Not Ready. The default is
Not Ready.
Initiate Wide Data
Transfer Negotiation
Lets you enable the library to initiate a SCSI synchronous
and wide data transfer negotiation with the host. The
settings are Do Not Initiate or Initiate. The default is Do
Not Initiate.
Operation
Table 6
View SCSI Options (continued)
Option
Description
Data Transfer Speed
Lets you set the robot or library SCSI data transfer rate to
Synchronous, 10 MB/sec, Synchronous, 5 MB/sec, or
Asynchronous Only. The default is Synchronous, 10
MB/sec.
Report Element Type
The default is Disabled.
Fast Terminate
Sequence
The default is Disabled.
Network Options
Selecting this option lets you view the settings defined from the Network option in the Edit
Options area (see Figure 50). Table 7 on page 68 lists and describes the available options.
NOTE: There are no firmware default settings for networks. Contact your network administrator for
specific information on connecting the library to your network.
Figure 50 Default view network options screen
NOTE: The IP Address, IP Mask, IP Gateway, and DNS Server become available after selecting
User Specified IP Address from the Network screen under Edit Options.
MSL6000 series tape library user guide
67
Table 7
View Network Options
Option
Description
IP Address
Determination
Lets you obtain an IP address from a DHCP server or set a
user specified IP address.
IP Address
Lets you select an IP Address.
IP Mask
Lets you select an IP Mask.
IP Gateway
Lets you select an IP Gateway.
DNS Server
Lets you select a DNS server address.
Library Info
Selecting this option lets you display the Miscellaneous Library Info screen (Figure 51). This
screen displays the library’s firmware revision, the local IP and Ethernet address that is currently in
use, the unit serial number, and the library’s power-on hours.
Figure 51 View library info screen
Edit Options Area
The Edit Options area lets you select the following screens:
• Library
• SCSI
• Network
• Passwords
Library
Selecting this option lets you define the Library options used to configure the library for your
specific needs (see Figure 52). Table 5 on page 61 lists and describes the available options.
68
Operation
NOTE:
You can move to the subsequent Library screen by selecting the T.
Figure 52 Edit library options screen
SCSI
Selecting this option lets you define the SCSI options used to configure the library for your specific
needs (see Figure 53). Table 6 on page 64 lists and describes the available options.
NOTE:
You can move to the subsequent SCSI screen by selecting the T.
Figure 53 Edit SCSI options screen
MSL6000 series tape library user guide
69
Network
Selecting this option lets you define the Network options used to configure the library for your
specific needs (see Figure 54). Table 7 on page 68 lists and describes the available options.
Figure 54 Edit network options screen
Passwords
Selecting this option lets you define the Password options used to configure the library for your
specific needs (see Figure 55). For information on library security features and password levels, see
”Front Panel and Media Security Locks” on page 51.
Figure 55 Edit passwords options screen
Utilities Area
The Utilities area lets you select the following screens:
• Maintenance
• Diagnostics
• Factory
• Security Level
70
Operation
Maintenance
Selecting this option lets you perform system maintenance on the library (see Figure 56):
Figure 56 Maintenance screen
The Maintenance menu options are described in Chapter 6, ”Maintenance” beginning on
page 91.
Diagnostics
Selecting this option lets you perform a system calibration on available components (see Figure 57).
Available options are dependent on the specified user level.
The Diagnostics menu options are described in Chapter 7, ”Troubleshooting” beginning on
page 101.
Figure 57 Diagnostics screen (four-drive model shown)
MSL6000 series tape library user guide
71
NOTE:
The Vertical Calibration button is only available on four-drive models.
Factory
The Factory menu options are intended for use by factory personnel only.
CAUTION:
Unauthorized use of the Factory option could render the library inoperable.
Security Level
Selecting this option lets you select passwords for a security level (see Figure 58).
NOTE:
The library ships with a default Service password of 5566.
NOTE:
Setting a value 0000 for a given level disables that level.
Figure 58 Security level screen
Inserting and Removing Tape Cartridges
Unless you are using the mail slot(s), a tape magazine must be removed from the library to remove
or insert tape cartridges. Make sure the slot you want to use is not already reserved for a tape
cartridge or cleaning cartridge that is now in a tape drive. The safest way to do this is to unload all
tape drives before removing a magazine. You can unload all the tape drives either through your
host system software or by using the LOAD/UNLOAD command from the Library Option menu.
72
Operation
NOTE:
Do not add more tape cartridges to the library than its rated slot capacity.
CAUTION: Ultrium and SDLT tape drives require special cleaning cartridges and data cartridges
formatted specifically for the drive technology. To avoid damage to your tape drive, it is critical to
use appropriate cleaning cartridges and properly formatted data cartridges. Contact an HP
authorized dealer or sales representative for current compatibility and availability.
Removing Magazines
Library magazine removal is a manual operation. Access the magazines using the Magazine
Access option from the library Status screen. This option lets you open the left- or right-hand
magazine doors separately, or all magazine doors at the same time. After opening the appropriate
magazine door, pull the magazine out from the library chassis (see Figure 59).
1
2
1
1
2
2
1
Left-hand Magazine(s)
2
Right-hand Magazine(s)
Figure 59 Removing tape cartridge magazines
MSL6000 series tape library user guide
73
Inserting Cartridges into a Magazine
A full left-hand magazine is shown in Figure 60. For two-drive models, the lowest numbered tape
cartridge slot Y is the one closest to the front of the left-hand magazine. For four-drive models, the
lowest numbered tape cartridge slot Y is the one closest to the front of the upper-left magazine.
1
1
Tape Cartridge
Orientation for
Left-hand Magazine
2
Lowest Numbered
Tape Cartridge Slot
3
Highest Numbered
Tape Cartridge Slot
3
2
Figure 60 Inserting a tape cartridge (left-hand magazine)
Insert tape cartridges so that the bar code labels are facing outward (see Figure 60).
NOTE: Handle and store tape cartridges in a clean, dust-free environment. Refer to the
documentation provided with your tape cartridges for additional information.
Using Mail Slots (Left-hand Magazines Only)
Mail slots are used only with host system software that supports this feature. The mail slot feature lets
you insert or remove a single tape without removing the entire magazine. The benefit of using a mail
slot is that the magazine does not need to be reinventoried. Access the mail slots using the Mail
Slot Access option from the library Status screen. This option lets you open a left-hand magazine
door for mail slot access. After opening a left-hand magazine door, pivot the mail slot forward to
insert a tape cartridge (see Figure 61).
74
Operation
NOTE: Mail slots must be enabled (firmware default) using the Mail Slot Mode option from the
Edit Library Options menu. See Table 5 for more information.
NOTE: Disabling a mail slot allows it to be used for an additional data slot, but this may be
incompatible with some host software applications.
1
1
Mail Slot Holder
2
Tape Cartridge
2
Figure 61 Left-hand magazine mail slot (two-drive model shown)
Labeling Tape Cartridges
Attaching a bar code label to each tape cartridge enables the library and application software to
identify the cartridge quickly, thereby speeding up inventory time. Make it a practice to use bar
code labels on your tape cartridges. Your host software may need to keep track of the following
information and the associated bar code:
• Date of format or initialization
• Tape’s media pool
• Data residing on the tape
• Age of the backup
• Errors encountered while using the tape (to determine if the tape is faulty)
MSL6000 series tape library user guide
75
CAUTION: The misuse and misunderstanding of bar code technology can result in backup and
restore failures. To ensure that your bar codes meet HP’s quality standards, always purchase them
from an approved supplier and never print bar code labels yourself. For more information, refer to
the order form provided with the library, as well as the Bar Code Label Requirements, Compatibility
and Usage white paper available from http://www.hp.com/support.
Ultrium Labels
Ultrium tape cartridges have a recessed area located on the face of the cartridge next to the
write-protect switch. Use this area for attaching the adhesive-backed bar code label (see Figure 62).
Do not apply labels onto the cartridge except in this designated area.
CAUTION: The bar code label should be applied as shown in Figure 62 with the alphanumeric
portion facing the hub side of the tape cartridge. Never apply multiple labels onto a cartridge, as
extra labels can cause the cartridge to jam in a tape drive.
Figure 62 Attaching a bar code label to an Ultrium tape cartridge
76
Operation
To ensure successful operation of your tape library, place the bar code label entirely within the
recessed area, ensuring that no part of the label is outside of it (see Figure 63).
Figure 63 Proper Ultrium bar code label placement
SDLT Labels
SDLT tape cartridges have a front slide slot located on the face of the cartridge next to the
write-protect switch (see Figure 64 shows) Use this slot for inserting the bar code label by sliding it
into the slot.
CAUTION: Do not apply labels onto the top, bottom, sides, or back of the cartridge as this may
cause damage to the tape drive, or interfere with reliable operation.
MSL6000 series tape library user guide
77
Figure 64 Attaching a bar code label to an SDLT tape cartridge
Media Label Identifiers
Be sure to use the proper bar code labels for your drive technology. Table 8 lists the identifier that is
found at the end of 7- or 8-character SDLT and Ultrium bar code labels.
CAUTION: To ensure that your bar codes meet HP’s quality standards, always purchase them from
an approved supplier and never print bar code labels yourself. For more information, refer to the
order form provided with the library, as well as the Bar Code Label Requirements, Compatibility and
Usage white paper available from http://www.hp.com/support.
Table 8
78
Media Label Identifiers
Cartridge Type
Density
Label Identifier
SDLT 320
160/320 GB
S or S1
SDLT 600
300/600 GB
S or S2
Ultrium 460
200/400 GB
L2
Ultrium 960
400/800 GB
L3
Ultrium 1840
800/1600 GB
L4
Operation
5
Remote Management Interface
Many of the same operations performed from the front panel can also be performed remotely using
the Remote Management Interface. Sections in this chapter include:
• Overview, page 79
• Accessing the Remote Management Interface, page 80
• Using Menu Buttons, page 82
• Changing the Remote Management Interface Passwords, page 88
Overview
The Remote Management Interface lets you monitor and control your automated tape library from
any terminal connected to your network or via the World Wide Web. The Remote Management
Interface hosts a dedicated, protected Internet site that displays a graphical representation of your
library.
After establishing a connection to the library, open any Web browser and enter the IP address of
the library.
NOTE:
Be sure that proxy server settings in your browser are disabled
This internet site can be accessed using either Microsoft Internet Explorer (3.0 or higher) or
Netscape (3.0 or higher). The Remote Management Interface shows the overall status of the library
at a glance, and presents a control panel for making adjustments and viewing details down to the
cartridge level.
To use the Remote Management Interface, you must have the following available:
• A 10 BaseT Ethernet Network
• An available IP address (either Internet or local)
• A host computer with COM port (initial setup and alternative maintenance procedures only)
• A computer with a Web browser installed that has access to your network
Two configurations for the Remote Management Interface are available:
• World Wide Accessible.
• Local Area Network
To configure the Remote Management Interface you must set the IP addresses. (For information on
setting IP addresses, see ”Configuring the Network Settings” on page 47.)
MSL6000 series tape library user guide
79
CAUTION: Some options of the Remote Management Interface take the library offline. This inactive
mode can interfere with host-based application software, causing data loss. Ensure that the library
is idle before attempting to perform any remote operations that will take the library offline.
Accessing the Remote Management Interface
To access your library remotely, the library must be in the ready mode to establish communications
with the Remote Management Interface. If you are unable to access the unit with your browser,
verify the library is not being operated locally.
1. Type the IP address in the Location field of your Web browser, and press Enter.
The browser connects to the Remote Management Interface and displays a login prompt.
Figure 65 Remote Management Interface login screen
2. Enter your level 1 or level 2 password in the appropriate field and click Login.
NOTE: The default level 1 password is 1. The default level 2 password is 2. The level 1 password
only allows use of passive features, such as viewing library status.
Use the MSLUtil.exe diagnostic utility and the serial interface to change the default passwords as
described in ”Changing the Remote Management Interface Passwords” on page 88.
80
Remote Management Interface
Figure 66 Remote Management Interface main screen
3. Click on the library to access the Status screen (see Figure 67).
MSL6000 series tape library user guide
81
Figure 67 Status screen
Using Menu Buttons
The Remote Management Interface menu buttons include:
• Status, page 82
• Move Media, page 83
• Setup, page 84
• Functions, page 87
• History, page 88
Status
Click the Status button to view a display of itemized status information for the library in general,
and for each drive. Scroll down to view additional information. You can configure two browser
settings from this screen:
• Auto refresh: off /1 min / 2 min / 5 min
This setting ensures that the status of your library displayed on the browser remains current.
• Inventory Display: Logical / Physical
This setting enables you to display your library either logically (drives and slots are grouped
separately) or physically (drives and slots are grouped by library module), depending on your
preference.
Information available from this screen:
• Library Status
82
Remote Management Interface
• Drive Status (Summary)
• Full Drive Status is available through the Full Drive Status button
Move Media
CAUTION: Do not move tapes while library application software is running. Fatal software faults
may occur.
This button allows you to move a selected cartridge to a target drive or cartridge slot.
Figure 68 Move media screen
1. Specify the source slot and destination.
2. Click Execute the Move.
A screen appears warning you that selecting Confirm causes the library to go offline during
the move media operation. After the move media operation completes, a completion message
appears.
MSL6000 series tape library user guide
83
Setup
Click Setup for button-and-browser controls that let you set library, SCSI, and drive configuration
options, also available on the Menu > Edit Options area of the tape library GUI.
Figure 69 Setup screen
84
Remote Management Interface
Library Configuration
Click Library Config to set basic library parameters.
Figure 70 Library configuration screen
MSL6000 series tape library user guide
85
SCSI Configuration
Click SCSI Config to SCSI mode and Tape Alert parameters.
Figure 71 SCSI configuration screen
Drive Configuration
Click Drive Config to set the SCSI IDs of the drives.
Figure 72 Drive configuration screen
86
Remote Management Interface
Functions
The Functions pages present button-and-browser controls of selectable files.
Figure 73 Functions screen
Four functions are available from this screen:
• Drive cleaning operation
• Timed or Free running library diagnostic
• Library flash operation
• Reset the library
CAUTION: Only perform the drive cleaning operation when the library displays a message
informing you that a tape drive needs cleaning. Excessive, unrequested cleaning can damage the
tape drives. See ”Running a Cleaning Cartridge” on page 93 for additional information.
NOTE: See ”Updating Firmware” on page 97 for additional information on using the library flash
operation in the Remote Management Interface.
MSL6000 series tape library user guide
87
History
Click History to list files that you can display or download. Scroll down for additional menus.
Figure 74 History screen
When you select a file, a Save As window appears, letting you select a network destination for the
download. When you select Display Trace, the log will display through the browser.
Changing the Remote Management Interface Passwords
The Remote Management Interface is set with two default passwords for level 1 and level 2 access
to features. Use the MSLUtil diagnostic utility and serial interface to change the default passwords
for the Remote Management Interface.
NOTE: The default passwords cannot be changed in the Remote Management Interface. The
default passwords can only be changed by using the MSLUtil diagnostic utility and diagnostic cable
connection to the computer running the utility.
To change level 1 and/or level 2 passwords:
1. Install the diagnostic utility on a Windows compatible computer using the MSLUtil CD supplied
with the library.
2. Connect the diagnostic cable from the computer installed with the diagnostic utility to a serial
port on the library controller board located at the back of the library.
3. Start MSLUtil and select Connect from the tool bar.
4. Click OK to use the default setting. A communication path is established to the library.
88
Remote Management Interface
5. Select Configure from the tool bar.
6. Select Set Values from the menu.
7. Select the Access tab in the Configure Library window. The default passwords display for levels
1 and 2.
8. Change the default password(s) to a new password and click OK.
9. Click OK to confirm the changes.
MSL6000 series tape library user guide
89
90
Remote Management Interface
6
Maintenance
This chapter includes procedures for:
• Using the Library Maintenance Menu, page 91
• Maintaining Tape Cartridges, page 92
• Running a Cleaning Cartridge, page 93
• Replacing a Cleaning Cartridge in a Reserved Slot, page 96
• Updating Firmware, page 97
Using the Library Maintenance Menu
You can use the library Maintenance menu to perform system maintenance. Access this menu from
the GUI touch screen by selecting Menu > Utilities > Maintenance. Table 9 lists the available
options.
Table 9
Maintenance Menu
Option
Description
Clean Drive
Cleans a drive by selecting the drive to
be cleaned, and the slot or mailslot
where the cleaning cartridge is
located.
Replace Drive
Deactivates a drive prior to its removal.
Drive Format
Formats a tape once the density and
compression settings have been
selected.
Park Drives
Parks all drives prior to transporting the
library.
Set User Defaults
Restores the library to its firmware
default settings.
Force Reconfiguration
Forces library to reconfigure based on
current or new SCSI elements.
MSL6000 series tape library user guide
91
Table 9
Maintenance Menu
Option
Description
Reboot Library
Reboots the library.
Flash Drive From Tape
Downloads firmware from a selected
tape to a selected drive.
NOTE: The firmware update (FUP)
tape must be in the mail slot before
beginning this operation.
Eject Tape From Drive
Terminates any on-going operations in
the selected drive, and attempts to eject
the cartridge.
NOTE: This function should be used
as a last resort to retrieve a cartridge
from a drive.
Maintaining Tape Cartridges
NOTE: In addition to the information provided in this section, refer to the documentation provided
with your media for more information.
Make it a practice to visually inspect your tape cartridges when loading or removing them from your
library. Taking a few minutes to check the condition of your cartridges will lower the risk of
operation and drive failures and help ensure uninterrupted backup.
Repeated drive failures may indicate defective tapes. Tapes need to be inspected and replaced if
they have been dropped, damaged, or used with a failed drive. To determine if the tapes have been
damaged:
• Gently shake the tape cartridge to verify that no internal parts are rattling, indicating that they
may be loose.
• Look at the tape cartridge to check for any obvious cracks or other physical damage. Look for
broken or missing parts.
CAUTION: Always discard damaged tape cartridges. If a defective tape cartridge is loaded into a
tape drive, it may in turn damage the drive potentially requiring drive replacement.
92
Maintenance
Do not use cartridges with:
• Tape or leaders that have been touched with bare fingers, as this may transfer oils to the tape
head.
• Labels used on the top, bottom, sides, or back of the cartridge. Use the label slot or recess only.
• More than one label applied, as extra labels can cause the cartridges to jam in the tape drive.
Ultrium Cartridges
CAUTION: Do not bulk erase Ultrium formatted cartridges. This will destroy pre-recorded servo
information, and make the cartridges unusable.
SDLT Cartridges
In addition to the general inspection listed on page 92, you can further determine if SDLT tapes
have been damaged by doing the following:
• Visually inspect the tape for a broken, unseated, or misaligned tape leader (Figure 75 on
page 93).
• Check the leader position by pressing in the door lock to release the cartridge door. While
pressing in the door lock, push the tab down to open the door. Be careful not to touch the tape
after opening the door. Ensure that the leader is in the correct position (Figure 75 on page 93).
Good
Worn (Do Not Use)
Figure 75 SDLT buckle leaders
Running a Cleaning Cartridge
Use the Clean Drive menu option contained in the Maintenance submenu of the Utilities area
on the front panel display to clean tape drives installed in HP StorageWorks MSL Series tape library.
MSL6000 series tape library user guide
93
CAUTION: Only perform the Clean Drive menu option when the library displays a message
informing you that a tape drive needs cleaning. Excessive, unrequested cleaning can damage the
tape drives.
CAUTION: Ultrium and SDLT tape drives require special cleaning cartridges and data cartridges
formatted specifically for the drive technology. To avoid damage to your tape drive, it is critical to
use appropriate cleaning cartridges and properly formatted data cartridges. Contact an HP
authorized dealer or sales representative for current compatibility and availability.
NOTE: Backup application software must be compatible with the library autoclean feature to avoid
robot command conflicts.
NOTE:
HP does not support preventive autocleaning operation.
Because the cleaning cartridge is abrasive, you should not use it unless the message “Use
Cleaner” appears on the front panel display. There are three ways to manage the cleaning of the
installed tape drives:
• Automatically, by application software.
• Automatically, by enabling Auto Clean Mode.
• Manually, by selecting the Clean Drive menu option from the Maintenance submenu on the
front panel display.
Automatically Running a Cleaning Cartridge
You can configure the library so that it automatically runs the cleaning cartridge mode. After a tape
drive that needs cleaning completes an unload operation, it sends a cleaning needed message to
the library. This activates an automatic cleaning cycle if the cleaning cartridge slot has been
reserved, Auto Clean Mode has been selected from the Library Options menu, and the
appropriate cartridge technology is loaded.
To configure the library to use Auto Clean Mode, do the following:
1. Reserve a cleaning cartridge slot. (See ”Setting Up a Reserved Slot” on page 41 for more
information.)
2. Enable Auto Clean Mode. (See ”Library Display Screens and Options” on page 53 for more
information.)
Manually Running a Cleaning Cartridge
A cleaning cartridge can be installed and run from one of three locations:
94
Maintenance
• The Mail Slot—This location has the advantage of not needing to remove a magazine to use a
data cartridge slot, or to reserve a cleaning cartridge slot.
• A Tape Cartridge Slot—This location requires removing a magazine to insert a cleaning
cartridge in a tape cartridge slot, and then removing it after cleaning.
• The Cleaning Slot—This location requires reserving the last tape cartridge slot for exclusive use
as a cleaning cartridge slot. The advantage with this method is that the cleaning cartridge is
stored in the library and is always available for use. It needs to be handled only when it expires
and needs to be replaced. (See ”Setting Up a Reserved Slot” on page 41 for more information.)
Running a Cleaning Cartridge from a Mail Slot
1. Insert a cleaning cartridge into a Mail Slot (see ”Using Mail Slots (Left-hand Magazines Only)”
on page 74).
2. Select the Clean Drive menu option from the Maintenance submenu on the front panel
display.
3. Select Source and then Mail Slot in the Source Element Type box.
4. Select Cleaning. If the default entry is not the tape drive to be cleaned, press Drive in the
Destination Element Type box to sequence through the available tape drive choices. You
can also use the Decimal Keypad to enter the tape drive number directly.
5. When the source and destination entries are correct, select Execute Clean.
6. When the cleaning cycle completes, the library returns the cleaning cartridge back to a Mail
Slot. To remove the cleaning cartridge, select Mail Slot Access from the library Status
screen.
Running a Cleaning Cartridge from a Tape Cartridge Slot
1. Insert a cleaning cartridge into an appropriate tape cartridge slot (Slot 0, for example). (see
”Using Mail Slots (Left-hand Magazines Only)” on page 74).
2. Select the Clean Drive menu option from the Maintenance submenu on the front panel
display.
3. Select Source. If the default entry is not the slot with the cleaning cartridge, press Slot in the
Source Element Type box to sequence through the available cartridge slots. You can also
use the Decimal Keypad to enter the slot number directly.
4. Select Cleaning. If the default entry is not the tape drive to be cleaned, press Drive in the
Destination Element Type box to sequence through the available tape drive choices. You
can also use the Decimal Keypad to enter the tape drive number directly.
5. When the source and destination entries are correct, select Execute Clean.
6. When the cleaning cycle completes, the library returns the cleaning cartridge back to the tape
cartridge slot. To remove the cleaning cartridge, select Magazine Access from the library
Status screen.
Running a Cleaning Cartridge from a Cleaning Slot
1. Reserve a cleaning tape cartridge slot. (See ”Setting Up a Reserved Slot” on page 41 for more
information.)
2. Install a cleaning cartridge in a reserved slot.
MSL6000 series tape library user guide
95
3. Select the Clean Drive menu option from the Maintenance submenu on the front panel
display. Note that the Source window defaults to the cleaning slot (Cln’g Slot 0).
4. Select Cleaning. If the default entry is not the tape drive to be cleaned, press Drive in the
Destination Element Type box to sequence through the available tape drive choices. You
can also use the Decimal Keypad to enter the tape drive number directly.
5. When the destination entry is correct, select Execute Clean.
6. When the cleaning cycle completes, the library returns the cleaning cartridge back to the
cleaning cartridge slot (Cln’g Slot 0). To remove the cleaning cartridge, select Magazine
Access from the library Status screen.
Replacing a Cleaning Cartridge in a Reserved Slot
A message will appear on the front panel display when the cleaning cartridge has expired.
Examine the library Status screen to make sure that the cleaning cartridge has been unloaded
from the tape drive to the reserved slot. If not, then unload it to the mail slot using the Move Media
menu option from the library Status screen.
NOTE: A cleaning cartridge can be removed and replaced by removing a right magazine, or by
using a mail slot in a left magazine.
Replacing a Cleaning Cartridge in a Right Magazine
1. Select Magazine Access from the library Status screen.
2. Remove the appropriate right magazine from the library.
3. Remove the expired cleaning cartridge from the last tape cartridge slot. Mark it as EXPIRED, and
properly dispose of it.
4. Place a new cleaning cartridge in the last tape cartridge slot of a right magazine.
5. Replace the appropriate right magazine.
Replacing a Cleaning Cartridge in a Mail Slot
1. Select the Move Media menu option from the library Status screen.
2. Select Source and then press Cleaning Slot in the Source Element Type box.
3. Select Destination and then press Mail Slot in the Destination Element Type box.
4. Select Execute Move to place the cleaning cartridge in a Mail Slot.
5. When the move completes, press the Back button to access the default front panel display.
6. Select Mail Slot Access from the library Status screen, and then remove the expired cleaning
cartridge. Mark it as EXPIRED, and properly dispose of it.
7. Place a new cleaning cartridge in a Mail Slot.
8. Select the Move Media option from the library Status screen.
9. Select Source and then press Mail Slot in the Source Element Type box.
10.Select Destination and then press Cleaning Slot in the Destination Element Type box.
11.Select Execute Move to put the new cleaning cartridge in a mail slot.
96
Maintenance
Updating Firmware
NOTE: Before upgrading firmware, be sure to generate a support ticket using HP StorageWorks
Library & Tape Tools (see page 98). The resulting information may be helpful to your service
provider in resolving potential issues that may have prompted the firmware upgrade.
MSL Series tape libraries can be flashed using HP StorageWorks Library and Tape Tools (L&TT), the
Remote Management Interface, or the MSLUtil.exe diagnostic utility and diagnostic cable.
Checking the Firmware Revision
Before downloading new firmware, check your current firmware revisions, and compare them to the
latest available revisions at http://www.hp.com/support, or through L&TT. You can check your current
firmware revisions from the GUI touch screen. Select Menu > View System Data > Library
Info.
Using the Remote Management Interface
To update the firmware using the Remote Management Interface, you need a LAN connection to the
library, or an Ethernet connection to the World Wide Web.
1. Login to the Remote Management Interface.
NOTE: See ”Accessing the Remote Management Interface” on page 80 for additional information
on setting up and using the Remote Management Interface.
2. Click on Functions.
3. Scroll down to Library Flash Operation.
Figure 76 Updating firmware using the Remote Management Interface
4. Select Flash Library from Remote File or Flash Library from Local File (see
Figure 76).
MSL6000 series tape library user guide
97
File.
Figure 77 Copying firmware using the Remote Management Interface
NOTE: If you select Flash Library from Local File, the *.bin file must be copied from
ftp://ftp.hp.com/pub/products/storageworks/msl to the /upload directory, which is located on the
library at the IP Address/upload. The level 1 password may be required to perform this procedure.
Figure 78 Confirming the Flash operation using the Remote Management Interface
5. Click Confirm to start the Flash operation. The library firmware automatically updates.
6. The library will reboot. Verify that the firmware level has been updated successfully by selecting
the Library Info button from the View System Data area of the GUI to view the Firmware
Revision.
Using HP StorageWorks Library & Tape Tools
HP StorageWorks Library & Tape Tools may already be installed on your host. If not, you can
download it from http://www.hp.com/support/tapetools.
Online help and instructions are included with the utility.
Using a Serial Connection
To update the firmware using the MSLUtil.exe you will need:
• MSLUtil.exe and the proper version of firmware, available for download from the HP website at
http://www.hp.com/support.
98
Maintenance
• Cable assembly, serial RJ11 to DB9
• PC with available serial port
Firmware Flashing Procedure
1. Install the MSLUtil.exe on the PC.
2. Copy the firmware image (*.bin) into the same directory that the MSLUtil.exe was installed.
3. Connect the library diagnostic port to the PC using the supplied cable assembly.
4. Start the MSLUtil.exe.
5. Click Connect, select the PC serial port that the cable assembly is connected to, and then click
OK.
6. Click Download > Browse. Navigate to the directory with the firmware image *.bin.
7. Click OK. The library firmware automatically updates.
NOTE: If the flash process does not complete, select a lower baud rate option, available under the
Connect window, and try again.
8. The library will reboot. Verify that the firmware level has been updated successfully by selecting
the Library Info button from the View System Data area of the GUI to view the Firmware
Revision.
MSL6000 series tape library user guide
99
100 Maintenance
7
Troubleshooting
This chapter describes how to identify and resolve the problems that can cause an HP StorageWorks
MSL Series tape library to malfunction. Sections in this chapter include:
• Identifying Platform Problems, page 101
• Performing Error Recovery, page 102
• Troubleshooting General Problems, page 135
• Using Diagnostic Support Tools, page 140
• Running Library Diagnostic Tests, page 141
Identifying Platform Problems
An incorrect installation or configuration can cause platform problems. In this case, the library
appears to be operating normally, but no data can be interchanged, or performance is poor. You
also might or might not get an error code on the graphical user interface (GUI) touch screen. To
identify an error caused by this type of problem, check your installation and configuration setup.
See Chapter 2, ”Installation” beginning on page 29 for information on how to correctly install and
configure the library.
General drive errors usually result from a miscommunication between a library processor and a tape
drive processor, drive and tape interaction issues, or a mechanical malfunction within the library.
Both platform problems and general tape drive errors display an error message and a Fault
Symptom Code (FSC) on the GUI touch screen. Use an FSC to report errors to your authorized
service provider, or in some cases, to determine a recovery procedure.
The library depends on several other components to operate correctly. Errors that seem to be caused
by the library often are a result of issues on the host, the network cabling, or with the application
software. When troubleshooting the library, begin by ruling out these components.
Your application software may need to be reconfigured or, in some cases, reinstalled after you have
installed additional drives or slots into the library. Changing the number of magazines, number of
reserved slots, or changing between SDLT and Ultrium magazines will also require changes to the
software. Some application software may require the purchase of additional add-on components
and/or licenses when increasing the number of storage slots or drives. Contact your application
software provider for more information, or if newly installed storage slots are drives are not
recognized by your application software.
NOTE: The library numbers drives and slots beginning with 0. Your software application may
number these items beginning with 1. Be aware of this difference in numbering when
troubleshooting the library.
MSL6000 series tape library user guide 101
Performing Error Recovery
Figure 79 outlines the recommended steps for error recovery. You should follow this chart in all
cases. FSCs are listed in Table 10 on page 103. For general library problems, see ”Troubleshooting
General Problems” on page 135.
Figure 79 Troubleshooting flow chart
102 Troubleshooting
Fault Symptom Codes (FSCs)
An FSC is accompanied by a descriptive message and instructions for clearing the fault.
NOTE: If an error message appears that is not included in Table 10, write down the fault code
number and follow the recovery procedure. If the same error occurs again, contact your authorized
service provider. If you did not write down the fault code number, you can retrieve it from the error
log.
Table 10
Fault Symptom Codes
FSC
Message
ERP
0306
Novram Update Error
• Press the Enter button to reboot.
(The firmware update failed.)
• Attempt firmware upgrade.
Barcode Not Active Error
• Turn off power to the library and inspect
connectors and cables.
0501
(The hardware could not detect a bar
code reader.)
0901
OS Catastrophic Error
• Press the Enter button to reboot.
0902
OS Task Exit Error
• Cycle power to the library or reboot
using the GUI touch screen.
(TCP/IP data error)
0A01
Invalid Ethernet (MAC) Address
(The library’s ethernet (MAC) address
stored in the non-volatile configuration is
not valid. The last three octets are either
0:0:0, or 255:255:255.)
0A02
0B01
• Check the ethernet connections on the
router for the master to slave(s)
communication.
• Cycle power to the library or reboot
using the GUI touch screen.
• Check IP address.
Invalid IP subnet Mask
(255.255.255.255)
• Invalid user initiated operation. Set
parameters correctly and try again.
(The ethernet subnet mask stored in the
nonvolatile configuration is not valid 255.255.255)
• Ensure configuration options are set
correctly.
Public Ethernet Open Error
• Make sure a valid Ethernet address has
been programmed using the LCD touch
display. (Menu -> Maintenance ->
Library)
(The library could not initialize the public
Ethernet interface)
• Reboot the library
MSL6000 series tape library user guide 103
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
0B02
Public Ethernet Set IP Error
• Make sure a valid Ethernet address has
been programmed using the LCD touch
display. (Menu -> Maintenance ->
Library)
(The library could not set the IP
parameters)
• Reboot the library
1001
SCSI Firmware Error
(Internal SCSI task processing error.
Unexpected state or hardware status.)
• Turn off power to the library and inspect
connectors and cables.
• Check the SCSI cable connections to
make sure they are secured.
• Make sure the library controller board
has SCSI termination.
1002
SCSI FIFO Empty
(The SCSI controller data FIFO is empty
but should contain more data bytes.)
• Turn off power to the library and inspect
connectors and cables.
• Check the SCSI cable connections to
make sure they are secured.
• Make sure the library controller board
has SCSI termination.
1003
SCSI FIFO Error
(The SCSI controller data FIFO should be
empty but still contains data bytes.)
• Turn off power to the library and inspect
connectors and cables.
• Check the SCSI cable connections to
make sure they are secured.
• Make sure the library controller board
has SCSI termination.
1004
SCSI Gross Error
(The SCSI controller detected a gross error
condition. Invalid SCSI bus phase or
DMA error.)
• Turn off power to the library and inspect
connectors and cables.
• Ensure SCSI options are set correctly.
• Check the SCSI cable connections to
make sure they are secured.
• Make sure the library controller board
has SCSI termination.
• Check host SCSI cable and connections.
104 Troubleshooting
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
1005
Illegal SCSI Cnt Cmd
• Turn off power to the library and inspect
connectors and cables.
(Either an invalid command was sent to
the SCSI controller, or the controller was
not in the correct mode.)
• Check that application is certified to work
with your library and has up-to-date
patches.
• Ensure SCSI options are set correctly.
• Check the SCSI cable connections to
make sure they are secured.
• Make sure the library controller board
has SCSI termination.
• Check host SCSI cable and connections.
1007
SCSI Invalid Element
(Internal SCSI task processing error.
Invalid element type was detected.)
• Turn off power to the library and inspect
connectors and cables.
• Check host SCSI cable and connections.
1008
SCSI No Pending Int.
• Turn off power to the library and inspect
connectors and cables.
1009
SCSI Invalid Int.
• Turn off power to the library and inspect
connectors and cables.
(The SCSI controller posted an invalid
interrupt status.)
100F
SCSI Un-terminated Resets
(SCSI Continuous Resets Detected)
2004
Loader Not Ready
(Failed to fetch, stow, scan, move, pass
through, or loader detected invalid
command and aborted.)
2008
Illegal Move
• Check host SCSI cable and connections.
• Verify that the library SCSI bus is
properly terminated.
•
• Cycle power to the library or reboot
using the GUI touch screen.
• Verify the source and destination of the
move operation.
•
2009
Door Open (status only)
(Door is forced open or door sensor
failed.)
Update the Map using the LCD touch
display. (Menu -> Maintenance -> Force
reconfiguration)
Update the Map using the LCD touch
display. (Menu -> Maintenance -> Force
reconfiguration)
• Invalid user initiated operation. Select
parameters correctly and try again.
• Make sure door(s) are closed.
• Press the Enter button to clear the
message.
MSL6000 series tape library user guide 105
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
200A
Menu Mode
• Take the library out of the Menu Mode
via the backspace using the LCD touch
display.
•
200C
Cart Inaccessible
(For an SDLT drive, indicates the tape is
not in the unloaded state. For an Ultrium
drive, indicates the tape is not ejected.
Cartridge in drive is not accessible from
changer.)
Update the Map using the LCD touch
display. (Menu -> Maintenance -> Force
reconfiguration)
• Invalid user initiated operation. Select
parameters correctly and try again.
• Ensure drive is powered on.
• Ensure the drive shows good status
through the drive status window.
• Check the tape cartridge used in the last
operation for damage.
• Reactivate drive using control panel
maintenance menu and reseat drive.
200D
Drive In Error
(A general drive error detected by control
task)
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure the drive shows good status
through the drive status window.
• Reseat drive.
200E
No Magazine
(Cannot move from changer. Element not
installed.)
• Press the Enter button to clear the
message.
• Invalid user initiated operation. Select
parameters correctly and try again.
• Check for magazine.
• Replace magazine.
200F
Removal Prevented
(Receive medium prevent removal from
drive for a fetch.)
• Attempt to unload drive from software. If
fails, power off unit, disconnect from SCSI
bus, and retry operation.
• Invalid host initiated operation. Check
that application is certified to work with
your library and has up-to-date patches.
• Invalid user initiated operation. Select
parameters correctly and try again.
• Check for firmware tape in drive.
• Check for cleaning tape in drive.
• Press the Enter button to clear the
message.
106 Troubleshooting
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
2010
Ctl. Firmware Error
• Cycle power to the library or reboot
using the GUI touch screen.
(Internal task processing error.
Unexpected event. SMX send or receive
error.)
2030
Drive Timeout Error
• Upgrade firmware if a newer revision
exists.
• Check if the drive shows good status
through the drive status window.
• Cycle power to the library or reboot
using the GUI touch screen.
• Reseat drive.
2080
Drive Code Update Command Error
(Update code from SCSI or from tape
failed.)
• Make sure that the firmware is the correct
file for this product.
• Check if the drive shows good status
through the drive status window.
• Cycle power to the library or reboot
using the GUI touch screen.
• Attempt firmware upgrade again.
2081
Move Command Failure
• Press the Enter button to reboot.
(Move command from or to drive slot
failed. Detected by control task.)
• Ensure the drive shows good status
through the drive status window.
• Cycle power to the library or reboot
using the GUI touch screen.
• Load/unload a cartridge to the drive to
verify.
2090
Open Mail Slot Fault
(Door open sensor time-out detected
when open door.)
• Press the Enter button to clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
• Run sensor test.
• Make sure door(s) are closed.
2091
Open Left Door Fault
(Door open sensor time-out detected
when open door.)
• Press the Enter button to clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
• Run sensor test.
• Make sure door(s) are closed.
MSL6000 series tape library user guide 107
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
2092
Open Right Door Fault
• Press the Enter button to clear the
message.
(Door open sensor time-out detected
when open door.)
• Cycle power to the library or reboot
using the GUI touch screen.
• Run sensor test.
• Make sure door(s) are closed.
2093
Open Doors Fault
(Door open sensor time-out detected
when open door.)
• Press the Enter button to clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
• Run sensor test.
• Make sure door(s) are closed.
2094
Open DLT Handle Fault
• Press Enter to clear the message.
(Failed to open DLT handle.)
•
•
20a0
No IP Address Found
(SMC router failed to get an IP address.)
Cycle power to the library or reboot by
using the LCD touch display
Make sure the drive shows good status
through the drive status window.
• Press the Enter button to clear the
message.
• Ensure network configuration options are
set correctly.
• Cycle power to the library or reboot
using the GUI touch screen.
20a1
No IP Address Mode Fault
(SMC router failed to detect static or IP
address mode.)
• Press the Enter button to clear the
message.
• Ensure network configuration options are
set correctly.
• Cycle power to the library or reboot
using the GUI touch screen.
20b0
Unknown Exchange For The Async
message
(Unexpected exchange detected when
process messages.)
108 Troubleshooting
• Press the Enter button to reboot.
• Cycle power to the library or reboot
using the GUI touch screen. Wait 30
seconds to power up again.
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
20c0
Drive In Error
• Press the Enter button to clear the
message.
(Control failed to set SCSI ID.)
• Ensure the drive shows good status
through the drive status window.
• Check SCSI ID settings.
• Cycle power to the library or reboot
using the GUI touch screen.
20c1
Drive In Error
(Control failed on installed drive.)
• Press the Enter button to clear the
message.
• Ensure the drive shows good status
through the drive status window.
• Check SCSI ID settings.
• Check cabling.
• Cycle power to the library or reboot
using the GUI touch screen.
3000
3002
3005
Motor Fault Condition
• Press the Enter button to reboot.
(One of the robot motors has been
disabled and could not be re-enabled.)
• Cycle power to the library or reboot
using the GUI touch screen.
Picker Tach Errors
• Press the Enter button to reboot.
(Picker tachometer errors were detected
when checking slots.)
• Cycle power to the library or reboot
using the GUI touch screen.
Pass-thru Tach Errors
• Power down the library using the LCD
touch display.
(Excessive Pass through elevator tach
errors.)
3011
•
Remove Pass-through and check
connections.
Bin Fetch Failure
• Press the Enter button to reboot.
(Loader failed to fetch a cartridge from a
bin.)
• Ensure cartridges are fully inserted in the
magazine(s).
• Ensure that there are no obstructions
inside the library (all cartridges are in
magazines).
• Run the cartridge cycle diagnostic to
verify.
• Check the tape cartridge used in the last
operation for damage.
MSL6000 series tape library user guide 109
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
3013
Drive Fetch Failure
• Press the Enter button to reboot.
(Loader failed to fetch a cartridge from a
drive.)
• Ensure the drive shows good status
through the drive status window.
• Deactivate the drive using the GUI control
panel maintenance menu.
• Reseat the drive.
• Check cabling.
• Load/unload a cartridge to the drive to
verify.
• Check the tape cartridge used in the last
operation for damage.
• Run the cartridge cycle diagnostic to
verify.
3014
Drive stow Failure
Stow to drive failed
3015
• Make sure the drive shows good status
through the drive status window.
•
Try loading then unloading the cartridge
via the Move Media option using the
LCD touch display.
Drive Timeout Failure
• Press the Enter button to reboot.
(Loader detects unload command
time-out.)
• Ensure the drive shows good status
through the drive status window.
• Deactivate the drive using the GUI control
panel maintenance menu.
• Reseat the drive.
• Check cabling.
• Load/unload a cartridge to the drive to
verify.
• Check the tape cartridge used in the last
operation for damage.
• Run the cartridge cycle diagnostic to
verify.
110 Troubleshooting
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
3016
Drive Status Failure
• Press the Enter button to reboot.
• Ensure the drive shows good status
through the drive status window.
• Deactivate the drive using the GUI control
panel maintenance menu.
• Reseat the drive.
• Check cabling.
• Load/unload a cartridge to the drive to
verify.
• Check the tape cartridge used in the last
operation for damage.
• Run the cartridge cycle diagnostic to
verify.
3017
Drive In Flux Timeout
• Press the Enter button to reboot.
(Time-out waiting for drive to clear the full
status.)
• Ensure the drive shows good status
through the drive status window.
• Deactivate the drive using the GUI control
panel maintenance menu.
• Reseat the drive.
• Check cabling.
• Load/unload a cartridge to the drive to
verify.
• Run the cartridge cycle diagnostic to
verify.
3018
Drive Load Retry Failed
• Press the Enter button to reboot.
(SLTO drive fail to load, detected in drive
task.)
• Ensure the drive shows good status
through the drive status window.
• Deactivate the drive using the GUI control
panel maintenance menu.
• Reseat the drive.
• Check cabling.
• Load/unload a cartridge to the drive to
verify.
• Check the tape cartridge used int he last
operation for damage.
• Run the cartridge cycle diagnostic to
verify.
MSL6000 series tape library user guide 111
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
3019
Drive Open Door Failed
• Press the Enter button to reboot.
• Ensure the drive shows good status
through the drive status window.
• Deactivate the drive using the GUI control
panel maintenance menu.
• Reseat the drive.
• Load/unload a cartridge to the drive to
verify.
• Check the tape cartridge used int he last
operation for damage.
• Run the cartridge cycle diagnostic to
verify.
301A
Drive Close Door Failed
• Press the Enter button to reboot.
• Ensure the drive shows good status
through the drive status window.
• Deactivate the drive using the GUI control
panel maintenance menu.
• Reseat the drive.
• Load/unload a cartridge to the drive to
verify.
• Check the tape cartridge used in the last
operation for damage.
• Run the cartridge cycle diagnostic to
verify.
301B
Drive Communication Error
• Press the Enter button to reboot.
(Intertask send, receive failed.)
• Ensure the drive shows good status
through the drive status window.
• Deactivate the drive using the GUI control
panel maintenance menu.
• Reseat the drive.
• Check cabling.
• Load/unload a cartridge to the drive to
verify.
• Check the tape cartridge used in the last
operation for damage.
• Run the cartridge cycle diagnostic to
verify.
112 Troubleshooting
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
301C
Drive Get General Status Fail
• Press the Enter button to reboot.
(Drive communication failed.)
• Ensure the drive shows good status
through the drive status window.
• Deactivate the drive using the GUI control
panel maintenance menu.
• Reseat the drive.
• Check cabling.
• Load/unload a cartridge to the drive to
verify.
• Check the tape cartridge used in the last
operation for damage.
• Run the cartridge cycle diagnostic to
verify.
301D
Drive Get Status 3 Fail
• Press the Enter button to clear the
message.
• Contact support.
301E
Drive Unload Fail
• Make sure the drive shows good status
through the drive status window.
•
3020
Undefined Config
(In loader, unexpected configuration, not
a 5U or 10U model. In diagnostics,
invalid source or destination.)
3030
Orphan Cartridge not stowed
(The loader could not successfully stow an
orphan cartridge to a bin.)
3031
3032
Try unloading then loading the cartridge
via the Move Media option using the
LCD touch display.
• Press the Enter button to clear the
message.
• Contact support.
• Unload magazine, remove a tape,
replace the magazine, and retry the
operation.
Chassis S/N Mismatch. Previous S/N
retained
• Press the Enter button to clear the
message.
(The serial number scanned from the bar
code label does not match the value
stored in non-volatile memory.)
• No action is required. This error is
expected when replacing the controller
board. If controller board was not
replace, then contact support.
Chassis S/N Character count is not
correct
• Press the Enter button to clear the
message.
(A valid serial number bar code label
could not b read.)
• Contact support.
MSL6000 series tape library user guide 113
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
3033
Chassis S/N did not scan
• Press the Enter button to clear the
message.
(A valid serial number bar code label
could not be read.)
3034
Chassis S/N save operation failed
(The serial number scanned from the bar
code label could not be saved to
non-volatile memory.)
3035
Drive Unload Prevented
(The drive prevented media removal
barcode on cartridge in drive could not
be read.)
3040
3041
3042
3050
• Press the Enter button to clear the
message.
• Contact support.
• Remove the cartridge from the library via
the Move Media using the LCD touch
display.
•
Inspect/replace the barcode label if
necessary.
Motor Firmware Error
• Press the Enter button to reboot.
(The loader task detected an unexpected
status and could not recover.)
• Turn off power to the library and inspect
connectors and cables.
Loader Received Invalid Command
• Press the Enter button to reboot.
(The loader task received an unexpected
command and could not recover.)
• Turn off power to the library and inspect
connectors and cables.
Motor Firmware Error
• Press the Enter button to reboot.
(The loader task detected an unexpected
status and could not recover.)
• Turn off power to the library and inspect
connectors and cables.
Missing Magazine
• Press the Enter button to clear the
message.
(In diag, no magazine installed for diag
to run.)
3051
• Contact support.
No Cartridges In Library
(No cartridge available for diag to run.)
• Insert magazine.
• Invalid user initiated operation. Set
parameters correctly and try again.
• Press the Enter button to clear the
message.
• Insert cartridge.
• Invalid user initiated operation. Set
parameters correctly and try again.
3052
Too Many Cartridges
(Unable to run cartridge or drive cycle
because loader is full with cartridges.)
114 Troubleshooting
• Press the Enter button to clear the
message.
• Remove a tape from the library.
• Invalid user initiated operation. Set
parameters correctly and try again.
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
3054
Need 1 Drive Minimum
• Install or activate a drive.
(No available drive to run diag.)
• Press the Enter button to clear the
message.
• Invalid user initiated operation. Set
parameters correctly and try again.
3055
Memory Allocation Error
(Memory allocation error in diagnostic.)
3057
Invalid Magazine Type
(Unsupported magazine type detected.)
• Cycle power to the library or reboot by
using the LCD touch display. Wait 30
seconds to power up again.
• Upgrade firmware if a newer revision
exists.
• Press the Enter button to clear the
message.
• Check magazine type.
• Invalid user initiated operation. Set
parameters correctly and try again.
3058
Magazine Type Change Not Handled
(Unsupported magazine type detected.)
• Upgrade firmware if a newer revision
exists.
• Press the Enter button to clear the
message.
• Check drive type.
• Invalid user initiated operation. Set
parameters correctly and try again.
3059
Drive Type Not Supported
(Unsupported magazine type detected.)
• Upgrade firmware if a newer revision
exists.
• Press the Enter button to clear the
message.
• Invalid user initiated operation. Set
parameters correctly and try again.
3060
Zone Sequence Error
• Cycle power to the library or reboot by
using the LCD touch display.
•
3061
Homing Error
(Unable to complete Shuttle Homing
Algorithm.)
Update the Map using the LCD touch
display. (Menu -> Maintenance -> Force
reconfiguration)
• Cycle power to the library or reboot by
using the LCD touch display.
•
Update the Map using the LCD touch
display. (Menu -> Maintenance -> Force
reconfiguration)
MSL6000 series tape library user guide 115
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
305B
Diag Fetch, Drive not loaded
• Press the Enter button to clear the
message.
(Diag: no cartridge present for fetch.)
• Load a cartridge in the drive and retry
the operation.
• Invalid user initiated operation. Set
parameters correctly and try again.
305D
Diag Timeout waiting for drive empty,
ready
(Fetch, time-out waiting for drive unload.)
• Press the Enter button to reboot.
• Invalid user initiated operation. Set
parameters correctly and try again.
• Ensure the drive shows good status
through the drive status window.
• Check the tape cartridge used in the last
operation for damage.
305F
Invalid bin number
(Invalid bin number detected in diag.)
3060
Zone Sequence Error
(Robot did not find sensor on power-up.)
3074
• Press the Enter button to clear the
message.
• Invalid user initiated operation. Set
parameters correctly and try again.
• Cycle power to the library or reboot
using the GUI touch screen.
Drive 0 Eject Failed
• Press the Enter button to reboot.
(Eject command time-out.)
• Ensure the drive shows good status
through the drive status window.
• Deactivate the drive using the GUI control
panel maintenance menu.
• Reseat drive.
• Load/unload a cartridge to the drive to
verify.
• Check the tape cartridge used in the last
operation for damage.
• Run the cartridge cycle diagnostic to
verify.
116 Troubleshooting
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
3075
Drive 1 Eject Failed
• Press the Enter button to reboot.
(Eject command time-out.)
• Ensure the drive shows good status
through the drive status window.
• Deactivate the drive using the GUI control
panel maintenance menu.
• Reseat drive.
• Load/unload a cartridge to the drive to
verify.
• Check the tape cartridge used in the last
operation for damage.
• Run the cartridge cycle diagnostic to
verify.
3076
Drive 2 Eject Failed
• Press the Enter button to reboot.
(Eject command time-out.)
• Ensure the drive shows good status
through the drive status window.
• Deactivate the drive using the GUI control
panel maintenance menu.
• Reseat drive.
• Load/unload a cartridge to the drive to
verify.
• Check the tape cartridge used in the last
operation for damage.
• Run the cartridge cycle diagnostic to
verify.
3077
Drive 3 Eject Fail
• Press the Enter button to reboot.
(Eject command time-out.)
• Ensure the drive shows good status
through the drive status window.
• Deactivate the drive using the GUI control
panel maintenance menu.
• Reseat drive.
• Load/unload a cartridge to the drive to
verify.
• Check the tape cartridge used in the last
operation for damage.
• Run the cartridge cycle diagnostic to
verify.
MSL6000 series tape library user guide 117
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
3078
Diag get drive 0 status failed
• Press the Enter button to reboot.
(Failed to get drive status, communication
error.)
• Ensure the drive shows good status
through the drive status window.
• Deactivate the drive using the GUI control
panel maintenance menu.
• Reseat drive.
• Check cabling.
• Load/unload a cartridge to the drive to
verify.
• Check the tape cartridge used in the last
operation for damage.
• Run the cartridge cycle diagnostic to
verify.
3079
Diag get drive 1 status failed
• Press the Enter button to reboot.
(Failed to get drive status, communication
error.)
• Ensure the drive shows good status
through the drive status window.
• Deactivate the drive using the GUI control
panel maintenance menu.
• Reseat drive.
• Check cabling.
• Load/unload a cartridge to the drive to
verify.
• Check the tape cartridge used in the last
operation for damage.
• Run the cartridge cycle diagnostic to
verify.
118 Troubleshooting
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
307A
Diag get drive 2 status failed
• Press the Enter button to reboot.
(Failed to get drive status, communication
error.)
• Ensure the drive shows good status
through the drive status window.
• Deactivate the drive using the GUI control
panel maintenance menu.
• Reseat drive.
• Check cabling.
• Load/unload a cartridge to the drive to
verify.
• Check the tape cartridge used in the last
operation for damage.
• Run the cartridge cycle diagnostic to
verify.
307B
Diag get drive 3 status failed
• Press the Enter button to reboot.
(Failed to get drive status, communication
error.)
• Ensure the drive shows good status
through the drive status window.
• Deactivate the drive using the GUI control
panel maintenance menu.
• Reseat drive.
• Check cabling.
• Load/unload a cartridge to the drive to
verify.
• Check the tape cartridge used in the last
operation for damage.
• Run the cartridge cycle diagnostic to
verify.
3082
Drive Stow Failed, Media Returned to
Source
• Press the Enter button to clear the
message.
• Use only media approved for the drive
type.
• Invalid user initiated operation. Set
parameters correctly and try again.
3083
Drive Stow Failed, Media Remains in
Drive
• Press the Enter button to clear the
message.
• Invalid user initiated operation. Set
parameters correctly and try again.
• Ensure cartridges are in magazines.
MSL6000 series tape library user guide 119
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
3084
UnSupported Drive For Requested
Operation
• Make sure the media type used is
compatible with the drive.
(Unsupported drive type.)
• Press the Enter button to clear the
message.
• Invalid user initiated operation. Set
parameters correctly and try again.
308F
No Retry On Fetch/Stow
(The loader retried an operation and
retries were disabled.)
• Press the Enter button to clear the
message.
• Invalid user initiated operation. Set
parameters correctly and try again.
• Ensure configuration options are set
correctly.
3100
Picker Jammed
• Press the Enter button to reboot.
(The picker jammed during a bin stow
operation.)
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure that there are no obstructions
inside the library (all cartridges are in
magazines).
• Ensure cartridges are fully inserted in the
magazine(s).
3102
Picker Jammed 2
• Press the Enter button to reboot.
(The picker jammed during a bin stow
operation.)
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure that there are no obstructions
inside the library (all cartridges are in
magazines).
• Ensure cartridges are fully inserted in the
magazine(s).
3103
Picker Jammed 3
• Press the Enter button to reboot.
(The picker jammed during a bin stow
operation.)
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure that there are no obstructions
inside the library (all cartridges are in
magazines).
• Ensure cartridges are fully inserted in the
magazine(s).
120 Troubleshooting
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
3104
Picker Jammed 4
• Press the Enter button to reboot.
(The picker jammed during a bin stow
operation.)
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure that there are no obstructions
inside the library (all cartridges are in
magazines).
• Ensure cartridges are fully inserted in the
magazine(s).
3105
Picker Jammed 5
• Press the Enter button to reboot.
(The picker jammed during a bin stow
operation.)
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure that there are no obstructions
inside the library (all cartridges are in
magazines).
• Ensure cartridges are fully inserted in the
magazine(s).
3106
Picker Jammed 6
• Press the Enter button to reboot.
(The picker jammed during a bin stow
operation.)
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure that there are no obstructions
inside the library (all cartridges are in
magazines).
• Ensure cartridges are fully inserted in the
magazine(s).
3107
Picker Jammed 7
• Press the Enter button to reboot.
(The picker jammed during a
pass-through fetch operation.)
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure that there are no (all cartridges
are in magazines).
• Ensure cartridges are fully inserted in the
magazine(s).
• Check pass-through alignment.
MSL6000 series tape library user guide 121
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
3108
Picker Jammed 8
• Press the Enter button to reboot.
(The picker jammed during a
pass-through fetch operation.)
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure that there are no obstructions
inside the library (all cartridges are in
magazines).
• Ensure cartridges are fully inserted in the
magazine(s).
• Check pass-through alignment.
3109
Picker Jammed 9
• Press Enter to reboot.
•
310A
Picker Jammed 10
• Press Enter to reboot.
•
310B
Make sure cartridges are fully inserted
into magazines.
Make sure cartridges are fully inserted
into magazines.
Picker Jammed 11
• Press the Enter button to reboot.
(The picker jammed during a drive fetch
operation.)
• Ensure the drive shows good status
through the drive status window.
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure that there are no obstructions
inside the library (all cartridges are in
magazines).
• Ensure cartridges are fully inserted in the
magazine(s).
310F
Picker Jammed on Stow
• Press the Enter button to reboot.
(The picker jammed on a stow operation.)
• Ensure the drive shows good status
through the drive status window.
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure that there are no obstructions
inside the library (all cartridges are in
magazines).
• Ensure cartridges are fully inserted in the
magazine(s).
122 Troubleshooting
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
3110
Picker Retries Exceeded
• Cycle power to the library or reboot by
using the LCD touch display.
•
Run cartridge cycle test using the LCD
touch display. (Menu -> Maintenance ->
Diagnostic options)
Note: If the backup application is running,
update the application cartridge map.
3111
3112
Picker Retries Exceeded 1
• Press the Enter button to reboot.
(Picker retries exceeded during a
pass-through fetch operation.)
• Cycle power to the library or reboot
using the GUI touch screen.
Picker Retries Exceeded 2
• Cycle power to the library or reboot by
using the LCD touch display.
• Check pass-through alignment.
•
Run cartridge cycle test using the LCD
touch display. (Menu -> Maintenance ->
Diagnostic options)
Note: If the backup application is running,
update the application cartridge map.
3113
Picker Retries Exceeded 3
• Press the Enter button to reboot.
(Picker retries exceeded during a bin stow
operation.)
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure that there are no obstructions
inside the library (all cartridges are in
magazines).
• Ensure cartridges are fully inserted in the
magazine(s).
3115
3200
Picker Retraction Error
• Press the Enter button to reboot.
(Picker did not retract during a bin check
operation.)
• Cycle power to the library or reboot
using the GUI touch screen.
Shuttle Jammed
• Press the Enter button to reboot.
(Shuttle could not reach target location.)
• Check pass-through mechanism
alignment.
• Cycle power to the library or reboot
using the GUI touch screen.
MSL6000 series tape library user guide 123
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
3300
Rotary Jammed
• Press the Enter button to reboot.
(Rotary track could not reach target
location.)
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure that there are no obstructions
inside the library (all cartridges are in
magazines).
• Ensure cartridges are fully inserted in the
magazine(s).
3301
3303
Shuttle on Wrong Side Of The Rotary
• Press the Enter button to reboot.
(Zone indicators show that the shuttle is
backwards on the rotary track during
power-up initialization.)
• Cycle power to the library or reboot
using the GUI touch screen.
Shuttle Not Attached to Cable
• Cycle power to the library or reboot by
using the LCD touch display.
•
3400
Check cable connections.
Pass-through Elevator Jammed
• Press the Enter button to reboot.
(Pass-through shuttle could not reach
target location.)
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure that there are no obstructions
inside the library (all cartridges are in
magazines).
• Check pass-through alignment.
3500
5011
Vertical Elevator Jammed
• Press the Enter button to reboot.
(Vertical elevator could not reach target
location. 10U libraries only).
• Cycle power to the library or reboot
using the GUI touch screen.
All Slots Empty
• Press the Enter button to clear the
message.
(There are no cartridges installed in any
of the reserved cleaning slots.)
• Ensure that there are no obstructions
inside the library (all cartridges are in
magazines).
• Insert cleaning cartridge in reserved
cleaning slot.
• Invalid user initiated operation. Set
parameters correctly and try again.
124 Troubleshooting
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
5014
Drive Already Loaded
• Press the Enter button to clear the
message.
(Cleaning operation failed because the
drive already has a cartridge inserted.)
• Invalid user initiated operation. Set
parameters correctly and try again.
• If the tape in the drive is not in use,
unload the drive and retry the cleaning
operation.
5015
Expired Clean'g Cart
(Cleaning operation failed due to an
expired cleaning cartridge.)
5016
Not a Clean'g Cart
(Cleaning operation failed because the
loaded cartridge is not a cleaning
cartridge.)
5035
Drive Timeout Error
(Cleaning operation failed because the
drive timed out.)
• Press the Enter button to clear the
message.
• Remove expired cleaning cartridge from
library and discard. Replace with new
cleaning cartridge.
• Press the Enter button to clear the
message.
• Make sure tape in reserved slot is a
cleaning cartridge.
• Invalid user initiated operation. Set
parameters correctly and try again.
• Press the Enter button to clear the
message.
• Invalid user initiated operation. Set
parameters correctly and try again.
• Ensure the drive shows good status
through the drive status window.
503B
Move Command Fail
(A front panel move operation failed.)
503C
Clean Operation Timeout
(Cleaning operation failed because the
drive timed out.)
• Press the Enter button to clear the
message.
• Invalid user initiated operation. Set
parameters correctly and try again.
• Press the Enter button to clear the
message.
• Invalid user initiated operation. Set
parameters correctly and try again.
• Ensure the drive shows good status
through the drive status window.
MSL6000 series tape library user guide 125
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
503D
Drive Status Fail
• Press the Enter button to clear the
message.
(Cleaning operation failed because the
library could not retrieve drive status.)
• Invalid user initiated operation. Set
parameters correctly and try again.
• Ensure the drive shows good status
through the drive status window.
6001
6002
6003
6004
Inter-Module Unknown Event
• Press Enter to reboot.
(Inter-module communication failure.)
•
•
Inter-Module no command matching
response
• Verify operation and retry.
Inter-Module command length
• Verify operation and retry.
(Incorrect command length.)
•
Inter-Module loopback buffer mismatch
• Cycle power to the library or reboot by
using the LCD touch display.
•
•
6005
6006
6007
Update the Map using the LCD touch
display. (Menu -> Maintenance -> Force
reconfiguration)
Retry operation.
• Verify operation and retry.
(Incorrect data length.)
•
Inter-Module bad packet length
• Verify operation and retry.
(Incorrect packet length.)
•
Inter-Module failed to allocate TCP buffer
• Power cycle the library.
Inter-Module pending table full
Command response from unexpected
source
126 Troubleshooting
Update the Map using the LCD touch
display. (Menu -> Maintenance -> Force
reconfiguration)
Update the Map using the LCD touch
display. (Menu -> Maintenance -> Force
reconfiguration)
Check pass-through connections.
• Power cycle the library.
•
7001
Update the Map using the LCD touch
display. (Menu -> Maintenance -> Force
reconfiguration)
Inter-Module bad data length
•
6008
Check pass-through connections.
Check network connections to the
network router.
Retry the operation.
• Press the Enter button to reboot.
• Cycle power to the library or reboot
using the GUI touch screen.
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
7002
Control command execution failed
• Press the Enter button to reboot.
• Cycle power to the library or reboot
using the GUI touch screen.
7003
7004
7005
7006
7007
Control response not matched to a known
command
• Press the Enter button to reboot.
Loader response not matched to a known
command
• Press the Enter button to reboot.
Drive response not matched to a known
command
• Press the Enter button to reboot.
Flash response not matched to a known
command
• Press the Enter button to reboot.
Drive index on Update Status message
was invalid
• Press the Enter button to reboot.
• Cycle power to the library or reboot
using the GUI touch screen.
• Cycle power to the library or reboot
using the GUI touch screen.
• Cycle power to the library or reboot
using the GUI touch screen.
• Cycle power to the library or reboot
using the GUI touch screen.
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure the drive shows good status
through the drive status window.
7008
The Drive response was not as expected
• Press the Enter button to reboot.
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure the drive shows good status
through the drive status window.
7009
700A
700B
The opcode for a WORD message was
unknown
• Press the Enter button to reboot.
The opcode for a DWORD message was
unknown
• Press the Enter button to reboot.
The button causing library to go offline
was unknown
• Press the Enter button clear the
message.
(A command to take the library off-line
was completed successfully, but the GUI
button that initiated the action could not
be identified.)
• Cycle power to the library or reboot
using the GUI touch screen.
• Cycle power to the library or reboot
using the GUI touch screen.
• Cycle power to the library or reboot
using the GUI touch screen.
MSL6000 series tape library user guide 127
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
700C
Destination Xchg was Null
• Press the Enter button to reboot.
• Cycle power to the library or reboot
using the GUI touch screen.
700D
Sending of a cmd failed
• Press the Enter button to reboot.
• Cycle power to the library or reboot
using the GUI touch screen.
700E
Deactivating a drive that is not attached
(The control task indicates that a request
to deactivate a drive failed because the
drive is not attached.)
• Press the Enter button clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure the drive shows good status
through the drive status window.
• Reseat the drive.
• Check cabling.
700F
Deactivation of a drive failed
(The control task indicates that a request
to deactivate a drive failed. Reason
unknown.)
• Press the Enter button clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure the drive shows good status
through the drive status window
• Reseat the drive.
• Check cabling.
7010
Drive removal failed
(The drive task indicates that a request to
power-down a drive failed. Reason
unknown.)
7012
Drive is Active failed
(The drive task indicates that a request to
determine if a drive is executing a host
command failed. Reason unknown.)
128 Troubleshooting
• Press the Enter button clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure the drive shows good status
through the drive status window.
• Press the Enter button clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure the drive shows good status
through the drive status window.
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
7013
Control Com Unidentified
• Press the Enter button clear the
message.
(During a hot swap, a command response
from the control task could not be
associated with any outstanding
command.)
7014
Drive status update failed
(The drive task indicates that a request to
determine the current state of a drive
failed. Reason unknown.)
7015
Loader command execution failed
(The loader task indicates that a
command has failed to complete
successfully.)
7016
Sequential command execution failed
(The sequential task indicates that a
command has failed to complete
successfully.)
7017
Destination Xchg for msg. was Null
(Attempted to send a message to a task,
but the argument exchange pointer was
NULL.)
7018
Bad src mod in peg msg
(A message was received from a remote
module, but the module number was out
of range.)
7019
Peg message wrapping a Null msg. ptr.
(A peg message has a pointer to NULL.)
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure the drive shows good status
through the drive status window.
• Press the Enter button clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure the drive shows good status
through the drive status window.
• Press the Enter button clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
• Press the Enter button clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
• Press the Enter button clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
• Press the Enter button clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
• Press the Enter button clear the
message.
• Cycle power to the router.
• Cycle power to all libraries in a stack, or
reboot using the GUI touch screen.
701A
Xchg conversion failed
(Attempted to determine the module
number containing the task that is
returning a command response failed.)
• Press the Enter button clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
MSL6000 series tape library user guide 129
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
701B
Invalid L-drive number to convert
• Press the Enter button clear the
message.
(Attempted to send a command to a
drive, but the logical drive number is out
of range.)
701C
Invalid P-drive number to convert
(Attempted to send a command to a
drive, but the physical drive number is out
of range.)
701D
Invalid mod number to convert
(Attempted to send a command to a drive
in a remote module, but the module
number is out of range.)
701E
Unknown drive type
(Attempted to show detailed drive status
of a drive whose type is unknown.)
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure the drive shows good status
through the drive status window.
• Press the Enter button clear the
message.
• Cycle power to the library.
• Ensure the drive shows good status
through the drive status window.
• Press the Enter button clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
• Press the Enter button clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure the drive shows good status
through the drive status window.
701F
The SCSI response was not expected
(The command response from the SCSI
task in a remote module was
unexpected.)
7020
The Flash response was not expected
(The command response from the Flash
task in a remote module was
unexpected.)
130 Troubleshooting
• Press the Enter button clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure the drive shows good status
through the drive status window.
• Press the Enter button clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure the drive shows good status
through the drive status window.
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
7021
SCSI response not matched to a known
command
• Press the Enter button clear the
message.
(A command response was received from
a SCSI task, but the original command
opcode could not be determined.)
• Cycle power to the library or reboot
using the GUI touch screen.
Unexpected state after NonVolConfig
cmd
• Press the Enter button clear the
message.
(After successfully completing a
NonVolConfigPut command, the current
state of the save operation was unknown.)
• Cycle power to the library or reboot
using the GUI touch screen.
Unexpected state after SCSI mode cmd
• Press the Enter button clear the
message.
7022
7023
(After successfully completing a
SCSIUpdateMode Parameters command,
the current state of the save operation was
unknown.)
7024
Unexpected state after SCSI init cmd
(After successfully completing a
SCSIInitCommand, the current state of the
save operation was unknown.)
7025
Message is Invalid Map Conversion
Parameters
(GUI Map Parameters are corrupt or
invalid.)
8001
Cartridge reject recovery failed
• Ensure the drive shows good status
through the drive status window.
• Ensure the drive shows good status
through the drive status window.
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure the drive shows good status
through the drive status window.
• Press the Enter button clear the
message.
• Cycle power to the library or reboot
using the GUI touch screen.
• Ensure the drive shows good status
through the drive status window.
• Update the Map using the LCD touch
display. (Menu -> Maintenance -> Force
reconfiguration)
• Press the Enter button to reboot.
• Ensure the drive shows good status
through the drive status window.
• Cycle power to the library or reboot
using the GUI touch screen.
• Check the tape cartridge used in the last
operation for damage.
MSL6000 series tape library user guide 131
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
8002
Drive Fan stalled
• Press the Enter button to clear the
message.
(The fan in the drive hot-swap shoe is
either not installed or has stalled.)
8003
• Look for a drive with an amber LED (rear
of library) to determine which drive has
the fan issue. If the drive is not in use,
take it off-line to prevent it from
overheating. If currently in use, end the
operation immediately, and take the drive
off-line.
Drive load did not complete
• Press the Enter button to reboot.
(The drive failed to successfully load a
tape.)
• Ensure the drive shows good status
through the drive status window.
• Cycle power to the library or reboot
using the GUI touch screen.
• Check the tape cartridge used in the last
operation for damage.
8004
Invalid drive was installed
(One or more installed drives are of a
type either unknown or not supported in
the current library personality.)
9001
Orphan cartridge recovery failed
(The master module could not successfully
return an orphan cartridge to a slot
location.)
• Press the Enter button to clear the
message.
• Update the firmware if a newer revision
exists.
• Invalid user initiated operation. Set
parameters correctly and try again.
• Make sure there is one empty slot in a
magazine in the master module.
• Press the Enter button to reboot.
• Cycle power to the library or reboot
using the GUI touch screen.
• Check pass-through alignment.
• Ensure that there are no obstructions
inside the library (all cartridges are in
magazines).
• Check the tape cartridge used in the last
operation for damage.
132 Troubleshooting
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
9003
Master pass-thru opto failed.
• Press the Enter button to reboot.
(The master module opto sensor was not
detected during the power-up
Pass-Through module inventory.)
• Run the sensor test, checking appropriate
sensor.
• Determine if the pass-through may have
been plugged or unplugged while power
was on to the library.
• Reinitialize or power-cycle the master it is
connected to. Ensure the pass-through is
functioning by observing whether or not
the pass-through car moves to either end
of the pass-through smoothly.
A001
A002
A003
A004
A005
A006
A007
SMX send error
• Press the Enter button to reboot.
(An attempt to place a message on a
task’s exchange generated a kernel
error.)
• Cycle power to the library or reboot
using the GUI touch screen.
SMX receive error
• Press the Enter button to reboot.
(An attempt to receive a message from a
task’s exchange generated a kernel
error.)
• Cycle power to the library or reboot
using the GUI touch screen.
Comm free list empty
• Press the Enter button to reboot.
(An attempt to acquire a message from
the free pool failed because the pool is
empty.)
• Cycle power to the library or reboot
using the GUI touch screen.
Invalid comm. put attempt
• Press the Enter button to reboot.
(An attempt to place a message on a
task’s exchange failed.)
• Cycle power to the library or reboot
using the GUI touch screen.
Invalid comm. get attempt
• Press the Enter button to reboot.
(An attempt to receive a message from a
task’s exchange failed.)
• Cycle power to the library or reboot
using the GUI touch screen.
Comm initialization error
• Press the Enter button to reboot.
(The Comm manager could not be
initialized at power-up because system is
out of memory.)
• Cycle power to the library or reboot
using the GUI touch screen.
Put of a NULL comm.
• Press the Enter button to reboot.
• Cycle power to the library or reboot
using the GUI touch screen.
MSL6000 series tape library user guide 133
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
A008
Msg contains no comm.
• Press the Enter button to reboot.
(A message obtained from the pool did
not contain a Comm block.)
• Cycle power to the library or reboot
using the GUI touch screen.
Comm return address is unknown
• Press the Enter button to reboot.
(An attempt to return a command
response to the originating task failed
because the originator could not be
determined.)
• Cycle power to the library or reboot
using the GUI touch screen.
Gateway initialization failed
(WEB TLC was unable to initialize the
gateway)
• Check the library IP address
Gateway Terminate Time-out
• Power-down the library using the LCD
touch display.
A009
C001
C002
(WEB TLC times-out when attempting to
terminate the gateway.)
C010
Error Attempting to exit Menu Mode
(WEB TLC experienced an error when
exiting the Menu Mode.)
D001
No WAN IP Address Tag Found
•
Check network cable connections to the
network router.
• Power-down the library using the LCD
touch display.
• Verify the WAN IP address.
(WEB TLC was unable to find a WAN IP
address.)
D002
WAN port disconnected
• Check the WAN cable connection.
(WEB TLC did not detect a WAN port.)
F001
Bad Image CRC
(The uploaded firmware image has a bad
CRC and is probably corrupted.)
F002
Flash erase sector failed
(One of the flash memory sectors could
not be programmed.)
F003
Flash program sector failed
(One of the flash memory sectors could
not be erased.)
134 Troubleshooting
• Press the Enter button to clear the
message.
• Make sure the firmware file is complete
and correct. If having difficulty uploading
firmware via FTP, telnet, the web
management interface, or TSMC, try
using HP StorageWorks Library and Tape
Tools.
• Press the Enter button to clear the
message.
• Press the Enter button to clear the
message.
Table 10
Fault Symptom Codes (continued)
FSC
Message
ERP
F004
Bad flash CRC
• Press the Enter button to clear the
message.
(The firmware image programmed into
flash memory has a bad CRC and is
probably corrupted.)
F005
Flash exit error
(Internal flash task error.)
F006
Incompatible image
(The uploaded firmware image is not
compatible with the library hardware,
and is possibly an older firmware
version.)
F402
Buffer allocation failed
(The flash task could not allocate a buffer
area to hold the firmware image to be
uploaded.)
• Make sure the firmware file is complete
and correct. If having difficulty uploading
firmware via FTP, telnet, the web
management interface, or LTT, try using
HP StorageWorks Library and Tape Tools
(see page 141).
• Press the Enter button to clear the
message.
• Press the Enter button to clear the
message.
• Make sure the firmware file is complete
and correct. If having difficulty uploading
firmware via FTP, telnet, the web
management interface, or LTT, try using
HP StorageWorks Library and Tape Tools
(see page 141).
• Press the Enter button to clear the
message.
Troubleshooting General Problems
This section includes information on troubleshooting general library problems. For problems that
may be related to the host or application software, refer to the host system documentation or the
application software instructions, and ensure that the software has the latest patches. If these
procedures fail, contact your authorized service provided for further assistance.
CAUTION: Consult your system administrator before cycling power. Never cycle power when
active devices are connected to the SCSI bus or Fibre Channel bus. Cycling power when the SCSI
bus or Fibre Channel bus is active can cause data loss or hang the host system.
MSL6000 series tape library user guide 135
Table 11
Troubleshooting General Problems
Problem
Solution
Power
Library will not power on.
• Check all power cord connections.
• Make sure that each power switch is on.
• Press anywhere on the GUI touch screen to activate
the display and turn on the library.
• Verify that the LEDs on the back of the library are on
and that the fans are turning to ensure the library is
receiving power.
• Replace the power cord(s).
• Contact your authorized service provider.
One of the redundant power supplies
is not functioning properly.
• Check the LEDs on the power supplies to identify the
one that may be at fault.
• Check GUI for FSC code.
• Contact your authorized service provider.
No display messages appear on the
GUI touch screen.
• Touch the GUI screen to bring out of sleep mode.
• Make sure the power cord is connected.
• Make sure the power switches are on.
• Check that the LEDs on the back of the library are on
and the fans are turning.
• Cycle power to the library or reboot using the GUI
touch screen.
• Try to access the library from the Web using the
Remote Management Interface (see page 79), or
through a host-based diagnostics tool such as HP
StorageWorks Library & Tape Tools (see page 98).
• Download library firmware (see page 97).
• Contact your authorized service provider.
Tape Movement
An error message appears after
inserting the magazine or loading
tapes.
• Verify that tapes are inserted correctly in the
magazine.
• Ensure that you are using the correct tape type for
your drive technology.
• Contact your authorized service provider.
136 Troubleshooting
Table 11
Troubleshooting General Problems (continued)
Problem
Solution
A tape is stuck in a drive.
• Cycle power to the library or reboot using the GUI
touch screen, and retry unloading the tape from the
library GUI touch screen, the Remote Management
Interface, or the host application software.
• Ensure the host application software is not reserving
the slot or drive. The software needs to cancel the
reservation. If necessary, disconnect from the host,
power cycle, and unload the drive.
• Contact your authorized service provider.
A tape is stuck in the robotics.
• Run a Vertical Calibration test from the
Diagnostics section of the Utilities menu.
• Cycle power to the library or reboot using the GUI
touch screen.
• Contact your authorized service provider.
A tape is stuck in a storage slot.
• Using the GUI touch screen, open the appropriate
door, and remove the magazine.
• Pull the tape out.
• Reinsert the magazine.
• If the magazine is damaged, contact your
authorized service provider.
Robotics are misaligned.
Robotics won’t get a tape.
Tape/drive/robotics are misaligned.
• Run a Vertical Calibration test from the
Diagnostics section of the Utilities menu.
• Ensure that you are using the correct tape type for
your drive technology.
• Contact your authorized service provider.
Media
Cannot load tape into drive.
• Ensure your media and format type matches your
drive type.
A new Ultrium data cartridge that is
write-enabled is rejected by the drive.
• LTO Cartridge Memory has failed or is damaged.
Replace the data cartridge.
A new Ultrium data cartridge that is
write-protected is rejected in multiple
known good drives.
• LTO Cartridge Memory has failed, and the drive has
found no data to recover. Replace the data
cartridge.
MSL6000 series tape library user guide 137
Table 11
Troubleshooting General Problems (continued)
Problem
Solution
An Ultrium cartridge that has data
written to it and is write-protected
restores very slowly.
• LTO Cartridge Memory has failed, and the drive
cannot use the tape directory information to recover
the data. The data can still be recovered, but may
take longer than normal.
• Contact your authorized support provider for more
information.
Cannot write to tape.
• Check the write-protect tab on the tape to assure
write-enabled status.
• Ensure that the application software does not have
the write-protect setting activated.
• Check the host device file system access permissions.
• Verify that you are using the correct tape type for
your drive technology.
• Try a new tape.
CAUTION: During the troubleshooting process, do not
put the tape in question into another drive, since
damaged tapes can damage drives.
Cannot load the cleaning cartridge.
• Ensure you are using an approved cleaning
cartridge for your drive type.
• Verify that the reserved cleaning slot is set up
correctly and that the cartridge is in the correct slot.
The slot numbering may be affected when manually
loading a magazine, changing the number of mail
slots, or using the default numbering scheme which
begins with zero.
• Contact your authorized service provider.
Connections
Changed the drive SCSI ID, but the
new ID is not recognized by the host
computer.
• Check that all SCSI devices on the same bus have
different ID numbers.
• Reboot the host.
• Check for proper cabling and termination.
• Contact your authorized service provider.
138 Troubleshooting
Table 11
Troubleshooting General Problems (continued)
Problem
Solution
Host does not detect the library.
• Ensure that the HBA type matches the library type
(LVDS or single-ended SCSI) and is properly installed
and configured.
• Check that the library is terminated and properly
cabled.
• Check that the SCSI cable length limits have not
been exceeded.
NOTE: SCSI cable length limits are very short on a
Single-Ended bus.
• Ensure that the terminator is compatible with the
library (LVDS or single-ended SCSI).
• Check for SCSI ID conflicts.
• Check that the HBA is recognized by the operating
system and properly configured.
• Check that the application software is compatible
with the library, and that it has all necessary patches
and updates.
• Check that the device is properly installed and
configured using HP StorageWorks Library & Tape
Tools, available from
http://www.hp.com/support/tapetools
• Power cycle the library and power down the host.
Wait until the library completes its power cycle
before powering up the host.
• If using Fibre Channel, make sure you power on the
devices in the correct order (switch, hub, library,
host).
• If using Fibre Channel, make sure there is not a
zoning issue that is preventing the host from seeing
the library.
• If using Fibre Channel, make sure that the router sees
the library and/or drives.
• Contact your authorized service provider.
MSL6000 series tape library user guide 139
Table 11
Troubleshooting General Problems (continued)
Problem
Solution
Library Performance
HP-UX host responds slowly, or crashes
after connecting to the library.
• Check the SCSI IDs of all devices on the host busses
to ensure there are no conflicts.
• Check that the application software does not require
SCSI IDs to be in a certain order.
• Contact your authorized service provider.
The library is not efficiently backing up
data.
• Check the network bandwidth from the target to the
host computer.
• Check that the library’s drives are on their own SCSI
bus, and not daisy-chained to another tape drive,
hard drive, or other high bandwidth device.
• Check that the server and file system have the
processing power and memory needed to stream the
tape drive.
• Ensure that other applications are not taking up
bandwidth from the backup server or target
workstations.
• Ensure the server has a fast enough file system (i.e.
RAID).
• Ensure that the drive is clean.
• Try a new tape. A marginal tape can cause
performance problems due to bad spots on the tape,
requiring retries.
• Ensure that the application software is using
fixed-length records (or blocks) to maximize
throughput, and has not defaulted to a smaller
record size. (64K should be sufficient.)
• Ensure that the data is being compressed, however
do not turn on both software and hardware
compression. (In most cases, hardware compression
should be enabled.)
• Check the size of the files. Backing up several small
files can impact performance.
Using Diagnostic Support Tools
This section describes diagnostic tools available to help troubleshoot and maintain your tape library.
140 Troubleshooting
HP StorageWorks Library and Tape Tools
To provide continued service to our customers, HP provides the HP StorageWorks Library and Tape
Tools (L&TT) software application. L&TT is a diagnostic tool that is designed to aid in the installation
and maintenance of both HP tape devices and tape libraries. L&TT includes several features
designed for use by both HP storage customers and trained service personnel. The key features
include:
• Diagnostic tools for tape drive and tape automation devices designed for simple troubleshooting
and verifying installations.
• Multiple options for retrieving and updating both the latest firmware for library and drives, and
the most current version of L&TT.
• Comprehensive reports to assist authorized service providers in troubleshooting.
Frequent firmware image updates are released on the Internet. For optimal performance, HP
recommends that you update your system periodically with the latest device firmware.
L&TT is available for download at no cost from the HP website at:
http://www.hp.com/support/tapetools
MSLUtil
The library ships with an RS232 diagnostic cable and a floppy containing the MSLUtil diagnostic
utility. After following the recommended steps from the ERP to resolve any issues, use this utility to
verify whether error conditions have been corrected. Follow this procedure until the diagnostics
software no longer detects an error condition.
Running Library Diagnostic Tests
Use the following procedure to run internal tests of library functions. Table 12 describes these tests.
1. From the library Status screen, select Menu.
2. Under the Utilities area, select Diagnostics.
3. Select the test you want to run.
NOTE:
Available tests are dependent on the library model and specified user level.
MSL6000 series tape library user guide 141
Table 12
Library Diagnostic Tests
Test
Description
Cartridge Cycle
Cycles cartridges continuously and
randomly in bins and mail slots,
displaying a count of the type of cycle
on the control panel. Press the Start
button to begin the test and the Stop
button end to end the test.
Drive Cycle
Cycles cartridges continuously and
randomly in bins, mail slots, and
drives, displaying a count of the type of
cycle on the control panel. Press the
Start button to begin the test and the
Stop button end to end the test.
Barcode Cycle
Scans all bar codes continuously,
listing those read and the number of
times a full library scan has been done.
Press the Start button to begin the test
and the Stop button end to end the
test.
Inventory
Physically scans the entire library to
determine which slots and drives
contain tapes and reads all barcode
labels.
Sensor Test
Tests all the hall effect sensors and lists
their status.
Vertical Calibration
(available in four-drive models only)
Calibrates the vertical lifters to correct
limits. This test is typically used when
vertical lifters are replaced.
View Error Log
Allows access to the error log to view
posted errors.
Touch Screen Calibrate
Allows resetting of calibration values
when the screen brightness is not
uniform.
Tachometer Diagnostic
This is a factory only diagnostic used to
measure tachometer motor function
limits.
Friction Diagnostic
This is a factory only diagnostic used to
measure friction in the motors for
acceptable limits.
142 Troubleshooting
A
Regulatory compliance notices
This appendix contains regulatory notices for the HP StorageWorks MSL Series libraries.
Regulatory compliance identification numbers
For the purpose of regulatory compliance certifications and identification, this product has been
assigned a unique regulatory model number. The regulatory model number can be found on the
product nameplate label, along with all required approval markings and information. When
requesting compliance information for this product, always refer to this regulatory model number.
The regulatory model number is not the marketing name or model number of the product.
Product specific information:
Regulatory model number: ED1005
FCC and CISPR classification: Class A
Contains fiber optic transceiver with a Class 1 laser. See Class 1 laser statement.
Federal Communications Commission notice
Part 15 of the Federal Communications Commission (FCC) Rules and Regulations has established
Radio Frequency (RF) emission limits to provide an interference-free radio frequency spectrum. Many
electronic devices, including computers, generate RF energy incidental to their intended function
and are, therefore, covered by these rules. These rules place computers and related peripheral
devices into two classes, A and B, depending upon their intended installation. Class A devices are
those that may reasonably be expected to be installed in a business or commercial environment.
Class B devices are those that may reasonably be expected to be installed in a residential
environment (for example, personal computers). The FCC requires devices in both classes to bear a
label indicating the interference potential of the device as well as additional operating instructions
for the user.
FCC rating label
The FCC rating label on the device shows the classification (A or B) of the equipment. Class B
devices have an FCC logo or ID on the label. Class A devices do not have an FCC logo or ID on the
label. After you determine the class of the device, refer to the corresponding statement.
Class A equipment
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at personal expense.
MSL6000 series tape library user guide 143
Class B equipment
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit that is different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio or television technician for help.
Declaration of Conformity for products marked with the FCC logo, United
States only.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
For questions regarding this FCC declaration, contact us by mail or telephone:
• Hewlett-Packard Company
P.O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
• Or call 1-281-514-3333
Modification
The FCC requires the user to be notified that any changes or modifications made to this device that
are not expressly approved by Hewlett-Packard Company may void the user’s authority to operate
the equipment.
Cables
When provided, connections to this device must be made with shielded cables with metallic
RFI/EMI connector hoods in order to maintain compliance with FCC Rules and Regulations.
Canadian notice (Avis Canadien)
Class A equipment
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
144 Regulatory compliance notices
Cet appareil numérique de la class A respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Class B equipment
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la class B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
European Union notice
Products bearing the CE marking comply with the EMC Directive (89/336/EEC) and the Low
Voltage Directive (73/23/EEC) issued by the Commission of the European Community.
Compliance with these directives implies conformity to the following European Norms (in
parentheses are the equivalent international standards and regulations):
• EN 55022 (CISPR 22)—Electromagnetic Interference
• EN55024 (IEC61000-4-2, 3, 4, 5, 6, 8, 11)—Electromagnetic Immunity
• EN61000-3-2 (IEC61000-3-2)—Power Line Harmonics
• EN61000-3-3 (IEC61000-3-3)—Power Line Flicker
• EN 60950 (IEC60950)—Product Safety
Japanese notices
MSL6000 series tape library user guide 145
Japanese power cord statement
Korean notices
Class A equipment
Class B equipment
Taiwanese notices
BSMI Class A notice
146 Regulatory compliance notices
Taiwan battery recycle statement
Recovery mark:
Recovery text:
Four-in-one recycling symbol “Please recycle waste batteries”
廢電池請回收
Laser compliance notices
This device may contain a laser that is classified as a Class 1 Laser Product in accordance with U.S.
FDA regulations and the IEC 60825-1. The product does not emit hazardous laser radiation.
WARNING! Use of controls or adjustments or performance of procedures other than those
specified herein or in the laser product’s installation guide may result in hazardous radiation
exposure. To reduce the risk of exposure to hazardous radiation:
• Do not try to open the module enclosure. There are no user-serviceable components inside.
• Do not operate controls, make adjustments, or perform procedures to the laser device other than
those specified herein.
• Allow only HP Authorized Service technicians to repair the unit.
The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration
implemented regulations for laser products on August 2, 1976. These regulations apply to laser
products manufactured from August 1, 1976. Compliance is mandatory for products marketed in the
United States.
MSL6000 series tape library user guide 147
Dutch laser notice
French laser notice
AVERTISSEMENT : cet appareil peut être équipé d'un laser classé en
tant que Produit laser de classe 1 et conforme à la réglementation de la FDA américaine
et à la norme 60825-1 de l'IEC. Ce produit n'émet pas de rayonnement dangereux.
L'utilisation de commandes, de réglages ou de procédures autres que ceux qui sont
indiqués ici ou dans le manuel d'installation du produit laser peut exposer l'utilisateur
à des rayonnements dangereux. Pour réduire le risque d'exposition à des rayonnements
dangereux :
- Ne tentez pas d'ouvrir le boîtier renfermant l'appareil laser. Il ne contient aucune pièce
dont la maintenance puisse être effectuée par l'utilisateur.
- Tout contrôle, réglage ou procédure autre que ceux décrits dans ce chapitre ne doivent
pas être effectués par l'utilisateur.
- Seuls les Mainteneurs Agréés HP sont habilités à réparer l'appareil laser.
148 Regulatory compliance notices
German laser notice
VORSICHT: Dieses Gerät enthält möglicherweise einen Laser, der nach
den US-amerikanischen FDA-Bestimmungen und nach IEC 60825-1 als Laserprodukt
der Klasse 1 zertifiziert ist. Gesundheitsschädliche Laserstrahlen werden nicht emittiert.
Die Anleitungen in diesem Dokument müssen befolgt werden. Bei Einstellungen oder
Durchführung sonstiger Verfahren, die über die Anleitungen in diesem Dokument bzw.
im Installationshandbuch des Lasergeräts hinausgehen, kann es zum Austritt gefährlicher
Strahlung kommen. Zur Vermeidung der Freisetzung gefährlicher Strahlungen sind die
folgenden Punkte zu beachten:
- Versuchen Sie nicht, die Abdeckung des Lasermoduls zu öffnen. Im Inneren befinden
sich keine Komponenten, die vom Benutzer gewartet werden können.
- Benutzen Sie das Lasergerät ausschließlich gemäß den Anleitungen und Hinweisen
in diesem Dokument.
- Lassen Sie das Gerät nur von einem HP Servicepartner reparieren.
Italian laser notice
AVVERTENZA: AVVERTENZA Questo dispositivo può contenere un
laser classificato come prodotto laser di Classe 1 in conformità alle normative US FDA
e IEC 60825-1. Questo prodotto non emette radiazioni laser pericolose.
L'eventuale esecuzione di comandi, regolazioni o procedure difformi a quanto
specificato nella presente documentazione o nella guida di installazione del prodotto
può causare l'esposizione a radiazioni nocive. Per ridurre i rischi di esposizione a
radiazioni pericolose, attenersi alle seguenti precauzioni:
- Non cercare di aprire il contenitore del modulo. All'interno non vi sono componenti
soggetti a manutenzione da parte dell'utente.
- Non eseguire operazioni di controllo, regolazione o di altro genere su un dispositivo
laser ad eccezione di quelle specificate da queste istruzioni.
- Affidare gli interventi di riparazione dell'unità esclusivamente ai tecnici dell'Assistenza
autorizzata HP.
MSL6000 series tape library user guide 149
Japanese laser notice
Spanish laser notice
ADVERTENCIA: Este dispositivo podría contener un láser clasificado
como producto de láser de Clase 1 de acuerdo con la normativa de la FDA de EE.UU.
e IEC 60825-1. El producto no emite radiaciones láser peligrosas.
El uso de controles, ajustes o manipulaciones distintos de los especificados aquí o en
la guía de instalación del producto de láser puede producir una exposición peligrosa
a las radiaciones. Para evitar el riesgo de exposición a radiaciones peligrosas:
- No intente abrir la cubierta del módulo. Dentro no hay componentes que el usuario
pueda reparar.
- No realice más operaciones de control, ajustes o manipulaciones en el dispositivo
láser que los aquí especificados.
- Sólo permita reparar la unidad a los agentes del servicio técnico autorizado HP.
Recycling notices
Disposal of waste equipment by users in private household in the European
Union
product.
This symbol on the product or on its packaging indicates that this product must not
be disposed of with your other household waste. Instead, it is your responsibility to
dispose of your waste equipment by handing it over to a designated collection
point for recycling of waste electrical and electronic equipment. The separate
collection and recycling of your waste equipment at the time of disposal will help to
conserve natural resources and ensure that it is recycled in a manner that protects
human health and the environment. For more information about where you can
drop off your waste equipment for recycling, please contact your local city office,
your household waste disposal service, or the shop where you purchase the
150 Regulatory compliance notices
Danish notice
Bortskaffelse af affald fra husstande i den Europæiske Union
Hvis produktet eller dets emballage er forsynet med dette symbol, angiver det,
at produktet ikke må bortskaffes med andet almindeligt husholdningsaffald.
I stedet er det dit ansvar at bortskaffe kasseret udstyr ved at aflevere det på den
kommunale genbrugsstation, der forestår genvinding af kasseret elektrisk og
elektronisk udstyr. Den centrale modtagelse og genvinding af kasseret udstyr
i forbindelse med bortskaffelsen bidrager til bevarelse af naturlige ressourcer
og sikrer, at udstyret genvindes på en måde, der beskytter både mennesker og miljø.
Yderligere oplysninger om, hvor du kan aflevere kasseret udstyr til genvinding, kan du få hos
kommunen, den lokale genbrugsstation eller i den butik, hvor du købte produktet.
Dutch notice
Verwijdering van afgedankte apparatuur door privé-gebruikers in de Europese Unie
Dit symbool op het product of de verpakking geeft aan dat dit product niet
mag worden gedeponeerd bij het normale huishoudelijke afval. U bent zelf
verantwoordelijk voor het inleveren van uw afgedankte apparatuur bij een
inzamelingspunt voor het recyclen van oude elektrische en elektronische
apparatuur. Door uw oude apparatuur apart aan te bieden en te recyclen,
kunnen natuurlijke bronnen worden behouden en kan het materiaal worden
hergebruikt op een manier waarmee de volksgezondheid en het milieu worden beschermd.
Neem contact op met uw gemeente, het afvalinzamelingsbedrijf of de winkel waar u het
product hebt gekocht voor meer informatie over inzamelingspunten waar u oude apparatuur
kunt aanbieden voor recycling.
Czecholslovakian notice
MSL6000 series tape library user guide 151
Estonian notice
Finnish notice
Laitteiden hävittäminen kotitalouksissa Euroopan unionin alueella
Jos tuotteessa tai sen pakkauksessa on tämä merkki, tuotetta ei saa hävittää
kotitalousjätteiden mukana. Tällöin hävitettävä laite on toimitettava sähkölaitteiden
ja elektronisten laitteiden kierrätyspisteeseen. Hävitettävien laitteiden erillinen
käsittely ja kierrätys auttavat säästämään luonnonvaroja ja varmistamaan, että
laite kierrätetään tavalla, joka estää terveyshaitat ja suojelee luontoa. Lisätietoja
paikoista, joihin hävitettävät laitteet voi toimittaa kierrätettäväksi, saa ottamalla
yhteyttä jätehuoltoon tai liikkeeseen, josta tuote on ostettu.
French notice
Élimination des appareils mis au rebut par les ménages dans l'Union européenne
Le symbole apposé sur ce produit ou sur son emballage indique que ce produit
ne doit pas être jeté avec les déchets ménagers ordinaires. Il est de votre
responsabilité de mettre au rebut vos appareils en les déposant dans les centres
de collecte publique désignés pour le recyclage des équipements électriques
et électroniques. La collecte et le recyclage de vos appareils mis au rebut
indépendamment du reste des déchets contribue à la préservation des ressources
naturelles et garantit que ces appareils seront recyclés dans le respect de la santé humaine
et de l'environnement. Pour obtenir plus d'informations sur les centres de collecte et de
recyclage des appareils mis au rebut, veuillez contacter les autorités locales de votre région, l
es services de collecte des ordures ménagères ou le magasin dans lequel vous avez acheté
ce produit.
152 Regulatory compliance notices
German notice
Entsorgung von Altgeräten aus privaten Haushalten in der EU
Das Symbol auf dem Produkt oder seiner Verpackung weist darauf hin, dass
das Produkt nicht über den normalen Hausmüll entsorgt werden darf. Benutzer
sind verpflichtet, die Altgeräte an einer Rücknahmestelle für Elektro- und
Elektronik-Altgeräte abzugeben. Die getrennte Sammlung und ordnungsgemäße
Entsorgung Ihrer Altgeräte trägt zur Erhaltung der natürlichen Ressourcen bei
und garantiert eine Wiederverwertung, die die Gesundheit des Menschen und
die Umwelt schützt. Informationen dazu, wo Sie Rücknahmestellen für Ihre Altgeräte finden,
erhalten Sie bei Ihrer Stadtverwaltung, den örtlichen Müllentsorgungsbetrieben oder im
Geschäft, in dem Sie das Gerät erworben haben.
Greek notice
MSL6000 series tape library user guide 153
Hungarian notice
Italian notice
Smaltimento delle apparecchiature da parte di privati nel territorio dell'Unione Europea
Questo simbolo presente sul prodotto o sulla sua confezione indica che il prodotto
non può essere smaltito insieme ai rifiuti domestici. È responsabilità dell'utente
smaltire le apparecchiature consegnandole presso un punto di raccolta designato
al riciclo e allo smaltimento di apparecchiature elettriche ed elettroniche. La raccolta
differenziata e il corretto riciclo delle apparecchiature da smaltire permette di
proteggere la salute degli individui e l'ecosistema. Per ulteriori informazioni relative
ai punti di raccolta delle apparecchiature, contattare l'ente locale per lo smaltimento dei rifiuti,
oppure il negozio presso il quale è stato acquistato il prodotto.
154 Regulatory compliance notices
Latvian notice
Lithuanian notice
MSL6000 series tape library user guide 155
Polish notice
Portuguese notice
Descarte de Lixo Elétrico na Comunidade Européia
Este símbolo encontrado no produto ou na embalagem indica que o produto não
deve ser descartado no lixo doméstico comum. É responsabilidade do cliente
descartar o material usado (lixo elétrico), encaminhando-o para um ponto de
coleta para reciclagem. A coleta e a reciclagem seletivas desse tipo de lixo
ajudarão a conservar as reservas naturais; sendo assim, a reciclagem será feita
de uma forma segura, protegendo o ambiente e a saúde das pessoas. Para obter
mais informações sobre locais que reciclam esse tipo de material, entre em contato com
o escritório da HP em sua cidade, com o serviço de coleta de lixo ou com a loja em que
o produto foi adquirido.
156 Regulatory compliance notices
Slovakian notice
Slovenian notice
Spanish notice
Eliminación de residuos de equipos eléctricos y electrónicos por parte de usuarios
particulares en la Unión Europea
Este símbolo en el producto o en su envase indica que no debe eliminarse junto
con los desperdicios generales de la casa. Es responsabilidad del usuario eliminar
los residuos de este tipo depositándolos en un "punto limpio" para el reciclado
de residuos eléctricos y electrónicos. La recogida y el reciclado selectivos de
los residuos de aparatos eléctricos en el momento de su eliminación contribuirá
a conservar los recursos naturales y a garantizar el reciclado de estos residuos
de forma que se proteja el medio ambiente y la salud. Para obtener más información sobre
los puntos de recogida de residuos eléctricos y electrónicos para reciclado, póngase en
contacto con su ayuntamiento, con el servicio de eliminación de residuos domésticos o
con el establecimiento en el que adquirió el producto.
MSL6000 series tape library user guide 157
Swedish notice
Bortskaffande av avfallsprodukter från användare i privathushåll inom
Europeiska Unionen
Om den här symbolen visas på produkten eller förpackningen betyder det att
produkten inte får slängas på samma ställe som hushållssopor. I stället är det
ditt ansvar att bortskaffa avfallet genom att överlämna det till ett uppsamlingsställe
avsett för återvinning av avfall från elektriska och elektroniska produkter. Separat
insamling och återvinning av avfallet hjälper till att spara på våra naturresurser
och gör att avfallet återvinns på ett sätt som skyddar människors hälsa och miljön.
Kontakta ditt lokala kommunkontor, din närmsta återvinningsstation för hushållsavfall eller
affären där du köpte produkten för att få mer information om var du kan lämna ditt avfall
för återvinning.
158 Regulatory compliance notices
B
Specifications
This appendix lists the following specifications met by HP StorageWorks MSL Series tape libraries:
• Power, page 159
• Mechanical, page 159
• Environmental (All Models), page 160
• Acoustics, page 161
• Safety and Regulatory, page 161
Power
Table 13
Power Specifications
Description
MSL6030/MSL6026
Specification
MSL6060/MSL6052
Specification
Voltage
100 to 240 VAC, +/- 10%
100 to 240 VAC, +/- 10%
Current
3.0 to 6.0 A
3.0 to 6.0 A
Line frequency operating
range
50 to 60 Hz
50 to 60 Hz
Power consumption
180 W (2 tape drives)
300 W (4 tape drives)
Maximum peak power
consumption
200 W (2 tape drives)
360 W (4 tape drives)
Mechanical
Table 14
Rackmount Model Mechanical Specifications
Description
MSL6030/MSL6026
Specification
MSL6060/MSL6052
Specification
Height
8.75 inches (22.2 cm), nominal
(5U)
17.5 inches (44.4 cm),
nominal (10U)
Width
17 inches (43.2 cm)
17 inches (43.2 cm)
Depth
31.5 inches (80 cm)
31.5 inches (80 cm)
Weight
61 pounds (27.7 kg), estimated
(with 2 tape drives installed)
123 pounds (55.9 kg),
estimated (with 4 tape drives
installed)
MSL6000 series tape library user guide 159
Environmental (All Models)
Table 15
Operating Environmental Specifications
Description
Specification
Dry bulb temperature
50°F to 95°F (10°C to 35°C)
Temperature gradient
1.8°F/min (1°C/min)
Temperature shock
27°F (15°C) over 2 minutes
Wet bulb temperature
78.8°F (26°C)
Relative humidity (noncondensing)
20% to 80%
Humidity gradient
10%/hr
Altitude
-1000 feet to +10,000 feet (-305 m to
3050 m)
Table 16
Packed or Unpacked Environmental Specifications
Description
Specification
Dry bulb temperature
-40°F to 140°F (-40°C to 60°C)
Temperature gradient
36°F (20°C)/hr (across the range)
Temperature shock
27°F (15°C) (over 2 minutes)
Wet bulb temperature
86°F (30°C)
Relative humidity (noncondensing)
10% to 95%
Humidity gradient
10%/hr
Altitude
-1000 feet to +15,000 feet (-305 m to
4600 m)
Table 17
Transit -- Short Term Environmental Specifications
Description
Specification
Dry bulb temperature
-40°F to 140°F (-40°C to 60°C)
Temperature gradient
36°F (20°C)/hr (across the range)
Temperature shock
27°F (15°C) (over 2 minutes)
Wet bulb temperature
86°F (30°C)
Relative humidity (noncondensing)
5% to 95%
Humidity gradient
10%/hr
Altitude
-1000 feet to +40,000 feet (-305 m to
12,200 m)
160 Specifications
Acoustics
Table 18
Acoustic Noise Declared per ISO 9296 and ISO 7779
Sound Power Level LW,Ad B
Sound Pressure Level
Lp,Am dBA
(bystander position)
Product
Idle
Operate
Idle
Operate
MSL6030/MSL6026
MSL6060/MSL6052
6.4
7.0
48
48
NOTE: Current values for specific configurations are available from HP representatives
1 B = 10 dBA.
Table 19
Schallemissionswerte - Werteangaben nach ISO 9296 und ISO 7779/DIN 27779
Schalleistungspegel LW,Ad B
Schalldruckpege Lp,Am
dBA
(bediener position)
Gerät
Leerlauf
Betrieb
Leerlauf
Betrieb
MSL6030/MSL6026
MSL6060/MSL6052
6,4
7,0
48
48
NOTE: Aktuelle Werte für spezielle Ausrüstungsstufen sind über die HP Vertretungen erhältlich. 1 B
= 10 dBa.
Safety and Regulatory
The library carries the following Regulatory Agency product safety certifications.
Table 20
Regulatory and Product Safety Certifications
Description
Specification
UL Listed Mark
UL 60950-1 (standard for safety of information
technology equipment)
TUV GS Mark (Germany)
EN60950-1 (standard for safety of information
technology equipment third edition)
MSL6000 series tape library user guide 161
Table 20
Regulatory and Product Safety Certifications
Description
Specification
CE Marking (European Union)
Low Voltage Directive, 72/23/EEC, European
Union
CUL Mark (Canadian UL)
CAN/CSA 22.2 No. 60950-1 (standard for safety
of information technology equipment)
Regulatory Series ID Number
ED 1005, Class A
162 Specifications
C
Electrostatic Discharge
To prevent damage to the system, be aware of the precautions you need to follow when setting up
the system or handling parts. A discharge of static electricity from a finger or other conductor can
damage system boards or other static-sensitive devices. This type of damage can reduce the life
expectancy of the device.
To prevent electrostatic damage, observe the following precautions:
• Avoid hand contact by transporting and storing products in static-safe containers.
• Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.
• Place parts on a grounded surface before removing them from their containers.
• Avoid touching pins, leads, or circuitry.
• Always be properly grounded when touching a static-sensitive component or assembly.
Grounding Methods
There are several methods for grounding. Use one or more of the following methods when handling
or installing electrostatic-sensitive parts:
• Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis.
Wrist straps are flexible straps with a minimum of 1 megohm ± 10 percent resistance in the
ground cords. To provide proper ground, wear the strap snug against the skin.
• Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet
when standing on conductive floors or dissipating floor mats.
• Use conductive field service tools.
• Use a portable field service kit with a folding static-dissipating work mat.
If you do not have any of the suggested equipment for proper grounding, have an HP authorized
service provider install the part.
NOTE: For more information on static electricity, or for assistance with product installation, contact
your authorized service provider.
MSL6000 series tape library user guide 163
164 Electrostatic Discharge
D
Configuration Examples
This appendix illustrates potential SCSI cabling configurations.
NOTE: For a more comprehensive set of SCSI cabling configurations, go to
http://www.hp.com/support.
NOTE: For step-by-step instructions on how to install and configure the library, see ”Cabling for
SCSI Configurations” on page 36.
SCSI Cable Configurations
Use the following guidelines when configuring your SCSI cables:
• Use the highest quality SCSI cables.
NOTE: Bus errors caused by excessive length or poor quality cables can significantly degrade
performance and reliability.
• Each of the tape drives in the library, and the library controller constitute a separate SCSI target.
When any two or more devices are connected to the same SCSI bus, each separate SCSI device
must be assigned a unique SCSI ID.
• SCSI IDs are set at the factory. Use the GUI touch screen to change any of the factory defaults.
• To connect a library to a host, the host must have at least one Wide LVD controller and the
appropriate driver software.
NOTE: The Single-Ended SCSI interface has a lower performance than LVD SCSI, and also has
shorter cable requirements.
• For optimal performance, do not attach more than two drives per SCSI bus.
NOTE: One drive per bus is HP’s recommended configuration. Two drives per bus is an
acceptable configuration for SDLT 1 and 2.
MSL6000 series tape library user guide 165
Configuration Examples
1
SCSI Terminator
3
Host cable (Bus 1, to host system)
2
0.5 m cable (to library controller card)
4
Host cable (Bus 0, to host system)
Figure 80 MSL6030/MSL6026, 2 hosts/2 drives
1
2
1
4
1
5
6
3
1
1
SCSI Terminator
4
Host cable (Bus 3, to host system)
2
0.5 m cable (to library controller card)
5
Host cable (Bus 2, to host system)
3
Host cable (Bus 1, to host system)
6
Host cable (Bus 0, to host system)
Figure 81 Single MSL6060/MSL6052, 4 hosts/4 drives
166 Configuration Examples
E
Optional Fibre Channel Card
The optional Fibre Channel card enables connectivity between MSL Series tape libraries and Fibre
Channel based Storage Area Networks (SANs). This allows the libraries to be attached to a
Switched Fabric.
This appendix includes the following sections:
• Host Prerequisites, page 167
• Connectors and Indicators, page 168
• Configuration, page 169
Host Prerequisites
To use Fibre Channel, check the host for the following:
• Fibre Channel backup software, host interface adapters, and associated device drivers.
• Host that acts as an initiator using the Fibre Channel controller to communicate with Fibre
Channel SCSI target devices.
• Backup application software with robust error recovery. Fibre Channel is an open system, similar
to LAN. Consequently, Fibre Channel is subject to data flow interruptions from power cycling,
connections, disconnections, and ESD charges.
NOTE: For a complete list of prerequisites and supported configurations, contact your HP sales
representative.
MSL6000 series tape library user guide 167
Connectors and Indicators
Figure 82 shows the connectors and indicators for the optional Fibre Channel board.
Pwr.
1
Serial
2
3
Ethernet
4
Link/
Act
Fibre
Channel
5
0
1
6
LVD/SE SCSl
7
1
Power LED
5
Fibre Channel link LED
2
Serial RJ-11 connector
6
FC-LC connector
3
Ethernet RJ-45 connector
7
SCSI VHDCI connector (2)
4
Fibre Channel activity LED
Figure 82 Connectors and indicators
NOTE: The Fibre Channel board serial cable is not the same as the library controller board serial
cable. The serial pinouts are different for each board, requiring different cables.
!
IMPORTANT: The Fibre Channel card can be reset by using a paper clip or other sturdy tool to
push the reset switch shown above the Power LED in Figure 82.
Power Indicator
The Fibre Channel card has one power LED X. LED definitions:
• Green - power has been applied
• Yellow - POST is in process or processor problems present
Serial Port
The Fibre Channel card has one serial port Y. The serial port can be used to access the
Serial/Telnet user interface, which is used to locally manage and configure the Fibre Channel card.
168 Optional Fibre Channel Card
Ethernet Port
The Fibre Channel card has one Ethernet port Z. LED definitions:
• Activity - there is port activity
• Link - a valid Ethernet link exists
Fibre Channel Port
The Fibre Channel card has one Fibre Channel port ]. LED definitions:
• Green (ACT) - Fibre Channel port activity [
• Green (LINK) - a valid Fibre Channel link exists \
SCSI VHDCI Connectors
The Fibre Channel card has two SCSI VHDCI connectors. A green LED indicates activity on the
corresponding port.
Configuration
For detailed configuration information, refer to the HP StorageWorks Network Storage Router User
Guide available on the MSL Series tape library documentation CD, or on the HP website at:
http://www.hp.com/support.
Before attempting to configure the Fibre Channel board, a basic understanding of Fibre Channel
and SCSI devices is recommended. For information on SCSI standards, refer to publications from
X3T10 committee of ANSI (American National Standards Institute). For more information on Fibre
Channel standards, refer to publications from the X3T11 committee of ANSI. To purchase approved
American National Standards and Technical Reports, contact ANSI at (212)642-4900.
Default Ethernet Settings
The basic factory default values are:
• IP address: http://1.1.1.1/
• Subnet mask: 255.255.255.0
• Gateway address: 0.0.0.0
• User name: root
• Password: password
HP recommends that you change these values from the defaults.
All settings within the configuration are pre-set with default values. These values are set to allow the
Fibre Channel card into most HP environments with little or no configuration changes.
After changing the basic default values listed above, carefully consider any additional configuration
changes.
After the initial configuration is established, HP recommends backing up the configuration to an
external file via the FTP file transfer protocol option. If needed, during a recovery process, this file
can be restored back onto the router.
MSL6000 series tape library user guide 169
Configuration Examples
3
1
1
1
2
2
10998
1
SCSI cable
2
Terminator
3
FIbre cable
Figure 83 MSL6030/MSL6026 standalone
170 Optional Fibre Channel Card
1
1
1
2
3
2
1
3
1
2
2
10999
1
SCSI cable
2
Terminator
3
Fibre Cable
Figure 84 MSL6060/MSL6052 standalone
MSL6000 series tape library user guide 171
172 Optional Fibre Channel Card
Index
A
abort move status 66
acoustic specs 161
audience 11
authorized reseller, HP 13
auto power-up 61
B
bar code 76, 77
label
assignment 62
check digit 62
labels 75
reader 23
base address 65
bus ID 64
bus parity 64
C
cable configuration 36
2 tape drives, 1 host 37
2 tape drives, 2 hosts 38
SCSI 165
SCSI examples 166
Canadian notice 144
card cage 25
cartridge map 68
CISPR classification 143
Class 1 laser 143
Class A device 143
cleaning cartridge
automatic 94
cleaning slot 95
mail slot 95
mail slot, replacing 96
manual 94
replacing 96
reserved slot 96
right magazine, replacing 96
running 93
clip nuts 32
controller
wide LVD/SE 37
conventions
document 12
text symbols 12
D
data speed transfer 67
Declaration of Conformity 144
device capability page length 65
diagnostics 71
library and tape tools 98
library tests 141
Disposal of waste equipment, European Union 150
DNS server 68
document
conventions 12
documentation, HP web site 11
door open response 66
doors 33
magazine 49
mechanical releases 50
open for installation 33
drive and slot numbering 62
E
edit options 59, 68
electronics controller card 23
electrostatic discharge 163
environmental specs 160
error recovery procedures 102
errors
post recovered 65
European Union notice 145
F
fasteners 31
fault symptom codes 103
FCC
notice 143
rating label 143
MSL6000 series tape library user guide 173
FCC classification 143
fibre channel board
described 26
location 26
fibre channel card
configuration examples 170
configuring 169
Ethernet settings 169
firmware
updating 97
upgrade requirements 98
front panel 49
FSCs 103
G
reserved slot locations 42, 43, 44, 45
robotics 23
securing the library 34
tape drive locations 17
template 31
troubleshooting flow chart 102
import/export element base address 65
indicators
front panel 26
library 51
init element status 65
initialization screen 53
initiate wide data transfer negotiation 66
installing rails 32
installing the library 33
grounding methods 163
GUI touch screen 26, 51
J
H
help, obtaining 13
host system 53
HP
authorized reseller 13
storage web site 13
Subscriber’s choice web site 13
I
illustrated
applying power 36
attaching a bar code 76, 77
attaching a bar code label to an SDLT/DLT tape
cartridge 78
cable configuration 37, 38
card cage 26
controller board 24
front panel 27, 49
indicators 51
installing the library 33
installing the rails 32
left magazine mail slot 75
left tape magazine 74
magazines 21
mechanical releases 50
power supply 22
PTM mounting location 28
removing magazines 73
174
Japanese notices 145
K
Korean notices 146
L
labels, bar code 75
laser compliance 147
latch mechanism 33
LCD contrast adjust 62
LCD contrast controls 57
library
components
tape cartridges 20
display screens and options 53
library and tape tools 98
library info 68
library mode 62
library options 60
library status LED 26
library systems
multi unit 27
locks 51
M
magazines 21
door mechanical releases 50
doors 49
inserting cartridges 74
removing 73
mail slot
access 74
holder 75
mode 62
using 74
maintenance 71
mechanical specs 159
menu
option 59
selections 60
mixed media 17
models 15
N
network options 67
O
offline 61
online 59
options
edit 68
network 67, 70
passwords 70
SCSI 63, 69
P
Pass-Through Mechanism (PTM) 23
password
levels 52
option 70
PCI slots 25
post recovered errors 65
power supply 22, 35
power switch 35
product identification 65
PTM
and robotics 27
R
rackmount model 30
regulatory compliance
identification numbers 143
notices 143
regulatory model number 143
reserved slots 61
locations 42, 43, 44, 45
numbering 42
setting up 41
retaining screws 33
robotics 25, 27
S
safety specs 161
screen
diagnostics 71
drive 0 bus 0 data field 41
drive 0 bus ID 40
edit library options 69
edit network options 70
edit passwords options 70
edit SCSI options 69
initialization 53
magazine access 56
mail slot access 55
maintenance 71
menu 60
move media 57
power-down confirmation message 58
reserved slots numeric keypad 46
SCSI ID confirmation 41
SCSI option selection 40
security level 72
status 58
technical support information 55
total reserved slots 45
total reserved slots confirmation 46
view library info 68
view library options 61
view network options 67
view SCSI options 63
SCSI
bus IDs 64
bus parity 64
cable configuration examples 166
cable configurations 36
IDs 37
IDs, setting 39
options 63
securing the library 34
security level 72
set up
network 47
MSL6000 series tape library user guide 175
rackmount model 30
reserved slots 41
setting a SCSI ID 39
shielded cables 144
slide rails 30, 34
inner 32
intermediate 32
specifications
acoustics 160, 161
environmental 160
mechanical 159
power 159
safety 161
status screen 58
storage element base address 65
Subscriber’s choice, HP 13
symbols in text 12
T
tabletop model
converting to rackmount 29, 35
Taiwanese notices 146
tape alert mode 66
tape cartridges
inserting and removing 72
mixed media 17
requirements 75
tape drives 18
location 16
LTO Ultrium 17
mixed media 17
SDLT 17
template 30, 31, 34
test unit ready reporting 65
text symbols 12
transfer element base address 65
transport element base address 65
troubleshooting
error recovery 102
fault symptom codes 103
flow chart 102
platform problems 101
troubleshooting flow chart 102
U
unit attention reporting 64
176
unload mode 61
utilities 70
diagnostics 71
factory 72
maintenance 71
security level 72
V
vendor identification 65
view system data 59, 60
viewing window 26
W
warning
PTM 27
rack enclosure 32
web sites
HP documentation 11
HP storage 13
HP Subscriber’s choice 13
Figures
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
Library tape drive locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
HP Ultrium 960 format trademark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Library magazines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Library power supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Library robotics (top cover removed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Library controller board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Library controller board connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Library card cages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Library front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Library PTM mounting location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Converting a tabletop model (four-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Library template (10000 rack enclosure shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Installing the rails. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Installing the library (two-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Securing the library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Converting a rackmount model (two-drive model shown). . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Applying power to the library (four-drive rackmounted library shown) . . . . . . . . . . . . . . . . . . 36
MSL6030/MSL6026 library SCSI cable configuration (two tape drives, dual host system) . . . . 37
MSL6060/MSL6052 library SCSI cable configuration (four tape drives, dual host system) . . . . 38
SCSI option selection screen (two-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Drive 0 bus ID screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
SCSI ID confirmation screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Drive 0 bus ID data field screen (two-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Reserved slot locations, SDLT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Reserved slot locations, Ultrium (MSL6030) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Reserved slot locations, lower module, SDLT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Reserved slot locations, lower module, Ultrium (MSL6060) . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Total reserved slots screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Reserved slots numeric keypad screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Total reserved slots confirmation screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
IP address determination screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
User-specified IP address screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Fixed IP address screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Library front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Magazine door mechanical releases (emergency access) . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Library indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Password levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Initialization screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Library status screen (two-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Technical support information screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Mail slot access screen (four-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Magazine access screen (two-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Move media screen (two-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Power-down confirmation message screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Status screen (four-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Cartridge map screen (two-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
Menu screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
View library options screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
View SCSI options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Default view network options screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
View library info screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Edit library options screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Edit SCSI options screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Edit network options screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Edit passwords options screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Maintenance screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Diagnostics screen (four-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Security level screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Removing tape cartridge magazines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Inserting a tape cartridge (left-hand magazine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Left-hand magazine mail slot (two-drive model shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Attaching a bar code label to an Ultrium tape cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Proper Ultrium bar code label placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Attaching a bar code label to an SDLT tape cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Remote Management Interface login screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Remote Management Interface main screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Status screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Move media screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Setup screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Library configuration screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
SCSI configuration screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Drive configuration screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Functions screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
History screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
SDLT buckle leaders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Updating firmware using the Remote Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . 97
Copying firmware using the Remote Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . 98
Confirming the Flash operation using the Remote Management Interface . . . . . . . . . . . . . . . . 98
Troubleshooting flow chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
MSL6030/MSL6026, 2 hosts/2 drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Single MSL6060/MSL6052, 4 hosts/4 drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Connectors and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
MSL6030/MSL6026 standalone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
MSL6060/MSL6052 standalone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Tables
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
