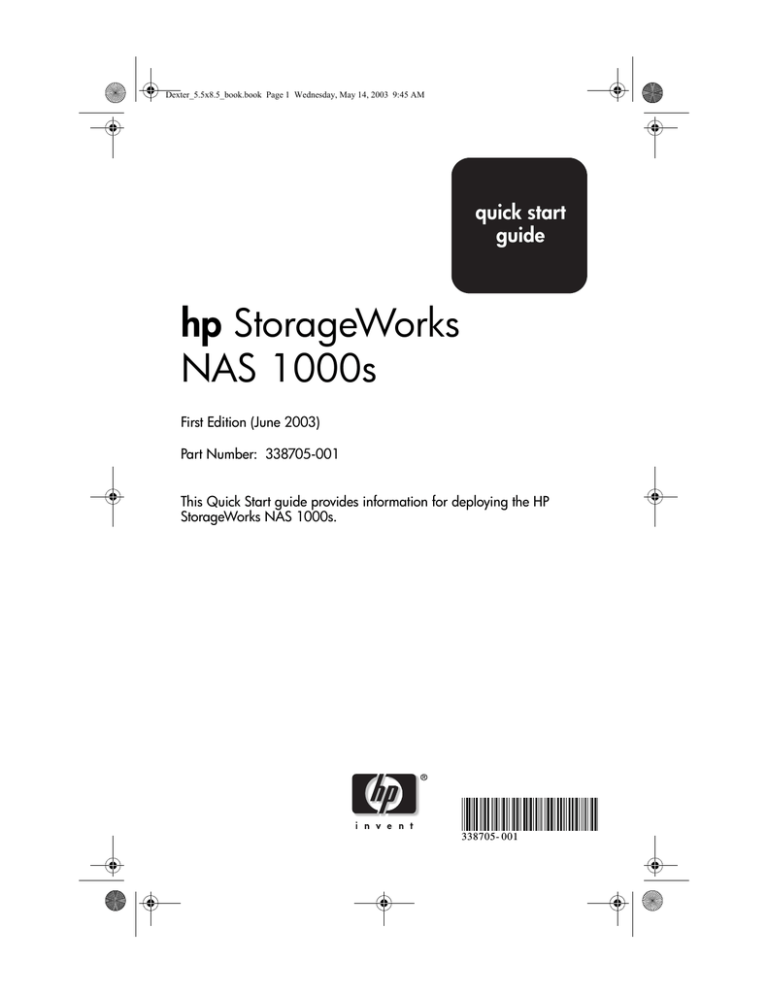

Dexter_5.5x8.5_book.book Page 1 Wednesday, May 14, 2003 9:45 AM
quick start
guide
hp StorageWorks
NAS 1000s
First Edition (June 2003)
Part Number: 338705-001
This Quick Start guide provides information for deploying the HP
StorageWorks NAS 1000s.
338705- 001
Dexter_5.5x8.5_book.book Page 2 Wednesday, May 14, 2003 9:45 AM
© Copyright 2003 Hewlett-Packard Development Company, L.P.
Hewlett-Packard Company makes no warranty of any kind with regard to this material,
including, but not limited to, the implied warranties of merchantability and fitness for a
particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the furnishing, performance, or
use of this material.
This document contains proprietary information, which is protected by copyright. No
part of this document may be photocopied, reproduced, or translated into another
language without the prior written consent of Hewlett-Packard. The information
contained in this document is subject to change without notice.
Compaq Computer Corporation is a wholly-owned subsidiary of Hewlett-Packard
Company.
Microsoft®, MS-DOS®, MS Windows®, Windows®, and Windows NT® are U.S.
registered trademarks of Microsoft Corporation.
Hewlett-Packard Company shall not be liable for technical or editorial errors or
omissions contained herein. The information is provided “as is” without warranty of any
kind and is subject to change without notice. The warranties for Hewlett-Packard
Company products are set forth in the express limited warranty statements for such
products. Nothing herein should be construed as constituting an additional warranty.
NAS 1000s Quick Start Guide
First Edition (June 2003)
Part Number: 338705-001
Dexter_5.5x8.5_book.book Page 3 Wednesday, May 14, 2003 9:45 AM
contents
Contents
About this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Text Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Equipment Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Rack Stability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HP Technical Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HP Storage Website . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
HP Authorized Reseller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
1
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Configuration Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Product Definition and Information . . . . . . . . . . . . . . . . . . . . . . . . .16
Server Hardware Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Optional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Software Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Managing the NAS 1000s. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Product Redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Dependencies and Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Storage Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
IP Networking and Setup Requirements. . . . . . . . . . . . . . . . . . .20
Deploying the NAS 1000s on the Network. . . . . . . . . . . . . . . . . . . .20
Setup and Configuration Overview. . . . . . . . . . . . . . . . . . . . . . . . . .22
Configuring the NAS 1000s . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Storage Management Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
NAS 1000s Quick Start Guide
3
Dexter_5.5x8.5_book.book Page 4 Wednesday, May 14, 2003 9:45 AM
Storage Management Elements . . . . . . . . . . . . . . . . . . . . . . . . .23
Logical Storage Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Persistent Storage Management Elements . . . . . . . . . . . . . . . . .24
Snapshot Facts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
File System Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
File-Sharing Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
2
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Preinitialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Collect Information for Configuration . . . . . . . . . . . . . . . . . . . . . . .27
Configuration Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
3
Configuration Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Configuration Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
WebUI Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Remote Access Method (Using Hostname) . . . . . . . . . . . . . . . .31
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Direct Access Method (Using the Console) . . . . . . . . . . . . . . . .33
Completing the System Configuration . . . . . . . . . . . . . . . . . . . . . . .34
4
Hot-Plug Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Important Guidelines for Replacing Hot-Pluggable Hard Drives. . .35
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Handling Hard Drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Replacing a Failed Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
A Regulatory Compliance Notices . . . . . . . . . . . . . . . . . . . . . . . 39
Federal Communications Commission Notice . . . . . . . . . . . . . . . . .39
Class A Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Class B Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Declaration of Conformity for products marked with the FCC logo
United States only. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Canadian Notice (Avis Canadien). . . . . . . . . . . . . . . . . . . . . . . . . . .42
Class A Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Class B Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
European Union Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
4
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 5 Wednesday, May 14, 2003 9:45 AM
BSMI Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Battery Replacement Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
B
Electrostatic Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Grounding Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
NAS 1000s Quick Start Guide
5
Dexter_5.5x8.5_book.book Page 6 Wednesday, May 14, 2003 9:45 AM
6
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 7 Wednesday, May 14, 2003 9:45 AM
about this
guide
About this Guide
This quick start guide provides information to help you deploy
the HP StorageWorks NAS 1000s.
About this Guide
About this Guide topics include:
■
Overview, page 8
■
Conventions, page 9
■
Rack Stability, page 12
■
Getting Help, page 12
NAS 1000s Quick Start Guide
7
Dexter_5.5x8.5_book.book Page 8 Wednesday, May 14, 2003 9:45 AM
Overview
This section covers the following topics:
■
Intended Audience
■
Prerequisites
■
Related Documentation
Intended Audience
This book is intended for use by technical professionals who are
experienced with the following:
■
Microsoft® administrative procedures
■
file-sharing protocols
Prerequisites
Before you set up the NAS 1000s, HP recommends that the
reader obtain supplemental documentation relative to the items
listed above in the section titled Intended Audience.
Related Documentation
In addition to this guide, HP provides corresponding information:
8
■
HP StorageWorks NAS 1000s Administration Guide
■
HP StorageWorks NAS 1000s Rack Installation Instructions
■
HP StorageWorks NAS 1000s Release Notes (if required, this
document will be available via www.hp.com)
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 9 Wednesday, May 14, 2003 9:45 AM
Conventions
Conventions consist of the following:
■
Document Conventions
■
Text Symbols
■
Equipment Symbols
Document Conventions
The document conventions included in Table 1 apply in most
cases.
Table 1: Document Conventions
Element
Convention
Cross-reference links
Figure 1
Key and field names, menu
items, buttons, and dialog box
titles
Bold
File names, application names,
and text emphasis
Italics
User input, command and
directory names, and system
responses (output and
messages)
Monospace font
COMMAND NAMES are
uppercase monospace font
unless they are case sensitive
Variables
<monospace, italic
font>
Website addresses
Underlined sans serif font text:
NAS 1000s Quick Start Guide
http://www.hp.com
9
Dexter_5.5x8.5_book.book Page 10 Wednesday, May 14, 2003 9:45 AM
Text Symbols
The following symbols may be found in the text of this guide.
They have the following meanings.
WARNING: Text set off in this manner indicates that failure
to follow directions in the warning could result in bodily harm
or death.
Caution: Text set off in this manner indicates that failure to
follow directions could result in damage to equipment or
data.
Note: Text set off in this manner presents commentary, sidelights, or
interesting points of information.
Equipment Symbols
The following equipment symbols may be found on hardware for
which this guide pertains. They have the following meanings.
Any enclosed surface or area of the equipment
marked with these symbols indicates the presence of
electrical shock hazards. Enclosed area contains no
operator serviceable parts.
WARNING: To reduce the risk of personal injury from
electrical shock hazards, do not open this enclosure.
10
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 11 Wednesday, May 14, 2003 9:45 AM
Any RJ-45 receptacle marked with these symbols
indicates a network interface connection.
WARNING: To reduce the risk of electrical shock, fire,
or damage to the equipment, do not plug telephone
or telecommunications connectors into this receptacle.
Any surface or area of the equipment marked with
these symbols indicates the presence of a hot surface
or hot component. Contact with this surface could
result in injury.
WARNING: To reduce the risk of personal injury from
a hot component, allow the surface to cool before
touching.
Power supplies or systems marked with these
symbols indicate the presence of multiple
sources of power.
WARNING: To reduce the risk of personal
injury from electrical shock, remove all power
cords to completely disconnect power from the
power supplies and systems.
Any product or assembly marked with these symbols
indicates that the component exceeds the
recommended weight for one individual to handle
safely.
WARNING: To reduce the risk of personal injury or
damage to the equipment, observe local occupational
health and safety requirements and guidelines for
manually handling material.
NAS 1000s Quick Start Guide
11
Dexter_5.5x8.5_book.book Page 12 Wednesday, May 14, 2003 9:45 AM
Rack Stability
Rack stability protects personal and equipment.
WARNING: To reduce the risk of personal injury or damage
to the equipment, be sure that:
■ The leveling jacks are extended to the floor.
■ The full weight of the rack rests on the leveling jacks.
■ In single rack installations, the stabilizing feet are
attached to the rack.
■ In multiple rack installations, the racks are coupled.
■ Only one rack component is extended at any time. A rack
may become unstable if more than one rack component
is extended for any reason.
Getting Help
If you still have a question after reading this guide, contact an HP
authorized service provider or access our website:
http://www.hp.com.
HP Technical Support
In North America, call technical support at 1-800-652-6672,
available 24 hours a day, 7 days a week.
Note: For continuous quality improvement, calls may be recorded or
monitored.
Outside North America, call technical support at the nearest
location. Telephone numbers for worldwide technical support are
listed on the HP website under support: http://www.hp.com.
12
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 13 Wednesday, May 14, 2003 9:45 AM
Be sure to have the following information available before
calling:
■
Technical support registration number (if applicable)
■
Product serial numbers
■
Product model names and numbers
■
Applicable error messages
■
Operating system type and revision level
■
Detailed, specific questions
HP Storage Website
The HP website has the latest information on this product, as well
as the latest drivers. Access storage at: http://www.hp.com. From
this website, select the appropriate product or solution.
HP Authorized Reseller
For the name of your nearest HP authorized reseller:
■
In the United States, call 1-800-345-1518
■
In Canada, call 1-800-263-5868
■
Elsewhere, see the HP website for locations and telephone
numbers: http://www.hp.com.
NAS 1000s Quick Start Guide
13
Dexter_5.5x8.5_book.book Page 14 Wednesday, May 14, 2003 9:45 AM
14
NAS 1000s Quick Start Guide
chap1.fm Page 15 Thursday, May 15, 2003 4:33 PM
Product Overview
1
This chapter describes the configuration options and setup and
configuration dependencies and requirements for the HP
StorageWorks NAS 1000s.
Configuration Options
The NAS 1000s is specifically designed for file serving; it offers
optimized performance for a growing environment.
The NAS 1000s is available in three models:
■
1 TB
■
640 GB
■
320 GB
NAS 1000s Quick Start Guide
15
chap1.fm Page 16 Thursday, May 15, 2003 4:33 PM
Product Definition and Information
The NAS 1000s is a business class NAS solution that provides
reliable performance, manageability, and fault tolerance.
Server Hardware Features
The following features are included in the NAS 1000s Model 1
server:
■
Intel Pentium 4 2.4 GHz processor
■
512-MB 200 MHz PC2100 DDR SDRAM memory
■
64-bit PCI-X slot
■
64-bit PCI slot
■
Four 80GB 7200 rpm hot-pluggable hard drives
■
Τwo embedded 10/100/1000 WOL (Wake on LAN)
network interface controllers (NICs)
■
SCSI Controller for tape backup
The following features are included in the NAS 1000s Model 2
server:
16
■
Intel Pentium 4 2.8 GHz processor
■
512-MB 200 MHz PC2100 DDR SDRAM memory
■
64-bit PCI-X slot
■
64-bit PCI slot
■
Four 160GB 7200 rpm hot-pluggable hard drives
■
Two embedded 10/100/1000 WOL (Wake on LAN)
network interface controllers (NICs)
■
SCSI Controller for tape backup
NAS 1000s Quick Start Guide
chap1.fm Page 17 Thursday, May 15, 2003 4:33 PM
The following features are included in the NAS 1000s Model 3
server:
■
Intel Pentium 4 2.8 GHz processor
■
512-MB 200 MHz PC2100 DDR SDRAM memory
■
64-bit PCI-X slot
■
64-bit PCI slot
■
Four 250GB 7200 rpm hot-pluggable hard drives
■
Two embedded 10/100/1000 WOL (Wake on LAN)
network interface controllers (NICs)
Optional Features
The following features are optional for the NAS 1000s server:
■
Additional memory
■
Network interface cards (NICs)
■
SAN Fibre Channel Adapter for tape backup
Software Features
Advanced features included and supported by the NAS 1000s
include:
■
Microsoft Services for Macintosh
■
Microsoft Services for NetWare
■
Microsoft Services for UNIX (SFU)
■
NAS Web Based User Interface (WebUI)
■
Windows Powered OS
■
Columbia Data Products Persistent Storage Manager
■
Optional third party supported software (not included):
— Backup software
— Management software
— Quota management
— Virus protection
NAS 1000s Quick Start Guide
17
chap1.fm Page 18 Thursday, May 15, 2003 4:33 PM
For specific software product recommendations, go to the HP
website:
http://h18000.www1.hp.com/products/storageworks/nas/support
edsoftware.html
Managing the NAS 1000s
The NAS 1000s is configured at the factory with default system
settings and with the NAS operating system installed. Refer to the
“Storage Management Overview” section later in this chapter for
more information.
The NAS administrator uses Windows Logical Disk Manager
(LDM) to manage the logical storage.
Figure 1: NAS 1000s device
18
NAS 1000s Quick Start Guide
chap1.fm Page 19 Thursday, May 15, 2003 4:33 PM
Product Redundancy
The NAS 1000s is specifically designed to perform file serving
tasks for networks, using industry standard components to ensure
reliability.
Other industry standard features, such as redundant array of
independent drives (RAID) and remote manageability, further
enhance the overall dependability of the NAS 1000s.
To ensure redundancy and reliability, the hard drives installed in
the NAS 1000s are configured so that a single drive failure will
not cause data loss or system failure. The NAS 1000s is
configured with dual boot capibility. When powered on, the NAS
1000s can boot using a primary OS or a secondary recovery OS.
The primary OS resides on drive 0 and is mirrored on drive 1
while the secondary OS resides on drive 2 and is mirrored on
drive 3. If the primary OS becomes corrupted and un-bootable,
the secondary OS is available for data backup prior to using the
Quick Restore DVD to restore the system to the factory default
state.
The data volume is configured as a RAID 5 volume across all
four drives. This ensures redundancy in the event of a drive
failure and the data volume is accessible by both the primary OS
and secondary OS.
NAS 1000s Quick Start Guide
19
chap1.fm Page 20 Thursday, May 15, 2003 4:33 PM
Dependencies and Requirements
Specific conditions must be met in order for the NAS 1000s to
operate.
Storage Requirements
To protect against data loss from hard drive failure, configure
storage with fault tolerance in mind. HP recommends adhering to
RAID5 configurations.
IP Networking and Setup Requirements
The following are IP networking and setup requirements needed
for a NAS 1000s device:
■
Windows-based PC running Microsoft Internet Explorer 5.5
(or later) on the same network segment as the NAS 1000s;
this will be used to set up and administer the NAS device.
■
Additional Ethernet connection ports to client subnets
(depending on network options ordered).
Deploying the NAS 1000s on the Network
The default shipping configuration contains two 10/100/1000
integrated network interface controller (NIC) ports for client data
access. These data ports also allow access to the Web user
interface (WebUI) that accompanies the product. Most
management and administrative procedures can be accomplished
via the WebUI.
20
NAS 1000s Quick Start Guide
chap1.fm Page 21 Thursday, May 15, 2003 4:33 PM
1
2
3
10
9
4
5
8
7
6
Figure 2: Rear panel connectors
Table 2: Rear Panel Connectors
Item
Description
1
Power connectors
2
Mouse connector (PS/2) (green)
3
Video connector (blue)
4
Serial connector (teal)
5
PCI expansion slot
6
LVD SCSI Controller connector
7
RJ-45 connector for NIC 1 (Eth0)
8
RJ-45 connector for NIC 1 (Eth1)
9
USB connectors (2) (black)
-
Keyboard connector (PS/2) (purple)
NAS 1000s Quick Start Guide
21
chap1.fm Page 22 Thursday, May 15, 2003 4:33 PM
Setup and Configuration Overview
Setting up systems is a well-defined process. This section is
intended as an overview of the process, not a detailed list of
step-by-step instructions. Step-by-step procedures are
documented in the administration guide. Some of the steps are
driven by wizards within the WebUI. In either type of setup, it is
important to read all of the supplied documentation before
starting. Relevant documents include:
■
HP StorageWorks NAS 1000s Administration Guide
■
HP StorageWorks NAS 1000s Rack Installation Instructions
■
HP StorageWorks NAS 1000s Release Notes (if required, this
document will be available via www.hp.com)
Configuring the NAS 1000s
The following describes how to configure the NAS 1000s.
1. Configure the NAS device using Chapter 2 of this guide.
2. This is a recommended step. Place the NAS device into an
Active Directory or Windows NT 4.0 domain for ease of
manageability.
3. Configure the NAS 1000s device using Chapter 3 of this
guide.
4. Using Logical Disk Manager (LDM), assign drive letters or
mount points, and format the data drives. See the LDM online
help for full details on this procedure.
5. This is an optional step. Enable protocols such as NFS
sharing, NCP, and/or AppleTalk. See the administration guide
for this procedure in detail.
6. This is an optional step. Create shares corresponding to the
protocols mentioned in the previous steps. Grant access rights
to the shares.
7. Read the remaining sections of the administration guide.
22
NAS 1000s Quick Start Guide
chap1.fm Page 23 Thursday, May 15, 2003 4:33 PM
Storage Management Overview
This section provides an overview of the components that make
up the NAS storage structure. A complete discussion of the
components and their relationships is available in the
administration guide.
Caution: This section on storage management and Windows
LDM is required reading material for the NAS administrator.
This section develops the concepts and requirements that
serve as the basis for successfully using an HP StorageWorks
NAS device. Failure to read this section and the appropriate
sections on storage management in the administration guide
may lead to data loss or file corruption.
Storage Management Elements
Storage is broken up into five major divisions:
■
Logical storage elements
■
Persistent Storage Manager Elements
■
File system elements
■
File sharing elements
Each of these elements is composed of the previous level’s
elements.
Logical Storage Elements
The NAS 1000s utilizes the Microsoft Logical Disk Manager
(LDM) for managing the various types of disk presented to the
file system. Logical Disk Manager has two types of disk
presentations: basic disk and dynamic disk. Each of these types of
disk has special features that enable different types of
management. The NAS 1000s uses a dynamic RAID5 volume to
ensure maximum data protection. This volume can then be
assigned a drive letter or mount point, formatted, and the
presented to the operating system for use.
NAS 1000s Quick Start Guide
23
chap1.fm Page 24 Thursday, May 15, 2003 4:33 PM
Persistent Storage Management Elements
Persistent Storage Manager lets the administrator make replicas
of disks, called snapshots. Snapshots enable the creation of
multipurpose logical replicas of production data without having
to physically copy the data. They can be used to immediately
recover a lost file or directory, to test a new application with
realistic data without affecting the “real” data, and to serve as a
source of data for backups. Snapshots are a temporary backup of
the data and are not meant to be permanent.
Snapshots use existing space from the volume, partition, or
logical drive to maintain the data required to present the original
data. This space is termed the cache file. By default the cache
files consumes 10 percent of the available space of a logical
storage element. Snapshots can be read only, read-write or always
keep, and if they are shared, users can access a snapshot and edit
the data. If snapshots are shared with write access enabled, a
second snapshot of the original volume should be created. There
is no backup of the original snapshot unless a second snapshot of
the volume is taken.
Snapshot Facts
■
Snapshots are created on a per volume, partition, or logical
drive basis.
■
Snapshots can be read-only, read-write or always keep.
■
Snapshots are mounted as a mount point on the root of the
volume, partition or logical drive.
■
Snapshots can be shared in the same manner as any other
folder, drive or mount point.
■
Snapshots are meant to be temporary in nature.
■
Snapshots are automatically deleted if disk space becomes
critical and they are not set to always keep.
■
Persistent Storage Manager only writes to the cache file on
the first change of the underlying data.
Full documentation of Persistent Storage Manager may be found
in the administration guide.
24
NAS 1000s Quick Start Guide
chap1.fm Page 25 Thursday, May 15, 2003 4:33 PM
File System Elements
File system elements are composed of the folders and subfolders
that are created under each logical storage element (partitions,
logical disks, and volumes). Folders are used to further subdivide
the available file system providing another level of granularity for
management of the information space. Each of these folders can
contain separate permissions and share names that can be used for
network access. Folders can be created for individual users,
groups, projects, etc. Refer to the administration guide for more
details on file system elements.
File-Sharing Elements
The NAS 1000s supports several file-sharing protocols, including
CIFS, NFS, FTP, HTTP, NCP, and AppleTalk. On each folder or
logical storage element, different file-sharing protocols can be
enabled using specific network names for access across a network
to a variety of clients. Permissions can then be granted to those
shares based on users or groups of users in each of the file sharing
protocols. Refer to the administration guide for more details on
file system elements.
NAS 1000s Quick Start Guide
25
chap1.fm Page 26 Thursday, May 15, 2003 4:33 PM
26
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 27 Wednesday, May 14, 2003 9:45 AM
Before You Begin
2
This chapter describes the preinitialization and configuration
tasks required for the HP StorageWorks NAS 1000s.
Preinitialization
Before beginning the installation process, verify that the
hardware installation is complete. Verify that the NAS 1000s is
completely installed in the rack and that all cables and cords are
connected. The setup utility documented here and in the next
section only provide basic setup for the network components of
the NAS 1000s.
Note: If you need assistance with rack installation or hardware
connections, refer to the quick reference and rack installation poster
included in the shipping carton.
Collect Information for Configuration
Choose a host name and collect general information before
initializing the NAS 1000s.
NAS 1000s Quick Start Guide
27
Dexter_5.5x8.5_book.book Page 28 Wednesday, May 14, 2003 9:45 AM
Configuration Information
Collect the general information required to initialize the NAS
device for both dynamic host configuration protocols (DHCP)
and non-DHCP configurations. You will be asked for this
information during configuration, as shown in Table 3. Become
familiar with this information before attempting to configure the
NAS device.
Table 3: Configuration Information
Part A: To be completed for DHCP and non-DHCP
configurations
Server Host Name:
Part B: To be completed for non-DHCP configurations
only
DNS Servers
IP Address
1
2
3
NAS NIC Port*
IP
Address
Subnet
Mask
Gateway
Address
Eth 0
Eth 1
* The default NAS 1000s has two Ethernet ports available for
network connectivity. Disable ports that will not be used. Each
Ethernet port must be configured with a separate subnet.
Part C: SNMP Information (optional)
Trap Destination (IP
Address) Manager Client:
Management Traps
Community String:
System Management
Community String:
28
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 29 Wednesday, May 14, 2003 9:45 AM
Configuration Setup
3
This chapter provides information about configuring the HP
StorageWorks NAS 1000s using the online method.
Before completing the tasks in this chapter, verify that the
NAS 1000s is installed in the rack and that all cables and cords
are connected. It is also necessary to collect certain information
required during the configuration process, as mentioned in
Chapter 2, “Before You Begin.”
Configuration Method
The two methods for configuring the NAS 1000s are:
■
Using the WebUI configuration application that comes with
the NAS 1000s.
■
Running the application directly from the console.
NAS 1000s Quick Start Guide
29
Dexter_5.5x8.5_book.book Page 30 Wednesday, May 14, 2003 9:45 AM
WebUI Configuration
The NAS 1000s includes a WebUI that is designed to be a
graphical, easy-to-use application that gathers the necessary
information for configuration. The WebUI may be accessed
locally or by host name.
Note: Configure the NAS 1000s locally when deploying the device
in a non-DHCP environment.
1
2
Figure 3: Ethernet connectors
Table 4: Ethernet Network Connectors
Item
Description
1
NIC Ethernet port 1 (Eth 1) used for data
2
NIC Ethernet port 0 (Eth 0) used for data
Note: Connect a loopback cable to any of the NAS 1000s Ethernet
ports that are not configured for use.
30
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 31 Wednesday, May 14, 2003 9:45 AM
Remote Access Method (Using Hostname)
The NAS 1000s ships by default with DHCP enabled on the
network port. If the system is placed on a DHCP serviced
network and the serial number of the device is known, it can be
accessed through a client running Microsoft Internet Explorer 5.5
(or later) on that network, using the 3201 port of the device. The
serial number is located on the product ID label.
Requirements
The following items are required to run the WebUI configuration
application:
■
Windows-based PC loaded with Internet Explorer 5.5 (or
later) on the same segment as the NAS 1000s
■
DHCP-serviced network
■
Serial number of the NAS 1000s
Note: The NAS 1000s is designed to be deployed without a monitor,
keyboard, and mouse. These ports are available and supported by the
NAS device, if used.
Procedure
To initialize the NAS 1000s using the WebUI configuration
application:
1. Connect the Ethernet cables to the respective network ports
of the NAS b2000 v2 and the corresponding network
segments in accordance with the information in the
“Configuration Information” section in Chapter 2.
2. See Figure 3 and Table 4 for the locations of the network
ports on the NAS 1000s.
3. Go to the NAS device and power it on. It will be several
minutes before the NAS device is accessible on the network.
NAS 1000s Quick Start Guide
31
Dexter_5.5x8.5_book.book Page 32 Wednesday, May 14, 2003 9:45 AM
Figure 4: Rapid Startup wizard screen
4. Open Internet Explorer on the Windows-based PC. Enter
http://, the serial number of the NAS 1000s followed by a
hyphen (-), followed by :3201. Press Enter. This launches
the WebUI configuration application (Rapid Startup) on the
target HP StorageWorks NAS device as shown in Figure 4.
Example: http://D4059ABC3433-:3201
Note: The NAS device will respond when the NAS operating system
has started.
5. Using the information from Table 4, fill in the screens that
follow. Verify that your information is correct when the
configuration review screen is displayed, as shown in
Figure 5.
32
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 33 Wednesday, May 14, 2003 9:45 AM
Figure 5: Rapid Startup configuration review screen
6. Click the Finish icon to exit Rapid Startup. Close the browser
window. The NAS 1000s will now reboot to set the
configuration information.
Direct Access Method (Using the Console)
To initialize the NAS 1000s using the WebUI configuration
application:
1. Logon locally using the username administrator. No
password is needed.
2. Open Internet Explorer on the Windows-based PC. The
browser will default to the Rapid Startup Wizard screen.
3. Using the information from Table 4, fill in the screens that
follow. Verify that your information is correct when the
configuration review screen is displayed, as shown in
Figure 5.
4. Click the Finish icon to exit Rapid Startup. Close the browser
window. The NAS 1000s will now reboot to set the
configuration information.
NAS 1000s Quick Start Guide
33
Dexter_5.5x8.5_book.book Page 34 Wednesday, May 14, 2003 9:45 AM
Completing the System Configuration
After the configuration process, there are additional tasks
required in order to begin sharing files on the network. All
procedures for the configuration tasks may be found in the HP
StorageWorks NAS 1000s Administration Guide. These include:
■
Configuring storage using LDM
■
Establishing file shares and creating access permissions
In addition to the required configuration steps above, enabling
additional protocols and the associated file shares may need to be
completed.
34
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 35 Wednesday, May 14, 2003 9:45 AM
Hot-Plug Hard Drive
4
This chapter provides information about replacing the
hot-pluggable hard drives of the HP StorageWorks NAS 1000s.
Important Guidelines for Replacing
Hot-Pluggable Hard Drives
Follow these guidelines when replacing drives configured for
fault tolerance on an HP StorageWorks NAS 1000s:
■
Never remove more than one drive at a time.
When a drive is replaced, the controller uses data from the
other drives in the array to reconstruct data on the
replacement drive. If more than one drive is removed, a
complete data set is not available to reconstruct data on the
replacement drives and permanent data loss can occur.
■
Never remove a drive while another drive is being rebuilt.
A replaced drive is rebuilt from data stored on the other
drives.
■
If a drive is replaced while the system is Off, it may be
necessary to rebuild the replaced drive. Follow the
instructions in the “ Replacing a Failed Hard Drive” section
of this guide or the instructions outlined in the system’s
reference guide.
NAS 1000s Quick Start Guide
35
Dexter_5.5x8.5_book.book Page 36 Wednesday, May 14, 2003 9:45 AM
Before You Begin
Before replacing a hot-pluggable hard drive:
■
Verify correct drive carrier support
Refer to the documentation included with the system.
■
Review important guidelines
When replacing a failed drive, refer to the documentation
included with the server to identify and remove a failed
drive. See “Important Guidelines for Replacing
Hot-Pluggable Hard Drives” earlier in this chapter.
■
Remove failed drive
Follow the steps shown in the section “Replacing a Failed
Hard Drive” later in this chapter.
■
Install Hot-Pluggable hard drive
Follow the steps shown in the section “Replacing a Failed
Hard Drive” later in this chapter.
Handling Hard Drives
Hard drives are sensitive electromechanical devices that can
be permanently damaged through improper handling. The
packaging provided with a hard drive is designed to protect it
from accidental drops. HP recommends that hard drives
remain in their original packaging until installation. Drives
should be handled with care and never dropped, even from
short distances.
36
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 37 Wednesday, May 14, 2003 9:45 AM
Replacing a Failed Hard Drive
Follow these steps to install the hot-pluggable hard drive into the
system.
1. Remove the NAS 1000s front bezel.
a. Locate the two bezel latches found on the side of the
bezel. Pull the latches outward.
b. Pull the front bezel away from the unit.
2. Remove a hard drive from the disk enclosure before installing
a new hard drive.
a. Press the ejector button and pivot the lever to full open
position.
b. Pull the drive from the disk enclosure.
3. Slide the replacement drive into the disk enclosure.
4. The ejector lever must be in the full open position while
installing to ensure a correct latch. When the drive has been
fully inserted, close the ejector lever.
5. With the system powered on, open Logical Disk Manager
(LDM) and follow these steps to reactivate the disk.
a. Open the Run applet from the Start menu and type
diskmgmt.msc.
b. Find the new disk drive in LDM.
c. Right-click the new disk drive and select Reactivate.
Logical Disk Manager will now rebuild the data on the mirror and
the RAID 5 volume.
NAS 1000s Quick Start Guide
37
Dexter_5.5x8.5_book.book Page 38 Wednesday, May 14, 2003 9:45 AM
38
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 39 Wednesday, May 14, 2003 9:45 AM
Regulatory
Compliance Notices
A
Federal Communications Commission Notice
Part 15 of the Federal Communications Commission (FCC) Rules
and Regulations has established Radio Frequency (RF) emission
limits to provide an interference-free radio frequency spectrum.
Many electronic devices, including computers, generate RF
energy incidental to their intended function and are, therefore,
covered by these rules. These rules place computers and related
peripheral devices into two classes, A and B, depending upon
their intended installation. Class A devices are those that may
reasonably be expected to be installed in a business or
commercial environment. Class B devices are those that may
reasonably be expected to be installed in a residential
environment (personal computers, for example). The FCC
requires devices in both classes to bear a label indicating the
interference potential of the device as well as additional operating
instructions for the user.
The rating label on the device shows which class (A or B) the
equipment falls into. Class B devices have an FCC logo or FCC
ID on the label. Class A devices do not have an FCC logo or FCC
ID on the label. Once the class of the device is determined, refer
to the following corresponding statement.
Class A Equipment
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful
NAS 1000s Quick Start Guide
39
Dexter_5.5x8.5_book.book Page 40 Wednesday, May 14, 2003 9:45 AM
interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the
interference at personal expense.
Class B Equipment
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
■
Reorient or relocate the receiving antenna.
■
Increase the separation between the equipment and receiver.
■
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
■
Consult the dealer or an experienced radio or television
technician for help.
Modifications
The FCC requires the user to be notified that any changes or
modifications made to this device that are not expressly approved
by Hewlett-Packard Company may void the user's authority to
operate the equipment.
Cables
Connections to this device must be made with shielded cables
with metallic RFI/EMI connector hoods in order to maintain
compliance with FCC Rules and Regulations.
40
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 41 Wednesday, May 14, 2003 9:45 AM
Declaration of Conformity for products marked with
the FCC logo United States only
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
NAS 1000s Quick Start Guide
41
Dexter_5.5x8.5_book.book Page 42 Wednesday, May 14, 2003 9:45 AM
For questions regarding your product, contact:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call
1-800- 652-6672
For questions regarding this FCC declaration, contact:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call
(281) 514-3333
To identify this product, refer to the Part, Series, or Model
number found on the product.
Canadian Notice (Avis Canadien)
Class A Equipment
This Class A digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les
exigences du Règlement sur le matériel brouilleur du Canada.
Class B Equipment
This Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les
exigences du Règlement sur le matériel brouilleur du Canada.
42
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 43 Wednesday, May 14, 2003 9:45 AM
European Union Notice
Products bearing the CE marking comply with the EMC Directive
(89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued
by the Commission of the European Community and if this
product has telecommunication functionality, the R&TTE
Directive (1999/5/EC).
Compliance with these directives implies conformity to the
following European Norms (in parentheses are the equivalent
international standards and regulations):
■
EN 55022 (CISPR 22) - Electromagnetic Interference
■
EN55024 (IEC61000-4-2, 3, 4, 5, 6, 8, 11) - Electromagnetic
Immunity
■
EN61000-3-2 (IEC61000-3-2) - Power Line Harmonics
■
EN61000-3-3 (IEC61000-3-3) - Power Line Flicker
■
EN 60950 (IEC 60950) - Product Safety
NAS 1000s Quick Start Guide
43
Dexter_5.5x8.5_book.book Page 44 Wednesday, May 14, 2003 9:45 AM
BSMI Notice
Japanese Notice
44
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 45 Wednesday, May 14, 2003 9:45 AM
Battery Replacement Notice
The battery-backed write cache uses a nickel metal hydride
(NiMH) battery pack.
WARNING: There is a risk of exlposion, fire, or personal
injury if the battery pack is not properly handled. To reduce
this risk:
■ Do not attempt to recharge the batteries if they are
disconnected from the controller.
■ Do not expose the battery pack to water, or to
temperatures higher than 60ºC (140ºF).
■ Do not abuse, disassemble, crush, or puncture the battery
pack.
■ Do not short the external contacts.
■ Replace the battery pack only with the designated HP
spare.
Battery disposal should comply with local regulations.
Batteries, battery packs, and accumulators should not be
disposed of together with the general household waste. To
forward them to recycling or proper disposal, use the public
collection system or return them by established parts return
methods to HP, an authorized HP Partner, or one of their
agents.
For more information about battery replacement or
proper disposal, contact an authorized reseller or an authorized
service provider.
NAS 1000s Quick Start Guide
45
Dexter_5.5x8.5_book.book Page 46 Wednesday, May 14, 2003 9:45 AM
46
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 47 Wednesday, May 14, 2003 9:45 AM
Electrostatic
Discharge
B
To prevent damage to the system, be aware of the precautions you
need to follow when setting up the system or handling parts. A
discharge of static electricity from a finger or other conductor
may damage system boards or other static-sensitive devices. This
type of damage may reduce the life expectancy of the device.
To prevent electrostatic damage, observe the following
precautions:
■
Avoid hand contact by transporting and storing products in
static-safe containers.
■
Keep electrostatic-sensitive parts in their containers until they
arrive at static-free workstations.
■
Place parts on a grounded surface before removing them from
their containers.
■
Avoid touching pins, leads, or circuitry.
■
Always be properly grounded when touching a
static-sensitive component or assembly.
NAS 1000s Quick Start Guide
47
Dexter_5.5x8.5_book.book Page 48 Wednesday, May 14, 2003 9:45 AM
Grounding Methods
There are several methods for grounding. Use one or more of the
following methods when handling or installing
electrostatic-sensitive parts:
■
Use a wrist strap connected by a ground cord to a grounded
workstation or computer chassis. Wrist straps are flexible
straps with a minimum of 1 megohm ± 10 percent resistance
in the ground cords. To provide proper grounding, wear the
strap snug against the skin.
■
Use heel straps, toe straps, or boot straps at standing
workstations. Wear the straps on both feet when standing on
conductive floors or dissipating floor mats.
■
Use conductive field service tools.
■
Use a portable field service kit with a folding
static-dissipating work mat.
If you do not have any of the suggested equipment for proper
grounding, have an authorized reseller install the part.
Note: For more information on static electricity, or for assistance with
product installation, contact your authorized reseller.
48
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 49 Wednesday, May 14, 2003 9:45 AM
index
A
serial 21
USB 21
video 21
conventions
document 9
equipment symbols 10
text symbols 10
audience 8
authorized reseller, HP 13
B
before you begin 27
C
NAS 1000s Quick Start Guide
Index
D
Index
cautions
data loss 23
file corruption 23
configuration
collect information 28
from RapidLaunch CD 29
configuration methods 29
direct access method 33
remote access method 31
WebUI 29
configuration See also
configuration tasks 29
configuration setup 29, 35
configuration tasks
complete the system
configuration 34
preinitialization 27
configuring the NAS 1000s 22
connectors
keyboard 21
mouse 21
NICs 21
power 21
RJ45 21
deployment
NAS 1000s 20
DHCP (dynamic host configuration
protocol)
defined 28
document
conventions 9
prerequisites 8
related documentation 8
dynamic host configuration
protocol See DHCP 28
E
equipment symbols 10
Ethernet connectors, illustrated 30
Ethernet Network Connectors,
table 30
Ethernet ports
configuring 28
loopback cables 30
European Union Notice 43
expansion slots, locations 21
49
Dexter_5.5x8.5_book.book Page 50 Wednesday, May 14, 2003 9:45 AM
F
features
hardware 16
optional 17
redundancy 19
software 17
G
getting help 12
H
hard drives
handling 36
replacing 37
help, obtaining 12
host configuration protocols,
DHCP and nonDHCP 28
hot-plug hard drive
replacing 35
HP
authorized reseller 13
storage website 13
technical support 12
K
keyboard connector 21
M
mouse connector 21
N
NAS 1000s
configuration 29
defined 16
dependencies and requirements
20
deployment 20
setup and configuration
overview 22
software features 17
NAS 1000s device, illustrated 18
50
NAS 1000s rear view, illustrated
21
O
options, configuration 15
P
power connector 21
preinitialization
collect information for
configuration 27
preinitialization tasks 27
prerequisites 8
product definition 16
product overview 15
R
rack stability, warning 12
Rapid Startup configuration
review screen, illustrated 33
Rapid Startup wizard screen,
illustrated 32
RapidLaunch device discovery
screen, illustrated 31
redundancy 19
related documentation 8
replacing hard drives, guidelines
35
requirements
IP networking and setup 20
storage 20
requirements and dependencies
20
RJ45 connectors
location 21
S
serial connector 21
setup and configuration, NAS
1000s 22
setup, related documents 22
slot locations
NAS 1000s Quick Start Guide
Dexter_5.5x8.5_book.book Page 51 Wednesday, May 14, 2003 9:45 AM
PCI slot 1 21
PCI slots 2 and 3 21
snapshots
effects on virtual disk 24
facts 24
write locality 24
storage management
file sharing elements 25
file system elements 25
Logical Storage elements 24
logical storage elements 23
persistent storage management
elements 24
storage management and Virtual
Replicator 23
storage management overview 23
symbols in text 10
symbols on equipment 10
T
table, Ethernet Network
Connectors 30
NAS 1000s Quick Start Guide
technical support, HP 12
text symbols 10
U
USB connectors 21
V
video connector 21
W
warning
rack stability 12
symbols on equipment 10
websites
HP storage 13
WebUI configuration
direct access method (via
hostname) 31
direct access procedure 31, 33
direct access requirements 31
51
Dexter_5.5x8.5_book.book Page 52 Wednesday, May 14, 2003 9:45 AM
52
NAS 1000s Quick Start Guide
