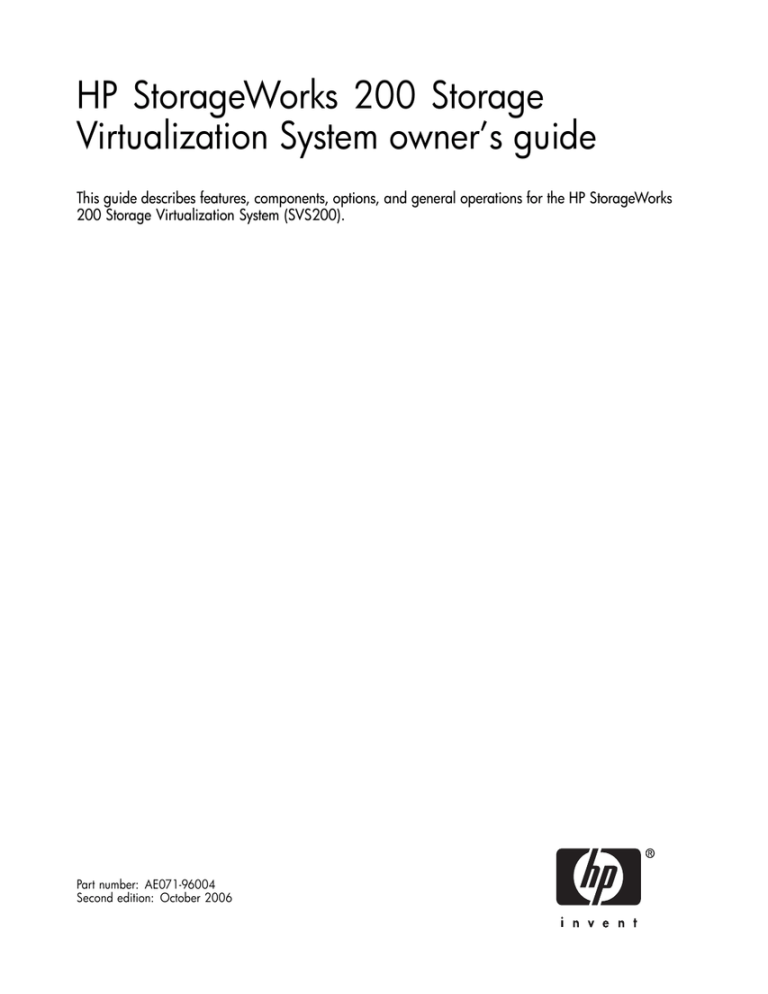

HP StorageWorks 200 Storage
Virtualization System owner’s guide
This guide describes features, components, options, and general operations for the HP StorageWorks
200 Storage Virtualization System (SVS200).
Part number: AE071-96004
Second edition: October 2006
Legal and notice information
© Copyright 2006 Hewlett-Packard Development Company, L.P., all rights reserved.
Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with
FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical
Data for Commercial Items are licensed to the U.S. Government under vendor’s standard commercial license.
The information contained herein is subject to change without notice. The only warranties for HP products
and services are set forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical
or editorial errors or omissions contained herein.
Intel, Itanium, Pentium, Intel Inside, and the Intel Inside logo are trademarks or registered trademarks of Intel
Corporation or its subsidiaries in the United States and other countries.
Microsoft, Windows, Windows XP, and Windows NT are U.S. registered trademarks of Microsoft Corporation.
Adobe and Acrobat are trademarks of Adobe Systems Incorporated.
Java is a U.S. trademark of Sun Microsystems, Inc.
Oracle is a registered U.S. trademark of Oracle Corporation, Redwood City, California.
Linux is a U.S. registered trademark of Linus Torvalds.
UNIX is a registered trademark of The Open Group.
Printed in the U.S.
Contents
Preface
. . . . . . . . . . . . . . . . . . . . . . . . .
About this guide . . . . . . . . .
Intended audience . . . . . . . .
HP SVS200 . . . . . . . . . . .
Related documentation . . . . . .
Document conventions and symbols
Rack stability . . . . . . . . . .
HP technical support . . . . . . .
Subscription service . . . . . . .
HP web sites . . . . . . . . . .
Documentation feedback . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1 Overview
. . . . . . . . . . . . . . . . . . . . . .
2 Hardware
. . . . . . . . . . . . . . . . . . . . . .
HP SVS200 description . . . . . . . . .
One Controller for multiple storage systems
Connectivity . . . . . . . . . . . . .
Scalability . . . . . . . . . . . . . .
Dual Controller option . . . . . . .
High availability . . . . . . . . . . . .
Summary of features . . . . . . . . . .
Web-based storage management . .
Operating systems . . . . . . . . .
External storage . . . . . . . . . .
Included components . . . . . . . .
Optional components . . . . . . .
Hardware specifications . . . . . .
Physical components . . . . . . . .
Controller . . . . . . . . . . . . .
Control panel . . . . . . . . .
Service processor (SVP) . . . . .
HP StorageWorks Continuous Track
Backup batteries . . . . . . . . . .
System and storage management . .
Operating specifications . . . . . .
Temperature . . . . . . . . .
. .
. .
. .
. .
XP
. .
. .
. .
. .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
HP StorageWorks 200 Storage Virtualization System owner’s guide
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
6
6
6
6
6
7
8
8
9
9
9
11
12
14
14
14
15
16
17
17
17
17
18
18
19
21
21
24
24
28
28
29
30
31
31
3
Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical vibration . . . . . . . . . . . . . . . . . . . . . . . . . . .
AC line voltage requirements . . . . . . . . . . . . . . . . . . . . . . .
3 Operations . . . . . . . . . . . . . . . . . . . . . .
General safety guidelines . . . . . . . . . . . . . . .
Powering down the system . . . . . . . . . . . . . .
Emergency power off . . . . . . . . . . . . . . .
Planned power off . . . . . . . . . . . . . . . .
Recovering from an unplanned or emergency power outage
Manual restart after power is restored . . . . . . . .
To restart the system manually: . . . . . . . . .
Automatic restart when power is restored . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
4 Software . . . . . . . . . . . . . . . . . . . . . . .
Available software products . . . . . . . . . . . .
HP LUN Configuration and Security Manager . . . .
HP Cache LUN . . . . . . . . . . . . . . . . .
HP Data Integrity Check . . . . . . . . . . . . .
HP LUN Security Extension . . . . . . . . . . . .
HP External Storage . . . . . . . . . . . . . . .
HP Command View XP Advanced Edition (AE) . . . .
HP Tiered Storage Manager . . . . . . . . . . . .
HP StorageWorks Business Copy and HP Snapshot XP
HP StorageWorks Continuous Access Synchronous and
Asynchronous . . . . . . . . . . . . . . . . . .
HP StorageWorks XP Disk/Cache Partition . . . . . .
. . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . .
HP Continuous Access
. . . . . . . . . .
. . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. . . .
. . . .
5 Troubleshooting . . . . . . . . . . . . . . . . . . . .
Service information messages . . . . . . . . . . . . . . . . . . . . . . . . .
Failure detection and reporting process . . . . . . . . . . . . . . . . . . . . .
6 Regulatory statements
. . . . . . . . . . . . . . . . .
FCC EMC statement (USA) . . .
IEC statement (worldwide) . . . .
EMC statement (Canada) . . . .
Spécification ATI Classe A (France)
VCCI EMC statement (Japan) . .
BSMI EMC statement (Taiwan) . .
RRL EMC statement (Korea) . . .
Harmonics conformance (Japan) .
German noise declaration . . .
Japan DENAN law cordset caution
Laser safety . . . . . . . . . .
4
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
32
32
33
35
36
38
38
39
40
40
40
42
43
44
45
45
46
46
47
47
48
49
49
49
51
51
52
53
53
53
53
54
54
54
54
55
55
55
56
European WEEE statements . . . . . . . . . . . . . . . . . . . . . . . . . .
57
Glossary . . . . . . . . . . . . . . . . . . . . . . . .
65
Index . . . . . . . . . . . . . . . . . . . . . . . . .
71
HP StorageWorks 200 Storage Virtualization System owner’s guide
5
Preface
About this guide
This guide provides information about owning and operating the HP 200 Storage
Virtualization System.
Intended audience
This guide is intended for system administrators with knowledge of:
• the host hardware
• the operating system
• RAID technology
HP SVS200
Unless otherwise noted, the term HP SVS200 refers to the HP StorageWorks 200
Storage Virtualization System.
Related documentation
The following documents provide related information:
•
•
•
•
HP
HP
HP
HP
StorageWorks
StorageWorks
StorageWorks
StorageWorks
200 Storage Virtualization System site preparation guide
LUN Configuration and Security Manager user guide
Command View XP Advanced Edition user guide
Disk Array XP Operating System configuration guide
You can find these documents from the Manuals page of the HP Business Support Center
web site: http://www.hp.com/support/manuals.
In the Storage section, click Storage array systems and then select your product.
6
Preface
Document conventions and symbols
Convention
Element
Blue text: Document conventions and
symbols
Cross-reference links and e-mail addresses
Blue, underlined text: http://www.hp.com
Web site addresses
Bold text
• Keys that are pressed
• Text typed into a GUI element, such as
a box
• GUI elements that are clicked or selected,
such as menu and list items, buttons,
tabs, and check boxes
Italic text
Text emphasis
Monospace text
•
•
•
•
Monospace, italic text
• Code variables
• Command variables
Monospace, bold text
Emphasized monospace text
File and directory names
System output
Code
Commands, their arguments, and
argument values
WARNING!
Indicates that failure to follow directions could result in bodily harm or death.
CAUTION:
Indicates that failure to follow directions could result in damage to equipment or data.
IMPORTANT:
Provides clarifying information or specific instructions.
NOTE:
Provides additional information.
HP StorageWorks 200 Storage Virtualization System owner’s guide
7
TIP:
Provides helpful hints and shortcuts.
Rack stability
Rack stability protects personnel and equipment.
WARNING!
To
•
•
•
•
•
reduce the risk of personal injury or damage to equipment:
Extend leveling jacks to the floor.
Ensure that the full weight of the rack rests on the leveling jacks.
Install stabilizing feet on the rack.
In multiple-rack installations, fasten racks together securely.
Extend only one rack component at a time. Racks can become unstable if more
than one component is extended.
HP technical support
Telephone numbers for worldwide technical support are listed on the HP support web
site: http://www.hp.com/support/.
Collect the following information before calling:
•
•
•
•
•
•
Technical support registration number (if applicable)
Product serial numbers
Product model names and numbers
Error messages
Operating system type and revision level
Detailed questions
For continuous quality improvement, calls may be recorded or monitored.
8
Preface
Subscription service
HP strongly recommends that customers register online using the Subscriber’s Choice
web site: http://www.hp.com/go/e-updates.
Subscribing to this service provides you with e-mail updates on the latest product
enhancements, newest driver versions, and firmware documentation updates as well as
instant access to numerous other product resources.
After subscribing, locate your products by selecting Business support and then Storage
under Product Category.
HP web sites
For additional information, see the following HP web sites:
•
•
•
•
•
http://www.hp.com
http://www.hp.com/go/storage
http://www.hp.com/service_locator
http://www.hp.com/support/manuals
http://www.hp.com/support/downloads
Documentation feedback
HP welcomes your feedback.
To make comments and suggestions about product documentation, please send a
message to storagedocs.feedback@hp.com. All submissions become the property of HP.
HP StorageWorks 200 Storage Virtualization System owner’s guide
9
10
Preface
1 Overview
The HP SVS200 is an addition to the StorageWorks family of storage and storage
management products. It provides unified control of multiple storage systems made by
HP and other manufacturers. The HP SVS200 supports multiple operating systems,
platforms, and RAID groups.
Advantages of the HP SVS200 system include:
•
•
•
•
One GUI and controller manages multiple storage systems
Connectivity
Scalability
Ease of use and management
HP StorageWorks 200 Storage Virtualization System owner’s guide
11
HP SVS200 description
The following figure and text describe the HP SVS200 system.
12
Overview
Item
Component
Description
1
Front view
Front view of rack with cabinet open
2
SVS200 Controller
Controller, including modules, control panel,
and Service Processor PC (SVP)
3
Second Controller space
Space where a second factory-installed SVS200
Controller resides if you ordered a second unit
with this rack.
4
Control Panel
Operational controls (described later)
CAUTION:
The HP SVS200 has no user-serviceable components. Only an HP support
representative should open the cabinet.
HP StorageWorks 200 Storage Virtualization System owner’s guide
13
One Controller for multiple storage systems
One control unit and GUI for unified storage management:
• Controls multiple heterogeneous arrays
• Manages multiple SAN fabrics with large port counts located on multiple sites
• Allows continued storage growth managed by a single storage virtualization
system, saving training and administration costs
• Enables optimum use of tiered storage, allowing automated placement of critical
data on premium, highly available storage, less critical data on low cost storage,
and migration of data from legacy systems to newer systems
• Simplifies management of virtual volumes, dynamically reallocating capacity
and pooling heterogeneous volumes into a single reservoir to increase capacity
utilization
• Provides local and remote heterogeneous data replication for data distribution,
data mining, backup and restore, and data validation testing
Connectivity
The system can be configured to provide the following types of host connections:
• Fibre Channel: Open Systems; FC-AL or Fabric; 1, 2, or 4 Gbps, single or
multimode; LC-Duplex
Scalability
The HP SVS200 scales to fit your current and future storage capacity needs. The system
consists of one primary 19-inch equipment rack containing one or two factory-installed
controller units.
The controller can be equipped with the following hardware and software bundles
based on the maximum storage to be managed:
• 1 TB Bundle: Hardware to control up to 1 TB of storage, including controller and
rack, CHIP pair, 4 GB cache, and 2 GB shared memory. Software to control
up to 1 TB of storage, including HP SVS200 LUN Configuration and Security
Manager, HP Command View XP Advanced Edition, HP SVS200 Tiered Storage
Manager, HP Data Integrity Check, HP SVS200 External Storage, and HP
Disk/Cache Partition.
• 6 TB Bundle: Hardware to control up to 6 TB of storage, including controller and
rack, CHIP pair, 12 GB cache, and 2 GB shared memory. Software to control
up to 6 TB of storage, including HP SVS200 LUN Configuration and Security
Manager, HP Command View XP Advanced Edition, HP SVS200 Tiered Storage
14
Overview
•
•
•
•
Manager, HP Data Integrity Check, HP SVS200 External Storage, and HP
Disk/Cache Partition.
16 TB Bundle: Hardware to control up to 16 TB of storage, including controller
and rack, CHIP pair, 16 GB cache, 2 GB shared memory, and 1 battery.
Software to control up to 16 TB of storage, including HP SVS200 LUN
Configuration and Security Manager, HP Command View XP Advanced Edition,
HP SVS200 Tiered Storage Manager, HP Data Integrity Check, HP SVS200
External Storage, and HP Disk/Cache Partition.
32 TB Bundle: Hardware to control up to 32 TB of storage, including controller
and rack, CHIP pair, 24 GB cache, 2 GB shared memory, and 1 battery.
Software to control up to 32 TB of storage, including HP SVS200 LUN
Configuration and Security Manager, HP Command View XP Advanced Edition,
HP SVS200 Tiered Storage Manager, HP Data Integrity Check, HP SVS200
External Storage, and HP Disk/Cache Partition.
64 TB Bundle: Hardware to control up to 64 TB of storage, including controller
and rack, CHIP pair, 24 GB cache, 2 GB shared memory, and 1 battery.
Software to control up to 64 TB of storage, including HP SVS200 LUN
Configuration and Security Manager, HP Command View XP Advanced Edition,
HP SVS200 Tiered Storage Manager, HP Data Integrity Check, HP SVS200
External Storage, and HP Disk/Cache Partition.
>64 TB Bundle: Hardware to control up to 127 TB of storage, including
controller and rack, CHIP pair, 24 GB cache, 2 GB shared memory, and 1
battery. Software to control up to 127 TB of storage, including HP SVS200 LUN
Configuration and Security Manager, HP Command View XP Advanced Edition,
HP SVS200 Tiered Storage Manager, HP Data Integrity Check, HP SVS200
External Storage, and HP Disk/Cache Partition.
Dual Controller option
The system you order can include a second factory-installed controller with the bundled
options listed previously.
HP StorageWorks 200 Storage Virtualization System owner’s guide
15
High availability
To provide high levels of availability, the HP SVS200 contains redundant hardware,
including:
•
•
•
•
•
•
Mirrored write cache
Dual channel adapters (CHIP pairs)
Dual and concurrently active data and control paths
Split power domains
Hot-pluggable boards, fans, and power supplies
Online upgradable firmware
The following software features and products help to ensure that the system meets your
requirements for high availability:
• Capability to “phone home” to the multidisciplinary HP Storage Technology
Center (STC) using HP StorageWorks Continuous Track XP
• Advanced remote diagnostics
• Full solution (host-SAN-storage) support
• Full software and solution integration enabled by HP software products. See
“Chapter 4 Software” for details.
16
Overview
Summary of features
This section summarizes the features and specifications of the system. For the most
current product information, visit the HP web site: http://h18006.www1.hp.com/
storage/enterprisestorage.html.
Web-based storage management
The storage virtualization system comes with HP StorageWorks Command View
Advanced Edition, a browser-based interface that runs on a single Windows-based
Device Manager server and can be accessed using remote web-based clients. Also
included in the supplied software is HP LUN Configuration and Security Manager,
which provides additional LUN configuration and security management capability for
your storage devices..
Operating systems
The SVS200 supports these operating systems:
•
•
•
•
•
HP-UX
Linux
Windows
Sun Solaris
IBM AIX
External storage
The HP SVS200 manages the following storage systems:
• HP StorageWorks XP48, XP128, XP512, XP1024, XP10000, and XP12000
disk arrays
• HP StorageWorks Modular Smart Array MSA1000 and MSA1500
• HP StorageWorks EVA3000, EVA4000, EVA5000, EVA6000, and EVA8000
disk arrays
• Specific disk array models of other manufacturers. Consult your HP representative
for details.
In addition to the hardware that allows connection and management of these storage
systems, the system bundle also includes essential software to enable easy configuration,
management, and optimal use of these storage systems.
HP StorageWorks 200 Storage Virtualization System owner’s guide
17
Included components
The base product includes the following hardware, software, services, and support:
• One equipment rack containing a controller, basic redundant power supplies,
batteries, and cables
• MIX module, Cache memory, Shared memory, HP microcode
• Blade PC Service Processor (SVP)
• Modem and HP Continuous Track XP remote monitoring software
• HP SVS200 LUN Configuration and Security Manager software
• HP Command View XP Advanced Edition software
• HP SVS200 Tiered Storage Manager software
• HP Data Integrity Check software
• HP SVS200 External Storage software
• HP Disk/Cache Partition software
• Installation and configuration services
• Proactive monitoring and support
• Reactive hardware support
• Software support
• Owner’s guide and operating system configuration guides CD
Optional components
HP offers an extensive list of optional hardware, software, and services, including the
following:
•
•
•
•
•
Additional Channel Adapters
Additional Cache memory
Additional Shared memory
Additional batteries
Optional software
For more information about software options, see Chapter 4 and contact your HP
support representative.
18
Overview
Hardware specifications
Feature
Specification
Power
Single-phase, 200VAC, 50 or 60 Hz
Equipment racks
One standard 19–inch equipment rack
Maximum external storage
capacity
127 TB
Maximum cache
32 GB
Maximum shared memory
6 GB
CHIP pairs on MIX module
1 FC pair
Maximum host ports
48 FC
Specifications are subject to change without notice.
HP StorageWorks 200 Storage Virtualization System owner’s guide
19
20
Overview
2 Hardware
The HP StorageWorks 200 Storage Virtualization System provides high-performance
management of up to 127 TB of heterogeneous storage.
There are no single points of failure in the system. It includes redundant data and control
paths and redundant power supplies.
Physical components
The HP SVS200 consists of a single equipment rack with a factory-installed Controller
unit containing these components:
•
•
•
•
•
•
•
Control panel
MIX Adapter with CHIP pairs for interfacing to storage systems and hosts
Cache memory with mirroring for data protection
Shared memory
Power Supplies
Batteries
Service Processor (SVP)
HP StorageWorks 200 Storage Virtualization System owner’s guide
21
The following figure shows the rack with Controller and control panel.
22
Hardware
Item
Component
Description
1
Front view
Front view of rack with cabinet open
2
HP SVS200 Controller
Controller, including modules, control panel,
and Service Processor PC (SVP)
3
Second Controller space
Space where a second factory-installed SVS200
Controller resides if you ordered a second unit
with this rack.
4
Control panel
Operational controls (described later)
CAUTION:
The HP SVS200 has no user-serviceable components. Only an HP support
representative should open the cabinet.
HP StorageWorks 200 Storage Virtualization System owner’s guide
23
Controller
The Controller resides in the equipment rack and contains the control panel, circuit
boards, power supplies, and SVP. Your HP representative will help you install the system
and make connections from the Controller to hosts, storage systems, networks, and
power.
Control panel
Once the system is powered on and running normally, no user operations are required
at the control panel, except when instructed by your HP support representative.
The following figure and table describe the control panel.
24
Hardware
Item
Label
Indicator
Description
1
READY
LED
(Green)
During normal operation,
this LED should be on.
ON: Input/output on the
channel interface is enabled.
OFF: The system is not accepting
data.
2
ALARM
LED (Red)
During normal operation,
this LED should be off.
ON: One or more of the following:
The DC is under voltage.
The DC is over current.
The temperature is abnormally high.
An unrecoverable failure has occurred.If
the system is set up to “phone home” to
STC; your HP support representative is
notified automatically. If the system is not
set up to “phone home,” place a service
call to HP to have the message evaluated
to determine if any action is required.
BLINKING: The DC is under voltage.
3
MESSAGE
LED
(Amber)
During normal operation,
this LED should be off.
ON: A service information message
(SIM) has been issued. If the system is
set up to “phone home” to STC, your
HP support representative is notified
automatically. If the system is not set
up to phone home, place a service call
to HP to have the message evaluated
to determine if any action is required.
BLINKING: An SVP failure has occurred.
The system will continue to operate
normally. Place a service call to HP to
ensure notification. SVP failures might
not be reported automatically to STC.
HP StorageWorks 200 Storage Virtualization System owner’s guide
25
Item
Label
Indicator
Description
4
RESTART
Switch
If a blocked path occurs between a host
and a disk drive, this switch is used to
unfence the fenced drive path and to
release Write Inhibit. During normal
operation, this switch should be in the
upper position. Restarting the system
performs a soft reset to try to recover. If
the system restart does not unblock the
path, an HP support representative will
be notified.
CAUTION:
Do not change the switch position
unless directed to do so by HP service
personnel.
5
REMOTE
MAINTENANCE
PROCESSING
LED
(Amber)
During normal operation, this LED may
be on if remote maintenance is occurring.
Remote maintenance can occur and this
LED can light only when the REMOTE
MAINTENANCE ENABLE/DISABLE
switch is in the ENABLE position.
ON: Remote maintenance is in progress.
An HP support representative is probably
working on the system. The system
remains online and accepting data.
6
REMOTE
MAINTENANCE
ENABLE/DISABLE
Switch
Used to permit remote service
maintenance. During normal
operation, this switch should
be in the ENABLE position.
DISABLE: No remote maintenance.
ENABLE: An HP support representative
can provide remote maintenance.
CAUTION:
Do not change the switch position
unless directed to do so by HP service
personnel.
7
26
BS-ON
Hardware
LED
(Amber)
During normal operation,
this LED should be on.
ON: The system is plugged in
and receiving power from the
primary AC outlet. The SVP is
receiving power from the outlet.
OFF: The system is not receiving power
from the primary AC outlet. Check the
electrical outlets in your building.
Item
Label
Indicator
Description
8
PS-ON
LED
(Green)
During normal operation,
this LED should be on.
ON: The PS ON/OFF switch is
on. If the READY light is also on,
the system is ready to receive data.
OFF: The PS ON/OFF switch is off and
the system is not ready to receive data.
9
PS ENABLE
Switch
Used to enable the PS ON/OFF switch.
During normal operation, this switch
should be in the “Disable” position
(opposite the ENABLE position).
ENABLE: The PS ON/OFF
switch can be used.
DISABLE: The PS ON/OFF switch
cannot be used.
CAUTION:
Do not change the switch position
unless directed to do so by HP service
personnel.
10
PS ON/OFF
Switch
Used to power on/off the system. During
normal operation, this switch should be
in the ON position.The switch functions
only if the PS ENABLE switch is in the
ENABLE position.
CAUTION:
Do not change the switch position
unless directed to do so by HP service
personnel.
HP StorageWorks 200 Storage Virtualization System owner’s guide
27
Service processor (SVP)
The Service Processor inside the controller performs these functions:
• Collects performance data on the system for diagnostic testing and analysis
• Provides your HP support representative with access to the system
• Hosts system management software
Your HP support representative uses the SVP to configure, maintain, and upgrade the
system software and hardware. The SVP is not a customer-accessible component.
To protect your security, the SVP does not have access to any user data stored on array
disks.
If you have extreme availability requirements, an optional second SVP is available.
HP StorageWorks Continuous Track XP
HP Continuous Track XP is a program in the system that detects and reports problems
even before they are noticed by operators and users.
HP Continuous Track XP “phones home” to the HP Storage Technology Center (STC),
providing:
• Periodic “well” checkups
This checkup records the health of the system on a day-to-day basis. Every 24 hours,
HP Continuous Track XP calls STC (your HP support representative sets the time of
the call). When a successful connection is made, status and configuration change
information is transferred from the system to STC.
• Incidental “sick” calls
When an error occurs, a service information message (SIM) is generated, stored
in the system for use by your HP support representative, and reported to STC. For
details, see Service information messages.
Note that the “phone home” capability can be turned off, if desired. HP Continuous Track
XP still monitors the system, but does not automatically notify HP if a problem occurs.
28
Hardware
Backup batteries
Internal batteries provide backup power for the cache memory, shared memory, and the
CHIPs. The backup batteries enable the system to continue normal operations for up to
20 milliseconds after the loss of AC power.
When AC power is off longer than 20 milliseconds, the system executes its backup
process. This process copies the contents of cache and shared memory to storage and
then supports cache and shared memory for up to 36 hours. Anytime the length of a
power outage exceeds the 36–hour battery backup time, contact HP for assistance
with recovery.
When power is restored, if the Auto-Power-On jumper is in the ENABLE position, the
system powers on automatically. If the jumper is in the DISABLE position, you must
turn the power switch on to power up the system. HP representatives will assist you in
determining which Auto-Power-On mode is best for your system configuration and will
configure the selected mode during system installation.
HP StorageWorks 200 Storage Virtualization System owner’s guide
29
System and storage management
HP Remote Web Console gives you browser-based control and management of the
system from a remote Windows client you supply. Additionally, to manage storage
systems, you must install the Command View Advanced Edition software on a Windows
Device Manager server you supply. Other HP StorageWorks software may also be
installed on this host, including the supplied External Storage and Tiered Storage
Manager applications that enable you to optimize use of your tiered storage systems.
See Chapter 4 for more information about supplied and optional HP software products.
To protect your security, Remote Web Console and HP Command View XP Advanced
Edition do not have access to user data stored on the storage systems.
You may use an existing host, such as your storage administrator’s PC, as the Device
Manager server provided that it meets system requirements for CV AE and the other
required and optional software you plan to deploy.
The CV AE Device Manager server (1) connects to the HP SVS200 system (3) using a
private Ethernet LAN connection (2), as shown in the following figure.
30
Hardware
Operating specifications
This section provides some general specifications. For complete specifications, see
the system site preparation guide, available on the HP XP Disk Array web site:
http://h18006.www1.hp.com/storage/xparrays.html.
Temperature
Temperature range type
Range
Recommended operating temperature
range
21 to 24 degrees C
70 to 75 degrees F
Operating temperature
16 to 32 degrees C
61 to 89 degrees F
Nonoperating temperature range
–10 to +43 degrees C
14 to 109 degrees F
Shipping and storage temperature
(product packed in factory packing)
–25 to +60 degrees C
–13 to +140 degrees F
Temperature shock immunity (maximum
rate of temperature change)
10 degrees C per hour
18 degrees F per hour
HP StorageWorks 200 Storage Virtualization System owner’s guide
31
Humidity
Protect the system from excessive humidity. You should not observe condensation in or
around the product under any conditions. There is no procedure for recovery from
moisture condensation
Humidity range type
Noncondensing relative humidity (RH)
Operating humidity range at 22
degrees C (71 degrees F)
20% to 80%
Nonoperating humidity range
8% to 90%
Shipping and storage humidity range
(product packed in factory packing)
5% to 95%
Operating maximum wet bulb
temperature
26 degrees C (79 F)
Nonoperating maximum wet bulb
temperature
27 degrees C (81 F)
Shipping and storage maximum wet
bulb temperature
29 degrees C (84 F)
Mechanical vibration
Continuous vibration can cause a slow degradation of mechanical parts. Mechanical
connections such as printed circuit assembly (PCA) conductors, cable connectors, and
processor backplane wiring can all be affected by vibration. Vibration specifications
apply to all three axes.
32
Condition
Specification
Operating
0.25 mm, 5–10 Hz
0.05 G, 10–300 Hz
Nonoperating
2.5 mm, 5–10 Hz
0.5 G, 10–70 Hz
0.05 mm, 70–99 Hz
1.0 G, 99–300 Hz
Hardware
AC line voltage requirements
This section lists the AC power recommendations. The rack has four power cords, but
only the lower two are used for the controller. The upper two power cords are reserved
for an optional second controller. In case of a failure of the power source for one cord,
the power requirements, and therefore the current requirement for the remaining power
cord, will double.
For details about electrical specifications, cabling, and connectors, see the HP
StorageWorks HP 200 Storage Virtualization System site preparation guide.
Parameter
200
VAC
208 VAC 60
Hz Only
220
VAC
230
VAC
240VAC
Rated line current
per power cord
16A
16A
16A
16A
16A
Number of power
cords per rack
4
4
4
4
4
20A
20A
20A
20A
20A
Recommended
circuit breakers
HP requires a separate branch circuit for each power cord connection. The circuit breaker
for each branch circuit must have a minimum rating of 20 amps. Breakers must be
easily visible and accessible so power can be quickly removed in an emergency. Local
building electrical codes may dictate specific additional circuit breaker requirements.
Consult your electrician or local code for the requirements in your location.
If you have multiple power sources, such as a UPS, connect two of the power cords
for each cabinet to each power source for maximum protection from power outages.
Consult your local HP service representative about which power cords are to be attached
to the two power sources.
HP StorageWorks 200 Storage Virtualization System owner’s guide
33
34
Hardware
3 Operations
During normal operations, the system does not require your intervention and you should
not attempt to open the system cabinets.
The system reports any service information messages (SIMs) to the SVP and the Device
Manager server. If the array is set up to “phone home,” the SVP automatically reports
SIMs to the HP Storage Technology Center (STC). For more information on SIMs, see
Service information messages.
HP StorageWorks 200 Storage Virtualization System owner’s guide
35
General safety guidelines
Carefully read these safety guidelines and follow them when working with the system.
• Fully understand and follow all hazard warnings in this guide and on warning
labels on the system. These hazard warnings help you to prevent or reduce the
risk of death, personal injury, or product damage. Hazard warnings include
alert headings consisting of an alert symbol and the word Caution or Warning:
CAUTION:
This indicates a hazardous situation which, if not avoided, will or can result in
serious product damage or loss of data.
WARNING!
This indicates a potentially hazardous situation which, if not avoided, can result in
death or serious injury.
• Replace any warning label that becomes dirty or starts peeling off.
• Keep in mind that the hazard warnings in this guide and on the HP SVS200
cannot cover every possible hazard because it is impossible to predict and
evaluate all potentially hazardous circumstances. Be alert and use common
sense. If you have any questions, contact your HP support representative.
• Follow the safety guidelines and procedures in all documentation for this and
related products.
CAUTION:
System maintenance must be done only by trained and qualified HP support
representatives. Only an HP support representative can power off the system, except
in an emergency.
CAUTION:
Do not perform any procedures not described in this guide. If you have any
questions or concerns, contact your HP support representative.
WARNING!
Do not touch areas marked HAZARDOUS, even with the power off. These areas
contain high-voltage power.
36
Operations
CAUTION:
If you detect any abnormal noise, smell, or smoke coming from the system,
immediately power off the system by following the emergency power off procedure
later in this chapter. For routine power off in non-emergency situations, contact
your HP support representative.
CAUTION:
Keep the front and rear doors closed at all times.
CAUTION:
Keep the tops and sides of the cabinets clear to allow air to flow properly.
CAUTION:
Use the supplied power cord. The power cord may not be used with other products.
HP StorageWorks 200 Storage Virtualization System owner’s guide
37
Powering down the system
Two situations may arise when you need to power down the system:
• Emergency power off
• Planned power off
For instructions in each of these situations, see the following procedures.
Emergency power off
The system does not have an emergency power off switch. In an emergency when it is
crucial to power off the system immediately for safety reasons, remove power at the AC
branch circuit breakers in your facility that supply power to the system. Take care when
placing these breakers that they are clearly marked and easily accessible.
CAUTION:
Performing an emergency power off immediately shuts down the system, neglecting
the normal power off sequence. Jobs in process are aborted and their integrity
after recovery is not guaranteed. Use this power off method only in an emergency.
Afterwards, only a qualified HP support representative is allowed to restore power to
the system. Call your HP support representative immediately.
Emergency situations in which you should consider performing the emergency power
off procedure are:
• A physical location catastrophe such as a flood, hurricane, tornado, or
earthquake
• Any circumstance that presents the threat of injury or death to a person
• You detect any smoke, abnormal loud noise, or smell coming from the system.
38
Operations
Planned power off
Occasionally, you may need to plan a site power outage, such as during alterations
to the data center, inspections, or work by the electric company. If a scheduled power
outage will affect the system, contact your HP support representative to schedule a
planned power off.
CAUTION:
Only a trained HP support representative can shut down and power off the system. Do
not attempt to power down the system other than during an emergency.
HP StorageWorks 200 Storage Virtualization System owner’s guide
39
Recovering from an unplanned or emergency power
outage
Unplanned power outages occur when the primary building power is lost due to
electrical blackouts, thunderstorm activity, or similar occurrences, and input AC power
is not received by the system. The system will maintain its state and recover when
power is restored.
The system cache is powered by backup batteries that will maintain the system state for
up to 36 hours, depending on the selected battery operation mode.
For restart procedures after power is restored to the system, see the following text about
manual and automatic restart of the system. If the length of a power outage exceeds the
cache battery backup time, contact HP for assistance with recovery.
Manual restart after power is restored
CAUTION:
After power is restored to your site and before restoring power to the system, HP
recommends that you have an electrician verify the power to ensure that all phases are
restored and input power is stable. Before you power on the system, power on any
external disk array(s) first and make sure they are operating properly.
For assistance recovering from a power outage, contact your HP support representative.
To restart the system manually:
1. On the control panel, move the PS ENABLE switch to the ENABLE position.
2. Move the PS ON/OFF switch to the ON position.
The following LED power sequence occurs:
BS-ON turns amber.
PS-ON turns green.
MESSAGE LED may turn amber if the system is not configured to “phone home,”
signifying a SIM was generated because the system lost power unexpectedly.
READY LED turns green, signifying the system is ready.
40
Operations
CAUTION:
Power on can take several minutes and is not complete until the READY
LED turns green.
3. Move the PS ENABLE switch to “DISABLE” (opposite the ENABLE position).
HP StorageWorks 200 Storage Virtualization System owner’s guide
41
Automatic restart when power is restored
CAUTION:
HP recommends the use of automatic power on restart only if the power to the system
is subject to power conditioning equipment, such as a UPS, to ensure that the power
restored to the system is stable. If your site does not have a UPS, HP recommends
configuring the system for manual restart, meaning the Auto-Power-On jumper, which
is set during installation by an HP support representative, is in the DISABLE position.
After a power outage, follow the preceding manual restart procedure only after power
has been restored and verified to be stable. Before you power on the system, power on
any external disk arrays and make sure they are operating properly.
Automatic restart is enabled by your HP representative during installation. With
automatic restart enabled, the system automatically restarts and returns to service when
power is restored after a power outage.
During the automatic restart, the following LED power sequence occurs:
BS-ON turns amber.
PS-ON turns green.
MESSAGE LED may turn amber if the system is not configured to “phone home,”
signifying a SIM was generated because the system lost power unexpectedly.
READY LED turns green, signifying the system is ready.
CAUTION:
Powering on the system can take several minutes. Power on is complete only when the
READY LED turns green.
42
Operations
4 Software
This chapter describes HP’s suite of software products available for your system. HP
StorageWorks software:
•
•
•
•
•
Augments critical array capabilities
Helps optimize your IT resources
Improves overall storage availability
Simplifies disaster recovery
Improves data security
Before installing a software package, refer to the software product documentation to
verify equipment requirements.
To learn more about HP software products, or to obtain software updates, visit the HP
web site: http://www.hp.com.
HP StorageWorks 200 Storage Virtualization System owner’s guide
43
Available software products
The following included and optional software products are available for the HP SVS200
system.
Included software:
•
•
•
•
•
•
•
•
HP
HP
HP
HP
HP
HP
HP
HP
LUN Configuration and Security Manager
Cache LUN
Data Integrity Check
LUN Security Extension
Command View XP Advanced Edition
Remote Web Console
External Storage
Tiered Storage Manager
Optional software:
•
•
•
•
HP
HP
HP
HP
Business Copy and HP Snapshot XP
Continuous Access Synchronous
Continuous Access Asynchronous
StorageWorks XP Disk Cache/Partition
The following text briefly describes each of the software packages listed above.
44
Software
HP LUN Configuration and Security Manager
HP LUN Configuration and Security Manager provides additional LUN configuration
and security options. You can add and delete paths, create custom-sized volumes, and
configure foolproof LUN security that provides controlled, secure access to data stored
on the disk arrays—preventing unauthorized servers from accessing your data. It also
configures the arrays to meet changing storage requirements and enables users to share
a single Fibre Channel array among multiple servers.
HP LUN Configuration and Security Manager allows you to:
•
•
•
•
Create, define, and configure LUNs on the disk arrays
Consolidate LUNs (combine up to 36 LUNs)
Create small size LUNs to accommodate data locked into cache
Establish security at the LUN level so that you can enable multiple server
connectivity to the disk arrays
• Hide LUNs assigned to one server from other servers during IOSCAN operations
• Configure LUSE and create custom volume sizes
HP Cache LUN
Cache LUN lets you reserve areas of memory cache to store frequently accessed
information. It improves file access times and enables faster data transfers. Assigning
information to on-board cache speeds up access to your data because cache-resident
data is available at host data transfer speeds for both read and write operations.
Cache LUN redirects I/O requests from the disk drives to data locked in the SVS200
cache. It’s transparent, simple to implement, and it delivers immediate performance
gains. Cache memory for Cache LUN can be set as low as one logical block or 512
MB. As your needs grow, you can increase cache volumes in increments of one logical
block to a maximum of 1,024 cached volumes.
HP StorageWorks 200 Storage Virtualization System owner’s guide
45
HP Data Integrity Check
HP Data Integrity Check corrects extraneous data problems in the I/O path from server
to array. It provides the system with an added level of protection when deployed
in Oracle database environments, eliminating data corruption-related downtime and
ensuring business continuity. It comprises flexible tools for solution configuration and
management and supports raw disk, LVM, and VxVM environments.
The software is compatible with HP-UX, Sun Solaris, and MC/Service Guard for HP-UX.
Key features and benefits include:
•
•
•
•
•
Enhanced data protection in Oracle environments
Implementation on Oracle’s Hardware Assisted Resilient Data (HARD) framework
Correction of any random data corruption in the I/O path from server to array
Averts unplanned downtime
Increases uptime and business continuity
HP LUN Security Extension
HP LUN Security Extension helps you manage business-critical or sensitive data by
providing a highly secure method of LDEV access control, allowing you to protect critical
data from being changed.
Key features and benefits include:
•
•
•
•
•
•
•
•
•
Creation of read-only volumes
Protection of datasets from write and read access
Protection from local and remote replication activities
Data read only by authorized applications
Access attributes assigned to each logical volume
Global masking for protection from all host servers
Rejection of file system device inquiry requests
Reporting of access failures to host server
Allows system deployment in data retention solutions that assist in meeting SEC-related data integrity requirements
(Once the retention period is set, it cannot be changed. Purchase
and deployment of this product does not by itself ensure that regulatory/legal
requirements for data retention will be met, and compliance is not implicitly or
explicitly guaranteed.)
• Firmware-based solution accessible from HP Remote Web Console
46
Software
HP External Storage
HP External Storage enables you to connect to and manage HP XP, HP EVA, and HP
MSA storage systems as well as current and legacy arrays from other storage providers.
The software allows you to provision storage systems and optimize their use to the
storage quality requirements of the data being stored. HP External Storage and the HP
SVS200 offer significant consolidation scalability from 1 TB to >127 TB of capacity.
Coupled with the significant cost advantages that external storage systems can provide,
you can confidently scale your solution to simplify configuration complexity and reduce
ongoing management cost. External Storage is compatible with a wide range of HP XP
and HP SVS200 software tools, including HP Business Copy for local replication and
HP Continuous Access products for remote replication. External Storage configuration
tools are integrated with HP Command View XP AE, so you’ll enjoy secure anytime,
anywhere web-based management.
HP Command View XP Advanced Edition (AE)
HP Command View XP Advanced Edition (CV XP AE) provides a browser-based common
management platform from which you can manage the attached storage. CV XP AE
installs on a management workstation that you provide and from there can manage
multiple disk arrays—even globally distributed arrays.
HP Command View XP Advanced Edition provides:
• Web-browser based GUI interface
• Visual representation and management of host and storage resources
• Common user interface for launching HP XP and HP SVS200 management
applications
• Security through authentication, authorization, and encryption
• Event level integration into the leading network and system management solutions
HP StorageWorks 200 Storage Virtualization System owner’s guide
47
HP Tiered Storage Manager
HP Tiered Storage Manager is a plug-in for the HP Command View XP Advanced
Edition Software. The plug-in migrates data to tiered storage systems according to
quality of service requirements, matching the defined quality requirements of the data to
the appropriate storage tier. It is a completely non-disruptive application that you can
schedule or start immediately, once you have designed a migration plan. The software
relieves you of data migration concerns, allowing you to define the migration criteria
once and then let the software handle migration automatically. Management via the HP
Command View XP Advanced Edition Software GUI ensures user friendly operation of
the migration setup and process. Attributes include such data as volume type, capacity,
emulation type, RAID level and disk type. Groups are created which place similar
demands on the storage resources.
Features and benefits:
• Matches quality of service requirements to data storage attributes
• Allows you to create migration groups to handle volumes with similar storage
requirements together
• Easy to use with convenient screens to save you time setting up storage groups
and tiers
• Runs on demand or according to automated schedules
48
Software
HP StorageWorks Business Copy and HP Snapshot
XP
The optional HP Business Copy (BC) software allows you to make up to nine ongoing
copies of data for nonproduction activities such as backup, batching, and system
testing. HP Business Copy supports HP Snapshot. HP Snapshot is optional software that
creates multiple, point-in-time, online, local copies without impacting primary production
operation. HP Snapshot may require additional shared memory.
HP StorageWorks Continuous Access Synchronous
and HP Continuous Access Asynchronous
The optional HP Continuous Access Synchronous software allows you to make ongoing
synchronous copies of array data to a remote array located many miles away from the
source array.
The optional HP Continuous Access Asynchronous software is similar to HP Continuous
Access Synchronous, but it operates in asynchronous mode. Transactions to be written
to the secondary array are kept in cache memory on the local array in a “side-file.”
This potentially increases performance in remote copying. Copy operations are
sequence-stamped to ensure they are executed and sorted correctly at the remote disk
array.
HP StorageWorks XP Disk/Cache Partition
HP Disk/Cache Partition software can help Enterprise customers subdivide a large XP
disk array into smaller storage segments for accomplishing corporate storage related
initiatives such as consolidation, tiered storage, chargeback, and application usage
tracking. Each domain or partition is separately configured and managed. Each
partition has its own assigned host ports, disk groups, and cache. This software can
reduce storage costs by dividing the disk array into smaller segments suitable for
departmental usage, while retaining superb performance and high availability.
HP StorageWorks 200 Storage Virtualization System owner’s guide
49
50
Software
5 Troubleshooting
Service information messages
The system generates service information messages (SIMs) to identify normal operations,
service requirements, and failures. SIMs are generated by the SVP and the system
microprocessors. Your HP support representative uses the SIMs to monitor and
troubleshoot the system. You can view SIMs using the system’s management software.
HP StorageWorks 200 Storage Virtualization System owner’s guide
51
Failure detection and reporting process
If a failure occurs in the system, the failure is detected and reported to the system log, the
SIM log, and the HP STC, as shown in the following figure and table.
Item
52
Description
1
A failure is detected in the system.
2
The failure is reported to the system.
3
The system stores the failure information in the system log.
4
The generated SIMs are stored on the system for use by HP support
representatives, and logged on the Device Manager server as remote SIMs
(R-SIMs).If the system is not set up to “phone home,” when a SIM is generated,
the amber message LED on the system control panel turns on. Call HP to
determine the reason for the message.
5
If the system is set up to “phone home,” Continuous Track XP reports the SIMs to
STC through a dedicated dialup connection.SIMs are classified according to
severity: service, moderate, serious, or acute. Service and moderate levels do
not require immediate attention and are addressed during routine maintenance.
These failures are often corrected before the failure becomes apparent. Serious
and acute levels are reported immediately to STC to ensure that the problem is
addressed as soon as possible.
Troubleshooting
6 Regulatory statements
FCC EMC statement (USA)
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his or her own expense. The
end user of this product should be aware that any changes or modifications made to
this equipment without the approval of Hewlett-Packard could result in the product not
meeting the Class A limits, in which case the FCC could void the user’s authority to
operate the equipment.
Hewlett-Packard’s device certification tests were conducted with HP computer systems
and HP shielded cables, such as those you received with your product. Changes or
modifications not expressly approved by Hewlett-Packard could void the user’s authority
to operate the equipment. Cables used with this device must be properly shielded to
comply with the requirements of the FCC.
IEC statement (worldwide)
This is a Class A product. In a domestic environment this product may cause radio
interference, in which case the user may be required to take adequate measures.
EMC statement (Canada)
This Class A digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numérique de la Classe A respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
HP StorageWorks 200 Storage Virtualization System owner’s guide
53
Spécification ATI Classe A (France)
DECLARATION D’INSTALLATION ET DE MISE EN EXPLOITATION d’un matériel de
traitement de l’information (ATI), classé A en fonction des niveaux de perturbations
radioélectriques émis, définis dans la norme européenne EN 55022 concernant la
Compatibilité Electromagnétique.
VCCI EMC statement (Japan)
BSMI EMC statement (Taiwan)
RRL EMC statement (Korea)
54
Regulatory statements
Harmonics conformance (Japan)
German noise declaration
SVS200: Schalldruckpegel Lp = 70 dB(A)
Am Arbeitsplatz (operator position)
Normaler Betrieb (normal operation)
Nach ISO 7779:1988 / EN 27779:1991 (Typprüfung)
Japan DENAN law cordset caution
Please use the supplied power cord. The power cord may not be used with other products.
HP StorageWorks 200 Storage Virtualization System owner’s guide
55
Laser safety
When equipped with native Fibre Channel adapters, this product contains a laser
internal to the Optical Link Module (OLM) contained on the 8-port Fibre Channel
Adapter board and 8-port FICON board, and on the 16-port Fibre Channel Adapter
board and 16-port FICON board for connection to a fibre communications network.
In the USA, the OLM is certified as a Class 1 laser product conforming to the PRT
requirements contained in the Department of Health and Human Services (DHHS)
regulation 21 CFR, Subchapter J. The certification is indicated by a label on the plastic
OLM housing. Outside the USA, the OLM is certified as a Class 1 laser product
conforming to the requirements contained in IEC 825-1:1993 and EN 60825-1:1994,
including Amendment 11:1996.
The following figure shows the Class 1 information label that appears on the plastic
housing of the OLM.
CLASS 1 LASER PRODUCT
Complies with
21 CFR 1040.10 and 1040.11
Each communications port consists of a transmitter and receiver optical subassembly.
The transmitter subassembly contains an internal semiconductor laser diode in the
wavelength range of 770 to 850 nanometers. In the event of a break anywhere in the
fibre path, the OLM control system prevents laser emissions from exceeding Class 1
levels. Class 1 laser products are not considered hazardous.
WARNING!
There are no user maintenance operations, service operations, or adjustments to be
performed on the Optical Link Module.
56
Regulatory statements
European WEEE statements
Czech
Danish
Dutch
HP StorageWorks 200 Storage Virtualization System owner’s guide
57
English
Estonian
58
Regulatory statements
Finnish
French
German
HP StorageWorks 200 Storage Virtualization System owner’s guide
59
Greek
Hungarian
60
Regulatory statements
Italian
Latvian
Lithuanian
HP StorageWorks 200 Storage Virtualization System owner’s guide
61
Polish
Portuguese
Slovak
62
Regulatory statements
Slovenian
Spanish
Swedish
HP StorageWorks 200 Storage Virtualization System owner’s guide
63
64
Regulatory statements
Glossary
ACP
Array control processor. On some XP models, such as the
XP12000, the ACP handles the passing of data between the
cache and the physical drives. On other XP models, such as
the XP10000 and SVS200, this function is handled by the disk
adapter on the MIX board.
AL
Arbitrated loop.
AL-PA
Arbitrated loop physical address.
allocation
The ratio of allocated storage capacity versus total capacity as
a percentage. “Allocated storage” refers to those LDEVs that
have paths assigned to them. The allocated storage capacity is
the sum of the storage of these LDEVs. Total capacity refers to
the sum of the capacity of all LDEVs on a disk array.
array group
A group of 4 or 8 physical hard disk drives (HDDs) installed in
an XP disk array and assigned a common RAID level. RAID1
array groups consist of 4 (2D+2D) or 8 HDDs (4D+4D). RAID5
array groups include a parity disk but also consist of 4 (3D+1P)
or 8 HDDs (7D+1P). All RAID6 array groups are made up of
8 HDDs (6D+2P).
ASE
Application System Engineer.
BC
The HP StorageWorks Business Copy XP software program,
which enables you to maintain up to nine internal copies of
logical volumes on a disk array.
C-Track
The HP StorageWorks Continuous Track XP software program,
which detects internal hardware component problems on a disk
array and automatically reports them to the HP STC.
Continuous Access
The HP StorageWorks Continuous Access XP program, which
enables you to replicate data stored on a local disk array to a
remote disk array.
cache
Very high speed memory that is used to speed I/O transaction
time. All reads and writes to a disk array are sent to the cache.
The data is buffered there until the transfer to/from physical
disks (with slower data throughput) is complete.
HP StorageWorks 200 Storage Virtualization System owner’s guide
65
The benefit of cache memory is that it speeds I/O throughput
to the application. The larger the cache size, the greater
the amount of data buffering that can occur and the greater
throughput to the applications.
The SVS200 supports a range of cache memory. In the event
of power loss, battery power holds up the contents of cache
for up to 36 hours.
66
CE
Customer engineer.
channel adapter
(CHA)
The channel adapter (CHA) provides the interface between
the disk array and the external host system. Occasionally this
term is used synonymously with the term channel host interface
processor (CHIP).
channel host interface processor
(CHIP)
Synonymous with the term channel adapter (CHA).
channel processor
(CHP)
The processors located on the channel adapter (CHA).
Synonymous with CHIP.
command device
A volume on the disk array that accepts Continuous Access
or Business Copy control operations which are then executed
by the disk array.
control unit
To organize the storage space attached to the DKC, you can
group similarly configured logical devices (LDEVs) with unique
control unit images (CUs). CUs are numbered sequentially. The
disk array supports a certain number of CUs, depending on
the disk array model. Each CU can manage multiple LDEVs.
Therefore, to uniquely identify a particular LDEV requires both
the CU number and the LDEV number.
CU
Control unit.
CVS
Custom volume size. CVS devices (OPEN-x CVS) are custom
volumes configured using array management software to
be smaller than normal fixed-size OPEN system volumes.
Synonymous with volume size customization (VSC).
disk adapter
(DKA)
Synonymous with the term ACP.
disk unit (DKU)
Disk array hardware that houses physical disks.
disk controller
(DKC)
Hardware that houses the channel adapters and service
processor (SVP).
Glossary
disk recovery and
restore unit (DRR)
The unit responsible for data recovery and restoration in the
event of a cache failure.
disk group
The physical disk locations associated with a parity group.
emulation modes
The logical devices (LDEVs) associated with each RAID
group in a disk array are assigned an emulation mode
that makes them operate like OPEN system disk drives.
The emulation mode determines the size of an LDEV.
OPEN-3: 2.46 GB
OPEN-8: 7.38 GB
OPEN-9: 7.42 GB
OPEN-E: 13.56 GB
OPEN-K: Not available on XP arrays
OPEN-L: 36 GB
OPEN-M: Not available on XP arrays
OPEN-V: User-defined custom size
EPO
Emergency power off.
expanded LUN
A LUN is normally associated with only a single LDEV. The
LUSE feature available with HP XP disk arrays allows a LUN
to be associated with 1 to 36 LDEVs. Essentially, LUSE
makes it possible for applications to access a single large
pool of storage. The LUSE feature is available when the HP
StorageWorks LUN Configuration Manager product is installed.
ExSA
Extended serial adapter.
failover
Disconnecting a failed unit or path and replacing it with an
alternative unit or path in order to continue functioning.
FC
Fibre Channel.
FC-AL
Fibre Channel arbitrated loop.
FCP
Fibre Channel Protocol.
fence level
A level for selecting rejection of a write I/O request from the
host according to the condition of mirroring consistency.
GB
Gigabytes.
HA
High availability.
HBA
Host bus adapter. A built-in function or a card installed in a
PC or other host computer to enable connection of the host to
the SAN.
HP StorageWorks 200 Storage Virtualization System owner’s guide
67
68
host mode
Each host port in the SVS200 can be configured for a
particular host type. These modes are represented as two-digit
hexadecimal numbers. For example, host mode 08 represents
an HP-UX host.
hot standby
Using two or more servers as a standby in case of a primary
server failure.
HP
Hewlett-Packard Development Company.
I/O
Input/output (applies to an operation or device).
LAN
Local area network.
LD, LDEV
Logical device. An LDEV is created when a RAID group is
divided into sections according to the selected host emulation
mode (that is, OPEN-3, OPEN-8, OPEN-9). The number of
resulting LDEVs depends on the selected emulation mode. The
term LDEV is often used synonymously with the term volume.
LED
Light emitting diode.
local disk
A disk in the host.
LU
Logical unit.
LUN
Logical unit number. A LUN results from mapping a SCSI
logical unit number, port ID, and LDEV ID to a RAID group.
The size of the LUN is determined by the emulation mode of
the LDEV, and the number of LDEVs associated with the LUN.
For example, a LUN associated with two OPEN-3 LDEVs has a
size of 4,693 MB.
LUSE
Logical unit size expansion. See also Expanded LUN.
m
Meters.
MB
Megabytes.
MCU
Main control unit.
MIX
A circuit board in the control unit that includes disk adapters
and channel adapters for interfacing disk arrays and the host
to cache memory.
mirroring consistency
The consistency (usability) of data in a volume (for example,
S-VOL).
mm
Millimeters.
MR
Magnetoresistive.
Glossary
ms, msec
Milliseconds.
mutual hot
standby system
Two servers that are poised to cover for each other if necessary.
NAS
Network attached storage.
node
Logically speaking, an environment where instances can be
executed. Physically, a processor, which is an element of a
cluster system.
NVS
Nonvolatile storage.
OFC
Open Fibre Control.
OLM
Optical link module.
OS
Operating system.
PA
Physical address.
parity group
A parity group is a disk configuration in which multiple disks
work together to provide redundancy. Synonymous with “array
group.”
partition
Dividing a specific physical disk into two or more areas as if
there are two or more physical disks.
path
Paths are created by associating a port, a target, and a LUN
ID with one or more LDEVs.
PCI
Power control interface or peripheral component interconnect.
port
A physical connection that allows data to pass between a host
and the controller. Ports are named by port group and port
letter, such as CL1-A. CL1 is the group, and A is the port letter.
P-P
Point-to-point.
PS
Power supply.
rack
The equipment rack that contains the SVS200 controller.
RS
Russellstoll®, a brand of electrical plugs and receptacles manufactured by Thomas &
RAID
Redundant array of independent disks.
RAID group
See “array group.”
RAID level
A RAID Level is one of the ways that disk drives are grouped
together to improve performance, data availability/reliability
or both. RAID levels are defined from RAID0 to RAID6.
Betts Corporation.
HP StorageWorks 200 Storage Virtualization System owner’s guide
69
70
RAM
Random access memory.
RM
HP StorageWorks RAID Manager XP, a command line interface
for managing XP arrays.
R-SIM
Remote service information message.
R/W, r/w
Read/write.
script file
A file containing a shell script.
SCSI
Small computer system interface.
shell script
A command sequence executed by a UNIX shell.
sidefile
An area of cache used to store the data sequence number,
record location, record length, and queued control information.
SIM
Service information message.
SMI-S
Storage Management Initiative Specification.
SMS
System managed storage.
SNMP
Simple Network Management Protocol.
SSID
Storage subsystem identification.
STC
HP Storage Technology Center.
SVP
Service processor, which is the PC built into the disk controller.
The SVP provides a direct interface into the disk array. SVP use
is reserved for HP support representatives only.
SVS
Storage Virtualization System, an appliance that manages
multiple disk array storage systems.
TB
Terabyte.
TCP/IP
Transmission control protocol/Internet protocol
TID
Target ID.
VSC
Volume size customization. Synonymous with CVS.
VOLID
Volume ID.
volume
Synonymous with LDEV.
Glossary
Index
Symbols
D
features
software, 16
A
AC power, 33
array management, 17
audience, 6
automatic restart, 42
B
batteries, backup, 29, 40
Business Copy, 49
C
cables
mechanical vibration, 32
cache battery backup, 29
Cache LUN, 45
Command View XP, 17, 30
Command View XP Advanced Edition,
17, 47
components
hardware, 21
included, 18
optional, 18
connectivity, 14
Continuous Access Asynchronous, 49
Continuous Access Synchronous, 49
Continuous Track XP, 16, 28, 52
control panel, 24
conventions
text symbols, 7
conventions, document, 7
data integrity, 16
Data Integrity Check, 46
disk control frame. See DKC, 24
Disk/Cache Partition, 49
DKC, 21, 24
DKU, 21
document, 6
related documentation, 6
document conventions, 7
documentation
providing feedback, 9
documentation, HP web site, 6
E
emergency power off, 37, 38
environmental specifications, 31
external storage, 17
External Storage software, 47
F
failure detection and reporting process,
52
features
connectivity, 14
controller, 14
data integrity, 16
dual controller, 15
hardware, 18
high availability, 16
scalability, 14
software, 18
summary of, 17
HP StorageWorks 200 Storage Virtualization System owner’s guide
71
H
hardware
control panel, 24
disk control frame, 24
features, 18
management server, 30
normal operations, 35
physical components, 21
service processor. See SVP, 28
specifications, 19, 31
hazard warnings, 36
help
obtaining, 8
high availability, 16
HP
Subscriber’s choice web site, 9
technical support, 8
humidity specifications, 32
L
line voltage, 33
LUN Configuration and Security
Manager, 45
LUN Security Extension, 46
M
maintenance, remote, 26
management server, 30
manual restart, 40
mechanical vibration specifications, 32
N
normal operations, 35
O
operating systems, 17
P
phone home, 16, 25, 52
See also Continuous Track XP, 25
physical components. See hardware,
21
72
power cords, 33
power off
emergency, 37, 38
planned, 39
recovery from unplanned, 40
unplanned, 29, 40
power specifications, 33
powering down, 38
powering down the system, 37
R
rack stability
warning, 8
recovering from a power outage, 40
regulatory statements, 53, 56
related documentation, 6
remote maintenance, 26
restart
automatic, 42
manual, 40
S
safety guidelines, 36
scalability, 14
service information messages, 51
service processor. See SVP, 28
software, 43
and solution integration, 16
Business Copy, 49
Cache LUN, 45
Command View XP Advanced
Edition, 47
Continuous Access Asynchronous,
49
Continuous Access Synchronous, 49
Data Integrity Check, 46
Disk/Cache Partition, 49
External Storage, 47
features, 16, 18
LUN Configuration and Security
Manager XP, 45
LUN Security Extension, 46
Tiered Storage Manager, 48
specifications, 31
specifications, hardware, 19
STC, 16, 25, 52
Subscriber’s choice, HP, 9
SVP, 21, 28, 51
symbols in text, 7
V
T
warning
rack stability, 8
warnings, hazard, 36
web sites, 6
HP, 9
HP Subscriber’s choice, 9
wet bulb temperature, 32
technical support, 16
HP, 8
service locator web site, 9
text symbols, 7
Tiered Storage Manager, 48
vibration specifications, 32
W
U
unit emergency power off switch, 37
HP StorageWorks 200 Storage Virtualization System owner’s guide
73
Download PDF

advertising
