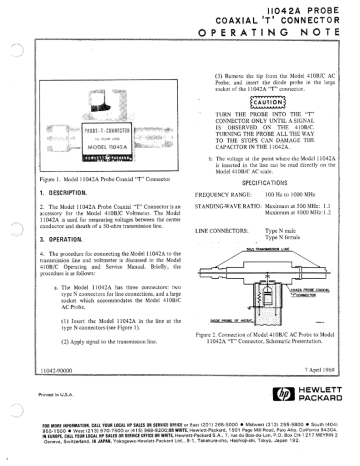

11042A PROBE
COAXIAL 'T' CONNECTOR
OPERATING NOTE
mT,
(3) Remove the tip from the Model 410B/C AC
Probe, and insert the diode probe in the large
socket of the 11042A “T” connector.
TURN THE PROBE INTO THE “T”
CONNECTOR ONLY UNTIL A SIGNAL
IS OBSERVED ON THE 410B/C.
TURNING THE PROBE ALL THE WAY
{A = TO THE STOPS CAN DAMAGE THE
ue] MODE pe CAPACITOR IN THE 11042A.
EA ых
E00 DMs LINE
cf b. The voltage at the point where the Model 11042A
is inserted in the line can be read directly on the :
Model 410B/C AC scale.
SPECIFICATIONS
1. DESCRIPTION. FREQUENCY RANGE: 100 Hz to 1000 MHz
Figure 1. Model 11042A Probe Coaxial “T” Connector
2. The Mode! 11042A Probe Coaxial “IT” Connector 15 an STANDING-WAVE RATIO: Maximum at 500 MHz: 1.1
accessory for the Model 410B/C Voltmeter. The Model Maximum at 1000 MHz:1.2
11042A is used for measuring voltages between the center |
conductor and sheath of a 50-ohm transmission line.
| LINE CONNECTORS: Type N male
3. OPERATION. o Type N female
SOL TRANSMISSION LINE
4. The procedure for connecting the Model 11042A to the
transmission line and voltmeter is discussed in the Model
410B/C Operating and Service Manual. Bricíly, the нет
procedure is as follows: 7 + >
T=
a. The Model 11042A has three connectors: two
type N connectors for line connections, and a large
socket which accommodates the Model 410B/C
AC Probe.
11042A PROBE COAXIAL
“T CONNECTOR
(1) Insert the Model 11042A in the line at the | DIODE PROBE OF 4108/C [ 0
type N connectors (see Figure 1).
HEF hr du:
Figure 2. Connection of Model 410B/C AC Probe to Model
(2) Apply signal to the transmission line. 11042A “T” Connector, Schematic Presentation.
11042-90000 7 April 1969
Printed in US.A, Гл HEWLETT
PACKARD
FOR MORE INFORMATION, CALL YOUR LOCAL HP SALES GR SERVICE OFFICE or East (201) 265-5000 e Midwest (3172) 255-9800 e South (404;
955-1500 ® West {213} 870-7500 or {415} 968-9200:0R WRITE, Hewlett-Packard, 1501 Page Mil Road, Palo Alto, California 34304,
IN EUROPE, CALL YOUR LOCAL HP SALES OR SERVICE GFFICE OR WRITE, Hewlett-Packard S.A., 7, rue du Bois-du-Lan, P.O. Box CH-1217 MEYRIN 2
(Geneva, Switzerland. IN JAPAN, Yokogawa-Hewlett-Packard Ltd., 9-1, Takakura-cho; Hachioji-shi, Tokyo, Japan 192.
