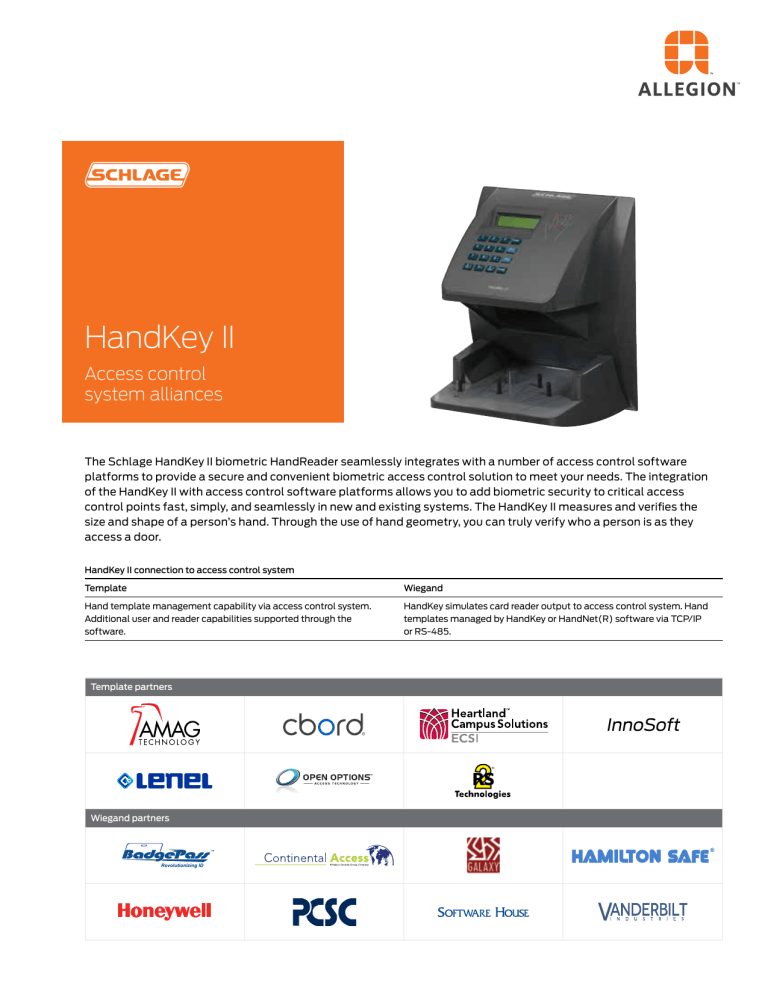

HandKey II
Access control
system alliances
The Schlage HandKey II biometric HandReader seamlessly integrates with a number of access control software
platforms to provide a secure and convenient biometric access control solution to meet your needs. The integration
of the HandKey II with access control software platforms allows you to add biometric security to critical access
control points fast, simply, and seamlessly in new and existing systems. The HandKey II measures and verifies the
size and shape of a person’s hand. Through the use of hand geometry, you can truly verify who a person is as they
access a door.
HandKey II connection to access control system
Template
Wiegand
Hand template management capability via access control system.
Additional user and reader capabilities supported through the
software.
HandKey simulates card reader output to access control system. Hand
templates managed by HandKey or HandNet(R) software via TCP/IP
or RS-485.
Template partners
InnoSoft
®
Wiegand partners
HandKey II Overview
Nothing is tougher!
Basic specificaitons
Our HandKey II product is ideal for applications where consistent
and dependable security is of prime importance. The product is
easy to maintain, and provides an ideal mix of convenience,
security and peace of mind.
Base model
Top 10 reasons to select Hand Geometry
Field proven reliability
§§ Hundreds of thousands of HandKeys are installed all over
the world in diverse applications providing millions of error
free transactions every day
Convenience and cost savings
§§ Incredibly fast installation and intuitive enrollment increases
user convenience
§§
§§
§§
Verification in less than one second makes it ideal for high
throughput applications
igh product quality + low maintenance costs = Low total
H
cost of ownership
Eliminate the worry of lost, stolen or unauthorized transfer
of ID cards plus the cost of purchasing and maintaining
these cards
Eliminate privacy concerns
§§ Hand Geometry technology is well accepted by end users as
there are no fingerprints or palm prints taken and the user
does not leave behind any trace of their biometric data
Amazing versatility
§§ HandKeys can be used as standalone systems to protect
critical access points that can be easily integrated into
virtually every new or existing access control system in the
market today
§§
Ability to customize user-specific security levels, time zones,
holidays and languages based on your needs
§§
Optional access control template management software
allows the HandKeys to form a system that communicates
alarms and transactions in real time, provides activity
reports, allows supervised on-site or remote user enrollment
and expiring privileges for temporary access
§§
Environmental enclosures and integrated heater units make
the HandKey an ideal solution for outdoor usage
HandKey II
Description
HandKey with base memory for 512 users
Verification time
< 1 second for comparison to reference template
ID number length
1-10 digits
Duress code
1 leading digit, user definable
Communication
RS232: Baud rate 300 bps to 28,000 bps
RS422: Baud rate 300 bps to 28,000 bps
RS485: Baud rate 300 bps to 28,800 bps
Optional modem: Baud rate 300 bps to 14,400 bps
Optional ethernet: 10 Base T
Template size
9 bytes
User memory
512 users field expandable up to 32,512 users
Memory module upgrade up to 259,072 users
Antimicrobial
Available on platen
Blue hand outline
Available on platen
Dimensions
HxWxD
11.65 in x 8.85 in x 8.55 in
29.6 cm x 22.5 cm x 21.7 cm
Power requirements
12 to 24 VDC or 12 to 24 VAC 50-60 Hz 7 Watts
(without options)
Weight
5.3 lbs (2.4 kgs.)
Without battery back-up or wall plate
Temperature
Operating: 0° - 45°C / 32° - 113°F
Non-operating (storage): -10° - 60°C / 14° - 140°F
Relative humidity
Operating: 20% to 80% RH non-condensing
Non-operating (storage): 5% to 85% RH
Non-condensing
About Allegion
Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security. As a
$2 billion provider of security solutions for homes and businesses, Allegion employs
more than 8,000 people and sells products in more than 120 countries across the
world. Allegion comprises 27 global brands, including strategic brands CISA®, Interflex®,
LCN®, Schlage® and Von Duprin®. For more, visit www.allegion.com.
© 2014 Allegion
010176, Rev. 06/14
