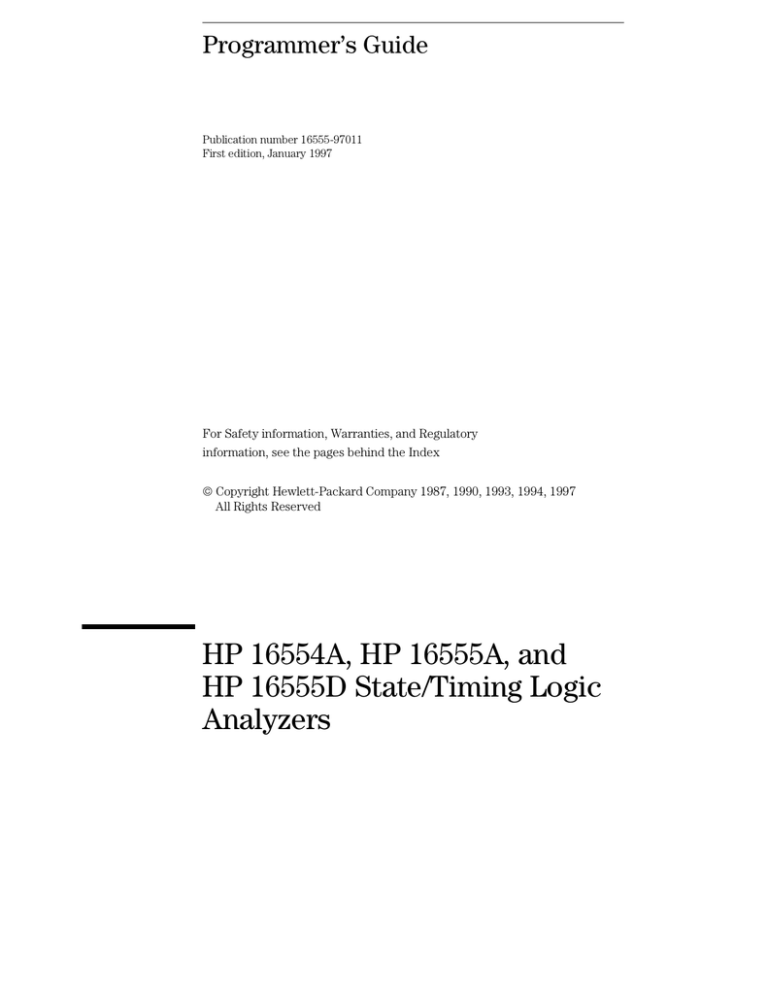

Programmer’s Guide
Publication number 16555-97011
First edition, January 1997
For Safety information, Warranties, and Regulatory
information, see the pages behind the Index
 Copyright Hewlett-Packard Company 1987, 1990, 1993, 1994, 1997
All Rights Reserved
HP 16554A, HP 16555A, and
HP 16555D State/Timing Logic
Analyzers
ii
In This Book
This guide, combined with the
HP 16500/16501A Programmer’s
Guide, provides you with the information
needed to program the HP 16554A and
HP 16555A/D logic analyzer modules.
Each module has its own reference to
supplement the mainframe manual since
not all mainframes will be configured with
the same modules.
This manual is organized in three parts.
Part 1 consists of chapters 1 and 2 which
contain general information and
instructions to help you get started.
Chapter 1 also contains:
• Mainframe system commands that are
frequently used with the logic analyzer
module
• HP 16554A/HP 16555A/HP 16555D
logic analyzer command tree
• Alphabetic command-to-subsystem
directory
Chapter 2 contains module-level
commands.
Part 2 consists of chapters 3 through 16
which contain the subsystem commands
for the logic analyzer and chapter 17
which contains information on the
SYSTem:DATA and SYSTem:SETup
commands for this module.
1
Programming the HP 16554A/
HP 16555A/HP 16555D
2
Module Level Commands
3
MACHine Subsystem
4
WLISt Subsystem
5
SFORmat Subsystem
6
STRigger (STRace) Subsystem
7
SLISt Subsystem
8
SWAVeform Subsystem
9
SCHart Subsystem
10
COMPare Subsystem
11
TFORmat Subsystem
12
TTRigger (TTRace) Subsystem
13
TWAVeform Subsystem
14
TLISt Subsystem
iii
Part 3, chapter 18, contains program examples of actual tasks that show you
how to get started in programming the HP 16554A and HP 16555A/D logic
analyzers. These examples are written in HP BASIC 6.2; however, the
program concepts can be used in any other popular programming language.
Error messages for the HP 16554A and HP 16555A/D are included in generic
system error messages and are in the HP 16500/16501A Programmer’s
Guide.
iv
15
SYMBol Subsystem
16
SPA Subsystem
17
DATA and SETup Commands
18
Programming Examples
Index
v
vi
Contents
Part 1 General Information
1 Programming the HP 16554A/ HP 16555A/HP 16555D
Selecting the Module 1–3
Programming the Logic Analyzer 1–3
Mainframe Commands 1–5
Command Set Organization 1–8
Module Status Reporting 1–12
MESE<N> 1–13
MESR<N> 1–15
2 Module Level Commands
ARMLine 2–5
DBLock 2–5
MACHine 2–6
SPA 2–7
WLISt 2–7
Part 2 Commands
3 MACHine Subsystem
MACHine 3–4
ARM 3–5
ASSign 3–6
LEVelarm 3–7
NAME 3–8
REName 3–8
RESource 3–9
TYPE 3–10
Contents–1
Contents
4 WLISt Subsystem
WLISt 4–4
DELay 4–5
INSert 4–6
LINE 4–7
MINus 4–8
OSTate 4–9
OTIMe 4–9
OVERlay 4–10
PLUS 4–11
RANGe 4–12
REMove 4–12
XOTime 4–13
XSTate 4–13
XTIMe 4–14
5 SFORmat Subsystem
SFORmat 5–6
CLOCk 5–6
LABel 5–7
MASTer 5–9
MODE 5–10
MOPQual 5–11
MQUal 5–12
REMove 5–13
SETHold 5–13
SLAVe 5–15
SOPQual 5–16
SQUal 5–17
THReshold 5–18
Contents–2
Contents
6 STRigger (STRace) Subsystem
Qualifier 6–6
STRigger (STRace) 6–8
ACQuisition 6–8
BRANch 6–9
CLEar 6–11
FIND 6–12
MLENgth 6–13
RANGe 6–14
SEQuence 6–15
STORe 6–16
TAG 6–17
TAKenbranch 6–18
TCONtrol 6–19
TERM 6–20
TIMER 6–21
TPOSition 6–22
7 SLISt Subsystem
SLISt 7–7
COLumn 7–7
CLRPattern 7–8
DATA 7–9
LINE 7–9
MMODe 7–10
OPATtern 7–11
OSEarch 7–12
OSTate 7–13
OTAG 7–14
OVERlay 7–15
REMove 7–15
RUNTil 7–16
TAVerage 7–17
TMAXimum 7–17
TMINimum 7–18
VRUNs 7–18
Contents–3
Contents
XOTag 7–19
XOTime 7–19
XPATtern 7–20
XSEarch 7–21
XSTate 7–22
XTAG 7–22
8 SWAVeform Subsystem
SWAVeform 8–4
ACCumulate 8–5
ACQuisition 8–5
CENTer 8–6
CLRPattern 8–6
CLRStat 8–7
DELay 8–7
INSert 8–8
MLENgth 8–8
RANGe 8–9
REMove 8–10
TAKenbranch 8–10
TPOSition 8–11
9 SCHart Subsystem
SCHart 9–4
ACCumulate 9–4
CENTer 9–5
HAXis 9–5
VAXis 9–6
10 COMPare Subsystem
COMPare 10–4
CLEar 10–5
CMASk 10–5
COPY 10–6
DATA 10–6
Contents–4
Contents
FIND 10–8
LINE 10–9
MENU 10–9
RANGe 10–10
RUNTil 10–11
SET 10–12
11 TFORmat Subsystem
TFORmat 11–4
ACQMode 11–5
LABel 11–6
REMove 11–7
THReshold 11–8
12 TTRigger (TTRace) Subsystem
Qualifier 12–6
TTRigger (TTRace)
ACQuisition 12–9
BRANch 12–9
CLEar 12–12
EDGE 12–13
FIND 12–14
MLENgth 12–16
RANGe 12–17
SEQuence 12–18
SPERiod 12–19
TCONtrol 12–20
TERM 12–21
TIMER 12–22
TPOSition 12–23
12–8
Contents–5
Contents
13 TWAVeform Subsystem
TWAVeform 13–7
ACCumulate 13–7
ACQuisition 13–8
CENTer 13–9
CLRPattern 13–9
CLRStat 13–9
DELay 13–10
INSert 13–11
MLENgth 13–12
MINus 13–13
MMODe 13–14
OCONdition 13–15
OPATtern 13–16
OSEarch 13–17
OTIMe 13–18
OVERlay 13–18
PLUS 13–19
RANGe 13–20
REMove 13–20
RUNTil 13–21
SPERiod 13–22
TAVerage 13–23
TMAXimum 13–23
TMINimum 13–24
TPOSition 13–24
VRUNs 13–25
XCONdition 13–26
XOTime 13–26
XPATtern 13–27
XSEarch 13–28
XTIMe 13–29
Contents–6
Contents
14 TLISt Subsystem
TLISt 14–7
COLumn 14–7
CLRPattern 14–8
DATA 14–9
LINE 14–9
MMODe 14–10
OCONdition 14–11
OPATtern 14–12
OSEarch 14–13
OSTate 14–14
OTAG 14–14
REMove 14–15
RUNTil 14–16
TAVerage 14–17
TMAXimum 14–17
TMINimum 14–18
VRUNs 14–18
XCONdition 14–19
XOTag 14–19
XOTime 14–20
XPATtern 14–20
XSEarch 14–21
XSTate 14–22
XTAG 14–23
15 SYMBol Subsystem
SYMBol 15–5
BASE 15–5
PATTern 15–6
RANGe 15–7
REMove 15–8
WIDTh 15–8
Contents–7
Contents
16 SPA Subsystem
MODE 16–7
OVERView:BUCKet 16–8
OVERView:HIGH 16–9
OVERView:LABel 16–10
OVERView:LOW 16–11
OVERView:MLENgth 16–12
OVERView:OMARker 16–13
OVERView:OVSTatistic 16–14
OVERView:XMARker 16–15
HISTogram:HSTatistic 16–16
HISTogram:LABel 16–17
HISTogram:OTHer 16–18
HISTogram:QUALifier 16–19
HISTogram:RANGe 16–20
HISTogram:TTYPe 16–21
TINTerval:AUTorange 16–22
TINTerval:QUALifier 16–23
TINTerval:TINTerval 16–24
TINTerval:TSTatistic 16–25
17 DATA and SETup Commands
Introduction 17–2
Data Format 17–3
SYSTem:DATA 17–4
Section Header Description 17–6
Section Data 17–6
Data Preamble Description 17–7
Acquisition Data Description 17–11
Time Tag Data Description 17–13
SYSTem:SETup 17–13
Contents–8
Contents
Part 3 Programming Examples
18 Programming Examples
Making a Timing Analyzer Measurement 18–3
Making a State Analyzer Measurement 18–5
Making a State Compare Analyzer Measurement 18–9
Transferring the Logic Analyzer Configuration 18–14
Checking for Measurement Completion 18–18
Sending Queries to the Logic Analyzer 18–19
Index
Contents–9
Contents–10
Part 1
1 Introduction to Programming
2 Module Level Commands
General Information
1
Programming the HP 16554A/
HP 16555A/HP 16555D
Introduction
This chapter introduces you to the basic command structure used to
program the logic analyzer. Also included is an example program that
sets up the timing analyzer for a basic timing measurement.
Additional program examples are in chapter 18.
1–2
Programming the HP 16554A/ HP 16555A/HP 16555D
Selecting the Module
Selecting the Module
Before you can program the logic analyzer, you must first "select" it. This
directs your commands to the logic analyzer.
To select the module, use the system command :SELect followed by the
numeric reference for the slot location of the logic analyzer (1 through 10
refering to slots A through J respectively). For example, if the logic analyzer
is in slot E, then the command:
:SELect
5
would select this module. For more information on the select command,
refer to the HP 16500/16501A Programmer’s Guide. It is available through
your HP Sales Office.
Programming the Logic Analyzer
A typical logic analyzer program will do the following:
•
•
•
•
•
•
•
•
•
•
select the appropriate module
name a specified analyzer
specify the analyzer type
assign pods
assign labels
sets pod thresholds
specify a trigger condition
set up the display
specify acquisition type
start acquiring data
1–3
Programming the HP 16554A/ HP 16555A/HP 16555D
Programming the Logic Analyzer
The following example program sets up the logic analyzer to make a simple
timing analyzer measurement.
Example
10
20
30
40
50
60
70
80
90
100
110
120
OUTPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
END
XXX;":SELECT 3"
XXX;":MACH1:NAME ’TIMING’"
XXX;":MACH1:TYPE TIMING"
XXX;":MACH1:ASSIGN 1"
XXX;":MACH1:TFORMAT:LABEL ’COUNT’,POS,0,0,255"
XXX;":MACH1:TTRIGGER:TERM A, ’COUNT’, ’#HFF’"
XXX;":MACH1:TWAVEFORM:RANGE 1E−6"
XXX;":MENU 3,5"
XXX;":MACH1:TWAVEFORM:INSERT ’COUNT’"
XXX;":RMODE SINGLE"
XXX;":START"
The three Xs (XXX) after the "OUTPUT" statements in the previous example
refer to the device address required for programming over either HP-IB or
RS-232-C. Refer to your controller manual and programming language
reference manual for information on initializing the interface.
Program Comments
Line 10 selects the logic analyzer in slot C.
Line 20 names machine (analyzer) 1 "TIMING".
Line 30 specifies machine 1 is a timing analyzer.
Line 40 assigns pods 1 and 2 to machine 1.
Line 50 sets up the Timing Format menu by assigning the label COUNT, and
assigning a polarity and channels to the label.
Line 60 selects the trigger pattern for the timing analyzer.
Line 70 sets the range to 100 ns (10 times s/div).
Line 80 changes the onscreen display to the Timing Waveforms menu.
Line 90 inserts the label "COUNT" in the Timing Waveform menu.
Line 100 specifies the Single run mode.
Line 110 starts data acquisition.
For more information on the specific logic analyzer commands, refer to
chapters 2 through 17.
1–4
Programming the HP 16554A/ HP 16555A/HP 16555D
Mainframe Commands
Mainframe Commands
These commands are part of the HP 16500/16501A mainframe system and
are mentioned here only for reference. For more information on these
commands, refer to the HP 16500/16501A Programmer’s Guide.
CARDcage? Query
The CARDcage query returns a string of integers which identifies the
modules that are installed in the mainframe. The returned string is in two
parts. The first five two-digit numbers identify the card type. The
identification number for the HP 16554A and HP 16555A/D logic analyzers is
34. A "−1" in the first part of the string indicates no card is installed in the
slot.
The five single-digit numbers in the second part of the string indicate which
card has the controlling software for the module; that is, where the master
card is located.
Example
12,11,−1,−1,34,2,2,0,0,5
A returned string of 12,11,-1,-1,34,2,2,0,0,5 means that an
oscilloscope time base card (ID number 11) is loaded in slot B and the
oscilloscope acquisition card (ID number 12) is loaded in slot A. The next
two slots (C and D) are empty (−1). Slot E contains a logic analyzer module
(ID number 34).
The next group of numbers (2,2,0,0,5) indicate that a two-card module is
installed in slots A and B with the master card in slot B. The "0" indicates an
empty slot, or the module software is not recognized or is not loaded. The
last digit (5) in this group indicates a one-card module is loaded in slot E.
Complete information for the CARDcage query is in the HP 16500/16501A
Programmer’s Guide.
1–5
Programming the HP 16554A/ HP 16555A/HP 16555D
Mainframe Commands
MENU Command/query
The MENU command selects a new displayed menu. The first parameter (X)
specifies the desired module. The optional, second parameter specifies the
desired menu in the module. The second parameter defaults to 0 if it is not
specified. The query returns the currently selected and displayed menu.
For the HP 16554A/HP 16555A/HP 16555D Logic Analyzers:
• X,0 — State/Timing
Configuration
•
•
•
•
•
•
•
X,1 — Format 1
X,2 — Format 2
X,3 — Trigger 1
X,4 — Trigger 2
X,5 — Waveform 1
X,6 — Waveform 2
•
•
•
•
•
•
•
•
X,8 — Listing 2
X,9 — Mixed Display
X,10 — Compare 1
X,11 — Compare 2
X,12 — Chart 1
X,13 — Chart 2
X,14 — SPA 1
X,15 — SPA 2
X,7 — Listing 1
If a machine is turned off, its menus are not available. The Mixed Display is
available only when one or both analyzers are state analyzers.
SELect Command/query
The SELect command selects which module or intermodule will have parser
control. SELect 0 selects the intermodule, SELect 1 through 5 selects
modules A through E respectively. Values −1 and −2 select software options
1 and 2. The SELect query returns the currently selected module.
STARt Command
The STARt command starts the specified module. If the specified module is
configured for intermodule (group run), STARt will start all modules
configured as part of the intermodule run.
1–6
Programming the HP 16554A/ HP 16555A/HP 16555D
Mainframe Commands
STOP Command
The STOP command stops the specified module. If the specified module is
configured as part of an intermodule run, STOP will stop all associated
modules.
STARt and STOP are overlapped commands. Overlapped commands allow
execution of subsequent commands while the logic analyzer operations
initiated by the overlapped command are still in progress. For more
information, see *OPC and *WAI commands in Chapter 5 of the
HP 16500/16501A Programmer’s Guide.
RMODe Command/query
The RMODe command specifies the run mode (single or repetitive) for a
module. If the selected module is configured for intermodule, the
intermodule run mode will be set by this command. The RMODe query
returns the current setting.
SYSTem:ERRor? Query
The SYSTem:ERRor query returns the oldest error in the error queue. In
order to return all the errors in the error queue, a simple FOR/NEXT loop can
be written to query the queue until all errors are returned. Once all errors
are returned, the query will return zeros.
SYSTem:PRINt Command/query
The SYSTem:PRINt command initiates a print of the screen or listing buffer
over the current printer communication interface. The SYSTem:PRINt query
sends the screen or listing buffer data over the current controller
communication interface.
MMEMory Subsystem
The MMEMory Subsystem provides access to both internal disc drives for
loading and storing configurations.
INTermodule Subsystem
The INTermodule Subsystem commands are used to specify intermodule
arming between multiple modules.
1–7
Programming the HP 16554A/ HP 16555A/HP 16555D
Command Set Organization
Command Set Organization
The command set for the HP 16554A/HP 16555A/HP 16555D is divided into
module-level commands and subsystem commands. Module-level commands
are listed in Chapter 2, "Module Level Commands" and each of the subsystem
commands are covered in their individual chapters starting with Chapter 3,
"MACHine Subsystem."
Each of these chapters contains a description of the subsystem, syntax
diagrams, and the commands in alphabetical order. The commands are
shown in long form and short form using upper and lowercase letters. For
example, LABel indicates that the long form of the command is LABEL and
the short form is LAB. Each of the commands contain a description of the
command and its arguments, the command syntax, and a programming
example.
Figure 1-1 on the following page shows the command tree for the
HP 16554A/HP 16555A/HP 16555D logic analyzer module. The (x) following
the SELect command at the top of the tree represents the slot number where
the logic analyzer module is installed. The number may range from 1 through
10, representing slots A through J, respectively.
1–8
Programming the HP 16554A/ HP 16555A/HP 16555D
Command Set Organization
Figure 1-1
HP 16554A/HP 16555A/HP 16555D Command Tree
1–9
Programming the HP 16554A/ HP 16555A/HP 16555D
Command Set Organization
Table 1-1
Alphabetical Command-to-Subsystem Directory
Command
ACCumulate
ACQMode
ACQuisition
ARM
ARMLine
ASSign
AUTorange
BASE
BRANch
BUCKet
CENter
CLEar
CLOCk
CLRPattern
CLRStat
CMASk
COLumn
COPY
DATA
DBLock
DELay
EDGE
FIND
HAXis
HIGH
HISTatistic
HISTogram
INSert
LABel
LEVelarm
LINE
LOW
MASTer
MENU
MINus
MLENgth
MMODe
MODE
Where Used
SCHart, SWAVeform, TWAVeform
TFORmat
STRigger, SWAVeform, TTRigger,
TWAVeform
MACHine
Module Level Commands
MACHine
SPA
SYMBol
STRigger, TTRigger
SPA
SCHart, SWAVeform, TWAVeform
COMPare, STRigger, TTRigger
SFORmat
SLISt, SWAVeform, TLISt, TWAVeform
SWAVeform, TWAVeform
COMPare
SLISt, TLISt
COMPare
COMPare, SLISt, TLISt
Module Level Commands
SWAVeform, TWAVeform, WLISt
TTRigger
COMPare, STRigger, TTRigger
SCHart
SPA
SPA
SPA
SWAVeform, TWAVeform, WLISt
SFORmat, SPA, TFORmat
MACHine
COMPare, SLISt, TLISt, WLISt
SPA
SFORmat
COMPare
TWAVeform, WLISt
SPA, STRigger, SWAVeform, TTRigger,
TWAVeform
SLISt, TLISt, TWAVeform
SPA
1–10
Command
MOPQual
MQUal
NAME
OCONdition
OMARker
OPATtern
OSEarch
OSTate
OTAG
OTHer
OTIMe
OVERlay
OVERView
OVSTatistic
PATTern
PLUS
QUALifier
RANGe
REName
RESource
RUNTil
SEQuence
SET
SETHold
SLAVe
SOPQual
SPERiod
SETHold
SLAVe
SOPQual
SPERiod
SQUal
STORe
TAG
TAKenbranch
Where Used
SFORmat
SFORmat
MACHine
TLISt, TWAVeform
SPA
SLISt, TLISt, TWAVeform
SLISt, TLISt, TWAVeform
SLISt, TLISt, WLISt
SLISt, TLISt
SPA
TWAVeform, WLISt
SLISt, TWAVeform, WLISt
SPA
SPA
SYMBol
TWAVeform, WLISt
SPA
COMPare, SPA, STRigger, SWAVeform,
SYMBol, TFORmat, TWAVeform, WLISt
SFORmat, SLISt, SWAVeform, SYMBol,
TFORmat, TLISt, TWAVeform, WLISt
MACHine
MACHine
COMPare, SLISt, TLISt, TWAVeform
STRigger, TTRigger
COMPare
SFORmat
SFORmat
SFORmat
TFORmat, TWAVeform
SFORmat
SFORmat
SFORmat
TFORmat, TWAVeform
SFORmat
STRigger
STRigger
STRigger, SWAVeform
TAVerage
SLISt, TLISt, TWAVeform
REMove
Programming the HP 16554A/ HP 16555A/HP 16555D
Command Set Organization
Table 1-1, continued
Alphabetical Command-to-Subsystem Directory, continued
Command
TCONtrol
TERM
THReshold
TIMER
TINTerval
TMAXimum
TMINimum
TPOSition
TSTatistic
TTYPe
TYPE
Where Used
STRigger, TTRigger
STRigger, TTRigger
SFORmat, TFORmat
STRigger, TTRigger
SPA
SLISt, TLISt, TWAVeform
SLISt, TLISt, TWAVeform
STRigger, SWAVeform, TTRigger,
TWAVeform
SPA
SPA
MACHine
Command
VAXis
VRUNs
WIDTh
XCONdition
XMARker
XOTag
XOTime
XPATtern
XSEarch
XSTate
XTAG
XTIMe
Where Used
SCHart
SLISt, TLISt, TWAVeform
SYMBol
TLISt, TWAVeform
SPA
SLISt, TLISt
SLISt, TLISt, TWAVeform, WLISt
SLISt, TLISt, TWAVeform
SLISt, TLISt, TWAVeform
SLISt, TLISt, WLISt
SLISt, TLISt
TWAVeform, WLISt
1–11
Programming the HP 16554A/ HP 16555A/HP 16555D
Module Status Reporting
Module Status Reporting
Each module reports its status to the Module Event Status Register
(MESR<N>), which in turn reports to the Combined Event Status Register
(CESR) in the HP 16500/16501A mainframe (see HP 16500/16501A
Programmer’s Guide chapter 6). The Module Event Status Register is
enabled by the Module Event Status Enable Register (MESE<N>).
The MESE<N> and MESR<N> instructions are not used in conjunction with
the SELect command, so they are not listed in the HP 16554A/HP 16555A/
HP 16555D’s command tree.
The following descriptions of the MESE<N> and MESR<N> instructions
provide the module specific information needed to enable and interpret the
contents of the registers.
Figure 1-2
Module Status Reporting
1–12
Programming the HP 16554A/ HP 16555A/HP 16555D
MESE<N>
MESE<N>
Command
:MESE<N><enable_mask>
The MESE<N> command sets the Module Event Status Enable register bits.
The MESE register contains a mask value for the bits enabled in the MESR
register. A one in the MESE will enable the corresponding bit in the MESR, a
zero will disable the bit.
The first parameter <N> specifies the module. The second parameter
specifies the enable value.
Refer to table 1-2 for information about the Module Event Status register bits,
bit weights, and what each bit masks for the module. Complete information
for status reporting is in chapter 6 of the HP 16500/16501A Programmer’s
Guide manual.
<N>
<enable_mask>
{1|2|3|4|5|6|7|8|9|10} number of slot in which the module resides. 1
refers to slot A, and so on.
integer from 0 to 255
Example
OUTPUT XXX;":MESE5 1"
Query
:MESE<N>?
The MESE query returns the current setting.
Returned Format
Example
[:MESE<N>]<enable_mask><NL>
10
20
30
40
OUTPUT XXX;":MESE5?"
ENTER XXX; Mes
PRINT Mes
END
1–13
Programming the HP 16554A/ HP 16555A/HP 16555D
MESE<N>
Table 1-2
Module Event Status Enable Register (A "1" enables the MESR bit)
Bit
Weight
Enables
7
128
Not used
6
64
Not used
5
32
Not used
4
16
Not used
3
8
Pattern searches failed
2
4
Trigger found
1
2
RNT-Run until satisfied
0
1
MC-Measurement complete
The Module Event Status Enable Register contains a mask value for the bits
to be enabled in the Module Event Status Register (MESR). A one in the
MESE enables the corresponding bit in the MESR, and a zero disables the bit.
1–14
Programming the HP 16554A/ HP 16555A/HP 16555D
MESR<N>
MESR<N>
Query
:MESR<N>?
The MESR<N> query returns the contents of the Module Event Status
register. When you read the MESR, the value returned is the total bit weights
of all bits that are set at the time the register is read. Reading the register
clears the Module Event Status Register.
Table 1-3 shows each bit in the Module Event Status Register and its bit
weight for this module.
The parameter 1 through 10 refers to the module in slot A through J
respectively.
Returned Format
<N>
<status>
Example
[MESR<N>]<status><NL>
{1|2|3|4|5|6|7|8|9|10}number of slot in which the module resides
integer from 0 to 255
10
20
30
40
OUTPUT XXX;":MESR5?"
ENTER XXX; Mer
PRINT Mer
END
1–15
Programming the HP 16554A/ HP 16555A/HP 16555D
MESR<N>
Table 1-3
Module Event Status Register
Bit
Weight
Condition
7
128
Not used
6
64
Not used
5
32
Not used
4
16
Not used
3
8
1 = One or more pattern searches failed
0 = Pattern searches did not fail
2
4
1 = Trigger found
0 = Trigger not found
1
2
1 = Run until satisfied
0 = Run until not satisfied
0
1
1 = Measurement complete
0 = Measurement not complete
1–16
2
Module Level Commands
Introduction
The logic analyzer module level commands access the global
functions of the HP 16554A/HP 16555A/HP 16555D logic analyzer
module. These commands are:
•
•
•
•
•
ARMLine
DBLock
MACHine
SPA
WLISt
2–2
Module Level Commands
Figure 2-1
Module Level Syntax Diagram
2–3
Module Level Commands
Table 2-1
Module Level Parameter Values
Parameter
Type of Parameter or Command
Reference
machine_num
MACHine{1|2}
arm_parm
arm parameters
see chapter 3
assign_parm
assignment parameters
see chapter 3
level_parm
level parameters
see chapter 3
name_parm
name parameters
see chapter 3
rename_parm
rename parameters
see chapter 3
res_parm
resource parameters
see chapter 3
type_parm
type parameters
see chapter 3
sformat_cmds
state format subsystem commands
see chapter 5
strace_cmds
state trace subsystem commands
see chapter 6
slist_cmds
state list subsystem commands
see chapter 7
swaveform_cmds
state waveform subsystem commands
see chapter 8
schart_cmds
state chart subsystem commands
see chapter 9
compare_cmds
compare subsystem commands
see chapter 10
tformat_cmds
timing format subsystem commands
see chapter 11
ttrace_cmds
timing trace subsystem commands
see chapter 12
twaveform_cmds
timing waveform subsystem
commands
see chapter 13
tlist_cmds
timing listing subsystem commands
see chapter 14
symbol_cmds
symbol subsystem commands
see chapter 15
mode_parm
SPA mode parameters
see chapter 16
overv_cmds
SPA overview commands
see chapter 16
hist_cmds
SPA histogram commands
see chapter 16
tint_cmds
SPA time interval commands
see chapter 16
Wlist_cmds
waveforms/listing commands
see chapter 4
2–4
Module Level Commands
ARMLine
ARMLine
Command
:ARMLine MACHine<N>
The ARMLine command selects which machine generates the arm out signal
on the IMB (intermodule bus). This command is only valid when two
analyzers are on. However, the query is always valid.
<N>
{1|2}
Example
OUTPUT XXX;":ARMLINE MACHINE1"
Query
:ARMLine?
If the analyzer is set up for OR’d triggering, then the ARMLine query returns
an empty string. This cannot be used for setting up OR’d triggering.
Returned Format
[:ARMLine]{MACHine<N>|}<NL>
Example
OUTPUT XXX;":ARMLine?"
DBLock
Command
:DBLock {PACKed | UNPacked}
The DBLock command specifies the data block format that is contained in
the response from a :SYSTem:DATA? query. See Chapter 17 for more
information on the :SYSTem:DATA command and query.
The PACKed option (default) uploads data in a compressed format. This
option is used to upload data for archiving, or for reloading back into the
analyzer. When an analyzer configuration is saved to disk, the PACKed data
format is always used (regardless of the current DBLock selection).
2–5
Module Level Commands
MACHine
The UNPacked option uploads data in a format that is easy to interpret and
process. The UNPacked format cannot be downloaded back into the analyzer.
Example
OUTPUT XXX;":DBLOCK PACKED"
Query
:DBLock?
The DBLock query returns the current data block format selection.
Returned Format
[:DBLock]{PACKed | UNPacked}<NL>
Example
OUTPUT XXX;":DBLock?"
MACHine
Command
:MACHine<N>
The MACHine command selects which of the two machines (analyzers) the
subsequent commands or queries will refer to. MACHine is also a subsystem
containing commands that control the logic analyzer system level functions.
Examples include pod assignments, analyzer names, and analyzer type. See
chapter 3 for details about the MACHine subsystem.
<N>
Example
{1|2}
OUTPUT XXX;":MACHINE1:NAME ’DRAMTEST’"
2–6
Module Level Commands
SPA
SPA
Command
:SPA<N>
The SPA command selects which of the two analyzers the subsequent
commands or queries will refer to. SPA is also a subsystem containing
commands that control the logic analyzer SPA functions. See chapter 16 for
details about the SPA subsystem.
<N>
Example
{1|2}
OUTPUT XXX;":SPA1:MODE OVERVIEW"
WLISt
Command
:WLISt
The WLISt selector accesses the commands used to place markers and query
marker positions in Timing/State Mixed mode. The WLISt subsystem also
contains commands that allows you to insert waveforms from other
time-correlated machines and modules. The details of the WLISt subsystem
are in chapter 4.
Example
OUTPUT XXX;":WLIST:OTIME 40.0E−6"
2–7
2–8
Part 2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
MACHine Subsystem
WLISt Subsystem
SFORmat Subsystem
STRigger (STRace) Subsystem
SLISt Subsystem
SWAVeform Subsystem
SCHart Subsystem
COMPare
TFORmat Subsystem
TTRigger (TTRace) Subsystem
TWAVeform Subsystem
TLISt Subsystem
SYMBol Subsystem
SPA Subsystem
DATA and SETup Commands
Commands
3
MACHine Subsystem
Introduction
The MACHine subsystem contains the commands that control the
machine level of operation of the logic analyzer. Some of the functions
are normally found in the Trigger menu. These commands are:
• ARM
• LEVelarm
The functions of three of these commands reside in the State/Timing
Configuration menu. These commands are:
• ASSign
• NAME
• TYPE
Even though the functions of the following commands reside in the
Format menu they are at the machine level of the command tree and
are therefore located in the MACHine subsystem. These commands
are:
• REName
• RESource
3–2
MACHine Subsystem
Figure 3-1
Machine Subsystem Syntax Diagram
3–3
MACHine Subsystem
MACHine
Table 3-1
Machine Subsystem Parameter Values
Parameter
Value
arm_source
{RUN | INTermodule | MACHine {1|2}}
pod_list
{NONE | <pod_num>[, <pod_num>]...}
pod_num
integer from 1 to 12
arm_level
integer from 1 to 11 representing sequence level
machine_name
string of up to 10 alphanumeric characters
res_id
{<state_terms>|H|J} for state analyzer
or
{<state_terms>|EDGE{1|2}} for timing analyzer
new_text
string of up to 8 alphanumeric characters
state_terms
{A|B|C|D|E|F|G|I| RANGE{1|2}|TIMER{1|2}}
res_terms
{<res_id>[,<res_id>]...}
MACHine
Selector
:MACHine<N>
The MACHine <N> selector specifies which of the two analyzers (machines)
available in the module the commands or queries following will refer to.
Because the MACHine<N> command is a root level command, it will normally
appear as the first element of a compound header.
<N>
Example
{1|2}
(the machine number)
OUTPUT XXX; ":MACHINE1:NAME ’TIMING’"
3–4
MACHine Subsystem
ARM
ARM
Command
:MACHine{1|2}:ARM <arm_source>
The ARM command specifies the arming source of the specified analyzer
(machine). The RUN option disables the arm source. For example, if you do
not want to use either the intermodule bus or the other machine to arm the
current machine, you specify the RUN option.
If you are using an HP 16500C mainframe, you can set up OR’d Triggering by
arming the module from INTermodule when intermodule is set to Group Run
with OR TRIGGER. See the HP 16500C Programmer’s Guide for details.
<arm_source>
{RUN|INTermodule|MACHine{1|2}}
Example
OUTPUT XXX;":MACHINE1:ARM MACHINE2"
Query
:MACHine{1|2}:ARM?
The ARM query returns the source that the current analyzer (machine) will
be armed by.
Returned Format
[:MACHine{1|2}:ARM] <arm_source>
Example
OUTPUT XXX;":MACHINE1:ARM?"
3–5
MACHine Subsystem
ASSign
ASSign
Command
:MACHine{1|2}:ASSign <pod_list>
The ASSign command assigns pods to a particular analyzer (machine). The
ASSign command will assign two pods for each pod number you specify
because pods must be assigned to analyzers in pairs. NONE clears all pods
from the specified analyzer (machine) and places them in the "unassigned"
category.
If you specify a pod number greater than currently available, the logic
analysis system generates an "Argument out of range" error.
<pod_list>
<pod>#
Example
{NONE | <pod >#[, <pod >#]...}
an integer from 1 to 12
This example assigns pod pairs 1/2 and 5/6 to machine 1:
OUTPUT XXX;":MACHINE1:ASSIGN 5, 2, 1"
Query
:MACHine{1|2}:ASSign?
The ASSign query returns which pods are assigned to the current analyzer
(machine).
Returned Format
[:MACHine{1|2}:ASSign] <pod_list><NL>
Example
OUTPUT XXX;":MACHINE1:ASSIGN?"
3–6
MACHine Subsystem
LEVelarm
LEVelarm
Command
:MACHine{1|2}:LEVelarm <arm_level>
The LEVelarm command allows you to specify the sequence level for a
specified machine that will be armed by the Intermodule Bus or the other
machine. This command is only valid if the specified machine is on and the
arming source is not set to RUN with the ARM command.
<arm_level>
integer from 1 to 11 representing sequence level
Example
OUTPUT XXX;":MACHINE1:LEVELARM 2"
Query
:MACHine{1|2}:LEVelarm?
The LEVelarm query returns the current sequence level receiving the arming
for a specified machine.
Returned Format
[:MACHine{1|2}:LEVelarm] <arm_level><NL>
Example
OUTPUT XXX;":MACHINE1:LEVELARM?"
3–7
MACHine Subsystem
NAME
NAME
Command
:MACHine{1|2}:NAME <machine_name>
The NAME command allows you to assign a name of up to 10 characters to a
particular analyzer (machine) for easier identification. Spaces are valid
characters.
<machine_name>
string of up to 10 alphanumeric characters
Example
OUTPUT XXX;":MACHINE1:NAME ’DRAM TEST’"
Query
:MACHine{1|2}:NAME?
The NAME query returns the current analyzer name as an ASCII string.
Returned Format
[:MACHine{1|2}:NAME] <machine name><NL>
Example
OUTPUT XXX;":MACHINE1:NAME?"
REName
Command
:MACHine{1|2}:REName {{<res_id>, <new_text>} |
DEFault}
The REName command allows you to assign a specific name of up to eight
characters to terms A through J, Range 1 and 2, Timer 1 and 2, and Edge 1
and 2. The terms do not have to be assigned to the specified machine. The
DEFault option sets all resource term names to the default names assigned
when turning on the instrument.
3–8
MACHine Subsystem
RESource
<res_id>
<new_text>
<state_terms>
{<state_terms>|H|J} for state analyzer
{<state_terms>|EDGE{1|2}} for timing analyzer
string of up to 8 alphanumeric characters
{A|B|C|D|E|F|G|I| RANGe1 | RANGe2 | TIMer1 | TIMer2}
Example
OUTPUT XXX;":MACHINE1:RENAME A,’DATA’"
Query
:MACHine{1|2}:RENAME? <res_id>
The REName query returns the current names for specified terms assigned
to the specified analyzer.
Returned Format
[:MACHine{1|2}:RENAME] <res_id>,<new_text><NL>
Example
OUTPUT XXX;":MACHINE1:RENAME? D"
RESource
Command
:MACHine{1|2}:RESource {<res_id>[,<res_id>]...}
The RESource command allows you to assign resource terms A through G
and I, Range 1 and 2, and Timer 1 and 2 to a particular analyzer.
In the timing analyzer only, two additional resource terms are available.
These terms are Edge 1 and 2. These terms are always assigned to the
machine that is configured as the timing analyzer.
In state analyzers that are not configured for high speed, terms H and J are
also available. H and J are not available to timing or high-speed analyzers.
<res_id>
<state_terms>
<state_terms> for high-speed state analyzer or
{<state_terms|H|J} for 100-MHz state analyzer or
{<state_terms>|EDGE{1|2}} for timing analyzer
{A|B|C|D|E|F|G|I|RANGe1| RANGe2 | TIMer1|TIMer2}
3–9
MACHine Subsystem
TYPE
Example
OUTPUT XXX;":MACHINE1:RESOURCE A,C,RANGE1"
Query
:MACHine{1|2}:RESOURCE?
The RESource query returns the current resource terms assigned to the
specified analyzer. If no resource terms are assigned, no <res_id> is returned.
Returned Format
[:MACHine{1|2}:RESOURCE] <res_id>[,<res_id>,...]<NL>
Example
OUTPUT XXX;":MACHINE1:RESOURCE?"
TYPE
Command
:MACHine{1|2}:TYPE <analyzer type>
The TYPE command specifies what type a specified analyzer (machine) will
be. The analyzer types are state or timing. State Compare (COMPare) and
SPA are considered to be state analyzers because they use an external clock,
but need to specified as COMPare or SPA.
The TYPE command also allows you to turn off a particular machine.
Only one timing analyzer can be specified at a time.
<analyzer
type>
Example
{OFF|COMPare|SPA|STATe|TIMing}
OUTPUT XXX;":MACHINE1:TYPE STATE"
3–10
MACHine Subsystem
TYPE
Query
:MACHine{1|2}:TYPE?
The TYPE query returns the current analyzer type for the specified analyzer.
Returned Format
[:MACHine{1|2}:TYPE] <analyzer type><NL>
Example
OUTPUT XXX;":MACHINE1:TYPE?"
3–11
3–12
4
WLISt Subsystem
Introduction
The commands in the WLISt (Waveforms/LISting) subsystem control
the X and O marker placement on the waveforms portion of the
Timing/State mixed mode display. The XSTate and OSTate queries
return what states the X and O markers are on. Because the markers
can only be placed on the timing waveforms, the queries return what
state (state acquisition memory location) the marked pattern is stored
in.
In order to have mixed mode, one machine must be a state analyzer
with time tagging on (use MACHine<N>:STRigger:TAG TIME).
•
•
•
•
•
•
•
•
•
•
•
•
•
DELay
INSert
LINE
MINus
OSTate
OTIMe
OVERlay
PLUS
RANGe
REMove
XOTime
XSTate
XTIMe
4–2
WLISt Subsystem
Figure 4-1
WLISt Subsystem Syntax Diagram
4–3
WLISt Subsystem
WLISt
Table 4-1
WLISt Subsystem Parameter Values
Parameter
Value
delay_value
real number between -2500 s and +2500 s
module_spec
{1|2|3|4|5|6|7|8|9|10} (slot where master card
is installed)
bit_id
integer from 0 to 31
label_name
string of up to 6 alphanumeric characters
line_num_mid_screen
integer from -516096 to +516096 (HP 16554A) or -1040384 to
+1040384 (HP 16555A) or -2080768 to +2080768 (HP 16555D)
waveform
string containing <acquisition_spec>{1|2}
acquisition_spec
{A|B|C|D|E|F|G|H|I|J}
time_value
real number
time_range
real number between 10 ns and 10 ks
WLISt
Selector
:WLISt
The WLISt (Waveforms/LISting) selector is used as a part of a compound
header to access the settings normally found in the Mixed Mode menu.
Because the WLISt command is a root-level command, it will always appear
as the first element of a compound header.
The WLISt subsystem is only available when one or more state analyzers with
time tagging on are specified.
Example
OUTPUT XXX;":WLIST:XTIME 40.0E−6"
4–4
WLISt Subsystem
DELay
DELay
Command
:WLISt:DELay <delay_value>
The DELay command specifies the amount of time between the timing
trigger and the horizontal center of the the timing waveform display. The
allowable values for delay are −2500 s to +2500 s.
<delay_value>
real number between −2500 s and +2500 s
Example
OUTPUT XXX;":WLIST:DELAY 100E−6"
Query
:WLISt:DELay?
The DELay query returns the current time offset (delay) value from the
trigger.
Returned Format
[:WLISt:DELay] <delay_value><NL>
Example
OUTPUT XXX;":WLIST:DELAY?"
4–5
WLISt Subsystem
INSert
INSert
Command
:WLISt:INSert [<module_spec>,]<label_name>
[,{<bit_id>|OVERlay|ALL}]
The INSert command inserts waveforms in the timing waveform display. The
waveforms are added from top to bottom up to a maximum of 96 waveforms.
Once 96 waveforms are present, each time you insert another waveform, it
replaces the last waveform.
Time-correlated waveforms from the oscilloscope and another logic analyzer
module can also be inserted in the logic analyzer’s timing waveforms display.
Oscilloscope waveforms occupy the same display space as three logic
analyzer waveforms. When inserting waveforms from the oscilloscope or
another logic analyzer module, the optional first parameter must be used,
which is the module specifier. 1 through 10 corresponds to modules A
through J. If you do not specify the module, the selected module is assumed.
The second parameter specifies the label name that will be inserted. The
optional third parameter specifies the label bit number, overlay, or all. If a
number is specified, only the waveform for that bit number is added to the
screen.
If you specify OVERlay, all the bits of the label are displayed as a composite
overlaid waveform. If you specify ALL, all the bits are displayed sequentially.
If you do not specify the third parameter, ALL is assumed.
<module_spec>
<label_name>
<bit_id>
Example
{1|2|3|4|5|6|7|8|9|10}
string of up to 6 alphanumeric characters
integer from 0 to 31
OUTPUT XXX;":WLIST:INSERT 3, ’WAVE’,9"
4–6
WLISt Subsystem
LINE
Inserting Oscilloscope Waveforms
Command
:WLISt:INSert <module_spec>,<label_name>
This inserts a waveform from an oscilloscope to the timing waveforms display.
<module_spec>
{1|2|3|4|5|6|7|8|9|10} slot in which master card is installed
<label_name>
string of one alpha and one numeric character, identical to that on the
oscilloscope waveform display.
Example
OUTPUT XXX;":WLIST:INSERT 3, ’C1’"
LINE
Command
:WLISt:LINE <line_num_mid_screen>
The LINE command allows you to scroll the timing analyzer listing vertically.
The command specifies the state line number relative to the trigger. The
analyzer then highlights the specified line at the center of the screen.
<line_num_mid_
screen>
integer from -516096 to +516096 (HP 16554A)
or -1040384 to +1040384 (HP 16555A)
or -2080768 to +2080768 (HP 16555D).
Example
OUTPUT XXX;":WLIST:LINE 0"
4–7
WLISt Subsystem
MINus
Query
:WLISt:LINE?
The LINE query returns the line number for the state currently in the data
listing roll box at center screen.
Returned Format
[:WLISt:LINE] <line_num_mid_screen><NL>
Example
OUTPUT XXX;":WLIST:LINE?"
MINus
Command
:WLISt:MINus <module_spec>,<waveform>,<waveform>
The MINus command inserts time-correlated A−B (A minus B) oscilloscope
waveforms on the screen. The first parameter is the module specifier where
the oscilloscope module resides, where 1 through 10 refers to slots A through
J. The next two parameters specify which waveforms will be subtracted from
each other.
MINus only inserts oscilloscope waveforms. It cannot be used with analyzer
waveforms.
<module_spec>
<waveform>
<acquisition_
spec>
Example
{1|2|3|4|5|6|7|8|9|10}(slot where master card is located)
string containing <acquisition_spec>{1|2}
{A|B|C|D|E|F|G|H|I|J} (slot where acquisition card is located)
OUTPUT XXX; ":WLIST:MINUS 1,’A1’,’A2’"
4–8
WLISt Subsystem
OSTate
OSTate
Query
:WLISt:OSTate?
The OSTate query returns the state where the O Marker is positioned. If data
is not valid, the query returns 2147483647.
Returned Format
<state_num>
Example
[:WLISt:OSTate] <state_num><NL>
integer
OUTPUT XXX;":WLIST:OSTATE?"
OTIMe
Command
:WLISt:OTIMe <time_value>
The OTIMe command positions the O Marker on the timing waveforms in the
mixed mode display. If the data is not valid, the command performs no
action.
<time_value>
Example
real number
OUTPUT XXX;":WLIST:OTIME 40.0E−6"
4–9
WLISt Subsystem
OVERlay
Query
:WLISt:OTIMe?
The OTIMe query returns the O Marker position in time. If data is not valid,
the query returns 9.9E37.
Returned Format
[:WLISt:OTIMe] <time_value><NL>
Example
OUTPUT XXX;":WLIST:OTIME?"
OVERlay
Command
:WLISt:OVERlay <module_number>,<label>
[,<label>]...
The OVERlay command overlays two or more oscilloscope waveforms and
adds the resultant waveform to the current waveform display. The first
parameter of the command syntax specifies which slot contains the
oscilloscope time base card. The next parameters are the labels of the
waveforms that are to be overlaid.
Overlay only inserts oscilloscope waveforms. It cannot be used with analyzer
waveforms.
<module_spec>
<waveform>
<acquisition_
spec>
Example
{1|2|3|4|5|6|7|8|9|10}(slot where master card is located)
string containing <acquisition_spec>{1|2}
{A|B|C|D|E|F|G|H|I|J} (slot where acquisition card is located)
OUTPUT XXX;":WLIST:OVERLAY 3, ’C1’,’B1’"
4–10
WLISt Subsystem
PLUS
PLUS
Command
:WLISt:PLUS <module_spec>,<waveform>,<waveform>
The PLUS command inserts time-correlated A+B oscilloscope waveforms on
the screen. The first parameter specifies which slot is the oscilloscope
module. 1 through 10 refers to slots A through J. The next two parameters
specify which waveforms will be added to each other.
PLUS only inserts oscilloscope waveforms. It cannot be used with analyzer
waveforms.
<module_spec>
<waveform>
<acquisition_
spec>
Example
{1|2|3|4|5|6|7|8|9|10} (slot where master card is located)
string containing <acquisition_spec>{1|2}
{A|B|C|D|E|F|G|H|I|J} (slot where acquisition card is located)
OUTPUT XXX; ":WLIST:PLUS 1,’A1’,’A2’"
4–11
WLISt Subsystem
RANGe
RANGe
Command
:WLISt:RANGe <time_value>
The RANGe command specifies the full-screen time in the timing waveform
menu. It is equivalent to ten times the seconds per division setting on the
display. The allowable values for RANGe are from 10 ns to 10 ks.
<time_range>
real number between 10 ns and 10 ks
Example
OUTPUT XXX;":WLIST:RANGE 100E−9"
Query
:WLISt:RANGe?
The RANGe query returns the current full-screen time.
Returned Format
[:WLISt:RANGe] <time_value><NL>
Example
OUTPUT XXX;":WLIST:RANGE?"
REMove
Command
:WLISt:REMove
The REMove command deletes all waveforms from the display.
Example
OUTPUT XXX;":WLIST:REMOVE"
4–12
WLISt Subsystem
XOTime
XOTime
Query
:WLISt:XOTime?
The XOTime query returns the time from the X marker to the O marker. If
data is not valid, the query returns 9.9E37.
Returned Format
<time_value>
Example
[:WLISt:XOTime] <time_value><NL>
real number
OUTPUT XXX;":WLIST:XOTIME?"
XSTate
Query
:WLISt:XSTate?
The XSTate query returns the state where the X Marker is positioned. If data
is not valid, the query returns 2147483647.
Returned Format
<state_num>
Example
[:WLISt:XSTate] <state_num><NL>
integer
OUTPUT XXX;":WLIST:XSTATE?"
4–13
WLISt Subsystem
XTIMe
XTIMe
Command
:WLISt:XTIMe <time_value>
The XTIMe command positions the X Marker on the timing waveforms in the
mixed mode display. If the data is not valid, the command performs no
action.
<time_value>
real number
Example
OUTPUT XXX;":WLIST:XTIME 40.0E−6"
Query
:WLISt:XTIMe?
The XTIMe query returns the X Marker position in time. If data is not valid,
the query returns 9.9E37.
Returned Format
[:WLISt:XTIMe] <time_value><NL>
Example
OUTPUT XXX;":WLIST:XTIME?"
4–14
5
SFORmat Subsystem
Introduction
The SFORmat subsystem contains the commands available for the
State Format menu in the HP 16554A/HP 16555A/HP 16555D logic
analyzer modules. These commands are:
•
•
•
•
•
•
•
•
•
•
•
•
CLOCk
LABel
MASTer
MODE
MOPQual
MQUal
REMove
SETHold
SLAVe
SOPQual
SQUal
THReshold
5–2
SFORmat Subsystem
Figure 5-1
SFORmat Subsystem Syntax Diagram
5–3
SFORmat Subsystem
Figure 5-1 (continued)
SFORmat Subsystem Syntax Diagram (continued)
5–4
SFORmat Subsystem
Table 5-1
SFORmat Subsystem Parameter Values
Parameter
Value
<N>
an integer from 1 to 12
label_name
string of up to 6 alphanumeric characters
polarity
{POSitive | NEGative}
clock_bits
format (integer from 0 to 65535) for a clock (clocks are assigned
in decreasing order)
upper_bits
format (integer from 0 to 65535) for a pod (pods are assigned in
decreasing order)
lower_bits
format (integer from 0 to 65535) for a pod (pods are assigned in
decreasing order)
clock_id
{J | K | L | M}
clock_spec
{OFF | RISing | FALLing | BOTH}
clock_pair_id
{1 | 2}
qual_operation
{AND|OR}
qual_num
{1 | 2 | 3 | 4}
qual_level
{OFF | LOW | HIGH}
pod_num
an integer from 1 to 12
set_hold_value
{0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9}
value
voltage (real number) -6.00 to +6.00
5–5
SFORmat Subsystem
SFORmat
SFORmat
Selector
:MACHine{1|2}:SFORmat
The SFORmat (State Format) selector is used as a part of a compound
header to access the settings in the State Format menu. It always follows the
MACHine selector because it selects a branch directly below the MACHine
level in the command tree.
Example
OUTPUT XXX;":MACHINE2:SFORMAT:MASTER J, RISING"
CLOCk
Command
:MACHine{1|2}:SFORmat:CLOCk<N> <clock_mode>
The CLOCk command selects the clocking mode for a given pod when the
pod is assigned to the state analyzer. When the MASTer option is specified,
the pod will sample all channels on the master clock. When the SLAVe option
is specified, the pod will sample all channels on the slave clock. When the
DEMultiplex option is specified, only one pod of a pod pair can acquire data.
The bits of the selected pod will be clocked by the demultiplex master for
labels with bits assigned under the Master pod. The same bits will be clocked
by the demultiplex slave for labels with bits assigned under the Slave pod.
The master clock always follows the slave clock when both are used.
<N>
<clock_mode>
Example
an integer from 1 to 12
{MASTer | SLAVe | DEMultiplex}
OUTPUT XXX;":MACHINE1:SFORMAT:CLOCK2 MASTER"
5–6
SFORmat Subsystem
LABel
Query
:MACHine{1|2}:SFORmat:CLOCk<N>?
The CLOCk query returns the current clocking mode for a given pod.
Returned Format
[:MACHine{1|2}:SFORmat:CLOCK<N>] <clock_mode><NL>
Example
OUTPUT XXX; ":MACHINE1:SFORMAT:CLOCK2?"
LABel
Command
:MACHine{1|2}:SFORmat:LABel <name>[,<polarity>,
<clock_bits>, <upper_bits>,<lower_bits>
[,<upper_bits>,<lower_bits>]...]
The LABel command allows you to specify polarity and assign channels to
new or existing labels. If the specified label name does not match an existing
label name, a new label will be created.
The order of the pod-specification parameters is significant. The first one
listed will match the highest-numbered pod assigned to the machine you’re
using. Each pod specification after that is assigned to the next highestnumbered pod. This way the specifications match the left-to-right
descending order of the pods you see on the Format display. Not including
enough pod specifications results in the lowest numbered pod(s) being
assigned a value of zero (all channels excluded). If you include more pod
specifications than there are pods for that machine, the extra ones will be
ignored. However, an error is reported any time more than 22 pod
specifications are listed.
The polarity can be specified at any point after the label name.
Because pods contain 16 channels, the format value for a pod must be
between 0 and 65535 (216−1). When giving the pod assignment in binary,
each bit will correspond to a single channel. A "1" in a bit position means the
associated channel in that pod is assigned to the label. A "0" in a bit position
means the associated channel in that pod is excluded from the label. Leading
zeroes may be omitted. For example, assigning #B1111001100 is equivalent
to entering "......****..**.." through the touchscreen.
A label can not have a total of more than 32 channels assigned to it.
5–7
SFORmat Subsystem
LABel
<name>
<polarity>
string of up to 6 alphanumeric characters
{POSitive | NEGative}
<clock_bits>
format (integer from 0 to 65535) for a clock (clocks are assigned in
decreasing order)
<upper_bits>
<lower_bits>
format (integer from 0 to 65535) for a pod (pods are assigned in decreasing
order)
Example
510 OUTPUT XXX;":MACHINE2:SFORMAT:LABEL ’STAT’, POSITIVE, 0,127,40312"
520 OUTPUT XXX;":MACHINE2:SFORMAT:LABEL ’SIG 1’, #B11,#B0000000011111111,
#B0000000000000000 "
Query
:MACHine{1|2}:SFORmat:LABel? <name>
The LABel query returns the current specification for the selected (by name)
label. If the label does not exist, nothing is returned. The polarity is always
returned as the first parameter. Numbers are always returned in decimal
format. Label names are case-sensitive.
Returned Format
[:MACHine{1|2}:SFORmat:LABel] <name>,<polarity>
[, <assignment>]...<NL>
Example
OUTPUT XXX;":MACHINE2:SFORMAT:LABEL? ’DATA’"
5–8
SFORmat Subsystem
MASTer
MASTer
Command
:MACHine{1|2}:SFORmat:MASTer <clock_id>,
<clock_spec>
The MASTer clock command allows you to specify a master clock for a given
machine. The master clock is used in all clocking modes (Master, Slave, and
Demultiplexed). Each command deals with only one clock (J,K,L,M);
therefore, a complete clock specification requires four commands, one for
each clock. Edge specifications (RISing, FALLing, or BOTH) are ORed.
At least one clock edge must be specified.
<clock_id>
<clock_spec>
{J|K|L|M}
{OFF|RISing|FALLing|BOTH}
Example
OUTPUT XXX;":MACHINE2:SFORMAT:MASTER J, RISING"
Query
:MACHine{1|2}:SFORmat:MASTer? <clock_id>
The MASTer query returns the clock specification for the specified clock.
Returned Format
[:MACHine{1|2}:SFORmat:MASTer] <clock_id>,<clock_spec><NL>
Example
OUTPUT XXX;":MACHINE2:SFORMAT:MASTER? <clock_id>"
5–9
SFORmat Subsystem
MODE
MODE
Command
:MACHine{1|2}:SFORmat:MODE {NORMal|FAST}
The MODE command places an HP 16555 state analyzer in either 100 MHz
(normal) or 110 MHz (fast) mode. The HP 16554A has only one state
analysis mode, 70 MHz. In 110-MHz mode, the h and j resource terms are not
available.
Example
OUTPUT XXX;":MACHINE2:SFORMAT:MODE NORM"
Query
:MACHine{1|2}:SFORmat:MODE?
The MODE query is valid for both the HP 16554 and HP 16555.
Returned Format
[:MACHine{1|2}:SFORmat:MODE] {NORMal|FAST}<NL>
Example
OUTPUT XXX;":MACHINE2:SFORMAT:MODE?"
5–10
SFORmat Subsystem
MOPQual
MOPQual
Command
:MACHine{1|2}:SFORmat:MOPQual <clock_pair_id>,
<qual_operation>
The MOPQual (master operation qualifier) command allows you to specify
either the AND or the OR operation between master clock qualifier pair 1/2,
or between master clock qualifier pair 3/4. For example, you can specify a
master clock operation qualifier 1 AND 2.
<clock_pair_
id>
<qual_
operation>
{1|2} where 2 indicates qualifier pair 3/4.
{AND|OR}
Example
OUTPUT XXX;":MACHINE1:SFORMAT:MOPQUAL 1,AND"
Query
:MACHine{1|2}:SFORmat:MOPQual? <clock_pair_id>
The MOPQual query returns the operation qualifier specified for the master
clock.
Returned Format
[:MACHine{1|2}:SFORmat:MOPQUal <clock_pair_id>]
<qual_operation><NL>
Example
OUTPUT XXX;":MACHine1:SFORMAT:MOPQUAL? 1"
5–11
SFORmat Subsystem
MQUal
MQUal
Command
:MACHine{1|2}:SFORmat:MQUal <qual_num>,
<clock_id>,<qual_level>
The MQUal (master qualifier) command allows you to specify the level
qualifier for the master clock.
<qual_num>
{1|2|3|4}
<clock_id>
{J|K|L|M}
<qual_level>
{OFF|LOW|HIGH}
Example
OUTPUT XXX;":MACHINE2:SFORMAT:MQUAL 1,J,LOW"
Query
:MACHine{1|2}:SFORmat:MQUal? <qual_num>
The MQUal query returns the qualifier specified for the master clock.
Returned Format
[:MACHine{1|2}:SFORmat:MQUal] <qual_level><NL>
Example
OUTPUT XXX;":MACHINE2:SFORMAT:MQUAL? 1"
5–12
SFORmat Subsystem
REMove
REMove
Command
:MACHine{1|2}:SFORmat:REMove {<name>|ALL}
The REMove command allows you to delete all labels or any one label for a
given machine.
<name>
Example
string of up to 6 alphanumeric characters
OUTPUT XXX;":MACHINE1:SFORMAT:REMOVE ’A’"
OUTPUT XXX;":MACHINE2:SFORMAT:REMOVE ALL"
SETHold
Command
:MACHine{1|2}:SFORmat:SETHold
<pod_num>,<set_hold_value>
The SETHold (setup/hold) command allows you to set the setup and hold
specification for the state analyzer.
Even though the command requires integers to specify the setup and hold,
the query returns the current settings in a string. For example, if you send
the integer 0 for the setup and hold value, the query will return 3.5/0.0 ns as
an ASCII string when you have one clock and one edge specified.
5–13
SFORmat Subsystem
SETHold
<pod_num>
<set_hold_
value>
Table 5-2
an integer from 1 to 12
integer {0|1|2|3|4|5|6|7|8|9} representing the following setup and
hold values:
Setup and hold values
For one clock and one edge
For one clock and both edges
Multiple Clocks
0 = 3.5/0.0 ns
0 = 4.0/0.0
0 = 4.5/0.0
1 = 3.0/0.5 ns
1 = 3.5/0.5
1 = 4.0/0.5
2 = 2.5/1.0 ns
2 = 3.0/1.0
2 = 3.5/1.0
3 = 2.0/1.5 ns
3 = 2.5/1.5
3 = 3.0/1.5
4 = 1.5/2.0 ns
4 = 2.0/2.0
4 = 2.5/2.0
5 = 1.0/2.5 ns
5 = 1.5/2.5
5 = 2.0/2.5
6 = 0.5/3.0 ns
6 = 1.0/3.0
6 = 1.5/3.0
7 = 0.0/3.5 ns
7 = 0.5/3.5
7 = 1.0/3.5
N/A
8 = 0.0/4.0
8 = 0.5/4.0
N/A
N/A
9 = 0.0/4.5
Example
OUTPUT XXX;":MACHINE2:SFORMAT:SETHOLD 1,2"
Query
:MACHine{1|2}:SFORMAT:SETHOLD? <pod_num>
The SETHold query returns the current setup and hold settings.
Returned Format
[:MACHine{1|2}:SFORmat:SETHold <pod_num>]
<setup_and_hold_string><NL>
Example
OUTPUT XXX;":MACHINE2:SFORMAT:SETHOLD? 3"
5–14
SFORmat Subsystem
SLAVe
SLAVe
Command
:MACHine{1|2}:SFORmat:SLAVe <clock_id>,
<clock_spec>
The SLAVe clock command allows you to specify a slave clock for a given
machine. The slave clock is only used in the Slave and Demultiplexed
clocking modes. Each command deals with only one clock (J,K,L,M);
therefore, a complete clock specification requires four commands, one for
each clock. Edge specifications (RISing, FALLing, or BOTH) are ORed.
When slave clock is being used at least one edge must be specified.
<clock_id>
<clock_spec>
{J|K|L|M}
{OFF|RISing|FALLing|BOTH}
Example
OUTPUT XXX;":MACHINE2:SFORMAT:SLAVE J, RISING"
Query
:MACHine{1|2}:SFORmat:SLAVe?<clock_id>
The SLAVe query returns the clock specification for the specified clock.
Returned Format
[:MACHine{1|2}:SFORmat:SLAVe] <clock_id>,<clock_spec><NL>
Example
OUTPUT XXX;":MACHINE2:SFORMAT:SLAVE? K"
5–15
SFORmat Subsystem
SOPQual
SOPQual
Command
:MACHine{1|2}:SFORmat:SOPQual <clock_pair_id>,
<qual_operation>
The SOPQual (slave operation qualifier) command allows you to specify
either the AND or the OR operation between slave clock qualifier pair 1/2, or
between slave clock qualifier pair 3/4. For example you can specify a slave
clock operation qualifier 1 AND 2.
<clock_pair_
id>
<qual_
operation>
{1|2}where 2 specifies qualifier pair 3/4
{AND|OR}
Example
OUTPUT XXX;":MACHine2:SFORMAT:SOPQUAL 1,AND"
Query
:MACHine{1|2}:SFORmat:SOPQual? <clock_pair_id>
The SOPQual query returns the operation qualifier specified for the slave
clock.
Returned Format
[:MACHine{1|2}:SFORmat:SOPQual <clock_pair_id>]
<qual_operation><NL>
Example
OUTPUT XXX;":MACHiNE2:SFORMAT:SOPQUAL? 1"
5–16
SFORmat Subsystem
SQUal
SQUal
Command
:MACHine{1|2}:SFORmat:SQUal
<qual_num>,<clock_id>,<qual_level>
The SQUal (slave qualifier) command allows you to specify the level qualifier
for the slave clock.
<qual_num>
{1|2|3|4}
<clock_id>
{J|K|L|M}
<qual_level>
{OFF|LOW|HIGH}
Example
OUTPUT XXX;":MACHINE2:SFORMAT:SQUAL 1,J,LOW"
Query
:MACHine{1|2}:SFORmat:SQUal?<qual_num>
The SQUal query returns the qualifier specified for the slave clock.
Returned Format
[:MACHine{1|2}:SFORmat:SQUal] <clock_id>,<qual_level><NL>
Example
OUTPUT XXX;":MACHINE2:SFORMAT:SQUAL? 1"
5–17
SFORmat Subsystem
THReshold
THReshold
Command
:MACHine{1|2}:SFORmat:THReshold<N>
{TTL|ECL|<voltage>}
The THReshold command allows you to set the voltage threshold for a given
pod to ECL, TTL, or a specific voltage from −6.00 V to +6.00 V in 0.05 volt
increments.
<N>
<voltage>
an integer from 1 to 12 indicating pod number
real number between −6.00 to +6.00
TTL
default value of +1.6 V
ECL
default value of −1.3 V
Example
OUTPUT XXX;":MACHINE1:SFORMAT:THRESHOLD1 4.0"
Query
:MACHine{1|2}:SFORmat:THReshold<N>?
The THReshold query returns the current threshold for a given pod.
Returned Format
[:MACHine{1|2}:SFORmat:THReshold<N>] <value><NL>
Example
OUTPUT XXX;":MACHINE1:SFORMAT:THRESHOLD4?"
5–18
6
STRigger (STRace) Subsystem
Introduction
The STRigger subsystem contains the commands available for the
State Trigger menu in the HP 16554A/HP 16555A/HP 16555D logic
analyzer modules. The State Trigger subsystem will also accept the
STRace selector as used in previous HP 16500-Series logic analyzer
modules to eliminate the need to rewrite programs containing STRace
as the selector keyword. The STRigger subsystem commands are:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
ACQuisition
BRANch
CLEar
FIND
MLENgth
RANGe
SEQuence
STORe
TAG
TAKenbranch
TCONtrol
TERM
TIMER
TPOSition
6–2
STRigger (STRace) Subsystem
Figure 6-1
STRigger Subsystem Syntax Diagram
6–3
STRigger (STRace) Subsystem
Figure 6-1 (continued)
STRigger Subsystem Syntax Diagram (continued)
6–4
STRigger (STRace) Subsystem
Table 6-1
STRigger Subsystem Parameter Values
Parameter
Value
branch_qualifier
<qualifier>
qualifier
see "Qualifier" on page 6–6
to_lev_num
integer from 1 to last level
proceed_qualifier
<qualifier>
occurrence
number from 1 to 1048575
label_name
string of up to 6 alphanumeric characters
start_pattern
stop_pattern
"{#B{0|1}...|
#Q{0|1|2|3|4|5|6|7}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F}...|
{0|1|2|3|4|5|6|7|8|9}...} "
num_of_levels
integer from 2 to 12
lev_of_trig
integer from 1 to (number of existing sequence levels - 1)
store_qualifier
<qualifier>
state_tag_qualifier
<qualifier>
timer_num
{1|2}
timer_value
400 ns to 500 seconds
term_id
{A|B|C|D|E|F|G|H|I|J} (H and J not available in
110 MHz mode)
pattern
"{#B{0|1|X}...|
#Q{0|1|2|3|4|5|6|7|X}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X}...|
{0|1|2|3|4|5|6|7|8|9}...}"
post_value
integer from 0 to 100 representing percentage
memory_length
{4096 | 8192 | 16384 | 32768 | 65536 |
131072 | 262144 |
516096 (HP 16554A only)
524288 | 1040384 (HP 16555A only)
524288 | 1048576 | 2080768 (HP 16555D
only)}
6–5
STRigger (STRace) Subsystem
Qualifier
Qualifier
The qualifier for the state trigger subsystem can be terms A through J, Timer
1 and 2, and Range 1 and 2. In addition, qualifiers can be the NOT boolean
function of terms, timers, and ranges. The qualifier can also be an expression
or combination of expressions as shown below and figure 6-2, "Complex
Qualifier," on page 6-10.
The following parameters show how qualifiers are specified in all commands
of the STRigger subsystem that use <qualifier>.
<qualifier>
{ "ANYSTATE" | "NOSTATE" | "<expression>" }
<expression>
{<expression1a>|<expression1b>|<expression1a> OR
<expression1b>|<expression1a> AND <expression1b>}
<expression1a>
{<expression1a_term>|(<expression1a_term>[ OR
<expression1a_term>]* )|(<expression1a_term>[ AND
<expression1a_term>]* )}
<expression1a_
term>
{ <expression2a>|<expression2b>|<expression2c>|<expression2d>}
<expression1b>
{<expression1b_term>|( <expression1b_term>[ OR
<expression1b_term>]* )|(<expression1b_term>[ AND
<expression1b_term>]* )}
<expression1b_
term>
{<expression2e>|<expression2f>|<expression2g>|<expression2h>}
<expression2a>
{<term3a>|<term3b>|(<term3a> <boolean_op> <term3b>)}
<expression2b>
{<term3c>|<range3a>|(<term3c> <boolean_op> <range3a>)}
<expression2c>
{<term3d>}
<expression2d>
{<term3e>|<timer3a>|(<term3e> <boolean_op> <timer3a>)}
<expression2e>
{<term3f>|<term3g>|(<term3f> <boolean_op> <term3g>)}
<expression2f>
{<term3h>|<range3b>|(<term3h> <boolean_op> <range3b>)}
<expression2g>
{<term3i>}
<expression2h>
{<term3j>|<timer3b>|(<term3j> <boolean_op> <timer3b>)}
<boolean_op>
{AND | NAND | OR | NOR | XOR | NXOR}
6–6
STRigger (STRace) Subsystem
Qualifier
<term3a>
{ A | NOTA }
<term3b>
{ B | NOTB }
<term3c>
{ C | NOTC }
<term3d>
{ D | NOTD }
<term3e>
{ E | NOTE }
<term3f>
{ F | NOTF }
<term3g>
{ G | NOTG }
<term3h>
{ H | NOTH }
<term3i>
{ I | NOTI }
<term3j>
{ J | NOTJ }
<range3a>
{ IN_RANGE1 | OUT_RANGE1 }
<range3b>
{ IN_RANGE2 | OUT_RANGE2 }
<timer3a>
{ TIMER1< | TIMER1>}
<timer3b>
{ TIMER2< | TIMER2>}
H, NOTH, J, and NOTJ are not available in 110-MHz mode.
Qualifier Rules
The following rules apply to qualifiers:
•
•
•
•
Examples
Qualifiers are quoted strings and, therefore, need quotes.
Expressions are evaluated from left to right.
Parentheses are used to change the order evaluation and are optional.
An expression must map into the combination logic presented in the
combination pop-up menu (see figure 6-2 on page 6-10).
’A’
’( A OR B )’
’(( A OR B ) AND
’(( A OR B ) AND
’(( A OR B ) AND
’IN_RANGE1 AND (
C
C
(
A
)’
AND IN_RANGE2 )’
C AND IN_RANGE1 ))’
OR B ) AND C’
6–7
STRigger (STRace) Subsystem
STRigger (STRace)
STRigger (STRace)
Selector
:MACHine{1|2}:STRigger
The STRigger (STRace) (State Trigger) selector is used as a part of a
compound header to access the settings found in the State Trace menu. It
always follows the MACHine selector because it selects a branch directly
below the MACHine level in the command tree.
Example
OUTPUT XXX;":MACHINE1:STRIGGER:TAG TIME"
ACQuisition
Command
:MACHine{1|2}:STRigger:ACQuisition
{AUTOmatic|MANual}
The ACQuisition command allows you to specify the acquisition mode for the
State analyzer.
Example
OUTPUT XXX;":MACHINE1:STRIGGER:ACQUISITION AUTOMATIC"
Query
:MACHine{1|2}:STRigger:ACQuisition?
The ACQuisition query returns the current acquisition mode.
Returned Format
[:MACHine{1|2}:STRigger:ACQuisition] {AUTOmatic|MANual}<NL>
Example
OUTPUT XXX;":MACHINE1:STRIGGER:ACQUISITION?"
6–8
STRigger (STRace) Subsystem
BRANch
BRANch
Command
:MACHine{1|2}:STRigger:BRANch<N>
<branch_qualifier>,<to_level_number>
The BRANch command defines the branch qualifier for a given sequence
level. When this branch qualifier is matched, it will cause the sequencer
to jump to the specified sequence level. The branch qualifier functions like
the "else on" branch of a sequence level.
The terms used by the branch qualifier (A through J, except in 110-MHz
mode) are defined by the TERM command. The meaning of IN_RANGE and
OUT_RANGE is determined by the RANGE command.
Within the limitations shown by the syntax definitions, complex expressions
may be formed using the AND and OR operators. Expressions are limited to
what you could manually enter through the State Trigger menu. Regarding
parentheses, the syntax definitions on the next page show only the required
ones. Additional parentheses are allowed as long as the meaning of the
expression is not changed. Figure 6-2 shows a complex expression as seen in
the State Trigger menu.
Example
The following statements are all correct and have the same meaning. Notice
that the conventional rules for precedence are not followed. The expressions
are evaluated from left to right.
OUTPUT XXX;":MACHINE1:STRIGGER:BRANCH1 ’C AND D OR F OR G’, 1"
OUTPUT XXX;":MACHINE1:STRIGGER:BRANCH1 ’((C AND D) OR (F OR G))’, 1"
OUTPUT XXX;":MACHINE1:STRIGGER:BRANCH1 ’F OR (C AND D) OR G’,1"
<N>
integer from 1 to <number_of_levels>
<to_level_
number>
integer from 1 to <number_of_levels>
<number_of_
levels>
<branch_
qualifier>
integer from 2 to the number of existing sequence levels (maximum 12)
<qualifier> see "Qualifier" on page 6-6
6–9
STRigger (STRace) Subsystem
BRANch
Example
OUTPUT XXX;":MACHINE1:STRIGGER:BRANCH1 ’ANYSTATE’, 3"
OUTPUT XXX;":MACHINE1:STRIGGER:BRANCH2 ’A’, 7"
OUTPUT XXX;":MACHINE1:STRIGGER:BRANCH3 ’((A OR B) OR NOTG)’, 1"
Query
:MACHine{1|2}:STRigger:BRANch<N>?
The BRANch query returns the current branch qualifier specification for a
given sequence level.
Returned Format
[:MACHine{1|2}:STRigger:BRANch<N>]
<branch_qualifier>,<to_level_num><NL>
Example
OUTPUT XXX;":MACHINE1:STRIGGER:BRANCH3?"
Figure 6-2
Complex qualifier
Figure 6-2 is a front panel representation of the complex qualifier (a Or b)
Or (f Or g).
6–10
STRigger (STRace) Subsystem
CLEar
Example
The following example would be used to specify the complex qualifier shown
in figure 6-2.
OUTPUT XXX;":MACHINE1:STRIGGER:BRANCH1 ’((A OR B) AND (F OR
G))’, 2"
Terms A through E, RANGE 1, and TIMER 1 must be grouped together
and terms F through J, RANGE 2, and TIMER 2 must be grouped together.
In the first level, terms from one group may not be mixed with terms from the
other. For example, the expression ((A OR IN_RANGE2) AND (C OR G)) is
not allowed because the term C cannot be specified in the F, G, and I group.
In the first level, the operators you can use are AND, NAND, OR, NOR,
XOR, NXOR. Either AND or OR may be used at the second level to join the two
groups together. It is acceptable for a group to consist of a single term.
Thus, an expression like (B AND G) is legal, since the two operands are both
simple terms from separate groups.
CLEar
Command
:MACHine{1|2}:STRigger:CLEar
{All|SEQuence|RESource}
The CLEar command allows you to clear all settings in the State Trigger
menu, clear only the Sequence levels, or clear only the resource term
patterns. Cleared settings are replaced with the defaults.
Example
OUTPUT XXX;":MACHINE1:STRIGGER:CLEAR RESOURCE"
6–11
STRigger (STRace) Subsystem
FIND
FIND
Command
:MACHine{1|2}:STRigger:FIND<N>
<proceed_qualifier>,<occurrence>
The FIND command defines the proceed qualifier for a given sequence level.
The qualifier tells the state analyzer when to proceed to the next sequence
level. When this proceed qualifier is matched the specified number of times,
the sequencer will proceed to the next sequence level. In the sequence level
where the trigger is specified, the FIND command specifies the trigger
qualifier (see SEQuence command).
The terms A through J are defined by the TERM command. The meaning of
IN_RANGE and OUT_RANGE is determined by the RANGe command.
Expressions are limited to what you could manually enter through the State
Trigger menu. Regarding parentheses, the syntax definitions below show
only the required ones. Additional parentheses are allowed as long as the
meaning of the expression is not changed. See page 6-9 for a detailed
example.
<N>
<occurrence>
<proceed_
qualifier>
Example
integer from 1 to (number of existing sequence levels −1)
integer from 1 to 1048575
<qualifier> see "Qualifier" on page 6-6
OUTPUT XXX;":MACHINE1:STRIGGER:FIND1 ’ANYSTATE’, 1"
OUTPUT XXX;":MACHINE1:STRIGGER:FIND3 ’((NOTA AND NOTB) OR
G)’, 1"
6–12
STRigger (STRace) Subsystem
MLENgth
Query
:MACHine{1|2}:STRigger:FIND4?
The FIND query returns the current proceed qualifier specification for a
given sequence level.
Returned Format
[:MACHine{1|2}:STRigger:FIND<N>]
<proceed_qualifier>,<occurrence><NL>
Example
OUTPUT XXX;":MACHINE1:STRIGGER:FIND<N>?"
MLENgth
Command
:MACHine{1|2}:STRigger:MLENgth <memory_length>
The MLENgth command allows you to specify the analyzer memory depth.
Valid memory depths range from 4096 states (or samples) through the
maximum system memory depth minus 8192 states (HP 16554A or
HP 16555A) or minus 16384 states (HP 16555D). Memory depth is affected
by acquisition mode. If the <memory_length> value sent with the command
is not a legal value, the closest legal setting will be used.
<memory_length>
{4096 | 8192 | 16384 | 32768 | 65536 | 131072 | 262144
| 516096 (HP 16554A only)
| 524288 | 1040384 (HP 16555A only)
| 524288 | 1048576 | 2080768 (HP 16555D only)}
Example
OUTPUT XXX;":MACHINE1:STRIGGER:MLENGTH 262144"
Query
:MACHine{1|2}:STRigger:MLENgth?
The MLENgth query returns the current analyzer memory depth selection.
Returned Format
[:MACHine{1|2}:STRigger:MLENgth] <memory_length><NL>
Example
OUTPUT XXX;":MACHINE1:STRIGGER:MLENGTH?"
6–13
STRigger (STRace) Subsystem
RANGe
RANGe
Command
:MACHine{1|2}:STRigger:RANGe<N> <label_name>,
<start_pattern>,<stop_pattern>
The RANGe command allows you to specify a range recognizer term for the
specified machine. Since a range can only be defined across one label and
since a label must contain 32 or fewer bits, the value of the start pattern or
stop pattern will be between (232)−1 and 0.
When these values are expressed in binary, they represent the bit values for
the label at one of the range recognizers’ end points. Don’t cares are not
allowed in the end point pattern specifications.
<label_name>
<start_pattern>
<stop_pattern>
<N>
Example
string of up to 6 alphanumeric characters
"{#B{0|1} . . . |
#Q{0|1|2|3|4|5|6|7} . . . |
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F} . . . |
{0|1|2|3|4|5|6|7|8|9} . . . }"
{1 | 2}
OUTPUT XXX;":MACHINE1:STRIGGER:RANGE1 ’DATA’, ’127’, ’255’ "
OUTPUT XXX;":MACHINE1:STRIGGER:RANGE2 ’ABC’, ’#B00001111’,
’#HCF’ "
6–14
STRigger (STRace) Subsystem
SEQuence
Query
:MACHine{1|2}:STRigger:RANGe<N>?
The RANGe query returns the range recognizer end point specifications for
the range.
Returned Format
[:MACHine{1|2}:STRigger:RANGe<N>]
<label_name>,<start_pattern>,<stop_pattern><NL>
Example
OUTPUT XXX;":MACHINE1:STRIGGER:RANGE1?"
SEQuence
Command
:MACHine{1|2}:STRigger:SEQuence <num_levels>,
<trig_level>
The SEQuence command redefines the state analyzer trigger sequence.
First, it deletes the current sequence. Then it inserts the number of levels
specified, with default settings, and assigns the trigger to be at a specified
sequence level. The number of levels may be between 2 and 12.
<num_levels>
integer from 2 to 12
<trig_level>
integer from 1 to (number of existing sequence levels − 1)
Example
OUTPUT XXX;":MACHINE1:STRIGGER:SEQUENCE 4,3"
Query
:MACHine{1|2}:STRigger:SEQuence?
The SEQuence query returns the current sequence specification.
Returned Format
[:MACHine{1|2}:STRigger:SEQuence] <num_levels>,
<trig_level><NL>
Example
OUTPUT XXX;":MACHINE1:STRIGGER:SEQUENCE?"
6–15
STRigger (STRace) Subsystem
STORe
STORe
Command
:MACHine{1|2}:STRigger:STORe<N> <store_qualifier>
The STORe command defines the store qualifier for a given sequence level.
Any data matching the STORe qualifier will be stored in memory as part of
the current trace data. The qualifier may be a single term or a complex
expression. The terms A through J are defined by the TERM command. The
meaning of IN_RANGE1 and 2 and OUT_RANGE1 and 2 is determined by the
RANGe command.
Expressions are limited to what you could manually enter through the State
Trigger menu. Regarding parentheses, the syntax definitions below show
only the required ones. Additional parentheses are allowed as long as the
meaning of the expression is not changed.
A detailed example is provided starting on page 6-10.
<N>
<store_
qualifier>
an integer from 1 to the number of existing sequence levels (maximum 12)
<qualifier> see "Qualifier" on page 6-6
Example
OUTPUT XXX;":MACHINE1:STRIGGER:STORE1 ’ANYSTATE’"
OUTPUT XXX;":MACHINE1:STRIGGER:STORE2 ’OUT_RANGE1’"
OUTPUT XXX;":MACHINE1:STRIGGER:STORE3 ’(NOTC AND NOTD AND
NOTI)’"
Query
:MACHine{1|2}:STRigger:STORe<N>?
The STORe query returns the current store qualifier specification for a given
sequence level <N>.
Returned Format
[:MACHine{1|2}:STRigger:STORe<N>] <store_qualifier><NL>
Example
OUTPUT XXX;":MACHINE1:STRIGGER:STORE4?"
6–16
STRigger (STRace) Subsystem
TAG
TAG
Command
:MACHine{1|2}:STRigger:TAG
{OFF|TIME|<state_tag_qualifier>}
The TAG command selects the type of count tagging (state or time) to be
performed during data acquisition. State tagging is indicated when the
parameter is the state tag qualifier, which will be counted in the qualified
state mode. The qualifier may be a single term or a complex expression. The
terms A through J are defined by the TERM command. The terms
IN_RANGE1 and 2 and OUT_RANGE1 and 2 are defined by the RANGe
command.
Expressions are limited to what you could manually enter through the State
Trigger menu. Regarding parentheses, the syntax definitions below show
only the required ones. Additional parentheses are allowed as long as the
meaning of the expression is not changed. A detailed example is provided
starting on page 6-10.
<state_tag_
<qualifier> see "Qualifier" on page 6-6
qualifier>
Example
OUTPUT
OUTPUT
OUTPUT
OUTPUT
Query
:MACHine{1|2} :STRigger:TAG?
XXX;":MACHINE1:STRIGGER:TAG
XXX;":MACHINE1:STRIGGER:TAG
XXX;":MACHINE1:STRIGGER:TAG
XXX;":MACHINE1:STRIGGER:TAG
OFF"
TIME"
’(IN_RANGE OR NOTF)’"
’((IN_RANGE OR A) AND E)’"
The TAG query returns the current count tag specification.
Returned Format
[:MACHine{1|2}:STRigger:TAG]
{OFF|TIME|<state_tag_qualifier>}<NL>
Example
OUTPUT XXX;":MACHINE1:STRIGGER:TAG?"
6–17
STRigger (STRace) Subsystem
TAKenbranch
TAKenbranch
Command
:MACHine{1|2}:STRigger:TAKenbranch {STORe|NOSTore}
The TAKenbranch command allows you to specify whether the state causing
the branch is stored or not stored for the specified machine. The states
causing the branch are defined by the BRANch and FIND commands.
Example
OUTPUT XXX;":MACHINE2:STRIGGER:TAKENBRANCH STORE"
Query
:MACHine{1|2}:STRigger:TAKenbranch?
The TAKenbranch query returns the current setting.
Returned Format
[:MACHine{1|2}:STRigger:TAKenbranch] {STORe|NOSTore}<NL>
Example
OUTPUT XXX;":MACHINE2:STRIGGER:TAKENBRANCH?
6–18
STRigger (STRace) Subsystem
TCONtrol
TCONtrol
Command
:MACHine{1|2}:STRigger:TCONtrol<N> <timer_num>,
{OFF|STARt|PAUSe|CONTinue}
The TCONtrol (timer control) command allows you to turn off, start, pause,
or continue the timer for the specified level. The time value of the timer is
defined by the TIMER command. There are two timers and they are available
for either machine but not both machines simultaneously.
<N>
<timer_num>
integer from 1 to the number of existing sequence levels (maximum 12)
{1|2}
Example
OUTPUT XXX;":MACHINE2:STRIGGER:TCONTROL6 1, PAUSE"
Query
:MACHine{1|2}:STRigger:TCONTROL<N>? <timer_num>
The TCONtrol query returns the current TCONtrol setting of the specified
level.
Returned Format
[:MACHine{1|2}:STRigger:TCONTROL<N> <timer_num>]
{OFF|STARt|PAUSe|CONTinue}<NL>
Example
OUTPUT XXX;":MACHINE2:STRIGGER:TCONTROL6? 1"
6–19
STRigger (STRace) Subsystem
TERM
TERM
Command
:MACHine{1|2}:STRigger:TERM <term_id>,
<label_name>,<pattern>
The TERM command allows you to specify a pattern recognizer term in the
specified machine. Each command deals with only one label in the given
term; therefore, a complete specification could require several commands.
Since a label can contain 32 or fewer bits, the range of the pattern value will
be between 232 − 1 and 0. When the value of a pattern is expressed in binary,
it represents the bit values for the label inside the pattern recognizer term.
Because the pattern parameter may contain don’t cares and be represented
in several bases, it is handled as a string of characters rather than a number.
Eight of the 10 terms (A through G and I) are always available for either
machine but not both simultaneously. Terms H and J are not available unless
the machine is configured as a state analyzer running in NORMal mode.
If you send the TERM command to a machine with a term that has not been
assigned to that machine, an error message "Legal command but settings
conflict" is returned.
<term_id>
<label_name>
<pattern>
Example
{A|B|C|D|E|F|G|H|I|J}
string of up to 6 alphanumeric characters
"{#B{0|1|X} . . . |
#Q{0|1|2|3|4|5|6|7|X} . . . |
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X} . . . |
{0|1|2|3|4|5|6|7|8|9} . . . }"
OUTPUT XXX;":MACHINE1:STRIGGER:TERM A,’DATA’,’255’ "
OUTPUT XXX;":MACHINE1:STRIGGER:TERM B,’ABC’,’#BXXXX1101’ "
6–20
STRigger (STRace) Subsystem
TIMER
Query
:MACHine{1|2}:STRigger:TERM? <term_id>,
<label_name>
The TERM query returns the specification of the term specified by term
identification and label name.
Returned Format
[:MACHine{1|2}:STRAce:TERM]
<term_id>,<label_name>,<pattern><NL>
Example
OUTPUT XXX;":MACHINE1:STRIGGER:TERM? B,’DATA’ "
TIMER
Command
:MACHine{1|2}:STRigger:TIMER{1|2} <time_value>
The TIMER command sets the time value for the specified timer. The limits
of the timer are 400 ns to 500 seconds in 16 ns to 500 µs increments. The
increment value varies with the time value of the specified timer. There are
two timers and they are available for either machine but not both machines
simultaneously.
<time_value>
real number from 400 ns to 500 seconds in increments which vary from 16 ns
to 500 µs.
Example
OUTPUT XXX;":MACHINE1:STRIGGER:TIMER1 100E−6"
Query
:MACHine{1|2}:STRigger:TIMER{1|2}?
The TIMER query returns the current time value for the specified timer.
Returned Format
[:MACHine{1|2}:STRigger:TIMER{1|2}] <time_value><NL>
Example
OUTPUT XXX;":MACHINE1:STRIGGER:TIMER1?"
6–21
STRigger (STRace) Subsystem
TPOSition
TPOSition
Command
:MACHine{1|2}:STRigger:TPOSition
{STARt|CENTer|END| POSTstore,<poststore>}
The TPOSition (trigger position) command allows you to set the trigger at
the start, center, end or at any position in the trace (poststore). Poststore is
defined as 0 to 100 percent with a poststore of 100 percent being the same as
start position and a poststore of 0 percent being the same as an end trace.
<poststore>
integer from 0 to 100 representing percentage of poststore.
Example
OUTPUT XXX;":MACHINE1:STRIGGER:TPOSITION END"
OUTPUT XXX;":MACHINE2:STRIGGER:TPOSITION POSTstore,75"
Query
:MACHine{1|2}:STRigger:TPOSition?
The TPOSition query returns the current trigger position setting.
Returned Format
[:MACHine{1|2}:STRigger:TPOSition] {STARt|CENTer|END|
POSTstore,<poststore>}<NL>
Example
OUTPUT XXX;":MACHINE1:STRIGGER:TPOSITION?"
6–22
7
SLISt Subsystem
Introduction
The SLISt subsystem contains the commands available for the State
Listing menu in the HP 16554A/HP 16555A/HP 16555D logic analyzer
modules. These commands are:
•
•
•
•
•
•
•
•
•
•
•
COLumn
CLRPattern
DATA
LINE
MMODe
OPATtern
OSEarch
OSTate
OTAG
OVERlay
REMove
7–2
•
•
•
•
•
•
•
•
•
•
•
RUNTil
TAVerage
TMAXimum
TMINimum
VRUNs
XOTag
XOTime
XPATtern
XSEarch
XSTate
XTAG
SLISt Subsystem
Figure 7-1
SLISt Subsystem Syntax Diagram
7–3
SLISt Subsystem
Figure 7-1 (continued)
SLISt Subsystem Syntax Diagram (continued)
7–4
SLISt Subsystem
Figure 7-1 (continued)
SLISt Subsystem Syntax Diagram (continued)
7–5
SLISt Subsystem
Table 7-1
SLISt Subsystem Parameter Values
Parameter
Value
mod_num
{1|2|3|4|5|6|7|8|9|10}
col_num
integer from 1 to 61
line_number
integer from -516096 to +516096 (HP 16554A) or from -1040384
to +1040384 (HP 16555A) or from -2080768 to +2080768
(HP 16555D)
label_name
a string of up to 6 alphanumeric characters
base
{BINary|HEXadecimal|OCTal|DECimal|TWOS|
ASCii|SYMBol|IASSembler} for labels or
{ABSolute|RELative} for tags
line_num_mid_screen
integer from -516096 to +516096 (HP 16554A) or from -1040384
to +1040384 (HP 16555A) or from -2080768 to +2080768
(HP 16555D)
label_pattern
"{#B{0|1|X}...|
#Q{0|1|2|3|4|5|6|7|X}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X}...|
{0|1|2|3|4|5|6|7|8|9}...}"
occurrence
integer from -516096 to +516096 (HP 16554A) or from -1040384
to +1040384 (HP 16555A) or from -2080768 to +2080768
(HP 16555D)
time_value
real number
state_value
real number
run_until_spec
{OFF|LT,<value>|GT,<value>|
INRange,<value>,<value>|
OUTRange,<value>,<value>}
value
real number
7–6
SLISt Subsystem
SLISt
SLISt
Selector
:MACHine{1|2}:SLISt
The SLISt selector is used as part of a compound header to access those
settings normally found in the State Listing menu. It always follows the
MACHine selector because it selects a branch directly below the MACHine
level in the command tree.
Example
OUTPUT XXX;":MACHINE1:SLIST:LINE 256"
COLumn
Command
:MACHine{1|2}:SLISt:COLumn <col_num>
[,<module_num>,MACHine{1|2}],<label_name>,<base>
The COLumn command allows you to configure the state analyzer listing by
assigning a label name and base to one of the 61 vertical columns in the
menu. A column number of 1 refers to the leftmost column. When a label is
assigned to a column it replaces the original label in that column.
When the label name is "TAGS," the TAGS column is assumed and the next
parameter must specify RELative or ABSolute.
<col_num>
integer from 1 to 61
<module_num>
{1|2|3|4|5|6|7|8|9|10}
<label_name>
a string of up to 6 alphanumeric characters; "TAGS" to insert state or time
tags.
<base>
Example
{BINary|HEXadecimal|OCTal|DECimal|TWOS|ASCii|SYMBol|
IASSembler} for labels or
{ABSolute|RELative} for tags
OUTPUT XXX;":MACHINE1:SLIST:COLUMN 4,’ADDR’,HEX"
7–7
SLISt Subsystem
CLRPattern
Query
:MACHine{1|2}:SLISt:COLumn? <col_num>
The COLumn query returns the column number, module slot, machine, label
name, and base for the specified column.
Returned Format
[:MACHine{1|2}:SLISt:COLumn]
<col_num>,<module_num>,MACHine{1|2}, <label_name>,<base><NL>
Example
OUTPUT XXX;":MACHINE1:SLIST:COLUMN? 4"
CLRPattern
Command
:MACHine{1|2}:SLISt:CLRPattern {X|O|ALL}
The CLRPattern command allows you to clear the marker patterns in the
Specify Patterns menu.
Example
OUTPUT XXX;":MACHINE1:SLISt:CLRPATTERN X"
7–8
SLISt Subsystem
DATA
DATA
Query
:MACHine{1|2}:SLISt:DATA? <line_number>,
<label_name>
The DATA query returns the value at a specified line number for a given
label. The format will be the same as the one shown in the listing display.
Returned Format
<line_number>
<label_name>
<pattern_
string>
Example
[:MACHine{1|2}:SLISt:DATA] <line_number>,<label_name>,
<pattern_string><NL>
integer from -516096 to +516096 (HP 16554A) or from -1040384 to +1040384
(HP 16555A) or from -2080768 to +2080768 (HP 16555D)
string of up to 6 alphanumeric characters
"{#B{0|1|X} . . . |
#Q{0|1|2|3|4|5|6|7|X} . . . |
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X} . . . |
{0|1|2|3|4|5|6|7|8|9} . . . }"
OUTPUT XXX;":MACHINE1:SLIST:DATA? 512, ’RAS’"
LINE
Command
:MACHine{1|2}:SLISt:LINE <line_num_mid_screen>
The LINE command allows you to scroll the state analyzer listing vertically.
The command specifies the state line number relative to the trigger. The
analyzer highlights the specified line at the center of the screen.
<line_num_mid_
screen>
integer from -516096 to +516096 (HP 16554A) or from -1040384 to +1040384
(HP 16555A) or from -2080768 to +2080768 (HP 16555D)
Example
OUTPUT XXX;":MACHINE1:SLIST:LINE 0"
7–9
SLISt Subsystem
MMODe
Query
:MACHine{1|2}:SLISt:LINE?
The LINE query returns the line number for the state currently in the box at
the center of the screen.
Returned Format
[:MACHine{1|2}:SLISt:LINE] <line_num_mid_screen><NL>
Example
OUTPUT XXX;":MACHINE1:SLIST:LINE?"
MMODe
Command
:MACHine{1|2}:SLISt:MMODe <marker_mode>
The MMODe command (Marker Mode) selects the mode controlling the
marker movement and the display of marker readouts. When PATTern is
selected, the markers will be placed on patterns. When STATe is selected
and state tagging is on, the markers move on qualified states counted
between normally stored states. When TIME is selected and time tagging is
enabled, the markers move on time between stored states. When MSTats is
selected and time tagging is on, the markers are placed on patterns, but the
readouts will be time statistics.
<marker_mode>
Example
{OFF|PATTern|STATe|TIME|MSTats}
OUTPUT XXX;":MACHINE1:SLIST:MMODE TIME"
7–10
SLISt Subsystem
OPATtern
Query
:MACHine{1|2}:SLISt:MMODe?
The MMODe query returns the current marker mode selected.
Returned Format
[:MACHine{1|2}:SLISt:MMODe] <marker_mode><NL>
Example
OUTPUT XXX;":MACHINE1:SLIST:MMODE?"
OPATtern
Command
:MACHine{1|2}:SLISt:OPATtern
<label_name>,<label_pattern>
The OPATtern command allows you to construct a pattern recognizer term
for the O Marker which is then used with the OSEarch criteria when moving
the marker on patterns. Because this command deals with only one label at a
time, a complete specification could require several invocations.
When the value of a pattern is expressed in binary, it represents the bit
values for the label inside the pattern recognizer term. In whatever base is
used, the value must be between 0 and 232 − 1, since a label may not have
more than 32 bits. Because the <label_pattern> parameter may contain
don’t cares, it is handled as a string of characters rather than a number.
<label_name>
<label_pattern>
Example
string of up to 6 alphanumeric characters
"{#B{0|1|X} . . . |
#Q{0|1|2|3|4|5|6|7|X} . . . |
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X} . . . |
{0|1|2|3|4|5|6|7|8|9} . . . }"
OUTPUT XXX;":MACHINE1:SLIST:OPATTERN ’DATA’,’255’ "
OUTPUT XXX;":MACHINE2:SLIST:OPATTERN ’ABC’,’#BXXXX1101’ "
7–11
SLISt Subsystem
OSEarch
Query
:MACHine{1|2}:SLISt:OPATtern? <label_name>
The OPATtern query returns the pattern specification for a given label name.
Returned Format
[:MACHine{1|2}:SLISt:OPATtern]
<label_name>,<label_pattern><NL>
Example
OUTPUT XXX;":MACHINE1:SLIST:OPATTERN? ’A’"
OSEarch
Command
:MACHine{1|2}:SLISt:OSEarch <occurrence>,<origin>
The OSEarch command defines the search criteria for the O marker, which is
then used with associated OPATtern recognizer specification when moving
the markers on patterns. The origin parameter tells the marker to begin a
search with the trigger, the start of data, or with the X marker. The actual
occurrence the marker searches for is determined by the occurrence
parameter of the OSEarch recognizer specification, relative to the origin. An
occurrence of 0 places the marker on the selected origin. With a negative
occurrence, the marker searches before the origin. With a positive
occurrence, the marker searches after the origin.
<occurrence>
<origin>
Example
integer from -516096 to +516096 (HP 16554A) or from -1040384 to +1040384
(HP 16555A) or from -2080768 to +2080768 (HP 16555D)
{TRIGger|STARt|XMARker}
OUTPUT XXX;":MACHINE1:SLIST:OSEARCH +10,TRIGGER"
7–12
SLISt Subsystem
OSTate
Query
:MACHine{1|2}:SLISt:OSEarch?
The OSEarch query returns the search criteria for the O marker.
Returned Format
[:MACHine{1|2}:SLISt:OSEarch] <occurrence>,<origin><NL>
Example
OUTPUT XXX;":MACHINE1:SLIST:OSEARCH?"
OSTate
Query
:MACHine{1|2}:SLISt:OSTate?
The OSTate query returns the line number in the listing where the O marker
resides. If data is not valid , the query returns 2147483647.
Returned Format
<state_num>
Example
[:MACHine{1|2}:SLISt:OSTate] <state_num><NL>
integer from -516096 to +516096 or 2147483647 (HP 16554A), or from
-1040384 to +1040384 or 2147483647 (HP 16555A) or from -2080768 to
+2080768 or 2147483647 (HP 16555D)
OUTPUT XXX;":MACHINE1:SLIST:OSTATE?"
7–13
SLISt Subsystem
OTAG
OTAG
Command
:MACHine{1|2}:SLISt:OTAG
{<time_value>|<state_value>}
The OTAG command specifies the tag value on which the O Marker should be
placed. The tag value is time when time tagging is on, or states when state
tagging is on. If the data is not valid tagged data, no action is performed.
<time_value>
real number
<state_value>
real number
Example
:OUTPUT XXX;":MACHINE1:SLIST:OTAG 40.0E−6"
Query
:MACHine{1|2}:SLISt:OTAG?
The OTAG query returns the O Marker position in time when time tagging is
on or in states when state tagging is on, regardless of whether the marker
was positioned in time or through a pattern search. If data is not valid, the
query returns 9.9E37 for time tagging, or returns 2147483647 for state
tagging.
Returned Format
[:MACHine{1|2}:SLISt:OTAG] {<time_value>|<state_value>}<NL>
Example
OUTPUT XXX;":MACHINE1:SLIST:OTAG?"
7–14
SLISt Subsystem
OVERlay
OVERlay
Command
:MACHine{1|2}:SLISt:OVERlay <col_num>,
<module_num>,MACHine{1|2},<label_name>
The OVERlay command allows you to add time-correlated labels from other
modules or machines to the state listing. The added labels are interleaved
with the column specified. The column must already contain a label.
<col_num>
integer from 1 to 61
<Module_num>
{1|2|3|4|5|6|7|8|9|10}
<label_name>
a string of up to 6 alphanumeric characters
Example
OUTPUT XXX;":MACHINE1:SLIST:OVERlay,25,5,MACHINE2,’DATA’"
REMove
Command
:MACHine{1|2}:SLISt:REMove
The REMove command removes all labels, except the leftmost label, from
the listing menu.
Example
OUTPUT XXX;":MACHINE1:SLIST:REMOVE"
7–15
SLISt Subsystem
RUNTil
RUNTil
Command
:MACHine{1|2}:SLISt:RUNTil <run_until_spec>
The RUNTil (run until) command allows you to define a stop condition when
the trace mode is repetitive. Specifying OFF causes the analyzer to make
runs until either the display’s STOP field is touched or the STOP command is
issued.
There are four conditions based on the time between the X and O markers.
Using this difference in the condition is effective only when time tags have
been turned on (see the TAG command in the STRace subsystem). These
four conditions are as follows:
•
•
•
•
The difference is less than (LT) some value.
The difference is greater than (GT) some value.
The difference is inside some range (INRange).
The difference is outside some range (OUTRange).
End points for the INRange and OUTRange should be at least 8 ns apart since
this is the minimum time resolution of the time tag counter.
<run_until_
spec>
<value>
{OFF|LT,<value>|GT,<value>|INRange,<value>,<value>
|OUTRange,<value>,<value>}
real number from −9E9 to +9E9
Example
OUTPUT XXX;":MACHINE1:SLIST:RUNTIL GT,800.0E−6"
Query
:MACHine{1|2}:SLISt:RUNTil?
Returned Format
[:MACHine{1|2}:SLISt:RUNTil] <run_until_spec><NL>
Example
OUTPUT XXX;":MACHINE1:SLIST:RUNTIL?"
The RUNTil query returns the current stop criteria.
7–16
SLISt Subsystem
TAVerage
TAVerage
Query
:MACHine{1|2}:SLISt:TAVerage?
The TAVerage query returns the value of the average time between the X
and O Markers. If the number of valid runs is zero, the query returns 9.9E37.
Valid runs are those where the pattern search for both the X and O markers
was successful, resulting in valid time measurements.
Returned Format
<time_value>
Example
[:MACHine{1|2}:SLISt:TAVerage] <time_value><NL>
real number
OUTPUT XXX;":MACHINE1:SLIST:TAVERAGE?"
TMAXimum
Query
:MACHine{1|2}:SLISt:TMAXimum?
The TMAXimum query returns the value of the maximum time between the X
and O Markers. If data is not valid, the query returns 9.9E37.
Returned Format
<time_value>
Example
[:MACHine{1|2}:SLISt:TMAXimum] <time_value><NL>
real number
OUTPUT XXX;":MACHINE1:SLIST:TMAXIMUM?"
7–17
SLISt Subsystem
TMINimum
TMINimum
Query
:MACHine{1|2}:SLISt:TMINimum?
The TMINimum query returns the value of the minimum time between the X
and O Markers. If data is not valid, the query returns 9.9E37.
Returned Format
<time_value>
Example
[:MACHine{1|2}:SLISt:TMINimum] <time_value><NL>
real number
OUTPUT XXX;":MACHINE1:SLIST:TMINIMUM?"
VRUNs
Query
:MACHine{1|2}:SLISt:VRUNs?
The VRUNs query returns the number of valid runs and total number of runs
made. Valid runs are those where the pattern search for both the X and O
markers was successful, resulting in valid time measurements.
Returned Format
[:MACHine{1|2}:SLISt:VRUNs] <valid_runs>,<total_runs><NL>
<valid_runs>
zero or positive integer
<total_runs>
zero or positive integer
Example
OUTPUT XXX;":MACHINE1:SLIST:VRUNS?"
7–18
SLISt Subsystem
XOTag
XOTag
Query
:MACHine{1|2}:SLISt:XOTag?
The XOTag query returns the time from the X to O markers when the marker
mode is time, or number of states from the X to O markers when the marker
mode is state. If there is no data in the time mode the query returns 9.9E37.
If there is no data in the state mode, the query returns 2147483647.
Returned Format
<XO_time>
<XO_states>
Example
[:MACHine{1|2}:SLISt:XOTag] {<XO_time>|<XO_states>}<NL>
real number
integer
OUTPUT XXX;":MACHINE1:SLIST:XOTAG?"
XOTime
Query
:MACHine{1|2}:SLISt:XOTime?
The XOTime query returns the time from the X to O markers when the
marker mode is time, or number of states from the X to O markers when the
marker mode is state. If there is no data in the time mode the query returns
9.9E37. If there is no data in the state mode, the query returns 2147483647.
Returned Format
<XO_time>
<XO_states>
Example
[:MACHine{1|2}:SLISt:XOTime] {<XO_time>|<XO_states>}<NL>
real number
integer
OUTPUT XXX;":MACHINE1:SLIST:XOTIME?"
7–19
SLISt Subsystem
XPATtern
XPATtern
Command
:MACHine{1|2}:SLISt:XPATtern
<label_name>,<label_pattern>
The XPATtern command allows you to construct a pattern recognizer term
for the X marker which is then used with the XSEarch criteria when moving
the marker on patterns. Since this command deals with only one label at a
time, a complete specification could require several invocations.
When the value of a pattern is expressed in binary, it represents the bit
values for the label inside the pattern recognizer term. In whatever base is
used, the value must be between 0 and 232 − 1, since a label may not have
more than 32 bits. Because the <label_pattern> parameter may contain
don’t cares, it is handled as a string of characters rather than a number.
<label_name>
<label_pattern>
string of up to 6 alphanumeric characters
"{#B{0|1|X} . . . |
#Q{0|1|2|3|4|5|6|7|X} . . . |
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X} . . . |
{0|1|2|3|4|5|6|7|8|9} . . . }"
Examples
OUTPUT XXX;":MACHINE1:SLIST:XPATTERN ’DATA’,’255’ "
OUTPUT XXX;":MACHINE1:SLIST:XPATTERN ’ABC’,’#BXXXX1101’ "
Query
:MACHine{1|2}:SLISt:XPATtern? <label_name>
The XPATtern query returns the pattern specification for a given label name.
Returned Format
[:MACHine{1|2}:SLISt:XPATtern]
<label_name>,<label_pattern><NL>
Example
OUTPUT XXX;":MACHINE1:SLIST:XPATTERN? ’A’"
7–20
SLISt Subsystem
XSEarch
XSEarch
Command
:MACHine{1|2}:SLISt:XSEarch <occurrence>,<origin>
The XSEarch command defines the search criteria for the X marker, which is
then with associated XPATtern recognizer specification when moving the
markers on patterns. The origin parameter tells the marker to begin a search
from the trigger or from the start of data. The occurrence parameter
determines which occurrence of the XPATtern recognizer specification,
relative to the origin, the marker actually searches for. An occurrence of 0
places a marker on the selected origin.
<occurrence>
<origin>
integer from -516096 to +516096 (HP 16554A), or from -1040384 to
+1040384 (HP 16555A)or from -2080768 to +2080768 (HP 16555D)
{TRIGger|STARt}
Example
OUTPUT XXX;":MACHINE1:SLIST:XSEARCH +10,TRIGGER"
Query
:MACHine{1|2}:SLISt:XSEarch?
The XSEarch query returns the search criteria for the X marker.
Returned Format
[:MACHine{1|2}:SLISt:XSEarch] <occurrence>,<origin><NL>
Example
OUTPUT XXX;":MACHINE1:SLIST:XSEARCH?"
7–21
SLISt Subsystem
XSTate
XSTate
Query
:MACHine{1|2}:SLISt:XSTate?
The XSTate query returns the line number in the listing where the X marker
resides. If data is not valid, the query returns 2147483647.
Returned Format
<state_num>
Example
[:MACHine{1|2}:SLISt:XSTate] <state_num><NL>
integer from -516096 to +516096 or 2147483647 (HP 16554A), or from
-1040384 to +1040384 or 2147483647 (HP 16555A) or from -2080768 to
+2080768 or 2147483647 (HP 16555D)
OUTPUT XXX;":MACHINE1:SLIST:XSTATE?"
XTAG
Command
:MACHine{1|2}:SLISt:XTAG
{<time_value>|<state_value>}
The XTAG command specifies the tag value on which the X marker should be
placed. The tag value is time when time tagging is on, and states when state
tagging is on. If the data is not valid tagged data, no action is performed.
<time_value>
<state_value>
Example
real number
integer
OUTPUT XXX;":MACHINE1:SLIST:XTAG 40.0E−6"
7–22
SLISt Subsystem
XTAG
Query
:MACHine{1|2}:SLISt:XTAG?
The XTAG query returns the X marker position in time when time tagging is
on or in states when state tagging is on, regardless of whether the marker
was positioned in time or through a pattern search. If data is not valid tagged
data, the query returns 9.9E37 for time tagging, or returns 2147483647 for
state tagging.
Returned Format
[:MACHine{1|2}:SLISt:XTAG] {<time_value>|<state_value>}<NL>
Example
OUTPUT XXX;":MACHINE1:SLIST:XTAG?"
7–23
7–24
8
SWAVeform Subsystem
Introduction
The commands in the State Waveform subsystem allow you to
configure the display so that you can view state data as waveforms. Up
to 96 channels, identified by label name and bit number, can be
displayed at a time. The 12 commands in this subsystem are
analogous to their counterparts in the Timing Waveform subsystem.
In this subsystem the X axis is restricted to representing only samples
(states), regardless of whether time tagging is on or off. As a result,
the only commands which can be used for scaling are DELay and
RANge.
The way to manipulate the X and O markers on the Waveform display
is through the State Listing (SLISt) subsystem. Using the marker
commands from the SLISt subsystem will affect the markers on the
Waveform display.
The commands in the SWAVeform subsystem are:
•
•
•
•
•
•
•
•
•
•
•
•
ACCumulate
ACQuisition
CENter
CLRPattern
CLRStat
DELay
INSert
MLENgth
RANGe
REMove
TAKenbranch
TPOSition
8–2
SWAVeform Subsystem
Figure 8-1
SWAVeform Subsystem Syntax Diagram
8–3
SWAVeform Subsystem
SWAVeform
Table 8-1
SWAVeform Subsystem Parameter Values
Parameter
Value
number_of_samples
integer from -516096 to +516096 (HP 16554A) or from -1040384
to +1040384 (HP 16555A) or from -2080768 to +2080768
(HP 16555D)
label_name
string of up to 6 alphanumeric characters
bit_id
{OVERlay|<bit_num>|ALL}
bit_num
integer representing a label bit from 0 to 31
range_values
integer from 10 to 5000 (representing (10 × states/Division))
mark_type
{X|O|XO|TRIGger}
percent
integer from 0 to 100
memory_length
{4096 | 8192 | 16384 | 32768 | 65536 |
131072 | 262144 |
516096 (HP 16554A only)
524288 | 1040384 (HP 16555A only)
524288 | 1048576 | 2080768 (HP 16555D
only)}
SWAVeform
Selector
:MACHine{1|2}:SWAVeform
The SWAVeform (State Waveform) selector is used as part of a compound
header to access the settings in the State Waveform menu. It always follows
the MACHine selector because it selects a branch directly below the
MACHine level in the command tree.
Example
OUTPUT XXX;":MACHINE2:SWAVEFORM:RANGE 40"
8–4
SWAVeform Subsystem
ACCumulate
ACCumulate
Command
:MACHine{1|2}:SWAVeform:ACCumulate
{{ON|1}|{OFF|0}}
The ACCumulate command allows you to control whether the waveform
display gets erased between individual runs or whether subsequent
waveforms are allowed to be displayed over the previous waveforms.
Example
OUTPUT XXX;":MACHINE1:SWAVEFORM:ACCUMULATE ON"
Query
MACHine{1|2}:SWAVeform:ACCumulate?
The ACCumulate query returns the current setting. The query always shows
the setting as the characters, "0" (off) or "1" (on).
Returned Format
[MACHine{1|2}:SWAVeform:ACCumulate] {0|1}<NL>
Example
OUTPUT XXX;":MACHINE1:SWAVEFORM:ACCUMULATE?"
ACQuisition
Command
:MACHine{1|2}:SWAVeform:ACQuisition {AUTOmatic|MANual}
The ACQuisition command allows you to specify the acquisition mode for the
state analyzer. The acquisition modes are automatic and manual.
Example
OUTPUT XXX;":MACHINE2:SWAVEFORM:ACQUISITION AUTOMATIC"
8–5
SWAVeform Subsystem
CENTer
Query
MACHine{1|2}:SWAVeform:ACQuisition?
The ACQuisition query returns the current acquisition mode.
Returned Format
[MACHine{1|2}:SWAVeform:ACQuisition] {AUTOmatic|MANual}<NL>
Example
OUTPUT XXX;":MACHINE2:SWAVEFORM:ACQUISITION?"
CENTer
Command
:MACHine{1|2}:SWAVeform:CENTer <marker_type>
The CENTer command allows you to center the waveform display about the
specified markers. The markers are placed on the waveform in the SLISt
subsystem.
<marker_type>
Example
{X|O|XO|TRIGger}
OUTPUT XXX;":MACHINE1:SWAVEFORM:CENTER X"
CLRPattern
Command
:MACHine{1|2}:SWAVeform:CLRPattern {X|O|ALL}
The CLRPattern command allows you to clear the marker patterns in the
selected Specify Patterns menu.
Example
OUTPUT XXX;":MACHINE1:SWAVEFORM:CLRPATTERN"
8–6
SWAVeform Subsystem
CLRStat
CLRStat
Command
:MACHine{1|2}:SWAVeform:CLRStat
The CLRStat command allows you to clear the waveform statistics without
having to stop and restart the acquisition.
Example
OUTPUT XXX;":MACHINE1:SWAVEFORM:CLRSTAT"
DELay
Command
:MACHine{1|2}:SWAVeform:DELay <number_of_samples>
The DELay command allows you to specify the number of samples between
the State trigger and the horizontal center of the screen for the waveform
display.
<number_of_
samples>
integer from -516096 to +516096 (HP 16554A) or from -1040384 to
+1040384 (HP 16555A) or from -2080768 to +2080768 (HP 16555D)
Example
OUTPUT XXX;":MACHINE2:SWAVEFORM:DELAY 127"
Query
MACHine{1|2}:SWAVeform:DELay?
The DELay query returns the current sample offset value.
Returned Format
[MACHine{1|2}:SWAVeform:DELay] <number_of_samples><NL>
Example
OUTPUT XXX;":MACHINE1:SWAVEFORM:DELAY?"
8–7
SWAVeform Subsystem
INSert
INSert
Command
MACHine{1|2}:SWAVeform:INSert <label_name>,
<bit_id>
The INSert command allows you to add waveforms to the state waveform
display. Waveforms are added from top to bottom on the screen. When 96
waveforms are present, inserting additional waveforms replaces the last
waveform. Bit numbers are zero-based, so a label with 8 bits is referenced as
bits 0 through 7. Specifying OVERlay causes a composite waveform display
of all bits or channels for the specified label.
<label_name>
<bit_id>
<bit_num>
Example
string of up to 6 alphanumeric characters
{OVERlay | <bit_num> | ALL}
integer representing a label bit from 0 to 31
OUTPUT XXX;":MACHINE1:SWAVEFORM:INSERT ’WAVE’, 19"
OUTPUT XXX;":MACHINE1:SWAVEFORM:INSERT ’ABC’, OVERLAY"
OUTPUT XXX;":MACH1:SWAV:INSERT ’POD1’, #B1001"
MLENgth
Command
:MACHine{1|2}:SWAVeform:MLENgth <memory_length>
The MLENgth command allows you to specify the analyzer memory depth.
Valid memory depths range from 4096 states (or samples) through the
maximum system memory depth minus 8192 states. Memory depth is
affected by acquisition mode. If the <memory_depth> value sent with the
command is not a legal value, the closest legal setting will be used.
<memory_length>
{4096 | 8192 | 16384 | 32768 | 65536 | 131072 | 262144
| 516096 (HP 16554A)
| 524288 | 1040384 (HP 16555A)
| 524288 | 1048576 | 2080768 (HP 16555D)}
8–8
SWAVeform Subsystem
RANGe
Example
OUTPUT XXX;":MACHINE1:SWAVEFORM:MLENGTH 262144"
Query
:MACHine{1|2}:SWAVeform:MLENgth?
The MLENgth query returns the current analyzer memory depth selection.
Returned Format
[:MACHine{1|2}:SWAVeform:MLENgth] <memory_length><NL>
Example
OUTPUT XXX;":MACHINE1:SWAVEFORM:MLENGTH?"
RANGe
Command
MACHine{1|2}:SWAVeform:RANGe <number_of_samples>
The RANGe command allows you to specify the number of samples across
the screen on the State Waveform display. It is equivalent to ten times the
states per division setting (states/Div) on the front panel. A number between
10 and 5000 may be entered.
<number_of_
samples>
integer from 10 to 5000
Example
OUTPUT XXX;":MACHINE2:SWAVEFORM:RANGE 80"
Query
MACHine{1|2}:SWAVeform:RANGe?
The RANGe query returns the current range value.
Returned Format
[MACHine{1|2}:SWAVeform:RANGe] <number_of_samples><NL>
Example
OUTPUT XXX;":MACHINE2:SWAVEFORM:RANGE?"
8–9
SWAVeform Subsystem
REMove
REMove
Command
:MACHine{1|2}:SWAVeform:REMove
The REMove command clears the waveform display before building a new
display.
Example
OUTPUT XXX;":MACHINE1:SWAVEFORM:REMOVE"
TAKenbranch
Command
MACHine{1|2}:SWAVeform:TAKenbranch {STORe|NOSTore}
The TAKenbranch command allows you to control whether the states that
cause branching are stored or not stored. This command is only available
when the acquisition mode is set to manual.
Example
OUTPUT XXX;":MACHINE2:SWAVEFORM:TAKENBRANCH STORE"
Query
MACHine{1|2}:SWAVeform:TAKenbranch?
The TAKenbranch query returns the current setting.
Returned Format
[MACHine{1|2}:SWAVeform:TAKenbranch] {STORe|NOSTore}<NL>
Example
OUTPUT XXX;":MACHINE2:SWAVEFORM:TAKENBRANCH?"
8–10
SWAVeform Subsystem
TPOSition
TPOSition
Command
MACHine{1|2}:SWAVeform:TPOSition
{STARt|CENTer|END|POSTstore,<percent>}
The TPOSition command allows you to control where the trigger point is
placed. The trigger point can be placed at the start, center, end, or at a
percentage of post store. The post store option is the same as the User
Defined option when setting the trigger point from the front panel.
The TPOSition command is only available when the acquisition mode is set to
manual.
<percent>
integer from 1 to 100
Example
OUTPUT XXX;":MACHINE2:SWAVEFORM:TPOSITION CENTER"
Query
MACHine{1|2}:SWAVeform:TPOSition?
The TPOSition query returns the current trigger setting.
Returned Format
[MACHine{1|2}:SWAVeform:TPOSition]
{STARt|CENTer|END|POSTstore,<percent>}<NL>
Example
OUTPUT XXX;":MACHINE2:SWAVEFORM:TPOSition?"
8–11
8–12
9
SCHart Subsystem
Introduction
The State Chart subsystem provides the commands necessary for
programming the HP 16554A/HP 16555A/HP 16555D’s Chart display.
The commands allow you to build charts of label activity, using data
normally found in the Listing display. The chart’s Y axis is used to
show data values for the label of your choice. The X axis can be used
in two different ways. In one, the X axis represents states (shown as
rows in the State Listing display). In the other, the X axis represents
the data values for another label.
When states are plotted along the X axis, X and O markers are
available. Because the State Chart display is simply an alternative way
of looking at the data in the State Listing, the X and O markers are
manipulated through the SLISt subsystem. Because the programming
commands do not force the menus to switch, you can position the
markers in the SLISt subsystem and see the effects in the State Chart
display.
The commands in the SCHart subsystem are:
•
•
•
•
ACCumulate
CENTer
HAXis
VAXis
9–2
SCHart Subsystem
Figure 9-1
SCHart Subsystem Syntax Diagram
Table 9-1
SCHart Subsystem Parameter Values
Parameter
Value
state_low_value
integer between ±516096 (HP 16554A), ±1040384 (HP
16555A), or ±2080768 (HP 16555D)
state_high_value
integer from <state_low_value> to 516096 (HP
16554A), 1040384 (HP 16555A), or 2080768 (HP 16555D)
label_name
a string of up to 6 alphanumeric characters
label_low_value
string from 0 to 232 - 1 (#HFFFFFFFF)
label_high_value
string from <label_low_value> to 232 - 1
(#HFFFFFFFF)
low_value
string from 0 to 232 - 1 (#HFFFFFFFF)
high_value
string from low_value to 232 - 1 (#HFFFFFFFF)
marker_type
{X | O | XO | TRIGger}
9–3
SCHart Subsystem
SCHart
SCHart
Selector
:MACHine{1|2}:SCHart
The SCHart selector is used as part of a compound header to access the
settings found in the State Chart menu. It always follows the MACHine
selector because it selects a branch below the MACHine level in the
command tree.
Example
OUTPUT XXX;":MACHINE1:SCHART:VAXIS ’A’, ’0’, ’9’"
ACCumulate
Command
MACHine{1|2}:SCHart:ACCumulate {{ON|1} | {OFF|0}}
The ACCumulate command controls whether the chart display gets erased
between each individual run or whether subsequent waveforms are displayed
over the previous waveforms.
Example
OUTPUT XXX;":MACHINE1:SCHART:ACCUMULATE OFF"
Query
MACHine{1|2}:SCHart:ACCumulate?
The ACCumulate query returns the current setting. The query always shows
the setting as the character "0" (off) or "1" (on).
Returned Format
[:MACHine{1|2}:SCHart:ACCumulate] {0|1}<NL>
Example
OUTPUT XXX;":MACHINE1:SCHART:ACCUMULATE?"
9–4
SCHart Subsystem
CENTer
CENTer
Command
MACHine{1|2}:SCHart:CENTer <marker_type>
The CENTer command centers the chart display about the specified markers.
The markers are placed in the SLISt subsystem.
<marker_type>
Example
{X | O | XO | TRIGger}
OUTPUT XXX;":MACHINE1:SCHART:CENTER XO"
HAXis
Command
MACHine{1|2}:SCHart:HAXis
{STAtes,<state_low_value>,<state_high_value>|
<label_name>,<label_low_value>,<label_high_value>,
<state_low_value>,<state_high_value>}
The HAXis command allows you to select whether states or a label’s values
will be plotted on the horizontal axis of the chart. The axis is scaled by
specifying the high and low values. The shortform for STATES is STA. This
is an intentional deviation from the normal truncation rule.
<state_low_
value>
integer from –516096 to +516096 (HP 16554A), or from –1040384 to
+1040384 (HP 16555A), or from –2080768 to +2080768 (HP 16555D)
<state_high_
value>
integer from <state_low_value> to +516096 (HP 16554A), +1040384
(HP 16555A), or +2080768 (HP 16555D)
<label_name>
a string of up to 6 alphanumeric characters
<label_low_
value>
<label_high_
value>
string from 0 to 232−1 (#HFFFFFFFF)
string from <label_low_value> to 232–1 (#HFFFFFFFF)
9–5
SCHart Subsystem
VAXis
Example
OUTPUT XXX;":MACHINE1:SCHART:HAXIS STATES, −100, 100"
OUTPUT XXX;":MACHINE1:SCHART:HAXIS ’READ’, ’−511’, ’511’,
0,300"
Query
MACHine{1|2}:SCHart:HAXis?
The HAXis query returns the current horizontal axis label and scaling.
Returned Format
[:MACHine{1|2}:SCHart:HAXis] {STAtes,<state_low_value>,
<state_high_value>|<label_name>,<label_low_value>,
<label_high_value><state_low_value>,<state_high_value>}
Example
OUTPUT XXX;":MACHINE1:SCHART:HAXIS?"
VAXis
Command
MACHine{1|2}:SCHart:VAXis
<label_name>,<low_value>,<high_value>
The VAXis command allows you to choose which label will be plotted on the
vertical axis of the chart and scales the vertical axis by specifying the high
value and low value.
<label_name>
<low_value>
<high_value>
Example
a string of up to 6 alphanumeric characters
string from 0 to 232–1 (#HFFFFFFFF)
string from <low_value> to 232–1 (#HFFFFFFFF)
OUTPUT XXX;":MACHINE2:SCHART:VAXIS ’SUM1’, ’0’, ’99’"
OUTPUT XXX;":MACHINE1:SCHART:VAXIS ’BUS’, ’#H00FF’, ’#H0500’"
9–6
SCHart Subsystem
VAXis
Query
MACHine{1|2}:SCHart:VAXis?
The VAXis query returns the current vertical axis label and scaling.
Returned Format
[:MACHine{1|2}:SCHart:VAXis] <label_name>,<low_value>,
<high_value><NL>
Example
OUTPUT XXX;":MACHINE1:SCHART:VAXIS?"
9–7
9–8
10
COMPare Subsystem
Introduction
Commands in the state COMPare subsystem provide the ability to do a
bit-by-bit comparison between the acquired state data listing and a
compare data image. The commands are:
•
•
•
•
•
•
•
•
•
•
CLEar
CMASk
COPY
DATA
FIND
LINE
MENU
RANGe
RUNTil
SET
10–2
COMPare Subsystem
Figure 10-1
COMPare Subsystem Syntax Diagram
10–3
COMPare Subsystem
COMPare
Table 10-1
COMPare Subsystem Parameter Values
Parameter
Value
label_name
string of up to 6 characters
care_spec
string of characters "{*|.}..."
*
care
.
don’t care
line_num
integer from –122880 to +122880 (HP 16554A) or –253951 to
+253951 (HP 16555A) or -507903 to +507903 (HP 16555D)
data_pattern
"{#B{0|1|X} ... |
#Q{0|1|2|3|4|5|6|7|X} ... |
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X} ... |
difference_occurrence
integer from 1 to 122880 (HP 16554A) or 253951 (HP 16555A)
or 507903 (HP 16555D)
start_line
integer from –122880 to +122880 (HP 16554A) or –253951 to
+253951 (HP 16555A) or -507,903 to +507903 (HP 16555D)
stop_line
integer from <start_line> to +122880 (HP 16554A) or
+253951 (HP 16555A) or +507903 (HP 16555D)
{0|1|2|3|4|5|6|7|8|9} ... }"
COMPare
Selector
:MACHine{1|2}:COMPare
The COMPare selector is used as part of a compound header to access the
settings found in the Compare menu. It always follows the MACHine selector
because it selects a branch directly below the MACHine level in the command
tree.
Example
OUTPUT XXX;":MACHINE1:COMPARE:FIND? 819"
10–4
COMPare Subsystem
CLEar
CLEar
Command
:MACHine{1|2}:COMPare:CLEar
The CLEar command clears all "don’t cares" in the reference listing and
replaces them with zeros except when the CLEar command immediately
follows the SET command (see SET command).
Example
OUTPUT XXX;":MACHINE2:COMPARE:CLEAR
CMASk
Command
:MACHine{1|2}:COMPare:CMASk <label_name>,
<care__spec>
The CMASk (Compare Mask) command allows you to set the bits in the
channel mask for a given label in the compare listing image to "compares" or
"don’t compares."
The CMASk query returns the state of the bits in the channel mask for a
given label in the compare listing image.
<label_name>
<care_spec>
Example
a string of up to 6 alphanumeric characters
string of characters "{*|.}..." (32 characters maximum)
*
care
.
don’t care
OUTPUT XXX;":MACHINE2:COMPARE:CMASK ’DATA’, ’*.**..**’"
10–5
COMPare Subsystem
COPY
COPY
Command
:MACHine{1|2}:COMPare:COPY
The COPY command copies the current acquired State Listing for the
specified machine into the Compare Listing template. This makes the current
acquisition the reference listing. It does not affect the compare range or
channel mask settings.
Example
OUTPUT XXX;":MACHINE2:COMPARE:COPY"
DATA
Command
:MACHine{1|2}:COMPare:DATA
{<label_name>,<line_num>,<data_pattern>|
<line_num>,<data_pattern>[, <data_pattern>]... }
The DATA command allows you to edit the compare listing image for a given
label and state row. When DATA is sent to an instrument where no compare
image is defined (such as at power-up) all other data in the image is set to
don’t cares.
Not specifying the <label_name> parameter allows you to write data
patterns to more than one label for the given line number. The first pattern
is placed in the leftmost label, with the following patterns being placed in a
left-to-right fashion as seen on the Compare display. Specifying more
patterns than there are labels simply results in the extra patterns being
ignored.
Because don’t cares (Xs) are allowed in the data pattern, it must always be
expressed as a string. You may still use different bases, but don’t cares
cannot be used in a decimal number.
10–6
COMPare Subsystem
DATA
<label_name>
<line_num>
a string of up to 6 alphanumeric characters
integer from –122880 to +122880 (HP 16554A) or –253951 to +253951
(HP 16555A) or –507903 to +507903 (HP 16555D)
<data_pattern>
"{#B{0|1|X} . . . |
#Q{0|1|2|3|4|5|6|7|X} . . . |
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X} . . . |
{0|1|2|3|4|5|6|7|8|9} . . . }"
Example
OUTPUT
OUTPUT
OUTPUT
OUTPUT
Query
:MACHine{1|2}:COMPare:DATA? <label_name>,
<line_num>
XXX;":MACHINE2:COMPARE:DATA ’CLOCK’, 42, ’#B011X101X’"
XXX;":MACHINE2:COMPARE:DATA ’OUT3’, 0, ’#HFF40’"
XXX;":MACH1:COMP:DATA 129,’#BXX00’,’#B1101’,’#B10XX’"
XXX;":MACH1:COMP:DATA −511,’4’,’64’,’16’,’256’,’8’,’6’"
The DATA query returns the value of the compare listing image for a given
label and state row.
Returned Format
[:MACHine{1|2}:COMPare:DATA] <label_name>,<line_num>,
<data_pattern><NL>
Example
10
15
20
25
30
35
40
45
50
55
60
65
70
DIM Label$[6], Response$[80]
PRINT "This program shows the values for a signal’s Compare listing"
INPUT "Enter signal label: ", Label$
OUTPUT XXX;":SYSTEM:HEADER OFF"
!Turn headers off (from responses)
OUTPUT XXX;":MACHINE2:COMPARE:RANGE?"
ENTER XXX; First, Last
!Read in the range’s end-points
PRINT "LINE #", "VALUE of "; Label$
FOR State = First TO Last
!Print compare value for each state
OUTPUT XXX;":MACH2:COMPARE:DATA? ’" Label$ "’," VAL$(State)
ENTER XXX; Response$
PRINT State, Response$
NEXT State
END
10–7
COMPare Subsystem
FIND
FIND
Query
:MACHine{1|2}:COMPare:FIND? <diff_occurrence>
The FIND query is used to get the line number of a specified difference
occurrence (first, second, third, etc.) within the current compare range, as
dictated by the RANGe command. A difference is counted for each line
where at least one of the current labels has a discrepancy between its
acquired state data listing (difference listing) and its compare data image
(reference listing).
Invoking the FIND query updates both the Listing and Compare displays so
that the line number returned is in the center of the screen.
If <diff_occurrence> is greater than the number of differences, the query
returns the last difference and the associated line number.
Returned Format
<diff_
occurrence>
<line_number>
Example
[:MACHine{1|2}:COMPare:FIND] <difference_occurrence>,
<line_number><NL>
integer from 1 to 122880 (HP 16554A) or 253952 (HP 16555A) or 507904
(HP 16555D).
integer from –122880 to +122880 (HP 16554A) or –253951 to +253951
(HP 16555A) or –507903 to +507903 (HP 16555D).
OUTPUT XXX;":MACHINE2:COMPARE:FIND? 26"
10–8
COMPare Subsystem
LINE
LINE
Command
:MACHine{1|2}:COMPare:LINE <line_num>
The LINE command allows you to center the compare listing display about a
specified line number. The Listing menu also changes so that the specified
line is displayed midscreen.
<line_num>
integer from –122880 to +122880 (HP 16554A) or –253951 to +253951
(HP 16555A) or –507903 to +507903 (HP 16555D).
Example
OUTPUT XXX;":MACHINE2:COMPARE:LINE –511"
Query
:MACHine{1|2}:COMPare:LINE?
The LINE query returns the current line number specified.
Returned Format
[:MACHine{1|2}:COMPare:LINE] <line_num>}<NL>
Example
OUTPUT XXX;":MACHINE4:COMPARE:LINE?"
MENU
Command
:MACHine{1|2}:COMPare:MENU {REFerence|DIFFerence}
The MENU command allows you to display the reference or the difference
listings in the Compare menu.
Example
OUTPUT XXX;":MACHINE2:COMPARE:MENU REFERENCE"
10–9
COMPare Subsystem
RANGe
RANGe
Command
:MACHine{1|2}:COMPare:RANGe {FULL |
PARTial,<start_line>,<stop_line>}
The RANGe command allows you to define the boundaries for the
comparison. The range entered must be a subset of the lines in the
acquisition memory.
<start_line>
<stop_line>
integer from –122880 to +122880 (HP 16554A) or –253951 to +253951
(HP 16555A) or –507904 to +507904 (HP 16555D)
integer from <start_line> to +122880 (HP 16554A) or +253951
(HP 16555A) or +507904 (HP 16555D)
Example
OUTPUT XXX;":MACHINE1:COMPARE:RANGE PARTIAL, –511, 512"
OUTPUT XXX;":MACHINE2:COMPARE:RANGE FULL"
Query
:MACHine{1|2}:COMPare:RANGe?
The RANGe query returns the current boundaries for the comparison.
Returned Format
[:MACHine{1|2}:COMPare:RANGe] {FULL|PARTial,<start_line>,
<stop_line>}<NL>
Example
10
20
30
40
50
60
DIM String$[100]
OUTPUT 707;":SELECT 2"
OUTPUT 707;":MACHINE1:COMPARE:RANGE?"
ENTER 707;String$
PRINT "RANGE IS ";String$
END
10–10
COMPare Subsystem
RUNTil
RUNTil
Command
:MACHine{1|2}:COMPare:RUNTil {OFF | LT,<value> |
GT,<value> | INRange,<value>,<value> |
OUTRange,<value>,<value> | EQUal | NEQual}
The RUNTil (run until) command allows you to define a stop condition when
the trace mode is repetitive. Specifying OFF causes the analyzer to make
runs until either the display’s STOP field is touched or the STOP command is
issued.
There are four conditions based on the time between the X and O markers.
Using this difference in the condition is effective only when time tags have
been turned on (see the TAG command in the STRigger subsystem). These
four conditions are as follows:
•
•
•
•
The difference is less than (LT) some value.
The difference is greater than (GT) some value.
The difference is inside some range (INRange).
The difference is outside some range (OUTRange).
End points for the INRange and OUTRange should be at least 8 ns apart since
this is the minimum time resolution of the time tag counter.
There are two conditions which are based on a comparison of the acquired
state data and the reference listing. You can run until one of the following
conditions is true:
• Every channel of every label has the same value (EQUal).
• Any channel of any label has a different value (NEQual).
<value>
Example
real number from −9E9 to +9E9
OUTPUT XXX;":MACHINE2:COMPARE:RUNTIL EQUAL"
10–11
COMPare Subsystem
SET
Query
:MACHine{1|2}:COMPare:RUNTil?
The RUNTil query returns the current stop criteria for the comparison when
running in repetitive trace mode.
Returned Format
[:MACHine{1|2}:COMPare:RUNTil] {OFF| LT,<value>|GT,<value>|
INRange,<value>,<value>|OUTRange,<value>,<value>|EQUal|NEQual}
<NL>
Example
OUTPUT XXX;":MACHINE2:COMPARE:RUNTIL?"
SET
Command
:MACHine{1|2}:COMPare:SET
The SET command sets every state in the reference listing to "don’t cares." If
you send the SET command by mistake you can immediately send the CLEar
command to restore the previous data. This is the only time the CLEar
command will not replace "don’t cares" with zeros.
Example
OUTPUT XXX;":MACHINE2:COMPARE:SET"
10–12
11
TFORmat Subsystem
Introduction
The TFORmat subsystem contains the commands available for the
Timing Format menu in the HP 16554A/HP 16555A/HP 16555D logic
analyzer module. These commands are:
•
•
•
•
ACQMode
LABel
REMove
THReshold
11–2
TFORmat Subsystem
Figure 11-1
TFORmat Subsystem Syntax Diagram
11–3
TFORmat Subsystem
TFORmat
Table 11-1
TFORmat Subsystem Parameter Values
Parameter
Value
<N>
an integer from 1 to 12
name
string of up to 6 alphanumeric characters
polarity
{POSitive | NEGative}
upper_bits
format (integer from 0 to 65535) for a pod (pods are
assigned in decreasing order)
lower_bits
format (integer from 0 to 65535) for a pod (pods are
assigned in decreasing order)
value
voltage (real number) -6.00 to +6.00
clock_bits
format (integer from 0 to 65535) for a clock (clocks are
assigned in decreasing order)
TFORmat
Selector
:MACHine{1|2}:TFORmat
The TFORmat selector is used as part of a compound header to access those
settings normally found in the Timing Format menu. It always follows the
MACHine selector because it selects a branch directly below the MACHine
level in the language tree.
Example
OUTPUT XXX;":MACHINE1:TFORMAT:ACQMODE?"
11–4
TFORmat Subsystem
ACQMode
ACQMode
Command
:MACHine{1|2}:TFORmat:ACQMode {FULL | HALF}
The ACQMode (acquisition mode) command allows you to select the
acquisition mode for the timing analyzer. The options are:
• conventional mode at full-channel 125 MHz (HP 16554A) or 250 MHz
(HP 16555A/D)
• conventional mode at half-channel 250 MHz (HP 16554A) or 500 MHz
(HP 16555A/D).
Example
OUTPUT XXX;":MACHINE2:TFORMAT:ACQMODE HALF"
Query
:MACHine{1|2}:TFORmat:ACQMode?
The ACQMode query returns the current acquisition mode.
Returned Format
[:MACHine{1|2}:TFORmat:ACQMode] {FULL | HALF}<NL>
Example
OUTPUT XXX;":MACHINE2:TFORMAT:ACQMODE?"
11–5
TFORmat Subsystem
LABel
LABel
Command
:MACHine{1|2}:TFORmat:LABel <name>[,<polarity>,
<clock_bits>,[<clock_bits>,]<upper_bits>,
<lower_bits>[,<upper_bits>,<lower_bits>]...]
The LABel command allows you to specify polarity and to assign channels to
new or existing labels. If the specified label name does not match an existing
label name, a new label will be created.
The order of the pod-specification parameters is significant. The first one
listed will match the highest numbered pod assigned to the machine you’re
using. Each pod specification after that is assigned to the next highest
numbered pod. This way they match the left-to-right descending order of the
pods you see on the Format display. Not including enough pod specifications
results in the lowest numbered pods being assigned a value of zero (all
channels excluded). If you include more pod specifications than there are
pods for that machine, the extra ones will be ignored. However, an error is
reported any time more than 22 pod specifications are listed.
The polarity can be specified at any point after the label name.
Because pods contain 16 channels, the format value for a pod must be
between 0 and 65535 (216−1). When giving the pod assignment in binary,
each bit will correspond to a single channel. A "1" in a bit position means the
associated channel in that pod is assigned to the label. A "0" in a bit position
means the associated channel in that pod is excluded from the label. Leading
zeroes may be omitted. For example, assigning #B1111001100 is equivalent
to entering "......****..**.." through the touchscreen.
A label can not have a total of more than 32 channels assigned to it.
<name>
<polarity>
<clock_bits>
string of up to 6 alphanumeric characters
{POSitive | NEGative}
format (integer from 0 to 65535) for a clock (clocks are assigned in
decreasing order)
11–6
TFORmat Subsystem
REMove
<upper_bits>
format (integer from 0 to 65535) for a pod (pods are assigned in decreasing
order)
<lower_bits>
format (integer from 0 to 65535) for a pod (pods are assigned in decreasing
order)
Example
OUTPUT XXX;":MACHINE2:TFORMAT:LABEL ’STAT’,POSITIVE,0,127,
40312"
OUTPUT XXX;":MACHINE2:TFORMAT:LABEL ’SIG 1’, #B11,
#B0000000011111111,#B0000000000000000 "
Query
:MACHine{1|2}:TFORmat:LABel? <name>
The LABel query returns the current specification for the selected (by name)
label. If the label does not exist, nothing is returned. Numbers are always
returned in decimal format.
Returned Format
<assignment>
Example
[:MACHine{1|2}:TFORmat:LABel] <name>,<polarity>
[,<assignment>]...<NL>
format (integer from 0 to 65535) for a pod (pods are assigned in decreasing
order)
OUTPUT XXX;":MACHINE2:TFORMAT:LABEL? ’DATA’"
REMove
Command
:MACHine{1|2}:TFORmat:REMove {<name>|ALL}
The REMove command allows you to delete all labels or any one label
specified by name for a given machine.
<name>
Example
string of up to 6 alphanumeric characters
OUTPUT XXX;":MACHINE1:TFORMAT:REMOVE ’A’"
11–7
TFORmat Subsystem
THReshold
THReshold
Command
:MACHine{1|2}:TFORmat:THReshold<N>
{TTL|ECL|<value>}
The THReshold command allows you to set the voltage threshold for a given
pod to ECL, TTL, or a specific voltage from −6.00 V to +6.00 V in 0.05 volt
increments.
<N>
<value>
pod number (integer from 1 to 12)
voltage (real number) −6.00 to +6.00
TTL
default value of +1.6 V
ECL
default value of −1.3 V
Example
OUTPUT XXX;":MACHINE1:TFORMAT:THRESHOLD1 4.0"
Query
:MACHine{1|2}:TFORmat:THReshold<N>?
The THReshold query returns the current threshold for a given pod.
Returned Format
[:MACHine{1|2}:TFORmat:THReshold<N>] <value><NL>
Example
OUTPUT XXX;":MACHINE1:TFORMAT:THRESHOLD2?"
11–8
12
TTRigger (TTRace) Subsystem
Introduction
The TTRigger subsystem contains the commands available for the
Timing Trigger menu in the HP 16554A/HP 16555A/HP 16555D logic
analyzer module. The Timing Trigger subsystem will also accept the
TTRace selector as used in previous HP 16500-series logic analyzer
modules to eliminate the need to rewrite programs containing TTRace
as the selector keyword. The TTRigger subsystem commands are:
•
•
•
•
•
•
•
•
•
•
•
•
•
ACQuisition
BRANch
CLEar
EDGE
FIND
MLENgth
RANGe
SEQuence
SPERiod
TCONtrol
TERM
TIMER
TPOSition
12–2
TTRigger (TTRace) Subsystem
Figure 12-1
TTRigger Subsystem Syntax Diagram
12–3
TTRigger (TTRace) Subsystem
Figure 12-1 (continued)
TTRigger Subsystem Syntax Diagram (continued)
12–4
TTRigger (TTRace) Subsystem
Table 12-1
TTRigger Parameter Values
Parameter
Value
branch_qualifier
<qualifier>
integer from 1 to last sequence level
to_level_num
proceed_qualifier
occurrence
label_name
start_pattern
stop_pattern
num_of_levels
timer_num
timer_value
term_id
pattern
qualifier
post_value
time_val
duration_time
sample_period
<qualifier>
number from 1 to 1048575
string of up to 6 alphanumeric characters
"{#B{0|1}...|
#Q{0|1|2|3|4|5|6|7}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F}...|
{0|1|2|3|4|5|6|7|8|9}...}"
integer from 1 to 10
{1|2}
400 ns to 500 seconds
{A|B|C|D|E|F|G|I}
"{#B{0|1|X}...|
#Q{0|1|2|3|4|5|6|7|X}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X}...|
{0|1|2|3|4|5|6|7|8|9}...}"
see "Qualifier" on page 12-6
integer from 0 to 100 representing percentage
real number
real number from 8 ns to 5 s based on the sample period
real number from 4 ns (HP 16554A) or 2 ns (HP 16555A/D) to
8 ms
edge_spec
string consisting of {E | F | R | .}
memory_length
{4096 | 8192 | 16384 | 32768 | 65536 |
131072 | 262144 |
516096 | 1040384 (HP 16554A)
524288 | 1048576 | 2088960(HP 16555A)
524288 | 1048576 | 2097152 | 4177920
(HP 16555D only)}
12–5
TTRigger (TTRace) Subsystem
Qualifier
Qualifier
The qualifier for the timing trigger subsystem can be terms A through G and
I, Timer 1 and 2, Range 1 and 2, and Edge 1 and 2. In addition, qualifiers can
be the NOT boolean function of terms, timers, and ranges. The qualifier can
also be an expression or combination of expressions as shown below and
figure 12-2, "Complex Qualifier," on page 12-11.
The following parameters show how qualifiers are specified in all commands
of the TTRigger subsystem that use <qualifier>.
<qualifier>
{ "ANYSTATE" | "NOSTATE" | "<expression>" }
<expression>
{<expression1a>|<expression1b>|<expression1a> OR
<expression1b>|<expression1a> AND <expression1b>}
<expression1a>
{<expression1a_term>|(<expression1a_term>[ OR
<expression1a_term>]* )|(<expression1a_term>[ AND
<expression1a_term>]* )}
<expression1b>
{<expression1b_term>|( <expression1b_term>[ OR
<expression1b_term>]* )|(<expression1b_term>[ AND
<expression1b_term>]* )}
<expression1a_
term>
{<expression2a>|<expression2b>|<expression2c>| <expression2d>}
<expression1b_
term>
{<expression2e>|<expression2f>|<expression2g>| <expression2h>}
<expression2a>
{<term3a>|<term3b>|(<term3a> <boolean_op> <term3b>)}
<expression2b>
{<term3c>|<range3a>|(<term3c> <boolean_op> <range3a>)}
<expression2c>
{<term3d>|<edge3a|(<term3d> <boolean_op> <edge3a>)}
<expression2d>
{<term3e>|<timer3a>|(<term3e> <boolean_op> <timer3a>)}
<expression2e>
{<term3f>|<term3g>|(<term3f> <boolean_op> <term3g>)}
<expression2f>
{<range3b>}
<expression2g>
{<term3i>|<edge3b>|(<term3i> <boolean_op> <edge3b>)}
<expression2h>
{<timer3b>}
<boolean_op>
{AND | NAND | OR | NOR | XOR | NXOR}
12–6
TTRigger (TTRace) Subsystem
Qualifier
<term3a>
{ A | NOTA }
<term3b>
{ B | NOTB }
<term3c>
{ C | NOTC }
<term3d>
{ D | NOTD }
<term3e>
{ E | NOTE }
<term3f>
{ F | NOTF }
<term3g>
{ G | NOTG }
<term3i>
{ I | NOTI }
<range3a>
{ IN_RANGE1 | OUT_RANGE1 }
<range3b>
{ IN_RANGE2 | OUT_RANGE2 }
<edge3a>
{EDGE1 | NOT EDGE1}
<edge3b>
{EDGE2 | NOT EDGE2}
<timer3a>
{ TIMER1< | TIMER1>}
<timer3b>
{ TIMER2< | TIMER2>}
* = is optional such that it can be used zero or more times
+ = must be used at least once and can be repeated
12–7
TTRigger (TTRace) Subsystem
TTRigger (TTRace)
Qualifier Rules
The following rules apply to qualifiers:
• Qualifiers are quoted strings and, therefore, need quotes.
• Expressions are evaluated from left to right.
• Parentheses are used to change the order evaluation and, therefore, are
optional.
• An expression must map into the combination logic presented in the
combination pop-up menu within the TTRigger menu.
Examples
’A’
’( A OR B )’
’(( A OR B ) AND
’(( A OR B ) AND
’(( A OR B ) AND
’IN_RANGE1 AND (
C
C
(
A
)’
AND IN_RANGE2 )’
C AND IN_RANGE1 ))’
OR B ) AND C’
TTRigger (TTRace)
Selector
:MACHine{1|2}:TTRigger
The TTRigger (TTRace) (Timing Trigger) selector is used as a part of a
compound header to access the settings found in the Timing Trigger menu.
It always follows the MACHine selector because it selects a branch directly
below the MACHine level in the command tree.
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:TAG TIME"
12–8
TTRigger (TTRace) Subsystem
ACQuisition
ACQuisition
Command
:MACHine{1|2}:TTRigger:ACQuisition
{AUTOmatic|MANual}
The ACQuisition command allows you to specify the acquisition mode for the
timing analyzer.
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:ACQUISITION AUTOMATIC"
Query
:MACHine{1|2}:TTRigger:ACQuisition?
The ACQuisition query returns the current acquisition mode specified.
Returned Format
[:MACHine{1|2}:TTRigger:ACQuisition] {AUTOmatic|MANual}<NL>
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:ACQUISITION?"
BRANch
Command
:MACHine{1|2}:TTRigger:BRANch<N>
<branch_qualifier>,<to_level_number>
The BRANch command defines the branch qualifier for a given sequence
level. When this branch qualifier is matched, it will cause the sequencer
to jump to the specified sequence level. BRANch functions like the "else on"
branch of the front-panel sequence level.
The terms used by the branch qualifier (A through G and I) are defined by
the TERM command. The meaning of IN_RANGE and OUT_RANGE is
determined by the RANGe command. The edge terms are defined by the
EDGE command.
12–9
TTRigger (TTRace) Subsystem
BRANch
Within the limitations shown by the syntax definitions, complex expressions
may be formed using the AND and OR operators. Expressions are limited to
what you could manually enter through the Timing Trigger menu. Regarding
parentheses, the syntax definitions on the next page show only the required
ones. Additional parentheses are allowed as long as the meaning of the
expression is not changed. Figure 12-2, on page 12-11, shows a complex
expression as seen in the Timing Trigger menu.
Example
The following statements are all correct and have the same meaning. Notice
that the conventional rules for precedence are not followed. The expressions
are evaluated from left to right.
OUTPUT XXX;":MACHINE1:TTRIGGER:BRANCH1 ’C AND D OR F OR G’, 1"
OUTPUT XXX;":MACHINE1:TTRIGGER:BRANCH1 ’((C AND D) OR (F OR
G))’, 1"
OUTPUT XXX;":MACHINE1:TTRIGGER:BRANCH1 ’F OR (C AND D) OR
G’,1"
<N>
integer from 1 to <number_of_levels>
<to_level_
number>
integer from 1 to <number_of_levels>
<number_of_
levels>
<branch_
qualifier>
Example
integer from 1 to the number of existing sequence levels (maximum 10)
<qualifier> see "Qualifier" on page 12-6
OUTPUT XXX;":MACHINE1:TTRIGGER:BRANCH1 ’ANYSTATE’, 3"
OUTPUT XXX;":MACHINE2:TTRIGGER:BRANCH2 ’A’, 7"
OUTPUT XXX;":MACHINE1:TTRIGGER:BRANCH3 ’((A OR B) OR NOTG)’,
1"
12–10
TTRigger (TTRace) Subsystem
BRANch
Query
:MACHine{1|2}:TTRigger:BRANch<N>?
The BRANch query returns the current branch qualifier specification for a
given sequence level.
Returned Format
[:MACHine{1|2}:TTRigger:BRANch<N>]
<branch_qualifier>,<to_level_num><NL>
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:BRANCH3?"
Figure 12-2
Complex Qualifier
Figure 12-2 is a front-panel representation of the complex qualifier (a Or
b) Or (f Or g).
Example
This example would be used to specify this complex qualifier.
OUTPUT XXX;":MACHINE1:TTRIGGER:BRANCH1 ’((A OR B) AND (F OR
G))’, 2"
12–11
TTRigger (TTRace) Subsystem
CLEar
Terms A through E, RANGE 1, EDGE1, and TIMER 1 must be grouped together
and terms F, G, and I, RANGE 2, EDGE2, and TIMER 2 must be grouped together.
In the first level, terms from one group may not be mixed with terms from the
other. For example, the expression ((A OR IN_RANGE2) AND (C OR G))
is not allowed because the term C cannot be specified in the F, G, and I group.
In the first level, the operators you can use are AND, NAND, OR, NOR,
XOR, NXOR. Either AND or OR may be used at the second level to join the
two groups together. It is acceptable for a group to consist of a single term.
Thus, an expression like (B AND G) is legal since the two operands are both
simple terms from separate groups.
CLEar
Command
:MACHine{1|2}:TTRigger:CLEar
{All|SEQuence|RESource}
The CLEar command allows you to clear all settings in the Timing Trigger
menu, clear only the sequence levels, or clear only the resource term
patterns. Cleared values are set to their defaults.
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:CLEAR RESOURCE"
12–12
TTRigger (TTRace) Subsystem
EDGE
EDGE
Command
:MACHine{1|2}:TTRigger:EDGE<N> <label_name>,
<edge_spec>
The EDGE command allows you to define edge specifications for a given
label. Edge specifications can be R (rising), F (falling), E (either), or "."
(don’t care). Edges are sent in the same string with the rightmost string
character specifying what the rightmost bit will be.
The <edge_spec> string length must match the exact number of bits assigned
to the specified label. If the string length does not match the number of bits, the
"Parameter string invalid" message is displayed.
<N>
<label_name>
<edge_spec>
Example
{1|2}
string of up to 6 alphanumeric characters
string consisting of {R|F|E|.}[to total number of bits]
For 8 bits assigned:
OUTPUT XXX;":MACHINE1:TTRIGGER:EDGE1 ’DATA’, ’....F..E’"
For 16 bits assigned:
OUTPUT XXX;":MACHINE1:TTRIGGER:EDGE1 ’DATA’,
’....EEE.....F..R’"
12–13
TTRigger (TTRace) Subsystem
FIND
Query
:MACHine{1|2}:TTRigger:EDGE<N>? <label_name>
The EDGE query returns the current specification for the given label.
Returned Format
[:MACHine{1|2}:TTRigger:EDGE<N>] <label_name>,<edge_spec><NL>
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:EDGE1? ’DATA’"
FIND
Command
:MACHine{1|2}:TTRigger:FIND<N> <time_qualifier>,
<condition_mode>
The FIND command defines the qualifier for a given sequence level. The
qualifier tells the timing analyzer when to proceed to the next sequence level.
When this proceed qualifier is matched for either the specified time or
occurrence, the sequencer will proceed to the next sequence level. In the
sequence level where the trigger is specified, the FIND command specifies
the trigger qualifier (see SEQuence command).
The terms A through G and I are defined by the TERM command. The
meaning of IN_RANGE and OUT_RANGE is determined by the RANGe
command. The edge terms are defined by the EDGE command. Expressions
are limited to what you could manually enter through the Timing Trigger
menu. Regarding parentheses, the syntax definitions below show only the
required ones. Additional parentheses are allowed as long as the meaning of
the expression is not changed. See figure 12-2 on page 12-11 for a detailed
example.
<N>
<time_
qualifier>
<condition_
mode>
GT
integer from 1 to the number of existing sequence levels (maximum 10)
<qualifier> see "Qualifier" on page 12-6
{{GT|LT}, <duration_time>|OCCurrence, <occurrence>}
greater than
12–14
TTRigger (TTRace) Subsystem
FIND
LT
<duration_
time>
<occurrence>
less than
real number from 8 ns to 5.00 seconds depending on sample period
integer from 1 to 1048575
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:FIND1 ’ANYSTATE’, GT, 10E−6"
OUTPUT XXX;":MACHINE1:TTRIGGER:FIND3 ’((NOTA AND NOTB) OR
G)’, OCCURRENCE, 10"
Query
:MACHine{1|2}:TTRigger:FIND4?
The FIND query returns the current time qualifier specification for a given
sequence level.
Returned Format
[:MACHine{1|2}:TTRigger:FIND<N>]
<time_qualifier>,<condition_mode><NL>
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:FIND<N>?"
12–15
TTRigger (TTRace) Subsystem
MLENgth
MLENgth
Command
:MACHine{1|2}:TTRigger:MLENgth <memory_length>
The MLENgth command allows you to specify the analyzer memory depth.
Valid memory depths range from 4096 samples through the maximum system
memory depth minus 8192 samples (HP 16554A/HP 16555A) or minus 16384
samples (HP 16555D). Memory depth is affected by acquisition mode. If the
<memory_depth> value sent with the command is not a legal value, the
closest legal setting will be used.
<memory_length>
{4096 | 8192 | 16384 | 32768 | 65536 | 131072 | 262144 |
516096 | 524288 | 1040384 (HP 16554A)
524288 | 1040384 | 1048576 | 2088960 (HP 16555A)
524288 | 1048576 | 2080768 | 2097152 | 4177920 (HP 16555D)}
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:MLENGTH 262144"
Query
:MACHine{1|2}:TTRigger:MLENgth?
The MLENgth query returns the current analyzer memory depth selection.
Returned Format
[:MACHine{1|2}:TTRigger:MLENgth] <memory_length><NL>
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:MLENGTH?"
12–16
TTRigger (TTRace) Subsystem
RANGe
RANGe
Command
:MACHine{1|2}:TTRigger:RANGe<N> <label_name>,
<start_pattern>,<stop_pattern>
The RANGe command allows you to specify a range recognizer term for the
specified machine. Since a range can only be defined across one label and,
since a label must contain 32 or fewer bits, the value of the start pattern or
stop pattern will be between 232−1 and 0.
When these values are expressed in binary, they represent the bit values for
the label at one of the range recognizers’ end points. Don’t cares are not
allowed in the end point pattern specifications.
<label_name>
<N>
<start_pattern>
<stop_pattern>
string of up to 6 alphanumeric characters
{1|2}
"{#B{0|1} . . . |
#Q{0|1|2|3|4|5|6|7} . . . |
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F} . . . |
{0|1|2|3|4|5|6|7|8|9} . . . }"
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:RANGE1 ’DATA’, ’127’, ’255’ "
OUTPUT XXX;":MACHINE1:TTRIGGER:RANGE2 ’ABC’, ’#B00001111’,
’#HCF’ "
Query
:MACHine{1|2}:TTRigger:RANGe<N>?
The RANGe query returns the range recognizer end point specifications for
the range.
Returned Format
[:MACHine{1|2}:TTRiger:RANGe<N>] <label_name>,<start_pattern>,
<stop_pattern><NL>
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:RANGE1?"
12–17
TTRigger (TTRace) Subsystem
SEQuence
SEQuence
Command
:MACHine{1|2}:TTRigger:SEQuence <number_of_levels>
The SEQuence command defines the timing analyzer trigger sequence. First
it deletes the current sequence, then it inserts the number of levels specified,
with default settings. The number of levels can be between 1 and 10 when
the analyzer is armed by the RUN key.
In timing analyzers, the trigger is always the last level.
<number_of_
levels>
integer from 1 to 10
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:SEQUENCE 4"
Query
:MACHine{1|2}:TTRigger:SEQuence?
The SEQuence query returns the current sequence specification.
Returned Format
[:MACHine{1|2}:TTRigger:SEQuence] <number_of_levels>,
<level_of_trigger><NL>
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:SEQUENCE?"
12–18
TTRigger (TTRace) Subsystem
SPERiod
SPERiod
Command
:MACHine{1|2}:TTRigger:SPERiod <sample_period>
The SPERiod command allows you to set the sample period of the timing
analyzer.
<sample_period>
real number from 4 ns (HP 16554A) or 2 ns (HP 16555A/D) to 8 ms
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:SPERIOD 50E−9"
Query
:MACHine{1|2}:TTRigger:SPERiod?
The SPERiod query returns the current sample period.
Returned Format
[:MACHine{1|2}:TTRigger:SPERiod] <sample_period><NL>
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:SPERIOD?"
12–19
TTRigger (TTRace) Subsystem
TCONtrol
TCONtrol
Command
:MACHine{1|2}:TTRigger:TCONtrol<N> <timer_num>,
{OFF|STARt|PAUSe|CONTinue}
The TCONtrol (timer control) command allows you to turn off, start, pause,
or continue the timer for the specified level. The time value of the timer is
defined by the TIMER command.
<N>
<timer_num>
integer from 1 to the number of existing sequence levels (maximum 10)
{1|2}
Example
OUTPUT XXX;":MACHINE2:TTRIGGER:TCONTROL6 1, PAUSE"
Query
:MACHine{1|2}:TTRigger:TCONTROL<N>? <timer_num>
The TCONtrol query returns the current TCONtrol setting of the specified
level.
Returned Format
[:MACHine{1|2}:TTRigger:TCONTROL<N> <timer_num>]
{OFF|STARt|PAUSe|CONTinue}<NL>
Example
OUTPUT XXX;":MACHINE2:TTRIGGER:TCONTROL6? 1"
12–20
TTRigger (TTRace) Subsystem
TERM
TERM
Command
:MACHine{1|2}:TTRigger:TERM <term_id>,
<label_name>,<pattern>
The TERM command allows you to a specify a pattern recognizer term in the
specified machine. Each command deals with only one label in the given
term; therefore, a complete specification could require several commands.
Since a label can contain 32 or fewer bits, the range of the pattern value will
be between 232 − 1 and 0. When the value of a pattern is expressed in binary,
it represents the bit values for the label inside the pattern recognizer term.
Since the pattern parameter may contain don’t cares and be represented in
several bases, it is handled as a string of characters rather than a number.
Eight of the 10 terms (A through G and I) are available (terms H and J are
not available) to either machine but not both simultaneously. If you send the
TERM command to a machine with a term that has not been assigned to that
machine, an error message "Legal command but settings conflict" is returned.
<term_id>
<label_name>
<pattern>
Example
{A|B|C|D|E|F|G|I}
string of up to 6 alphanumeric characters
"{#B{0|1|X} . . . |
#Q{0|1|2|3|4|5|6|7|X} . . . |
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X} . . . |
{0|1|2|3|4|5|6|7|8|9} . . . }"
OUTPUT XXX;":MACHINE1:TTRIGGER:TERM A,’DATA’,’255’ "
OUTPUT XXX;":MACHINE1:TTRIGGER:TERM B,’ABC’,’#BXXXX1101’ "
12–21
TTRigger (TTRace) Subsystem
TIMER
Query
:MACHine{1|2}:TTRigger:TERM?
<term_id>,<label_name>
The TERM query returns the specification of the term indicated by term
identification and label name.
Returned Format
[:MACHine{1|2}:TTRigger:TERM]
<term_id>,<label_name>,<pattern><NL>
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:TERM? B,’DATA’ "
TIMER
Command
:MACHine{1|2}:TTRigger:TIMER{1|2} <time_value>
The TIMER command sets the time value for the specified timer. The limits
of the timer are 400 ns to 500 seconds in 16 ns to 500 µs increments. The
increment value varies with the time value of the specified timer.
<time_value>
real number from 400 ns to 500 seconds in increments which vary from 16 ns
to 500 µs.
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:TIMER1 100E−6"
Query
:MACHine{1|2}:TTRigger:TIMER{1|2}?
The TIMER query returns the current time value for the specified timer.
Returned Format
[:MACHine{1|2}:TTRigger:TIMER{1|2}] <time_value><NL>
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:TIMER1?"
12–22
TTRigger (TTRace) Subsystem
TPOSition
TPOSition
Command
:MACHine{1|2}:TTRigger:TPOSition
{STARt|CENTer|END|DELay, <time_val>|
POSTstore,<poststore>}
The TPOSition (trigger position) command allows you to set the trigger at
the start, center, end or at any position in the trace (poststore). Poststore is
defined as 0 to 100 percent with a poststore of 100 percent being the same as
start position and a poststore of 0 percent being the same as an end trace.
The DELay mode can be used to set the time between the trigger point and
the start of the trace, causing the trace to begin after the trigger point.
<time_val>
<poststore>
real number from either (2 × sample period) or 16 ns, whichever is greater, to
(516096 × sample period)(HP 16554A) or (1040384 × sample period)
(HP 16555A/D).
integer from 0 to 100 representing percentage of poststore.
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:TPOSITION END"
OUTPUT XXX;":MACHINE1:TTRIGGER:TPOSITION POSTstore,75"
Query
:MACHine{1|2}:TTRigger:TPOSition?
The TPOSition query returns the current trigger position setting.
Returned Format
[:MACHine{1|2}:TTRigger:TPOSition] {STARt|CENTer|END|DELay,
<time_val>|POSTstore,<poststore>}<NL>
Example
OUTPUT XXX;":MACHINE1:TTRIGGER:TPOSITION?"
12–23
12–24
13
TWAVeform Subsystem
Introduction
The TWAVeform subsystem contains the commands available for the
Timing Waveforms menu in the HP 16554A/HP 16555A/HP 16555D
logic analyzer module. These commands are:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
ACCumulate
ACQuisition
CENTer
CLRPattern
CLRStat
DELay
INSert
MINus
MLENgth
MMODe
OCONdition
OPATtern
OSEarch
OTIMe
OVERlay
PLUS
13–2
•
•
•
•
•
•
•
•
•
•
•
•
•
•
RANGe
REMove
RUNTil
SPERiod
TAVerage
TMAXimum
TMINimum
TPOSition
VRUNs
XCONdition
XOTime
XPATtern
XSEarch
XTIMe
TWAVeform Subsystem
Figure 13-1
TWAVeform Subsystem Syntax Diagram
13–3
TWAVeform Subsystem
Figure 13-1 (continued)
TWAVeform Subsystem Syntax Diagram (continued)
13–4
TWAVeform Subsystem
Figure 13-1 (continued)
TWAVeform Subsystem Syntax Diagram (continued)
13–5
TWAVeform Subsystem
Table 13-1
TWAVeform Parameter Values
Parameter
Value
delay_value
real number between -2500 s and +2500 s
module_spec
{1|2|3|4|5|6|7|8|9|10}
bit_id
integer from 0 to 31
waveform
string containing <acquisition_spec>{1|2}
acquisition_spec
{A|B|C|D|E|F|G|H|I|J} (slot where acquisition card is
located)
label_name
string of up to 6 alphanumeric characters
label_pattern
"{#B{0|1|X}...|
#Q{0|1|2|3|4|5|6|7|X}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X}...|
{0|1|2|3|4|5|6|7|8|9}...}"
occurrence
integer
time_value
real number
time_range
real number between 10 ns and 10 ks
run_until_spec
{OFF|LT,<value>|GT,<value>|INRange,<value>,
<value>|OUTRange,<value>,<value>}
GT
greater than
LT
less than
value
real number
time_val
real number
sample_period
real number from 4 ns (HP 16554A) or 2 ns (HP 16555A/D) to 8 ms
marker_type
{X | O | XO | TRIGger}
memory_length
{4096 | 8192 | 16384 | 32768 | 65536 |
131072 | 262144 |
516096 | 524288 | 1040384 (HP 16554A)
524288 | 1040384 | 1048576 | 2088960
(HP 16555A)
524288 | 1048576 | 2080768 | 4177920
(HP 16555D)}
13–6
TWAVeform Subsystem
TWAVeform
TWAVeform
Selector
:MACHine{1|2}:TWAVeform
The TWAVeform selector is used as part of a compound header to access the
settings found in the Timing Waveforms menu. It always follows the
MACHine selector because it selects a branch below the MACHine level in the
command tree.
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:DELAY 100E−9"
ACCumulate
Command
:MACHine{1|2}:TWAVeform:ACCumulate <setting>
The ACCumulate command allows you to control whether the waveform
display gets erased between each individual run or whether subsequent
waveforms are allowed to be displayed over the previous ones.
<setting>
Example
{0|OFF} or {1|ON}
OUTPUT XXX;":MACHINE1:TWAVEFORM:ACCUMULATE ON"
13–7
TWAVeform Subsystem
ACQuisition
Query
:MACHine{1|2}:TWAVeform:ACCumulate?
The ACCumulate query returns the current setting. The query always shows
the setting as the characters, "0" (off) or "1" (on).
Returned Format
[:MACHine{1|2}:TWAVeform:ACCumulate] {0|1}<NL>
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:ACCUMULATE?"
ACQuisition
Command
:MACHine{1|2}:TWAVeform:ACQuisition
{AUTOmatic|MANual}
The ACQuisition command allows you to specify the acquisition mode for the
timing analyzer. The acquisition modes are automatic and manual.
Query
MACHine{1|2}:TWAVeform:ACQuisition?
The ACQuisition query returns the current acquisition mode.
Returned Format
[MACHine{1|2}:TWAVeform:ACQuisition] {AUTOmatic|MANual}<NL>
Example
OUTPUT XXX;":MACHINE2:TWAVEFORM:ACQUISITION?"
13–8
TWAVeform Subsystem
CENTer
CENTer
Command
:MACHine{1|2}:TWAVeform:CENTer <marker_type>
The CENTer command allows you to center the waveform display about the
specified markers.
<marker_type>
Example
{X|O|XO|TRIGger}
OUTPUT XXX;":MACHINE1:TWAVEFORM:CENTER X"
CLRPattern
Command
:MACHine{1|2}:TWAVeform:CLRPattern {X|O|ALL}
The CLRPattern command allows you to clear the patterns in the selected
Specify Patterns menu.
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:CLRPATTERN ALL"
CLRStat
Command
:MACHine{1|2}:TWAVeform:CLRStat
The CLRStat command allows you to clear the waveform statistics without
having to stop and restart the acquisition.
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:CLRSTAT"
13–9
TWAVeform Subsystem
DELay
DELay
Command
:MACHine{1|2}:TWAVeform:DELay <delay_value>
The DELay command specifies the amount of time between the timing
trigger and the horizontal center of the the timing waveform display. The
allowable values for delay are −2500 s to +2500 s.
<delay_value>
real number between −2500 s and +2500 s
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:DELAY 100E−6"
Query
:MACHine{1|2}:TWAVeform:DELay?
The DELay query returns the current time offset (delay) value from the
trigger.
Returned Format
[:MACHine{1|2}:TWAVeform:DELay] <time_value><NL>
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:DELAY?"
13–10
TWAVeform Subsystem
INSert
INSert
Command
:MACHine{1|2}:TWAVeform:INSert [<module_spec>,]
<label_name>[,{<bit_id>|OVERlay|ALL}]
The INSert command inserts waveforms in the timing waveform display. The
waveforms are added from top to bottom up to 96 waveforms. Once 96
waveforms are present, each time you insert another waveform, it replaces
the last waveform.
Time-correlated waveforms from an oscilloscope or another logic analyzer
module can also be inserted in the logic analyzer’s timing waveforms display.
Oscilloscope waveforms occupy the same display space as three logic
analyzer waveforms. When inserting waveforms from an oscilloscope or
another logic analyzer module, the optional module specifier must be used.
1 through 10 corresponds to modules A through J. If you do not specify the
module, the selected module is assumed.
The second parameter specifies the label name that will be inserted. The
optional third parameter specifies the label bit number, overlay, or all. If a
number is specified, only the waveform for that bit number is added to the
screen.
If you specify OVERlay, all the bits of the label are displayed as a composite
overlaid waveform. If you specify ALL, all the bits are displayed sequentially.
If you do not specify the third parameter, ALL is assumed.
<module_spec>
<label_name>
<bit_id>
Example
{1|2|3|4|5|6|7|8|9|10}
string of up to 6 alphanumeric characters
integer from 0 to 31
OUTPUT XXX;":MACHINE1:TWAVEFORM:INSERT 3, ’WAVE’,9"
13–11
TWAVeform Subsystem
MLENgth
Inserting Oscilloscope Waveforms
Command
:MACHine{1|2}:TWAVeform:INSert <module_spec>,
<label_name>
This inserts a waveform from an oscilloscope to the timing waveforms display.
<module_spec>
<label_name>
Example
{1|2|3|4|5|6|7|8|9|10} slot in which the oscilloscope master card is
installed
string of one alpha and one numeric character
OUTPUT XXX;":MACHINE1:TWAVEFORM:INSERT 3, ’C1’"
MLENgth
Command
:MACHine{1|2}:TWAVeform:MLENgth <memory_length>
The MLENgth command allows you to specify the analyzer memory depth.
Valid memory depths range from 4096 samples through the maximum system
memory depth minus 8192 samples (HP 16554A/HP 16555A) or the
maximum system memory depth minus 16384 (HP 16555D). Memory depth
is affected by acquisition mode. If the <memory_depth> value sent with the
command is not a legal value, the closest legal setting will be used.
<memory_length>
Example
{4096 | 8192 | 16384 | 32768 | 65536 | 131072 | 262144
| 516096 | 524288 | 1040384 (HP 16554A)
| 524288 | 1040384 | 1048576 | 2088960 (HP 16555A)
| 524288 | 1048576 | 2080768 | 2088960 | 4177920
(HP 16555D)}
OUTPUT XXX;":MACHINE1:TWAVEFORM:MLENGTH 262144"
13–12
TWAVeform Subsystem
MINus
Query
:MACHine{1|2}:TWAVeform:MLENgth?
The MLENgth query returns the current analyzer memory depth selection.
Returned Format
[:MACHine{1|2}:TWAVeform:MLENgth] <memory_length><NL>
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:MLENGTH?"
MINus
Command
:MACHine{1|2}:TWAVeform:MINus
<module_spec>,<waveform>,<waveform>
The MINus command inserts time-correlated A−B (A minus B) oscilloscope
waveforms on the display. The first parameter specifies where the
oscilloscope master card resides, where 1 through 10 refers to slots A
through J. The next two parameters specify which waveforms will be
subtracted from each other.
MINus is only available for oscilloscope waveforms.
<module_spec>
<waveform>
<acquisition_
spec>
Example
{1|2|3|4|5|6|7|8|9|10}
string containing <acquisition_spec>{1|2}
{A|B|C|D|E|F|G|H|I|J} (slot where acquisition card is located)
OUTPUT XXX; ":MACHINE1:TWAVEFORM:MINUS 1,’A1’,’A2’"
13–13
TWAVeform Subsystem
MMODe
MMODe
Command
:MACHine{1|2}:TWAVeform:MMODe
{OFF|PATTern|TIME|MSTats}
The MMODe (Marker Mode) command selects the mode controlling marker
movement and the display of the marker readouts. When PATTern is
selected, the markers will be placed on patterns. When TIME is selected, the
markers move on time. In MSTats, the markers are placed on patterns, but
the readouts will be time statistics.
Example
OUTPUT XXX; ":MACHINE1:TWAVEFORM:MMODE TIME"
Query
:MACHine{1|2}:TWAVeform:MMODe?
The MMODe query returns the current marker mode.
Returned Format
<marker_mode>
Example
[:MACHine{1|2}:TWAVeform:MMODe] <marker_mode><NL>
{OFF|PATTern|TIME|MSTats}
OUTPUT XXX;":MACHINE1:TWAVEFORM:MMODE?"
13–14
TWAVeform Subsystem
OCONdition
OCONdition
Command
:MACHine{1|2}:TWAVeform:OCONdition
{ENTering|EXITing}
The OCONdition command specifies where the O marker is placed. The
O marker can be placed on the entry or exit point of the OPATtern when in
the PATTern marker mode.
Example
OUTPUT XXX; ":MACHINE1:TWAVEFORM:OCONDITION ENTERING"
Query
:MACHine{1|2}:TWAVeform:OCONdition?
The OCONdition query returns the current setting.
Returned Format
[:MACHine{1|2}:TWAVeform:OCONdition] {ENTering|EXITing}<NL>
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:OCONDITION?"
13–15
TWAVeform Subsystem
OPATtern
OPATtern
Command
:MACHine{1|2}:TWAVeform:OPATtern <label_name>,
<label_pattern>
The OPATtern command allows you to construct a pattern recognizer term
for the O marker which is then used with the OSEarch criteria and
OCONdition when moving the marker on patterns. Since this command deals
with only one label at a time, a complete specification could require several
invocations.
When the value of a pattern is expressed in binary, it represents the bit
values for the label inside the pattern recognizer term. In whatever base is
used, the value must be between 0 and 232 − 1, since a label may not have
more than 32 bits. Because the <label_pattern> parameter may contain
don’t cares, it is handled as a string of characters rather than a number.
<label_name>
<label_pattern>
string of up to 6 alphanumeric characters
"{#B{0|1|X} . . . |
#Q{0|1|2|3|4|5|6|7|X} . . . |
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X} . . . |
{0|1|2|3|4|5|6|7|8|9} . . . }"
Example
OUTPUT XXX; ":MACHINE1:TWAVEFORM:OPATTERN ’A’,’511’"
Query
:MACHine{1|2}:TWAVeform:OPATtern? <label_name>
The OPATtern query, in pattern marker mode, returns the pattern
specification for a given label name. In the time marker mode, the query
returns the pattern under the O marker for a given label. If the O marker is
not placed on valid data, don’t cares (X) are returned.
Returned Format
[:MACHine{1|2}:TWAVeform:OPATtern]
<label_name>,<label_pattern><NL>
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:OPATTERN? ’A’"
13–16
TWAVeform Subsystem
OSEarch
OSEarch
Command
:MACHine{1|2}:TWAVeform:OSEarch <occurrence>,
<origin>
The OSEarch command defines the search criteria for the O marker which is
then used with the associated OPATtern specification and the OCONdition
when moving markers on patterns. The origin parameter tells the marker to
begin a search from the start of the acquisition, the trigger, or the X marker.
The actual occurrence the marker searches for is determined by the
occurrence parameter of the OSEArch specification, relative to the origin.
An occurrence of 0 places a marker on the selected origin. With a negative
occurrence, the marker searches before the origin. With a positive
occurrence, the marker searches after the origin.
<origin>
<occurrence>
{STARt|TRIGger|XMARker}
integer from −1040384 to +1040384 (HP 16554A) or from −2088960 to
+2088960 (HP 16555A) or from –4177920 to +4177920 (HP 16555D)
Example
OUTPUT XXX; ":MACHINE1:TWAVEFORM:OSEARCH +10,TRIGGER"
Query
:MACHine{1|2}:TWAVeform:OSEarch?
The OSEarch query returns the search criteria for the O marker.
Returned Format
[:MACHine{1|2}:TWAVeform:OSEarch] <occurrence>,<origin><NL>
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:OSEARCH?"
13–17
TWAVeform Subsystem
OTIMe
OTIMe
Command
:MACHine{1|2}:TWAVeform:OTIMe <time_value>
The OTIMe command positions the O marker in time when the marker mode
is TIME. If data is not valid, the command performs no action.
<time_value>
real number −2.5 ks to +2.5 ks
Example
OUTPUT XXX; ":MACHINE1:TWAVEFORM:OTIME 30.0E−6"
Query
:MACHine{1|2}:TWAVeform:OTIMe?
The OTIMe query returns the O marker position in time. If data is not valid,
the query returns 9.9E37.
Returned Format
[:MACHine{1|2}:TWAVeform:OTIMe] <time_value><NL>
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:OTIME?"
OVERlay
Command
:MACHine{1|2}:TWAVeform:OVERlay <module_number>,
<label>,<label>[,<label>]...
The OVERlay command overlays two or more oscilloscope waveforms and
adds the resultant waveform to the current waveforms display. The first
parameter of the command specifies which slot contains the oscilloscope
master card. The next parameters are the labels of the waveforms that are to
be overlaid.
The OVERlay command only works on oscilloscopes. To overlay analyzer
waveforms, use the INSert command with OVERlay option.
13–18
TWAVeform Subsystem
PLUS
<module_spec>
<waveform>
<acquisition_
spec>
Example
{1|2|3|4|5|6|7|8|9|10}
string containing <acquisition_spec>{1|2}
{A|B|C|D|E|F|G|H|I|J} (slot where acquisition card is located)
OUTPUT XXX;":MACHINE1:TWAVEFORM:OVERLAY 3, ’C1’,’C2’"
PLUS
Command
:MACHine{1|2}:TWAVeform:PLUS
<module_spec>, <waveform>, <waveform>
The PLUS command inserts time-correlated A+B oscilloscope waveforms on
the screen. The first parameter specifies the slot where the oscilloscope
module resides. 1 through 10 refers to slots A through J. The next two
parameters specify which waveforms will be added to each other.
PLUS is only available for oscilloscope waveforms.
<module_spec>
<waveform>
<acquisition_
spec>
Example
{1|2|3|4|5|6|7|8|9|10}
string containing <acquisition_spec>{1|2}
{A|B|C|D|E|F|G|H|I|J} (slot where acquisition card is located)
OUTPUT XXX; ":MACHINE1:TWAVEFORM:PLUS 1,’A1’,’A2’"
13–19
TWAVeform Subsystem
RANGe
RANGe
Command
:MACHine{1|2}:TWAVeform:RANGe <time_value>
The RANGe command specifies the full-screen time in the timing waveform
menu. It is equivalent to ten times the sec/Div setting on the display. The
allowable values for RANGe are from 10 ns to 10 ks.
<time_range>
real number between 10 ns and 10 ks
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:RANGE 100E−9"
Query
:MACHine{1|2}:TWAVeform:RANGe?
The RANGe query returns the current full-screen time.
Returned Format
[:MACHine{1|2}:TWAVeform:RANGe] <time_value><NL>
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:RANGE?"
REMove
Command
:MACHine{1|2}:TWAVeform:REMove
The REMove command deletes all waveforms from the display.
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:REMOVE"
13–20
TWAVeform Subsystem
RUNTil
RUNTil
Command
:MACHine{1|2}:TWAVeform:RUNTil <run_until_spec>
The RUNTil (run until) command defines stop criteria based on the time
between the X and O markers when the trace mode is in repetitive. When
OFF is selected, the analyzer will run until either the STOP touch screen field
is touched, or, the STOP command is sent. Run until time between X and O
marker options are:
•
•
•
•
Less Than (LT) a specified time value.
Greater Than (GT) a specified time value.
In range (INRange) between two time values.
Out of range (OUTRange) between two time values.
End points for INRange and OUTRange should be at least 2 ns apart since
this is the minimum time at which data is sampled.
This command affects the timing analyzer only, and has no relation to the
RUNTil commands in the SLISt and COMPare subsystems.
<run_until_
spec>
<value>
{OFF | LT,<value> | GT,<value> | INRange,<value>,
<value>| OUTRange,<value>,<value>}
real number
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:RUNTIL GT, 800.0E−6"
OUTPUT XXX;":MACHINE1:TWAVEFORM:RUNTIL INRANGE, 4.5, 5.5"
Query
:MACHine{1|2}:TWAVeform:RUNTil?
The RUNTil query returns the current stop criteria.
Returned Format
[:MACHine{1|2}:TWAVeform:RUNTil] <run_until_spec><NL>
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:RUNTIL?"
13–21
TWAVeform Subsystem
SPERiod
SPERiod
Command
:MACHine{1|2}:TWAVeform:SPERiod <sample_period>
The SPERiod command allows you to set the sample period of the timing
analyzer.
<sample_period>
real number from 4 ns (HP 16554A) or 2 ns (HP 16555A/D) to 8 ms
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:SPERIOD 50E−9"
Query
:MACHine{1|2}:TWAVeform:SPERiod?
The SPERiod query returns the current sample period.
Returned Format
[:MACHine{1|2}:TWAVeform:SPERiod] <sample_period><NL>
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:SPERIOD?"
13–22
TWAVeform Subsystem
TAVerage
TAVerage
Query
:MACHine{1|2}:TWAVeform:TAVerage?
The TAVerage query returns the value of the average time between the
X and O markers. If there is no valid data, the query returns 9.9E37.
Returned Format
<time_value>
Example
[:MACHine{1|2}:TWAVeform:TAVerage] <time_value><NL>
real number
OUTPUT XXX;":MACHINE1:TWAVEFORM:TAVERAGE?"
TMAXimum
Query
:MACHine{1|2}:TWAVeform:TMAXimum?
The TMAXimum query returns the value of the maximum time between the X
and O markers. If there is no valid data, the query returns 9.9E37.
Returned Format
<time_value>
Example
[:MACHine{1|2}:TWAVeform:TMAXimum] <time_value><NL>
real number
OUTPUT XXX;":MACHINE1:TWAVEFORM:TMAXIMUM?"
13–23
TWAVeform Subsystem
TMINimum
TMINimum
Query
:MACHine{1|2}:TWAVeform:TMINimum?
The TMINimum query returns the value of the minimum time between the X
and O markers. If there is no valid data, the query returns 9.9E37.
Returned Format
<time_value>
Example
[:MACHine{1|2}:TWAVeform:TMINimum] <time_value><NL>
real number
OUTPUT XXX;":MACHINE1:TWAVEFORM:TMINIMUM?"
TPOSition
Command
MACHine{1|2}:TWAVeform:TPOSition
{STARt |CENTer | END | DELay, <time_val> |
POSTstore, <percent>}
The TPOSition command allows you to control where the trigger point is
placed in the acquisition. The trigger point can be placed at the start, center,
end, at a percentage of post store, or at a value specified by delay. The post
store option is the same as the User Defined option when setting the trigger
point from the front panel.
The TPOSition command is only available when the acquisition mode is set to
manual.
<time_val>
<percent>
Example
real number that varies by sample period
integer from 1 to 100
OUTPUT XXX;":MACHINE2:TWAVEFORM:TPOSITION CENTER"
13–24
TWAVeform Subsystem
VRUNs
Query
MACHine{1|2}:TWAVeform:TPOSition?
The TPOSition query returns the current trigger setting.
Returned Format
[MACHine{1|2}:TWAVeform:TPOSition] {STARt|CENTer|END|DELay,
<time_val>| POSTstore,<percent>}<NL>
Example
OUTPUT XXX;":MACHINE2:TWAVEFORM:TPOSition?"
VRUNs
Query
:MACHine{1|2}:TWAVeform:VRUNs?
The VRUNs query returns the number of valid runs and total number of runs
made. Valid runs are those where the pattern search for both the X and O
markers was successful resulting in valid time measurements.
Returned Format
[:MACHine{1|2}:TWAVeform:VRUNs] <valid_runs>,<total_runs><NL>
<valid_runs>
zero or positive integer
<total_runs>
zero or positive integer
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:VRUNS?"
13–25
TWAVeform Subsystem
XCONdition
XCONdition
Command
:MACHine{1|2}:TWAVeform:XCONdition
{ENTering | EXITing}
The XCONdition command specifies where the X marker is placed. The X
marker can be placed on the entry or exit point of the XPATtern when in the
PATTern marker mode.
Example
OUTPUT XXX; ":MACHINE1:TWAVEFORM:XCONDITION ENTERING"
Query
:MACHine{1|2}:TWAVeform:XCONdition?
The XCONdition query returns the current setting.
Returned Format
[:MACHine{1|2}:TWAVeform:XCONdition] {ENTering|EXITing}<NL>
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:XCONDITION?"
XOTime
Query
:MACHine{1|2}:TWAVeform:XOTime?
The XOTime query returns the time from the X marker to the O marker. If
data is not valid, the query returns 9.9E37.
Returned Format
<time_value>
Example
[:MACHine{1|2}:TWAVeform:XOTime] <time_value><NL>
real number
OUTPUT XXX;":MACHINE1:TWAVEFORM:XOTIME?"
13–26
TWAVeform Subsystem
XPATtern
XPATtern
Command
:MACHine{1|2}:TWAVeform:XPATtern
<label_name>,<label_pattern>
The XPATtern command allows you to construct a pattern for the X marker
which is then used with the XSEarch criteria and XCONdition when moving
the marker on patterns. Since this command deals with only one label at a
time, a complete specification could require several iterations.
When the value of a pattern is expressed in binary, it represents the bit
values for the label inside the pattern. In whatever base is used, the value
must be between 0 and 232 − 1, since a label may not have more than 32 bits.
Because the <label_pattern> parameter may contain don’t cares, it is
handled as a string of characters rather than a number.
<label_name>
<label_pattern>
string of up to 6 alphanumeric characters
"{#B{0|1|X} . . . |
#Q{0|1|2|3|4|5|6|7|X} . . . |
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X} . . . |
{0|1|2|3|4|5|6|7|8|9} . . . }"
Example
OUTPUT XXX; ":MACHINE1:TWAVEFORM:XPATTERN ’A’,’511’"
Query
:MACHine{1|2}:TWAVeform:XPATtern? <label_name>
The XPATtern query, in pattern marker mode, returns the pattern
specification for a given label name. In the time marker mode, the query
returns the pattern under the X marker for a given label. If the X marker is
not placed on valid data, don’t cares (X) are returned.
Returned Format
[:MACHine{1|2}:TWAVeform:XPATtern]
<label_name>,<label_pattern><NL>
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:XPATTERN? ’A’"
13–27
TWAVeform Subsystem
XSEarch
XSEarch
Command
:MACHine{1|2}:TWAVeform:XSEarch
<occurrence>,<origin>
The XSEarch command defines the search criteria for the X marker. The
criteria are then used with the associated XPATtern specification and the
XCONdition when moving markers on patterns. The origin parameter tells
the marker to begin a search from the trigger or start. The occurrence
parameter determines which occurrence of the XPATtern recognizer
specification, relative to the origin, the marker actually searches for. An
occurrence of 0 places a marker on the origin.
<origin>
<occurrence>
{TRIGger|STARt}
integer from from −1040384 to +1040384 (HP 16554A) or from –2088960 to
+2088960(HP 16555A) or from –4177920 to +4177920(HP 16555D)
Example
OUTPUT XXX; ":MACHINE1:TWAVEFORM:XSEARCH,+10,TRIGGER"
Query
:MACHine{1|2}:TWAVeform:XSEarch?
<occurrence>, <origin>
The XSEarch query returns the search criteria for the X marker.
Returned Format
[:MACHine{1|2}:TWAVeform:XSEarch] <occurrence>,<origin><NL>
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:XSEARCH?"
13–28
TWAVeform Subsystem
XTIMe
XTIMe
Command
:MACHine{1|2}:TWAVeform:XTIMe <time_value>
The XTIMe command positions the X marker in time when the marker mode
is time. If data is not valid, the command performs no action.
<time_value>
real number from −2.5 ks to +2.5 ks
Example
OUTPUT XXX; ":MACHINE1:TWAVEFORM:XTIME 40.0E−6"
Query
:MACHine{1|2}:TWAVeform:XTIMe?
The XTIMe query returns the X marker position in time. If data is not valid,
the query returns 9.9E37.
Returned Format
[:MACHine{1|2}:TWAVeform:XTIMe] <time_value><NL>
Example
OUTPUT XXX;":MACHINE1:TWAVEFORM:XTIME?"
13–29
13–30
14
TLISt Subsystem
Introduction
The TLISt subsystem contains the commands available for the Timing
Listing menu in the HP 16554A/HP 16555A/HP 16555D logic analyzer
modules and is the same as the SLISt subsystem (except for the
OCONdition and XCONdition commands). The TLISt subsystem
commands are:
•
•
•
•
•
•
•
•
•
•
•
•
•
COLumn
CLRPattern
DATA
LINE
MMODe
OCONdition
OPATtern
OSEarch
OSTate
OTAG
REMove
RUNTil
TAVerage
14–2
•
•
•
•
•
•
•
•
•
•
TMAXimum
TMINimum
VRUNs
XCONdition
XOTag
XOTime
XPATtern
XSEarch
XSTate
XTAG
TLISt Subsystem
Figure 14-1
TLISt Subsystem Syntax Diagram
14–3
TLISt Subsystem
Figure 14-1 (continued)
TLISt Subsystem Syntax Diagram (continued)
14–4
TLISt Subsystem
Figure 14-1 (continued)
TLISt Subsystem Syntax Diagram (continued)
14–5
TLISt Subsystem
Table 14-1
TLISt Parameter Values
Parameter
Value
mod_num
{1|2|3|4|5|6|7|8|9|10}
mach_num
{1|2}
col_num
integer from 1 to 61
line_number
integer between ±1040384 (HP 16554A), or ±2088960
(HP 16555A) or ±4177920 (HP 16555D)
label_name
a string of up to 6 alphanumeric characters
base
{BINary|HEXadecimal|OCTal|DECimal|TWOS
|ASCii|SYMBol} for labels or
{ABSolute|RELative} for tags
line_num_mid_screen
integer between ±1040384 (HP 16554A), or ±2088960
(HP 16555A) or ±4177920 (HP 16555D)
label_pattern
"{#B{0|1|X}...|
#Q{0|1|2|3|4|5|6|7|X}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X}...|
{0|1|2|3|4|5|6|7|8|9}...}"
occurrence
integer between ±1040384 (HP 16554A), or ±2088960
(HP 16555A) or ±4177920 (HP 16555D)
time_value
real number
run_until_spec
{OFF|LT,<value>|GT,<value>|INRange,
<value>,<value>|OUTRange<value>,<value>}
value
real number
14–6
TLISt Subsystem
TLISt
TLISt
Selector
:MACHine{1|2}:TLISt
The TLISt selector is used as part of a compound header to access those
settings normally found in the Timing Listing menu. It always follows the
MACHine selector because it selects a branch directly below the MACHine
level in the command tree.
Example
OUTPUT XXX;":MACHINE1:TLIST:LINE 256"
COLumn
Command
:MACHine{1|2}:TLISt:COLumn <col_num>
[,<module_num>,MACHine{1|2}],<label_name>,<base>
The COLumn command configures the timing analyzer listing by assigning a
label name and base to one of the 61 vertical columns in the menu. A column
number of 1 refers to the leftmost column. When a label is assigned to a
column it replaces the original label in that column.
To insert time values, use the label name "TAGS". When the label name is
"TAGS," the next parameter must specify RELative or ABSolute.
A label for tags must be assigned in order to use ABSolute or RELative time
tagging.
<col_num>
integer from 1 to 61
<module_num>
{1|2|3|4|5|6|7|8|9|10}
<label_name>
a string of up to 6 alphanumeric characters
<base>
{BINary|HEXadecimal|OCTal|DECimal|TWOS|ASCii|SYMBol} for
labels or
{ABSolute|RELative} for time
14–7
TLISt Subsystem
CLRPattern
Example
OUTPUT XXX;":MACHINE1:TLIST:COLUMN 4,2,’A’,HEX"
Query
:MACHine{1|2}:TLISt:COLumn? <col_num>
The COLumn query returns the column number, data source, label name, and
base for the specified column.
Returned Format
[:MACHine{1|2}:TLISt:COLumn]
<col_num>,<module_num>,MACHine{1|2},<label_name>,<base><NL>
Example
OUTPUT XXX;":MACHINE1:TLIST:COLUMN? 4"
CLRPattern
Command
:MACHine{1|2}:TLISt:CLRPattern {X|O|ALL}
The CLRPattern command allows you to clear the patterns for the selected
markers in the Specify Patterns menu.
Example
OUTPUT XXX;":MACHINE1:TLIST:CLRPATTERN O"
14–8
TLISt Subsystem
DATA
DATA
Query
:MACHine{1|2}:TLISt:DATA? <line_number>,
<label_name>
The DATA query returns the value at a specified line number for a given
label. The base will be the same as the one shown in the Listing display.
Returned Format
<line_number>
<label_name>
<pattern_
string>
Example
[:MACHine{1|2}:TLISt:DATA] <line_number>,<label_name>,
<pattern_string><NL>
integer from –1040384 to +1040384 (HP 16554A) or from –2088960 to
+2088960 (HP 16555A) or from –4177920 to +4177920 (HP 16555D)
string of up to 6 alphanumeric characters
"{#B{0|1|X} . . . |
#Q{0|1|2|3|4|5|6|7|X} . . . |
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X} . . . |
{0|1|2|3|4|5|6|7|8|9} . . . }"
OUTPUT XXX;":MACHINE1:TLIST:DATA? 512, ’RAS’"
LINE
Command
:MACHine{1|2}:TLISt:LINE <line_num_mid_screen>
The LINE command scrolls the timing analyzer listing vertically. The
command specifies the state line number relative to the trigger. The analyzer
then highlights the specified line at the center of the screen.
<line_num_mid_
screen>
integer from –1040384 to +1040384 (HP 16554A) or from –2088960 to
+2088960 (HP 16555A) or from –4177920 to +4177920 (HP 16555D)
Example
OUTPUT XXX;":MACHINE1:TLIST:LINE 0"
14–9
TLISt Subsystem
MMODe
Query
:MACHine{1|2}:TLISt:LINE?
The LINE query returns the line number for the state currently in the data
roll box at the center of the screen.
Returned Format
[:MACHine{1|2}:TLISt:LINE] <line_num_mid_screen><NL>
Example
OUTPUT XXX;":MACHINE1:TLIST:LINE?"
MMODe
Command
:MACHine{1|2}:TLISt:MMODe <marker_mode>
The MMODe command (Marker Mode) selects the mode controlling the
marker movement and the display of marker readouts. When PATTern is
selected, the markers will be placed on patterns. When TIME is selected the
markers move on time between stored states. When MSTats is selected the
markers are placed on patterns, but the readouts will be time statistics.
<marker_mode>
{OFF|PATTern|TIME|MSTats}
Example
OUTPUT XXX;":MACHINE1:TLIST:MMODE TIME"
Query
:MACHine{1|2}:TLISt:MMODe?
The MMODe query returns the current marker mode selected.
Returned Format
[:MACHine{1|2}:TLISt:MMODe] <marker_mode><NL>
Example
OUTPUT XXX;":MACHINE1:TLIST:MMODE?"
14–10
TLISt Subsystem
OCONdition
OCONdition
Command
:MACHine{1|2}:TLISt:OCONdition {ENTering|EXITing}
The OCONdition command specifies where the O marker is placed. The
O marker can be placed on the entry or exit point of the OPATtern when in
the PATTern marker mode.
Example
OUTPUT XXX; ":MACHINE1:TLIST:OCONDITION ENTERING"
Query
:MACHine{1|2}:TLISt:OCONdition?
The OCONdition query returns the current setting.
Returned Format
[:MACHine{1|2}:TLISt:OCONdition] {ENTering|EXITing}<NL>
Example
OUTPUT XXX;":MACHINE1:TLIST:OCONDITION?"
14–11
TLISt Subsystem
OPATtern
OPATtern
Command
:MACHine{1|2}:TLISt:OPATtern <label_name>,
<label_pattern>
The OPATtern command allows you to construct a pattern for the O marker
which is then used with the OSEarch criteria when moving the marker on
patterns. Since this command deals with only one label at a time, a complete
specification could require several iterations.
When the value of a pattern is expressed in binary, it represents the bit
values for the label inside the pattern recognizer term. In whatever base is
used, the value must be between 0 and 232 − 1, since a label may not have
more than 32 bits. Because the <label_pattern> parameter may contain
don’t cares, it is handled as a string of characters rather than a number.
<label_name>
<label_pattern>
string of up to 6 alphanumeric characters
"{#B{0|1|X} . . . |
#Q{0|1|2|3|4|5|6|7|X} . . . |
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X} . . . |
{0|1|2|3|4|5|6|7|8|9} . . . }"
Example
OUTPUT XXX;":MACHINE1:TLIST:OPATTERN ’DATA’,’255’ "
OUTPUT XXX;":MACHINE1:TLIST:OPATTERN ’ABC’,’#BXXXX1101’ "
Query
:MACHine{1|2}:TLISt:OPATtern? <label_name>
The OPATtern query returns the pattern specification for a given label name.
Returned Format
[:MACHine{1|2}:TLISt:OPATtern] <label_name>,
<label_pattern><NL>
Example
OUTPUT XXX;":MACHINE1:TLIST:OPATTERN? ’A’"
14–12
TLISt Subsystem
OSEarch
OSEarch
Command
:MACHine{1|2}:TLISt:OSEarch <occurrence>,<origin>
The OSEarch command defines the search criteria for the O marker, which is
then used with associated OPATtern recognizer specification when moving
the markers on patterns. The origin parameter tells the marker to begin a
search from the trigger, the start of data, or the X marker. The actual
occurrence the marker searches for is determined by the occurrence
parameter, relative to the origin. An occurrence of 0 places the marker on
the selected origin. With a negative occurrence, the marker searches before
the origin. With a positive occurrence, the marker searches after the origin.
<occurrence>
<origin>
integer from –1040384 to +1040384 (HP 16554A) or from –2088960 to
+2088960 (HP 16555A) or from –4177920 to +4177920 (HP 16555D)
{TRIGger|STARt|XMARker}
Example
OUTPUT XXX;":MACHINE1:TLIST:OSEARCH +10,TRIGGER"
Query
:MACHine{1|2}:TLISt:OSEarch?
The OSEarch query returns the search criteria for the O marker.
Returned Format
[:MACHine{1|2}:TLISt:OSEarch] <occurrence>,<origin><NL>
Example
OUTPUT XXX;":MACHINE1:TLIST:OSEARCH?"
14–13
TLISt Subsystem
OSTate
OSTate
Query
:MACHine{1|2}:TLISt:OSTate?
The OSTate query returns the line number in the listing where the O marker
resides. If data is not valid, the query returns 2147483647.
Returned Format
<state_num>
Example
[:MACHine{1|2}:TLISt:OSTate] <state_num><NL>
2147483647 or integer from –1040384 to +1040384 (HP 16554A) or from
–2088960 to +2088960 (HP 16555A) or from –4177920 to +4177920
(HP 16555D)
OUTPUT XXX;":MACHINE1:TLIST:OSTATE?"
OTAG
Command
:MACHine{1|2}:TLISt:OTAG <time_value>
The OTAG command specifies the tag value on which the O marker should be
placed. The tag value is always time for the timing analyzer. If the data is
not valid tagged data, no action is performed.
<time_value>
Example
real number
:OUTPUT XXX;":MACHINE1:TLIST:OTAG 40.0E−6"
14–14
TLISt Subsystem
REMove
Query
:MACHine{1|2}:TLISt:OTAG?
The OTAG query returns the O marker position in time regardless of whether
the marker was positioned in time or through a pattern search. If data is not
valid, the query returns 9.9E37.
Returned Format
[:MACHine{1|2}:TLISt:OTAG] <time_value><NL>
Example
OUTPUT XXX;":MACHINE1:TLIST:OTAG?"
REMove
Command
:MACHine{1|2}:TLISt:REMove
The REMove command removes all labels, except the leftmost label, from the
listing menu.
Example
OUTPUT XXX;":MACHINE1:TLIST:REMOVE"
14–15
TLISt Subsystem
RUNTil
RUNTil
Command
:MACHine{1|2}:TLISt:RUNTil <run_until_spec>
The RUNTil (run until) command allows you to define a stop condition when
the run mode is repetitive. Specifying OFF causes the analyzer to make runs
until either the display’s STOP field is touched or the STOP command is
issued.
There are four conditions based on the time between the X and O markers.
These four conditions are as follows:
•
•
•
•
The difference is less than (LT) some value.
The difference is greater than (GT) some value.
The difference is inside some range (INRange).
The difference is outside some range (OUTRange).
End points for INRange and OUTRange should be at least 2 ns apart since
this is the minimum time between samples.
<run_until_
spec>
<value>
{OFF|LT,<value>|GT,<value>|INRange,<value>,<value>
|OUTRange,<value>,<value>}
real number from −9E9 to +9E9
Example
OUTPUT XXX;":MACHINE1:TLIST:RUNTIL GT,800.0E−6"
Query
:MACHine{1|2}:TLISt:RUNTil?
The RUNTil query returns the current stop criteria.
Returned Format
[:MACHine{1|2}:TLISt:RUNTil] <run_until_spec><NL>
Example
OUTPUT XXX;":MACHINE1:TLIST:RUNTIL?"
14–16
TLISt Subsystem
TAVerage
TAVerage
Query
:MACHine{1|2}:TLISt:TAVerage?
The TAVerage query returns the value of the average time between the X
and O markers. If the number of valid runs is zero, the query returns 9.9E37.
Valid runs are those where the pattern search for both the X and O markers
was successful, resulting in valid time measurements.
Returned Format
<time_value>
Example
[:MACHine{1|2}:TLISt:TAVerage] <time_value><NL>
real number
OUTPUT XXX;":MACHINE1:TLIST:TAVERAGE?"
TMAXimum
Query
:MACHine{1|2}:TLISt:TMAXimum?
The TMAXimum query returns the value of the maximum time between the X
and O markers. If data is not valid, the query returns 9.9E37.
Returned Format
<time_value>
Example
[:MACHine{1|2}:TLISt:TMAXimum] <time_value><NL>
real number
OUTPUT XXX;":MACHINE1:TLIST:TMAXIMUM?"
14–17
TLISt Subsystem
TMINimum
TMINimum
Query
:MACHine{1|2}:TLISt:TMINimum?
The TMINimum query returns the value of the minimum time between the X
and O markers. If data is not valid, the query returns 9.9E37.
Returned Format
<time_value>
Example
[:MACHine{1|2}:TLISt:TMINimum] <time_value><NL>
real number
OUTPUT XXX;":MACHINE1:TLIST:TMINIMUM?"
VRUNs
Query
:MACHine{1|2}:TLISt:VRUNs?
The VRUNs query returns the number of valid runs and total number of runs
made. Valid runs are those where the pattern search for both the X and
O markers was successful resulting in valid time measurements.
Returned Format
[:MACHine{1|2}:TLISt:VRUNs] <valid_runs>,<total_runs><NL>
<valid_runs>
zero or positive integer
<total_runs>
zero or positive integer
Example
OUTPUT XXX;":MACHINE1:TLIST:VRUNS?"
14–18
TLISt Subsystem
XCONdition
XCONdition
Command
:MACHine{1|2}:TLISt:XCONdition {ENTering|EXITing}
The XCONdition command specifies where the X marker is placed. The
X marker can be placed on the entry or exit point of the XPATtern when in
the PATTern marker mode.
Example
OUTPUT XXX; ":MACHINE1:TLIST:XCONDITION ENTERING"
Query
:MACHine{1|2}:TLISt:XCONdition?
The XCONdition query returns the current setting.
Returned Format
[:MACHine{1|2}:TLISt:XCONdition] {ENTering|EXITing}<NL>
Example
OUTPUT XXX;":MACHINE1:TLIST:XCONDITION?"
XOTag
Query
:MACHine{1|2}:TLISt:XOTag?
The XOTag query returns the time from the X to the O marker. If there is no
data the query returns 9.9E37.
Returned Format
<XO_time>
Example
[:MACHine{1|2}:TLISt:XOTag] <XO_time><NL>
real number
OUTPUT XXX;":MACHINE1:TLIST:XOTAG?"
14–19
TLISt Subsystem
XOTime
XOTime
Query
:MACHine{1|2}:TLISt:XOTime?
The XOTime query returns the time from the X to O markers. If there is no
data the query returns 9.9E37.
Returned Format
<XO_time>
Example
[:MACHine{1|2}:TLISt:XOTime] <XO_time><NL>
real number
OUTPUT XXX;":MACHINE1:TLIST:XOTIME?"
XPATtern
Command
:MACHine{1|2}:TLISt:XPATtern <label_name>,
<label_pattern>
The XPATtern command allows you to construct a pattern for the X marker
which is then used with the XSEarch criteria when moving the marker on
patterns. Since this command deals with only one label at a time, a complete
specification could require several iterations.
When the value of a pattern is expressed in binary, it represents the bit
values for the label inside the pattern recognizer term. In whatever base is
used, the value must be between 0 and 232 − 1, since a label may not have
more than 32 bits. Because the <label_pattern> parameter may contain
don’t cares, it is handled as a string of characters rather than a number.
<label_name>
<label_pattern>
string of up to 6 alphanumeric characters
"{#B{0|1|X} . . . |
#Q{0|1|2|3|4|5|6|7|X} . . . |
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X} . . . |
{0|1|2|3|4|5|6|7|8|9} . . . }"
14–20
TLISt Subsystem
XSEarch
Example
OUTPUT XXX;":MACHINE1:TLIST:XPATTERN ’DATA’,’255’ "
OUTPUT XXX;":MACHINE1:TLIST:XPATTERN ’ABC’,’#BXXXX1101’ "
Query
:MACHine{1|2}:TLISt:XPATtern? <label_name>
The XPATtern query returns the pattern specification for a given label name.
Returned Format
[:MACHine{1|2}:TLISt:XPATtern] <label_name>,
<label_pattern><NL>
Example
OUTPUT XXX;":MACHINE1:TLIST:XPATTERN? ’A’"
XSEarch
Command
:MACHine{1|2}:TLISt:XSEarch <occurrence>,<origin>
The XSEarch command defines the search criteria for the X marker, which is
then used with the associated XPATtern specification when moving the
markers on patterns. The origin parameter tells the marker to begin a search
from the trigger or the start of data. The occurrence parameter determines
which occurrence of the X pattern, relative to the origin, the marker actually
searches for. An occurrence of 0 places a marker on the selected origin.
<occurrence>
<origin>
Example
integer from –1040384 to +1040384 (HP 16554A) or from –2088960 to
+2088960 (HP 16555A) or from –4177920 to +4177920 (HP 16555D)
{TRIGger|STARt}
OUTPUT XXX;":MACHINE1:TLIST:XSEARCH +10,TRIGGER"
14–21
TLISt Subsystem
XSTate
Query
:MACHine{1|2}:TLISt:XSEarch?
The XSEarch query returns the search criteria for the X marker.
Returned Format
[:MACHine{1|2}:TLISt:XSEarch] <occurrence>,<origin><NL>
Example
OUTPUT XXX;":MACHINE1:TLIST:XSEARCH?"
XSTate
Query
:MACHine{1|2}:TLISt:XSTate?
The XSTate query returns the line number in the listing where the X marker
resides. If data is not valid, the query returns 2147483647.
Returned Format
<state_num>
Example
[:MACHine{1|2}:TLISt:XSTate] <state_num><NL>
2147483647 or integer from –1040384 to +1040384 (HP 16554A) or from
–2088960 to +2088960 (HP 16555A) or from –4177920 to +4177920
(HP 16555D).
OUTPUT XXX;":MACHINE1:TLIST:XSTATE?"
14–22
TLISt Subsystem
XTAG
XTAG
Command
:MACHine{1|2}:TLISt:XTAG <time_value>
The XTAG command specifies the tag value on which the X marker should be
placed. The tag value is always time for the timing analyzer. If the data is
not valid tagged data, no action is performed.
<time_value>
real number
Example
OUTPUT XXX;":MACHINE1:TLIST:XTAG 40.0E−6"
Query
:MACHine{1|2}:TLISt:XTAG?
The XTAG query returns the X marker position in time regardless of whether
the marker was positioned in time or through a pattern search. If data is not
valid tagged data, the query returns 9.9E37.
Returned Format
[:MACHine{1|2}:TLISt:XTAG] <time_value><NL>
Example
OUTPUT XXX;":MACHINE1:TLIST:XTAG?"
14–23
14–24
15
SYMBol Subsystem
Introduction
The SYMBol subsystem contains the commands that allow you to
define symbols on the controller and download them to the
HP 16554A/HP 16555A/HP 16555D logic analyzer modules. The
commands in this subsystem are:
•
•
•
•
•
BASE
PATTern
RANGe
REMove
WIDTh
15–2
SYMBol Subsystem
Figure 15-1
SYMBol Subsystem Syntax Diagram
15–3
SYMBol Subsystem
Table 15-1
SYMBol Parameter Values
Parameter
Value
label_name
string of up to 6 alphanumeric characters
symbol_name
string of up to 16 alphanumeric characters
pattern_value
"{#B{0|1|X}...|
#Q{0|1|2|3|4|5|6|7|X}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X}...|
{0|1|2|3|4|5|6|7|8|9}...}"
start_value
stop_value
"{#B{0|1}...|
#Q{0|1|2|3|4|5|6|7}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F}...|
{0|1|2|3|4|5|6|7|8|9}...}"
width_value
integer from 1 to 16
15–4
SYMBol Subsystem
SYMBol
SYMBol
Selector
:MACHine{1|2}:SYMBol
The SYMBol selector is used as a part of a compound header to access the
commands used to create symbols. It always follows the MACHine selector
because it selects a branch directly below the MACHine level in the command
tree.
Example
OUTPUT XXX;":MACHINE1:SYMBOL:BASE ’DATA’, BINARY"
BASE
Command
:MACHine{1|2}:SYMBol:BASE <label_name>,
<base_value>
The BASE command sets the base in which symbols for the specified label
will be displayed in the symbol menu. It also specifies the base in which the
symbol offsets are displayed when symbols are used.
BINary is not available for labels with more than 20 bits assigned. In this case
the base will default to HEXadecimal.
<label_name>
string of up to 6 alphanumeric characters
<base_value>
{BINary | HEXadecimal | OCTal | DECimal | ASCii}
Example
OUTPUT XXX;":MACHINE1:SYMBOL:BASE ’DATA’,HEXADECIMAL"
15–5
SYMBol Subsystem
PATTern
PATTern
Command
:MACHine{1|2}:SYMBol:PATTern <label_name>,
<symbol_name>,<pattern_value>
The PATTern command allows you to create a pattern symbol for the
specified label.
Because don’t cares (X) are allowed in the pattern value, it must always be
expressed as a string. The values may be in binary (#B), octal (#Q),
hexadecimal (#H), or decimal (default). Don’t cares cannot be used in a
decimal number.
<label_name>
string of up to 6 alphanumeric characters
<symbol_name>
string of up to 16 alphanumeric characters
<pattern_value>
Example
"{#B{0|1|X} . . . |
#Q{0|1|2|3|4|5|6|7|X} . . . |
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F|X} . . . |
{0|1|2|3|4|5|6|7|8|9} . . . }"
OUTPUT XXX;":MACHINE1:SYMBOL:PATTERN ’STAT’,
’MEM_RD’,’#H01XX’"
15–6
SYMBol Subsystem
RANGe
RANGe
Command
:MACHine{1|2}:SYMBol:RANGe <label_name>,
<symbol_name>,<start_value>,<stop_value>
The RANGe command allows you to create a range symbol containing a start
value and a stop value for the specified label. The values may be in binary
(#B), octal (#Q), hexadecimal (#H) or decimal (default). You can not use
don’t cares in any base.
<label_name>
string of up to 6 alphanumeric characters
<symbol_name>
string of up to 16 alphanumeric characters
<start_value>
<stop_value>
"{#B{0|1} . . . |
#Q{0|1|2|3|4|5|6|7} . . . |
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F} . . . |
{0|1|2|3|4|5|6|7|8|9} . . . }"
Example
OUTPUT XXX;":MACHINE1:SYMBOL:RANGE ’STAT’,
’IO_ACC’,’0’,’#H000F’"
15–7
SYMBol Subsystem
REMove
REMove
Command
:MACHine{1|2}:SYMBol:REMove
The REMove command deletes all symbols from a specified machine.
Example
OUTPUT XXX;":MACHINE1:SYMBOL:REMOVE"
WIDTh
Command
:MACHine{1|2}:SYMBol:WIDTh <label_name>,
<width_value>
The WIDTh command specifies the width (number of characters) in which
the symbol names will be displayed when symbols are used.
The WIDTh command does not affect the displayed length of the symbol
offset value.
<label_name>
<width_value>
Example
string of up to 6 alphanumeric characters
integer from 1 to 16
OUTPUT XXX;":MACHINE1:SYMBOL:WIDTH ’DATA’,9 "
15–8
16
SPA Subsystem
Introduction
This chapter provides you with information for programming the
System Performance Analysis (SPA) features on the HP 16554A/
HP 16555A/HP 16555D logic analyzer modules.
SPA commands have subsystems, indicated by the outdented items in
the list. Indented commands must be prefaced with the outdented
command above it unless MODE was previously used to set the mode.
The SPA commands are:
• OVERView
• BUCKet
• HIGH
• LABel
• LOW
• MLENgth
• OMARker
• OVSTatistic
• XMARker
• HISTogram
• HISTatistic
• LABel
• OTHer
• QUALifier
• RANGe
• TTYPe
16–2
• TINTerval
• AUTorange
• QUALifier
• TINTerval
• TSTatistic
• MODE
SPA Subsystem
Figure 16-1
SPA Subsystem Syntax Diagram
16–3
SPA Subsystem
Figure 16-1 (continued)
SPA Subsystem Syntax Diagram (continued)
16–4
SPA Subsystem
Figure 16-1 (continued)
SPA Subsystem Syntax Diagram (continued)
16–5
SPA Subsystem
Table 16-1
SPA Subsystem Parameter Values
Parameter
Value
bucket_num
0 to (number of valid buckets - 1)
high_patt
<pattern>
label_name
a string of up to 6 alphanumeric characters
low_patt
<pattern>
memory
{4096 | 8192 | 16384 | 32768 | 65536 |
131072 | 262144 |
516096 (HP 16554A)
524288 | 1040384 (HP 16555A)
524288 | 1048576 | 2080768 (HP 16555D)}
o_patt
<pattern>
x_patt
<pattern>
range_num
an integer from 0 to 10
range_name
a string of up to 16 alphanumeric characters
min_time
real number
max_time
real number
start_pattern
<pattern>
end_pattern
<pattern>
interval_num
an integer from 0 to 7
pattern
"{#B{0|1}...|
#Q{0|1|2|3|4|5|6|7}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F}...|
{0|1|2|3|4|5|6|7|8|9}...}"
16–6
SPA Subsystem
MODE
MODE
Command
:SPA{1|2}:MODE {OVERView|HISTogram|TINTerval}
The MODE command selects which menu to display: State Overview, State
Histogram, or Time Interval. A query returns the current menu mode.
Example
OUTPUT XXX;":SPA1:MODE OVERView"
OUTPUT XXX;":SPA2:MODE HISTogram"
OUTPUT XXX;":SPA1:MODE TINTerval"
Query
:SPA{1|2}:MODE?
Returned Format
[:SPA{1|2}:MODE] {OVERView|HISTogram|TINTerval}<NL>
Example
10
20
30
40
50
60
DIM String$[100]
OUTPUT XXX;":SELECT 1"
OUTPUT XXX;":SPA1:MODE?"
ENTER XXX;String$
PRINT String$
END
16–7
SPA Subsystem
OVERView:BUCKet
OVERView:BUCKet
Query
:SPA{1|2}:OVERView:BUCKet?
{SIZE|NUMBer|<bucket_num>}
The OVERView:BUCKet query returns data relating to the State Overview
measurement. You specify SIZE for width of each bucket, NUMBer for
number of buckets, or <bucket_num> for the number of hits in the specified
bucket number
Returned Format
<bucket_num>
<number>
Example
[:SPA{1|2}:OVERView:BUCKet] {SIZE|NUMBer|<bucket_num>},
<number><NL>
0 to (number of valid buckets – 1)
integer number
10
20
30
40
50
60
DIM String$[100]
OUTPUT XXX;":SELECT 1"
OUTPUT XXX;":SPA2:OVERView:BUCKet? 23"
ENTER XXX;String$
PRINT String$
END
16–8
SPA Subsystem
OVERView:HIGH
OVERView:HIGH
Command
:SPA{1|2}:OVERView:HIGH <high_pattern>
The OVERView:HIGH command sets the upper boundary of the State
Overview measurement. A query returns the current setting of the upper
boundary.
Setting the upper boundary defaults the data accumulators, statistic
counters, and the number of buckets and their size.
<high_pattern>
"{#B{0|1}...|
#Q{0|1|2|3|4|5|6|7}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F}.. .|
{0|1|2|3|4|5|6|7|8|9}...}"
Example
OUTPUT XXX;":SPA1:OVERView:HIGH ’23394’"
OUTPUT XXX;":SPA2:OVERView:HIGH ’#Q4371’"
Query
:SPA{1|2}:OVERView:HIGH?
Returned Format
[:SPA{1|2}:OVERView:HIGH] <high_pattern><NL>
Example
10
20
30
40
50
60
DIM String$[100]
OUTPUT XXX;":SELECT 1"
OUTPUT XXX;":SPA1:OVERView:HIGH?"
ENTER XXX;String$
PRINT String$
END
16–9
SPA Subsystem
OVERView:LABel
OVERView:LABel
Command
:SPA{1|2}:OVERView:LABel <label_name>
The OVERView:LABel command selects a new label for collecting the SPA
measurements. A query returns the name of the currently selected label.
Selecting a new label defaults the State Overview data accumulators, statistic
counters, and the number of buckets and their size.
<label_name>
string of up to 6 alphanumeric characters
Example
OUTPUT XXX;":SPA2:OVERView:LABel ’A’"
Query
:SPA{1|2}:OVERView:LABel?
Returned Format:
[:SPA{1|2}:OVERView:LABel] <label_name><NL>
Example
10
20
30
40
50
60
DIM String$[100]
OUTPUT XXX;":SELECT 1"
OUTPUT XXX;":SPA2:OVERView:LABel?"
ENTER XXX;String$
PRINT String$
END
16–10
SPA Subsystem
OVERView:LOW
OVERView:LOW
Command
:SPA{1|2}:OVERView:LOW <low_pattern>
The OVERView:LOW command sets the lower boundary of the State
Overview measurement. A query returns the current setting of the lower
boundary.
Setting the lower boundary defaults the data accumulators, statistic counters,
and the number of buckets and their size.
<low_pattern>
"{#B{0|1}...|
#Q{0|1|2|3|4|5|6|7}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F}...|
{0|1|2|3|4|5|6|7|8|9}...}"
Example
OUTPUT XXX;":SPA2:OVERView:LOW ’23394’"
OUTPUT XXX;":SPA1:OVERView:LOW ’#Q4371’"
Query
:SPA{1|2}:OVERView:LOW?
Returned Format
[:SPA{1|2}:OVERView:LOW] <low_pattern><NL>
Example
10
20
30
40
50
60
DIM String$[100]
OUTPUT XXX;":SELECT 1"
OUTPUT XXX;":SPA1:OVERView:LOW?"
ENTER XXX;String$
PRINT String$
END
16–11
SPA Subsystem
OVERView:MLENgth
OVERView:MLENgth
Command
:SPA{1|2}:OVERView:MLENgth <memory_length>
The MLENgth command specifies the memory depth. Valid memory depths
range from 4096 states (or samples) through the maximum system memory
depth minus 8192 states (HP 16554A/HP 16555A) or minus 16384 states
(HP 16555D). Memory depth is affected by acquisition mode. If the
<memory_depth> value sent with the command is not a legal value, the
closest legal setting will be used.
<memory_length>
{4096 | 8192 | 16384 | 32768 | 65536 | 131072 | 262144
| 516096 (HP 16554A)
| 524288 | 1040384 (HP 16555A)
| 524288 | 1048576 | 2080768 (HP 16555D)}
Example
OUTPUT XXX;":SPA1:OVERVIEW:MLENGTH 262144"
Query
:SPA{1|2}:OVERView:MLENgth?
The MLENgth query returns the current analyzer memory depth selection.
Returned Format
[:SPA{1|2}:OVERView:MLENgth] <memory_length><NL>
Example
OUTPUT XXX;":SPA1:OVERVIEW:MLENGTH?"
16–12
SPA Subsystem
OVERView:OMARker
OVERView:OMARker
Command
:SPA{1|2}:OVERView:OMARker <o_pattern>
The OVERView:OMARker command sends the O marker to the lower
boundary of the bucket where the specified pattern is located. A request to
place the marker outside the defined boundary forces the marker to the
appropriate end bucket. A query returns the pattern associated with the
lower end of the bucket where the marker is placed.
<o_pattern>
"{#B{0|1}...|
#Q{0|1|2|3|4|5|6|7}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F}...|
{0|1|2|3|4|5|6|7|8|9}...}"
Example
OUTPUT XXX;":SPA2:OVERView:OMARker ’#H3C31’"
Query
:SPA{1|2}:OVERView:OMARker?
Returned Format
[:SPA{1|2}:OVERView:OMARker] <o_pattern><NL>
Example
10
20
30
40
50
60
DIM String$[100]
OUTPUT XXX;":SELECT 1"
OUTPUT XXX;":SPA1:OVERView:OMARker?"
ENTER XXX;String$
PRINT String$
END
16–13
SPA Subsystem
OVERView:OVSTatistic
OVERView:OVSTatistic
Query
:SPA{1|2}:OVERView:OVSTatistic?
{XHITs|OHITs|TOTal}
The OVERView:OVSTatistic query returns the number of hits associated with
the requested statistic or returns the number of hits in the specified bucket.
XHITs requests the number of hits in the bucket where the X marker is
located. OHITs requests the number of hits in the bucket where the
O marker is located. TOTal requests the total number of hits.
Returned Format
<number_hits>
Example
[:SPA{1|2}:OVERView:OVSTatistic] {XHITs|OHITs|TOTal},
<number_hits><NL>
integer number
10
20
30
40
50
60
DIM String$[100]
OUTPUT XXX;":SELECT 1"
OUTPUT XXX;":SPA2:OVERView:OVSTatistic? OHITs"
ENTER XXX;String$
PRINT String$
END
16–14
SPA Subsystem
OVERView:XMARker
OVERView:XMARker
Command
:SPA{1|2}:OVERView:XMARker <x_pattern>
The OVERView:XMARker command sends the X marker to the lower
boundary of the bucket where the specified pattern is located. A request to
place the marker outside the defined boundary forces the marker to the
appropriate end bucket. A query returns the pattern associated with the
lower end of the bucket where the marker is placed.
<x_pattern>
"{#B{0|1}...|
#Q{0|1|2|3|4|5|6|7}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F}...|
{0|1|2|3|4|5|6|7|8|9}...}"
Example
OUTPUT XXX;":SPA2:OVERView:XMARker ’#H3C31’"
Query
:SPA{1|2}:OVERView:XMARker?
Returned Format
[:SPA{1|2}:OVERView:XMARker] <x_pattern><NL>
Example
10
20
30
40
50
60
DIM String$[100]
OUTPUT XXX;":SELECT 1"
OUTPUT XXX;":SPA2:OVERView:XMARker?"
ENTER XXX;String$
PRINT String$
END
16–15
SPA Subsystem
HISTogram:HSTatistic
HISTogram:HSTatistic
Query
:SPA{1|2}:HISTogram:HSTatistic?
{TOTal|OTHer|<range_number>}
The HISTogram:HSTatistic query returns the total number of samples or
returns the number of samples in the specified range. Specify TOTal for the
total number of samples, OTHer for the number of hits in "other" range, or
<range_number> for the number of hits in that range.
Depending on whether the "other" range is on or off, the statistic TOTal
includes or excludes the number of hits in the "other" range.
Returned Format
[:SPA{1|2}:HISTogram:HSTatistic] {TOTal|OTHer|
<range_number>},<number_hits><NL>
<range_number>
0 to 10
<number_hits>
Example
integer number
10
20
30
40
50
60
DIM String$[100]
OUTPUT XXX;":SELECT 1"
OUTPUT XXX;":SPA1:HISTogram:HSTatistic? 7"
ENTER XXX;String$
PRINT String$
END
16–16
SPA Subsystem
HISTogram:LABel
HISTogram:LABel
Command
:SPA{1|2}:HISTogram:LABel <label_name>
The HISTogram:LABel command selects a new label for collecting SPA
measurements. A query returns the name of the currently selected label.
Selecting a new label defaults the State Histogram range names, bucket sizes,
and hit accumulators.
<label_name>
string of up to 6 alphanumeric characters
Example
OUTPUT XXX;":SPA2:HISTogram:LABel ’A’"
Query
:SPA{1|2}:HISTogram:LABel?
Returned Format
[:SPA{1|2}:HISTogram:LABel] <label_name><NL>
Example
10
20
30
40
50
60
DIM String$[100]
OUTPUT XXX;":SELECT 1"
OUTPUT XXX;":SPA2:HISTogram:LABel?"
ENTER XXX;String$
PRINT String$
END
16–17
SPA Subsystem
HISTogram:OTHer
HISTogram:OTHer
Command
:SPA{1|2}:HISTogram:OTHer {INCLuded|EXCLuded}
The HISTogram:OTHer command selects including or excluding the "other"
histogram bucket. A query returns data indicating whether the "other"
bucket is currently included or excluded.
Example
OUTPUT XXX;":SPA2:HISTogram:OTHer INCLuded"
OUTPUT XXX;":SPA1:HISTogram:OTHer EXCLuded"
Query
:SPA{1|2}:HISTogram:OTHer?
Returned Format
[:SPA{1|2}:HISTogram:OTHer] {INCLuded|EXCLuded}<NL>
Example
10
20
30
40
50
60
DIM String$[100]
OUTPUT XXX;":SELECT 1"
OUTPUT XXX;":SPA2:HISTogram:OTHer?"
ENTER XXX;String$
PRINT String$
END
16–18
SPA Subsystem
HISTogram:QUALifier
HISTogram:QUALifier
Command
:SPA{1|2}:HISTogram:QUALifier <label_name>,
<pattern>
The HISTogram:QUALifier command sets the pattern associated with the
specified label. The pattern is a condition for triggering and storing the
measurement. A query of a label returns the current pattern setting for that
label.
<label_name>
<pattern>
string of up to 6 alphanumeric characters
"{#B{0|1}...|
#Q{0|1|2|3|4|5|6|7}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F}...|
{0|1|2|3|4|5|6|7|8|9}...}"
Example
OUTPUT XXX;":SPA2:HISTogram:QUALifier ’A’,’255’"
Query
:SPA{1|2}:HISTogram:QUALifier? <label_name>
Returned Format
[:SPA{1|2}:HISTogram:QUALifier] <label_name>,<pattern><NL>
Example
10
20
30
40
50
60
DIM String$[100]
OUTPUT XXX;":SELECT 1"
OUTPUT XXX;":SPA1:HISTogram:QUALifier? ’A’"
ENTER XXX;String$
PRINT String$
END
16–19
SPA Subsystem
HISTogram:RANGe
HISTogram:RANGe
Command
:SPA{1|2}:HISTogram:RANGe {OFF | <range_num>,
<range_name>,<low_patt>,<high_patt>}
The HISTogram:RANGe command turns off all ranges or defines the range
name, low boundary, and high boundary of the specified range. Defining a
specified range turns on that range. For the specified range, a query returns
the name, low boundary, high boundary, and whether the range is on or off.
<range_num>
<range_name>
<low_patt>
<high_patt>
0 to 10
string of up to 16 alphanumeric characters
"{#B{0|1}...|
#Q{0|1|2|3|4|5|6|7}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F}...|
{0|1|2|3|4|5|6|7|8|9}...}"
Example
OUTPUT XXX;":SPA1:HISTogram:RANGe OFF"
OUTPUT XXX;":SPA2:HISTogram:RANGe 5,’A’,’255’,’512’"
OUTPUT XXX;":SPA1:HISTogram:RANGe 8,’DATA’,’#B0100110’,’#H9F’"
Query
:SPA{1|2}:HISTogram:RANGe? <range_num>
Returned Format
[:SPA{1|2}:HISTogram:RANGe] <range_number>,<range_name>,
<low_pattern>,<high_pattern>,<range_onoff><NL>
<range_onoff>
Example
{ON|OFF}
10
20
30
40
50
60
DIM String$[100]
OUTPUT XXX;":SELECT 1"
OUTPUT XXX;":SPA1:HISTogram:RANGe? 4"
ENTER XXX;String$
PRINT String$
END
16–20
SPA Subsystem
HISTogram:TTYPe
HISTogram:TTYPe
Command
:SPA{1|2}:HISTogram:TTYPe {ALL|QUALified}
The HISTogram:TTYPe command sets the trigger to trigger on anystate or on
qualified state. A query returns the current trace type setting.
Example
OUTPUT XXX;":SPA2:HISTogram:TTYPe ALL"
Query
:SPA{1|2}:HISTogram:TTYPe?
Returned Format
[:SPA{1|2}:HISTogram:TTYPe] {ALL|QUALified}<NL>
Example
10
20
30
40
50
60
DIM String$[100]
OUTPUT XXX;":SELECT 1"
OUTPUT XXX;":SPA1:HISTogram:TTYPe?"
ENTER XXX;String$
PRINT String$
END
16–21
SPA Subsystem
TINTerval:AUTorange
TINTerval:AUTorange
Command
:SPA{1|2}:TINTerval:AUTorange
{LOGarithmic|LINear},<min_time>,<max_time>
The TINTerval:AUTorange command automatically sets the Time Interval
ranges in a logarithmic or linear distribution over the specified range of time.
When the AUTorange command is executed, the data accumulators and
statistic counters are reset.
<min_time>
real number
<max_time>
real number
Example
OUTPUT XXX;":SPA2:TINTerval:AUTorange LINear,4.0E-3,55.6E+2"
OUTPUT XXX;":SPA1:TINTerval:AUTorange LOGarithmic,3.3E+1,8.6E+2"
16–22
SPA Subsystem
TINTerval:QUALifier
TINTerval:QUALifier
Command
:SPA{1|2}:TINTerval:QUALifier <label_name>,
<start_pattern>,<end_pattern>
The TINTerval:QUALifier command defines the start and stop patterns for a
specified label. The start and stop patterns determine the time windows for
collecting data. A query returns the currently defined start and stop patterns
for a given label.
<label_name>
string of up to 6 alphanumeric characters
<start_pattern>
"{#B{0|1}...|
#Q{0|1|2|3|4|5|6|7}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F}...|
{0|1|2|3|4|5|6|7|8|9}...}"
<end_pattern>
"{#B{0|1}...|
#Q{0|1|2|3|4|5|6|7}...|
#H{0|1|2|3|4|5|6|7|8|9|A|B|C|D|E|F}...|
{0|1|2|3|4|5|6|7|8|9}...}"
Example
OUTPUT XXX;":SPA1:TINTerval:QUALifier ’A’,’#Q231’,’#Q455’"
OUTPUT XXX;":SPA2:TINTerval:QUALifier ’DATA’,’#H3A’,’255’"
Query
:SPA{1|2}:TINTerval:QUALifier? <label_name>
Returned Format
[:SPA{1|2}:TINTerval:QUALifier] <label_name>,
<start_pattern>,<end_pattern><NL>
Example
10
20
30
40
50
60
DIM String$[100]
OUTPUT XXX;":SELECT 1"
OUTPUT XXX;":SPA1:TINTerval:QUALifier? ’A’"
ENTER XXX;String$
PRINT String$
END
16–23
SPA Subsystem
TINTerval:TINTerval
TINTerval:TINTerval
Command
:SPA{1|2}:TINTerval:TINTerval
<interval_number>,<min_time>,<max_time>
The TINTerval:TINTerval command specifies the minimum and maximum
time limits for the given interval. A query returns these limits for a specified
interval.
<interval_
number>
0 to 7
<min_time>
real number
<max_time>
real number
Example
OUTPUT XXX;":SPA2:TINTerval:TINTerval 4,1.0E-3,47.0E5"
OUTPUT XXX;":SPA1:TINTerval:TINTerval 3,6.8E-7,4.90E2"
Query
:SPA{1|2}:TINTerval:TINTerval? <interval_number>
Returned Format
[:SPA{1|2}:TINTerval:TINTerval] <interval_number>,<min_time>,
<max_time><NL>
Example
10
20
30
40
50
60
DIM String$[100]
OUTPUT XXX;":SELECT 1"
OUTPUT XXX;":SPA2:TINTerval:TINTerval? 6"
ENTER XXX;String$
PRINT String$
END
16–24
SPA Subsystem
TINTerval:TSTatistic
TINTerval:TSTatistic
Query
:SPA{1|2}:TINTerval:TSTatistic? {TMINimum|
TMAXimum|TAVerage|TOTal|TTOTal|<interval_number>}
The TINTerval:TSTatistic query returns either the time or the number of
samples associated with the requested statistic. The statistics you can
request are:
•
•
•
•
•
•
TMINimum - overall minimum interval time
TMAXimum - overall maximum interval time
TAVerage - overall average interval time
TOTal - total number of samples
TTOTal - overall total time of all interval samples
<interval_number> - number of hits in given interval
If TMINimum, TMAXaximum, TAVErage, or TTOTal are not currently valid,
the real value 9.9E37 is returned.
Returned Format
<interval_
number>
[:SPA{1|2}:TINTerval:TSTatistic] { { {TMINimum | TMAXimum |
TAVerage | TTOTal } <time_number>} | { {TOTal |
<interval_number>}, <number_hits>} }<NL>
0 to 7
<number_hits>
integer number
<time_number>
real number
Example
10
20
30
40
50
60
DIM String$[100]
OUTPUT XXX;":SELECT 1"
OUTPUT XXX;":SPA1:TINTerval:TSTatistic? 3"
ENTER XXX;String$
PRINT String$
END
16–25
16–26
17
DATA and SETup Commands
Introduction
The DATA and SETup commands are SYSTem commands that allow
you to send and receive block data between the HP 16554A,
HP 16555A, or HP 16555D and a controller. Use the DATA instruction
to transfer acquired timing and state data, and the SETup instruction
to transfer instrument configuration data. This is useful for:
• Re-loading to the logic analyzer
• Processing data later
• Processing data in the controller
This chapter explains how to use these commands.
The format and length of block data depends on the instruction being
used, the configuration of the instrument, and the amount of acquired
data. The length of the data block can be as big as 20 Mbytes
(HP 16554A), 40 Mbytes (HP 16555A), or 80 Mbytes (HP 16555D) in
a three-card configuration.
The SYSTem:DATA section describes each part of the block data as it
appears when used by the DATA instruction when DBLock is set to
UNPacked. The beginning byte number, the length in bytes, and a
short description is given for each part of the block data. This is
intended to be used primarily for processing of data in the controller.
This description is for data downloaded in UNPacked format. Data sent to a
controller with the DBLock mode set to PACKed can be reloaded into the
analyzer. It is highly configuration dependent, and so is not documented for
post-processing. Data sent to a controller with the DBLock mode set to
UNPacked cannot be reloaded into the analyzer.
17–2
DATA and SETup Commands
Data Format
Data Format
To understand the format of the data within the block data, there are four
important things to keep in mind.
•
•
•
•
Example
Data is sent to the controller in binary form.
Each byte, as described in this chapter, contains 8 bits.
The first bit of each byte is the MSB (most significant bit).
Byte descriptions are printed in binary, decimal, or ASCII depending on
how the data is described.
The first ten bytes that describe the section name contain a total of 80 bits as
follows:
Byte 1
Byte 10
Binary
0100 0100 0100 0001 0101 0100 0100 0001 0010 0000...0010 0000
MSB
Decimal
ASCII
LSB
68 65 84 65 32 32 32 32 32 32
DATA space space space space space space
17–3
DATA and SETup Commands
SYSTem:DATA
SYSTem:DATA
Command
:SYSTem:DATA <block data>
The SYSTem:DATA command transmits the acquisition memory data from
the controller to the HP 16554A/HP 16555A/HP 16555D logic analyzers.
The block data consists of a variable number of bytes containing information
captured by the acquisition chips. Since no parameter checking is
performed, out-of-range values could cause instrument lockup; therefore,
care should be taken when transferring the data string into the HP 16554A/
HP 16555A/HP 16555D.
The <block data> parameter can be broken down into a <block length
specifier> and a variable number of <section>s.
The <block length specifier> always takes the form #8DDDDDDDD. Each
D represents a digit (ASCII characters "0" through "9"). The value of the eight
digits represents the total length of the block (all sections). For example, if
the total length of the block is 14522 bytes, the block length specifier would
be "#800014522".
Each <section> consists of a <section header> and <section data>.
The <section data> format varies for each section and may be any length.
For the DATA instruction, there is only one <section>, which is composed
of a data preamble followed by the acquisition data. This section has a
variable number of bytes depending on configuration and amount of acquired
data.
Example
OUTPUT XXX;":SYSTEM:DATA" <block data>
Do not load UNPacked data into the instrument; it may cause the HP 16500 to
lock up. If this happens, cycle power. Only data saved in PACKed mode can be
reloaded back into a logic analyzer.
17–4
DATA and SETup Commands
SYSTem:DATA
<block data>
<block length
specifier
<length>
<block length specifier><section>...
#8<length>
the total length of all sections in byte format (must be represented with 8
digits)
<section>
<section header><section data>
<section
header>
16 bytes, described on the following page
<section data>
format depends on the type of data
The total length of a section is 16 (for the section header) plus the length of the
section data. So when calculating the value for <length>, don’t forget to
include the length of the section headers.
Query
:SYSTem:DATA?
The SYSTem:DATA query sends block data to the controller. The data sent
by the SYSTem:DATA query reflect the configuration of the machines when
the last run was performed. Any changes made since then through either
front-panel operations or programming commands do not affect the stored
configuration. The format of the block data depends on the current setting of
the DBLock parameter.
Returned Format
[:SYSTem:DATA] <block data><NL>
See Also
The DBLock command description in chapter 2, "Module Level Commands."
17–5
DATA and SETup Commands
Section Header Description
Section Header Description
Because block data may contain multiple sections, this description numbers
bytes beginning at the section header. The initial 10 bytes of the block length
specifier and any other sections are not included in the numbering.
The section header uses bytes 1 through 16 (this manual begins counting at
1; there is no byte 0). The 16 bytes of the section header are as follows:
Byte Position
1
10 bytes - Section name ("DATA space space space space space
space" in ASCII for the DATA instruction).
11
1 byte - Reserved
12
1 byte - Module ID (34 decimal for the HP 16554A and HP 16555A/D master
boards, and 35 for expander boards)
13
4 bytes - Length of block in bytes that when converted to decimal, specifies
the number of bytes contained in the data block.
Section Data
For the SYSTem:DATA query when DBLock mode is UNPacked, the
<section data> parameter consists of two parts: the data preamble and the
acquisition data. These are described in the following two sections.
When DBLock mode is set to PACKed, the format is highly configuration
dependent. Because of the complexity and because it may be changed
without notice, it is not described here.
Use UNPacked format for data you wish to post-process, and PACKed data
for measurements you may want to load back into the analyzer module later.
17–6
DATA and SETup Commands
Data Preamble Description
Data Preamble Description
The UNPacked block data is organized as 574 bytes of preamble information,
followed by a variable number of bytes of data. The preamble gives
information for each analyzer describing the amount and type of data
captured, where the trace point occurred in the data, which pods are
assigned to which analyzer, and other information.
The preamble (bytes 17 through 590) consists of the following 574 bytes:
Byte Position
17
4 bytes - Instrument ID (always 16500 decimal for both the HP 16554A and
HP 16555A)
21
4 bytes - Revision Code
25
4 bytes - number of acquisition chips used in last acquisition
29
4 bytes - Analyzer ID (0 for HP 16554A, 1 for the HP 16555A/D)
The values stored in the preamble represent the captured data currently
stored in this structure and not the current analyzer configuration. For
example, the mode of the data (bytes 33 and 103) may be STATE with
tagging, while the current setup of the analyzer is TIMING.
The next 70 bytes are for Analyzer 1 Data Information.
33
4 bytes - Machine data mode, one of the following decimal values:
−1 = off
0 = 70 MHz (HP 16554A) or 100 MHz (HP 16555A/D) State data, no tags
1 = 70 MHz (HP 16554A) or 100 MHz (HP 16555A/D) State data with tags
2 = 70 MHz (HP 16554A) or 100 MHz (HP 16555A/D) State data with tags
3 = Fast State data, no tags (HP 16555A/D)
4 = Fast State data with tags (HP 16555A/D)
5 = Fast State data with tags (HP 16555A/D)
10 = conventional timing data on all channels
13 = conventional timing data on half channels
State data includes data acquired by State Compare and SPA machine types.
There is no change in the data format.
17–7
DATA and SETup Commands
Data Preamble Description
Byte Position
37
Example
Example
4 bytes - List of pods in this analyzer, where a binary 1 indicates that the
corresponding pod is assigned to this analyzer
bit 31
bit 30
bit 29
bit 28
bit 27
bit 26
bit 25
bit 24
unused
unused
unused
unused
unused
unused
unused
unused
bit 23
bit 22
bit 21
bit 20
bit 19
bit 18
bit 17
bit 16
unused
unused
clkpd1
unused
unused
unused
unused
unused
bit 15
bit 14
bit 13
bit 12
bit 11
bit 10
bit 9
bit 8
unused
unused
unused
Pod 12
Pod 11
Pod 10
Pod 9
Pod 8
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
Pod 7
Pod 6
Pod 5
Pod 4
Pod 3
Pod 2
Pod 1
unused
xxxx xxxx xx1x xxxx xxx0 0000 0001 111x indicates that data
pods 1 through 4 and clock pod 1 are assigned to this analyzer (x = unused).
41
4 bytes - Master chip for this analyzer.
45
4 bytes - Maximum hardware memory depth available for this analyzer.
49
4 bytes - Unused.
53
8 bytes - Sample period in picoseconds (timing only).
The following 64 bits represent a sample period of 8,000 picoseconds
(8 nanoseconds):
00000000 00000000 00000000 00000000 00000000 00000000 00011111 01000000
17–8
DATA and SETup Commands
Data Preamble Description
Byte Position
61
4 bytes - Tag type for state mode in one of the following decimal values:
0 = off
1 = time tags
2 = state tags
65
8 bytes - Trigger offset. The time offset (in picoseconds) from when this
analyzer is triggered and when this analyzer provides an output trigger to the
IMB or port out. The value for one analyzer is always zero and the value for
the other analyzer is the time between the triggers of the two analyzers.
73
30 bytes - Unused
103
70 bytes - The next 70 bytes are for Analyzer 2 Data Information. They are
organized in the same manner as Analyzer 1 above, but they occupy bytes
103 through 172.
173
88 bytes - Number of valid rows of data (starting at byte 591) for each pod.
Bytes 173 through 212 Unused
Bytes 213 through 216 contain the number of valid rows of data for
pod 4 of the highest card slot expansion card in a three-card module.
Bytes 217 through 220 contain the number of valid rows of data for
pod 3 of the highest cardslot expansion card in a three-card module.
Bytes 221 through 224 contain the number of valid rows of data for
pod 2 of the highest cardslot expansion card in a three-card module.
Bytes 225 through 228 contain the number of valid rows of data for
pod 1 of the highest cardslot expansion card in a three-card module.
Bytes 229 through 232 contain the number of valid rows of data for
pod 4 of either the expansion card in a two-card module, or a middle
cardslot expansion card in a three-card module.
Bytes 233 through 236 contain the number of valid rows of data for
pod 3 of either the expansion card in a two-card module, or a middle
cardslot expansion card in a three-card module.
Bytes 237 through 240 contain the number of valid rows of data for
pod 2 of either the expansion card in a two-card module, or a middle
cardslot expansion card in a three-card module.
17–9
DATA and SETup Commands
Data Preamble Description
Byte Position
Bytes 241 through 244 contain the number of valid rows of data for
pod 1 of either the expansion card in a two-card module, or a middle
cardslot expansion card in a three-card module.
Bytes 245 through 248 contain the number of valid rows of data for
pod 4 of the master card.
Bytes 249 through 252 contain the number of valid rows of data for
pod 3 of the master card.
Bytes 253 through 256 contain the number of valid rows of data for
pod 2 of the master card.
Bytes 257 through 260 contain the number of valid rows of data for
pod 1 of the master card.
261
Example
88 bytes - The trigger point location for each pod, organized in the same way
as the data rows (bytes 173 – 260). These rows start at 0, which represents
the first sample stored for a pod. Bytes 345 through 348 contain the trigger
location for pod 1.
If bytes 341 and 344 contain the value 101008, the data in row 101008 for
that pod is the trigger. There are 101008 rows of pre-trigger data.
349
234 bytes - Unused
583
2 bytes - Real Time Clock (RTC) year at time of acquisition. Year value is
equal to the year minus 1990.
585
2 bytes - RTC month (1 = January . . . 12 = December ) at time of acquisition.
586
1 byte - RTC day of the month at time of acquisition.
587
1 byte - RTC day of the week at time of acquisition.
588
1 byte - RTC hour (0 through 23) at time of acquisition.
589
1 byte - RTC minutes at time of acquisition.
590
1 byte - RTC seconds at time of acquisition.
17–10
DATA and SETup Commands
Acquisition Data Description
Acquisition Data Description
The acquisition data section consists of a variable number of bytes depending
on the number of cards in the configuration, the acquisition mode, and the
state tag setting. The data is grouped in rows of bytes with one sample from
each pod in a single row. The width of the row is based on the number of
cards in the system. Each card has four pods with two bytes of data per pod.
The clock pod data (four bytes) is always first in the data row. The first two
bytes of the clock pod data are unused. The total number of bytes in a data
row for the various card count configurations is:
Cards
1
2
3
Clock Pod Bytes
4 bytes
4 bytes
4 bytes
Data Bytes
8 bytes
16 bytes
24 bytes
Total Bytes Per Row
12 bytes
20 bytes
28 bytes
The sequence of pod data within a row is the same as shown above for the
number of valid rows per pod. The number of valid rows per pod can be
determined by examining bytes 253 through 256 for pod pair 3/4 of the
master card and bytes 257 through 260 for pod pair 1/2 of the master card.
The number of valid rows for other pod pairs is contained in bytes 213
through 252.
A one-card configuration has the following data arrangement (per row):
<clk pod 1> <pod 4> <pod 3> <pod 2> <pod 1>
A two-card configuration has the following data arrangement (per row):
<-----expansion card ------><-------master card-------->
<clk 1><pod 4><pod 3><pod 2><pod 1><pod 4><pod 3><pod 2><pod 1>
A three-card configuration has the following data arrangement per row:
<- high expander -><-lower expander -><---master card--->
<clk 1><pod 4>. . .<pod 1><pod 4>. . .<pod 1><pod 4>. . .<pod 1>
If the data block is unloaded without first using the DBLock command to specify
UNPacked data, this data block description does not apply.
Unused pods always have data, however it is invalid and should be ignored.
17–11
DATA and SETup Commands
Acquisition Data Description
The depth of the data array is equal to the pod with the greatest number of
rows of valid data. If a pod has fewer rows of valid data than the data array,
unused rows will contain invalid data that should be ignored.
The clock pod contains data mapped according to the clock designator and
the board (see below). Unused clock lines should be ignored.
Clock Pod 1
exp2 exp1 mstr
< xxxx MLKJ MLKJ MLKJ >
Where x = not used, mstr = master card, exp# = expander card number.
Byte Position
591
2 bytes - Not used (clock pod 2).
593
1 byte - MSB of clock pod 1.
594
1 byte - LSB of clock pod 1.
595
1 byte - MSB of data pod 4, board x.
596
1 byte - LSB of data pod 4, board x.
597
1 byte - MSB of data pod 3, board x.
598
1 byte - LSB of data pod 3, board x.
599
1 byte - MSB of data pod 2, board x.
600
1 byte - LSB of data pod 2, board x.
601
1 byte - MSB of data pod 1, board x.
602
1 byte - LSB of data pod 1, board x.
.
.
Byte n
where n = 591 + (bytes per row × maximum number of valid rows) - 1
17–12
DATA and SETup Commands
Time Tag Data Description
Example
A three-card configuration with 516096 valid rows
First data byte = byte 591
Last data byte = 14,451,278 [591 + (28 × 516096) - 1]
Time Tag Data Description
If tags are enabled for one or both analyzers, the tag data follows the
acquisition data. The first byte of the tag data is determined as follows:
591 + (bytes per row × maximum number of valid rows)
Each row of the tag data array consists of one (single analyzer with state
tags) or two (both analyzers with state tags) eight-byte tag values per row.
When both analyzers have state tags enabled, the first tag value in a row
belongs to Machine 1 and the second tag value belongs to Machine 2.
If the tag value is a time tag, the number is an integer representing time in
picoseconds. If the tag value is a state tag, the number is an integer state
count.
The total size of the tag array is 8 or 16 bytes per row times the greatest
number of valid rows.
SYSTem:SETup
Command
:SYStem:SETup <block data>
The SYStem:SETup command configures the logic analyzer module as
defined by the block data sent by the controller. It is not affected by DBLock.
There are three data sections which are always returned. The strings which
are included in the section header are:
"CONFIG
"
"DISPLAY1 "
"BIG_ATTRIB"
17–13
DATA and SETup Commands
SYSTem:SETup
Additionally, the following sections may also be included, depending on what
is available:
"SYMBOLS A "
"SYMBOLS B "
"INVASM A "
"INVASM B "
<block data>
<block length
specifier
<length>
<section>
<section
header>
<block length specifier><section>...
#8<length>
the total length of all sections in byte format (must be represented with 8
digits)
<section header><section data>
16 bytes in the following format:
10 bytes for the section name
1 byte reserved
1 byte for the module ID code (34 for the HP 16554A and HP 16555A/D
logic analyzer)
4 bytes for the length of the section data in bytes
<section data>
format depends on the type of data. The total length of a section is 16 (for
the section header) plus the length of the section data. So when calculating
the value for <length>, don’t forget to include the length of the section
headers. The format of the setup block is not affected by the DBLock
command setting.
Example
OUTPUT XXX;"SETUP" <block data>
Query
:SYStem:SETup?
The SYStem:SETup query returns a block of data that contains the current
configuration to the controller.
Returned Format
[:SYStem:SETup] <block data><NL>
17–14
Part 3
18 Programming Examples
Programming Examples
18
Programming Examples
Introduction
This chapter contains short, usable, and tested programs that cover
the most asked for examples. The examples are written in HP BASIC
6.0.
•
•
•
•
Making a timing analyzer measurement
Making a state analyzer measurement
Making a state compare analyzer measurement
Transferring logic analyzer configuration between the logic analyzer
and the controller
• Checking for measurement completion
• Sending queries to the logic analyzer
18–2
Programming Examples
Making a Timing Analyzer Measurement
Making a Timing Analyzer Measurement
This program sets up the logic analyzer to make a simple timing analyzer
measurement. This example can be used with E2422-60004 Logic Analyzer
Training board to acquire and display the output of the ripple counter. It can
also be modified to make any timing analyzer measurement.
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
! ****************** TIMING ANALYZER EXAMPLE ******************
!
for the HP 16554A/HP 16555A/HP 16555D Logic Analyzer
!
! **************************************************************
! Select the module slot in which the HP 16554A/HP 16555A/D is installed.
! In this example, it is in slot B of the mainframe.
!
OUTPUT 707;":SELECT 2"
!
! **************************************************************
! Name Machine 1 "TIMING," configure Machine 1 as a timing analyzer,
! and assign pod 1 to Machine 1.
!
OUTPUT 707;":MACH1:NAME ’TIMING’"
OUTPUT 707;":MACH1:TYPE TIMING"
OUTPUT 707;":MACH1:ASSIGN 1"
!
! **************************************************************
! Make a label "COUNT," give the label a positive polarity, and
! assign the lower 8 bits.
!
OUTPUT 707;":MACHINE1:TFORMAT:REMOVE ALL"
OUTPUT 707;":MACH1:TFORMAT:LABEL ’COUNT’,POS,0,0,#B0000000011111111"
!
! **************************************************************
! Specify FF hex for resource term A, which is the default
! trigger term for the timing analyzer.
!
OUTPUT 707;":MACH1:TTRACE:TERM A, ’COUNT’, ’#HFF’"
!
! ***************************************************************
! Remove any previously inserted labels, insert the "COUNT"
! label, change the seconds-per-division to 100 ns, and display the
! waveform menu.
!
18–3
Programming Examples
Making a Timing Analyzer Measurement
360
370
380
390
400
410
420
430
440
450
460
470
480
490
500
510
520
530
540
550
560
570
580
590
600
610
620
625
630
635
640
650
660
670
680
690
700
710
720
730
740
750
760
770
OUTPUT 707;":MACH1:TWAVEFORM:REMOVE"
OUTPUT 707;":MACH1:TWAVEFORM:INSERT ’COUNT’, ALL"
OUTPUT 707;":MACH1:TWAVEFORM:RANGE 1E-6"
OUTPUT 707;":MENU 2,5"
!
! ****************************************************************
! Run the timing analyzer in single mode.
!
OUTPUT 707;":RMODE SINGLE"
OUTPUT 707;":START"
!
! ****************************************************************
! Set the marker mode (MMODE) to time so that patterns are available
! for marker measurements. Place the X-marker on 03 hex and the O! marker on 07 hex. Then tell the timing analyzer to find the first
! occurrence of 03h after the trigger and the first occurrence of 07h
! after the X-marker is found.
!
OUTPUT 707;":MACHINE1:TWAVEFORM:MMODE PATTERN"
!
OUTPUT 707;":MACHINE1:TWAVEFORM:XPATTERN ’COUNT’,’#H03’"
OUTPUT 707;":MACHINE1:TWAVEFORM:OPATTERN ’COUNT’,’#H07’"
!
OUTPUT 707;":MACHINE1:TWAVEFORM:XCONDITION ENTERING"
OUTPUT 707;":MACHINE1:TWAVEFORM:OCONDITION ENTERING"
!
OUTPUT 707;":MACHINE1:TWAVEFORM:XSEARCH +1, TRIGGER"
WAIT 2
OUTPUT 707;":MACHINE1:TWAVEFORM:OSEARCH +1, XMARKER"
WAIT 2
!
! *****************************************************************
! Turn the longform and headers on, dimension a string for the query
! data, send the XOTIME query and print the string containing the
! XOTIME query data.
!
OUTPUT 707;":SYSTEM:LONGFORM ON"
OUTPUT 707;":SYSTEM:HEADER ON"
!
DIM Mtime$[100]
OUTPUT 707;":MACHINE1:TWAVEFORM:XOTIME?"
ENTER 707;Mtime$
PRINT Mtime$
END
18–4
Programming Examples
Making a State Analyzer Measurement
Making a State Analyzer Measurement
This state analyzer program selects the HP 16554A/HP 16555A/HP 16555D
module, displays the configuration menu, defines a state machine, displays
the state trigger menu, sets a state trigger for multilevel triggering. This
program then starts a single acquisition measurement while checking for
measurement completion.
This program is written so that you can run it with the HP E2433-60004 Logic
Analyzer Training Board. This example is the same as the "Multilevel State
Triggering" example in chapter 9 of the HP E2433 Logic Analyzer Training
Kit.
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
! ******************** STATE ANALYZER EXAMPLE *************************
!
for the HP 16554A/HP 16555A/HP 16555D Logic Analyzer
!
! ************* SELECT THE HP 16554/HP 16555 MODULE *******************
! Select slot in which the HP 16554A/HP 16555A/HP 16555D is installed.
! In this example, it is in slot B of the mainframe.
!
OUTPUT 707;":SELECT 2"
!
! ******************** CONFIGURE THE STATE ANALYZER **********************
! Name Machine 1 "STATE," configure Machine 1 as a state analyzer, assign
! pod 1 to Machine 1, and display System Configuration menu of the
! HP 16554A/HP 16555A/HP 16555D.
!
OUTPUT 707;":MACHINE1:NAME ’STATE’"
OUTPUT 707;":MACHINE1:TYPE STATE"
OUTPUT 707;":MACHINE1:ASSIGN 1"
OUTPUT 707;":MENU 2,0"
!
! ******************* SETUP THE FORMAT SPECIFICATION *********************
! Make a label "SCOUNT," give the label a positive polarity, and
! assign the lower 8 bits.
!
OUTPUT 707;":MACHINE1:SFORMAT:REMOVE ALL"
OUTPUT 707;":MACHINE1:SFORMAT:LABEL ’SCOUNT’, POS, 0,0,255"
!
18–5
Programming Examples
Making a State Analyzer Measurement
270
280
290
300
310
320
330
340
350
360
370
380
390
400
410
420
430
440
450
460
470
480
490
500
510
520
530
540
550
560
570
580
590
600
610
620
630
640
650
660
670
680
690
700
710
! ******************* SETUP THE TRIGGER SPECIFICATION ********************
! The trigger specification will use five sequence levels with the trigger
! level on level four. Resource terms A through E, and RANGE1 will be
! used to store only desired counts from the 8-bit ripple counter.
!
! Display the state trigger menu.
!
OUTPUT 707;":MENU 2,3"
!
! Create a 5-level trigger specification with the trigger on the
! fourth level.
!
OUTPUT 707;":MACHINE1:STRIGGER:SEQUENCE 5,4"
!
! Define pattern terms A, B, C, D, and E to be 11, 22, 33, 44 and 59
! decimal respectively.
!
OUTPUT 707;":MACHINE1:STRIGGER:TERM A,’SCOUNT’,’11’"
OUTPUT 707;":MACHINE1:STRIGGER:TERM B,’SCOUNT’,’22’"
OUTPUT 707;":MACHINE1:STRIGGER:TERM C,’SCOUNT’,’33’"
OUTPUT 707;":MACHINE1:STRIGGER:TERM D,’SCOUNT’,’44’"
OUTPUT 707;":MACHINE1:STRIGGER:TERM E,’SCOUNT’,’59’"
!
! Define a Range having a lower limit of 50 and an upper limit of 58.
!
OUTPUT 707;":MACHINE1:STRIGGER:RANGE1 ’SCOUNT’,’50’,’58’"
!
! ***************** CONFIGURE SEQUENCE LEVEL 1 ***************************
! Store NOSTATE in level 1 and Then find resource term "A" once.
!
OUTPUT 707;":MACHINE1:STRIGGER:STORE1 ’NOSTATE’"
OUTPUT 707;":MACHINE1:STRIGGER:FIND1 ’A’,1"
!
! ***************** CONFIGURE SEQUENCE LEVEL 2 ***************************
! Store RANGE1 in level 2 and Then find resource term "E" once.
!
OUTPUT 707;":MACHINE1:STRIGGER:STORE2 ’IN_RANGE1’"
OUTPUT 707;":MACHINE1:STRIGGER:FIND2 ’E’,1"
!
! ***************** CONFIGURE SEQUENCE LEVEL 3 ***************************
! Store NOSTATE in level 3 and Then find term "B" once.
!
OUTPUT 707;":MACHINE1:STRIGGER:STORE3 ’NOSTATE’"
OUTPUT 707;":MACHINE1:STRIGGER:FIND3 ’B’,1"
!
18–6
Programming Examples
Making a State Analyzer Measurement
720
730
740
750
760
770
780
790
800
810
820
830
840
850
860
870
880
890
900
910
920
930
940
950
960
970
980
990
1000
1010
1020
1030
1040
1050
1060
1070
1080
1090
1100
1110
1120
1130
1140
1150
1160
! ***************** CONFIGURE SEQUENCE LEVEL 4 ***************************
! Store a combination of resource terms (C or D or RANGE1) in level 4 and
! Then Trigger on resource term "E."
!
OUTPUT 707;":MACHINE1:STRIGGER:STORE4 ’(C OR D OR IN_RANGE1)’"
!
! ************************ NOTE ***********************
!
The FIND command selects the trigger in the
!
sequence level specified as the trigger level.
! *****************************************************
!
OUTPUT 707;":MACHINE1:STRIGGER:FIND4 ’E’,1"
!
! ***************** CONFIGURE SEQUENCE LEVEL 5 ***************************
! Store anystate on level 5
!
OUTPUT 707;":MACHINE1:STRIGGER:STORE5 ’ANYSTATE’"
!
! ***************** START ACQUISITION ************************************
! Place the logic analyzer in single acquisition mode, then determine when
! the acquisition is complete.
!
OUTPUT 707;":RMODE SINGLE"
!OUTPUT 707;"*CLS"
OUTPUT 707;":START"
!
! ****************** CHECK FOR MEASUREMENT COMPLETE **********************
! Enable the MESR register and query the register for a measurement
! complete condition.
!
OUTPUT 707;":SYSTEM:HEADER OFF"
OUTPUT 707;":SYSTEM:LONGFORM OFF"
!
Status=0
OUTPUT 707;":MESE2 1"
OUTPUT 707;":MESR2?"
ENTER 707;Status
!
! Print the MESR register status.
!
CLEAR SCREEN
PRINT "Measurement complete status is ";Status AND 1
PRINT "0 = not complete, 1 = complete"
! Repeat the MESR query until measurement is complete.
WAIT 1
18–7
Programming Examples
Making a State Analyzer Measurement
1170
1180
1190
1200
1210
1220
1230
1240
1250
1260
1270
1280
1290
1300
IF (Status AND 1)=1 THEN GOTO 1190
GOTO 1070
PRINT TABXY(30,15);"Measurement is complete"
!
! ************************ VIEW THE RESULTS *****************************
! Display the State Listing and select a line number in the listing that
! allows you to see the beginning of the listing on the logic analyer
! display.
!
OUTPUT 707;":MACHINE1:SLIST:COLUMN 1, ’SCOUNT’, DECIMAL"
OUTPUT 707;":MENU 2,7"
OUTPUT 707;":MACHINE1:SLIST:LINE -16"
!
END
18–8
Programming Examples
Making a State Compare Analyzer Measurement
Making a State Compare Analyzer Measurement
This program example acquires a state listing, copies the listing to the
compare listing, acquires another state listing, and compares both listings to
find differences.
This program is written so that you can run it with the HP E2433-60004 Logic
Analyzer Training Board. This example is the same as the "State Compare"
example in chapter 3 of the HP E2433 Logic Analyzer Training Kit.
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
! *********** STATE COMPARE EXAMPLE ********************************
!
for the HP 16554A/HP 16555A/HP 16555D Logic Analyzer
!
!
!******* SELECT THE HP 16554A/HP 16555A/HP 16555D MODULE ***********
! Select the slot in which the module is installed.
! In this example, it is in slot B of the mainframe.
!
OUTPUT 707;":SELECT 2"
!
!************** CONFIGURE THE STATE ANALYZER ***********************
! Name Machine 1 "STATE," configure Machine 1 as a compare state
! analyzer, and assign pod 1 to Machine 1.
!
OUTPUT 707;":MACHINE1:NAME ’STATE’"
OUTPUT 707;":MACHINE1:TYPE COMPARE"
OUTPUT 707;":MACHINE1:ASSIGN 1"
!
! ******************************************************************
! Remove all labels previously set up, make a label "SCOUNT," specify
! positive logic, and assign the lower 8 bits of pod 1 to the label.
!
OUTPUT 707;":MACHINE1:SFORMAT:REMOVE ALL"
OUTPUT 707;":MACHINE1:SFORMAT:LABEL ’SCOUNT’, POS, 0,0,255"
!
! ******************************************************************
! Make the "J" clock the Master clock and specify the falling edge.
!
OUTPUT 707;":MACHINE1:SFORMAT:MASTER J, FALLING"
!
18–9
Programming Examples
Making a State Compare Analyzer Measurement
310
320
330
340
350
360
370
380
390
400
410
420
430
440
450
460
470
480
490
500
510
520
530
540
550
560
570
580
590
600
610
620
630
640
650
660
670
680
690
700
710
! ******************************************************************
! Specify two sequence levels, the trigger sequence level, specify
! FF hex for the "a" term which will be the trigger term, and store
! no states until the trigger is found.
!
OUTPUT 707;":MACHINE1:STRIGGER:SEQUENCE 2,1"
OUTPUT 707;":MACHINE1:STRIGGER:TERM A,’SCOUNT’,’#HFF’"
OUTPUT 707;":MACHINE1:STRIGGER:STORE1 ’NOSTATE’"
OUTPUT 707;":MENU 2,3"
!
! ******************************************************************
! Change the displayed menu to the state listing and start the state
! analyzer in repetitive mode.
!
OUTPUT 707;":MENU 2,7"
OUTPUT 707;":RMODE REPETITIVE"
OUTPUT 707;":START"
!
! ******************************************************************
! The logic analyzer is now running in the repetitive mode
! and will remain in repetitive until the STOP command is sent.
!
PRINT "The logic analyzer is now running in the repetitive mode"
PRINT "and will remain in repetitive until the STOP command is sent."
PRINT
PRINT "Press CONTINUE"
PAUSE
!
!***********************************************************************
! Stop the acquisition and copy the acquired data to the compare reference
! listing.
!
OUTPUT 707;":STOP"
OUTPUT 707;":MENU 2,10"
OUTPUT 707;":MACHINE1:COMPARE:MENU REFERENCE"
OUTPUT 707;":MACHINE1:COMPARE:COPY"
!
! The logic analyzer acquistion is now stopped, the Compare menu
! is displayed, and the data is now in the compare reference
! listing.
!
18–10
Programming Examples
Making a State Compare Analyzer Measurement
720
730
740
750
760
770
780
790
810
820
830
840
850
860
870
880
890
900
910
920
930
940
950
960
970
980
990
1000
1010
1020
1030
1040
1041
1050
1060
1070
1080
1090
!***********************************************************************
! Display line 4090 of the compare listing and start the analyzer
! in a repetitive mode.
!
OUTPUT 707;":MACHINE1:COMPARE:LINE 4090"
OUTPUT 707;":START"
!
! Line 4090 of the listing is now displayed at center screen.
! In this example, the states are stable. However, in some
! cases, the end points of the listing may vary thus causing
! a false failure in compare. To eliminate this problem, a
! partial compare can be specified to provide predictable end
! points of the data.
!
PRINT "Press CONTINUE to send the STOP command."
PAUSE
OUTPUT 707;":STOP"
!
!************************************************************************
! The end points of the compare can be fixed to prevent false failures.
! In addition, you can use partial compare to compare only sections
! of the state listing you are interested in comparing.
!
OUTPUT 707;":MACHINE1:COMPARE:RANGE PARTIAL, 0, 508"
!
! The compare range is now from line 0 to +508
!
!************************************************************************
! Change the Glitch jumper settings on the training board so that the
! data changes, reacquire the data and compare which states are different.
PRINT "Change the glitch jumper settings on the training board so that "
PRINT "the data changes, reacquire the data and compare which states are "
PRINT "different."
!
PRINT "Press CONTINUE when you have finished changing the jumper."
!
PAUSE
!
18–11
Programming Examples
Making a State Compare Analyzer Measurement
1100
1110
1120
1130
1140
1150
1155
1160
1170
1180
1190
1200
1210
1220
1230
1240
1250
1260
1270
1280
1290
1300
1310
1320
1330
1340
1350
1360
1370
1380
1390
1400
1410
1420
1430
1440
1450
1460
1470
1480
1490
1500
1510
1520
1530
!************************************************************************
! Start the logic analyzer to acquire new data and then stop it to compare
! the data. When the acquistion is stopped, the Compare Listing Menu will
! be displayed.
!
OUTPUT 707;":START"
WAIT 2
OUTPUT 707;":STOP"
OUTPUT 707;":MENU 2,10"
!
!************************************************************************
! Dimension strings in which the compare find query (COMPARE:FIND?)
! enters the line numbers and error numbers.
!
DIM Line$[20]
DIM Error$[4]
DIM Comma$[1]
!
! ***********************************************************************
! Display the Difference listing.
!
OUTPUT 707;":MACHINE1:COMPARE:MENU DIFFERENCE"
!
! ************************************************************************
! Loop to query all 508 possible errors.
!
FOR Error=1 TO 508
!
! Read the compare differences
!
OUTPUT 707;":MACHINE1:COMPARE:FIND? " & VAL$(Error)
!
! ************************************************************************
! Format the Error$ string data for display on the controller screen.
!
IF Error>99 THEN GOTO 1580
IF Error>9 THEN GOTO 1550
!
ENTER 707 USING "#,1A";Error$
ENTER 707 USING "#,1A";Comma$
ENTER 707 USING "K";Line$
Error_return=IVAL(Error$,10)
IF Error_return=0 THEN GOTO 1820
!
GOTO 1610
18–12
Programming Examples
Making a State Compare Analyzer Measurement
1540
1550
1555
1560
1570
1580
1590
1595
1600
1610
1620
1630
1640
1650
1660
1670
1680
1690
1700
1710
1720
1730
1740
1750
1760
1770
1780
1790
1800
1810
1820
1830
1840
1850
!
ENTER 707 USING "#,2A";Error$
ENTER 707 USING "#,1A";Comma$
ENTER 707 USING "K";Line$
GOTO 1610
!
ENTER 707 USING "#,3A";Error$
ENTER 707 USING "#,1A";Comma$
ENTER 707 USING "K";Line$
!
! ************************************************************************
! Test for the last error. The error number of the last error is the same
! as the error number of the first number after the last error.
!
Error_line=IVAL(Line$,10)
IF Error_line=Error_line2 THEN GOTO 1780
Error_line2=Error_line
!
! ************************************************************************
! Print the error numbers and the corresponding line numbers on the
! controller screen.
!
PRINT "Error number ",Error," is on line number ",Error_line
!
NEXT Error
!
PRINT
PRINT
PRINT "Last error found"
GOTO 1850
PRINT "No errors found"
!
!
END
18–13
Programming Examples
Transferring the Logic Analyzer Configuration
Transferring the Logic Analyzer Configuration
This program uses the SYSTem:SETup query to transfer the configuration of
the logic analyzer to your controller. This program also uses the
SYSTem:SETup command to transfer a logic analyzer configuration from the
controller back to the logic analyzer. The configuration data will set up the
logic analyzer according to the data. It is useful for getting configurations for
setting up the logic analyzer by the controller. The SYSTem:SETup
command differs from the SYSTem:DATA command because it only transfers
the configuration and not acquired data.
10
20
30
40
50
51
52
53
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
! ****************** SETUP COMMAND AND QUERY EXAMPLE ********************
!
for the HP 16554A/HP 16555A/HP 16555D
!
! ********************* CREATE TRANSFER BUFFER *************************
! Create a buffer large enough for the block data. See "Sending Queries
! to the Logic Analyzer" for how to calculate buffer size for data. This
! buffer is only big enough for setup information.
!
ASSIGN @Buff TO BUFFER [320000]
!
! **************** INITIALIZE HPIB DEFAULT ADDRESS *********************
!
REAL Address
Address=707
ASSIGN @Comm TO Address
!
CLEAR SCREEN
!
! ************* INTITIALIZE VARIABLE FOR NUMBER OF BYTES *****************
! The variable "Numbytes" contains the number of bytes in the buffer.
!
REAL Numbytes
Numbytes=0
!
! ************** RE-INITIALIZE TRANSFER BUFFER POINTERS ******************
!
CONTROL @Buff,3;1
CONTROL @Buff,4;0
!
18–14
Programming Examples
Transferring the Logic Analyzer Configuration
270
280
290
300
310
320
330
340
350
360
370
380
390
400
410
420
430
440
450
460
470
480
490
500
510
520
530
540
550
560
570
580
600
610
620
630
640
650
! *********************** SEND THE SETUP QUERY **************************
OUTPUT 707;":SYSTEM:HEADER ON"
OUTPUT 707;":SYSTEM:LONGFORM ON"
OUTPUT @Comm;":SELECT 2"
OUTPUT @Comm;":SYSTEM:SETUP?"
!
! ******************** ENTER THE BLOCK SETUP HEADER *********************
! Enter the block setup header in the proper format.
!
ENTER @Comm USING "#,B";Byte
PRINT CHR$(Byte);
WHILE Byte<>35
ENTER @Comm USING "#,B";Byte
PRINT CHR$(Byte);
END WHILE
ENTER @Comm USING "#,B";Byte
PRINT CHR$(Byte);
Byte=Byte-48
IF Byte=1 THEN ENTER @Comm USING "#,D";Numbytes
IF Byte=2 THEN ENTER @Comm USING "#,DD";Numbytes
IF Byte=3 THEN ENTER @Comm USING "#,DDD";Numbytes
IF Byte=4 THEN ENTER @Comm USING "#,DDDD";Numbytes
IF Byte=5 THEN ENTER @Comm USING "#,DDDDD";Numbytes
IF Byte=6 THEN ENTER @Comm USING "#,DDDDDD";Numbytes
IF Byte=7 THEN ENTER @Comm USING "#,DDDDDDD";Numbytes
IF Byte=8 THEN ENTER @Comm USING "#,DDDDDDDD";Numbytes
PRINT Numbytes
!
! ******************** TRANSER THE SETUP ********************************
! Transfer the setup from the logic analyzer to the buffer.
!
TRANSFER @Comm TO @Buff;COUNT Numbytes,WAIT
!
ENTER @Comm USING "-K";Length$
PRINT "LENGTH of Length string is";LEN(Length$)
!
PRINT "**** GOT THE SETUP **** Press Continue when ready"
PAUSE
18–15
Programming Examples
Transferring the Logic Analyzer Configuration
660
670
680
690
700
710
720
730
740
750
760
770
780
790
800
810
820
821
830
840
850
860
870
880
890
900
910
920
930
940
950
960
970
980
990
1000
1010
1020
1030
1040
1050
! ********************* SEND THE SETUP **********************************
! Make sure buffer is not empty.
!
IF Numbytes=0 THEN
PRINT "BUFFER IS EMPTY"
GOTO 1170
END IF
!
! ********************* SEND THE SETUP COMMAND **************************
! Send the Setup command
!
OUTPUT @Comm USING "#,15A";":SYSTEM:SETUP #"
PRINT "SYSTEM:SETUP command has been sent. Press Continue to send setup"
PAUSE
!
! ********************* SEND THE BLOCK SETUP ****************************
! Send the block setup header to the module in the proper
! format.
!
Byte=LEN(VAL$(Numbytes))
OUTPUT @Comm USING "#,B";(Byte+48)
IF Byte=1 THEN OUTPUT @Comm USING "#,A";VAL$(Numbytes)
IF Byte=2 THEN OUTPUT @Comm USING "#,AA";VAL$(Numbytes)
IF Byte=3 THEN OUTPUT @Comm USING "#,AAA";VAL$(Numbytes)
IF Byte=4 THEN OUTPUT @Comm USING "#,AAAA";VAL$(Numbytes)
IF Byte=5 THEN OUTPUT @Comm USING "#,AAAAA";VAL$(Numbytes)
IF Byte=6 THEN OUTPUT @Comm USING "#,AAAAAA";VAL$(Numbytes)
IF Byte=7 THEN OUTPUT @Comm USING "#,AAAAAAA";VAL$(Numbytes)
IF Byte=8 THEN OUTPUT @Comm USING "#,AAAAAAAA";VAL$(Numbytes)
!
! *********************** SAVE BUFFER POINTERS *************************
! Save the transfer buffer pointer so it can be restored after the
! transfer.
!
STATUS @Buff,5;Streg
!
! ************ TRANSFER SETUP TO THE MODULE ****************
! Transfer the setup from the buffer to the HP 16554A/HP 16555A/HP 16555D.
!
TRANSFER @Buff TO @Comm;COUNT Numbytes,WAIT
!
18–16
Programming Examples
Transferring the Logic Analyzer Configuration
1060
1070
1080
1090
1100
1110
1120
1130
1140
1150
1160
1170
! ********************** RESTORE BUFFER POINTERS ***********************
! Restore the transfer buffer pointer
!
CONTROL @Buff,5;Streg
!
! ******************** SEND TERMINATING LINE FEED **********************
! Send the terminating linefeed to properly terminate the setup string.
!
OUTPUT @Comm;""
!
PRINT "**** SENT THE SETUP **** Program complete."
END
18–17
Programming Examples
Checking for Measurement Completion
Checking for Measurement Completion
This program can be appended to or inserted into another program when you
need to know when a measurement is complete. If it is at the end of a
program it will tell you when measurement is complete. If you insert it into a
program, it will halt the program until the current measurement is complete.
In this example, the module installed in slot B is being checked for
measurement complete.
This program is also in the state analyzer example program in "Making a State
Analyzer Measurement" on page 18-5. It is included in the state analyzer
example program to show how it can be used in a program to halt the
program until measurement is complete.
420
430
440
450
460
470
480
490
500
510
520
530
540
550
560
570
580
590
600
610
620
630
640
650
! ****************** CHECK FOR MEASUREMENT COMPLETE **********************
! Enable the MESR register and query the register for a measurement
! complete condition.
!
OUTPUT 707;":SYSTEM:HEADER OFF"
OUTPUT 707;":SYSTEM:LONGFORM OFF"
!
Status=0
OUTPUT 707;":MESE2 1"
! Enables register for slot B
OUTPUT 707;":MESR2?"
! Queries register for slot B
ENTER 707;Status
!
! Print the MESR register status.
!
CLEAR SCREEN
PRINT "Measurement complete status is ";Status AND 1
PRINT "0 = not complete, 1 = complete"
! Repeat the MESR query until measurement is complete.
WAIT 1
IF (Status AND 1)=1 THEN GOTO 630
GOTO 510
PRINT TABXY(30,15);"Measurement is complete"
!
END
18–18
Programming Examples
Sending Queries to the Logic Analyzer
Sending Queries to the Logic Analyzer
This program example contains the steps required to send a query to the
logic analyzer. Sending the query alone only puts the requested information
in an output buffer of the logic analyzer. You must follow the query with an
ENTER statement to transfer the query response to the controller. When the
query response is sent to the logic analyzer, the query is properly terminated
in the logic analyzer. If you send the query but fail to send an ENTER
statement, the logic analyzer will display the error message "Query
Interrupted" when it receives the next command from the controller, and the
query response is lost.
10
20
30
40
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
70
80
90
100
110
120
130
140
! ****************** DATA COMMAND AND QUERY EXAMPLE ********************
!
for the HP 16554A/HP 16555A/HP 16555D
!
! ********************* CREATE TRANSFER BUFFER *************************
!
! NOTE WELL! The data from the 16554A may be up to 19Mbytes long!
! NOTE WELL! The data from the 16555A may be up to 38Mbytes long!
! NOTE WELL! The data from the 16555D may be up to 76Mbytes long!
! You may estimate the size of the buffer needed using the following
! formula.
!
! LET Cards = Number of 16554/16555 cards in your module.
! LET Samples = Memory Length (see Acquisition Control in Trigger Menu)
! LET BufferSize = (12 * Samples * Boards) + 1000
!
! For example, a 1 board system with a full memory length of 1040384
! requires (12 * 1040384) + 1000 = 12,485,608 bytes.
!
! You may have to enlarge the workspace of your Basic environment
! to accomodate this buffer.
ASSIGN @Buff TO BUFFER [3700000]
!
! **************** INITIALIZE HPIB DEFAULT ADDRESS *********************
!
REAL Address
Address=707
ASSIGN @Comm TO Address
!
CLEAR SCREEN
18–19
Programming Examples
Sending Queries to the Logic Analyzer
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
360
370
380
390
400
410
420
430
440
450
460
470
480
490
500
510
520
530
531
532
540
!
! ************* INTITIALIZE VARIABLE FOR NUMBER OF BYTES *****************
! The variable "Numbytes" contains the number of bytes in the buffer.
!
REAL Numbytes
Numbytes=0
!
! ************** RE-INITIALIZE TRANSFER BUFFER POINTERS ******************
!
CONTROL @Buff,3;1
CONTROL @Buff,4;0
!
! *********************** SEND THE DATA QUERY **************************
OUTPUT 707;":SYSTEM:HEADER ON"
OUTPUT 707;":SYSTEM:LONGFORM ON"
OUTPUT @Comm;"SELECT 2"
OUTPUT @Comm;":SYSTEM:DATA?"
!
! ******************** ENTER THE BLOCK DATA HEADER *********************
! Enter the block data header in the proper format.
!
ENTER @Comm USING "#,B";Byte
PRINT CHR$(Byte);
WHILE Byte<>35
ENTER @Comm USING "#,B";Byte
PRINT CHR$(Byte);
END WHILE
ENTER @Comm USING "#,B";Byte
PRINT CHR$(Byte);
Byte=Byte-48
IF Byte=1 THEN ENTER @Comm USING "#,D";Numbytes
IF Byte=2 THEN ENTER @Comm USING "#,DD";Numbytes
IF Byte=3 THEN ENTER @Comm USING "#,DDD";Numbytes
IF Byte=4 THEN ENTER @Comm USING "#,DDDD";Numbytes
IF Byte=5 THEN ENTER @Comm USING "#,DDDDD";Numbytes
IF Byte=6 THEN ENTER @Comm USING "#,DDDDDD";Numbytes
IF Byte=7 THEN ENTER @Comm USING "#,DDDDDDD";Numbytes
IF Byte=8 THEN ENTER @Comm USING "#,DDDDDDDD";Numbytes
Str1$=DVAL$(Numbytes,10)
! DVAL$ returns an 11 character string
PRINT Str1$[12-Byte]
!
18–20
Programming Examples
Sending Queries to the Logic Analyzer
550
560
570
580
600
610
620
630
640
650
660
670
680
690
700
710
720
730
740
750
760
770
780
790
800
810
820
821
830
850
860
870
920
930
940
950
960
970
980
990
1000
! ******************** TRANSER THE DATA ********************************
! Transfer the data from the logic analyzer to the buffer.
!
TRANSFER @Comm TO @Buff;COUNT Numbytes,WAIT
!
ENTER @Comm USING "-K";Length$
PRINT "LENGTH of Length string is ";Byte
!
PRINT "**** GOT THE DATA **** Press continue."
PAUSE
! ********************* SEND THE DATA **********************************
! Make sure buffer is not empty.
!
IF Numbytes=0 THEN
PRINT "BUFFER IS EMPTY"
GOTO 1170
END IF
!
! ********************* SEND THE DATA COMMAND **************************
! Send the Setup command
!
OUTPUT @Comm USING "#,14A";":SYSTEM:DATA #"
PRINT "SYSTEM:DATA command has been sent. Press continue."
PAUSE
!
! ********************* SEND THE BLOCK DATA ****************************
! Send the block data header to the HP 16554A/HP 16555A in the proper
! format.
!
OUTPUT @Comm USING "#,A";"8"
Str1$=DVAL$(Numbytes,10)
Byte=1
PRINT USING "AAAAAAAA";Str1$[4]
OUTPUT @Comm USING "#,AAAAAAAA";Str1$[4]
!
! *********************** SAVE BUFFER POINTERS *************************
! Save the transfer buffer pointer so it can be restored after the
! transfer.
!
STATUS @Buff,5;Streg
!
18–21
Programming Examples
Sending Queries to the Logic Analyzer
1010
1020
1030
1040
1050
1060
1070
1080
1090
1100
1110
1120
1130
1140
1150
1160
1170
! ************* TRANSFER DATA TO THE HP 16554A/HP 16555 ****************
! Transfer the data from the buffer to the HP 16554A/HP 16555A.
!
TRANSFER @Buff TO @Comm;COUNT Numbytes,WAIT
!
! ********************** RESTORE BUFFER POINTERS ***********************
! Restore the transfer buffer pointer
!
CONTROL @Buff,5;Streg
!
! ******************** SEND TERMINATING LINE FEED **********************
! Send the terminating linefeed to properly terminate the data string.
!
OUTPUT @Comm;""
!
PRINT "**** SENT THE DATA **** Program complete."
END
18–22
Index
A
A+B, 4–11, 13–19
A,B, 13–18
A-B, 13–13
ACCumulate command/query, 8–5, 9–4,
13–7
ACQMode command/query, 11–5
ACQuisition command/query, 6–8, 8–5,
12–9, 13–8
acquisition size, 8–8, 12–16, 13–12
analyzer 1 data information, 17–7
analyzer 2 data information, 17–9
ARM command/query, 3–5
ARMLine selector, 2–5
ASSign command/query, 3–6
AUTorange command, 16–22
average time, 13–23, 14–17, 16–25
B
BASE command, 15–5
block data, 17–4
block length specifier, 17–4, , 17–5, 17–14
BRANch command/query, 6–9 to 6–10,
12–9 to 12–11
BUCKet query, 16–8
C
CARDcage query, 1–5
CENTer command, 8–6, 9–5, 13–9
chart display, 9–2
Chart menu, 9–2
CLEar command, 6–11, 10–5, 12–12
clock, 5–9
CLOCk command/query, 5–6
CLRPattern command, 7–8, 8–6, 13–9,
14–8
CLRStat command, 8–7, 13–9
CMASk command/query, 10–5
COLumn command/query, 7–7, 14–7
command
ACCumulate, 8–5, 9–4, 13–7
ACQMode, 11–5
ACQuisition, 6–8, 12–9, 13–8
ARM, 3–5
ARMLine, 2–5
ASSign, 3–6
AUTorange, 16–22
BASE, 15–5
BRANch, 6–9, 12–9
CENTer, 8–6, 9–5, 13–9
CLEar, 6–11, 10–5
CLOCk, 5–6
CLRPattern, 7–8, 8–6, 13–9, 14–8
CLRStat, 8–7, 13–9
CMASk, 10–5
COLumn, 7–7, 14–7
COMPare, 10–4
COPY, 10–6
DATA, 10–6, 17–4
DBLock, 2–5
DELay, 4–5, 8–7, 13–10
EDGE, 12–13
FIND, 6–12, 12–14
HAXis, 9–5
HIGH, 16–9
HISTogram:LABel, 16–17
HISTogram:OTHer, 16–18
HISTogram:QUALifier, 16–19
HISTogram:RANGe, 16–20
HISTogram:TTYPe, 16–21
INSert, 4–6, 8–8, 13–11
LABel, 5–7, 11–6, 16–10, 16–17
LEVelarm, 3–7
LINE, 4–7, 7–9, 10–9, 14–9
LOW, 16–11
MACHine, 2–6, 3–4
MASTer, 5–9
MENU, 1–6, 10–9
MESE, 1–13
MINus, 4–8, 13–13
MLENgth, 6–13, 8–8, 12–16, 13–12, 16–12
MMODe, 7–10, 13–14, 14–10
MODE, 5–10
Module Level, 2–2
MOPQual, 5–11
MQUal, 5–12
NAME, 3–8
OCONdition, 13–15, 14–11
OMARker, 16–13
OPATtern, 7–11, 13–16, 14–12
OSEarch, 7–12, 13–17, 14–13
OTAG, 7–14, 14–14
OTHer, 16–18
OTIMe, 4–9, 13–18
OVERlay, 4–10, 7–15, 13–18
OVERView:HIGH, 16–9
OVERView:LABel, 16–10
OVERView:LOW, 16–11
OVERview:MLENgth, 16–12
OVERView:OMARker, 16–13
OVERView:XMARker, 16–15
PATTern, 15–6
PLUS, 4–11, 13–19
PRINt, 1–7
QUALifier, 16–19, 16–23
RANGe, 4–12, 6–14, 8–9, 10–10, 12–17,
13–20, 15–7, 16–20
REMove, 4–12, 5–13, 7–15, 8–10, 11–7,
13–20, 14–15, 15–8
REName, 3–8
RESource, 3–9
RMODe, 1–7
RUNTil, 7–16, 10–11, 13–21, 14–16
SCHart, 9–4
SELect, 1–3, 1–6
SEQuence, 6–15, 12–18
SET, 10–12
SETup, 17–13
SFORmat, 5–6
SLAVe, 5–15
SLISt, 7–7
SOPQual, 5–16
SPA, 2–7
SPERiod, 12–19, 13–22
SQUal, 5–17
STARt, 1–6
STOP, 1–7
STORe, 6–16
SWAVeform, 8–4
SYMBol, 15–5
SYSTem:DATA, 17–2, 17–4
SYSTem:PRINt, 1–7
SYStem:SETup, 17–2, 17–13
TAKenbranch, 6–18, 8–10
TCONtrol, 6–19, 12–20
TERM, 6–20, 12–21
TFORmat, 11–4
THReshold, 5–18, 11–8
TIMER, 6–21, 12–22
TINTerval:AUTorange, 16–22
TINTerval:QUALifier, 16–23
TINTerval:TINTerval, 16–24
TLISt, 14–7
TPOSition, 6–22, 8–11, 12–23, 13–24
TTYPe, 16–21
TYPE, 3–10
VAXis, 9–6
Index–1
Index
WIDTh, 15–8
WLISt, 2–7, 4–4
XCONdition, 13–26, 14–19
XMARker, 16–15
XPATtern, 7–20, 13–27, 14–20
XSEarch, 7–21, 13–28, 14–21
XTAG, 7–22, 14–23
XTIMe, 4–14, 13–29
command set organization, 1–8 to 1–11
compare full, 10–10
compare partial, 10–10
COMPare selector, 10–4
COMPare subsystem, 10–1, 10–3 to 10–12
complex expression, 12–10
complex qualifier, 6–10, 12–11
configuration menu, 3–2
COPY command, 10–6
count states, 6–17
count time, 6–17
D
DATA, 17–4
State 17–11 to 17–12
DATA and SETup Commands, 17–1,
17–3 to 17–14
data block
analyzer 1 data, 17–7
analyzer 2 data, 17–9
data preamble, 17–7
section data, 17–6
section header, 17–6
DATA command/query, 10–6 to 10–7
data preamble, 17–7 to 17–10
DATA query, 7–9, 14–9
DBLock selector, 2–5
DELay command/query, 4–5, 8–7, 13–10
delete symbols, 15–8
demux clock, 5–6, 5–15
difference listing, 10–9
display, 8–6, 8–9, 9–5, 10–9, 13–10,
14–7, 14–9
deleting waveforms, 13–20
E
EDGE command/query, 12–13
else branch, 6–9
else on, 12–9
entering, 14–11
examples, 16–8
program, 1–4, 10–7, 10–10, 18-1 to 18-6
exiting, 14–11
M
MACHine selector, 2–6, 3–4
MACHine subsystem, 3–1, 3–3 to 3–11
markers, 4–2, 7–8, 7–10, 7–17, 13–21,
14–8, 14–10, 14–17 to 14–20, 16–14
Chart, 9–2
O, 4–9, 7–11 to 7–12, 13–15 to 13–16,
13–17, 14–11, 14–14, 16–13
occurrence, 7–14, 7–22
pattern, 8–6, 13–15, 14–12, 14–19
F
searching, 7–21
FIND command/query, 6–12,
setting type, 13–14
12–14 to 12–15
statistics, 7–17 to 7–18, 8–7, 13–23 to
find error, 10–8
13–25
FIND query, 10–8
waveform, 8–2
from Start/Trigger, 13–28, 14–21
X, 7–20, 7–22, 13–26 to 13–29, 14–20,
from Start/Trigger/X marker, 13–17, 14–13
14–22 to 14–23, 16–15
full channel mode, 11–5
X-O, 13–26
mask bits, 10–5
H
master clock, 5–6
half channel mode, 11–5
MASTer command/query, 5–9
HAXis command/query, 9–5
maximum time, 13–23, 14–17
HIGH command/query, 16–9
measurement complete program example,
HISTogram:HSTatistic query, 16–16
18–18
HISTogram:LABel command/query, 16–17
HISTogram:OTHer command/query, 16–18 memory depth, 8–8, 12–16, 13–12
MENU, 1–6
HISTogram:QUALifier command/query,
MENU command, 10–9
16–19
HISTogram:RANGe command/query, 16–20 MESE command/query, 1–13
HISTogram:TTYPe command/query, 16–21 MESR query, 1–15
minimum time, 13–24, 14–18
HSTatistic query, 16–16
MINus command, 4–8, 13–13
mixed mode, 4–2
I
MLENgth command/query, 6–13, 8–8,
INSert command, 4–6, 8–8, 13–11
12–16, 13–12, 16–12
interleave, 7–15
MMEMory Subsystem, 1–7
INTermodule Subsystem, 1–7
MMODe command/query, 7–10, 13–14,
internal clock, 12–19
14–10
MODE command/query, 5–10, 16–7
L
module level commands, 2–1, 2–3 to 2–7
label, 5–13
module status reporting, 1–12
LABel command/query, 5–7 to 5–8, 11–6,
MOPQual command/query, 5–11
16–10, 16–17
most significant bit, 17–3
LEVelarm command/query, 3–7
LINE command/query, 4–7, 7–9, 10–9, 14–9 MQUal command/query, 5–12
listing menu, 7–2
LOW command/query, 16–11
Index–2
N
NAME command/query, 3–8
number of runs, 13–25, 14–18
number of samples, 16–25
Index
O
transferring configuration to analyzer,
OCONdition command/query, 13–15, 14–11
18–14
offset, 4–5
transferring configuration to the
OMARker command/query, 16–13
controller, 18–14
OPATtern command/query, 7–11, 13–16,
14–12
Q
OR’d trigger, 3–5
QUALifier command/query, 16–19, 16–23
OSEarch command/query, 7–12, 13–17,
Query
14–13
ACCumulate, 8–5, 9–4, 13–8
OSTate query, 4–9, 7–13, 14–14
ACQMode, 11–5
OTAG command/query, 7–14, 14–14
ACQuisition, 6–8, 12–9, 13–8
OTHer command/query, 16–18
ARM, 3–5
OTIMe command/query, 4–9, 13–18
ASSign, 3–6
OVERlay command/query, 4–10, 7–15
BRANch, 6–10, 12–11
13–18
BUCKet, 16–8
OVERView:BUCKet query, 16–8
CARDcage, 1–5
OVERView:HIGH command/query, 16–9
CLOCk, 5–7
OVERView:LABel command/query, 16–10
CMASk, 10–5
OVERView:LOW command/query, 16–11
COLumn, 7–8, 14–8
OVERview:MLENgth command/query,
DATA, 7–9, 10–7, 14–9, 17–5
16–12
DELay, 4–5, 8–7, 13–10
OVERView:OMARker command/query,
EDGE, 12–14
16–13
ERRor, 1–7
OVERView:OVSTatistic query, 16–14
FIND, 6–13, 10–8, 12–15
OVERView:XMARker command/query,
HAXis, 9–6
16–15
HIGH, 16–9
OVSTatistic query, 16–14
HISTogram:HSTatistic, 16–16
HISTogram:LABel, 16–17
P
HISTogram:OTHer, 16–18
PATTern command, 15–6
HISTogram:QUALifier, 16–19
pattern markers, 7–8, 7–10 to 7–11, 8–6,
HISTogram:RANGe, 16–20
13–14, 13–26 to 13–27, 14–10 to 14–12
HISTogram:TTYPe, 16–21
PLUS command, 4–11, 13–19
HSTatistic, 16–16
pod clock, 5–7
LABel, 5–8, 11–7, 16–10, 16–17
poststore, 8–11
LEVelarm, 3–7
preamble description, 17–7
LINE, 4–8, 7–10, 10–9, 14–10
prestore, 8–11
LOW, 16–11
program examples
MASTer, 5–9
checking for measurement complete,
MENU, 1–6
18–18
MESE, 1–13
sending queries to the logic analyzer,
MESR, 1–15
18–19
MLENgth, 6–13, 8–9, 12–16, 13–13, 16–12
state analyzer, 18–5
MMODe, 7–11, 13–14, 14–10
state compare, 18–9
MODE, 5–10, 16–7
SYSTem:SETup command, 18–14
MOPQual, 5–11
SYSTem:SETup query, 18–14
MQUal, 5–12
timing analyzer, 18–3
NAME, 3–8
OCONdition, 13–15, 14–11
OMARker, 16–13
OPATtern, 7–12, 13–16, 14–12
OSEarch, 7–13, 13–17, 14–13
OSTate, 4–9, 7–13, 14–14
OTAG, 7–14, 14–15
OTHer, 16–18
OTIMe, 4–10, 13–18
OVERView:BUCKet, 16–8
OVERView:HIGH, 16–9
OVERView:LABel, 16–10
OVERView:LOW, 16–11
OVERview:MLENgth, 16–12
OVERView:OMARker, 16–13
OVERView:OVSTatistic, 16–14
OVERView:XMARker, 16–15
OVSTatistic, 16–14
PRINt, 1–7
QUALifier, 16–19, 16–23
RANGe, 4–12, 6–15, 8–9, 10–10, 12–17,
13–20, 16–20
REName, 3–9
RESource, 3–10
RMODe, 1–7
RUNTil, 7–16, 10–12, 13–21, 14–16
SEQuence, 6–15, 12–18
SETup, 17–14
SLAVe, 5–15
SOPQual, 5–16
SPERiod, 12–19, 13–22
SQUal, 5–17
STORe, 6–16
SYSTem:DATA, 17–5
SYSTem:ERRor, 1–7
SYSTem:PRINt, 1–7
SYStem:SETup, 17–14
TAG, 6–17
TAKenbranch, 6–18, 8–10
TAVerage, 7–17, 13–23, 14–17
TCONtrol, 6–19, 12–20
TERM, 6–21, 12–22
THReshold, 5–18, 11–8
TIMER, 6–21, 12–22
TINTerval:QUALifier, 16–23
TINTerval:TINTerval, 16–24
TINTerval:TSTatistic, 16–25
TMAXimum, 7–17, 13–23, 14–17
TMINimum, 7–18, 13–24, 14–18
TPOSition, 6–22, 8–11, 12–23, 13–25
Index–3
Index
TSTatistic, 16–25
TTYPe, 16–21
TYPE, 3–11
VAXis, 9–7
VRUNs, 7–18, 13–25, 14–18
XCONdition, 13–26, 14–19
XMARker, 16–15
XOTag, 7–19, 14–19
XOTime, 4–13, 7–19, 13–26, 14–20
XPATtern, 7–20, 13–27, 14–21
XSEarch, 7–21, 13–28, 14–22
XSTate, 4–13, 7–22, 14–22
XTAG, 7–23, 14–23
XTIMe, 4–14, 13–29
query program example, 18–19
SLAVe command/query, 5–15
SLISt selector, 7–7
SLISt subsystem, 7–1, 7–3 to 7–23
SOPQual command/query, 5–16
SPA selector, 2–7
specify patterns, 13–9, 14–8, 14–12, 14–19
SPERiod command/query, 12–19, 13–22
SQUal command/query, 5–17
STARt, 1–6
state analyzer
program example, 18–5
state markers, 7–10
states/Div, 8–9
statistics, 7–10, 13–23 to 13–25, 16–14,
16–16, 16–22, 16–25
statistics markers, 7–18, 8–7, 13–14,
14–10, 14–17 to 14–18
R
RANGe command/query, 4–12, 6–14, 8–9, STOP, 1–7
stop measurement, 7–16, 10–11, 13–21,
10–10, 12–17, 13–20, 15–7, 16–20
14–16
reference listing, 10–6, 10–9
STORe command/query, 6–16
REMove command, 4–12, 5–13, 7–15,
STRace selector, 6–8
8–10, 11–7, 13–20, 14–15, 15–8
STRigger selector, 6–8
REName command/query, 3–8
STRigger/STRace subsystem, 6–1, 6–3 to
RESource command/query, 3–9
6–22
RMODe, 1–7
Subsystem
RUNTil command/query, 7–16, 10–11,
COMPare, 10–2
13–21, 14–16
MACHine, 3–2
SCHart, 9–2
S
SFORmat, 5–1, 5–3 to 5–18
s/Div, 4–12
SLISt, 7–1, 7–3 to 7–23
sample period, 13–22
STRigger/STRace, 6–1, 6–3 to 6–22
sample rate, 12–19
SWAVeform, 8–2
SCHart selector, 9–4
SYMBol, 15–1, 15–3 to 15–8
SCHart subsystem, 9–1, 9–3 to 9–7
TFORmat, 11–1, 11–3 to 11–8
scroll listing, 14–9
TLISt, 14–1, 14–3 to 14–23
search, 7–12, 7–21
TTRigger/TTRace, 12–1, 12–3 to 12–23
searching, 14–13
TWAVeform, 13–1, 13–3 to 13–29
sec/Div, 13–20
WLISt, 4–1, 4–3 to 4–14
section data, 17–6
SWAVeform selector, 8–4
section data format, 17–4
SWAVeform subsystem, 8–1, 8–3 to 8–11
section header, 17–6
SYMBol selector, 15–5
SELect command, 1–3, 1–6
SYMBol subsystem, 15–1, 15–3 to 15–8
SEQuence command/query, 6–15, 12–18
syntax diagram
SET command, 10–12
COMPare Subsystem, 10–3
SETup, 17–13
MACHine Subsystem, 3–3
SFORmat selector, 5–6
SCHart Subsystem, 9–3
SFORmat subsystem, 5–1, 5–3 to 5–18
SFORmat Subsystem, 5–3
slave clock, 5–6
Index–4
SLISt Subsystem, 7–3
STRigger Subsystem, 6–3 to 6–4
SWAVeform Subsystem, 8–3
SYMBol Subsystem, 15–3
TFORmat Subsystem, 11–3
TLISt Subsystem, 14–3
TTRigger Subsystem, 12–3
TWAVeform Subsystem, 13–3 to 13–4
WLISt Subsystem, 4–3
SYSTem:DATA, 17–4 to 17–5
SYSTem:ERRor, 1–7
SYSTem:PRINt, 1–7
SYStem:SETup, 17–13 to 17–14
SYSTem:SETup program example, 18–14
T
TAG command/query, 6–17
TAKenbranch command/query, 6–18, 8–10
TAVerage query, 7–17, 13–23, 14–17
TCONtrol command/query, 6–19, 12–20
TERM command/query, 6–20, 12–21
TFORmat selector, 11–4
TFORmat subsystem, 11–1, 11–3 to 11–8
THReshold command/query, 5–18, 11–8
time markers, 7–10, 13–14, 13–18, 13–26,
13–29, 14–10
time tag data description, 17–13
time tags, 14–7
timer, 6–19, 6–21, 12–20
TIMER command/query, 6–21, 12–22
timing analyzer
program example, 18–3
TINTerval:AUTorange command, 16–22
TINTerval:QUALifier command/query,
16–23
TINTerval:TINTerval command/query,
16–24
TINTerval:TSTatistic query, 16–25
TLISt selector, 14–7
TLISt subsystem, 14–1, 14–3 to 14–23
TMAXimum query, 7–17, 13–23, 14–17
TMINimum query, 7–18, 13–24, 14–18
TPOSition command/query, 6–22, 8–11,
12–23, 13–24
trace size, 8–8, 12–16
trigger, 8–11, 12–14
SPA, 16–21
trigger position, 13–24
Index
TSTatistic query, 16–25
TTRace selector, 12–8
TTRigger selector, 12–8
TTRigger/TTRace subsystem, 12–1, 12–3
to 12–23
TTYPe command/query, 16–21
TWAVeform selector, 13–7
TWAVeform Subsystem, 13–1, 13–3 to
13–29
TYPE command/query, 3–10 to 3–11
V
VAXis command/query, 9–6 to 9–7
vertical scroll, 4–7
VRUNs query, 7–18, 13–25, 14–18
W
WIDTh command, 15–8
WLISt selector, 2–7, 4–4
WLISt subsystem, 4–1, 4–3 to 4–14
X
X entering, 14–19
X exiting, 14–19
XCONdition command/query, 13–26, 14–19
XMARker command/query, 16–15
XOTag query, 7–19, 14–19
XOTime query, 4–13, 7–19, 13–26, 14–20
XPATtern command/query, 7–20, 13–27,
14–20
XSEarch command/query, 7–21, 13–28,
14–21
XSTate query, 4–13, 7–22, 14–22
XTAG command/query, 7–22 to 7–23,
14–23
XTIMe command/query, 4–14, 13–29
Index–5
Index–6
© Copyright HewlettPackard Company 1987,
1990, 1993, 1994, 1997
All Rights Reserved.
Reproduction, adaptation, or
translation without prior
written permission is
prohibited, except as allowed
under the copyright laws.
Document Warranty
The information contained in
this document is subject to
change without notice.
Hewlett-Packard makes
no warranty of any kind
with regard to this
material, including, but
not limited to, the implied
warranties of
merchantability or fitness
for a particular purpose.
Hewlett-Packard shall not be
liable for errors contained
herein or for damages in
connection with the
furnishing, performance, or
use of this material.
Safety
This apparatus has been
designed and tested in
accordance with IEC
Publication 348, Safety
Requirements for Measuring
Apparatus, and has been
supplied in a safe condition.
This is a Safety Class I
instrument (provided with
terminal for protective
earthing). Before applying
power, verify that the correct
safety precautions are taken
(see the following warnings).
In addition, note the external
markings on the instrument
that are described under
"Safety Symbols."
Warning
• Before turning on the
instrument, you must connect
the protective earth terminal
of the instrument to the
protective conductor of the
(mains) power cord. The
mains plug shall only be
inserted in a socket outlet
provided with a protective
earth contact. You must not
negate the protective action
by using an extension cord
(power cable) without a
protective conductor
(grounding). Grounding one
conductor of a two-conductor
outlet is not sufficient
protection.
• Only fuses with the
required rated current,
voltage, and specified type
(normal blow, time delay,
etc.) should be used. Do not
use repaired fuses or
short-circuited fuseholders.
To do so could cause a shock
of fire hazard.
Hewlett-Packard
P.O. Box 2197
1900 Garden of the Gods Road
Colorado Springs, CO 80901
• Service instructions are for
trained service personnel. To
avoid dangerous electric
shock, do not perform any
service unless qualified to do
so. Do not attempt internal
service or adjustment unless
another person, capable of
rendering first aid and
resuscitation, is present.
• If you energize this
instrument by an auto
transformer (for voltage
reduction), make sure the
common terminal is
connected to the earth
terminal of the power source.
Safety Symbols
Instruction manual symbol:
the product is marked with
this symbol when it is
necessary for you to refer to
the instruction manual in
order to protect against
damage to the product.
Hazardous voltage symbol.
• Whenever it is likely that
the ground protection is
impaired, you must make the
instrument inoperative and
secure it against any
unintended operation.
• Do not operate the
instrument in the presence of
flammable gasses or fumes.
Operation of any electrical
instrument in such an
environment constitutes a
definite safety hazard.
• Do not install substitute
parts or perform any
unauthorized modification to
the instrument.
• Capacitors inside the
instrument may retain a
charge even if the instrument
is disconnected from its
source of supply.
• Use caution when exposing
or handling the CRT.
Handling or replacing the
CRT shall be done only by
qualified maintenance
personnel.
Earth terminal symbol: Used
to indicate a circuit common
connected to grounded
chassis.
W ARNI NG
The Warning sign denotes a
hazard. It calls attention to a
procedure, practice, or the
like, which, if not correctly
performed or adhered to,
could result in personal
injury. Do not proceed
beyond a Warning sign until
the indicated conditions are
fully understood and met.
CAUTION
The Caution sign denotes a
hazard. It calls attention to
an operating procedure,
practice, or the like, which, if
not correctly performed or
adhered to, could result in
damage to or destruction of
part or all of the product. Do
not proceed beyond a
Caution symbol until the
indicated conditions are fully
understood or met.
Product Warranty
This Hewlett-Packard
product has a warranty
against defects in material
and workmanship for a period
of one year from date of
shipment. During the
warranty period,
Hewlett-Packard Company
will, at its option, either
repair or replace products
that prove to be defective.
For warranty service or
repair, this product must be
returned to a service facility
designated by
Hewlett-Packard.
For products returned to
Hewlett-Packard for warranty
service, the Buyer shall
prepay shipping charges to
Hewlett-Packard and
Hewlett-Packard shall pay
shipping charges to return
the product to the Buyer.
However, the Buyer shall pay
all shipping charges, duties,
and taxes for products
returned to Hewlett-Packard
from another country.
Hewlett-Packard warrants
that its software and firmware
designated by
Hewlett-Packard for use with
an instrument will execute its
programming instructions
when properly installed on
that instrument.
Hewlett-Packard does not
warrant that the operation of
the instrument software, or
firmware will be
uninterrupted or error free.
Limitation of Warranty
The foregoing warranty shall
not apply to defects resulting
from improper or inadequate
maintenance by the Buyer,
Buyer-supplied software or
interfacing, unauthorized
modification or misuse,
operation outside of the
environmental specifications
for the product, or improper
site preparation or
maintenance.
No other warranty is
expressed or implied.
Hewlett-Packard
specifically disclaims the
implied warranties of
merchantability or fitness
for a particular purpose.
Exclusive Remedies
The remedies provided
herein are the buyer’s sole
and exclusive remedies.
Hewlett-Packard shall not be
liable for any direct, indirect,
special, incidental, or
consequential damages,
whether based on contract,
tort, or any other legal theory.
Assistance
Product maintenance
agreements and other
customer assistance
agreements are available for
Hewlett-Packard products.
For any assistance, contact
your nearest Hewlett-Packard
Sales Office.
Certification
Hewlett-Packard Company
certifies that this product met
its published specifications at
the time of shipment from the
factory. Hewlett-Packard
further certifies that its
calibration measurements are
traceable to the United States
National Institute of
Standards and Technology, to
the extent allowed by the
Institute’s calibration facility,
and to the calibration
facilities of other
International Standards
Organization members.
About this edition
This is the first edition of the
HP 16554A/HP 16555A/
HP 16555D Programmer’s
Guide.
The following list of pages
gives the date of the current
edition and of any changed
pages to that edition.
All pages original edition
Publication number
16555-97011
Printed in USA.
Edition dates are as follows:
First edition, January 1997
New editions are complete
revisions of the manual.
Update packages, which are
issued between editions,
contain additional and
replacement pages to be
merged into the manual by
you. The dates on the title
page change only when a new
edition is published.
A software or firmware code
may be printed before the
date. This code indicates the
version level of the software
or firmware of this product at
the time the manual or
update was issued. Many
product updates do not
require manual changes; and,
conversely, manual
corrections may be done
without accompanying
product changes. Therefore,
do not expect a one-to-one
correspondence between
product updates and manual
updates.
Download PDF

advertising
