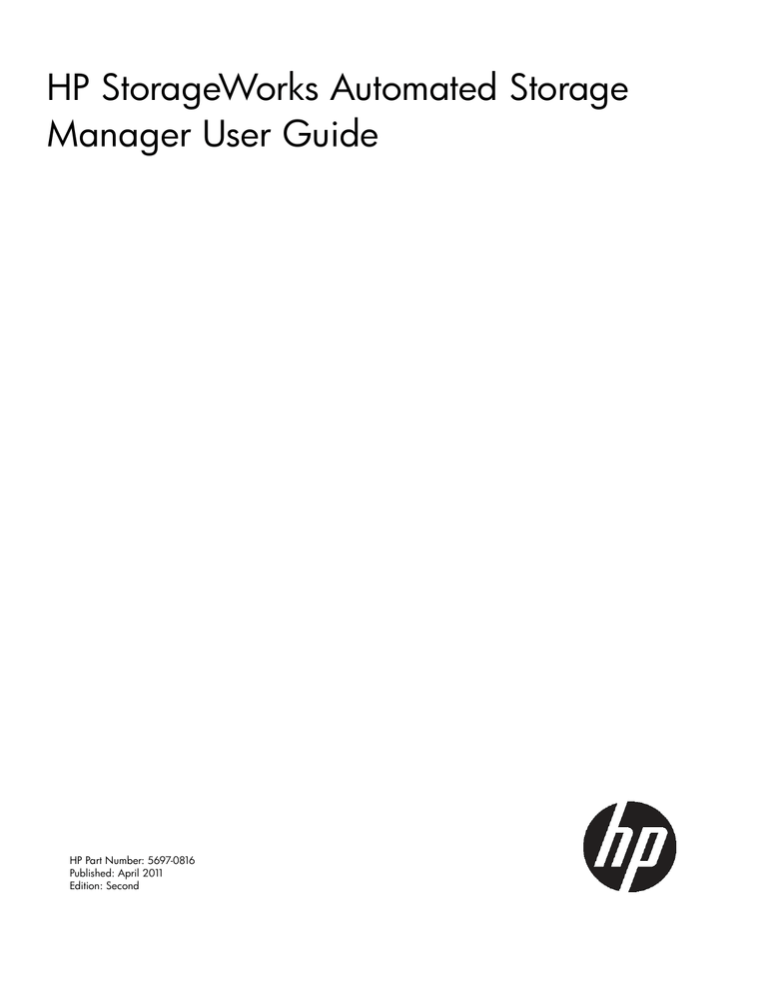

HP StorageWorks Automated Storage
Manager User Guide
HP Part Number: 5697-0816
Published: April 2011
Edition: Second
© Copyright 2010, 2011 Hewlett-Packard Development Company, L.P.
Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and 12.212, Commercial
Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under
vendor's standard commercial license.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Acknowledgments
Microsoft, Windows, Windows XP, and Windows NT are U.S. registered trademarks of Microsoft Corporation.
Contents
1 Automated Storage Manager Overview........................................................5
Software requirements...............................................................................................................5
Software support.................................................................................................................5
Using ASM with HP StorageWorks Storage Mirroring software..................................................6
Support for LUNs over 2TB in size...............................................................................................6
2 Configuring Automated Storage Manager.....................................................7
Installing the Automated Storage Manager Agent.........................................................................7
Installing the Automated Storage Manager Agent on network application servers.........................7
Add an HP Storage System........................................................................................................7
Remove an HP Storage System...................................................................................................7
Configure display options..........................................................................................................7
Configure Application Credentials..............................................................................................8
Configure Storage Networks......................................................................................................8
Resetting iSCSI connections...................................................................................................9
3 Hosting storage for applications and shared folders......................................10
Using the Host an Exchange Storage Group Wizard...................................................................10
Entering a name of a server that hosts Exchange....................................................................11
Selecting Exchange storage group components......................................................................11
Local Continuous Replication (LCR).......................................................................................12
Using the Create a Shared Folder Wizard.................................................................................12
Choosing shared folder types..............................................................................................13
Naming a shared folder ....................................................................................................13
Setting permissions for a shared folder.................................................................................13
Using the Host a SQL Server Database Wizard..........................................................................14
Selecting a server that hosts SQL Server................................................................................14
Selecting SQL Server database components..........................................................................14
Selecting a database workload type.....................................................................................15
Using the Host a User-Defined Application Wizard.....................................................................15
Choose type of application.................................................................................................16
Entering an application name..............................................................................................17
Using the Create a Virtual Library Wizard.................................................................................17
Accessing the Virtual Library Wizard....................................................................................17
Configure your virtual library..........................................................................................17
Allocating space for components..............................................................................................17
Setting advanced storage properties.....................................................................................18
Selecting data protection.........................................................................................................22
Reviewing task summary and scheduling tasks............................................................................24
Monitoring task completion status.............................................................................................25
Cancelling tasks................................................................................................................25
Migrating user-defined application data from a remote application...............................................25
4 Managing data protection.........................................................................27
Scheduling and running snapshots............................................................................................27
Managing snapshots..............................................................................................................27
Taking and deleting snapshots.............................................................................................27
Exposing a snapshot..........................................................................................................28
Unexposing a snapshot......................................................................................................28
Contents
3
Reverting data to snapshots.................................................................................................29
Scheduling backups................................................................................................................29
Managing backups.................................................................................................................29
Running a device backup....................................................................................................29
Running a virtual library backup..........................................................................................30
Restoring data from backups...............................................................................................30
Using DPX to restore data...............................................................................................30
Setting the password for the ASMbackup user account.......................................................31
Using the Administrator account to change the ASMbackup password.................................31
Installing Data Protector Express on other machines...........................................................32
5 Managing storage....................................................................................33
Increasing or reducing the allocated storage..............................................................................33
Changing the percent full warning threshold..............................................................................33
Removing application areas from view.......................................................................................34
Changing permissions, names, descriptions, or paths of shared folders..........................................34
Deleting shared folders............................................................................................................35
6 Monitoring storage...................................................................................36
Application View....................................................................................................................36
Accessing application and shared folder properties................................................................37
Storage View.........................................................................................................................46
Accessing storage area properties.......................................................................................47
Application Server View..........................................................................................................48
Accessing application server properties................................................................................49
Storage Utilization View..........................................................................................................50
Automated Storage Manager Alerts..........................................................................................51
7 Troubleshooting Automated Storage Manager..............................................52
Troubleshooting Data Protector Express......................................................................................52
8 Support and other resources......................................................................54
Contacting HP........................................................................................................................54
Subscription service............................................................................................................54
Index.........................................................................................................55
4
Contents
1 Automated Storage Manager Overview
This documentation is intended for the person who administers HP StorageWorks X1000 Network
Storage Systems running Automated Storage Manager software.
ASM provides storage-allocation wizards that walk you through the process of allocating and
configuring storage on your HP Storage System to host application data and shared folders. The
storage-allocation wizards also allow you to schedule backups and snapshots of hosted application
data and shared folders.
Other wizards are provided to help you set up Exchange Server storage, SQL Server database
storage, user-defined application storage, and shared folders storage.
ASM is designed to work seamlessly with Windows administrator tools, HP Storage System
Management applications, Microsoft iSCSI Target, and Data Protector Express. For example, you
can change your HP Storage System's:
•
Storage allocations (quotas), shared folder permissions and names, and snapshot schedules
using ASM, Windows administrator tools, and the HP Storage System Management
applications.
•
Media rotation type using ASM and Data Protector Express.
IMPORTANT: Do not use Windows administrator tools to change the paths to storage configured
on your HP Storage System or file directories created by ASM on application servers with storage
hosted on your HP Storage System. Doing so will break the iSCSI communication paths between
your application servers and HP Storage System, and make it so ASM can no longer locate allocated
storage areas on your HP Storage System.
Software requirements
ASM comes preinstalled on your HP Storage System. A license key is not required for ASM.
Software support
Storage for application servers running on Windows Server 2003 with SP1 through Windows
Server 2008 R2 that are on the same domain as your HP Storage System can be hosted. Windows
domain controllers (such as Windows Small Business Server) are supported by ASM as managed
application servers.
ASM provides storage-management services for the following applications:
Table 1 Storage support on ASM
Microsoft Exchange Server 2003 with SP1 or later,
Exchange Server 2007, and Exchange Server 2010
See “Using the Host an Exchange Storage Group Wizard”
(page 10).
File sharing services on local storage
See “Using the Create a Shared Folder Wizard” (page 12).
Microsoft SQL Server 2000 with SP4 or later, SQL Server See “Using the Host a SQL Server Database Wizard”
2005 with SP2 or later, SQL Server 2008, and SQL Server (page 14).
2008 R2*
User-defined applications
See “ Using the Host a User-Defined Application Wizard”
(page 15).
* ASM does not support SQL Server 2008 databases that utilize FILESTREAM data type storage.
ASM does not support Internet Protocol version 6 (IPv6). When entering or configuring IP address
settings using ASM, use Internet Protocol version 4 (IPv4) addresses.
In order to use some Automated Storage Manager features, your HP Storage System must have
supporting software installed. Microsoft iSCSI Software target is preinstalled. HP Data Protector
Software requirements
5
Express is not preinstalled. For more information about Data Protector Express, see the X1000
Network Storage System QuickSpecs at http://www.hp.com/go/X1000. To obtain an evaluation
version of HP Data Protector Express, see the HP Data Protector Express Web site at http://
www.hp.com/go/dataprotectorexpress.
The following table lists the supporting software and installation requirements.
Table 2 Required software for ASM features
Software
Required for:
Preinstalled on X1000 Network Storage
Systems
Microsoft iSCSI Software Target
Hosting application storage (Exchange Yes (license key not required)
and SQL Server) and iSCSI-based
User-Defined application storage
HP Data Protector Express
Creating backups to tape, other disks, No
or other types of storage media
Using ASM with HP StorageWorks Storage Mirroring software
As of ASM version 4.0, HP StorageWorks Storage Mirroring (SWSM) software is no longer
integrated directly with ASM.
Support for LUNs over 2TB in size
ASM supports the provisioning of LUNs over 2TB in size on systems running Windows Storage
Server 2003 and Windows Storage Server 2008 and greater. ASM uses GUID Partition Table
(GPT) partitions to enable this new feature. All storage that is provisioned using ASM now uses
GPT partitions by default.
Limitations
•
Existing Master Boot Record (MBR) LUNs cannot be grown beyond 2TB. This includes local
volumes and iSCSI volumes.
•
iSCSI LUN volumes greater than 2TB are supported only if the iSCSI Target is running a
minimum of iSCSI Target version 3.2.
•
The maximum size allowed for a LUN is 256TB.
IMPORTANT: If you want to grow existing MBR partitions to a size exceeding 2TB, you must first
convert the MBR partition to a GPT partition. This can be accomplished by backing up the data
on the MBR partition and then deleting the MBR partition. A new GPT partition can then be created
and the data can be restored. For more information about GPT partitions, refer to Microsoft
Knowledge Base article KB302873.
6
Automated Storage Manager Overview
2 Configuring Automated Storage Manager
Installing the Automated Storage Manager Agent
If you plan to perform data migration tasks for any application servers on your network using the
wizards that are available in the Automated Storage Manager, you must first install the Automated
Storage Manager Agent on those application servers. Follow these instructions before performing
any data migration operations.
Installing the Automated Storage Manager Agent on network application servers
To install the Automated Storage Manager Agent on a network application server:
1.
2.
3.
Locate the file at c:\\hpnas\components\allinonestoragemanager\agent.
Copy the file to the application server(s) you will use to perform data migration tasks.
Run the copied file on each application server to install the Automated Storage Manager
Agent.
or
1.
On the application server that stores data to be migrated, insert the HP StorageWorks Storage
System Recovery DVD.
NOTE:
If the application server is in a remote location, use Remote Desktop Connection to
access the server, copy the Agent installation files, and run the Agent installation.
2.
3.
4.
Navigate to the \Automated Storage Manager\Agent folder on the DVD.
Double-click asmagentinstaller.exe.
Follow the on-screen installation instructions.
After completing the Automated Storage Manger Agent installation on the application servers, you
can then schedule data migration using the HP Automated Storage Manager wizards.
Add an HP Storage System
You may add another HP Storage System for the ease of managing more than one server from the
same console. To add another HP Storage System:
1.
2.
3.
Click on Add HP Storage System in the Actions pane.
A dialog box will open. Enter the hostname or IP address (IPv4) of the HP Storage System to
add.
The added HP Storage System will appear in the Navigation pane.
Remove an HP Storage System
To remove an added HP Storage System:
1.
2.
3.
Click on Remove HP Storage System.
A window will appear, asking if you would like to remove the HP Storage System.
Click Yes.
Configure display options
ASM allows you to customize the user interface color and scale settings.
Installing the Automated Storage Manager Agent
7
Changing color settings
Changing color settings customizes the color used in the content pane to display the different types
of storage, volumes, and servers. Colors help distinguish the different types of storage, storage
areas, and servers from each other.
1.
In the Actions pane, click Configure Display Options.
The Display Options dialog box opens.
2.
3.
4.
Select an item in the Items list and a color in the Color drop-down menu.
When your color selections are complete, click Apply to apply the color settings to the content
pane.
Click OK.
Scaling display settings
Changing the scaling settings customizes the size at which each application area or shared folder
is displayed in the content pane. You can choose to scale each application area and shared folder
so that it is displayed in proportion to its capacity (allocated storage size), or so that all the
application areas and shared folders are displayed at the same size.
1.
In the Actions pane, click Configure Display Options.
The Display Options dialog box opens.
2.
3.
4.
5.
Click the Scaling tab.
Select the storage-display proportion setting:
•
According to capacity, using automatic scaling—Displays logical disks and volumes, and
application areas according to relative size, but leaves the display readable.
•
All as the same size—Displays logical disks and volumes, and application areas as the
same size.
Click Apply to apply your change.
Click OK.
Configure Application Credentials
Use the Application Credentials dialog box to set or update user name and password security
credentials applicable to the HP Storage System.
1.
2.
3.
4.
5.
Expand the nodes of the tree in order to view the credential status of an application server.
If the Credential Status column reads OK or Not required, no action is required for that
application.
If the Credential Status column reads Failed or Not set, select the application row and then
click Update Credentials. An Enter Credentials dialog box is displayed.
Type the user name and password of a user with sufficient privileges as described in the dialog
and then click OK.
Repeat steps 1 through 4 for each application server.
Configure Storage Networks
Use the Storage Networks dialog box to configure a preferred private storage network for iSCSI
traffic between your HP Storage System and any connected servers that use the iSCSI protocol.
This dialog box appears the first time you use the Host an Exchange Storage Group wizard, Host
a SQL Server Database wizard, or Host a User-Defined Application wizard. Settings configured
in this dialog box affect only iSCSI traffic.
8
Configuring Automated Storage Manager
HP strongly recommends configuring all iSCSI-based storage for application servers on a dedicated
Ethernet subnet. The purpose of a private LAN for iSCSI traffic is to is to guarantee dedicated
network bandwidth for storage as well as increased security.
To configure storage networks for iSCSI traffic:
1.
2.
Under Preferred Storage Network, select a network that will be designated to manage all
iSCSI traffic.
Under Available for Failover, select a network that can be used to manage iSCSI traffic in the
event that the preferred storage network fails. In the event of iSCSI initiator failure, iSCSI traffic
fails over to the designated network.
NOTE:
Any existing iSCSI connections must be reset before changes take effect.
Resetting iSCSI connections
If you use the Storage Networks dialog box to configure a preferred private storage network for
iSCSI traffic and there are one or more existing iSCSI connections on the system, the new setting
will not take effect until the existing connections are reset through iSCSI Initiator on the connected
systems.
WS2008 R2. To reset an iSCSI connection:
1.
2.
3.
4.
5.
6.
On the system that contains the iSCSI initiator whose connection has been changed, open
Microsoft iSCSI Initiator.
On the Favorite Targets tab, select the iSCSI target that resides on your HP Storage System
and then click Remove.
On the Targets tab, select the iSCSI target that resides on your HP Storage System and then
click Disconnect.
On the Discovery tab under Target Portals, select the IP address that was previously designated
for iSCSI traffic between the application server and the HP Storage System and click Remove.
Back on the Targets tab, under Quick Connect, enter the IP address (IPv4) that was enabled
for iSCSI traffic in the Automated Storage Networks dialog box and then click Quick Connect.
A Quick Connect dialog should show Login Succeeded. Click Done.
Click OK to close the iSCSI Initiator Properties dialog box.
WS2003. To reset an iSCSI connection:
1.
2.
3.
4.
5.
6.
7.
8.
9.
On the system that contains the iSCSI initiator whose connection has been changed, open
Microsoft iSCSI Initiator.
On the Persistent Targets tab, select the iSCSI target that resides on your HP Storage System
and then click Remove.
On the Targets tab, select the iSCSI target that resides on your HP Storage System and then
click Details.
Select the target identifier from the list, click Log off, and then click OK.
On the Discovery tab, under Target Portals select the IP address that was previously designated
for iSCSI traffic between the application server and the HP Storage System and click Remove.
Click Add. In the IP address or DNS name field, type the IP address (IPv4) that was enabled
for iSCSI traffic in the Automated Storage Networks dialog box and then click OK.
On the Targets tab, click Log On.
Check the Automatically restore this connection when the system boots check box and then
click OK.
Click OK to close the iSCSI Initiator Properties dialog box.
Configure Storage Networks
9
3 Hosting storage for applications and shared folders
The Automated Storage Manager (ASM) radically simplifies hosting application storage and shared
folders on your HP Storage System, using storage-allocation wizards. Use storage-allocation wizards
to allocate and configure storage for these applications:
Application
Description
Notes
Exchange
Allocate and configure storage for one or more Exchange storage See “Using the Host an Exchange
group components. A wizard assists you by discovering
Storage Group Wizard”
Exchange storage group components (such as mail stores, public (page 10).
stores, and logs), suggesting default storage configurations based
on best practices for Exchange, migrating the Exchange storage
group components you selected to your HP Storage System, and
configuring Exchange to store data on your HP Storage System.
Shared Folders
Create shared folders on your HP Storage System. A wizard
See “Using the Create a Shared
assists you in allocating and configuring storage space for shared Folder Wizard” (page 12).
folders, and creating shared folders.
SQL Server
Allocate and configure storage for SQL Server databases. A
See “Using the Host a SQL Server
wizard assists you by discovering servers that host SQL Server
Database Wizard” (page 14).
and SQL Server database components (such as data files and
logs), suggesting default storage configurations based on best
practices for SQL Server, migrating the SQL Server database
components you selected to your HP Storage System, optionally
deleting the SQL Server database components you selected from
the server that hosts SQL Server, and configuring SQL Server to
store data on your HP Storage System.
User-Defined
Applications
Allocate and configure storage for any remote application over See “ Using the Host a
the iSCSI protocol or any other application that requires storage User-Defined Application Wizard”
on the HP Storage System. A wizard assists you in allocating
(page 15).
and configuring storage space.
The wizard does not migrate user-defined application data to
your HP Storage System or reconfigure the application to store
data on your HP Storage System. You must do this manually as
described in “Migrating user-defined application data from a
remote application” (page 25), and as described in the
application's documentation.
Data Protection
Create a virtual library that backs up data from a remote system See “Using the Create a Virtual
on your HP Storage System. A wizard assists you in choosing
Library Wizard” (page 17).
size and storage allocation.
Using the Host an Exchange Storage Group Wizard
The Host an Exchange Storage Group Wizard automatically discovers the Exchange storage groups
on your application server and helps you allocate and configure storage space for these components:
•
Mail stores—Contain the data in user mailboxes.
•
Public stores—Contain the data in public folders.
•
Logs—Provide a record of every message stored in a storage group.
Before you begin configuring storage for Exchange
10
•
Make sure the ASM agent is installed on each server with Exchange data you plan to host.
•
Make sure you have a current backup of your Exchange data and logs.
Hosting storage for applications and shared folders
Accessing the Host an Exchange Storage Group Wizard
1.
In the Actions pane, select Host an Exchange Storage Group.
The Host an Exchange Storage Group Wizard welcome page opens.
2.
Click Next to open the Specify Exchange Server page (see “Entering a name of a server that
hosts Exchange” (page 11)).
Migrating Microsoft Exchange 2010 mail stores
If you are attempting to migrate Microsoft Exchange 2010 mail stores that are replicated (that is,
configured in a DAG environment), it is not mandatory that the ASM agent be installed on the
other mailbox servers participating in the DAG to facilitate the replication. ASM can still migrate
the mailbox and the log files for the replicated database by stopping replication between the
participating servers, and then restarting replication after the migration is complete.
If your replicated mail stores share their mail box database path or the log file path with another
mail store (replicated or not) they will not be shown as candidates for migration.
For a replicated Exchange 2010 mailbox, if the mailbox database path and the log files path for
an Exchange 2010 mailbox are on the same folder before migration, discovery is required after
migration for a proper reconciliation. After migration and before the subsequent discovery, you
will see only one app area for the migrated Exchange 2010 mailbox. After the discovery, ASM
will properly reconcile the app areas to show two different app areas under the storage group
instance.
Entering a name of a server that hosts Exchange
Use the Specify Exchange Server page to provide ASM with the name or the Internet Protocol
address (IPv4) of a remote server in your current domain that hosts Exchange.
1.
2.
Do one of the following:
•
Enter the host name of a server that hosts Exchange (exactly as it is registered in the
domain).
•
Enter the IP address (IPv4) of a server that hosts Exchange.
Click Next to open the Select Storage Group Components page (see “Selecting Exchange
storage group components” (page 11)).
Selecting Exchange storage group components
Use the Select Storage Group Components page to select the Exchange storage group and storage
group components (mail stores, public stores, and logs) you want to host on your HP Storage
System and manage using ASM.
Using the Host an Exchange Storage Group Wizard
11
1.
Do one of the following:
•
Select the entire storage group (including all of its components) by checking the box next
to the storage group.
•
Select individual storage group components by expanding the list and checking the boxes
next to the components.
You must select all the storage group components in a storage group if you want to run backups
or take snapshots of the Exchange storage group using ASM.
The table below lists the action ASM will perform for each storage group component selected.
Table 3 Selecting storage group components to host
2.
Action
Description
None
Component's check box is not selected, so ASM will not perform any action.
Select check box to change action.
Allocate Space, Move Data
Storage space will be allocated and configured on your HP Storage System.
Component's data will be migrated to your HP Storage System.
None, Already Managed
Component's data is already hosted on your HP Storage System and already
managed by ASM. No action is possible.
To view the properties for a storage group component, select the storage group component
name and then click Properties.
See “Mail Store tab: Exchange storage group component properties” (page 39), PublicStore
database properties, and “Log tab: Exchange storage group component properties” (page 40)
for descriptions of the properties displayed.
3.
When you are done, click Next to open the Storage Allocation page (see “Allocating space
for components” (page 17)).
Local Continuous Replication (LCR)
If the Local Continuous Replication (LCR) feature is enabled in Microsoft Exchange 2007, you have
the option of migrating LCR components to your HP Storage System. LCR components are shown
in the Select Storage Group Components page in the wizard if this feature is enabled. They are
selected in the same manner as other Exchange components.
NOTE: It is not recommended to host both the LCR and the original Exchange components on a
single HP Storage System.
Using the Create a Shared Folder Wizard
The Create a Shared Folder Wizard walks you through the process of creating a top-level shared
folder (file share) on your HP Storage System, including allocating and configuring the required
storage.
NOTE: You cannot create nested shared folders on your HP Storage System using ASM. You
may use other applications, such as Windows Explorer or the Shared Folder MMC snap-in, to
create nested shared folders on your HP Storage System.
In addition, ASM does not support enforcing an allocated storage limit (or quota) for parent folders
of shared folders that are created and managed using ASM.
Accessing the Create a Shared Folder Wizard
1.
In the Actions pane, select Create a Shared Folder.
The Create a Shared Folder Wizard welcome page opens.
12
Hosting storage for applications and shared folders
2.
Click Next to open the Choose Shared Folder Types page (see “Choosing shared folder types”
(page 13)).
Choosing shared folder types
Use the Choose Shared Folder types page to enable the types of client protocols that are allowed
to connect to the shared folder.
1.
2.
Select the Share this folder as a Windows share check box to allow Windows clients and
clients running the Server Message Block (SMB) and Common Internet File System (CIFS)
protocols to connect to the shared folder.
Select the Share this folder as a UNIX/Linux share check box to allow clients running the
Network File System (NFS) protocol to connect to the shared folder.
NOTE: If the folder is shared as a UNIX/Linux share, NFS user names must be mapped to
Windows users before clients can connect to the share.
If you are running a Windows-only environment, you should not select the UNIX/Linux share option.
Naming a shared folder
Use the Enter a Shared Folder Name and Description page to provide ASM with a name and
description for the shared folder.
1.
Enter the name for the shared folder.
NOTE: The path to the shared folder is created by ASM and is based on the shared folder
name. The Share Path field is Read Only.
2.
3.
Enter a description of the shared folder (optional).
Click Next to open the Set Shared Folder Permissions page (see “ Setting permissions for a
shared folder” (page 13)).
Setting permissions for a shared folder
Use the Set Shared Folder Permissions page to set network user read and write permissions for the
shared folder.
NOTE: Permissions can be further customized using Windows administration tools, such as
Windows Explorer and the Shared Folder MMC snap-in.
This page will display either Windows Share Security options, UNIX/Linux Share Security options,
or both Windows and UNIX/Linux options depending on which shared folder types you previously
selected on the Choose Shared Folder types page.
For Windows Share Security:
1.
2.
3.
For Windows Share Security, select a permission level. Users can have read/write permissions
(full control), read-only, or no access.
For UNIX/Linux Share Security, select the Allow anonymous access check box to allow
anonymous access with the default user identifer (UID) and group identifier (GID) of 2. Select
the level of anonymous access (No Access, Read-Only, or Read-Write) from the Type of access
list. Select Allow root access only if you want a UNIX/Linux root user on an NFS client to have
Administrator access to the share.
Click Next to open the Storage Allocation page (see “Allocating space for components”
(page 17)).
Using the Create a Shared Folder Wizard
13
Using the Host a SQL Server Database Wizard
The Host a SQL Server Database Wizard automatically discovers the servers that host SQL Server
and SQL Server databases on your domain, and helps you allocate and configure storage space
for each database component you select:
•
Data file—Contains pointers to database files, storage for system tables and objects, and
storage for database data and objects.
•
Log file—Holds all the transaction log information for the database. Every database has exactly
one log file, which cannot be used to hold any other data.
Before you begin configuring storage for SQL Server
•
Make sure the ASM agent is installed on each server with SQL Server data you plan to host.
•
Make sure you have a current backup of your SQL Server data and logs.
Accessing the Host a SQL Server Database Wizard
1.
In the Actions pane, select Host a SQL Server Database.
The Host a SQL Server Database Wizard welcome page opens.
2.
Click Next to open the Select a SQL Server page (see “Selecting a server that hosts SQL Server”
(page 14)).
Selecting a server that hosts SQL Server
Use the Select a SQL Server page to select one of the servers that hosts SQL Server discovered on
your domain by the wizard.
1.
2.
Do one of the following:
•
Enter the host name of a server that hosts SQL (exactly as it is registered in the domain).
•
Enter the IP address (IPv4) of a server that hosts SQL.
Click Next to open the Select Database Components page (see “Selecting SQL Server database
components” (page 14)).
Selecting SQL Server database components
Use the Select Database Components page to select the SQL Server database and database
components you want to host on your HP Storage System.
14
Hosting storage for applications and shared folders
1.
Do one of the following:
•
Select all components (including all of its components) by checking the box next to the
component.
•
Select individual database components by expanding the list and checking the boxes
next to the components.
You must select all the database components, including the log file, in a database if you want
to run backups and/or take snapshots of the database using ASM.
NOTE: ASM cannot migrate system databases; for example, ASM cannot migrate master,
model, msdb and tempdb.
The following table lists the action ASM can perform for each database component listed.
Table 4 Selecting database components to host
2.
Action
Description
None
Component's check box is not selected, so ASM will not perform any action.
Select check box to change action.
Allocate Space, Move Data
Storage space will be allocated and configured on your HP Storage System.
Component's data will be migrated to your HP Storage System.
None, Already Managed
Component's data is already hosted on your HP Storage System and already
managed by ASM. No action is possible.
To view the properties for a database component, select the database component name and
then click Properties.
See Data file properties and Log file properties for database for descriptions of the properties
displayed.
3.
4.
If you do not want ASM to delete the original files for the selected database components from
the server that hosts SQL Server after it migrates the data to your HP Storage System, clear
the Delete original files after successful migration checkbox.
When you are done, click Next to open the Select the Database Workload Type page (see
“Selecting a database workload type” (page 15)).
Selecting a database workload type
Use the Select the Database Workload Type page to select the workload type for the SQL Server
database.
NOTE: You can only select the database workload type while using the Host a SQL Server
Database Wizard. The database workload type cannot be changed later.
1.
2.
Do one of the following:
•
Select Transaction processing (TP) for frequently updated, fast growing databases with
large volumes of data requiring concurrent user access.
•
Select Decision support systems (DSS) for databases designed to handle queries on large
amounts of data, typically used for data-mining applications.
When you are done, click Next to open the Storage Allocation page (see “Allocating space
for components” (page 17)).
Using the Host a User-Defined Application Wizard
This wizard helps you set up your HP Storage System to store application data for various
applications. Storage is allocated for the application, optionally exposed to another server using
the iSCSI protocol, and an NTFS file volume may be optionally created on the remote application
Using the Host a User-Defined Application Wizard
15
server. Upon completion, you can monitor and manage storage for the application through the
Automated Storage Manager.
After storage is allocated and configured on your HP Storage System for a remote application
using the Host a User-Defined Application Wizard, do the following:
•
Manually migrate the remote application's data to your HP Storage System. See “Migrating
user-defined application data from a remote application” (page 25) for more information.
•
Configure the remote application to store its data on the iSCSI LUN exported by ASM to the
application server as described in the application's documentation.
Before you begin configuring storage for a user-defined application
•
Make sure the ASM agent is installed on each application server with data you plan to host.
•
Make sure you have a current backup of your remote application data and logs.
•
For an iSCSI LUN application, you will need the iSCSI Qualified Name (IQN).
NOTE: For a remote Windows application, you need to know the path to the iSCSI LUN on the
application server to configure the remote application to store data on the iSCSI LUN. The path to
the iSCSI LUN is displayed on the application's Properties window on the Storage tab.
To access the Host a User-Defined Application Wizard
1.
In the Actions pane, select Host a User-Defined Application.
The Host a User-Defined Application Wizard welcome page opens.
2.
Click Next to open the Choose type of Application page (see “Choose type of application”
(page 16)).
Choose type of application
1.
Select the type of application for hosting a user-defined application:
•
Remote Windows Application: ASM will provision storage for the application and expose
the storage to the given server as an NTFS volume over the iSCSI protocol. This is the
recommended option for most scenarios. The Automated Storage Manager agent must
be installed on the application server to use this option.
•
iSCSI LUN: Exposes a LUN to the remote server so the server can store data on the LUN.
You will need to install an iSCSI initiator on your host server. Storage is provisioned for
these applications.
NOTE: A valid iSCSI Qualified Name (IQN) is required to host a user-defined application
as an iSCSI LUN. IP addresses are not valid IQNs. If you enter a temporary IQN (such
as an IP address) in the iSCSI Qualified Name (IQN) field, you must manually configure
the iSCSI Target using the Microsoft iSCSI Software Target management console in order
for ASM to discover and assign the application server to the iSCSI LUN.
•
2.
Local storage only: Creates a volume on your HP Storage System. Storage is provisioned
for these applications.
Click Next to open the Enter an Application Name page (see “ Entering an application name”
(page 17)).
When hosting a user-defined application as an iSCSI LUN, the volume presented is not automatically
initialized with NTFS and mounted. This is because the iSCSI LUN could be presented to a
non-Windows server. After completing the wizard, you must manually initialize and mount the
volume.
16
Hosting storage for applications and shared folders
Entering an application name
Use the Enter an Application Name page to enter a name for the application. This name will be
used anywhere the application is referenced in ASM, so it must be a unique name.
1.
2.
Enter a name for the application.
When you are done, click Next to open the Storage Allocation page (see “Allocating space
for components” (page 17)).
Using the Create a Virtual Library Wizard
This wizard helps you create a virtual library for disk-to-disk backup of other client or servers to
your HP Storage System and manage the storage for the virtual library through ASM. Install Data
Protector Express on additional servers you need to backup. See “Installing Data Protector Express
on other machines” (page 32) for more information.
Accessing the Virtual Library Wizard
To access the Create a Virtual Library Wizard
1.
In the Actions pane, select Create a Virtual Library.
The Create a Virtual Library welcome page opens.
2.
Click Next to open the Configure virtual library page (see “Configure your virtual library”
(page 17)).
Configure your virtual library
To configure your virtual library, do the following:
1.
2.
3.
In the name dialog box, type a name for your virtual library.
In the Number of slots field, type or use the arrows to indicate how many slots are needed
for your virtual library.
When you are done, click Next to open the Storage Allocation page (see “Allocating space
for components” (page 17)).
NOTE: The number of slots needed for your virtual library will depend on the media rotation
type chosen for the backups that will use the virtual library. The number of slots must be high
enough to support the rotation type you intend to use for scheduling backups to this virtual
library. See Planning for Media Rotation in the Data Protector Express User's Guide and
Technical Reference for more information.
Allocating space for components
Use the Storage Allocation page in the wizards to specify the allocated space size and advanced
configuration settings for each application component or shared folder listed. Default values are
provided.
Using the Create a Virtual Library Wizard
17
1.
Do one of the following:
•
Click Next to accept the default values that ASM has provided for the components,
user-defined application, or shared folder selected.
•
Change the default size values:
◦
Select a row to edit.
◦
Highlight the storage size unit value and then enter a new value as necessary:
megabytes (MB), gigabytes (GB), or terabytes (TB).
◦
Highlight the storage size number value and enter a new value, or click the arrow
buttons to change the value.
NOTE: The Size Range column shows the minimum and maximum storage space that can
be allocated to each application component, user-defined application, or shared folder listed.
Whenever you change the allocated space size or an advanced configuration setting for an
application component, the maximum value for Size Range is recalculated for all the application
components listed.
NOTE: To change the advanced configuration settings for an application component,
user-defined application, or shared folder listed, select the item to edit and then click Advanced.
See “Setting advanced storage properties” (page 18) for more information.
2.
When you are done selecting the storage allocation and configuration settings, click Next to
open the summary page.
NOTE: After storage space is allocated and configured using a wizard, only the following storage
configuration settings can be changed:
•
Allocated space size
•
Percent full warning threshold
•
Enforce Allocated Limit (shared folders and local storage applications)
After a logical disk is created, its configuration cannot be changed.
Setting advanced storage properties
Use the Advanced Storage Properties dialog box in the ASM wizards to change the allocated
space size and default advanced configuration settings for each application component, user-defined
application, and shared folder listed.
After storage is configured using a wizard, you can change the allocated space size using the
Allocate Space Wizard. See “Increasing or reducing the allocated storage” (page 33) for more
information.
Table 5 (page 19) provides a brief description of the items you can modify:
18
Hosting storage for applications and shared folders
Table 5 Advanced Storage Properties items
Physical storage
Item
Description
Size
The amount of storage that ASM allocates to the
You are prevented from setting the size
application component, user-defined application, or below 15 MB.
shared folder you are configuring.
After the allocated storage space is full
(100 percent used), no further data can
be stored to the space until you
increase the size using the Allocate
Space Wizard. The only exception is
for shared folders and local storage
applications without an enforced
allocated limit. If there is unused
storage space on the logical disk where
a component without an enforced
allocated limit resides, data can be
written to the component until the
logical disk is full.
Physical disk type
Type of physical disk to add for the hot spare.
You are able to choose SAS, (Serial
Attached SCSI) SATA, (Serial Advanced
Technology Attachment) or SCSI (Small
Computer System Interface) for a
physical disk type, depending on your
hardware.*
RAID level
Hard drive formatting that provides different levels
of performance, capacity, and data protection.
For more information about RAID levels,
see “Customizing RAID levels”
(page 20).*
Hot spare required
A hot spare is a hard drive reserved as a spare for
storage space configured as RAID 1, 1+0, 5, or 6.
A hot spare automatically replaces a hard drive
when it fails. When the failed hard drive is replaced,
its replacement becomes the new hot spare.
A hot spare is assigned at the array
level. A LUN that does not require a hot
spare may be assigned one anyway if
another LUN on the same array requires
a hot spare. *
Minimum number of
physical disks
The minimum number of physical disks that the
For better performance, increase the
allocated storage will be spread across. Storage
minimum number of physical disks
may be provisioned across more disks, but this setting
determines the minimum number of disks reserved
for the allocated storage.
Assigned logical disk
The storage area can be assigned to an existing
logical disk, or it can be assigned a new disk, which
is created upon completion of the scheduled tasks
for the storage wizard.
RAID stripe size
The number of bytes or kilobytes of data in each
ASM provides the following values: 8
RAID stripe (block of data). The RAID stripe size
KB, 16 KB, 32KB, 64 KB, 128 KB, and
selected affects performance. For the best
256 KB.*
performance, select the stripe size closest to the size
of the files being saved.
Snapshot storage space Amount of storage space (as a percentage of the
(percentage of size)
volume) that is reserved for storing snapshots of the
storage area.
Notes
This value may be modified in order to
match the change rate of the data in
the storage area.
Other storage settings
Allocating space for components
19
Table 5 Advanced Storage Properties items (continued)
Physical storage
Item
Description
Notes
Percent full warning
threshold
The percent full value that when reached changes
the storage status to Warning and issues a warning
alert. The warning indicates that storage use has
surpassed the percentage full value. For example, if
you enter 75%, you see a warning (yellow asterisk)
in the content pane when storage is at 75 percent
full.
The percent full warning threshold is set
by default to 80%. Percent full warning
threshold values are ASM-specific;
percent full warning threshold values
selected in the Quota Management
MMC snap-in are not adopted by ASM.
All other Quota Management MMC
snap-in settings are adopted by ASM.
See “Setting a percent full warning
threshold” (page 21).
Enforce allocated limit
(quota)
Sets an enforced quota for the amount of storage
available to a shared folder or local storage
application. When the storage space allocated to a
component is full, no further data can be saved to
this component.
This item is available for shared folders
and local storage component. See
“Enforcing an allocated storage limit
for shared folders and local storage
applications” (page 22).
Application server
volume mount type
Indicates whether the storage area is hosted on a
mount point or drive letter.
This setting does not apply to shared
folders.
*After you have allocated and configured storage for an application component, user-defined application, or shared
folder using a wizard, you can change the allocated space size, change the percent full warning threshold, and change
the enforced allocated limit (shared folders and local storage applications). However, you cannot change the RAID
level, RAID stripe size, Hot Spares, or Physical Disk Type.
Customizing RAID levels
Before you customize the default RAID level setting, review Table 6 (page 21) to see how the
different RAID levels affect performance, capacity, and data protection level.
Unless you customize the advanced configuration settings, the wizard configures the storage space
with the default values shown on the Advanced window:
•
For Exchange and SQL Server, the wizard suggests default settings based on HP storage best
practices and specific recommendations for Exchange storage group and SQL Server database
components. You should generally accept these defaults.
•
For user-defined applications and shared folders (where industry-standard recommendations
cannot be determined), the wizard provides default settings you can customize.
Table 6 (page 21) shows how the different RAID levels affect:
20
•
Performance–The speed at which data is read from and written to the hard drives. The RAID
level with the best performance rating provides the fastest reads and writes.
•
Capacity–The available storage space on the hard drives. The RAID levels with the best
capacity rating require the least amount of storage space to store data.
•
Data protection–The number of hard drives that can fail without data being lost. The RAID
level with the best data protection rating allows more hard drives to fail before data is lost.
Hosting storage for applications and shared folders
Table 6 Descriptions of RAID levels
RAID level
Description
No RAID
Offers no protection against disk failure. If a disk drive fails, data is lost.
RAID 0 – Striping (No Fault Tolerance)
Offers the greatest capacity and performance without data protection. If
you select this option, you will experience data loss if a hard drive that
holds the data fails. However, because no logical drive capacity is used
for redundant data, this method offers the best capacity. This method offers
the best processing speed by reading two stripes on different hard drives
at the same time and by not having a parity drive.
RAID 1 – Mirroring
Offers a good combination of data protection and performance. RAID 1
or drive mirroring creates fault tolerance by storing duplicate sets of data
on a minimum of two hard drives. There must be an even number of drives
for RAID 1. RAID 1 and RAID 1+0(10) are the most costly fault tolerance
methods because they require 50 percent of the drive capacity to store the
redundant data. RAID 1 mirrors the contents of one hard drive in the array
onto another. If either hard drive fails, the other hard drive provides a
backup copy of the files and normal system operations are not interrupted.
RAID 1+0 – Mirroring and Striping
Offers the best combination of data protection and performance. RAID 1+0
or drive mirroring creates fault tolerance by storing duplicate sets of data
on a minimum of four hard drives. There must be an even number of drives
for RAID 1+0. RAID 1+0(10) and RAID 1 are the most costly fault tolerance
methods because they require 50 percent of the drive capacity to store the
redundant data. RAID 1+0(10) first mirrors each drive in the array to
another, and then stripes the data across the mirrored pair. If a physical
drive fails, the mirror drive provides a backup copy of the files and normal
system operations are not interrupted. RAID 1+0(10) can withstand multiple
simultaneous drive failures, as long as the failed drives are not mirrored to
each other.
RAID 5 – Distributed Data Guarding
Offers the best combination of data protection and usable capacity while
also improving performance over RAID 6. RAID 5 stores parity data across
all the physical drives in the array and allows more simultaneous read
operations and higher performance than data guarding. If a drive fails, the
controller uses the parity data and the data on the remaining drives to
reconstruct data from the failed drive. The system continues operating with
a slightly reduced performance until you replace the failed drive. RAID 5
can only withstand the loss of one drive without total array failure. It requires
an array with a minimum of three physical drives. Usable capacity is N-1
where N is the number of physical drives in the logical array.
RAID 6– Advanced Data Guarding (ADG) Offers the best data protection and is an extension of RAID 5. RAID 6 uses
multiple parity sets to store data and can therefore tolerate up to 2 drive
failures simultaneously. RAID 6 requires a minimum of 4 drives and is
available only if the controller has an enabler. Writer performance is lower
than RAID 5 due to parity data updating on multiple drives. It uses two disk
for parity; its fault tolerance allows two disks to fail simultaneously. Usable
capacity is N-2 where N is the number of physical drives in the logical
array.
Setting a percent full warning threshold
To receive a warning alert when storage capacity reaches a specified limit, set the percent full
warning threshold. You can set a warning threshold for any application component, user-defined
application, and shared folder that ASM manages. An iSCSI LUN application will not have a
warning threshold.
By default, the warning threshold is set to 80%. To change it, enter a new percent value on the
Advanced window.
After you set a warning threshold, ASM changes the status indicator for the application component,
user-defined application, or shared folder when this threshold has been surpassed. This is a warning
Allocating space for components
21
only; no hard limits are enforced on storage capacity as a result of setting this value. The warning
is visible in these places:
•
A yellow warning icon appears on the application component, user-defined application, or
shared folder icon in the content pane.
•
As an alert in the Properties window.
NOTE: For shared folders and local storage applications, you can set an enforceable limit (or
quota) for allocated storage, as well as a warning threshold. For more information, see “Enforcing
an allocated storage limit for shared folders and local storage applications” (page 22).
Enforcing an allocated storage limit for shared folders and local storage applications
ASM provides a way to enforce an allocated storage limit for shared folders and local storage
applications. If enforced, the system does not allow the amount of allocated space for a shared
folder and local storage application to be exceeded.
If the capacity of the shared folder and/or local storage application surpasses the percent full
warning threshold and reaches the allocated space limit, the status changes from Warning to
Critical in the content pane, and users are blocked from adding data to the shared folder and
local storage application.
ASM does not support enforcing an allocated storage limit (or quota) for parent folders of shared
folders that are created and managed using ASM.
NOTE: If you do not choose to enforce an allocated storage limit for a shared folder, the ASM
status indicator still goes from Warning to Critical in the content pane; however, users are not
blocked from adding data to the shared folder as long as there is still unallocated storage space
on the logical disk where the shared folder resides. Data can be written to the shared folder until
the logical disk is full.
By default, the Enforce Allocated Limit (Quota) is set to No for all shared folders and local storage
applications. To change this setting, do one of the following:
•
Using the Create a Shared Folder Wizard, change the Enforce Allocated Limit (Quota) setting
on the Advanced window to Yes.
•
Select the shared folder in the content pane, click Properties in the Actions pane, click the
Warning Threshold tab, and then select the Enforce Allocated Limit (Quota).
NOTE: If a Shared Folder is created outside of ASM, you must use the Warning Threshold property
tab on the particular folder to enable the Enforce Allocated Limit (Quota) setting.
To allocate space for a shared folder, specify a size using the Allocate Space Wizard as described
in “Increasing or reducing the allocated storage” (page 33).
Selecting data protection
Use the Data Protection window in the wizard to select the following:
•
Snapshots (Local disk backup) Previous versions of data are retained on disk using virtual
library backups and/or volume snapshots for fast recovery. See “Scheduling snapshots”
(page 23) for more information.
•
Tape or Other Device (Alternate location backup) Data is copied off of this HP Storage System
to tape, other disks, or other types of storage media. This enables long term storage and
disaster recovery. See “Scheduling backups” (page 23) for more information.
From this window, you can also click Modify advanced properties to configure advanced settings
for backups.
22
Hosting storage for applications and shared folders
NOTE: Backups and snapshots are disabled in ASM for an Exchange storage group or a SQL
Server database if one or more of the components of the Exchange storage group or SQL Server
database are not hosted. To host components for a storage group or database, start the Host an
Exchange Storage Group Wizard or Host a SQL Server Database Wizard as appropriate, select
the storage group or database, and then select the components on the Select Storage Group
Components page that are not currently hosted.
NOTE: Snapshots are taken at the volume level. See “Storage View” (page 46), for information
on viewing volumes.
After you have selected and configured data protection settings, click Next.
Scheduling snapshots
1.
2.
3.
4.
5.
6.
7.
8.
On the Data Protection page in any wizard, click the button on the right side of the Snapshot
Schedule box to open the Snapshot Schedule page.
Click Add to add a snapshot to the snapshot schedule.
Select a snapshot frequency (hourly, daily, weekly, monthly) for snapshots.
Enter a start date for snapshots.
Enter a start time for snapshots.
To add another snapshot to the snapshot schedule, repeat steps 2 through 5.
To delete a snapshot from the snapshot schedule, select the snapshot and click Remove.
Click OK to save your changes and return to the Data Protection page.
The Schedule box now displays the snapshot schedule or Multiple schedules if there is more
than one snapshot schedule.
9.
After you have selected and configured all data protection settings, click Next
Scheduling backups
IMPORTANT:
•
Before you schedule alternate location backups, install a tape library or other physical device
and add it to the same Data Protector Express Management Domain as your HP Storage
System.
•
Installing a tape library that can accommodate the media rotation type required by your
environment requires tape storage management experience. See http://www.hp.com/sbso/
serverstorage/ultimate.html to learn more about tape storage.
1.
2.
3.
On the Data Protection page in any wizard, select Tape or Other Device Backup.
Select the device for the virtual library to reside in the Device list.
Select Modify Advanced Properties. This will open the Data Protection Advanced Properties
window.
Select Schedule backups to tape or another device to enable backups on a tape library or
physical device.
Select Schedule backups to a local virtual library to enable backups on a virtual library that
resides on this HP Storage System.
Select a Data Protector Express media rotation type from the list.
Type or use the arrows to indicate a time for the backup to begin.
For alternate location backups, select the device for the virtual library to reside.
For local virtual library backups, select the size for the virtual library. A default value will be
recommended, based on the selected rotation type and component size. Click Modify advanced
storage properties to modify advanced storage settings such as RAID level and stripe size.
4.
5.
6.
7.
8.
9.
Selecting data protection
23
See “Setting advanced storage properties” (page 18) for more information on advanced
properties.
10. Click OK.
11. After you have selected and configured all data protection settings, click Next.
Modifying backup job properties in Data Protector Express
Although it is not required, after you finish creating a backup job using a wizard or a components
property page, you can modify the backup job properties in Data Protector Express. For example,
you may want to enable encryption or customize a media rotation type.
1.
2.
Launch Data Protector Express.
On the login window:
a. Enter localhost in the Host name field.
b. Enter ASMbackup in the User name field.
CAUTION: The default password for ASMbackup is blank. It can be changed in the
Command Line Interface (CLI).
c.
3.
4.
5.
6.
Click OK.
Click Jobs and Media in the Favorites pane, located on the left side of the main window.
Double-click ASMbackup on the right side of the main window.
Select the backup job for the application or shared folder whose backup schedule you want
to edit.
Right-click the file and select Properties.
See the HP StorageWorks Data Protector Express Users Guide and Technical Reference for more
information.
Reviewing task summary and scheduling tasks
1.
Review the list of tasks the wizard will perform to allocate and configure storage, and to host
the application storage or shared folder on your HP Storage System.
For application storage, ensure the following is true before you run the tasks:
2.
•
You have an up-to-date backup of the application data and logs.
•
The application data and logs are not being accessed or modified.
Do one of the following:
•
To go back and change your selections, click Back.
•
To run the listed tasks immediately, click Finish.
◦
•
The Task Viewer opens, running the tasks required to configure storage and migrate
data. See “Monitoring task completion status” (page 25) for more information.
To schedule tasks to run at a later time, select Schedule tasks to run later, enter a start
date and time, and then click Finish.
To select AM or PM for the start time, click the up and down arrow buttons.
To use a calendar to select a start date, click the down arrow button (located to the right
of the up and down arrow buttons) to open a calendar. To change the month displayed
on the calendar, click the previous and next buttons on the calendar, or click on the month
or year displayed at the top of the calendar to display drop-down lists.
24
Hosting storage for applications and shared folders
Monitoring task completion status
The Task Viewer shows the status of ASM wizard tasks. ASM wizard tasks allocate and configure
storage, host application storage and shared folders, and configure data protection.
NOTE:
Click the Expand tree icon next to a task to view its subtasks.
Select a task to view its description in the Details box on the Task Viewer.
The Task Viewer has a filter drop-down menu. Each selection displays information about
task-completion status for different time periods:
•
Show All—Displays all tasks that have been completed or failed to complete. Displays the
tasks and subtasks currently being processed and all scheduled tasks.
•
Today—Displays the tasks and subtasks currently being processed, all scheduled tasks, and
tasks that completed or failed today.
•
Last 3 Days—Displays the tasks and subtasks currently being processed, all scheduled tasks,
and tasks that completed or failed during the past three days, including today.
•
Last 7 Days—Displays the tasks and subtasks currently being processed, all scheduled tasks,
and tasks that completed or failed during the past seven days, including today.
•
Last 30 Days—Displays the tasks and subtasks currently being processed, all scheduled tasks,
and tasks that completed or failed during the past thirty days, including today.
•
Errors Only—Displays all tasks that have failed and provides information about problems that
occurred during task processing.
The status of each task is provided and can be any one of the following:
•
Scheduled—The task has been scheduled to run at a specified time.
•
Verifying—ASM is confirming the configuration you specified is valid.
•
Ready—The task is ready to run and is waiting for other tasks or background processes to
run.
•
Running—The task is being processed.
•
Completed (date)—The task completed without problems.
•
Cancelling—The task is being cancelled.
•
Cancelled—The task has been cancelled (see “Cancelling tasks” (page 25)).
•
Failed—An error occurred during processing.
Cancelling tasks
1.
2.
To cancel an uncompleted task, select the task and click Cancel Selected Task.
Click Yes to confirm.
Tasks canceled after they have started may not cancel immediately. A task will stop running when
the last subtask started is completed. All subtasks listed below the last completed subtask are not
completed and cannot be restarted.
Migrating user-defined application data from a remote application
The Host an Exchange Storage Group Wizard and Host a SQL Server Database Wizard
automatically migrate application data from the application server to your HP Storage System. The
Host a User-Defined Application Wizard, however, does not migrate data for a user-defined
application from the application server to your HP Storage System. You must do this manually.
Monitoring task completion status
25
1.
Using ASM, determine the path to the iSCSI LUN (logical disk) created on the application
server by ASM, as follows:
a. Select the user-defined application in the content pane.
b. In the Actions pane, select Properties.
The Properties window opens.
c.
d.
2.
Click the Storage tab.
Record the Application Path information displayed.
Copy the application data to the path on the application server recorded in step 1 as follows:
a.
b.
Using Windows Explorer, navigate to the application data you want to host on your HP
Storage System.
Copy the application data and paste it to the application path on the application server
recorded in step 1.
For example, if the application data is stored on C:\application\data and the
application path you recorded is G:\application\data, copy and paste the data in
C:\application\data to G:\application\data on the application server.
3.
Delete the application data from the old path (optional).
Any data saved to the iSCSI LUN on the application server is now saved to a LUN on your HP
Storage System and not on the server.
26
Hosting storage for applications and shared folders
4 Managing data protection
The Automated Storage Manager provides data protection through the use of snapshots and
backups. You can configure these data protection methods through the Data Protection page of
ASM's application wizards, or you can configure and modify data protection settings after running
the wizards by accessing the Snapshots and Backup actions in the ASM Actions pane.
For more information on available data protection methods, see the following:
•
“Scheduling and running snapshots” (page 27)
•
“Managing snapshots” (page 27)
•
“Scheduling backups” (page 29)
•
“Managing backups” (page 29)
NOTE: Backups and snapshots are disabled in ASM for an Exchange storage group or a SQL
Server database if one or more of the components of the Exchange storage group or SQL Server
database are not hosted. To host components for a storage group or database, start the Host an
Exchange Storage Group Wizard or Host a SQL Server Database Wizard as appropriate, select
the storage group or database, and then select the components on the Select Storage Group
Components page that are not currently hosted.
Scheduling and running snapshots
From the Snapshots property tab, you can configure schedules for snapshots.
Snapshots cannot be scheduled on a target HP Storage System running ASM; the snapshot schedule
must be set on the system that is hosting the component data.
IMPORTANT:
1.
2.
3.
4.
5.
6.
7.
8.
9.
Snapshots and backups are not supported on user-defined iSCSI LUN applications.
Select an Exchange storage group, SQL Server database, user-defined application, or shared
folder in the content pane.
In the Actions pane, click Snapshots and then click Configure Snapshot Schedule. The Snapshots
property tab displays.
Click Add to add a snapshot to the snapshot schedule.
Select a snapshot frequency (hourly, daily, weekly, monthly) for snapshots.
Enter a start date for snapshots.
Enter a start time for snapshots.
To add another snapshot to the snapshot schedule, repeat steps 2 through 5.
To delete a snapshot from the snapshot schedule, select the snapshot and click Remove.
Click OK .
Managing snapshots
From the Manage Snapshots dialog box, you can take, delete, expose, unexpose, and revert
snapshots.
IMPORTANT:
Snapshots and backups are not supported on user-defined iSCSI LUN applications.
Taking and deleting snapshots
To take or delete a snapshot:
1.
Select an Exchange storage group, SQL Server database, user-defined application, or shared
folder in the content pane.
Scheduling and running snapshots
27
2.
3.
4.
5.
In the Actions pane, click Snapshots and then click Manage Snapshots. The Manage Snapshots
dialog box displays.
To take a snapshot immediately, click Take Snapshot and then click Yes to confirm.
To delete a snapshot, select the snapshot from the snapshot list and click Delete.
When you are done making changes, click Close.
Exposing a snapshot
You can view a read-only copy of a snapshot of an Exchange storage group, SQL Server database,
or user-defined application by exposing the snapshot on your HP Storage System. Exposing a
snapshot allows you to view the contents of a snapshot and selectively revert files.
NOTE: A snapshot of a shared folder cannot be exposed or unexposed using ASM. Use the
Shadow Copy Client to view snapshots of shared folders from a client computer. Snapshots of a
shared folder are stored on the same logical disk as the shared folder, in a protected system folder.
To expose a snapshot:
1. Select an Exchange storage group, SQL Server database, or user-defined application in the
content pane.
2. In the Actions pane, click Snapshots and then click Manage Snapshots. The Manage Snapshots
dialog box displays.
3. Select either Latest data or a snapshot from the list and then click Expose. The Expose Snapshot
dialog box displays.
Latest data represents the most current data on the system. The snapshot that is taken represents
reflects the data that is on the system at that specific point in time.
4.
5.
Do one of the following:
•
Select Mount as a volume on a remote Windows system running the All-in-in-One Storage
Manager Agent to expose the snapshot on a mount point on a remote server. Type the
IP address (IPv4) or hostname and mount path of the remote server in the provided fields.
•
Select Expose as a Windows share (SMB protocol) to expose the snapshot on a local
Windows share.
•
Select Expose as an iSCSI LUN to an iSCSI Initiator to expose the snapshot to a remote
iSCSI initiator. Type the iSCSI Qualified Name of the iSCSI Initiator in the provided field.
Click Expose.
Unexposing a snapshot
After restoring from a snapshot, you may choose to unexpose a snapshot; unexposing a snapshot
completely removes access to it. Note that unexposing a Latest data will result in that snapshot
also being removed.
NOTE: A snapshot of a shared folder cannot be exposed or unexposed using ASM. Use the
Shadow Copy Client to view snapshots of shared folders from a client computer. Snapshots of a
shared folder are stored on the same logical disk as the shared folder, in a protected system folder.
To unexpose a snapshot:
1. Select an Exchange storage group, SQL Server database, or user-defined application in the
content pane.
2. In the Actions pane, click Snapshots and then click Manage Snapshots. The Manage Snapshots
dialog box displays.
3. Select an exposed snapshot from the snapshot list.
4. Click Unexpose.
5. Click Yes to confirm.
28
Managing data protection
Reverting data to snapshots
ASM allows you to revert data stored on your HP Storage System to a snapshot. This overwrites
the existing data and reverts it to a past state.
NOTE:
•
Snapshots of shared folders cannot be reverted using ASM. To revert a shared folder to a
past snapshot, use the Shadow Copy Client.
•
Snapshots of user-defined applications that are configured as local storage only applications
cannot be reverted using ASM because all data that is on the same volume as the application
would also be reverted.
1.
Select an Exchange storage group, SQL Server database, or user-defined application in the
content pane.
In the Actions pane, click Snapshots and then click Manage Snapshots. The Manage Snapshots
dialog box displays.
Select a snapshot from the list and click Revert.
Click Yes to confirm.
2.
3.
4.
Scheduling backups
From the Backup property tab, you can schedule and configure backups.
1.
Select an Exchange storage group, SQL Server database, user-defined application, or shared
folder in the content pane.
2. In the Actions pane, click Configure Backup. The Backup property tab displays.
3. Select Schedule backups to tape or another device to enable backups on a tape library or
physical device.
4. Select Schedule backups to a local virtual library to enable backups to a virtual library that
will be created on this HP Storage System.
5. Select a Data Protector Express media rotation type from the list.
6. Type or use the arrows to indicate a time for the backup to begin.
7. For backups to tape or other devices, select the backup device.
8. For local virtual library backups, select the size for the virtual library. A default value will be
recommended, based on the selected rotation type and component size. Click Modify advanced
storage properties to modify advanced storage settings such as RAID level and stripe size.
See “Setting advanced storage properties” (page 18) for more information on advanced
properties.
9. Click OK.
10. Click OK on the Review Task Summary dialog box to confirm the backup settings.
Managing backups
After scheduling backups, you can manage backups for Exchange storage group, SQL Server
database, user-defined application, or shared folders. Based on the backup features that have
been configured, you can run a device backup, run a virtual library backup, or run the Restore
From Backup wizard.
IMPORTANT:
Snapshots and backups are not supported on user-defined iSCSI LUN applications.
Running a device backup
If an alternative backup device has been assigned, you can use Run Device Backup to run an
alternative location backup for the selected component.
Scheduling backups
29
1.
2.
3.
Select an Exchange storage group, SQL Server database, user-defined application, or shared
folder that has backups scheduled in the content pane.
In the Actions pane, click Backup and then click Run Device Backup.
Click Yes to confirm the backup operation.
Running a virtual library backup
If virtual library backup has been configured for this component, you can run a virtual library
backup from this location.
1.
2.
3.
Select an Exchange storage group, SQL Server database, user-defined application, or shared
folder that has backups scheduled in the content pane.
In the Actions pane, click Backup and then click Run Virtual Library Backup.
Click Yes to confirm the backup operation.
Restoring data from backups
ASM allows you to restore data to your HP Storage System from the latest backups created using
Data Protector Express. You can choose to overwrite the existing data with the backup, or restore
the backup to an unused space on your HP Storage System so you can selectively overwrite existing
data.
If you want to restore data using a backup other than the latest backup, see Selecting files for
restoring in the HP StorageWorks Data Protector Express Users Guide and Technical Reference
for more information.
1.
2.
3.
4.
5.
6.
Select an Exchange storage group, SQL Server database, user-defined application, or shared
folder that has backups scheduled in the content pane.
In the Actions pane, click Backup and then click Restore from Backup. The Restore From Backup
Wizard displays.
Do one of the following:
•
Select Overwrite Restore to overwrite the existing data with the backup.
•
Select Different Location Restore to save the backup to a different location, and then enter
the location (path) where you want the backup saved on your HP Storage System. To
browse for the location, click Browse.
Click Next.
Click Launch DPX to launch Data Protector Express. See “Using DPX to restore data” (page
30)) for Data protector Express instructions.
After the restore is complete, click Finish to exit the wizard.
Using DPX to restore data
1.
When the login window appears, do the following:
a. Enter localhost in the Host name field.
b. Enter ASMbackup in the User name field.
CAUTION: The default password for ASMbackup is blank. It can be changed in the
Command Line Interface (CLI). See “Setting the password for the ASMbackup user account”
(page 31) for more information.
c.
2.
3.
4.
30
Click OK.
Click Jobs and Media in the Favorites pane, located on the left side of the main window.
Double-click ASMbackup on the right side of the main window.
Select the restore job for the application or shared folder whose data you want to restore.
Managing data protection
NOTE: To modify properties of the job, right-click the Restore Job Properties. For example,
you may want to choose a different device from which to restore or select different version of
files to restore. To restore version for files other than the latest backup, refer to Selecting Files
and File Versions in the HP StorageWorks Data Protector Express Users Guide and Technical
Reference.
5.
6.
Right-click the restore job and click Run to perform the restore.
Click Yes to confirm the restore.
To view the status of the restore job, click Job Status in the Favorites pane.
7.
Exit Data Protector Express.
Setting the password for the ASMbackup user account
To set or change the ASMBackup user password:
1.
Use the Command Line interface (CLI) found at C:\Program Files\HP\HP All-in-One
Storage Manager\hpkacli.exe.
The password may be set interactively, allowing the password characters to be masked, or it
may be set with a single command.
2.
Use the following command to display usage details:
> hpkacli /?
3.
To specify a password, type the following:
> hpkacli set password
4.
This will bring up the following:
Current password for ASMbackup:
New password for ASMbackup:
Confirm new password for ASMbackup:
5.
6.
7.
If the current password for ASM backup is blank, press return when prompted. Otherwise,
enter the current password.
Confirm the new password by typing in password again under Confirm new password.
The password has been set.
Using the Administrator account to change the ASMbackup password
1.
2.
Use the Command Line interface (CLI) found at C:\Program Files\HP\HP All-in-One
Storage Manager\hpkacli.exe
Type in the following:
> hpkacli set password /admin
3.
This will bring up the following:
Password of Admin user:
New password for ASMbackup:
Confirm new password for ASMbackup:
4.
5.
6.
Type the Data Protector Express admin password.
Type the new password for the ASMbackup account.
Confirm the new password by typing it in again.
Managing backups
31
Installing Data Protector Express on other machines
The Data Protector Express installation on the HP Storage System acts as the master server for a
Data Protector Express Management Domain. If you wish to use the ASM system as a Disk-To-Disk
(D2D) backup target for other clients or servers, you may install Data Protector Express on those
machines and join the management domain.
NOTE:
Installing Data Protector Express on other servers is not required to backup Exchange,
SQL Server, or User-Defined applications, when those applications are hosted by ASM. The
instructions provided here are only needed if a user wishes to use ASM as a backup target for
additional user data in their environment.
You can download Data Protector Express from http://www.hp.com/go/dataprotectorexpress.
1.
2.
When installing Data Protector Express on another machine, select Join an existing Data
Protector Express domain.
When prompted, provide the hostname or IP address (IPv4) of the HP Storage System.
An unlimited number of client platforms such as Windows XP, Vista, and Windows 7 may be
added to the Data Protector Express domain managed by the HP Storage System. Server platforms
such as Windows Server 2003 or 2008 will require one license per protected server.
For Data Protector Express 4.0, the following license is required to add a server to the backup
domain:HP Data Protector Express Network Client Agent BB121AA. For Data
Protector Express 5.0, the same license is used to create the initial backup domain on the first
server and to add additional servers to the domain. This license is sold in packs of 1, 3, or 10
servers; (TC330A, TC331A, or TC332A).
You may use ASM to create and manage storage for Data Protector Express virtual libraries on
the HP Storage System. You may then create backup jobs in Data Protector Express that use these
virtual libraries as targets for Disk-to-Disk backups of your protected clients and servers. See “Using
the Create a Virtual Library Wizard” (page 17) for more information.
NOTE: When manually creating or modifying backup jobs that were not created by ASM, do
not use the Data Protector Express ASMbackup account. It is recommended that you create other
Data Protector Express user accounts as needed.
32
Managing data protection
5 Managing storage
After an application is hosted or shared folder is created on your HP Storage System using a
storage-allocation wizard, you can manage its storage and data by:
•
“Increasing or reducing the allocated storage” (page 33)
•
“Changing the percent full warning threshold” (page 33)
•
“Removing application areas from view” (page 34)
•
“Changing permissions, names, descriptions, or paths of shared folders” (page 34)
•
“Deleting shared folders” (page 35)
Increasing or reducing the allocated storage
You can increase or reduce the storage allocated to an application component, user-defined
application, or shared folder after storage is initially allocated and configured using a
storage-allocation wizard.
Increasing the storage allocated requires ASM to grow the logical disk (increase the amount of
hard drive space allocated to the logical disk) holding the data. Reducing the allocated storage
does not reduce the size of the logical disk holding the data, because once hard drive space is
allocated to a logical disk, it cannot be unallocated due to the configuration of hard drives.
NOTE: Unallocated storage on a logical disk is re-allocated by ASM when new or additional
storage is allocated to an application component or shared folder and the advanced configuration
values selected for the storage matches those of the logical disk.
For example, if an application component or shared folder's allocated storage is increased, any
unallocated space on the logical disk where it resides is used before the logical disk grows.
1.
2.
3.
Select the application component, user-defined application, or shared folder in the content
pane.
In the Actions pane, click Allocate Space to open the Allocate Space wizard.
Change the size value:
•
Highlight the storage size unit value and then enter a new value as necessary: megabytes
(MB), gigabytes (GB), or terabytes (TB).
•
Highlight the storage size number value and enter a new value, or click the arrow buttons
to change the value.
The Size Range field shows the minimum and maximum storage space that can be allocated
to an application component, user-defined application, or shared folder. Whenever you
change the storage space allocated to an application component or change an advanced
configuration setting for an application component, the maximum value for Size Range is
recalculated for each application component shown.
4.
Click Next to open the Review Tasks Summary page (see “Reviewing task summary and
scheduling tasks” (page 24)) for more information.
Changing the percent full warning threshold
You can change the percent full warning threshold value for an application component, user-defined
application, or shared folder after storage is initially allocated and configured using a
storage-allocation wizard. See “Setting a percent full warning threshold” (page 21) for more
information.
Increasing or reducing the allocated storage
33
NOTE: For shared folders, you can set an enforced limit (quota) for allocated storage, as well
as a warning threshold. For more information, see “Enforcing an allocated storage limit for shared
folders and local storage applications” (page 22).
To change the percent full warning threshold from the Properties window:
1.
2.
3.
4.
5.
Select the application component, user-defined application, or shared folder in the content
pane.
In the Actions pane, click Properties.
Click the Warning Threshold tab.
Change the percent full warning threshold value.
Click OK.
Removing application areas from view
You can remove application components and user-defined applications from view on the ASM
user interface. This allows you to remove storage information from the content pane pertaining to
storage allocations lost due to hard drive failure or storage for an application component or
user-defined application whose storage you plan to unhost.
Removing an application component or user-defined application from view does not unhost its
storage. Its storage is still hosted on your HP Storage System. To permanently remove storage from
your HP Storage System, you must first remove the storage that is hosted by ASM.
NOTE: If you remove an application component or user-defined application from view without
unhosting the storage, your HP Storage System will re-discover the applications immediately.
NOTE: This action is not available for shared folders. Because ASM automatically discovers
top-level shared folders on your HP Storage System, the folder would just reappear after the next
discovery process. A shared folder is automatically removed from view when it is removed from
your HP Storage System.
To remove an application component or user-defined application from view:
1.
2.
3.
Permanently remove storage from your ASM, depending on the type of application. The
application component will still remain in the content pane.
Select the application component or user-defined application to remove in the content pane.
In the Actions pane, click Remove from View.
A confirmation dialog box opens.
4.
Do one of the following:
•
Click OK to remove the item from view.
•
Click Cancel to cancel the action.
Changing permissions, names, descriptions, or paths of shared folders
ASM cannot be used to change permissions, names, descriptions, or paths of top-level or nested
shared folders that reside on your HP Storage System. Use Windows Explorer or the Shared Folder
MMC snap-in to change permissions, names, descriptions, or paths of shared folders that reside
on your HP Storage System.
ASM automatically discovers and adopts any changes you make to the permissions, names,
descriptions, or paths of shared folders using other applications. You do not have to make any
changes in ASM to implement the changes. Click Refresh in the Actions pane (or perform any
action in ASM) to update the ASM user interface to display your changes.
34
Managing storage
You will need to know the path of a shared folder to change its permissions, name, description,
or path. To find the path, select the shared folder in the content pane and then click Properties in
the Actions pane. The share path listed on the General tab is the path for the shared folder.
Deleting shared folders
ASM cannot be used to delete top-level or nested shared folders that reside on your HP Storage
System. Use Windows Explorer or the Shared Folder MMC snap-in to delete shared folders that
reside on your HP Storage System.
A shared folder is automatically removed from view on the ASM user interface when it is deleted
from your HP Storage System.
Deleting shared folders
35
6 Monitoring storage
ASM provides storage-management functions so you can quickly view used and allocated storage,
and percent full warning thresholds settings for application and shared folder storage on your HP
Storage System. You have a choice of these views for the content pane:
•
“Application View” (page 36)—Monitoring the overall used and allocated storage values for
specific applications and shared folders (such as Exchange or SQL Server storage)
•
“Storage View” (page 46)—Monitoring the used and allocated storage values for the logical
disks and volumes on your HP Storage System that ASM created to host application storage
and shared folders.
•
“Application Server View” (page 48)—Monitoring the application servers with storage hosted
on your HP Storage System.
•
“Storage Utilization View” (page 50)—Monitoring the allocated storage values for specific
applications and the shared folders pool, the unallocated storage value, and the storage value
for data not managed by ASM.
Views are selected from the Actions pane.
You can also quickly view storage status on the content pane. Status icons for warnings and critical
conditions are displayed on top of icons in the content pane when storage status changes from
OK to Warning or Critical.
NOTE: Select an item in the content pane and then click Properties in the Actions pane to view
any alerts for the item.
IMPORTANT: During the ASM discovery process, if ASM detects a user-defined storage area
that hosts SQL or Exchange data and the proper credentials have been set between ASM and the
application server, these user-defined storage areas are moved to SQL or Exchange storage areas
as appropriate. For more information about setting application credentials between ASM and
application servers, see “Configure Application Credentials” (page 8).
Application View
Application View displays the used and allocated storage space, and storage status of applications
and shared folders hosted on your HP Storage System in the content pane.
•
In the Actions pane, select Application View.
•
To view all the application storage and shared folders hosted on your HP Storage System in
the content pane, select Show all from the Filter drop-down menu, located at the top of the
content pane.
Application storage properties are displayed in order of hierarchy in an expandable and collapsible
view.
Click the Expand tree icon next to each application to view the used and allocated storage properties
for the hosted application components. Click the Collapse tree icon next to expanded applications
to hide the application component storage properties.
To view all the storage properties for an item listed in the content pane, see “Accessing application
and shared folder properties” (page 37).
36
Monitoring storage
Accessing application and shared folder properties
When Application View is selected in the Actions pane, you can view the storage status, alerts,
and properties for the following:
•
Applications
•
Application components
•
User-defined applications
•
Shared folders pool
•
Shared folders
•
Virtual libraries
Do one of the following:
•
Select the item in the content pane and then click Properties in the Actions pane.
•
Right-click the item in the content pane and select Properties.
NOTE: ASM rolls up all status alerts to the highest level. For instance, if a top-level shared folder
has surpassed its percent full warning threshold and exceeded its enforced allocated storage space,
a warning message is shown in the shared folders pool. Likewise, if a critical status alert exists in
an Exchange mail store, that alert is also shown in the status for the Exchange storage group.
Accessing properties for Exchange, Exchange storage group, and Exchange storage group
components
ASM provides properties information for Exchange, Exchange storage group, and Exchange
storage group components when Exchange storage is hosted on your HP Storage System.
1.
2.
3.
In the Actions pane, select Application View.
From the Filter drop-down menu, select Exchange or Show all.
To access Exchange:
•
Select Exchange in the content pane and then click Properties in the Actions pane.
•
Right-click Exchange in the content pane and select Properties.
To access Exchange Storage groups and components:
•
Select any Exchange storage group or Exchange storage group component in the content pane
and then click Properties in the Action pane.
•
Right-click any Exchange storage group or component in the content pane and select Properties.
Properties window
ASM provides properties information for Exchange, Exchange storage groups, and components
for storage hosted on your HP Storage System. The following lists the tabs available in the properties
window, and in parenthesis, if it applies to Exchange, Exchange storage groups, or Exchange
storage group components.
•
General tab—(Exchange, Exchange storage groups, and components) Displays the name of
the application, the total capacity reserved for the application, and its operating status:
Table 7 General tab: Exchange properties
Status indicator
Value
OK
Exchange is running and storage is online. No alerts.
Warning
See the Alerts list for more information.
Critical
See the Alerts list for more information.
Application View
37
•
Details tab — (Exchange storage groups) Displays the following Exchange server values:
Table 8 Details tab: Exchange storage group properties
Property
Value
Exchange Server
Name of server where Exchange storage is being hosted.
Exchange Version
Version of Exchange.
Days before log file removal
The number of days before log files are deleted from the server.
Directory Server
The domain controller used by the server.
Server Type
The type of Exchange installation: Front-end or Back-end. ASM can only host
storage from Back-end Exchange servers, because Front-end Exchange
installations do not actually store mailboxes and other Exchange data.
Clustered
Indicates whether the server that hosts Exchange Server is part of a cluster.
Replication Type
Type of Exchange replication enabled.
LCR status
Indicates Exchange status for LCR.
LCR Copy
Indicates if Exchange component is the original or a copy.
LCR Log Folder Copy
Path to the LCR log file copies
LCR System Folder Copy
Path to LCR system file copies
•
Snapshots tab — (Exchange storage groups) Allows you to schedule snapshots of the storage
group. For more information, see “Scheduling and running snapshots” (page 27).
•
Backup tab — (Exchange storage groups) Allows you to schedule backups of the storage
group. See “Scheduling backups” (page 29) for more information.
•
Storage tab—(Exchange storage group components) Displays the storage group component's
storage space, including allocated space, used space, free space, and the following storage
allocation details:
Table 9 Storage tab: Exchange storage group component properties
Property
Value
Application Path
Path to the file directory on the server that hosts Exchange where the storage
group component's data is saved by Exchange. The file directory is located
on the volume created on the iSCSI LUN exported by ASM to the server that
hosts Exchange.
Application Server Host Name
Name of server that hosts Exchange and the storage group component.
Application Server Volume - Name Name of the volume on the server that hosts Exchange to which Exchange
saves the storage group component's data. The volume resides on the iSCSI
LUN exported by ASM to the server that hosts Exchange.
Application Server Volume - Status Status of the volume on the server that hosts Exchange where the storage
group component is stored.
Application Server Volume - Mount Path the volume is mounted on, on the server that hosts Exchange. The volume
Paths
is built on the iSCSI LUN exported by ASM to the server that hosts Exchange.
38
Storage system host name
Name of your HP Storage System.
Storage system volume - Name
Name of the volume on your HP Storage System where the storage group
component's data is stored.
Storage system volume - Status
Status of the volume that holds the storage group component on your HP
Storage System.
Storage system volume - Mount
paths
Path to where the volume that holds the storage group component on your
HP Storage System is mounted.
Monitoring storage
Table 9 Storage tab: Exchange storage group component properties (continued)
Property
Value
Logical disk - RAID Level
The RAID level to which the storage group component storage is configured.
See “Customizing RAID levels” (page 20) for more information.
Logical disk - RAID Stripe Size
The RAID stripe size to which the storage group component's storage is
configured. See “Advanced Storage Properties items” (page 19) for more
information.
Virtual array - Number of Hot
Spares
The number of hot spares with which the storage group component storage
is configured. See “Advanced Storage Properties items” (page 19) for more
information.
Virtual array - Physical disk type
Type of physical disk designated for the hot spare. Physical disk types include
SAS, SATA, and SCSI.
•
Warning Threshold tab—(Exchange storage group components) Allows you to change the
Percent Full Warning Threshold value for the storage group component. See “Setting a percent
full warning threshold” (page 21) for more information.
•
Mail Store, Public Store, or Log tab—(Exchange storage group components) One of these
three tabs is available depending on whether the storage group component is a mail store,
public store, or log.
◦
Mail Store tab—Displays the status and properties of the mail store reported by the
Exchange server.
Table 10 Mail Store tab: Exchange storage group component properties
◦
Value
Description
Mail Store Name
Name of storage group mail store.
Online
The storage group mail store is available for use.
Database File
Path to the file that stores all messages submitted through MAPI, as well
as the database tables that define mailboxes, messages, folders, and
attachments.
Streaming Database File
(Exchange 2003 only)
Path to the file that stores Internet-formatted messages, such as native
Multipurpose Internet Extensions (MIME) content.
Replication type
Indicates if LCR is being used.
LCR Status
Indicate Exchange warnings for LCR.
LCR Copy
Copy of the active/original exchange component.
LCR Database Copy File
Path to LCR mailstore copy
Public Store tab—Displays the public store's free space and the following storage allocation
details about the public store:
Table 11 Public Store tab: Exchange storage group component properties
Value
Description
Public Store Name
Name of storage group public store.
Online
The storage group public store is available for use.
Database File
Path to the file that stores all messages submitted through MAPI, as well
as the database tables that define mailboxes, messages, folders, and
attachments.
Streaming Database File
(Exchange 2003 only)
Path to the file stores Internet-formatted messages, such as native
Multipurpose Internet extensions (MIME) content.
Application View
39
Table 11 Public Store tab: Exchange storage group component properties (continued)
◦
Value
Description
Replication Type
Indicates if LCR is being used.
LCR Status
Indicate Exchange warnings for LCR.
LCR Copy
Copy of the active/original exchange component.
LCR Database Copy File
Path to the LCR public folder copy
Log tab—Displays the log's free space and the following storage allocation details about
the log:
Table 12 Log tab: Exchange storage group component properties
Value
Description
Path
Path to the log file.
Circular Logging
Indicates whether or not circular logging is enabled. If enabled, a new
log entry will replace the oldest log entry when the size limit is reached.
Replication Type
Indicates if LCR is being used.
LCR Status
Indicate Exchange warnings for LCR.
LCR Copy
Copy of the active/original exchange component.
LCR Log Folder Copy
Path to the LCR log file copies
LCR System Folder Copy
Path to LCR system file copies
Accessing properties for shared folders
ASM provides properties information for shared folders pool and for any shared folder on your
HP Storage System. Using properties information, you can determine details about shared-folder
status, including allocated space, whether shared-folder storage is online or offline, and any
warning or critical status indicators.
1.
2.
3.
•
In the Actions pane, select Application View.
From the Filter drop-down menu, select Shared Folders or Show all.
Do one of the following:
•
Select Shared Folders in the content pane and then click Properties in the Actions pane.
•
Right-click Shared Folders in the content pane and select Properties.
General tab— (Shared folders pool, shared folders) Displays the shared folder name, type of
shared folder, share path on your HP Storage System, share description, and the shared folder
operating status:
Table 13 General tab: Shared folder properties
•
40
Status indicator
Value
OK
The storage is online.
Warning
The storage has surpassed the percent full warning threshold. See the Alerts
list for more information.
Critical
Shared folder storage has past the allocated storage limit and alerts are
shown. See the Alerts list for more information.
Storage tab—(Shared folders) Displays the shared folder storage space, including allocated
space, used space, free space, and the following storage allocation details:
Monitoring storage
Table 14 Storage tab: Shared folder properties
Property
Value
Application Path
Path to the shared folder on the server.
Storage System Host Name
Name of your HP Storage System.
Storage System Volume - Name
Name of the volume on your HP Storage System where the shared folder is
stored.
Storage System Volume - Status
Status of the volume that holds the shared folder on your HP Storage System.
Storage System Volume - Mount
Paths
Path to where the volume that holds the shared folder on your HP Storage
System is mounted.
Logical disk - RAID Level
The RAID level to which the shared folder's storage is configured. See
“Customizing RAID levels” (page 20) for more information.
Logical disk - RAID Stripe Size
The RAID stripe size to which the shared folder's storage is configured. See
“Advanced Storage Properties items” (page 19) for more information.
Virtual array - Number of Hot
Spares
The number of hot spares with which the shared folder's storage is configured.
See “Advanced Storage Properties items” (page 19) for more information.
Virtual array - Physical disk type
Type of physical disk designated for the hot spare. Physical disk types include
SAS, SATA, and SCSI.
•
Shared Folder Type tab — (Shared folders) Allows you to enable the types of client protocols
that are allowed to connect to the shared folder.
•
Warning Threshold tab—(Shared folders) Allows you to enable or disable the enforcement of
the allocated space limit for the shared folder. See “Enforcing an allocated storage limit for
shared folders and local storage applications” (page 22) for more information. Also, allows
you to change the shared folder's percent full warning threshold value. See “Setting a percent
full warning threshold” (page 21) for more information.
•
Snapshots tab — (Shared folders) Allows you to schedule snapshots of the shared folder. For
more information, see “Scheduling and running snapshots” (page 27).
•
Backup tab — (Shared folders) Allows you to schedule backups of the shared folder. See
“Scheduling backups” (page 29) for more information.
Accessing properties for SQL Server
ASM provides properties information for SQL Server when SQL Server storage is hosted on your
HP Storage System.
1.
2.
3.
In the Actions pane, select Application View.
From the Filter drop-down menu, select SQL Server or Show all.
Do one of the following:
•
Select one of the following:SQL Server, SQL Server database or a SQL Server database
component in the content pane and then click Properties in the Actions pane.
•
Right-click SQL Server, SQL Server database or a SQL Server database component in the
content pane and select Properties.
Properties window
ASM provides properties information for the SQL server, databases and database components
when SQL Server storage is hosted on your HP Storage System. The following lists the tabs in the
Application View
41
properties window, and in parenthesis, which applications are applicable: SQL Server, SQL Server
databases or SQL Server database components.
•
General tab—(SQL Server, SQL Server database, SQL Server database component) Displays
the name of the application, the total capacity reserved for the application, and its operating
status:
Table 15 Operating status: SQL Server properties
Status indicator
Value
OK
SQL Server is running and storage is online. No alerts.
Warning
See the Alerts list for more information.
Critical
See the Alerts list for more information.
•
Details tab — (SQL Server database) — (SQL Server database) Displays the following SQL
Server values:
Table 16 Details tab: SQL Server database properties
Property
Value
SQL Server
Name of server where SQL Server storage is being hosted.
SQL server status
Operational status of the SQL Server.
Version
Version of SQL Server.
Database status
Operational status of the SQL Server database.
Workload type
Workload type of the SQL Server database.
Clustered
Indicates whether the server that hosts SQL Server is part of a cluster.
•
Snapshots tab — (SQL Server database) Allows you to schedule snapshots of the database.
For more information, see “Scheduling and running snapshots” (page 27).
•
Backup tab — (SQL Server database) Allows you to schedule backups of the database. See
“Scheduling backups” (page 29) for more information.
•
Storage tab—(SQL Server database component) Displays the database component's storage
space, including allocated space, used space, free space, and the following storage allocation
details:
Table 17 Storage tab: SQL Server database component properties
Property
Value
Application Path
Path to the file directory on the server that hosts SQL Server where the database
component's data is saved by SQL Server. The file directory is located on the
volume created on the iSCSI LUN exported by ASM to the server that hosts SQL
Server.
Protocol
Communication protocol used to transfer data between the server that hosts SQL
Server (and the database component) and your HP Storage System.
Application Server Host Name
Name of server that hosts SQL Server and the database component.
Application Server Volume - Name
Name of the volume on the server that hosts SQL Server to which SQL Server
saves the database component's data. The volume resides on the iSCSI LUN
(logical disk) exported by ASM to the server that hosts SQL Server.
Application Server Volume - Status
Status of the volume on the server that hosts SQL Server where the database
component is stored.
Application Server Volume - Exclusive Indicates if database component storage is configured with exclusive storage.
Storage
See “Advanced Storage Properties items” (page 19) for more information.
42
Monitoring storage
Table 17 Storage tab: SQL Server database component properties (continued)
Property
Value
Application Server Volume - RAID
Level
The RAID level to which the database component storage is configured. See
“Customizing RAID levels” (page 20) for more information.
Application Server Volume - RAID
Stripe Size
The RAID stripe size to which the database component's storage is configured.
See “Advanced Storage Properties items” (page 19) for more information.
Application Server Volume - Read
Cache
Speeds up reads when enabled. This setting is determined by the storage array,
not ASM.
Application Server Volume - Write
Cache
Speeds up writes when enabled. This setting is determined by the storage array,
not ASM.
Application Server Volume - Number The number of hot spares with which the database component storage is
of Hot Spares
configured. See “Advanced Storage Properties items” (page 19) for more
information.
Application Server Volume - Mount
Paths
Path the volume is mounted on, on the server that hosts SQL Server. The volume
is built on the iSCSI LUN exported by ASM to the server that hosts SQL Server.
•
Warning Threshold tab—(SQL Server database component) Allows you to change the percent
full warning threshold value for the database component. See “Setting a percent full warning
threshold” (page 21) for more information.
•
Data File or Log tab— (SQL Server database component) One of these two tabs is available
depending on whether the database component is a data file or log.
•
Data File tab—Displays the data file's free space and the following storage allocation details
about the SQL Server data file:
Table 18 Data File tab: SQL Server database component properties
•
Value
Description
Data File Name
Name of database data file.
Filename
Relative path to where the database data file is stored on the server that
hosts SQL Server.
File Group
File group of data file. This value is assigned by SQL Server.
Data File Space Available
Free storage space available for data file.
Log tab—Displays the log file's free space and the following storage allocation details about
the SQL Server log file.
Table 19 Log tab: SQL Server database component properties
Value
Description
Log Name
Name of database log file.
File Name
Relative path to where the database log file is stored on the server that hosts
SQL Server.
Accessing properties for user-defined applications
ASM provides properties information for the user-defined applications on your HP Storage System.
Using properties information, you can determine the status of all user-defined application areas
monitored by ASM, and any warning or critical status indicators.
1.
2.
In the Actions pane, select Application View.
From the Filter drop-down menu, select User-Defined or Show all.
Application View
43
3.
To select properties for the user-defined application pool:
•
Select User-Defined in the content pane and then click Properties in the Actions pane.
or
•
Right-click User-Defined in the content pane and select Properties.
For a user-defined application:
•
Select any user-defined application in the content pane and then click Properties in the
Actions pane.
or
•
Right-click any user-defined application in the content pane and select Properties.
Properties window
•
General tab—Displays the user-defined application name, name of the application server that
runs the user-defined application, and the application area status:
Table 20 Operating status: User-defined application properties
•
Status indicator
Value
OK
Application storage is online. No alerts.
Warning
See the Alerts list for more information.
Critical
See the Alerts list for more information.
Storage tab—Displays the user-defined application's storage space, including allocated space,
used space, free space, and the following storage allocation details:
Table 21 Storage tab: User-defined application properties
Property
Value
Application Path
Path to the file directory on the application server where the user-defined
application data is saved by the user-defined application. The file directory
is located on the volume created on the iSCSI LUN that was exported by
ASM to the application server.
Protocol
Communication protocol used to transfer data between the server that hosts
the user-defined application and your HP Storage System.
Application Server Host Name
Name of server that hosts the user-defined application.
Application Server Volume - Name Name of the volume on the application server to which the user-defined
application saves its data. The volume resides on the iSCSI LUN (logical
disk) exported by ASM to the application server.
Application Server Volume - Status Status of the volume on the application server where the user-defined
application data is stored.
44
Application Server Volume Exclusive Storage
Indicates if user-defined application storage is configured with exclusive
storage. See “Advanced Storage Properties items” (page 19) for more
information.
Application Server Volume - RAID
Level
The RAID level to which the user-defined application storage is configured.
See “Customizing RAID levels” (page 20) for more information.
Application Server Volume - RAID
Stripe Size
The RAID stripe size to which the user-defined application storage is
configured. See “Advanced Storage Properties items” (page 19) for more
information.
Application Server Volume - Read
Cache
Speeds up reads when enabled. This setting is determined by the storage
array, not ASM.
Monitoring storage
Table 21 Storage tab: User-defined application properties (continued)
Property
Value
Application Server Volume - Write
Cache
Speeds up writes when enabled. This setting is determined by the storage
array, not ASM.
Application Server Volume Number of Hot Spares
The number of hot spares with which the database component storage is
configured. See “Advanced Storage Properties items” (page 19) for more
information.
Application Server Volume - Mount Path the application server volume is mounted on. The volume is built on the
Paths
iSCSI LUN exported by ASM to the application server.
•
Warning Threshold tab—Allows you to change the percent full warning threshold value for
the user-defined application. See “Setting a percent full warning threshold” (page 21) for
more information.
•
Snapshots tab — Allows you to schedule snapshots of the user-defined application. For more
information, see “Scheduling and running snapshots” (page 27).
•
Backup tab — Allows you to schedule backups of the user-defined application. See “Scheduling
backups” (page 29) for more information.
Accessing properties for virtual libraries
ASM provides properties information for virtual libraries on your HP Storage System. Using
properties information, you can determine the status of all remote backup virtual libraries monitored
by ASM, and any warning or critical status indicators.
1.
2.
3.
In the Actions pane, select Application View.
From the Filter drop-down menu, select Data Protection or Show all.
To select properties for the virtual library:
•
Select a virtual library in the Remote Backup Virtual Libraries area of the content pane
and then click Properties in the Actions pane.
or
•
Right-click a virtual library in the Remote Backup Virtual Libraries area of in the content
pane and select Properties.
Properties window
•
General tab—Displays the virtual library name, storage area type, the virtual library status:
Table 22 Operating status: Virtual library properties
•
Status indicator
Value
OK
Virtual library is online. No alerts.
Warning
See the Alerts list for more information.
Critical
See the Alerts list for more information.
Storage tab — Displays the virtual library's storage space, including allocated space, used
space, free space, and the following storage allocation details:
Table 23 Storage tab: Virtual library properties
Property
Value
Application Path
Path to the virtual library folder on the server.
Storage System Host Name
Name of the host server for your virtual library.
Application View
45
Table 23 Storage tab: Virtual library properties (continued)
Property
Value
Storage System Volume - Name
Name of the volume on your HP Storage System where the virtual library is
stored.
Storage System Volume - Status
Status of the volume that holds the virtual library on your HP Storage System.
Storage System Volume - Mount
Paths
Path to where the volume that holds the virtual library on your HP Storage
System is mounted.
Logical Disk- RAID Level
The RAID level to which the virtual library's storage is configured. See
“Customizing RAID levels” (page 20) for more information.
Logical Disk- RAID Stripe Size
The RAID stripe size to which the virtual library's storage is configured. See
“Advanced Storage Properties items” (page 19) for more information.
Virtual array - Number of Hot
Spares
The number of hot spares with which the virtual library storage is configured.
See ??? for more information.
Virtual array - Physical disk type
Type of physical disk designated for the hot spare. Physical disk types include
SAS, SATA, and SCSI.
•
Warning Threshold tab — Allows you to change the percent full warning threshold value for
the user-defined application. See “Setting a percent full warning threshold” (page 21) for
more information.
•
Virtual Library tab — Displays the virtual library's remaining storage capacity, and the following
virtual library details:
Table 24 Virtual Library tab: Virtual library properties
Property
Value
Device name
Name of the virtual library.
Machine name
Name of machine hosting the virtual library.
Device path
Location of the virtual library.
Slot count
Number of slots used for a virtual library.
Storage View
Storage View displays the used and allocated storage space of the storage areas (logical disks
and volumes) on your HP Storage System that were created by ASM to store application data and
shared folders.
•
In the Actions pane, select Storage View.
•
To view the storage area properties for all applications and shared folders hosted on your HP
Storage System, select Show all from the Filter drop-down menu, located at the top of the
content pane.
Storage area properties are displayed in order of hierarchy in an expandable and collapsible
view. For example, all the volumes on your HP Storage System are displayed under the logical
disks they reside on, and all the applications and shared folders hosted on your HP Storage System
are displayed under the volumes on which they are stored. Application components and individual
shared folders are displayed under the application or shared folders pool to which they belong.
Click the Expand tree icon next to each logical disk name to view the volume's storage properties.
Click the Collapse tree icon next to expanded logical disks to hide the volume's storage properties.
46
Monitoring storage
ASM assigns a drive letter to each volume on a logical disk. The drive letter can be viewed on the
volume's Properties window. See “Accessing properties for HP Storage System volumes” (page 47)
for more information.
NOTE: A logical disk can only have one RAID configuration, so an application's components
will reside on more than one logical disk if different RAID levels are selected for the application
components using the storage-allocation wizard.
To view all the storage properties for an item listed in the content pane, see “Accessing storage
area properties” (page 47).
Accessing storage area properties
When Storage View is selected in the Actions pane, you can view the storage status, alerts, and
properties for the following storage areas on your HP Storage System:
•
Volumes
•
Logical disks
Do one of the following:
•
Select the item in the content pane and then click Properties in the Actions pane.
•
Right-click the item in the content pane and select Properties.
Accessing properties for HP Storage System volumes
ASM provides properties information for any volume on a logical disk on your HP Storage System.
1.
2.
In the Actions pane, select Storage View.
Do one of the following:
•
Select any Volume (Vol) area in the content pane and then click Properties in the Actions
pane.
•
Right-click any Volume (Vol) area in the content pane and select Properties.
Accessing properties for HP Storage System logical disks
ASM provides properties information for the logical disks created on your HP Storage System by
ASM.
1.
2.
In the Actions pane, select Storage View.
Do one of the following:
•
Select any logical disk in the content pane and then click Properties in the Actions pane.
•
Right-click any logical disk in the content pane and select Properties.
Properties window
ASM provides properties information for any logical disks and for any logical disk created on your
HP Storage System.
General tab—Based on the application opened, logical disks or volumes, it will list the operating
status for that application only.
Table 25 Operating status: General tab
Status indicator
Value
OK
The storage is online. No alerts.
Warning
See the Alerts list for more information.
Critical
See the Alerts list for more information.
Storage View
47
Storage tab—Displays the unallocated space, used space, free space on the volume, and also
details on your volume or logical disk properties, depending on the application open:
Table 26 Storage tab: HP Storage System logical disk properties
Property
Value
System Name
Name the system uses to identify the logical disk.
Physical Disks
Globally unique identifier(s) of the hard drive(s) used by the logical disk for
storage.
Exclusive Storage
Indicates if the logical disk is configured with exclusive storage. See “Advanced
Storage Properties items” (page 19) for more information.
RAID Level
The RAID level to which the logical disk is configured. See “Customizing RAID
levels” (page 20) for more information.
RAID Stripe Size
The RAID stripe size to which the logical disk is configured. See “Advanced
Storage Properties items” (page 19) for more information.
Read Cache
Speeds up reads when enabled. This setting is determined by the storage array,
not ASM.
Write Cache
Speeds up writes when enabled. This setting is determined by the storage array,
not ASM.
Number of Hot Spares
The number of hot spares with which the logical disk is configured. See
“Advanced Storage Properties items” (page 19) for more information.
Unmanaged Data
Space on the logical disk used to store data that is not managed by ASM.
Free Space
Unused storage space on the logical disk that is not allocated.
Table 27 Storage tab: HP Storage System volume properties
Property
Value
Storage System Host Name
Name of your HP Storage System.
Storage System Volume - Name
Name of the volume on your HP Storage System.
Storage System Volume - Status
Status of the volume on your HP Storage System.
Storage System Volume - Exclusive
Storage
Indicates if volume is configured with exclusive storage. See “Advanced Storage
Properties items” (page 19) for more information.
Storage System Volume - RAID Level
The RAID level to which the volume is configured. See “Customizing RAID levels”
(page 20) for more information.
Storage System Volume - RAID Stripe The RAID stripe size to which the volume is configured. See “Advanced Storage
Size
Properties items” (page 19) for more information.
Storage System Volume - Read Cache Speeds up reads when enabled. This setting is determined by the storage array,
not ASM.
Storage System Volume - Write
Cache
Speeds up writes when enabled. This setting is determined by the storage array,
not ASM.
Storage System Volume - Number of The number of hot spares with which the shared folder's storage is configured.
Hot Spares
See “Advanced Storage Properties items” (page 19) for more information.
Storage System Volume - Mount Paths Path on which the volume on your HP Storage System is mounted.
Application Server View
Application Server View lists your HP Storage System and the application servers with storage
hosted on your HP Storage System. Expand HP Storage System to display the top-level shared
48
Monitoring storage
folders on your HP Storage System. Expand the application servers listed to display the application
server volumes and the applications hosted on the volumes.
•
In the Actions pane, select Application Server View.
•
To view the properties for all application servers with storage hosted on your HP Storage
System, select Show all from the Filter drop-down menu, located at the top of the content pane.
Application server properties are displayed in order of hierarchy in an expandable and collapsible
view. For example, all the volumes created on the iSCSI LUNs (logical disk) exported by ASM to
the application server are displayed under the application server, and all the application components
hosted from the application server are displayed under the application server.
Click the Expand tree icon next to each application server to view the used and allocated storage
properties for the volume and application components. Click the Collapse tree icon next to an
expanded application server to hide the volume and application component storage properties.
To view all the storage properties for an item listed in the content pane, see “Accessing application
server properties” (page 49).
Accessing application server properties
When Application Server View is selected in the Actions pane, you can view the storage status,
alerts, and properties for the following:
•
Volumes created on the iSCSI LUNs (logical disks) exported by ASM to the application servers
•
Shared folders and application components (same information displayed on Application View)
Do one of the following:
•
Select the item in the content pane and then click Properties in the Actions pane.
•
Right-click the item in the content pane and select Properties.
See “Accessing application and shared folder properties” (page 37) for descriptions of shared
folder and application component properties.
Accessing properties for application server volumes
ASM provides properties information for application server volumes created on the iSCSI LUNs
exported by ASM to the application server.
1.
2.
In the Actions pane, select Application Server View.
Do one of the following:
•
Select an application server volume in the content pane and then click Properties in the
Actions pane.
•
Right-click an application server volume in the content pane and select Properties.
Application Server View
49
3.
Click one of the following tabs:
•
General tab—Displays the name of the volume on the application server, the volume type,
and status:
Table 28 Operating status: Application server volume properties
•
Status indicator
Value
OK
The storage is online.
Warning
See the Alerts list for more information.
Critical
See the Alerts list for more information.
Storage tab—Displays the unallocated space, used space, free space on the volume, and
the following storage allocation details:
Table 29 Storage tab: Application server volume properties
Property
Value
Application Server Host Name
Name of the application server where the volume resides.
Application Server Volume Name
Name of the volume on the application server. Volume is located on the
iSCSI LUN exported by ASM.
Application Server Volume Status
Status of the volume on the application server.
Application Server Volume Exclusive Storage
Indicates if the volume on the application server is configured with
exclusive storage. See “Advanced Storage Properties items” (page 19)
for more information.
Application Server Volume - RAID The RAID level to which the volume on the application server is
Level
configured. See “Customizing RAID levels” (page 20) for more
information.
Application Server Volume - RAID The RAID stripe size to which the volume on the application server is
Stripe Size
configured. See “Advanced Storage Properties items” (page 19) for
more information.
Application Server Volume - Read Speeds up reads when enabled. This setting is determined by the storage
Cache
array, not ASM.
Application Server Volume Write Cache
Speeds up writes when enabled. This setting is determined by the storage
array, not ASM.
Application Server Volume Number of Hot Spares
The number of hot spares with which the volume on the application server
is configured. See “Advanced Storage Properties items” (page 19) for
more information.
Application Server Volume Mount Paths
Path the volume is mounted on.
Storage Utilization View
Storage Utilization View displays the allocated storage values for specific applications and the
shared folders pool, the unallocated storage value, and the storage value for data not managed
by ASM in a pie chart.
•
In the Actions pane, select Storage Utilization View.
The storage value for each application hosted, the shared folders pool, unallocated storage, and
data not managed by ASM is displayed according to its percentage of total capacity, using colors
selected in the Color Options window.
50
Monitoring storage
The total capacity of your HP Storage System is divided into the following areas:
•
Exchange—Storage allocated to host Exchange storage group components.
•
Shared Folders—Storage allocated to host shared folders.
•
SQL Server—Storage allocated to host SQL Server database components.
•
User-defined—Storage allocated to host user-defined applications.
•
Data Protection — Storage allocated to host snapshots, backups, and replicated data.
•
Unallocated—Unused storage that is not allocated.
The unallocated space value is the total unused space on your HP Storage System that has
not been allocated to host application or shared folder storage. Unallocated storage includes
raw (unconfigured) storage and unused configured storage (logical disks).
•
Unmanaged—Storage used by data that is not managed by ASM.
The unmanaged value is the total storage being used to store data not managed by ASM,
such as application or shared folder data no longer managed by ASM because the application
components or shared folder was removed from view (see “Removing application areas from
view” (page 34)) and any other data saved on your HP Storage System that is not managed
by ASM.
NOTE: Logical disks (LUNs) being used to store application data or shared folders cannot be
grown (increased in size) by ASM using space on unused logical disks (configured storage); they
can only be grown using raw storage.
Unused logical disks are reallocated by ASM when an unhosted application component, shared
folder, or user-defined application's storage is hosted using a storage-allocation wizard and the
advanced configuration settings selected in the wizard match those of the unused logical disk. You
can find the advanced configuration settings and capacities of unused (and used) logical disks on
the Properties window for each logical disk (see “Accessing properties for HP Storage System
logical disks” (page 47)).
Automated Storage Manager Alerts
ASM generates an alert when the status of an application area or storage area changes from OK
to Warning or Critical. The alerts describe the condition that caused the storage status to change.
When an alert is generated, a One or more alerts exist message appears in the ASM content
pane. Click the message to display a list of current ASM alerts.
NOTE: ASM rolls up any status alert to the highest level. For instance, if a shared folder has
surpassed its percent full warning threshold and exceeded its allocated storage space, a warning
icon is shown on the shared folders pool icon. Likewise, if a critical status exists in an Exchange
mail store, the critical icon is also shown on the Exchange storage group icon.
Automated Storage Manager Alerts
51
7 Troubleshooting Automated Storage Manager
The following list documents recommended workarounds for conditions related to Automated
Storage Manager. For information specific to a particular product release, see the HP Automated
Storage Manager Release Notes for your product version.
The ASM Grow/Extend Volume command fails intermittently.
The Grow/Extend Volume command sometimes returns a failure even though the operation completes successfully and
the volume capacity matches the requested size.
Workaround: Retry the operation after completing the Discovery process.
Backup and/or Restore operations in ASM may fail if there is more than one File Volume (partition) configured on an
iSCSI-Based LUN (disk)
Workaround: Do not perform backup or restore operations in ASM on storage where more than one File Volume is
hosted on a single iSCSI LUN. ASM never provisions more than one volume on iSCSI LUNs, and this situation will not
be encountered for storage provisioned by ASM.
Data protection settings are not modified for storage areas that are promoted by ASM
If data protection settings (snapshots and backup) are applied to a remote user-defined storage area, and then a SQL
Server database or Exchange database is manually migrated to this storage area, ASM automatically promotes the
application to a SQL or Exchange Storage area during the discovery process. ASM does not, however, adjust the
data protection settings that were originally applied to the area. This may lead to failures when taking snapshots or
running backups.
Workaround: When SQL Server or Exchange databases that are part of user-defined storage areas are promoted to
SQL or Exchange storage areas in ASM, disable and delete all data protection settings for those areas (snapshots and
backup) and reset them using ASM.
Troubleshooting Data Protector Express
This section describes workarounds for conditions related to HP StorageWorks Data Protector
Express (DPX), a service required to enable data protection features on the HP ASM. Note that
DPX is not installed on HP StorageWorks X1000 Network Storage Systems by default. The following
applies only to storage systems with DPX installed and enabled.
DPX Virtual Tape Libraries show up as User Defined Applications in ASM after running System Recovery
DPX Virtual Tape Libraries that are not backed up prior to running the System Recovery process appear as User-Defined
Applications in the ASM UI after the system recovery process is complete.
Workaround: Before running System recovery, back up all DPX files and configuration settings and reapply them after
the System Recovery process is complete.
Changes made to a backup using Data Protector Express are not always reflected in ASM
If you use Data Protector Express to change the rotation type associated with a backup to Custom rotation, the change
is not reflected in ASM.
Workaround: Data Protector Express can be used to change the rotation type of a backup to Custom rotation, however,
this change will not be reflected in ASM. If you need to use a custom rotation, HP recommends that you continue to
use Data Protector Express to make any further changes to the backup.
52
Troubleshooting Automated Storage Manager
Backup job fails for Exchange storage groups that were manually migrated to the storage system
It is possible to manually create a virtual hard disk on the storage system using the Microsoft Software iSCSI Target
snap-in. This disk may then be assigned to a target, allowing an iSCSI initiator on the Exchange server to access the
disk as a local volume.
If the logs and database(s) of an Exchange storage group are then moved to this iSCSI volume, ASM will discover the
Exchange Storage Group, and present it as an application in the ASM user interface. This will allow you to configure
data protection for the application and schedule a DPX backup; however, when the backup job runs, it fails.
The job status in DPX will be operator canceled, and the following error is written to the Windows application event
log on the storage system:
Stopping backup job '<job name>' due to checksum verification failure.
The error occurs because ASM performs checksum verifications using the eseutil.exe utility on Exchange databases
and logs before backing up the files. Databases and logs are expected to be found in separate volumes as a best
practice method employed by ASM when a wizard is used to migrate an Exchange storage group to the storage
system. When the logs are not found, the checksum fails and ASM cancels the backup job and notifies Exchange that
the backup did not complete successfully.
Workaround: Manually create another iSCSI virtual hard disk and make it accessible to the Exchange server:
1. Use the Exchange Management Console to move the storage group path for the log files and system files to the
new volume, leaving the database at the original iSCSI volume.
2. After modifying the paths in Exchange, click Refresh in the ASM user interface to force a discovery.
3. The application area for log files will now show an alert. Right click on this area and select Remove from view.
4. Another discovery will be performed and ASM will restore the log file area into the user interface with corrected
properties, such as the new location on the Exchange server.
For backup jobs from ASM to work properly, each database and the log files/system files must be on a separate iSCSI
volume. For example, if a storage group contains one mail store and one public folder store, three iSCSI volumes
should be used, one for each database, and one for the log and system files.
Performing a “Remove from View” on a Virtual Library causes the library to appear as a User-Defined application
If a virtual library is deleted from Data Protector Express, and then the Remove from View option is used on the virtual
library in ASM, the virtual library is removed from the Data Protection view, but appears in the User Defined view.
Workaround:
1. Use Data Protector Express to stop and then delete the Virtual Library Device.
a. In Data Protector Express, select the Devices icon from the Favorites pane on the left.
b. In the right pane, navigate until the desired device is displayed.
c. Right-click the Virtual Library device and select Stop.
d. After the device has been stopped, right-click again and select Delete.
2. Delete the storage folder used by Data Protector Express to store the backup data. The storage folder path can be
found by right-clicking on the virtual library in ASM, selecting Properties, and then selecting the Storage tab.
3. Right-click on the virtual library in ASM and select Remove from view.
Troubleshooting Data Protector Express
53
8 Support and other resources
Contacting HP
For worldwide technical support information, see the HP support website:
http://www.hp.com/support
Before contacting HP, collect the following information:
•
Product model names and numbers
•
Technical support registration number (if applicable)
•
Product serial numbers
•
Error messages
•
Operating system type and revision level
•
Detailed questions
Subscription service
HP recommends that you register your product at the Subscriber's Choice for Business website:
http://www.hp.com/go/e-updates
After registering, you will receive e-mail notification of product enhancements, new driver versions,
firmware updates, and other product resources.
54
Support and other resources
Index
A
accessing application and shared folder properties, 37
accessing application server properties, 49
accessing properties
for application server volumes, 49
for Exchange, 37
for HP Storage System logical disks, 47
for HP Storage System volumes, 47
for shared folders pools, 40
for SQL Server, 41
for the user-defined application pool, 43
for virtual libraries, 45
accessing storage area properties, 47
Application Server View, 36, 48
application server volumes
accessing properties, 49
operating status values, 50
Storage properties, 50
Application View, 36
Automated Storage Manager
user interface options, 7
C
contacting HP, 54
D
Data file properties, 43
Details properties
Exchange storage groups, 38
H
help
obtaining, 54
HP
technical support, 54
HP Storage System alerts
operating status values, 47
HP Storage System logical disks
accessing properties, 47
Storage properties, 48
HP Storage System volumes
accessing properties, 47
Storage properties, 48
Microsoft Exchange storage groups
Details properties, 38
monitoring storage, 36
O
operating status values
application server volumes, 50
Exchange, 37, 42
HP Storage System alerts, 47
shared folders, 40
user-defined applications, 44
virtual libraries, 45
P
PublicStore database, 39
S
shared folders
operating status values, 40
Storage properties, 41
shared folders pool
accessing properties, 40
SQL Server
accessing properties, 41
SQL Server database components
Storage properties, 43
SQL Server properties
operating status values, 42
status icons, 36
Storage properties
Exchange storage group components, 39
shared folders, 41
SQL Server database components, 43
Storage View, 36, 46
Subscriber's Choice, HP, 54
T
technical support
HP, 54
U
L
user-defined application pool
accessing properties, 43
user-defined applications
operating status values, 44
storage properties, 45
log file properties for database, 43
log properties for storage groups, 40
V
M
virtual libraries
operating status values, 45
storage properties, 46
Mailstore database, 39
Microsoft Exchange Server
accessing properties, 37
operating status values, 37
Microsoft Exchange storage group components
Storage properties, 39
W
Warning Threshold, 33, 43, 45, 46
websites
HP Subscriber's Choice for Business, 54
55
Download PDF

advertising
