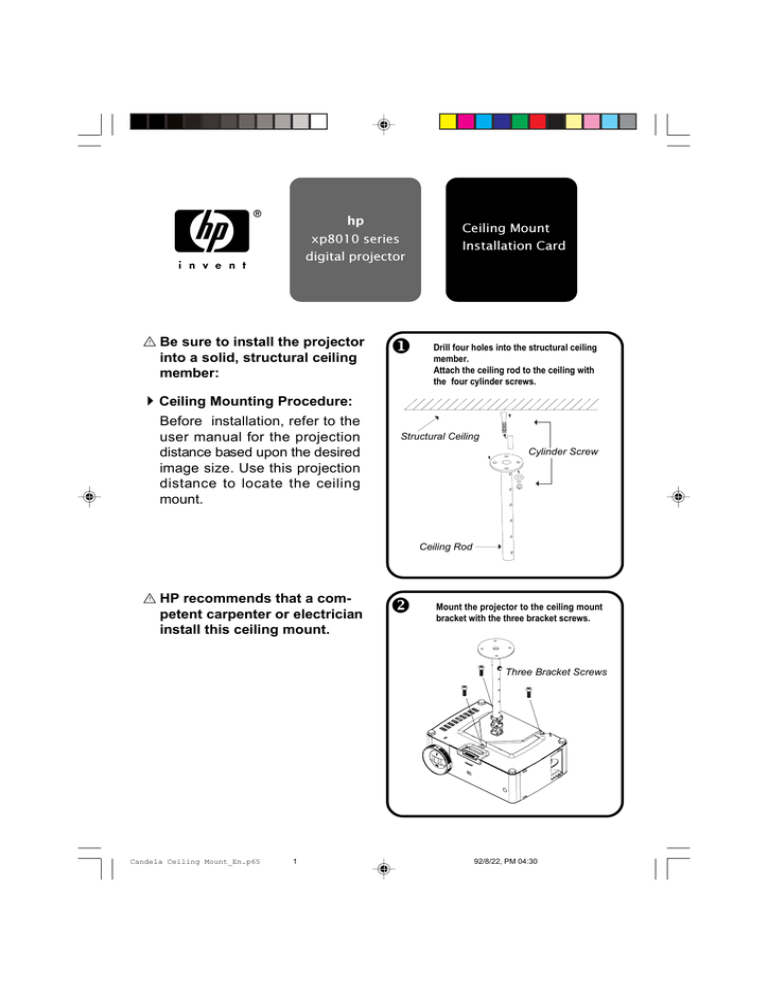

H
!
hp
xp8010 series
digital projector
Be sure to install the projector
into a solid, structural ceiling
member:
u
Ceiling Mount
Installation Card
Drill four holes into the structural ceiling
member.
Attach the ceiling rod to the ceiling with
the four cylinder screws.
4 Ceiling Mounting Procedure:
Before installation, refer to the
user manual for the projection
distance based upon the desired
image size. Use this projection
distance to locate the ceiling
mount.
Structural Ceiling
Cylinder Screw
Ceiling Rod
!
HP recommends that a competent carpenter or electrician
install this ceiling mount.
v
Mount the projector to the ceiling mount
bracket with the three bracket screws.
Three Bracket Screws
Candela Ceiling Mount_En.p65
1
92/8/22, PM 04:30
w
Attach the ceiling bracket to the ceiling rod with
the round thumbscrew. Height adjustments can
be made by using different holes on the ceiling
rod and ceiling bracket.
v
The total adjustment range is15.75 to 25.6
inches (40~65cm). Adjusments can be
made in one inch (2.5cm) increments.
Round Thumbscrew
Ceiling Bracket
x
Make necessary roll and yaw adjustments to the projector.
(YAW ADJUSTMENT)
(ROLL ADJUSTMENT)
180°
±60°
v
C
±20°
Open the on-screen menu and select Setup > Projector Position. Select the
appropriate ceiling option.
Copyright Hewlett-Packard Company 2003
First Edition (August 2003)
Printed in Taiwan
Candela Ceiling Mount_En.p65
2
P/N 36.87108.001-A
92/8/22, PM 04:30
