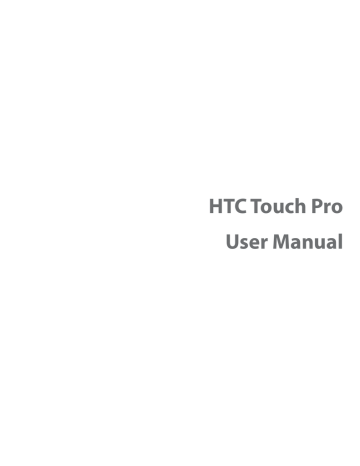

HTC Touch Pro
User Manual
Please Read Before Proceeding
THE BATTERY IS NOT CHARGED WHEN YOU TAKE IT OUT OF THE BOX.
DO NOT REMOVE THE BATTERY PACK WHEN THE DEVICE IS CHARGING.
YOUR WARRANTY IS INVALIDATED IF YOU OPEN OR TAMPER WITH THE DEVICE’S OUTER
CASING.
PRIVACY RESTRICTIONS
Some countries require full disclosure of recorded telephone conversations, and stipulate that you must
inform the person with whom you are speaking that the conversation is being recorded. Always obey the
relevant laws and regulations of your country when using the recording feature of your PDA Phone.
INTELLECTUAL PROPERTY RIGHT INFORMATION
Copyright © 2008 HTC Corporation. All Rights Reserved.
HTC, the HTC logo, HTC Innovation, ExtUSB, TouchFLO, Touch Pro and HTC Care are trademarks and/or service
marks of HTC Corporation.
Microsoft, MS-DOS, Windows, Windows NT, Windows Server, Windows Mobile, Windows XP, Windows Vista,
ActiveSync, Windows Mobile Device Center, Internet Explorer, MSN, Hotmail, Windows Live, Outlook, Excel,
PowerPoint, Word, OneNote and Windows Media are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
Bluetooth and the Bluetooth logo are trademarks owned by Bluetooth SIG, Inc.
Copyright © 2008, Adobe Systems Incorporated. All Rights Reserved.
microSD is a trademark of SD Card Association.
Opera® Mobile from Opera Software ASA. Copyright 1995-2008 Opera Software ASA. All Rights Reserved.
Google is a registered trademark of Google, Inc. in the United States and other countries.
Copyright © 2001-2008, Spb Software House. All Rights Reserved.
Copyright © 2008, Esmertec AG. All Rights Reserved.
Copyright © 2003-2008, ArcSoft, Inc. and its licensors. All Rights Reserved. ArcSoft and the ArcSoft logo are
registered trademarks of ArcSoft, Inc. in the United States and/or other countries.
Copyright © 2004-2008, Ilium Software, Inc. All Rights Reserved.
All other company, product and service names mentioned herein are trademarks, registered trademarks or
service marks of their respective owners.
HTC shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or
consequential damages resulting from furnishing this material. The information is provided “as is” without
warranty of any kind and is subject to change without notice. HTC also reserves the right to revise the content
of this document at any time without prior notice.
No part of this document may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying, recording or storing in a retrieval system, or translated into any
language in any form without prior written permission of HTC.
Disclaimers
THE WEATHER INFORMATION, DATA AND DOCUMENTATION ARE PROVIDED “AS IS” AND WITHOUT WARRANTY
OR TECHNICAL SUPPORT OF ANY KIND FROM HTC. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE
LAW, HTC AND ITS AFFILIATES expressly disclaim any and all representations and warranties, express or
implied, arising by law or otherwise, regarding the Weather Information, Data, Documentation, or any other
Products and services, including without limitation any express or implied warranty of merchantability,
express or implied warranty of fitness for a particular purpose, non-infringement, quality, accuracy,
completeness, effectiveness, reliability, usefulness, that the Weather Information, Data and/or Documentation
will be error-free, or implied warranties arising from course of dealing or course of performance.
Without limiting the foregoing, it is further understood that HTC and its Providers are not responsible for Your
use or misuse of the Weather Information, Data and/or Documentation or the results from such use. HTC and
its Providers make no express or implied warranties, guarantees or affirmations that weather information
will occur or has occurred as the reports, forecasts, data, or information state, represent or depict and it shall
have no responsibility or liability whatsoever to any person or entity, parties and non-parties alike, for any
inconsistency, inaccuracy, or omission for weather or events predicted or depicted, reported, occurring or
occurred. WITHOUT LIMITING THE GENERALITY OF THE FOREGOING, YOU ACKNOWLEDGE THAT THE WEATHER
INFORMATION, DATA AND/OR DOCUMENTATION MAY INCLUDE INACCURACIES AND YOU WILL USE COMMON
SENSE AND FOLLOW STANDARD SAFETY PRECAUTIONS IN CONNECTION WITH THE USE OF THE WEATHER
INFORMATION, DATA OR DOCUMENTATION.
Limitation of Damages
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HTC OR ITS PROVIDERS
BE LIABLE TO USER OR ANY THIRD PARTY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR
PUNITIVE DAMAGES OF ANY KIND, IN CONTRACT OR TORT, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF
REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA, AND/OR LOSS OF PROFITS
ARISING OUT OF, OR RELATED TO, IN ANY MANNER, OR THE DELIVERY, PERFORMANCE OR NONPERFORMANCE
OF OBLIGATIONS, OR USE OF THE WEATHER INFORMATION, DATA OR DOCUMENTATION HEREUNDER
REGARDLESS OF THE FORESEEABILITY THEREOF.
Important Health Information and Safety Precautions
When using this product, the safety precautions below must be taken to avoid possible legal liabilities and
damages.
Retain and follow all product safety and operating instructions. Observe all warnings in the operating
instructions on the product.
To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following
precautions.
ELECTRICAL SAFETY
This product is intended for use when supplied with power from the designated battery or power supply unit.
Other usage may be dangerous and will invalidate any approval given to this product.
SAFETY PRECAUTIONS FOR PROPER GROUNDING INSTALLATION
CAUTION: Connecting to an improperly grounded equipment can result in an electric shock to your device.
This product equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your
computer is properly grounded (earthed) before connecting this product to the computer. The power supply
cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with
all local codes and ordinances.
SAFETY PRECAUTIONS FOR POWER SUPPLY UNIT
• Use the correct external power source
A product should be operated only from the type of power source indicated on the electrical ratings
label. If you are not sure of the type of power source required, consult your authorized service provider
or local power company. For a product that operates from battery power or other sources, refer to the
operating instructions that are included with the product.
• Handle battery packs carefully
This product contains a Li-ion battery. There is a risk of fire and burns if the battery pack is handled
improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture,
short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures
higher than 60˚C (140˚F).
W
ARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not
disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (140° F), or
dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries
according to the local regulations or reference guide supplied with your product.
• Take extra precautions
• Keep the battery or device dry and away from water or any liquid as it may cause a short circuit.
• Keep metal objects away so they don’t come in contact with the battery or its connectors as it may
lead to short circuit during operation.
• The phone should be only connected to products that bear the USB-IF logo or have completed the
USB-IF compliance program.
• Do not use a battery that appears damaged, deformed, or discolored, or the one that has any rust
on its casing, overheats, or emits a foul odor.
• Always keep the battery out of the reach of babies and small children, to avoid swallowing of the
battery. Consult the doctor immediately if the battery is swallowed.
• Only use the battery with a charging system that has been qualified with the system per this
standard, IEEE-Std-1725-2006. Use of an unqualified battery or charger may present a risk of fire,
explosion, leakage or other hazard.
• Replace the battery only with another battery that has been qualified with the system per this
standard, IEEE-Std-1725-2006. Use of an unqualified battery may present a risk of fire, explosion,
leakage or other hazard.
• Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard
surface, and the user suspects damage, take it to a service centre for inspection.
• If the battery leaks:
• Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact,
flush the affected area immediately with clean water and seek medical advice.
• Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub;
rinse with clean water immediately and seek medical advice.
• Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition
or explosion.
SAFETY PRECAUTIONS FOR DIRECT SUNLIGHT
Keep this product away from excessive moisture and extreme temperatures. Do not leave the product or
its battery inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car
dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for
extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle.
PREVENTION OF HEARING LOSS
CAUTION: Avoid potential hearing loss
Prolonged exposure to loud sounds (including music) is the most common cause of preventable hearing
loss. Some scientific research suggests that using portable audio devices, such as portable music players and
cellular telephones, at high volume settings for long durations may lead to permanent noise-induced hearing
loss. This includes the use of headphones (including headsets, earbuds and Bluetooth® or other wireless
devices). Exposure to very loud sound has also been associated in some studies with tinnitus (a ringing in the
ear), hypersensitivity to sound and distorted hearing. Individual susceptibility to noise-induced hearing loss
and other potential hearing problems varies.
The amount of sound produced by a portable audio device varies depending on the nature of the sound, the
device, the device settings and the headphones. You should follow some commonsense recommendations
when using any portable audio device:
• Set the volume in a quiet environment and select the lowest volume at which you can hear adequately.
• When using headphones, turn the volume down if you cannot hear the people speaking near you or if
the person sitting next to you can hear what you are listening to.
• Do not turn the volume up to block out noisy surroundings. If you choose to listen to your portable
device in a noisy environment, use noise-cancelling headphones to block out background
environmental noise.
• Limit the amount of time you listen. As the volume increases, less time is required before your hearing
could be affected.
• Avoid using headphones after exposure to extremely loud noises, such as rock concerts, that might
cause temporary hearing loss. Temporary hearing loss might cause unsafe volumes to sound normal.
• Do not listen at any volume that causes you discomfort. If you experience ringing in your ears, hear
muffled speech or experience any temporary hearing difficulty after listening to your portable audio
device, discontinue use and consult your doctor.
You can obtain additional information on this subject from the following sources:
American Academy of Audiology
11730 Plaza American Drive, Suite 300
Reston, VA 20190
Voice: (800) 222-2336
Email: [email protected]
Internet: www.audiology.org
National Institute on Deafness and Other Communication Disorders
National Institutes of Health
31 Center Drive, MSC 2320
Bethesda, MD USA 20892-2320
Voice: (301) 496-7243
Email: [email protected]
Internet: http://www.nidcd.nih.gov/health/hearing
National Institute for Occupational Safety and Health
Hubert H. Humphrey Bldg.
200 Independence Ave., SW
Washington, DC 20201
Voice: 1-800-35-NIOSH (1-800-356-4674)
Internet: http://www.cdc.gov/niosh/topics/noise/default.html
SAFETY IN AIRCRAFT
Due to the possible interference caused by this product to an aircraft’s navigation system and its
communications network, using this device’s phone function on board an airplane is against the law in most
countries. If you want to use this device when on board an aircraft, remember to turn off your phone by
switching to Airplane Mode.
ENVIRONMENT RESTRICTIONS
Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in
progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck
on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains
chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could
cause an explosion or fire resulting in bodily injury or even death.
EXPLOSIVE ATMOSPHERES
When in any area with a potentially explosive atmosphere or where flammable materials exist, the product
should be turned off and the user should obey all signs and instructions. Sparks in such areas could cause
an explosion or fire resulting in bodily injury or even death. Users are advised not to use the equipment at
refueling points such as service or gas stations, and are reminded of the need to observe restrictions on the
use of radio equipment in fuel depots, chemical plants, or where blasting operations are in progress. Areas
with a potentially explosive atmosphere are often, but not always, clearly marked. These include fueling areas,
below deck on boats, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals
or particles, such as grain, dust, or metal powders.
ROAD SAFETY
Vehicle drivers in motion are not permitted to use telephony services with handheld devices, except in the
case of emergency. In some countries, using hands-free devices as an alternative is allowed.
SAFETY PRECAUTIONS FOR RF EXPOSURE
• Avoid using your phone near metal structures (for example, the steel frame of a building).
• Avoid using your phone near strong electromagnetic sources, such as microwave ovens, sound
speakers, TV and radio.
• Use only original manufacturer-approved accessories, or accessories that do not contain any metal.
• Use of non-original manufacturer-approved accessories may violate your local RF exposure guidelines
and should be avoided.
INTERFERENCE WITH MEDICAL EQUIPMENT FUNCTIONS
This product may cause medical equipment to malfunction. The use of this device is forbidden in most
hospitals and medical clinics.
If you use any other personal medical device, consult the manufacturer of your device to determine if they
are adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this
information.
Turn your phone OFF in health care facilities when any regulations posted in these areas instruct you to do so.
Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.
HEARING AIDS
Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may
want to consult your service provider, or call the customer service line to discuss alternatives.
NONIONIZING RADIATION
Your device has an internal antenna. This product should be operated in its normal-use position to ensure
the radiative performance and safety of the interference. As with other mobile radio transmitting equipment,
users are advised that for satisfactory operation of the equipment and for the safety of personnel, it is
recommended that no part of the human body be allowed to come too close to the antenna during operation
of the equipment.
Use only the supplied integral antenna. Use of unauthorized or modified antennas may impair call quality and
damage the phone, causing loss of performance and SAR levels exceeding the recommended limits as well as
result in non-compliance with local regulatory requirements in your country.
To assure optimal phone performance and ensure
human exposure to RF energy is within the guidelines
set forth in the relevant standards, always use your
device only in its normal-use position. Contact with the
antenna area may impair call quality and cause your
device to operate at a higher power level than needed.
Avoiding contact with the antenna area when the
phone is IN USE optimizes the antenna performance
and the battery life.
Antenna location
General Precautions
• Avoid applying excessive pressure to the device
Do not apply excessive pressure on the screen and the device to prevent damaging them and remove the
device from your pants’ pocket before sitting down. It is also recommended that you store the device in a
protective case and only use the device stylus or your finger when interacting with the touch screen. Cracked
display screens due to improper handling are not covered by the warranty.
• Device getting warm after prolonged use When using your device for prolonged periods of time, such as when you’re talking on the phone, charging
the battery or browsing the web, the device may become warm. In most cases, this condition is normal and
therefore should not be interpreted as a problem with the device.
• Heed service markings Except as explained elsewhere in the Operating or Service documentation, do not service any product
yourself. Service needed on components inside the device should be done by an authorized service
technician or provider.
• Damage requiring service Unplug the product from the electrical outlet and refer servicing to an authorized service technician or
provider under the following conditions:
• Liquid has been spilled or an object has fallen onto the product.
• The product has been exposed to rain or water.
• The product has been dropped or damaged.
• There are noticeable signs of overheating.
• The product does not operate normally when you follow the operating instructions.
• Avoid hot areas The product should be placed away from heat sources such as radiators, heat registers, stoves, or other
products (including amplifiers) that produce heat.
• Avoid wet areas Never use the product in a wet location.
• Avoid using your device after a dramatic change in temperature When you move your device between environments with very different temperature and/or humidity ranges,
condensation may form on or within the device. To avoid damaging the device, allow sufficient time for the
moisture to evaporate before using the device.
NOTICE: When taking the device from low-temperature conditions into a warmer environment or from high-temperature
conditions into a cooler environment, allow the device to acclimate to room temperature before turning on
power.
• Avoid pushing objects into product Never push objects of any kind into cabinet slots or other openings in the product. Slots and openings are
provided for ventilation. These openings must not be blocked or covered.
• Mounting accessories Do not use the product on an unstable table, cart, stand, tripod, or bracket. Any mounting of the product
should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the
manufacturer.
• Avoid unstable mounting Do not place the product with an unstable base.
• Use product with approved equipment This product should be used only with personal computers and options identified as suitable for use with
your equipment.
• Adjust the volume Turn down the volume before using headphones or other audio devices.
• Cleaning Unplug the product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning, but NEVER use water to clean the LCD screen.
Contents
Chapter 1 Getting Started................................................................................ 13
1.1 Getting to Know Your Touch Phone and Accessories........................................................14
1.2 Installing the Battery and Storage Card..................................................................................16
1.3 Charging the Battery......................................................................................................................17
1.4 Starting Up........................................................................................................................................18
1.5 Navigating on Your Device..........................................................................................................18
1.6 The Today Screen.............................................................................................................................20
1.7 Status Icons.......................................................................................................................................20
1.8 Start Menu.........................................................................................................................................22
1.9 Quick Menu.......................................................................................................................................22
1.10 LED Alerts........................................................................................................................................23
1.11 Adjusting the Volume.................................................................................................................23
1.12 When Connecting Your Device to a Computer..................................................................24
Chapter 2 Using Phone Features...................................................................... 25
2.1 Using the Phone..............................................................................................................................26
2.2 Voice Call............................................................................................................................................26
2.3 Smart Dial..........................................................................................................................................29
Chapter 3 TouchFLO™ 3D.................................................................................. 31
3.1 About TouchFLO™ 3D....................................................................................................................32
3.2 Using TouchFLO 3D........................................................................................................................32
3.3 Finger Gestures................................................................................................................................42
Chapter 4 Entering Text.................................................................................... 43
4.1 Entering Information.....................................................................................................................44
4.2 Using the Hardware Keyboard...................................................................................................45
4.3 Using the Full QWERTY.................................................................................................................45
4.4 Using the Compact QWERTY......................................................................................................46
4.5 Using the Phone Keypad..............................................................................................................46
4.6 Using Multitap and T9 Modes.....................................................................................................47
4.7 Using Numeric and Symbol Mode............................................................................................48
4.8 Using Block Recognizer.................................................................................................................48
4.9 Using Letter Recognizer................................................................................................................49
4.10 Using Transcriber..........................................................................................................................49
Chapter 5 Synchronizing Information With Your Computer.......................... 51
5.1 About Synchronization.................................................................................................................52
5.2 Setting Up Windows Mobile® Device Center on Windows Vista®..................................53
5.3 Setting Up ActiveSync® on Windows XP®...............................................................................54
5.4 Synchronizing With Your Computer.........................................................................................54
5.5 Synchronizing via Bluetooth.......................................................................................................55
5.6 Synchronizing Music and Video.................................................................................................56
10 Chapter 6 Exchanging Messages...................................................................... 57
6.1 Messaging..........................................................................................................................................58
6.2 Text Messages...................................................................................................................................58
6.3 MMS Messages.................................................................................................................................60
6.4 Types of E-mail Accounts..............................................................................................................62
6.5 E-mail Setup Wizard.......................................................................................................................63
6.6 Using E-mail......................................................................................................................................65
Chapter 7 Working With Company E-mails and Meeting Appointments...... 69
7.1 Synchronizing with the Exchange Server..............................................................................70
7.2 Working With Company E-mails................................................................................................71
7.3 Managing Meeting Requests......................................................................................................73
7.4 Finding Contacts in the Company Directory.........................................................................74
Chapter 8 Internet............................................................................................. 75
8.1 Ways of Connecting to the Internet.........................................................................................76
8.2 Starting a Data Connection.........................................................................................................78
8.3 Using Opera Mobile™....................................................................................................................79
8.4 Using Your Device As a Modem (Modem Link)....................................................................81
Chapter 9 Bluetooth.......................................................................................... 87
9.1 Bluetooth Modes.............................................................................................................................88
9.2 Bluetooth Partnerships.................................................................................................................89
9.3 Connecting a Bluetooth Hands-free or Stereo Headset...................................................89
9.4 Beaming Information Using Bluetooth...................................................................................90
9.5 Bluetooth Explorer and Bluetooth File Sharing...................................................................91
9.6 Printing Files via Bluetooth..........................................................................................................92
Chapter 10 Navigating on the Road................................................................. 93
10.1 Guidelines and Preparation for Using GPS..........................................................................94
Chapter 11 Experiencing Multimedia.............................................................. 95
11.1 Taking Photos and Videos..........................................................................................................96
11.2 Viewing Photos and Videos Using Album......................................................................... 102
11.3 Using Windows Media® Player Mobile............................................................................... 105
11.4 Using Audio Booster................................................................................................................. 108
11.5 Using MP3 Trimmer................................................................................................................... 109
Chapter 12 Programs on your Device............................................................ 111
12.1 Programs on your Device....................................................................................................... 112
12.2 Adding and Removing Programs........................................................................................ 113
12.3 Adobe® Reader® LE.................................................................................................................... 114
12.4 Calendar........................................................................................................................................ 115
12.5 Contacts........................................................................................................................................ 117
12.6 Comm Manager......................................................................................................................... 119
12.7 JETCET™ PRINT............................................................................................................................ 120
12.8 Microsoft® Office Mobile......................................................................................................... 121
12.9 Notes.............................................................................................................................................. 122
11
12.10 Tasks............................................................................................................................................. 123
12.11 Voice Recorder.......................................................................................................................... 123
12.12 WorldCard Mobile................................................................................................................... 124
12.13 ZIP................................................................................................................................................. 126
Chapter 13 Managing Your Device................................................................. 127
13.1 Copying and Managing Files................................................................................................. 128
13.2 Settings on Your Device.......................................................................................................... 129
13.3 Changing Basic Settings......................................................................................................... 131
13.4 Using Task Manager.................................................................................................................. 133
13.5 Protecting Your Device............................................................................................................ 134
13.6 Connecting to an External Display...................................................................................... 135
13.7 Managing Memory................................................................................................................... 136
13.8 Resetting Your Device.............................................................................................................. 136
13.9 Windows Update...................................................................................................................... 137
13.10 Battery Saving Tips................................................................................................................. 138
Appendix........................................................................................................... 139
A.1 Specifications................................................................................................................................ 140
A.2 Regulatory Notices...................................................................................................................... 141
A.3 Additional Safety Information................................................................................................ 144
Index ................................................................................................................ 149
12 Chapter 1 Getting Started
1.1 Getting to Know Your Touch Phone
and Accessories
1.2 Installing the Battery and Storage
Card
1.3 Charging the Battery
1.4 Starting Up
1.5 Navigating on Your Device
1.6 The Today Screen
1.7 Status Icons
1.8 Start Menu
1.9 Quick Menu
1.10 LED Alerts
1.11 Adjusting the Volume
1.12 When Connecting Your Device to a
Computer
14 Getting Started
1.1 Getting to Know Your Touch Phone and Accessories
Top panel
POWER
Press to turn off the display temporarily. To turn off the power, press and hold for about 5 seconds. For more information, see “Starting Up” in this chapter.
Speaker
Front panel
Hardware Keyboard
See Chapter 4 for details. Touch Screen
Earpiece
Listen to a phone call
from here.
HOME
Press to return to the Today screen.
BACK
Press to return to the previous
screen.
END
•Press to end a call or return to the
Today screen.
•Press and hold to perform a specified
action (for example, lock the device).
(See “Long Press End Key” under
“Settings on your Device” in Chapter
13 for details.)
TALK/SEND
• Press to answer an incoming call or dial a number.
• During a call, press and hold to toggle the
speakerphone on and off.
• Press and hold to use Voice Speed Dial. (See Chapter 12 for details.)
Navigation Control
This Navigation Control is both presssensitive and touch-sensitive.
See “Navigation Control” later in this
chapter for details.
Note When using the four buttons — HOME, BACK, TALK/SEND, and END — and the Navigation Control, please observe
the following precautions:
•Make sure to press on the icons of the four buttons for the best accuracy. When pressing on the Navigation
Control, make sure to press the outer areas near the ENTER button for directional control.
• For best results, press with your fingertip. Do not wear gloves.
Getting Started 15
Bottom panel
Microphone
Reset
With the stylus, press the
Reset button to soft-reset
the device.
Sync Connector/Earphone Jack
• Connect the supplied USB cable to synchronize information or plug in the
AC adapter to recharge the battery.
• Connect the supplied USB stereo headset for hands-free conversation or
for listening to audio media.
• Connect an HTC composite video and audio cable (purchased separately)
to output the device screen contents and device audio to an external
viewing device.
Left panel
VOLUME UP
During a call or when playing
music, press this button to increase
the volume.
Back panel
Right panel
3.2 Megapixel Camera
See “Taking Photos and Videos”
in Chapter 11 for details.
Flash Light
VOLUME DOWN
During a call or when
playing music, press
this button to lower the
volume.
Back Cover
Push the back cover upward
to remove it.
Stylus
(See “Stylus” in this
chapter for details.)
16 Getting Started
Accessories
The product package includes the following items and accessories:
• Standard Lithium Ion Battery
• AC Charger
• Mini USB Sync and Charging Cable
• Multifunction Audio Cable
• Read First Poster and Quick Reference Guide
• Getting Started CD (includes User Guide)
• VZ Access Manager CD
• Spare Stylus
1.2 Installing the Battery and Storage Card
Always turn off your device before installing or replacing the battery and storage card. You also need to
remove the back cover before you can install these components.
To remove the back cover
1. Make sure your device is turned off.
2. Hold the device with both hands and the front panel facing
down.
3. Push the back cover up with your thumb until it disengages
from the device and then slide it up to remove
Battery
Your device comes with a rechargeable Lithium-ion or Lithium-ion polymer battery and is designed to use
only manufacturer-specified original batteries and accessories. Battery performance depends on many
factors, including network configuration, signal strength, the temperature of the environment in which you
operate your device, the features and/or settings you select and use, items attached to connecting ports, and
your voice, data, and other program usage patterns.
Battery life estimates (approximations):
• Standby time: Up to 350 hours
• Talk time: Up to 250 minutes
Note Battery life is subject to network and phone usage.
Warning!
To reduce risk of fire or burns:
• Do not attempt to open, disassemble, or service the battery pack.
• Do not crush, puncture, short external contacts, or dispose of in fire or water.
• Do not expose to temperatures above 60oC (140oF).
• Replace only with the battery pack designated for this product.
• Recycle or dispose of used battery as stipulated by local regulations.
Getting Started 17
To install the battery
1. Align the battery’s exposed copper contacts with the battery
connectors inside the battery compartment.
2. Insert the contact’s side of the battery first and then gently
push the battery into place.
3. Replace the back cover.
To remove the battery
1. Make sure your device is turned off.
2. Remove the back cover.
3. The bottom right side of the battery has a protruding grip. Lift
the protruding grip to remove the battery.
Battery grip
Storage card
To have additional storage for your images, videos, music, and files, you can purchase a microSD™ card and
install it into the your device.
To install a microSD card
Insert the microSD™ card into the slot with its gold contacts facing
down.
To remove the microSD card, press it to eject it from the slot.
Note A microSD card is not included in the box.
1.3 Charging the Battery
New batteries are shipped partially charged. Before you start using your device, it is recommended that you
install and charge the battery. Some batteries perform best after several full charge/discharge cycles.
To charge the battery
1. Connect the USB connector of the AC adapter to the sync connector on your device.
2. Plug in the AC adapter to an electrical outlet to start charging the battery.
Note Only the AC adapter and USB sync cable provided with your device must be used to charge the device.
Charging is indicated by a “breathing” white light around the Navigation Control. As the battery is being
charged while the power is on, a charging icon (
) also appears in the title bar of the Today screen. After the battery has been fully charged, the Navigation Control LED shows a solid white light and a full
battery icon (
) appears in the title bar of the Today screen.
For more information about the Navigation Control LED, see “LED Alerts” in this chapter.
Warning! • Do not remove the battery from the device while you are charging it using the AC or car adapter.
• As a safety precaution, the battery stops charging when it overheats.
18 Getting Started
1.4 Starting Up
After installing and charging the battery, you can now power on and start using your device.
Turn your device on and off
To turn on the power
1. Press and hold the POWER button for a few seconds.
2. When you turn on your device for the first time, a Quick Start Wizard guides you to set up regional
settings, date and time, and password. For more information about these settings, see Chapter 13. After the Quick Start Wizard finishes, you can start using the device.
To turn off the power
1. Press and hold the POWER button for a few seconds.
2. Tap Yes when a message prompts you to choose whether or not to turn off the device completely.
Switch to Sleep mode when not in use
Press and immediately release the POWER button to turn off the display temporarily and switch your device
to Sleep mode. Sleep mode suspends your device to a low power state while the display is off in order to save
battery power.
Your device automatically goes into Sleep mode when you leave the device idle after a certain period of time.
You will still be able to receive messages and calls while your device is in Sleep mode. Pressing the POWER
button again, removing the stylus, or incoming calls/messages will wake up your device.
1.5 Navigating on Your Device
There are different ways you can navigate and interact with the interface of your device.
Finger-touch control
A quick and easy way to interact with the Today screen and the whole interface of your device is by touch.
Basically, the following are the types of actions, called finger gestures, you would use when interacting with
your device:
Touch or tap
When selecting items on the screen, such as the Start menu, programs and settings icons, and large on-screen
buttons, simply touch them with your finger. Apply some pressure with your finger pad when touching an
item on the screen.
Tapping means to touch lightly and quickly with your finger pad or fingertip. On screens that display smallersize items, you can more accurately select an item by tapping it with your fingertip.
Finger zooming and panning
In programs such as Album and Opera Mobile, you can use finger gestures when zooming and panning. See
Chapter 3, 8 and 11 for details.
Scrolling
When browsing the contacts list, web pages, and documents, slowly swipe your finger vertically across the
screen to scroll. This allows you to scroll by page and to view the content or available selections as you scroll.
The direction of swiping resembles the way you move a printed document as you are reading it.
For detailed instructions, see “Finger scrolling” in Chapter 3. .
Getting Started 19
Slide
Sliding on the touch screen also involves dragging with your finger, but you need to press and hold your
finger with some pressure before you start to drag. While dragging, do not release your finger until you have
reached the target position.
Advancing playback
In players that have a progress bar, such as Windows Media® Player Mobile, slide your finger horizontally on
the progress bar to advance forward or move backward in the music or video you are playing.
Flick
Flicking the screen is similar to swiping, except that you need to swipe your finger in light, quicker strokes.
This finger gesture is always in a vertical direction, such as when flicking the contacts list.
Stylus
You can use the stylus to navigate and interact with the touch
screen. To use the stylus, pull it out from the stylus compartment at
the bottom of the right panel of your device. If the backlight is off,
removing the stylus automatically turns the backlight back on.
The stylus is magnetic and sticks to the side when held close to the
device. This prevents you from accidentally losing or misplacing the
stylus.
Basically, you tap with the stylus to open programs and select items on the screen, and you tap and hold on
the screen to open a shortcut menu. You can also use the stylus the same way as what you do with finger
gestures, such as swiping, sliding and flicking on the screen.
Navigation Control
On the Today screen and in many programs on your device, you can use the Navigation Control for directional
control. Press the directional arrows to navigate up, down, left, and right on the screen. When an item has
been selected on the screen, press the ENTER button (the center button) to confirm your selection.
The Navigation Control is also touch sensitive and can be used for zooming. Slide your finger clockwise
around the Navigation Control to zoom in, counterclockwise to zoom out.
Sliding your finger clockwise
Sliding your finger
counterclockwise
The following programs allow you to use the Navigation Control for zooming:
• Album
• Opera Mobile
• Camera
• Word Mobile and Excel Mobile
Tip
If you purchase and install GPS navigation software on your device, you can also use the Navigation Control for
zooming in the GPS software.
20 Getting Started
1.6 The Today Screen
The Today screen displays important information, such as upcoming appointments, number of new messages,
and your tasks. You can tap an item on the Today screen to open the associated program.
• To access the Today screen, tap Start > Today.
• To customize the Today screen display, including the background image, tap Start > Settings >
Personal tab > Today.
1
23 4 56
7
8
9
10
11
12
13
14
1
2
3
4
5
6
Tap to open the Start menu.
Displays connectivity status.
Indicates the radio signal strength.
Device/ringer volume icon.
Indicates the battery status.
Opens the Quick Menu (see “The Quick Menu” in this chapter for
details).
7 Displays the current date and time. Tap to set up date, time, alarm,
and more.
8 Displays the service provider name.
9 Getting Started provides a list of “how to’s” that you can reference to
learn basic features and settings of your device.
10 Indicates the incoming messages. Tap to open Messaging.
11 Reminds you of upcoming appointment(s). Tap to open Calendar.
12 Tap
to lock the device. The icon changes to . Tap Unlock on the Today screen to unlock again.
13 Tap to open Calendar.
14 Tap to open Contacts.
1.7 Status Icons
When you touch or tap the icon area of the title bar, the System Status screen opens and displays larger status
icons so you can touch them with your finger more easily and accurately.
Tip
The System Status screen can be disabled in TouchFLO settings. See “Settings on Your Device” in Chapter 13 for
details.
Getting Started 21
The following are some of the status icons that you may see on the device.
1
1
2
3
Icons that appear in this area
4
5
3
Icons that appear in this area
Multiple notifications; tap the icon to
view all
Data connection is active but idle
New e-mail messages
Data connection is active and
transmitting data
New text messages;
SMS notification of voice mail
Maximum signal strength
New MMS messages
No signal
Missed call
Phone is turned off
Speakerphone on
No phone service
Roaming
Searching for phone service
Alarm
Voice call in progress
Other wireless network(s) detected
Wired headset connected
Bluetooth on
4
Icons that appear in this area
Bluetooth visible mode on
Vibrate mode
Bluetooth stereo headset connected
Sound on
Sound off
2
Icons that appear in this area
5
Icons that appear in this area
1xRTT available
Battery charging
EVDO available
Battery full
Connected to a wireless network
Connection is active
Connection is not active
Synchronization in progress
Battery very low
22 Getting Started
1.8 Start Menu
The Start Menu, located at the top left corner of the Today screen, displays a list of programs. You can start a
program by scrolling through the programs list and then pressing ENTER, or by tapping a program with the
stylus.
1
1 Tap to open the Start menu.
2
3
2 Tap to start a recently-used program.
3 Tap to switch to the Today screen.
4 Tap to open a program. The items displayed in
the Start menu can be customized by tapping
Start > Settings > Personal tab > Menus.
4
5 Tap to view and select more programs that are
installed on your device.
5
6
7
6 Tap to change device settings.
7 Tap to see a Help topic for the current screen.
By default, the Start menu is displayed in a large size to make it easier for you to touch menu items with your
finger when selecting them. The Start menu can also be displayed in a smaller size, if preferred. Tap Start
> Settings > System tab > TouchFLO and then clear the Enable large Start menu check box to display a
smaller Start menu.
1.9 Quick Menu
The Quick Menu, located at the top right corner of the Today screen, shows the currently running programs.
You can quickly switch between running programs and stop programs when you do not need to use them.
1
2
3
4
1 Stop all currently running programs.
2 Customize Task Manager settings. (See “Using Task Manager” in Chapter 13.)
3 Display the percentage of memory in use.
Tap this icon to view more information about
memory usage.
5
4 Tap this button to open the Quick Menu.
5 • To switch to a running program, tap the
program name.
• To stop running a program, tap
.
and
to scroll to running programs
• Tap
that are off the display.
Getting Started 23
1.10 LED Alerts
The buttons below the touch screen and the exterior edge of the Navigation Control which is an LED ring will
light up in the following situations:
Controls
Light Behavior
SEND button
Light flashes when there is an incoming call.
END button
Light stays solid when there is an incoming call.
Navigation Control
• The LED ring shows a “breathing” white light when the battery is being charged.
• The LED ring shows a solid white light when the battery is fully charged.
• The LED ring flashes a white light once when the battery level is low and reaches down to
about 10%.
• The top and bottom parts of the LED ring flashes a white light twice when there is a new
e-mail, voice mail, or meeting reminder.
• A white light goes around the LED ring counterclockwise twice starting from the top when
there is a missed call or new SMS message.
The LED ring, HOME, BACK, SEND, and END buttons will flash a white light once when one of the buttons or
Navigation Control is pressed.
1.11 Adjusting the Volume
Adjusting the system volume changes the volume level of sound notifications and audio/video playback,
whereas adjusting the ring volume affects only the volume of the phone ring. The system volume and ring
volume can be separately adjusted.
) on the System Status
1. Touch the icon area in the title bar and then touch the Speaker icon (
screen.
2. To switch between the Ring Volume and System Volume screens, touch Ring or System on top of the
screen.
3. On either screen, you can do the following:
• To increase or decrease the volume level, drag your finger up or down the volume bars. You can also
press the VOLUME UP/DOWN buttons on the left panel of your device.
Volume bars
• Touch Vibrate to switch both System and Ring to Vibrate mode.
• Touch Silent to mute both the system and ring volume.
4. The System Volume or Ring Volume screen automatically closes. You can also manually close the screen
by touching the screen.
Note On certain screens that do not show the volume status icon on the title bar, you need to use the VOLUME
UP/DOWN buttons on the left panel of your device to adjust the volume. Also use these buttons to adjust the
conversation phone volume during an ongoing call.
24 Getting Started
1.12 When Connecting Your Device to a Computer
To easily carry media and other files with you, you can use your device’s storage card as a USB flash drive.
Touch Start > Settings > Connections tab > USB to PC and then select Disk Drive mode. This allows you to
copy files from your computer to the device’s storage card and vice versa faster.
Notes • You need to have a storage card installed on your device to be able to use your device as a disk drive.
• A storage card is not included with your device.
When Disk Drive mode is used:
• You will not be able to use your device to access files from the storage card or run applications that are
installed on the storage card while the device is connected to your PC.
• Your PC will only connect to the device’s storage card. When you access your device from the PC, you
will only see the contents of the device’s storage card.
Remember to change back to ActiveSync mode when you need to synchronize data between your device
and your PC.
Chapter 2 Using Phone Features
2.1 Using the Phone
2.2 Voice Call
2.3 Smart Dial
26 Using Phone Features
2.1 Using the Phone
Like a standard mobile phone, you can use your device to make, receive, and keep track of calls and send
messages.
The Phone screen
To open the Phone screen, do one of the following:
• Tap Start > Phone.
• Press the TALK/SEND button.
TALK/SEND button
2.2 Voice Call
Make a call
To make a call from the Phone screen
1. Tap Start > Phone.
2. Tap the keys on the keypad to enter the phone number.
Note If you tapped a wrong number, tap
to erase each subsequent digit of a number. To erase the entire number, tap and hold
.
3. Press the TALK/SEND button to place the call.
Tip
When in a call, use the VOLUME UP/DOWN buttons on the side of the device to adjust the phone volume.
Note After tapping 6 keys and the number you are dialing is not in your contacts, a Save to Contacts? button will
appear above the keypad. Tap it to save the number to your Contacts.
To make a call from Contacts
On the Today screen, tap Contacts to open the Contacts screen.
Do one of the following:
• Select the contact to call and then press TALK/SEND.
Note If the contact has more than one number stored, press Navigation right/left to select the number you want
to call before pressing TALK/SEND.
• Tap the contact to open the contact details and then tap the phone number you want to call.
• Tap and hold the contact you want to call and then from the menu, select Call Work, Call Home, or Call
Mobile.
To make an emergency call
Enter the international emergency number for your locale, and press the TALK/SEND button on your device.
Using Phone Features 27
To call voice mail
Number 1 is generally reserved for your voice mail. Tap and hold this button on the Phone screen keypad to
call voice mail and retrieve your voice mail messages.
Answer a call
When you receive a phone call, a message will appear, giving you the option to either answer or ignore the
incoming call. The TALK/SEND button will also flash when you receive a call.
To answer or reject an incoming call
• To answer the call, tap Answer, or press the TALK/SEND button.
• To reject the call, tap Ignore, or press the END button.
• To mute the ringing sound without rejecting the call, tap Mute Ring.
Tip
You can also place your phone face down on a table to mute the ring without rejecting the call.
To reject a call and send a text message
When you reject a call, you can choose to automatically send a text message to the mobile phone of the caller.
1. On the Phone screen, tap Menu > Options > Advanced tab.
2. Select the Reject call with text message check box.
3. Change the default text message if needed, then tap OK.
When Reject call with text message is enabled, tap Send Text to reject the call and send the text message to
the caller.
To put a call on hold
Your device notifies you when you have another incoming call, and gives you the option of rejecting or
accepting the call. If you are already on a call and accept the new call, you can choose to switch between the
two callers, or set up a conference call between all three parties.
1. Tap Answer to take the second call, and put the first one on hold.
2. To end the second call and return to the first call, tap End Call or press END on your device.
To switch between two calls
Press the TALK/SEND button.
To turn on and off the Speakerphone
During a call, tap
to toggle between turning on or off the speakerphone. The speakerphone icon
appears in the title bar when the speakerphone is on.
Tip
You can also press and hold TALK/SEND to toggle between turning on or off the speakerphone.
Warning! To avoid damage to your hearing, do not hold your device against your ear when the Speakerphone is turned
on.
28 Using Phone Features
To mute the microphone during a call
Tap
icon
to toggle between turning on or off the microphone. When the microphone is turned off, the mute
appears on the screen.
To open Notes while in a call
Tap
or pull out the stylus.
To vibrate the device when the call is established
You can set the device to vibrate once to alert you that the call has been established with the other party.
1. On the Phone screen, tap Menu > Options >Advanced tab.
2. Select the Vibrate device when connection is established check box and then tap OK.
End a call
When a call is in progress, tap End Call or press the END button to hang up.
To add a new phone number to Contacts after a call
If the phone number of the person who called is not in Contacts, you can choose to save the number after you
hang up.
1. On the Phone screen, tap Menu > Options > Advanced tab.
2. Select the Add new phone number to Contacts at end of call check box, then tap OK.
When you enable this option, a pop-up message appears after you end the phone call and lets you add the
phone number to Contacts.
To check a missed call
You will see the
following: icon in the title bar when you missed a call. To check who the caller was, do one of the
• Tap the title bar, tap
and then tap View.
• On the Phone screen, tap Menu > Call History and then tap
.
Call History
Use Call History to check for missed calls, dialed numbers, and calls received. To open the Call History screen,
tap Menu > Call History on the Phone screen.
Speed Dial
Use Speed Dial to call frequently-used numbers with a single tap. For example, if you assign a contact to
the location 2 in Speed Dial, you can tap and hold the number 2 key on the Phone screen keypad to dial the
contact’s number.
To create a Speed Dial entry
1. On the Phone screen, tap Menu > Speed Dial.
2. Tap Menu > New.
3. Tap a contact, then select the phone number of the contact that you want assigned to the speed dial
key.
4. In Location, select an available key to use as the speed dial key.
5. Tap OK.
Tips
•To create a Speed Dial entry from Contacts, tap the contact, select the number you want to add to Speed Dial,
then tap Menu > Add to Speed Dial.
•To delete a Speed Dial entry, from the Phone screen tap Menu > Speed Dial, and in the Speed Dial list, tap and
hold the desired entry, then tap Delete.
Using Phone Features 29
Turn the phone function on and off
In many countries, you are required by law to turn off the phone while on board an aircraft.
To enable or disable the phone function
1. Tap Start > Settings > Connections tab > Comm Manager.
2. On the Comm Manager screen, tap the Phone button to enable or disable the phone function. When enabled, the ON indicator is activated.
To enable or disable Airplane Mode
Another way to turn off the phone function is to switch your device to Airplane Mode.
When you enable Airplane Mode, all wireless radios on your device are turned off, including the phone
function, Bluetooth, and Wi-Fi.
When you disable Airplane Mode, the phone function is turned back on and the previous states of Bluetooth
and Wi-Fi are restored.
1. Tap Start > Settings > Connections tab > Comm Manager.
2. On the Comm Manager screen, tap the Airplane Mode button to enable or disable Airplane Mode.
When enabled, the ON indicator is activated.
2.3 Smart Dial
Smart Dial makes it easy for you to dial a phone number.
When you start entering a phone number or contact
name, Smart Dial automatically searches and sorts the
contact entries in Contacts, and the phone numbers in
Call History (including incoming, outgoing, and missed
calls). You can then select the desired number or contact
from the filtered list to dial.
Smart Dial panel
To find a contact name or number
You can just enter the first letter of the name or number of a contact. Smart Dial will search for contact
phone numbers and the first character of a contact name as well as from the character that appears after
a space, dash, or underscore in a contact name. For example, if you tap number “2” on the phone keypad,
which is associated with [a, b, and c] on the Phone keypad, contact names such as the following will be
considered matches: “Ben Miller”, “George Adams”, “John-Carter”, “Carter, Ellen”, “Dixon, Allan”, “Thomas_Clark”,
“JaneCampbell”.
If the matching list is long and you want to narrow down the search further, enter another letter. Using the
same example above, if you continue to tap “3” which is associated with [d, e, f ], the matching list will be
narrowed down to the following names: “Ben Miller”, “George Adams”, “Carter, Ellen”, “Dixon, Allan”.
Make a call or send a text message using Smart Dial
1. Tap Start > Phone.
2. Begin entering the first few numbers or characters. When you start entering a number or letter, the
Smart Dial panel will display matches found.
Tip
Tap
to close the phone keypad to see if there are more matching contacts.
3. In the Smart Dial panel, flick and slide your finger on the touch screen or press Navigation up/down to
browse the list or select a contact.
30 Using Phone Features
4. You can do one of the following:
• Tap the contact to call the selected contact.
• To send a text message to the selected contact, tap Menu > Send Text Message.
• To call a different phone number associated with the selected contact, select the contact and then
press Navigation left/right to select the number to call.
Chapter 3 TouchFLO™ 3D
3.1 About TouchFLO™ 3D
3.2 Using TouchFLO 3D
3.3 Finger Gestures
32 TouchFLO™ 3D
3.1 About TouchFLO™ 3D
TouchFLO™ 3D gives you touch control over your Windows Mobile-powered device. TouchFLO 3D provides
the following features:
• A Home screen that allows finger-touch access to the most widely-used functions, such as My Favorites,
Messaging, Email, Music, Browser, and more.
• Allows you to use finger gestures to navigate screens.
3.2 Using TouchFLO 3D
You can set the Today screen to display the conventional Windows Mobile Today screen or the TouchFLO 3D
Home screen.
To turn TouchFLO 3D on and off
1. Tap Start > Settings > Personal tab > Today > Items tab.
2. Tap TouchFLO 3D in the list to enable and disable TouchFLO 3D.
Navigating in TouchFLO 3D
There are different ways you can navigate and interact with the interface of your device in TouchFLO 3D
mode. A quick and easy way to interact with the Home screen and the whole interface of your device is by
touch. Basically, the following are the types of actions, called finger gestures, you would use when interacting
with your device:
Swipe
To swipe means to drag your finger vertically or horizontally across the screen. The following are some
instances when you would use swiping:
• Flipping on the Home screen
Swipe your finger vertically to flip through favorite contacts, messages, music albums, photos, and
more. For more information, see “Using the TouchFLO 3D Home Screen” in this chapter.
• Scrolling
When browsing the contacts list, web pages, documents, and certain selection lists on the Home
screen (such as the All Programs list), slowly swipe your finger vertically across the screen to scroll.
This allows you to scroll by page and to view the content or available selections as you scroll. The
direction of swiping resembles the way you move a printed document as you are reading it. For detailed
instructions, see “Finger scrolling” in this chapter.
Slide
Sliding on the touch screen also involves dragging with your finger, but you need to press and hold your
finger with some pressure before you start to drag. While dragging, do not release your finger until you have
reached the target position.
The following are some instances when you would use sliding:
• Switching between Home screen tabs
Slide your finger left and right to switch between the Home screen tabs. For more information, see
“Using the TouchFLO 3D Home screen“ in this chapter.
• Advancing playback
In players that have a progress bar, such as the Home screen’s Music tab and Windows Media® Player
Mobile, slide your finger horizontally on the progress bar to advance forward or move backward in the
music or video you are playing. For more information about the Home screen’s Music tab, see “Music” in
this chapter.
Flick
Flicking the screen is similar to swiping, except that you need to swipe your finger in light, quicker strokes.
This finger gesture is always in a vertical direction, such as when flicking the contacts list.
TouchFLO™ 3D 33
Using the TouchFLO 3D Home Screen
The TouchFLO 3D Home screen have the following tabs:
Home
My Favorites
Messaging
Settings
Email
Browser
Music
Weather
My Applications
Photos and Videos
To switch between the tabs of the Home screen
Do one of the following:
• Touch or tap the desired tab on the Home screen.
• Press Navigation right or left to move to the next or previous tab.
• Press and hold your finger on the active tab, then slide your finger right or left over the tabs. Release when you have selected the desired tab.
Note Apply some pressure when pressing and holding on the active tab to be able to slide over the tabs.
• Swipe left across the screen to move to the next tab, and swipe right across the screen to move to the
previous tab.
34 TouchFLO™ 3D
Home
The Home tab displays the current date, a digital clock, and an Alarm icon that indicates whether the alarm is
on or off. Missed calls and your upcoming calendar appointments are also shown on the Home tab.
To select an item on the Home tab
• Touch the item; or
• Press Navigation up or down first to navigate to the item you want to select and then press ENTER.
Touch the date or the flip clock
to open the Clock & Alarms
screen where you can set the
date, time, and alarm.
(See Chapter 13 for details.)
Touch this area to view details
about missed calls in the Call
History. (See Chapter 2 for
details.)
Swipe upward on the screen to
display the smaller digital clock
and view more appointments.
Home tab with flip clock
One all-day appointment and
up to two timed appointments
can be displayed. Touch this
area to create, edit or view an
appointment. (See “Calendar”
in Chapter 12 for details.)
Swipe downward on the screen
to change back to the flip clock.
Home tab with smaller digital clock
TouchFLO™ 3D 35
My Favorites
On the My Favorites tab, you can add favorite contacts who you most frequently communicate with. This
allows you to quickly make calls, send text messages, and send e-mails to your favorite contacts.
Tip
You can add up to 15 favorite contacts on the My Favorites tab.
To add favorite contacts
You should already have created or synchronized contacts on your device before you can add them to the My Favorites tab.
1. On the Home screen, slide your finger to the My Favorites tab.
2. Touch the big Plus icon, or touch Add Favorite.
3. On the Select a Contact screen, touch the name of the desired contact.
Tip
To create a new contact, touch Menu > New Contact. See “Contacts” in
Chapter 12 for details.
4. Select a phone number or e-mail address to associate to the favorite
contact.
Note If there is no picture associated with the contact, the next screen
prompts you to assign a picture to the contact.
5. To add another favorite contact, touch the small Plus icon (
right side of the screen and repeat steps 3 and 4.
) at the
To choose from your favorite contacts
• Do any of the following:
To flip through the contact pictures
one at a time, swipe your finger up
or down the screen. You can also
press Navigation up or down to flip
through the contact pictures.
On the picture strip at the right side of the People
screen:
• Touch the picture of the desired favorite contact; or
• Press and hold on the currently selected contact
picture to display a slide-out bar, and then slide up
or down the picture strip. Release your finger when
the desired favorite contact is selected.
• After selecting a favorite contact, touch the
/
/
icon or the phone number/e-mail address
shown below the contact picture to place a call, send a text message, or send an e-mail to the contact.
• Touch the picture of the contact on the center screen to access his or her contact card. On the contact
card, you will see the last outgoing or incoming call as well as contact details such as phone numbers,
e-mail address, and more.
Tips
•On the My Favorites tab, touch All People to access all contacts that are stored on your device.
• To remove the current favorite contact, touch Menu > Remove Favorite.
36 TouchFLO™ 3D
Messaging
On the Messaging tab, you can read text messages as they arrive and create a new text message. When there
are new incoming text messages, the icon on the Messaging tab will show the number of new messages. For example,
indicates that there is a new message received.
To view the entire message
thread from the sender and
reply, touch the message on
the screen.
Touch All Messages to access
all text messages in your inbox
and other folders.
Touch this icon to create a new text
message.
To flip through received text messages,
swipe your finger upward/downward,
touch the Up/Down arrow on the
screen, or press Navigation up/down.
Touch Menu to remove the current
message and access more options.
For more information about working with text messages, see “Text Messages” in Chapter 6.
Music
The Music tab allows you to visually browse through albums and music tracks and play music. The albums
and music tracks that you see on the Music tab are from the Now Playing list of the Library.
Note Your device searches for all music files that have the following audio formats: AMRNB/WB (.awb), MP3 (.mp3), WMA
(.wma), AAC/AAC+/eAAC+ (.aac), and MPEG-4 (.m4a). It searches for music from the following locations: Device: \My Music (including all subfolders) \My Documents (including all subfolders)
Storage Card: \Storage Card (including all subfolders)
To play music
On the Music tab, flip through albums and all the music in each album, then touch the Play icon (
middle-right side of the screen to start playback.
) on the
Touch here to go to the previous
album or the previous music in
the current album.
Swipe upward/downward on the
screen or press Navigation up/
down to flip through albums and
the music or songs in an album.
Touch here to access the Library.
Touch here to play or pause. You
can also press the ENTER button to
play or pause.
Touch here to go to the next album or
the next music in the current album.
Touch Menu to set music playback to
Repeat, turn Shuffle on or off, and more.
TouchFLO™ 3D 37
To advance forward or backward in the music
Do one of the following:
• Touch and hold on the thin bar below the album art to display the progress bar:
Drag your finger right or left on the progress bar to move forward or backward in the current music.
• Slide your finger around the Navigation Control as follows:
Slide your finger clockwise to
advance forward in the music.
To move backward in the music,
slide your finger counterclockwise.
To set repeat and shuffle modes
Touch Menu > Repeat and choose whether to repeat once, repeat all, or do not repeat. To toggle shuffle
mode on and off, touch Menu > Shuffle and then select Shuffle On or Shuffle Off.
The icons on the upper-right side of the Music tab show whether repeat and shuffle modes are enabled.
Repeat [One]
Repeat [All]
Shuffle [On]
To browse and play music in the Library
The Library organizes music into categories, such as Now Playing, Artists, Albums, Genres, All Songs, and
more. When you add more albums or music tracks to your device, go to the Library to locate and play the new
albums or music tracks.
1. On the Music tab, touch Library to open the Library screen.
2. The tabs at the bottom of the Library screen correspond to the different categories. To browse music
under a certain category, slide to the tab that corresponds to the desired category.
3. Tap a music track to play it.
Note When you select a category in the Library such as Artists and play its music, the Now Playing list will be replaced
with the music tracks from that category.
To use playlists
You can group your favorite music into a playlist and then play back the playlist.
• To create a new playlist:
1. Select the desired music on the Music tab or the Library.
2. Touch Menu > Add to Playlist.
3. Touch <New Playlist>, enter a Playlist name and then touch OK.
• To add more music files to a playlist:
1. On the Playlists tab, touch a playlist to open it.
2. Touch Menu > Edit.
3. Touch Menu > Add.
4. Select the check boxes of the music you want to add to the playlist, or touch Menu > Select All to
choose all the music.
5. Touch OK three times and then touch Up to return to the Playlists tab.
• To play back a playlist:
1. On the Playlists tab, touch a playlist to open it.
2. Touch the first song in the playlist. The Music tab starts playing the first song. After each song, the
next one in the playlist will be played.
38 TouchFLO™ 3D
Note Playlists are not automatically updated when music files have been deleted from the device memory or storage
card.
There are two types of playlists that can be shown on the Playlists tab:
• Custom playlists. Playlists that are created on the Music tab.
• Windows Media® Player playlists. Playlists that are in Windows Media® Player Mobile’s Library (which
is synchronized with Windows Media® Player on your computer). They are indicated by the Windows
). These playlists cannot be edited.
Media® Player icon (
Custom playlists
Windows Media®
Player playlists
Note If a Windows Media® Player playlist contains a combination of music, video and image files, only music files in the
playlist will be synchronized to your device and other media types will be filtered out.
Email
The Email tab is where you send and receive e-mail messages. Including Outlook E-mail, you can add up to
four POP3/IMAP4 and Web-based e-mail accounts in this tab.
To add an e-mail account
1. On the Home screen, slide your finger to the Email tab.
2. If this is your first time to add an e-mail account, touch New Account on the bottom-right side of the
screen.
3. Set up your e-mail account using the E-mail Setup wizard.
4. To add another e-mail account, touch Menu > Accounts > New Account and use the E-mail Setup
wizard to set up your account.
For detailed instructions on setting up e-mail accounts using the E-mail Setup wizard, see Chapter 6.
To check e-mail
When there are new e-mails, the icon on the Email tab and the respective icons of the e-mail accounts will
show the number of newly received messages.
• To browse through received
e-mails, swipe up or down on
the envelope image or press
Navigation up/down.
• Touch the e-mail on the screen
to open and read the message.
Touch Inbox to access all
e-mail messages of the
currently selected account.
After selecting an e-mail account,
touch this icon to create and send a
new e-mail message.
These are your e-mail accounts.
Touch an icon to select an e-mail
account and view the new e-mails
received in that account.
Touch Menu to access more options.
For more information about working with e-mails, see Chapter 6 and 7.
TouchFLO™ 3D 39
Browser
On the Browser tab, you can open Opera Mobile™ to browse the Web and add Web favorites for one-touch
access to your favorite Web sites.
Touch here to browse the
Web using Opera Mobile.
Swipe upward or press Navigation
down to scroll down the screen
and access more Web favorites.
Touch All Bookmarks to open
Opera Mobile and add, view or
delete Web favorites.
For more information about using Opera Mobile, see Chapter 8.
Photos and Videos
The Photos and Videos tab lets you visually flip through your photos and video clips and view them in full
screen. From this tab, you can also activate the Camera so you can take pictures and record video clips.
The Photos and Videos tab displays pictures and video files from the current favorite album. By default, the
Camera Shots album which stores the pictures and videos that you captured using the device camera is set as
the favorite. You can change to another favorite album, if preferred.
To set an album as a Favorite
1. On the Photos and Videos tab, touch Album to open the Album program.
2. Touch Albums and then select one of the listed favorite albums.
3. Tap Menu > Set as Favorite and then tap OK on the confirmation screen.
To view photos and videos
Touch here to take a photo.
Touch the photo or video on
the screen to view or play it
in full screen.
Touch here to open the Album
program. (See “Viewing Photos
and Videos Using Album” in
Chapter 11 for details.)
Touch here to shoot video.
To flip through photos and videos,
swipe upward/downward, touch the
Up/Down arrow, or press Navigation
up/down.
Touch Slideshow to view the
photos as a slideshow. If a video
is selected, touch Play.
Tips
•For more information about viewing in full screen, see “View an image” and “Play back video” in Chapter 11. The
file formats that can be viewed on the Photos and Videos tab are the same as the Album program.
•To transfer media files from a computer and view them on the Photos and Videos tab, copy or synchronize them
to a folder under \My Device (the device memory) or \Storage Card (if a microSD card is installed).
40 TouchFLO™ 3D
My Applications
The My Applications tab allows you to add your favorite programs for one-touch access.
Touch a program icon to
open the corresponding
program.
Touch an empty slot to
add a favorite program.
Touch All Applications
to access all the
programs of your device.
Touch Remove to choose
which program to remove
from the My Applications tab.
When you have filled up the screen with programs, scroll down the My Applications tab to access more
empty slots and add more programs. To scroll down, press and hold on the screen and then drag your finger
upward. You can add up to 18 favorite programs.
To scroll back up, press and hold on the screen and then drag your finger downward.
Note To replace a slot with another program, you must delete the occupying program shortcut first and then add your
desired program.
Weather
The Weather tab shows you the current weather as well as weather information for the next five days of the
week.
To add a city
The Weather tab can display weather information of your local city and other added cities. Follow the steps
below to add a city on this tab.
Tip
You can add up to 10 cities in the Weather tab.
1. On the Weather tab, touch Menu > Add Location.
2. The Select Country screen then appears. Flick your finger on the screen or use the Quick Scroll bar on
the right of the screen to choose the country. You can also slowly scroll through the country list by
dragging your finger upward on the screen. Touch the desired country to select it.
3. The Select City screen then appears. Flick your finger on the screen or use the Quick Scroll bar on the
right of the screen to choose the city. You can also slowly scroll through the city list by dragging your
finger upward on the screen. Touch the desired city to select it.
TouchFLO™ 3D 41
To view weather information
Your device automatically connects to the Internet via the data connection or Wi-Fi to download and display
weather information. The current temperature, temperature range, type of weather (sunny, cloudy, showers,
or others), and the time of day (daytime or nighttime) are shown on the Weather tab. To see the weather
information for the next five days of the week, touch 5-day at the bottom-left side of the screen.
Shows the last weather update.
Touch this item to download the
latest weather information.
To switch between cities, swipe your
finger upward/downward, touch the
Up/Down arrow on the screen, or
press Navigation up/down.
Touch to see the
weather information
for the next five days
of the week.
Touch Menu to add or delete a
city, change the temperature to
Celsius or Fahrenheit, and more.
To choose download options
1. On the Weather tab, touch Menu > Settings.
Tip
You can also slide to the Settings tab and then touch Data.
2. You can choose from the following options:
• Download weather automatically. When this option is selected, weather information is
automatically downloaded from the AccuWeather Web site whenever you select the Weather tab, if the data has not been updated within the last three hours. Weather data is also downloaded every
time an ActiveSync connection is established (through over-the-air or USB connections). Clear this
option if you prefer to manually download weather information.
• Download weather when roaming. Select this option only if you want to allow automatic
download of weather data when roaming. This may incur additional costs.
Settings
The Settings tab allows you to synchronize information with your computer or the Exchange Server, change
sound settings such as the ring tone, and choose a different wallpaper for the Home tab. You can also easily
turn on and off the communications features of your device such as Wi-Fi, Bluetooth, and more.
42 TouchFLO™ 3D
3.3 Finger Gestures
You can use finger gestures to scroll, zoom and pan on the touch screen.
Finger scrolling
Finger scrolling can be used to scroll up and down Web pages, documents, and lists such as the contacts list,
file list, message list, calendar appointments list, and more.
When finger scrolling,
swipe or flick your finger
on the touch screen.
To scroll up and down
• To scroll down, swipe your finger upward on the touch screen. To scroll up, swipe your finger downward
on the touch screen.
• To auto-scroll, flick your finger upward or downward on the touch screen. Touch the screen to stop
scrolling.
To scroll left and right
• To scroll towards the right, swipe your finger to the left. To scroll towards the left, swipe your finger to the right.
• To auto-scroll, flick your finger left or right. Touch the screen to stop scrolling.
Finger zooming
The type of finger gesture to use when zooming varies in different programs.
• To zoom in on a Web page in Opera Mobile, tap your finger twice on the screen. See “Using Opera
Mobile” in Chapter 8 for details.
• To zoom in on a photo in Album, make a full-circle swipe on the touch screen. See “Viewing Photos and
Videos Using Album” in Chapter 11 for details.
Finger panning
You can use finger panning to move to and view other parts of a zoomed
photo, Web page, document, or an e-mail. To pan, touch and hold on the
touch screen and then drag your finger in any direction.
Tip
To enable or mute finger scrolling and panning sound, touch Start > Settings
> System tab > TouchFLO, and then select or clear the Enable sound when
finger scrolling and panning check box.
Chapter 4 Entering Text
4.1 Entering Information
4.2 Using the Hardware Keyboard
4.3 Using the Full QWERTY
4.4 Using the Compact QWERTY
4.5 Using the Phone Keypad
4.6 Using Multitap and T9 Modes
4.7 Using Numeric and Symbol Mode
4.8 Using Block Recognizer
4.9 Using Letter Recognizer
4.10 Using Transcriber
44 Entering Text
4.1 Entering Information
When you start a program or select a field that requires text or numbers, you can either use the QWERTY
keyboard or one of the on-screen input methods to enter information.
QWERTY keyboard
Your device comes with a QWERTY keyboard, which is similar to a
standard keyboard on your PC.
To use the keyboard, slide the screen panel to the right to reveal
the keyboard. The screen orientation automatically switches to
landscape mode when the keyboard is opened.
On-screen input methods
When you start a program or select a field that requires text or numbers, the Input Panel icon becomes
available on the menu bar.
Tap the Input Selector arrow (that appears next to the Input Panel icon) to open a menu where you
can select a text input method and customize input options. After selecting a text input method, the
corresponding Input Panel is displayed, which you can use to enter text.
Tip
Select Other Input Methods to display more input methods.
To show or hide the Input Panel, tap the Input Panel icon.
Key when pressed
Input Panel (Full QWERTY)
Input Panel icon
Input Selector arrow
Icon Input method
Full QWERTY
Text input methods
Icon Input method
Letter Recognizer or Block Recognizer
Compact QWERTY
Transcriber
Phone Keypad
Keyboard
Notes •Some text input methods may not be available in certain language versions of the device.
•When in landscape mode, the Compact QWERTY and Phone Keypad are not available.
Entering Text 45
4.2 Using the Hardware Keyboard
You can do the following with the hardware keyboard:
• To type lowercase letters and numbers, press the keys using your thumbs or fingers.
• To use all uppercase letters, press
. To change back to all lowercase letters, press
again.
• To use a single uppercase letter, press
and then press the corresponding key.
• To enter the symbol or punctuation mark, or launch the program or command that is printed at the
upper right corner of a key, press
, then press the corresponding key.
• To open the Symbol Pad, press
.
• Press
to insert a hard return while typing.
• Press the arrow keys
/
/
/
for directional movement.
• Press
to open the Messaging program.
• Press and hold
, then press
to open the Comm Manager.
4.3 Using the Full QWERTY
The Full QWERTY is a full on-screen QWERTY keyboard layout similar to a desktop PC keyboard.
Tip
You can also use the Windows Mobile on-screen keyboard which also has a QWERTY keyboard layout by selecting
Keyboard (or Other Input Methods > Keyboard) on the Text input method menu.
•Tap to enter letters or symbols.
•Tap and hold to enter a punctuation
mark, symbol, or number that
appears on top of a key
Displays the word candidate list
in T9 mode. Tap a word to insert
to add a
it into your text. Tap
word to the T9 dictionary.
Tap to delete the previous character.
•Tap to enter an uppercase letter.
•Tap twice to turn on Caps Lock.
Tap to toggle between
using Normal or T9 mode.
Tap to create a new line.
Tap to open a keyboard layout that lets you easily
enter numbers and symbols. See “Using Numeric and Symbol mode” for details.
To enter text using the Full QWERTY
1. Start a program that accepts text input, such as Word Mobile.
2. Tap the Input Selector arrow, then tap Full QWERTY.
3. Start tapping keys on the keyboard as you would on a PC keyboard to enter your text. To learn how to
enter text using T9 mode, see “Using Multitap and T9 modes” in this chapter.
46 Entering Text
4.4 Using the Compact QWERTY
The Compact QWERTY is a type of on-screen keyboard which features 20 keys. With its large, touch-friendly
keys and enhanced features such as T9 predictive input, you can enter text faster and more accurately.
Displays the word candidate list
in T9 mode. Tap a word to insert
to add a
it into your text. Tap
word to the T9 dictionary.
•Tap to enter letters or symbols.
•Tap and hold to enter a punctuation
mark, symbol, or number that
appears on top of a key
Tap to delete the previous character.
Tap to create a new line.
•Tap to enter an uppercase letter.
•Tap twice to turn on Caps Lock.
Tap to toggle between
using Multitap or T9 mode.
Tip
You can tap and hold
Tap to open a keyboard layout that lets you easily
enter numbers and symbols. See “Using Numeric and Symbol mode” for details.
to immediately open the numeric keyboard.
To enter text using the Compact QWERTY
1. Start a program that accepts text input, such as Word Mobile.
2. Tap the Input Selector arrow, then tap Compact QWERTY.
3. Start tapping keys on the keyboard to enter your text. To learn how to enter text using Multitap or T9
mode, see “Using Multitap and T9 modes” in this chapter.
4.5 Using the Phone Keypad
The Phone Keypad is a 12-key on-screen keypad that has a layout similar to mobile phone keypads, plus
some additional keys. The Phone Keypad has large keys and enhanced input features such as T9 predictive
input, which makes it faster for you to enter text in your messages and documents.
•Tap to enter letters or symbols.
•Tap and hold to enter a punctuation
mark, symbol, or number that
appears on top of a key
Displays the word candidate list
in T9 mode. Tap a word to insert
to add a
it into your text. Tap
word to the T9 dictionary.
Tap to open the input settings.
Tap to delete the previous character.
•Tap to enter an uppercase letter.
•Tap twice to turn on Caps Lock.
Tap to create a new line.
Tap to toggle between
using Multitap or T9 mode.
Tip
You can tap and hold
Tap to open a keyboard layout that lets you easily
enter numbers and symbols. See “Using Numeric and Symbol mode” for details.
to immediately open the numeric keyboard.
Entering Text 47
To enter text using the Phone Keypad
1. Start a program that accepts text input, such as Word Mobile.
2. Tap the Input Selector arrow, then tap Phone Keypad.
3. Start tapping keys on the keyboard to enter your text. To learn how to enter text using Multitap or T9
mode, see “Using Multitap and T9 modes” in this chapter.
4.6 Using Multitap and T9 Modes
When using the on-screen keyboards, you can choose to enter text using Multitap or T9 mode.
Multitap mode
In Multitap mode (for Compact QWERTY and Phone Keypad), enter a character by tapping a key until the
desired character is displayed on the screen.
• To enter the first letter that shows on a key, tap the key once. To enter the second letter, tap twice.
• To enter a punctuation mark, symbol, or number that appears on top of a key, tap and hold the key.
T9 mode
T9 is a predictive text input mode which displays a word candidate list as you enter the first few characters so
you just select the word that you want.
To enter text using T9 mode
1. Start entering the first few letters of a word. As you enter each letter, predicted words will appear above
the keyboard.
2. Tap the desired word to immediately insert it to your text.
Note Navigate through the word candidate list if there are more words to choose from.
To add a word to the T9 dictionary
If the word that you have entered is not found in the dictionary, you can add it to the dictionary.
on right side of the word candidate list.
1. While in T9 mode, type a letter and then tap
2. Type the word you want to add and then tap ADD.
Tap to add the word.
To customize Touch Input settings
1. Tap the Input Selector arrow, then tap Touch Input Settings.
2. On the Touch Input Settings screen, select or clear the following options according to your preferences:
• Spell Correction. Lets you correct typographical errors by selecting from a list of possible words
that reflect the characters of the keys you have tapped as well as characters of nearby keys.
• Word Completion in T9 mode. Lets you select from a list of possible words based on the keys that
you have tapped and on the words available in the dictionary.
• Word Completion in ABC mode. Lets you select from a list of possible combinations based on the
characters that appear on the keys that you tapped.
• Auto-Substitution. Automatically inserts an apostrophe when you type common contracted
words (for example, “dont” automatically becomes “don’t”).
3. Tap Done.
48 Entering Text
4.7 Using Numeric and Symbol Mode
Switch to Numeric and Symbol mode to let you easily enter numbers and common symbols such as
parentheses, braces, currency signs, punctuation marks, special characters, and more. Numeric and Symbol
mode is available when using the Full QWERTY, Compact QWERTY, and Phone Keypad.
Tap a number or symbol to
insert it into your text.
Tap to go to the previous or
next page of symbols.
See “To lock the keyboard in
Numeric and Symbol mode.”
Tap to switch to the numeric
keyboard.
Compact QWERTY
and Phone Keypad
Tap to switch back to the
letter keyboard layout.
Full QWERTY
To switch to Numeric and Symbol mode
1. While using Full QWERTY, Compact QWERTY, or Phone Keypad, tap
2. Locate the number or symbol, then tap it to insert it into your text.
/
.
To lock the keyboard in Numeric and Symbol mode
You can lock the keyboard in Numeric and Symbol mode so you can continuously enter symbols and
numbers.
1. Tap the Input Selector arrow and then tap Other Input Methods > Options.
2. In the Input Method tab, select a Touch input method in the Input method list, then tap Options.
3. Clear the Turn on one-touch symbol entry check box.
Tip
In Compact QWERTY and Phone Keypad, tap
/
to toggle between locking the keyboard in Numeric and
Symbol mode and switching back to the letter keyboard layout after tapping a symbol or number.
4.8 Using Block Recognizer
With Block Recognizer, you use a single stroke to write letters, numbers, symbols, and punctuation, which
are then converted into typed text.
To use Block Recognizer
1. From a program, tap the Input Selector arrow and then tap Other Input Methods > Block
Recognizer.
2. Write characters, numbers, and symbols in the designated writing area.
• Enter letters by writing in the abc (left) area of the box.
• Enter numbers by writing in the 123 (right) area of the box.
• Enter symbols and punctuation by tapping the left or right area of the box (a gray dot appears),
then writing the desired character.
Tip
For help with writing characters, tap the question mark near the writing area.
Entering Text 49
4.9 Using Letter Recognizer
With Letter Recognizer, you can write individual letters, numbers, and punctuation marks, which are then
converted into typed text.
To use Letter Recognizer
1. From a program, tap the Input Selector arrow and then tap Other Input Methods > Letter
Recognizer.
2. Write characters, numbers, and symbols in the designated writing area.
• Enter uppercase letters by writing in the ABC (left) area of the box.
• Enter lowercase letters by writing in the abc (middle) area of the box.
• Enter numbers by writing in the 123 (right) area of the box.
• Enter punctuation and symbols by writing the desired character in the 123 (right) area of the box.
Tip
For help with writing characters, tap the question mark near the writing area.
4.10 Using Transcriber
Transcriber is a handwriting recognition program that enables you to write in cursive, print, or a combination
of both.
To write using Transcriber
1. Open a program that accepts user input, such as Word Mobile.
2. Tap the Input Selector arrow and then tap Other Input Methods > Transcriber. The Transcriber
introductory screen appears. Read the introduction and tap OK.
3. Position the cursor where you want text to appear.
4. Use the stylus to write anywhere on the screen. The handwriting will be converted to text shortly after
you lift the stylus from the screen.
To enter punctuation and symbols
Transcriber comes with an on-screen keyboard that provides an easy way to add punctuation or a special
on the Transcriber toolbar.
symbol to existing text. To use this on-screen keyboard, tap
The keyboard remains visible until you tap the button again.
Tips
•To reposition the keyboard, tap and hold the title bar, then drag to the desired location.
•When no text is selected, you can open the keyboard by using the gesture (draw a line straight down and
then straight up). For more information about using Transcriber gestures, see Help on your device.
To edit text
1. In a program, draw a line from left to right across the text you want to edit.
2. After you lift the stylus from the screen, the line disappears and the selected text will be highlighted.
3. Do either of the following:
• Rewrite the text.
• Use gestures to capitalize letters, insert a space, and so on. For information about using Transcriber
gestures, see Help on your device.
50 Entering Text
Chapter 5 Synchronizing Information
With Your Computer
5.1 About Synchronization
5.2 Setting Up Windows Mobile® Device Center
on Windows Vista®
5.3 Setting Up ActiveSync® on Windows XP®
5.4 Synchronizing With Your Computer
5.5 Synchronizing via Bluetooth
5.6 Synchronizing Music and Video
52 Synchronizing Information With Your Computer
5.1 About Synchronization
You can take information from your computer wherever you go by synchronizing them to your device. The
following types of information can be synchronized between your computer and your device:
• Microsoft® Office Outlook® information, which include Office Outlook e-mail, contacts, calendar,
tasks, and notes
• Notes, which are created using Microsoft® Office OneNote® 2007
• Media, such as pictures, music, and video
• Favorites, which are the bookmarked links to your favorite Web sites
• Files, such as documents and other files
Before you can synchronize, you need to install and set up first the synchronization software on your
computer. For more information, see “Setting Up Windows Mobile Device Center on Windows Vista®” and
“Setting Up ActiveSync® on Windows XP®” in this chapter.
Note ActiveSync or Windows Mobile Device Center only synchronizes data on your computer and device. If you have
installed a storage card and you want to back up files from the storage card, use Windows Explorer on your
computer to copy files from the storage card to your computer.
Ways to synchronize
After you have installed the synchronization software on your computer, connect and synchronize your
device with your computer by:
• Using the supplied USB sync cable.
Upon connecting the sync cable to your device and your computer, the synchronization process
automatically starts.
• Using Bluetooth.
You must first set up a Bluetooth partnership between your device and your computer before you
can synchronize information between them using Bluetooth. For more information about setting up
a Bluetooth partnership, see Chapter 9. For information about synchronizing through Bluetooth, see
“Synchronizing via Bluetooth” later in this chapter.
Try to synchronize regularly in order to keep information up-to-date in both your device and your computer.
Notes •You can also synchronize Outlook e-mail, contacts, calendar, and tasks on your device with the Exchange Server
at your work. For more information about setting up your device to synchronize with the Exchange Server, see
Chapter 7.
• If you are sending your device for repair or performing a hard reset, data from your device will be lost. It is
recommended that you sync your device to your computer to back up your files. To back up files from the
storage card to your computer, use Windows Explorer to copy files from the storage card to the computer.
Synchronizing Information With Your Computer 53
5.2 Setting Up Windows Mobile® Device Center on Windows Vista®
Microsoft Windows Mobile® Device Center is the replacement for Microsoft® ActiveSync® on Windows Vista®.
Note Some versions of Windows Vista® come with Windows Mobile Device Center already installed. If Windows Mobile
Device Center is not available on your Windows Vista®, you can install it from the Getting Started CD that came
with your device.
Set up synchronization in Windows Mobile Device Center
When you connect your device to your computer and start Windows Mobile Device Center for the first time,
you are asked to create a Windows Mobile partnership with your device. To create a partnership:
1. Connect your device to your computer. Windows Mobile
Device Center configures itself, then opens.
2. On the license agreement screen, click Accept.
3. On the Windows Mobile Device Center’s Home screen,
click Set up your device.
Note
Choose Connect without setting up your device if you only want to transfer media files, check for updates, and explore your device but not synchronize Outlook information.
4. Select the items you want to synchronize, then click Next.
5. Enter a device name, then click Set Up.
When you finish the setup wizard, Windows Mobile Device Center synchronizes your device automatically.
Notice that Outlook e-mails and other information appear on your device after synchronization.
Use Windows Mobile Device Center
To open Windows Mobile Device Center, click Start > All Programs > Windows Mobile Device Center on
your Windows Vista computer.
On Windows Mobile Device Center, you can do the following:
• Click Mobile Device Settings to change synchronization settings.
• When you click Pictures, Music and Video > XX new pictures/video clips are available for import, a
wizard guides you to tag and transfer photos from your device to the Photo Gallery on your computer.
• Click Pictures, Music and Video > Add media to your device from Windows Media Player to
synchronize music and video files using Windows Media® Player. For more information, see “Using
Windows Media® Player Mobile” in Chapter 11.
• Click File Management > Browse the contents of your device to view documents and files on your
device.
Note See Windows Mobile Device Center Help for more information.
54 Synchronizing Information With Your Computer
5.3 Setting Up ActiveSync® on Windows XP®
The Getting Started CD that comes with your device contains Microsoft ActiveSync 4.5 or later. Follow the
steps in this section to install and set up ActiveSync on Windows XP or other compatible Windows systems.
Note For a list of compatible Windows systems, go to http://www.microsoft.com/windowsmobile/activesync/
activesync45.mspx.
Install ActiveSync
1.
2.
3.
4.
5.
6.
Place the Getting Started CD to the disc drive of your computer.
Click Setup and Installation.
Select the ActiveSync check box, then click Install.
Read the license terms, then click Accept.
When installation is completed, click Done.
On the Getting Started with Windows Mobile screen, click Close.
Set up synchronization in ActiveSync
1. Connect your device to your computer. The Synchronization Setup Wizard automatically starts and
guides you to create a synchronization partnership. Click Next to proceed.
2. To synchronize your device with your computer, clear the Synchronize directly with a server running
Microsoft Exchange check box, then click Next.
3. Select the information types that you want to synchronize, then click Next.
4. Select or clear the Allow wireless data connections check box according to your preference.
5. Click Finish.
When you finish the wizard, ActiveSync synchronizes your device automatically. Notice that Outlook e-mails
and other information appear on your device after synchronization.
5.4 Synchronizing With Your Computer
Connect and synchronize your device with your computer using the USB cable or Bluetooth connection.
Start and stop synchronization
You can manually synchronize either from your device or computer.
From your device
Tap Start > Programs > ActiveSync, then tap Sync. To end synchronization before it completes, tap Stop.
Tip
To delete a partnership with one computer completely, disconnect your device from that computer first. In
ActiveSync on your device, tap Menu > Options, tap the computer name, then tap Delete.
From Windows Mobile Device Center
1. Click Start > All Programs > Windows Mobile Device Center.
at the lower left of the Windows Mobile Device Center. To end synchronization before it
2. Click
completes, click
.
From ActiveSync on your computer
When you connect your device to your computer, ActiveSync automatically opens on your computer and
synchronizes.
• To manually start synchronization, click
.
• To end synchronization before it completes, click
.
Synchronizing Information With Your Computer 55
Change which information is synchronized
You can change the information types and the amount of information to synchronize for each type either on
your device or your computer. Follow the steps below to change synchronization settings on your device.
Note Before changing synchronization settings on your device, disconnect it from your computer.
1. In ActiveSync on your device, tap Menu > Options.
2. Select the check box for any items you want to synchronize. If you cannot select a check box, you might
have to clear the check box for the same information type elsewhere in the list.
3. To change synchronization settings for an information type, for instance, E-mail, select it and tap
Settings.
You can then set the download size limit, specify the time period of information to download, and more.
Notes •Some information types such as Favorites, Files and Media cannot be selected in ActiveSync Options on
your device. You can only select or clear these items from your computer’s Windows Mobile Device Center or
ActiveSync.
•A computer can have sync partnerships with many different Windows Mobile powered devices, but a device
can have sync partnerships with at most two computers. To ensure that your device will synchronize properly
with both computers, set up the second computer using the same synchronization settings you used on the first
computer.
•Outlook e-mail can be synchronized with only one computer.
Troubleshoot sync connection problem
In some cases, when the computer connects to the Internet or a local network, it may disconnect the
connection with your device in favor of the Internet or network connection.
If this happens, tap Start > Settings > Connections tab > USB to PC, then clear the Enable advanced
network functionality check box. This makes your computer utilize a serial USB connection with your device.
5.5 Synchronizing via Bluetooth
You can connect and synchronize your device with the computer using Bluetooth.
Note To connect and synchronize your device with a computer via Bluetooth, your computer must have a built-in
Bluetooth or installed with a Bluetooth adapter or dongle.
To synchronize with a computer via Bluetooth
1. Set up Windows Mobile Device Center or ActiveSync on your computer to synchronize through
Bluetooth. See the program’s Help for instructions.
2. On your device, tap Start > Programs > ActiveSync.
3. Make sure that Bluetooth on both your device and the computer are turned on and set to visible mode.
See “Bluetooth Modes” in Chapter 9 for details.
If this is the first time you have connected to this computer via Bluetooth, you must first complete the
Bluetooth wizard on your device and set up a Bluetooth partnership between your device and the
computer. For more information about creating a Bluetooth partnership, see “Bluetooth Partnerships”
in Chapter 9.
4. Tap Menu > Connect via Bluetooth. Make sure the Bluetooth function of both your device and the
computer are turned on and set to visible mode.
Note To conserve battery power, turn off Bluetooth when not in use.
56 Synchronizing Information With Your Computer
5.6 Synchronizing Music and Video
If you want to carry your music or other digital media along with you while you travel, set up Windows Media®
Player on your computer to synchronize music and video with your device.
Other than selecting the Media information type to be synchronized, all media synchronization settings must
be set in Windows Media® Player. Before media can be synchronized, you must do the following:
• Install Windows Media® Player Version 11 on your computer. (Windows Media® Player 11 works only in
Windows XP or later versions).
• Connect your device to the computer with a USB cable. If your device is currently connected using
Bluetooth, you must end that connection before media can be synchronized.
• Set up a sync partnership between your device and your computer’s Windows Media® Player.
For more information about using Windows Media® Player Mobile, see Chapter 11.
Chapter 6 Exchanging Messages
6.1 Messaging
6.2 Text Messages
6.3 MMS Messages
6.4 Types of E-mail Accounts
6.5 E-mail Setup Wizard
6.6 Using E-mail
58 Exchanging Messages
6.1 Messaging
Messaging is a central location where you will find all types of messaging accounts, which include text
messages (SMS), multimedia messages (MMS), and e-mail accounts.
To select a messaging account
Do one of the following:
• Tap Start > Messaging. The Account Picker screen then appears where
you can select an account.
• While you are in a message list of a certain account, for example SMS \ MMS, tap Menu > Go To to switch to other types of messaging
accounts.
To configure message account settings
• Tap Menu > Options on the Account Picker screen; or
• Tap Menu > Tools > Options while you’re in a message list.
Account Picker screen
To automatically add a signature in outgoing messages
You can automatically add your name and other information as your signature in outgoing SMS and e-mail
messages:
Note You need to specify your signature for each type of messaging account.
1.
2.
3.
4.
5.
6.
Tap Start > Messaging, then tap Menu > Options.
Tap Signatures.
Select a messaging account in which to add a signature.
Select the Use signature with this account check box.
In the provided text box, enter the information that will be displayed as your signature.
If you want the signature to be added whenever you reply or forward messages, select the Use when
replying and forwarding check box, then tap OK.
7. Repeat the steps to add a signature to other messaging accounts.
6.2 Text Messages
Send short text messages (SMS) to other mobile phones. SMS messages have a 160-character limit. If you
continue to enter text after the limit is reached, the text message will be delivered to your recipients in two
or more separate messages. These are called concatenated SMS messages. If your recipient’s mobile phone
supports concatenated messages, they will receive your complete SMS message at one time.
Create a new text message
Depending on your preference, there are a number of alternative ways you can create a new text message.
From the Account Picker screen
1. Tap Start > Messaging > SMS \ MMS.
2. Tap Menu > New > SMS.
From the Contacts screen
1. Tap Start > Programs > Contacts.
2. Tap the contact’s name to open his or her contact card.
3. Touch Send text message.
Exchanging Messages 59
Compose and send a text message
After creating a new text message, follow the steps below to enter your message and then send it.
1. To add recipients, enter their mobile phone numbers in the To field, separating them with a semicolon.
You can also tap To or tap Menu > Add Recipient to add mobile phone numbers from Contacts.
2. Enter your message.
Tip
To choose from preset messages, tap Menu > My Text and tap a desired message. To check the spelling, tap
Menu > Spell Check.
3. Tap Send.
Tips
•For more information about entering text and symbols, see Chapter 4.
•If you want to know when a text message is received, before sending the message that you are composing, tap
Menu > Message Options, then select the Request message delivery notification check box.
•To always receive a delivery notification, tap Menu > Tools > Options in the text message list, tap Text
Messages, then select the Request delivery notifications check box.
To automatically resend text messages that failed delivery
If text messages were not successfully sent due to network problem or loss of signal coverage, they will be
queued in the Text Messages Retry program and automatically resent. While text messages remain queued,
you can choose to delete some or all of them by following these steps:
1. Tap Start > Programs > Text Messages Retry.
2. Do one of the following:
• To delete a text message, select the message then tap Menu > Dismiss.
• To delete all queued text messages, tap Menu > Dismiss All.
Manage text messages
Text messages that are sent to and received from a contact (or number) are grouped as a single thread in
your inbox. Threaded SMS lets you see exchanged messages (similar to a chat program) with a contact on the
screen.
To reply to a text message
1. In the Text Messages inbox, tap a message thread to open it.
2. At the bottom of the screen, type your reply message and then tap Send.
Enter your reply message here
To delete a message in the thread
1. In the Text Messages inbox, tap a message thread to open it.
2. Use the Navigation Up or Down control to select a message in the thread that you want to delete.
3. Tap Menu > Delete.
60 Exchanging Messages
To delete all messages in a thread
1. In the Text Messages inbox, select a message thread using the Navigation Up or Down control.
2. Tap Delete.
To reply to a text message with an MMS message
You can reply to a text message in a thread using an MMS message.
1. In the SMS \ MMS inbox, tap a message thread to open it.
2. Tap Menu > Insert, and then in the menu, select the item you want to insert: Picture/Video, Audio or
Attachment.
Tip
Tap Menu > Advanced Composer after adding a picture/video, audio, or attachment to compose an MMS
message complete with text, emoticons, media and attachments.
3. Tap Send.
Tip
You can also insert a vCard or vCalendar in your MMS message.
6.3 MMS Messages
Creating and sharing multimedia messages (MMS) with your friends and family are easy with your device.
You can attach pictures or video, and an audio clip in an MMS. You can even use the device camera to capture
photos and video clips while composing a new MMS message, and send them along with your message.
To access MMS
1. Tap Start > Messaging.
2. On the Account Picker screen, tap SMS \ MMS.
Notes •Please note that MMS is a charged service. In order to use MMS successfully, this has to be provisioned on your
mobile account. Please contact Verizon Wireless to have this provisioned as part of your calling plan.
•Please ensure the size of your MMS message is within the allowed limits when sending to another mobile phone
user or sending to an e-mail address.
To configure MMS settings
1. Tap Start > Messaging > SMS \ MMS.
2. Tap Menu > MMS Options. The MMS Configuration screen appears.
3. In the Preferences tab, select or clear the provided check boxes according to your needs. You can
choose to retrieve MMS messages immediately, accept or reject messages, request a delivery receipt,
specify a resolution for images you send, and more.
Create and send MMS messages
After configuring the required settings, you can start to compose and send MMS messages.
To compose an MMS message
You can compose MMS messages in a combination of various slides, where each slide can consist of an image
or video clip, audio, and/or text.
1. On the SMS \ MMS screen, do one of the following:
• Tap Menu > New > Flix Message to create an MMS message containing video and text.
• Tap Menu > New > Pix Message to create an MMS message containing images, audio, and text.
Tip
When you choose Pix Message, you can tap a preset template, or tap Custom to open a blank picture and
video message on the Choose a MMS screen. If you want to always use a blank message, select the Always
choose custom check box.
2. In To, enter the recipient’s phone number or e-mail address directly, or tap To, Cc, or Bcc to choose a
phone number or an e-mail address from Contacts.
3. Enter a subject for your message.
Exchanging Messages 61
4. Tap the Insert icon (
) to select and insert a photo, GIF animation, or video clip. When selecting a
photo or video clip, you can:
• Tap Select to insert the selected photo or video clip into the MMS message you are composing.
• Tap
or
to take a photo/record a video clip, and then insert it into the MMS message.
• Tap the Exit button (
Tip
) to quit selection and return to the MMS message.
To go to another folder where you store the picture and video files, tap the Down arrow (
and select the other folder.
) to navigate
5. Enter text and insert audio clips by tapping the respective areas. See “To add text to an MMS message”
and “To add an audio clip to an MMS message” for details.
or tap Menu > Slides > Insert Slide. Repeat steps 4 and 5 to insert photos/
6. To add more slides, tap
videos, text, and audio onto your slides.
7. Tap Send to send the MMS message.
Tip
You can also send an MMS message directly from the Pictures & Videos , Album, or Camera program. Do one of the
following:
•In Pictures & Videos, select a picture, GIF animation, or video, and tap Menu > Send. In Select an account, tap
Flix Message if you're sending video, or tap Pix Message if you're a sending an image or GIF animation.
•Capture a photo or an MMS video clip using the camera, and tap the Send icon (
box, tap Send via MMS.
). In the Send File dialog
To add text to an MMS message
When you tap Insert text here on your MMS message, an empty screen appears where you can enter your
text. You can insert the following types of information:
Enter your text here.
• Tap
to add an emoticon.
• Tap
to include a Favorites link.
• Tap
to choose from common words or
phrases from the My Text list.
• Tap
to insert contact information.
• Tap
to insert calendar appointment.
To add an audio clip to the picture and video message
You can add an audio clip to a picture message.
1. Tap Insert audio on the composing screen.
2. Select an audio file. When selected, you can:
• Tap Select to insert it into the picture and video message.
• Tap
to play the audio clip; tap
to stop playback.
• Tap the Exit button (
) to quit selection and return to the composing screen.
Tip
To record a new audio clip and add it to your picture and video message, tap
. The Record pop-up window
then opens. Tap Record to start recording, and Stop to end the recording. Tap Play to listen to the recorded audio
clip, then tap Add. The new audio clip is then inserted into your picture and video message.
To create a picture and video message from a template
While on a picture and video message, tap Menu > Template > Select a Template to compose a message
using a predefined template.
To save a message as a template, open the message and tap Menu > Template > Save as Template.
62 Exchanging Messages
View and reply to picture and video messages
To view a picture and video message
• Use the playback controls
,
, and
.
• Tap Contents to see a list of files included in the message.
• On the Message Contents screen, you can do the following:
• To save a file, select it, and tap Menu > Save.
• To save the contents of a text file to the My Text list, tap Menu > Save into My Text.
• To associate a photo to one of your contacts, tap Menu > Assign to Contact.
To reply to a picture and video message
On the message list, select the picture and video message and tap Menu > Reply > Reply to reply to the
sender of the message.
To block a phone number from sending you picture and video messages
If you do not want to receive picture and video messages from a particular sender, you can add the sender’s
phone number to the Pics/Video Blacklist.
1. When you receive a new picture and video message, open and view the message.
2. To avoid receiving picture and video messages from this sender next time, tap Menu > Show >
Message Detail.
3. On the Pics/Video Detail screen, tap Menu > Show Contact Details.
4. Tap Menu > Save to Blacklist.
5. Tap Done.
Tips
•To view the Pics/Video Blacklist, on the message list tap Menu > MMS Options > Blacklist tab.
•To unblock a phone number and allow the sender to send you picture and video messages, remove the number
from the blacklist. Tap and hold the phone number in the blacklist, then tap Delete.
6.4 Types of E-mail Accounts
You can set up the following types of e-mail accounts on your device:
• Outlook e-mail that you sync with your computer or the Exchange Server.
• E-mail account that you have from an Internet Service Provider (ISP) or other e-mail provider.
• Web-based e-mail accounts such as Gmail®, Yahoo!® Mail Plus, AOL®, and others.
• Work account that you access using a VPN connection.
Set up your device to synchronize Outlook e-mail with the computer
If you have installed the synchronization software on your computer and created a partnership with your
device, then your device is ready to send and receive Outlook e-mail.
If you have not yet installed the synchronization software nor created a partnership, do so by following the
procedures in Chapter 5.
Tip
To set up your company e-mail account so that you can access Outlook e-mail messages wirelessly, you must set
up your device to synchronize via an over-the-air connection with your company’s Exchange Server. For more
information about synchronizing with your company e-mail server, see Chapter 7.
Add an e-mail account
To add an e-mail account, tap Start > Messaging > Setup E-mail.
The E-mail Setup wizard then opens and lets you enter your e-mail account settings. See “E-mail Setup Wizard”
in this chapter for details.
Exchanging Messages 63
6.5 E-mail Setup Wizard
Windows Mobile’s E-mail Setup wizard walks you through the process of setting up your e-mail account. It
has an Auto Setup feature which can automatically set up your e-mail account based on the e-mail address
and password that you enter, if your e-mail provider settings are preconfigured on your device. If the settings
are not found on your device, Auto Setup then attempts to retrieve the settings online for which you may be
charged when your device connects to the Internet and downloads them. If it cannot find the e-mail settings
online, you need to enter them manually.
Note For more information about setting up your company Outlook e-mail account, see Chapter 7.
Set up an Internet e-mail account
Set up a POP3 or IMAP4 e-mail account on your device if you have an e-mail account from an Internet service
provider (ISP) or other e-mail service provider, or a Web-based account such as Gmail, Yahoo! Mail Plus,
or AOL. You can also add a work account that you access using a VPN server connection as a POP3/IMAP4
account.
1. Add a new e-mail account. See “Add an e-mail account” for instructions.
2. Enter your E-mail address and the Password for your e-mail account and select the Save password
option. Tap Next.
3. If e-mail provider settings are found preconfigured on your device, the E-mail Setup wizard shows a
successful message. Tap Next.
If the settings are not found on your device, select the Try to get e-mail settings automatically from
the Internet checkbox to find and download e-mail server settings from the Internet and then tap
Next.
4. Enter Your name and the Account display name and then tap Next.
Note If the E-mail Setup wizard was unsuccessful in finding and downloading settings from the Internet, select
Internet e-mail from the Your e-mail provider list on the next screen. You will be asked to enter e-mail
server settings. See “To specify e-mail server settings” for details.
5. In the Automatic Send/Receive list, choose how often you want e-mail messages to be automatically
sent and downloaded on your device.
Note Tap Review all download settings to select download options, set the e-mail format as HTML or plain text,
and more. For more information, see “To customize download and format settings."
6. Tap Finish.
To specify e-mail server settings
If Auto Setup is unsuccessful, contact your ISP or e-mail provider for the Incoming mail server and Outgoing
mail server settings so you can enter them on your device.
Other options that you can select include the following:
• Select the Outgoing server requires authentication check box, if required by your provider.
• If the outgoing e-mail server requires a different user name and password for sending e-mail, clear the
Use the same user name and password for sending e-mail check box. You will be prompted to enter
this information.
• Tap Advanced Server Settings, then select the Require SSL check boxes if your e-mail provider
uses an SSL connection for more secured e-mail. From the Network connection list, select the data
connection that you use for connecting to the Internet.
64 Exchanging Messages
To customize download and format settings
Before you tap Finish when setting up your POP3 or IMAP4 e-mail account, you can tap the Review all
download settings link at the bottom of the screen to choose download options, message format, and other
settings.
Options
Automatic Send/Receive
Download messages
Send/receive when I click Send
Use automatic send/receive
schedule when roaming
When deleting messages
Message format
Message download limit
Description
You can select a time interval for connecting to the Internet automatically to send
and receive messages.
Set the number of days of messages that you want to be downloaded to your
device.
By default, messages are immediately delivered when you tap Send. If you prefer
to save outgoing messages to the Outbox folder first, clear the check box. (In
this case, you will need to manually send messages by tapping Menu > Send/
Receive).
This allows your device to data roam when there is a set time interval for
connecting to the Internet automatically. Since this may result in higher
connection costs, you may want to leave the check box cleared.
Choose whether to delete messages from the mail server when you delete them
on your device.
Select HTML or Plain Text.
Select the e-mail download size. If you have large volumes of e-mail, use a lower
size or select to download headers only.
Set up a custom domain e-mail
When you are using an e-mail domain name that is hosted by a different e-mail provider (for example, your
e-mail address may be [email protected] but Email.com hosts the e-mail account and provides e-mail
services), select the Custom Domain option in the E-mail Setup wizard to set up your e-mail account on your
device.
1. Add a new e-mail account. See “Add an e-mail account” for instructions.
2. Enter your E-mail address and the Password for your e-mail account and select the Save password
option. Tap Next.
3. Clear the Try to get e-mail settings automatically from the Internet and then tap Next.
4. In Your e-mail provider, select Custom domain and then tap Next.
5. Enter the domain of your e-mail provider and then tap Next.
6. The E-mail Setup wizard then tries to find the e-mail provider settings on your device or from the
Internet. If the settings are found, it shows a successful message. Tap Next.
7. Enter Your name and the Account display name and then tap Next.
Note If the E-mail Setup wizard was unsuccessful in finding the settings, you will be prompted to enter e-mail
server settings on the succeeding screens. See “To specify e-mail server settings” for details.
8. In the Automatic Send/Receive list, choose how often you want e-mail messages to be automatically
sent and downloaded on your device.
Note Tap Review all download settings to select download options, set the e-mail format as HTML or plain text,
and more. For more information, see “To customize download and format settings."
9. Tap Finish.
Exchanging Messages 65
6.6 Using E-mail
After setting up e-mail accounts on your device, you can start sending and receiving e-mail messages.
Create a new e-mail message
Depending on your preference, there are two ways you can create a new e-mail message.
To start from an empty message
1. Tap Start > Messaging then select an e-mail account.
2. Tap Menu > New.
To send an e-mail to a contact
1. Tap Start > Programs > Contacts.
2. Select a Contact name.
3. Touch Send e-mail.
Compose and send an e-mail
After creating a new e-mail, follow the steps below to enter your message and then send it.
1. To add recipients, enter their e-mail addresses, separating them with a semicolon. You can also tap To if
you want to add e-mail addresses stored in Contacts.
2. Enter a subject and compose your message.
Tip
To choose from preset messages, tap Menu > My Text and tap a desired message. To check the spelling, tap
Menu > Spell Check.
3. Tap Send.
Tips
•For more information about entering text and symbols, see Chapter 4.
•To set the message priority, tap Menu > Message Options.
•If you are working offline, e-mail messages are moved to the Outbox folder and will be sent the next time you
connect.
To add an attachment to a message
1. In the message that you are composing, tap Menu > Insert and tap the item you want to attach:
Picture, Voice Note, or File.
2. Select the file or picture you want to attach, or record a voice note.
Filter the Inbox message list
When the Inbox on your device is full of messages, you can filter your Inbox to display only the messages that
contain a particular sender or subject you are searching for.
To filter your Inbox
Enter the sender name or e-mail subject you want to look for. As you type
characters, the message list narrows down to the sequence of characters you
have entered.
For example, entering “R”, then “I” narrows the list to only the e-mails that
contain sender names and e-mail subjects that start with “RI.”
66 Exchanging Messages
View and reply to messages
To download a complete e-mail
By default, each e-mail received in the inbox on your device contains only the first few kilobytes of the
message. When you open an e-mail, it displays only the headers and part of the message. You must download
the whole e-mail to view the complete content.
To download a complete e-mail message, open the e-mail and then do one of the following:
• Finger-scroll to the end of the message, and tap Get entire message and any attachments (POP3 e-mail account) or tap Get the rest of this message (IMAP4 and Outlook e-mail accounts).
• Tap Menu > Download Message.
Notes •The Fetch Mail feature, which is available for POP3 and IMAP4 Internet e-mail accounts, downloads an entire
e-mail without the need for you to perform a full synchronization. This limits the download to just the e-mail
message that you want and helps save data cost. Fetch Mail is also available for Outlook E-mail. See “Instant
download through Fetch Mail” in Chapter 7 for details.
•Download may take some time, depending on the speed of your Internet connection, size of the whole e-mail, and whether file attachments are automatically downloaded.
To download file attachments
• POP3 e-mail account: File attachments of a POP3 Internet e-mail account are automatically
downloaded when you download a complete e-mail.
• IMAP4 and Outlook e-mail accounts: File attachments appear below the subject of an e-mail
message. Tapping an attachment opens the attachment if it has been fully downloaded or marks it for
download the next time you send and receive e-mail.
You can set automatic download of file attachments. See “Customize e-mail settings” in this chapter for
details.
To reply to or forward a message
1. Open the message and tap Menu > Reply, Menu > Reply All, or Menu > Forward.
2. Enter your response, then tap Send.
Notes •You can receive and view HTML e-mails from any type of e-mail account. The HTML format is retained, without
layout shifting or resizing. HTML e-mail support in Outlook Mobile is available only if you are synchronizing your
device with Microsoft Exchange Server 2007.
•When replying using an Outlook e-mail account, you can customize ActiveSync to exclude addresses, including
your own, from being added to the recipient list. Tap Menu > Options in ActiveSync, select the E-mail item, tap
Settings, then tap Advanced. In the My e-mail addresses text box, enter e-mail addresses you want to exclude.
Synchronize e-mails
Synchronizing e-mails ensures that new e-mails are downloaded to the device Inbox folder, e-mails in the
Outbox folder are sent, and e-mails deleted from the server are removed from your device. The manner in
which you synchronize e-mails depends on the type of e-mail account you have.
To automatically synchronize an Outlook e-mail account
1. Connect your device to your computer through USB or Bluetooth. Otherwise, connect through Wi-Fi or a data connection if you are synchronizing Outlook e-mail with the Exchange Server. For more
information, see Chapter 7.
2. Synchronization automatically begins, and your device sends and receives Outlook e-mail.
To manually synchronize your Outlook or Internet e-mail account
1. Select your Internet e-mail account. (See “To select a messaging account” in this chapter.)
2. Tap Menu > Send/Receive.
Exchanging Messages 67
Customize e-mail settings
To change the download size and format for Outlook e-mail
1.
2.
3.
4.
Disconnect your device from the computer.
Tap Start > Programs > ActiveSync.
Tap Menu > Options, select E-mail, then tap Settings.
On the E-mail Sync Options screen:
• Under Message format, select HTML or Plain text. HTML is only available when connected to
Microsoft Exchange Server 2007 or later.
• Under Download size limit, select the desired e-mail size.
5. Close ActiveSync and reconnect your device to the computer.
To change the download size and format for Internet e-mail
1. Tap Menu > Options on the Account Picker screen, or tap Menu > Tools > Options while you’re in a
message list.
2. Tap your POP3 or IMAP4 Internet e-mail account.
3. Tap Download Size Settings.
• Under Message format, select HTML or Plain text.
• Under Download size limit, select the desired e-mail size.
4. Tap Done.
To automatically receive attachments on Outlook e-mails
1. Tap Start > Programs > ActiveSync.
2. Tap Menu > Options.
3. Tap E-mail > Settings, then select Include file attachments.
To automatically receive attachments on IMAP4 e-mails
1. Tap Menu > Options on the Account Picker screen, or tap Menu > Tools > Options while you’re in a
message list.
2. Tap the name of your IMAP4 e-mail account.
3. Tap Download Size Settings.
4. In Download attachments, select a download size or select All attachments.
5. Tap Done.
To store attachments on the storage card
1. Tap Start > Messaging.
2. Tap Menu > Options > Storage tab.
3. Select the When available, use this storage card to store attachments check box.
68 Exchanging Messages
Chapter 7 Working With Company E-mails
and Meeting Appointments
7.1 Synchronizing with the Exchange Server
7.2 Working With Company E-mails
7.3 Managing Meeting Requests
7.4 Finding Contacts in the Company Directory
70 Working With Company E-mails and Meeting Appointments
7.1 Synchronizing with the Exchange Server
To keep up-to-date with your company e-mails and meeting schedules while you’re out of the office, you can
connect your device to the Internet through Wi-Fi or a data connection and synchronize with your company’s
Exchange Server.
Set up an Exchange Server connection
Before you can synchronize or access information on the Exchange Server, you need to set up an Exchange
Server connection on your device. You need to get the following information from your network administrator
and enter them on your device:
• Exchange Server name (must be Outlook Web Access server name)
• Domain name
• User name and password that you use at work
If you have not synchronized your device with your computer, follow these steps to set up an Exchange Server
connection.
1. Add a new e-mail account. See “Add an e-mail account” in Chapter 6 for instructions.
2. Enter the E-mail address and Password for the e-mail account and select the Save password option.
Tap Next.
3. Clear the Try to get e-mail settings automatically from the Internet option and tap Next.
4. In Your e-mail provider, select Exchange server and tap Next.
5. Tap Next again.
6. Select the Attempt to detect Exchange Server Settings automatically option and tap Next.
7. Enter the Domain name and tap Next.
8. In Server address, enter the Exchange Server address and tap Next.
9. Select the items that you want to sync with the Exchange Server.
Tips • To change synchronization settings of an information item, for example, E-mail, select the item, then tap
Settings.
• To change the rules for resolving synchronization conflicts, tap Menu > Advanced.
10.Tap Finish.
Notes •If you synchronized e-mails with your computer before, open ActiveSync on your device, then tap Menu >
Add Server Source to set up an Exchange Server connection. When prompted to select information types for
synchronization, you must first clear the E-mail check box under the Windows PC item before you can select E-mail under Exchange Server.
•To change Exchange Server settings, open ActiveSync on your device, then tap Menu > Configure Server.
Start synchronization
Before you start synchronizing with the Exchange Server, make sure your device has been set up with a WiFi or data connection to the Internet so that you can synchronize over the air. For more information about
connections, see Chapter 8.
After you finish setting up an Exchange Server connection, your device automatically starts synchronization.
You can manually start synchronization anytime by tapping Sync in ActiveSync.
Note If you connect your device to your office computer via a USB or Bluetooth connection, you can use this connection
to the computer to “pass through” to the network and download Outlook e-mails and other information to your
device.
Working With Company E-mails and Meeting Appointments 71
7.2 Working With Company E-mails
Your device gives you instant access to your company e-mails and lets you manage your messages easier.
Direct Push, Fetch Mail, Remote e-mail search, and e-mail flags are just some of the tools you can use to
manage your e-mails.
Note Some messaging features depend on the Microsoft Exchange Server version used in your company. Check with
your network administrator for the availability of these features.
Automatic synchronization through Direct Push
Direct Push technology (push e-mail feature) enables you to receive new e-mails on your device as soon as they
arrive in your Inbox on the Exchange Server. Items such as contacts, calendar and tasks are also immediately
updated onto your device when these items have been changed or new entries have been added on the
Exchange Server. To make Direct Push work, you need to have a Wi-Fi or data connection on your device.
You need to perform a full synchronization between your device and the Exchange Server first before Direct
Push can be enabled.
RequirementThe Direct Push feature works for your device only if your company is using Microsoft Exchange
Server 2003 Service Pack 2 (SP2) with Exchange ActiveSync or higher version.
You can turn on Direct Push in the Comm Manager or ActiveSync.
To turn on Direct Push in Comm Manager
1. To open the Comm Manager, tap Start > Settings > Connections tab > Comm Manager.
2. On the Comm Manager screen, touch Microsoft Direct Push.
To turn on Direct Push in ActiveSync
1. Tap Start > Programs > ActiveSync and then tap Menu > Schedule.
2. Select As items arrive in the Peak times and Off-peak times boxes.
Note When Direct Push is off, you need to manually retrieve your e-mails.
Scheduled synchronization
If you do not want to use Direct Push, you can set a regular schedule for synchronizing Outlook e-mail and
information.
1. In ActiveSync on your device, tap Menu > Schedule.
2. Select a shorter time interval in the Peak times box for you to be able to receive e-mails more
frequently. (Peak times usually refer to your working hours when e-mail volume is high).
3. Select a longer interval in the Off-peak times box.
Tip
To set the days and hours that make up your peak and off-peak times, tap the peak times link at the bottom of the
screen.
Instant download through Fetch Mail
The Fetch Mail feature downloads an entire e-mail immediately without the need for you to perform a full
Send/Receive action. This limits the download to just the e-mail message that you want and helps save data
cost.
RequirementFetch Mail works for your device only if your company is using Microsoft Exchange Server 2007 or
higher.
1. Tap Start > Messaging > Outlook E-mail.
2. Open an e-mail message.
3. By default, only the first few words of the message is shown. To download the whole e-mail, fingerscroll to the end of the message, then tap Get the rest of this message.
4. Wait for the remainder of the message body to download.
Notes •For information about changing e-mail sync options such as setting the download size for e-mail, see "Customize
e-mail settings" in Chapter 6.
72 Working With Company E-mails and Meeting Appointments
•When you receive an e-mail that contains a link to a document such as a PDF or Microsoft Office document
located on SharePoint or an internal file server, you can tap the link to view the document on your device. You
can view the document only if you have a Microsoft Outlook account that synchronizes with Microsoft Exchange
Server 2007 or later. Exchange Server must also be set up to allow access to SharePoint document libraries or
internal file servers.
Search for e-mails on the Exchange Server
You can access e-mails that are not available on your device by searching your Microsoft Exchange Server
mailbox. The search results are downloaded and displayed in a Search Results folder.
RequirementYour company must be using Microsoft Exchange Server 2007 or higher.
1.
2.
3.
4.
5.
6.
Tip
Tap Start > Messaging > Outlook E-mail.
Tap Menu > Tools > Search Server.
In the Look for text box, enter the search keyword.
Choose the date range of messages to search from.
In the Look in list, specify whether to search in the Inbox, Sent Items, or All Folders.
Tap Search.
To clear the search results and return to the message list, tap Menu > Clear Results.
Flag your messages
Flags serve as a reminder for you to follow-up on important issues or requests contained in e-mail messages.
Flagging messages, which has been a useful feature on desktop Outlook E-mail, can also be done in Outlook
Mobile on your device. You can flag received e-mail messages on your device.
RequirementFlags are enabled only if e-mails are synchronized with Microsoft Exchange Server 2007 or higher.
Flags are disabled or hidden if e-mails are synchronized with earlier versions of Microsoft Exchange
Server.
To flag or unflag a message
1. Open Outlook on your device and access the Inbox.
2. Select a message or open a message.
3. Tap Menu > Follow Up and select one of the following options:
• Set Flag Mark the message with a red flag to indicate that it needs follow up.
• Complete Flag Mark the message with a check mark to indicate that the issue or request in the e-mail is already completed.
• Clear Flag Remove the flag to unmark the message.
Note E-mail message reminders are displayed on your device if the messages are flagged with reminders and
synchronized from the Exchange Server.
Working With Company E-mails and Meeting Appointments 73
Out-of-office auto-reply
Outlook Mobile allows you to retrieve and change your out-of-office status.
Just like desktop Outlook E-mail, Outlook Mobile automatically sends an
auto-reply message when you’re not available.
To send out-of-office auto-reply messages
1. Tap Start > Messaging > Outlook E-mail.
2. Tap Menu > Tools > Out of Office.
3. In the I am currently list, select Out of the Office.
4. Enter your auto-reply message, then tap Done.
7.3 Managing Meeting Requests
When you schedule and send meeting requests from your device, you can invite attendees to your meeting
and check their status to know about their availability.
When you receive a meeting request, you can reply by accepting or declining the request. The meeting
request also clearly indicates whether or not there are conflicting or adjacent meetings.
RequirementYour company must be using Microsoft Exchange Server 2007 or higher.
To reply to a meeting request
1. When you receive a meeting request e-mail, a notification will be displayed on your device. Open the
e-mail.
2. Tap Accept to reply and accept the meeting request, or tap Menu > Decline if you cannot attend the
meeting.
Tips
• Before responding, you can check your availability during the time of the requested meeting by
tapping View your calendar.
• If the time of the meeting conflicts with your other appointments, a “Scheduling Conflict” status
appears on top of the e-mail.
3. Choose whether or not to edit your response e-mail before sending, then tap OK.
If you accepted the meeting request, it will automatically be added as an appointment in Calendar on your
device.
To view the list of meeting participants
1. Tap Start > Programs > Calendar.
2. Tap a meeting request that you sent and then tap Attendees. The required and optional attendees will
be listed.
Icons indicating whether each attendee has accepted or declined the meeting request will also be displayed.
74 Working With Company E-mails and Meeting Appointments
Note To see the icon indicators in the attendees list, make sure Calendar is synchronized with the Exchange Server.
Tips
• For information about creating a meeting request, see “To send a meeting request” in Chapter 12.
•To view an attendee’s contact information, tap the attendee’s name. If the attendee is included in your contacts
list, you will see the contact information immediately. If the attendee is not in your contacts list, tap Company
Directory to view the contact information.
7.4 Finding Contacts in the Company Directory
In addition to having contacts on your device, you can access contact information from your organization’s
Company Directory. By having over-the-air access to the Company Directory, you can easily send e-mail
messages and meeting requests to anyone in your company.
RequirementAccess to the Company Directory is available only if your organization is running Microsoft Exchange
Server 2003 SP2 or higher, and you have completed your first synchronization with the Exchange
Server.
1. Synchronize with the Exchange Server.
2. Do any of the following:
• In Contacts, tap Menu > Company Directory.
• In a new e-mail message, tap the To box (or tap Menu > Add Recipient), then tap Company
Directory on the top of the list.
• When creating a meeting request and selecting required and optional attendees in Calendar, tap
Company Directory.
2. Enter a partial or full contact name and tap Search. In the search results list, tap a contact to select it.
Note •You can save a contact from the Company Directory to your device by selecting the contact, then tapping Menu
> Save to Contacts.
•You can search on the following information as long as that information is included in the Company Directory:
First name, Last name, E-mail name, Display name, E-mail address, or Office location. Chapter 8 Internet
8.1 Ways of Connecting to the Internet
8.2 Starting a Data Connection
8.3 Using Opera Mobile™
8.4 Using Your Device As a Modem
(Modem Link)
76 Internet
8.1 Ways of Connecting to the Internet
Your device’s networking capabilities allow you to access the Internet or your corporate network at work
through one of the following connections:
• Wi-Fi
• Dial-up
Note You can also add and set up the following connections:
• VPN: A VPN connection is used to access your corporate network by using an existing Internet connection.
•Proxy: A Proxy connection is used to access the Internet using an existing connection to your corporate or WAP
network.
Wi-Fi
Wi-Fi provides wireless Internet access over distances of up to 300 feet (100 meters).
To use Wi-Fi on your device, you need access to a wireless access point or “hotspot”.
Note The availability and range of your device’s Wi-Fi signal depends on the number, infrastructure, and other objects
through which the signal passes:
To turn Wi-Fi on and off
1. Tap Start > Settings > Connections tab > Comm Manager..
2. Tap Wi-Fi to enable/disable the wireless function.
When enabled, the On indicator is activated and available wireless networks will be detected.
To connect to a wireless network
After Wi-Fi is turned on, your device scans for available wireless networks in your area.
1. The network names of the detected wireless networks are displayed on
a pop-up message window. Tap the desired wireless network, then tap
OK.
Note When you select an open (unsecured) network, you will be automatically connected to the network after tapping OK. You do not need to do steps 2 and 3.
2. On the next pop-up message window, do one of the following:
• Tap The Internet if the wireless network connects your device to
the Internet.
• Tap Work if the wireless network connects your device to a private
network.
3. Enter the key and then tap Connect.
Next time you use your device to detect wireless networks, you will not see the pop-up message windows
again, and you will not be prompted to enter the network key of the previously accessed wireless network
(unless you perform a hard reset which will erase custom settings on your device).
Note Wi-Fi networks are self-discoverable, which means no additional steps are required for your device to connect to a
Wi-Fi network. It may be necessary to provide a username and password for certain closed wireless networks.
Internet 77
To check wireless network status
You can check the current wireless connection status from any of the following screens of your device:
• Title bar. When you enable Wi-Fi on your device, the Wi-Fi ON icon appears on the title bar. After
Wi-Fi is turned on, your device scans for available wireless networks and the wireless signal icon
appears on the title bar. The arrows in this icon move back and forth while your device is scanning for a
wireless network signal. Once your device successfully connects to a wireless network, the arrows stop
moving.
• Wireless LAN screen. Tap Start > Settings > Connections tab >
Wireless LAN to open the Wireless LAN Settings screen. On the Main
tab, you will see the wireless network that your device is currently
connected to. The configuration and signal quality of the wireless
network are also shown.
• Configure Wireless Networks screen. Tap Start > Settings >
Connections tab > Wi-Fi. This screen displays the wireless networks
currently available. To connect to a wireless network in the list, tap and
hold on the desired network, then tap Connect. Tap a wireless network
in the list to view or change its connection settings. You can also add
new wireless networks, if available, by tapping Add New.
To save battery power while connected to a wireless network
Using Wi-Fi quickly consumes battery power. Turn off Wi-Fi when not in use. You can also enable power saving
settings.
1. Tap Start > Settings > Connections tab > Wireless LAN to open the Wireless LAN Settings screen.
2. On the Power Mode tab, move the Power Save Mode slider to a position that optimizes performance
with the least power consumption.
For example, move the slider to the left (Best Performance) to
have the optimal wireless network performance; move to the
right (Best Battery) to obtain the maximum battery usage.
78 Internet
Dial-up
Your device’s networking capability allows you to access the Internet through the dial-up connection. Settings
for connecting to your service provider’s 1xRTT/EVDO network are already preconfigured on your device,
and your device is ready to connect to the Internet. Do not change these settings as this may cause your data
connection to stop working.
If you need to use another dial-up connection from an ISP (Internet Service Provider), you can manually
add it to your device. To establish a dial-up connection on your device, you need the same settings that you
normally use when you dial up from your computer. This includes the ISP server phone number, your user
name and password.
1. Tap Start > Settings > Connections tab > Connections.
2. Tap Add a new modem connection.
3. On the Make New Connection screen, enter a name for the connection and select Cellular Line in the
Select a modem list, then tap Next.
4. Enter the ISP server phone number, then tap Next.
5. Enter your user name, password, and any other information required by your ISP, then tap Finish.
8.2 Starting a Data Connection
After setting up a data connection on your device, you can now connect your device to the Internet. The
connection is started automatically when you begin using a program that accesses the Internet such as Opera
Mobile.
To manually start a data connection
If you have set up multiple types of data connections on your device, you can manually start a connection.
1. Tap Start > Settings > Connections tab > Connections.
2. Tap Manage existing connections.
3. Tap and hold the name of the desired connection, then tap Connect.
To disconnect active data connections
1. Tap Start > Settings > Connections tab > Comm Manager.
2. Tap the Data Connection button.
Internet 79
8.3 Using Opera Mobile™
Opera Mobile™ is a full-featured Internet browser, optimized for use on your device.
Note You can also use Internet Explorer® Mobile to browse the Web. To open Internet Explorer Mobile, tap Start >
Programs > Internet Explorer.
1
8
2
3
1
2
3
4
5
6
7
8
9
4
5
6
7
9
Refresh. Tap to reload the Web page being viewed.
Address bar. Enter the URL of the Web site here.
Back. Tap to go back to the previous Web page viewed.
Bookmarks. Tap to go to the Bookmarks screen where you can add a bookmark, edit bookmarked Web
pages, and send a favorite URL link via one of the Messaging accounts.
Tabs. Tap to add a new browsing tab or switch to another existing browsing tab. Home. Tap to go to the Home page.
Menu. Tap to open a list where you can change Opera Mobile settings, check downloads, view History,
and more.
Close tab. Tap to close the current tab. This is only enabled if you have more than one tab opened.
Exit Full Screen mode. When browsing the Web, Opera Mobile automatically switches to Full screen
mode. Tap to show the address and Menu bars again. To open Opera Mobile
Tap Start > Opera.
To go to a Web site
1. On the Opera Mobile screen, tap the address bar.
2. Enter the URL address and tap
.
Address bar
Tip
Search field
When you tap the address bar, a search field also appears. Quickly search the Web by entering the search item and
tapping
.
80 Internet
View Web pages
While browsing Web pages, use finger gestures to pan and zoom on the Web
page. To zoom in, tap your finger twice on the screen. To zoom out, tap your
finger twice on the screen again.
Tip
Touch and hold an empty area on a Web page to open a shortcut menu that
lets you go back to the previous page, reload the page, add the page as a
Favorite, and more. You can also tap and hold a link or image on a Web page to
open a menu with different options.
To change the screen orientation
Change the screen orientation by simply turning your device sideways.
Opera Mobile menu
On the menu bar, tap
to open the menu.
Tap to open the Settings screen where you
can set the default home page, change display
settings, set privacy settings, and more.
Tap to view items being downloaded. You can
also resume or stop current downloads. Tap to view information about the Web page
you are browsing. Tap to see web pages that you have viewed. Tap to manage and view web pages that
you have saved. Tap to open the Opera Mobile help file. Tap to close Opera Mobile completely. Opera Mobile will not run in the background.
Note For more information about using Opera Mobile, go to: http://www.opera.com/products/mobile/
Internet 81
8.4 Using Your Device As a Modem (Modem Link)
While traveling, you can use your Windows Mobile powered device as a modem for your notebook. Use either
VZAccess Manager or the Modem Link program to use your device as a USB modem.
Note When you activate Modem Link, ActiveSync will be disabled automatically.
Using VZAccess Manager
The following instructions describe how to install VZAccess® Manager on a computer that uses Microsoft®
Windows® so that your wireless device can be used as a tethered modem.
To install VZAccess Manager
1. Insert the VZAccess Manager installation CD that came with your device into the CD drive on your
computer.
2. Complete the on-screen instructions.
Note For technical support, please go to dts.vzw.com. Also, to download the latest version of VZAccess Manager, please
go to vzam.net.
To connect to BroadbandAccess
1. On your computer, click Start > Programs > VZAccess Manager.
2. Follow the initial WWAN Setup Wizard to detect the device (action needs to be performed only once for
each device).
3. Select Verizon Wireless - VZAccess connection from the available connection list.
4. Click the Connect WWAN button.
5. Once connected, the Connect WWAN button will change to Disconnect WWAN. Click this button to
end your connection session.
Note For optimum performance, the wireless device should be at least 12 inches from your notebook while operating in
tethered mode.
Using Modem Link
Connect your device to your notebook using the USB cable, then follow the steps below to activate your
device as a modem.
1. On your device, tap Start > Programs > Modem Link.
2. Tap Menu > Start.
After you tap Menu > Start on the Modem Link screen of your device, your notebook will automatically
detect that your device has been connected. The Found New Hardware dialog box will then appear on your
computer.
To add your device as a modem to a Windows Vista notebook
1. Click Cancel to close the Found New Hardware dialog
box.
2. Open the Control Panel, then click Device Manager.
3. Right-click Generic Serial, then click Update Driver
Software.
4. Click Browse my computer for driver software, then click Let me pick from a list of device drivers
on my computer.
82 Internet
5. Click Show All Devices, then click Have Disk and browse the Getting Started Disc to locate the USB
modem driver for your device.
6. HTC USB Modem will then be displayed. Select this modem driver then click Next.
7. If you see the Update Driver Warning message, simply click Yes to continue with the installation.
8. In the Windows Security dialog box, click Install this driver software anyway to continue with the
installation.
9. Wait for the installation of the HTC USB Modem to complete, then tap Close.
To add your device as a modem to a Windows XP notebook
1. In the Found New Hardware dialog box, select Install from a list or specific location (Advanced) and
click Next.
2. Select Search for the best drivers in these locations.
3. Insert the Getting Started Disc into your CD drive. Select the Include this location in the search check
box. Click Browse and choose the CD drive and root folder where the modem driver is located, then
click Next.
4. Wait for the installation to complete, then click Finish.
5. Click Start > Settings > Control Panel.
6. Double-click Phone and Modem Options.
7. Click the Modems tab. Select the new modem from the
Modem list, then click OK.
8. You can now connect your computer to the Internet. Follow the
steps in “Dial up and connect to the Internet.”
Internet 83
Create a modem dial-up connection
After your notebook recognizes your device as a modem, create a modem dial-up connection on your
notebook.
To set up a modem dial-up connection in a Windows Vista notebook
1. On your notebook, click Start > Control Panel.
2. Double-click Network and Sharing Center.
3. On the left-hand panel of the Network and Sharing Center, click Set up a connection or network.
4. Click Set up a dial-up connection then click Next.
5. Enter the following information: dial-up phone number (#777), your user name and password. Also
select the Remember this password check box.
6. When you have finished entering the information, click Connect. Your notebook then starts to dial up
to the Internet using your device as a modem.
7. When you see a dialog box that shows you are connected to the Internet, click Close.
8. In the Set Network Location dialog box, choose the type of location where you will use the dial-up
connection.
84 Internet
To set up a dial-up connection in a Windows XP notebook
1.
2.
3.
4.
5.
6.
7.
8.
On your computer, click Start > Settings > Control Panel.
Double-click Network Connections.
Click File > New Connection.
In the New Connection Wizard, click Next.
Click Connect to the Internet then click Next.
Select Set up my connection manually then click Next.
Select Connect using a dial-up modem then click Next.
Select the USB modem that you previously installed, then click Next.
9. Enter a descriptive name for this connection, then click Next.
10.Enter #777 as the dial-up phone number then click Next.
11.Under Internet Account Information, enter your user name and password then click Next.
12.Click Finish to exit the wizard.
13.The Connect dialog box then opens. Click Dial to dial up and connect to the Internet.
Internet 85
Dial up and connect to the Internet
Whenever you want to dial up to the Internet on your notebook using your device as a modem, tap Menu >
Start in Modem Link of your device, then do the following steps to connect to the Internet.
1. If Modem Link has not yet been activated on your device, select the type of connection (USB or
Bluetooth) then tap Menu > Start.
2. On a Windows Vista notebook, click Start > Connect to, select the name of the dial-up connection,
then tap Connect.
3. On a Windows XP notebook, click Start > Settings > Control Panel, double-click Network
Connections, then double-click the modem connection.
4. The Connect dialog box then opens. Click Dial to dial up and connect to the Internet.
To end the modem session
On the Modem Link screen, tap Done or tap Menu > Stop.
86 Internet
Chapter 9 Bluetooth
9.1 Bluetooth Modes
9.2 Bluetooth Partnerships
9.3 Connecting a Bluetooth Hands-free
or Stereo Headset
9.4 Beaming Information
Using Bluetooth
9.5 Bluetooth Explorer and Bluetooth
File Sharing
9.6 Printing Files via Bluetooth
88 Bluetooth
9.1 Bluetooth Modes
Bluetooth is a short-range wireless communications technology. Devices with Bluetooth capabilities can
exchange information over a distance of about eight meters without requiring a physical connection.
Bluetooth on your device operates in three different modes:
• On. Bluetooth is turned on. Your device can detect other Bluetooth-enabled devices, but not vice versa.
• Visible. Bluetooth is turned on, and all other Bluetooth-enabled devices can detect your device.
• Off. Bluetooth is turned off. In this mode, you can neither send nor receive information using Bluetooth.
Notes •By default, Bluetooth is turned off. If you turn it on, then turn off your device, Bluetooth also turns off. When you
turn on your device again, Bluetooth automatically turns on.
•Turn off Bluetooth when not in use to conserve battery power, or in places where using a wireless device is
prohibited, such as on board an aircraft and in hospitals.
Supported Profiles
Your device supports the following Bluetooth profiles:
GAP (generic access profile)
AVRCP (audio/video remote control profile)
SPP (serial port profile)
HID (human interface device profile)
OPP (object push profile)
Service discovery application profile
GOEP (generic object exchange profile)
FTP (file transfer profile)
ActiveSync-Over-Bluetooth (legacy application via SPP)
BPP (basic printing profile)
HSP (headset profile)
PAN (personal area networking profile)
HFP 1.5 (handsfree profile)
PBAP (phone book access profile)
A2DP (advanced audio distribution profile)
Internet sharing
To turn Bluetooth on and make your device visible
1. On your device, tap Start > Settings > Connections tab > Bluetooth > Mode tab.
2. Select the Turn on Bluetooth and Make this device visible to other devices check boxes.
3. Tap OK. The Title bar will show
to indicate that the device is in Visible mode.
To turn off Bluetooth visibility after a certain period of time
You can automatically turn off Bluetooth visibility after a specified period of time.
1. On your device, tap Start > Settings > Connections tab > Bluetooth > Timeout tab.
2. In Turn off Visible mode, select the time before your device’s Bluetooth visibility turns off. Tap OK.
Bluetooth 89
9.2 Bluetooth Partnerships
A Bluetooth partnership is a relationship that you create between your device and another Bluetooth-enabled
device in order to exchange information in a secure manner.
To create a Bluetooth partnership
1.
2.
3.
4.
5.
6.
On your device, tap Start > Settings > Connections tab > Bluetooth > Devices tab.
Tap Add new device. Your device displays the names of other Bluetooth devices within range.
Tap the device name in the box, then tap Next.
Specify a passcode to establish a secure connection. The passcode can be 1 up to 16 characters.
Tap Next.
Wait for the paired device to accept the partnership. The receiving party needs to enter the same
passcode that you specified.
7. After the receiving party enters the passcode, a message box appears on your device confirming the
partnership.
Tip
Tap Advanced to change the paired device name and to set the services you want to use for the paired
device. After setting the name and options, tap Save.
8. Tap Done.
Note Creating a Bluetooth partnership between two devices is a one-time process. Once a partnership is created, the
devices can recognize the partnership and exchange information without entering a passcode again.
To accept a Bluetooth partnership
1. Ensure that Bluetooth is turned on and in visible mode.
2. Tap Yes when prompted to establish a partnership with the other device.
3. Enter a passcode (the same passcode that is entered on the device requesting the partnership) to
establish a secure connection. The passcode must be between 1 and 16 characters.
4. Tap Next.
5. Tap Done. You can now exchange information with the paired device.
Tips
•To rename a Bluetooth partnership, tap and hold the partnership’s name on the Devices tab of the Bluetooth
screen, then tap Edit.
•To delete a Bluetooth partnership, tap and hold the partnership’s name on the Devices tab, then tap Delete.
9.3 Connecting a Bluetooth Hands-free or Stereo Headset
For hands-free phone conversations, you can use a Bluetooth hands-free headset such as a car kit with your
device. Your device also supports A2DP (Advanced Audio Distribution Profile) which allows you to use a
Bluetooth stereo headset for hands-free phone conversations and for listening to stereo music.
To connect a Bluetooth hands-free or stereo headset
1. Make sure that both your device and the Bluetooth headset are turned on and within close range,
and that the headset is visible. Refer to the manufacturer’s documentation to find out how to set the
headset in visible mode.
2. On your device, tap Start > Settings > Connections tab > Bluetooth > Devices tab > Add new
device.
3. Tap the name of the Bluetooth headset, then tap Next. The device will automatically pair the device
with the Bluetooth headset.
Windows Mobile will automatically try one of the preconfigured passcodes (0000, 1111, 8888, 1234) to pair
the Bluetooth headset with the device. If this fails, you have to enter the passcode delivered with your headset
manually.
Note If the Bluetooth stereo headset becomes disconnected, turn the headset on and repeat step 1 to 2 above. Tap and
hold the name of the Bluetooth stereo headset and tap Set as Wireless Stereo.
90 Bluetooth
9.4 Beaming Information Using Bluetooth
You can beam information, such as contacts, calendar items, tasks, and files from your device to your
computer or to another Bluetooth-enabled device.
Note If your computer does not have built-in Bluetooth capability, you need to connect and use a Bluetooth adapter or
dongle on your computer.
To beam information from your device to a computer
1. Turn on Bluetooth on your device, and make your device visible. For information about this, see “To
turn Bluetooth on and make your device visible”.
2. Set Bluetooth on your computer to visible mode, create a Bluetooth partnership, then enable your
computer to receive Bluetooth beams.
Note If the Bluetooth adapter or dongle on your computer was installed using a third-party provided driver, open
the Bluetooth software that came with the Bluetooth adapter/dongle and enable the adapter/dongle to be
discovered by other devices. Refer to the Bluetooth adapter’s documentation for more information.
If your computer has Windows Vista or Windows XP SP2 and your computer’s Bluetooth adapter is
supported by your Windows version, do the following steps:
a. On your computer, open Bluetooth Devices from the Control Panel, then click the Options tab on
the Bluetooth Devices window.
b.ForWindows Vista, select Allow Bluetooth devices to find this computer. For Windows XP,
select Turn discovery on and Allow Bluetooth devices to connect to this computer.
c. Create a Bluetooth partnership between your device and computer. For information about
creating a partnership, see “Bluetooth partnerships”.
d. In the Options tab of Bluetooth Devices, select Show the Bluetooth icon in the notification
area.
e. To enable your computer to receive Bluetooth beams, right-click the Bluetooth icon
in the
notification area at the bottom-right corner of your computer screen and select Receive a File.
You are now ready to beam.
3. On your device, select an item to beam. The item can be an appointment in your calendar, a task, a
contact card, or a file.
4. To beam a contact, tap Menu > Send Contact > Beam. To beam other types of information, tap Menu
> Beam [type of item].
5. Tap the device name to which you want to send the item.
6. If you beamed a calendar, task, or contact item to your computer and it is not automatically added to
Outlook, select File > Import and Export in Outlook to import it.
To beam information to a Bluetooth-enabled device such as another Windows Mobile-powered device, follow
steps 1 to 5 in the above procedure.
Tips
•The default folder on your computer where beamed items are stored may be C:\Documents and Settings\your_
username\My Documents in Windows XP or C:\Users\your_username\My Documents in Windows Vista.
•For your device to receive Bluetooth beams, tap Start > Settings > Connections tab > Beam and make sure the
Receive all incoming beams check box is selected.
Bluetooth 91
9.5 Bluetooth Explorer and Bluetooth File Sharing
Bluetooth Explorer searches for other Bluetooth devices that have file sharing enabled and lets you access
their Bluetooth shared folder. You can copy files from and to their shared folder, and create subfolders in it.
When you enable Bluetooth file sharing on your device, other Bluetooth-enabled devices will also be able to
access your Bluetooth shared folder.
To enable Bluetooth Explorer and Bluetooth file sharing on your device
1. On your device, tap Start > Settings > Connections tab > Bluetooth > FTP tab.
2. Select the Enable Bluetooth Explorer check box. This makes the \Bluetooth device folder visible in
the File Explorer.
3. Select the Enable File Sharing check box. You can use the default Bluetooth shared folder, or tap
Browse to use another folder as your shared folder.
4. Tap OK.
To use Bluetooth Explorer
1. Bluetooth Explorer is integrated with the File Explorer program. You can open it by tapping Start >
Programs > Bluetooth Explorer or by tapping the down arrow (
) on the upper left of File Explorer
screen then tapping Bluetooth.
2. Bluetooth Explorer then scans for other Bluetooth devices that have
file sharing enabled. From the list, tap to select a Bluetooth device
you want to connect to. You may need to enter a passcode in order
for you to connect to the selected device. If there are files contained
in the Bluetooth shared folder on the other device, you will be able to
see them on the Bluetooth Explorer screen.
3. Select one or more files, then tap Menu > Edit and choose to cut or
copy the files.
4. Tap Up twice.
5. Navigate to the folder where you want to paste the files on your
device, then tap Menu > Edit > Paste.
92 Bluetooth
9.6 Printing Files via Bluetooth
Connect your device to a Bluetooth printer to print contact information, appointment details, images, and
other file types.
Note You can print files in the .txt, .jpg, .xhtml, .vcf, .vcs file formats.
Before you start printing, make sure to turn on the Bluetooth printer and to turn on Bluetooth on your device.
To turn on Bluetooth, tap Start > Settings > Connections tab > Comm Manager, then tap the Bluetooth
button.
To print contact information
1. On the Today screen, tap Contacts.
2. Select the contact whose information you want to print.
3. Tap Menu > Print via Bluetooth > Menu > Search Devices. Your device starts to search for Bluetooth
devices.
4. Select the Bluetooth printer and tap Menu > Send File.
5. Set the printing options you want, then tap Print.
To print a calendar appointment
1. Tap Start > Programs > Calendar, then select (highlight) the appointment whose details you want to
print.
2. Follow steps 3 to 5 in the “To print contact information” procedure.
To print a JPEG file
1. In Pictures & Videos, locate the JPEG file you want to print.
2. Tap and hold the JPEG image file and then on the menu, tap Print via Bluetooth.
3. Follow steps 3 to 5 in the “To print contact information” procedure:
To print a text file
1. In File Explorer, locate the text file you want to print.
2. Tap and hold the txt file and then on the menu, tap Print via Bluetooth.
3. Follow steps 3 to 5 in the “To print contact information” procedure:
Chapter 10 Navigating on the Road
10.1 Guidelines and Preparation
for Using GPS
94 Navigating on the Road
10.1 Guidelines and Preparation for Using GPS
If you install a GPS software on your device, please follow these guidelines before and when using your device
as a GPS device.
• Do not operate the GPS system while driving. The plotted GPS route is only for driving reference. It
should not interfere with actual driving behavior.
• When using the device inside a vehicle, use the car holder to mount the device securely in place. Avoid
placing the device in the areas shown in the following diagram:
1 Do not place where it will block the driver’s vision.
2 Do not place where air bags could deploy.
3 Do not place anywhere in the vehicle without securing the device in the holder.
• Please use the GPS system cautiously. Users shall be liable for any damages resulting from negligent
operation of the system.
• The GPS signal cannot pass through solid non-transparent objects. Signal reception may be affected by
obstructions such as high-rise buildings, tunnels, bridges, forests, weather (rainy or cloudy days), etc. If
the vehicle’s visor contains metal, it will be difficult for the GPS signal to pass through.
• Wireless communication products (such as mobile phones or radar-detecting devices) may interfere
with the satellite signal, resulting in unstable signal reception.
• The Global Positioning System (GPS) is built and operated by the US Defense Department. The
Department is responsible for the accuracy and maintenance of the system. Any changes that the
Department makes may affect the accuracy and function of the GPS system.
• Do not leave your device in a vehicle or expose the device to direct sunlight to avoid overheating the
battery, which could pose damage to the device or risk to the vehicle.
Chapter 11 Experiencing Multimedia
11.1 Taking Photos and Videos
11.2 Viewing Photos and Videos Using Album
11.3 Using Windows Media® Player Mobile
11.4 Using Audio Booster
11.5 Using MP3 Trimmer
96 Experiencing Multimedia
11.1 Taking Photos and Videos
Use Camera to take photos and record video clips. You can either use the camera to take photos or shoot
videos.
To open the Camera screen
Tap Start > Programs > Camera. The screen orientation automatically switches to landscape mode when you
open Camera.
To exit the Camera
Tap the screen first to display the Camera screen icons, and then tap the Exit icon (
).
Capture modes
The camera on your device allows you to capture pictures and video clips by using various built-in modes that
provide you flexibility in taking your shots.
To change the capture mode
• Press Navigation left or right (Landscape orientation).
• Tap the middle icon at the bottom of the screen (the icon displayed is based on the current Capture
mode). On the on-screen menu, tap the Capture mode you want to use.
Current Capture mode
You can select from the following capture modes:
Icon
Capture Mode
Photo Captures standard still images.
Video Captures video clips, with or without accompanying audio.
Panorama Captures a sequence of still images continuously in one direction, and allows stitching of all the
images to create a panoramic view of a scenery.
MMS Video Captures video clips suitable for sending with the picture and video message.
Contacts Picture Captures a still image and gives you the option to immediately assign it as a Photo ID for a
contact.
Picture Theme Captures still images and places them within frames.
Experiencing Multimedia 97
Supported file formats
Using the available capture modes, the camera in your device captures files in the following formats:
Capture mode
Format
Photo / Contacts Picture / Picture Theme / Panorama
JPEG
Video / MMS Video
H.263 (.3gp) ; 3GPP2; MPEG-4 (.mp4)
Camera controls
The camera comes with an auto-focus function to let you capture sharp and crisp photos and videos of your
subjects. Depending on the Shoot Option you have chosen, you will need to either touch or press the ENTER
button to activate auto-focus. When auto-focus is activated, it is indicated by a flashing white bracket (
).
When focus is set, the bracket changes to a steady green bracket (
).
Note For more information about the different shoot options, see “Advanced Options” in this chapter.
By default, you need to touch (do not press) the ENTER button to activate auto-focus and then when focus
is set, press the ENTER button to take the shot or start capturing video. For example, in Photo mode, touch
ENTER to activate auto-focus; when focus is set, press ENTER to take the shot.
Notes •In Video or MMS Video mode, press ENTER again to stop recording.
•In Picture Theme or Panorama mode, press ENTER for each shot you need to take.
On-screen controls and indicators
Tap the screen to display the controls and indicators.
7
6
5
8
1
2
3
When capturing in Video and
MMS Video modes
4
Photo, Video, MMS Video, and
Contacts Picture modes
1 Zoom control. Tap
to zoom in, or
to zoom out.
TipYou can also press Navigation up/down (Landscape orientation) or slide your finger clockwise or
counterclockwise on the center Navigation Control to zoom in or out.
2 Album. Tap to open Album. See “Viewing Photos and Videos Using Album” for details.
3 Capture mode. Displays the current capture mode. Tap to open an on-screen menu where you can choose
the capture mode.
4 Menu. Tap to open the Camera Settings screen. See “Menu Panel” for details.
5 Exit. Tap to exit the Camera program.
6 Remaining information indicator. In Photo, Contacts Picture, Picture Theme, and Panorama modes, this
shows the remaining/available shots of pictures based on the current settings.
In Video and MMS Video modes, this shows the remaining duration that can be recorded. While recording
video, this shows the recorded duration.
7 Auto-focus indicator. Displays a flashing bracket (
).
bracket changes to a steady green bracket (
) when focusing. When focus is set, the flashing
98 Experiencing Multimedia
8 Recording indicator. Flashes when recording a video.
Picture Theme mode
9 10
9 Progress
indicator.
In
Theme
and Panorama modes, this shows the number of consecutive shots.
10Template
Selector icon. In Picture Theme mode, tap to toggle among different templates.
Menu Panel
The Menu Panel provides a quick way of adjusting most common camera settings and lets you access more
advanced camera settings. On the Camera screen, tap
to open the Menu Panel. To adjust a setting, keep
tapping a button on the panel, for instance, White Balance, to cycle through the available settings. To access
.
advanced options, tap
Note The available settings on the panel depend on the selected Capture mode.
5
4
1
3
2
1 Flash Light. Tap to turn on or off the flash light that is located at the back of your device. When the flash
light is on, the camera gives off a flash when taking photos.
2 Self-timer. Tap to set the self-timer to 2 seconds, 10 seconds, or Off when in the Photo or Contacts
Picture mode. When you press the ENTER button to capture a still image, it starts to count down, then
captures a still image after the time expires.
3 Advanced. Tap to open the advanced camera settings. See “Advanced Options” for details.
4 Brightness. Tap to open the Brightness bar at the bottom of the screen. On the Brightness bar, tap
to
decrease, or
to increase the brightness level. Tap outside the Brightness bar to apply the change.
5 White Balance. White balance enables the camera to capture colors more accurately by adjusting to
different lighting conditions. White balance settings include: Auto (
), Daylight (
), Night (
),
Incandescent (
), and Fluorescent (
).
Experiencing Multimedia 99
Zooming
Before capturing a photo or a video clip, you can zoom in to make the object in focus move closer, or zoom
out to make the object move farther away.
To zoom in
Slide your finger around the Navigation Control clockwise, press Navigation up (Landscape orientation), or
tap
.
To zoom out
Slide your finger around the Navigation Control counterclockwise, press Navigation down (Landscape
orientation), or tap
.
Zoom In
Zoom Out
The camera zoom range for a photo or a video clip depends on the capture mode and resolution. Refer to the
table for more information.
Capture mode
Video
Resolution
Zoom range
3M (2048 x 1536)
1.0x to 2.0x
2M (1600 x 1200)
1.0x to 2.0x
1M (1280 x 960)
1.0x to 2.0x
Large (640 x 480)
1.0x to 2.0x
Medium (320 x 240)
1.0x to 4.0x
CIF (352 x 288)
1x and 1.5x
Large (320 x 240)
1x and 1.5x
Medium (176 x 144)
1x and 1.5x
Small (128 x 96)
1x and 1.5x
Medium (176 x 144)
1x and 1.5x
Small (128 x 96)
1x and 1.5x
Large (640 x 480)
1x and 2x
Medium (320 x 240)
1x, 2x and 4x
Medium (240 x 320)
1.0x to 4.0x
MMS Video
Panorama
Contacts Picture
Picture Theme
Determined by the current template
Depends on the size of the selected template
100 Experiencing Multimedia
The Review screen
After capturing, the Review screen lets you view, send, or delete the photo or video clip by tapping an icon at
the bottom of the screen.
Review screen icons
Icon
Function
Back Return to the live Camera screen.
View View the captured image or video in the Album program.
Delete Delete the captured image or video.
Send Send the captured image or video via e-mail.
Assign to Contact After capturing in Contacts Picture mode, tap this icon to assign the photo to a selected
contact.
Advanced Options
The Advanced Options let you adjust options for your selected capture mode and set Camera program
preferences. Access the Advanced Options by tapping Advanced on the Menu Panel.
You can either tap on-screen or press Navigation up/down (Landscape orientation) to navigate through the
Advanced Options screen.
Tap an item to change the setting.
Tap to go back to the Camera screen.
Tap to go through the different
Advanced Camera Settings screens.
• Review Duration. Set a time length for displaying the captured image/video on the Review screen.
Select No Limit if you do not want to impose a time limit. Select No Review to immediately return to
the live Camera screen after capturing and saving.
• Resolution. Select the resolution to use when taking photos or capturing videos. • Quality. Select the JPEG image quality level for all captured still images. Choose from Basic, Normal,
Fine, and Super Fine.
• Capture Format (Video and MMS Video modes). Select the desired file format.
• Time Stamp (Photo mode). Choose whether or not to include the shooting date and time on captured
photos.
Experiencing Multimedia 101
• Storage. Select where you want to save your files. You can either save the files to the main memory or
to a storage card if one is installed.
• Keep Backlight. Turn the backlight on or off. This overrides your device backlight settings while you are
using the camera.
• Shutter Sound. Choose whether or not you want the camera to make a shutter sound when you press
the ENTER button.
• Shoot Option. The camera comes with an auto-focus feature that is activated when the ENTER button is
either touched or pressed.
• Touch and Press (default). Requires you to touch the ENTER button to activate the auto-focus;
when focus is set, press the ENTER button to take the shot.
• Touch. Requires you to touch the ENTER button to activate autofocus; when focus is set, Camera
automatically takes the shot.
• Full Press. Requires you to press the ENTER button to activate auto-focus; when focus is set, Camera
automatically takes the shot.
• Image Properties. This option lets you adjust the capture properties, such as Contrast, Saturation, and
Sharpness.
1 Tap a property to adjust.
2 Tap to reset all properties to their
default values.
3 Tap to save the settings.
1
/
or press Navigation
4 Tap
right/left (Landscape orientation) to
increase/decrease the value.
5 Tap to close the submenu without
applying and saving the changes.
2
3
4
5
• Effect. Choose a special effect such as Grayscale, Sepia, or Negative, to apply to your photos or video
clips.
• Metering Mode. Select a metering mode to allow the camera to measure the amount of light and
calculate the best-fit exposure value before capturing. Choose either Center Area to measure light
using the center area of the subject, or Average to measure light using the area around the subject.
• Prefix. When Default is selected as the prefix, the file name of each new captured file is set to “IMAGE”
or “VIDEO” followed by a sequential number, for example: IMAGE_001.jpg. You may also choose to name
files using either the current Date or Date & Time as the prefix.
Note If you set the Camera to save captured photos to a storage card, the prefix cannot be selected. Captured
photos will be named using the convention IMAGnnnn.jpg (where ‘nnnn’ is the counter) which is the DCIM
(Digital Camera Images) naming standard, and will be saved to the \DCIM\100MEDIA folder on the storage
card.
• Counter. To reset the file naming counter back to 1, tap Reset.
• Flicker Adjustment. When taking indoor shots, flicker on the camera screen may be caused by
inconsistencies between the vertical scan rate of the camera display and the flicker frequency of
fluorescent lighting. To reduce flicker, you can change the flicker adjustment setting to Auto or to the
proper frequency (50Hz or 60Hz) of the power in the country where your device is being used.
• Grid (Photo mode). Choose whether or not to
show a grid on the Camera screen. Showing a
grid helps you frame and center your subject
easily and accurately.
Grid marks
102 Experiencing Multimedia
• Record with Audio (Video and MMS Video modes). Select On to record audio with the captured video
clips, or select Off to capture video without audio.
• Template (Picture Theme mode). Select a template.
• Recording Limit (Video mode). Set the maximum duration or file size for recording video.
• Template Folder (Picture Theme mode). By default, templates are stored in the \My Documents\
Templates folder on the device’s Main Memory. If you transferred some templates to a storage card
(via File Explorer), set this option to Main + Card to specify that templates are located in both the main
memory and the storage card.
• Show Reminder (Contacts Picture mode). Select On if you want the Camera to always display a
message that confirms whether or not to assign the captured picture to a contact.
• Direction (Panorama mode). Choose in what direction images will be stitched in a panorama.
• Stitch Count (Panorama mode). Select the desired number of images to be captured and stitched into a
panorama.
• Help. Tap to open the Camera program help file.
• About. Tap to display version and copyright information.
11.2 Viewing Photos and Videos Using Album
Use Album to view images and videos in your device. Album offers a host of features that let you rotate
images, view your images as a slideshow, use images as contact pictures, and more.
Note Album can only display files in the BMP, GIF, PNG, JPG, Animated GIF, 3GP, MP4, and WMV formats.
To open Album
Tap to open the Camera program.
Do one of the following:
• Tap Start > Programs > Album.
• In the Camera program, tap
.
Note When you open Album from the Camera program, the screen
orientation of Album is switched to landscape mode.
Select a photo or video to view
1. On the main Album screen, tap Albums and then select the album to view. The contents of the album
are then displayed on the main Album screen.
2. Browse through the files by sliding your finger upward or downward.
3. Do one of the following:
• Tap an image to view it in full screen mode. See “View an image” for details.
• Tap a video file (files with the
icon) to play back the video file. See “Play back video” in this
chapter for details.
• Select a still image and then tap Menu > Slideshow to view the images in the album as a
slideshow. Animated GIF and video files will not be played back in the slideshow. See “To view still
images as a slideshow” in this chapter for details.
Experiencing Multimedia 103
View an image
While viewing an image in full screen, tap the screen or press ENTER to open the on-screen menu.
Tap to go back to the main
Album screen or Camera.
Tap to start the slideshow.
Tip
Tap to open a menu where you can
save the screen image as a photo for
a contact, save the current image as a
new file, delete the image, and view
file properties.
Tap to send the image using one
of the Messaging accounts.
You can delete multiple files at once by selecting Menu > Delete Items on the main Album screen and then
selecting the files to delete. To rotate the image
While viewing images, you can automatically rotate the image by simply turning your device sideways.
To view the next or previous image
When viewing images in Portrait or Landscape mode, go to the next image by swiping your finger across the
screen from right to left. Go back to the previous image by swiping your finger from left to right.
104 Experiencing Multimedia
To zoom in or out of an image
While viewing an image, make a full circle motion on the screen with your finger.
Slide your finger clockwise on
an area to zoom in on that area.
Slide your finger counter-clockwise
to zoom out.
Tips
•When you zoom in on an image, double-tap the screen to automatically zoom out and fit the image to the
screen.
•When you zoom in on an image, tap and hold the screen so you can pan the image.
•You can also zoom in and out of the image by sliding your finger around the Navigation Control clockwise/
counterclockwise.
•When you zoom in on an image, tap the screen to open the on-screen menu. On the on-screen menu, tap
and then select Save Screen Image to save the image on-screen as a new file.
To view still images as a slideshow
While viewing the slideshow, tap the screen to show playback controls.
Tip
The screen orientation automatically switches to landscape mode when viewing a slideshow.
Tap to open the slideshow
options where you can
set the transition effect
to use, time per slide, and
orientation of the images.
Tap to return to the main
Album screen. Tap to go back to the
previous image.
Tap to play or pause the
slideshow playback.
Tap to go to the
next image.
Experiencing Multimedia 105
Play back video
While playing back video, tap the screen to show the playback controls.
Drag to go forward or
backward in the video.
Total duration
Elapsed time
Tap to go back to the
beginning of the video.
Tap to stop video playback.
Tap to play or pause
video playback.
Close Album
Close Album by tapping
on the main Album screen. When viewing files in full screen mode, tap the screen
to show the on-screen menu or playback controls and then tap
to go back to the main Album screen.
11.3 Using Windows Media® Player Mobile
Windows Media® Player Mobile plays digital audio and video files that are stored on your device or on a
network, such as on a Web site.
Video File Formats Supported
File Extensions
Windows Media Video
MPEG4 Simple Profile
H.263
H.264
Motion JPEG
.wmv, .asf
.mp4
.3gp, .3g2
.mp4, .3gp, .3g2, .m4v
.avi
Audio File Formats Supported
File Extensions
Windows Media Audio
WAVE
MP3
MIDI and SP MIDI
AMR Narrow Band
AMR Wide Band
AAC, AAC+, and eAAC+
MPEG4 audio
QCELP
EVRC
.wma
.wav
.mp3
.mid, .midi, .rmi
.amr, .3gp
.awb,.3gp
.aac, .mp4, .m4a, .3gp
.m4a
.qcp, .3g2
.qcp
To open Windows Media® Player Mobile
Tap Start > Programs > Windows Media.
106 Experiencing Multimedia
About the controls
Tap and drag to jump to
any part of the video or
audio
Full screen
Mute/Unmute
Increase volume
Visit WindowsMedia.com
Decrease volume
Skip to the beginning of
Skip to the next file
the current file or to the Play/Pause
previous file
About the screens and menus
Windows Media® Player Mobile has three primary screens:
• Playback screen. The screen that displays the playback controls (such as Play, Pause, Next, Previous,
and Volume) and the video window. You can change the appearance of this screen by choosing a
different skin.
• Now Playing screen. The screen that displays the Now Playing playlist. This special playlist indicates the
current file being played and any files that are “queued up” to play next.
• Library screen. The screen that lets you quickly find your audio files, video files, and playlists. It contains
categories such as My Music, My Videos, My TV, and My Playlists.
At the bottom of each screen, you can open a Menu. The commands on this menu vary, depending on which
screen you are viewing. For more information about the commands in these menus, see Help on your device.
Synchronize video and audio files
Use the latest version of Windows Media® Player on your computer to synchronize digital media files from
your computer to your device. This ensures that protected files and album art (for skins) are copied to your
device correctly.
To synchronize content to your device automatically
1. On your computer, open Windows Media® Player, then connect your device to your computer.
2. In the Device Setup Wizard, select Yes, search my computer now.
NoteIf you have previously opened Windows Media® Player and searched for media on your computer, you will
not be prompted to search your computer in Step 2.
3. On the Device Setup dialog box, enter a name for your device and click Finish.
Note If you installed a storage card that has a capacity of more than 4GB and your entire library can fit into the
storage card, Windows Media Player will automatically synchronize your music files. The device also needs
to be set to Disk Drive mode for Windows Media Player to automatically synchronize.
4. On the left panel of Windows Media® Player, right-click the name of your device and click Set Up Sync.
Note To set up media synchronization on a storage card, right-click Storage Card in the left panel of Windows
Media® Player, then click Set Up Sync.
5. Select the playlist(s) that you want to sync between your computer and device, then click Add.
Note On the Device Setup dialog box, make sure that the Sync this device automatically check box is selected.
6. Click Finish.
The files will begin synchronizing to your device. The next time you connect your device to your computer
while Windows Media® Player is running, synchronization will start automatically.
Experiencing Multimedia 107
To synchronize content manually to your device
1. If you have not set up media synchronization between your device and computer, follow steps 1 to 3 in
“To synchronize content to your device automatically”.
2. Click the Sync tab on the Windows Media® Player of your computer. Select a Playlist or a Library on the
left panel of the Windows Media® Player.
3. From the Content List, drag the media files that you want to sync to your device and drop them to the
Sync List.
Playlists and Library List
Content List
Sync List
4. Click Start Sync to start synchronizing the selected files to your device.
Notes •Use Windows Media® Player 11 or higher on your computer to synchronize media files to your device.
•Audio files copy faster if Windows Media® Player is configured to automatically set the quality level for audio files
copied to your device. For more information, see the Windows Media® Player Help.
Play media
Use the Library to find and play songs, videos, and playlists that are stored on your device or an installed
storage card.
To update the Library
1. If you are not on the Library screen, tap Menu > Library.
2. On the Library screen, tap the Library arrow (near the top of the screen), then tap the media storage
that you want use, for example, Storage Card.
3. In most cases, Windows Media® Player Mobile automatically updates the library. However, you can
manually update the library to ensure that it contains new files that you recently copied to your device.
Tap Menu > Update Library to manually update the library list.
To play video and audio files on your device
1. Select a category (for example, My Music or My Playlists).
2. Tap and hold the item that you want to play (such as a song, album, or artist name), then tap Play.
Tips
•To play a media file that is stored on your device but is not in a library, on the Library screen, tap Menu > Open
File. Tap and hold the item that you want to play (such as a file or a folder), then tap Play.
•To play a media file from the Internet or a network server, tap Menu > Library then tap Menu > Open URL.
108 Experiencing Multimedia
Playlists
In Windows Media® Player Mobile, you can create a new playlist by saving the current Now Playing playlist and
giving it a new name.
To save a new playlist
1. If you are not on the Library screen, tap Menu > Library.
2. Tap to select a category (for example, My Music or My Playlists).
3. Select a media file that you want, then tap Menu > Queue Up. This adds the file to the Now Playing list.
Repeat this step until you have added all desired media files to the Now Playing list.
Note You cannot select multiple files simultaneously.
4.
5.
6.
7.
After adding the media files, tap Menu > Now Playing.
On the Now Playing screen, tap Menu > Save Playlist.
Enter the playlist name, then tap Done.
To play back the playlist you created, tap My Playlists in the Library, select your playlist, then tap Play.
Troubleshooting
If you encounter a problem while using the Windows Media® Player Mobile, see the Troubleshooting Windows
Media® Player Mobile page at the Microsoft Web site (http://www.microsoft.com/windows/windowsmedia/
player/windowsmobile/troubleshooting.aspx).
11.4 Using Audio Booster
Audio Booster optimizes sound for a better listening experience. It provides preset moods, such as hip hop,
jazz, rock, etc., and several enhancement presets that suit different types of music.
Note You must first plug in a headset before you can use Audio Booster.
To access Audio Booster
Tap Start > Programs > Audio Booster.
5
1
This control
Does this
1
On
Select the check box to enable or disable
the equalizer.
2
Frequency
band
Drag the sliders to adjust the frequency.
3
Menu
•Tap Menu > Cancel to exit Audio Booster
without applying the modified settings:
•Tap Menu > Save as Preset or Delete
Preset to save or delete preset equalizer
settings.
4
Done
Tap to apply the modified settings.
5
Equalizer
presets
Tap to choose the Equalizer preset to use.
2
4
3
To use a Equalizer preset
Tap the list box then select a desired preset.
To create a custom equalizer preset
1. Adjust the frequency bands to your desired values by dragging the equalizer controls. The selected
values are indicated on top of the sliders.
2. Save your equalizer settings as a preset by tapping Menu > Save as Preset.
3. Enter a preset name and then tap Done. The preset you created will be added to the list box.
Experiencing Multimedia 109
To delete a custom equalizer preset
1. Tap the list box then select the Equalizer preset you want to delete.
2. Tap Menu > Delete Preset.
Note You can only delete custom equalizer presets. Equalizer presets that are pre-installed cannot be deleted.
11.5 Using MP3 Trimmer
Use MP3 Trimmer to trim MP3 files. You can choose to save it as a new file or set it as a ring tone.
Title
Duration
Playback
time
Play/Stop
Start and End Points
Set the part of the music that will be used as
the ring tone. Drag the left handle to set the
start time, then drag the right handle to set the
end time.
Start Point / End Point
To set the start and end points more precisely,
you can also tap these controls to step
backward/forward one step.
To trim the MP3 file
1. Tap Start > Programs > MP3 Trimmer.
2. Tap Open to find the MP3 file in the device or storage card.
3. On the MP3 Trimmer screen, use the stylus to adjust the Start Point and End Point.
After you set the Start Point, the song will play back starting from the start point.
After you set the End Point, the song will play back starting from 5 seconds before the end point.
4. Tap Play to play back the trimmed song.
5. Tap Menu and select to whether set the file as the default ring tone, save the file to the ring tone folder,
or save it using another file name.
Tip
If you only want to save the song to the ring tone folder for future use, tap Save to Ring Tone Folder. Later on, you
can tap Start > Settings > Personal tab > Phone to set it as your ring tone.
110 Experiencing Multimedia
Chapter 12 Programs on your Device
12.1 Programs on your Device
12.2 Adding and Removing Programs
12.3 Adobe® Reader® LE
12.4 Calendar
12.5 Contacts
12.6 Comm Manager
12.7 JETCET™ PRINT
12.8 Microsoft® Office Mobile
12.9 Notes
12.10 Tasks
12.11 Voice Recorder
12.12 WorldCard Mobile
12.13 ZIP
112 Programs on your Device
12.1 Programs on your Device
The following are programs you can find on your device.
Programs in the Start Menu
Icon
Description
Calculator Perform basic arithmetic and calculations, such as addition, subtraction, multiplication, and
division.
File Explorer Organize and manage files on your device.
Get Applications Download software online for your device..
Messaging Send and receive e-mail and text messages.
Opera Mobile This is the mobile version of the Opera browser. See Chapter 8 for details.
Phone Make and receive calls, switch between calls, and set up conference calling. See Chapter 2 for details.
Help See Help topics for the current screen or program.
Programs screen
Icon
Description
Games Play these pre-installed games: Bubble Breaker, Teeter and Solitaire.
Office Mobile Use the complete suite of Microsoft® Office applications for your mobile device.
Excel Mobile Create new workbooks or view and edit Excel workbooks.
OneNote Mobile Create notes with text, photos, and voice recordings.
PowerPoint Mobile View PowerPoint slides and presentations.
Word Mobile Create, view, and edit Word documents.
ActiveSync Synchronize information between your device and a PC or the Exchange Server. See Chapter 5
and 7 for details.
Adobe Reader LE View PDF (Portable Document Format) files on your device.
Album View photos and videos that you captured using the device camera. See Chapter 11 for details.
Audio Booster Enhances your music experience by providing you with controls for adjusting equalizer, 3D
sound, treble, and bass settings. See Chapter 11 for details.
Bluetooth Explorer Search for other Bluetooth devices that have file sharing enabled and access their
Bluetooth shared folder. See Chapter 9 for details.
Calendar Keep track of your appointments and create meeting requests.
Camera Take photos and shoot video clips with accompanying audio. See Chapter 11 for details.
ClearVue Presenter Create, edit, save, view, and print presentations.
Comm Manager Manage your device’s connections (including data connection and Bluetooth), turn the
phone on or off, and enable or disable the Direct Push function.
Contacts Keep track of your friends and colleagues.
Getting Started View a list of “how to’s” that you can reference to learn basic features and settings of your
device.
Programs on your Device 113
Icon
Description
Internet Explorer Mobile Browse Web and WAP sites as well as download new programs and files from the
Internet.
JETCET PRINT Print documents, image files, e-mails, web pages and more from your device.
Modem Link Connect your notebook computer to the Internet using your device’s data connection.
MP3 Trimmer Trim MP3 files, and choose to save the trimmed music as a new file or set it as a ring tone. See
Chapter 11 for details.
Notes Create handwritten or typed notes, drawings, and voice recordings.
Pictures & Videos View, organize, and sort pictures, animated GIFs, and video files on your device.
Remote Desktop Mobile Connect and control your desktop computer remotely from your device.
Search Search contacts, data, and other information on your device.
Tasks Keep track of your tasks.
Text Messages Retry Queues text messages that were not sent due to a network problem or loss of signal
coverage. See Chapter 6 “Text Messages” for details.
Voice Recorder Record your voice and send it via e-mail or beaming. You can also set the recorded voice as
your ring tone.
VZ Navigator Provides all the features of an advanced navigation system on your mobile phone.
VZAppZone VZAppZone is an online mobile marketplace that allows you to browse and purchase add-on
applications for your device and also provides access to support content and real-time news and weather
information.
Windows Media Player Mobile Play back audio and video files. See Chapter 11 for details.
WorldCard Mobile Capture business cards using the device camera, and export the business card
information as a new contact in your Contacts list.
ZIP Save memory and free up storage space on your device by compressing files in the conventional ZIP
format.
12.2 Adding and Removing Programs
Additional programs, such as the programs in the Getting Started CD or other programs that you purchase,
can be installed and uninstalled on your device. Your device does not allow you to uninstall most of the
preinstalled programs.
Note Before you purchase additional programs for your device, make sure that they are compatible with your device.
To install a program
1. Download the program to your computer (or insert the CD or disk that contains the program into your
computer).
You may see a single *.exe file, a *.zip file, a Setup.exe file, or several versions of files for different
device types and processors. Be sure to select only the programs designed for your device.
2. Read any installation instructions or documentation that comes with the program. Many programs
provide special installation instructions.
3. Connect your device to the computer.
4. Double-click the installation setup file.
To uninstall a program
1. Tap Start > Settings > System tab > Remove Programs.
2. In the Programs in storage memory list, select the program you want to remove, then tap Remove.
114 Programs on your Device
12.3 Adobe® Reader® LE
Adobe® Reader® LE is an application for viewing PDF (Portable Document Format) documents on your
device. It supports a subset of the features found in the PC versions of Adobe Reader.
To open Adobe Reader LE
Tap Start > Programs > Adobe Reader LE.
To open a PDF file on your device
• Open a PDF file in Adobe Reader LE; or
• Open File Explorer, find the PDF file, then tap the file to open it.
To navigate through a PDF document
You can use the controls in the program and finger gestures to navigate a PDF document.
• Tap Tools > View > Continuous and then slide your finger up or down the screen to scroll through the
pages in the document.
Tip You can also drag the scroll bars to scroll through the pages.
• Tap
to zoom in or
to zoom out. After zooming in, slide your finger on the screen to pan the
current page.
• Press Navigation up/down/right/left to move to the desired direction of the page.
• Tap to return to the previous page; tap to move to the next page. Tap
to jump to the first page;
tap
to jump to the last page.
• Tap Tools > Go To > Page Number to enter a page number that you want to view.
To search for text in the document
1. Tap Tools > Find > Text or tap
in the toolbar.
2. Type in the text to be searched, then tap Find. The matched text in the document will be highlighted.
3. To view the next occurrence of the text, tap Tools > Find > Next.
Tips
•Adobe Reader LE displays a bookmark pane for the PDF files that contain bookmarks. Tap the bookmarks to go
to a specific section/page within the file.
•Adobe Reader LE supports password-protected PDF files with up to 128-bit encryption. When you open a
password-protected PDF file, you will be prompted to enter the password before opening it.
Programs on your Device 115
12.4 Calendar
Use Calendar to create appointments, including meetings and other events. You can also synchronize
Calendar appointments between your device and computer.
To open the Calendar screen
• On the Today screen, tap Calendar or a displayed appointment; or
• Tap Start > Programs > Calendar.
Create appointments
To schedule an appointment
1. Open the Calendar screen and then tap Menu > New Appointment.
2. Enter a name for the appointment.
3. Do one of the following:
• If it is a special occasion such as a birthday or a whole-day event, set the All Day option to Yes.
• If there is a time frame for the appointment, set the start and end dates and times.
4. Specify the type of category for your appointment, so that it can be grouped with other related
appointments. Tap Categories, then select a preset category (Business, Holiday, Personal, or Seasonal),
or tap New to create your own category.
5. When finished, tap OK to return to the calendar.
Notes •All-day events do not occupy blocks of time in Calendar; instead, they appear in banners at the top of the
calendar.
•To remove an appointment, tap Menu > Delete Appointment.
Tip
To have the time entered automatically in Day view, tap and drag to select a time slot for the new appointment,
and tap Menu > New Appointment.
To set the reminder time for new appointments
By default, Calendar has been set to display a reminder alert when you have new upcoming appointments.
You can change the reminder time.
1. Open the Calendar screen.
2. Tap Menu > Tools > Options > Appointments tab.
3. Make sure the Set reminders for new items check box is selected.
4. Set the time when you want the reminder to alert you.
5. Tap OK to return to the Calendar screen.
116 Programs on your Device
View appointments
By default, Calendar displays appointments in Agenda view. You can also look at your appointments in Day,
Week, Month, and Year views.
The highlighted hours
here indicate the time of
your appointments.
The red box and arrows indicate that
there are conflicting appointments.
Tap to view appointment details.
Tap to switch views.
Agenda view
• To see detailed appointment information in any view, tap the appointment.
• To view appointments by category, tap Menu > Filter, then select the desired category.
• To change the default view that Calendar uses to display appointments, tap Menu > Tools > Options >
General tab. Tap the Start in box, then choose the calendar view.
• When in Month view, you will see the following indicators:
Morning appointment
Afternoon or evening appointment
All-day event
Both morning and afternoon/evening
appointments
Send appointments
To send a meeting request
Use Calendar to schedule meetings via e-mail with contacts who use Outlook or Outlook Mobile.
1. Open the Calendar screen.
2. Schedule a new appointment, or open an existing one and tap Menu > Edit.
3. Tap Attendees, then tap Add Required Attendee or Add Optional Attendee and add the contacts
whom you want to invite.
Note You can specify if an attendee is required or optional only if your device is connected to a Microsoft
Exchange 2007 server. Otherwise, all attendees are designated as required. For more information, see
“Managing Meeting Requests” in Chapter 7.
4. When you have finished adding attendees, tap Done.
5. Tap OK to send.
Tip
To choose the e-mail account to use for sending meeting requests, tap Menu > Tools > Options > Appointments
tab. Tap the Send meeting requests via box and choose to send via your Outlook E-mail or POP3/IMAP4 account.
Notes •If you’re sending the meeting request using your Outlook E-mail account, it will be sent to the attendees the next
time you synchronize your device with your computer or Exchange Server.
•When attendees accept your meeting request, the meeting is automatically added to their schedules. When their
response is sent back to you, your calendar is updated as well.
Programs on your Device 117
12.5 Contacts
Contacts is your address book and information storage for people and businesses you communicate with.
You can add Outlook contacts to your device. Outlook contacts can be created and stored on your device, or
synchronized with your PC or the Exchange Server.
To open the Contacts screen
Do one of the following:
• On the Today screen tap Contacts; or
• Tap Start > Programs > Contacts.
Add new contacts
To add a contact on your device
1. Open the Contacts screen.
2. Tap New and enter the contact information.
3. In the File as field, choose how you want the contact name to appear
in the contact list.
4. To add a photo of the contact, tap Select a picture, and then select
the picture file or tap Camera to take a photo of the contact.
5. To assign a ring tone to the contact, tap the Ring tone field, scroll
through the list of tones, then select a desired tone.
6. When finished, tap OK.
Tips
•If a person who is not in your list of contacts called you and you want to save that person’s phone number, tap
and hold the phone number in the Call History and then tap Save to Contacts from the shortcut menu.
•To save a phone number that is contained in a message, open the message, tap the underlined phone number,
and then tap Menu > Save to Contacts.
•To edit contact information, tap the contact name and then tap Menu > Edit.
118 Programs on your Device
Organize and search contacts
To group similar contacts
For easier management, you can group similar contacts by assigning them to categories.
1. Create a new Outlook contact or edit an existing Outlook contact.
2. Tap Categories.
3. Select a preset category such as Business or Personal, or tap New to create your own category.
4. When finished, tap OK.
To find a contact on your device
There are several ways to find a contact when your contact list is long:
• Begin entering a contact name in the provided text box until the contact you want is displayed.
• On the Quick Scroll bar on the right of the
Contacts screen, scroll to or tap a letter to go
directly to the part of the contacts list where
contact names start with that letter.
Note You can disable the Quick Scroll bar by
tapping Menu > Options and selecting the
Show alphabetical index check box. This will
show the alphabetical index at the top of the
Contacts list.
Quick Scroll bar
• Filter the list by categories. In the contact list, tap Menu > Filter, then tap a category you’ve assigned to
a contact. To show all contacts again, select Menu > Filter > All Contacts.
Share contact information
To beam a contact’s details
You can quickly send contact information to another mobile phone or device through Bluetooth beaming.
1. On the Contacts screen, select a contact.
2. Tap Menu > Send Contact > Beam, then select a device where to beam the contact to.
Note Before beaming, make sure Bluetooth is turned on and set to visible mode on your device and the target mobile
device. You can also beam contact information to your computer. See Chapter 9 for details.
Programs on your Device 119
12.6 Comm Manager
Comm Manager is a central location where you can easily turn on and off the communication features of
your device such as the phone, Wi-Fi, data connection, Bluetooth, and more.
To access the Comm Manager
Do one of the following:
• Touch Start > Programs > Comm Manager.
• Touch Start > Settings > Connections tab > Comm Manager.
1
2
3
4
5
6
1 Switch Airplane Mode on or off. Turning on Airplane Mode turns off the phone, Wi-Fi and Bluetooth
functions. For more information, see "To enable or disable Airplane Mode" in Chapter 2.
2 Switch the phone on or off. Tap Settings > Phone to set the ring tone and other phone settings. See Chapter 13 for details.
3 Switch Bluetooth on or off. Tap Settings > Bluetooth to configure Bluetooth on your device. See Chapter 9 for details.
4 Switch Wi-Fi on or off. Tap Settings > Wireless LAN to configure wireless network connection
settings. See Chapter 8 for details.
5 Switch between automatically receiving (as items arrive) or manually retrieving Outlook e-mails. See Chapter 7 for details.
6 Disconnect and reconnect active data connections.
120 Programs on your Device
12.7 JETCET™ PRINT
JETCET PRINT lets you print image files or documents from your device straight to a Bluetooth or network
printer. You can also print emails, email attachments, web pages, appointments, contacts, and tasks.
Tip
For more information about JETCET PRINT, consult the JETCET PRINT help in your device by tapping Menu > Help
> Contents in the JETCET PRINT screen.
Open JETCET PRINT
Tap Start > Programs > JETCET PRINT.
Tap to select an
image to print.
Tap to select a
document to print.
Tap to select an e-mail, e-mail
attachment, appointment, calendar,
or task to print.
Tap to set up a printer
or change the printer
settings.
Tap to view and select
additional tools or options.
Set up a printer
You must configure your device to connect to a printer before you can start printing.
1. Tap Start > Programs > JETCET PRINT.
2. Tap the Settings tab, then:
• Tap Add Network Printer to set up and connect to a shared network printer.
Note The device will wait continuously if you have entered an incorrect IP address while setting up a network
printer.
• Tap Add Bluetooth Printer to set up and connect to a Bluetooth printer.
Note To learn how to set up a printer, refer to the JETCET PRINT help on your device.
Print a file
1. Tap Start > Programs > JETCET PRINT.
2. Locate and select the type of file that you want to print (document, image, or email/PIM) by tapping
the corresponding tabs on the left side of the screen.
3. Tap and hold the file that you want to print, then tap Print on the menu.
4. Select a printer in the Choose a Printer list box, select the paper size, then tap Next.
5. Choose the page layout in the list, then tap Next to print the file.
Tip
You can also print document and image files from File Explorer. To print, use File Explorer to locate the file you
want to print. Tap and hold the file, then tap Print on the pop up menu.
Print a web page
1. Open your web browser and go to the web page that you want to print.
2. Tap and hold the screen, then tap Print on the menu.
3. Select a printer in the Choose a Printer list box, select the paper size, then tap Next to print the web
page.
Programs on your Device 121
12.8 Microsoft® Office Mobile
Microsoft® Office Mobile consists of the following applications:
• Microsoft® Office Excel® Mobile lets you create and edit Excel workbooks and templates on your
device.
• Microsoft® Office OneNote® Mobile lets you create notes with text, photos, and voice recordings for
synchronization later with Microsoft® Office OneNote® 2007 on your computer.
• Microsoft® Office PowerPoint® Mobile allows you to view (not create) slide show presentations in
*.ppt and *.pps formats.
• Microsoft® Office Word Mobile lets you create and edit documents and templates in Word Mobile and
save them as *.doc, *.rtf, *.txt, and *.dot files.
To use Microsoft Office Mobile
1. Tap Start > Programs > Office Mobile.
2. Tap the Office Mobile application that you want to use.
When working with Word Mobile and Excel Mobile files, you can use the Navigation Control on your device for
zooming:
To zoom in, slide your finger
clockwise around the Navigation
Control.
To zoom out, slide your finger counterclockwise around
the Navigation Control.
Word Mobile and Excel Mobile do not fully support some features of Microsoft® Office Word and Microsoft®
Office Excel®. To see a complete list of features that are not supported in Word Mobile and Excel Mobile, see
Help on your device.
Tips
•By default, Word Mobile saves documents in .docx format, while Excel Mobile saves workbooks in .xlsx format.
If you want to open these types of files on a computer that uses Microsoft Office 2000, Office XP, or Office 2003,
you need to download and install the File Format Converter in your computer. You can find this converter at
http://www.microsoft.com/downloads/details.aspx?FamilyId=941B3470-3AE9-4AEE-8F43-C6BB74CD1466&displ
aylang=en.
•If you want Word Mobile to save documents in .doc format, tap Menu > Tools > Options (or Menu > Options
when no document is opened), then change the Default template to Word 97-2003 Document (.doc).
•If you want Excel Mobile to save workbooks in a format that is compatible with Microsoft Office 2000, Office XP,
or Office 2003, tap Menu > Options (with no workbook opened), then change the Template for new workbook
to Blank 97-2003 Workbook.
122 Programs on your Device
12.9 Notes
Using Notes, you can create handwritten and typed notes, record voice notes, convert handwritten notes to
text for easy readability, and more.
To create a note
1. Tap Start > Programs > Notes. In the note list, tap New.
2. Choose an input method and then enter your text.
Tip
For more information about input methods and entering text, see Chapter 4.
3. When finished, tap OK to save and return to the note list.
Notes •To select handwritten text, tap and hold next to the writing. As soon as dots appear, and before they form a
complete circle, quickly drag across the writing.
•If a letter crosses three ruled lines, it is treated as a drawing rather than text.
To draw in a note
1. Create or open a note file.
2. Use the stylus to draw on the screen. A selection box then appears
around your drawing.
3. Tap OK to save.
Note To select a drawing (for example, to copy or delete it), tap and hold the drawing
briefly. When you lift the stylus, the drawing is selected.
To record a voice note
You can create a stand-alone recording (voice note) or you can add a recording to a note.
1. Tap Start > Programs > Notes.
2. If you do not see the Recording toolbar, tap Menu > View Recording Toolbar.
3. Do one of the following:
• To add a recording to a note, create or open a note.
• To create a stand-alone recording, record from the note list.
4. Tap the Record icon (
finished recording.
Tip
) to begin recording your voice. Tap the Stop icon (
) when you are
To select the voice recording format, return to the note list and then tap Menu > Options > Global Input Options
link (at the bottom of the Options screen). On the Input screen, tap the Options tab and choose the desired format
from the Voice recording format list.
Programs on your Device 123
12.10 Tasks
Use Tasks to keep track of things you need to do. A task can occur once or repeatedly (recurring).
Your tasks are displayed in a task list. Overdue tasks are displayed in red. A reminder will be displayed when
you have new tasks to be completed.
To create a task
1. Tap Start > Programs > Tasks.
2. Tap Menu > New Task, enter a subject for the task, and fill in information such as start and due dates,
priority, and so on.
3. Specify the type of category for your task, so that it can be grouped with other related tasks. Tap
Categories, then select a preset category (Business, Holiday, Personal, or Seasonal), or tap New to
create your own category.
4. When finished, tap OK.
To change the priority of a task
Before you can sort tasks by priority, you need to specify a priority level for each task.
1. Tap Start > Programs > Tasks.
2. Tap the task you want to change the priority for.
3. Tap Edit, and tap a priority level in the Priority box.
4. Tap OK to return to the task list.
Note All new tasks are assigned a Normal priority by default.
To show start and due dates in the task list
1. Tap Start > Programs > Tasks.
2. Tap Menu > Options.
3. Select the Show start and due dates check box, then tap OK.
12.11 Voice Recorder
Voice Recorder lets you record your voice and quickly send it as e-mail attachment, beam it via Bluetooth, or
set the recorded voice as your ring tone.
Note Voice Recorder saves voice recordings in AMR-NB (Adaptive Multi-Rate Narrowband) format only. This is a common
speech audio format used in mobile devices.
To record your voice
1. Tap Start > Programs > Voice Recorder.
2. Hold the device’s microphone close to your mouth.
3. Touch Record or
to start recording. Tap Stop or
to end the recording.
To select or create a folder where to save voice recordings
By default, all recordings are saved in the My Voices folder. You can choose another folder or create a new
folder to save your voice recordings.
Note If a storage card is installed before you open Voice Recorder, the recordings are saved in the My Voices folder on
the storage card by default.
1. Tap the arrow beside the folder name on the top-left of the screen.
2. In the menu that opens, choose an existing folder or touch Add/Delete to create a new folder.
To play back a voice recording
On the Voice Recorder screen, touch a voice recording, or navigate to a voice recording and then tap Play (
).
124 Programs on your Device
Tip
If you need to adjust the sound volume, touch any of the status icons on the title bar and then touch the Speaker
icon (
) to open the System Volume screen where you can adjust the volume.
To send a voice recording via e-mail
Select a voice recording, tap Menu > Send, and then select an e-mail account. This creates a new e-mail
message with the voice recording inserted as a file attachment.
See “Using E-mail” in Chapter 6 to learn how to send e-mails.
To beam a voice recording via Bluetooth
1. Select the voice recording you want to beam, then tap Menu > Beam File.
Tip
To select multiple recordings, tap and drag over the desired recordings or tap Menu > Select All.
2. Tap the device you want to send the voice recording to.
3. On the other device, accept the file transfer to receive the file.
To set a voice recording as ring tone
Select the voice recording, then tap Menu > Set as Ringtone.
To rename or move a recording
1. Select the voice recording, then tap Menu > Rename/Move.
Tip
To select multiple recordings, tap and drag over the desired recordings or tap Menu > Select All. Note that you can move multiple files, but you cannot rename multiple files simultaneously.
2. In Name, enter the new voice recording name.
3. To move the voice recording, select the new destination Folder and Location.
4. Tap OK.
12.12 WorldCard Mobile
WorldCard Mobile lets you take a photo of a business card and easily export the contact information on the
card into your Contacts.
To open WorldCard Mobile
Tap Start > Programs > WorldCard Mobile.
Tap to view the
WorldCard Mobile
copyright information.
Tap to open the
WorldCard Mobile help.
Tap to open the
Camera program
and take a photo of a
business card.
Tap to exit WorldCard
Mobile.
Capture and export business card information
Capture a business card and export the card information as a new contact in your Contacts list.
To capture a business card and export its information to Contacts
1. Tap on the WorldCard Mobile screen.
2. Press ENTER to take a photo of the business card. Refer to Chapter 11 for details on how to use the
camera.
Programs on your Device 125
Tip
Make sure that the business card is displayed completely in the Camera screen before you take the photo,
and that lighting is adequate.
3. On the WorldCard Mobile screen, tap Recognize.
Tips •
If you want to retake the shot, tap Re-Capture.
•For better recognition, choose the Language and Region based on the language used in the business
card.
4. The screen shows various contact information from the business card. Use the on-screen keyboard to
edit the contact information, if needed.
Clear this box if you do not
want to include the particular
information for the contact
when exported to the
Contacts list.
Tap the down
arrow to change
the field name.
5. Tap Export, then go to your Contacts list to view the exported contact.
For more information about using WorldCard Mobile, see Help on your device.
Tap to open
the on-screen
keyboard and
edit the contact
details.
126 Programs on your Device
12.13 ZIP
The ZIP program increases the storage capacity of your device by allowing you to compress files in the
conventional ZIP format. It also allows you to extract files from a zip file.
To start ZIP on your device
Tap Start > Programs > Zip.
Each time you start ZIP, it searches for files that have the .zip file extension, and displays these files on the
Archive List screen.
To open a ZIP file and extract files
1. Touch a zip file to open it, or navigate to a zip file and then touch File > Open Archive.
Note You cannot select multiple ZIP files.
2. From the zip file, select files by doing one of the following:
• Touch a file to select it.
• To select several files, touch Menu > Action and make sure Multi-Select Mode is selected. Select
files by touching each file. (Touch a selected file to deselect it).
• To select all files, touch Menu > Action > Select All.
3. Touch Menu > Action > Extract.
4. Choose a folder where the files will be extracted to, then touch Extract.
5. Touch Menu > File > Close Archive to close the zip file.
To create a new zip archive
1.
2.
3.
4.
5.
6.
Touch File > New Archive.
On the Save As screen, enter the zip file name and choose a folder where you want to save it.
Touch Save.
Touch Menu > Action > Add.
Navigate to the folder that contains the files you want to archive.
Select files to add by doing one of the following:
• Touch a file to select it.
• To select several consecutive files, drag over the files.
• To select several non-contiguous files, use the stylus to tap and hold on the screen and then select
Multi-Select Mode. Select files by tapping each file. (Tap a selected file to deselect it).
• To select all files, use the stylus to tap and hold on the screen and then tap Select All.
7. Touch Add.
8. Touch Menu > File > Close Archive to save and close the zip file.
Chapter 13 Managing Your Device
13.1 Copying and Managing Files
13.2 Settings on Your Device
13.3 Changing Basic Settings
13.4 Using Task Manager
13.5 Protecting Your Device
13.6 Connecting to an External Display
13.7 Managing Memory
13.8 Resetting Your Device
13.9 Windows Update
13.10 Battery Saving Tips
128 Managing Your Device
13.1 Copying and Managing Files
You can copy files between your device and computer, or copy files to a storage card installed on your device.
You can also efficiently manage your files and folders using File Explorer.
To copy files using Windows Mobile Device Center or ActiveSync
1. Connect your device to the computer.
2. Click File Management > Browse the contents of your device in Windows Mobile Device Center on
your computer, or click Explore in ActiveSync on your computer. This opens Windows Explorer on your
computer and displays the contents of your device.
3. To copy a file from your device to your computer:
a. Browse the contents of your device, right-click the file you want to copy, then click Copy.
b. Right-click a folder on your computer, then click Paste.
4. To copy a file from your computer to your device:
a. Browse the folders on your computer, right-click the file you want to copy, then click Copy.
b. Right-click a folder on your device, then click Paste.
To manage files on your device using File Explorer
File Explorer lets you browse and manage the contents of your device. The root folder on the device is
named My Device, and contains the following folders: My Documents, Program Files, Windows, and more.
1. Tap Start > File Explorer.
2. Tap a folder or file to open it.
3. To return to an upper level folder, tap Up and select the folder.
4. To quickly delete, rename, or copy a file, tap and hold the file, then choose the desired operation on
the shortcut menu. To copy or delete multiple files, tap and drag over the desired files to select, tap and
hold the selection, then choose the desired operation on the shortcut menu.
To copy files to a storage card
1.
2.
3.
4.
5.
Tip
Make sure the storage card is properly installed on your device.
Tap Start > File Explorer and navigate to the appropriate folder.
Tap and hold the file you want to copy, then tap Copy.
), then tap Storage Card in the list.
Tap the down arrow (
Tap and hold an empty area on the screen and then select Paste on the menu.
You can configure programs such as Word Mobile and Excel Mobile to directly save edited files onto a storage card.
In the program's file list, tap Menu > Options, then select the Storage Card in the Save to box.
Managing Your Device 129
13.2 Settings on Your Device
You can adjust the device settings to suit the way you work. To see all available settings, tap Start > Settings,
then tap the Personal, System, and Connections tabs located at the bottom of the screen.
Personal tab
Icon
Description
Buttons Assign a program or function to a hardware button.
Input Set options for each of the input methods.
Lock Set a password for your device.
Menus Set which programs will appear in the Start menu.
Owner Information Enter your personal information on your device.
Phone Customize phone settings such as ring tone, and more.
Sounds & Notifications Enable sounds for events, notifications, and more, and set the type of notification for
different events.
Today Customize the appearance and the information to be displayed on the Today screen.
Voice Command Choose which functions you want to access by speaking out voice commands.
System tab
Icon
Description
About This is where you can see basic information such as the Windows Mobile® version and type of
processor used on your device. You can also specify a name for your device.
Certificates See information about certificates that are installed on your device.
Clock & Alarms Set the device clock to the date and time of your locale or to a visiting time zone when you’re
traveling. Alarms can also be set at specified days and times of a week.
Customer Feedback Set your device to automatically send information about how you use Windows Mobile.
By default, this option is disabled.
Device Information See information about the firmware version, hardware, identity, and the duration of calls
made on your device.
Encryption Encrypt files on your storage card. Encrypted files will only be readable on your device. Error Reporting Enable or disable the device's error reporting function. When this function is enabled and
a program error occurs, technical data about the state of the program and your computer will be logged in a
text file and delivered to Microsoft's technical support if you choose to send it.
External GPS Set the appropriate GPS communication ports, if required. You may need to do this when there
are programs on your device that access GPS data or you have connected a GPS receiver to your device. See
Help for details.
G-Sensor Recalibrate the G-Sensor of the device. Use when auto-rotate is not working properly.
Key Lock Lock the buttons on your device except for the POWER button when the device is in Sleep mode.
This ensures you will not switch the device on by accident and consume unnecessary power.
Long Press End Key Choose the desired function to be executed (for instance, lock the device) when
pressing and holding the END key.
Managed Programs Displays the programs that were installed on your device using System Center Mobile
Device Manager. Memory Check the device memory allocation status and storage card information. .
Microphone AGC Adjust the volume of your voice automatically when you are recording.
Power Check the remaining battery power. You can also set the brightness of the backlight and timeout for
turning off the display (switching device to Sleep mode) to conserve battery power.
130 Managing Your Device
Icon
Description
Regional Settings Set the regional configuration to use, including the format for displaying numbers,
currency, date, and time on your device.
Remove Programs Remove programs that you installed on your device.
Screen Re-calibrate the screen, apply ClearType, and change the screen text size.
Task Manager Stop running programs and set the (
) button to end programs immediately when you tap
the button. For more information, see "Using Task Manager" in this chapter.
Text Messaging Configure the text message feature as Threaded mode or Classic mode.
TouchFLO You can enable or mute the finger scrolling and panning sound. You can also enable or disable the
large Start menu, and choose to show or hide the System Status screen when title bar icons are tapped. Windows Update Link to Microsoft's Web site and update Windows Mobile® on your device with the latest
security patches or fixes, if they are available.
Connections tab
Icon
Description
Beam Set your device to receive incoming Bluetooth beams.
Bluetooth Turn Bluetooth on, set your device to visible mode, and scan for other Bluetooth devices.
Comm Manager Manage your device’s connections (including data connections, Wi-Fi, and Bluetooth), turn
the phone on or off, and enable or disable the Direct Push function.
Connections Set up one or more types of modem connections for your device, such as phone dial-up, and
more, so that your device can connect to the Internet or a private local network.
Domain Enroll Enroll your device in your company’s domain to let System Center Mobile Device Manager to
manage the device. Please ask your Server Administrator for more details.
USB to PC Set the type of USB connection to your PC. Select the ActiveSync option for synchronizing data, or
use Disk Drive to quickly transfer files to the storage card on your device.
Wi-Fi Scan for available wireless networks.
Wireless LAN See information about the active wireless network, and customize Wi-Fi settings.
Managing Your Device 131
13.3 Changing Basic Settings
Date and time
To set the date and time
1. Tap Start > Settings > System tab > Clock & Alarms > Time tab.
Tip
Tap the More tab and select the Display the clock on the title bar in all programs option to show the
clock on all screens.
2. Select the correct time zone and change the date or time.
Note During synchronization, the time on your device is updated with the time on your computer.
To set the date and time for a different location
If you visit or communicate with someone in a particular time zone often, you can select it as your visiting
time zone.
1. Tap Start > Settings > System tab > Clock & Alarms > Time tab.
2. Tap Visiting.
3. Select the correct time zone and change the date or time.
Regional settings
The style in which numbers, currency, dates, and times are displayed is specified in regional settings.
1. Tap Start > Settings > System tab > Regional Settings..
2. On the Region tab, select your region from the list. The region you select determines which options
will be available on the other tabs.
Note This does not change the language of your device’s operating system.
3. To customize regional settings further, tap the appropriate tabs and set the desired options.
Display settings
To adjust the screen brightness
1. Tap Start > Settings > System tab > Power > Backlight tab.
2. Adjust the brightness by dragging the slider under On battery power and On external power.
Tip
Select Auto adjust backlight to automatically adjust the backlight brightness according to the ambient lighting.
To set the backlight to dim after a time delay
1. Tap Start > Settings > System tab > Power > Advanced tab.
2. In On battery power and On external power, select the Turn off backlight if device is not used for
check box, then specify the time delay.
To increase or decrease the size of text on the screen
1. Tap Start > Settings > System tab > Screen > Text Size tab.
2. Move the slider to increase or decrease the text size.
Device name
The device name is used to identify your device in the following situations:
• Synchronizing with a computer
• Connecting to a network
• Restoring information from a backup
Note If you synchronize multiple devices with the same computer, each device must have a unique name.
132 Managing Your Device
To change the device name
1. Tap Start > Settings > System tab > About > Device ID tab.
2. Enter the device name.
Notes •The device name must begin with a letter, consist of letters from A to Z, numbers from 0 to 9, and cannot contain
spaces. Use the underscore character to separate words.
•If you enroll your device to your company’s domain, the device name will be changed to be the same as the one
used to enroll the device.
Ringer settings
To change the ring type and ring tone
1.
2.
3.
4.
Tap Start > Settings > Personal tab > Phone.
In the Ring type list, tap the desired option.
In the Ring tone list, tap the sound you want to use.
Tap Done.
Tips
•You can use *.wav, *.mid, *.mp3, *.wma, or other types of sound files that you downloaded from the Internet
or copied from your computer as ring tones. To quickly set the music file as a ring tone, tap and hold the music
file and then select Set As Ringtone. For a complete list of supported audio file formats for ring tones, see
“Specifications” in the Appendix.
•To use your sound files as ring tones, copy them first to the /My Documents/My Ringtones folder on your
device, then select the sound from the Ring tone list of your device. For more information about copying files,
see “Copying and Managing Files” in this chapter.
Alarms and notifications
To set an alarm
1. Tap Start > Settings > System tab > Clock & Alarms > Alarms tab.
2. Tap <Description> and enter a name for the alarm.
3. Tap the day of the week for the alarm. Select multiple days by tapping each desired day. Tap again to
deselect the day.
4. Tap the time to open a clock and set the time for the alarm.
Tip You can drag the hour and minute hands of the clock to set the time.
5. Tap the alarm icon (
) to specify the type of alarm you want. You can choose a flashing light, a single
sound, a repeating sound, or vibration.
6. If you choose to play a sound, tap the list next to the Play sound check box and tap the sound you
want.
To choose how to be notified about events or actions
1. Tap Start > Settings > Personal tab > Sound & Notifications.
2. On the Sounds tab, choose how you want to be notified by selecting the appropriate check boxes.
3. On the Notifications tab, in Event, tap an event name and choose how you want to be notified by
selecting the appropriate check boxes. You can choose from several options, such as a special sound, a
message, a flashing light or vibrate.
Tips
• Turning off sounds and the flashing light helps conserve battery power.
•The types of notifications that can be enabled depend on the event. For instance, only Play sound and Vibrate
notifications can be enabled if it is an ActiveSync event.
Managing Your Device 133
Phone services
Your device can directly link to the mobile phone network, and enable you to access and change the settings
of various phone services for your device. Contact your wireless service provider to find out about the
availability of phone services for your device.
To access and change settings of phone services
1. Tap Start > Settings > Personal tab > Phone > Services tab.
2. Select the service you want to use, then tap Get Settings.
3. Choose your desired options, then tap OK.
The following are some of the optional phone services that you may find on your device. For more
information about customizing settings of phone services, see Help on your device.
Phone Services
Usage
Location Setting
Allow the mobile phone network to detect your current location via your device’s built-in GPS
chip. This is especially useful in times of emergency.
Network Service
Choose whether to restrict your device to phone calls from your home network only.
TTY Mode
Allow the use of a TTY (teletypewriter) device with the device for users who are visually or
hearing impaired.
Time Synchronization
Choose whether or not to synchronize the time on your device with the mobile network.
13.4 Using Task Manager
Task Manager lets you view and stop running programs, configure the
Menu on the Today screen.
button, and enable the Quick
To open Task Manager
Do one of the following:
• Tap the Quick Menu button on the top right corner of the Today screen to open the Quick Menu, then
tap
.
• Tap Start > Settings > System tab > Task Manager.
To switch back to a running program
• Tap the program name in the Quick Menu.
• On the Task Manager screen, tap and hold the program name on the Running tab, then tap Activate.
To configure the Exit (
) button
You can configure the Exit button to shut down running programs when the button is tapped, or to just
temporarily close the program screen but keep the program running.
1. On the Task Manager screen, tap the Button tab.
2. Select the Enable the “X” button to end running programs check box.
Note When the Enable the “X” button to end running programs check box is not selected, tapping the Exit
button will only close a program screen. The program is not ended and continues to run in the background.
3. Choose the action for shutting down programs (by tapping the
the
button).
4. Tap OK.
button, or by tapping and holding
134 Managing Your Device
To close running programs from the Task Manager
1. On the Task Manager screen, tap the Running tab.
2. Do one of the following:
• Select the check box of the programs that you want to close, then tap Stop Selected.
• Tap Stop All to close all programs in the list.
• Tap Menu > Stop All but Selected to close all programs except those which check boxes are
selected.
Tip
You can also close running programs from the Quick Menu on the Today screen. See “Quick Menu” in Chapter 1 for
details.
To add a running program to the exclusive list
If you add a running program to the Exclusive Programs List, it will not be closed when you tap Stop
Selected or Stop All and will not be listed in the Quick Menu on the Today Screen.
1. On the Task Manager screen, tap the Running tab.
2. Tap and hold the program name, then tap Add Exclusive.
Tip
To remove a program from the exclusive list, tap the Exclusive tab, select the check box of the program, then tap
Remove.
To set the sorting preference and program icon size in the Quick Menu
1. On the Task Manager screen, tap the Others tab.
2. In Sort programs in Quick Menu by, choose whether to sort according to Program name or Memory
usage. The list will be sorted in ascending order.
3. In Program icon size in Quick Menu, choose whether to use Small size or Large size.
13.5 Protecting Your Device
Protect your device with a password
You can help keep your data more secure by requiring a password every time the device is turned on.
To set a device password
1. Tap Start > Settings > Personal tab > Lock.
2. Select the Prompt if device unused for check box, then specify the idle time before the device
requires a password.
3. In the Password type box, select the type of password you would like to use.
Tip If your device is configured to connect to a network, use an alphanumeric password for increased security.
4. Enter the password in both the Password and Confirm boxes.
5. Tap OK. The next time the device is turned on, you will be prompted to enter your password.
Notes •To ensure that you can always make emergency calls, do not begin your password with the digits of your local
emergency number.
•If you entered a hint, the hint will be displayed after the wrong password is entered five times.
•Each time a wrong password is entered, the device response time gets longer until the device appears to be not
responding.
•If you forget your password, you can hard reset or clear the device memory. Before you do this, make sure you
back up your data and files so that you can restore them back to your device. For more information about hard
resetting the device and clearing the memory, see “Resetting Your Device” in this chapter.
Managing Your Device 135
Encrypt files on your storage card
You can set your device to encrypt files as they are saved on the storage card.
1. Tap Start > Settings > System tab > Encryption.
2. Select Encrypt files when placed on a storage card.
Notes
• Encrypted files can only be read on the device that encrypted them.
•Encrypted files are opened just like other files, provided you are using the device that encrypted them.
There is no separate step for you to take to read these files.
Important If Encrypt files when placed on a storage card is enabled, backup all files from the storage card
before using Clear Storage, hard reset, or updating the ROM system software. Otherwise you will no
longer be able to access the encrypted files on the storage card. Use ActiveSync or Windows Mobile
Device Center to transfer files between your storage card and computer. After the procedure, copy
your files back to the storage card.
13.6 Connecting to an External Display
The TV Out function outputs the device’s screen contents and audio to an external display with an RCA cable
socket such as a television.
Notes •You need an HTCTV Out cable to connect your device to an external display. The HTC TV Out cable is sold
separately.
•When you plug in the HTC TV Out cable to your device, you will not be able to play music files from the TouchFLO
3D Music tab, if TouchFLO 3D is enabled. See Chapter 3 about enabling TouchFLO 3D.
•It is recommended that you use an audio accessory (not the HTC TV Out cable) such as the wired headset when
you want to listen to music on your device. You can check the HTC web site for other audio accessories for your
device.
Connect the device to an external display
1. Turn off the external display.
2. Connect the ends (red, white, and yellow RCA plugs) of the
HTC TV Out cable to the external display’s RCA sockets.
3. Connect the mini-USB end of the HTC TV Out cable to the
sync connector at the bottom of the device. The TV Out screen
opens.
Note The display automatically changes to landscape mode after
connecting the HTC TV Out cable.
4. Choose the video standard to use when outputting the video
and then tap Done. For example, if your video is in the NTSC
standard and you select PAL-M, TV Out will automatically
convert your video to PAL-M before it outputs to the external
display.
5. Tap the type of media you want to output.
6. Turn on the external display and then switch it to the input signal that you connected the HTC TV Out
cable to (for example, Video 1).
136 Managing Your Device
13.7 Managing Memory
To see how much memory is available for use
Tap Start > Settings > System tab > Memory > Main tab.
The amount of memory allocated to data storage versus program storage is displayed, as well as the amount
of memory in use versus the available memory.
To see the available space of the storage card
Tap Start > Settings > System tab > Memory > Storage card tab.
If your device is running low on memory, try the following to free memory on your device:
• Close programs which are not in use.
• Move files and e-mail attachments to a storage card.
• Delete unnecessary files. Tap Start > File Explorer. Tap and hold the file, and tap Delete.
• Delete large files. To find large files on your device, tap Start > Programs > Search. In the Type list, tap
Larger than 64 KB, and tap Search.
• In Opera Mobile or Internet Explorer Mobile, delete temporary Internet files and clear history information.
• Remove programs you no longer use.
• Reset your device.
13.8 Resetting Your Device
Soft reset
Occasionally, you may need to reset your device. A soft (or normal) reset of your device clears all active
program memory and shuts down all active programs. This can be useful when your device is running slower
than normal, or a program is not performing properly. A soft reset is also necessary after the installation of
some programs. If a soft reset is performed when programs are running, unsaved work will be lost.
To perform a soft reset
1. Pull out the stylus.
2. Use the stylus to press the RESET button located at the
bottom of the device.
Your device restarts and displays the Today screen.
Hard reset
RESET button
You can also perform a hard reset (also known as a full reset). A hard reset should only be performed if
a normal reset does not solve a system problem. After a hard reset, the device is restored to its default
settings—the way it was when you first purchased it and turned it on. Any programs you installed, data you
entered, and settings you customized on your device will be lost. Only Windows Mobile® software and other
pre-installed programs will remain.
Warning!Your device will be set back to factory default settings. Make sure that any additional installed
programs and/or user data have been backed up before you perform a hard reset.
ImportantIf Encrypt files when placed on a storage card is enabled, backup all files from the storage card
before using Clear Storage, hard reset, or updating the ROM system software. Otherwise you will no
longer be able to access the encrypted files on the storage card. Use ActiveSync or Windows Mobile
Device Center to transfer files between your storage card and computer. After the procedure, copy your
files back to the storage card.
Managing Your Device 137
To perform a hard reset
1. Turn off the power.
2. Press and hold the ENTER key, and then press the POWER key.
3. Release the POWER key, but continue pressing the ENTER key until you see the following message on
the screen:
This operation will delete
all your personal data,
and reset all settings
to manufacturer default.
Press VolUp to restore
manufacturer default, or
press other keys to cancel.
4. Release the ENTER key, then press the VOLUME UP button to perform the hard reset, or press any other
button to cancel the reset.
After the device performs the hard reset and restarts, the customization process will start followed by the
Quick Start Wizard.
Clear Storage
Another way of clearing the device storage and reset all settings back to factory default settings is to use the
Clear Storage feature. You will lose all your data and files on the device storage when you use Clear Storage, so
make sure to do a backup first.
1. Tap Start > Settings > System tab > Memory > Clear Storage tab.
2. Enter “1234” and then tap OK.
After the device performs the Clear Storage and restarts, the customization process will start followed by the
Quick Start Wizard.
13.9 Windows Update
You can update Windows Mobile® on your device with the latest updates, security patches or fixes, if these are
available.
To set up Windows Update
The first time you run Windows Update, you need to set up how you want Windows Update to check for
patches on the Microsoft Web site.
1. Tap Start > Settings > System tab > Windows Update.
2. On the Update Setup screen, tap Next.
3. Choose how you want to check for updates, Manual or Automatic, then tap Next.
Note If you select Automatic, you will be asked if you want to use your current data plan to check for updates.
Select or clear the Use my data plan to check for and download updates check box and tap Next.
4. Tap Finish.
To check for updates
1. Tap Start > Settings > System tab > Windows Update.
2. Tap Check Now.
Note Windows Mobile® updates may not be available at all times. Check the Windows Mobile® Web site for update
information.
To change Windows Update options
1. Tap Start > Settings > System tab > Windows Update.
2. Tap Menu and select the option you want to change.
138 Managing Your Device
• Tap Connections to change how the device connects to
the Internet when checking for updates.
• Tap Change Schedule to change how Windows Update
checks for Windows Mobile® updates.
13.10 Battery Saving Tips
How long your battery power lasts depends on the battery type and how you use your device. Try the
following to help conserve battery life:
• When the device is not in use, press POWER to switch off the display.
• Tap Start > Settings > System > Power > Advanced tab. Here, you can specify the time before your
device automatically turns off the display and backlight to conserve battery power. For optimum
conservation, specify 3 minutes or less.
• Tap Start > Settings > System > Power > Backlight tab to adjust the backlight brightness settings.
• Use the AC adapter to plug your device into an external power outlet whenever possible, especially
when using a storage card or when using a modem or other peripherals.
• Turn Bluetooth off when you are not using it. Make your device visible to other devices only when you
are trying to establish a Bluetooth partnership. For more information about Bluetooth, see Chapter 9.
• Lower the volume.
• Close battery-intensive programs, such as the Camera, when you are done using them. Make sure
the programs are ended and are not continuously running in the background. Refer to “Using Task
Manager” in this chapter for information on closing programs.
• When you know you are out of range of your Wi-Fi networks, turn Wi-Fi off. Searching for networks
consumes a lot of power. For more information about Wi-Fi, see Chapter 11.
• Tap Start > Settings > Connections tab > Wi-Fi and then tap Menu > Advanced. From the Turn off
Wi-Fi if not connected in list, select a timeout period so that Wi-Fi can be automatically turned off
when your device is not connected to any wireless network for some time.
Appendix
A.1 Specifications
A.2 Regulatory Notices
A.3 Additional Safety Information
140 Appendix
A.1 Specifications
Processor
Qualcomm® MSM7500A™ 528 MHz
Operating System
Windows Mobile® 6.1 Professional
Memory
–ROM : 512 MB
–RAM : 192 MB
Dimensions
(LxWxT)
106.2 mm X 52.1 mm X 17.85 mm (4.181 inches X 2.051 inches X 0.703 inches)
Weight
150 grams (5.29 ounces) with battery
Display
2.8-inch TFT-LCD flat touch-sensitive screen with VGA resolution
Network
CDMA2000 1xEVDO/1xRTT and IS-95A/B voice or data
Dual-band (800 and 1900 MHz)
(Band frequency and data speed are operator dependent.)
Device Control
• TouchFLO™ 3D
• 4-Way touch-sensitive navigation control with ENTER button
Keyboard
• Slide-out 5-row QWERTY keyboard
GPS
• GPS and A-GPS ready
Connectivity
• Bluetooth® 2.0 with Enhanced Data Rate and A2DP for stereo wireless headsets
• Wi-Fi® (IEEE 802.11 b/g)
• HTC ExtUSB™ (11-pin mini-USB 2.0, audio jack, and TV Out* in one)
Camera
3.2 megapixel color camera with auto focus and flash light
Audio
Built-in microphone and speaker
Ring tone formats:
• AAC, AAC+, eAAC+, AMR-NB, AMR-WB, QCP, MP3, WMA, WAV
• 40 polyphonic and standard MIDI format 0 and 1 (SMF)/SP MIDI
Battery
Rechargeable Lithium-ion battery
Capacity: 1340 mAh
Talk time: Up to 250 minutes
Standby time: Up to 350 hours
(The above are subject to network and phone usage.)
Expansion Slot
microSD™ memory card (SD 2.0 compatible)
AC Adapter
Voltage range/frequency: 100 - 240V AC, 50/60 Hz
DC output: 5V and 1A
Operating
Temperature Range
0°C to 40°C (32°F to 104°F)
* HTC TV Out cable needed.
Appendix 141
A.2 Regulatory Notices
Regulatory Agency Identifications
For regulatory identification purposes, your product is assigned a model number of RAPH500.
To ensure continued reliable and safe operation of your device, use only the accessories listed below with
your RAPH500.
The Battery Pack has been assigned a model number of DIAM171.
Note This product is intended for use with a certified Class 2 Limited Power Source, rated 5 Volts DC, maximum 1 Amp
power supply unit.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio or television technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End
users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain
compliance with FCC RF exposure compliance requirements, please follow operation instruction as
documented in this manual.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter,
except the transmitters built-in with the device.
FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices
On July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket 01309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988 (HAC Act)
to require digital wireless phones be compatible with hearing-aids. The intent of the HAC Act is to ensure
reasonable access to telecommunications services for persons with hearing disabilities.
While some wireless phones are used near some hearing devices (hearing aids and cochlear implants), users
may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to
this interference noise, and phones also vary in the amount of interference they generate.
The wireless telephone industry has developed a rating system for wireless phones, to assist hearing device
users find phones that may be compatible with their hearing devices. Not all phones have been rated. Phones
that are rated have the rating on their box or a label located on the box.
The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss.
If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone
successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal
needs.
142 Appendix
M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to
hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings. RAPH500 is rated
M3.
Please power off the Bluetooth function while using hearing aid devices with your RAPH500.
Hearing devices may also be rated. Your hearing device manufacturer or hearing health
professional may help you find this rating. Higher ratings mean that the hearing device
is relatively immune to interference noise. The hearing aid and wireless phone rating
values are then added together. A sum of 5 is considered acceptable for normal use. A
sum of 6 is considered for better use. A sum of 8 is considered for best use.
In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M3 level
rating, the sum of the two values equal M5. This should provide the hearing aid user with “normal usage”
while using their hearing aid with the particular wireless phone. “Normal usage” in this context is defined as a
signal quality that is acceptable for normal operation.
The M mark is intended to be synonymous with the U mark. The T mark is intended to be synonymous
with the UT mark. The M and T marks are recommended by the Alliance for Telecommunications Industries
Solutions (ATIS). The U and UT marks are referenced in Section 20.19 of the FCC Rules. The HAC rating and
measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard.
For information about hearing aids and digital wireless phones
FCC Hearing Aid Compatibility and Volume Control:
http://www.fcc.gov/cgb/dro/hearing.html
Gallaudet University, RERC:
http://tap.gallaudet.edu/DigWireless.KS/DigWireless.htm
SAR Information
1.43 W/KG @1g (HEAD)
1.18 W/KG @1g (BODY)
THIS MODEL DEVICE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used
with the HTC Corporation accessories supplied or designated for this product. Use of other accessories may
not ensure compliance with the FCC RF exposure guidelines.
Your wireless mobile CDMA phone is a radio transmitter and receiver. It is designed and manufactured not to
exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish
permitted levels of RF energy for the general population. The guidelines are based on the safety standards
previously set by both U.S. and international standards bodies:
• American National Standards Institute (ANSI) IEEE. C95.1-1992.
• National Council on Radiation Protection and Measurement (NCRP). Report 86. 1986.
• International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996.
• Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed
to assure the safety of all persons, regardless of age and health.
The exposure standard for wireless mobile CDMA phone employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg.
This phone has been tested and meets the FCC RF exposure guidelines when used with an accessory that
contains no metal and that positions the handset a minimum of 1.5 cm from the body. The FCC has granted
an Equipment Authorization for this model device with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on this model device is on file with the FCC and can be
found under the Display Grant section of https://fjallfoss.fcc.gov/oetcf/eas/reports/GenericSearch.cfm after
searching on FCC ID: NM8RAPH500. Additional information on Specific Absorption Rates (SAR) can be found
on the Cellular Telecommunications & Internet Association (CTIA) Web-site as http://www.phonefacts.net.
Appendix 143
Normal condition only to ensure the radiative performance and safety of the interference. As with other
mobile radio transmitting equipment, users are advised that for satisfactory operation of the equipment and
for the safety of personnel, it is recommended that no part of the human body be allowed to come too close
to the antenna during operation of the equipment. Use of non-HTC Corporation approved accessories may
violate FCC RF exposure guidelines and should be avoided.
Telecommunications & Internet Association (TIA) Safety Information
Pacemakers
The Health Industry Manufacturers Association recommends that a minimum separation of six inches be
maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the
pacemaker. These recommendations are consistent with the independent research by and recommendations
of Wireless Technology Research. Persons with pacemakers:
• Should ALWAYS keep the phone more than six inches from their pacemaker when the phone is turned
ON.
• Should not carry the phone in a breast pocket.
• Should use the ear opposite the pacemaker to minimize the potential for interference. If you have any
reason to suspect that interference is taking place, turn the phone OFF immediately.
Hearing Aids
Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may
want to consult your service provider, or call the customer service line to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your device to determine if they
are adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this
information.
Turn the phone OFF in health care facilities when any regulations posted in these areas instruct you to do so.
Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.
WEEE Notice
The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered into force as European law
on 13th February 2003, resulted in a major change in the treatment of electrical equipment at end-of-life.
The purpose of this Directive is, as a first priority, the prevention of WEEE, and in addition, to promote the
reuse, recycling and other forms of recovery of such wastes so as to reduce disposal.
The WEEE logo (shown at the left) on the product or on its box indicates that this product must not be
disposed of or dumped with your other household waste. You are liable to dispose of all your electronic
or electrical waste equipment by relocating over to the specified collection point for recycling of
such hazardous waste. Isolated collection and proper recovery of your electronic and electrical waste
equipment at the time of disposal will allow us to help conserving natural resources. Moreover,
proper recycling of the electronic and electrical waste equipment will ensure safety of human health
and environment. For more information about electronic and electrical waste equipment disposal,
recovery, and collection points, please contact your local city center, household waste disposal service,
shop from where you purchased the equipment, or manufacturer of the equipment.
RoHS Compliance
This product is in compliance with Directive 2002/95/EC of the European Parliament and of the Council of
27 January 2003, on the restriction of the use of certain hazardous substances in electrical and electronic
equipment (RoHS) and its amendments.
144 Appendix
A.3 Additional Safety Information
This section provides more safety information in addition to the information at the beginning of the user manual.
When Driving
Do Not Use The PC Functions Of Your Pocket PC While Driving Or Walking
Never use the personal computer functions of your device while driving an automobile or any other moving
vehicle. Always pull out of traffic and come to a stop in a legally permissible and safe location before using
your device. Failure to do so could result in serious bodily injury in a traffic accident.
When driving:
• Always secure your device in its leather pouch.
• Never place your device on the passenger seat or anyplace else in the car where it can become a
projectile during a collision or stop.
• An air bag inflates with great force. DO NOT place objects, including either installed or portable
wireless equipment, in the area over the air bag or in the air bag deployment area. If in-vehicle wireless
equipment is improperly installed and the air bag inflates, serious injury could result.
Never store or transport flammable liquids, gases or explosive materials in the same compartment of your
automobile as the device or any of its accessories, as possible sparking in the device could cause ignition or
explosion.
Never use your device while walking. Usage while walking could result in bodily injury caused by inattention
to automobile traffic or other pedestrian hazards.
Using The Phone Function Of Your Pocket PC While Driving Is Extremely Dangerous
Talking on or using your device while driving is extremely dangerous and is illegal in some states. Remember,
safety comes first. Check the laws and regulations on the use of phones in the areas where you drive. Always
obey them.
If you must use the phone function while driving, please:
• Give full attention to driving. Driving safely is your first responsibility.
• Use hands-free operation and/or one-touch, speed dialing, and auto answer modes.
• Pull off the road and park before making or answering a call.
Warning!
Failure to follow these instructions could lead to serious personal injury and possible property damage.
When Using Your Device Near Other Electronic Devices
Your wireless handheld portable device is a low power radio transmitter and receiver. When it is ON, it receives
and also sends out radio frequency (RF) signals.
Most modern electronic equipment is shielded from RF energy. However, certain electronic equipment
may not be shielded against the RF signals from your wireless device; therefore, use of your device must be
restricted in certain situations.
In addition, the computer portion of your device produces low levels of RF energy due to the generation of
digital timing pulses by its clock oscillator circuits. Your device has been equipped with internal shielding
to minimize stray emissions of RF energy. However, use of the computer functions of your device must be
restricted in certain situations.
PACEMAKERS
The Health Industry Manufacturers Association recommends that a minimum separation of six (6”) inches be
maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the
pacemaker. These recommendations are consistent with the independent research by and recommendations
of Wireless Technology Research.
Never come closer than six (6) inches to a person with a heart pacemaker implant when using your device.
Doing so could result in interference with the function of the pacemaker.
Appendix 145
Persons with pacemakers:
• Should ALWAYS keep the phone more than six inches from their pacemaker when the phone is turned ON.
• Should not carry the phone in a breast pocket.
• Should use the ear opposite the pacemaker to minimize the potential for interference.
Note
This is not necessary if the device is not held to the ear.
• If you have any reason to suspect that interference is taking place, turn the phone OFF immediately.
HEARING AIDS
Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may
want to consult your service provider, or call the customer service line to discuss alternatives.
For more regulatory information about hearing devices, see “FCC Hearing-Aid Compatibility (HAC)
Regulations for Wireless Devices”.
OTHER MEDICAL DEVICES
If you use any other personal medical device, consult the manufacturer of your device to determine if it
is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this
information.
HOSPITALS AND HEALTH CARE FACILITIES
Turn your device OFF in health care facilities when any regulations posted in these areas instruct you to do so.
Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.
ELECTRONIC DEVICES IN VEHICLES
RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles.
Check with the manufacturer or its representative regarding your vehicle. You should also consult the
manufacturer of any equipment that has been added to your vehicle.
POSTED FACILITIES
Turn your device OFF where posted notices so require.
Turn Off Your Device Before Flying
AIRCRAFT
FCC regulations prohibit using the transmitting and phone functions of your device while in the air. In
addition, most airline regulations prohibit the on-board use of portable PCs (and all other portable electronic
devices that could potentially emit stray RF energy), particularly during take-offs and landings, to prevent any
possible interference with the reception of signals by airborne electronic navigational devices.
Turn your device OFF before boarding an aircraft. Always request and obtain prior consent and approval of an
authorized airline representative before using your device aboard an aircraft. Always follow the instructions of
the airline representative whenever using your device aboard an aircraft, to prevent any possible interference
with airborne electronic equipment.
Turn Off Your Device in Dangerous Areas
BLASTING AREAS
To avoid interfering with blasting operations, turn your device OFF when in a “blasting area” or in areas posted
“Turn off two-way radio”. Obey all signs and instructions.
146 Appendix
POTENTIALLY EXPLOSIVE ATMOSPHERES
Turn your device OFF when in any area with a potentially explosive atmosphere and obey all signs and
instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include fueling
areas such as gas stations; below deck on boats; fuel or chemical transfer or storage facilities; vehicles using
liquefied petroleum gas (such as propane or butane); areas where the air contains chemicals or articles, such
as grain, dust, or metal powders; and any other area where you would normally be advised to turn off your
vehicle’s engine.
General Safety
Your pocket PC is a high quality piece of equipment. Before operating, read all instructions and cautionary
markings on the product, battery and adapter/charger.
Failure to follow the directions below could result in serious bodily injury and/or property damage due to
battery liquid leakage, fire or rupture.
DO NOT use or store this equipment in a place where it will be exposed to high temperatures, such as near an
open flame or heat-emitting equipment.
DO NOT drop your device or subject it to severe shock. When not using, lay down the unit to avoid possible
damage due to instability.
DO NOT expose this equipment to rain or spilled beverages.
DO NOT use unauthorized accessories.
DO NOT disassemble the device or its accessories. If service or repair is required, return unit to an authorized
cellular service center. If the unit is disassembled, the risk of electric shock or fire may result.
Never allow metallic objects, such as staples and paper clips, to get into the inside of your device.
Never touch the liquid that might leak from a broken liquid crystal display. Contact with this liquid could
cause a skin rash. If the crystal display liquid should come into contact with the skin or clothing, wash it
immediately with clean water.
In the event that the device emits an unusual odor or sound or generates smoke, immediately disconnect the
AC adapter from the power outlet, then detach the battery.
Antenna Safety
Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or
attachments could impair call quality, damage your device, or result in violation of FCC regulations. Please
contact your local dealer for replacement antenna.
Do not use the device with a damaged antenna. If a damaged antenna comes into contact with the skin, a
minor burn may result. Please contact your local dealer for replacement antenna.
Battery Safety
Your device uses a removable and rechargeable lithium ion battery. Please contact customer service for
assistance should you need a replacement battery.
DOs
• Only use the battery and charger approved by the manufacturer.
• Only use the battery for its original purpose.
• Try to keep batteries in a temperature between 41°F (5°C) and 95°F (35°C).
• If the battery is stored in temperatures above or below the recommended range, give it time to warm
up or cool down before using.
• Completely drain the battery before recharging. It may take one to four days to completely drain.
• Store the discharged battery in a cool, dark, and dry place.
• Purchase a new battery when its operating time gradually decreases after fully charging.
• Properly dispose of the battery according to local regulations.
Appendix 147
DON’Ts
• Don’t attempt to disassemble the battery – it is a sealed unit with no serviceable parts.
• Don’t expose the battery terminals to any other metal object (e.g., by carrying it in your pocket or purse
with other metallic objects such as coins, clips and pens). This can short circuit and critically damage
the battery.
• Don’t leave the battery in hot or cold temps. Otherwise, it could significantly reduce the capacity and
lifetime of the battery.
• Don’t dispose of the battery into a fire.
Lithium ion batteries are recyclable. When you replace the removable battery, please request the repair center
to recycle the battery in accordance with RBRC standards. When disposing of the battery by yourself, please
call RBRC at (800) 822-8837 for proper disposal tips.
Never touch any fluid that might leak from the built-in battery. Such liquid when in contact with the eyes or
skin, could cause injury to the skin or eyes. Should the liquid come into contact with the eyes, irrigate the
eyes thoroughly with clean water and immediately seek medical attention. In the event the liquid comes into
contact with the skin or clothing, wash it away immediately with clean water.
Adapter/Charger
Use the Correct External Power Source
A product should be operated only from the type of power source indicated on the electrical ratings label. If
you are not sure of the type of power source required, consult your authorized service provider or local power
company. For a product that operates from battery power or other sources, refer to the operating instructions
that are included with the product.
The AC Adapter/Charger designed for this unit requires the use of a standard 120 V AC power source for
device operation.
Never attempt to disassemble or repair an AC adapter/charger. Never use an AC adapter/charger if it has a
damaged or worn power cord or plug. Always contact an authorized service center, if repair or replacement is
required.
Never alter the AC cord or plug on an AC adapter/charger. If the plug will not fit into the available outlet, have
a proper outlet installed by a qualified electrician.
Never allow any liquids or water to spill on an AC adapter/charger when it is connected to an AC power
source.
Always use the authorized AC adapter/charger to avoid any risk of bodily injury or damage to your cellular
phone or battery.
Never attempt to connect or disconnect the AC adapter/charger with wet hands. Always unplug the AC
adapter/charger from the power source before attempting any cleaning. Always use a soft cloth dampened
with water to clean the equipment, after it has been unplugged.
Handling the cord on this product or cords associated with accessories sold with this product, will expose you
to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash
hands after handling.
Always disconnect the travel charger or desktop charger from the power source when it is not in use.
148 Appendix
Index A
A2DP 89
ActiveSync
- about 112
- set up 54
- synchronize with computer 54
- synchronize with Exchange Server 70
Add and remove programs 113
Adobe Reader LE 112, 114
Airplane Mode 29, 119
Alarm 132
Album
- about 102, 112
- close Album 105
- play back video 105
- select a photo or video to view 102
- view an image 103
Attachment
- add to e-mail 65
- download 66
- set IMAP4 to automatically receive attachments 67
- set Outlook to automatically receive attachments 67
Audio Booster 108, 112
B
Back cover
- remove 16
Backlight
- adjust brightness 131
- set backlight timeout 131
Basic settings 131
Battery
- charge battery 17
- install 17
- remove 17
- save battery power 77, 138
Beam via Bluetooth 90
Block Recognizer 48
Bluetooth
- about 88
- Bluetooth Explorer 91, 112
- Bluetooth file sharing 91
- Bluetooth shared folder 91
- hands-free headset 89
- modes 88
- partnership (pairing) 89
- stereo headset 89
- synchronize 55
- turn on and off 119
- visible 88
Bluetooth Explorer 112
C
Calculator 112
Calendar
- about 112
- create appointment 115
- send appointment 116
- view appointment 116
Call History 28
Calling
- from Contacts 26
- from Phone screen 26
Camera
- about 96, 112
- Advanced Options
100
- capture modes 96
- controls 97
- file formats 97
- icons 97
- Menu Panel 98
- zooming 99
Clear Storage 137
ClearVue Presenter 112
Clock & Alarms 129, 131, 132
Comm Manager 112, 119, 130
Compact QWERTY 46
Company Directory 74
Connect device to Internet
- Dial-up 78
- start a connection 78
- ways of connecting 76
Contacts 112, 117
Contacts Picture capture mode 96
Copy
- copy and manage files 128
- media files from PC to device 106
D
Device name 131
Dial-up 78
Direct Push 71, 119
Disconnect data connection 119
Download
- download complete e-mail 66
- e-mail download settings 64, 67
- file attachments 66
- synchronize e-mails 66
Draw 122
E
E-mail
- Email tab (Home screen) 38
- Internet e-mail account (POP3/IMAP4) 63
- mail server settings 63
150 Index
- send 65
- settings (POP3/IMAP4) 64
- setup wizard 63
- synchronize 52, 66, 70
- types of e-mail accounts 62
Emergency call 26
Entering Information 44
- On-screen 44
- QWERTY keyboard 44
Equalizer 108
Excel Mobile 112, 121
Exchange Server 70
F
Favorite contacts 35
File Explorer 112, 128
Find contact
- Company Directory 74
- on device 118
Finger gestures 42
Finger panning 42
Finger scrolling 42
Forward e-mail 66
Full QWERTY 45
G
Games 112
Getting Started 112
GPS 94
H
Hard reset 136, 137
Hardware Keyboard 45
Help 112
Home screen 33
Home tab (Home screen) 34
I
IMAP4 63
Input methods
- Block Recognizer 48
- Compact QWERTY 46
- Full QWERTY 45
- Letter Recognizer 49
- Phone Keypad 46
- Transcriber 49
Input Panel 44
Input Selector arrow 44
Internet 76
Internet e-mail 63
Internet Explorer Mobile 113
J
JETCET PRINT 113
L
Letter Recognizer 49
Library
- Music tab (Home screen) 37
- Windows Media Player Mobile 106
M
Meeting request 73, 116
Memory 136, 140
Messaging
- about 58, 112
- e-mail 62, 63, 65
- text (SMS) 58
Microsoft Office Mobile 112, 121
Modem Link 113
MP3 Trimmer 109, 113
Multitap 47
N
Notes 113, 122
Now Playing
- Music tab (Home screen) 37
- Windows Media Player Mobile 106
Numeric and Symbol Mode 48
O
Office Mobile 112, 121
OneNote Mobile 112, 121
Open PDF file 114
Opera Mobile 79, 112
P
Panorama capture mode 96
Password 134
Phone 26, 112
Phone Keypad 46
Phone services 133
Photo capture mode 96
Photos and Videos tab (Home screen) 39
Pictures & Videos 113
Picture Theme capture mode 96
Playlists
- Music tab (Home screen) 37
- Windows Media Player Mobile 108
Play media 107
Play music
- Music tab (Home screen) 36
- Windows Media Player Mobile 107
POP3 63
PowerPoint Mobile 112, 121
Programs 112
Put call on hold 27
Q
Quick menu 22, 133
QWERTY keyboard 44
Index 151
R
Record
- voice note 122
- voice recording 123
Regional Settings 130, 131
Regulatory notices 141
Remote Desktop Mobile 113
Reply
- e-mail 66
- text (SMS) 36, 59
Reset
- clear storage 137
- hard reset 136
- soft reset 136
Review screen (Camera) 100
Ring tone 41, 132
Ring type 132
S
Safety information 3
Screen text size 131
Search 113
Send
- e-mail 65
- text message (SMS) 58
Settings (Connections tab)
- Beam 130
- Bluetooth 130
- Connections 78, 130
- Domain Enroll 130
- USB to PC 55, 130
- Wi-Fi 77, 130
- Wireless LAN 77, 130
Settings (Personal tab)
- Buttons 129
- Input 129
- Lock 129, 134
- Menus 129
- Owner Information 129
- Phone 129, 132, 133
- Sounds & Notifications 129, 132
- Today 129
Settings (System tab)
- About 129, 132
- Certificates 129
- Clear Storage 137
- Clock & Alarms 129, 131, 132
- Device Information 129
- Encryption 129, 135
- Error Reporting 129
- External GPS 129
- G-Sensor 129
- Key Lock 129
- Long Press End Key 129
- Managed Programs 129
- Memory 129
- Microphone AGC 129
- Power 129
- Regional Settings 130, 131
- Remove Programs 113, 130
- Screen 130, 131
- Task Manager 130, 133
- TouchFLO 22, 42, 130
- Windows Update 130, 137
Settings tab (Home screen) 41
Sleep mode 18
Smart Dial 29
SMS 58, 65
Soft reset 136
Sounds & Notifications 129, 132
Speakerphone 27
Specifications 140
Speed Dial 28
Start menu 22
Status icons 20
Storage card
- encrypt 135
Swap/switch calls 27
Synchronize
- ActiveSync 54
- change information types 55
- music and videos 56
- via Bluetooth 55
- Windows Media Player 106
- Windows Mobile Device Center 53
- with computer 41, 54
- with Exchange Server 41, 70
T
T9 47
Task Manager 130, 133
Tasks 113, 123
Text messages
- create new message 58
- send 59
Text size (screen) 131
Today Screen 20
TouchFLO 3D
- using 32
Transcriber 49
Troubleshoot
- sync connection 55
- Windows Media Player Mobile 108
Turn device on and off 18
Turn phone function on and off 119
Turn the phone function on and off 29
TV Out 135
U
USB to PC 55, 130
152 Index
V
Vibrate 21, 23, 28, 132
Video capture mode 96
Voice call
- about 26
- answer call 27
- end call 28
- make call 26
Voicemail 27
Voice Recorder 113, 123
VZAppZone 113
VZ Navigator 113
W
Weather tab (Home screen) 40
Wi-Fi 76, 119
Windows Media Player Mobile
- about 113
- file formats 105
- menus 106
- playlists 108
- troubleshoot 108
Windows Mobile Device Center 53
Windows Update 130, 137
Word Mobile 112, 121
WorldCard Mobile 113, 124
Z
ZIP
- about 113, 126
- create archive 126
- open zip file and extract files 126
Zooming
- Camera 99
- finger gestures 42
