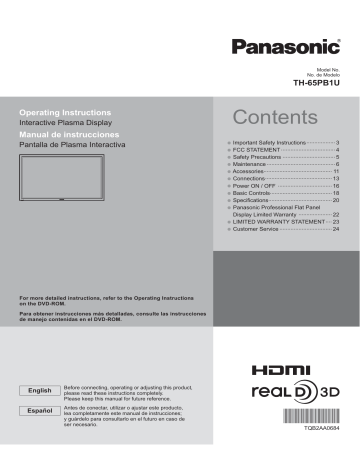

Operating Instructions

Interactive Plasma Display

Manual de instrucciones

Pantalla de Plasma Interactiva

For more detailed instructions, refer to the Operating Instructions on the DVD-ROM.

Para obtener instrucciones más detalladas, consulte las instrucciones de manejo contenidas en el DVD-ROM.

English

Español

Before connecting, operating or adjusting this product,

please read these instructions completely.

Please keep this manual for future reference.

Antes de conectar, utilizar o ajustar este producto,

lea completamente este manual de instrucciones; y guárdelo para consultarlo en el futuro en caso de

ser necesario.

Model No.

No. de Modelo

TH-65PB1U

Contents

Important Safety Instructions .................. 3

FCC STATEMENT .................................. 4

Safety Precautions ................................. 5

Maintenance ........................................... 6

Accessories........................................... 11

Connections .......................................... 13

Power ON / OFF .................................. 16

Basic Controls....................................... 18

Specifications........................................ 20

Panasonic Professional Flat Panel

Display Limited Warranty ..................... 22

LIMITED WARRANTY STATEMENT .... 23

Customer Service ................................. 24

TQB2AA0684

2

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back.

No user-serviceable parts inside. Refer servicing to quali ed service personnel.

The lightning flash with arrow-head within a triangle is in tend ed to tell the user that parts inside the product are a risk of electric shock to per sons.

The exclamation point within a t r i a n g l e i s i n t e n d e d t o tell the user that important o p e r a t i n g a n d s e r v i c i n g instructions are in the papers with the ap pli ance.

WARNING : To prevent damage which may result in re or shock hazard, do not expose this apparatus to rain or mois ture.

Do not place containers with water ( ower vase, cups, cosmetics, etc.) above the set.

(including on shelves above, etc.)

WARNING :

1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to quali ed service personnel.

2) Do not remove the grounding pin on the power plug. This apparatus is equipped with a three pin grounding-type power plug. This plug will only t a grounding-type power outlet. This is a safety fea ture.

If you are unable to insert the plug into the outlet, contact an electrician.

Do not defeat the purpose of the grounding plug.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli ers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments / accessories speci ed by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table speci ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to quali ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

3

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced technician for help.

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION:

To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to computer or peripheral devices. Any changes or modi cations not expressly approved by Panasonic Corp. of North America could void the user's authority to operate this device.

FCC Declaration of Conformity

Model No. TH-65PB1U

Responsible Party: Panasonic Corporation of North America

Contact Source:

Three Panasonic Way 2F-5, Secaucus, NJ 07094

Panasonic System Communications Company of North America

1-800-973-4390

4

CANADIAN NOTICE:

This Class B digital apparatus complies with Canadian ICES-003.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention to remain on the Plasma Display.

Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

Trademark Credits

• VGA is a trademark of International Business Machines Corporation.

• Macintosh is a registered trademark of Apple Inc., USA.

• SVGA, XGA, SXGA and UXGA are registered trademarks of the Video Electronics Standard Association.

Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.

• HDMI, the HDMI Logo, and High-De nition Multimedia Interface are trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other countries.

• “RealD 3D” is a trademark of RealD.

Safety Precautions

CAUTION

This Plasma Display is for use only with the following optional accessories.

Use with any other type of optional accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Panasonic Corporation.)

• Pedestal ..................................................... TY-ST65P20

• Mobile Stand for Display ............................ TY-ST65PF1

• Wall-hanging bracket (angled) ................... TY-WK65PR20

• BNC Dual Video Terminal Board ................ TY-FB9BD

• HD-SDI Terminal Board .............................. TY-FB9HD

• HD-SDI Terminal Board with audio ............ TY-FB10HD

• Dual Link HD-SDI Terminal Board .............. TY-FB11DHD

• Dual HDMI Terminal Board ........................ TY-FB10HMD

• DVI-D Terminal Board ................................ TY-FB11DD

• Mate-IF Boad ............................................. TY-FB11HB

• AV Terminal Box ......................................... TY-TB10AV

• 3D IR TRANSMITTER ............................... TY-3D30TRW

• 3D Eyewear................................................ TY-EW3D3SU, TY-EW3D3MU, TY-EW3D3LU

• Electronic Pen for Interactive Plasma Display... TY-TPEN1PBU

• Wireless Module......................................... ET-WM200U

Always be sure to ask a quali ed technician to carry out set-up.

Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from being played with by young children, creating the potential risk of suffocation.

When using the Plasma Display

Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display.

• Top of the Plasma Display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries can happen if any body parts are brought too close. Placing any object near the top of the display could also result in heat damages to the object as well as to the Display if its ventilation holes are blocked.

This Plasma Display radiates infrared rays, therefore it may affect other infrared communication equipment.

Install your infrared sensor in a place away from direct or re ected light from your Plasma Display.

Be sure to disconnect all cables before moving the Plasma Display.

• Moving the Display with its cables attached might damage the cables which, in turn, can cause re or electric shock.

Clean the power cable regularly to prevent it from becoming dusty.

• Built-up dust on the power cord plug can increase humidity which might damage the insulation and cause re. Unplug the cord from the wall outlet and clean it with a dry cloth.

Disconnect the power plug from the wall outlet as a safety precaution before carrying out any cleaning.

• Electric shocks can result if this is not done.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention to remain on the Plasma Display.

Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

5

Safety Precautions

WARNING

Setup

Do not place the Plasma Display on sloped or unstable surfaces, and ensure that the Plasma Display does not hang over the edge of the base.

• The Plasma Display may fall off or tip over.

Do not place any objects on top of the Plasma Display.

• If water spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result in re or electric shock. If any foreign objects get inside the Plasma

Display, please consult an Authorized Service Center.

Do not cover the ventilation holes.

• Doing so may cause the Plasma Display to overheat, which can cause re or damage to the Plasma Display.

Transport only in upright position!

• Transporting the unit with its display panel facing upright or downward may cause damage to the internal circuitry.

If using the pedestal (optional accessory), leave a space of 3

15

/

16

” (10 cm) or more at the top, left and right, and

2

3

/

4

” (7 cm) or more at the rear, and also keep the space between the bottom of the display and the oor surface.

If using some other setting-up method, follow the manual of it. (If there is no speci c indication of installation dimension in the installation manual, leave a space of

3

15

/

16

” (10 cm) or more at the top, bottom, left and right, and 2

3

/

4

” (7 cm) or more at the rear.)

When installing the Plasma Display vertically;

Turn up the power switch for the upward direction when you install the Plasma Display vertically.

And set “DISPLAY ORIENTATION” to “PORTRAIT” in

SETUP menu.

An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.

AC Power Supply Cord

The Plasma Display is designed to operate on 110 - 127

V AC, 50/60 Hz.

Ensure that the mains plug is easily accessible.

Do not use any power supply cord other than that provided with this unit.

• Doing so may cause re or electric shocks.

Securely insert the power cord plug as far as it will go.

• If the plug is not fully inserted, heat may be generated which could cause re. If the plug is damaged or the wall socket plate is loose, they should not be used.

Do not handle the power cord plug with wet hands.

• Doing so may cause electric shocks.

Do not do anything that might damage the power cable. When disconnecting the power cable, hold the plug, not the cable.

• Do not make any modi cations, place heavy objects on, place near hot objects, heat, bend, twist or forcefully pull the power cable. Doing so may cause damage to the power cable which can cause re or electric shock.

If damage to the cable is suspected, have it repaired at an Authorized Service Center.

If the Plasma Display will not be used for a long period of time, unplug the power cord from the wall outlet.

If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is detected from the

Plasma Display, unplug the power cord immediately.

• Continuous use of the Display under these conditions might cause re or permanent damage to the unit.

Have the Display evaluated at an Authorized Service

Center. Services to the Display by any unauthorized personnel are strongly discouraged due to its high voltage dangerous nature.

If water or foreign objects get inside the Plasma Display, if the Plasma Display is dropped, or if the cabinet becomes damaged, disconnect the power cord plug immediately.

• A short may occur, which could cause re. Contact an

Authorized Service Center for any repairs that need to be made.

Maintenance

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-free cloth.

• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water in which neutral detergent has been diluted 100 times, and then wipe it evenly with a dry cloth of the same type until the surface is dry.

• Do not scratch or hit the surface of the panel with ngernails or other hard objects, otherwise the surface may become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.

• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get inside the unit, operating problems may result.

• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

6

Safety Precautions

3D Safety Precautions

WARNING

Small Parts

3D Eyewear contains small parts (battery and specialised band, etc.) and must be kept out of reach of small children to avoid accidental ingestion.

Disassembly

Do not disassemble or modify the 3D Eyewear.

CAUTION

To enjoy 3D images safely and comfortably, please read these instructions fully.

Use for commercial applications and public viewing

Someone in authority should responsibly convey the precautions for use of the 3D Eyewear to the user.

3D Eyewear (sold separately)

Do not drop, exert pressure on, or step on the 3D Eyewear.

Be careful of the tips of the frame when putting on the 3D Eyewear.

Be careful not to trap a nger in the hinge section of the 3D Eyewear.

Pay special attention when children are using the 3D Eyewear.

3D Eyewear should not be used by children younger than 5 - 6 years old, as a guideline.

All children must be fully supervised by parents or guardians who must ensure their safety and health throughout the using 3D Eyewear.

7

Safety Precautions

Viewing 3D Content

Content for 3D viewing includes commercially available Blu-ray discs, 3D broadcasts, etc.

When preparing your own 3D content, ensure that it is properly produced.

Do not use the 3D Eyewear if you have a history of over-sensitivity to light, heart problems, or have any other existing medical conditions.

Please stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any other uncomfortable sensation.

Take an appropriate break after viewing a 3D movie.

Take a break of between 30 - 60 minutes after viewing 3D content on interactive devices such as 3D games or computers.

Be careful not to strike the screen or other people unintentionally. When using the 3D Eyewear the distance between the user and screen can be misjudged.

The 3D Eyewear must only be worn when viewing 3D content.

If you do not look toward the screen for a while when viewing 3D images, the 3D Eyewear may be turned off automatically.

If you suffer from any eyesight problems (short / far-sighted, astigmatism, eyesight differences in left and right), please ensure to correct your vision before using the 3D Eyewear.

Stop using the 3D Eyewear if you can clearly see double images when viewing 3D content.

Do not use the 3D Eyewear at a distance less than the recommended distance.

View from at least the recommended distance (3 times the effective height of the screen).

Recommended distance: 94.5”/2.4 m

When the top and bottom area of the screen is blackened, such as movies, view the screen at a distance

3 times further than the height of the actual image. (That makes the distance closer than above recommended

gure.)

3D Eyewear (sold separately) Use

Before using the 3D Eyewear, ensure no breakable objects surrounding the user to avoid any accidental damage or injury.

Remove the 3D Eyewear before moving around to avoid falling or accidental injury.

Use the 3D Eyewear only for the intended purpose and nothing else.

Do not use 3D Eyewear in the condition of high temperature.

Do not use if the 3D Eyewear is physically damaged.

Do not use any devices that emit the infrared signals near the 3D Eyewear, as this may cause the 3D Eyewear false operations.

Do not use devices (such as mobile phones or personal transceivers) that emit strong electromagnetic waves near the 3D Eyewear as this may cause the 3D Eyewear to malfunction.

Stop using the 3D Eyewear immediately if a malfunction or fault occurs.

Stop using the 3D Eyewear immediately if you experience any redness, pain, or skin irritation around the nose or temples.

In rare cases, the materials used in the 3D Eyewear may cause an allergic reaction.

8

Safety Precautions

Electronic Pen Use

WARNING

Operating Safeguards

Do not alter the unit or modify any parts. Alteration or modi cation can cause re or electric shock.

Electronic Pen

Do not use near medical equipment.

(Do not bring into a surgery room, intensive care unit, critical care unit, etc.)

Electromagnetic waves generated by this device can affect equipment, and can cause equipment to malfunction.

Choking Hazard

Keep the penpoint, electronic pen adapter and battery out of reach of children to prevent swallowing.

Battery

Use only the speci ed type of battery. Using the incorrect type of battery can result in overheating/burning or leakage of battery acid.

Do not use near automatic doors, smoke detectors and other automatically controlled equipment.Electromagnetic waves generated by this device can affect equipment, and can cause equipment to malfunction.

Use at least 22cm (9in.) away from pacemakers.

Electromagnetic waves generated by this device can affect the operation of pacemakers.

Make sure that the battery is installed with the correct polarity as indicated on the battery holder. Incorrectly installed batteries may burst or leak, resulting in injuries.

Do not use the damaged batteries. Using damaged batteries may result in leaking.

CAUTION

When the unit is not used over an extended period of time, take the batteries out of the unit. Otherwise, the batteries may leak. Do not use the leaked batteries.

Do not short, heat, break or throw in a re, as it may result in the battery leaking, generating heat, or bursting.

When disposing of the battery, cover the battery contacts with insulation (ex. tape). Direct contact with other batteries may result in leaking, re, or explosion.

Do not solder the battery, as it may result in the battery leaking, generating heat, or bursting.

Remove empty batteries immediately to avoid battery

uid leakage.

Avoid contact of battery uid with eyes, skin or clothing, as this may result in irritation or injury. In these cases, do not rub the affected area, and rinse thoroughly with clean water.

9

Safety Precautions

Precautions

Any changes or modi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate this device.

Other Information

Usage Note

Operating the electronic pen and the electronic pen adapter near electrical appliances may cause interference. Move away from the electrical appliances such as TVs, radios, cordless phone, or wireless devices.

About Using the Battery

If a battery is used improperly, the battery may leak, causing corrosion of the unit, or it may burst. To prevent this, always follow the precaution given below.

battery has run out, remove it immediately and dispose of it according to local regulations. Leaving a drained battery in the electronic pen may result in leakage.

A nickel metal hydride battery that is recyclable powers the product you have

|purchased.

Please call 1-800-8-BATTERY for information on how to recycle this battery.

MEDICAL

Consult the manufacturer of any personal medical devices, such as pacemakers, to determine if they are adequately shielded from external RF

(radio frequency) energy. (The unit operates in the frequency range of 2,405 GHz to 2,480 GHz, and the power output level is 1 milliwatts.) Do not use the unit in health care facilities if any regulations posted in the area instruct you not to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF (radio frequency) energy.

No responsibility will be taken by our company with respect to consequences resulting from the use, damage or both of the equipment.

10

Accessories

Accessories Supplied

Operating

Instruction book

Check that you have the Accessories and items shown

Software DVD-ROM × 1 Remote Control Transmitter

N2QAYB000691

Clamper × 1

TMME289

• elite Panaboard software

• elite Panaboard book

• Operating Instructions

Display Operations

Network Operations

Electronic Pen Operations

• Software license statements

GNU GENERAL PUBLIC LICENSE

GNU LESSER GENERAL PUBLIC LICENSE

AC cord

Ferrite core × 2

J0KG00000014

Batteries for the

Remote Control

Transmitter

(AA Size × 2)

Use the Ferrite cores to comply with the EMC standard.

(See page 15)

Electronic Pen set

Recharger Cable × 2

6.56 ft. (2m)

Electronic Pen Adapter × 1 Rechargeable AAA Ni-MH

Battery × 2

Electronic Pen × 2

N2FZ00000007

N5EDZ0000006

Pen Tip (Replacement) × 2

The supplied rechargeable battery is only for this electronic pen. When replacing the rechargeable battery, replace it with a commercially available rechargeable AAA Ni-

MH battery. (For Canada, HHR-4MRA)

Pen Holder × 2

TKKL5543

Store the extra pen tip along with this operating instructions.

About Using the DVD-ROM

To prevent damage to the DVD-ROM:

• Do not touch or write on the surface of the disc.

• Do not leave the disc out of the protective case.

• Do not leave the disc in the direct sunlight or near heat sources.

• Do not place heavy objects on the disc case or drop the case.

• To clean the disc, hold the disc by its edges and wipe it from the center to the edges with a dry, soft cloth.

11

Accessories

Remote Control Batteries

Requires two AA batteries.

1. Pull and hold the hook, then open the battery cover.

2. Insert batteries - note correct polarity (+ and -).

“AA” size

+

-

-

+

3. Replace the cover.

Helpful Hint:

For frequent remote control users, replace old batteries with Alkaline batteries for longer life.

Precaution on battery use

Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.

Disposal of batteries should be in an environment-friendly manner.

Observe the following precautions:

1. Batteries should always be replaced as a pair. Always use new batteries when replacing the old set.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).

4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.

5. Battery replacement is necessary when the remote control acts sporadically or stops operating the Plasma Display.

6. Do not burn or breakup batteries.

7. Batteries must not be exposed to excessive heat such as sunshine, re or the like.

12

Connections

Speaker connection

Note:

Please use 8 /10 W speaker.

1 2

Red

Black

While pressing the lever, insert the core wire.

Red

Black

Return the lever.

AC cord connection and xing, cable xing

AC cord xing

Unplug the AC cord

Unplug the AC cord pressing the

Plug the AC cord into the display unit.

Plug the AC cord until it clicks.

Note:

Make sure that the AC cord is locked on both the left and right sides.

two knobs.

Note:

When disconnecting the AC cord, be absolutely sure to disconnect the AC

Using the clamper

Secure any excess cables with clamper as required.

Note:

cord plug at the socket outlet rst.

One clamper is supplied with this unit. In case of securing cables at three positions, please purchase it separately.

1

Attach the clamper

hole

To remove from the unit: snaps

2

Bundle the cables

To loosen:

Insert the clamper in a hole.

Keep pushing both side snaps hooks

Set the tip in the hooks knob

Keep pushing the knob

13

Connections

Video equipment connection

Terminals are on the bottom side of the Plasma Display.

SERIAL:

Control the Plasma

Display by connecting to

PC.

3D IR TRANSMITTER:

Connect the 3D IR

TRANSMITTER (optional accessory).

(8Ω,20W[10W+10W])

SLOT:

Terminal board (optional accessories) insert slot

(see page 5)

Note:

The right side slot is for terminal board with 2-slot width. The terminal board with 1-slot width does not function when installed in the right side slot.

AV IN (VIDEO):

Composite Video Input Terminal

COMPONENT/RGB IN:

Component/RGB

Video Input Terminal

DVI-D IN:

DVI-D Input Terminal

PC IN:

PC Input Terminal Connect to video terminal of

PC or equipment with Y, P

B

(C

B

) and P

R

(C

R

) output.

AV IN (HDMI):

HDMI Input Terminal

Connect to video equipment such as VCR or DVD player.

WIRELESS

MODULE, LAN:

See page 15

14

Connections

Example of Network Connection (Wired LAN)

COMPUTER

Display (main unit, rear)

Less than

3.9 inch

(10 cm)

LAN cable

(not supplied)

Ferrite core

(supplied)

Installing the Ferrite core

Ferrite core

(supplied)

Less than

3.9 inch (10 cm)

Open

Pull back the tabs

(in two places)

Wind the cable twice

Press the cable through and close

Hub or broadband router

Notes:

• Make sure the broadband router or hub supports 10BASE-T/100BASE-TX.

• To connect a device using 100BASE-TX, use “category 5” LAN cable.

• Touching the LAN terminal with a statically charged hand (body) may cause damage due to its discharge.

Do not touch the LAN terminal or a metal part of the LAN cable.

• For instructions on how to connect, consult your network administrator.

Connecting Wireless Module (Wireless LAN)

To use the wireless function, the wireless module (ET-WM200U) (sold separately) is necessary.

When connecting the wireless module to the display, remove the protective lm and cap.

Connecting procedure

Hold the wireless module with its LED on the near side and connect it to the wireless module connection terminal.

Note:

Do not connect any other device than the wireless module (ET-WM200U).

When using the electronic pen

Using the electronic pen with the wireless module

(ET-WM200U) connected may result in malfunction of the electronic pen due to radio wave interference as an example. In that case, set “WIRELESS LAN” to “OFF” before using the electronic pen. (refer to

“Operating Instructions, Network Operations”)

(8Ω,20W[10W+10W])

ET-WM200

LED

15

Power ON / OFF

Connecting the AC cord plug to the Plasma Display.

Connecting the plug to the Wall Outlet.

Note:

When disconnecting the AC cord, be absolutely sure to disconnect the AC cord plug at the socket outlet rst.

Press the Power switch on the Plasma Display to turn the set on: Power-On.

Power Indicator: Green

[Starting up the network]

It takes some time for the network to start up just after the power is turned on.

During that time, “NETWORK SETUP” in the “SETUP” menu is grayed out and cannot be set.

INPUT MENU -/ VOL +/ ENTER/

Power Indicator

Remote Control Sensor

Press the button on the remote control to turn the Plasma Display off.

Power Indicator: Red (standby)

Press the button on the remote control to turn the Plasma Display on.

Power Indicator: Green

Turn the power to the Plasma Display off by pressing the switch on the unit, when the Plasma Display is on or in standby mode.

Note:

During operation of the power management function, the power indicator turns orange in the power off state.

16

Power ON / OFF

When rst switching on the unit

Following screen will be displayed when the unit is turned on for the rst time.

Select the items with the remote control. Unit buttons are invalid.

OSD LANGUAGE DAY/TIME SETUP DISPLAY ORIENTATION

OSD LANGUAGE

English (UK)

Deutsch

Français

Italiano

Español

ENGLISH (US)

DAY/TIME SETUP

DAY

TIME

SET

TIME MON 99:99

MON

99:99

DISPLAY ORIENTATION

LANDSCAPE

PORTRAIT

DAY/TIME SETUP

TIME MON 99:99

DAY

TIME

SET

TUE

10:00

SELECT SET

1

Select the language.

2

Set.

1

2

Select “DAY” or “TIME”.

Setup “DAY” or “TIME”.

1

2

For vertical installation, select “PORTRAIT”.

Set.

1

Select “SET”.

2

Set.

Notes:

• Once the items are set, the screens won't be displayed when switching on the unit next time.

• After the setting, the items can be changed in the following menus.

Power ON warning message

The following message may be displayed when turning the unit power ON:

3D Safety Precautions

When 3D images will be viewed by unspeci ed number of people or used for commercial applications, someone in authority should convey the following precautions.

These precautions should be followed in the home as well.

To enjoy 3D images safely and comfortably, please refer to the Operating Instructions for in-depth description.

Please refrain from viewing 3D images if you do not feel well or are experiencing visual fatigue.

Activate 3D Safety Precautions if you deliver 3D images to unspeci ed audiences for business or other purposes.

If “3D FUNCTION” in “3D SETTINGS” is set to “ON”, a warning message is displayed every time the power is turned ON.

No activity power off Precautions

’NO ACTIVITY POWER OFF’ IS ENABLED.

If “NO ACTIVITY POWER OFF” in SETUP menu is set to “ENABLE”, a warning message is displayed every time the power is turned ON.

These message displays can be set with the following menu: Options menu

3D Safety Precautions

Power On Message

17

Basic Controls

Main Unit

Remote control sensor

Volume Adjustment

Volume Up “+” Down “–”

When the menu screen is displayed:

“+” : press to move the cursor up

“–” : press to move the cursor down

Enter / Aspect button

INPUT MENU -/ VOL

+

/ ENTER/

Main Power On / Off Switch MENU Screen ON / OFF

Each time the MENU button is pressed, the menu screen will switch.

Power Indicator

The Power Indicator will light.

• Power-OFF .... Indicator not illuminated (The unit will still consume some power as long as the power cord is still inserted into the wall outlet.)

• Standby ........ Red

Normal Viewing

SOUND


POS./SIZE

SETUP

INPUT button (Input signal selection)

Orange (When “Slot power” is set to “On”.)

Orange (Depending on the type of the function board installed, when the power is supplied to the slot)

Orange (When “CONTROL I/F SELECT” is set to “LAN” or “WEB CONTROL” is set to “ON”.

Refer to “Operating Instructions, Network Operations”.)

• Power-ON ...... Green

• PC POWER MANAGEMENT (DPMS)

....................... Orange (With PC input signal.)

When this function is set to ON, it operates under the following conditions to turn the power on or off automatically.

When no pictures (HD/VD sync signals) are detected for 30 or so seconds during PC signal input:

Power is turned off (standby); the power indicator lights up orange.

When pictures (HD/VD sync signals) are subsequently detected:

Power is turned on; the power indicator lights up green.

• DVI-D POWER MANAGEMENT

.......................Orange (With DVI input signal.)

• NO SIGNAL POWER OFF

.......................Red

Equipment power supply is turned OFF when there is no signal.

When this is set to “ENABLE”, the power supply of the unit goes Off 10 minutes after the input signals stop.

18

Remote Control Transmitter

ACTION button

Press to make selections.

ASPECT button

Press to adjust the aspect.

Standby (ON / OFF) button

The Plasma Display must rst be plugged into the wall outlet and turned on at the power switch (see page 16).

Press this button to turn the Plasma Display

On, from Standby mode. Press it again to turn the Plasma Display Off to Standby mode.

POS. /SIZE button

PICTURE button

Sound mute On / Off

Press this button to mute the sound.

Press again to reactivate sound.

Sound is also reactivated when power is turned off or volume level is changed.

N button

POSITION buttons

INPUT button

Press to select input signal sequentially.

ECO MODE (ECO)

Press to change the ECO MODE setup status.

FUNCTION buttons (FUNCTION)

Basic Controls

OFF TIMER button

The Plasma Display can be preset to switch to standby after a xed period. The setting changes to 30 minutes, 60 minutes, 90 minutes and 0 minutes (off timer cancelled) each time the button is pressed.

30 MIN 60 MIN 90 MIN

0 MIN(Cancel)

When three minutes remain, “OFF TIMER 3 MIN” will ash.

The off timer is cancelled if a power interruption occurs.

AUTO SETUP button

Automatically adjusts the position/ size of the screen.

SETUP button

SOUND button

Volume Adjustment

Press the Volume Up “+” or Down “–” button to increase or decrease the sound volume level.

R button

Press the R button to return to previous menu screen.

RECALL button

Press the “RECALL” button to display the current system status.

1

Input label

2

Aspect mode

During 3D images

Audio input

Pro le name

NANODRIFT SAVER operating

3

Touch Pen mode ON/OFF

4

Off timer

The off timer indicator is displayed only when the off

5 timer has been set.

Clock display

1

PC

3D

4:3

COMPONENT

MEMORY NAME: MEMORY2

NANODRIFT

2

TOUCH-PEN ON 3

5 1 0 : 0 0

OFF TIMER 90MIN 4

Digital Zoom

19

Speci cations

Power Source

Power Consumption

Rated Power Consumption

Stand-by condition

Power off condition

Plasma Display panel

Screen size

(No.of pixels)

TH-65PB1U

110 - 127 V AC, 50/60 Hz

555 W

0.4 W

0.2 W

Drive method : AC type 65-inch, 16:9 aspect ratio

56.4” (1,434 mm) (W) × 31.7” (806 mm) (H) × 64.7” (1,645 mm) (diagonal)

2,073,600 (1,920 (W) × 1,080 (H))

[5,760 × 1,080 dots]

Operating condition

Temperature

Humidity

Applicable signals

Color System

Scanning format

32 °F - 104 °F (0 °C - 40 °C)

20 % - 80 %

PC signals

NTSC, PAL, PAL60, SECAM, Modi ed NTSC

525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i · 60p · 50i · 50p

· 24p · 25p · 30p · 24sF, 1250 (1080) / 50i

VGA, SVGA, XGA, SXGA

UXGA ···· (compressed)

Horizontal scanning frequency 15 - 110 kHz

Vertical scanning frequency 48 - 120 Hz

Connection terminals

AV IN

VIDEO

AUDIO L-R

HDMI

COMPONENT/RGB IN

Y/G

DVI-D IN

PC IN

P

B

/C

B

/B

P

R

/C

R

/R

AUDIO L-R

AUDIO

BNC

RCA Pin jack × 2

BNC

BNC

BNC

RCA Pin jack × 2

DVI-D 24 Pin

Content Protection

Stereo mini jack (M3) × 1

High-Density Mini D-sub 15 Pin

1.0 Vp-p (75 )

0.5 Vrms, Shared with COMPONENT/RGB IN

TYPE A Connector with sync 1.0 Vp-p (75 )

0.7 Vp-p (75 )

0.7 Vp-p (75 )

0.5 Vrms, Shared with VIDEO

Compliance with DVI Revision 1.0

Compatible with HDCP 1.1

0.5 Vrms, Shared with PC IN

Y or G with sync 1.0 Vp-p (75 )

Y or G without sync 0.7 Vp-p (75 )

P

B

/C

B

/B: 0.7 Vp-p (75 )

P

R

/C

R

/R: 0.7 Vp-p (75 )

HD/VD: 1.0 - 5.0 Vp-p (high impedance)

0.5 Vrms, Shared with DVI-D IN

SERIAL

AUDIO

Stereo mini jack (M3) × 1

External Control Terminal

D-sub 9 Pin

3D IR TRANSMITTER for 3D IR TRANSMITTER (TY-3D30TRW)

3D SHUTTER OUT

DC 8V OUT

M3 jack × 1

Center plus, for EIAJ 4mm plug

Mass (weight)

main unit only

RS-232C compatible

WIRELESS MODULE for Wireless module (ET-WM200U)

LAN

RJ45 10BASE-T/100BASE-TX, compatible with PJLink™

EXT SP

8 , 20 W [10 W + 10 W] (10 % THD)

Dimensions (W × H × D)

61.2” (1,554 mm) × 36.5” (925 mm) × 3.9” (99 mm) approx. 132.3 lbs

Note:

Design and speci cations are subject to change without notice. Mass and dimensions shown are approximate.

20

Speci cations

Electronic Pen

Type

Transmission system

Power source

External dimensions (L × H)

Weight

Operation time

Charging time

Electronic pen

2.4 GHz radio transmission

Rechargeable AAA Ni-MH battery × 1 or AAA alkaline battery × 1

7.9" (198.5 mm) × 0.9" (22.1 mm)

Approx. 0.09 lb. (Approx. 40 g) (including the included rechargeable battery)

Approx. 4 h (Rechargeable AAA Ni-MH battery)

Approx. 4 h (AAA alkaline battery)

Approx. 4 h (Rechargeable AAA Ni-MH battery)

21

(for the U.S.A and Puerto Rico)

Panasonic System Communications Company of North America

Unit of Panasonic Corporation of

North America

Three Panasonic Way 2F-5

Secaucus, NJ 07094

Panasonic Professional Flat Panel Display

Limited Warranty

Panasonic System Communications Company of

North America (referred to as “the Warrantor”) will repair this product and all included accessories with new or refurbished parts, free of charge in the USA or

Puerto Rico, of the original purchase in the event of a defect in materials or workmanship as follows: antenna, inadequate signal pickup, maladjustment of consumer controls, improper operation, power line surge, improper voltage supply, lighting damage, or service by anyone other than an authorized repair facility, or damage that is attributable to acts of God.

LIMITS AND EXCLUSIONS

Models or Parts

Part

Warranty

Labor

Warranty

There are no express warranties except as listed above.

Professional Flat

Panel Display

2 Years 2 Years

On-site or carry-in service in the

USA and Puerto Rico

may be obtained during the warranty period by contacting

Panasonic System Communications Company of North

America Service toll free at

1-800-973-4390.

THE WARRANTOR SHALL NOT BE LIABLE FOR

INCIDENTAL OR CONSEQUENTIAL DAMAGES

(INCLUDING, WITHOUT LIMITION, DAMAGE

TO DISCS) RESULTING FROM THE USE OF THIS

PRODUCT, OR ARISING OUT OF ANY BREACH OF

THE WARRANTY. ALL EXPRESS AND IMPLIED

WARRANTIES, INCLUDING THE WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR

PARTICULAR PURPOSE, ARE LIMITED TO THE

APPLICABLE WARRANTY PERIOD SET FORTH

ABOVE.

This warranty is extended only to the original purchaser and is non transferable. A purchase receipt or other proof of date of original purchase will be required before warranty service is rendered.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may nor apply to you. This warranty gives you specific legal rights and you may other rights, which vary from state to state.

This warranty only covers failures due to defects in materials or workmanship, which occur during normal use. The warranty does not cover damage which occur in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from improper installation, set-up adjustments, improper

If you have a problem with this product that is not handled to your satisfaction, then write the Consumer

Affairs Department at the Company address indicated above.

In the USA and Puerto Rico

FOR SERVICE

CALL TOLL FREE

1-800-973-4390

22

(for Canada)

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

LIMITED WARRANTY STATEMENT

Panasonic Canada Inc. (also known as PCI) warrants this product to be free of defects in material and workmanship under normal use during the applicable warranty coverage period described below. PCI agrees to repair, or at its option, exchange, any part that becomes defective. However, the product must be purchased and serviced in Canada. The product or part that shows evidence of defect must be delivered prepaid or carried in to an authorized Panasonic Broadcast

Service Center. This warranty does not cover shipping costs.

The warranty coverage period is one year for both parts and labour beginning with the date of original end user purchase, subject to the exceptions as stated below.

Repaired or replacement parts supplied during the warranty coverage period carry the unexpired portion of the original warranty coverage period. Proof of product purchase is a condition of warranty service. The owner must produce the product purchase receipt or other satisfactory evidence of date of original purchase.

This warranty does not apply to external appearance items, such as handles, knobs, safety windows, etc. This warranty does not apply to any part, or parts, of the product, installed, altered, repaired or misused in any way that, in the opinion of PCI, affects the reliability of or detracts from the performance of the product.

For products requiring routine preventive maintenance, that maintenance must be performed in order to maintain warranty coverage.

Serial numbers that have been altered, defaced or removed void this warranty. This warranty does not cover replacements or repairs necessitated by loss or damage resulting from any cause beyond the control of PCI.

Marking or retained images (sometimes called “burn-in”) resulting from the display of fixed images on video display products are not defects and are not covered under this warranty.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR

ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

WARRANTY COVERAGE PERIOD EXCEPTIONS

Item Parts

Video Tape

P2/SD Cards

Video Heads

D5 Video heads

Maintenance Items

Colour Camera CCD

Imaging Block

BT-H Series LCD Monitors

* DLP™ Projectors

30 days—Replacement only

(content not covered)

(Content not covered)

1 year or 2,000 hrs. (prorated)

Whichever comes first

1 year or 1,000 hrs.

Whichever comes first

90 days

2 years

* LCD Projectors above

2,500 ANSI Lumens

* LCD Projectors below

2,500 ANSI Lumens

Projector Lamps

2 years

3 years or 17,000 hrs.

Whichever comes first

3 years or 2,500 hrs.

Whichever comes first

3 years or 1,500 hrs.

Whichever comes first

50% of the rated lamp life or 1 year.

Whichever comes first

All Plasma displays

103 inch Plasma displays

Hard Drive Disk Unit

2 years (burn-in not covered)

3 years (burn-in not covered)

1 year plus balance (if any) of the original Manufacturer’s

Limited Warranty.

(Content not covered)

Labour

N/A

N/A

1 year or 2,000 hrs.

Whichever comes first

1 year or 1,000 hrs.

Whichever comes first

90 days

2 years

2 years

3 years or 17,000 hrs.

Whichever comes first

3 years or 2,500 hrs.

Whichever comes first.

3 years or 1,500 hrs.

Whichever comes first

50% of the rated lamp life or 1 year.

Whichever comes first.

2 years

3 years

1 year

• Dust, smoke, rental/staging environment and twenty-four/seven operation, dramatically decreases the interval between performances of routine preventive maintenance required to maintain this warranty coverage.

Warranty Service

If the product needs to be shipped for service, carefully pack (preferably in the original carton) and enclose a letter, detailing the complaint. Send prepaid and adequately insured to the local authorized Panasonic Service Centre in your area or to Panasonic Technical Support and Product Services Department, 5770

Ambler Drive, Mississauga, Ontario, L4W 2T3. Shipping to the latter location requires a return authorization before shipment. No liability is assumed for loss or damage to the product while in transit.

23

24

USA Only:

Disposal may be regulated in your community due to environmental considerations. For disposal or recycling information, please visit Panasonic website: http://www.panasonic.com/environmental or call 1-888-769-0149.

Customer’s Record

The model number and serial number of this product can be found on its back cover. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identi cation in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

¤

Panasonic Corporation 2012

Panasonic System Communications Company of North America

Unit of Panasonic Corporation of North America

Executive Of ce :

Three Panasonic Way 2F-5, Secaucus, NJ 07094

Panasonic Canada Inc.

5770 Ambler Drive

Mississauga, Ontario

L4W 2T3

Printed in U.S.A.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
