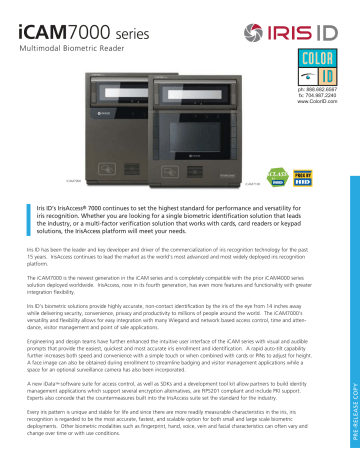

Multimodal Biometric Reader MAY 2011

Multimodal Biometric Reader MAY 2011
Multimodal Biometric Reader
ph: 888.682.6567
fx: 704.987.2240
www.ColorID.com
Introducing
MAY 2011
iCAM7000
iCAM7100
Iris ID’s IrisAccess® 7000 continues to set the highest standard for performance and versatility for
iris recognition. Whether you are looking for a single biometric identification solution that leads
the industry, or a multi-factor verification solution that works with cards, card readers or keypad
solutions, the IrisAccess platform will meet your needs.
Iris ID has been the leader and key developer and driver of the commercialization of iris recognition technology for the past
15 years. IrisAccess continues to lead the market as the world’s most advanced and most widely deployed iris recognition
platform.
The iCAM7000 is the newest generation in the iCAM series and is completely compatible with the prior iCAM4000 series
solution deployed worldwide. IrisAccess, now in its fourth generation, has even more features and functionality with greater
integration flexibility.
Iris ID’s biometric solutions provide highly accurate, non-contact identification by the iris of the eye from 14 inches away
while delivering security, convenience, privacy and productivity to millions of people around the world. The iCAM7000’s
versatility and flexibility allows for easy integration with many Wiegand and network based access control, time and attendance, visitor management and point of sale applications.
A new iData™ software suite for access control, as well as SDKs and a development tool kit allow partners to build identity
management applications which support several encryption alternatives, are FIPS201 compliant and include PKI support.
Experts also concede that the countermeasures built into the IrisAccess suite set the standard for the industry.
Every iris pattern is unique and stable for life and since there are more readily measurable characteristics in the iris, iris
recognition is regarded to be the most accurate, fastest, and scalable option for both small and large scale biometric
deployments. Other biometric modalities such as fingerprint, hand, voice, vein and facial characteristics can often vary and
change over time or with use conditions.
PRE-RELEASE COPY
Engineering and design teams have further enhanced the intuitive user interface of the iCAM series with visual and audible
prompts that provide the easiest, quickest and most accurate iris enrollment and identification. A rapid auto-tilt capability
further increases both speed and convenience with a simple touch or when combined with cards or PINs to adjust for height.
A face image can also be obtained during enrollment to streamline badging and visitor management applications while a
space for an optional surveillance camera has also been incorporated.
Technical Specifications
The iCAM7000 series has features no other iris system offers. iCAM7000 enables
rapid iris acquisition with greater image quality for superior enrollment and
recognition. A holographic targeting aid is just one part of an intuitive and
interactive interface that includes voice and visual feedback for increased speed.
All models feature the robust Iris ID countermeasure package experts agree sets
the standard in the industry.
Benefits:
!"#
Features:
!
$%
#!
!
!&'(!#"
#)!
$
#!!$)
*&!#"!
"+
&$
!#!/
368!$8#!!!9:::!$
)$/$
%!!
$)
!)!!/
"/"/!%
iCAM7000 series
Dimensions (W x H x D)
Weight
Power Input / Consumption
Status LED
Iris Operating Range Indicator
Voice Indication
Iris Capture Range
User Input
Touch Screen LCD Display
Pin Pad
Flash
Face Image Camera
Transaction Log Capacity *
Relays x 2(door, other)
External Media Device Connectivity
Operating Temperature
Storage Temperature
Humidity
Iris & Face Camera Rotation Angle
Communications
Inputs / Outputs
Architecture:
#!;#(9:::!<!$!"8;<$
required depending on the project requirements.
Equipment Supplied with iCAM4000
IrisAccess EAC Server for Enterprise,
iData SDK
7.01” x 8.31” x 2.52” (178mm x 211mm x 64mm)
3.5lbs (1.6kg)
12~24 VDC, 2.0 Amps @ 12 VDC / 24W
Multi Color - Red, Green, Blue for status and alarm indication
Dual Color - Orange (out of range), Green (in range)
English standard, others available by download
12“~14” (31cm~35cm)
Function keys six user definable (iCAM7100)
4.3” (480 x 272 pixels) (iCAM7100)
Pop-up on screen pin pad (iCAM7100)
High output flash for face capture
Face camera CMOS - 5MP
Up to 1,000,000 transactions stored on device, unlimited on server
Control for all electric locking mechanisms and auxiliary relay for user
defined operation
Secure user accessible USB port
32°F~113°F (0°C~45°C)
-4°F~203°F (-20°C~95°C)
Up to 90% non-condensing
+35°/-25°
Ethernet (LAN, WAN), RS422, RS232
Proximity Card Reader (Wiegand In), Embedded Smart Card Reader (Optional),
Wiegand In, Wiegand Out, Dry Contact Relay x 2, Programmable GPIO x 4
Instruction Manual - Quick Start Guide
Refer to IrisAccess Enterprise Access Control Software specifications
* Future functionality will not be available in May 2011
User Interface
12~14”
(31-35cm)
Green dot = In range
+[+
"
/&!8
!!8!!?
H
!JL9!;QLQU$<8?
"
V!X
!$?
H&"!'!!$?
Use of IrisAccess
+
!8
!!!?
G!
!$"8"
$!?
)"!>
?
"
!
?
Installation and Dimension
3$"
Mirror
3
!
*
#"!
@?:\
;@]$$<
J?UJ\
;^9$$<
^\
;UU$<
U9\
;Q]$<
]?Q\
;J$$<
NOTE
This is based
on the assumption
that users’ average
[email protected]\;@:$<
H
"`{
!
$`
3
%
Illustration of mounting prep depth requirements with flush mount to wall.
)!!$
6&"/@:::+/@:::)//
6?
PRE-RELEASE COPY
Eye "
#!#%=!!!$
"
">
!!"
'
&!!'
$"!"!"8!
!"#!#%!&!!"!?#!!!$!$(>
$!?
!!
$
#!!!!
!"
"88(*'#'#!"!!?#!!!
tions have been independently tested and approved for eye safety by public and private sectors around the world.
formerly
Iris ID, Inc.
7 Clarke Drive, Cranbury, NJ 08512, USA
Tel. 609-819-IRIS(4747) Fax. 609-819-4736
www.irisid.com
ph: 888.682.6567
fx: 704.987.2240
www.ColorID.com
©2011 Iris ID, Inc. All rights reserved. Design and specification subject to change without notice.
Document # IRISIDIRISACCESS7000-0311
