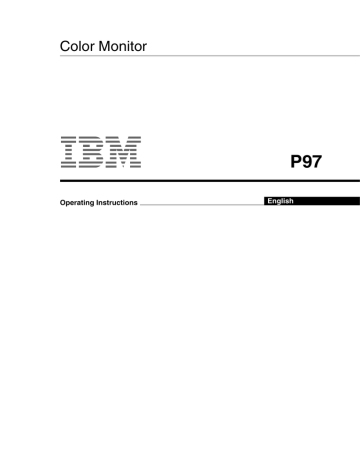

Color Monitor
P97
Operating Instructions
English
First Edition (October 2001)
This publication could contain technical inaccuracies or typographical errors. Changes are made periodically to the information herein;
these changes will be made in later editions. IBM may make improvements and/or changes in the product(s) and/or program(s) at any time.
It is possible that this publication may contain reference to, or information about, IBM products (machines and programs), programming,
or services that are not announced in your country.
Requests for copies of this publication and for technical information about IBM products should be made to your IBM Authorized Dealer
or IBM Retailer.
No part of this publication may be reproduced or distributed in any form or by any means without prior permission in writing from the
International Business Machines Corporation.
© Copyright International Business Machines Corporation 2001.
All rights reserved.
Note to U.S. Government Users--Documentation related to restricted rights--Use, duplication, or disclosure is subject to restrictions set forth
in GSA ADP Schedule Contract with IBM Corp.
Notices
References in this publication to IBM products, programs, or services do not imply that IBM intends to make these available in all countries
in which IBM operates. Any reference to an IBM product, program or service is not intended to state or imply that only IBM’s product,
program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any of IBM’s intellectual
property rights or other legally protectable rights may be used instead of the IBM product, program, or service. Evaluation and verification
of operation in conjunction with other products, programs, or services, except those expressly designated by IBM, are the user’s
responsibility.
IBM may have patents or pending patent applications covering subject matter in this document. The furnishing of this document does not
give you any license to these patents.
Trademarks
The following terms, used in this publication, are trademarks or service marks of the IBM Corporation in the United States, other countries,
or both:
HelpCenter IBM
ENERGY STAR is a U.S. Govt. registered trademark.
Microsoft and Windows are trademarks of Microsoft Corporation in the United States, other countries, or both.
Other company, product, and service names may be trademarks or service marks of others.
US
Table of Contents
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Identifying parts and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Step 1: Connect your monitor to your computer . . . . . . . . . . . . . . . 4
Step 2: Connect the power cord . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Step 3: Turn on the monitor and computer . . . . . . . . . . . . . . . . . . . 4
Customizing Your Monitor . . . . . . . . . . . . . . . . . . . . . . . .5
Navigating the menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Adjusting the brightness and contrast (BRIGHT/CONTRAST) . . . . 7
Adjusting the centering of the picture (SIZE/CENTER) . . . . . . . . . . 8
Adjusting the size of the picture (SIZE/CENTER) . . . . . . . . . . . . . . 8
Automatically sizing and centering the picture (AUTO) . . . . . . . . . . 8
Adjusting the shape of the picture (GEOMETRY) . . . . . . . . . . . . . . 9
Adjusting the convergence (CONVERGENCE) . . . . . . . . . . . . . . . . 9
Adjusting the picture quality (SCREEN) . . . . . . . . . . . . . . . . . . . . . 10
Adjusting the color of the picture (COLOR) . . . . . . . . . . . . . . . . . . 10
Additional settings (OPTION) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Resetting the adjustments (RESET) . . . . . . . . . . . . . . . . . . . . . . . 12
Technical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Preset and user modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Power saving function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
If thin lines appear on your screen (damper wires) . . . . . . . . . . . .
On-screen messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trouble symptoms and remedies . . . . . . . . . . . . . . . . . . . . . . . . . .
Self-diagnosis function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13
13
15
17
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
1
US
Use of the Tilt-Swivel
Precautions
This monitor can be adjusted within the angles shown below. To
find the center of the monitor’s turning radius, align the center of
the monitor’s screen with the centering mark on the stand.
Hold the monitor at the bottom with both hands when you turn it
horizontally or vertically. Be careful not to pinch your fingers at
the back of the monitor when you tilt the monitor up vertically.
Installation
Do not install the monitor in the following places:
• on surfaces (rugs, blankets, etc.) or near materials (curtains,
draperies, etc.) that may block the ventilation holes
• near heat sources such as radiators or air ducts, or in a place
subject to direct sunlight
• in a place subject to severe temperature changes
• in a place subject to mechanical vibration or shock
• on an unstable surface
• near equipment which generates magnetism, such as a
transformer or high voltage power lines
• near or on an magnetically charged metal surface
• in a dusty or smoky environment
• into a wall or enclosure
• in a small space that does not allow adequate ventilation around
the top, bottom, and sides of the monitor that may block the
ventilation holes
15°
90°
90°
5°
Centering mark
Protection
Important information on power connection
•
•
•
•
• Use the supplied power cord. If you use a different power cord,
be sure that it is compatible with your local power supply.
Do not put foreign objects into the monitor.
Disconnect the monitor if environment exceeds 60°C/140°F.
Ensure AC power cord is not trapped under furniture, TV, etc.
Do not overload wall outlets, extension cords, or convenience
receptacles beyond their capacity.
Example of plug types:
US
Maintenance
• Clean the screen with a soft cloth. If you use a glass cleaning
liquid, do not use any type of cleaner containing an anti-static
solution or similar additive as this may scratch the screen’s
coating.
• Do not rub, touch, or tap the surface of the screen with sharp or
abrasive items such as a ballpoint pen or screwdriver. This type
of contact may result in a scratched picture tube.
• Clean the cabinet, panel and controls with a soft cloth lightly
moistened with a mild detergent solution. Do not use any type
of abrasive pad, scouring powder, or solvent, such as alcohol or
benzine.
for 100 to 120 V ac
for 200 to 240 V ac
for 240 V ac only
• Before disconnecting the power cord, wait at least 30 seconds
after turning off the power to allow the static electricity on the
screen’s surface to discharge.
• After the power is turned on, the screen is demagnetized
(degaussed) for a few seconds. This generates a strong
magnetic field around the screen which may affect the data
stored on magnetic tapes and diskettes place near the monitor.
Be sure to keep magnetic recording equipment, tapes, and
diskettes away from this monitor.
Transportation
Install the equipment near an easily accessible electrical
outlet.
When you transport this monitor for repair or shipment, use the
original carton and packing materials.
2
Identifying parts and controls
See the pages in parentheses for further details.
Front
Rear
5
1 6m (contrast/down) and M (brightness/up)
buttons (pages 5 – 12)
These buttons are used to display the BRIGHT/CONTRAST
menu and to highlight the desired menu item.
2
6
5 AC input connector (page 4)
This connector provides ac power to the monitor.
6 Video input connector (HD15) (page 4)
This connector inputs RGB video signals (0.700 Vp-p,
positive) and sync signals.
button (pages 5 – 12)
This button is used to display the menu and to select the menu
item and to activated the adjustment.
1 2 3 4 5
6 7 8 9 10
11 12 13 14 15
3 </, buttons
(pages 5 – 12)
These buttons are used to make the adjustment.
4 1 (power) button and indicator (pages 4, 13, 15, 17)
This button turns the monitor on and off. The power indicator
lights up in green when the monitor is turned on, and lights up
in orange when the monitor is in power saving mode.
Pin No.
Signal
Pin No.
Signal
1
Red
8
Blue Ground
2
Green
(Sync on
Green)
9
DDC + 5V*
10
Ground
11
ID (Ground)
12
Bi-Directional
Data (SDA)*
3
Blue
4
ID (Ground)
5
DDC Ground*
13
H. Sync
6
Red Ground
14
V. Sync
7
Green Ground
15
Data Clock
(SCL)*
* Display Data Channel (DDC) Standard of VESA
3
US
Step 2: Connect the power cord
Setup
With the monitor and computer turned off, first connect the proper
power cord for your local supply to the monitor, then connect it to
a properly grounded power outlet.
This monitor works with platforms running at horizontal
frequencies between 30 and 107 kHz.
Step 1: Connect your monitor to
your computer
Turn off the monitor and computer before connecting.
Notes
• Do not touch the pins of the video signal cable connector as this might
bend the pins.
• When connecting the video signal cable, check the alignment of the
video input connector. Do not force the video input connector in the
wrong way or the pins might bend.
to AC input
to a power outlet
power cord
Step 3: Turn on the monitor and
computer
First turn on the monitor, then turn on the computer.
To a computer with
an HD15 video output
The installation of your monitor is complete.
If necessary, use the monitor’s controls to adjust the picture.
If no picture appears on your screen
• Check that the monitor is correctly connected to the computer.
• If NO SIGNAL appears on the screen, confirm that your
computer’s graphics board is completely seated in the correct
bus slot.
• If you are replacing an old monitor with this model and OUT
OF SCAN RANGE appears on the screen, reconnect the old
monitor. Then adjust the computer’s graphics board so that the
horizontal frequency is between 30 – 107 kHz and the vertical
frequency is between 48 – 170 Hz.
For more information about the on-screen messages, see “Trouble
symptoms and remedies” on page 15.
4
US
Workplace Preparation
Customizing Your Monitor
Positioning the Monitor
Choose a suitable place to position the monitor where it is not near
fluorescent desk lighting or any equipment that produces
magnetic fields that could cause interference.
Ensure that the furniture or equipment can support the weight of
the monitor. Allow at least 2 in. (50 mm) ventilation space around
the monitor.
You can make numerous adjustments to your monitor using the
on-screen menu.
Navigating the menu
x Using the
Height
The monitor should be positioned so that the top of the screen is
slightly below your eye level when you sit at your workstation.
, m/M, and </, buttons
1 Display the menu.
Press the
button to display the menu on the screen.
Orientation
Choose a position that gives the least reflection from lights and
windows, usually at a right angle to any windows. Position the
monitor directly in front of you so that you do not have to twist
your body. Tilt the monitor to a comfortable viewing angle.
EX I T
45
1280x1024 / 85Hz
Working Practices
2 Select the menu you want to adjust.
Rest
Take regular breaks. Vary your posture, and stand up and stretch
occasionally as prolonged use of computer workstations can be
tiring.
Highlight the desired menu by pressing the m/M buttons.
Then press the
button.
US
Back
Sit back in the chair and use the backrest.
Hands
Use a light touch on the keyboard, keeping your hands and fingers
relaxed. Allow a space in front of the keyboard to rest your wrists
when not typing. Consider using a wristpad.
3 Adjust the menu.
Press the </, buttons to make the adjustment, then press
the
button to activate the adjustment.
Eyesight
Working with monitors, in common with any kind of prolonged
close work, can be visually demanding. Look away from the
screen periodically and have your eyesight checked regularly.
Screen settings
Set the screen brightness and contrast to a comfortable level.
You may have to adjust this as the lighting changes during the
day. Many application programs let you select color combinations
which can help you to view in comfort.
If you want to select another menu:
Press the m/M buttons to select
and press the
exit the menu.
button to
4 Close the menu.
Each time you select
and press the
button, the menu
exits. If no buttons are pressed, the menu closes automatically
after about 30 seconds.
(continued)
5
x Selecting the on-screen menu language
(LANGUAGE)
x Menu items
EXIT
Close the menu.
English, French, German, Spanish, Italian, Dutch, Swedish,
Russian, and Japanese versions of the on-screen menus are
available.
1 Press the
BRIGHT/CONTRAST
(page 7)
Adjusts the brightness and
contrast. You can call up
this menu directly by
pressing the
M or 6 m
buttons while there is no
menu on the screen.
button.
EX I T
BR I GHT / CONTRAST
BR I GHTNESS
50
1280x1024 / 85Hz
45
SIZE/CENTER (page 8)
Adjusts the size and
centering.
1280x1024 / 85Hz
2 Press the m/M buttons to highlight
press the
S I ZE / CENTER
OPTION and
button.
45
1280x1024 / 85Hz
OPT I ON
GEOMETRY (page 9)
Adjusts the rotation and
shape of the picture.
CONTROL
LOCK
ON
OFF
GEOMETRY
45
1280x1024 / 85Hz
1280x1024 / 85Hz
3 Press the m/M buttons to highlight
and press the
(LANGUAGE)
CONVERGENCE
(page 9)
Adjusts the picture’s
horizontal and vertical
convergence.
button.
OPT I ON
LANGUAGE
ENGL I SH
FRANÇA I S
DEUTSCH
1/3
CONVERGENCE
T
B
45
1280x1024 / 85Hz
SCREEN (page 10)
Adjusts the picture’s
quality.
The options include:
• degaussing the screen
(DEGAUSS)
• adjusting the moire
cancellation (CANCEL
MOIRE)
1280x1024 / 85Hz
4 Press the m/M buttons until the desired language
appears on the screen. Then press the
button to
select the language.
Each time you press the m/M buttons, the languages that can
be selected appear cyclically.
• ENGLISH
• FRANÇAIS: French
• DEUTSCH: German
• ESPAÑOL: Spanish
• ITALIANO: Italian
• NEDERLANDS: Dutch
• SVENSKA: Swedish
•
: Russian
•
: Japanese
COLOR (page 10)
Adjusts the picture’s color
temperature to match the
monitor’s colors to a printed
picture’s colors.
SCREEN
DEGAUSS
OK
CANCEL
1280x1024 / 85Hz
COLOR
: PRESET
9300K
6500K
5000K
1280x1024 / 85Hz
To close the menu
Press the m/M buttons to select
. If no buttons are pressed, the menu
closes automatically after about 30 seconds.
(continued)
6
US
OPTION (page 12)
Adjusts the monitor’s
options.
The options include:
• locking the controls
• changing the on-screen
menu’s language
• changing the on-screen
menu position
0 RESET (page 12)
Resets the adjustments.
Adjusting the brightness and
contrast (BRIGHT/CONTRAST)
OPT I ON
CONTROL
LOCK
ON
OFF
These settings are stored in memory for all signals.
1280x1024 / 85Hz
1 Press the
M button to call up the BRIGHTNESS
adjustment window, or press the 6 m button to call
up the CONTRAST adjustment window.
2 Press the </, buttons to adjust the brightness
RESET
1
2
(
CURRENT
MODE
If you are using the sRGB mode
OK
CANCEL
If you selected the sRGB mode in the COLOR MODE ( ) of the
COLOR ( ) menu, the following BRIGHT/CONTRAST menu
appears on the screen.
1280x1024 / 85Hz
x Displaying the current input signal
When you press the
button to display the menu, information
on the current input signal is displayed. If the current input signal
matches one of the monitor’s factory preset modes, the resolution
and vertical frequencies are displayed. (See page 18 for a list of
factory preset modes.) If the current input signal does not match
one of the factory presets, the horizontal and vertical frequencies
are displayed.
BR I GHT / CONTRAST
s RGB
:
/
1280x1024 / 85Hz
You cannot adjust the contrast (6) nor brightness ( ) on this
screen. If you want to adjust them, select a mode other than sRGB
in the COLOR MODE ( ) of the COLOR ( ) menu.
EX I T
For more information about using the sRGB mode, see
“Adjusting the color of the picture (COLOR)” on page 10.
45
1280x1024 / 85Hz
) or contrast (6).
the vertical
frequencies of
the current
input signal
the resolution/horizontal
frequencies of the current input
signal
7
US
Adjusting the centering of the
picture (SIZE/CENTER)
Automatically sizing and centering
the picture (AUTO)
This setting is stored in memory for the current input signal.
You can easily adjust the picture to fill the screen by using the
SIZE/CENTER menu.
1 Press the
button.
The menu appears on the screen.
1 Press the
button.
The menu appears on the screen.
2 Press the m/M buttons to highlight
SIZE/CENTER
and press the
button.
The SIZE/CENTER menu appears on the screen.
2 Press the m/M buttons to highlight
SIZE/CENTER
and press the
button.
The SIZE/CENTER menu appears on the screen.
3 Press the m/M buttons to select
for horizontal
adjustment, or
for vertical adjustment. Then
press the
button.
3 Press the m/M buttons to select
(AUTO). Then
press the
button.
The adjustment window appears on the screen.
4 Press the </, buttons to adjust the centering.
4 Press the m/M buttons to select OK.
The picture automatically fills the screen.
Adjusting the size of the picture
(SIZE/CENTER)
This setting is stored in memory for the current input signal.
1 Press the
button.
The menu appears on the screen.
Notes
• If you do not want to use the AUTO function, select CANCEL in step 4.
• This function is intended to be used when the computer is displaying
what should be a full-screen picture. It may not work properly if the
background color is dark or if the input picture does not fill the screen
to the edges.
• The displayed image moves for a few seconds while this function is
performed. This is not a malfunction.
2 Press the m/M buttons to highlight
SIZE/CENTER
and press the
button.
The SIZE/CENTER menu appears on the screen.
3 Press the m/M buttons to select
for horizontal
adjustment, or
for vertical adjustment. Then
press the
button.
4 Press the </, buttons to adjust the size.
8
US
Adjusting the shape of the picture
(GEOMETRY)
Adjusting the convergence
(CONVERGENCE)
VERGENCE)
The GEOMETRY settings allow you to adjust the rotation and
shape of the picture.
The
(rotation) setting is stored in memory for all input signals.
All other settings are stored in memory for the current input
signal.
The CONVERGENCE settings allow you to adjust the quality of
the picture by controlling the convergence. The convergence
refers to the alignment of the red, green, and blue color signals.
If you see red or blue shadows around letters or lines, adjust the
convergence.
These settings are stored in memory for all input signals.
1 Press the
button.
The menu appears on the screen.
1 Press the
button.
The menu appears on the screen.
2 Press the m/M buttons to highlight
GEOMETRY
and press the
button.
The GEOMETRY menu appears on the screen.
2 Press the m/M buttons to highlight
CONVERGENCE and press the
button.
The CONVERGENCE menu appears on the screen.
3 Press the m/M buttons to select the desired
3 Press the m/M buttons to select the desired
adjustment item. Then press the
button.
The adjustment bar appears on the screen.
adjustment item. Then press the
button.
The adjustment bar appears on the screen.
4 Press the </, buttons to make the adjustment.
Select
4 Press the </, buttons to make the adjustment.
To
Select
rotate the picture
horizontally shift red or blue shadows
expand or contract the picture sides
vertically shift red or blue shadows
shift the picture sides to the left or right
adjust the picture width at the top of the screen
shift the picture to the left or right at the top of the
screen
0
RESET
To
reset all the GEOMETRY adjustments to the
factory setting levels. Select OK.
For more information about using the RESET mode, see
“Resetting the adjustments (RESET)” on page 12.
T
TOP
vertically shift red or blue shadows at the top of
the screen
B
BOTTOM
vertically shift red or blue shadows at the bottom
of the screen
0
RESET
reset all the CONVERGENCE adjustments to
the factory setting levels. Select OK.
For more information about using the RESET mode, see
“Resetting the adjustments (RESET)” on page 12.
9
US
Adjusting the picture quality
(SCREEN)
Adjusting the color of the picture
(COLOR)
The SCREEN settings allow you to degauss (demagnetize) the
monitor manually and adjust the picture quality by controlling the
moire.
• If the color is not uniform or the picture is fuzzy, degauss the
monitor (DEGAUSS).
• If elliptical or wavy patterns appear on the screen, cancel the
moire (CANCEL MOIRE).
The monitor is automatically demagnetized (degaussed) when the
power is turned on.
The screen is degaussed for about 2 seconds. If a second degauss
cycle is needed, allow a minimum interval of 20 minutes for the
best result.
The COLOR settings allow you to adjust the picture’s color
temperature by changing the color level of the white color field.
Colors appear reddish if the temperature is low, and bluish if the
temperature is high. This adjustment is useful for matching the
monitor’s color to a printed picture’s colors.
x Select the COLOR mode
There are 4 types of adjustment modes, PRESET, VARIABLE,
EXPERT, and sRGB. The default setting is PRESET mode which
can be adjusted to 9300K, 6500K, or 5000K.
If you want to set another mode (other than PRESET), select the
desired mode in the COLOR ( ) menu. Then adjust the selected
mode in each COLOR MODE ( ) menu.
The CANCEL MOIRE setting is stored in memory for the current
input signal.
1 Press the
button.
The menu appears on the screen.
1 Press the
button.
The menu appears on the screen.
2 Press the m/M buttons to highlight
2 Press the m/M buttons to highlight
COLOR and
press the
button.
The COLOR menu appears on the screen.
SCREEN and
press the
button.
The SCREEN menu appears on the screen.
3 Press the m/M buttons to highlight
MODE). Then press the
3 Press the m/M buttons to select the desired
adjustment item. Then press the
button.
The adjustment bar appears on the screen.
(COLOR
button.
US
4 Press the m/M buttons to select the COLOR mode.
COLOR
: PRESET
4 Press the m/M or </, buttons to make the
adjustment.
COLOR MODE
Select
To
DEGAUSS
degauss the monitor. To degauss the monitor
manually, select OK.
CANCEL
MOIRE
PRESET
VARIABLE
EXPERT
s RGB
1280x1024 / 85Hz
adjust the degree of moire cancellation until
the moire* is at a minimum
5 Press the
button three times to close the menu.
* Moire is a type of natural interference which produces soft, wavy lines
on your screen. It may appear due to interference between the pattern
of the picture on the screen and the phosphor pitch pattern of the
monitor.
Example of moire
Note
The picture may become fuzzy when the CANCEL MOIRE function is
activated.
(continued)
10
x PRESET mode
x EXPERT mode
1 Press the
You can make additional adjustments to the color in greater detail
by selecting the EXPERT mode.
button.
The menu appears on the screen.
1 Press the
2 Press the m/M buttons to highlight
button.
The menu appears on the screen.
COLOR and
press the
button.
The COLOR menu appears on the screen.
2 Press the m/M buttons to highlight
press the
3 Press the m/M buttons to highlight
the
. Then press
COLOR
button.
COLOR
COLOR and
button.
: EXPERT
R
G
B
R
G
B
: PRESET
9300K
6500K
5000K
45
1280x1024 / 85Hz
3 Press the m/M buttons to select the R (red), G
1280x1024 / 85Hz
(green), or B (blue) and press the
button. Then
press the </, buttons to adjust the input signal
for both GAIN (6) and BIAS ( ).
If you want to reset the EXPERT adjustments, select
0 (RESET) in COLOR menu. Then select OK in the RESET
window.
4 Press the m/M buttons to select the desired
temperature.
The preset color temperatures are 9300K, 6500K, and 5000K.
Since the default setting is 9300K, the whites will change
from a bluish hue to a reddish hue as the temperature is
lowered to 6500K and 5000K.
x sRGB mode
x VARIABLE mode
The sRGB color setting is an industry standard color space
protocol designed to correlate the displayed and printed colors of
sRGB compliant computer products. To adjust the colors to the
sRGB profile, simply select the sRGB mode in the COLOR
MODE ( ) menu of the COLOR ( ) menu.
However, in order to display the sRGB colors correctly (γ = 2.2,
6500K), you must set your computer to the sRGB profile. If you
select this mode, you cannot operate the BRIGHT/CONTRAST
menu adjustments.
1 Press the
button.
The menu appears on the screen.
2 Press the m/M buttons to highlight
COLOR and
press the
button.
The COLOR menu appears on the screen.
3 Press the m/M buttons to highlight
the
. Then press
COLOR
button.
COLOR
: VARIABLE
: s RGB
s RGB
:
/
1280x1024 / 85Hz
5000K
1280x1024 / 85Hz
Note
Your computer and other connected products (such as a printer), must be
sRGB compliant.
4 Press the </, buttons to fine tune the color
temperature.
The new color temperature setting you fine tuned between
5000K to 11000K is stored in memory.
11
US
Additional settings (OPTION)
Resetting the adjustments (RESET)
You can lock the controls, change the on-screen language, change
the menu position.
This monitor has the following 2 reset methods.
x Resetting all the adjustment data for the
current input signal
1 Press the
button.
The menu appears on the screen.
1 Press the
button.
The menu appears on the screen.
2 Press the m/M buttons to highlight
OPTION and press the
button.
The OPTION menu appears on the screen.
2 Press the m/M buttons to highlight
0 RESET and press the
3 Press the m/M buttons to select the desired
adjustment item.
Adjust the selected item according to the following
instructions.
3 Press the m/M buttons to select 01 (CURRENT
MODE) and press the
button.
4 Press the m/M buttons to select OK.
x Locking the controls (CONTROL LOCK)
RESET
You can protect the adjustment data by locking the controls.
Press the m/M buttons to highlight
(CONTROL
LOCK) and press the
button. Then press the m/M
buttons to select ON and press the
button.
Only the 1 (power) button,
button,
, and
(CONTROL LOCK) of the
OPTION menu will operate. If
any other items are selected, the
mark appears on the screen.
To cancel the control lock
Repeat the procedure above and set
button.
1
2
CURRENT
MODE
OK
CANCEL
1280x1024 / 85Hz
Note that the following items are not reset by this method:
• on-screen menu language (page 6)
• color mode setting in the COLOR menu (PRESET,
VARIABLE, EXPERT, sRGB) (page 10)
• color temperature setting in the PRESET mode (9300K,
6500K, 5000K) (page 11)
• on-screen menu position (page 12)
(CONTROL LOCK) to OFF.
x Changing the on-screen language
(LANGUAGE)
See page 6.
x Resetting all of the adjustment data for all
input signals
x Changing the menu’s position
(OSD POSITION)
Change the menu’s position if it is blocking an image on the
screen.
Press the m/M buttons to select
(OSD POSITION)
for horizontal adjustment, or
(OSD POSITION) for
vertical adjustment and press the
button. Then
press the </, buttons to shift the on-screen menu.
Then press the
button.
Select 02 (ALL MODES) in step 3 above.
Note
The RESET function does not function when
is set to ON.
12
(CONTROL LOCK)
US
Technical Features
Troubleshooting
Before contacting technical support, refer to this section.
Preset and user modes
If thin lines appear on your screen
(damper wires)
When the monitor receives an input signal, it automatically
matches the signal to one of the factory preset modes stored in the
monitor’s memory to provide a high quality picture at the center
of the screen. (See page 18 for a list of the factory preset modes.)
For input signals that do not match one of the factory preset
modes, the digital Multiscan technology of this monitor ensures
that a clear picture appears on the screen for any timing in the
monitor’s frequency range (horizontal: 30 – 107 kHz, vertical: 48
– 170 Hz). If the picture is adjusted, the adjustment data is stored
as a user mode and automatically recalled whenever the same
input signal is received.
The visible lines on your screen especially when the background
screen color is light (usually white), are normal for the Trinitron
monitor. This is not a malfunction. These are shadows from the
damper wires used to stabilize the aperture grille. The aperture
grille is the essential element that makes a Trinitron picture tube
unique by allowing more light to reach the screen, resulting in a
brighter, more detailed picture.
Damper wires
Note for Windows users
For Windows users, check your graphics board manual or the
utility program which comes with your graphics board and select
the highest available refresh rate to maximize monitor
performance.
Power saving function
On-screen messages
This monitor meets the power-saving guidelines set by VESA and
ENERGY STAR. If no signal is input to the monitor from your
computer, the monitor will automatically reduce power
consumption as shown below.
If there is something wrong with the input signal, one of the
following messages appears on the screen.
If NO SIGNAL appears on section 1
This indicates that no signal is input.
Power mode
Power consumption
1 (power)
indicator
normal
operation
≤ 135 W
green
active off*
(deep sleep)**
≤3W
orange
power off
Approx. 0 W
off
1
I NFORMAT I ON
MON I TOR I S WORK I NG
I NPUT
: NO S I GNAL
ACT I VATE BY COMPUTER
CHECK S I GNAL CABLE
W
R
G
B
2
* When your computer enters power saving mode, the input signal is cut
and NO SIGNAL appears on the screen before the monitor enters active
off mode. After a minute, the monitor enters power saving mode.
**“Deep sleep” is power saving mode defined by the Environmental
Protection Agency.
2 The remedies
The following messages appear on the screen.
• If ACTIVATE BY COMPUTER appears on the screen, try
pressing any key on the computer or moving the mouse, and
confirm that your computer’s graphics board is completely
seated in the correct bus slot.
• If CHECK SIGNAL CABLE appears on the screen, check
that the monitor is correctly connected to the computer
(page 4).
(continued)
13
US
If OUT OF SCAN RANGE appears on line 1
This indicates that the input signal is not supported by the
monitor’s specifications.
2
1
I NFORMAT I ON
MON I TOR I S WORK I NG
I NPUT
: 2 0 0 . 0 k H z / 8 5 Hz
OUT OF SCAN RANGE
CHANGE S I GNAL T I M I NG
W
R
G
B
3
2 The frequencies of the current input signal
If the monitor recognizes the frequencies of the current input
signal, the horizontal and vertical frequencies are also
displayed.
3 The remedies
CHANGE SIGNAL TIMING appears on the screen. If you
are replacing an old monitor with this monitor, reconnect the
old monitor. Then adjust the computer’s graphics board so
that the horizontal frequency is between 30 – 107 kHz, and the
vertical frequency is between 48 – 170 Hz.
For more information, see “Trouble symptoms and remedies” on
page 15.
US
Displaying this monitor’s name, serial number,
and date of manufacture
While the monitor is receiving a video signal, press and hold the
button for more than 5 seconds to display this monitor’s
information box.
Example
INFORMATION
MODEL : IBM P97
SER NO : 12-34567
MANUFACTURED : 2001-52
W
R
G
B
If the problem persists, call your authorized technical support and
give the following information.
• Model name: IBM P97
• Serial number
• Name and specifications of your computer and graphics board
14
Trouble symptoms and remedies
If the problem is caused by the connected computer or other equipment, please refer to the connected equipment’s instruction manual.
Use the self-diagnosis function (page 17) if the following recommendations do not resolve the problem.
Symptom
Check these items
No picture
If the 1 (power) indicator is not lit
• Check that the power cord is properly connected.
• Check that the 1 (power) button is in the “on” position.
If the NO SIGNAL message appears
on the screen, or if the
1 (power) indicator is orange
• Check that the video signal cable is properly connected and all plugs are firmly seated in
their sockets (page 4).
• Check that the video input connector’s pins are not bent or pushed in.
xProblems caused by the connected computer or other equipment
• The computer is in power saving mode. Try pressing any key on the keyboard or moving
the mouse.
• Check that the computer’s power is “on.”
• Check that the graphic board is completely seated in the proper bus slot.
If the OUT OF SCAN RANGE
message appears on the screen
xProblems caused by the connected computer or other equipment
• Check that the video frequency range is within that specified for the monitor. If you
replaced an old monitor with this monitor, reconnect the old monitor and adjust the
frequency range to the following.
Horizontal: 30 – 107 kHz
Vertical: 48 – 170 Hz
If no message is displayed and the
1 (power) indicator is green or
flashing orange
• Use the Self-diagnosis function (page 17).
Picture flickers, bounces,
oscillates, or is scrambled
US
• Isolate and eliminate any potential sources of electric or magnetic fields such as other
monitors, laser printers, fluorescent lighting, televisions, or electric fans.
• Move the monitor away from power lines or place a magnetic shield near the monitor.
• Try plugging the monitor into a different AC outlet, preferably on a different circuit.
• Try turning the monitor 90° to the left or right.
xProblems caused by the connected computer or other equipment
• Check your graphics board manual for the proper monitor setting.
• Confirm that the graphics mode and the frequency of the input signal are supported by this
monitor (page 18). Even if the frequency is within the proper range, some graphics boards
may have a sync pulse that is too narrow for the monitor to sync correctly.
• Adjust the computer’s refresh rate (vertical frequency) to obtain the best possible picture.
Picture is fuzzy
• Adjust the brightness and contrast (page 7).
• Degauss the monitor* (page 10).
• Adjust the degree of moire cancellation until the moire is minimal, or set CANCEL
MOIRE to OFF (page 10).
* If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result. A humming noise may be heard, but this is not a
malfunction.
(continued)
15
Symptom
Check these items
Picture is ghosting
• Eliminate the use of video cable extensions and/or video switch boxes.
• Check that all plugs are firmly seated in their sockets.
Picture is not centered or sized
properly
• Set the AUTO ( ) function to OK (on) in the SIZE/CENTER menu (page 8).
• Adjust the size or centering (page 8). Note that with some input signals and/or graphics
boards the periphery of the screen is not fully utilized.
Edges of the image are curved
• Adjust the geometry (page 9).
Wavy or elliptical pattern (moire)
is visible
• Adjust the degree of moire cancellation until the moire is minimal (page 10).
Color is not uniform
• Degauss the monitor* (page 10). If you place equipment that generates a magnetic field,
such as a speaker, near the monitor, or if you change the direction the monitor faces, color
may lose uniformity.
White does not look white
• Adjust the color temperature (page 10).
Letters and lines show red or blue
shadows at the edges
• Adjust the convergence (page 9).
Monitor buttons do not operate
(
appears on the screen)
• If the control lock is set to ON, set it to OFF (page 12).
A hum is heard right after the
power is turned on
• This is the sound of the auto-degauss cycle. When the power is turned on, the monitor is
automatically degaussed for a few seconds.
xProblems caused by the connected computer or other equipment
• Change your desktop pattern.
* If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result. A humming noise may be heard, but this is not a
malfunction.
US
16
Self-diagnosis function
Specifications
This monitor is equipped with a self-diagnosis function. If there is
a problem with your monitor or computer(s), the screen will go
blank and the 1 (power) indicator will either light up green or
flash orange. If the 1 (power) indicator is lit in orange, the
computer is in power saving mode. Try pressing any key on the
keyboard or moving the mouse.
CRT
Viewable image size
Resolution
Maximum
Recommended
Input signal levels
1 (power) indicator
x If the 1 (power) indicator is green
1 Disconnect the video input connector from the
computer, or turn off the connected computer.
Standard image area
2 Press the 1 (power) button twice to turn the monitor
off and then on.
Deflection frequency*
3 Press the M button for 2 seconds before the monitor
enters power saving mode.
AC input voltage/current
Power consumption
Dimensions
Mass
Plug and Play
0.24 mm aperture grille pitch
19 in. measured diagonally
90-degree deflection
Trinitron
Approx. 365.0 × 274.0 mm (w/h)
(14 × 11 in.)
18.0" viewing image
Horizontal: 1600 dots
Vertical: 1200 lines
Horizontal: 1280 dots
Vertical: 1024 lines
Video signal
Analog RGB: 0.700 Vp-p
(positive), 75 Ω
SYNC signal
H/V separate or composite sync:
TTL 2 kΩ, Polarity free
Sync on Green: 0.3 Vp-p
(negative)
4:3
Approx. 352 × 264 mm (w/h)
(13 6/7 × 10 2/5 in.)
Horizontal: 30 to 107 kHz
Vertical: 48 to 170 Hz
100 to 240 V, 50 – 60 Hz, 2.0 – 1.0 A
Approx. 135 W
Approx. 462 × 483 × 469 mm (w/h/d)
(18 1/4 × 19 1/8 × 18 1/2 in.)
Approx. 27 kg (59 lb 8.39 oz)
DDC2B/DDC2Bi, GTF (page 18)
If all four color bars appear (white, red, green, blue), the monitor
is working properly. Reconnect the video input cables and check
the condition of your computer.
* Recommended horizontal and vertical timing condition
• Horizontal sync width duty should be more than 4.8% of
total horizontal time or 0.67 µs, whichever is larger.
• Horizontal blanking width should be more than 2.4 µsec.
• Vertical blanking width should be more than 400 µsec.
If the color bars do not appear, there is a potential monitor failure.
Inform your authorized technical support of the monitor’s
condition.
Design and specifications are subject to change without notice.
x If the 1 (power) indicator is flashing orange
Press the 1 (power) button twice to turn the monitor off
and then on.
If the 1 (power) indicator lights up green, the monitor is working
properly.
If the 1 (power) indicator is still flashing, there is a potential
monitor failure. Count the number of seconds between orange
flashes of the 1 (power) indicator and inform your authorized
technical support of the monitor’s condition. Be sure to note the
model name and serial number of your monitor. Also note the
make and model of your computer and graphic board.
17
US
x Preset mode timing table
No. Resolution
(dots ×
lines)
Service Information
Horizontal Vertical
Graphics
Frequency Frequency Mode
The following parts are for use by IBM service, or IBM
authorized dealers, to support customer warranty. Parts are for
service use only.
1
640 × 480
31.5 kHz
60 Hz
VGA-G
2
640 × 480
43.3 kHz
85 Hz
VESA
3
720 × 400
31.5 kHz
70 Hz
VGA-Text
4
720 × 400
37.9 kHz
85 Hz
VESA
Part No.
M/T-Model Description
5
800 × 600
37.9 kHz
60 Hz
VESA
22P7456
6651-T3N
P97 Monitor - NH (Pearl White)
6
800 × 600
46.9 kHz
75 Hz
VESA
22P7457
6651-U3N
P97 Monitor - NH (Stealth Black)
7
800 × 600
53.7 kHz
85 Hz
VESA
22P7458
6651-T3S
P97 Monitor - SH (Pearl White)
8
1024 × 768
48.4 kHz
60 Hz
VESA
22P7459
6651-U3S
P97 Monitor - SH (Stealth Black)
9
1024 × 768
56.5 kHz
70 Hz
VESA
10 1024 × 768
60.0 kHz
75 Hz
VESA
11 1024 × 768
68.7 kHz
85 Hz
VESA
12 1152 × 864
67.5 kHz
75 Hz
VESA
13 1152 × 864
77.5 kHz
85 Hz
VESA
14 1280 × 960
60.0 kHz
60 Hz
VESA
15 1280 × 960
85.9 kHz
85 Hz
VESA
16 1280 × 1024
64.0 kHz
60 Hz
VESA
17 1280 × 1024
80.0 kHz
75 Hz
VESA
18 1280 × 1024
91.1 kHz
85 Hz
VESA
19 1600 × 1200
75.0 kHz
60 Hz
VESA
20 1600 × 1200
81.3 kHz
65 Hz
VESA
21 1600 × 1200
87.5 kHz
70 Hz
VESA
22 1600 × 1200
93.8 kHz
75 Hz
VESA
23 1600 × 1200
106.3 kHz
85 Hz
VESA
Monitor Information
US
If the input signal does not match one of the factory preset modes
above, the Generalized Timing Formula feature of this monitor
will automatically provide an optimal image for the screen as long
as the signal is GTF compliant.
18
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
